Installation Instructions
Modernist Pro Range
DOP48M86D*/DOP36M86D*
Part No. 115116 Rev A
2 English
Table of Contents
Before You Begin 3
Important 3
Customer-Assurance Information 3
Important Safety Instructions 4
Read All Instructions Before Using This Manual 4
Appliance Symbols Used In This Manual 4

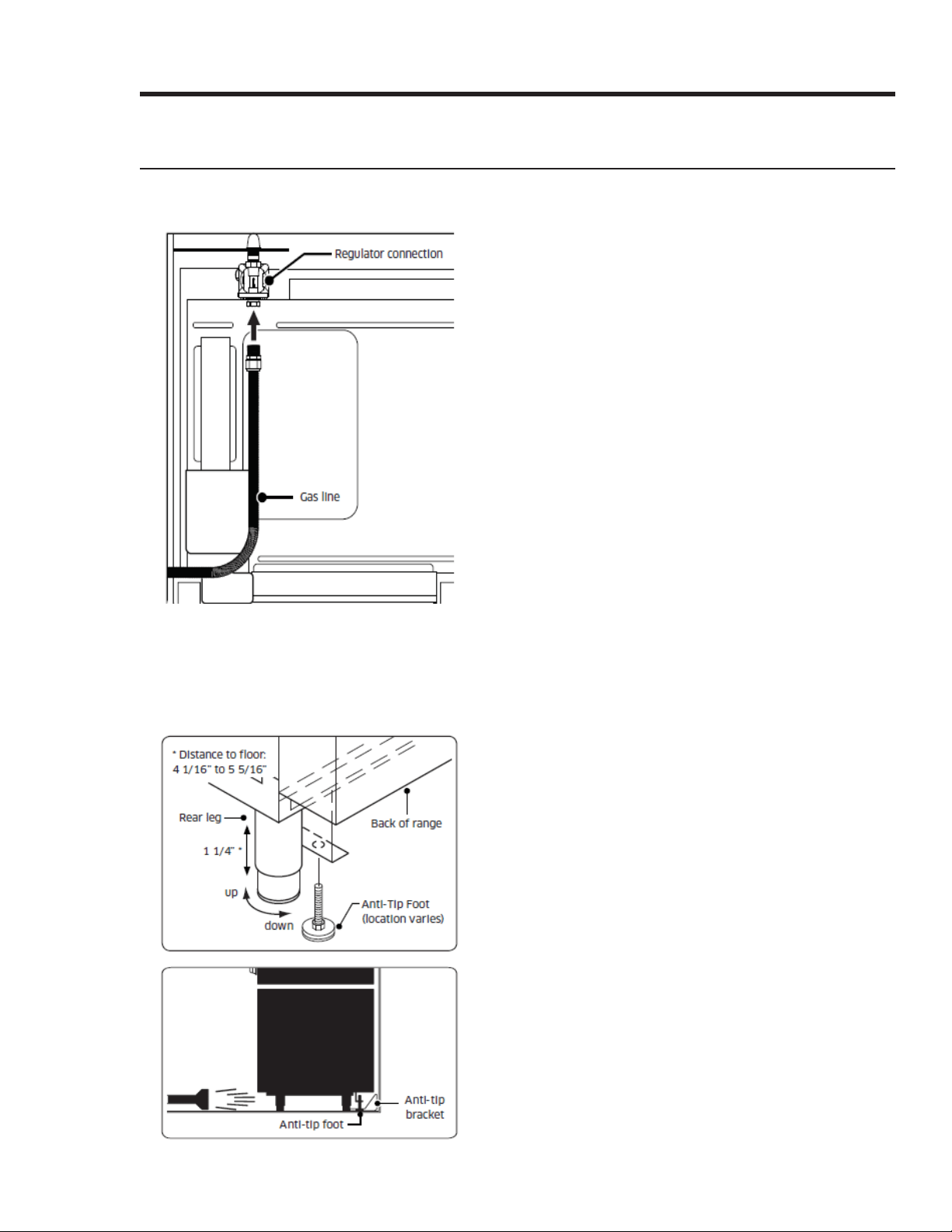

About the Anti-tip Device 4
Installation-Related Safety Instructions 5
Product Specications 10

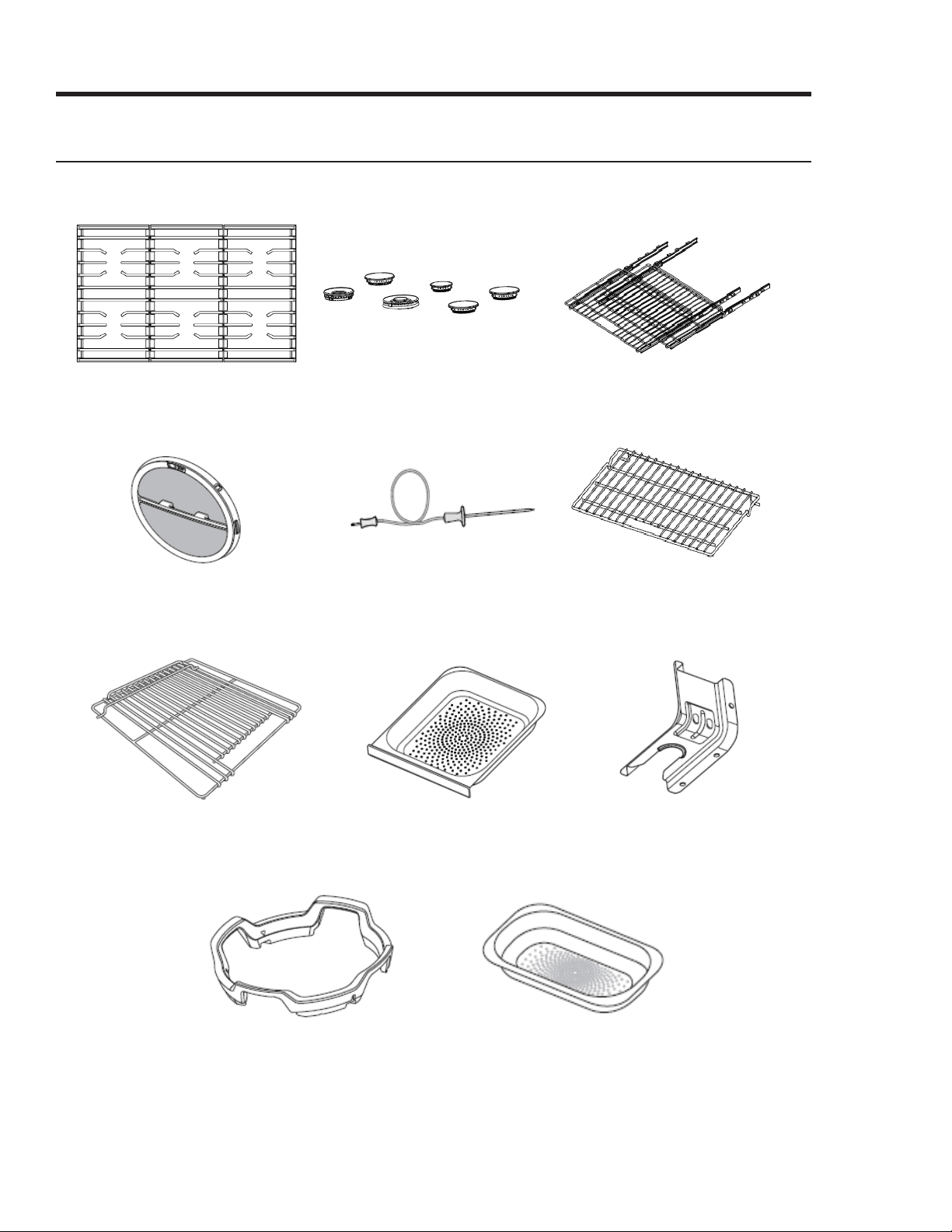

What is Included (DOP48M86D*) 10

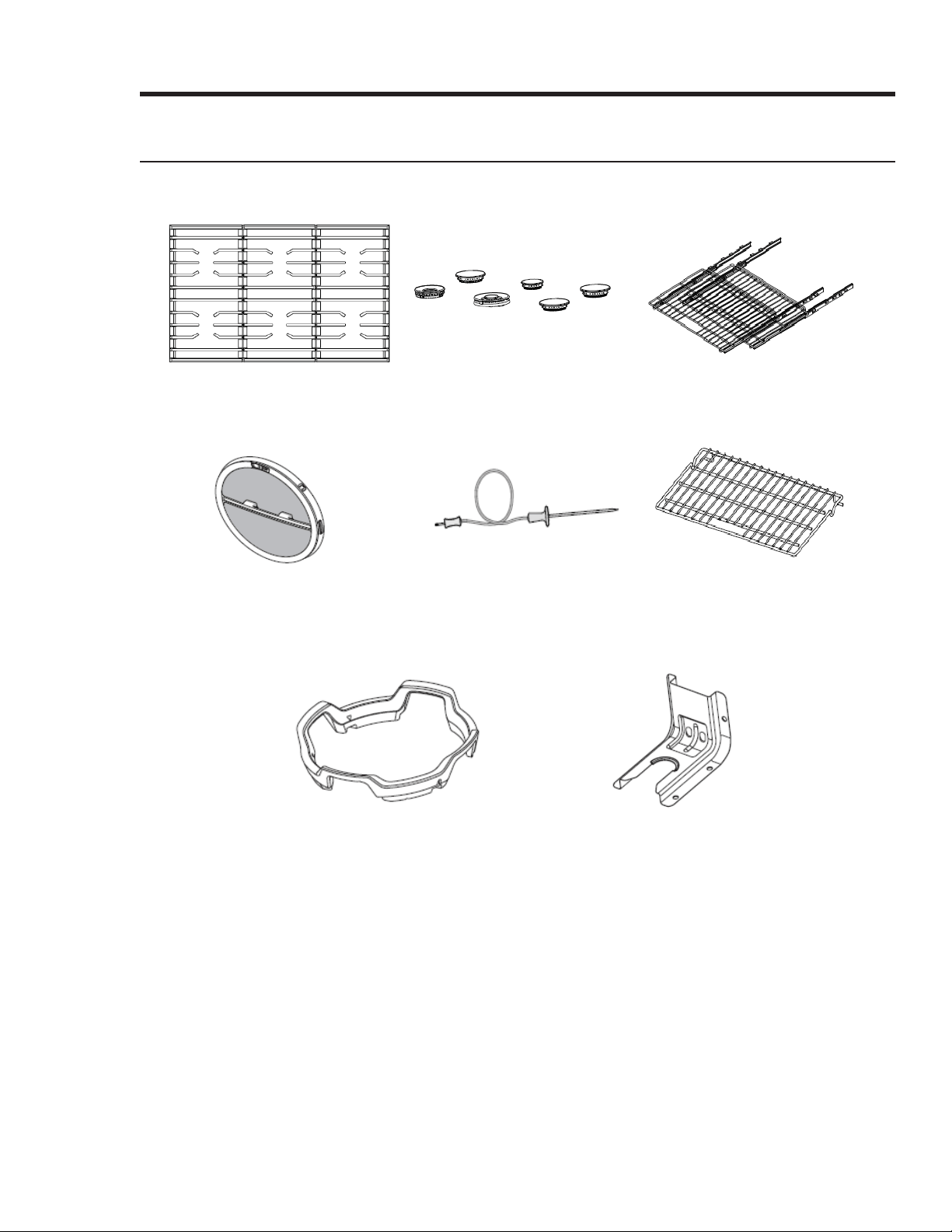

What is Included (DOP36M86D*) 11

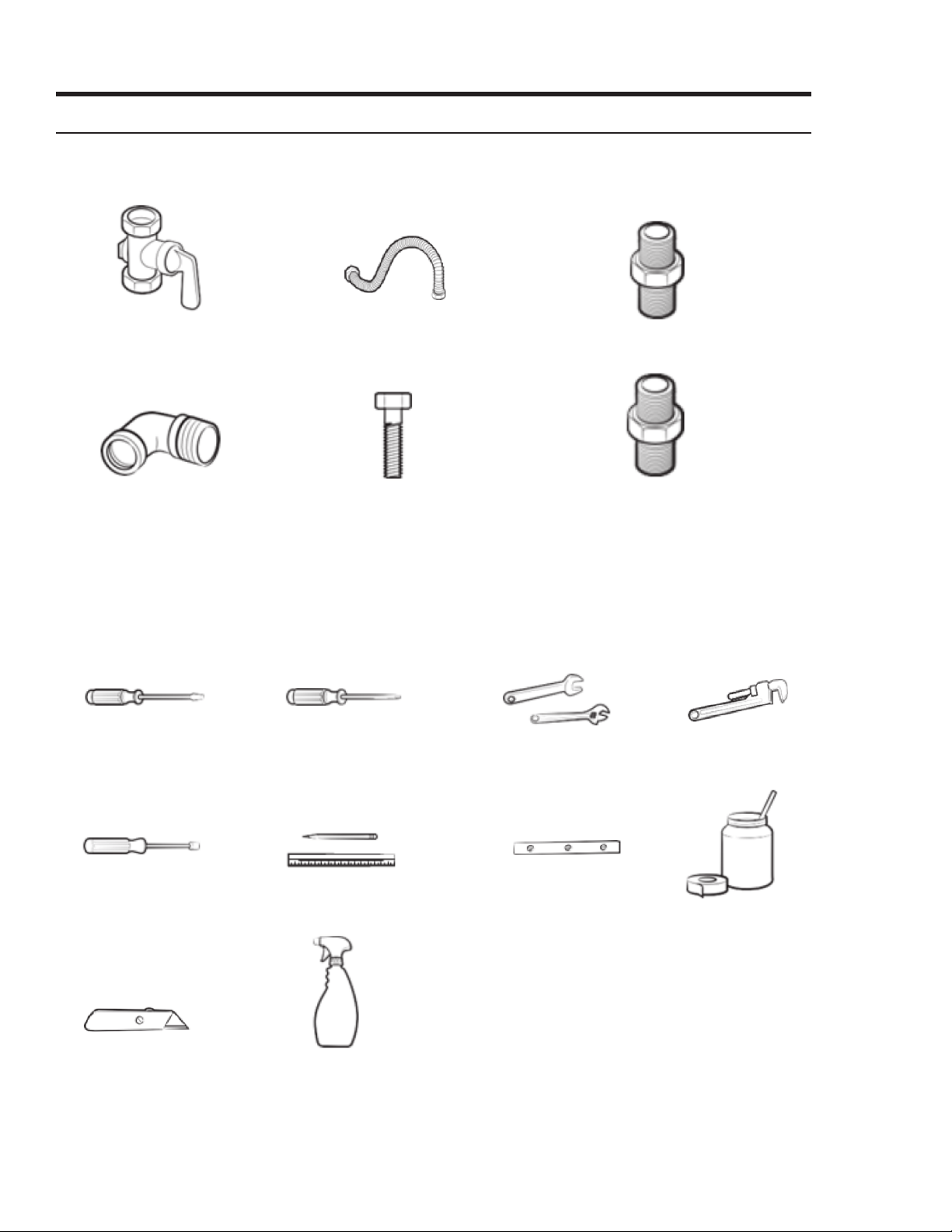

Needed Tools and Parts 12
Installation Requirements 13
Pre-Installation Checklist 13
General Requirements 13

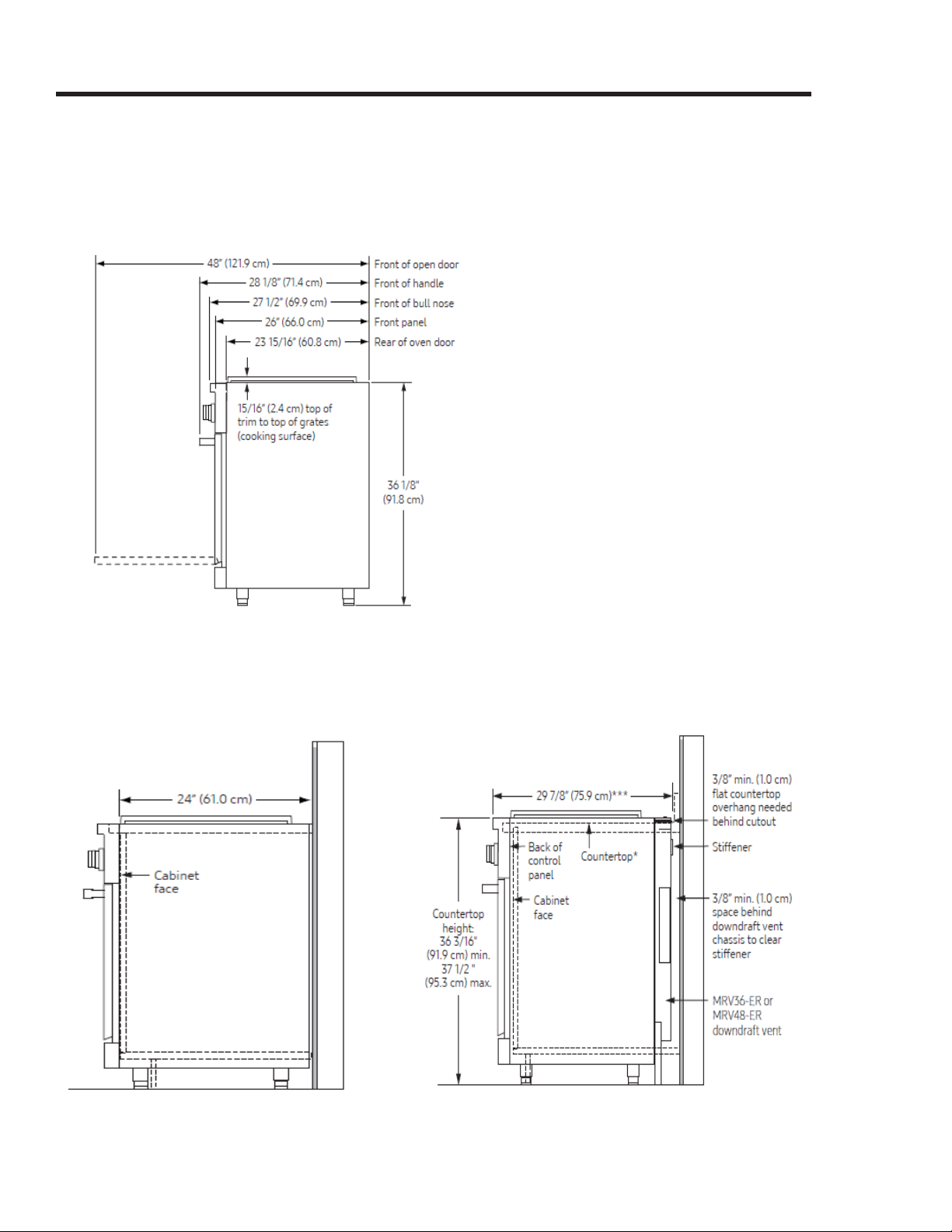

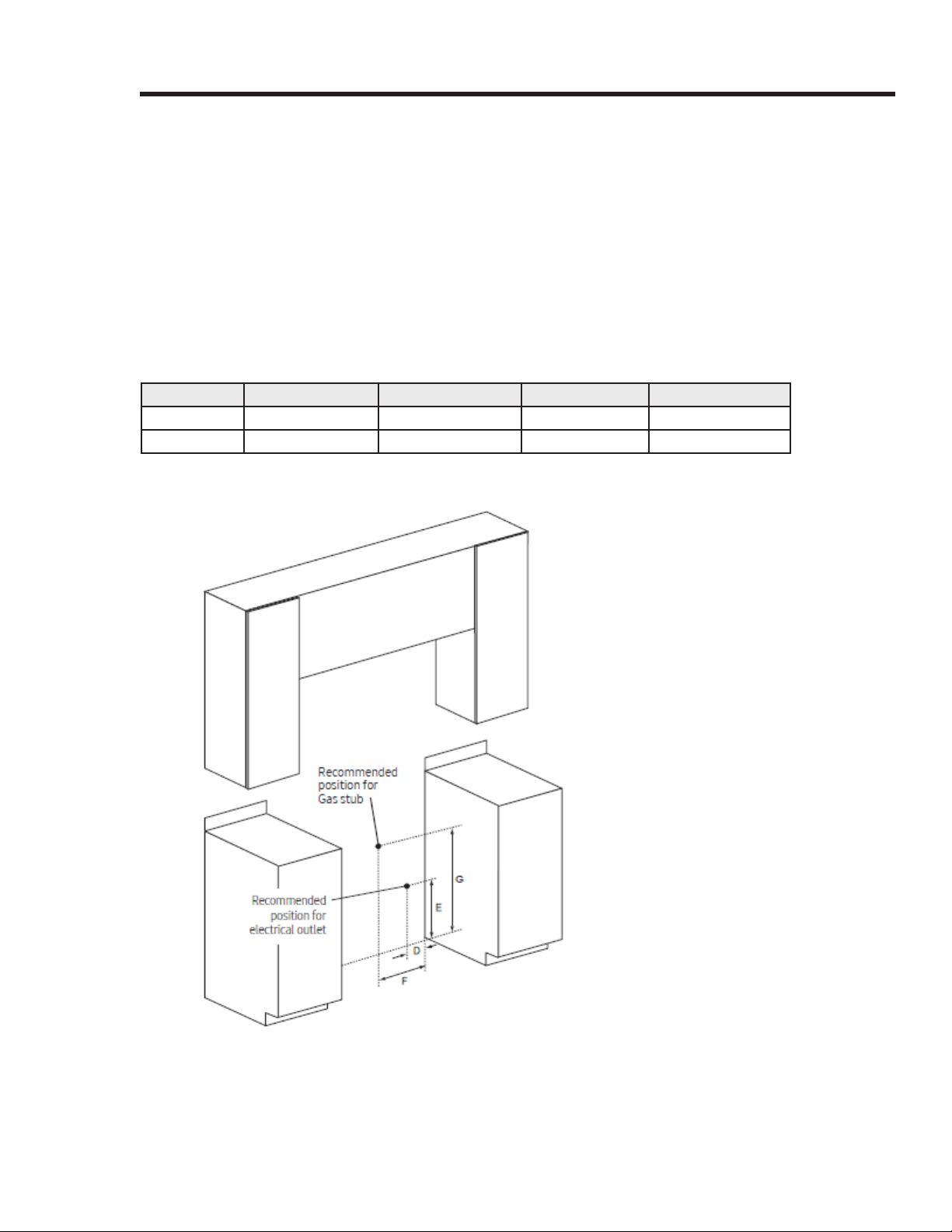

Location Requirements 16
Gas Requirements 18
Special Gas Requirements (gas models sold in Massachusetts) 18

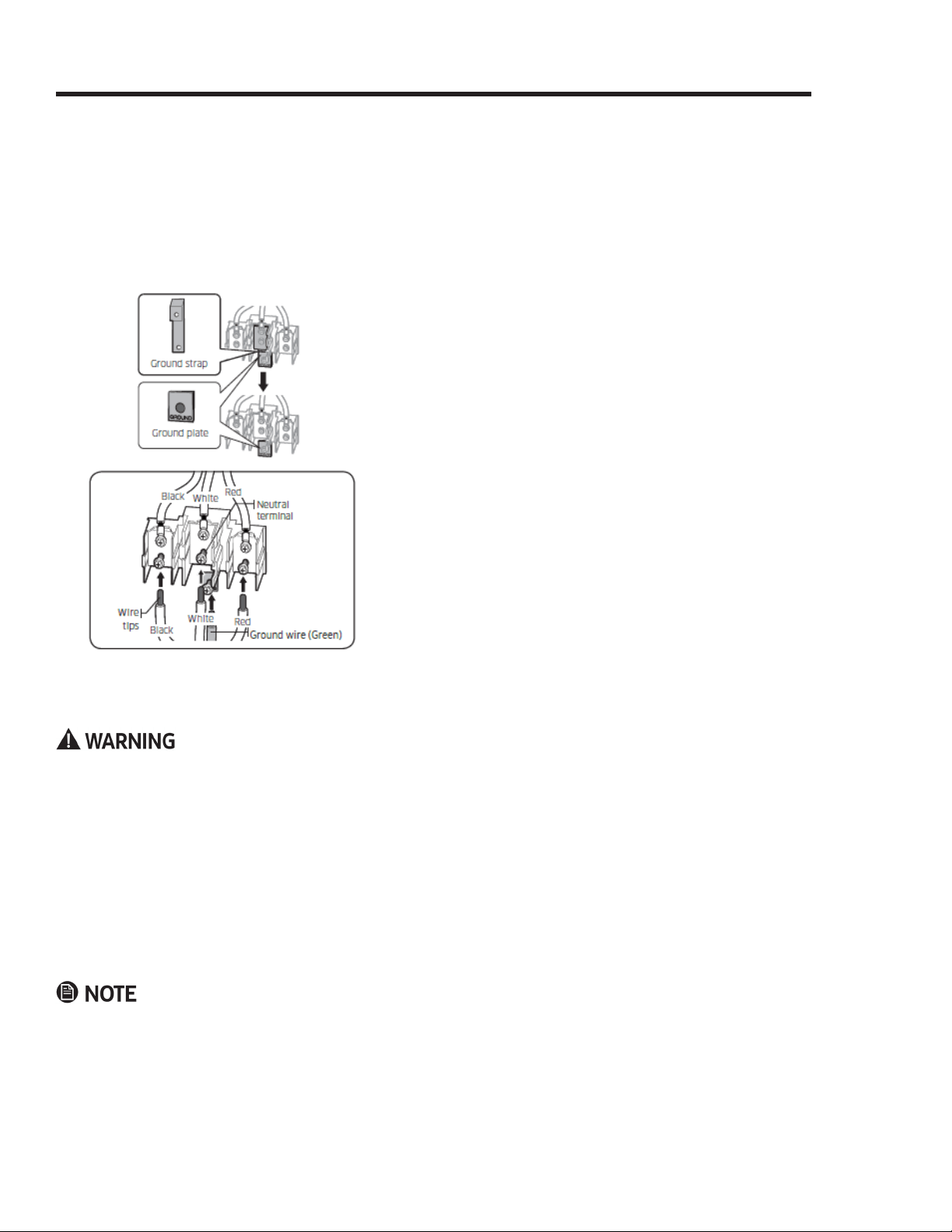

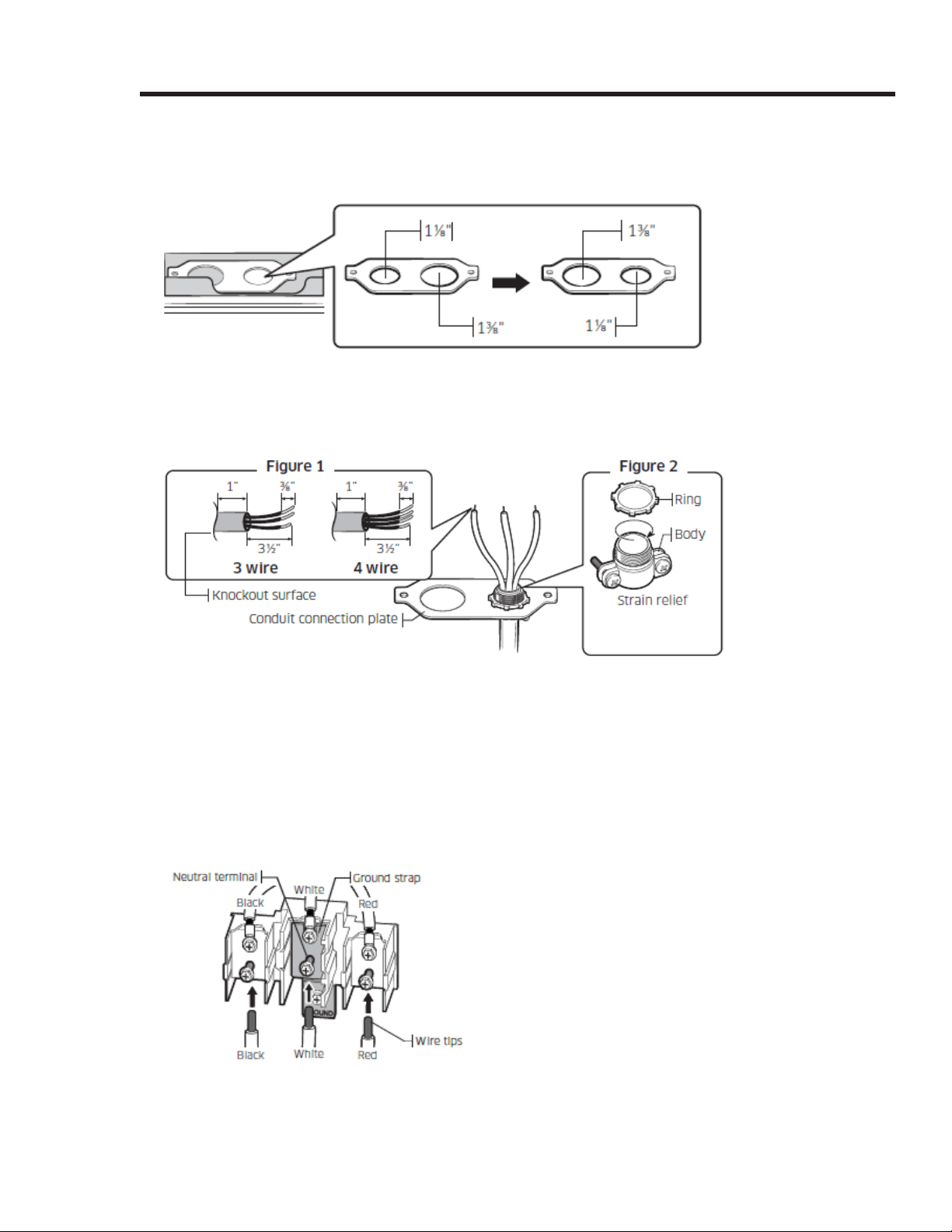

Electrical Requirements 19
Installation Instructions 20
Preparing for Installation 20
Installing the Burner-Control Knobs 29

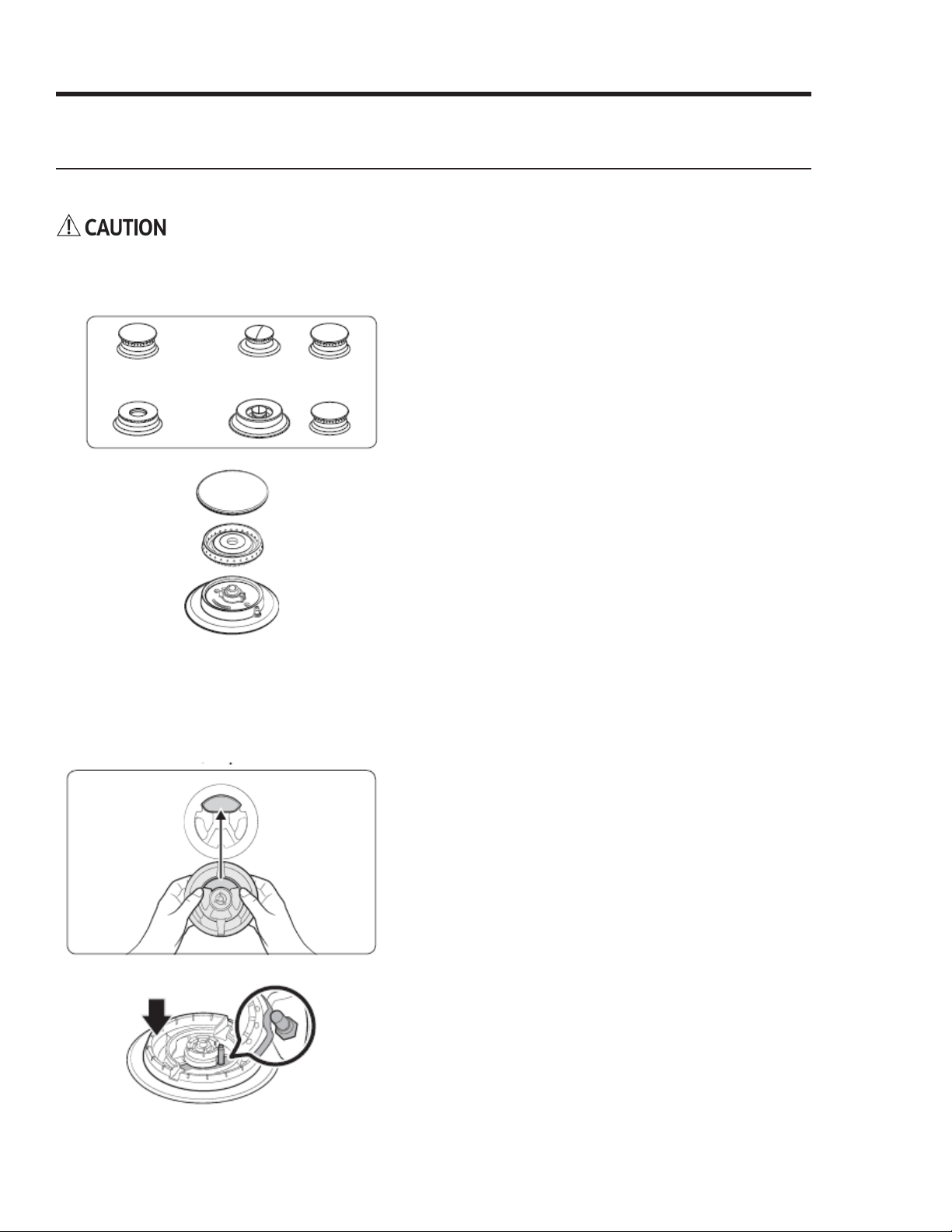

Rangetop Assembly 30

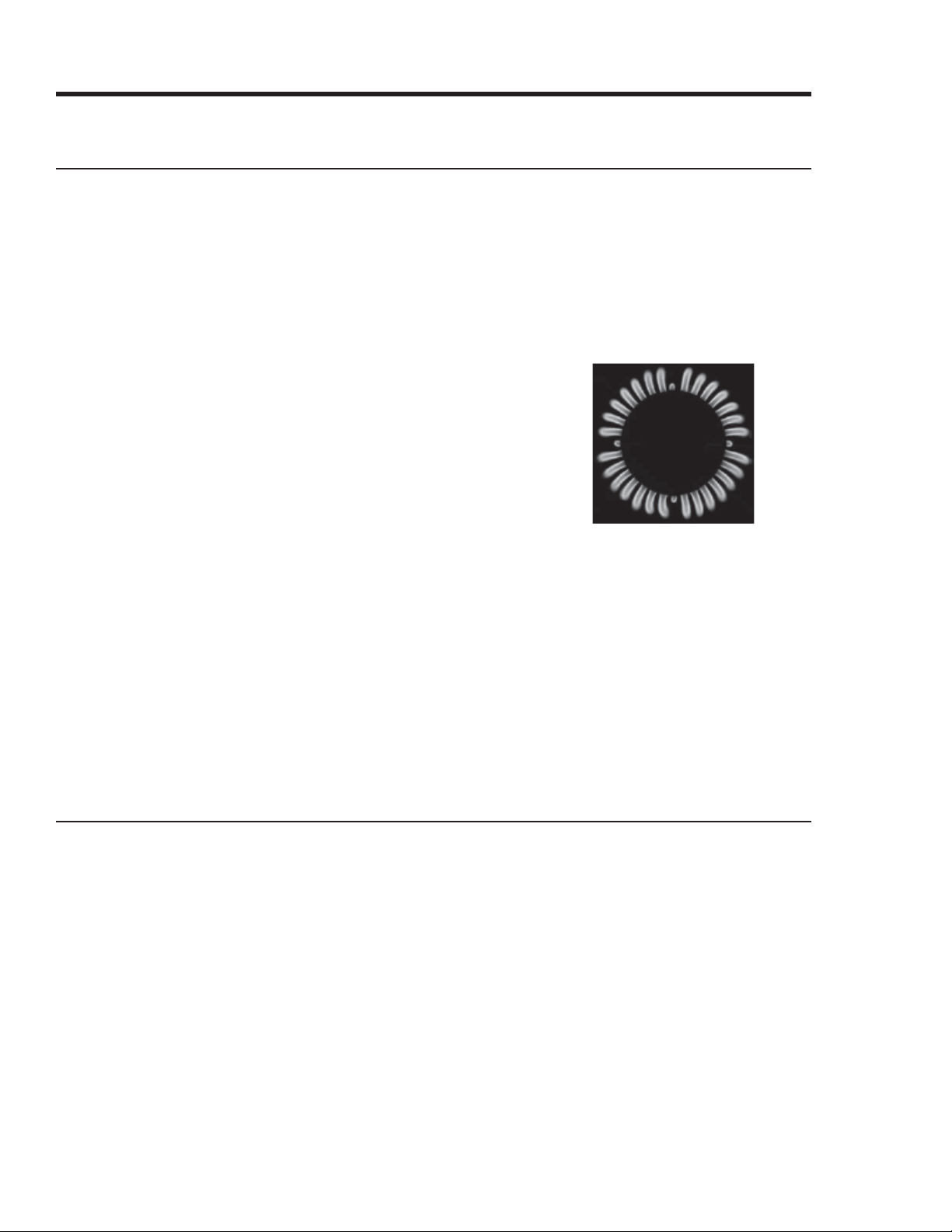

Verifying Proper Operation 34

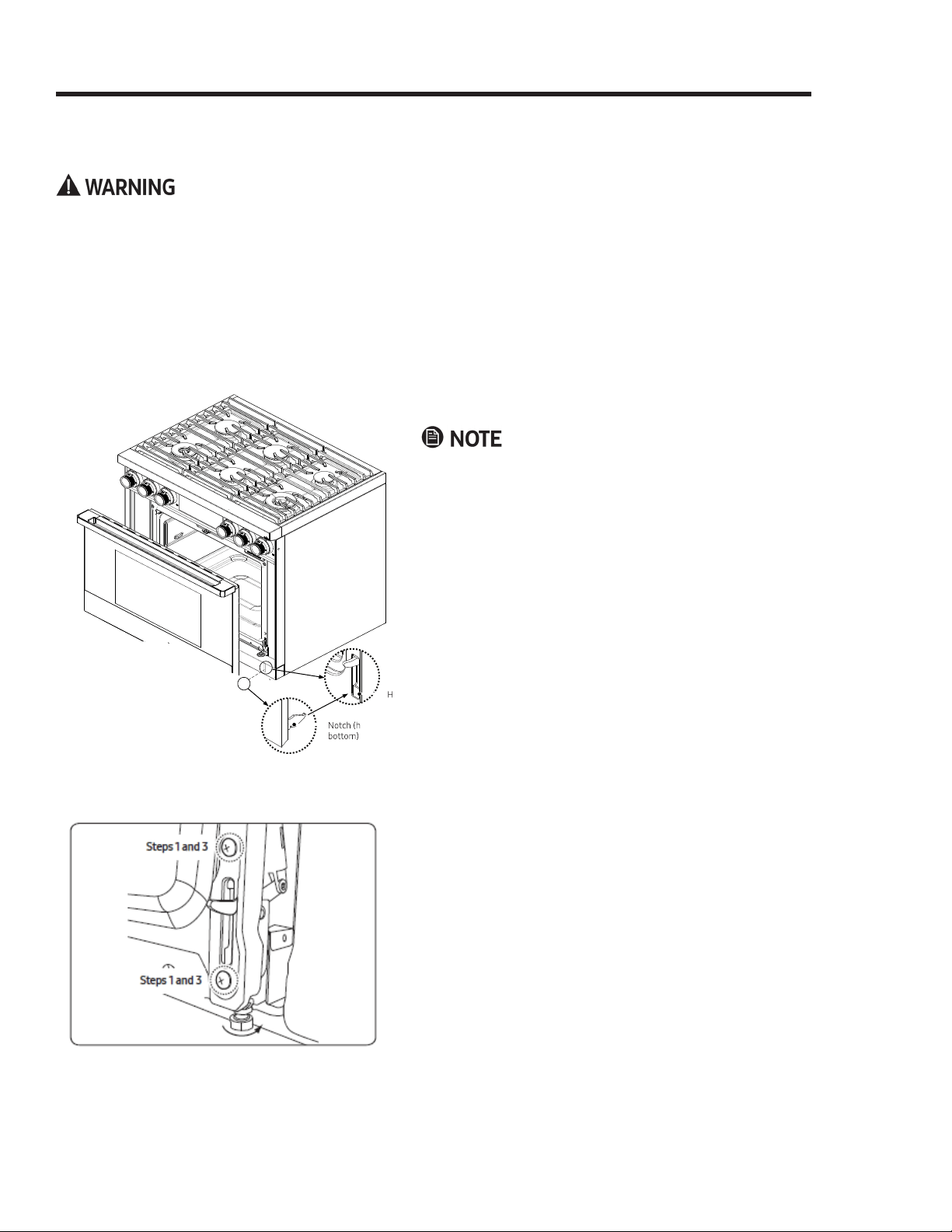

Removing and Reinstalling the Range 34
Installation Checklist 35
3English
Before You Begin
Important Notes to the Owner
• As with any heat-generating appliance, certain safety precautions must be followed.
•
• Ensure the wall coverings near the range can withstand the heat generated by it.
• Cabinet storage space above the range surface should be at least 30 in. (76.2 cm).
• Keep this manual handy for personal and professional reference.
Customer-Assurance Information
Installer
• Read this manual before installing the range.
• Remove all packing material before connecting the elec-
tric and gas supply.
• Observe all governing codes and ordinances.
• Leave this manual with the owner, and write the unit's
model/serial #s inside for easy reference. Installation of
this appliance requires basic mechanical skills.
• The owner shall see to the range's proper installation.
(The warranty does not cover product failure due to im-
proper installation.)
Owner
To resolve questions and installation issues, contact your Dacor dealer or the Dacor Customer Assurance Team.
Before calling, have the range's model/serial numbers available. (See the range's data label: Double oven –
left door trim of small oven; single oven – left door trim.)
Dacor Customer Assurance:
Phone: (833) 35-ELITE (35483) (USA, Canada)
Hours of Operation:
Time
Website: www.dacor.com/support/contact-dacor
Service Technician
The electrical diagram is attached inside the burner box.
4 English
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
• To avoid property damage/personal injury/death, follow the directions in this manual.
• Electrical and gas equipment with moving parts can be dangerous. The Important safety instructions in
this manual are intended to minimize the risk of property damage, personal injury, and death. Read these
instructions.
• Keep this manual in a handy place for reference.
Important Safety Instructions
Symbols In This Manual
Follow these warning icons and symbols explicitly to prevent property damage and personal injury.
Hazards or unsafe practices that may result in severe personal injury or death.
Hazards or unsafe practices that may result in electric shock, personal injury, or property damage.
Useful tips and instructions.
State of California Proposition 65 Warning (US only)
• This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.
• Gas appliances can cause low-level exposure to Proposition 65-listed substances (e.g., carbon monoxide,
formaldehyde, soot) caused by the incomplete combustion of LP or natural gas.
Commonwealth of Massachusetts
-
must not be connected in series.

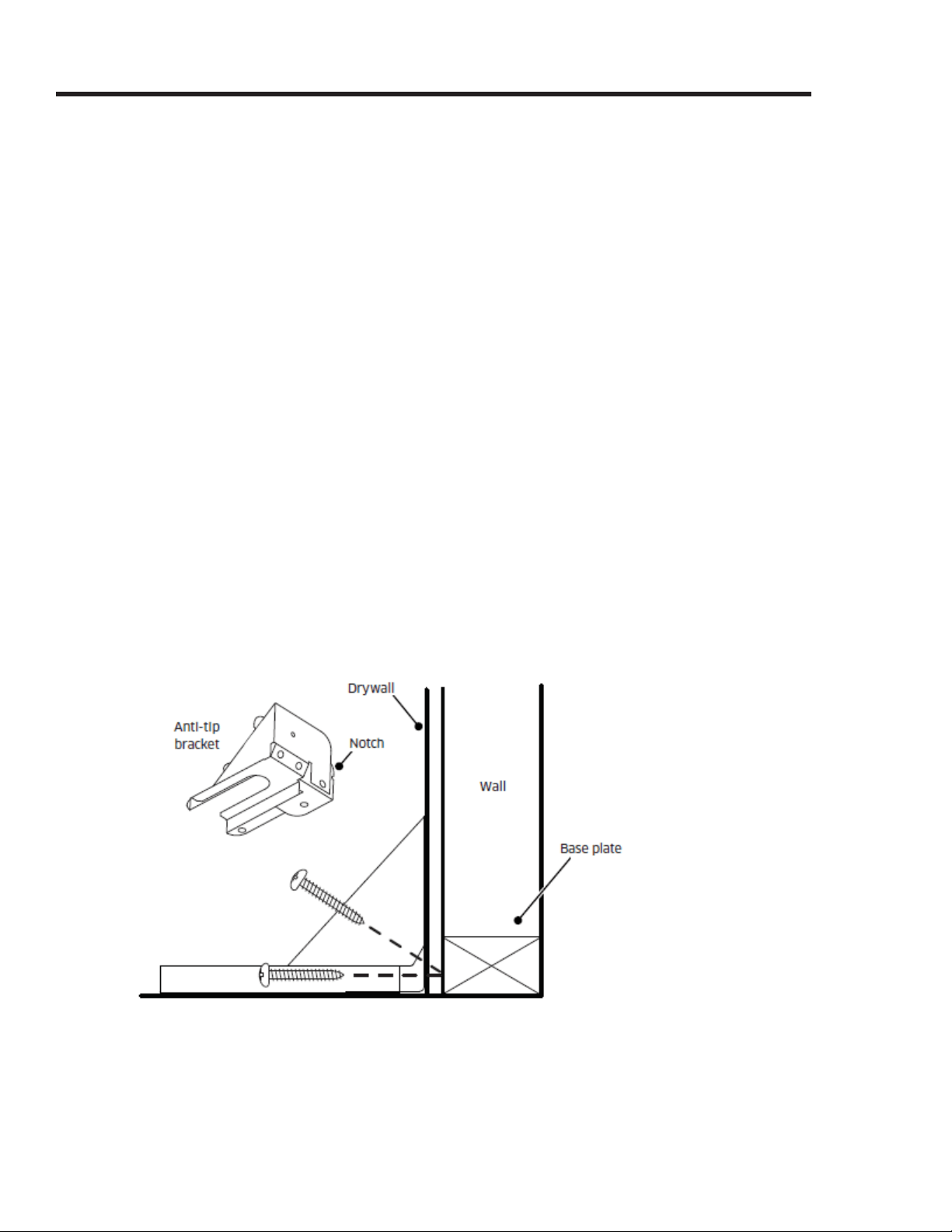

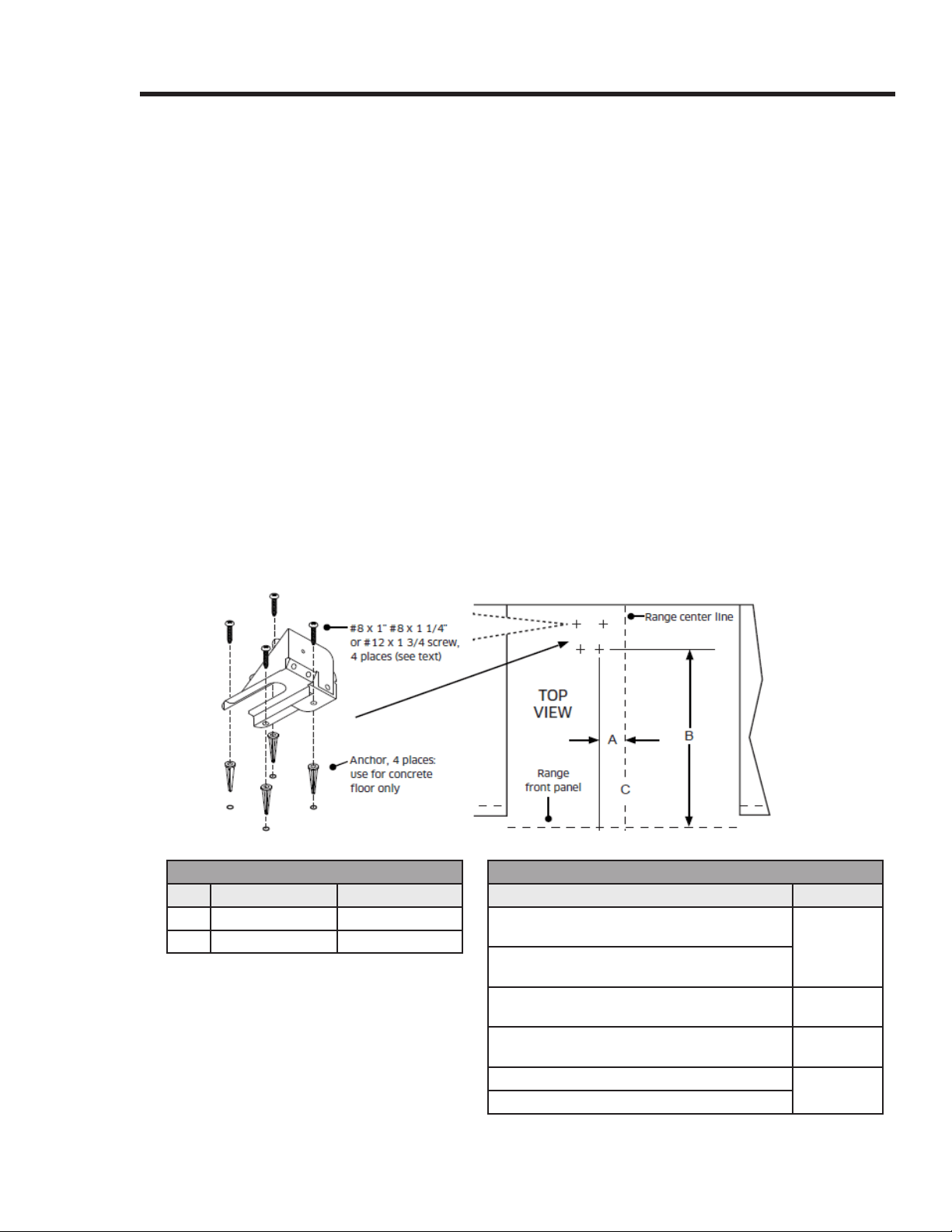

About Anti-Tip Device
• After installing the anti-tip device (see Installing the Anti-Tip Device), verify proper installation by carefully
tipping the range forward. The anti-tip device should keep the range safely in place.
• When the range is put back in place after maintenance, be sure to re-engage the anti-tip device.
• To avoid personal/property damage, do not step/sit/lean on the range.
All ranges can tip and cause personal injury and death. Install and check the
anti- tip bracket per the instructions and template supplied with the bracket.
5English
Important Safety Instructions
General Safety
• Do not touch the range during or immediately after cooking.
• Know where and how to shut off/on the range's gas-supply valve.
• Use only dry pot holders.
• Do not let children sit/stand on the range or play with any of its parts. Do not leave children unattended
near the range when it is in use.
• Remove all packaging before operating the range, and properly and immediately dispose of the packaging.
• Keep all packaging away from children.
• Do not keep objects of interest to children on or around the range.
• Do not operate the range if it is damaged or malfunctioning, or is missing parts.
• Do not use oven cleaners/liners anywhere on the oven.
• Do not heat sealed food containers.
• Do not strike the oven glass.
• When disposing of the range, cut off the power cord, and remove the door.
• Shut off the gas, and unplug the range before service/maintenance.
• Cook meat to an internal temperature of 160 °F (71 °C) and poultry to 180 °F (82 °C).
• Air curtains or hoods that blow on the gas range shall be used only if the hood and range are designed and
tested per the Standard for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an independent testing
lab for combination use.
• Never use the range as a space heater.
Fire Safety
• Do not store/place/use combustible items (e.g., paper, plastic, fabrics, gasoline) near the range.
•
•
bulky cloth as a pot holder.
•
use a multi-purpose, dry-chemical, or foam extinguisher.
•
use a multipurpose, dry-chemical, or foam extinguisher.
• Do not heat sealed containers; pressure may burst the container and cause injury.
Installation-Related Safety Instructions
ensure proper installation.
6 English
Important Safety Instructions
Gas Safety
If you smell gas:
• do not use the range, and close the gas valve.
• do not light a match, candle, or cigarette.
• do not turn on any gas or electric appliances.
• do not plug in a power cord or touch an electrical switch.
• do not use any phone in your building.
• evacuate the building.
• immediately call your gas supplier from a neighbor’s phone; follow the supplier’s directions.
•
Checking For Gas Leaks
a soap-and-water solution around the area in question. If there is a gas leak, small bubbles will appear in the
solution. If unsure, call for professional help.
Electrical and Grounding Safety
• Do not remove the ground prong.
• Do not use an adapter or extension cord.
• Do not use a damaged plug, cord, or loose power outlet, and do not alter the plug, cord, or outlet.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 240 Vac, 60 Hz, 50 Amp breaker for the 48" Range and a 40 Amp breaker for the 36" Range.
A time-delay fuse or circuit breaker should be used. Plug only the range into this circuit.
• Do not connect the ground wire to plastic plumbing/gas lines, or hot water pipes.
• The range must be grounded. Grounding lowers the risk of electric shock by giving the current a safe path.
If unsure that your outlet is properly grounded, have a licensed electrician check it.
• The range has a grounded, 4-prong, plug that must be inserted in a grounded, 4-prong outlet that meets
• Electrical service to the range must conform to local codes, or in their absence, to the National Electrical
code/NFPA No. 70 – Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 or Latest Revi-
sions.
• The owner shall ensure the range receives the proper electrical service.
Installation-Related Safety Instructions, cont.
ensure proper installation.
7English
Installation Safety
•
• Do not service/alter/replace the range or any part of it unless as instructed in this manual. All other service
• Remove all tape and packing material.
•
• Ensure the anti-tip device is properly installed (Pg. 20).
• Due to the size and weight of the range, have two or more people move the range.
• After unpacking the product, remove all accessories, taking care with heavy pieces.
• Verify that no parts came loose during shipping.
•
gas (natural or LP) you will use. For the range to use LP gas, the installer must replace all surface burner
responsible for the gas conversion.
• Installation of this range must conform with local codes or, in their absence , with the National Fuel Gas
Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natu-
ral Gas and Propane Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code, CAN/
ANSI Z21.1/CSA 1.1, latest edition.
Location Safety
• Install the range indoors away from weather/water/strong drafts.
• If the range is near a window, do not hang paper blinds or long curtains that could be blown over/onto the
range.
• The range must be installed within easy reach of a grounded, 4-prong outlet.
• Wall and cabinet coverings around the range must withstand heat up to 194 °F (90 °C).
• -
leum) must withstand 180°F (82°C) without shrinking, warping, or discoloring. The range must be separat-
ed from carpeting by a sheet of ¼" plywood or similar insulator.
•
thus ensuring safe operation.
• Avoid cabinet storage above the range; otherwise, allow at least 30 in. (76.2 cm) from cooking surface to
cabinet bottom; or install a range hood that projects outward at least 5 in. (12.7 cm) beyond the cabinetry.
Important Safety Instructions
Installation-Related Safety Instructions, cont.
ensure proper installation.
8 English
Important Safety Instructions
Cooktop Safety
• Turn all burners off if not using the range.
• Do not line the grates or any part of the cooktop with foil.
• Do not leave burners unattended on medium or high settings.
• Before igniting, ensure burners and caps are properly seated.
•
minutes for the gas to dissipate, then retry.
• When setting a burner to simmer, turn the knob slowly; ensure the burner stays lit.
• Place only cookware on the cooktop.
• The cooktop is designed to cook with a wok or wok-ring attachment.
• Food should only be cooked under an active ventilation hood.
• Before removing cookware, turn off the burner, and remove food/cookware when done cooking.
• Burners should be off and all surfaces cool before removing grates and burner parts. After cleaning the
burner head, dry it completely before re-assembly.

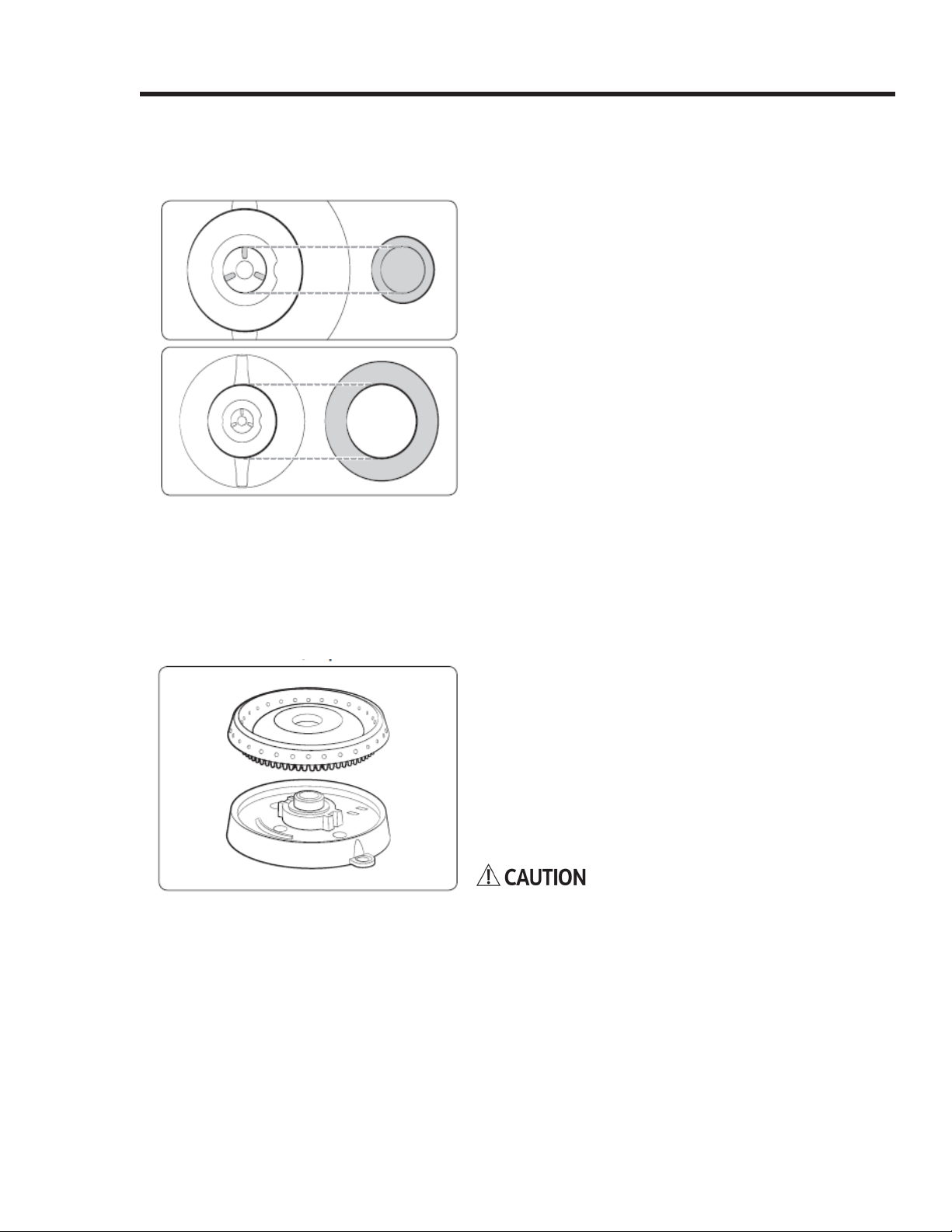

• Assemble the dual-burner spreader so its spark mark is next to the electrode.
• Do not pour water or other liquids into the cooktop.
•
under the cookware.
• Do not use cookware that is much larger than the grate.
• Turn cookware handles away from active burners and the cooktop front edge.
• Heat frying-oil slowly, and watch as it heats. When frying at high heat, stand at a safe distance, and monitor
the oil constantly. If combining fats/oils, mix them together before heating.
• Use a deep-fry thermometer if possible to avoid heating the oil beyond its smoke point.
• Fry with minimal oil. Thaw food fully before frying; do not fry icy or overly cold food. Let oil/fat cool to room
temperature before moving the cookware.
• To avoid delayed-eruptive boiling, let oil/fat stand at least 20 seconds after turning off the burner to stabi-
lize the temperature.
Installation-Related Safety Instructions, cont.
ensure proper installation.
9English
Important Safety Instructions
Oven Safety
• Do not use the oven for non-cooking purposes such as drying clothes or storage. Use the oven for cooking
purposes only.
• Ensure the oven racks are placed on the same level on each side.
• Do not spray water on the oven glass while the oven is on or just after you turn it off.
• Do not clean the door gasket.
• Do not use cover/line any part of the oven with aluminium foil or like material.
• When using the oven, stand to one side when opening the door.
• Keep the oven free from grease buildup.
• Ensure the oven is completely cool before adjusting the oven racks.
• Do not leave plastic items in the oven.
• To avoid damaging the burner control knobs or oven control, always bake/broil with the oven door closed.
• Do not put meat too close to the broil element; trim excess fat before cooking meat.
• Use cooking bags as directed by the bag manufacturer.
• Do not use abrasive cleaners or metal scrapers to clean the oven-door glass.
• Do not try to operate the oven during a power failure.
• If power fails, turn the oven off. If the oven is not turned off and power returns, the oven may begin to oper-
Self-Cleaning Safety
• During self-cleaning, the oven operates at about 800 °F (427 °C). Do not touch any surfaces of the range
during a self-cleaning cycle, and keep children away from the oven.
• Before operating the self-clean cycle, wipe excess food residue from the oven. (Excess grease may ignite,
causing smoke damage.
• Before self-cleaning, remove all racks, cookware, and utensils from the oven. Only porcelain- coated oven
racks may be left in the oven.
• Stand aside when opening the oven door after self-cleaning.
•
technician.
• Fumes released during self-cleaning can be harmful/fatal to pet birds. Move birds to a distant, well-venti-
lated room.
• Do not use commercial oven cleaner or protective coating on the oven interior/exterior.
Installation-Related Safety Instructions, cont.
ensure proper installation.
10 English
Product Specications
What Is Included (DOP48M86D*)
The range comes with brass and porcelain burner caps to suit customer preference.
Grates (3) Burner heads (6) and Burner
caps (7)
Glide racks (2)
Temp. Probe (1) Wire rack (1)
Steam tray (2)* Anti-tip bracket (1)Small rack (1)*
WOK ring (1) Half steam tray (2)*
*Steam ovens only
11English
Product Specications
What Is Included (DOP36M86D*)
The range comes with brass and porcelain burner caps to suit customer preference.
Grates (3) Burner heads (6) and Burner
caps (7)
Glide racks (2)
Temp. Probe (2) Wire rack (1)
Anti-tip bracket (1)WOK ring (1)
12 English
Product Specications
Needed Tools and Parts
Parts Needed
Tools Needed
Gas line shut-off valve Flexible metal appliance
135-degree elbow (op-
tional)
Lag bolt or 1/2-in (OD)
sleeve anchor
Flare union adapter 1/2 in (NPT x 1/2
in (ID)
Flat-blade screwdriver Phillips screwdriver Open-end or adjustable
wrench
Pipe wrench (2)
Nut driver Pencil and ruler Level Pipe joint compound
Utility knife Soapy water solution
13English
Installation Requirements
Pre-Installation Checklist
1. Before installing the range, read this manual thoroughly.
2. Plan for a location where the range will not be subject to strong drafts.
3. Remove packaging, grate boxes, regulator with literature, and literature package from the range, verify
that all items are present before beginning the installation.
General Requirements
Clearances and Dimensions
• For over-the-range (OTR) over gas stove, follow the local gas code.
• For safe operation, provide adequate space between the range and combustible surfaces. Location of the
electrical outlet and gas piping may be adjusted to meet the dimensions and clearances in this manual.
•
wall between the range and hood. It is not necessary to install non- combustible material directly behind
• Canada only: A free-standing range shall be installed at least 4.7 in. (12 cm) from all adjacent surfaces.
The range complies with the maximum allowable wood-cabinet temperature of 194 °F (90 °C).
Ensure the adjacent wall covering, countertops, and cabinets can withstand such heat to avoid discoloration,
delamination, or melting.
Minimum Dimensions
Regarding overhead cabinets, a hood should be installed that projects at least 5" (12.7 cm) beyond the cabin-
etry face to dissipate heat in those cabinets. The hood must consist of sheet metal at least .0122" thick. Install
the hood with at least 1/4" clearance between it and the bottom of the combustible material or metal cabinet.
The hood must be at least as wide as the range and centered over it. Clearance between the cook surface and
hood bottom must be at least 24". (For above-range cooking appliances, follow that appliance's installation
criteria.)
• 30" (76.2 cm) minimum clearance between the cook surface and bottom of an unprotected wood/ metal
cabinet; or if no 30" (76.2 cm) min. clearance, 24" (61 cm) min. when the bottom of the wood/metal cabinet
steel, .015" (.038 cm) stainless steel, .024" (.061 cm) aluminum, or .02" (.051 cm) copper.
• 18 in. (45.7 cm) minimum between the countertop and adjacent cabinet bottom.
14 English
Installation Requirements
Product Dimensions—Product tolerances: ±1/16” (±1.6 mm)
DOP36M86D*: 35 7/8” (91.1 cm) wide ; DOP48M86D*: 47 7/8” (121.6
cm)
Range Installed Range Installed with Downdraft Vent
15English
Installation Requirements
Cabinet Dimensions
Maintain all max/min dimensions and clearances in the diagrams below for safe use.
CUTOUT DIMENSIONS
Range Model A B C
DOP36M86D*
42” (106.7 cm)*; 36” (91.4 cm)** 36” (91.4 cm)**; 36 1/8” (91.7 cm)*** 33 1/2” (84.8 cm)
DOP48M86D*
54” (137.2 cm)*; 48” (121.9 cm)** 48” (121.9 cm)**; 48 1/8” (122.2 cm)*** 43 1/2” (110.5 cm)
*Recommended, **Minimum, ***Maximum
1. Vertical from range grate level to combustible overhead surface; if installing an overhead hood, see hood
2. Cabinet/countertop depth is at the customer's discretion, but cabinet face must not protrude beyond the
rear of the front panel. (See Product Dimensions, Pg. 14.)
3. Consult local codes for exact location requirements.
4. Vertical from grate level to combustible surface.
5. Does not apply to cabinets more than a horizontal distance of 10" (25.4 cm) from the range edge.
16 English
Installation Requirements
Location Requirements
DOP36M86D* (rear)
DOP36M86D* (rear)
1. Measurement with appli-
ance legs adjusted to lowest
height.
2. The hole size for the electri-
cal wiring may be increased
to 1 1/8” (2.9 cm) by removing
the conduit bracket in the
bottom of the range electri-
cal box.
17English
Installation Requirements
Gas and Electrical Service
• See below for the recommended location of the gas inlet and electrical junction box/receptacle. Existing
utilities may be used if they are compatible with this range. Check local building codes for allowed gas-
valve locations.
• An external manual shut-off valve must be installed between the gas inlet and range so the range's gas
supply can be turned on/off. Installation must allow access to the gas shut-off valve when the unit is in-
stalled and access to the remote circuit-breaker panel/fuse box without moving the range.
• The gas-supply piping and shut-off valve, and the electrical junction box/receptacle must be located so as
not to interfere with the range when it is installed.
• The junction box and gas-shut off valve must be located so the range can be pulled out for service without
being disconnected.
Model D E F G
DOP36M86D* 8 7/8" (22.5 cm) 6 5/8" (16.8 cm) 11 3/16" (28.4 cm) 24 1/4" (61.6 cm)
DOP48M86D* 5 1/2" (13.9 cm) 6 5/8" (16.8 cm) 8 1/8" (20.6 cm) 26 5/8" (67.6 cm)
18 English
Installation Requirements
Gas Requirements
Provide Adequate Gas Supply
This oven's installation must conform to local codes or, in their absence, with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54.
This range's cooktop is designed to operate at a manifold pressure of 5 in. (13 cm) of water column for natural
gas/natural gas at high altitude (NG-H) or 10 in. (25.4 cm) of water column for LP (propane)/LP at high altitude
(LP-H).
Verify that the oven is right for the provided gas service.
When verifying regulator function, inlet pressure must be at least 1 in. (2.5 cm) greater than the operating
(manifold) pressure as given.
• The pressure regulator at the inlet of the cooktop manifold must stay in the supply line whether or not
natural or LP gas is used.
• Use only the range's regulator, which must be installed in the gas line that runs from the cooktop gas inlet
to the gas shut-off valve.
• An external manual shut-off valve must be installed between the gas inlet and range for turning on/off gas
to the appliance.
•
•
connectors.
GAS SUPPLY PRESSURE REQUIREMENTS*
Gas Type Minimum Manifold Pressure Minimum Gas Supply Pressure**
Natural Gas 5” Water Column 6” Water Column
LP (propane) Gas 10” Water Column 11” Water Column
*The gas supply pressure for testing the regulator setting shall be at least 1" water column (249 Pa) above the
Special Gas Requirements (gas models sold in Massachusetts)
• Gas leaks may occur in your system, creating a hazardous condition. Such leaks may not be detected by
smell alone; thus, gas suppliers recommend installing a UL-approved gas detector per manufacturer speci-
•
• A T-handle manual gas valve MUST be installed in the gas-supply line to your range.
•
19English
Installation Requirements
Electrical Requirements
Follow these directions to reduce risk of property damage, personal injury, or death.
The owner shall ensure that the electrical service meets requirements and that the electrical outlet is installed
by a licensed electrician.
All Ranges
• Do not use an extension cord or adapter plug with this range.
•
doubt that the outlet is properly grounded.)
•
• All wiring/grounding must comply with local codes or, in their absence, with the National Electrical Code,
ANSI/NFPA No. 70 – Latest Revision (US), or the Canadian Electrical Code CSA C22.1 – Latest Revisions and
local codes.
• The wiring diagram is on the back of the range.
• A dedicated circuit breaker is required.
• Use this chart to identify the minimum recommended dedicated circuit protection.
Range Model KW Rating (240 V) Recommended Circuit Size (Dedicated)
DOP36M86D*
7.3 KW - 9.6 KW 40 Amp
DOP48M86D*
9.7 KW - 12.0 KW 50 Amp
20 English
Installation Instructions
•
installation. Call the dealer, the gas supplier or a licensed electrician.
•
Unpacking the Range
Unpack the parts box and verify that all required components have been provided. If any item is missing or
damaged, please contact your dealer immediately. Do not install a damaged or incomplete appliance.
Installing the Anti-tip Bracket and Foot
There are two ways to mount the anti-tip bracket: Floor mounting (preferred), and wall mounting (Pg. 22). Use
Preparing for Installation
Floor-Mounting the Anti-Tip Bracket
-
ings such as ceramic/asphalt tile or linoleum.
• Four plastic anchors are provided with three
sizes (4 each) of #8 or #12 Phillips head screws
both anchors and four of the screws to attach the
• Determine the location of the range center line
on the Product Dimensions (Pg. 14) and the actual
cabinet/cutout dimensions used for the installa-
tion.
21English
Installation Instructions
Floor-Mounting the Anti-Tip Bracket, cont.
• Determine the required position of the anti-tip bracket, based on the diagram below. Mark the 4 mount-
• Determine the screw size. The minimum full thread depth (portion of screw threaded into wood/slab) is
3/8” (1 cm) for wood and 5/8” (1.6 cm) for concrete. (See SCREW SIZE table, below, for correct screw sizes.)
Attaching the Bracket to a Concrete Floor
1.
2. Through these holes, drill 4 anchor holes 1-1/4” (3.2 cm) into the concrete with a 3/16” masonry
bit. This hole length is longer than the anchor. Clean out the holes, and tap in each anchor so its
3. Align the bracket and anchor holes, then insert and tighten the screws.
Attaching the Bracket to a Wood Floor
1.
drilling pilot holes.
2. Drill 4 pilot holes in the wood with a drill bit (1/16” dia. for #8 screws, 1/8” dia. for #12 screws).
Align the bracket and pilot holes, then insert and tighten the screws.
SCREW SIZE
Sub-Floor Type/Floor Covering Thickness Screw Size
Concrete/wood suboor, no oor covering over
top
#8 x 1*
Concrete/wood suboor, oor covering up to 1/4”
thick
Concrete/wood suboor, oor covering over 1/4”
up to 1/2” thick
#8 x 1 1/4*
Wood sub-oor, oor covering over 1/2” and up
to 1 3/16” thick
#12 x 1 3/4*
Concrete under oor covering over 1/2” thick Purchase
separately**
Wood under oor covering over 1 3/16” thick
ANTI-TIP BRACKET PLACEMENT
Dim. DOP36M86DL* DOP48M86DL*
A 13” (33.0 cm) 3 1/2” (8.9 cm)
B 22 1/2” (57.2 cm) 22 1/2” (57.2 cm)
*Included with range;
**determine required depth
based on info in Step 3, and pur-
chase from hardware store.
22 English
Installation Instructions
Installing the Anti-Tip Bracket and Foot, cont.
Wall-Mounting the Anti-Tip Bracket
For this option to be suitable, the range front panel must be 26 1/2" (67.3 cm) or less from the wall,
and the bracket screws must be able to engage the base plate inside the wall. Notches on the sides
will not impede secure threading.
To determine if the base height is suitable:
• -
sition based on the product dimensions on Pg. 14 and the actual cabinet/cutout dimensions used
for the installation.
• Determine and mark the required position of the anti-tip bracket, based on the diagram on Pg. 21.
Push the bracket up against the wall in the mounting location.
• With a pencil, make a dot next to the notches on both sides of the bracket. Determine if the base
plate is as high as the notches by drilling test holes into the wall at both dots with a 1/16” drill bit.
Drill just deep enough to see if the bit contacts the base plate. If there is contact, the location will
support wall installation of the bracket. If there is no contact, wall mounting is unsuitable, and
the notches.
To install the bracket, place it against the wall in the mounting location. Using a drill with 1/8" diam-
eter drill bit, drill four (4) 1 5/8” deep pilot holes perpendicular to the screw seating surfaces shown
below. Attach the bracket to the wall as shown with the four (4) included #12 x 1
¾ screws.
23English
Installation Instructions
Preparing for Installation, cont.
Wall-Mounting the Anti-Tip Bracket, cont.
ANTI-TIP BRACKET PLACEMENT
Dimension DOP36M86DL* DOP48M86DL*
C 14 1/8” (35.9 cm) 3 1/2” (8.9 cm)
Removing the Oven Door
• Do not try to disengage the hinge catches with the door(s) removed. The hinge springs could release caus-
ing personal injury.
• Do not lift or carry the oven door(s) by the handle.
1. Open the door fully.
2. With needle-nose pliers or a slotted
screwdriver, rotate the catch over the
retaining arm on each hinge.
24 English
Installation Instructions
For personal safety, do not use an extension cord with the range. Remove the house fuse or open the circuit
breaker before starting the installation.
The range must receive the proper voltage and frequency and connect to an individual, properly grounded
electrician show you where to turn off power to the range. Consult local utilities for applicable codes. Failure
to wire your oven per these codes could create a safety hazard. If there are no such codes, your range must be
wired and fused per the National Electrical Code, ANSI/NFPA No. 70–Latest Edition. For a copy, write: National
Fire Protection Association, Batterymarch Park, Quincy, MA 02269
Effective Jan. 1, 1996, the National Electrical Code requires that new construction use a 4- conductor
connection to an electric range. When installing an electric range in new construction, follow Steps 2 and
3 for 4-wire connection.
• A 3-wire or 4-wire, single-phase A.C. 240 Volt, 60 hertz electrical system is required. If the home electrical
• Use only a 3-conductor or a 4-conductor UL-listed range cord. These cords may be provided with ring termi-
nals on wire and a strain relief device.
• DOP36M86D* requires a range cord rated at 40 amps with 125/250 minimum volt range.
• DOP48M86D* requires a range cord rated at 50 amps with 125/250 minimum volt range.
•
Removing the Oven Door, cont.
ALL NEW BRANCH-CIRCUIT CONSTRUCTION, MOBILE HOMES, RECREATIONAL VEHICLES, AND
INSTALLATIONS WHERE LOCAL CODES PROHIBIT GROUNDING THROUGH NEUTRAL, REQUIRE
A 4-CONDUCTOR UL-LISTED RANGE CORD.
3. Lift the oven door to about a 15° angle from verti-
cal.
4. With both hands, grasp the door just below the
handle, and pull up slightly.
5. On the bottom-right edge of the door, pull out the
wire connector, and disconnect the wires.
6. Lift the door away from the oven.
Electrical Connection
If conduit is being used, see Pg. 25.
25English
Installation Instructions
Installing the Flexible Conduit
1. Prepare the conduit cord (Figure 1).
2. Install the conduit cord (Figure 2).
through the body of the strain relief, and fasten the ring, then reinstall the bracket.
Installing a 3-wire Conduit
• Aluminum building wire may be used but must be rated for the correct amperage and voltage.
Connect wires according to Step 4 depending on the number of wires.
• Wire used, location/enclosure of splices, etc., must follow good wiring practices and local
codes.
1. Loosen the three lower screws on the terminal block.
2. Insert the white/neutral bare wire tip through the
bottom-center block opening. (Some models: the wire
inserted through the ground-strap opening into the
bottom-center block opening.)
3. Insert the left and right wire tips into their respective
block openings.
4. Tighten the screws to 35 – 50 in.-lbs.(Any tighter may
damage the wires.)
26 English
Installation Instructions
Installing the Flexible Conduit, cont.
Installing a 4-wire conduit
• Aluminum building wire may be used but it must be rated for the correct amperage and voltage.
Connect wires according to this Step 4 depending on the number of wires.
• Wire used, location and enclosure of splices, etc., must conform to good wiring practices and local
codes.
1. Loosen the 3 lower screws on the terminal block. Re-
move and retain the ground screw and ground plate.
2. Cut and discard the ground strap. Do not discard any
screws.
3. Insert the ground bare wire tip between the range frame
and ground plate (removed earlier), and secure it with
the ground screw (removed earlier).
4. Insert the wire (white/neutral) tip through the bottom
center of the block opening.
5. Insert the left and right wire tips into their respective
block openings.
6. Tighten the screws to 35 – 50 in.-lbs.(Any tighter may
damage the wires.)
Gas Connection
• Turn off the gas-supply valve, and turn off power to the range at the circuit breaker or fuse box before con-
necting the gas line.
•
•
• Maximum gas-supply pressure to the regulator must not exceed ½ psi (pounds per square inch) or 3.5 kPa.
• The range and shut-off valve must be disconnected from the gas-supply piping for pressure testing that
exceeds ½ psi (3.5 kPa).
• The range must be isolated from the gas-supply piping by closing the shut-off valve for pressure testing at
or below ½ psi (3.5 kPa).
•
The gas-pressure regulator is factory set for the type of gas used with the range. To verify that the range is
compatible with the available gas, see the rating label (oven left door trim). Consult your dealer if the range is
incompatible with the supplied gas.
27English
Installation Instructions
About Oven Functions, cont.
Before sliding the range into the cabinet
1. Turn off the gas-supply valve, and turn off power to the
range.
2.
on the stub out. The line must be long enough that the
range can be pulled out for service without disconnect-
ing the line.
3. Slide the gas line up through the chassis' access holes to
the regulator. (Move the wires inside the access holes to
keep them from catching on the gas line.)
4. Connect the gas line to the regulator.
5. Turn off all cooktop controls, then turn on the gas supply.
6. With a soap-and-water solution, check all lines and con-
nections for leaks.
7. Turn off the gas-supply valve.
Final Installation
Gas Connection, cont.
1. Peel the protective sheeting from the range.
2.
legs as needed to position the trim around the cooktop
even with or above the countertop.
3. Turn to lower the anti-tip foot at the back of the range
4. Slide the range into the cutout so the anti-tip foot en-
5. With a level, check that the range does not tilt in any
direction. (Adjust the legs to level the range as needed.)
28 English
Installation Instructions
Reinstalling the Oven Door(s)
To avoid personal injury or damage to the door from it falling off its hinges:
• Make sure that the notch on the bottom of each hinge rests on the lower lip of each hinge receptacle before
trying to open the oven door.
• Flip the hinge locks toward the front of the range immediately after installation of the door.
1. Grasp the oven door on both sides, and hold it at a 15° angle from the front of the oven. Slide the hinges
into their slots, resting the bottom of the hinge arms on the hinge receptacles. Maintain the 15° angle with
one hand while pushing in on each bottom corner of the door, until the notch on the bottom of each hinge
slips over the lower lip of each hinge receptacle.
Wire connector under the right side of the door
should be connected.
2. Lower the door to the fully opened position.
3. Rotate the two hinge locks toward the oven.
4. Slowly and carefully open and close the door
completely to ensure that it is properly installed.
5. Remove any packaging from inside the oven(s).
this, use the three bolts (one on the right- upper side,
and one under the each hinge) .The upper bolt adjusts
the door horizontally. The lower two bolts adjust the
door vertically.
To adjust door vertically:
1. Remove the door, then remove 2 screws on each
door-hinge latch.
2. Adjust the bolt under each latch.
3. Re-attach and tighten the 2 screws.
4. Re-install the door.
Adjusting the Door (DOP48M86D* only)
inge
slot
inge
29English
Installation Instructions
Adjusting the Door (DOP48M86D* only), cont.
When installing the knobs, align the “D” shaped opening on the back of the knob with the end of the valve
shaft. Gently push the knob on until it stops.
Lifting the door-hinge latches too much makes fasten-
Installing the Burner-Control Knobs
48" Model: DOP48M86D* 36" Model: DOP36M86D*
30 English
Rangetop Assembly
Assembling the Burners
Installation Instructions
• Do not operate the rangetop burners unless properly assembled.
• Do not push in a rangetop knob while removing the burner; a slight electrical shock might result.
• Do not remove the top or touch a burner electrode while another burner is on.
1. Orient the burner head so the electrode opening
aligns with the electrode.
2. Install the burner head so the electrode passes
through its opening in the head. Ensure the burner
Dual Burner Head/Cap
1. Place the burner heads on the burner bases as
parallel to the rangetop.
2. Place the matching size caps on top of each range-
top burner head.
31English
Installation Instructions
Dual Burner Head/Cap, cont.
3. Match the burner caps to the burners by size, then
install the caps on the heads.
Round Burner Head/Cap
1. Put the burner heads on the burner bases as shown
base.
2. Turn the head until it drops into place. Twist the head
back and forth slightly to ensure it is properly seated.
3. Put the burner caps (brass or porcelain) atop the burn-
er heads. The ridge around the bottom edge of the cap
and snugly in place.
32 English
Installation Instructions
1. Put the burner heads in place as shown. The locat-
ing tab on the burner head goes in the keyed hole as
shown.
2. Put the burner rings on the burner heads as shown.
Match the tabs on the bottom of the ring to the slots
on the head. Twist each ring back and forth slightly to
verify it is properly seated.
3. Put the burner caps on the burner rings. Use either
the supplied brass or porcelain caps. The ridge around
the bottom edge of the cap goes around the top of the
burner ring.
Be sure electrical power is off and all surfaces are cool before cleaning any part of the cooktop.
33English
Installation Instructions
Installing the Grates
For best results and longest life, install the grates as instructed. When installed properly, the openings in the
-
bility and safe operation, these grates should only be used in their proper positions. The back of the right grate
is notched to help orient the grates correctly. (See the graphic below.)
To correctly position the grates:
1. Find the notch on the back of the right-hand grate, and orient the grate properly above the right-
hand burners.
2. Gently lower the right-hand grate so its legs rest in the corresponding dimples on the cooktop.
3. Likewise place the remaining grates so their feet rest in the corresponding dimples.
Grates are not interchangeable. Each grate has own engraving under it. It tells you which the front side of
grate is and proper position, left, center or right.
34 English
Installation Instructions
Verifying Proper Operation
1. Before starting the test procedure, turn off all burners, and see that all burner components and grates are
properly positioned.
2. Open the gas-supply valve, and check for gas leaks.
3. Turn on power to the range at the circuit breaker or fuse box.
4. Use the oven display to set user preferences and wireless network settings.
5. On the display, tap MENU > BAKE. (The default bake temperature should appear.)
6. Tap Start. In 3 minutes, open the door to see that the oven chamber is heating. (The display should show
BAKE and the preheating temperature.)
Removing the Range for Service
1. Close the gas-supply valve.
2. Turn off power to the range at the circuit breaker or fuse box.
3. Pull the range out from the wall
Reinstalling the Range After Service
1. Push the range into position, engaging the anti-tip bracket.
2. Turn on power to the range at the circuit breaker or fuse box.
3. Open the gas-supply valve.
Removing and Reinstalling the Range
If the range does not operate properly:
1. Verify that power and gas are supplied to the range.
2. Check the electrical connections and gas supply to verify proper installation.
3. Repeat the above bake test and burner-ignition test.
4. If the range still does not work, contact Dacor Customer Assurance: (833) 35-ELITE (35483). Be ready with
the model/serial numbers. (See the data label, left-side door trim.)
Do not try to repair the range yourself. Dacor is not responsible for the cost of correcting problems caused by a
faulty installation.
7. Tap OFF.
8. Push a knob in, and turn it counterclockwise to HIGH. (Within 4 sec-
onds, ignition occurs, and the igniter stops sparking. If ignition does
not occur as expected, turn off the knob, wait 5 minutes for the gas to
dissipate, then retry the test.
9. After ignition, turn the control knob from HIGH to LOW while watching
and quiet with a sharp, blue inner cone that varies in length depend-
ing on the burner size.
10. Turn the control knob OFF.
11. Repeat the ignition test for the remaining burners.
Normal Flame
35English
Installation Instructions
Installation Checklist
The installer should complete this checklist to ensure thorough, proper installation. Proper installation is the
responsibility of the homeowner.
• Was the plastic sheeting peeled off the range exterior?
• Was all packaging removed from the oven chamber?
•
• Was the range secured with the anti-tip bracket and foot as instructed? (Pgs. 20 – 23.)
• Was the gas-supply inlet pressure measured to ensure it does not exceed the maximums stated in these
instructions. (Pg. 18.)
• Is the range connected to the gas supply as instructed and according to applicable codes? Was
• the gas supply checked for leaks? Was the regulator cover re-installed? (Pg. 25 – 27.)
• Is the oven door installed as instructed? (Pg. 28 – 29.)
• Were the burner knobs properly installed? (Pg. 29.)
• Are the burners (Pg. 30 – 32) and grates (Pg. 33) installed as instructed?
•
•
Website: www.dacor.com/customer-care/contact-us Customer Assurance: 833-353-5483
WARRANTY INFORMATION
IMPORTANT:
Your warranty will not be activated until you activate it online or return this form to Dacor. If you have purchased more
than one Dacor product, please return all forms in one envelope, or activate the warranty online for each product.
Your willingness to take a few seconds to complete the section below will be sincerely appreciated. Thank you.
1. How were you first exposed to Dacor products? (Please check one.)
A. T.V. Cooking Show F Builder
B. Magazine G. Architect/Designer
C. Appliance Dealer Showroom H. Another Dacor Owner
D. Kitchen Dealer Showroom I. Model Home
E. Home Show J. Other
2. Where did you buy your Dacor appliances?
A. Appliance Dealer D. Builder
B. Kitchen Dealer E. Other
C. Builder Supplier
3. For what purpose was the product purchased?
A. Replacement only C. New Home
B. Part of a Remodel D. Other
4. What is your household income?
A. Under $75,000 D. $150,000 – $200,000
B. $75,000 – $100,000 E. $200,000 – $250,000
C. $100,000 – $150,000 F. Over $250,000
5. What other brands of appliances do you have in your kitchen?
A. Cooktop C. Dishwasher
B. Oven D. Refrigerator
6. Would you buy or recommend another Dacor product?
Yes No
Comments
Owner Last Name (please print) First Middle Init.
Street
City State Zip
Purchase Date Email Phone
Dealer
City State Zip
cut herecut here
Please visit www.dacor.com to activate your warranty online.
Thank you very much for your assistance. The information you
have provided will be extremely valuable in helping us plan
for the future and in giving you the support you deserve.
Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not
consider it a proper way of expressing our gratitude for your having chosen Dacor products for your kitchen!
fold here
DACOR
ATTN WARRANTY PROCESSING DEPT
PO BOX 90070
CITY OF INDUSTRY CA 91715-9907
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST-CLASS MAIL CITY OF INDUSTRY CAPERMIT NO 1600
POSTAGE WILL BE PAID BY ADDRESSEE
