Welcome
Congratulations on your purchase of a new
Honda scooter. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda’s
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner’s manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
scooter.
To protect your investment, we urge you to
take responsibility for keeping your scooter
well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that
your dealer knows your scooter best. If you
have the required mechanical “know-how”
and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks.
2 P. 110
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities.
2 P. 112
You may also want to visit our website at
www.powersports.honda.com.
Happy riding!
California Proposition 65 Warning
WARNING: This product contains or emits
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
12 FSC600A-31MGF6300.book 2 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this scooter safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a scooter. You
must use your own good judgement.
You will find important safety information in
a variety of forms, including:
● Safety labels on the scooter.
● Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3
DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your scooter, other
property, or the environment.
12 FSC600A-31MGF6300.book 3 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Scooter Safety
This section contains important information for safe riding of your scooter.
Please read this section carefully.
Safety Guidelines .........................................P. 3
Safety Labels ................................................P. 7
Safety Precautions .......................................P. 9
Riding Precautions .....................................P. 10
Accessories & Modifications......................P. 14
Loading .......................................................P. 15
12 FSC600A-31MGF6300.book 2 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Guidelines
3
continued
Scooter Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in exhaust
gases is toxic and can kill you.
It’s a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel.
2 P. 9
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the handrails or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the scooter is stopped.
Even if you have ridden other scooters, practice
riding in a safe area to become familiar with
how this scooter works and handles, and to
become accustomed to the scooter’s size and
weight.
Always Wear a Helmet
Before Riding
Take Time to Learn & Practice
12 FSC600A-31MGF6300.book 3 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Guidelines
4
Scooter Safety
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial. For
information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You and
Your Motorcycle Riding Tips booklet that came
with your scooter.
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make yourself more visible, especially at night,
by wearing bright reflective clothing,
positioning yourself so other drivers can see
you, signaling before turning or changing lanes,
and using your horn when necessary.
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.
Alcohol and riding don’t mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. Don’t drink and ride, and don’t let your
friends drink and ride either.
Ride Defensively
Make Yourself Easy to See
Ride within Your Limits
Don’t Drink and Ride
12 FSC600A-31MGF6300.book 4 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Guidelines
5
Scooter Safety
It’s important to keep your scooter properly
maintained and in safe riding condition.
Inspect your scooter before every ride and
perform all recommended maintenance. Never
exceed load limits (
2 P. 15), and do not modify
your scooter or install accessories that would
make your scooter unsafe (
2 P. 14).
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
If you decide to continue riding, first evaluate
the condition of your scooter. If the engine is
still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, control levers, brakes,
and wheels. Ride slowly and cautiously.
Your scooter may have suffered damage that is
not immediately apparent. Have your scooter
thoroughly checked at a qualified service facility
as soon as possible.
Keep Your Honda in Safe Condition
If You are Involved in a Crash
12 FSC600A-31MGF6300.book 5 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Guidelines
6
Scooter Safety
Exhaust contains poisonous carbon monoxide,
a colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could contain
a dangerous amount of carbon monoxide.
Never run your scooter inside a garage or other
enclosure.
Carbon Monoxide Hazard
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill you.
Avoid any areas or activities that
expose you to carbon monoxide.
12 FSC600A-31MGF6300.book 6 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Labels
7
continued
Scooter Safety

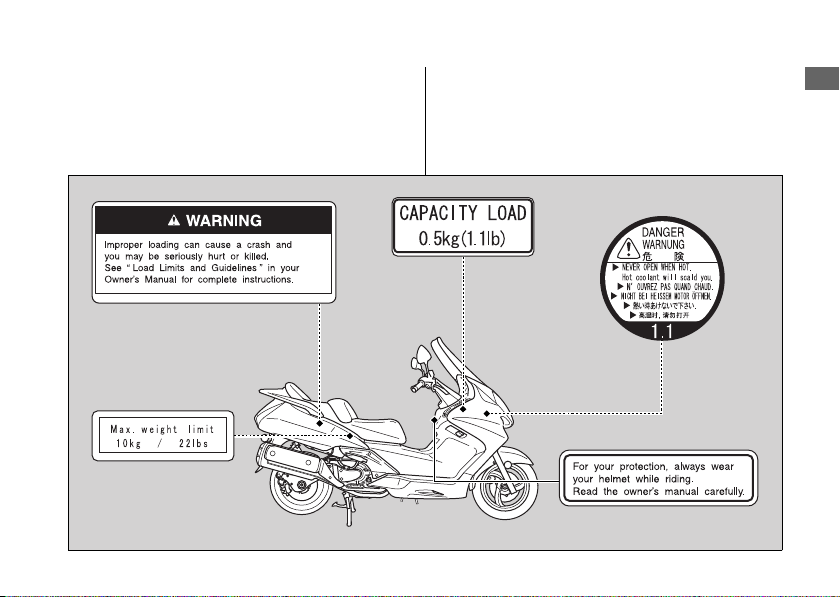

Safety Labels

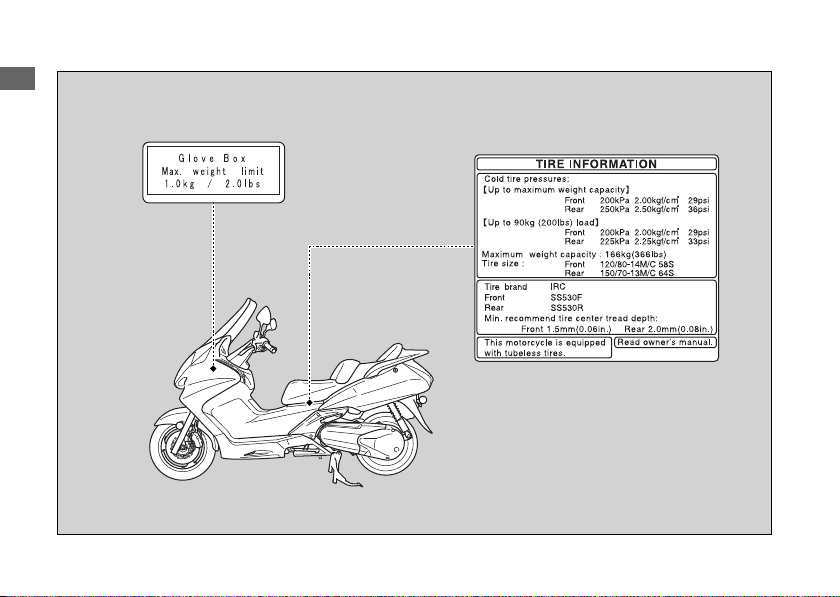

Safety and information labels on your scooter
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don’t remove them. If a label comes off or
becomes hard to read, contact your dealer for a
replacement.
12 FSC600A-31MGF6300.book 7 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Labels
8
Scooter Safety
12 FSC600A-31MGF6300.book 8 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Safety Precautions
9
continued
Scooter Safety
Safety Precautions
● Ride cautiously and keep your hands on the
handlebars and feet on the floor.
● Keep passenger’s hands onto the handrails or
your waist, passenger’s feet on the footpegs
while riding.
● Always consider the safety of your passenger,
as well as other drivers and riders.
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
❙
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head.
● Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection.
Look for a DOT (Department of Transportation)
certification label on any helmet you buy.
❙
Gloves
Full-finger leather gloves with high abrasion
resistance.
Protective Apparel
3
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
12 FSC600A-31MGF6300.book 9 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Riding Precautions
10
Scooter Safety
❙
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection.
❙
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit).
Riding Precautions
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your scooter’s
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking.
● Ride conservatively.
Observe the following guidelines:
● Avoid excessively hard braking.
u Sudden braking can reduce the scooter’s
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Running-in Period
Brakes
12 FSC600A-31MGF6300.book 10 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Riding Precautions
11
continued
Scooter Safety
● Exercise caution on low traction surfaces.
u The tires slip more easily on such surfaces
and braking distances are longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness.
❙
Brake System
Your scooter is equipped with a brake system
that distributes the braking force between the
front and rear brakes.
The distribution of the braking force applied to
the front and rear brakes when operating the
front brake lever only and when operating the
rear brake lever only is different.
For full braking effectiveness, operate both the
brake levers together.
❙
ABS (Anti-lock Brake System)
ABS helps prevent the brakes from locking up
during hard braking. Always use the
recommended tires to ensure correct ABS
operation.
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below
6 mph (10 km/h).
● The brake levers may recoil slightly when
applying the brakes. This is normal.
❙
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
12 FSC600A-31MGF6300.book 11 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Riding Precautions
12
Scooter Safety
● Park on a firm, level paved surface.
● If you must park on a slight incline or loose
surface, park so that the scooter cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes and
other high-temperature parts until they cool
down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the scooter unattended. Use of an
anti-theft device is also recommended.
❙
Parking with the Side Stand or Center Stand
1.
Stop the engine.
2.
Using the side stand
Lower the side stand.
Slowly lean the scooter to the left until its
weight rests on the side stand.
Turn the handlebar fully to left.
u Turning the handlebar to the right reduces
stability and may cause the scooter to fall.

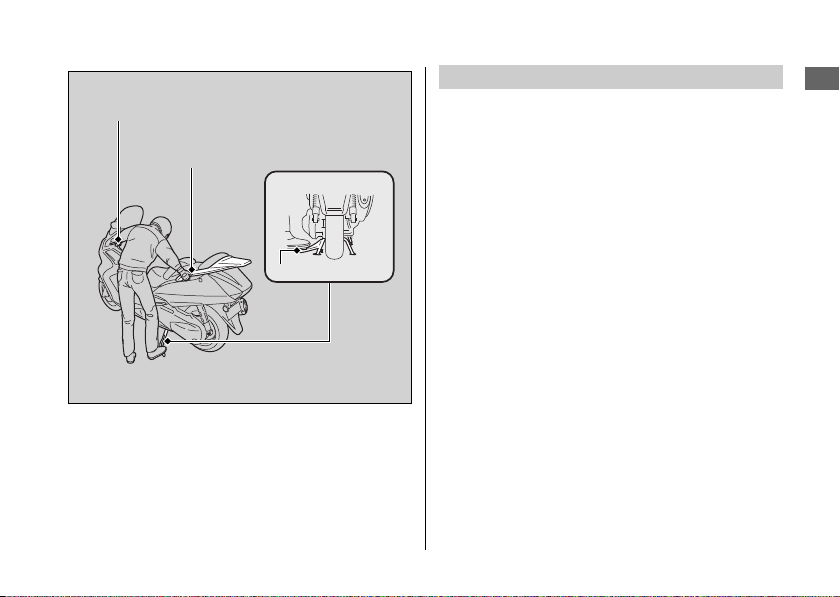

Using the center stand
Stand on the left side of the scooter, and
then hold the left handle grip and the left
passenger handrail. Press down on the tip of
the center stand with your right foot and,
simultaneously, pull up and back.
Turn the handlebar fully to left or right.
Parking
12 FSC600A-31MGF6300.book 12 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Riding Precautions
13
Scooter Safety
3.
Lock the steering and remove the key. 2 P. 24
Follow these guidelines to protect the engine
and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in decreased
engine performance.
● Do not use fuels containing a high
concentration of alcohol.
2 P. 109
● Do not use stale or contaminated gasoline or
an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Left handle grip
Handrail
Center stand
Refueling and Fuel Guidelines
12 FSC600A-31MGF6300.book 13 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Accessories & Modifications
14
Scooter Safety
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
for your scooter by Honda or make
modifications to your scooter from its original
design. Doing so can make it unsafe.
Modifying your scooter may also void your
warranty and make your scooter illegal to
operate on public roads and highways. Before
deciding to install accessories on your scooter
be certain the modification is safe and legal.
Do not pull a trailer with, or attach a sidecar to,
your scooter. Your scooter was not designed for
these attachments, and their use can seriously
impair your scooter’s handling.
3
WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding accessories and
modifications.
12 FSC600A-31MGF6300.book 14 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Loading
15
Scooter Safety
Loading
● Carrying extra weight affects your scooter’s
handling, braking and stability. Always ride at
a safe speed for the load you are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
2 Maximum weight capacity / Maximum
luggage weight
P. 116
● Tie all luggage securely, evenly balanced and
close to the center of the scooter.
● Do not place objects near the lights or the
muffler.
3
WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
12 FSC600A-31MGF6300.book 15 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
16
Operation Guide
Operation Guide

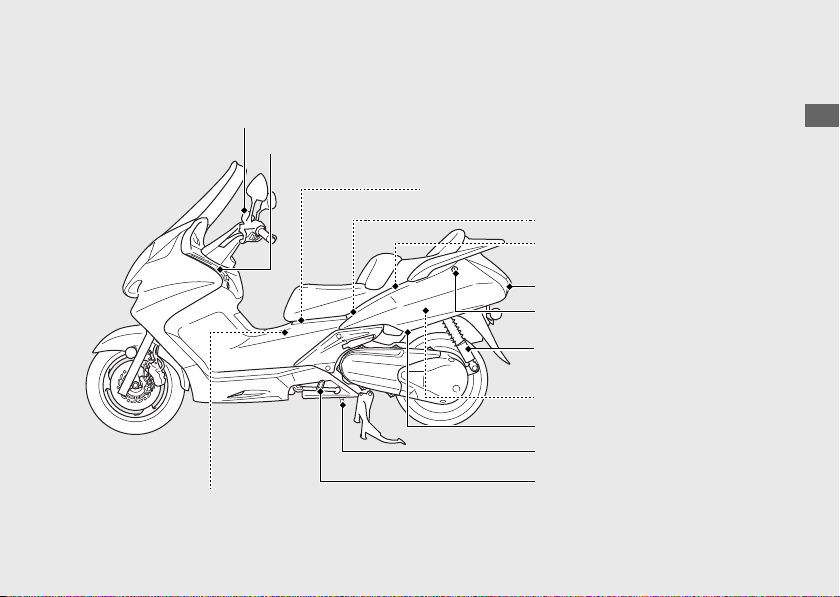

Parts Location
Fuel fill cap (P30)
Parking brake lever (P25)
Air cleaner (P63 )
Right side cover (P59 )
Backrest (P36 )
Tool kit/Document bag (P33)
Front brake fluid reservoir (P74)
Windscreen garnish (P55)
Right fairing pocket (P35)
Center compartment (P32)
Throttle grip (P78)
Coolant reserve tank (P72)
Engine oil fill cap/
dipstick
(P67)
Engine oil filter (P69 )
Engine oil plug (P69 )
12 FSC600A-31MGF6300.book 16 ページ ２０１１年１１月２２日 火曜日 午後７時１３分

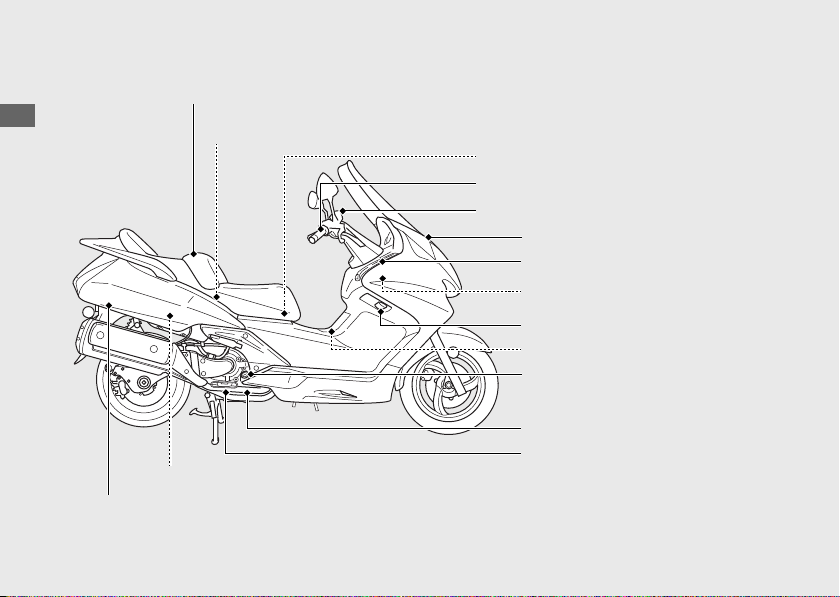

17
Operation Guide
Rear brake fluid reservoir (P74 )
Crankcase breather (P64)
Side stand (P77)
Battery (P62)
Throttle stop screw (Idle speed) (P71)
Main fuse A (P93)
Rear suspension spring
preload adjuster
(P79)
Seat lock (P32 )
Rear cover (P56 )
Fuse boxes (P92)
Left fairing pocket (P34)
Left side cover (P57)
Spark plugs (P65)
12 FSC600A-31MGF6300.book 17 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
18
Operation Guide
Instruments
Display Check
When the ignition switch is turned on, all the
mode and digital segments will show. If any
part of these displays does not come on
when it should, have your dealer check for
problems.
Tachometer red zone
(excessive engine rpm range)
NOTICE
Do not operate the engine in the
tachometer red zone.
Excessive engine speed can adversely
affect engine life.
Speedometer
Tachometer
RESET [R] button
MODE [M] button
12 FSC600A-31MGF6300.book 18 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
19
continued
Operation Guide
Fuel gauge
Remaining fuel when only
1st (E) segment starts flashing:
approximately 0.92 US gal (3.5 liters)
Odometer [TOTAL] &
Tripmeter [TRIP A/B]
MODE button switches between
odometer & tripmeters.
• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since
tripmeter was reset (press and
hold RESET button to reset to
0.0 mile).
Coolant temperature gauge ( )
• Above the specified temperature:
- 5th (H) segment comes on
- High coolant temperature indicator comes on
Clock
To set the clock: (P20)
12 FSC600A-31MGF6300.book 19 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
20
Instruments (Continued)
Operation Guide
To set the clock:
!a Turn the ignition switch on.
!b Press and hold MODE and RESET buttons
until the hour digits start flashing.
!c Press RESET button until the desired hour is
displayed.
u Press and hold to advance the hour fast.
!d Press MODE button. The minute digits start
flashing.
!e Press RESET button until the desired minute
is displayed.
u Press and hold to advance the minute
fast.
!f Press MODE button. The clock is set.
u The time can also be set by turning the
ignition switch off.
u The display will stop flashing
automatically and the adjustment will be
cancelled if the button is not pressed for
about 2 minutes.
The clock will be reset AM 1:00 if the battery
is disconnected.
12 FSC600A-31MGF6300.book 20 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
21
continued
Operation Guide

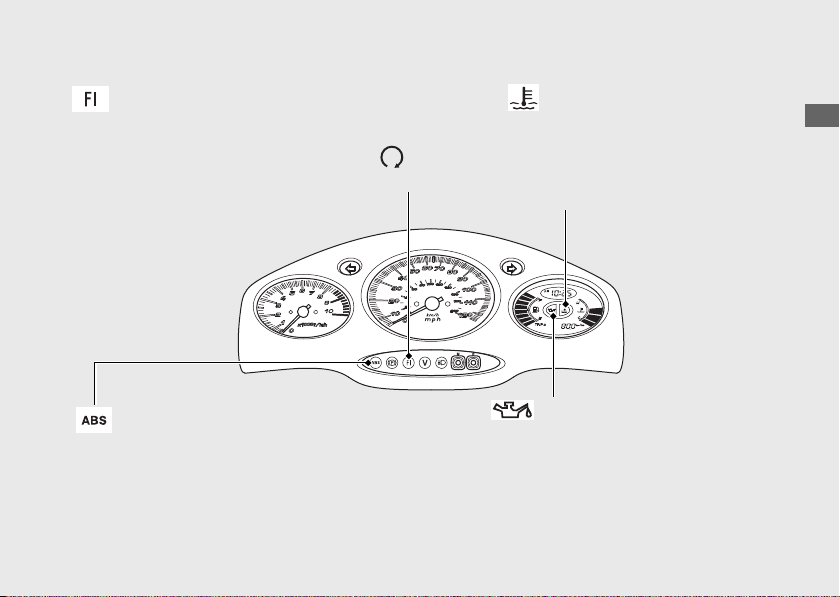

Indicators
Low oil pressure indicator
Comes on when the ignition switch is
turned on. Goes off when the engine
starts.
If it comes on while engine is
running:
(P83)
High coolant temperature
indicator
Comes on briefly when the ignition
switch is turned on.
If it comes on while riding:
(P82)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is turned on
with the engine stop switch in the RUN position.
If it comes on while engine is running:
(P83)
ABS (Anti-lock Brake System)
indicator
Comes on when the ignition switch is
turned on. Goes off when your speed
reaches approximately 6 mph (10 km/h).
If it comes on while riding:
(P84)
12 FSC600A-31MGF6300.book 21 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
22
Indicators (Continued)
Operation Guide
High beam indicator
Left turn signal indicator
Parking brake indicator
Comes on as a reminder that you have not
released the parking brake lever. (P25)
Right turn signal indicator
V-matic indicator
• Comes on briefly when the ignition
switch is turned on.
• Comes on when the V-matic parts have
to be replaced. If it comes on, contact
your dealer.
12 FSC600A-31MGF6300.book 22 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
23
continued
Operation Guide

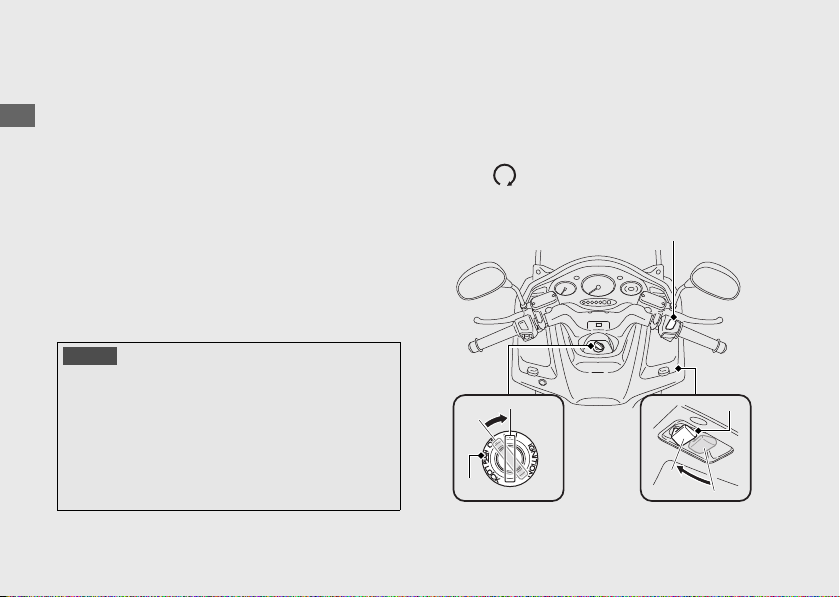

Switches
Engine stop switch
Should normally remain in the
RUN position.
u In an emergency, switch to
the OFF position (the
starter motor will not
operate) to stop the engine.
Headlight dimmer switch
• : High beam
• : Low beam
Horn button
Turn signal switch
Start button
Headlight turns off when
operating the starter motor.
Ignition switch (P24)
12 FSC600A-31MGF6300.book 23 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
24
Switches (Continued)
Operation Guide

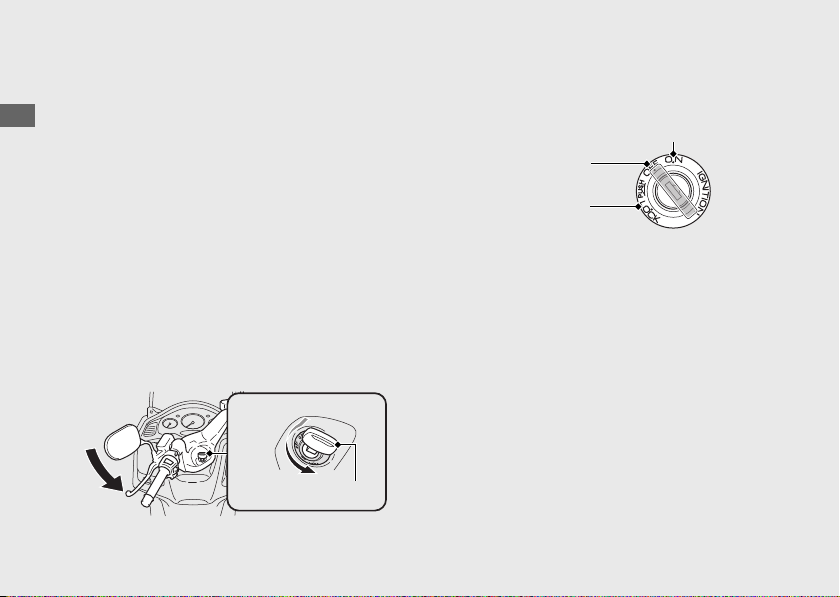

Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
❙
Locking
!a Turn the handlebar all the way to the left (or
right only when the center stand is used).
!b Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebar if the lock is difficult
to engage.
!c Remove the key.
❙
Unlocking
Insert the key, push it in, and turn the
ignition switch to the OFF position.
Ignition switch
Switches the electrical system on/off, locks
the steering.
u Key can be removed when in the OFF or
LOCK position.
ON
Locks steering.
Turns electrical system
on for starting/riding.
Turns engine off.
OFF
LOCK
!a
Push
Turn
!b
Ignition key
12 FSC600A-31MGF6300.book 24 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
25
Operation Guide

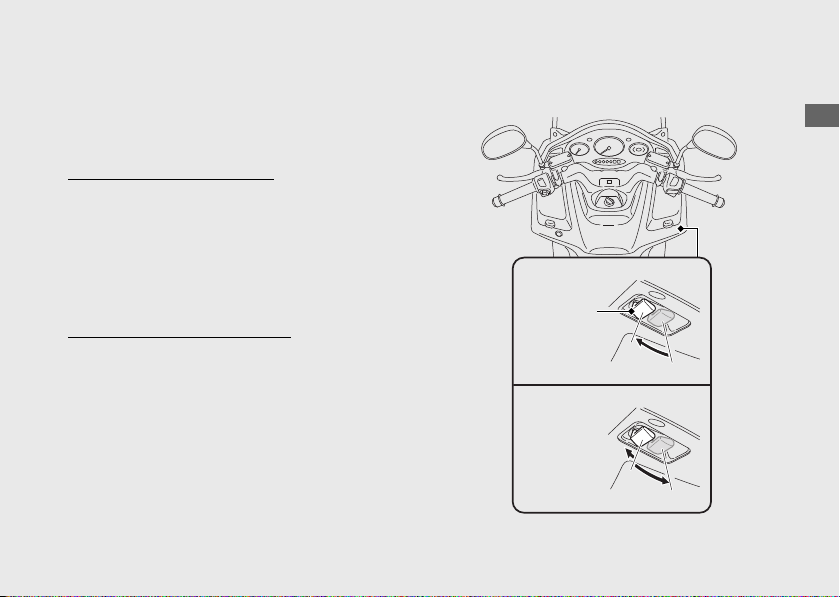

Parking Brake
Parking Brake Lever
Be sure the parking brake is applied while
parking and warming up the engine.
To apply the parking brake
Pull the parking brake lever back to lock the
rear wheel.
u The parking brake lock will not function if
the parking brake is not adjusted properly.
(P76)
To release the parking brake
Release the parking brake lever by lightly
pulling in the lever.
u Before riding, check that the parking brake
indicator is turned off and make sure that the
parking brake is fully released so there is no
drag on the rear wheel.
To Apply
Parking
brake
lever
Pull
To Release
Lightly
pull
Release
12 FSC600A-31MGF6300.book 25 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
26
Operation Guide
Starting
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
This scooter is equipped with a side stand
ignition cut-off system.
u If the side stand is down, the engine cannot
be started.
u If you lower the side stand with the engine
running, it will automatically shut off.
!a Place the scooter on its center stand.
!b Lock the parking brake (parking brake
indicator comes on).
!c Make sure the engine stop switch is in the
RUN position.
!d Turn the ignition switch to the ON position.
NOTICE
• If the engine does not start within 5 seconds, turn the
ignition off and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
• Snapping the throttle of fast idling for more than
5 minutes may cause exhaust pipe discoloration.
!c
!d
!b
12 FSC600A-31MGF6300.book 26 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
27
Operation Guide
!e Squeeze the rear brake lever.
u The starter motor will only work when
the rear brake lever is squeezed and the
side stand is up.
!f Press the start button with the throttle
completely closed. Release the start button
as soon as the engine starts.
!e
!f
If the engine does not start:
!a Open the throttle fully and press the start
button for 5 seconds.
!b Repeat the normal starting procedure.
!c If the engine starts, open the throttle slightly
if idling is unstable.
!d If the engine does not start, wait 10 seconds
before trying steps !a & !b again.
❙
If Engine Will Not Start (P81)
12 FSC600A-31MGF6300.book 27 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
28
Operation Guide
Riding
Starting the Scooter
!a Push the scooter forward off the center
stand.
u Lock the parking brake.
u Keep throttle closed.
Make sure the side stand and center stand are
up.
!b Get on the scooter.
u Mount the scooter from the left side,
keeping at least one foot on the ground.
!c Release the parking brake lever.
u To prevent unexpected movement,
squeeze brake levers.
!d Acceleration and deceleration.
To accelerate......Open the throttle slowly.
To decelerate......Close the throttle.
Close (Decelerate)
Open (Accelerate)
12 FSC600A-31MGF6300.book 28 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
29
Operation Guide
Braking
Close the throttle and apply the front and
rear brake levers together.
Do not apply the parking brake while riding.
It may cause the rear wheel to lock, reducing
control of the scooter.
Rear brake lever Front brake lever
12 FSC600A-31MGF6300.book 29 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
30
Operation Guide
Refueling
Fuel type: Unleaded gasoline only
Fuel octane number: Your scooter is
designed to use Pump Octane Number (PON)
86 or higher.
Tank capacity: 4.23 US gal (16.0 liters)
❙
Refueling and Fuel Guidelines (P13)

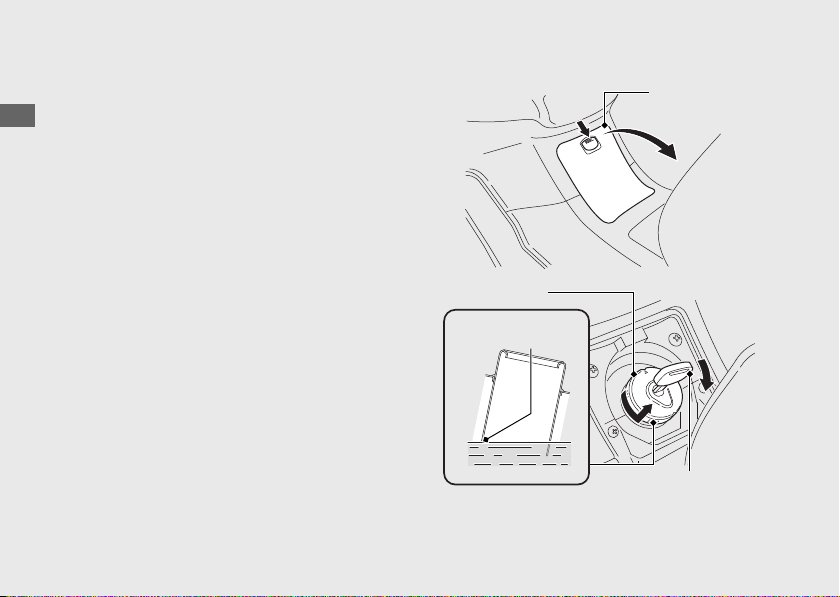

Opening the Fuel Fill Cap
!a Open the fuel tank lid.
!b Turn the ignition key clockwise until it stops.
!c Turn the fuel fill cap counterclockwise until
it stops and remove the cap.
Do not fill with fuel above the filler neck.
Fuel tank lid
Fuel fill cap
Ignition key
Filler neck
Fuel level (max)
12 FSC600A-31MGF6300.book 30 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
31
Operation Guide
Closing the Fuel Fill Cap
!a Install and tighten the fuel fill cap by turning
it clockwise.
u Make sure that the arrow mark on the
cap faces forward.
!b Turn the key counterclockwise until it stops
and remove the key.
!c Close the fuel tank lid.
3
WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
12 FSC600A-31MGF6300.book 31 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
32
Operation Guide

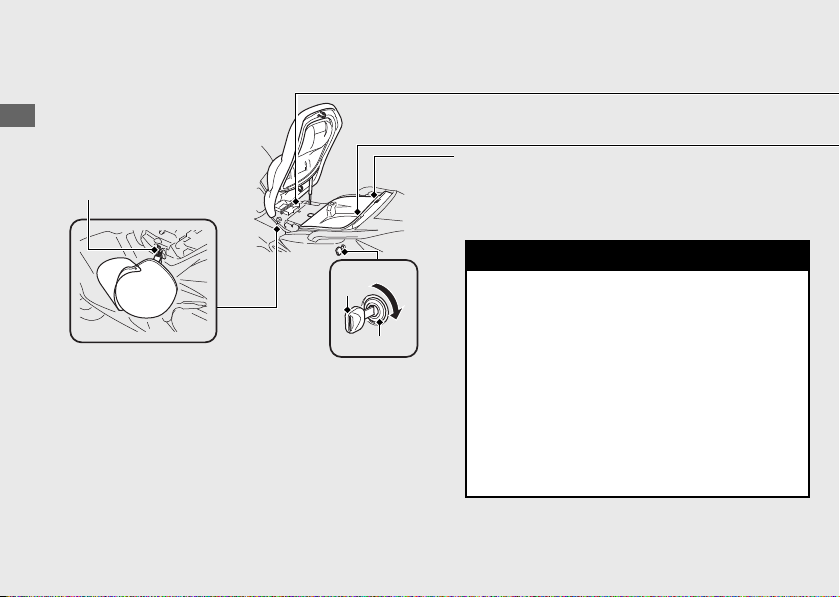

Storage Compartment
Helmet holder
The helmet holder is
located under the seat.
u Use the helmet holder
only when parked.
Center compartment
Never exceed the maximum weight capacity.
Maximum Weight: 22 lb (10 kg)
u Do not store food and other articles.
3
WARNING
Riding with a helmet attached to the
holder can interfere with the rear
wheel or suspension and could cause a
crash in which you can be seriously
hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
To open the seat
Insert the ignition key into the seat lock and
turn it clockwise to unlock.
To close the seat
Close and push down on the rear of the seat
until it locks. Make sure that the seat is
locked securely to pull it up lightly.
Ignition
key
Seat lock
12 FSC600A-31MGF6300.book 32 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
33
continued
Operation Guide

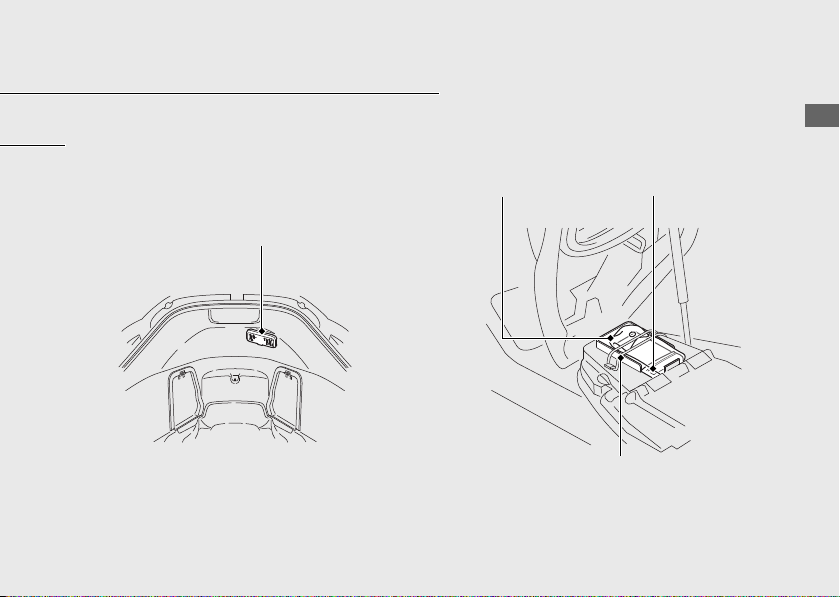

Trunk light
Lights automatically when the seat is
opened. Turns off when the seat is closed.
Trunk light
Tool kit/Document bag
The tool kit and document bag are stored
under the seat by the rubber strap.
Tool kit Document bag
Rubber strap
12 FSC600A-31MGF6300.book 33 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
34
Storage Compartment (Continued)
Operation Guide
Left Fairing Pocket
Never exceed the maximum weight capacity.
Maximum weight: 2.0 lb (1.0 kg)
To open
!a Insert the ignition key and turn it clockwise
to unlock.
!b Open the left fairing pocket cover while
pressing the button.
To close
Close the left fairing pocket cover and turn
the ignition key counterclockwise to lock.
Make sure that the cover is locked securely.
Left fairing pocket cover
Button
LOCK
Ignition key
UNLOCK
12 FSC600A-31MGF6300.book 34 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
35
Operation Guide
Right Fairing Pocket
Never exceed the maximum weight capacity.
Maximum weight: 1.1 lb (0.5 kg)
Right fairing pocket cover
Button
To open
Open the right fairing pocket cover while
pressing the button.
To close
Close the right fairing pocket cover.
Make sure that the cover is closed securely.
12 FSC600A-31MGF6300.book 35 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
36
Operation Guide
Comfort & Convenience
Backrest
The seat is equipped with an adjustable
backrest.
To adjust
!a Open the seat. (P32)
!b Remove the bolts.
!c Move the backrest to the preferred position.
!d Install the bolts.
!e Close the seat.
Make sure that the backrest is locked
securely.
After cleaning or riding in the rain, wipe off
water collected under the backrest before
riding the scooter again.
Backrest
Bolt
12 FSC600A-31MGF6300.book 36 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals”
carefully before attempting any maintenance. Refer to “Specifications” for service
data.
Importance of Maintenance ..................... P. 38
Maintenance Schedule .............................. P. 40
Maintenance Fundamentals ..................... P. 43
Removing & Installing Body
Components ............................................. P. 55
Windscreen Garnish.................................. P. 55
Rear Cover................................................ P. 56
Left Side Cover ......................................... P. 57
Right Side Cover ....................................... P. 59
Right Fairing Pocket .................................. P. 61
Battery...................................................... P. 62
Air Cleaner ................................................. P. 63
Crankcase Breather ....................................P. 64
Spark Plugs .................................................P. 65
Engine Oil ...................................................P. 67
Engine Idle Speed ......................................P. 71
Coolant .......................................................P. 72
Brakes .........................................................P. 74
Side Stand...................................................P. 77
Throttle .......................................................P. 78
Other Adjustments ....................................P. 79
Rear Suspension ........................................P. 79
Headlight Aim ...........................................P. 79
12 FSC600A-31MGF6300.book 37 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
38
Maintenance
Importance of Maintenance
Keeping your scooter well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner’s
responsibility. Be sure to inspect your scooter
before each ride, and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 40
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA) and the
California Air Resources Board (CARB).
2 P. 103
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified“ to EPA standards.
Importance of Maintenance
3
WARNING
Improperly maintaining your scooter
or failing to correct a problem before
you ride can cause a crash in which
you can be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
12 FSC600A-31MGF6300.book 38 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Importance of Maintenance
39
Maintenance
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Park your scooter on a firm, level surface
using the center stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and do
so in a well-ventilated area.
Maintenance Safety
12 FSC600A-31MGF6300.book 39 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
40
Maintenance
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda’s standards and
specifications by properly trained and
equipped technicians. Your dealer meets all
of these requirements. Keep an accurate
record of maintenance to help ensure that
your scooter is properly maintained. Make
sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged for by your dealer. Retain all
receipts. If you sell the scooter, these receipts
should be transferred with the scooter to the
new owner.
12 FSC600A-31MGF6300.book 40 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Schedule
41
continued
Maintenance
Maintenance Level
: Intermediate. We recommend service by your dealer, unless
you have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Service Manual.
(
2 P. 110)
: Technical. In the interest of safety, have your scooter serviced
by your dealer.
Maintenance Legend
: Inspect (clean, adjust, lubricate, or replace, if necessary)
: Replace : Clean
Frequency Odometer Reading
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line –
Throttle Operation 78
Air Cleaner
*2
63
Crankcase Breather
*3
64
Spark Plugs 65
Valve Clearance –
Engine Oil
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 8,000 mi (12,800 km) or 12 months:
67
Engine Oil Filter 68
Engine Oil Strainer Screen 68
Engine Idle Speed 71
Radiator Coolant
*5
72
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System –
I
I
I
I
I
I
R R
R R R
I
R
R
R
R
R
R
I
I
I
I
I
I
I
I
I
R
I
I
I
I
I
I
I
I
I
R
12 FSC600A-31MGF6300.book 41 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Schedule
42
Maintenance
Notes:
*1 :
At higher odometer readings, repeat at the frequency interval
established here.
*2 :
Service more frequently when riding in unusually wet or dusty areas.
*3 :
Service more frequently when riding in rain or at full throttle.
*4 :
Inspect every 12,000 mi (19,200 km) after replacement.
*5 :
Replace every 2 years, or at indicated odometer interval, whichever
comes first. Replacement requires mechanical skill.
*6 :
Replace every 2 years. Replacement requires mechanical
skill.
Frequency Odometer Reading
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Belt
*4
–
Belt Case Air Cleaner –
Final Drive Oil
*6
–
Brake Fluid
*5
74
Brake Pads Wear 75
Brake System 74 , 75
Brake Lock Operation 76
Headlight Aim 79
Clutch Shoes Wear –
Side Stand 77
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tires 51
Steering Head Bearings –
I
R
I
I
I
R
I
I
R
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
12 FSC600A-31MGF6300.book 42 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
43
Maintenance
Maintenance Fundamentals
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your scooter:
● Tire tread wear and air pressures are within
limits.
2 P. 51
● Lights, horn, and turn signals operate
normally.
Check the following items if you are carrying a
passenger or cargo:
● Combined weight is within load limits.
2 P. 116
● Cargo is secured properly.
● Suspension spring preload setting is adjusted
to suit load.
2 P. 79
Check the following items after you get on your
scooter:
● Throttle action moves smoothly without
binding.
2 P. 78
● Brake levers operate normally.
● Check the remaining fuel and refuel when
needed.
2 P. 19, 30
● Engine stop switch functions properly.
2 P. 23
Check the following items at regular intervals:
● Oil level is between the upper and lower
marks.
2 P. 67
● Brake fluid level is above the lower marks.
2 P. 74
● Engine coolant level is between the upper
and lower marks.
2 P. 72
● Side stand functions properly. 2 P. 77
● Parking brake works properly. 2 P. 76
Pre-ride Inspection
12 FSC600A-31MGF6300.book 43 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
44
Maintenance
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due.
2 P. 40
Periodic Checks
Tires and wheels
Check the air pressure (2 P. 51), examine tread for wear and
damage (
2 P. 51), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 67), engine coolant level (2 P. 72),
and brake fluid level (
2 P. 74).
Lights
Check that the headlight, brake light, taillight, turn signals and
license plate light are working properly.
Controls
Check the freeplay of the throttle grip (2 P. 78). Check the
parking brake (
2 P. 76) operate properly.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
12 FSC600A-31MGF6300.book 44 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
45
Maintenance
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label. The color label is attached to the
center compartment under the seat.
2 P. 32
Replacing Parts
3
WARNING
Installing non-Honda parts may make
your scooter unsafe and cause a crash
in which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your scooter.

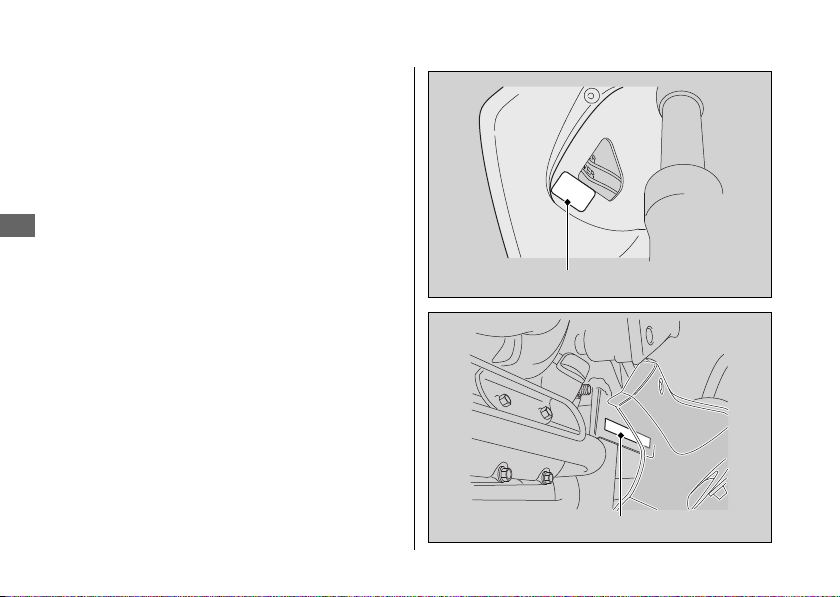

Color label
12 FSC600A-31MGF6300.book 45 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
46
Maintenance
Your scooter has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is no
need to remove the cap when charging.
❙
What to do in an emergency
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool water
for at least 15 minutes. Using water under
pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
Battery
3
WARNING
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
12 FSC600A-31MGF6300.book 46 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
47
continued
Maintenance
❙
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 62
2.
If the terminals are starting to corrode and
are coated with a white substance, wash with
warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with
another maintenance-free battery of the same
type.
❙
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If you can’t
charge the battery or it appears unable to hold a charge,
contact your dealer.
12 FSC600A-31MGF6300.book 47 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
48
Maintenance
Fuses protect the electrical circuits on your
scooter. If something electrical on your scooter
stops working, check for and replace any blown
fuses.
2 P. 92
❙

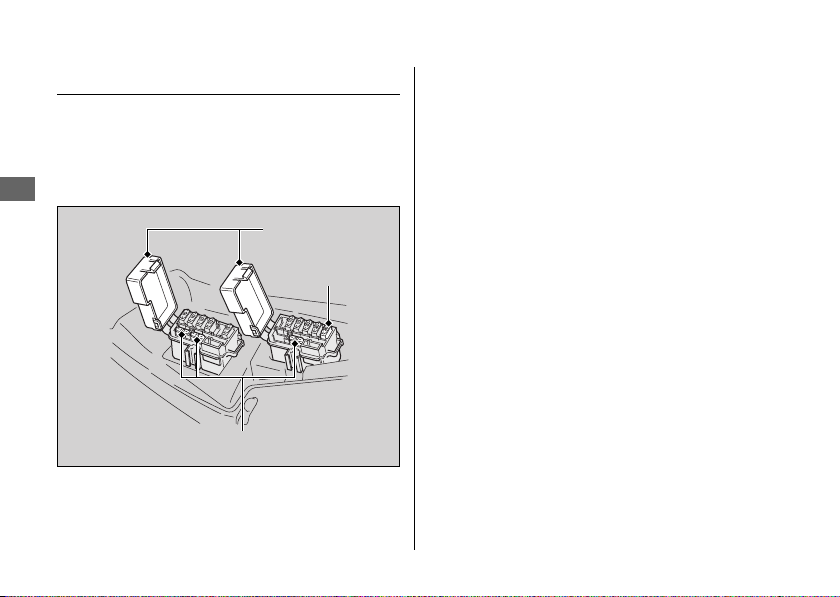

Inspecting and Replacing Fuses
Turn off the ignition switch to remove and
inspect fuses. If a fuse is blown, replace with a
fuse of the same rating. For fuse ratings, see
“Specifications”.
2 P. 118
If a fuse fails repeatedly, you likely have an
electrical fault. Have your scooter inspected by
your dealer.
NOTICE
Jump starting using an automobile battery can damage
your scooter’s electrical system and is not recommended.
Bump starting is also not recommended.
NOTICE
Installing non-Honda electrical accessories can overload
the electrical system, discharging the battery and possibly
damaging the system.
Fuses
NOTICE
Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.
Blown fuse
12 FSC600A-31MGF6300.book 48 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
49
Maintenance
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and top off
if necessary. Dirty oil or old oil should be
changed as soon as possible.
❙
Selecting the Engine Oil
For recommended engine oil, see
“Specifications”.
2 P. 117
If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” on the circular API service symbol.
Engine Oil
Oil classification
Oil code
Not recommended
Recommended
12 FSC600A-31MGF6300.book 49 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
50
Maintenance
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
Pro Honda HP is a pre-mixed solution of
antifreeze and distilled water.
A concentration of antifreeze below 40 % will
not provide proper corrosion and cold
temperature protection. A concentration of up
to 60 % will provide better protection in colder
climates.
Brake Fluid
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
Recommended Coolant
Concentration:
50 % antifreeze and 50 % distilled water
NOTICE
Using coolant not specified for aluminum engines or
using ordinary tap water can cause corrosion.
12 FSC600A-31MGF6300.book 50 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
51
continued
Maintenance
This scooter is equipped with a viscous type air
cleaner element.
Compressed air cleaning or any other cleaning
can degrade the viscous element performance
and cause the intake of dust.
Service more frequently when riding in rain, at
full throttle, or after the scooter is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
❙
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
2 P. 117
❙
Inspecting for Damage
Inspect the tires for cuts,
slits, or cracks that
exposes fabric or cords,
or nails or other foreign
objects embedded in the
side of the tire or the
tread. Also inspect for the
bumps or bulges in the
side walls of the tires.
Air Cleaner
Crankcase Breather
Tires (Inspecting/Replacing)
12 FSC600A-31MGF6300.book 51 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
52
Maintenance
❙

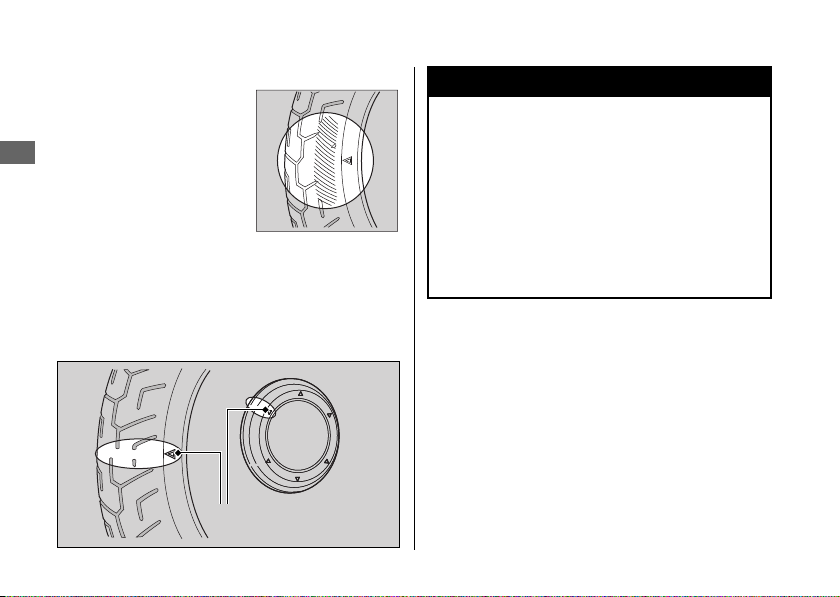

Inspecting for Abnormal Wear
Inspect the tires for signs
of abnormal wear on the
contact surface.
❙
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
Wear indicator
location mark
3
WARNING
Riding on tires that are excessively
worn or improperly inflated can cause
a crash in which you can be seriously
hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
12 FSC600A-31MGF6300.book 52 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
53
Maintenance
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications”.
2 P. 117
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents of
the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
● Do not install a tube inside a tubeless tire on
this scooter. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tires on this scooter. The
rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3
WARNING
Installing improper tires on your
scooter can adversely affect handling
and stability, and can cause a crash in
which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
12 FSC600A-31MGF6300.book 53 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Maintenance Fundamentals
54
Maintenance
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
❙
Tire Identification Number (TIN)
The tire identification number (TIN) is a group of
numbers and letters located on the sidewall of
the tire.
Tire Service Life
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets
all requirements of the U.S.
Department of Transportation.
!
a XXXX: Factory code
!
b XXXX: Tire type code
!
c 22 09:
Date of manufacture (week & year).
Example: week 22 in year 09.
!a !b !c
Tire Labeling Example
Tire identification
number (TIN)
12 FSC600A-31MGF6300.book 54 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
55
Maintenance
Removing & Installing Body Components
Windscreen Garnish
The windscreen garnish must be removed for
headlight bulb and front turn signal light
bulb replacement.
❙
Removal
1.
Remove the screws A and screws B.
2.
Remove the windscreen garnish.
❙
Installation
Install the parts in the reverse order of
removal.
Screws B
Windscreen garnish
Screws A
12 FSC600A-31MGF6300.book 55 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Rear Cover
56
Maintenance

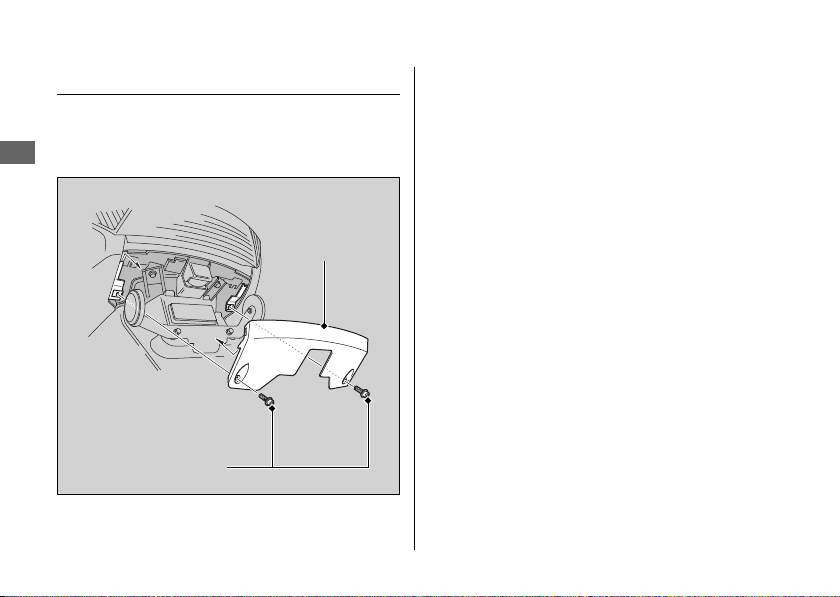

Rear Cover
The rear cover must be removed to remove
the left and right side covers and license plate
light bulb replacement.
❙
Removal
1.
Remove the screws.
2.
Remove the rear cover.
❙
Installation
Install the parts in the reverse order of
removal.
Screws
Rear cover
12 FSC600A-31MGF6300.book 56 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Left Side Cover
57
continued
Maintenance
Left Side Cover
The left side cover must be removed to
access the main fuse A.
❙
Removal
1.
Remove the rear cover. 2 P. 56
2.
Open the seat. 2 P. 32
3.
Remove the screws A and screw B.
Screws A
Screw B
12 FSC600A-31MGF6300.book 57 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Left Side Cover
58
Maintenance

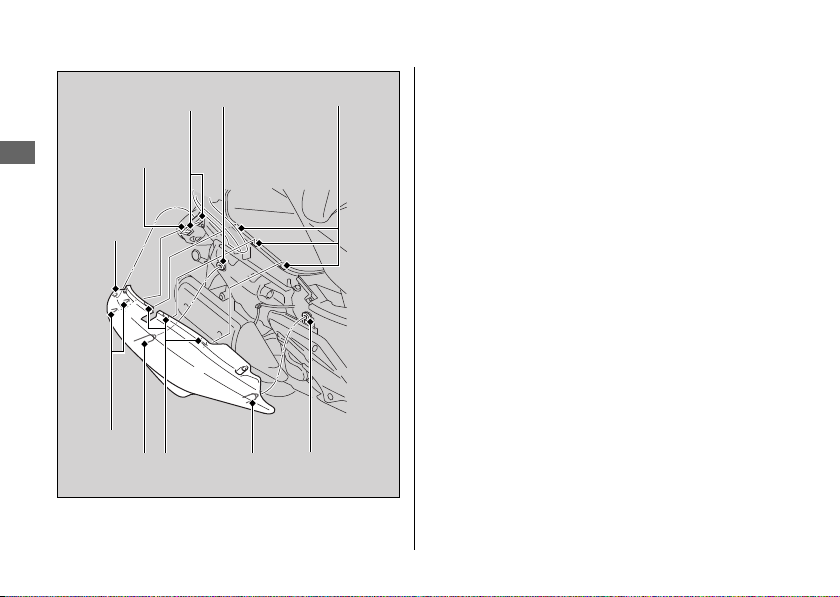

4.
Remove the hook A from the turn signal
light case.
5.
Remove the hooks B from the slots B.
6.
Remove the prongs from the grommets.
7.
Remove the hooks C from the slots C.
u Carefully release the hooks.
❙
Installation
Install the parts in the reverse order of
removal.
Slots C
Grommet
Slots B
Turn signal
light case
Hook A
Hooks B
Prong
Hooks C
Prong
Grommet
12 FSC600A-31MGF6300.book 58 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Right Side Cover
59
continued
Maintenance
Right Side Cover
The right side cover must be removed for air
cleaner maintenance.
❙
Removal
1.
Remove the rear cover. 2 P. 56
2.
Open the seat. 2 P. 32
3.
Remove the screws.
Screws
12 FSC600A-31MGF6300.book 59 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Right Side Cover
60
Maintenance
4.
Remove the hook A from the turn signal
light case.
5.
Remove the hooks B from the slots B.
6.
Remove the prongs from the grommets.
7.
Remove the hooks C from the slots C.
u Carefully release the hooks.
❙
Installation
Install the parts in the reverse order of
removal.
Slots C
Grommet
Slots B
Turn signal
light case
Hook A
Hooks B
Prong Hooks C
Prong
Grommet
12 FSC600A-31MGF6300.book 60 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Right Fairing Pocket
61
Maintenance

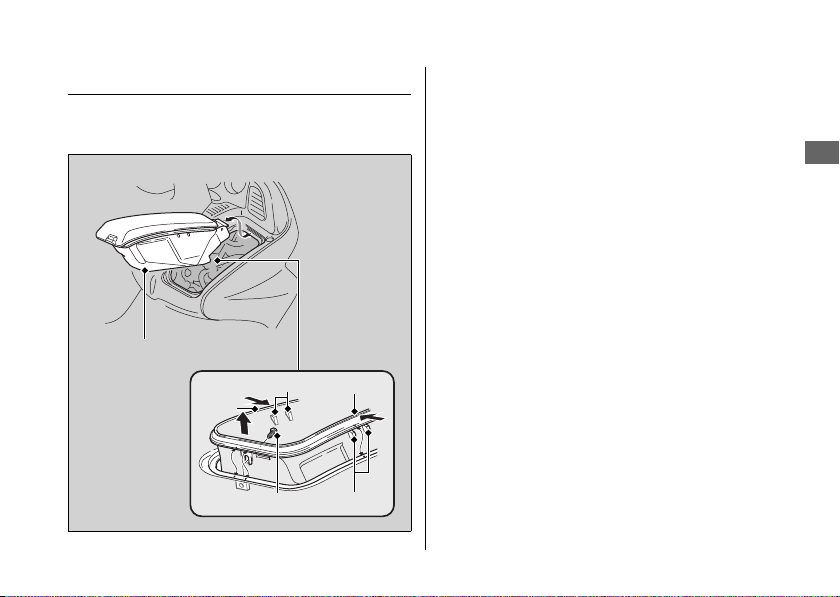

Right Fairing Pocket
The right fairing pocket must be removed to
access the coolant reserve tank.
❙
Removal
1.
Open the right fairing pocket cover.
2 P. 35
2.
Remove the screw.
3.
Pry up on the edge of the right fairing
pocket to release the right and left hooks
as shown in the illustration.
4.
Close the right fairing pocket cover.
5.
Remove the right fairing pocket.
❙
Installation
Install the parts in the reverse order of
removal.
Right fairing
pocket
Screw
Edge
Hooks Edge
Hooks
12 FSC600A-31MGF6300.book 61 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Removing & Installing Body Components u Battery
62
Maintenance

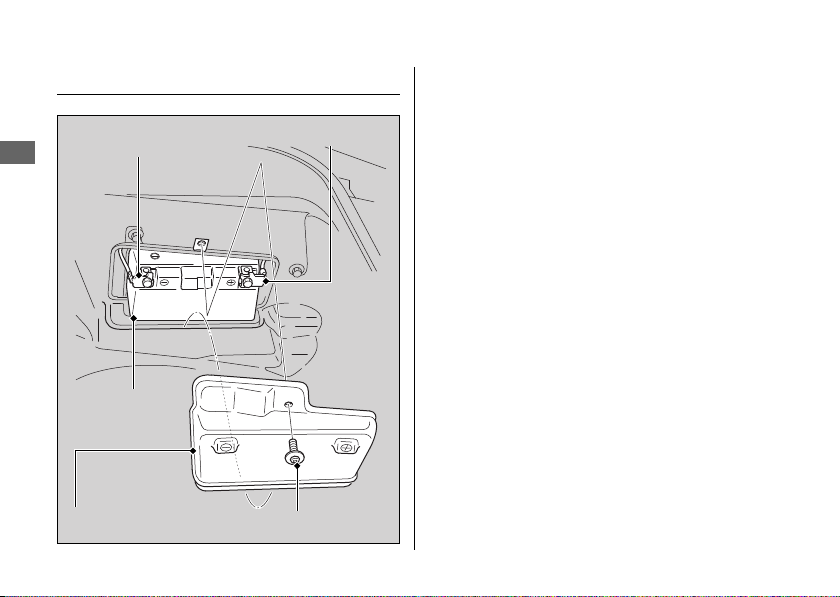

Battery
❙
Removal
Make sure the ignition switch is OFF.
1.
Open the seat. 2 P. 32
2.
Remove the screw and battery cover.
3.
Disconnect the negative - terminal and
remove the battery lead.
4.
Disconnect the positive + terminal and
remove the battery lead.
5.
Pull out the battery taking care not to
drop the terminal nuts.
❙
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
For proper handling of the battery, see
“Maintenance Fundamentals“. 2 P. 46
Battery Goes Dead. 2 P. 86
Battery
Negative terminal
Battery cover
Positive terminal
Screw
12 FSC600A-31MGF6300.book 62 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
63
Maintenance

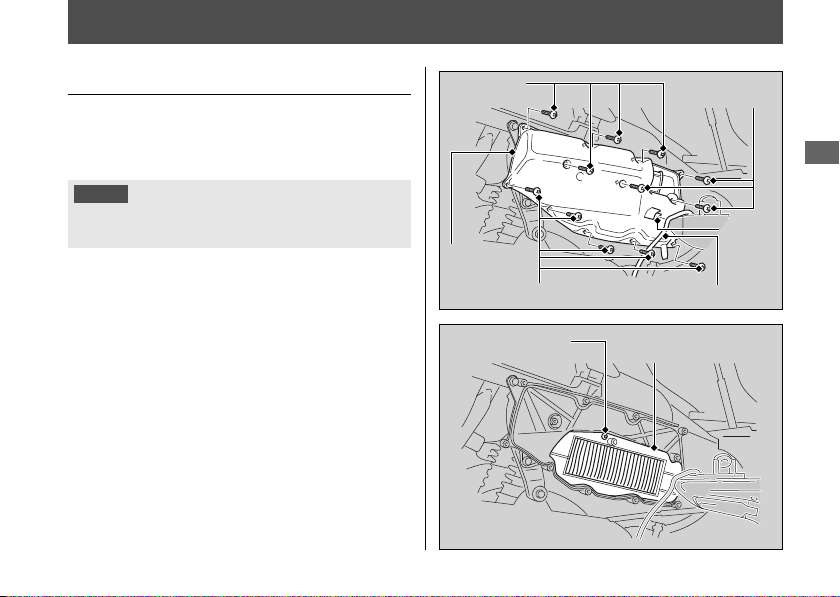

Air Cleaner
Changing Air Cleaner Element
Use a new Honda Genuine air cleaner
element or equivalent specified for your
model.
1.
Remove the rear cover. 2 P. 56
2.
Remove the right side cover. 2 P. 59
3.
Release the wire harness from the guide.
4.
Remove the air cleaner housing cover by
removing the screws A.
5.
Remove the air cleaner element by
removing the screw B.
6.
Install a new air cleaner element.
7.
Install the parts in the reverse order of
removal.
u Make sure that the wire harness is
installed in the guide securely.
NOTICE
Using the wrong air cleaner element can result in serious
damage to the engine.
Air cleaner
housing
cover
Screws A
Screws A
Screws A
Guide
Wire harness
Screw B
Air cleaner
element
12 FSC600A-31MGF6300.book 63 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
64
Maintenance
Crankcase Breather
Draining Crankcase Breather
1.
Place a drain pan under the crankcase
breather tube.
2.
Remove the crankcase breather tube plug
and drain deposits.
3.
Reinstall the plug.
Crankcase breather tube plug
12 FSC600A-31MGF6300.book 64 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
65
continued
Maintenance
Spark Plugs
Changing Spark Plug
For the recommended spark plugs, see
“Specifications”. 2 P. 117
Use only the recommended type of spark
plugs in the recommended heat range.
1.
Open the seat. 2 P. 32
2.
Remove the screws.
3.
Close the seat.
4.
Push the plug maintenance lid backward.
5.
Remove the plug maintenance lid.
NOTICE
Using spark plugs with an improper heat range can cause
engine damage.
Screw
Screw
Plug maintenance lid
Plug maintenance lid
12 FSC600A-31MGF6300.book 65 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Spark Plugs u Changing Spark Plug
66
Maintenance
6.
Disconnect the spark plug caps.
7.
Clean any dirt from around the spark
plug bases.
8.
Remove the spark plugs using a suitable
spark plug wrench.
9.
Install the new spark plugs.
10.
With the plug washers attached, thread
the spark plugs in by hand to prevent
cross-threading.
11.
Tighten each spark plug:
● If the old plug is good:
1/8 turn after it seats.
● If installing a new plug, tighten it twice
to prevent loosening:
12.
Reinstall the spark plug caps. Take care
avoid pinching any cables or wires.
13.
Install the parts in the reverse order of
removal.
Spark plug caps
Spark plug wrench
a) First, tighten the plug:
NGK: 1/2 turn after it seats.
DENSO: 1 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
Improperly tightened spark plugs can damage the engine.
If a plug is too loose, a piston may be damaged. If a plug
is too tight, the threads may be damaged.
12 FSC600A-31MGF6300.book 66 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
67
Maintenance
Engine Oil
Checking the Engine Oil
1.
Place your scooter on its center stand on a
firm, level surface.
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch OFF, stop the
engine and wait 2 to 3 minutes.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don’t screw it in.
Check that the oil level is between the
upper and lower level marks in the oil fill
cap/dipstick.
6.
Securely install the oil fill cap/dipstick.
Oil fill cap/dipstick
Lower level
Upper level
12 FSC600A-31MGF6300.book 67 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Engine Oil u Adding Engine Oil
68
Maintenance
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 49
1.
Add the recommended oil until it reaches
the upper level mark.
u Place your scooter on its center stand
on a firm, level surface when checking
the oil level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
oil filler opening.
u Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap/dipstick.
For the recommended oil and oil selection
guidelines, see “Maintenance
Fundamentals”.
2 P. 49
Changing Engine Oil & Filter,
Cleaning Strainer Screen
Changing the oil and filter requires special
tools. We recommend that you have your
scooter serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
NOTICE
Overfilling with oil or operating with insufficient oil can
cause damage to your engine. Do not mix different brands
and grades of oil. They may affect lubrication.
12 FSC600A-31MGF6300.book 68 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Engine Oil u Changing Engine Oil & Filter, Cleaning Strainer Screen
69
continued
Maintenance
1.
Place your scooter on its center stand on
a firm, level surface.
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch OFF, stop the
engine and wait for 2 to 3 minutes.
4.
Place a drain pan under the oil plug.
5.
Remove the oil fill cap, oil plug, O-ring,
spring and oil strainer screen to drain the
oil.
6.
Clean the oil strainer screen.
7.
Remove the oil filter with a filter wrench
and let the remaining oil drain out. Make
sure the prior seal is not stuck to the
engine.
u Discard the oil and oil filter at an
approved recycling center.
NOTICE
Using the wrong oil filter can result in serious damage to
the engine.
Oil strainer screen
Spring
Oil plug
O-ring
Oil filter
Rubber seal
12 FSC600A-31MGF6300.book 69 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Engine Oil u Changing Engine Oil & Filter, Cleaning Strainer Screen
70
Maintenance
8.
Apply a thin coat of engine oil to the
rubber seal of a new oil filter.
9.
Install a new oil filter and tighten.
10.
Replace the O-ring and apply a thin coat
of engine oil to the new O-ring before
installing it.
11.
Install the oil strainer screen, spring and
oil plug tighten.
12.
Fill the crankcase with the recommended
oil (
2 P. 49) and install the oil fill cap/
dipstick.
13.
Check the oil level. 2 P. 67
14.
Check that there are no oil leaks.
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
Torque: 11 lbf·ft (15 N·m, 1.5 kgf·m).
Required oil
When changing oil & engine oil
filter:
2.3 US qt (2.2 liters)
When changing oil only:
2.1 US qt (2.0 liters)
12 FSC600A-31MGF6300.book 70 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
71
Maintenance

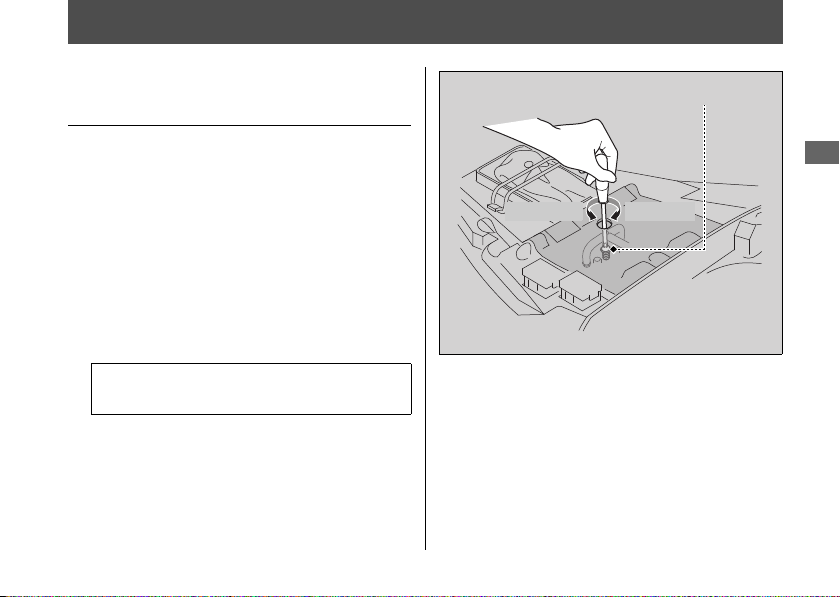

Engine Idle Speed
Adjusting the Engine Idle
Speed
The engine must be at normal operating
temperature for accurate idle speed
adjustment. 10 minutes of stop-and-go
riding is sufficient.
1.
Warm up the engine, place the scooter on
its center stand.
2.
Open the seat. 2 P. 32
3.
Adjust idle speed with the throttle stop
screw.
Idle speed:
1,300 ± 100 rpm
Throttle stop screw
Decrease Increase
12 FSC600A-31MGF6300.book 71 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
72
Maintenance
Coolant
Checking the Coolant
1.
Place your scooter on a firm, level surface.
2.
Hold your scooter in an upright position.
3.
Check that the coolant level is between
the upper and lower level marks in the
reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your scooter inspected by
your dealer.
Adding Coolant
1.
If the coolant level is below the lower
level, add the recommended coolant
(
2 P. 50) until the level reaches the upper
level mark.
Add fluid only from the reserve tank cap
and do not remove the radiator cap.
2.
Remove the right fairing pocket. 2 P. 61
Upper level
Lower level
12 FSC600A-31MGF6300.book 72 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Coolant u Changing Coolant
73
Maintenance
3.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
4.
Securely reinstall the cap.
5.
Reinstall the right fairing pocket.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
Reserve tank cap
Upper level mark
3
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator
cool down before removing the
radiator cap.
12 FSC600A-31MGF6300.book 73 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
74
Maintenance
Brakes
Checking Brake Fluid
1.
Place your scooter in an upright position
on a firm, level surface.
2.
Check that the brake fluid reservoir cap is
horizontal and that the fluid level is above
the lower level mark.
If the brake fluid level in either reservoir is
below the lower level mark or both the brake
levers freeplay becomes excessive, inspect
the brake pads for wear. If the brake pads are
not worn, you most likely have a leak. Have
your scooter inspected by your dealer.
Front brake fluid reservoir
Rear brake fluid reservoir
Front
Rear
Lower level mark
Lower level mark
12 FSC600A-31MGF6300.book 74 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Brakes u Inspecting the Brake Pads
75
Maintenance
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators. The pads need to be replaced if a
brake pad is worn to the wear indicator.
1.
Inspect the brake pads from
underneath the brake caliper.
2.
Inspect the brake pads from
underneath the brake caliper.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Front
Rear
Brake pad
Wear
indicator
Wear
indicator
Brake pad
Disc
Disc
Wear
indicator
Wear
indicator
Front
Rear
12 FSC600A-31MGF6300.book 75 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Brakes u Inspecting the Parking Brake
76
Maintenance
Inspecting the Parking Brake
Place your scooter on a firm, level surface.
Stop the engine and push your scooter while
applying the parking brake lever to check the
efficacy of the parking brake.
If the efficacy of the parking brake become
weak, have the brake adjusted by your
dealer.
Parking brake lever
12 FSC600A-31MGF6300.book 76 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
77
Maintenance
Side Stand
1.
Place your scooter on its center stand on a
firm, level surface.
2.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
3.
Check the spring for damage or loss of
tension.
4.
Sit on the scooter and raise the side stand.
5.
Start the engine.
6.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn’t stop, have
your scooter inspected by your dealer.
Side stand spring
12 FSC600A-31MGF6300.book 77 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
78
Maintenance

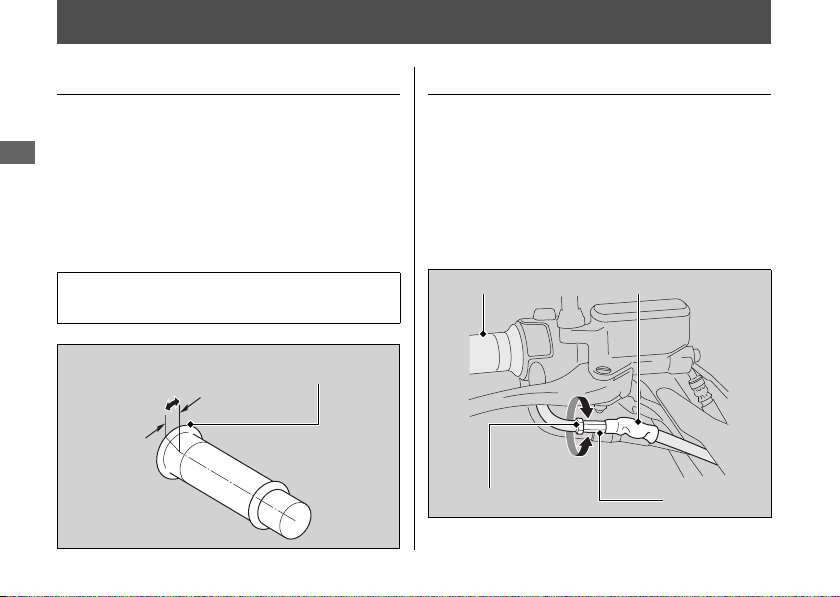

Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the scooter inspected
by your dealer.
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
to 1/4 in (2 to 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
Freeplay at the throttle grip flange:
1/16 to 1/4 in (2 to 6 mm).
Freeplay
Flange
Throttle grip
Cable boot
Lock nut
Adjuster
+
–
12 FSC600A-31MGF6300.book 78 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
79
Maintenance
Other Adjustments
Adjusting the Rear Suspension
❙
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use a proper pin spanner to turn the
adjuster. Position 1 is for a decrease spring
preload (soft), or turn the position 3 to 5
increase spring preload (hard). The standard
position is 2.
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the adjuster in or
out as necessary.
Obey local laws and regulations.
NOTICE
Do not turn the adjuster beyond its limits.
Pin spanner
Adjuster
1
2
3
4
5
Adjuster
Lower
Raise
12 FSC600A-31MGF6300.book 79 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Troubleshooting
Engine Will Not Start .................................P. 81
Overheating
(High coolant temperature
indicator is on)..........................................P. 82
Warning Indicators On or Flashing ...........P. 83
Low Oil Pressure Indicator..........................P. 83
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL) ............P. 83
ABS (Anti-lock Brake System) Indicator ......P. 84
Tire Puncture ..............................................P. 85
Electrical Trouble ....................................... P. 86
Battery Goes Dead .................................... P. 86
Burned-out Light Bulb............................... P. 86
Blown Fuse ............................................... P. 92
12 FSC600A-31MGF6300.book 80 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
81
Troubleshooting
Engine Will Not Start
❙
Starter Motor Operates But Engine
Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 26
● Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator light is on, contact your
dealer as soon as possible.
❙
Starter Motor Does Not Operate
Check the following items:
● Make sure engine stop switch is RUN
position.
2 P. 23
● Make sure the side stand is raised.
● Check for a blown fuse. 2 P. 92
● Check for a loose battery connection or
battery terminal corrosion. 2 P. 46
● Check the condition of the battery. 2 P. 86
If the problem continues, have your scooter
inspected by your dealer.
12 FSC600A-31MGF6300.book 81 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
82
Troubleshooting
Overheating (High coolant temperature indicator is on)
The engine is overheating when the
following occurs:
● High coolant temperature indicator comes
on.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the
overheating.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
Suspect a fault. Do not start the engine.
Transport your scooter to your dealer.
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 72
Do not start the engine. Transport your
scooter to your dealer.
4.
Check the coolant level in the reserve
tank, and add coolant as necessary.
2 P. 72
5.
If 1-4 check normal, you may continue
riding, but closely monitor the
temperature gauge.
NOTICE
Continuing to ride with an overheated engine can cause
serious damage to the engine.
If the fan is not operating:
If the fan is operating:
If there is a leak:
12 FSC600A-31MGF6300.book 82 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
83
Troubleshooting
Warning Indicators On or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
1.
Check the engine oil level, and add oil as
necessary. 2 P. 67
2.
Start the engine.
u Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on
when the oil level is at the proper level, stop
the engine and contact your dealer.
If the engine oil level goes down rapidly, your
scooter may have a leak or another serious
problem. Have your scooter inspected by
your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your scooter
inspected by your dealer as soon as possible.
NOTICE
Continuing to ride with low oil pressure can cause serious
damage to the engine.
12 FSC600A-31MGF6300.book 83 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Warning Indicators On or Flashing u ABS (Anti-lock Brake System) Indicator
84
Troubleshooting
ABS (Anti-lock Brake System)
Indicator
If the indicator operates in one of the
following ways, you may have a serious
problem with the brake system. Reduce your
speed and have your scooter inspected by
your dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the on position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may come on if you turn
the rear wheel while your scooter is lifted off
the ground. In this case, turn the ignition
switch off and then on again. The ABS
indicator will go off after your speed reaches
19 mph (30 km/h).
12 FSC600A-31MGF6300.book 84 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
85
Troubleshooting
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your scooter with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3
WARNING
Riding your scooter with a temporary
tire repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and
do not exceed 30 mph (50 km/h) until
the tire is replaced.
12 FSC600A-31MGF6300.book 85 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
86
Troubleshooting
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the scooter while
charging.
Do not use an automobile-type battery
charger, as these can overheat a scooter
battery and cause permanent damage.
If the battery does not recover after
recharging, contact your dealer.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications“.
2 P. 118
NOTICE
Jump starting using an automobile battery is not
recommended, as this can damage your scooter’s
electrical system.
12 FSC600A-31MGF6300.book 86 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Burned-out Light Bulb
87
continued
Troubleshooting
❙
Headlight Bulb
1.
Remove the windscreen garnish. 2 P. 55
2.
Pull the socket off the bulb without
turning it.
3.
Remove the dust cover.
4.
Press the pin down and pull out the bulb
without turning it.
5.
Install a new bulb and parts in the reverse
order of removal.
u Install the dust cover with its “TOP”
mark facing up.
6.
Reinstall the windscreen garnish.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
alcohol.
Bulb
Socket
Dust cover
“TOP” mark
Pin
12 FSC600A-31MGF6300.book 87 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Burned-out Light Bulb
88
Troubleshooting
❙

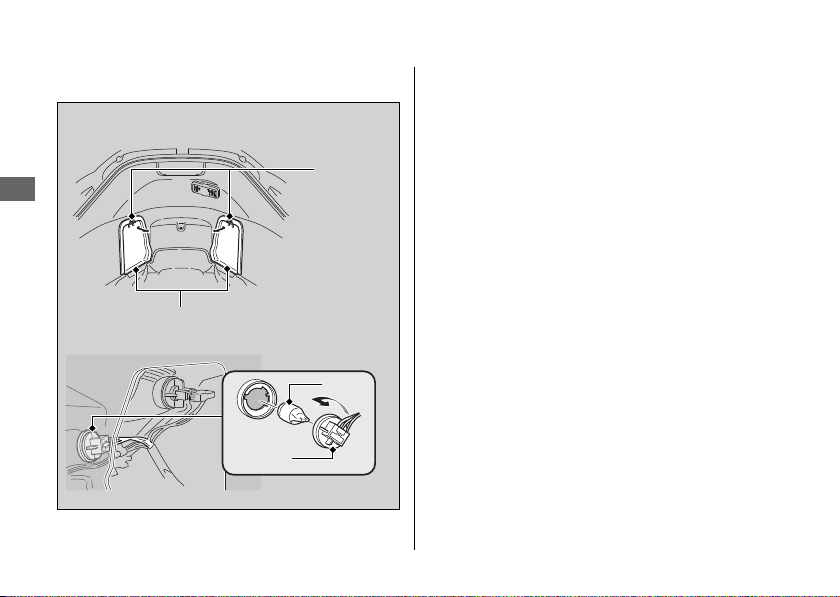

Brake/Tail Light Bulb
1.
Open the seat. 2 P. 32
2.
Remove the bulb maintenance lids while
pressing down the hooks.
3.
Turn the socket counterclockwise and pull
it out.
4.
Pull out the bulb without turning it.
5.
Install a new bulb in the reverse order of
removal.
6.
Reinstall the bulb maintenance lids.
7.
Close the seat.
Hooks
Bulb maintenance lids
Bulb
Socket
12 FSC600A-31MGF6300.book 88 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Burned-out Light Bulb
89
continued
Troubleshooting
❙

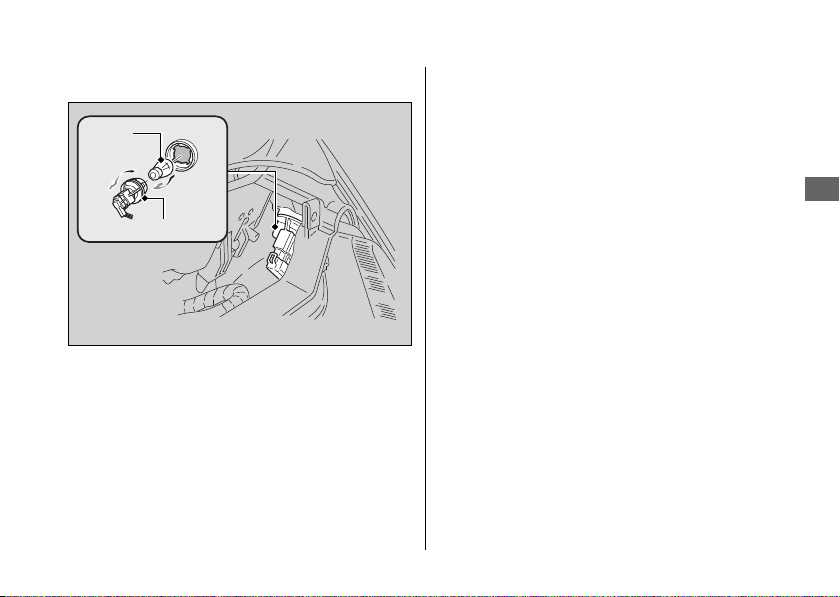

Front Turn Signal Light Bulb
1.
Remove the windscreen garnish. 2 P. 55
2.
Turn the socket counterclockwise and pull
it out.
3.
Slightly press the bulb in and turn it
counterclockwise.
4.
Install a new bulb in the reverse order of
removal.
u Use only the amber bulb.
5.
Reinstall the windscreen garnish.
Bulb
Socket
12 FSC600A-31MGF6300.book 89 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Burned-out Light Bulb
90
Troubleshooting
❙

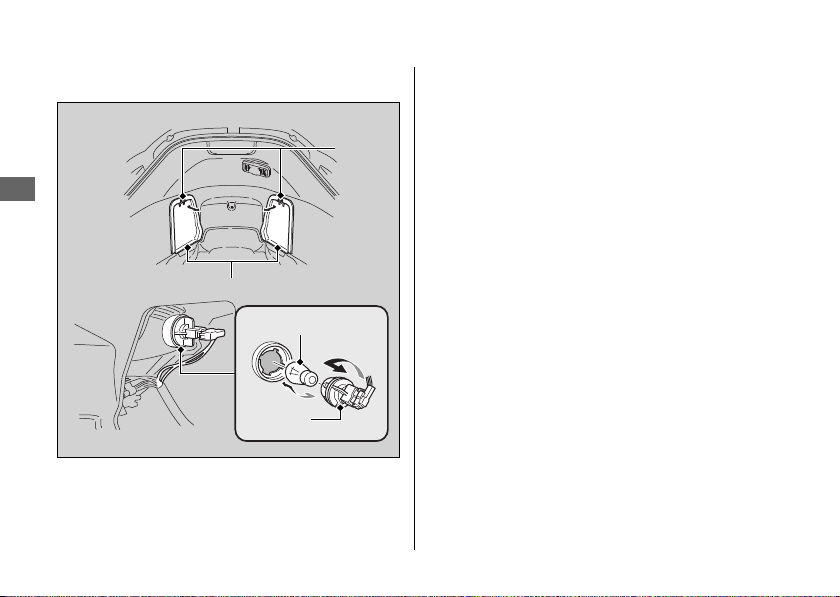

Rear Turn Signal Light Bulb
1.
Open the seat. 2 P. 32
2.
Remove the bulb maintenance lids while
pressing down the hooks.
3.
Turn the socket counterclockwise and pull
it out.
4.
Slightly press the bulb in and turn it
counterclockwise.
5.
Install a new bulb in the reverse order of
removal.
u Use only the amber bulb.
6.
Reinstall the bulb maintenance lids.
7.
Close the seat.
Hooks
Bulb
Socket
Bulb maintenance lids
12 FSC600A-31MGF6300.book 90 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Burned-out Light Bulb
91
Troubleshooting
❙
License Plate Light Bulb
1.
Remove the rear cover. 2 P. 56
2.
Remove the screws, license light cover
and license light lens.
3.
Pull out the bulb without turning it.
4.
Install a new bulb in the reverse order of
removal.
5.
Install the parts in the reverse order of
removal.
License light lens
License light
cover
Screws
Bulb
12 FSC600A-31MGF6300.book 91 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Blown Fuse
92
Troubleshooting
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses”. 2 P. 48
❙
Fuse Box Fuses
1.
Open the seat. 2 P. 32
2.
Open the fuse box covers.
3.
Pull the main fuse B and other fuses out
one by one and check for a blown fuse.
Always replace a blown fuse with a spare
of the same rating.
4.
Close the fuse box covers.
5.
Close the seat.
Main fuse B
Fuse box covers
Spare fuses
12 FSC600A-31MGF6300.book 92 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Electrical Trouble u Blown Fuse
93
Troubleshooting
❙

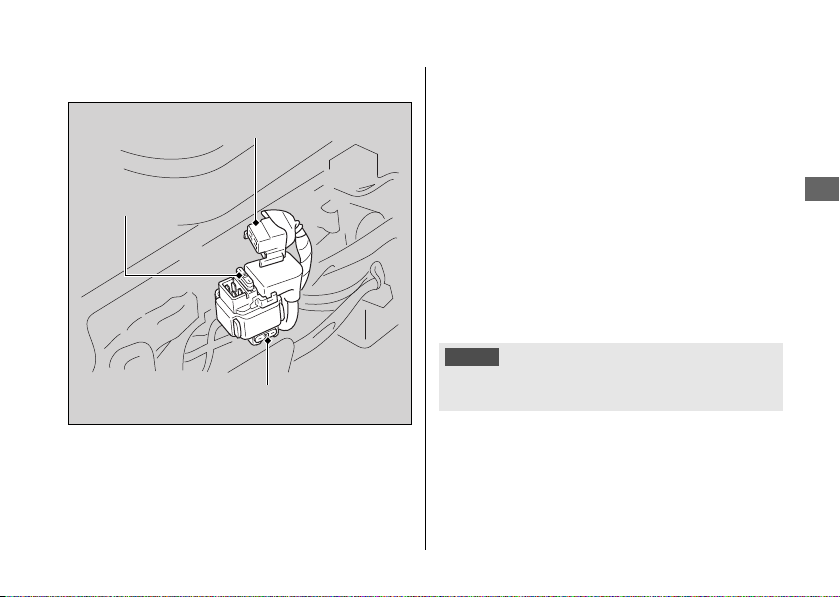

Main Fuse A
1.
Remove the rear cover. 2 P. 56
2.
Open the seat. 2 P. 32
3.
Remove the left side cover. 2 P. 57
4.
Disconnect the wire connector of the
starter magnetic switch.
5.
Pull the main fuse A out and check for a
blown fuse. Always replace a blown fuse
with a spare of the same rating.
u Spare main fuse is located under the
starter magnetic switch.
6.
Install the parts in the reverse order of
removal.
Main fuse A
Wire connector
Spare main fuse
NOTICE
If a fuse fails repeatedly, you likely have an electrical
problem. Have your scooter inspected by your dealer.
12 FSC600A-31MGF6300.book 93 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Information
Keys.............................................................P. 95
Instruments, Controls, &
Other Features ............................................
P. 96
Caring for Your Scooter.............................P. 97
Storing Your Scooter .................................P. 99
Transporting Your Scooter ......................P. 100
You & the Environment ...........................P. 101
Vehicle Identification Number ................P. 102
Emission Control Systems........................P. 103
Catalytic Converter ..................................P. 108
Oxygenated Fuels ....................................P. 109
Authorized Manuals ................................P. 110
Warranty Coverage and Service............. P. 112
Honda Contacts ....................................... P. 113
Reporting Safety Defects ........................ P. 115
12 FSC600A-31MGF6300.book 94 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Keys
95
Information
Keys
Be sure to record the key number provided with
the original keys and record it in this manual.
Store the spare key in a safe location.
To make a duplicate, take the spare key or the
key number to a locksmith.
If you lose all keys and the key number, the
ignition switch assembly will probably have to
be removed by your dealer to determine the key
number.
Ignition key
12 FSC600A-31MGF6300.book 95 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Instruments, Controls, & Other Features
96
Information
Instruments, Controls, &
Other Features
The headlight is always on when the ignition
switch is on. Leaving the ignition switch on with
the engine stopped will drain the battery.
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch OFF. Failing to
do so will drain the battery.
The display locks at 999,999 when the readout
exceeds 999,999.
The tripmeter returns to 0.0 when the readout
exceeds 999.9.
The owner’s manual, registration, and
insurance information can be stored in the
plastic document bag located under the seat.
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the scooter
falls over. To reset the sensor, you must turn the
ignition switch to OFF and back to the ON
position before the engine can be restarted.
Ignition Switch
Engine Stop Switch
Odometer
Tripmeter
Document Bag
Ignition Cut-off System
12 FSC600A-31MGF6300.book 96 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Caring for Your Scooter
97
continued
Information
Caring for Your Scooter
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean scooter
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your scooter
thoroughly after riding on coastal or treated
roads.
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your scooter thoroughly using a garden
hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the windscreen, headlight lens,
panels, and other plastic components with
extra care to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your scooter with plenty of
clean water and dry with a soft, clean cloth.
4.
After the scooter dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto the
brakes or tires. Brake discs or pads
contaminated with oil will suffer greatly
reduced braking effectiveness and can
lead to a crash.
5.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These can
damage the metal, paint, and plastic on
your scooter.
Keep the wax clear of the tires and brakes.
❙
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can damage
moving parts and electrical parts,
rendering them inoperable.
Washing
12 FSC600A-31MGF6300.book 97 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Caring for Your Scooter
98
Information
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to help
dry them.
● Do not direct water under the seat:
u Water in the underseat compartment can
damage your documents and other
belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u Any condensation inside the headlight
should dissipate after a few minutes of
running the engine.
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty of
water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, windscreen,
panels, or headlight.
Aluminum Components
Panels and Windscreen
12 FSC600A-31MGF6300.book 98 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Storing Your Scooter
99
continued
Information
The exhaust is made of stainless steel, which
can become tarnished with burn marks if
splattered with oil or other substances when
hot. To remove burn marks, use a mild abrasive
compound. To remove dirt and mud, use a
kitchen cleaning solution for stainless steel and
wash with a soft sponge. Rinse with plenty of
water to remove all residue.
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Storing Your Scooter
If you store your scooter outdoors, you should
consider using a full-body motorcycle cover.
If you won’t be riding for an extended period,
follow these guidelines:
● Wash your scooter and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Use the center stand and position a block so
that both tires are off the ground.
● After rain, remove the body cover and allow
the scooter to dry.
● Remove the battery to prevent discharge.
Charge the battery in a shaded, well-
ventilated area.
u If you leave the battery in place,
disconnect the negative
- terminal to
prevent discharge.
Exhaust Pipe and Muffler
NOTICE
Even though the exhaust is made of stainless steel, it can
become stained. Remove all marks and blemishes as soon
as they are noticed.
12 FSC600A-31MGF6300.book 99 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Transporting Your Scooter
100
Information
After removing your scooter from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage, refer to
the Honda Winter Storage Guide, available
from your dealer.
Transporting Your Scooter
If your scooter needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your scooter with a
wheel or wheels on the ground.
NOTICE
Towing your scooter can cause serious damage to the
transmission.
12 FSC600A-31MGF6300.book 100 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
You & the Environment
101
Information
You & the Environment
Owning and riding a scooter can be enjoyable,
but you must do your part to protect the
environment.
Use a biodegradable detergent when you wash
your scooter. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective ozone
layer.
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
Choose Sensible Cleaners
Recycle Wastes
12 FSC600A-31MGF6300.book 101 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Vehicle Identification Number
102
Information
Vehicle Identification
Number
The VIN and engine serial numbers uniquely
identify your scooter and are required in order
to register your scooter. They may also be
required when ordering replacement parts.
The VIN number is stamped on the right side of
the frame body and also appears on the Safety
Certification Label attached under the right
front air cover.
The engine number is stamped on the left side
of the crankcase.
You should record these numbers and keep
them in a safe place.
VIN
VIN
12 FSC600A-31MGF6300.book 102 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Emission Control Systems
103
continued
Information
Emission Control Systems
Your scooter engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Engine number
12 FSC600A-31MGF6300.book 103 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Emission Control Systems
104
Information
The U.S. Environmental Protection Agency
(EPA) and the California Air Resources Board
(CARB) require that your scooter comply with
applicable exhaust, crankcase, and fuel
permeation emission standards during its useful
life, when operated and maintained according
to the instructions provided.
CARB also requires that your scooter comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor’s
Warranties for Honda Scooter Emission Control
Systems is necessary in order to maintain a valid
emissions system warranty. The Vehicle
Emission Control Information label is attached
to the inside of the center compartment.
2 P. 32
The EPA requires that scooters built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Requirements
Noise Emission Requirements
Vehicle emission control information label
12 FSC600A-31MGF6300.book 104 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Emission Control Systems
105
continued
Information
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
❙
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems.
The engine control module (ECM) uses sensors
to determine how much air enters the engine,
and then controls how much fuel to inject.
❙
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
❙
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
❙
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Exhaust Emission Control System
Evaporative Emission Control System
12 FSC600A-31MGF6300.book 105 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Emission Control Systems
106
Information
The positive crankcase ventilation system
prevents gases that build up in the engine’s
crankcase from being released into the
atmosphere. The gases are drawn into the
engine and burned while riding.
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions.
Tampering with these components to reduce or
defeat the effectiveness of the fuel permeation
technologies is prohibited.
❙
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits the following acts or
the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of design
incorporated into any new vehicle for the
purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Crankcase Emissions Control System
Fuel Permeation Emission Control
Noise Emission Control System
12 FSC600A-31MGF6300.book 106 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Emission Control Systems
107
Information
❙
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
1.
Removal of, or puncturing the muffler,
baffles, header pipes or any other component
which conducts exhaust gases.
2.
Removal of, or puncturing of any part of the
intake system.
3.
Lack of proper maintenance.
4.
Replacing any moving parts of the vehicle, or
parts of the exhaust or intake system, with
parts other than those specified by the
manufacturer.
Have your scooter inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting.
● Rough idling.
● Misfiring or backfiring during acceleration.
● Poor engine performance and poor fuel
economy.
Problems Affecting Scooter Exhaust
Emissions
12 FSC600A-31MGF6300.book 107 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Catalytic Converter
108
Information
Catalytic Converter
This scooter is equipped with a three-way
catalytic converter. The catalytic converter
contain precious metals that serve as catalysts in
high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine’s
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
scooter’s catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the scooter.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
scooter serviced as soon as possible.
12 FSC600A-31MGF6300.book 108 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Oxygenated Fuels
109
Information
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
areas to help reduce emissions to meet clean air
standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved for use in your
scooter:
●
Ethanol (ethyl alcohol) 10 % by volume (max).
Gasoline containing ethanol may be
marketed under the name “Gasohol”.
● MTBE (Methyl Tertiary Butyl Ether) 15 % by
volume (max).
● Methanol (methyl alcohol) 5 % by volume
(max) that contain cosolvents and corrosion
inhibitors to protect the fuel system. Never
use a blend containing more than 5 %.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
NOTICE
Improper use of oxygenated fuels can damage metal,
rubber, and plastic parts of your fuel system.
Oxygenated fuel can also damage paint. Damage caused
by spilled fuel is not covered by warranty.
12 FSC600A-31MGF6300.book 109 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Authorized Manuals
110
Information
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and all-terrain vehicles.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Publication Item No. Description
61MCT10 2012 FSC600A SILVER WING Service Manual
61CM002 Common Service Manual
31MGF630 2012 FSC600A SILVER WING Owner’s Manual
12 FSC600A-31MGF6300.book 110 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Authorized Manuals u
111
Information
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday – Friday 8:00 AM – 6:00 PM EST
12 FSC600A-31MGF6300.book 111 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Warranty Coverage and Service
112
Information
Warranty Coverage and
Service
Your new Honda is covered by the following
warranties:
● Scooter Limited Warranty
● Emission Control System Warranty
● Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner’s card with your
Warranties Booklet.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
scooter.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the Honda Protection Plan.
For more information, see your Honda dealer.
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
scooter, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
Coverage
Service
12 FSC600A-31MGF6300.book 112 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Honda Contacts
113
continued
Information
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs.
If you have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren’t
satisfied with your dealer’s handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership’s management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Honda Contacts
If you wish to contact Honda directly to
comment on your experiences with your
scooter or with your dealer, please send your
comments to the following address:
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
American Honda Motor Co., Inc.
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
12 FSC600A-31MGF6300.book 113 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Honda Contacts
114
Information
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products and Honda Genuine
Accessories that provide the same quality that
went into your scooter.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area, and
the Honda Rider’s Club of America.
The Honda Rider’s Club of America (HRCA)
sponsors local riding chapters at Authorized
Honda Dealerships across the country. You can
log on to the HRCA Clubhouse website for
more information at www.hrca.honda.com.
Your Honda Dealer
Honda Rider’s Club of America (HRCA)
12 FSC600A-31MGF6300.book 114 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Reporting Safety Defects
115
Information
Reporting Safety Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
12 FSC600A-31MGF6300.book 115 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
116
Specifications
Specifications
Specifications
■ Main Components
*1 Including rider, passenger, all luggage, and accessories.
*2 Includes the weight of the luggage and added accessories.
Type PF01
Overall length 89.6 in (2,275 mm)
Overall width 30.3 in (770 mm)
Overall height 56.3 in (1,430 mm)
Wheelbase 62.8 in (1,595 mm)
Minimum ground
clearance
5.5 in (140 mm)
Caster angle 28º 30’
Trail 4.1 in (105 mm)
Curb weight 551 lb (250 kg)
Maximum weight
capacity
*1
366 lb (166 kg)
Maximum luggage
weight
*2
25 lb (11.5 kg)
Luggage 22 lb (10 kg)
Accessories 3.3 lb (1.5 kg)
Passenger capacity Rider and 1 passenger
Minimum turning
radius
9.2 ft (2.8 m)
Displacement 35.5 cu-in (582 cm
3
)
Bore x stroke 2.83 x 2.81 in (72.0 x 71.5 mm)
Compression ratio 10.2:1
Fuel
Unleaded gasoline
Recommended: 86 PON or higher
Tank capacity 4.23 US gal (16.0 liters)
Battery
YTZ12S
12V-11Ah (10 HR) or
FTZ12S
12V-10Ah (10 HR)
Primary reduction V-Matic (2.1:1 ~ 0.85:1)
Final reduction 6.016
12 FSC600A-31MGF6300.book 116 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Specifications
117
Specifications
■ Service Data
Tire size
Front 120/80-14M/C 58S
Rear 150/70-13M/C 64S
Tire type Bias-ply, tubeless
Recommended
Tires
Front IRC SS530F
Rear IRC SS530R
Tire air pressure
Front 29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear
[With less than 200 lb (90 kg) of
added weight]
33 psi (225 kPa, 2.25 kgf/cm
2
)
[With more than 200 lb (90 kg)
of added weight]
36 psi (250 kPa, 2.50 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plugs (standard)
CR8EH-9 (NGK) or
U24FER9 (DENSO)
Spark plug gap
0.031 to 0.035 in
(0.80 to 0.90 mm)
Idle speed 1,300 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher except
oils labeled as energy conserving on the
circular API service label, SAE 10W-30,
JASO T 903 standard MA, Pro Honda
GN4 4-stroke oil or Honda 4-stroke oil, or an
equivalent motorcycle oil
After draining 2.1 US qt (2.0 liters)
Engine oil
capacity
After draining &
engine oil filter change
2.3 US qt (2.2 liters)
After disassembly 2.7 US qt (2.6 liters)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
3.2 US qt (3.0 liters)
Recommended
coolant
Pro Honda HP Coolant
12 FSC600A-31MGF6300.book 117 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
Specifications
118
Specifications
■ Bulbs
■ Fuses
■ Torque Specifications
Headlight 12V-55W x 2
Brake/Tail light 12V-21/5W x 2
Front turn signal lights 12V-21W x 2
Rear turn signal lights 12V-21W x 2
License plate light 12V-5W
Trunk light 12V-3.4W
Main fuse
A 30A
B 30A
Other fuses 30A, 15A, 10A
Engine oil plug 11 lbf·ft (15 N·m, 1.5 kgf·m)
Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)
12 FSC600A-31MGF6300.book 118 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
119
Information Record
VIN
Engine No.
Ignition Key No.
Color Label & Code
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Manager
12 FSC600A-31MGF6300.book 119 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
120
Index
Index
Index
A
ABS (Anti-lock Brake System) ................... 11
ABS (Anti-lock Brake System)
Indicator............................................. 21, 84
Accessories ................................................. 14
Air Cleaner................................................. 63
Authorized Manuals ............................... 110
B
Backrest...................................................... 36
Battery ................................................. 46, 62
Brakes
Brakes ...................................................... 10
Fluid ................................................... 50, 74
Pad Wear ................................................. 75
Parking Brake ........................................... 76
Braking....................................................... 29
Bulb
Brake/Tail Light......................................... 88
Front Turn Signal Light ............................. 89
Headlight ................................................. 87
License Plate Light .................................... 91
Rear Turn Signal Light............................... 90
C
Caring for Your Scooter ............................97
Catalytic Converter ..................................108
Center Compartment ................................32
Color Label .................................................45
Compartment
Center ......................................................32
Owner’s Manual .......................................33
Tool Kit.....................................................33
Coolant.......................................................72
Coolant Temperature Gauge ....................19
Crankcase Breather....................................64
D
Digital Clock Adjustment ..........................20
E
Electrical Trouble .......................................86
Emission Control Systems ........................103
Engine
Idle Speed.................................................71
Number ..................................................102
Oil ......................................................49, 67
12 FSC600A-31MGF6300.book 120 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
121
Index
Oil Filter ................................................... 68
Oil Strainer Screen.................................... 68
Overheats ................................................ 82
Starting.................................................... 26
Stop Switch........................................ 23, 96
Stopping .................................................. 96
Environment............................................ 101
F
Flooded Engine ......................................... 27
Frame Number ........................................ 102
Fuel
Gauge...................................................... 19
Recommended......................................... 30
Remaining................................................ 19
Tank Capacity .......................................... 30
Fuses .................................................... 48, 92
G
Gasohol.................................................... 109
Gasoline..................................................... 30
H
Headlight Aim ........................................... 79
Headlight Dimmer Switch......................... 23
Helmet Holder ........................................... 32
High Beam Indicator ................................. 22
High Coolant Temperature Indicator....... 21
Honda Contacts ....................................... 113
Horn Button............................................... 23
I
Ignition Cut-off System
Banking Sensor......................................... 96
Side Stand ................................................ 77
Ignition Key ......................................... 26, 95
Ignition Switch .................................... 24, 96
Indicators ................................................... 21
Information Record................................. 119
Instruments................................................ 18
L
Labels ........................................................... 7
Left Fairing Pocket .................................... 34
Left Side Cover .......................................... 57
12 FSC600A-31MGF6300.book 121 ページ ２０１１年１１月２２日 火曜日 午後７時１３分
122
Index
Load Limits................................................. 15
Loading Guidelines ................................... 15
Low Oil Pressure Indicator .................. 21, 83
M
Maintenance
Fundamentals........................................... 43
Importance............................................... 38
Safety....................................................... 39
Schedule .................................................. 40
Maximum Weight Limit .................... 15, 116
Modifications............................................. 14
O
Odometer ............................................ 19, 96
Oil
Engine................................................ 49, 67
Overheating............................................... 82
Oxygenated Fuels.................................... 109
P
Parking....................................................... 12
Parking Brake Indicator ............................ 22
Parking Brake Lever...................................25
Parts Location ............................................16
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL).....21, 83
Protective Apparel.......................................9
R
Rear Cover..................................................56
Recommended
Coolant ....................................................50
Fuel ..........................................................30
Oil ............................................................49
Refueling....................................................30
Removal
Battery......................................................62
Left Side Cover .........................................57
Rear Cover................................................56
Right Fairing Pocket ..................................61
Right Side Cover .......................................59
Windscreen Garnish..................................55
Repair Kit ...................................................85
Reporting Safety Defects ........................115
