OWNER’S MANUAL Street Scooter Honda 2023 RUCKUS

CONTENTS

  • Vehicle Safety
  • Operation Guide
  • Maintenance
  • Troubleshooting
  • Information
  • Specifications

Operation Guide

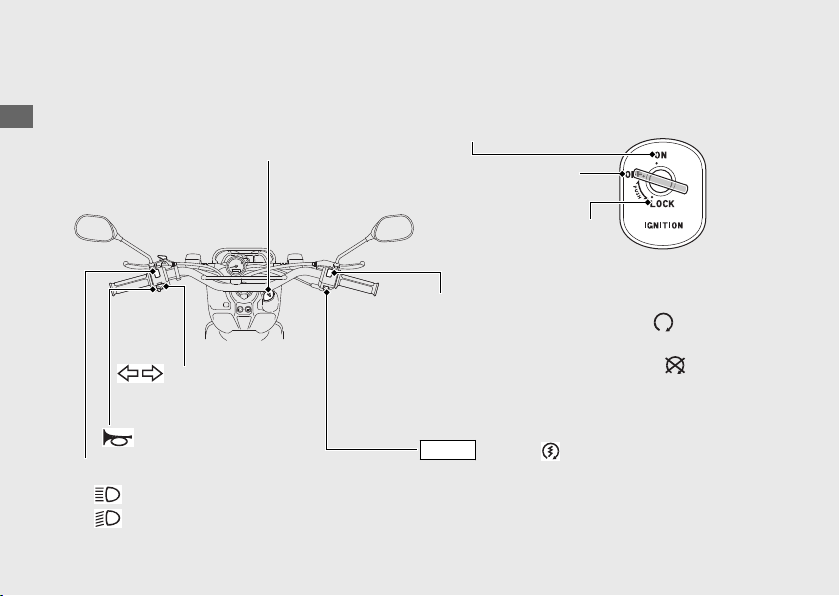

Switches

Steering Lock

  • Lock the steering when parking to help prevent theft.
  • A U-shaped wheel lock or similar device is also recommended.

Locking

  1. Turn the handlebar all the way to the left.
  2. Push the key down, and turn the ignition switch to the LOCK position
  3. Remove the key.

Unlocking

  • Insert the key, push it in, and turn the ignition switch to the OFF position.

Starting the Engine

Start your engine using the following procedure, regardless of whether the engine is cold or warm.

NOTICE

  • (Using the start button) If the engine does not start within 5 seconds, turn the ignition switch to the OFF position and wait 10 seconds before trying to start the engine again to recover battery voltage.
  • Extended fast idling and revving the engine can damage the engine and the exhaust system.
  • Do not operate the kickstarter while the engine is running as engine damage could result. Do not apply excessive force on the kickstarter.
  • Fold up the kickstarter after the kickstarter is returned to the pedal stop.
  1. Place the vehicle on its center stand.
  2. Lock the rear brake. The starter motor will only work when the brake lever is pulled in.
  3. Make sure the engine stop switch is in the (Run) position.
  4. Turn the ignition switch to the ON position.
  5. Press the start button with the throttle completely closed. Release the start button as soon as the engine starts.

Riding

Starting the Vehicle

  1. Push the vehicle forward off the center stand. Lock the rear brake lock. Keep throttle closed.
  2. Get on the vehicle. Mount the vehicle from the left side, keeping at least one foot on the ground.
  3. Release the rear brake lock. To prevent unexpected movement, squeeze brake levers.
  4. Acceleration and deceleration To accelerate: Open the throttle slowly. To decelerate: Close the throttle.

Braking

  • Close the throttle and apply the front and rear brake levers together.
  • Do not apply the brake lock while riding. It may cause the wheel to lock, reducing control of the vehicle.

Refueling

Opening the Fuel Fill Cap

  1. Pull the tab and open the fuel tank lid.
  2. Insert the ignition key in the fuel fill cap and turn it clockwise until it stops.
  3. Turn the fuel fill cap counterclockwise until it stops and remove the cap.

Closing the Fuel Fill Cap

  1. Install and tighten the fuel fill cap by turning it clockwise. Make sure that the arrow marks on the cap and fuel tank are aligned.
  2. Turn the key counterclockwise until it stops and remove the key.
  3. Close the fuel tank lid.

Storage Equipment

Unlocking

  • Insert the ignition key and turn it counterclockwise.

Locking

  1. Hang your helmet on the holder pin and push it in to lock.
  2. Remove the key. Use the helmet holder only when parked.

Maintenance

Removing & Installing Body Components

Removal

Make sure the ignition switch is in the OFF position.

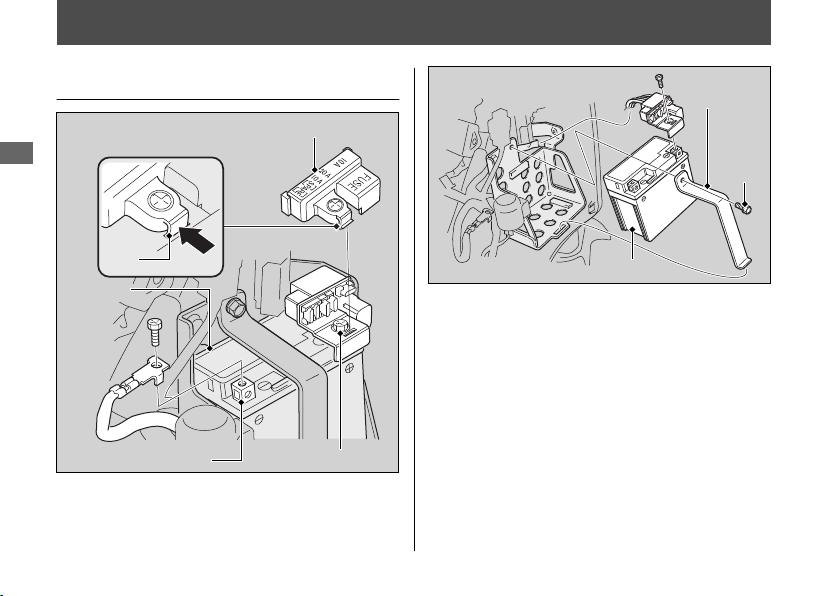

  1. Remove the inner cover.
  2. Disconnect the negative - terminal from the battery.
  3. Release the tab, then remove the fuse box cover.
  4. Disconnect the positive + terminal from the battery.
  5. Remove the battery holder by removing the bolt.
  6. Remove the battery, taking care not to drop the terminal nuts.

Installation

  • Install the parts in the reverse order of removal. Always connect the positive + terminal first. Make sure bolts and nuts are tight

Inner Cover

Removal

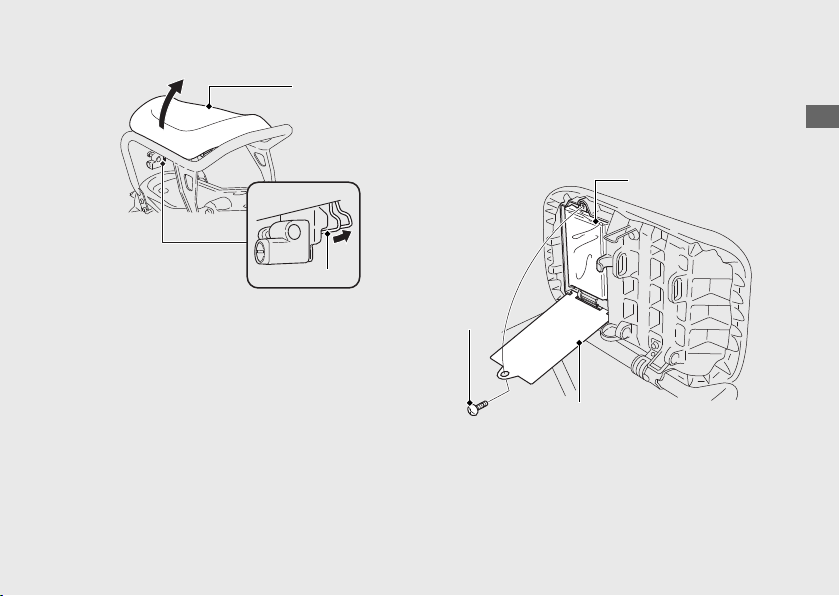

  1. Remove the screws.
  2. Release the tabs, then remove the inner cover.

Installation

  • Install the parts in the reverse order of removal.

Checking the Engine Oil

  1. If the engine is cold, idle the engine for 3 to 5 minutes.
  2. Turn the ignition switch to the OFF position and wait for 2 to 3 minutes.
  3. Place your vehicle on its center stand on a firm, level surface.
  4. Remove the oil fill cap/dipstick and wipe it clean.
  5. Insert the oil fill cap/dipstick until it seats, but don't screw it in.
  6. Check that the oil level is between the upper level and lower level marks on the oil fill cap/dipstick.
  7. Securely install the oil fill cap/dipstick.

Adding Engine Oil

If the engine oil is below or near the lower level mark, add the recommended engine oil.

  1. Remove the oil fill cap/dipstick. Add the recommended oil until it reaches the upper level mark. Place your vehicle on its center stand on a firm, level surface when checking the oil level. Do not overfill above the upper level mark. Make sure no foreign objects enter the oil filler opening. Wipe up any spills immediately
  2. Securely reinstall the oil fill cap/dipstick.

Coolant

Checking the Coolant

Check the coolant level in the reserve tank while the engine is cold.

  1. Place your vehicle on its center stand on a firm, level surface.

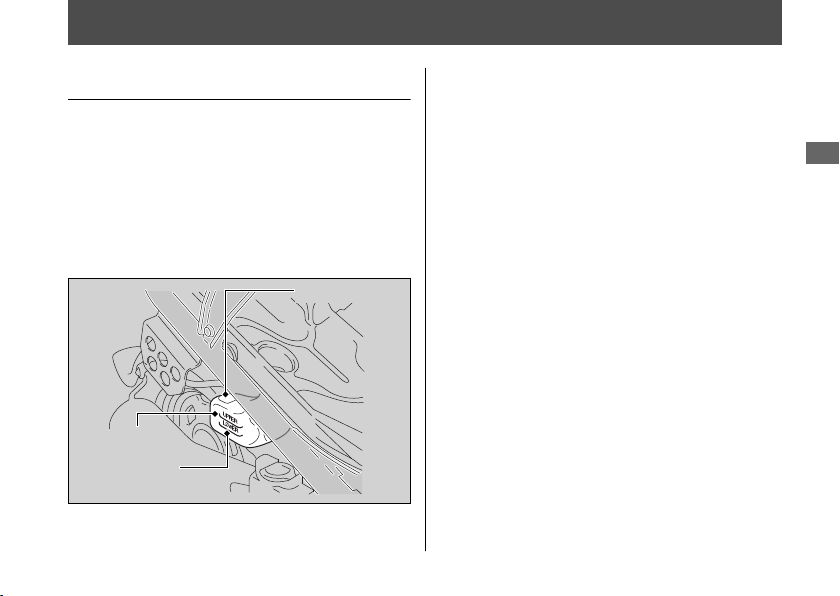

  2. Check that the coolant level is between the UPPER level and LOWER level marks on the reserve tank.

Adding Coolant

If the coolant level is below the LOWER level mark, add the recommended coolant  until the level reaches the UPPER level mark. Add fluid only from the reserve tank cap and do not remove the radiator cap.

  1. Remove the reserve tank cap and add fluid while monitoring the coolant level.Do not overfill above the UPPER level mark. Make sure no foreign objects enter the reserve tank opening.
  2. Securely reinstall the reserve tank cap.

Brakes

Inspecting the Brake Lever Freeplay

  1. Place your vehicle on its center stand on a firm, level surface.
  2. Measure the distance the front and rear brake levers move before each brake takes hold.

Check the brake cable for kinks or signs of wear. If necessary have it replaced by your dealer. Lubricate the brake cable with a commercially available cable lubricant to prevent premature wear and corrosion. Make sure the brake arm, spring and fastener are in good condition.

Adjusting the Rear Brake Lever Freeplay

Adjust the freeplay of the brake lever with the front wheel pointed straight ahead. Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting the freeplay.

If proper adjustment cannot be obtained by this method, see your dealer.

  1. Adjust by turning the rear brake adjusting nut a half-turn at a time
  2. Apply the brake several times and check for free wheel rotation after the brake lever is released.
  3. Push the brake arm to confirm that there is a gap between the rear brake adjusting nut and brake arm pin.

Adjusting the Front Brake Lever Freeplay

Adjust the freeplay of the brake lever with the front wheel pointed straight ahead. Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting the freeplay.

  1. Adjust by turning the front brake adjusting nut a half-turn at a time.
  2. Apply the brake several times and check for free wheel rotation after the brake lever is released.
  3. Push the brake arm to confirm that there is a gap between the front brake adjusting nut and brake arm pin.
