PN-U553
PN-U473
PN-U423
LCD MONITOR
OPERATION MANUAL
IMPORTANT:
To aid reporting in case of loss or theft, please record the
product’s model and serial numbers in the space provided.
The numbers are located in the rear of the product.
Model No.:
Serial No.:
U.S.A. ONLY
3
E
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within
a triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING:
FCC Regulations state that any unauthorized changes or modications to this equipment not expressly approved by the
manufacturer could void the user’s authority to operate this equipment.
NOTE:
This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
U.S.A. ONLY
4
E
Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your
product, please read the Safety Precautions carefully before using this product.
SAFETY PRECAUTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can
result in electric shock and/or re. In order to prevent potential danger, please observe the following instructions when installing,
operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the
following precautions carefully before using the product.
1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future
reference.
3. Observe warnings — All warnings on the product and in the instructions must be observed closely.
4. Follow instructions — All operating instructions must be followed.
5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do
not use liquid cleaners or aerosol cleaners.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result
in accidents.
7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto
it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.
Do not cover or block these vents and openings since insufcient ventilation can cause overheating and/or shorten the life
of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings.
Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from
resting on them.
10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with
impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.
11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause re or electric shock.
12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage ows in
the product, and inserting an object can cause electric shock and/or short internal parts.
For the same reason, do not spill water or liquid on the product.
13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other
dangerous conditions. Request a qualied service person to perform servicing.
14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualied service
person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls
not described in the instructions can cause damage, which often requires extensive adjustment work by a qualied
technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product
needs servicing.
15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement
parts specied by the manufacturer, or those with the same characteristics and performance as the original parts. Use of
unauthorized parts can result in re, electric shock and/or other danger.
16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to
ensure that the product is in proper operating condition.
17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method
recommended by the manufacturer.
18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including ampliers).
DEAR SHARP CUSTOMER
5
E
SAFETY PRECAUTIONS (Continued)
19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment,
dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:
• Use the specied batteries only.
• Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the
compartment.
• Do not mix old and new batteries.
• Do not mix batteries of different types. Voltage specications of batteries of the same shape may vary.
• Replace an exhausted battery with a new one promptly.
• If you will not use the remote control for a long time, remove the batteries.
• If leaked battery uid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your
eye well rather than rubbing and seek medical treatment immediately. Leaked battery uid that gets into your eye or your
clothing may cause a skin irritation or damage your eye.
20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury,
severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and
missile launch control in a weapon system.
21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in
low-temperature burns.
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may
be required to take adequate measures.
To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: DVI-D input/output
terminals, HDMI input terminal, D-sub input terminal, RS-232C input/output terminals, and DisplayPort input terminal.
If a monitor is not positioned in a sufciently stable location, it can be potentially hazardous due to falling. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
• Using xing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the
monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
Especially for child safety
- Don’t allow children to climb on or play with the monitor.
- Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
- Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care
should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
- Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by
curious children.
6
E
- The TFT color LCD panel used in this monitor is made with
the application of high precision technology. However, there
may be minute points on the screen where pixels never light
or are permanently lit. Also, if the screen is viewed from
an acute angle there may be uneven colors or brightness.
Please note that these are not malfunctions but common
phenomena of LCDs and will not affect the performance of
the monitor.
- Do not display a still picture for a long period, as this could
cause a residual image.
- Never rub or tap the monitor with hard objects.
- Please understand that SHARP CORPORATION bears no
responsibility for errors made during use by the customer or
a third party, nor for any other malfunctions or damage to this
product arising during use, except where indemnity liability is
recognized under law.
- This monitor and its accessories may be upgraded without
advance notice.
- Do not use the monitor where there is a lot of dust, where
humidity is high, or where the monitor may come into contact
with oil or steam. Do not use in an environment where
there are corrosive gases (sulfur dioxide, hydrogen sulde,
nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this
could lead to re.
- Ensure that the monitor does not come into contact with
water or other uids. Ensure that no objects such as paper
clips or pins enter the monitor as this could lead to re or
electric shock.
- Do not place the monitor on top of unstable objects or in
unsafe places. Do not allow the monitor to receive strong
shocks or to strongly vibrate. Causing the monitor to fall or
topple over may damage it.
- Do not use the monitor near heating equipment or in places
where there is likelihood of high temperature, as this may
lead to generation of excessive heat and outbreak of re.
- Do not use the monitor in places where it may be exposed to
direct sunlight.
- Please be sure to constantly remove dust and garbage that
has attached to the ventilation opening. If dust collects in the
ventilation opening or the inside of the monitor, it may lead to
excessive heat, outbreak of re, or malfunction.
Please request a cleaning of the inside of the monitor from
an authorized SHARP servicing dealer or service center.
- Images cannot be rotated on this monitor.
When using in portrait orientation, you will need to prepare
appropriately orientated content in advance.
- The AC outlet shall be installed near the equipment and shall
be easily accessible.
The Power Cord
- Use only the power cord supplied with the monitor.
- Do not damage the power cord nor place heavy objects on
it, stretch it or over bend it. Also, do not add extension cords.
Damage to the cord may result in re or electric shock.
- Do not use the power cord with a power tap.
Adding an extension cord may lead to re as a result of
overheating.
- Do not remove or insert the power plug with wet hands.
Doing so could result in electric shock.
- Unplug the power cord if it is not used for a long time.
- Do not attempt to repair the power cord if it is broken
or malfunctioning. Refer the servicing to the service
representative.
Manual Scope
- Microsoft, Windows and Internet Explorer are registered
trademarks of Microsoft Corporation.
- The terms HDMI and HDMI High-Denition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and
other countries.
- DisplayPort is a registered trademark of Video Electronics
Standards Association.
- Adobe, Acrobat, and Reader are either registered trademarks
or trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
- This product comes with RICOH Bitmap Fonts produced and
sold by RICOH COMPANY, LTD.
- All other brand and product names are trademarks or
registered trademarks of their respective holders.
- Language of OSD menu used in this manual is English by
way of example.
- Illustrations in this manual may not exactly represent the
actual product or display.
- This manual assumes use in landscape orientation, except
where specically noted.
LED Backlight
● The LED backlight in this product has a limited lifetime.
* If the screen gets dark or does not turn on, it may be
necessary to replace the LED backlight.
* This LED backlight is exclusive to this product and must
be replaced by an authorized SHARP servicing dealer
or service center. Please contact an authorized SHARP
servicing dealer or service center for assistance.
TIPS AND SAFETY INSTRUCTIONS
7
E
MOUNTING PRECAUTIONS
• This product is for use indoors.
• A mounting bracket compliant with VESA specications is
required.
• Since the monitor is heavy, consult your dealer before
installing, removing or moving the monitor.
• Do not hold the monitor by the speakers.
• Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this
work yourself. Our company will bear no responsibility
for accidents or injuries caused by improper mounting or
mishandling.
• Use the monitor with the surface perpendicular to a level
surface. If necessary, the monitor may be tilted up to 20
degrees upward or downward.
• This monitor should be used at an ambient temperature
between 41°F (5°C) and 104°F (40°C).
(32°F (0°C) and 104°F (40°C) for the PN-U473/PN-U423)
Provide enough space around the monitor to prevent heat
from accumulating inside.
Unit: inch [mm]
For the monitor in portrait orientation
7-7/8 [200]
2
[50]
2
[50]
2 [50]
2
[50]
2 [50]
Power LED
For the monitor in landscape orientation
Unit: inch [mm]
5/16 [7]
5/16 [7]
7-7/8 [200]
2
[50]
• If it is difcult to provide sufcient space for any reason
such as the installation of the monitor inside a housing, or
if the ambient temperature may be outside of the range
of 41°F (5°C) to 104°F (40°C), install a fan or take other
measures to keep the ambient temperature within the
required range.
(32°F (0°C) and 104°F (40°C) for the PN-U473/PN-U423)
• Temperature condition may change when using the monitor
together with the optional equipments recommended by
SHARP. In such cases, please check the temperature
condition specied by the optional equipments.
• Do not block any ventilation openings. If the temperature
inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Adhere to the following when installing the monitor in its
portrait orientation. Failing to adhere to the following may
cause malfunctions.
- Install the monitor such that the power LED is located on
the bottom side.
- Set the MONITOR on the MONITOR menu to PORTRAIT.
(See page 24.)
- Be sure to clamp the power cord (supplied) onto the cable
clamp attachment using the supplied cable clamp. When
clamping the power cord, take care not to stress the
terminal of the power cord. Do not bend the power cord
excessively.
Cable clamp
Power cord (Supplied)
Cable clamp
attachment
• Use the supplied vertical sticker when you install the
monitor in portrait orientation.
Vertical sticker
(Operation panel)
Vertical sticker
(Logo)
Do not remove the factory-afxed sticker but afx the
sticker over it. Be careful not to cover the remote control
sensor or buttons.
8
E
Supplied Components
If any component should be missing, please contact your dealer.
Liquid Crystal Display Monitor: 1
Remote control unit: 1
Cable clamp: 2
Power cord: 1
R-6 battery (“AA” size): 2
CD-ROM (Utility Disk for Windows): 1
Setup Manual: 1
Vertical sticker (Logo): 1
Vertical sticker (Operation panel): 1
Model Name / Serial No. label: 1
Indicates the model name and serial number.
Cover SHARP logo: 1
Place this sticker onto the SHARP logo to cover the logo.
* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
* For environmental protection!
Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
Contents
IMPORTANT INFORMATION ............................................3
DEAR SHARP CUSTOMER ..............................................4
SAFETY PRECAUTIONS ..................................................4
TIPS AND SAFETY INSTRUCTIONS ...............................6
MOUNTING PRECAUTIONS ............................................7
Supplied Components .....................................................8
Part Names .......................................................................9
Connecting Peripheral Equipment ...............................11
Connecting the Power Cord .........................................13

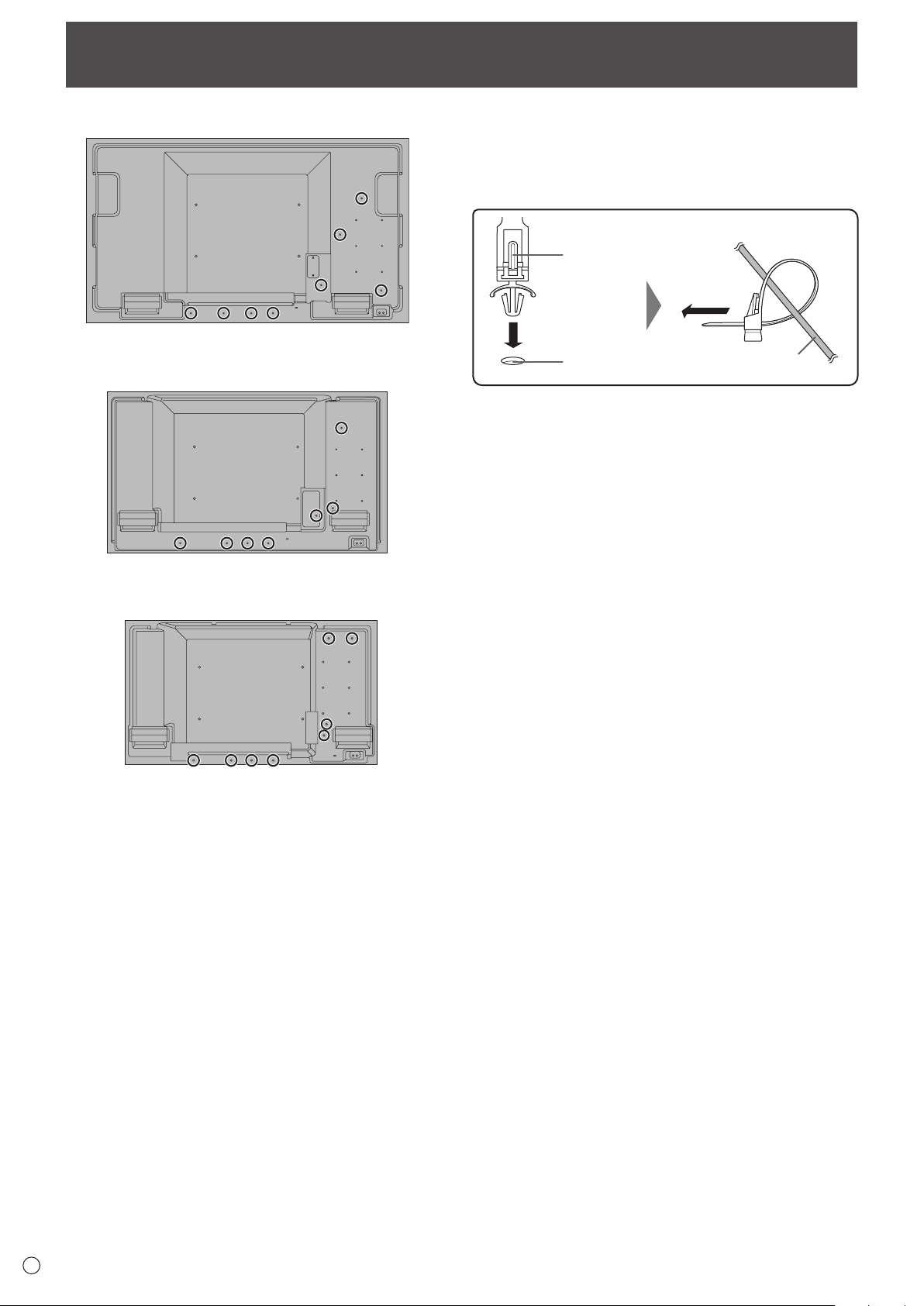

Binding Cables ...............................................................14
Preparing the Remote Control Unit ..............................15
Installing the batteries ................................................15
Remote control operation range .................................15

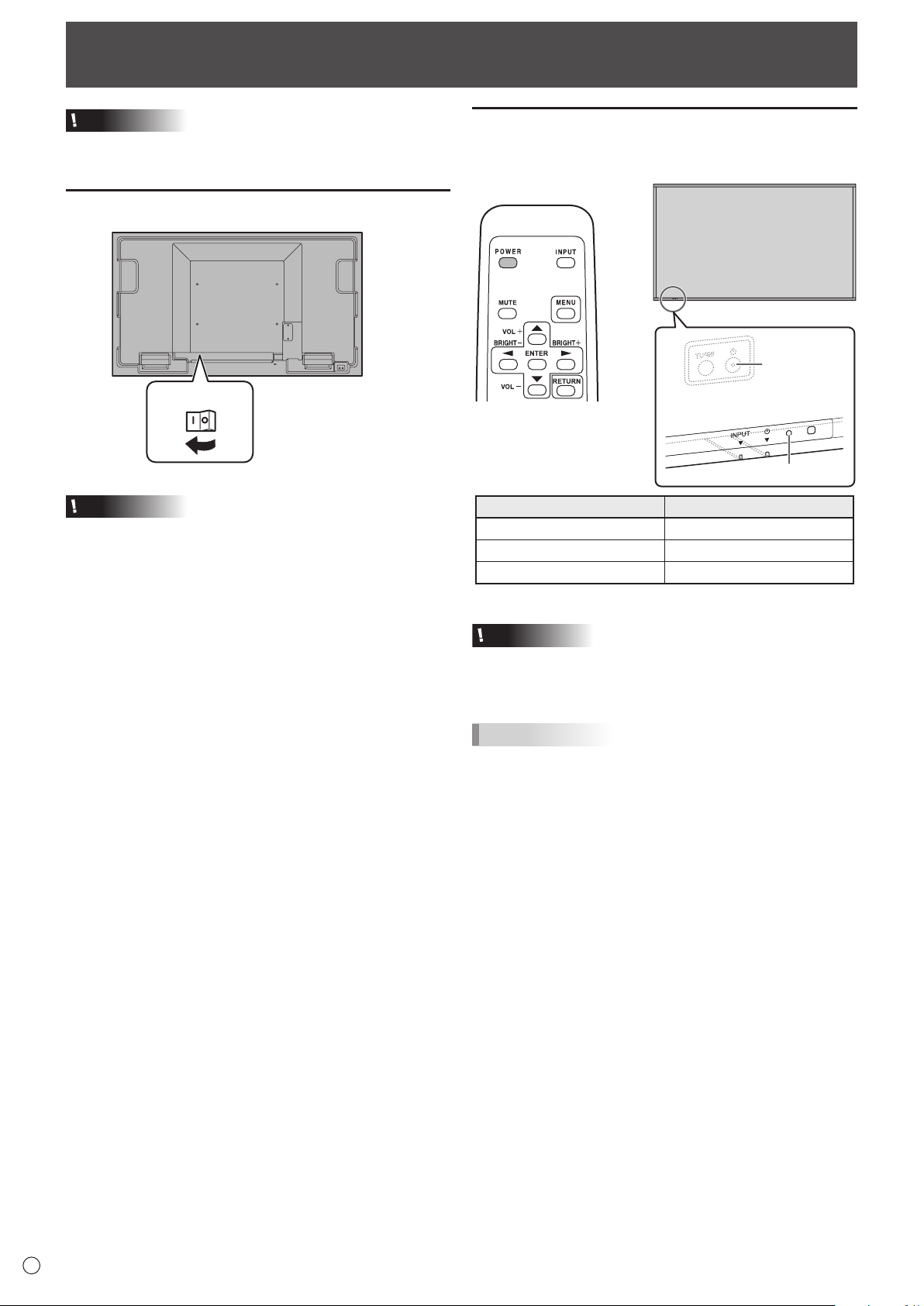

Turning Power On/Off ....................................................16
Turning on the main power.........................................16
Turning power on/off ..................................................16
Basic Operation .............................................................18
Menu Items .....................................................................20
Displaying the menu screen .......................................20
Menu item details .......................................................21
Adjustments for PC screen display ............................28
Initialization (Reset)/Functional Restriction
Setting (FUNCTION) .......................................................29
Controlling the Monitor with a PC (RS-232C) ..............30
PC connection ............................................................30
Communication conditions .........................................30
Communication procedure .........................................30
RS-232C command table ...........................................34

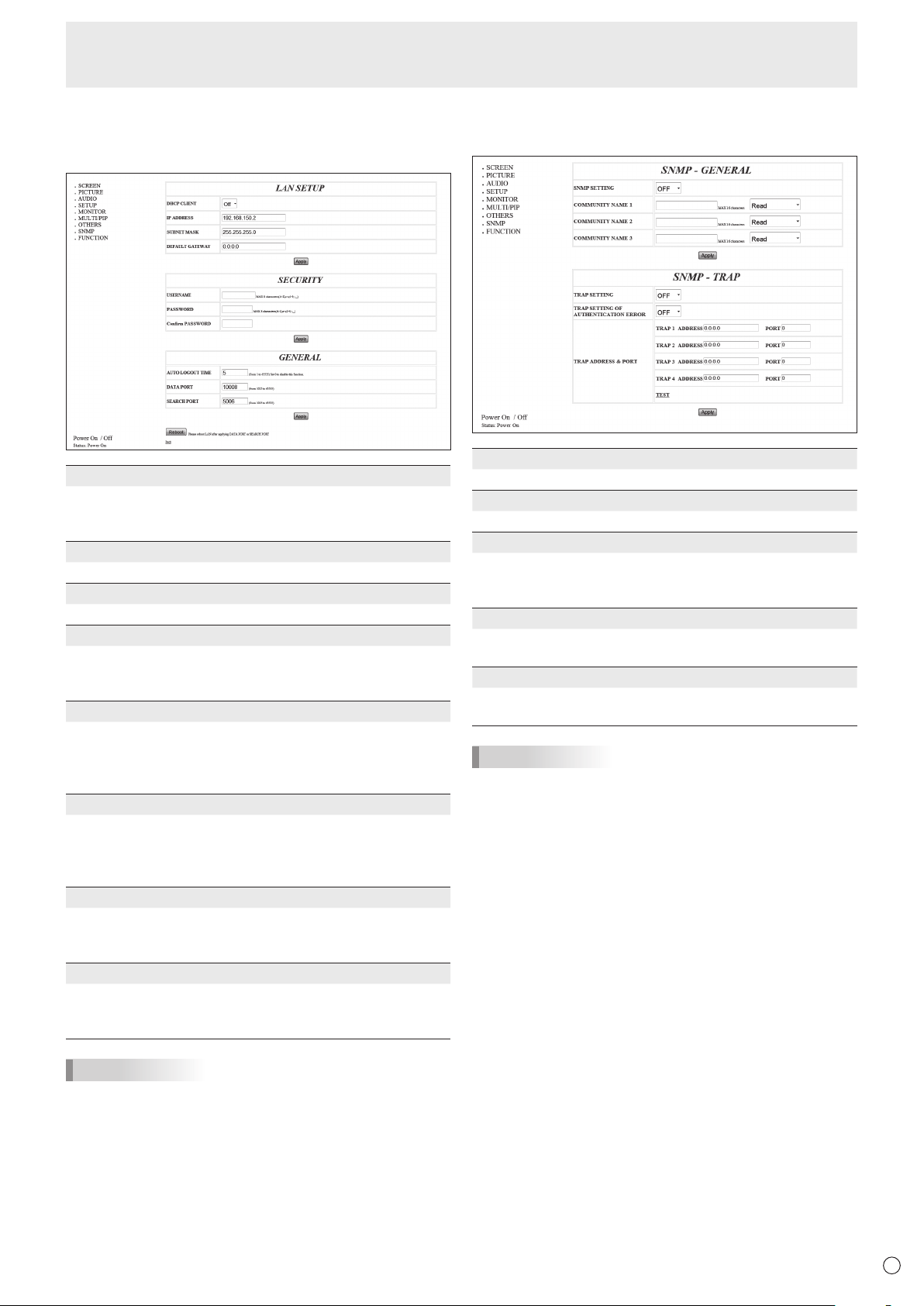

Controlling the Monitor with a PC (LAN) .....................39
Settings to connect to a LAN ......................................39
Controlling with a PC ..................................................41
“Advanced operation” Command-based control ........44
Troubleshooting .............................................................45
Specications ...............................................................47
Mounting Precautions
(For SHARP dealers and service engineers) ...............53
9
E
n
Front view
6
7
45
8824
10
11 12 13 14 15 16 17 18 19 20 21
9
22
23
23
4
5
*
1
Guideline
Part Names
n
Rear view
Caution
• Consult your SHARP dealer for attachment/detachment of optional parts.
• When lifting or moving the monitor, do not hold by the speakers.
1. LCD panel
2. Power LED (See page 16.)
3. Remote control sensor (See page 15.)
4. Input switch (See page 18.)
5. Power switch (See page 16.)
* The Input switch and Power switch are located on the back
of the monitor. Use the position of the slot on the front as a
guideline for operation of the switches.
(The switch with the protrusion is the Power switch.)
6. Optional attachment section
This section is used to connect optional hardware for
function expansion. Offering this attachment location
is not a guarantee that future compatible hardware
attachments will be released.
7. Vents
8. Speakers
9. AC input terminal (See page 13.)
10. Main power switch (See page 16.)
11. RS-232C output terminal (See page 12.)
12. RS-232C input terminal (See page 12.)
13. LAN terminal (See page 12.)
14. HDMI input terminal (See page 11.)
15. DisplayPort input terminal (See page 11.)
16. DVI-D input terminal (See page 11.)
17. DVI-D output terminal (See page 12.)
18. D-sub input terminal (See page 11.)
19. Audio1 input terminal (See page 12.)
20. Component input terminals (See page 11.)
21. Video input terminal (See page 11.)
22. Audio output terminals (See page 12.)
23. Audio2 input terminals (See page 12.)
24. Anti-theft hole (
)
A commercially available anti-theft lock can be connected.
The anti-theft hole is compatible with the Kensington
MicroSaver Security System.
10
E
Part Names
n

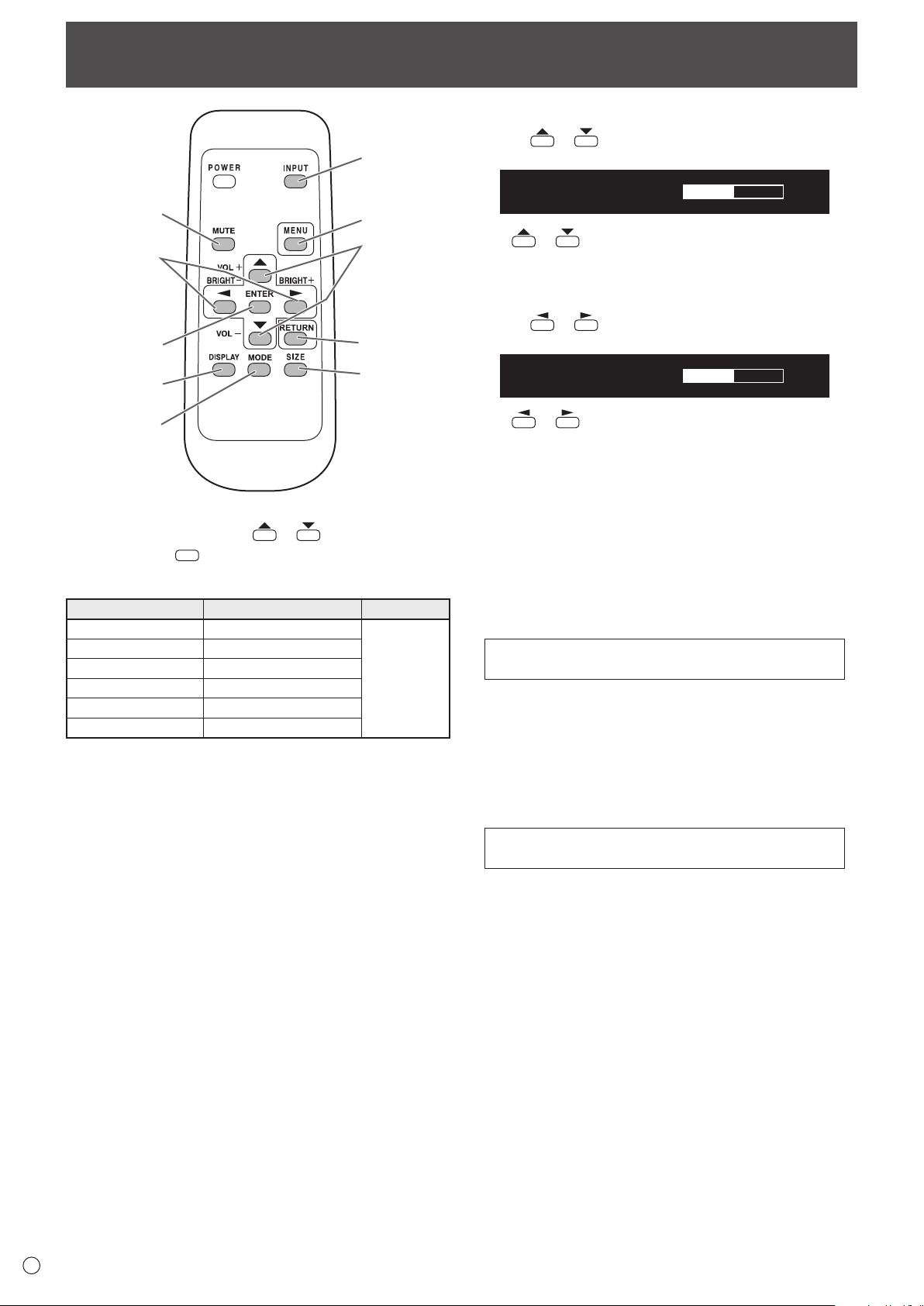

Remote control unit
1
2
3
4
5
6
11
8
7
9
10
1. Signal transmitter
2. POWER button (See page 16.)
3. MUTE button (See page 18.)
4. VOL +/- buttons (See page 18.)
BRIGHT +/- buttons (See page 18.)
Cursor control (
/ / / ) buttons
5. DISPLAY button (See page 18.)
6. MODE button (See page 18.)
7. INPUT button (See page 18.)
8. MENU button (See page 18.)
9. ENTER button (See page 18.)
10. RETURN button (See page 18.)
11. SIZE button (See page 18.)
11
E
9475
10
8
11 12 13 12 36
Connecting Peripheral Equipment
Caution
• Be sure to turn off the main power switch and disconnect
the plug from the power outlet before connecting/
disconnecting cables. Also, read the manual of the
equipment to be connected.
• Be careful not to confuse the input terminal with the output
terminal when connecting cables. Accidentally reversing
cables connected to the input and output terminals may
cause malfunctions and the other problems.
• Do not use any cable that has a damaged or deformed
terminal. Using such cables may cause malfunctions.
TIPS
• Images may not be displayed properly depending on the
computer (video card) to be connected.
• Use the automatic screen adjustment when a PC screen is
displayed for the rst time using D-SUB, or when the setting
of the PC is changed. The screen is adjusted automatically
when SELF ADJUST in the SCREEN menu is set to ON.
• If the audio output from the playback device is connected
directly to speakers or other devices, the video on the
monitor may appear delayed from the audio portion.
Audio should be played through this monitor by connecting
the playback device to the monitor’s audio input, and
connecting the monitor’s audio output to the speakers or
other devices.
• The audio input terminals used in each input mode are
factory-set as follows.
Input mode
Audio input terminal
(Factory setting)
DVI-D, D-SUB Audio1 input terminal
DisplayPort DisplayPort input terminal
HDMI HDMI input terminal
COMPONENT, VIDEO Audio2 input terminals
1. HDMI input terminal
• Use a commercially available HDMI cable (conforming to
the HDMI standard).
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
When HDMI is selected, connection to the audio input
terminal is unnecessary.
2. DisplayPort input terminal
• Use a commercially available DisplayPort cable.
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
When DisplayPort is selected, connection to the audio
input terminal is unnecessary.
3. DVI-D input terminal
• Use a commercially available signal cable (DVI-D 24 pin).
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
4. D-sub input terminal
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
5. Component input terminals
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
6. Video input terminal
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
12
E
Connecting Peripheral Equipment
7. Audio1 input terminal
• Use an audio cable without resistance.
• Set the audio input terminal to be used in each input
mode in AUDIO SELECT on the SETUP menu.
8. Audio2 input terminals
• Set the audio input terminal to be used in each input
mode in AUDIO SELECT on the SETUP menu.
9. DVI-D output terminal
• When the input mode is set to DVI-D, the video of the
DVI-D input can be output to an external device.
• Outputting HDCP-encrypted video requires an external
device which supports HDCP.
• This terminal allows the daisy chain connection of up
to 5 monitors by connecting the monitors to each other
through the DVI-D input terminal of each monitor.
TIPS
• The length of the signal cables or surrounding environment
may affect the image quality.
• When the input mode is set to a mode other than DVI-D,
video cannot be output.
10. Audio output terminals
• The output sound varies depending on the input mode.
• It is not possible to control the sound output from the
audio output terminals with the AUDIO menu.
11. RS-232C output terminal
12. RS-232C input terminal
• You can control the monitor from a PC by connecting a
commercially available RS-232 straight cable between
these terminals and the PC.
• PN-U553/PN-U473/PN-U423 monitors can be connected
together in a daisy chain connection.
13. LAN terminal
• You can control the monitor from a PC on a network by
connecting a commercially available LAN cable between
this terminal and a network.
13
E
Connecting the Power Cord
Caution
• Use only the power cord supplied with the monitor.
1. Turn off the main power switch.
2. Plug the power cord (supplied) into the AC input terminal.
3. Plug the power cord (supplied) into the AC power outlet.
Power cord (Supplied)
AC input terminal
For power
outlet
Main power switch
3
2
1
14
E
Binding Cables
The cables connected to the terminals on the rear of the
monitor can be fastened with the cable clamp.
Attach the cable clamp into the cable clamp attachment on the
rear of the monitor and fasten the cables.
[PN-U473]
[PN-U553]
[PN-U423]
Cable clamp
attachment
Cable
Cable clamp
15
E
Preparing the Remote Control Unit
Installing the batteries
1. Press the cover gently and slide it in the direction of the
arrow.
2. See the instructions in the compartment and put in the
supplied batteries (R-6 (“AA” size) x 2) with their plus (+)
and minus (-) sides oriented correctly.
3. Close the cover.
TIPS
• When the batteries become exhausted, replace them with
new (commercially available) batteries.
• The supplied batteries (R-6 (“AA” size) x 2) may become
exhausted quickly depending on how they are stored.
• If you will not be using the remote control for a long time,
remove the batteries.
• Use manganese or alkaline batteries only.
Remote control operation range
The operation range of the remote control unit is approx. 16.4
feet (5 m) at an angle of approx 10° from the center to the top/
bottom/right/left of the remote control sensor.
Remote
control sensor
10°
10°
10°
10°
16.4
feet
(5 m)
TIPS
• Do not expose the remote control unit to shock by dropping
or stepping on it. This could lead to a malfunction.
• Do not expose the remote control unit to liquids, and do not
place it in an area with high humidity.
• The remote control unit may not work properly if the remote
control sensor is under direct sunlight or strong lighting.
• Objects between the remote control unit and the remote
control sensor may prevent proper operation.
• Replace the batteries when they run low as this may
shorten the remote control’s operation range.
• If a uorescent light is illuminated near the remote control
unit, it may interfere with proper operation.
• Do not use it with the remote control of other equipment
such as air conditioner, stereo components, etc.
16
E
Caution
• Turn on the monitor rst before turning on the PC or
playback device.
Turning on the main power
Main power switch
Caution
• The main power must be turned on/off with the main power
switch. Do not connect/disconnect the power cord or turn
the breaker on/off while the main power switch is on.
• When switching the main power switch or the POWER
button off and back on, always wait for at least 5 seconds.
• For a complete electrical disconnection, pull out the main
plug.
Turning Power On/Off
Turning power on/off
Press the POWER button or POWER switch to turn the power
ON/OFF.
Power LED
Power switch
Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby mode)
Green ashing Input signal waiting mode
Caution
• When switching the main power switch or the POWER
button off and back on, always wait for at least 5 seconds.
A short interval may result in a malfunction.
TIPS
• When the main power switch is off, the monitor cannot be
turned on.
• If the monitor is in the input signal standby mode and you
press the POWER button on the remote control unit, the
monitor enters standby mode.
• Setting the SCHEDULE ashes the power LED alternately
in red and orange in standby mode.
• To disable the logo screen from displaying when turning the
power ON, set LOGO SCREEN to OFF on the OTHERS
menu. (See page 25.)
17
E
Turning Power On/Off
n
Date/time setting
• If the time has not been set, such as when the monitor
is rst turned on, set the date and time in DATE/TIME
SETTING of the SETUP menu.
Be sure to set the date and time.
TIPS
•
Set the date in “Year/Month/Day” order.
•
Set the time on a 24-hour basis.
•
The clock stops if the main power remains off for about
1 week.*
(*Approximate time. The actual time varies depending
on the state of the monitor.)
18
E
Basic Operation
1
2
3
4
5
8
9
10
7
6
1. INPUT (Input mode selection)
The menu is displayed. Press
or to select the input
mode, and press
ENTER
to enter.
* You can select the input terminal by pressing the input
switch of the monitor.
Input mode Video Audio
DVI-D DVI-D input terminal
*
DisplayPort DisplayPort input terminal
HDMI HDMI input terminal
D-SUB D-sub input terminal
COMPONENT Component input terminals
VIDEO Video input terminal
* Select the terminal for AUDIO SELECT which is used for
audio input. (See page 23.)
2. MUTE
Turns off the volume temporarily.
Press the MUTE button again to turn the sound back to the
previous level.
3. MENU
Displays and turns off the menu screen. (see page 20.)
4. VOL +/- (Volume adjustment)
Pressing
or displays the VOLUME menu when the
menu screen is not displayed.
V OLUME 15
Press or to adjust the volume of the sound.
* If you do not press any buttons for about 5 seconds, the
VOLUME menu automatically disappears.
5. BRIGHT +/- (Brightness adjustment)
Pressing
or displays the BRIGHT menu when the
menu screen is not displayed.
BRIGHT 15
Press or to adjust the brightness.
* If you do not press any buttons for about 5 seconds, the
BRIGHT menu automatically disappears.
6. ENTER
Conrms the setting.
7. RETURN
Returns to the previous screen.
8. SIZE (Screen size selection)
Each time you press this button, the screen size changes in
the following order: (See page 19.)
WIDE → NORMAL → CUSTOM → Dot by Dot →WIDE...
9. DISPLAY
Displays monitor information (Input mode, Audio).
The display disappears automatically after about 5 seconds.
10. MODE (Color mode selection)
Each time you press this button, the color mode changes in
the following order:
STD (Standard) → sRGB → HIGH ILLUMINANCE →
STD...
• HIGH ILLUMINANCE is a display with colors suited to
bright locations.
• sRGB is for DVI-D, DisplayPort, and D-SUB input only.
sRGB is international standard of color representation
specied by IEC (International Electrotechnical
Commission). Color conversion is made in taking account
of liquid crystal’s characteristics and represents color tone
close to its original image.
19
E
Basic Operation
n
Switching the screen size
Even when the screen size is changed, the display may remain the same depending on the input signal.
WIDE Displays image so it lls the entire screen.
NORMAL
Displays image so it lls the screen without changing the aspect ratio of the input
signals.
Dot by Dot
Displays the dots of the input signals as the corresponding dots on the screen.
CUSTOM Displays the image at the size set with CUSTOM ZOOM in the SCREEN menu.
TIPS
• Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial
or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright
Law, so please be careful.
• When “Enlarge” is set, the screen size is xed to WIDE mode.
• When dual-screen display is selected, the screen size cannot be set to Dot by Dot or CUSTOM.
• The appearance of the original video may change if you select a screen size with a different aspect ratio than the original
image (e.g. TV broadcast or video input from external equipment).
• When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this
monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen
size to NORMAL.
• When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen
size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the
edges of the screen. This is due to the characteristics of the software, and is not a malfunction.
• Depending on the original image size, black bands may remain at the edges of the screen.
20
E
Menu Items
Displaying the menu screen
Video and audio adjustment and settings of various functions
are enabled. This section describes how to use the menu
items. See pages 21 to 27 for details of each menu items.
Caution
• Do not turn the main power switch off while the menu items
are being displayed. Doing so may initialize the settings.
n
Example of operation
(Adjusting CONTRAST in the PICTURE menu)
1. Press
MENU
to display the menu screen.
1920x1080
V: 60 Hz H: 67.5 kHz
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
AUTO
SELF ADJUST
CLOCK
PHASE
H-POS
V-POS
SIZE
CUSTOM ZOOM
INPUT RESOLUTION
RESET
SCREEN
OK···[ENTER] END···[RETURN]
D-SUB
55
0
50
50
OFF
Dot by Dot
2. Press
or
to select PICTURE, and press
ENTER
.
3. Press
or
to select CONTRAST.
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
BACK···[RETURN]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB
31
50
50
50
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
4. Press or
to adjust the setting.
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
BACK···[RETURN]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB
31
60
50
50
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
For items that have , press
ENTER
, make settings and
then press
RETURN
.
5. Press
MENU
to close the menu screen.
TIPS
• The menu will differ depending on the input mode.
• The menu screen will close automatically if no operation is
performed for about 45 seconds.
n
Menu screen display
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
BACK···[RETURN]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB
31
50
50
50
2
3
1
4
1 Name of the menu
2 Input mode
3 An item being selected (highlighted)
4 Screen resolution of input signal, and other data.
TIPS
• Items that cannot be selected appear in gray.
(e.g. Function not supported by the current input signal)
21
E
Menu item details
The menu will differ depending on the input mode.
n
SCREEN
AUTO (D-SUB)
The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.
Pressing
ENTER
performs adjustment. Use this automatic adjustment when you use the D-SUB to display a PC screen for the
rst time or when you change the setting of the PC. (See page 28.)
SELF ADJUST (D-SUB)
On a D-SUB screen, specify whether to perform screen adjustment automatically or not.
When ON is selected, the screen is automatically adjusted when the timing of input signals changes.
For images with black edges, etc., depending on the signal, adjustment may not be possible. In this case select OFF. (Perform
manual adjustment of the screen.)
CLOCK (D-SUB)
Adjusts frequency for sampling clock for applicable video.
Adjust when there is ickering in the form of vertical stripes.
When using the adjustment pattern (see page 28), make adjustments so that no vertical stripe noise appears in it.
PHASE (D-SUB)
Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/or there are
ickers at corners. When using the adjustment pattern (see page 28), make adjustments so that no horizontal stripe noise
appears in it.
* Adjustments to PHASE should be made only after CLOCK has been correctly set.
H-POS (D-SUB)
Adjust the horizontal position of the image.
V-POS (D-SUB)
Adjust the vertical position of the image.
SIZE
Changes the screen size. The screen size can also be changed using a remote control unit. (See page 19.)
CUSTOM ZOOM
Sets the image size and display area when SIZE is set to CUSTOM.
ZOOM
Enlarge and display part of the image.
H-ZOOM
Adjust the horizontal size of the image.
V-ZOOM
Adjust the vertical size of the image.
H-POS / V-POS (D-SUB)
Adjust the display position of the enlarged image.
INPUT RESOLUTION (D-SUB)
If a computer connected to the D-SUB output any of the following resolution, make a selection from the following options.
768......................AUTO, 1024x768, 1280x768, or 1360x768
1050....................AUTO, 1400x1050 or 1680x1050
1200....................AUTO, 1600x1200 or 1920x1200
RESET
Resets the values of the SCREEN menu items to the factory preset values.
Select “ON” and then press
ENTER
.
Menu Items
22
E
n
BRIGHT
Adjusts the backlight brightness.
CONTRAST
Adjusts the difference between the bright and dark portions of the image.
BLACK LEVEL
Adjusts the entire brightness of the video signals.
TINT (HDMI/COMPONENT/VIDEO)
Adjusts the hue. Selecting - changes the color towards green, and selecting + changes it towards magenta.
COLORS (HDMI/COMPONENT/VIDEO)
Adjusts the color intensity.
SHARPNESS
Adjusts the sharpness of the image.
COLOR ADJUSTMENT
COLOR MODE
Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See
page 18.)
* sRGB is DVI-D, DisplayPort, D-SUB input only. See page 18 for details.
WHITE BALANCE
THRU ..............Displays the input signal level as is.
PRESET ..........Selects the color temperature using PRESET.
USER .............. Used for adjusting R-/G-/B-GAIN and R-/G-/B-OFFSET respectively.
PRESET
Selects the color temperature when the WHITE BALANCE is set to PRESET.
The setting values are shown for reference. The color temperature of the screen varies over time. This function is not
intended to keep the color temperature constant.
USER
Adjusts each item when the WHITE BALANCE is set to USER.
R-GAIN ............... Adjusts bright-toned red component.
G-GAIN .............. Adjusts bright-toned green component.
B-GAIN ............... Adjusts bright-toned blue component.
R-OFFSET ......... Adjusts dark-toned red component.
G-OFFSET ......... Adjusts dark-toned green component.
B-OFFSET ......... Adjusts dark-toned blue component.
GAMMA
Selects the gamma.
ADVANCED
NOISE REDUCTION (HDMI/COMPONENT/VIDEO)
Reduce the noise of playback images on video.
Setting a higher level reduces more noise. However, it may cause blurring on an image.
HDMI RGB INPUT RANGE (HDMI)
Sets the RGB input signal range. Set according to the image.
When the setting is different, images will be displayed with washed out blacks and compressed gradients.
RESET
Resets the values of the PICTURE menu items to the factory preset values.
Select “ON” and then press
ENTER
.
Menu Items
23
E
Menu Items
n
AUDIO
TREBLE
Adjusts the volume of treble-level sound.
BASS
Adjusts the volume of bass-level sound.
BALANCE
Adjusts the balance of the audio sound between right and left.
RESET
Resets the values of the AUDIO menu items to the factory preset values.
Select “ON” and then press
ENTER
.
n
SETUP
DATE/TIME SETTING
Set the date and time. Press
or
to select the date and time, and press
or
to change the numerical values.
Set the date in “Year/Month/Day” order.
Set the time on a 24-hour basis.
SCHEDULE (See page 27.)
You can turn the power on/off at a specied time.
LANGUAGE
Sets the display language for the menu screen.
INPUT SELECT
HOT PLUG CONTROL
Sets whether to use hot plug control for the DVI-D and HDMI input terminals.
AUDIO SELECT
Selects the terminal used to input audio signals in each input mode.
COMMUNICATION SETTING
RS-232C/LAN SELECT
Selects the method with which to control the monitor from the computer.
LAN SETUP
Congures the settings to control the monitor from the computer via LAN. (See page 39.)
ID No. SET
Assigns ID numbers to monitors connected in a daisy chain (see page 31), using the RS-232 cables.
The numbers 1 to 26 are available for ID numbers.
If “0” is set, the system regards this as the state where no ID number is set.
INFORMATION
Displays monitor information (model, serial number, MAC address).
24
E
Menu Items
n
MONITOR
MONITOR
Select the installation direction of the monitor.
LANDSCAPE ............Landscape orientation
PORTRAIT ...............Portrait orientation
OSD H-POSITION
Adjusts the horizontal display position of menu screen.
OSD V-POSITION
Adjusts the vertical display position of menu screen.
STANDBY MODE
When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed
in standby mode.
When LOW POWER is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the
startup time from standby mode becomes longer.
If set to LOW POWER, RS-232C commands cannot be used in standby mode and control via LAN is disabled.
OFF IF NO OPERATION
Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit,
RS-232C commands, or LAN for over 4 hours.
POWER ON DELAY
You can delay the screen display after the monitor is turned on. The period can be set up to 60 seconds in units of 1 second.
When this function is activated, the power LED ashes (at approx. 1 second interval) in orange.
n
MULTI/PIP
MULTI
ENLARGE (See page 26.)
Sets whether or not to use the enlarge function.
ADVANCED (ENLARGE)
ENLARGE H / ENLARGE V
.......... Sets the number of screen splits (number of monitors) in the horizontal/vertical direction used for the enlargement.
ENLARGE-POS
.......... Specify the split screen to be displayed when the enlargement function is used.
BEZEL ADJUST
When ENLARGE is set to ON, sets whether or not to use the frame correction function.
PIP/PbyP
PIP MODES (See page 26.)
Sets the display method.
OFF .........Displays one screen.
PIP ..........Displays a sub screen inside a main screen.
PbyP ........Displays a main screen and a sub screen in a line.
PbyP2......Displays a main screen which measures 1440 pixels in the longest direction and a sub screen in a line.
PIP SIZE
Sets the size of the sub screen in PIP mode.
PIP H-POS
Adjusts the horizontal position of the sub screen in PIP mode.
PIP V-POS
Adjusts the vertical position of the sub screen in PIP mode.
PIP SOURCE
Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.
SOUND CHANGE
Sets the sound which is output in PIP, PbyP, or PbyP2 mode.
25
E
Menu Items
n
OTHERS
SCREEN MOTION
Residual images can be reduced by moving the entire screen vertically and horizontally.
Set the time (operating interval) until the screen moves.
POWER MANAGEMENT
POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode.
When the input mode is DisplayPort, HDMI, DVI-D, or D-SUB, or when the input mode is COMPONENT or VIDEO, the settings
of each can be congured.
LOGO SCREEN
Sets whether or not to display the logo screen.
SCAN MODE (HDMI)
Sets the scan mode.
OVERSCAN ....... Over-scan display
UNDERSCAN .....Under-scan display
BACKLIGHT OFF
When set to ON, the backlight turns off. While the backlight is off, residual images are reduced by internal display of a residual
image reduction pattern. BACKLIGHT OFF is canceled when any operation is performed, such as using the remote control unit.
COLOR SYSTEM (VIDEO)
Select the color system of the AV equipment which is connected to video input terminal. (AUTO / PAL / PAL-60 / SECAM /
NTSC3.58 / NTSC4.43)
When AUTO is selected, the color system is automatically set according to the input signal.
TIPS
• If COLOR MODE is set to sRGB, the following items cannot be set.
WHITE BALANCE, PRESET, USER, GAMMA, BLACK LEVEL and CONTRAST
• When the COLOR MODE is set to HIGH ILLUMINANCE, GAMMA can not be adjusted.
• When the SCREEN MOTION function is set to used, the SIZE is WIDE.
• When dual-screen display is selected or Enlarge is used, the SCREEN MOTION function is disabled.
• With some parameters, the same adjustment value may continue.
This is because adjustment in 100 or more steps is possible internally, and is not a failure.
26
E
n
Dual screen display
You can display two screens simultaneously.
Set this function with PIP MODES of PIP/PbyP in the MULTI/
PIP menu.
PIP
Main screen
Sub
screen
A sub screen is displayed
inside a main screen.
PbyP
Main
screen
Sub
screen
A main screen and a sub
screen are displayed in a
line.
PbyP2
Main screen
Sub
screen
Displays a main screen
which measures 1440
pixels in the longest
direction and a sub
screen in a line.
* The currently selected input signal is displayed on the main
screen.
* The following combinations [A] and [B] are available for
display:
[A]: DVI-D/DisplayPort/HDMI
[B]: D-SUB/COMPONENT/VIDEO
TIPS
• You might infringe on a copyright of the author which is
protected by copyright law when you display the images of
the computer screen and television/VCR simultaneously for
prot-making or to show the image to the public.
• When the screen size is Dot by Dot or CUSTOM, dual-
screen display is not possible.
• When dual-screen display is selected, the screen size
cannot be set to Dot by Dot or CUSTOM.
• When PIP is selected, the sub screen is displayed at an
aspect ratio of 4:3, regardless of the screen size setting.
• When PbyP is selected, the main screen and sub screen
are displayed at the aspect ratio of the input signal,
regardless of the screen size setting.
• When PbyP2 is selected, the main screen and sub screen
are displayed at an aspect ratio of 4:3, regardless of the
screen size setting.
• When dual-screen display is selected, the SCREEN
MOTION function is disabled.
• When dual-screen display is selected, the screen cannot
be enlarged.
• When an interlaced signal (1080i, 480i, video) is input to
the sub screen, horizontal lines may icker. If this happens,
display the image on the main screen.
• When the main screen is DVI-D, HDMI, or DisplayPort,
the input mode that can be selected is DVI-D, HDMI, or
DisplayPort.
• When the main screen is D-SUB, COMPONENT, or
VIDEO, the input mode that can be selected is D-SUB,
COMPONENT, or VIDEO.
• In the following cases, dual-screen display is turned off:
- The power is turned off
- Input signal waiting mode is entered
Menu Items
n
Enlarge
• You can align several monitors and integrate them into a
single large screen to display.
• Up to 5 monitors can be aligned in both the horizontal and
vertical directions.
• Each monitor displays enlarged views of separated images.
(Example)
Horizontal direction: 2 monitors
Vertical direction: 2 monitors
Horizontal direction: 3 monitors
Vertical direction: 2 monitors
Setting procedure
Set using MULTI in the MULTI/PIP menu.
1. Set ENLARGE to ON.
2. Select ADVANCED (ENLARGE).
3. Set the number of monitors aligned in the horizontal
direction in ENLARGE H.
4. Set the number of monitors aligned in the vertical
direction in ENLARGE V.
5. Set the section of the separated image to be displayed
on each monitor in ENLARGE-POS.
1) Press
ENTER
.
2) Press
, , or to select position, then
press
MENU
.
TIPS
• When Enlarge is used, the SCREEN MOTION function is
disabled.
• When Enlarge is used, dual-screen display cannot be used.
• When Enlarge is used, the SELF ADJUST function is
disabled.
27
E
Menu Items
Caution
• Do not switch off the main power after setting the
SCHEDULE.
• Specify the correct date and time. (See page 23.)
SCHEDULE does not function unless the date and time are
specied.
• Check regularly that the set date and time are correct.
TIPS
• Up to 7 SCHEDULE items can be registered.
• Setting the SCHEDULE ashes the power LED alternately
in red and orange in standby mode.
• A SCHEDULE that has a large number has precedence
over that of a small number when schedules overlap.
• In the following cases, set separate power-on SCHEDULE
and power-off SCHEDULE:
- The power is turned off and then on, in that order, in the
SCHEDULE
- The power is turned on and then off, in that order, in the
SCHEDULE, but the power-off time is the next day or later
n
SCHEDULE
You can set the time to switch the monitor on and off.
Set this function with SCHEDULE in the SETUP menu. (See
page 23.)
(1)
(5)
(2) (3) (4)
BACK···[RETURN]
V: 60 Hz H: 67.5 kHz
–
:
––
:
––
D-SUB
SCHEDULE
ON
EVERY DAY
WED
SAT
OFF INPUT
XXXX / XX / XX XX XX : XX : XX
MON
THU
SUN
TUE
FRI
EVERY WEEK
1 920x1080
1. Press or to select the SCHEDULE number, and
press
.
2. Set the SCHEDULE. ((2) to (5) below)
Press
or to select items.
3. Press
RETURN
.
4. Press
or to select the SCHEDULE number, and
press
ENTER
. ((1) below)
SCHEDULE becomes effective.
(1) SCHEDULE number
Enable/disable the SCHEDULE with
ENTER
.
■: SCHEDULE effective
□: SCHEDULE not effective
(2) ON
Specify the time the power turns on with
or .
Set the time on a 24-hour basis.
(3) OFF
Specify the time the power turns off with
or .
Specify a time later than the time the power is turned on.
Set the time on a 24-hour basis.
(4) INPUT
Specify the input mode at power on with
or . If you
don’t specify this the input active at the last power-off will
appear.
(5) Day of the week
Species the day of the week to execute the SCHEDULE
with
ENTER
.
• EVERY DAY
Executes the SCHEDULE every day regardless of the day
of the week.
• MON - SUN
Executes the SCHEDULE once on the specied day.
• EVERY WEEK
Executes the SCHEDULE on the specied day every
week.
Select EVERY WEEK and specify the day of the week
(MON - SUN).
28
E
Menu Items
Adjustments for PC screen display
n
Automatic adjustment
When you use the D-SUB to display a PC screen for the
rst time, or when you change the setting of the PC, use the
automatic screen adjustment.
1. Switch the input to D-SUB and display the adjustment
pattern. (See the description below.)
2. Press
MENU
and use or to display the SCREEN
menu.
3. Press
ENTER
and select “AUTO”.
4. Press
ENTER
.
The automatic adjustment is complete in several seconds.
TIPS
• If the screen cannot be adjusted properly with one
automatic adjustment, repeat the automatic adjustment two
or three times. Try manual adjustment if necessary.
n
Screen display for adjustment
Before making adjustments in the SCREEN menu or
PICTURE menu, display an image to brighten the entire
screen. If you are using a Windows PC, use the adjustment
pattern on the supplied CD-ROM.
Opening the adjustment pattern
The following example is performed in Windows 7.
1. Load the supplied CD-ROM into the computer’s CD-
ROM drive.
2. Open [CD Drive] in [Computer].
In Windows XP, open [CD Drive] in [My Computer].
3. Double-click [Adj_uty.exe].
The adjustment pattern will appear.
Adjust the screen automatically or manually.
4. When adjustment is nished, press the [Esc] on the
computer’s keyboard to quit the adjustment program.
5. Eject the CD-ROM from the CD-ROM drive.
TIPS
• If the display mode on the computer you are using is
65,000 colors, the color levels in the color pattern may
appear differently or grayscale may appear to be colored.
(This is due to the specications of the input signal and is
not a malfunction.)
29
E
You can return the settings to their factory-preset values and
restrict operations.
1. Hold
SIZE
down until “F” appears in the upper left
corner of the screen.
2. While “F” appears, press
, , , in that
order.
▲▲▲
▲ ▲ ▲
OFF
ON
ON
FUNCTION
ALL RESET
ADJUSTMENT LOCK
OSD DISPLAY
LED
OK…[ENTER] BACK…[RETURN]
3. Select and set the items.
ALL RESET
Resets the settings to the factory default settings.
(The settings in COMMUNICATION SETTING are
retained.)
Press
ENTER
, select ALL RESET, and then press
ENTER
.
After initialization, turn the main power switch off and
then back on.
ADJUSTMENT LOCK
You can disable operations on the monitor and the
remote control unit that use buttons.
OFF ...Enables operation.
ON .....Disables all operations other than turning power
on/off and FUNCTION.
OSD DISPLAY
Shows/hides the menu, modes and messages.
The FUNCTION screen cannot be hidden.
ON ................. Shows menus, modes, and messages.
OFF ............... Hides menus, modes and messages.
LED
Species whether to light the power LED.
4. Press
RETURN
to return to the normal screen.
TIPS
• Even if LED is set to OFF, the power LED lights when a
temperature alert occurs.
Initialization (Reset)/Functional Restriction Setting (FUNCTION)
30
E
Controlling the Monitor with a PC (RS-232C)
You can control this monitor from a PC via RS-232C (COM
port) on the PC.
You can also connect multiple monitors via a daisy chain by
using a PC. By assigning ID numbers to each monitor (see
page 31), you can make input mode selection/adjustment or
can check the status of a specic monitor.
TIPS
• To control the monitor via RS-232C, set RS-232C/
LAN SELECT to RS-232C, and STANDBY MODE to
STANDARD.
• You cannot use RS-232C and LAN control simultaneously.
PC connection
n
One-to-one connection with a PC
Connect with RS-232 straight cable between the PC’s COM
port (RS-232C connector) and the RS-232C input terminal on
the monitor.
RS-232 straight cable
(commercially available)
To COM port
PC
RS-232C
input terminal
n
Daisy chain connection…
Advanced operation
PN-U553/PN-U473/PN-U423 monitors can be connected
together in a daisy chain connection.
Connect with RS-232 straight cable between the PC’s COM
port (RS-232C connector) and the RS-232C input terminal on
the rst monitor.
Next, connect RS-232 straight cable to the rst monitor’s
RS-232C output terminal and to the second monitor’s
RS-232C input terminal. Connect in the same way to the third
and subsequent monitors.
Up to 25 monitors can be connected. (Depending on the
length of the cable used and the surrounding environment.)
To COM port
RS-232 straight cables (commercially available)
PC
First monitorSecond monitor
RS-232C
input terminal
RS-232C
output terminal
Communication conditions
Set the RS-232C communication settings on the PC to match
the monitor’s communication settings as follows:
Baud rate 9600bps
Stop bit
1 bit
Data length 8 bits Flow control None
Parity bit None
Communication procedure
n
Command format
When a command is sent from the PC to the monitor, the
monitor operates according to the received command and
sends a response message to the PC.
C1 C2 C3 C4 P1 P2 P3 P4
Return code
Command field
(4 prescribed
alphanumerical characters
)
Parameter field
(4 character string comprised of:
0-9, +, -, space, ?)
Example: VOLM0030
VOLM
30
* Be sure to input 4 characters for the parameter. Pad with
spaces (“
”) if necessary.
(“
” is a return code (0D
H
, 0A
H
or 0D
H
))
Wrong : VOLM30
Right : VOLM 30
Do not use spaces for MPOS, DATE, and SH01 through
SH07. Specify parameters using a specied number of
characters.
Example: MPOS010097
If a command has “R” listed for “DIRECTION” in the
“RS-232C command table” on page 34, the current value can
be returned by using “?” as the parameter.
Example:
VOLM ? ? ? ? ←
From PC to monitor (How much
is current volume setting?).
30 ←
From monitor to PC (Current
volume setting: 30).
* If an ID number (see page 31) has been assigned
(For example, ID number = 1).
VOLM
? ←
From PC to monitor.
30 001 ←
From monitor to PC.
31
E
Controlling the Monitor with a PC (RS-232C)
n
Response code format
When a command has been executed correctly
O K
Return code
(0DH, 0AH)
A response is returned after a command is executed.
* If an ID number has been assigned
O K SPC 0 0 1
ID number of respondin
g
monitor
Space (20
H)
Return code
(0DH, 0AH)
When a command has not been executed
R R E
Return code
(0DH, 0AH)
* If an ID number has been assigned
R R E SPC 0 0 1
ID n
u
m
be
r
Space (20H)
Return code
(0DH, 0AH)
TIPS
• “ERR”isreturnedwhenthereisnorelevantcommandor
whenthecommandcannotbeusedinthecurrentstateof
the monitor.
• Ifcommunicationhasnotbeenestablishedforreasons
suchasabadconnectionbetweenthePCandmonitor,
nothingisreturned(notevenERR).
• “ERR”maybereturnedwhenacommandcannotbe
receivedcorrectlyduetointerferencefromthesurrounding
environment.
Pleaseensurethatthesystemorsoftwareretriesthe
command if this occurs.
• IfnomonitorhasbeenassignedthedesignatedIDnumber
(e.g. if the command IDSL0002
isused,butnomonitor
withIDnumber:2isfound),noresponseisreturned.
If execution of the command is taking some time
I W T A
Return code
(0DH, 0AH)
Whenthefollowingcommandsareused,“WAIT”isreturned.
Inthiscase,avaluewillbereturnedifyouwaitawhile.Donot
sendanycommandduringthisperiod.
No ID number is attached to WAIT response.
• CommandswhichreturnWAIT:
1. Whenrepeatercontrolisused
2. When an IDSL or IDLK command is used
3. Whenoneofthefollowingcommandsisused:RSET,
INPS,ASNC,WIDE,PXSL,POWR,MWIN,MWIP,
EMHV,EPHV,ESHV,ENLG,BOMD
n
Communication interval
• AfterOKorERRisreturned,youmustsendthefollowing
commands.
Tosetatimeoutforthecommandresponse,specify10
secondsorlonger.
Whenconnectingmultiplemonitorsinadaisychain,setthe
timeouttoatleasttheproductofthemonitor’spositionfrom
thecomputermultipliedby10seconds.
Example)3rdmonitorfromcomputer:30secondsorlonger.
• Provideanintervalof100msormorebetweenthe
command response and the transmission of the next
command.
VOLM0020
OK
INPS0001
WAIT
OK
Interval of 100 ms or more
TIPS
• WhenexecutingALLRESET,setthetimeoutperiodto30
secondsorlonger.
• WhenturningthepoweronwhilethePOWERONDELAY
functionisinuse,setthetimeoutperiodtothePOWERON
DELAYperiod+10secondsorlonger.
Advanced operation
Thissectionexplainscommandsfordaisychainconnection.
The basic communication procedure is the same as in the
“One-to-oneconnectionwithaPC”section.
n
ID numbers
YoucanassignauniqueIDnumbertoeachmonitor(see
page23).Thisallowsyoutocontrolaparticularmonitorina
daisychainofmonitors.
YoucanassignIDnumberseitherfromthemenuscreenor
fromthePCusingRS-232cable.
[Example]
ID number: 1 ID number: 2 ID number: 3ID number: 4
Ifmonitorsareconnectedasshownabove,youcan
executecommandslike“Setthevolumeofthemonitorwith
ID4to20”.
WhendesignatingIDnumbersforasetofmonitorslinkedina
daisychain,youshouldbasicallyavoidanyduplicationofID
numbers.
IDnumbersdonothavetobeassignedinascendingorder
startingfromthePC.Theycanalsobeconnectedasshown
below.
[E
xamp
l
e
]
ID number: 3 ID number: 2 ID number: 4ID number: 1
32
E
Controlling the Monitor with a PC (RS-232C)
n
Commands for ID control
Thecommandexamplesshownonthispageassumethe
followingconnectionandIDnumbersetup.
ID number: 1 ID number: 2 ID number: 3ID number: 4
IDST .........AmonitorreceivingthiscommandsetsitsownID
numberintheparametereld.
Example:
IDST0001
OK
001 ←
The ID number of this monitor is set to 1.
TIPS
YoucanautomaticallyassignIDnumbersbyusingtheIDST
commandwiththeRepeatercontrol(see“Repeatercontrol”
onpage33).
Forexample,usingthecommand“IDST001+”automatically
setstheIDnumbers,asshownbelow.
[Example]
ID number: 1 ID number: 2 ID number: 3ID number: 4
IDST001+ ←
IDsettingcommandwithrepeatercontrol
WAIT
OK
001 ←
“OK”responsefromIDnumber:1
OK 002 ←
“OK”responsefromIDnumber:2
OK 003 ←
“OK”responsefromIDnumber:3
OK 004 ←
“OK”responsefromIDnumber:4(End)
IDSL ........The parameter of this command sets the ID number
of the monitor. The monitor is subject to the next
command.
Example:
IDSL0002 ←
The next command is for the monitor
withIDnumber:2.
WAIT ←
SearchingformonitorwithIDnumber:
2
OK 002 ←
FoundmonitorwithIDnumber:2
VOLM0030 ←
SetsvolumeofmonitorwithID
number:2to30.
WAIT ←
Processing
OK 002 ←
OKresponsefrommonitorwithID
number:2
VOLM0020 ←
Setsvolumeto20.
OK 001 ←
ThevolumeofthemonitorwithID
number:1(theonedirectlyconnected
tothePC)issetto20.*
* TheIDSLcommandiseffectiveonlyonce,forthe
immediatelysucceedingcommand.
IDLK ........
The parameter of this command sets the ID
numberofthemonitor.Themonitorissubjecttoall
subsequentcommands.
Example:
IDLK0002 ←
Followingcommandsareforthemonitor
withIDnumber:2.
WAIT ←
SearchingformonitorwithIDnumber:
2
OK 002 ←
FoundmonitorwithIDnumber:2
VOLM0030 ←
SetsvolumeofmonitorwithID
number:2to30.*
WAIT ←
Processing
OK 002
VOLM0020 ←
SetsvolumeofmonitorwithID
number:2to20.*
WAIT
OK
002
IDLK0000 ←
CancelingxedIDnumbersetting
WAIT ←
CancelingIDLK
OK 002 ←
Cancelationcomplete
VOLM0010
OK
001 ←
ThevolumeofthemonitorwithIDnumber:
1(theonedirectlyconnectedtothePC)is
setto10.(IDLKiscanceled.)
* TheIDLKcommandremainseffectiveuntilitis
canceled,orpowerisshutoff.
33
E
Controlling the Monitor with a PC (RS-232C)
n
Repeater control
This system has a function to allow setting of multiple
monitors connected in a daisy chain using a single command.
This function is called repeater control. You can use Repeater
control function without assigning ID numbers.
[Example]
Set 1
Set 2 Set 3Set 4
* If monitors are connected as shown above, you can
execute a command like “Set all monitors’ input settings to
D-SUB”.
n
Repeater control command
Repeater control is achieved by setting the FOURTH
CHARACTER of the parameter to “+”.
Example:
VOLM030 + ←
Sets volume of all monitors to 30.
In repeater control, responses are returned by all the
connected monitors.
If you want to determine that a value has been returned by a
specic set, assign ID numbers to each monitor in advance.
When some monitors do not return their responses, the
probable cause is that the monitors could not receive the
command or command processing is not complete. Do not
send a new command.
Example: (When 4 monitors are connected, and
assigned ID numbers: 1 through 4)
VOLM030 +
WAIT
OK
001
OK
002
OK
003
OK
004 ← If 4 monitors are connected in
a chain, reliable operation can
be ensured by sending a new
command only after a reply
has been returned by 4th (last)
monitor.
Repeater control can also be used for reading settings.
Example:
VOLM ? ? ? +
WAIT
10
001
Volume settings for all
monitors are returned.
20
002
30
003
30
004
TIPS
• If repeater control is used during ID designation (IDSL,
IDLK), the ID designation is canceled.
34
E
RS-232C command table
How to read the command table
Command: Command eld (See page 30.)
Direction: W When the “Parameter” is set in the parameter eld (see page 30), the command functions as described
under “Control/Response Contents”.
R The returned value indicated under “Reply” can be obtained by setting “????”, “
?” or “???+”
(repeater control) in the parameter eld (see page 30).
Parameter: Parameter eld (See page 30.)
Reply: Response (Returned value)
* : “○” indicates a command which can be used in power standby mode.
“–” indicates a command which cannot be used in power standby mode.
(When STANDBY MODE is STANDARD. When set to LOW POWER, RS-232C commands cannot be used.)
Power control/Input mode selection
Function
Command Direction
Parameter Reply Control/Response contents *
POWER CONTROL POWR W 0
Switches to standby mode.
○
1 Returns from standby mode.
R 0 Standby mode
1 Normal mode
2 Input signal waiting mode
INPUT MODE SELECTION INPS W 0 Toggle change for input mode.
1 DVI-D
2 D-SUB
3 COMPONENT
4 VIDEO
9 HDMI
14 DisplayPort
R 1 DVI-D
2 D-SUB
3 COMPONENT
4 VIDEO
9 HDMI
14 DisplayPort
SCREEN menu
Function
Command Direction
Parameter Reply Control/Response contents *
AUTO ASNC W 1 When the input mode is D-SUB.
-
SELF ADJUST AADJ WR 0-1 0-1 0: OFF, 1: ON
○
CLOCK CLCK WR 0-100 0-100 When the input mode is D-SUB.
-
PHASE PHSE WR 0-100 0-100 When the input mode is D-SUB.
POSITIONING POSITION OF
THE LONGEST
DIRECTION
HPOS WR 0-100 0-100 When the input mode is D-SUB.
POSITION OF
THE SHORTEST
DIRECTION
VPOS WR 0-100 0-100 When the input mode is D-SUB.
SIZE (DVI-D, DisplayPort, D-SUB) WIDE WR 1-3,6 1-3,6 1: WIDE, 2: NORMAL, 3: Dot by Dot, 6: CUSTOM
SIZE (HDMI, COMPONENT, VIDEO) WIDE WR 1,4-6 1,4-6 1: WIDE, 4: NORMAL, 5: Dot by Dot, 6: CUSTOM
CUSTOM ZOOM ZOOM CZSZ WR 0-100 0-100
SIZE OF THE
LONGEST
DIRECTION
CZHS WR 0-100 0-100
SIZE OF THE
SHORTEST
DIRECTION
CZVS WR 0-100 0-100
POSITION OF
THE LONGEST
DIRECTION
CZHP WR 0-100 0-100 When the input mode is D-SUB.
POSITION OF
THE SHORTEST
DIRECTION
CZVP WR 0-100 0-100 When the input mode is D-SUB.
INPUT
RESOLUTION
(DVI-D, DisplayPort,
D-SUB)
RESOLUTION CHECK
PXCK R
-
Returns current resolution in the form of hhh, vvv.
PIXEL SETTING
(D-SUB)
PXSL WR
1 1 768) 1360 x 768
2 2 768) 1280 x 768
3 3 768) 1024 x 768
7 7 1050) 1680 x 1050
8 8 1050) 1400 x 1050
9 9 768) AUTO
11 11 1200) 1920 x 1200
12 12 1200) 1600 x 1200
13 13 1050) AUTO
14 14 1200) AUTO
INPUT RESOLUTION
(HDMI, COMPONENT,
VIDEO)
RESOLUTION CHECK
RESO R - 480i, 480p, 1080i, 720p, 1080p, etc.
RESET ARST W 1
Controlling the Monitor with a PC (RS-232C)
35
E
PICTURE menu
Function
Command Direction
Parameter Reply Control/Response contents *
BRIGHT VLMP WR 0-31 0-31
○
CONTRAST CONT WR 0-100 0-100
BLACK LEVEL BLVL WR 0-100 0-100
TINT (HDMI, COMPONENT, VIDEO) TINT WR 0-100 0-100
COLORS (HDMI, COMPONENT, VIDEO) COLR WR 0-100 0-100
SHARPNESS SHRP WR 0-100 0-100
COLOR
ADJUSTMENT
COLOR MODE BMOD WR 0 0 STD
3 3 sRGB (When the input mode is DVI-D, DisplayPort, D-SUB)
4 4 HIGH ILLUMINANCE
WHITE
BALANCE
THRU CTMP WR 0 0
PRESET 1-18 1-18
From 1: approximately 3,000K to 15: approximately 10,000K (500K steps)
16: approximately 5,600K, 17: approximately 9,300K, 18: approximately 3,200K
USER 99 99
R-GAIN CRTR WR 0-256 0-256 “ERR” when CTMP is not set to 99.
G-GAIN CRTG WR 0-256 0-256
B-GAIN CRTB WR 0-256 0-256
R-OFFSET OFSR WR 0-255 0-255
G-OFFSET OFSG WR 0-255 0-255
B-OFFSET OFSB WR 0-255 0-255
GAMMA GAMM WR 0-2, 5 0-2, 5 0: 1.8, 1: 2.2, 2: 2.4, 5: 2.0
ADVANCED NOISE REDUCTION
(HDMI, COMPONENT, VIDEO)
TDNR WR 0-2 0-2 0: OFF, 1: LOW, 2: HIGH
HDMI RGB INPUT RANGE
(HDMI)
AHDR WR 1-2 1-2 1: FULL, 2: LIMITED
RESET ARST W 2
-
AUDIO menu
Function
Command Direction
Parameter Reply Control/Response contents *
TREBLE AUTR WR 0-100 0-100
○
BASS AUBS WR 0-100 0-100
BALANCE AUBL WR 0-100 0-100
RESET ARST W 3
-
Controlling the Monitor with a PC (RS-232C)
36
E
SETUP menu
Function
Command Direction
Parameter Reply Control/Response contents *
DATE/TIME SETTING DATE WR
AABBCCDDEE AABBCCDDEE
AA: Year, BB: Month, CC: Day, DD: Hour, EE: Minute
○
SCHEDULE SH01-
SH07
WR ABBCCDDEEF
GHIJKLMNO
ABBCCDDEEF
GHIJKLMNO
Schedule of a specied number
A : Schedule 0= Not effective, 1 = Effective
B : Power-on hour 00-23, 99 = Not effective
C : Power-on minute 00-59, 99 = Not effective
D : Power-off hour 00-23, 99 = Not effective
E : Power-off minute 00-59, 99 = Not effective
F : Input 0 = Not specied, 1 = DVI-D, 2 = DisplayPort,
3 = HDMI, 4 = D-SUB, 5 = COMPONENT, 6 = VIDEO
G : EVERY DAY 0 = OFF, 1 = ON
H : EVERY WEEK 0 = OFF, 1 = ON
I-O : MON-SUN 0 = OFF, 1 = ON
LANGUAGE LANG WR 14 14 ENGLISH
1 1 DEUTSCH
2 2 FRANÇAIS
3 3 ITALIANO
4 4 ESPAÑOL
5 5 РУССКИЙ
6 6
INPUT SELECT
HOT PLUG
CONTROL (DVI-D)
HPCT WR 0-1 0-1 0: OFF, 1: ON
HOT PLUG
CONTROL (HDMI)
HPCH WR 0-1 0-1 0: OFF, 1: ON
AUDIO SELECT DVI-D
ASDP WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
D-SUB
ASAP WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
HDMI
ASHA WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
COMPONENT
ASCA WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
VIDEO
ASVA WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
DisplayPort
ASDI WR 1-3 1-3
1: AUDIO1, 2: AUDIO2, 3: DisplayPort
ID SETTING ID NO.SETTING IDST W 0-26 Sets the monitor’s ID number. (“0” means “no ID number”.)
R 0-26 Returns the monitor’s ID number.
ID NO. SETTING
(ONCE)
IDSL W 1-26 Sets a monitor ID number.
This ID number is only effective for the command immediately after this
command.
0 Clears the ID number if one has been designated.
ID NO. SETTING
(SUBSEQUENT)
IDLK W 1-26 Sets a monitor ID number.
This ID number is effective for the next and all subsequent commands after this
command.
0 Clears the ID number if one has been designated.
INFORMATION MODEL INF1 R Value
SERIAL NO SRNO R Value
MONITOR menu
Function
Command Direction
Parameter Reply Control/Response contents *
MONITOR STDR WR 0-1 0-1 0: LANDSCAPE, 1: PORTRAIT
○
OSD H-POSITION OSDH WR 0-100 0-100
OSD V-POSITION OSDV WR 0-100 0-100
STANDBY MODE STBM WR 0-1 0-1 0: STANDARD, 1: LOW POWER
OFF IF NO OPERATION ATOF WR 0-1 0-1 0: OFF, 1: ON
POWER ON DELAY PWOD WR 0-60 0-60 0: OFF, 1-60 seconds
Controlling the Monitor with a PC (RS-232C)
37
E
MULTI/PIP menu
Function
Command Direction
Parameter Reply Control/Response contents *
ENLARGE ENLG WR 0-1 0-1 0: OFF, 1: ON
-
ENLARGE MODE EMHV WR 11-55 11-55 1 x 1 (OFF) to 5 x 5 (“m x n” is expressed as “mn”, where m and n are the
numbers of monitors specied for the longest direction and the shortest direction
respectively.)
IMAGE POSITION (M x N) EPHV WR 11-55 11-55 Species values in the order of IMAGE POSITION IN LONGEST/ SHORTEST
DIRECTION.
BEZEL ADJUST BZCO WR 0-1 0-1 0: OFF, 1: ON
ENLARGE/IMAGE POSITION SETTING ESHV WR XXYY XXYY XX: ENLARGE MODE (Same as EMHV), YY: IMAGE POSITION (Same as
EPHV)
PIP MODES MWIN WR 0-3 0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2
PIP SIZE MWSZ WR 0-2 0-2 0: SMALL, 1: MIDDLE, 2: LARGE
○
PIP POS THE LONGEST
DIRECTION
MHPS W 0-100
R 0-100
THE SHORTEST
DIRECTION
MVPS W 0-100
R 0-100
PIP POS LD+SD BATCH MPOS W 0-100,0-100 Specify the position in MPOSxxxyyy format.
(xxx: Longer side, yyy: Shorter side position)
R 0-100,0-100 Returns a response in (xxx,yyy) format.
(xxx: Longer side, yyy: Shorter side position)
PIP SOURCE MWIP WR 1 1 DVI-D
2 2 D-SUB
3 3 COMPONENT
4 4 VIDEO
9 9 HDMI
14 14 DisplayPort
SOUND CHANGE MWAD WR 1-2 1-2 1: MAIN, 2: SUB
OTHERS menu
Function
Command Direction
Parameter Reply Control/Response contents *
SCREEN MOTION MTIM WR 0-900 0-900 0: OFF, 10-900: Operating interval (Per 10 senconds)
○
POWER MANAGEMENT
(DisplayPort, HDMI, DVI-D, D-SUB)
PMNG WR 0-1 0-1 0: OFF, 1: ON
POWER MANAGEMENT
(COMPONENT, VIDEO)
PMAV WR 0-1 0-1 0: OFF, 1: ON
LOGO SCREEN BTSC WR 0-1 0-1 0: OFF, 1: ON
SCAN MODE SCAN WR 0-1 0-1 0: OVERSCAN, 1: UNDERSCAN
(When the input mode is HDMI)
-
BACKLIGHT OFF BOMD W 0-1 0: Enters BACKLIGHT OFF mode, 1: Exits BACKLIGHT OFF mode
R 0-1 0: BACKLIGHT OFF mode, 1: Normal operation state
COLOR SYSTEM (VIDEO) CSYS WR 0-5 0-5 0: AUTO, 1: PAL, 2: PAL-60, 3: SECAM, 4: NTSC3.58, 5: NTSC4.43
○
Initialization/Functional Restriction Setting (FUNCTION) menu
Function
Command Direction
Parameter Reply Control/Response contents *
ALL RESET RSET W 1 1: ALL RESET -
ADJUSTMENT LOCK ALCK WR 0-1 0-1 0: OFF, 1:ON
○
OSD DISPLAY LOSD WR 0-1 0-1 0: ON, 1: OFF
LED OFLD WR 0-1 0-1 0: ON, 1: OFF
Controlling the Monitor with a PC (RS-232C)
38
E
Others
Function
Command Direction
Parameter Reply Control/Response contents *
VOLUME VOLM WR 0-31 0-31
○
MUTE MUTE WR 0-1 0-1 0: OFF, 1: ON -
TEMPERATURE SENSOR DSTA R 0 Internal temperature normal
○
1 Internal temperature abnormal has occurred and the monitor is in standby mode
2 Internal temperature abnormal occurred (To delete the information of temperature
abnormal, turn off the main power.)
3 Internal temperature abnormal has occurred and backlight brightness is dimmed
4 Temperature sensor abnormal
TEMPERATURE ACQUISITION ERRT R Value Returns the temperature at the temperature sensors in the following format.
[Sensor 1] [Sensor 2]
Indicates a temperature sensor abnormality when “126” is returned.
CAUSE OF LAST STANDBY MODE STCA W 0 Initialization
R 0 No detectable error has occurred
1 Standby mode by POWER button
2 Main power off by the main power switch
3 Standby mode by RS-232C or LAN
4 Input signal waiting mode by No Signal
6 Standby mode by abnormal temperature
8 Standby mode by SCHEDULE setting
20 Standby mode by OFF IF NO OPERATION setting
TIPS
• With some commands, the settings of an item are not continuous. In that case, the entered parameter will be set to the
closest setting.
(Example) When the settings are “...45, 50, 55...” :
The entered parameter is “50”, “51”, or “52”, “50” is set.
The entered parameter is “53”, “54”, or “55”, “55” is set.
• With some commands, the number set in the menu screen may differ from the number of the parameter.
Controlling the Monitor with a PC (RS-232C)
39
E
Your monitor can be connected to a LAN allowing you to
control it from a PC on the LAN.
The connection requires a commercially available LAN cable
(UTP cable, Category 5, straight through).
Hub
LAN terminal
LAN cable (commercially available, straight)
Network (LAN)
TIPS
• You must assign an IP address to the monitor by following
the procedures in “Settings to connect to a LAN”. (See the
description on the right.)
• Your PC must be installed with Internet Explorer (version 7.0
or later).
- Version 7, 8, or 9 of Internet Explorer is recommended.
- Use Internet Explorer Version 10 in compatibility mode.
• To control the monitor via LAN, set RS-232C/LAN SELECT
to LAN, and STANDBY MODE to STANDARD.
• You cannot use RS-232C and LAN control simultaneously.
Controlling the Monitor with a PC (LAN)
Settings to connect to a LAN
Set the monitor’s IP address and subnet mask to match the
settings of your LAN.
These settings can be made on either the monitor or a PC
connected to the monitor.
The settings depend on the conguration of your LAN. Ask
your LAN administrator for details.
■ To set on the monitor
Set RS-232C/LAN SELECT of COMMUNICATION SETTING
on the SETUP menu to LAN, and then set the LAN SETUP
options. (See page 23.)
After setting each item, press
RETURN
.
DHCP CLIENT
If your LAN has a DHCP server and you wish to obtain an
address automatically, change this setting to ON.
To set the address manually, set this to OFF.
IP ADDRESS
If the DHCP CLIENT is set to OFF, specify an IP address.
Press
or to select items, and press or to
change the values.
SUBNET MASK
If the DHCP CLIENT is set to OFF, specify the subnet mask.
Press
or to select items, and press or to
change the values.
DEFAULT GATEWAY
If the DHCP CLIENT is set to OFF, specify the default
gateway.
If you are not using a gateway, specify “000.000.000.000”.
Press
or to select items, and press or to
change the values.
40
E
■ To set from a PC
When the monitor is connected to a PC, LAN settings can be
congured via PC.
Set up process
(1) Connect your monitor to a PC
(2) Specify the PC’s IP address
(3) Congure the monitor’s LAN settings
(1) Connecting your monitor to a PC
Connect a commercially available crossover LAN cable
(UPT cable, Category 5) to the LAN port on the PC and this
monitor.
LAN cable
(commercially available, crossover)
To LAN terminal
PC
LAN terminal
(2) Specifying the PC’s IP address
To congure the monitor’s LAN settings, you must temporarily
change the settings on the PC.
This explanation is based on Windows 7.
1. Log on to the PC with an administrator account.
2. Click [Start], and then click “Control Panel”.
3. Click “View network status and tasks” in “Network and
Internet”.
In “Classic View”, click “Network and Sharing Center”.
4. Click “Local Area Connection” and then “Properties”.
5. Click “Internet Protocol Version 4 (TCP/IPv4)” and then
“Properties”.
6. Make a note of the current IP address, subnet mask, and
default gateway settings.
Make sure you write this information now as you will
be changing the IP address, subnet mask, and default
gateway settings back to these settings afterwards.
7. Temporarily change the IP address and subnet mask.
To access the monitor as it is shipped from the factory, set
as follows.
• IP Address: 192.168.150.1
• Subnet Mask: 255.255.255.0
• Default Gateway: (leave blank)
8. Click [OK] and then reboot the PC.
TIPS
• This monitor is factory preset as shown below.
(When DHCP CLIENT is set to OFF)
IP Address : 192.168.150.2
Subnet Mask : 255.255.255.0
Default Gateway : 0.0.0.0
(3) Conguring the monitor’s LAN settings
Access the monitor using Internet Explorer.
Controlling the monitor
1. Turn the power ON to the monitor.
2. Set RS-232C/LAN SELECT of COMMUNICATION
SETTING on the SETUP menu to LAN.
3. Set DHCP CLIENT of LAN SETUP of COMMUNICATION
SETTING on the SETUP menu to OFF.
PC operation
4. Launch Internet Explorer, in the “Address” box type
“http://192.168.150.2/” and press the Enter key.
5. Leave the “Username
”
and “Password
”
boxes blank and
click [Login].
Controlling the Monitor with a PC (LAN)
41
E
6. Click SETUP.
7. Click [ ] next to LAN SETUP.
8. Specify the DHCP CLIENT, IP ADDRESS,etc.
DHCP CLIENT
If your LAN has a DHCP server and you wish to obtain an
address automatically, change this setting to ON.
To set the address manually, set this to OFF.
IP ADDRESS
If the DHCP CLIENT is set to OFF, specify an IP address.
SUBNET MASK
If the DHCP CLIENT is set to OFF, specify the subnet mask.
DEFAULT GATEWAY
If the DHCP CLIENT is set to OFF, specify the default gateway.
If you are not using a default gateway, specify “0.0.0.0”.
9. When the setting is changed, click [Apply].
10
. Exit Internet Explorer.
11
. Restore the PC’s IP address jotted in Step 6, “(2)
Specifying the PC’s IP address”.
12
. Connect the monitor and the PC to the LAN.
Controlling with a PC
■ Basic operation
You use Internet Explorer on a PC on the LAN to control the
monitor.
1. Launch Internet Explorer on the PC.
2.
In the “Address” box, type “http://” followed by your monitor’s
IP address followed by “/”, then press the Enter key.
3. Enter in “Username” and in “Password”, and click [Login].
Enter the user name and password set in SECURITY.
If you did not make any SECURITY settings, leave the
spaces blank and click on [Login].
4. You can congure settings in each setting screen.
TIPS
• You cannot operate the monitor while it is warming up.
Controlling the Monitor with a PC (LAN)
42
E
Controlling the Monitor with a PC (LAN)
■ PC operation
1
2
3
5
4
SCREEN Page 21
PICTURE Page 22
INPUT SOURCE Page 18
AUDIO Page 23
VOLUME Page 18
SETUP Page 23
SCHEDULE Page 27
LAN SETUP Page 43
MONITOR Page 24
MULTI/PIP Page 24
OTHERS Page 25
SNMP Page 43
FUNCTION Page 29
For details on each item, see below.
1. Display a setting screen.
2. Click [+][-] to adjust. If there is a text box,
you can also directly enter a number.
3. Click [
] and adjust in the screen that
appears.
4. Click and select an item from the menu that
appears.
5. Click to turn the power on/off.
*
Make sure that the setting is applied before
performing the next step.
If clicked repeatedly, the setting may not be
properly applied.
43
E
■ LAN SETUP / SECURITY / GENERAL
This screen allows you to set the settings necessary when the
monitor is connected to a LAN.
DHCP CLIENT
If your LAN has a DHCP server and you wish to obtain an
address automatically, change this setting to ON.
To set the address manually, set this to OFF.
IP ADDRESS
If the DHCP CLIENT is set to OFF, specify an IP address.
SUBNET MASK
If the DHCP CLIENT is set to OFF, specify the subnet mask.
DEFAULT GATEWAY
If the DHCP CLIENT is set to OFF, specify the default
gateway.
If you are not using a default gateway, specify “0.0.0.0”.
USER NAME / PASSWORD / Conrm PASSWORD
Sets up a user name and password to restrict access to this
monitor.
For conrmation, reenter the password you entered in
PASSWORD in Conrm PASSWORD.
AUTO LOGOUT TIME
Specify the time (in minutes) to elapse before automatically
disconnecting this monitor from the network.
Specify in minutes from 1 to 65535. A value of ‘0’ will disable
this function.
DATA PORT
Specify the TCP port number to use for exchanging data with
the monitor.
Specify a value from 1025 to 65535.
SEARCH PORT
Specify the port number to use when searching for this
monitor.
Specify a value from 1025 to 65535.
TIPS
• After you have changed the settings, click [Apply].
• After you have changed the settings in DATA PORT and
SEARCH PORT, click [Reboot].
Controlling the Monitor with a PC (LAN)
■ SNMP
You can congure settings related to SNMP.
SNMP SETTING
Set whether to enable or disable SNMP.
COMMUNITY NAME 1 to 3
Set the name of the community required for the access.
TRAP SETTING
Set whether to enable or disable the trap function.
When this function is enabled, a trap will be sent when the
monitor is turned on.
TRAP SETTING OF AUTHENTICATION ERROR
Set whether the trap function sends a notication when
authentication fails.
TRAP ADDRESS & PORT
Set the destination address and port number of the
notication sent by the trap function.
TIPS
• After you have changed the settings, click [Apply].
44
E
Controlling the Monitor with a PC (LAN)
“Advanced operation”
Command-based control
You can control the monitor using RS-232C commands
(see page 34) via terminal software and other appropriate
applications.
In order to use this function, enable a connection to the
monitor through Internet Explorer.
Read the manual for the terminal software for detailed
instructions.
(1) Connect the PC to the monitor.
1. Specify the IP address and data port number and
connect the PC to the monitor.
When connection has been established successfully,
[
Login:] is returned as response.
2. Send the user name set in the SECURITY settings (see
page 43).
• Send [User name] + [
].
• If the user name is not set, send [
].
• When the transmission is successful, [
Password:]
is returned as response.
3. Send the password set in the SECURITY settings (see
page 43).
• Send [Password] + [
].
• If the password is not set, send [
].
• When the transmission is successful, [OK
] is
returned as response.
(2) Send commands to control the monitor.
• The commands used are the same as those for RS-
232C. Refer to the communication procedure (see
page 30) for operation.
• Usable commands are provided in the RS-232C
command table (see page 34).
(3) Disconnect the connection with the monitor and
quit the function.
1. Send [BYE ].
When the transmission is successful, [goodbye] is
returned and the connection is disconnected.
TIPS
• Connection is automatically disconnected when the
time specied in AUTO LOGOUT TIME elapses over a
no-communication period.
45
E
Troubleshooting
If you are experiencing any problem with your display, before
calling for service, please review the following troubleshooting
tips.
There is no picture or sound.
• Is the power cord disconnected? (See page 13.)
• Is the main power switch off? (See page 16.)
• Is the monitor in standby mode (the power LED illuminating
in orange)? (See page 16.)
• Make sure correct input mode is selected. (See page 18.)
• If any external equipment is connected, make sure the
equipment is operating (playing back).
Remote control does not work.
• Are the batteries inserted with polarity (+,-) aligned? (See
page 15.)
• Are the batteries exhausted?
• Point the remote control unit toward the monitor’s remote
control sensor. (See page 15.)
• Is the menu display hidden or is operation disabled? (See
page 29.)
Sound from left and right speakers is reversed.
Sound is heard from only one side.
• Are audio cables connected properly?
• Check the setting of BALANCE for AUDIO menu. (See
page 23.)
There is a picture but no sound.
• Is the sound muted?
• Make sure the volume is not set to minimum.
• Are audio cables connected properly?
• Is the setting of AUDIO SELECT on the SETUP menu
correct? (See page 23.)
Unstable video.
• The signal may be incompatible.
• Try the automatic screen adjustment when the D-SUB is
used.
The video from the HDMI input terminal does not appear
properly.
• Is the HDMI cable HDMI standard compliant? The monitor
will not work with cables that are not standard compliant.
• Is the input signal compatible with this monitor? (See page
51.)
The video from the DVI-D input terminal does not appear
properly.
• Is the input signal compatible with this monitor? (See page
51.)
• Turn off the power to the connected equipment and then
turn the power on again.
• If the monitors are connected in a daisy chain, turn off the
power to all the monitors connected in a daisy chain and
then turn the power on again.
The video from D-Sub input terminal does not appear
properly.
• Is the input signal compatible with this monitor? (See page
51.)
The video from the DisplayPort does not appear properly.
• Is the input signal compatible with this monitor? (See page
51.)
The video from component input terminals does not
appear properly.
• Is the video cable (Y/Cb/Cr) connected correctly?
• Is the input mode set to COMPONENT?
The video will not appear correctly if the input mode is set
to VIDEO.
The video from video input terminal does not appear
properly.
• Is the input mode set to VIDEO?
The video will not appear correctly if the input mode is set
to COMPONENT.
Control buttons do not work.
There is no picture.
• Load noises from outside may be interfering with normal
operation. Turn off the power and turn it on after waiting at
least 5 seconds, and then check the operation.
The monitor makes a cracking sound.
• You may occasionally hear a cracking sound from the
monitor. This happens when the cabinet slightly expands
and contracts according to change in temperature. This
does not affect the monitor’s performance.
46
E
The Power LED is ashing in red and green alternately.
• When the internal temperature of the monitor rises
excessively, the brightness of the backlight decreases
automatically in order to prevent high-temperature-related
problems. When this occurs, the Power LED ashes red
and green alternately.
• If the internal temperature rises further, the monitor
automatically enters standby mode. (The Power LED
continues ashing red and green alternately.)
• Remove the cause of the excessive temperature rise.
- If the monitor enters standby mode due to a rise in
temperature, to return to normal display, turn the power
switch off and then back on again. The monitor, however,
will enter standby mode again if the cause of the
temperature rise is not eliminated. (See page 7.)
- Check whether the monitor is placed at a location where
a quick rise in temperature is likely. Internal temperature
rises quickly if the vents on the monitor are blocked.
- Internal temperature rises quickly if dust accumulates
inside the monitor or around the vents. Remove dust if
possible. Ask SHARP dealer about removing internal dust.
Troubleshooting
47
E
Specications
n
Product Specications
Model PN-U553 PN-U473 PN-U423
LCD component
55" Class [54-5/8 inch
(138.8cm) diagonal]
TFT LCD
47" Class [46-15/16
inch (119.3cm)
diagonal] TFT LCD
42" Class [42 inch
(106.7cm) diagonal]
TFT LCD
Max. resolution (pixels)
1920 x 1080
Max. colors
Approx. 1.06 billion colors
Pixel pitch
0.630 mm (H) ×
0.630 mm (V)
0.542 mm (H) ×
0.542 mm (V)
0.485 mm (H) ×
0.485 mm (V)
Viewing angle
178° right/left/up/down (contrast ratio ≥ 10)
Screen active area inch (mm)
47-5/8 (W) x 26-13/16 (H)
(1209.6 x 680.4)
40-15/16 (W) x 23 (H)
(1039.7 x 584.8)
36-5/8
(W) x 20-5/8 (H)
(930.2 x 523.3)
Computer input signal
Digital (DVI 1.0 standard-compliant), Analog RGB (0.7 Vp-p) [75 Ω],
DisplayPort 1.1
Sync signal
Horizontal/vertical separate (TTL: positive/negative)
Video color system
NTSC (3.58MHz)/NTSC (4.43MHz)/PAL/PAL-60/SECAM
Plug and play
VESA DDC2B
Power management
VESA DPMS, DVI DMPM
Input terminals
PC/AV HDMI x 1
PC Mini D-sub 15 pin, 3 rows x 1
DisplayPort x 1
DVI-D 24 pin (HDCP compatible) x 1
AV Component: BNC (Y, Cb/Pb, Cr/Pr) x 1
*
1
Composite video: BNC x 1
*
1
Audio
3.5 mm mini stereo jack x 1
RCA pin (L/R) x 1
Serial (RS-232C)
D-sub 9 pin x 1
Output terminals PC
DVI-D 24 pin (HDCP compatible) x 1
Audio
RCA pin (L/R) x 1
Serial (RS-232C)
D-sub 9 pin x 1
LAN terminal 10 BASE-T/100 BASE-TX
Speaker output 10 W + 10 W
Power requirement AC 100 - 240 V, 1.5 A,
50/60 Hz
AC 100 - 240 V, 1.5 A,
50/60 Hz
AC 100 - 240 V, 1.3 A,
50/60 Hz
Operating temperature
*
2
41°F to 104°F
(5°C to 40°C)
*
3
32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption
(Input signal waiting mode / standby mode
*
4
)
130 W (4.5 W / 4.5 W) 130 W (4.5 W / 4.5 W) 115 W (4.5 W / 4.5 W)
Dimensions (excluding protrusions) inch (mm)
Approx. 49-3/16 (W) x
2-1/4 (D) x 28-3/8 (H)
(1250 x 57 x 721)
Approx. 42-5/8 (W) x
2-3/16 (D) x 24-11/16 (H)
(1083 x 55 x 627)
Approx. 38-5/16 (W) x
2-1/4 (D) x 22-1/4 (H)
(973 x 57 x 565)
Weight lbs. (kg)
Approx. 55.2 (25) Approx. 41.9 (19) Approx. 35.3 (16)
*1 Cannot be used simultaneously.
*2 Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such
cases, please check the temperature condition specied by the optional equipments.
*3 Use of the monitors in temperatures below 50°F (10°C) might result in inconsistent image quality that, depending on the viewing angle,
might be noticeable along the edges of the screen. Please note that this is not a malfunction and does not affect monitor operation.
*4 When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER: 0.5 W
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
48
E
Specications
n
Dimensional Drawings
Note that the values shown are approximate values.
Opening height
(26-7/8 [683])
Opening width (47-11/16 [1212])
28-3/8 [721]
49-3/16 [1250]
Opening width (41-1/8 [1044])
24-11/16 [627]
42-5/8 [1083]
Opening width (36-3/4 [934])
Opening height
(
20-3/4
[
527])
22-1/4 [565]
38-5/16 [973]
1
[
26
]
2-1/4
[57]
VESA holes *
VESA holes *
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
1-1/16
[
27
]
1-1/16
[
27
]
2-3/16
[55]
Opening height
(
23-1/8
[
588])
2-1/4
[57]
7-7/8
[200]
VESA holes *
Unit: inch [mm]
Unit: inch [mm]
Unit: inch [mm]
7-7/8
[200]
[PN-U553]
[PN-U473]
[PN-U423]
When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.
SHARP recommends using M6 screws and tighten the screws.
Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in
serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch
(8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times
or more the weight of the monitor.
49
E
n
Power management
This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in
order for the monitor’s power management function to work.
DPMS: Display Power Management Signaling
DPMS Screen
Power
consumption*
Hsync Vsync
ON STATE Display
130 W
130 W
115 W
Yes Yes
STANDBY
No
display
4.5 W
4.5 W
4.5 W
No Yes
SUSPEND Yes No
OFF STATE No No
DMPM: Digital Monitor Power Management
DMPM Screen
Power
consumption*
Monitor ON Display
130 W
130 W
115 W
Active OFF No display
4.5 W
4.5 W
4.5 W
* Values of the PN-U553, PN-U473, and PN-U423 in that order from the top.
n
DDC (plug and play)
The monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters
is exchanged between the two. This function can be used if the computer supports DDC and it has been congured to detect
plug-and-play monitors.
There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.
Specications
50
E
n
Compatible signal timing (PC)
* Displays a reduced image, except in Dot by Dot. In Dot by Dot, the image will be cut down to panel size then displayed.
VESA
Wide
US TEXT
Sun
Screen resolution Hsync Vsync Dot frequency
Digital
640 × 480
800 × 600
848 × 480
1024 × 768
1152 × 864
1280 × 768
1280 × 800
1280 × 960
1280 × 1024
1360 × 768
1400 × 1050
1440 × 900
1600 × 1200
*
1680 × 1050
1920 × 1200
*
1280 × 720
1920 × 1080
720 × 400
1024 × 768
1152 × 900
1280 × 1024
1600 × 1000
31.5kHz
37.9kHz
37.5kHz
35.1kHz
37.9kHz
48.1kHz
46.9kHz
31.0kHz
48.4kHz
56.5kHz
60.0kHz
67.5kHz
47.8kHz
60.3kHz
49.7kHz
60.0kHz
64.0kHz
80.0kHz
47.7kHz
65.3kHz
55.9kHz
75.0kHz
65.3kHz
74.0kHz
44.7kHz
66.3kHz
67.5kHz
31.5kHz
48.3kHz
53.6kHz
56.6kHz
61.8kHz
71.8kHz
71.7kHz
81.1kHz
68.6kHz
60Hz
72Hz
75Hz
56Hz
60Hz
72Hz
75Hz
60Hz
60Hz
70Hz
75Hz
75Hz
60Hz
75Hz
60Hz
60Hz
60Hz
75Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
70Hz
60Hz
66Hz
70Hz
66Hz
76.2Hz
67.2Hz
76Hz
66Hz
25.175MHz
31.5MHz
31.5MHz
36.0MHz
40.0MHz
50.0MHz
49.5MHz
33.75MHz
65.0MHz
75.0MHz
78.75MHz
108.0MHz
79.5MHz
102.25MHz
83.5MHz
108.0MHz
108.0MHz
135.0MHz
85.5MHz
121.75MHz
106.5MHz
162.0MHz
146.25MHz
154.0MHz
74.4MHz
148.5MHz
148.5MHz
28.3MHz
64.13MHz
70.4MHz
74.25MHz
94.88MHz
108.23MHz
117.01MHz
134.99MHz
135.76MHz
Yes
Yes
Yes
-
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-
-
-
-
-
-
-
-
Analog
(D-SUB)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DVI-DHDMI
Yes
Yes
Yes
-
Yes
Yes
Yes
-
Yes
Yes
Yes
Yes
-
-
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-
-
-
-
-
-
-
-
DisplayPort
Yes
Yes
Yes
-
Yes
Yes
Yes
-
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Ye
s
Yes
Yes
-
-
-
-
-
-
-
-
• All are compliant only with non-interlaced.
• Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input.
• The frequency values for the Sun are reference values.
n
Compatible signal timing (AV)
Screen resolution Frequency HDMI Component
1920 × 1080p 24Hz Yes -
50Hz Yes Yes
59.94Hz Yes Yes
60Hz Yes Yes
1920 × 1080i 50Hz Yes Yes
59.94Hz Yes Yes
60Hz Yes Yes
1280 × 720p 50Hz Yes Yes
59.94Hz Yes Yes
60Hz Yes Yes
720 × 576p 50Hz Yes Yes
720 × 480p 59.94Hz Yes Yes
60Hz Yes Yes
640 × 480p(VGA) 59.94Hz Yes -
60Hz Yes -
720(1440) × 576i 50Hz Yes Yes
720(1440) × 480i 59.94Hz Yes Yes
60Hz Yes Yes
Specications
51
E
Specications
n
DVI-D input terminal pins
(DVI-D 24 pin)
No. Function No. Function
1 TMDS data 2- 13 N.C.
2 TMDS data 2+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot-plug detection
5 N.C. 17 TMDS data 0-
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8 N.C. 20 N.C.
9 TMDS data 1- 21 N.C.
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock+
12 N.C. 24 TMDS clock-
n
D-sub input terminal pins
(Mini D-sub 15 pin)
No. Function No. Function
1 Red video signal input 9 +5V
2 Green video signal input 10 GND
3 Blue video signal input 11 N.C.
4 N.C. 12 DDC data
5 N.C. 13 Hsync signal input
6 GND for red video signal 14 Vsync signal input
7 GND for green video signal 15 DDC clock
8 GND for blue video signal
n
DisplayPort input terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 3- 11 Gnd
2 Gnd 12 MainLane 0+
3 MainLane 3+ 13 Gnd
4 MainLane 2- 14 Gnd
5 Gnd 15 Aux +
6 MainLane 2+ 16 Gnd
7 MainLane 1- 17 Aux -
8 Gnd 18 Hot-plug detection
9 MainLane 1+ 19 Gnd
10 MainLane 0- 20 3.3V
n
HDMI input terminal pins
(HDMI
TM
Connector)
No. Function No. Function
1 TMDS data 2+ 11 TMDS clock shield
2 TMDS data 2 shield 12 TMDS clock-
3 TMDS data 2- 13 CEC
4 TMDS data 1+ 14 N.C.
5 TMDS data 1 shield 15 SCL
6 TMDS data 1- 16 SDA
7 TMDS data 0+ 17 GND
8 TMDS data 0 shield 18 +5V
9 TMDS data 0- 19 Hot-plug detection
10 TMDS clock+
n
RS-232C input terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Transmitted data 7 N.C.
3 Received data 8 N.C.
4 N.C. 9 N.C.
5 GND
52
E
Specications
n
DVI-D output terminal pins
(DVI-D 24 pin)
No. Function No. Function
1 TMDS data 2- 13 N.C.
2 TMDS data 2+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot-plug detection
5 N.C. 17 TMDS data 0-
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8 N.C. 20 N.C.
9 TMDS data 1- 21 N.C.
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock+
12 N.C. 24 TMDS clock-
n
RS-232C output terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Received data 7 N.C.
3 Transmitted data 8 N.C.
4 N.C. 9 N.C.
5 GND
53
E
• When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
• Do not use an impact driver.
• When moving the monitor, hold the parts marked by
below. Do not hold the LCD panel. This may cause product
damage, failure, or injury.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
Mounting Precautions
(For SHARP dealers and service engineers)
PN-U553U473U423 Mu EN13G(1)
