Help Guide
Personal Audio System
SRS-ZR7
The following explains how to use this speaker.
The content referenced in the Operating Instructions is described in detail through the following links.
Network connection (wired)
You can connect the speaker to a wired network if a Wi-Fi network connection is not possible.
Connecting by using the browser on your PC
This section explains how to set up by using the browser on your PC via a Wi-Fi network.
Playback via a network (Internet music streaming service)
You can stream music from the Internet using SongPal.
Playback via a network (SongPal Link)
Enjoy music in any room via Wi-Fi. You can listen to your favorite music stored in your PC or mobile phone, or
from music streaming services, in different rooms with high sound quality.
USB connection (USB-A port, USB flash drive)
You can connect a USB flash drive to the USB-A port.
USB connection (USB-A port, Walkman)
You can connect a Walkman to the USB-A port.
USB connection (USB-B port, Walkman compatible with High-Resolution Audio formats)
Connect a Walkman to the USB-B port.
USB connection (USB-B port, Xperia compatible with High-Resolution Audio formats)
Connect an Xperia to the USB-B port.
USB connection (USB-B port, PC)
Connect a PC storing High-Resolution Audio files to the USB-B port. To play back a High-Resolution Audio file,
the dedicated software “Sony | Music Center for PC” or “Hi-Res Audio Player” is required to be downloaded.
HDMI cable connection (HDMI ARC TO TV port, TV)
Connect the speaker to a TV with using a commercially-available High Speed HDMI cable.
Audio cable connection (AUDIO IN port, portable audio device)
You can connect the device to the AUDIO IN jack with a commercially-available audio cable (with stereo mini
plugs).
Getting Started
What you can do with the speaker
Parts and controls
Mounting the speaker on a wall
Included items
Checking the included items
Power source
Connecting to an AC outlet
Turning the power on
Turning the power off (standby mode)
Using the BLUETOOTH/Network standby mode
Auto standby mode
SongPal
About SongPal
How to use the SongPal screen
What you can do with SongPal
Wi-Fi network connection
Connecting to a Wi-Fi network using SongPal (Smartphone)
Connecting to a Wi-Fi network using SongPal (iPhone/iPod touch)
Device control
Listening to music on a PC via a Wi-Fi network
Listening to music on a smartphone, iPhone, etc. via a Wi-Fi network
Listening to music on a device via a USB connection (USB-A)
Listening to music on a computer via a USB connection (USB-B)
Listening to music from an Internet streaming service (Google Cast)
Listening with multiple speakers (SongPal Link)
Speaker settings
Setting the sound quality
Setting the auto standby mode
Setting the BLUETOOTH/Network standby mode
Setting the BLUETOOTH audio streaming playback quality (Codec)
Listening to music on a PC
Without a Wi-Fi network
Connecting via a USB cable
Connecting via a LAN cable
Making a wireless connection (BLUETOOTH connection)
With a Wi-Fi network
Using “Sony | Music Center for PC”
Using Windows Media Player (Windows 7 or later)
Using other music playback software
Listening to music on a smartphone such as an Xperia or Walkman equipped with Android
Without a Wi-Fi network
Making a wireless connection (BLUETOOTH connection)
Connecting via an audio cable (with stereo mini plugs)
With a Wi-Fi network
Using the Music application (Xperia only)
Using SongPal
Listening to music on an Xperia compatible with High-Resolution Audio formats
Without a Wi-Fi network
Connecting via a USB cable
Making a wireless connection (BLUETOOTH connection)
Connecting via an audio cable (with stereo mini plugs)
With a Wi-Fi network
Using the Music application (Xperia only)
Using SongPal
Listening to music on an iPhone/iPod
Without a Wi-Fi network
Making a wireless connection (BLUETOOTH connection)
Connecting via an audio cable (with stereo mini plugs)
With a Wi-Fi network
Using SongPal
Listening to music on a Walkman
Making a wireless connection (BLUETOOTH connection)
Connecting a USB cable (USB-A)
Connecting via an audio cable (with stereo mini plugs)
Listening to music on a Walkman compatible with High-Resolution Audio formats
Connecting via a USB cable
Making a wireless connection (BLUETOOTH connection)
Connecting via an audio cable (with stereo mini plugs)
Listening to music on a USB flash drive
Using SongPal
Listening to music from an Internet music service
Without a Wi-Fi network (PC)
Connecting via a LAN cable
Making a wireless connection (BLUETOOTH connection)
Without a Wi-Fi network (Smartphone)
Making a wireless connection (BLUETOOTH connection)
With a Wi-Fi network
Using SongPal (Google Cast)
Listening sound from a TV
Connecting a HDMI cable
Connections
Wi-Fi network connection
Selecting the Wi-Fi network connection method
DLNA (Digital Living Network Alliance)
Connecting to a Wi-Fi network using the Wi-Fi Protected Setup (WPS) button of the wireless router
Connecting to a Wi-Fi network using a PC connected with a LAN cable
Connecting to a Wi-Fi network using a PC connected wirelessly
Wired network connection
Selecting the wired network connection method
DLNA (Digital Living Network Alliance)
Connecting to a wired network
Wireless Surround/Wireless Stereo connection
Using this speaker as a rear speaker (Wireless Surround)
Connecting two speakers (Wireless Stereo)
BLUETOOTH connection (pairing)
How to make a wireless connection with BLUETOOTH devices
Pairing and connecting with a BLUETOOTH device
Pairing and connecting with a PC (Windows 10)
Pairing and connecting with a PC (Windows 8.1)
Pairing and connecting with a PC (Windows 7)
BLUETOOTH connection (NFC)
Connecting with an NFC-compatible device by one touch (NFC)
Disconnecting the NFC-compatible device by one touch (NFC)
Switching devices by one touch (NFC)
BLUETOOTH connection (with a paired device)
Connecting with a paired BLUETOOTH device
Connecting with a paired PC (Windows 10)
Connecting with a paired PC (Windows 8.1)

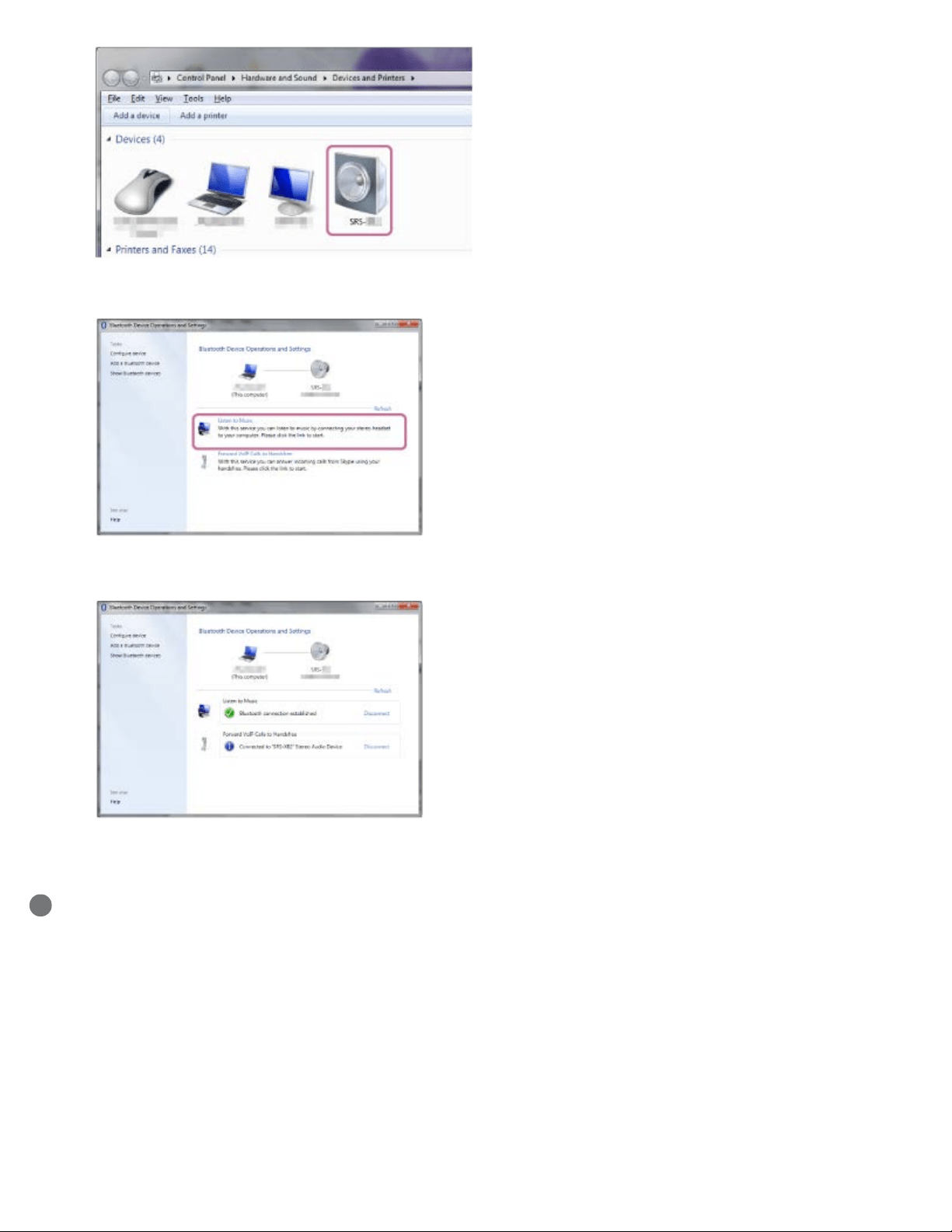

Connecting with a paired PC (Windows 7)
USB device
Connecting a USB flash drive
Connecting a Walkman
Connecting a Walkman compatible with High-Resolution Audio formats
Connecting an Xperia compatible with High-Resolution Audio formats
AUDIO IN
Connecting to a portable audio device, etc.
HDMI
Connecting to a TV
Settings
Network

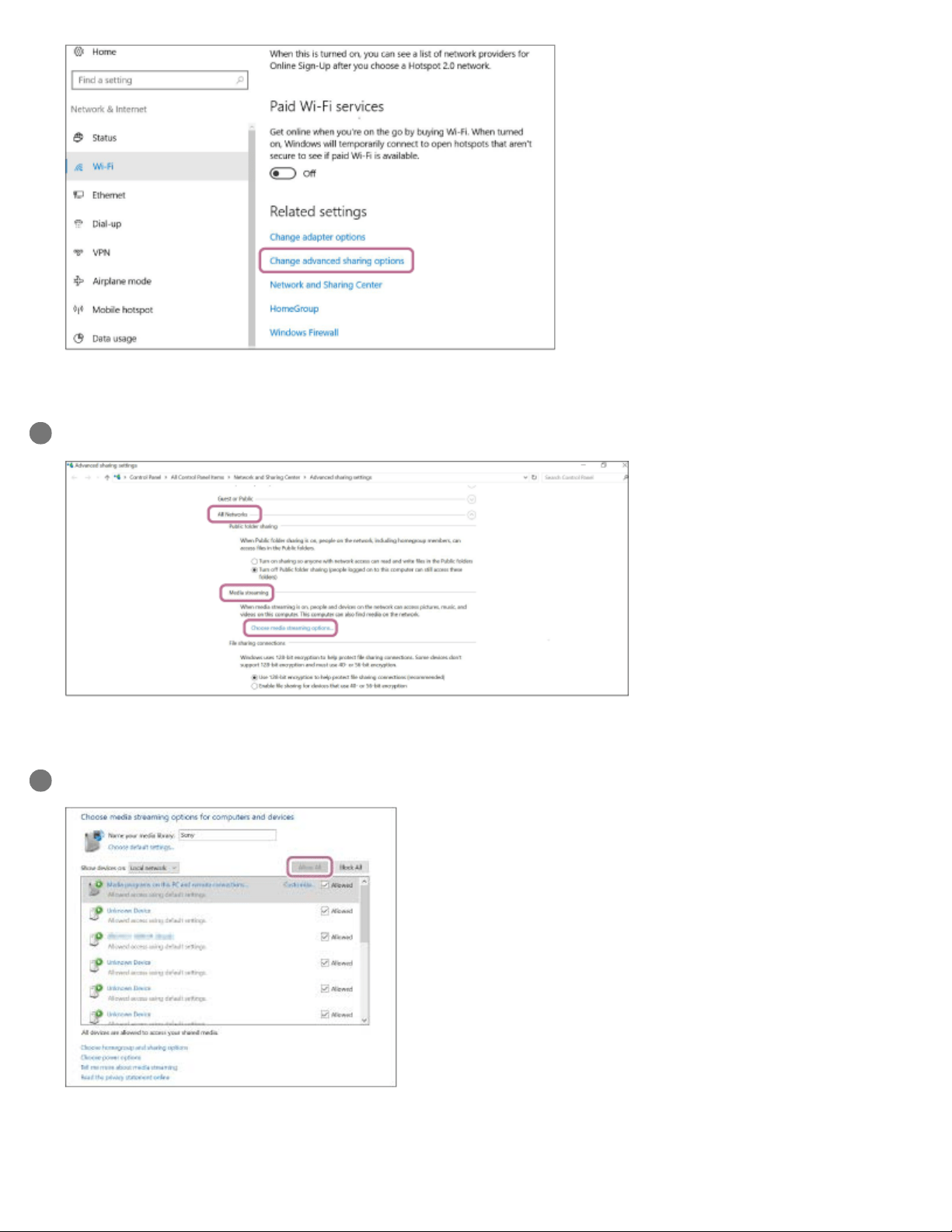

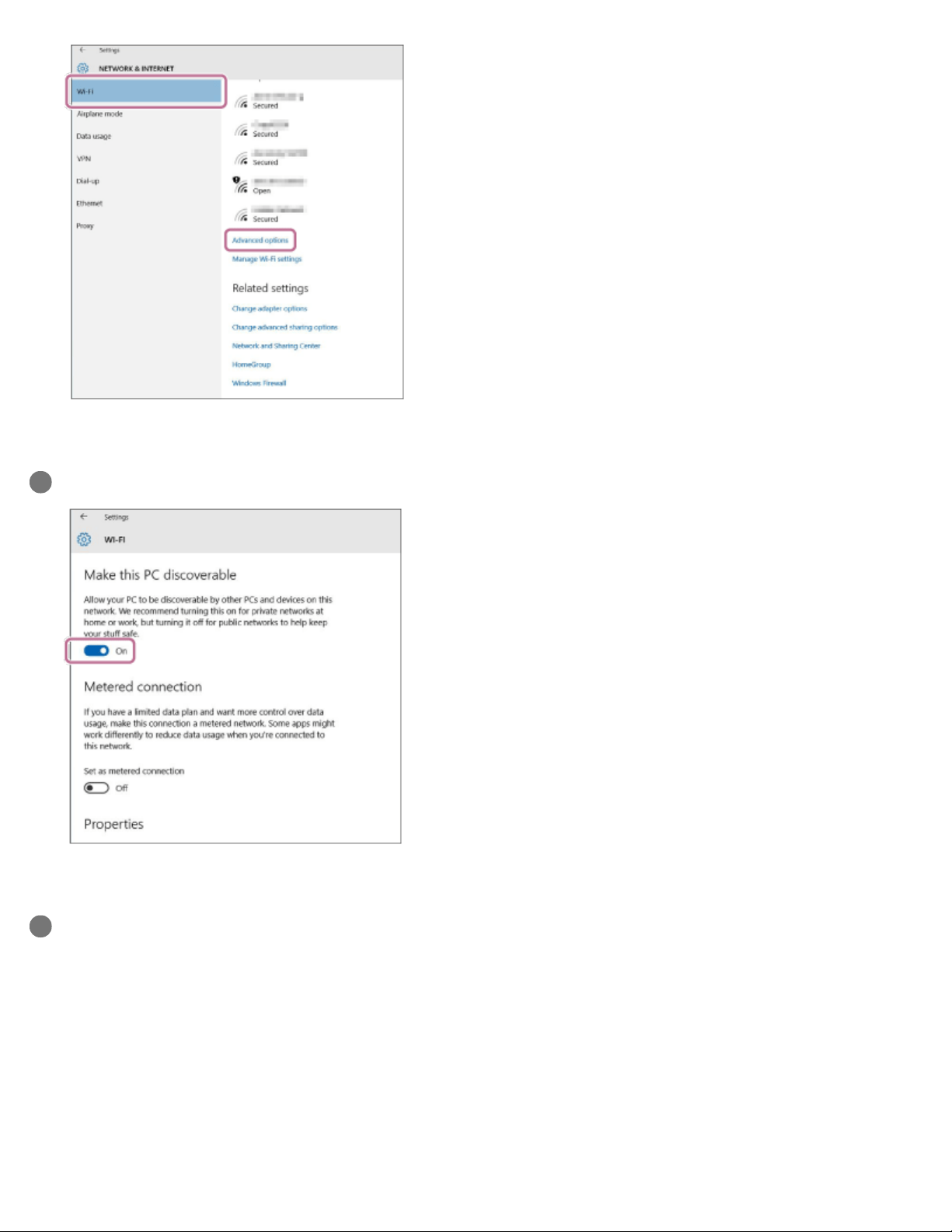

Setting your PC as a DLNA server and controller (Windows 10)
Setting your PC as a DLNA server and controller (Windows 8.1)

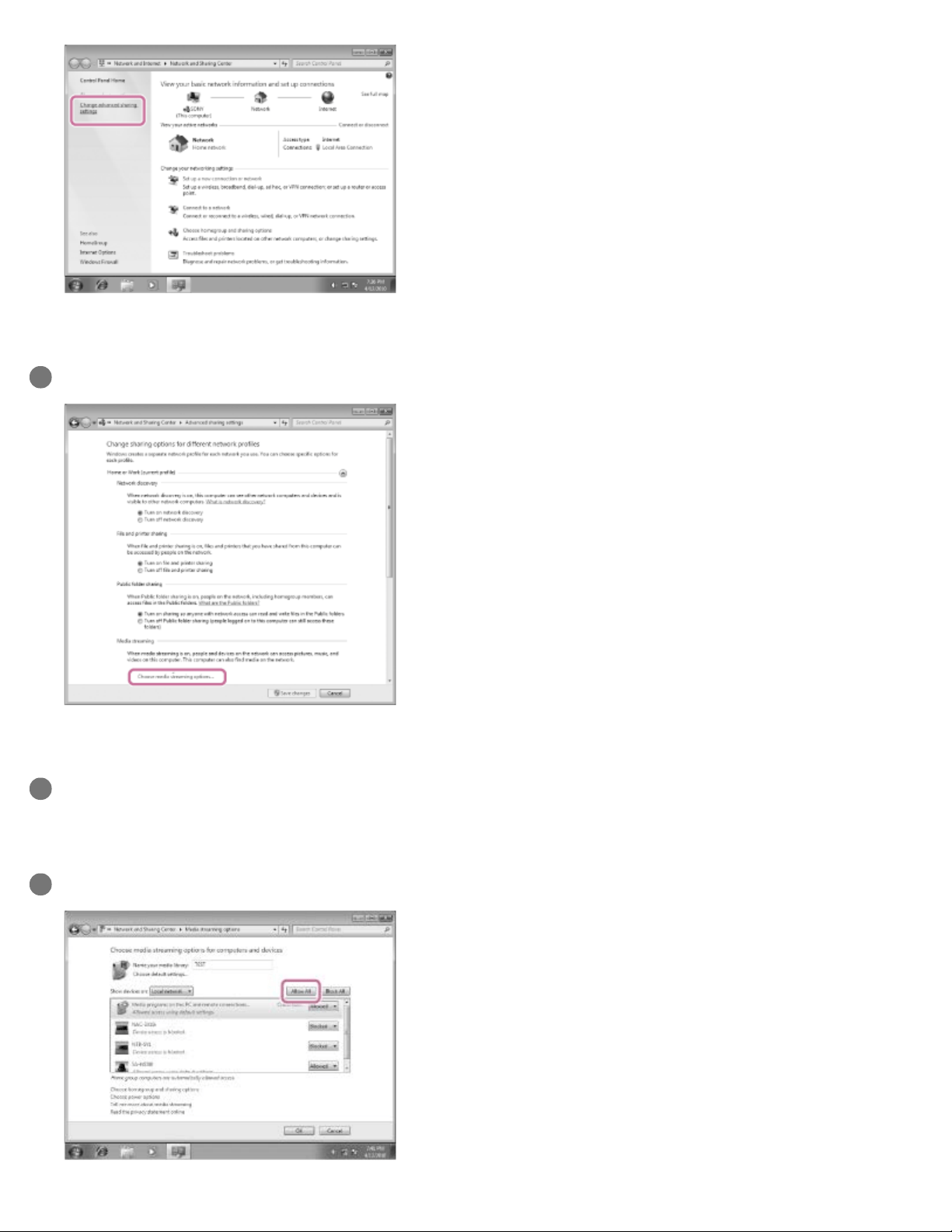

Setting your PC as a DLNA server and controller (Windows 7)
USB
Connecting a PC/Installing the driver
Listening
Network
Listening to music on a PC via a network (“Sony | Music Center for PC”)

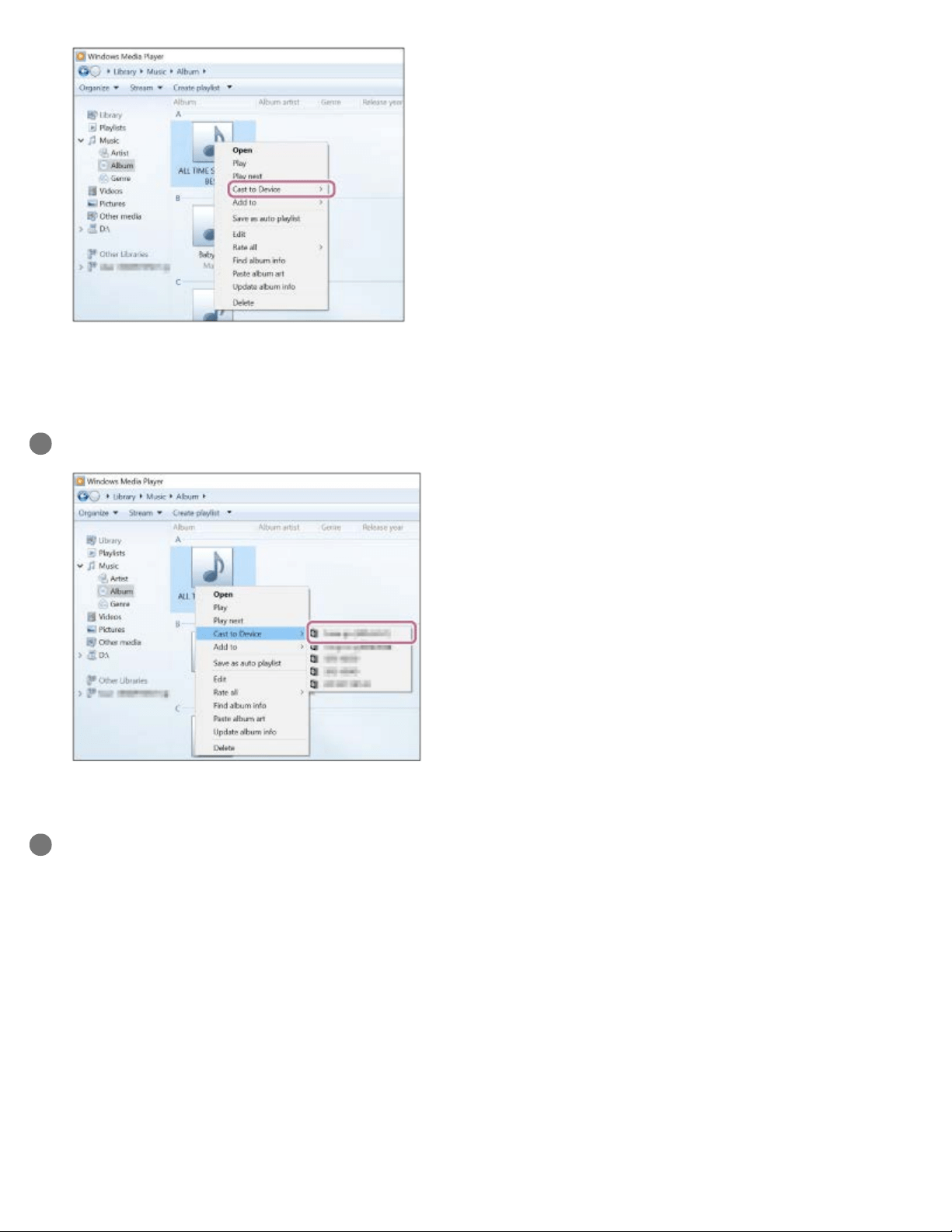

Listening to music on a PC via a network (Windows Media Player)
Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal operation)
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
Listening to music with the Music application (Xperia)
Listening with multiple speakers (SongPal Link)
Listening to an Internet music service (Spotify)
BLUETOOTH
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Listening to music on a device via a BLUETOOTH connection
Terminating the BLUETOOTH connection (After use)
USB
Listening to music on a USB flash drive
Listening to music on a Walkman
Listening to music on a Walkman compatible with High-Resolution Audio formats
Listening to music on a Xperia compatible with High-Resolution Audio formats
Listening to music on a PC
AUDIO IN
Listening to music on a portable audio device, etc.
HDMI
Listening to TV sound
Listening to High-Resolution Audio format files
About High-Resolution Audio format files
Installing “Sony | Music Center for PC” or “Hi-Res Audio Player” to a PC
Listening to High-Resolution Audio format files via a network
Information
Specifications
About the indicators
Compatible devices and operating systems
Compatible iPhone/iPod touch models
Compatible Walkman models
Compatible operating systems (Windows)
Compatible operating systems (Mac)
Compatible DLNA devices
Compatible BLUETOOTH devices
Compatible USB devices
Software update
Updating the pre-installed software
Update method 1: Automatic update via the Internet
Update method 2: Manual update via the Internet
Update method 3: Manual update via a USB flash drive
Searching the latest software via a network connection
Manual update via a USB flash drive (when the update via a network has failed)
Wi-Fi signal strength
Checking the Wi-Fi signal strength (reception sensitivity)
About the standby mode
Standby mode differences
Notes on use
Precautions
What is BLUETOOTH wireless technology?
What is LDAC?
About the voice guidance
Trademarks
Important information on software
Notes on software
Support website
Customer support websites
Troubleshooting
What can I do to solve a problem?
Power supply
Unable to turn on the speaker
Any button on the speaker cannot be operated
The setup conditions of the speaker used last time are not retained
The speaker has entered the standby mode or BLUETOOTH/Network standby mode unexpectedly
The power indicator flashes in red
Sound
No sound/Sound from only one speaker/Low sound level
Distorted sound/humming or noise from the speaker
Network connection
The speaker cannot connect to the network (Other equipment on the network cannot find or recognize the speaker)
Unable to connect to a network via a Wi-Fi connection
Unable to connect to a network via a Wi-Fi connection (even though a correct SSID is selected)
The speaker cannot connect to a network using the UPDATE/WPS button
The speaker does not appear in the device list of the PC's music playback application
The speaker does not appear in the device select screen of SongPal
The speaker cannot connect to music services
4-592-259-11(6) Copyright 2016 Sony Corporation
The controller cannot find the speaker (The controller cannot browse the contents of the speaker)
Music started automatically (home network)
The sound is interrupted
Playback does not start
BLUETOOTH
Smartphone, iPhone, etc. cannot be paired
Unable to connect the speaker to a BLUETOOTH device with One-touch (NFC)
There is no sound (BLUETOOTH)
Distorted sound/humming or noise from the speaker
USB device
An unsupported USB device is connected
There is no sound (USB)
There is noise, skipping, or distorted sound
A USB device is not recognized
Playback does not start
Playback does not start from the first track
Software update
Updating the pre-installed software
Update method 1: Automatic update via the Internet
Update method 2: Manual update via the Internet
Update method 3: Manual update via a USB flash drive
Searching the latest software via a network connection
Manual update via a USB flash drive (when the update via a network has failed)
Reset
Initializing the speaker
Disposal and transfer
Disposing of or giving away this speaker
TOC-1
Table Of Contents
SRS-ZR7 Help GuidePersonal Audio System Help Guide i
Connecting to a wired network 1
Connecting to a Wi-Fi network using a PC connected wirelessly 3
Listening to music from an Internet streaming service (Google Cast) 7
Listening with multiple speakers (SongPal Link) 10
Connecting a USB flash drive 12
Connecting a Walkman 13
Connecting a Walkman compatible with High-Resolution Audio formats 14
Connecting an Xperia compatible with High-Resolution Audio formats 15
Connecting a PC/Installing the driver 16
Connecting to a TV 18
Connecting to a portable audio device, etc. 19
Getting Started ii
What you can do with the speaker 20
Parts and controls 21
Mounting the speaker on a wall 25
Included items ii
Checking the included items 26
Power source ii
Connecting to an AC outlet 27
Turning the power on 28
Turning the power off (standby mode) 29
Using the BLUETOOTH/Network standby mode 30
Auto standby mode 31
SongPal ii
About SongPal ii
How to use the SongPal screen 32
What you can do with SongPal 34
Wi-Fi network connection iii
Connecting to a Wi-Fi network using SongPal (Smartphone) 35
Connecting to a Wi-Fi network using SongPal (iPhone/iPod touch) 40
Device control iii
Listening to music on a PC via a Wi-Fi network 45
Listening to music on a smartphone, iPhone, etc. via a Wi-Fi network 48
Listening to music on a device via a USB connection (USB-A) 50
Listening to music on a computer via a USB connection (USB-B) 52
TOC-2
Speaker settings iii
Setting the sound quality 54
Setting the auto standby mode 56
Setting the BLUETOOTH/Network standby mode 58
Setting the BLUETOOTH audio streaming playback quality (Codec) 60
Listening to music on a PC iii
Without a Wi-Fi network iii
Connecting via a USB cable 62
Connecting via a LAN cable 63
Making a wireless connection (BLUETOOTH connection) 64
With a Wi-Fi network iii
Using “Sony | Music Center for PC” 65
Using Windows Media Player (Windows 7 or later) 66
Using other music playback software 67
Making a wireless connection (BLUETOOTH connection) 68
Listening to music on a smartphone such as an Xperia or Walkman equipped
with Android iv
Without a Wi-Fi network iv
Making a wireless connection (BLUETOOTH connection) 68
Connecting via an audio cable (with stereo mini plugs) 69
With a Wi-Fi network iv
Using the Music application (Xperia only) 70
Using SongPal 71
Listening to music on an Xperia compatible with High-Resolution Audio formats iv
Without a Wi-Fi network iv
Connecting via a USB cable 72
Making a wireless connection (BLUETOOTH connection) 73
Connecting via an audio cable (with stereo mini plugs) 74
With a Wi-Fi network iv
Using the Music application (Xperia only) 70
Using SongPal 75
Listening to music on an iPhone/iPod iv
Without a Wi-Fi network iv
Making a wireless connection (BLUETOOTH connection) 76
Connecting via an audio cable (with stereo mini plugs) 74
With a Wi-Fi network iv
Using SongPal 75
Listening to music on a Walkman v
TOC-3
Making a wireless connection (BLUETOOTH connection) 76
Connecting a USB cable (USB-A) 77
Connecting via an audio cable (with stereo mini plugs) 78
Listening to music on a Walkman compatible with High-Resolution Audio formats v
Connecting via a USB cable 79
Making a wireless connection (BLUETOOTH connection) 80
Connecting via an audio cable (with stereo mini plugs) 81
Listening to music on a USB flash drive v
Using SongPal 82
Listening to music from an Internet music service v
Without a Wi-Fi network (PC) v
Connecting via a LAN cable 83
Making a wireless connection (BLUETOOTH connection) 84
Without a Wi-Fi network (Smartphone) v
Making a wireless connection (BLUETOOTH connection) 85
With a Wi-Fi network v
Using SongPal (Google Cast) 86
Listening sound from a TV v
Connecting a HDMI cable 87
Connections v
Wi-Fi network connection v
Selecting the Wi-Fi network connection method 88
DLNA (Digital Living Network Alliance) 89
Connecting to a Wi-Fi network using the Wi-Fi Protected Setup (WPS) button
of the wireless router 90
Connecting to a Wi-Fi network using a PC connected with a LAN cable 92
Wired network connection v
Selecting the wired network connection method 95
DLNA (Digital Living Network Alliance) 89
Connecting to a wired network 1
Wireless Surround/Wireless Stereo connection vi
Using this speaker as a rear speaker (Wireless Surround) 96
Connecting two speakers (Wireless Stereo) 99
BLUETOOTH connection (pairing) vi
How to make a wireless connection with BLUETOOTH devices 102
Pairing and connecting with a BLUETOOTH device 104
Pairing and connecting with a PC (Windows 10) 107
Pairing and connecting with a PC (Windows 8.1) 111
TOC-4
Pairing and connecting with a PC (Windows 7) 119
BLUETOOTH connection (NFC) vi
Connecting with an NFC-compatible device by one touch (NFC) 124
Disconnecting the NFC-compatible device by one touch (NFC) 127
Switching devices by one touch (NFC) 128
BLUETOOTH connection (with a paired device) vi
Connecting with a paired BLUETOOTH device 129
Connecting with a paired PC (Windows 10) 131
Connecting with a paired PC (Windows 8.1) 134
Connecting with a paired PC (Windows 7) 139
USB device vi
Connecting a USB flash drive 12
Connecting a Walkman 13
Connecting a Walkman compatible with High-Resolution Audio formats 14
Connecting an Xperia compatible with High-Resolution Audio formats 15
AUDIO IN vi
Connecting to a portable audio device, etc. 19
HDMI vi
Connecting to a TV 18
Settings vii
Network vii
Setting your PC as a DLNA server and controller (Windows 10) 143
Setting your PC as a DLNA server and controller (Windows 8.1) 147
Setting your PC as a DLNA server and controller (Windows 7) 150
USB vii
Connecting a PC/Installing the driver 16
Listening vii
Network vii
Listening to music on a PC via a network (“Sony | Music Center for PC”) 153
Listening to music on a PC via a network (Windows Media Player) 156
Listening to music on a PC via a network (“Sony | Music Center for PC” with
SongPal operation) 159
Listening to music on a PC via a network (Windows Media Player with
SongPal operation) 163
Listening to music with the Music application (Xperia) 165
Listening to an Internet music service (Spotify) 168
BLUETOOTH vii
Selecting the BLUETOOTH audio streaming playback quality (Codec) 170
TOC-5
Listening to music on a device via a BLUETOOTH connection 172
Terminating the BLUETOOTH connection (After use) 174
USB vii
Listening to music on a USB flash drive 175
Listening to music on a Walkman 177
Listening to music on a Walkman compatible with High-Resolution Audio
formats 179
Listening to music on a Xperia compatible with High-Resolution Audio formats
181
Listening to music on a PC 183
AUDIO IN vii
Listening to music on a portable audio device, etc. 186
Listening to TV sound 188
HDMI viii
Listening to TV sound 188
Listening to High-Resolution Audio format files viii
About High-Resolution Audio format files 189
Installing “Sony | Music Center for PC” or “Hi-Res Audio Player” to a PC 190
Listening to High-Resolution Audio format files via a network 191
Information viii
Specifications 192
About the indicators 194
Compatible devices and operating systems viii
Compatible iPhone/iPod touch models 197
Compatible Walkman models 198
Compatible operating systems (Windows) 199
Compatible operating systems (Mac) 200
Compatible DLNA devices 201
Compatible BLUETOOTH devices 202
Compatible USB devices 203
Software update viii
Updating the pre-installed software 204
Update method 1: Automatic update via the Internet 205
Update method 2: Manual update via the Internet 207
Update method 3: Manual update via a USB flash drive 209
Searching the latest software via a network connection 211
Manual update via a USB flash drive (when the update via a network has
failed) 213
TOC-6
Wi-Fi signal strength viii
Checking the Wi-Fi signal strength (reception sensitivity) 215
About the standby mode viii
Standby mode differences 217
Notes on use viii
Precautions 218
What is BLUETOOTH wireless technology? 220
What is LDAC? 222
About the voice guidance 223
Trademarks 224
Important information on software 225
Notes on software 226
Support website ix
Customer support websites 228
Troubleshooting ix
What can I do to solve a problem? 229
Power supply ix
Unable to turn on the speaker 230
Any button on the speaker cannot be operated 231
The setup conditions of the speaker used last time are not retained 232
The speaker has entered the standby mode or BLUETOOTH/Network
standby mode unexpectedly 233
The power indicator flashes in red 234
Sound ix
No sound/Sound from only one speaker/Low sound level 235
Distorted sound/humming or noise from the speaker 236
Network connection ix
The speaker cannot connect to the network (Other equipment on the network
cannot find or recognize the speaker) 237
Unable to connect to a network via a Wi-Fi connection 238
Unable to connect to a network via a Wi-Fi connection (even though a correct
SSID is selected) 239
The speaker cannot connect to a network using the UPDATE/WPS button 240
The speaker does not appear in the device list of the PC's music playback
application 241
The speaker does not appear in the device select screen of SongPal 242
The speaker cannot connect to music services 244
The controller cannot find the speaker (The controller cannot browse the
TOC-7
contents of the speaker) 245
Music started automatically (home network) 246
The sound is interrupted 247
Playback does not start 248
BLUETOOTH x
Smartphone, iPhone, etc. cannot be paired 249
Unable to connect the speaker to a BLUETOOTH device with One-touch
(NFC) 250
There is no sound (BLUETOOTH) 251
Distorted sound/humming or noise from the speaker 252
USB device x
An unsupported USB device is connected 253
There is no sound (USB) 254
There is noise, skipping, or distorted sound 255
A USB device is not recognized 256
Playback does not start 257
Playback does not start from the first track 258
Software update x
Updating the pre-installed software 204
Update method 1: Automatic update via the Internet 205
Update method 2: Manual update via the Internet 207
Update method 3: Manual update via a USB flash drive 209
Searching the latest software via a network connection 211
Manual update via a USB flash drive (when the update via a network has
failed) 213
Reset x
Initializing the speaker 259
Disposal and transfer x
Disposing of or giving away this speaker 260
TOC-8
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a wired network
This section explains how to connect the speaker to a wireless router with a commercially-available LAN cable, then how to connect
the router to the PC.
Usually the DHCP setting is set to ON when you connect your PC to the network.
Do the following before starting.
Set the DHCP setting of your PC to ON.
Check that your PC and wireless router are turned on.
1
Connect the wireless router to the LAN port with a commercially-available LAN cable.
2
Connect the wireless router to your PC using another commercially-available LAN cable, or a Wi-Fi connection.
3
Turn the speaker on.
The
(power) indicator lights up in green, then the LINK indicator begins to flash in pink. Wait about a minute until the LINK
indicator lights up in pink. When the connection is completed, the LINK indicator changes from flashing to staying lit in pink.
4
1
Note
When you connect the speaker to a network for the first time after purchase, or after you initialize the speaker, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
Hint
When you connect the speaker to a PC for the first time, it takes about four or five minutes until the LINK indicator stops flashing and stays lit
in pink.
2
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a Wi-Fi network using a PC connected wirelessly
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration (pairing)
information is deleted. To use the BLUETOOTH connection after that, delete all pairing information on the PC, and then set pairing
again.
This section describes how to connect a PC and the speaker wirelessly, then how to connect the speaker to a wireless router, using
the PC.
Do the following before starting.
Place the speaker closer to the wireless router.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a Wi-Fi
network. The encryption key restricts access to devices on a network. It is used to make more secure communication between
the devices connected to wireless routers or access points.
Have the Wi-Fi network name (SSID) and password (encryption key) of the wireless router available for reference.
For details, refer to the operating instructions supplied with your wireless router.
1
With the speaker turned on, press and hold the – (volume) button and the
(power)/ PAIRING button at the same
time for more than 4 seconds to initialize the settings of the speaker.
The (power) indicator flashes quickly in green for two seconds. The settings of the speaker return to their factory defaults,
and network information and all BLUETOOTH device registration (pairing) information are deleted. Then, the speaker enters the
start-up mode automatically. It takes about 60 to 80 seconds to turn on the speaker. When the
(power) indicator turns off
(standby mode), you can turn on the speaker.
2
Turn on the speaker.
3
Connect the speaker to the PC.
Modern UI:
Move the mouse pointer to the top-right (or bottom-right) corner of the Start screen to display the charms, then select
[Settings]. In the case of a touch panel, display the charms by swiping from the right side of the screen to the center, then
select [Settings].
4
3
Select or .
Select [SRS-ZR7] from the network list.
Windows 7/Windows 8.1:
For Windows 8.1, click or tap the desktop on the Start screen.
Select
or on the right-bottom of the screen.
Select [SRS-ZR7] from the network list.
Windows 10:
Select on the right-bottom of the screen.
Select [SRS-ZR7] – [Connect] from the network list.
Mac:
Click at the top of the screen.
Select [Open Network Preferences...].
Select [SRS-ZR7] from the network list.
Display the [Sony Network Device Settings] screen.
5
Launch a browser (Internet Explorer, Safari, etc.).
1.
Enter the following URL in the address bar.
http://192.168.211.129
2.
4
Select [Network Settings] from the menu.
6
Enter the SSID of the wireless router and the password.
7
Select [Apply].
8
Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange. It may take more than a minute for the LINK
indicator to light up.
9
5
Hint
If you want to set a fixed IP address, set in the screen in step above.
When the connection of the speaker to your Wi-Fi network has completed, connect your PC to the previous destination or your wireless router.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from step .
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby mode is turned on
automatically.
4-592-259-11(6) Copyright 2016 Sony Corporation
The connection is complete.
Connect the PC to the wireless router to be used.
10
6
Help Guide
Personal Audio System
SRS-ZR7
Listening to music from an Internet streaming service (Google Cast)
You can enjoy music from various streaming services offered on the internet via your smartphone, iPhone, etc. with SongPal
installed.
You need to download a Google Cast-enabled music service app.
If you have already installed a Google Cast enabled music application, go to step
. If you have not yet set up Google Cast, follow
the steps below.
For details about Google Cast, refer to the following URL:
http://www.google.com/cast/audio/learn/
The specification and design of the application may change without notice.
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
1
Tap [SRS-ZR7].
2
Tap [Settings].
3
7
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Tap [Google Cast].
4
Tap [Learn how to cast].
5
See the instructions, then find and install a Google Cast-enabled app on your smartphone/iPhone.
6
Launch the Google Cast-enabled app.
7
Tap the Cast button, and then tap [SRS-ZR7].
8
Select and start playback a track on the Google Cast-enabled app, and adjust the volume.
Music will be heard from the speaker.
9
8
Note
Depending on the country or region, music services and their period of availability may differ. Separate registration is required for certain services.
An update of the device may be required.
In some cases, the speaker may need to be activated by a music service. If you activated the speaker, you can use music services. Follow the
instructions on the music service’s application or SongPal.
Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony bears no responsibility for this.
Related Topic
What you can do with SongPal
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
9
Help Guide
Personal Audio System
SRS-ZR7
Listening with multiple speakers (SongPal Link)
You can enjoy listening to your favorite music in various styles by wireless speaker combinations.
Compatible models
For more details about SongPal Link and compatible models for Wireless Surround and Wireless Stereo functions, refer to the
following URL.
http://sony.net/nasite/
SongPal Link features
The Wireless Multi-room function, Wireless Surround function, and Wireless Stereo function are available.
To switch between functions, cancel the function you are using, and then operate for the other function. To cancel a function, operate
on SongPal. For the Wireless Surround function or Wireless Stereo function, you can also cancel the function by pressing and
holding the SET UP button on the rear of the speaker until a beep is heard. The L/R indicators turn off, and the function is canceled.
The grouping is also canceled.
Note
To play back music stored on a PC, the server (DMS) function is required on the PC. For more information, refer to the operating instructions for the
PC.
Only music files on the server device of the home network can be played back. Sound from video files cannot be played back.
Playing music in more than one room at the same time (Wireless Multi-room)
By grouping speakers, you can fill your rooms with same music simultaneously.
For music stored on a PC or NAS, you can also listen to different songs from each speaker.*
You can save the settings of your favorite speaker group.
For more details on the Wireless Multi-room function (such as grouping and group playback), refer to the following URL.
* Different songs stored on a smartphone or tablet cannot be output from each speaker.
10
http://info.songpal.sony.net/help/
Using the speaker as a rear speaker (Wireless Surround)
Enjoy even greater surround sound with additional speakers.
For more details, see "Using this speaker as a rear speaker (Wireless Surround)."
Using two speakers (Wireless Stereo)
Pair two speakers together to create wider, stereo sound.
For more details, see "Connecting two speakers (Wireless Stereo)."
Related Topic
Using this speaker as a rear speaker (Wireless Surround)
Connecting two speakers (Wireless Stereo)
4-592-259-11(6) Copyright 2016 Sony Corporation
11
Help Guide
Personal Audio System
SRS-ZR7
Connecting a USB flash drive
You can connect a USB flash drive to the USB-A port ( A) directly.
You can also use a commercially-available USB cable to connect a USB device.
Music stored in a USB flash drive connected to the USB-A port (
A) can be played back with a smartphone, iPhone, etc. that
has SongPal installed.
You can play back high-resolution audio format files by connecting a USB flash drive of Hi-Speed USB standard or more, to the USB-
A port (
A).
Note
Do not disconnect a USB flash drive during operation. To prevent damage to data, stop playback, then turn off the power of the speaker before
disconnecting the USB flash drive.
Sony is not responsible for any loss or damage to data in a USB flash drive that is connected to the speaker.
Sony does not guarantee correct operation when a USB hub or USB extension cable is used.
Do not connect a USB flash drive to the USB-B port (
B). Only connect a USB flash drive to the USB-A port ( A).
Related Topic
Listening to music on a USB flash drive
Listening to music on a device via a USB connection (USB-A)
4-592-259-11(6) Copyright 2016 Sony Corporation
Connect a USB flash drive to the USB-A port ( A).
1
12
Help Guide
Personal Audio System
SRS-ZR7
Connecting a Walkman
You can listen to music on a Walkman by connecting it to the USB-A port ( A) with the USB cable supplied with the Walkman.
Note
If the Walkman does not have a WM-PORT (22 pin), connect it to the AUDIO IN jack with a commercially-available audio cable.
Files imported by x-app. cannot be played back. Connect the Walkman to the AUIDO IN jack of the speaker, and play back these files on the AUDIO
IN mode.
Sony is not responsible for any loss of data stored in a Walkman that is connected to the speaker.
Related Topic
Listening to music on a Walkman
Listening to music on a device via a USB connection (USB-A)
4-592-259-11(6) Copyright 2016 Sony Corporation
Connect the Walkman to the USB A port ( A) with the USB cable supplied with the Walkman.
1
13
Help Guide
Personal Audio System
SRS-ZR7
Connecting a Walkman compatible with High-Resolution Audio formats
You can connect a Walkman compatible with High-Resolution Audio formats to the speaker with a commercially-available USB cable
and an optional High-Resolution Audio USB Adaptor WM-PORT cable.
*
The speaker receives unconverted digital audio data, which is converted to analog data through the digital-to-analog converter of the
speaker before being output.
Note
Sony is not responsible for loss or damage of data in a Walkman that is connected to the speaker.
The Walkman will not be charged if it is connected to the USB-B port (
B).
Related Topic
About High-Resolution Audio format files
Listening to music on a Walkman compatible with High-Resolution Audio formats
4-592-259-11(6) Copyright 2016 Sony Corporation
Optional High-Resolution Audio USB Adaptor WM-PORT Cable can be ordered from your nearest Sony Service Center.
*
Connect an optional High-Resolution Audio USB Adaptor WM-PORT Cable to the Walkman.
1
Connect a commercially-available USB cable to the optional High-Resolution Audio USB Adaptor WM-PORT Cable and
USB-B port (
B).
2
14
Help Guide
Personal Audio System
SRS-ZR7
Connecting an Xperia compatible with High-Resolution Audio formats
You can connect an Xperia compatible with High-Resolution Audio formats to the speaker with a commercially-available USB cable
and an optional cable for Xperia.
The speaker receives unconverted digital audio data, which is converted to analog data through the digital-to-analog converter of the
speaker before being output.
Note
Sony is not responsible for any loss or damage to data in an Xperia that is connected to the speaker.
The Xperia will not charge if it is connected to the USB-B port (
B).
Related Topic
About High-Resolution Audio format files
Listening to music on a Xperia compatible with High-Resolution Audio formats
4-592-259-11(6) Copyright 2016 Sony Corporation
Connect an optional cable for Xperia to the Xperia.
1
Connect a commercially-available USB cable to the optional cable for Xperia and USB-B port (
B).
2
15
Help Guide
Personal Audio System
SRS-ZR7
Connecting a PC/Installing the driver
You can connect a PC to the USB-B port ( B) with a commercially-available USB cable.
To play High-Resolution Audio format files
The speaker is compatible with High-Resolution Audio format (192 kHz/24 bit).
To play High-Resolution Audio format files on your PC with the speaker, you need to download and install “Sony | Music Center for
PC” or “Hi-Res Audio Player” to your PC.
Note
Sony does not guarantee correct operation when a USB hub or USB extension cable is used.
Do not disconnect the PC during operation. To prevent damage to data, stop playback, then turn off the power of the speaker before disconnecting
the PC.
Related Topic
About High-Resolution Audio format files
Connect a PC to the USB-B port ( B) with a commercially-available USB cable.
When connecting to a Windows PC, the driver is automatically installed. If it is not installed automatically, visit one of the
following websites, and download and install the driver.
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
For details how to install the application, follow the instructions on the website.
1
16
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a TV
Use a High Speed Type HDMI cable (not supplied) to listen to TV sound from the speaker.
Hint
If the HDMI port on your TV is supported with ARC (Audio Return Channel), “ARC” is indicated on the HDMI port.
ARC is a feature to send TV sound from the HDMI input port of a TV to an AV device using the HDMI cable.
Note
If the speaker is connected to the HDMI port which is not supported with ARC, you cannot listen to TV sound from the speaker.
If the speaker is connected to the HDMI port of a device other than a TV, you cannot listen sound from the speaker.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connect a High Speed Type HDMI cable to the HDMI ARC TO TV port on the speaker and the HDMI IN ARC port on your
TV.
1
18
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a portable audio device, etc.
Be sure to turn off the power of the device before making any connections.
Related Topic
Listening to music on a portable audio device, etc.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connect a device to the AUDIO IN jack with a commercially-available audio cable (with stereo mini plugs).
1
If you use a cable (with stereo mini plugs) with significant resistance, the sound may be lower. Therefore make sure you use a cable (with stereo
mini plugs) with low resistivity.
*
19
Help Guide
Personal Audio System
SRS-ZR7
What you can do with the speaker
Compatible with High-Resolution Audio formats up to 192 kHz/24 bit
Music playback via a wireless connection (DLNA/BLUETOOTH)
Music service support
Music services and their period of availability may differ. An update of the speaker may be required. Services offered by third
parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility for such situations.
BLUETOOTH supported codec
*1
: SBC (Subband Codec) / AAC (Advanced Audio Coding) / LDAC
By connecting the speaker to a HDMI port supported with ARC on a TV via a HDMI cable (not supplied), you can listen to TV
sound from the speaker.
The USB port supports playback from a USB flash drive.
Easy operation from your smartphone and tablet
*2
Compatible with DSEE HX
This function enables enhancement
*3
of the sound quality for compressed audio files and restores high-range sound removed
during the compression process. [Auto] is set as the default setting so you can enjoy both compressed audio files and high-
resolution audio files.
Compatible with ClearAudio+
Tap operation
4-592-259-11(6) Copyright 2016 Sony Corporation
Audio signal compression and conversion format
*1
Only when SongPal is installed on your device
*2
Enhancement up to 192 kHz/24 bit
*3
20
(power)/ PAIRING button/indicator
Press to turn the speaker’s power on and off (standby mode).
While the speaker is turned on, press and hold until the beep sounds. The speaker is then in the pairing mode for the
BLUETOOTH connection.
1.
-/+ (volume) buttons
Touch to adjust the volume. The
(power) indicator flashes according to the volume adjustment when pressed.
2.
FUNCTION button
Touch to change the speaker modes in the following order:
AUDIO IN
NETWORK BLUETOOTH HDMI USB-A USB-B AUDIO IN NETWORK
...
3.
AUDIO IN indicator
Lights up while in the AUDIO IN mode.
4.
USB-B indicator
Lights up while in the USB-B mode.
5.
USB-A indicator
Lights up while in the USB-A mode.
6.
HDMI indicator
Lights up while in the HDMI mode.
7.
BLUETOOTH indicator
Lights up or flashes while in the BLUETOOTH mode to indicate the status of the BLUETOOTH connection.
8.
NETWORK indicator
Lights up while in the network mode, or depending on the receiving service.
9.
22
UPDATE indicator
Lights up or flashes depending on the status of the speaker's software update.
10.
DTS indicator
Lights up when the DTS format sound inputs into the speaker which is in the HDMI mode.
11.
DOLBY D indicator
Lights up when the Dolby Digital format sound inputs into the speaker which is in the HDMI mode.
12.
L (left)/R (right) indicators
Lights up or flashes depending on the status of the speaker while the Wireless Surround function or Wireless Stereo function is
on.
13.
LINK indicator
Indicates the status of the speaker’s network connection.
14.
N-Mark
If your connecting device such as a smartphone is NFC-compatible, touch it on the N-Mark of the speaker. The speaker will
automatically turn on, register (pair) with the device, and make a BLUETOOTH connection.
15.
Grille detachment lever
Removes the front speaker grille.
16.
Screw holes for wall mounting
Use for wall mounting the speaker with using the mount bracket (not supplied).
17.
USB-A port A
Connect to the USB flash drive. If you connect to the Walkman, etc., use the cable supplied with the device.
18.
AUDIO IN port
Connect to the headphone jack of a portable audio device, etc., using a commercially-available audio cable (with stereo mini
plugs).
19.
DC IN 19.5V jack
Connect the supplied AC adaptor.
20.
STEREO PAIR button
Press to use the Wireless Stereo function for combining two speakers.
21.
LAN port
Connect to a PC or wireless router using a commercially-available LAN cable.
22.
SET UP button
Press to use the Wireless Surround function or Wireless Stereo function for combining the speaker and other audio devices.
23.
HDMI ARC TO TV port
Connect to the HDMI IN ARC port
*1
on your TV with using the commercially-available HDMI cable.
24.
USB-B port B
Connect to a PC using a commercially-available USB cable. Use a dedicated cable (not supplied) when connecting a Walkman or
Xperia compatible with High-Resolution Audio formats.
25.
UPDATE/WPS button
After pressing and holding for 2 seconds while the indicator is lit, the software update starts after the beep sounds from the
speaker.
If your wireless router has a Wi-Fi Protected Setup™ (WPS) button
*2
, you can use this button to connect to the network. After
26.
23
Related Topic
About the indicators
Mounting the speaker on a wall
4-592-259-11(6) Copyright 2016 Sony Corporation
pressing and holding for two seconds, the speaker is ready to connect to a wireless router after the beep sound from the
speaker
*3
.
“ARC” indicates for the HDMI ARC port on your TV.
*1
If your wireless router has a Wi-Fi Protected Setup™ (WPS) button (AOSS), you can connect to the Wi-Fi network by this method. For details, refer to the
operating instructions supplied with your wireless router.
*2
Not available while the UPDATE indicator is lit.
*3
24
Help Guide
Personal Audio System
SRS-ZR7
Checking the included items
After unpacking, check that all items in the list below are included.
If any items are missing, contact your dealer.
The number in ( ) indicates the quantity.
Personal audio system (SRS-ZR7) (1)
AC adaptor (1)
AC power cord
*
Conversion adaptor
*
Operating Instructions (Warranty Card
*
)
Provides important safety information, BLUETOOTH connection method, troubleshooting, etc.
Reference Guide
*
Provides important safety information.
Warranty card
*
4-592-259-11(6) Copyright 2016 Sony Corporation
Depending on your region/country
*
26
Help Guide
Personal Audio System
SRS-ZR7
Turning the power on
Hint
The LINK indicator may also begin to flash or light up when the speaker is turned on.
It may take a while before the speaker turns on.
When you turn on the speaker in the BLUETOOTH/Network standby mode, the start-up time becomes shorter and the speaker will become
operational sooner, than when you turn on the speaker in standby mode.
To turn on the BLUETOOTH/Network standby mode, turn on the speaker, then press and hold the
(power)/ PAIRING button and the
FUNCTION button on the top until the
(power) indicator lights up in orange.
Related Topic
Turning the power off (standby mode)
About the indicators
Using the BLUETOOTH/Network standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
Press the (power)/ PAIRING button.
The (power) indicator lights up in green.
1
28
Help Guide
Personal Audio System
SRS-ZR7
Turning the power off (standby mode)
Hint
If you turn off the speaker while the BLUETOOTH/Network standby mode is on, the (power) indicator lights up in orange and the speaker enters
the BLUETOOTH/Network standby mode.
Note
If you turn off the speaker while the LINK indicator is flashing, the (power) indicator may flash for several tens of seconds. This is not a
malfunction. Wait until the indicator stops flashing. While the
(power) indicator is flashing, the speaker is not operational. Wait until the indicator
stays lit.
Related Topic
Using the BLUETOOTH/Network standby mode
Auto standby mode
Standby mode differences
4-592-259-11(6) Copyright 2016 Sony Corporation
Press the (power)/ PAIRING button.
The (power) indicator flashes slowly in green. When the indicator turns off, the speaker enters the standby mode.
1
29
Help Guide
Personal Audio System
SRS-ZR7
Using the BLUETOOTH/Network standby mode
If the BLUETOOTH/Network standby mode is on, the speaker turns on when a BLUETOOTH device or network device is operated.
The BLUETOOTH or network connection then starts.
When you turn on the speaker in the BLUETOOTH/Network standby mode, the start-up time becomes shorter and the speaker will
become operational sooner, than when you turn on the speaker in the standby mode.
To turn off the BLUETOOTH/Network standby mode
With the speaker turned on, press and hold the (power)/ PAIRING button and the FUNCTION button simultaneously. When the
indicator turns off, the BLUETOOTH/Network standby mode is turned off and the speaker enters the standby mode.
Related Topic
Turning the power off (standby mode)
Setting the auto standby mode
Standby mode differences
4-592-259-11(6) Copyright 2016 Sony Corporation
Turn the speaker on.
The (power) indicator lights up in green.
1
Press and hold the
(power)/ PAIRING button and the FUNCTION button simultaneously until the (power)
indicator lights up in orange.
The speaker turns off and enters the BLUETOOTH/Network standby mode.
If you operate a BLUETOOTH device or network device to connect to the speaker, the speaker turns on automatically and
connection starts.
2
30
Help Guide
Personal Audio System
SRS-ZR7
Auto standby mode
The speaker automatically enters the standby mode or switches to the BLUETOOTH/Network standby mode if the speaker remains
in any of the following states for about 15 minutes.
No operation of the speaker
No connect/disconnect operations to the speaker from external devices
Music (sound) is not played while connected to an external device.
Hint
The auto standby mode can be turned off by using SongPal.
Note
The auto standby mode may not work depending on the connecting device during the AUDIO IN function.
Related Topic
Setting the auto standby mode
Standby mode differences
4-592-259-11(6) Copyright 2016 Sony Corporation
31
Help Guide
Personal Audio System
SRS-ZR7
How to use the SongPal screen
SongPal is an application for controlling Sony audio devices which are compatible with SongPal, by your smartphone, iPhone, etc.
Search for SongPal at Google Play or the App Store and download with your smartphone, iPhone, etc. After downloading SongPal
onto your smartphone, iPhone, etc.
[SongPal] will be displayed on the screen.
For details about SongPal, refer to the following URL:
http://info.songpal.sony.net/help/
The specification and design of the application may change without notice.
To start up SongPal on your smartphone, iPhone, etc.
Tap [SongPal] on your smartphone, iPhone, etc.
SongPal
Make sure that your smartphone, iPhone, etc. is connected to a network when starting SongPal at the first time.
The overview of the devices on the home network is displayed. You can select the audio device to play or group the audio devices
using SongPal Link.
You can select sound sources for playback. Also, you can make various sound/network settings of an audio device.
32
Help Guide
Personal Audio System
SRS-ZR7
What you can do with SongPal
SongPal is an application for controlling Sony audio devices which are compatible with SongPal, by your smartphone, iPhone, etc.
Search for SongPal at Google Play or the App Store and download it onto your smartphone, iPhone, etc.
For details about SongPal, refer to the following URL:
http://info.songpal.sony.net/help/
Downloading SongPal onto your smartphone/iPhone provides the following.
Sound settings of the speaker
You can easily customize your sound, or use the “ClearAudio+” and “DSEE HX” settings recommended by Sony.
Music service
You can configure the initial settings to use music services
*
.
Controlling devices on your home network
You can play music stored in your PC or home network server over your network.
Controlling a device connected via USB
You can play music in a device connected the USB-A port of the speaker.
Note
What you can control with SongPal varies depending on the connected device. The specification and design of the application may change without
notice.
4-592-259-11(6) Copyright 2016 Sony Corporation
Depending on the country or region, music services and their period of availability may differ. Separate registration is required for certain services. An
update of the device may be required.
Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility for such
situations.
*
34
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a Wi-Fi network using SongPal (Smartphone)
You can connect the speaker to a Wi-Fi network using SongPal installed on your smartphone. First, make a BLUETOOTH connection
between the speaker and the smartphone. Then configure the Wi-Fi network settings. Wi-Fi network settings in SongPal are sent
from your smartphone to the speaker via BLUETOOTH.
Complete step
within 15 minutes after turning on the speaker. If the speaker is not operated for more than 15 minutes, the
speaker enters the standby mode automatically by the auto standby mode.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Before starting this procedure, be aware that the setting information of your Wi-Fi network will not be protected until the setting is
complete. After the setting is complete, the setting information of your Wi-Fi network will be protected again when you set wireless
LAN security.
The specification and design of the application may change without notice.
Connect your smartphone to your wireless router.
Connect it to 2.4 GHz band (11b, 11g, and 11n) or 5 GHz band (11a and 11n). The speaker does not support IEEE 802.11ac.
1
Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
Some wireless routers have multiple SSIDs. Be sure to have the SSID that your smartphone is connected to.
For details, refer to the operating instructions supplied with your wireless router.
2
Install SongPal on your smartphone.
Search for SongPal at Google Play.
SongPal
3
Turn on the speaker.
Complete step
within 15 minutes after turning on the speaker.
The
(power) indicator lights up in green, then the LINK indicator begins to flash.
4
35
Tap [SongPal] on your smartphone to start up the application.
Follow the instructions on the screen.
SongPal
5
If your smartphone is NFC-compatible, turn on the NFC function, and unlock the screen of the smartphone. Then touch
the smartphone on the N-Mark of the speaker. If your smartphone is not NFC-compatible, go to step
.
Keep touching the smartphone on the N-Mark ( ) of the speaker until the smartphone responds (it may take a few seconds).
Then go to step
.
6
If your smartphone is not NFC-compatible, make the BLUETOOTH connection between the speaker and the
smartphone.
7
Turn on the BLUETOOTH function of your smartphone.
1.
Tap [Bluetooth settings] on the SongPal screen of your smartphone.
2.
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
3.
36
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In this case,
by only placing the speaker in the BLUETOOTH mode, the BLUETOOTH indicator will begin to flash quickly and the
speaker will enter the pairing mode automatically. Then go to step 5.
Press and hold the
(power)/ PAIRING button of the speaker until beeps are heard.
The BLUETOOTH indicator begins to flash quickly, and the speaker enters the pairing mode.
4.
Tap [SRS-ZR7] on the SongPal screen of your smartphone.
If [SRS-ZR7] is not displayed, search for the device. For details, refer to the operating instructions of your smartphone.
5.
Check that the BLUETOOTH indicator on the speaker is changed to lit from flashing.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit.
8
Configure the Wi-Fi network settings by your smartphone, following the on-screen instructions of SongPal.
9
37
Note
To download the app, you may have to pay a communication fee, depending on your Internet contract.
If a password is required, select the SSID that you recorded in step , and enter the password.
The following screen will be displayed.
Check that the LINK indicator on the speaker lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
Depending on the environment, it may take more than a minute for the LINK indicator to light up.
The connection is complete.
10
38
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker, the BLUETOOTH/Network
standby mode is turned on automatically.
When connecting a smartphone with using the NFC function, be careful not to touch the FUNCTION button and -/+ (volume) buttons at the same
time with the smartphone.
Related Topic
Auto standby mode
Standby mode differences
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
39
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a Wi-Fi network using SongPal (iPhone/iPod touch)
You can connect the speaker to a Wi-Fi network using SongPal installed on your iPhone/iPod touch. First, make a BLUETOOTH
connection between the speaker and the iPhone/iPod touch. Then configure the Wi-Fi network settings. Wi-Fi network settings in
SongPal are sent from your iPhone/iPod touch to the speaker via BLUETOOTH.
Complete step
within 15 minutes after turning on the speaker. If the speaker is not operated for more than 15 minutes, the
speaker enters the standby mode automatically by the auto standby mode.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Before starting this procedure, be aware that the setting information of your Wi-Fi network will not be protected until the setting is
complete. After the setting is complete, the setting information of your Wi-Fi network will be protected again when you set wireless
LAN security.
The specification and design of the application may change without notice.
Connect your iPhone/iPod touch to your wireless router.
Connect it to 2.4 GHz band (11b, 11g, and 11n) or 5 GHz band (11a and 11n). The speaker does not support IEEE 802.11ac.
1
Search for SongPal at the App Store and download it onto your iPhone/iPod touch.
SongPal
2
40
Turn on the speaker.
Complete step within 15 minutes after turning on the speaker.
The
(power) indicator lights up in green, then the LINK indicator begins to flash.
3
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In this case, by
only placing the speaker in the BLUETOOTH mode, the BLUETOOTH indicator will begin to flash quickly and the speaker will
enter the pairing mode automatically. Then go to step
.
4
Press and hold the
(power)/ PAIRING button of the speaker until beeps are heard.
The BLUETOOTH indicator begins to flash quickly, and the speaker enters the pairing mode.
5
Search for the speaker on the iPhone/iPod touch.
6
Select [Settings].
1.
Tap [Bluetooth].
2.
Tap [ ] to display [ ].
3.
41
Tap [SRS-ZR7].
4.
Check that the BLUETOOTH indicator on the speaker is changed to lit from flashing.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit.
7
Configure the Wi-Fi network settings of the speaker, following the on-screen instructions of SongPal.
8
Tap [SongPal] on your iPhone/iPod touch to start up the application..
Follow the instructions on the screen.
1.
42
SongPal
When the following screen is displayed, tap [OK].
2.
If [Share Wi-Fi Settings?] is displayed, tap [Allow].
The following screen will be displayed.
3.
Check that the LINK indicator on the speaker lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
Depending on the environment, it may take more than a minute for the LINK indicator to light up.
9
43
Note
To download the app, you may have to pay a communication fee, depending on your Internet contract.
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker, the BLUETOOTH/Network
standby mode is turned on automatically.
Related Topic
Auto standby mode
Standby mode differences
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
The connection is complete.
44
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a PC via a Wi-Fi network
You can use a smartphone, iPhone, etc. with SongPal installed as a DLNA controller (operating device). You can select/play music
files on a PC via a Wi-Fi network by operating your smartphone, iPhone, etc.
To listen to music on the PC, it is necessary to set the PC as a DLNA server.
The specification and design of the application may change without notice.
Set up your PC as a DLNA server.
For details about settings, see Related Topic below.
1
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
2
Tap [SRS-ZR7].
3
Tap [Home Network].
4
45
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Select the DLNA server registered for your PC, by following the on-screen instruction of SongPal.
5
Select a song from the list and start playback.
Music in your PC will be heard from the speaker.
6
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
*
46
Hint
When playing back High-Resolution Audio files, using commercially-available LAN cables to connect the speaker, a router and a PC are
recommended.
Related Topic
DLNA (Digital Living Network Alliance)
Compatible DLNA devices
Setting your PC as a DLNA server and controller (Windows 10)
Setting your PC as a DLNA server and controller (Windows 8.1)
Setting your PC as a DLNA server and controller (Windows 7)
Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal operation)
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
4-592-259-11(6) Copyright 2016 Sony Corporation
distortion.
47
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a smartphone, iPhone, etc. via a Wi-Fi network
You can listen to the music stored in your smartphone, iPhone, etc. over Wi-Fi network with SongPal.
The specification and design of the application may change without notice.
Connect the speaker and a smartphone, iPhone, etc. to the same network.
Connect the speaker and your smartphone, iPhone, etc. to the same SSID of your wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to your network.
1
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
2
Tap [SRS-ZR7].
3
Tap [My Music].
4
48
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
4-592-259-11(6) Copyright 2016 Sony Corporation
Start playing back music on your smartphone, iPhone, etc., and adjust the volume.
Music will be heard from the speaker.
5
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
49
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a device via a USB connection (USB-A)
You can use a smartphone, iPhone, etc. with SongPal installed as a remote control. You can select/play music files on a device
connected to the USB A port (
A) of the speaker by operating your smartphone, iPhone, etc.
The specification and design of the application may change without notice.
Connect the device to the USB A port ( A) of the speaker.
For details about connection, see Related Topic below.
1
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
2
Tap [SRS-ZR7].
3
Tap [USB].
4
50
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.*
Note
Files imported to the Walkman via x-app. cannot be played back.
Related Topic
Connecting a USB flash drive
Connecting a Walkman
4-592-259-11(6) Copyright 2016 Sony Corporation
Select a song from the list and start playback.
Music will be heard from the speaker.
5
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
51
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a computer via a USB connection (USB-B)
You can use a smartphone/iPhone, etc. with SongPal installed as a remote control. Select the computer connected to the USB-B port
(
B) of the speaker by using your smartphone, iPhone, etc., then operate the computer to playback music.
The specification and design of the application may change without notice.
Connect the PC to the USB-B port ( B) of the speaker.
For details about connection, see Related Topic below.
1
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
2
Tap [SRS-ZR7].
3
Tap [USB DAC].
4
52
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.*
4-592-259-11(6) Copyright 2016 Sony Corporation
Play back music on the PC.
For details, refer to the operating instructions of your computer.
5
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
53
Help Guide
Personal Audio System
SRS-ZR7
Setting the sound quality
You can easily customize the sound quality of the speaker by using your smartphone, iPhone, etc. with SongPal installed.
The specification and design of the application may change without notice.
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
1
Tap [SRS-ZR7].
2
Tap [Settings].
3
54
4-592-259-11(6) Copyright 2016 Sony Corporation
Tap [Sound].
4
Select the desired setting and set the sound quality.
You can set the following sound settings.
ClearAudio+
You can enjoy ClearAudio+ mode (Sony-recommended sound quality). ClearAudio+ mode is set as the default.
Equalizer
You can set the sound quality according to the music genre.
DSEE HX
This function enables enhancement
*
of the sound quality for compressed audio files and restores high-range sound
removed during the compression process. [Auto] is set as the default setting so you can enjoy both compressed audio files
and high-resolution audio files.
5
Enhancement up to 192 kHz/24 bit.
*
55
Help Guide
Personal Audio System
SRS-ZR7
Setting the auto standby mode
You can turn on/off the auto standby mode of the speaker, using SongPal installed on your smartphone, iPhone, etc.
The specification and design of the application may change without notice.
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
1
Tap [SRS-ZR7].
2
Tap [Settings].
3
56
Related Topic
Auto standby mode
Standby mode differences
4-592-259-11(6) Copyright 2016 Sony Corporation
Tap [Power Option].
4
Tap [Auto Standby].
Set the auto standby mode to on/off. If you set the auto standby mode to off, the speaker will not enter the standby mode or
BLUETOOTH/Network standby mode automatically. When the auto standby mode is turned off, press the
(power)/
PAIRING button on the speaker to turn off the speaker.
5
57
Help Guide
Personal Audio System
SRS-ZR7
Setting the BLUETOOTH/Network standby mode
You can turn on/off the BLUETOOTH/Network standby mode of the speaker, using SongPal installed on your smartphone, iPhone,
etc.
The specification and design of the application may change without notice.
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
1
Tap [SRS-ZR7].
2
Tap [Settings].
3
58
4-592-259-11(6) Copyright 2016 Sony Corporation
Tap [System].
4
Tap [Network Standby].
Set the BLUETOOTH/Network standby mode to on/off.
5
59
Help Guide
Personal Audio System
SRS-ZR7
Setting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker, using SongPal installed on your smartphone,
iPhone, etc.
The specification and design of the application may change without notice.
Tap [SongPal] on your smartphone, iPhone, etc. to start up the application.
SongPal
1
Tap [SRS-ZR7].
2
Tap [Settings].
3
60
Note
If the playback quality setting is changed with the speaker turned on, the BLUETOOTH connection is terminated. In this case, connect the
BLUETOOTH device manually again. After reconnecting, the playback quality is switched.
You may also need to adjust the settings of the connected device to change the playback quality setting, such as SBC, AAC, LDAC. For details, refer
to the operating instructions supplied with the device.
Related Topic
Selecting the BLUETOOTH audio streaming playback quality (Codec)
4-592-259-11(6) Copyright 2016 Sony Corporation
Tap [Other Settings].
4
Tap [Bluetooth Codec] and select the desired codec.
You can set the following.
Auto: Optimal codec is automatically selected from AAC, LDAC, and SBC.
SBC: SBC is selected.
5
61
Help Guide
Personal Audio System
SRS-ZR7
Connecting via a USB cable
Operate an application such as “Sony | Music Center for PC” to play back music.
This connection method is suitable for playing back high-resolution audio files.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting a PC/Installing the driver
1.
Installing “Sony | Music Center for PC” or “Hi-Res Audio Player” to a PC
2.
Listening to music via a music playback application
3.
62
Help Guide
Personal Audio System
SRS-ZR7
Connecting via a LAN cable
A commercially-available LAN cable is required.
Connect your PC and the speaker via a wireless network.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting to a wired network
1.
Setting your PC as a DLNA server and controller (Windows 10)/(Windows 8.1)/(Windows 7)
2.
Listening to music via Windows Media Player
3.
63
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Confirm that your PC is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your PC and the speaker by using the following methods
Pairing a device to connect to the speaker for the first time (Windows 10)/(Windows 8.1)/(Windows 7)
Connecting a paired PC and the speaker (Windows 10)/(Windows 8.1)/(Windows 7)
1.
Listening to music via a music playback application
2.
64
Help Guide
Personal Audio System
SRS-ZR7
Using “Sony | Music Center for PC”
Listen to music stored on the PC from the speaker via a Wi-Fi network.
Operating “Sony | Music Center for PC” via SongPal
A smartphone, iPhone, etc. with SongPal installed is used.
First, connect the speaker to a Wi-Fi network using SongPal (Smartphone)/(iPhone/iPod touch). Next, set your PC for operating from
a controller such as a smartphone/iPhone, then listen to music from the speaker via a Wi-Fi network.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting to a Wi-Fi network
1.
Listening to music on a PC via a network (“Sony | Music Center for PC”)
2.
65
Help Guide
Personal Audio System
SRS-ZR7
Using Windows Media Player (Windows 7 or later)
Operate Windows Media Player on your PC to listen to music from the speaker via a Wi-Fi network.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting to a Wi-Fi network
1.
Setting your PC as a DLNA server and controller (Windows 10)/(Windows 8.1)/(Windows 7)
2.
Listening to music on a PC via a network (Windows Media Player)
3.
66
Help Guide
Personal Audio System
SRS-ZR7
Using other music playback software
If you want to use the server function to listen to the music files stored on your PC from the speaker via a network, move or copy
music files to the library of “Sony | Music Center for PC” or “Hi-Res Audio Player.”
Note
If you want to use a music playback software other than “Sony | Music Center for PC” or “Hi-Res Audio Player,” make a BLUETOOTH connection
with a PC.
4-592-259-11(6) Copyright 2016 Sony Corporation
67
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Confirm that your smartphone is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your smartphone and the speaker by using the following methods
Pairing and connecting with a BLUETOOTH device
Connecting with a paired BLUETOOTH device
1.
Listening to music via a music playback application
2.
68
Help Guide
Personal Audio System
SRS-ZR7
Using the Music application (Xperia only)
Make sure that the Music application (WALKMAN application) is pre-installed in your Xperia.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connect your Xperia to your wireless router.
For details on connecting your Xperia to your wireless router, refer to the operating instructions supplied with your Xperia.
1.
Connecting the speaker to your wireless router
2.
Listening to music with the Music application
3.
70
Help Guide
Personal Audio System
SRS-ZR7
Connecting via a USB cable
A dedicated cable (not supplied) is required.
This connection method is suitable for playing back high-resolution audio files.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting an Xperia compatible with High-Resolution Audio formats
1.
Listening to music via a music playback application
2.
72
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Check whether your iPhone/iPod touch is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your iPhone/iPod touch and the speaker by using the following methods
Pairing iPhone/iPod touch to connect to the speaker for the first time
Connecting a paired iPhone/iPod touch and the speaker
1.
Listening to music via a music playback application
2.
73
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Confirm that your Walkman is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your Walkman and the speaker by using the following methods
Pairing and connecting with a BLUETOOTH device
Connecting with a paired BLUETOOTH device
1.
Listening to music via a music playback application
2.
76
Help Guide
Personal Audio System
SRS-ZR7
Connecting a USB cable (USB-A)
Use your smartphone, iPhone, etc. with SongPal installed to control playback on the Walkman.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting the speaker to a Wi-Fi network using SongPal (smartphone)/(iPhone/iPod touch)
1.
Connecting a Walkman
2.
Listening to music via SongPal
3.
77
Help Guide
Personal Audio System
SRS-ZR7
Connecting via a USB cable
An optional High-Resolution Audio USB Adaptor WM-PORT cable
*
is required.
This connection method is suitable for playing back high-resolution audio files.
4-592-259-11(6) Copyright 2016 Sony Corporation
Optional High-Resolution Audio USB Adaptor WM-PORT Cable can be ordered from your nearest Sony Service Center.
*
Connecting a Walkman compatible with High-Resolution Audio formats
1.
Listening to music via a music playback application
2.
79
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Confirm that your Walkman is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your Walkman and the speaker by using the following methods
Pairing and connecting with a BLUETOOTH device
Connecting with a paired BLUETOOTH device
1.
Listening to music via a music playback application
2.
80
Help Guide
Personal Audio System
SRS-ZR7
Using SongPal
Use your smartphone, iPhone, etc. with SongPal installed to control playback music on a USB flash drive.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting the speaker to a Wi-Fi network using SongPal (smartphone)/(iPhone/iPod touch)
1.
Connecting a USB flash drive
2.
Listening to music on a device via a USB connection (USB-A)
3.
82
Help Guide
Personal Audio System
SRS-ZR7
Connecting via a LAN cable
A commercially-available LAN cable is required.
Connect your PC and the speaker via a wireless network.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting to a wired network
1.
Setting your PC as a DLNA server and controller (Windows 10)/(Windows 8.1)/(Windows 7)
2.
Receiving music services on the PC
3.
83
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Confirm that your PC is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your PC and the speaker by using the following methods
Pairing a device to connect to the speaker for the first time (Windows 10)/(Windows 8.1)/(Windows 7)
Connecting a paired PC and the speaker (Windows 10)/(Windows 8.1)/(Windows 7)
1.
Receiving music services on your PC
2.
84
Help Guide
Personal Audio System
SRS-ZR7
Making a wireless connection (BLUETOOTH connection)
Make sure whether your smartphone, iPhone, etc. is equipped with the BLUETOOTH function.
4-592-259-11(6) Copyright 2016 Sony Corporation
Making a BLUETOOTH connection between your smartphone, iPhone, etc. and the speaker by using the following methods
Pairing and connecting with a BLUETOOTH device
Connecting with a paired BLUETOOTH device
1.
Receiving music services on the smartphone, iPhone, etc.
2.
85
Help Guide
Personal Audio System
SRS-ZR7
Using SongPal (Google Cast)
A smartphone, iPhone, etc. with SongPal installed is required.
You can listen to music services from the speaker via a Google Cast-enabled app.
4-592-259-11(6) Copyright 2016 Sony Corporation
Connecting the speaker to a Wi-Fi network using SongPal (smartphone)/(iPhone/iPod touch)
1.
Listening to music services via a Google Cast-enabled app
2.
86
Help Guide
Personal Audio System
SRS-ZR7
Selecting the Wi-Fi network connection method
Select the appropriate connection method for your network environment from below. Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Connecting to a Wi-Fi network using SongPal
Download SongPal to your smartphone, iPhone, etc. This application provides Wi-Fi connection setup with the speaker, and allows
you to select/play music in a DLNA server (such as a PC).
For details, see “Connecting to a Wi-Fi network using SongPal (Smartphone)” or “Connecting to a Wi-Fi network using SongPal
(iPhone/iPod touch).”
Connecting to a Wi-Fi network using the Wi-Fi Protected Setup (WPS) button of the wireless router
If your wireless router has a Wi-Fi Protected Setup (WPS) button, connect to the Wi-Fi network by this method.
To check if your wireless router is compatible with Wi-Fi Protected Setup (WPS), refer to the operating instructions of your router.
For details, see “Connecting to a Wi-Fi network using the Wi-Fi Protected Setup (WPS) button of the wireless router.”
Connecting to a Wi-Fi network using a PC
If your wireless router does not have a Wi-Fi Protected Setup (WPS) button, use your PC to connect the speaker to the Wi-Fi
network. Select one of the connecting methods from below.
Connecting to a Wi-Fi network using a PC connected with a commercially-available LAN cable
For details, see “Connecting to a Wi-Fi network using a PC connected with a LAN cable.”
Connecting to a Wi-Fi network using a PC connected with Wi-Fi connection.
The speaker should be initialized to the factory default settings for this connection.
For details, see “Connecting to a Wi-Fi network using a PC connected wirelessly.”
Hint
If your wireless router has a Wi-Fi Protected Setup (WPS) button, you can connect to the Wi-Fi network by this method. For details, refer to the
operating instructions supplied with your wireless router.
Related Topic
Connecting to a Wi-Fi network using SongPal (Smartphone)
Connecting to a Wi-Fi network using SongPal (iPhone/iPod touch)
Checking the Wi-Fi signal strength (reception sensitivity)
4-592-259-11(6) Copyright 2016 Sony Corporation
88
Help Guide
Personal Audio System
SRS-ZR7
DLNA (Digital Living Network Alliance)
You can listen to music stored in a DLNA server (such as a PC) on a home network using the speaker.
By connecting DLNA-compatible digital devices with each other on the network, you can play back music stored in a DLNA server by
using a DLNA controller.
To use the PC as a DLNA server or controller, it is necessary to set the PC.
To listen to music in a DLNA server (PC, etc.) by operating a smartphone, iPhone, etc.
Download SongPal to your smartphone, iPhone, etc.
This application provides Wi-Fi connection setup with the speaker, and allows you to select/play music in the DLNA server (such as a
PC).
For details, see “Connecting to a Wi-Fi network using SongPal (Smartphone)/(iPhone/iPod touch),” “Listening to music on a PC via a
Wi-Fi network” or “Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal operation).”
To listen to music in a DLNA server using your PC as a controller
You can play back music stored in a DLNA server by operating your PC.
Start Windows Media Player on your PC, then play back music by using the “Cast to Device” function (Windows 10) or “Play To”
function (Windows 8.1/Windows 7).
Follow the instructions on the PC screen to operate.
To use the PC as a DLNA server or controller, it is necessary to set the PC.
For details, see “Setting your PC as a DLNA server and controller (Windows 10)/(Windows 8.1)/(Windows 7),” “Listening to music on
a PC via a network (“Sony | Music Center for PC”)” or “Listening to music on a PC via a network (Windows Media Player).”
Note
The speaker can play MP3, Linear PCM, WMA, AAC, WAV, FLAC, ALAC and AIFF format files (only AAC files with the extension “.m4a,” “.mp4,” or
“.3gp” are playable). Even if the bit rate and file format are supported, the playback of all files is not guaranteed.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a WMA file is protected by DRM,
right-click the file on the PC.
When you listen to music via a home network, it may take some time to start, since each DLNA-compatible device has to recognize the component
currently used.
Some content may not be playable with DLNA certified products.
Related Topic
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
89
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a Wi-Fi network using the Wi-Fi Protected Setup (WPS) button of the wireless
router
If your wireless router has a Wi-Fi Protected Setup (WPS) button, you can connect to the Wi-Fi network by this method.
To check if your wireless router is compatible with Wi-Fi Protected Setup (WPS), refer to the operating instructions of your router.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Turn on the speaker.
1
Press and hold the UPDATE/WPS button on the rear of the speaker until a beep is heard (for about 2 seconds).
The LINK indicator flashes in orange and the NETWORK indicator lights up.
2
Press the Wi-Fi Protected Setup (WPS) button* of the wireless router.
Operate within 90 seconds after pressing the UPDATE/WPS button of the speaker. Depending on the wireless router, press and
hold the Wi-Fi Protected Setup (WPS) button of the wireless router for a few seconds. For details, refer to the operating
instructions of your wireless router.
3
The position and shape of the Wi-Fi Protected Setup (WPS) button differ depend on the wireless router.
*
Check that the LINK indicator changes from flashing to staying lit in orange.
4
90
If the LINK indicator flashes in red
The speaker failed to connect to the Wi-Fi network. Try connecting again from step .
Hint
For details on the Wi-Fi Protected Setup (WPS) button of your wireless router, refer to the operating instructions of your wireless router.
If the Wi-Fi connection fails even if you try several times, initialize the speaker and delete the setting information of the Wi-Fi connection, then try
connecting again.
Note
While a LAN cable (not supplied) is connected to the speaker, the speaker cannot connect to a Wi-Fi network.
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker, the BLUETOOTH/Network
standby mode is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby mode
Updating the pre-installed software
Initializing the speaker
4-592-259-11(6) Copyright 2016 Sony Corporation
When the Wi-Fi connection is established, the LINK indicator lights up in orange.
Depending on the environment, it may take more than a minute for the LINK indicator to light up.
The connection is established.
91
Help Guide
Personal Audio System
SRS-ZR7
Connecting to a Wi-Fi network using a PC connected with a LAN cable
This section explains how to connect the speaker to a Wi-Fi network using your PC after connecting the speaker to the PC via a
commercially-available LAN cable.
Do the following before starting.
Place the speaker closer to your wireless router.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a Wi-Fi
network. The encryption key restricts access to devices on a network. It is used to make more secure communication between
the devices connected to wireless routers or access points.
Have the Wi-Fi network name (SSID) and password (encryption key) of the wireless router available for reference.
For details, refer to the operating instructions supplied with your wireless router.
1
Connect your PC to the LAN port of the speaker using the LAN cable.
2
Turn the speaker on.
The (power) indicator lights up in green, then the LINK indicator begins to flash in pink. Wait about a minute until the LINK
indicator lights up in pink.
Hint
When you connect the speaker to a PC for the first time, it takes about four or five minutes until the LINK indicator stops flashing and stays lit
in pink.
3
Display the [Sony Network Device Settings] screen.
92
4
Launch a browser (Internet Explorer, etc.).
1.
Enter the following URL in the address bar.
http://169.254.1.1
This URL is for connecting the PC and speaker via a LAN cable.
2.
Select [Network Settings] from the menu.
If it is not displayed, disconnect the PC from the Wi-Fi network.
5
Enter the SSID of the wireless router and the password (encryption key).
6
Select [Apply].
7
93
If the LINK indicator flashes in red
The Wi-Fi connection is failed. Start over the procedure above.
Hint
If you start over the procedure above for more than one time, initialize the speaker to delete information about the Wi-Fi network connection, and
then start over the procedure again.
Note
When you connect the speaker to a Wi-Fi network for the first time after purchase, or your initialize the speaker, the BLUETOOTH/Network standby
mode is turned on automatically.
4-592-259-11(6) Copyright 2016 Sony Corporation
Disconnect the LAN cable from the speaker with following the instruction screen.
8
Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
It may take more than a minute for the LINK indicator to light up.
The connection is complete.
9
94
Help Guide
Personal Audio System
SRS-ZR7
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
For more details, refer to "Connecting to a wired network."
4-592-259-11(6) Copyright 2016 Sony Corporation
95
Help Guide
Personal Audio System
SRS-ZR7
Using this speaker as a rear speaker (Wireless Surround)
You can enjoy surround sound by combining with products that support the Wireless Surround function.
A Sony product (such as a sound bar/home theater system) that supports the Wireless Surround function and two SRS-ZR7 are
required.
For more information including compatible models, refer to the following URL.
http://sony.net/nasite/
Preparing for using the Wireless Surround function
Connect the speaker (SRS-ZR7) to the wireless network.
For details about the wireless network connection, see "Selecting the
Wi-Fi network connection method."
Check if the software of this speaker is the latest version.
For details how to check the software version, see "Searching the latest
software via a network connection."
Setting speakers to use as rear speakers (Wireless Surround)
Place the speakers at a distance 1 m (3 ft) or less from each other, and then turn on them.
The (power) indicator lights up in green.
1
On each speaker, tap the FUNCTION button repeatedly until the NETWORK indicator lights up.
Both speakers enter the NETWORK mode.
2
Set up the Wireless Surround function on the connecting equipment.
Follow the instructions on the screen. The following operations are for a sound bar (HT-NT5) are used as an example.
For more details, refer to the operating instructions of the connecting equipment.
3
Press the HOME button on the remote control.
1.
Select [Setup], and then press the enter button.
2.
Select [Wireless Surround], and then follow the instructions on the screen.
3.
96
Canceling the Wireless Surround function/using other functions
While using the Wireless Surround function, other functions (such as the Wireless Multi-room function, Wireless Stereo function) are
not available.
Press and hold the SET UP button on this speaker until a beep is heard.
The L/R indicators turn off and the Wireless Surround function is canceled. Then, the grouping is also canceled.
Hint
You can also set the Wireless Surround function using SongPal.
Check that the L/R indicators and LINK indicator on this speaker light up.
4
On the connecting equipment, start playback and adjust the volume.
For more details, refer to the operating instructions of the connecting equipment.
5
97
Note
When using the Wireless Surround function, the automatic software update feature of the speaker and sound bar/home theater system is not
activated. To update the software, cancel the Wireless Surround function, and then connect the speaker or sound bar/home theater system to the
wireless network.
When using the Wireless Surround function, the speaker and sound bar/home theater system cannot be connected to the wireless network. To
connect the speaker or sound bar/home theater system to the wireless network, cancel the Wireless Surround function, and then connect it to the
wireless network.
Setting on SongPal is available when SongPal version is 4.0 or later. For more details on SongPal, refer to the following URL.
http://info.songpal.sony.net/help/
When using the Wireless Multi-room function on this speaker, setting (grouping) for the Wireless Surround function cannot be operated on this
speaker.
Related Topic
Listening with multiple speakers (SongPal Link)
Connecting two speakers (Wireless Stereo)
4-592-259-11(6) Copyright 2016 Sony Corporation
98
Help Guide
Personal Audio System
SRS-ZR7
Connecting two speakers (Wireless Stereo)
By connecting two SRS-ZR7, you can enjoy more expanding stereo sound.
Two SRS-ZR7 are required.
Preparing for the Wireless Stereo function
Connect the speaker (SRS-ZR7) to the wireless network. For details about the wireless network connection, see "Selecting the
Wi-Fi network connection method."
Check if the software of this speaker is the latest version. For details how to check the software version, see "Searching the latest
software via a network connection."
Connecting two speakers (Wireless Stereo)
Place the speakers at a distance 1 m (3 ft) or less from each other, and then turn on them.
The (power) indicator lights up in green.
1
On each speaker, tap the FUNCTION button repeatedly until the NETWORK indicator lights up.
Both speakers enter the NETWORK mode.
2
Press and hold the STEREO PAIR button on the rear of one of the speakers until beeps are heard, which informs you to
start setting the function.
The L/R indicators flash.
3
99
Canceling the Wireless Stereo function/using other functions
While using the Wireless Stereo function, other functions (such as the Wireless Multi-room function, Wireless Surround function) are
not available.
Press and hold the SET UP button on this speaker until a beep is heard.
The L/R indicators turn off, and the Wireless Stereo function is canceled. Then, the grouping is also canceled.
Hint
You can also set Wireless Stereo using SongPal.
If the signal strength is weak due reasons such as separating the speakers, the connection may be canceled temporarily. Place the speakers in a
position that provides enough signal strength.
When the connection is canceled temporarily, the speakers automatically reconnect. If it takes 10 minutes or more to reconnect after canceling, the
Wireless Stereo function is canceled. When using the Wireless Stereo function the next time, operate from step 1.
Note
When using the Wireless Stereo function, the automatic software update feature of the speakers is not activated. To update the software, cancel the
Wireless Stereo function, and then connect the speaker to the wireless network.
Press and hold the SET UP button on the rear of the other speaker until beeps are heard, which informs you to start the
connection.
This operation is completed in 30 seconds from pressing the STEREO PAIR button on the previous step.
Beeps sound on each speaker to inform which speaker is set to the left or right position, and the two speakers are connected
with the Wireless Stereo function.
4
On the device connected to the speaker*, start playback, and adjust the volume.
5
* Operate the speaker whose LINK indicator lights off or lights up in orange.
100
While using the Wireless Stereo function, one of the speakers may inform you that the latest software is available (the UPDATE indicator lights up in
orange). In this case, update the software of the speaker whose UPDATE indicator lights up in orange. For details on how to update, see “Update
method 2: Manual update via the Internet.” Grouping of the Wireless Stereo function is automatically canceled. Then, connect the other speaker to
the wireless network, and then update the software of the speaker. For details on how to update, see “Searching the latest software via a network
connection.” After updating both speakers to the latest software, set the Wireless Stereo function again.
It is recommended to turn down the volume of the speaker which of pressing the STEREO PAIR button before setting the Wireless Stereo function.
The two speakers output sound for the Wireless Stereo function, so a louder sound may be output than that with playback with one speaker.
Setting on SongPal is available when SongPal version is 4.0 or later. For more details on SongPal, refer to the following URL.
http://info.songpal.sony.net/help/
Related Topic
Listening with multiple speakers (SongPal Link)
Using this speaker as a rear speaker (Wireless Surround)
4-592-259-11(6) Copyright 2016 Sony Corporation
101
Help Guide
Personal Audio System
SRS-ZR7
How to make a wireless connection with BLUETOOTH devices
You can enjoy music with the speaker wirelessly by using your device’s BLUETOOTH function.
Do the following before starting.
Place the BLUETOOTH device within 1 m (3 ft) of the speaker.
Prepare the operating instructions supplied with the BLUETOOTH device for reference.
Turn down the volume of the BLUETOOTH device.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
Pairing the speaker with a BLUETOOTH device
Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time. Perform same
procedures to pair to other devices.
See the following topic.
Pairing and connecting with a BLUETOOTH device
Pairing and connecting with a PC (Windows 10)/(Windows 8.1)/(Windows 7)
Connecting the speaker with a paired device
Once BLUETOOTH devices are paired, there is no need to pair them again. To connect a device already paired, see the following
topic.
Connecting with a paired BLUETOOTH device
Connecting with a paired PC (Windows 10)/(Windows 8.1)/(Windows 7)
Connecting the speaker with an NFC-compatible device by one touch (NFC)
By touching the speaker with an NFC-compatible device such as a smartphone or Walkman, etc., the speaker turns on automatically,
then pairs with the device and makes a BLUETOOTH connection.
Connecting with an NFC-compatible device by one touch (NFC)
Compatible smartphones
NFC-compatible smartphones with Android 4.1 or later installed
For details, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
102
Compatible Walkman models
NFC-compatible Walkman models*
NFC
NFC (Near Field Communication) is a technology enabling short-range wireless communication between various devices, such as
smartphones and IC tags. The data communication is easily activated by touching the device to the specific position on the speaker.
Note
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
The speaker can be paired with up to 9 devices. If a new device is paired after 9 devices are already paired, the paired device with the oldest
connection time is replaced by the new one.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
The speaker is initialized.
All pairing information will be deleted. If you initialize the speaker, it may not be able to connect your iPhone/iPod touch or PC. In this case, erase
the pairing information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
The passkey of this speaker is "0000." If a passkey besides "0000" is set on the BLUETOOTH device, pairing cannot be done with the speaker.
When connecting a device such as a smartphone or Walkman with using the NFC function, be careful not to touch the FUNCTION button and -/+
(volume) buttons at the same time with the device.
4-592-259-11(6) Copyright 2016 Sony Corporation
Even if your Walkman is compatible with the NFC function, it may not be able to make a BLUETOOTH connection with the speaker by one touch. For
details on the compatible models, refer to the operating instructions supplied with your Walkman.
*
103
Help Guide
Personal Audio System
SRS-ZR7
Pairing and connecting with a BLUETOOTH device
Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time. Perform same
procedures to pair to other devices.
Do the following before starting.
Place the BLUETOOTH device within 1 m (3 ft) of the speaker.
Prepare the operating instructions supplied with the BLUETOOTH device for reference.
Turn down the volume of the BLUETOOTH device.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
Turn on the speaker.
The (power) indicator lights up in green.
1
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In this case,
by only placing the speaker in the BLUETOOTH mode, the BLUETOOTH indicator will begin to flash quickly and the
speaker will enter the pairing mode automatically. Then go to step
.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. In this case, turn off the BLUETOOTH function on the BLUETOOTH device, or turn off the BLUETOOTH
device.
2
Press and hold the
(power)/ PAIRING button of the speaker until beeps are heard.
The BLUETOOTH indicator begins to flash quickly, and the speaker enters the pairing mode.
3
104
Hint
For details on operating a BLUETOOTH device, refer to the operating instructions supplied with the BLUETOOTH device.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function to play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
The pairing mode of the speaker is released after about 5 minutes and the BLUETOOTH indicator flashes slowly. However, when pairing information
is not stored in the speaker, or you turn on the speaker for the first time after purchase, the pairing mode is not released. If the pairing mode is
released before finishing the process, repeat from step
.
Perform the pairing procedure on the BLUETOOTH device to detect the speaker.
When a list of detected devices appears on the display of the BLUETOOTH device, select [SRS-ZR7].
If a passkey
*
is required on the display of the BLUETOOTH device, enter “0000.”
4
A passkey may be called “Passcode,” “PIN code,” “PIN number” or “Password.”
*
Check that the BLUETOOTH indicator on the speaker is changed to lit from flashing.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit.
If the BLUETOOTH connection is not established, repeat from step .
5
105
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
The speaker can be paired with up to 9 devices. If a new device is paired after 9 devices have already been paired, the paired device with the
oldest connection time is replaced by the new one.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
The speaker is initialized.
All pairing information will be deleted. If you initialize the speaker, it may not be able to connect your iPhone/iPod touch or PC. In this case, erase
the pairing information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
The passkey of this speaker is "0000." If a passkey besides "0000" is set on the BLUETOOTH device, pairing cannot be done with the speaker.
Related Topic
Listening to music on a device via a BLUETOOTH connection
4-592-259-11(6) Copyright 2016 Sony Corporation
106
Help Guide
Personal Audio System
SRS-ZR7
Pairing and connecting with a PC (Windows 10)
Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time. Perform same
procedures to pair to other devices.
Do the following before starting.
Make sure that your PC has the BLUETOOTH wireless function.
Place your PC within 1 m (3 ft) of the speaker.
Locate the operating instructions supplied with the PC for reference.
Turn down the volume of the PC.
Stop playback on the PC to avoid any sudden loud sound from the speaker.
Activate the BLUETOOTH function on your PC. For details how to activate the BLUETOOTH function or to confirm that your PC
has the BLUETOOTH function, refer to the operating instructions of the PC.
Set the speaker setting on the PC to on. If the mute (off) mode is set in the speaker’s setting on the PC, the speaker will not
output sound.
If the speaker setting on the PC is the mute (off) mode
If the speaker setting on the PC is the on mode
Prepare to search for the speaker on the PC.
1
Select [
(Action Center)] – [Bluetooth] in the taskbar on the right-bottom of the screen.
1.
Turn the speaker on.
The (power) indicator lights up in green.
2
107
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In this case,
by only placing the speaker in the BLUETOOTH mode, the BLUETOOTH indicator will begin to flash quickly (three times a
second) and the speaker will enter the pairing mode automatically. Then go to step
.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. In this case, turn off the BLUETOOTH function on the BLUETOOTH device, or turn off the BLUETOOTH
device.
3
Set the speaker to the pairing mode.
Press and hold the
(power)/ PAIRING button until the speaker beeps and the BLUETOOTH indicator starts flashing
quickly (three times a second).
4
Search for the speaker on the PC.
5
Select [Connect] in the Action Center on the right-bottom of the screen.
1.
108
Select [SRS-ZR7].
If [SRS-ZR7] does not appear on the screen, repeat the procedure from step .
After pairing, the BLUETOOTH connection establishes automatically and [Connected music] will be displayed on the
screen.
2.
Check that the BLUETOOTH indicator on the speaker changes from flashing to staying lit.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit. You can enjoy the music playback from
your PC.
If the connection is not completed even though [SRS-ZR7] is displayed on the screen, place the speaker in the pairing mode to
connect.
Press and hold the (power)/ PAIRING button until the speaker beeps and the BLUETOOTH indicator starts flashing
6
109
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the PC.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
If your PC does not have the BLUETOOTH function, it will be necessary to connect a commercially available BLUETOOTH adaptor to the PC.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
The pairing mode of the speaker is released after about 5 minutes and the BLUETOOTH indicator flashes slowly. However, when pairing information
is not stored in the speaker, or you turn on the speaker for the first time after purchase, pairing mode is not released. If the pairing mode is released
before finishing the process, repeat from step
.
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
The speaker is initialized.
All pairing information will be deleted. If you initialize the speaker, it may not be able to connect your iPhone/iPod touch or PC. In this case, erase
the pairing information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
The passkey of this speaker is “0000.” If a passkey besides “0000” is set on the BLUETOOTH device, pairing cannot be done with the speaker.
4-592-259-11(6) Copyright 2016 Sony Corporation
quickly (three times a second).
110
Help Guide
Personal Audio System
SRS-ZR7
Pairing and connecting with a PC (Windows 8.1)
Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time. Perform same
procedures to pair to other devices.
Do the following before starting.
Make sure that your PC has the BLUETOOTH wireless function.
Place your PC within 1 m (3 ft) of the speaker.
Locate the operating instructions supplied with the PC for reference.
Turn down the volume of the PC.
Stop playback on the PC to avoid any sudden loud sound from the speaker.
Activate the BLUETOOTH function on your PC. For details how to activate the BLUETOOTH function or to confirm that your PC
has the BLUETOOTH function, refer to the operating instructions of the PC.
Set the speaker setting on the PC to on. If the mute (off) mode is set in the speaker’s setting on the PC, the speaker will not
output sound.
If the speaker setting on the PC is the mute (off) mode
If the speaker setting on the PC is the on mode
Prepare to search for the speaker on the PC.
1
Select [Desktop] from the Start screen.
1.
Align your mouse with the upper-right side of the screen (if using a touch panel, swipe from the right edge of the screen),
and select [Settings] from the charms that are displayed.
2.
111
When the [Settings] charms are displayed, click [Control Panel].
3.
When [All Control Panel Items] is displayed, select [Device and printer].
If the [Control Panel] screen is displayed instead of [All Control Panel Items], select [Large icons] or [Small icons] from [View
by] on the upper right of the screen.
The following screen will be displayed.
4.
112
Turn the speaker on.
The (power) indicator lights up in green.
2
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In this case,
by only placing the speaker in the BLUETOOTH mode, the BLUETOOTH indicator will begin to flash quickly and the
speaker will enter the pairing mode automatically. Then go to step
.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. In this case, turn off the BLUETOOTH function on the BLUETOOTH device, or turn off the BLUETOOTH
device.
3
Set the speaker to the pairing mode.
Press and hold the
(power)/ PAIRING button until the speaker beeps and the BLUETOOTH indicator starts flashing
quickly.
4
Perform the pairing procedure on the PC.
5
Click [Add a device].
1.
113
Click [SRS-ZR7], and then click [Next].
If a passkey
*
is required, enter “0000.”
If [SRS-ZR7] does not appear on the screen, repeat the procedure from step
.
2.
A passkey may be called “Passcode,” “PIN code,” “PIN number” or “Password.”
*
When the following screen is displayed, click [Close].
The driver installation for the PC begins.
During the installation, the [ ] mark is displayed on the bottom left of the [SRS-ZR7] icon.
When [
] disappears, the driver installation has finished. Go to step 4.
3.
114
Depending on the PC, this installation may take a while. If the driver installation takes a long time, the speaker enters the
auto standby mode automatically. In this case, turn on the speaker again.
Right-click [SRS-ZR7] of [Device], and then select [Sound Settings] from the displayed menu.
4.
Check [SRS-ZR7 Stereo] on the [Sound] screen.
If [SRS-ZR7 Stereo] has a checkmark (green), go to step
.
If [SRS-ZR7 Stereo] does not have a checkmark (green), go to step 6.
If [SRS-ZR7 Stereo] does not appear on the [Sound] screen, right-click on the [Sound] screen, and place a checkmark
by [Show Disabled Devices].
5.
115
Right-click [SRS-ZR7 Stereo], and then select [Connect] from the displayed menu.
When the connection is finished, a checkmark appears on [SRS-ZR7 Stereo] of the [Sound] screen. Go to step .
If you cannot select [Connect] of [SRS-ZR7 Stereo], select [Disable] of [Default Device] displayed with a checkmark (green).
6.
116
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the PC.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
If your PC does not have the BLUETOOTH function, it will be necessary to connect a commercially available BLUETOOTH adaptor to the PC.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
Check that the BLUETOOTH indicator on the speaker changes from flashing to staying lit.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit. You can enjoy the music playback from
your PC.
If the connection is not completed even though [SRS-ZR7] is displayed on the screen, place the speaker in the pairing mode to
connect.
Press and hold the
(power)/ PAIRING button until the speaker beeps and the BLUETOOTH indicator starts flashing
quickly.
6
117
The pairing mode of the speaker is released after about 5 minutes and the BLUETOOTH indicator flashes slowly. However, when pairing information
is not stored in the speaker, or you turn on the speaker for the first time after purchase, pairing mode is not released. If the pairing mode is released
before finishing the process, repeat from step
.
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
The speaker can be paired with up to 9 devices. If a new device is paired after 9 devices have already been paired, the paired device with the
oldest connection time is replaced by the new one.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
The speaker is initialized.
All pairing information will be deleted. If you initialize the speaker, it may not be able to connect your iPhone/iPod touch or PC. In this case, erase
the pairing information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
The passkey of this speaker is "0000." If a passkey besides "0000" is set on the BLUETOOTH device, pairing cannot be done with the speaker.
Related Topic
Listening to music on a device via a BLUETOOTH connection
4-592-259-11(6) Copyright 2016 Sony Corporation
118
Help Guide
Personal Audio System
SRS-ZR7
Pairing and connecting with a PC (Windows 7)
Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time. Perform same
procedures to pair to other devices.
Do the following before starting.
Make sure that your PC has the BLUETOOTH wireless function.
Place your PC within 1 m (3 ft) of the speaker.
Locate the operating instructions supplied with the PC for reference.
Turn down the volume of the PC.
Stop playback on the PC to avoid any sudden loud sound from the speaker.
Activate the BLUETOOTH function on your PC. For details how to activate the BLUETOOTH function or to confirm that your PC
has the BLUETOOTH function, refer to the operating instructions of the PC.
Set the speaker on the PC to on. If the speaker setting on the PC is the mute (off) mode, the speaker does not output sound.
If the speaker setting on the PC is the mute (off) mode
If the speaker setting on the PC is the on mode
Turn the speaker on.
The (power) indicator lights up in green.
1
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In this case,
by only placing the speaker in the BLUETOOTH mode, the BLUETOOTH indicator will begin to flash quickly and the
2
119
speaker will enter the pairing mode automatically. Then go to step .
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. In this case, turn off the BLUETOOTH function on the BLUETOOTH device, or turn off the BLUETOOTH
device.
Set the speaker to the pairing mode.
Press and hold the
(power)/ PAIRING button until the speaker beeps and the BLUETOOTH indicator starts flashing
quickly.
3
Perform the pairing procedure on the PC.
4
Click the [Start] button and then [Devices and Printers].
1.
Click [Add a device].
2.
Click [SRS-ZR7], and then click [Next].
3.
120
If a passkey* is required, enter “0000.”
If [SRS-ZR7] does not appear on the screen, repeat the procedure from step
.
A passkey may be called “Passcode,” “PIN code,” “PIN number” or “Password.”
*
When the following screen is displayed, click [Close].
The driver installation for the PC begins.
During the installation, the [ ] mark is displayed on bottom-left of the [SRS-ZR7] icon.
When [
] disappears, the driver installation is finished. Go to step 5.
Depending on a PC, this installation may take a time. When the driver installation takes for long time, the speaker enters the
standby mode automatically. In this case, turn on the speaker again.
4.
Double-click [SRS-ZR7] on [Devices].
5.
121
Click [Listen to Music].
When the connection is established, a checkmark appears.
6.
Check that the BLUETOOTH indicator on the speaker changes from flashing to staying lit.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit. You can enjoy the music playback from
your PC.
5
122
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the PC.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
If your PC does not have the BLUETOOTH function, it will be necessary to connect a commercially available BLUETOOTH adaptor to the PC.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
The pairing mode of the speaker is released after about 5 minutes and the BLUETOOTH indicator flashes slowly. However, when pairing information
is not stored in the speaker, or you turn on the speaker for the first time after purchase, pairing mode is not released. If the pairing mode is released
before finishing the process, repeat from step
.
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
The speaker can be paired with up to 9 devices. If a new device is paired after 9 devices have already been paired, the paired device with the
oldest connection time is replaced by the new one.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
The speaker is initialized.
All pairing information will be deleted. If you initialize the speaker, it may not be able to connect your iPhone/iPod touch or PC. In this case, erase
the pairing information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
The passkey of this speaker is "0000." If a passkey besides "0000" is set on the BLUETOOTH device, pairing cannot be done with the speaker.
Related Topic
Listening to music on a device via a BLUETOOTH connection
4-592-259-11(6) Copyright 2016 Sony Corporation
123
Help Guide
Personal Audio System
SRS-ZR7
Connecting with an NFC-compatible device by one touch (NFC)
By only touching the speaker with an NFC-compatible device such as a smartphone, pairing (registration) will be made automatically.
Compatible smartphones
NFC-compatible smartphones with Android 4.1 or later installed
For details, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
Compatible Walkman models
NFC-compatible Walkman models*
NFC
NFC (Near Field Communication) is a technology enabling short-range wireless communication between various devices, such as
smartphones and IC tags. The data communication is easily activated by touching the device to the specific position on the speaker.
Do the following before starting.
Turn down the volume of the device.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
Even if your Walkman is compatible with the NFC function, it may not be able to make a BLUETOOTH connection with the speaker by one touch. For
details on the compatible models, refer to the operating instructions supplied with your Walkman.
*
Turn on the NFC function of the device.
1
Touch the speaker with the device.
Unlock the screen of the device.
Keep touching the device on the N-Mark (
) of the speaker until the device responds (it may take a few seconds).
2
124
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the BLUETOOTH device.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
Even if the speaker is not turned on, the BLUETOOTH indicator flashes when touching with a device. When the connection is established, the
speaker is turned on automatically.
If the connection is not established, do the following.
Move the device over the N-Mark of the speaker slowly.
If the device is in a case, remove it.
When you touch an NFC-compatible device which is connected with another NFC-compatible device such as a headphone, the connection is
switched to the speaker automatically.
Note
If the NFC fails to connect, touch with the device again.
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
If your smartphone is changed to the standby mode by a magnetic reaction, it might not connect with the speaker by one touch (NFC). Use the
smartphone without the NFC function. For details, refer to the operating instructions of your smartphone.
When connecting your NFC-compatible device with using the NFC function, be careful not to touch the FUNCTION button and -/+ (volume) buttons
at the same time with the device.
Follow the instructions on the screen.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stops flashing and stays lit.
To disconnect, touch the speaker with the device again.
125
Help Guide
Personal Audio System
SRS-ZR7
Disconnecting the NFC-compatible device by one touch (NFC)
You can disconnect the speaker from a connected NFC-compatible device such as a smartphone or Walkman by touching the
speaker with it.
4-592-259-11(6) Copyright 2016 Sony Corporation
Touch the speaker with the device.
Touch the device to the N-Mark ( ) of the speaker.
1
127
Help Guide
Personal Audio System
SRS-ZR7
Switching devices by one touch (NFC)
If you move an NFC-compatible device over the N-Mark part of the speaker while the speaker is connected with another
BLUETOOTH device, the speaker disconnects from the BLUETOOTH device. The speaker then connects with the NFC-
compatible device that was just touched.
When an NFC-compatible device is connected with the speaker via the BLUETOOTH connection, it will disconnect from the
speaker if you touch the device onto another NFC-compatible BLUETOOTH headset or BLUETOOTH speaker. The device then
connects with the BLUETOOTH headset or BLUETOOTH speaker it has just touched.
When connecting your NFC-compatible device with using the NFC function, be careful not to touch the FUNCTION button and -/+
(volume) buttons at the same time with the device.
4-592-259-11(6) Copyright 2016 Sony Corporation
128
Help Guide
Personal Audio System
SRS-ZR7
Connecting with a paired BLUETOOTH device
The procedure explained below is for guidance only. For details, refer to the operating instructions supplied with the BLUETOOTH
device.
Do the following before starting.
If you have connected the speaker with another device, turn off the BLUETOOTH function on that device.
Turn down the volume of the BLUETOOTH device.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
Turn on the speaker.
The (power) indicator lights up in green.
1
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. In this case, turn off the BLUETOOTH function on the BLUETOOTH device, or turn off the BLUETOOTH
device.
2
Perform the pairing procedure on the BLUETOOTH device to detect the speaker.
When the BLUETOOTH connection is established, the BLUETOOTH indicator lights up.
3
129
Hint
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
When you turn on the speaker or the BLUETOOTH mode, the speaker tries to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device’s BLUETOOTH function is on, the BLUETOOTH connection is started automatically.
When the BLUETOOTH/Network standby mode is turned on, the speaker turns on automatically by operating a BLUETOOTH device, and starts the
BLUETOOTH connection.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
If the speaker tries to reconnect with the last connected BLUETOOTH device, the connection may fail. In this case, turn off the BLUETOOTH
function on the BLUETOOTH device, or turn off the BLUETOOTH device.
When connecting your NFC-compatible device with using the NFC function, be careful not to touch the FUNCTION button and -/+ (volume) buttons
at the same time with the device.
Related Topic
Listening to music on a device via a BLUETOOTH connection
Using the BLUETOOTH/Network standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
130
Help Guide
Personal Audio System
SRS-ZR7
Connecting with a paired PC (Windows 10)
Do the following before starting.
If you have connected the speaker with the other device, turn off the BLUETOOTH function on the device.
Turn down the volume of the PC.
Stop playback on the PC to avoid any sudden loud sound from the speaker.
Activate the BLUETOOTH function on your PC. For details how to activate the BLUETOOTH function, refer to the operating
instructions of the PC.
Turn the speaker on.
The (power) indicator lights up in green.
1
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. In this case, turn off the BLUETOOTH function on the BLUETOOTH device, or turn off the BLUETOOTH
device.
2
Search for the speaker by the PC.
3
Select [
(Action Center)] – [Bluetooth] in the taskbar on the right-bottom of the screen.
1.
131
Select [Connect] in the Action Center on the right-bottom of the screen.
2.
Select [SRS-ZR7].
[Connected music] will be displayed on the screen.
3.
Check that the BLUETOOTH indicator on the speaker changes from flashing to staying lit.
When the BLUETOOTH connection is established, the BLUETOOTH indicator stays lit. You can enjoy the music playback from
your PC.
4
132
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the PC.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
When you turn on the speaker or the BLUETOOTH mode, the speaker tries to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device’s BLUETOOTH function is on, the BLUETOOTH connection is started automatically.
When the BLUETOOTH/Network standby mode is turned on, the speaker turns on automatically by operating a BLUETOOTH device, and starts the
BLUETOOTH connection.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
If the speaker tries to reconnect with the last connected BLUETOOTH device, the connection may fail. In this case, turn off the BLUETOOTH
function on the BLUETOOTH device, or turn off the BLUETOOTH device.
Related Topic
Listening to music on a device via a BLUETOOTH connection
Using the BLUETOOTH/Network standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
133
Help Guide
Personal Audio System
SRS-ZR7
Connecting with a paired PC (Windows 8.1)
Do the following before starting.
If you have connected the speaker with the other device, turn off the BLUETOOTH function on the device.
Turn down the volume of the PC.
Stop playback on the PC to avoid any sudden loud sound from the speaker.
Activate the BLUETOOTH function on your PC. For details how to activate the BLUETOOTH function, refer to the operating
instructions of the PC.
Turn the speaker on.
The (power) indicator lights up in green.
1
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last-connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. If you want to connect another BLUETOOTH device, terminate the current BLUETOOTH connection by
operating the currently-connected BLUETOOTH device.
2
Search for the speaker by the PC.
3
Select [Desktop] from the Start screen.
1.
134
Align your mouse with the upper-right side of the screen (if using a touch panel, swipe from the right edge of the screen),
and select [Settings] from the charms that are displayed.
2.
When the [Settings] charms are displayed, click [Control Panel].
3.
When [All Control Panel Items] is displayed, select [Sound].
If the [Control Panel] screen is displayed instead of [All Control Panel Items], select [Large icons] or [Small icons] from [View
by] on upper right of the screen.
4.
Check [SRS-ZR7 Stereo] on the [Sound] screen.
5.
135
If [SRS-ZR7 Stereo] has a checkmark (green), go to step .
If [SRS-ZR7 Stereo] does not have a checkmark (green), go to step 6.
If [SRS-ZR7 Stereo] does not appear on the [Sound] screen, right-click on the [Sound] screen, and place a checkmark
by [Show Disabled Devices].
Right-click [SRS-ZR7 Stereo], and then select [Connect] from the displayed menu.
6.
136
When the connection is finished, a checkmark appears on [SRS-ZR7 Stereo] of the [Sound] screen. Go to step .
If you cannot select [Connect] of [SRS-ZR7 Stereo], select [Disable] of [Default Device] displayed with a checkmark (green).
Check that the BLUETOOTH indicator on the speaker changes from flashing to staying lit.
The connection of the speaker and PC is established. You can enjoy the music playback from your PC.
4
137
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the PC.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
When you turn on the speaker or the BLUETOOTH mode, the speaker tries to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device’s BLUETOOTH function is on, the BLUETOOTH connection is started automatically.
When the BLUETOOTH/Network standby mode is turned on, the speaker turns on automatically by operating a BLUETOOTH device, and starts the
BLUETOOTH connection.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
If the speaker tries to reconnect with the last connected BLUETOOTH device, the connection may fail. In this case, turn off the BLUETOOTH
function on the BLUETOOTH device, or turn off the BLUETOOTH device.
Related Topic
Listening to music on a device via a BLUETOOTH connection
Using the BLUETOOTH/Network standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
138
Help Guide
Personal Audio System
SRS-ZR7
Connecting with a paired PC (Windows 7)
Do the following before starting.
If you have connected the speaker with the other device, turn off the BLUETOOTH function on the device.
Turn down the volume of the PC.
Stop playback on the PC to avoid any sudden loud sound from the speaker.
Activate the BLUETOOTH function on your PC. For details how to activate the BLUETOOTH function, refer to the operating
instructions of the PC.
Turn the speaker on.
The (power) indicator lights up in green.
1
Tap the FUNCTION button repeatedly until the BLUETOOTH indicator flashes.
The speaker enters the BLUETOOTH mode.
When you turn on the BLUETOOTH mode, the speaker will try to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device is nearby, the BLUETOOTH connection establishes automatically and the BLUETOOTH
indicator stays lit. When you want to connect another BLUETOOTH device, terminate the current BLUETOOTH connection by
operating the currently connected BLUETOOTH device.
2
Search for the speaker by the PC.
3
Click the [Start] button and then [Devices and Printers].
1.
Double-click [SRS-ZR7].
2.
139
Check [Listen to Music].
When [Listen to Music] appears, go to the next step.
If the checked mark is displayed on [Connecting to Bluetooth service]: The connection is established. Check that the
BLUETOOTH indicator is lit.
If [Searching services] > [Error] appears: The speaker is connected another BLUETOOTH device. Disconnect the
currently connected BLUETOOTH device by operating on it, and then go back to the step 2.
3.
Click [Listen to Music].
When the connection is finished, a checked mark appears.
4.
140
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the PC.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is established. In this case, the previous
connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
When you turn on the speaker or the BLUETOOTH mode, the speaker tries to make a BLUETOOTH connection with the last connected
BLUETOOTH device. If the device’s BLUETOOTH function is on, the BLUETOOTH connection is started automatically.
When the BLUETOOTH/Network standby mode is turned on, the speaker turns on automatically by operating a BLUETOOTH device, and starts the
BLUETOOTH connection.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
If the speaker tries to reconnect with the last connected BLUETOOTH device, the connection may fail. In this case, turn off the BLUETOOTH
function on the BLUETOOTH device, or turn off the BLUETOOTH device.
Related Topic
Check that the BLUETOOTH indicator on the speaker changes from flashing to staying lit.
The connection of the speaker and PC is established. You can enjoy the music playback from your PC.
4
141
Help Guide
Personal Audio System
SRS-ZR7
Setting your PC as a DLNA server and controller (Windows 10)
Windows 10 supports DLNA1.5. A Windows 10 PC can be used as both a DLNA server and controller.
By operating from a Windows 10 PC, you can enjoy music stored in a DLNA server (including a Windows 10 PC) on your home
network with the speaker if you set the following.
If you download SongPal to your smartphone, iPhone, etc. and operate a Windows 10 PC, perform “ Listening to music on a PC via a
network (Windows Media Player with SongPal operation) .”
Select [ Settings] from the Start menu on the left-bottom of the screen.
1
Select [Network & Internet].
2
Select [Wi-Fi] – [Advanced options].
3
143
Turn on [Make this PC discoverable].
4
Select [Wi-Fi] – [Change advanced sharing options].
5
144
Select [Choose media streaming options...] from [Media streaming] in [All Networks].
6
Select [Allow All].
The [Allow All Media Devices] screen appears.
7
145
Related Topic
Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal operation)
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
Listening to music on a PC via a network (“Sony | Music Center for PC”)
Listening to music on a PC via a network (Windows Media Player)
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
Select [Allow all computers and media devices].
If all the devices in the local network are allowed ([allow]) to access your network, select [OK] and close the screen.
8
146
Help Guide
Personal Audio System
SRS-ZR7
Setting your PC as a DLNA server and controller (Windows 8.1)
Windows 8.1 supports DLNA1.5. A Windows 8.1 PC can be used as both a DLNA server and controller.
By operating from a Windows 8.1 PC, you can enjoy music stored in a DLNA server (including a Windows 8.1 PC) on your home
network with the speaker if you set the following.
If you download SongPal to your smartphone, iPhone, etc. and operate a Windows 8.1 PC, perform “ Listening to music on a PC via
a network (Windows Media Player with SongPal operation) .”
Move the mouse pointer to the top-right (or bottom-right) corner of the screen to display the charms, then select
[Settings].
In the case of a touch panel, display the charms by swiping from the right side of the screen to the center, then select [Settings].
1
Select [Change PC settings].
2
147
Select [Network].
3
Select [Connections], and then select the icon with [Connected] using
or .
4
Turn on [Find devices and content].
5
148
Related Topic
Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal operation)
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
Listening to music on a PC via a network (“Sony | Music Center for PC”)
Listening to music on a PC via a network (Windows Media Player)
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
149
Help Guide
Personal Audio System
SRS-ZR7
Setting your PC as a DLNA server and controller (Windows 7)
A Windows 7 PC can be used as both a DLNA server and controller.
By operating from a Windows 7 PC and DLNA controller on your home network, you can enjoy music stored in a DLNA server
(including a Windows 7 PC) on your home network with the speaker if you set the following.
Go to [Start]-[Control Panel], then select [Network and Sharing Center].
The [Network and Sharing Center] screen appears.
If the desired item does not appear in the display, try changing the Control Panel display type.
1
Select [Public network] under [View your active networks].
If the display shows other than [Public network], go to step
.
The [Set Network Location] screen appears.
2
Select [Home network] or [Work network] according to the environment in which the speaker is used.
3
Follow the instructions that appear on the display according to the environment in which the speaker is used.
When the setting is completed, in the [Network and Sharing Center] screen, confirm that the item under [View your active
networks] has changed to [Home network] or [Work network].
4
Select [Change advanced sharing settings].
5
150
Select [Choose media streaming options…] from [Media streaming].
6
If [Media streaming is not turned on] appears in the [Media streaming options] screen, select [Turn on media
streaming].
7
Select [Allow All].
8
151
Related Topic
Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal operation)
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
Listening to music on a PC via a network (“Sony | Music Center for PC”)
Listening to music on a PC via a network (Windows Media Player)
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
The [Allow All Media Devices] screen appears. If all the devices in the local network are allowed ([Allow]) to access your
network, select [OK] and close the screen.
Select [Allow all computers and media devices].
9
Select [OK] to close the screen.
10
152
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a PC via a network (“Sony | Music Center for PC”)
You can share music on your PC (server function) with the free application “Sony | Music Center for PC” installed on your PC. You
can listen to music on your PC from the speaker via a Wi-Fi network.
Install or update the latest version of “Sony | Music Center for PC” on your PC beforehand.
Access the following website to download the application. You may have to pay a communication fee, depending on your Internet
contract.
http://www.sony.net/smc4pc/
For details how to install the application, follow the instructions on the website.
The specification and design of the application may change without notice.
Connect the speaker and a PC to the same network.
Connect the speaker and the PC to the same SSID of your wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to your network.
1
Tap the FUNCTION button repeatedly until the NETWORK indicator lights up.
The speaker enters the NETWORK mode.
2
Start “Sony | Music Center for PC” installed on the PC.
3
Select [Settings] from the [Tools] menu.
4
Click [Audio output settings]
and add a check mark to the check box for [Network device] . Then, click
[Settings...]
.
5
153
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Note
Before listening to music, connect your smartphone/iPhone installed with SongPal to the same network as used by the speaker and PC.
The speaker can play MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, and DSD format files (only AAC files with the extension “.m4a,” “.mp4,” or “.3gp”
are playable). Even if the bit rate and file format are supported, the playing back of all files is not guaranteed. There may be a specification change.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a WMA file is protected by DRM,
right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time to start, since each DLNA-compatible device has to recognize the component
currently used.
Select [SRS-ZR7 xxxxxx (Sony Corporation)] from the list under [Select network device]. Then, click [OK] to close the
screen.
6
Select a song to play and adjust the volume.
The selected song will be heard from the speaker.
For details on the procedure, refer to [How to use] on the “Sony | Music Center for PC” support website.
http://www.sony.net/smc4pc/
7
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
154
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a PC via a network (Windows Media Player)
You can use a PC as a controller (operating device).
Music can be played back by using the “Cast to Device” function, after starting Windows Media Player. Follow the instructions on the
PC screen to operate.
Connect the speaker and the PC to the same network.
Connect the speaker and the PC to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to your network.
1
Tap the FUNCTION button repeatedly until the NETWORK indicator lights up.
The speaker enters the NETWORK mode.
2
Select [Windows Media Player] in [All apps].
3
Right-click or tap and hold a song to be played.
4
Select [Cast to Device] or [Play To] from the menu.
5
156
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
The device list appears.
Tap [SRS-ZR7].
6
Select a song to play and adjust the volume.
The selected song will be heard from the speaker.
7
157
Hint
After SongPal is downloaded and installed to your smartphone, iPhone, etc., you can use your smartphone, iPhone, etc. as a remote control to
operate devices connected to the speaker.
Note
The procedure explained above is for guidance only. Normally, the volume level on a PC and the speaker do not synchronize. However, depending
on the version of Windows Media Player installed on a PC or the PC's condition, the volume levels may synchronize.
The speaker can play MP3, WMA, AAC and WAV format files (only AAC files with the extension “.m4a,” “.mp4,” or “.3gp” can be played). Even if the
bit rate and file format are supported, the playback of all files is not guaranteed. There may be a specification change.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a WMA file is protected by DRM,
right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time to start, since each DLNA-compatible device has to recognize the component
currently used.
Some content may not be playable with DLNA certified products.
Related Topic
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
158
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a PC via a network (“Sony | Music Center for PC” with SongPal
operation)
You can share music on your PC (server function) with the free application “Sony | Music Center for PC” installed on your PC.
You can listen to music on your PC from the speaker via a Wi-Fi network by using the SongPal installed on your smartphone, iPhone,
etc. as a DLNA controller.
Install or update the latest version of “Sony | Music Center for PC” on your PC beforehand.
Access the following website to download the application. You may have to pay a communication fee, depending on your Internet
contract.
http://www.sony.net/smc4pc/
For details how to install the application, follow the instructions on the website.
The specification and design of the application may change without notice.
Connect the speaker, a PC and a smartphone, iPhone, etc. with SongPal installed to the same network.
Connect the speaker, the PC and the smartphone, iPhone, etc. to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to your network.
1
Tap the FUNCTION button repeatedly until the NETWORK indicator lights up.
The speaker enters the NETWORK mode.
2
Start “Sony | Music Center for PC” installed on the PC.
3
Select [Settings] from the [Tools] menu.
4
Click [Share media]
and add a check mark to the check box for [Share media with local network device] . Then,
5
159
input an arbitrary library name in the text box for [Library name:] . Click [OK] to close the screen.
For details on the procedure, refer to [How to use] on the “Sony | Music Center for PC” support website.
http://www.sony.net/smc4pc/
Start up SongPal to select music on the PC.
Tap [SongPal] on your smartphone, iPhone, etc.
6
Tap [SRS-ZR7].
7
Tap [Home Network].
8
160
Tap the library name checked in step from the server list that appeared on the screen.
9
Tap [Music], then select a song from the list, and start playback.
The playback of the videos and photos are not supported.
The selected song will be heard from the speaker.
10
Adjust the volume using SongPal.
11
161
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Note
Before listening to music, connect your smartphone, iPhone, etc. installed with SongPal to the same network as used by the speaker and PC.
The speaker can play MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, and DSD format files (only AAC files with the extension “.m4a,” “.mp4,” or “.3gp”
are playable). Even if the bit rate and file format are supported, the playing back of all files is not guaranteed. There may be a specification change.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a WMA file is protected by DRM,
right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time to start, since each DLNA-compatible device has to recognize the component
currently used.
Some content may not be playable with DLNA certified products.
Related Topic
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
162
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a PC via a network (Windows Media Player with SongPal operation)
By operating from a controller such as a smartphone or iPhone on your home network, you can enjoy music stored in a Windows 8 or
later PC on your home network with the speaker.
To operate the Windows 8 or later PC after downloading SongPal on the smartphone, iPhone, etc., follow the steps below.
Select [Windows Media Player] in [All apps].
1
Click or tap [Stream], then select [More streaming options...].
If [More streaming options...] does not appear, select [Turn on media streaming...]. Then select [Turn on media streaming] on
the [Media streaming options] screen.
2
Check that all the devices are allowed, then select [OK] (in some versions, select [Next]) to close the screen.
If not all devices are allowed, select [Allow All], then the [Allow All Media Devices] screen appears. Then, select [Automatically
allow all computers and media devices.] to allow all devices.
3
Check that [Music] is set to [Shared], then select [Next].
4
163
Related Topic
Listening to music on a PC via a Wi-Fi network
4-592-259-11(6) Copyright 2016 Sony Corporation
Select [Finish] to close the screen.
5
Select [Stream], then check that [Automatically allow devices to play my media...] has been checked.
The setting is now complete. You can listen to music stored in your PC, using your smartphone, iPhone, etc.
6
164
Help Guide
Personal Audio System
SRS-ZR7
Listening to music with the Music application (Xperia)
Using the Music application, you can play music stored in an Xperia.
Do the following before starting.
The Music application is pre-installed in your Xperia.
Operations of the Music application are subject to change without notice. For details about how to use the Music application, refer
to the operating instructions supplied with the Xperia.
Your Xperia may need to disable [Auto-select wireless option] of [Throw settings]. For details, refer to the user guide of Xperia.
Update the Android OS on your Xperia to the latest version before using it with the speaker.
Hint
Depending on the model, a music application installed in Xperia may be called as Music or WALKMAN.
Connect the speaker and an Xperia to the same network.
Connect the speaker and your Xperia to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the connection is complete.
1
Tap the FUNCTION button repeatedly until the NETWORK indicator lights up.
The speaker enters the NETWORK mode.
The speaker can also be switched to the NETWORK mode automatically, instead of touching the FUNCTION button, by
selecting the speaker in the menu of the Music application on the Xperia, then playing back music.
2
Start up [Music] on your Xperia.
3
165
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Tap and [SRS-ZR7] on the Xperia.
4
Start playing back music on the Xperia, and adjust the volume.
Music will be heard from the speaker.
If playback does not start, perform the process again from step .
5
166
Hint
Refer to the operating instructions of your Xperia for details.
For details on the use of the Android OS, refer to Help of Android OS.
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
167
Help Guide
Personal Audio System
SRS-ZR7
Listening to an Internet music service (Spotify)
“Spotify” gives you instant access to millions of songs.
The “Spotify Connect” feature lets you select music on the Spotify app and stream it on the unit. To use “Spotify Connect” feature,
you need a Premium account.
For details about Spotify, refer to the following URL:
www.spotify.com/connect
Note
Depending on the country or region, the Spotify service availability may differ.
Connect the speaker and a smartphone, iPhone, etc. to the same network.
Connect the speaker and the smartphone, iPhone, etc. to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to your network.
1
Tap the FUNCTION button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
2
Download the Spotify app to your smartphone, iPhone, etc. from Google Play or the App Store.
3
Launch the Spotify app and log in to a Spotify Premium account.
4
Select and start playing the music.
5
168
Hint
When “Spotify Connect” is activated, the Connect icon ( ) lights up.
4-592-259-11(6) Copyright 2016 Sony Corporation
Tap the Connect icon ( ) and select the unit as the audio output device.
Select the unit
6
169
Help Guide
Personal Audio System
SRS-ZR7
Selecting the BLUETOOTH audio streaming playback quality (Codec)
The “Priority on sound quality” and “Priority on stable connection” modes are available as options for selecting the playback quality of
BLUETOOTH audio streaming. “Priority on sound quality” enables you to play back with a setting of, not only SBC, but also AAC and
LDAC, so that you can enjoy high-quality sound via BLUETOOTH. “Priority on stable connection” provides you with a more stable
BLUETOOTH audio streaming. “Priority on sound quality” is the default setting.
The sound quality can be changed while the speaker is in the BLUETOOTH/Network standby mode.
Playback quality
Priority on sound quality (default setting): Optimal codec is automatically selected from AAC, LDAC, and SBC.
Priority on stable connection: SBC is selected.
Hint
You can switch the playback quality by using SongPal. "Priority on sound quality" appears as [Auto] and "Priority on stable connection" appears as
[SBC] when setting with SongPal.
Note
Communication may become unstable in the "Priority on sound quality" mode, depending on the setting of your BLUETOOTH device and the
ambient conditions. In this case, reset the speaker to the "Priority on stable connection" mode by performing steps
and above.
When the playback quality setting is changed by using SongPal while the speaker is turned on, the BLUETOOTH connection is terminated. In this
Set the speaker to the BLUETOOTH/Network standby mode.
The (power) indicator lights up in orange.
1
Press and hold the
(power)/ PAIRING button and + (volume) button for more than four seconds.
When the setting is changed to "Priority on sound quality" mode, the BLUETOOTH indicator flashes three times.
When the setting is changed to "Priority on stable connection" mode, the BLUETOOTH indicator flashes twice.
The playback quality is switched, and the speaker turns on.
2
170
case, connect the BLUETOOTH device manually again. After reconnecting, the playback quality is switched.
You may also need to adjust the settings of the connected device to change the playback quality setting, such as SBC, AAC, LDAC. For details, refer
to the operating instructions supplied with the device.
Related Topic
Using the BLUETOOTH/Network standby mode
Setting the BLUETOOTH audio streaming playback quality (Codec)
4-592-259-11(6) Copyright 2016 Sony Corporation
171
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of a BLUETOOTH device and operate it via a BLUETOOTH connection if it supports the following
BLUETOOTH profiles.
A2DP (Advanced Audio Distribution Profile)
Enables you to enjoy high-quality audio contents wirelessly.
AVRCP (Audio Video Remote Control Profile)
Enables you to adjust the volume of a BLUETOOTH device.
The volume of a BLUETOOTH device may not be adjusted depending on the BLUETOOTH device. Refer also to the operating
instructions supplied with your BLUETOOTH device.
Note
Make sure beforehand that the volume on the BLUETOOTH device is set to a moderate level to avoid sudden loud sound output from the speaker.
Connect the speaker with the BLUETOOTH device.
The BLUETOOTH indicator lights up in white when the BLUETOOTH connection is established.
1
Adjust the volume with your BLUETOOTH device or by tapping the -/+ (volume) buttons of the speaker.
When you tap the –/+ (volume) button, the
(power) indicator flashes once or three times according to the volume.
2
172
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Hint
After SongPal is downloaded and installed to your smartphone, iPhone, etc., you can use your smartphone, iPhone, etc. as a remote control to
operate devices connected to the speaker.
SongPal has no function to play music via a BLUETOOTH connection. Play music with your BLUETOOTH device such as smartphone, PC, etc.
Depending on the BLUETOOTH device, it may be necessary to adjust the volume or set the audio output setting on the connected device.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. When pairing is completed, loud sound may output
from the speaker. Otherwise, you may experience sudden loud sound from the speaker when music is played back for the first time after pairing.
If the communication condition is poor, the BLUETOOTH device may react incorrectly to the operation on the speaker.
Related Topic
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
4-592-259-11(6) Copyright 2016 Sony Corporation
Start playback on the BLUETOOTH device.
3
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
173
Help Guide
Personal Audio System
SRS-ZR7
Terminating the BLUETOOTH connection (After use)
When you finish playing music with the BLUETOOTH device, perform any of the following operations to terminate the BLUETOOTH
connection.
Turn off the BLUETOOTH function on the BLUETOOTH device. For details, refer to the operating instructions supplied with the
device.
Turn off the BLUETOOTH device.
Turn off the speaker.
Touch the paired device to N-Mark of the speaker again (for the NFC-compatible device).
Hint
If no operation is performed and no music (sound) is input by a BLUETOOTH device for about 15 minutes, the speaker is turned off automatically by
the auto standby mode, then the BLUETOOTH connection terminates.
When you finish playing music, the BLUETOOTH connection may terminate automatically, depending on the BLUETOOTH device.
Related Topic
Auto standby mode
Disconnecting the NFC-compatible device by one touch (NFC)
4-592-259-11(6) Copyright 2016 Sony Corporation
174
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a USB flash drive
You can connect a USB flash drive to the USB-A port ( A) directly.
You can also use a commercially-available USB cable to connect a USB device.
Music stored in a USB flash drive connected to the USB-A port (
A) can be played back by a smartphone, iPhone, etc. installed
with SongPal.
You can play back high-resolution audio format files by connecting a USB flash drive of Hi-Speed USB standard or more, to the USB-
A port (
A).
For details on file formats, refer to the operating instructions supplied with your USB flash drive.
Connect the USB flash drive to the USB-A port ( A).
1
Tap the FUNCTION button repeatedly until the USB-A indicator lights up.
2
The speaker switches to the USB-A mode, and the USB-A indicator lights up in white.
3
Operate SongPal as a remote controller to play back music.
4
Tap -/+ (volume) buttons to adjust the volume.
When you tap the -/+ (volume) buttons, the
(power) indicator flashes once or three times according to the volume adjustment.
5
175
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.*
What you can do with the speaker during playback
You can adjust the volume using the -/+ (volume) buttons.
Hint
After SongPal is downloaded and installed to your smartphone, iPhone, etc., you can use it as a remote control.
Note
Sony is not responsible for any loss or damage to data in a USB flash drive that is connected to the speaker.
Do not disconnect a USB flash drive during operation. To prevent damage to data, stop playback, then turn off the power of the speaker before
disconnecting the device.
Sony does not guarantee correct operation when a USB hub or USB extension cable is used.
When you connect a USB flash drive, the speaker starts reading all the data stored on it. Reading files may take some time.
Operation may become slow depending on the USB flash drive.
Related Topic
Listening to music on a device via a USB connection (USB-A)
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
176
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a Walkman
You can listen to music on a Walkman by connecting it to the USB-A port ( A) with the USB cable supplied with the Walkman.
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.*
Connect the Walkman to the USB-A port ( A).
1
Tap the FUNCTION button repeatedly until the USB-A indicator lights up.
2
The speaker switches to USB-A mode and the USB-A indicator lights up in white.
3
Operate SongPal as a remote controller to play back music.
4
Tap -/+ (volume) buttons to adjust the volume.
When you tap the -/+ (volume) buttons, the
(power) indicator flashes once or three times according to the volume adjustment.
5
177
What you can do with the speaker during playback
You can adjust the volume using the -/+ (volume) buttons.
Hint
After SongPal is downloaded and installed to your smartphone, iPhone, etc., you can use it as a remote control.
Note
Files imported by x-app. cannot be played back. Connect the Walkman to the AUIDO IN jack of the speaker, and play back these files on the AUDIO
IN mode.
The speaker supports only audio playback functions of Walkman.
Sony is not responsible for any loss or damage to data in a Walkman that is connected to the speaker.
Correct operation is not guaranteed, even for a supported Walkman.
When the Walkman is connected, sound is not output from its headphone jack.
Related Topic
Listening to music on a device via a USB connection (USB-A)
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
178
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a Walkman compatible with High-Resolution Audio formats
You can connect a Walkman compatible with High-Resolution Audio formats to the speaker with an optional High-Resolution Audio
USB Adaptor WM-PORT Cable.
The speaker receives unconverted digital audio data, which is converted to analog data through the digital-to-analog converter of the
speaker before being output.
To enjoy a more dynamic sound
*
Connect the Walkman compatible with High-Resolution Audio formats to the USB-B port ( B).
1
Tap the FUNCTION button repeatedly until the USB-B indicator lights up.
The speaker enters the USB-B mode.
2
Operate the Walkman compatible with High-Resolution Audio formats to start playback and adjust the volume to a
moderate level.
3
Tap the –/+ (volume) buttons to adjust the volume.
When you tap the –/+ (volume) buttons, the
(power) indicator flashes once or three times according to the volume.
4
179
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
Note
The speaker supports only audio playback functions of Walkman.
Sony is not responsible for loss or damage of data in a Walkman that is connected to the speaker.
Correct operation is not guaranteed, even for a supported Walkman.
Depending on the Walkman, dynamic normalizer, equalizer, VPT, DSEE HX and speaker output optimizer may be set to on (or adjusted). If the
sound is distorted, set these functions to off.
When the Walkman is connected, sound is not output from its headphone jack.
Related Topic
About High-Resolution Audio format files
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
180
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a Xperia compatible with High-Resolution Audio formats
You can connect a Xperia compatible with High-Resolution Audio formats to the speaker with an optional cable for Xperia.
The speaker receives unconverted digital audio data, which is converted to analog data through the digital-to-analog converter of the
speaker before being output.
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Connect the Xperia compatible with High-Resolution Audio formats to the USB-B port ( B).
1
Tap the FUNCTION button repeatedly until the USB-B indicator lights up.
The speaker enters the USB-B mode.
2
Operate the Xperia compatible with High-Resolution Audio formats to start playback and adjust the volume to a
moderate level.
3
Tap the –/+ (volume) buttons to adjust the volume.
When you tap the –/+ (volume) buttons, the
(power) indicator flashes once or three times according to the volume.
4
181
Note
The speaker supports only audio playback functions of Xperia.
Sony is not responsible for any loss or damage to data in an Xperia that is connected to the speaker.
The Xperia cannot be operated from the speaker.
The sound may be distorted if the equalizer function of the Xperia is set to on. In this case, set the function to off.
Related Topic
About High-Resolution Audio format files
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
182
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a PC
You can listen to music on a PC connected to the USB-B port ( B) of the speaker.
To play High-Resolution Audio format files
The speaker is compatible with High-Resolution Audio format (192 kHz/24 bit).
To play High-Resolution Audio format files on your PC with the speaker, you need to download and install “Sony | Music Center for
PC” or “Hi-Res Audio Player” to your PC.
Connect your PC to the USB-B port ( B).
1
Tap the FUNCTION button repeatedly until the USB-B indicator lights up.
The speaker enters the USB-B mode.
The following settings are required on “Sony | Music Center for PC” when using “Sony | Music Center for PC.”
2
Select [Settings] from the [Tools] menu.
1.
Click [Audio output settings] . Then, select [ASIO] or [Exclusive WASAPI] under [Output mode]. Select the dedicated
driver
*1
or connected device
*1
from the pull-down menu.
2.
“Sony Audio Driver” or “Speakers (Sony Audio)” may be displayed.
*1
183
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*2
Hint
After SongPal is downloaded and installed to your smartphone, iPhone, etc., you can use it as a remote control to adjust the speaker’s volume, etc.
Note
Sony does not guarantee correct operation when a USB hub or USB extension cable is used. Do not disconnect the PC during operation. To prevent
damage to data, stop playback, then turn off the power of the speaker before disconnecting the PC.
Digital broadcast audio is not output from the USB port of the PC. To listen to digital broadcast audio, connect the PC’s analog audio output to the
For details on the procedure, refer to [How to use] on the “Sony | Music Center for PC” support website.
http://www.sony.net/smc4pc/
Follow the instructions on the PC screen to operate.
3.
Operate the PC to start playback a High-Resolution Audio file and adjust the volume to a moderate level.
To play back High-Resolution Audio files on the PC, use “Sony | Music Center for PC” or “Hi-Res Audio Player.”
3
Tap the –/+ (volume) buttons to adjust the volume.
When you tap the –/+ (volume) buttons, the
(power) indicator flashes once or three times according to the volume.
4
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*2
184
Help Guide
Personal Audio System
SRS-ZR7
Listening to music on a portable audio device, etc.
You can use the speaker as an ordinary wired speaker system by connecting a portable audio device, etc., using a commercially-
available audio cable (with stereo mini plugs).
Connect the device to the speaker using a commercially-available audio cable.
1
Turn on the speaker.
The
(power) indicator lights up in green.
2
Tap the FUNCTION button repeatedly to light up the AUDIO IN indicator.
The speaker enters the AUDIO IN mode.
3
Turn on the connected device.
4
Operate the connected device to start playback and adjust the volume to a moderate level.
5
Tap the –/+ (volume) buttons to adjust the volume.
When you tap the –/+ (volume) buttons, the
(power) indicator flashes once or three times according to the volume.
6
186
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Hint
After SongPal is downloaded and installed to your smartphone, iPhone, etc., you can use it as a remote control to adjust the speaker's volume, etc.
4-592-259-11(6) Copyright 2016 Sony Corporation
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
187
Help Guide
Personal Audio System
SRS-ZR7
Listening to TV sound
Connect the speaker to the HDMI IN ARC port on your TV to listen to TV sound from the speaker.
To enjoy a more dynamic sound
Pull the lever on the bottom of the speaker in the direction of the arrow shown in the illustration below to remove the grille.
*
Connect a High Speed Type HDMI cable to the HDMI ARC TO TV port on the speaker and the HDMI IN ARC port on your
TV.
1
Tap the FUNCTION button repeatedly until the HDMI indicator lights up.
The speaker enters in the HDMI mode.
2
Select a TV program with a remote control supplied with the TV.
3
After removing the speaker grille, do not touch the exposed part of the speaker (speaker units), and keep the removed grille on a flat surface to prevent
distortion.
*
188
Help Guide
Personal Audio System
SRS-ZR7
About High-Resolution Audio format files
High-Resolution Audio, which is typically 96 kHz/24 bit or higher, is made by digitally sampling an original analog audio source. The
number of times at which sampling is performed (in one-second increments) is called the sampling frequency, which is expressed in
hertz or “Hz”. Digitizing refers to the audio process where the sampled signal is converted (or quantized) into binary digits, consisting
of 1's and 0's, and expressed as “bits”. The higher the number of bits, the closer the sample is to the original source. CDs are
standardized at 44.1 kHz/16 bit, but there is no single standard for High-Resolution Audio.
An alternative way of digitizing an analog source is a method called DSD (Direct Stream Digital) which captures sound information as
a sequence of single bit values with an extremely high sampling rate of either 2.8 MHz or 5.6 MHz. This is approximately 64 or 128
times the sampling rate of CD audio and is simply known as DSD 2.8 MHz or DSD 5.6 MHz. For some engineers, this is the closest a
digital file sample can get to an original analog source.
4-592-259-11(6) Copyright 2016 Sony Corporation
189
Help Guide
Personal Audio System
SRS-ZR7
Installing “Sony | Music Center for PC” or “Hi-Res Audio Player” to a PC
The software is required to play High-Resolution Audio format files on your PC with the speaker.
For a Windows PC: “Sony | Music Center for PC” or “Hi-Res Audio Player”
For a Mac: “Hi-Res Audio Player”
Access the following websites, and download the software.
You may have to pay a communication fee, depending on your internet contract.
“Sony | Music Center for PC”
http://www.sony.net/smc4pc/
“Hi-Res Audio Player”
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
Related Topic
About High-Resolution Audio format files
Listening to music on a PC
Listening to music on a computer via a USB connection (USB-B)
4-592-259-11(6) Copyright 2016 Sony Corporation
190
Help Guide
Personal Audio System
SRS-ZR7
Listening to High-Resolution Audio format files via a network
You can listen to High-Resolution Audio format files stored in a PC connected to your network.
High-Resolution Audio format files can be played back by using “Sony | Music Center for PC” or “Hi-Res Audio Player.”
For details how to setup a PC, see “Listening to music on a PC.”
For more information about the music playback and connection, see Related Topic below.
When playing back High-Resolution Audio files, using commercially-available LAN cables to connect the speaker, a router and a PC
are recommended.
Related Topic
Connecting to a Wi-Fi network using SongPal (Smartphone)
Connecting to a Wi-Fi network using SongPal (iPhone/iPod touch)
Selecting the Wi-Fi network connection method
DLNA (Digital Living Network Alliance)
Connecting to a wired network
Listening to music on a PC via a Wi-Fi network
Listening to music on a PC via a network (“Sony | Music Center for PC”)
Listening to music on a PC via a network (Windows Media Player)
4-592-259-11(6) Copyright 2016 Sony Corporation
191
Help Guide
Personal Audio System
SRS-ZR7
Specifications
Speaker section
Speaker system
Full range: approx. 45 mm (1 49/64 inches) dia. x 2
Subwoofer: approx. 62 mm (2 7/16 inches) dia. x 2
Enclosure system
Passive radiator type
Network section
Compatible standards
IEEE 802.11 a/b/g/n (WEP 64 bit, WEP 128 bit, WPA/WPA2-PSK (AES), WPA/WPA2-PSK (TKIP))
Radio frequency
2.4/5 GHz band
BLUETOOTH section
Output
BLUETOOTH Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (30 ft)
*1
Radio frequency
2.4 GHz band (2.4000 GHz to 2.4835 GHz)
Communication system
BLUETOOTH Specification Ver. 4.2+EDR standard
Modulation scheme
FHSS
Compatible BLUETOOTH Profiles
*2
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
SPP (Serial Port Profile)
Supported codec
*3
SBC
*4
192
AAC
*5
LDAC
*6
Corresponding content protection
SCMS-T
Transmission bandwidth (A2DP)
20 Hz to 20,000 Hz (with 44.1 kHz for sampling)
Others
AUDIO IN (external input) jack
ø3.5 mm stereo mini jack
LAN port
10BASE-T/100BASE-TX (automatic polarity control)
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Related Topic
Trademarks
4-592-259-11(6) Copyright 2016 Sony Corporation
The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception
sensitivity, aerial’s performance, operating system, software application, etc.
*1
BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
*2
Codec: Audio signal compression and conversion format
*3
Subband Codec
*4
Advanced Audio Coding
*5
LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a
BLUETOOTH connection.
*6
193
Help Guide
Personal Audio System
SRS-ZR7
About the indicators
(power) indicator
LINK indicator
AUDIO IN indicator
USB-A indicator
*1
USB-B indicator
Lights up
(green)
The speaker is turned on.
Lights up
(orange)
The speaker is in the BLUETOOTH/Network standby mode.
Turns off The speaker is in the standby mode.
Flashes
(green)
When you turn on the speaker, the indicator flashes slowly in green, then lights up in green.
When you turn off the speaker, the indicator flashes slowly in green, then lights up in orange or lights off. While the
indicator is flashing, the speaker is not operational.
When you tap the -/+ (volume) buttons, the indicator flashes once or three times according to the volume
adjustment.
Flashes
(red)
The speaker is in the protect mode, or the software update has failed.
Lights up (orange) The speaker is connected to a Wi-Fi network.
Lights up (pink) The speaker is connected to a wired network.
Flashes (orange) The speaker is in the process of connecting to a Wi-Fi network.
Flashes (pink) The speaker is in the process of connecting to a wired network.
Flashes (red) The network connection failed.
Lights up (red) The network connection failed, or connection failed even though the network setting is complete.
Lights up (white) The speaker is in the AUDIO IN mode.
Lights up (white) The speaker is in the USB-A mode.
194
BLUETOOTH indicator
*1*2*3*4
HDMI indicator
*1
NETWORK indicator
*1*2*4
UPDATE indicator
*5
DTS indicator
DOLBY D indicator
L/R indicators
Lights up or flashes depending on the status of the speaker while the Wireless Surround function or the Wireless Stereo function is
on.
Lights up (white) The speaker is in the USB-B mode.
Lights up (white) The speaker is connected to a BLUETOOTH device.
Flashes quickly (white) The speaker is pairing with a BLUETOOTH device.
Flashes (white) The speaker is searching for a BLUETOOTH device to connect.
Lights up (white) The speaker is in the HDMI mode, but the HDMI ARC TO TV port of the speaker is connected to a TV.
Flashes (white) The speaker is in the HDMI mode, but the speaker is not connected to a TV.
Lights up (white) The speaker is in the NETWORK mode.
Lights up (green or light blue) The speaker is connected to a music service.
Lights
up
(orange)
The speaker detected the availability of a software update while connected to the Internet. After pressing and holding
the UPDATE button for 2 seconds while the indicator is lit, the software update starts when the speaker beeps.
Flashes
(orange)
The speaker is updating the software. During the update, you cannot operate the speaker.
When the speaker turns on for the first time after the software update, the UPDATE button flashes three times to inform
you that the update has completed.
Lights up (white) The speaker is in the HDMI mode, and the DTS format sound is input to the speaker.
Lights up (white) The speaker is in the HDMI mode, and the Dolby Digital format sound is input to the speaker.
When checking the Wi-Fi signal strength (reception sensitivity), the indicator is lit while connected to the Wi-Fi network.
*1
When switching the wireless function to on/off, the indicator flashes.
*2
When switching the BLUETOOTH audio streaming playback quality of the speaker, the indicator flashes.
*3
195
Related Topic
Checking the Wi-Fi signal strength (reception sensitivity)
Updating the pre-installed software
The power indicator flashes in red
Using this speaker as a rear speaker (Wireless Surround)
Connecting two speakers (Wireless Stereo)
4-592-259-11(6) Copyright 2016 Sony Corporation
When disabling the Wi-Fi network function and BLUETOOTH network function, the indicator flashes.
*4
If the software updating has failed, the indicator is lit.
*5
196
Help Guide
Personal Audio System
SRS-ZR7
Compatible iPhone/iPod touch models
iPhone/iPod touch models that can be used with the speaker are shown below.
Update the software of your iPhone/iPod touch to the latest version before using it with the speaker.
For the latest iPhone/iPod touch compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
Bluetooth technology works with iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s,
iPod touch (6th generation), iPod touch (5th generation).
Note
Sony cannot accept responsibility in the event that data recorded to an iPhone/iPod touch is lost or damaged when it is connected to this speaker.
4-592-259-11(6) Copyright 2016 Sony Corporation
197
Help Guide
Personal Audio System
SRS-ZR7
Compatible Walkman models
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
4-592-259-11(6) Copyright 2016 Sony Corporation
198
Help Guide
Personal Audio System
SRS-ZR7
Compatible operating systems (Windows)
Compatible PC
IBM PC/AT compatible PCs
Supported Operating Systems
Windows 10
Windows RT 8.1
Windows 8.1 Enterprise
Windows 8.1 Pro
Windows RT
Windows 8 Enterprise
Windows 8 Professional
Windows 8 Core Edition
Windows 7 Ultimate
Windows 7 Professional
Windows 7 Home Premium
Windows 7 Home Basic
Windows 7 Starter
Suitable browsers
Internet Explorer 9 or later
Any of the above operating systems must be factory installed in the PC.
Correct operation of all PCs is not guaranteed.
Correct operation with a home-built PC, personally upgraded operating system, or multi-boot environment is not guaranteed.
Operations such as standby mode, sleep mode or pause mode are not guaranteed for all PCs.
4-592-259-11(6) Copyright 2016 Sony Corporation
199
Help Guide
Personal Audio System
SRS-ZR7
Compatible operating systems (Mac)
Supported Operating Systems
Mac OS X v10.11 El Capitan
Mac OS X v10.10 Yosemite
Mac OS X v10.9 Mavericks
Mac OS X v10.8 Mountain Lion
Mac OS X v10.7 Lion
Mac OS X v10.6 Snow Leopard
Suitable browsers
Safari (latest version at the time of Mac OS X v10.6 Snow Leopard being released, or later)
Any of the above operating systems must be factory installed in the PC.
Correct operation of all PCs is not guaranteed.
Correct operation with a home-built PC, personally upgraded operating system, or multi-boot environment is not guaranteed.
Operations such as standby mode, sleep mode or pause mode are not guaranteed for all PCs.
4-592-259-11(6) Copyright 2016 Sony Corporation
200
Help Guide
Personal Audio System
SRS-ZR7
Compatible DLNA devices
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
4-592-259-11(6) Copyright 2016 Sony Corporation
201
Help Guide
Personal Audio System
SRS-ZR7
Compatible BLUETOOTH devices
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
Compatible BLUETOOTH Profiles
*1
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
SPP (Serial Port Profile)
Supported codec
*2
SBC
*3
AAC
*4
LDAC
4-592-259-11(6) Copyright 2016 Sony Corporation
BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
*1
Codec: Audio signal compression and conversion format
*2
Subband Codec
*3
Advanced Audio Coding
*4
202
Help Guide
Personal Audio System
SRS-ZR7
Compatible USB devices
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
USB-A port (
A) supported format
*
MP3: 32/44.1/48 kHz, 16-320 kbps (CBR/VBR)
AAC: 32/44.1/48/88.2/96 kHz, 16-320 kbps (CBR/VBR)
WMA: 32/44.1/48 kHz, 16-320 kbps (CBR/VBR)
WAV: 32/44.1/48/88.2/96/176.4/192 kHz (16/24 bit)
AIFF: 32/44.1/48/88.2/96/176.4/192 kHz (16/24 bit)
FLAC: 32/44.1/48/88.2/96/176.4/192 kHz (16/24 bit)
ALAC: 32/44.1/48/88.2/96/176.4/192 kHz (16/24 bit)
DSD (DSF/DSDIFF): 2.8/5.6 MHz (1 bit)
USB-B port (
B) supported format
*
PCM: 44.1/48/88.2/96/176.4/192 kHz (16/24/32 bit)
DSD (DSF/DSDIFF): 2.8 MHz (1 bit)
4-592-259-11(6) Copyright 2016 Sony Corporation
Compatibility with all encoding/writing software, recording devices and recording media cannot be guaranteed.
*
203
Help Guide
Personal Audio System
SRS-ZR7
Updating the pre-installed software
When a new version of the software is released, you can update your speaker’s pre-installed software by using the following
methods.
By updating the software, new features will be added enabling you to experience more convenient and stable use.
Preparation for update
Software updates become possible when the speaker is in the following states.
Update method 1: Automatic update via the Internet
When the speaker is connected to the Internet, it can detect a new software version and automatically update when you are not
using the speaker. This feature requires speaker settings to be made.
Update method 2: Manual update via the Internet
When the speaker is connected to the Internet, it can detect a new software version and if found, and the UPDATE indicator lights
up in orange to inform you. This is the default setting.
Update method 3: Manual update via a USB flash drive
When the speaker is not connected to the Internet, use a PC or another device to download the update file, then install it to the
speaker.
Hint
The UPDATE indicator turns off and the speaker switches to standby mode or BLUETOOTH/Network standby mode automatically when the updating
is completed.
When the speaker is turned on for the first time after updating, the UPDATE indicator flashes in orange three times.
Related Topic
Manual update via a USB flash drive (when the update via a network has failed)
4-592-259-11(6) Copyright 2016 Sony Corporation
The speaker is connected to the Internet via a wired or Wi-Fi network.
1.
204
Help Guide
Personal Audio System
SRS-ZR7
Update method 1: Automatic update via the Internet
When you use the speaker while connected to the Internet via a wired or Wi-Fi network, the speaker can update to the latest software
automatically.
This feature is disabled by default.
Preparation for update
Software updates become possible when the speaker is in the following states.
To update software automatically
Launch SongPal on your smartphone, iPhone, etc., and set on [System] in the [Settings] menu.
The automatic software update feature ([Auto Update]) of the speaker is activated. If [Auto Update] is disabled, change the setting
to enable.
The update is performed when you are not using the speaker, such as during midnight or when the speaker is in standby mode.
During an update, the UPDATE indicator flashes in orange, and turns off when the update is complete. When the speaker is
turned on for the first time after updating, the UPDATE indicator flashes in orange three times.
To deactivate the software automatic update
Disable [Auto Update] in the [Settings] menu by using SongPal installed on a smartphone, iPhone, etc.
However, the software may still be updated automatically for critical changes, even if you disable this function.
If the indicator and the button flash as explained in the following
The (power) indicator flashes in red and the UPDATE indicator flashes in orange.
The software update has failed.
If the network connection is not reliable, the update may fail before it completes. See the following to update using a USB flash drive.
Manual update via a USB flash drive (when the update via a network has failed)
Hint
The number of flashes of the UPDATE indicator indicates the update’s progress. The UPDATE indicator flashes four times at first, and decreases by
one flash, then turns off when the updating is completed. Do not turn the speaker off during the update.
When the speaker is connected to the Internet via a wired or Wi-Fi network, the UPDATE indicator on the speaker lights up in orange when the
speaker detects a new software version. (The UPDATE indicator is usually turned off.)
Regardless of the [Auto Update] setting, the UPDATE indicator lights up in orange when the speaker detects a new software version.
You can update the software manually even when the [Auto Update] setting is activated. See "Update method 2: Manual update via the Internet."
Note
Updating normally takes 3 to 10 minutes. It may take longer depending on your network environment.
Do not operate the speaker during an update. Also, keep the speaker connected to the power supply and network while updating.
The speaker is connected to the Internet via a wired or Wi-Fi network.
1.
205
While updating via the Internet, you can terminate the update procedure by pressing the UPDATE/WPS button when the UPDATE indicator flashes
four times. (This is not always possible.) If you cancel the update, the UPDATE indicator will stay lit again.
Related Topic
Searching the latest software via a network connection
4-592-259-11(6) Copyright 2016 Sony Corporation
206
Help Guide
Personal Audio System
SRS-ZR7
Update method 2: Manual update via the Internet
When the speaker is connected to the Internet via a wired or Wi-Fi network, the UPDATE indicator on the speaker lights up in orange
when the speaker detects a new software version. (The UPDATE indicator is usually turned off.)
In this case, follow the steps below to update the software to the latest version.
When the update starts, any music being played will stop. Also, any BLUETOOTH connection is disconnected.
Preparation for update
Software updates become possible when the speaker is in the following states.
If the (power) indicator flashes in red and the UPDATE indicator flashes in orange during the update
The update has failed.
If the network connection is not reliable, the update may fail before it completes. See the following to update using a USB flash drive.
Manual update via a USB flash drive (when the update via a network has failed)
Hint
The number of flashes of the UPDATE indicator indicates the update’s progress. The UPDATE indicator flashes four times at first, and decreases by
one flash, then turns off when the updating is completed. Do not turn the speaker off during the update.
Note
Updating normally takes 3 to 10 minutes. It may take longer depending on your network environment.
Do not operate the speaker during an update. Keep the speaker connected to the power supply and network while updating.
The speaker is connected to the Internet via a wired or Wi-Fi network.
1.
When the UPDATE indicator is lit in orange, press and hold the UPDATE/WPS button until beeps are heard.
When the updating starts, the UPDATE indicator flashes in orange.
While updating, the speaker cannot be operated.
The UPDATE indicator turns off and the speaker switches to standby mode or BLUETOOTH/Network standby mode
automatically when the updating is completed.
When the speaker is turned on for the first time after updating, the UPDATE indicator flashes in orange three times.
1
207
While updating via the Internet, you can terminate the update procedure by holding the UPDATE/WPS button when the UPDATE indicator flashes
four times. (This is not always possible.) If you cancel the update, the UPDATE indicator will stay lit again.
4-592-259-11(6) Copyright 2016 Sony Corporation
208
Help Guide
Personal Audio System
SRS-ZR7
Update method 3: Manual update via a USB flash drive
You can use a USB flash drive to update the software when the speaker is not connected to the Internet. Follow the steps below.
Hint
Stop any music that is being played.
1
Download the update file from the website below, then store it in a USB flash drive.
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
2
Connect the USB flash drive to the USB-A port (
A) on the speaker.
3
Tap/press and hold both the FUNCTION button and UPDATE/WPS button until beeps are heard.
When the update starts, the UPDATE indicator flashes in orange. While updating, the speaker cannot be operated.
The UPDATE indicator turns off and the speaker enters to the standby mode or BLUETOOTH/Network standby mode
automatically when the updating is completed.
When you turn on the speaker for the first time after an update, the UPDATE indicator flashes in orange three times.
4
209
The number of flashes of the UPDATE indicator will change according to the update’s progress. The UPDATE indicator flashes four times at first,
and decreases by one flash, then turns off when the updating is completed. Do not turn the speaker off during the update.
Note
When you update using a USB flash drive, the update cannot be stopped. If the USB flash drive is removed or the speaker is unplugged from the
power supply during the update, the speaker will malfunction.
Updating normally takes 3 to 10 minutes.
Do not operate the speaker during an update. Also, keep the speaker connected to the power supply and network while updating.
4-592-259-11(6) Copyright 2016 Sony Corporation
210
Help Guide
Personal Audio System
SRS-ZR7
Searching the latest software via a network connection
The speaker has a function which updates the latest software automatically via a Wi-Fi or wired network.
When the latest software is released and the speaker searches it, the UPDATE indicator lights up in orange.
To avoid the network trouble by many accessing the network server, the searching timing is differ to each speaker. You can also
check manually if the latest software is released.
This section explains how to check the latest software releasing manually.
Do the following before starting.
Check that the speaker is connected to a Wi-Fi network.
Check that the LINK indicator lights up in orange or pink.
Check that the UPDATE indicator lights off.
If the indicator lights up in orange, the speaker has already searched the latest software, and you cannot operate the following
procedure. Start updating the software.
Press the UPDATE/WPS button on the rear of the speaker.
The UPDATE indicator flashes in orange
*1
, the NETWORK indicator lights up, and the speaker starts searching if the latest
software is released.
1
Check the UPDATE indicator as followings.
Lights off: The software of this speaker is the latest version.
Lights up in orange: The latest software is released.
If you set the function, which updates the speaker software automatically, to enable by SongPal, the speaker will update the
software while you are not using the speaker, such as midnight or when the speaker is in the standby mode.
When you update the software immediately, update manually as followings.
When updating starts, the playback is stopped and the BLUETOOTH connection is disconnected.
2
When the UPDATE indicator lights up in orange, press and hold the UPDATE/WPS button until the beep sound is
heard.
When updating starts, the UPDATE indicator flashes in orange.
3
211
Related Topic
Update method 2: Manual update via the Internet
4-592-259-11(6) Copyright 2016 Sony Corporation
While updating, the speaker cannot be operated.
When software updating is completed, the UPDATE indicator lights off, and the speaker enters the standby mode or
BLUETOOTH/Network mode automatically.
When turning on the speaker after updating, the UPDATE indicator flashes three times in orange.
The checking is finished immediately. So, you cannot see the flashing indicator. Depending on the network environment, it may take time. In this case,
wait for about one minute.
*1
212
Hint
The number of flashes of the UPDATE indicator will change according to the update’s progress. The UPDATE indicator flashes four times at first,
and decreases by one flash, then turns off when the updating is completed. Do not turn the speaker off during the update.
Note
When you update using a USB flash drive, the update cannot be stopped. If the USB flash drive is removed or the speaker is unplugged during the
update, the speaker will malfunction.
Updating normally takes 3 to 10 minutes.
Do not operate the speaker during an update. Also, keep the speaker connected to the power supply and network while updating.
4-592-259-11(6) Copyright 2016 Sony Corporation
214
Help Guide
Personal Audio System
SRS-ZR7
Checking the Wi-Fi signal strength (reception sensitivity)
The indicator of the speaker shows signal strength (reception sensitivity) by its lit status when the speaker is connected to a Wi-Fi
network and is turned on.
To receive a stronger signal
Try the following:
While the speaker is connected to a Wi-Fi network (the LINK indicator lights up in orange), turn on the speaker, and
then press and hold the - (volume) button and SET UP button.
The function indicators (NETWORK, BLUETOOTH, HDMI, USB-A) on the top panel start to light up.
The number of indicators lit shows the strength of the signal.
When any button is tapped, flashing stops and the signal’s strength indicator is canceled.
When no indicator is lit, the signal strength is the weakest. When four indicators are lit, the signal strength is the strongest.
1
215
Change the orientation/location.
Turn off other wireless devices.
Then, touch any button to cancel the Wi-Fi signal strength indication, repeat procedures from step
4-592-259-11(6) Copyright 2016 Sony Corporation
216
Help Guide
Personal Audio System
SRS-ZR7
Standby mode differences
Standby mode
The speaker is in the standby mode when the (power) indicator lights off.
If you press the
(power)/ PAIRING button to turn off the speaker, the (power) indicator lights off and the speaker enters the
standby mode.
BLUETOOTH/Network standby mode
The speaker is in the BLUETOOTH/Network standby mode when the (power) indicator lights up in orange.
If the BLUETOOTH/Network standby mode is on, the speaker turns on when a BLUETOOTH device or network device is operated.
Then, the BLUETOOTH or network connection starts.
When you turn on the speaker in the BLUETOOTH/Network standby mode, the start-up time becomes shorter and the speaker will
become operational sooner, than when you turn on the speaker in standby mode.
With the speaker turned on, press and hold the
(power)/ PAIRING button until the (power) indicator lights up in orange. The
speaker turns off and enters the BLUETOOTH/Network standby mode.
Auto standby mode
The speaker automatically enters the standby mode or switches to the BLUETOOTH/Network standby mode if the speaker remains
in any of the following states for about 15 minutes.
No operation of the speaker.
No connect/disconnect operations to the speaker from external devices.
Music (sound) is not played while connected to an external device.
Hint
In the standby mode, the power consumption of the speaker reduces.
In BLUETOOTH/Network standby mode, the speaker's start-up time will be shorter.
The auto standby mode can be turned off by using SongPal.
Note
The auto standby mode may not work depending on the connecting device during the AUDIO IN function.
Related Topic
Auto standby mode
Setting the auto standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
217
Help Guide
Personal Audio System
SRS-ZR7
Precautions
On safety
The nameplate and important information concerning safety are located on the bottom exterior of the speaker and on the surface
of the AC adaptor.
Before operating the speaker, be sure that the operating voltage of the speaker is identical with that your local power supply.
Where purchased: all countries/regions
Operating voltage: 100 V - 240 V AC, 50 Hz/60 Hz
Notes on the AC adaptor
To disconnect the AC adaptor from an AC outlet, hold the power plug while you unplug it. Do not pull the cable.
When connecting or disconnecting the AC adaptor, turn off the speaker beforehand. Otherwise, it may cause malfunction.
Use only the supplied AC adaptor. To avoid damaging the speaker, do not use any other AC adaptor.
The supplied AC adaptor is for this speaker only. It is not to be used for any other device.
Do not install the AC adaptor in a confined space, such as a bookcase or built-in cabinet.
About the main unit becoming warm
If you use the speaker for a long period, the main unit may become warm. This is not a malfunction.
On operations
The speaker unit, built-in amplifier, and cabinet are adjusted precisely. Do not disassemble or remodel.
Do not leave the speaker in any of the following locations.
A place subject to high temperature such as direct sunlight or near a heat source
In a car with windows closed (especially in summer)
A place with moisture such as a bathroom
A place with excessive dust, or on sand
Near any object susceptible to magnetism (such as recorded tapes, watches, cash cards, floppy disks)
A place with heavy vibration
Place the speaker on the flat surface.
Make sure the speaker will not fall from its location. Do not place valuables near the speaker.
When transporting the speaker, do not place any objects susceptible to magnetism, such as cash cards or floppy disks, near the
speaker.
If the cabinet becomes dirty, wipe it using a soft cloth with a little detergent. Do not use alcohol, benzene, or thinner to clean the
cabinet.
Others
If you have any questions or problems, contact your nearest Sony dealer after reading this guide.
When disposing of or giving away the speaker, make sure to initialize it to reset all settings to the factory defaults.
The MAC address is located on the bottom exterior of the speaker.
218
MAC1: MAC address for wired networks
MAC2: MAC address for Wi-Fi networks
4-592-259-11(6) Copyright 2016 Sony Corporation
219
Help Guide
Personal Audio System
SRS-ZR7
What is BLUETOOTH wireless technology?
BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication between digital
devices, such as a PC and digital camera. BLUETOOTH wireless technology operates within a range of about 10 m (about 30 ft).
Connecting between only two devices is common, but some devices can be connected to multiple devices at the same time.
You do not need to use a cable for connection, nor is it necessary for the devices to face one another, such is the case with infrared
technology. For example, you can use such a device in a bag or pocket.
BLUETOOTH standard is an international standard supported by thousands of companies all over the world, and used worldwide.
Maximum communication range
The maximum communication range may shorten under the following conditions.
There is an obstacle such as a person, metal, or wall between the speaker and BLUETOOTH device.
A wireless LAN device is in use near the speaker.
A microwave oven is in use near the speaker.
A device that generates electromagnetic radiation is in use near the speaker.
Interference from other devices
Because BLUETOOTH devices and wireless LAN (IEEE802.11b/g/n) use the same frequency, microwave interference may occur
and resulting in communication speed deterioration, noise, or invalid connection if the speaker is used near a wireless LAN device. In
such a case, do the following.
Use the speaker at least 10 m (about 30 ft) away from the wireless LAN device.
If the speaker is used within 10 m (about 30 ft) of a wireless LAN device, turn off the wireless LAN device.
Interference to other devices
Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off the speaker and
other BLUETOOTH devices in the following locations, as it may cause an accident.
where inflammable gas is present, in a hospital, train, airplane, or a gas station
near automatic doors or a fire alarm
Note
To be able to use the BLUETOOTH function, the BLUETOOTH device to be connected requires the same profile as the speaker’s.
Note also that even when the same profile exists, devices may vary in function depending on their specifications.
Due to the characteristics of BLUETOOTH wireless technology, the sound played on the speaker is slightly delayed from the sound played on the
BLUETOOTH device while talking on the telephone or listening to music.
This speaker supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH
wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless
technology.
Sony does not take any responsibility for the leakage of information during BLUETOOTH communication.
A device featuring the BLUETOOTH function is required to conform to the BLUETOOTH standard specified by Bluetooth SIG, and be authenticated.
Even when the connected device conforms to the above mentioned BLUETOOTH standard, some devices may not be connected or work correctly,
depending on the features or specifications of the device.
220
Noise or sound skips may occur depending on the BLUETOOTH device connected with the speaker, the communication environment, or the usage
environment.
4-592-259-11(6) Copyright 2016 Sony Corporation
221
Help Guide
Personal Audio System
SRS-ZR7
What is LDAC?
LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content,
even over a BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies such as SBC, it operates without
any downconversion of the Hi-Res Audio content
*1
, and allows approximately three times more data
*2
than those other technologies
to be transmitted over a BLUETOOTH wireless network with unprecedented sound quality, by means of efficient coding and
optimized packetization.
Note
Depending on the network environment, there may be an interruption at the high bitrate transmission.
4-592-259-11(6) Copyright 2016 Sony Corporation
excluding DSD format contents
*1
in comparison with SBC (Subband Coding) when the bitrate of 990 kbps (96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected
*2
222
Help Guide
Personal Audio System
SRS-ZR7
About the voice guidance
Depending on the status of the speaker, the voice guidance is output from the speaker as follows.
Note
The voice guidance of this speaker is output only in English.
BLUETOOTH function
“Bluetooth pairing”
Wireless Surround/Wireless Stereo function
“Wireless stereo”
“Start connecting”
“Disconnected”
“Left”
“Right”
Related Topic
How to make a wireless connection with BLUETOOTH devices
Using this speaker as a rear speaker (Wireless Surround)
Connecting two speakers (Wireless Stereo)
4-592-259-11(6) Copyright 2016 Sony Corporation
223
Help Guide
Personal Audio System
SRS-ZR7
Trademarks
Windows, the Windows logo, and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology
outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for
iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has
been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this unit or its
compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect
wireless performance. App Store is a service mark of Apple Inc.
is a mark of the Wi-Fi Alliance.
Wi-Fi®, Wi-Fi Protected Access® and Wi-Fi Alliance® are registered marks of the Wi-Fi Alliance.
Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc., in the United States and in other countries.
The BLUETOOTH® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Sony Corporation
is under license. Other trademarks and trade names are those of their respective owners.
Google Play and Android are trademarks of Google Inc.
Google Cast™ and the Google Cast Badge are trademarks of Google Inc.
"Xperia" and "Xperia Tablet" are trademarks of Sony Mobile Communications AB.
WALKMAN and WALKMAN logo are registered trademarks of Sony Corporation.
LDAC and LDAC logo are trademarks of Sony Corporation.
"S-Master HX" is a trademark of Sony Corporation.
ClearAudio+ and
are trademarks of Sony Corporation.
"DSEE HX" is a trademark of Sony Corporation.
DLNA™, DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network
Alliance.
AOSS is a trademark of BUFFALO INC.
This product incorporates Spotify software which is subject to 3rd party licenses found here:
https://developer.spotify.com/esdk-third-party-licenses/
Spotify and Spotify logos are trademarks of the Spotify Group.
The system names and product names indicated in this Help Guide are generally the trademarks or registered trademarks of the
manufacturer. ™ and ® marks are omitted in this Help Guide.
4-592-259-11(6) Copyright 2016 Sony Corporation
224
Help Guide
Personal Audio System
SRS-ZR7
Important information on software
When using the speaker with a wireless network, the UPDATE indicator lights up in orange when the new version of the software is
found.
For the timing of auto searching or manual updating methods, refer to “Searching the latest software via a network connection.”
For the latest version of the software, refer to the URL below for details.
http://rd1.sony.net/help/speaker/sl/16/
Related Topic
Updating the pre-installed software
4-592-259-11(6) Copyright 2016 Sony Corporation
225
Help Guide
Personal Audio System
SRS-ZR7
Notes on software
Notes on the License
This speaker contains software that Sony uses under a licensing agreement with the owner of its copyright. We are obligated to
announce the contents of the agreement to customers under requirement by the owner of copyright for the software.
Please read the contents of the license described in “Important information on software.”
Notice on GNU/GPL/LGPL applied software
This speaker contains software that is subject to the following GNU General Public License (hereinafter referred to as “GPL”) or GNU
Lesser General Public License (hereinafter referred to as “LGPL”). These establish that customers have the right to acquire, modify,
and redistribute the source code of said software in accordance with the terms of the GPL or LGPL supplied. The source code for the
above-listed software is available on the Web.
To download, please access the following URL then select the model name “SRS-ZR7.”
URL: http://oss.sony.net/Products/Linux/
Please note that Sony cannot answer or respond to any inquiries regarding the content of the source code.
Notes on the update
If you use the speaker while connected to the Internet via a Wi-Fi network or wired network, the speaker can update to the latest
software automatically.
By updating the software, new features will be added enabling you to experience more convenient and stable use.
If you do not want to automatically update the software, you can disable this function by using the SongPal installed on your
smartphone, iPhone, etc.
However, the software may be updated automatically for stable use, etc., even if you disable this function. Also, if you disable this
function, you can still update the software manually.
For details about how to set and operate, see “Updating the pre-installed software.” The speaker may not be operational while
updating.
Disclaimer regarding services offered by third parties
Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any
responsibility in these sorts of situations.
Privacy policy
The speaker (software version is 4.xx or later) has a function to collect the usage state of the speaker. For details, refer to the privacy
policy below.
URL: http://policies.sony.net/vs/01/index.html
You can make the settings related to the information collection based on the above privacy policy by using Sony | Music Center
*1
(Android version only).
When the consent/non-consent of information collection is not set
*2
, or when a change occurs in the agreed privacy policy:
When connecting to Sony | Music Center, a screen to select the consent/non-consent of information collection is displayed. You
can select the consent/non-consent from the screen.
When the consent/non-consent of information collection has already been set:
You can change the settings of the consent/non-consent of information collection from the setting menu of Sony | Music Center.
When Sony | Music Center is unavailable:
By initializing the speaker, you can restore the consent/non-consent of information collection to the unset state
*2
. For details how
to initialize the speaker, see “Initializing the speaker.”
226
4-592-259-11(6) Copyright 2016 Sony Corporation
SongPal renewed to Sony | Music Center.
*1
If the consent/non-consent of information collection has not been set, the information will not be collected.
*2
227
Help Guide
Personal Audio System
SRS-ZR7
Customer support websites
Please access the following support home page to get support information about your speaker:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
4-592-259-11(6) Copyright 2016 Sony Corporation
228
Help Guide
Personal Audio System
SRS-ZR7
What can I do to solve a problem?
If the speaker does not function as expected, try the following steps to resolve the issue.
Find the symptoms of the issue in this Help Guide, and try any corrective actions listed.
Unplug the power plug, leave it for a while, and plug it again.
Initialize the speaker.
All settings of the speaker return to their factory defaults. All the pairing information and all the network settings are deleted.
Look up information about the issue on the customer support website.
If the operations above do not work, consult your nearest Sony dealer.
Related Topic
Initializing the speaker
4-592-259-11(6) Copyright 2016 Sony Corporation
229
Help Guide
Personal Audio System
SRS-ZR7
Unable to turn on the speaker
Make sure the AC adaptor and AC power cord are connected to the speaker and the AC outlet firmly.
Unplug from the AC outlet. After two minutes, connect to the AC outlet again, and then press the
(power)/ PAIRING button
to turn on the speaker.
Related Topic
Connecting to an AC outlet
4-592-259-11(6) Copyright 2016 Sony Corporation
230
Help Guide
Personal Audio System
SRS-ZR7
Any button on the speaker cannot be operated
The speaker may be in the protect mode if the (power) indicator is flashing red, none of the buttons can be operated, and the
speaker cannot be turned off by the
(power)/ PAIRING button.
Unplug the power plug, and disconnect all other items connected to the speaker. Then, plug the power plug again and turn on the
speaker again. If the
(power) indicator keeps flashing, consult your nearest Sony dealer or the shop from which you purchased
this speaker.
Related Topic
Connecting to an AC outlet
The power indicator flashes in red
4-592-259-11(6) Copyright 2016 Sony Corporation
231
Help Guide
Personal Audio System
SRS-ZR7
The setup conditions of the speaker used last time are not retained
If you unplug the AC power cable from the AC outlet with the speaker turned on, the setup conditions of the speaker used last
time are not retained. Turn off the speaker, before unplug the AC power cable.
4-592-259-11(6) Copyright 2016 Sony Corporation
232
Help Guide
Personal Audio System
SRS-ZR7
The speaker has entered the standby mode or BLUETOOTH/Network standby mode
unexpectedly
The speaker enters the standby mode or BLUETOOTH/Network standby mode automatically if no operation is performed and no
sound is input for about 15 minutes. For details, see "Auto standby mode."
Related Topic
Auto standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
233
Help Guide
Personal Audio System
SRS-ZR7
The power indicator flashes in red
The speaker is in the protect mode, or the software update has failed. Check the following:
The UPDATE indicator continues flashing in orange.
The software update has failed. Update using a USB flash drive. To update using a USB flash drive, see “Manual update via a
USB flash drive (when the update via a network has failed).”
None of the buttons can be operated, and the speaker does not turn off even if the
(power)/ PAIRING button is tapped.
The speaker may be in the protect mode. Unplug the AC power cord of the speaker, and unplug all other items connected to
the speaker. Then, plug the AC power cord in again and turn on the speaker. If the
(power) indicator keeps flashing,
consult your nearest Sony dealer or the shop from which you purchased this speaker.
Related Topic
Connecting to an AC outlet
Any button on the speaker cannot be operated
Updating the pre-installed software
4-592-259-11(6) Copyright 2016 Sony Corporation
234
Help Guide
Personal Audio System
SRS-ZR7
No sound/Sound from only one speaker/Low sound level
Check that both the speaker and the connected device are turned on.
Check that the volume of both the speaker and the connected device are not too low.
Check that music is playing back on the connected device.
If the device is connected to the AUDIO IN jack, check that both stereo mini plugs of the audio cable are firmly inserted into the
speaker and the connected device.
If the device that is connected to the AUDIO IN jack is monaural, sound will only be output from the left speaker.
Keep the speaker away from metal objects.
4-592-259-11(6) Copyright 2016 Sony Corporation
235
Help Guide
Personal Audio System
SRS-ZR7
Distorted sound/humming or noise from the speaker
Check that the volume of the connected device is not too high. Adjust the volume of the connected device since sound volume
level may differ depending on a playback file.
Check that the equalizer function of the connected device is set to on.
Keep the speaker away from microwave ovens or other wireless devices such as TVs or radios with Wi-Fi function.
If you connect a device with a built-in radio or tuner to the speaker, broadcasts may not be received, or sensitivity may be
reduced. Locate the speaker farther away from the device and check that you can listen to broadcasts satisfactorily.
Move the speaker away from sources of noise.
Connect the speaker to a different wall outlet.
Use a commercially-available AC power extension cord with a noise filter. The noise may reduce.
Keep the speaker away from metal objects.
4-592-259-11(6) Copyright 2016 Sony Corporation
236
Help Guide
Personal Audio System
SRS-ZR7
The speaker cannot connect to the network (Other equipment on the network cannot find or
recognize the speaker)
It takes about 1 minute for the speaker to acquire an IP address when it is turned on in a communication environment without a
router.
If you use a fixed IP address, the same IP address might be already in use by other equipment. Therefore, use a different IP
address.
There is more than one home network. The PC and smartphone are connected to a different network than the speaker’s.
If the settings are correct, try the following.
Turn off the wireless router/access point, wait a while and turn on the power again.
Turn off the speaker, wait a while and turn on the power again.
4-592-259-11(6) Copyright 2016 Sony Corporation
237
Help Guide
Personal Audio System
SRS-ZR7
Unable to connect to a network via a Wi-Fi connection
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer together and
perform the setup again.
When setting the Wi-Fi network using SongPal on the smartphone, iPhone, etc., connect the smartphone, iPhone, etc. to a Wi-Fi
network first.
Do not connect a commercially available LAN cable to the speaker. If a commercially available LAN cable is connected to the
speaker, the speaker automatically connects to the wired network.
Check the settings of the wireless router/access point. Make sure the SSID stealth mode on the wireless router is set to off. For
details on the settings of the wireless router, refer to its operating instructions.
Place the speaker closer to your wireless router. Devices that use the 2.4 GHz frequency band, such as a microwave oven,
BLUETOOTH or digital cordless device, etc., may interrupt Wi-Fi communication. Move the speaker away from such devices or
turn them off.
The speaker does not support IEEE 802.11ac. Connect it to 2.4 GHz band (11b, 11g, and 11n) or 5 GHz band (11a and 11n).
There is more than one home network. The PC and smartphone are connected to a different network than the speaker’s.
If the settings are correct, try the following.
Turn off the wireless router/access point, wait a while and turn on the power again.
Turn off the speaker, wait a while and turn on the power again.
4-592-259-11(6) Copyright 2016 Sony Corporation
238
Help Guide
Personal Audio System
SRS-ZR7
Unable to connect to a network via a Wi-Fi connection (even though a correct SSID is selected)
When the speaker cannot connect even though the correct SSID for your wireless router is selected, check if the correct
password (encryption key) is input.
The password (encryption key) is case sensitive, therefore make sure that you are entering correct uppercase and lowercase
characters. Multi-byte characters cannot be used; enter single-byte characters.
Examples of easily mistaken characters:
“I (uppercase I)” and “l (lowercase L)”
“0 (numeral 0)” and “O (uppercase O)”
“d (lowercase D)” and “b (lowercase B)”
“9 (numeral 9)” and “q (lowercase Q)”
4-592-259-11(6) Copyright 2016 Sony Corporation
239
Help Guide
Personal Audio System
SRS-ZR7
The speaker cannot connect to a network using the UPDATE/WPS button
Set up your network after searching the wireless router/access point using the PC connected to the speaker (access point scan).
Update the firmware of the wireless router/access point to the latest version.
Press and hold the UPDATE/WPS button for about two seconds until beeps are heard.
Refer to the operating instructions of your wireless router to make sure you are operating the Wi-Fi Protected Setup (WPS) button
on the wireless router correctly.
Depending on the wireless router, press and hold the Wi-Fi Protected Setup (WPS) button for a few seconds. For details, refer to
the operating instructions of your wireless router.
Place the speaker closer to your wireless router.
If your wireless router has a Wi-Fi Protected Setup (WPS) button, you can connect to the Wi-Fi network by this method. For
details, refer to the operating instructions supplied with your wireless router.
If the settings are correct, try the following.
Turn off the wireless router/access point, wait a while and turn on the power again.
Turn off the speaker, wait a while and turn on the power again.
4-592-259-11(6) Copyright 2016 Sony Corporation
240
Help Guide
Personal Audio System
SRS-ZR7
The speaker does not appear in the device list of the PC's music playback application
Some software that is pre-installed on a PC cannot select the speaker as an audio output device.
Use software that can select the speaker as an audio output device, such as Windows Media Player, etc.
Check the network connection.
Check that the speaker and the PC are connected to the same SSID of your router.
Check that the speaker is turned on.
If your PC uses a firewall, this may prevent the speaker from appearing on the list.
In this case, disable the firewall. For details, refer to the operating instructions or help guide of the firewall software.
4-592-259-11(6) Copyright 2016 Sony Corporation
241
Help Guide
Personal Audio System
SRS-ZR7
The speaker does not appear in the device select screen of SongPal
Check the network connection.
Set the Wi-Fi network settings of the smartphone, iPhone, etc. to on.
If you use a privacy separator function or network separating function of your wireless router, the router may not connect to the
speaker. In this case, disable these functions on your router. For details about the setting, refer to the operating instructions of
your router.
Check that the speaker and the smartphone, iPhone, etc. are connected to the same SSID of your wireless router.
Example of a good network connection
(The speaker ( ) and the smartphone, iPhone, etc. ( ) are connected to the same SSID of your wireless router ( ), so they
belong to the same network.)
In this situation, the smartphone, iPhone, etc. is able to recognize the speaker using SongPal.
Example of a bad network connection
(The speaker ( ) and the smartphone, iPhone, etc. ( ) are connected to different SSIDs of your wireless routers, such as
mobile routers, etc. (
), so they belong to different networks.)
In this situation, the smartphone, iPhone, etc. is not able to recognize the speaker using SongPal. The SSID connected to the
speaker can be identified by using SongPal if the speaker and the smartphone, iPhone, etc. are connected via BLUETOOTH.
242
Internet
Modem
Router
Speaker
Smartphone, iPhone, etc.
Distribute the connection using a network hub or a Wi-Fi access point set to infrastructure mode when it is difficult to connect the
speaker and the smartphone, iPhone, etc. directly to one router (for example, when using SongPal on a smartphone, iPhone, etc.
placed in a different room from the speaker).
Depending on your network environment, for example if you are living in an apartment building, the router may be shared with the
other residents. For details about your network environment, contact the person in charge of your network.
Related Topic
Connecting to a Wi-Fi network using a PC connected with a LAN cable
4-592-259-11(6) Copyright 2016 Sony Corporation
243
Help Guide
Personal Audio System
SRS-ZR7
The speaker cannot connect to music services
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer together and
perform the setup again.
Depending on the provider, only one connection to the Internet may be allowed. In that case, the speaker will not be able to
connect if the connection is currently occupied. Please consult your carrier or service provider.
Turn your smartphone, iPhone, etc. off for a short period, turn it on again, then restart the SongPal application.
Check that the enabled music application is installed in the smartphone, iPhone, etc.
4-592-259-11(6) Copyright 2016 Sony Corporation
244
Help Guide
Personal Audio System
SRS-ZR7
The controller cannot find the speaker (The controller cannot browse the contents of the
speaker)
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer together and
perform the setup again.
Make sure that the controller and the speaker are connected to the SSID of your wireless router.
Disable the multicast control on the wireless router/access point. For details, refer to the operating instructions supplied with your
wireless router.
4-592-259-11(6) Copyright 2016 Sony Corporation
245
Help Guide
Personal Audio System
SRS-ZR7
Music started automatically (home network)
The speaker may have been operated by another device on your home network. To prevent this, set the BLUETOOTH/Network
standby mode to off.
Related Topic
Setting the auto standby mode
4-592-259-11(6) Copyright 2016 Sony Corporation
246
Help Guide
Personal Audio System
SRS-ZR7
The sound is interrupted
The DLNA server is overloaded. Quit all running applications.
Wireless signal condition is poor. Stop using your microwave oven, etc.
The communication speed of the Wi-Fi network may become slower for IEEE802.11n-compliant wireless routers/access points if
the security method is set to WEP or WPA/WPA2-PSK (TKIP). If the speed slows down, change the security method to
WPA/WPA2-PSK (AES).
The encryption (security) scheme varies depending on the device. For details, refer to the operating instructions of your
router/access point.
If the sound is interrupted or noise is generated via a Wi-Fi connection, connect the speaker and wireless router via a
commercially-available LAN cable, instead of via Wi-Fi. If the quality does not improve, also connect the PC and wireless router
via a commercially-available LAN cable.
If the sound is interrupted or noise is generated during high-resolution audio playback when compared to MP3, AAC, or other
audio compressions, connect the speaker and wireless router via a commercially-available LAN cable, instead of via Wi-Fi. If the
quality does not improve, also connect the PC and wireless router via a commercially-available LAN cable.
Related Topic
Checking the Wi-Fi signal strength (reception sensitivity)
Connecting to a wired network
4-592-259-11(6) Copyright 2016 Sony Corporation
247
Help Guide
Personal Audio System
SRS-ZR7
Playback does not start
Check that the speaker and the network device are connected to your home network.
Check whether the audio file is incompatible or has been deleted from the server. Refer to the operating instructions of the server.
The server tries to play the audio file in an audio format that the speaker does not support. Check the audio format information on
the server.
Disable the multicast control on the wireless router/access point. For details, refer to the operating instructions of the wireless
router/access point. If it is enabled, it may take several minutes to output audio.
Access for the speaker may not be permitted by the server. Change the settings on the server to allow access for the speaker.
Refer to the operating instructions of the server.
Related Topic
DLNA (Digital Living Network Alliance)
4-592-259-11(6) Copyright 2016 Sony Corporation
248
Help Guide
Personal Audio System
SRS-ZR7
Smartphone, iPhone, etc. cannot be paired
Bring the speaker and the BLUETOOTH device to within 1 m (3 ft) of each other.
If the BLUETOOTH indicator is not flashing quickly in white, press and hold the
(power)/ PAIRING button until the speaker
beeps and the BLUETOOTH indicator starts flashing quickly in white.
If you initialize the speaker, it may not be able to connect your iPhone/iPod touch or PC. In this case, erase the pairing
information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
If you reset network settings of your iPhone/iPod touch or PC, the speaker may not be able to connect to it. Perform the pairing
procedure again.
4-592-259-11(6) Copyright 2016 Sony Corporation
249
Help Guide
Personal Audio System
SRS-ZR7
Unable to connect the speaker to a BLUETOOTH device with One-touch (NFC)
If the screen lock is activated on the smartphone, it cannot be connected. Cancel the screen lock on the smartphone.
Keep the NFC-compatible device close to the speaker until the NFC-compatible device reacts. If it still fails to connect, move the
NFC-compatible device slowly on the N-Mark of the speaker. Follow the instructions on the screen.
Check that the NFC function of the NFC-compatible device is set to on.
If the NFC-compatible device is in a case, remove it.
NFC reception sensitivity varies depending on the device. If you repeatedly fail to connect the speaker with an NFC-compatible
device by one touch, make the connection by an on-screen operation.
Check that your device is compatible with NFC.
For details, access the following URL.
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
Related Topic
Compatible BLUETOOTH devices
4-592-259-11(6) Copyright 2016 Sony Corporation
250
Help Guide
Personal Audio System
SRS-ZR7
There is no sound (BLUETOOTH)
If you are connecting a PC to the speaker, make sure that the audio output setting of the PC is set for a BLUETOOTH device.
Check that the speaker has established a BLUETOOTH connection with the BLUETOOTH device.
Pair the speaker and the BLUETOOTH device again.
Check the volume on the BLUETOOTH device and the speaker.
4-592-259-11(6) Copyright 2016 Sony Corporation
251
Help Guide
Personal Audio System
SRS-ZR7
Distorted sound/humming or noise from the speaker
Bring the speaker and the BLUETOOTH device closer together. Remove any obstacles between the speaker and the
BLUETOOTH device.
There are some BLUETOOTH devices that can have the wireless playback quality changed. If your device is compatible with this
function, select a setting that prioritizes stable connection over sound quality. For details, refer to the operating instructions
supplied with the device.
Select "Priority on stable connection" for the BLUETOOTH audio streaming playback quality.
Related Topic
Selecting the BLUETOOTH audio streaming playback quality (Codec)
4-592-259-11(6) Copyright 2016 Sony Corporation
252
Help Guide
Personal Audio System
SRS-ZR7
An unsupported USB device is connected
If you connect an unsupported USB device, the following problems may occur. Refer to the URL in “Compatible USB devices” and
use a supported USB device.
The USB device is not recognized.
Playback is not possible.
The sound skips.
There is noise.
The sound is distorted.
Related Topic
Compatible USB devices
4-592-259-11(6) Copyright 2016 Sony Corporation
253
Help Guide
Personal Audio System
SRS-ZR7
There is no sound (USB)
The USB device is not connected correctly. Turn off the speaker, then reconnect the USB device.
To listen to music on a PC connected to the USB-B port (
B), restart the music playback application on the PC. If you
change to a mode other than the USB-B mode by pressing the FUNCTION button, the connection between the application on the
PC and the speaker may disconnect. For details, refer to the operating instructions or help guide of the music playback
application.
After changing to a mode other than the USB-B mode by tapping the FUNCTION button, tap the FUNCTION button again to
change to the USB-B mode.
Related Topic
Parts and controls
4-592-259-11(6) Copyright 2016 Sony Corporation
254
Help Guide
Personal Audio System
SRS-ZR7
There is noise, skipping, or distorted sound
An unsupported USB device is connected. Refer to the URL in “Compatible USB devices” and use a supported USB device.
Turn off the speaker, reconnect the USB device, then turn on the speaker.
The music data itself contains noise, or the sound is distorted. Noise contained in the music may be transferred. In this case,
delete the music file from the USB device and copy the original music file again to the USB device. If noise or distorted sound
occurs in the same playback position each time, the music data may be corrupted.
The bit rate used when encoding files was too low. In this case, delete the music file from the USB device and copy the original
music file again at a higher bit rate to the USB device.
Related Topic
Compatible USB devices
4-592-259-11(6) Copyright 2016 Sony Corporation
255
Help Guide
Personal Audio System
SRS-ZR7
A USB device is not recognized
Turn off the speaker, reconnect the USB device, then turn on the speaker.
An unsupported USB device is connected. Refer to the URL in “Compatible USB devices” and use a supported USB device.
The USB device does not work properly. Refer to the operating instructions supplied with the USB device for a solution.
Related Topic
Compatible USB devices
4-592-259-11(6) Copyright 2016 Sony Corporation
256
Help Guide
Personal Audio System
SRS-ZR7
Playback does not start
Check that the file format is supported by the speaker. For details, refer to the Operating Instructions.
An unsupported USB device is connected. Refer to the URL in “Compatible USB devices” and use a supported USB device.
Related Topic
Compatible USB devices
4-592-259-11(6) Copyright 2016 Sony Corporation
257
Help Guide
Personal Audio System
SRS-ZR7
Initializing the speaker
With the speaker turned on, press and hold the (power)/ PAIRING button and the - (volume) button at the same time for more
than four seconds.
The (power) indicator flashes quickly in green for two seconds. The settings of the speaker return to their factory defaults, and
network information and all BLUETOOTH device registration (pairing) information are deleted. Then, the speaker enters the start-up
mode automatically. It takes about 60 to 80 seconds to turn on the speaker. When the
(power) indicator turns off (standby mode),
you can turn on the speaker.
Note
If you initialize the speaker, it may not be able to make a BLUETOOTH connection with your iPhone/iPod touch or PC. In this case, erase the pairing
information of the speaker on your iPhone/iPod touch or PC, and then perform the pairing procedure again.
4-592-259-11(6) Copyright 2016 Sony Corporation
259
Help Guide
Personal Audio System
SRS-ZR7
Disposing of or giving away this speaker
When disposing of or giving away this speaker, erase information from the speaker. Make sure you to initialize it to reset all
settings to the factory defaults.
If you use in Internet service such as music service, information about the speaker may be retained by the service provider. In this
case, contact the network service provider to delete that information.
Related Topic
Initializing the speaker
4-592-259-11(6) Copyright 2016 Sony Corporation
260
