Personal Audio System
SRS-X77
The following explains how to use this speaker. Select a topic from the navigation pane on the left.
The content referenced in the Wi-Fi Startup Guide and Operating Instructions are described in
detail through the following links.
Help Guide
Network connection (wired)
You can connect the speaker to a wired network if a Wi-Fi network connection is not possible.

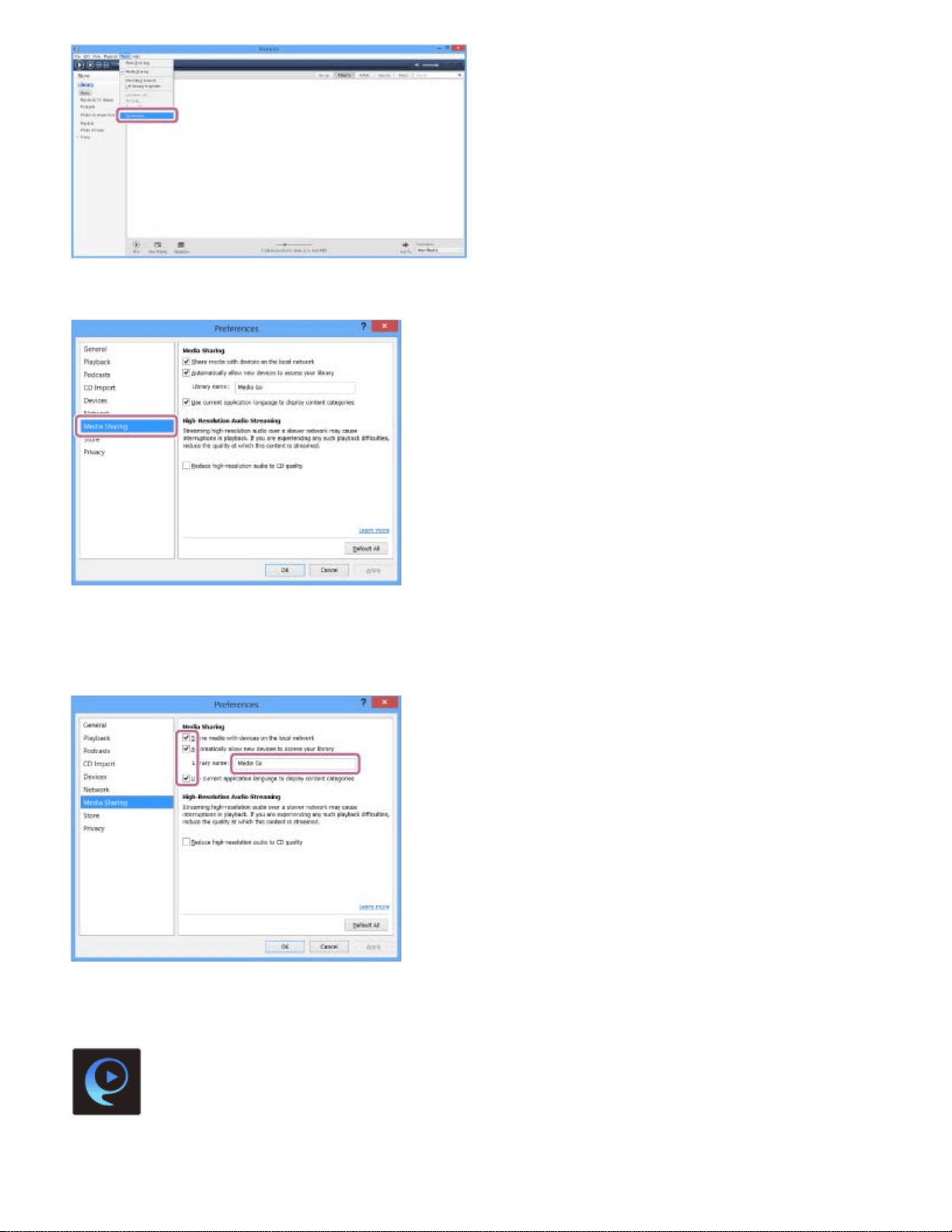

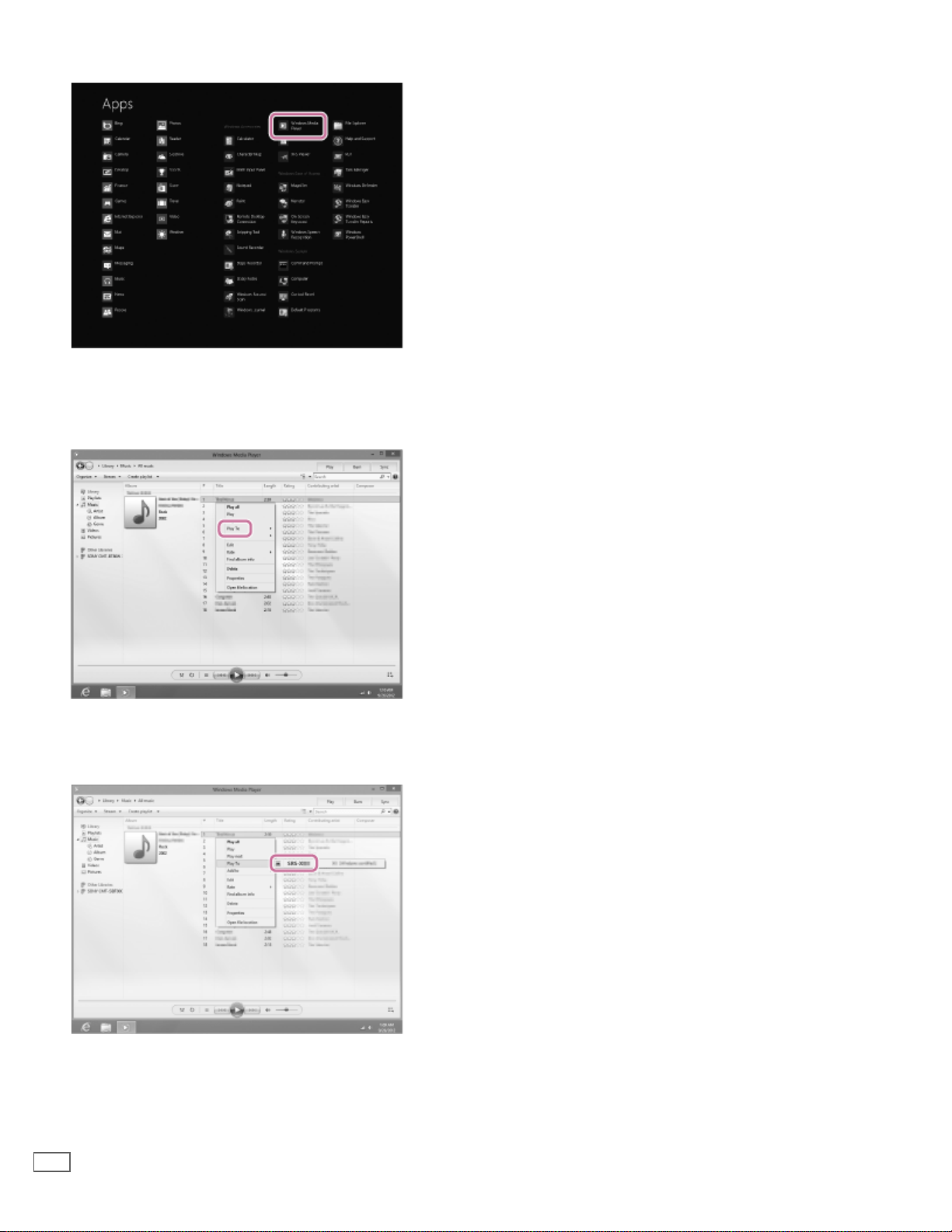

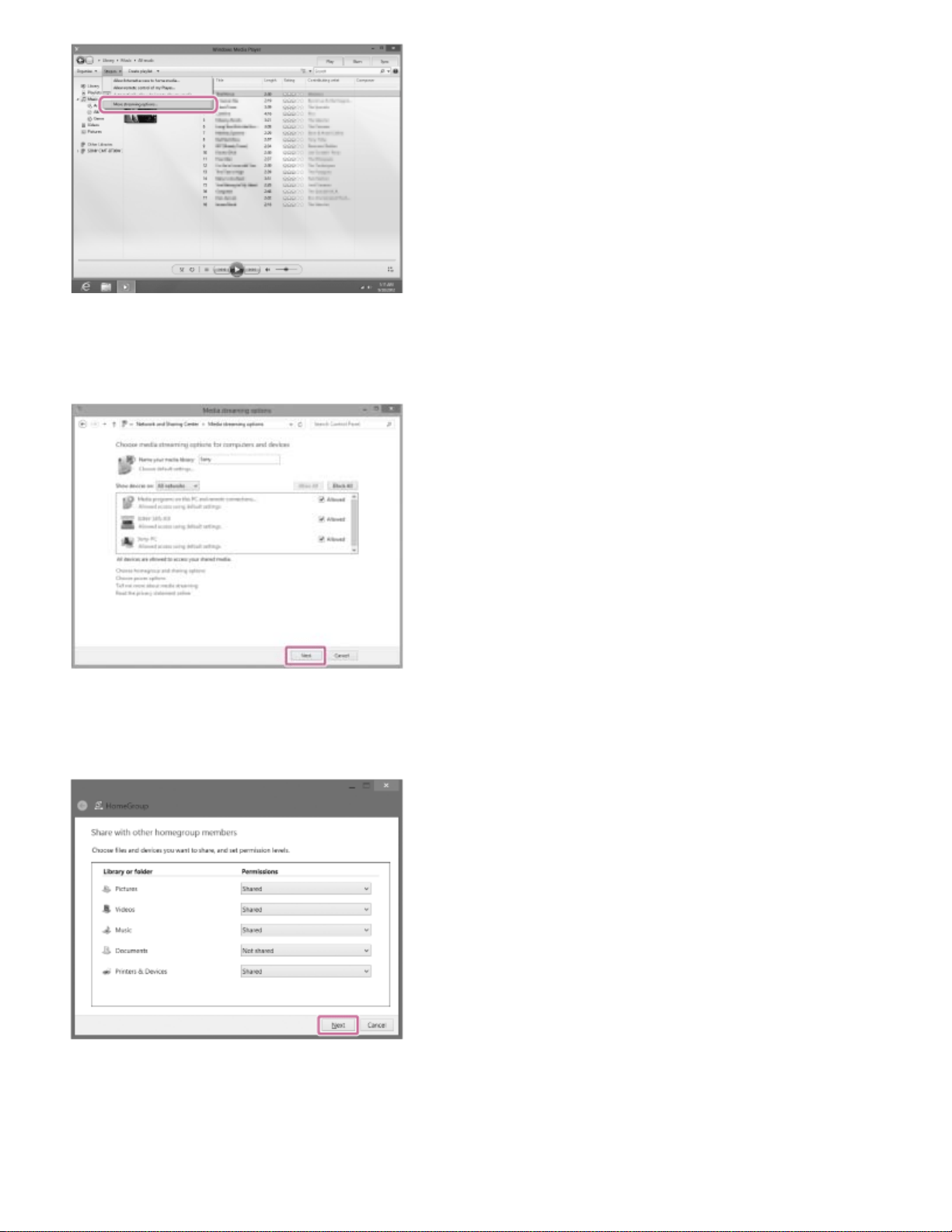

Playback via a network (Windows 8, Windows Media Player)
You can listen to music stored in a Windows 8 PC connected to your network using Windows Media Player.

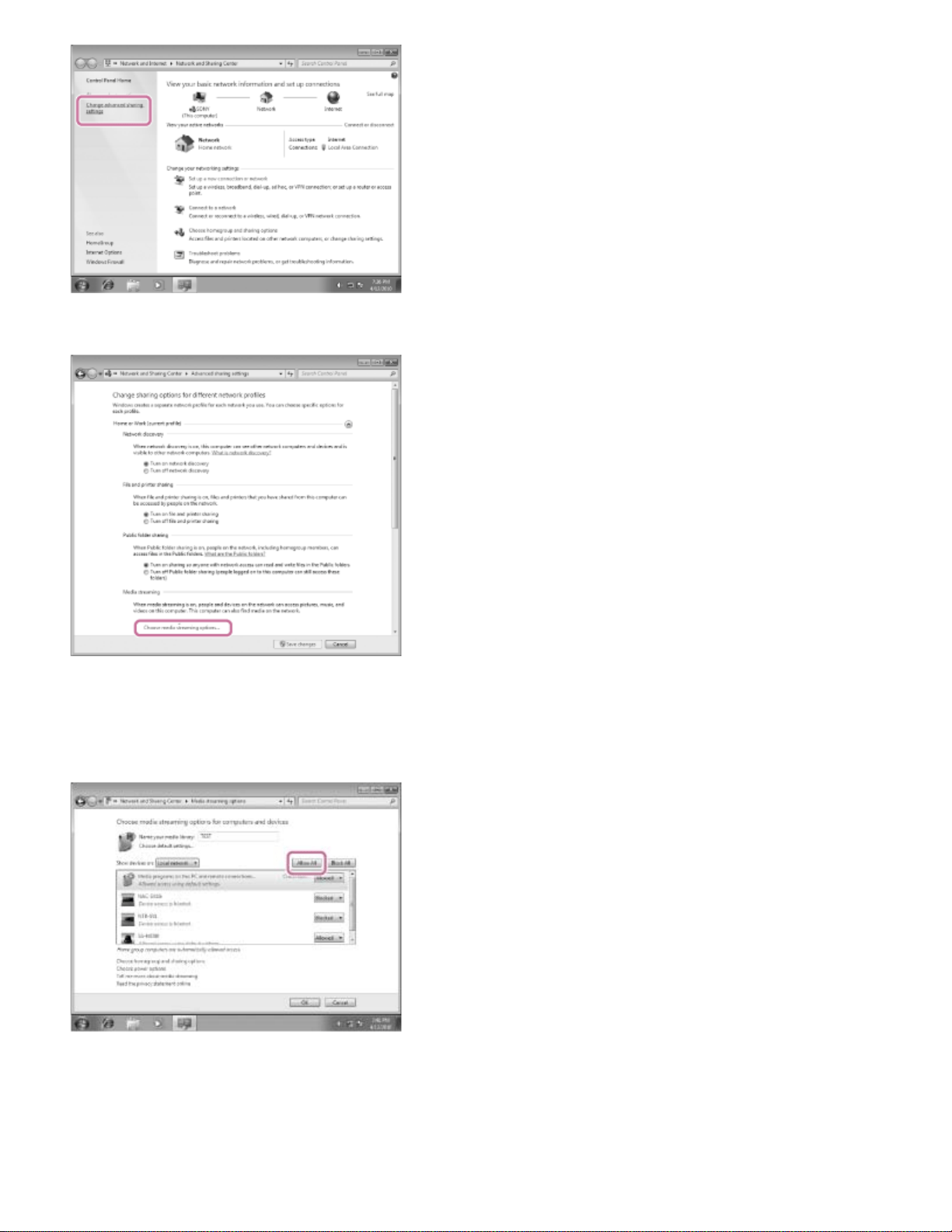

Playback via a network (Windows 7, Windows Media Player)
You can listen to music stored in a Windows 7 PC connected to your network using Windows Media Player.
Playback via a network (internet music streaming service)
You can stream music from the internet using SongPal.

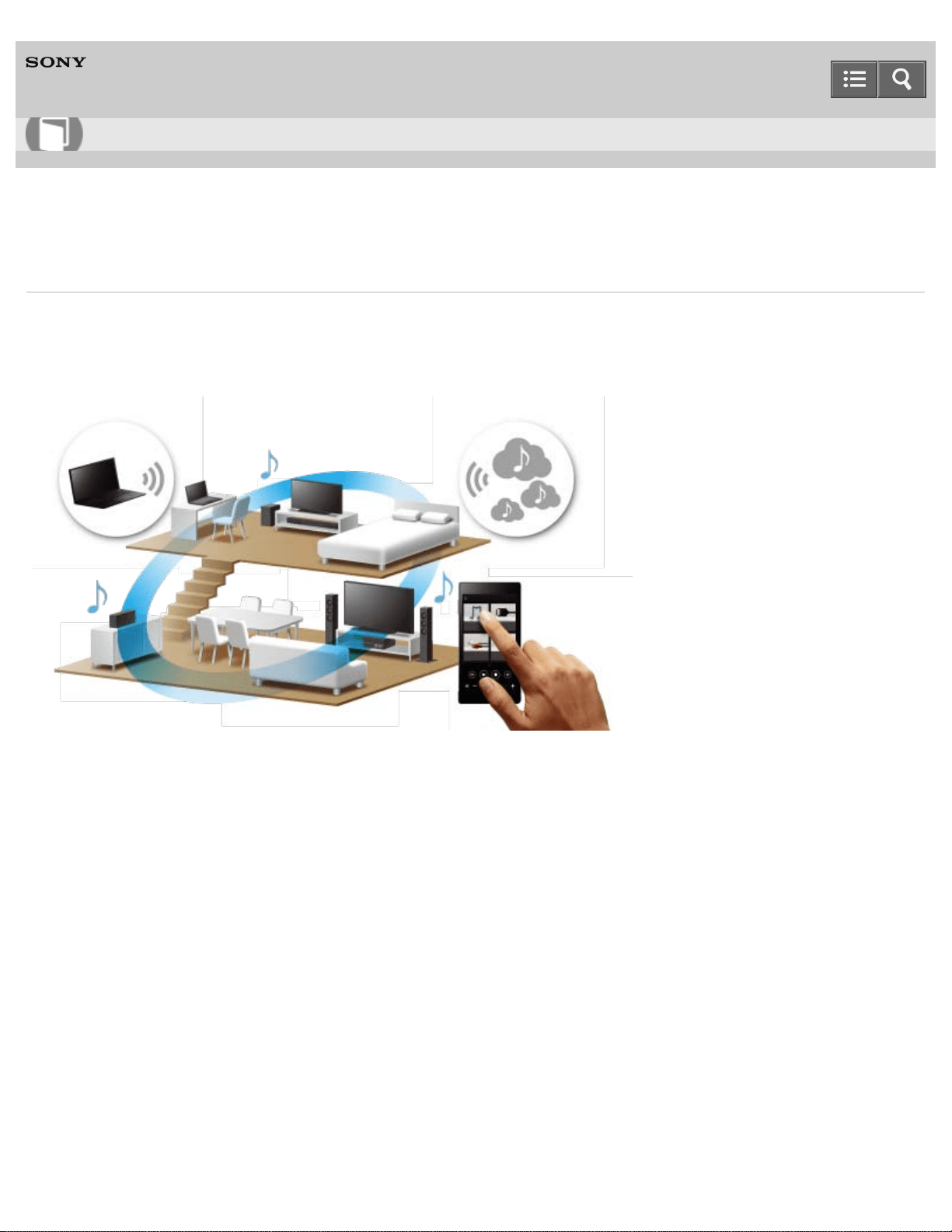

Playback via a network (SongPal Link)
Enjoy music in any room via Wi-Fi. You can listen to your favorite music stored in your computer or mobile
phone, or from music streaming services, in different rooms with high sound quality.
Audio cable connection (AUDIO IN port, portable audio device)
Getting Started
SongPal
Listening to music via home network
Listening to music via BLUETOOTH connection
Listening to music by connecting with an audio cable
Listening to music on an Xperia
Listening to music on a smartphone
Listening to music on an iPhone/iPad/iPod
Listening to music on a Walkman
Listening to music on a PC (Windows 8)
Listening to music on a PC (Windows 7)
Listening to music on a PC (Windows Vista)
Listening to music on a Mac
Information
You can connect the device to the AUDIO IN jack with a commercially-available audio cable.
How to Use
Troubleshooting
Table Of Contents
SRS-X77 Help Guide i.......................................................................................................................
Network connection (wired) 1............................................................................................................
Playback via a network (Windows 8, Windows Media Player) 3.......................................................
Playback via a network (Windows 7, Windows Media Player) 6.......................................................
Playback via a network (internet music streaming service) 8............................................................
Playback via a network (SongPal Link) 10........................................................................................
Audio cable connection (AUDIO IN port, portable audio device) 11..................................................
Getting Started 12.............................................................................................................................
Overview 52.................................................................................................................................
What you can do with the speaker 130..................................................................................
Parts and controls 131.................................................................................................................
Included items 54........................................................................................................................
Checking the included items 134...........................................................................................
Power source 55..........................................................................................................................
Connecting to an AC outlet 135.............................................................................................
Turning the power on 137......................................................................................................
Turning the power off 138......................................................................................................
Using the BLUETOOTH/Network standby function 42..........................................................
Charging USB devices, such as smartphones 139...............................................................
Auto standby function 141.....................................................................................................
SongPal 13........................................................................................................................................
About SongPal 56........................................................................................................................
Wi-Fi network connection 57.......................................................................................................
Device control 58.........................................................................................................................
Speaker settings 59.....................................................................................................................
Listening to music via home network 14............................................................................................
Selecting the network connection method 60..............................................................................
About home network (DLNA) 61..................................................................................................
Listening to music on a PC via a network (Modern UI) 62..........................................................
Listening to music on a PC via a network (Windows 8) 63..........................................................
Listening to music on a PC via a network (Windows 7) 64..........................................................
Listening to music on a PC via a network (Windows Vista) 65....................................................
Listening to music on a computer via a network (Mac) 66..........................................................
Listening to music on an iPhone/iPad/iPod via a network 67......................................................
Listening to music on an Xperia via a network 68.......................................................................
Listening to music via BLUETOOTH connection 15..........................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on a device via a BLUETOOTH connection 70.............................................
TOC-1
Listening to music by connecting with an audio cable 16..................................................................
Listening to music on a portable audio device, etc., by connecting with an
audio cable (AUDIO IN) 71..........................................................................................................
Connecting to a portable audio device, etc. 11......................................................................
Listening to music on a portable audio device, etc. 50..........................................................
Listening to music on an Xperia 17...................................................................................................
Selecting the network connection method 72..............................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on an Xperia via a network 74.......................................................................
Listening to music on a device via a BLUETOOTH connection 75.............................................
Listening to music on a portable audio device, etc., by connecting with an
audio cable (AUDIO IN) 76..........................................................................................................
Listening to music on a smartphone 18.............................................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on a device via a BLUETOOTH connection 78.............................................
Listening to music on a portable audio device, etc., by connecting with an
audio cable (AUDIO IN) 79..........................................................................................................
Listening to music on an iPhone/iPad/iPod 19..................................................................................
Selecting the network connection method 80..............................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on an iPhone/iPad/iPod via a network 82......................................................
Listening to music on an iPhone/iPad/iPod via a BLUETOOTH connection 83..........................
Listening to music on a portable audio device, etc., by connecting with an
audio cable (AUDIO IN) 84..........................................................................................................
Listening to music on a Walkman 20.................................................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on a Walkman via a BLUETOOTH connection 86.........................................
Listening to music on a portable audio device, etc., by connecting with an
audio cable (AUDIO IN) 87..........................................................................................................
Listening to music on a PC (Windows 8) 21......................................................................................
Selecting the network connection method 88..............................................................................
About home network (DLNA) 89..................................................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on a PC via a network (Modern UI) 91..........................................................
Listening to music on a PC via a network (Windows 8) 92..........................................................
Listening to music on a PC via a BLUETOOTH connection 93...................................................
Listening to music on a PC (Windows 7) 22......................................................................................
Selecting the network connection method 94..............................................................................
About home network (DLNA) 95..................................................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
TOC-2
Listening to music on a PC via a network (Windows 7) 97..........................................................
Listening to music on a PC via a BLUETOOTH connection 98...................................................
Listening to music on a PC (Windows Vista) 23................................................................................
Selecting the network connection method 99..............................................................................
About home network (DLNA) 100................................................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on a PC via a network (Windows Vista) 102..................................................
Listening to music on a PC via a BLUETOOTH connection 103.................................................
Listening to music on a Mac 24.........................................................................................................
Selecting the network connection method 104............................................................................
About home network (DLNA) 105................................................................................................
How to make a wireless connection with BLUETOOTH devices 214..........................................
Listening to music on a computer via a network (Mac) 107........................................................
Listening to music on a PC via a BLUETOOTH connection 108.................................................
Information 25....................................................................................................................................
About the indicators 231..............................................................................................................
Compatible devices and operating systems 110.........................................................................
Software update 111...................................................................................................................
Wi-Fi signal strength 112.............................................................................................................
About standby functions 113.......................................................................................................
Notes on use 114........................................................................................................................
Trademarks 115..........................................................................................................................
Support website 116....................................................................................................................
Troubleshooting 117..........................................................................................................................
What can I do to solve a problem? 258.......................................................................................
Main unit 27.......................................................................................................................................
Power supply 118........................................................................................................................
Sound 119...................................................................................................................................
Network 28........................................................................................................................................
Network connection 120..............................................................................................................
Music Services 121.....................................................................................................................
Home network (DLNA) 122.........................................................................................................
AirPlay 123..................................................................................................................................
BLUETOOTH 29................................................................................................................................
Pairing 124..................................................................................................................................
One-touch connection (NFC) 125................................................................................................
Sound 126...................................................................................................................................
Additional information 30...................................................................................................................
Software update 127...................................................................................................................
Reset 128....................................................................................................................................
TOC-3
Disposal and transfer 129............................................................................................................
How to Use 31...................................................................................................................................
Troubleshooting 40............................................................................................................................
TOC-4
Personal Audio System
SRS-X77
Connection method 4: Connecting to a wired network
This section describes how to connect the speaker to a wireless router with a commercially-available LAN cable, then
how to connect the router to the computer.
Usually the DHCP setting is set to ON when you connect your computer to the network.
Do the following before starting.
Set the DHCP setting of your computer to ON.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Check that your computer and wireless router are turned on.
2. Connect the wireless router to the LAN port with a commercially-available LAN cable.
3. Connect the wireless router to your computer using another commercially-available LAN cable, or a Wi-Fi
connection.
4. Turn the speaker on.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash in pink. Wait about a
minute until the LINK indicator lights up in pink.
When the connection is completed, the LINK indicator changes from flashing to staying lit in pink.
Help Guide
How to Use
1
Hint
Wait about two minutes until the LINK indicator lights up in pink when you connect the speaker to a network for
the first time after purchase.
Note
When you connect the speaker to a network for the first time after purchase, or after you initialize the speaker, the
BLUETOOTH/Network standby function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
2
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
You can use a PC as a controller (operating device).
Music can be played back by using the [Play To] function, after starting Windows Media Player. Follow the instructions
on the PC screen to operate.
1. Connect the speaker and PC to the same network.
Connect the speaker and the PC to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the connection is complete.
2. Tap the NETWORK button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
The speaker can also be switched to NETWORK mode automatically, instead of tapping the NETWORK button, by
playing back music using the [Play To] function, after starting Windows Media Player.
3. Right-click on the Start screen of the PC.
In the case of a touch-panel, swipe from the bottom to the top on the Start screen, then select [All Apps] at the
bottom-right of the screen.
Help Guide
How to Use
3
4. Select [Windows Media Player].
5. Right-click or press and hold a song to be played.
6. Select [Play To] from the menu.
The device list appears.
7. Select [SRS-X77].
8. Play back the selected song, and adjust the volume.
The selected song will be heard from the speaker.
Hint
4
After SongPal is downloaded and installed to your smartphone/iPhone, you can use it as a remote control to operate
devices connected to the speaker.
Note
The procedure explained above is for guidance only. Normally, the volume level on a computer and the speaker do
not synchronize. However, depending on the version of the Windows Media Player installed on a computer or the
computer's condition, the volume levels may synchronize.
The speaker can play MP3, WMA, AAC and WAV format files (only AAC files with the extension ".m4a," ".mp4," or
".3gp" can be played). Even if the bit rate and file format are supported, the playback of all files is not guaranteed and
there may be a change in the specification.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a
WMA file is protected by DRM, right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time, since each DLNA-compatible device has to
recognize the component currently used.
Some content may not be playable with DLNA certified products.
Related Topic
Listening to music on a PC via a Wi-Fi network
Setting your PC as a DLNA server and controller (Windows 8)
4-569-737-11(1)
Copyright 2015 Sony Corporation
5
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows 7) (Windows Media Player)
You can use a PC as a controller (operating device).
Music stored in the PC can be played back by simple operations with the [Play To] function of Windows 7. Follow the
instructions on the PC screen to operate.
1. Connect the speaker and a PC to the same network.
Connect the speaker and the PC to the same SSID of your wireless router.
The LINK indicator lights up in orange or pink when the connection is complete.
2. Tap the NETWORK button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
The speaker can also be switched to NETWORK mode automatically, instead of tapping the NETWORK button, by
playing back music using the [Play To] function, after starting Windows Media Player.
3. Start [Windows Media Player] in the PC.
4. Right-click the song to be played.
5. Select [Play To] from the menu.
Help Guide
How to Use
The device list appears.
6. Select [SRS-X77].
7. Play back the selected song, and adjust the volume.
The selected song will be heard from the speaker.
Hint
After SongPal is downloaded and installed to your smartphone/iPhone, you can use it as a remote control to operate
devices connected to the speaker.
Note
The speaker can play MP3, WMA, AAC and WAV format files (only AAC files with the extension ".m4a," ".mp4," or
".3gp" can be played). Even If the bit rate and file format are supported, the playback of all files is not guaranteed and
there may be a change in the specification.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a
WMA file is protected by DRM, right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time, since each DLNA-compatible device has to
recognize the component currently used.
Some content may not be playable with DLNA certified products.
Related Topic
Setting your PC as a DLNA server and controller (Windows 7)
Listening to music on a PC via a Wi-Fi network
4-569-737-11(1)
Copyright 2015 Sony Corporation
7
Personal Audio System
SRS-X77
Listening to music from an internet streaming service (music service)
You can enjoy music from various streaming services offered on the internet via your smartphone/iPhone with SongPal
installed.
The specification and design of the application may change without notice.
1. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
2. Tap [SRS-X77].
3. Tap the desired music service.
The selected music service starts, and a list of playable music is displayed.
Help Guide
How to Use
8
4. Select the desired content and start playback.
Music will be heard from the speaker.
Note
Depending on the country or region, music services and their period of availability may differ. Separate registration is
required for certain services. An update of the device may be required.
In some cases, the speaker may need to be activated by a music service. Follow the instructions on the music
service’s application or SongPal.
The services that the third parties provide may be revised, stopped, and discontinued without a notice. Sony bears no
responsibility for this.
4-569-737-11(1)
Copyright 2015 Sony Corporation
9
Personal Audio System
SRS-X77
Listening to the same music with multiple speakers or different music in different places (SongPal Link function)
Enjoy music in any room via Wi-Fi.
You can listen to your favorite music stored in your PCs or mobile phones and furthermore, music from streaming
services in different rooms with ultimate sound quality.
1. Connect the speaker and your smartphone/iPhone to the same SSID of your wireless router.
2. Connect the SongPal Link compatible devices to the same wireless router as that used by the speaker and the
smartphone/iPhone.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
10
Personal Audio System
SRS-X77
Connecting to a portable audio device, etc.
Be sure to turn off the power of the device before making any connections.
1. Connect a device to the AUDIO IN jack with a audio cable (not supplied).
Related Topic
Listening to music on a portable audio device, etc.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
11
Personal Audio System
SRS-X77
Listening to music via home network
Selecting the network connection method
About home network (DLNA)
Listening to music on a PC via a network (Modern UI)
Listening to music on a PC via a network (Windows 8)
Listening to music on a PC via a network (Windows 7)
Listening to music on a PC via a network (Windows Vista)
Listening to music on a computer via a network (Mac)
Listening to music on an iPhone/iPad/iPod via a network
Listening to music on an Xperia via a network
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
14
Personal Audio System
SRS-X77
Listening to music on an Xperia
Selecting the network connection method
How to make a wireless connection with BLUETOOTH devices
Listening to music on an Xperia via a network
Listening to music on a device via a BLUETOOTH connection
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
17
Personal Audio System
SRS-X77
Listening to music on a smartphone
How to make a wireless connection with BLUETOOTH devices
Listening to music on a device via a BLUETOOTH connection
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
18
Personal Audio System
SRS-X77
Listening to music on an iPhone/iPad/iPod
Selecting the network connection method
How to make a wireless connection with BLUETOOTH devices
Listening to music on an iPhone/iPad/iPod via a network
Listening to music on an iPhone/iPad/iPod via a BLUETOOTH connection
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Listening to music on a Walkman
How to make a wireless connection with BLUETOOTH devices
Listening to music on a Walkman via a BLUETOOTH connection
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
20
Personal Audio System
SRS-X77
Listening to music on a PC (Windows 8)
Selecting the network connection method
About home network (DLNA)
How to make a wireless connection with BLUETOOTH devices
Listening to music on a PC via a network (Modern UI)
Listening to music on a PC via a network (Windows 8)
Listening to music on a PC via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
21
Personal Audio System
SRS-X77
Listening to music on a PC (Windows 7)
Selecting the network connection method
About home network (DLNA)
How to make a wireless connection with BLUETOOTH devices
Listening to music on a PC via a network (Windows 7)
Listening to music on a PC via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
22
Personal Audio System
SRS-X77
Listening to music on a PC (Windows Vista)
Selecting the network connection method
About home network (DLNA)
How to make a wireless connection with BLUETOOTH devices
Listening to music on a PC via a network (Windows Vista)
Listening to music on a PC via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
23
Personal Audio System
SRS-X77
Listening to music on a Mac
Selecting the network connection method
About home network (DLNA)
How to make a wireless connection with BLUETOOTH devices
Listening to music on a computer via a network (Mac)
Listening to music on a PC via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
24
Personal Audio System
SRS-X77
How to Use
Getting Started
Overview
What you can do with the speaker
Parts and controls
Parts and controls
Included items
Checking the included items
Power source
Connecting to an AC outlet
Turning the power on
Turning the power off
Using the BLUETOOTH/Network standby function
Charging USB devices, such as smartphones
Auto standby function
SongPal
About SongPal
How to use the SongPal screen
What you can do with SongPal
Wi-Fi network connection
Connecting to a Wi-Fi network using SongPal (Smartphone)
Connecting to a Wi-Fi network using SongPal (iPhone)
Device control
Listening to music on a PC via a Wi-Fi network
Listening to the music stored in your smartphone/iPhone over Wi-Fi network
Listening to music from an internet streaming service (music service)
Listening to the same music with multiple speakers or different music in different places (SongPal Link function)
Speaker settings
Setting the sound quality
Setting the auto standby function
Setting the BLUETOOTH/Network standby function
Help Guide
List of Topics
31
Checking the battery level
Setting the BLUETOOTH audio streaming playback quality (Codec)
Listening to music via home network
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
About home network (DLNA)
DLNA (Digital Living Network Alliance)
Listening to music on a PC via a network (Modern UI)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Modern UI)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server and controller (Windows 8)
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a network (Windows 8)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server and controller (Windows 8)
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a network (Windows 7)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server and controller (Windows 7)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Windows 7) (Windows Media Player)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a network (Windows Vista)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows Vista)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server (Windows Vista)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Media Go)
Listening to music on a computer via a network (Mac)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a Mac connected wirelessly
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Listening with the AirPlay function (iTunes)
Listening to music on an iPhone/iPad/iPod via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a wired network
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Listening with the AirPlay function (iPhone/iPad/iPod touch)
Listening to music on an Xperia via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a wired network
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Listening to music with the WALKMAN application (Xperia)
Listening to music via BLUETOOTH connection
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a device via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Disconnecting the NFC-compatible device by one touch (NFC)
Switching devices by one touch (NFC)
Listening to music by connecting with an audio cable
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
Listening to music on a portable audio device, etc.
Listening to music on an Xperia
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on an Xperia via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a wired network
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Listening to music with the WALKMAN application (Xperia)
Listening to music on a device via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Disconnecting the NFC-compatible device by one touch (NFC)
Switching devices by one touch (NFC)
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
Listening to music on a portable audio device, etc.
Listening to music on a smartphone
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a device via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Disconnecting the NFC-compatible device by one touch (NFC)
Switching devices by one touch (NFC)
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
Listening to music on a portable audio device, etc.
Listening to music on an iPhone/iPad/iPod
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on an iPhone/iPad/iPod via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a wired network
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Listening with the AirPlay function (iPhone/iPad/iPod touch)
Listening to music on an iPhone/iPad/iPod via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
Listening to music on a portable audio device, etc.
Listening to music on a Walkman
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a Walkman via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Disconnecting the NFC-compatible device by one touch (NFC)
Switching devices by one touch (NFC)
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
Listening to music on a portable audio device, etc.
Listening to music on a PC (Windows 8)
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
About home network (DLNA)
DLNA (Digital Living Network Alliance)
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a PC via a network (Modern UI)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Modern UI)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server and controller (Windows 8)
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a network (Windows 8)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server and controller (Windows 8)
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Listening to music on a PC (Windows 7)
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
36
About home network (DLNA)
DLNA (Digital Living Network Alliance)
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a PC via a network (Windows 7)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server and controller (Windows 7)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Windows 7) (Windows Media Player)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Listening to music on a PC (Windows Vista)
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
About home network (DLNA)
DLNA (Digital Living Network Alliance)
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a PC via a network (Windows Vista)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows Vista)
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Setting your PC as a DLNA server (Windows Vista)
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a network (Media Go)
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Listening to music on a Mac
Selecting the network connection method
Selecting the Wi-Fi network connection method
Selecting the wired network connection method
About home network (DLNA)
DLNA (Digital Living Network Alliance)
How to make a wireless connection with BLUETOOTH devices
How to make a wireless connection with BLUETOOTH devices
Listening to music on a computer via a network (Mac)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connection method 3: Connecting to a Wi-Fi network using a Mac connected wirelessly
Connection method 4: Connecting to a wired network
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Listening with the AirPlay function (iTunes)
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connection method 2: Connecting with a paired BLUETOOTH device
Listening to music on a device via a BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Information
About the indicators
About the indicators
Compatible devices and operating systems
Compatible iPhone/iPad/iPod models
Compatible Walkman models
Compatible operating system (Windows)
Compatible operating systems (Mac)
Compatible DLNA devices
Compatible BLUETOOTH devices
Software update
Updating the pre-installed software
Wi-Fi signal strength
Checking the Wi-Fi signal strength (reception sensitivity)
About standby functions
38
Personal Audio System
SRS-X77
Troubleshooting
Troubleshooting
Troubleshooting
What can I do to solve a problem?
Main unit
Power supply
Unable to turn on the speaker or charge the built-in battery
None of the speaker buttons can be operated.
The speaker has entered standby mode or BLUETOOTH/Network standby mode unexpectedly.
Sound
No sound/Sound from only one speaker/Low sound level
Distorted sound/Humming or noise in the speaker output
Network
Network connection
The speaker cannot connect to the network (Other equipment on the network cannot find or recognize the speaker)
The speaker cannot connect to a Wi-Fi network
The speaker cannot connect to a network using the WPS button
The speaker does not appear in the device list of the computer's music playback application.
The speaker does not appear in the device select screen of SongPal
Music Services
The speaker cannot connect to music services
Home network (DLNA)
The controller cannot find the speaker (The controller cannot browse the contents of the speaker)
Music started automatically (home network)
The sound is interrupted
Playback does not start
A music file cannot be played back
AirPlay
The speaker cannot be found from an iPhone/iPad/iPod touch or a computer with iTunes
Music started automatically (AirPlay)
Help Guide
List of Topics
40
There is no sound, or the sound skips during playback
The speaker cannot be operated
BLUETOOTH
Pairing
Unable to pair the speaker with a BLUETOOTH device
One-touch connection (NFC)
Unable to connect the speaker to a BLUETOOTH device with One-touch (NFC)
Sound
There is no sound (BLUETOOTH)
Distorted sound/Humming or noise
Additional information
Software update
Updating the pre-installed software
Reset
Using the RESET button
Initializing the speaker
Disposal and transfer
Disposing of or giving away this speaker
4-569-737-11(1)
Copyright 2015 Sony Corporation
41
Personal Audio System
SRS-X77
Using the BLUETOOTH/Network standby function
If the BLUETOOTH/Network standby function is on, the speaker turns on automatically by operating a BLUETOOTH
device or network device, and BLUETOOTH or network connection starts.
The BLUETOOTH/Network standby function can be set only when the speaker is connected to an AC outlet via the AC
adaptor.
When you turn on the speaker in the BLUETOOTH/Network standby mode, the start-up time becomes shorter and the
speaker will become operational sooner, than when you turn on the speaker in standby mode.
1. Connect the speaker to the AC outlet.
2. Turn on the speaker.
The (on/standby) indicator lights up in green.
3. Press and hold the (on/standby) button until the (on/standby) indicator lights up in orange.
The speaker turns off and enters the BLUETOOTH/Network standby mode.
If you operate a BLUETOOTH device or network device, the speaker turns on automatically and connection starts.
To turn off the BLUETOOTH/Network standby function
With the speaker turned on, press and hold the (on/standby) button.
When the (on/standby) indicator turns off, the BLUETOOTH/Network standby function is turned off and the
speaker enters the standby mode.
Note
The BLUETOOTH/Network standby function can be set only when the speaker is connected to an AC outlet via the
AC adaptor. When the speaker is being powered by the built-in battery only, the BLUETOOTH/Network standby
function is not available.
Help Guide
How to Use
42
Personal Audio System
SRS-X77
Listening to music on a PC via a Wi-Fi network
You can use a smartphone/iPhone with SongPal installed as a DLNA controller (operating device). You can select/play
music files on a PC via a Wi-Fi network by operating your smartphone/iPhone.
To listen to music on the PC, it is necessary to set the PC as a DLNA server.
The specification and design of the application may change without notice.
1. Set up your PC as a DLNA server.
For details about settings, see Related Topic below.
2. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
3. Tap [SRS-X77].
4. Tap [Home Network].
Help Guide
How to Use
5. Select the DLNA server registered for your PC, by following the on-screen instruction of SongPal.
6. Select a song from the list and start playback.
Music in your PC will be heard from the speaker.
Related Topic
Setting your PC as a DLNA server and controller (Windows 8)
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Setting your PC as a DLNA server and controller (Windows 7)
Setting your PC as a DLNA server (Windows Vista)
4-569-737-11(1)
Copyright 2015 Sony Corporation
44
Personal Audio System
SRS-X77
Setting your PC as a DLNA server and controller (Windows 8)
Windows 8 supports DLNA1.5. A Windows 8 PC can be used as both a DLNA server and controller.
By operating from a Windows 8 PC, you can enjoy music stored in a DLNA server (including a Windows 8 PC) on your
home network with the speaker if you set the following.
If you download SongPal to your smartphone/iPhone and operate a Windows 8 PC, perform "Setting your PC for
operating from a controller such as smartphone/iPhone (Windows 8)."
1. Move the mouse pointer to the top-right (or bottom-right) corner of the Start screen to display the charms, then
select [Settings].
In the case of a touch panel, display the charms by swiping from the right side of the Start screen, then select
[Settings].
2. Select or .
3. Right-click the name of the connected network or press and hold it, then select [Turn sharing on or off].
Help Guide
How to Use
45
4. Select [Yes, turn on sharing and connect to devices].
Related Topic
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
Listening to music on a PC via a Wi-Fi network
4-569-737-11(1)
Copyright 2015 Sony Corporation
46
Personal Audio System
SRS-X77
Setting your PC as a DLNA server and controller (Windows 7)
A Windows 7 PC can be used as both DLNA server and controller.
By operating from a Windows 7 PC and DLNA controller on your home network, you can enjoy music stored in a DLNA
server (including a Windows 7 PC) on your home network with the speaker if you set the following.
1. Go to [Start]-[Control Panel], then select [Network and Sharing Center].
The [Network and Sharing Center] screen appears.
If the desired item does not appear in the display, try changing the Control Panel display type.
2. Select [Public network] under [View your active networks].
If the display shows other than [Public network], go to step 5.
The [Set Network Location] screen appears.
3. Select [Home network] or [Work network] according to the environment in which the speaker is used.
4. Follow the instructions that appear on the display according to the environment in which the speaker is used.
When the setting is completed, in the [Network and Sharing Center] screen, confirm that the item under [View your
active networks] has changed to [Home network] or [Work network].
5. Select [Change advanced sharing settings].
Help Guide
How to Use
47
6. Select [Choose media streaming options…] from [Media streaming].
7. If [Media streaming is not turned on] appears in the [Media streaming options] screen, select [Turn on media
streaming].
8. Select [Allow All].
The [Allow All Media Devices] screen appears. If all the devices in the local network are allowed ([Allow]) to access
your network, select [OK] and close the screen.
9. Select [Allow all computers and media devices].
10. Select [OK] to close the screen.
48
Personal Audio System
SRS-X77
Listening to music on a portable audio device, etc.
You can use the speaker as an ordinary wired speaker system by connecting a portable audio device, etc., using a
commercially-available audio cable.
1. Connect the device to the speaker using an audio cable (not supplied).
2. Turn on the speaker.
The (on/standby) indicator lights up in green.
3. Tap the AUDIO IN button.
The speaker switches to AUDIO IN mode and the AUDIO IN indicator lights up in white.
4. Turn on the connected device.
5. Operate the connected device to start playback and adjust the volume to a moderate level.
6. Tap the VOL (volume) –/+ button to adjust the volume.
When you tap the VOL (volume) –/+ button, the (on/standby) indicator flashes once or three times according
to the volume adjustment.
Hint
Help Guide
How to Use
50
After SongPal is downloaded and installed to your smartphone/iPhone, you can use it as a remote control to adjust
the speaker's volume, etc.
4-569-737-11(1)
Copyright 2015 Sony Corporation
51
Personal Audio System
SRS-X77
Power source
Connecting to an AC outlet
You can charge the speaker from an AC outlet via the AC adaptor (supplied).
Turning the power on
Turn the speaker on.
Turning the power off
Turn the speaker off.
Using the BLUETOOTH/Network standby function
The speaker turns on automatically by operating a BLUETOOTH device or network device, and BLUETOOTH or network
connection starts.
Charging USB devices, such as smartphones
You can charge your smartphone from the speaker connected with the USB cable.
Auto standby function
If no operation is performed and no sound is input for about 15 minutes, the speaker turns off automatically.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
55
Personal Audio System
SRS-X77
About SongPal
How to use the SongPal screen
SongPal is a application for controlling Sony audio devices which are compatible with SongPal, by your smartphone/iPhone.
What you can do with SongPal
SongPal can set up a Wi-Fi connection with the speaker, allowing you to select/play music on the PC or server via your home
network.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Wi-Fi network connection
Connecting to a Wi-Fi network using SongPal (Smartphone)
You can connect the speaker to a Wi-Fi network using SongPal installed on your smartphone. First, make a BLUETOOTH
connection between the speaker and the smartphone.
Connecting to a Wi-Fi network using SongPal (iPhone)
You can connect the speaker to a Wi-Fi network using SongPal installed on your iPhone. First, make a BLUETOOTH
connection between the speaker and the iPhone.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
57
Personal Audio System
SRS-X77
Device control
Listening to music on a PC via a Wi-Fi network
You can listen to music on a PC via a Wi-Fi network, using SongPal installed on your smartphone/iPhone.
Listening to the music stored in your smartphone/iPhone over Wi-Fi network
You can listen to the music stored in your smartphone/iPhone over Wi-Fi network with SongPal.
Listening to music from an internet streaming service (music service)
You can use various music streaming services offered on the internet, using SongPal installed on your smartphone/iPhone.
Listening to the same music with multiple speakers or different music in different places (SongPal Link function)
You can play the same music in different places at the same time.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
58
Personal Audio System
SRS-X77
Speaker settings
Setting the sound quality
You can easily customize the sound quality of the speaker by using your smartphone/iPhone with Songpal installed.
Setting the auto standby function
You can turn on/off the auto standby function of the speaker, using SongPal installed on your smartphone/iPhone.
Setting the BLUETOOTH/Network standby function
You can turn on/off the BLUETOOTH/Network standby function of the speaker, using your smartphone/iPhone with SongPal
installed.
Checking the battery level
You can check the battery level of the speaker using the SongPal installed on your smartphone/iPhone.
Setting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker, using SongPal installed on your
smartphone/iPhone.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
59
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
60
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Modern UI)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Modern UI)
Connect the speaker with a Modern UI PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server and controller (Windows 8)
Set a Windows 8 PC for use as a DLNA server and a controller.
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Set a Windows 8 PC to listen to music stored in that PC by operating the DLNA controller.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
You can listen to music stored in a Windows 8 PC connected to your network using Windows Media Player.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
Help Guide
How to Use
62
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows 8)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connect the speaker with a Windows 7 or Windows 8 PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server and controller (Windows 8)
Set a Windows 8 PC for use as a DLNA server and a controller.
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Set a Windows 8 PC to listen to music stored in that PC by operating the DLNA controller.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
You can listen to music stored in a Windows 8 PC connected to your network using Windows Media Player.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
Help Guide
How to Use
63
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows 7)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connect the speaker with a Windows 7 or Windows 8 PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server and controller (Windows 7)
Set a Windows 7 PC for use as a DLNA server and a controller.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Windows 7) (Windows Media Player)
You can listen to music stored in a Windows 7 PC connected to your network.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
64
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows Vista)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows Vista)
Connect the speaker with a Windows Vista PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server (Windows Vista)
Set a Windows Vista PC for use as a DLNA server.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
65
Personal Audio System
SRS-X77
Listening to music on a computer via a network (Mac)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a Mac connected wirelessly
Connect the speaker with a Mac wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
66
Personal Audio System
SRS-X77
Listening to music on an iPhone/iPad/iPod via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to a Wi-Fi network that the iPhone/iPad/iPod touch with iOS 8 or later has been connected to.
Listening with the AirPlay function (iPhone/iPad/iPod touch)
You can listen to music on an iPhone/iPad/iPod touch using the speaker with AirPlay.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
67
Personal Audio System
SRS-X77
Listening to music on an Xperia via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to a Wi-Fi network that the iPhone/iPad/iPod touch with iOS 8 or later has been connected to.
Listening to music with the WALKMAN application (Xperia)
You can listen to music on an Xperia using the speaker with the WALKMAN application installed on your Xperia.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
68
Personal Audio System
SRS-X77
Listening to music on a device via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
By touching the speaker with a smartphone, the speaker turns on automatically, then pairs with the device and makes a
BLUETOOTH connection.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
Disconnecting the NFC-compatible device by one touch (NFC)
You can disconnect the speaker from a connected smartphone by touching the speaker with it.
Switching devices by one touch (NFC)
You can switch devices by touching a new device once on the N-Mark of the speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
70
Personal Audio System
SRS-X77
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
You can connect a portable audio device, etc., with a commercially-available audio cable.
Listening to music on a portable audio device, etc.
You can enjoy music of a portable audio device, etc., connected to the AUDIO IN jack.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
71
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Listening to music on an Xperia via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to a Wi-Fi network that the iPhone/iPad/iPod touch with iOS 8 or later has been connected to.
Listening to music with the WALKMAN application (Xperia)
You can listen to music on an Xperia using the speaker with the WALKMAN application installed on your Xperia.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
74
Personal Audio System
SRS-X77
Listening to music on a device via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
By touching the speaker with a smartphone, the speaker turns on automatically, then pairs with the device and makes a
BLUETOOTH connection.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
Disconnecting the NFC-compatible device by one touch (NFC)
You can disconnect the speaker from a connected smartphone by touching the speaker with it.
Switching devices by one touch (NFC)
You can switch devices by touching a new device once on the N-Mark of the speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
75
Personal Audio System
SRS-X77
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
You can connect a portable audio device, etc., with a commercially-available audio cable.
Listening to music on a portable audio device, etc.
You can enjoy music of a portable audio device, etc., connected to the AUDIO IN jack.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Listening to music on a device via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
By touching the speaker with a smartphone, the speaker turns on automatically, then pairs with the device and makes a
BLUETOOTH connection.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
Disconnecting the NFC-compatible device by one touch (NFC)
You can disconnect the speaker from a connected smartphone by touching the speaker with it.
Switching devices by one touch (NFC)
You can switch devices by touching a new device once on the N-Mark of the speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
78
Personal Audio System
SRS-X77
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
You can connect a portable audio device, etc., with a commercially-available audio cable.
Listening to music on a portable audio device, etc.
You can enjoy music of a portable audio device, etc., connected to the AUDIO IN jack.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
79
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Listening to music on an iPhone/iPad/iPod via a network
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to a Wi-Fi network that the iPhone/iPad/iPod touch with iOS 8 or later has been connected to.
Listening with the AirPlay function (iPhone/iPad/iPod touch)
You can listen to music on an iPhone/iPad/iPod touch using the speaker with AirPlay.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
82
Personal Audio System
SRS-X77
Listening to music on an iPhone/iPad/iPod via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
83
Personal Audio System
SRS-X77
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
You can connect a portable audio device, etc., with a commercially-available audio cable.
Listening to music on a portable audio device, etc.
You can enjoy music of a portable audio device, etc., connected to the AUDIO IN jack.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Listening to music on a Walkman via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
Disconnecting the NFC-compatible device by one touch (NFC)
You can disconnect the speaker from a connected smartphone by touching the speaker with it.
Switching devices by one touch (NFC)
You can switch devices by touching a new device once on the N-Mark of the speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
86
Personal Audio System
SRS-X77
Listening to music on a portable audio device, etc., by connecting with an audio cable (AUDIO IN)
Connecting to a portable audio device, etc.
You can connect a portable audio device, etc., with a commercially-available audio cable.
Listening to music on a portable audio device, etc.
You can enjoy music of a portable audio device, etc., connected to the AUDIO IN jack.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
87
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
88
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Modern UI)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Modern UI)
Connect the speaker with a Modern UI PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server and controller (Windows 8)
Set a Windows 8 PC for use as a DLNA server and a controller.
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Set a Windows 8 PC to listen to music stored in that PC by operating the DLNA controller.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
You can listen to music stored in a Windows 8 PC connected to your network using Windows Media Player.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
Help Guide
How to Use
91
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows 8)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connect the speaker with a Windows 7 or Windows 8 PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server and controller (Windows 8)
Set a Windows 8 PC for use as a DLNA server and a controller.
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
Set a Windows 8 PC to listen to music stored in that PC by operating the DLNA controller.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Windows 8) (Windows Media Player)
You can listen to music stored in a Windows 8 PC connected to your network using Windows Media Player.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
Help Guide
How to Use
92
Personal Audio System
SRS-X77
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
93
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
94
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows 7)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Connect the speaker with a Windows 7 or Windows 8 PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server and controller (Windows 7)
Set a Windows 7 PC for use as a DLNA server and a controller.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Windows 7) (Windows Media Player)
You can listen to music stored in a Windows 7 PC connected to your network.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
97
Personal Audio System
SRS-X77
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
98
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
99
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Windows Vista)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows Vista)
Connect the speaker with a Windows Vista PC wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Setting your PC as a DLNA server (Windows Vista)
Set a Windows Vista PC for use as a DLNA server.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
Listening to music on a PC via a network (Media Go)
You can listen to music stored in a PC connected to your network using Media Go.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
102
Personal Audio System
SRS-X77
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
103
Personal Audio System
SRS-X77
Selecting the network connection method
Selecting the Wi-Fi network connection method
Select the network connection method, which depends on your network environment.
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the computer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
104
Personal Audio System
SRS-X77
Listening to music on a computer via a network (Mac)
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button (AOSS), you can connect to the Wi-Fi network by this method.
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
Connect the speaker and a computer via a commercially-available LAN cable, then connect the speaker to the wireless router
using the computer.
Connection method 3: Connecting to a Wi-Fi network using a Mac connected wirelessly
Connect the speaker with a Mac wirelessly, then connect to the Wi-Fi network.
Connection method 4: Connecting to a wired network
Connect the speaker to a wireless router with a commercially-available LAN cable, then connect the router to the computer.
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Connect the speaker to the same Wi-Fi network as the iPhone/iPad/iPod touch with iOS 8 or later.
Listening with the AirPlay function (iTunes)
You can listen to music stored in a computer with iTunes by using AirPlay.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
107
Personal Audio System
SRS-X77
Listening to music on a PC via a BLUETOOTH connection
Connection method 1: Pairing and connecting with a BLUETOOTH device
You can register (pair) a BLUETOOTH device and the speaker with each other, and make a BLUETOOTH connection.
Connection method 2: Connecting with a paired BLUETOOTH device
You can connect the speaker with a BLUETOOTH device that is already paired.
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of your BLUETOOTH device wirelessly via a BLUETOOTH connection.
Selecting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker.
Terminating the BLUETOOTH connection (After use)
After use, terminate the BLUETOOTH connection between the speaker and BLUETOOTH device.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
108
Personal Audio System
SRS-X77
Compatible devices and operating systems
Compatible iPhone/iPad/iPod models
Compatible Walkman models
Compatible operating system (Windows)
Compatible operating systems (Mac)
Compatible DLNA devices
Compatible BLUETOOTH devices
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
110
Personal Audio System
SRS-X77
Notes on use
Precautions
Precautions on safety and use, etc.
Notes on charging
Notes about the built-in battery
Disposing of the speaker
Before disposing of the speaker, remove the built-in battery pack.
What is BLUETOOTH wireless technology?
BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication between
devices, such as a computer and digital camera.
What is LDAC?
LDAC is an audio coding technology for "High Resolution (Hi-Res) Audio", developed by Sony.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
114
Personal Audio System
SRS-X77
Power supply
Unable to turn on the speaker or charge the built-in battery
None of the speaker buttons can be operated.
The speaker has entered standby mode or BLUETOOTH/Network standby mode unexpectedly.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
118
Personal Audio System
SRS-X77
Sound
No sound/Sound from only one speaker/Low sound level
Distorted sound/Humming or noise in the speaker output
You might be looking for the following topics:
There is no sound (BLUETOOTH)
Distorted sound/Humming or noise
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
119
Personal Audio System
SRS-X77
Network connection
The speaker cannot connect to the network (Other equipment on the network cannot find or recognize the
speaker)
The speaker cannot connect to a Wi-Fi network
The speaker cannot connect to a network using the WPS button
The speaker does not appear in the device list of the computer's music playback application.
The speaker does not appear in the device select screen of SongPal
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
120
Personal Audio System
SRS-X77
Home network (DLNA)
The controller cannot find the speaker (The controller cannot browse the contents of the speaker)
Music started automatically (home network)
The sound is interrupted
Playback does not start
A music file cannot be played back
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
122
Personal Audio System
SRS-X77
AirPlay
The speaker cannot be found from an iPhone/iPad/iPod touch or a computer with iTunes
Music started automatically (AirPlay)
There is no sound, or the sound skips during playback
The speaker cannot be operated
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
123
Personal Audio System
SRS-X77
Sound
There is no sound (BLUETOOTH)
Distorted sound/Humming or noise
You might be looking for the following topics:
No sound/Sound from only one speaker/Low sound level
Distorted sound/Humming or noise in the speaker output
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
126
Personal Audio System
SRS-X77
What you can do with the speaker
Music playback via a wireless connection (AirPlay/DLNA/BLUETOOTH)
Music service support
*1
BLUETOOTH supported codec
*2
: SBC (Subband Codec) / AAC (Advanced Audio Coding) / LDAC
Easy operation from your smartphone and tablet
*3
Compatible with DSEE
Compatible with ClearAudio+
Tap operation
*1
Music services and their period of availability may differ. An update of the device may be required. Services offered by third
parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility for such
situations.
*2
Codec: Audio signal compression and conversion format
*3
Only when SongPal is installed on your device.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
1. UPDATE button
Indicates the status of the unit’s software update.
2. CHARGE indicator
Lights or flashes to indicate the charging status of the built-in lithium-ion battery.
3. VOL (volume) -/+ buttons
Tap to adjust the volume.
The (on/standby) indicator flashes according to the volume adjustment when tapped.
4. (on/standby) button/indicator
Press to turn the speaker’s power on and off.
The power status of the speaker is indicated by the lighting or flashing of the indicator.
5. LINK indicator
Indicates the status of the speaker’s network connection.
6. NETWORK button/indicator
Tap to switch the speaker to NETWORK mode.
Tap to listen to music services and music stored in a device on the home network.
The connection status of the network is indicated by the flashing or lighting of the indicator.
7. (BLUETOOTH) PAIRING button/indicator
Tap to switch the speaker to BLUETOOTH mode or pairing mode.
Tap to pair or connect with a BLUETOOTH device, or listen to music with a BLUETOOTH device.
The connection status of the BLUETOOTH device is indicated by the flashing or lighting of the indicator.
Tap once to switch the speaker to BLUETOOTH mode. Tap and hold to switch the speaker to pairing mode.
8. AUDIO IN button/indicator
Tap to switch the speaker to AUDIO IN mode.
Tap to listen to music in a device connected to the AUDIO IN jack.
The AUDIO IN indicator lights up when tapped.
9. N-Mark
If your smartphone or Walkman is NFC-compatible, touch it on the N-Mark of the speaker. The speaker will turn on
automatically, register (pair) with the device, and a BLUETOOTH connection can be made.
10. Wi-Fi antenna
Set upright before Wi-Fi connection, as below.
Push the right side of the antenna, and the antenna pops out from its recess.
Set the antenna upright.
11. NETWORK OFF/ON switch
Turn the network function on and off. Set this switch to ON when connecting to the network.
12. RESET button
Push to reset the speaker. If the speaker cannot be turned on or operated, pushing the RESET button with a
pointed object, such as a pin, should help the situation.
13. WPS button
Press and hold when connecting to a Wi-Fi network.
After pressing and holding for 2 seconds, beeps will be heard indicating that the speaker is ready to connect to a
wireless router.
If your wireless router has a WPS button, you can use this button to connect to the network.
14. DC OUT ONLY port (USB)
Connect a USB device, such as smartphone, using a USB cable (not supplied) to charge from the speaker. If you
play music on the connected USB device, sound will not be output from the speaker.
15. LAN port
Use a commercially-available LAN cable to connect the computer or the wireless router. Use shielded network
cables.
16. AUDIO IN jack
Connect to the headphone jack of a portable audio device, etc., using a audio cable (not supplied).
17. DC IN 18 V jack
Connect the AC adaptor (supplied).
4-569-737-11(1)
Copyright 2015 Sony Corporation
133
Personal Audio System
SRS-X77
Checking the included items
After unpacking, check that all items in the list below are included.
If any items are missing, contact your dealer.
The number in ( ) indicates the quantity.
Personal audio system (SRS-X77) (1)
AC power cord (1)
*1
AC adaptor (1)
Wi-Fi Startup Guide: Listening to Music over Your Wi-Fi Network
Explains how to listen to music stored in your computer or other device over your Wi-Fi network.
Operating Instructions (Warranty card
*2
)
Provides important safety information, BLUETOOTH connection method, troubleshooting, etc.
Reference Guide
*2
Provides important safety information.
Warranty card
*2
*1
Quantity may differ depending on your region/country.
*2
Depending on your region/country
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Connecting to an AC outlet
You can operate the speaker by using the AC adaptor or built-in lithium-ion battery (rechargeable).
Charge the battery before using the speaker for the first time.
1. Connect the AC power cord (supplied) to the AC adaptor (supplied).
2. Connect the AC adaptor (supplied) to the DC IN 18 V jack of the speaker.
3. Plug the AC power cord connected to the AC adaptor into an AC outlet securely.
When the speaker is connected to an AC outlet via the AC adaptor, charging starts and the CHARGE indicator
lights up. Charging is completed in about 3 hours* and the indicator turns off.
*
Time that is required to fully charge an empty battery.
Usage life of lithium-ion battery
When the NETWORK OFF/ON switch is OFF: Approx. 10 hours
When the NETWORK OFF/ON switch is ON: Approx. 3 hours
Time stated above may vary, depending on ambient temperature or conditions of use.
When the battery is running low
Help Guide
How to Use
When the CHARGE indicator flashes slowly, the battery is running low and needs to be charged by connecting to an
AC outlet via the AC adaptor.
If the CHARGE indicator flashes 3 times and goes off when you turn on the speaker, the battery is empty and needs
to be charged by connecting to an AC outlet via the AC adaptor.
Note
When you switch the power source between an AC outlet and battery by connecting/disconnecting the AC adaptor,
sound output will stop for a short while. This is not a malfunction.
The maximum power output will be lower when the AC adaptor is disconnected.
If the inside of the speaker heats up after extended use in a hot environment, charging may not start. This is to protect
the battery and is not a malfunction. When the inside of the speaker has cooled down, charging will start.
If you do not intend to use the speaker for a long time, charge the battery to its full capacity once every 6 months to
maintain its performance.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Personal Audio System
SRS-X77
Turning the power on
1. Press the (on/standby) button.
The (on/standby) indicator lights up in green.
Hint
The LINK indicator also begins to flash when the speaker is turned on. When you turn on the speaker for the first time
after purchase, or after you initialize the speaker, you can configure the network settings after the LINK indicator
begins to flash slowly (once per 3 seconds). Slow flashing begins in about two minutes.
When you turn on the speaker in the BLUETOOTH/Network standby mode, the start-up time becomes shorter and the
speaker will become operational sooner, than when you turn on the speaker in standby mode. To turn on the
BLUETOOTH/Network standby function, with the speaker turned on, press and hold the (on/standby) button
until the (on/standby) indicator lights up in orange.
Note
When the CHARGE indicator flashes slowly, the battery is running low and needs to be charged by connecting to an
AC outlet via the AC adaptor.
If the CHARGE indicator flashes 3 times and goes off when you turn on the speaker, the battery is empty and needs
to be charged by connecting to an AC outlet via the AC adaptor.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Turning the power off
1. Press the (on/standby) button.
The (on/standby) indicator flashes slowly in green. When the (on/standby) indicator turns off, the
speaker enters the standby mode.
Hint
If you turn off the speaker while the BLUETOOTH/Network standby function is on, the (on/standby) indicator
lights up in orange and the speaker enters the BLUETOOTH/Network standby mode.
Note
If the speaker is turned off while the LINK indicator is flashing, the (on/standby) indicator will flash for several
tens of seconds. While the (on/standby) indicator is flashing, the speaker is not operational.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Charging USB devices, such as smartphones
You can charge your smartphone from the speaker connected via the USB cable.
1. Connect a USB device, such as smartphone to DC OUT ONLY port (USB) with a USB cable (not supplied) or the
USB cable supplied with your USB device.
When you connect the speaker to an AC outlet via the AC adaptor, charging of the USB device will start
automatically.
When the speaker is being powered by the built-in battery only, go to step 2.
2. Turn on the speaker.
The (power) indicator lights up in green and charging of the USB device will start.
Note
If the speaker is being powered by the built-in battery only, charging of the connected USB device will stop when the
speaker turns off.
When the CHARGE indicator flashes slowly, the battery is running low and needs to be charged. In this state, the
speaker cannot supply the power to other devices.
Do not use a smartphone charging dock; it may prevent charging.
Charging of all USB devices cannot be guaranteed.
Help Guide
How to Use
139
If you play music on a USB device connected to the DC OUT ONLY port (USB), sound will not be output from the
speaker.
In an extremely hot environment, charging of the connected USB device will stop.
If the speaker is switched to another mode by tapping one of the function buttons while charging, charging may be
stopped. In this case, disconnect the USB cable from the speaker and connect it again. Charging will resume.
4-569-737-11(1)
Copyright 2015 Sony Corporation
140
Personal Audio System
SRS-X77
Auto standby function
The speaker automatically enters standby mode or switches to the BLUETOOTH/Network standby mode if the speaker
remains in any of the following states for about 15 minutes.
No operation of the speaker.
Connection/disconnection operations to the speaker from the external devices have not been performed.
Music (sound) is not played while connected to an external devices.
Note
Even when charging a USB device by connecting it to the DC OUT ONLY port (USB) of the speaker, if the above
conditions continue for 15 minutes, the speaker automatically enters standby mode or BLUETOOTH/Network standby
mode. If the speaker is being powered by the battery only, charging will stop.
You can use SongPal to turn off the auto standby function.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
How to use the SongPal screen
SongPal is a application for controlling Sony audio devices which are compatible with SongPal, by your
smartphone/iPhone. Search for SongPal at Google Play or App store and download with your smartphone/iPhone.
After downloading SongPal on to your smartphone or iPhone, [SongPal] will be displayed on the screen.
For details about SongPal, refer to the following URL:
http://info.songpal.sony.net/help/
The specification and design of the application may change without notice.
To start up SongPal on your smartphone/iPhone
Tap [SongPal] on your smartphone/iPhone.
SongPal
Make sure you are connected to a network the first time you start SongPal with your smartphone/iPhone.
The overview of the devices on the home network is displayed.
You can select the audio device to play or group the audio devices using SongPal Link (multi-room function).
Help Guide
How to Use
142
You can select sound sources for playback. Also, you can make various sound/network settings of an audio device.
Note
The screens above are the display examples. The actual display may differ.
What you can control with SongPal varies depending on the connected device.
Related Topic
What you can do with SongPal
4-569-737-11(1)
Copyright 2015 Sony Corporation
143
Personal Audio System
SRS-X77
What you can do with SongPal
SongPal is the application for controlling Sony audio devices which are compatible with SongPal, by your
smartphone/iPhone.
Search for SongPal at Google Play or App store and download it onto your smartphone/iPhone.
For details about SongPal, refer to the following URL:
http://info.songpal.sony.net/help/
Downloading SongPal on to your smartphone/iPhone provides the following.
Sound settings of the speaker
You can easily customize your sound, or use the “ClearAudio+” setting recommended by Sony.
Music service
You can configure the initial settings to use music services
*
.
To enjoy music services, a third-party application is required.
*
Depending on the country or region, music services and their period of availability may differ. Separate registration is required
for certain services. An update of the device may be required. Services offered by third parties may be changed, suspended, or
terminated without prior notice. Sony does not bear any responsibility for such situations.
Controlling devices on your home network
You can play music stored in your PC or home network server over your network.
Note
What you can control with SongPal varies depending on the connected device. The specification and design of the
application may change without notice.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
144
Personal Audio System
SRS-X77
Connecting to a Wi-Fi network using SongPal (Smartphone)
You can connect the speaker to a Wi-Fi network using SongPal installed on your smartphone.
First, make a BLUETOOTH connection between the speaker and the smartphone. Then configure the Wi-Fi settings. Wi-
Fi settings in SongPal are sent from your smartphone to the speaker via BLUETOOTH. Complete step 10 within 15
minutes after turning on the speaker. If the settings are not completed within 15 minutes, the speaker will turn off
automatically.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Set the NETWORK OFF/ON switch on the rear of the speaker to ON.
Before starting this procedure, be aware that the setting information of your Wi-Fi network will not be protected until the
setting is complete. After the setting is complete, the setting information of your Wi-Fi network will be protected again
when you set wireless LAN security.
The specification and design of the application may change without notice.
1. Connect your smartphone to your wireless router.
Connect it to 2.4 GHz band (11b, 11g, and 11n) or 5 GHz band (11a and 11n). The speaker is not compatible with
IEEE 802.11ac.
2. Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
Some wireless routers have multiple SSIDs. Be sure to have the SSID that your smartphone is connected to.
For details, refer to the operating instructions of the wireless router.
3. Install SongPal on your smartphone.
Search for SongPal at Google Play™.
SongPal
4. Turn on the speaker.
Complete step 10 within 15 minutes after turning on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash.
When you configure the settings of the speaker for the first time after purchase, or after you initialize the speaker,
wait until the LINK indicator begins to flash slowly (once per 3 seconds). Slow flashing begins in about two minutes.
Help Guide
How to Use
145
5. Tap [SongPal] on your smartphone to start up the application.
Follow the on-screen instructions.
SongPal
6. If your smartphone is NFC-compatible, touch the smartphone on the N-Mark ( ) of the speaker. If your
smartphone is not NFC-compatible, go to step 7.
Keep touching the smartphone on the N-Mark of the speaker until the smartphone responds (it may take a few
seconds). Then go to step 8.
7. If your smartphone is not NFC-compatible, make the BLUETOOTH connection between the speaker and the
smartphone.
i. Turn on the BLUETOOTH function of your smartphone.
ii. Tap [Open the Bluetooth setting screen] on the SongPal screen of your smartphone.
iii. Tap the (BLUETOOTH) PAIRING button on the speaker once.
The
(BLUETOOTH) indicator begins to flash in white.
146
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker.
In this case, tap the
(BLUETOOTH) PAIRING button, the (BLUETOOTH) indicator will begin to flash
quickly in white and the speaker enters pairing mode automatically, then go to step v.
iv. Tap and hold the
(BLUETOOTH) PAIRING button on the speaker until beeps are heard.
The
(BLUETOOTH) indicator begins to flash quickly in white, and the speaker enters pairing mode.
v. Tap [SRS-X77] on the SongPal screen of your smartphone.
If [SRS-X77] is not displayed, search for the device. For details, refer to the operating instructions of your
smartphone.
8. Check that the (BLUETOOTH) indicator on the speaker is lit.
When the BLUETOOTH connection is established, the (BLUETOOTH) indicator stays lit.
9. Configure the Wi-Fi settings by your smartphone, following the on-screen instructions of SongPal.
If a password is required, select the SSID that you recorded in step 2, and enter the password.
The following screen is displayed.
10. Check that the LINK indicator on the speaker lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
Depending on the environment, it may take more than a minute for the LINK indicator to light up.
The connection is complete.
Note
To download the app, you may have to pay a communication fee, depending on your internet contract.
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker,
the BLUETOOTH/Network standby function is turned on automatically.
Related Topic
148
Personal Audio System
SRS-X77
Connecting to a Wi-Fi network using SongPal (iPhone)
You can connect the speaker to a Wi-Fi network using SongPal installed on your iPhone.
First, make a BLUETOOTH connection between the speaker and the iPhone. Then configure the Wi-Fi settings. Wi-Fi
settings in SongPal are sent from your iPhone to the speaker via BLUETOOTH. Complete step 9 within 15 minutes after
turning on the speaker. If the settings are not completed within 15 minutes, the speaker will turn off automatically.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Set the NETWORK OFF/ON switch on the rear of the speaker to ON.
Before starting this procedure, be aware that the setting information of your Wi-Fi network will not be protected until the
setting is complete. After the setting is complete, the setting information of your Wi-Fi network will be protected again
when you set wireless LAN security.
The specification and design of the application may change without notice.
1. Connect your iPhone to your wireless router.
Connect to the 2.4 GHz band (11b, 11g, 11n) or 5 GHz band (11a, 11n). The speaker is not compatible with IEEE
802.11ac.
2. Search for SongPal at App store and download it on to your iPhone.
SongPal
Help Guide
How to Use
150
3. Turn on the speaker.
Complete step 9 within 15 minutes after turning on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash.
When you configure the settings of the speaker for the first time after purchase, or after you initialize the speaker,
wait until the LINK indicator begins to flash slowly (once per 3 seconds). Slow flashing begins in about two minutes.
4. Tap the (BLUETOOTH) PAIRING button on the speaker once.
The (BLUETOOTH) indicator begins to flash in white.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In
this case, tap the (BLUETOOTH) PAIRING button, the (BLUETOOTH) indicator will begin to flash quickly
in white and the speaker enters pairing mode automatically, then go to step 6.
5. Tap and hold the (BLUETOOTH) PAIRING button on the speaker until beeps are heard.
The (BLUETOOTH) indicator begins to flash quickly in white, and the speaker enters pairing mode.
6. Search for the speaker by the iPhone.
i. Tap [Settings].
ii. Tap [Bluetooth].
iii. Tap[ ]to turn on BLUETOOTH.
151
iv. Tap [SRS-X77].
7. Check that the (BLUETOOTH) indicator on the speaker is lit.
When the BLUETOOTH connection is established, the (BLUETOOTH) indicator stays lit.
8. Configure the Wi-Fi settings, following the on-screen instructions of SongPal.
i. Tap [SongPal] on your iPhone.
Follow the on-screen instructions.
SongPal
ii. When the following screen is displayed, tap [OK].
iii. If [Share Wi-Fi settings?] is displayed, tap [Allow].
The following screen will be displayed.
9. Check that the LINK indicator on the speaker lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
Depending on the environment, it may take more than a minute for the LINK indicator to light up.
The connection is complete.
Note
To download the app, you may have to pay a communication fee, depending on your internet contract.
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker,
the BLUETOOTH/Network standby function is turned on automatically.
153
Personal Audio System
SRS-X77
Listening to the music stored in your smartphone/iPhone over Wi-Fi network
You can listen to the music stored in your smartphone/iPhone over Wi-Fi network with SongPal.
The specification and design of the application may change without notice.
1. Connect the speaker and a smartphone/iPhone to the same network.
Connect the speaker and your smartphone/iPhone to the same SSID of your wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to the wireless router.
2. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
3. Tap [SRS-X77].
4. Select [My Phone].
Help Guide
How to Use
5. Start playing back music on your smartphone/iPhone, and adjust the volume.
Music in the smartphone/iPhone will be heard from the speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
156
Personal Audio System
SRS-X77
Setting the sound quality
You can easily customize the sound quality of the speaker by using your smartphone/iPhone with Songpal installed.
The specification and design of the application may change without notice.
1. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
2. Tap [SRS-X77].
3. Tap [Settings].
4. Tap [Sound].
Help Guide
How to Use
5. Select the desired setting and set the sound quality.
You can set the following sound settings.
ClearAudio+
You can enjoy Clear Audio+ mode (the sound quality recommended by Sony). ClearAudio+ mode is set as the
default.
Equalizer
You can set the sound quality according to the music genre.
Wide Stereo
You can set the surround sound level to [Normal] or [High].
4-569-737-11(1)
Copyright 2015 Sony Corporation
Personal Audio System
SRS-X77
Setting the auto standby function
You can turn on/off the auto standby function of the speaker, using SongPal installed on your smartphone/iPhone.
The specification and design of the application may change without notice.
1. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
2. Tap [SRS-X77].
3. Tap [Settings].
4. Tap [Power Option].
Help Guide
How to Use
5. Tap [Auto Standby] to turn on/off the auto standby function.
When the auto standby function is turned off, press the (on/standby) button on the speaker to turn off the
speaker since it will not be turned off automatically.
Related Topic
Standby mode differences
4-569-737-11(1)
Copyright 2015 Sony Corporation
160
Personal Audio System
SRS-X77
Setting the BLUETOOTH/Network standby function
You can turn on/off the BLUETOOTH/Network standby function of the speaker, using SongPal installed on your
smartphone/iPhone.
The specification and design of the application may change without notice.
1. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
2. Tap [SRS-X77].
3. Tap [Settings].
Help Guide
How to Use
4. Tap [System].
5. Tap [Network Standby] to turn on/off the function.
4-569-737-11(1)
Copyright 2015 Sony Corporation
162
Personal Audio System
SRS-X77
Checking the battery level
You can check the battery level of the speaker using the SongPal installed on your smartphone/iPhone.
The specification and design of the application may change without notice.
1. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
2. Tap [SRS-X77].
3. Tap [Settings].
4. Tap [Power Option].
Help Guide
How to Use
Personal Audio System
SRS-X77
Setting the BLUETOOTH audio streaming playback quality (Codec)
You can select the BLUETOOTH audio streaming playback quality of the speaker using the SongPal installed on your
smartphone/iPhone.
The specification and design of the application may change without notice.
1. Tap [SongPal] on your smartphone/iPhone to start up the application.
SongPal
2. Tap [SRS-X77].
3. Tap [Settings].
Help Guide
How to Use
4. Tap [Other Settings].
5. Tap [Bluetooth Codec] and select the desired codec.
You can set the following.
Auto: Optimal codec is automatically selected from AAC, LDAC, and SBC.
SBC: SBC is selected.
Note
If the playback quality setting is changed with the speaker turned on, the BLUETOOTH connection is terminated. In
this case, connect the BLUETOOTH device manually again. After reconnecting, the playback quality is switched.
You may also need to adjust the settings of the connected device to change the playback quality setting, such as
SBC, AAC, LDAC. For details, refer to the operating instructions supplied with the device.
Related Topic
Selecting the BLUETOOTH audio streaming playback quality (Codec)
4-569-737-11(1)
Copyright 2015 Sony Corporation
166
Personal Audio System
SRS-X77
Selecting the Wi-Fi network connection method
Select the appropriate connecting method for your network environment from below.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Set the NETWORK OFF/ON switch on the rear to ON.
Connecting to a Wi-Fi network using SongPal
Download SongPal, to your smartphone or iPhone. This application provides Wi-Fi connection setup with the speaker,
and allows you to select/play music files on a PC via a Wi-Fi network by operating your smartphone/iPhone.
For details, see “Connecting to a Wi-Fi network using SongPal (Smartphone)” or “Connecting to a Wi-Fi network using
SongPal (iPhone)”
Connecting to a Wi-Fi network using the WPS button of the wireless router
If your wireless router has a WPS button, connect to the Wi-Fi network by this method.
To check if your wireless router is compatible with WPS (Wi-Fi Protected Setup), refer to the operating instructions of
your router. For details, see “Connecting to a Wi-Fi network using the WPS button of a wireless router”.
Connecting to a Wi-Fi network using a computer
Help Guide
How to Use
If your wireless router does not have a WPS button, use your computer to connect the speaker to the Wi-Fi network.
Select one of the connecting methods from below.
Connecting to a Wi-Fi network using a computer connected with a commercially-available LAN cable
For details, see “Connecting to a Wi-Fi network using a computer connected with a LAN cable”.
Connecting to a Wi-Fi network using a computer connected wirelessly
The speaker should be initialized to the factory default for this connection.
For details, see “Connecting to a Wi-Fi network using a computer connected wirelessly (Modern UI) / (Windows
7/Windows 8) / (Windows Vista) ” or “Connecting to a Wi-Fi network using a Mac connected wirelessly”.
Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
The speaker and your iPhone/iPad/iPod touch can be connected to the same Wi-Fi network. For details, see
“Connecting to a Wi-Fi network using a iPhone/iPad/iPod touch”.
Related Topic
Connecting to a Wi-Fi network using SongPal (Smartphone)
Connecting to a Wi-Fi network using SongPal (iPhone)
Checking the Wi-Fi signal strength (reception sensitivity)
4-569-737-11(1)
Copyright 2015 Sony Corporation
168
Personal Audio System
SRS-X77
Selecting the wired network connection method
Connect the speaker to your wireless router with a commercially-available LAN cable, then connect the router to the
computer.
For details, see "Connecting to a wired network."
To turn off the wireless function
You can turn off the wireless function. With the speaker turned on, press and hold both the NETWORK button and WPS
button. When the (BLUETOOTH) indicator and NETWORK indicator begin to flash at the same time, the wireless
function turns off. To turn on the wireless function, do the above again.
Note
If you turn off the wireless function, Wi-Fi network, BLUETOOTH and NFC functions will not be available.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
DLNA (Digital Living Network Alliance)
You can listen to music stored in a DLNA server (PC, etc.) on a home network using the speaker.
By connecting DLNA-compatible digital devices with each other on the network, you can play back a music stored in a
DLNA server by using a DLNA controller.
To use the PC as a DLNA server or controller, it is necessary to set the PC.
To listen to music in a DLNA server (PC, etc.) by operating a smartphone/iPhone
Download SongPal to your smartphone/iPhone.
This application provides Wi-Fi connection setup with the speaker, and allows you to select/play music in the PC.
For details, see "Connecting to a Wi-Fi network using SongPal (Smartphone)/(iPhone)", "Listening to music on a PC via
a Wi-Fi network" or "Listening to music on a PC via network connection (Media Go)."
To listen to music in a DLNA server using your PC as a controller
You can play back music stored in a DLNA server by operating your PC.
Start Windows Media Player on your PC, then play back music by using the [Play To] function (Windows 8) or the [Play
To] function (Windows 7). Follow the on-screen instructions to operate.
To use the PC as a DLNA server or controller, it is necessary to set the PC.
For details, see "Setting your PC as a DLNA server and controller (Windows 8)/(Windows 7)" or "Listening to music on a
PC via a network (Windows Media Player) (Windows 8)/(Windows 7)."
Hint
You need the DLNA controller to listen to music stored in a Windows Vista PC with the speaker.
For details, refer to the operating instructions of the PC.
Note
The speaker can play MP3, Linear PCM, WMA, AAC, WAV, FLAC, ALAC and AIFF format files (only AAC files with
the extension ".m4a," ".mp4," or ".3gp" are playable). Even if the bit rate and file format are supported, the playback of
all files is not guaranteed.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a
WMA file is protected by DRM, right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time, since each DLNA-compatible device has to
recognize the component currently used.
You may not be able to play back some content of DLNA certified products.
Related Topic
Listening to music on a PC via a Wi-Fi network
Help Guide
How to Use
170
Personal Audio System
SRS-X77
Connection method 1: Connecting to a Wi-Fi network using the WPS button of a wireless router
If your wireless router has a WPS button, you can connect to the Wi-Fi network by the following method.
To check if your wireless router is compatible with WPS (Wi-Fi Protected Setup), refer to the operating instructions of
your router.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker near the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Set the NETWORK OFF/ON switch on the rear of the speaker to ON.
1. Turn on the speaker.
The
(on/standby) indicator lights up in green, then the LINK indicator begins to flash.
When you configure the settings of the speaker for the first time after purchase, or after initializing the speaker, wait
about two minutes until the LINK indicator flashes slowly (blinks once in three seconds).
2. Press and hold the WPS button on the rear of the speaker until a beep sound is heard (for about 2 seconds).
The LINK indicator flashes in orange.
3. Press the WPS button
*
of the wireless router.
Operate within 90 seconds after pressing the WPS button of the speaker. Depending on the wireless router, you
may need to press and hold the WPS button for a few seconds. For details, refer to the operating instructions
Help Guide
How to Use
171
supplied with the router.
*
The position and shape of the WPS button differ depending on the wireless router.
4. Check that the LINK indicator changes from flashing to staying lit in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
Depending on the environment, it may take more than a minute for the LINK indicator to light up.
The connection is complete.
If the LINK indicator lights up in red
The speaker failed to connect to the Wi-Fi network. Try connecting again.
Hint
For details on the WPS button of your wireless router, refer to its operating instructions.
If the Wi-Fi connection fails even if you try several times, initialize the speaker and delete the setting information of
the Wi-Fi connection, then try connecting again.
Note
While a LAN cable (not supplied) is connected to the speaker, the speaker cannot connect to a Wi-Fi network.
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker,
the BLUETOOTH/Network standby function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
172
Personal Audio System
SRS-X77
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
This section describes the method to connect the speaker and a computer via a commercially-available LAN cable, and
the method to connect the speaker to the wireless router, using the computer.
Do the following before starting.
Place the speaker closer to the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a
Wi-Fi network. The encryption key restricts access to devices on a network. It is used to make more secure
communication between the devices connected to wireless routers and access points.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
For the SSID and password, refer to the operating instructions of the wireless router.
2. Connect the computer to the LAN port with a commercially-available LAN cable.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash.
Wait about a minute until the LINK indicator lights up in pink.
Hint
Wait about two minutes until the LINK indicator lights up in pink when you connect the speaker to a Wi-Fi
network for the first time after purchase.
Help Guide
How to Use
173
4. Display the [Sony Network Device Settings] screen on the computer.
i. Launch a browser (such as Internet Explorer).
ii. Enter the following URL in the address bar.
http://169.254.1.1
The above URL is used when connecting a computer and the speaker with a commercially-available LAN cable.
5. Select [Network Settings] from the menu.
If the above screen does not appear, disconnect your computer from the wireless internet connection.
6. Select the SSID of the wireless router, and enter the password.
Hint
Up tp 20 SSIDs can be shown in the list.
When the SSID you want to connect does not appear in the list, check that the wireless router is turned on, then
turn off the speaker and repeat the procedure from step 3 above again. If you still cannot find your desired SSID,
input the SSID directly into [Wireless Settings] in the window above.
7. Select [Apply].
8. When instructed by the computer screen, unplug the LAN cable from the speaker.
174
9. Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange.
It may take more than a minute for the LINK indicator to light up.
The connection is complete.
If the LINK indicator lights up in red
The speaker failed to connect to the Wi-Fi network. Try connecting again.
Hint
If the Wi-Fi connection fails even if you try several times, initialize the speaker and delete the setting information of
the Wi-Fi connection, then try connecting again.
Note
When you connect the speaker to a Wi-Fi network for the first time after purchase, or after you initialize the speaker,
the BLUETOOTH/Network standby function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
175
Personal Audio System
SRS-X77
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Modern UI)
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration
(pairing) information is deleted.
This section describes how to connect a Modern UI PC and the speaker wirelessly, then how to connect to a wireless
router, using the PC.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a
Wi-Fi network. The encryption key restricts access to devices on a network. It is used to make more secure
communication between the devices connected to wireless routers and access points.
Set the NETWORK OFF/ON switch on the rear of the speaker to ON.
1. Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
For details, refer to the operating instructions of your wireless router.
2. With the speaker turned on, press and hold the VOL (volume) – button and the
(on/standby) button at the
same time for more than 5 seconds.
The power of the speaker turns off automatically. The settings of the speaker return to their factory defaults, and
network settings and all BLUETOOTH device registration (pairing) information are deleted.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash. Wait about two minutes
until the LINK indicator flashes slowly (blinks once in three seconds).
4. Connect the speaker to the PC.
Help Guide
How to Use
i. Move the mouse pointer to the top-right (or bottom-right) corner of the Start screen to display the charms, then
select [Settings]. In the case of a touch panel, display the charms by swiping from the right side of the Start
screen, then select [Settings].
ii. Select or .
iii. Select [SRS-X77] from the network list.
5. Display the [Sony Network Device Settings] screen.
i. Launch a browser (Internet Explorer, etc.).
ii. Enter the following URL in the address bar.
http://192.168.211.129
6. Select [Network Settings] from the menu.
7. Select the SSID of the wireless router, and enter the password.
Hint
Up tp 20 SSIDs can be shown in the list.
When the SSID you want to connect does not appear in the list, check that the wireless router is turned on, then
turn off the speaker and repeat the procedure from step 3 above again. If you still cannot find your desired SSID,
input the SSID directly into [Wireless Settings] in the window above.
8. Select [Apply].
9. Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange. It may take more than a minute for
the LINK indicator to light up.
The connection is complete.
10. Connect the PC to the wireless router.
Hint
If you want to set a fixed IP address, set in the screen in step 6 above.
When the connection of the speaker to your Wi-Fi network has completed, connect your computer to the previous
destination or your wireless router.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from
step 2.
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after
setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
178
Personal Audio System
SRS-X77
Connection method 5: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration
(pairing) information is deleted.
The speaker can be connected to the same Wi-Fi network as the iPhone/iPad/iPod touch, if the iPhone/iPad/iPod touch
is iOS 8 or later. The Wi-Fi settings of the speaker is made by the iPhone/iPad/iPod touch.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker near the wireless router and the iPhone/iPad/iPod touch.
Set the Wi-Fi antenna on the rear to the upright position.
Make sure that the iPhone/iPad/iPod touch is updated to iOS 8 or later.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Connect a iPhone/iPad/iPod touch to the wireless router.
Connect it to 2.4 GHz band (11b, 11g, and 11n) or 5 GHz band (11a and 11n). The speaker is not compatible with
IEEE 802.11ac.
2. With the speaker turned on, press and hold the VOL (volume) – button and the (on/standby) button at the
same time for more than 5 seconds.
Help Guide
How to Use
180
The power of the speaker turns off automatically. The settings of the speaker return to their factory defaults, and
network settings and all BLUETOOTH device registration (pairing) information are deleted.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash. Wait about two minutes
until the LINK indicator flashes slowly (blinks once in three seconds).
4. Search for the speaker using the iPhone/iPad/iPod touch.
i. Select [Settings].
ii. Touch [SRS-X77] from the network list.
5. Perform the Wi-Fi network settings on the iPhone/iPad/iPod touch.
Follow the instructions on the screen.
6. Check that the LINK indicator lights up in orange.
When the speaker is connected to the same Wi-Fi network as the iPhone/iPad/iPod touch, the LINK indicator lights
up in orange. It may take more than a minute for the LINK indicator to light up.
181
The connection is complete.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from
step 2.
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after
setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
182
Personal Audio System
SRS-X77
Setting your PC for operating from a controller such as smartphone/ iPhone (Windows 8)
By operating from a controller such as smartphone/iPhone on your home network, you can enjoy music stored in a
Windows 8 PC on your home network with the speaker. Set your PC as described below.
1. Right-click on the Start screen.
In the case of a touch panel, swipe the Start screen from the bottom to the top, and select [All apps] at the bottom-
right of the screen.
2. Select [Windows Media Player].
3. Click or tap [Stream], then select [More streaming options].
Help Guide
How to Use
183
If [More streaming options] does not appear, select [Turn on media streaming...]. Then select [Turn on media
streaming] on the [Media streaming options] screen.
4. If all devices are allowed, select [Next].
If not all devices are allowed, select [Allow All], then the [Allow All Media Devices] screen appears.
Select [Allow all PCs and Media Devices].
5. Check that [Music] is set to [Shared], then select [Next].
6. Select [Finish] to close the screen.
7. Select [Stream], then check that [Automatically allow devices to play my media...] has been ticked.
The setting is now complete. You can listen to music stored in your PC, using your smartphone/iPhone.
184
Personal Audio System
SRS-X77
Listening with the AirPlay function (iTunes)
You can enjoy sound stored in a computer with iTunes wirelessly by using AirPlay.
Update iTunes to the latest version in advance.
1. Connect the speaker and a computer with iTunes to the same network.
Connect the speaker and your computer to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the connection is complete.
2. Tap the NETWORK button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
The speaker can also be switched to NETWORK mode automatically, instead of tapping the NETWORK button, by
selecting the speaker in the AirPlay menu of iTunes and then playing back music.
3. Select the icon on the iTunes window.
4. Select [SRS-X77] on the AirPlay menu of iTunes.
Help Guide
How to Use
186
5. Start playing back music on iTunes, and adjust the volume.
The selected song will be heard from the speaker.
If playback does not start, perform the process again from step 3.
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the
device.
After SongPal is downloaded and installed to your smartphone/iPhone, you can use it as a remote control to operate
devices connected to the speaker.
The volume level set by the VOL (volume) -/+ buttons of the speaker and that set in iTunes are synchronized.
For details on how to operate iTunes, refer to the help documentation of iTunes.
Note
Loud sound may be output from the speaker if you set the volume too high in iTunes.
In some cases, the volume level of iTunes might not synchronize with the volume level of the speaker.
Related Topic
Listening to music on a device via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
Personal Audio System
SRS-X77
Listening to music on a PC via a network (Media Go)
You can share music on your PC (server function) with the free application Media Go installed on your PC.
You can listen to music on your PC from the speaker via a Wi-Fi network by using the SongPal installed on your
smartphone/iPhone as a DLNA controller.
Install Media Go on your PC beforehand. Access the following website to download the application.
You may have to pay a communication fee, depending on your internet contract.
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
For details on how to install the application, follow the instructions on the website.
The specification and design of the application may change without notice.
1. Connect the speaker, a PC and a smartphone/iPhone with SongPal installed to the same network.
Connect the speaker, the PC and the smartphone/iPhone to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the speaker is connected to your network.
2. Tap the NETWORK button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
3. Start [Media Go] installed on the PC.
4. Select [Preferences...] from the [Tools] menu.
Help Guide
How to Use
5. Select [Media Sharing] on the [Preferences...] screen.
6. Check [Library name] of [Media Sharing].
You can change [Library name] to any name.
Make sure that a check mark is in all three items of [Media Sharing].
7. Start up SongPal to select music on the PC.
Tap [SongPal] on your smartphone/iPhone.
SongPal
8. Tap [SRS-X77].
9. Tap [Home Network].
10. Select the same name as [Library name] checked in step 6 from the server list that appeared on the screen.
11. Select [Music], then select a song from the list, and start playback.
The playback of the videos and photos are not supported.
190
The selected song will be heard from the speaker.
12. Adjust the volume using SongPal.
Note
If you operate Media Go on your PC directly without a smartphone, a connection method other than network (a
BLUETOOTH connection, etc.) is required.
Before listening to music, connect your smartphone/iPhone installed with SongPal to the same network as used by
the speaker and PC.
The speaker can play MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, and DSD format files (only AAC files with the
extension “.m4a,” “.mp4,” or “.3gp” are playable). Even if the bit rate and file format are supported, the playback of all
files is not guaranteed and there may be a change in the specification.
Files with DRM (Digital Rights Management) copyright protection cannot be played on the speaker. To check if a
WMA file is protected by DRM, right-click the file on the PC. If there is a [License] tab, the file is DRM-copyrighted.
When you listen to music via a home network, it may take some time, since each DLNA-compatible device has to
recognize the component currently used.
Some content may not be playable with DLNA certified products.
Related Topic
Listening to music on a PC via a Wi-Fi network
4-569-737-11(1)
Copyright 2015 Sony Corporation
191
Personal Audio System
SRS-X77
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows 7/Windows 8)
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration
(pairing) information is deleted.
This section describes how to connect a Windows 7 or Windows 8 PC and the speaker wirelessly, then how to connect
to a wireless router using the PC.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker near the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a
Wi-Fi network. The encryption key restricts access to devices on a network. It is used to make more secure
communication between the devices connected to wireless routers and access points.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
For details, refer to the operating instructions of your wireless router.
2. With the speaker turned on, press and hold the VOL (volume) – button and the
(on/standby) button at the
same time for more than 5 seconds.
The power of the speaker turns off automatically. The settings of the speaker return to their factory defaults, and
network settings and all BLUETOOTH device registration (pairing) information are deleted.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash. Wait about two minutes
until the LINK indicator flashes slowly (blinks once in three seconds).
4. Connect the speaker to the PC.
Help Guide
How to Use
192
i. Click or tap the desktop on the Start screen.
ii. Select the or icon.
iii. Select [SRS-X77] from the network list.
5. Display the [Sony Network Device Settings] screen.
i. Launch a browser (Internet Explorer, etc.).
ii. Enter the following URL in the address bar.
http://192.168.211.129
6. Select [Network Settings] from the menu.
7. Select the SSID of the wireless router, and enter the password.
Hint
Up tp 20 SSIDs can be shown in the list.
When the SSID you want to connect does not appear in the list, check that the wireless router is turned on, then
turn off the speaker and repeat the procedure from step 3 above again. If you still cannot find your desired SSID,
input the SSID directly into [Wireless Settings] in the window above.
8. Select [Apply].
193
9. Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange. It may take more than a minute for
the LINK indicator to light up.
The connection is complete.
10. Connect the PC to the wireless router to be used.
Hint
If you want to set a fixed IP address, set in the screen in step 6 above.
When the connection of the speaker to your Wi-Fi network has completed, connect your computer to the previous
destination or your wireless router.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from
step 2.
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after
setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
194
Personal Audio System
SRS-X77
Connection method 3: Connecting to a Wi-Fi network using a PC connected wirelessly (Windows Vista)
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration
(pairing) information is deleted.
This section describes how to connect a Windows Vista PC and the speaker wirelessly, then how to connect to a
wireless router, using a PC.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker closer to the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a
Wi-Fi network. The encryption key restricts access to devices on a network. It is used to make more secure
communication between the devices connected to wireless routers and access points.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
For details, refer to the operating instructions of your wireless router.
2. With the speaker turned on, press and hold the VOL (volume) – button and the
(on/standby) button at the
same time for more than 5 seconds.
The power of the speaker turns off automatically. The settings of the speaker return to their factory defaults, and
network settings and all BLUETOOTH device registration (pairing) information are deleted.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash. Wait about two minutes
until the LINK indicator flashes slowly (blinks once in three seconds).
4. Connect the speaker to the PC.
Help Guide
How to Use
195
i. Click the icon at the bottom of the screen.
ii. Select [Connect to a network].
iii. Select [SRS-X77] from the network list.
5. Display the [Sony Network Device Settings] screen.
i. Launch a browser (Internet Explorer, etc.).
ii. Enter the following URL in the address bar.
http://192.168.211.129
6. Select [Network Settings] from the menu.
7. Select the SSID of the wireless router, and enter the password.
Hint
Up tp 20 SSIDs can be shown in the list.
When the SSID you want to connect does not appear in the list, check that the wireless router is turned on, then
turn off the speaker and repeat the procedure from step 3 above again. If you still cannot find your desired SSID,
input the SSID directly into [Wireless Settings] in the window above.
8. Select [Apply].
196
9. Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange. It may take more than a minute for
the LINK indicator to light up.
The connection is complete.
10. Connect the PC to the wireless router to be used.
Hint
If you want to set a fixed IP address, set in the screen in step 6 above.
When the connection of the speaker to your Wi-Fi network has completed, connect your computer to the previous
destination or your wireless router.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from
step 2.
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after
setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
197
Personal Audio System
SRS-X77
Setting your PC as a DLNA server (Windows Vista)
Windows Vista PC can be used as a DLNA server. You need to set up Windows Media Player 11 to listen to music using
Windows Vista PC as a server.
By operating from the DLNA controller on your home network, you can enjoy music stored in a Windows Vista PC, set as
a DLNA server, with the speaker if you set the following.
1. Go to [Start]-[All Programs], then select [Windows Media Player].
Windows Media Player 11 starts up.
2. Select [Media Sharing…] from the [Library] menu.
3. When is displayed, select [Networking…].
The [Network and Sharing Center] screen appears.
4. Select [Customize].
The [Set Network Location] screen appears.
5. Add a check mark next to [Private], then select [Next].
Help Guide
How to Use
198
6. Confirm that [Location type] has changed to [Private], then select [Close].
7. Confirm that [(Private network)] is displayed in the [Network and Sharing Center] screen, then close the screen.
8. If a check is not added next to [Share my media] in the [Media Sharing] screen displayed in step 2, add a check
mark, then select [OK].
A list of connectable devices is displayed.
9. Select [Settings…] that appears beside [Share my media to :].
10. Add a check mark next to [Allow new devices and computers automatically], then select [OK].
Note
Uncheck this item after you confirm that the speaker can connect to the PC and play audio data on the speaker.
Related Topic
199
Personal Audio System
SRS-X77
Connection method 3: Connecting to a Wi-Fi network using a Mac connected wirelessly
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration
(pairing) information is deleted.
This section describes how to connect a Mac and the speaker wirelessly, then how to connect to a wireless router, using
the Mac.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker near the wireless router.
Set the Wi-Fi antenna on the rear to the upright position.
Locate the SSID (the name of a wireless network) and encryption key (WEP or WPA), which are required to set up a
Wi-Fi network. The encryption key restricts access to devices on a network. It is used to make more secure
communication between the devices connected to wireless routers and access points.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Have the Wi-Fi network name (SSID) and password of the wireless router available for reference.
For the SSID and password, refer to the operating instructions of the wireless router.
2. With the speaker turned on, press and hold the VOL (volume) – button and the
(on/standby) button at the
same time for more than 5 seconds.
The power of the speaker turns off automatically. The settings of the speaker return to their factory defaults, and
network settings and all BLUETOOTH device registration (pairing) information are deleted.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash. Wait about two minutes
until the LINK indicator flashes slowly (blinks once in three seconds).
4. Connect the speaker to the Mac.
Help Guide
How to Use
201
i. Click the icon at the top of the screen.
ii. Select [Open Network Preferences...].
iii. Select [SRS-X77] from the network list.
5. Display the [Sony Network Device Settings] screen.
i. Launch a browser (Safari, etc.).
ii. Enter the following URL in the address bar.
http://192.168.211.129
6. Select [Network Settings] from the menu.
7. Select the SSID of the wireless router, and enter the password.
Hint
Up tp 20 SSIDs can be shown in the list.
When the SSID you want to connect does not appear in the list, check that the wireless router is turned on, then
turn off the speaker and repeat the procedure from step 3 above again. If you still cannot find your desired SSID,
input the SSID directly into [Wireless Settings] in the window above.
8. Select [Apply].
202
9. Check that the LINK indicator lights up in orange.
When the Wi-Fi connection is completed, the LINK indicator lights up in orange. It may take more than a minute for
the LINK indicator to light up.
The connection is complete.
10. Connect the Mac to the wireless router to be used.
Hint
If you want to set a fixed IP address, set in the screen in step 6 above.
When the connection of the speaker to your Wi-Fi network has completed, connect your Mac to the previous
destination or your wireless router.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from
step 2.
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after
setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
203
Personal Audio System
SRS-X77
Connection method 3: Connecting to a wired network
This section describes how to connect the speaker to a wireless router with a commercially-available LAN cable, then
how to connect the router to the computer.
Usually, the DHCP setting is set to ON when you connect your computer to the network.
Do the following before starting.
Set the DHCP setting of your computer to ON.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Check that your computer and wireless router are turned on.
2. Connect the wireless router to the LAN port with a commercially-available LAN cable.
3. Connect the wireless router to your computer using another commercially-available LAN cable, or a Wi-Fi
connection.
4. Turn the speaker on.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash in pink. Wait about a
minute until the LINK indicator lights up in pink.
When the connection is completed, the LINK indicator changes from flashing to staying lit in pink.
Help Guide
How to Use
204
Hint
Wait about two minutes until the LINK indicator lights up in pink when you connect the speaker to a network for
the first time after purchase.
Note
When you connect the speaker to a network for the first time after purchase, or after you initialize the speaker, the
BLUETOOTH/Network standby function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
205
Personal Audio System
SRS-X77
Connection method 4: Connecting to a Wi-Fi network using an iPhone/iPad/iPod touch
Note that the speaker should be initialized to the factory default for this connection. All BLUETOOTH device registration
(pairing) information is deleted.
The speaker can be connected to the same Wi-Fi network as the iPhone/iPad/iPod touch, if the iPhone/iPad/iPod touch
is iOS 8 or later. The Wi-Fi settings of the speaker is made by the iPhone/iPad/iPod touch.
Do the following before starting.
Disconnect the LAN cable (not supplied) from the speaker.
Place the speaker near the wireless router and the iPhone/iPad/iPod touch.
Set the Wi-Fi antenna on the rear to the upright position.
Make sure that the iPhone/iPad/iPod touch is updated to iOS 8 or later.
Set the NETWORK OFF/ON switch on the rear to ON.
1. Connect a iPhone/iPad/iPod touch to the wireless router.
Connect it to 2.4 GHz band (11b, 11g, and 11n) or 5 GHz band (11a and 11n). The speaker is not compatible with
IEEE 802.11ac.
2. With the speaker turned on, press and hold the VOL (volume) – button and the (on/standby) button at the
same time for more than 5 seconds.
Help Guide
How to Use
206
The power of the speaker turns off automatically. The settings of the speaker return to their factory defaults, and
network settings and all BLUETOOTH device registration (pairing) information are deleted.
3. Turn on the speaker.
The (on/standby) indicator lights up in green, then the LINK indicator begins to flash. Wait about two minutes
until the LINK indicator flashes slowly (blinks once in three seconds).
4. Search for the speaker using the iPhone/iPad/iPod touch.
i. Select [Settings].
ii. Touch [SRS-X77] from the list.
5. Perform the Wi-Fi network settings on the iPhone/iPad/iPod touch.
Follow the instructions on the screen.
6. Check that the LINK indicator lights up in orange.
When the speaker is connected to the same Wi-Fi network as the iPhone/iPad/iPod touch, the LINK indicator lights
up in orange. It may take more than a minute for the LINK indicator to light up.
207
The connection is complete.
Note
This procedure needs to be completed within 30 minutes. If you cannot complete within 30 minutes, start over from
step 2.
Until you finish the Wi-Fi network setting, it will not be protected. The Wi-Fi network will be protected again after
setting the Wi-Fi security.
When you connect the speaker to a Wi-Fi network for the first time after purchase, the BLUETOOTH/Network standby
function is turned on automatically.
Related Topic
Using the BLUETOOTH/Network standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
208
Personal Audio System
SRS-X77
Listening with the AirPlay function (iPhone/iPad/iPod touch)
You can enjoy music stored in an iPhone/iPad/iPod touch wirelessly using AirPlay.
Update the iPhone/iPad/iPod touch to the latest version in advance.
1. Connect the speaker and an iPhone/iPad/iPod touch to the same network.
Connect the speaker and your iPhone/iPad/iPod touch to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the connection is complete.
2. Tap the NETWORK button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
The speaker can also be switched to NETWORK mode automatically, instead of tapping the NETWORK button, by
selecting the speaker in the AirPlay menu of the iPhone/iPad/iPod touch, then playing back music.
3. Swipe the screen of the iPhone/iPad/iPod touch from the bottom to the top to open the control center.
4. Touch (AirPlay).
Help Guide
How to Use
209
5. Select [SRS-X77] on the AirPlay menu of the iPhone/iPad/iPod touch.
6. Start playing back music on the iPhone/iPad/iPod touch, and adjust the volume.
The selected song will be heard from the speaker.
If playback does not start, perform the process again from step 3.
Hint
The procedure explained above is for guidance only. For details, refer to the operating instructions supplied with the
device.
The window above is an example of iOS8.
After SongPal is downloaded and installed to your iPhone, you can use your iPhone as a remote control to operate
devices connected to the speaker.
The volume level set by the VOL (volume) -/+ buttons of the speaker and that set in your iPhone/iPad/iPod touch are
synchronized.
Note
Loud sound may be output from the speaker if you set the volume too high by the iPhone/iPad/iPod touch.
In some cases, the volume level of the iPhone/iPad/iPod touch might not synchronize with the volume level of the
speaker.
Related Topic
210
Personal Audio System
SRS-X77
Listening to music with the WALKMAN application (Xperia)
Using the WALKMAN application, you can play music stored in an Xperia.
Do the following before starting.
The WALKMAN application is pre-installed in your Xperia.
Operations of the WALKMAN application are subject to change without notice. For details about how to use the
WALKMAN application, refer to the operating instructions supplied with the Xperia.
Your Xperia may need to disable [Auto-select wireless option] of [Throw settings]. For details, refer to the user guide
of Xperia.
Update the Android OS on your Xperia to the latest version before using it with the speaker.
1. Connect the speaker and a Xperia to the same network.
Connect the speaker and your Xperia to the same SSID of the wireless router.
The LINK indicator lights up in orange or pink when the connection is complete.
2. Tap the NETWORK button.
The NETWORK indicator lights up in white, and the speaker switches to NETWORK mode.
The speaker can also be switched to NETWORK mode automatically, instead of tapping the NETWORK button, by
selecting the speaker in the menu of the WALKMAN application on the Xperia, then playing back music.
3. Select [WALKMAN] on your Xperia.
Help Guide
How to Use
4. Tap and select [SRS-X77] on the Xperia.
5. Start playing back music on the Xperia, and adjust the volume.
The selected song will be heard from the speaker.
If playback does not start, perform the process again from step 1.
Hint
Refer to the operating instructions of your Xperia for details.
For details on the use of the Android OS, refer to Help of Android OS.
4-569-737-11(1)
Copyright 2015 Sony Corporation
213
Personal Audio System
SRS-X77
How to make a wireless connection with BLUETOOTH devices
You can enjoy music with the speaker wirelessly by using your device’s BLUETOOTH function.
Do the following before starting.
Place the BLUETOOTH device within 1 m (3 ft) of the speaker.
Connect the speaker to the AC outlet or charge the battery sufficiently.
Prepare the operating instructions supplied with the BLUETOOTH device for reference.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
Pairing the speaker with a BLUETOOTH device
Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time.
See the following topic.
Connection method 1: Pairing and connecting with a BLUETOOTH device
Connecting the speaker with a paired device
Once BLUETOOTH devices are paired, there is no need to pair them again. To connect a device already paired, see the
following topic.
Connection method 2: Connecting with a paired BLUETOOTH device
Connecting the speaker with an NFC-compatible device by one touch (NFC)
By touching the speaker with an NFC-compatible device such as a smartphone or Walkman,etc., the speaker turns on
automatically, then pairs with the device and makes a BLUETOOTH connection. For details, see the following topic.
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
Compatible smartphones
NFC-compatible smartphones with Android 4.1 or later installed
Compatible Walkman models
NFC-compatible Walkman models
*
*
Even if your Walkman is compatible with the NFC function, it may not be able to make a BLUETOOTH connection with the
speaker by one touch. For details on the compatible models, refer to the operating instructions supplied with your Walkman.
NFC
NFC (Near Field Communication) is a technology enabling short-range wireless communication between various
devices, such as smartphones and IC tags.
Help Guide
How to Use
214
Thanks to the NFC function, data communication - for example, BLUETOOTH pairing - can be achieved easily by simply
touching NFC-compatible devices together (i.e., at the N-Mark symbol or location designated on each device).
Note
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
The speaker can be paired with up to 9 devices. If a new device is paired after 9 devices are already paired, the paired
device with the oldest connection time is replaced by the new one.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
When the speaker is initialized, all pairing information is deleted.
If you reset network settings of your iPhone/iPad/iPod, the speaker may not be able to connect to it. Perform the
pairing procedure again.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
4-569-737-11(1)
Copyright 2015 Sony Corporation
215
Personal Audio System
SRS-X77
Connection method 1: Pairing and connecting with a BLUETOOTH device
The speaker can be paired with up to 9 BLUETOOTH devices.
It is necessary to pair a device with the speaker to be able to make a BLUETOOTH connection for the first time.
Do the following before starting.
Place the BLUETOOTH device within 1 m (3 ft) of the speaker.
Connect the speaker to the AC outlet or charge the battery sufficiently.
Prepare the operating instructions supplied with the BLUETOOTH device for reference.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
1. Turn on the speaker.
The
(on/standby) indicator lights up in green.
2. Tap the (BLUETOOTH) PAIRING button.
The (BLUETOOTH) indicator begins to flash in white.
When you turn on the speaker for the first time after purchase, pairing information is not stored in the speaker. In
this case, tap the (BLUETOOTH) PAIRING button, the (BLUETOOTH) indicator will begin to flash
quickly in white and the speaker enters pairing mode automatically, then go to step 4.
When you tap the (BLUETOOTH) PAIRING button, the speaker tries to make a BLUETOOTH connection
with the last connected BLUETOOTH device. If the device is nearby, the BLUETOOTH connection is established
automatically and the (BLUETOOTH) indicator stays lit. When you want to connect another BLUETOOTH
device, terminate the current BLUETOOTH connection by operating the currently connected BLUETOOTH
device.
3. Tap and hold the (BLUETOOTH) PAIRING button until beeps are heard.
The (BLUETOOTH) indicator begins to flash quickly in white, and the speaker enters pairing mode.
Help Guide
How to Use
216
4. Perform the pairing procedure on the BLUETOOTH device to detect the speaker.
When a list of detected devices appears on the display of the BLUETOOTH device, select [SRS-X77].
If a passkey
*
is required on the display of the BLUETOOTH device, enter “0000.”
*
A passkey may be called “Passcode”, “PIN code”, “PIN number” or “Password.”
5. Make the BLUETOOTH connection from the BLUETOOTH device.
When the BLUETOOTH connection is established, the (BLUETOOTH) indicator stays lit.
If the BLUETOOTH connection is not established, repeat from step 3.
Hint
For details, refer to the operating instructions supplied with the BLUETOOTH device.
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is
established. In this case, the previous connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device
such as smartphone, computer, etc.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. Otherwise, you may
experience sudden loud sound output from the speaker when music is played back for the first time after pairing.
Pairing mode of the speaker is released after about 5 minutes and the (BLUETOOTH) indicator flashes slowly.
However, when pairing information is not stored in the speaker, such as when you turn on the speaker for the first
time after purchase, pairing mode is not released. If pairing mode is released before finishing the process, repeat
from step 3.
When pairing with a BLUETOOTH device that cannot display a list of detected devices or that has no display, you
may pair the device by setting both the speaker and the BLUETOOTH device to pairing mode. In this case, if a
passkey besides "0000" is set on the BLUETOOTH device, pairing cannot be done with the speaker.
Once BLUETOOTH devices are paired, there is no need to pair them again, except in the following cases:
Pairing information has been deleted after repair, etc.
The speaker is already paired with 9 devices and another device is to be paired.
217
The speaker can be paired with up to 9 devices. If a new device is paired after 9 devices are already paired, the paired
device with the oldest connection time is replaced by the new one.
The pairing information with the speaker has been deleted from the BLUETOOTH device.
When the speaker is initialized, all the pairing information is deleted.
The speaker can be paired with multiple devices, but can only play music from one paired device at a time.
Related Topic
Listening to music on a device via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
218
Personal Audio System
SRS-X77
Connection method 2: Connecting with a paired BLUETOOTH device
Do the following before starting.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
1. Turn on the speaker.
The
(on/standby) indicator lights up in green.
2. Tap the (BLUETOOTH) PAIRING button.
The (BLUETOOTH) indicator begins to flash in white.
When you tap the (BLUETOOTH) PAIRING button, the speaker tries to make a BLUETOOTH connection
with the last connected BLUETOOTH device. If the device is nearby, the BLUETOOTH connection is established
automatically and the (BLUETOOTH) indicator stays lit. When you want to connect another BLUETOOTH
device, terminate the current BLUETOOTH connection by operating the currently connected BLUETOOTH device.
3. Make the BLUETOOTH connection from the BLUETOOTH device.
When the BLUETOOTH connection is established, the (BLUETOOTH) indicator stays lit.
Hint
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is
established. In this case, the previous connection will be disconnected.
Help Guide
How to Use
219
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device
such as smartphone, computer, etc.
When you turn on the speaker or tap the (BLUETOOTH) PAIRING button, the speaker tries to make a
BLUETOOTH connection with the last connected BLUETOOTH device. If the device’s BLUETOOTH function is on,
the BLUETOOTH connection is started automatically.
When the BLUETOOTH/Network standby function is turned on, the speaker turns on automatically by operating a
BLUETOOTH device, and starts the BLUETOOTH connection.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. Otherwise, you may
experience sudden loud sound output from the speaker when music is played back for the first time after a
BLUETOOTH connection has been made.
If the speaker tries to reconnect with the last connected BLUETOOTH device, the connection may fail. In this case,
terminate the BLUETOOTH connection by operating the connected BLUETOOTH device.
Related Topic
Listening to music on a device via a BLUETOOTH connection
4-569-737-11(1)
Copyright 2015 Sony Corporation
220
Personal Audio System
SRS-X77
Connection method 3: Connecting with an NFC-compatible device by one touch (NFC)
By touching the speaker with an NFC-compatible device such as a smartphone or Walkman, etc., the speaker turns on
automatically, then pairs with the device and makes a BLUETOOTH connection.
Compatible smartphones
NFC-compatible smartphones with Android 4.1 or later installed
Compatible Walkman models
NFC-compatible Walkman models
*
*
Even if your Walkman is compatible with the NFC function, it may not be able to make a BLUETOOTH connection with the
speaker by one touch. For details on the compatible models, refer to the operating instructions supplied with your Walkman.
NFC
NFC (Near Field Communication) is a technology enabling short-range wireless communication between various
devices, such as smartphones and IC tags.
Thanks to the NFC function, data communication - for example, BLUETOOTH pairing - can be achieved easily by simply
touching NFC-compatible devices together (i.e., at the N-Mark symbol or location designated on each device).
Do the following before starting.
Stop playback on the BLUETOOTH device to avoid sudden loud sound output from the speaker.
1. Set the NFC function of the device to on.
For details, refer to the operating instructions supplied with the device.
2. Touch the speaker with the device.
Unlock the screen of the device beforehand.
Keep touching the device on the N-Mark (
) of the speaker until the device responds (it may take a few seconds).
If the speaker is off, it will turn on when the device touches it.
Help Guide
How to Use
221
Follow the on-screen instructions to establish the connection.
When the BLUETOOTH connection is established, the (BLUETOOTH) indicator stays lit.
To disconnect, touch the speaker with the device again.
Hint
You can perform pairing or connect to another BLUETOOTH device even when a BLUETOOTH connection is
established. In this case, the previous connection will be disconnected.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device
such as smartphone, computer, etc.
If you cannot connect the speaker, try the following.
Move the device slowly over the N-Mark of the speaker.
If the device is in a case, remove the case.
Make sure that the app screen is displayed on the device.
If you touch a device on the speaker, the device terminates BLUETOOTH connection with any current device (NFC-
compatible headset, etc.), and connects with the speaker (One-touch connection switching).
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. Otherwise, you may
experience sudden loud sound output from the speaker when music is played back for the first time after a
BLUETOOTH connection has been made.
Related Topic
Disconnecting the NFC-compatible device by one touch (NFC)
Switching devices by one touch (NFC)
222
Personal Audio System
SRS-X77
Listening to music on a device via a BLUETOOTH connection
You can enjoy listening to music of a BLUETOOTH device and operate it via a BLUETOOTH connection if it supports the
following BLUETOOTH profiles.
A2DP (Advanced Audio Distribution Profile)
Enables you to enjoy high-quality audio contents wirelessly.
AVRCP (Audio Video Remote Control Profile)
Enables you to adjust the volume of a BLUETOOTH device.
The volume of a BLUETOOTH device may not be adjusted depending on the BLUETOOTH device. Refer also to the
operating instructions supplied with your BLUETOOTH device.
Note
Make sure beforehand that the volume on the BLUETOOTH device is set to a moderate level to avoid sudden loud
sound output from the speaker.
1. Connect the speaker with the BLUETOOTH device.
The
(BLUETOOTH) indicator lights up in white when the BLUETOOTH connection is established.
2. Adjust the volume with your BLUETOOTH device or the VOL (volume) –/+ button of the speaker.
When you tap the VOL (volume) –/+ button, the (on/standby) indicator flashes once or three times according
to the volume adjustment.
Help Guide
How to Use
224
3. Start playback on the BLUETOOTH device.
Hint
After SongPal is downloaded and installed to your smartphone/iPhone, you can use it as a remote control to operate
devices connected to the speaker.
SongPal has no function of play music via a BLUETOOTH connection. Play music with your BLUETOOTH device
such as smartphone, computer, etc.
Depending on the BLUETOOTH device, it may be necessary to adjust the volume or set the audio output setting on
the connected device.
Note
Stop playback on the BLUETOOTH device and turn down the volume of the device beforehand. Otherwise, you may
experience sudden loud sound output from the speaker when music is played back for the first time after a
BLUETOOTH connection has been made.
If the communication condition is poor, the BLUETOOTH device may react incorrectly to the operation on the speaker.
Related Topic
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
4-569-737-11(1)
Copyright 2015 Sony Corporation
225
Personal Audio System
SRS-X77
Selecting the BLUETOOTH audio streaming playback quality (Codec)
The “Priority on sound quality” and “Priority on stable connection” modes are available as options for selecting the
playback quality of BLUETOOTH audio streaming. “Priority on sound quality” enables you to playback with a setting of,
not only SBC, but also AAC and LDAC, so that you can enjoy high-quality sound via BLUETOOTH. “Priority on stable
connection” provides you with a more stable BLUETOOTH audio streaming. “Priority on sound quality” is the default
setting.
Playback quality
Priority on sound quality (default setting): Optimal codec is automatically selected from AAC, LDAC, and SBC.
Priority on stable connection: SBC is selected.
1. With the speaker turned on, press and hold the
(on/standby) button until the (on/standby) indicator
lights up in orange.
The speaker turns off and enters the BLUETOOTH/Network standby mode.
2. Press and hold the VOL (volume) + button and (on/standby) button at the same time, until the
(BLUETOOTH) indicator flashes in white.
When the setting is changed to "Priority on sound quality" mode, the (BLUETOOTH) indicator flashes 3 times.
When the setting is changed to "Priority on stable connection" mode, the (BLUETOOTH) indicator flashes 2
times.
The playback quality is switched, and the speaker turns on.
Hint
You can switch the playback quality by using SongPal. "Priority on sound quality" appears as [Auto] and "Priority on
stable connection" appears as [SBC] when setting with SongPal.
Note
Communication may become unstable in the "Priority on sound quality" mode, depending on the setting of your
Help Guide
How to Use
BLUETOOTH device and the ambient conditions. In this case, reset the speaker to the "Priority on stable connection"
mode by performing steps 1 and 2 above.
When the playback quality setting is changed by using Songpal while the speaker is turned on, the BLUETOOTH
connection is terminated. In this case, connect the BLUETOOTH device manually again. After reconnecting, the
playback quality is switched.
You may also need to adjust the settings of the connected device to change the playback quality setting, such as
SBC, AAC, LDAC. For details, refer to the operating instructions supplied with the device.
Related Topic
Setting the BLUETOOTH audio streaming playback quality (Codec)
4-569-737-11(1)
Copyright 2015 Sony Corporation
227
Personal Audio System
SRS-X77
Terminating the BLUETOOTH connection (After use)
When you finish playing music with the BLUETOOTH device, perform any of the following operations to terminate the
BLUETOOTH connection.
Turn off the BLUETOOTH function on the BLUETOOTH device. For details, refer to the operating instructions supplied
with the device.
Turn off the BLUETOOTH device.
Turn off the speaker.
Touch the NFC-compatible device on the N-Mark of the speaker again (if your device has the NFC function).
Hint
If no operation is performed and no music (sound) is input by a BLUETOOTH device for about 15 minutes, the
speaker enters standby mode automatically by the auto standby function, then the BLUETOOTH connection
terminates.
When you finish playing music, the BLUETOOTH connection may terminate automatically, depending on the
BLUETOOTH device.
Related Topic
Disconnecting the NFC-compatible device by one touch (NFC)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
228
Personal Audio System
SRS-X77
Disconnecting the NFC-compatible device by one touch (NFC)
You can disconnect the speaker from the connected NFC-compatible device such as a smartphone or Walkman, etc., by
touching the speaker with it.
1. Touch the device on the N-Mark ( ) of the speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
229
Personal Audio System
SRS-X77
Switching devices by one touch (NFC)
If you move an NFC-compatible device over the N-Mark part of the speaker while the speaker is connected with
another BLUETOOTH device, the speaker disconnects from the BLUETOOTH device. The speaker then connects
with the NFC-compatible device that was just touched.
When an NFC-compatible device is connected with the speaker via the BLUETOOTH connection, it will disconnect
from the speaker if you touch the device onto another NFC-compatible BLUETOOTH headset or BLUETOOTH
speaker. The device then connects with the BLUETOOTH headset or BLUETOOTH speaker it has just touched.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
About the indicators
(on/standby) indicator
Turns off
The speaker is in the standby mode.
Lights up (green)
The speaker is turned on.
Lights up (orange)
The speaker is in the BLUETOOTH/Network standby mode.
The BLUETOOTH/Network standby function can be set only when the speaker is connected to an AC outlet via the AC
adaptor. When the speaker is being powered by the built-in battery only, the BLUETOOTH/Network standby function is
not available.
Flashes (green)
If you turn off the speaker, the indicator flashes slowly in green, then lights up in orange or turns off. While the
indicator is flashing, the speaker is not operational.
When you tap the VOL (volume) -/+ button, the indicator flashes once or three times according to the volume
adjustment.
Flashes (red)
The speaker is in the protect mode. Push the RESET button on the rear of with a pointed object, such as a pin. Then
turn on the speaker. If the
(on/standby) indicator keeps flashing, consult your nearest Sony dealer or the shop from
which you purchased this speaker.
CHARGE indicator
Turns off
Charging of the speaker is completed.
Lights up
The speaker is charging.
Flashes slowly
The built-in battery is running low and needs to be charged. In this state, the speaker cannot supply power to other
devices.
Flashes three times and turns off
If the CHARGE indicator flashes three times and goes off when you turn on the speaker, the battery is empty and needs
Help Guide
How to Use
231
to be charged.
LINK indicator
Turns off
The speaker is not connected to a network.
Lights up (orange)
The speaker is connected to a Wi-Fi network.
Lights up (pink)
The speaker is connected to a wired network.
Flashes (orange)
The speaker is in the process of connecting to a Wi-Fi network.
Flashes (pink)
The speaker is in the process of connecting to a wired network.
Lights up (green or light blue)
The speaker is connected to a music service.
Flashes (red)
The network connection failed.
Lights up (red)
The network connection failed, or connection failed even though the network setting is complete.
AUDIO IN indicator
*1*2
Lights up (white)
The speaker is in the AUDIO IN mode.
(BLUETOOTH) PAIRING indicator
*1*2*3*4
Lights up (white)
The speaker is connected to a BLUETOOTH device.
Flashes quickly (white)
The speaker is pairing with a BLUETOOTH device.
Flashes (white)
The speaker is searching for a BLUETOOTH device to connect.
NETWORK indicator
*1*2*3
Lights up (white)
The speaker is in the NETWORK mode.
Flashes (white)
The speaker is receiving an audio file via the network.
232
UPDATE button
Lights up (orange)
The speaker detects the availability of a software update while connected to the internet. When you tap and hold the lit
button, the update of the speaker’s software is started.
Flashes (orange)
The speaker is updating the software. During the update, you cannot operate the speaker.
When the speaker turns on for the first time after the software update, the UPDATE button flashes three times to
inform you that the update is completed.
*1
If software update fails, the indicator also lights up.
*2
When checking Wi-Fi signal strength, the indicator also flashes.
*3
When switching the wireless function to on or off, the indicator also flashes.
*4
When switching the BLUETOOTH audio streaming, the indicator also flashes.
Related Topic
Updating the pre-installed software
Checking the Wi-Fi signal strength (reception sensitivity)
4-569-737-11(1)
Copyright 2015 Sony Corporation
233
Personal Audio System
SRS-X77
Compatible iPhone/iPad/iPod models
iPhone/iPad/iPod models that can be used with the speaker are shown below.
Update the software of your iPhone/iPad/iPod to the latest version before using it with the speaker.
For the latest iPhone/iPad/iPod compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
AirPlay connection compatible models
iPhone 6 Plus
iPhone 6
iPhone 5s
iPhone 5c
iPhone 5
iPhone 4s
iPhone 4
iPhone 3GS
iPad Air 2*
iPad mini 3*
iPad Air*
iPad mini 2*
iPad (4th generation)*
iPad mini*
iPad (3rd generation)*
iPad 2*
iPad*
iPod touch (5th generation)
iPod touch (4th generation)
iPod touch (3rd generation)*
BLUETOOTH connection compatible models
Help Guide
How to Use
iPhone 6 Plus
iPhone 6
iPhone 5s
iPhone 5c
iPhone 5
iPhone 4s
iPhone 4
iPhone 3GS
iPad Air 2*
iPad mini 3*
iPad Air*
iPad mini 2*
iPad (4th generation)*
iPad mini*
iPad (3rd generation)*
iPad 2*
iPad*
iPod touch (5th generation)
iPod touch (4th generation)
iPod touch (3rd generation)*
iPod nano (7th generation)*
*
SongPal does not support iPod touch (3rd generation) or iPod nano. As of January 2015, SongPal does not support the display
optimized for iPad screens.
AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and Mac
and PC with iTunes 10.2.2 or later.
Note
Sony cannot accept responsibility in the event that data recorded to an iPhone/iPad/iPod is lost or damaged when
using an iPhone/iPad/iPod connected to this speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
235
Personal Audio System
SRS-X77
Compatible Walkman models
Operation checked models (as of January 2015)
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
A series
NW-A865/A866/A867
NW-A16/NW-A17
S series
NW-S754/S755/S756
NW-S754K/S755K
NW-S764/S765/S766
NW-S764K/S765K
NW-S764BT
NW-S774/S775
NW-S774K/S775K
NW-S774BT
NW-S774/WI
NW-S774K/WI
NW-S784/S785/S786
NW-S784K/S785K
NW-S14/S14K/S15/S15K
E series
NW-E062/E063
NW-E062K/E063K
NW-E083/E083K
F series
Help Guide
How to Use
NW-F805/F806/F807
NW-F805K/F806K
NW-F805BT
NW-F807/S
NW-F885/F886/F887
Z series
NW-Z1050/Z1060/Z1070/Z1070/W
ZX1 series
NW-ZX1/NW-ZX2
4-569-737-11(1)
Copyright 2015 Sony Corporation
237
Personal Audio System
SRS-X77
Compatible operating system (Windows)
Compatible PC
IBM PC/AT compatible computers
Supported Operating Systems
Windows RT 8.1
Windows 8.1 Enterprise
Windows 8.1 Pro
Windows RT
Windows 8 Enterprise
Windows 8 Professional
Windows 8 Core Edition
Windows 7 Ultimate
Windows 7 Professional
Windows 7 Home Premium
Windows 7 Home Basic
Windows 7 Starter
Windows Vista Ultimate
Windows Vista Business
Windows Vista Home Premium
Windows Vista Home Basic
Suitable browsers
Internet Explorer 9 or later
Any of the above operating systems must be factory installed in the PC.
Correct operation of all PCs is not guaranteed.
Correct operation with a home-built PC, personally upgraded operating system, or multi-boot environment is not
guaranteed.
Operations such as system suspend mode, sleep mode or hibernation mode are not guaranteed for all PCs.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Compatible operating systems (Mac)
Supported Operating Systems
Mac OS X v10.10 Yosemite
Mac OS X v10.9 Mavericks
Mac OS X v10.8 Mountain Lion
Mac OS X v10.7 Lion
Mac OS X v10.6 Snow Leopard
Suitable browsers
Safari (latest version at the time of Mac OS X v10.6 Snow Leopard being released, or later)
Any of the above operating systems must be factory installed in the computer.
Correct operation of all computers is not guaranteed.
Correct operation with a home-built computer, personally upgraded operating system, or multi-boot environment is not
guaranteed.
Operations such as system suspend mode, sleep mode or hibernation mode are not guaranteed for all computers.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
239
Personal Audio System
SRS-X77
Compatible DLNA devices
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Compatible BLUETOOTH devices
For the latest compatible models, access the following URL:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
Compatible BLUETOOTH Profiles
*1
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
Supported codec
*2
SBC
*3
AAC
*4
LDAC
*1
BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
*2
Codec: Audio signal compression and conversion format
*3
Subband Codec
*4
Advanced Audio Coding
Related Topic
Distorted sound/Humming or noise
What is LDAC?
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
241
Personal Audio System
SRS-X77
Updating the pre-installed software
You can update to the latest software version by connecting the speaker to the internet.
The UPDATE button on the speaker lights up in orange when the speaker detects the availability of a software update
while connected to the internet. (Normally off.)
This button is usually not displayed.
When the button lights up in orange, follow the steps below to update the software to the latest version.
Once updating is started, the speaker stops music playback and BLUETOOTH communications.
1. Tap and hold the UPDATE button until beeps are heard.
The UPDATE button will flash in orange when updating starts.
The speaker is not operational while updating.
The UPDATE button turns off and the speaker switches to standby mode or BLUETOOTH/Network standby mode
automatically when updating is completed.
When you turn on the speaker the first time after updating pre-installed software, the UPDATE button flashes three
times.
If the indicator flashes in red during the update
Software update failed. Follow the procedure below to update the software by using a USB flash drive.
Press the button to turn the speaker off. Download the update file via the Customer support websites and store it
in a USB flash drive. Connect the USB flash drive to the DC OUT ONLY port (USB) of the speaker and turn the speaker
on. Software update will start automatically.
When updating is completed, the speaker will switch to standby mode or BLUETOOTH/Network standby mode
automatically.
Hint
The number of flashes of the UPDATE button will change according to the progress of updating. The UPDATE button
flashes four times at first, and decreases by one flash, then turns off when updating is completed. Do not turn the
speaker off during the update.
Help Guide
How to Use
242
When the UPDATE button flashes four times, the update procedure can be terminated by tapping and holding the
UPDATE button (This does not necessarily apply to all cases.).
Software update may fail during the procedure if the network environment is not adequate. In this case, update the
software by using a USB flash drive. For details on the update procedure using a USB flash drive, see the Customer
support websites.
The pre-installed software can be updated automatically when the speaker is connected to the internet; whether via a
wired or Wi-Fi network as the default setting. If you want to deactivate this automatic update function, change the
setting of [Auto Update] by using your smartphone/iPhone with SongPal installed. When the speaker detects the
availability of a software update, the update will start during the night when the speaker is unlikely to be in frequent
use. The UPDATE button works as described in this Help Guide.
Note
Updating normally takes 3 to 10 minutes. It may take longer depending on your network environment.
Keep the speaker connected to an AC outlet via the AC adaptor and network while updating. Update cannot be
carried out when the speaker is powered by the built-in battery only.
Software update is active only when the speaker is connected to an AC outlet via the AC adaptor.
The speaker cannot play back music files in a USB flash drive even if the USB flash drive is connected to the DC
OUT ONLY port (USB).
4-569-737-11(1)
Copyright 2015 Sony Corporation
243
Personal Audio System
SRS-X77
Checking the Wi-Fi signal strength (reception sensitivity)
The indicator of the speaker shows signal strength (reception sensitivity) by its flashing status when the speaker is
connected to a Wi-Fi network.
1. While the speaker is connected to Wi-Fi a network (the LINK indicator lights up in orange), tap and hold the
NETWORK button until beeps are heard.
The function indicators (NETWORK, (BLUETOOTH), AUDIO IN) on the top panel start to flash. The number of
flashing indicators shows the strength of the signal. Flashing stops when any button is tapped.
When no indicator is flashing, the signal strength is the weakest. When 3 indicators are flashing, the signal strength
is the strongest.
To receive a stronger signal
Try the following:
Help Guide
How to Use
244
Change the direction of the wireless LAN antenna.
Turn off other wireless devices.
4-569-737-11(1)
Copyright 2015 Sony Corporation
245
Personal Audio System
SRS-X77
Standby mode differences
Standby function
The speaker is in standby mode when the (on/standby) indicator is off.
If you press the (on/standby) button to turn off the speaker, the (on/standby) indicator turns off and the
speaker enters standby mode.
BLUETOOTH/Network standby function
The speaker is in the BLUETOOTH/Network standby mode when the (on/standby) indicator lights up in orange.
If the BLUETOOTH/Network standby function is on, the speaker turns on automatically by operating a network device or
BLUETOOTH device, and network or BLUETOOTH connection starts.
When you turn on the speaker in the BLUETOOTH/Network standby mode, the start-up time becomes shorter and the
speaker will become operational sooner, than when you turn on the speaker in standby mode.
The BLUETOOTH/Network standby function can be set only when the speaker is connected to an AC outlet via the AC
adaptor.
With the speaker turned on, press and hold the (on/standby) button until the (on/standby) indicator lights up
in orange. The speaker turns off and enters the BLUETOOTH/Network standby mode.
Auto standby function
The speaker automatically enters standby mode or switches to the BLUETOOTH/Network standby mode if the speaker
remains in any of the following states for about 15 minutes.
No operation of the speaker.
No connect/disconnect operations to the speaker from external devices.
Music (sound) is not played while connected to an external device.
Hint
In standby mode, the power consumption of the speaker reduces.
In BLUETOOTH/Network standby mode, the speaker's start-up time will be shorter.
The auto standby function can be turned off by using SongPal.
Related Topic
Setting the auto standby function
Setting the BLUETOOTH/Network standby function
Help Guide
How to Use
246
Personal Audio System
SRS-X77
Precautions
On safety
The nameplate indicating Sony trademark, model number and electrical rating, is located on the bottom exterior of the
speaker.
The MAC address is located on the bottom exterior of the speaker.
MAC1 : MAC address for wired networks
MAC2 : MAC address for Wi-Fi networks
Before operating the speaker, be sure that the operating voltage of the speaker matches that of your local power
supply.
Where purchased: all countries/regions
Operating voltage: varies depending on the country/region.
Notes on the AC adaptor
When connecting or disconnecting the AC adaptor, turn off the speaker beforehand. Otherwise, it may cause
malfunction.
Use only the supplied AC adaptor. To avoid damaging the speaker, do not use any other AC adaptor.
Polarity of the plug
Plug the AC adaptor into a nearby wall outlet (mains). In the case of a problem, unplug it from the wall outlet (mains)
immediately.
Do not install the AC adaptor in a confined space, such as a bookcase or built-in cabinet.
To reduce the risk of fire or electric shock, do not expose the AC adaptor to dripping or splashing liquid, and do not
place objects containing liquid, such as vases, on the AC adaptor.
The validity of the CE marking is restricted to where it is legally enforced, mainly in the EEA (European Economic
Area) countries/regions.
About the main unit becoming warm
If you use the speaker for a long period, the main unit may become warm. This is not a malfunction.
On placement
Do not set the speaker in an inclined position.
Do not leave the speaker in a location near heat sources, or in a place subject to direct sunlight, excessive dust,
moisture, rain or mechanical shock.
Help Guide
How to Use
247
On operation
Do not insert any small objects, etc., into the jacks or ventilation hole on the rear of the speaker. The speaker may
short out or malfunction.
On cleaning
Do not use alcohol, benzene, or thinner to clean the cabinet.
Others
If you have any questions or problems concerning the speaker that are not covered in this Help Guide, please consult
your nearest Sony dealer.
When disposing of or giving away the speaker, make sure to initialize it to reset all settings to the factory defaults.
Related Topic
Updating the pre-installed software
Notes on software
4-569-737-11(1)
Copyright 2015 Sony Corporation
248
Personal Audio System
SRS-X77
Notes on charging
Caution
If the speaker detects a problem while charging the battery, the CHARGE indicator may turn off, even though charging is
not completed.
Check for the following causes:
Ambient temperature exceeds the range of 5 °C – 35 °C (41 °F – 95 °F).
There is a problem with the battery.
Note
Charging time varies depending on battery usage conditions.
The speaker becomes warm during charging. This is not a malfunction.
If the inside of the speaker heats up after extended use in a hot environment, charging may not start. This is to protect
the battery and is not a malfunction. When the inside of the speaker has cooled down, charging will start.
If the speaker is not used for a long time, it may take longer to charge the battery.
Avoid exposure to rapid temperature change, direct sunlight, moisture, sand, dust, or mechanical shock. Also, never
leave the speaker in a car parked in the sun.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Disposing of the speaker
For protection of the environment, remove the built-in battery pack from the speaker. Before removing the battery, drain
the battery by removing the AC adaptor and using the speaker only with the battery.
Take out the built-in battery for recycling. Do not open the cabinet other than when
disposing of the speaker.
1. Turn off the speaker and remove the AC adaptor.
2. Detach the cover from the bottom of speaker to remove the battery pack.
Remove the 6 rubber covers from the bottom of the speaker.
Remove the 6 screws.
Remove the cover.
Remove the connector plug from the speaker.
Remove the battery.
Note
Be careful not to damage the cord cover and battery with metallic tweezers, etc., when you remove the battery pack
from the speaker.
Do not let the battery be thrown into fire, heated up, or put under pressure.
Help Guide
How to Use
Personal Audio System
SRS-X77
What is BLUETOOTH wireless technology?
BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication
between digital devices, such as a computer and digital camera. BLUETOOTH wireless technology operates within a
range of about 10 m (about 30 ft).
Connecting between only two devices is common, but some devices can be connected to multiple devices at the same
time.
You do not need to use a cable for connection, nor is it necessary for the devices to face one another, such is the case
with infrared technology. For example, you can use such a device in a bag or pocket.
BLUETOOTH standard is an international standard supported by thousands of companies all over the world, and used
worldwide.
Maximum communication range
The maximum communication range may shorten under the following conditions.
There is an obstacle such as a person, metal, or wall between the speaker and BLUETOOTH device.
A wireless LAN device is in use near the speaker.
A microwave oven is in use near the speaker.
A device that generates electromagnetic radiation is in use near the speaker.
Interference from other devices
Because BLUETOOTH devices and wireless LAN (IEEE802.11b/g/n) use the same frequency, microwave interference
may occur and resulting in communication speed deterioration, noise, or invalid connection if the speaker is used near a
wireless LAN device. In such a case, do the following.
Use the speaker at least 10 m (about 30 ft) away from the wireless LAN device.
If the speaker is used within 10 m (about 30 ft) of a wireless LAN device, turn off the wireless LAN device.
Interference to other devices
Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off the
speaker and other BLUETOOTH devices in the following locations, as it may cause an accident.
where inflammable gas is present, in a hospital, train, airplane, or a gas station
near automatic doors or a fire alarm
Note
To be able to use the BLUETOOTH function, the BLUETOOTH device to be connected requires the same profile as
the system’s.
Note also that even when the same profile exists, devices may vary in function depending on their specifications.
Help Guide
How to Use
Due to the characteristics of BLUETOOTH wireless technology, the sound played on the speaker is slightly delayed
from the sound played on the BLUETOOTH device while talking on the telephone or listening to music.
This speaker supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection
when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be
careful when communicating using BLUETOOTH wireless technology.
Sony does not take any responsibility for the leakage of information during BLUETOOTH communication.
A device featuring the BLUETOOTH function is required to conform to the BLUETOOTH standard specified by
Bluetooth SIG, and be authenticated. Even when the connected device conforms to the above mentioned
BLUETOOTH standard, some devices may not be connected or work correctly, depending on the features or
specifications of the device.
Noise or sound skips may occur depending on the BLUETOOTH device connected with the speaker, the
communication environment, or the usage environment.
4-569-737-11(1)
Copyright 2015 Sony Corporation
252
Personal Audio System
SRS-X77
What is LDAC?
LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res)
Audio content, even over a BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies such as
SBC, it operates without any downconversion of the Hi-Res Audio content
*1
, and allows approximately three times more
data
*2
than those other technologies to be transmitted over a BLUETOOTH wireless network with unprecedented sound
quality, by means of efficient coding and optimized packetization.
*1
excluding DSD format contents
*2
in comparison with SBC (Subband Coding) when the bitrate of 990 kbps (96/48 kHz) or 909 kbps (88.2/44.1kHz) is selected
Note
Depending on the network environment, there may be an interruption at the high bitrate transmission.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Trademarks
Windows, the Windows logo, and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such
technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
Apple, the Apple logo, AirPlay, iPad, iPhone, iPod, iPod nano, iPod touch, iTunes, Mac and OS X are trademarks of
Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc. App Store
is a service mark of Apple Inc.
"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to
connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless
performance.
is a mark of the Wi-Fi Alliance.
Wi-Fi®, Wi-Fi Protected Access® and Wi-Fi Alliance® are registered marks of the Wi-Fi Alliance.
Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
DLNA™, DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital
Living Network Alliance.
"S-Master" is a trademark of Sony Corporation.
ClearAudio+ and are trademarks of Sony Corporation.
"DSEE" and are trademarks of Sony Corporation.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
The BLUETOOTH® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Sony
Corporation is under license. Other trademarks and trade names are those of their respective owners.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc., in the United States and in other countries.
Google Play and Android are trademarks of Google Inc.
Google Cast™ Ready and the Google Cast Ready Badge are trademarks of Google Inc.
"Xperia" and "Xperia Tablet" are trademarks of Sony Mobile Communications AB.
WALKMAN and WALKMAN logo are registered trademarks of Sony Corporation.
LDAC and LDAC logo are trademarks of Sony Corporation.
AOSS is a trademark of BUFFALO INC.
The system names and product names indicated in this Help Guide are generally the trademarks or registered
trademarks of the manufacturer. ™ and ® marks are omitted in this Help Guide.
Help Guide
How to Use
254
Personal Audio System
SRS-X77
Notes on software
Notes on the License
This speaker contains software that Sony uses under a licensing agreement with the owner of its copyright. We are
obligated to announce the contents of the agreement to customers under requirement by the owner of copyright for the
software.
Please read the contents of the license described in Important information on software.
Notice on GNUGPL/LGPL applied software
This speaker contains software that is subject to the following GNU General Public License (hereinafter referred to as
“GPL”) or GNU Lesser General Public License (hereinafter referred to as “LGPL”). These establish that customers have
the right to acquire, modify, and redistribute the source code of said software in accordance with the terms of the GPL or
LGPL supplied. The source code for the above-listed software is available on the Web.
To download, please access the following URL then select the model name “SRS-X77”.
URL: http://oss.sony.net/Products/Linux/
Please note that Sony cannot answer or respond to any inquiries regarding the content of the source code.
Notes on the update
If you use the speaker while connected to the Internet via a wired or Wi-Fi network, the speaker can update to the latest
software automatically.
By updating the software, new features will be added enabling you to experience more convenient and stable use.
If you do not want to automatically update the software, you can disable this function by using the SongPal installed on
your smartphone/iPhone.
However, the software may be updated automatically for stable use, etc., even if you disable this function. Also, if you
disable this function, you can still update the software manually.
For details about how to set and operate, see Updating the pre-installed software. The speaker may not be operational
while updating.
Disclaimer regarding services offered by third parties
Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear
any responsibility in these sorts of situations.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
Customer support websites
Please access the following support home page to get support information about your speaker:
For customers in Europe:
http://www.sony.eu/support
For customers in the USA:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
How to Use
Personal Audio System
SRS-X77
What can I do to solve a problem?
If the speaker does not function as expected, try the following steps to resolve the issue.
Find the symptoms of the issue in this Help Guide, and try any corrective actions listed.
Connect the speaker to an AC outlet via the AC adaptor to charge the battery.
You may be able to resolve some issues by charging the battery.
Push the RESET button on the rear of the speaker with a pointed object such as a pin.
Then turn on the speaker.
Initialize the speaker.
All settings of the speaker return to their factory defaults. All the pairing information and all the network settings are
deleted.
Look up information about the issue on the customer support website.
If the operations above do not work, consult your nearest Sony dealer.
Related Topic
Customer support websites
Initializing the speaker
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
258
Personal Audio System
SRS-X77
Unable to turn on the speaker or charge the built-in battery
Charge the built-in battery.
Make sure the AC adaptor is connected to the speaker and the AC outlet firmly.
Push the RESET button on the rear of the speaker with a pointed object, such as a pin.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
None of the speaker buttons can be operated.
If the (on/standby) indicator is flashing red, the speaker may be in the protect mode.
Push the RESET button on the rear of with a pointed object, such as a pin. Then turn on the speaker. If the
(on/standby) indicator keeps flashing, consult your nearest Sony dealer or the shop from which you purchased this
speaker.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
260
Personal Audio System
SRS-X77
The speaker has entered standby mode or BLUETOOTH/Network standby mode unexpectedly.
The speaker enters standby mode or BLUETOOTH/Network standby mode automatically if no operation is performed
and no sound is input for about 15 minutes. For details, see "Auto standby function."
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
261
Personal Audio System
SRS-X77
No sound/Sound from only one speaker/Low sound level
Check that both the speaker and the connected device are turned on.
Turn up the volume of the speaker and the connected device.
Check that the connected device is playing back.
If the device is connected to the AUDIO IN jack, check that both plugs of the audio cable (not supplied) are firmly
inserted into the speaker and the connected device.
If the device that is connected to the AUDIO IN jack is monaural, sound will only be output from the left speaker.
Keep the speaker away from metal objects.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
262
Personal Audio System
SRS-X77
Distorted sound/Humming or noise in the speaker output
Turn down the volume of the connected device. Adjust the volume of the connected device since sound volume level
may differ depending on a playback file.
If the connected device has an equalizer function, set it to off.
Keep the speaker away from microwave ovens or other wireless devices such as TVs or radios with Wi-Fi function.
Charge the speaker by connecting the AC adaptor if the CHARGE indicator is flashing.
If you connect a device with a built-in radio or tuner to the speaker, broadcasts may not be received, or sensitivity may
be reduced. Locate the speaker farther away from the device and check that you can listen to broadcasts
satisfactorily.
Move the speaker away from sources of noise.
Connect the speaker to a different wall outlet.
Use a commercially-available AC power extension cord with a noise filter.
Keep the speaker away from metal objects.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
The speaker cannot connect to the network (Other equipment on the network cannot find or recognize the speaker)
It takes about 1 minute for the speaker to acquire an IP address when it is turned on in a communication environment
without a router.
If you use a fixed IP address, the same IP address might be used already in use by other equipment. Therefore, use a
different IP address.
There is more than one home network. The computer and smartphone are connected to a different network than the
speaker.
Confirm that the Wi-Fi antenna is set.
If the settings are correct, try the following.
Turn off the wireless router/access point, wait a while and turn on the power again.
Turn off the speaker, wait a while and turn on the power again.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
264
Personal Audio System
SRS-X77
The speaker cannot connect to a Wi-Fi network
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer
together and perform the setup again.
If a LAN cable (not supplied) is connected to the speaker, it automatically makes a wired network connection. If you
wish to use a Wi-Fi network, do not connect a LAN cable (not supplied) to the speaker.
Check the settings of the wireless router/access point. Make sure the SSID stealth mode on the wireless router is set
to off. For details on the settings of the wireless router, refer to its operating instructions.
Bring the speaker and wireless router closer together. Devices that use the 2.4 GHz frequency band, such as a
microwave oven, BLUETOOTH or digital cordless device, etc., may interrupt Wi-Fi communication. Move the speaker
away from such devices or turn them off.
The speaker does not support IEEE 802.11ac . Use the 2.4 GHz frequency band (IEEE 802.11 b/g/n) or 5 GHz
frequency band (IEEE 802.11 a/n) for Wi-Fi connection.
There is more than one home network. The computer and smartphone are connected to a different network than the
speaker.
Confirm that the Wi-Fi antenna is set.
If the settings are correct, try the following.
Turn off the wireless router/access point, wait a while and turn on the power again.
Turn off the speaker, wait a while and turn on the power again.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
265
Personal Audio System
SRS-X77
The speaker cannot connect to a network using the WPS button
Set up your network after searching the wireless router/access point using the computer connected to the speaker
(access point scan).
Update the firmware of the wireless router/access point to the latest version.
Press and hold the WPS button for about two seconds until beeps are heard.
Refer to the operating instructions of your wireless router to make sure you are operating the WPS button on the
wireless router correctly.
Depending on the wireless router, press and hold the WPS button for a few seconds. For details, refer to the
operating instructions of your wireless router.
Place the speaker closer to your wireless router.
Confirm that the Wi-Fi antenna is set.
If the settings are correct, try the following.
Turn off the wireless router/access point, wait a while and turn on the power again.
Turn off the speaker, wait a while and turn on the power again.
Related Topic
Selecting the Wi-Fi network connection method
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
266
Personal Audio System
SRS-X77
The speaker does not appear in the device list of the computer's music playback application.
Some software that is pre-installed on a computer cannot select the speaker as an audio output device. Use software
that can select the speaker as an audio output device, such as Windows Media Player (except for Windows Vista) or
iTunes, etc.
Check the network connection.
Check that the speaker and the computer are connected to the same SSID of your router.
Check that the speaker is turned on.
If your computer uses a firewall, this may prevent the speaker from appearing on the list.
In this case, disable the firewall. For details, refer to the operating instructions or help guide of the firewall software.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
The speaker does not appear in the device select screen of SongPal
Check the network connection.
Set the Wi-Fi network settings of the smartphone/iPhone to on.
If you use a privacy separator function or network separating function of your wireless router, the router may not
connect to the speaker. In this case, disable these functions on your router. For details about the setting, refer to the
operating instructions of your router.
Check that the speaker and the smartphone/iPhone are connected to the same SSID of your wireless router.
Example of a good network connection
(The speaker ( ) and the smartphone/iPhone ( ) are connected to the same SSID of your wireless router ( ),
so they belong to the same network.)
In this situation, the smartphone/iPhone is able to recognize the speaker using SongPal.
Example of a bad network connection
(The speaker ( ) and the smartphone/iPhone ( ) are connected to different SSIDs of your wireless routers such
as mobile routers, etc. ( ), so they belong to different networks.)
In this situation, the smartphone/iPhone is not able to recognize the speaker using SongPal. The SSID connected to
the speaker can be identified by using SongPal if the speaker and the smartphone/iPhone are connected via
BLUETOOTH.
Help Guide
Troubleshooting
268
: Internet
: Modem
: Router
: Speaker
: Smartphone/iPhone
Distribute the connection using a network hub or a Wi-Fi access point set to infrastructure mode when it is difficult to
connect the speaker and the smartphone/iPhone directly to one router (for example, when using SongPal on a
smartphone/iPhone placed in a different room from the speaker).
Depending on your network environment, for example if you are living in an apartment building, the router may be
shared with the other residents. For details about your network environment, contact the person in charge of your
network. You can verify the SSID of the wireless router/access point that the speaker is connected to. While the
speaker is connected to the wireless router/access point, do steps 1 to 6 of "Connection method 2: Connecting to a
Wi-Fi network using a computer connected with a LAN cable," then check the SSID of the wireless router/access
point on the screen of step 6.
Related Topic
Connection method 2: Connecting to a Wi-Fi network using a computer connected with a LAN cable
4-569-737-11(1)
Copyright 2015 Sony Corporation
269
Personal Audio System
SRS-X77
The speaker cannot connect to music services
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer
together and perform the setup again.
Depending on the provider, only one connection to the internet may be allowed. In that case, the speaker will not be
able to connect if the connection is currently occupied. Please consult your carrier or service provider.
Turn your smartphone/iPhone off for a short period, turn it on again, then restart the SongPal application.
Related Topic
What you can do with SongPal
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
The controller cannot find the speaker (The controller cannot browse the contents of the speaker)
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer
together and perform the setup again.
Make sure that the controller and the speaker are connected to the SSID of your wireless router.
Disable the multicast control on the wireless router/access point. For details, refer to the operating instructions
supplied with your wireless router.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
Music started automatically (home network)
The speaker may have been operated by another device on your home network. To prevent this, set the
BLUETOOTH/Network standby function to off.
Related Topic
Setting the auto standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
272
Personal Audio System
SRS-X77
The sound is interrupted
The DLNA server is overloaded. Quit all running applications.
Wireless signal condition is poor. Stop using your microwave oven, etc.
The communication speed of the Wi-Fi network may become slower for IEEE802.11n-compliant wireless
routers/access points if the security method is set to WEP or WPA/WPA2-PSK (TKIP). If the speed slows down,
change the security method to WPA/WPA2-PSK (AES). The encryption (security) scheme varies depending on the
device. For details, refer to the operating instructions of your router/access point.
If the sound is interrupted or noise is generated via a Wi-Fi connection, connect the speaker and wireless router via a
commercially-available LAN cable, instead of via Wi-Fi. If the quality does not improve, also connect the computer
and wireless router via a commercially-available LAN cable.
Related Topic
Checking the Wi-Fi signal strength (reception sensitivity)
Connection method 4: Connecting to a wired network
4-569-737-11(1)
Copyright 2015 Sony Corporation
273
Personal Audio System
SRS-X77
Playback does not start
Check that the speaker and the network device are connected to your home network.
Check whether the audio file is incompatible or has been deleted from the server. Refer to the operating instructions
of the server.
The server tries to play the audio file in an audio format that the speaker does not support. Check the audio format
information on the server.
Disable the multicast control on the wireless router/access point. If it is enabled, it may take several minutes to output
audio. For details, refer to the operating instructions of the wireless router/access point.
Access for the speaker may not be permitted by the server. Change the settings on the server to allow access for the
speaker. For details, refer to the operating instructions of the server.
Related Topic
DLNA (Digital Living Network Alliance)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
274
Personal Audio System
SRS-X77
The speaker cannot be found from an iPhone/iPad/iPod touch or a computer with iTunes
Make sure the wireless router/access point is turned on.
When the speaker is connected to a Wi-Fi network, place the wireless router/access point and the speaker closer
together and perform the setup again.
It takes about 1 minute for the speaker to acquire an IP address when the speaker is turned on in a communication
environment without a router.
If you use a fixed IP address, the same IP address might be already in use by other equipment. Therefore, use a
different IP address.
Make sure that the iPhone/iPad/iPod touch or computer with iTunes is connected to the same home network as used
by the speaker.
Before using with the speaker, update iOS and iTunes to the latest versions.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
Music started automatically (AirPlay)
The speaker may be under the control of another component via AirPlay. To prevent this, set the
BLUETOOTH/Network standby function to off.
Related Topic
Setting the auto standby function
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
There is no sound, or the sound skips during playback
Make sure that the iPhone/iPad/iPod touch or computer with iTunes and the speaker are connected to the same SSID
of your wireless router.
The server is overloaded. Quit all unnecessary running software in the server.
Wireless signal condition is poor. Stop using your microwave oven, etc.
The communication speed of the Wi-Fi network may become slower for IEEE802.11n-compliant wireless
routers/access points if the security method is set to WEP or WPA/WPA2-PSK (TKIP). If the speed slows down,
change the security method to WPA/WPA2-PSK (AES). The encryption (security) scheme varies depending on the
device. For details, refer to the operating instructions of your router/access point.
If the sound is interrupted or noise is generated via a Wi-Fi connection, connect the speaker and wireless router via a
commercially-available LAN cable, instead of via Wi-Fi. If the quality does not improve, also connect the computer
and wireless router via a commercially-available LAN cable.
Related Topic
Checking the Wi-Fi signal strength (reception sensitivity)
Connection method 4: Connecting to a wired network
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
278
Personal Audio System
SRS-X77
The speaker cannot be operated
Check that the speaker is turned on.
Update the software version of the iPhone/iPad/iPod touch to the latest version.
If the UPDATE button on the speaker lights up in orange, update the pre-installed software of the speaker to the latest
version.
Make sure another device is not streaming to the AirPlay compatible device at the same time.
Update the SongPal software to the latest version.
Related Topic
Updating the pre-installed software
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
Unable to pair the speaker with a BLUETOOTH device
Bring the speaker and the BLUETOOTH device to within 1 m (3 ft) of each other.
If the (BLUETOOTH) indicator is not flashing quickly in white, tap and hold the (BLUETOOTH) (PAIRING)
button until the speaker beeps and the (BLUETOOTH) indicator starts flashing quickly in white.
Connect the speaker to an AC outlet or charge the battery of the speaker sufficiently.
If you initialize the speaker, it may not be able to connect with your iPhone/iPad/iPod. In this case, erase the pairing
information on the iPhone/iPad/iPod, and then perform the pairing procedure again.
If you reset network settings of your iPhone/iPad/iPod, the speaker may not be able to connect to it. Perform the
pairing procedure again.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
Personal Audio System
SRS-X77
Unable to connect the speaker to a BLUETOOTH device with One-touch (NFC)
Keep the NFC-compatible device close to the speaker until the NFC-compatible device reacts. If it still fails to connect,
move the NFC-compatible device slowly on the N-Mark of the speaker.
Check that the NFC function of the NFC-compatible device is set to on.
If the NFC-compatible device is in a case, remove it.
NFC reception sensitivity varies depending on the device. If you repeatedly fail to connect the speaker with an NFC-
compatible device by one touch, make the connection by an on-screen operation.
Check that your device is compatible with NFC. Refer to the customer support website.
Related Topic
Compatible BLUETOOTH devices
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
281
Personal Audio System
SRS-X77
There is no sound (BLUETOOTH)
If you are connecting a personal computer to the speaker, make sure that the audio output setting of the computer is
set for a BLUETOOTH device.
Check that the speaker has established a BLUETOOTH connection with the BLUETOOTH device.
Pair the speaker and the BLUETOOTH device again.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
282
Personal Audio System
SRS-X77
Distorted sound/Humming or noise
Bring the speaker and the BLUETOOTH device closer together. Remove any obstacles between the speaker and the
BLUETOOTH device.
There are some BLUETOOTH devices that can have the wireless playback quality changed. If your device is
compatible with this function, select a setting that prioritizes stable connection over sound quality. For details, refer to
the operating instructions supplied with the device.
Select "Priority on stable connection" for the BLUETOOTH audio streaming playback quality.
Related Topic
Selecting the BLUETOOTH audio streaming playback quality (Codec)
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
283
Personal Audio System
SRS-X77
Using the RESET button
If any of the followings occurs, push the RESET button on the rear of the speaker with a pointed object, such as a pin.
The speaker cannot be turned on.
The speaker cannot be operated even when it is turned on.
The (on/standby) indicator flashes in red.
After pushing the RESET button, turn on the speaker. If it does not turn on, consult your nearest Sony dealer.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
284
Personal Audio System
SRS-X77
Initializing the speaker
With the speaker turned on, press and hold the VOL (volume) – button and the (on/standby) button at the same
time for more than 5 seconds.
When the speaker receives the signal, the (on/standby) button flashes in green quickly for about two seconds.
The speaker is initialized, and it enters the standby mode. All settings of the speaker return to their factory defaults. All
the pairing information and all the network settings are deleted.
Note
If you initialize the speaker, it may not be able to connect your iPhone/iPad/iPod. In this case, erase the pairing
information of the speaker on your iPhone/iPad/iPod, and then perform the pairing procedure again.
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
285
Personal Audio System
SRS-X77
Disposing of or giving away this speaker
When disposing of or giving away this speaker, erase information from the speaker. Make sure you to initialize it to
reset all settings to the factory defaults.
If you use in internet service such as music service, information about the speaker may be retained by the service
provider. In this case, contact the network service provider to delete that information.
Related Topic
Initializing the speaker
4-569-737-11(1)
Copyright 2015 Sony Corporation
Help Guide
Troubleshooting
286
