Miele 10034540 30" PureLine Obsidian Black Warming Drawer ESW6880OB

User Manual - Transcript

• Page 1 - English - : Operating and Installation Instructions Warming Drawer To prevent accidents and machine damages read these instructions before installation or use MNr 09 800 170en US CA
• Page 2 - English - : IMPORTANT SAFETY INSTRUCTIONS3 Guide to the appliance 6 Warming drawer 6 Control panel 7 Standard accessories 8 Before using for the first time9 Operation 10 Operating modes10 Temperature settings11 Duration 12 Keeping food warm 13 Warming dishes 15 Capacity16 Other uses 17 Sabbath mode 18 Cleaning and care 19 Frequently asked questions 20 Optional accessories21 IMPORTANT SAFETY INSTRUCTIONS24 Installation dimensions 25 Installation 27 Installing the front panel 28 Electrical connection30 Technical Service31 Help protect our environment32 Contents
• Page 3 - English - : WARNING When using your appliance follow basic precautions including the following Read all instructions before installation or use to prevent injury and appliance damage This appliance conforms to all uniform safety codes and regulations Keep these operating instructions in a safe place and pass them on to any future user SAVE THESE INSTRUCTIONS Proper use This gourmet warming drawer is intended for domestic use and similar installation conditions Use only as described in this manual Any other use is prohibited This gourmet warming drawer is not designed for outdoors use Persons who lack physical sensory or mental abilities or experience with the appliance should not use it without supervision or instruction by a responsible person Children Close supervision is necessary when any appliance is used by or near children The appliance becomes hot during use and remains hot for some time after turning off Keep children away from the warming drawer until it has cooled to a safe temperature Ensure that any packing material is disposed of safely and kept out of the reach of children Danger of suffocation Technical safety Installation repair and maintenance work should be performed by a Miele authorized service technician in accordance with local building and safety codes Work by unqualified persons could be dangerous and may void the warranty Before installing the appliance check for externally visible damage Do not operate a damaged appliance Do not operate any appliance with a damaged cord Contact Mieles Technical Service Department To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system It is imperative that this basic safety requirement be met If there is any doubt have the electrical system of the house checked by a qualified electrician IMPORTANT SAFETY INSTRUCTIONS
• Page 4 - English - : Before installation make sure that the voltage and frequency listed on the rating label correspond with the household electrical supply This data must correspond to prevent injury and appliance damage Consult a qualified electrician if in doubt Power bars and extension cords are not safe for use with this appliance Risk of fire Do not use them to connect the gourmet warming drawer to the electrical power supply Do not use the appliance until it has been properly installed in the cabinetry This gourmet warming drawer must not be operated in mobile installations boats Under no circumstance open the outer casing of the appliance This is a safety hazard and may damage the appliance Defective components should be replaced by Miele original spare parts only Only with these parts can the manufacturer guarantee the safety of the appliance Do not operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner Contact Mieles Technical Ser vice Department Before servicing turn off the gas valve and disconnect the power supply by either removing the fuse unplugging the unit or manually quottrippingquot the circuit breaker Proper use Protect your hands with oven mitts or potholders when using the appliance Use only dry heat resistant potholders Moist or damp potholders used on hot surfaces can result in steam burns Do not store plastic containers or flammable objects in the drawer They can melt or catch fire when the appliance is turned on Fire hazard The use of accessories not recommended by Miele may cause injury Make certain that the power cords of small appliances do not come in contact with the appliance The insulation of the cable could become damaged Danger of electric shock Objects in the vicinity of the activated drawer may burn due to the high temperatures Never use the appliance to heat rooms Do not replace the nonslip mat with kitchen towels or similar objects Do not overload the appliance or sit or stand on the opened drawer as this would damage the drawer The drawer can be loaded with maximum 55 lbs 25 kg If the appliance is installed in a closed kitchen cabinet only use it when the cabinet door is open IMPORTANT SAFETY INSTRUCTIONS
• Page 5 - English - : Do not heat unopened food containers Pressure can build up causing an explosion that will damage the cooking compartment There is also a danger of personal injury and scalding Before serving be sure food is at a safe temperature This is particularly important when preparing food for babies and children Be aware of loose fitting or hanging clothing while using the warming drawer They may present a fire hazard The floor of the drawer becomes hot during use Caution do not touch Use the handle for opening and closing the appliance Do not use plastic containers or plastic wrap in the warming drawer These items may melt and cause damage to the warming drawer or injury Never warm undiluted alcohol in the warming drawer this can easily ignite Exercise caution when warming food with a high sugar content If heated for too long the sugar may caramelize or ignite Be sure that the vents are not covered Food and tableware may not warm evenly otherwise Do not leave the warming drawer unattended while in use Do not use water on grease fires A violent steam explosion may result Smother the fire with a dry chemical or foam fire extinguisher Never add water to food in a hot drawer The steam created could cause serious burns or scalds Liquids entering the appliance interior through the air vents may cause a shortcircuit Open and close the loaded drawer carefully to prevent liquids from spilling The quotKeep food warmquot operating mode must be only used for keeping hot food warm but not for heating cold food Ensure that the food is sufficiently heated before you place it in the appliance It is possible that some bacterial growth may occur in foods kept for lengthy period of time at low temperature levels Do not use a steam cleaner to clean the drawer Steam could penetrate electrical components and cause a short circuit SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY IMPORTANT SAFETY INSTRUCTIONS

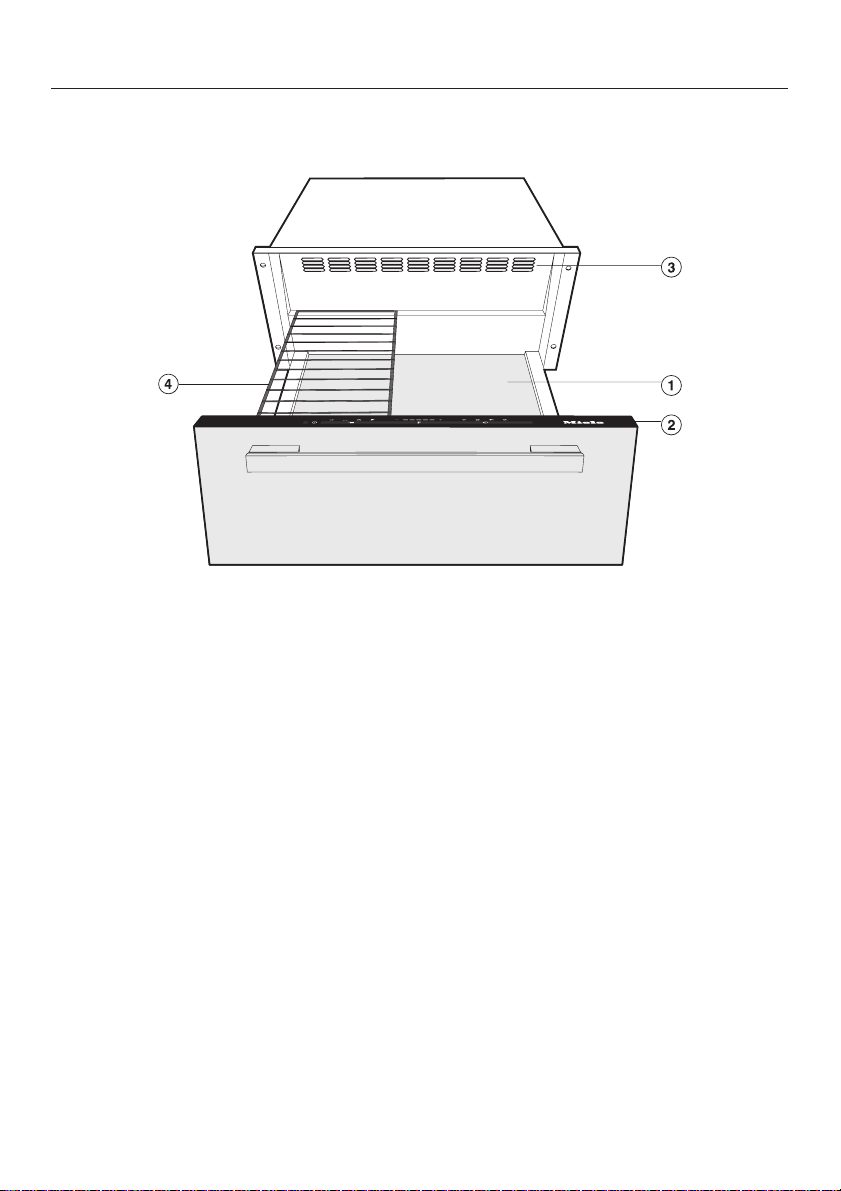

• Page 6: Warming drawer a Nonslip mat b Control panel c Vents d Rack Guide to the appliance
• Page 7 - English - : Control panel Sensors s Turns the warming drawer on and off Menu Selects the operating mode Temperature Sets the temperature Duration Sets the duration Indicators Operating modes H For warming cups and glasses H For warming plates and dishes 2 For keeping food warm For low temperatures Temperature Q Q Q Q Q Duration 1h 1 hour 2h 2 hours 3h 3 hours 4h 4 hours Guide to the appliance
• Page 8 - English - : Standard accessories All standard and additional accessories can be reordered if necessary see quotOptional accessoriesquot from Miele Rack For increasing the loading area Nonslip mat Provides a secure base for your dishes Guide to the appliance
• Page 9 - English - : Clean and heat the appliance Remove any protective wrapping Remove the nonslip mat and the rack if provided from the appliance and clean both with a sponge cloth warm water and liquid dish soap Then dry with a cloth Wipe your appliance inside and outside with a damp cloth and then dry Reinsert the nonslip mat and the rack if provided Heat the empty drawer for at least 2 hours Touch the ONOFF sensor s to turn the appliance on Tap quotMenuquot until the s symbol is illuminated Tap quotTemperaturequot until the LED on the far right is illuminated Tap quotDurationquot until 2h is illuminated Close the drawer The heater and the fan of the appliance will only turn on when the drawer is closed The appliance will turn off automatically after two hours Metal components have a protective coating which may give off a slight odor the first time your new appliance is heated The smell will dissipate after a short time and does not indicate a faulty connection Ensure proper ventilation of the area during this time Before using for the first time
• Page 10 - English - : Operating modes Touch the quotMenuquot sensor to select the operating mode the corresponding symbol will be illuminated H Warming cups and glasses H Warming dishes and plates Keeping food warm Low temperature The last selected operating mode is automatically set when the appliance is turned on the next time and will be displayed on the control panel The appliance is fitted with a fan distributing the warmed air within the drawer The fan runs continuously in the quotCupsglassesquot and quotWarming dishesplatesquot modes It works intermittently in the quotKeeping food warmquot and quotLow temperaturequot modes The appliance lets you keep food warm while simultaneously warming dishes For this purpose use the quotKeeping food warmquot operating mode Caution The dishes need more time to warm up but may become very hot Operation
• Page 11 - English - : Temperature settings Every operating mode has its own temperature range The factory settings for recommended temperatures are shown in bold By touching the 6 sensor you can change the temperature in 5 degree increments The last selected temperature is automatically set when the appliance is turned on the next time and will be displayed on the control panel Exception Low temperature Temperature Display Temperature F C H H 2 10440 14060 15065 15065 113 45 150 65 158 70 158 70 12250 15870 16775 16775 13155 16775 17680 17680 14060 17680 18585 18585 Approximate temperatures measured in the center of an empty drawer Operation
• Page 12 - English - : Duration The appliance is set to continuous operation Exception Low temperature You can select a limited duration by touching the quotDurationquot sensor 1 touch 1 hour 1h 2 touches 2 hours 2h and so on up to a maximum of 4 hours A fifth touch returns the appliance to continuous operation Do not leave the appliance unattended for longer periods of time when in continuous mode Long warming times cause food to dry out and possibly burn Your appliance is fitted with a safety device that will turn the warming drawer off after 12 hours max of continuous use Operating principle Open the drawer Touch the ONOFF sensor s to turn the appliance on Tap quotMenuquot until the desired operating mode is illuminated If you want to change the temperature tap quotTemperaturequot until the LED with the desired temperature is illuminated Tap quotDurationquot until the desired number of hours is illuminated Close the drawer Keep the ONOFF sensor s clean and dry The sensor key may not respond otherwise or cause uncontrolled switching actions Operation
• Page 13 - English - : Select only the 2 operating mode to ensure that the required minimum temperature 150 F 65 C for keeping food warm is maintained This mode is for keeping food that has just been cooked warm that is food that is still hot It is not intended for reheating food that is cold Select 2 Select the desired duration Preheat the appliance for 15 minutes to ensure that the interior has reached the required temperature Put the dishes into the drawer during preheating Remove the warmed dishes from the drawer Use pot holders when removing the dishes Place hot food on warmed dishes Replace the dishes in the drawer and carefully close the drawer to prevent liquid food from spilling Tips Fill the hot food into prewarmed dishes Put the dishes into the drawer during preheating Do not cover roasted or fried food that should be crispy Keep these foods warm at a higher temperature Moist and liquid foods and those that may generate a skin should be covered with aluminum foil or a plate Do not overfill dishes to prevent spilling Freshly prepared food is hotter than food kept warm Serve food kept warm on warmed plates Loss of nutrients begins with the preparation of the food and continues while it is being kept warm The longer food is kept warm the greater the loss of nutrients It is not recommended to keep food warm over a longer period of time as it will continue to cook Do not use force when opening or closing the drawer Liquid may spill from the containers and enter the ventilation slots The food may cool down if the drawer is opened frequently Keeping food warm
• Page 14 - English - : Settings Food Dishes Cover dishes Temperature at setting 2 Position Bottom Rack Steak rare Plate no xx Casserole soufflé gratin Gratin dish yes x Roast Plate yes x Stew Pot yes x Meat in gravy Pot yes x Vegetable in sauce Pot yes x Mashed potatoes Pot yes x Plated meal Plate yes x Baked potato Boiled potato Platepot yes x Breaded poultry meat Pan no x Pancakes Plate no xx Pizza Plate no x Sauce Pot yes x Strudel Plate no x Warming bread loaf no xx Warming rolls no xx Depending on the appliance mode Keeping food warm
• Page 15 - English - : Try to distribute the dishes over the entire surface High stacks of plate will warm up slower than individual dishes If you cannot avoid plate stacks place them in the front of the appliance Use the rack if provided with your model Do not place large platters vertically in front of the venting slots They will cover the outlets for the warm air The dishes wont be warmed up evenly For cups and glasses use only the H mode to ensure that the maximum temperature 140 F 60 C is not exceeded Warmed dishes will quickly lose their heat Remove them only immediately prior to use Warming times Various factors can affect the heating time Material and thickness of your dishes Load size Load distribution Temperature setting Use the following values as guidelines When set to H even warming requires the times shown in the list below Place settings for 6 persons approx 30 35 minutes Place settings for 12 persons approx 40 45 minutes With time you will get to know the optimum settings for your household Warming dishes
• Page 16 - English - : Capacity The quantity that can be loaded depends on the size and weight of your dishes Do not overload the drawer The maximum load is 55 lbs 25 kg The following examples are provided as guidelines 12 place settings 12 dinner plates C 10 14quot 26 cm 12 soup bowls C 9 116quot 23 cm 12 dessert plates C 7 12 19 cm 1 oval platter 12 58quot 32 cm 1 serving dish C 7 12 19 cm 1 serving dish C 6 516 16 cm 1 serving dish C 5 18quot 13 cm or alternatively 40 dinner plates C 10 14quot 26 cm 60 soup bowls C 9 116quot 23 cm 45 soup cups C 4quot 10 cm 20 dinner plates C 10 14quot 26 cm 20 soup bowls C 9 116quot 23 cm 20 pizza plates C 14 316quot 36 cm 142 espresso cups C 2 516quot 59 cm 90 cappuccino cups C 2 1116quot 88 cm 30 tea glasses C 2 58quot 3 18quot 67 cm8 cm height You can increase the load area by using the rack The rack can be used as needed With two racks you can increase the load area even more by placing one rack on the left and the other on the right You can obtain another rack from Miele Warming dishes
• Page 17 - English - : Food Dishes Cover dishes Temp at setting Temp at setting H Position Duration in hours min Bottom Rack Defrosting berries Bowlplate no x 050 Dissolving gelatin Bowl no x x 015 Proofing yeast dough Bowl yes with plate x 030 Preparing yogurt Yogurt glasses with lid x 500 Soaking rice pudding Pot yes with lid x x 040 Melting chocolate Bowl no x x 020 Defrosting vegetables Bowl no x 100 Depending on appliance model Other uses
• Page 18 - English - : Sabbath mode can be selected to facilitate religious customs Sabbath mode will turn off after about 72 hours and normal operation will resume In Sabbath mode the timer is deactivated and the sensors have to be touched longer than usual To activate Press and hold the Duration sensor At the same time press and hold the s sensor Press and hold both sensors until all 4 timer indicators light up Select the desired operating mode and temperature To deactivate You can deactivate the Sabbath mode before the 72 hours are up Press and hold the s sensor until all the indicators go out The drawer returns to normal operation Sabbath mode
• Page 19 - English - : Allow the appliance to cool before cleaning Do not use a steam cleaner to clean this appliance Pressurized steam could penetrate electrical components and cause a short circuit Do not use commercial cleaning agents Only use agents recommended for domestic use Appliance front interior Remove spills as soon as possible Otherwise the soiling may become hard to remove If spills are allowed to sit for an extended period of time or if unsuitable cleaning agents are used the surfaces may discolor or change Clean the appliance with a solution of warm water and liquid soap applied with a soft sponge Dry with a soft cloth All surfaces of the appliance are susceptible to scratching Breakages can occur on glass surfaces Glass cleaners may be used to clean the exterior However do not allow them to sit or quotpuddlequot this can cause damage to the surface Remove the cleaner promptly To better maintain your appliance avoid the following cleaners containing soda ammonia thinners or chlorides cleaners containing descaling agents or lime removers abrasive cleaners stainless steel cleaners dishwasher soap powder caustic oven cleaners scouring pads steel wool hard brushes metal scrapers Nonslip mat The mat can be removed to clean the bottom of the drawer Clean the mat by hand with warm water and liquid dish soap Dry thoroughly Do not return the mat until it is completely dry Never clean in the washing machine Cleaning and care
• Page 20 - English - : Repairs should only be carried out by an authorized technician in accordance with local and national safety regulations Unauthorized repairs could cause injury or appliance damage What if the drawer does not heat Possible fault Solution There is no power to the warming drawer Insert the plug into the outlet The circuit breaker has tripped Reset the circuit breaker If in doubt contact an electrician What if the food is not warm enough Adjust the temperature setting Check that the vents have not been blocked by large plates or dishes What if the food or dishes are too hot Check the temperature setting and make sure the food is not too close to the heating element What if the dishes are not warm enough Possible fault Solution The wrong temperature was selected Check the temperature setting The vents were blocked by dishes Reload the dishes The dishes need more time to warm See quotWarming timesquot A noise is heard during use This is not a fault This is the circulation fan which distributes the heated air The fan works in intervals during the quot2 Keep food warmquot mode Frequently asked questions
• Page 21 - English - : Miele offers a variety of additional accessories for its appliances including Miele cleaning and conditioning products These products can be easily ordered from Miele Rack For increasing the load capacity Nonslip mat To keep the dishes securely in place Optional accessories
• Page 23 - English - : Installation Instructions IMPORTANT SAVE FOR THE LOCAL ELECTRICAL INSPECTORS USE Information is subject to change Please refer to our website to obtain the most current product specification technical amp warranty information To prevent accidents and machine damage read these instructions before installation or use
• Page 24 - English - : Before installation make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply This data must correspond in order to avoid risk of damage to the appliance If in doubt consult a qualified technician The electrical outlet should be easily accessible after installing the unit The gourmet warming drawer must be installed only in combination with other appliances specified by Miele When installed with other appliances the warranty is void since the manufacturer cannot guarantee the safe use of the warming drawer A solidly installed base must be present for the installation of the gourmet warming drawer and the combination device to ensure the required load carrying capacity for both appliances The combination appliance is placed directly onto the installed gourmet warming drawer an intermediate base is not required The appliance must be installed in such a manner that the contents of the dishes can be seen Scalding due to spilling of hot food can be avoided Sufficient space must be given to pull the drawer out The gourmet warming drawer is available in two variants differing in height The required niche dimensions result from the installation dimensions of the gourmet warming drawer and the installation dimensions of the combination device Note to the installer Please leave these instructions with the consumer of the appliance for the local building inspectors use SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

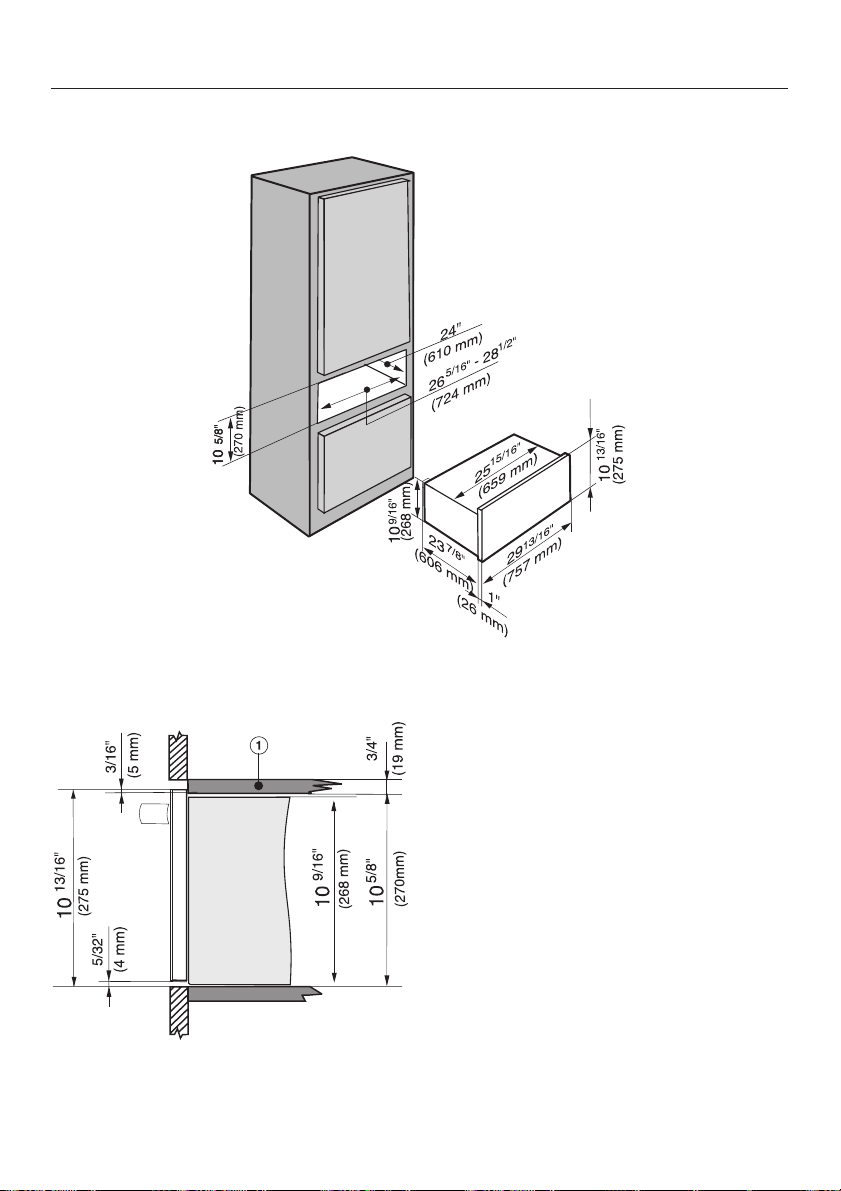

• Page 25: Solo installation Side view a Fixed shelf Appliances with glass front Appliances with stainless steel front Installation dimensions
• Page 26: Installation with an oven Side view with oven Appliances with glass front Appliances with stainless steel front Installation dimensions
• Page 27 - English - : Check that the base of the warming drawer is clean and level Only then will it function properly When inserting the appliance wear work gloves to avoid injuries Push the drawer into the cabinet as far as the vapor strip and align it Open the drawer and use the 4 screws provided to secure the drawer to the side walls of the cabinet Install the combination appliance according to the manual included with that appliance Installation

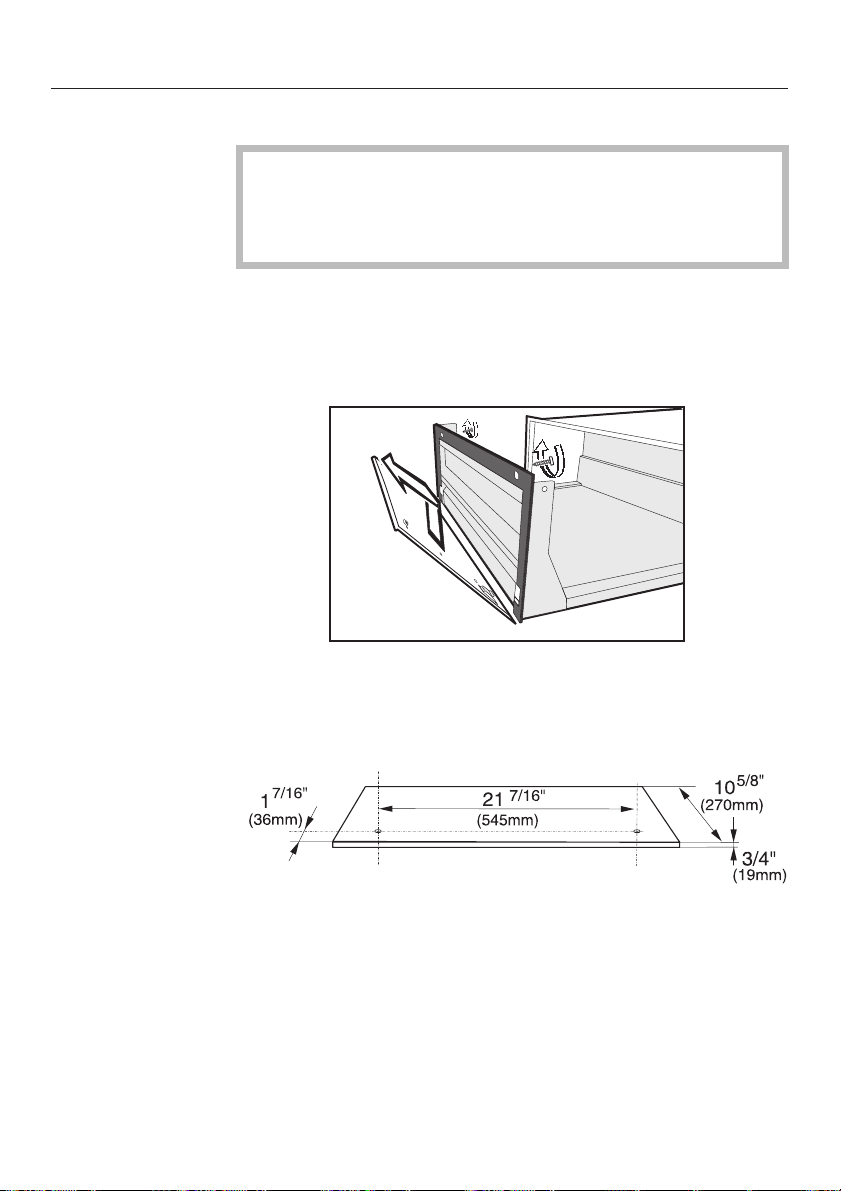

• Page 28 - English - : ESW 6380 FB The front panel must be at least 34quot 19 mm thick and made of heat resistant material 140 F 60 C The front panel including handle must not exceed 11 lb 5 kg in weight Attach the handle to the front panel using countersunk screws Remove the screws from the left and right sides of the drawer front and carefully lift the control panel out Be careful not to pull on or damage the power cord Remove the two screws on the inside of the front and remove the panel from the front of the drawer Predrill the custom front panel see illustration C 38quot 10 mm t 38quot 10 mm Installing the front panel
• Page 29 - English - : Remove the cable tie from the panel Screw the removed panel to the front panel see illustration Hook the panel into the bottom Make sure the seal is seated correctly Replace and slightly tighten the screws on the inside of the drawer front Align the front Tighten the screws on the inside of the drawer front Replace the control panel Use caution with the power cord Replace and tighten the screws on the left and right side of the drawer front Installing the front panel
• Page 30 - English - : CAUTION Before servicing disconnect the power supply by either removing the fuse shutting off the power main or manually quottrippingquot the circuit breaker Installation work and repairs should only be performed by a qualified technician in accordance with all applicable codes and standards Repairs and service by unqualified persons could be dangerous Before connecting the appliance to the power supply make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply This data must correspond to prevent machine damage Consult an electrician if in doubt When another appliance is installed in combination with the warming drawer to the same circuit operating both appliances at the same time may cause an overload If in doubt consult a qualified electrician Power supply This appliance is equipped witha5ft 15 m long power cord with a threeprong grounding plug ready for connection to a 120 V 15 A 60 Hz power supply Further installation details are on the wiring diagram Electrical connection
• Page 31 - English - : In the event of a fault which you cannot easily fix yourself please contact the Miele Technical Service Department at the address on the back of this booklet When contacting Technical Service please quote the serial number and model of the appliance This information is visible on the silver data plate supplied with the appliance MieleCare USA only MieleCare our Extended Service Contract program gives you the assurance of knowing that your appliance investment is covered by 5 years of worry free ownership MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts Only genuine Miele parts installed by factory trained professionals can guarantee the safety reliability and longevity of your Miele appliance Please note that unless expressly approved in writing by the Miele Ser vice department Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele Our goal is to prevent unauthorized and untrained service personnel from working on your Miele products possibly doing further damage to them you andor your home To learn more about MieleCare Extended Service Contracts please contact your appliance dealer or visit us online at httpmieleusacommielecare Technical Service
• Page 32 - English - : Disposal of packing materials The cardboard box and packing materials are biodegradable and recyclable Please recycle Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of children Danger of suffocation Disposal of an old appliance Old appliances contain materials that can be recycled Please contact your local recycling authority about the possibility of recycling these materials Before discarding an old appliance disconnect it from the electrical supply and cut off the power cord to prevent it from becoming a hazard Help protect our environment
• Page 35: INFORMATION IS SUBJECT TO CHANGE PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS TECHNICAL amp WARRANTY INFORMATION
• Page 36: MNr 09 800 170 00en US CA ESW 6380 ESW 6380 FB ESW 6580 ESW 6680 ESW 6780 ESW 6880
