Operating and installation instructions
Gourmet warming drawer
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 11 227 100
Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 11
Overview............................................................................................................... 12
ESW 7010, ESW 7110........................................................................................... 12
ESW 7020, ESW 7030, ESW 7120........................................................................ 13
Controls and display ............................................................................................. 14
Accessories supplied ............................................................................................ 15
Before using for the first time ............................................................................ 16
Cleaning the drawer for the first time.................................................................... 16
Heating up the drawer for the first time ................................................................ 16
Miele@home .......................................................................................................... 17
Operation.............................................................................................................. 20
Operating principles .............................................................................................. 20
Using MobileStart.................................................................................................. 21
Functions............................................................................................................... 21
Duration................................................................................................................. 21
Temperature settings............................................................................................. 22
Keeping food warm............................................................................................. 23
Warming crockery ............................................................................................... 26
Heating-up times................................................................................................... 26
Capacity ................................................................................................................ 26
ESW 7010, ESW 7110...................................................................................... 27
ESW 7020, ESW 7030, ESW 7120................................................................... 28
Low temperature cooking .................................................................................. 29
Other uses............................................................................................................ 34
Networking with Miele built-in appliances........................................................ 35
Sabbath mode...................................................................................................... 36
Cleaning and care ............................................................................................... 37
Problem solving guide ........................................................................................ 39
Optional accessories .......................................................................................... 41
Safety instructions for installation..................................................................... 42
Installation notes ................................................................................................. 43
Contents
3
Installation dimensionsESW 7010, ESW 7110.................................................. 44
Combination appliance with a height of 45cm..................................................... 44
Combination appliance with a height of 60cm..................................................... 45

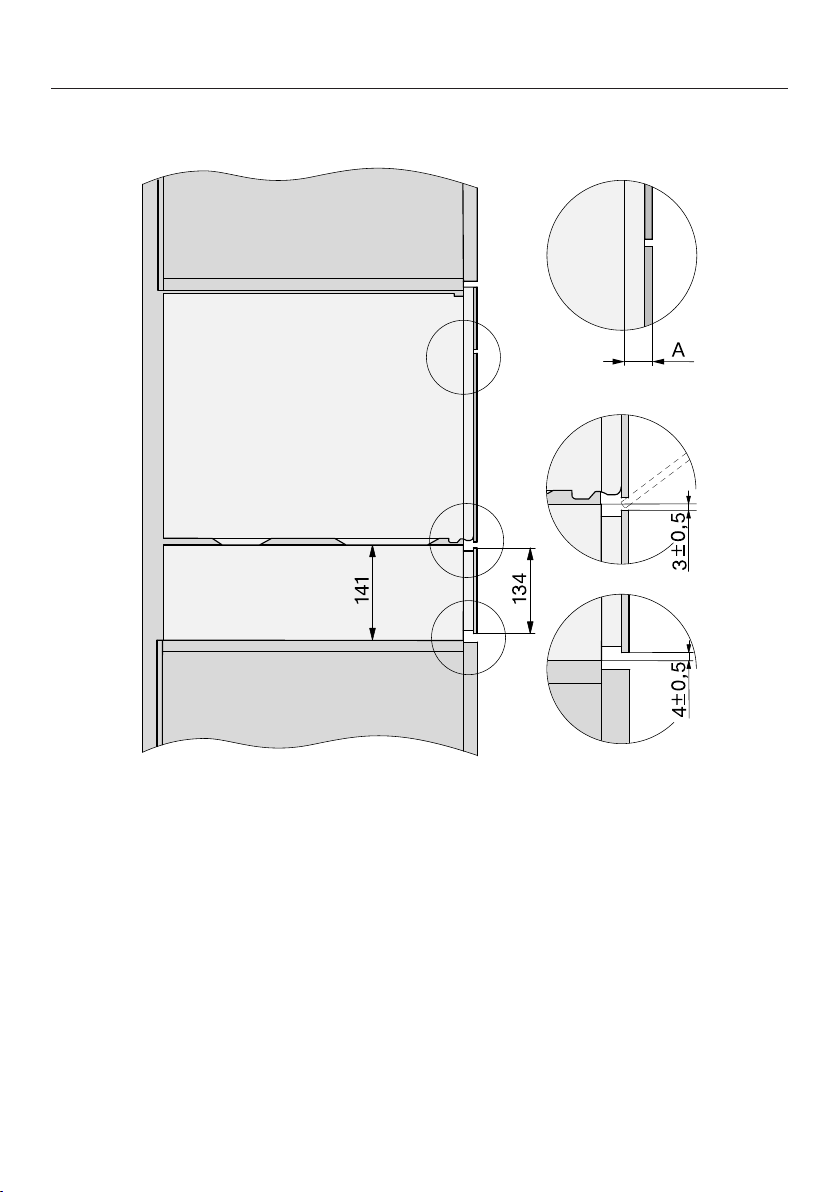

Side view ............................................................................................................... 46

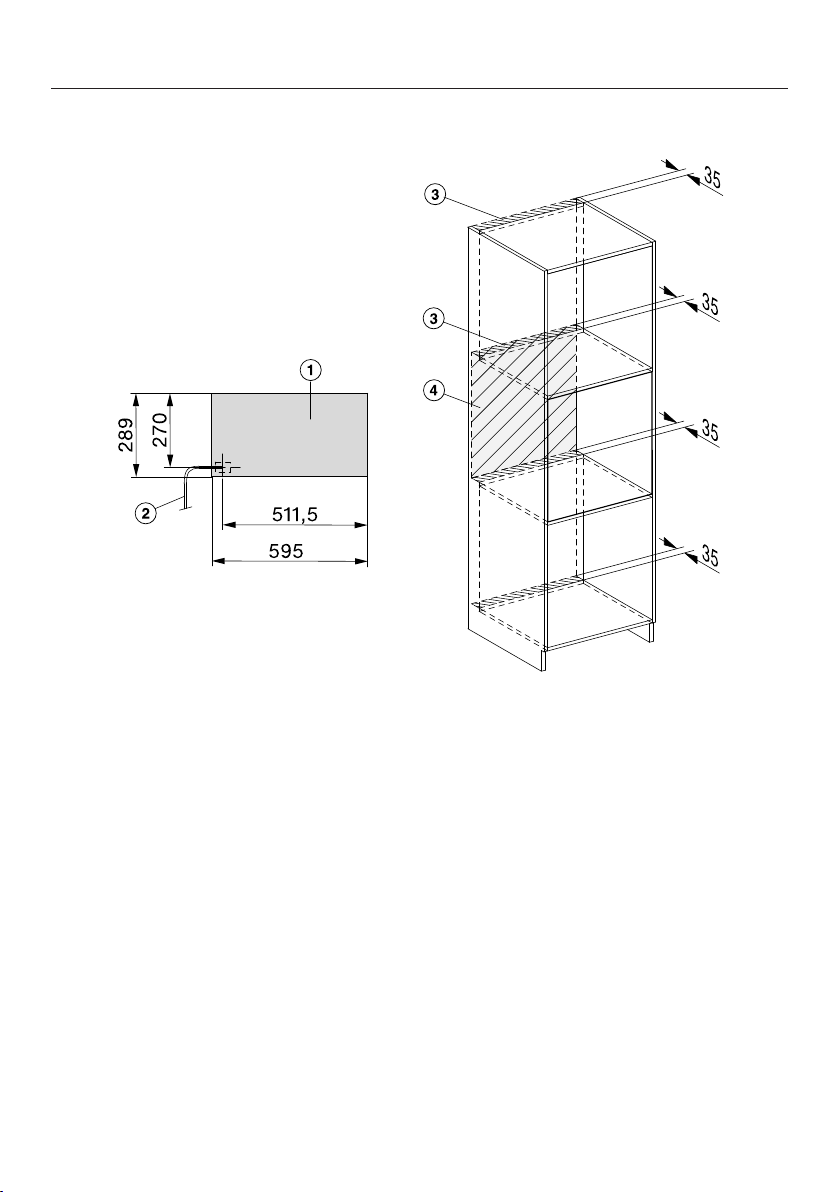

Connections and ventilation.................................................................................. 47
Installation dimensionsESW 7020, ESW 7120.................................................. 48
Combination appliance with a height of 45cm..................................................... 48
Combination appliance with a height of 60cm..................................................... 49
Side view ............................................................................................................... 50
Connections and ventilation.................................................................................. 51
Installation dimensionsESW 7030..................................................................... 52
Combination appliance with a height of 45cm..................................................... 52
Combination appliance with a height of 60cm..................................................... 53
Side view ............................................................................................................... 54
Connections and ventilation.................................................................................. 55
Installation............................................................................................................ 56
Electrical connection .......................................................................................... 57
Service.................................................................................................................. 59
Contact in case of fault ......................................................................................... 59
Data plate .............................................................................................................. 59
Warranty ................................................................................................................ 59
Warning and Safety instructions
4
Please note that the Gourmet warming drawer is referred to in these operating
instructions as the drawer.
This drawer complies with all relevant safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents or damage to the appliance, please
read these instructions carefully before installation and using it for
the first time. They contain important notes on installation, safety,
use and maintenance.
Miele cannot be held liable for damage caused by non-compliance
with these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Warning and Safety instructions
5
Correct application
This drawer is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This drawer is not suitable for outdoor use.
The warming drawer must only be used as described in these
instructions. Any other usage is not supported by the manufacturer
and could be dangerous.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.
Warning and Safety instructions
6
Safety with children
Young children must not be allowed to use this appliance.
Older children may use the appliance without supervision if its
operation has been clearly explained to them and they are able to
use it safely. Children must be able to recognise and understand the
potential risks of improper use.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the drawer, and do not
let them play with it.
The drawer gets hot when in use and remains hot for quite a
while after being switched off. Keep children well away from the
drawer until it has cooled sufficiently so that there is no longer any
danger of burning.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
7
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged drawer can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
Reliable and safe operation of the drawer can only be assured if it
has been connected to the mains electrical supply.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
The connection data (voltage and frequency) on the data plate of
the drawer must match the mains electricity supply in order to avoid
the risk of damage to the drawer.
Compare this data before connecting the appliance. If in any doubt,
consult a qualified electrician.
Do not connect the drawer to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
For safety reasons, this drawer may only be used when it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Never open the casing of the drawer.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
Warning and Safety instructions
8
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
If the plug has been removed or the connection cable is not
supplied with a plug, the drawer must be connected to the mains
supply by a suitably qualified electrician.
If the mains connection cable is damaged, it must be replaced
with a special connection cable of type H05VV-F (rubber insulated),
available from Miele, by a suitably qualified and competent
electrician in order to avoid a hazard (see “Electrical connection”).
During installation, maintenance and repair work, the drawer must
be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
If the drawer is installed behind a furniture panel (e.g. a door),
ensure that the door is never closed whilst the drawer is in use. Heat
and moisture can build up behind a closed furniture panel and cause
subsequent damage to the drawer, the housing unit and the floor. Do
not close the door until the drawer has cooled down completely.
Warning and Safety instructions
9
Correct use
You could burn yourself on the hot drawer or hot dishes. Protect
your hands with heat-resistant pot holders or oven gloves when
handling hot items. Do not let them get wet or damp. Heat transfers
through damp and wet material more quickly with the risk of scalding
or burning yourself.
Fire hazard! Do not store any plastic containers or combustible
objects in the drawer. They can melt or catch fire when the appliance
is switched on.
Due to the high temperatures radiated, objects left near the
warming drawer when it is switched on could catch fire. Do not use
the drawer to heat up the room.
Never replace the anti-slip mat supplied with the appliance with
paper kitchen towel or similar.
The telescopic runners can support a maximum load of 25kg.
Overloading or leaning or sitting on the drawer will damage the
telescopic runners.
The underside of the drawer gets hot when it is in use. Be careful
not to touch it when the drawer is open.
The anti-slip mat is heat-resistant up to 200°C.
It is possible for the bottom of pots and pans to exceed this
temperature, especially after they have been used to sear food.
Allow pots and pans to cool down for a minute or two before placing
them in the drawer.
Items made of plastic or aluminium foil will melt at high
temperatures. When keeping food warm, use only heat-resistant
containers made of porcelain, glass, etc.
If liquids get into the appliance through the vents, it can cause a
short circuit. Take care when opening and closing the loaded drawer
so that liquids do not spill over.
Warning and Safety instructions
10
The “Keeping food warm” function is designed to keep hot
food warm and not to warm up cold food. Ensure food is sufficiently
hot when placed inside the drawer.
Bacteria can develop in certain foods if the temperature is too low.
Make sure that you set a high enough temperature to keep food
warm.
Cleaning and care
Danger of electric shock! The steam from a steam cleaning
appliance could reach electrical components and cause a short
circuit. Never use a steam cleaner for cleaning.
Caring for the environment
11
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Overview
12
ESW 7010, ESW 7110
a
Anti-slip mat
b
Controls and indicators
c
Drawer front with Push2open mechanism
The drawer can be opened and closed by pressing lightly on the drawer front.
Overview
13
ESW 7020, ESW 7030, ESW 7120
d
e
c
a
b
a
Anti-slip mat
b
Controls and indicators
c
Drawer front with Push2open mechanism
The drawer can be opened and closed by pressing lightly on the drawer front.
d
Rack
e
Air vents
Overview
14
Controls and display
Sensor controls
a
On/Off sensor
b
MobileStart
c
Selecting the operating mode
d
Setting the temperature
e
Setting the duration
Display/indicator lights
f
Duration
1h=1hour
2h=2hours
3h=3hours
4h=4hours
g
Temperature display with segment bars
h
Low temperature cooking
i
Keeping food warm
j
Warming plates/dishes
k
Warming cups/glasses
l
MobileStart activated
m
Optical interface
(for Miele service technicians only)
Overview
15
Accessories supplied
The accessories supplied with your
appliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).
Rack
For increasing the loading area (ESW
7020, ESW 7030, ESW 7120).
Anti-slip mat
For keeping dishes secure.
“Low temperature cooking” the
cookbook
A selection of the best recipes from the
Miele test kitchen.
Before using for the first time
16
Remove any protective wrapping and
stickers.
Do not remove stickers carrying
safety or installation information or
the data plate.
This makes it easier to perform
servicing and repair work.
Cleaning the drawer for the
first time
Remove the anti-slip mat and the
rack, if present, from the drawer.
Clean them with warm water and a
little washing-up liquid applied with a
clean sponge or with a clean, damp
microfibre cloth.
Dry the mat and the rack with a soft
cloth.
Wipe the drawer inside and out with a
damp cloth to remove any dust or
left-over packaging.
Dry all surfaces with a soft cloth.
Refit the anti-slip mat and the rack (if
applicable) in the drawer.
Heating up the drawer for the
first time
Heat the empty drawer for at least
2hours.
Switch the drawer on by touching the
On/Off sensor.
Touch the sensor repeatedly until
the symbol lights up.
Touch the sensor repeatedly until
the segment on the far right-hand
side of the temperature display lights
up.
Touch the sensor repeatedly until
2h lights up.
Close the drawer.
The drawer is fitted with a contact
switch. This ensures that the heating
element and fan in the appliance only
work when the drawer is closed.
The drawer will switch itself off
automatically after 2hours.
The metal components have a
protective coating. This may give off a
slight smell when the drawer is heated
up for the first time. The smell and any
vapours given off will dissipate after a
short time and do not indicate a faulty
connection or appliance.
Ensure that the kitchen is well ventilated
when heating the drawer for the first
time.
Before using for the first time
17
Miele@home
Your drawer is equipped with an
integrated Wi-Fi module.
In order to use it, you need:
– a Wi-Fi network
– the Miele@mobile App
– a Miele user account. The user
account can be created via the
Miele@mobile App.
The Miele@mobile App will guide you
as you connect your drawer to your
home Wi-Fi network.
Once your drawer is connected to your
Wi-Fi network, you can use the App, for
example, to carry out the following
activities:
– Access information about the
operating status of your drawer
– Retrieve information on cooking
processes that are in progress
– End cooking programmes that are in
progress
Connecting your drawer to your Wi-Fi
network will increase energy
consumption, even when the drawer is
switched off.
Before installing the drawer in its final
location, ensure that the signal of
your Wi-Fi network is strong enough.
Miele@home availability
The ability to use the Miele@mobile App
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele@mobile App
You can download the Miele@mobile
App from the Apple App Store
®
or the
Google Play Store™ free of charge (only
functional in selected countries).
Before using for the first time
18
Connecting via the app
The Miele@mobile App can be used to
connect to your network.
Install the Miele@mobile App on your
mobile device.
To log in you will need:
1. Your Wi-Fi network password.
2. The password of your drawer.
The password for your drawer consists
of the last nine digits of the serial
number. This can be found on the
appliance's data plate.
Data plate
The data plate is located here:
Start signing the appliance on in the
app. Follow the signing-in
instructions.
When requested to activate Wi-Fi on
the drawer, proceed as follows:
Switch the drawer off.
Press and hold the sensor.
At the same time, touch the
sensor.
2h will light up constantly, 3h will flash
on and off.
The drawer will be ready for connection
in the next 10minutes.
Follow the instructions in the App.
When successfully connected, 2h and
3h will light up constantly.
Quit the connection mode on the
drawer by touching the sensor.
The drawer can now be operated via
the App.
Before using for the first time
19
Connecting via WPS
Your Wi-Fi router must support WPS
(Wi-Fi Protected Setup).
Switch the drawer off.
Press and hold the sensor.
At the same time, touch the
sensor.
2h will light up constantly, 3h will flash
on and off.
The WPS connection must be started
on the drawer at the same time as on
the Wi-Fi router.
Touch the sensor control on the
drawer after a few seconds.
After a short while, 2h will light up
constantly, and 3h and 4h will flash on
and off.
The drawer will be ready for connection
in the next 10minutes.
Start the WPS connection on your
Wi-Fi router.
When successfully connected, 2h and
3h will light up constantly.
Quit the connection mode on the
drawer by touching the sensor.
The drawer can now be operated via
the App.
If the connection fails, you have
probably not connected WPS on your
router quickly enough. Repeat the steps
above.
Useful tip: If your Wi-Fi router does not
support WPS, please connect via the
Miele@mobile App.
Signing out of Wi-Fi (resetting factory
default settings)
To set up a new Wi-Fi connection, the
existing Wi-Fi connection must first be
disconnected.
Switch the drawer off.
Press and hold the sensor.
At the same time, touch the
sensor.
With an existing Wi-Fi connection, 2h
and 3h will light up constantly.
The drawer will be ready for
disconnection in the next 10minutes.
Touch the sensor.
2h will light up constantly, 3h will flash
on and off.
After a few seconds, 2h and 3h will
flash on and off. The connection has
been disconnected.
Quit the signing-off mode on the
drawer by touching the sensor.
The Wi-Fi connection has been
disconnected. A new connection can
now be set up.
Operation
20
Operating principles
Malfunction due to dirty and/or
covered sensor controls.
The sensor controls do not react or
unintentional switching procedures
result, perhaps even automatic
switching off of the drawer.
Keep the sensor controls and
indicators clean.
Do not place anything over the
sensor controls or indicators.
Damage caused by leaking
liquids.
Liquids that get inside the drawer
can cause a short circuit.
Open and close the loaded drawer
carefully to prevent liquids from
spilling.
Open the drawer.
Switch the drawer on by touching the
sensor.
Touch the sensor repeatedly until
the required function lights up.
Touch thesensor repeatedly until
the segment for the required
temperature lights up in the
temperature display.
Touch the sensor repeatedly until
the required operating duration (in
hours) lights up.
Close the drawer.
Operation
21
Using MobileStart
Touch the sensor to activate
MobileStart.
The indicator light above the sensor
will light up. You will be able to operate
the drawer via the Miele@mobile App.
Operation via the sensors has
precedence over operation via the
App.
Functions
The following functions are available:
– Warming cups/glasses
– Warming dishes/plates
– Keeping food warm
– Low temperature cooking
The last function selected is
automatically activated the next time
the drawer is switched on, and appears
in the display.
The drawer has a fan which distributes
the warm air evenly throughout the
drawer. The fan runs continuously with
all functions.
The drawer can be used to keep food
warm at the same time as warming
plates and dishes. Use the Keeping
food warm function for this.
Danger of burning from hot
dishes!
Empty dishes will become very hot
when heated using the Keeping
food warm function.
Use oven gloves when removing the
dishes.
Duration
Fire hazard due to dried-out
food.
Keeping food warm for a long time
can result in it drying out or even
self-igniting.
Do not leave the drawer unattended
for long periods in continuous
operation.
The drawer is set for continuous
operation mode (exception: Low
temperature cooking). The safety
switch-off mechanism will switch off the
drawer after a maximum of 12hours of
continuous operation.
A limited operating duration can be
selected by touching the sensor.
Touch once for 1hour (1h), twice for
2hours (2h), etc., up to a maximum of
4hours.
Continuous operation is restored by
touching the sensor a fifth time.
Operation
22
Temperature settings
Each operating mode has its own temperature range. The factory default
recommended temperatures are printed in bold. The temperature can be altered in
5°C increments by touching the sensor.
The last temperature selected is automatically activated the next time the drawer is
switched on, and shown in the display (exception: Low temperature cooking).
Temperature
display
Temperature
[°C]*
40 60 65 65
45 65 70 70
50 70 75 75
55 75 80 80
60 80 85 85
* Approximate temperature values, measured in the middle of the drawer when empty
Keeping food warm
23
Useful tips
To maintain your food's optimum quality
please note the following:
– Place the hot food into pre-heated
dishes. Place the empty dishes in the
drawer while it pre-heats.
– Do not cover roasted or fried foods
which you want to keep crisp. These
types of food need to be kept warm
at a higher temperature.
– Cover liquids and food with a high
moisture content with a suitable lid or
heat-resistant foil. This will prevent
moisture escaping and condensing
outside the dish.
– To avoid spillages, do not overfill
dishes.
– Freshly cooked food is hotter than
food which is being kept warm. Serve
food which has been kept warm on
pre-heated plates.
– Nutrients are lost when food is
cooked, and continue to diminish
when food is kept warm. The longer
food is kept warm for, the greater the
loss of nutrients.
– We do not recommend food being
kept warm for too long, as it will
continue to cook.
– Food may cool down if the drawer is
opened and closed too often.
– Do not open the drawer too quickly or
slam it shut. Liquids could spill over
and get into the vents or into the
inner parts of the drawer.
Health risk caused by using too
low a temperature.
Bacteria may develop in the food if
the temperature used for keeping
food warm is too low.
Only use the Keeping food warm
function for keeping food warm.
This function is for keeping food warm
which has just been cooked and is still
hot. It is not for reheating food that has
gone cold.
Select the Keeping food warm
function.
Select the desired duration.
Pre-heat the drawer for approx.
15minutes to ensure that it has
reached the required minimum
temperature.
Whilst the appliance is heating up,
place the empty dishes in the drawer.
Remove the pre-heated dishes from
the drawer after 15minutes and fill
them with the hot food. Wear oven
gloves when removing dishes from
the drawer.
Then place the dishes in the drawer
and close it carefully to prevent any
liquids from spilling.
Keeping food warm
24
Settings
Food Dishes Cover
dish
Temperature for
the setting
Position
Floor Rack*
Steak (rare) Plate No x x
Bakes/Gratins Shallow
dish
Yes x
Roast Plate Yes x
Casserole Ovenproof
dish
Yes x
Fish fingers Pan No x
Meat in a sauce Ovenproof
dish
Yes x
Vegetables in a
sauce
Ovenproof
dish
Yes x
Stew Ovenproof
dish
Yes x
Mashed potato Ovenproof
dish
Yes x
Plated meal Plate Yes x
Baked potatoes/
New potatoes
Plate/
Ovenproof
dish
Yes x
Schnitzel Pan No x
Pancakes/
Potato cakes
Plate No x x
Pizza Plate No x
Boiled potatoes Ovenproof
dish
Yes x
Gravy Ovenproof
dish
Yes x
Strudel Plate No x
Warming bread – No x x
Keeping food warm
25
Food Dishes Cover
dish
Temperature for
the setting
Position
Floor Rack*
Warming bread
rolls
– No x x
* depending on model
Warming crockery
26
Useful tips
– Distribute the crockery over the whole
area of the drawer. Stacks of plates
heat up more slowly than individual
pieces of crockery. If you cannot
avoid stacking plates, place them at
the front of the drawer.
Use the rack (depending on model).
– Do not place large serving dishes
right up against the vents. They will
cover the warm air outlets. The
crockery will not heat up evenly.
– For cups and glasses, only select the
Warming cups/glasses function to
ensure that the maximum
temperature (60°C) is not exceeded.
– Heated crockery cools down very
quickly. Do not remove it from the
drawer until just before you need it.
Heating-up times
Various factors will affect the heating-
up times:
– The material and thickness of the
crockery
– Load size
– How the crockery is arranged
– The temperature setting
It is therefore not possible to state
precise times. For even heating with the
Warming dishes/plates function, the
following values can be used as a
guide:
– 30–35 minutes for 6 place settings to
heat up evenly
– 40–45 minutes for 12 place settings
to heat up evenly
As you use the warming drawer, you will
get to know which setting suits your
own needs best.
Capacity
Risk of damage due to
overloading.
Overloading the drawer will damage
the telescopic runners.
The maximum load bearing capacity
of the drawer is 25kg.
The quantity that can be loaded will
depend to a great extent on the size
and weight of your crockery.
ESW 7020, ESW 7030, ESW 7120: the
loading area can be increased by using
the rack supplied with the drawer.
Position the rack to suit. With two racks
you can increase the loading area even
more by placing one rack on the left
and the other on the right. An additional
rack can be obtained from the Miele
online shop, or directly from Miele (see
“Optional accessories”).
Warming crockery
27
ESW 7010, ESW 7110
The loading examples shown here are suggestions:
6 place settings
6 dinner plates 26cm
6soup bowls 23cm
6dessert plates 19cm
1 oval serving dish 32 cm
1 serving dish 16cm
1 serving dish 13cm
or alternatively
12 dinner plates 26cm
18soup bowls 23cm
16soup cups 10cm
6dinner plates and
6soup bowls
26cm
23cm
6pizza plates 36cm
72espresso cups 5.9 cm
30cappuccino cups 8.8 cm
30 punch glasses 6.7cm (8cm tall)
Warming crockery
28
ESW 7020, ESW 7030, ESW 7120
The loading examples shown here are suggestions:
12 place settings
12 dinner plates 26cm
12 soup bowls 23cm
12 dessert plates 19cm
1 oval serving dish 32 cm
1 serving dish 19cm
1 serving dish 16cm
1 serving dish 13cm
or alternatively
40 dinner plates 26cm
60 soup bowls 23cm
45 soup cups 10cm
20 dinner plates
20 soup bowls
26cm
23cm
20 pizza plates 36cm
142 espresso cups 5.9 cm
90 cappuccino cups 8.8 cm
30 punch glasses 6.7cm (8cm tall)
Low temperature cooking
29
With low temperature cooking, food is
cooked at a low temperature over a
long period of time. Using this method,
food loses less liquid as it is cooked
gently and so remains succulent and
tender.
If food probes from other Miele built-
in appliances are used in the drawer,
they may affect the built-in
appliances.
Only use the Miele built-in appliance
food probe with the built-in
appliance that it was supplied with.
For precision, we recommend using a
proprietary food probe to monitor the
core temperature. The food can then be
cooked to an exact temperature.
Core temperature
Food can be cooked to a core
temperature of up to 70°C in the
drawer. Food which needs to be cooked
to a core temperature higher than 70°C
is not suitable for cooking in the drawer.
The core temperature indicates the
degree of doneness in the middle of the
food.
For meat, the lower the core
temperature, the less cooked the meat
is in the middle:
– 45–50°C = rare
– 55–60°C = medium
– 65°C = well-done
Cooking duration
The cooking duration depends on the
size of the food, and can be between 1
and 6hours.
Pre-heat the drawer with the suitable
cooking containers for 15minutes. This
ensures that the dishes and the interior
of the drawer reach the required
temperature.
Example:
Selected duration 1h
Actual operating time 1hour 15minutes
Notes
– Use meat that has been properly
hung.
– The quality of the food is of vital
importance for a good result.
– The food must be at room
temperature. Take it out of the fridge
about 15minutes before cooking.
Low temperature cooking
30
Using the Low temperature
cooking function
Select the Low temperature
cooking function.
Place an ovenproof dish on the floor
of the drawer.
The drawer will pre-heat automatically
for 15minutes and then operate at the
preset temperature of 85°C for a preset
duration of 4h.
If you wish to cook using different
settings, please consult the cooking
charts on the following pages.
If necessary, select the desired
temperature.
If necessary, select the desired
duration.
After pre-heating, put the food in the
dish.
If using a food probe:
Push the food probe into the food so
that the tip is in the centre. Make sure
that it does not come into contact
with bones or layers of fat as these
can cause a false reading.
When the temperature is approx.
10°C (guide value) below the core
temperature given in the cooking
chart, remove the food from the
drawer.
A smaller temperature difference is
recommended for large portions of
food.
Sear the food on all sides over a high
heat on the cooktop.
Useful tips
– Do not cook the food all the way
through. Sear the food straight after
cooking.
– The food can be sliced straight away.
It does not need to rest.
– Serve the food on pre-heated plates
to stop it cooling too quickly.
Low temperature cooking
31
Pre-heat the cooking container for 15minutes. In this time, rest the food at room
temperature.
Place the food into the pre-heated cooking container in the drawer.
The durations given in the charts are guidelines only. The food can be cooked
further if required.
Beef cooking chart
Cut of meat [min] * [°C] [min]
Medallions
3–4cm thick
1 per side
1–2 per side
2 per side
45–50
55–60
65
45–60
65–80
95–110
Sirloin steak
approx. 170g
1 per side
2 per side
2 per side
45–50
55–60
65
45–60
65–80
95–110
Rump steak
approx. 200g
1 per side
1–2 per side
2 per side
45–50
55–60
65
35–45
45–60
95–110
*45–50°C rare/55–60°C medium/65°C well done
Searing time/Core temperature/Duration/Temperature setting
Veal cooking chart
Cut of meat [min] * [°C] [min]
Medallions
3–4cm thick
1 per side
2 per side
2 per side
45–50
55–60
65
40–55
60–75
90–105
Steak
approx. 160g
2cm thick
1 per side
2 per side
2 per side
45–50
55–60
65
15–30
30–45
65–80
*45–50°C rare/55–60°C medium/65°C well done
Searing time/Core temperature/Duration/Temperature setting
Low temperature cooking
32
Pork cooking chart
Cut of meat [min] * [°C] [min]
Fillet
approx. 550g
6–8 total 65 90–110
Medallions
approx. 4cm thick
2 per side 65 85–100
*65°C well done
Searing time/Core temperature/Duration/Temperature setting
Lamb cooking chart
Cut of meat [min] * [°C] [min]
Rack of lamb
approx. 170g
2–4
2–4
60
65
45–60
85–100
Rack of lamb
approx. 400g
2–4
2–4
60
65
45–60
85–100
Boned
rack of lamb
approx. 600g
2 per side
2 per side
60
65
45–60
95–110
*60°C medium/65°C well done
Searing time/Core temperature/Duration/Temperature setting
Game cooking chart
Cut of meat [min] * [°C] [min]
Venison medallions
3–4cm thick
2 per side
2 per side
60
65
65–80
95–110
Saddle of roebuck off
the bone
approx. 800g
2 per side
2 per side
60
65
55–70
95–110
*60°C medium/65°C well done
Searing time/Core temperature/Duration/Temperature setting
Low temperature cooking
33
Fish cooking chart
Type of fish [min] [°C] [min]
Salmon
400g
2 on the skin side 52 45–60
Trout (whole)
approx. 350g
2 per side 52 15–30
Cod
200g
No searing 52 75–90
Sea bream (whole)
approx. 480–500g
2 per side 52 25–40
Sea bass (whole)
approx. 480–500g
2 per side 52 20–35
Searing time/Core temperature/Duration/Temperature setting
Other uses
34
Food Cooking
container
Cover the
dish?
[h:min]
Defrosting
berries
Bowl / Plate No 00:50
Dissolving
gelatine
Bowl No 00:15
Proving yeast
dough
Bowl Yes, with
plate
00:30
Making yoghurt Yoghurt jars
with lid
– 05:00
Rice pudding
(to finish off the
cooking
process)
Oven-safe
dish
Yes, with lid 00:40
Melting
chocolate
Bowl No 00:20
Defrosting
frozen
vegetables
Bowl No 01:00
Temperature setting/ Temperature setting/ Duration
Networking with Miele built-in appliances
35
Networking enables the drawer to
operate automatically depending on the
operational status of another Miele
built-in appliance.
Example:
The drawer heats dishes at the right
time before or after using the networked
built-in appliance.
Pre-requisites
The following conditions must be met
for networking the drawer with other
built-in appliances:
– The drawer is connected to the
household Wi-Fi network via
Miele@home.
– The other built-in appliance is
connected to the household Wi-Fi
network via Miele@home.
Carrying out the networking
Networking is carried out via the
Miele@mobile App as normal.
See “Before using for the first time –
Setting up Miele@home” as well as the
Miele@mobile App for detailed
information about this function.
Operation via the sensors has
precedence over operation via the
App.
Sabbath mode
36
For religious observance, the drawer
can be programmed for the duration of
the Sabbath. This mode switches off
automatically after about 72hours and
the drawer resumes normal operation.
When this function is activated, the
timer is deactivated and the sensor
controls must be touched for longer
than usual.
Activating
If necessary, switch the drawer off.
Press and hold the sensor.
At the same time, touch the
sensor.
1h, 2h, 3h and 4h will light up.
Set the required mode and
temperature.
Deactivating
You can deactivate the Sabbath mode
before the time has expired.
Press and hold the sensor.
All displays will switch off.
The drawer is in normal mode again.
Cleaning and care
37
Risk of damage due to moisture
ingress.
The steam from a steam cleaning
appliance could reach electrical
components and cause a short
circuit.
Do not use a steam cleaner to clean
the drawer.
The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter. All surfaces are
susceptible to scratching. Scratches
on glass surfaces could cause a
breakage in certain circumstances.
Remove any residual cleaning agent
immediately.
Never use abrasive sponges or
cleaning agents.
Danger of burning on the hot
interior!
The interior of the drawer will be hot
after use.
Allow the drawer to cool down to a
safe temperature before cleaning.
The drawer and accessories should
be cleaned and dried after each use.
Unsuitable cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
– cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides
– cleaning agents containing descaling
agents
– abrasive cleaning agents, e.g.
powder cleaners and cream cleaners
– solvent-based cleaning agents
– stainless steel cleaners
– cleaning agents for ceramic cooktops
– dishwasher cleaner
– oven cleaners or sprays
– glass cleaning agents
– hard, abrasive sponges and brushes,
e.g. pot scourers
– sharp metal scrapers
Cleaning and care
38
Cleaning the drawer front and
interior
Malfunction due to dirty and/or
covered sensor controls.
The sensor controls do not react or
unintentional switching procedures
result, perhaps even automatic
switching off of the drawer.
Keep the sensor controls and
indicators clean.
Do not place anything over the
sensor controls or indicators.
Remove all soiling using a solution of
hot water and washing-up liquid
applied with a sponge or use a clean,
damp microfibre cloth.
Wipe with clean water afterwards.
After cleaning, wipe the surfaces dry
using a soft cloth.
Cleaning the anti-slip mat
Damage caused by incorrect
cleaning.
Washing the anti-slip mat in a
dishwasher or washing machine will
damage it.
The anti-slip mat should only be
cleaned by hand.
Damage caused by incorrect
drying.
Drying the anti-slip mat in an oven
will damage it.
Never place it in the oven to dry.
Remove the anti-slip mat from the
drawer.
Clean the anti-slip mat using a
solution of hot water and a little
washing-up liquid.
Afterwards dry the anti-slip mat with
a soft cloth.
Only replace the anti-slip mat in the
drawer when it is completely dry.
Problem solving guide
39
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Problem Possible cause and remedy
The drawer does not
heat up.
The appliance is not correctly plugged in and
switched on at the mains socket.
Insert the plug and switch on at the socket.
The circuit breaker has tripped.
Reset the circuit breaker in the mains fuse box
(see data plate for minimum fuse rating). If, after
resetting/replacing the trip switch in the fuse box
or the residual current protection device, the
drawer will still not switch on, contact a qualified
electrician or Miele.
A noise can be heard
when the drawer is in
use.
The noise is caused by the fan which distributes the
heat evenly throughout the drawer. This is not a fault.
The food is not hot
enough.
The function for keeping food warm is not
selected.
Select the correct function.
The temperature setting is too low.
Check that the doors have been closed properly.
Select a higher temperature.
The vents have been covered up.
Ensure that the air can circulate freely.
The food is too hot. The function for keeping food warm is not
selected.
Select the correct function.
The temperature setting is too high.
Select a lower temperature.
Problem solving guide
40
Problem Possible cause and remedy
The crockery is not
warm enough.
The function for warming plates and disheshas
not been selected.
Select the correct function.
The temperature setting is too low.
Select a higher temperature.
The air vents are covered.
Ensure that the air can circulate freely.
The crockery has not been allowed to heat up for a
sufficiently long time.
Various factors affect how long crockery takes to
heat up (see “Warming crockery”).
The crockery is too hot. The Warming plates/dishes or Warmingcups/
glasses function has not been selected.
Select the correct function.
The temperature setting is too high.
Select a lower temperature.
Optional accessories
41
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Rack
For increasing the loading area (ESW
7020, ESW 7030, ESW 7120).
Anti-slip mat
For keeping dishes secure.
Original Miele all purpose
microfibre cloth
Removes finger marks and light soiling.
Safety instructions for installation
42
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the drawer and/or the combination
appliance.
The appliance must only be installed by a suitably qualified and competent
person.
The socket and on-off switch should be easily accessible after the
drawer has been installed.
The drawer may only be installed in combination with those
appliances quoted by Miele as being suitable. If the drawer is used in
combination with other appliances, the warranty will be invalidated,
as trouble-free operation cannot be guaranteed.
The base on which the drawer and the combination appliance are
fitted must be fixed in place and must support the weight of both
appliances.
When building in the combination appliance, it is essential to
follow the instructions given in the operating and installation
instructions supplied with it.
The warming drawer must be installed in such a way that:
– The contents of the dishes can be seen when it is opened. This is
to avoid scalding from hot food spilling over.
– There is enough space for the drawer to be pulled out fully.
Installation notes
43
The drawer can be used in combination with the following Miele built-in
appliances:
– all 60cm wide ovens
– all 60cm wide steam ovens
– all 60cm wide coffee machines
– all 60cm wide microwave ovens
– the 60cm wide Dialog oven
The combination appliance is placed on top of the drawer without the need for an
interim shelf.
The drawer is available in 3models, which differ in height. The building-in
dimensions for the drawer must be added to the building-in dimensions for the
combination appliance to establish the niche size required.
Installation dimensionsESW 7010, ESW 7110
44
All dimensions in this instruction booklet are given in mm.
Combination appliance with a height of 45cm
The furniture housing unit must not have a back panel fitted behind the
building-in niche.
Installation dimensionsESW 7010, ESW 7110
45
Combination appliance with a height of 60cm
The furniture housing unit must not have a back panel fitted behind the
building-in niche.
Installation dimensionsESW 7010, ESW 7110
46
Side view
A Glass front: 22mm
Metal front: 23.3mm
Installation dimensionsESW 7010, ESW 7110
47
Connections and ventilation
a
Front view
b
Mains connection cable, L = 2,000 mm
c
Ventilation cut-out, min. 180cm
2
d
No connections permitted in this area
Installation dimensionsESW 7020, ESW 7120
48
All dimensions in this instruction booklet are given in mm.
Combination appliance with a height of 45cm
The furniture housing unit must not have a back panel fitted behind the
building-in niche.
Installation dimensionsESW 7020, ESW 7120
49
Combination appliance with a height of 60cm
The furniture housing unit must not have a back panel fitted behind the
building-in niche.
Installation dimensionsESW 7020, ESW 7120
50
Side view
A Glass front: 22mm
Metal front: 23.3mm
Installation dimensionsESW 7020, ESW 7120
51
Connections and ventilation
a
Front view
b
Mains connection cable, L = 2,000 mm
c
Ventilation cut-out, min. 180cm
2
d
No connections permitted in this area
Installation dimensionsESW 7030
52
All dimensions in this instruction booklet are given in mm.
Combination appliance with a height of 45cm
The furniture housing unit must not have a back panel fitted behind the
building-in niche.
Installation dimensionsESW 7030
53
Combination appliance with a height of 60cm
The furniture housing unit must not have a back panel fitted behind the
building-in niche.
Installation dimensionsESW 7030
54
Side view
A Glass front: 22mm
Metal front: 23.3mm
Installation dimensionsESW 7030
55
Connections and ventilation
a
Front view
b
Mains connection cable, L = 2,000 mm
c
Ventilation cut-out, min. 180cm
2
d
No connections permitted in this area
Installation
56
Check that the base on which the
drawer will sit is clean and level (use
a spirit level). This is important for
the appliance to function correctly.
Push the drawer into the furniture unit
up to the vapour strip and make sure
it is correctly aligned in the unit.
Open the drawer and use the 2
screws supplied to secure it to the
side walls of the furniture unit.
Build in the combination appliance in
accordance with the operating and
installation instructions supplied with
it.
Electrical connection
57
We recommend that you connect the
drawer to the mains electricity via a
suitable switched electrical socket. This
simplifies servicing. The socket and on-
off switch should be easily accessible
after the drawer has been installed.
Danger of injury due to
unauthorised installation,
maintenance and repairs.
Danger of injury! Miele cannot be
held liable for unauthorised
installation, maintenance and repair
work as this can be dangerous to
users.
Miele cannot be held liable for
damage or injury (e.g. electric shock)
caused by the lack of or inadequacy
of an on-site earthing system.
If the plug is removed from the
connection cable or if the cable is
supplied without a plug, the drawer
must be connected to the electricity
supply by a suitably qualified and
competent electrician.
If the socket is no longer accessible,
or if a hard-wired connection is
planned, an additional means of
disconnection must be provided for
all poles. Suitable means of
disconnection include switches with
an all-pole contact gap of at least
3mm. These include miniature circuit
breakers, fuses and relays. The
connection data is given on the data
plate. Please ensure this information
matches the household mains
electricity supply.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is given on the
data plate. Please ensure this
information matches the household
mains supply.
Residual current device
For extra safety, it is advisable to
protect the drawer with a suitable
residual current device (RCD) with a trip
range of 30mA.
Electrical connection
58
Replacing the mains
connection cable
If replacing the mains connection cable,
it must be replaced with a cable type
H05VV-F (rubber insulated), available
from Miele, by a suitably qualified and
competent electrician.
Service
59
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
The data plate is located here:
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
www.miele.com.au
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
205-207 Stirling Highway
Claremont, WA 6010
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd.
Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Telephone:
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
M.-Nr. 11 227 100 / 00en-AU, NZ
ESW 7010, ESW 7020, ESW 7030, ESW 7110, ESW 7120
