STATUS LIGHTS
Amber
White
DESCRIPTION
Charging
Fully charged
Flat size (W×H): 13.78 × 3.94 in. (350 × 100 mm.)
Final folded size: 2.75 × 3.94 in. (70 × 100 mm.)
PACKAGE CONTENTS
• Charging station
• Rechargeable battery packs (2)
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.

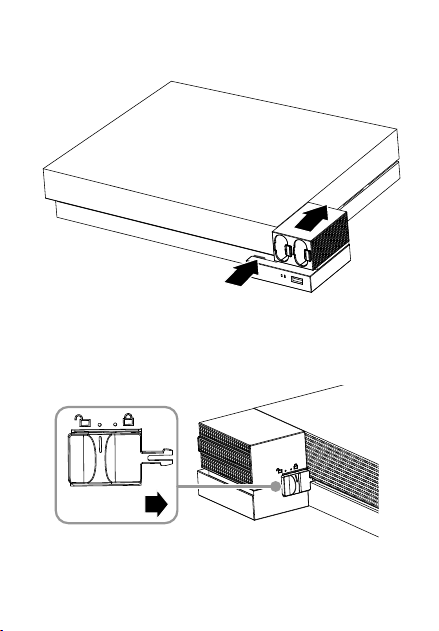

2 Slide your charging station onto the right side
of your Xbox One X Console.
3 Slide the locking switch to the right to lock.
4 Insert the contact end of your rechargeable
battery pack into your charging station. Make
sure that the lighter stripe faces the battery
lock. The battery pack automatically locks in
when fully seated.
• Status light information:
QUICK SETUP GUIDE
Side Dock
Charging Station for
Xbox® One X
NSGXBOSBCX19 / NSGXBOSBCX19C
5 When your battery pack is fully charged, slide
the battery lock to the right to release the
battery pack. The battery automatically pops
out.
FEATURES
• Charge up to two controller battery packs
simultaneously
• View charging status at a glance via LED
indicators
• Battery lock mechanism holds battery packs in
place
• USB port with power and data pass-thru
• Compatible with Xbox One X
• Full UL certied battery packs
SETTING UP THE BATTERY CHARGING
STATION

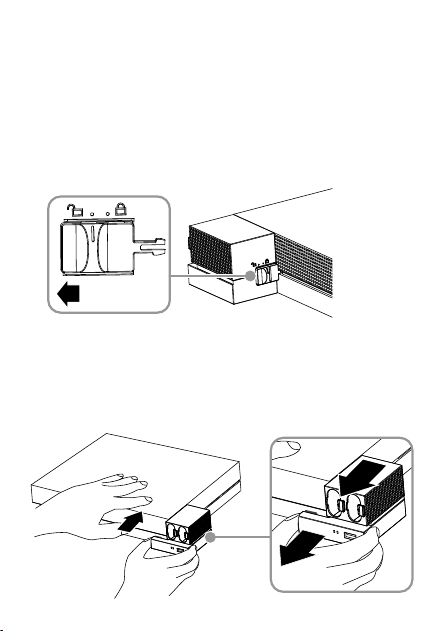

1 Make sure that the locking switch is in the
unlocked position.
Charging station
Rechargeable
battery packs
Status
lights
Battery
lock
Locking switch
Locking switch
