• Page 1: Builtin Oven User manual NV31T4551 NV31T4551SSAADG6801265A00ENMESCFRindb 1 20200225 125945
• Page 2 - English - : 2 English Regulatory Notice 1 FCC Notice CAUTION FCC CAUTION Any changes or modications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment This device complies with Part 15 of FCC Rules Operation is Subject to following two conditions 1 This device may not cause harmful interference and 2 This device must accept any interference received including interference that cause undesired operation For products sold in the US and Canadian markets only channels 11 are available You cannot select any other channels FCC STATEMENT This equipment has been tested and found to comply within the limits for a Class B digital device pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures Reorienting or relocating the receiving antenna Increasing the separation between the equipment and receiver Connecting the equipment to an outlet that is on a different circuit than the radio or TV Consulting the dealer or an experienced radioTV technician for help NV31T4551SSAADG6801265A00ENMESCFRindb 2 20200225 125945
• Page 3 - English - : English 3 FCC RADIATION EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated so there is at least 8 inches 20 cm between the radiator and your body This device and its antennas must not be colocated or operated in conjunction with any other antenna or transmitter 2 IC Notice The term IC before the radio certication number only signies that Industry Canada technical specications were met Operation is subject to the following two conditions 1 this device may not cause interference and 2 this device must accept any interference including interference that may cause undesired operation of the device This Class B digital apparatus complies with Canadian ICES003 For products sold in the US and Canadian markets only channels 11 are available You cannot select any other channels IC RADIATION EXPOSURE STATEMENT This equipment complies with IC RSS102 radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated so there is at least 8 inches 20 cm between the radiator and your body This device and its antennas must not be colocated or operated in conjunction with any other antenna or transmitter NV31T4551SSAADG6801265A00ENMESCFRindb 3 20200225 125945
• Page 4 - English - : 4 English Contents Contents IMPORTANT SAFETY INSTRUCTIONS 5 Introducing your new oven 17 Overview 17 Whats included with your oven 17 Before you begin 18 Setting the clock 18 New oven smell 18 Racks 18 Operations 19 Control panel 19 Basic cooking steps 20 Cooking modes 20 Recipe guide 22 How to use the cooking modes 23 Cook time 23 Delay Start 24 Keep Warm 24 Bread Proof 24 Slow cook 25 Frozen Food 25 Steam Clean 25 Smart Control 26 Timer 27 Light 27 Lock 27 Options 28 Sabbath mode 30 Maintaining your appliance 31 Cleaning 31 Replacement 34 Troubleshooting 35 Checkpoints 35 Information codes 37 Warranty USA 37 Warranty CANADA 39 Appendix 40 Open Source Announcement 40 NV31T4551SSAADG6801265A00ENMESCFRindb 4 20200225 125946
• Page 5 - English - : English 5 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS CAUTION To reduce the risk of re explosion electric shock or personal injury when using your oven follow these basic safety precautions Do NOT attempt Do NOT disassemble Do NOT touch Follow directions explicitly Unplug the power plug from the wall socket Make sure the machine is grounded to prevent electric shock Call a Samsung service center for help Note These warning signs are here to prevent injury to you and others Please follow them explicitly After reading this section keep it in a safe place for future reference IMPORTANT SAFETY INSTRUCTIONS Read and follow all instructions before using your oven to prevent the risk of re electric shock personal injury or damage when using the oven This guide does not cover all possible conditions that may occur Always contact your service agent or the manufacturer about problems that you do not understand WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and important safety instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your oven Important safety symbols and precautions What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury or death CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage NV31T4551SSAADG6801265A00ENMESCFRindb 5 20200225 125947
• Page 6 - English - : 6 English IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CALIFORNIA PROPOSITION 65 WARNING WARNING Cancer and Reproductive Harm wwwP65Warningscagov FOR YOUR SAFETY When using electrical appliances you should follow basic safety precautions including the following CAUTION Use this appliance only for its intended purpose as described in this Owners Manual Potentially hot surfaces include the oven vent opening surfaces near the opening and crevices around the oven door Proper Installation Be sure your appliance is properly installed and grounded by a qualied technician User servicing Do not repair or replace any part of the appliance unless specically recommended in this manual All other servicing should be referred to a qualied technician Always disconnect the power to the appliance before servicing by removing the fuse or switching off the circuit breaker Do not enter the oven Do not leave children alone Never leave children alone or unattended in an area where this appliance is in use They should never be allowed to sit or stand on any part of the appliance Never use your appliance for warming or heating the room Do not use water on grease res Turn off the oven to avoid spreading the ames Smother the re or ames by closing the door or use a dry chemical baking soda or foamtype extinguisher Avoid scratching or striking the glass doors and the control panel Doing so may lead to glass breakage Do not cook on a product with broken glass Shock re or cuts may occur If there is a re in the oven during selfcleaning turn the oven off and wait for the re to go out Do not force the door open The introduction of fresh air at selfcleaning temperatures may lead to a burst of ame from the oven Failure to follow these instructions may result in severe burns NV31T4551SSAADG6801265A00ENMESCFRindb 6 20200225 125947
• Page 7 - English - : English 7 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS If the oven is heavily soiled with oil selfclean the oven before using the oven again Leaving the oil in place creates a risk of re Wipe up heavy soil on the oven bottom with a paper towel or rag before selfcleaning Selfcleaning the oven when there is heavy soil on the oven bottom requires longer cleaning cycles and produces more smoke Storage in or on the appliance Do not store ammable materials in the oven or near the surface units Be sure all packing materials are removed from the appliance before operating it Keep plastics clothes and paper away from parts of the appliance that may become hot Wear proper apparel Never wear loosetting or hanging garments while using the appliance Use only dry potholders Placing moist or damp potholders on hot surfaces may result in burns from steam Do not let the potholder touch hot heating elements Do not use a towel or other bulky cloth instead of a potholder Teach children not to play with the controls or any other part of the oven For your safety do not use highpressure water cleaners or steam jet cleaners to clean any part of the oven If the power cord is damaged it must be replaced by the manufacturer its service agent or similarly qualied persons to avoid creating a hazard The appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Remote Operation This appliance is congurable to allow remote operation at any time Do not store any ammable materials or temperature sensitive items inside on top or near surface units of the appliance NV31T4551SSAADG6801265A00ENMESCFRindb 7 20200225 125947
• Page 8 - English - : 8 English IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock CHILD SAFETY WARNING This appliance is not intended for use by young children or inrm persons without the adequate supervision of a responsible adult Young children should be supervised to ensure that they do not play with the appliance Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their ngers in the door During selfcleaning the surfaces may get hotter than usual Keep small children away from the oven when it is in the self cleaning mode WARNING Accessible parts may become hot during use To avoid burns young children should be kept away ELECTRICAL SAFETY Use only the factory installed exible power cord to connect to the power supply Do not use a 3rd party power supply cord kit The appliance should be serviced only by qualied service personnel Repairs carried out by unqualied individuals may cause injury or a serious malfunction If your appliance is in need of repair contact a Samsung authorized service center Failure to follow these instructions may result in damage and void the warranty Flush mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards This ensures that the appliances are installed in compliance with the appropriate safety standards If your appliance malfunctions or if fractures cracks or splits appear Switch off the oven Unplug the oven from the AC wall outlet Contact your local Samsung service center NV31T4551SSAADG6801265A00ENMESCFRindb 8 20200225 125948
• Page 9 - English - : English 9 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS Use care when opening the door Let hot air or steam escape before you remove food from or put food into the oven Protective liners Do not use aluminum foil to line the oven bottoms except as suggested in this manual Improper installation of these liners may result in a risk of electric shock or re Placement of oven racks Always place oven racks in the desired location while the oven is cool If the rack must be moved while the oven is hot use potholders Do not let the potholders come in contact with the hot heating element in the oven Do not allow aluminum foil or a meat probe to contact the heating elements During use the appliance becomes hot Care should be taken to avoid touching heating elements inside the oven Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass They can scratch the surface which may result in the glass shattering OVEN DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN Heating elements may be hot even though they are dark in color Interior surfaces of an oven become hot enough to cause burns During and after use do not touch or let clothing or other ammable materials contact the heating elements or interior surfaces of the oven until they have had sufcient time to cool Other surfaces of the appliance may become hot enough to cause burns Among these surfaces are oven vent openings and surfaces near these openings the oven door and the window of the oven door Do not heat unopened food containers The buildup of pressure may cause the container to burst and result in injury Do not use the oven to dry newspapers If overheated newspapers can catch re Do not use the oven for a storage area Items stored in an oven can ignite NV31T4551SSAADG6801265A00ENMESCFRindb 9 20200225 125948
• Page 10 - English - : 10 English IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Do not use any commercial oven cleaner or oven liner protective coating of any kind in or on the outside of the oven Remove the nickel oven shelves from the oven before you begin the selfcleaning cycle or they may discolor If the selfcleaning mode malfunctions turn the oven off and disconnect the power supply Have it serviced by a qualied technician Excess spillage must be removed before you run the self cleaning cycle VENTILATING HOOD Clean ventilating hoods frequently Do not let grease accumulate on the hood or lter When aming foods under the hood turn the fan on CAUTION Do not attempt to operate the oven during a power failure If the power fails always turn the oven off If the oven is not turned off and the power returns the oven may begin to operate again Food left unattended could catch re or spoil SELFCLEANING OVENS Do not clean the door gasket The door gasket is essential for a good seal Care should be taken not to rub damage or move the gasket Never keep pet birds in the kitchen Birds are extremely sensitive to the fumes released during an oven selfclean cycle Fumes may be harmful or fatal to birds Move birds to a wellventilated room Clean only the parts listed in this manual in the selfclean cycle Before selfcleaning the oven remove the partition rack utensils and any food Before operating the selfclean cycle wipe grease and food soils from the oven Excessive amounts of grease may ignite leading to smoke damage to your home NV31T4551SSAADG6801265A00ENMESCFRindb 10 20200225 125948
• Page 11 - English - : English 11 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS Do not cut or remove the ground prong from the power cord under any circumstances Connect the oven to a circuit that provides the correct amperage Do not install this appliance in a humid oily or dusty location or in a location exposed to direct sunlight or water rain drops This may result in electric shock or re Do not use a damaged power cord or loose wall socket This may result in electric shock or re Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord or insert the power cord between objects This may result in electric shock or re If the power cord is damaged contact your nearest Samsung service center CRITICAL INSTALLATION WARNINGS WARNING This appliance must be installed by a qualied technician or service company Failing to have a qualied technician install the oven may result in electric shock re an explosion problems with the product or injury Unpack the oven remove all packaging material and examine the oven for any damage such as dents on the interior or exterior of the oven broken door latches cracks in the door or a door that is not lined up correctly If there is any damage do not operate the oven and notify your dealer immediately Keep all packaging materials out of the reach of children Children may use them for play and injure themselves This appliance must be properly grounded Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock re an explosion or problems with the product NV31T4551SSAADG6801265A00ENMESCFRindb 11 20200225 125948
• Page 12 - English - : 12 English IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always observe safety precautions when using your oven Never try to repair the oven on your own there is dangerous voltage inside If the oven needs to be repaired contact an authorized Samsung service center near you If you use the appliance when it is contaminated by foreign substances such as food waste it may result in a problem with the appliance Take care when removing the wrapping from food taken out of the appliance If the food is hot hot steam may be emitted abruptly when you remove the wrapping and this may result in burns Do not attempt to repair disassemble or modify the appliance yourself Since a high voltage current enters the product chassis it may result in electric shock or re When a repair is needed contact your nearest Samsung service center If any foreign substance such as water has entered the appliance contact your nearest Samsung service center Failing to do so may result in electric shock or re CRITICAL USAGE WARNING CAUTION If the appliance is ooded by any liquid please contact your nearest Samsung service center Failing to do so may result in electric shock or re If the appliance produces a strange noise a burning smell or smoke unplug the power plug immediately and contact your nearest Samsung service center Failing to do so may result in electric shock or re In the event of a gas leak such as propane gas LP gas etc ventilate the area immediately Do not touch the power cord Do not touch the appliance A spark may result in an explosion or re Take care not to contact the oven door heating elements or any of the other hot parts with your body while cooking or just after cooking Failing to do so may result in burns If materials inside the oven should ignite keep the oven door closed turn the oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel If the door is opened the re may spread NV31T4551SSAADG6801265A00ENMESCFRindb 12 20200225 125948
• Page 13 - English - : English 13 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS Do not insert ngers foreign substances or metal objects such as pins or needles into inlets outlets or holes If foreign substances are inserted into any of these holes contact your product provider or nearest Samsung service center Do not tamper with or make any adjustments or repairs to the door Under no circumstances should you remove the door or outer shell of the oven Do not store or use the oven outdoors Never use this appliance for purposes other than cooking Using the appliance for any purpose other than cooking may result in re Open the cap or stopper of sealed containers herb tonic tea bottle baby bottle milk bottle and so on before heating them Make a hole in food items that have shells eggs chestnuts etc with a knife before cooking them Failing to do so may result in burns or injury Never heat plastic or paper containers and do not use them for cooking Failing to do so may result in re Do not touch the power cord with wet hands This may result in electric shock Do not turn the appliance off while an operation is in progress This may cause a spark and result in electric shock or re Do not let children or any person with reduced physical sensory or mental capabilities use this appliance unsupervised Make sure that the appliances controls and cooking areas are out of the reach of children Failing to do so may result in electric shock burns or injury Do not touch the inside of the appliance immediately after cooking The inside of the appliance will be hot Failing to do so may result in burns Do not use or place ammable sprays or objects near the oven Flammable items or sprays can cause res or an explosion NV31T4551SSAADG6801265A00ENMESCFRindb 13 20200225 125948
• Page 14 - English - : 14 English IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS USAGE CAUTIONS CAUTION If the surface is cracked turn the appliance off Failing to do so may result in electric shock Dishes and containers can become hot Handle with care Hot foods and steam can cause burns Carefully remove container coverings directing the steam away your hands and face Remove lids from baby food jars before heating After heating baby food stir well to distribute the heat evenly Always test the temperature by tasting before feeding the baby The glass jar or the surface of the food may appear to be cooler than the interior which can be hot enough to burn an infants mouth Take care as beverages or food may be very hot after heating Especially when feeding a child make sure the food or beverage has cooled sufciently Do not heat food wrapped in paper from magazines newspapers etc This may result in re Do not open the door when the food in the oven is burning If you open the door it causes an inow of oxygen and may cause the food to ignite Do not apply excessive pressure to the door or the inside of the appliance Do not strike the door or the inside or the appliance Hanging on to the door may result in the product falling and cause serious injury If the door is damaged do not use the appliance Contact a Samsung service center Do not hold food in your bare hands during or immediately after cooking Use cooking gloves The food may be very hot and you could burn yourself As the handle and oven surfaces may be hot enough to cause burns after cooking use cooking gloves to protect your hands from burns NV31T4551SSAADG6801265A00ENMESCFRindb 14 20200225 125948
• Page 15 - English - : English 15 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS Do not put your face or body close to the appliance while cooking or when opening the door just after cooking Take care that children do not come too close to the appliance Failing to do so may result in children burning themselves Do not place food or heavy objects over the edge of the oven door If you open the door the food or object may fall and this may result in burns or injury Do not abruptly cool the door the inside of the appliance or a dish by pouring water over it during or just after cooking This may result in damage to the appliance The steam or water spray may result in burns or injury Do not operate while empty except for selfcleaning Do not defrost frozen beverages in narrownecked bottles The bottles can break Do not scratch the glass of the oven door with a sharp object This may result in the glass being damaged or broken Do not store anything directly on top of the appliance when it is in operation Take care when heating liquids such as water or other beverages Make sure to stir during or after cooking Avoid using a slippery container with a narrow neck Wait at least 30 seconds after heating before removing the heated liquid Failing to do so may result in an abrupt overow of the contents and cause burns Do not stand on top of the appliance or place objects such as laundry an oven cover lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance Items such as a cloth may get caught in the door This may result in electric shock re problems with the product or injury Do not operate the appliance with wet hands This may result in electric shock Do not spray volatile substances such as insecticide onto the surface of the appliance As well as being harmful to humans it may also result in electric shock re or problems with the product NV31T4551SSAADG6801265A00ENMESCFRindb 15 20200225 125948
• Page 16 - English - : 16 English IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CRITICAL CLEANING WARNINGS CAUTION Do not clean the appliance by spraying water directly on to it Do not use benzene thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or re Take care not to hurt yourself when cleaning the appliance externally or internally You may hurt yourself on the sharp edges of the appliance Do not clean the appliance with a steam cleaner This may result in corrosion Keep the inside of the oven clean Food particles or spattered oils stuck to the oven walls or oor can cause paint damage and reduce the efciency of the oven Do not use sealed containers Remove seals and lids before cooking Sealed containers can explode due to the build up of pressure even after the oven has been turned off Take care that food you are cooking in the oven does not come into contact with the heating element This may result in re Do not overheat food Overheating food may result in re Use caution when opening or closing the door Your ngers may be pinched resulting in physical injury The door reveals wires at the bottom for connecting LED lights So use caution not to pull or cut the wires when handling the door NV31T4551SSAADG6801265A00ENMESCFRindb 16 20200225 125948

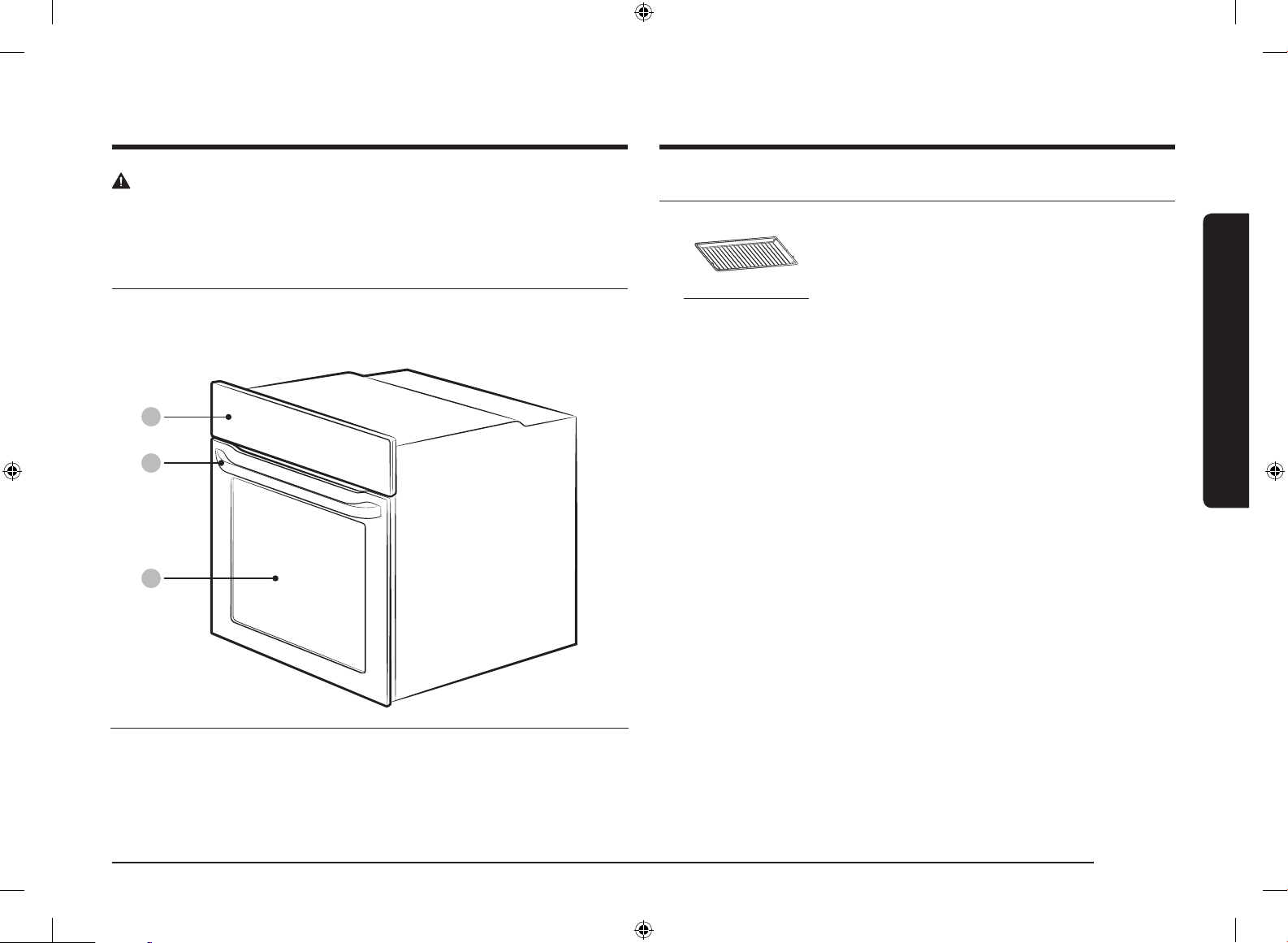

• Page 17 - English - : English 17 Introducing your new oven Whats included with your oven Wire rack 3 Introducing your new oven WARNING This oven must be installed by a qualied technician The installer is responsible for connecting the oven to the main power while observing the relevant safety regulations of your area Overview Make sure all parts and accessories are included in the product package If you have a problem with the oven or accessories contact a local Samsung customer center or the retailer 01 Control panel 02 Door handle 03 Door NV31T4551SSAADG6801265A00ENMESCFRindb 17 20200225 125949
• Page 18 - English - : 18 English Before you begin Position The oven comes with 3 oven racks and 2 side racks one on each side The side racks serve as rack guides and support the oven racks in 5 different oven rack positions Insert the racks to the correct position inside of the oven Each rack guide has a stop that prevents you from accidentally pulling an oven rack out completely 01 Level 1 02 Level 2 03 Level 3 04 Level 4 05 Level 5 Rack position Food type 5 Hamburgers Steak Toasts 4 Toasts Fish llets Chicken pieces Steak 3 Cakes Mufns Brownies Cookies Pound cake Lasagna 2 Angel food cake Pies Most roasts Homemade pizza 1 Large roast CAUTION Do not cover an oven rack with aluminum foil This will disturb the heat circulation resulting in poor baking Do not place aluminum foil on the oven bottom The aluminum can melt and damage the oven Arrange the oven racks only when the oven is cool Take caution in removing cookware andor racks out of the oven Hot meals or racks can cause burns When placing an oven rack in the topmost rack position position 5 on the ladder racks make sure the oven rack is situated stably on the embossed stop Before you begin Setting the clock The clock must be set to the correct time of day for the automatic oven timing functions to work properly The time of day cannot be changed during timed cooking delaytimed cooking or a selfcleaning cycle 1 Touch Clock The hour element blinks 2 Touch or to set the hour and then touch STARTSET The minute element blinks 3 Touch or to set the minute and then touch STARTSET NOTE When the time format is set to 12hour format you cannot manually change the AMPM It will change automatically when you toggle through the hour element New oven smell Before using the oven for the rst time clean inside the oven to remove the new oven smell 1 Remove all accessories from inside the oven 2 Run the oven with Bake mode at 550 F for 40 minutes This will burn any remaining production substances in the oven 3 When complete turn off the oven Racks For rst time use clean the accessories thoroughly with warm water detergent and a soft clean cloth The racks may be deformed while they are gaining heat Once they have cooled down they will recover their original appearance and performance NV31T4551SSAADG6801265A00ENMESCFRindb 18 20200225 125949

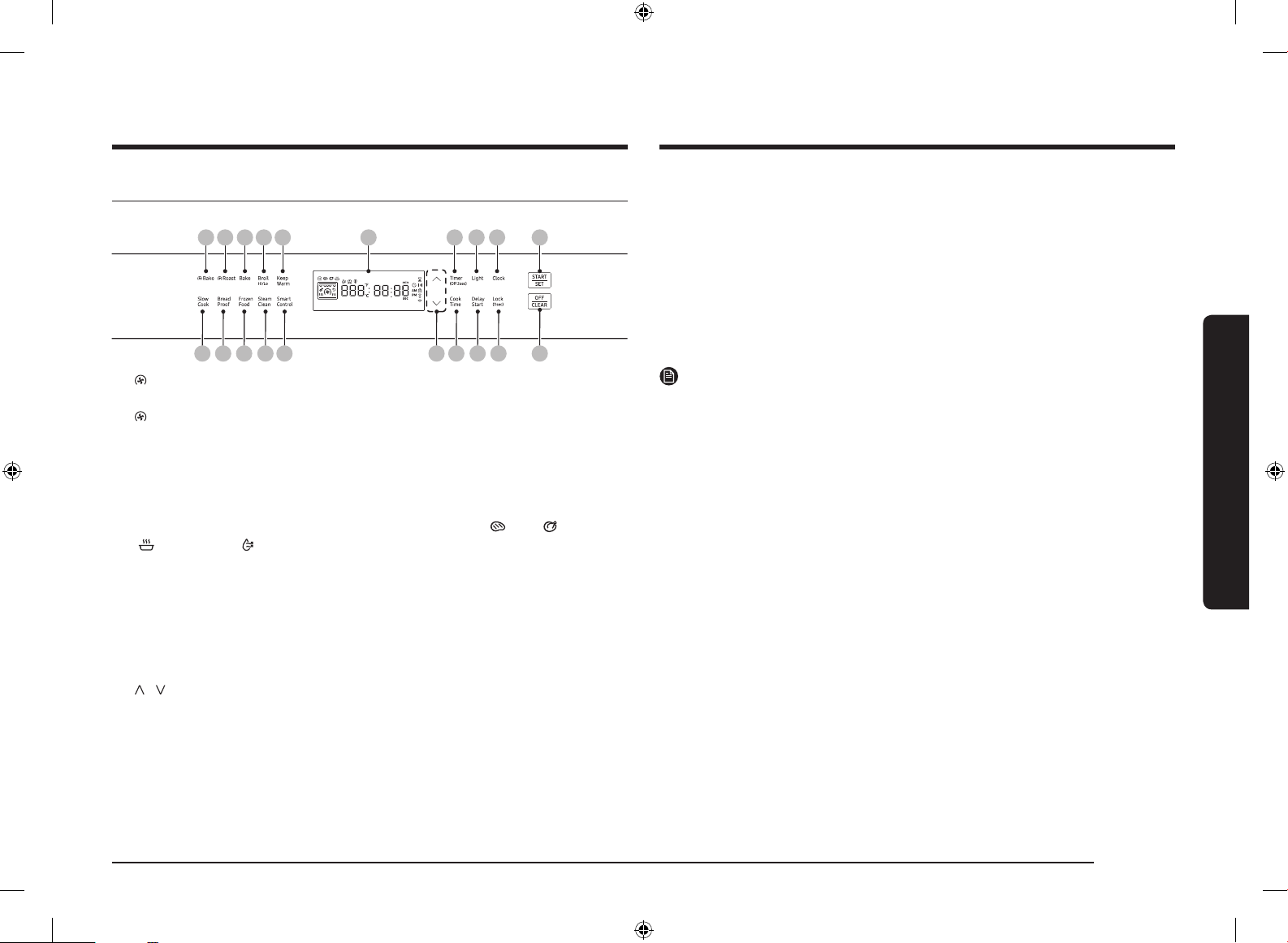

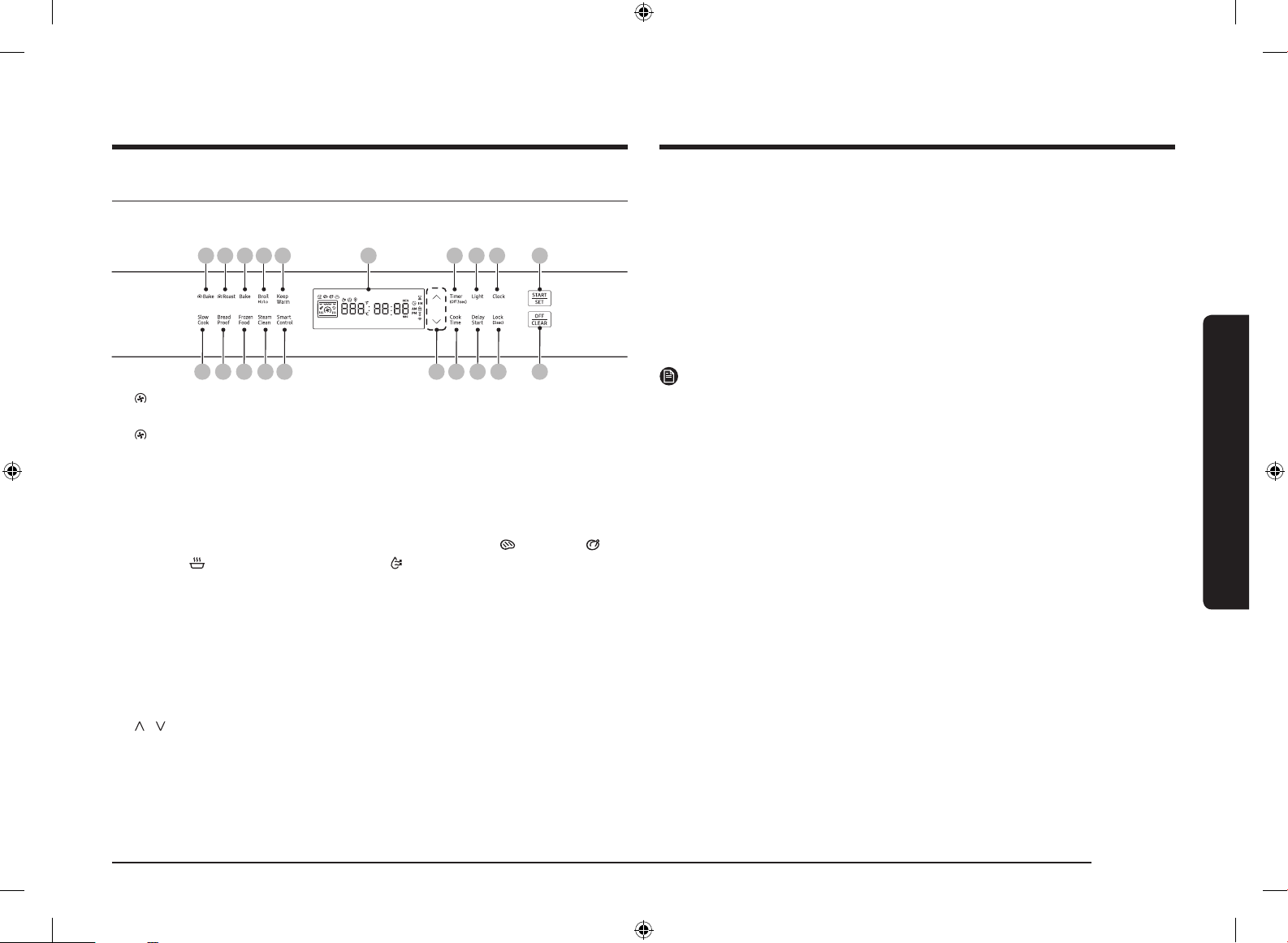

• Page 19 - English - : English 19 Operations 16 Cook Time Touch to set the cooking time 17 Delay Start Touch to set the desired time to start cooking 18 Lock Touch and hold for 3 seconds to activate or deactivate the Lock function The Lock function disables all controls to prevent accidents 19 STARTSET Touch to conrm your setting or start cook modes and functions 20 OFFCLEAR Touch to end current process or cancel your setting NOTE Tapping on the display while wearing plastic or oven gloves may not operate properly Operations Control panel For improved quality the actual appearance of the oven is subject to change without notice 01 02 03 04 05 11 13 14 15 06 07 08 09 10 16 17 18 01 Bake Convection Bake Activates Convection Bake mode 02 Roast Convection Roast Activates Convection Roast mode 03 Bake Activates Bake mode 04 Broil Activates Broil mode 05 Keep Warm Activates Keep Warm mode 06 Slow Cook Activates one of the four Slow Cook modes You can touch this button repeatedly to cycle through meat poultry stew or dehydrate 07 Bread Proof Activates Bread Proof mode 08 Frozen Food Activates Frozen Food mode 09 Steam Clean Activates steam clean function 10 Smart Control Activates the Smart Control function You must connect the product to Wi through the SmartThings app Touch and hold for 3 seconds to connect the product to the SmartThings app 11 Display Shows necessary information of selected mode or settings 12 Up Down Use to adjust the setting value for your selection 13 Timer Touch to set the timer 14 Light Touch to turn the internal light on or off 15 Clock Touch to set the time NV31T4551SSAADG6801265A00ENMESCFRindb 19 20200225 125950

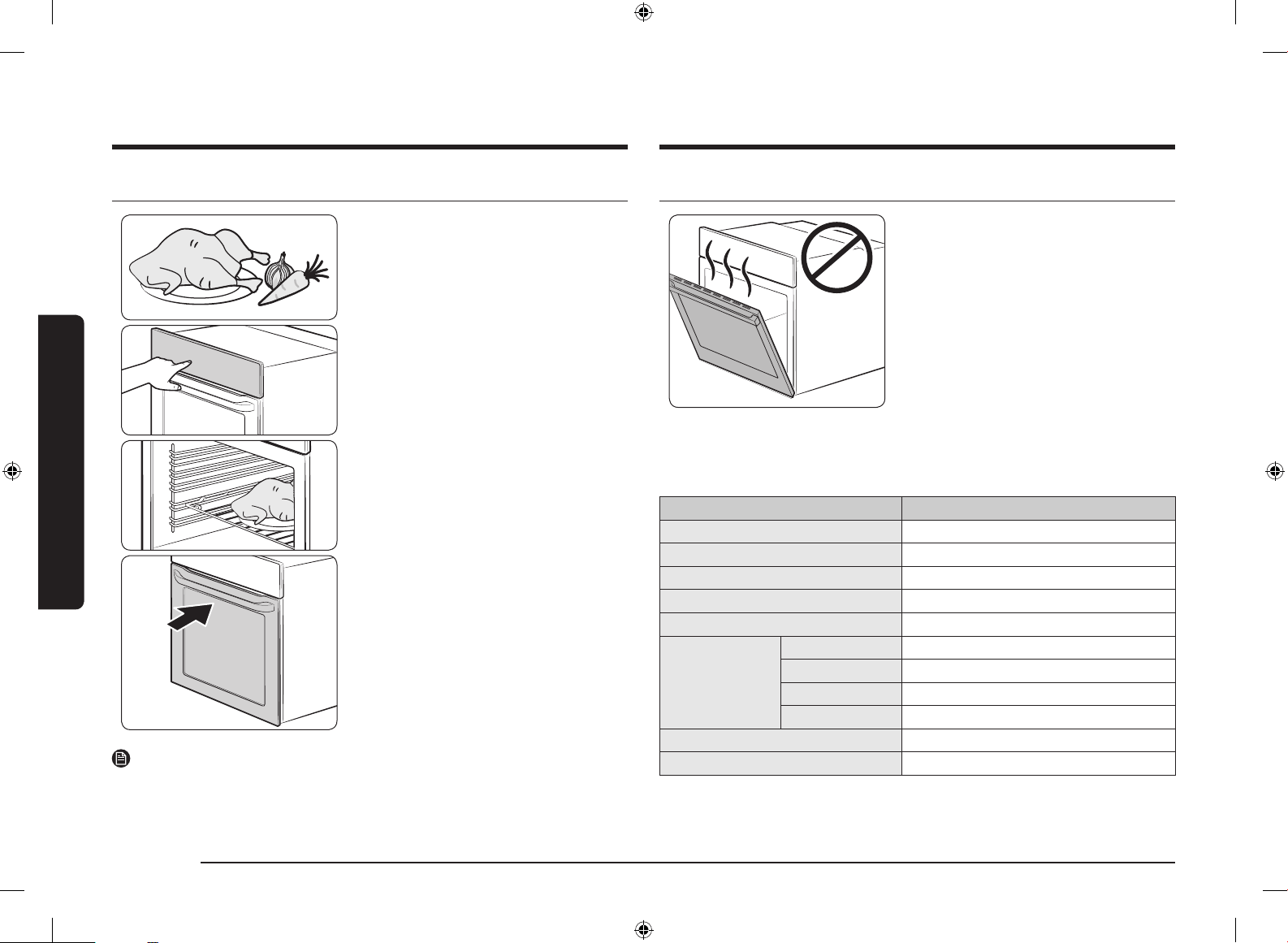

• Page 20 - English - : 20 English Operations Operations Basic cooking steps STEP 1 Put all ingredients in a heatsafe container STEP 2 Select a cooking mode and then start preheating STEP 3 Place the container on a rack STEP 4 Close the door and start cooking NOTE The cooling fan automatically runs for a certain amount of time after cooking is complete Cooking modes Make sure to close the door before you start cooking If you leave the door open for 2030 seconds while the oven is in convection bakingroasting baking or broiling modes the oven burner shuts off To restart the burner close the door Temperature settings All the features listed in the table below have minimum and maximum time or temperature settings Feature Temperature range Convection Bake 175 550 F 285 C Convection Roast 175 550 F 285 C Bake 175 550 F 285 C Broil LO HI Keep Warm 175 F 80 C Slow Cook Meat 160 250 F 120 C Poultry 160 250 F 120 C Stew 160 250 F 120 C Dehydrate 100 225 F 105 C Bread Proof 95 F 35 C Frozen Food 175 550 F 285 C NV31T4551SSAADG6801265A00ENMESCFRindb 20 20200225 125950
• Page 21 - English - : English 21 Operations Convection cooking The convection fan at the back of the oven circulates hot air evenly throughout the oven cavity so that food is evenly cooked and browned in less time than with regular heat Convection baking Ideal for foods being cooked using multiple racks Good for large quantities of food Provides the best performance for cookies biscuits brownies cupcakes cream puffs sweet rolls angel food cake and bread Cookies bake best when cooked on at cookie sheets When convection baking using a single rack place the rack in rack position 3 When convection baking on two racks place the racks in positions 1 and 4 for cake and cookies When convection baking on three racks place the racks in positions 1 3 and 5 for cookies For the best results we recommend you use commercial halfsheets or a 12 cookie sheet Convection roasting Good for larger tender cuts of meat uncovered For best performance place a broiler pan and grid under the meat or poultry The pan catches grease spills and the grid prevents grease spatters Heated air circulates over under and around the food Meat and poultry are browned on all sides as if they were cooked on a rotisserie NOTE The convection oven fan shuts off when the oven door is opened Do not leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element For performance reasons the convection fan may turn on or off during baking If you are using an oven thermometer in the oven cavity the temperature registered by the thermometer may differ from the actual set oven temperature Baking Bake is used to cook cakes cookies and casseroles Always preheat the oven rst Baking temperatures and times will vary depending on the ingredients and the size and shape of the baking pan used Dark or nonstick coatings may cook faster with more browning NOTE Place food in the oven after preheating if the recipe calls for it Preheating is very important for good results when baking cakes cookies pastry and breads After the oven has reached the desired temperature the oven will beep 3 times If you are using an oven thermometer in the oven cavity the temperature on the thermometer may differ from the actual set oven temperature NV31T4551SSAADG6801265A00ENMESCFRindb 21 20200225 125951
• Page 22 - English - : 22 English Operations Operations Broiling Broiling uses the oven broil burner at the top of the oven to cook and brown food Meat or sh must be put on a broiling grid in a broiling pan Preheating for 5 minutes before broiling is recommended NOTE Use the Broil LO for poultry or thick cuts of meat to prevent overbroiling Use caution when you open the oven door to turn over the food The air escaping from the oven will be very hot This oven is designed for closed door broiling While broiling keep the door closed Only open the door to put food in turn food over or take food out Recipe guide Broiling guide NOTE This is for reference only Preheating for 5 minutes before broiling is recommended The size weight thickness starting temperature and your doneness preference will affect broiling times This guide is based on meat at refrigerator temperature If you cover meat with aluminum foil and you let it stand covered for 510 minutes after cooking is complete the internal temperature increases by 510 F degrees Food Doneness Size Thickness inch Broil Rack Position Cooking time min 1st 2nd Hamburgers Medium 9 patties 1 HI 5 45 34 Beef steak Rare 1 lb 1 HI 5 45 34 Medium 1 lb 1 HI 4 67 45 Welldone 1 lb 1 Lo 4 78 55 Pork steak Welldone 12 pcs 121 Lo 4 1214 1012 Lamb chops Welldone 152 lbs 1 HI 4 79 68 Chicken pieces Welldone 15 lbs 121 Lo 4 1012 810 Welldone 3 lbs 121 Lo 4 1215 1113 Chicken breast Welldone 35 pcs 121 HI 4 1012 68 Salmon steak Welldone 35 pcs 121 HI 4 68 46 Fish llets Welldone 35 pcs 1412 HI 4 79 68 CAUTION Make sure to close the door after turning over the food NV31T4551SSAADG6801265A00ENMESCFRindb 22 20200225 125951
• Page 23 - English - : English 23 Operations How to use the cooking modes It is recommended to insert food in the oven after preheating is complete This will help obtain best result 1 Touch the desired cooking mode You can select from Bake Convection Bake Roast Convection Roast Bake or Broil For detailed information of each mode see Cooking modes section on page 2 Touch or to set the desired temperature You cannot set the temperature for the Broil mode Select a desired power level instead 3 Set additional options Cook Time Delay Start if necessary You cannot set an additional option for the Broil mode Refer to the corresponding section for detailed instructions 4 Touch STARTSET Cook time You can set the cook time to cook food for the length of time you select At the end of the cooking time the oven turns off automatically 1 Set the desired cooking mode and temperature The Cook Time setting is available on Bake Convection Bake Roast Convection Roast Bake Slow Cook Frozen Food mode Refer to How to use the cooking modes section for detailed instructions 2 Touch Cook Time 3 Touch or to set the cooking time You can set the cook time up to 9 hours and 59 minutes 4 Touch STARTSET NOTE You can cancel a cook time at any time by setting the cook time to 0 minutes Touch Cook Time gt set cook time to 0 min gt touch STARTSET If you have set the cook time you can set the Keep Warm function to activate at the end of the cook time For detailed information on Keep Warm function see the Keep Warm section on page 24 NV31T4551SSAADG6801265A00ENMESCFRindb 23 20200225 125951
• Page 24 - English - : 24 English Operations Operations Delay Start With the Delay Start function you can start cooking at the desired time The clock must be set to the current time You can set the oven for a delay start before setting other cooking operations 1 Set the desired cooking mode and temperature The Delay Start function is available on Bake Convection Bake Roast Convection Roast Bake Slow Cook Frozen Food mode Refer to How to use the cooking modes section for detailed instructions 2 Touch Delay Start 3 Set the time Set hour minute and AMPM in order Touch or to adjust value and then touch STARTSET to save the setting and move to next element 4 Touch STARTSET At the set time a short beep will sound and the oven will begin heating to the set temperature Keep Warm When cooking is nished Keep Warm will hold the food at a safe serving temperature for up to 3 hours After 3 hours the feature will shut off automatically You can use the Keep Warm feature without setting cooking modes or you can set it to activate at the end of cooking with the cook time setting You should not use this feature to reheat cold food Using Keep Warm individually 1 Touch Keep Warm 2 Touch STARTSET 3 Touch OFFCLEAR at any time to turn the function off Setting the oven to activate Keep Warm at the end of cooking 1 Set the desired mode The Keep Warm function is available on Bake Convection Bake Roast Convection Roast Bake Slow Cook Frozen Food mode Refer to How to use the cooking modes section for detailed instructions 2 Touch Keep Warm to turn the function on The Keep Warm icon appears on the display To turn the function off touch Keep Warm again The Keep Warm icon disappears on the display Bread Proof Bread Proof provides an optimal temperature for the bread proong process and therefore does not require a temperature adjustment For the best results always start the Bread Proof option with a cool oven 1 Touch Bread Proof 2 Touch STARTSET 3 Touch OFFCLEAR at any time to end the Bread Proof function NOTE Use rack position 2 for Bread Proof NV31T4551SSAADG6801265A00ENMESCFRindb 24 20200225 125951
• Page 25 - English - : English 25 Operations Slow cook The Slow Cook function may be used to cook food more slowly at lower oven temperatures The extended cooking times allow better distribution of avors in many recipes 1 Touch Slow Cook The meat icon appears on the display 2 Touch Slow Cook repeatedly until you the desired category is selected You can select from meat poultry stew or dehydrate 3 Touch or to set the desired temperature 4 Set additional options Cook Time Delay Start if necessary Refer to the corresponding section for detailed instructions 5 Touch STARTSET Frozen Food The Frozen Food function can be used to cook frozen food conveniently without preheating Temperature should be set according to the manufacturers guide on the packaging Use the highest temperature specied on the guide 1 Touch Frozen Food 2 Touch or to set the desired temperature 3 Set additional options Cook Time Delay Start if necessary Refer to the corresponding section for detailed instructions 4 Touch STARTSET Steam Clean This is useful for cleaning small messes with steam This function saves you time by removing the need for regular manual cleaning 1 Pour 400 ml 34 pint of water onto the bottom of the oven and close the oven door 2 Touch Steam Clean 3 Touch STARTSET Steam cleaning runs for 26 minutes 4 Use a dry cloth to clean inside the oven WARNING Do not open the door before the cycle is complete The water inside the oven is very hot and it can cause a burn NOTE If the oven is heavily soiled with grease for example after roasting or grilling it is recommended to remove stubborn messes manually using a cleaning agent before activating Steam cleaning Leave the oven door open when the cycle is complete This is to allow the interior enamel surface to dry thoroughly If the oven is hot inside Steam Clean function may not start Wait until the oven cools down and try again When you pour water onto the bottom of the oven do it gently to prevent water from overowing to the front The water poured onto the bottom of the oven may not completely evaporate This is normal NV31T4551SSAADG6801265A00ENMESCFRindb 25 20200225 125951
• Page 26 - English - : 26 English Operations Operations When Smart Control is on you can Remotely change oven settings mode time temperature using your mobile device Remotely start the oven Remotely turn off the oven Once cooking starts you can change the cooking time and temperature remotely CAUTION Steam Clean mode cannot be started remotely NOTE After enabling Smart Control if you open the door before cooking starts Smart Control is disabled After enabling Smart Control if you open the door during cooking Smart Control remains enabled After enabling Smart Control if you leave the door closed after cooking is complete Smart Control remains enabled for 24 hours After enabling Smart Control if you open the door within 15 minutes after cooking is completed or canceled Smart Control will not be disabled immediately It will remain on for 15 from the time the cooking has been completed or canceled If is not shown on the display you can still monitor the ovens status and turn the oven off When oven cooking is nished or cancelled will turn off Smart Control To use the ovens Smart Control you must download the SmartThings app to a mobile device Functions that can be operated using the SmartThings app may not work smoothly if communication conditions are poor or the oven is installed in a place with a weak WiFi signal Please refer to the following table for the main functions that can be operated from the app When Smart Control on the oven is off Monitoring Oven Probe Oven off When Smart Control on the oven is on Monitoring Oven Probe Oven start Oven off Error check How to connect the oven 1 Download and open the SmartThings app on your smart device 2 Follow the apps onscreen instructions to connect your oven 3 Once the process is complete the WiFi icon appears on your oven display and the app will conrm you are connected 4 If the connection icon does not turn on follow the instruction in the app to reconnect To start the oven remotely 1 Touch Smart Control Smart Control icon appears on the display The oven can now be started and controlled remotely by a connected mobile device NV31T4551SSAADG6801265A00ENMESCFRindb 26 20200225 125952
• Page 27 - English - : English 27 Operations Lock The Lock function lets you lock the buttons on the control panel so they cannot be activated accidentally You can only activate this function when the oven is in standby mode 1 Cancel or turn off all other functions 2 Touch and hold Lock for 3 seconds The Lock icon appears on the display NOTE All other functions must be cancelled before you activate this function How to unlock the controls Touch and hold Lock for 3 seconds The Lock icon disappears on the display Timer The kitchen timer serves as an extra timer that will beep when the set time has elapsed It does not start or stop cooking functions You can use the kitchen timer with any of the other oven functions 1 Touch Timer 2 Touch or to set the time The timer can be set for any amount of time from 1 minute to 9 hours and 59 minutes 3 Touch STARTSET After starting the timer touch and hold Timer for 3 seconds to abort the timer 4 When the set time elapses touch Timer to dismiss the alarm sound Light The oven light turns on when the door is opened The oven light turns off automatically when the door is closed You can turn the oven and door light on and off manually by touching Light NV31T4551SSAADG6801265A00ENMESCFRindb 27 20200225 125952
• Page 28 - English - : 28 English Operations Operations Temp Unit Fahrenheit or Celsius temperature selection You can program the oven control to display the temperature in Fahrenheit or Celsius The oven has been preset at the factory to display in Fahrenheit 1 Touch Delay Start and at the same time for 2 seconds Current setting blinks on the display 2 Touch or to select the desired setting 3 Touch STARTSET to save the changes Auto Recipe Conversion When you use the auto recipe conversion feature the convection auto conversion feature will automatically convert entered regular baking temperatures to convection baking temperatures If this feature is activated the display will show the actual converted reduced temperature For example if you set a regular recipe temperature of 350 F and start cooking the display will show the converted temperature of 325 F Default setting off 1 Touch Bake and at the same time for 2 seconds 2 Touch or to select the desired setting 3 Touch STARTSET to save the changes Options You can change some of the options such as Temp Adjust Temp Unit Auto Recipe Conversion Clock unit Energy save Sound OnOff Demo mode and WiFi OnOff You can only change these options when the oven is in standby mode Temp Adjust The temperature in the oven has been calibrated at the factory When rst using the oven be sure to follow recipe times and temperatures If you think the oven is too hot or too cool you can correct the temperature in the oven Before correcting test a recipe by using a temperature setting that is higher or lower than the recommended temperature The baking results should help you to decide how much of an adjustment is needed 1 Touch Broil and at the same time for 2 seconds Current setting blinks on the display 2 Touch or to select the desired setting The oven temperature can be adjusted between 35 F 19 C 3 Touch STARTSET to save the changes NOTE This adjustment will not affect the broiling or the selfcleaning temperatures The adjustment will be retained in memory after a power failure NV31T4551SSAADG6801265A00ENMESCFRindb 28 20200225 125952
• Page 29 - English - : English 29 Operations Sound OnOff Using Sound OnOFF you can set the oven controls to operate silently 1 Touch Broil and at the same time for 2 seconds 2 Touch or to select the desired setting 3 Touch STARTSET to save the changes Demo mode This option is for use by retail establishments for display purposes only When Demo mode is on the heating element is disabled and does not operate 1 Touch Bake and at the same time for 2 seconds 2 Touch or to select the desired setting 3 Touch STARTSET to save the changes WiFi OnOff You can turn the ovens WiFi connection on or off Touch Bread Proof and at the same time for 2 seconds to turn the WiFi on or off The icon appears or disappears accordingly NOTE When you turn the ovens WiFi connection off Users cant set to easy setup Time of Day 12hr24hr The oven control can be programmed to display time of day in the 12 hour or 24hour mode The oven has been preset at the factory to display in the 12hour mode 1 Touch Bake and at the same time for 2 seconds 2 Touch or to select the desired setting 3 Touch STARTSET to save the changes 12hour energy saving If you accidently leave the oven on this feature will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function 1 Touch Delay Start and at the same time for 2 seconds 2 Touch or to select the desired setting 3 Touch STARTSET to save the changes NV31T4551SSAADG6801265A00ENMESCFRindb 29 20200225 125952
• Page 30 - English - : 30 English Operations Operations 5 You can turn the oven off at any time by touching OFFCLEAR This will turn only the oven off If you want to deactivate the Sabbath mode hold down Bake and at the same time for 3 seconds quotSAbquot will disappear from the display NOTE Do not to attempt to activate any other cooking modes or functions except Bake while the Sabbath mode is active ONLY the following buttons will function correctly with the Sabbath mode on Bake STARTSET and OFFCLEAR All other buttons should not be used once the Sabbath mode is activated You can change the oven temperature but the display will not change and tones will not sound when a change occurs The oven temperature adjustment feature should be used only on Jewish holidays After changing the temperature while the unit is in Sabbath mode there is a 15 second delay before the unit recognizes the change You can set the Cook time function before activating the Sabbath mode Should there be a power failure or interruption the oven will shut off When power is returned the oven will not turn back on automatically Sab will be displayed in the oven control display but the oven will not operate Food may be safely removed from the oven while it is still in the Sabbath mode however the oven cannot be turned back on until after the SabbathHolidays After the Sabbath observance turn OFF the Sabbath mode Touch and hold both Bake and for at least 3 seconds simultaneously to turn the Sabbath mode off The oven can then be used with all normal functions Do not open the oven door or change the oven temperature for about 30 minutes after you have started Sabbath mode to allow the oven to reach the set temperature Note that for best performance the oven fan operates only when the oven temperature is rising Sabbath mode K For use on the Jewish Sabbath and Holidays Use this option only for baking on the Jewish Sabbath and Holidays For more information visit the website at httpwwwstarkorg You can use the Sabbath mode with baking only The oven temperature may be set higher or lower after you set the Sabbath mode The oven temperature adjustment function should be used only during Jewish holidays The display however will not change and tones will not sound when a change occurs Once the oven is properly set for baking with the Sabbath mode active the oven will remain on continuously until the Sabbath mode is cancelled This will override the factory preset 12 hour energy saving function If the oven light is needed during the Sabbath touch before activating the Sabbath feature Once the oven light is turned on and the Sabbath feature is active the oven light will remain on until the Sabbath feature is turned off If the oven light needs to be off be sure to turn the oven light off before activating the Sabbath feature How to use the Sabbath mode 1 Touch Bake The default temperature is 350 F 2 Touch or to set the desired temperature 3 Touch STARTSET The temperature display will start to change once the oven temperature reaches 175 F 4 Touch and hold Bake and at the same time for 3 seconds The display will show SAb Once quotSAbquot appears in the display the oven will not beep or display any further changes You may change the oven temperature once baking has started Remember that the oven will not beep or display any further changes once the Sabbath mode is engaged NV31T4551SSAADG6801265A00ENMESCFRindb 30 20200225 125952
• Page 31 - English - : English 31 Maintaining your appliance Maintaining your appliance Cleaning WARNING Make sure the oven and accessories are cool before cleaning Do not use abrasive cleaning agents hard brushes scouring pads or cloths steel wool knives or any other abrasive materials Oven interior For cleaning the interior of the oven use a clean cloth and a mild cleaning agent or warm soapy water Do not handclean the door seal To avoid damaging the enameled oven surfaces only use standard oven cleaners To remove stubborn messes use a special oven cleaner Oven exterior For cleaning the exterior of the oven such as the oven door handle and display use a clean cloth and a mild cleaning detergent or warm soapy water and dry with a dry towel Grease and dirt can remain especially around the handle because of the hot air coming from inside It is recommended to clean the handle after each use Accessories Wash the accessories after every use and dry it with a dry towel To remove stubborn impurities soak the used accessories in warm soapy water for about 30 minutes before washing Catalytic enamel surface applicable models only The removable parts are coated with dark grey catalytic enamel They can be soiled with oil and fat spattered by the circulating air during convection heating However these impurities burn off at oven temperatures of 392 F 200 C or above 1 Remove all accessories from the oven 2 Clean the interior of the oven 3 Select the Convection mode with max temperature and run the cycle for an hour Door Do not remove the oven door unless for cleaning purposes To remove the door for cleaning follow these instructions WARNING The oven door is heavy 1 Open the door and ip open the clips at both hinges NV31T4551SSAADG6801265A00ENMESCFRindb 31 20200225 125953

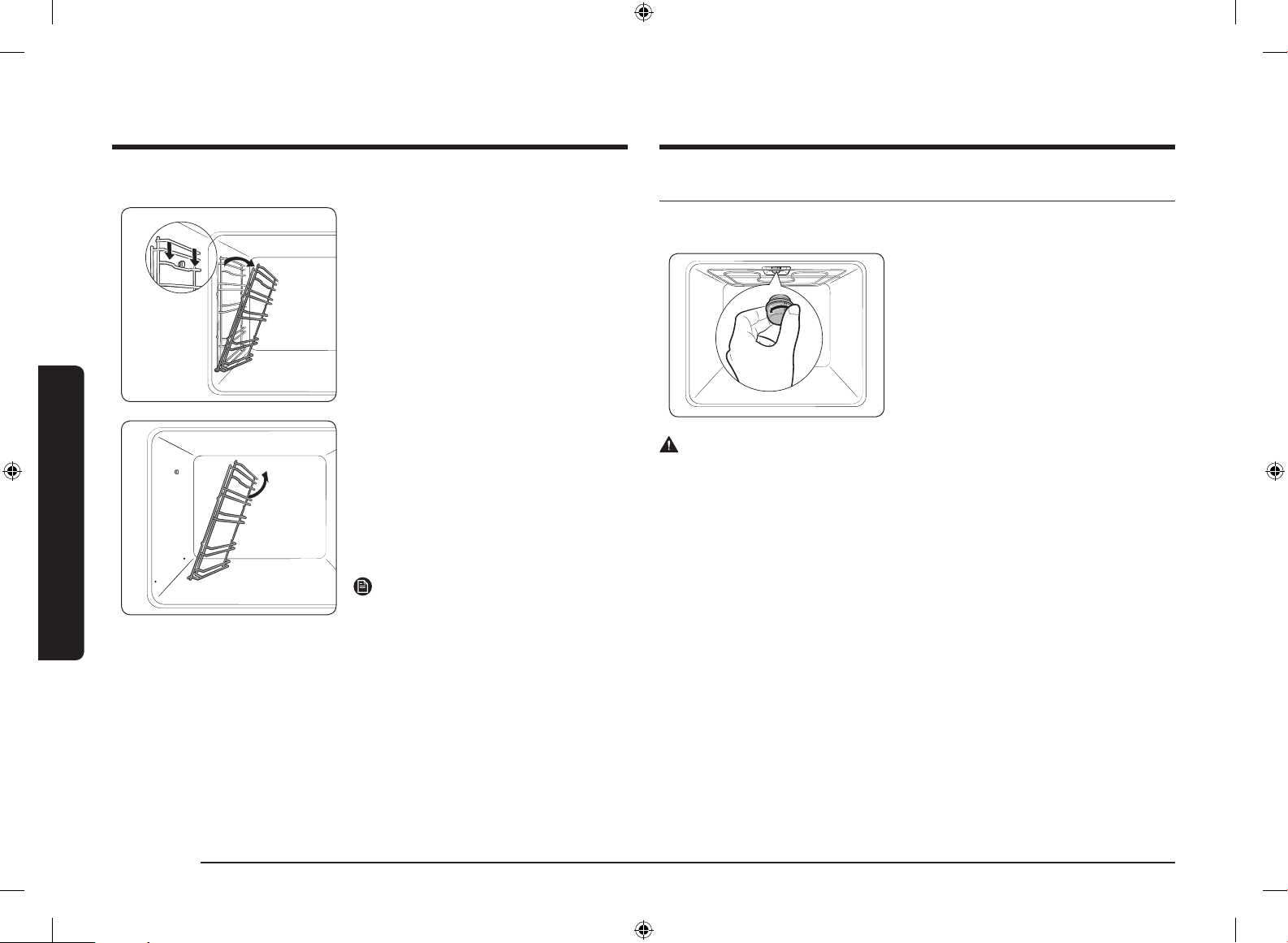

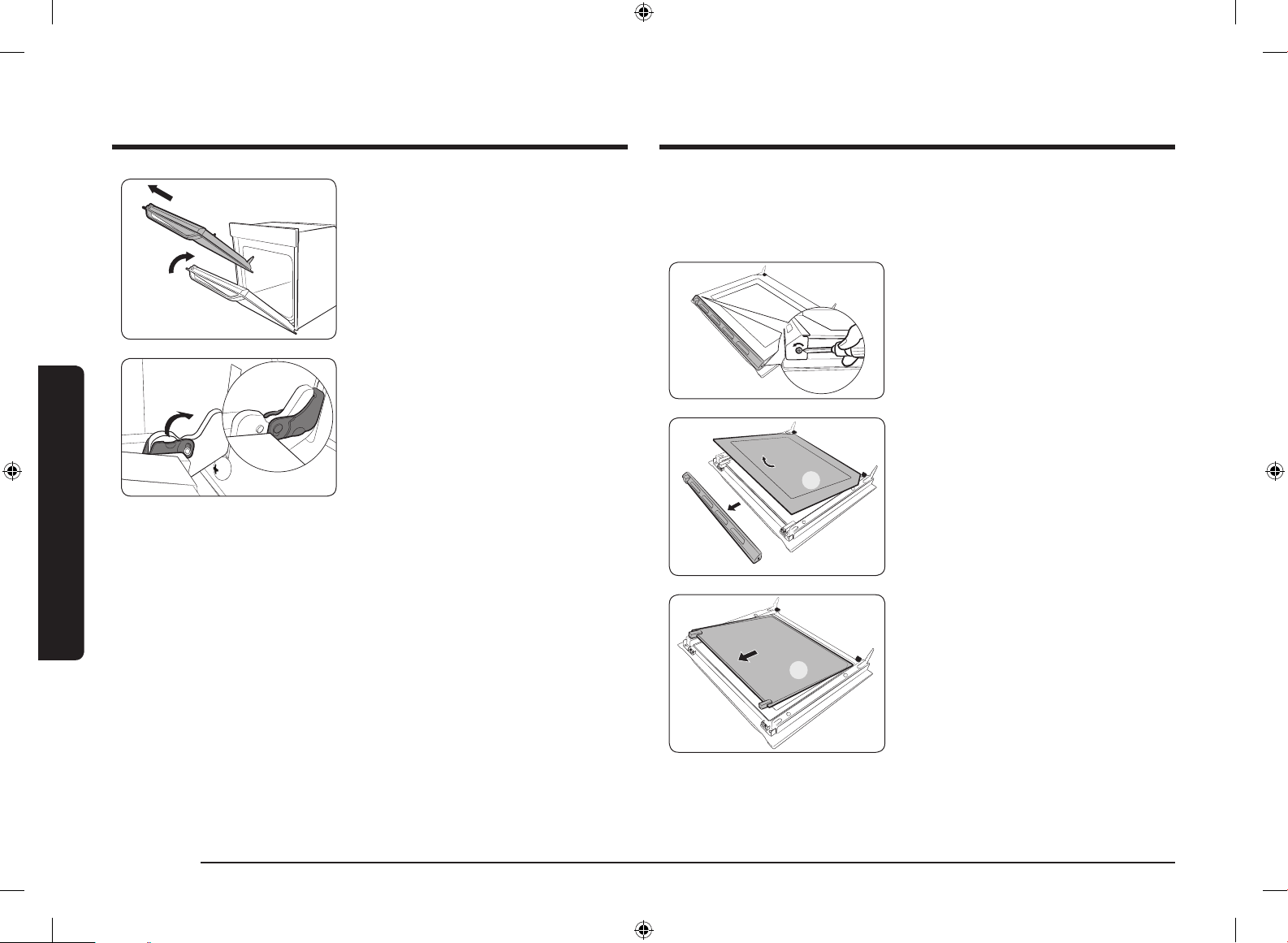

• Page 32 - English - : 32 English Maintaining your appliance Maintaining your appliance 2 Close the door approximately 70 Hold the oven door by the sides using both hands and lift and pull upwards until the hinges are removed 3 Clean the door with soapy water and a clean cloth 4 When done follow steps 1 to 2 in the reverse order to reinstall the door Make sure the clips are hinged on both sides Door glass Depending on the model the oven door is equipped with 34 sheets of glass placed against each other Do not remove the door glass unless for cleaning purposes To remove the door glass for cleaning follow these instructions 1 Use a screwdriver to remove the screws on the left and right sides 2 Detach the coverings in the arrow directions 3 Remove the rst sheet from the door 4 Remove the second sheet from the door in the arrow direction 5 Clean the glass with soapy water and a clean cloth NV31T4551SSAADG6801265A00ENMESCFRindb 32 20200225 125953
• Page 33 - English - : English 33 Maintaining your appliance 01 Support clip 1 02 Support clip 2 03 Support clip 3 6 When done reinsert the sheets as follows Insert sheet 2 between support clip 1 and 2 and sheet 1 into support clip 3 in this order 7 Check if the glass rubbers t into and secure the glass sheet properly 8 Follow steps 12 in the reverse order to reinstall the door WARNING To prevent heat leaks make sure you properly reinsert the glass sheets Ceiling applicable models only 1 Put down the grill heater For this turn the circular nut counterclockwise while holding the grill heater The grill heater is not a removable part Do not force the grill heater down 01 Approx 12 º 2 Clean the ceiling of the oven with soapy water and a clean cloth 3 When done put the grill heater back and turn the circular nut clockwise NV31T4551SSAADG6801265A00ENMESCFRindb 33 20200225 125954
• Page 34 - English - : 34 English Maintaining your appliance Maintaining your appliance Replacement Bulbs 1 Remove the glass cap by turning counterclockwise 2 Replace the oven light 3 Clean the glass cap 4 When done follow step 1 in the reverse order to reinsert the glass cap WARNING Before replacing a bulb turn off the oven and unplug the power cord Use only 20 W 120 V 350 C heatresistant bulbs You can purchase approved bulbs at a local Samsung service center Always use a dry cloth when handling a halogen bulb This is to prevent the bulb from being tampered with ngerprints or sweat resulting in a shortened lifecycle Side racks applicable models only 1 Press the top line of the left side rack and lower by approximately 45 º 2 Pull and remove the bottom line of the left side rack 3 Remove the right side rack in the same way 4 Clean both side racks 5 When done follow steps 1 to 2 in the reverse order to reinsert the side racks NOTE The oven operates without the side racks and racks in position NV31T4551SSAADG6801265A00ENMESCFRindb 34 20200225 125955
• Page 35 - English - : English 35 Troubleshooting Troubleshooting Checkpoints If you encounter a problem with the oven rst check the table below and try the suggestions If the problem continues contact a local Samsung service center Problem Cause Action The buttons cannot be pressed properly If there is foreign matter caught between the buttons Remove the foreign matter and try again Touch model if there is moisture on the exterior Remove the moisture and try again If the lock function is set Check whether the lock function is set The time is not displayed If there is no power supplied Check whether there is power supplied The oven does not work If there is no power supplied Check whether there is power supplied The oven stops while in operation If it is unplugged from the power socket Reconnect the power The power turns off during operation If continuous cooking takes a long time After cooking for a long time let the oven cool If the cooling fan does not work Listen for the sound of the cooling fan If the oven is installed in a place without good ventilation Keep the gaps specied in the product installation guide When using several power plugs in the same socket Use a single plug Problem Cause Action There is no power to the oven If there is no power supplied Check whether there is power supplied The oven exterior is too hot during operation If the oven is installed in a place without good ventilation Keep the gaps specied in the product installation guide The door cannot be opened properly If there is food residue stuck between the door and product interior Clean the oven well and then open the door again The interior light is dim or does not turn on If the lamp turns on and then off The lamp automatically turns off after a certain amount of time to save power You can turn it on again by pressing the lamp button If the lamp is covered by foreign matter during cooking Clean the inside of the oven and then check Electric shock occurs on the oven If the power supply is not properly grounded If you are using a socket without grounding Check whether the power supply is properly grounded There is water dripping There may be water or steam in some cases depending on the food This is not a product malfunction Cool the oven and then wipe with a dry dish towel There is steam through a crack in the door There is water remaining in the oven NV31T4551SSAADG6801265A00ENMESCFRindb 35 20200225 125955
• Page 36 - English - : 36 English Troubleshooting Troubleshooting Problem Cause Action The brightness inside the oven varies The brightness changes depending on power output changes Power output changes during cooking are not malfunctions so there is no need to worry Cooking is nished but the cooling fan is still running The fan automatically runs for a certain amount of time to ventilate inside the oven This is not a product malfunction so there is no need to worry The oven does not heat If the door is open Close the door and restart If oven controls are not correctly set Refer to the chapter on oven operation and reset the oven If the household fuse has been blown or the circuit breaker has operated Replace the fuse or reset the circuit If it happens repeatedly call an electrician Smoke comes out during operation During initial operation Smoke may come from the heater when you rst use the oven This is not a malfunction and if you run the oven 23 times it should stop happening If there is food on the heater Let the oven cool sufciently and remove the food from the heater Problem Cause Action There is a burning or plastic smell when using the oven If using plastic or other containers that are not heatresistant Use glass containers suitable for hot temperatures The oven does not cook properly If the door is often opened during cooking Do not frequently open the door unless you are cooking things that need to be turned If you open the door often the interior temperature will be lower and this may affect the results of your cooking NV31T4551SSAADG6801265A00ENMESCFRindb 36 20200225 125955
• Page 37 - English - : English 37 Warranty USA Warranty USA PLEASE DO NOT DISCARD THIS PAGE REPLACES THE WARRANTY PAGE IN THE USE amp CARE GUIDE SAMSUNG ELECTRIC OVEN LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product as supplied and distributed by SAMSUNG ELECTRONICS AMERICA INC SAMSUNG and delivered new in the original carton to the original consumer purchaser is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period starting from the date of original purchase of One 1 Year Parts and Labor This limited warranty is valid only on products purchased and used in the United States that have been installed operated and maintained according to the instructions attached to or furnished with the product To receive warranty service the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures Warranty service can only be performed by a SAMSUNG authorized service center The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNGs authorized service center to receive warranty service SAMSUNG will provide inhome service within the contiguous United States during the warranty period at no charge subject to availability of SAMSUNG authorized servicers within the customers geographic area If inhome service is not available SAMSUNG may elect at its option to provide transportation of the product to and from an authorized service center If the product is located in an area where service by a SAMSUNG authorized servicer is not available you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service To receive inhome service product must be unobstructed and accessible to the service agent Information codes If the oven fails to operate you may see an information code on the display Check the table below and try the suggestions Code Meaning Action C20 Sensor malfunctions Turn off the oven and then restart If the problem continues turn off all power for 30 seconds or more and then reconnect If the problem is not xed please contact a service centre C21 C22 CF1 Only occurs during EEPROM Read Write Cd0 Button problem Occurs when a button is pressed and held for a period of time Clean the buttons and make sure there is no water on around them Turn off the oven and try again If the problem continues contact a local Samsung service centre CF0 This code occurs if communication between the Main and Sub PBA is interrupted Touch OFFCLEAR and then restart the oven If the problem persists disconnect all power to the oven for at least 30 seconds and then reconnect the power If this does not solve the problem call for service CF2 This code occurs if communication between the Main and Touch is interrupted C30 The PCB sensor is open when the oven is operating The PCB sensor is short when the oven is operating CA2 The cooling motor is operating abnormally Call for service Troubleshooting NV31T4551SSAADG6801265A00ENMESCFRindb 37 20200225 125955
• Page 38 - English - : 38 English Warranty USA Warranty USA During the applicable warranty period a product will be repaired replaced or the purchase price refunded at the sole option of SAMSUNG SAMSUNG may use new or reconditioned parts in repairing a product or replace the product with a new or reconditioned product Replacement parts and products are warranted for the remaining portion of the original products warranty or ninety 90 days whichever is longer All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household noncommercial use of this product and shall not cover the following damage that occurs in shipment delivery installation and uses for which this product was not intended damage caused by unauthorized modication or alteration of the product product where the original factory serial numbers have been removed defaced changed in any way or cannot be readily determined cosmetic damage including scratches dents chips and other damage to the products nishes damage caused by abuse misuse overheating due to overcooking glass tray or turntable pest infestations accident re oods or other acts of nature or God damage caused by use of equipment utilities services parts supplies accessories applications installations repairs external wiring or connectors not supplied or authorized by SAMSUNG damage caused by incorrect electrical line current voltage uctuations and surges damage caused by failure to operate and maintain the product according to instructions inhome instruction on how to use your product service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing ie house wiring fuses or water inlet hoses In addition damage to the glass cooktop caused by i use of cleaners other than the recommended cleaners and pads or ii hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered by this limited warranty The cost of repair or replacement under these excluded circumstances shall be the customers responsibility Visits by an authorized servicer to explain product functions maintenance or installation are not covered by this limited warranty Please contact SAMSUNG at the number below for assistance with any of these issues EXCLUSION OF IMPLIED WARRANTIES IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW Some states do not allow limitations on how long an implied warranty lasts so the above limitations or exclusions may not apply to you This warranty gives you specic rights and you may also have other rights which vary from state to state LIMITATION OF REMEDIES YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR PRODUCT REPLACEMENT OR REFUND OF THE PURCHASE PRICE AT SAMSUNGS OPTION AS PROVIDED IN THIS LIMITED WARRANTY SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK HOTELS ANDOR RESTAURANT MEALS REMODELING EXPENSES LOSS OF REVENUE OR PROFITS FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES Some states do not allow exclusion or limitation of incidental or consequential damages so the above limitations or exclusions may not apply to you This warranty gives you specic rights and you may also have other rights which vary from state to state SAMSUNG does not warrant uninterrupted or errorfree operation of the product No warranty or guarantee given by any other person rm or corporation with respect to this product shall be binding on SAMSUNG To obtain warranty service please contact SAMSUNG at Samsung Electronics America Inc 85 Challenger Road Ridgeeld Park NJ 07660 1800SAMSUNG 7267864 and wwwsamsungcomussupport NV31T4551SSAADG6801265A00ENMESCFRindb 38 20200225 125955
• Page 39 - English - : English 39 Warranty CANADA SAMSUNG will repair or replace this product at our option and at no charge as stipulated herein with new or reconditioned parts or products if found to be defective during the limited warranty period specied above All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG Replacement parts and products assume the remaining original warranty or ninety 90 days whichever is longer This limited warranty covers manufacturing defects in materials and workmanship encountered in normal noncommercial use of this product and shall not apply to the following damage which occurs in shipment delivery and installation applications and uses for which this product was not intended altered product or serial numbers cosmetic damage or exterior nish accidents abuse neglect re water lightning or other acts of nature use of products equipment systems utilities services parts supplies accessories applications installations repairs external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service problems incorrect electrical line voltage uctuations and surges customer adjustments and failure to follow operating instructions maintenance and environmental instructions that are covered and prescribed in the instruction book product removal and reinstallation problems caused by pest infestations and overheating or overcooking by user This limited warranty shall not cover cases of incorrect electric current voltage or supply light bulbs house fuses house wiring cost of a service call for instructions or xing installation errors SAMSUNG does not warrant uninterrupted or errorfree operation of the product Warranty CANADA PLEASE DO NOT DISCARD THIS PAGE REPLACES THE WARRANTY PAGE IN THE USE amp CARE GUIDE SAMSUNG ELECTRIC OVEN LIMITED WARRANTY TO ORIGINAL PURCHASER This SAMSUNG brand product as supplied and distributed by SAMSUNG ELECTRONICS CANADA INC SAMSUNG and delivered new in the original carton to the original consumer purchaser is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of One 1 Year Parts and Labor This limited warranty begins on the original date of purchase and is valid only on products purchased and used in the CANADA To receive warranty service the purchaser must contact SAMSUNG for problem determination and service procedures Warranty service can only be performed by a SAMSUNG authorized service center The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNGs authorized service center Samsung will provide inhome service during the warranty period at no charge subject to availability within the contiguous CANADA In home service is not available in all areas To receive in home service the product must be unobstructed and accessible to the service agent If service is not available Samsung may elect to provide transportation of the product to and from an authorized service center NV31T4551SSAADG6801265A00ENMESCFRindb 39 20200225 125955
• Page 40 - English - : 40 English Warranty CANADA Warranty CANADA Appendix Open Source Announcement The software included in this product contains open source software You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailtoossrequest samsungcom It is also possible to obtain the complete corresponding source code in a physical medium such as a CDROM a minimal charge will be required The following URL httpopensourcesamsungcomopensourceSMARTAT051 seq0 leads to the download page of the source code made available and open source license information as related to this product This offer is valid to anyone in receipt of this information EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE NO WARRANTY OR GUARANTY GIVEN BY ANY PERSON FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS OR ANY OTHER SPECIAL INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE MISUSE OR INABILITY TO USE THIS PRODUCT REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE WITHOUT LIMITING THE FOREGOING PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS DAMAGE OR INJURY TO PURCHASER AND PURCHASERS PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE MISUSE OR INABILITY TO USE THIS PRODUCT THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages so the above limitations or exclusions may not apply to you This warranty gives you specic legal rights and you may also have other rights which vary from state to state To obtain warranty service please contact SAMSUNG at Samsung Electronics Canada Inc 2050 Derry Road West Mississauga Ontario L5N 0B9 Canada 1800SAMSUNG 7267864 and wwwsamsungcomcasupport English wwwsamsungcomcafrsupport French NV31T4551SSAADG6801265A00ENMESCFRindb 40 20200225 125955
• Page 41: English 41 Appendix Memo NV31T4551SSAADG6801265A00ENMESCFRindb 41 20200225 125955
• Page 42: Memo NV31T4551SSAADG6801265A00ENMESCFRindb 42 20200225 125955
• Page 43: Memo NV31T4551SSAADG6801265A00ENMESCFRindb 43 20200225 125955
• Page 44 - English - : Please be advised that the Samsung warranty does NOT cover service calls to explain product operation correct improper installation or perform normal cleaning or maintenance QUESTIONS OR COMMENTS COUNTRY CALL OR VISIT US ONLINE AT USA Consumer Electronics 1800SAMSUNG 7267864 wwwsamsungcomussupport CANADA 1800SAMSUNG7267864 wwwsamsungcomcasupport English wwwsamsungcomcafrsupport French DG6801265A00 Scan the QR code or visit wwwsamsungcomspsn to view our helpful Howto Videos and Live Shows Requires reader to be installed on your smartphone NV31T4551SSAADG6801265A00ENMESCFRindb 44 20200225 125956
