Fujifilm X70 Camera User Manual

DIGITAL CAMERA

X70

Owner’s Manual

Thank you for your purchase of this product. This

manual describes how to use your FUJIFILM X70

digital camera. Be sure that you have read and un-

derstood its contents before using the camera.

■ Product website:

http://fujifilm-x.com/x70/

■ Additional information may be found in online manuals available from:

http://fujifilm-dsc.com/manuals/

EN

BL00004741-203

Before You Begin

First Steps

Basic Photography

and Playback

Basic Movie Recording

and Playback

The Q (Quick Menu) Button

The Fn (Function) Buttons

More on Photography and Playback

Mode Selection ................................................................................. 50

P, S, A, and M Modes ................................................................. 50

Auto Modes ................................................................................... 50

Choosing an Exposure Mode ..................................................... 51

Program AE (P) ................................................................................ 51

Shutter-Priority AE (S) .................................................................. 52

Aperture-Priority AE (A) ............................................................... 53

Manual Exposure (M) .................................................................... 54

Choosing a Scene Position .......................................................... 55

SADVANCED SR AUTO ......................................................... 56

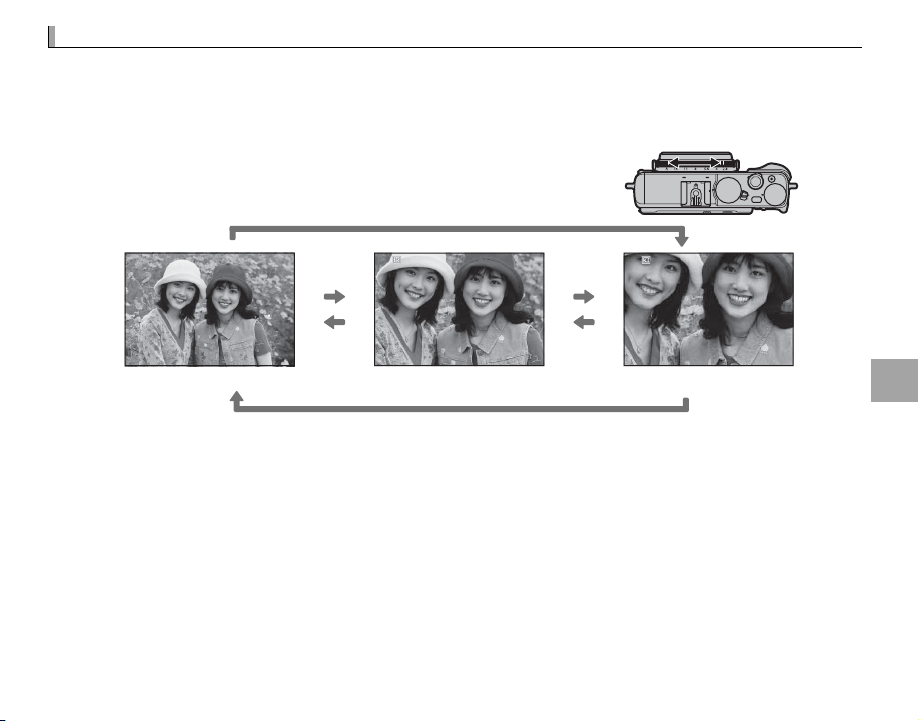

The Digital Teleconverter ............................................................. 57

White Balance ................................................................................... 58

Sensitivity ........................................................................................... 60

AUTO ................................................................................................ 61

Exposure Compensation .............................................................. 62

Metering .............................................................................................. 63

Self-Portraits (SELFIE) .................................................................... 64

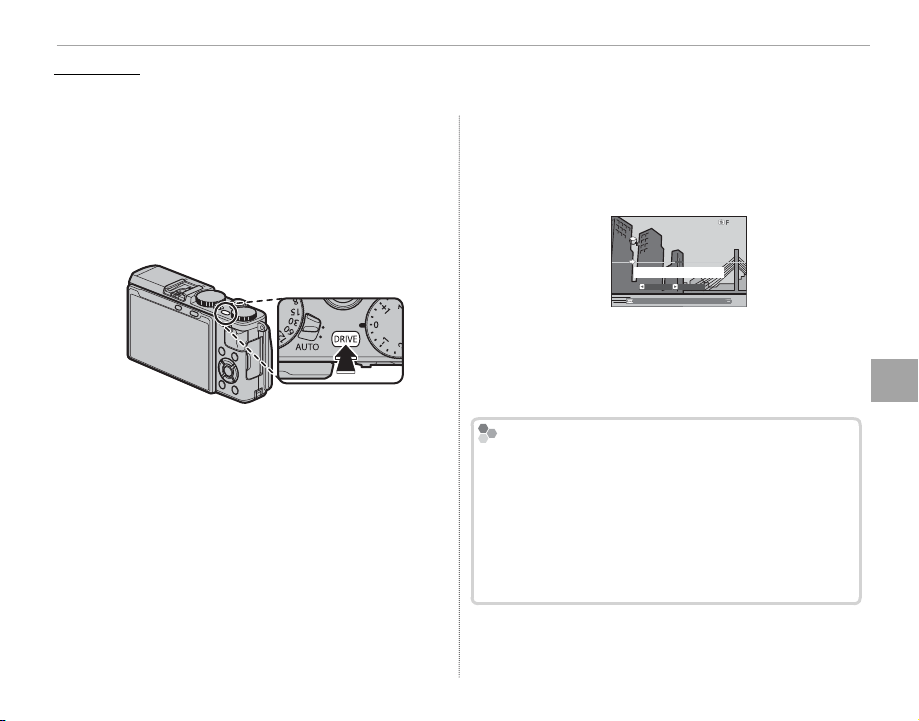

The DRIVE Button ............................................................................ 65

I Continuous Shooting (Burst Mode) ................................. 66

Bracketing ......................................................................................... 67

Panoramas ........................................................................................ 69

Viewing Panoramas ...................................................................... 70

Multiple Exposures ........................................................................ 71

Advanced Filters ............................................................................. 72

Film Simulation ................................................................................ 73

Focus Mode ........................................................................................ 74

The Focus Indicator .................................................................... 75

MF Assist ......................................................................................... 76

Autofocus Options (AF Mode) .................................................. 77

Focus-Point Selection ................................................................... 78

Single Point AF ............................................................................. 78

Zone AF ........................................................................................... 79

Tracking (Focus Mode C Only) ................................................ 80

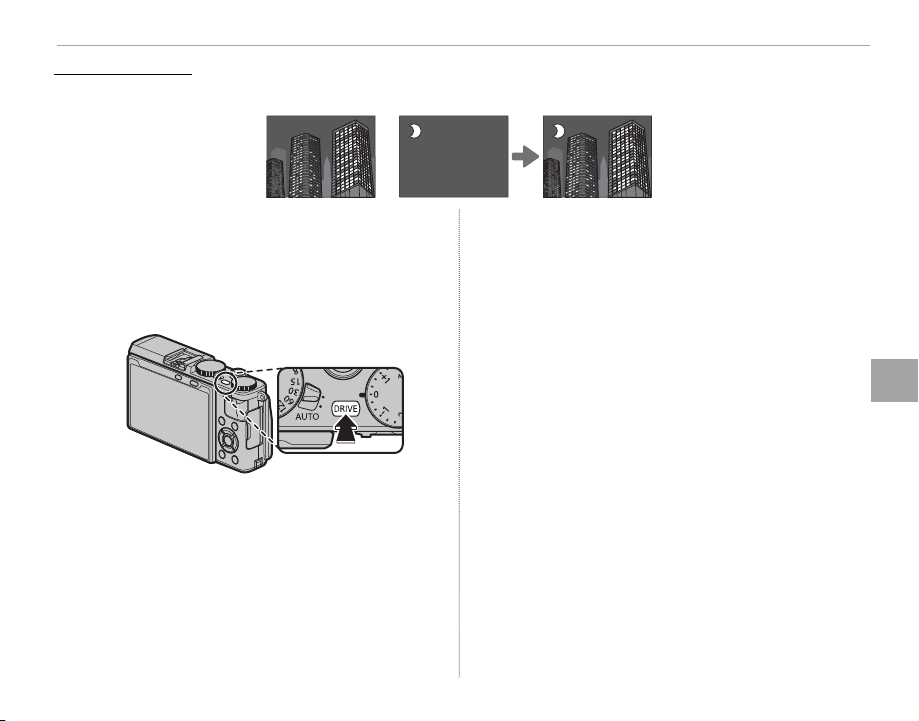

Long Time-Exposures (T/B) ......................................................... 81

Time (T) .............................................................................................. 81

Bulb (B) ............................................................................................... 81

Using a Remote Release .............................................................. 82

Interval Timer Photography ....................................................... 83

Focus/Exposure Lock ..................................................................... 84

Recording Pictures in RAW Format ......................................... 86

Creating JPEG Copies of RAW Pictures .................................. 87

Saving Settings ................................................................................. 88

Image Search ..................................................................................... 89

PhotoBook Assist ............................................................................. 90

Creating a PhotoBook .................................................................. 90

Viewing Photobooks .................................................................... 91

Editing and Deleting Photobooks ........................................... 91

Menus

Using the Menus: Shooting Mode ........................................... 92

Shooting Menu Options (Photographs) ............................... 92

d ADVANCED FILTER................................................................ 92

A SCENE POSITION ................................................................... 92

G AUTOFOCUS SETTING ........................................................ 92

N ISO .............................................................................................. 94

O IMAGE SIZE .............................................................................. 94

T IMAGE QUALITY .................................................................... 94

U DYNAMIC RANGE.................................................................. 94

P FILM SIMULATION ................................................................ 95

xiii

Table of Contents

B SELF-

TIMER .............................................................................. 95

o INTERVAL TIMER SHOOTING ............................................ 95

D WHITE BALANCE ................................................................... 95

f COLOR ....................................................................................... 95

q SHARPNESS ............................................................................. 95

r HIGHLIGHT TONE .................................................................. 95

s SHADOW TONE ..................................................................... 95

h NOISE REDUCTION ............................................................... 95

K LONG EXPOSURE NR ........................................................... 95

u SELECT CUSTOM SETTING ................................................ 95

K EDIT/SAVE CUSTOM SETTING .......................................... 95

Y WIDE CONVERSION LENS .................................................. 96

w CONTROL RING SETTING ................................................... 96

K TOUCH SCREEN MODE ....................................................... 96

c MF ASSIST ................................................................................ 96

k AE/AF-LOCK MODE .............................................................. 96

v AE/AF-LOCK BUTTON.......................................................... 96

C PHOTOMETRY ........................................................................ 96

v INTERLOCK SPOT AE & FOCUS AREA ............................ 96

p FLASH SET-UP ........................................................................ 97

W MOVIE SET-UP ........................................................................ 97

X FILM SIMULATION BKT ....................................................... 98

r WIRELESS COMMUNICATION ........................................... 98

x SHUTTER TYPE ....................................................................... 98

J DIGITAL TELE-CONV. ............................................................ 98

Using the Menus: Playback Mode............................................ 99

Playback Menu Options .............................................................. 99

r WIRELESS COMMUNICATION ........................................... 99

j RAW CONVERSION ............................................................... 99

A ERASE ........................................................................................ 99

G CROP .......................................................................................... 99

e RESIZE .....................................................................................100

D PROTECT ................................................................................100

C IMAGE ROTATE ..................................................................... 100

B RED EYE REMOVAL ............................................................. 101

I SLIDE SHOW .........................................................................101

m PHOTOBOOK ASSIST ......................................................... 101

b IMAGE SEARCH .................................................................... 102

s PC AUTO SAVE .....................................................................102

K PRINT ORDER (DPOF) ........................................................ 102

V instax PRINTER PRINT ........................................................102

J DISP ASPECT .........................................................................102

The Setup Menu ............................................................................. 103

Using the Setup Menu ............................................................... 103

Setup Menu Options ..................................................................104

F DATE/TIME .............................................................................104

N TIME DIFFERENCE ............................................................... 104

Q a .............................................................................. 104

R RESET .......................................................................................104

o SOUND & FLASH ................................................................. 104

b SOUND SET-UP .................................................................... 105

A SCREEN SET-UP ....................................................................105

h BUTTON/DIAL SETTING....................................................107

I CONTROL RING ....................................................................107

L TOUCH SCREEN SETTING.................................................107

Z POWER MANAGEMENT .................................................... 107

t SAVE DATA SET-UP .............................................................108

J COLOR SPACE .......................................................................108

r CONNECTION SETTING .................................................... 109

K FORMAT ..................................................................................110

Factory Defaults ............................................................................. 111

xiv

Table of Contents

Connections

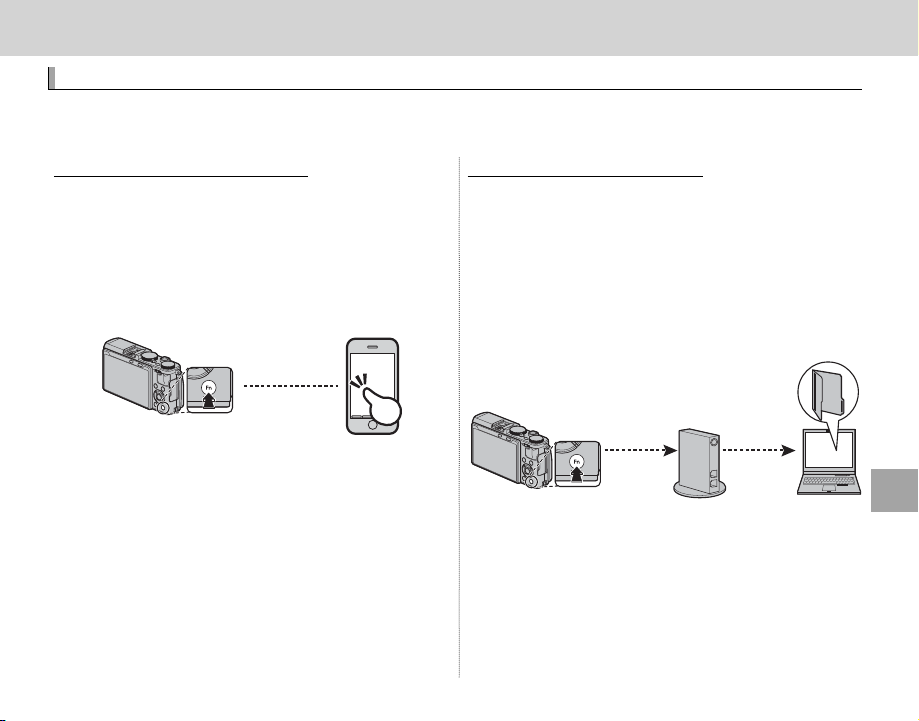

Wireless Transfer ............................................................................ 113

Wireless Connections: Smartphones ...................................113

Wireless Connections: Computers ........................................ 113

Viewing Pictures on a Computer ............................................114

Windows .......................................................................................... 114

Macintosh .......................................................................................114

Connecting the Camera ............................................................ 115

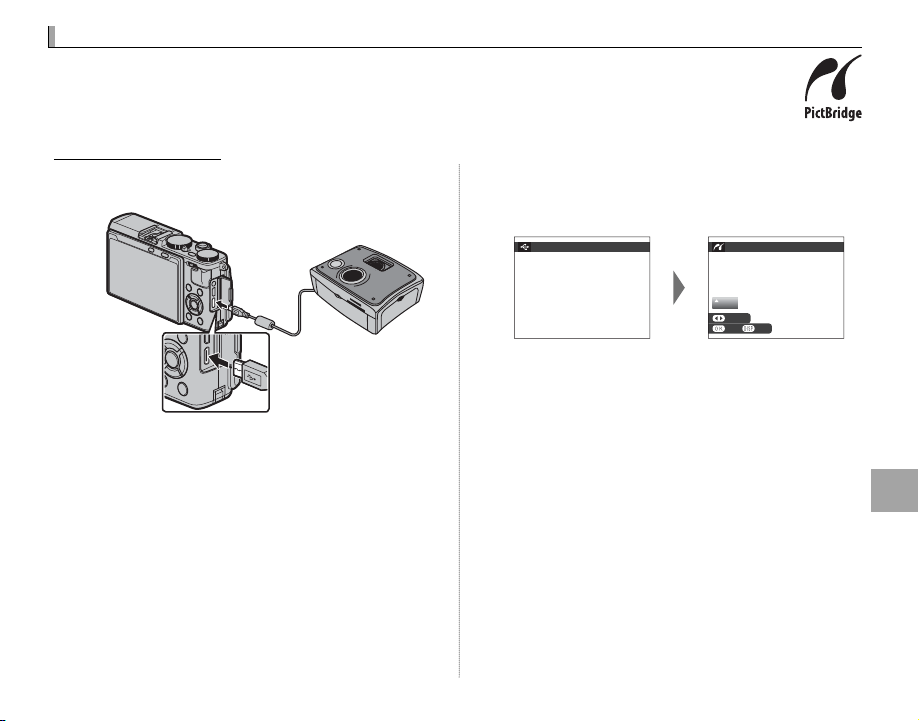

Printing Pictures via USB ...........................................................117

Connecting the Camera ............................................................ 117

Printing Selected Pictures ........................................................118

Printing the DPOF Print Order ................................................119

Creating a DPOF Print Order....................................................120

WITH DATE s/ WITHOUT DATE .......................................... 120

RESET ALL .....................................................................................121

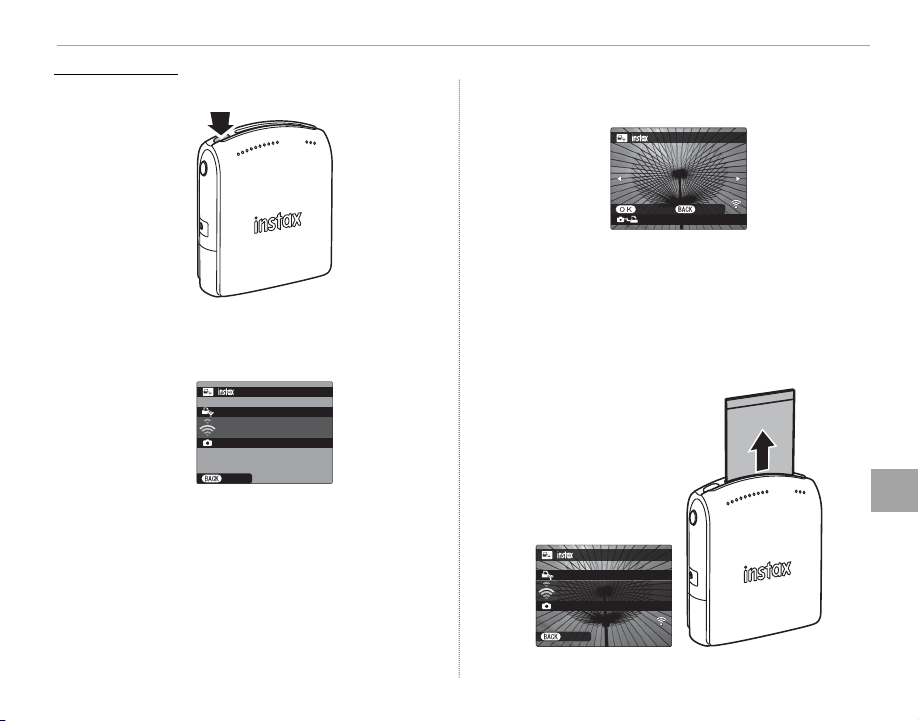

instax SHARE Printers .................................................................. 122

Establishing a Connection........................................................122

Printing Pictures ...........................................................................123

Viewing Pictures on TV ...............................................................124

Technical Notes

Optional Accessories....................................................................125

Accessories from FUJIFILM .......................................................125

Connecting the Camera to Other Devices ......................... 127

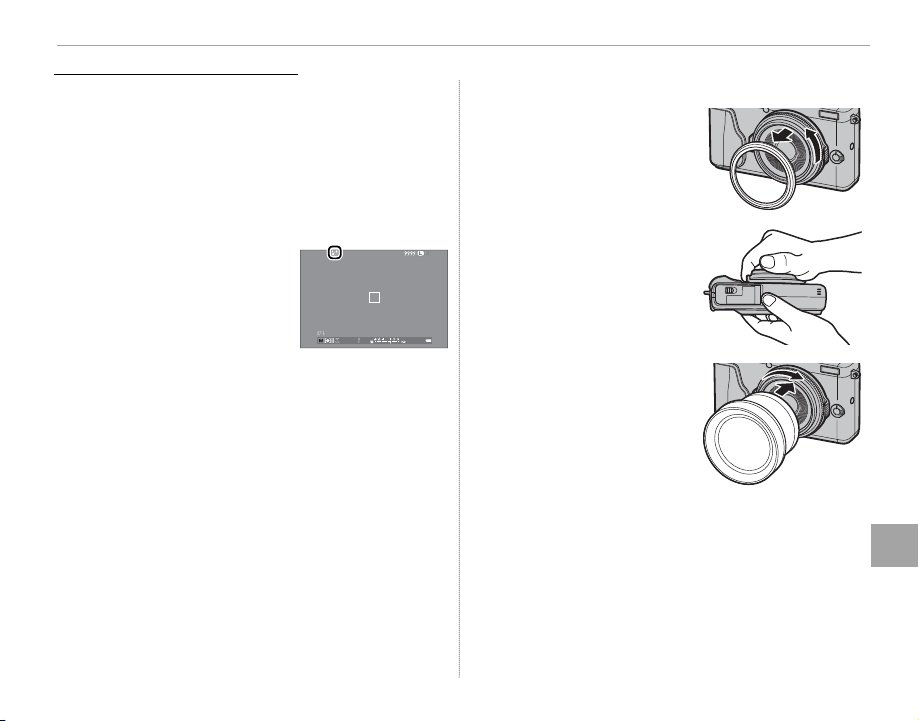

Attaching Adapter Rings ...........................................................128

Attaching Lens Hoods ................................................................128

Attaching Protector Filters .......................................................128

The WCL-X70 Wide Conversion Lens .................................... 129

Caring for the Camera ................................................................. 130

Use and Storage Precautions .................................................. 130

Traveling .......................................................................................... 130

Troubleshooting

Problems and Solutions .............................................................131

Warning Messages and Displays ............................................ 136

Appendix

Memory Card Capacity ...............................................................139

Links .....................................................................................................140

FUJIFILM X70 Product Information .......................................140

Firmware Updates .......................................................................140

Free FUJIFILM Apps .....................................................................140

Speci cations ..................................................................................141

Restrictions on Camera Settings ............................................ 146

1

Before You Begin

Symbols and Conventions

The following symbols are used in this manual:

Q This information should be read before use to ensure correct operation.

R Additional information that may be helpful when using the camera.

P Other pages in this manual on which related information may be found.

Menus and other text in the displays are shown in bold. In the illustrations in this manual, displays may

be simpli ed for explanatory purposes.

Supplied Accessories

The following items are included with the camera:

NP-95 rechargeable battery AC-5VF AC power adapter Plug adapter

*

USB cable

• Protective covers (× 2)

• Shoulder strap

• Owner’s Manual

(this manual)

Lens cap Clip attaching tool Metal strap clips (× 2)

* Shape of adapter varies with region of sale.

2

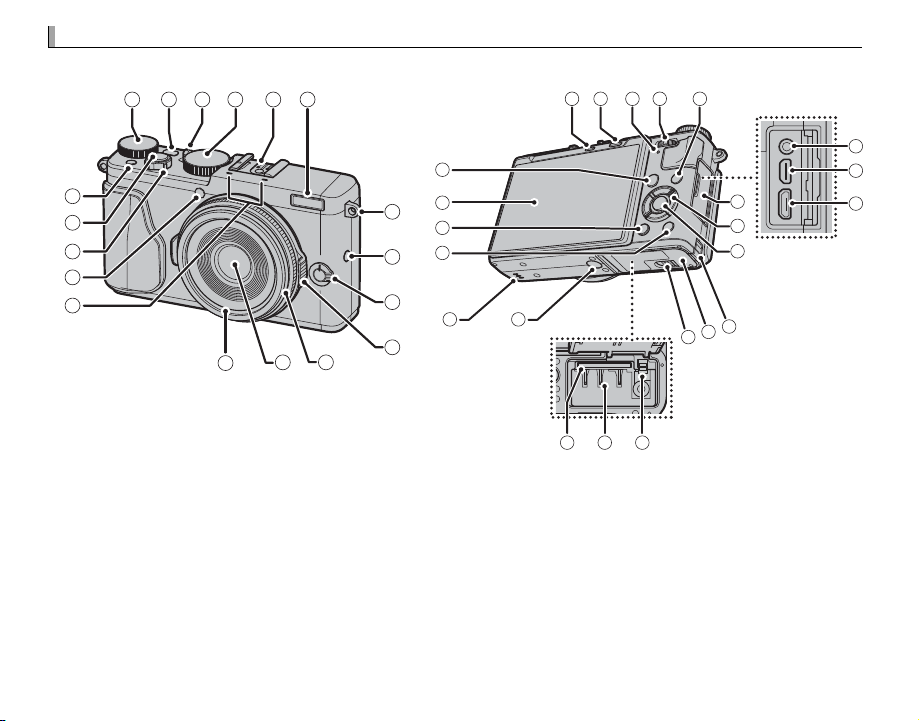

Parts of the Camera

For more information, refer to the page listed to the right of each item.

1 2 3 4 5 6

18

17

16

15

14

7

8

9

10

1112

13

19

20 21 22 23

34

35

33

32

31 30

29

28

27

25

24

26

36

37

38

394041

3

Before You Begin

Parts of the Camera

A

Exposure compensation dial .............................62

B

DRIVE button ...................... 65, 66, 67, 69, 71, 72

C

Auto mode selector lever .............................. 5, 50

D

Shutter speed dial ............................51, 52, 53, 54

E

Hot shoe ...........................................................47

F

Flash ................................................................. 46

G

Strap eyelet ......................................................12

H

Control ring options button .......................... 6, 49

Function button (Fn7) ......................................42

I

Focus mode selector .........................................74

J

Aperture ring ...................................51, 52, 53, 54

K

Control ring ................................................... 6, 49

L

Lens .................................................................... x

M

Front ring ........................................................128

N

Microphone ......................................................36

O

AF-assist illuminator .........................................93

Self-timer lamp ................................................45

P

ON/OFF switch .................................................21

Q

Shutter button ..................................................29

R

Movie-record button .........................................36

Function button (Fn1) ................................ 42, 44

S

b (delete) button ............................................35

Function button (Fn8) ......................................42

T

a (playback) button ......................................30

U

Indicator lamp ....................................................7

V

Command control ...............................................6

W

Q (quick menu) button

*

....................................39

Quick menu edit/custom settings button

(press and hold)

*

........................................ 41, 88

RAW conversion button (playback mode) .........87

X

Connector cover .............18, 37, 82, 115, 117, 124

Y

Selector/function buttons ...................................4

Z

MENU/OK button ............................4, 92, 99, 103

X (control lock) button (press and hold)

a

Cable channel cover for DC coupler

b

Battery-chamber cover .....................................14

c

Battery-chamber cover latch ............................14

d

Tripod mount

e

Speaker .............................................................38

f

Wi-Fi button.............................................48, 113

Function button (Fn6) ......................................42

g

DISP (display)/BACK button ............................25

Function button role selection (press and hold)

.........................................................................42

h

LCD monitor .............................................. 7, 8, 25

i

AF-L/AE-L (autofocus/autoexposure lock) button

............................................................. 74 ,85, 96

j

Microphone/remote release connector ....... 37, 82

k

Micro HDMI connector ....................................124

l

Micro USB connector ......................... 18, 115, 117

m

Battery latch .....................................................14

n

Battery chamber ...............................................14

o

Memory card slot ..............................................15

* In shooting mode, press and release to display quick menu or press and hold to display quick menu edit options. When quick

menu is displayed, press and hold to edit custom settings.

Control Lock

To prevent accidental operation of the selector, Q, function (Fn6), and AF-L/AE-L buttons during shooting, press

MENU/OK until X is displayed. The controls can be unlocked by pressing MENU/OK until X is no longer displayed.

4

Parts of the Camera

The Selector

Press the selector up (

A

), right (

C

), down (

D

), or left (

B

) to highlight items. The

up, left, right, and down buttons also double as the AF mode, self-timer,  ash

mode, and focus-area selection buttons, respectively, and as function buttons 2

through 5 (P 42, 44, 45, 46, 48).

5

Before You Begin

Parts of the Camera

The Auto Mode Selector Lever

Switch between auto and manual modes.

Position

Mode

Select from P (program AE), S (shutter-priority AE), A (aperture-priority AE), and M (manual) modes

(P 51, 52, 53, 54). Adjust shutter speed and aperture using program shift (mode P) or set shutter speed and/or

aperture manually (modes S, A, and M).

Auto mode. In drive mode B (STILL IMAGE), the camera adjusts settings automatically according to the

option selected by rotating the control ring. Choose from modes suited to speci c subject types (P 55),

or select S ADVANCED SR AUTO to let the camera automatically match the mode to the subject (P 56).

R Restrictions may apply to camera settings depending on the mode and shooting conditions (P 146). Updates

to camera  rmware may also a ect the options available.

6

Parts of the Camera

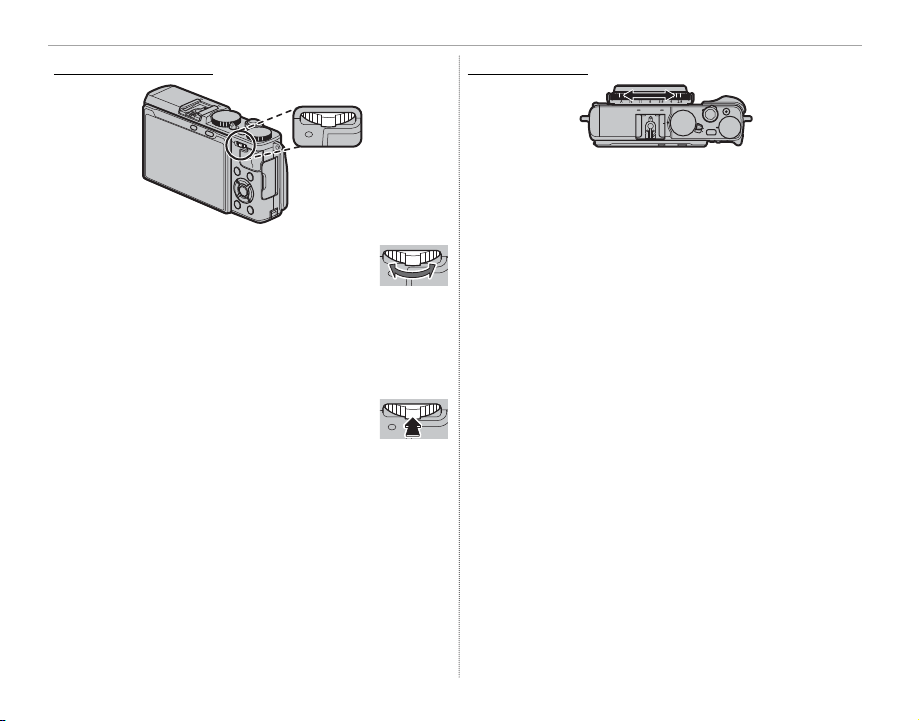

The Command Control

Press the command control left or right to

choose the desired combination of

shutter speed and aperture (program shift; P 51),

 ne -tune shutter speed (P 52, 54), zoom in on pic-

tures during playback (P 32), or “zoom out” to

view multiple pictures (P 33).

Press the center of the control to zoom

in on the selected focus area during

shooting or playback (P 31, 75).

Press and hold the center of the control during man-

ual focus to choose a manual focus assist display

(P 76).

The Control Ring

Use the control ring for quick access to camera

functions during shooting. The function assigned

to the control ring can be selected by pressing

the control ring options button (P 49). Choose

from:

• DEFAULT • FILM SIMULATION

• ISO • DIGITAL TELE-CONV.

• WHITE BALANCE

7

Before You Begin

Parts of the Camera

The LCD Monitor

The LCD monitor can be reversed for self-portraits (P 64) or tilted for ease of view-

ing when framing pictures.

Pinch point

When tilting the monitor, be careful that your  ngers and other objects do not get caught between the monitor and

the camera body. Do not touch the wires behind the display; failure to observe this precaution could cause camera

malfunction.

The Indicator Lamp

The indicator lamp shows camera status as follows:

Indicator lamp

Camera status

Glows green

Glows green Focus locked.

Blinks green

Blinks green Blur, focus, or exposure warning. Picture can be taken.

Blinks green and orange

Blinks green and orange Recording pictures. Additional pictures can be taken.

Glows orange

Glows orange Recording pictures. No additional pictures can be taken at this time.

Blinks orange

Blinks orange Flash charging;  ash will not  re when picture is taken.

Blinks red

Blinks red Lens or memory error.

Indicator lamp

R Warnings may also appear in the display (P 136).

8

Parts of the Camera

Camera Displays

The following types of indicator may be displayed during shooting and playback. In the description

that follows, all available indicators are shown for illustrative purposes; the indicators actually displayed

vary with camera settings.

■ Shooting

11/15/2015 11:15 AM

12000

5.6

51200

00

m

00

s

9

Before You Begin

Parts of the Camera

A

Depth-of- eld preview .....................................53

B

Wide conversion lens ......................................129

C

Location data download status .......................109

D

Movie mode ................................................ 36, 97

E

Time remaining ................................................36

F

Date and time ............................................. 22, 23

G

Number of available frames * .........................139

H

Image quality and size ......................................94

I

Focus warning .................................... 7, 133, 136

J

Temperature warning .....................................138

K

Touchscreen mode indicator .............................24

L

White balance ...................................................58

M

Film simulation .................................................73

N

Dynamic range .................................................94

O

Control lock .........................................................3

P

Sound and  ash indicator ...............................104

Q

Histogram .........................................................27

R

Distance indicator .............................................74

S

Battery level .....................................................21

T

Sensitivity .........................................................60

U

Exposure compensation/exposure indicator

................................................................... 54, 62

V

Aperture ............................................... 51, 53, 54

W

Shutter speed ....................................... 51, 52, 54

X

AE lock indicator ...............................................84

Y

Metering ...........................................................63

Z

Shooting mode .................................................50

a

Focus indicator ............................................ 29, 75

b

Manual focus indicator .....................................75

c

Focus mode ......................................................74

d

Shutter type......................................................98

e

Continuous mode .............................................66

f

Self-timer indicator ..........................................45

g

Microphone/remote release ................. 37, 82, 97

h

Flash mode/ ash compensation ................. 46, 97

i

Virtual horizon ..................................................27

j

Focus frame ................................................ 29, 84

k

Focus check .......................................................75

l

Digital teleconverter .........................................57

* Shows “9999” if there is space for over 9999 frames.

Control Lock

X

Pressing a locked control (

P

3) displays a

X

icon.

10

Parts of the Camera

■ Playback

100-0001

12/31/2050 10:00 AM

1/4000

5.6

400

11

Before You Begin

Parts of the Camera

A

Date and time ............................................. 22, 23

B

Intelligent face detection indicator ...................93

C

Red-eye removal indicator ..............................101

D

Advanced  lter .................................................72

E

Location data ..................................................109

F

Protected image .............................................100

G

Sound and  ash indicator ...............................104

H

Frame number ................................................ 108

I

Gift image .........................................................30

J

Photobook assist indicator ................................90

K

DPOF print indicator .......................................120

L

Battery level .....................................................21

M

Image quality and size ......................................94

N

Film simulation .................................................73

O

Dynamic range .................................................94

P

White balance ...................................................58

Q

Sensitivity .........................................................60

R

Exposure compensation ....................................62

S

Aperture ............................................... 51, 53, 54

T

Shutter speed ....................................... 51, 52, 54

U

Playback mode indicator...................................30

V

Movie icon ........................................................38

W

Rating ...............................................................30

12

First Steps

Attaching the Strap

Attach the strap clips to the camera and then attach the strap.

1

Open a strap clip.

Use the clip attaching tool to open a strap clip,

making sure that the tool and clip are in the

orientations shown.

Q Keep the tool in a safe place. You will need it to

open the strap clips when removing the strap.

2

Place the strap clip on an eyelet.

Hook the strap eyelet in the clip opening. Re-

move the tool, using the other hand to keep

the clip in place.

3

Pass the clip through the eyelet.

Rotate the clip fully through

the eyelet until it clicks

closed.

4

Attach a protective cover.

Place a protective cover over the eyelet as

shown, with the black side of the cover toward

the camera. Repeat Steps 1–4 for the second

eyelet.

13

First Steps

Attaching the Strap

5

Insert the strap.

Insert the strap through a protective cover

and strap clip.

6

Fasten the strap.

Fasten the strap as shown. Repeat Steps 5–6

for the second eyelet.

Q To avoid dropping the camera, be sure the strap is

correctly secured.

14

Inserting the Battery and a Memory Card

The camera has no internal memory; instead, pictures are stored on optional SD, SDHC, and SDXC

memory cards (sold separately). After charging the battery, insert the battery and memory card as

described below.

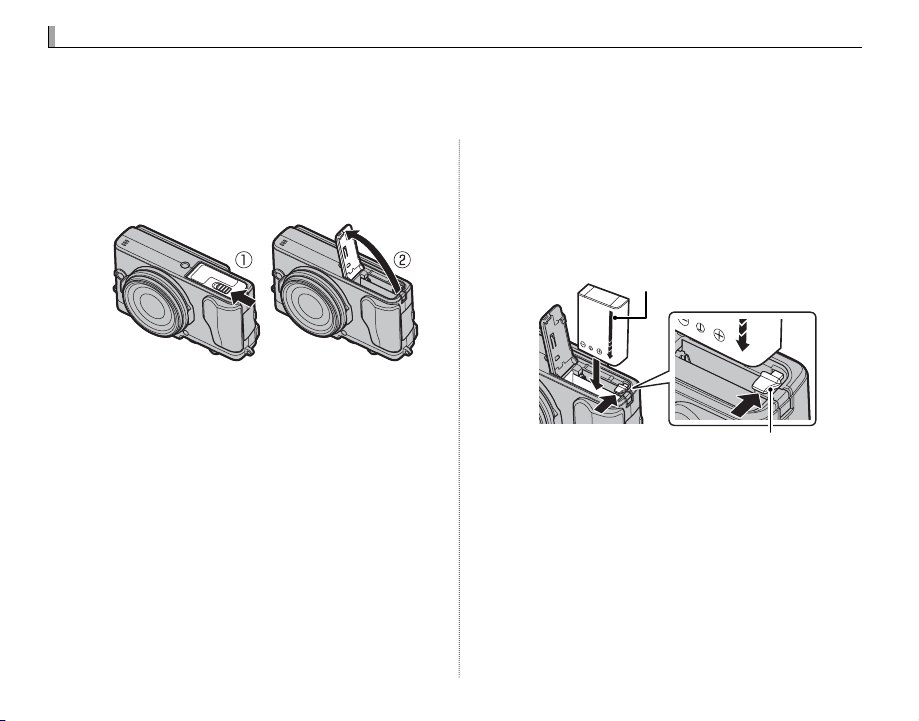

1

Open the battery-chamber cover.

Slide the battery-chamber latch as shown and

open the battery-chamber cover.

Q Do not open the battery-chamber cover when

the camera is on. Failure to observe this precau-

tion could damage image  les or memory cards.

Q Do not use excessive force when handling the

battery-chamber cover.

2

Insert the battery.

Using the battery to keep the battery latch

pressed to one side, insert the battery con-

tacts  rst in the direction shown by the arrow.

Con rm that the battery is securely latched.

Battery latch

Arrow

Q Insert the battery in the orientation shown. Do

not use force or attempt to insert the battery up-

side down or backwards. The battery will slide in

easily in the correct orientation.

15

First Steps

Inserting the Battery and a Memory Card

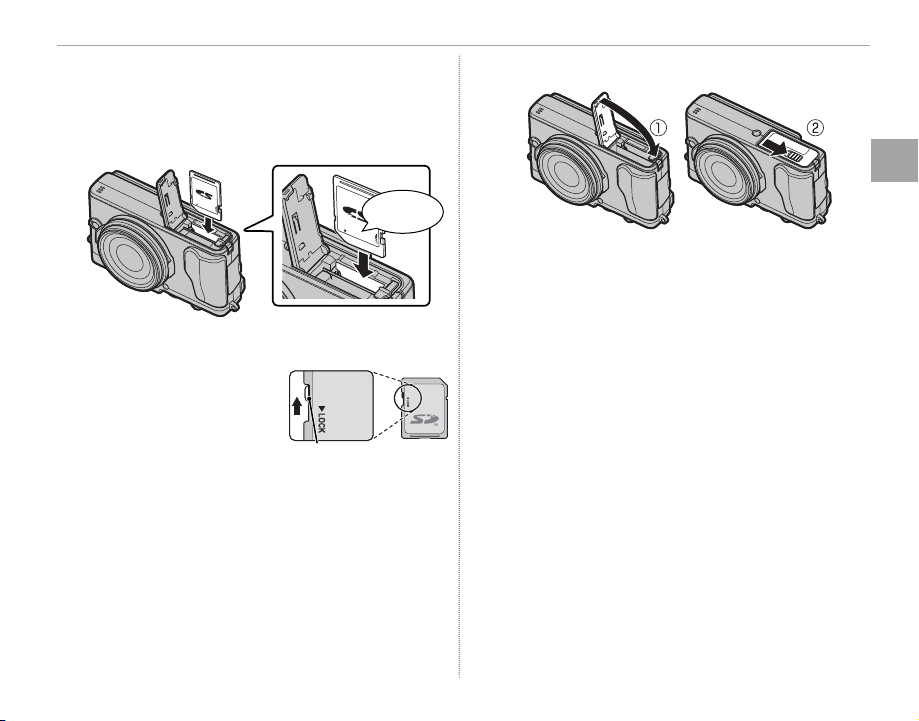

3

Insert the memory card.

Holding the memory card in the orientation

shown, slide it in until it clicks into place at the

back of the slot.

Click!

Q Be sure card is in the correct orientation; do not

insert at an angle or use force.

Q SD/SDHC/SDXC memo-

ry cards can be locked,

making it impossible to

format the card or to

record or delete images.

Before inserting a memory card, slide the write-

protect switch to the unlocked position.

4

Close the battery-chamber cover.

Write-protect switch

16

Inserting the Battery and a Memory Card

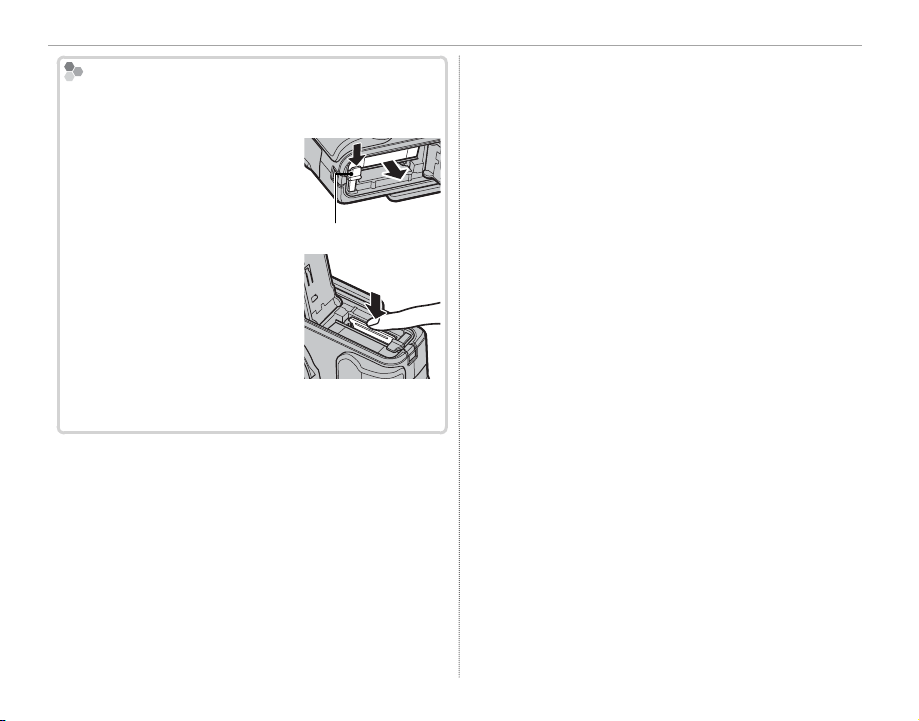

Removing the Battery and Memory Card

Before removing the battery or memory card, turn

the camera o and open the battery-chamber cover.

To remove the battery, press the

battery latch to the side, and

slide the battery out of the cam-

era as shown.

Battery latch

To remove the memory card,

press it in and release it slowly.

The card can then be removed

by hand. When a memory card

is removed, the card could be

ejected too quickly. Use your

 nger to hold it and gently re-

lease the card.

Q

Batteries

• Remove dirt from the battery terminals with a clean,

dry cloth. Failure to observe this precaution could

prevent the battery from charging.

• Do not a x stickers or other objects to the battery.

Failure to observe this precaution could make it im-

possible to remove the battery from the camera.

• Do not short the battery terminals. The battery could

overheat.

• Read the cautions in “The Battery and Power Supply”

(P v).

• Use only battery chargers designated for use with the

battery. Failure to observe this precaution could re-

sult in product malfunction.

• Do not remove the labels from the battery or attempt

to split or peel the outer casing.

• The battery gradually loses its charge when not in

use. Charge the battery one or two days before use.

17

First Steps

Inserting the Battery and a Memory Card

■ Compatible Memory Cards

FUJIFILM and SanDisk SD, SDHC, and SDXC memory cards have been approved for use in the cam-

era. A complete list of approved memory cards is available at http://www.fujifilm.com/support/digital_

cameras/compatibility/. Operation is not guaranteed with other cards. The camera can not be used

with xD-Picture Cards or MultiMediaCard (MMC) devices.

Q

Memory Cards

• Do not turn the camera o or remove the memory card while the memory card is being formatted or data are

being recorded to or deleted from the card. Failure to observe this precaution could damage the card.

• Format memory cards before  rst use, and be sure to reformat all memory cards after using them in a computer

or other device. For more information on formatting memory cards, see page 110.

• Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card,

seek medical assistance immediately.

• miniSD or microSD adapters that are larger or smaller than the standard dimensions of an SD/SDHC/SDXC card

may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do

not forcibly remove the card.

• Do not a x labels to memory cards. Peeling labels can cause camera malfunction.

• Movie recording may be interrupted with some types of SD/SDHC/SDXC memory card. Use a H card or

better for movies and burst photography.

• Formatting a memory card in the camera creates a folder in which pictures are stored. Do not rename or delete

this folder or use a computer or other device to edit, delete, or rename image  les. Always use the camera to

delete pictures; before editing or renaming  les, copy them to a computer and edit or rename the copies, not

the originals. Renaming the  les on the camera can cause problems during playback.

18

Charging the Battery

The battery is not charged at shipment. Charge the battery before use. The camera charges the bat-

tery internally.

• The camera uses an NP-95 rechargeable battery.

• See the speci cations (P 144) for charging times.

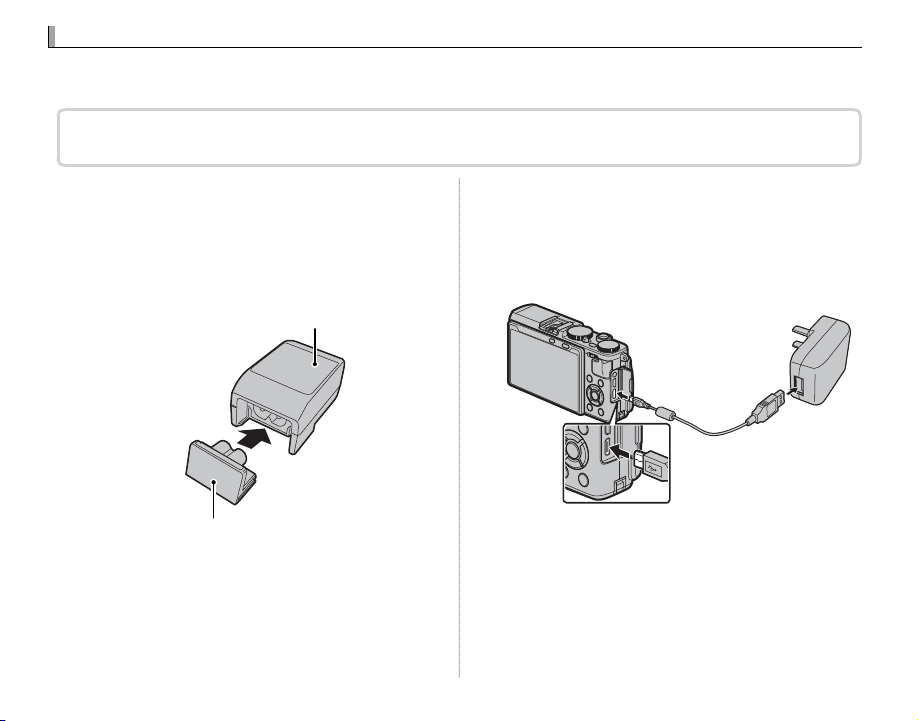

1

Attach the plug adapter to the AC power

adapter.

Attach the plug adapter as shown, making

sure that it is fully inserted and clicks into place

on the AC power adapter terminals.

AC power adapter

Plug adapter

Q The plug adapter is exclusively for use with the

supplied AC power adapter. Do not use it with

other devices.

2

Charge the battery.

Connect the camera to the supplied AC pow-

er adapter using the supplied USB cable. Then

plug the AC power adapter into an indoor

power outlet.

Q Be sure the connectors are in the correct orien-

tation and then insert them fully.

19

First Steps

Charging the Battery

Charge status

The battery status icons show battery charge status when the camera is turned on, and the indicator lamp

shows it when the camera is turned o .

Battery status icon when camera on

Indicator lamp when camera o

Battery status

Y

(yellow)

On

Battery charging.

N

(green)

O

Charging complete.

Z

(red)

Blinks

Battery fault.

No icon

—

Operating in external power mode.

R The camera operates in external power mode if the camera is turned on while the camera is connected to AC

power and the battery is inserted.

Q The battery will not charge while the camera is in the shooting mode.

Q Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent

the battery from charging.

Q Do not a x stickers or other objects to the battery. Failure to observe this precaution could make it impossible

to remove the battery from the camera.

Q Do not short the battery terminals. The battery could overheat.

Q Read the cautions in “The Battery and Power Supply”.

Q Use only battery chargers designated for use with the battery. Failure to observe this precaution could result

in product malfunction.

Q Do not remove the labels from the battery or attempt to split or peel the outer casing.

Q The battery gradually loses its charge when not in use. Charge the battery one or two days before use.

Q Charging times may increase at very low or very high temperatures.

20

Charging the Battery

Charging via a computer

The battery can be charged by connecting the camera to a computer. Connect the supplied USB cable as

shown, making sure the connectors are fully inserted.

Q Connect the camera directly to the computer; do not use a USB hub or keyboard.

Q If the computer goes into sleep mode while charging, charging will stop. To continue charging, disable sleep

mode on the computer, and disconnect and connect the USB cable.

Q Charging may be impossible depending on computer speci cations, settings or conditions.

21

First Steps

Turning the Camera on and O

Rotate the ON/OFF switch to ON to turn the camera on. Select OFF

to turn the camera o .

R Press the a button to start playback. Press the shutter button half-

way to return to shooting mode.

R The camera will turn o automatically if no operations are performed

for the length of time selected for Z POWER MANAGEMENT>

AUTO POWER OFF (P 107). To reactivate the camera after it has

turned o automatically, press the shutter button halfway or turn the ON/OFF switch to OFF and then back to ON.

R For information on startup options, see page 107.

Q Fingerprints and other marks on the lens can a ect pictures and the view through the lens in the camera

display. Keep the lens clean.

Battery Level

After turning the camera on, check the battery level in the display.

Indicator

Description

O (white)

Battery partially discharged.

M (white)

Battery about two-thirds charged.

K (white)

Battery about one-third charged. Charge as soon as possible.

J (red)

Low battery. Charge battery.

A (blinks red)

Battery exhausted. Turn camera o and recharge battery.

P

22

Basic Setup

A language-selection dialog is displayed the  rst time the camera is turned on.

1

Choose a language.

START MENU

NOSET

ENGLISH

FRANCAIS

DEUTSCH

Highlight a language and press MENU/OK.

R Press DISP/BACK to skip the current step. Any steps you skip will be dis-

played the next time the camera is turned on.

2

Set the date and time.

NOSET

YY. MM. DD

DATE / TIME NOT SET

1. 1

2016

12

:

00

AM

2015

2014

2018

2017

Press the selector left or right to highlight the year, month, day, hour,

or minute and press up or down to change. To change the order in

which the year, month, and day are displayed, highlight the date for-

mat and press the selector up or down. Press MENU/OK to set the clock

and display performance options.

3

Choose a performance option.

Press the selector up or down to highlight one of the following options:

• ON: Make faster AF and reduce time to restart camera.

• OFF: Power saving for longer battery life.

Press MENU/OK to select the highlighted option and exit to shooting mode.

R If the battery is removed for an extended period, the camera clock will be reset and the language-selection

dialog will be displayed when the camera is turned on.

23

First Steps

Basic Setup

Changing Basic Settings

To change the language or reset the clock:

1

Display the desired option.

Display the setup menu and select Q a to change the language, F DATE/TIME to reset

the clock, or Z POWER MANAGEMENT> HIGH PERFORMANCE to change performance set-

tings (P 103).

2

Adjust settings.

To choose a language or performance setting, highlight the desired option and press MENU/OK. To

set the clock, press the selector left or right to highlight the year, month, day, hour, or minute and

press up or down to change, then press MENU/OK once the clock has been set to your satisfaction.

24

Touch Screen Mode

Touch controls can be used for such operations as choosing the focus area and taking

photographs. The operation performed can be selected by tapping the touchscreen

mode indicator in the display to cycle through the following options:

Touchscreen mode indicator

12000

5.6

51200

Mode

Description

Icon

TOUCH SHOOTING

Tap your subject in the display to focus and release the shutter.

R If FOCUS is selected for G AUTOFOCUS SETTING> RELEASE/FOCUS PRIORITY (P 92),

keep your  nger on the display until the shutter is released.

R In burst mode, pictures will be taken while you keep your  nger on the display.

FOCUS AREA

FOCUS AREA Tap to select a focus area for focus.

OFF

OFF Touch controls o . The display does not respond when tapped.

Touch control settings can be adjusted using the K TOUCH SCREEN MODE option in the shooting menu.

R The touchscreen mode indicator is not displayed and touch controls can not be used when OFF is selected for

L TOUCH SCREEN SETTING in the setup menu.

R For information on the touch controls available during playback, see page 34.

25

First Steps

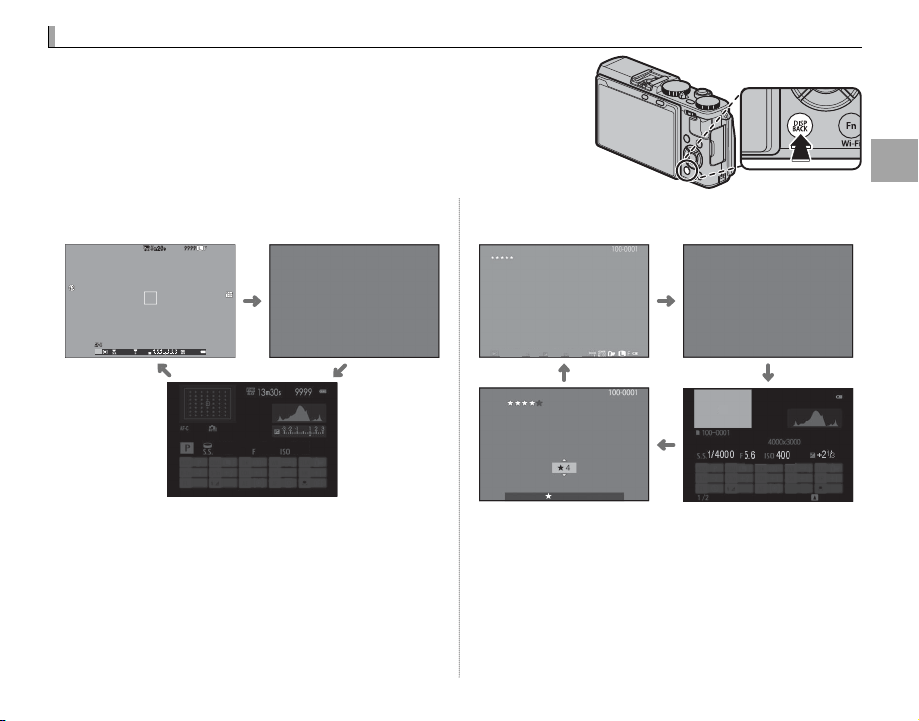

Display Modes

Press DISP/BACK to cycle through display modes as follows:

■ Shooting

Standard Information o

P

5.6 4004000

Info display

■ Playback

Standard Information o

12/31/2050 10:00 AM

1/ 4 0 0 0

1/4000

+2

1

/

3

+2

1

/

3

400

5.6

12/31/2050 10:00 AM

FAVORITES

12/31/2050 10:00 AM

1

/

3

Favorites Info display

26

Display Settings

■ Customizing the Standard Display

To choose the items shown in the standard display:

1

Display standard indicators.

Press the DISP/BACK button until standard indicators are displayed.

2

Select DISP. CUSTOM SETTING.

Select A SCREEN SET-UP> DISP. CUSTOM SETTING in the setup menu.

3

Choose items.

Highlight items and press MENU/OK to select or deselect.

• FRAMING GUIDELINE

• ELECTRONIC LEVEL (P 27)

• FOCUS FRAME

• AF DISTANCE INDICATOR

• MF DISTANCE INDICATOR

• HISTOGRAM (P 27)

• SHOOTING MODE

• APERTURE/S-SPEED/ISO

• INFORMATION BACKGROUND

• EXPOSURE COMPENSATION

• FOCUS MODE

• PHOTOMETRY

• SHUTTER TYPE

• FLASH

• CONTINUOUS MODE

• DUAL IS MODE

• WHITE BALANCE

• FILM SIMULATION

• DYNAMIC RANGE

• FRAMES REMAINING

• IMAGE SIZE/QUALITY

• MOVIE MODE & REC. TIME

• BATTERY LEVEL

4

Save changes.

Press DISP/BACK to save changes.

5

Exit the menus.

Press DISP/BACK as needed to exit the menus and return to the shooting display.

R See page 8 for the locations of these items in the displays.

27

First Steps

Display Settings

Virtual Horizon

Selecting ELECTRONIC LEVEL displays a virtual horizon. The camera is level when the two

lines overlap.

R The virtual horizon may not be displayed if the camera lens is pointed up or down.

P

Histograms

Histograms show the distribution of tones in the im-

age. Brightness is shown by the horizontal axis, the

number of pixels by the vertical axis.

Shadows Highlights

No. of pixels

Pixel brightness

Optimal exposure: Pixels are distrib-

uted in an even curve through-

out the tone range.

Overexposed: Pixels are clustered

on the right side of the graph.

Underexposed: Pixels are clustered

on the left side of the graph.

Adjusting Display Brightness

The brightness and hue of the LCD monitor can be adjusted using the options under A SCREEN SET-

UP in the setup menu. Choose LCD BRIGHTNESS or LCD COLOR to adjust LCD monitor brightness or

hue (P 105).

28

Basic Photography and Playback

Taking Photographs

This section describes how to take pictures using program AE (mode P). See pages 51 – 54 for

information on S, A, and M modes and pages 55 and 56 for information on the options available in auto

mode.

1

Adjust settings for program AE.

C

D

①

B

A

Shutter speed (P 51): Select A (auto)

B

Auto mode selector lever (P 50): Select z

C

Focus mode (P 74): Select S (single AF)

D

Aperture (P 51): Select A (auto)

Con rm that P appears in

the display.

P

4000

5.6

400

The Q Button

The Q button can be used to view and adjust

camera settings (P 39).

29

Basic Photography and Playback

Taking Photographs

2

Ready the camera.

Hold the camera steady

with both hands and brace

your elbows against your

sides. Shaking or unsteady

hands can blur your shots.

To prevent pictures that

are out of focus or too dark

(underexposed), keep your

 ngers and other objects

away from the lens,  ash,

and AF-assist illuminator.

3

Frame the picture.

4

Focus.

Frame the picture with your sub-

ject in the center of the display and

press the shutter button halfway to

focus.

R If the subject is poorly lit, the AF-assist illumina-

tor may light (P 93).

If the camera is able to focus, it will beep twice and

the focus indicator and area in focus will glow

green. Focus and exposure will lock while the

shutter button is pressed halfway.

If the camera is unable to focus, the focus frame

will turn red, s will be displayed, and the fo-

cus indicator will blink white.

5

Shoot.

Smoothly press the shutter button

the rest of the way down to take the

picture.

30

Viewing Pictures

Viewing Pictures Full Frame

To view pictures full frame, press a.

100-0001

Additional pictures can be viewed by pressing the selector left or right or rotating the con-

trol ring. Press the selector or rotate the ring right to view pictures in the order recorded, left

to view pictures in reverse order. Keep the selector pressed to scroll rapidly to the desired

frame.

R Pictures taken using other cameras are marked with a m (“gift image”) icon to warn that they may not display

correctly and that playback zoom may not be available.

Favorites: Rating Pictures

To rate the current picture, press DISP/BACK and press the selector up and down to select from zero to  ve stars.

31

Basic Photography and Playback

Viewing Pictures

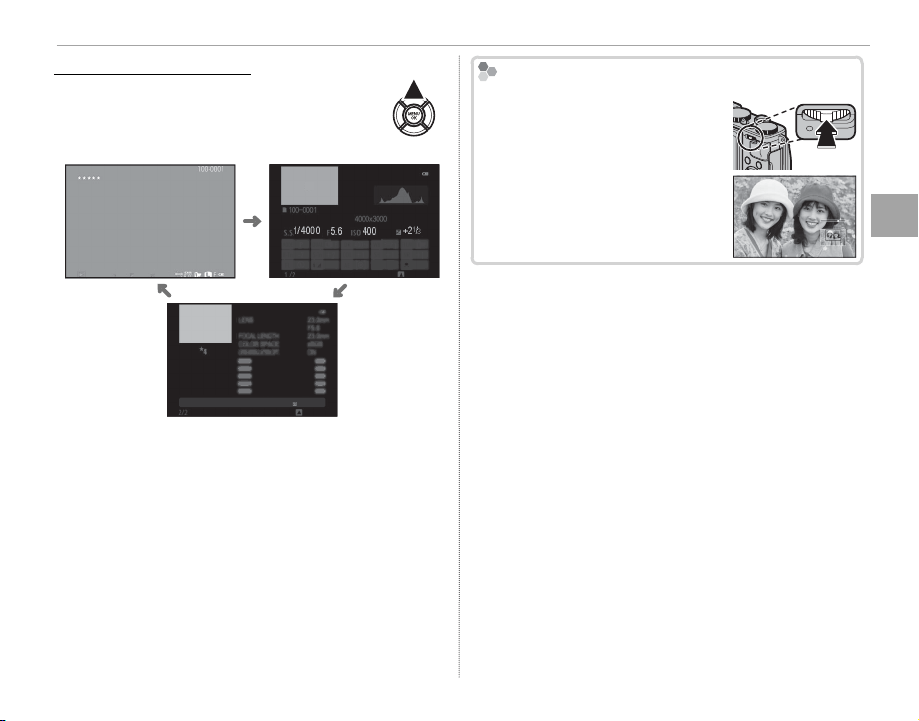

Viewing Photo Information

The photo information display changes

each time the selector is pressed up.

Basic data Info display 1

12/31/2050 10:00 AM

1/ 4 0 0 0

1/4000

+2

1

/

3

+2

1

/

3

400

5.6

12/31/2050 10:00 AM

1

/

3

1/4000

S.S

5.6

F

400 +2

1

/

3

ISO

LENS

23.0

mm

F

5.6

FOCAL LENGTH

23.0

mm

COLOR SPACE sRGB

LENS MODULATION OPT.

ON

R Rotate the control ring to view other images with-

out changing the photo information display format.

Zooming in on the Focus Point

Press the center of the command

control to zoom in on the focus

point. Press again to return to full-

frame playback.

32

Viewing Pictures

Playback Zoom

Press the command control right to zoom in on the current picture, left to zoom out (to view multiple

images, press the control left when the picture is displayed full frame; P 33). To view other pictures at

the current zoom ratio, rotate the control ring. Press DISP/BACK or MENU/OK to exit zoom.

Zoom indicator

Navigation window shows

portion of image currently

displayed

R The maximum zoom ratio varies with image size (P 94). Playback zoom is not available with cropped or resized

copies saved at a size of a.

33

Basic Photography and Playback

Viewing Pictures

Multi-Frame Playback

To change the number of images displayed, press the command control

left when a picture is displayed full frame.

Press left to view more images.

100-0001

Press right to view fewer images.

Use the selector to highlight images and press MENU/OK to view the highlighted image full frame (to

zoom in on the selected image, press the command control right when the picture is displayed full

frame; P 32). In the nine- and hundred-frame displays, press the selector up or down to view more

pictures.

34

Viewing Pictures

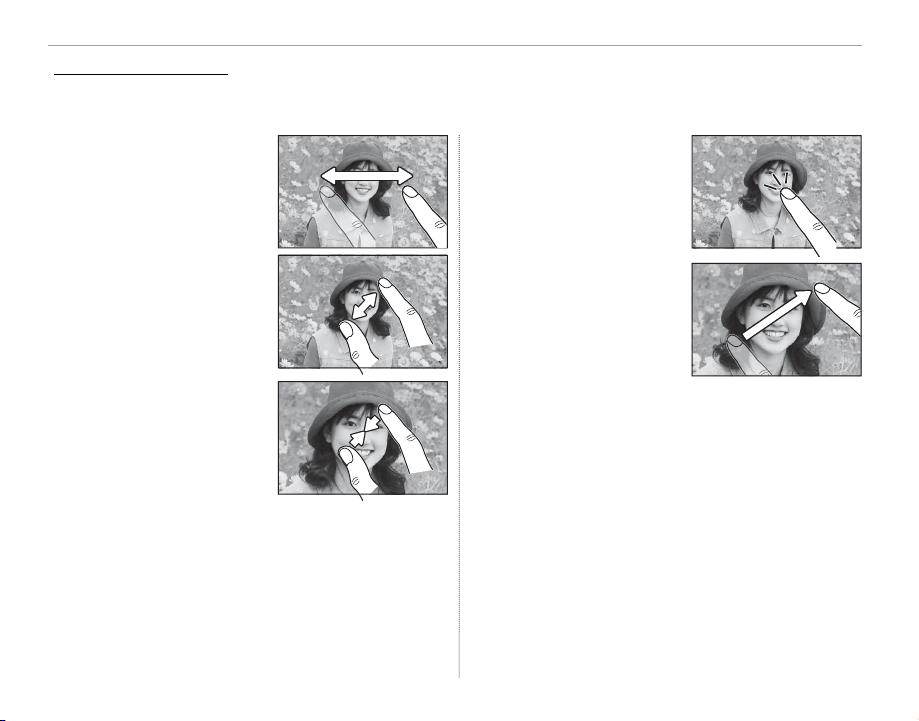

Playback Touch Controls

When ON is selected for L TOUCH SCREEN SETTING in the setup menu, touch controls can be used

for the following playback operations:

• Swipe: Swipe a  nger

across the display to

view other images.

• Pinch-out: Place two  n-

gers on the display and

spread them apart to

zoom in.

• Pinch-in: Place two  n-

gers on the display and

slide them together to

zoom out.

R Pictures can be zoom out until the entire image

is visible but no further.

• Double-tap: Tap the dis-

play twice to zoom in on

the selected area.

• Drag: View other areas of

the image during play-

back zoom.

35

Basic Photography and Playback

Deleting Pictures

To delete individual pictures, multiple selected pictures, or all pictures, press the b button when a

picture is displayed full frame and choose from the options below. Note that deleted pictures can not

be recovered. Copy important pictures to a computer or other storage device before proceeding.

ERASE

FRAME

SELECTED FRAMES

ALL FRAMES

Option

Description

FRAME

Press the selector left or right to scroll through pictures and press MENU/OK to delete the current picture

(a confirmation dialog is not displayed).

SELECTED FRAMES

Highlight pictures and press MENU/OK to select or deselect (pictures in photobooks or print orders are shown

by S). When the operation is complete, press DISP/BACK to display a con rmation dialog, then highlight OK

and press MENU/OK to delete the selected pictures.

ALL FRAMES

A con rmation dialog will be displayed; highlight OK and press MENU/OK to delete all unprotected pictures.

Pressing DISP/BACK cancels deletion; note that any pictures deleted before the button was pressed can not

be recovered.

R Protected pictures can not be deleted. Remove protection from any pictures you wish to delete (P 100).

R Pictures can also be deleted by A ERASE from playback menu.

R If a message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete

the pictures.

36

Basic Movie Recording and Playback

Recording Movies

The camera can be used to record short high-de nition movies. Sound is recorded in stereo via the

built-in microphone; do not cover the microphone during recording.

1

Press and hold the movie-record (Fn1) button to

start recording.

Recording indicator

Time remaining

2

Press the button again to end recording. Re-

cording ends automatically when the maximum

length is reached or the memory card is full.

R Sensitivity and frame size and rate can be selected

using the W MOVIE SET-UP option (P 97). Focus

mode is selected using the focus mode selector

(P 74); for continuous focus adjustment, select C,

or choose S and enable Intelligent Face Detection

(P 93). Intelligent Face Detection is not available in

focus mode M.

R During recording, exposure compensation can be

adjusted by up to ±2EV.

R The indicator lamp lights while movies are being

recorded.

Q The microphone may pick up lens noise and other

sounds made by the camera during recording.

Q Vertical or horizontal streaks may appear in movies

containing very bright subjects. This is normal and

does not indicate a malfunction.

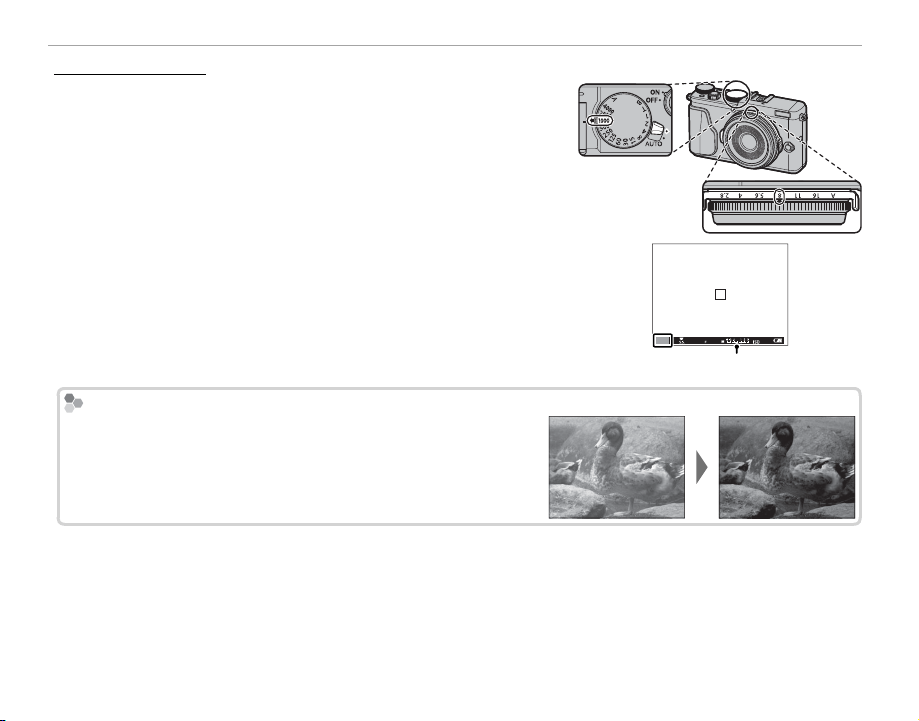

Depth of Field

Adjust aperture before recording begins. Choose

low f-numbers to soften background details.

37

Basic Movie Recording and Playback

Recording Movies

Using an External Microphone

Sound can be recorded with external microphones that connect using jacks 2.5 mm

in diameter; microphones that require bus power can not be used. See the micro-

phone manual for details.

R The dialog shown at right will be displayed when a microphone is connected to the mi-

crophone/remote release connector. Press MENU/OK and select MIC/REMOTE RELEASE>

m MIC.

CHECK MIC/REMOTE RELEASE

SETTING

SKIP

SET

38

Viewing Movies

During playback, movies are displayed as shown at right. The following operations

can be performed while a movie is displayed:

Operation

Description

Start/pause playback

Press the selector down to start playback. Press again to pause. While playback is

paused, you can press the selector left or right to rewind or advance one frame

at a time.

End playback

End playback Press the selector up to end playback.

Adjust speed

Adjust speed Press the selector left or right to adjust playback speed during playback.

Adjust volume

Press MENU/OK to pause playback and display volume controls. Press the selector

up or down to adjust the volume; press MENU/OK again to resume playback. Vol-

ume can also be adjusted using the b SOUND SET-UP > PLAYBACK VOLUME

option in the setup menu (P 105).

12/31/2050 10:00 AM

PLAYPLAY

±0

Movie icon

Progress is shown in the display during playback.

Q Do not cover the speaker during playback.

Q Sound is not played back if OFF is selected for o SOUND & FLASH (P 104).

Progress bar

STOP PAUSE

29m59s

Playback Speed

Press the selector left or right to adjust playback speed during playback. Speed is shown by the

number of arrows (M or N).

Arrow

STOP PAUSE

29m59s

39

The Q (Quick Menu) Button

Using the Q Button

Press Q for quick access to selected options.

The Quick Menu Display

At default settings, the quick menu contains the following items.

SET

SELECT CUSTOM SETTING

BASE

A

u SELECT CUSTOM SETTING .......................88

B

N ISO ............................................................60

C

U DYNAMIC RANGE ..................................... 94

D

D WHITE BALANCE ......................................58

E

h NOISE REDUCTION ..................................95

F

O IMAGE SIZE ..............................................94

G

T IMAGE QUALITY .......................................94

H

P FILM SIMULATION ...................................73

I

r HIGHLIGHT TONE ..................................... 95

J

s SHADOW TONE .........................................95

K

f COLOR ....................................................... 95

L

q SHARPNESS ..............................................95

M

B SELF-TIMER .............................................. 45

N

F AF MODE ...................................................77

O

p FLASH MODE ............................................ 46

P

J LCD BRIGHTNESS ................................... 105

The quick menu shows the options currently selected for items

B

—

P

, which can be changed as

described on page 41. The u SELECT CUSTOM SETTING item (item

A

)

shows the current custom

settings bank:

• q: No custom settings bank selected.

• t — u: Select a bank to view the settings saved using the K EDIT/SAVE CUSTOM SETTING

option in the shooting menu (P 88).

40

Using the Q Button

Viewing and Changing Settings

1

Press Q to display the quick menu during shooting.

2

Use the selector to highlight items and press the command control left or right

to change.

3

Press Q to exit when settings are complete.

R The options displayed in the quick menu can be selected using the h BUTTON/DIAL SETTING> EDIT/SAVE

QUICK MENU option in the setup menu. Quick menu edit options can also be displayed by pressing and

holding the Q button (P 41).

41

The Q (Quick Menu) Button

Using the Q Button

Editing the Quick Menu

To choose the items displayed in the quick menu:

1

Press and hold the Q button during shooting.

SET END

SELECT CUSTOM SETTING

2

The current quick menu will be displayed; use the selector to highlight the item you wish to change

and press MENU/OK. You will be given the following choice of items to assign to the selected position:

• SELECT CUSTOM SETTING

• ISO

• DYNAMIC RANGE

• WHITE BALANCE

• NOISE REDUCTION

• IMAGE SIZE

• IMAGE QUALITY

• FILM SIMULATION

• HIGHLIGHT TONE

• SHADOW TONE

• COLOR

• SHARPNESS

• SELF-TIMER

• FACE DETECTION

• PHOTOMETRY

• AF MODE

• FLASH MODE

• FLASH COMPENSATION

• MF ASSIST

• MOVIE MODE

• MOVIE ISO

• MIC LEVEL ADJUSTMENT

• SOUND & FLASH

• LCD BRIGHTNESS

• LCD COLOR

• WIDE CONVERSION LENS

• SHUTTER TYPE

• NONE

R Select NONE to assign no option to the selected position. When SELECT CUSTOM SETTING is selected,

current settings are shown in the quick menu by the label BASE.

3

Highlight the desired item and press MENU/OK to assign it to the selected position.

R The quick menu can also be edited using the h BUTTON/DIAL SETTING> EDIT/SAVE QUICK MENU

option in the setup menu (P 107).

42

The Fn (Function) Buttons

Using the Function Buttons

The roles played by each of the function buttons can be selected by pressing and holding the button.

The default options are shown below:

Fn1 button Fn2 button Fn3 button Fn4 button

Movie recording (P 36, 44) AF mode (P 44, 77) Self-timer (P 45) Flash mode (P 46)

Fn5 button Fn6 button Fn7 button Fn8 button

Focus-frame selection

(P 48, 78)

Wireless options (P 48, 113) Control ring options (P 49) None

43

Using the Function Buttons

The Fn (Function) Buttons

Assigning Roles to the Function Buttons

To assign roles to the function buttons, press and hold the DISP/BACK button until the menu below is

displayed. Select buttons to choose their roles.

FUNCTION

(

Fn

)

SETTING

• PREVIEW DEPTH OF FIELD

• ISO

• SELF-TIMER

• IMAGE SIZE

• IMAGE QUALITY

• DYNAMIC RANGE

• FILM SIMULATION

• WHITE BALANCE

• PHOTOMETRY

• AF MODE

• FOCUS AREA

• FLASH MODE

• FLASH COMPENSATION

• SELECT CUSTOM SETTING

• MOVIE

• FACE DETECTION

• RAW

• WIRELESS COMMUNICATION

• WIDE CONVERSION LENS

• SHUTTER TYPE

• PREVIEW EXP. IN MANUAL MODE

• PREVIEW PIC. EFFECT

• CONTROL RING SETTING

• NONE

R To disable the selected button, choose NONE.

R You can also display options for any of the function buttons by pressing and holding the button.

R The roles played by the function buttons can also be selected using h BUTTON/DIAL SETTING> FUNCTION

(Fn) SETTING (P 107).

The Fn1 Button

To prevent accidental operation of the Fn1 button during operation of the exposure compensation dial, the as-

signed function (by default, movie recording) can only be accessed by pressing and holding the button. New

functions can not be assigned by pressing and holding the button. To assign a new function to the Fn1 button,

press and hold the DISP/BACK button (P 42) or use the h BUTTON/DIAL SETTING option in the setup menu

(P 107).

44

Default Roles

The following sections describe the default roles assigned to function buttons (Fn1–Fn7). At default

settings, no function is assigned to Fn8.

Movie Recording (Fn1)

Press the button to start or stop movie recording

(P 36).

AF Mode (Fn2)

Choose the AF mode for focus modes S and C.

R AF mode selection can also be accessed using the

G AUTOFOCUS SETTING option in the shooting

menu (P 92).

45

Default Roles

The Fn (Function) Buttons

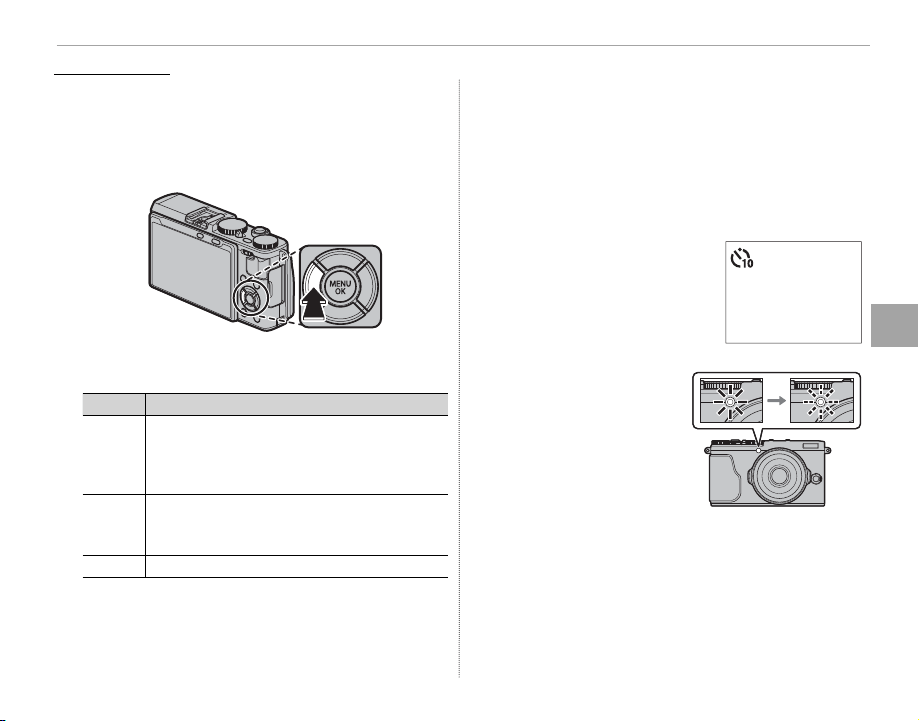

Use the timer for self-portraits or to prevent blur

caused by camera shake.

1

Press the function button to display self-timer

options.

2

Press the selector up or down to highlight the

desired option and press MENU/OK to select.

Option

Description

R

2 SEC

The shutter is released two seconds after the

shutter button is pressed. Use to reduce blur

caused by the camera moving when the shut-

ter button is pressed.

S

10 SEC

The shutter is released ten seconds after the

shutter button is pressed. Use for photographs

in which you wish to appear yourself.

OFF

OFF Self-timer o .

R Self-timer options can also be accessed from the

shooting menu (P 95).

3

Press the shutter button halfway to focus.

Q Stand behind the camera when using the shut-

ter button. Standing in front of the lens can in-

terfere with focus and exposure.

4

Press the shutter button the rest of the way

down to start the timer. The display in the mon-

itor shows the number of

seconds remaining until the

shutter is released. To stop

the timer before the picture

is taken, press DISP/BACK.

The self-timer lamp on

the front of the camera

will blink immediately

before the picture is

taken. If the two-sec-

ond timer is selected,

the self-timer lamp will blink as the timer

counts down.

R The self-timer turns o automatically when the

camera is turned o .

9

Self-Timer (Fn3)

46

Default Roles

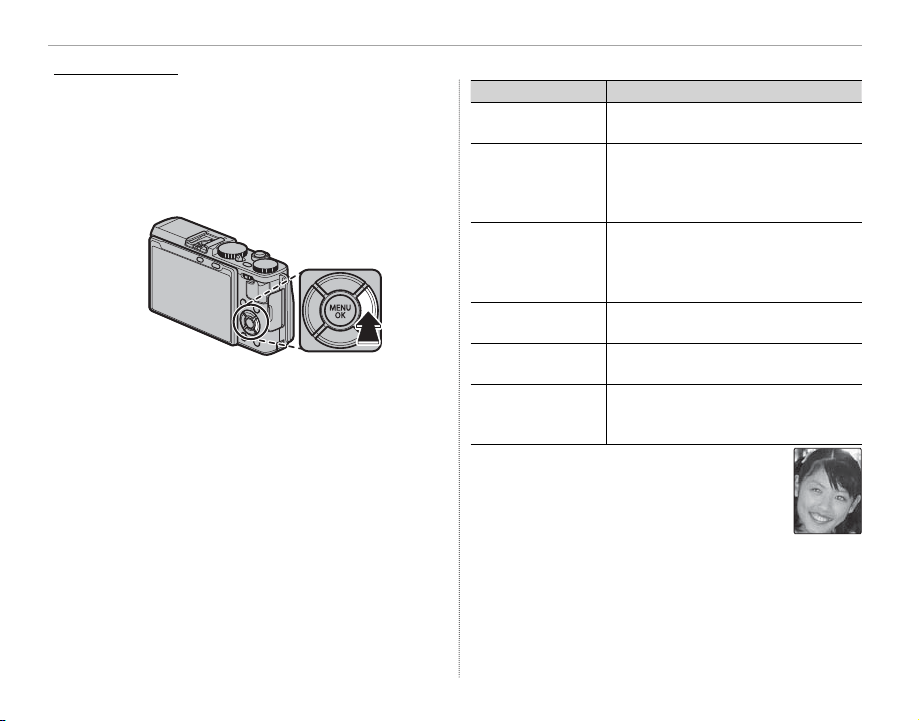

Use the built-in  ash for additional lighting when

shooting at night or indoors under low light.

Press the function button to display the following

options, then use the selector to highlight an op-

tion and press MENU/OK to select.

Mode

Description

A

(AUTO FLASH)

/

K

(RED EYE REDUCTION)

*

The  ash  res when required. Recom-

mended in most situations.

N

(FORCED FLASH)

/

L

(FORCED FLASH)

*

The  ash  res whenever a picture is

taken. Use for backlit subjects or for

natural coloration when shooting in

bright light.

F

(SLOW SYNCHRO)

/

M

(RED EYE & SLOW)

*

Capture both the main subject and

the background under low light (note

that brightly lit scenes may be overex-

posed).

D

(COMMANDER)

The built-in  ash can be used to control

optional remote  ash units.

C

(EXTERNAL FLASH)

Select when using optional third-party

 ash units.

P

(SUPPRESSED FLASH)

The  ash does not  re even when the

subject is poorly lit. A tripod is recom-

mended.

* Red-eye removal is available in these modes

when Intelligent Face Detection is active (P 93)

and red-eye removal is on (P 97). Red-eye re-

moval minimizes “red-eye” caused when light

from the  ash is re ected from the subject’s

retinas as shown in the illustration at right.

Flash Mode (Fn4)

47

Default Roles

The Fn (Function) Buttons

R Flash options can also be accessed using the p FLASH SET-UP option in the shooting menu (P

97

97).

R If p is displayed when the shutter button is pressed halfway, the  ash will  re when the photo is taken.

R Except in commander mode, the  ash may  re several times with each shot. Do not move the camera until

shooting is complete.

R Remove lens hoods to prevent shadows in photos taken with the  ash.

Flash Sync Speed

The  ash will synchronize with the shutter at shutter speeds of 

/

 s or slower.

Optional Flash Units

The camera can also be used with optional FUJIFILM shoe-mounted  ash units. Do not use third-party  ash

units that apply over 300 V to the camera hot shoe.

Flash Mode and Shooting Mode

The  ash modes available vary with the shooting mode (P 146):

Flash mode

P

S

A

M

Y

j

u

S

h

Z

M

N

O

H

p

Q

R

s

f

U

V

W

F

r

*

A

✔

N

✔

F

✔

D

✔

C

✔

P

✔

* Wireless remote photography.

48

Default Roles

Focus-Frame Selection (Fn5)

Press the button to choose the focus area for fo-

cus modes S and C. The procedure varies with the

option selected for AF mode (P 78).

R Focus-area selection can also be accessed using the

G AUTOFOCUS SETTING option in the shooting

menu (P 92).

Wireless Options (Fn6)

Press the function button in shooting mode

to connect to a smartphone or tablet via Wi-Fi

(P 113). Once a connection is established, you

can control the camera from the phone or

download location data.

R Wireless options can also be accessed from the

shooting and playback menus (P 98, 99).

49

Default Roles

The Fn (Function) Buttons

To choose the role assigned to the control ring:

1

Press the function button to display control

ring options.

2

Highlight the desired option and press

MENU/OK. Choose from DEFAULT, ISO, WHITE

BALANCE, FILM SIMULATION, and DIGITAL

TELE-CONV..

R Control ring options can also be accessed from the

shooting menu (P 96).

■ DEFAULT

When DEFAULT is selected, the function assigned

to the control ring changes with the shooting

mode.

Auto mode selector lever

AUTO

z

Shooting mode

P

—

DIGITAL TELE-CONV.

S

A

M

u

FILM SIMULATION

j

FILM SIMULATION

Y

Advanced  lter selection

AUTO

Scene selection

—

R When the focus-mode selector is rotated to M, the

control ring can be used only for manual focus, re-

gardless of the option selected above. Note, how-

ever, that the selected option does apply if manual

focus is selected when S, h, or Z is chosen in

AUTO mode.

Control Ring Options (Fn7)

50

More on Photography and Playback

Mode Selection

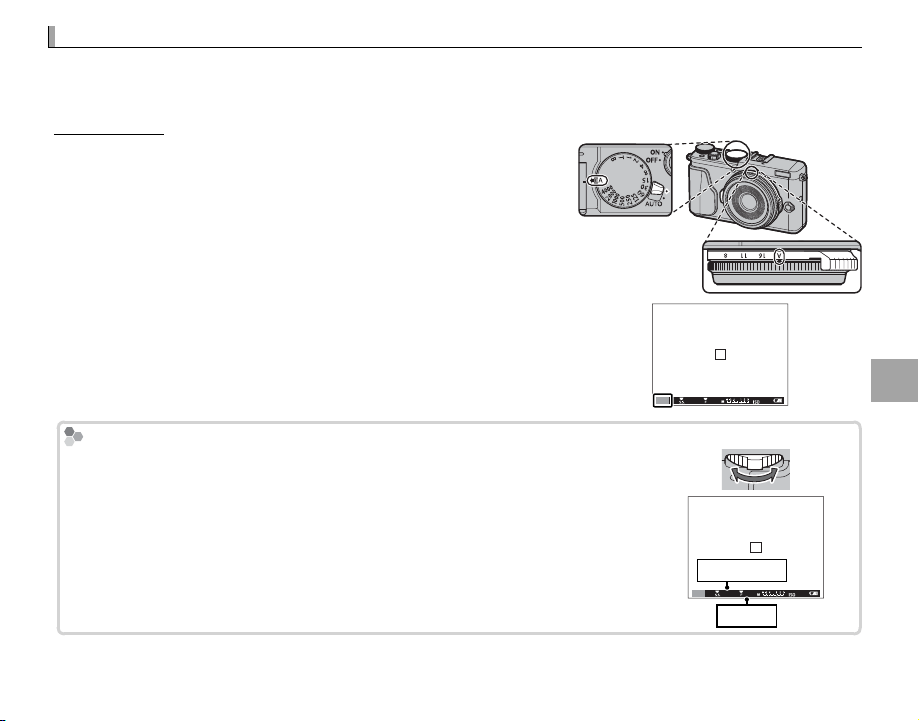

Use the auto mode selector lever to switch between manual (P, S, A, M) and auto modes.

■ P, S, A, and M Modes

Rotate the auto mode selector lever to z to take

pictures in P, S, A, and M modes.

■ Auto Modes

Rotate the auto mode selector lever to AUTO to let

the camera adjust settings to suit the subject.

AUTO is displayed in the

LCD monitor.

Scene Selection

In auto mode, you choose options for di erent sub-

ject types by rotating the control ring or using the

A SCENE POSITION option the shooting menu

(P 92).

51

More on Photography and Playback

Choosing an Exposure Mode

When the auto mode selector lever is rotated to z, you can choose from the following exposure

modes: program AE (P), shutter-priority AE (S), aperture-priority AE (A), and manual (M).

Program AE (P)

To allow the camera to adjust both shutter speed and aperture

for optimal exposure, rotate the auto mode selector lever to z

and set shutter speed and aperture to A. P will appear in the

display.

Q If the subject is outside the metering range of the camera, the shutter

speed and aperture displays will show “– – –”.

P

4000

5.6

400

Program Shift

If desired, you can press the command control left or right to select other combi-

nations of shutter speed and aperture without altering exposure (program shift).

The new values for shutter speed and aperture are shown in yellow. Program shift

is not available if an option other than

P

P (o ) is selected for  ash mode or if an

auto option is selected for U DYNAMIC RANGE in the shooting menu (P 94). To

cancel program shift, turn the camera o .

P

4000

5.6

400

Shutter speed

Aperture

52

Choosing an Exposure Mode

Shutter-Priority AE (S)

To adjust shutter speed manually while letting the camera select

aperture for optimal exposure, rotate the auto mode selector le-

ver to z and set aperture to A and use the shutter speed dial. S

will appear in the display.

R Shutter speed can also be adjusted in increments of 

/

EV by pressing

the command control left or right. Shutter speed can be adjusted

even while the shutter button is pressed halfway.

Q If the correct exposure can not be achieved at the selected shutter

speed, aperture will be displayed in red when the shutter button is

pressed halfway. Adjust shutter speed until the correct exposure is

achieved.

Q If the subject is outside the metering range of the camera, the aper-

ture display will show “– – –”.

S

1000

400

53

More on Photography and Playback

Choosing an Exposure Mode

Aperture-Priority AE (A)

To adjust aperture manually while letting the camera select shut-

ter speed for optimal exposure, rotate the auto mode selector

lever to z and rotate the shutter speed dial to A and adjust aper-

ture as desired. A will appear in the display.

R Aperture can be adjusted even while the shutter button is pressed

halfway.

Q If the correct exposure can not be achieved at the selected aper-

ture, the shutter speed will be displayed in red when the shutter but-

ton is pressed halfway. Adjust aperture until the correct exposure is

achieved.

Q If the subject is outside the metering range of the camera, the shutter

speed display will show “– – –”.

8.0

400

A

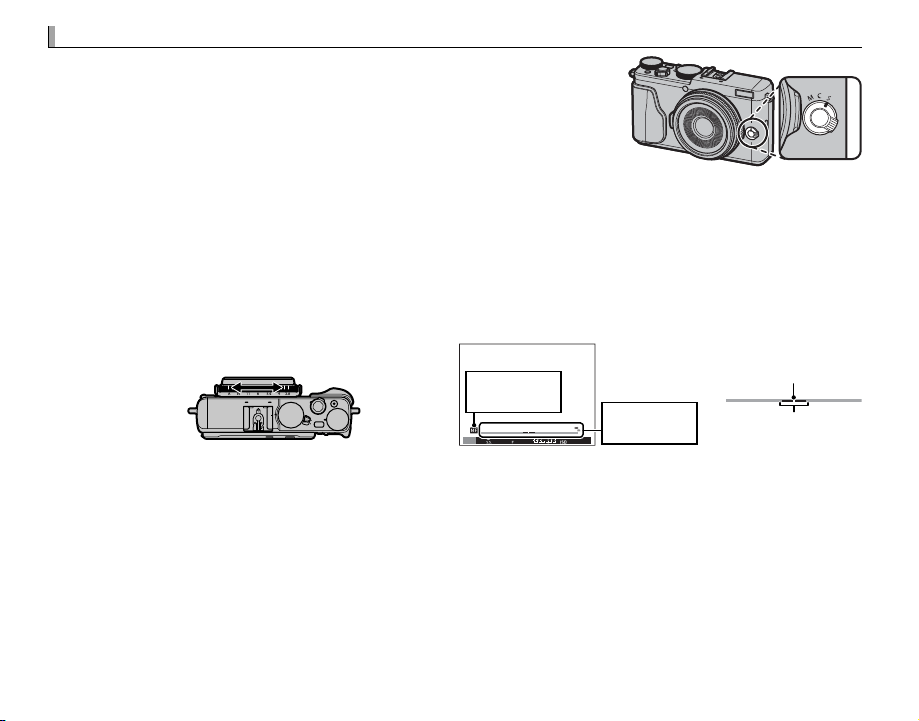

Previewing Depth of Field

When L PREVIEW DEPTH OF FIELD is assigned to a function button (P 42, 43),

pressing the button stops aperture down to the selected setting, allowing depth

of  eld to be previewed in the display.

Depth of  eld can also be previewed using the depth-of- eld indicator in the

standard display. Press DISP/BACK to cycle through display modes until standard

indicators are displayed.

01 0.5 1.0 1.5 2.0 3.0 5.0 10

8.0

400

A

5

1.0 1.5 2.0 3.0 5.0

Depth of  eld

54

Choosing an Exposure Mode

Manual Exposure (M)

Exposure can be altered from the value suggested by the camera

by rotating the auto mode selector lever to z and setting both

shutter speed and aperture to values other than A. M will appear

in the display.

R Shutter speed can also be adjusted in increments of 

/

EV by pressing

the command control left or right.

M

1000

8.0

400

Exposure indicator

Exposure Preview

To preview exposure in the LCD monitor, select ON for A SCREEN

SET-UP> PREVIEW EXP. IN MANUAL MODE. Select OFF when

using the  ash or on other occasions on which exposure may

change when the picture is taken.

55

More on Photography and Playback

Choosing a Scene Position

When the auto mode selector lever is rotated to AUTO, you can rotate

the control ring to choose from the subject types listed below.

R The subject type can also be selected using the A SCENE POSITION op-

tion the shooting menu.

Mode

Description

S

ADVANCED SR AUTO

The camera automatically optimizes settings to suit the scene.

h

PORTRAIT

Choose for portraits.

Z

PORTRAIT ENHANCER

Processes portraits to give the subject a smooth, natural-looking complexion.

M

LANDSCAPE

Choose for daylight shots of buildings and landscapes.

N

SPORT

Choose when photographing moving subjects.

O

NIGHT

Choose for poorly lit twilight or night scenes.

H

NIGHT (TRIPOD)

Choose this mode for slow shutter speeds when shooting at night.

p

FIREWORKS

Slow shutter speeds are used to capture the expanding burst of light from a  rework.

Q

SUNSET

Choose this mode to record the vivid colors in sunrises and sunsets.

R

SNOW

Choose for crisp, clear shots that capture the brightness of scenes dominated by shining white snow.

s

BEACH

Choose for crisp, clear shots that capture the brightness of sunlit beaches.

f

UNDERWATER

Reduces the blue cast typically associated with underwater lighting.

U

PARTY

Capture indoor background lighting under low-light conditions.

V

FLOWER

E ective for taking more vivid shots of  owers.

W

TEXT

Take clear pictures of text or drawings in print.

56

Choosing a Scene Position

■ SADVANCED SR AUTO

The scene selected by the camera in S ADVANCED SR AUTO mode is shown

by an icon in the display.

a AUTO

c LANDSCAPE

d NIGHT

e MACRO

v SUNSET

x SKY

z SKY & GREENERY

g BACKLIT PORTRAIT

a PORTRAIT&MOTION

u BEACH

w SNOW

y GREENERY

d PORTRAIT

c MOVING OBJECT

b BACKLIT PORTRAIT&MOTION

Q The mode selected may vary with shooting conditions. If the mode and subject do not match, select a scene

manually.

57

More on Photography and Playback

The Digital Teleconverter

Use the digital teleconverter to further magnify the image while processing it for sharp, high-resolu-

tion results.

1

Assign DIGITAL TELE-CONV. to the control ring (P 49).

2

Choose the zoom angle using the control ring.

Standard (28 mm*) 35 mm* 50 mm*

* 35 mm format equivalent

3

Take pictures at the selected zoom angle.

R J DIGITAL TELE-CONV. can also be accessed from the shooting menu (P 98).

Q Image quality drops slightly at DIGITAL TELE-CONV. settings of 35 and 50 mm.

Q The digital teleconverter may be unavailable in some modes.

58

White Balance

For natural colors, choose a white balance option that matches the light source.

1

Press MENU/OK in shooting mode to display the shooting menu. Press the selector up or

down to highlight D WHITE BALANCE and press MENU/OK.

2

Press the selector up or down to highlight the desired option and press MENU/OK to select.

The dialog shown at bottom right will be displayed; use the selector to  ne-tune white

balance or press DISP/BACK to exit without  ne-tuning.

Option

Description

AUTO

AUTO White balance adjusted automatically.

h

Measure a value for white balance (P 59).

k

Selecting this option displays a list of

color temperatures (P 59); highlight a

temperature and press MENU/OK to select

the highlighted option and display the

 ne-tuning dialog.

i

For subjects in direct sunlight.

Option

Description

j

For subjects in the shade.

k

Use under “daylight”  uorescent lights.

l

Use under “warm white”  uorescent lights.

m

Use under “cool white”  uorescent lights.

n

Use under incandescent lighting.

g

Reduces the blue cast typically associ-

ated with underwater lighting.

R:0 B:0

WB SHIFT AUTO

SET

R White balance is adjusted for  ash lighting only in AUTO and g modes. Turn the  ash o using other white

balance options.

R Results vary with shooting conditions. Play pictures back after shooting to check colors.

59

More on Photography and Playback

White Balance

h

: Custom White Balance

Choose h to adjust white balance for unusual lighting conditions. White balance measurement options will

be displayed; frame a white object so that it  lls the display and press the shutter button all the way down to

measure white balance (to select the most recent custom value and exit without measuring white balance,

press DISP/BACK, or press MENU/OK to select the most recent value and display the  ne-tuning dialog).

• If “COMPLETED!” is displayed, press MENU/OK to set white balance to the measured value.

• If “UNDER” is displayed, raise exposure compensation (

P 62) and try again.

• If “OVER” is displayed, lower exposure compensation (P 62) and try again.

k

: Color Temperature

Color temperature is an objective measure of the color of a light source, expressed in Kelvin (K). Light sources

with a color temperature close to that of direct sunlight appear white; light sources with a lower color tempera-

ture have a yellow or red cast, while those with a higher color temperature are tinged with blue. You can match

color temperature to the light source as shown in the following table, or choose options that di er sharply from

the color of the light source to make pictures “warmer” or “colder.”

Choose for redder light sources

or “colder” pictures

Choose for bluer light sources

or “warmer” pictures

2,000 K

Candlelight

5,000 K

Direct sunlight

15,000 K

Blue sky

Sunset/sunrise Shade

60

Sensitivity

“Sensitivity” refers to the camera’s sensitivity to light. Choose from values between 200 and 6400, or

select L(100), H(12800), H(25600), or H(51200) for special situations. Higher values can be used to

reduce blur when lighting is poor, while lower values allow slower shutter speeds or wider apertures in

bright light; note, however, that mottling may appear in pictures taken at high sensitivities, particularly

at H(51200), while choosing L(100) reduces dynamic range. Values of from ISO 200 to ISO 6400 are

recommended in most situations. If AUTO1, AUTO2, or AUTO3 is selected, the camera will adjust

sensitivity automatically in response to shooting conditions.

1

Press MENU/OK in shooting mode to display the shooting menu. Press the selector up or

down to highlight N ISO and press MENU/OK.

2

Press the selector up or down to highlight the desired option and press MENU/OK to select.

R Sensitivity is not reset when the camera is turned o .

R L (100) is reset to ISO 200 and H (12800), H (25600), and H (51200) are reset to ISO 6400 when RAW,

FINE+RAW, or NORMAL+RAW is selected for image quality (P 94). For more information on the settings avail-

able with L(100), H(12800), H(25600), and H(51200), see page 146.

61

More on Photography and Playback

Sensitivity

■ AUTO

The following options are available when AUTO1, AUTO2, or AUTO3 is selected:

Option

Default

DEFAULT SENSITIVITY

200

MAX. SENSITIVITY

800 (

AUTO1

)

1600 (

AUTO2

)

3200 (

AUTO3

)

MIN. SHUTTER SPEED

1/60

The camera automatically chooses a sensitivity between the default and maximum values. Sensitiv-

ity is only raised above the default value if the shutter speed required for optimal exposure would be

slower than the value selected for MIN. SHUTTER SPEED.

R If the value selected for DEFAULT SENSITIVITY is higher than that selected for MAX. SENSITIVITY, DEFAULT

SENSITIVITY will be set to the value selected for MAX. SENSITIVITY.

R The camera may select shutter speeds slower than MIN. SHUTTER SPEED if pictures would still be underex-

posed at the value selected for MAX. SENSITIVITY.

62

Exposure Compensation

Rotate the exposure compensation dial to adjust

exposure when photographing very bright, very

dark, or high-contrast subjects. The e ect is vis-

ible in the display.

P

4000

5.6

400

Exposure

compensation

indicator

Choose positive values (+) to

increase exposure

Choose negative values (–) to

reduce exposure

Q The amount of compensation available varies with

the shooting mode.

Exposure Value (EV)

The exposure value is determined by the sensitiv-

ity of the image sensor and the amount of light to

which the sensor is exposed. Doubling the amount

increases EV by one, while halving it reduces EV by

one. The amount of light entering the camera can be

controlled by adjusting aperture and shutter speed.

Choosing an Exposure Compensation Value

• Backlit subjects: Choose values

from +

/

 EV to +1

/

 EV.

• Highly re ective subjects or very

bright scenes (e.g., snow elds): +1 EV

• Scenes that are mostly sky: +1 EV

• Spotlit subjects (particularly if photographed against dark back-

grounds): –

/

 EV

• Subjects with low re ectivity (pine trees or dark-colored foliage):

–

/

 EV

63

More on Photography and Playback

Metering

Choose how the camera meters exposure.

1

Press MENU/OK in shooting mode to display the shooting menu. Press the selector up or

down to highlight C PHOTOMETRY and press MENU/OK.

2

Press the selector up or down to highlight the desired option and press MENU/OK to select.

Mode

Description

o

(MULTI)

The camera instantly determines exposure based on an analysis of composition, color, and bright-

ness distribution. Recommended in most situations.

p

(SPOT)

The camera meters lighting conditions in an area at the center of the frame equivalent to 2% of the

total. Recommended with backlit subjects and in other cases in which the background is much

brighter or darker than the main subject.

q

(AVERAGE)

Exposure is set to the average for the entire frame. Provides consistent exposure across multiple

shots with the same lighting, and is particularly e ective for landscapes and portraits of subjects

dressed in black or white.

Q The selected option will only take e ect when Intelligent Face Detection is o (P 93).

64

Self-Portraits (SELFIE)

To shoot a self-portrait, rotate the LCD monitor as

shown.

R Rotating the LCD monitor to the self-portrait posi-

tion automatically enables Intelligent Face Detec-

tion (P 93) and eye focus (P 93). The LCD monitor

shows a mirror image of the view through the lens.

R Intelligent Face Detection is not available with man-

ual focus (P 74) or if M ,N, P, V, or W is selected

with the auto mode selector lever rotated to AUTO.

65

More on Photography and Playback

The DRIVE Button

The DRIVE button gives you access to the following options.

STILL IMAGE

Drive mode

P

Available in

B

STILL IMAGE

—

All shooting modes

I

CONTINUOUS

66

O

AE BKT

67

Modes

P

,

S

,

A

, and

M

W

ISO BKT

67

X

FILM SIMULATION BKT

68

H

WHITE BALANCE BKT

68

Y

DYNAMIC RANGE BKT

68

Adv. MODE

All shooting modes

(

(Camera functions in auto mode when auto mode selector lever is rotated to AUTO.

)

u

MOTION PANORAMA

69

j

MULTIPLE EXPOSURE

71

Y

ADVANCED FILTER

72

66

The DRIVE Button

I

Continuous Shooting (Burst Mode)

Capture motion in a series of pictures.

1

Press the DRIVE button to display drive options,

then press the selector up or down to high-

light I (CONTINUOUS) and press MENU/OK.

2

Press the selector left or right to choose a

frame advance rate and press MENU/OK to se-

lect and return to the shooting display.

3

Take photographs. The camera will take pic-

tures while the shutter button is pressed;

shooting ends when the shutter button is re-

leased, the maximum number of pictures has

been taken, or the memory card is full.

Q The camera’s internal temperature increases with

the number of shots taken, and the camera may

turn o automatically to protect its internal circuits.

Wait for the camera to cool before turning it on

again.

R Frame rate varies with the subject, shutter speed,

sensitivity, and focus mode and may slow as more

shots are taken.

R The  ash turns o automatically; the previously-se-

lected  ash mode is restored when burst shooting

is disabled.

R Additional time may be required to record pictures

when shooting ends.

R If  le numbering reaches 999 before shooting is

complete, the remaining pictures will be recorded

to a new folder (P 108).

R Burst shooting may not begin if the space available

on the memory card is insu cient.

Focus and Exposure

To vary focus and exposure with each shot, select fo-

cus mode C; in other modes, focus and exposure are

determined by the  rst shot in each series.

Q Selecting J in focus mode C restricts the choice of focus

frames (P 80).

Q Exposure and focus tracking performance may vary with

aperture, sensitivity, and shooting conditions.

67

More on Photography and Playback

The DRIVE Button

Bracketing

Automatically vary settings over a series of pictures.

1

Press the DRIVE button to display drive options.

2

Press the selector up or down to choose from the following options:

OExposure (AE) bracketing

WSensitivity (ISO) bracketing

XFilm simulation bracketing

HWhite balance bracketing

YDynamic range bracketing

s



s





s





AE BKT

Option

Description

O

AE BKT

Press the selector left or right to choose the bracketing amount. Each time the shutter but-

ton is pressed, the camera will take three shots: one using the metered value for exposure, the

second overexposed by the selected amount, and the third underexposed by the same amount

(regardless of the amount selected, exposure will not exceed the limits of the exposure meter-

ing system).

W

ISO BKT

Press the selector left or right to choose the bracketing amount. Each time the shutter is re-

leased, the camera will take a picture at the current sensitivity (P 60) and process it to create

two additional copies, one with sensitivity raised and the other with sensitivity lowered by the

selected amount (regardless of the amount selected, sensitivity will not exceed ISO 6400 or fall

below ISO 200).

68

The DRIVE Button

Option

Description

X

FILM SIMULATION BKT

Each time the shutter is released, the camera takes one shot and processes it to create copies

with di erent  lm simulation settings (P 73). Film simulation settings can be chosen by selecting

X FILM SIMULATION BKT in the shooting menu.

H

WHITE BALANCE BKT

Press the selector left or right to choose the bracketing amount. Each time the shutter button

is pressed, the camera takes three shots: one at the current white balanced setting, one with

 ne-tuning increased by the selected amount, and another with  ne-tuning decreased by the

selected amount.

Y

DYNAMIC RANGE BKT

Each time the shutter button is pressed, the camera takes three shots with di erent dynamic

ranges (P 94): 100% for the  rst, 200% for the second, and 400% for the third. While dynamic

range bracketing is in e ect, sensitivity will be restricted to a minimum of ISO 800; the sensitivity

previously in e ect is restored when bracketing ends.

3

Press MENU/OK to select the highlighted option and return to the shooting display.

4

Take photographs.

69

More on Photography and Playback

The DRIVE Button

Panoramas

Follow an on-screen guide to create a panorama.

1

Press the DRIVE button to display drive options,

then press the selector up or down to high-

light Adv., then press it left or right to high-

light

u

u (MOTION PANORAMA) and press

MENU/OK to select and return to the shooting

display.

2

To select the size of the angle through which

you will pan the camera while shooting, press

the selector left. Highlight a size and press

MENU/OK.

3

Press the selector right to view a choice of pan

directions. Highlight a pan direction and press

MENU/OK.

4

Press the shutter button all the way down to

start recording. There is no need to keep the

shutter button pressed during recording.

5

Pan the camera in the direction shown by the

arrow. Shooting ends automatically when the

camera is panned to the end of the guides

and the panorama is complete.

8002.030

Sweep camera along yellow

line in direction of y

ANGLE DIRECTION

R Shooting ends if the shutter button is pressed all

the way down during shooting. No panorama

may be recorded if the shutter button is pressed

before the panorama is complete.

For Best Results

For best results, prop your elbows against your sides

and move the camera slowly in a small circle at a

steady speed, keeping the camera horizontal and

being careful only to pan in the direction shown by

the guides. Use a tripod for best results. If the desired

results are not achieved, try panning at a di erent

speed.

70

The DRIVE Button

Q Panoramas are created from multiple frames; expo-

sure for the entire panorama is determined by the

 rst frame. The camera may in some cases record an

greater or lesser angle than selected or be unable to

stitch the frames together perfectly. The last part of

the panorama may not be recorded if shooting ends

before the panorama is complete.

Q Shooting may be interrupted if the camera is panned

too quickly or too slowly. Panning the camera in a

direction other than that shown cancels shooting.

Q The desired results may not be achieved with mov-

ing subjects, subjects close to the camera, unvary-

ing subjects such as the sky or a  eld of grass, sub-

jects that are in constant motion, such as waves and

waterfalls, or subjects that undergo marked chang-

es in brightness. Panoramas may be blurred if the

subject is poorly lit.

Viewing Panoramas

In full-frame playback, you can use the command

control to zoom panoramas in or out. Alterna-

tively, you can play the panorama back using the

selector.

PLAY

STOP PAUSE

Press the selector down to start playback and

press again to pause. While playback is paused,

you can scroll the panorama manually by press-

ing the selector left or right; vertical panoramas

will scroll vertically, horizontal panoramas hori-

zontally. To exit to full-frame playback, press the

selector up.

71

More on Photography and Playback

The DRIVE Button

Multiple Exposures

Create a photograph that combines two exposures.

+

1

Press the DRIVE button to display drive options,

then press the selector up or down to high-

light Adv., then press it left or right to highlight

j (MULTIPLE EXPOSURE) and press MENU/OK

to select and return to the shooting display.

2

Take the  rst shot.

3

Press MENU/OK. The  rst shot will be shown su-

perimposed on the view through the lens and

you will be prompted to take the second shot.

R To return to Step 2 and retake the  rst shot,

press the selector left. To save the  rst shot and

exit without creating a multiple exposure, press

DISP/BACK.

4

Take the second shot, using the  rst frame as a

guide.

5

Press MENU/OK to create the multiple exposure,

or press the selector left to return to Step 4

and retake the second shot.

72

The DRIVE Button

Advanced Filters

Take photos with  lter e ects.

1

Press the DRIVE button to display drive op-

tions, then press the selector up or down to

highlight Y (ADVANCED FILTER) and press

MENU/OK.

2

Press the selector left or right to choose a  lter

type and press MENU/OK to select and return to

the shooting display.

Filter

Description

G

TOY CAMERA

Choose for a retro toy camera

e ect.

H

MINIATURE

The tops and bottoms of pic-

tures are blurred for a diorama

e ect.

I

POP COLOR

Create high-contrast images

with saturated colors.

J

HIGH-KEY

Create bright, low-contrast

images.

Filter

Description

Z

LOW-KEY

Create uniformly dark tones

with few areas of emphasized

highlights.

K

DYNAMIC TONE

Dynamic tone expression is

used for a fantasy e ect.

X

SOFT FOCUS

Create a look that is evenly

soft throughout the whole

image.

u

PARTIAL COLOR (RED)

Areas of the image that are

the selected color are record-

ed in that color. All other ar-

eas of the image are recorded

in black-and-white.

v

PARTIAL COLOR (ORANGE)

w

PARTIAL COLOR (YELLOW)

x

PARTIAL COLOR (GREEN)

y

PARTIAL COLOR (BLUE)

z

PARTIAL COLOR (PURPLE)

3

Take photographs.

R Depending on the subject and camera settings, im-

ages may in some cases be grainy or vary in bright-

ness and hue.

73

More on Photography and Playback

Film Simulation

Simulate the e ects of di erent kinds of  lm, including black-and-white (with or without color  lters).

1

Press MENU/OK in shooting mode to display the shooting menu. Press the selector up or

down to highlight P FILM SIMULATION and press MENU/OK.

2

Press the selector up or down to highlight the desired option and press MENU/OK to select.

Option

Description

c

(PROVIA/STANDARD)

Standard color reproduction. Suited to a wide range of subjects, from portraits to landscapes.

>

(Velvia/VIVID)

A high-contrast palette of saturated colors, suited to nature photos.

e

(ASTIA/SOFT)

Enhances the range of hues available for skin tones in portraits while preserving the bright blues of

daylight skies. Recommended for outdoor portrait photography.

i

(CLASSIC CHROME)

Soft color and enhanced shadow contrast for a calm look.

g

(PRO Neg. Hi)

O ers slightly more contrast than h (PRO Neg. Std). Recommended for outdoor portrait photogra-

phy.

h

(PRO Neg. Std)

A soft-toned palette. The range of hues available for skin tones is enhanced, making this a good choice

for studio portrait photography.

b

(MONOCHROME)

Take pictures in standard black and white.

e

(MONOCHROME +

Ye FILTER)

Take black-and-white pictures with slightly increased contrast. This setting also slightly tones down

the brightness of the sky.

d

(MONOCHROME +

R FILTER)

Take black-and-white pictures with increased contrast. This setting also tones down the brightness

of the sky.

f

(MONOCHROME +

G FILTER)

Soften skin tones in black-and-white portraits.

f

(SEPIA)

Take pictures in sepia.

R Film simulation options can be combined with tone and sharpness settings (P 95).

74

Focus Mode

Use the focus mode selector to choose how the camera focuses.

• S (single AF): Focus locks while the shutter button is pressed halfway.

Choose for stationary subjects.

• C (continuous AF): Focus is continually adjusted to re ect changes in the

distance to the subject while the shutter button is pressed halfway.

Use for subjects that are in motion. Eye-detection AF is not available.

• M (manual): Focus manually using the control ring. Rotate the ring left to reduce the focus distance,

right to increase. The manual focus indicator indicates how closely the focus distance matches the

distance to the subject in the focus brackets (the white line indicates the focus distance, the blue bar

the depth of  eld, or in other words the distance in front of and behind the focus point that appears

to be in focus); you can also check focus visually in the LCD monitor. Choose for manual control of

focus or in situations in which the camera is unable to focus using autofocus (P 85).

Reduce focus

distance

Increase focus

distance

01 0.5 1.0 1.5 2.0 3.0 5.0 10

4000

5.6

400

M

Manual focus

indicator

Manual focus

mode icon

Focus distance

(white line)

5

1.0 1.5 2.0 3.0 5.0

Depth of  eld

(blue bar)

R Use the I CONTROL RING option in the setup menu (P 107) to reverse the direction of rotation of the control

ring.

R To use autofocus to focus on the subject in the selected focus area (P78), press the AF-L/AE-L button (the size

of the focus area can be chosen with the command control). In manual focus mode, you can use this feature

to quickly focus on a chosen subject using either single or continuous AF according to the option chosen for

G AUTOFOCUS SETTING> INSTANT AF SETTING (P 92).

75

More on Photography and Playback

Focus Mode

R The camera can show focus distance in meters or feet. Use the A SCREEN SET-UP > FOCUS SCALE UNITS

option in the setup menu (P 106) to choose the units used.

R If ON is selected for G AUTOFOCUS SETTING> PRE-AF in the shooting menu (P 93), focus will be adjusted

continuously in modes S and C even when the shutter button is not pressed.

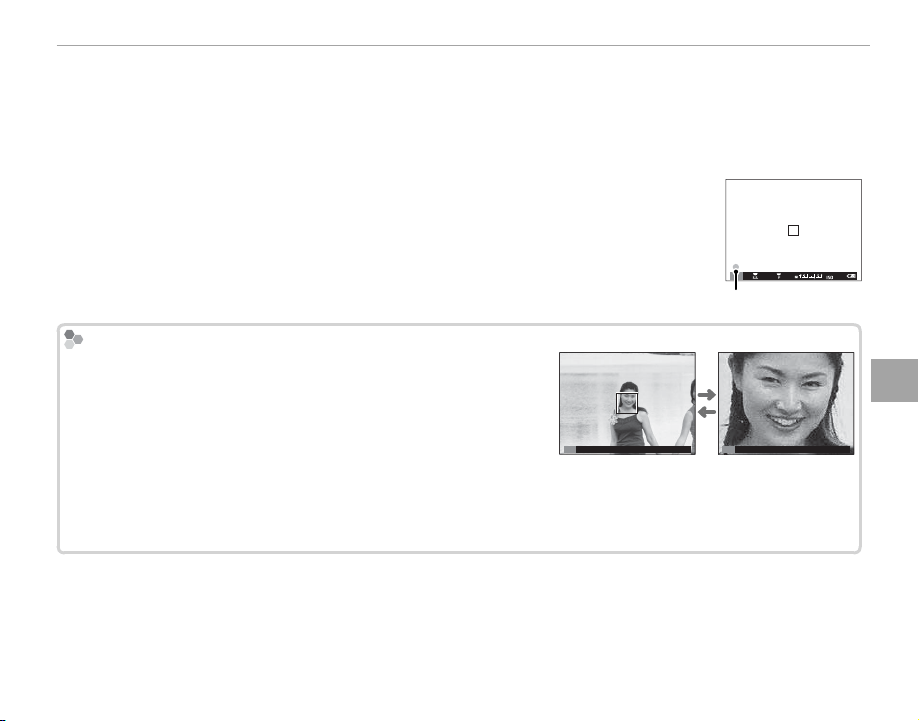

■ The Focus Indicator

The focus indicator turns green when the subject is in focus and blinks white when

the camera is unable to focus. Brackets (“( )”) indicate that the camera is focusing

and are displayed continuously in mode C. j is displayed in manual focus mode.

4000

5.6

400

P

Focus indicator

Checking Focus

To zoom in on the current focus area (P 78) for precise focus, press

the center of the command control. Press again to cancel zoom.

In manual focus mode, zoom can be adjusted by pressing the

command control left or right when STANDARD or FOCUS PEAK

HIGHLIGHT is selected for c MF ASSIST, while if ON is selected for

A SCREEN SET-UP> FOCUS CHECK, the camera will automatically

zoom in on the selected focus area when the control ring is rotated. Focus zoom is not available in focus mode

C or when G AUTOFOCUS SETTING> PRE-AF is on or an option other than r SINGLE POINT is selected for

G AUTOFOCUS SETTING > AF MODE.

M M

76

Focus Mode

■ MF Assist

The c MF ASSIST option in the shooting menu can be used to check focus when pictures are framed

in the LCD monitor in manual focus mode.

R The c MF ASSIST menu can be displayed by pressing and holding the center of the command control.

The following options are available:

• FOCUS PEAK HIGHLIGHT: Highlights high-contrast outlines. Rotate the control ring

until the subject is highlighted.

• DIGITAL SPLIT IMAGE: Displays a split, black-and-white image in the center of the

frame. Frame the subject in the split-image area and rotate the control ring until

the three parts of the split image are correctly aligned.

77

More on Photography and Playback

Focus Mode

Autofocus Options (AF Mode)

To choose the AF mode for focus modes S and C, press the function but-

ton (Fn2) to display the options shown below, then press the selector

up or down to highlight an option and press MENU/OK to select.

• r SINGLE POINT: The camera focuses on the subject in the selected

focus point. Use for pin-point focus on a selected subject.

• y ZONE: The camera focuses on the subject in the selected focus

zone. Focus zones include multiple focus points (5 × 3, 5 × 5, or 3 × 3),

making it easier to focus on subjects that are in motion.

• z WIDE/TRACKING: In focus mode C, the camera tracks focus on the subject in the selected focus

point while the shutter button is pressed halfway. In focus mode S, the camera automatically focuses

on high-contrast subjects; the areas in focus are shown in the display. The camera may be unable to

focus on small objects or subjects that are moving rapidly.

R AF mode options can also be accessed using the G AUTOFOCUS SETTING option in the shooting menu

(P 92).

78

Focus Mode

Focus-Point Selection

Choose a focus point for autofocus. The procedure for selecting the

focus point varies with the option chosen for AF mode (P 77).

R Focus-area selection can also be accessed using the G AUTOFOCUS SET-

TING option in the shooting menu (P 92).

R Focus-area selection can also be used to choose the focus point for manual

focus and focus zoom.

■ Single Point AF

Press the function button (Fn5) to display the focus points (“+”) and

focus frame. Use the selector to position the focus frame over the de-

sired focus point, or press DISP/BACK to return to the center point.

Focus frame

Focus point

Use the command control to choose the size of the focus frame. Press

the control left to reduce the frame by up to 50%, right to enlarge it by

up to 150%, or press the center of the control to restore the frame to its

original size. Press MENU/OK to put your selection into e ect.

79

More on Photography and Playback

Focus Mode

■ Zone AF

Press the function button (Fn5) to display the focus zone. Use the se-

lector to position the zone or press DISP/BACK to return the zone to the

center of the display.

Focus zone

To choose the number of focus frames in the zone, use the command

control. Press the control right to cycle through zone sizes in the or-

der 5 × 5, 3 × 3, 5 × 3, 5 × 5…, left to cycle through zone sizes in reverse

order, or press the center of the control to select a zone size of 5 × 3.

Press MENU/OK to put your selection into e ect.

80

Focus Mode

■ Tracking (Focus Mode C Only)

Press the function button (Fn5) to display the focus frame. Use the

selector to position the focus frame, or press DISP/BACK to return the

frame to the center of the display. Press MENU/OK to put your selection

into e ect. The camera will track focus on the subject while the shutter

button is pressed halfway.

Focus frame

Q Manual focus-frame selection is not available when wide/tracking is selected in focus mode S.

Burst Mode Focus-Frame Selection

During high-speed burst photography (J), the number of focus frames available in focus mode C drops and the

maximum zone size is restricted to 5 × 3.

Single point Zone Wide/Tracking

81

More on Photography and Playback

Long Time-Exposures (T/B)

Select a shutter speed of T (time) or B (bulb) for long time-exposures.

R Use of a tripod is recommended to prevent the camera from moving during the exposure.

R To reduce “noise” (mottling) in long time-exposures, select ON for K LONG EXPOSURE NR in the shooting

menu (P 95). Note that this may increase the time needed to record images after shooting.

Time (T)

1

Rotate the shutter speed dial to T.

2

Press the command control left or

right to choose a shutter speed.

2

”

200

S

3

Press the shutter button all the way

down to take a picture at the select-

ed shutter speed. A count-down

timer will be displayed while the ex-

posure is in progress.

Bulb (B)

1

Rotate the shutter speed dial to B.

2

Press the shutter button all the way

down. The shutter will remain open

for up to 60 minutes while the shut-

ter button is pressed; the display

shows the time elapsed since the

exposure started.

R Selecting an aperture of A  xes shutter speed at 30 s.

82

Long Time-Exposures (T/B)

Using a Remote Release

An optional RR-90 remote release can be used for

long time-exposures. See the manual provided

with the RR-90 for more information.

Third-Party Remote Releases

Electronic releases from third-

party suppliers can be

connect-

ed via the microphone/remote

release connector

. A con rma-

tion dialog will be displayed

when a third-party release is

connected; press MENU/OK and

select n REMOTE for MIC/RE-

MOTE RELEASE.

CHECK MIC/REMOTE RELEASE

SETTING

SKIP

SET

83

More on Photography and Playback

Interval Timer Photography

Follow the steps below to con gure the camera to take photos automatically at a preset interval.

1

Press MENU/OK in shooting mode to display the shooting menu. Press the selector

up or down to highlight o INTERVAL TIMER SHOOTING and press MENU/OK.

2

Use the selector to choose the interval and number of shots. Press MENU/OK to

proceed.

INTERVAL/NUMBER OF TIMES

INTERVAL NUMBER OF TIMES

END CANCEL

001

2

1

24

23

0

01 00

hms

3

Use the selector to choose the starting time and then press MENU/OK. Shooting

will start automatically.

START WAITING TIME

ESTIMATED START TIME

11:00

PM

START CANCEL

LATERhm

2

1

24

23

0

00

Q Interval timer photography can not be used at a shutter speed of B (bulb) or during panorama or multiple

exposure photography. In burst mode, only one picture will be taken each time the shutter is released.

R Use of a tripod is recommended.

R Check the battery level before starting.

R The display turns o between shots and lights a few seconds before the next shot is taken. The display can be

activated at any time by pressing the shutter button all the way down.

84

Focus/Exposure Lock

The camera focuses and sets exposure for photographs when the shutter button is pressed halfway

and focus (AF) and exposure (AE) remain locked while the shutter button is kept in this position. Use

focus and exposure lock to compose photographs with o -center subjects.

1

Position the subject in the focus frame.

P

2

Press the shutter button halfway to set focus and exposure. The focus frame will

turn green.

R This process can be repeated as often as desired before the picture is taken.

P

3

Recompose the photograph. Do not change the distance to the subject while

the shutter button is pressed halfway.

P

4

Press the shutter button the rest of the way down to take the picture.

85

More on Photography and Playback

Focus/Exposure Lock

The AF-L/AE-L Button

Focus and/or exposure can also be locked using the

AF-L/AE-L button.

R Focus and/or exposure will remain locked while

the button is pressed, regardless of whether or

not the shutter button is pressed halfway.

R The role played by the AF-L/AE-L button can be

selected using the v AE/AF-LOCK BUTTON op-

tion in the shooting menu:

• AE LOCK ONLY (the default setting): The AF-L/AE-L

button locks exposure only.

• AF LOCK ONLY: The AF-L/AE-L button locks focus

only.

• AE/AF LOCK: The AF-L/AE-L button locks both focus

and exposure.

R If AE&AF ON/OFF SWITCH is selected for k AE/

AF-LOCK MODE in the shooting menu, focus

and/or exposure will lock when the button is

pressed and remain locked until the button is

pressed again (P 96).

Autofocus

Although the camera boasts a high-precision auto-

focus system, it may be unable to focus on the sub-

jects listed below.

• Very shiny subjects such as

mirrors or car bodies.

• Fast-moving subjects.

• Subjects photographed through a window or oth-

er re ective object.

• Dark subjects and subjects that absorb rather than

re ect light, such as hair or fur.

• Insubstantial subjects, such as smoke or  ame.

• Subjects that show little contrast with the back-

ground (for example, subjects in clothing that is

the same color as the background).

• Subjects positioned in front of or behind a high-

contrast object that is also in the focus frame (for

example, a subject photographed against a back-

drop of highly contrasting elements).

86

Recording Pictures in RAW Format

To record raw, unprocessed data from the camera image sensor, select a RAW option for image qual-

ity in the shooting menu as described below. JPEG copies of RAW images can be created using the

j RAW CONVERSION option in the playback menu, or RAW images can be viewed on a computer

using the RAW FILE CONVERTER application (P 87, 114).

1

Press MENU/OK in shooting mode to display the shooting menu. Press the selector up or down to

highlight T IMAGE QUALITY and press MENU/OK.

2

Highlight an option and press MENU/OK. Select RAW to record only RAW images, or FINE+RAW or

NORMAL+RAW to record both JPEG copy together with the RAW images. FINE+RAW uses lower

JPEG compression ratios for higher-quality JPEG images, while NORMAL+RAW uses higher JPEG

compression ratios to increase the number of images that can be stored.

The Function Buttons

To toggle RAW image quality on or o for a single shot, assign RAW to a function button (P 42, 43). If a JPEG option

is currently selected for image quality, pressing the button temporarily selects the equivalent JPEG+RAW option.

If a JPEG+RAW option is currently selected, pressing the button temporarily selects the equivalent JPEG option,

while if RAW is selected, pressing the button temporarily selects FINE. Taking a picture or pressing the button

again restores the previous setting.

R Sensitivities of L (100), H (12800), H (25600), and H (51200) are not available when RAW image quality is on

(P 60).

87

More on Photography and Playback

Recording Pictures in RAW Format

Creating JPEG Copies of RAW Pictures

RAW pictures store information on camera settings separately from the data captured by the camera

image sensor. Using the j RAW CONVERSION option in the playback menu, you can create JPEG

copies of RAW pictures using di erent options for the settings listed below. The original image data

are una ected, allowing a single RAW image to be processed in a multitude of di erent ways.

1

Press MENU/OK during playback to display the

playback menu, then press the selector up

or down to highlight j RAW CONVERSION

and press MENU/OK to display the settings list-

ed in the table at right.

R These options can also be displayed by pressing

Q button during playback.

2

Press the selector up or

down to highlight a setting

and press the selector right

to select. Press the selec-

tor up or down to highlight

the desired option and press MENU/OK to select

and return to the settings list. Repeat this step

to adjust additional settings.

3

Press the Q button to preview the JPEG copy

and press MENU/OK to save.

Setting

Description

REFLECT SHOOTING

COND.

Create a JPEG copy using the settings in ef-

fect at the time the photo was taken.

PUSH/PULL

PROCESSING

Adjust exposure by –1 EV to +3 EV in incre-

ments of 

/

 EV.

DYNAMIC RANGE

Enhance details in highlights for natural

contrast (P 94).

FILM SIMULATION

Simulate the e ects of di erent types of  lm

(P 73).

WHITE BALANCE

Adjust white balance (P 58).

WB SHIFT

Fine-tune white balance (P 58).

COLOR

Adjust color density (P 95).

SHARPNESS

Sharpen or soften outlines (P 95).

HIGHLIGHT TONE

Adjust highlights (P 95).

SHADOW TONE

Adjust shadows (P 95).

NOISE REDUCTION

Process the copy to reduce mottling (P 95).

COLOR SPACE

Choose the color space used for color repro-

duction (P 108).

CREATE

REFLECT SHOOTING COND.

PUSH/PULL PROCESSING

DYNAMIC RANGE

FILM SIMULATION

WHITE BALANCE

WB SHIFT

RAW CONVERSION

CANCEL

88

Saving Settings

Save up to 7 sets of custom camera settings for commonly-encountered situations. Saved settings can

be recalled using the u SELECT CUSTOM SETTING option in the shooting menu.

1

Press MENU/OK in shooting mode to display the shooting menu. Press

the selector up or down to highlight K EDIT/SAVE CUSTOM SET-

TING and press MENU/OK.

P

SHOOTING MENU

EDIT/SAVE CUSTOM SETTING

OFF

35

mm

OFF

ON

0

OFF

O

CUSTOM

1

CUSTOM

2

CUSTOM

3

CUSTOM

4

CUSTOM

5

CUSTOM

6

CUSTOM

7

2

Highlight a custom settings bank and press MENU/OK to select. Ad-

just the following as desired and press DISP/BACK when adjustments

are complete: N ISO, U DYNAMIC RANGE, P FILM SIMULATION,

D WHITE BALANCE, f COLOR, q SHARPNESS, r HIGHLIGHT

TONE, s SHADOW TONE, and h NOISE REDUCTION.

EXIT

SAVE CURRENT SETTINGS

DYNAMIC RANGE

FILM SIMULATION

WHITE BALANCE

COLOR

CUSTOM

1

AUTO

0

ISO

200

R To replace the settings in the selected bank with the settings currently selected with the camera, select

K SAVE CURRENT SETTINGS and press MENU/OK.

3

A con rmation dialog will be displayed; highlight OK and press MENU/OK.

OK

CUSTOM

1

SET OK?

CANCEL

OK

SAVE CUSTOM SETTING

89

More on Photography and Playback

Image Search

Follow the steps below to search for pictures.

1

Press MENU/OK during playback to display the playback menu. Press the selector up or down to highlight

b IMAGE SEARCH and press MENU/OK.

2 Highlight an option and press MENU/OK.

Option

Description

BY DATE Search by date.

BY FACE Search for pictures that include faces.

BY I FAVORITES Search by rating (P 30).

BY SCENE Search by scene.

BY TYPE OF DATA Find all still pictures, all movies, or all RAW pictures.

3

Select a search condition. Only pictures that match the search condition will

be displayed. To delete or protect selected pictures or to view the selected

pictures in a slide show, press MENU/OK and choose from the options at right.

4 To end the search, select EXIT SEARCH.

Option

See page

A

ERASE

99

D

PROTECT

100

I

SLIDE SHOW

101

90

PhotoBook Assist

Create books from your favorite photos.

Creating a PhotoBook

1

Select NEW BOOK for m PHOTOBOOK

ASSIST in the playback menu (P 101) and

choose from the following options:

• SELECT FROM ALL: Choose from all available

pictures.

• SELECT BY IMAGE SEARCH: Choose from pictures

matching selected search conditions (P

89).

R Neither photographs a or smaller nor movies

can be selected for photobooks.

2

Scroll through the images and press the se-

lector up to select or deselect. To display the

current image on the cover, press the selector

down. Press MENU/OK to exit when the book is

complete.

R The  rst picture selected becomes the cover im-

age. Press the selector down to select a di erent

image for the cover.

3

Highlight COMPLETE PHOTOBOOK and

press MENU/OK (to select all photos or all pho-

tos matching the speci ed search conditions

for the book, choose SELECT ALL). The new

book will be added to the list in the photo-

book assist menu.

Q Books can contain up to 300 pictures.

Q Books that contain no photos are automatically de-

leted.

91

More on Photography and Playback

PhotoBook Assist

Viewing Photobooks

Highlight a book in the photobook assist menu

and press MENU/OK to display the book, then press

the selector left or right to scroll through the pic-

tures.

Editing and Deleting Photobooks

Display the photobook and press MENU/OK. The

following options will be displayed; select the

desired option and follow the on-screen instruc-

tions.

• EDIT: Edit the book as described in “Creating a

PhotoBook” (P 90).

• ERASE: Delete the book.

Photobooks

Photobooks can be copied to a computer using MyFinePix Studio software (P 114).

92

Menus

Using the Menus: Shooting Mode

The shooting menu is used to adjust settings for a wide range of shooting condi-

tions. To display the shooting menu, press MENU/OK in shooting mode. Highlight

items and press the selector right to view options, then highlight an option and

press MENU/OK. Press DISP/BACK to exit when settings are complete.

EXIT

SHOOTING MENU

ISO

AUTOFOCUS SETTING

PROGRAM AE

IMAGE SIZE

IMAGE QUALITY

DYNAMIC RANGE AUTO

FILM SIMULATION

F

200

3:2

P

Shooting Menu Options (Photographs)

d

ADVANCED FILTER

Choose a  lter (P 72).

R This option is only available when Y ADVANCED FILTER is selected for drive mode.

A

SCENE POSITION

Choose the shooting mode used when the auto mode selector lever is in the AUTO position.

G

AUTOFOCUS SETTING

Adjust autofocus settings.

Option

Description

FOCUS AREA

FOCUS AREA Choose the focus area (P 78).

AF MODE

AF MODE Choose the AF mode for focus modes S and C (P 77).

RELEASE/FOCUS

PRIORITY

Choose how the camera focuses in focus mode AF-S or AF-C.

• RELEASE: Shutter response is prioritized over focus. Pictures can be taken when the camera is not in focus.

• FOCUS: Focus is prioritized over shutter response. Pictures can be only taken when the camera is in focus.

INSTANT AF SETTING

INSTANT AF SETTING Choose how the camera focuses when the AF-L/AE-L button is pressed in manual focus mode (P 74).

93

Menus

Using the Menus: Shooting Mode

G

AUTOFOCUS SETTING (Continued)

Option

Description

FACE DETECTION

Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the

camera from focusing on the background in group portraits. Choose for shots that emphasize portrait

subjects.

To use Intelligent Face Detection, press MENU/OK to display the shooting menu and

select ON for G AUTOFOCUS SETTING> FACE DETECTION. Faces can be detect-

ed with the camera in vertical or horizontal orientation; if a face is detected, it will be

indicated by a green border. If there is more than one face in the frame, the camera

will select the face closest to the center; other faces are indicated by white borders.

Q In some modes, the camera may set exposure for the frame as a whole rather

than the portrait subject.

Q If the subject moves as the shutter button is pressed, the face may not be in the area indicated by the

green border when the picture is taken.

EYE DETECTION AF

Choose whether the camera detects and focuses on eyes when Intelligent Face

Detection is on. Choose from uAUTO (the camera automatically chooses which

eye to focus on), w RIGHT EYE PRIORITY (the camera focuses on the right eye),

v LEFT EYE PRIORITY (the camera focuses on the left eye), and OFF (eye focus

o ).

R If the camera is unable to detect the subject’s eyes because they are hidden by

hair, glasses, or other objects, the camera will instead focus on faces.

PRE-AF

If ON is selected, the camera will continue to adjust focus even when the shutter button is not pressed

halfway. Note that this increases the drain on the battery.

AF ILLUMINATOR

If ON is selected, the AF-assist illuminator will light to assist autofocus.

R The AF-assist illuminator turns o automatically when OFF is selected for o SOUND & FLASH in the

setup menu.

Q The camera may be unable to focus using the AF-assist illuminator in some cases. If the camera is un-

able to focus in macro mode, try increasing the distance to the subject.

Q Avoid shining the AF-assist illuminator directly into your subject’s eyes.

94

Using the Menus: Shooting Mode

N

ISO

Control the camera’s sensitivity to light (P 60).

O

IMAGE SIZE

Choose the size and aspect ratio at which still pictures are recorded.

Aspect Ratio

Pictures with an aspect ratio of 3 : 2 have the same proportions as

a frame of 35 mm  lm, while an aspect ratio of 16 : 9 is suited to

display on

H

igh

D

e nition (HD) devices. Pictures with an aspect

ratio of 1 : 1 are square.

O IMAGE SIZE is not reset when the camera is turned o or an-

other shooting mode is selected.

Option

Prints at sizes up to

Option

Prints at sizes up to

O

3 : 2

41 × 28 cm (16 × 11 in.)

Q

3 : 2

21 × 14 cm (8 × 5 in.)

O

16 : 9

41 × 23 cm (16 × 9 in.)

Q

16 : 9

21 × 12 cm (8 × 4 in.)

O

1 : 1

28 × 28 cm (11 × 11 in.)

Q

1 : 1

14 × 14 cm (5 × 5 in.)

P

3 : 2

29 × 20 cm (11 × 7 in.)

P

16 : 9

29 × 16 cm (11 × 6 in.)

P

1 : 1

20 × 20 cm (7 × 7 in.)

T

IMAGE QUALITY

Choose a  le format and compression ratio. Select FINE or NORMAL to record JPEG images, RAW to record RAW images, or

FINE+RAW or NORMAL+RAW to record both JPEG and RAW images. FINE and FINE+RAW use lower JPEG compression ratios

for higher-quality JPEG images, while NORMAL and NORMAL+RAW use higher JPEG compression ratios to increase the num-

ber of images that can be stored.

U

DYNAMIC RANGE

Control contrast. Choose lower values to increase contrast when shooting indoors or under overcast skies, higher values to

reduce loss of detail in highlights and shadows when photographing high-contrast scenes. Higher values are recommended

for scenes that include both sunlight and deep shade, for such high-contrast subjects as sunlight on water, brightly-lit autumn

leaves, and portraits taken against a blue sky, and for white objects or people wearing white; note, however, that mottling may

appear in pictures taken at higher values.

R If AUTO is selected, the camera will automatically choose either

V

V 100% or

W

W 200% according to the subject and shoot-

ing conditions. Shutter speed and aperture will be displayed when the shutter button is pressed halfway.

R

W

W 200% is available at sensitivities of ISO 400 and above,

X

X 400% at sensitivities of ISO 800 and above.

95

Menus

Using the Menus: Shooting Mode

P

FILM SIMULATION

Simulate the e ects of di erent types of  lm (P 73).

B

SELF-TIMER

Take pictures with the self-timer (P 45).

o

INTERVAL TIMER SHOOTING

Adjust settings for interval timer photography (P 83).

D

WHITE BALANCE

Adjust colors to match the light source (P 58).

f

COLOR

Adjust color density.

q

SHARPNESS

Sharpen or soften outlines.

r

HIGHLIGHT TONE

Adjust the appearance of highlights.

s

SHADOW TONE

Adjust the appearance of shadows.

h

NOISE REDUCTION

Reduce noise in pictures taken at high sensitivities.

K

LONG EXPOSURE NR

Select ON to reduce mottling in long time-exposures (P 81).

u

SELECT CUSTOM SETTING

Recall settings saved with K EDIT/SAVE CUSTOM SETTING.

K

EDIT/SAVE CUSTOM SETTING

Save settings (P 88).

96

Using the Menus: Shooting Mode

Y

WIDE CONVERSION LENS

Select ON when using an optional wide conversion lens (P 129).

w

CONTROL RING SETTING

Set functions assigned to the control ring.

K

TOUCH SCREEN MODE

Choose whether touch controls can be used to select the focus area or release the shutter (P 24).

c

MF ASSIST

Choose how focus is displayed in manual focus mode (P 76).

• STANDARD: Focus is displayed normally (focus peaking and digital split image are not available).

• DIGITAL SPLIT IMAGE: A black-and-white split-image display.

• FOCUS PEAK HIGHLIGHT: The camera heightens high-contrast outlines. Choose a color and peaking level.

k

AE/AF-LOCK MODE

If AE & AF ON WHEN PRESSING is selected, exposure and/or focus will lock while the AF-L/AE-L button is pressed. If AE & AF

ON/OFF SWITCH is selected, exposure and/or focus will lock while the AF-L/AE-L button is pressed and remain locked until the

button is pressed again.

v

AE/AF-LOCK BUTTON

Choose the role played by the AF-L/AE-L button (P 85).

C

PHOTOMETRY

Choose how the camera meters exposure when Intelligent Face Detection is o (P 63).

v

INTERLOCK SPOT AE & FOCUS AREA

Select ON to meter the current focus frame when SINGLE POINT is selected for AUTOFOCUS SETTING> AF MODE and SPOT

is selected for PHOTOMETRY.

97

Menus

Using the Menus: Shooting Mode

p

FLASH SET-UP

Adjust  ash settings.

Option

Description

FLASH MODE

Choose a  ash mode (

P 46).

FLASH COMPENSATION

Adjust  ash brightness. Choose from values between +2 EV and –2 EV. Note that the desired results may

not be achieved depending on shooting conditions and the distance to the subject.

RED EYE REMOVAL

Choose ON to remove red-eye e ects caused by the  ash.

R Red-eye reduction is performed only when a face is detected.

R Red-eye removal is not available with RAW images.

W

MOVIE SET-UP

Adjust movie settings (P 36).

Option

Description

MOVIE MODE

Select a frame size and rate for movie recording.

• i 1920×1080 60 fps: Full HD (60 fps)

• i 1920×1080 50 fps: Full HD (50 fps)

• i 1920×1080 30 fps: Full HD (30 fps)

• i 1920×1080 25 fps: Full HD (25 fps)

• i 1920×1080 24 fps: Full HD (24 fps)

• h 1280×720 60 fps: HD (60 fps)

• h 1280×720 50 fps: HD (50 fps)

• h 1280×720 30 fps: HD (30 fps)

• h 1280×720 25 fps: HD (25 fps)

• h 1280×720 24 fps: HD (24 fps)

MOVIE ISO

Choose the sensitivity for movie recording from AUTO or from settings between ISO 400 and 6400.

R This setting has no e ect on photographs.

MIC LEVEL ADJUSTMENT

MIC LEVEL ADJUSTMENT Adjust the microphone recording level.

MIC/REMOTE RELEASE

Specify whether the device connected to the microphone/remote release connector is a microphone or

a remote release (P 37, 82).

98

Using the Menus: Shooting Mode

X

FILM SIMULATION BKT

Choose  lm types for  lm simulation bracketing (P 67, 68).

r

WIRELESS COMMUNICATION

Connect to a smartphone or tablet over a wireless network (P 113).

R For more information, visit http://fujifilm-dsc.com/wifi/.

x

SHUTTER TYPE

Choose the shutter type. Choose the electronic shutter to mute the shutter sound.

Option

Description

t

MECHANICAL SHUTTER

Take pictures with the mechanical shutter.

s

ELECTRONIC SHUTTER

Take pictures with the electronic shutter.

t

MECHANICAL +

s

ELECTRONIC

The camera chooses the shutter type according to shooting conditions.

R If s ELECTRONIC SHUTTER or t MECHANICAL + s ELECTRONIC is selected, shutter speeds faster than 

/

s can be

chosen by rotating the shutter speed dial to 4000 and then pressing the command control left or right.

R Regardless of the option selected, the mechanical shutter is used for motion panoramas. When the electronic shutter is used,

shutter speed and sensitivity are restricted to values of 

/

–1s and ISO 6400–200 respectively, and long exposure noise

reduction has no e ect. In burst mode, focus and exposure are  xed at the values for the  rst shot in each burst.

Q Distortion may be visible in shots of moving subjects with electronic shutter, while banding and fog may occur in shots taken

under  uorescent lights or other  ickering or erratic illumination. When taking pictures with the shutter muted, respect your

subjects’ image rights and right to privacy.

J

DIGITAL TELE-CONV.

Select ON to enable digital zoom (P 57).

99

Menus

Using the Menus: Playback Mode

To display the playback menu, press MENU/OK in playback mode. Highlight items

and press the selector right to view options, then highlight an option and press

MENU/OK. Press DISP/BACK to exit when settings are complete.

RAW CONVERSION

PLAYBACK MENU

ERASE

CROP

RESIZE

PROTECT

IMAGE ROTATE

EXIT

WIRELESS COMMUNICATION

Playback Menu Options

r

WIRELESS COMMUNICATION

Connect to a smartphone or tablet over a wireless network (P 113).

R For more information, visit http://fujifilm-dsc.com/wifi/.

j

RAW CONVERSION

Create JPEG copies of RAW pictures (P 87).

A

ERASE

Delete pictures (P 35).

G

CROP

Create a cropped copy of the current picture.

1

Display the desired picture.

2

Select G CROP in the playback menu.

3

Press the command control left or right to zoom in and out and press the selector up, down, left, or right to scroll the picture

until the desired portion is displayed.

4

Press MENU/OK to display a con rmation dialog.

5

Press MENU/OK again to save the cropped copy to a separate  le.

R Larger crops produce larger copies; all copies have an aspect ratio of 3 : 2. If the size of the  nal copy will be a, OK will be

displayed in yellow.

100

Using the Menus: Playback Mode

e

RESIZE

Create a small copy of the current picture.

1

Display the desired picture.

2

Select e RESIZE in the playback menu.

3

Highlight a size and press MENU/OK to display a con rmation dialog.

4

Press MENU/OK again to save the resized copy to a separate  le.

R The sizes available vary with the size of the original image.

D

PROTECT

Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK.

• FRAME: Protect selected pictures. Press the selector left or right to view pictures and press MENU/OK to select or deselect. Press

DISP/BACK when the operation is complete.

• SET ALL: Protect all pictures.

• RESET ALL: Remove protection from all pictures.

Q Protected pictures will be deleted when the memory card is formatted (P 110).

C

IMAGE ROTATE

Rotate pictures.

1

Display the desired picture.

2

Select C IMAGE ROTATE in the playback menu.

3

Press the selector down to rotate the picture 90° clockwise, up to rotate it 90° counterclockwise.

4

Press MENU/OK. The picture will automatically be displayed in the selected orientation whenever it is played back on the

camera.

R Protected pictures can not be rotated. Remove protection before rotating pictures.

R The camera may not be able to rotate pictures created with other devices. Pictures rotated on the camera will not be rotated

when viewed on a computer or on other cameras.

R Pictures taken with A SCREEN SET-UP> AUTOROTATE PB are automatically displayed in the correct orientation during

playback (P 106).

101

Menus

Using the Menus: Playback Mode

B

RED EYE REMOVAL

Remove red-eye from portraits. The camera will analyze the image; if red-eye is detected, the image will be processed to create

a copy with reduced red-eye.

1

Display the desired picture.

2

Select B RED EYE REMOVAL in the playback menu.

3

Press MENU/OK.

R Red eye may not be removed if the camera is unable to detect a face or the face is in pro le. Results may di er depending on

the scene. Red eye can not be removed from pictures that have already been processed using red-eye removal or pictures

created with other devices.

R The amount of time needed to process the image varies with the number of faces detected.

R Copies created with B RED EYE REMOVAL are indicated by a e icon during playback.

R Red eye removal can not be performed on RAW images.

I

SLIDE SHOW

View pictures in an automated slide show. Choose the type of show and press MENU/OK to start. Press DISP/BACK at any time dur-

ing the show to view on-screen help. The show can be ended at any time by pressing MENU/OK.

Option

Description

NORMAL

Press the selector left or right to go back or skip ahead one frame. Select FADE-IN for fade transitions between

frames.

FADE-IN

NORMAL

g

As above, except that camera automatically zooms in on faces.

FADE-IN

g

MULTIPLE

MULTIPLE Display several pictures at once.

R The camera will not turn o automatically while a slide show is in progress.

m

PHOTOBOOK ASSIST

Create books from your favorite photos (P 90).

102

Using the Menus: Playback Mode

b

IMAGE SEARCH

Search for pictures (P 89).

s

PC AUTO SAVE

Upload pictures to a computer over a wireless network (P 113).

R For more information, visit http://fujifilm-dsc.com/wifi/.

K

PRINT ORDER (DPOF)

Select pictures for printing on DPOF- and PictBridge-compatible devices (P 120).

V

instax PRINTER PRINT

Print pictures on optional FUJIFILM instax SHARE printers (P 123).

J

DISP ASPECT

Choose how High De nition (HD) devices display pictures with an aspect ratio of 3 : 2

(this option is available only when an HDMI cable is connected). Select 16 : 9 to display

the image so that it  lls the screen with its top and bottom cropped out, 3 : 2 to display

the entire image with black bands at either side.

3:2

16:9

16 : 9

3 : 2

103

Menus

The Setup Menu

Using the Setup Menu

1

Display the setup menu.

1.1 Press MENU/OK to display the menu for the current mode.

1.2 Press the selector left to highlight the tab for the current menu.

1.3 Press the selector down to highlight the setup menu tab containing the de-

sired option.

ON

EXIT

SET-UP

DATE/TIME

TIME DIFFERENCE

RESET

SOUND & FLASH

SOUND SET-UP

SCREEN SET-UP

ENGLISH

Tab

1.4 Press the selector right to place the cursor in the setup menu.

2

Adjust settings.

Highlight items and press the selector right to view options, then highlight an option and press

MENU/OK. Press DISP/BACK to exit when settings are complete.

104

The Setup Menu

Setup Menu Options

F

DATE/TIME

Set the camera clock (P 22, 23).

N

TIME DIFFERENCE

Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the

di erence between local time and your home time zone:

1

Highlight g LOCAL and press MENU/OK.

2

Use the selector to choose the time di erence between local time and your home time zone. Press MENU/OK when settings

are complete.

To set the camera clock to local time, highlight g LOCAL and press MENU/OK. To set the clock to the time in your home time

zone, select h HOME. If g LOCAL is selected, g will be displayed for three seconds when the camera is turned on.

Q

a

Choose a language (P 22, 23).

R

RESET

Reset shooting or setup menu options to default values. Custom white balance, custom settings banks created using

K

EDIT/

SAVE CUSTOM SETTING,

r

r WIRELESS SETTINGS, and the setup menu F DATE/TIME, N TIME DIFFERENCE options are

not a ected.

1

Highlight the desired option and press the selector right.

2

A con rmation dialog will be displayed; highlight OK and press MENU/OK.

o

SOUND & FLASH

Select OFF to disable the speaker,  ash, and illuminator in situations in which camera sounds or lights may be unwelcome. o

appears in the display when OFF is selected.

105

Menus

The Setup Menu

b

SOUND SET-UP

Adjust sound settings.

Option

Description

OPERATION VOL.

Adjust the volume of the sounds produced when camera controls are operated. Choose e OFF

(mute) to disable control sounds.

SHUTTER VOLUME

Adjust the volume of the sounds produced when the shutter is released. Choose e OFF (mute) to

disable the shutter sound.

SHUTTER SOUND

SHUTTER SOUND Choose the sound made by the shutter.

PLAYBACK VOLUME

PLAYBACK VOLUME Adjust the volume for movie playback.

A

SCREEN SET-UP

Adjust display settings.

Option

Description

IMAGE DISP.

Choose how long images are displayed after shooting. Colors may di er slightly from those in the  nal

image and “noise” mottling may be visible at high sensitivities.

Option

Description

CONTINUOUS

Pictures are displayed until the MENU/OK button is pressed or the shutter button is

pressed halfway. To zoom in on the active focus point, press the center of the com-

mand control; press again to cancel zoom.

1.5 SEC

Pictures are displayed for 1.5 seconds (1.5 SEC) or 0.5 seconds (0.5 SEC) or until the

shutter button is pressed halfway.

0.5 SEC

OFF

OFF Pictures are not displayed after shooting.

PREVIEW EXP. IN MANUAL

MODE

Select ON to enable exposure preview in manual exposure mode. Select OFF when using the  ash or

on other occasions on which exposure may change when the picture is taken.

LCD BRIGHTNESS

LCD BRIGHTNESS Adjust monitor brightness.

LCD COLOR

LCD COLOR Adjust monitor hue.

106

The Setup Menu

A

SCREEN SET-UP (Continued)

Option

Description

PREVIEW PIC. EFFECT

Choose ON to preview the e ects of  lm simulation, white balance, and other settings in the monitor.

Choose OFF to make shadows in low-contrast, back-lit scenes and other hard-to-see subjects more

visible.

R If OFF is selected, the e ects of camera settings will not be visible in the monitor and colors and

tone will di er from those in the  nal picture. The display will however be adjusted to show the

e ects of advanced  lters and of monochrome and sepia settings.

FRAMING GUIDELINE

Choose the type of framing grid available in shooting mode.

F

GRID 9

G

GRID 24

H

HD FRAMING

P P P

For “rule of thirds” composition. A six-by-four grid. Frame HD pictures in the crop

shown by the lines at the top and

bottom of the display.

AUTOROTATE PB

AUTOROTATE PB Choose ON to automatically rotate “tall” (portrait-orientation) pictures during playback.

FOCUS CHECK

The image will be magni ed in the display to assist focus when the control ring is rotated in manual

focus mode (P 75).

FOCUS SCALE UNITS

Choose the units used for the focus distance indicator (P 75).

DISP. CUSTOM SETTING

DISP. CUSTOM SETTING Choose items for the standard display (P 26).

107

Menus

The Setup Menu

h

BUTTON/DIAL SETTING

Choose the roles played by camera controls.

Option

Description

FUNCTION (Fn) SETTING

FUNCTION (Fn) SETTING Choose the roles played by the function buttons (P 42, 43).

SELECTOR BUTTON SETTING

Choose the roles played by the up, down, left, and right buttons on the selector.

Option

Description

Fn BUTTON

Fn BUTTON The selector buttons serve as function buttons.

FOCUS AREA

FOCUS AREA The selector buttons can be used to position the focus area.

EDIT/SAVE QUICK MENU

Choose the options displayed in the quick menu (P 39, 40).

I

CONTROL RING

Choose the direction in which the control ring is rotated to increase the focus distance in manual focus mode.

L

TOUCH SCREEN SETTING

Enable or disable touch-screen controls (P 24, 34).

Z

POWER MANAGEMENT

Adjust power management settings.

Option

Description

AUTO POWER OFF

Choose the length of time before the camera turns o automatically when no operations are performed.

Shorter times increase battery life; if OFF is selected, the camera must be turned o manually. Note that in

some situations the camera turns o automatically even when OFF is selected.

HIGH PERFORMANCE

HIGH PERFORMANCE Select ON for faster focus and to reduce the time needed to restart the camera after it has been turned o .

108

The Setup Menu

t

SAVE DATA SET-UP

Adjust  le management settings.

Option

Description

FRAME NO.

New pictures are stored in image  les named using a four-digit  le number assigned by

adding one to the last  le number used. The  le number is displayed during playback as

shown at right. FRAME NO. controls whether  le numbering is reset to 0001 when a new

memory card is inserted or the current memory card is formatted.

Frame number

100-0001

Directory

number

File

number

Option

Description

CONTINUOUS

Numbering continues from the last  le number used or the  rst available  le number, whichever is

higher. Choose this option to reduce the number of pictures with duplicate  le names.

RENEW

RENEW Numbering is reset to 0001 after formatting or when a new memory card is inserted.

R If the frame number reaches 999-9999, the shutter release will be disabled (P 137).

R Selecting R RESET (P 104) sets FRAME NO. to CONTINUOUS but does not reset the  le number.

R Frame numbers for pictures taken with other cameras may di er.

SAVE ORG IMAGE

Choose ON to save unprocessed copies of pictures taken using

B

B RED EYE REMOVAL.

EDIT FILE NAME

Change the  le name pre x. sRGB images use a four-letter pre x (default “DSCF”), Adobe RGB images a three-

letter pre x (“DSF”) preceded by an underscore.

J

COLOR SPACE

Choose the gamut of colors available for color reproduction.

Option

Description

sRGB

sRGB Recommended in most situations.

Adobe RGB

Adobe RGB For commercial printing.

109

Menus

The Setup Menu

r

CONNECTION SETTING

Adjust settings for connection to wireless devices, including smartphones, computers, and FUJIFILM instax SHARE printers.

Option

Description

WIRELESS

SETTINGS

Adjust settings for connection to wireless networks.

Option

Description

GENERAL SETTINGS

Choose a name (NAME) to identify the camera on the wireless network (the camera is as-

signed a unique name by default) or select RESET WIRELESS SETTINGS to restore default

settings.

RESIZE IMAGE FOR

SMARTPHONE

SMARTPHONE H

Choose ON (the default setting, recommended in most circumstances) to resize larger

images to H for upload to smartphones, OFF to upload images at their original size.

Resizing applies only to the copy uploaded to the smartphone; the original is not a ected.

PC AUTO SAVE

SETTINGS

Choose DELETE REGISTERED DESTINATION PC to remove selected destinations, DE-

TAILS OF PREVIOUS CONNECTION to view computers to which the camera has recently

connected.

PC AUTO SAVE

SETTING

Choose an upload destination. Choose SIMPLE SETUP to connect using WPS, MANUAL SETUP to con g-

ure network settings manually.

GEOTAGGING SET-UP

View location data downloaded from a smartphone and choose whether to save the data with your pic-

tures.

Option

Description

GEOTAGGING

Choose whether location data downloaded from a smartphone are embedded in pictures

as they are taken.

LOCATION INFO

LOCATION INFO Display the location data last downloaded from a smartphone.

instax PRINTER

CONNECTION SETTING

Adjust settings for connection to optional FUJIFILM instax SHARE printers (P 122).

R For more information on wireless connections, visit http://fujifilm-dsc.com/wifi/

110

The Setup Menu

K

FORMAT

To format the memory card:

1

Highlight K FORMAT in the setup menu and press MENU/OK.

2

A con rmation dialog will be displayed. To format the memory card, highlight OK and press MENU/OK.

To exit without formatting the memory card, select CANCEL or press DISP/BACK.

Q All data—including protected pictures—will be deleted from the memory card. Be sure important

 les have been copied to a computer or other storage device.

Q Do not open the battery-chamber cover during formatting.

SET

FORMAT

FORMAT OK?

ERASE ALL DATA

OK

CANCEL

111

Menus

Factory Defaults

The factory default settings for the options in the shooting and setup menus are listed below. These

settings can be restored using the R RESET option in the setup menu (P 104).

■ Shooting Menu

Menu

Default

d

d ADVANCED FILTER

G

G TOY CAMERA

A

A SCENE POSITION

S

S ADVANCED SR AUTO

G AUTOFOCUS SETTING

AF MODE

y ZONE

RELEASE/FOCUS PRIORITY

• AF-S PRIORITY SELECTION: RELEASE

• AF-C PRIORITY SELECTION: RELEASE

INSTANT AF SETTING

INSTANT AF SETTING AF-S

FACE DETECTION

FACE DETECTION OFF

EYE DETECTION AF

u AUTO

PRE-AF

PRE-AF OFF

AF ILLUMINATOR

AF ILLUMINATOR ON

N ISO

AUTO3

O IMAGE SIZE O 3 : 2

T IMAGE QUALITY

FINE

U DYNAMIC RANGE V 100%

P FILM SIMULATION

c PROVIA/STANDARD

B SELF-TIMER

OFF

D

D WHITE BALANCE

AUTO

f COLOR

(0) MID

q SHARPNESS

(0) STANDARD

r HIGHLIGHT TONE

(0) STANDARD

s SHADOW TONE

(0) STANDARD

h NOISE REDUCTION

(0) STANDARD

K LONG EXPOSURE NR

ON

Menu

Default

u SELECT CUSTOM SETTING

CUSTOM 1

Y WIDE CONVERSION LENS

OFF

w CONTROL RING SETTING

DEFAULT

K TOUCH SCREEN MODE

OFF

c MF ASSIST

STANDARD

k AE/AF-LOCK MODE

AE&AF ON WHEN PRESSING

v AE/AF-LOCK BUTTON

AE LOCK ONLY

C PHOTOMETRY o MULTI

v INTERLOCK SPOT AE &

FOCUS AREA

ON

p FLASH SET-UP

FLASH MODE

P SUPPRESSED FLASH

FLASH COMPENSATION ±0

RED EYE REMOVAL OFF

W MOVIE SET-UP

MOVIE MODE

i 1920 × 1080 60 fps

MOVIE ISO AUTO

MIC LEVEL ADJUSTMENT 3

MIC/REMOTE RELEASE

m MIC

X FILM SIMULATION BKT

FILM 1

c PROVIA/STANDARD

FILM 2

d Velvia/VIVID

FILM 3

e ASTIA/SOFT

x SHUTTER TYPE t MECHANICAL SHUTTER

112

Factory Defaults

■ Setup Menu

Menu

Default

o SOUND & FLASH

ON

b SOUND SET-UP

OPERATION VOL.

c

SHUTTER VOLUME

c

SHUTTER SOUND

i SOUND 1

PLAYBACK VOLUME 7

A SCREEN SET-UP

IMAGE DISP. OFF

PREVIEW EXP. IN MANUAL MODE ON

LCD BRIGHTNESS 0

LCD COLOR 0

PREVIEW PIC. EFFECT ON

FRAMING GUIDELINE

F GRID 9

AUTOROTATE PB ON

FOCUS CHECK

FOCUS CHECK OFF

FOCUS SCALE UNITS

FOCUS SCALE UNITS METERS

DISP. CUSTOM SETTING

• FRAMING GUIDELINE: 

• ELECTRONIC LEVEL: 

• AF DISTANCE INDICATOR: 

• HISTOGRAM: 

• All other options: R

h BUTTON/DIAL SETTING

FUNCTION (Fn) SETTING See page 42.

SELECTOR BUTTON SETTING Fn BUTTON

EDIT/SAVE QUICK MENU See page 39.

I CONTROL RING X CW

L TOUCH SCREEN SETTING

ON

Menu

Default

Z POWER MANAGEMENT

AUTO POWER OFF 2 MIN

HIGH PERFORMANCE OFF

t SAVE DATA SET-UP

FRAME NO. CONTINUOUS

SAVE ORG IMAGE OFF

J COLOR SPACE

sRGB

r CONNECTION SETTING

WIRELESS SETTINGS • RESIZE IMAGE FOR

SMARTPHONE

H

H: ON

GEOTAGGING SET-UP • GEOTAGGING: ON

• LOCATION INFO: ON

113

Connections

Wireless Transfer

Access wireless networks and connect to computers, smartphones, or tablets. For downloads and

other information, visit http://fujifilm-dsc.com/wifi/.

Wireless Connections: Smartphones

Install the “FUJIFILM Camera Remote” app on your

smartphone to browse the images on the cam-

era, download selected images, control the cam-

era remotely, or copy location data to the camera.

To connect to the smartphone, press the camera

function button (Fn6).

R You can also connect using the r WIRELESS

COMMUNICATION options in the camera shooting

and playback menu.

Wireless Connections: Computers

Once you have installed the “FUJIFILM PC AutoSave”

application and con gured your computer as a

destination for the images copied from the camera,

you can upload pictures from the camera using the

s PC AUTO SAVE option in the camera playback

menu or by pressing and holding the function but-

ton (

Fn6

) in playback mode.

114

Viewing Pictures on a Computer

Read this section for information on copying pictures to a computer.

Windows

Use MyFinePix Studio to copy pictures to your computer, where they can be stored, viewed, organized,

and printed. MyFinePix Studio is available for download from the following website:

http://fujifilm-dsc.com/mfs/

Once download is complete, double-click the downloaded  le (“MFPS_Setup.EXE”) and follow the

on-screen instructions to complete installation. Proceed to “Connecting the Camera” (P 115) when

installation is complete.

Macintosh

Pictures can be copied to your computer using Image Capture (supplied with your computer) or other

software. Proceed to “Connecting the Camera” (P 115).

Viewing RAW Files

To view RAW  les on your computer, use the RAW FILE CONVERTER, available for download from:

http://fujifilm-dsc.com/rfc/

115

Connections

Viewing Pictures on a Computer

Connecting the Camera

1

Find a memory card containing pictures you want to copy to the computer and insert the card into

the camera (P 14).

R Windows users may require the Windows CD when starting the software for the  rst time.

Q Loss of power during transfer could result in loss of data or damage to the memory card. Insert a fresh or

fully-charged battery before connecting the camera.

2

Turn the camera o and connect a USB cable as shown,

making sure the connectors are fully inserted. Connect

the camera directly to the computer; do not use a USB

hub or keyboard.

3

Turn the camera on.

4

Copy pictures to the computer using MyFinePix Studio or

applications provided with your operating system.

For more information on using the software, start the application and select the appropriate option

from the Help menu.

116

Viewing Pictures on a Computer

Q If a memory card containing a large number of images is inserted, there may be a delay before the software

starts and you may be unable to import or save images. Use a memory card reader to transfer pictures.

Q Make sure that the computer does not display a message stating that copying is in progress and that the indi-

cator lamp is out before turning the camera o or disconnecting the USB cable (if the number of images cop-

ied is very large, the indicator lamp may remain lit after the message has cleared from the computer display).

Failure to observe this precaution could result in loss of data or damage to the memory card.

Q Disconnect the camera before inserting or removing memory cards.

Q In some cases, it may not be possible to access pictures saved to a network server using the software in the

same way as on a standalone computer.

Q The user bears all applicable fees charged by the phone company or Internet service provider when using

services that require an Internet connection.

Disconnecting the Camera

After con rming that the indicator lamp is out, turn the camera o and disconnect the USB cable.

117

Connections

Printing Pictures via USB

If the printer supports PictBridge, the camera can be connected directly to the printer and

pictures can be printed without  rst being copied to a computer. Note that depending on the

printer, not all the functions described below may be supported.

Connecting the Camera

1

Connect a USB cable as shown and turn the

printer on.

2

Turn the camera on. t USB will be displayed

in the monitor, followed by the PictBridge dis-

play shown below at right.

USB

00

PICTBRIDGE

TOTAL:

00000

SHEETS

SETOK

FRAME

R Pictures can be printed from memory cards that has

been formatted in the camera.

R Page size, print quality, and border selections are

made using the printer.

118

Printing Pictures via USB

1

Press the selector left or right to dis-

play a picture you wish to print.

R To print one copy of the current picture, pro-

ceed directly to Step 3.

2

Press the selector up or down to

choose the number of copies (up to

99). Repeat steps 1–2 to select ad-

ditional pictures.

3

Press MENU/OK to display a con rma-

tion dialog.

PRINT THESE FRAMES

TOTAL:

9

SHEETS

CANCELYES

4

Press MENU/OK to start printing.

Printing the Date of Recording

To print the date of recording on pictures, press

DISP/BACK in the PictBridge display and select PRINT

WITH DATE s (to print pictures without the date of

recording, select PRINT WITHOUT DATE). To ensure

that the date is correct, set the camera clock before

taking pictures. Some printers do not support date

printing. See the printer manual for details.

Printing Selected Pictures

119

Connections

Printing Pictures via USB

To print the print order created with K PRINT

ORDER (DPOF) in the playback menu (P 102):

1

In the PictBridge display, press DISP/

BACK to open the PictBridge menu.

2

Press the selector up or down to

highlight u PRINT DPOF.

PICTBRIDGE

PRINT WITH DATE

s

PRINT WITHOUT DATE

PRINT DPOF

3

Press MENU/OK to display a con rma-

tion dialog.

CANCELYES

PRINT DPOF OK?

TOTAL:

9

SHEETS

4

Press MENU/OK to start printing.

During Printing

The message shown at right is

displayed during printing. Press

DISP/BACK to cancel before all

pictures are printed (depending

on the printer, printing may end

before the current picture has

printed).

If printing is interrupted, turn the camera o and

then on again.

Disconnecting the Camera

Con rm that the above message is not displayed and

turn the camera o . Disconnect the USB cable.

CANCEL

PRINTING

Printing the DPOF Print Order

120

Printing Pictures via USB

To modify the DPOF print order, select K PRINT

ORDER (DPOF) in the playback menu and press

the selector up or down to highlight WITH

DATE s or WITHOUT DATE.

SLIDE SHOW

PLAYBACK MENU

PHOTOBOOK ASSIST

IMAGE SEARCH

PRINT ORDER

(

DPOF

)

PC AUTO SAVE

RED EYE REMOVAL

PRINTER PRINT

Y

WITH DATE

s

WITHOUT DATE

RESET ALL

WITH DATE s: Print date of recording

on pictures.

WITHOUT DATE: Print pictures without

date.

Press MENU/OK and follow the steps below.

1

Press the selector left or right to dis-

play a picture you wish to include in

or remove from the print order.

2

Press the selector up or down to

choose the number of copies (up

to 99). To remove a picture from the

order, press the selector down until

the number of copies is 0.

01

PRINT ORDER

(

DPOF

)

SHEETS

SETFRAME

DPOF:

00001

Total number of prints

Number of copies

Creating a DPOF Print Order

The K PRINT ORDER (DPOF) option in the playback menu can be used to create a digital “print order”

for PictBridge-compatible printers or devices that support DPOF.

DPOF

DPOF (Digital Print Order Format) is standard that allows pictures to be printed from “print orders”

stored on the memory card. The information in the order includes the pictures to be printed and the

number of copies of each picture.

■ WITH DATE s/ WITHOUT DATE

121

Connections

Printing Pictures via USB

3

Repeat steps 1–2 to complete the

print order. Press MENU/OK to save

the print order when settings are

complete, or DISP/BACK to exit with-

out changing the print order.

4

The total number of prints is dis-

played in the monitor. Press MENU/OK

to exit.

The pictures in the current

print order are indicated by a

u icon during playback.

■ RESET ALL

To cancel the current print

order, select RESET ALL for

K PRINT ORDER (DPOF). The

con rmation shown at right

will be displayed; press MENU/OK

to remove all pictures from the

order.

R Print orders can contain a maximum of 999 pictures.

R If a memory card is inserted

containing a print order cre-

ated by another camera, the

message shown at right will

be displayed. Pressing MENU/OK

cancels the print order; a new

print order must be created as

described above.

CANCELYES

RESET DPOF OK?

NOYES

RESET DPOF OK?

122

instax SHARE Printers

Print pictures from your digital camera to instax SHARE printers.

Establishing a Connection

Select r CONNECTION SETTING > instax PRINTER CONNECTION SETTING in the camera setup

menu and enter the instax SHARE printer name (SSID) and password.

The Printer Name (SSID) and Password

The printer name (SSID) can be found on the bottom of the printer; the default

password is “1111”. If you have already chosen a di erent password to print

from a smartphone, enter that password instead.

SSID:instax-

12345678

XxxxxXxxx XX:

000000000

XxxxxXxxx XX:

000000000

XxxxxXxxx XX:

000

123

Connections

instax SHARE Printers

Printing Pictures

1

Turn the printer on.

2

Select V instax PRINTER PRINT in the cam-

era playback menu. The camera will connect

to the printer.

FUJIFILM-CAMERA-1234

CONNECTING TO PRINTER

CANCEL

PRINTER PRINT

instax-12345678

R To print a frame from a burst sequence, display

the frame before selecting V instax PRINTER

PRINT.

3

Use the selector to display the picture you

want to print, then press MENU/OK.

100-0020

instax-12345678

PRINTER PRINT

TRANSMIT CANCEL

R Pictures taken with other cameras can not be

printed.

R The area printed is smaller than the area visible

in the LCD monitor.

4

The picture will be sent to the printer and

printing will start.

FUJIFILM-CAMERA-1234

CANCEL

SENDING

PRINTER PRINT

instax-12345678

124

Viewing Pictures on TV

To show pictures to a group, connect the camera to a TV using an HDMI cable (available separately

from third-party suppliers; note that the TV can only be used for playback, not shooting).

1

Turn the camera o .

2

Connect the cable as shown below.

Insert into

Micro HDMI connector

Insert into

HDMI connector

Q Use an HDMI cable no more than 1.5m (4.9ft.) long.

R Be sure the connectors are fully inserted.

3

Tune the television to the HDMI input channel. See the documentation supplied with the televi-

sion for details.

4

Turn the camera on and press a button. The camera monitor turns o and pictures and movies

are played back on the TV. Note that the camera volume controls have no e ect on sounds played

on the TV; use the television volume controls to adjust the volume.

R The USB cable can not be used while an HDMI cable is connected.

R Some televisions may brie y display a black screen when movie playback begins.

125

Technical Notes

Optional Accessories

The camera supports a wide range of accessories from FUJIFILM and other manufacturers.

Accessories from FUJIFILM

The following optional accessories are available from FUJIFILM. For the latest information on the accesso-

ries available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm.com/

products/digital_cameras/index.html.

Rechargeable Li-ion batteries

NP-95: Additional large-capacity NP-95 rechargeable batteries can be purchased as required.

Battery chargers

BC-65N: At +20 °C/+68 °F, the BC-65N charges an NP-95 in about 240 minutes.

Remote releases

RR-90: Use to reduce camera shake or keep the shutter open during a time exposure.

Stereo microphones

MIC-ST1: An external microphone for movie recording.

126

Optional Accessories

Shoe-mounted  ash units

EF-20: This clip-on  ash unit (powered by two AA batteries) has a Guide Number of 20/65 (ISO 100, m/ft.) and

supports TTL  ash control. The  ash head can be rotated upwards 90° for bounce lighting.

EF-42: This clip-on  ash unit (powered by four AA batteries) has a Guide Number of 42/137 (ISO 100, m/ft.)

and supports TTL  ash control and auto power zoom in the range 24–105 mm (35 mm format equivalent).

The  ash head can be rotated 90° up, 180° left, or 120° right for bounce lighting.

EF-X20: This clip-on  ash unit has a Guide Number of 20/65 (ISO 100, m/ft.).

instax SHARE printers

SP-1: Connect via wireless LAN to print pictures on instax  lm.

Leather cases

BLC-X70: This case, exclusively for use with the X70, is made with genuine leather and comes with a hand strap and a cloth case.

Protective  lters

PRF-49S: A protective  lter with a diameter of 49 mm, used to protect the lens.

Lens hoods

LH-X70: This aluminum lens hood, exclusively for use with the X70, comes with an adapter ring made of the same material.

Wide conversion lenses

WCL-X70: A conversion lens that increases picture angle.

Optional view nders

VF-X21: This optical view nder is for framing shots at a focal length of 28 mm or 21 mm and comes with its own case.

127

Technical Notes

Optional Accessories

Connecting the Camera to Other Devices

X70

■

Computer Related

Computer

†

■

Printing

Printer

†

PictBridge-

compatible printer

†

* Available separately from FUJIFILM.

† Available separately from third-party suppliers. Use an HDMI cable no

more than 1.5m (4.9ft.) long.

USB cable (supplied)

SD/SDHC/SDXC

memory card

†

■

Flash Photography

EF-20 shoe mount

 ash

*

EF-42 shoe mount

 ash

*

EF-X20 shoe

mount  ash

*

■

Remote Shutter

Release

■

External

Microphones

MIC-ST1 stereo

microphone

*

RR-90 remote release

*

HDTV

†

■

Audio/Visual

HDMI cable

†

SP-1 instax

SHARE

printer

*

Wireless LAN

128

Optional Accessories

Attaching Adapter Rings

R Use the adapter ring supplied with the LX-H70 lens

hood.

1

Remove the front ring.

R

If you have trouble re-

moving the front ring,

grip the entire ring and

rotate it as shown.

2

Attach the adapter ring

as shown, with the pro-

jections facing out.

Q Keep the front ring and lens cap in a safe place

when not in use.

Q Attach the adapter ring before attaching LH-X70

lens hood, PRF-49S protector  lter, or third-party

 lters.

Attaching Lens Hoods

Attach the adapter ring

before attaching the lens

hood.

Attaching Protector Filters

Attach the adapter ring be-

fore attaching the  lter.

129

Technical Notes

Optional Accessories

The WCL-X70 Wide Conversion Lens

A Y WIDE CONVERSION LENS option has been

added to the shooting menu for use with the op-

tional WCL-X70 wide conversion lens (P 96). Se-

lect ON when using the WCL-X70.

Q Update the camera  rmware to the latest version

when using a wide conversion lens.

R The wide conversion indica-

tor is displayed when ON is

selected.

12000

5.6

51200

R The WCL-X70 may cast shadows in pictures taken

with the built-in  ash. Use an optional external  ash

approved for the X70.

R Y WIDE CONVERSION LENS can be assigned to a

function button.

R Be sure to select OFF for Y WIDE CONVERSION

LENS when the WCL-X70 is not in use.

■ Attaching the WCL-X70

1

Remove the front ring.

R If you have trouble re-

moving the front ring,

grip the entire ring and

rotate it as shown.

2

Attach the wide conver-

sion lens.

Q Keep the front ring and lens cap in a safe place

when not in use.

130

Caring for the Camera

To ensure continued enjoyment of the product, observe the following precautions.

Use and Storage Precautions

If the camera will not be used for an extended pe-

riod, remove the battery and memory card. Do

not store or use the camera in locations that are:

• exposed to rain, steam, or smoke

• very humid or extremely dusty

• exposed to direct sunlight or very high tem-

peratures, such as in a closed vehicle on a very

hot day

• extremely cold

• subject to strong vibration

• exposed to strong magnetic  elds, such as near

a broadcasting antenna, power line, radar emit-

ter, motor, transformer, or magnet

• in contact with volatile chemicals such as pes-

ticides

• in contact with rubber or vinyl products

■ Water and Sand

Exposure to water and sand can also damage the

camera and its internal circuitry and mechanisms.

When using the camera at the beach or seaside,

avoid exposing the camera to water or sand. Do

not place the camera on a wet surface.

■ Condensation

Sudden increases in temperature, such as occur

when entering a heated building on a cold day,

can cause condensation inside the camera. If this

occurs, turn the camera o and wait an hour be-

fore turning it on again. If condensation forms on

the memory card, remove the card and wait for

the condensation to dissipate.

Traveling

Keep the camera in your carry-on baggage.

Checked baggage may su er violent shocks that

could damage the camera.

131

Troubleshooting

Problems and Solutions

■

Power and Battery

Problem

Solution

The camera does not

turn on.

•

The battery is exhausted

: Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

•

The battery is inserted incorrectly

: Reinsert in the correct orientation (

P

14).

•

The battery-chamber cover is not latched

: Latch the battery-chamber cover (

P

15).

The monitor does not

turn on.

The monitor may not turn on if the camera is turned oﬀ and then on again very quickly. Press the shutter button

halfway to activate the monitor.

The battery runs down

quickly.

•

The battery is cold

: Warm the battery by placing it in a pocket or other warm place and reinsert it in the camera

immediately before taking a picture.

•

There is dirt on the battery terminals

: Clean the terminals with a soft, dry cloth.

•

ON

is selected for

is selected for G AUTOFOCUS SETTING>

PRE-AF

: Turn

PRE-AF

oﬀ (

P

93).

•

S

is selected for shooting mode

: Select a diﬀ erent mode (

P

50, 55).

•

The battery has been charged many times

: The battery has reached the end of its charging life. Purchase a new

battery.

The camera turns o

suddenly.

The battery is exhausted

: Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

Charging does not start.

Reinsert the battery in the correct orientation and make sure that the AC power adapter is plugged in (

P

18).

Charging is slow.

Charge the battery at room temperature (

P

v).

The indicator lamp  ashes

during charging or

Z

is

displayed in the LCD moni-

tor and the battery does

not charge.

•

There is dirt on the battery terminals

: Clean the terminals with a soft, dry cloth.

•

The battery has been charged many times

: The battery has reached the end of its charging life. Purchase a new

battery. If the battery still fails to charge, contact your FUJIFILM dealer.

■

Menus and Displays

Problem

Solution

Display is not in English.

Select

ENGLISH

for

Q

a

(

P

23, 104).

132

Problems and Solutions

■

Shooting

Problem

Solution

No picture is taken when

the shutter button is

pressed.

•

The memory card is full

: Insert a new memory card or delete pictures (

P

14, 35).

•

The memory card is not formatted

: Format the memory card (

P

110).

•

There is dirt on the memory card contacts

: Clean the contacts with a soft, dry cloth.

•

The memory card is damaged

: Insert a new memory card (

P

17).

•

The battery is exhausted

: Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

•

The camera has turned o automatically

: Turn the camera on (

P

21).

•

The indicator lamp was orange when you attempted to record a panorama

: Wait until the indicator lamps turns oﬀ

(

P

7).

The camera does not focus.

The subject is not suited to autofocus

: Use focus lock (

P

84) or manual focus (

P

74).

Intelligent Face Detection

is not available.

Intelligent Face Detection is not available in the current shooting mode

: Choose a diﬀ erent shooting mode (

P

146).

No face is detected.

•

The subject’s face is obscured by sunglasses, a hat, long hair, or other objects

: Remove the obstructions.

•

The subject’s face occupies only a small area of the frame

: Change the composition so that the subject’s face oc-

cupies a larger area of the frame (

P

93).

•

The subject’s head is tilted or horizontal

: Ask the subject to hold their head straight.

•

The camera is tilted

: Keep the camera level.

•

The subject’s face is poorly lit

: Shoot in bright light.

Wrong subject is selected.

The selected subject is closer to the center of the frame than the main subject. Recompose the picture or turn face

detection oﬀ and frame the picture using focus lock (

P

84).

The  ash does not  re.

•

The  ash can not be used at current settings

: See the list of the settings that can be used with the ﬂ ash (

P

146).

•

The battery is exhausted

: Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

•

The camera is in bracketing or continuous mode

: Select single frame mode (

P

65).

•

OFF

is selected for

o

SOUND & FLASH

: Select

ON

(

P

104).

Some  ash modes are not

available.

OFF

is selected for

o

SOUND & FLASH

. Select

ON

(

P

104).

133

Troubleshooting

Problems and Solutions

Problem

Solution

The  ash does not fully

light the subject.

•

The subject is not in range of the  ash

: Position the subject in range of the ﬂ ash (

P

142).

•

The  ash window is obstructed

: Hold the camera correctly (

P

29).

•

Shutter speed is faster than



/



s

: Choose a slower shutter speed (

P

47, 52, 54).

Pictures are blurred.

•

The lens is dirty

: Clean the lens (

P

x).

•

The lens is blocked

: Keep objects away from the lens.

•

s

is displayed during shooting and the focus frame is displayed in red

: Check focus before shooting (

P

29).

Pictures are mottled.

•

Shutter speed is slow and the ambient temperature is high

: This is normal and does not indicate a malfunction.

•

The camera has been used continuously at high temperatures or a temperature warning is displayed

: Turn the cam-

era oﬀ and wait for it to cool down.

Camera turns o during

burst photography.

The camera has been continuously used in burst mode at high temperatures

: Wait for the camera to cool down before

turning it on again (

P

66).

■

Playback

Problem

Solution

Pictures are grainy.

The pictures were taken with a diﬀ erent make or model of camera.

Playback zoom is unavail-

able.

The pictures were created using

O

RESIZE

or with a diﬀ erent make or model of camera.

No sound in movie

playback.

•

Playback volume is too low

: Adjust playback volume (

P

38, 105).

•

The microphone was obstructed

: Hold the camera correctly during recording (

P

2, 36).

•

The speaker is obstructed

: Hold the camera correctly during playback (

P

2, 38).

•

OFF

is selected for

o

SOUND & FLASH

: Select

ON

(

P

104).

Selected pictures are not

deleted.

Some of the pictures selected for deletion are protected. Remove protection using the device with which it was

originally applied (

P

100).

File numbering is unex-

pectedly reset.

The battery-chamber cover was opened while the camera was on. Turn the camera oﬀ before opening the bat-

tery-chamber cover (

P

14, 21).

134

Problems and Solutions

■

Connections/Miscellaneous

For additional information on troubleshooting wireless connections, visit:

http://faq.fujifilm.com/digitalcamera/faq_product.html?pid=X

Problem

Solution

Problem connecting or

uploading pictures to

smartphone.

•

The smartphone is too far away

: Move the devices closer.

•

Nearby devices are causing radio interference

: Move the camera and smartphone away from microwave ovens or

cordless phones.

Can not upload images.

•

The smartphone is connected to another device

: The smartphone and camera can connect to only one device at a

time. End the connection and try again.

•

There are several smartphones in the vicinity

: Try connecting again. The presence of multiple smartphones can

make connection diﬃ cult.

•

The current image is a movie or was created on another device and can not be uploaded to a smartphone.

Smartphone will not

display pictures.

Select

ON

for

r

CONNECTION SETTING

>

WIRELESS SETTING

>

RESIZE IMAGE FOR SMARTPHONE

H

. Selecting

OFF

increases upload times for larger images; in addition, some phones may not display images

over a certain size.

No picture or sound on TV.

•

The camera is not properly connected

: Connect the camera properly (

P

124

). Note that once the camera is con-

nected, pictures will be displayed on the TV instead of in the camera monitor.

•

Input on the television is set to “TV”

: Set input to “HDMI”.

•

The volume on the TV is too low

: Use the controls on the television to adjust the volume.

The computer does not

recognize the camera.

Be sure the camera and computer are correctly connected (

P

115

).

Can not transfer RAW or

JPEG  les to computer.

Use MyFinePix Studio to transfer pictures (Windows only;

P

114

).

Pictures can not be

printed.

•

The camera is not properly connected

: Connect the camera correctly (

P

117

).

•

The printer is o

: Turn the printer on.

Only one copy is printed/

the date is not printed.

The printer is not PictBridge compatible.

135

Troubleshooting

Problems and Solutions

Problem

Solution

The camera is unrespon-

sive.

•

Temporary camera malfunction

: Remove and reinsert the battery (

P

14).

•

The battery is exhausted

: Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

•

The camera is connected to a wireless LAN

: End the connection.

The camera does not func-

tion as expected.

Remove and reinsert the battery (

P

14). If the problem persists, contact your FUJIFILM dealer.

No sound.

Select

ON

for

o

SOUND & FLASH

(

P

104).

136

Warning Messages and Displays

The following warnings appear in the display.

Warning

Description

B

(red)

Low battery. Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

A

(blinks red)

Battery exhausted. Charge the battery (

P

18) or insert a fully-charged spare battery (

P

14).

s

(displayed in red with

red focus frame)

The camera can not focus. Use focus lock to focus on another subject at the same distance, then recompose the

picture (

P

84).

Aperture or shutter speed

displayed in red

The subject is too bright or too dark and the picture will be over- or under-exposed. Use the ﬂ ash for additional

lighting when taking photographs of poorly-lit subjects (

P

46).

FOCUS ERROR

Camera malfunction. Turn the camera oﬀ and then on again. If the message persists, contact a FUJIFILM dealer.

TURN OFF THE CAMERA

AND TURN ON AGAIN

LENS CONTROL ERROR

BUSY

The memory card is incorrectly formatted. Use the camera to format the card (

P

110).

CARD NOT INITIALIZED

•

The memory card is not formatted or the memory card has been formatted in a computer or other device

: Format the

memory card using the

K

FORMAT

option in the camera setup menu (

P

110).

•

The memory card contacts require cleaning

: Clean the contacts with a soft, dry cloth. If the message is repeated,

format the card (

P

110). If the message persists, replace the card.

•

Camera malfunction

: Contact a FUJIFILM dealer.

PROTECTED CARD

The memory card is locked. Unlock the card.

137

Troubleshooting

Warning Messages and Display

Warning

Description

CARD ERROR

•

The memory card is not formatted for use in the camera

: Format the card (

P

110).

•

The memory card contacts require cleaning or the memory card is damaged

: Clean the contacts with a soft, dry

cloth. If the message is repeated, format the card (

P

110). If the message persists, replace the card.

•

Incompatible memory card

: Use a compatible card (

P

17).

•

Camera malfunction

: Contact a FUJIFILM dealer.

b

MEMORY FULL

The memory card is full and pictures can not be recorded. Delete pictures (

P

35) or insert a memory card with

more free space (

P

14).

NO CARD

The shutter can only be released when a memory card is inserted. Insert a memory card.

WRITE ERROR

•

Memory card error or connection error

: Reinsert the card or turn the camera oﬀ and then on again. If the message

persists, contact a FUJIFILM dealer.

•

Not enough memory remaining to record additional pictures

: Delete pictures (

P

35) or insert a memory card with

more free space (

P

14).

•

The memory card is not formatted

: Format the memory card (

P

110).

READ ERROR

•

The  le is corrupt or was not created with the camera

: The ﬁ le can not be viewed.

•

The memory card contacts require cleaning

: Clean the contacts with a soft, dry cloth. If the message is repeated,

format the card (

P

110). If the message persists, replace the card.

•

Camera malfunction

: Contact a FUJIFILM dealer.

FRAME NO. FULL

The camera has run out of frame numbers (current frame number is 999-9999). Format the memory card and

select

RENEW

for

FRAME NO.

. Take a picture to reset frame numbering to 100-0001, then select

CONTINU-

OUS

for

FRAME NO.

.

TOO MANY FRAMES

•

A search has returned more than 30,000 results

: Choose a search that returns fewer results.

•

More than 999 images are selected for deletion

: Choose fewer images.

138

Warning Messages and Display

Warning

Description

PROTECTED FRAME

An attempt was made to delete or rotate to a protected picture. Remove protection and try again (

P

100).

CAN NOT CROP

The picture is damaged or was not created with the camera.

m

CANNOT EXECUTE

Red-eye removal can not be applied to pictures created with other devices.

F

CANNOT EXECUTE

Red-eye removal can not be applied to movies.

CAN NOT ROTATE

The selected picture can not be rotated.

F

CAN NOT ROTATE

Movies can not be rotated.

DPOF FILE ERROR

The DPOF print order on the current memory card contains more than 999 images. Copy the pictures to a com-

puter and create a new print order.

CAN NOT SET DPOF

The picture can not be printed using DPOF.

F

CAN NOT SET DPOF

Movies can not be printed using DPOF.

COMMUNICATION ERROR

A connection error occurred while pictures were being printed or copied to a computer or other device. Conﬁ rm

that the device is turned on and that the USB cable is connected.

PRINTER ERROR

Printer out of paper or ink, or other printer error. Check printer (see printer manual for details). To resume printing,

turn the printer oﬀ and then turn it back on.

PRINTER ERROR

RESUME?

Printer out of paper or ink, or other printer error. Check printer (see printer manual for details). If printing does not

resume automatically, press

MENU/OK

to resume.

CANNOT BE PRINTED

An attempt was made to print a movie, a picture not created with the camera, or a picture in a format not sup-

ported by the printer. Movies, RAW images, and some pictures created with other devices can not be printed; if

the picture is a still picture created with the camera, check the printer manual to conﬁ rm that the printer supports

the JFIF-JPEG or Exif-JPEG format. If it does not, the pictures can not be printed.

p

Turn the camera oﬀ and wait for it to cool. Mottling may increase in pictures taken when this warning is displayed.

139

Appendix

Memory Card Capacity

The following table shows the recording time or number of pictures available at di erent image sizes.

All  gures are approximate;  le size varies with the scene recorded, producing wide variations in the

number of  les that can be stored. The number of exposures or length remaining may not diminish

at an even rate.

Capacity

O

8 GB

16 GB

T

FINE

T

NORMAL

T

FINE

T

NORMAL

Photographs

O

3 : 2

800

1210

1660

2490

RAW

230

480

Movies

1

i

1920×1080 60 fps

2

i

1920×1080 50 fps

2

i

1920×1080 30 fps

2

i

1920×1080 25 fps

2

i

1920×1080 24 fps

2

26 min.

54min.

h

1280×720 60 fps

3

h

1280×720 50 fps

3

h

1280×720 30 fps

3

h

1280×720 25 fps

3

h

1280×720 24 fps

3

51 min.

105 min.

1 Use a H card or better.

2 Individual movies can not exceed 14 minutes in length.

3 Individual movies can not exceed 27 minutes in length.

140

Links

For more information on FUJIFILM digital camera, visit the websites listed below.

FUJIFILM X70 Product Information

Optional accessories and support information

can be found on the following website.

fujilm X70

Firmware Updates

Updates to product  rmware may result in

changes not described in the manual. For more

information, visit:

http://ww w.fujifilm.com/support/digital_cameras/

software/fw_table.html

fujilm rmware

Free FUJIFILM Apps

FUJIFILM apps give you more opportunities to

enjoy your pictures on smartphones, tablets, and

computers.

http://fujifilm-dsc.com/

fujilm Wi-Fi app

For the latest version of MyFinePix Studio, visit:

http://fujifilm-dsc.com/mfs/

fujilm mfs

For the latest version of RAW FILE CONVERTER, visit:

http://fujifilm-dsc.com/rfc/

fujilm rfc

141

Appendix

Speci cations

System

Model

FUJIFILM X70

digital camera

E ective pixels

Approx. 16.3 million

Image sensor

23.6 mm × 15.6 mm (APS-C), X-Trans CMOS II sensor with primary color ﬁ lter

Storage media

FUJIFILM-recommended SD/SDHC/SDXC memory cards

File system

Compliant with

D

esign Rule for

C

amera

F

ile System

(DCF)

, Exif 2.3, and

D

igital

P

rint

O

rder

F

ormat

(DPOF)

File format

•

Still pictures

: Exif 2.3 JPEG

(compressed)

; RAW

(original RAF format, special-purpose software required)

; RAW+JPEG available

•

Movies

: H.264 standard with stereo sound

(MOV)

Image size

•

O

3 : 2

: 4,896 × 3,264

•

P

3 : 2

: 3,456 × 2,304

•

Q

3 : 2

: 2,496 × 1,664

•

O

16 : 9

: 4,896 × 2,760

•

P

16 : 9

: 3,456 × 1,944

•

Q

16 : 9

: 2,496 × 1,408

•

O

1 : 1

: 3,264 × 3,264

•

P

1 : 1

: 2,304 × 2,304

•

Q

1 : 1

: 1,664 × 1,664

•

O

panorama

: 2,160 × 9,600

(vertical)

/ 9,600 × 1,440

(horizontal)

•

P

panorama

: 2,160 × 6,400

(vertical)

/ 6,400 × 1,440

(horizontal)

Lens

FUJINON ﬁ xed focal length lens

Focal length

f=18.5 mm

(35 mm format equivalent: 28 mm)

Maximum aperture

F2.8

Sensitivity

Standard output sensitivity equivalent to ISO 200 – 6400; AUTO; extended output sensitivity equivalent to ISO 100,

12800, 25600, or 51200

Metering

256-segment

t

hrough-

t

he-

l

ens (TTL) metering; MULTI, SPOT, AVERAGE

Exposure control

Programmed AE

(with program shift)

; shutter-priority AE; aperture-priority AE; manual exposure

Exposure compensation

–3 EV – +3 EV in increments of



/



EV

142

Speci cations

System

Shutter speed

•

MECHANICAL SHUTTER

-

P

mode

: 4 sec. to



/



sec.

-

Bulb

: Max. 60 min.

-

Time

: 30 sec. to



/



sec.

-

All other modes

: 30 sec. to



/



sec.

•

ELECTRONIC SHUTTER

-

P

,

S

,

A

, and

M

modes

: 1 sec. to



/



sec.

-

Bulb

: Fixed at 1 sec.

-

Time

: 1 sec. to



/



sec.

•

MECHANICAL + ELECTRONIC

-

P

mode

: 4 sec. to



/



sec.

-

Bulb

: Max. 60 min.

-

Time

: 30 sec. to



/



sec.

-

All other modes

: 30 sec. to



/



sec.

Continuous

Mode

Frame rate (fps)

Frames per burst

I

J

8.0

Up to approximately 10

O

3.0

Until card is full

R The frame rate and number of frames per burst may vary depending on the type of memory card

used.

R The frame rate varies with shooting conditions and the number of images recorded.

Focus

•

Mode

: Single or continuous AF; manual focus with control ring

•

Focus-area selection

: SINGLE POINT, ZONE, WIDE/TRACKING

•

Autofocus system

: Intelligent hybrid AF (TTL contrast-detect/phase-detection AF) with AF-assist illuminator

White balance

Custom, color temperature selection, auto, direct sunlight, shade, daylight ﬂ uorescent, warm white ﬂ uorescent,

cool white ﬂ uorescent, incandescent, underwater

Self-timer

Oﬀ , 2 sec., 10 sec.

Flash

•

Type

: Auto ﬂ ash

•

E ective range (ISO 1600)

: Approx. 30 cm — 7.9 m/1.0 ft. — 25.9 ft.

Mode

Auto, ﬁ ll ﬂ ash, oﬀ , slow sync, commander, external ﬂ ash

(red-eye removal o )

; auto with red-eye removal, ﬁ ll ﬂ ash with

red-eye removal, oﬀ , slow sync with red-eye removal, commander, external ﬂ ash

(red-eye removal on)

143

Appendix

Speci cations

System

Hot shoe

Accessory shoe with TTL contacts

LCD monitor

3.0-in/7.6 cm, 1040k-dot color touchscreen LCD monitor, tilting

Movies

•

i

1920 × 1080 60fps

: Frame size 1,920 × 1,080 (1080p); 60 fps; stereo sound

•

i

1920 × 1080 50fps

: Frame size 1,920 × 1,080 (1080p); 50 fps; stereo sound

•

i

1920 × 1080 30fps

: Frame size 1,920 × 1,080 (1080p); 30 fps; stereo sound

•

i

1920 × 1080 25fps

: Frame size 1,920 × 1,080 (1080p); 25 fps; stereo sound

•

i

1920 × 1080 24fps

: Frame size 1,920 × 1,080 (1080p); 24 fps; stereo sound

•

h

1280 × 720 60fps

: Frame size 1,280 × 720 (720p); 60 fps; stereo sound

•

h

1280 × 720 50fps

: Frame size 1,280 × 720 (720p); 50 fps; stereo sound

•

h

1280 × 720 30fps

: Frame size 1,280 × 720 (720p); 30 fps; stereo sound

•

h

1280 × 720 25fps

: Frame size 1,280 × 720 (720p); 25 fps; stereo sound

•

h

1280 × 720 24fps

: Frame size 1,280 × 720 (720p); 24 fps; stereo sound

Input/output terminals

HDMI output

Micro HDMI connector (Type D)

Digital input/output

Micro USB connector (USB 2.0 High-Speed)

Microphone/

remote release connector

φ2.5 mm mini-stereo jack

144

Speci cations

Power supply/other

Power supply

NP-95 rechargeable battery

Battery life

(approximate

number of frames that can

be taken with a fully-charged

battery)

Battery type

Approximate number of frames

NP-95

(type supplied with camera)

330

CIPA standard, measured using battery supplied with camera and SD memory card.

Note

: Number of shots that can be taken with battery varies with battery charge level and will decline at low

temperatures.

Charging time

Approx. 4 hours 30 minutes (+20 °C/+68 °F)

Camera size

(W × H × D)

112.5 mm × 64.4 mm × 44.4 mm (

25.9 mm excluding projections, measured at thinnest part

)/4.43 in. × 2.54 in. × 1.75 in. (1.02 in.)

Camera weight

Approx. 302 g/10.7 oz., excluding battery, accessories, and memory card

Shooting weight

Approx. 340 g/12.0 oz., including battery and memory card

Operating conditions

•

Temperature

: 0 °C to +40 °C/+32 °F to +104 °F

•

Humidity

: 10% – 80%

(no condensation)

Wireless transmitter

Standards

IEEE 802.11b/g/n

(standard wireless protocol)

Operating frequency

•

U. S. A., Canada, Taiwan

: 2,412 MHz–2,462 MHz

(11 channels)

•

Other countries

: 2,412 MHz–2,472 MHz

(13 channels)

Access protocols

Infrastructure

145

Appendix

Speci cations

NP-95 rechargeable battery

Nominal voltage

DC 3.6 V

Nominal capacity

1,800 mAh

Operating temperature

0 °C to +40 °C/+32 °F to +104 °F

Dimensions

(W × H × D)

35.2 mm × 49.5 mm × 10.8 mm/1.4 in. × 1.9 in. × 0.4 in.

Weight

Approx. 39 g/1.4 oz.

AC-5VF AC power adapter

Rated input

100 V – 240 V AC, 50/60 Hz

Input capacity

11.6 VA (100 V), 15.5 VA (240 V)

Rated output

5.0 V DC, 1000 mA

Operating temperature

0 °C to +40 °C/+32 °F to +104 °F

Weight

Approx. 32 g/1.1 oz. (AC power adapter only)

Weight and dimensions vary with the country or region of sale. Labels, menus, and other displays may di er from those on the

actual camera.

■

Notices

• Speci cations subject to change without notice; for the latest information, visit http://www.fujifilm.com/products/

digital_cameras/index.html. FUJIFILM shall not be held liable for damages resulting from errors in this manual.

• Although the LCD monitor is manufactured using advanced high-precision technology, small bright points and

anomalous colors may appear, particularly in the vicinity of text. This is normal for this type of LCD display and

does not indicate a malfunction; images recorded with the camera are una ected.

• Digital cameras may malfunction when exposed to strong radio interference (e.g., electric  elds, static electricity,

or line noise).

146

Restrictions on Camera Settings

The options available in each shooting mode are listed below. Some options may not be available for

the items that are supported in any given mode, and function may be restricted depending on shoot-

ing conditions.

Auto mode selector lever

z

AUTO

z

AUTO

z

AUTO

F

r

13

Shooting mode/scene position

P

S

A

M

u

j

Y

S

h

Z

M

N

O

H

p

Q

R

s

f

U

V

W

I

CONTINUOUS

J

/

O

✔

Bracketing

O

/

W

/

X

/

H

/

Y

✔

J

DIGITAL TELE-CONV.

✔

K

TOUCH SCREEN MODE

✔

p

FLASH MODE

10

RED EYE REMOVAL: OFF

A

✔

N

✔

F

✔

D

✔

C

✔

P

✔

1

✔

1

✔

1

✔

RED EYE REMOVAL: ON

K

✔

L

✔

M

✔

D

✔

C

✔

P

✔

1

✔

1

✔

1

✔

1

✔

FLASH COMPENSATION

✔

12

B

SELF-TIMER

✔

Exposure Compensation

✔

5

✔

2

✔

F

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

S.S.

✔

1

✔

4

✔

1

✔

4

✔

3

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

3

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

3

✔

x

SHUTTER TYPE

t

✔

1

✔

1

✔

12

t

+

s

✔

12

s

✔

1

✔

12

Program shift

✔

12

147

Appendix

Restrictions on Camera Settings

Auto mode selector lever

z

AUTO

z

AUTO

z

AUTO

F

r

13

Shooting mode/scene position

P

S

A

M

u

j

Y

S

h

Z

M

N

O

H

p

Q

R

s

f

U

V

W

v

AE/AF-LOCK BUTTON

AF-L

✔

12

AE+AF

✔

12

N

ISO

AUTO

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

AUTO1/AUTO2/AUTO3

✔

12

H (51200)

2

/

H (25600)

2

/

H (12800)

2

✔

6400 – 1000

✔

800 – 400

✔

320 – 200

✔

L (100)

✔

O

IMAGE SIZE

O

✔

12

P

✔

12

Q

✔

1

✔

1

✔

12

T

IMAGE QUALITY

FINE/NORMAL

✔

12

RAW

✔

12

U

DYNAMIC RANGE

AUTO

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

12

V

/

W

/

X

✔

12

P

FILM SIMULATION

c

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

d

/

e

/

i

✔

g

/

h

✔

b

/

e

/

d

/

f

✔

f

✔

D

WHITE BALANCE

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

FACE DETECTION

✔

1

✔

1

✔

1

✔

EYE DETECTION AF

✔

C

PHOTOMETRY

o

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

12

p

✔

12

q

✔

12

148

Restrictions on Camera Settings

Auto mode selector lever

z

AUTO

z

AUTO

z

AUTO

F

r

13

Shooting mode/scene position

P

S

A

M

u

j

Y

S

h

Z

M

N

O

H

p

Q

R

s

f

U

V

W

Focus mode

S

✔

1

✔

1

✔

1

✔

1

C

✔

M

✔

AF MODE

CENTER

✔

12

r

✔

1

y

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

1

✔

12

z

✔

c

MF ASSIST

STANDARD

✔

1

✔

1

✔

1

✔

1

✔

DIGITAL SPLIT IMAGE

✔

FOCUS PEAK HIGHLIGHT

✔

v

INTERLOCK SPOT AE & FOCUS AREA

✔

12

RED EYE REMOVAL

✔

AF ILLUMINATOR

✔

12

f

COLOR

✔

12

q

SHARPNESS

✔

12

r

HIGHLIGHT TONE

✔

12

s

SHADOW TONE

✔

12

h

NOISE REDUCTION

✔

12

K

LONG EXPOSURE NR

✔

12

u

SELECT CUSTOM SETTING

K

EDIT/SAVE CUSTOM SETTING

✔

3

PREVIEW EXP. IN MANUAL MODE

✔

12

FOCUS CHECK (AF)

11

✔

6

✔

6

✔

6

✔

6

✔

6

✔

6

✔

6

✔

6

FOCUS CHECK (MF)

11

✔

149

Appendix

Restrictions on Camera Settings

Auto mode selector lever

z

AUTO

z

AUTO

z

AUTO

F

r

13

Shooting mode/scene position

P

S

A

M

u

j

Y

S

h

Z

M

N

O

H

p

Q

R

s

f

U

V

W

DISP. CUSTOM SETTING

FRAMING GUIDELINE

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

ELECTRONIC LEVEL

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

AF DISTANCE INDICATOR

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

MF DISTANCE INDICATOR

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

HISTOGRAM

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

APERTURE/

S-SPEED/ISO

✔

8

EXP. COMPENSATION

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

PHOTOMETRY

✔

FLASH

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

WHITE BALANCE

✔

FILM SIMULATION

✔

DYNAMIC RANGE

✔

FRAMES REMAINING

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

IMAGE SIZE/QUALITY

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

BATTERY LEVEL

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

7

✔

J

COLOR SPACE

✔

9

✔

12

1

Fixed automatically.

2

Restricted to range of ±2.0 EV during movie recording.

3

Options available vary with shooting mode.

4

A

is not available.

5

Available only with auto ISO sensitivity.

6

Available only when

SINGLE POINT

is selected for

AF MODE

in

focus mode

S

.

7

Available only when auto mode selector lever is rotated to

AUTO

.

8

Display shows shutter speed only.

9

sRGB selected automatically.

10

Flash turns o when

ELECTRONIC SHUTTER

is selected for

SHUTTER TYPE

.

11

Turns o automatically when interval timer is on.

12

Still photography settings are used.

13

Wireless remote photography.
