• Page 1: wwwphilipscomwelcome User manual Register your product and get support at AS141
• Page 2 - English - : 1EN Contents 1 Important 2 2 Your Docking System for Android Introduction 3 Whats in the box 3 Overview of the docking system 4 3 Get started 6 Connect power 6 Turn on 6 Switch to standby mode 6 Select a source 6 4 Play and charge 7 Compatible with Android 7 Play audio through manual Bluetooth connection 7 Play audio through auto Bluetooth connection with Philips DockStudio 8 Install DockStudio app onto Androidpowered device 9 Activate Bluetooth with DockStudio app 11 Sync time automatically 14 Play audio with Philips Songbird 14 Install Songbird on Android powered device 14 Install Songbird on PC 16 Sync with PC through Philips Songbird 16 Use more features with DockStudio 17 Set alarm timer 17 Set sleep timer 18 Listen to Internet radio 19 Dock and charge Androidpowered phone 20 Dock Androidpowered phone 20 Use dock extension 20 Charge Androidpowered phone 21 5 Listen to FM radio 22 Tune to FM radio stations 22 Store FM radio stations automatically 22 Store FM radio stations manually 22 Select a preset radio station 22 6 Other features 23 Set time 23 Set alarm timer 23 Set alarm 23 Select alarm source 23 Activatedeactivate alarm timer 23 Snooze alarm 23 Set sleep timer 23 Play audio from an external device 24 Adjust display brightness 24 7 Product information 25 Tuner 25 General information 25 8 Troubleshooting 26 About Bluetooth device 26 9 Notice 27 Recycling 27
• Page 3 - English - : 2 EN 1 Important Read these instructions Heed all warnings Follow all instructions Do not block any ventilation openings Install in accordance with the manufacturers instructions Do not install near any heat sources such as radiators heat registers stoves or produce heat Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and the point where they exit from the unit by the manufacturer Unplug this unit during lightning storms or when unused for long periods of time personnel Servicing is required when the unit has been damaged in any way such as powersupply cord or plug is damaged liquid has been spilled or objects have fallen into the unit the unit has been exposed to rain or moisture does not operate normally or has been dropped This unit shall not be exposed to dripping or splashing Do not place any sources of danger on Where the plug of the Direct Plugin Adapter is used as the disconnect device the disconnect device shall remain readily operable
• Page 4 - English - : 3EN 2 Your Docking System for Android Congratulations on your purchase and support that Philips offers register your product at wwwphilipscomwelcome Introduction With this docking system you can enjoy audio from your Androidpowered device charge your phone through micro USB connector listen to FM radio wake up to buzzer alarm radio or audio in your device and experience a variety of features brought by Philips DockStudio and Philips Songbird app Whats in the box Check and identify the contents of your package Main unit Power adapter Dock extension MP3 link cable x 1 Quick start guide

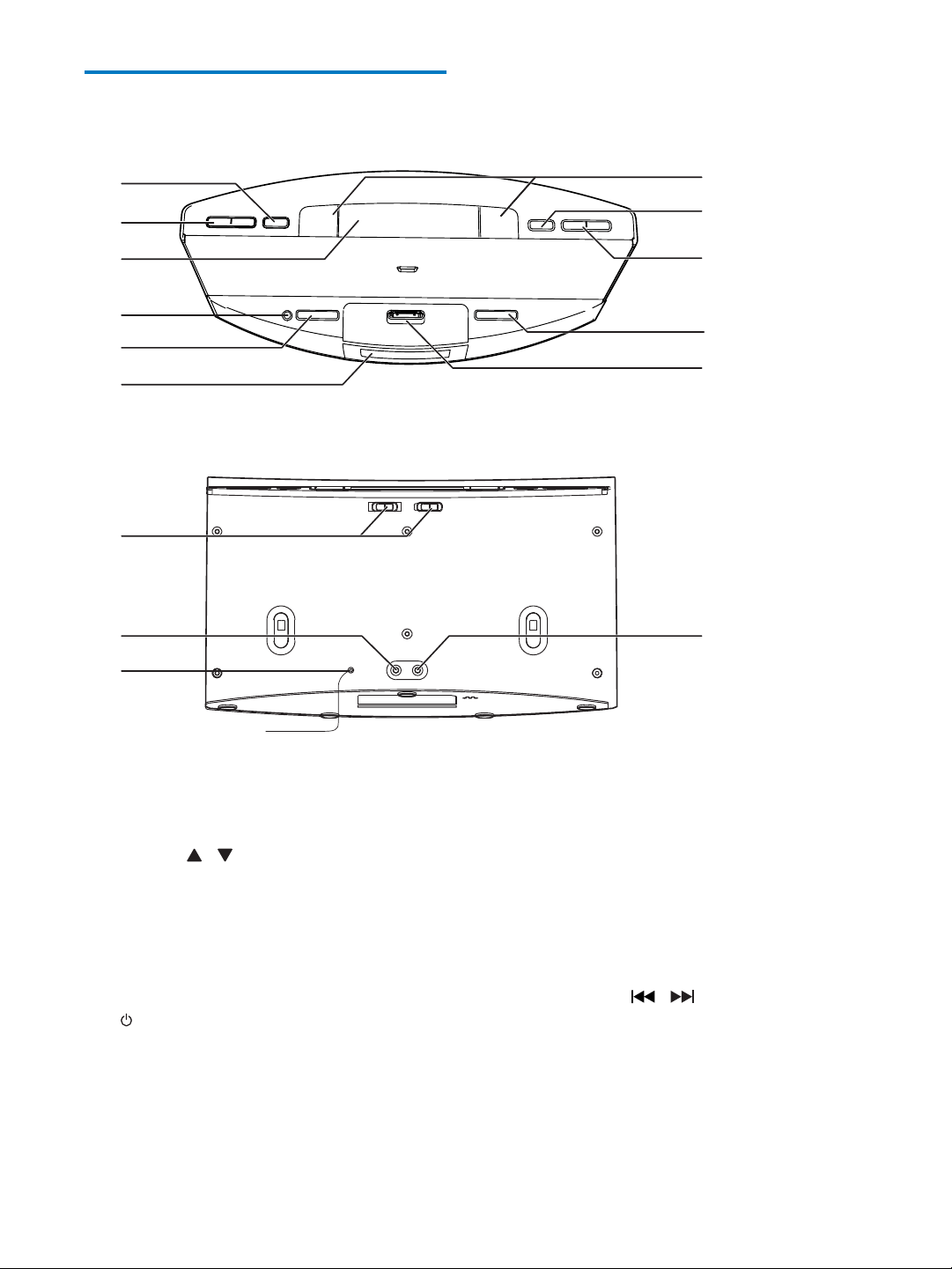

• Page 5 - English - : 4 EN Overview of the docking system a SET TIMEPROG Set clock Store FM radio stations b PRESET Select a preset radio station Adjust hour and hour format c SNOOZEBRIGHTNESS Snooze alarm Adjust display brightness d Turn the docking system on or off Switch the system to standby mode e SOURCE Select a source FM tuner Bluetooth device or MP3 link a b c d e f l m n g h i j k o f Display panel Show current information g AL1AL2 Set alarm View alarm settings Activate or deactivate alarm timer h SLEEP Set sleep timer i TUNING Tune to FM radio stations Adjust minute j VOLUME Adjust volume k Dock for Android phone Dock your Androidpowered phone
• Page 6 - English - : 5EN l AL1AL2 RADIOBUZZDOCK Select alarm source for Alarm 1 or Alarm 2 m MP3 LINK Connect an external audio device n FM ANTENNA Improve FM reception o DC IN Connect power
• Page 7 - English - : 6 EN 3 Get started Always follow the instructions in this chapter in sequence Connect power Caution Risk of product damage Ensure that the power voltage corresponds to the voltage printed on the back or underside of the device Risk of electric shock When you unplug the power adapter always pull the plug from the socket Never pull the cord Note The type plate is located on the bottom of the docking system Connect the power adapter to the DC IN socket of the docking system the wall socket Turn on Press The docking system switches to the last selected source Switch to standby mode Press again to switch the docking system to standby mode OFF displayed Select a source Press SOURCE repeatedly to select a source Bluetooth FM tuner or MP3 link Note When an androidpowered device is docked the system automatically switches to Bluetooth mode
• Page 8 - English - : 7EN 4 Play and charge With this docking system you can enjoy audio in two ways through manual Bluetooth connection through automatic Bluetooth connection with Philips DockStudio app Compatible with Android To make full use of your docking system your Androidpowered device should satisfy the following requirements With Android operation system Version With Bluetooth software Version 21 or With a micro USB connector For other devices with micro USB connector and Bluetooth function you can still use the docking system to do the the following Charge your device through the USB connector Enjoy audio through Bluetooth Tip Play audio through manual Bluetooth connection The docking system uses Bluetooth wireless technology to stream music from your portable device to the system Note Before you connect a Bluetooth device to this docking system familiarize yourself with the Bluetooth capabilities of the device Keep this docking system away from other electronic devices that may cause interference 1 On your docking system press to activate Bluetooth The Bluetooth indicator blinks on the display panel 2 Turn on Bluetooth function of your portable device Different devices may have different way to activate Bluetooth

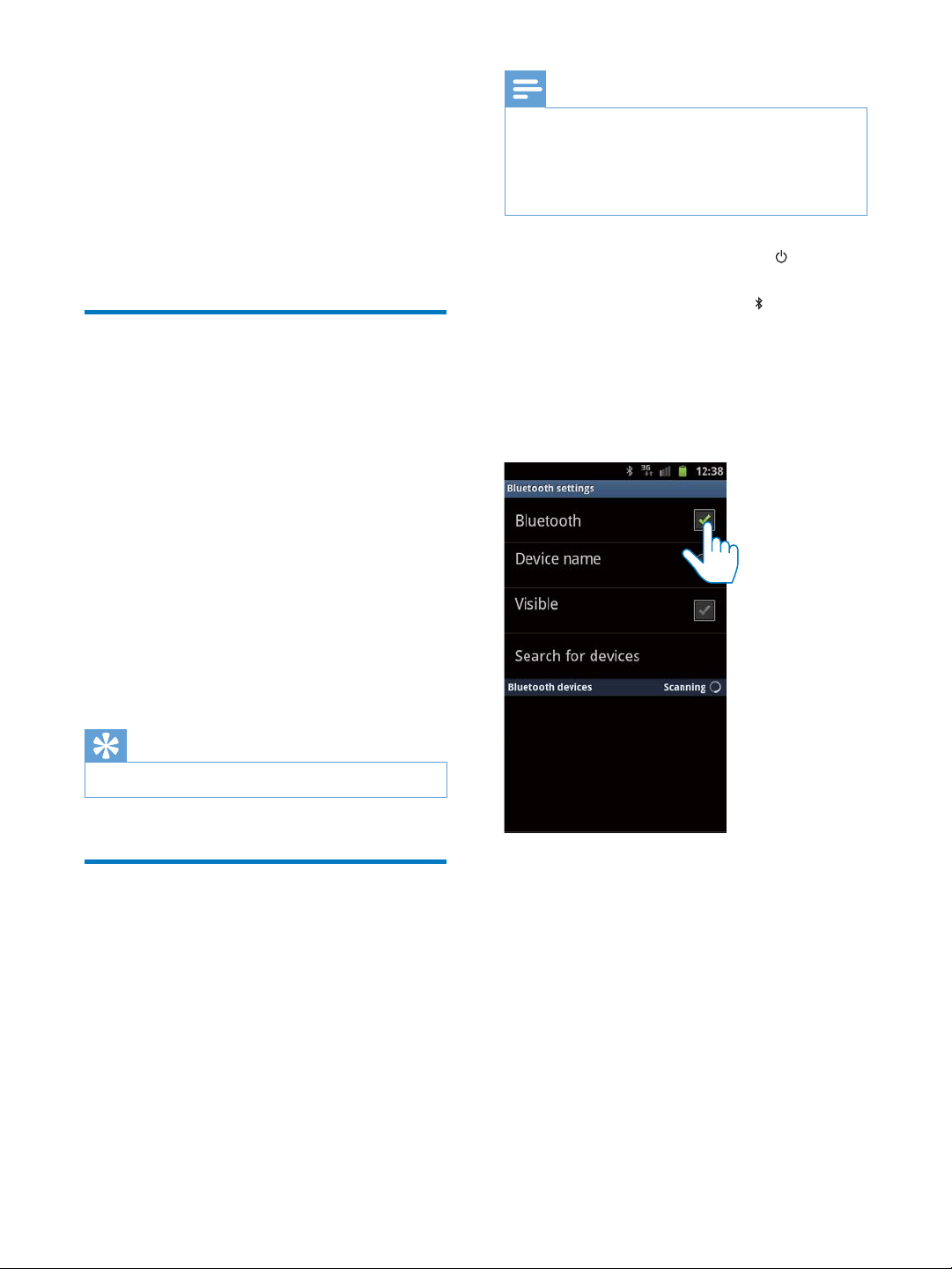

• Page 9 - English - : 8 EN 3 Scan Bluetooth devices that can pair with your portable device 4 When PHILIPS AS141 is displayed on your device select it to start connection If connection is successful you will hear different Bluetooth icon on the top of the screen 5 Play audio with the media player of your portable device The audio comes out through the docking system Tip The effective operation range between the docking system and the paired device is approximately 10 Any obstacle between the system and the device can reduce the operational range Play audio through auto Bluetooth connection with Philips DockStudio Philips DockStudio app brings a suite of new features to your docking system including automatic Bluetooth connection Songbird music player Internet radio and a multifunction alarm clock To enjoy more features you are recommended to download and install the free app
• Page 10 - English - : 9EN Install DockStudio app onto Android powered device You have two ways to install Philips DockStudio on your Androidpowered device Install DockStudio app through QR code Note Make sure that your Androidpowered device is connected to the internet Make sure that your device has a barcode scanner such as quotQR Droidquot If not download one from the Android market 1 Use the barcode scanner to scan the QR code on the package or Quick Start Guide 2 Follow the onscreen instructions to install Philips DockStudio app 3 When installation is complete tap Done The DockStudio icon appears on your portable device The Philips DockStudio app brings a suite of cool new features to your Philips DockStudio docking speaker including automatic Bluetooth connection Songbird music player worldwide Internet radio sound settings DockStudio

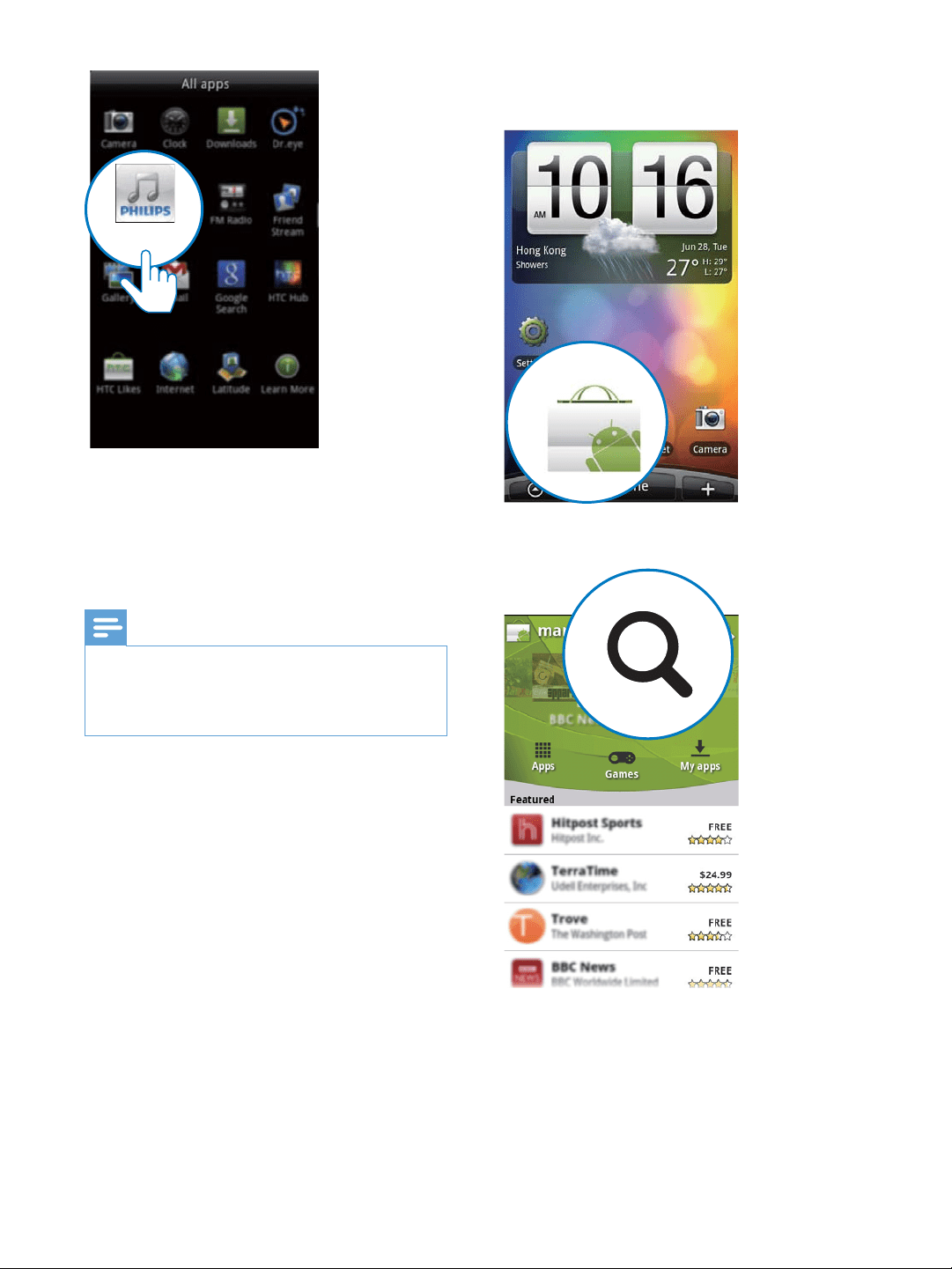

• Page 11 - English - : 10 EN Install DockStudio app through Android Market You can also search Philips DockStudio in the Android Market directly and then install the app Note Make sure that your Androidpowered device is connected to the internet Make sure that Android Market is available on your Androidpowered device DockStudio 1 Tap the quotAndroid Marketquot icon on your device 2 Tap the search icon on the screen 3 In the search bar type in quotPhilips DockStudioquot to search the app 4 Philips DockStudio to start downloading
• Page 12 - English - : 11EN 5 Follow the onscreen instructions to install the DockStudio app 6 When installation is complete tap Done The Philips DockStudio app brings a suite of cool new features to your Philips DockStudio docking speaker including automatic Bluetooth connection Songbird music player worldwide Internet radio sound settings DockStudio Activate Bluetooth with DockStudio app Philips DockStudio app helps to connect your Androidpowered device and docking system through Bluetooth automatically Note Make sure that your Androidpowered device is connected to the Internet Firsttime launch 1 On your docking system press repeatedly to select Bluetooth source blinks on the display panel 2 On the home screen of your device tap the DockStudio icon to launch the app A prompt message asking you to download Songbird appears DockStudio

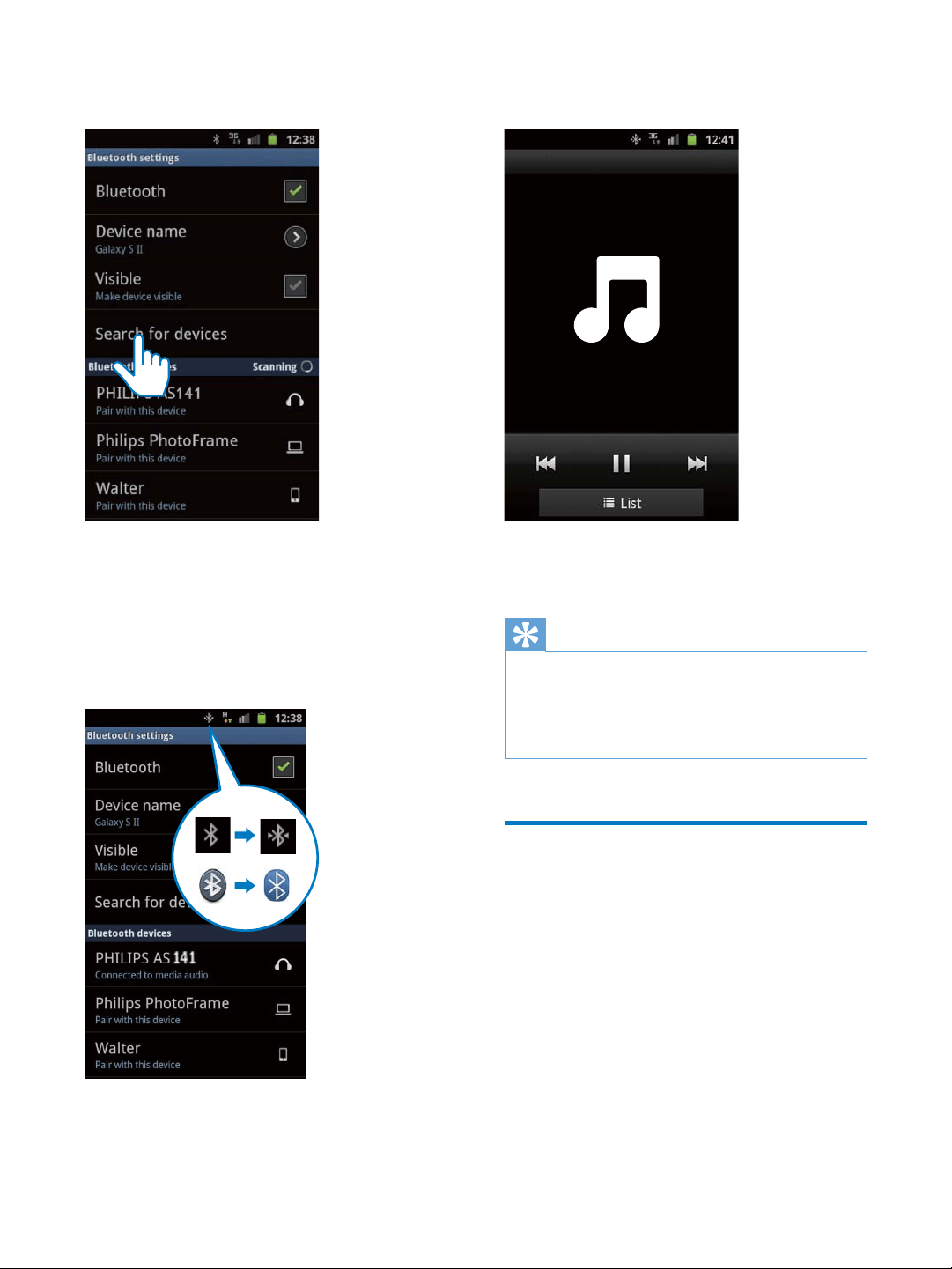

• Page 13 - English - : 12 EN 3 Tap Cancel The device starts to scan Philips devices that can be paired automatically 4 When PHILIPS AS141 is displayed on your device select it to start connection It may take a few seconds to complete the connection After Bluetooth connection a different Bluetooth icon can be found on the top of the screen

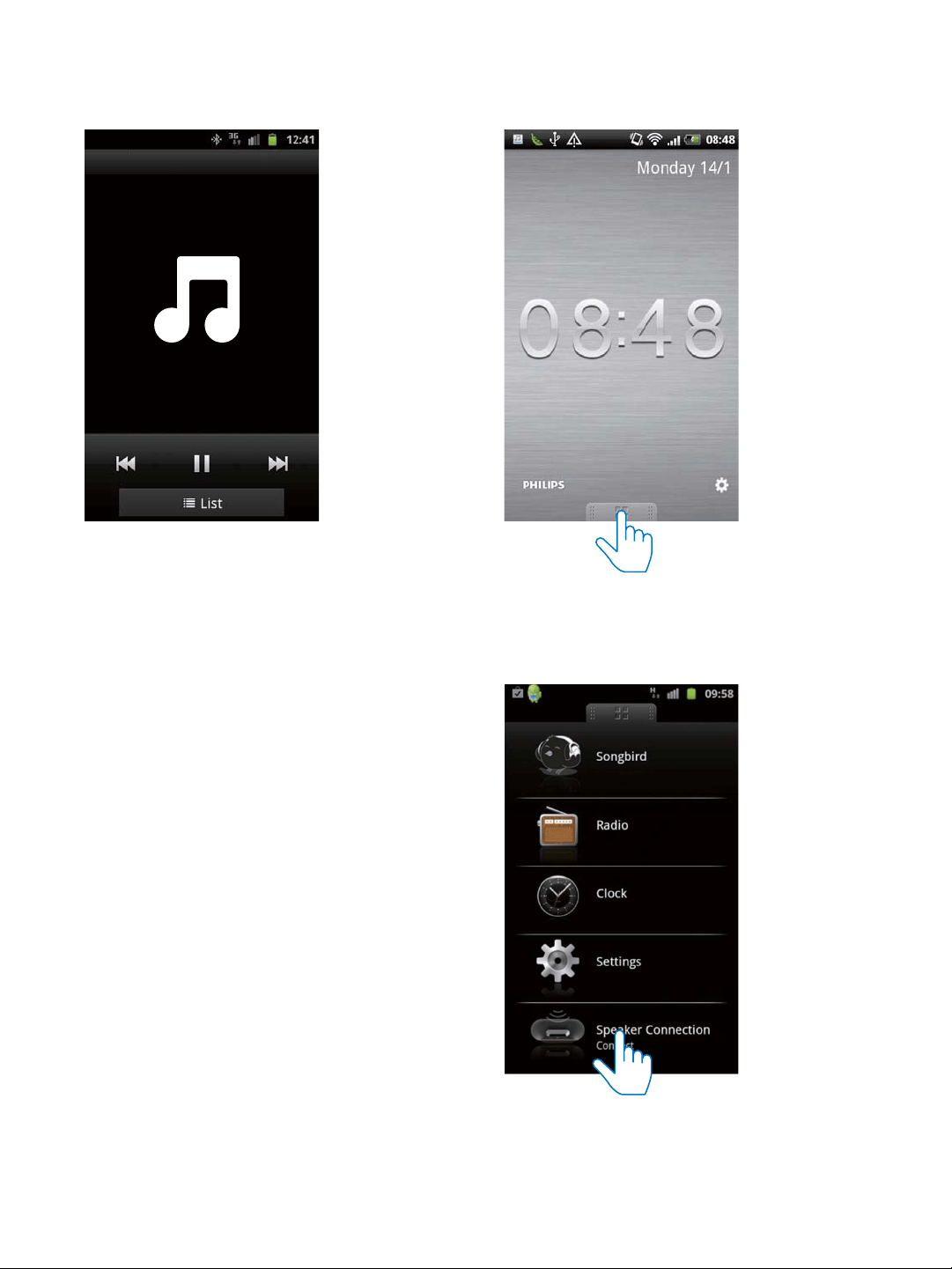

• Page 14 - English - : 13EN 5 Play audio with the media player of your portable device The audio comes out through the docking system Nexttime launch Next time you launch the DockStudio app connect to the docking system through Bluetooth as below 1 Activate the Bluetooth function of your docking system 2 Launch Philips DockStudio and access its menu 3 Tap Speaker Connection Speaker Bluetooth connection It may take a few seconds to complete the connection
• Page 15 - English - : 14 EN 4 Play audio on your portable device The audio comes out through the docking system Sync time automatically After you activate Bluetooth connection through Philips DockStudio the docking system synchronizes time with your Bluetoothenabled device automatically Play audio with Philips Songbird Philips Songbird is a simple easytouse PC program and Android app It lets you discover play and sync your media from PC to your Androidpowered devices seamlessly Install Songbird on Androidpowered device 1 Tap the DockStudio icon on your Android powered device The DockStudio menu is displayed DockStudio

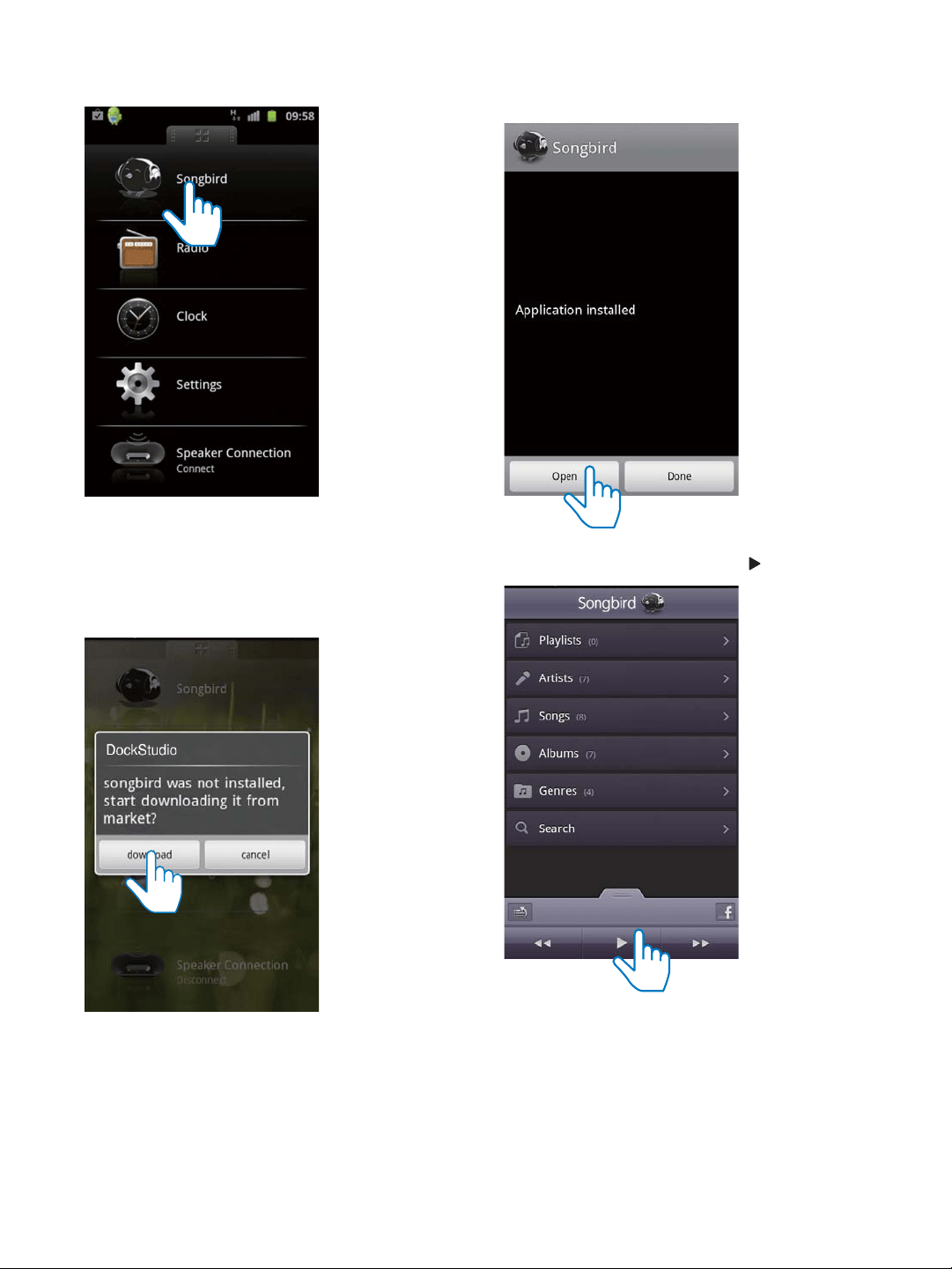

• Page 16 - English - : 15EN 2 Tap Songbird You are requested to download Songbird 3 Follow the onscreen instructions to download the app 4 After installation tap Open access Songbird menu 5 Select a track and then tap to play music

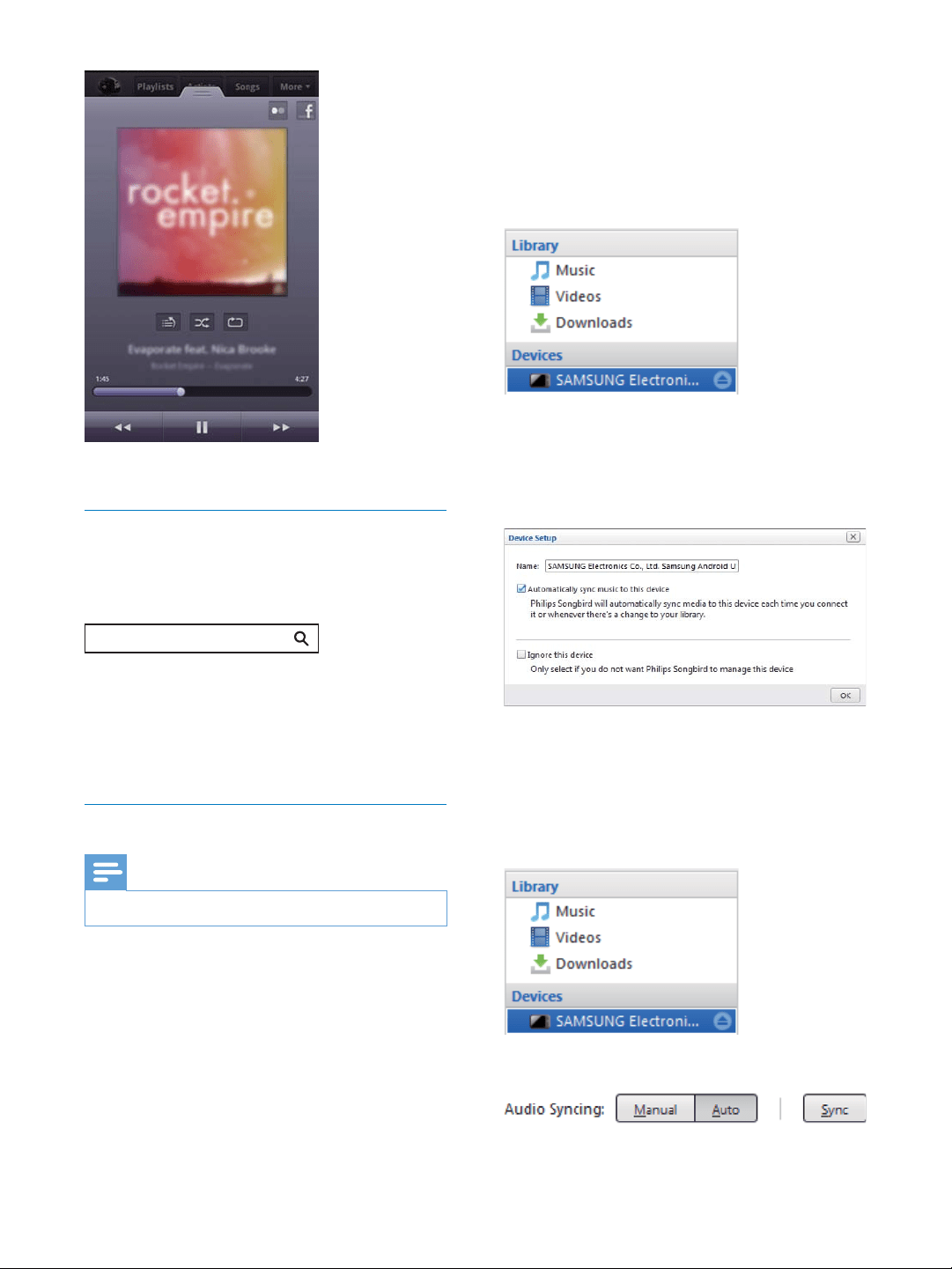

• Page 17 - English - : 16 EN Install Songbird on PC 1 Go to wwwphilipscomsongbird 2 Search Songbird 3 Download the latest Songbird application 4 Follow onscreen instructions to install Philips Songbird on your PC Sync with PC through Philips Songbird Note Make sure that you have turned on the USB storage 1 On your PC launch Philips Songbird songbird 2 Connect your Androidpowered device to PC with a USB cable Wait until the device is recognized by the Songbird On Philips Songbird the device is displayed when it is recognized by the PC device to Philips Songbird a popup screen appears Select auto sync as prompted The device synchronizes with Philips Songbird automatically If you didnt select auto sync you can sync with Songbird manually 1 Select the device under Devices 2 Select Manual or Auto

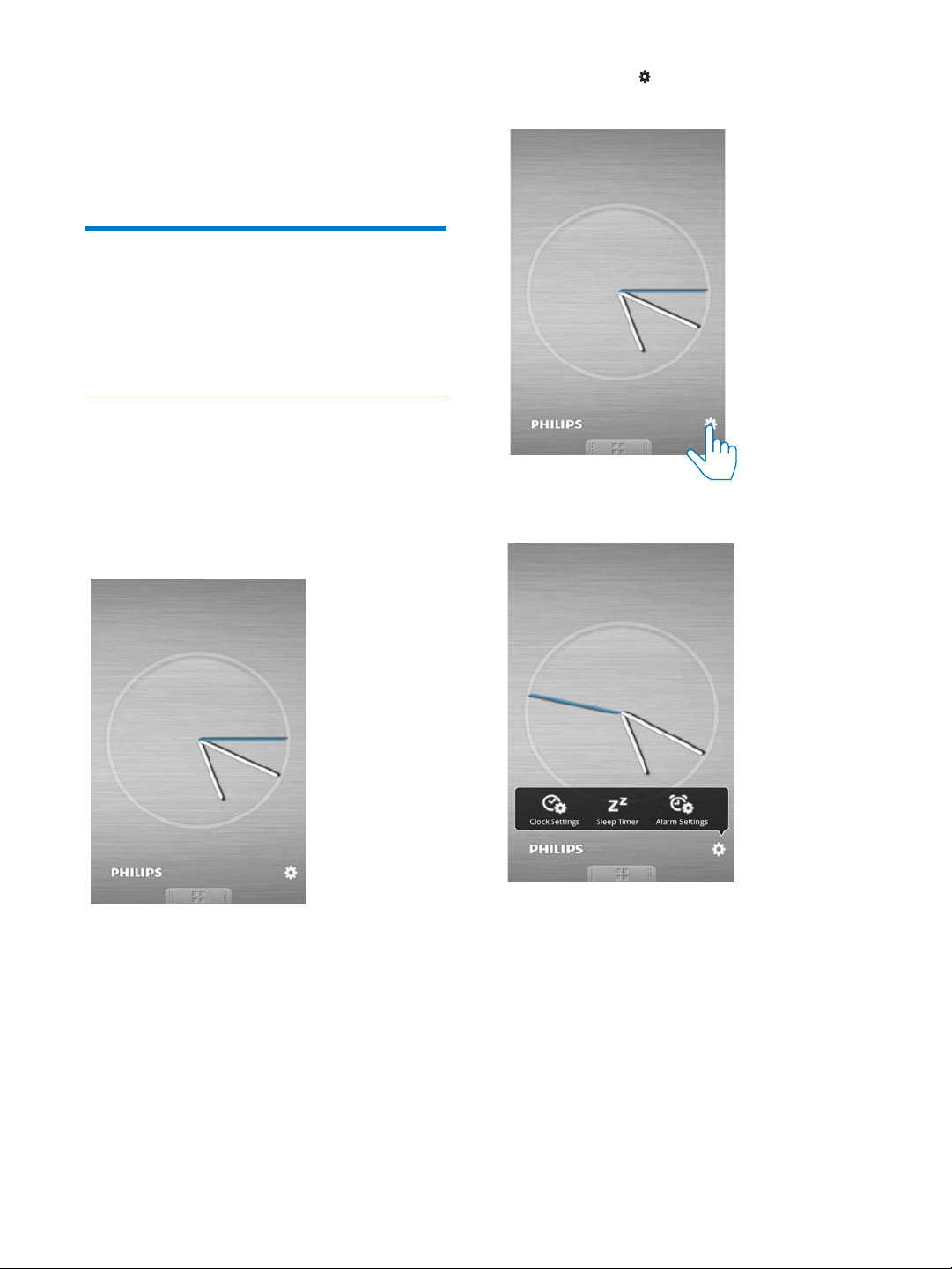

• Page 18 - English - : 17EN 3 Click Sync If you have selected auto sync auto sync starts automatically when you connect the device to the PC Use more features with DockStudio With Philips DockStudio you can also listen to Internet radio set alarm timer and sleep timer Set alarm timer With Philips DockStudio you can set multiple alarms and know the latest weather It even alerts you when weather conditions are suitable for your favorite outdoors activity 1 Launch the app 2 Tap the icon to access clock setting menu 3 Tap Alarm settings
• Page 19 - English - : 18 EN 4 Tap to access alarm setting menu 5 Set the alarm and tap Save top right of the screen The new alarm is saved and displayed on the screen Note From the Lifestyle The alarm will not ring if the weather is not good enough Set sleep timer 1 Launch Philips DockStudio 2 Tap the icon to access the sleep timer menu

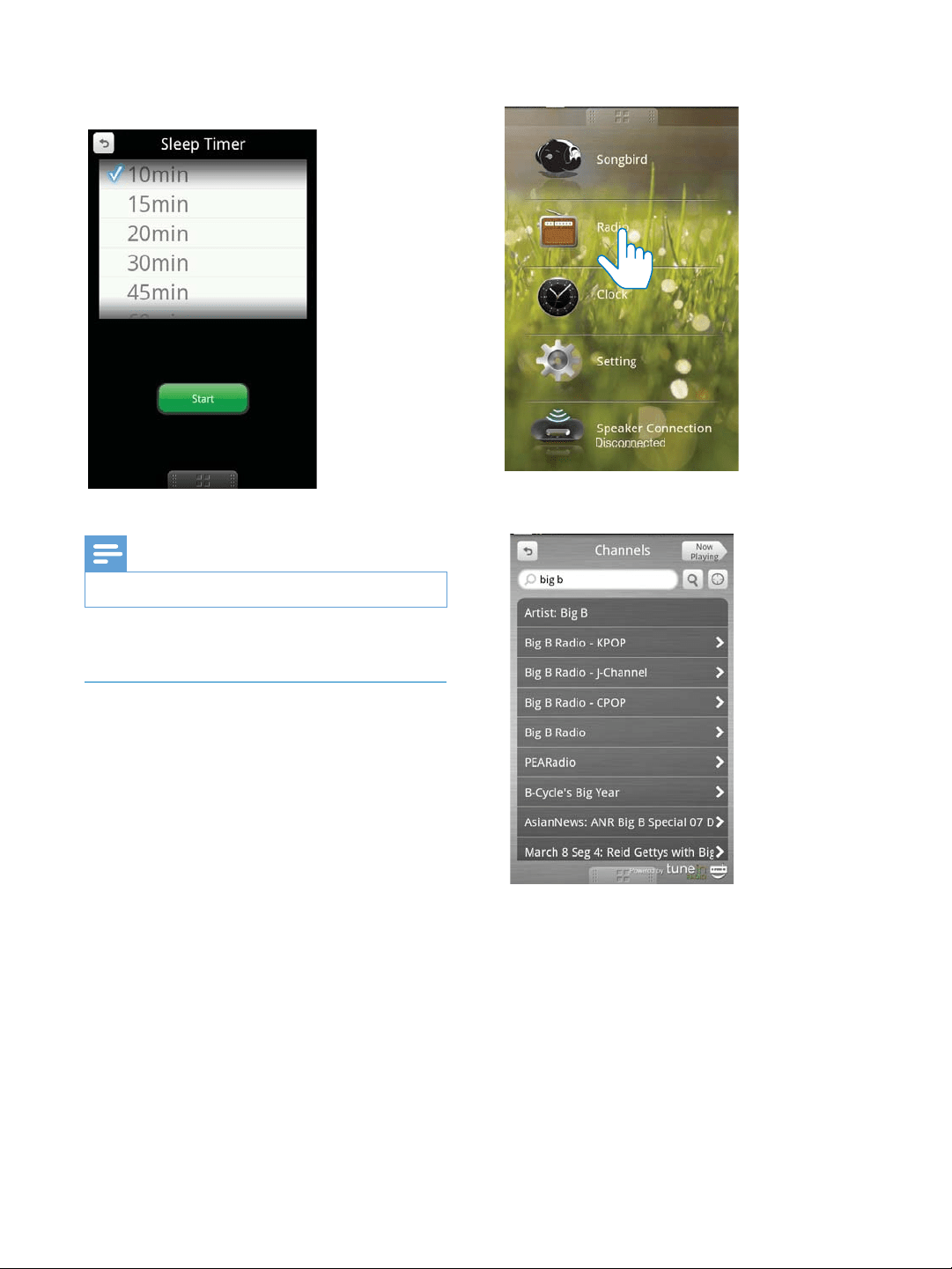

• Page 20 - English - : 19EN 3 Select a time period for the sleep timer and then tap Start Note This function only works with Philips Songbird Listen to Internet radio 1 Connect your Androidpowered device and the docking system through Bluetooth 2 Open Philips DockStudio to go to the main menu 3 Tap Radio 4 Search a radio station in the search bar 5 Select a radio station from the search result list The radio station begins to broadcast
• Page 21 - English - : 20 EN Dock and charge Android powered phone Dock Androidpowered phone To charge your Androidpowered phone you 1 Check the orientation of the micro USB connector on your Androidpowered phone it outwards 2 If necessary rotate the USB connector on the docking system and then place your Androidpowered phone into the dock 3 Adjust the bumpers on both sides of the connector to stabilize the phone 4 Slide the connector to place your phone in the middle of the docking system Note If the micro USB connector is located at the top and your are using Android system of version 23 or above screen autorotation is available Use dock extension If the USB connector on your phone is close to the edge the supplied dock extension can balance the docked phone as illustrated 1 Adjust the slide knobs to make both bumpers at the lowest position
• Page 22 - English - : 21EN 2 Place the dock extension onto the dock 3 Dock your phone Charge Androidpowered phone When the docking system is connected to power your docked phone starts charging automatically even in standby mode
• Page 23 - English - : 22 EN 5 Listen to FM radio Tune to FM radio stations Tip Position the antenna as far as possible from TV VCR or other radiation source For better reception fully extend and adjust the position of the antenna 1 Press SOURCE repeatedly to select FM tuner source 2 Press and hold for two seconds The docking system tunes to a station with strong reception automatically 3 Repeat step 2 to tune to more radio stations To tune to a station manually 1 Press optimal reception Store FM radio stations automatically Note You can store a maximum of 20 FM radio stations In tuner mode press an hold PROG for two seconds The docking system stores all the available available station automatically Store FM radio stations manually 1 Tune to an FM radio station 2 Press PROG The preset number begins to blink 3 Press repeatedly to select a number 4 Press PROG 5 Repeat steps 1 to 4 to store other stations Note To remove a prestored station store another station in its place Select a preset radio station In tuner mode press repeatedly to select a preset number
• Page 24 - English - : 23EN 6 Other features Set time 1 Press to switch the docking system to standby mode 2 Press and hold SET TIME for two seconds The hour and minute digits begin to blink 3 Press and repeatedly to set the hour and minute 4 Press SET TIME 12H or 24H begins to blink 5 Press to select 1224 hour format 6 Press SET TIME The set time is displayed Set alarm timer Set alarm In standby mode you can set two alarms to ring at different time Note Make sure that you have set the clock correctly 1 Press and hold AL1AL2 for two seconds to activate alarm setting mode The hour and minute digits begin to blink 2 Press and repeatedly to set the hour and minute 3 Press AL1AL2 Select alarm source Note For alarm sound you can select buzzer your last listened radio chanel or the latest played track in your Androidpowered device Adjust AL1AL2 RADIOBUZZDOCK control to select alarm source for both alarms Note If DOCK is selected as alarm source make sure that you have docked your device into the docking system Activatedeactivate alarm timer 1 Press AL1AL2 to view alarm settings 2 Press AL1AL2 again to activate or deactivate the alarm timer The alarm icon appears if alarm timer is on and disappears if it is off To stop the ringing alarm press the corresponding AL1AL2 The alarm repeats ringing for the next day Snooze alarm When alarm sounds press SNOOZE The alarm snoozes and repeats ringing nine minutes later Set sleep timer This docking system can switch to standby mode automatically after a preset period Press SLEEP repeatedly to select the sleep When the sleep timer is activated appears
• Page 25 - English - : 24 EN To deactivate the sleep timer Press SLEEP repeatedly until OFF appears Play audio from an external device You can listen to audio from an external device through this device 1 Connect the MP3 link cable to the MP3 LINK socket the headphone socket of an external device 2 Press SOURCE repeatedly to select MP3 link source is displayed 3 Play audio in the external device see the Adjust display brightness Press BRIGHTNESS repeatedly to select different brightness levels
• Page 26 - English - : 25EN 7 Product information Note Product information is subject to change without prior notice Rated Output Power 20W RMS Tuner Tuning Range FM 875 108 MHz Sensitivity Mono 26dB SN Ratio FM lt22 dBf Search Selectivity FM lt28 dBf Total Harmonic Distortion FM lt2 Signal to Noise Ratio FM gt55 dB General information AC Power Model AS190100 AI180 Input 100240 V 5060Hz 07A Output 10 V 18 A Operation Power Consumption lt35 W Standby Power Consumption lt2 W Max load of Android output 5V 1A Dimensions Main Unit 290 x 160 x 113 mm Weight With Packing Main Unit 20 kg 14 kg
• Page 27 - English - : 26 EN 8 Troubleshooting Warning Never remove the casing of this device To keep the warranty valid never try to repair the system yourself If you encounter problems when using this device check the following points before requesting service If the problem remains unsolved go to the Philips Web page www make sure that the device is nearby and the model number and serial number are available No power Ensure that the AC power plug of the unit is connected properly Ensure that there is power at the AC outlet No sound or poor sound Adjust the volume of your docking system and Androidpowered device Make sure that your Androidpowered device is connected to the docking system through Bluetooth Poor radio reception Increase the distance between the unit and your TV or VCR Fully extend the FM antenna Clocktimer setting erased Power has been interrupted or the power plug has been disconnected Reset the clocktimer Alarm does not work Set the clockalarm correctly About Bluetooth device Music playback is unavailable on the system even after successful Bluetooth connection The device cannot be used with the system to play music The audio quality is poor after connection with a Bluetoothenabled device The Bluetooth reception is poor Move the device closer to the system or remove any obstacle between the device and the system Cannot connect with the system required for the system The Bluetooth function of the device is not enabled Refer to the user manual of the device for how to enable the function The system is not in the pairing mode The system is already connected with another Bluetoothenabled device Disconnect that device or all other connected devices and then try again The paired device connects and disconnects constantly The Bluetooth reception is poor Move the device closer to the system or remove any obstacle between the device and the system For some devices the Bluetooth connection may be deactivated automatically as a powersaving feature This does not indicate any malfunction of the system
• Page 28 - English - : 27EN 9 Notice device that are not expressly approved by Philips Consumer Lifestyle may void the users authority to operate the equipment This product complies with the radio interference requirements of the European Community Recycling Your product is designed and manufactured with high quality materials and components which can be recycled and reused When you see the crossedout wheel bin symbol attached to a product it means the product is covered by the European Directive 200296EC Never dispose of your product with other household waste Please inform yourself about the local rules on the separate collection of electrical and electronic products The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health Environmental information All unnecessary packaging has been omitted We have tried to make the packaging easy to Your system consists of materials which can be recycled and reused if disassembled by a specialized company Please observe the local regulations regarding the disposal of packaging materials exhausted batteries and old equipment
