• Page 2 - English - : English EN Contents 1 Important 2 2 Your Docking Speaker for Android 3 Introduction 3 Whats in the box 3 Overview of main unit 3 3 Get started 4 Connect power 4 Turn on 4 Set time 4 Adjust brightness of display panel 4 Adjust brightness of night light 4 4 Play and charge 6 Compatible with Android 6 Play audio through manual Bluetooth connection 6 Play audio through auto Bluetooth connection with Philips DockStudio 7 Dock and charge Androidpowered phone 12 Play audio with Philips Songbird 14 5 Use more features with DockStudio 17 Listen to Internet radio 17 Set sleep timer 17 Set alarm timer 18 6 Product information 20 Specications 20 7 Troubleshooting 21 8 Notice 22 Recycling 22
• Page 3 - English - : 2 EN 1 Important Read these instructions Heed all warnings Follow all instructions Do not block any ventilation openings Install in accordance with the manufacturers instructions Do not install near any heat sources such as radiators heat registers stoves or otherapparatusincludingampliersthat produce heat Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and the point where they exit from the unit Onlyuseattachmentsaccessoriesspecied by the manufacturer Unplug this unit during lightning storms or when unused for long periods of time Referallservicingtoqualiedservice personnel Servicing is required when the unit has been damaged in any way such as powersupply cord or plug is damaged liquid has been spilled or objects have fallen into the unit the unit has been exposed to rain or moisture does not operate normally or has been dropped This unit shall not be exposed to dripping or splashing Do not place any sources of danger on theunitegliquidlledobjectslighted candles Where the plug of the Direct Plugin Adapter is used as the disconnect device the disconnect device shall remain readily operable
• Page 4 - English - : English EN 2 Your Docking Speaker for Android Congratulations on your purchase and welcometoPhilipsTofullybenetfromthe support that Philips offers register your product at wwwphilipscomwelcome Introduction With this docking speaker you can enjoy audio from your Bluetoothenabled device charge your device through micro USB connector Know the time and experience various features brought by Philips DockStudio and Philips Songbird app Whats in the box Check and identify the contents of your package Main unit Power adapter Dock extension Quick start guide Safety sheet Overview of main unit a Dock for Androidpowered phone b Display panel Show time Show Bluetooth status c Activate or deactivate Bluetooth function d CLOCKNIGHT LIGHT Set time Adjust the brightness of display panel and night light e Adjust volume Adjust time a b c d e
• Page 5 - English - : 4 EN 3 Get started Always follow the instructions in this chapter in sequence Connect power Caution Risk of product damage Ensure that the power voltage corresponds to the voltage printed on the back or underside of the unit Risk of electric shock When you unplug the AC adapter always pull the plug from the socket Never pull the cord Connect the power adapter to the wall outlet Turn on Press The Bluetooth indicator begins to blink Switch to standby mode Press again to switch the docking speaker to standby mode The Bluetooth indicator turns off Set time 1 In standby mode press and hold CLOCK NIGHT LIGHT for two seconds to activate clock setting mode 24H begins to blink 2 Press to set the 1224 hour format 3 Press CLOCKNIGHT LIGHTtoconrm The hour digits begin to blink 4 Repeat steps 2 to 3 to set the hour and minute The set time is displayed Adjust brightness of display panel In standby mode press CLOCKNIGHT LIGHT repeatedly to adjust the brightness of the display panel high medium or low Adjust brightness of night light 1 Press to turn on the speaker
• Page 6: English EN 2 Press CLOCKNIGHT LIGHT repeatedly to adjust the brightness of the night light high medium or off
• Page 7 - English - : 6 EN 4 Play and charge With this docking speaker you can enjoy audio in two ways through manual Bluetooth connection through automatic Bluetooth connection with Philips DockStudio app Compatible with Android To make full use of your docking speaker your Androidpowered device should satisfy the following requirements With Android operation system Version 21orabove With Bluetooth software Version 21 or aboveand With a micro USB connector For other devices with micro USB connector and Bluetooth function you can still use the docking speaker to do the following Charge your device through the USB connector Enjoy audio through Bluetooth Tip Formoredetailsgotowwwphilipscomexidock Play audio through manual Bluetooth connection The docking speaker uses Bluetooth wireless technology to stream music from your portable device to the system Note Before you connect a Bluetooth device to this docking speaker familiarize yourself with the Bluetooth capabilities of the device Keep this docking speaker away from other electronic devices that may cause interference 1 On your docking speaker press to activate Bluetooth The Bluetooth indicator blinks on the display panel 2 Turn on Bluetooth function of your portable device Different devices may have different way to activate Bluetooth 3 Scan Bluetooth devices that can pair with your portable device 4 When PHILIPS AS111 is displayed on your device select it to start connection If connection is successful you will hear doublebeepconrmationtoneand ndadifferentBluetoothicononthe top of the screen
• Page 8 - English - : English EN 5 Play audio with the media player of your portable device The audio comes out through the docking speaker Tip The effective operation range between the docking speaker and the paired device is approximately 10 meters30feet Any obstacle between the speaker and the device can reduce the operational range Play audio through auto Bluetooth connection with Philips DockStudio Philips DockStudio app brings a suite of new features to your docking speaker including automatic Bluetooth connection Songbird music player Internet radio and a multifunction alarm clock To enjoy more features you are recommended to download and install the free app Install DockStudio app onto Android powered device You have two ways to install Philips DockStudio on your Androidpowered device Install DockStudio app through QR code Note Make sure that your Androidpowered device is connected to the Internet Make sure that your device has a barcode scanner such as quotQR Droidquot If not download one from the Android market 1 Use the barcode scanner to scan the QR code on the package or Quick Start Guide

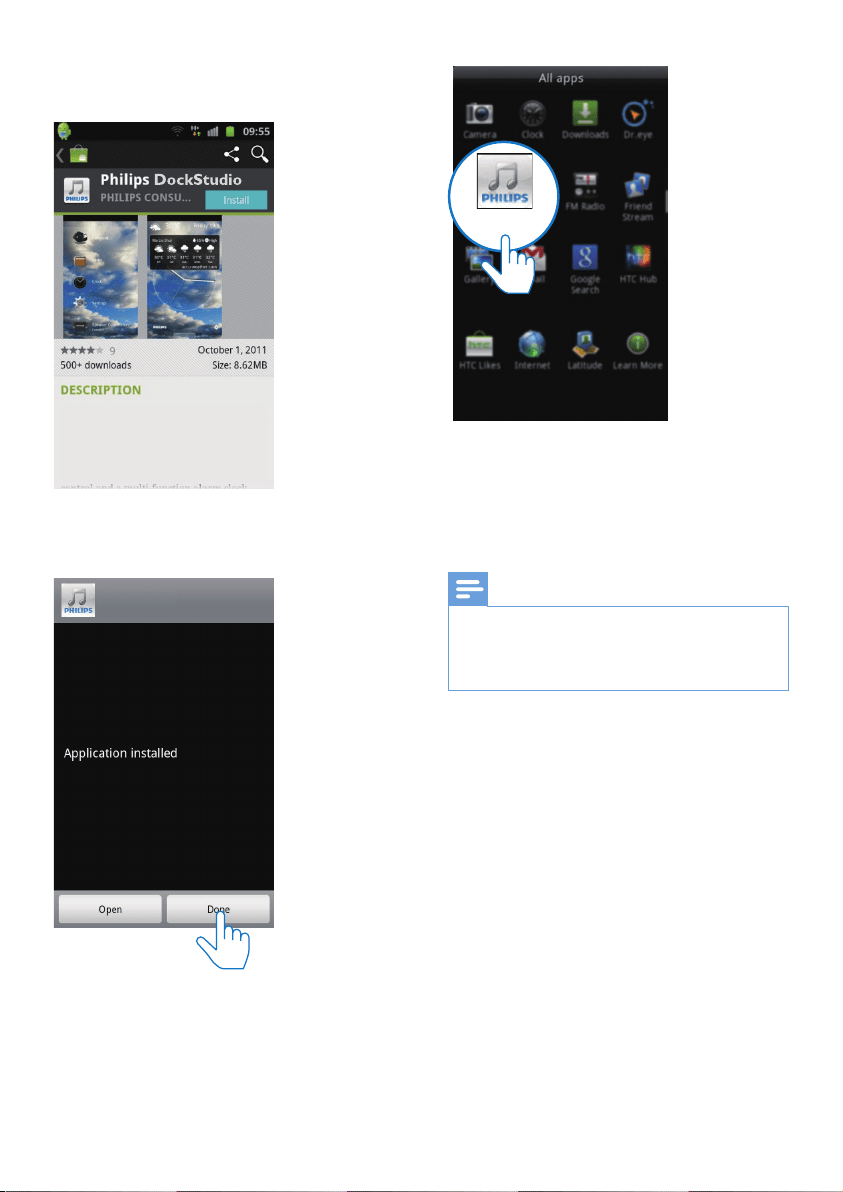

• Page 9 - English - : 8 EN 2 Follow the onscreen instructions to install Philips DockStudio app 3 When installation is complete tap Done done The DockStudio icon appears on your portable device The Philips DockStudio app brings a suite of cool new features to your Philips DockStudio docking speaker including automatic Bluetooth connection Songbird music player worldwide Internet radio sound settings DockStudio Install DockStudio app through Android Market You can also search Philips DockStudio from Android Market directly and then install the app Note Make sure that your Androidpowered device is connected to the internet Make sure that Android Market is available on your Androidpowered device 1 Tap the quotAndroid Marketquot icon on your device DockStudio

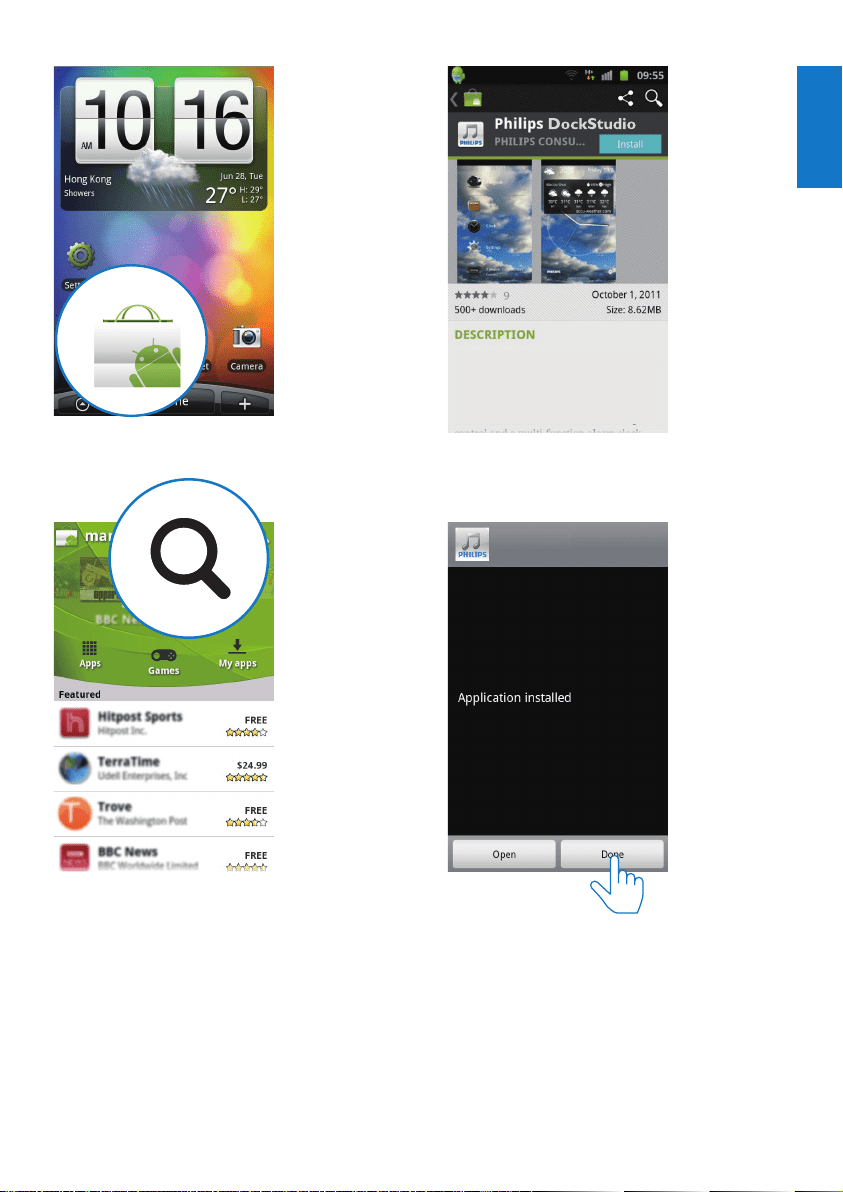

• Page 10 - English - : English EN 2 Tap the search icon on the screen 3 In the search bar type in quotPhilips DockStudioquot to search the app 4 Fromthesearchresultlistndandtap Philips DockStudio to start downloading 5 Follow the onscreen instructions to install the DockStudio app 6 When installation is complete tap Done done The Philips DockStudio app brings a suite of cool new features to your Philips DockStudio docking speaker including automatic Bluetooth connection Songbird music player worldwide Internet radio sound settings DockStudio
• Page 11 - English - : 10 EN Activate Bluetooth with DockStudio app Philips DockStudio app helps to connect your Androidpowered device and docking speaker through Bluetooth automatically Note Make sure that your Androidpowered device is connected to the Internet Firsttime launch 1 On your docking speaker press to activate Bluetooth blinks on the display panel 2 On the home screen of your device tap the DockStudio icon to launch the app A prompt message asking you to download Songbird appears 3 Tap Cancelcancel DockStudio The device starts to scan Philips devices that can be paired automatically 4 When PHILIPS AS111 is displayed on your device select it to start connection It may take a few seconds to complete the connection

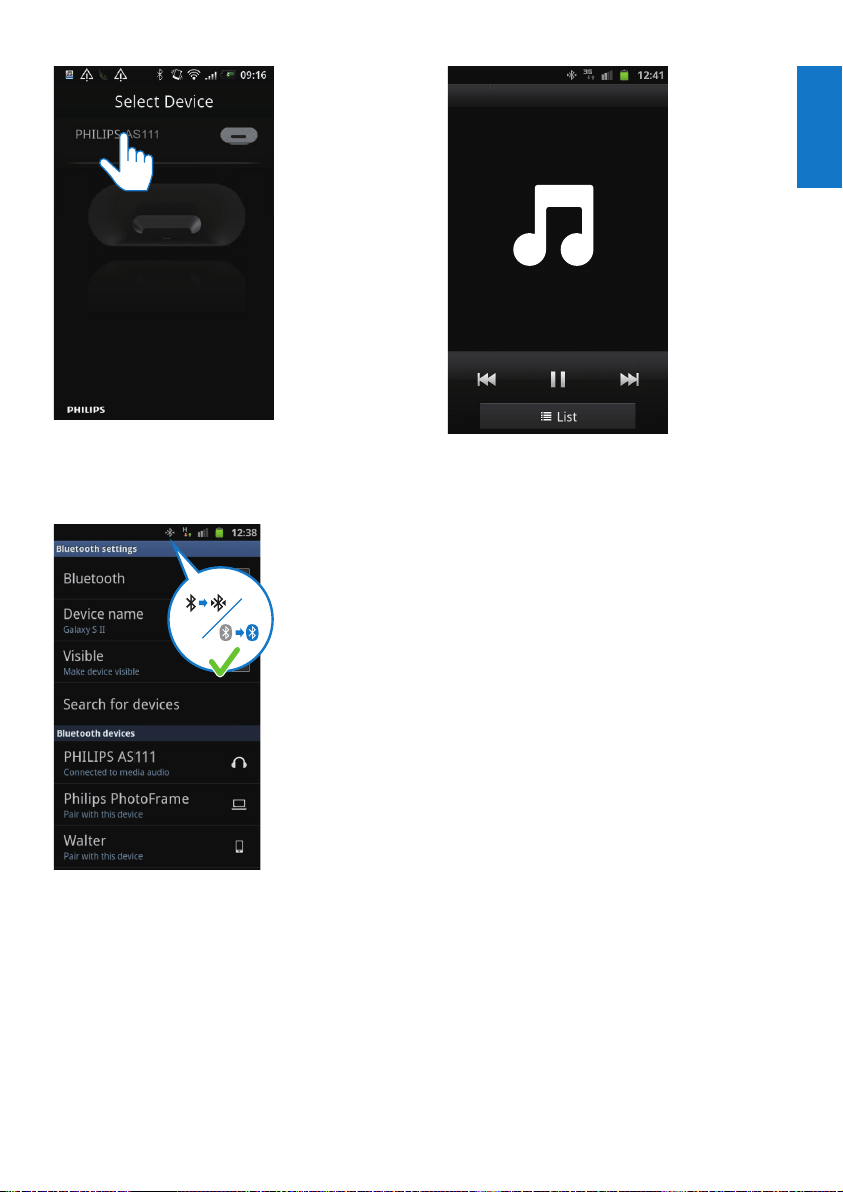

• Page 12 - English - : English EN After Bluetooth connection a different Bluetooth icon can be found on the top of the screen 5 Play audio with the media player of your portable device Now you can enjoy audio through the speaker Nexttime launch Next time you launch the DockStudio app connect to the docking speaker through Bluetooth as below 1 Activate the Bluetooth function of your docking speaker 2 Launch Philips DockStudio to access its menu

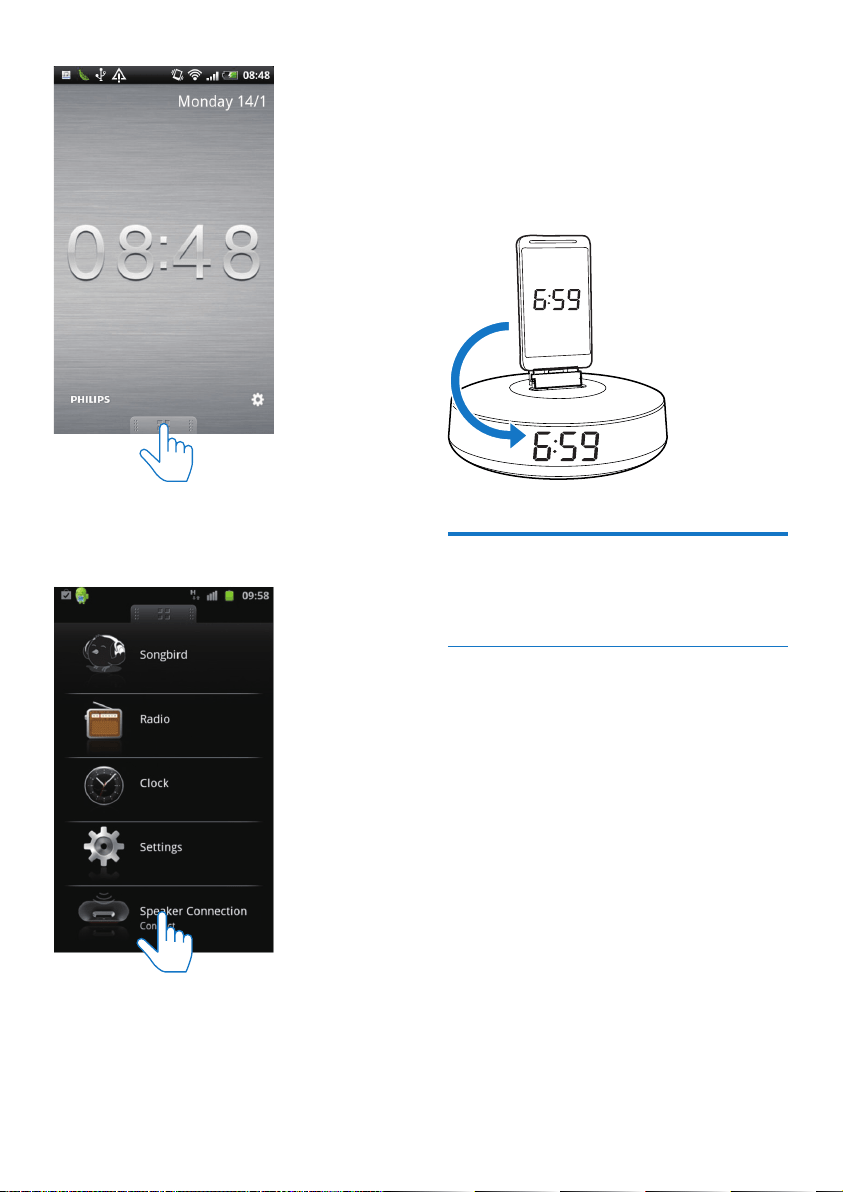

• Page 13 - English - : 12 EN 3 Tap Speaker Connection Speaker Connectiontoactivateautomatic Bluetooth connection It may take a few seconds to complete the connection 4 Play audio on your portable device The audio comes out through the docking speaker Sync time automatically After you activate Bluetooth connection through Philips DockStudio the docking speaker synchronizes time with your Bluetooth enabled device automatically Dock and charge Android powered phone Dock Androidpowered device To charge your Androidpowered phone you needtodockitinthedockingspeakerrst 1 Check the orientation of the micro USB connector on your Androidpowered phone If your USB connector has a cover ipitoutwards 2 If necessary rotate the USB connector on the docking speaker and then place your Androidpowered phone onto the dock
• Page 14 - English - : English EN 3 Adjust the bumpers on both sides of the connector to stabilize the phone 4 Slide the connector to place your phone in the middle of the docking speaker Tip If the micro USB connector is located at the top and your are using Android system of version 23 or above screen autorotation is available Use dock extension If the USB connector on your phone is close to the edge the supplied dock extension can balance the docked phone as illustrated 1 Adjust the bumpers on both sides to the lowest position 2 Place the dock extension onto the dock 3 Dock your Androidpowered device Charge Androidpowered phone When the docking speaker is connected to power the docked phone starts charging automatically Tip This function is also available for non Androidpowered device that has a micro USB connector

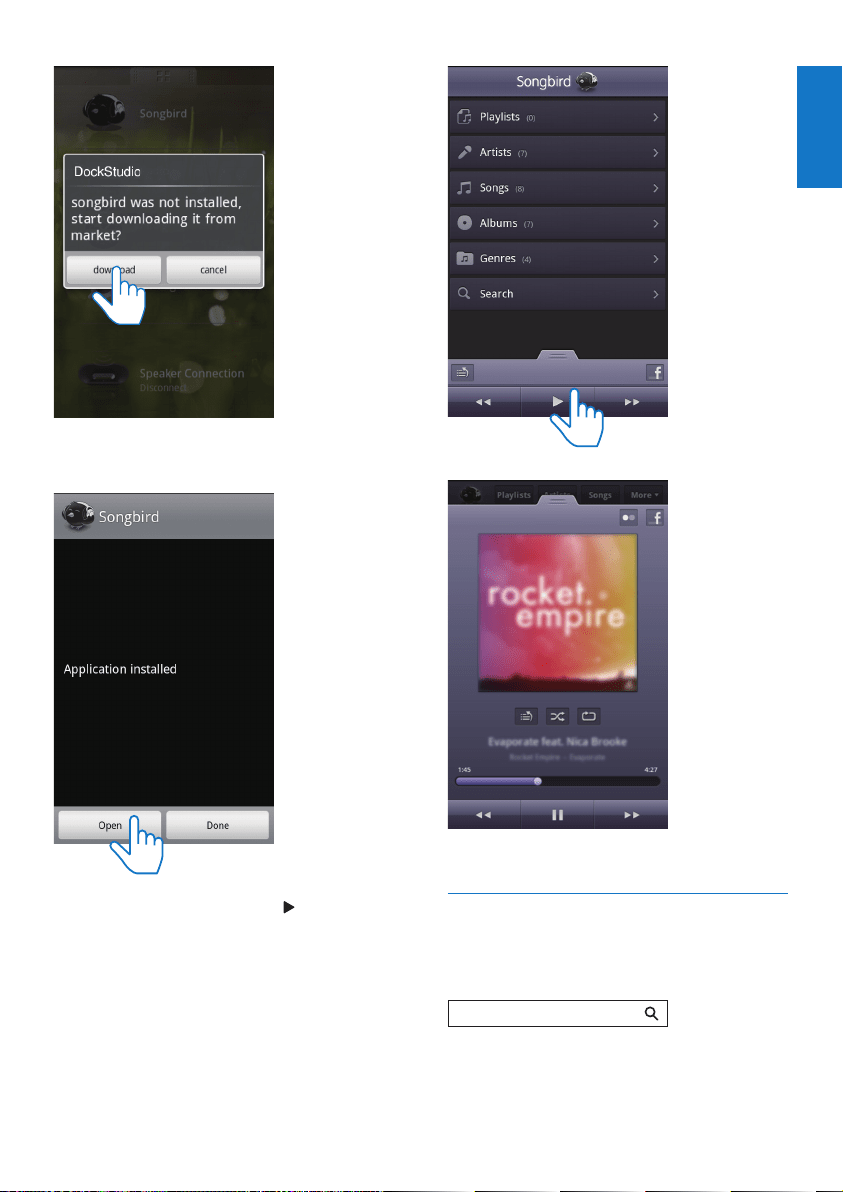

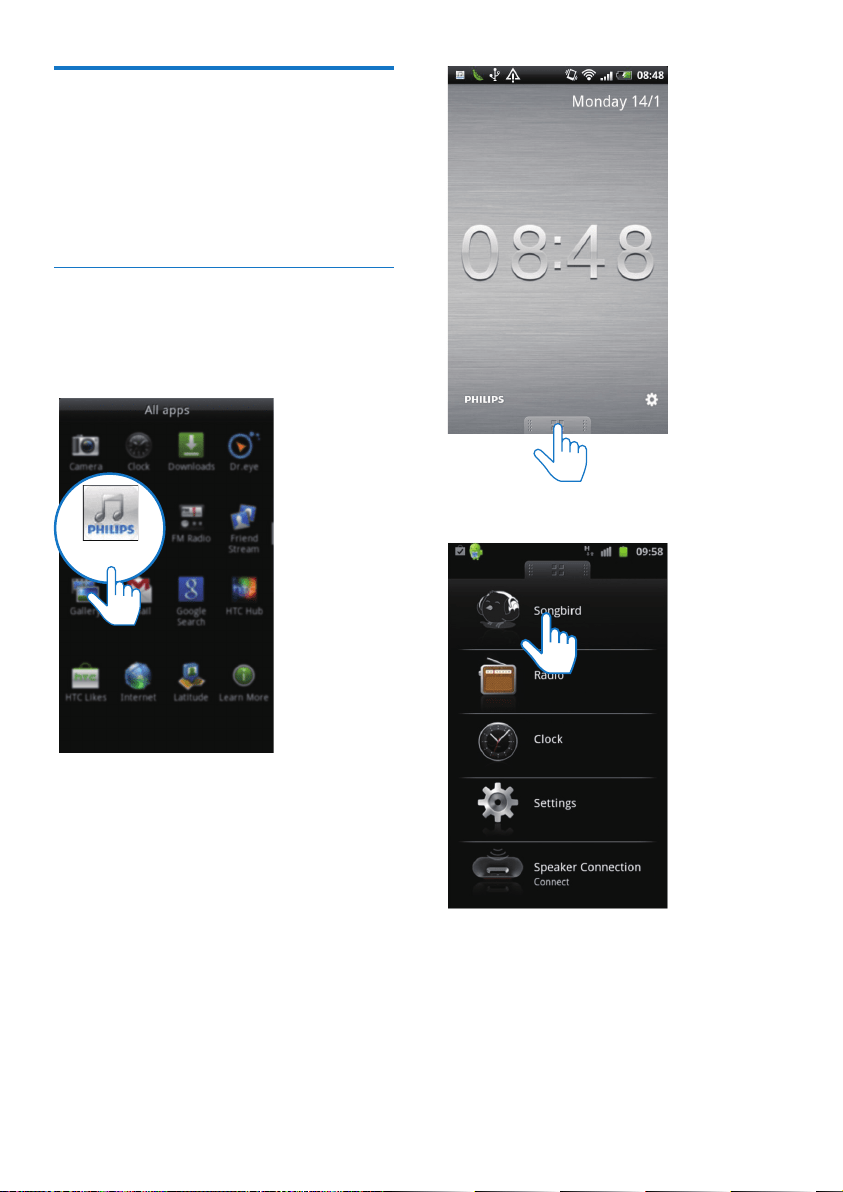

• Page 15 - English - : 14 EN Play audio with Philips Songbird Philips Songbird is a simple easytouse PC program and Android app It lets you discover play and sync your media from PC to your Androidpowered devices seamlessly Install Songbird on Androidpowered device 1 Tap the DockStudio icon on your Android powered device The DockStudio menu is displayed DockStudio 2 Tap Songbird You are requested to download Songbird 3 Follow the onscreen instructions to download the app
• Page 16 - English - : English EN 4 After installation tap Open Opento access Songbird menu 5 Select a track and then tap to play music Install Songbird on PC 1 Go to wwwphilipscomsongbird 2 Search Songbird 3 Download the latest Songbird application songbird
• Page 17 - English - : 16 EN 4 Follow onscreen instructions to install Philips Songbird on your PC Sync with PC through Philips Songbird Note Make sure that you have turned on the USB storage 1 On your PC launch Philips Songbird 2 Connect your Androidpowered device to PC with a USB cable Wait until the device is recognized by the Songbird On Philips Songbird the device is displayed when it is recognized by the PC Ifitisthersttimeyouconnectthe device to Philips Songbird a popup screen appears Select auto sync as prompted The device synchronizes with Philips Songbird automatically If you didnt select auto sync you can sync with Songbird manually 1 Select the device under Devices 2 Select Manual or Auto 3 Click Sync If you have selected auto sync auto sync starts automatically when you connect the device to the PC
• Page 18 - English - : English EN 5 Use more features with DockStudio With Philips DockStudio you can also listen to Internet radio set alarm timer and sleep timer Note Make sure that your portable device is connected to the Internet Listen to Internet radio 1 Connect your Androidpowered device and the docking system through Bluetooth 2 Open Philips DockStudio to go to the main menu 3 Tap Radio Radioonthescreen 4 Search a radio station in the search bar 5 Select a radio station from the search result list The radio station begins to broadcast Set sleep timer 1 Launch Philips DockStudio 2 Tap the icon to access the sleep timer menu
• Page 19 - English - : 18 EN 3 Select a time period for the sleep timer and then tap Start Start Note This function only works with Philips Songbird Set alarm timer With Philips DockStudio you can set multiple alarms and know the latest weather It even alerts you when weather conditions are suitable for your favorite outdoors activity 1 Launch the app 2 Tap the icon to access clock setting menu 3 Tap Alarm settings Alarmsettings
• Page 20 - English - : English EN 4 Tap to access alarm setting menu 5 Set the alarm and tap Save Saveonthe top right of the screen The new alarm is saved and displayed on the screen Note From the LifestyleLifestyletabyoucanselectyour preferredsportandweatherexcellentgoodorfair The alarm will not ring if the weather is not good enough
• Page 21 - English - : 20 EN 6 Product information Note Product information is subject to change without prior notice Specications Amplier Rated Output Power 2 X 2 W RMS Signal to Noise Ratio 75 dBA General information AC Power Power Adaptor AS150059AA240Philips AS150059AI240Philips AS150059AE240Philips Input 100240 V 5060 Hz 07 A Output 59 V 24 A S018KU0590240Philips S018KV0590240Philips S018KB0590240Philips S018KS0590240Philips Input 100240V 5060Hz 500mA Output 59 V 24 A Operation Power Consumption 8 W Standby Power Consumption lt1W Charging through micro USB connector Max 1A Dimensions Main Unit W xHxD 171 X 1026 X 171 mm Weight Main Unit 0605 kg
• Page 22 - English - : English EN 7 Troubleshooting Warning Never remove the casing of this device To keep the warranty valid never try to repair the system yourself If you encounter problems when using this device check the following points before requesting service If the problem remains unsolved go to the Philips Web page www philipscomsupportWhenyoucontactPhilips make sure that the device is nearby and the model number and serial number are available No power Make sure that the AC power adaptor of the device is connected properly Make sure that there is power at the AC outlet No sound or poor sound Adjust the volume of the docking system Adjust the volume of your phone No response from the unit Disconnect and reconnect the AC power plug then turn on the unit again
• Page 23 - English - : 22 EN 8 Notice Anychangesormodicationsmadetothis device that are not expressly approved by WOOX Innovations may void the users authority to operate the equipment This product complies with the radio interference requirements of the European Community Hereby WOOX Innovations declares that this product is in compliance with the essential requirements and other relevant provisions of Directive19995ECYoucanndtheDeclaration of Conformity on wwwphilipscomsupport Recycling Your product is designed and manufactured with high quality materials and components which can be recycled and reused When you see the crossedout wheel bin symbol attached to a product it means the product is covered by the European Directive 200296EC Never dispose of your product with other household waste Please inform yourself about the local rules on the separate collection of electrical and electronic products The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health Environmental information All unnecessary packaging has been omitted We have tried to make the packaging easy to separateintothreematerialscardboardbox polystyrenefoambufferandpolyethylene bagsprotectivefoamsheet Your system consists of materials which can be recycled and reused if disassembled by a specialized company Please observe the local regulations regarding the disposal of packaging materials exhausted batteries and old equipment This is CLASS II apparatus with double insulation and no protective earth provided The making of unauthorized copies of copy protected material including computer programslesbroadcastsandsound recordings may be an infringement of copyrights and constitute a criminal offence This equipment should not be used for such purposes Note The type plate is located on the bottom of the apparatus The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG Inc and any use of such marks by WOOX Innovations is under license
