PN-L703B
PN-L603B
LCD MONITOR
OPERATION MANUAL
IMPORTANT:
To aid reporting in case of loss or theft, please record the
product’s model and serial numbers in the space provided.
The numbers are located in the rear of the product.
Model No.:
Serial No.:
U.S.A. ONLY
3
E
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within
a triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING:
FCC Regulations state that any unauthorized changes or modications to this equipment not expressly approved by the
manufacturer could void the user’s authority to operate this equipment.
NOTE:
This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
This product utilizes a CR coin Lithium battery which contains a Perchlorate material.
Special handling for this material may apply,
California residents, See www.dtsc.ca.gov/hazardouswaste/perchlorate/
Others, consult local environmental ofcers.
U.S.A. ONLY
4
E
Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your
product, please read the Safety Precautions carefully before using this product.
SAFETY PRECAUTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can
result in electric shock and/or re. In order to prevent potential danger, please observe the following instructions when installing,
operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the
following precautions carefully before using the product.
1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future
reference.
3. Observe warnings — All warnings on the product and in the instructions must be observed closely.
4. Follow instructions — All operating instructions must be followed.
5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do
not use liquid cleaners or aerosol cleaners.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result
in accidents.
7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto
it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.
Do not cover or block these vents and openings since insufcient ventilation can cause overheating and/or shorten the life
of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings.
Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from
resting on them.
10. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with
impact. Be careful not to be injured by broken glass pieces in case the screen breaks.
11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause re or electric shock.
12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage ows in
the product, and inserting an object can cause electric shock and/or short internal parts.
For the same reason, do not spill water or liquid on the product.
13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other
dangerous conditions. Request a qualied service person to perform servicing.
14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualied service
person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls
not described in the instructions can cause damage, which often requires extensive adjustment work by a qualied
technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product
needs servicing.
15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement
parts specied by the manufacturer, or those with the same characteristics and performance as the original parts. Use of
unauthorized parts can result in re, electric shock and/or other danger.
16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to
ensure that the product is in proper operating condition.
17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method
recommended by the manufacturer.
18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including ampliers).
DEAR SHARP CUSTOMER
5
E
SAFETY PRECAUTIONS (Continued)
19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment,
dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:
• Use the specied batteries only.
• Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the
compartment.
• Do not mix old and new batteries.
• Do not mix batteries of different types. Voltage specications of batteries of the same shape may vary.
• Replace an exhausted battery with a new one promptly.
• If you will not use the remote control for a long time, remove the batteries.
• If leaked battery uid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your
eye well rather than rubbing and seek medical treatment immediately. Leaked battery uid that gets into your eye or your
clothing may cause a skin irritation or damage your eye.
20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury,
severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and
missile launch control in a weapon system.
21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in
low-temperature burns.
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may
be required to take adequate measures.
To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal,
D-SUB input terminal, and DisplayPort input/output terminals.
If a monitor is not positioned in a sufciently stable location, it can be potentially hazardous due to falling. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
• Using xing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the
monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
Especially for child safety
- Don’t allow children to climb on or play with the monitor.
- Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
- Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care
should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
- Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by
curious children.
6
E
-
The TFT color LCD panel used in this monitor is made with
the application of high precision technology. However, there
may be minute points on the screen where pixels never light
or are permanently lit. Also, if the screen is viewed from an
acute angle there may be uneven colors or brightness. Please
note that these are not malfunctions but common phenomena
of LCDs and will not affect the performance of the monitor.
- Do not display a still picture for a long period, as this could
cause a residual image.
- Never rub or tap the monitor with hard objects.
- Please understand that SHARP CORPORATION bears no
responsibility for errors made during use by the customer or
a third party, nor for any other malfunctions or damage to this
product arising during use, except where indemnity liability is
recognized under law.
- This monitor and its accessories may be upgraded without
advance notice.
-
Do not use the monitor where there is a lot of dust, where humidity
is high, or where the monitor may come into contact with oil or
steam. Do not use in an environment where there are corrosive
gases (sulfur dioxide, hydrogen sulde, nitrogen dioxide, chlorine,
ammonia, ozone, etc.). As this could lead to re.
-
Ensure that the monitor does not come into contact with water
or other uids. Ensure that no objects such as paper clips or
pins enter the monitor as this could lead to re or electric shock.
- Do not place the monitor on top of unstable objects or in
unsafe places. Do not allow the monitor to receive strong
shocks or to strongly vibrate. Causing the monitor to fall or
topple over may damage it.
- Do not use the monitor near heating equipment or in places
where there is likelihood of high temperature, as this may
lead to generation of excessive heat and outbreak of re.
- Do not use the monitor in places where it may be exposed to
direct sunlight.
- The AC outlet shall be installed near the equipment and shall
be easily accessible.
- Please be sure to constantly remove dust and garbage that
has attached to the ventilation opening. If dust collects in the
ventilation opening or the inside of the monitor, it may lead to
excessive heat, outbreak of re, or malfunction.
Please request a cleaning of the inside of the monitor from
an authorized SHARP servicing dealer or service center.
- Do not touch the screen while the PC is starting up, it will
lead to a malfunction. When this occurs, restart the PC.
- Do not operate the screen with a hard or pointed object such
as a ngernail or pencil.
- If another USB device is connected to the computer to which
the touch panel is connected, do not operate the USB device
during touch panel input. Input may not take place correctly.
- If the infrared transmitter/receiver becomes dirty,
malfunctioning may result. Use a soft cloth to gently wipe dirt
off the infrared transmitter/receiver.
- If dust accumulates inside the infrared transmitter/receiver,
the product cannot transmit or receive infrared rays properly,
resulting in a malfunction. To clean the dust accumulated
inside, contact an authorized SHARP servicing dealer or
service center (extra charge required).
The Power Cord
- Use only the power cord supplied with the monitor.
- Do not damage the power cord nor place heavy objects on
it, stretch it or over bend it. Also, do not add extension cords.
Damage to the cord may result in re or electric shock.
- Do not use the power cord with a power tap.
Adding an extension cord may lead to re as a result of
overheating.
- Do not remove or insert the power plug with wet hands.
Doing so could result in electric shock.
- Unplug the power cord if it is not used for a long time.
- Do not attempt to repair the power cord if it is broken
or malfunctioning. Refer the servicing to the service
representative.
Manual Scope
- Microsoft, Windows, Internet Explorer, Excel and PowerPoint
are registered trademarks of Microsoft Corporation.
- The terms HDMI and HDMI High-Denition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and
other countries.
- DisplayPort is a registered trademark of Video Electronics
Standards Association.
- Adobe, Acrobat, and Reader are either registered trademarks
or trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
- Intel, Celeron, and Intel Core 2 Duo are trademarks or
registered trademarks of Intel Corporation or its subsidiaries
in the U.S.A. and other countries.
- AMD, AMD Sempron, AMD Athlon, and combinations thereof
are trademarks of Advanced Micro Devices, Inc.
- This product comes with RICOH Bitmap Fonts produced and
sold by RICOH COMPANY, LTD.
- All other brand and product names are trademarks or
registered trademarks of their respective holders.
- Language of OSD menu used in this manual is English by
way of example.
- Illustrations in this manual may not exactly represent the
actual product or display.
LED Backlight
● The LED backlight in this product has a limited lifetime.
* If the screen gets dark or does not turn on, it may be
necessary to replace the LED backlight.
* This LED backlight is exclusive to this product and must
be replaced by an authorized SHARP servicing dealer
or service center. Please contact an authorized SHARP
servicing dealer or service center for assistance.
TIPS AND SAFETY INSTRUCTIONS
7
E
MOUNTING PRECAUTIONS
• This product is for use indoors.
• A mounting bracket compliant with VESA specications is
required.
• Since the monitor is heavy, consult your dealer before
installing, removing or moving the monitor.
• Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this
work yourself. Our company will bear no responsibility
for accidents or injuries caused by improper mounting or
mishandling.
• Use the monitor with the surface perpendicular to a level
surface. If necessary, the monitor may be tilted up to 20
degrees upward.
• When moving the monitor, be sure to hold it with the
handles and the unit bottom. Do not grasp the screen or
tray. This may cause product damage, failure, or injury.
• This monitor should be used at an ambient temperature
between 41°F (5°C) and 95°F (35°C). Provide enough
space around the monitor to prevent heat from
accumulating inside.
7-7/8 [20]
Unit: inch [cm]
2 [5]
2
[5]
2
[5]
1-7/16 [3.5]
• If it is difcult to provide sufcient space for any reason
such as the installation of the monitor inside a housing, or
if the ambient temperature may be outside of the range
of 41°F (5°C) to 95°F (35°C), install a fan or take other
measures to keep the ambient temperature within the
required range.
• Temperature condition may change when using the monitor
together with the optional equipments recommended by
SHARP. In such cases, please check the temperature
condition specied by the optional equipments.
• Do not block any ventilation openings. If the temperature
inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Do not use the product in locations where the unit is
exposed to direct sunlight or other strong light. Since this
product operates with infrared rays, such light may cause a
malfunction.
• When using multiple monitors closely, be sure the infrared
transmitter/receiver does not affect the other ones.
8
E
Contents
IMPORTANT INFORMATION ............................................3
DEAR SHARP CUSTOMER ..............................................4
SAFETY PRECAUTIONS ..................................................4
TIPS AND SAFETY INSTRUCTIONS ...............................6
MOUNTING PRECAUTIONS ............................................7
Supplied Components .....................................................9
System Requirements .....................................................9
Part Names .....................................................................10
Connecting Peripheral Equipment ...............................12
Connecting the Power Cord .........................................14
Binding Cables ...............................................................14

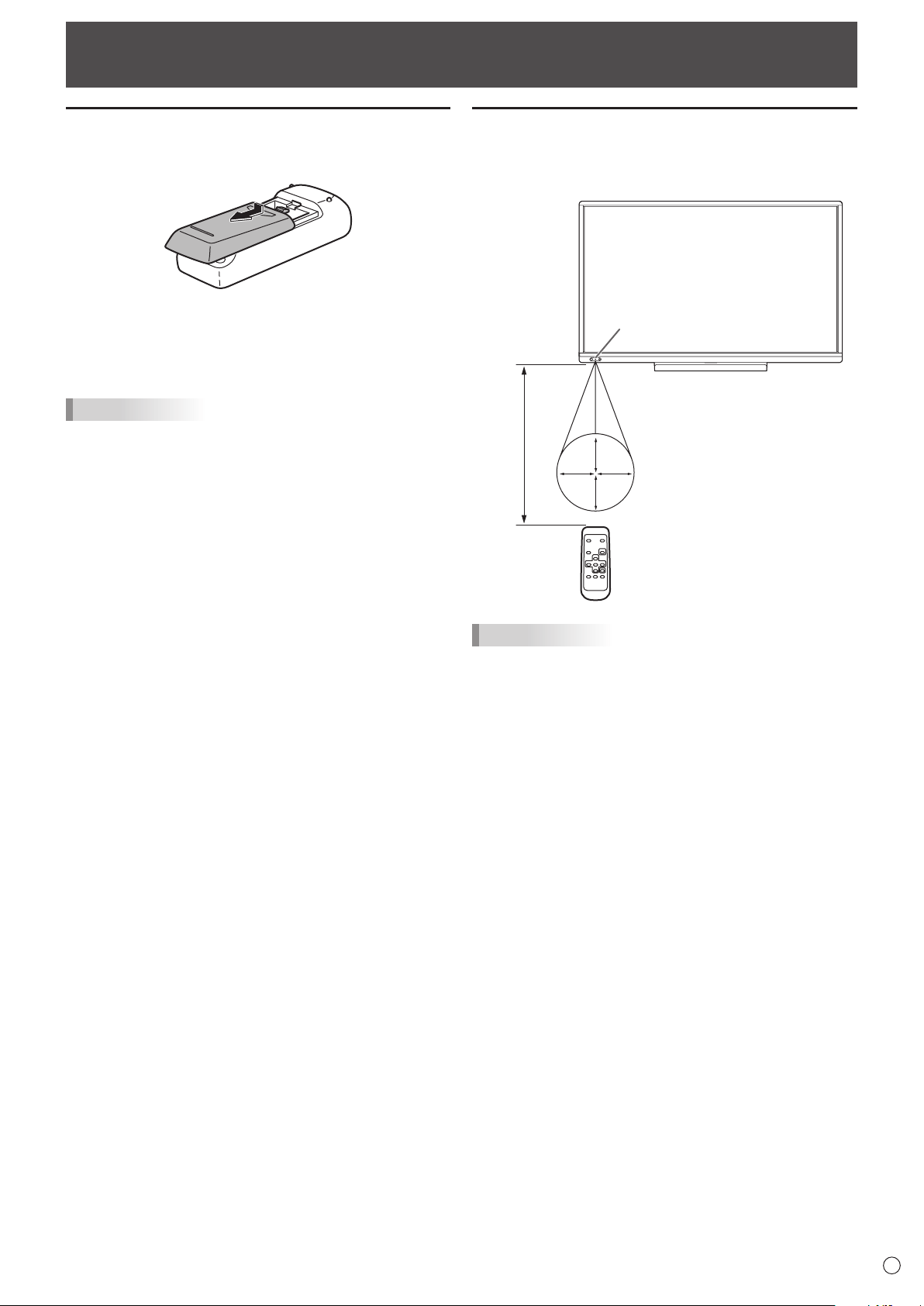

Preparing the Remote Control Unit ..............................15
Installing the batteries ................................................15
Remote control operation range .................................15
Removing the Handles ..................................................16
Mounting a web camera ................................................16

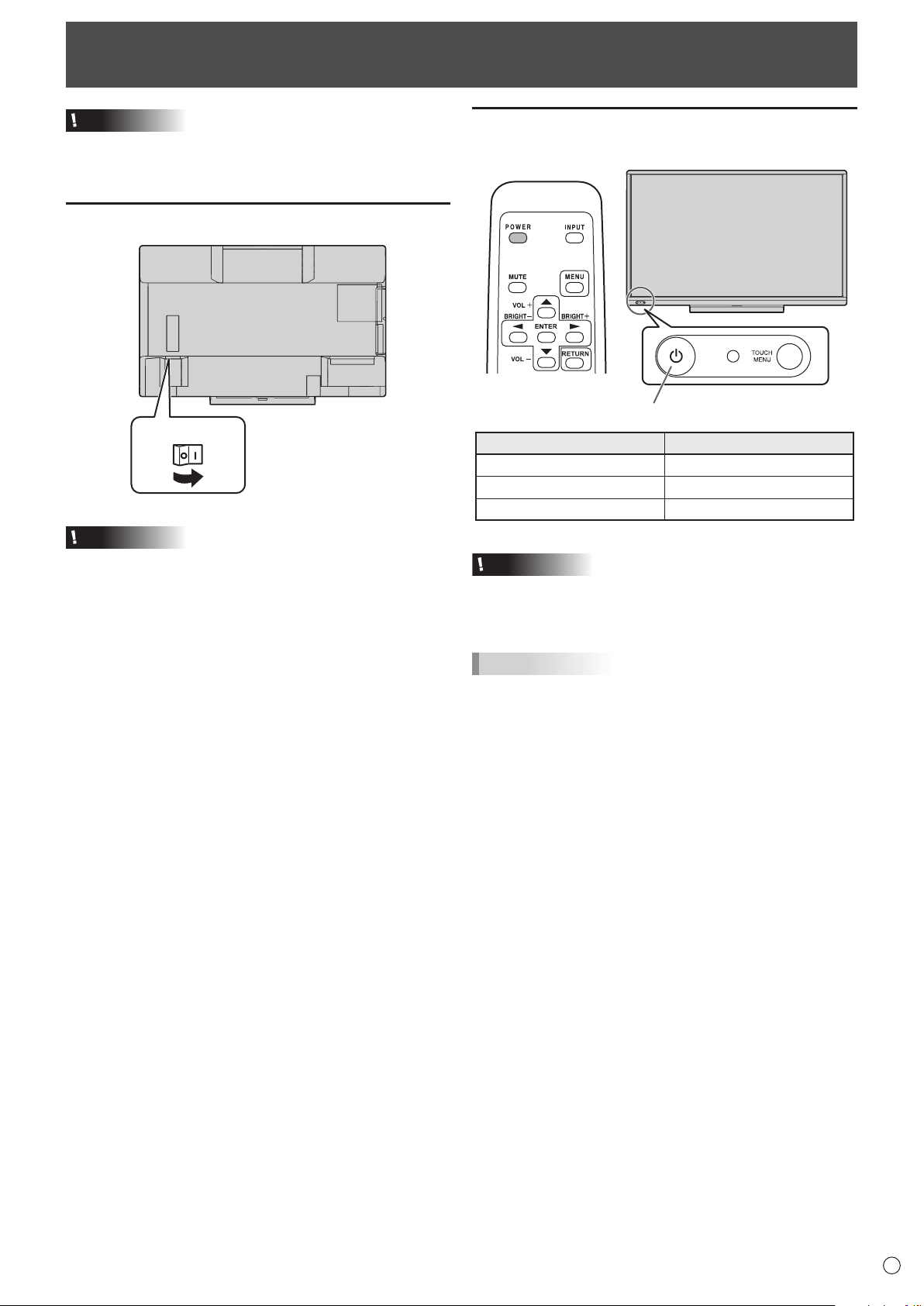

Turning Power On/Off ....................................................17
Turning on the main power.........................................17
Turning power on/off ..................................................17

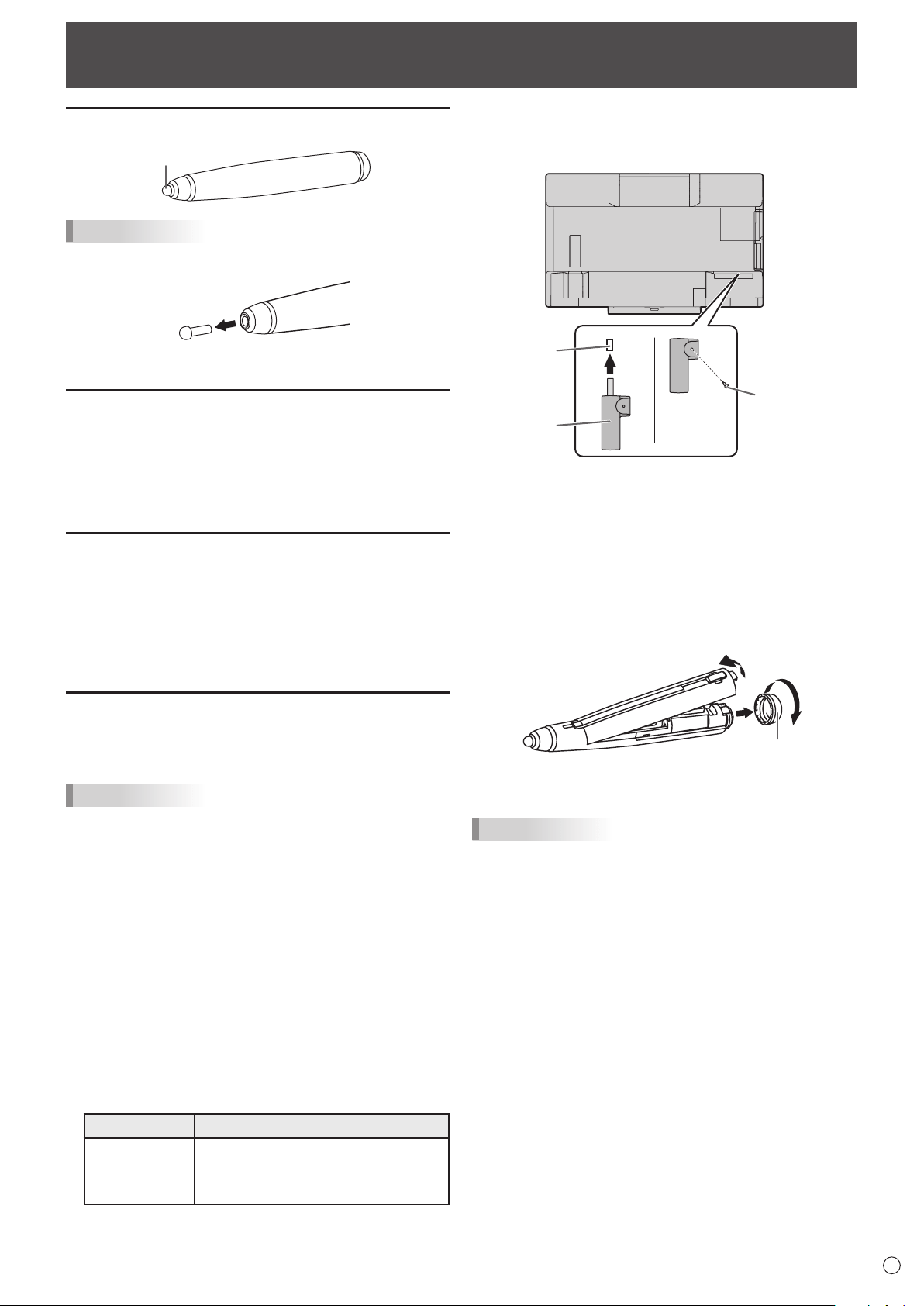

Touch Panel / Touch Pen Preparations ........................19
Touch Pen ..................................................................19
Computer preparations ..............................................19
Calibration ..................................................................19
Touch Pen (sold separately) .......................................19
Touch action ...................................................................21
Touch action ...............................................................21
Other functions ...........................................................23
Cautionary points .......................................................23
Eraser .........................................................................23
Basic Operation .............................................................24
Using the touch menu ................................................24
Using the remote control unit .....................................25
Menu Items .....................................................................27
Displaying the menu screen .......................................27
Menu item details .......................................................28
Adjustments for PC screen display ............................38
Initialization (Reset)/Functional Restriction Setting
(FUNCTION) ....................................................................39

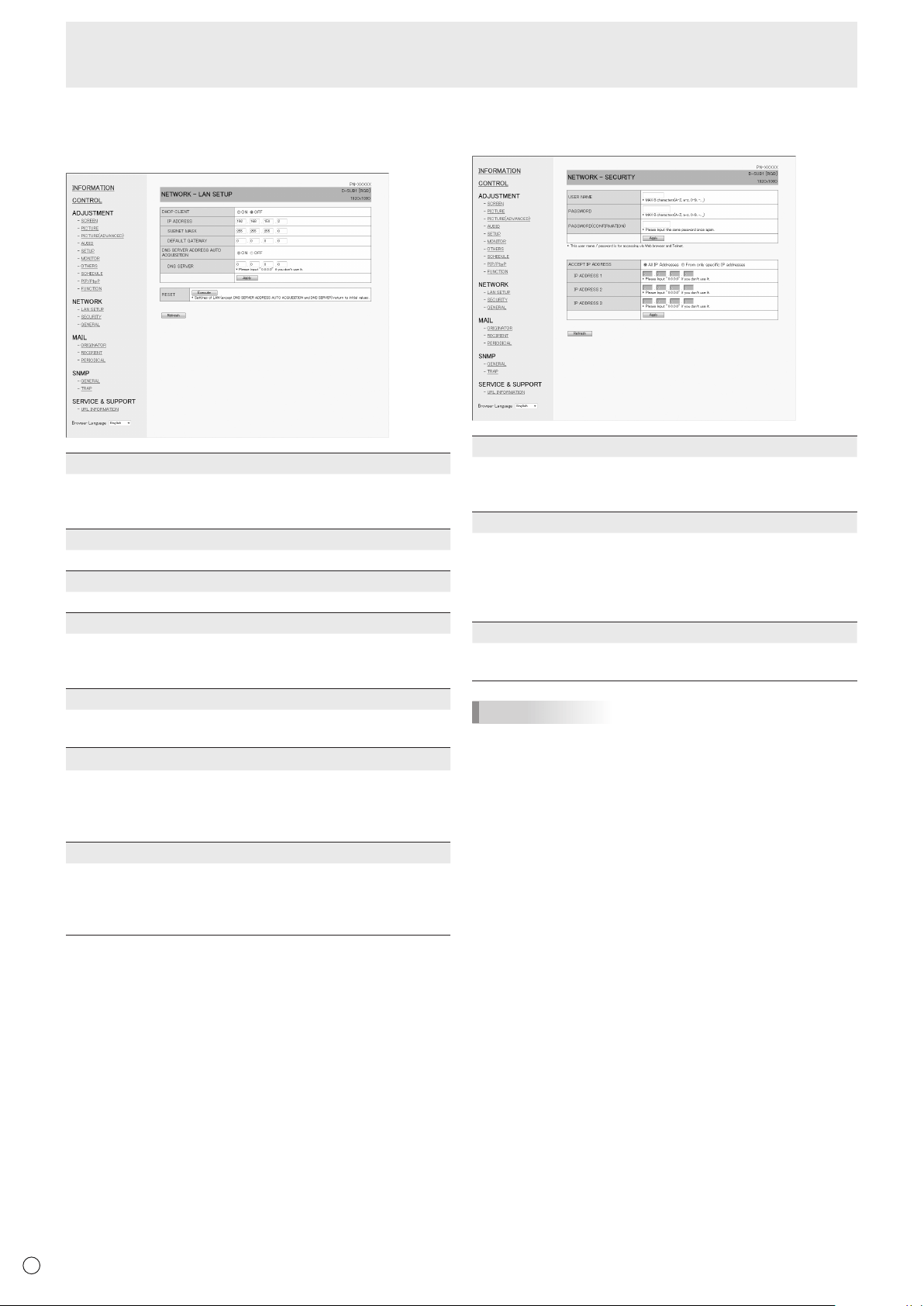

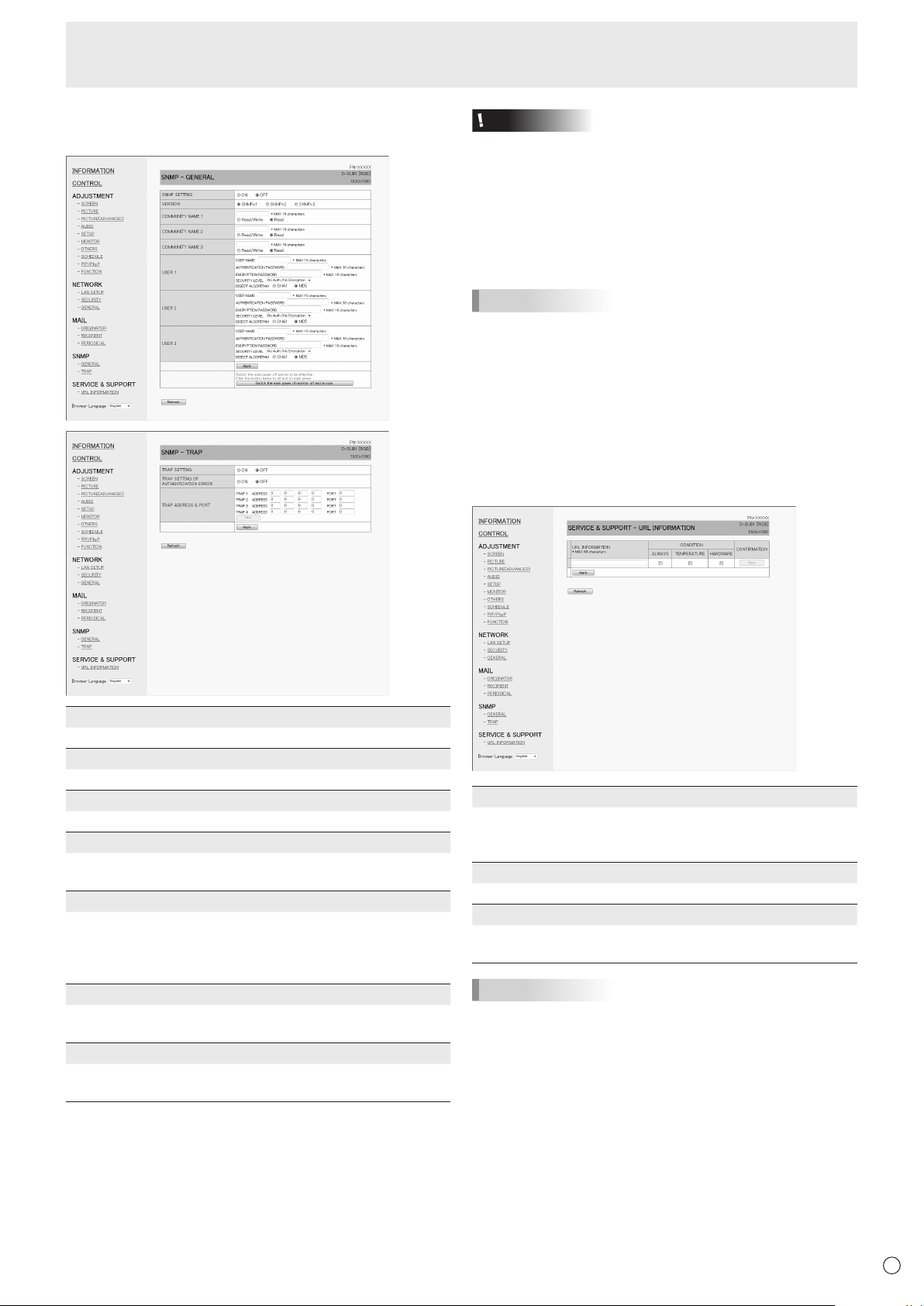

Controlling the Monitor with a PC (LAN) .....................40
Settings to connect to a LAN ......................................40
Controlling with a PC ..................................................42
[Advanced operation] Command-based control .........48
[Advanced operation] Communication procedure ......48
[Advanced operation] Control command table ...........50
Troubleshooting .............................................................58

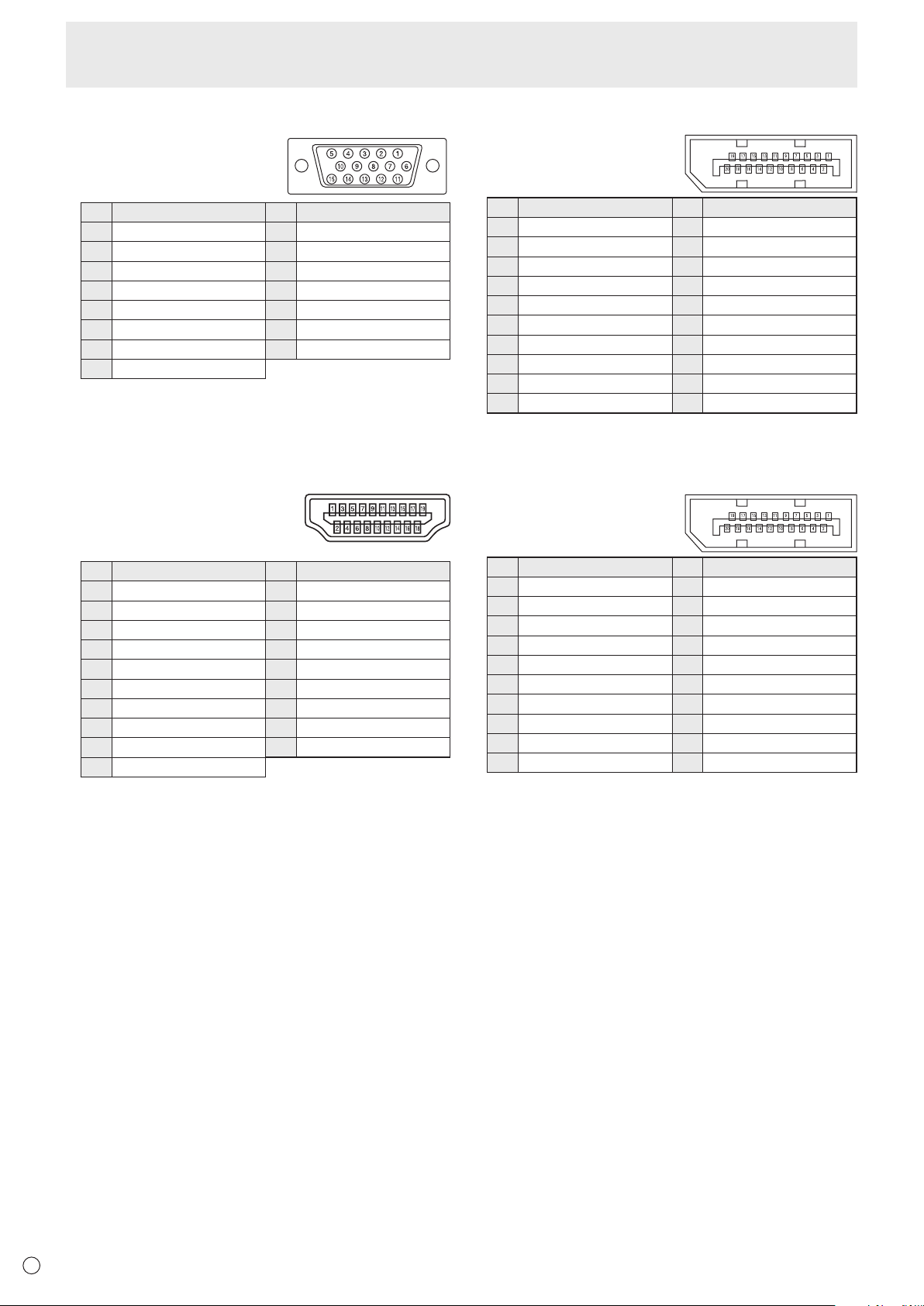

Specications ...............................................................60
Mounting Precautions
(For SHARP dealers and service engineers) ...............65
For information on Touch Panel Settings Tool, Pen Software and Touch Display Link, see the manual for each.
9
E
Supplied Components
If any component should be missing, please contact your dealer.
System Requirements
Computer
PC/AT compatible computer with a USB 2.0 port and able to output a resolution of 1920 x 1080.
(CD-ROM drive required for software installation.)
OS
Windows 7 (32-bit or 64-bit version),
Windows 8 (32-bit or 64-bit version), Windows 8.1 (32-bit or 64-bit version)
CPU
Intel Celeron or AMD Sempron 1.6 GHz or faster
Intel Core 2 Duo or AMD Athlon II X2 2.8 GHz or faster recommended
Memory At least 2 GB
Free space on hard drive At least 200 MB (free space separately required for data storage)
To use a touch panel, the touch panel must be connected to the computer, and Touch Panel Settings Tool and Pen Software
must be installed on the computer from the supplied CD-ROM.
To install the software, see the manual for each.
To use a touch panel with a computer connected to the bottom, connect to the USB 1 port.
To use a touch panel with a computer connected to the side, connect to the USB 2 port.
(Factory setting. Can be changed in TOUCH INPUT SELECT in the SETUP menu.)
Liquid Crystal Display Monitor: 1
Remote control unit: 1
Cable clamp: 3
Cable clamp (insertion type): 2
Power cord: 1
Remote control unit battery
(R-6 (“AA” size)): 2
CD-ROM (Utility Disk): 1
CD-ROM (Touch Display Link): 1
Setup Manual: 1
Touch pen: 1
Pen tip (for touch pen): 2
Tray: 1
USB cable: 1
Eraser: 1
Camera mount: 1
Camera screw (inch thread): 1
Tray mounting screws (M3) : 5
Cover SHARP logo: 1
Place this sticker onto the SHARP logo to cover
the logo.
* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
* For environmental protection!
Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
10
E

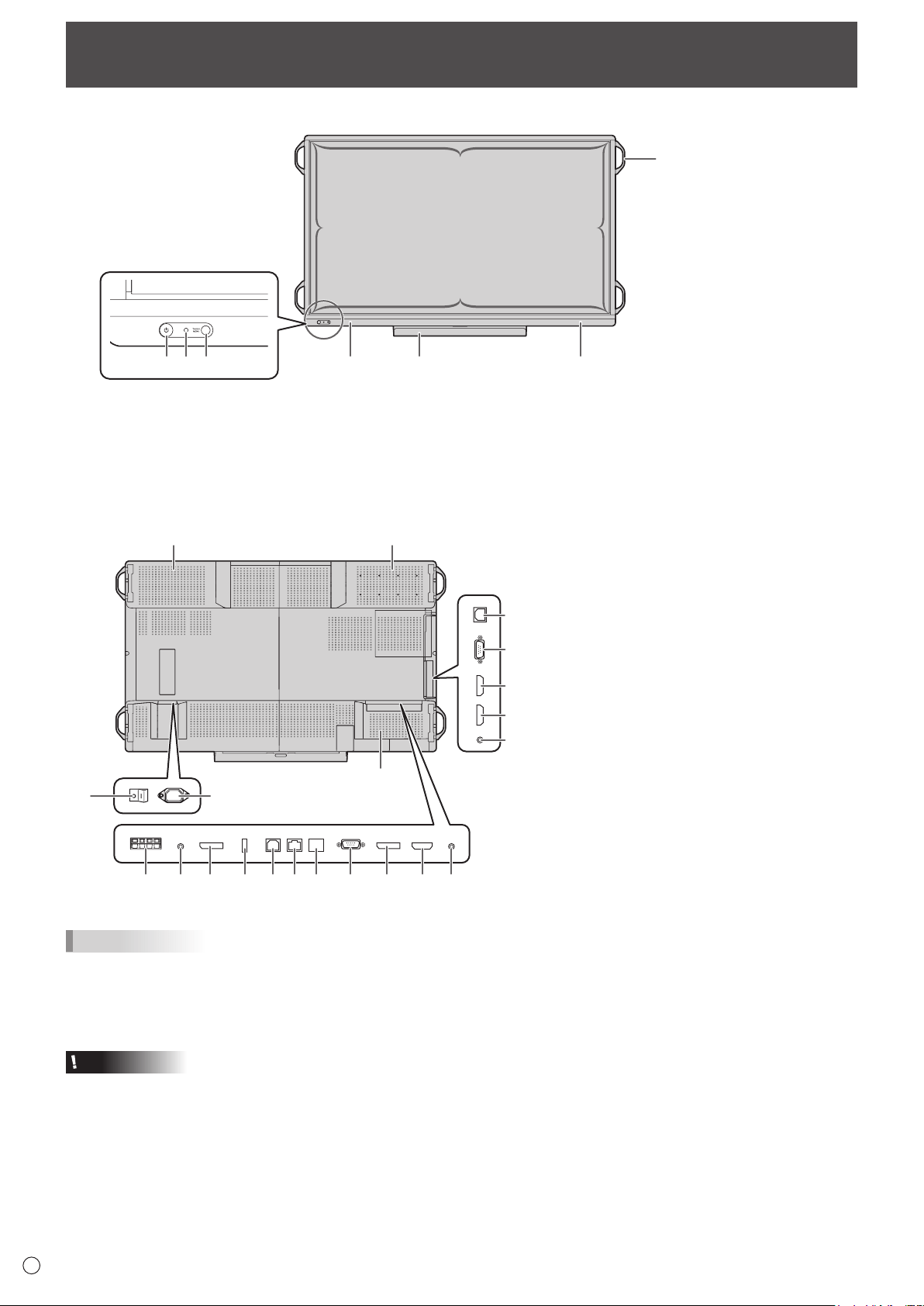

Part Names
n
Front view
123 45 5
6
77
7
7
n
Rear view
8 9
8
1110
12 13 14 15 16 17 18 19 20 21 22
23
24
25
26
27
1. Power button / Power LED (See page 17.)
2. Remote control sensor (See page 15.)
3. TOUCH MENU button (See page 24.)
8. Vents
9. Optional attachment section
This section is used to connect optional
hardware for function expansion. Offering this
attachment location is not a guarantee that
future compatible hardware attachments will be
released.
10. Main power switch (See page 17.)
11. AC input terminal (See page 14.)
12. External speaker terminals (See page 13.)
13. Audio output terminal (See page 13.)
14. DisplayPort output terminal (See page 13.)
15. Touch pen adapter port (See page 19.)
16. USB 1 port (See page 13.)
17. LAN terminal (See page 13.)
18. Optional terminal
This terminal is provided for possible future
(optional) function expansion. Offering of
this terminal is not a guarantee that future
expanded functionality will be provided.
19. D-sub 1 input terminal (See page 12.)
20. DisplayPort input terminal (See page 12.)
21. HDMI 1 input terminal (See page 12.)
22. Audio 1 input terminal (See page 13.)
23. USB 2 port (See page 13.)
24. D-sub 2 input terminal (See page 12.)
25. HDMI 2 input terminal (See page 12.)
26. HDMI 3 input terminal (See page 12.)
27. Audio 2 input terminal (See page 13.)
TIPS
• Itisconvenienttousetheterminalsforseparatepurposes;
for example, using the terminal on the bottom of the monitor
toconnectaxedcomputerandusingtheterminalonthe
side of the monitor to connect a mobile computer.
Caution
• ConsultyourSHARPdealerforattachment/detachmentof
optional parts.
4. Tray
5. Speakers
6. Handles (2 on the PN-L603B)
7. Infrared transmitter/receiver
11
E
Part Names
n
Remote control unit
1
2
3
4
5
6
11
8
7
9
10
1. Signal transmitter
2. POWER button (See page 17.)
3. MUTE button (See page 25.)
4. VOL +/- buttons (See page 25.)
BRIGHT +/- buttons (See page 25.)
Cursor control (
/ / / ) buttons
5. DISPLAY button (See page 25.)
6. MODE button (See page 25.)
7. INPUT button (See page 25.)
8. MENU button (See page 25.)
9. ENTER button (See page 25.)
10. RETURN button (See page 25.)
11. SIZE button (See page 25.)
12
E
Connecting Peripheral Equipment
Caution
• Be sure to turn off the main power switch and disconnect
the plug from the power outlet before connecting/
disconnecting cables. Also, read the manual of the
equipment to be connected.
• Be careful not to confuse the input terminal with the output
terminal when connecting cables. Accidentally reversing
cables connected to the input and output terminals may
cause malfunctions and the other problems.
• Do not use any cable that has a damaged or deformed
terminal. Using such cables may cause malfunctions.
TIPS
•
When using the touch panel, connect the USB cable to the
computer. For details, see the Touch Panel Settings Tool
Operation Manual.
• Images may not be displayed properly depending on the
computer (video card) to be connected.
• Use the automatic screen adjustment when a computer
screen is displayed for the rst time using D-SUB1 or
D-SUB2, or when the setting of the computer is changed.
The screen is adjusted automatically when SELF ADJUST
in the MONITOR menu is set to ON.
• If the audio output from the playback device is connected
directly to speakers or other devices, the video on the
monitor may appear delayed from the audio portion.
Audio should be played through this monitor by connecting
the playback device to the monitor’s audio input, and
connecting the monitor’s audio output to the speakers or
other devices.
• The audio input terminals used in each input mode are
factory-set as follows.
Input mode
Audio input terminal
(Factory setting)
D-SUB1 Audio 1 input terminal
D-SUB2 Audio 2 input terminal
DisplayPort DisplayPort input terminal
HDMI1 HDMI 1 input terminal
HDMI2 HDMI 2 input terminal
HDMI3 HDMI 3 input terminal
It is convenient to use the terminals for separate purposes;
For example, using the terminal on the bottom of the monitor
to connect a xed computer and using the terminal on the side
of the monitor to connect a mobile computer.
1. HDMI 1 input terminal
2. HDMI 2 input terminal
3. HDMI 3 input terminal
• Use a commercially available HDMI cable (conforming to
the HDMI standard).
• Set HDMI1/HDMI2/HDMI3 of INPUT SELECT on the
SETUP menu according to the device to be connected.
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
When HDMI is selected, connection to the audio input
terminal is unnecessary.
4. DisplayPort input terminal
• Use a commercially available DisplayPort cable
(conforming to the DisplayPort standard).
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
When DisplayPort is selected, connection to the audio
input terminal is unnecessary.
5. D-sub 1 input terminal
• Set D-SUB1 of INPUT SELECT on the SETUP menu
according to the device to be connected.
• To use with D-SUB1[VIDEO], connect the green terminal
to the device’s video output.
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
6. D-sub 2 input terminal
• Select the audio input terminal to be used in AUDIO
SELECT of the SETUP menu.
15 10 911121454
17
8
3
2
6
13
13
E
Connecting Peripheral Equipment
7. Audio 1 input terminal
8. Audio 2 input terminal
• Use an audio cable without resistance.
• Set the audio input terminal to be used in each input
mode in AUDIO SELECT on the SETUP menu.
9. DisplayPort output terminal
• The screen displayed on the monitor and the audio output
from the monitor can be output to an external device.
• Use a commercially available DisplayPort cable
(conforming to the DisplayPort standard).
• Outputting HDCP-encrypted video requires an external
device which supports HDCP.
10. Audio output terminal
• The output sound varies depending on the input mode.
• The volume of the output sound can be xed by setting
AUDIO OUTPUT of AUDIO OPTION on the SETUP
menu.
• It is not possible to control the sound output from the
audio output terminals with the AUDIO menu.
11. Touch pen adapter port
• Use when an active pen is used. (See page 19.)
12. USB 1 (type B) port
• To use the touch panel with the computer connected to
the bottom, connect the touch panel to the computer with
the USB cable.
(Factory setting. Can be changed in TOUCH INPUT
SELECT on the SETUP menu.)
13. USB 2 (type B) port
• To use the touch panel with the computer connected to
the side, connect to the computer with the USB cable.
(Factory setting. Can be changed in TOUCH INPUT
SELECT in the SETUP menu.)
14. LAN terminal
• You can control the monitor from a computer on a network
by connecting a commercially available LAN cable
between this terminal and a network.
15. External speaker terminals
• To use external speakers, set SPEAKER SELECT to
EXTERNAL in AUDIO OPTION on the SETUP menu.
• Be sure to use external speakers with an impedance of 6 Ω
or greater and a rated input of at least 10 W.
12
1. While pushing the tab, insert the tip of the cable.
2. Release the tab.
TIPS
• Be sure to connect the + and - terminals and the left and
right speakers properly.
• Avoid short circuiting the + and - terminals.
• When SPEAKER SELECT is set to EXTERNAL, the
internal speakers are disabled.
14
E
Connecting the Power Cord
Caution
• Use only the power cord supplied with the monitor.
1. Turn off the main power switch.
2. Plug the power cord (supplied) into the AC input terminal.
3. Plug the power cord (supplied) into the AC power outlet.
Binding Cables
AC input terminal
2
1
Main power switch
Power cord (Supplied)
For power
outlet
3
Cable
Cable clamp
(insertion type)
*1 *2
*1
*1
*2
*1
*2 *2 *2
*2
Cable clamp
Cable
Cable clamp
attachment
Cable clamp
attachment
PN-L703B only
The cables connected to the terminals on the rear of the
monitor can be fastened with the cable clamp.
15
E
Preparing the Remote Control Unit
Installing the batteries
1. Press the cover gently and slide it in the direction of the
arrow.
2. See the instructions in the compartment and put in the
supplied batteries (R-6 (“AA” size) x 2) with their plus (+)
and minus (-) sides oriented correctly.
3. Close the cover.
TIPS
• When the batteries become exhausted, replace them with
new (commercially available) batteries.
• The supplied batteries (R-6 (“AA” size) x 2) may become
exhausted quickly depending on how they are stored.
• If you will not be using the remote control for a long time,
remove the batteries.
• Use manganese or alkaline batteries only.
Remote control operation range
The operation range of the remote control unit is approx. 16.4
feet (5 m) at an angle of approx 10° from the center to the top/
bottom/right/left of the remote control sensor.
10°10°
10°
10°
Remote
control sensor
16.4
feet
(5 m)
TIPS
• Do not expose the remote control unit to shock by dropping
or stepping on it. This could lead to a malfunction.
• Do not expose the remote control unit to liquids, and do not
place it in an area with high humidity.
• The remote control unit may not work properly if the remote
control sensor is under direct sunlight or strong lighting.
• Objects between the remote control unit and the remote
control sensor may prevent proper operation.
• Replace the batteries when they run low as this may
shorten the remote control’s operation range.
• If a uorescent light is illuminated near the remote control
unit, it may interfere with proper operation.
• Do not use it with the remote control of other equipment
such as air conditioner, stereo components, etc.
16
E
Removing the Handles
Mounting a web camera
The handles can be removed.
Handle
Handle screws
Caution
• The removable handles and handle screws are for use with this monitor. Do not use them for any other devices.
• To attach handles, be sure to use the handles and handle screws which were removed from this monitor.
• Be sure the handles are attached securely.
(1)
(2)
(3)
It is possible to mount a commercially available web camera in the following positions:
Mounting on the tray
Attach the web camera to the mounting hole on the right or left
side of the tray with the supplied camera screw (inch thread)
(x1).
Mounting on the top of the monitor
(1) Remove the screws from the monitor.
(2) Attach the supplied camera mount with the screws of (1)
(x2).
(3) Attach the web camera to the camera mount with the
supplied camera screw (inch thread) (x1).
17
E
Caution
• Turn on the monitor rst before turning on the computer or
playback device.
Turning on the main power
Main power switch
Caution
• The main power must be turned on/off with the main power
switch. Do not connect/disconnect the power cord or turn
the breaker on/off while the main power switch is on.
• When switching the main power switch or the POWER
button off and back on, always wait for at least 5 seconds.
• For a complete electrical disconnection, pull out the main
plug.
Turning Power On/Off
Turning power on/off
Press the POWER button to turn the power ON/OFF.
POWER button / Power LED
Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby mode)
Green ashing Input signal waiting mode
Caution
• When switching the main power switch or the POWER
button off and back on, always wait for at least 5 seconds.
A short interval may result in a malfunction.
TIPS
• When the main power switch is off, the monitor cannot be
turned on.
• If the monitor is in input signal waiting mode and you press
the POWER button on the remote control unit, the monitor
enters standby mode.
• Setting the SCHEDULE ashes the power LED alternately
in red and orange in standby mode.
• To disable the logo screen from displaying when turning the
power ON, set LOGO SCREEN to OFF on the OTHERS
menu. (See page 35.)
18
E
Turning Power On/Off
n
Date/time setting
• If the time has yet to be set when the monitor is rst turned
on, the date/time setting screen appears. Set the date and
time.
DATE/TIME SETTING
//
OK···[ENTER] CANCEL···[RETURN]
: :
01 01 14
/
12 AM00
:/ 20
1. Press or to select the date and time, and
press
or to change the numerical values.
2. Press
ENTER
.
• Be sure to set the date and time.
• The date/time setting screen will close automatically if
no operation is performed for about 15 seconds. The
date and time can be set using DATE/TIME SETTING
from the SETUP menu when the date/time setting screen
disappears.
TIPS
•
Set the date in “Month/Day/Year” order.
•
Set the time on a 12-hour basis.
•
The clock is maintained by the internal battery.
•
If you already set the time but the date/time setting
screen appears when the power is turned on, the
internal battery may be exhausted. Please contact
your local SHARP servicing dealer or service center for
assistance with battery replacement.
•
Estimated service life of the internal battery: About 5
years (depending on monitor operation)
•
The initial battery was inserted at the factory when the
monitor was shipped, so it may run out of power before
its expected operation life.
19
E
Touch Panel / Touch Pen Preparations
Touch Pen
Pen tip
TIPS
• Ifthepentipbecomeswornordamaged,replaceit.
Computer preparations
Tousethetouchpanel,installthesoftwarebelow.
• TouchPanelSettingsTool
• PenSoftware
Toinstallthesoftware,seethemanualforeach.
Calibration
Calibrationisusedtoperformpositionalignmentsothatthe
mousecursormovestothecorrectpositionwhenthescreen
istouched.
PerformcalibrationfromtheTouchPanelSettingsTool.For
details,seetheTouchPanelSettingsToolOperationManual.
Touch Pen (sold separately)
Inthismanual,“activepen”referstoaseparatelysoldtouch
pen.
TIPS
• Theactivepenisnotavailableinsomecountries/regions.
Fordetails,consultyourdealer.
Touseanactivepen,thetouchpanelandcomputermust
beconnected,andTouchPenUtilitymustbeinstalledonthe
computerfromtheCD-ROMsuppliedwiththemonitor.
Toinstallthesoftware,seetheTouchPenUtilityOperation
Manual.
• Upto4activepenscanbeusedsimultaneously.(Upto
10activepenscanberegistered.)Whenactivepensare
added,theycanbeusedtowritesimultaneously,anda
differentcolorcanbesetforeachpen.
• Touseanactivepenwiththemonitor,connectthetouch
penadaptertothemonitor.
• TousethePN-ZL02withthemonitor,theactivepenmust
beregisteredinthetouchpenadapter(pairing).
(ThePN-ZL01isalreadypaired.)
Item Model Remarks
Touchpen PN-ZL01 Touchpenadapterand
activepenset
PN-ZL02 Additionalactivepen
n
Connecting the touch pen adapter
Tousetheactivepen,insertthetouchpenadapterintothe
touchpenadapterportonthemonitor.
Touch pen
adaptor
Touch pen
adapter screw
(antitheft)
Touch pen
adapter port
n
Active Pen Preparations
Inserting the battery
1. Remove the battery cap.
2. Open the cover and insert the supplied battery (LR-03
(“AAA” size)) into the active pen.
Checktheplus(+)andminus(-)markingsontheinside
oftheactivepenandinsertthebatteryinthecorrect
orientation.
Battery cap
1
2
3. Replace the cover and battery cap.
TIPS
• Thesuppliedbattery(LR-03(“AAA”size))maybe
exhaustedinashorttime,dependingonhowitwasstored.
• Iftheactivepenwillnotbeusedforanextendedtime,
removethebatteryfromtheactivepen.
• Forthebattery,useanalkalinebattery.
20
E
Touch Panel / Touch Pen Preparations
n
Adding active pens (pairing)
Perform active pen pairing for one pen at a time.
1. Click the touch pen utility icon (
) on the taskbar.
2. Click [Touch pen settings].
3.
Select a line in the touch pen settings screen that does
not have an active pen registered, and click [Registration].
4. Simultaneously hold down function button 1 and
function button 3 of the active pen being paired for at
least 5 seconds (approx.).
5. When the battery indicator blinks, release function
button 1 and function button 3.
A message appears after completion of pairing.
6. Click [OK].
TIPS
• When multiple active pens are used, touch positions
and pen information (color, thickness, etc.) may become
interchanged, and lines may break.
- When touched simultaneously.
- When pens are moved near each other.
- When batteries are low.
- When other wireless equipment is operating nearby.
• Do not press the pen tip on other than the display. This may
cause malfunctioning.
• An active pen cannot be registered in multiple touch pen
adapters at once.
• You can afx the supplied ID labels to the PN-ZL02 to
distinguish the active pens.
n
Active pen actions
Pen tip
Battery indicator
Function button 1 Function button 3
Function button 2
Functions can be assigned to the function buttons. For details,
see the Touch Pen Utility Operation Manual.
The factory default settings are as follows.
• Function button 1 : Right mouse click
• Function button 2 : PageDown
• Function button 3 : PageUP
When the function button is pressed, the battery indicator
illuminates.
If the battery indicator does not illuminate, check if the battery
is depleted.
TIPS
• Use function buttons near the front of the screen. If too far
away, operation will not be possible.
• Press function buttons slowly and rmly. If pressed too
quickly, the action may not be recognized.
• The line may break if the active pen battery is low or there
is other wireless equipment in operation nearby.
• If the pen tip becomes worn or damaged, replace it.
n
Active pen settings
Active pen settings are congured using the Touch Pen Utility.
For details on the settings and how to use the utility, see the
Touch Pen Utility Operation Manual.
21
E
Touch action
Touch action
Touch actions that can be used with this monitor differ
according to operating system and application. The functions
of touch actions are also different. For details, check Windows
Help and the application’s support documentation.
Touch Operation
Mode
Multi-Touch Mode Mouse Mode
OS
Touch action
Windows 8 /
8.1
Windows 7
Windows
7 / 8 / 8.1
Single-tap
Yes Yes Yes
Double-tap
Yes Yes Yes
Swipe
Yes Yes No
Swipe from edge of
screen
Yes No No
Drag-and-drop
Yes Yes Yes
Slide to pan
Yes Yes No
Flicks
Yes Yes No
Press-and-hold
Yes Yes Yes*
Zoom
Yes Yes No
Press-and-tap
No Yes No
Rotate
Yes Yes No
* When “Recognize press and hold as right click” is set with
the Touch Panel Settings Tool.
The action may be different from a mouse right-click in
some cases.
TIPS
• In Windows 7, if the checkmark has been removed from
“Enable multi-touch gestures and inking” in “Pen and touch”
in Control Panel, select the checkbox.
• For the procedures for using the touch pen in the Pen
Software, see the Pen Software Operation Manual.
n
Common nger and touch pen actions
Single-tap
Same action as left-clicking a mouse.
Touch with your nger/touch pen.
Double-tap
Same action as double-clicking a mouse.
Quickly touch twice with your nger/touch pen.
When double-tapping with your nger, be sure to lift your
nger sufciently off the screen after the rst tap. If there
is insufcient distance between the screen and your nger,
double-tap will not take place.
Swipe
Touch the screen with your nger/touch pen, move without
lifting, and then stop.
Swipe from edge of screen
After touching the edge of the monitor with your nger/touch
pen, move horizontally without releasing your nger/touch
pen and then stop.
22
E
Touch action
Drag-and-drop
Same action as drag-and-drop with a mouse.
Touch the screen with your nger/touch pen and move without
lifting. When you have nished the movement, lift your nger/
touch pen.
Flicks
Flick your nger/touch pen in the direction of the function you
want to use.
Flick your nger
Press-and-hold
Same action as right-clicking a mouse.
Press briey with your nger/touch pen, and then lift your
nger/touch pen from the screen.
Slide to pan
With your nger/touch pen touching the screen, move it up
and down to scroll the screen.
n
Finger actions
Zoom
Use in a screen that is capable of enlargement/reduction.
Touch the screen with two ngers and move your ngers
closer together to reduce the view, or apart to enlarge the
view.
Reduction
Enlargement
Press-and-tap
Same action as right-clicking a mouse.
With one nger touching the screen, tap once (single tap) with
another nger.
With one nger touching
Tap once (single tap) with another nger
23
E
Touch action
Rotate
Use this action in a screen that is capable of image rotation.
Touch the center point of the rotation with one nger. While
holding that nger still, move another nger in the desired
direction of rotation.
With one nger touching
Move another nger in the
desired direction of rotation
TIPS
•
The screen may not respond correctly in the following cases:
Touch gesture is too quick
The distance between the two points is too short
The two points intersect
•
Operation with the touch pen is not possible.
Other functions
In Windows 8/8.1, input panel functions can be used.
In Windows 7, touch pointer and input panel functions can be
used.
For information on these functions, see Windows Help.
Touch pointer :
A translucent image of a mouse appears near the point
touched. The left/right buttons of the image can be clicked
to perform the same actions as left/right clicking a mouse.
Input panel :
A software keyboard and an input panel with handwriting
recognition appear on the screen.
Windows 8/8.1 and Windows 7 (excluding Starter), the ink
function of Microsoft Ofce can be used.
Handwritten comments can be written, and handwriting can
be recognized.
For details, see Microsoft Ofce Help.
Cautionary points
• Do not use the touch pen for any purpose other than touch
panel operation.
• Do not press hard on the pen tip.
• Operation will not take place correctly if there is an obstacle
between the infrared transmitter/receiver and the touch pen
or your nger. Operation will not take place correctly if your
ngers or your sleeve is near the screen.
• If the touch pen is held too at against the screen, the
touch position may not be correctly detected.
• If the touch pen does not work at the edge of the screen,
move it slowly.
• This may not operate correctly if there is an inverter
uorescent light nearby.
• Do not store with the pen tip of the active pen or function
button pressed. The battery will be exhausted.
• If there is dirt or foreign matter on the tip of the touch pen,
remove it. Foreign matter may damage the screen.
• The touch pen position may occasionally deviate in the
login screen. In this case, use the keyboard or mouse.
• If the USB cable becomes disconnected, the touch
panel may not operate correctly after the USB cable is
reconnected. In this case, restart the computer.
Eraser
The eraser is used with the Pen Software. For the procedure for
using the eraser, refer to the Pen Software Operation Manual.
Caution
• When using the eraser, gently bring the cloth side into
contact with the screen. Touching the screen with one of
the non-cloth sides will damage the screen.
•
If there is any dirt or foreign matter on the surface that contacts
the screen, remove it. Foreign matter may damage the screen.
24
E
Basic Operation
Using the touch menu
You can touch the monitor to change input mode, volume, and
other settings.
1. Press the TOUCH MENU button.
TOUCH MENU button
2. Touch the screen to change settings.
INPUT
BOTTOM INPUT TERMINAL
DisplayPort
HDMI1
D-SUB1
SIDE INPUT TERMINAL
HDMI2
HDMI3
D-SUB2
(4) (1) (2) (3)
(1) INPUT (Input mode selection)
Changes the input mode.
Input mode Video Audio
DisplayPort DisplayPort input terminal
*5
HDMI1 HDMI1 input terminal
*1
HDMI2 HDMI2 input terminal
*2
HDMI3 HDMI3 input terminal
*3
D-SUB1 D-sub1 input terminal
*4
D-SUB2 D-sub2 input terminal
• Whentheinputmodeischanged,thetouchpanel
connection also changes. You can set whether the side or
bottom USB port is used in each input mode. (See page
32.)
*1 Select the terminal to be used in HDMI1 of INPUT
SELECT. (See page 31.)
*2 Select the terminal to be used in HDMI2 of INPUT
SELECT. (See page 31.)
*3 Select the terminal to be used in HDMI3 of INPUT
SELECT. (See page 31.)
*4 Select the terminal to be used in D-SUB1 of INPUT
SELECT. (See page 31.)
*5 Select the terminal for AUDIO SELECT which is used for
audio input. (See page 31.)
(2) Volume adjustment
Changes the volume.
15
Mutes the sound.
Touch again to return the sound to the original
volume.
Increases the volume.
Decreases the volume.
(3) Touch action setting
Touch to disable touch action.
Touch again to enable touch action.
TIPS
• Whentheinputmodeischanged,thedisabletouch
action setting is canceled.
• WhenTOUCHOUTPUTINVALIDICONissettoONand
touchactionisdisabled,theTOUCHOUTPUTINVALID
icon appears in the monitor.
• YoucantouchtheTOUCHOUTPUTINVALIDiconinthe
monitor to enable touch action.
• ThepositionoftheTOUCHOUTPUTINVALIDiconcan
be changed. (See page 33.)
• TheTOUCHOUTPUTINVALIDiconappearsevenwhen
a USB cable is not connected.
(4) Exit touch menu
Closes the touch menu.
TIPS
• Thetouchmenucanalsobeusedwiththeremotecontrol
unit.
(1) Hold down
DISPLA
Y
at least 5 seconds.
The touch menu appears.
(2) Select the setting item with
.
(3) Set with
, and press
ENTER
.
- The setting is entered.
- Press
RETURN
to exit the touch menu.
25
E
Using the remote control unit
1
2
3
4
5
8
9
10
7
6
1. INPUT (Input mode selection)
The menu is displayed. Press
or to select the input
mode, and press
ENTER
to enter.
* For the input modes that can be selected, see “Using the
touch menu” (See page 24.).
2. MUTE
Turns off the volume temporarily.
Press the MUTE button again to turn the sound back to the
previous level.
3. MENU
Displays and turns off the menu screen. (see page 27.)
4. VOL +/- (Volume adjustment)
Pressing
or displays the VOLUME menu when the
menu screen is not displayed.
15
Press or to adjust the volume of the sound.
* If you do not press any buttons for about 4 seconds, the
VOLUME menu automatically disappears.
* You can also change the setting by touch action.
5. BRIGHT +/- (Backlight adjustment)
Pressing
or displays the BRIGHT menu when the
menu screen is not displayed.
BRIGHT 15
Press or to adjust the brightness.
* If you do not press any buttons for about 4 seconds, the
BRIGHT menu automatically disappears.
6. ENTER
Conrms the setting.
7. RETURN
Returns to the previous screen.
8. SIZE (Screen size selection)
The menu is displayed.
Press
or to select the screen size. (See page 26.)
9. DISPLAY
Displays monitor information.
The display changes from INFORMATION1 →
INFORMATION2 → clear display, and so on every time you
press this button.
• The display disappears automatically after about 15
seconds.
•
LAN
is displayed during LAN communication.
• If
LAN
is displayed in red, there is a duplicate IP address.
10. MODE (Color mode selection)
Each time you press this button, the color mode changes in
the following order:
STD (Standard) → VIVID → sRGB →
HIGH ILLUMINANCE → STD...
• sRGB applies to PC input only.
sRGB is international standard of color representation
specied by IEC (International Electrotechnical
Commission). Color conversion is made in taking account
of liquid crystal’s characteristics and represents color tone
close to its original image.
• HIGH ILLUMINANCE is a display with colors suited to
bright locations.
Basic Operation
26
E
Basic Operation
n
Switching the screen size
Even when the screen size is changed, the display may remain the same depending on the input signal.
WIDE PC input Displays image so it lls the entire screen.
AV input An image with a 4:3 aspect ratio is stretched to ll the entire
screen.
ZOOM 1
PC input An image with a 4:3 aspect ratio is enlarged to ll the entire screen
without changing the aspect ratio. The edges of the image may be
cut off.
AV input
ZOOM 2
PC input Use this size if ZOOM 1 cuts off the subtitles.
AV input
NORMAL
PC input Displays image so it lls the screen without changing the aspect
ratio of the input signals.
AV input Displays the entire image of the aspect ratio of 4:3 without
changing the aspect ratio.
Dot by Dot
PC input Displays the dots of the signals input from the connected PC as
the corresponding dots on the screen.
AV input Displays the dots of the input signals as the corresponding dots on
the screen.
TIPS
• Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial
or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright
Law, so please be careful.
• When dual-screen display is selected, the screen size cannot be changed.
• The appearance of the original video may change if you select a screen size with a different aspect ratio than the original
image (e.g. TV broadcast or video input from external equipment).
• When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this
monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen
size to “NORMAL”.
• When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen
size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the
edges of the screen. This is due to the characteristics of the software, and is not a malfunction.
• Depending on the original image size, black bands may remain at the edges of the screen.
27
E
Menu Items
Displaying the menu screen
Video and audio adjustment and settings of various functions
are enabled. This section describes how to use the menu
items. See pages 28 to 35 for details of each menu items.
Caution
• Do not turn the main power switch off while the menu items
are being displayed. Doing so may initialize the settings.
n
Example of operation
(Adjusting CONTRAST in the PICTURE menu)
1. Press
MENU
to display the menu screen.
1 920x1080
V: 60 Hz H: 67.5 kHz
SCREEN
AUDIO
SETUP
MONITOR
PIP/PbyP
OTHERS
AUTO
CLOCK
PHASE
H-POS
V-POS
H-SIZE
V-SIZE
RESOLUTION SETTING
RESET
600
25
610
37
50
50
SCREEN D-SUB1[RGB]
OK···[ENTER] BACK···[RETURN]
2. Press
or
to select PICTURE, and press
ENTER
.
3. Press
or
to select CONTRAST.
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
31
30
30
30
30
12
SCREEN
AUDIO
SETUP
MONITOR
PIP/PbyP
OTHERS
BACK···[RETURN]MOVE OSD···[DISPLAY]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB1[RGB]
4. Press or
to adjust the setting.
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
31
40
30
30
30
12
SCREEN
AUDIO
SETUP
MONITOR
PIP/PbyP
OTHERS
BACK···[RETURN]MOVE OSD···[DISPLAY]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB1[RGB]
For items that have , press
ENTER
, make settings and
then press
RETURN
.
5. Press
MENU
to close the menu screen.
TIPS
• The menu will differ depending on the input mode.
• The menu screen will close automatically if no operation is
performed for about 15 seconds. (DATE/TIME SETTING,
SCHEDULE and LAN SETUP screens will close in about 4
minutes.)
n
Menu screen display
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
31
30
30
30
30
12
SCREEN
AUDIO
SETUP
MONITOR
PIP/PbyP
OTHERS
BACK···[RETURN]MOVE OSD···[DISPLAY]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB1[RGB]
1
23
4
1 Name of the menu
2 Input mode
3 An item being selected (highlighted)
4 Screen resolution of input signal, and other data.
TIPS
• Items that cannot be selected appear in gray.
(e.g. Function not supported by the current input signal)
28
E
Menu Items
Menu item details
The menu will differ depending on the input mode.
n
SCREEN
You can move the menu screen display position each time
DISPLAY
is pressed.
AUTO (D-SUB1[RGB]/D-SUB2)
The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.
Pressing
ENTER
performs adjustment. Use this automatic adjustment when you use the D-SUB1[RGB] or D-SUB2 to display a
computer screen for the rst time or when you change the setting of the computer. (See page 38.)
CLOCK (D-SUB1[RGB]/D-SUB2)
Adjusts frequency for sampling clock for applicable video.
Adjust when there is ickering in the form of vertical stripes.
When using the adjustment pattern (see page 38.), make adjustments so that no vertical stripe noise appears in it.
PHASE (D-SUB1[RGB]/D-SUB2)
Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/or there are
ickers at corners. When using the adjustment pattern (see page 38.), make adjustments so that no horizontal stripe noise
appears in it.
* Adjustments to PHASE should be made only after CLOCK has been correctly set.
H-POS
Adjust the horizontal position of the image.
V-POS
Adjust the vertical position of the image.
H-SIZE
Adjust the horizontal size of the image.
V-SIZE
Adjust the vertical size of the image.
RESOLUTION SETTING (D-SUB1[RGB]/D-SUB2)
H-RESOLUTION
Sets proper horizontal resolution when the resolution of input signals is not recognized properly.
(Adjustment may be impossible with some signals.)
V-RESOLUTION
Sets proper vertical resolution when the resolution of input signals is not recognized properly.
(Adjustment may be impossible with some signals.)
RESET
Resets the values of the SCREEN menu items to the factory preset values.
Select “ON” and then press
ENTER
.
29
E
Menu Items
n
You can move the menu screen display position each time
DISPLAY
is pressed.
BRIGHT
Adjusts the backlight brightness. (In PIP mode, the main side setting is reected in the image.)
CONTRAST
Adjusts the difference between the bright and dark portions of the image.
BLACK LEVEL
Adjusts the entire brightness of the video signals.
TINT
Adjusts the hue. Selecting + changes the color towards green, and selecting - changes it towards magenta.
COLORS
Adjusts the color intensity.
SHARPNESS
Adjusts the sharpness of the image.
COLOR ADJUSTMENT
COLOR MODE
Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See
page 25.)
* sRGB is PC input only. See page 25 for details.
(In PIP mode, the main side setting is reected in the image.)
WHITE BALANCE
THRU ..............Displays the input signal level as is. (for PC input only)
PRESET ..........Selects the color temperature using PRESET.
USER .............. Used for adjusting R-/G-/B-CONTRAST and R-/G-/B-OFFSET respectively.
(In PIP mode, the main side setting is reected in the image.)
PRESET
Selects the color temperature when the WHITE BALANCE is set to PRESET.
The setting values are shown for reference. The color temperature of the screen varies over time. This function is not
intended to keep the color temperature constant.
USER
Adjusts each item when the WHITE BALANCE is set to USER.
R-CONTRAST .... Adjusts bright-toned red component.
G-CONTRAST ... Adjusts bright-toned green component.
B-CONTRAST .... Adjusts bright-toned blue component.
R-OFFSET ......... Adjusts dark-toned red component.
G-OFFSET ......... Adjusts dark-toned green component.
B-OFFSET ......... Adjusts dark-toned blue component.
COPY TO USER
Copies the value of PRESET to the USER setting.
Select “ON” and then press
ENTER
.
(In the case other than white, color tone may differ from the PRESET.)
GAMMA
Selects the gamma. USER sets the gamma to the sent value (see page 57.).
(In PIP mode, the main side setting is reected in the image.)
FLESH TONE (AV input)
Adjust the hue control.
When FLESH TONE is set to LOW or HIGH, C.M.S.-HUE/-SATURATION/-VALUE cannot be set.
C.M.S.-HUE (AV input)
Adjusts color tone with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).
C.M.S.-SATURATION (AV input)
Adjusts color vividness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).
C.M.S.-VALUE (AV input)
Adjusts color brightness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).
30
E
Menu Items
ADVANCED
AUTO (D-SUB1[RGB]/D-SUB2)
The ANALOG GAIN and ANALOG OFFSET are automatically adjusted.
Pressing
ENTER
performs adjustment.
ANALOG GAIN (D-SUB1[RGB]/D-SUB2)
Adjusts the bright portions of the video input signal.
ANALOG OFFSET (D-SUB1[RGB]/D-SUB2)
Adjusts the dark portions of the video input signal.
3D-NR (AV input)
Reduce the noise of playback images on video.
Setting a higher level reduces more noise. However, it may cause blurring on an image.
MPEG-NR (AV input)
Reduce block noise caused by digital compression.
3D-Y/C (D-SUB1[VIDEO])
Specify whether to perform 3-dimension Y/C separation.
If dot interference or cross-color is occurring in fast-motion scenes, selecting “OFF” may improve the image quality.
RGB INPUT RANGE (HDMI[PC]/HDMI[AV]/D-SUB1[RGB]/D-SUB2/DisplayPort)
Sets the RGB input signal range. When using HDMI or DisplayPort set to AUTO, the RGB input signal range is detected
automatically. Use AUTO normally.
If the RGB input signal range cannot be set appropriately even when using AUTO, set according to the image. When the
setting is different, images will be displayed with washed out blacks and compressed gradients.
ACTIVE CONTRAST (AV input)
Automatically adjusts the contrast according to the image.
(In PIP mode, the main side setting is reected in the image.)
The adjustment operation may not be smooth depending on the image. In this case select OFF.
DISPLAY COLOR PATTERN
Displays a color pattern. Can be displayed while the menu screen is displayed, so you can refer to the pattern while adjusting
the image.
OFF ...............No pattern display.
WHITE ...........White single color pattern display.
RED...............Red single color pattern display.
GREEN .........Green single color pattern display.
BLUE .............Blue single color pattern display.
USER ............Red/green/blue mixed color pattern display. When USER is selected, set each color’s level.
RESET
Resets the values of the PICTURE menu items to the factory preset values.
Select “ON” and then press
ENTER
.
31
E
Menu Items
n
AUDIO
TREBLE
Adjusts the volume of treble-level sound.
BASS
Adjusts the volume of bass-level sound.
BALANCE
Adjusts the balance of the audio sound between right and left.
RESET
Resets the values of the AUDIO menu items to the factory preset values.
Select “ON” and then press
ENTER
.
n
SETUP
DATE/TIME SETTING
Set the date and time. Press
or
to select the date and time, and press
or
to change the numerical values.
Set the date in “Month/Day/Year” order.
Set the time on a 12-hour basis. (Factory default)
DATE/TIME FORMAT
Sets the date/time display format.
DATE ..................MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD
(YYYY: Year, MM: Month, DD: Day)
TIME ...................Select 12- or 24-hour time.
SCHEDULE (See page 37.)
You can turn the power on/off and change the screen brightness at a specied time.
LANGUAGE
Sets the display language for the menu screen.
INPUT SELECT
HDMI1/HDMI2/HDMI3
Select the input mode to be used in HDMI1, HDMI2 and HDMI3 input terminals.
D-SUB1
Select the input mode to be used in D-Sub1 input terminal. Select SET after selecting the input mode, and then press
ENTER
.
HDMI AUTO VIEW
When ON is selected, the screen size is adjusted automatically according to the screen size control signal included in the
video signal input from the AV HDMI input terminal.
HOT PLUG CONTROL
Sets whether to use hot plug control for the HDMI1, HDMI2, and HDMI3 input terminals.
INPUT MODE NAME
For each terminal, you can change the input mode name that is displayed during input mode selection and display.
AUDIO SELECT
Selects the terminal used to input audio signals in each input mode.
AUDIO OPTION
SPEAKER SELECT
Selects the speaker to be used.
AUDIO OUTPUT
Sets the volume of sound output from the audio output terminals.
When set to VARIABLE 2, sound will not be output from the built-in speaker or the external speaker terminal.
VARIABLE1 ........ You can adjust the volume using VOLUME.
VARIABLE2 ........ You can adjust the volume using VOLUME.
FIXED................. Fixes the sounds.
AUDIO INPUT LEVEL 1/2
Selects the maximum audio input level of the audio input 1, 2 terminals.
32
E
TOUCH INPUT SELECT
These settings enable use of the touch panel according to input mode selection.
BOTTOM USB
Sets which input mode the touch panel connected to the USB 1 port is used in. Select the terminal into which the video
signal of the computer connected to the USB 1 port will be input.
When BOTTOM INPUT TERM. is selected and the input mode is DisplayPort, HDMI1, or D-SUB1, the touch panel can be
used with the computer connected to the USB 1 port.
When “-“ is selected, the touch panel cannot be used.
SIDE USB
Sets which input mode the touch panel connected to the USB 2 port is used in. Select the terminal into which the video
signal of the computer connected to the USB 2 port will be input.
When SIDE INPUT TERM. is selected and the input mode is HDMI2, HDMI3, or D-SUB2, the touch panel can be used with
the computer connected to the USB 2 port.
When “-“ is selected, the touch panel cannot be used.
LAN SETUP
Congures the settings to control the monitor from the computer via LAN. (See page 40.)
Menu Items
33
E
n
MONITOR
OSD H-POSITION
Adjusts the horizontal display position of menu screen.
OSD V-POSITION
Adjusts the vertical display position of menu screen.
STANDBY MODE
When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed
in standby mode.
When LOW POWER is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the
startup time from standby mode becomes longer.
When LOW POWER is set, LAN control is not possible in standby mode.
OFF IF NO OPERATION
Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit,
or LAN for over 4 hours.
POWER ON DELAY
If SET is set to ON, you can delay the screen display after the monitor is turned on. When ON is selected, set the delay time
with INTERVAL (interval can be set up to 60 seconds in units of 1 second).
When this function is activated, the power LED ashes (at approx. 0.5 second interval) in green.
SELF ADJUST
On a D-SUB1[RGB]/D-SUB2 screen, specify whether to perform screen adjustment automatically or not.
When ON is selected, the screen is automatically adjusted when its resolution is 800 x 600 or higher and the timing of input
signals changes. “ADJUSTING” appears on the screen during the adjustment.
If SELF ADJUST is set to ON, set the time it takes to start the SELF ADJUST function in START TIMING.
For images with black edges, etc., depending on the signal, adjustment may not be possible. In this case select OFF. (Perform
manual adjustment of the screen.)
TOUCH OUTPUT INVALID DISP.
TOUCH OUTPUT INVALID ICON
Sets whether the TOUCH OUTPUT INVALID icon is displayed when touch action is disabled.
CHANGE DISPLAY POSITION
Sets the display position of the TOUCH OUTPUT INVALID icon.
TOUCH OPERATION MODE
Select the touch mode.
AUTO .............................. Automatically switches between MOUSE MODE and MULTI-TOUCH MODE.
MOUSE MODE ............... Touch information is output as mouse information.
MULTI-TOUCH MODE ... Touch information is output as digitizer information.
* If Touch Panel Settings Tool is installed on your computer, set with the Touch Panel Settings Tool.
* The touch panel must be connected in order to congure this setting.
TOUCH PANEL MODE (PC input)
When the resolution is 1920 x 1080, setting this to ON improves touch panel tracking.
When two screens are displayed, or when V-POS or V-SIZE is adjusted on the SCREEN menu, the screen may become
distorted. In this event, set to OFF.
Menu Items
34
E
n
PIP/PbyP
PIP MODES
Sets the display method.
OFF ...........Displays one screen.
PIP .............Displays a sub screen inside a main screen.
PbyP ..........Displays a main screen and a sub screen in a line.
PbyP2 ........Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.
PIP SIZE
Sets the size of the sub screen in PIP mode.
PIP H-POS
Adjusts the horizontal position of the sub screen in PIP mode.
PIP V-POS
Adjusts the vertical position of the sub screen in PIP mode.
PIP BLEND
In PIP mode, use this menu item to display the sub screen transparently.
PIP SOURCE
Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.
SOUND CHANGE
Sets the sound which is output in PIP, PbyP, or PbyP2 mode.
If the main screen is displayed as a full screen by the AUTO OFF function, the sound for the main screen is output even when
the sound for the sub screen is specied.
MAIN POS
Sets the position of the main screen in PbyP or PbyP2 mode.
PbyP2 POS
Sets the position of the sub screen in PbyP2 mode.
AUTO OFF
Sets the display method when no signals for the sub screen are input in PIP, PbyP, or PbyP2 mode.
MANUAL .... Displays a main screen and a black sub screen.
AUTO .........Displays the main screen as a full screen.
Menu Items
35
E
n
OTHERS
SCREEN MOTION
PATTERN
Residual images are reduced by moving the screen.
OFF ................. SCREEN MOTION function is disabled.
PATTERN1 ...... The whole screen moves vertically and horizontally.
PATTERN2 ...... A black screen spreads from the bottom of the screen and then shrinks to the bottom of the screen.
PATTERN3 ...... A black bar moves from the left end to the right end of the screen.
PATTERN4 ...... Black screens appear from both the top and bottom of the screen, and the displayed image is compressed
into the central eld.
PATTERN1 PATTERN2
PATTERN4PATTERN3
MOTION TIME 1
Specify a time period (operating interval) until SCREEN MOTION starts.
MOTION TIME 2
Specify a time period during which SCREEN MOTION operates (time period during which the screen will move).
POWER MANAGEMENT
POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode.
CONNECT AUTO INPUT SELECT
Sets whether the input into the input terminal automatically changes when a video signal is input into that terminal.
(With some input signals, the input may not change.)
NO SIGNAL AUTO INPUT SEL.
Specify whether to change inputs automatically. When ON is selected and no signal is present in the selected input mode, the
monitor automatically changes the selected mode to another mode where a video signal is present.
When there are video signals in multiple input modes, switching takes place according to the order of priority set in AUTO
INPUT SELECT PRIORITY.
AUTO INPUT SELECT PRIORITY
Sets the order of input terminal priority for NO SIGNAL AUTO INPUT SEL..
Input does not change automatically for terminals without a priority setting.
LOGO SCREEN
Sets whether or not to display the logo screen.
INPUT SIGNAL (D-SUB1[RGB]/D-SUB2)
If the resolution of the computer is one of the following, make a selection from the following options.
480 LINES .......... AUTO, 640x480 or 848x480
768 LINES ..........AUTO, 1024x768, 1280x768, or 1360x768
1050 LINES ........1400x1050 or 1680x1050
ZOOM2 SPECIAL SETTING (See page 36.)
SCAN MODE (AV input)
Sets the scan mode used for AV mode input.
MODE1 ............... Over-scan display
MODE2 ...............Under-scan display
MODE3 ............... Under-scan display when the input signal is 1080i/p. Otherwise, over-scan display
*
Even when MODE1 is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot.
COLOR SYSTEM (D-SUB1[VIDEO])
Select the color system of the AV equipment which is connected to D-sub1 input terminal. (AUTO / PAL / PAL-60 / SECAM /
NTSC3.58 / NTSC4.43)
When AUTO is selected, the color system is automatically set according to the input signal.
TIPS
• When WHITE BALANCE is set to THRU, BLACK LEVEL, CONTRAST, TINT, COLORS, RGB INPUT RANGE, GAMMA and
COPY TO USER cannot be set.
• If COLOR MODE is set to sRGB, the following items cannot be set.
WHITE BALANCE, PRESET, USER, COPY TO USER, and GAMMA
• When the COLOR MODE is set to VIVID or HIGH ILLUMINANCE, GAMMA can not be adjusted.
• STANDBY MODE cannot be set to LOW POWER when SCHEDULE is effective.
• When displaying the color pattern, it is possible to adjust certain items of the PICTURE menu.
Non-adjustable items cannot be selected.
Audio input from the HDMI input terminal is also not output.
Menu Items
36
E
Menu Items
n
Dual screen display
You can display two screens simultaneously.
Set this function with “PIP MODES” in the PIP/PbyP menu.
PIP
Main screen
Sub
screen
A sub screen is displayed
inside a main screen.
PbyP
Main
screen
Sub
screen
A main screen and a sub
screen are displayed in a
line.
PbyP2
Main screen
Sub
screen
Displays a main screen
which measures 1280
pixels in the longest
direction and a sub
screen in a line.
* The currently selected input signal is displayed on the main
screen.
* The following combinations are available for display:
DisplayPort - D-SUB1, D-SUB2
HDMI1, HDMI2, HDMI3 - D-SUB1, D-SUB2
TIPS
• You might infringe on a copyright of the author which is
protected by copyright law when you display the images of
the computer screen and television/VCR simultaneously for
prot-making or to show the image to the public.
• The screen size for dual-screen display is the same as
the screen size for single-screen display. The Dot by Dot
screen is displayed in NORMAL size except when it is set
as the PIP main screen.
• When dual-screen display is selected, the SCREEN
MOTION function is disabled.
• When dual-screen display is selected, the CONNECT
AUTO INPUT SELECT function and NO SIGNAL AUTO
INPUT SEL. function are disabled.
• When dual-screen display is selected, the INPUT SELECT
options cannot be set.
• When dual-screen display is selected, the AUDIO menu
cannot be set.
• When an interlaced signal (1080i, 480i, video) is input to
the sub screen, horizontal lines may icker. If this happens,
display the image on the main screen.
n
ZOOM2 SPECIAL SETTING
If you connect a laptop computer with any of the following
screen resolutions and black bands appear around the screen,
set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the
OTHERS menu to ON and then select ZOOM2 in the SIZE
setting.
This displays the area inside the black band.
Laptop computer
resolution
Corresponding signal*
1
1280x800 1280x1024, 1280x960, 1400x1050*
2
1280x600 1280x720
1024x600 1024x768
*1: This setting is effective only when the screen resolution,
including the black band, is one of the resolutions listed
above.
*2: Use the automatic screen adjustment.
37
E
n
SCHEDULE
You can set the time to switch the monitor on and off.
Set this function with “SCHEDULE” in the SETUP menu. (See
page 31.)
-
:
– – – – – – – – – – – –– – – – –
SCHEDULE
No.
POWER DAY OF THE WEEK
TIME INPUT BRIGHT
– –
/
– –
/
– – – – – – –
– –
:
– –
:
– – – –
D-SUB1[RGB]
(1)
–
-
:
– – – – – – – – – – – –– – – – ––
-
:
– – – – – – – – – – – –– – – – ––
-
:
– – – – – – – – – – – –– – – – ––
-
:
– – – – – – – – – – – –– – – – ––
-
:
– – – – – – – – – – – –– – – – ––
-
:
– – – – – – – – – – – –– – – – ––
-
:
– – – – – – – – – – – –– – – – ––
(5)(2) (3) (4) (6)
OK···[ENTER] CANCEL···[RETURN]
1920x1080
V: 60 Hz H: 67.5 kHz
1. Press or to select the SCHEDULE number, and
press
.
2. Set the SCHEDULE. (See the description below.)
Press
or to select items, and press or to
change the setting.
3. Press
ENTER
.
SCHEDULE becomes effective.
(1)
●: SCHEDULE effective
-
: SCHEDULE not effective
(2) POWER
ON : Switches the monitor on at the specied time.
OFF : Switches the monitor off at the specied time and puts
the monitor in standby mode.
(3) DAY OF THE WEEK
Species the day of the week to execute the SCHEDULE.
0:ONLY ONCE
Executes the SCHEDULE once on the specied day.
Specify the day of the week to execute the SCHEDULE.
1:EVERY WEEK
Executes the SCHEDULE on the specied day of the week
every week. Specify the day of the week to execute the
SCHEDULE.
Periodic setting such as “Monday through Friday” is also
possible.
2:EVERY DAY
Executes the SCHEDULE every day regardless of the day
of the week.
(4) TIME
Species the time to execute the SCHEDULE.
Set the time on a 12-hour basis. (Factory default)
Can be entered as 24-hour time using the TIME setting in
DATE/TIME FORMAT.
(5) INPUT
Species the input mode at power-on. If you don’t specify
this the input active at the last power-off will appear. Input
modes displayed on HDMI1, HDMI2, HDMI3 and D-SUB1
will depend upon the INPUT SELECT settings.
(6) BRIGHT
Sets the brightness when changing the screen brightness at
a specied time.
Menu Items
Caution
• Do not switch off the main power after setting the
SCHEDULE.
• Specify the correct date and time. (See page 31.)
SCHEDULE does not function unless the date and time are
specied.
• Check regularly that the set date and time are correct.
• When STANDBY MODE is LOW POWER, SCHEDULE
cannot be set.
• When a temperature abnormality occurs and the backlight
brightness is reduced, the brightness is not changed even
if a schedule set to BRIGHT is executed.
TIPS
• Up to 8 SCHEDULE items can be registered.
• Setting the SCHEDULE ashes the power LED alternately
in red and orange in standby mode.
• A SCHEDULE that has a large number has precedence
over that of a small number when schedules overlap.
38
E
Adjustments for PC screen display
n
Automatic adjustment
When you use D-SUB1 or D-SUB2 to display a computer
screen for the rst time, or when you change the setting of the
computer, use the automatic screen adjustment.
1. Switch the input to D-SUB1 or to D-SUB2 and display
the adjustment pattern. (See the description below.)
2. Press
MENU
and use or to display the SCREEN
menu.
3. Press
ENTER
and select “AUTO”.
4. Press
ENTER
.
The automatic adjustment is complete in several seconds.
5. Press
MENU
to close the menu screen.
TIPS
• If the screen cannot be adjusted properly with one
automatic adjustment, repeat the automatic adjustment two
or three times. Try manual adjustment if necessary.
n
Screen display for adjustment
Before making adjustments in the SCREEN menu or
PICTURE menu, display an image to brighten the entire
screen. If you are using a Windows PC, use the adjustment
pattern on the supplied CD-ROM.
Opening the adjustment pattern
The following example is performed in Windows 7.
1. Load the supplied CD-ROM into the computer’s CD-
ROM drive.
2. Open [CD Drive] in [Computer].
3. Double-click [Adj_uty.exe] in the [Monitor] folder.
The adjustment pattern will appear.
Adjust the screen automatically or manually.
4. When adjustment is nished, press the [Esc] on the
computer’s keyboard to quit the adjustment program.
5. Eject the CD-ROM from the CD-ROM drive.
TIPS
• If the display mode on the computer you are using is
65,000 colors, the color levels in the color pattern may
appear differently or grayscale may appear to be colored.
(This is due to the specications of the input signal and is
not a malfunction.)
Menu Items
39
E
You can return the settings to their factory-preset values and
restrict operations.
1. Hold
SIZE
down until “F” appears in the upper left
corner of the screen.
2. While “F” appears, press
, , , in that
order.
▲
▲▲▲▲▲▲▲
▲ ▲ ▲ ▲ ▲ ▲ ▲
OFF
UNLOCKED
ON 1
ON
LED
OFF
FUNCTION
ALL RESET
ADJUSTMENT LOCK
ADJUSTMENT LOCK TARGET
LAN
OSD DISPLAY
LED
TEMPERATURE ALERT
STATUS ALERT
OK…[ENTER] END…[RETURN]
MONITOR
POWER BUTTON
EXTERNAL CONTROLLER INPUT
3. Select and set the items.
ALL RESET
Resets the settings to the factory default settings.
Press
ENTER
, select the resetting method, and then press
ENTER
.
ALL RESET1 ....Resets all the settings to the factory
default settings.
ALL RESET2 ....Returns all settings to the factory default
settings except for the following items:
LAN SETUP, NETWORK, MAIL,
SERVICE & SUPPORT, and SNMP (See
page 32, and pages 44 to 47.)
ADJUSTMENT LOCK
You can disable operations on the monitor and the
remote control unit that use buttons.
OFF ...Enables operation.
ON 1 ..Disables all operations other than turning power
on/off and FUNCTION.
ON 2 ..Only the FUNCTION operation is enabled.
Disables all operations other than FUNCTION (not
even power on/off).
When STANDBY MODE is set to LOW POWER,
ON 2 cannot be set.
ADJUSTMENT LOCK TARGET
Sets the target to prohibit operation of with
ADJUSTMENT LOCK.
REMOTE CONTROL ..... Prohibits remote control
operation
MONITOR BUTTONS ... Prohibits monitor button
operation
BOTH ............................. Prohibits remote control and
monitor button operation
LAN
Species whether to allow control via LAN (see page
40.).
Initialization (Reset)/Functional Restriction Setting (FUNCTION)
OSD DISPLAY
Shows/hides the menu, modes and messages.
The FUNCTION screen cannot be hidden.
ON 1 .............. Shows all menus, modes and messages.
ON 2 .............. Hides messages automatically displayed
by the display. Shows messages during
operation.
OFF ............... Hides all menus, modes and messages.
LED
Species whether to light the power LED.
TEMPERATURE ALERT
Selects the notication method for an abnormal
temperature.
OFF .............. Do not notify about an abnormal
temperature.
OSD & LED .. When an abnormal temperature is
detected, the power LED ashes in red
and green alternately and the screen
displays a message: TEMPERATURE.
LED............... When an abnormal temperature is
detected, the power LED ashes in red
and green alternately.
STATUS ALERT
Selects the notication method for a hardware error.
OFF .............. Do not notify about the error.
OSD & LED .. When a hardware error is detected, the
power LED ashes in red and the screen
displays a message: STATUS [xxxx].
LED............... When a hardware error is detected, the
power LED ashes in red.
POWER BUTTON
Normally, leave this setting as MONITOR.
When using an optional part, if instruction appears,
change the setting accordingly.
EXTERNAL CONTROLLER INPUT
Normally, you do not need to change this setting.
When using an optional part, if instruction appears,
change the setting accordingly.
4. Press
RETURN
to return to the normal screen.
TIPS
• When both abnormal temperature and hardware error are
detected, the hardware error notication overrides.
• If TEMPERATURE ALERT or STATUS ALERT is set to
OSD&LED, alert messages will appear even if the OSD
DISPLAY is set to ON 2 or OFF.
• If TEMPERATURE ALERT or STATUS ALERT is set to LED
or OSD & LED, the LED lights even if the LED function is
set to OFF.
40
E
Your monitor can be connected to a LAN allowing you to
control it from a PC on the LAN.
You can also congure the monitor to send e-mail notication
when it has a problem.
The connection requires a commercially available LAN cable
(UTP cable, Category 5, straight through).
Hub
LAN terminal
LAN cable (commercially available, straight)
Network (LAN)
TIPS
• You must assign an IP address to the monitor by following
the procedures in “Settings to connect to a LAN”. (See the
description on the right.)
• Your PC must be installed with Internet Explorer (version 7.0
or later).
- Version 7, 8, or 9 of Internet Explorer is recommended.
- Use Internet Explorer Version 10 in compatibility mode.
• When STANDBY MODE is set to LOW POWER, control is
not possible in standby mode.
Initializing personal information
• Personal information such as e-mail addresses can be
registered in the monitor. Before transferring or disposing of
the monitor, initialize all settings by selecting ALL RESET
1. (See page 39.) Note that ALL RESET 2 will not initialize
e-mail addresses and other settings.
Controlling the Monitor with a PC (LAN)
Settings to connect to a LAN
Set the monitor’s IP address and subnet mask to match the
settings of your LAN.
These settings can be made on either the monitor or a PC
connected to the monitor.
The settings depend on the conguration of your LAN. Ask
your LAN administrator for details.
■ To set on the monitor
Set the LAN SETUP on the SETUP menu. (See page 32.)
After setting each item, select SET and press
ENTER
.
DHCP CLIENT
If your LAN has a DHCP server and you wish to obtain an
address automatically, change this setting to ON.
To set the address manually, set this to OFF.
IP ADDRESS
If the DHCP CLIENT is set to OFF, specify an IP address.
Press
or to select items, and press or to
change the values.
SUBNET MASK
If the DHCP CLIENT is set to OFF, specify the subnet mask.
Press
or to select items, and press or to
change the values.
DEFAULT GATEWAY
If the DHCP CLIENT is set to OFF, specify the default
gateway.
If you are not using a gateway, specify “0.0.0.0”.
Press
or to select items, and press or to
change the values.
RESET
Resets the values of the LAN settings to the factory preset
values.
Select ON and then press
ENTER
.
41
E
■ To set from a PC
When the monitor is connected to a PC, LAN settings can be
congured via PC.
Set up process
(1) Connect your monitor to a PC
(2) Specify the PC’s IP address
(3) Congure the monitor’s LAN settings
(1) Connecting your monitor to a PC
Connect a commercially available crossover LAN cable
(UPT cable, Category 5) to the LAN port on the PC and this
monitor.
LAN cable
(commercially available, crossover)
To LAN terminal
PC
LAN terminal
(2) Specifying the PC’s IP address
To congure the monitor’s LAN settings, you must temporarily
change the settings on the PC.
This explanation is based on Windows 7.
1. Log on to the PC with an administrator account.
2. Click [Start], and then click “Control Panel”.
3. Click “View network status and tasks” in “Network and
Internet”.
In “Classic View”, click “Network and Sharing Center”.
4. Click “Local Area Connection” and then “Properties”.
5. Click “Internet Protocol Version 4 (TCP/IPv4)” and then
“Properties”.
6. Make a note of the current IP address, subnet mask, and
default gateway settings.
Make sure you write this information now as you will
be changing the IP address, subnet mask, and default
gateway settings back to these settings afterwards.
7. Temporarily change the IP address and subnet mask.
To access the monitor as it is shipped from the factory, set
as follows.
• IP Address: 192.168.150.1
• Subnet Mask: 255.255.255.0
• Default Gateway: (leave blank)
8. Click [OK] and then reboot the PC.
TIPS
• This monitor is factory preset as shown below.
(When DHCP CLIENT is set to OFF)
IP Address : 192.168.150.2
Subnet Mask : 255.255.255.0
Default Gateway : 0.0.0.0
(3) Conguring the monitor’s LAN settings
Access the monitor using Internet Explorer.
Controlling the monitor
1. Turn the power ON to the monitor.
2. Set DHCP CLIENT to OFF in LAN SETUP on the SETUP
menu.
PC operation
3. Launch Internet Explorer, in the “Address” box type
“http://192.168.150.2/” and press the Enter key.
Controlling the Monitor with a PC (LAN)
42
E
4. Click on “LAN SETUP” under NETWORK.
5. Specify the “DHCP CLIENT”, “IP ADDRESS”,etc.
DHCP CLIENT
If your LAN has a DHCP server and you wish to obtain an
address automatically, change this setting to “ON”.
To set the address manually, set this to “OFF”.
IP ADDRESS
If the DHCP CLIENT is set to “OFF”, specify an IP address.
SUBNET MASK
If the DHCP CLIENT is set to “OFF”, specify the subnet mask.
DEFAULT GATEWAY
If the DHCP CLIENT is set to “OFF”, specify the default gateway.
If you are not using a default gateway, specify “0.0.0.0”.
6. When the setting is changed, click [Apply].
7. Check the message and click [OK].
8. Exit Internet Explorer.
9. Restore the PC’s IP address jotted in Step 6, “(2)
Specifying the PC’s IP address”.
10.
Connect the monitor and the PC to the LAN.
TIPS
• Wait 10 seconds after clicking [OK] before proceeding.
• When operating using the remote control unit or similar,
click [Refresh].
Controlling with a PC
TIPS
• For security, set a USER NAME and PASSWORD.
■ Basic operation
You use Internet Explorer on a PC on the LAN to control the
monitor.
1. Launch Internet Explorer on the PC.
2.
In the “Address” box, type “http://” followed by your monitor’s
IP address followed by “/”, then press the Enter key.
You can conrm the IP address with the DISPLAY function.
When prompted to enter a user name and password, type
the user name and password that you specied in the
security settings (see page 44.), and click [OK].
3. You can check, control, and change the monitor’s status
and settings by clicking the menu items on the left side of
the screen.
• If you see an [Apply] button next to a setting, click it after
you change that setting.
TIPS
• See pages 43 to 47 for details on each setting.
• If you click [Refresh] before the screen nishes updating
the current display, the “Server Busy Error” will appear.
Wait for a moment before operating your monitor again.
• You cannot operate the monitor while it is warming up.
• If “DHCP CLIENT” is set to “ON”, press
DISPLAY
on the
remote control unit two times and then check the monitor’s
IP address.
Controlling the Monitor with a PC (LAN)
43
E
■ INFORMATION
Information about this monitor appears.
■ CONTROL
You can control the operations corresponding to the buttons
(
POWER
INPUT
SIZE
) on the remote control unit. (See page 25.)
TIPS
• In standby mode, Power ON is the operation available.
■ ADJUSTMENT
You can adjust these settings which are also available on the
monitor’s menu.
• SCREEN (See page 28.)
• PICTURE (See pages 29 to 30.)
• AUDIO (See page 31.)
• SETUP (See pages 31 to 32.)
• MONITOR (See page 33.)
• SCHEDULE (See page 37.)
• PIP/PbyP (See page 34.)
• OTHERS (See page 35.)
• FUNCTION (See page 39.)
TIPS
• After changing DISPLAY COLOR PATTERN to OFF in
PICTURE menu, click [Refresh] to correctly retrieve the
status of the monitor.
Controlling the Monitor with a PC (LAN)
44
E
■ NETWORK (LAN SETUP)
This screen allows you to set the settings necessary when the
monitor is connected to a LAN.
DHCP CLIENT
If your LAN has a DHCP server and you wish to obtain an
address automatically, change this setting to ON.
To set the address manually, set this to OFF.
IP ADDRESS
If the DHCP CLIENT is set to OFF, specify an IP address.
SUBNET MASK
If the DHCP CLIENT is set to OFF, specify the subnet mask.
DEFAULT GATEWAY
If the DHCP CLIENT is set to OFF, specify the default
gateway.
If you are not using a default gateway, specify “0.0.0.0”.
DNS SERVER ADDRESS AUTO ACQUISITION
If the DHCP CLIENT is set to ON, specify whether or not to
automatically obtain the DNS server address.
DNS SERVER
Specify the DNS server address if the DHCP CLIENT
is set to OFF or the DNS SERVER ADDRESS AUTO
ACQUISITION is set to OFF.
If you are not using a DNS server, specify “0.0.0.0”.
RESET
Clicking [Execute] returns all of the LAN SETUP settings
to the factory-preset values except for the DNS SERVER
ADDRESS AUTO ACQUISITION and DNS SERVER
settings.
■ NETWORK (SECURITY)
This screen allows you to specify the security-related settings.
USER NAME / PASSWORD
Sets up a user name and password to restrict access to this
monitor.
After entering a user name and password, click [Apply].
ACCEPT IP ADDRESS
You can limit access to this monitor by registering IP
addresses of PCs that should have access.
To limit access, specify the option “From only specic IP
addresses”. Otherwise, to allow access from any PC, specify
“All IP Addresses”.
IP ADDRESS 1 to 3
If “ACCEPT IP ADDRESS” is set to “From only specic IP
addresses”, enter the IP addresses that you want to allow.
TIPS
• The USER NAME and PASSWORD can be up to 8
alphanumeric characters (hyphens and underscores
allowed).
• To cancel the user name and/or password after it has been
set, make the box empty and click [Apply].
Controlling the Monitor with a PC (LAN)
45
E
■ NETWORK (GENERAL)
This screen allows you to specify the general LAN settings.
MONITOR NAME
Specify a name for this monitor as it should appear on the
Internet Explorer screen.
AUTO LOGOUT TIME
Specify the time (in minutes) to elapse before automatically
disconnecting this monitor from the network.
Specify in minutes from 1 to 65535. A value of ‘0’ will disable
this function.
DATA PORT
Specify the TCP port number to use for exchanging data with
the monitor.
Specify a value from 1025 to 65535.
SEARCH PORT
Specify the port number to use when searching for this
monitor.
Specify a value from 1025 to 65535.
INSTALLATION INFORMATION (NAME/LOCATION)
Specify the information to display for this monitor in the
Internet Explorer window.
LINK MODE
Selects the link speed and duplex.
Use AUTO normally.
TIPS
• The MONITOR NAME can be up to 16 alphanumeric
characters or symbols.
• Enter up to 50 characters in the NAME eld in the
INSTALLATION INFORMATION.
• Enter up to 100 characters in the LOCATION eld in the
INSTALLATION INFORMATION.
■ MAIL (ORIGINATOR)
This screen allows you to congure the e-mail sent periodically
or when the monitor has an error.
The settings depend on the conguration of your LAN. Ask
your LAN administrator for details.
SMTP SERVER
Specify the SMTP server address for sending e-mail.
* When using a domain name, make sure to specify the
DNS SERVER as well. (See page 44.)
SMTP PORT
If the “AUTHENTICATION” is “SMTP-AUTH”, specify the port
number.
ORIGINATOR E-MAIL ADDRESS
Specify the e-mail address for this monitor.
This address becomes the e-mail address of the originator.
ORIGINATOR NAME
Specify the name for the originator.
This name appears in the “Originator Name” eld of the
e-mail.
AUTHENTICATION
Specify the authentication method to use when sending
e-mail.
POP SERVER
If the “AUTHENTICATION” method is “POP before SMTP”,
specify the POP server address.
ACCOUNT NAME / PASSWORD
If the “AUTHENTICATION” is “POP before SMTP” or
“SMTP-AUTH”, specify the account name and password to
connect to the SMTP server.
TIPS
• You can enter up to 64 alphanumeric characters or symbols
for the ORIGINATOR E-MAIL ADDRESS, ORIGINATOR
NAME, ACCOUNT NAME, and PASSWORD.
• The SMTP SERVER and POP SERVER can be up to 64
characters.
The following characters can be used: a-z, A-Z, 0-9, - , .
Controlling the Monitor with a PC (LAN)
46
E
■ MAIL (RECIPIENT)
This screen allows you to specify the recipients of the e-mail
sent periodically or when the monitor has an error.
RECIPIENT E-MAIL ADDRESSES
Specify the e-mail addresses to send error notication e-mail
to.
CONDITION
Specify the conditions to send mails.
When you check PERIODICAL, specify the date and time to
send the mails in the PERIODICAL setting.
CONFIRMATION
Sends test e-mail.
This allows you to conrm that the e-mail settings are
congured properly.
Attach the log le to a TEMPERATURE/HARDWARE error
e-mail.
When this option is checked, a log is added to the mail which
noties a temperature or status error.
TIPS
• The RECIPIENT E-MAIL ADDRESSES can be up to 64
alphanumeric characters or symbols.
Controlling the Monitor with a PC (LAN)
■ MAIL (PERIODICAL)
When PERIODICAL for CONDITION of MAIL (RECIPIENT) is
checked, set the date and time to send the mail.
DAY OF THE WEEK
Specify the day of the week to send the periodical mails.
TIME
Specify the time of the day to send the periodical mails.
Caution
• Do not turn off the main power when you set to send the
periodical mails.
• Specify the correct date and time. (See page 31.)
If the date and time settings are incorrect, the periodical
mail is not sent properly.
• Regularly conrm that the specied date and time is
correct.
• When LOW POWER is selected for STANDBY MODE,
periodical mails will not be sent in standby mode.
47
E
Controlling the Monitor with a PC (LAN)
■ SNMP
You can congure settings related to SNMP.
SNMP SETTING
Set whether to enable or disable SNMP.
VERSION
Set the version of the SNMP to be supported.
COMMUNITY NAME 1 to 3
Set the name of the community required for the access.
USER 1 to 3
Set the user name, password, authentication method and
other options required for access.
TRAP SETTING
Set whether to enable or disable the trap function.
When this function is enabled, a trap will be sent when the
monitor is turned on.
A test transmission of a trap can be performed in “Test”.
TRAP SETTING OF AUTHENTICATION ERROR
Set whether the trap function sends a notication when
authentication fails.
TRAP ADDRESS & PORT
Set the destination address and port number of the
notication sent by the trap function.
Caution
• After you set SNMP, click [Switch the main power of
monitor off and on now.] or turn off the monitor and then
turn it on again with the main power switch. When the
monitor restarts, wait about 30 seconds and then start the
next operation.
• If the IP address is changed while the SNMP function is
operational, turn off the monitor and then turn it on again
with the main power switch.
TIPS
• Depending on the SNMP settings, a short delay may occur
before the SNMP is usable. (About 5 minutes)
• Up to 16 alphanumeric letters and symbols can be used for
the community name, user name and password.
■ SERVICE & SUPPORT
(URL INFORMATION)
You can display a specic URL in the URL INFORMATION
eld on the INFORMATION screen when an error occurs in
the monitor. (See page 43.)
URL INFORMATION
Enter the URL to display on the INFORMATION screen when
an error occurs on the monitor.
Up to 64 alphanumeric characters or symbols can be used.
CONDITION
Specify the condition to display the URL.
CONFIRMATION
The home page of the specied URL is displayed.
You can check whether the URL you entered is correct.
TIPS
• It is also possible to specify the message text, such as the
name of a contact or a telephone number, to be displayed
instead of the linked URL.
48
E
[Advanced operation]
Command-based control
You can control the monitor using control commands (see
page 50.) via terminal software and other appropriate
applications.
In order to use this function, enable a connection to the
monitor through Internet Explorer.
Read the manual for the terminal software for detailed
instructions.
(1) Connect the PC to the monitor.
1. Specify the IP address and data port number and
connect the PC to the monitor.
When connection has been established successfully,
[
Login:] is returned as response.
2. Send the user name set in the SECURITY settings (see
page 44).
• Send [User name] + [
].
• If the user name is not set, send [
].
• When the transmission is successful, [
Password:]
is returned as response.
3. Send the password set in the SECURITY settings (see
page 44).
• Send [Password] + [
].
• If the password is not set, send [
].
• When the transmission is successful, [OK
] is
returned as response.
(2) Send commands to control the monitor.
• Usable commands are provided in the Control
command table (see page 50.).
• Send the command as described in the
communication procedure (See the description on
the right.).
(3) Disconnect the connection with the monitor and
quit the function.
1. Send [BYE ].
When the transmission is successful, [goodbye] is
returned and the connection is disconnected.
TIPS
• Connection is automatically disconnected when the
time specied in AUTO LOGOUT TIME elapses over a
no-communication period.
[Advanced operation]
Communication procedure
n
Command format
When a command is sent from the PC to the monitor, the
monitor operates according to the received command and
sends a response message to the PC.
C1 C2 C3 C4 P1 P2 P3 P4
Return code
Command field
(4 prescribed
alphanumerical characters
)
Parameter field
(4 character string comprised of:
0-9, +, -, space, ?)
Example: VOLM0030
VOLM
30
* Be sure to input 4 characters for the parameter. Pad with
spaces (“
”) if necessary.
(“
” is a return code (0D
H
, 0A
H
or 0D
H
))
Wrong : VOLM30
Right : VOLM 30
When inputting a negative value, specify a numerical value in
three digits.
Example: AUTR-005
Do not use spaces for MPOS, DATE, and SC01 through
SC08. Specify parameters using a specied number of
characters.
Example: MPOS010097
If a command has “R” indicated for “DIRECTION” in the
“Control command table” on page 50, the current value can be
returned by using “?” as the parameter.
Example:
VOLM ? ? ? ? ←
From PC to monitor (How much
is current volume setting?).
30 ←
From monitor to PC (Current
volume setting: 30).
Controlling the Monitor with a PC (LAN)
49
E
n
Response code format
When a command has been executed correctly
O K
Return code
(0DH, 0AH)
A response is returned after a command is executed.
When a command has not been executed
R R E
Return code
(0DH, 0AH)
TIPS
• “ERR” is returned when there is no relevant command or
when the command cannot be used in the current state of
the monitor.
• If communication has not been established for reasons
such as a bad connection between the PC and monitor,
nothing is returned (not even ERR).
• “ERR” may be returned when a command cannot be
received correctly due to interference from the surrounding
environment.
Please ensure that the system or software retries the
command if this occurs.
If execution of the command is taking some time
I W T A
Return code
(0DH, 0AH)
When the following commands are used, “WAIT” is returned.
In this case, a value will be returned if you wait a while. Do not
send any command during this period.
• Commands which return WAIT:
RSET, INPS, ASNC, WIDE, PXSL, POWR, AGIN, MWIN,
MWIP, MWPP
TIPS
• If the processing takes time, “WAIT” may be returned
multiple times.
When control via LAN is locked (to prevent use) using the
operation lock function (see page 39.)
E C D K O L
Return code
(0D
H, 0AH)
n
Communication interval
• After OK or ERR is returned, you must send the following
commands.
To set a timeout for the command response, specify 10
seconds or longer.
• Provide an interval of 100 ms or more between the
command response and the transmission of the next
command.
VOLM0020
OK
INPS0001
WAIT
OK
Interval of 100 ms or more
TIPS
• When executing ALL RESET, set the timeout period to 30
seconds or longer.
• When turning the power on while the POWER ON DELAY
function is in use, set the timeout period to the POWER ON
DELAY period + 10 seconds or longer.
Controlling the Monitor with a PC (LAN)
50
E
[Advanced operation] Control command table
How to read the command table
Command: Command eld (See page 48.)
Direction: W When the “Parameter” is set in the parameter eld (see page 48.), the command functions as described
under “Control/Response Contents”.
R The returned value indicated under “Reply” can be obtained by setting “????” or “
?” in the
parameter field. (see page 48.).
Parameter: Parameter eld (See page 48.)
Reply: Response (Returned value)
TIPS
• The following commands cannot be used in standby mode.
TPEN, ASNC, CLCK, PHSE, HPOS, VPOS, HSIZ, VSIZ, HRES, VRES, ARST, CPTU, AGIN, TOMD, PXCK, PXSL, RESO,
RSET, MUTE
Power control/Input mode selection
Function
Command Direction
Parameter Reply Control/Response contents
POWER CONTROL POWR W 0
Switches to standby mode.
1 Enters the power ON state.
R 0 Standby mode
1 Normal mode
2 Input signal waiting mode
INPUT MODE SELECTION INPS W 0 Toggle change for input mode. Terminals not selected in INPUT SELECT cannot be
selected.
2 D-SUB1[RGB]
“ERR” when other than RGB is selected for D-SUB1 of INPUT SELECT.
3 D-SUB1[COMPONENT]
“ERR” when other than COMPONENT is selected for D-SUB1 of INPUT SELECT.
4 D-SUB1[VIDEO]
“ERR” when other than VIDEO is selected for D-SUB1 of INPUT SELECT.
9 HDMI1[AV]
“ERR” when PC is selected for HDMI1 of INPUT SELECT.
10 HDMI1[PC]
“ERR” when AV is selected for HDMI1 of INPUT SELECT.
12 HDMI2[AV]
“ERR” when PC is selected for HDMI2 of INPUT SELECT.
13 HDMI2[PC]
“ERR” when AV is selected for HDMI2 of INPUT SELECT.
14 DisplayPort
16 D-SUB2
17 HDMI3[AV]
“ERR” when PC is selected for HDMI3 of INPUT SELECT.
18 HDMI3[PC]
“ERR” when AV is selected for HDMI3 of INPUT SELECT.
R 2 D-SUB1[RGB]
3 D-SUB1[COMPONENT]
4 D-SUB1[VIDEO]
9 HDMI1[AV]
10 HDMI1[PC]
12 HDMI2[AV]
13 HDMI2[PC]
14 DisplayPort
16 D-SUB2
17 HDMI3[AV]
18 HDMI3[PC]
Controlling the Monitor with a PC (LAN)
51
E
SCREEN menu
Function
Command Direction
Parameter Reply Control/Response contents
AUTO ASNC W 1 When the input mode is D-SUB1[RGB], D-SUB2.
CLOCK CLCK WR 0-1200 0-1200 When the input mode is D-SUB1[RGB], D-SUB2.
Varies depending on the signal.
PHASE PHSE WR 0-63 0-63 When the input mode is D-SUB1[RGB], D-SUB2.
POSITIONING POSITION OF
THE LONGEST
DIRECTION
HPOS WR 0-100 0-100 0-800 on D-SUB1[RGB], D-SUB2.
Varies depending on the signal.
POSITION OF
THE SHORTEST
DIRECTION
VPOS WR 0-100 0-100 0-200 on D-SUB1[RGB], D-SUB2.
Varies depending on the signal.
SIZE SIZE OF THE
LONGEST
DIRECTION
HSIZ WR 0-100 0-100
SIZE OF THE
SHORTEST
DIRECTION
VSIZ WR 0-100 0-100
RESOLUTION
LONGEST
DIRECTION
RESOLUTION
HRES WR 300-1920 300-1920 When the input mode is D-SUB1[RGB], D-SUB2.
Only even numbers are valid for parameters.
Varies depending on the signal.
SHORTEST
DIRECTION
RESOLUTION
VRES WR 200-1200 200-1200
RESET ARST W 1
PICTURE menu
Function
Command Direction
Parameter Reply Control/Response contents
BRIGHT VLMP WR 0-31 0-31
CONTRAST CONT WR 0-60 0-60
BLACK LEVEL BLVL WR 0-60 0-60
TINT TINT WR 0-60 0-60
COLORS COLR WR 0-60 0-60
SHARPNESS SHRP WR 0-24 0-24
COLOR
ADJUSTMENT
COLOR MODE BMOD WR 0 0 STD
2 2 VIVID
3 3 sRGB (When the input mode is PC)
4 4 HIGH ILLUMINANCE
WHITE
BALANCE
THRU CTMP WR 0 0 PC input
PRESET 1-28 1-28
From 1: approximately 3,000K to 15: approximately 10,000K (500K steps)
16: approximately 5,600K, 17: approximately 9,300K, 18: approximately 3,200K
From 19: approximately 10,500K to 28: approximately 15,000K (500K steps)
USER 99 99
R-CONTRAST CRTR WR 0-256 0-256 “ERR” when CTMP is not set to 99.
G-CONTRAST CRTG WR 0-256 0-256
B-CONTRAST CRTB WR 0-256 0-256
R-OFFSET OFSR WR -127-127 -127-127
G-OFFSET OFSG WR -127-127 -127-127
B-OFFSET OFSB WR -127-127 -127-127
COPY TO USER CPTU W 0 Copies a preset value to the user setting.
GAMMA GAMM WR 0-2 0-2 0: 1.8, 1: 2.2, 2: 2.4 (during PC input)
0: LIGHT 2, 2: DARK (during AV input)
4-6 4-6 4: USER, 5: 2.0, 6: STD (during PC input)
4: USER, 5: LIGHT 1, 6: STD (during AV input)
FLESH TONE (AV input) FLES WR 0-2 0-2 0: OFF, 1: LOW, 2: HIGH
C.M.S.-HUE (AV input)
CMHR WR -10-10 -10-10 R
“ERR” when other than OFF is selected for FLESH TONE.
CMHY Y
“ERR” when other than OFF is selected for FLESH TONE.
CMHG G
“ERR” when other than OFF is selected for FLESH TONE.
CMHC C
“ERR” when other than OFF is selected for FLESH TONE.
CMHB B
“ERR” when other than OFF is selected for FLESH TONE.
CMHM M
“ERR” when other than OFF is selected for FLESH TONE.
CRST W 1 Resets the hue.
“ERR” when other than OFF is selected for FLESH TONE.
C.M.S.-SATURATION
(AV input)
CMSR WR -10-10 -10-10 R
“ERR” when other than OFF is selected for FLESH TONE.
CMSY Y
“ERR” when other than OFF is selected for FLESH TONE.
CMSG G
“ERR” when other than OFF is selected for FLESH TONE.
CMSC C
“ERR” when other than OFF is selected for FLESH TONE.
CMSB B
“ERR” when other than OFF is selected for FLESH TONE.
CMSM M
“ERR” when other than OFF is selected for FLESH TONE.
CRST W 2 Resets the saturation.
“ERR” when other than OFF is selected for FLESH TONE.
C.M.S.-VALUE (AV input)
CMVR WR -10-10 -10-10 R
“ERR” when other than OFF is selected for FLESH TONE.
CMVY Y
“ERR” when other than OFF is selected for FLESH TONE.
CMVG G
“ERR” when other than OFF is selected for FLESH TONE.
CMVC C
“ERR” when other than OFF is selected for FLESH TONE.
CMVB B
“ERR” when other than OFF is selected for FLESH TONE.
CMVM M
“ERR” when other than OFF is selected for FLESH TONE.
CRST W 3 Resets the brightness.
“ERR” when other than OFF is selected for FLESH TONE.
Controlling the Monitor with a PC (LAN)
52
E
Function
Command Direction
Parameter Reply Control/Response contents
ADVANCED AUTO
AGIN W 1 When the input mode is D-SUB1[RGB], D-SUB2.
ANALOG GAIN
ANGA WR 0-127 0-127 When the input mode is D-SUB1[RGB], D-SUB2.
ANALOG OFFSET
ANOF WR 0-127 0-127 When the input mode is D-SUB1[RGB], D-SUB2.
3D-NR (AV input) TDNR WR 0-2 0-2 0: OFF, 1: LOW, 2: HIGH
MPEG-NR (AV input) MPNR WR 0-1 0-1 0: OFF, 1: ON
3D-Y/C YCSP WR 0-1 0-1 0: OFF, 1: ON (When the input mode is D-SUB1[VIDEO])
RGB INPUT RANGE
(HDMI1[AV])
AHDR WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
RGB INPUT RANGE
(HDMI1[PC])
PHDR WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
RGB INPUT RANGE
(HDMI2[AV])
AH2R WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
RGB INPUT RANGE
(HDMI2[PC])
PH2R WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
RGB INPUT RANGE
(HDMI3[AV])
AH3R WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
RGB INPUT RANGE
(HDMI3[PC])
PH3R WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
RGB INPUT RANGE
(D-SUB1[RGB])
PDSR WR 1-2 1-2 1: FULL, 2: LIMITED
RGB INPUT RANGE
(D-SUB2)
PD2R WR 1-2 1-2 1: FULL, 2: LIMITED
RGB INPUT RANGE
(DisplayPort)
PDPR WR 0-2 0-2 0: AUTO, 1: FULL, 2: LIMITED
ACTIVE CONTRAST
(AV input)
ACNT WR 0-1 0-1 0: OFF, 1: ON
DISPLAY COLOR
PATTERN
PTDF WR
0 0 No pattern display.
1 1 White single color pattern display.
2 2 Red single color pattern display.
3 3 Green single color pattern display.
4 4 Blue single color pattern display.
99 99 Red/green/blue mixed color pattern display.
Set each color's level with PTDR, PTDG, PTDB.
DISPLAY COLOR
PATTERN (R)
PTDR WR 0-15 0-15 “ERR” when PTDF is not set to 99.
DISPLAY COLOR
PATTERN (G)
PTDG WR 0-15 0-15
DISPLAY COLOR
PATTERN (B)
PTDB WR 0-15 0-15
RESET ARST W 2
AUDIO menu
Function
Command Direction
Parameter Reply Control/Response contents
TREBLE AUTR WR -5-5 -5-5
BASS AUBS WR -5-5 -5-5
BALANCE AUBL WR -10-10 -10-10
RESET ARST W 3
Controlling the Monitor with a PC (LAN)
53
E
SETUP menu
Function
Command Direction
Parameter Reply Control/Response contents
DATE/TIME SETTING DATE WR
AABBCCDDEE AABBCCDDEE
AA: Year, BB: Month, CC: Day, DD: Hour, EE: Minute
DATE DISPLAY FORMAT DTFT WR
0-2 0-2
0: YYYY/MM/DD, 1: MM/DD/YYYY, 2: DD/MM/YYYY
YYYY: Year, MM: Month, DD: Day
TIME DISPLAY FORMAT TMFT WR
0-1 0-1
0: 24-HOUR TIME, 1: 12-HOUR TIME
SCHEDULE SC01-
SC08
WR ABCDEFFGGH ABCDEFFGGH Schedule of a specied number
A: Schedule 0= Not effective, 1 = Effective
B: Power 0 = OFF, 1 = ON
C: Day of the week 1 0 = Only once, 1 = Every week, 2 = Every day
D: Day of the week 2* 0 = Sunday, 1 = Monday through 6 = Saturday,
9 = Not exist
E: Day of the week 3* 0 = Sunday, 1 = Monday through 6 = Saturday,
9 = Not exist
F: Hour 00-23
G: Minute 00-59
H: Input 0 = Not specied, 1 = HDMI1, 2 = HDMI2, 3 = HDMI3,
4 = D-SUB1, 5 = D-SUB2, 6 = DisplayPort
* If “Every day” is selected for “Day of the week 1”, “ERR” occurs when other than 9 is
selected.
“ERR” when LOW POWER is selected for STANDBY MODE.
SCHEDULE BRIGHTNESS SB01-
SB08
WR 0-31 0-31 Screen brightness to change
99 99 Disable brightness setting
LANGUAGE LANG WR 14 14 ENGLISH
1 1 DEUTSCH
2 2 FRANÇAIS
3 3 ITALIANO
4 4 ESPAÑOL
5 5 РУССКИЙ
6 6
INPUT
SELECT
HDMI1 HDSL WR 0-1 0-1 0:PC, 1:AV
HDMI2 H2SL WR 0-1 0-1 0:PC, 1:AV
HDMI3 H3SL WR 0-1 0-1 0:PC, 1:AV
D-SUB1 SLDS WR 0-2 0-2 0:RGB, 1:COMPONENT, 2:VIDEO
HDMI1 AUTO VIEW
HDAW WR 0-1 0-1 0: OFF, 1: ON
HDMI2 AUTO VIEW
H2AW WR 0-1 0-1 0: OFF, 1: ON
HDMI3 AUTO VIEW
H3AW WR 0-1 0-1 0: OFF, 1: ON
HOT PLUG CONTROL
(HDMI1)
HPCH WR 0-1 0-1 0: OFF, 1: ON
HOT PLUG CONTROL
(HDMI2)
HPH2 WR 0-1 0-1 0: OFF, 1: ON
HOT PLUG CONTROL
(HDMI3)
HPH3 WR 0-1 0-1 0: OFF, 1: ON
INPUT
MODE
NAME
DisplayPort
INDP WR 0-30 0-30 0: NO SETTING, 1: PC1, 2:PC2, 3: PC3, 4: TV, 5: VIDEO, 6: DVD, 7: HDD, 8: DVR,
9: BD, 10: CAMERA, 11: DOCUMENT CAMERA, 12: VIDEO CAMERA,
13: VIDEO CONFERENCE, 14: GAME, 15: VGA, 16: BNC, 17: COMPOSITE,
18: COMPONENT, 19: RGB, 20: INPUT1, 21: INPUT2, 22: INPUT3, 23: INPUT4,
24: INPUT5, 25: INPUT6, 26: SATELLITE, 27: CABLE, 28: CAMCORDER,
29: TABLET, 30: SURVEILLANCE CAM.
HDMI1 INH1
HDMI2 INH2
HDMI3 INH3
D-SUB1 IND1
D-SUB2 IND2
AUDIO
SELECT
DisplayPort
ASDI WR 1-3 1-3
1: AUDIO1, 2: AUDIO2, 3: DisplayPort
HDMI1[PC]
ASHP WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
HDMI1[AV]
ASHA WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
HDMI2[PC]
AH2P WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
HDMI2[AV]
AH2A WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
HDMI3[PC]
AH3P WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
HDMI3[AV]
AH3A WR 0-2 0-2
0: HDMI, 1: AUDIO1, 2: AUDIO2
D-SUB1[RGB]
ASAP WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
D-SUB1[COMPONENT]
ASC2 WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
D-SUB1[VIDEO]
ASV2 WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
D-SUB2
ASA2 WR 1-2 1-2
1: AUDIO1, 2: AUDIO2
AUDIO
OPTION
SPEAKER SELECT
SPSL WR 0-1 0-1
0: Internal speaker, 1: External speaker
AUDIO OUTPUT
AOUT WR 0-2 0-2
0: VARIABLE1, 1: FIXED, 2: VARIABLE2
AUDIO INPUT LEVEL1
AIVP WR 0-1 0-1
0: 1.0Vrms, 1: 0.5Vrms
AUDIO INPUT LEVEL2
AIV2 WR 0-1 0-1
0: 1.0Vrms, 1: 0.5Vrms
TOUCH
INPUT
SELECT
BOTTOM USB USCB WR
0-7 0-7
0: INVALID, 1: BOTTOM INPUT TERM., 2: DisplayPort, 3: HDMI1, 4: HDMI2,
5: HDMI3, 6: D-SUB1, 7: D-SUB2
SIDE USB USCS WR
0-7 0-7
0: INVALID, 1: SIDE INPUT TERM., 2: DisplayPort, 3: HDMI1, 4: HDMI2, 5: HDMI3,
6: D-SUB1, 7: D-SUB2
Controlling the Monitor with a PC (LAN)
54
E
MONITOR menu
Function
Command Direction
Parameter Reply Control/Response contents
OSD H-POSITION OSDH WR 0-100 0-100
OSD V-POSITION OSDV WR 0-100 0-100
STANDBY MODE STBM WR 0-1 0-1 0: STANDARD, 1: LOW POWER
When ADJUSTMENT LOCK is set to ON2, LOW POWER cannot be selected (ERR).
“ERR" when SCHEDULE is effective.
OFF IF NO OPERATION ATOF WR 0-1 0-1 0: OFF, 1: ON
POWER ON
DELAY
SET PODS WR 0-1 0-1 0: OFF, 1: ON
INTERVAL PWOD WR 0-60 0-60 0: OFF, 1-60 seconds
SELF ADJUST SELF ADJUST AADJ WR 0-1 0-1 0: OFF, 1: ON
START TIMING AADD WR 10-200 10-200 10: 1 second through 200: 20 seconds
TOUCH OUTPUT
INVALID DISP.
TOUCH OUTPUT
INVALID ICON
TOPI WR 0-1 0-1 0: OFF, 1: ON
CHANGE DISPLAY
POSITION
TOIP WR 0-3 0-3 0: UPPER RIGHT, 1: UPPER LEFT, 2: LOWER RIGHT, 3: LOWER LEFT
TOUCH OPERATION MODE TOMD WR 0-2 0-2 0: AUTO, 1: MULTI-TOUCH MODE, 2: MOUSE MODE
“ERR” when the touch panel is not connected.
“ERR” when Touch Panel Settings Tool is installed in the computer connected to the
touch panel.
TOUCH PANEL MODE GMDP WR 0-1 0-1 0: OFF, 1: ON (When the input mode is PC)
PIP/PbyP menu
Function
Command Direction
Parameter Reply Control/Response contents
PIP MODES MWIN WR 0-3 0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2
PIP SIZE MPSZ WR 1-64 1-64
PIP POS THE LONGEST
DIRECTION
MHPS WR 0-100 0-100
THE SHORTEST
DIRECTION
MVPS WR 0-100 0-100
PIP POS LD+SD BATCH MPOS W 0-100,0-100 Specify the position in MPOSxxxyyy format.
(xxx: Longer side, yyy: Shorter side position)
R 0-100,0-100 Returns a response in (xxx,yyy) format.
(xxx: Longer side, yyy: Shorter side position)
PIP BLEND MWBL WR 0-15 0-15
PIP SOURCE MWIP WR 2 2 D-SUB1[RGB]
3 3 D-SUB1[COMPONENT]
4 4 D-SUB1[VIDEO]
9 9 HDMI1[AV]
10 10 HDMI1[PC]
12 12 HDMI2[AV]
13 13 HDMI2[PC]
14 14 DisplayPort
16 16 D-SUB2
17 17 HDMI3[AV]
18 18 HDMI3[PC]
SOUND CHANGE MWAD WR 1-2 1-2 1: MAIN, 2: SUB
MAIN POS (Main screen) MWPP WR 0-1 0-1 0: POS1, 1: POS2
PbyP2 POS (Sub screen) MW2P WR 0-2 0-2 0: POS1, 1: POS2, 2: POS3
AUTO OFF MOFF WR 0-1 0-1 0: MANUAL, 1: AUTO
Controlling the Monitor with a PC (LAN)
55
E
OTHERS menu
Function
Command Direction
Parameter Reply Control/Response contents
SCREEN MOTION PATTERN SCSV WR 0-4 0-4 0: OFF, 1-4: PATTERN1-4
MOTION TIME1 MTIM WR 0-20 0-20
MOTION TIME2
(PATTERN1)
MINT WR 10-990 10-990 Per 10 seconds
MOTION TIME2
(PATTERN2-4)
MINT WR 5-20 5-20 Per second
POWER MANAGEMENT (PC) PMNG WR 0-1 0-1 0: OFF, 1: ON
POWER MANAGEMENT (AV) PMAV WR 0-1 0-1 0: OFF, 1: ON
CONNECT AUTO INPUT SELECT AICO WR 0-1 0-1 0: OFF, 1: ON
NO SIGNAL AUTO INPUT SEL. AINO WR 0-1 0-1 0: OFF, 1: ON
AUTO INPUT
SELECT
PRIORITY
DisplayPort
APDP WR 0-6 0-6 0: Not selected by auto input selection, 1-6: Priority setting
• “ERR” when OFF is selected for NO SIGNAL AUTO INPUT SEL..
• All input terminals cannot be set to 0 simultaneously.
HDMI1 APH1
HDMI2 APH2
HDMI3 APH3
D-SUB1 APD1
D-SUB2 APD2
LOGO SCREEN BTSC WR 0-1 0-1 0: OFF, 1: ON
INPUT
RESOLUTION
(PC)
RESOLUTION CHECK
PXCK R - Returns current resolution in the form of hhh, vvv.
PIXEL SETTING
(D-SUB1[RGB],
D-SUB2)
PXSL WR 1 1 768) 1360 x 768
2 2 768) 1280 x 768
3 3 768) 1024 x 768
5 5 480) 848 x 480
6 6 480) 640 x 480
7 7 1050) 1680 x 1050
8 8 1050) 1400 x 1050
9 9 768) AUTO
10 10 480) AUTO
INPUT RESOLUTION (AV)
RESOLUTION CHECK
RESO R - 480i, 480p, 1080i, 720p, 1080p , etc.
ZOOM2 SPECIAL SETTING
(D-SUB1[RGB], D-SUB2)
Z2SP WR 0-1 0-1 0: OFF, 1: ON
SCAN MODE SCAN WR 0-2 0-2 0: MODE1, 1: MODE2, 2: MODE3 (When the input mode is AV)
COLOR SYSTEM CSYS WR 0-5 0-5 0: AUTO, 1: PAL, 2: PAL-60, 3: SECAM, 4: NTSC3.58, 5: NTSC4.43
Controlling the Monitor with a PC (LAN)
56
E
Initialization/Functional Restriction Setting (FUNCTION) menu
Function
Command Direction
Parameter Reply Control/Response contents
ALL RESET RSET W 0-1 0: ALL RESET 1, 1: ALL RESET 2
ADJUSTMENT LOCK ALCK WR 0-2 0-2 0: OFF, 1:ON1, 2:ON2
When STANDBY MODE is set to LOW POWER, ON2 cannot be selected (ERR).
ADJUSTMENT LOCK TARGET ALTG WR 0-2 0-2 0: REMOTE CONTROL, 1: MONITOR BUTTONS, 2: BOTH
“ERR” when OFF is selected for ADJUSTMENT LOCK.
OSD DISPLAY LOSD WR 0-2 0-2 0: ON1, 1: OFF, 2: ON2
LED OFLD WR 0-1 0-1 0: ON, 1: OFF
TEMPERATURE ALERT TALT WR 0-2 0-2 0: OFF, 1: OSD & LED, 2: LED
STATUS ALERT SALT WR 0-2 0-2 0: OFF, 1: OSD & LED, 2: LED
POWER BUTTON PBTN WR 0-1 0-1 0: MONITOR, 1: EXT. CONTROLLER
EXTERNAL CONTROLLER INPUT PCIP WR 0-5 0-5 0: D-SUB1, 1: D-SUB2, 2: DisplayPort, 3: HDMI1, 4: HDMI2, 5: HDMI3
“ERR” when MONITOR is selected for POWER BUTTON.
Others
Function
Command Direction
Parameter Reply Control/Response contents
SCREEN SIZE (PC) WIDE WR 0-5 0-5 0: Toggle to change size, 1: WIDE, 2: NORMAL, 3: Dot by Dot, 4: ZOOM1, 5: ZOOM2
SCREEN SIZE (AV) WIDE WR 0-5 0-5 0: Toggle to change size, 1: WIDE, 2: ZOOM1, 3: ZOOM2, 4: NORMAL, 5: Dot by Dot
VOLUME VOLM WR 0-31 0-31
MUTE MUTE WR 0-1 0-1 0: OFF, 1: ON
INFORMATION MODEL INF1 R Value
SERIAL NO SRNO R Value
TEMPERATURE SENSOR DSTA R 0 Internal temperature normal
1 Internal temperature abnormal has occurred and the monitor is in standby mode
2 Internal temperature abnormal occurred (To delete the information of temperature
abnormal, turn off the main power.)
3 Internal temperature abnormal has occurred and backlight brightness is dimmed
4 Temperature sensor abnormal
TEMPERATURE ACQUISITION ERRT R Value Returns the temperature at the temperature sensors.
Indicates a temperature sensor abnormality when “126” is returned.
CAUSE OF LAST STANDBY MODE STCA W 0 Initialization
R 0 No detectable error has occurred
1 Standby mode by POWER button
2 Main power off by the main power switch
3 Standby mode by LAN
4 Input signal waiting mode by No Signal
6 Standby mode by abnormal temperature
8 Standby mode by SCHEDULE setting
20 Standby mode by OFF IF NO OPERATION setting
Touch operation valid/invalid TPEN WR 0-1 0-1 0: Invalid, 1: Valid
“ERR” when TOUCH INPUT SELECT is set to INVALID or the touch panel is not
connected.
Controlling the Monitor with a PC (LAN)
57
E
Commands for setting of the GAMMA user data
Function
Command Direction
Parameter Reply Control/Response contents
RED GAMMA DATA TRANSFER UGRW W aaxxxx
···
xxxxcc
(xxxx: 32 pieces)
aa: 01-16
xxxx: 0000-1023
cc: 00-FF
aa: Block number
xxxx: 32 pieces of user data
cc: Checksum (ASCII data) of the block number and user data
GREEN GAMMA DATA TRANSFER UGGW W
BLUE GAMMA DATA TRANSFER UGBW W
RED GAMMA DATA READ UGRR W 1-16 xxxx
···
xxxx
(xxxx: 32 pieces)
xxxx: 0000-1023
xxxx: User data of 32 pieces
GREEN GAMMA DATA READ UGGR W 1-16
BLUE GAMMA DATA READ UGBR W 1-16
USER DATA INITIALIZE UGRS W 0 Initialize the user data.
USER DATA SAVE UGSV W 0 Save the user data in the monitor.
To transfer the GAMMA user data
Use the user data transfer commands (UGRW, UGGW and UGBW). For each of the R, G and B colors, divide the total 512
pieces of user data into 16 blocks, and transfer 32 pieces of data with each command.
C1 C2 C3 C4 P1 P2 P3 P4
…
S1 S2
Command field
Block number (01 to 16)
Data fieldChecksum field
Example: To transfer the data of block 1 (0 to 31 levels)
of red (R) data
UGRW01000000010002 … 0031C0
Command
Block number
32 pieces of data Checksum
One piece of data consists
of 4 digits.
* If data is less than 4 digits, add a “0” (zero) to make it 4 digits.
* The checksum eld is the character string (ASCII) data of lower-order one byte which indicates the sum of the block number
and 32 pieces of data in hexadecimal (0 to F).
Saving the GAMMA user data
Use the user data save command (UGSV) to save the transferred user data in the monitor.
If the data is not saved, it will be cleared when:
• The main power switch is off
• STANDBY MODE is LOW POWER and the monitor enters standby mode
Activating the GAMMA user data
To activate the transferred user data, select USER for GAMMA in the PICTURE menu, or send the corresponding control
command.
Checking the GAMMA user data
Use the user data read commands (UGRR, UGGR and UGBR) to return 512 pieces of user data for each of the R, G and B
colors. Divide the data into 16 blocks and return 32 pieces of data with each command. The value to be returned is not the value
stored in the monitor, but the value in the temporary memory for display. (These values are the same when the user data save
command (UGSV) above has been sent.)
TIPS
• The user data is not initialized by RESET of the PICTURE menu. To initialize the user data, use ALL RESET of the
FUNCTION menu.
The GAMMA user data initialize command (UGRS) allows the initialization of the user data only.
Controlling the Monitor with a PC (LAN)
58
E
Troubleshooting
If you are experiencing any problem with your display, before
calling for service, please review the following troubleshooting
tips.
There is no picture or sound.
• Is the power cord disconnected? (See page 14.)
• Is the main power switch off? (See page 17.)
• Is the monitor in standby mode (the power LED illuminating
in orange)? (See page 17.)
• Make sure correct input mode is selected. (See pages 24
to 25.)
• If any external equipment is connected, make sure the
equipment is operating (playing back).
Remote control does not work.
• Are the batteries inserted with polarity (+,-) aligned? (See
page 15.)
• Are the batteries exhausted?
• Point the remote control unit toward the monitor’s remote
control sensor. (See page 15.)
• Is the menu display hidden or is operation disabled? (See
page 39.)
Sound from left and right speakers is reversed.
Sound is heard from only one side.
• Are audio cables connected properly? (See page 13.)
• Make sure audio cables for external speakers are
connected properly: left and right cables may be reversed
or one of the two cables may not be connected. (See page
13.)
• Check the setting of BALANCE for AUDIO menu. (See
page 31.)
There is a picture but no sound.
• Is the sound muted?
• Make sure the volume is not set to minimum.
• Are audio cables connected properly?
• Is the setting of AUDIO SELECT on the SETUP menu
correct? (See page 31.)
• Is the setting for SPEAKER SELECT of AUDIO OPTION on
the SETUP menu correct? (See page 31.)
Unstable video.
• The signal may be incompatible.
• Try the automatic screen adjustment when D-SUB1[RGB]
or D-SUB2 are used.
• If the top and bottom of the image are not horizontally
aligned, set TOUCH PANEL MODE on the MONITOR
menu to OFF.
The video from the HDMI input terminal does not appear
properly.
• Is the setting for HDMI1/HDMI2/HDMI3 of INPUT SELECT
on the SETUP menu correct? (See page 31.)
• Is the HDMI cable HDMI standard compliant? The monitor
will not work with cables that are not standard compliant.
• Is the input signal compatible with this monitor? (See pages
62 to 63.)
The video from D-sub1 input terminal does not appear
correctly.
• Is the setting for D-SUB1 of INPUT SELECT on the SETUP
menu correct? (See page 31.)
• Is the input signal compatible with this monitor? (See page
62.)
The video from D-sub2 input terminal does not appear
correctly.
• Is the input signal compatible with this monitor? (See page
62.)
The video from DisplayPort input terminal does not
appear correctly.
• Is the input signal compatible with this monitor? (See page
62.)
• Is the DisplayPort cable DisplayPort standard compliant?
The monitor will not work with cables that are not standard
compliant.
Control buttons do not work.
There is no picture.
• Load noises from outside may be interfering with normal
operation. Turn off the power and turn it on after waiting at
least 5 seconds, and then check the operation.
The input mode changes automatically.
• When CONNECT AUTO INPUT SELECT is ON, the input
mode automatically changes to that terminal when a video
signal is input into the input terminal.
For this reason, the input mode may change when the
computer wakes up from system standby.
• When the NO SIGNAL AUTO INPUT SEL. is ON and no
signal is present in a selected input mode, the monitor
automatically changes the selected mode to a mode where
a video signal is present.
The input mode may change in the following cases:
- When a computer is in standby mode.
- When video play is stopped with a playback device.
The touch panel does not respond.
• Is the USB cable connected properly? (Touch Panel
Settings Tool Operation Manual)
• Has Touch Panel Settings Tool been installed? (Touch
Panel Settings Tool Operation Manual)
• Has the pen tip of the touch pen become worn? Replace
the pen tip. (See page 19.)
• When using an active pen, has Touch Pen Utility been
installed? (Touch Pen Utility Operation Manual)
• When using an active pen, is the battery inserted in the
wrong orientation (+, -) in the touch pen? (See page 19.)
• When using an active pen, is the touch pen battery
exhausted?
The response of the touch screen is slow.
Some parts of the screen do not respond.
A different place is touched
• Is the screen exposed to direct sunlight or other strong
light? The touch panel uses infrared rays and thus may not
operate correctly.
• Is there an obstacle between the infrared transmitter/
receiver and the touch pen or your nger? An obstacle will
prevent correct operation. If your ngers or a sleeve are too
close to the screen, correct operation will not be possible.
• Is the infrared transmitter/receiver dirty? Gently wipe off
any dirt with a soft cloth.
•
If the touch panel is touched with a small tip less than about
3/16 inch (5.5 mm) x 3/16 inch (5.5 mm), the touch may not be
detected by infrared and correct operation will not take place.
• When starting your computer or connecting the USB cable,
do not touch the touch panel. If you touch the touch panel,
this may be detected as an element failure in the infrared
transmitter/receiver and incorrect operation will result.
Power LED ashes red.
“STATUS [xxxx]” appears in the corner of the screen.
• Hardware has a problem. Turn off the monitor and request
repair from your SHARP dealer.
(When STATUS ALERT is set to OSD & LED. This varies
depending on the setting.)
59
E
When “AUTO DIMMING” is displayed.
• When the internal temperature of the monitor rises
excessively, the brightness of the backlight automatically
decreases in order to prevent a further temperature rise. If
you attempt to use
to adjust the brightness while
the monitor is in this state, “AUTO DIMMING” is displayed
and you cannot change the brightness.
• Remove the cause of the excessive temperature rise.
The monitor makes a cracking sound.
• You may occasionally hear a cracking sound from the
monitor. This happens when the cabinet slightly expands
and contracts according to change in temperature. This
does not affect the monitor’s performance.
The Power LED is ashing in red and green alternately.
When “TEMPERATURE” is displayed in the corner of the
screen.
• When the internal temperature of the monitor rises
excessively, the brightness of the backlight decreases
automatically in order to prevent high-temperature-
related problems. When this occurs, “TEMPERATURE” is
displayed on the screen and the Power LED ashes red
and green alternately. (When TEMPERATURE ALERT is
set to OSD & LED. This varies depending on the setting.)
• If the internal temperature rises further, the monitor
automatically enters standby mode. (The Power LED
continues ashing red and green alternately.)
• Remove the cause of the excessive temperature rise.
- If the monitor enters standby mode due to a rise in
temperature, to return to normal display, turn the power
switch off and then back on again. The monitor, however,
will enter standby mode again if the cause of the
temperature rise is not eliminated. (See page 7.)
- Check whether the monitor is placed at a location where
a quick rise in temperature is likely. Internal temperature
rises quickly if the vents on the monitor are blocked.
- Internal temperature rises quickly if dust accumulates
inside the monitor or around the vents. Remove dust if
possible. Ask SHARP dealer about removing internal dust.
Troubleshooting
60
E
Specications
n
Product Specications
Model PN-L703B PN-L603B
LCD component
70" Class [69-1/2 inch (176.6cm)
diagonal] TFT LCD
60" Class [60-1/16 inch (152.5cm)
diagonal] TFT LCD
Max. resolution (pixels)
1920 x 1080
Max. colors
Approx. 1.06 billion colors
Pixel pitch
0.802 mm (H) × 0.802 mm (V) 0.692 mm (H) × 0.692 mm (V)
Viewing angle
160° right/left/up/down (contrast ratio ≥ 10)
Screen active area inch (mm)
60-9/16 (W) x 34-1/16 (H)
(1538.9 x 865.6)
52-5/16 (W) x 29-7/16 (H)
(1329.1 x 747.6)
Computer input signal
Analog RGB (0.7 Vp-p) [75
Ω
], DisplayPort 1.1a
Sync signal
Horizontal/vertical separate (TTL: positive/negative), Sync-on-green
*1
,
Composite sync (TTL: positive/negative)
*1
Video color system
NTSC (3.58MHz)/NTSC (4.43MHz)/PAL/PAL-60/SECAM
Plug and play
VESA DDC2B
Power management
VESA DPMS
Input terminals
PC/AV HDMI x 3
PC Mini D-sub 15 pin, 3 rows x 2
DisplayPort x 1
Audio
3.5 mm mini stereo jack x 2
Output terminals
Video/Audio
DisplayPort x 1
Audio
3.5 mm mini stereo jack x 1
LAN terminal 10 BASE-T/100 BASE-TX
Speaker output (internal/external) 10 W + 10 W/10 W + 10 W
6
Ω
Touch Panel
Detection method Infrared blocking detection method
PC connector USB (2.0 compliant) (Type B) x 2
Touch pen adapter port
USB (2.0 compliant) (Type A)
Power requirement AC 100 V - 240 V, 2.6 A, 50/60 Hz AC 100 V - 240 V, 2.2 A, 50/60 Hz
Operating temperature
*
2
*
3
41°F to 95°F (5°C to 35°C)
Operating humidity
*
3
20% to 80% (no condensation)
Power consumption
(Maximum / input signal waiting mode
*
4
/
standby mode
*
5
)
225 W / 14 W / 3.5 W 185 W / 14 W / 3.5 W
Dimensions (excluding protrusions) inch (mm)
Approx. 64-13/16 (W) x 3-11/16 (D)
x 39-3/4 (H) (1647 x 94 x 1010)
Approx. 56-9/16 (W) x 3-11/16 (D)
x 35-1/16 (H) (1437 x 94 x 890)
Weight lbs. (kg)
Approx. 130.1 (59) Approx. 101.5 (46)
*1 D-sub input terminal only.
*2 Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP.
In such cases, please check the temperature condition specied by the optional equipments.
*3 In addition, check the requirements of the computer and other devices to be connected, and make sure that all requirements are satised.
*4 When CONNECT AUTO INPUT SELECT and NO SIGNAL AUTO INPUT SEL. are set to OFF.
*5 When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER: 0.5 W
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
61
E
Specications
n
Dimensional Drawings
Note that the values shown are approximate values.
64-13/16 [1647]
31-11/16 [805]3-1/4 [82]
1-15/16
[49]
31-11/16 [805]
1-15/16
[49]
3-1/4 [82]
3-11/16
[94]
1-15/16
[49]
39-3/4 [1010]
41-13/16 [1062]
Opening width (62-3/16 [1580])
Opening height
(
35-13/16 [910]
)
56-9/16 [1437]
35-1/16 [890]
37-1/16 [942]
Opening width (53-15/16 [1370])
Opening height
(
31-1/8 [790]
)
VESA holes *
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
VESA holes *
7-7/8
[200]
7-7/8
[200]
7-7/8
[200]
3-11/16
[94]
1-15/16
[49]
Unit: inch [mm]
Unit: inch [mm]
[PN-L603B]
[PN-L703B]
When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.
SHARP recommends using M6 screws and tighten the screws.
Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in
serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch
(8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times
or more the weight of the monitor.
62
E
n
Power management
This monitor conforms to VESA DPMS. Both your video card and computer must support the same standard in order for the
monitor’s power management function to work.
DPMS: Display Power Management Signaling
DPMS Screen
Power
consumption
*1
Hsync Vsync
ON STATE Display
225 W
185 W
Yes Yes
STANDBY
No
display
14 W
*2
14 W
*2
No Yes
SUSPEND Yes No
OFF STATE No No
*1 Upper value: PN-L703B, Lower value: PN-L603B.
*2 When CONNECT AUTO INPUT SELECT and NO SIGNAL AUTO INPUT SEL. are set to OFF.
n
DDC (plug and play)
The monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters
is exchanged between the two. This function can be used if the computer supports DDC and it has been congured to detect
plug-and-play monitors.
There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.
n
Compatible signal timing (PC)
VESA
Wide
US TEXT
Sun
Screen resolution Hsync Vsync Dot frequency
Digital
640 × 480
800 × 600
848 × 480
1024 × 768
1152 × 864
1280 × 768
1280 × 800
1280 × 960
1280 × 1024
1360 × 768
1400 × 1050
1440 × 900
1600 × 1200*
1680 × 1050
1920 × 1200*
1280 × 720
1920 × 1080
720 × 400
1024 × 768
1152 × 900
1280 × 1024
1600 × 1000
31.5kHz
37.9kHz
37.5kHz
35.1kHz
37.9kHz
48.1kHz
46.9kHz
31.0kHz
48.4kHz
56.5kHz
60.0kHz
67.5kHz
47.8kHz
60.3kHz
49.7kHz
60.0kHz
64.0kHz
80.0kHz
47.7kHz
65.3kHz
55.9kHz
75.0kHz
65.3kHz
74.0kHz
44.7kHz
67.5kHz
31.5kHz
48.3kHz
53.6kHz
56.6kHz
61.8kHz
71.8kHz
71.7kHz
81.1kHz
68.6kHz
60Hz
72Hz
75Hz
56Hz
60Hz
72Hz
75Hz
60Hz
60Hz
70Hz
75Hz
75Hz
60Hz
75Hz
60Hz
60Hz
60Hz
75Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
70Hz
60Hz
66Hz
70Hz
66Hz
76.2Hz
67.2Hz
76Hz
66Hz
25.175MHz
31.5MHz
31.5MHz
36.0MHz
40.0MHz
50.0MHz
49.5MHz
33.75MHz
65.0MHz
75.0MHz
78.75MHz
108.0MHz
79.5MHz
102.25MHz
83.5MHz
108.0MHz
108.0MHz
135.0MHz
85.5MHz
121.75MHz
106.5MHz
162.0MHz
146.25MHz
154.0MHz
74.4MHz
148.5MHz
28.3MHz
64.13MHz
70.4MHz
74.25MHz
94.88MHz
108.23MHz
117.01MHz
134.99MHz
135.76MHz
Yes
Yes
Yes
-
Yes
Yes
Yes
-
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-
-
-
-
-
-
-
-
Analog
(D-SUB)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DisplayPortHDMI
Yes
Yes
Yes
-
Yes
Yes
Yes
-
Yes
Yes
Yes
Yes
-
-
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-
-
-
-
-
-
-
-
* Displays a reduced image, except in Dot by Dot. In Dot by Dot, the image will be cut down to panel size then displayed.
• Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input.
• The frequency values for the Sun are reference values.
Specications
63
E
n
Compatible signal timing (AV)
Screen resolution Frequency HDMI Component
1920 × 1080p 24Hz Yes -
50Hz Yes Yes
59.94Hz Yes Yes
60Hz Yes Yes
1920 × 1080i 50Hz Yes Yes
59.94Hz Yes Yes
60Hz Yes Yes
1280 × 720p 50Hz Yes Yes
59.94Hz Yes Yes
60Hz Yes Yes
720 × 576p 50Hz Yes Yes
720 × 480p 59.94Hz Yes Yes
60Hz Yes Yes
640 × 480p(VGA) 59.94Hz Yes -
60Hz Yes -
720(1440) × 576i 50Hz Yes Yes
720(1440) × 480i 59.94Hz Yes Yes
60Hz Yes Yes
Specications
64
E
n
D-sub input terminal pins
(Mini D-sub 15 pin)
No. Function No. Function
1 Red video signal input 9 +5V
2 Green video signal input 10 GND
3 Blue video signal input 11 N.C.
4 N.C. 12 DDC data
5 GND 13 Hsync signal input
6 GND for red video signal 14 Vsync signal input
7 GND for green video signal 15 DDC clock
8 GND for blue video signal
n
HDMI input terminal pins
(HDMI
TM
Connector)
No. Function No. Function
1 TMDS data 2+ 11 TMDS clock shield
2 TMDS data 2 shield 12 TMDS clock-
3 TMDS data 2- 13 CEC
4 TMDS data 1+ 14 N.C.
5 TMDS data 1 shield 15 SCL
6 TMDS data 1- 16 SDA
7 TMDS data 0+ 17 DDC/CEC GND
8 TMDS data 0 shield 18 +5V
9 TMDS data 0- 19 Hot-plug detection
10 TMDS clock+
n
DisplayPort input terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 3- 11 Gnd
2 Gnd 12 MainLane 0+
3 MainLane 3+ 13 Gnd
4 MainLane 2- 14 Gnd
5 Gnd 15 Aux +
6 MainLane 2+ 16 Gnd
7 MainLane 1- 17 Aux -
8 Gnd 18 Hot-plug detection
9 MainLane 1+ 19 Gnd
10 MainLane 0- 20 3.3V
n
DisplayPort output terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 0+ 11 Gnd
2 Gnd 12 MainLane 3-
3 MainLane 0- 13 Gnd
4 MainLane 1+ 14 Gnd
5 Gnd 15 Aux +
6 MainLane 1- 16 Gnd
7 MainLane 2+ 17 Aux -
8 Gnd 18 Hot-plug detection
9 MainLane 2- 19 Gnd
10 MainLane 3+ 20 3.3V
Specications
65
E
• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
• Do not use an impact driver.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
Mounting Precautions
(For SHARP dealers and service engineers)
n
Attaching the Tray
Secure the tray using 5 tray mounting screws (M3) (supplied).
PN-L703B-L603B M EN14C(1)
