www.lg.com
Owner's Manual
IPS LED MONITOR
(LED MONITOR
*
)
34UM64
Please read the safety information carefully
before using the product.
IPS LED Monitor (LED Monitor) Model List
* LG LED Monitors are LCD Monitors with LED Backlighting.
2
TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Composition
5 Product and Button Description
6 - How to Use the Joystick Button
6 - Input Connector
7 Moving and Lifting the Monitor
8 Installing the Monitor
8 - Assembling the Stand
10 - Detaching the Stand
12 - Installing on a Table
12 - Adjusting the angle
13 - Tidying up Cables
13 - Installing the Wall Mount Plate
14 - Installing on the Wall
15 - Using the Kensington Lock
16 USING THE MONITOR
16 Connecting to a PC
16 - DVI Connection
17 - HDMI Connection
17 - DisplayPort Connection
18 Connecting AV Devices
18 - HDMI Connection
18 Connecting Peripherals
18 - Connecting Headphones
19 USER SETTINGS
19 Activating the Main Menu
19 - Main Menu Features
20 User Settings
20 - Menu Settings
21 - Ratio
22 - Function
23 - PBP
24 - Picture
25 - Color
26 - Settings
27 - Reset
28 - Reader
29 TROUBLESHOOTING
31 PRODUCT SPECIFICATION
32 Factory Support Mode (Preset Mode,
DVI-D/ HDMI/ DisplayPort PC)
32 HDMI Timing (Video)
32 Power LED
33 PROPER POSTURE
33 Proper Posture for Using the Monitor
WARNING: This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after handling.
ENGLISH
3
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance
logo for dual-mode source devices are all registered trademarks of the Video
Electronics Standards Association.
4
ASSEMBLING AND PREPARING
ENGLISH
ASSEMBLING AND PREPARING

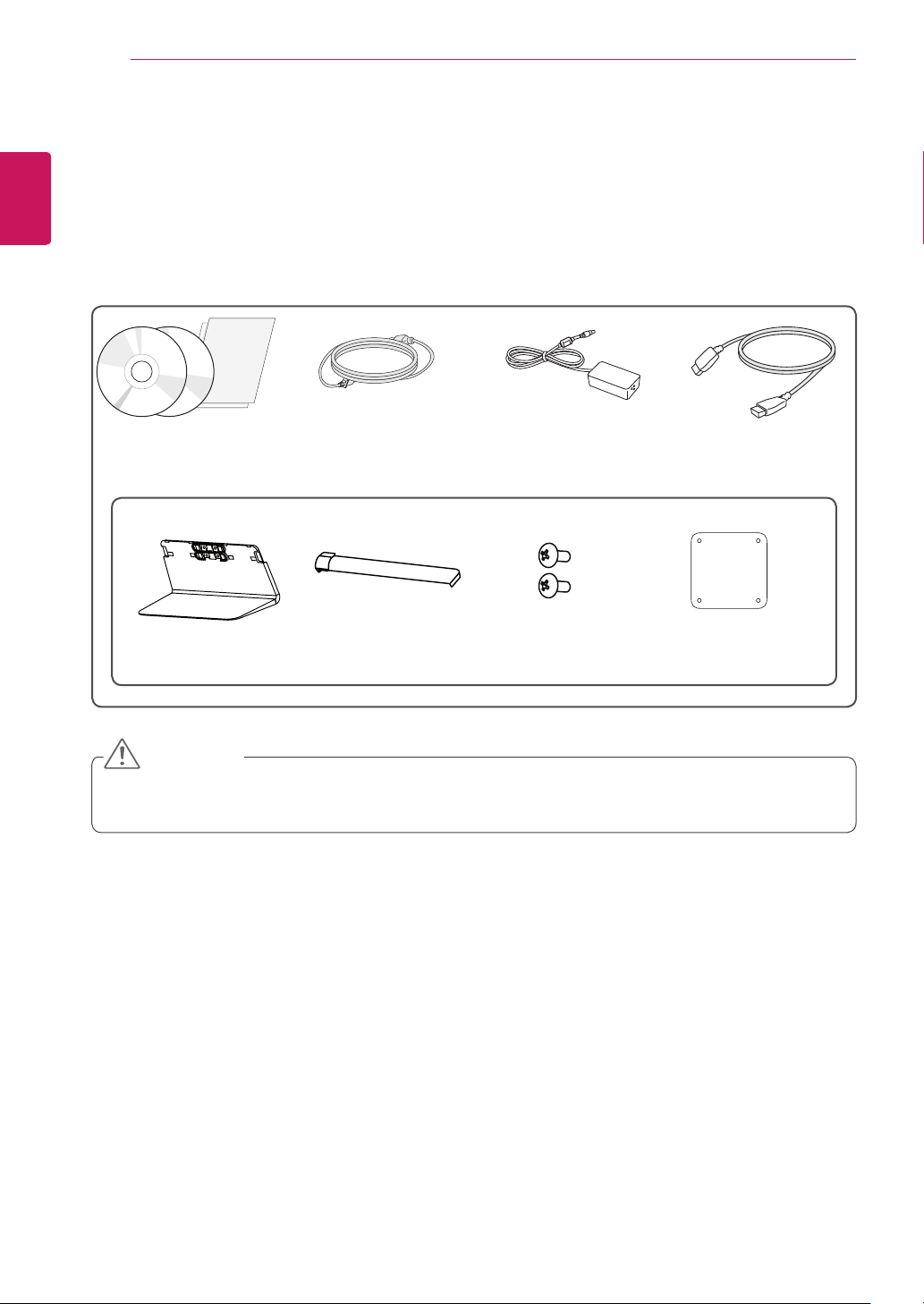

Product Composition
Please check whether all the components are included in the box before using the product. If there are
any missing components, contact the retailer where you purchased the product. Note that the product and
related components may look different from those shown here.
CD (Owner's Manual /
Software / Guides)
/ Cards
Power cord AC/DC Adapter
HDMI cable
(Depending upon country)
Stand Base Screw Cover
Two Screws
(M4 x L10)
Clear sheet
y
Always use genuine LG components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of unauthorized components.
CAUTION
ENGLISH
5
ASSEMBLING AND PREPARING
y
The components may look different from those illustrated here.
y
Without prior notice, all product information and specifications contained in this manual are subject to
change to improve the performance of the product.
y
To purchase optional accessories, visit an electronics store or an online shopping site, or contact the
retailer from which you purchased the product.
y
The power cord provided may differ depending upon the region.
NOTE
Product and Button Description
Joystick
Button
Power Indicator
y
On Power on
y
Off Power off
y
The joystick button is located at the bottom of the monitor.
NOTE
6
ASSEMBLING AND PREPARING
ENGLISH

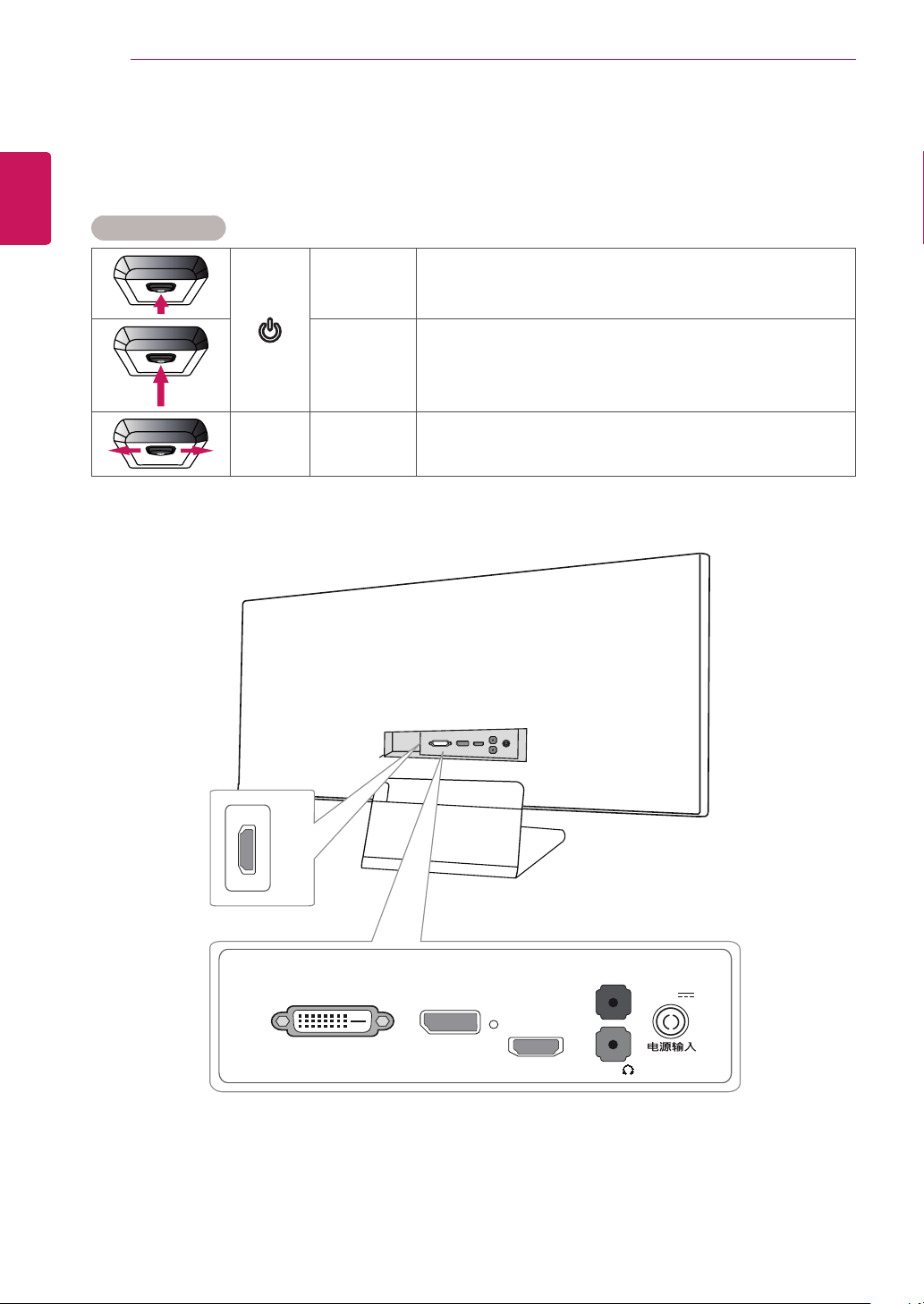

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn off
the monitor.
◄/►
Volume
Control
You can control the volume by moving the joystick button left/right.
Input Connector
HDMI IN 2
DC-IN
(19 V )
HDMI
IN
2
DVI-D IN
DP-IN
H/P
HDMI IN 1
AUDIO IN
(PC)
ENGLISH
7
ASSEMBLING AND PREPARING
Moving and Lifting the
Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation, regardless of its shape or size.
y
Place the monitor in the original box or pack-
ing material before attempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all other cables.
y
Hold the bottom and side of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to avoid damage.
y
When transporting the monitor, do not expose
the monitor to shock or excessive vibration.
y
When moving the monitor, keep it upright and
never turn the monitor on its side or tilt it side-
ways.
y
Avoid touching the monitor screen as much as
possible.
- This may result in damage to the screen or
some of the pixels used to create images.
y
If you use the monitor panel without the stand
base, its joystick button may cause the moni-
tor to become unstable and fall, resulting in
damage to the monitor or human injury. In
addition, this may cause the joystick button to
malfunction.
CAUTION
8
ASSEMBLING AND PREPARING
ENGLISH

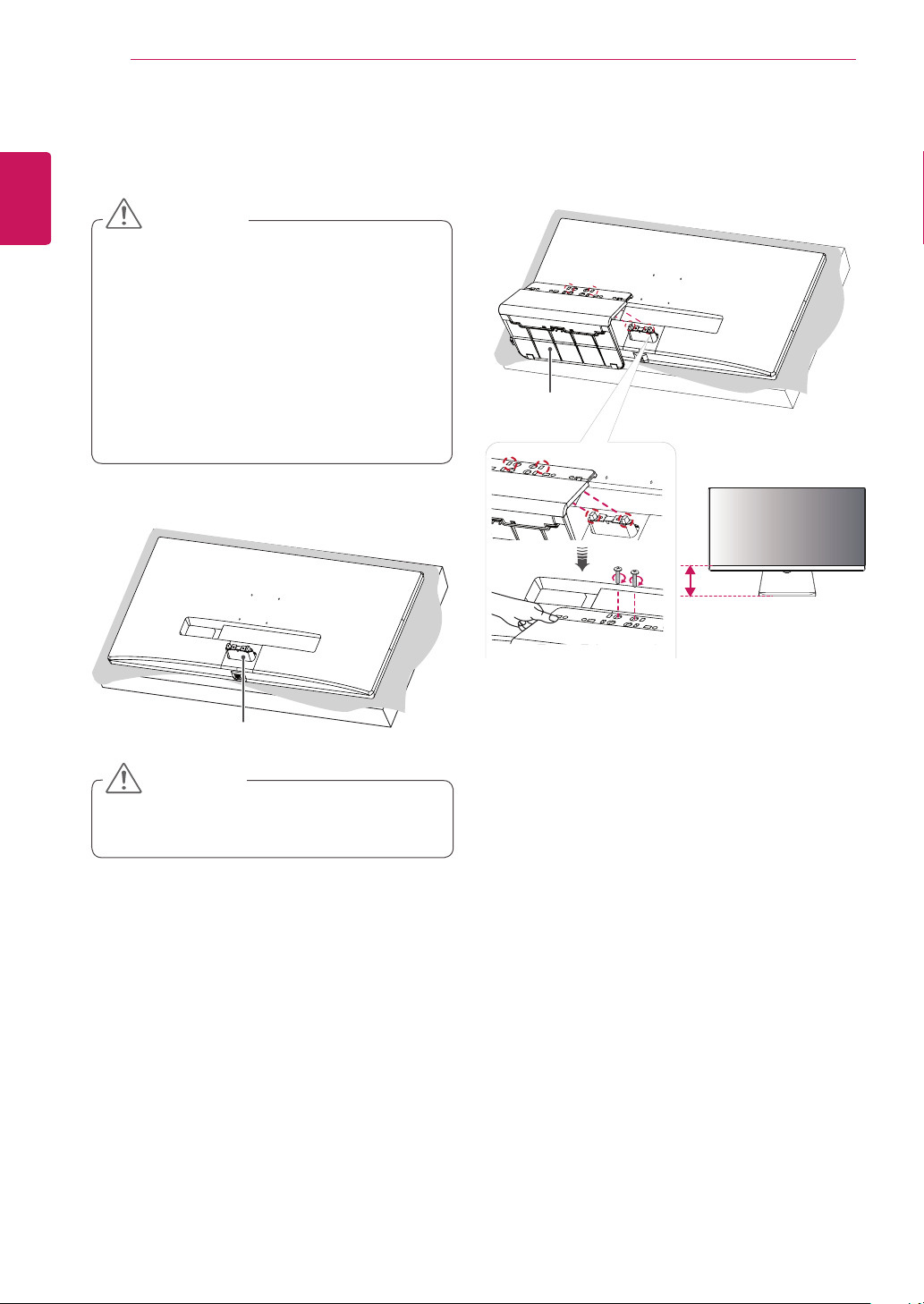

Installing the Monitor
Assembling the Stand
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
y
If you use the monitor panel without the
stand base, its joystick button may cause the
monitor to become unstable and fall, result-
ing in damage to the monitor or human injury.
In addition, this may cause the joystick button
to malfunction.
CAUTION
1
Place the screen face down.
Stand Hinge
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Mount the stand base onto the stand hinge as
shown in the illustration. Fix two screws into
the back of the stand base and close the screw
cover.
Stand Base
120 mm
(4.7 inch)
ENGLISH
9
ASSEMBLING AND PREPARING

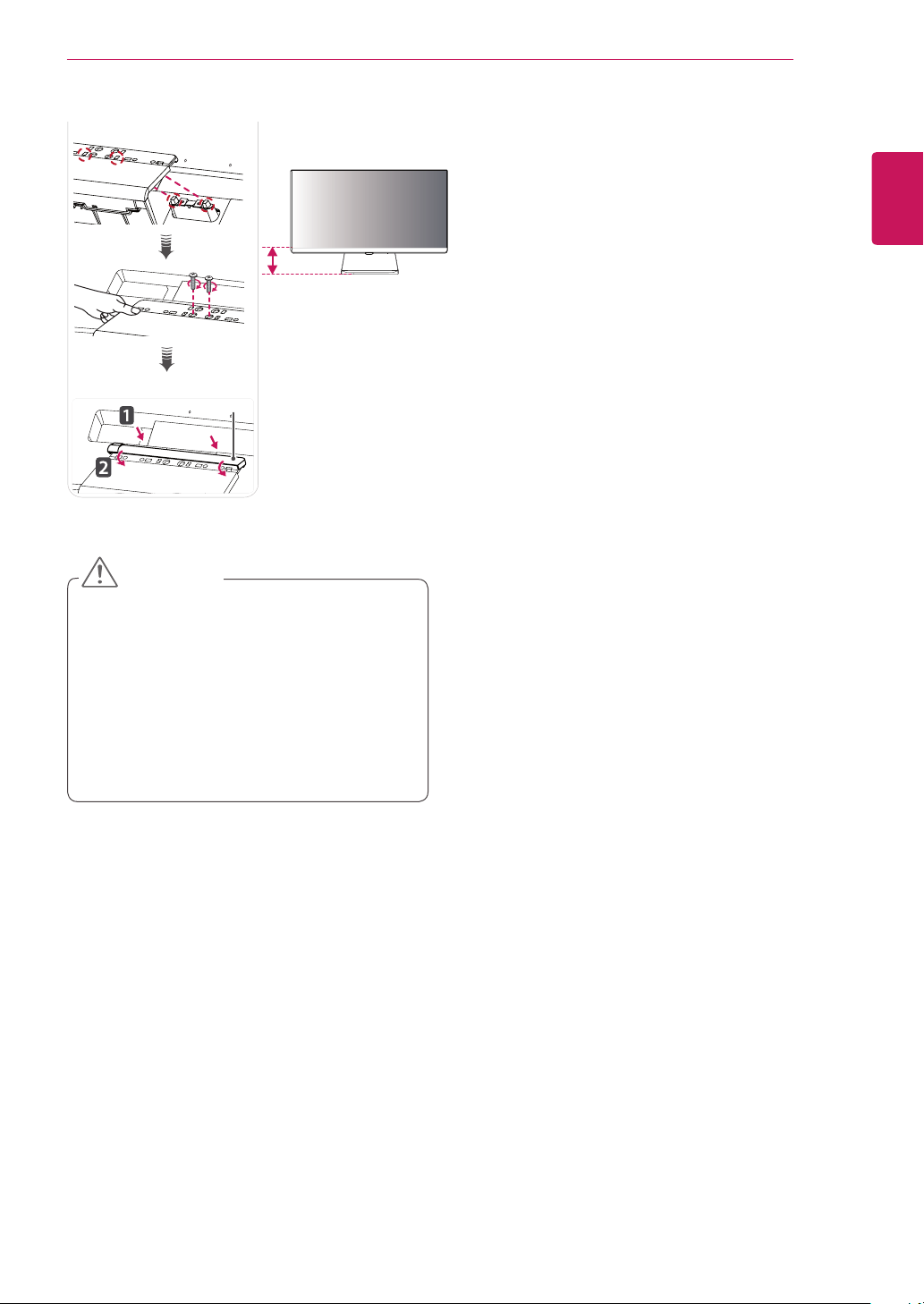

Screw Cover
or
100 mm
(3.9 inch)
y
The stand height is adjustable by 20 mm
(0.7 inch).
y
When tightening the screws after mounting
the stand base onto the stand hinge, be sure
to hold the stand base with your hand. Other-
wise, the product may fall, causing personal
injury or damage to the product.
y
Be careful not to hurt your hand on the edges
of the screw covers.
CAUTION
10
ASSEMBLING AND PREPARING
ENGLISH
Detaching the Stand
y
Illustrations in this document represent typical
procedures, so they may look different from
the actual product.
y
Do not carry the monitor upside down by just
holding the base. This may cause the monitor
to fall off the stand and could result in personal
injury.
y
When lifting or moving the monitor, do not
touch the monitor screen. The force applied to
the monitor screen may cause damage to it.
y
If you use the monitor panel without the stand
base, its joystick button may cause the moni-
tor to become unstable and fall, resulting in
damage to the monitor or human injury. In
addition, this may cause the joystick button to
malfunction.
CAUTION
1
Place the screen face down.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Detach the screw cover from the stand base
as shown in the illustration and then remove
the two screws on the back to detach the stand
base from the hinge.
Screw Cover
ENGLISH
11
ASSEMBLING AND PREPARING
Stand Base
y
When removing the screws to detach the
stand base from the hinge, be sure to hold
the stand base with your hand. Otherwise, the
product may fall, causing personal injury or
damage to the product.
CAUTION
12
ASSEMBLING AND PREPARING
ENGLISH
Installing on a Table
1
Lift the monitor and place it on the table in an
upright position. Place the monitor at least
10 cm (3.9 inch) away from the wall to ensure
sufficient ventilation.
10 cm
10 cm (3.9 inch)
10 cm
10 cm
2
Connect the power adapter to the monitor and
then plug the power cord into the wall outlet.
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
y
Unplug the power cord before moving or
installing the monitor. There is risk of electric
shock.
CAUTION
Adjusting the angle
1
Place the monitor mounted on the stand base
in an upright position.
2
Adjust the angle of the screen.
The angle of the screen can be adjusted forward
or backward from -5° to 15° for a comfortable
viewing experience.
-515
Front
Rear
y
When you adjust the angle, do not hold the
stand as shown on the following illustration.
You may injure your fingers.
-515
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor.
-515
WARNING
ENGLISH
13
ASSEMBLING AND PREPARING
Tidying up Cables
Tidy up cables using the cable holder on the stand
base as shown in the illustration.
y
Cables can get caught in the hinge area as
shown in the illustration, so be careful when
organizing cables.
NOTE
Installing the Wall Mount Plate
This monitor meets the specifications for the wall
mount plate or other compatible devices.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Attach the clear sheet to the back of the moni-
tor and align it with the screw holes.
Clear sheet
(PET sheet)
3
Place the wall mount plate onto the monitor
and align it with the screw holes.
4
Tighten the four screws to fix the plate to the
monitor using a screwdriver.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to apply too much force while
mounting the wall mount plate as it may cause
damage to the screen
NOTE
14
ASSEMBLING AND PREPARING
ENGLISH
Installing on the Wall
Install the monitor at least 10 cm (3.9 inch) away
from the wall and leave about 10 cm (3.9 inch)
of space at each side of the monitor to ensure
sufficient ventilation. Detailed installation instruc-
tions can be obtained from your local retail store.
Alternatively, please refer to the manual for how to
install and set up a tilting wall mounting bracket.
10 cm (3.9 inch)
10 cm
10 cm
10 cm
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
1
If you use screws longer than the standard
length, it may damage the inside of the prod-
uct.
2
A non-VESA standard screw may damage the
product and cause the monitor to fall. LG Elec-
tronics is not liable for any accidents relating to
the use of non-standard screws.
Model 34UM64
Wall Mount (A x B) 100 x 100
Stand Screw M4 x L10
Required Screws 4
Wall Mount Plate
(Optional)
RW120
y
Wall Mount (A x B)
A
B
y
Use the screws specified by VESA standards.
y
The wall mount kit includes the installation guide
and all necessary parts.
y
The wall mounting bracket is optional. You can
obtain optional accessories from your local dealer.
y
The length of the screw may differ for each wall
mounting bracket. Be sure to use the proper
length.
y
For more information, please refer to the owner's
manual for the wall mounting bracket.
NOTE
ENGLISH
15
ASSEMBLING AND PREPARING
y
Unplug the power cord before moving or install-
ing the monitor to avoid electric shock.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling off,
which could lead to injury. Use an authorized LG
wall mount and contact the local dealer or quali-
fied personnel.
y
Applying excessive force when tightening
screws may cause damage to the monitor. Dam-
age caused in this way will not be covered by
the product warranty.
y
Use the wall mounting bracket and screws that
conform to VESA standards. Damage caused by
the use or misuse of inappropriate components
will not be covered by the product warranty.
y
When measured from the back of the monitor,
the length of each installed screw must be 8 mm
(0.3 inch) or less.
Wall Mount Plate
Back of the Monitor
Screw
Dimensions
: M4 x L10
Wall Mount Plate
Back of the Monitor
Max 8 mm (0.3 inch)
CAUTION
Using the Kensington Lock
The connector for the Kensington security system
is located at the back of the monitor.
For more information on installation and usage,
refer to the Kensington lock owner's manual or visit
the website at http://www.kensington.com.
Connect the monitor to a table using the Kensing-
ton security system cable.
y
The Kensington security system is optional.
You can obtain optional accessories from most
electronics stores.
NOTE
16
USING THE MONITOR
ENGLISH
USING THE MONITOR
Press the joystick button, go to Menu → Easy con-
trol → Input, and then select the input option.
y
Do not press the screen for a prolonged time.
This may cause image distortion.
y
Do not display a still image on the screen
for a prolonged time. This may cause image
retention. Use a screensaver if possible.
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) power strip or a
grounded power outlet.
y
The monitor may flicker when turned on in
an area where the temperature is low. This is
normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
NOTE
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
* Plug and Play: A feature that allows you to add a
device to your computer without having to recon-
figure anything or install any manual drivers.

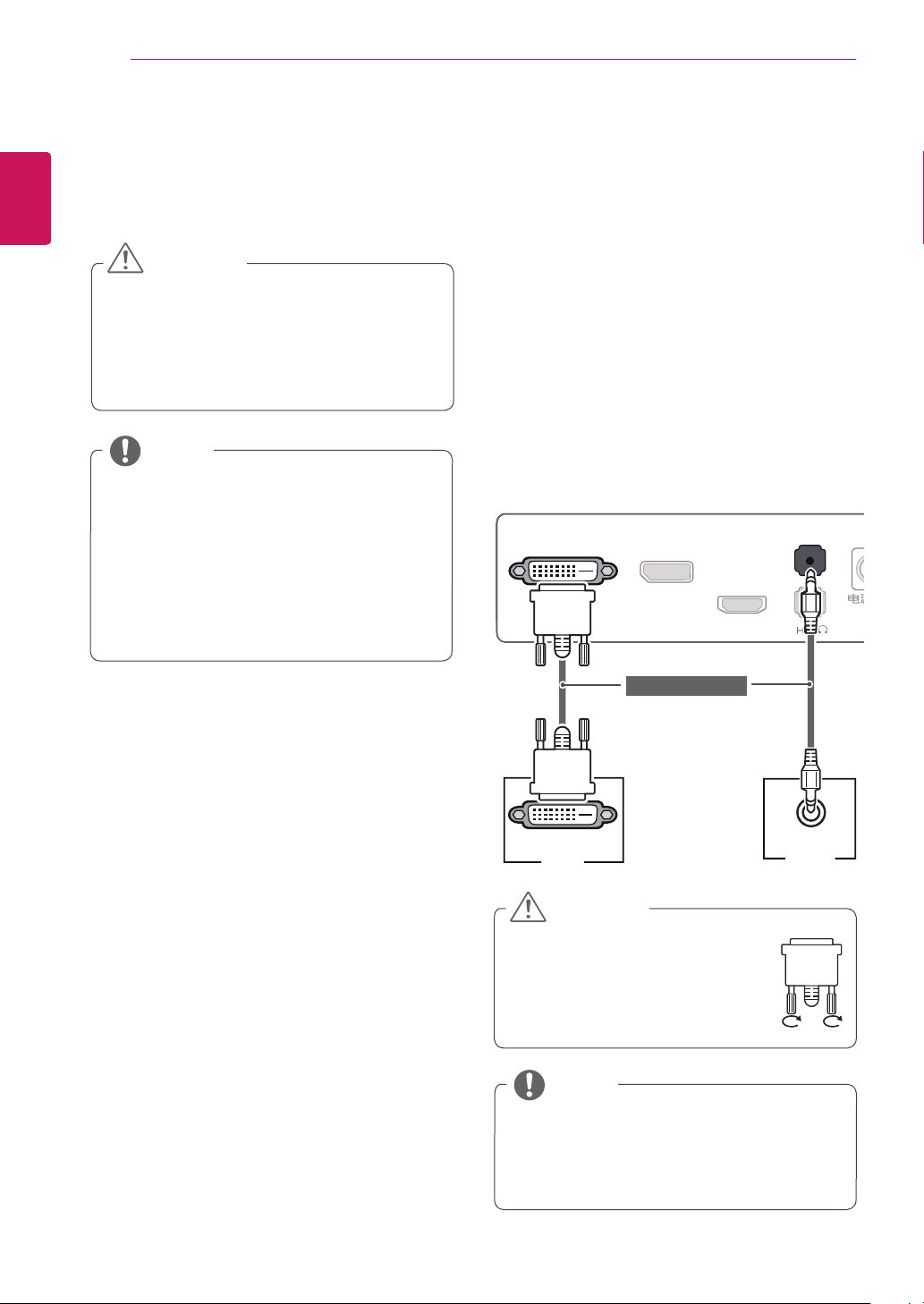

DVI Connection
Transmits digital video signals to the monitor. Con-
nect the monitor using the DVI cable as illustrated
below.
To hear sound in DVI input mode, connect the
PC's AUDIO OUT port to the monitor's AUDIO IN
(PC) port using the audio cable.
D
VI-D IN
DP IN
HDMI
IN
1
DP OUT
DVI-D IN
AUDIO IN
(PC)
DVI-D IN
DP
IN
HDMI
IN
1
AUDIO IN
(PC)
D
C
-I
N
(19 V )
DVI-I(D) OUT
PC
D
VI-D IN
D
P I
N
HDMI IN 1
AU
DI
O
IN
(
P
C)
DVI
-
D
IN
D
P I
N
HDMI IN 1
AU
DI
O
I
N
(
P
C)
D
VI-D I
N
D
P IN
H/P
HDMI
IN
1
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
DC-I
N
(19 V )
D
C-IN
(19 V )
H/P
AUDIO OUT
PC
H/P
H
/
P
H
/
P
(sold separately)
y
Connect the input signal cable and
turn it in the direction of the arrow
as shown in the illustration. To
prevent disconnection, secure the
cable tightly.
CAUTION
y
If you connect a DVI signal cable, use the
DVI-D dual cable.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
ENGLISH
17
USING THE MONITOR
DisplayPort Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect the monitor to your PC
using the display port cable as shown in the illus-
tration below.
D
VI-D IN
DP IN
HDMI
IN
1
DP OUT
DVI-D IN
AUDIO IN
(PC)
DVI-D IN
DP
IN
HDMI
IN
1
AUDIO IN
(PC)
D
C
-I
N
(19 V )
DVI-I(D) OUT
PC
D
VI-D IN
D
P I
N
HDMI IN 1
AU
DI
O
IN
(
P
C)
DVI
-
D
IN
D
P I
N
HDMI IN 1
AU
DI
O
I
N
(
P
C)
D
VI-D I
N
D
P IN
H/P
HDMI
IN
1
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
DC-I
N
(19 V )
D
C-IN
(19 V )
H/P
AUDIO OUT
PC
H/P
H
/
P
H
/
P
(sold separately)
y
There may be no video or audio output de-
pending on the DP (DisplayPort) version of the
PC.
NOTE
HDMI Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor
using the HDMI cable as shown in the illustration
below.
D
VI-D IN
DP IN
HDMI
IN
1
DP OUT
DVI-D IN
AUDIO IN
(PC)
DVI-D IN
DP
IN
HDMI
IN
1
AUDIO IN
(PC)
D
C
-I
N
(19 V )
DVI-I(D) OUT
PC
D
VI-D IN
D
P I
N
HDMI IN 1
AU
DI
O
IN
(
P
C)
DVI
-
D
IN
D
P I
N
HDMI IN 1
AU
DI
O
I
N
(
P
C)
D
VI-D I
N
D
P IN
H/P
HDMI
IN
1
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
DC-I
N
(19 V )
D
C-IN
(19 V )
H/P
AUDIO OUT
PC
H/P
H
/
P
H
/
P
y
Connecting your PC to the monitor using the
HDMI cable may cause device compatibility
issues.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
CAUTION
18
USING THE MONITOR
ENGLISH
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals
from your AV device to the monitor. Connect your
AV device to the monitor using the HDMI cable as
shown in the illustration below.
D
VI-D IN
DP IN
HDMI
IN
1
DP OUT
DVI-D IN
AUDIO IN
(PC)
DVI-D IN
DP
IN
HDMI
IN
1
AUDIO IN
(PC)
D
C
-I
N
(19 V )
DVI-I(D) OUT
PC
D
VI-D IN
D
P I
N
HDMI IN 1
AU
DI
O
IN
(
P
C)
DVI
-
D
IN
D
P I
N
HDMI IN 1
AU
DI
O
I
N
(
P
C)
D
VI-D I
N
D
P IN
H/P
HDMI
IN
1
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
DC-I
N
(19 V )
D
C-IN
(19 V )
H/P
AUDIO OUT
PC
H/P
H
/
P
H
/
P
y
Using a DVI to HDMI cable may cause
compatibility issues.
NOTE
Connecting Peripherals
Connecting Headphones
Connect peripherals to the monitor via the head-
phones port. Connect as illustrated.
D
VI-D IN
DP IN
HDMI
IN
1
DP OUT
DVI-D IN
AUDIO IN
(PC)
DVI-D IN
DP
IN
HDMI
IN
1
AUDIO IN
(PC)
D
C
-I
N
(19 V )
DVI-I(D) OUT
PC
D
VI-D IN
D
P I
N
HDMI IN 1
AU
DI
O
IN
(
P
C)
DVI
-
D
IN
D
P I
N
HDMI IN 1
AU
DI
O
I
N
(
P
C)
D
VI-D I
N
D
P IN
H/P
HDMI
IN
1
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
AU
DI
O
I
N
(
P
C)
DC
-IN
(19 V )
DC-I
N
(19 V )
D
C-IN
(19 V )
H/P
AUDIO OUT
PC
H/P
H
/
P
H
/
P
(sold separately)
y
Peripheral devices are sold separately.
y
If you use Angled earphones, it may cause
a problem with connecting another external
device to the monitor. Therefore, it is recom-
mended to use Straight earphones.
Angled Straight
y
Depending on the audio settings of the PC
and external device, headphones and speaker
functions may be limited.
NOTE
ENGLISH
19
USER SETTINGS
USER SETTINGS
Activating the Main Menu
1
Press the joystick button on the bottom of the monitor.
2
Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3
Press the joystick button once more to exit the main menu.
Joystick
Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu
(Holding down the button to turn off the monitor: You can turn off
the monitor this way at any time, including when the OSD is on)
◄
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the menu features.
►
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the PBP feature.
▲
Main menu disabled Enables the main menu.
Main menu enabled Enters the reader feature.
▼
Main menu disabled Enables the main menu.
Main menu enabled Turns off the monitor.
Main Menu Features
Reader
Menu PBP
Monitor off
Exit
Long press: Monitor off
Main Menu Description
Menu Configures the screen settings.
Reader Adjusts color for comfortable text file reading.
PBP Displays the screens of two input modes on one monitor.
Monitor off Turns off the monitor.
Exit Exits the main menu.
20
USER SETTINGS
ENGLISH
User Settings
Menu Settings
1
To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the
Menu.
2
Configure the options by moving the joystick up/down/left/right.
3
To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
4
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
y
When you enter the menu, instructions on how to use the button will appear in the bottom right corner
of the screen.
Easy control Function PBP Screen Settings Reset
Each option is described below.
Menu Description
Easy control Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume level.
y
You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume
menu.
NOTE
Input Selects the input mode.
Ratio Adjusts the aspect ratio of the screen.
Function Adjusts SMART ENERGY SAVING and Picture Modes.
PBP PBP Displays the screens of two input modes on one monitor.
Screen Picture Adjusts the Sharpness, Black level and Response Time of the screen.
Color Adjusts Gamma, Color Temperature, Red, Green, Blue and Six Color.
Settings Adjusts Main Audio, Language, Power LED, Automatic Standby and OSD Lock.
Reset Restores the default settings.
◄ Exit Exits the OSD menu.
y
Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
CAUTION
ENGLISH
21
USER SETTINGS
Ratio
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Easy control > Ratio by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Easy control > Ratio Description
Wide Displays the video in widescreen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
Cinema 1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the
bottom for subtitles. (at 1080p)
1:1 The aspect ratio is not adjusted from the original.
y
The display may look the same for Wide, Original, and 1:1 options at the recommended resolution
(2560 x 1080).
y
The ratio is disabled in the interlaced signal.
NOTE
Easy control
Easy control
Brightness
100
>
Contrast 70
>
Function
Volume
30
>
Input DVI-D
>
PBP
Ratio Wide
>
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
22
USER SETTINGS
ENGLISH
Function
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Function by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Function Description
SMART ENERGY
SAVING
Conserve energy by using luminance compensation algorithm
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the SMART ENERGY SAVING feature.
Picture Mode Custom Allows the user to adjust settings. You can adjust the color mode of the main
menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for videos.
Game Optimizes the screen for games.
Function
Easy control
SMART ENERGY SAVING Low
>
Picture Mode Custom
>
Function
PBP
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
y
Saving Data depends on the panel. So,those values should be different between each panel and
panel vendor. If the option of SMART ENERGY SAVING is set High or Low, monitor luminance will
become higher or lower dependent upon the source.
y
If the option of SMART ENERGY SAVING is set High or Low, the Picture Mode will automatically be
Custom, and Reader Mode will automatically be set to Reader Off.
NOTE
ENGLISH
23
USER SETTINGS
PBP
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to PBP by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > PBP Description
PBP Displays the screens of two input modes on one monitor.
PBP Connection
Sub screen (Right)
DVI HDMI 1 HDMI 2 DisplayPort
Main screen
(Left)
DVI - O X O
HDMI 1 O - O O
HDMI 2 X O - O
DisplayPort O O O -
Input Main Selects the video signal input of the main screen.
Sub Selects the video signal input of the sub screen.
Audio Changes the audio output in PBP mode.
Swap Toggles between the main screen and sub screen in PBP mode.
Sub Full Converts the sub screen in PBP mode to wide screen.
Ratio Adjusts the aspect ratio of the main screen or sub screen.
Main Wide Displays the video to fit the PBP screen, regardless of the video
signal input.
Original Displays the video in the aspect ratio of the video signal input on
the PBP screen.
Sub Wide Displays the video to fit the PBP screen, regardless of the video
signal input.
Original Displays the video in the aspect ratio of the video signal input on
the PBP screen.
y
When the PBP mode is Off, Input, Audio, Swap, Sub Full, and Ratio menus become disabled. The
Main/Sub options for Ratio become disabled if there is no signal.
y
When the monitor is turned off, the PBP mode will be disabled.
y
When Input is switched, the PBP mode will be disabled.
NOTE
PBP
Easy control
PBP Off
>
Input
>
Function
Audio HDMI
>
Swap
PBP
Sub Full
Ratio
>
Screen
Settings
Reset
PBP Preview
DVI-D
▲/▼: Move
/ ►: OK
◄: Back
24
USER SETTINGS
ENGLISH
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Screen > Picture by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Screen > Picture Description
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
• Offset: as a reference for a video signal, this is the darkest color the monitor can dis-
play.
High The picture of the screen gets brighter.
Low The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a nor-
mal environment, it is recommended that you use Middle. For a fast-moving picture, it is
recommended that you use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Does not use the response time improvement feature.
Screen
Easy control
>
Color
>
Function
PBP
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
25
USER SETTINGS
Color
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Screen > Color by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Screen > Color Description
Gamma Custom gamma settings: When using the gamma 0, gamma 1 and gamma 2 monitor set-
tings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp. Custom Selects the factory default picture color.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Red You can customize the picture color using Red, Green and Blue colors.
Green
Blue
Six Color Meets the user requirements for colors by adjusting the tone and saturation of the six colors
(red, green, blue, cyan, magenta and yellow) and then saving the settings.
Hue Adjusts the tone of the screen colors.
Saturation Adjusts the saturation of the screen colors. The lower the value, the less satu-
rated and brighter the colors become. The higher the value, the more saturated
and darker the colors become.
Reset Returns color to the default settings.
Screen
Easy control
>
Color
>
Function
PBP
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
26
USER SETTINGS
ENGLISH
Settings
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Settings by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Settings Description
Main Audio Outputs audio from digital input ports (HDMI, DisplayPort and Audio-in) to the monitor speakers.
Language Sets the menu screen to the desired language.
Power LED Turns the power indicator on the front of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
Automatic
Standby
Feature that automatically turns off the monitor when there is no movement on the screen for a
period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
OSD Lock Prevents incorrect key input.
On Disables key input
Off Enables key input
y
All features are disabled except Brightness, Contrast, Volume, Input, OSD Lock in Settings,
and the Exit button.
NOTE
Settings
Easy control
Main Audio Audio-In
>
Language English
>
Function
Power LED Off
>
Automatic Standby Off
>
PBP
OSD Lock Off
>
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
27
USER SETTINGS
Reset
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Reset by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Restores the default settings.
Cancel Cancel the reset.
Reset
Easy control
Do you want to reset your settings?
Reset
Function
Cancel
PBP
Screen
Settings
Reset
▲/▼:Move
/►:OK
◄:Back
28
USER SETTINGS
ENGLISH
Reader
1
Press the joystick button on the bottom of the monitor.
2
Go to Reader by moving the joystick button to ▲.
3
Configure the options following the instructions that appear in the bottom
right corner.
Each option is described below.
Reader Mode Description
Reader 1 Optimizes the screen for browsing newspapers. You can brighten the screen in the OSD menu.
Reader 2 Optimizes the screen for looking at cartoons. You can brighten the screen in the OSD menu.
Reader Off Reader Mode is off.
Reader Mode
Reader 1
Reader 2
Reader Off
◄/►:ChangeMode : OK
ENGLISH
29
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord
plugged in?
y
Check if the power cord is correctly plugged into the power outlet.
Is the power indicator on?
y
Check the power cable connection and press the power button.
Is the power on and the power
indicator displaying white?
y
Check that the connected input is enabled (Menu - Input).
Is the power indicator blinking?
y
If the monitor is in sleep mode, move the mouse, or press any key
on the keyboard, to switch the display on.
y
Check if the computer is turned on.
Is the OUT OF RANGE mes-
sage being displayed?
y
This occurs when signals transferred from the PC (video card) are
out of the horizontal or vertical frequency range of the monitor.
Please see the Product Specification section of this manual to set
the appropriate frequency.
Is the No Signal message being
displayed?
y
This is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect
it.
The OSD Locked message is being displayed.
Are some functions not avail-
able when you press the Menu
button?
y
The OSD is locked. Go to Menu > Settings and set OSD Lock to Off.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to
the screen, resulting in the retention of the image.
y
To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the
screen may be flickering. Change the resolution to 1080p or the
recommended resolution.
y
Vertical Frequency In order to display an image, the screen must be refreshed dozens of times per
second, like a fluorescent lamp. The number of times the screen is refreshed per second is called
vertical frequency, or refresh rate, and is represented by Hz.
y
Horizontal Frequency The time it takes to display one horizontal line is called the horizontal cycle. If
1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second.
This is called horizontal frequency and is represented by kHz.
NOTE
30
TROUBLESHOOTING
ENGLISH
y
Check if the video card's resolution or frequency is within the range allowed by the monitor and set it to
the recommended (optimal) resolution in Control Panel > Display > Settings.
y
Not setting the video card to the recommended (optimal) resolution may result in blurred text, a dimmed
screen, a truncated display area or misalignment of the display.
y
The setting methods may be different depending on the computer or operating system, and some reso-
lutions may not be available depending on the performance of the video card. If this is the case, contact
the manufacturer of the computer or video card for assistance.
y
Some video cards may not support 2560 x 1080 resolution. If the resolution cannot be displayed, con-
tact the manufacturer of your video card.
NOTE
The display color is abnormal.
Does the display appear discol-
ored (16 colors)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Con-
trol Panel > Display > Settings > Color Quality.
Does the display color appear
unstable or monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for an LCD screen.
It is not an error, nor is it related to the monitor's performance.
ENGLISH
31
PRODUCT SPECIFICATION
PRODUCT SPECIFICATION
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.312 mm x 0.310 mm
Resolution Max Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI : 56 Hz to 75 Hz
HDMI : 56 Hz to 75 Hz
DP : 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, DP (DisplayPort) IN, HDMI IN 1, HDMI IN 2, AUDIO IN(PC), H/P OUT
Power Sources Power Rating 19 V 2.7 A
Power Consumption
(Typical)
On Mode : 28.4 W Typ. (ENERGY STAR
®
standard) *
42 W Typ. (Outgoing condition) **
Sleep Mode < 0.5 W
Off Mode < 0.3 W
AC/DC adapter LCAP39 type, manufactured by Lien Chang
DA-65G19 type, manufactured by APD
Output: 19 V 3.42 A
Stand Angle Forward/Backward: -5° to 15° (Monitor)
Environmental
Conditions
Operating Conditions Temperature 0°C to 40°C (32 °F to 104 °F)
Humidity Less than 80%
Storing Conditions Temperature -20°C to 60°C (-4 °F to 140°F)
Humidity Less than 85%
Audio Output 7 W + 7 W
Dimensions Monitor Size (Width x Height x Depth)
With Stand 829.9 mm x 468.9 mm x 172.9 mm
(32.6 inch x 18.4 inch x 6.8 inch)
Without Stand 829.9 mm x 379.8 mm x 82.9 mm
(32.6 inch x 14.9 inch x 3.2 inch)
Weight (Without
Packaging)
With Stand 7.3 kg (16.0 lb)
Without Stand 6.3 kg (13.8 lb)
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR
®
test standard.
** The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution)
32
PRODUCT SPECIFICATION
ENGLISH
Factory Support Mode (Preset Mode, DVI-D/ HDMI/ Display-
Port PC)
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75.0 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75.0 +/+
1024 x 768 48.363 60.0 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75.0 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60.0 60.0 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+
* DVI: DTV Mode is not supported (interlace mode)
HDMI Timing (Video)
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Remarks
480p 31.5 60
576p 31.25 50
720p 37.5 50
720p 45 60
1080p 56.25 50
1080p 67.5 60
Power LED
Mode LED Color
On Mode White (only 15 seconds)
Sleep Mode Flashing White
Off Mode Off
ENGLISH
33
PROPER POSTURE
PROPER POSTURE
Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye
level.
y
Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged
usage.
y
Adjust the stand angle from -5° to 15° to obtain the best view of the screen.
You should be looking
slightly down at the
screen.
Place your hands gently
on the keyboard,
keeping your arms bent at
the elbows
and extended horizontally
in front of you.
Stand Angle
-5° to 15°
Adjust the position of
the screen to mini-
mize reflections.
This device meets the EMC requirements for
home appliances (Class B) and is intended
for home usage. This device can be used in
all regions. Read the owner's manual (CD)
carefully and keep it at hand. Please note that
the label attached to the product provides
information for technical support.
Model
Serial No.
Declaration of Conformity
Trade Name: LG
Model: 34UM64
Responsible Party: LG Electronics Inc.
Address: 1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U.S.A
TEL: 201-266-2534
ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
Refer to ENERGY STAR.gov for more
information on the ENERGY STAR® program.
As an ENERGY STAR® Partner
LGE U. S. A., Inc. has determined
that this product meets the
ENERGY STAR® guidelines for
energy efficiency.
