EXHAUST HOOD
FLEXIBLE GAS LINE CONNECTOR
SOAP SOLUTION
FOR LEAK DETECTION
PIPE
COMPOUND
DUCT TAPE
GLOVES
SAFETY GLASSES
4" DIAM METAL ELBOW
4" DUCT CLAMPS
OR
4" SPRING CLAMPS
(x2)
(x2)
4" DIA. FLEXIBLE METAL (SEMI-RIGID)
UL LISTED TRANSITION DUCT
(IF NEEDED)
KIT WX08X10077 (INCLUDES 2 ELBOWS)
4" DIA. METAL DUCT
(RECOMMENDED)
4" DIA. FLEXIBLE METAL (FOIL TYPE)
UL LISTED TRANSITION DUCT
(IF NEEDED.)
4" COVER PLATE (IF NEEDED)
(KIT WE1M454)
WARNING RISK OF FIRE
• To reduce the risk of severe injury or death, follow all installation instructions.
$SSOLDQFHLQVWDOODWLRQPXVWEHSHUIRUPHGE\DTXDOL¿HGLQVWDOOHU
• Install the clothes appliance according to these instructions and in accordance with local
codes. In the absence of local codes, installation must comply with National Fuel Gas Code,
ANSIZ223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.
• California Safe Drinking Water and Toxic Enforcement Act.
This act requires the governor of California to publish a list of substances known to the
state to cause cancer, birth defects or other reproductive harm and requires businesses
to warn customers of potential exposure to such substances. Gas appliances can
cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde and soot, caused primarily by the incomplete combustion of natural gas
or LP fuels. Properly adjusted dryers will minimize incomplete combustion. Exposure to
these substances can be minimized further by properly venting the dryer to the outdoors.

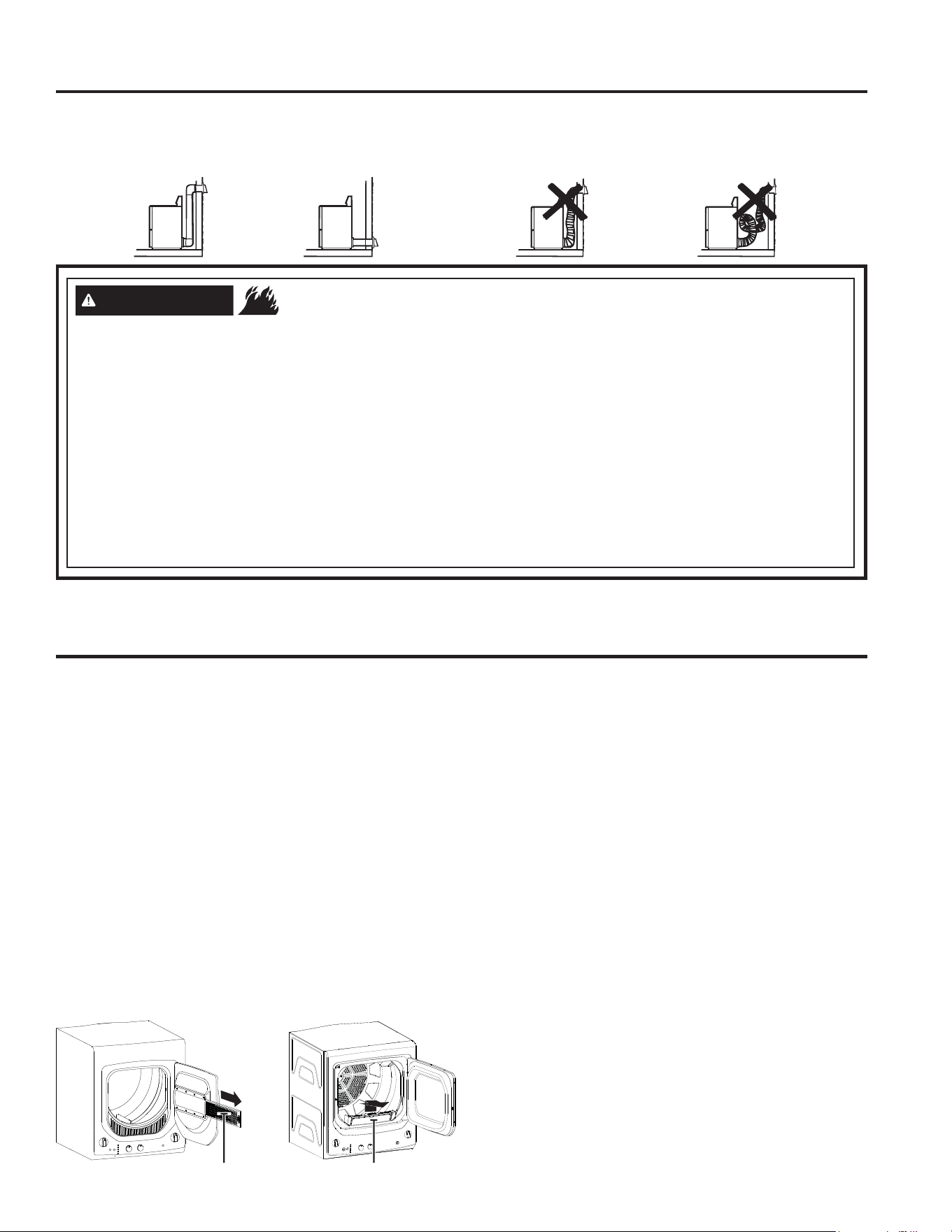

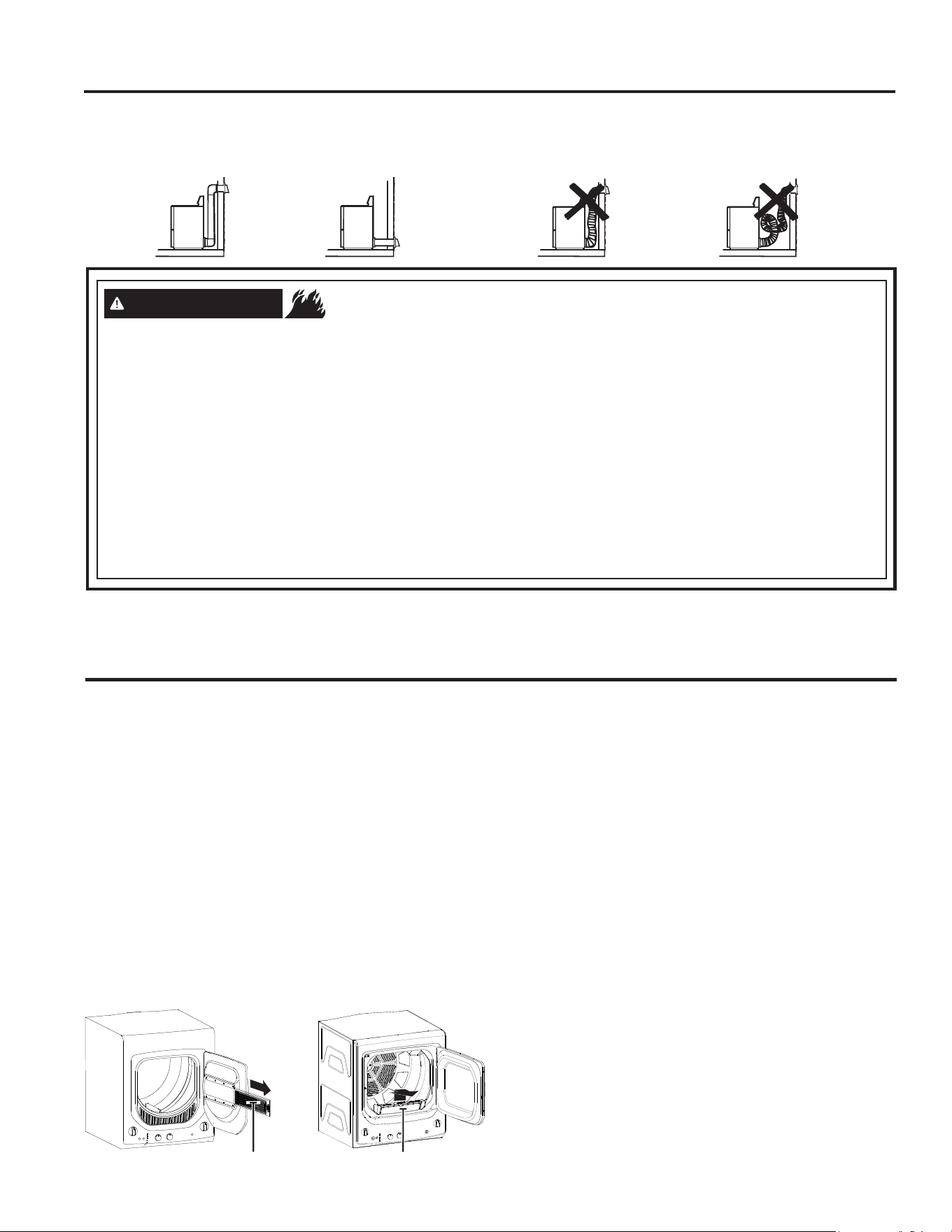

• This appliance must be exhausted to the outdoors.

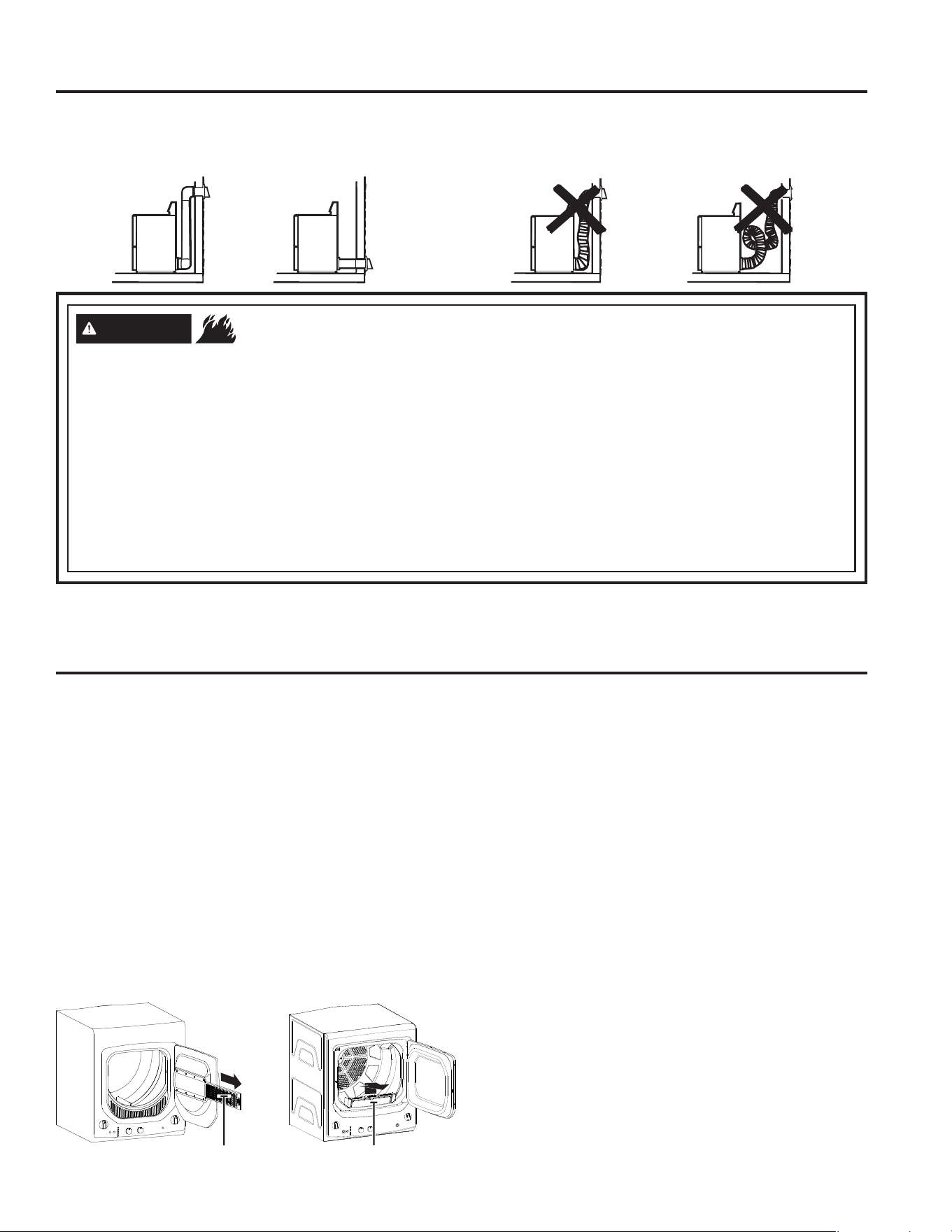

• Use only 4” rigid metal ducting for exhausting the appliance to the outdoors.
• DO NOTLQVWDOODFORWKHVGU\HUZLWKÀH[LEOHSODVWLFGXFWLQJPDWHULDOV,IÀH[LEOHPHWDO
(semi-rigid or foil-type) duct is installed, it must be UL listed and installed in accordance
with the instructions found in “Connecting The Dryer To House Vent” on page 8 of this
manual. Flexible venting materials are known to collapse, be easily crushed, and trap lint.
7KHVHFRQGLWLRQVZLOOREVWUXFWGU\HUDLUÀRZDQGLQFUHDVHWKHULVNRI¿UH
• Do not install or store this appliance in any location where it could be exposed to water
and or weather.
• Save these instructions. (Installers: Be sure to leave these instructions with the customer).
Installation
Instructions

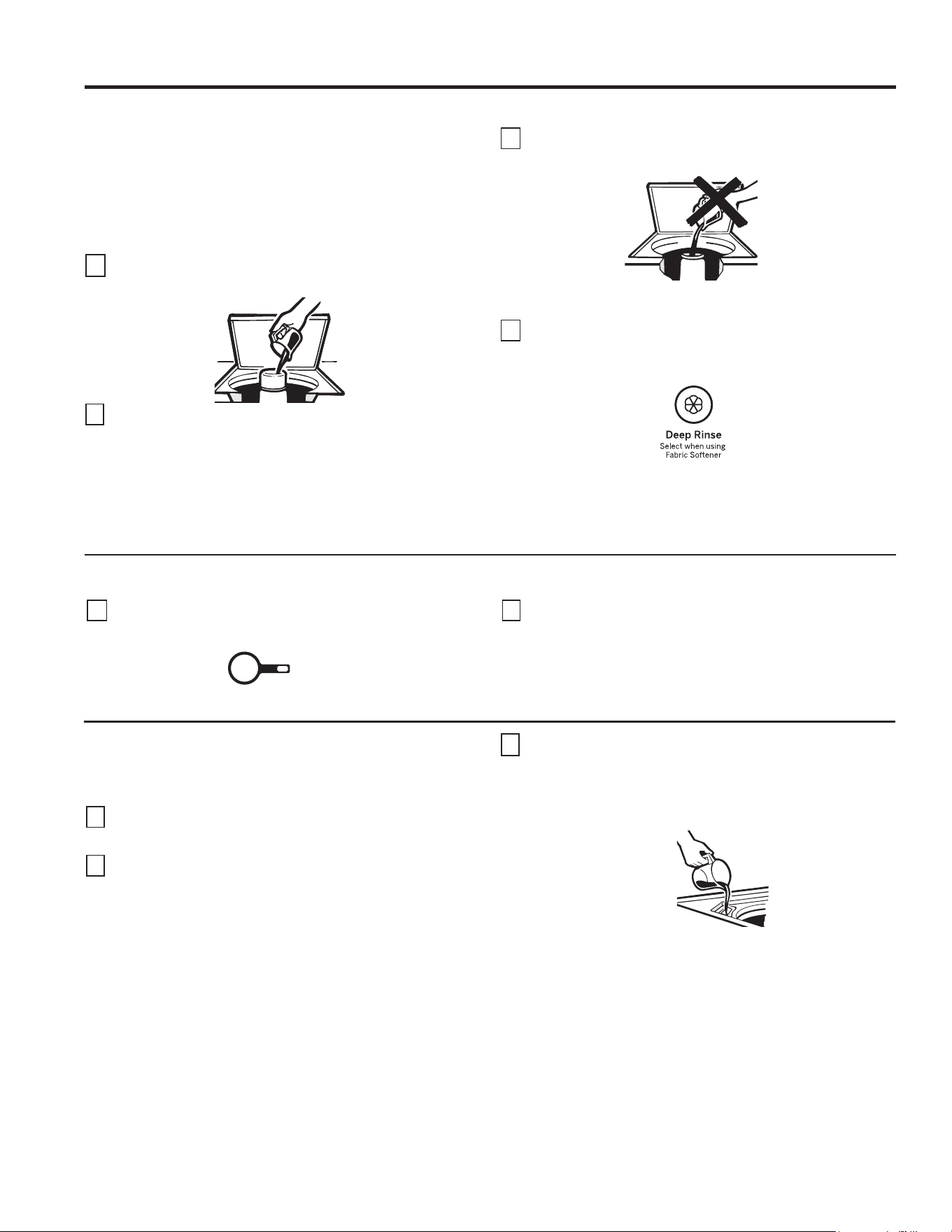

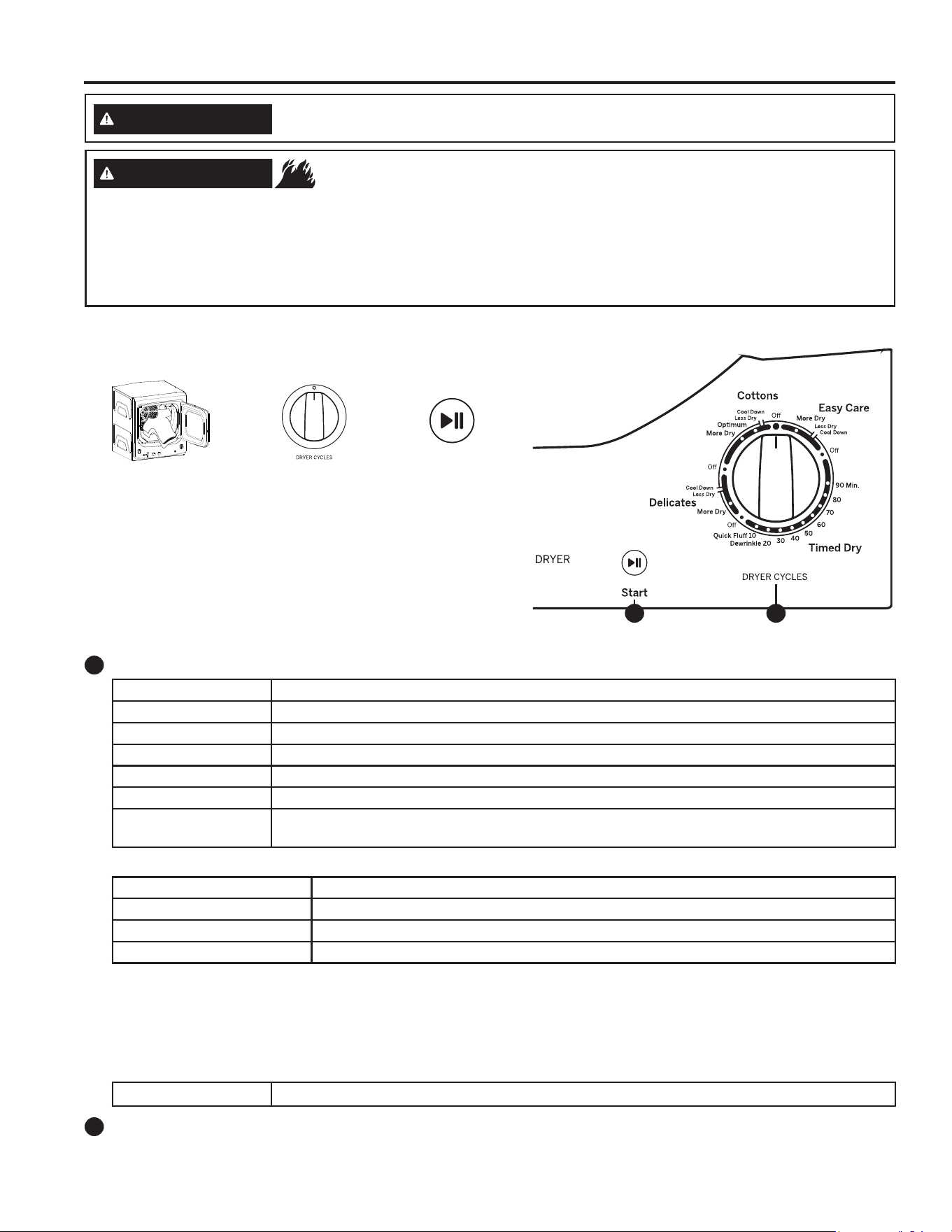

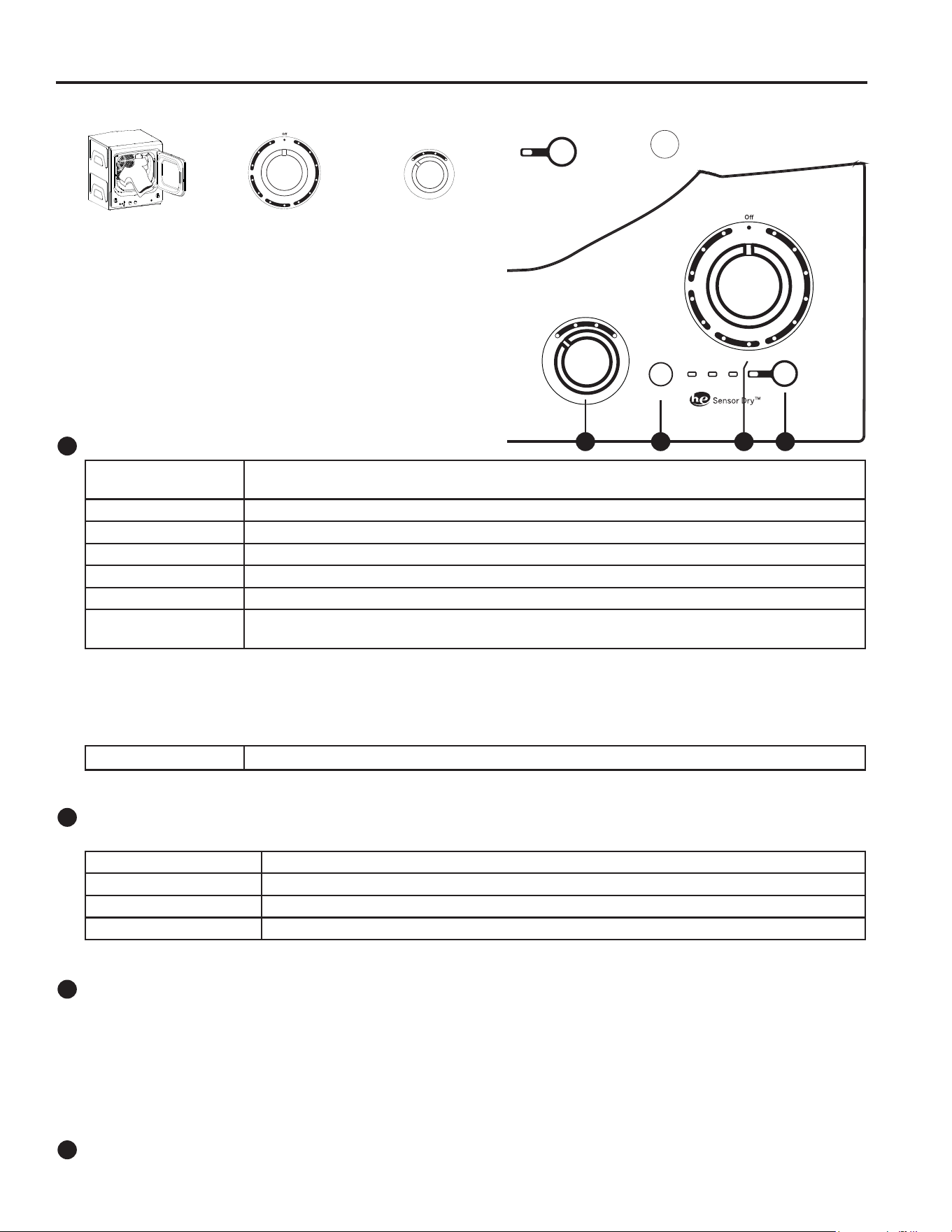

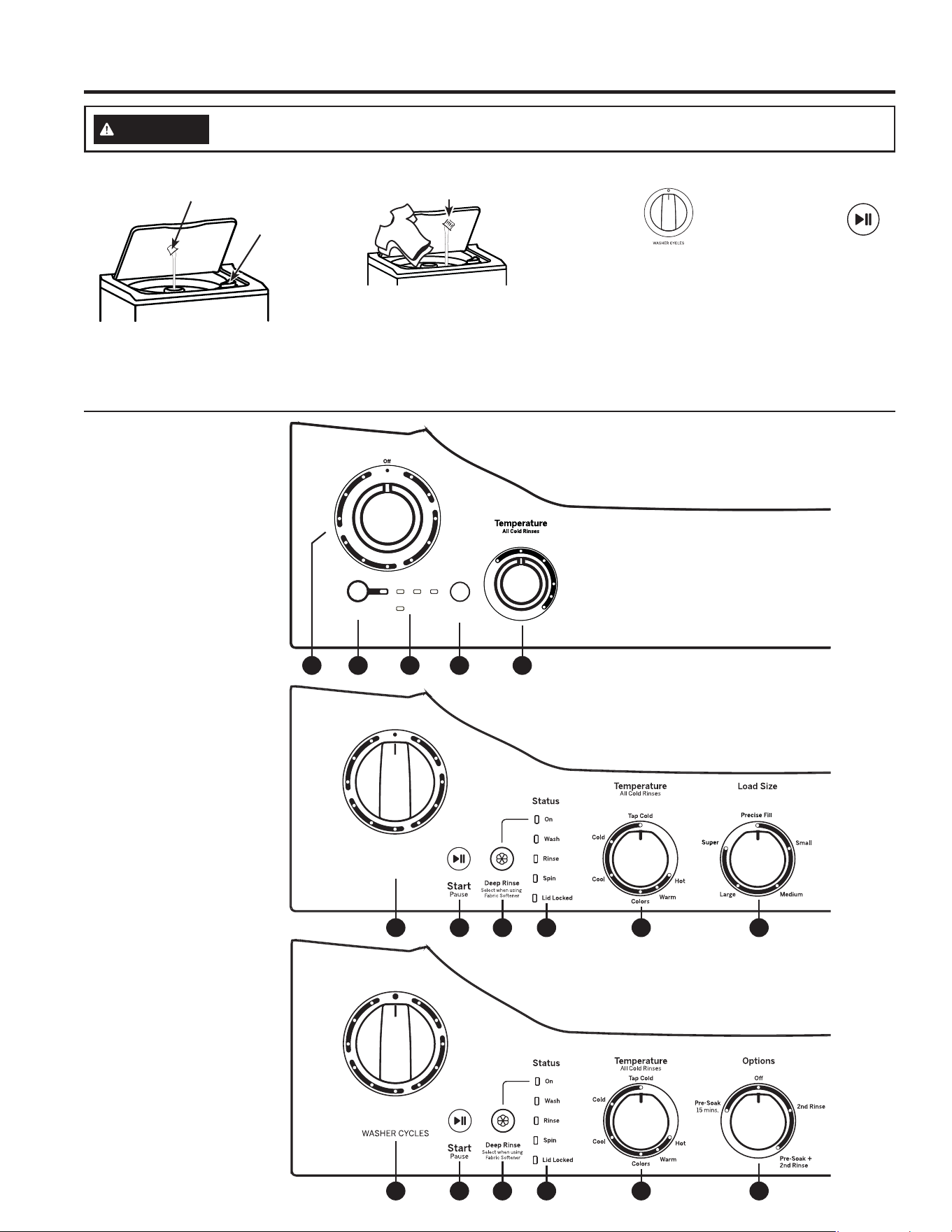

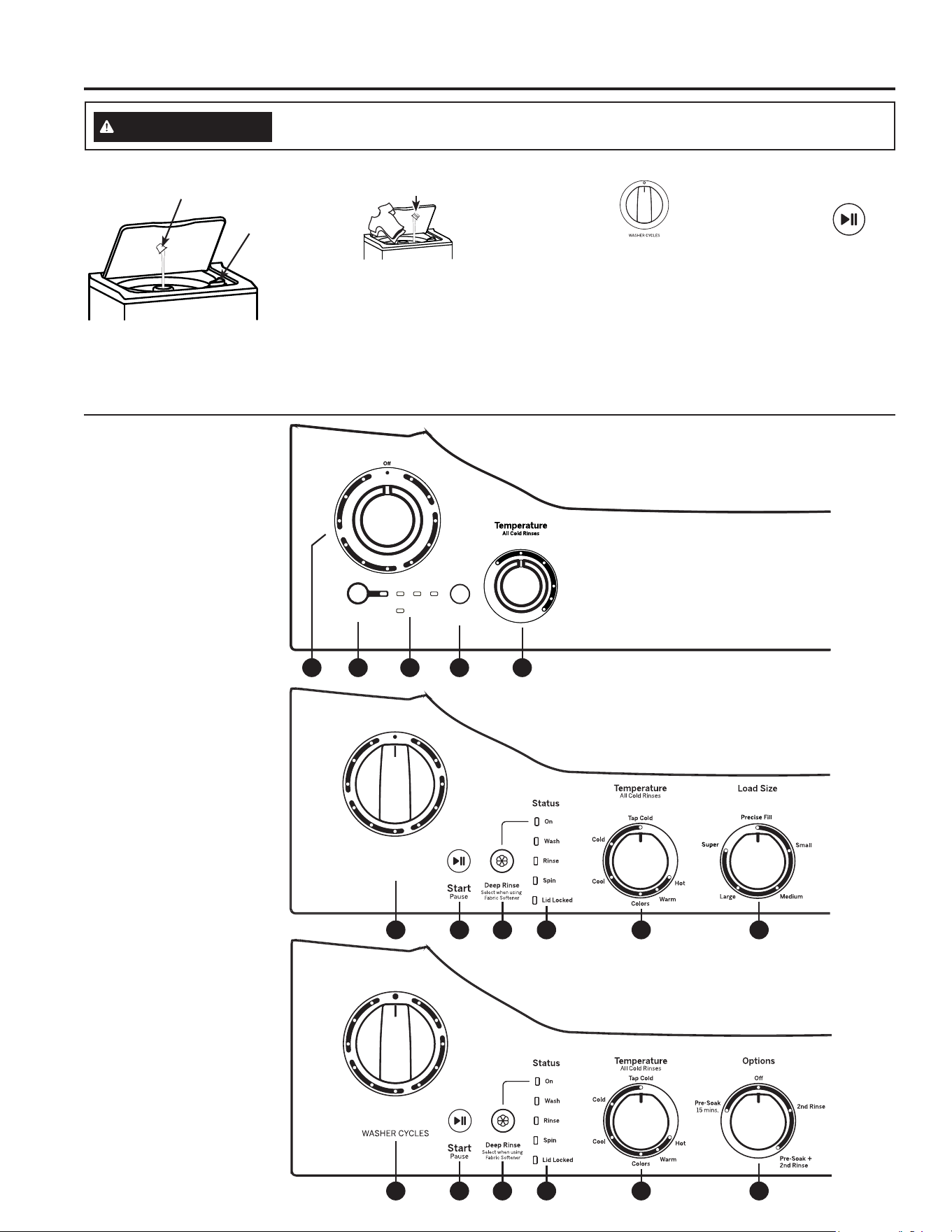

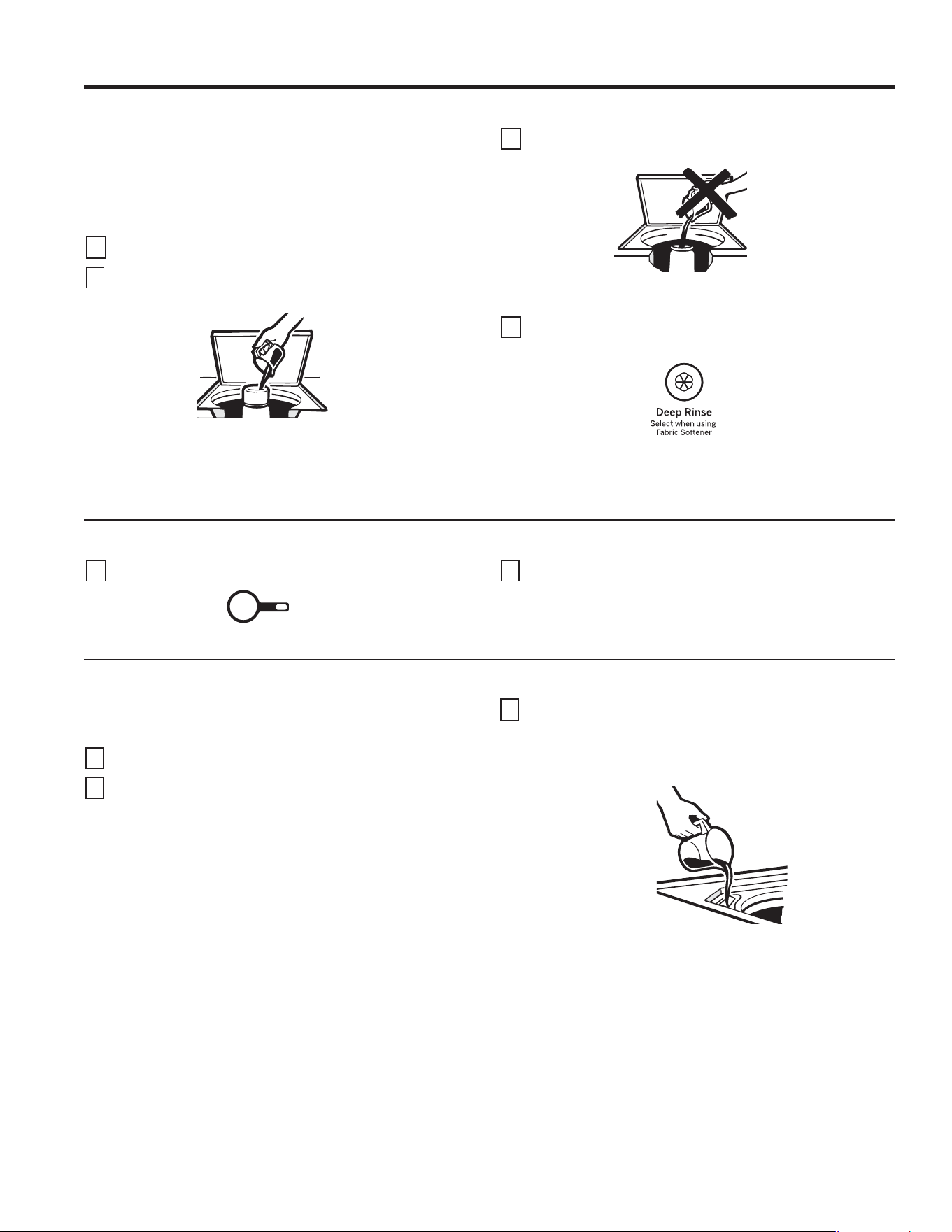

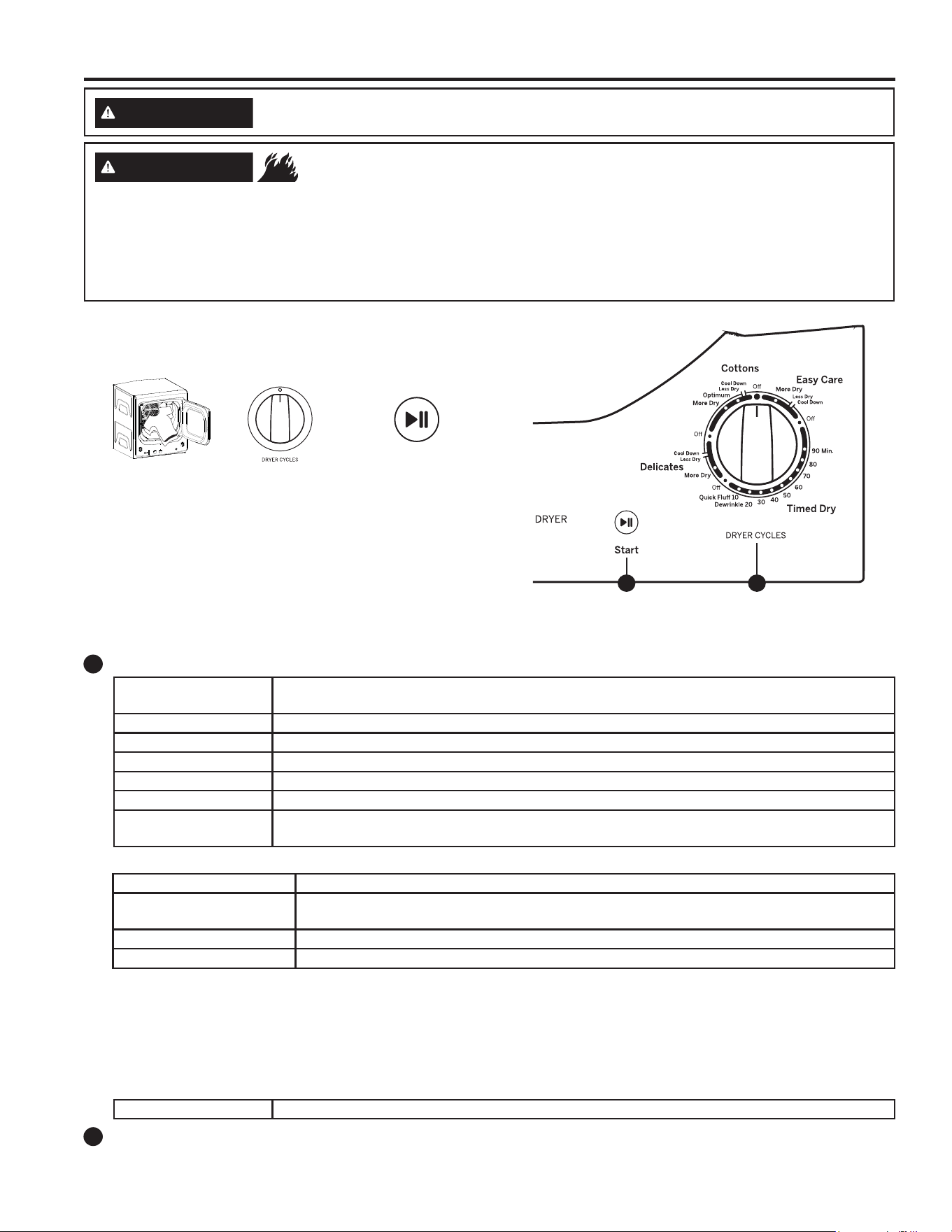

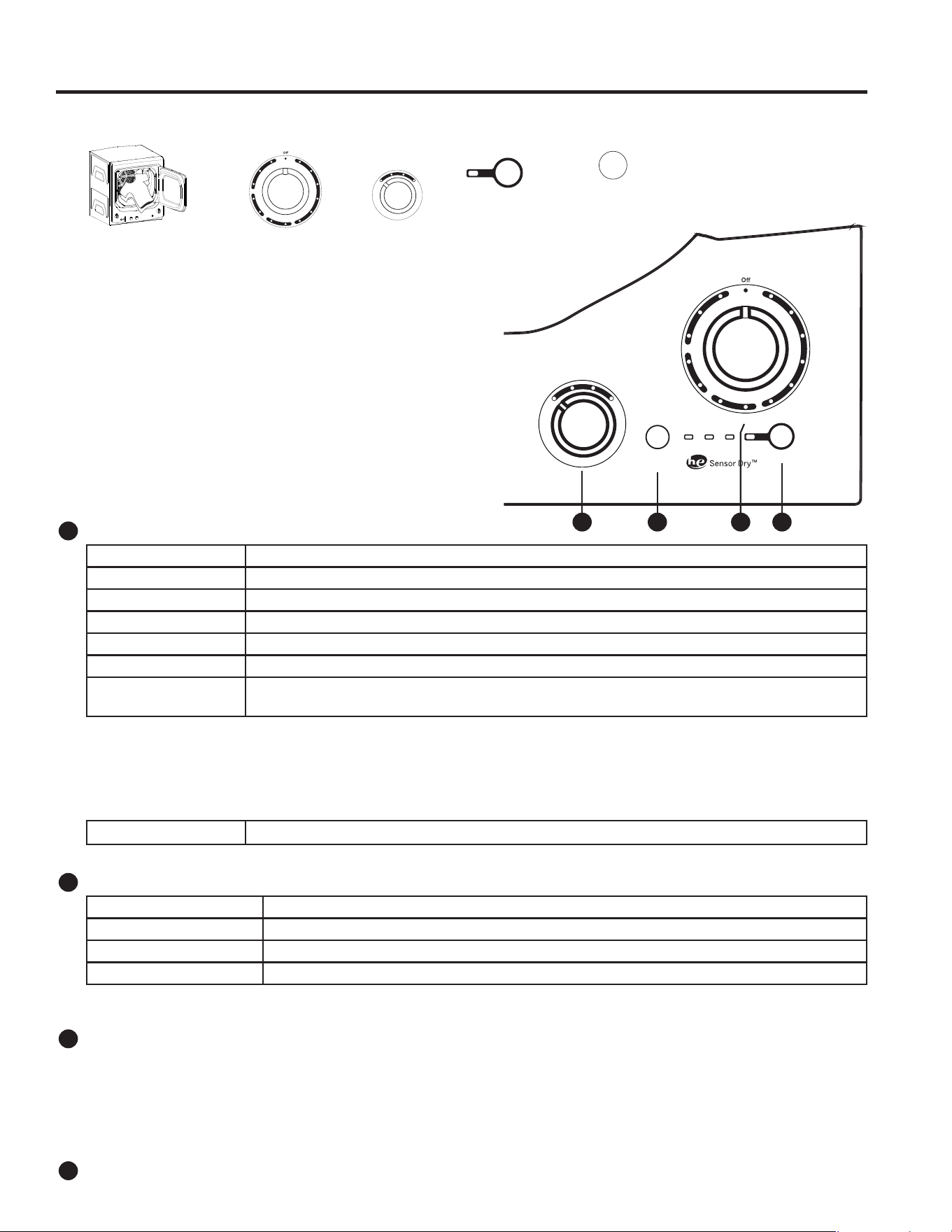

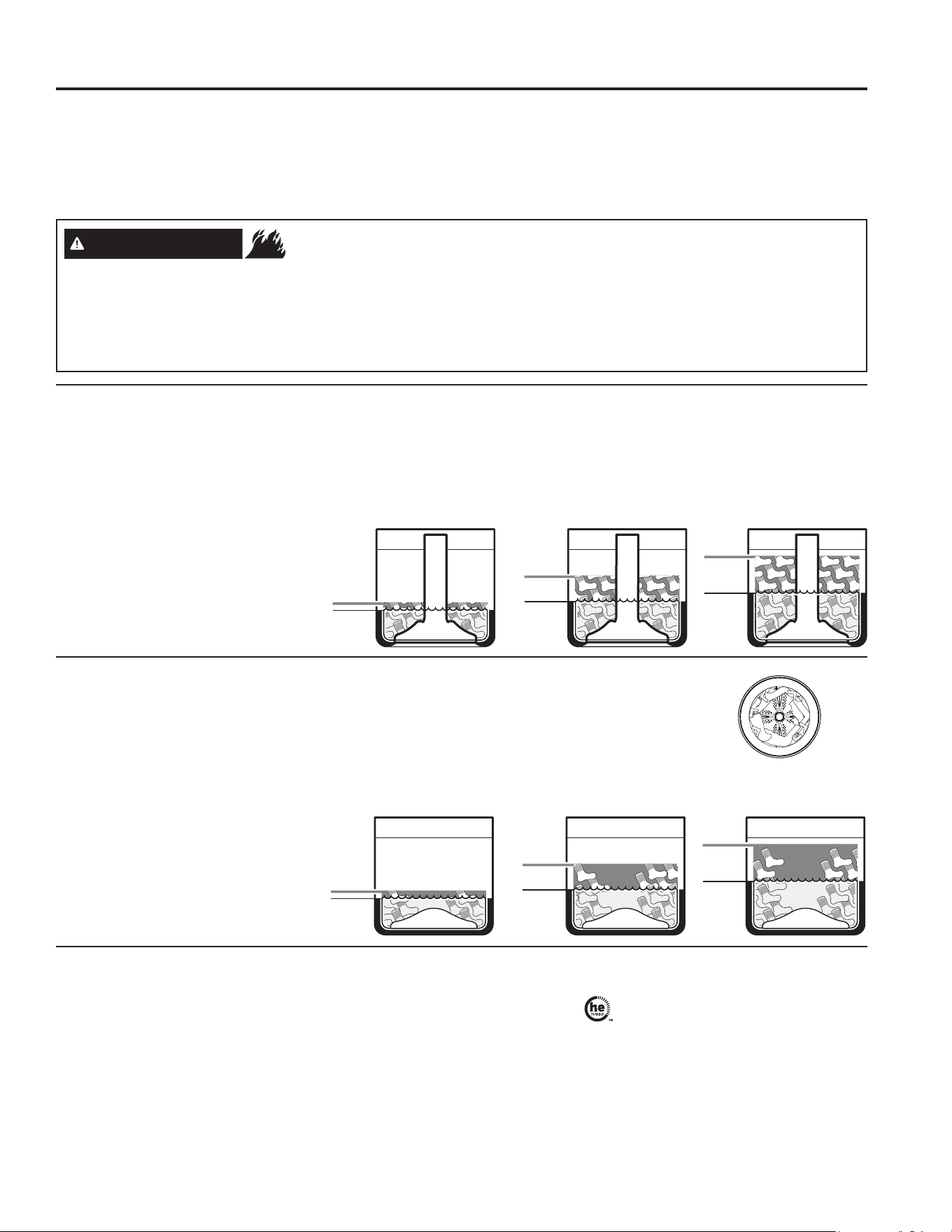

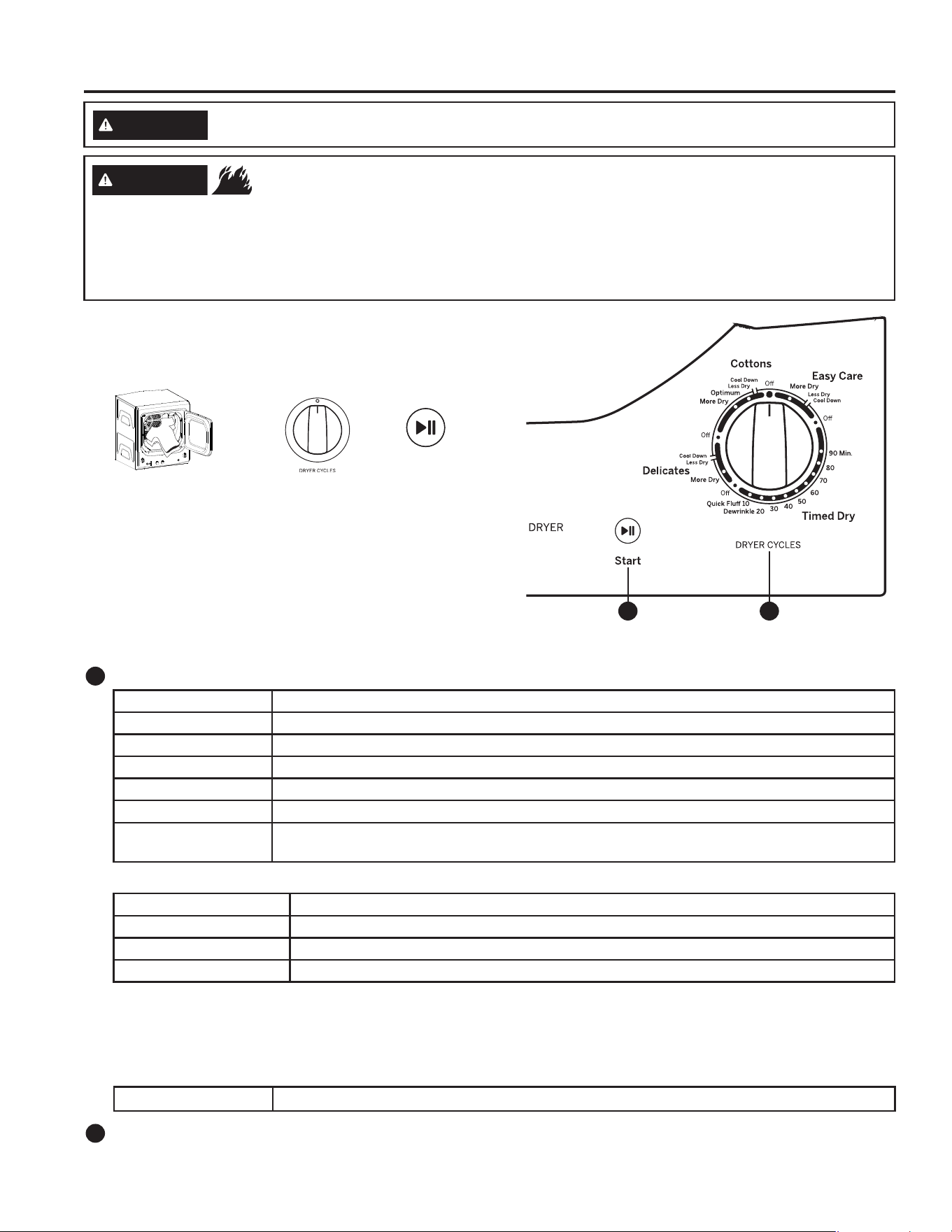

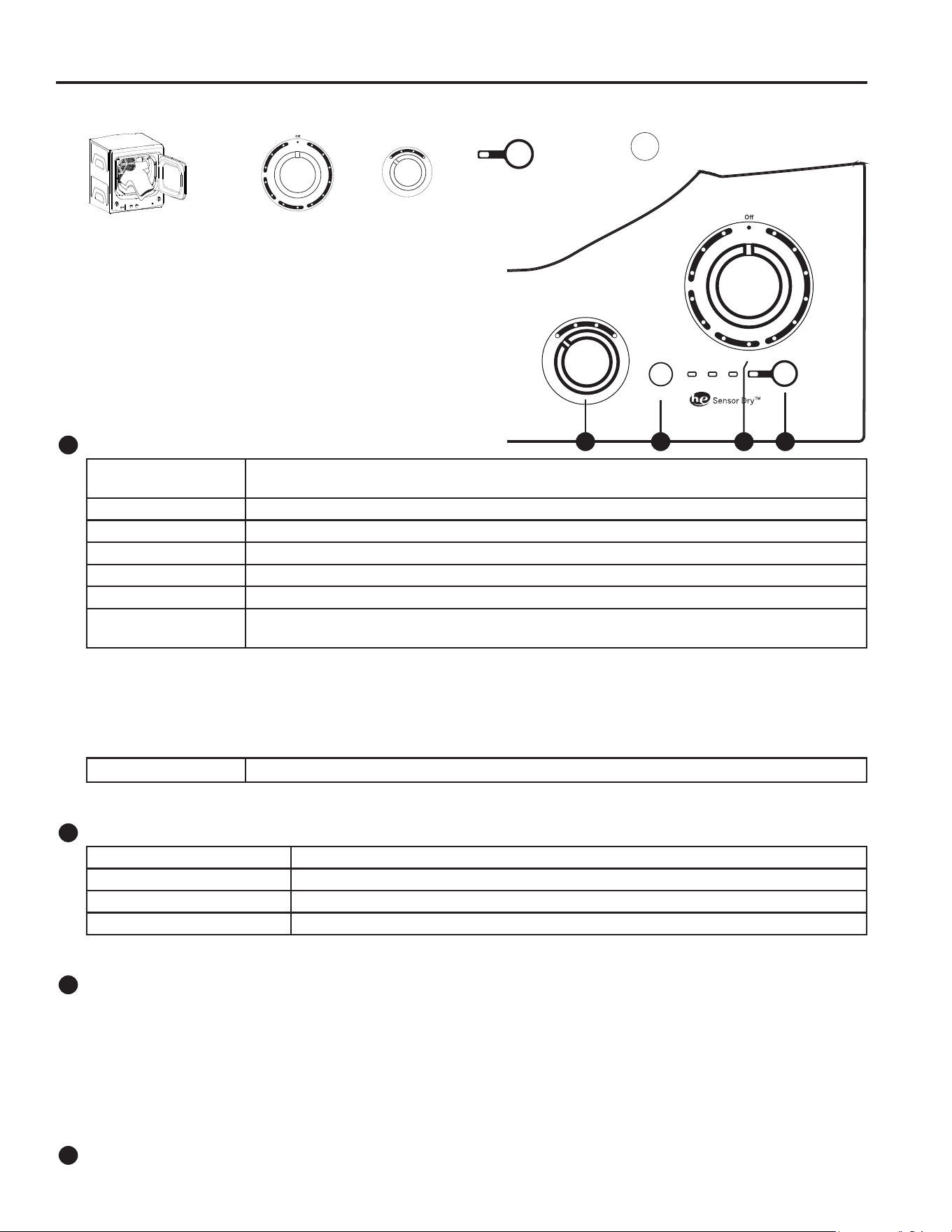

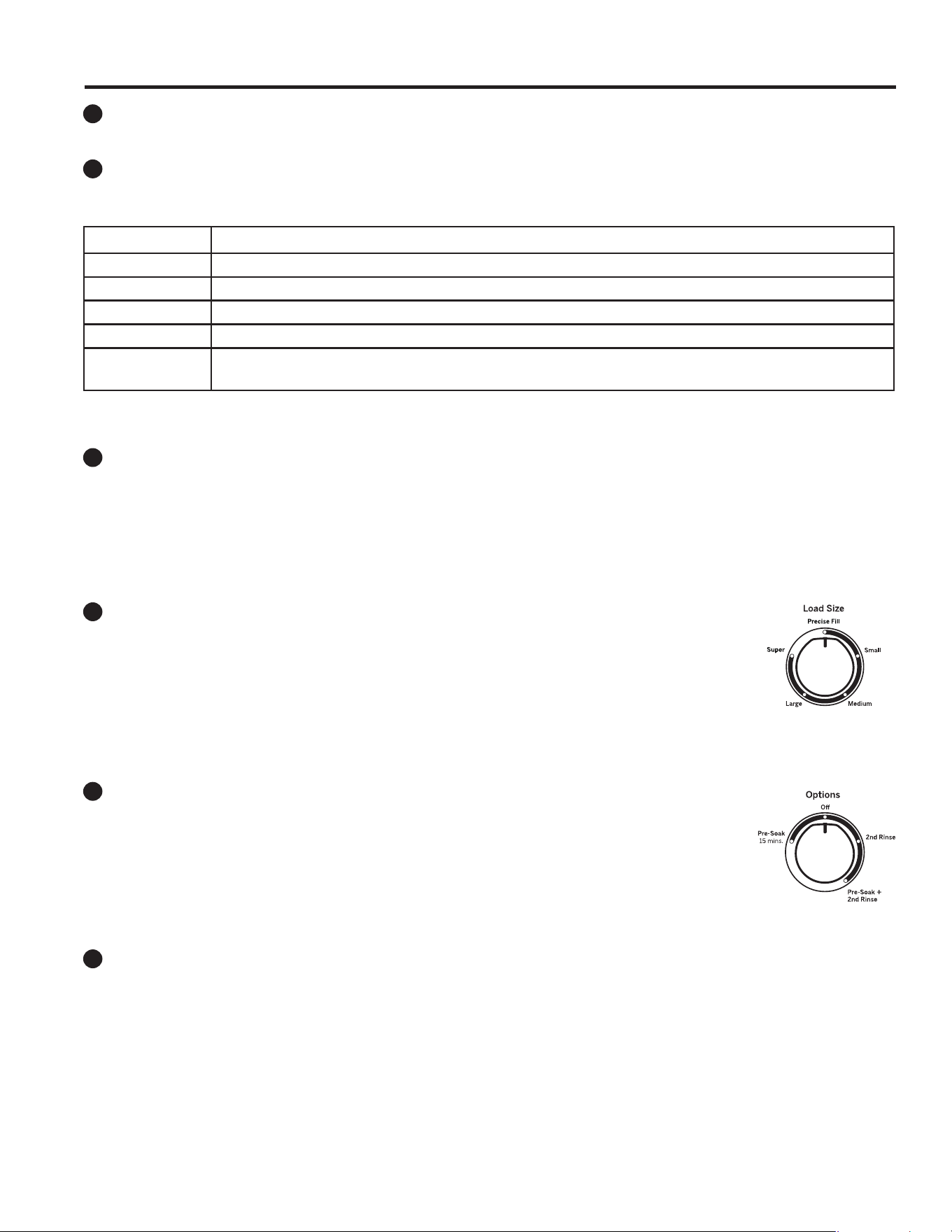

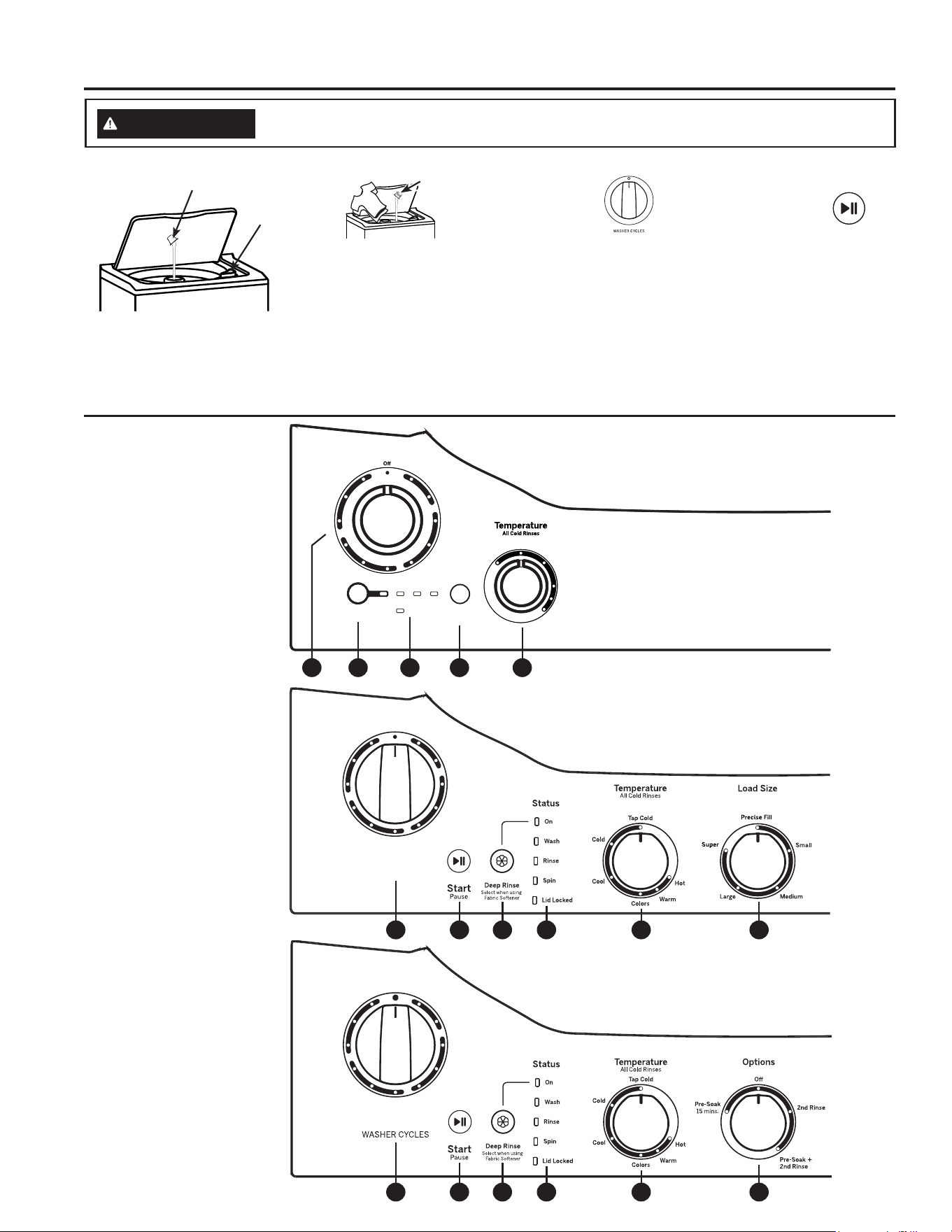

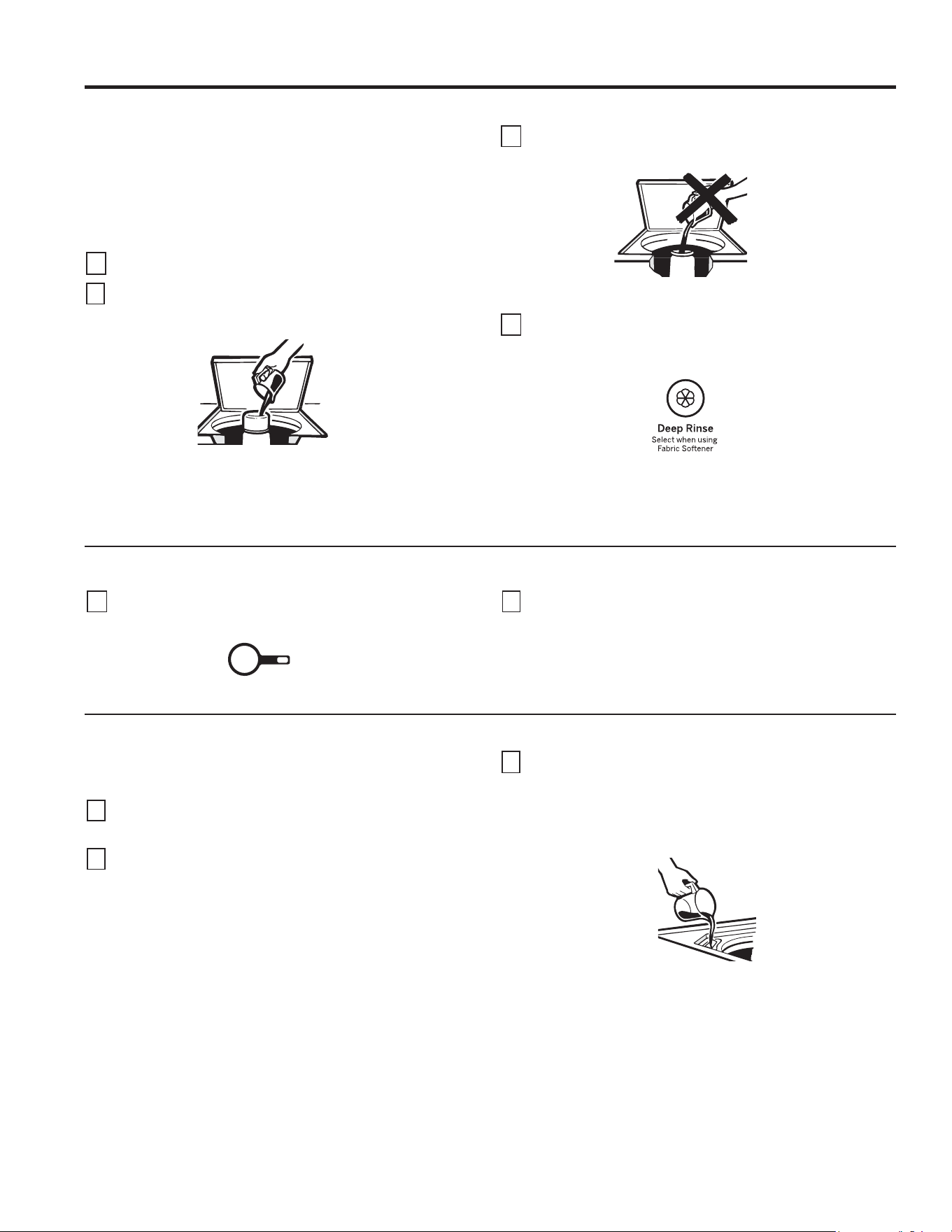

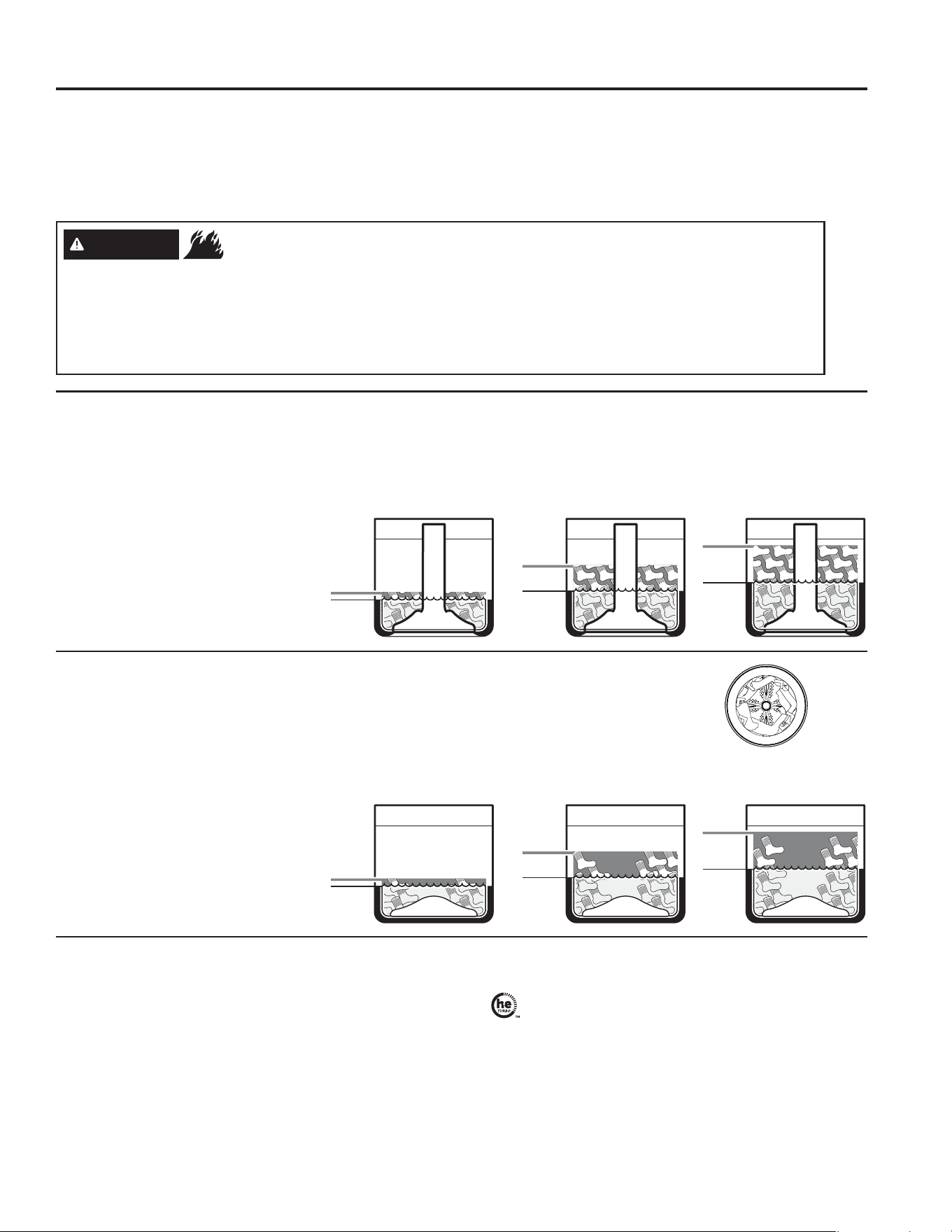

Unitized Gas
Washer/Dryer
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•
IMPORTANT- Save these instructions for
local inspector’s use.
•
IMPORTANT- Observe all governing
codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the customer.
• Note to Customer - Keep these instructions
with your Use and Care Book for future
reference.
• Before the appliance is removed from service
or discarded, remove the washer and dryer
door.
• Inspect the dryer exhaust outlet and straighten
the outlet walls if they are bent.
• Service information and the wiring diagram
are located at the access panel.
• Do not allow children on or in the appliance.
Close supervision of children is necessary
when the appliance is used near children.
• Install the dryer where the temperature is
above 50°F (10°C) for satisfactory operation of
the dryer control system.
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
PARTS SUPPLIED
MATERIALS YOU WILL NEED
2 Rubber Washers
2 Stainer Screens/
Rubber Washers
(washers may be in water hoses)
2 Washer Hoses
1 Cable Tie
LEVEL
8" PIPE WRENCH
10" ADJUSTABLE WRENCHES
(x2)
SLIP JOINT PLIERS
FLAT BLADE SCREWDRIVER
TOOLS YOU WILL NEED
1/4” Nutdriver
Questions on Installation? Call: 1-800-GECARES (US) or Visit our Web site at: www.GEAppliances.com (US).
In Canada, call 800-561-3344 or visit www.GEAppliances.ca.
In the state of Massachusetts:
• Installation must be performed by
D TXDOL¿HGRU OLFHQVHG FRQWUDFWRU
SOXPEHU RU JDV¿WWHU TXDOL¿HG RU
licensed by the state.
•
:KHQ XVLQJ EDOOW\SH JDV VKXWRȺ
valves, they shall be T-handle type.
•
$ÀH[LEOHJDVFRQQHFWRUZKHQXVHG
must not exceed 3 feet.
233D1835P003
31-16727 12-14 GE Printed in Mexico
