HYBRID WALKING TREADMILL
WITH ARM EXERCISE
SF-T7971
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this treadmill.
DANGER– To reduce the risk of electrical shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from the outlet when not in
use and before placing or removing parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return this treadmill to a service center for
examination for repair.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair,
and alike items.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.

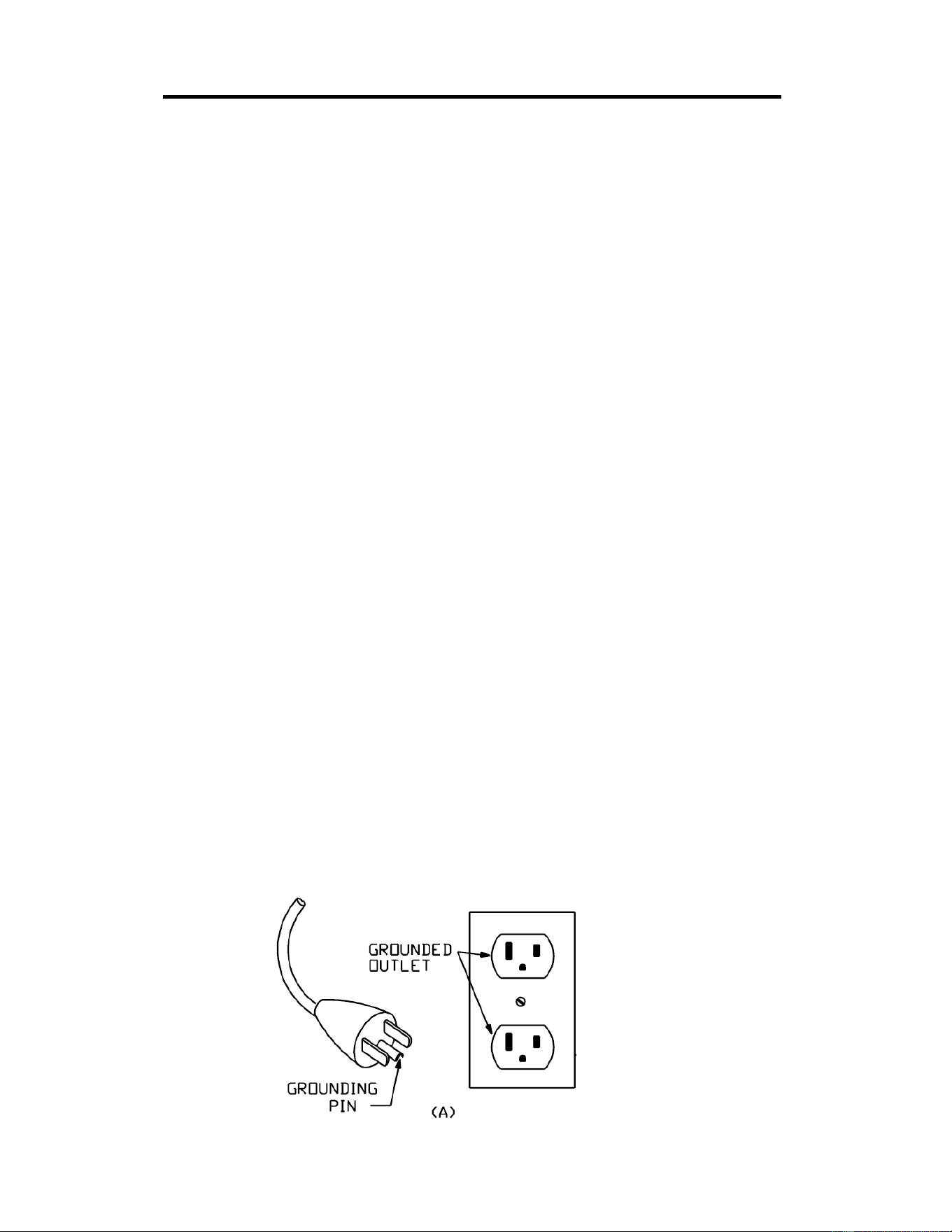

10. Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To avoid injury, use extreme caution when stepping onto or off of a moving belt. Read instruction manual
before using.
SAVE THESE INSTRUCTIONS
2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this treadmill
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2
feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only, it is not intended for commercial use!
3
IMPORTANT OPERATING INSTRUCTIONS
1.Insert the AC power plug directly into the socket.
2.Read the manual before operating the treadmill.
3.Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the remote control. The speed will increase gradually.
4.While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the running belt. This may result in serious injury.
5.This treadmill starts at a very low speed. To begin use, stand on the side rails while it starts up, then
step onto the running belt once it’s in motion.
6.A safety key is provided for emergency use. The treadmill will function only if the safety key is inserted
into the console. In case of emergency, remove the safety key to immediately stop the running belt
and shut off the treadmill. The display screen will reset once the safety key is reinserted.
7.This treadmill is designed for adult use only! Children should not be allowed to use or play near this
treadmill. When present, children should always be supervised by an adult.
8.Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
9. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 19 for instructions
on how to properly apply lubricant.
4

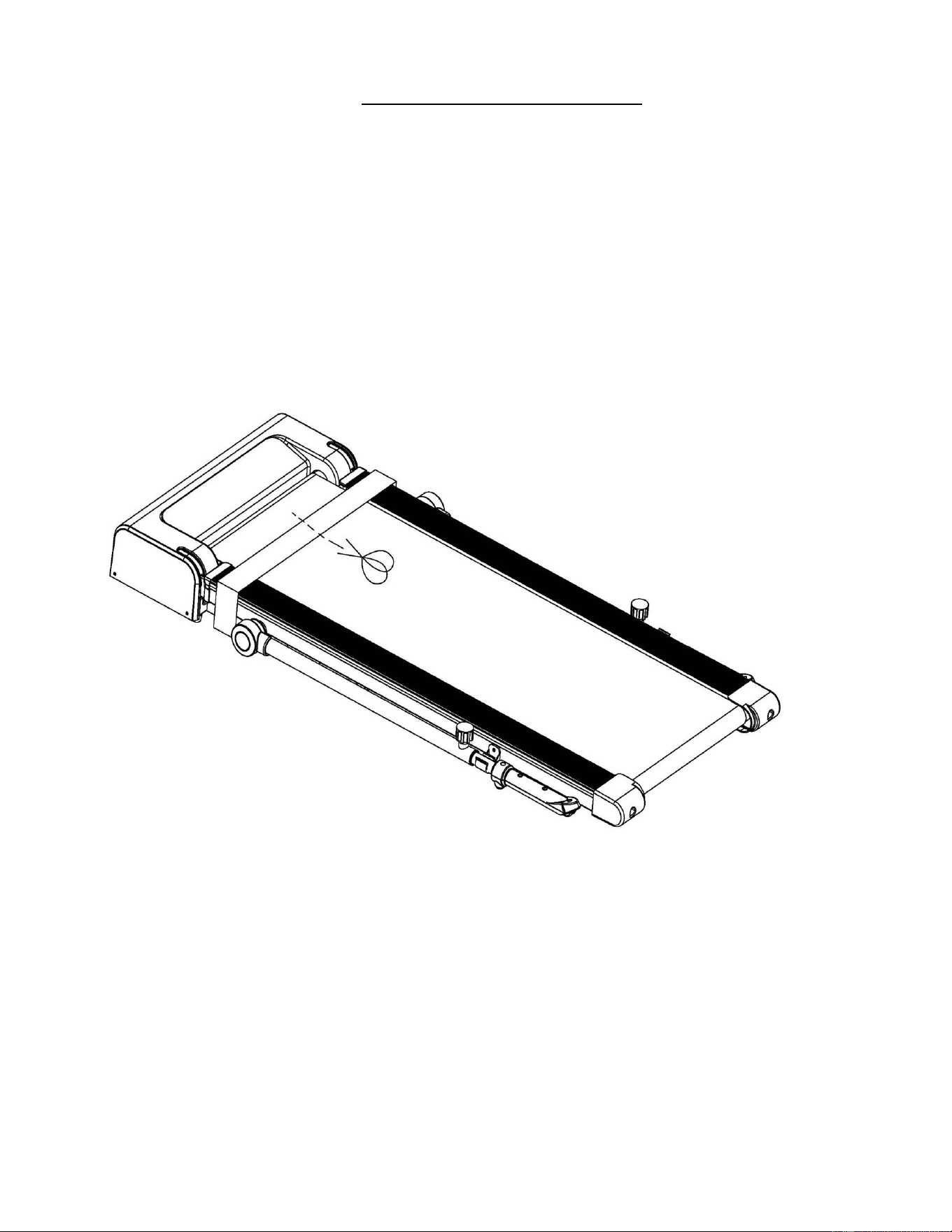

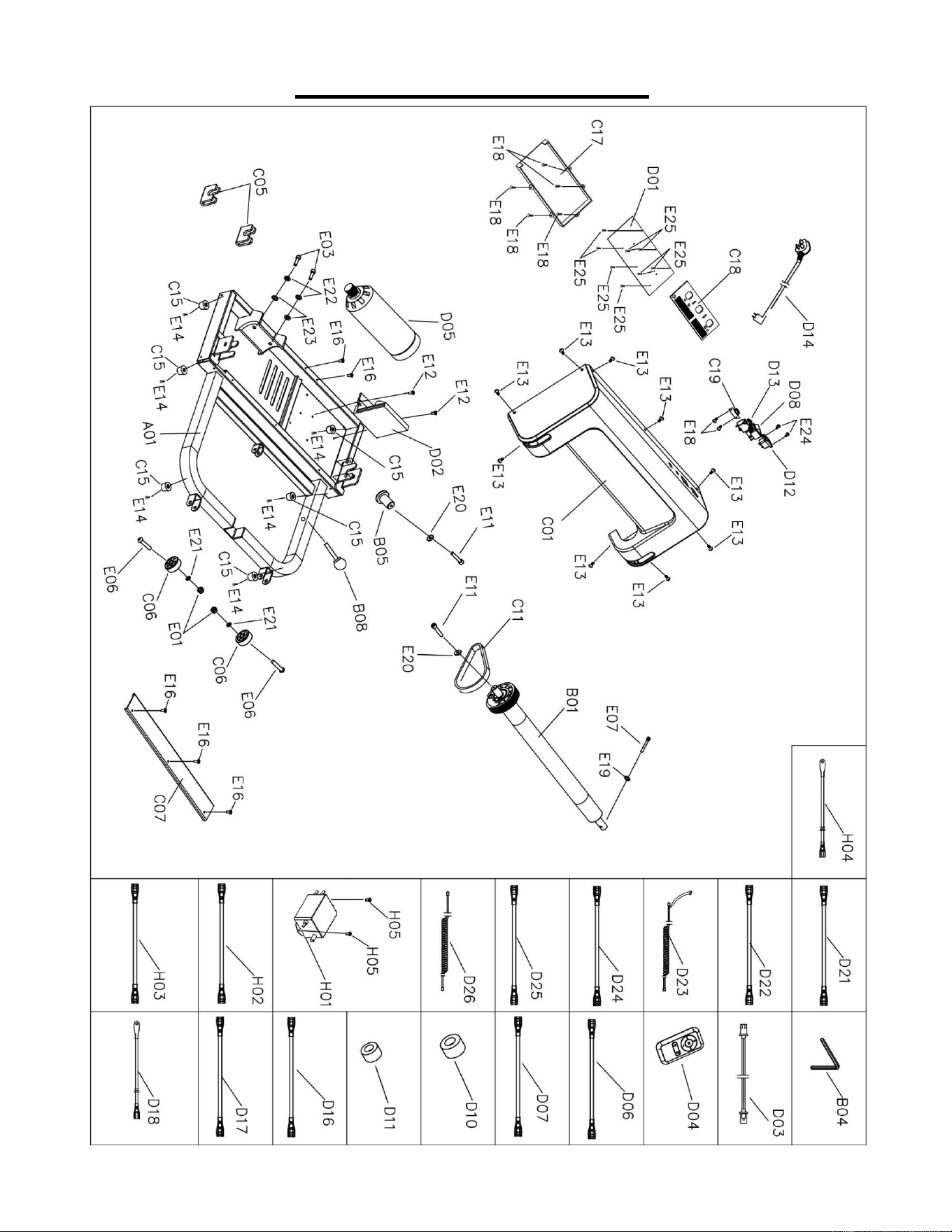

EXPLODED DIAGRAM 1
5

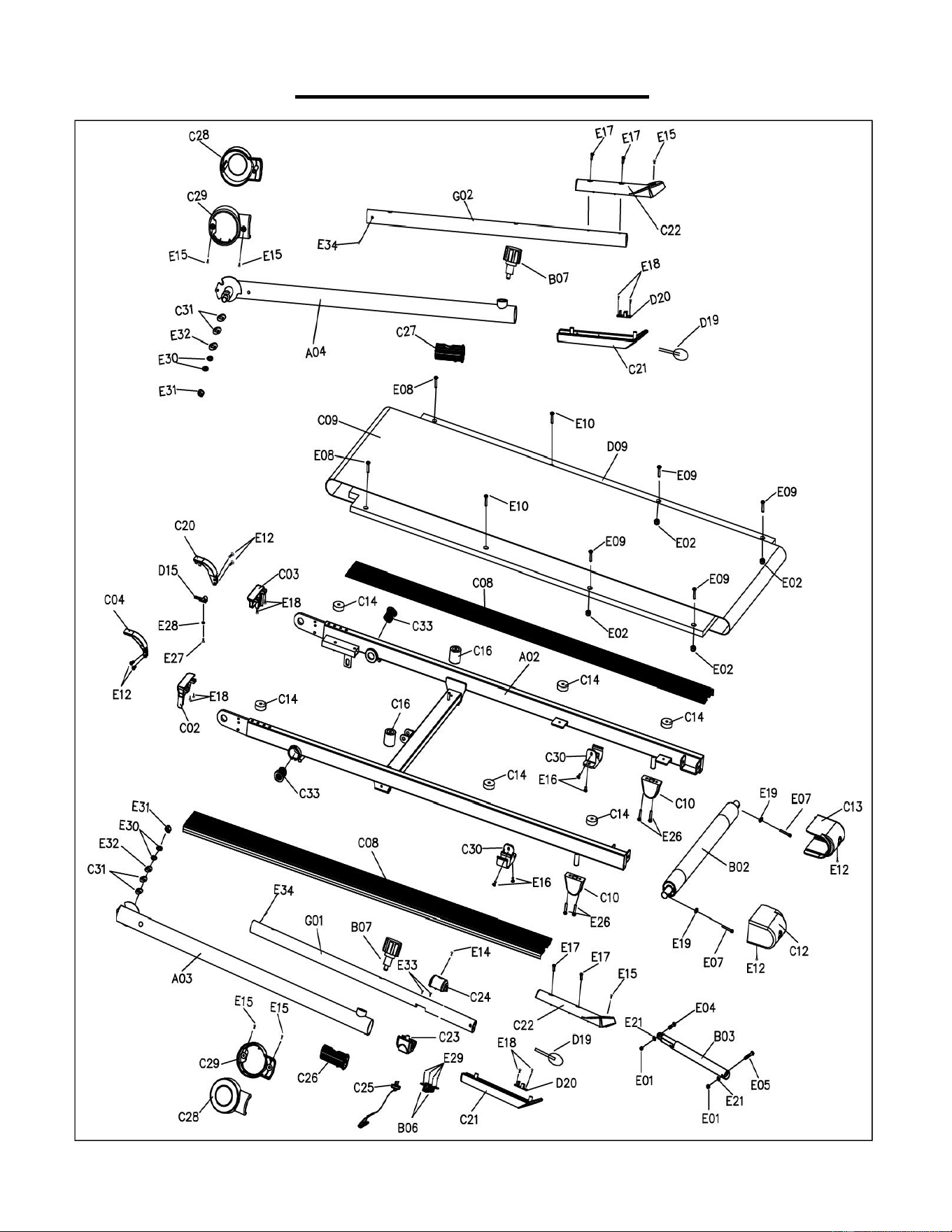

EXPLODED DIAGRAM 2
6
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
A01 Base Frame 1 C24
Safety Key Bottom
Cover
1
A02 Main Frame 1 C25 Safety Key 1
A03 Left Handrail Frame 1 C26 Handrail Left Cover 1
A04
Right Handrail Frame
1
C27
Handrail Right Cover
1
B01
Front Roller
1
C28
Handrail Outer Cover
2
B02
Rear Roller
1
C29
Handrail Inner Cover
2
B03 Cylinder 1 C30 Support Fastener 2
B04
Allen Wrench
5mm
1
C31
Plastic Gasket
4
B05
Front Base Secure
Shaft
1 C33 Bushing 2
B06
Safety Key Spring
Gasket
2 D01 Console 1
B07
Adjustment Knob
2
D02
Control Board
1
B08 Ball Pin 1 D03
Console Communication
Wire
1
C01 Motor Top Cover 1 D04 Remote Control 1
C02
Left Side Rail Plug
1
D05
DC Motor
1
C03 Right Side Rail Plug 1 D06 AC Single Line Blue 1
C04
Motor Cover Board
1
D07
AC Single Line
Brown
1
C05
Plastic Insulation
Block
2 D08 Square Switch 1
C06 Transportation Wheel 2 D09 Running Board 1
C07
Front Board
1
D10
Magnetic Ring
1
C08
Side Rail
2
D11
Magnetic Core
1
C09
Running Belt
1
D12
Power Socket
1
C10 End Foot Pad 2 D13 Overload Protector 1
C11
Motor Belt
1
D14
Power Wire
1
C12
Left End Cap
1
D15
Inverted Switch
1
C13
Right End Cap
1
D16
AC Single Line
Blue
1
C14 Black Cushion 6 D17 AC Single Line Brown 1
C15
Foot Pad
6
D18
Grounding Wire
1
C16
Black Cushion
Column
2 D19 Button 2
C17
Table Core Cover
1 D20 Button Switch Board 2
C18
Grating
1
D21
Left Handrail Top Wire
1
C19 Module Switch Button 1 D22
Left Handrail Middle
Wire
1
C20
Motor Cover Right
Board
1 D23
Left Handrail Bottom
Wire
1
C21
Handrail Top Cover
2
D24
Right Handrail Top Wire
1
C22
Handrail Bottom
Cover
2 D25
Right Handrail Middle
Wire
1
C23 Safety Key Top Cover 1 E20
Big Washer
6 2
7
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
D26
Right Handrail
Bottom Wire
1 E21
Lock Washer
8 4
E01 Nut M8 4 E22
Spring Washer
8 2
E02 Nut M6 4 E23
Flat Washer
8 2
E03 Bolt M8*15 2 E24
Screw
ST2.9*8 2
E04 Bolt M8*30 1 E25
Screw
ST2*6 8
E05 Bolt M8*45 1 E26
Bolt
M5*25 4
E06
Bolt
M8*35 2 E27
Screw
ST2.9*8 1
E07 Bolt M6*55 3 E28
Flat Washer
3 1
E08 Bolt M6*45 2 E29
Screw
ST2.5*6
4
E09 Bolt M6*35 4 E30
Washer
Ф10 4
E10 Bolt M6*25 2 E31
Nut
M10 2
E11 Bolt M6*15 2 E32
Gasket
54 2
E12 Bolt M5*12 8 E33
Screw
ST4.2*8 2
E13 Bolt M5*10 9 E34
Screw
ST2.9*4 2
E14 Screw ST4.2*20 7 H01
Filter
1
E15
Screw
ST4.2*12
6
H02
AC Single Line
1
E16
Screw
ST4.2*12
9
H03
AC Single Line
1
E17
Screw
ST4.2*12 4 H04
Ground wire
1
E18
Screw
ST2.9*6.0 15 H05
Bolt
M5*12 2
E19
Lock Washer
6
3
G01
Left Handrail
1
G02
Right Handrail
1
8
ASSEMBLY HARDWARE

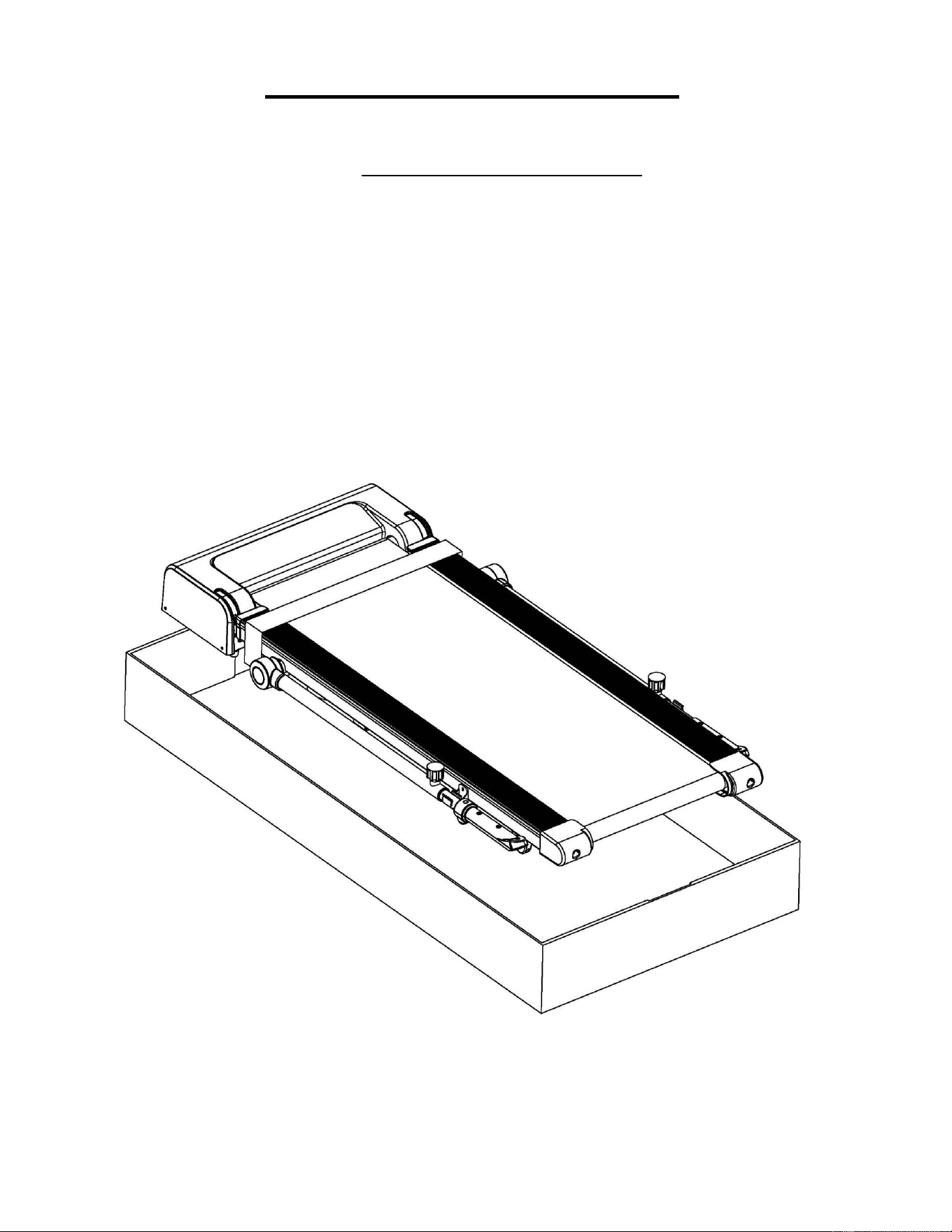

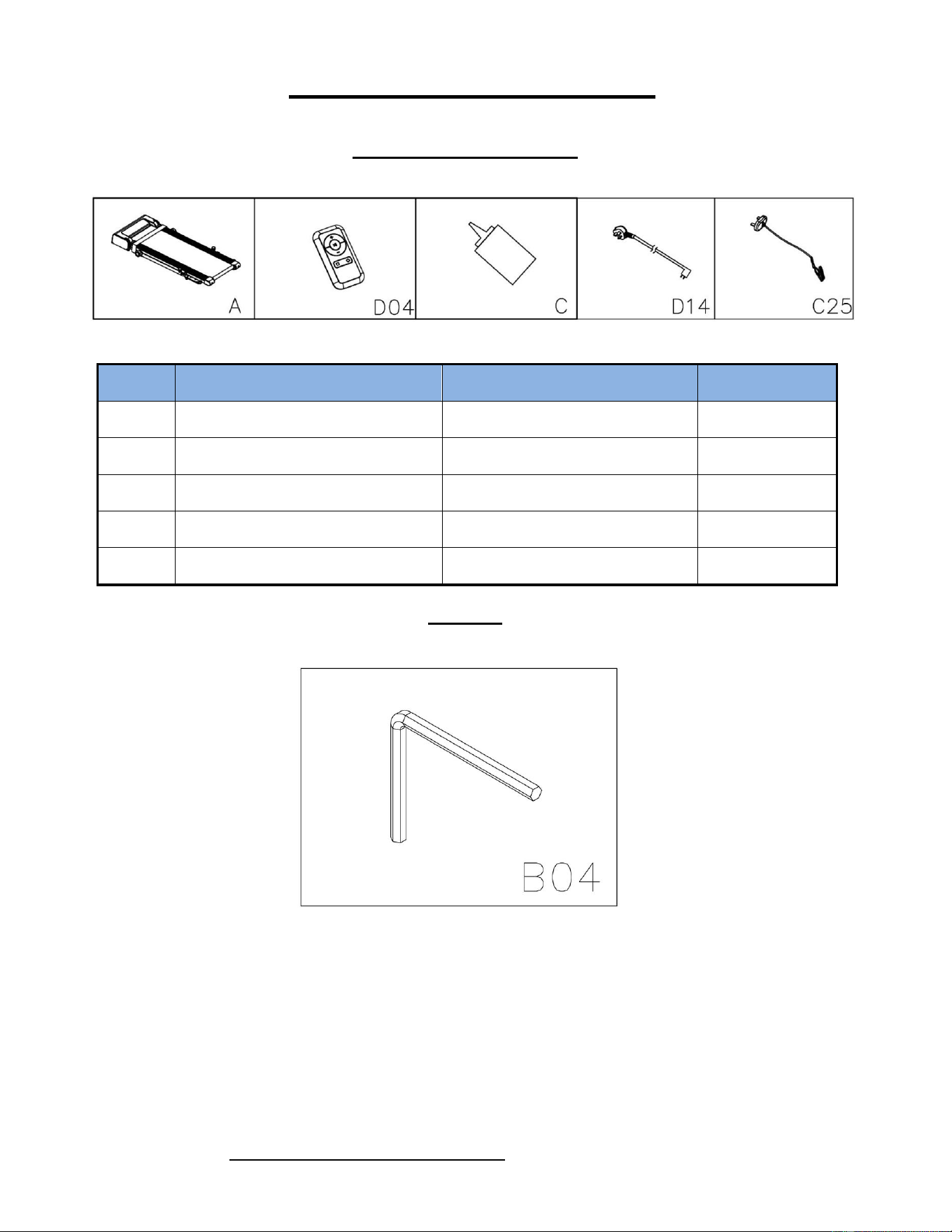

CARTON CONTENTS:
TOOLS
Allen Wrench (5mm)
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669)
No.
Description
Specification
Qty.
A Main Frame 1
D04
Remote Control
1
C Lubricant Oil 20ml/bottle 1
D14
Power Wire
1
C25 Safety key 1
9
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-
8669).

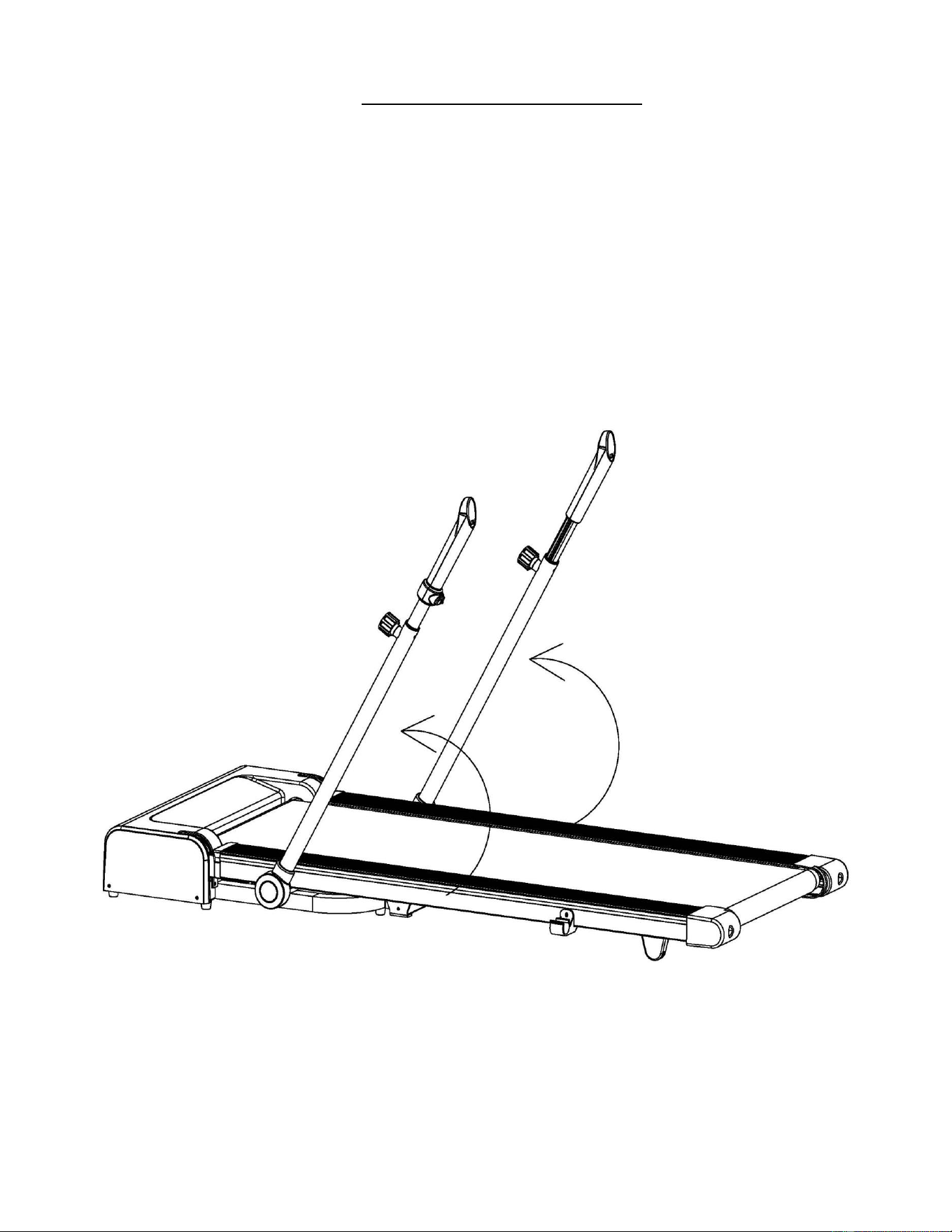

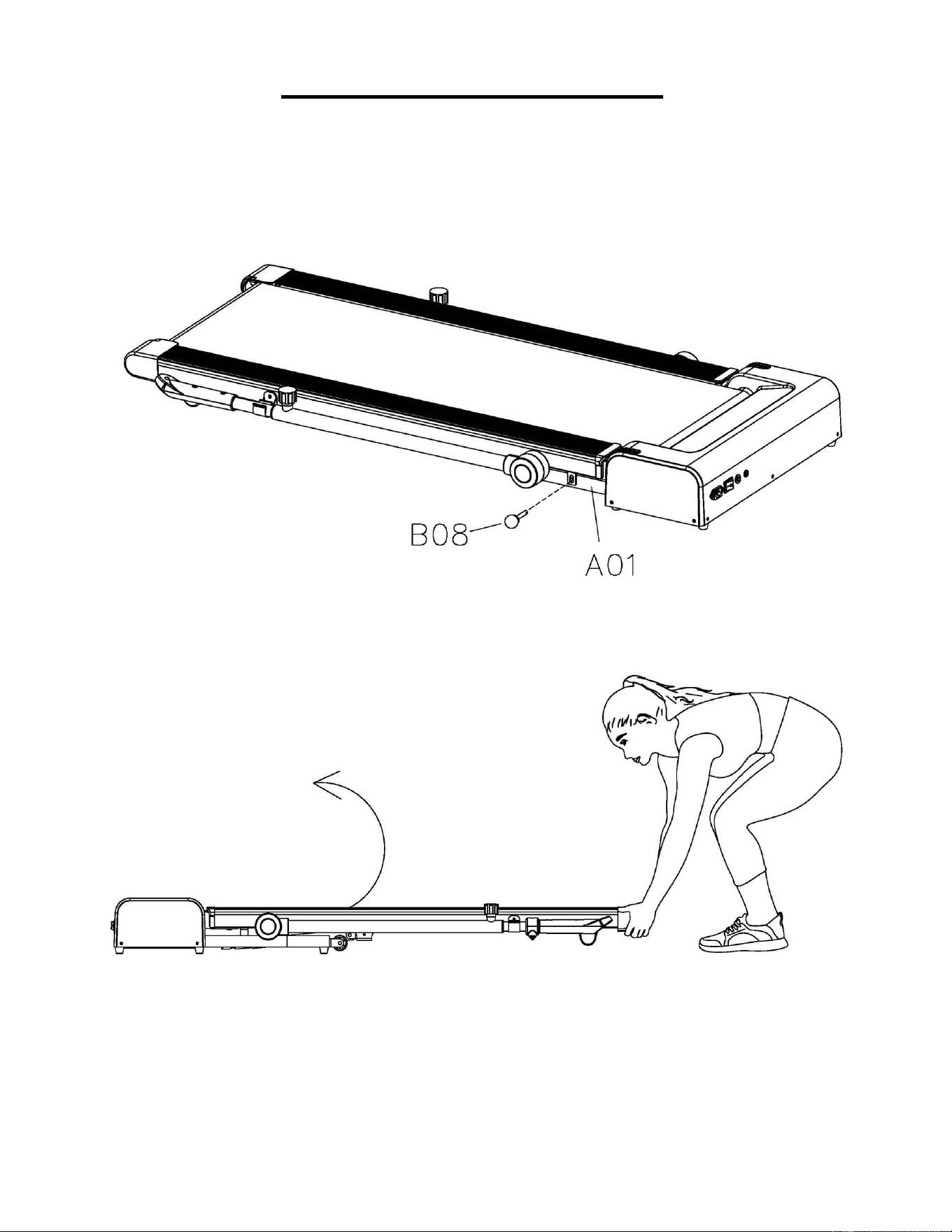

STEP 1:
10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-
8669).
STEP 2:
.
11
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-
8669).
STEP 3:
12
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-
8669).
STEP 4:

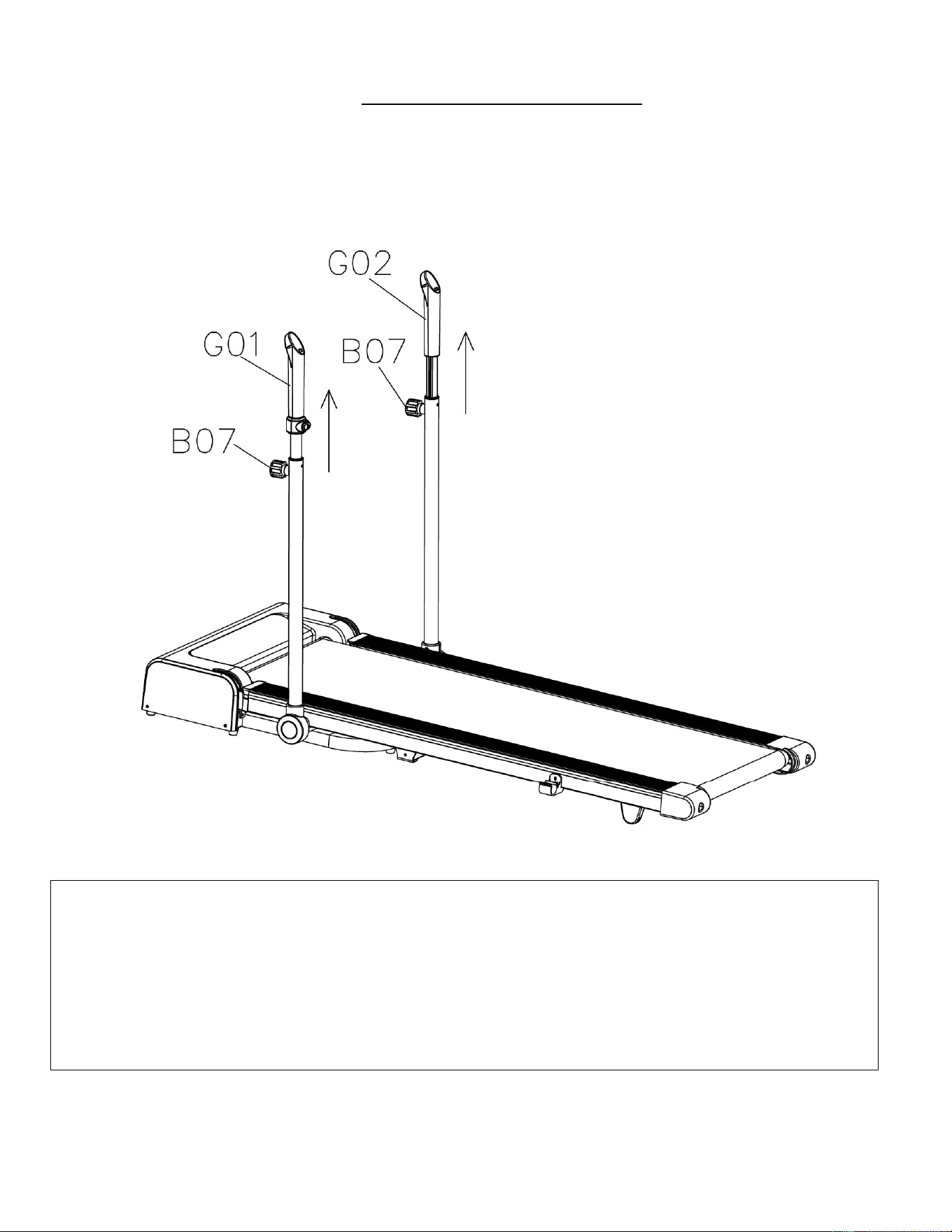

When it is necessary to adjust the length of the Left Handrail (No. G01), hold the Adjustment
Knob (No. B07) with one hand and rotate until it becomes loosened. Pull the Adjustment Knob
(No. B07) outward, and hold Left Handrail (No. G01) with your other hand. Pull upward until the
Adjustment Knob (No. B07) clicks on the handrail. Tighten the Adjustment Knob (No. B07) up
once desired length is achieved. Adjust the Right Handrail (No. G02) in the same way.
13

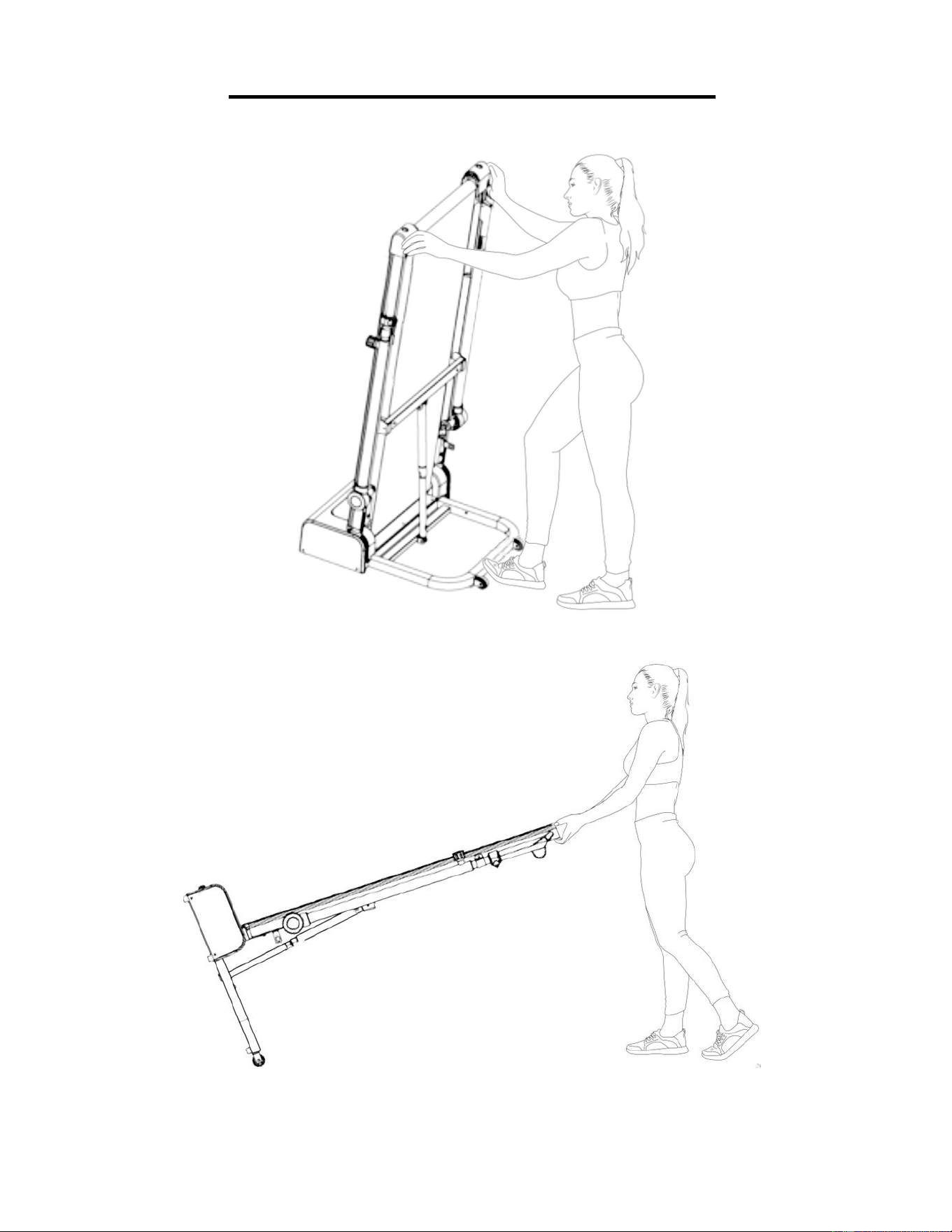

FOLDING INSTRUCTIONS

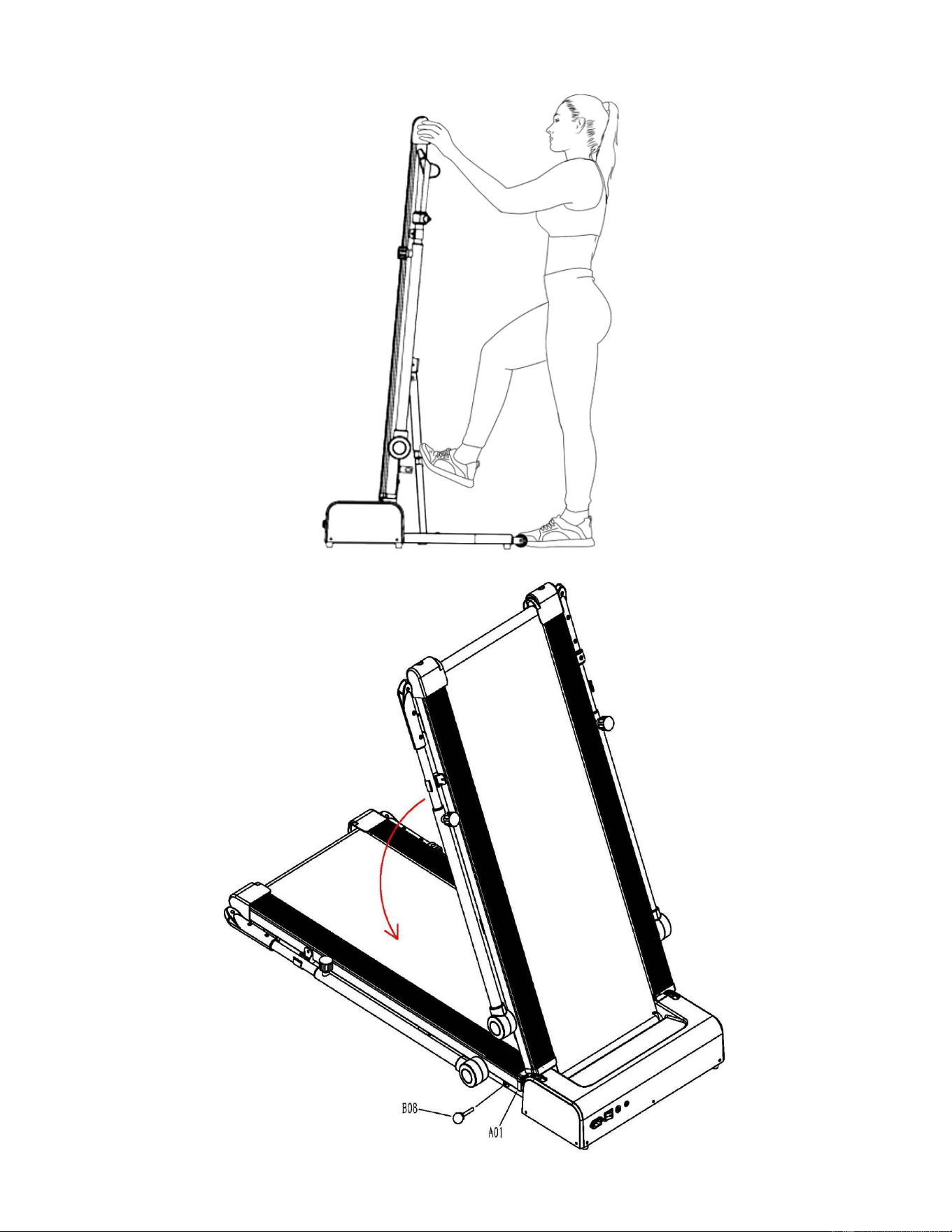

FOLDING:
14
UNFOLDING:
15
HOW TO MOVE THE TREADMILL
16

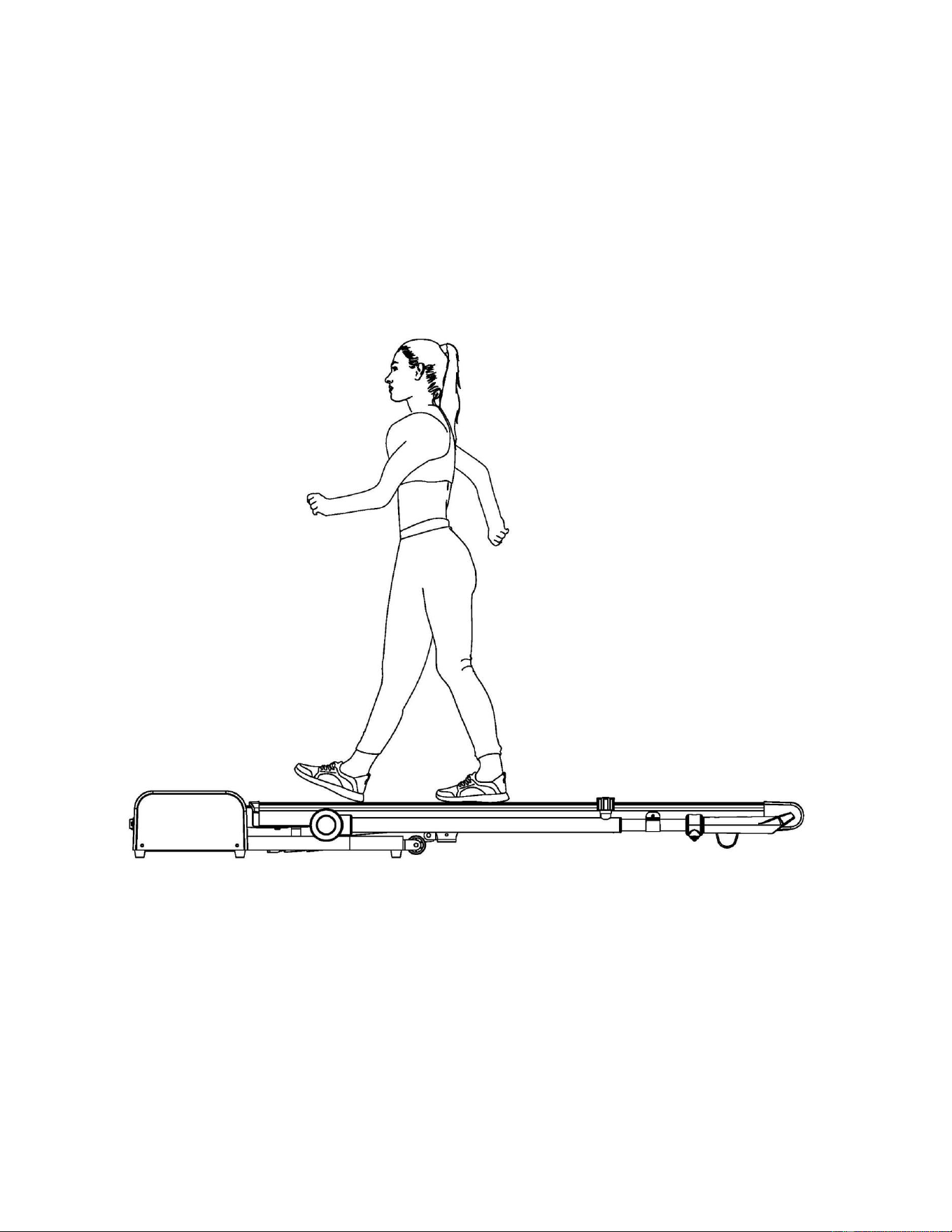

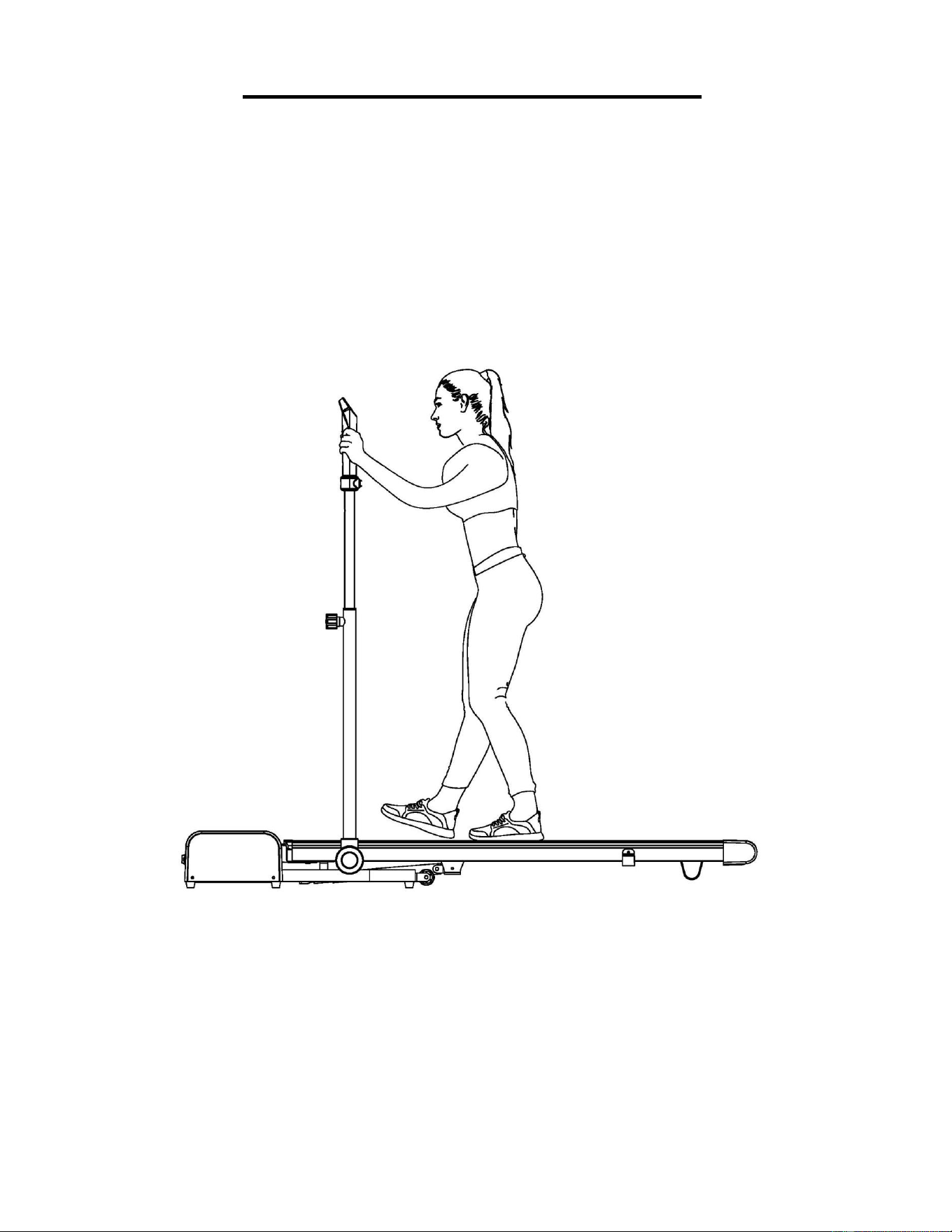

HOW TO USE THE TREADMILL
WITH HANDRAILS
：
17
WITHOUT HANDRAILS
：
18
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C09) to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that
dirt from your shoes does not wear the Running Board (No. D09) and Running Belt (No. C09).

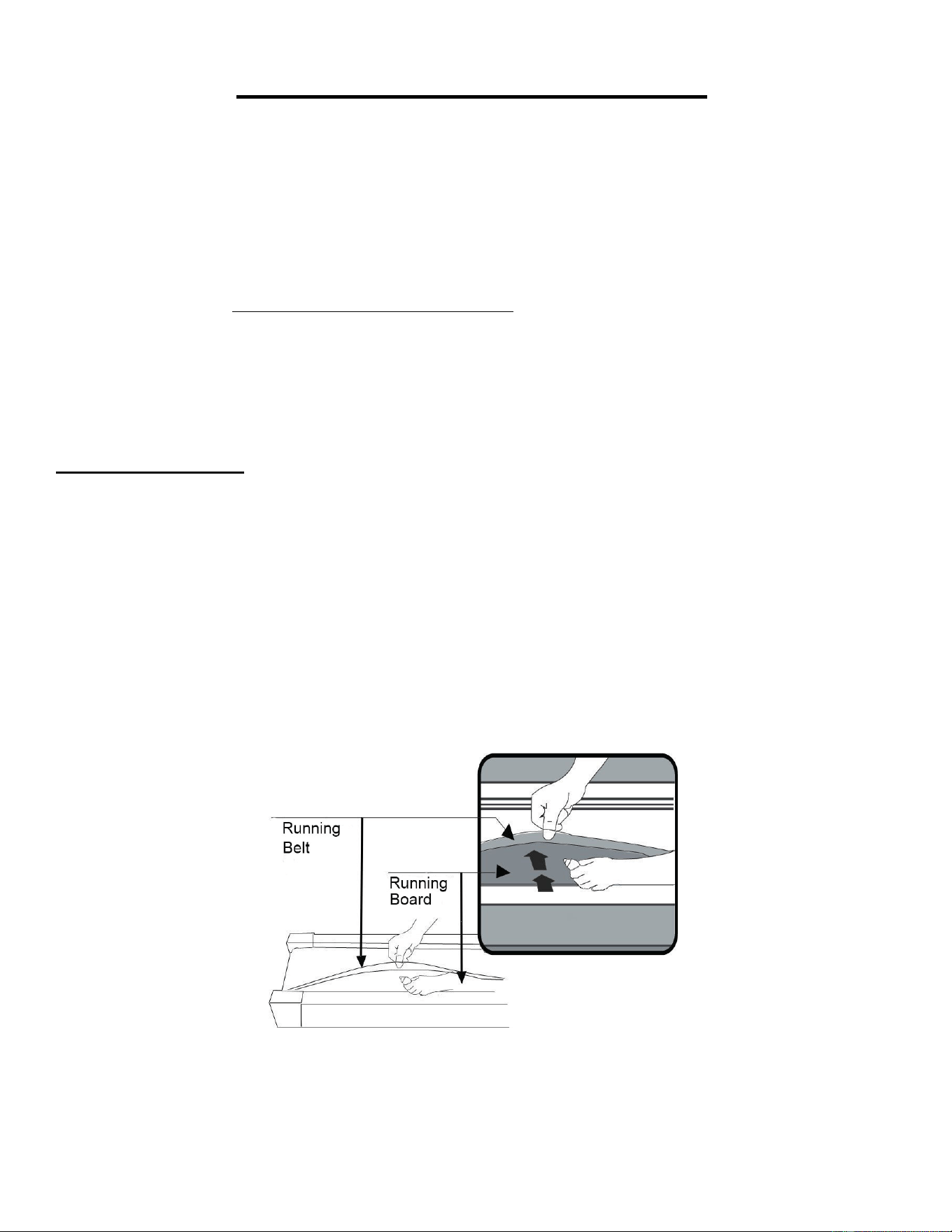

Clean the surface of the Running Belt (No. C09) with a clean damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.

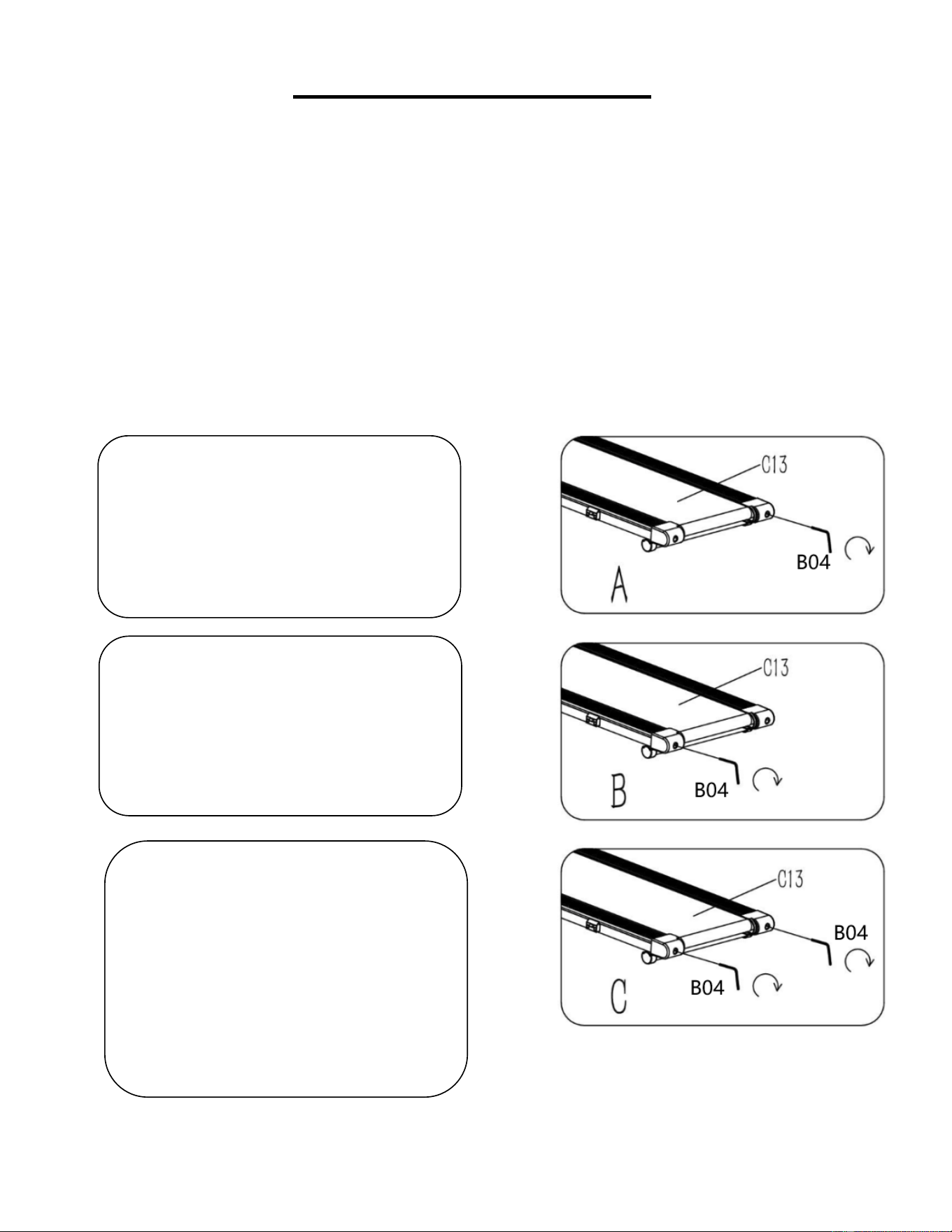

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 4 mph to check if the Running Belt (No. C09) drifts
from the center. Use Allen Wrench (No. B04) to adjust.
1. If the Running Belt (No. C09) drifts
to the right, turn the right adjusting bolt
¼ turn clockwise
, then turn the left
adjusting bolt ¼ turn counter-clockwise.
If the Running Belt (No. C09) does not
move, repeat this step until it centers.
Refer to Figure A.
2. If the Running Belt (No. C09) drifts
to the left, turn the left adjusting bolt ¼
of a turn clockwise, then turn the right
adjusting bolt ¼ turn counter-clockwise.
If the Running Belt (No. C09) does not
move, repeat this step until it centers.
Refer to Figure B.
3. Over time the Running Belt (No.
C09) will loosen. To tighten the running
belt turn the Left & Right adjusting
bolts one full turn clockwise, check the
tension of the
Running Belt (No.
C09)
. Continue this process until
Running Belt (No. C09)
is at the
correct tension. Make sure to adjust
both sides equally to ensure correct
belt alignment. Refer to diagram
“C”
.
19
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D09) and Running Belt (No. C09) is essential as the friction
between the two affects the life span and operations of the treadmill. Inspect the Running Board (No.
D09) and Running Belt (No. C09) regularly. If you find any wear on the Running Board (No. D09),
please contact us at: support@sunnyhealthfitness.com.
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating or
repairing the unit.
HOW TO LUBRICATE:
1. Raise the Running Belt (No. C09) up on one side and apply lubricant to the Running Board (No.
D09). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D09). Repeat this
process for the other side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of
the equipment. Inspect and tighten all bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C09) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C09) will negatively affect the motor performance and also create
more friction between the roller and Running Belt (No. C09). The most suitable tightness for the
Running Belt (No. C09) is when it is pulled out 50-75mm from the Running Board (No. D09).
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
20
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 8 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, verify that the power source is correct before
powering in the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a plug that has an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet with the same configuration
as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check
with a qualified electrician or serviceman if you are unsure whether the product has been properly
grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting AC power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any other high humidity environment.
GROUNDING METHOD
21

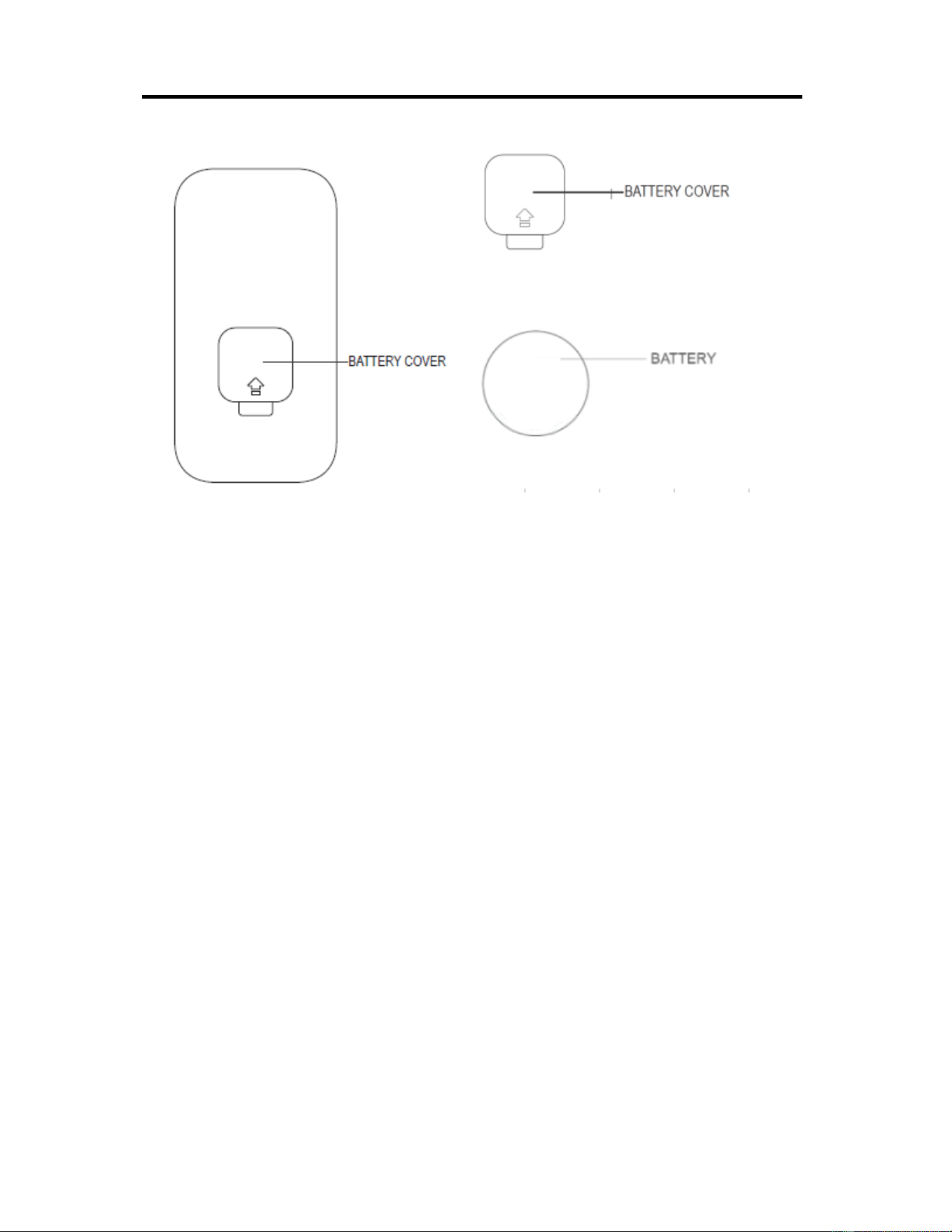

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Remove the battery cover from the Remote Control (No. D04).
2. Take out the 1pc battery that is included inside the remote control box.
3. Install the battery into the battery holder with the positive end facing up.
4. Put the battery cover back on to the battery holder.
The installation is complete!
BATTERY REPLACEMENT:
1. Remove the battery cover from the back of the Remote Control (No. D04).
2. Remove the old battery and install the new battery into the battery holder with the positive end facing
up.
3. Put the battery cover back on to the battery holder.
The installation is complete!
Dispose the old battery according to your state or regional guidelines.
22
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage
your health. Stop exercising immediately if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or
feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to familiarize yourself
with the controls.
1. Once you get on, you can stand with your feet on the side rails and stabilize yourself by holding
onto the Left & Right Handrails (No. G01 & No. G02).
2. Next, attach the clip end of the Safety Key (No. C25) to your clothes and insert the magnetic end
of the Safety Key (No. C25) into the console.
3. Press the START button to start the treadmill. The treadmill will start at the system default setting
speed of 0.5 MPH. Step onto the running belt.
4. When you feel comfortable, you may slowly increase this speed. When you are finished with your
exercise, press the STOP button to stop the treadmill or you can remove the magnetic end of the
Safety Key (No. C25) to stop the treadmill.
23
THE DISPLAY CONSOLE

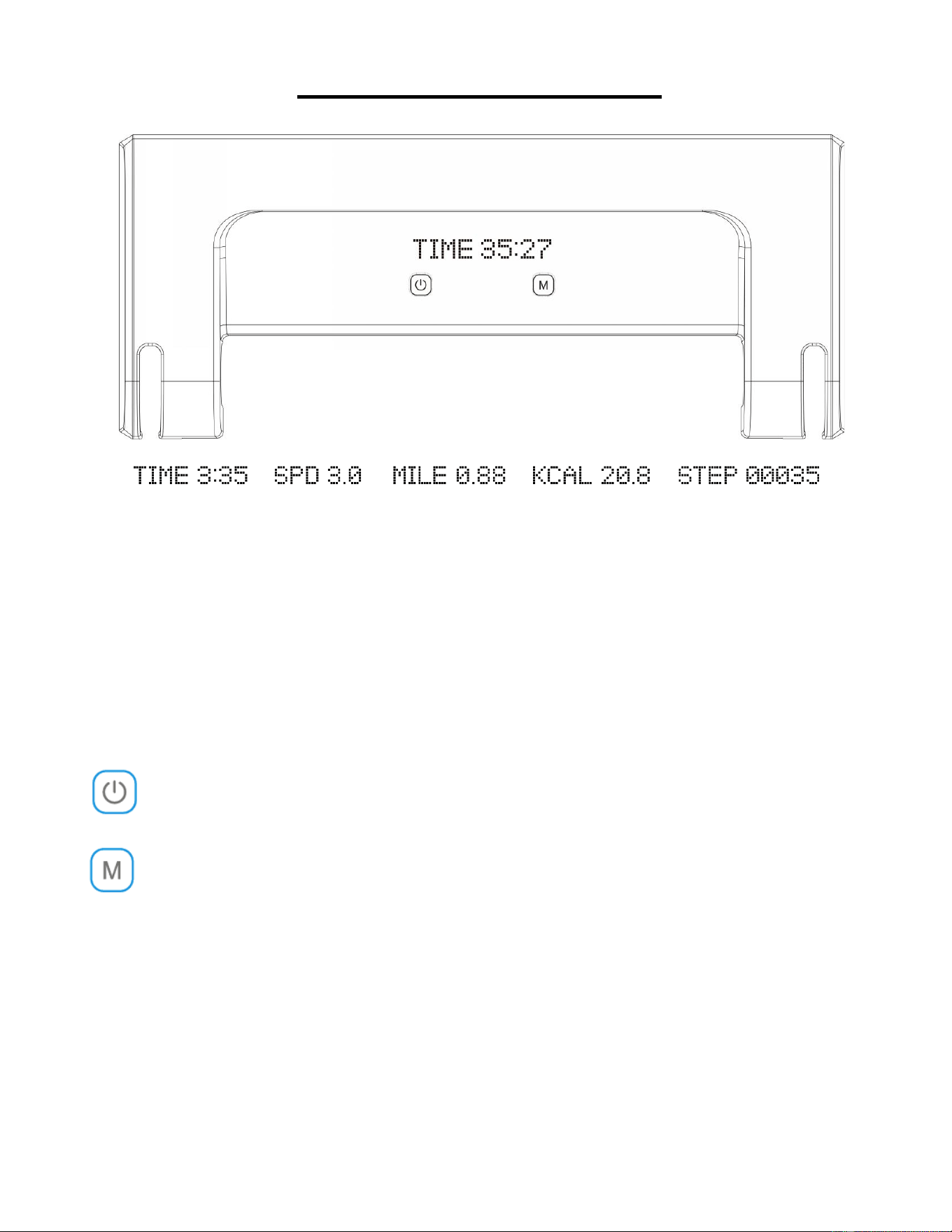

WINDOW DISPLAY:
1. LATTICE WINDOW: Displays time, distance, calories, steps and speed value in turn every 5
seconds.
2. MODE: Includes standby mode and manual mode. When pressing the mode switch on the remote
control or the mode switch on the console, the corresponding current state light of the mode window
will be lit.
CONSOLE FUNCTIONS:
1. STANDBY MODE: the treadmill is waiting for the input command. You can use the remote
control to switch to manual mode.
2. MANUAL MODE: You can use the remote control to start/pause/stop the treadmill, as well
as increase or decrease the speed.
NOTE: When attempting to get off of the treadmill but you do not press the Start/Pause button, the
treadmill will stop automatically within 10 seconds. If you want to continue exercising, restart the
treadmill.
24

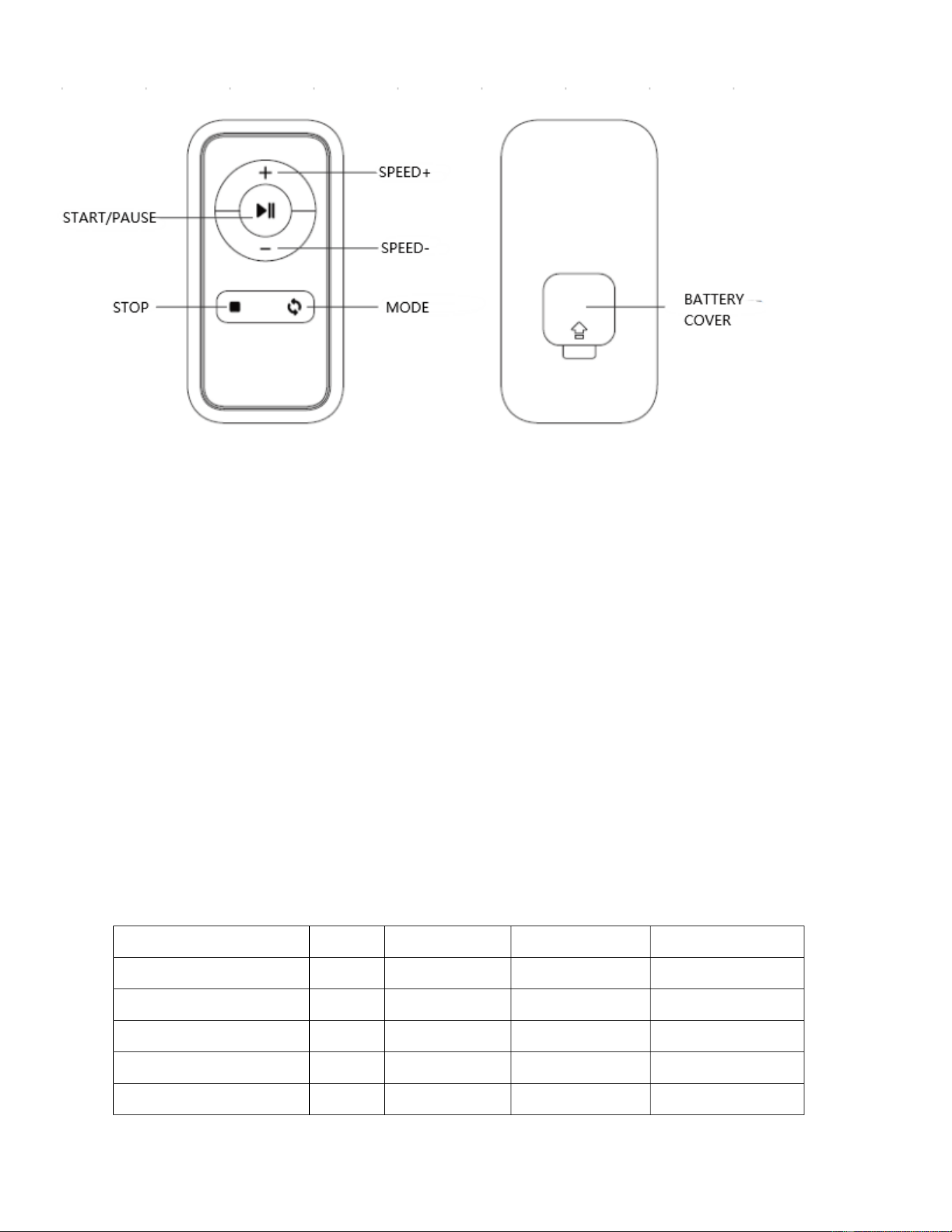

REMOTE CONTROL FUNCTIONS:
Note: If the treadmill does not respond to the remote control, you will need to resync the
treadmill and remote control. To sync the remote control with the treadmill, press the
start/pause button on the remote control for five seconds.
1. START/PAUSE BUTTON: Press the START button to start the treadmill. 0.5 MPH is the default
start speed. During the exercise, you can also press this button to pause the treadmill.
2. SPEED +/– BUTTONS: Press the +/- buttons to increase or decrease the speed in increments of
0.1 MPH (Miles per hour). Pressing and holding either of these buttons for a duration of over ½ a
second will increase or decrease the speed continually.
3. STOP BUTTON: When in use, press the STOP button to terminate your workout session. All data
will be deleted and reset to the initial setting.
4. MODE:
a. When in stop mode, you can press this button to switch between Standby Mode and Manual Mode.
b. When running on the running belt, you can press this button to switch the display.
*NOTE: The maximum speed on this treadmill is 4 MPH (Miles per hour).
PROGRAMS Initial Default Value Set Range Display Range
TIME (MIN:SECOND) 0 - -
0:00－18H
SPEED (MPH) 0.0 0.5 0.5-4.0 0.0-4.0
DISTANCE (MILES) 0.00 - -
0.00－99.9
STEP 0 - - 0--99999
CALORIES (KCAL) 0.0 - -
0.0－9999
25

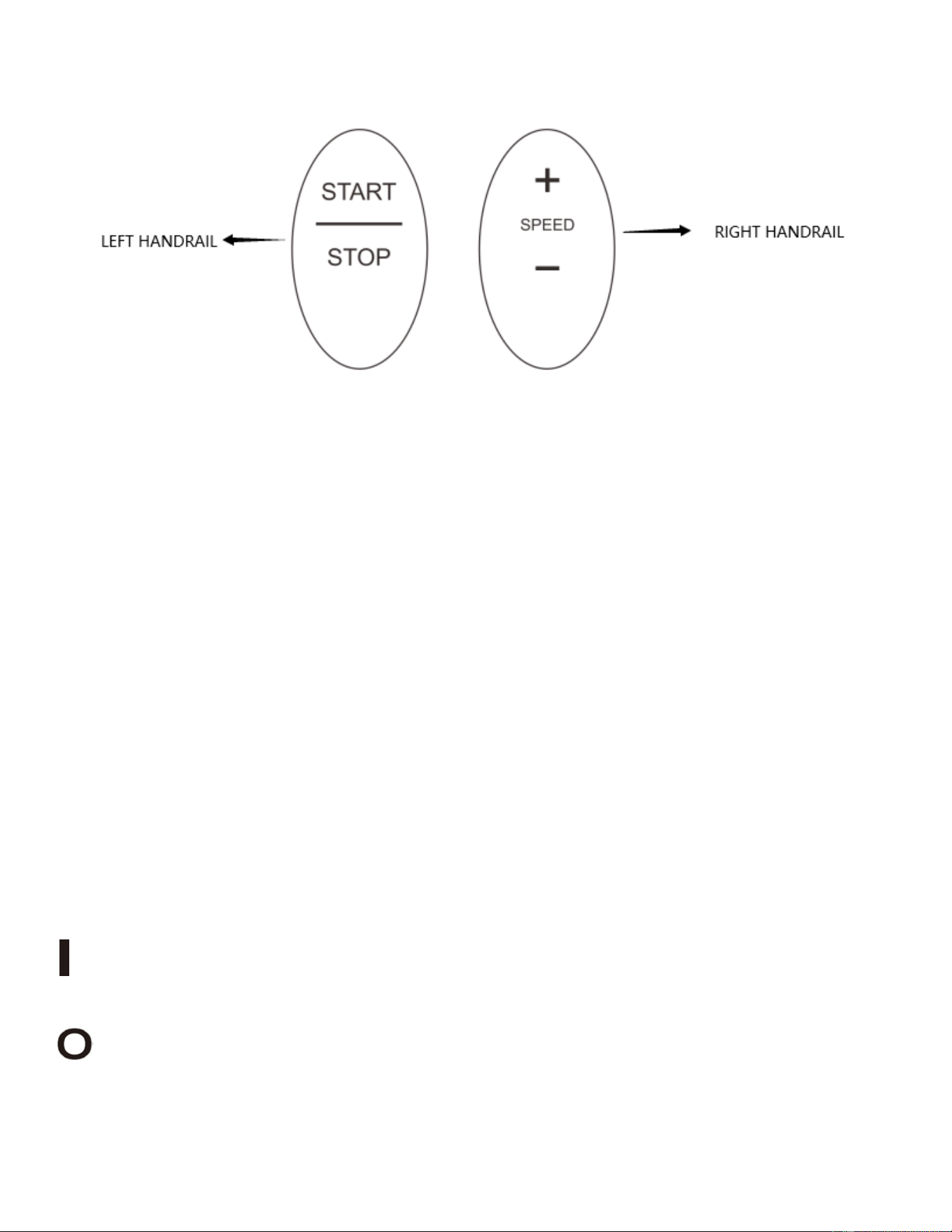

HANDRAIL CONTROL FUNCTIONS:
1. START BUTTON: Press the START button to start the treadmill. 0.5 MPH is the default start speed.
During the exercise, you can also press this button to pause the treadmill.
2. STOP BUTTON: When in use, press the STOP button to terminate your workout session. All data
will be deleted and reset to the initial setting.
3. SPEED + BUTTON: Press the + button to increase the speed in increments of 0.1 MPH (Miles per
hour).
4. SPEED – BUTTON: Press the - button to decrease the speed in increments of 0.1 MPH (Miles per
hour).
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping
sound every 10 seconds and displays an “OIL” icon on your LCD display. Please read the
LUBRICATING THE TREADMILL instructions on Page 19 to learn the proper steps to lubricate your
treadmill. Apply the lubricant oil to the middle of the running board on both sides. After application,
press and hold the STOP button for 3 seconds to clear the reminder.
POWER SAVE FUNCTION:
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the LCD display of the console will be turned off. To turn it back on, press any
button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes during exercise.
26
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SUGGESTED ACTION
Treadmill will not start.
Not plugged in. Plug power cord into outlet.
Safety Key (No. C25) is
not inserted.
Insert Safety Key (No. C25).
Running belt is not
centered.
Running belt tension is not
correct on the left or right
side of the running board.
Tighten the left and right
adjusting bolts of the rear
roller.
Computer is not working.
Wires from the console and
bottom control
board are
not properly connected.
Check wire connections from
the console to the bottom
control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01 or E13
: Message
failure.
Wires from the console and
bottom contro
l board are
not properly connected.
Check wire connections from
the console to the bottom
control board.
If the wire has
been punctured or damaged,
you will need to replace it. If
the problem is not rectified,
you may need to replace the
bottom control board.
E02: Burst clash
protection.
Incoming voltage is lower
than 50% of the required
voltage.
Check that the incoming
power supply is the correct
voltage.
E05: Current overload
protection (Self Protecting
System).
The incoming voltage is too
low or too high. The control
board is damaged.
Restart the treadmill. Check
the incoming voltage to ensure
it is correct. Check the control
board, replace if damaged.
A moving part of the
treadmill is stuck and
therefore the motor is
unable to rotate properly.
Insp
ect moving parts of the
treadmill to ensure that they
are operating correctly. Check
the motor, listen for any
strange noises and check for a
burning smell. Replace the
motor if necessary.
E06: Motor Abnormality.
The motor wire
is not
connected or the motor is
damaged.
Check motor wires to see if the
motor
is connected. If the wire
has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the motor.
27
NOTE: If you are unable to resolve an issue using the troubleshooting guide above, please
contact Customer Service at [email protected].
E08: Control Board
Abnormality.
The control boa
rd is not
connected.
Check the upper and middle
wires to see if the control
board is connected. If the wire
has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
E09: Inversion error.
The treadmill sets upright
or not placed horizontally.
Adjust the treadmill and place
it horizontally. The wires of the
control board
are not
connected well. Replace the
control board.
E10:Motor Abnormality.
The motor is damaged or a
moving part of the treadmill
is stuck and therefore the
motor is unable to rotate
properly.
Inspect moving parts of the
treadmill to ensure that they
are operating correctly.
Replace the motor if
necessary.
Version 1.2
