INSTALLATION & USER MANUAL
WRC613SB, WRC913SB, WRC614SC, WRC914SC
CANOPY RANGEHOOD
2 CONTENTS
CONTENTS
Important safety instructions ........................................................3
Description of your rangehood ....................................................5
Components list ................................................................................. 5
Technical specifications ...................................................................5
Rangehood dimensions ................................................................. 6
Installation ..............................................................................................7
Using your rangehood ................................................................... 12
Care & maintenance ......................................................................... 12
Troubleshooting .................................................................................14
Optional ducting accessories ......................................................15
Warranty ................................................................................................19
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have
these meanings:
WARNING
WARNING
This symbol indicates information concerning your
personal safety.
WARNING
CAUTION
This symbol indicates information on how to avoid
damaging the appliance.
TIPS & INFORMATION
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENTAL TIPS
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the appliance.
Dear Customer,
Congratulations and thank you for choosing our canopy
rangehood. We are sure you will find your new rangehood
a pleasure to use. Before you use your rangehood,
we recommend that you read through the whole user
manual, which provides the description of the rangehood
and its function.
To avoid the risks that are always present when you use
an electrical appliance it is important that the canopy
rangehood is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the canopy rangehood please check it
is not damaged. If in doubt, do not use the appliance but
contact your local Electrolux Service Centre.
Conditions of use
This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and working
environments
• Farm houses
• By clients in hotels, motels and other residential type
environments
• Bed and breakfast type environments
• Catering and similar non-retail applications
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here:
Model number:........................................................................................
Serial number: .........................................................................................
PNC: .............................................................................................................
CONTENTSCONGRATULATIONS
IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to
strictly adhere to the requirements in this manual may
result in personal injury, property damage and affect
your ability to make a claim under the Westinghouse
manufacturer’s warranty provided with your product.
Products must be used, installed and operated in
accordance with this manual.
You may not be able to claim on the Westinghouse
manufacturer’s warranty in the event that your product
fault is due to failure to adhere this manual.
3SAFETY
SAFETY
This manual explains the proper use of your new
Westinghouse canopy rangehood. Please read this
manual carefully before using the product. This manual
should be kept in a safe place for handy reference. This
canopy rangehood is a domestic appliance which has
been manufactured and tested to comply with Australian
and New Zealand Standard AS/NZS 60335.2.31.
TIPS & INFORMATION
IMPORTANT
Important – check for any damages or marks
If you find the rangehood is damaged or marked, you
must report it within 7 days if you wish to claim for
damage/marks under the manufacturers warranty. This
does not affect your statutory rights.
Unpacking
Check that the cooker hood has no damage.
Transportation damage should immediately be reported
to the company responsible for the transportation
Damage, faults and missing details should immediately be
reported to the retailer. Take care of the packing materials
so that small children cannot play with them
ENVIRONMENTAL TIPS
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable. Please
dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
WARNING
WARNING
These warnings have been provided in the interest of
safety. You MUST read them carefully before installing
or using the appliance.
• The appliance must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning the use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
• This canopy rangehood is not recommended for
barbecues and cannot be installed for external use.
• Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.
• The exhaust from the canopy rangehood must not
be discharged into any heating flue, which may carry
combustion products from other sources. (Fig 1)
• Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.
• There must be adequate ventilation of the room when
the canopy rangehood is used at the same time as
appliances burning gas or other fuels.
• Always cover lit gas burners with pots or pans when
canopy rangehood is in use.
• Always switch off gas burners before you remove
pots or pans.
• Do not leave lit gas burners exposed due to the risk
of fire. (Fig 2)
• The hood must always be disconnected from
the electricity supply before beginning any
maintenance work.
• Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.
Fig. 1 Fig. 2
IMPORTANT SAFETY INSTRUCTIONS
4 SAFETY
IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)
Electrical connection
Check that the mains voltage matches with the voltage
on the data plate inside the canopy rangehood. Check
that the installation complies with standards of local
building, gas and electrical authorities. Before connecting
to the mains supply ensure that the mains voltage
corresponds to the voltage on the rating plate inside the
cooker hood.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.
Safety warnings – for the installer
When installing the cooker hood, make sure you adhere
to the minimum and maximum distances from the cooker
hood base to the hob surface (refer to page 8).
Exhaust flue installation: The following rules must be
strictly followed to obtain optimal air extraction.
• Keep exhaust flue short and straight.
• Do not reduce the size or restrict exhaust flue. Keep
bends in the exhaust flue to a minimum.
• When using flexible flue always install duct with helix
pulled taut to minimise pressure loss.
• Failure to observe these basic instructions will
drastically reduce the performance and increase the
noise levels of the cooker hood.
Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for that purpose. The
exhaust from the cooker hood must not be discharged
into any heating flue, which may carry combustion
products from other sources.
NOTE: Some installations may require the telescopic
exhaust cover to be cut to length. Cut with sharp tin snips
or a fine-tooth hack saw blade, taking care not to distort
or dent the exhaust cover.
5PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Technical specification
· Power supply: 240 V 50 Hz. Connects to 10 A
power point
· Lights: 2 x 4 watt, 240 V LED (for WRC613SB/WRC913SB)
MODEL WRC613SB WRC913SB
Height 660 mm - 1,160 mm 660 mm - 1,160 mm
Width 600mm 900mm
Depth 500mm 500mm
Max absorbed power 338 W 338 W
Lighting 2 x 4W LED (GU10 fitting) 2 x 4W LED (GU10 fitting)
Outlet diameter 150mm 150mm
Electrical connection 220 - 240V, 50Hz 220 - 240V, 50Hz
The manufacturer reserves the right to make technical changes.
Additional items required for installation
· Fixings required to attach rangehood body and
anti tilt brackets
· Fixings required to attach flue cover
mounting brackets
· Worm drive clamps, duct tape or cable ties
· Ducting accessories
Fig. 3
Components list Qty.
1
Telescopic flue cover set 1
2
Upper Flue mounting bracket 1
3
Lower Flue mounting bracket 1
4
Exhaust transition duct 1
5
Main body and fan housing
assembly
1
6
Grease filter(WRC613SB) 2
6
Grease filter(WRC913SB) 3
1
2
3
4
5
6
· Lights: 2 x 3.5 watt, 240 V LED (for WRC614SC/WRC914SC)
WRC614SC WRC914SC
660 mm - 1,160 mm 660 mm - 1,160 mm
600mm 900mm
500mm 500mm
337 W 337 W
2 x 3.5W LED (GU10 fitting) 2 x 3.5W LED (GU10 fitting)
150mm 150mm
220 - 240V, 50Hz 220 - 240V, 50Hz
6 DIMENSIONS

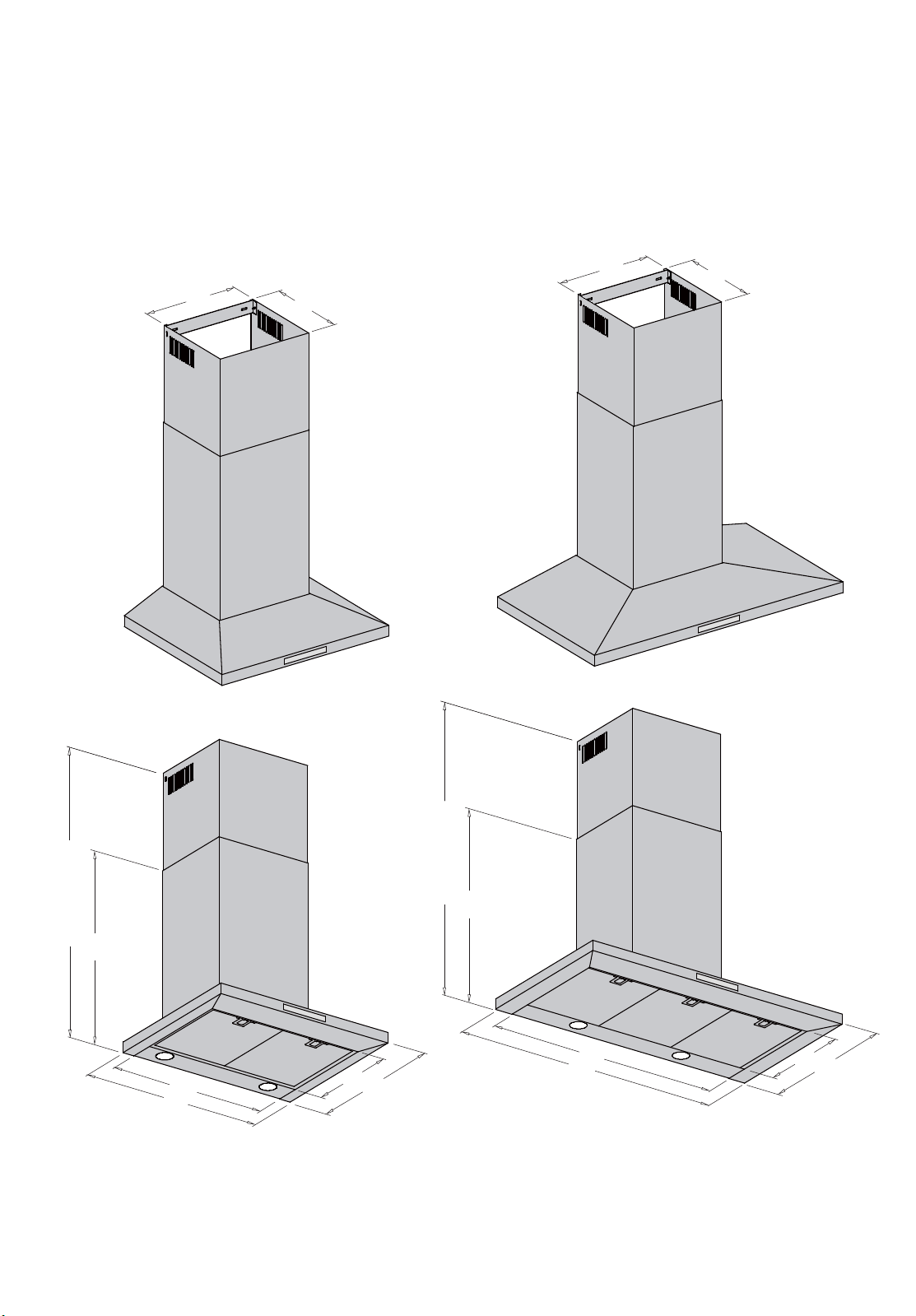

RANGEHOOD DIMENSIONS
WRC613SB/WRC614SC WRC913SB/WRC914SC
RANGEHOOD DIMENSIONS
WRC613SB
Fig. 4
320
290
625
Min 660 / Max1160
500
600
520
320
320
290
500
320
900
780
625
Min 660 / Max1160
WRC913SB
RANGEHOOD DIMENSIONS
WRC613SB
Fig. 4
320
290
625
Min 660 / Max1160
500
600
520
320
320
290
500
320
900
780
625
Min 660 / Max1160
WRC913SB
6
Fig. 4
7INSTALLATION
INSTALLATION
Pre-installation

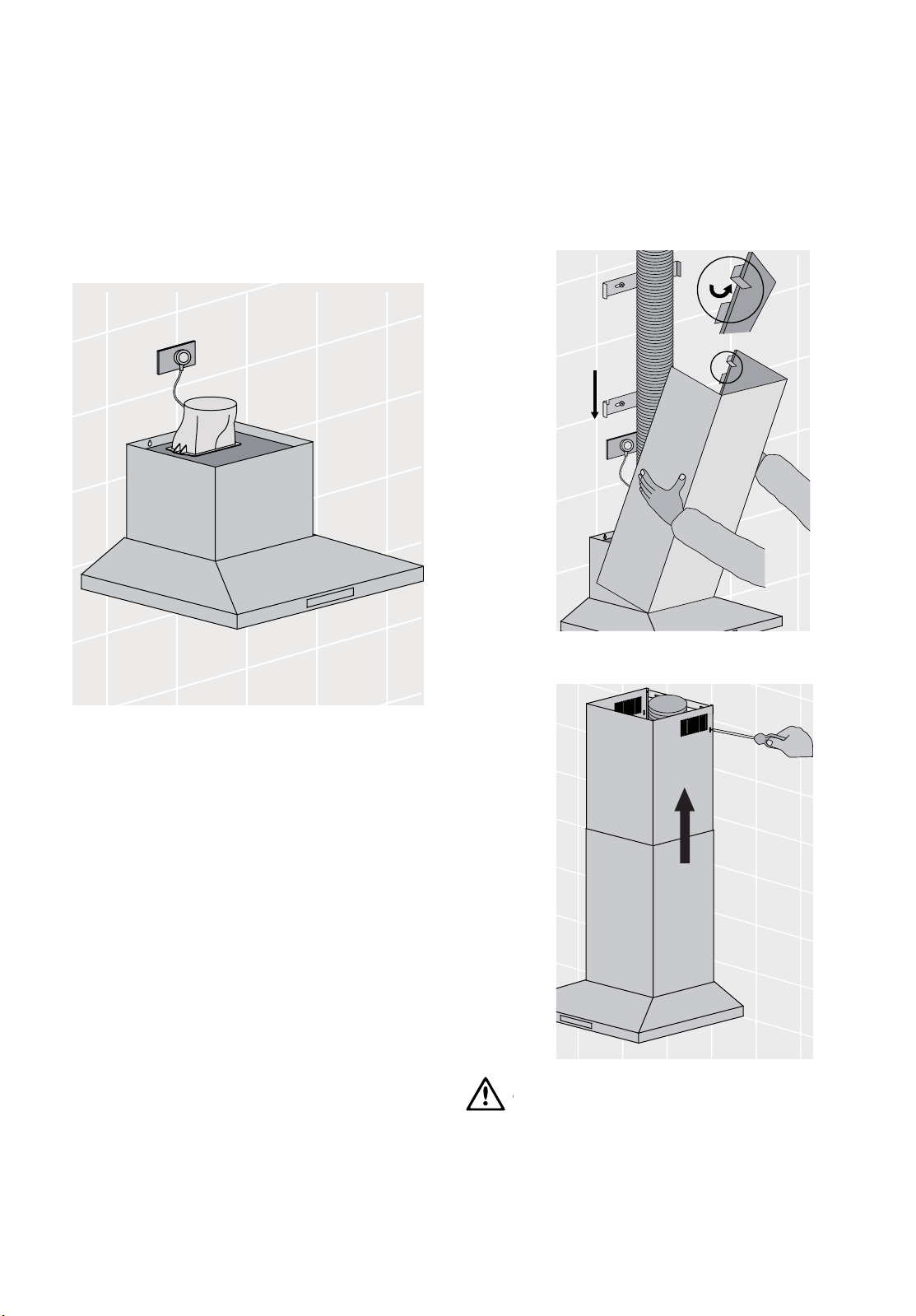

Before installing the cooker hood, peel off any protective
plastic covering and remove polystyrene from inside
behind the fan motor. See Fig. 5 below
Location
The hood is to be mounted on the wall. When installed,
the hood must be not less than 60cm above electric
burners or 65cm above gas or mixed-fuel burners.
DISTANCE FROM HOOD BASE TO TOP OF HOB
HOB TYPE MINIMUM* MAXIMUM
Gas 650mm 800mm
Electric 600mm 800mm
* If the instructions of the hob specify a greater distance
than the minimum above, then that shall be the minimum
height for installation.
Fig. 5
8 INSTALLATION
INSTALLATION

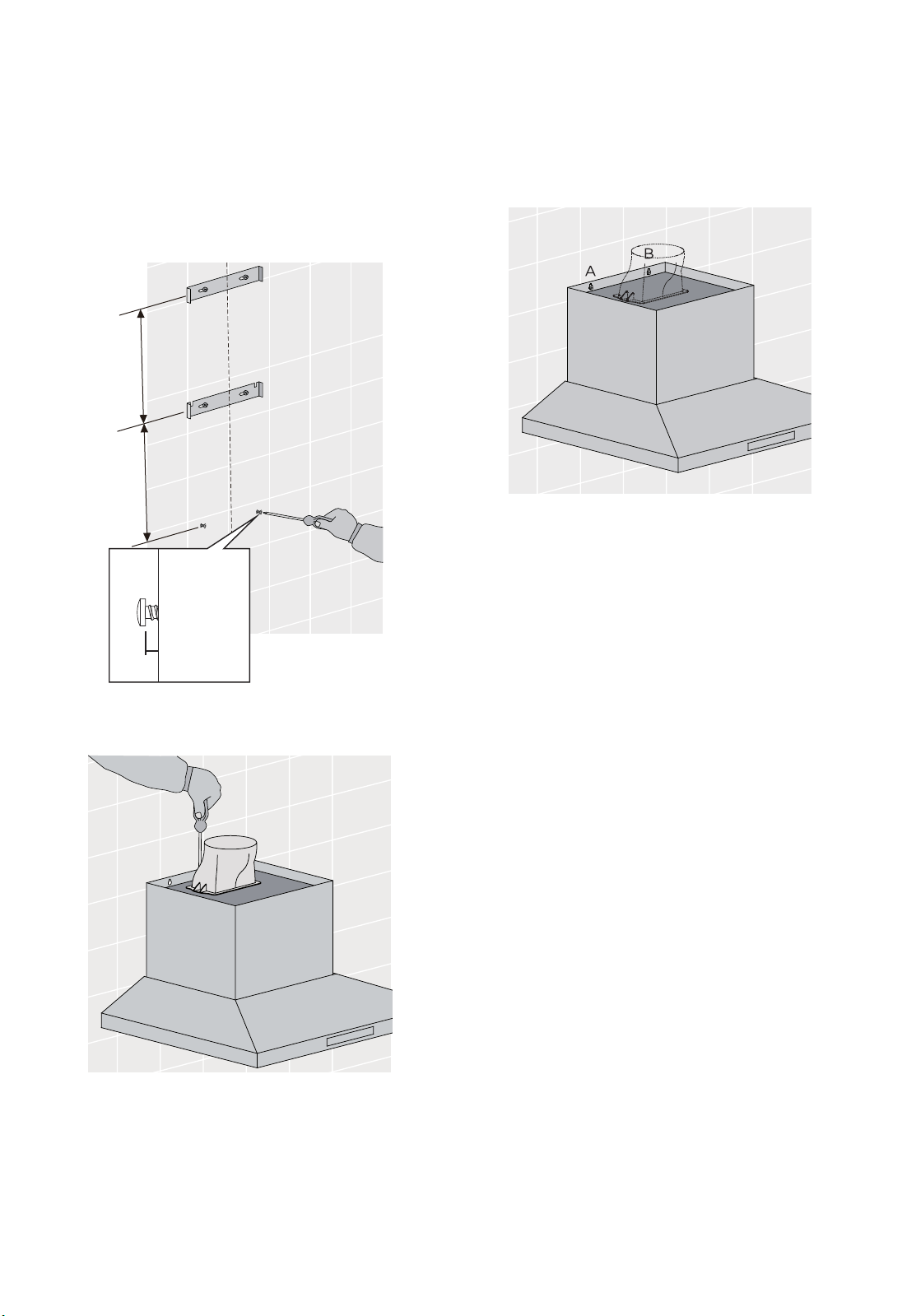

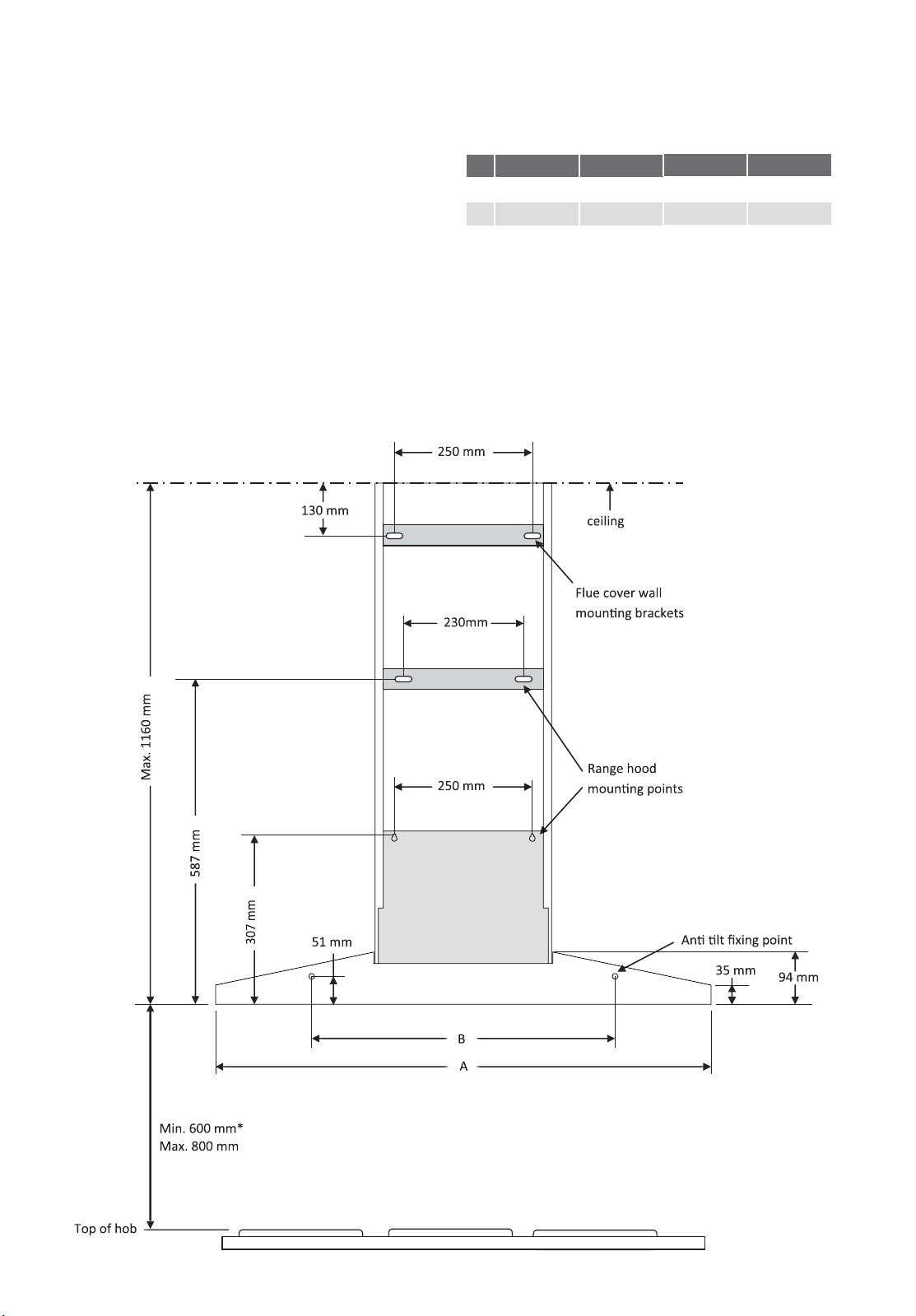

1. Using a spirit level mark a vertical centre line on
the wall where the hood is to be positioned, and
a horizontal line at the hood base position.
(See Fig. 4, or 5 for relevant model.
NOTE : The height of the underside of the hood body
must be a minimum of 600mm* to a maximum height
of 800mm .
* If the instructions of the hob specify a greater
distance than the minimum above, then that shall
be the minimum height for installation.
2. Mark the location for the flue cover wall mounting
brackets and rangehood mounting points and
anti-tilt fixing points above the hood base using
the hood base as a reference point
WRC613SB WRC913SB
A 600mm 900mm
B 440mm 550mm
WRC614SC WRC914SC
600mm 900mm
440mm 550mm
9INSTALLATION
INSTALLATION
3. Install flue cover wall mounting brackets with
suitable fixings. Install suitable screws for rangehood
mounting points (to support a total weight of 30kg)
to the wall as marked (Fig. 7)
4. Fix exhaust transition duct using screws supplied
(Fig. 8)
5. Hang the body hood on the mounting screws then
secure at the anti-tilt locations as indicated in Fig 9
Fig. 7
Fig. 8
Fig. 9
2 mm
10 INSTALLATION
INSTALLATION
Fig. 11
Fig. 12
Fig. 10
INSTALLATION
Depending on the preferred installation/ducting mode,
follow step 14a or 14b below.
6a. Recirculating mode (Fig. 10). Using the centre line,
secure the recirculating T-piece to the wall with
suitable screws/fixings (optional kit AR610RK).
Install flexible pipe between T-piece and reducer.
Use cable ties or suitable duct tape to secure flexible pipe
to T-piece and reducer (Fig. 12)
NOTE: When installed in recirculating mode, it is
recommended to use a carbon filter (included in
recirculation kit AR610RK) to prevent odours being
emitted back into the room.
6b. Ducted mode (Fig. 11) Fit a 150mm diameter non
combustible flue pipe. Continue the centre line to
the ceiling. Fit flue pipe to the exhaust transition
duct. Use cable ties or suitable duct tape to secure
flue pipe to the transition duct.
Note: For ducted mode we recommend to extend the flue
pipe through the roof cladding (with appropriate flashing)
to an external roof cowl, venting the exhaust externally.
Some States allow venting into the ceiling cavity, enquiries
should be made with the local Government to ensure the
installation complies with the regulations.
NOTE: To ensure optimum performance of the
rangehood, the use of rigid ducting (optional AR150F)
is recommended. The use of bends should be avoided.
Rigid flexible ducting is suitable, although loose flexible
ducting is unacceptable. All ducting must be fire
retardant.
11INSTALLATION
INSTALLATION
7. Electrical connection
Check that the installation complies with the standards
of local building, gas and electrical authorities. Before
connecting to the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the rangehood.
8. Installation of telescopic flue covers
Separate the inner and outer flue covers, and carefully
remove the protective coating from both. Carefully
reassemble the upper and lower flue covers sections by
sliding the inner into the outer flue cover. Carefully lower
the assembled upper and lower flue covers onto the top
of the rangehood body, and insert the flue cover into the
rangehood body approximately 5mm.
Fig. 13
9. Fix upper flue cover
Fix upper flue cover to the wall mounting bracket
with screws supplied. Ensure that the upper section is
extended.
WARNING
WARNING
Care must be taken to ensure the screws (supplied in
accessories bag) are not cross threaded when attaching the
upper flue cover. If installed in recirculating mode, insert the
optional carbon filter (included in recirculation kit AR610RK).
To complete the cooker hood installation, insert the three
filters to the underside of the hood body. Place back edge
of filter into position and push up front edge so that the filter
clips into place.
Your Electrolux cooker hood is now ready to use.
Fig. 15
Fig. 14
12 CONTROL PANEL / CARE & MAINTENENCE
CONTROL PANEL CARE & MAINTENENCE
• Best results are obtained by using a low speed for
normal conditions and a high speed when odours are
more concentrated.
• Turn the hood on for a few minutes before you start
cooking.
• The hood should be left on for a minimum of 5
minutes after cooking or until all odours have
dispersed.
• The control switches are located on the front panel of
the unit. See Fig. 16 below.
A. Filter
• This is the indicator/switch to show when the filter
needs to be cleaned.
• Once the filters are cleaned the ‘Filter’ alert can be
deactivated with a single touch.
B.
Timer
Using the Timer
• At the end of cooking, if the timer is switched on, the
rangehood will continue to run for an additional 5 to
15 minutes, depending on the selected fan speed.
• The fan speed is reduced in 5 minute increments until
the rangehood turns it self OFF.
• If the fan speed is set on high, it will run for 5 minutes
then reduce to medium for 5 minutes, then reduce to
low for 5 minutes before finally turning it self OFF.
• This should ensure the removal of any odours that
remain after cooking.
C.
Lights
To switch Lights On and OFF
• Touch the ‘light’ symbol to turn the lights ON.
• Touch the ‘light’ symbol again to turn the lights OFF.
D.
Power on/off
E.
Fan speed 1
Light frying/boiling
F.
Fan speed 2
Frying/wok cooking/heavy boiling
G.
Fan speed 3
Grilling, intensive frying and wok cooking
NOTE. This product is fitted with a safety cutout device.
If the cooker hood is installed to close to the cooktop,
flambe cooking, operating the cooktop without cooking
utensils and blocked filters may activate the safety cutout
device. If the hood stops during operation, correct the
faults and allow time for the safety cutout device to reset,
the cooker hood will then function correctly.
WARNING
CAUTION
External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage
Cleaning the hood
• Clean the outside of the hood using a damp cloth and
a solution of water and mild washing up liquid. Clean
stainless steel surfaces using non-abrasive cleaning
products that are specifically for use on stainless
steel. To ensure the best results also use an even
pressure and follow the grain of the stainless steel.
Use of a soft cloth reduces the risk of scratching. If
the cloth is wet ensure that a dry soft cloth is used
to wipe down the surface and apply stainless steel
protector to reduce the risk of any surface rust
appearing.
• Never use corrosive, abrasive or flammable cleaning
products or products containing bleach.
• Never insert pointed objects in the motors protective
grid.
• Only ever clean the switch panel and filter grill using a
damp cloth and mild washing up liquid.
• It is extremely important to clean the unit and change
the filters at the recommended intervals. Failure to do
so will cause grease deposits that could cause a fire.
Removing the metal grease filters
• Push the grease filter and then pull it down and out.
Fig. 16
13CARE & MAINTENENCE
CARE & MAINTENENCE
Hand washing
Soak grease filters for about one hour in hot water
with a grease-loosening cleaner, then rinse off thoroughly
with hot water. Repeat the process if necessary. Refit
the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select the most
powerful washing program and highest temperature, at
least 65°C. Repeat the process. Refit the grease filters
when they are dry. When washing the metal grease filter
in the dishwasher a slight discolouration of the filter can
occur, this does not have any impact on it’s performance.
NOTE: The metal grease filters must be removed and
washed, either by hand or in the dishwasher, every four
weeks
· Clean the inner housing using warm water and grease
loosening cleaner (never use caustic dete
rgents,
abrasive powders or brushes).
Charcoal filter
· The charcol filter should only be used if you want
to use the hood in the recirculation function.
· This filter cannot be cleaned or re-used and as a
general rule, the activated charcoal filter should be
changed once every four months.
Fitting the charcoal filter
Fit one charcoal filter on the left and one on the right so
as to cover the plastic grids that protect the fan wheel.
· Always specify the hood model code number and
serial number when ordering replacement filters.
This information is shown on the registration plate
located on the inside of this unit.
· Replacement charcoal filters can be ordered from
your local service centre.
WARNING
CAUTION
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
Changing the LED lamps
If LED lamps need replacing, they must be replaced by
lamps as stated in the technical specifications.
s
Ensure that the appliance is switched off before carrying
out maintenance to avoid any possibility of electric shock.
Suitable lamp for replacement (for WRCG613SB/ WRC913SB)
Lamp type: LED
Fixing type: GU10
Voltage: 220~240V AC
Power: 4W
Dimension: o 50mm
DBR-4-H-GU10-50/53
Suitable lamp for replacement (for WRC614SC/ WRC914SC)
Lamp type: LED
Fixing type: GU10
Voltage: 220~240V AC
Power: 3.5W
DBR-3.5-H-GU10-50/53
Dimension: o 50mm
14 TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
PROBLEM REMEDY
The cooker hood will not start
Check that the hood is connected to an electrical supply
Check that a fan speed has been selected
The cooker hood is not working
Check that the fan speed is set high enough for the task
The grease filters are clean
The kitchen is adequately vented to allow the entry of fresh air
If set up for recirculation, check that the charcoal filter is still effective
If set up for extraction, check that the ducting and outlets are not blocked
Do not operate cooktop without pots/pans
Do not flambe under cooktop
The cooker hood has switched off
during operation
The safety cut-out device has been tripped – turn off the hob and wait for
the device to reset. Check and clean filters. If the hood has been installed
below the heights indicated in the installation instructions the motor will cut
out frequently which will damage the hood.
If you have completed all of the above checks and are still experiencing difficulty, please contact your local Electrolux
Service Centre.
NOTE: This product is fitted with a safety cutout device.
• If the cooker hood is installed to close to the cooktop, flame cooking, operating the cooktop without cooking
utensils and blocked filters may activate the safety cutout device. If the hood stops during operation, correct the
faults and allow time for the safety cutout device to reset, the cooker hood will then function correctly.
• Do not operate cooktop without pots/pans.
• Do not flambe under cooktop.
15OPTIONAL ACCESSORIES
OPTIONAL DUCTING ACCESSORIES
PART NUMBERS DESCRIPTION
AR150RC 150mm G/Bond Roof Cowl
AR150F 150mm G/Bond Flue 1200m
AR150WV 150mm Wall Vent & duct
AR610RK Recirculating kit (150–120m reducer, T-piece & carbon filters)
AR610CF Replacement carbon filter
AR610FS Stainless steel exhaust cover extension 1200mm
AR150FD 150mm aluminum flexible duct
AR125FDA 125mm aluminum flexible duct
1438124 50mm wide aluminum tape (55m roll)
AR150RC
AR150F
AR150WV
AR610RK
AR150FD AR125FD
AR610CF
16
NOTES
17
NOTES
NOTES
NOTES
This document sets out the terms and conditions of the product
warranties for Westinghouse Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should there be a manufacturing
defect in your Appliance. This warranty is in addition to other rights
you may have under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products
Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004
762 341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: WESTINGHOUSE RANGEHOODS
WRange_War_Jul19
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
AUSTRALIA
phone: 13 13 49
email: customercare@electrolux.com.au
web: westinghouse.com.au
NEW ZEALAND
phone: 0800 436 245
email: customercare@electrolux.co.nz
web: westinghouse.co.nz
For more information on all Westinghouse
appliances, or for dimension and installation
information, call into your retailer, phone or email
our customer care team or visit our website:
and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation.
Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved.
© 2019 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
WMAN_WRC613SB_WRC913SB_WRC614SC_WRC914SC_Sep19
