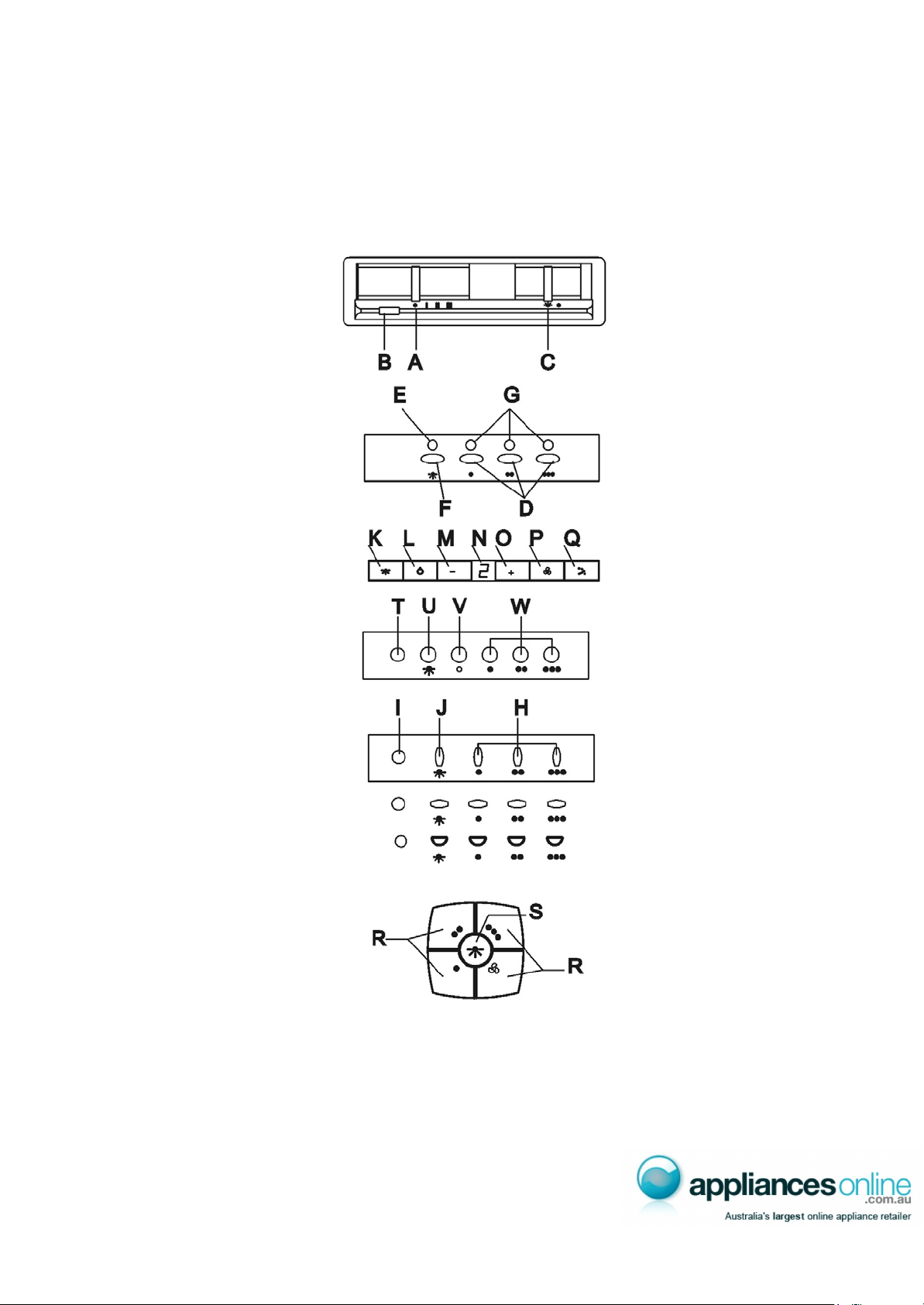

600-900 Canopy Installation and Operation Manual
The instructions in this manual are for cooker hood models: CS601, CS901, WRF600, WRF900,WRG950CGS
These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand
Standard AS/NZS 3350.2.31.
Safety Warnings
Young children should be supervised to ensure they do not play with the cooker hood.
The cooker hood is not intended for use by young children or infirm persons without supervision.
Ensure the cooker hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
Do not
flamb’e
under the cooker hood.
This cooker hood is not recommended for
barbeques.
The exhaust air from the cooker hood must not be discharged into any heating flue, which may carry combustion products from
other sources.
Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or
other fuels.
Always cover lit gas burners with pots or pans when the cooker hood is in use.
Always switch off gas burners before you remove pots or pans.
Cleaning
Wipe the cooker hood body and flue with a sponge or soft cloth soaked in warm soapy water. Do not use oven cleaners or other
abrasive materials.
Electrical Connection
Check that the mains voltage matches with the voltage on the data plate inside the cooker hood.
Check that the installation complies with standards of local gas and electricity authorities.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order
to avoid a hazard.
Accessories
Use 125mm round exhaust ducting for best performance.

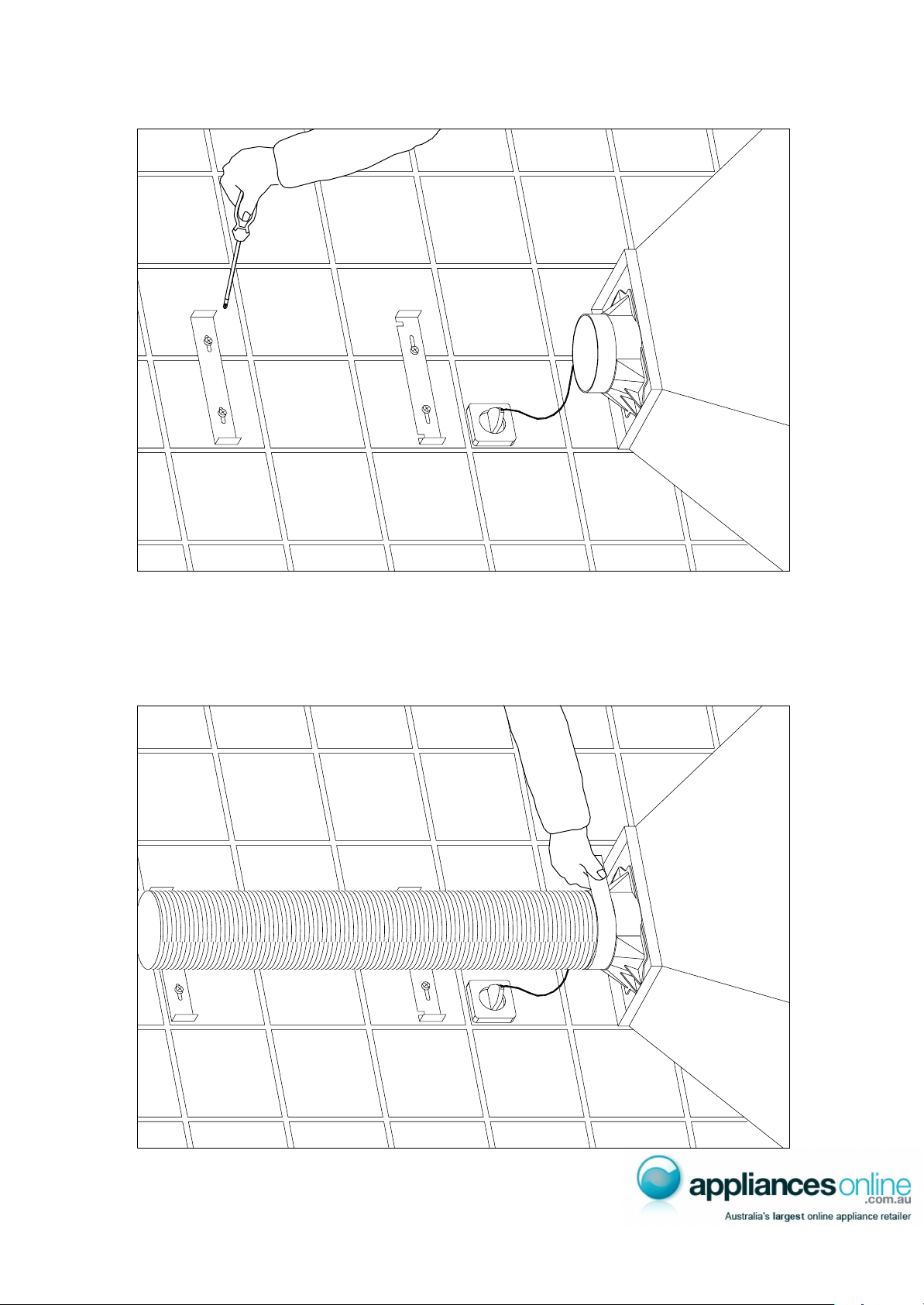

When using flexible duct always install duct with the wire helix pulled taut to minimise pressure loss.
Try to keep exhaust duct short and straight.
Keep bends in the exhaust duct to a minimum.
Do not reduce the size or restrict exhaust duct.
DUCTING ACCESSORIES
AR500FS

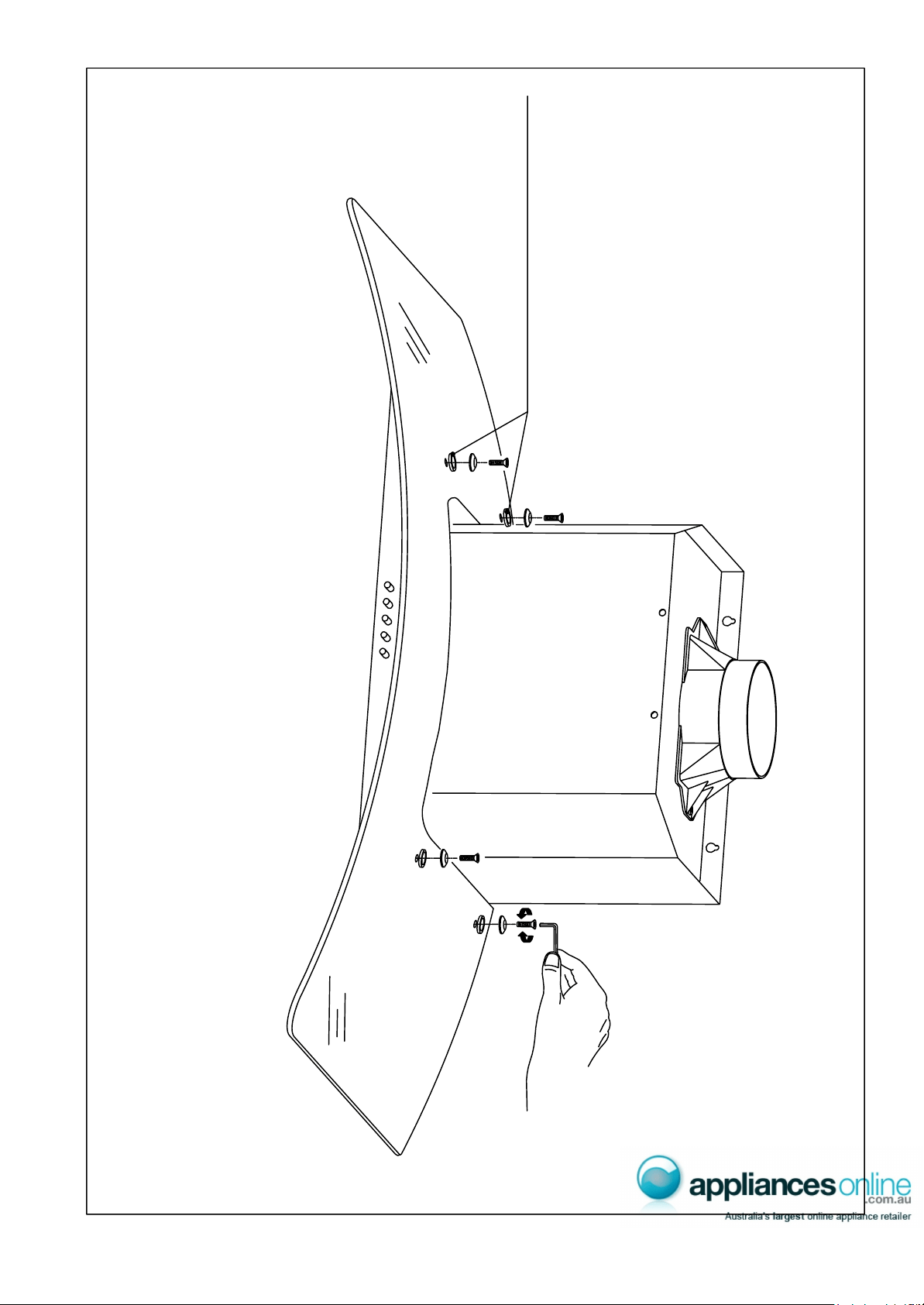

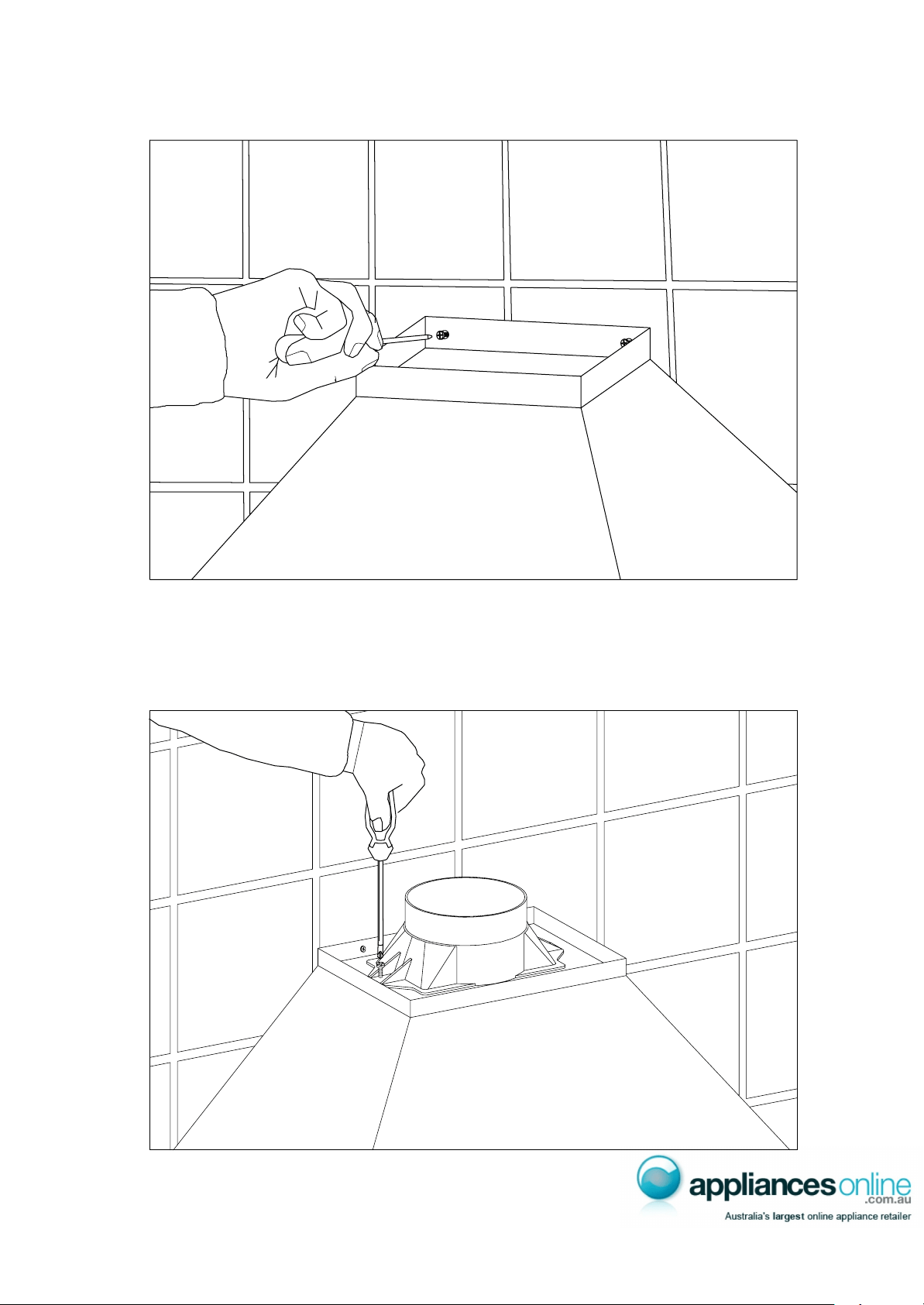

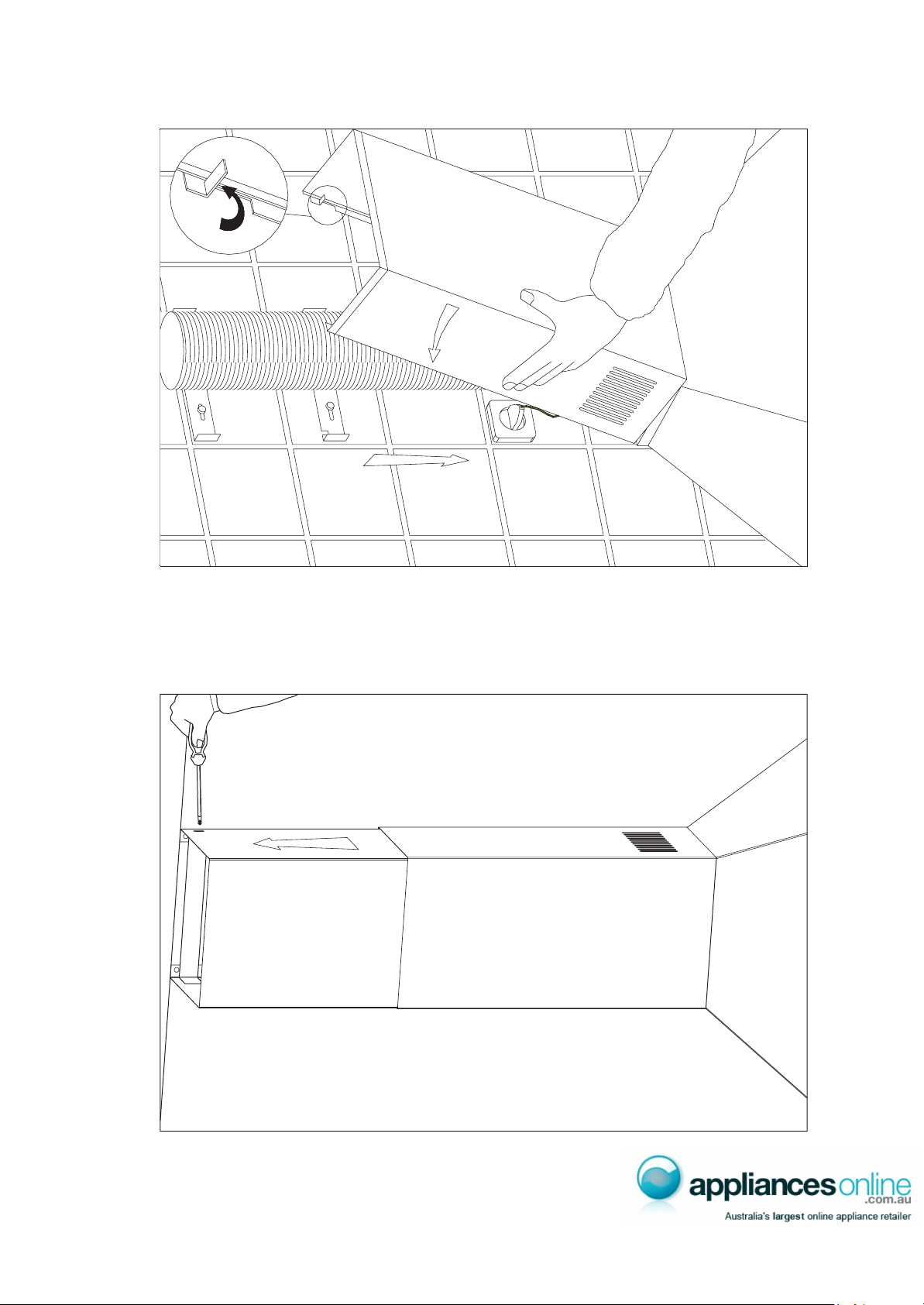

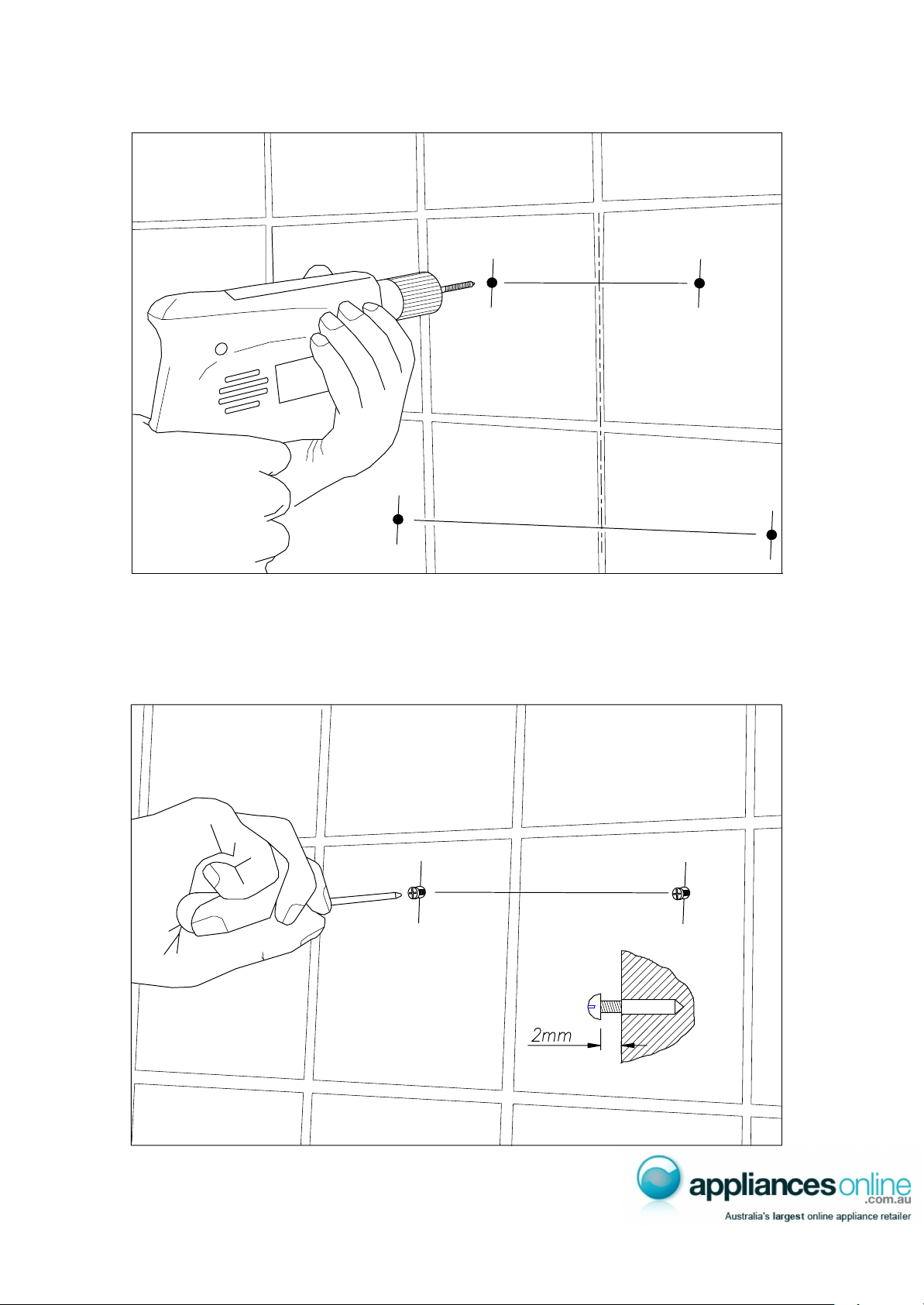

INSTALLATION OPTIONS
Rear Exhaust
to atmosphere
Side Exhaust
to atmosphere
Recirculating
Installation
Top Exhaust
to atmosphere
Roof Cowl
90º Bend
Flue 1200mm Long
Flexible Duct - 1 Metre Long When Expanded
Wall Vent Kit
Extra Length Flue Cover 1100mm Length Brushed Stainless Steel
Recirculating Kit
Replacement Carbon Filters
Part Numbers: Description:
AR125RC
AR125B
AR125F
AR125FD
AR125VW
AR500FS
AR500RK
AR500CF
AR125RC
AR125F
AR125FD
Roof cowl
Flue
1200mm length
Alternative flue connection
1 metre flexible duct with joiners
Flashing
Not Supplied
90º bend
AR125B
AR500RK
AR125WV
Wall vent
(i
ncludes 400mm of flue)
