2002 Sony Corporation
KE-42XBR900
KE-50XBR900
Flat Panel Color TV
Operating Instructions
4-092-940-14 (1)
Flat Panel Color TV KE-42XBR900/KE-50XBR900
Printed in Japan
Printed on 100% recycled paper.
1
WARNING
To reduce the risk of fire or shock hazard, do not expose the TV to rain or
moisture.
This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
CAUTION
To prevent electric shock, do not use this polarized AC plug with an
extension cord, receptacle or other outlet unless the blades can be fully
inserted to prevent blade exposure.
Note on Caption Vision
This television receiver provides display of television closed captioning in
accordance with §15.119 of the FCC rules.

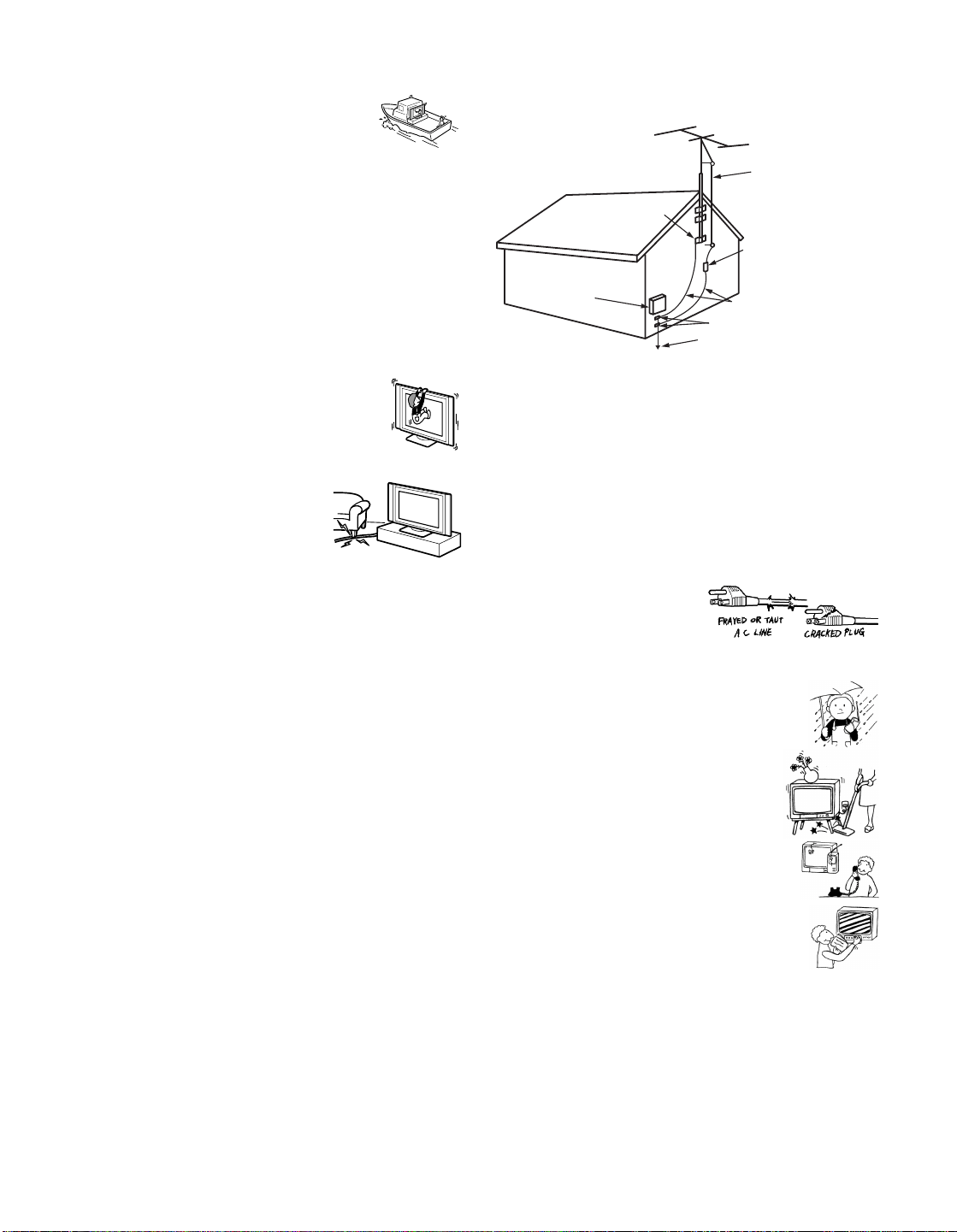

Note to CATV System Installer
This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the National Electrical Code (NEC) that provides
guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
Use of this television receiver for other than private viewing of programs
broadcast on UHF or VHF or transmitted by cable companies for the use
of the general public may require authorization from the broadcaster/cable
company and/or program owner.
NOTIFICATION
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
s Reorient or relocate the receiving antennas.
s Increase the separation between the equipment and receiver.
s Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
s Consult the dealer or an experienced radio/TV technician for help.
Safety
s Operate the TV only on 120 V AC.
s The plug is designed, for safety purposes, to fit into the wall outlet
only one way. If you are unable to insert the plug fully into the outlet,
contact your dealer.
s If any liquid or solid object should fall inside the cabinet, unplug the
TV immediately and have it checked by qualified service personnel
before operating it further.
s If you will not be using the TV for several days, disconnect the
power by pulling the plug itself. Never pull on the cord.
s For details concerning safety precautions, see “Important
Safeguards” on page 3.
CAUTION
When using TV games, computers, and similar products with your TV,
or viewing a TV station whose logo always stays on the screen, keep
the brightness and contrast functions at low settings. If a fixed
(non-moving) pattern such as a station logo is left on the screen for
long periods of time, especially at a high brightness or contrast setting,
the image can be permanently imprinted onto the screen. These types
of imprints are not covered by your warranty.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
2

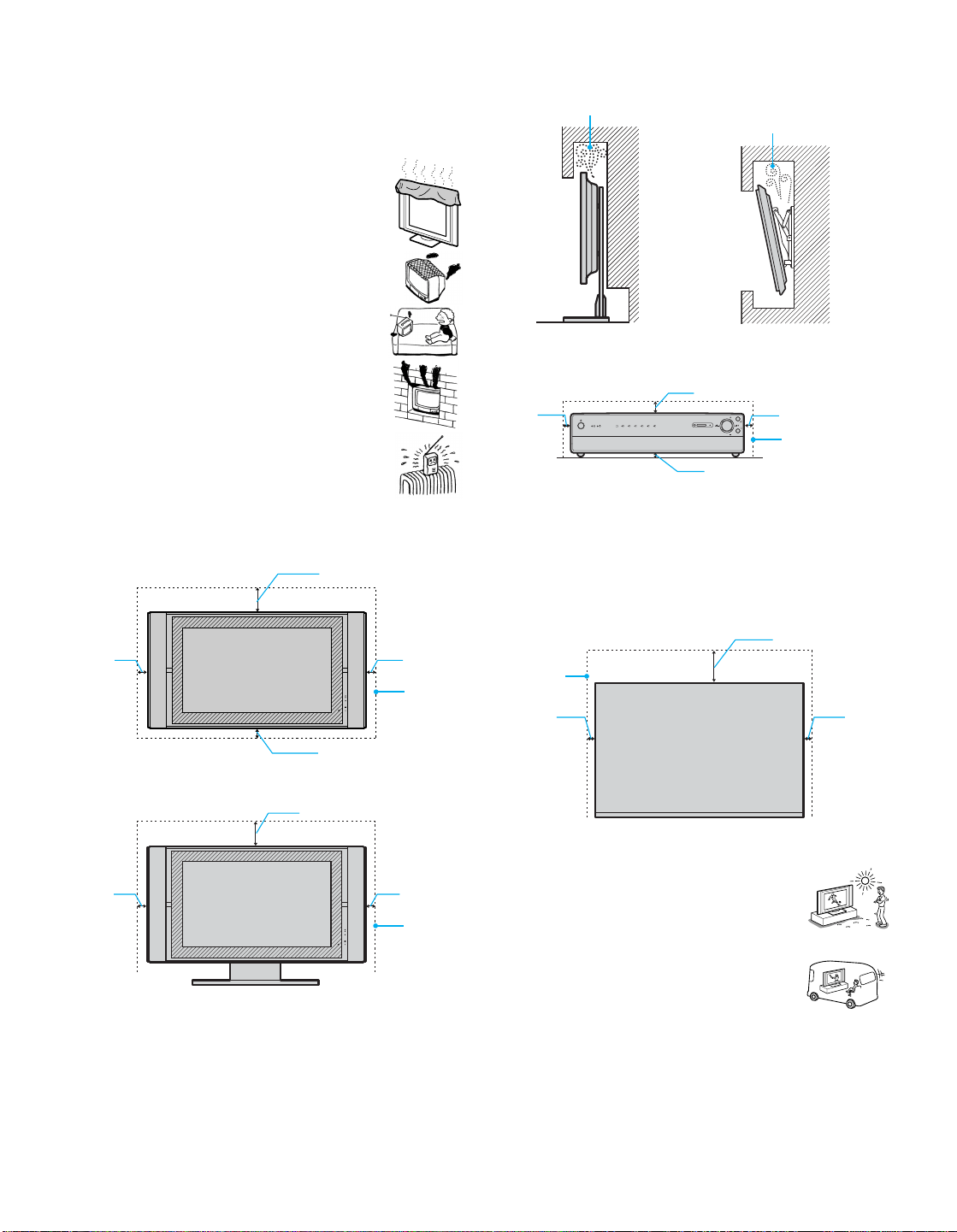

Installing
s To prevent internal heat buildup, do not block the ventilation
openings.
s Do not install the TV in a hot or humid place, or in a place subject to
excessive dust or mechanical vibration.
s Avoid operating the TV at temperatures below 5°C (41°F).
s If the TV is transported directly from a cold to a warm location, or if
the room temperature changes suddenly, the picture may be blurred
or show poor color due to moisture condensation. In this case, please
wait a few hours to let the moisture evaporate before turning on the
TV.
s To obtain the best picture, do not expose the screen to direct
illumination or direct sunlight. It is recommended to use spot
lighting directed down from the ceiling or to cover the windows that
face the screen with opaque drapery. It is desirable to install the TV
in a room where the floor and walls are not of a reflective material.
CAUTION
The following SONY appliance(s) for use only with the following TV
STAND or WALL-HANGING RACK UNIT. Use with other TV STAND
or WALL-HANGING RACK UNIT is capable of resulting in instability
causing possible injury.
SONY APPLIANCE MODEL NO.
KE-42XBR900 (PDM-4200)
KE-50XBR900 (PDM-5000)
TABLE TOP STAND MODEL NO.
SU-P42T1 (for PDM-4200)
SU-P50T1 (for PDM-5000)
RYOJU KAKO CO., LTD
WALL MOUNT UNIT MODEL NO.
SU-PW1 (for PDM-4200/5000)
JOLSON
FLOATING STAND MODEL NO.
SU-PF1 (for PDM-4200/5000)
NIPPON SHEET GLASS CO., LTD
Trademark Information
TruSurround and the symbol are trademarks of SRS Labs, Inc.
TruSurround technology is incorporated under license from SRS Labs, Inc.
BBE and BBE Symbol are trademarks of BBE Sound, Inc. and are licensed
by BBE Sound, Inc. under U.S. Patent No. 4,638,258 and 4,482,866.
Steady Sound, Digital Reality Creation, Caption Vision, CineMotion,
Memory Stick, and Twin View are registered trademarks of Sony
Corporation. ClearEdge VM, HD Detailer, and Uniform Brightness Screen
are trademarks of Sony Corporation.
Owner’s Record
The model and serial numbers are located at the rear of the TV, below the
Sony logo, on the sticker, and also on the TV box (white label). Record
these numbers in the spaces provided below. Refer to them whenever you
call upon your Sony dealer regarding this product.
Model No. ________________________________
Serial No. ________________________________
CAUTION
How to reduce the risk of “Image Retention” on your TV
Bright, stationary images such as TV station logos displayed on your
TV can cause permanent damage to your TV, resulting in retention of
the image in the picture. Please take the following steps to reduce the
risk of causing image retention:
View a variety of program sources or programming material.
Image retention can occur when bright stationary images such as TV
station logos are viewed. Changing the program material viewed
reduces the possibility that a single image will become imprinted on
the picture tubes in your TV.
When viewing programs with stationary images, adjust the picture
setting to reduce the “Picture” and “Brightness” levels. Image
retention is accelerated by higher “Brightness” and higher “Picture”
settings.
Please see page 78 for instructions on adjusting picture settings.
This will help you reduce the risk of causing image retention.
IMAGE RETENTION IS NOT COVERED BY YOUR WARRANTY
3

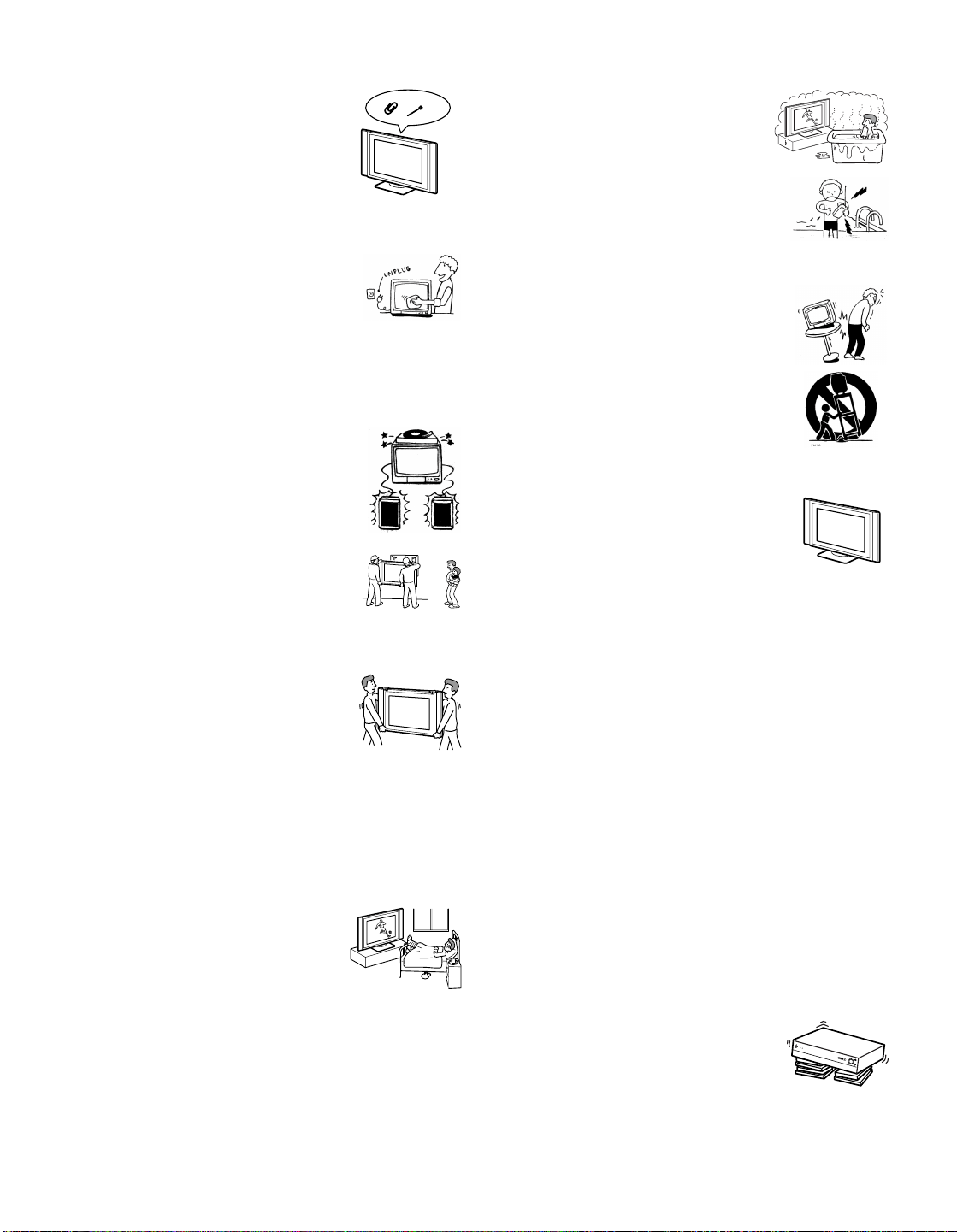

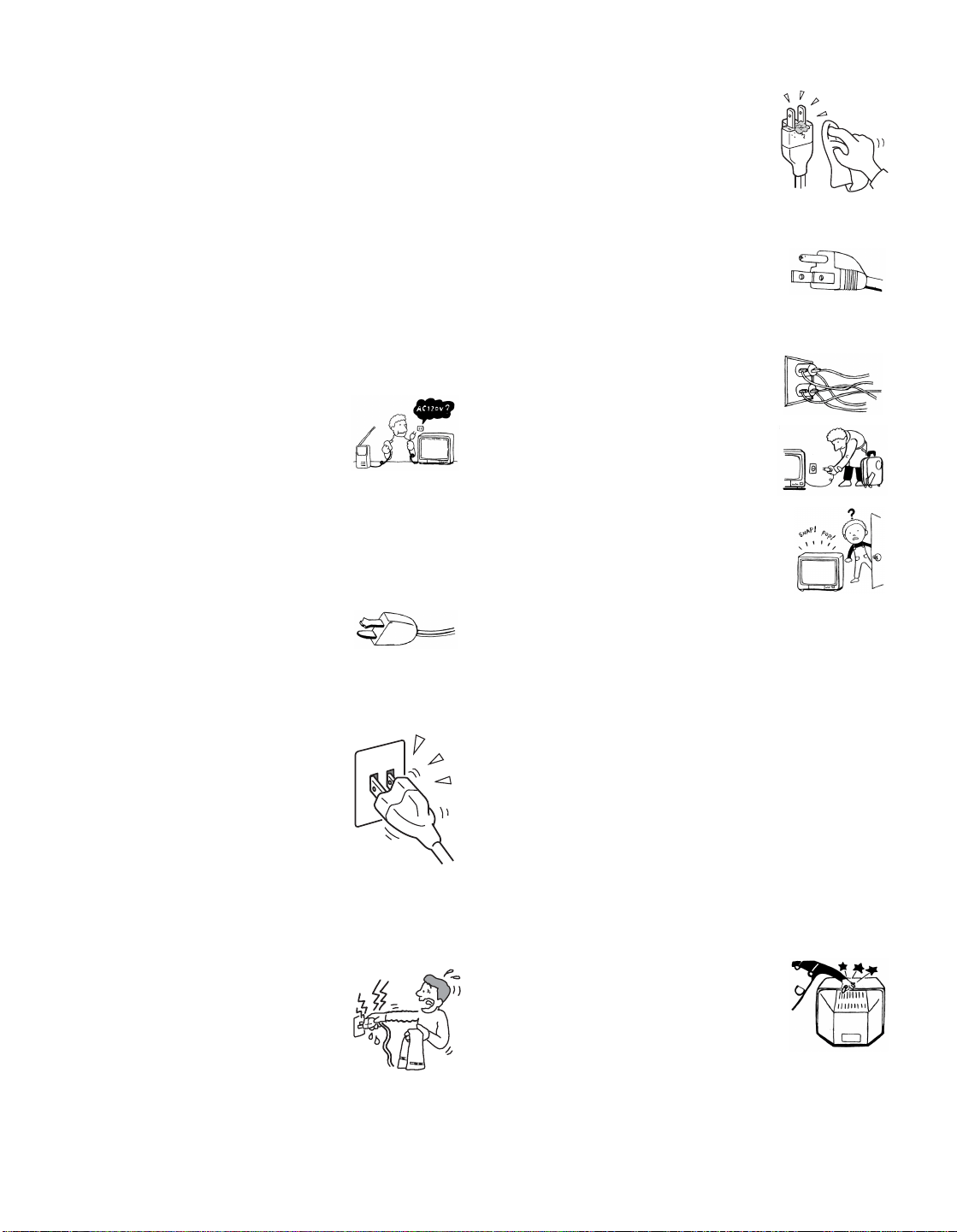

Important
Safeguards
Before using your TV, please read these instructions completely, and keep
this manual for future reference.
Carefully observe and comply with all warnings, cautions and instructions
placed on the set or described in the operating instructions or service
manual.
WARNING
To guard against injury, the following basic safety precautions should be
observed in the installation, use and servicing of the set.
Use
Power Sources
This set should be operated only from the type of
power source indicated on the serial/model plate.
If you are not sure of the type of electrical power
supplied to your home, consult your dealer or local
power company. For those sets designed to operate
from battery power, refer to the operating
instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug (a plug having
one blade wider than the other), or with a three-wire grounding type plug
(a plug having a third pin for grounding).Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug.
If the plug still fails to fit, contact your electrician to have a suitable outlet
installed. Do not defeat the safety purpose of the polarized plug by forcing
it in.
Wall outlet
Do not use a poor fitting outlet.
Insert the plug fully into the outlet. If it is loose, it
may cause arcing and result in fire.
Contact your electrician to have the outlet changed.
Wiring
Unplug the AC power cord when wiring cables.
Be sure to unplug the AC power cord for your safety, when hooking up.
Moisture
Do not touch the AC power cord with a wet hand.
If you plug/unplug the AC power cord with a wet
hand, it may cause electric shock.
Cleaning
Clean the AC power plug regularly.
If the plug is covered with dust and it picks up
moisture, its insulation may deteriorate and result in
fire. Unplug the AC power plug and clean it
regularly.
For the set with a three-wire grounding type AC
plug
This plug will only fit into a grounding-type power
outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician
to have a suitable outlet installed. Do not defeat the
safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity, since
this can result in fire or electric shock.
Always turn the set off when it is not being used.
When the set is left unattended and unused for long
periods of time, unplug it from the wall outlet as a
precaution against the possibility of an internal
malfunction that could create a fire hazard.
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds, particularly
when being turned on or off.

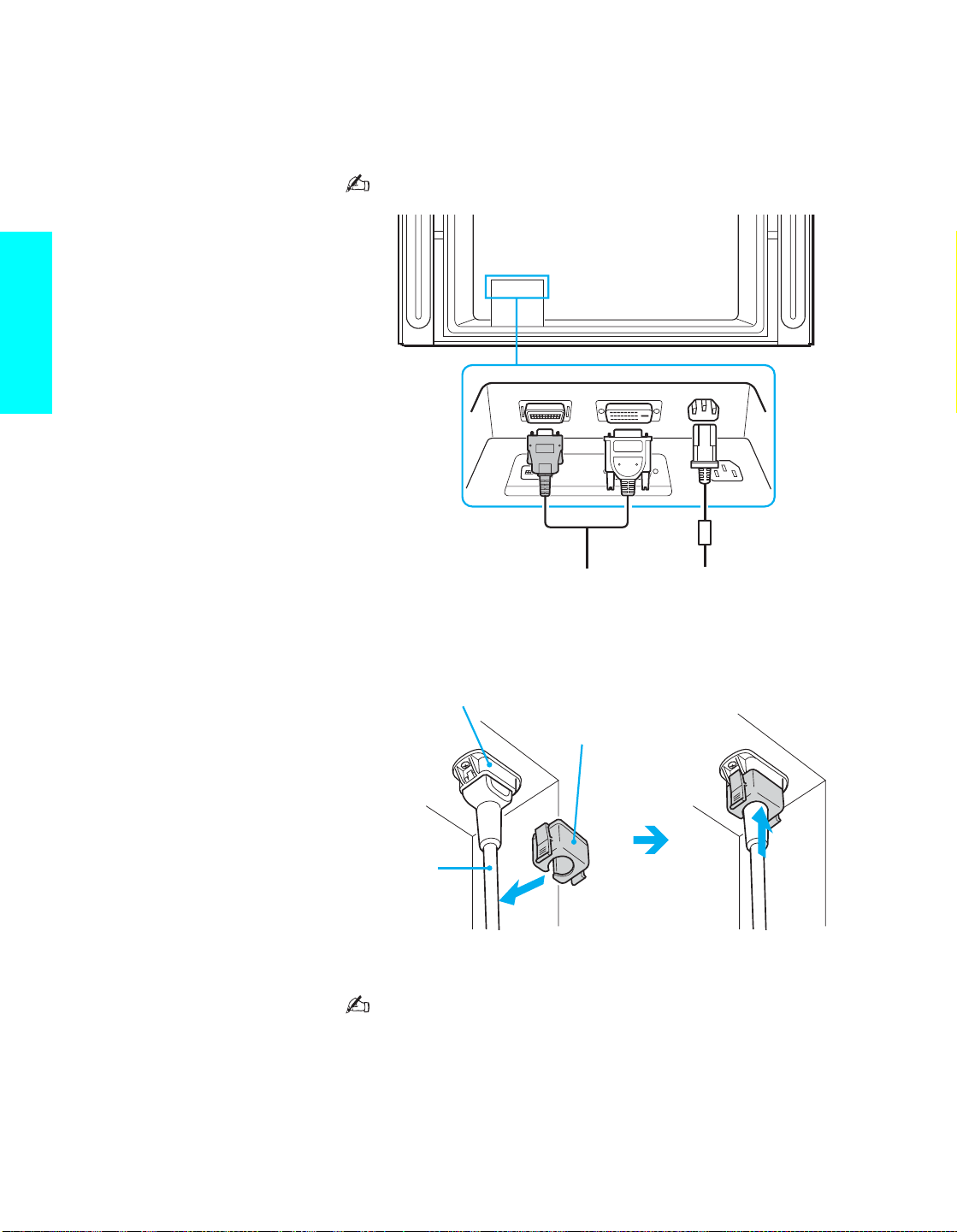

AC power cord and display cable
If you damage the AC power cord or display cable, it may result in fire or
electric shock.
s Do not pinch, bend, or twist the cable excessively. The core lines
may be bared and cut, and cause short-circuit, resulting in fire or
electric shock.
s Do not convert or damage the AC power cord or display cable.
s Do not put anything heavy on the AC power cord or display cable.
Do not pull the AC power cord or display cable.
s Keep the AC power cord or display cable away from heat sources.
s Be sure to grasp the plug when disconnecting the AC power cord.
s Refer to the operating instructions when disconnecting the display
cable.
If the AC power cord or display cable is damaged, stop using it and ask
your dealer or Sony service center to exchange it.
Cleaning
Unplug the AC power cord when cleaning this unit. If not, it may result in
electric shock.
Object and Liquid Entry
Never push objects of any kind into the set through the
cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
set.
(Continued)
4
Ventilation holes
Do not insert anything in the ventilation holes. If
metal or something flammable enters, it may result in
fire or electric shock.
Cleaning
Clean the cabinet of the TV with a dry soft cloth. To
remove dust from the screen, wipe it gently with a soft
cloth. Stubborn stains may be removed with a cloth
slightly dampened with a solution of mild soap and
warm water. Never use strong solvents such as thinner
or benzine for cleaning.
If the picture becomes dark after using the TV for a long period of time, it
may be necessary to clean the inside of the TV. Consult qualified service
personnel.
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Installation
When installing the display unit on the wall, be sure to
have assemblers install and keep away from the unit.
If a person other than the assemblers install the display
unit on the wall using a wall mount unit, the unit may
fall and cause serious injury when an earthquake
occurs or when the unit is not installed securely.

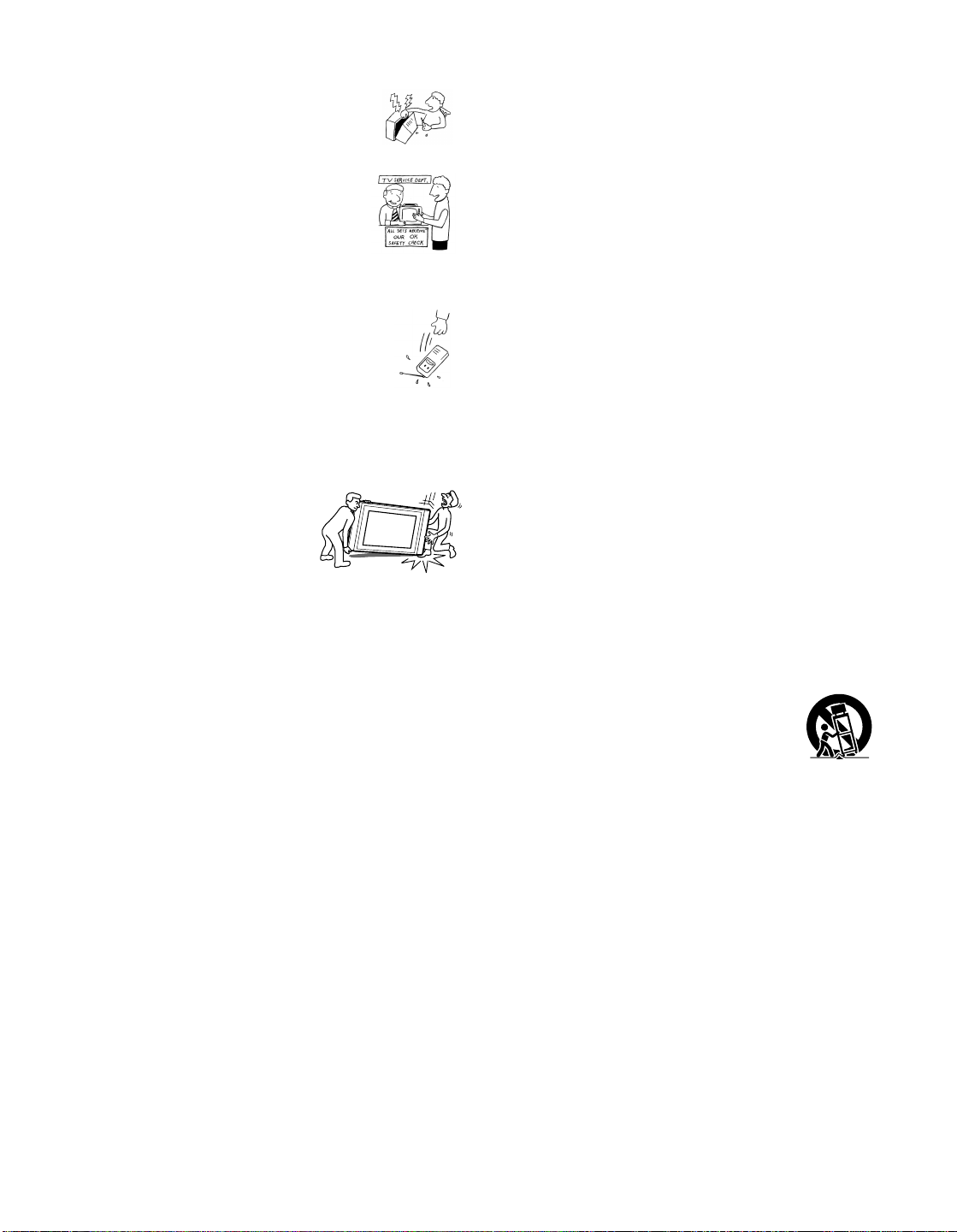

Carrying
Carrying the set requires two or more people.
If you carry the set in a manner other than that
specified, it may drop and a serious injury may be
caused. Be sure two or more people carry the set.
When transporting, do not subject the set to shocks or
vibration excessive force. The set may fall and damage the set, causing
serious injury.
AC power cord
Unplug the AC power cord when moving the set.
Do not move the set with the AC power cord plugged in. It may damage
the AC power cord and result in fire or electric shock.
Medical institution
Do not place this unit in a place where medical
equipment is in use.
It may cause malfunction of medical instruments.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement, or
near a swimming pool, etc. It may result in fire or
electric shock.
Accessories
Do not place the set on an unstable cart, stand, table or
shelf. The set may fall, causing serious injury to a child
or an adult and serious damage to the set. Use only a
cart or stand recommended by Sony for the specific
model of TV. No part of the TV set should overhang
any edge of the TV cart or stand; any overhanging edge
is a safety hazard. An appliance and cart combination
should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and
cart combination to overturn.
Installation and moving
Optional accessories
Observe the following when installing the display unit
using a stand or wall mount unit. If not, the unit may fall
and cause serious injury.
s Be sure to follow the operating instructions
supplied with your stand when installing the unit.
s Be sure to attach the brackets supplied with your
stand.
Protruding location
Do not install the display unit in protruding locations. If you install the unit
in the following locations, injury may result.
s Do not install the unit in a location where the unit protrudes, such as
pillars.
s Do not install the unit in a location that may cause facial injury.
Oils
Do not install this unit in restaurants where oily vapours occur. Dust
absorbing oil may enter into the unit and damage the unit.
Corrosion
If you use this unit near the seashore, salt may corrode metal parts of the
unit and cause internal damage or fire.
It may also shorten the life of the unit.
Accessories
Secure the display unit from falling down.
If the display unit is not secured properly, it may fall and cause injury. Take
measures against it using a stand or other apparatus on the floor or wall in
the specified manner, referring to the operating instructions supplied with
your stand.
Recommended place for the Media receiver unit
Place the Media receiver unit on a stable, level surface.
Otherwise, the Media receiver unit may fall and cause
injury. Use an optional Sony stand, which has adequate
strength.
Weight
Do not stand on the Media receiver unit. The unit may fall or break, causing
injury. Pay special attention to little children.
5
Ventilation
The slots and openings in the media receiver unit and display unit are
provided for necessary ventilation. To ensure reliable operation of the set,
and to protect it from overheating, these slots and openings must never be
blocked or covered.
Unless proper ventilation is provided, the unit may gather
dust and get dirty. For proper ventilation, Observe the
following:
s Do not install the unit turned backward or sideways.
s Do not install the unit turned over or upside down.
s Never cover the slots and openings with a cloth or
other materials.
s Never block the slots and openings by placing the set
on a bed, sofa, rug or other similar surface.
s Never place the set in a confined space, such as a
bookcase or built-in cabinet, unless proper ventilation
is provided.
s Do not place the set near or over a radiator or heat
register, or where it is exposed to direct sunlight.
Ventilation
Leave some space around the unit. Otherwise, adequate air-circulation may
be blocked causing overheating and cause fire or damage the unit.
Place the Media receiver unit on a stable level surface so as not to block the
inlets at the bottom of the Media receiver unit.
Media receiver unit: Top view
Never place the Media receiver unit in a confined space. It may cause
overheating and result in fire, or damage the unit. Ensure reliable operation
of the unit by ensureing proper ventilation of the exhaust fan.
Outdoor use
Do not install this unit outdoors. If the unit is exposed to
rain, it may result in fire or electric shock. If the unit is
exposed to direct sunlight, the unit may heat up and it may
damage the unit.
Vehicle and ceiling
Do not install this unit in a vehicle or hung from the
ceiling.
Bumping of the vehicle may cause the set to fall down and
cause injury.
When installing the unit on the wall
Leave
this
space at
least.
When installing the unit using a stand
Leave
this
space at
least.
30 cm (11
7
/8
in)
10 cm
(4 in)
10 cm
(4 in)
10 cm (4 in)
30 cm (11
7
/8
in)
10 cm
(4 in)
10 cm
(4 in)
654321
PC
MEMORY STICK
PROG
PROG
Never install the unit as follows:
Air circulation is blocked.
Air circulation is
blocked.
Media receiver unit: Front view
Leave this
space at least.
7 cm (2
7
/8
in)
5 cm
(2 in)
5 cm (2 in)
1 cm (
13
/32
in)
Leave this
space at
least.
5 cm
(2 in)
10 cm (4 in)
5 cm
(2 in)
(Continued)
6
Ship and vessel
Do not install this unit in a ship or vessel. If the unit is
exposed to seawater, it may cause fire or damage the unit.
Carrying
Carrying the set requires two or more people.
If you carry the set in a manner other than that specified, it may drop and a
serious injury may be caused. Be sure two or more people carry the set.
When transporting, do not subject the set to shocks or vibration, or
excessive force. The set may fall and be damaged, causing serious injury.
AC power cord
Unplug the AC power cord when moving the set.
Do not move the set with the AC power cord plugged in. It may damage
the AC power cord and result in fire or electric shock.
Fall
Do not hang anything on the unit.
The unit may fall from the stand or wall mount unit, causing
damage or serious injury.
Power-Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can come
in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and Section 54
of the Canadian Electrical Code in Canada provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Lightning
For added protection for this television receiver during a lightning storm,
or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the antenna. This will prevent damage
to the receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
s When the power cord or plug
is damaged or frayed.
s If liquid has been spilled into
the set.
s If the set has been exposed to rain or water.
s If the set has been subject to excessive shock by
being dropped, or the cabinet has been
damaged.
s If the set does not operate normally when
following the operating instructions. Adjust only
those controls that are specified in the operating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the set to normal operation.
s When the set exhibits a distinct change in
performance, it indicates a need for service.
Antenna lead-in wire
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
Ground clamps
Electric service
equipment
NEC: National Electrical Code
7
Servicing
Do not attempt to service the set yourself since opening the
cabinet may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used
replacement parts specified by the manufacturer that
have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
Safety Check
Upon completion of any service or repairs to the set, ask the
service technician to perform routine safety checks (as
specified by the manufacturer) to determine that the set is in
safe operating condition, and to so certify. When the set
reaches the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified service
technician to dispose of the set.
For Safety
Be careful when moving the TV
When you place the TV in position, be careful
not to drop it on your foot or fingers.
Watch your footing while installing the TV.
Carry the TV in the specified manner
If you carry the TV in a manner other than specified and without the
specified number of persons, it may drop and a serious injury may be
caused. Be sure to follow the instructions mentioned below.
s Carry the TV with the specified number of persons.
s Do not carry the TV holding the speaker grill.
s Hold the TV tightly when carrying it.
The TV includes handles that you can use to carry the unit.
Others
Damage requiring service
If the surface of the display unit cracks, do not touch it until you unplug the
AC power cord.
Otherwise electric shock may result.
Object placement
Do not place something heavy on the Media receiver unit.
It may damage the unit.
Liquid placement
Do not place objects containing liquid on the Media receiver unit.
It may result in electric shock or damage the unit.
Moisture
Do not let this unit get wet. It may result in electric shock or damage the
unit.
Electric shock
Do not touch the unit with a wet hand.
Doing so may cause electric shock or damage to the unit.
Broken pieces
Do not throw anything at the unit.
The screen glass may explode by the impact and cause serious injury.
Cable wiring
Take care not to catch your feet on the cables. It may damage the unit.
Heat
Do not touch the surface of the display unit.
It remains hot, even for some time after the display unit is turned off.
Important Safety Instruction
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
9
Contents
Introducing the TV
Welcome...............................................................................................13
Package Contents..........................................................................13
Features.........................................................................................13
Setting Up the TV
Overview ..............................................................................................15
TV Controls and Connectors..............................................................16
Display unit.....................................................................................16
Media receiver unit Front Panel .....................................................17
Media receiver unit Rear Panel......................................................18
Installing the TV...................................................................................20
Basic Connections: Connecting a Cable or Antenna ......................22
Cable or Antenna Only...................................................................23
Cable and Antenna Only ................................................................24

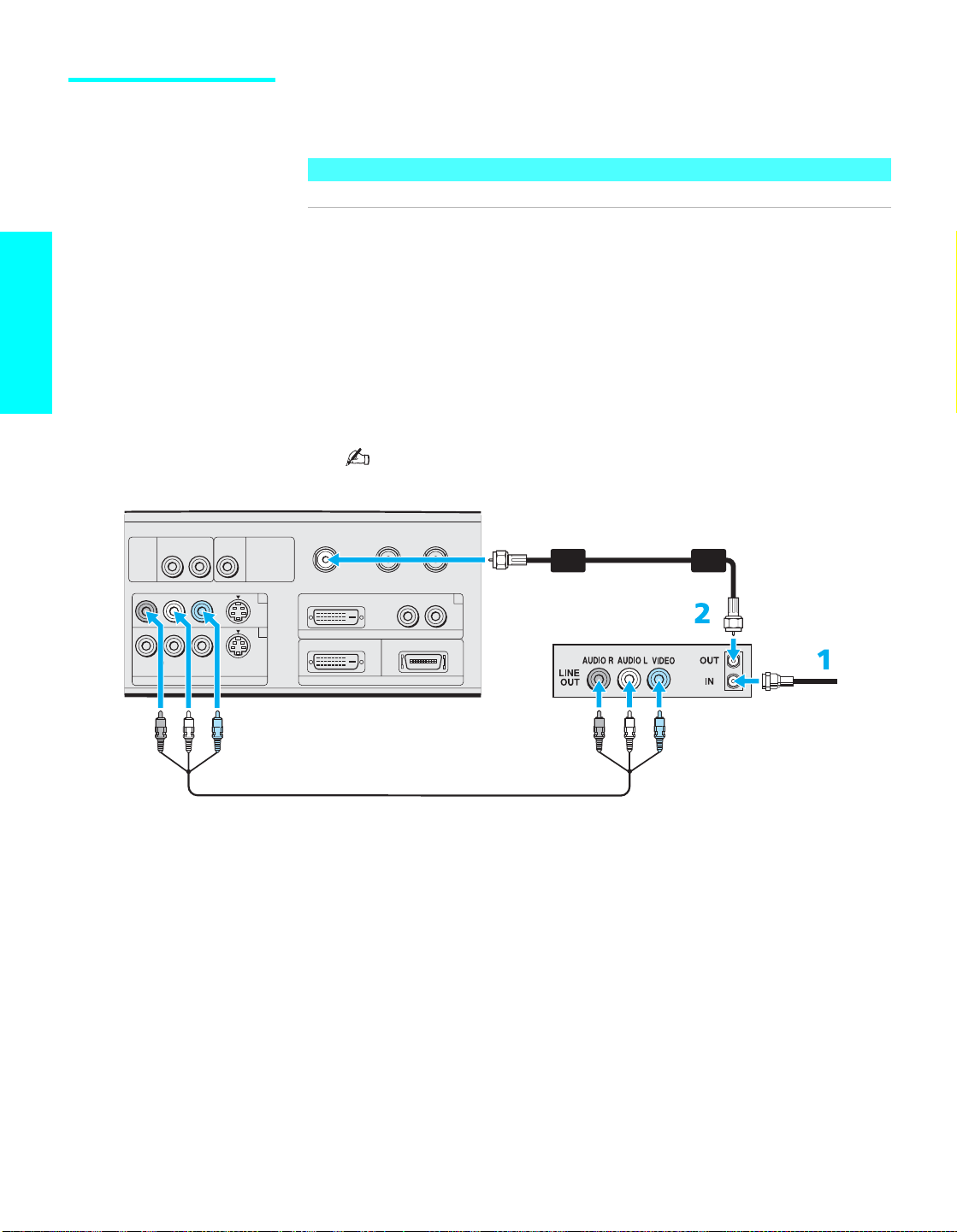

Cable Box and Cable Only.............................................................25
Cable Box Only ..............................................................................27
Connecting Optional Equipment .......................................................29
About Using S VIDEO....................................................................29
VCR and Cable ..............................................................................30
VCR and Cable Box.......................................................................32

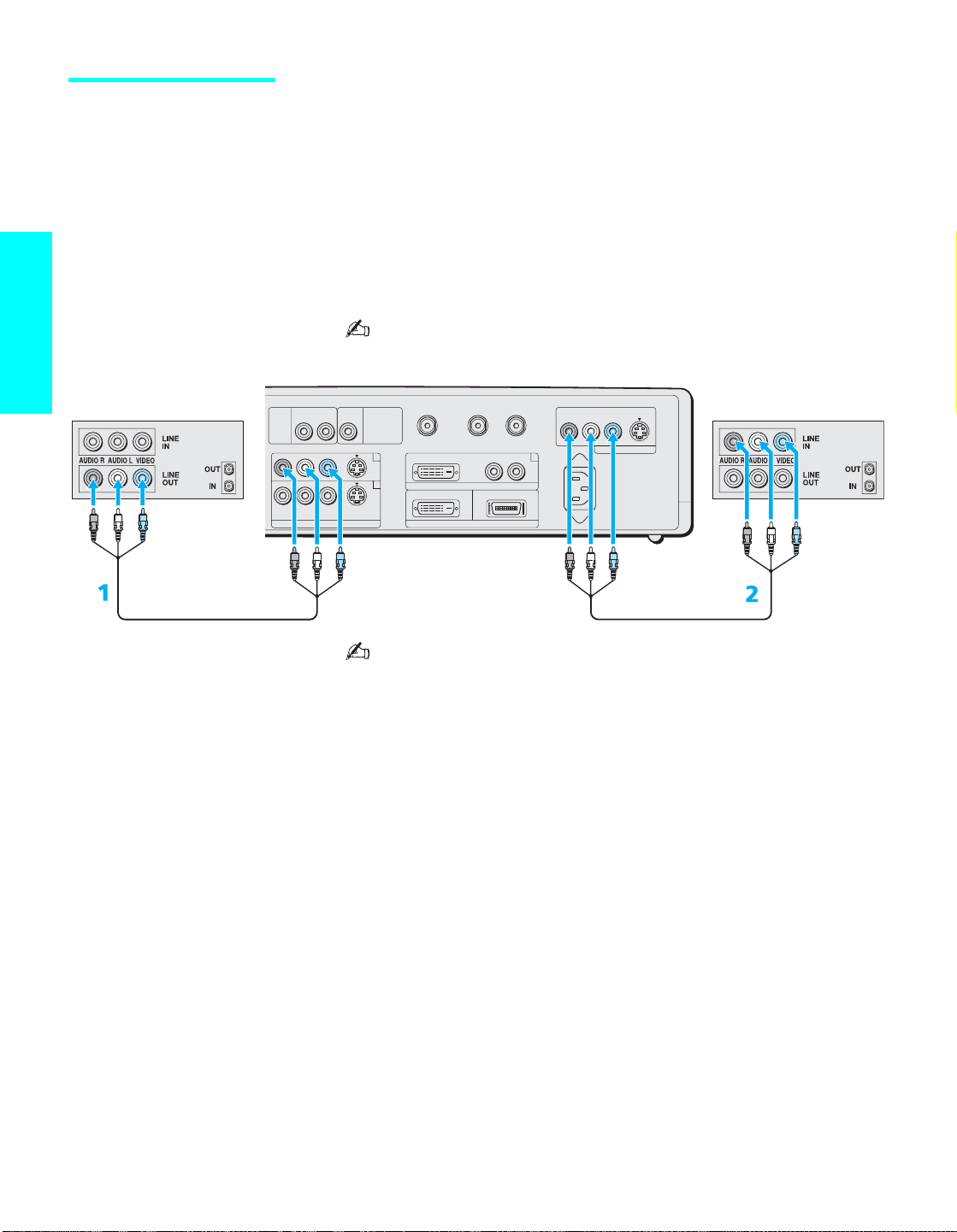

Two VCRs for Tape Editing............................................................34

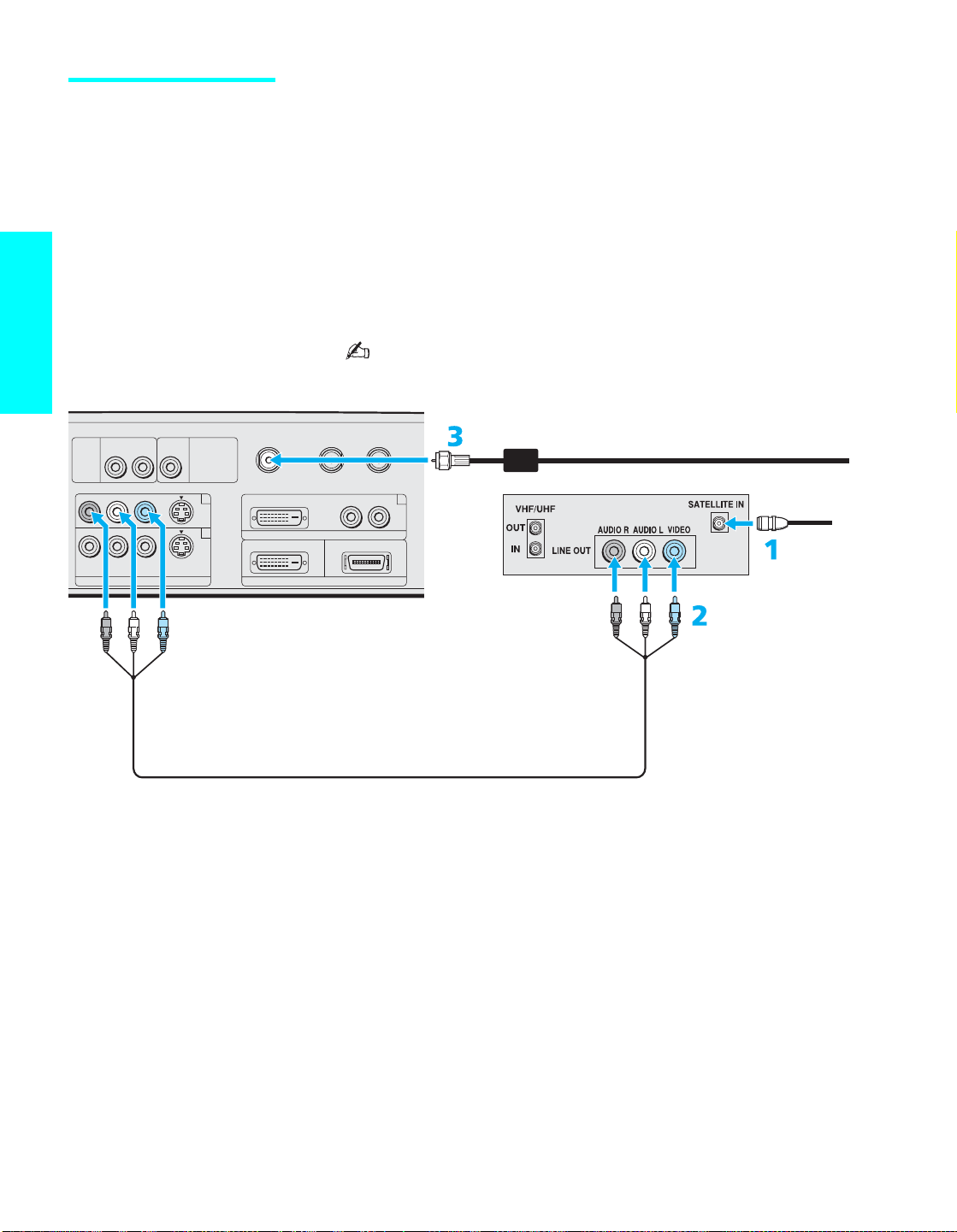

Satellite Receiver ...........................................................................36
Satellite Receiver and VCR............................................................38

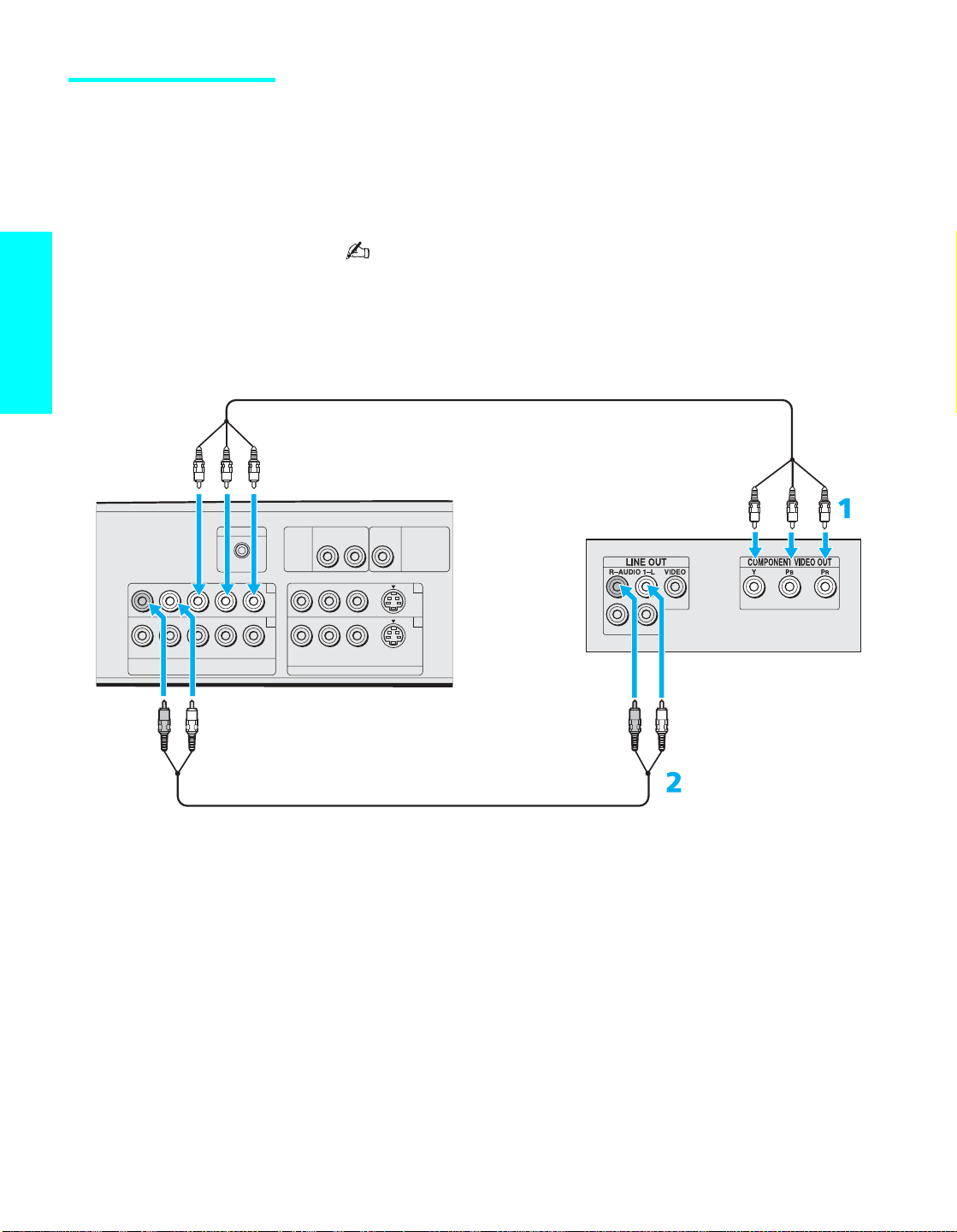

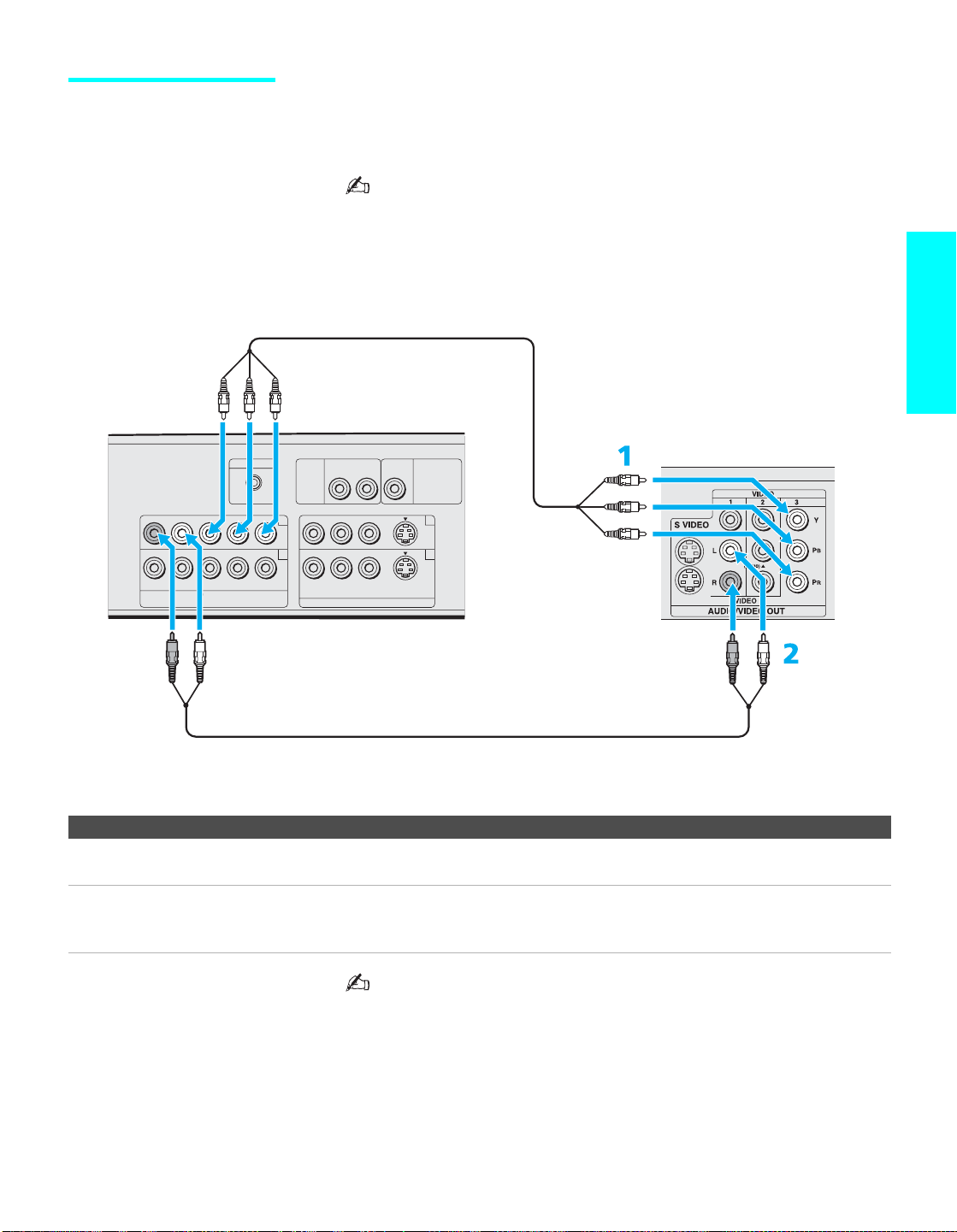

DVD Player with Component Video Connectors............................40
DVD Player with S VIDEO and Audio Connectors.........................42
Digital TV Set-Top Box with Component Video Connectors ..........43
Digital Satelite Receiver with DVI-HDTV connector.......................44

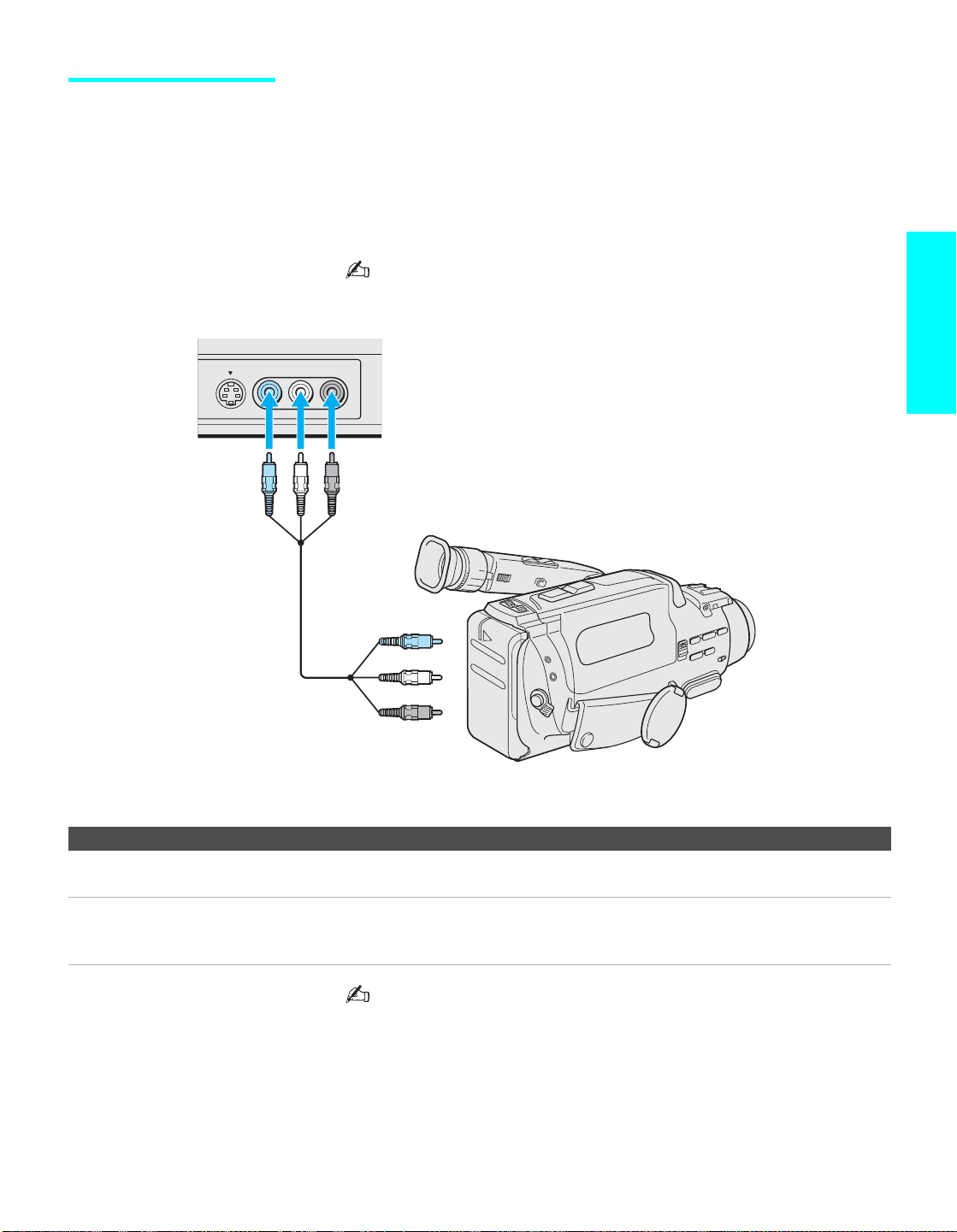

Camcorder .....................................................................................45
Audio Receiver...............................................................................46

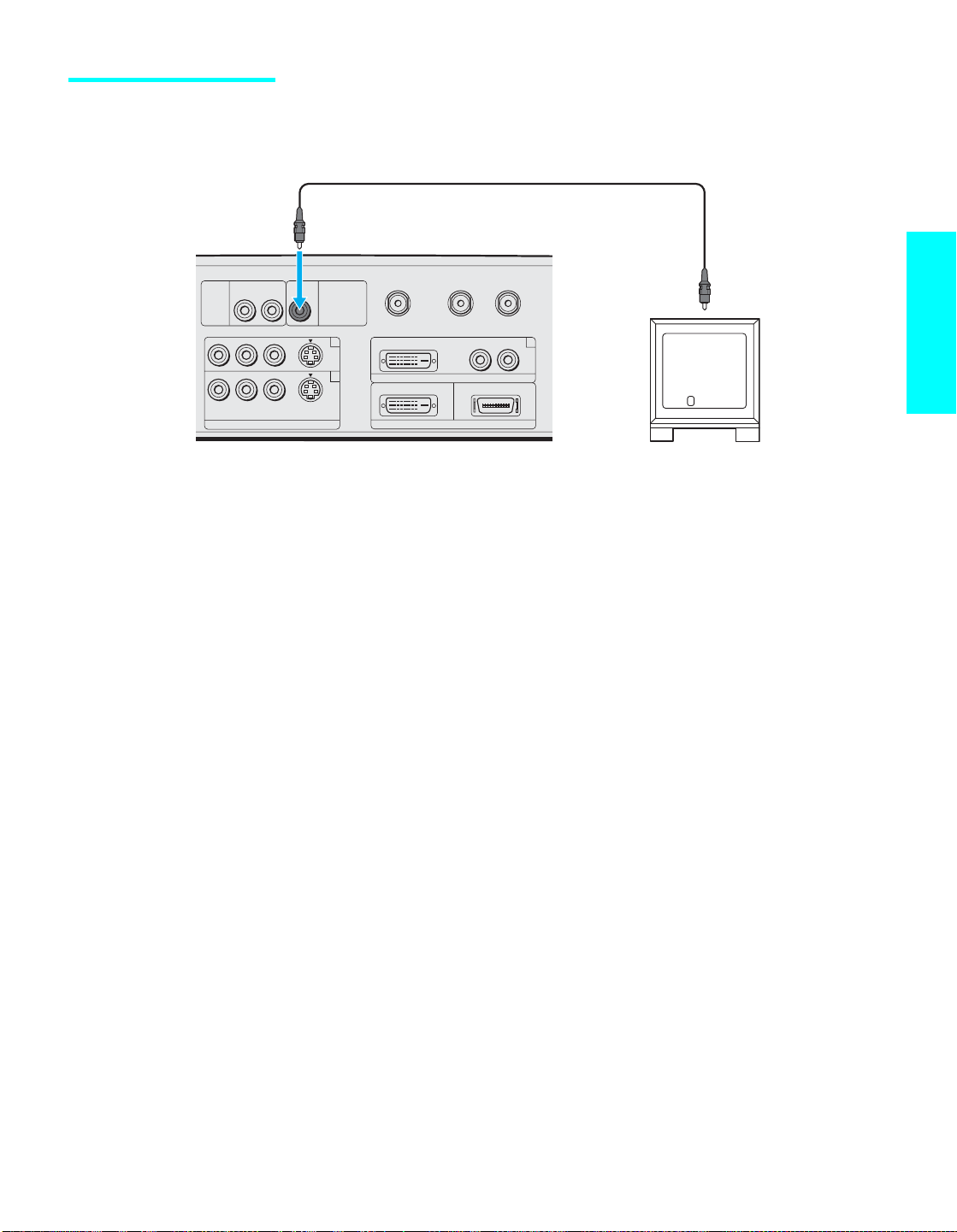

Sub Woofer ....................................................................................47

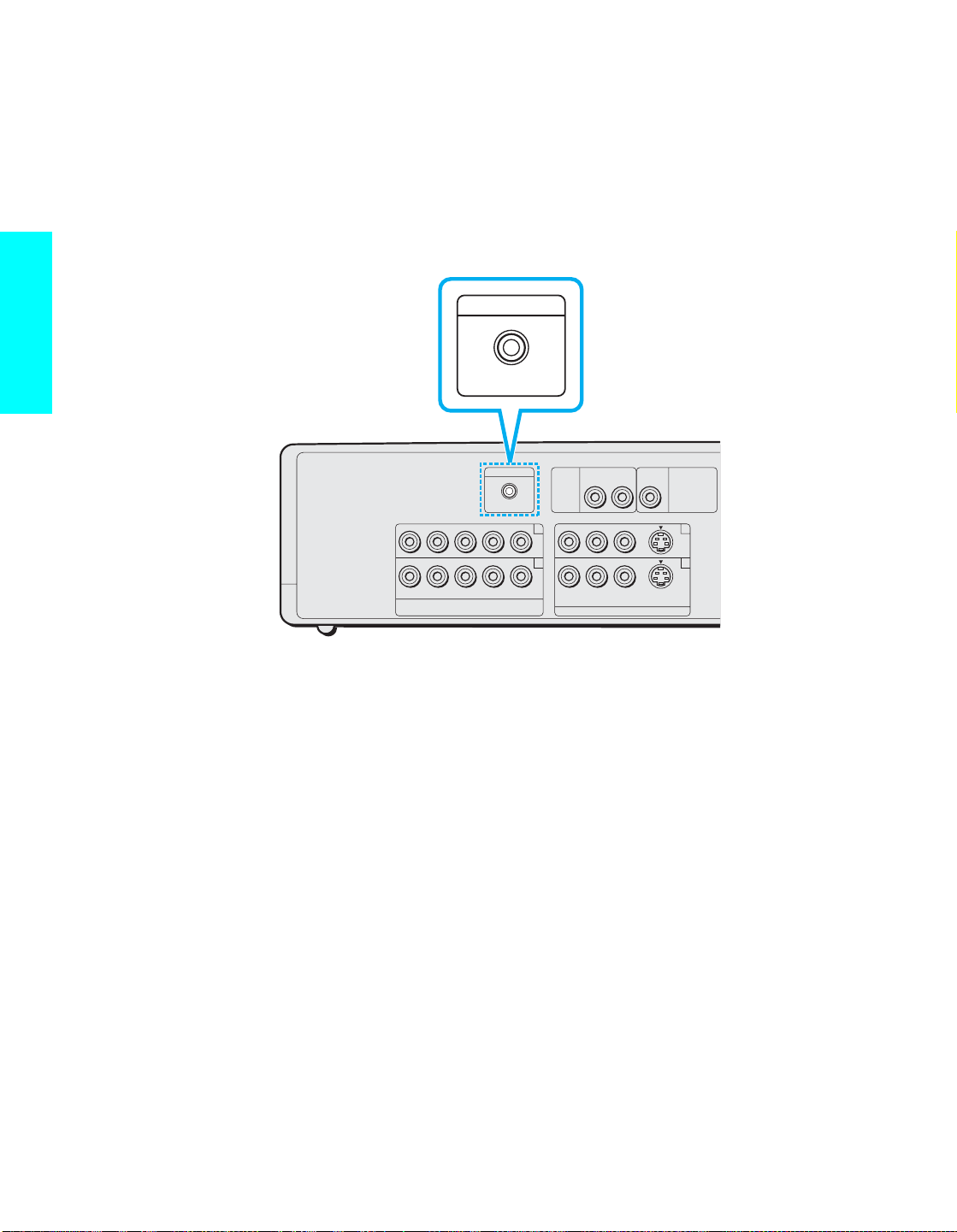

Using the CONTROL S Feature..........................................................48
Setting Up the Channel List ...............................................................49
Using Auto Setup ...........................................................................49
10
Using the Remote Control
Overview ..............................................................................................51

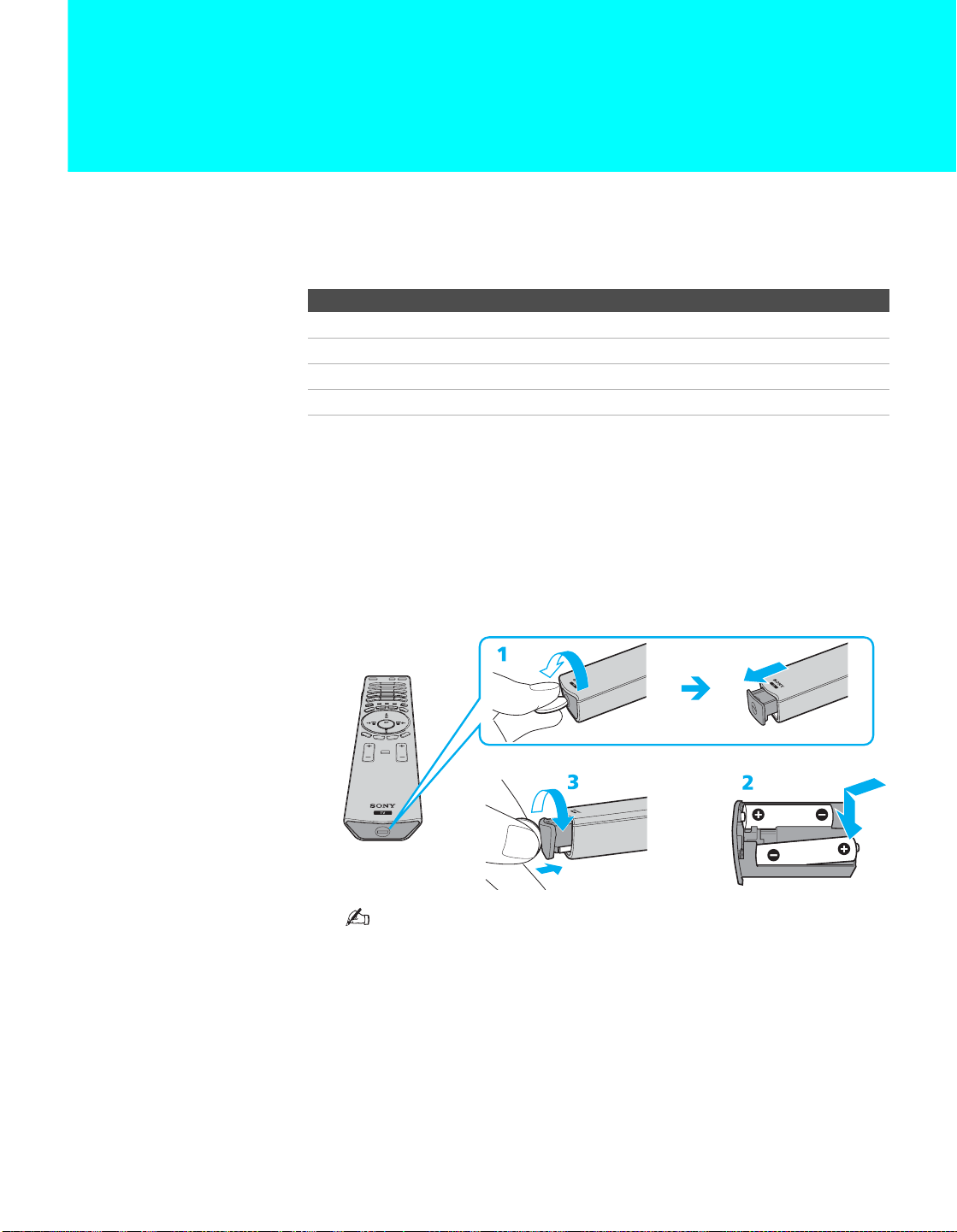

Inserting Batteries...............................................................................51

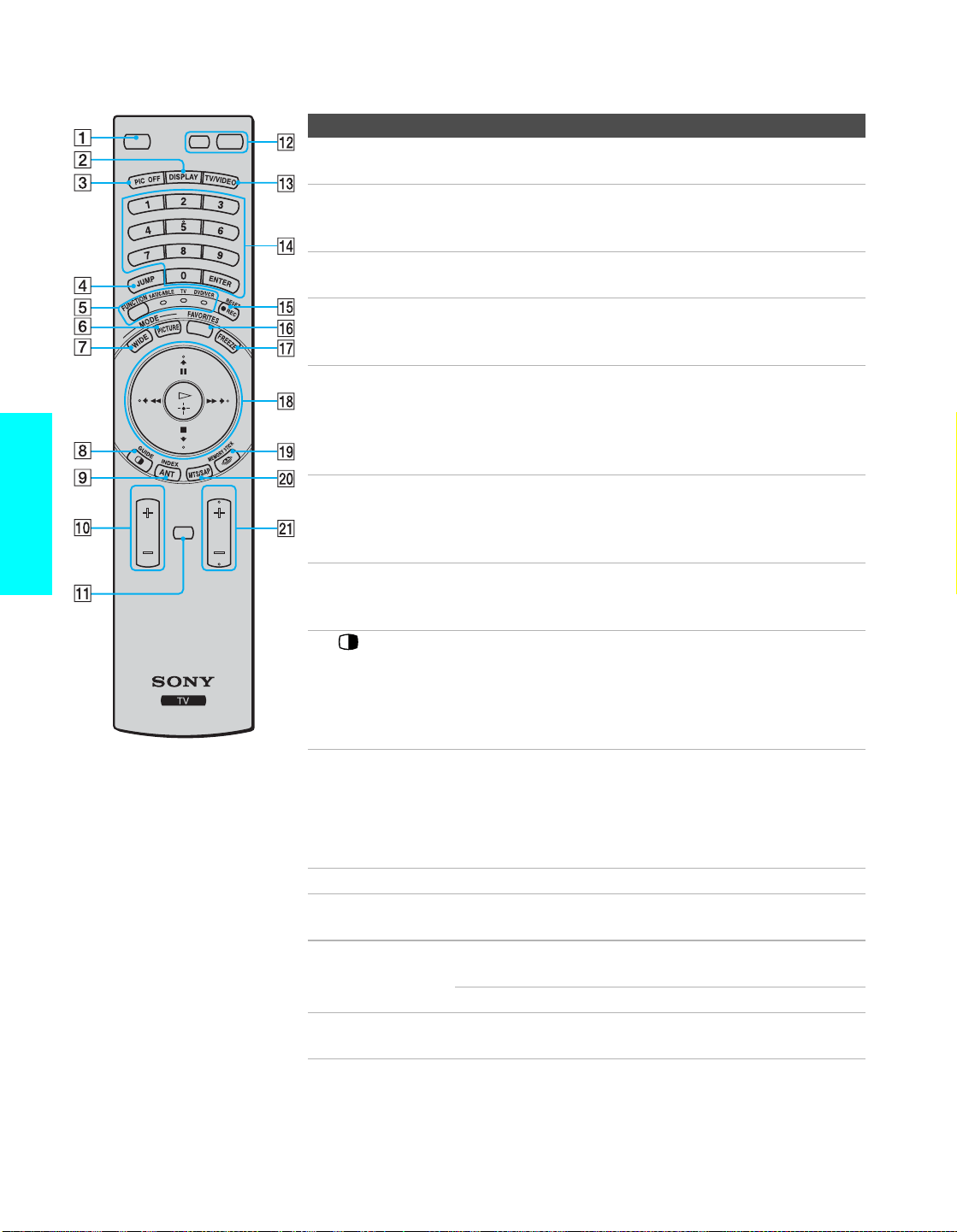

Button Descriptions............................................................................52
Programming the Remote Control.....................................................54
Using Other Equipment with Your TV Remote Control ...................56
All Equipment .................................................................................56
Operating a VCR............................................................................56
Operating a Satellite Receiver .......................................................56
Operating a Cable Box...................................................................57
Operating a DVD Player.................................................................57
Operating an MDP (Laserdisc Player) ...........................................57
Using the Features
Overview ..............................................................................................59
Watching TV.........................................................................................60

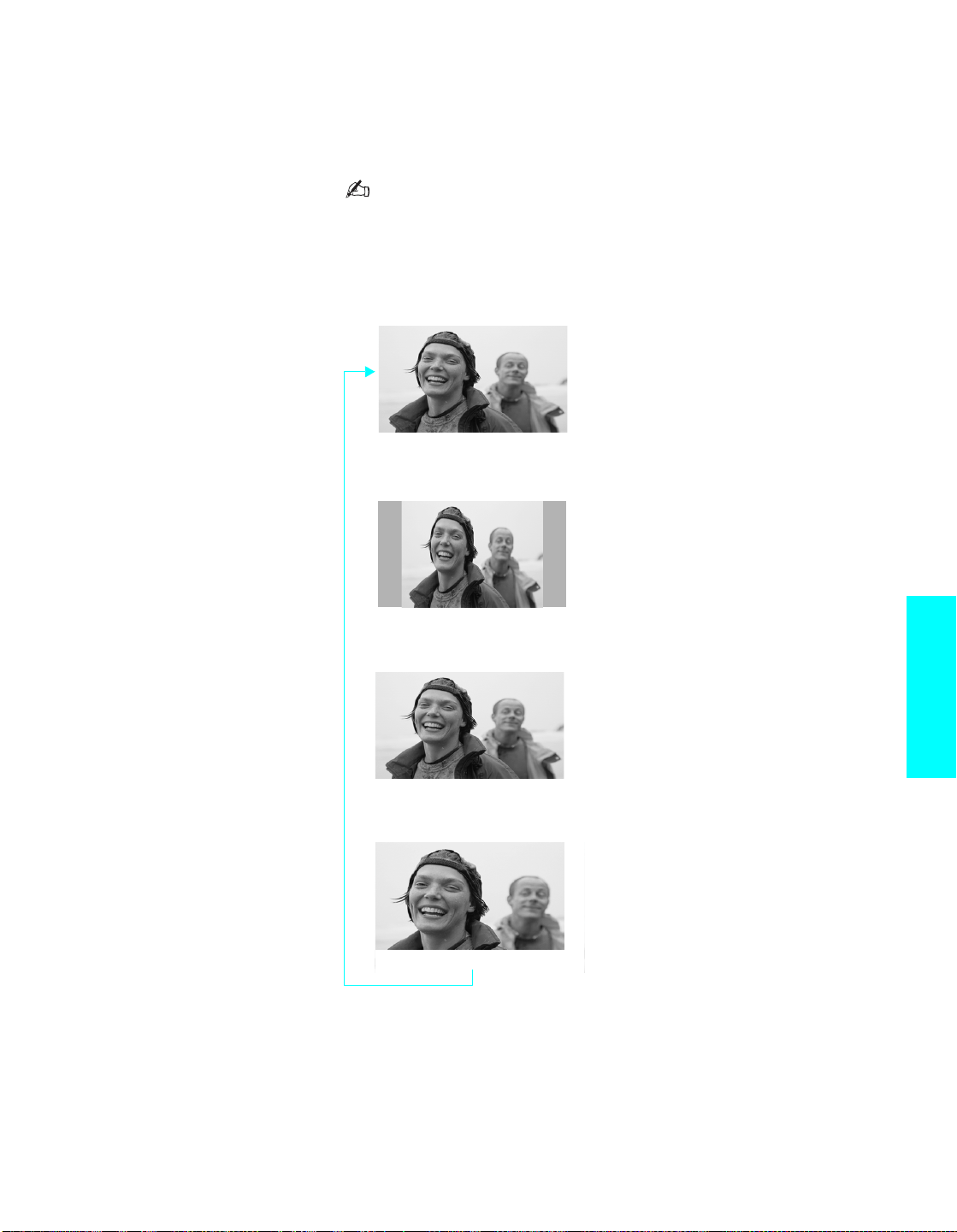

Using Wide Mode ................................................................................61

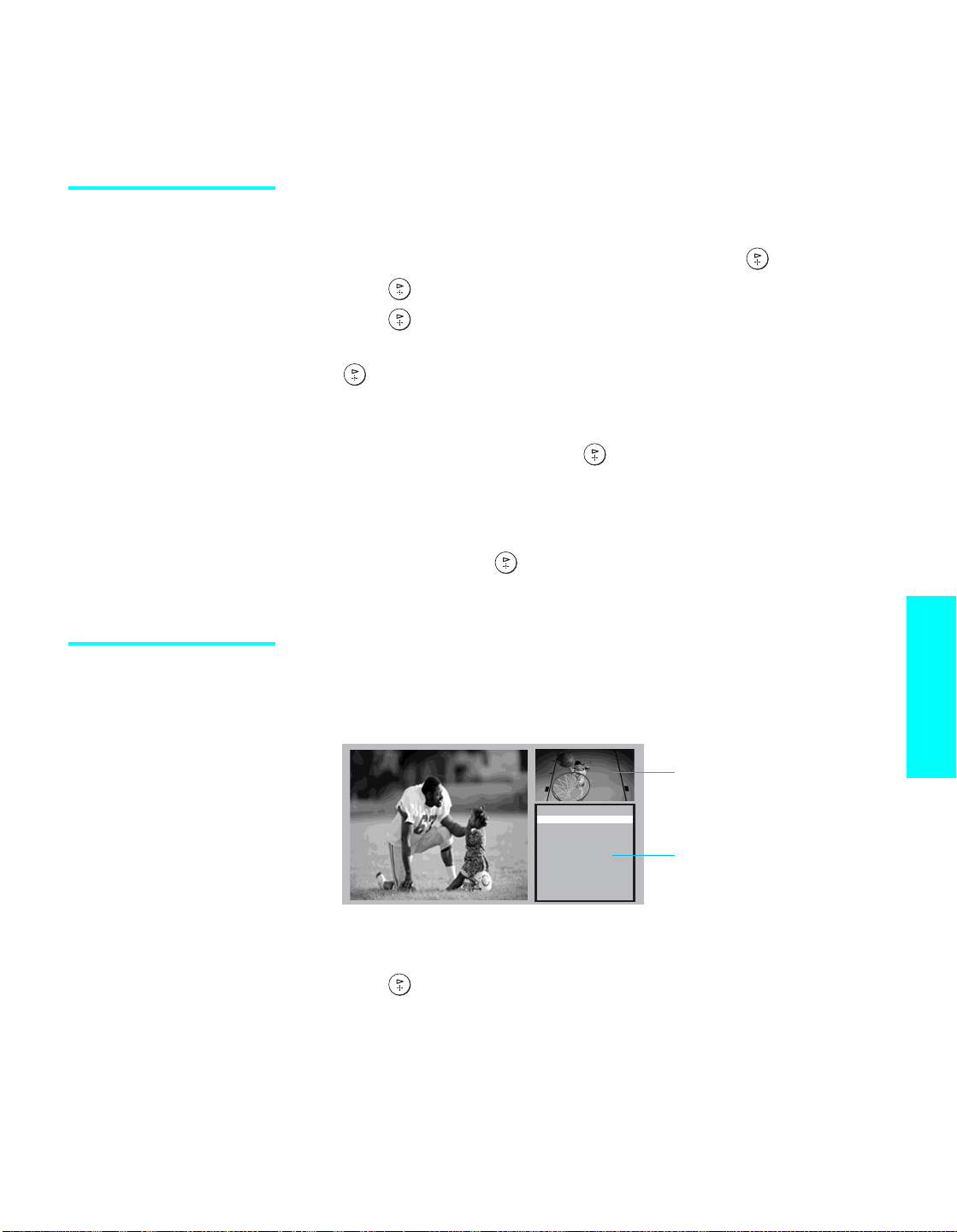

Using Twin View..................................................................................62
Displaying Twin Pictures ................................................................62
Activating the Picture .....................................................................63

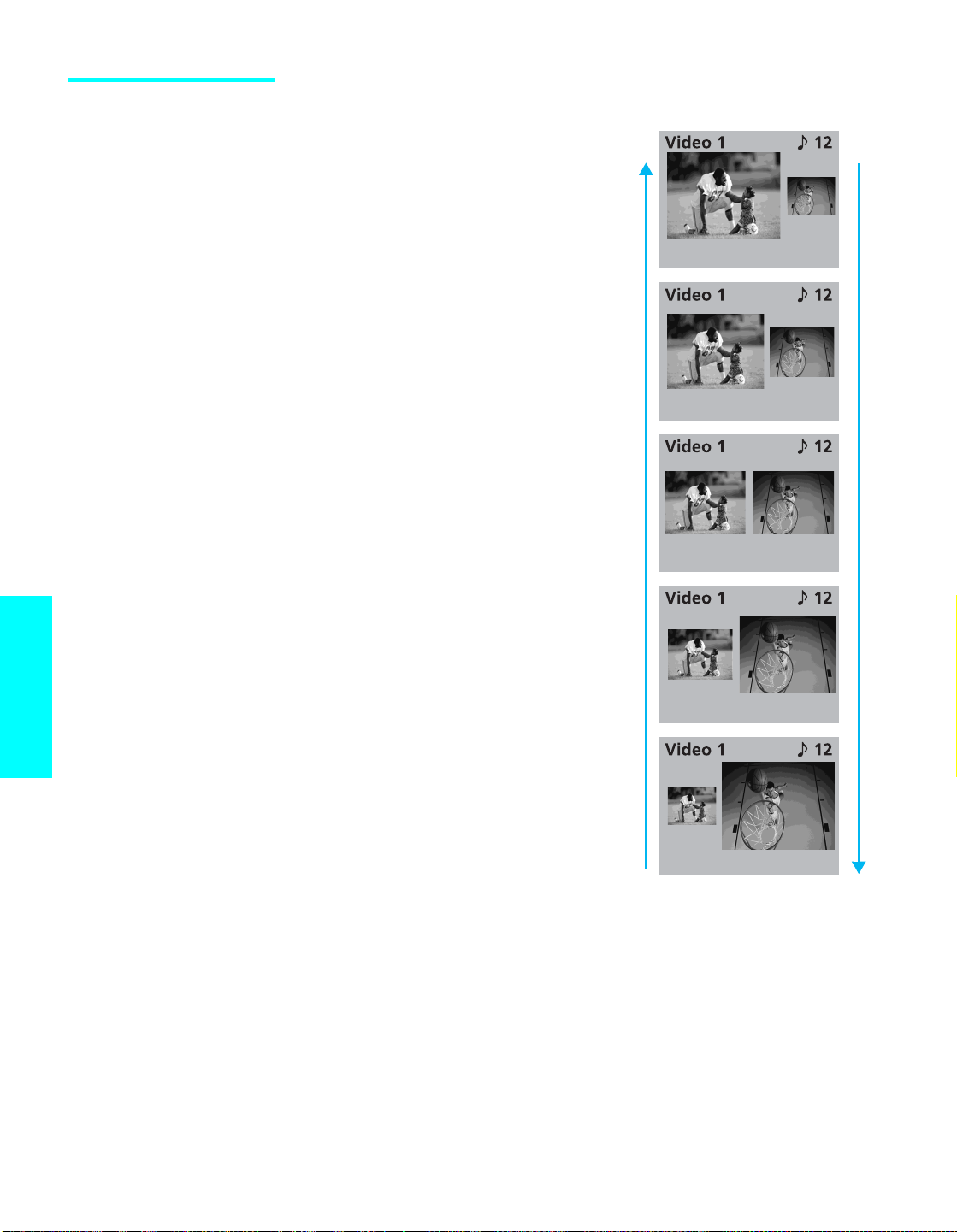

Changing the Picture Size..............................................................64
Using Favorite Channels ....................................................................65
Creating a List of Favorite Channels..............................................65
Displaying a List of Favorite Channels...........................................65
Using the Freeze Function .................................................................66
Using Picture Off.................................................................................67
Using the Memory Stick Picture Viewer............................................68
About Memory Stick .......................................................................68
Supported Image Types.................................................................68
Unsupported Image Types.............................................................69
Inserting and Removing a Memory Stick .......................................70
Displaying the Memory Stick Menu................................................72

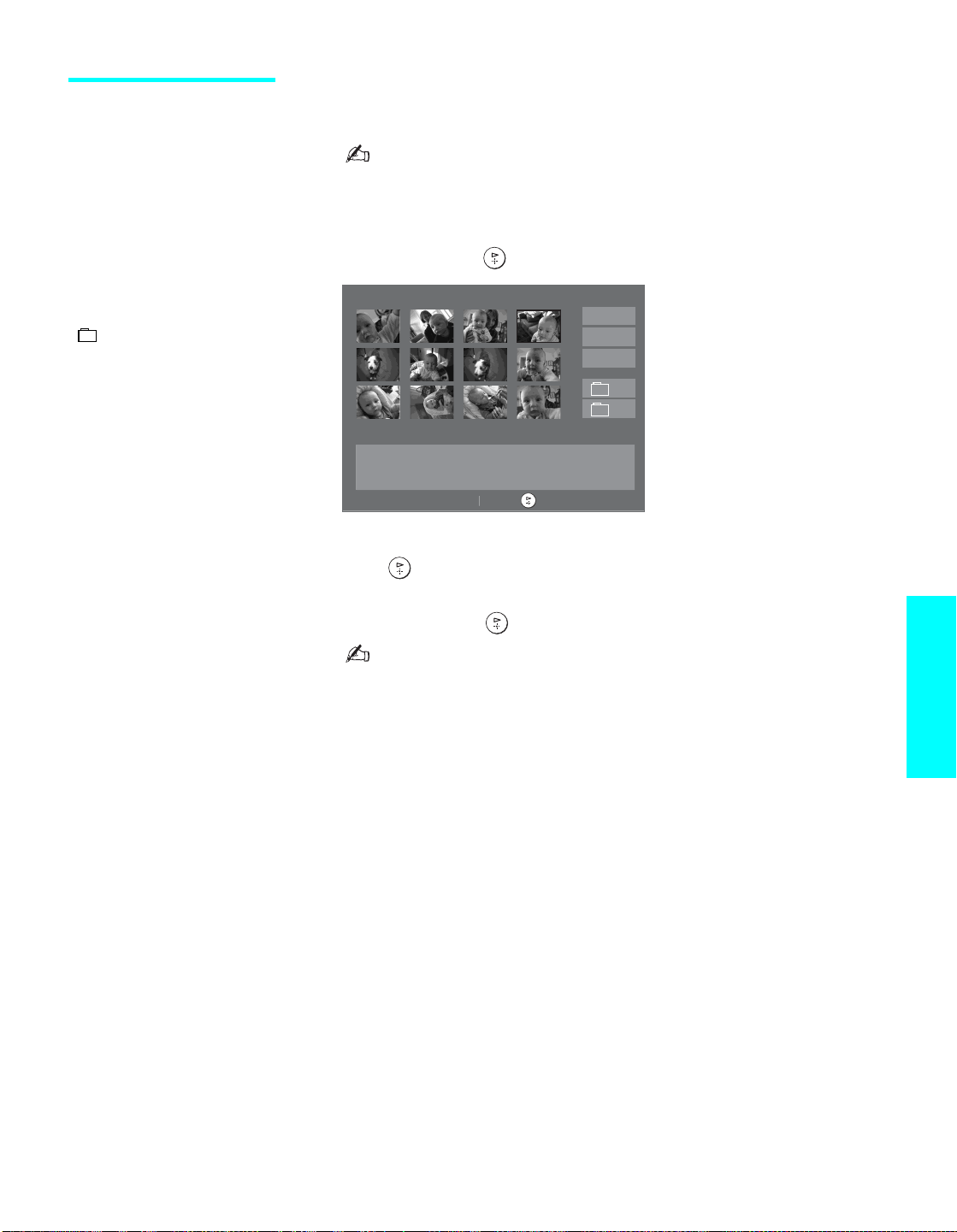

Using the Memory Stick Index .......................................................73
Using the Memory Stick Slideshow................................................74
Changing the Memory Stick Setup Options ...................................74
Using the Rotate Picture Screen....................................................75
11
Using the Menus
Overview ..............................................................................................77
Navigating Through Menus................................................................77

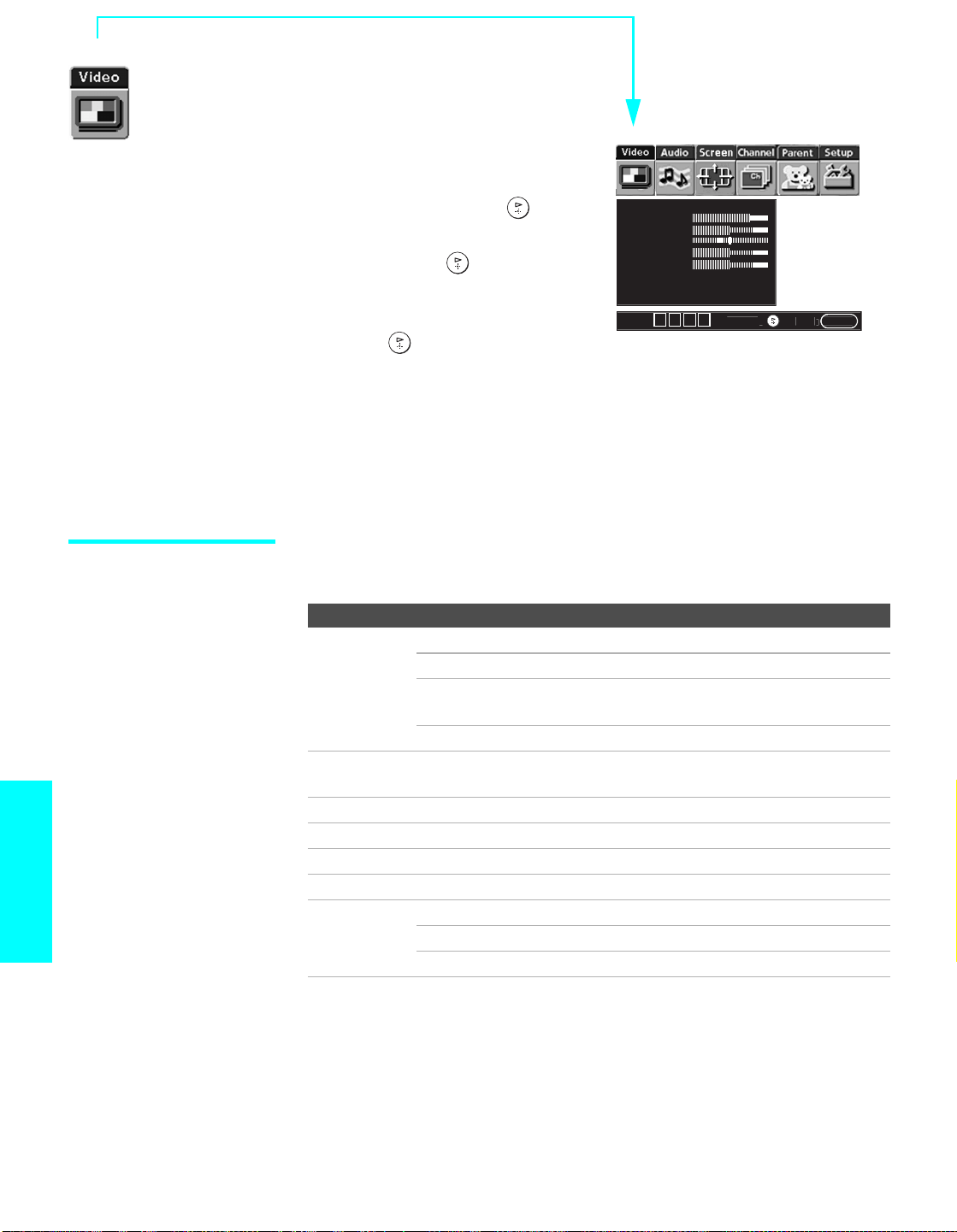

Using the Video Menu.........................................................................78
Selecting Video Options.................................................................78
Using the Audio Menu ........................................................................80
Selecting Audio Options.................................................................80
Using the Screen Menu.......................................................................82
Selecting Screen Mode Options.....................................................82

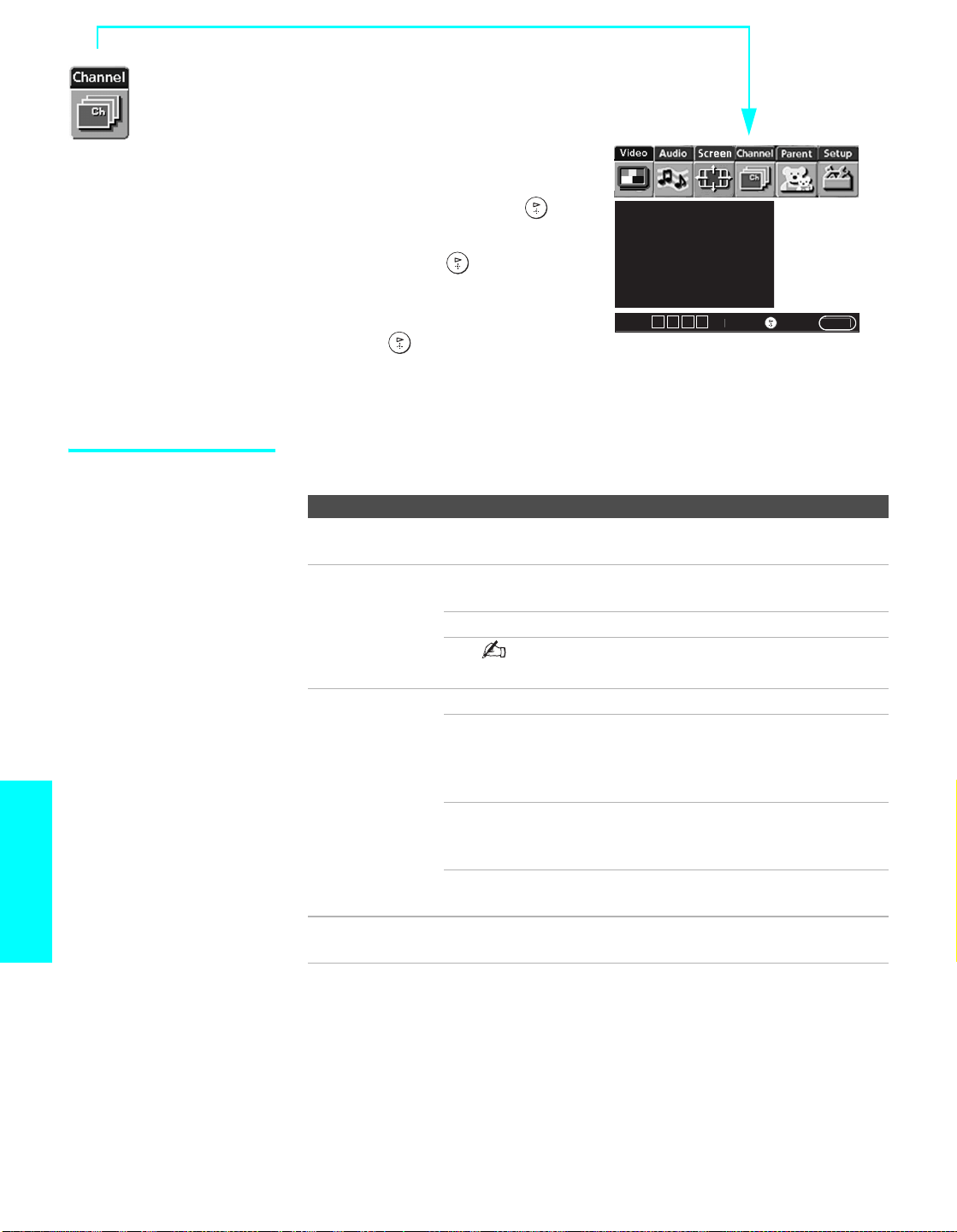

Using the Channel Menu ....................................................................84
Selecting Channel Options.............................................................84

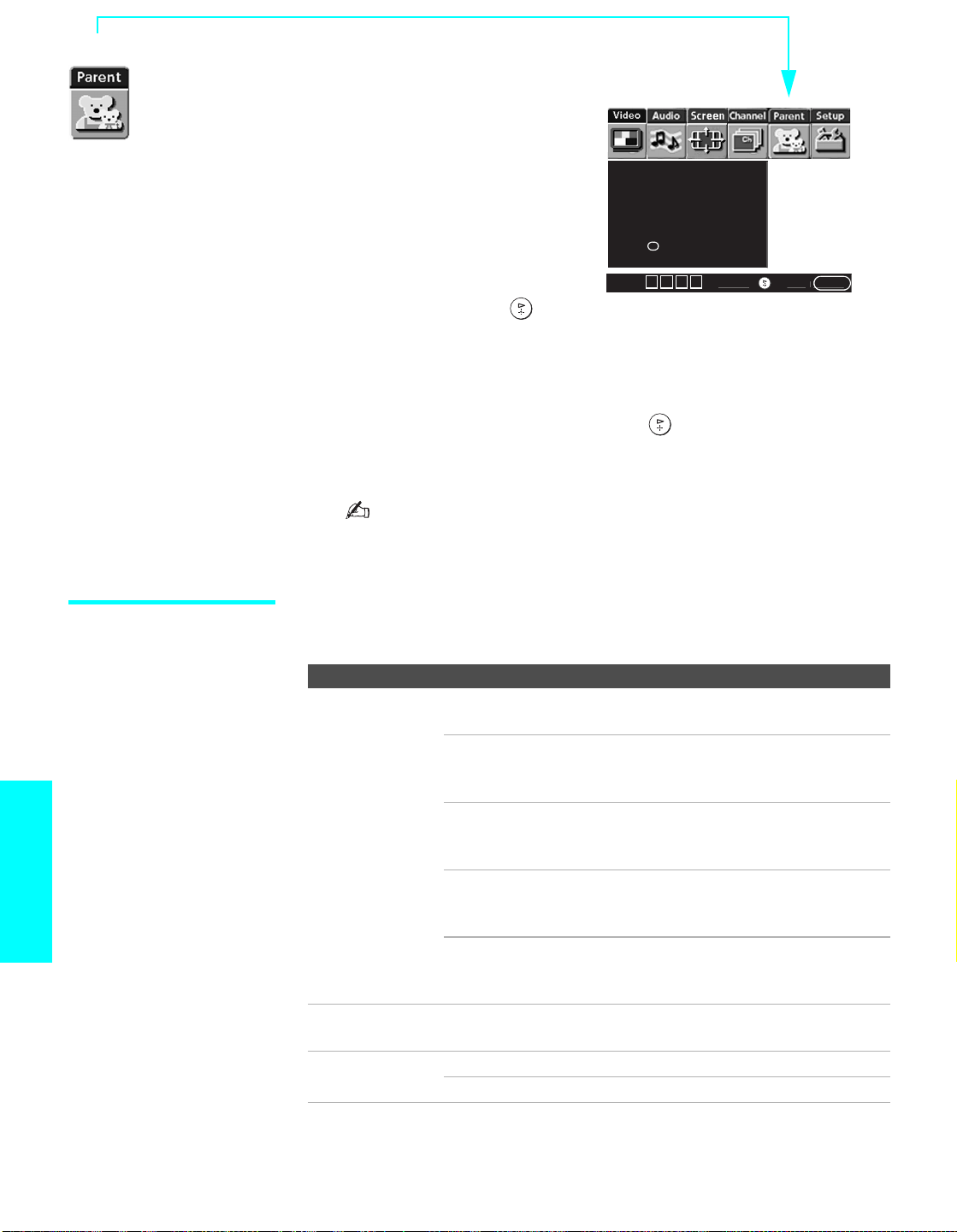

Using the Parent Menu .......................................................................86
Selecting Parent Options ...............................................................86
US Models: Selecting Custom Rating Options...............................87
Viewing Blocked Programs ............................................................87
Canadian Models: Selecting Custom Rating Options ....................88
Viewing Blocked Programs ............................................................88

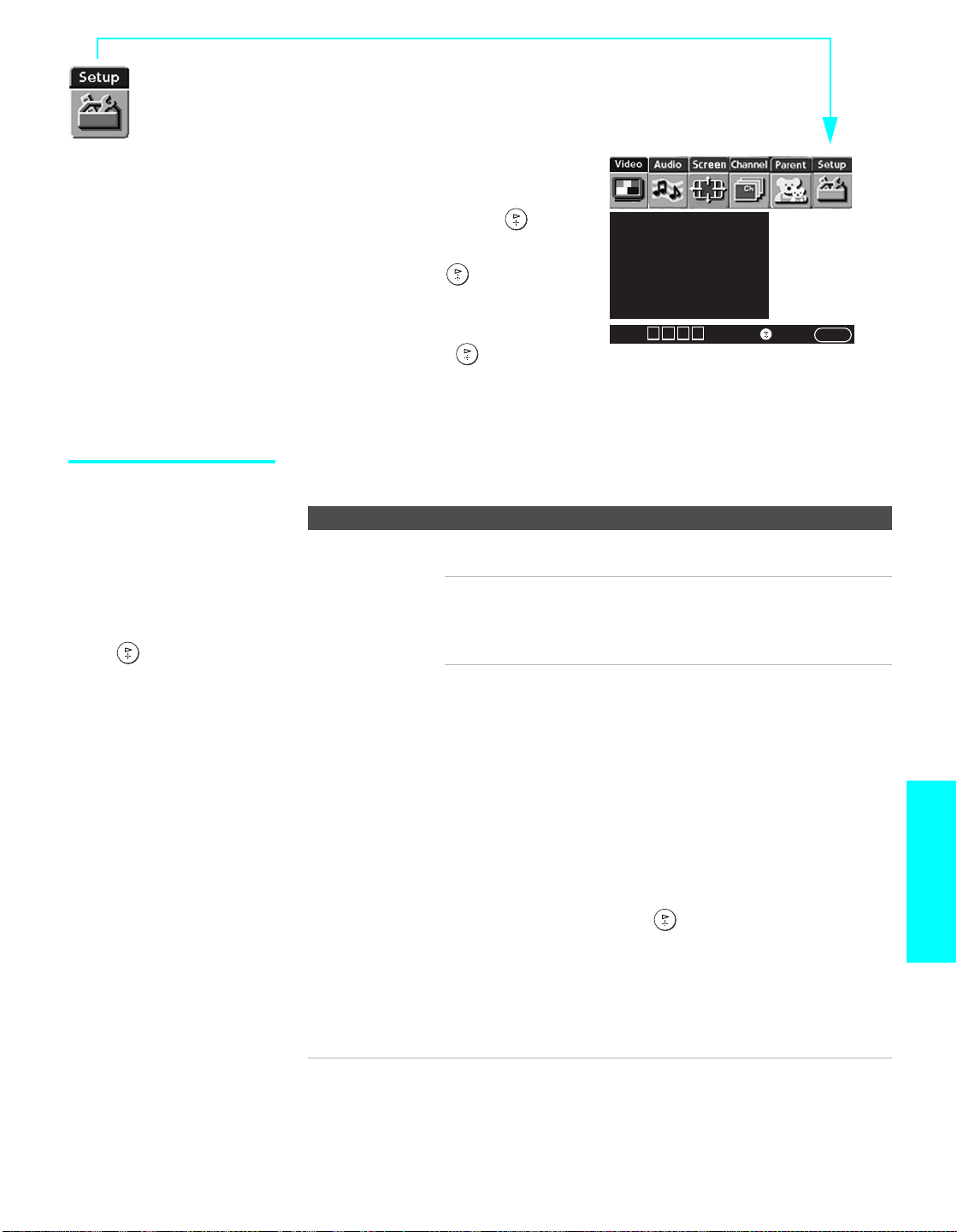

Using the Setup Menu.........................................................................89
Selecting Setup Options.................................................................89
Other Information
Overview ..............................................................................................93
Glossary...............................................................................................94
Notes on Using Memory Stick Media ................................................95
Memory Stick Precautions .............................................................95
Contacting Sony..................................................................................96
Troubleshooting..................................................................................96
Twin View.......................................................................................96
Remote Control ..............................................................................97
Memory Stick .................................................................................97
Video..............................................................................................98
Audio..............................................................................................99
Channels........................................................................................99
General ........................................................................................100
Specifications....................................................................................101
Optional Accessories........................................................................103
Index...................................................................................................104
13
Introducing the TV
Welcome
Thank you for purchasing the Sony Flat Panel Color TV. This manual is to
be used with the following models:
s KE-42XBR900
s KE-50XBR900
Package Contents The package contains the following:
s Flat panel display unit (PDM-5000 or PDM-4200)
s Media receiver unit (MBT-XBR900)
s Remote control (RM-927Y) and two size AAA (LR03) batteries
s Two AC power cords
s AC plug holder
s Display interface cable
s Antenna cable
s Cleaning cloth
s Operating Instructions
These items are all you need to set up and operate the TV in its basic
configuration.
Most components (VCRs, DVD players, etc.) come with the necessary
cables to connect them. If you want to set up a complex system, you may
need to buy extra cables, connectors, etc. Be sure to have these on hand
before you start to connect your system.
Features Some of the features that you will enjoy with your new TV include:
s WEGA Engine
™
: Delivers superb picture quality from any video
source by minimizing the signal deterioration caused by digital-to-
analog conversion and stabilizing the signal processing. This engine
features unique Sony technology, including:
• The first step in the digital processing system, Composite
Component Processor (CCP), which enhances input signal to noise
ratio by chroma decoder degital processing;
(Continued)
14
Welcome
• DRC
®
(Digital Reality Creation) Multifunction V1: Unlike
conventional line doublers, the DRC Multifunction feature replaces
the signal’s NTSC waveform with the near-HD equivalent by digital
mapping processing. The DRC Palette option lets you customize the
level of detail (Reality) and smoothness (Clarity) to create up to three
custom palettes.

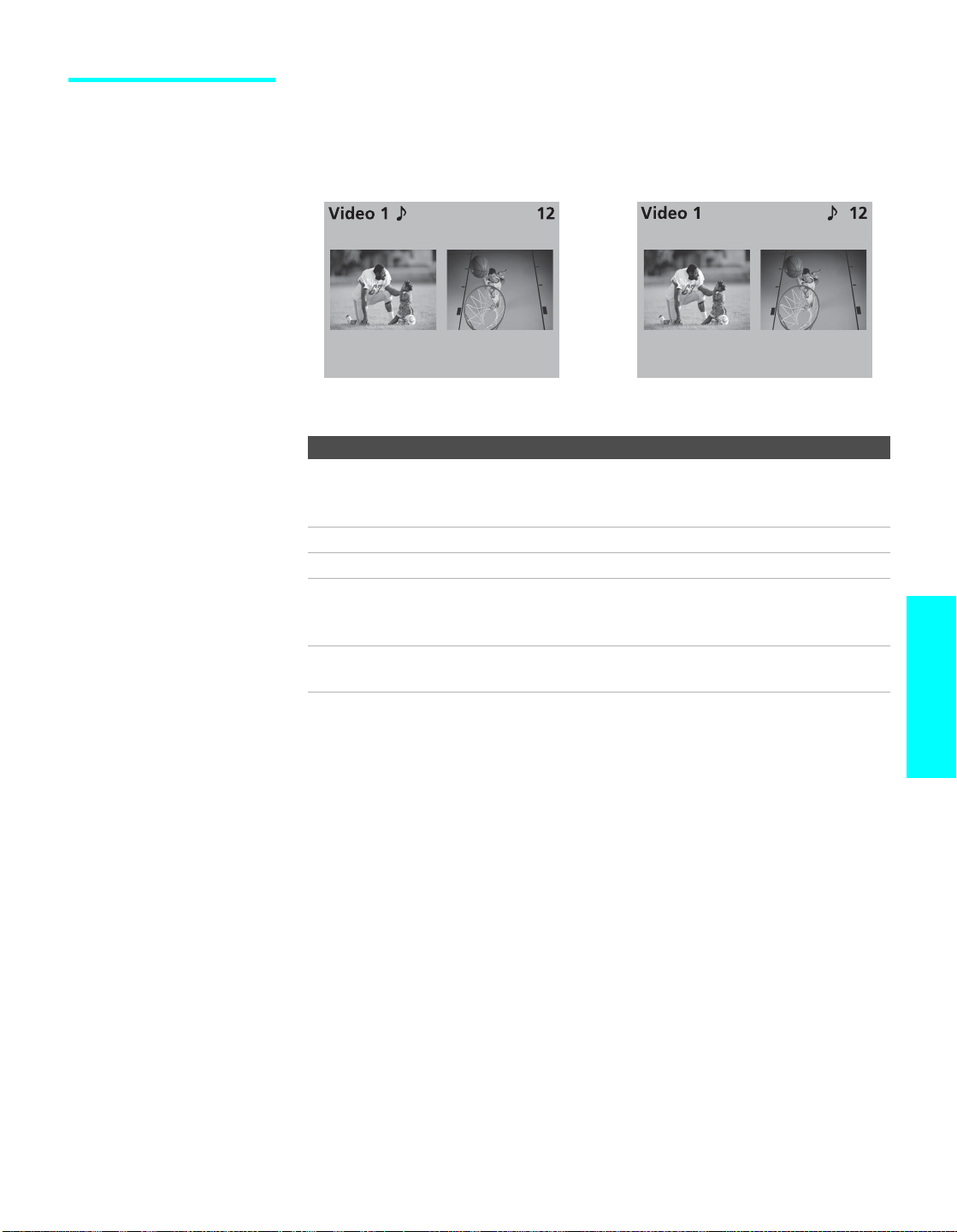

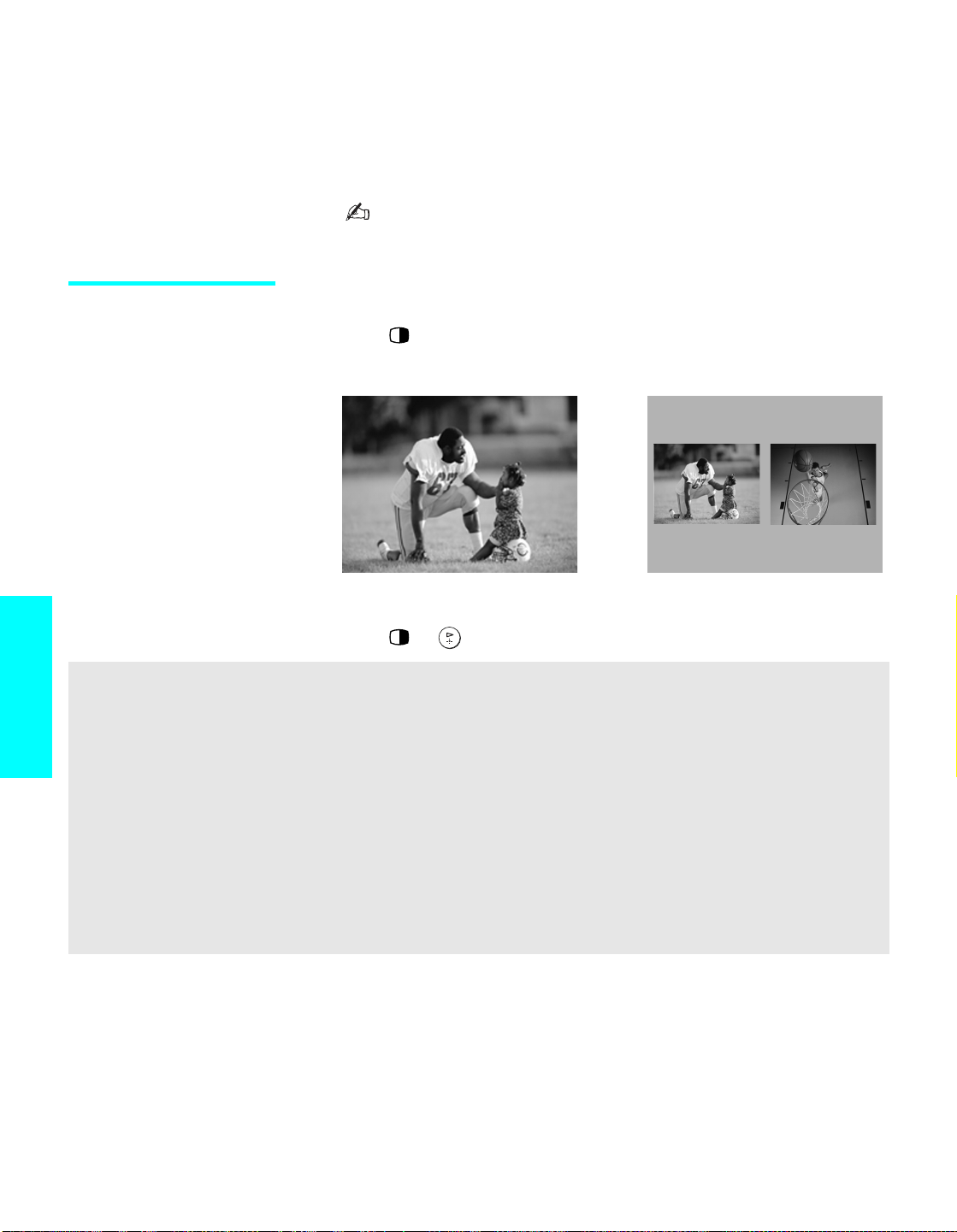

• Multi-Image Driver (MID
™
-XU): (Twin View
™
) Allows you to
watch two programs side by side. You can watch pictures from two
different sources (1080i, 720p, 480p, and 480i) simultaneously.
(Only the left Twin View window can display 1080i, 720p, and 480p
sources.)
• CineMotion
™
: Provides an optimized display by automatically
detecting film content and applying a reverse 3/2 pulldown process.
Moving pictures will appear clearer and more natural-looking.
• Newly developed PDP driver IC: Achieves high-precision gamma
characteristics, using Sony’s unique digital technology. Fine
gradation of dark scenes, which is not possible with conventional
PDP, is realized by greatly enhancing resolution in the low brightness
range.
s Wide Screen Mode: Watch conventional 4:3 aspect ratio broadcasts in
wide screen (16:9) mode.
s Favorite Channels: Allows you to preview and select from eight of
your favorite channels.
s Steady Sound
®
: Equalizes volume levels so there is consistent output
between programs and commercials.
s Memory Stick
®
Picture Viewer: Allows you to view on your TV
screen digital images that are stored on Memory Stick media.
s Component Video Inputs: Offers the best video quality for DVD
(480p, 480i), and digital set-top box (HD1080i, 720p) connections.
s HD Detailer
™
: Wideband video amplifier has a high bandwidth
frequency rating, which allows it to send more video information to the
screen, resulting in finer picture quality, especially for HD sources.
s Parental Control: V-Chip technology allows parents to block
unsuitable programming from younger viewers.
s Digital Visual Interface (DVI-HDTV): Can accommodate a copy-
protected digital connection (HDCP
*
) to other devices (such as digital
set-top boxes) that have compatible interfaces. The DVI-HDTV input
terminal is compliant with the EIA-861 standard and is not intended for
use with personal computers.
* High-bandwidth Digital Content Protection
15
Setting Up the TV
Overview
This chapter includes illustrated instructions for setting up your TV.
Topic Page(s)
TV Controls and Connectors 16-18
Installing the TV 20
Basic Connections: Connecting a Cable or Antenna 22-27
Connecting Optional Equipment

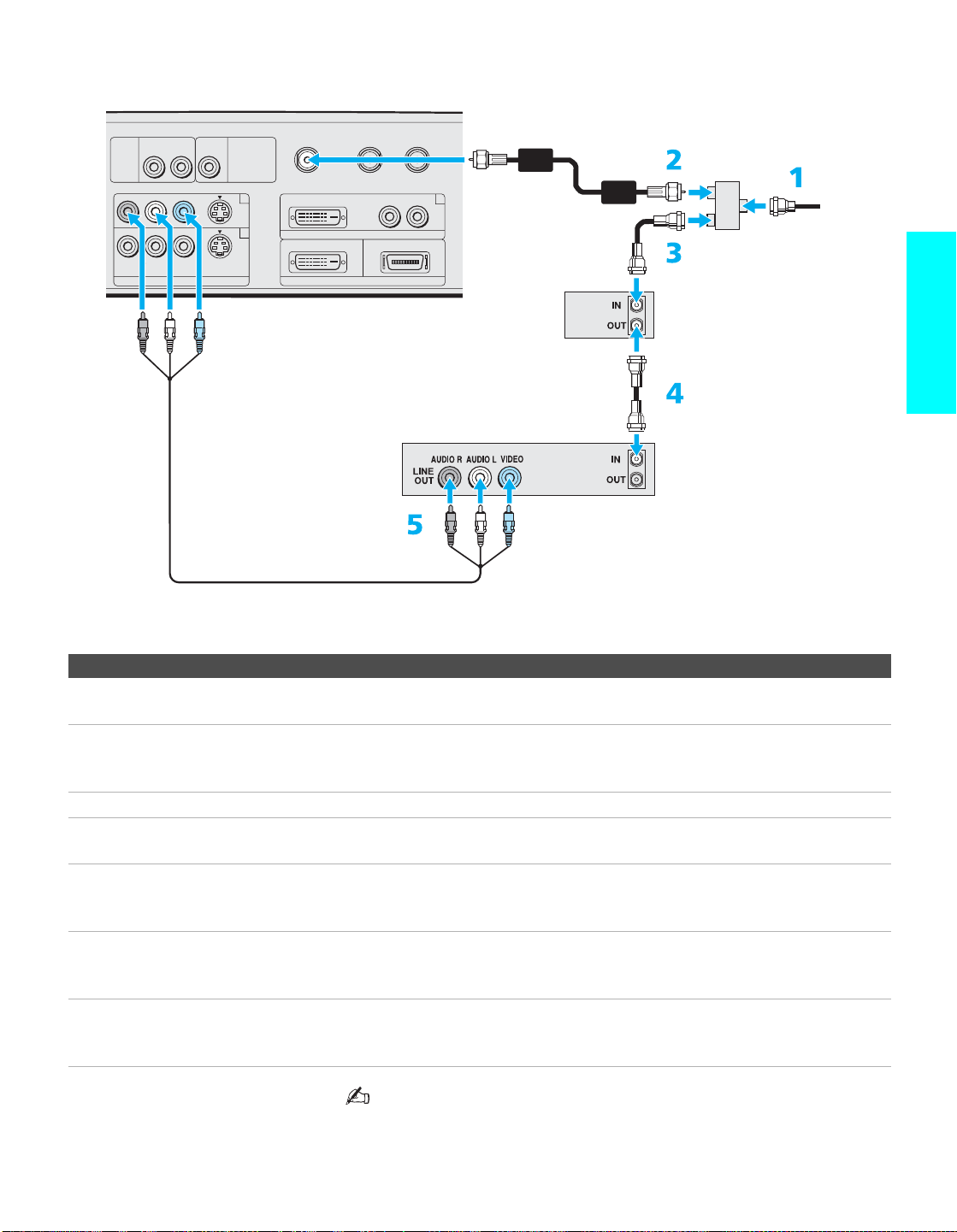

VCR and Cable
VCR and Cable Box
Two VCRs for Tape Editing
Satellite Receiver

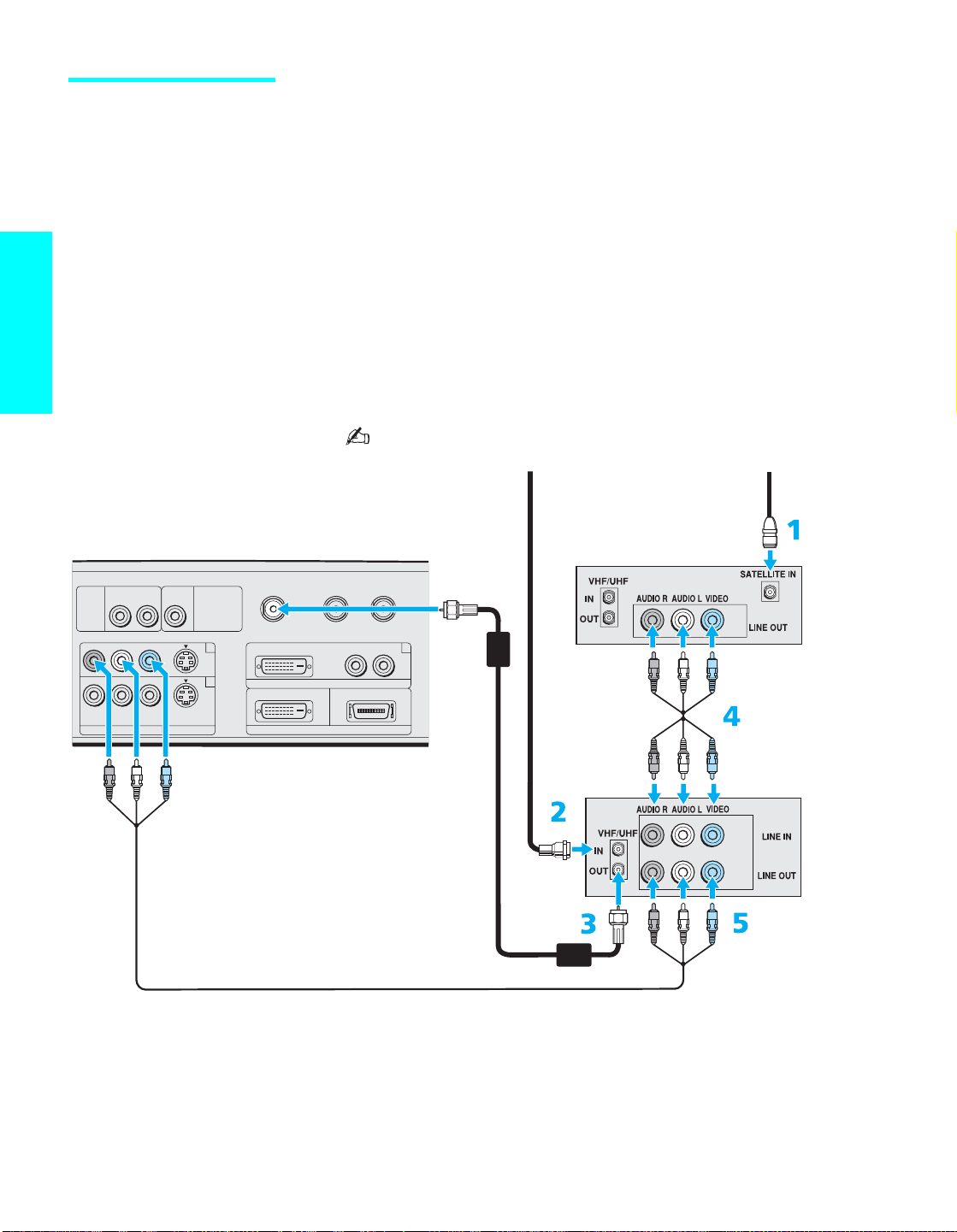

Satellite Receiver and VCR
DVD Player with Component Video Connectors

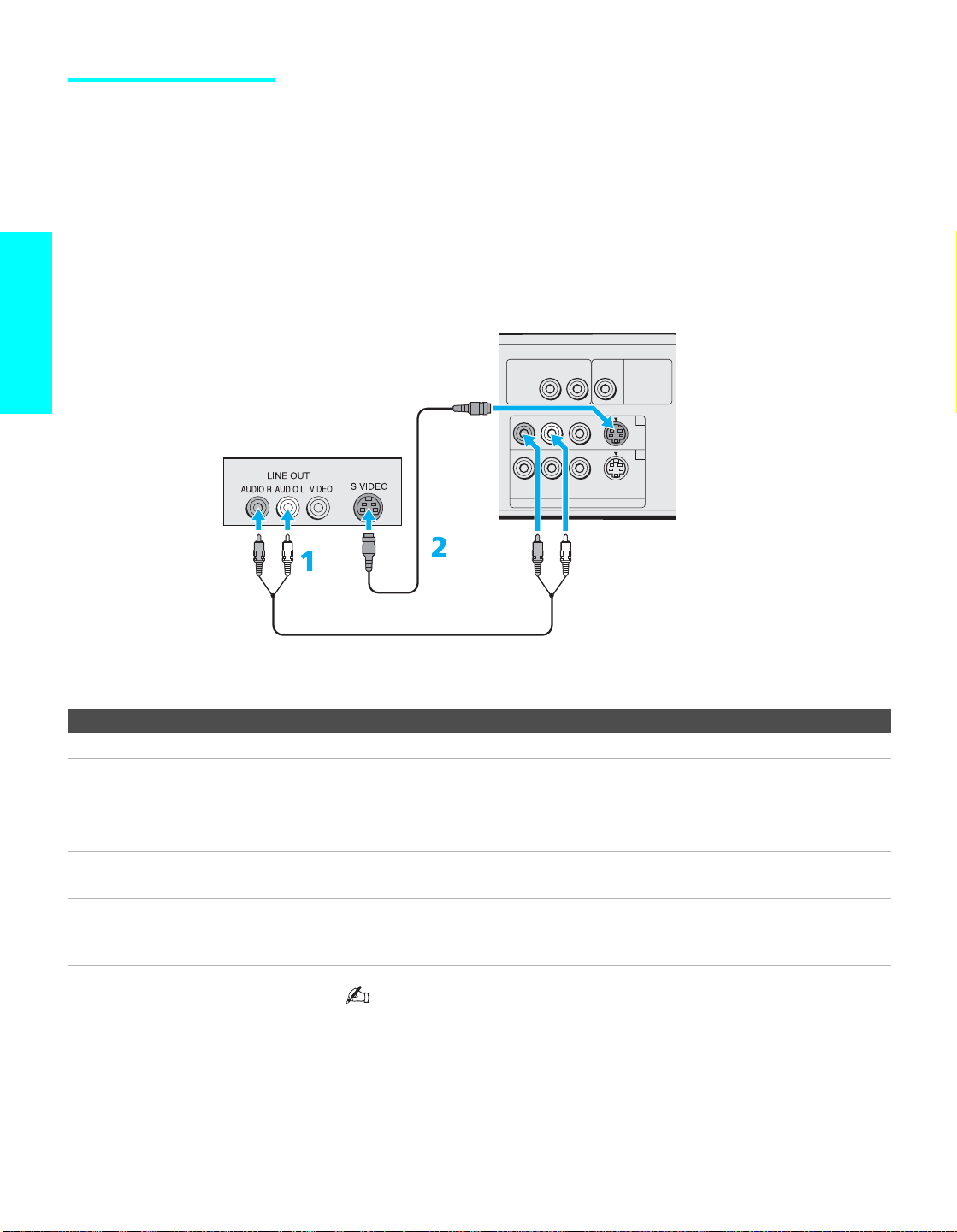

DVD Player with S VIDEO and Audio Connectors
Digital TV Set-Top Box with Component Video Connectors

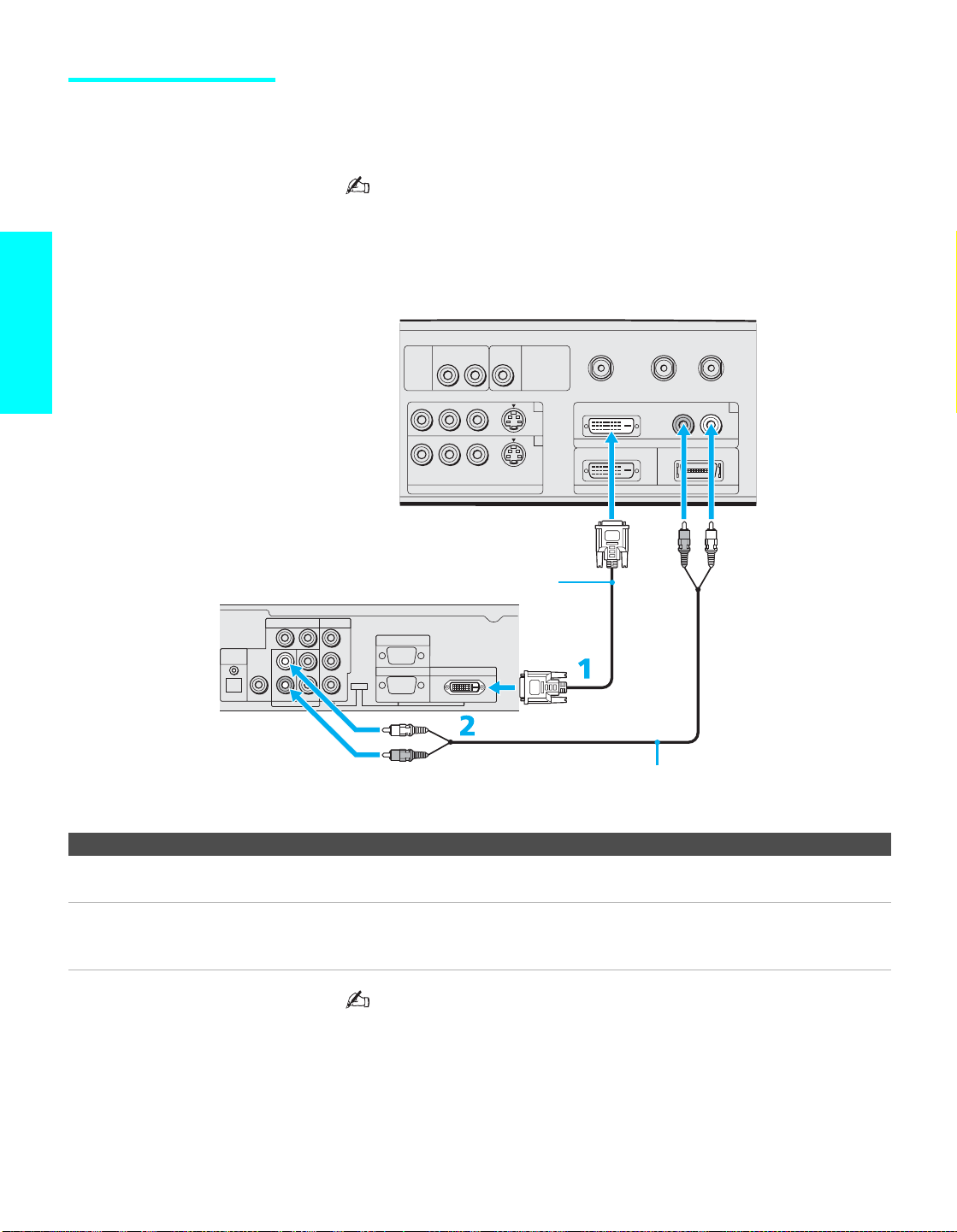

Digital Satelite Receiver with DVI-HDTV connector
Camcorder
Audio Receiver
Sub woofer
30
32
34
36
38
40
42
43
44
45
46
47
Using the CONTROL S Feature 48
Setting Up the Channel List 49
16
Setup
TV Controls and Connectors
Display unit
Item Description
1 1 POWER
ON/STAND BY
LED
Lights up in green when the TV set is turned on. When in
standby mode, the LED lights up in red. The LED does not
light up when the main power is turned off. If the LED
blinks continuously, this may indicate the display unit
needs servicing (see “Contacting Sony” on page 96).
2 TIMER LED When lit, indicates one of the timers is set. When the timer
is set, this LED will remain lit even if the TV set is turned
off. For details, see page 89.
3 PICTURE
OFF LED
When lit, indicates that the Picture Off feature is activated.
For details, see page 67.
4 Infrared
Receiver (IR)
Receives IR signals from the TV’s remote control.
POWER ON/
STAND BY
OFF
TIMER
1
2
3
4
17

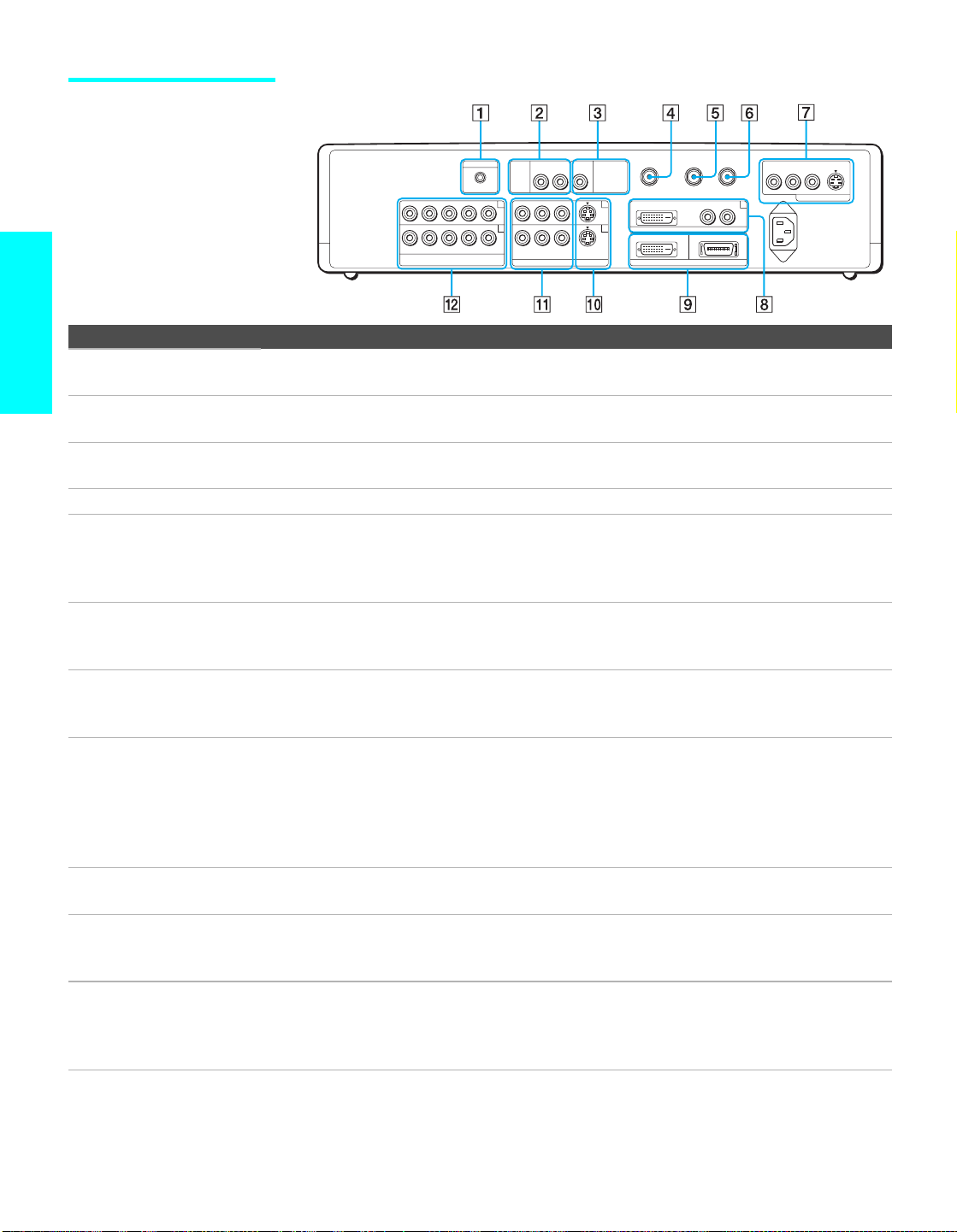

Setup
Media receiver unit
Front Panel
Item Description
1 Main POWER Press to turn on and off the main power of the TV Set.
2 POWER LED Lights up in green when the TV set is turned on. The LED
lights up in red when in standby mode. The LED does not
light up when the main power is turned off. If the LED
blinks continuously, this may indicate the Media receiver
unit needs servicing (see “Contacting Sony” on page 96).
3 ON/OFF TIMER
LED
When lit, indicates one of the timers is set. When the timer
is set, this LED will remain lit even if the TV set is turned
off. For details, see page 89.
4 MEMORY
STICK

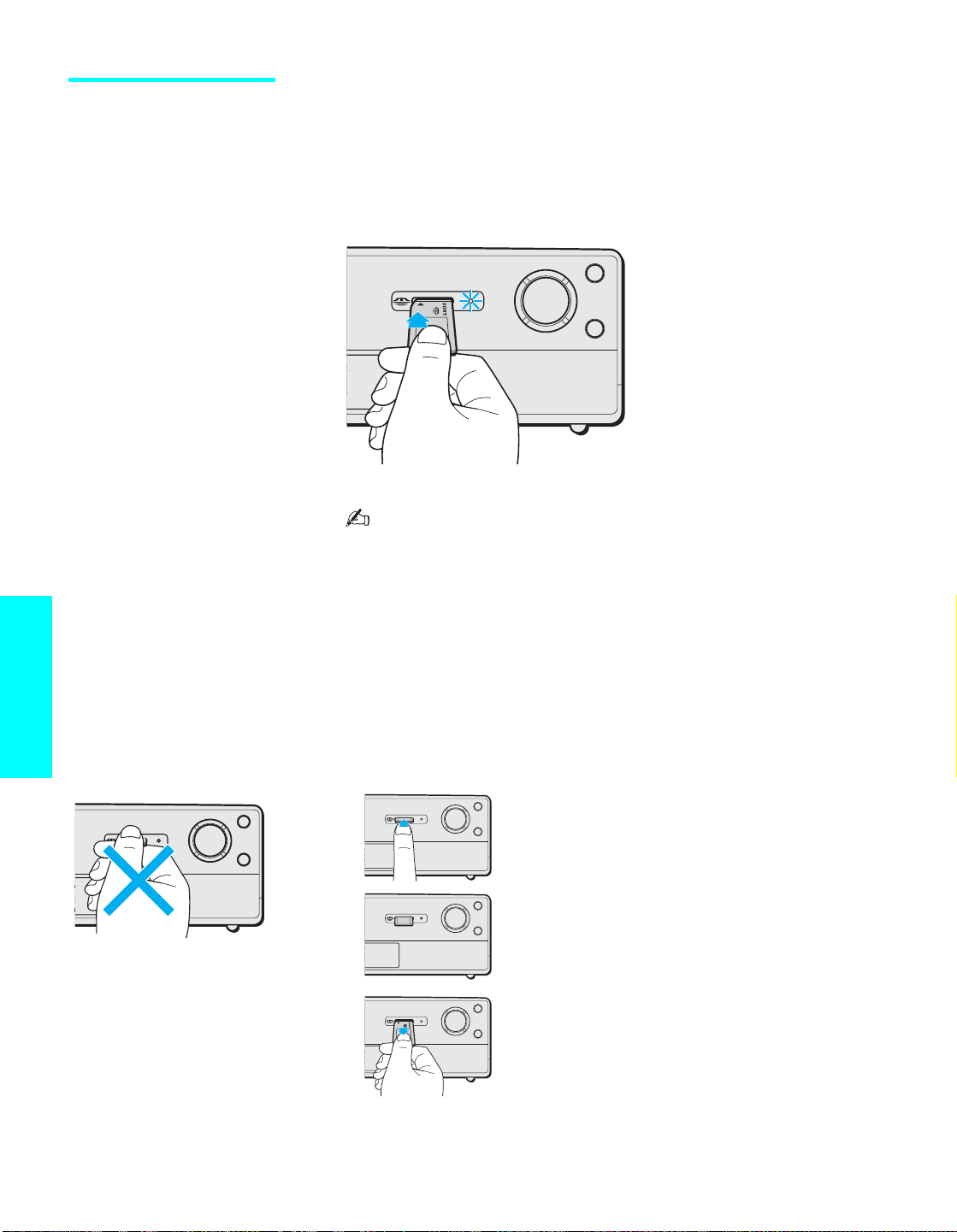

Memory Stick insertion slot. For details, see “Inserting and
Removing a Memory Stick” on page 70.
5 MEMORY
STICK ACCESS
LED
When lit, indicates that the Memory Stick is being read.
(Do not remove the Memory Stick when the indicator is lit.)
6 INPUT SELECT Press repeatedly to cycle through the video equipment
connected to the Media receiver unit’s video inputs.
7 MTS/SAP Press repeatedly to cycle through the Multi-channel TV
Sound (MTS) options: Stereo, Auto SAP, and Mono. For
details on each option, see page 80.
8 – CHANNEL + Press to scan through channels. To scan quickly through
channels, press and hold down either CHANNEL.
– VOLUME + Press to adjust the volume.
9 VIDEO/
L-AUDIO-R
VIDEO 2 INPUT
Connects to the composite A/V output jacks on your
camcorder or other video equipment.
0 S VIDEO 2
INPUT
Connects to the S VIDEO OUT jack on your camcorder or
other video equipment that has S VIDEO. Provides better
picture quality than composite video (9).
POWER
CHANNEL
+
CHANNEL
–
VOL
–
VOL
+
INPUT SELECT
MTS/SAP
POWER
TV VIDEO1 VIDEO2 VIDEO3 VIDEO4 VIDEO5 VIDEO6 MEMORY STICK
ON/OFF TIMER
–AUDIO–
VIDEO
S VIDEO
LR
VIDEO 2 INPUT
18
Setup
Media receiver unit
Rear Panel
AUDIO IN
AV MOUSE
4
HD/DVD IN
( 1080i / 720p / 480p / 480i )
CONTROL S
AUDIO
OUT
SUBWOOFER
OUT
R–AUDIO–L Y P
B
P
R
5
1
6
VIDEO IN
DISPLAY SIGNAL OUT
MONITOR OUT
DVI–HDTV IN
WHITE
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF
R–AUDIO–L VIDEO S VIDEO
OUT
AUX
TO
CONVERTER
DVI–HDTV
BLACK
R–AUDIO–L
~ AC IN
(VAR/FIX) (VAR)
Jack Description
1 CONTROL S OUT Allows the TV to send remote control signals to other Sony infrared-controlled audio or
video equipment that has the CONTROL S function.
2 AUDIO OUT
(VAR/FIX) L/R
Connects to the left and right audio input jacks of your audio or video equipment. You can
use these outputs to listen to your TV’s audio through your stereo system.
3 SUB WOOFER OUT
(VAR)
Connects to the input jack of your sub woofer.
4 VHF/UHF Primary RF input that connects to your VHF/UHF antenna or cable.
5 TO CONVERTER Connects to your cable box input jack. This VHF/UHF output jack lets you set up your TV
to switch between scrambled channels (coming through a cable box) and unscrambled cable
channels. Use this jack instead of a splitter to get better picture quality when you need to
switch between scrambled and unscrambled cable channels. For details, see pages 24 and 25.
6 AUX Auxiliary RF input that connects to your antenna, CATV cable, or cable box output jack.
This is convenient if you are using two VHF/UHF sources (antenna, CATV cable, or cable
box). For details, see pages 24 and 25.
7 MONITOR OUT Lets you record the program you are watching to a VCR. When two VCRs are connected,
you can use the TV as a monitor for tape-to-tape editing (not available with 480p, 720p, or
1080i when the input is set to VIDEO 4-6).
8 DVI-HDTV IN
DVI-HDTV
AUDIO R/L
(VIDEO IN 6)
Can accommodate a copy-protected digital connection (HDCP*) to other devices (such as
digital set-top boxes) that have compatible interfaces. The DVI-HDTV input terminal is
compliant with the EIA-861 standard and is not intended for use with personal computers.
See the instruction manual that came with your equipment for details about connecting and
using it with the TV.
Use a DVI-D single link cable.
9 DISPLAY SIGNAL
OUT
Connects to the display input jack of the display unit by using the supplied display interface
cable.
0 S VIDEO IN 1/3 Connects to the S VIDEO OUT jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than either composite video (qa) or
VHF/UHF (4) connections.
qa VIDEO IN 1/3
VIDEO/
L-AUDIO-R
Connect to the composite A/V output jacks on your VCR or other video component. A third
component A/V input jack (VIDEO 2) is located on the front panel of the Media receiver
unit. These video connections provide better picture quality than the VHF/UHF (4)
connections.
19
Setup
qs HD/DVD IN 4/5
(1080i/720p/480p/
480i)
Connect to your DVD player’s or digital set-top box’s component video (Y, PB, PR) and
audio (L/R) jacks. Component video provides better picture quality than 4, 0, or qa).
* High-bandwidth Digital Content Protection
Jack Description
20
Setup
Installing the TV
1 Connect the display interface cable (supplied) to the display unit’s DISPLAY
SIGNAL IN jack, and connect the AC power cord (supplied) to the display
unit’s AC IN jack.
Disconnect all power sources before making any connections.
2
Secure the AC power plug to the display’s AC IN jack.
When you unplug the AC power cord, drag the AC plug holder
down by pushing both sides of the holder, then pull out the
plug.
BLACK
WHITE
DISPLAY SIGNAL IN
SONY EXCLUSIVE CABLE ONLY
AC IN
Display interface
cable (supplied)
Tighten the
screw slowly
until the
screw is
stabilized.
AC Power cord
(supplied)
AC IN (Power
supply input)
jack of the
display
AC plug holder
(supplied)
AC power cord
(supplied)
1 Attach the AC plug holder
(supplied) to the AC
power cord.
2 Clip on to the AC IN
jack until you hear
clicking.
21
Setup
3
Install the display unit using an optional stand or rack unit.
For details, refer to the operating instructions supplied with your stand or rack unit.

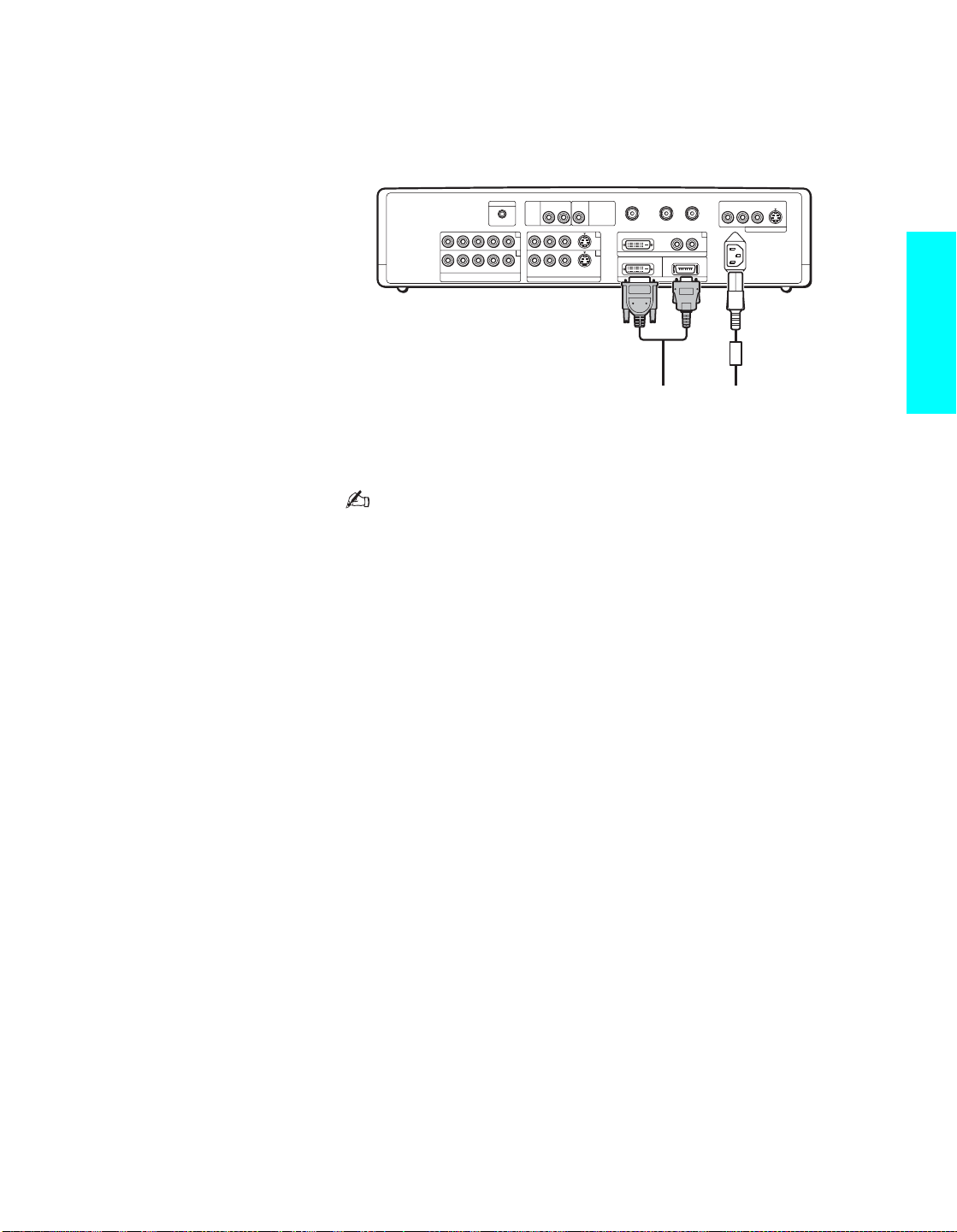

4 Connect the other end of display interface cable to the Media receiver unit’s
DISPLAY SIGNAL OUT jack, and connect the AC power cord (supplied) to the
media receiver unit’s AC IN jack.
5 After making all connections, connect the AC power cords (supplied) to wall
outlets.
Be sure to use the supplied AC power cords.
When connecting optional components, do not connect the AC
power cords to wall outlets until you have completed making all
connections.
Do not tighten the screws too much. It may damage the screws.
Handle the display interface cable with care. If you pull the
cable by catching your feet on the cable, this unit may fall and
cause injury.
Do not use damaged cables, such as cables whose connectors
are deformed.
AUDIO IN
AV MOUSE
4
HD/DVD IN
( 1080i / 720p / 480p / 480i )
CONTROL S
AUDIO
OUT
SUBWOOFER
OUT
R–AUDIO–L Y P
B
P
R
5
1
VIDEO IN
MONITOR OUT
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF
R–AUDIO–L VIDEO S VIDEO
OUT
AUX
TO
CONVERTER
~ AC IN
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
Tighten the screw slowly until
the screw is stabilized.
Display interface
cable (supplied)
AC power cord
(supplied)
22
Setup
Basic Connections: Connecting a Cable or Antenna
The way in which you will connect your TV varies, depending on how your
home receives a signal (cable, cable box, antenna) and whether or not you
plan to connect a VCR.
If you are connecting a VCR
s See the connections described on pages 30 and 32.
If You Are Connecting See Page
Cable or Antenna Only
s No cable box or VCR
23
Cable and Antenna Only
s No cable box or VCR
24
Cable Box and Cable Only
s Cable box unscrambles only some channels
(usually premium channels)
s No VCR
25
Cable Box Only
s Cable box unscrambles all channels
s No VCR
27
23
Setup
Cable or Antenna
Only
For best results, use one of the following connections if you are
connecting a cable or an antenna and you:
s Do not need a cable box to unscramble channels. (If you have a cable
box, see page 27.)
s Do not intend to connect a VCR. (If you have a VCR, see pages 30 and
32.)
For antenna connection, use the supplied antenna cable.
When using an indoor antenna, such as rabbit-ear or dipole-
antenna, keep the antenna away from the display unit. If not,
noise may appear on the screen.
75-ohm coaxial cable (usually found in newer homes)
Cable Type Connect As Shown
VHF Only or
combined
VHF/UHF or
Cable
VHF/UHF
Antenna
cable
(supplied)
24
Setup
Cable and Antenna
Only
For best results, use this connection if you:
s Have a cable and an antenna.
(This is convenient if you are using a separate rooftop antenna to receive
additional channels that are not provided by your cable company.)
s Do not have a cable box or VCR. (If you have a cable box, see pages 25
to 27. If you have a VCR, see pages 30 and 32.)
For antenna connection, use the supplied antenna cable.
When using an indoor antenna, such as rabbit-ear or dipole-
antenna, keep the antenna away from the display unit. If not,
noise may appear on the screen.
Notes on Using This Connection
Cable Type Connect As Shown
Cable TV (CATV)
and Antenna
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you cannot view antenna channels in the right dual picture
window.
AUX
Antenna cable (supplied)
(No connection to
TO CONVERTER)
CATV cable
TO CONVERTER
VHF/UHF
TV
To Do This ... Do This ...
Switch the TV’s input between
the cable and antenna
Press ANT to switch back and forth between the TV’s VHF/UHF and AUX inputs.
Receive channels using an
antenna, instead of the cable
1 Press ANT to switch to the AUX input.
2 Set the Cable option to Off. For details, see “Selecting Channel Options” on
page 84.
3 Run the Auto Setup program, as described in “Using Auto Setup” on page 49.
25
Setup
Cable Box and Cable
Only
For best results, use this connection if:
s Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not scramble
all channels.
s You do not have a VCR. (If you have a VCR, see pages 30 and 32.)
With this connection you can:
s Use the TV remote control to change channels coming through the cable
box to the TV’s AUX input jack. (You must first program the remote
control for your specific cable box; see “Programming the Remote
Control” on page 54.)
s Use the TV remote control to change channels coming directly into the
TV’s VHF/UHF input. (The TV’s tuner provides a better signal than the
cable box.)
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features for unscrambled
channels coming directly into the TV’s VHF/UHF input jack.
However, you can use only some of the dual picture features for channels coming
through the cable box to the TV’s AUX input jack. For example, when you switch
the TV’s input to AUX — to select the cable box input — the picture displays only
in the left window. For example, if you turn on Twin View, you can watch cable
channels coming into the VHF/UHF jack in the right window, but you cannot swap
the pictures between the left and right windows.
(Continued)
26
Setup
To connect the cable box and cable
1 Connect your cable company to the TV’s VHF/UHF jack using the
supplied antenna cable.
2 Use a coaxial cable to connect the TV’s TO CONVERTER jack to the
cable box’s input jack. (The TV’s internal converter lets you switch
between unscrambled signals coming straight into the TV and
scrambled signals coming in through the cable box, eliminating the need
for an external splitter.)
3 Use a coaxial cable to connect the cable box’s output jack to the TV’s
AUX jack.
4 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 49.
Notes on Using This Connection
Do not leave the display indication of the cable box turned on.
AUX
TO CONVERTER
VHF/UHF
Antenna cable (supplied)
75-ohm coaxial cable
(not supplied)
OUT
Coaxial cable
IN
Cable box
TV
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4) and then
use the cable box to switch channels.
Set up the TV remote control to
operate the cable box
Program the remote control. See “Programming the Remote Control” on page 54.
Activate the remote control to
operate the cable box
Press SAT/CABLE FUNCTION repeatedly until the SAT/CABLE indicator lights
up.
Prevent the accidental switching
of TV channels
When using the cable box, you need the TV to stay on the channel the cable box is
set to (usually channel 3 or 4). You can use the TV’s Channel Fix feature to lock in a
specific channel. For details, see “Using the Channel Menu” on page 84.
Switch
the TV’s input between
the cable box and cable
Press ANT to switch back and forth between the TV’s VHF/UHF (unscrambled
channels) and AUX (scrambled) inputs.
27
Setup
Cable Box Only For best results, use this connection if:
s Your cable company scrambles all channels, which requires you to use a
cable box.
s You do not have a VCR. (If you have a VCR, see pages 30 and 32.)
With this connection you can:
s Use the TV remote control to change channels coming through the cable
box to the TV’s VHF/UHF jack. (You must first program the remote
control for your specific cable box.)
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, all channels come into the TV through your cable box and
only one unscrambled signal is sent to the TV, so you cannot use the dual picture
features.
(Continued)
28
Setup
To connect the cable box
1 Connect the CATV cable to the cable box’s input jack.
2 Use the supplied antenna cable to connect the cable box’s output jack to
the TV’s VHF/UHF jack.
3 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 49.
Notes on Using This Connection
Do not leave the display indication of the cable box turned on.
VHF/UHF
Antenna cable
(supplied)
OUTIN
Cable box
CATV
cable
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4) and then
use the cable box to switch channels.
Set up the TV remote control to
operate the cable box
Program the remote control. See “Programming the Remote Control” on page 54.
Activate the remote control to
operate the cable box
Press FUNCTION repeatedly until the SAT/CABLE indicator lights up.
Prevent the accidental switching
of TV channels
When using the cable box, you need the TV to stay on the channel the cable box is
set to (usually channel 3 or 4). You can use the TV’s Channel Fix feature to lock in a
specific channel. For details, see “Using the Channel Menu” on page 84.
29
Setup
Connecting Optional Equipment
Use the directions in this section to connect the following optional
equipment:
About Using
S VIDEO
If the optional equipment you are connecting has an S VIDEO jack
(shown at left), you can use an S VIDEO cable for improved picture
quality (compared to an A/V cable). Because S VIDEO carries only
the video signal, you also need to connect audio cables for sound, as
shown below.

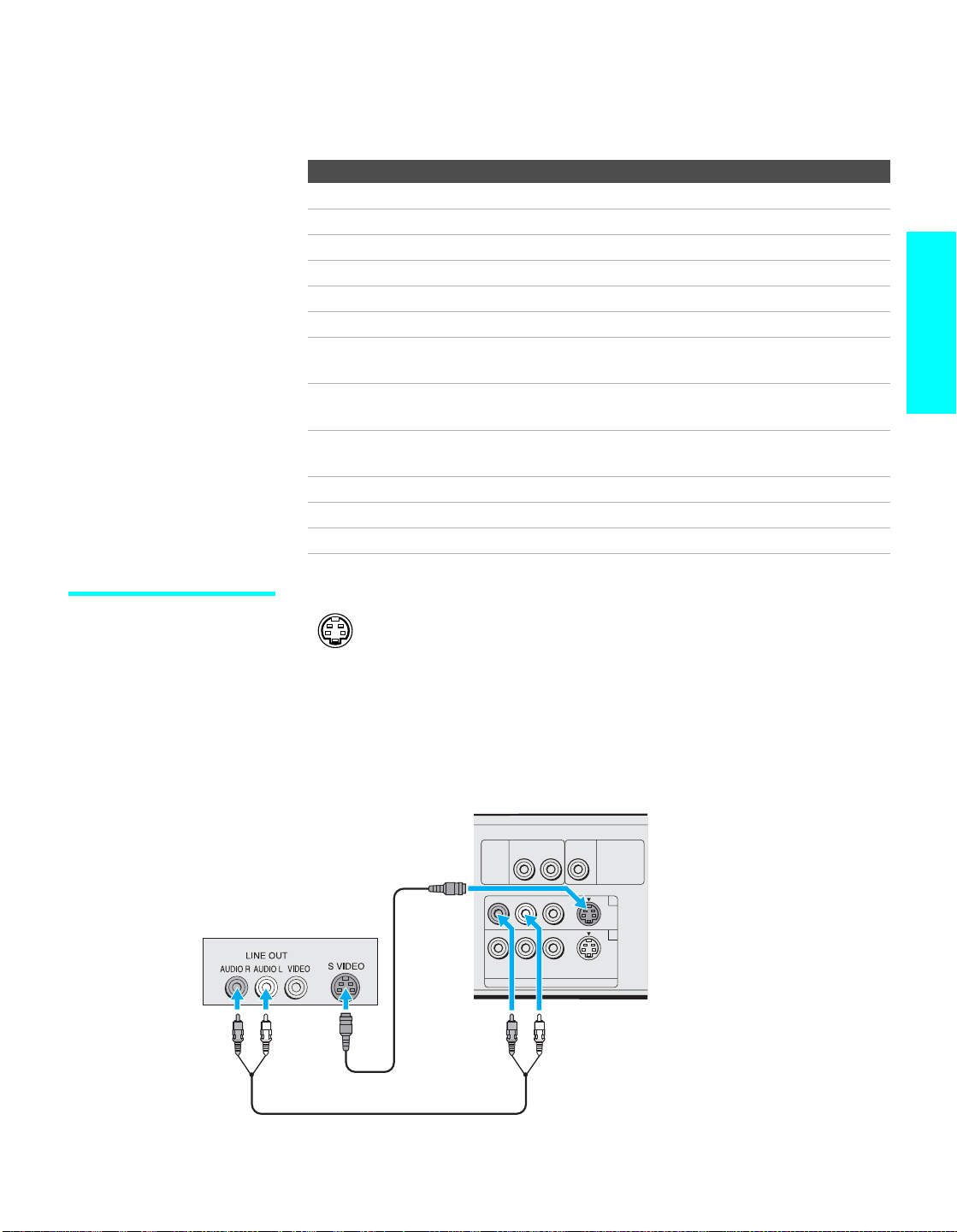

Example of an S VIDEO Connection
If You Are Connecting See Page
VCR and Cable 30
VCR and Cable Box 32
Two VCRs for Tape Editing 34
Satellite Receiver 36
Satellite Receiver and VCR 38
DVD Player with Component Video Connectors 40
DVD Player with S VIDEO and Audio
Connectors
42
Digital TV Set-Top Box with Component Video
Connectors
43
Digital Satelite Receiver with DVI-HDTV
connector
44
Camcorder 45
Audio Receiver 46
Sub Woofer 47
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
(VAR/FIX) (VAR)
S VIDEO
cable
Audio cable
Rear of Media receiver unit
Equipment with S VIDEO
30
Setup
VCR and Cable For best results, use this connection if:
s Your cable company does not require you to use a cable box.
To connect the VCR and cable
1 Connect the CATV cable to the VCR’s VHF/UHF input jack.
2 Use the supplied antenna cable to connect the VCR’s VHF/UHF output
jack to the TV’s VHF/UHF jack.
3 Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
4 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 49.
Using S VIDEO jacks? See page 29.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features.
AUDIO
OUT
SUBWOOFER
OUT
1
6
VIDEO IN
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF AUX
TO
CONVERTER
DVI–HDTV
BLACK
R–AUDIO–L
(VAR/FIX) (VAR)
Rear of Media receiver unit
A/V cable
Antenna cable (supplied)
VCR
CATV cable
31
Setup
Notes on Using This Connection
Do not leave the display indication of the VCR turned on.
To Do This ... Do This ...
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration).
Watch cable channels Press TV/VIDEO repeatedly to select the cable input (VHF/UHF in the illustration).
Set up the TV remote control to
operate the VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on page 54.
Activate the TV remote control to
operate the VCR
Press FUNCTION repeatedly until the DVD/VCR indicator lights up.
Control VCR functions with the
TV remote control
See “Operating a VCR” on page 56.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
32
Setup
VCR and Cable Box For best results, use this connection if:
s Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not scramble
all channels.
With this connection you can:
s Use the TV remote control to change channels coming through the cable
box. (You must first program the remote control for your specific cable
box; see “Programming the Remote Control” on page 54.)
s Use the TV remote control to change channels coming directly into the
TV’s VHF/UHF jack. (The TV’s tuner provides a better signal than the
cable box.)
s Record channels coming through the cable box and channels coming
directly into the TV.
To connect a VCR and cable box, you need:
s A splitter, which is a small, inexpensive device that you can purchase at
your local electronics store.
s Three coaxial cables.
s One A/V cable or one S VIDEO cable with audio cables.
To connect the VCR and cable box
1 Connect the CATV cable to the single (input) jack of the splitter.
2 Use the supplied antenna cable to connect one of the splitter’s two
output jacks to the TV’s VHF/UHF jack.
3 Use a coaxial cable to connect the splitter’s other output jack to the
cable box’s input jack.
4 Use a coaxial cable to connect the cable box’s output jack to the VCR’s
RF input jack.
5 Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
6 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 49.
Using S VIDEO jacks? See page 29.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features.
33
Setup
Notes on Using This Connection
Do not leave the display indication of the cable box and VCR
turned on.
Rear of Media receiver unit
Cable box
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF AUX
TO
CONVERTER
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
VCR
CATV
cable
Coaxial cable
Antenna cable
(supplied)
Splitter
(not supplied)
A/V cable
Cable box
To Do This ... Do This ...
Watch cable (unscrambled)
channels
Press TV/VIDEO repeatedly to select the cable input (UHF/VHF in the illustration).
Watch cable box (scrambled)
channels
Turn on the VCR and tune it to the channel the cable box is set to (usually channel 3
or 4). Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration). Use the cable box to change channels.
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration).
Set up the TV remote control to
operate the cable box or VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on page 54.
Activate the remote control to
operate the cable box or VCR
For the cable box, press FUNCTION repeatedly until the SAT/CABLE indicator
lights up. For the VCR, press FUNCTION repeatedly until the DVD/VCR indicator
lights up.
Control specific cable box and
VCR functions with the TV
remote control
See “Operating a Cable Box” on page 57 and “Operating a VCR” on page 56.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
34
Setup
Two VCRs for Tape
Editing
Connecting two VCRs lets you record from one VCR to the other. By
connecting them as shown below, you can view (monitor) what is being
recorded.
To connect two VCRs for tape editing
1 Use an A/V cable to connect the playback VCR’s A/V output jacks to
the TV’s A/V input jacks.
2 Use an A/V cable to connect the recording VCR’s A/V input jacks to the
TV’s MONITOR OUT jacks.
Using S VIDEO jacks? See page 29.
When connecting two VCRs for tape editing;
– you cannot edit a tape with copy protection.
– do not connect the TV’s A/V input jack and output jack to your
VCRs at the same time to avoid looping the signal.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
MONITOR OUT
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF
R–AUDIO–L VIDEO S VIDEO
AUX
TO
CONVERTER
~
AC IN
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
Rear of Media receiver unit
Recording VCR
A/V cable
A/V cable
Playback VCR
35
Setup
Notes on Using This Connection
To Do This ... Do This ...
View (monitor) what is being
recorded
Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration
above).
Set up the TV remote control to
operate the VCR(s)
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on page 54.
Activate the TV remote control to
operate the VCR(s)
Press FUNCTION repeatedly until the DVD/VCR indicator lights up.
Control VCR functions with the
TV remote control
See “Operating a VCR” on page 56.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
36
Setup
Satellite Receiver To connect a satellite receiver
1 Connect the satellite antenna cable to the satellite receiver’s satellite
input jack.
2 Use an A/V cable to connect the satellite receiver’s A/V output jacks to
the TV’s A/V input jacks.
3 Connect the supplied antenna cable from your cable or antenna to the
TV’s VHF/UHF jack.
4 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 49.
Using S VIDEO jacks? See page 29.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF AUX
TO
CONVERTER
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
Rear of Media receiver unit
A/V cable
Satellite receiver
Antenna cable (supplied)
Satellite antenna
cable
37
Setup
Notes on Using This Connection
Do not leave the Electric Program Guide and display indication
turned on.
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the satellite receiver input
(VIDEO 1 in the illustration).
Set up the TV remote control to operate the
satellite receiver
If you have a non-Sony satellite receiver, you must program the
remote control. See “Programming the Remote Control” on page 54.
Activate the TV remote control to operate the
satellite receiver
Press FUNCTION repeatedly until the SAT/CABLE indicator lights
up.
Control satellite receiver functions with the TV
remote control
See “Operating a Satellite Receiver” on page 56.
Label video inputs to easily identify equipment
connected to the TV
See the instructions for setting up Video Labels on page 91.
38
Setup
Satellite Receiver
and VCR
To connect a satellite receiver and VCR
1 Connect the satellite antenna cable to the satellite receiver’s satellite
input jack.
2 Connect the CATV cable to the VCR’s VHF/UHF input jack.
3 Use the supplied antenna cable to connect the VCR’s VHF/UHF output
jack to the TV’s VHF/UHF jack.
4 Use an A/V cable to connect the satellite receiver’s A/V output jacks to
the VCR’s A/V input jacks.
5 Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
6 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 49.
Using S VIDEO jacks? See page 29.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF AUX
TO
CONVERTER
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
A/V cable
Satellite receiver
Antenna
cable
(supplied)
Satellite antenna
cable
CATV cable
A/V cable
VCR
Rear of Media receiver unit
39
Setup
Notes on Using This Connection
Do not leave the Electric Program Guide and display indication
turned on.
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration).
The VCR may need to be turned on and set to the satellite receiver input.
Watch the VCR Press TV/VIDEO repeatedly to select the input to which the VCR is connected
(VIDEO 1 in the illustration).
Set up the TV remote control to
operate the satellite receiver or
VCR
If you have a non-Sony VCR or satellite receiver, you must program the remote
control. See “Programming the Remote Control” on page 54.
Activate the TV remote control to
operate the satellite receiver or
VCR
For the satellite receiver, press FUNCTION repeatedly until the SAT/CABLE
indicator lights up. For the VCR, press FUNCTION repeatedly until the DVD/VCR
indicator lights up.
Control satellite receiver and
VCR functions with the TV
remote control
See “Operating a Satellite Receiver” on page 56 and “Operating a VCR” on page 56.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
40
Setup
DVD Player with
Component
Video Connectors
For best results, use this connection if your DVD player has component
video (Y, P
B, PR) jacks.
To connect a DVD player with component video connectors
1 Use three separate component video cables to connect the DVD player’s
Y, P
B and PR jacks to the Y, PB and PR jacks (VIDEO 4) on the TV.
The Y, PB and PR jacks on your DVD player are sometimes
labeled Y, C
B and CR, or Y, B-Y and R-Y. If so, connect the
cables to their matching color jacks.
2
Use an audio cable to connect the DVD player’s audio output jacks to the
TV’s VIDEO 4 audio input jacks.
AUDIO IN
AV MOUSE
4
HD/DVD IN
( 1080i / 720p / 480p / 480i )
CONTROL S
AUDIO
OUT
SUBWOOFER
OUT
R–AUDIO–L Y P
B
P
R
5
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
OUT
(VAR/FIX) (VAR)
Rear of Media receiver unit
DVD player
Component video cable
Audio cable
41
Setup
Notes on Using This Connection
You cannot record the signal from any equipment connected
into the Y, PB, PR jacks.
Do not leave a still image, such as the DVD menu, displayed on
the screen.
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 4 in the illustration).
Set up the TV remote control to
operate the DVD player
If you have a non-Sony DVD player, you must program the remote control. See
“Programming the Remote Control” on page 54.
Activate the TV remote control to
operate the DVD player
Press FUNCTION repeatedly until the DVD/VCR indicator lights up.
Control DVD functions with the
TV remote control
See “Operating a DVD Player” on page 57.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
42
Setup
DVD Player with
S VIDEO and Audio
Connectors
Use this connection if your DVD player does not have component video (Y,
P
B, PR) jacks.
To connect a DVD player with A/V connectors
1 Use an audio cable to connect the DVD player’s audio output jacks to
the TV’s audio input jacks.
2 Use an S VIDEO cable to connect the DVD player’s S VIDEO jack to
the TV’s S VIDEO jack.
Notes on Using This Connection
Do not leave a still image, such as the DVD menu, displayed on
the screen.
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the illustration).
Set up the TV remote control to
operate the DVD player
If you have a non-Sony DVD player, you must program the remote control. See
“Programming the Remote Control” on page 54.
Activate the TV remote control to
operate the DVD player
Press FUNCTION repeatedly until the DVD/VCR indicator lights up.
Control DVD functions with the
TV remote control
See “Operating a DVD Player” on page 57.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
(VAR/FIX) (VAR)
Rear of Media receiver unit
DVD player
Audio cable
S VIDEO
cable
43
Setup
Digital TV Set-Top
Box with
Component
Video Connectors
To connect a digital TV set-top box with component video connectors
1 Use three separate component video cables to connect the set-top box’s
Y, P
B and PR jacks to the Y, PB and PR jacks (VIDEO 4) on the TV.
The Y, PB and PR jacks on your set-top box are sometimes
labeled Y, C
B and CR, or Y, B-Y and R-Y. If so, connect the
cables to their matching color jacks.
2 Use an audio cable to connect the set-top box’s audio output jacks to the
TV’s VIDEO 4 audio input jacks.
Notes on Using This Connection
You cannot record the signal from any equipment connected
into the Y, P
B, PR jacks.
Do not leave a still image or display indication, such as the
Electric Program Guide, displayed on the screen.
To Do This ... Do This ...
Watch the digital TV set-top box Press TV/VIDEO repeatedly to select the digital TV set-top box input (VIDEO 4 in
the illustration).
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
AUDIO IN
AV MOUSE
4
HD/DVD IN
( 1080i / 720p / 480p / 480i )
CONTROL S
AUDIO
OUT
SUBWOOFER
OUT
R–AUDIO–L Y P
B
P
R
5
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
OUT
(VAR/FIX) (VAR)
Rear of Media receiver unit
Audio cable
Digital TV Set-Top Box
Component video cable
44
Setup
Digital Satelite
Receiver with
DVI-HDTV connector
To connect a digital Satelite Receiver with DVI-HDTV connector
1 Use a DVI-D single link cable to connect the Digital Satelite Receiver’s
DVI-HDTV connector to the TV’s DVI-HDTV connector.
The DVI-HDTV VIDEO connector does not provide audio, so
audio cables must be connected to provide sound.
2 Use an audio cable to connect the Digital Satelite Receiver’s audio
output jacks to the TV’s DVI-HDTV AUDIO jacks.
Notes on Using This Connection
Do not leave a still image or display indication, such as the
Electric Program Guide, displayed on the screen.
To Do This ... Do This ...
Watch the digital satelite receiver Press TV/VIDEO repeatedly to select the digital satelite receiver input (VIDEO 6 in
the illustration).
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF AUX
TO
CONVERTER
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
VIDEO OUT
(480i)
VIDEO OUT
(1080i/720p/480p)
AUTHORIZED
SERVICES ONLY
RGB OUT
TYPE
1
L1 L2
Y
P
B
PR
R1
AUDIO OUT
S. VIDEOOPTICAL
OPTICAL
AUDIO
OUT
R2
2
(1080i/720p/480p) (1080i/720p/480p)
DVI-HDTV OUT
Rear of Media receiver unit
Audio cable
Digital Satelite Receiver
DVI-D single link cable
45
Setup
Camcorder For easy connection of a camcorder, the TV has front A/V input jacks. If you
prefer, however, you can connect the camcorder to the TV’s rear A/V input
jacks.
To connect a camcorder
Use an A/V cable to connect the camcorder’s A/V output jacks to the TV’s
A/V input jacks.
Using S VIDEO jacks? See page 29.
Notes on Using This Connection
Do not leave a still image of the camcorder or digital camera
displayed on the screen.
To Do This ... Do This ...
Watch the camcorder Press TV/VIDEO repeatedly to select the camcorder input (VIDEO 2 in the
illustration).
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 91.
VIDEO 2 INPUT
–AUDIO–
VIDEO L R
VIDEO
A/V cable
Media receiver unit Front Video Panel
Camcorder
To A/V output
46
Setup

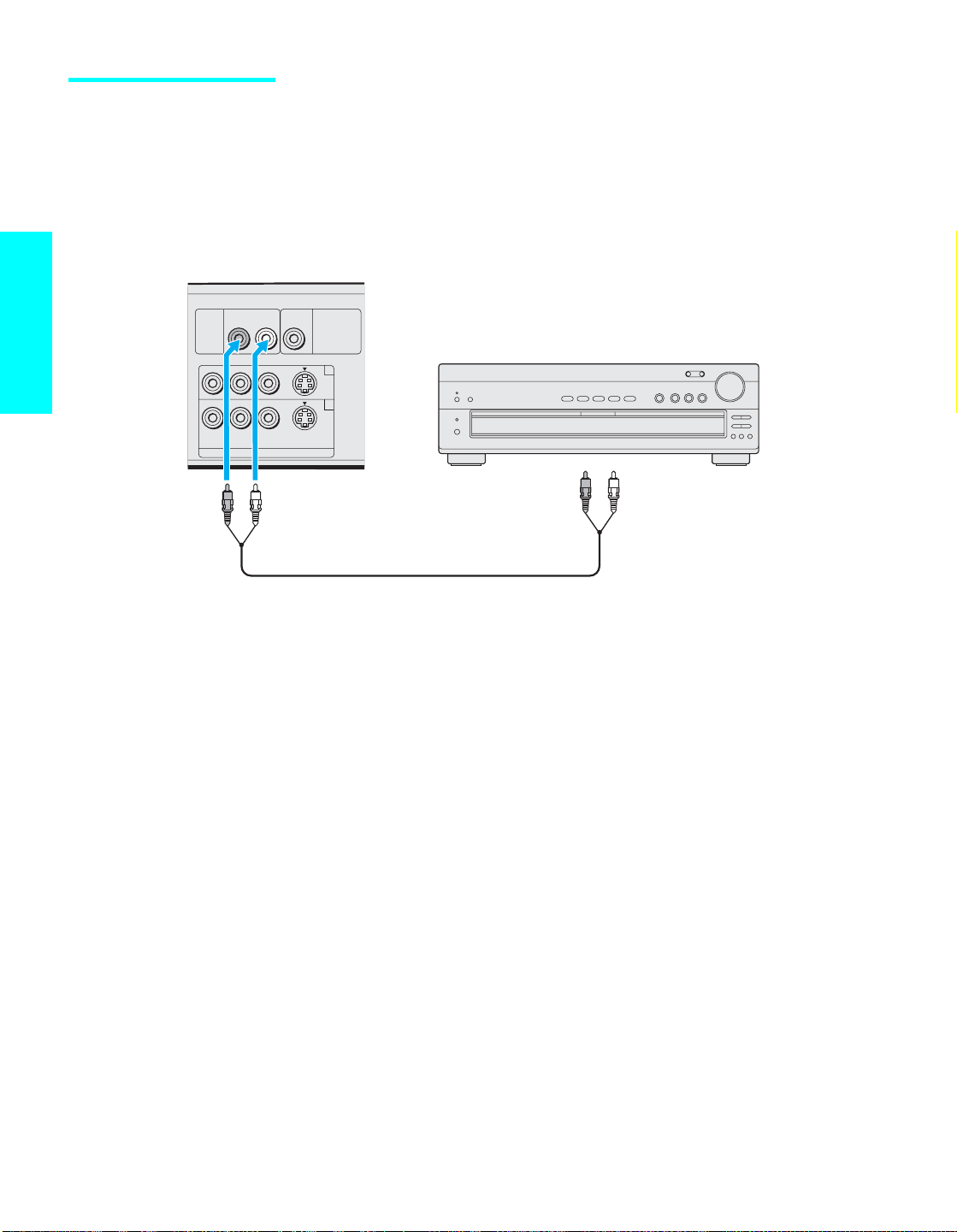

Audio Receiver For improved sound quality, you may want to play the TV’s audio through
your stereo system.
To connect an audio system
1 Use an audio cable to connect the TV’s audio output jacks to the audio
receiver’s line input jacks.
2 Using the TV’s Audio Menu, set the Speaker option to Off. Then set
the Audio Out option to Fixed or Variable, depending on how you want
to control the volume. For details, see “Using the Audio Menu” on page
80.
3 Turn on the audio receiver, and then set the receiver’s line input to the
jack into which you connected the TV.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
(VAR/FIX) (VAR)
Rear of Media receiver unit
Audio cable
Receiver
To line input
47
Setup
Sub Woofer Use a monaural audio cable to connect the TV’s SUB WOOFER OUT jack
to the sub woofer’s input jack.
AUDIO
OUT
SUBWOOFER
OUT
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
VHF/UHF AUX
TO
CONVERTER
(VAR/FIX) (VAR)
6
DISPLAY SIGNAL OUT
DVI–HDTV IN
WHITE
DVI–HDTV
BLACK
R–AUDIO–L
Rear of Media receiver unit
Sub woofer
Monaural audio cable (not supplied)
Sub woofer input
48
Setup
Using the CONTROL S Feature
CONTROL S allows you to control your system and other Sony equipment
with one remote control. In addition to allowing you to control multiple
devices with one remote control, the CONTROL S feature allows you to
always point your remote control at your TV, instead of having to point it at
the other equipment, which might be hidden or out of direct line of sight.
Use CONTROL S OUT to send signals to connected equipment.
AUDIO IN
AV MOUSE
4
HD/DVD IN
( 1080i / 720p / 480p / 480i )
CONTROL S
AUDIO
OUT
SUBWOOFER
OUT
R–AUDIO–L Y P
B
P
R
5
1
VIDEO IN
R–AUDIO–L
R–AUDIO–L
VIDEO S VIDEO
3
OUT
(VAR/FIX) (VAR)
CONTROL S
OUT
Rear of Media receiver unit
49
Setup
Setting Up the Channel List
After you finish connecting your TV, you need to run Auto Setup to set up
your channels. The Auto Setup screen appears when you turn on your TV for
the first time after hooking it up. If you do not want to set up the channels at
this time, you can do it later by selecting the Auto Program option in the
Channel Menu (see page 84).
The Auto Setup feature does not apply for installations that use
a cable box for all channel selection.
Using Auto Setup 1 Press POWER to turn on the TV.
2 Press FUNCTION on the remote control repeatedly until the TV indicator
lights up.
3 To continue running Auto Setup, press CH+. To exit Auto Setup, press
CH–.
Auto Setup automatically creates a list of receivable channels. When
finished, the lowest numbered channel is displayed.
To reset the TV to factory settings
1 Press POWER to turn on the TV.
2 Hold down RESET on the remote control.
3 Press POWER on the Media receiver unit. (The TV will turn itself off,
then back on.)
4 Release RESET.
51
Using the Remote Control
Overview
This chapter describes how to set up, program, and use the TV’s remote
control.
Inserting Batteries
1 Open the battery compartment as illustrated below.
2 Insert two size AAA (LR03) batteries (supplied) by matching the e and
E terminals on the batteries to the diagram inside the battery
compartment.
3 Close the battery compartment.
Remove the batteries to avoid damage from possible battery
leakage whenever you anticipate that the remote control will
not be used for an extended period.
Handle the remote control with care.
Avoid dropping it, getting it wet, placing it in direct sunlight,
near a heater, or where the humidity is high.
Topic Page
Inserting Batteries 51
Button Descriptions 52
Programming the Remote Control 54
Using Other Equipment with Your TV Remote Control 56
m
<
52
Remote Control
Button Descriptions
VOL CH
MENU
MUTING
SAT/CABLE
POWER
Button Description
1 MUTING Press to mute the sound. Press again or press VOL+ to
restore the sound.
2 DISPLAY Press once to display the current channel number, current
time, and channel label. If set, the current channel number
will display for 10 seconds.
3 PIC OFF Press to have the TV screen turn off. For details, see page
67.
4 JUMP Press to jump back and forth between two channels. The
TV alternates between the current channel and the last
channel that was selected.
5 FUNCTION
button and
indicators
Press to have the remote control operate the equipment you
want. Press repeatedly until the indicator of the desired
equipment lights up.
For details, see “Programming the Remote Control” on
page 54.
6 PICTURE Press repeatedly to cycle through the available video
picture modes: Vivid, Standard, Pro, Mild. Also available
in the Video Menu. For details, see “Selecting Video
Options” on page 78.
7 WIDE Press repeatedly to step through the Wide Mode settings:
Wide Zoom, Normal, Full, Zoom. Also available in the
Screen menu. For details, see pages 61 and 82.
8 (Twin
View)
Press to turn on and off Twin View. For details, see page
62.
If FUNCTION is switched on SAT/CABLE
GUIDE*
* If not Sony brand, requires that you first program the remote control
(page 54).
Press to display the program guide of your satellite
program provider.
9 ANT Press to switch between the sources connected to the TV’s
VHF/UHF and AUX inputs.
If FUNCTION is switched on SAT/CABLE
INDEX* Press to display the index of your satellite program
provider.
0 VOL +/– Press to adjust the volume.
qa MENU Press to display the Menu. Press again to exit from the
Menu. For details, see page 77.
qs Power
Buttons
SAT/CABLE*: Press to turn on and off the satellite
receiver or cable box.
POWER: Press to turn on and off the TV.
qd TV/VIDEO Press repeatedly to cycle through the video equipment
connected to the TV’s video inputs.
53
Remote Control
Button Description
qf 0 - 9
ENTER
Press 0 - 9 to select a channel; the channel changes after 3
seconds. Press ENTER to change channels immediately.
qg RESET Press to reset the settings to the factory defaults. See pages
78 and 80. Also used to clear Favorite Channels (see page
65).
If FUNCTION is switched on DVD/VCR
z REC Press together with H to record.
qh FAVORITES Press to display the Favorite Channels list. For details, see
page 65.

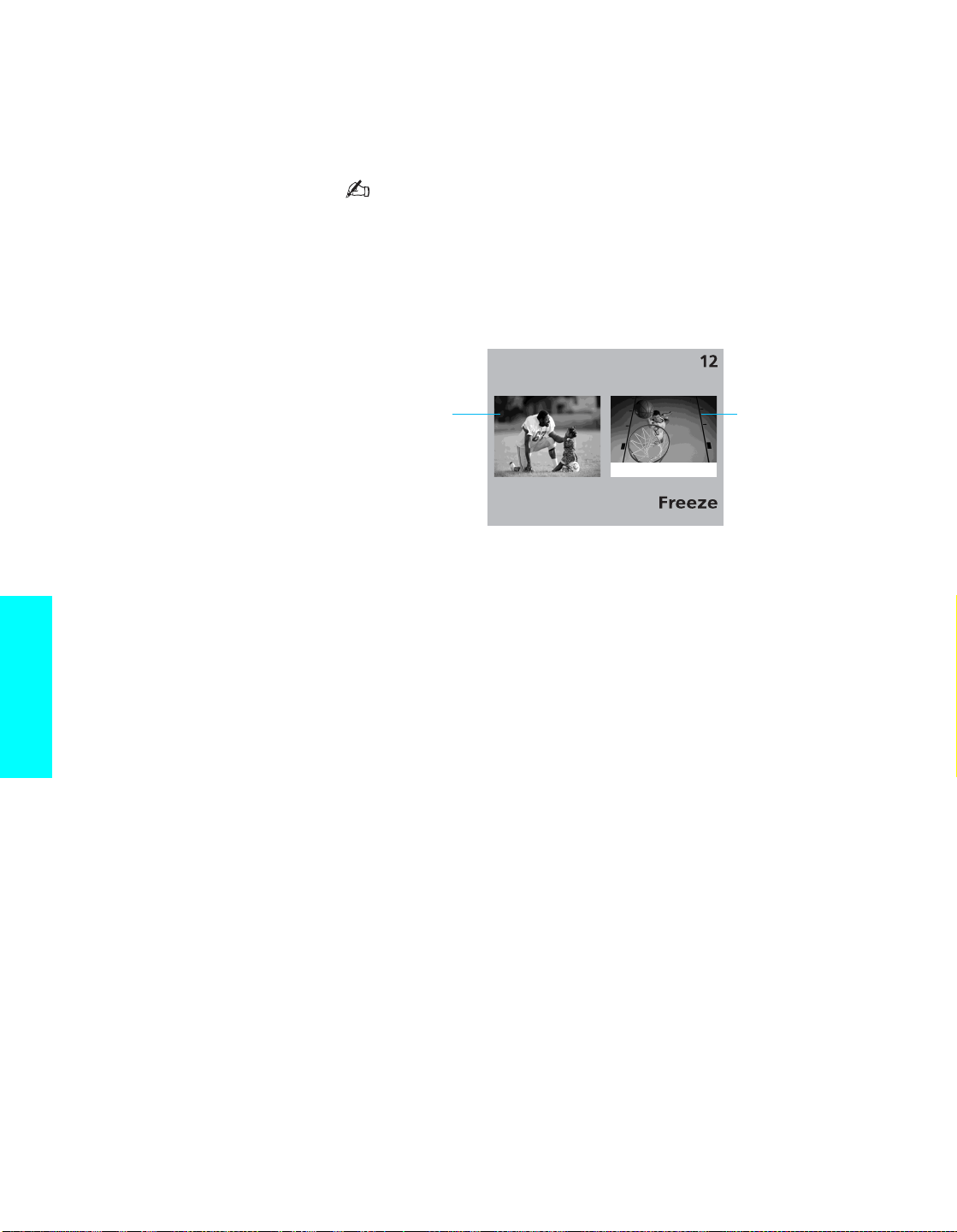

qj FREEZE Press to freeze the picture. Press again to restore the
picture. For details, see “Using the Freeze Function” on
page 66.
qk Press V v B b to move the on-screen cursor. To select an
item, press .
If FUNCTION is switched on SAT/CABLE or DVD/VCR
Transport
Buttons
m Rewind
H Play
x Stop
M Fast forward
X Pause
ql MEMORY
STICK
Press to display the Memory Stick Menu. For details, see
“Using the Memory Stick Picture Viewer” on page 68.
w; MTS/SAP Press repeatedly to cycle through the Multi-channel TV
Sound (MTS) options: Stereo, Auto SAP, and Mono. For
details on each option, see page 80.
wa CH +/– Press to scan through channels. To scan quickly through
channels, press and hold down either CH.
54
Remote Control
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to control
with the TV’s remote control, use the following procedure to program the
remote control.
The equipment must have infrared (IR) remote capability in
order to be used with the remote control.
1 Turn to the list of “Manufacturer’s Codes” on page 55, and find the
three-digit code number for the manufacturer of your equipment. (If
more than one code number is listed, use the number listed first.)
2 Press FUNCTION repeatedly until the DVD/VCR or SAT/CABLE
indicator lights up.
3 While the desired indicator is lit, enter the three-digit manufacturer’s
code number.
4 Press ENTER.
You must do step 4 within 10 seconds of step 3, or you must
redo steps 3 through 4.
5 To check if the code number works, aim the TV’s remote control at the
equipment and press POWER that corresponds with that equipment. If
it responds, you are done. If not, try using another code listed for that
manufacturer.
Notes
s If more than one code number is listed, try entering them one by one
until you come to the correct code for your equipment.
s If you enter a new code number, the code number you previously
entered at that setting is erased.
s In some cases, you may not be able to operate your equipment with the
supplied remote control. In such cases, use the equipment’s own remote
control unit.
s Whenever you remove the batteries to replace them, the code numbers
may revert to the factory setting and must be reset.
Sony Equipment Programmable Code Number
Beta, Ed Beta VCRs 303
8 mm VCR 302
VHS VCR 301
DVD player 751
55
Remote Control
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305,
338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LG 332
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Laserdisc Players
Olympic 309, 308
Optimus 327
Orion 317
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Manufacturer Code
Sony 701
Panasonic 704, 710
Pioneer 702
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 751
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Oritron 759
Panasonic 753
Philips 757
Pioneer 752
RCA/Proscan 755
Samsung 758
Toshiba 754
Zenith 760
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
56
Remote Control
Using Other Equipment with Your TV Remote Control
All Equipment
Operating a VCR
Operating a Satellite
Receiver
To Do This ... Do This ...
Switch the TV’s input to the VCR,
DVD player, or other connected
equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the TV’s
video inputs.
Set up the TV remote control to
operate non-Sony equipment
You must program the remote control the first
time you use it. See “Programming the Remote
Control” on page 54.
To Do This ... Press
Activate the remote control to
operate the VCR
FUNCTION repeatedly until the DVD/VCR
indicator lights up.
Change channels
CH +/–
Record and z REC simultaneously
Play
Stop x
Fast forward M
Rewind the tape m
Pause X
Search the picture forward or
backward
M or m during playback
(release to resume normal playback)
To Do This ... Press
Activate the remote control to
operate the satellite receiver
FUNCTION repeatedly until the SAT/CABLE
indicator lights up.
Turn on/off SAT/CABLE
Select a channel 0-9, ENTER
Change channels CH +/–
Back to previous channel JUMP
Display channel number DISPLAY
Display SAT Guide GUIDE
Display SAT Menu MENU
Move highlight (cursor) V v B b
Select item
57
Remote Control
Operating a Cable
Box
Operating a DVD
Player
Operating an MDP
(Laserdisc Player)
To Do This ... Press
Activate the remote control to
operate the cable box
FUNCTION repeatedly until the SAT/CABLE
indicator lights up.
Turn on/off SAT/CABLE
Select a channel 0-9, ENTER
Change channels CH +/–
Back to previous channel JUMP
To Do This ... Press
Activate the remote control to
operate the DVD
FUNCTION repeatedly until the DVD/VCR
indicator lights up.
Play
Stop x
Pause X
Step through different
tracks of the disc
M to step forward or m to step backward
Step through different chapters
of a video disc
CH+ to step forward or CH– to step backward
Display the DVD player Menu
(Setup)
MENU
Move highlight (cursor) V v B b
Select item
To Do This ... Press
Activate the remote control to
operate the MDP
FUNCTION repeatedly until the indicator of the
position you programmed for the MDP player
lights up.
Play
Stop x
Pause X
Search the picture forward or
backward
M or m during playback
(release to resume normal playback)
Search a chapter forward or
backward
CH +/–
60
Features
Watching TV
z
For a complete list of all
t
he functions of the remote
control, see page 52.
To Do This ... Do This ...
Activate the remote control to
operate the TV
Press FUNCTION repeatedly until the TV
indicator lights up.
Turn on/off the TV Press POWER
Tune directly to a channel Press 0-9 and then ENTER (or wait 3 seconds)
or
Press CH+/–
Adjust the volume Press VOL +/–
Mute the volume Press MUTING (press again to unmute)
Alternate back and forth between
two channels
Press JUMP
The TV alternates between the current channel
and the last channel tuned.
Display the current channel
number (and other information)
Press DISPLAY once to display the channel
number, current time, wide mode, and channel
label (if set).
Switch the TV’s input to the VCR,
DVD player, or other connected
equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the TV’s
video inputs.
Change video and audio options,
customize the TV’s setup, set
parental controls, and more
Press MENU to display the Menu. For details,
see “Using the Menus” on page 77.
Switch the TV’s input between
sources connected to the TV’s
VHF/UHF and AUX inputs
Press ANT to alternate between sources
connected to the TV’s VHF/UHF and AUX
inputs.
61
Features
Using Wide Mode
Wide Screen mode lets you watch 4:3 normal broadcasts in several Wide
Screen modes (16:9 aspect ratio).
z Wide Zoom is recommended for 4:3 picture to prevent image retention.
When viewing high-definition programs broadcast in
720p/1080i, it is not possible to change between Wide Screen
modes.
s Press WIDE repeatedly to toggle through the following Wide Mode
settings.
z You can also access the
Wide Mode settings in the
Screen menu. For details,
see page 82.
Wide Zoom enlarges the 4:3 picture,
while the upper and lower parts of
the picture are condensed to fit the
16:9 screen.
m
Normal returns the 4:3 picture to its
original size.
m
Full Mode stretches the 4:3 picture
horizontally only, to fill the 16:9
screen.
m
Zoom Mode enlarges the 4:3 picture
horizontally and vertically to an
equal aspect ratio that fills the 16:9
screen. Useful for watching
Letterbox movies.
Wide Zoom
Normal
Full
Zoom
z When you change
channels or inputs, the Wide
Mode settings revert to the 4:3
Default setting in the Screen
menu. To retain the current
Wide Mode setting as
channels and inputs are
changed, set 4:3 Default to
Off. For details, see page 83.
62
Features
Using Twin View
Twin View lets you see two pictures from two sources — from an antenna,
VCR, DVD, etc. — on the screen at the same time. You hear the sound from
only one of the sources at a time, but you can choose which source’s sound is
selected. You can also change the relative size of each of the pictures.
Using Twin View for an extended period of time may result in
image retention.
Displaying Twin
Pictures
1 Tune the TV to a working channel.
2 Press .
A second picture appears.
To cancel Twin View and watch the active picture
s Press or .
,
<
Factors Affecting Twin View
s If you use a cable box to view all channels, the same channel appears in both windows because the
cable box unscrambles only one channel at a time.
s If you use a cable box, you can view the cable box output in one window and view a different source
(such as a VCR or DVD player) in the second window by using TV/VIDEO. For details, see
“Connecting Optional Equipment” on page 29.
s Sources connected to the AUX, VIDEO 4, VIDEO 5, and VIDEO 6 inputs display in the left window,
but not the right.
s If you are viewing a 4:3 source and a 16:9 enhanced source (such as a DVD) side by side, the 4:3
source appears larger.
s Twin View does not display channels that are blocked by parental settings (see page 86).
63
Features
Activating the
Functions Available in the Active Window
To activate the picture in the
right window
s Press b.
To activate the picture in the left
window
s Press B.
To Do This ... Do This ...
Tune to a channel Press 0-9 and then ENTER (or wait 3 seconds)
or
Press CH+/–
Adjust the volume Press VOL +/–
Mute the volume Press MUTING (press again to unmute)
Switch
the TV’s input between
sources connected to the TV’s
A/V inputs
Press TV/VIDEO
Change the picture size Press V or v. (For details, see “Changing the
Picture Size” on page 64.)
,
<
64
Features
Changing the
Picture Size
The zoom feature lets you vary the relative size of the left and right pictures.
When you adjust the picture sizes, the TV memorizes the change. The next
time you use the Twin View function, the memorized sizes appear.
1 Press B or b to activate the picture that
you want to resize.
2 Press V to enlarge the picture.
3 Press v to make the picture smaller.
65
Features
Using Favorite Channels
The Favorite Channels feature lets you select programs from a list of up to
eight favorite channels that you specify.
Creating a List of
Favorite Channels
1 Press MENU to display the Menu.
2 Press B or b to highlight the Channel icon and press .
3 Press to select Favorite Channels.
4 Press to select Program.
5 Press V or v to highlight a Favorite Channel number (1-8) and press
.
6 Press V or v to highlight a channel you want to assign to the Favorite
Channel number. A preview of the highlighted channel appears in the
upper right of the screen. Press to select that channel as a Favorite
Channel.
7 To add more channels to your favorites list, repeat steps 5-6.
To clear a Favorite Channel, press V or v to highlight the channel you
want to clear. Press and then press RESET.
8 Press MENU to exit the Menu.
Displaying a List of
Favorite Channels
1 Press FAVORITES. The Favorite Channels list appears.
2 Press V or v to highlight the channel you want to watch.
A preview of the highlighted Favorite Channel appears.
3 Press to select the channel you want to watch.
The Favorite Channels list disappears after 90 seconds if you do not
operate the TV.
z For details on using the
Channel Menu, see page
84.
z To assign Channel
Labels (e.g., ABC, HBO,
MTV, etc.) to channel
numbers, as shown at right,
use the Channel Label
feature in the Channel
Menu (see page 85).
Favorites
10 ABC
20 HBO
36 MTV
6FOX
8CBS
37 COMED
40
9
Exit
Preview of
highlighted Favorite
Channel
Favorite Channels
66
Features
Using the Freeze Function
FREEZE allows you to temporarily capture a program’s picture. You can
use this feature to write down information such as phone numbers, recipes,
etc.
The Freeze feature is not available while you are using the Twin
View feature.
1 When the program information you want to capture is displayed, press
FREEZE.
2 The TV switches to Twin View mode and displays the “frozen” picture
on the right, while the current program continues on the left.
3 To cancel and return to normal viewing, press FREEZE (or just tune to
another channel).
The “frozen” picture disappears automatically after 5 minutes.
Call 555-1234
Current program
in progress
Frozen picture
67
Features
Using Picture Off
The Picture Off feature lets you enjoy music from radio programs of digital
broadcasts or DVDs with the TV screen turned off.
This feature turns off the display unit only.
1 Press PIC OFF.
The PICTURE OFF LED lights up in blue and the screen turns off.
To cancel and return to normal viewing, press any button except for
VOL +/–, POWER, MUTING and MTS/SAP.
68
Features
Using the Memory Stick Picture Viewer
About Memory Stick
Memory Stick (sold separately) is a new, compact, portable, and versatile
Integrated Circuit recording medium with a data capacity that exceeds that of
a floppy disk. Memory Stick is specially designed for exchanging and
sharing digital data among Memory Stick compatible products such as
digital cameras and digital video cameras. Because it is removable, Memory
Stick can also be used for external data storage.
You cannot write to Memory Stick media using the TV.
Memory Stick technology allows you to view on your TV screen digital
(jpeg) images that are stored on Memory Stick media. You can choose from
an index of the images stored on the Memory Stick, or you can run a
slideshow of those images. You can also customize the features of the
slideshow by selecting the length of time that each image is displayed,
toggling the display of file information, and rotating each image.
For more information about the using Memory Stick media, see “Notes on
Using Memory Stick Media” on page 95.
Supported Image
Types
This TV’s Memory Stick viewer can display only still images that have been
recorded on Memory Stick media by Sony brand digital still and video
cameras.
The TV’s Memory Stick viewer is compatible with Memory
Sticks up to and including 128MB. It is not compatible with
Memory Sticks that exceed 128MB.
Recorded images must also meet the following specifications:
s Compression format: JPEG
s File name format: DCF compliant
JPEG stands for “Joint Photographic Experts Group,” which is
the organization that implemented this format. DCF stands for
“Design Rules for Camera File Systems,” which are
specifications established by the Japan Electronic Industry
Development Association (JEIDA).
69
Features
About DCF File Names
Most Sony brand digital still and video cameras automatically record still
images using DCF compliant directory and file names, as shown in the
following example:
Do not rename directories. If the names are changed, the still
images cannot be displayed on your TV.
Unsupported Image
Types
This TV’s Memory Stick viewer cannot display any of the following:
s Images recorded on digital still cameras and digital video cameras that
are not Sony brand
s Images recorded using products that are not DCF compliant, including
the following Sony products:
s Images stored on a Memory Stick that have a capacity that exceeds
128MB
s Images stored in TIFF or any other non-JPEG compression format
s Images in directories that were modified or renamed on a computer
s Images with less than 16 horizontal and/or vertical lines per dot
s Images with more than 4096 horizontal and/or vertical lines per dot
s Movie clips
Image Directory Name
Image File Names
Digital still cameras DSC-D700, DSC-D770
Digital video cameras DCR-TRV900/DSR-PD100A
70
Features
Inserting and
Removing a Memory
Stick
To insert a Memory Stick
1 Locate the Memory Stick slot (see page 17) and insert the Memory Stick
into the Memory Stick slot as illustrated below. When inserted properly,
it should slide in with little resistance and click into place.
.
Be sure to insert the Memory Stick in the correct direction. If
the Memory Stick is forced in the wrong way, it may become
damaged.
Insert only Memory Stick media into the Memory Stick slot.
Attempting to insert other objects into the slot may damage the TV.
To remove a Memory Stick
1 Check that the Memory Stick indicator is off. (When the light is on, this
indicates that the TV is reading data from the Memory Stick.)
2 Push the Memory Stick gently into the slot, and then release it. The
Memory Stick media is ejected.
CHANNEL
+
CHANNEL
–
VOL
–
VOL
+
INPUT SELECT
MTS/SAP
–AUDIO–
O
LR
EO IN 2
CHANNEL
+
CHANNEL
–
VOL
–
VOL
+
INPUT SELECT
MTS/SAP
–AUDIO–
O
LR
E
O IN 2
z When removing the
Memory Stick, do not
attempt to just pull it from
its slot. Follow steps 1-3
(right).
CHANNEL
+
CHANNEL
–
VOL
–
VOL
+
INPUT SELECT
MTS/SAP
–AUDIO–
O
LR
EO IN 2
CHANNEL
+
CHANNEL
–
VOL
–
VOL
+
INPUT SELECT
MTS/SAP
–AUDIO–
O
LR
EO IN 2
CHANNEL
+
CHANNEL
–
VOL
–
VOL
+
INPUT SELECT
MTS/SAP
–AUDIO–
O
LR
EO IN 2
71
Features
3 Pull the Memory Stick completely out of the slot.
To protect small children from injury from Memory Stick Media,
remove all Memory Stick media from the TV’s Memory Stick slot
and store it in a safe location when it is not in use.
72
Features
Displaying the
Memory Stick Menu
1 Insert a Memory Stick that contains the images you want to view. For
details, see page 70.
2 Press MEMORY STICK on the remote control. The Memory Stick
Menu appears.
3 To select an option, press V or v to highlight the option and press .
4 To exit the Memory Stick Menu, press CH +/–, TV/VIDEO, ANT,
MEMORY STICK again or use 0-9 and ENTER (or wait 3 seconds) to
select a channel.
Memory Stick functions are not available while using Twin View,
Freeze or Favorite Channel functions.
If still images are displayed for an extended period of time,
image retention may result due to the characteristics of the
Plasma Display Panel. Reduce Brightness when displaying
Memory Stick images, since brighter images cause more image
retention. This does not prevent image retention completely
however, so avoid displaying still images for an extended
period of time.
Option Description
Index Displays an index of thumbnail images that are on the
Memory Stick. For details, see “Using the Memory Stick
Index” on page 73.
Slideshow Displays a slideshow of images that are on the Memory
Stick. For details, see “Using the Memory Stick
Slideshow” on page 74.
Setup Allows you to change slideshow options and rotate
images. For details, see “Changing the Memory Stick
Setup Options” on page 74.
Memory Stick
Index
Slideshow
Setup
S
elect:
Move:
V v
73
Features
Using the Memory
Stick Index
The Memory Stick Index lets you view images that are on the Memory Stick
in an index of thumbnail images.
There is no audio signal available while viewing images on
Memory Stick.
1 Insert a Memory Stick that contains the images you want to view. For
details, see page 70.
2 Press MEMORY STICK on the remote control. The Memory Stick
Menu appears.
3 Press V v B b to highlight Index and press . The Memory Stick
Index appears.
The Memory Stick Index disappears after 5 minutes if you do not
operate the TV.
4 Press V v B b to highlight an image and press to select the image.
Selecting an image displays that image at full size. While an image is
displayed full size, you can do any of the following:
5 To return to the Memory Stick Menu, press V v B b to highlight
Menu and press .
If a blank square appears instead of a thumbnail image, this
indicates that the image does not support a thumbnail view.
Selecting the icon, however, displays the full-size image on the
screen. It could also indicate that both the thumbnail and full-
size images are corrupted or not supported.
z The Page and folder
( ) buttons are available
only if the Memory Stick
contains more images or
folders than can be
displayed on one screen.
To Do This ... Do This ...
Display the previous image Press B.
Display the next image Press b. If you press b while viewing the
last image, the first image is displayed. If
you press B while viewing the first image,
the last image is displayed.
Display the Memory Stick Index Press .
Memory Stick Index
Filename: DSC00004 Ima
g
e: 12/25
4
Date & Time: 4/12
/
2001 6:43P
M
Picture Size: 640x480
S
elect:
Move:
V v B b
Directory Name: 900MSDCF Page 1/42
Menu
J
Page -
-
Page
+
+
The selected image is
highlighted in yellow
Information about the
selected image
z Larger images will take
longer to display on
screen.
J
74
Features
Using the Memory
Stick Slideshow
The Memory Stick Slideshow lets you watch a slideshow of the images that
are on the Memory Stick.
1 Insert a Memory Stick that contains the images you want to view. For
details, see page 70.
2 Press MEMORY STICK on the remote control. The Memory Stick
Menu appears.
3 Press V v B b to highlight Slideshow and press . The slideshow
starts.
4 To end the slideshow, press . The Memory Stick Menu is displayed.
Changing the
Memory Stick Setup
Options
1 Press MEMORY STICK on the remote control. The Memory Stick
Menu appears.
2 Press V v B b to highlight Setup and press . The Memory Stick
Setup Menu appears.
3 Press V v B b to highlight an option and press .
4 Press b (or press ) to change settings. Press B (or press ) to select
the changed setting.
5 To exit the Memory Stick Setup Menu, press V v B b to highlight
Menu
and press .
Option Description
Menu Returns to the Memory Stick Menu.
Slideshow –
Interval
Decrease or increase the length of time that each image is
displayed: 5 seconds, 10 seconds, 1 minute, 5 minutes, or
15 minutes.
Slideshow –
Repeat
Select On to set the slideshow to repeat after displaying all
the images recorded on the Memory Stick. Select Off to
not repeat the slideshow.
File Information Select On to show file information of each image while
that image is being displayed.
Rotate Picture Displays the Rotate Picture screen. For details, see “Using
the Rotate Picture Screen” on page 75.
Memory Stick Setup
Menu
Slideshow - Interval: 5 sec
Slideshow - Repeat: On
File Information: On
Rotate Picture
J
S
elect:
S
Move: V v B b
J
75
Features
Using the Rotate
Picture Screen
The Rotate Picture Screen lets you rotate an image from an index of
thumbnails.
You cannot rotate images if the LOCK switch on the Memory
Stick is on. To rotate the images, first set the LOCK switch to
off.
1 In the Memory Stick Setup Menu, press V v B b to highlight Rotate
Picture and press . The Rotate Picture screen appears.
2 Press V v B b to highlight an image that you want to rotate.
3 Press to rotate an image 90 degrees in a clockwise direction.
4 To return to the Memory Stick Setup Menu, press V v B b to highlight
Menu and press .
If a blank square appears instead of the thumbnail image, this
indicates that the image does not support a thumbnail view and
cannot be rotated.
z The Page and folder
( ) buttons are available
only if the Memory Stick
contains more images or
folders than can be
displayed on one screen.
Rotate Picture
Filename: DSC00004 Ima
g
e: 12/25
4
Date & Time: 4/27
/
2001 6:43P
M
Picture Size: 640x480
S
elect:
Move:
V v B b
Directory Name: 900MSDCF Page 1/42
Menu
J
Page -
-
Page
+
+
J
77

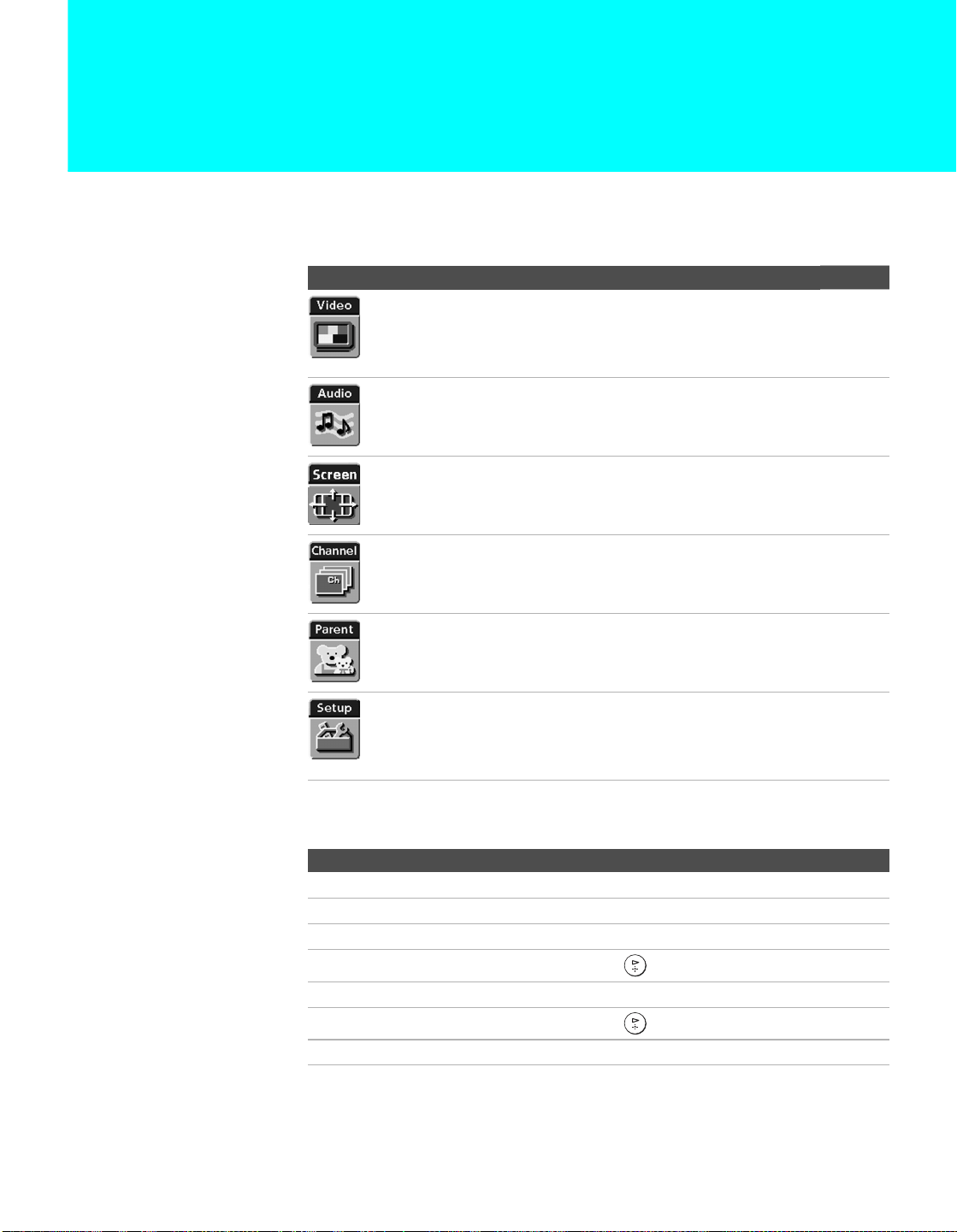

Using the Menus
Overview
The Menu gives you access to the following features:
Navigating Through Menus
Menu Icon Description Page
Allows you to make adjustments to your picture settings. It
also allows you to customize the Picture Mode based on
the type of program you are viewing, select Advanced
Video options, and more.
78
Offers enhanced audio options such as listening to second
audio programming (SAP) or customizing the Effect of the
sound on your TV.
80

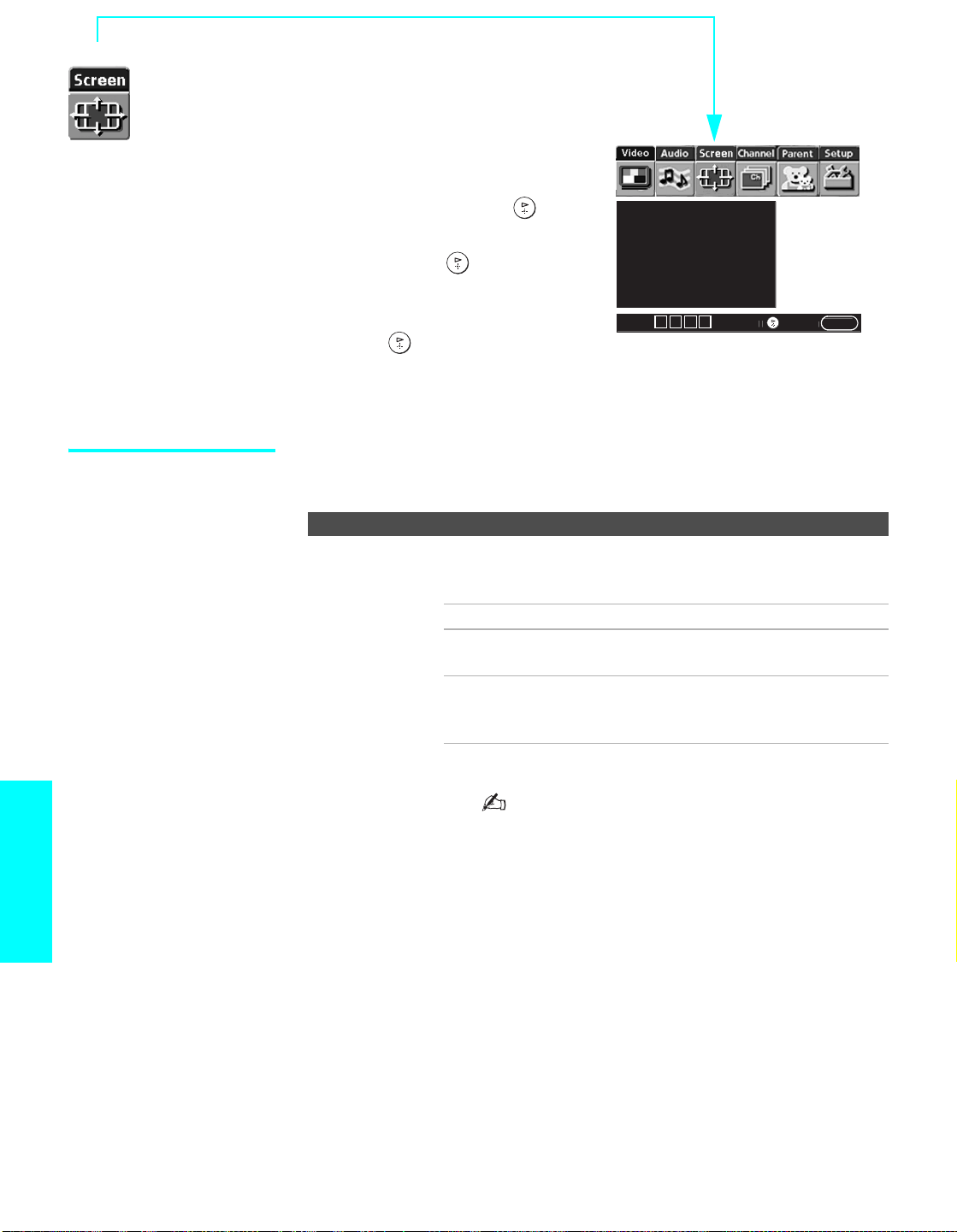

Allows you to make Wide Mode adjustments and make
changes to the screen’s vertical center.
82
Allows you to set up a Favorite Channel list, run the Auto
Program function, skip and label channels, and more.
84
Lets you control the viewing of programs based on their
ratings.
86
Provides options for setting up your system, including
setting the Timer, selecting closed caption modes, labeling
video inputs, selecting the language of the on-screen
menus, and more.
89
z Press MENU to enter
and exit Menus.
To Do This ... Press
Display the Menu MENU
Move through the Menus B b
Move through the Menu options V v
Select an option to change
Change an option’s settings V v B b
Select (confirm) changed setting or B
Exit the Menu MENU
z Menus include
navigation help text that
appears at the bottom of
each Menu.
78
Menus
Using the Video Menu
To select the Video Menu
1 Press MENU.
2 Press B or b to highlight the
Video icon and press .
3 Press V v B b to highlight an
option. Press to select an
option.
4 Press V v B b to change settings.
Press to select the changed
setting.
5 Press MENU to exit the Menu.
To restore the factory default settings for the Video settings (excluding
Advanced Video) of the Mode (Vivid, Standard, etc.) the TV is set to:
s Press RESET on the remote control when in the Video Menu.
Selecting Video
Options
The Video Menu includes the following options:
Mode: Vivid
Brightness
Color
Hue
Sharpness
Color Temp.: Cool
NR: High
DRC Function
S
elec
t
:
En
d
:
MENU
Move:
V v B b
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings.
Pro Select for professional monitor like appearance
settings.
Mild Select for a natural, soft picture.
Picture Adjust to increase picture contrast and deepen the color, or decrease
picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Color Temp.
White intensity
adjustment
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint.
z To change from one
Mode to another, use
PICTURE on the remote
control.
z You can alter the Video
Menu settings (Picture,
Brightness, Color, etc.) for
each Mode.
z To prevent image
retention, do not use the
Vivid mode for a long time.
79
Menus
NR
Noise
Reduction
Select to reduce the noise level of connected equipment. It is also
effective on the signal from the VHF/UHF jack. Select from High,
Medium, Low, Off.
DRC
Function
Select Program to choose among the DRC Mode and DRC Palette
options while viewing NTSC sources.
DRC Mode Creates a high-resolution picture with 4x density, for
high quality sources (i.e., DVD player, satellite
receiver).
High Dens. Recommended for moving pictures.
Progressive Recommended for still images and
text.
CineMotion Provides an optimized display by
automatically detecting film content
and applying a reverse 3/2 pulldown
process. Moving pictures will appear
clearer and more natural-looking.
DRC Palette Allows you to customize the level of detail (Reality)
and smoothness (Clarity) for up to three input
sources. For example, you can create one Custom
setting to optimize your cable input’s picture, and
create another to optimize your DVD player’s
picture. You can switch among the three Custom
settings in the menu.
1 Press V v B b to highlight Custom 1, Custom
2, or Custom 3 and then press . The DRC
palette appears.
2 Press V v B b to adjust the position of the
marker ( ). As you move the higher along
the Reality axis, the picture becomes more
detailed. As you move the to the right, along
the Clarity axis, the picture becomes smoother.
3 To save the setting, press .
To return the Custom options to the default factory
settings, press RESET.
Option Description
z DRC Function options
are not available (grayed
out) when watching 480p,
720p, and 1080i sources.
Clarity [ 1]
Reality
[25]
Custom 1
z For best results, adjust
the Reality by pressing V v
until you are satisfied with
the level of detail. Then
adjust the Clarity by
pressing B b until you
have a smooth image.
80
Menus

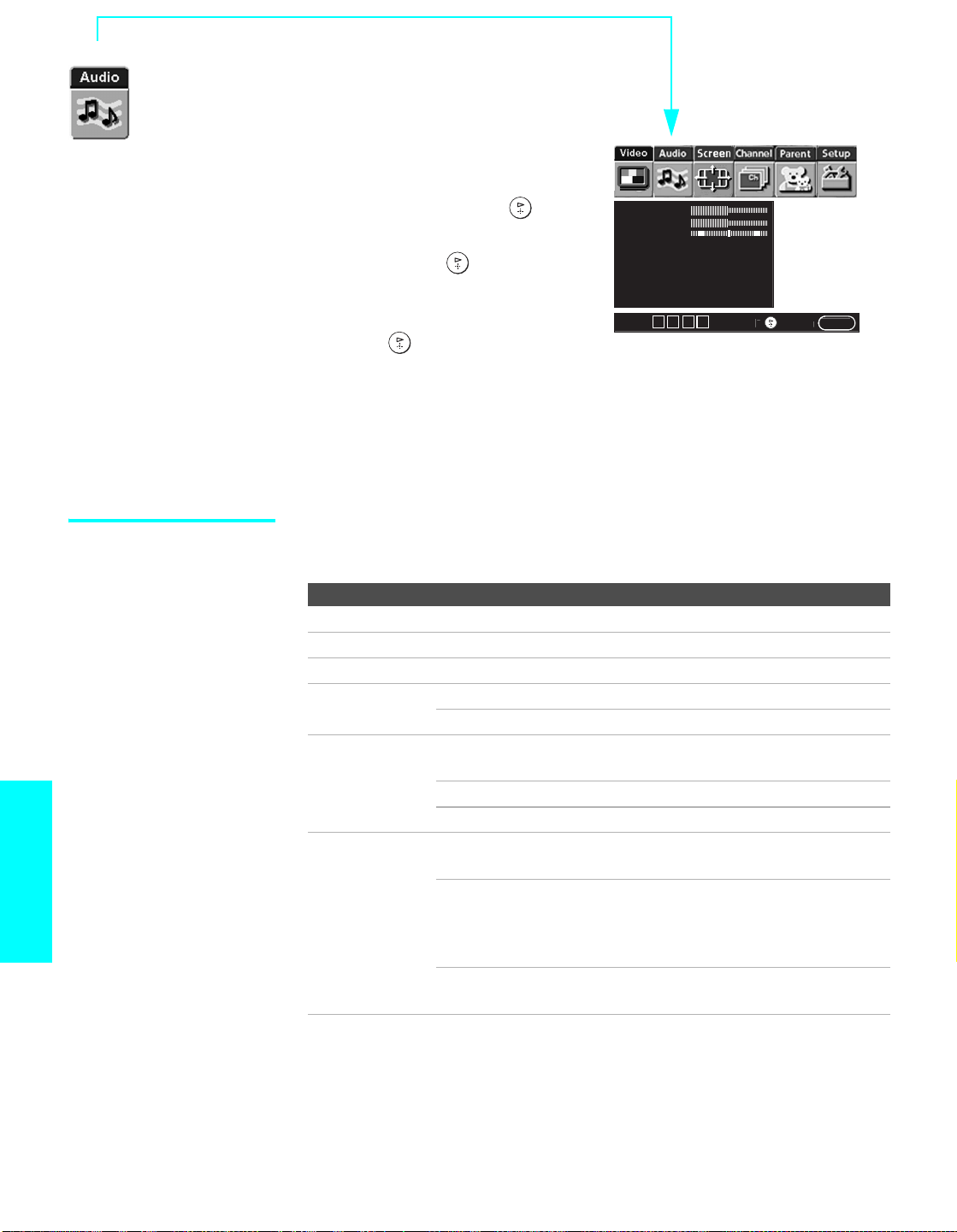

Using the Audio Menu
To select the Audio Menu
1 Press MENU.
2 Press B or b to highlight the
Audio icon and press .
3 Press V v B b to highlight an
option. Press to select an
option.
4 Press V v B b to change settings.
Press to select the changed
setting.
5 Press MENU to exit the Menu.
To restore the factory default settings for Treble, Bass, and Balance
s Press RESET on the remote control when in the Audio Menu.
Selecting Audio
Options
The Audio Menu includes the following options:
Treble
Bass
Balance
Steady Sound: Off
Effect: Simulated
MTS: Stereo
Speaker: On
Audio Out: Fixed
S
elec
t
:
En
d
:
MENU
Move:
V v B b
Option Description
Treble Adjust to decrease or increase higher-pitched sounds.
Bass Adjust to decrease or increase lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady Sound Auto Select to stabilize the volume.
Off Select to turn off Steady Sound.
Effect TruSurround Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
Off Normal stereo or mono reception.
MTS
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a
program broadcast in stereo.
Auto SAP Select to automatically switch the TV to second
audio programs when a signal is received. (If no
SAP signal is present, the TV remains in Stereo
mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
z To change quickly from
one MTS to another, use
MTS/SAP on the remote
control.
81
Menus
Speaker On Select to turn on the TV speakers.
Off Select to turn off the TV speakers and listen to the
TV’s sound only through your external audio
system speakers.
Audio Out
Easy control of
volume
adjustments
This option can be set only when the Speaker option is set to
Off.
Variable The TV’s speakers are turned off, but the audio
output from your audio system can still be
controlled by the TV’s remote control.
Fixed The TV’s speakers are turned off and the audio
output of the TV is fixed. Use your audio
receiver’s remote control to adjust the volume
(and other audio settings) through your audio
system.
Option Description
82
Menus
Using the Screen Menu
To select the Screen Menu
1 Press MENU.
2 Press B or b to move to the
Screen icon and press .
3 Press V or v to move to an
option. Press to select an
option.
4 Press B b V v to change settings.
Press to select the changed
setting.
5 Press MENU to exit the Menu.
Selecting Screen
Mode Options
The Screen menu includes the following options:
Wide Mode: Wide Zoom
4:3 Default: Wide Zoom
Vertical Center
Vertical Size
S
elec
t
:
En
d
:
MENU
Move:
V v B b
Screen Saver
Option Description
Wide Mode
Select a Wide
Mode to use for
4:3 sources.
Wide Zoom Select to enlarge the 4:3 size picture, while the
upper and lower parts of the picture are
condensed to fit the wide screen.
Normal Select to return the 4:3 picture to normal mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Wide Mode is unavailable while in Twin View, or when
viewing HD (1080i, 720p) sources.
In some cases, wide-screen programs will be
shown in aspect ratios that require the
display of black bands at the top and bottom
of your 16:9 screen. For more details, see
page 98.
z To change from one
Wide Mode to another,
use WIDE on the remote
control.
z Wide Zoom is
recommended for 4:3
picture to prevent image
retention.
z For Wide Zoom and
Zoom modes, you can
adjust the vertical position
and size of the picture. For
details, see page 83.
83
Menus
4:3 Default
Select the default
Screen Mode to
use for 4:3 sources
Wide Zoom Select to enlarge the 4:3 size picture, while the
upper and lower parts of the picture are
condensed to fit the wide screen.
Normal Select to return the 4:3 picture to normal mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Off Select to continue using the current Wide Mode
setting when the channel or input is changed.
Vertical Center Allows you to move the position of the picture up and down in
the window. (Available only in Wide Zoom and Zoom modes.)
Press V or v and press to choose a correction between +15
and –15 (Zoom mode), and +5 and –5 (Wide Zoom mode).
Vertical Size Allows you to adjust the vertical size of the picture. (Available
only in Wide Zoom and Zoom modes.)
Press V or v and press to choose a correction between +7
and –7.
Screen Saver Orbit Moves the picture position to reduce image
retention. This does not prevent image retention
completely if the same picture is displayed for
an extended period of time.
All White Displays a white screen to reduce image
retention.
Option Description
z
If 4:3 Default is set to
anything but Off, the Wide
Mode setting changes only
for the current channel.
When you change
channels (or inputs), Wide
Mode is automatically
replaced with the 4:3
Default setting. To retain
the current Wide Mode
setting as channels and
inputs are changed, set
4:3 Default to Off.
84
Menus
Using the Channel Menu
To select the Channel Menu
1 Press MENU.
2 Press B or b to highlight the
Channel icon and press .
3 Press V v B b to highlight an
option. Press to select an
option.
4 Press V v B b to change settings.
Press to select the changed
setting.
5 Press MENU to exit the Menu.
Selecting Channel
Options
The Channel Menu includes the following options:
Favorite Channels
Cable: On
Channel Fix: Off
Auto Program
Channel Skip/Add
Channel Label
S
elec
t
:
En
d
:
MENU
Move:
V v B b
Option Description
Favorite
Channels
Lets you set up a list of your favorite channels. For details, see
“Using Favorite Channels” on page 65.
Cable On Select if you are receiving cable channels with a
CATV cable.
Off Select if you are using an antenna.
You should run Auto Program after changing
this option.
Channel Fix
Useful when you
have a cable box
or satellite
receiver connected
Off Turns off Channel Fix.
2-6 “Fix” your TV’s channel setting to 2-6 and use
the cable box or satellite receiver to change
channels. Select one of these settings if you
connected the equipment to the VHF/UHF jack.
AUX 2-6 Same as 2-6, except you select one of these
settings if you connected the equipment to the
AUX jack (see page 18).
Video 1 Use this setting if you have connected the
equipment to the A/V input jacks.
Auto Program Automatically sets up the channel list on the TV for all
receivable channels.
85
Menus
Channel
Skip/Add
Allows you to customize the channel list that appears when you
use the CH+/– buttons.
1 Press V or v to scroll through the channels until you find
the channel you want to skip or add. Then press to
select it.
2 Press V or v to toggle between Add or Skip. Then press
to select.
3 To add or skip more channels, repeat steps 1 and 2.
4 Press B to return to the Channel Menu, or press MENU to
exit the Menus.
Depending on reception condition, the digital
TV broadcast channel may be presettable.
In this case, set the channel to be skipped.
Channel Label Allows you to assign labels (such as station call letters) to
channel numbers. You can label up to 20 channels.
1 Press V v B b to highlight Channel and press .
2 Press V v to scroll through the channel numbers (1-125).
Then press to select the channel number that you want
to assign a label.
3 Press V v B b to highlight Label and press .
4 Press V v to scroll through the label characters (A-Z, 0-9,
etc.). Then press to select the highlighted character.
5 Repeat to add up to 5 characters to the label.
6 To assign labels to more channels, repeat steps 1-4.
7 Press B to return to the Channel Menu, or press MENU to
exit the Menus.
Option Description
z Channels that you set
to be skipped can be
accessed only with the
0-9 buttons.
z Channel Label is not
available (grayed out)
when watching 480p,
720p, and 1080i sources.
86
Menus
Using the Parent Menu
The Parent Menu allows you to set
up the TV to block programs
according to their content and rating
levels.
To select the Parent Menu
1 Press MENU.
2 Press B or b to highlight the
Parent icon and press .
3 Use 0-9 on the remote control to enter a four-digit password.
4 If this is the first time you are creating this password, confirm the
password by entering it again. (The Parent Menu options appear.)
5 Press V v B b to change settings. Press to select the changed
setting.
6 Press MENU to exit the Menu.
You need your password for any future access into the Parent
Menu. If you lose your password, see “Lost password” on page
100.
Selecting Parent
Options
The Parent Menu includes the following options:
Password:
_ _ _ _
Press + to enter
password
S
elec
t
:
En
d
:
MENU
Move: V v B b
Option Description
Parental Lock
Turn ratings on/off
and select a rating
system
Off Parental lock is off. No programs are blocked
from viewing.
Child Maximum ratings permitted are:
s US: TV-Y, TV-G, G
s Canada: C, G, TV-Y
Yo u th Maximum ratings permitted are:
s US: TV-PG, PG
s Canada: C8+, PG, 8 ans+, TV-PG
Y. Adult Maximum ratings permitted are:
s US: TV-14, PG-13
s Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
s US: See page 87 for details.
s Canada: See page 88 for details.
Change
Password
For changing your password.
Select Country U.S.A. Select to use USA ratings (see page 87).
Canada Select to use Canadian ratings (see page 88).
z If you are not familiar
with the Parental Guideline
rating system, you should
select Child, Yo u t h , or
Y. Adult to help simplify the
rating selection. To set
more specific ratings,
select Custom.
z
For descriptions of
Child, Yo u t h, and Y. Ad ul t
ratings, see page 87.
87
Menus
US Models:
Selecting Custom
Rating Options
For US models, the Custom Rating Menu includes the following options.
(For Canadian models, see page 88.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press ENTER
when tuned to a blocked program, then enter the password. This temporarily
switches off the Parental Lock. To reactivate the Parental Lock settings, turn
off the TV. When the TV is turned on again, your Parental Lock settings are
reactivated.
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is suggested
for children under 17.
NC-17
and X
No one 17 or under allowed.
TV Rating
Block programs by
their rating,
content or both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Ratings
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
Unrated
Block programs or
movies that are
broadcast without
a rating
Allow Allows programs and movies that are broadcast
without a rating.
Block Blocks all programs and movies that are broadcast
without a rating.
z The Content-Based
Ratings are linked to the
level of the Age-Based
Rating. For example, a
program with an Age-
Based Rating of TV-PG V
(Violence) rating may
contain moderate
violence, while a TV-14 V
(Violence) rating may
contain more intense
violence.
z To ensure maximum
blocking capability, set the
Age-Based Ratings.
z If you block unrated TV
programs, be aware that
the following types of
programs may be blocked:
programs broadcast from
another country,
emergency broadcasts,
political programs, sports,
news, public service
announcements, religious
programs and weather.
88
Menus
Canadian Models:
Selecting Custom
Rating Options
For Canadian models, the Custom Rating Menu includes the following
options. (For US models, see page 87
.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press ENTER
when tuned to a blocked program, then enter the password. This temporarily
switches off the Parental Lock. To reactivate the Parental Lock settings, turn
off the TV. When the TV is turned on again, your Parental Lock settings are
reactivated.
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 87 for details.
89
Menus
Using the Setup Menu
To select the Setup Menu
1 Press MENU.
2 Press B or b to highlight the
Setup icon and press .
3 Press V v B b to highlight an
option. Press to select an
option.
4 Press V v B b to change
settings. Press to select the
changed setting.
5 Press MENU to exit the Menu.
Selecting Setup
Options
The Setup Menu includes the following options:
z To move from within one
Menu to the main Menu of
icons, press B.
Clock/Timers
Caption Vision: Off
Illuminated
Video Label
Select: End: MENU
Move: V v B b
Game Picture
Language: English
Option Description
Clock/Timers Lets you set the clock on your TV and allows you to program
your TV for scheduled viewing using the Timers.
Sleep Allows you to select the time in
minutes (15, 30, 45, 60, or 90) that you
want the TV to remain on before
shutting off automatically.
Timer 1 & 2 You can use the Timers to program the
TV to turn on and off and tune to a
specific channel at two scheduled
viewing times.
Timer 1 & 2 are not available to be set
until you set the Current Time.
1 Press V or v to highlight Timer 1
or Timer 2. To set the timer, press
b.
2 Press V or v to highlight one of
the following options, then press
.
Program: Select to set the Timer
by day, time, duration, and
channel.
Off: Select to turn off the Timer.
(Your previous settings are
saved.)
z To go directly to
programming Timer 1 or 2,
press instead of
pressing b.
(Continued)
90
Menus
3 If you selected Program in step
2, press V and v to set the day(s),
hour, minute, duration, and
channel number. Press or
press b to confirm each setting
and move to the next setting.
Press B to go back to the previous
setting.
4 Press MENU to exit the Menu.
An LED on the front panel will
light, indicating the timer has
been set.
Current Time
1 Press V and v to highlight
Current Time and then press
.
2 Press V and v to set the current
time (day, hour, and minute).
Press (or press b) to confirm
each setting and move to the next
setting. Press B to go back to the
previous setting.
3 Press MENU to exit the Menu.
Caption Vision Allows you to select from three closed caption modes (for
programs that are broadcast with closed caption).
Off Turns off Caption Vision.
CC1-CC4 Displays a printed version of the dialog
or sound effects of a program. (Should
be set to CC1 for most programs.)
Text1- Text4 Displays network/station information
presented using either half or the whole
screen (if available). For closed
captioning, set to CC1.
Info Displays the program name and the
time remaining in the program (if the
broadcaster offers this service).
Displays when the channel is changed
or DISPLAY is pressed.
Illuminated Allows you to illuminate the Sony logo on the front panel of the
display unit.
Ye s Illuminates the Sony logo while the
power is turned on.
No Illuminates the Sony logo only when
the power is switched to on or off.
Option Description
91
Menus
Video Label Allows you to identify A/V equipment you connected to the TV,
such as a VCR, DVD, etc. For example, if you have a DVD
player connected to the VIDEO 4 jack, you can select the label
DVD for the VIDEO 4 input. Then when you press TV/VIDEO
to change inputs, the Video Label you assigned to that input
appears on screen.
1 Press V or v to highlight the video input (VIDEO 1-6) to
which you want to assign a label. Then press to select
the input.
2 Press V or v to highlight one of the displayed labels. Then
press to select the label.
You can select from the following labels for each input:
Video 1-3 VHS, DVD, Receiver, Satellite,
Cable Box, 8mm, DTV, Game, LD,
Web, Beta, Skip
Video 4-6 DVD, Satellite, Cable Box, DTV,
HD, Game, Skip
If you select Skip, your TV skips this input
when you press the TV/VIDEO button.
Game Picture Allows you to move the position of the picture left and right in
the window. (Available for the picture of connected equipment.)
Select while watching the picture to be adjusted. The TV stores
the position in memory for each input.
Language Select to display all on-screen Menus in your language of
choice.
Option Description
z When selecting Game,
or Web, the TV decreases
brightness to prevent
image retention.
z The Skip label is useful
for inputs that do not have
equipment connected to
them.
94
Other Info

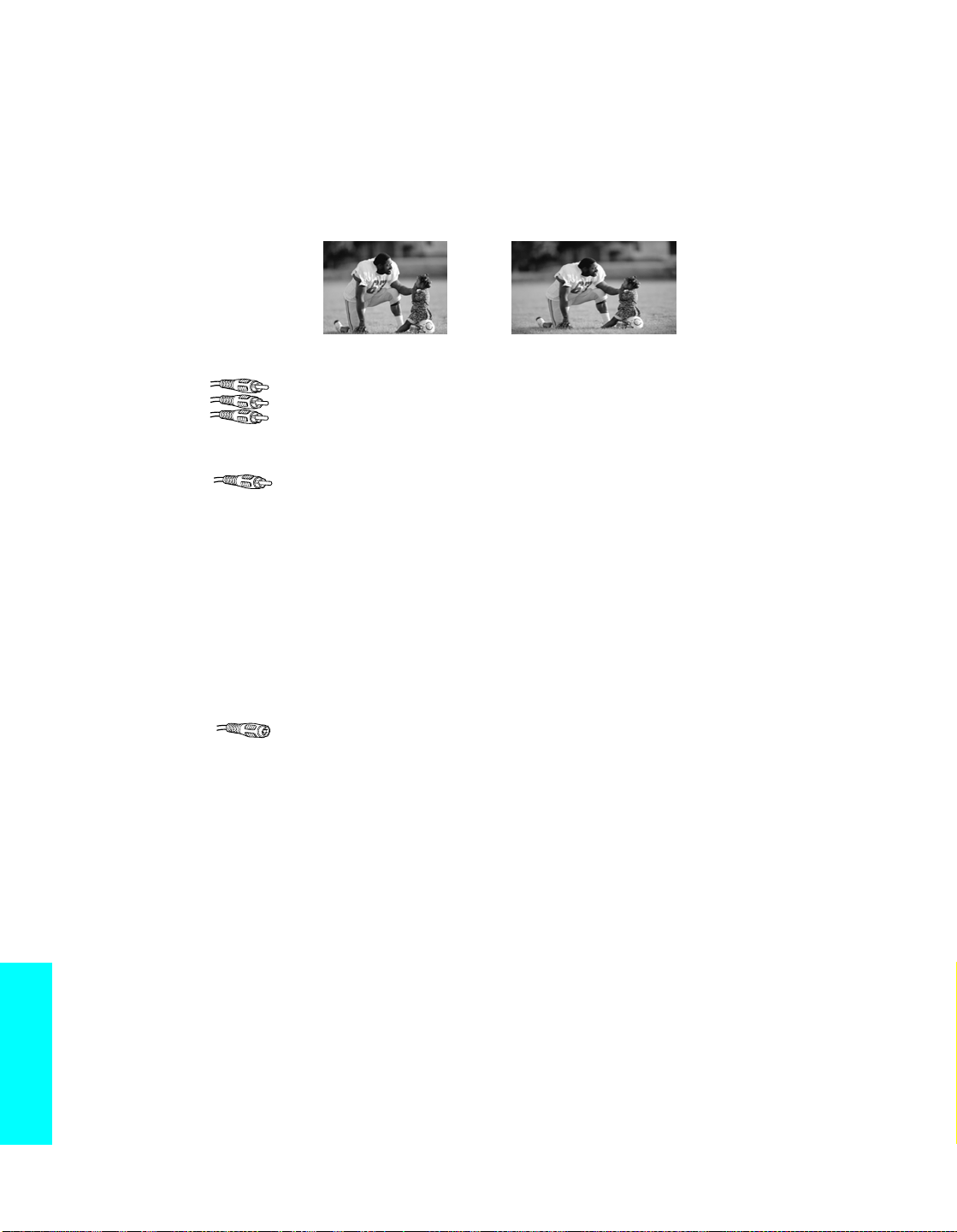

Glossary
analog signal A signaling method that uses continuous changes in the amplitude or frequency of an
electronic transmission to convey information.
aspect ratio Refers to the ratio between the width and height of the screen. This TV has a 16:9
(widescreen) aspect ratio, as opposed to a 4:3 aspect ratio.
component video Component video is sent through three cables: two color shade (chrominance) signals
and one brightness (luminance) signal. Component video achieves greater color
accuracy than composite video or S VIDEO by splitting chrominance into two
separate portions.
composite video Composite video is sent through a single cable. Composite video combines the color
shade (chrominance) and brightness (luminance) information into one video signal.
digital television (DTV) A new technology for transmitting and receiving broadcast television signals. DTV
provides higher resolution and improved sound quality over analog television.
National Television
System Committee
(NTSC)
A unit of the Federal Communications Commission, Washington, DC, that
establishes television standards in the United States, such as NTSC Color, the
standard used in this TV.
RF Radio Frequency. That part of the frequency spectrum in which it is possible to
radiate (transmit) electromagnetic waves.
S VIDEO S VIDEO requires a single cable, which carries the brightness (luminance) and color
(chrominance) signals of the picture separately. S VIDEO provides better resolution
than composite video, which carries the signals together.
VHF/UHF VHF (Very High Frequency) is the part of the radio spectrum from 30 to 300
megahertz. UHF (Ultra High Frequency) is the part of the radio spectrum from 300 to
3,000 megahertz.
480i Provides 480 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the TV screen and then the even lines.
480p Provides 480 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
720p Provides 720 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the TV screen and then the even lines. 1080i is one
of the formats used by HDTV (High Definition TV).
4:3 aspect ratio
16:9 aspect ratio
95
Other Info
Notes on Using Memory Stick Media
Memory Stick
Precautions
When using Memory Stick media, follow these precautions:
s To avoid permanent damage to still image data, do not turn off the TV or
remove Memory Stick media from the insertion slot while data is being
read (as indicated by the Memory Stick indicator light being on).
s Avoid touching the terminal of Memory Stick media or bringing it into
contact with a metal object.
s Do not drop, bend, or submit Memory Stick media to external shock.
s Do not disassemble or modify Memory Stick media.
s Avoid getting liquid on Memory Stick media.
s Apply labels only within the designated label area.
s To avoid permanent damage to still image data, do not use or store
Memory Stick media in a location subject to:
s High temperature (such as near a heater or inside a hot car)
s High humidity
s Direct sunlight
s Corrosive substances
s Magnetic fields
s Excessive dust
s Static electricity or electric noise
s Store and carry Memory Stick media in its original case to ensure
protection of stored data.
s Save a backup of stored data.
Label Area
96
Other Info
Contacting Sony
If, after reading these operating instructions, you have additional questions
related to the use of your Sony television, please call our Customer
Information Services Center at 1-800-222-SONY (7669) (US residents only)
or (416) 499-SONY (7669) (Canadian residents only).
Troubleshooting
Twin View
Problem Possible Remedies
I cannot get Twin View to work s If you are using a cable box to unscramble all channels (as shown on page 27),
you cannot use the Twin View feature. This is because the cable box can
unscramble only one channel at a time.
s You can use Twin View to view a signal from a different source that is connected
to the TV’s A/V jacks (such as a VCR or DVD player) in the second window by
pressing TV/VIDEO while in Twin View.
s Sources connected to the AUX, VIDEO 4, VIDEO 5, and VIDEO 6 inputs display
in the left Twin View window, but not the right.
There is no Twin View window,
or it is just static
s Be sure the Twin View window is set to a video input or channel that has a signal
airing.
s You might be tuned to a video input with nothing connected to it. Try cycling
through the video inputs by pressing TV/VIDEO.
Twin View cannot display
anything but TV channels
s Try cycling through the video inputs by pressing TV/VIDEO. Check that the
Video Label option is not set to Skip. (See the Setup Menu on page 91.)
Twin View displays the same
program in both windows
s Both Twin View windows might be set to the same channel. Try changing
channels in either window.
97
Other Info
Remote Control
Memory Stick
Problem Possible Remedies
Remote control does not
operate
s The batteries could be weak. Replace the batteries.
s Check the orientation of the batteries.
s Press FUNCTION repeatedly until the TV indicator lights up. You may have
inadvertently pressed FUNCTION, which changes the remote control to SAT or
CABLE mode.
s Make sure this unit’s power cord is connected securely to the wall outlet.
s Locate the unit at least 3-4 feet away from fluorescent lights.
Cannot change channels with
the remote control
s If you are using the TV to change channels, first press FUNCTION repeatedly
until the TV indicator lights up.
s If you are using another device to change channels, be sure you have not
inadvertently switched your TV from the channel 3 or 4 setting. Use the Channel
Fix option to “fix” the channel based on the hookup you used (see page 84).
s If you are using another device to change channels, be sure to press FUNCTION
for that device. For example, if you are using your cable box to change channels,
be sure to press FUNCTION repeatedly until the SAT/CABLE indicator lights up.
Remote control does not
operate non-Sony video
equipment
s If you replaced the batteries to the remote recently, the code numbers for the video
equipment may need to be reset.
s There may be more than one code for the equipment that you are attempting to
operate.
s There is a possibility that some non-Sony equipment cannot be operated by your
Sony TV remote.You may need to use the equipment’s original remote control.
Problem Possible Remedies
Image does not display s Make sure the image is supported by the TV (see page 68).
s Make sure the Memory Stick is inserted properly (see page 70).
s Memory Stick functions are not available while using Twin View, Freeze or
Favorite Channel functions.
Blank square appears instead of
a thumbnail image
s This indicates that the image does not support a thumbnail view. Selecting the
icon, however, displays the full-size image on the screen. It could also indicate
that both the thumbnail and full-size images are corrupted or not supported.
Cannot rotate image, no
thumbnail appears
s Be sure the LOCK switch on the Memory Stick is set to off.
s If a blank square appears instead of the thumbnail image, this indicates that the
image does not support a thumbnail view and cannot be rotated.
Cannot hear audio while using
Memory Stick
s There is no audio available while using Memory Stick.
Image file name does not
appear; instead, dashes (---)
appear
s Dashes appear instead of the file name if the image was recorded using equipment
that is not DCF-compliant. Dashes also appear if a DCF-compliant file was
renamed.
98
Other Info
Video
Problem Possible Remedies
No picture (screen not lit), no
sound
s If your TV does not turn on, and a red light keeps flashing, your TV may need
service. Call your local Sony Service Center.
s Make sure the power cord is plugged in.
s Press POWER on the front of the media receiver unit.
s Press TV/VIDEO to cycle through the connected video sources.
s Try another channel; it could be station trouble.
s Press PIC OFF so that the PICUTRE OFF LED on the display unit goes off.
s Make sure the display interface cable is connected to the display unit and media
receiver unit.
Dark, poor or no picture
(screen lit), good sound
s Adjust the Picture option in the Video Menu (see page 78).
s Adjust the Brightness option in the Video Menu (see page 78).
s Check the antenna/cable connections.
No color s Adjust the Color option in the Video Menu (see page 78).
Only snow and noise appear on
the screen
s Check the antenna/cable connections.
s Try another channel; it could be station trouble.
s Press ANT to change the input mode (see page 52).
Dotted lines or stripes s Adjust the antenna.
s Move the TV away from noise sources such as cars, neon signs, or hair-dryers.
Double images or ghosts s Using a highly directional outdoor antenna or a cable may solve the problem.
“Black box” on screen s You have selected a text option in the Setup Menu and no text is available. (See
page 90 to reset Setup selections.) To turn off this feature, set the Caption Vision
option to Off. If you were trying to select closed captioning, select CC1 instead of
Text 1-4.
Black bands appear at the top
and bottom of the screen
s Some wide-screen programs are filmed in aspect ratios that are greater than 16:9
(this is especially common with theatrical releases). Your TV will show these
programs with black bands at the top and bottom of the screen. For more details,
check the documentation that came with your DVD (or contact your program
provider).
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes
s The compression used by certain digital broadcasts and DVDs may cause your
TV’s screen to display less detail than usual, or cause artifacts (small blocks or
dots, pixelations) to appear on your screen. This is due to your TV’s large screen
and ability to show very fine detail, and is normal for certain digitally recorded
programs. Adjust the reality/clarity in the DRC Palette menu (see page 79) to
optimize the picture while viewing these sources.
99
Other Info
Audio
Channels
Problem Possible Remedies
Good picture, no sound s Press MUTING so that Muting disappears from the screen (see page 52).
s Make sure the Speaker option is set to On in the Audio Menu (see page 81).
Audio noise s Communication problems may occur if the infrared communication equipment
(e.g., infrared cordless headphones) is used near the TV. Please use headphones
other than infrared cordless headphones. Also, if you use the infrared
communication equipment other than infrared cordless headphones, move the
infrared transceiver away from the TV until the noise is eliminated, or move the
transmitter and receiver of the infrared communication equipment closer together.
Cannot gain enough volume
when using a cable box
s Increase the volume of the cable box using the cable box’s remote control. Then
press FUNCTION repeatedly until the TV indicator lights up and adjust the TV’s
volume.
Sound seems weak or
insufficient
s The TV’s audio might be set to Auto SAP or Mono, when it might be better set to
Stereo. In the Audio Menu (see page 80), set the MTS setting to Stereo. If
already set to Stereo, switch to Mono (which may reduce background noise
during weak stereo broadcasts).
Cannot raise the volume on
external speakers
s If the Speaker option is set to Off and the Audio Out option is set to Fixed (in
order to output the sound to your audio system) use your audio receiver to adjust
the sound (see page 81). Or, to use the TV remote control, set the Audio Out
option to Variable.
s To turn on the TV speakers, set the Speaker option to On (see page 81).
Problem Possible Remedies
Cannot receive upper channels
(UHF) when using an antenna
s Change the Cable option to Off (see page 84).
s Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the TV’s memory (see page 84).
TV is fixed to one channel s Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the TV’s memory (see page 84).
s Check your Channel Fix settings (see page 84).
Cannot receive any channels
when using cable TV
s Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the TV’s memory (see page 84).
s Make sure the Cable option is set to On in the Channel Menu (see page 84).
Cannot receive or select
channels
s Use Auto Program in the Channel Menu to add receivable TV channels that are
not presently in TV memory (see page 84).
100
Other Info
General
Problem Possible Remedies
How to reset TV to
factory settings
s Turn off the main power of the TV set. While holding down RESET on the
remote control, turn on the main power of the TV set. Turn on the TV. While
holding down RESET on the remote control, press POWER on the media
receiver unit. (The TV will turn itself off, then back on again.) Release RESET.
How to restore Video settings
to factory settings
s Press RESET on the remote control while in the Video Menu (see page 78).
How to restore Audio settings
to factory settings
s Press RESET on the remote control while in the Audio Menu (see page 80).
Cannot cycle through the other
video equipment connected to
the TV
s Be sure the Video Label option is not set to Skip (see page 91).
Cannot operate Menu s If a menu option appears in gray, this indicates that the menu option is not
available.
Lost password s In the password screen (see page 86), enter the following master password: 4357.
The master password clears your previous password; it cannot be used to
temporarily unblock channels.
LED on the display unit is lit s The POWER ON/STAND BY LED (see page 16) lights up when the TV is turned
on. If the LED blinks continuously, this may indicate the TV needs a service.
s The TIMER LED (see page 16) indicates that the timer is set. When the timer is
set, this LED will remain lit even when the TV is turned off.
101
Other Info
Specifications
Panel System Plasma Display panel
Display resolution Display resolution:
1024 pixels (horizontal) × 768 pixels (vertical)(KE-42XBR900)
1365 pixels (horizontal) × 768 pixels (vertical)(KE-50XBR900)
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Channel Coverage VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 120V, 60 Hz
Inputs/Outputs
DVI-HDTV 1 terminal, 3.3V T.M.D.S., 50 ohms
The DVI-HDTV input terminal is compliant with the EIA-861 standard and is not
intended for use with personal computers.
Video (IN) 3 total (1 on front panel) 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 total (1 on front panel) Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 total (1 on front panel) 500 mVrms (100% modulation)
Impedance: 47 kilohm
Component Video Input 2 (Y, P
B, PR) Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative;
P
B: 0.7 Vp-p, 75 ohms
P
R: 0.7 Vp-p, 75 ohms
CONTROL S (OUT) 1
Variable/Fixed Audio (OUT) 1 More than 408 mVrms at the maximum volume
setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
Monitor/Fixed Audio (OUT) ×1
Sub woofer (OUT) 1 phono jack
RF Inputs 2
Converter 1
Screen Size (measured diagonally) KE-42XBR900 42 inches
KE-50XBR900 50 inches
Speaker Output 15W × 2
Dimensions (W × H × D) PDM-4200 1352 × 720 × 102 mm
(53
1
/4 × 28
3
/8 × 4
1
/8 in)
PDM-5000 1573 × 856 × 108 mm
(62
1
/8 × 33
3
/4 × 4
3
/8 in)
MBT-XBR900 430 × 105 × 360 mm
(17 × 4
1
/4 × 14
1
/4 in)
Mass Display unit
PDM-4200: 39kg (86 lbs)
PDM-5000: 53kg (114 lbs)
Media receiver unit
MBT-XBR900: 7.5kg (16 lbs)
(Continued)
102
Other Info
Design and specifications are subject to change without notice.
Power Consumption In Use Display unit
PDM-4200: 460 W
PDM-5000: 540 W
Media receiver unit
MBT-XBR900: 36 W
In Standby Under 1.5 W
Supplied Accessories Remote Control (1) RM-927Y
AAA (LR03) Batteries (2)
AC power code (2)
AC plug holder (1)
Display interface cable (1)
Antenna cable (1)
Cleaning cloth (1)
103
Other Info
Optional Accessories
s A/V Cable (VMC-810/820/830 HG)
s Audio Cable (RKC-515HG)
s Component Video Cable (VMC-10/30 HG)
s Control S Cable (RK-G69HG)
s 10M display interface cable (VMC-P10)
s Memory Stick media: 8 MB (MSA-8A); 16 MB (MSA-16A); 32 MB
(MSA-32A); 64 MB (MSA-64A); 128 MB (MSA-128A)
s Table top stand: SU-P42T1 (for PDM-4200)
SU-P50T1 (for PDM-5000)
s Wall mount unit: SU-PW1 (for PDM-4200/5000)
s Floating stand: SU-PF1 (for PDM-4200/5000)
104
Index
0-9 buttons 53, 60
16:9 aspect ratio 61
4:3 aspect ratio 61
4:3 Default settings 83
A
ANT button 52, 60
antenna, connecting 23
Audio Menu 77, 80
Audio Out 81
audio receiver, connecting 46
Auto Program (channel setup) 49, 84
Auto SAP, MTS setting 80
AUX jack, described 18
B
balance, adjusting 80
bass, adjusting 80
batteries, inserting in remote 51
bilingual audio 80
blocking programs. See ratings.
brightness, adjusting 78
C
cable
connecting 23
setting On/Off 84
with VCR, connecting 30
cable box
connecting with VCR 32
Twin View issues 62
using with TV remote control 57
Caption Vision 90
CATV. See cable
CH buttons 17, 53, 60
changing picture size, in Twin View 64
Channel Menu 77, 84
Channel Skip/Add 85
channels
creating labels 85
setting up 49
CineMotion 14, 79
clearing, Favorite Channels 65
Clock/Timers 89
closed caption modes 77, 90
color, adjusting 78
CONTROL S 48
CONTROL S OUT jack, described 18
Cool, Color Temperature 78
D
Digital Reality Creation 14
Digital Visual Interface (DVI) 14, 18
DISPLAY button 60
DISPLAY SIGNAL OUT, described 18
Display unit
connecting 20
controls 16
DRC Function 79
DRC Mode 79
DRC Palette 79
DRC. See Digital Reality Creation.
DVD player
using with TV remote control 57
with A/V connectors, connecting 42
DVI. See Digital Visual Interface.
DVI-HDTV 18, 101
E
ENTER button 53, 60
F
Fast-forward button 53
Favorite Channels
clearing 65
in Channel Menu 84
using 65
FAVORITES button 53
features 13
Fixed audio setting 81
FREEZE button 53, 66
Freeze, using 66
Full mode, setting 82
FUNCTION button and indicators 52
105
Other Info
G
Game Picture 91
GUIDE button 52
H
HD/DVD IN (1080i/720p/480p/480i) jacks,
described 19
hue, adjusting 78
I
INPUT SELECT button 17
interlaced 94
J, K
JUMP button 52, 60
L
label
channels 85
Language, setting 91
LOCK switch, Memory Stick 75
M
MDP, using with TV remote control 57
Media receiver unit
connecting 21
front panel 17
rear panel 18
Memory Stick
Index 73
indicator (LED) 17
inserting 70
insertion slot 17
Menu 72
precautions 95
Rotate Picture 75
Setup options 74
Slideshow 74
supported and unsupported images 68
troubleshooting 97
using 68–75
Memory Stick button 53
MENU button 52, 60, 77
Menus
Audio 77, 80
Channel 77, 84
Parent 77, 86
Screen 77, 82
Setup 89
Video 77, 78
Mild mode 78
Mono, MTS setting 80
MTS 80
MTS/SAP button 53
MUTING button 52, 60
N
Neutral, Color Temperature 78
Normal mode, setting 82
NR 79
O
off, turning off the TV 17
on, turning on the TV 17
P, Q
Parent Menu 77, 86
parental control, described 14
password, changing 86
Pause button 53
PIC OFF button 52
PICTURE button 52
picture contrast, adjusting 78
Picture in Picture. See Twin View.
Play button 53
POWER button 16, 17, 52, 60
POWER LED 100
POWER ON/STAND BY indicator 16, 17
powering on/off, the TV 17
presetting channels 84
Pro (Video) mode 78
problems, troubleshooting 96–100
progressive 94
R
ratings, setting 86–88
ratings, viewing blocked programs 87, 88
Record buttons 53
remote control
inserting batteries 51
programming 54–55
removing, Favorite Channels 65
RESET button 53
resetting
Audio options 80
Rewind button 53
rotate picture, Memory Stick 75
(Continued)
106
Other Info
S
S VIDEO jack, described 17, 18
SAT/CABLE indicator 52
SAT/CABLE power button 52
satellite receiver, using with TV remote control 56
Screen Saver 83
setting up channels 49
Setup Menu 89
sharpness, adjusting 78
Simulated, Effect 80
sizing, picture in Twin View 64
slideshow 74
speakers
turning on/off 81
using external speakers 81
specifications 101
Standard mode 78
Steady Sound, described 14
Steady Sound, setting 80
Stereo, MTS setting 80
Stop button 53
SUBWOOFER OUT jack, described 18
surround sound 80
T, U
TIMER indicator 16, 17, 100
transport buttons 53
treble, adjusting 80
troubleshooting 96–100
TruSurround 80
TruSurround, Effect 80
turning on/off the TV 17
TV indicator 60
TV/VIDEO button 52, 60
Twin View
described 14
using 62–64
Twin View button 52
V
Variable audio setting 81
VCR
using with TV remote control 56
with cable box, connecting 32
with cable, connecting 30
with satellite receiver, connecting 38
Vertical Center, adjusting 83
Vertical Size 83
VHF/UHF jack, described 18
VIDEO (L/R)/AUDIO jacks, described 18
Video Menu 77, 78
Video modes, selecting 78
Vivid mode 78
VOL buttons 17, 52, 60
W, X, Y
Warm, Color Temperature 78
WIDE button 52
Wide Mode 82
Wide Screen, described 14
Wide Zoom mode, setting 82
Z
zoom feature, with Twin View 64
Zoom mode, setting 82
2002 Sony Corporation
KE-42XBR900
KE-50XBR900
Flat Panel Color TV
Operating Instructions
4-092-940-14 (1)
Flat Panel Color TV KE-42XBR900/KE-50XBR900
Printed in Japan
Printed on 100% recycled paper.
