LEICA C-LUX
INSTRUCTIONS
2
Finding the information you need
In these instructions, you can find the information you need from the following pages.
Search from “Table of
Contents”
4 -
Search from the list of function
names
“Contents by Function”
10 -
Search from “Names and
Functions of the Main Parts”
15 -
Search from “List of monitor/
viewfinder displays”
269 -
Search from the list of
on-screen messages
“Message displays”
275 -
Search from the menu list
164 -
Search from “Q&A
Troubleshooting”
277 -
For details on how to use these
instructions, see the next page.
3
How to use these instructions
Recording mode icons
Recording modes:
In recording modes that show icons in black, you can select and execute the indicated
menus and functions.
(Custom Mode) has different functions depending on the recording mode that is
registered.
■
About the symbols in the text
Indicates that a menu item can be set after pressing the [MENU/SET] button.
Indicates that a Wi-Fi setting can be made after pressing the [Wi-Fi] button.
[AE|AF LOCK], [DISP], [
], etc. indicate the respectively labeled buttons.
Tips for skillful use and points for recording.
(→00) Indicates the reference page.
In these instructions, steps for setting a menu item are described as follows:
→ [Rec] → [Quality] → [ ]
• These instructions indicate the up, down, left, and right cursor buttons
as
.
• Ring, dial and lever operations are illustrated as below.
Turn the control ring
Rotate the thumb dial
Rotate the zoom lever
4
Table of Contents
■
Finding the information you need ..... 2
■
How to use these instructions ........... 3
■
Before use ......................................... 12
■
Scope of Delivery .............................. 14
■
Accessories ....................................... 14
Before Use
■
Names and Functions
of the Main Parts ............................... 15
Preparations
■
Attaching the Wrist Strap ................. 17
■
Charging the Battery ........................ 18
Inserting the battery ...................................19
Charging the battery ..................................20
■
Inserting and Removing the Card ... 24
■
About the Card .................................. 25
Formatting the card (initialization)..............26

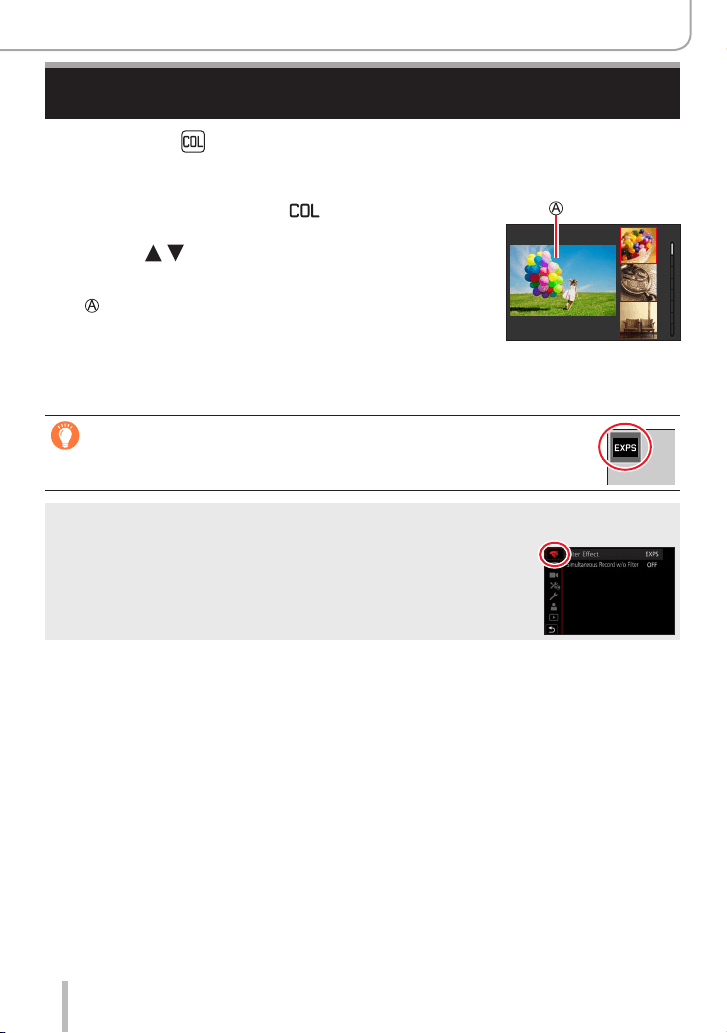

Estimated recording capacity
(number of pictures/recording time) ........... 26
■
Setting Language, Time,
and Date ............................................. 28
■
Contents by Function ....................... 10
■
Holding the Camera .......................... 30
■
Buttons/Ring/Dials/Levers
Used for Recording ........................... 31
Switching between viewfinder and
monitor displays ......................................... 31
How to use the lens’ zoom function ...........32

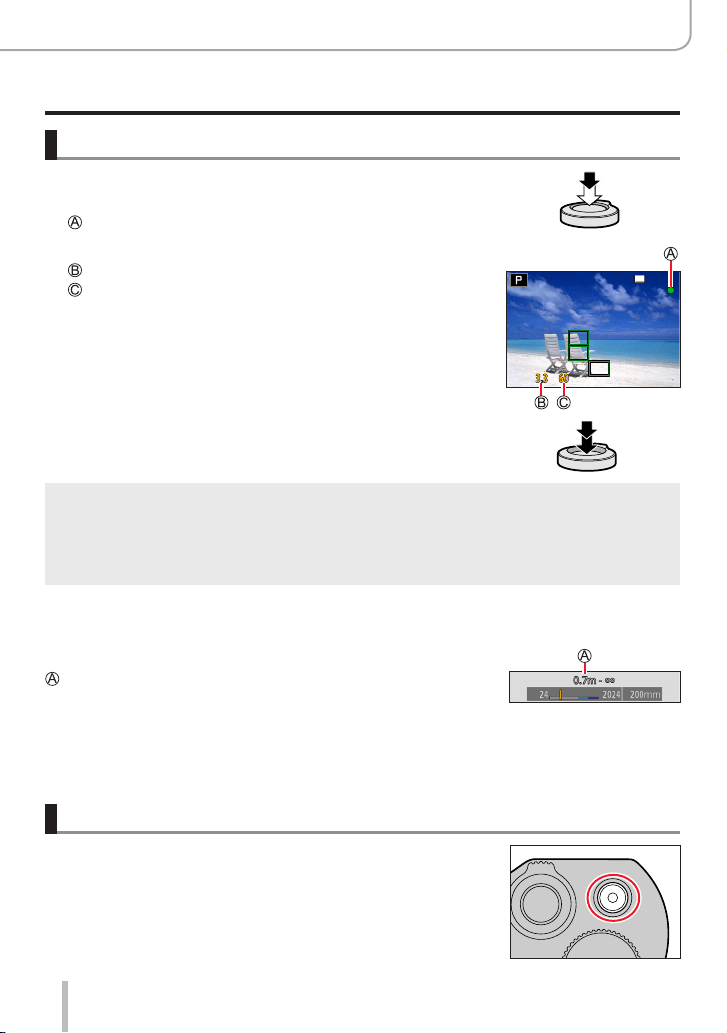

Taking pictures ........................................... 33
Recording videos .......................................33
How to use the mode dial ..........................34
Control ring / Thumb dial ...........................35
Cursor buttons / [MENU/SET] button
(Selecting/setting items) ............................36
[DISP] button
(Switching the display information) ............ 36
■
Touch screen operations ................. 39
Focusing on the subject at the touched
position (Touch AF, Touch Shutter) ............40

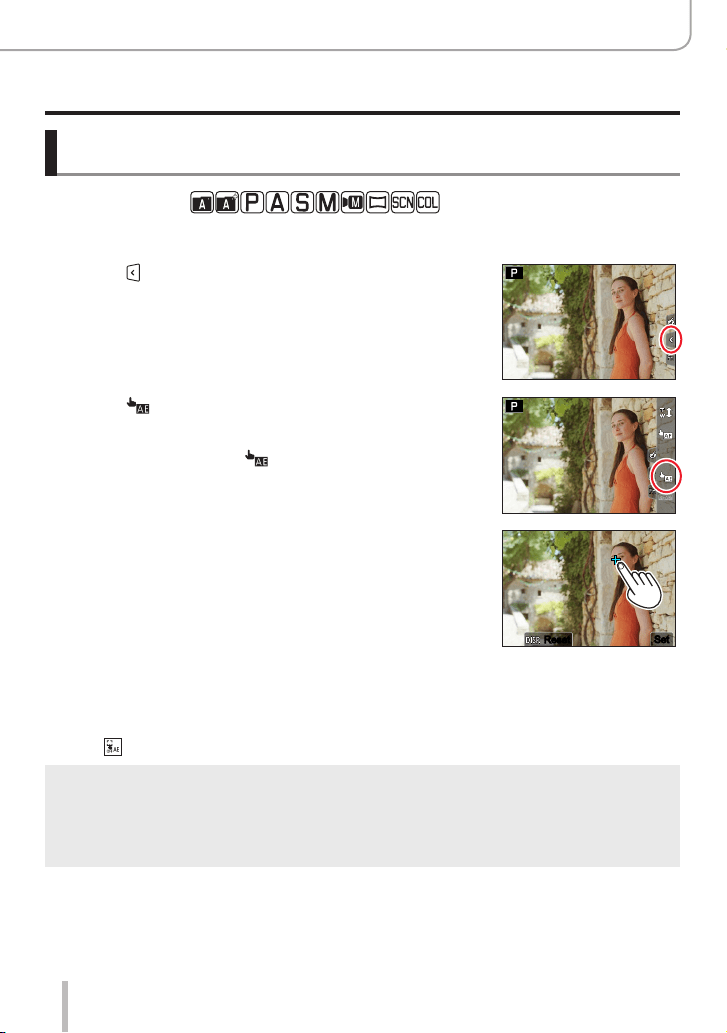

Adjusting the exposure based on the
touched subject detail ([Touch AE]) ...........41
Basics
■
Menu Control ..................................... 42
■
Quick Menu ........................................ 44
Customizing the Quick Menu ..................... 45
■
Assigning Frequently
used Functions to the Buttons
(Function buttons) ............................ 46
Using the function buttons during
recording .................................................... 47
Using the function buttons during
playback.....................................................48
■
Changing the Settings Assigned
to the Control Ring/Thumb Dial ....... 49
■
Entering Text ..................................... 50
5
Table of Contents
Recording Modes
■
Snapshot Modes ............................... 51
[Snapshot Mode] menu..............................53
Setting coloring ..........................................54
Setting brightness (exposure)/
blurriness of the background
(Defocus control function) .......................... 55
■
Taking Pictures Using the
Exposure Control Modes
, , , and ............................... 56
Program exposure mode ...........................56
Aperture Priority Exposure Mode...............57
Shutter-Priority Exposure Mode.................58
Manual Exposure Mode ............................. 59
Checking the effects of the aperture
value and shutter speed settings
(Preview Mode)..........................................62
Easily set aperture value / shutter speed
for suitable exposure (One Push AE) ........63
■
Recording panorama pictures ......... 64
■
Scene Modes ..................................... 67
Types of Scene Modes ..............................68
■
Taking Pictures
with Different Effects
(Creative Control Mode) ................... 71
Types of picture effects .............................. 72
■
Creative Video Mode ......................... 77
Recording Slow Motion Videos
([High Speed Video]) .................................78

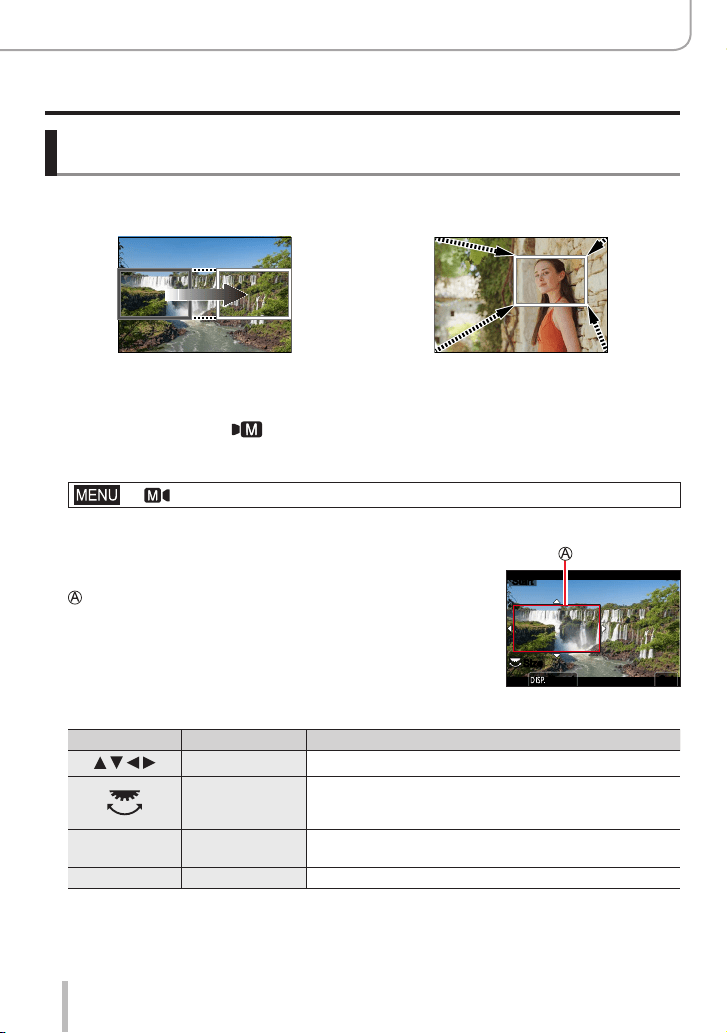

Panning or zooming while recording
with the camera in a fixed position
([4K Live Cropping]) ................................... 79
■
Registering your own
settings and recording
(Custom Mode) .................................. 81
Registering your own settings
([Cust.Set Mem.]).......................................81
Recording using a registered
custom set .................................................82
6
Table of Contents
4K Photo and Drive Settings
■
Recording with the 4K Photo
function and selecting pictures
to save .............................................. 108
Recording with the 4K Photo function .....108
Selecting pictures from 4K photo series
files and saving ........................................ 111
Notes on the 4K Photo function ............... 116
■
Selecting the focusing
plane after recording
([Post Focus]/[Focus Stacking]) .... 119
Recording using [Post Focus] .................. 119
Selecting a focus point and saving the
picture ([Post Focus])...............................121

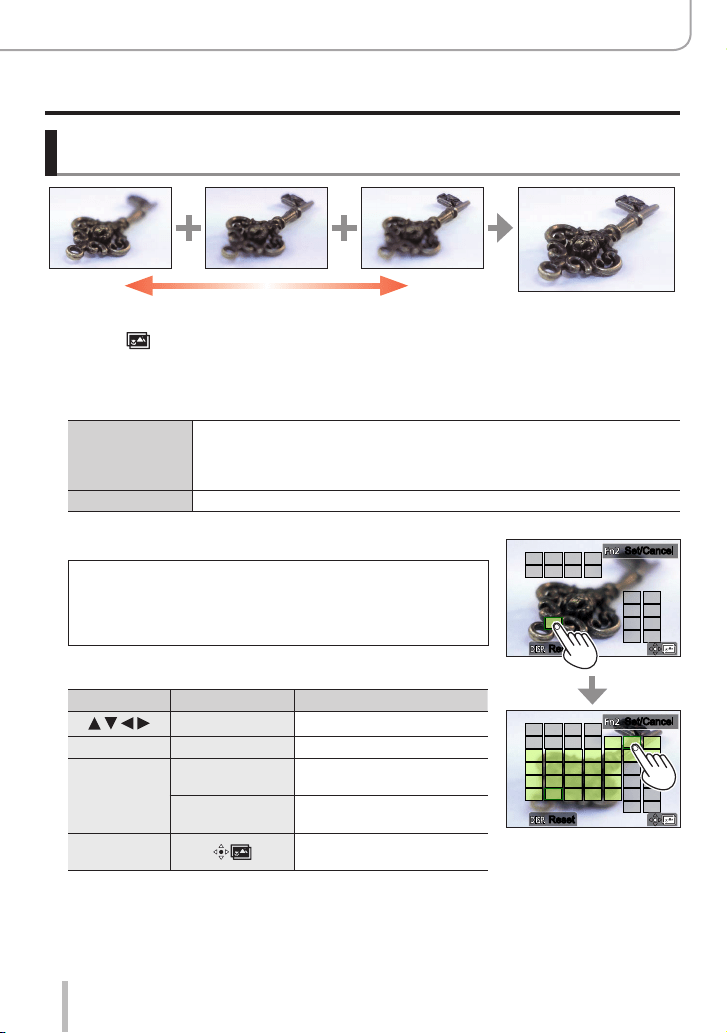

Determining subject parts to be in focus by
combining several shots and creating
a single picture ([Focus Stacking])...........122
Notes on the [Post Focus]/
[Focus Stacking] ......................................123
■

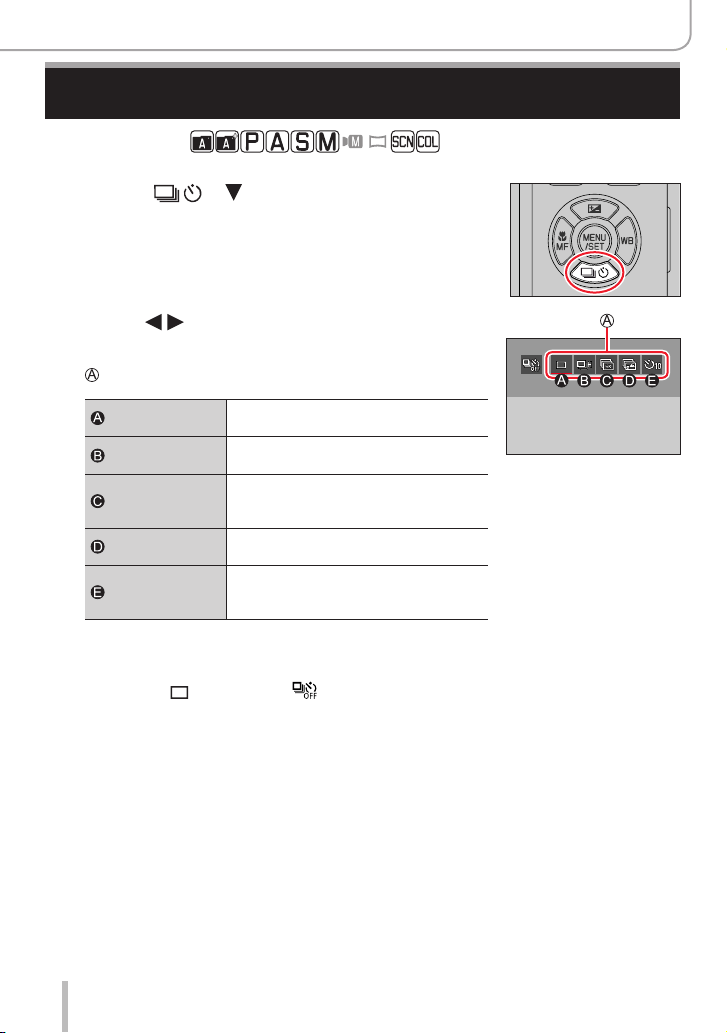

Selecting a Drive Mode ................... 124
Continuous exposure function .................125
Taking pictures with the self-timer............127
■
Taking Picture Series with
Automatically Changing Settings
(Bracket Recording) ........................ 128
Exposure Bracket ....................................129
Aperture Bracket ...................................... 130
Focus Bracket .......................................... 130
■
Taking Pictures
Automatically at Set Intervals
[Time Lapse Shot] ........................... 131
■
Creating stop motion animation
[Stop Motion Animation] ................ 134
Focus, Brightness (Exposure) and Color tone Settings
■
Using Autofocus ............................... 83
Set the focusing operation to be
performed when the shutter button is
pressed halfway (AFS, AFF, AFC) .............84
Switching [AF Mode] .................................. 85
Changing the position and size of the
AF area ......................................................91
Setting the AF area position by touch ........94
Optimizing the focus and exposure
settings for a touched position ................... 95
■
Taking close-up pictures .................. 96
■
Taking pictures with
Manual Focusing ............................... 97
■
Taking pictures by locking the
focus and/or exposure settings ....... 99
■
Taking pictures with
Exposure Compensation ................ 100
■
Setting the ISO Sensitivity ............. 101
■
Setting the White Balance .............. 103
7
Table of Contents
Playing Back and Editing Pictures
■
Viewing your pictures ..................... 156
■

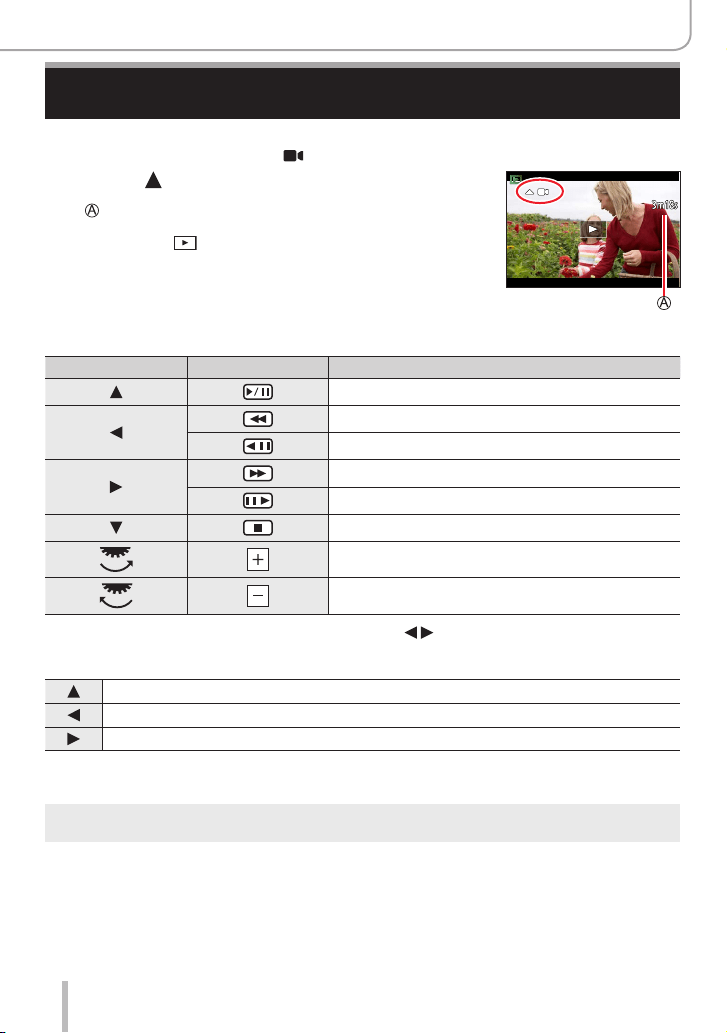

Viewing Videos ................................ 157
Extracting single frames from videos ....... 158
■
Switching the Playback Method .... 159
Zooming in and viewing
“Playback Zoom”......................................159
Viewing a list of pictures
“Multi Playback” .......................................159
Viewing pictures by their recording date
“Calendar Playback” ................................160
■
Viewing group pictures .................. 161
■
Deleting pictures ............................. 163
Stabilizer, Zoom and Flash
■
Compensating Camera Shake ....... 137
■
Using the Lens’ Zoom Function .... 139
Zoom types and use ................................139
Using Touch zoom ...................................142
■
Taking Pictures with the
Built-In Flash ................................... 143
Changing the Flash Control Mode ........... 144
2nd curtain sync.......................................147
Flash exposure compensation ................. 147
Recording Videos
■

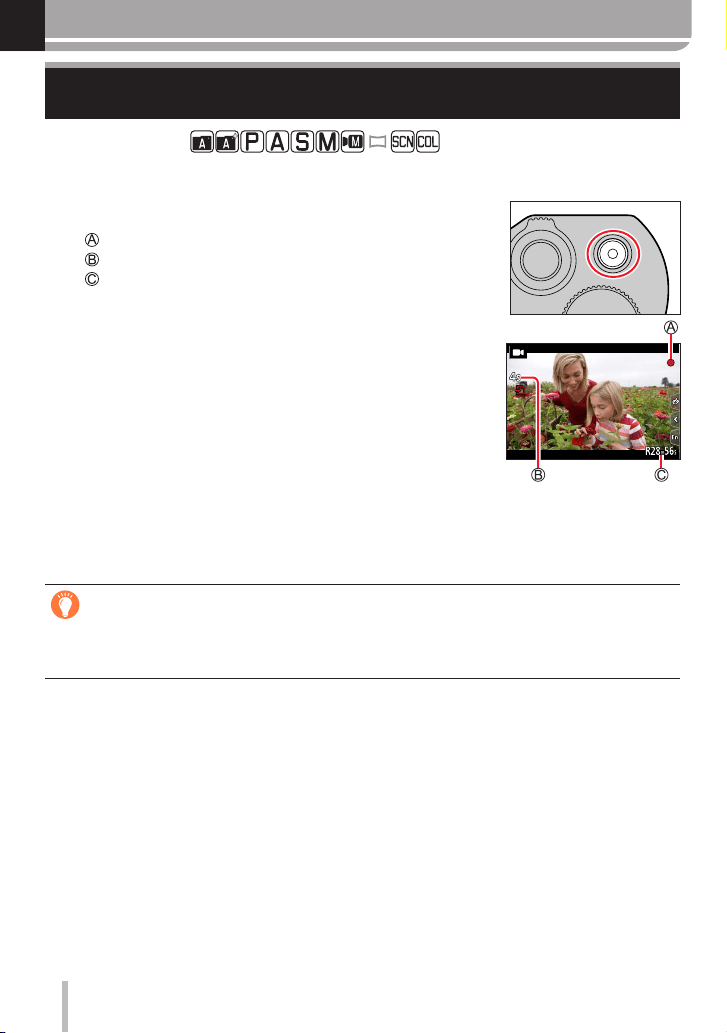

Recording Videos/4K Videos ......... 148
Setting the resolution and the
frame rate ................................................150
Focusing while recording videos
([Continuous AF]) ..................................... 151
■
Taking Pictures While a Video is
Being Recorded .............................. 152
■
Recording Snap Videos .................. 153
8
Table of Contents
Wi-Fi/Bluetooth
■
What you can do with the
Wi-Fi
®
/Bluetooth
®
function ............. 223
■
Wi-Fi/Bluetooth Function ............... 224
■
Connecting the camera to a
smartphone ..................................... 227
Installing the smartphone/tablet app
“Leica C-Lux” ...........................................227

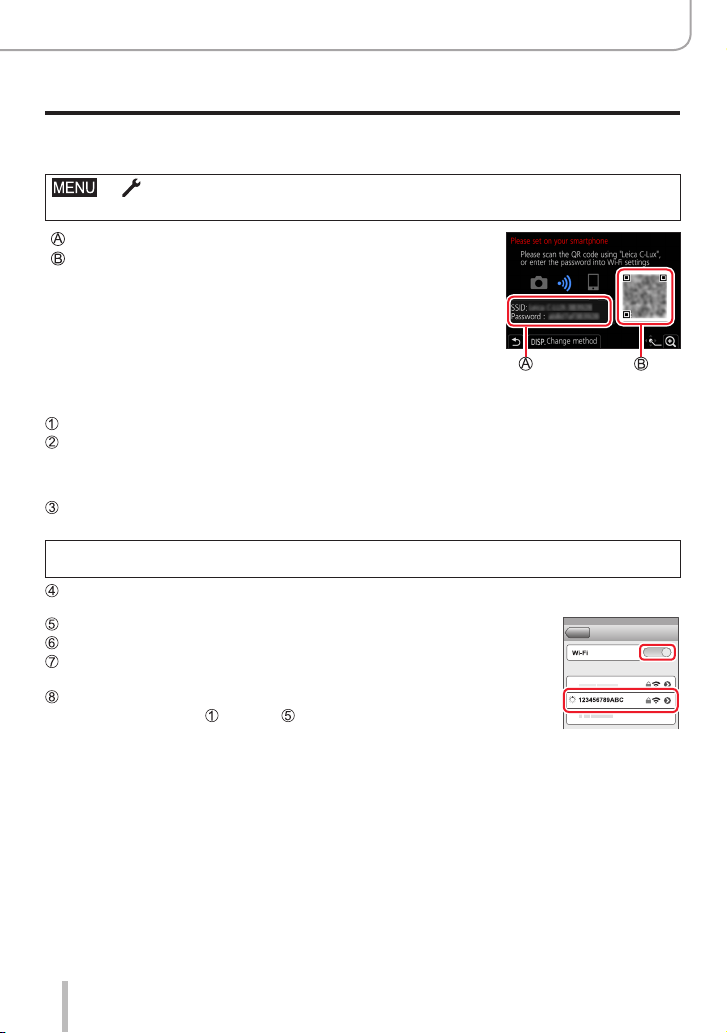

Connecting the camera to a smartphone
compatible with Bluetooth Low Energy .... 228
Connecting the camera to a smartphone
that does not support Bluetooth Low
Energy .....................................................230
■
Controlling the Camera with a
Smartphone ..................................... 235
Turning on/off the camera using a
smartphone .............................................. 235
Tripping the camera’s shutter using a
smartphone (remote recording) ...............236
Playing back or saving images stored
in the camera, or uploading them
on social media sites ...............................240
Transferring recorded images to a
smartphone automatically ........................ 241
Writing location information of a
smartphone on a recorded image ............ 243
Synchronizing the camera’s clock
with a smartphone ...................................244
■
Sending pictures to a
smartphone ..................................... 245
■
About Wi-Fi connections ................ 249
Connecting via a wireless access point
([Via Network]) .........................................249
Connecting directly ([Direct]) ...................252
Connecting quickly with the
same settings as used previously
([Select a destination from History] /
[Select a destination from Favorite]) ........ 253
■
[Wi-Fi Setup] .................................... 255
Using Menu Functions
■
Menu list .......................................... 164
[Rec] ........................................................165
[Motion Picture] ........................................ 180
[Custom] ..................................................182
[Setup] .....................................................196
[My Menu] ................................................206
[Playback] ................................................207
9
Table of Contents
Connecting with Other Devices
■
Viewing 4K videos .......................... 256
Saving 4K videos .....................................257
■
Viewing on a TV .............................. 258
Recording while monitoring camera
images .....................................................260
HDTV Link (HDMI) (HDAVI Control™) ....261
■
Copying the Recorded Image
Data to a Computer ......................... 262
Copying pictures and videos....................263
■
Storing recorded pictures and
videos in a recorder ........................ 265
■
Printing ............................................ 266
Printing with date and text .......................268
Others
■
List of monitor/viewfinder
displays ............................................ 269
■
Message displays ........................... 275
■
Q&A
Troubleshooting .............................. 277
■
Usage cautions and notes ............. 285
■
Leica Service Addresses ................ 293
10
Contents by Function
Recording

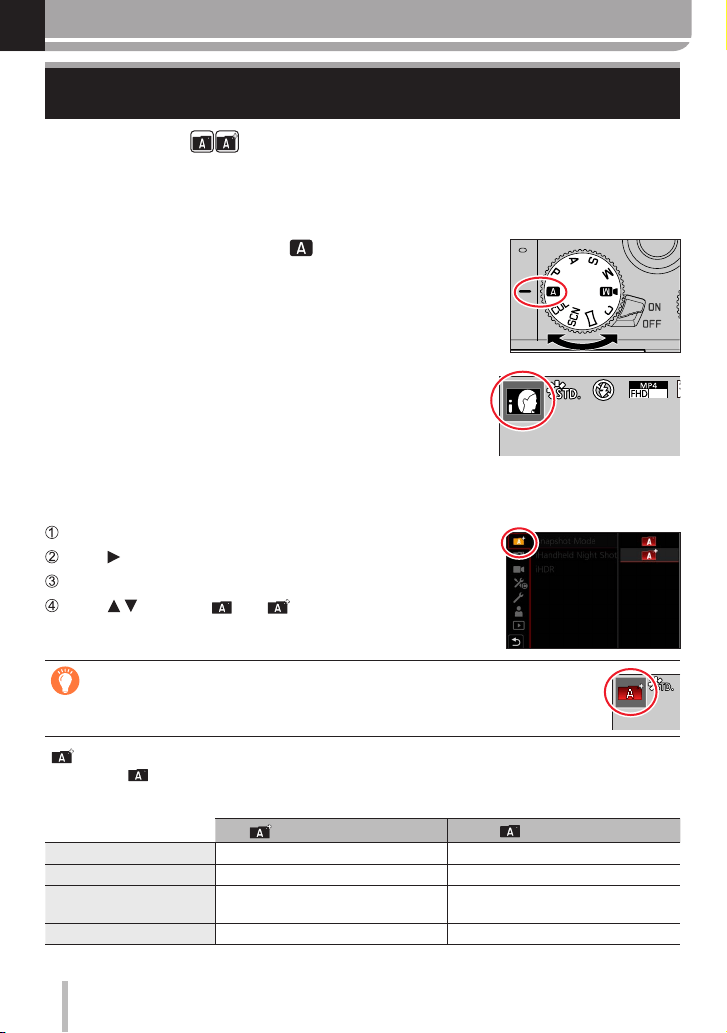

Recording mode ...........................................34
[Preview] ....................................................... 62
Panorama Shot Mode ...................................64
Macro recording ............................................96
Bracket recording .......................................128
[Time Lapse Shot] .......................................131
[Stop Motion Animation] ..............................134
[Silent Mode] ...............................................176
[Multi Exp.] .................................................. 179
4K Photo
[4K PHOTO]................................................108
[Post Focus] recording ................................ 119
Focus (AF/MF)
Autofocus ......................................................83
AF Mode .......................................................85
Adjusting the AF area position ...................... 91
Manual Focus ...............................................97
AF/AE Lock ...................................................99
Drive
Drive Mode .................................................124
Serial exposures ......................................... 125
[Self Timer] .................................................127
Exposure
[Touch AE] ....................................................41
[One Push AE] ..............................................63
AF/AE Lock ...................................................99
Exposure Compensation ............................100
ISO sensitivity ............................................. 101
Exposure Bracketing ..................................129
[Metering Mode] ..........................................172
Recording
Picture Quality and Color Tone
White Balance ............................................103
[Picture Size] ..............................................166
[Quality] ......................................................167
[Photo Style] ...............................................168
[Filter Settings] ............................................170
[Color Space] .............................................. 171
[Highlight Shadow] ......................................173
[i.Dynamic] .................................................. 174
[i.Resolution] ............................................... 174
[Long Shtr NR] ............................................ 175
[Diffraction Compensation] .........................176
[HDR] .......................................................... 178
Flash
[Flash Mode] ............................................... 144
2nd curtain synchro ....................................147
[Flash Adjust.] .............................................147
Monitoring
Recording while monitoring camera
images ........................................................260
Video recording
Creative Video Mode ....................................77
[High Speed Video] ....................................... 78
[4K Live Cropping] ........................................79
[Rec Quality] ...............................................150
Taking pictures while a video is being
recorded .....................................................152
[Snap Movie] ...............................................153
Video recording
Audio
[Wind Noise Canceller] ...............................181
Screen settings
[Monochrome Live View] ............................188
[Center Marker] ...........................................189
[Zebra Pattern] ............................................190
11
Contents by Function
Playback

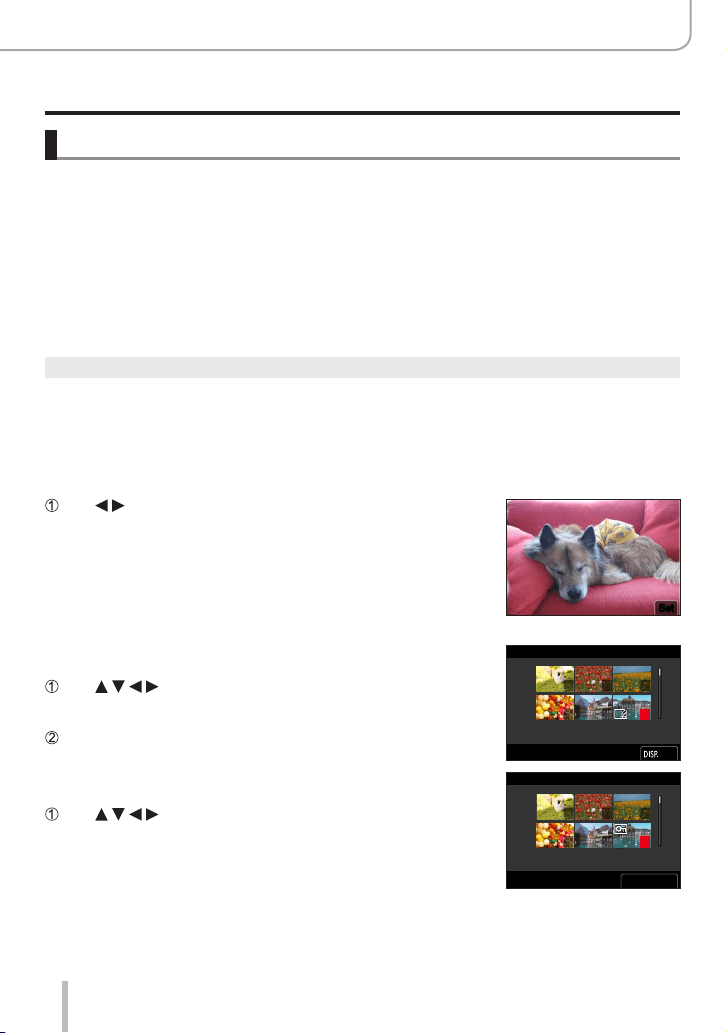

Picture playback .........................................156
Video playback ...........................................157
Playback Zoom ........................................... 159
Multi Playback ............................................159
Delete .........................................................163
[Auto Review] .............................................187
[Slide Show] ................................................208
[Rotate]/[Rotate Disp.] ........................220, 222
Playback
Edit
[Post Focus] ................................................121
[Focus Stacking] .........................................122
[Title Edit] .................................................... 211
[RAW Processing] .......................................212
[4K PHOTO Bulk Saving] ...........................214

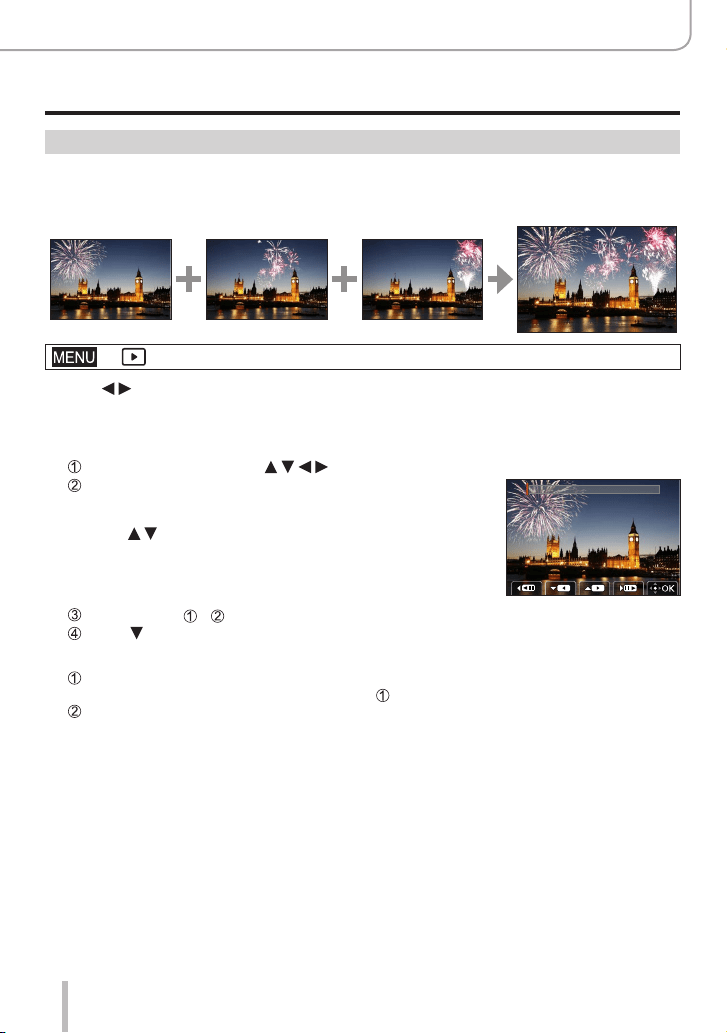

[Light Composition] ..................................... 215

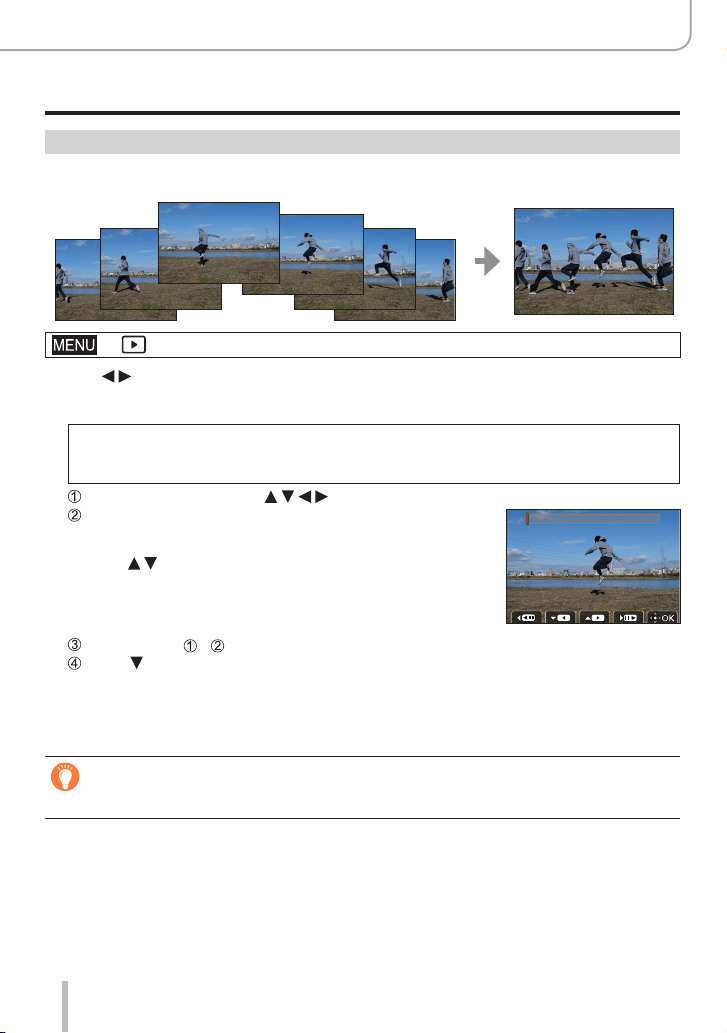

[Sequence Composition] ............................216
[Clear Retouch] ...........................................217
[Text Stamp] ................................................ 218
[Resize] ....................................................... 219
[Cropping] ...................................................220
Image settings
[Protect] ......................................................210
[Rating] .......................................................210
Smartphone/tablet app “Leica C-Lux”
Leica C-Lux app .........................................227
Remote start-up .......................................... 235
Remote recording .......................................236
Auto transfer ...............................................241
Wi-Fi/Bluetooth
PC
Copying the Recorded Image Data to a
Computer .................................................... 262
TV
Playing back pictures on a TV screen ........258
[HDTV Link] ................................................261
Connecting with other devices
Recorder
Dubbing ......................................................265
Printer
PictBridge ...................................................266
Basic settings
[Format] ........................................................26
[Clock Set] ....................................................28
Diopter adjustment .......................................31
Quick Menu ..................................................44
[Beep] .........................................................198
[Economy] ...................................................199
[Reset] (initialization) ..................................205
Setup/Custom
Customization
Function buttons ...........................................46
Custom Mode ...............................................81
[Custom] menu ...........................................182
12
Before Use
Before use
■
Camera handling
Keep the camera away from excessive vibration, force, or pressure.
●
Avoid using the camera under the following conditions, which may damage the lens,
monitor, viewfinder, or camera body.
This may also cause the camera to malfunction or prevent recording.
• Dropping or hitting the camera against a hard surface
• Sitting down with the camera in your pants pocket or forcing it into a full bag
• Adding accessories to the camera strap
• Exerting excessive force on the lens or monitor
The camera is not dust resistant, splash resistant, or waterproof.
Avoid using the camera in places with excessive dust or sand, or where water can
come into contact with the camera.
●
Avoid using the camera under the following conditions, which present a risk that sand,
water, or foreign material may enter the camera through the lens or openings around
buttons. Be especially careful because these conditions may damage the camera, and
such damage may not be repairable.
• In extremely dusty or sandy places
• In the rain or by the shore, where the camera may be exposed to water
■
Condensation (When the lens, the monitor, or viewfinder, is fogged up)
●
Condensation may occur when the camera is exposed to sudden changes of
temperature or humidity. Avoid these conditions, which may make the lens, monitor, or
viewfinder dirty, cause mold, or damage the camera.
●
If condensation does occur, turn off the camera and wait about two hours before using
it. Once the camera adjusts to the surrounding temperature, the fogging will clear
naturally.
13
Before Use
Before use
■
Always take a test shot first
Before important events when you will use the camera (at weddings, for example), always
take a test shot to make sure that pictures and sound record correctly.
■
No compensation for missed shots
Leica Camera AG cannot compensate for missed shots if technical problems with the
camera or card prevent recording.
■
Carefully observe copyright laws
Unauthorized use of recordings that contain works with copyright for purposes other than
personal use is prohibited under copyright law. Recording of certain material may be
restricted even for the purpose of personal use.
■
Also refer to “Usage cautions and notes” (→285)
14
Before Use
Scope of Delivery
Order No.
Rechargeable battery pack
BP-DC15-E 18 544
BP-DC15-U 18 545
BP-DC15-TK 18 546
Battery charger/AC adapter
ACA-DC16-E 423-118.001-005
ACA-DC16-C 423-118.001-006
ACA-DC16-K 423-118.001-007
ACA-DC16-B 423-118.001-008
ACA-DC16-N 423-118.001-009
ACA-DC16-A 423-118.001-010
ACA-DC16-U 423-106.001-012
USB Cable Micro-B 423-118.001-014
Wrist strap 423-109.001-020
Short instructions 93 856 - 860
(delivery differs depending on markets)
Guarantee Card 439-399.100-026
Accessories
Please visit the Leica Camera AG website for information on the extensive range of Leica
C-LUX accessories:
www.leica-camera.com
Notes:
• Memory cards are optional.
• The battery pack is indicated as battery pack or battery in the text.
• SD, SDHC, and SDXC memory cards are referred to as card in the text.
• Check that all items belonging to the scope of delivery are included before using the
camera.
• Depending on the country or area where the camera was purchased, the items and
their shape may differ from the descriptions and illustrations in these instructions.
• Always keep small parts in a safe place out of the reach of children.
• Please dispose of all packaging appropriately.
15
Before Use
Names and Functions of the Main Parts
1
Shutter button (→33)
2
Zoom lever (→32, 139, 187)
3
Video button (→33, 148)
4
Thumb dial (→35, 49)
5
Main [ON/OFF] switch (→28)
6
Mode dial (→34)
7
Flash (→30, 143)
8
Viewfinder (→31, 269)
9
Diopter adjustment dial (→31)
10
Eye sensor (→31)
11
Stereo microphones (→30, 181)
Be careful not to cover the microphones
with your finger. Doing so may impair
sound recording.
12
Strap eyelet (→17)
13
Control ring (→35, 49)
14
Lens barrel
15
Front lens element
16
Self-timer indicator (→127) /
AF Assist Lamp (→30, 184)
1 2 3
46
8 9
12
131415
16
7
5
10
11
16
Before Use
Names and Functions of the Main Parts
12
Strap eyelet (→17)
17
[EVF] button (→31) /
[Fn4] button (→46)
18
Flash release lever (→143)
19
[AE|AF LOCK] button (→99)
20
Charging lamp (→21) /
WIRELESS connection lamp (→224)
21
[PF] ([Post Focus]) button (→119) /
[Fn2] button (→46)
22
[ ] (Delete) button (→163) /
[
] (Cancel) button (→44) /
[Fn3] button (→46)
23
[4K] (4K photo mode) button (→108) /
[Fn1] button (→46)
24
[ ] (Playback) button (→156)
25
Cursor buttons (→36)
[

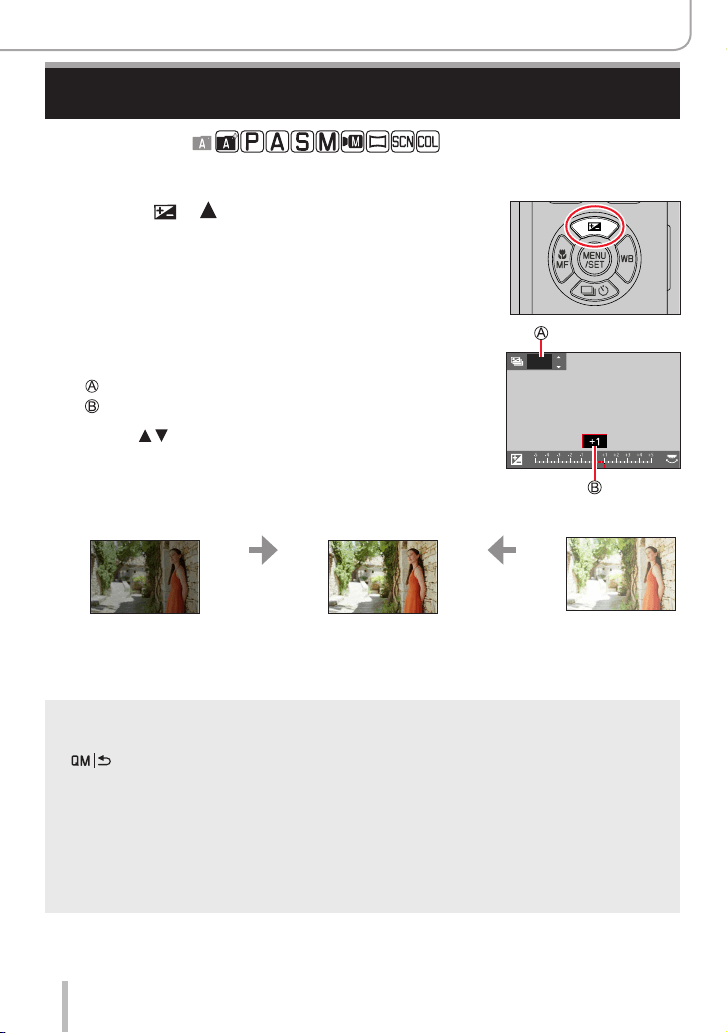

] (Exposure compensation) ( )
(→100)
[
] (White balance) ( ) (→103)
[
] (Drive Mode) ( ) (→124)
[
] (Focus Mode) ( ) (→83, 96, 97)
26
[MENU/SET] button (→36, 42)
27
[DISP] button (→36)
28
[HDMI] socket (→258)
29
[USB/CHARGE] socket (→20, 263, 266)
30
Card/Battery door (→19, 24)
31
Release slider (→19, 24)
32
Tripod thread (→288)
Using tripod screws with lengths of
5.5mm (
7
/
32
″) or more may damage the
camera if attached.
33
Speaker (→30, 198)
34
Monitor (→269) with touch control
options (→39)

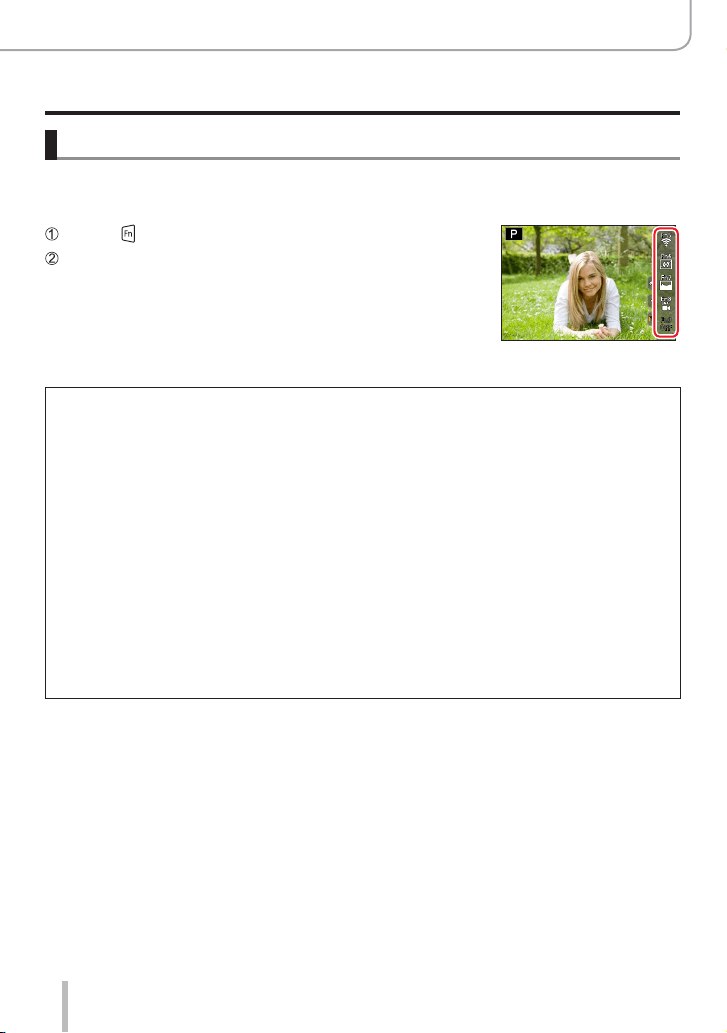

Function buttons [Fn5] to [Fn9] are
touch icons.
They can be called up by touching the [ ]
tab on the monitor screen.
20
21
22
23
24
25
26
27
28
29
17 12
32 31 3034
18 19
33
17
Preparations
Attaching the Wrist Strap
We recommend attaching the wrist strap when using the camera to prevent it from
dropping.
Strap eyelet
18
Preparations
Charging the Battery
Always use the dedicated AC adapter, USB cable, and battery for this camera.
• Always charge before first use! (battery is shipped uncharged)
• Charge the battery while it is in the camera.
Camera status Charge
Turned off Yes
Turned on No
About batteries that you can use with this camera
It has been found that counterfeit batteries which look very similar to the
genuine product are available in some markets. Some of these batteries are
not adequately equipped with internal protection to meet the requirements
of appropriate safety standards. Using such batteries may lead to fire or
explosion. Please be advised that Leica Camera AG is not liable for any accident
or failure occurring as a result of use of a counterfeit battery. To ensure that
safe products are used we urgently recommend to use only the Leica battery
BP-DC15 (→14).
19
Preparations
Charging the Battery
Inserting the battery
To charge the battery, insert it into the camera.
1
Push the release slider to the [OPEN]
position and open the card/battery door
Release slider
[OPEN] [LOCK]
2
Insert the battery all the way
• Insert the battery all the way and check that it
is locked by latch.
3
Close the card/battery door and then
push the release slider to the [LOCK]
position
Make sure to insert the battery in the correct
orientation.
Lever
■
To remove the battery
Move the latch in the card/battery
compartment in the direction of the arrow.
●
Use only the Leica battery BP-DC15 (→14).
●
Leica Camera AG cannot guarantee the quality of any other type of battery.
●
To remove the battery, turn the camera off and wait until the Leica logo on the monitor screen goes
off. (Failure to wait may cause the camera to malfunction and may damage the card or recorded
data.)
●
Remove the battery from the camera if you will not use it for a long period of time.
20
Preparations
Charging the Battery
Charging the battery
We recommend charging in a location where the ambient temperature is between 10°C
and 30°C (50°F to 86°F) (same for the battery temperature).
Insert the battery into the camera.
Make sure the camera is turned off.
The battery can be charged from an outlet or through a PC.
USB cable
AC adapter
To the electrical outlet
Computer
Getting ready: Turn on the computer.
When charging the camera, connect the USB cable to the [USB/CHARGE]
socket.
[USB/CHARGE] socket
• This socket is located at the bottom when the camera is in an
upright position.
• Always check the orientation of the plug, and hold it straight to insert
or remove it. (If it is inserted in the wrong direction, the socket could
be deformed and cause faulty operation.)
Also, do not insert into the wrong socket. Doing so may damage the
camera.
21
Preparations
Charging the Battery
●
If the computer enters sleep mode during charging, charging may be stopped.
●
If a notebook computer that is not connected to an electrical outlet is connected to the camera,
the battery of the notebook computer will be depleted. Do not leave the camera and notebook
connected for a long period of time.
●
Always connect the USB cable to the USB socket on your computer. Do not connect it to the USB
socket of the monitor, keyboard, printer, or USB hub.
Charging lamp indications
Charging lamp (Red)
On: Charging in progress
Off: Charging complete
(After charging stops, disconnect the camera
from the electrical outlet or your computer.)
Flashing: Charging error
(For instructions on correcting the problem,
refer to (→277).)
22
Preparations
Charging the Battery
Notes on charging time
When using the AC adapter
Charging time Approx. 190 min.
• The charging time indicated above is the time required for charging in case the battery
is completely depleted. The time required for charging differs depending on conditions
of battery usage. Charging takes longer in cases when temperatures are either high or
low and when the battery has not been used for a long period of time.
• The time required for charging through the computer varies depending on the power
supply capacity of the computer.
●
Do not use any other USB cables except the supplied one. Doing so may cause malfunction of the
camera.
●
Do not use any other AC adapters except the supplied one.
●
Do not use a USB extension cable.
●
The AC adapter and the USB cable are dedicated accessories of this camera. Do not use them for
other devices.
●
Remove the battery if the camera will not be used for a long period of time. (The battery may
become completely depleted in such a case even after being charged initially.)
●
If there is any trouble related to the electrical outlet (i.e. power failure), charging may not complete
properly. Disconnect the USB cable and reconnect it to the camera.
Remaining battery
60
p
Remaining battery capacity
(flashes red)
If the battery mark flashes red, recharge or replace with a fully
charged battery.
23
Preparations
Charging the Battery
Estimated number of recordable pictures and operating time
The number of recordable pictures are based on CIPA (Camera & Imaging Products
Association) standards.
When a SDHC memory card and the supplied battery are used.
■
Recording pictures (When using the monitor)
Number of recordable pictures Approx. 370
Recording time Approx. 185 min.
■
Recording pictures (When using the viewfinder (EVF))
The values in parentheses apply when [EVF Display Speed] is set to [ECO 30fps].
Number of recordable pictures Approx. 250 (Approx. 350)
Recording time Approx. 125 min.
■
Recording videos (When using the monitor)
[Rec Quality] [FHD/28M/60p] [4K/100M/30p]
Available recording time Approx. 100 min. Approx. 90 min.
Actual available recording time
*
Approx. 50 min. Approx. 45 min.
*
The time you can actually record when repeating actions such as turning the camera on/off and
starting/stopping recording.
■
Viewing pictures (When using the monitor)
Playback time Approx. 260 min.
●
The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
• In low-temperature environments, such as on ski slopes.
• When functions such as flash and zoom are used repeatedly.
●
If the available battery power is significantly reduced, the battery is reaching the end of its lifespan.
Please purchase a new battery.
24
Preparations
Inserting and Removing the Card
• Make sure the camera is turned off.
1
Push the release slider to the
[OPEN] position and open the
card/battery door
Release slider
2
Insert the card all the way
Do not touch the terminals
• Check the orientation of a card.
• Insert the card all the way down until
it clicks.
3
Close the card/battery door
and push the release slider to
the [LOCK] position
[OPEN] [LOCK]
■
To remove the card
First, press the card down slightly.
Press Pull out
●
Keep memory cards out of reach of children to prevent swallowing.
●
To remove the card, turn the camera off and wait until the Leica logo on the monitor screen goes
off. (Failure to wait may cause the camera to malfunction and may damage the card or recorded
data.)
25
Preparations
About the Card
The following SD standard-based cards can be used.
Type of Card Capacity Notes
SD memory cards 512 MB – 2 GB • This camera is compatible with UHS-
Ι UHS Speed
Class 3 standard SDHC/SDXC memory cards.
SDHC memory cards 4 GB – 32 GB
SDXC memory cards 48 GB – 128 GB
■
About video/4K photo recording and speed class ratings
Use a card that meets the following ratings of the SD Speed Class or UHS Speed Class.
• SD Speed Class and UHS Speed Class are the speed standards regarding continuous
writing. Confirm the SD speed by checking the card label or other card related
materials.
[Rec Quality] Speed class Label example
[FHD]/[HD] Class 4 or higher
[4K]/[High Speed Video] UHS Speed Class 3
When recording in 4K Photo /
[Post Focus]
UHS Speed Class 3
Access to the card
The access indication displays red when pictures are being recorded on the
card.
60
p
●
While the camera is accessing the card (for an operation such as picture data writing, reading,
deletion, or formatting), do not turn it off or remove the battery or the card. Do not subject the
camera to vibrations, impact, or static electricity. The card or the data on the card may be
damaged, and this camera may no longer operate normally. If operation fails due to vibration,
impact or static electricity, perform the operation again.
●
If you set the write-protect switch to “LOCK”, you may not be able to write, delete
or format the data or display it by recording date.
●
It is recommended that you copy important pictures to your computer
(as electromagnetic radiation, static electricity, or faults may cause data to be
damaged).
26
Preparations
About the Card
Formatting the card (initialization)
Format the card before recording a picture with this camera.
Since data cannot be recovered after formatting, make sure to back up necessary
data in advance.
→ [Setup] → [Format]
●
This requires a sufficiently charged battery.
●
Do not turn off the camera or perform other operations during formatting.
●
Always format cards with this camera. Please reformat the card with this camera if it has already
been formatted with a computer or another device.
Estimated recording capacity (number of pictures/recording time)
The number of photos you can take and the recording time vary in proportion to the card
capacity (and depending on recording conditions and type of card).
Recording picture capacity
When [Aspect Ratio] is set to [3:2] and [Quality] is set to [ ]
[Picture Size] 16 GB 32 GB 64 GB 128 GB
L (20M) 1450 2910 5810 11510
M (10M)
2650 5310 10510 20810
S (5M)
4600 9220 17640 34940
When [Aspect Ratio] is set to [3:2] and [Quality] is set to [ ]
[Picture Size] 16 GB 32 GB 64 GB 128 GB
L (20M) 450 920 1840 3650
M (10M)
530 1070 2140 4250
S (5M)
580 1170 2340 4630
●
When the number of recordable pictures exceeds 9,999, “9999+” is displayed.
27
Preparations
About the Card
Recording time capacity (videos)
• The recordable time is the total time of all the videos which have been recorded.
([h], [m] and [s] indicate “hour”, “minute” and “second”.)
[Rec Quality] 16 GB 32 GB 64 GB 128 GB
[4K/100M/30p]
[4K/100M/24p]
20m00s 41m00s 1h25m 2h45m
[FHD/28M/60p] 1h10m 2h25m 5h00m 9h55m
[FHD/20M/30p] 1h35m 3h15m 6h40m 13h15m
[HD/10M/30p] 3h05m 6h20m 12h45m 25h20m
●
MP4 videos with a [Rec Quality] size of [FHD] or [HD]:
Recording stops when the continuous recording time exceeds 29 minutes.
The video files are split into smaller ones for recording and playback if the file size would
otherwise exceed 4 GB. (You can continue to record such a video without interruption.)
●
MP4 videos with a [Rec Quality] size of [4K]:
Recording stops when the continuous recording time exceeds 15 minutes.
When using an SDHC memory card, files are split into separate ones for recording and playback
if the file size would otherwise exceed 4 GB. (You can continue to record such a video without
interruption.)
If using an SDXC memory card, you can record a video in a single file even if the size is greater
than 4 GB.
●
The maximum available continuous recording time is displayed on the monitor screen.
28
Preparations
Setting Language, Time, and Date
The clock is not set when the camera is shipped.
1
Set the main [ON/OFF] switch to [ON]
2
Press [MENU/SET] while the message is displayed
3
Press to select the language, and then [MENU/SET]
• The [Please set the clock] message appears.
4
Press [MENU/SET]
5
Press to select the items (year,
month, day, hour, minute), and then
to set
: Home time
: Destination time
Style
Display order
Time display format
■
To set the display order or time display format
Select [Style] and then [MENU/SET] to display the
setting screen for display order and time display format.
6
Press [MENU/SET]
29
Preparations
Setting Language, Time, and Date
7
When [The clock setting has been completed.] is displayed,
press [MENU/SET]
8
When [Please set the home area] is displayed, press
[MENU/SET]
9
Press to set your home area and then
[MENU/SET]
City or area name
Current time
Difference from GMT (Greenwich Mean Time)
■
Changing time settings
Perform steps
5
and
6
by selecting [Setup] menu → [Clock Set].
• For details about how to set the menu (→42)
30
Basics
Holding the Camera
Hold the camera firmly with both hands keeping your arms close to your body
while standing with your feet slightly apart.
• To prevent dropping, be sure to attach the supplied strap and wrap it around your
wrist.
• Do not block the flash, AF Assist Lamp, microphones, or speaker with your
fingers or other objects.
• Make sure the camera does not move when you press the shutter button.
• Make sure your footing is stable and there is no danger of colliding with another person
or object in the vicinity while taking pictures.
AF Assist Lamp
Flash
Microphones
Speaker
Wrist strap
■
About the direction detect function
Pictures recorded with the camera held vertically can be
automatically displayed in portrait orientation during playback.
(Only when [Rotate Disp.] is set to [ON].)
• The direction detect function may not operate correctly if the
pictures were taken with the camera pointing up or down.
• Videos, 4K photo series files recorded with the 4K Photo
function, and pictures recorded in [Post Focus] cannot be
displayed vertically.
31
Basics
Buttons/Ring/Dials/Levers Used for Recording
Switching between viewfinder and monitor displays
1
Press [EVF]
Eye Sensor
[EVF] button
You can switch between monitor and viewfinder display.
Automatic switching
between viewfinder and
monitor
*
Viewfinder display
*
Monitor display
*
When [Eye Sensor AF] in the [Custom] ([Focus / Release Shutter]) menu is set to [ON], the camera
focuses automatically when the eye sensor is activated. Even when [Eye Sensor AF] is set and the
camera automatically focuses, a beep will not sound.
■
Automatic switching between viewfinder and monitor displays
The eye sensor automatically switches the display to the viewfinder when your eye or
an object moves close to the viewfinder. When the eye or object moves away from the
viewfinder, the camera returns to monitor display.
■
About diopter adjustment
Rotate the diopter adjustment dial until you are able to clearly
see the characters displayed in the viewfinder.
●
If [EVF Display Speed] is set to [ECO 30fps] when the viewfinder is used, the camera can be
operated for a longer period since battery drainage is reduced.
●
The eye sensor may react differently depending on the shape of your eyeglasses, the way you
hold the camera, or whether the eye sensor is exposed to strong light.
●
During video playback or Slide Show, the eye sensor does not operate.
32
Basics
Buttons/Ring/Dials/Levers Used for Recording
How to use the lens’ zoom function
You can determine how much of a subject is to be captured / how large a subject is to be
rendered by selecting the appropriate focal length, i.e. by zooming.
• You can also use the zoom function from the touch panel. (→142)
• For details about zoom types and use, refer to (→139).
Zoom lever Control ring
1
Move the zoom lever
1
Turn the control ring
*
*
You can perform zoom operation by assigning
the [Zoom] setting to the control ring. (→49)
T side: Telephoto, enlarges the subject
W side: Wide-angle, captures a larger area
Clockwise: Telephoto, enlarges the subject
Counterclockwise: Wide-angle, captures a larger
area
●
Do not touch the lens barrel during zooming.
●
Focusing should be performed after zooming.
●
The camera may make a rattling noise and vibrate when the zoom lever or control ring is
operated. This is not a malfunction.
33
Basics
Buttons/Ring/Dials/Levers Used for Recording
Taking pictures
1
Press the shutter button halfway (to the first pressure
point) to focus on the subject
Focus display
( When focus is set correctly for the targeted subject: illuminated
When focus is not set correctly for the targeted subject: flashing)
Aperture value
Shutter speed
• The descriptions on this page are based on the assumption that
one of the Autofocus modes is being used. (→83)
• The aperture value and shutter speed are displayed. (If the
aperture value and shutter speed are shown in red and flashing,
this indicates over- or underexposure, unless you are using the
flash.)
2
Press the shutter button fully (all the way) to take the
●
Pictures can be taken only when the image is correctly focused as long as the [Focus/
Release Priority] is set to [FOCUS].
●
When [Monitor Display Speed] or [EVF Display Speed] (or both) is set to [ECO 30fps],
Digital Zoom is not available.
●
Even during menu operation or picture playback, if you press the shutter button halfway, you can
instantly set the camera ready for recording.
■
Focusing range
The focusing range is displayed when zooming
Focusing range
• The focusing range is displayed in red when, after pressing
the shutter button halfway, focusing is not successful/
possible
The focusing range may change gradually depending on the zoom setting.
Recording videos
1
Press the video button to start recording
• Immediately release the video button after pressing it.
2
Press the video button again to end recording
34
Basics
Buttons/Ring/Dials/Levers Used for Recording
How to use the mode dial
1
Set to the desired recording mode
• Rotate the mode dial slowly to select the desired mode.
Snapshot Mode (→51)
For taking pictures with extended automatic settings.
Snapshot Plus Mode (→51)
For taking pictures with extended automatic settings while allowing certain manual
adjustments.
Program Mode (→56)
For taking pictures with automatic exposure control.
Aperture-Priority Mode (→57)
The exposure is determined by the automatically controlled shutter speed, based on the
manually set aperture value.
Shutter-Priority Mode (→58)
The exposure is determined by the automatically controlled aperture value, based on the
manually set shutter speed.
Manual Exposure Mode (→59)
The exposure is determined by the manually set aperture value and shutter speed.
Creative Video Mode (→77)
For recording videos with manual setting of aperture, shutter speed and ISO sensitivity.
• You cannot take pictures.
Custom Mode (→81)
For taking pictures with previously registered settings.
Panorama Shot Mode (→64)
For taking panorama pictures.
Scene Modes (→67)
For taking pictures with automatic settings that match the subject.
Creative Control Mode (→71)
For taking pictures using different picture effects.
35
Basics
Buttons/Ring/Dials/Levers Used for Recording
Control ring / Thumb dial
You can select menu items etc. by rotating the thumb dial.
You can use the control ring ( )/thumb dial ( ) to change the settings for recording.
Following are the pre-assigned settings.
Mode dial
Control ring
*
1
Thumb dial
Step Zoom
—
Program Shift
Aperture setting
Shutter speed setting
Aperture setting
*
2
Shutter speed setting
*
2
Aperture setting
*
3
/ Shutter speed setting
*
3
Picture effects change
Aperture setting
*
4
/ Shutter speed setting
*
5
Picture effects change
*
1
When Manual Focus is set, the control ring is assigned to focus setting.
*
2
Press to switch between shutter speed and aperture setting.
*
3
When [Exposure Mode] is set to [A], [S], or [M], you can change the aperture value and shutter
speed in the same way as when the mode dial is set to [
], [ ], or [ ].
*
4
The operation is possible only when the Scene Mode is set to [Appetizing Food].
*
5
The operation is possible only when the Scene Mode is set to [Artistic Nightscape].
The control ring/thumb dial can be used to change to your preferred settings. (→49)
36
Basics
Buttons/Ring/Dials/Levers Used for Recording

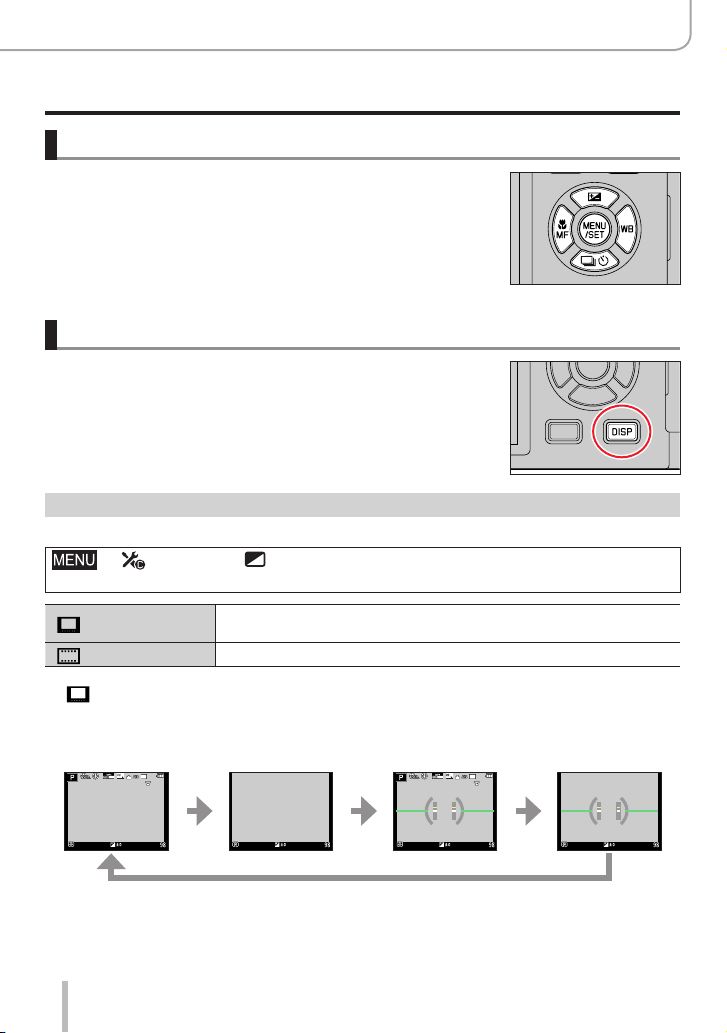

Cursor buttons / [MENU/SET] button (Selecting/setting items)
Pressing the cursor buttons:
Use to select items or values etc.
Pressing [MENU/SET]:
Use this to confirm settings, etc.
[DISP] button (Switching the display information)
1
Press [DISP] to switch the display
During recording
You can switch the viewfinder/monitor display method.
→ [Custom] → [Monitor / Display] → [EVF/Monitor Disp. Set]
→ [EVF Disp. Set] or [Monitor Disp. Set]
[ ] (viewfinder style)
Scales down images slightly so that you can better review the
composition of the images.
[
] (monitor style)
Scales images to fill the entire screen so that you can see their details.
■

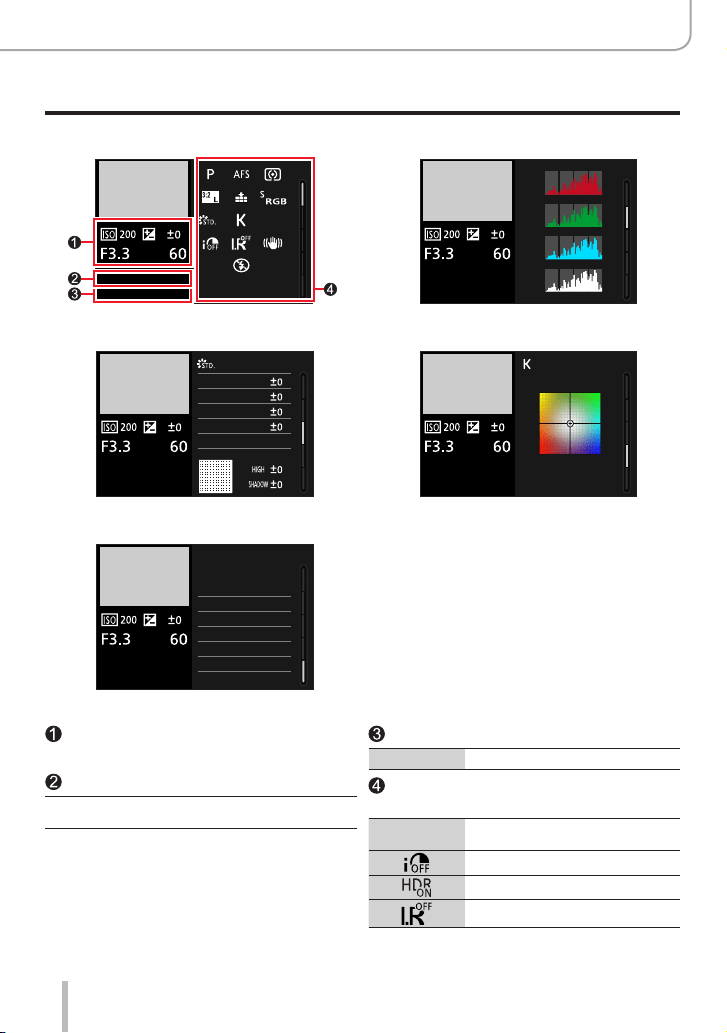

[ ] Viewfinder style display layout (Example of viewfinder style display)
With information
(Detailed information) With information
With information
(Detailed information)
+
level gauge
With information
+
level gauge
60
p
60
p
37
Basics
Buttons/Ring/Dials/Levers Used for Recording
■
[ ] Monitor style display layout (Example of monitor style display)
With information Without information
With information
+
level gauge
Without information
+
level gauge
60
p
60
p
Turned off
●
With [Fn Button Set] in the [Custom] ([Operation]) menu, you can assign [EVF/Monitor Disp. Style]
to a function button. Each time you press the assigned function button, the display style of the
monitor or viewfinder ([
]/[ ]), whichever is currently in use, will change.
■
Using the level gauge
The yellow line indicates the current angle. Correct the angle of the camera so that it
matches the white line.
Tilting up or down
• In this case, it is facing upwards.
Tilting left or right
• In this case, it is tilted to the
right.
• When the camera is level or only very slightly tilted, the level gauge will turn green.
●
Even when no tilt is indicated, there may be an error of about ±1 degree.
●
The level gauge may not be displayed correctly or the direction detect function may not operate
correctly if the pictures are taken with the camera pointing sharply up or down.
38
Basics
Buttons/Ring/Dials/Levers Used for Recording
During playback
With information
Detailed information
display
*
1
Without information
([Highlight])
*
2
Without information
100-0001
1/5
10:00 1.DEC.2018
*
1
Press to switch between the following display modes:
– Detailed information display
– Histogram display
– Photo style, Highlight shadow display
– White balance display
– Lens information display
*
2
This screen is displayed only when [Highlight] in the [Custom] ([Monitor / Display]) menu is set to
[ON].
39
Basics

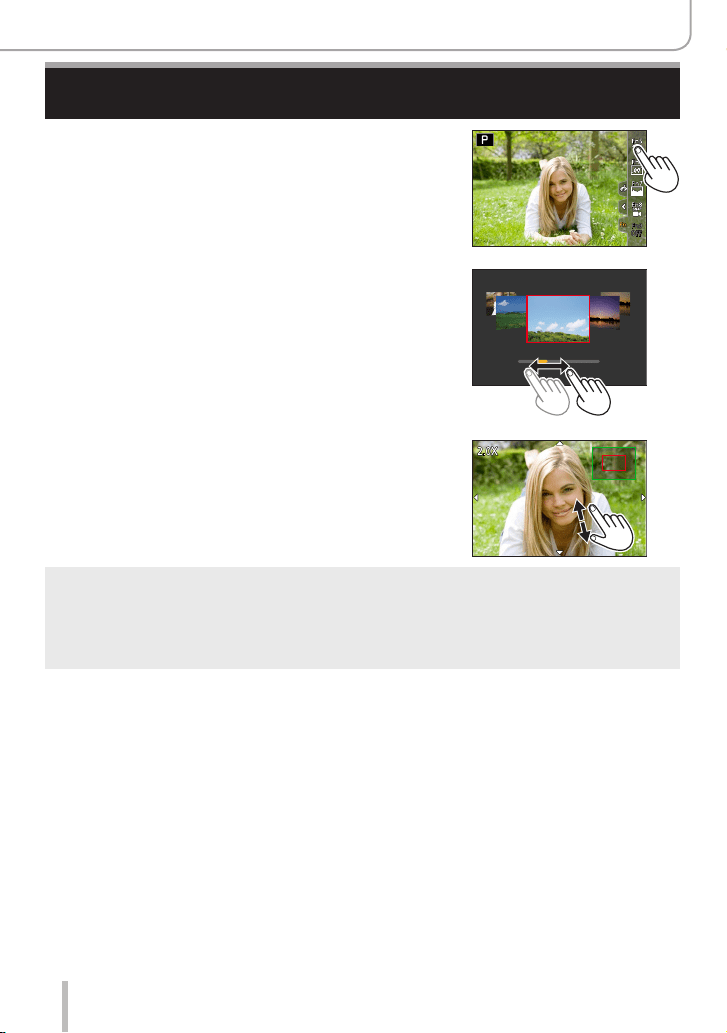

Touch screen operations
Touch
Touch and release the monitor screen.
Drag
Touch and slide your finger across the monitor screen.
Pinch (spread/pinch)
On the monitor screen, spread 2 fingers to zoom in, and
pinch 2 fingers to zoom out.
●
Touch the screen with a clean and dry finger.
●
If you use a commercially available monitor protection foil, please follow the instructions that
accompany it. (Some monitor protection foils may impair visibility or operability.)
●
The touch screen may not function normally in the following cases.
• When touched by a gloved hand
• When the monitor surface is wet
40
Basics
Touch screen operations
Focusing on the subject at the touched position
(Touch AF, Touch Shutter)
Recording modes:
1
Touch [ ]
2
Touch the desired icon
• The icon switches every time you touch one.
[ ] (Touch AF)
Focuses on the subject detail you touch.
*
[ ] (Touch shutter)
Focuses on the touched subject detail and releases the
shutter.
*
[ ] (OFF)
Touch AF and Touch Shutter are disabled.
*
When [Touch AF] in [Touch Settings] of the [Custom] ([Operation]) menu is set to [AF+AE], the
focus and exposure settings are optimized for the touched subject detail. (→95)
3
(When settings other than OFF are selected)
Touch the subject
For details on changing the position and size of the AF area when
the [
] (Touch AF) is set, refer to (→91).
●
If shooting with the touch shutter function fails, the AF area turns red and disappears.
41
Basics
Touch screen operations
Adjusting the exposure based on the touched subject detail
([Touch AE])
Recording modes:
When e.g. the face of the subject is darker than you would like, you can brighten the
exposure by basing it on the face.
1
Touch [ ]
2
Touch [ ]
• The setting screen for the brightness optimization position is
displayed.
• [Metering Mode] is set to [
], which is used exclusively for
[Touch AE].
3
Touch the subject detail you want to optimize the
brightness for
• Touching [Reset] will bring the brightness optimization position
back to the center.
SetSet
ResetReset
4
Touch [Set]
■
Canceling the [Touch AE] function
Touch [
]
●
This function is not available in the following cases:
• When using the Digital Zoom
• When recording with [High Speed Video]
• When recording using [4K Live Cropping]
• When [Touch AF] in [Touch Settings] of the [Custom] ([Operation]) menu has been set to
[AF+AE]
42
Basics
Menu Control
Menu settings can be made either by button or touch operation.
1
Press [MENU/SET] to bring up the menu
2
To switch between menu tabs
Menu tabs
Press
Press to select a tab such as [ ]
Press [MENU/SET]
With touch screen operations
Touch a tab, such as [
]
[Rec]
(→165)
For settings such as aspect ratio, number of pixels, 4K Photo, etc.
[Motion Picture]
(→180)
This menu lets you set the [Rec Quality], and other aspects for
video recording.
[Custom]
(→182)
Operation of the camera, such as displaying of the screen and
button operations, can be set up according to your preferences.
[Setup]
(→196)
For settings that make usage more convenient, such as the
changing the clock settings and beep tone. You can also perform
Wi-Fi/Bluetooth function-related settings.
[My Menu]
(→206)
Allows you to register frequently used menus.
[Playback]
(→207)
Allows you to perform settings for playback and editing pictures.
• Menus displayed in each recording mode (→164)
43
Basics
Menu Control

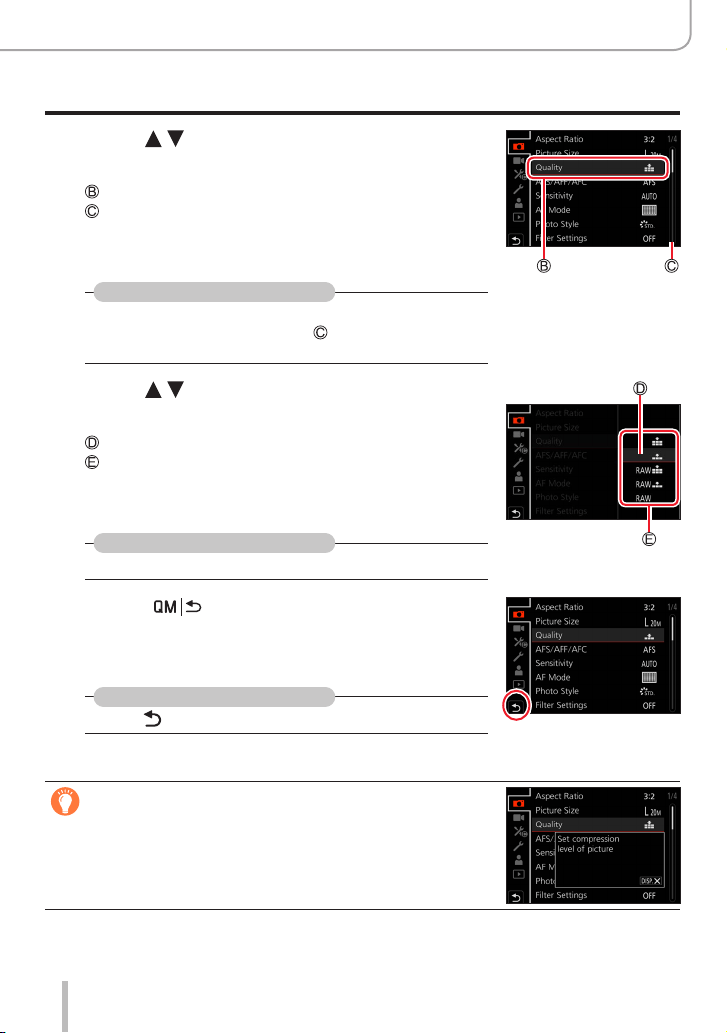

3
Press to select the menu item and
then [MENU/SET]
Item
Page
• You can switch to the next page by rotating the thumb
dial.
With touch screen operations
Touch the menu item
• You can switch pages by touching on the right side of the
display.
4
Press to select the setting and then
[MENU/SET]
Selected setting
Settings
• The setting methods vary depending on the menu
item.
With touch screen operations
Touch the setting to set
5
Press [ ] repeatedly until the
recording or playback screen reappears
• During recording, the menu screen can also be exited
by pressing the shutter button halfway.
With touch screen operations
Touch [
]
●
You can display an explanation on the menu by pressing the
[DISP] while you select a menu item or setting.
●
The menu items that cannot be set are grayed out. In some
setting conditions, the reason the setting is disabled is
displayed when you press [MENU/SET] if you select a grayed-
out menu item.
44
Basics
Quick Menu
You can easily call up some of the menu items and set them during recording.
1
Press [ ]
2
Rotate the thumb dial to select a menu
item, and press or
• The menu item can also be selected by pressing .
60
p
60
p
3
Rotate the thumb dial to select the setting
• The setting can also be selected with .
60
p
60
p
4
Press [ ] to close the Quick Menu
●
Some items or settings cannot be selected depending on the mode or display style the camera is
in.
45
Basics
Quick Menu
Customizing the Quick Menu
Up to 15 items can be assigned to the Quick Menu.
→ [Custom] → [Operation] → [Q.MENU] → [CUSTOM]
1
After pressing [ ], press to select [ ], and
then [MENU/SET]
2
Press to select the menu item in the top row
and then [MENU/SET]
Top row: Items that can be set
Bottom row: Items assigned to the Quick Menu
• Items that are displayed in light gray in the top row are already
assigned to the Quick Menu.
3
Press to select the empty space in the bottom row
and then [MENU/SET]
• You can also assign a menu item by dragging it from the top row
to the bottom row.
• If there is no empty space in the bottom row, assigning a new
item replaces the one formerly in the position of the new item.
• To cancel the setting, move to the bottom row by pressing
and
select an item to cancel, and then press [MENU/SET].
4
Press [ ]
• It will return to screen of step
1
. Press [MENU/SET] to switch to the recording screen.
46
Basics
You can assign frequently-used functions to particular buttons ([Fn1] - [Fn4]) or icons
displayed on the monitor screen ([Fn5] - [Fn9]).
1
Set the menu
→ [Custom] → [Operation] → [Fn Button Set]
Settings: [Setting in REC mode] / [Setting in PLAY mode]
2
Press to select the function button
you want to assign a function to and then
[MENU/SET]
3
Press to select the function you want to assign and then
[MENU/SET]
• For details on the functions that can be assigned in [Setting in REC mode], refer
to (→47).
• For details on the functions that can be assigned in [Setting in PLAY mode], refer
to (→48).
■
Rapidly assigning functions
The screen displayed in Step
3
can be displayed by holding a function button ([Fn1] to
[Fn4]) for 2 seconds.
●
Certain functions cannot be assigned to some function buttons.
●
The function assigned to a function button may not work in some modes or on some display
screens.
Assigning Frequently used Functions to the Buttons
(Function buttons)
47
Basics
Assigning Frequently used Functions to the Buttons (Function buttons)
Using the function buttons during recording
Press the function button to use the assigned function.
■
Using the touch function buttons
Touch [ ]
Touch [Fn5], [Fn6], [Fn7], [Fn8] or [Fn9]
■
Functions that can be assigned in [Setting in REC mode]
• [4K Photo Mode]: [Fn1]
*
1
• [Post Focus]: [Fn2]
*
1
• [Wi-Fi]: [Fn5]
*
1
• [Q.MENU]: [Fn3]
*
1
• [Video Record]
• [EVF/Monitor Switch]: [Fn4]
*
1
• [EVF/Monitor Disp. Style]
• [AF/AE LOCK]
• [AF-ON]
• [Preview]
• [One Push AE]
• [Touch AE]
• [Level Gauge]: [Fn6]
*
1
• [Focus Area Set]
• [Operation Lock]
• [Photo Style]
• [Filter Effect]
• [Aspect Ratio]
• [Picture Size]
• [Quality]
• [Sensitivity]
• [AF Mode]
• [AFS/AFF/AFC]
• [Metering Mode]
• [Bracket]
• [Highlight Shadow]
• [i.Dynamic]
• [i.Resolution]
• [Min. Shtr Speed]
• [HDR]
• [Shutter Type]
• [Flash Mode]
• [Flash Adjust.]
• [i.Zoom]
• [Digital Zoom]
• [Stabilizer]
• [4K Live Cropping]
• [Snap Movie]: [Fn8]
*
1
• [Motion Pic. Rec Quality]
• [Silent Mode]
• [Peaking]
• [Histogram]: [Fn7]
*
1
• [Guide Line]
• [Zebra Pattern]
• [Monochrome Live View]
• [Constant Preview]
• [Rec Area]
• [Zoom lever]
• [Exposure Comp.]
• [White Balance]
• [Focus Mode]
• [Drive Mode]
• [Rec / Playback Switch]
• [Off]
*
2
: [Fn9]
*
1
*
1
Function button settings at the time of purchase.
*
2
No function is assigned to function buttons.
48
Basics
Assigning Frequently used Functions to the Buttons (Function buttons)
●
When [Video Record] is assigned to a function button, you can start and stop recording videos the
same way as you would by pressing the video button.
●
When [Focus Area Set] is assigned to a function button, you can display the AF area or the MF
Assist position setting screen.
●
When [Operation Lock] is assigned to a function button, you can disable the operations that were
set using [Operation Lock Setting] in the [Custom] ([Operation]) menu. To cancel the lock, press
the function button to which [Operation Lock] is assigned again.
●
When [Rec / Playback Switch] is assigned to a function button, you can switch between recording
and playback modes.
●
To restore the default function button settings, select [Restore to Default] in
step
3
(→46).
●
If the screen displays or similar, the displayed operation will be
performed instead of the function assigned to the function buttons by
[Fn Button Set].
Using the function buttons during playback
You can directly set an assigned function to a selected image by pressing the function
button during playback.
Example: When [Fn2] is set to [Rating★3]
1
Press to select the picture
2
Press [Fn2], and then set the picture as [Rating★3]
■
Functions that can be assigned in [Setting in PLAY mode]
• The following functions can be assigned to the buttons [Fn1], [Fn2] or [Fn4].
• [Wi-Fi]: [Fn1]
*
1
• [EVF/Monitor Switch]: [Fn4]
*
1
• [Rec / Playback Switch]
• [4K PHOTO Play]
• [Delete Single]
• [Protect]
• [Rating★1]
• [Rating★2]
• [Rating★3]: [Fn2]
*
1
• [Rating★4]
• [Rating★5]
• [RAW Processing]
• [4K PHOTO Bulk Saving]
• [Off]
*
2
*
1
Function button settings at the time of purchase.
*
2
No function is assigned to function buttons.
●
To restore the default function button settings, select [Restore to Default] in step
3
(→46).
49
Basics
Changing the Settings Assigned to the Control Ring/
Thumb Dial
Recording modes:
Changes the settings assigned to the control ring/thumb dial.
→ [Custom] → [Operation] → [Ring/Dial Set]
Settings: [
] (control ring) / [ ] (thumb dial)
1
Use to select the setting and then [MENU/SET]
[DEFLT] [Normal] [Photo Style]
[Zoom]
*
[Filter Effect]
[Step Zoom]
*
[Aspect Ratio]
[Exposure Comp.] [Highlight Shadow]
[Sensitivity] [i.Dynamic]
[White Balance] [i.Resolution]
[AF Mode] [Flash Mode]
[Focus Mode] [Flash Adjust.]
[Drive Mode] [OFF]
[Not Set]
*
*
Items that can only be set to the control ring
• To return to the default setting, select [Normal].
• If you do not want to use the control ring, select [Not Set].
• Under [Highlight Shadow], both the control ring and thumb dial are used.
If [Highlight Shadow] is assigned to the control ring (or thumb dial), [Highlight
Shadow] will also be assigned to the thumb dial (or control ring).
●
The assigned function setting applies to all the recording modes.
However, the assigned function may not operate when combined with certain recording modes.
50
Basics
Entering Text
Follow the steps below when the text entry screen is displayed.
1
Use to select characters
2
Press [MENU/SET] several times until the
desired character is displayed
• [ ]: Enter a blank.
■
To change the character type
• Press [DISP]
• Use
to select [ ] and press [MENU/SET]
■
To continue entering characters
• Use
to select [ ] and press [MENU/SET]
• Move the zoom lever towards the T side
• Rotate the thumb dial counterclockwise.
■
To edit text
Use to select [ ] [ ] and press [MENU/SET]. Then, move the cursor to
the character to edit
• You can also use the zoom lever or thumb dial to reposition the cursor.
Use to select [Delete] and press [MENU/SET]
Use to select the correct character, and press [MENU/SET]
3
When you are finished entering text, use to select
[Set] and press [MENU/SET]
●
A maximum of 30 characters can be entered (maximum of 9 characters when setting names in
[Face Recog.]).
●
A maximum of 15 characters can be entered for [ ], [ ], [ ], [ ] and [ ] (maximum of
6 characters when setting names in [Face Recog.]).
51
Recording Modes
Snapshot Modes
Recording modes:
These modes are recommended for those who prefer a point and shoot style, while
relying on the camera to automatically select settings to match the subject and recording
environment.
1
Set the mode dial to [ ]
• At the time of purchase, the mode is set to Snapshot
Plus Mode.
2
Point the camera at the subject
• When the camera identifies the optimal scene mode
for the targeted subject, the icon for the respective
scene mode turns blue for 2 seconds and then
changes to the gray indication.
(Automatic Scene Detection)
60
p
■
Switching between Snapshot Plus Mode and Snapshot Mode
Select the Snapshot Mode tab
Press to open the Snapshot Mode menu
Select [Snapshot Mode] in the [Snapshot Mode] menu
Press to select [ ] or [ ] and then [MENU/SET]
It is also possible to display the selection screen by touching the recording mode
icon in recording screen.
60
p
[ ] allows you to adjust some settings such as the exposure and color tone while
also using [ ] for other settings so that you can record pictures more suited to your
preferences.
(○: Available, –: Not available)
Snapshot Plus Mode
Snapshot Mode
Setting the color tone ○ –
Setting the exposure ○ –
Defocus control
function
○ –
Menus that can be set Many Few
52
Recording Modes
Snapshot Modes

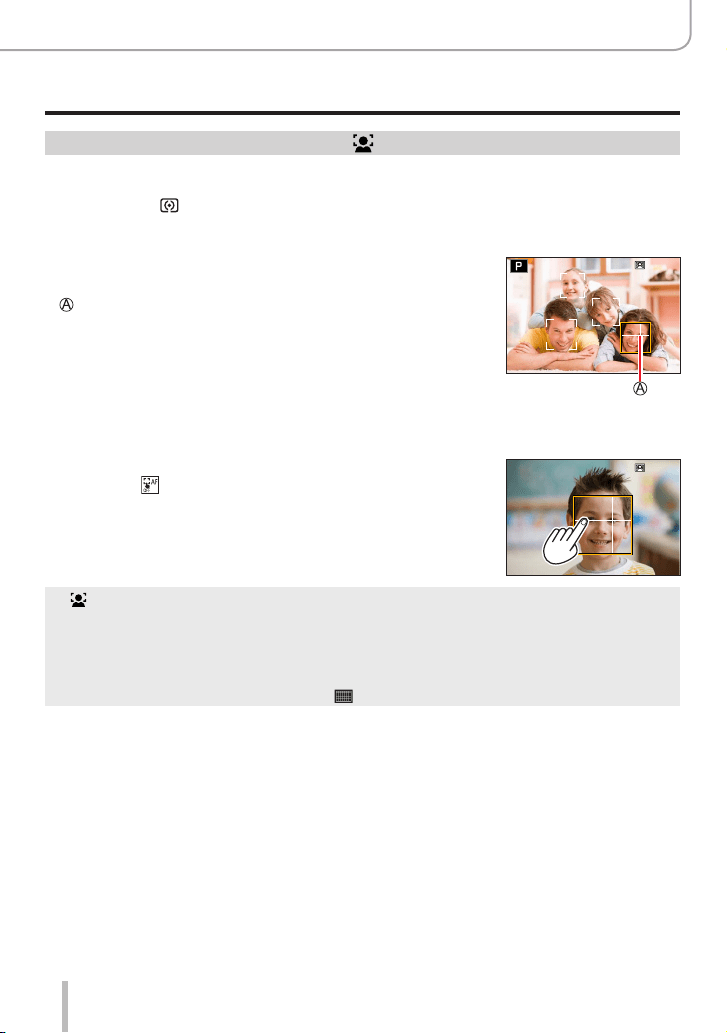

Autofocus, Face/Eye Detection, and Face Recognition
[AF Mode] is automatically set to [ ]. When you touch the subject detail you want to
be rendered sharply, the camera switches to [ ] and the AF tracking function starts
operating.
• You can also switch to [ ] by pressing [MENU/SET], going to the [Rec] menu, then
going to the [AF Mode] menu and selecting [ ] (tracking). Aim the AF tracking area at
the subject detail you want to be rendered sharply and press the shutter button halfway
to initiate the AF tracking function.
• When [Face Recog.] is set to [ON] and if the camera recognizes a face similar to a
registered face, [R] is displayed on the upper right corner of the [ ], [ ], and [ ]
icons.
Flash
When the flash is open, the camera will automatically be set to [ ], [ ] (Auto/Red-Eye
Reduction), [ ], or [ ], depending on the type of subject and ambient brightness.
●
When [ ] or [ ] is displayed, the [Red-Eye Removal] function is activated to automatically
detect red-eye and correct the picture data.
●
When [ ] or [ ] is selected, the shutter speed may be reduced.
Automatic Scene Detection
When taking pictures
[i-Portrait] [i-Scenery] [i-Macro]
[i-Night Portrait]
*
1
[i-Night Scenery]
[i-Handheld Night Shot]
*
2
[i-Food]
[i-Baby]
*
3
[i-Sunset]
/ When the subject does not correspond to any of the above
When recording videos
[i-Portrait] [i-Scenery] [i-Low Light] [i-Macro]
/ When the subject does not correspond to any of the above
*
1
Displayed only when using flash.
*
2
When [iHandheld Night Shot] is [ON].
*
3
When children (that are registered in the camera with Face Recognition) under 3 years old are
recognized.
53
Recording Modes
Snapshot Modes
• When the camera identifies [ ] as the optimal scene mode and if it determines that
camera shake is reduced by the use of a tripod or by other means, a shutter speed
slower than usual is selected. After pressing the shutter button, do not move the
camera while recording.
• When recording 4K photos or when recording using [Post Focus], Scene Detection
works the same way as when recording videos.
●
Depending on recording conditions, different scenes may be determined for the same subject.
About Backlight Compensation
Backlight compensation is automatically activated in Snapshot Plus Mode or Snapshot Mode.
Backlight is a condition where a light shines from behind a subject. In backlighting, parts of the subject
would appear darker than you may want them to be rendered, so the camera will automatically attempt
to correct this by increasing the overall brightness.
[Snapshot Mode] menu
Taking pictures handholding the camera ([iHandheld Night Shot])
Recording modes:
If a night scene is detected while the camera is being handheld, [iHandheld Night Shot] is
selected automatically to record a picture with less camera shake and less noise without
using a tripod by combining a number of serial shots.
→ / [Snapshot Mode] → [iHandheld Night Shot]
Settings: [ON] / [OFF]
●
The recorded area is slightly smaller than usual.
●
After the shutter button has been pressed, do not move the camera during the exposure series.
●
The flash is fixed to the [ ] (Forced Flash Off) setting.
●
This function will not work for pictures while a video is being recorded.
●
This function is not available in the following cases:
• When using [Burst]
• When recording 4K photos
• When recording using [Post Focus]
• When recording using [Bracket]
• When [Quality] is set to [
], [ ] or [ ]
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
54
Recording Modes
Snapshot Modes

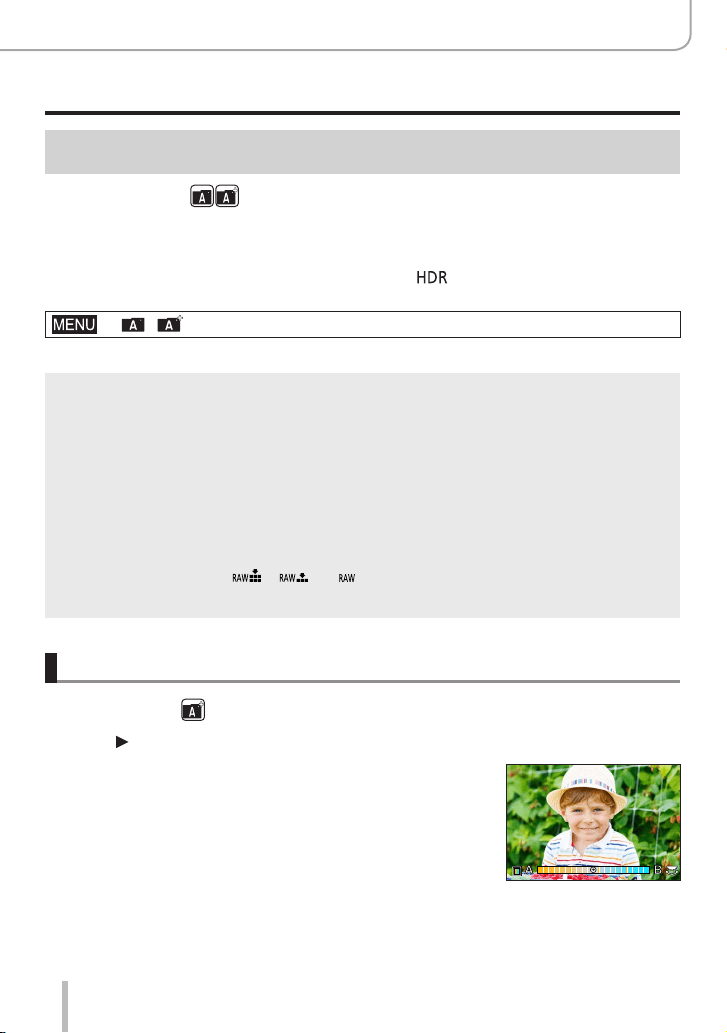

Combining several photos into a single picture with rich gradation
([iHDR])
Recording modes:
When there is, for example, strong contrast between the background and the subject,
[iHDR] records multiple photos with differing exposures and combines them to create a
single picture rich in gradation.
[iHDR] is activated when required. When activated, [ ] will be displayed on the
monitor screen.
→ / [Snapshot Mode] → [iHDR]
Settings: [ON] / [OFF]
●
The recorded area is slightly smaller than usual.
●
After the shutter button has been pressed, do not move the camera during the exposure series.
●
Since a series of photos are combined after they have been recorded, it will be a few moments
before you can record another one.
●
In the case of composition from a photo series, afterimages may appear if the subject was moving.
●
This function will not work for pictures while videos are being recorded.
●
This function is not available in the following cases:
• When recording using the flash
• When using [Burst]
• When recording 4K photos
• When recording using [Post Focus]
• When recording using [Bracket]
• When [Quality] is set to [
], [ ] or [ ]
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
Setting coloring
Recording mode:
1
Press to display the setting screen
2
Rotate the thumb dial to adjust the color
• Press [MENU/SET] to return to the recording screen.
• The color setting will return to the default level (center point)
when the camera is turned off or it is switched to another
recording mode.
• With touch screen operations (→55)
55
Recording Modes
Snapshot Modes

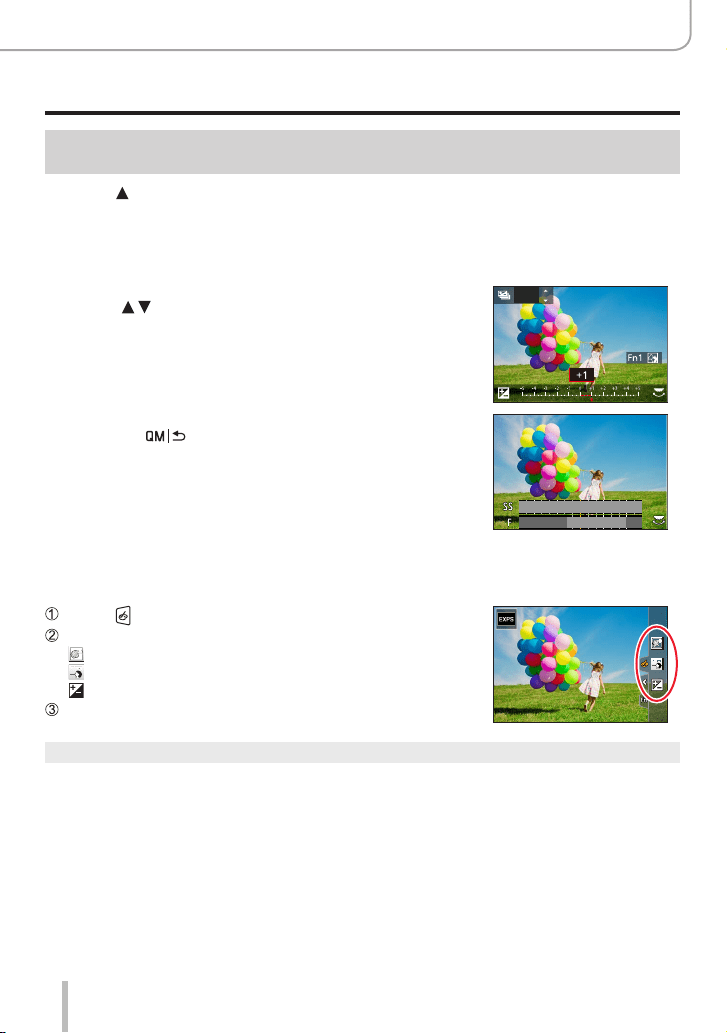

Setting brightness (exposure)/blurriness of the background
(Defocus control function)
Recording mode:
1
Press to display the setting screen
• The brightness (exposure) operation screen is displayed. Press [Fn1] to operate the defocus
control, and then press it again to finish the operation.
2
Rotate the thumb dial to set
• Press [MENU/SET] to return to the recording screen.
When setting the brightness (exposure)
• Press
to set the Exposure Bracket. (→129)
OFF
When setting the background defocusing
• Pressing [
] will cancel the setting.
• The Autofocus Mode is set to [
]. The position of the AF area
can be set by touching the screen. (Its size cannot be changed)
8.05.64.0
250 125 60 30 15
■
With touch screen operations
Touch [ ]
Touch the item you want to set
[ ]: Coloring
[ ]: Degree of defocusing
[ ]: Brightness
Drag the slide bar or exposure meter to set
• Press [MENU/SET] to return to the recording screen.
56
Recording Modes
Taking Pictures Using the Exposure Control Modes
, , , and
Program exposure mode
Recording mode:
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
1
Set the mode dial to [ ]
2
Press the shutter button halfway
• If the aperture value and shutter speed flash red, you do not have the correct
exposure.
3
While the numeric values are displayed
(approximately 10 seconds), rotate the
thumb dial to change the values, i.e. to
use the Program Shift function
Program Shift indication
Aperture value
Shutter speed
8.05.64.0
250 125 60 30 15
60
p
• The operation can also be performed by rotating the control ring.
• To cancel Program Shift, either turn off the camera or rotate the thumb dial until
the Program Shift indication turns off.
• Program Shift can easily be canceled by setting a function button to [One Push
AE]. (→46, 63)
About Program Shift
The function for maintaining the same exposure (brightness) while changing the aperture
value and shutter speed combination is called “Program Shift”.
●
Program Shift cannot be used in the following cases:
• When recording using the flash
• When recording 4K photos
• When recording using [Post Focus]
• When ISO sensitivity is set to [
]
57
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
Aperture Priority Exposure Mode
Recording mode:
Set the aperture value to a higher number if you want a larger in-focus area (in front of
and behind the focused subject), or to a lower number for the opposite.
1
Set the mode dial to [ ]
2
Rotate the thumb dial to set the aperture value
• The operation can also be performed by rotating the control ring.
Aperture value
Exposure setting balance
Aperture values that
can be set
*
Shutter speed automatic setting range
(seconds)
F3.3 - F8.0
60 - 1/2000
(When the mechanical shutter is used)
1 - 1/16000
(When the electronic shutter is used)
*
You may not be able to select some values depending on the
zoom lens’ focal length setting.
8.05.64.0
250 125 60 30 15
●
The effect of the aperture value you have set is not applied to the monitor image. To check the
effect on the monitor image, use Preview Mode. (→62)
●
The brightness of the monitor image may vary from the actual recorded photo. Check its
brightness using the playback screen.
●
When you adjust the aperture value, an exposure setting balance is displayed. If the aperture
value is shown in red, you do not have an appropriate exposure.
●
If the correct exposure is not achieved when you press the shutter button halfway, the numeric
values of the shutter speed is displayed in flashing red.
58
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
Shutter-Priority Exposure Mode
Recording mode:
Set a faster shutter speed if you want to take a sharp photo of a moving subject, or a
slower speed if you want to create e.g. subject blur to emphasize a movement.
1
Set the mode dial to [ ]
2
Rotate the thumb dial to set the shutter speed
• The operation can also be performed by rotating the control ring.
Shutter speed
Exposure setting balance
Shutter speeds that can be set
(seconds)
Aperture value
automatic setting
range
60 - 1/2000
(When the mechanical shutter is used)
1 - 1/16000
(When the electronic shutter is used)
F3.3 - F8.0
8.0 5.6 4.0
15 30 60 125 250
●
The effect of the shutter speed you have set is not applied to the monitor image. To check the
effect on the monitor image, use Preview Mode. (→62)
●
The brightness of the monitor image may vary from the actual recorded photo. Check its
brightness using the playback screen.
●
When you adjust the shutter speed, an exposure setting balance is displayed. If the shutter speed
is shown in red, you do not have an appropriate exposure.
●
If the correct exposure is not achieved when you press the shutter button halfway, the numeric
value of the aperture is displayed in flashing red.
59
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
Manual Exposure Mode
Recording mode:
This mode allows you to determine the exposure by manually setting both shutter speed
and aperture value. The exposure setting balance scale appears at the bottom of the
screen to indicate the over-/under-/ correct exposure resulting from the respective
settings.
1
Set the mode dial to [ ]
2
Turn the control ring to set the aperture value, and the
thumb dial to set the shutter speed
• You can switch the setting operation of control ring and thumb
dial by pressing
.
Aperture value
Shutter speed
Exposure deviation indication
Exposure setting balance
Aperture values that
can be set
*
Shutter speeds that can be set
(seconds)
F3.3 - F8.0
T (Time), 60 - 1/2000
(When the mechanical shutter is used)
1 - 1/16000
(When the electronic shutter is used)
*
You may not be able to select some values depending on the
zoom lens’ focal length setting.
8.05.64.0
8 15 30 60 125
Optimizing the ISO sensitivity for the aperture value and shutter speed
When the ISO sensitivity is set to [AUTO], the camera sets it automatically to ensure an appropriate
exposure for the respective aperture and shutter speed settings.
• Depending on recording conditions, an appropriate exposure may only be achieved by using a
higher ISO sensitivity, or not at all with the respective aperture and shutter speed settings.
Light balance (approximation)
Shows pictures with standard brightness (appropriate exposure).
Shows brighter pictures. For the appropriate exposure, either use a faster shutter
speed or increase the aperture value.
Shows darker pictures. For the appropriate exposure, either use a slower shutter
speed or reduce the aperture value.
60
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
●
The effect of the aperture value and shutter speed you have set is not applied to the monitor
image. To check the effect on the monitor image, use Preview Mode. (→62)
●
The brightness of the monitor image may vary from the actual recorded photo. Check its
brightness using the playback screen.
●
When you adjust the aperture value and shutter speed, an exposure setting balance is displayed.
If aperture and shutter speed are shown in red, you do not have an appropriate exposure.
●
If the correct exposure is not achieved when you press the shutter button halfway, the numeric
values of the aperture and shutter speed are displayed in flashing red.
61
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
About [T] (Time) (Approximately up to 120 seconds)
If you set the shutter speed to [T], the shutter stays open when the shutter button is
pressed fully. The shutter closes when you press the shutter button again. Use this
function when you want to keep the shutter open for an extended period, for example, to
record pictures of fireworks or night scenes.
●
When the shutter speed is set to [T] (time), we recommend using a tripod and taking pictures
remotely by connecting the camera to a smartphone via Wi-Fi connection to prevent camera
shake. [B] (Bulb) is also available when connected via Bluetooth. (→236, 238)
●
When you take pictures with the shutter speed set to T (time), the pictures may have higher
noise levels. If you want to suppress noise, we recommend setting [Long Shtr NR] to [ON] in
the [Rec] menu. (→175)
●
This function is not available in the following cases:
• When recording using the flash (Only when [Flash Synchro] is set to [2ND])
• When recording 4K photos
• When recording using [Post Focus]
• When recording using [Bracket]
• When [HDR] is set to [ON]
• When using the electronic shutter
• When [Silent Mode] is set to [ON]
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
62
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
Checking the effects of the aperture value and shutter speed
settings (Preview Mode)
Recording modes:
• Checking the effect of the selected aperture value: This enables you to check the
depth of field (focus range).
• Checking the effect of the selected shutter speed: This allows you to check motion
sharpness in a scene.
Preparations
• Assign [Preview] to the function button (→46)
The following step is an example of assigning [Preview] to the [Fn3] button.
1
Press [Fn3] to switch the confirmation screen
• Every time you press [Fn3], the screen switches.
Normal recording screen
Aperture effect preview
screen
Aperture effect: ○
Shutter speed effect: –
Shutter speed effect
preview screen
Aperture effect: ○
Shutter speed effect: ○
Fn3
Shtr Speed Effect On
Fn3
Exit Preview
Depth of field characteristics
Recording
conditions
Aperture value Small Large
Focal length longer shorter
Distance to a subject closer farther
Depth of field
(Focus range)
Shallow (narrow)
Example:
To deliberately blur the
background
Deep (wide)
Example:
To render more of the
subject in focus
63
Recording Modes
Taking Pictures Using the Exposure Control Modes , , , and
●
You can take a picture even when Preview Mode is activated.
●
The range in which you can check the effect of a selected shutter speed is between 8 seconds
and 1/16000 seconds.
●
This mode cannot be used with [ ] ([4K Pre-Burst]) of 4K Photo.
Easily set aperture value / shutter speed for suitable exposure
(One Push AE)
Recording modes:
When the exposure setting is too bright or too dark, you can use one push AE to achieve
a suitable exposure setting.
How to tell if the exposure is not adequate
Flashes red
• If the aperture values and shutter speed flash red when the shutter
button is pressed halfway.
• If the Exposure Deviation Indication (→59) is anything other than
[
] when in Manual Exposure Mode.
Preparations
• Assign [One Push AE] to the function button (→46)
1
(When exposure is not adequate) Press the function button
Change to an appropriate exposure
5.64.0
15 30 60 125 250
8.0
●
In the following cases, a suitable exposure cannot be set.
• When the subject is extremely dark and it is not possible to achieve adequate exposure by
changing the aperture value or shutter speed
• When recording using the flash
• Preview Mode
64
Recording Modes
Recording mode:
Consecutive photos taken while the camera is moved are combined to form a panorama.
1
Set the mode dial to [ ]
2
Press the shutter button halfway to focus
3
Press the shutter button fully and pan the camera in a small
circular motion to the recording direction to start recording
Horizontal/vertical guide line
Recording direction and progress status (approximate)
Taking pictures from left to right
Image size: [STANDARD] Image size: [WIDE]
• Pan the camera at a constant speed.
• You may not be able to take pictures successfully if you move the camera too quickly or too
slowly.
4
Press the shutter button fully again to end recording
• You can also end recording if you stop panning the camera while taking pictures.
• Recording can also be ended by moving the camera to the end of the guide.
Recording panorama pictures
65
Recording Modes
Recording panorama pictures
■
Changing the recording direction and panning range of panorama pictures
→ [Panorama Shot] → [Direction] / [Picture Size]
[Direction] Sets the recording direction.
[Picture Size] Sets the panning range.
[STANDARD] / [WIDE]
• The number of recording pixels per horizontal line and vertical line of a panorama
picture varies depending on the panning range, recording direction and number of
stitched photos. The maximum number of recording pixels is as follows:
Panning range Recording direction Horizontal resolution Vertical resolution
[STANDARD]
Horizontal 8176 pixels 1920 pixels
Vertical 2560 pixels 7680 pixels
[WIDE]
Horizontal 8176 pixels 960 pixels
Vertical 1280 pixels 7680 pixels
Tips
Pan the camera in the recording direction as steadily as possible.
(If the camera shakes too much, it may not be able to take pictures or may end up creating a narrower
panorama picture.)
Pan the camera to a point slightly ahead of the
point that you want to take.
(However, the last frame is not recorded to the
end.)
66
Recording Modes
Recording panorama pictures
■
About panorama picture playback
Pressing
will start scrolling playback automatically in the
same direction as the recording.
• The following operations can be performed during scrolling
playback.
Start panorama playback / Pause
*
Stop
*
When the playback is paused, you can scroll forwards and backwards by dragging the screen.
When the scroll bar is touched, the playback position jumps to the touched position.
●
The zoom position is fixed to the widest focal length.
●
The focus, exposure and White Balance are all fixed to optimal values for the first picture.
If the focusing or brightness of the recorded pictures as part of a panorama picture differ
significantly from the first one, the panorama picture as a whole (when all pictures are stitched
together) may not have consistent focus and brightness.
●
Since several photos are stitched together to create a panorama picture, some subjects may be
distorted or the joining portions of successively taken photos that are stitched may be noticeable.
●
Panorama pictures may not be created or photos may not be recorded properly in the case of the
following subjects or in case of following recording conditions:
• Subjects that have large single-color areas or repetitive patterns (sky, beach, etc.)
• Moving subjects (persons, pets, vehicles, waves, or flowers swaying in the wind, etc.)
• Subjects whose colors or patterns change quickly (such as an image appearing on a display)
• Dark locations
• Locations with a flickering light source (fluorescent lamp, candle light, etc.)
67
Recording Modes
Recording mode:
If you select a scene mode suiting the subject and the recording conditions with reference
to the example images, the camera will set optimal exposure, color, and focus, allowing
you to record in a manner appropriate to the scene.
1
Set the mode dial to [ ]
2
Press to select the scene mode
• The scene mode can also be selected by dragging an
example image or the slide bar.
3
Press [MENU/SET]
It is also possible to display the selection screen by touching the Recording
mode icon in the recording screen.
60
p
●
Depending on the scene mode, the recording screen may seem as if frames are missed.
●
To change the scene mode, select [Scene Switch] in the [Scene Guide] menu, and then press
[MENU/SET]. You can return to step
2
.
●
Some of the recording menu items cannot be set in Scene Mode because the camera
automatically adjusts the settings to the optimal values.
●
Although White Balance is fixed to [AWB] for certain scene modes, you can fine tune the White
Balance or use White Balance bracketing by pressing the cursor button
on the recording
screen.
Scene Modes
68
Recording Modes
Scene Modes
Types of Scene Modes

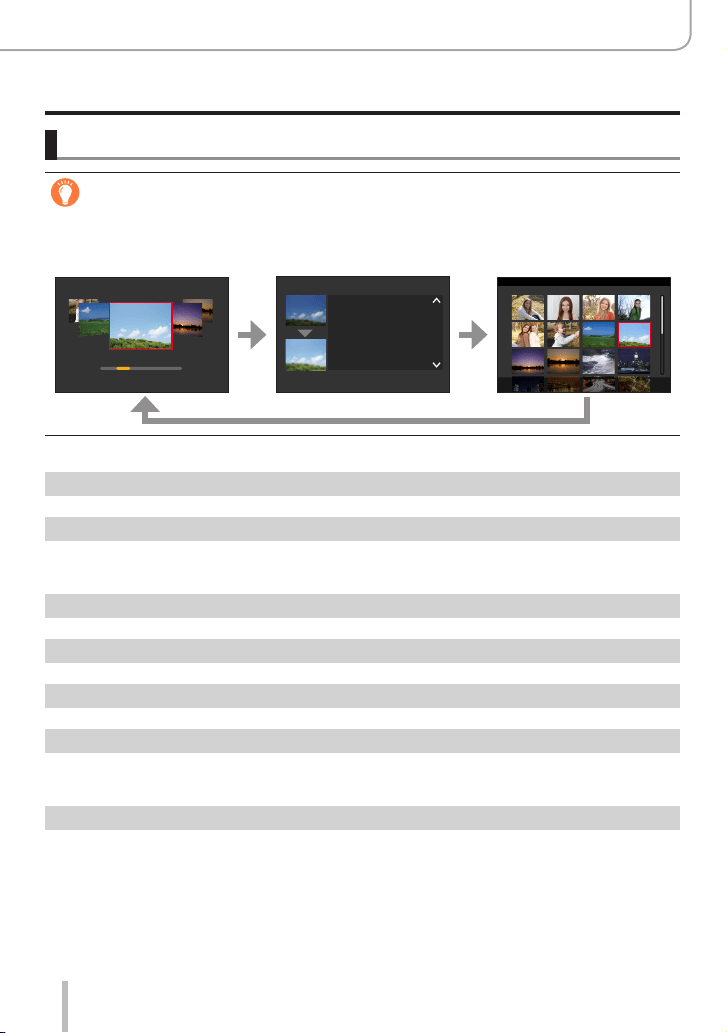

Displaying the description of each scene mode and recording tips
Press [DISP] while the scene selection screen is displayed
• When it is set to the guide display, detailed explanations and tips for each scene are displayed.
Normal display Guide display List display
1: [Clear Portrait]
2: [Silky Skin]
●
If a part of the background etc. is a color close to skin color, this part is also smoothed.
●
This mode may not be effective when there is insufficient brightness.
3: [Backlit Softness]
4: [Clear in Backlight]
5: [Relaxing Tone]
6: [Sweet Child’s Face]
●
When you touch the face, a picture is recorded with the focus and exposure set for the touched
location.
7: [Distinct Scenery]
69
Recording Modes
Scene Modes
8: [Bright Blue Sky]
9: [Romantic Sunset Glow]
10: [Vivid Sunset Glow]
11: [Glistening Water]
●
The Star filter used in this mode may also cause glistening effects on objects other than a water
surface.
12: [Clear Nightscape]
13: [Cool Night Sky]
14: [Warm Glowing Nightscape]
15: [Artistic Nightscape]
16: [Glittering Illuminations]
17: [Handheld Night Shot]
●
After pressing the shutter button, do not move the camera during the exposure series.
●
The recorded area is slightly smaller than usual.
18: [Clear Night Portrait]
●
Tripod, self-timer recommended.
●
When [Clear Night Portrait] is selected, keep the subject still for about 1 second after taking the
picture.
19: [Soft Image of a Flower]
●
For close-up recording, we recommend you avoid using the flash.
70
Recording Modes
Scene Modes
20: [Appetizing Food]
●
For close-up recording, we recommend you avoid using the flash.
21: [Cute Dessert]
●
For close-up recording, we recommend you avoid using the flash.
22: [Freeze Animal Motion]
●
Default [AF Assist Lamp] setting is [OFF].
23: [Clear Sports Shot]
24: [Monochrome]
71
Recording Modes
Taking Pictures with Different Effects
(Creative Control Mode)
Recording mode:
You can select the effects to be applied from sample pictures and preview these effects
on the screen.
1
Set the mode dial to [ ]
1/8
2
Press to select the picture effect
(filters)
Preview display
• You can also select the picture effects (filters) by
touching the example images.
3
Press [MENU/SET]
It is also possible to display the selection screen by touching the Recording
mode icon in recording screen.
60
p
●
Depending on the picture effect, the recording screen may seem as if frames are missed.
●
[White Balance] will be fixed to [AWB] and ISO sensitivity to [AUTO].
●
The following menu items can be set in the [Creative Control] menu.
• [Filter Effect]: Allows you to set the picture effect (filter).
• [Simultaneous Record w/o Filter]: Allows you to set the camera to take a
picture with and without a picture effect
simultaneously. (→171)
72
Recording Modes
Taking Pictures with Different Effects (Creative Control Mode)
Displaying the description of each picture effect (Filter)
Press [DISP] while the picture effect selection screen is displayed
• When it is set to the guide display, explanations for each picture effect are displayed.
Normal display Guide display List display
1/8
1/8
Types of picture effects
Adjusting the picture effects according to your preferences
1
Press to display the setting screen
2
Rotate the thumb dial to adjust the setting conditions
of the picture effects
• Press [MENU/SET] to return to the recording screen.
73
Recording Modes
Taking Pictures with Different Effects (Creative Control Mode)
Picture effect Items that can be set
[Expressive] Vividness
Subdued coloring
Gaudy coloring
[Retro] Coloring
Yellowish coloring
Reddish coloring
[Old Days] Contrast
Low contrast
High contrast
[High Key] Coloring
Pinkish coloring
Light-bluish coloring
[Low Key] Coloring
Reddish coloring
Bluish coloring
[Sepia] Contrast
Low contrast
High contrast
[Monochrome] Coloring
Yellowish coloring
Bluish coloring
[Dynamic Monochrome] Contrast
Low contrast
High contrast
[Rough Monochrome] Grainy picture effect
Weak grainy picture effect
Strong grainy picture effect
[Silky Monochrome] Degree of defocusing
Slight defocusing
Strong defocusing
[Impressive Art] Vividness
Black & white
Gaudy coloring
[High Dynamic] Vividness
Black & white
Gaudy coloring
[Cross Process] Coloring
Greenish coloring / Bluish coloring /
Yellowish coloring / Reddish coloring
• Select the desired color tone by rotating
the thumb dial, and press [MENU/SET].
[Toy Effect] Coloring
Orangish coloring
Bluish coloring
[Toy Pop] Range in which peripheral brightness is reduced
Small
Large
[Bleach Bypass] Contrast
Low contrast
High contrast
[Miniature Effect] Vividness
Subdued coloring
Gaudy coloring
• For details about [Miniature Effect] (→74)
74
Recording Modes
Taking Pictures with Different Effects (Creative Control Mode)

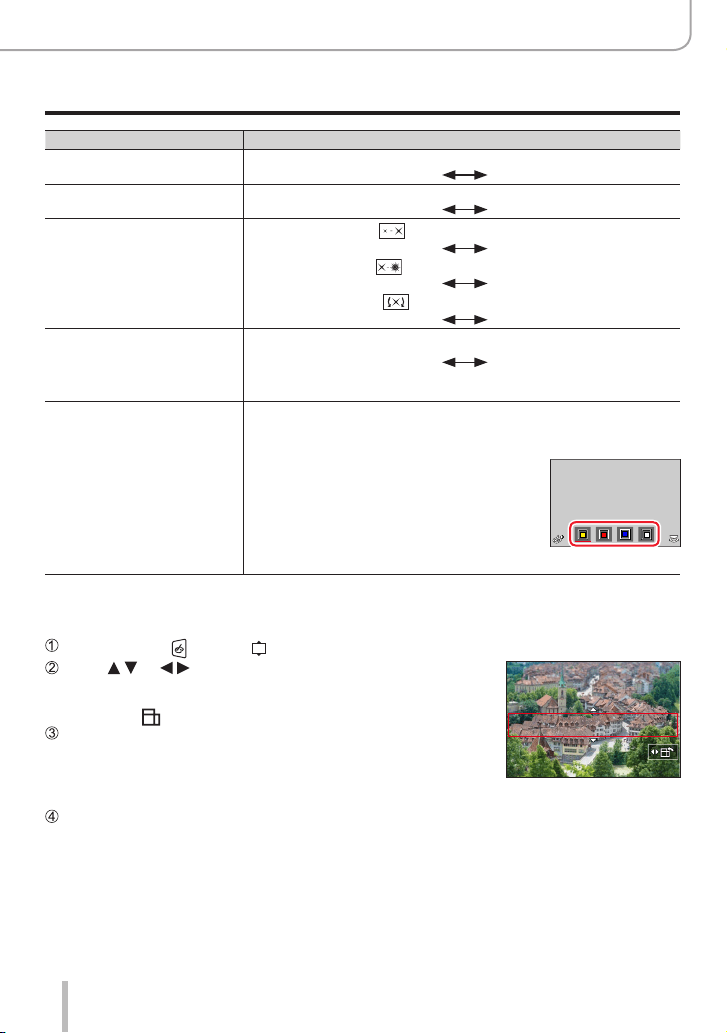

Picture effect Items that can be set
[Soft Focus] Degree of defocusing
Slight defocusing
Strong defocusing
[Fantasy] Vividness
Subdued coloring
Gaudy coloring
[Star Filter]
Length of the light rays
Light rays are short
Light rays are long
Number of the light rays
Smaller
Larger
Angle of the light rays
Rotate to the left
Rotate to the right
[One Point Color] Amount of color retained
Leaves a small amount of
color
Leaves a large amount of
color
• For details about [One Point Color] (→75)
[Sunshine] Coloring
Yellowish coloring / Reddish coloring /
Bluish coloring / Whitish coloring
• Rotate the thumb dial to select coloring,
and press [MENU/SET].
• For details about [Sunshine] (→75)
■
Setting the type of defocus ([Miniature Effect])
After touching [ ], touch [ ]
Press or to move the focusing area frame
• You can also move the in-focus section by touching the recording
screen at the desired area.
• Touching [
] allows you to change the recording orientation.
Rotate the thumb dial to select the size of the focusing area
(frame)
• On the touch screen, spread your 2 fingers to zoom in, and pinch
2 fingers to zoom out.
• When you press [DISP], the initial setting condition is restored.
Press [MENU/SET]
75
Recording Modes
Taking Pictures with Different Effects (Creative Control Mode)
●
No audio is recorded for videos.
●
When a video is recorded, the finished recording will be approximately 1/10th of the actual
recorded time period. (e.g. in case of a 10-minute recording, the resulting video will be
approximately 1 minute.) The recordable time displayed on the camera is approx. 10 times of the
actual recording time.
●
If you stop recording videos too soon, the camera may continue recording for a certain time.
■

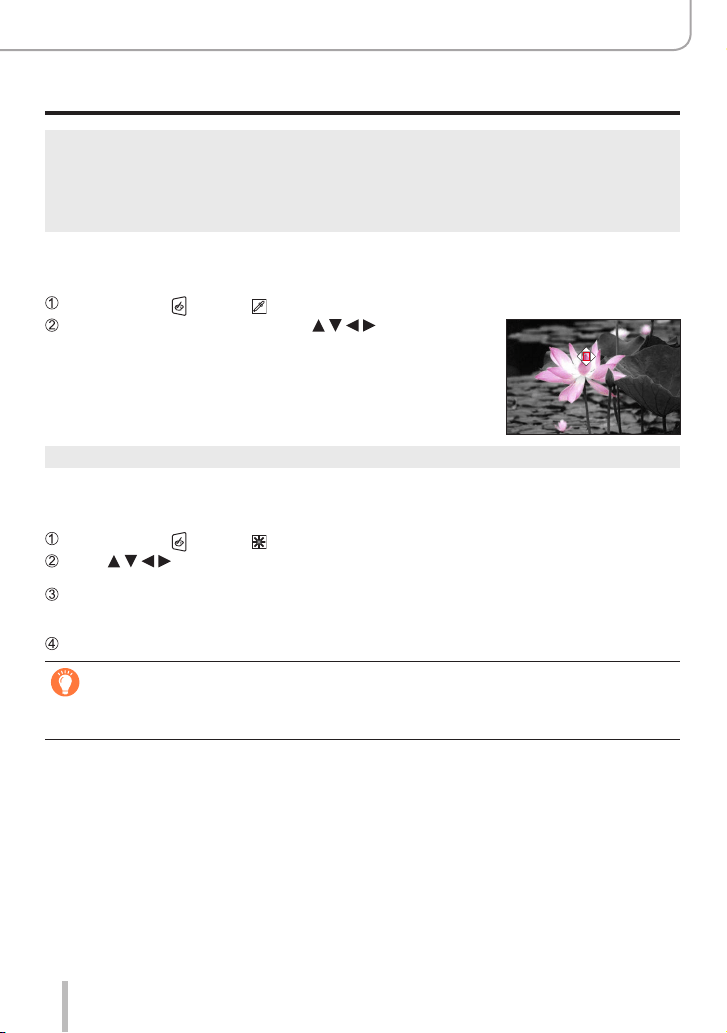

Selecting the color to be retained ([One Point Color])
After touching [ ], touch [ ]
Select the color to be retained with and press
[MENU/SET]
• You can also select it by touch operations.
• When you press [DISP], the initial setting condition is restored.
●
The selected color may not be retained for some subjects.
■
Setting the position and size of the light source ([Sunshine])
After touching [ ], touch [ ]
Press to move the center of the light source to a different position
• The position of the light source can also be moved by touching the screen.
Rotate the thumb dial to adjust the size of the light source
• On the touch screen, spread 2 fingers to zoom in, and pinch 2 fingers to zoom out.
• When you press [DISP], the initial setting condition is restored.
Press [MENU/SET]
Tips on positioning the center of the light source
You can move the center of the light source to a point outside the image to obtain a more natural
finish.
76
Recording Modes
Taking Pictures with Different Effects (Creative Control Mode)
Setting the brightness (exposure)/blurriness of the background (Defocus
control function)
1
Press to display the setting screen
• The brightness (exposure) operation screen is displayed. Press [Fn1] to operate the defocus
control, and then press it again to finish the operation.
2
Rotate the thumb dial to set
• Press [MENU/SET] to return to the recording screen.
When setting the brightness (exposure)
• Press
to set the Exposure Bracket. (→129)
OFF
When setting the background defocusing
• Pressing [
] will cancel the setting.
8.05.64.0
250 125 60 30 15
■
With touch screen operations
Touch [ ]
Touch the item you want to set
[ ]: Adjusting the picture effect
[ ]: Degree of defocusing
[ ]: Brightness
Drag the slide bar or exposure meter to set
• Press [MENU/SET] to return to the recording screen.
●
Defocus control operation is not available in [Miniature Effect] (Creative Control Mode).
77
Recording Modes
Creative Video Mode
Recording mode:
The operation for changing the aperture value, shutter speed or ISO sensitivity is the
same as the operation for setting the mode dial to [ ], [ ], [ ] or [ ] (except Program
Shift Mode).
1
Set the mode dial to [ ]
2
Set the menu
→ [Creative Video] → [Exposure Mode]
Settings: [P] / [A] / [S] / [M]
It is also possible to display the selection screen by touching the recording mode
icon in recording screen.
60
p
3
Press the video button (or the shutter button) to start
recording
Touch [ ] (Cannot be used during [High Speed Video] recording.)

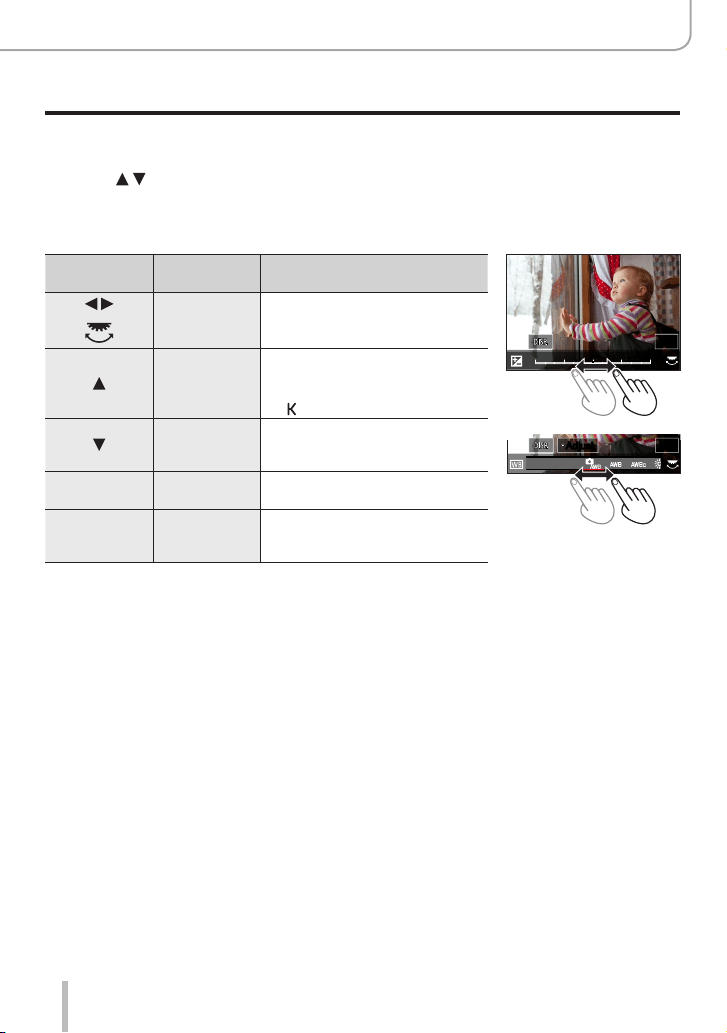

Touch icon
Zoom Exposure Compensation
Aperture value ISO sensitivity
Shutter speed
Drag the slide bar to set
[ ] / [ ] Changes the setting slowly
[
] / [ ]
Changes the setting quickly
Using touch icons allows silent operation while
recording videos.
4
Press the video button (or the shutter button) to stop
recording
●
The ISO sensitivity can be set within the following range.
• [AUTO], [125] to [6400] ([L.80] to [6400] when [Extended ISO] is set to [ON])
78
Recording Modes
Creative Video Mode
■
Setting the upper limit value of ISO sensitivity when [Sensitivity] is set to [AUTO]
→ [Motion Picture] → [ISO Auto Upper Limit (Video)]
Settings: [AUTO] / [200] / [400] / [800] / [1600] / [3200] / [6400]
Recording Slow Motion Videos ([High Speed Video])
Slow motion videos can be recorded by performing recording at a super high speed.
When these recordings are played back, the motion is displayed slowly.
• To record pictures, use a UHS Speed Class 3 card.
1
Set the mode dial to [ ]
2
Set the menu
→ [Creative Video] → [High Speed Video] → [ON]
• Recording is done at 120 frames/second with [FHD] in [MP4].
3
Press the video button (or the shutter button) to start recording
4
Press the video button (or the shutter button) to stop recording
●
When recording, the recorded area is slightly smaller than usual.
●
No sound is recorded.
●
Files are split into separate files for recording and playback when their size would otherwise
exceed 4 GB. (You can continue to record the video without interruption.)
Recording stops when the continuous recording time exceeds 29 minutes.
(In terms of playback time, you can record up to approximately 120 minutes.)
●
The focus and zoom settings are fixed to those specified when recording was started.
●
Flickering or horizontal stripes may appear while recording under fluorescent lighting.
79
Recording Modes
Creative Video Mode
Panning or zooming while recording with the camera in a fixed
position ([4K Live Cropping])
By cropping your video down from the 4K angle of view to Full High Definition, you can
record a video and pan and zoom in/out while leaving the camera in a fixed position.
Pan Zoom in
• Hold the camera firmly in place while recording.
• A video will be recorded at [FHD/20M/30p] under [MP4].
1
Set the mode dial to [ ]
2
Set the menu
→ [Creative Video] → [4K Live Cropping]
Settings: [40SEC] / [20SEC] / [OFF]
3
Select the crop start frame and press [MENU/SET] to
set
Crop start frame
• When making settings for the first time, a crop start frame with a
resolution of 1920×1080 is displayed. (After setting the crop start
and end frames, the start and end frames you set immediately
before will be displayed.)
• The camera will remember the frame position and resolution
even when it is turned off.
SizeSize
StartStart
Reset
Reset
SetSet
Operation Touch operation Description
Touch Moves the frame
Spread / Pinch
Increases/reduces the resolution
(The range of settings allowed is from 1920×1080 to
3840×2160.)
[DISP] [Reset]
Returns the position of the frame to the center and its
resolution to the default setting
[MENU/SET] [Set] Determines the position and resolution of the frame
80
Recording Modes
Creative Video Mode
4
Repeat step
3
, and then set the crop end frame
Crop end frame
• The setting of [AF Mode] switches to [
] (Face Detection).
(Eye Detection cannot be used.)
EndEnd
SizeSize
ResetReset
SetSet
5
Press the video button (or the shutter button) to start
recording
Elapsed recording time
Set operating time
• Immediately release the video button (or the shutter button) after
pressing it.
• When the set operating time has elapsed, recording
automatically ends. To end recording midway, press the video
button (or the shutter button) again.
When you want to zoom in/out, set different frames for the cropping start and end frames. For
example, to zoom in, set a larger start frame and a smaller one for the end frame.
■
Changing the position and size of a crop frame
Press [Fn3] while the recording screen is displayed, and perform steps
3
and
4
.
■
To cancel [4K Live Cropping] recording
Select [OFF] in step
2
.
●
The recorded area is slightly smaller than usual.
●
[4K Live Cropping] recording cannot be performed when [High Speed Video] is set.
●
Focus is set and fixed in the crop start frame.
●
[Continuous AF] is set to [OFF].
●
[Metering Mode] will be [ ] (Multi Metering).
●
You cannot zoom in/out during [4K Live Cropping] recording.
81
Recording Modes
Registering your own settings and recording
(Custom Mode)
Recording mode:
Registering your own settings ([Cust.Set Mem.])
Up to 3 sets of camera settings can be registered using [Cust.Set Mem.].
([ ], [ ], [ ])
• Initial setting of the Program Mode is registered as the custom settings initially.
Preparations
• Set the recording mode and menu settings in advance so that the camera can be in the state with
the settings to be saved.
→ [Setup] → [Cust.Set Mem.]
→ Custom set where you want to register settings
●
The following menu items are not registered as custom settings.
[Custom] menu [Setup] menu [Playback] menu
• [Menu Guide]
• Data registered with [Face Recog.]
• The [Profile Setup] setting
• All menus • [Rotate Disp.]
• [Picture Sort]
82
Recording Modes
Registering your own settings and recording (Custom Mode)
Recording using a registered custom set
1
Set the mode dial to [ ]
• The custom set you used last time will be called up.
■
To change a custom set
Set the mode dial to [ ]
Press [MENU/SET] to bring up the menu
Press to select the custom set you want to use, and then [MENU/SET]
• The settings are switched to those settings you selected for the
custom set.
60
p
It is also possible to display the selection screen by touching the recording mode
icon in recording screen.
60
p
■
Changing the registered content
Even if the menu settings are changed temporarily when the mode dial has been set
to [
], the currently registered settings will remain unchanged. To change the currently
registered settings, overwrite the registered data using [Cust.Set Mem.] in the [Setup]
menu.
83
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Recording modes:
1
Press [ ] ( )
2
Press to select [AF] and then [MENU/SET]
• Focusing starts when the shutter button is pressed halfway (→84)
• Switching [AF Mode] (→85)
3
Press the shutter button halfway
Focus display
( When focus is achieved: illuminated
When focus is not achieved: flashing)
AF area
(When focus is achieved: green)
• Two “beep” sounds are heard and Autofocus is activated.
Four “beep” sounds when focus is not achieved.
• When you take a picture in a dark location, [ ] is displayed for the focus display
and it may take longer to focus than usual.
• If the camera detects stars in the night sky after displaying [ ], Starlight AF will
be activated. When focus is achieved, the focus indication [ ] and AF areas in
focus are displayed. (Starlight AF cannot perform detection on the edges of the
screen.)
Subjects/environments which may make focusing difficult:
• Fast-moving or extremely bright objects, or objects with no color contrast.
• Taking pictures through glass or near objects emitting light.
• In the dark, or with significant camera shake.
• When too close to an object or when both distant and close objects appear together in the
same picture.
●
When ambient lighting is low making it difficult to focus with Autofocus, set [Monitor Display
Speed] or [EVF Display Speed] to [60fps].
●
Starlight AF will not function when using the monitor with [Monitor Display Speed] set to [ECO
30fps] or when using the viewfinder with [EVF Display Speed] set to [ECO 30fps].
84
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Set the focusing operation to be performed when the shutter
button is pressed halfway (AFS, AFF, AFC)
Recording modes:
→ [Rec] / [Motion Picture] → [AFS/AFF/AFC]
Settings
The movement of the
subject and the scene
(recommended)
Description
[AFS]
Subject is still
(Scenery, anniversary
photograph, etc.)
“AFS” is an abbreviation of “Autofocus Single”. Focus is set
automatically when the shutter button is pressed halfway.
The focus setting will be fixed as long as it is pressed
halfway.
[AFF]
Movement cannot be
predicted
(Children, pets, etc.)
“AFF” is an abbreviation of “Autofocus Flexible”. In this
mode, focusing is performed automatically when the shutter
button is pressed halfway.
If the subject moves during that time, the focus is corrected
to match the movement automatically.
[AFC]
Subject is moving
(Sport, trains, etc.)
“AFC” is an abbreviation of “Autofocus Continuous”. In this
mode, while the shutter button is pressed halfway, focusing
is constantly performed to match the movement of the
subject.
When recording using [AFF], [AFC]
●
When the subject is moving, the focusing is performed by predicting the subject position at the time
of recording. (Movement prediction)
●
Focusing may take time when zooming from one end of the focal length range to the other, or if you
suddenly move closer to a subject from a greater distance.
●
Press the shutter button halfway again when it is difficult to focus on the subject.
●
While the shutter button pressed halfway, shake may be seen on the screen.
●
[AFF] or [AFC] operates as [AFS] in the following case:
• Creative Video Mode
• When recording with [
] ([4K Burst(S/S)]) of the 4K Photo function.
• When ambient lighting is low.
●
It is fixed to [AFS] when Panorama Shot Mode is set.
●
[AFF] is not available when recording 4K photos. Continuous AF works during recording.
●
This setting cannot be used when recording using [Post Focus].
85
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Switching [AF Mode]
Recording modes:
This allows selecting the focusing method that suits the positions and number of the
subjects to be rendered sharply.
→ [Rec] / [Motion Picture] → [AF Mode]
Settings: [
] (Face/Eye Detection) / [ ] (Tracking) / [ ] (49-area-focusing) /
[ ] etc. (Custom Multi) / [ ] (1-area-focusing) / [ ] (Pinpoint-focusing)
(→86 - 90)
●
In Snapshot Mode and Snapshot Plus Mode, [ ] or [ ] can be set.
●
The [AF Mode] is fixed to [ ] in the following case:
• When recording using [4K Live Cropping]
●
Autofocus is fixed to [ ] in the following cases:
• When using the Digital Zoom
• [Miniature Effect] (Creative Control Mode)
●
[AF Mode] cannot be set in the following cases:
• When recording using [Post Focus]
• When [Pull Focus] in [Snap Movie] is set to [ON]
86
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Taking head-on pictures of people (Face/Eye Detection)
The camera automatically detects the faces and eyes of subjects. It adjusts the focus on
the eye that is closer to the camera and the exposure based on the face (when [Metering
Mode] is set to [ ] (Multi Metering)).
• The camera can detect up to 15 faces. The camera detects only the eye of the face
focused on.
• When the camera recognizes a face, the AF area and the
eye used for focusing are displayed.
Eye used for focusing
Yellow: When the shutter button is pressed halfway and the
subject is focused, the frame turns green.
White: Displayed when more than one face is detected.
Other faces that are the same distance away as
faces within the yellow AF area will also be in focus.
■
Changing the eye to be in focus
Touch the eye to be used for focusing
• If you touch [ ] or press [MENU/SET], the eye focus setting will be
canceled.
●
[ ] (Face/Eye Detection) cannot be set in the following cases:
• [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape], [Artistic Nightscape],
[Glittering Illuminations], [Handheld Night Shot], [Appetizing Food], [Cute Dessert] (Scene
Mode)
●
The eye to be in focus cannot be changed when [4K Live Cropping] is set.
●
If conditions prevent the face from being recognized, such as when the movement of the subject is
too rapid, the AF Mode setting switches to [
] (49-area-focusing).
87
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus

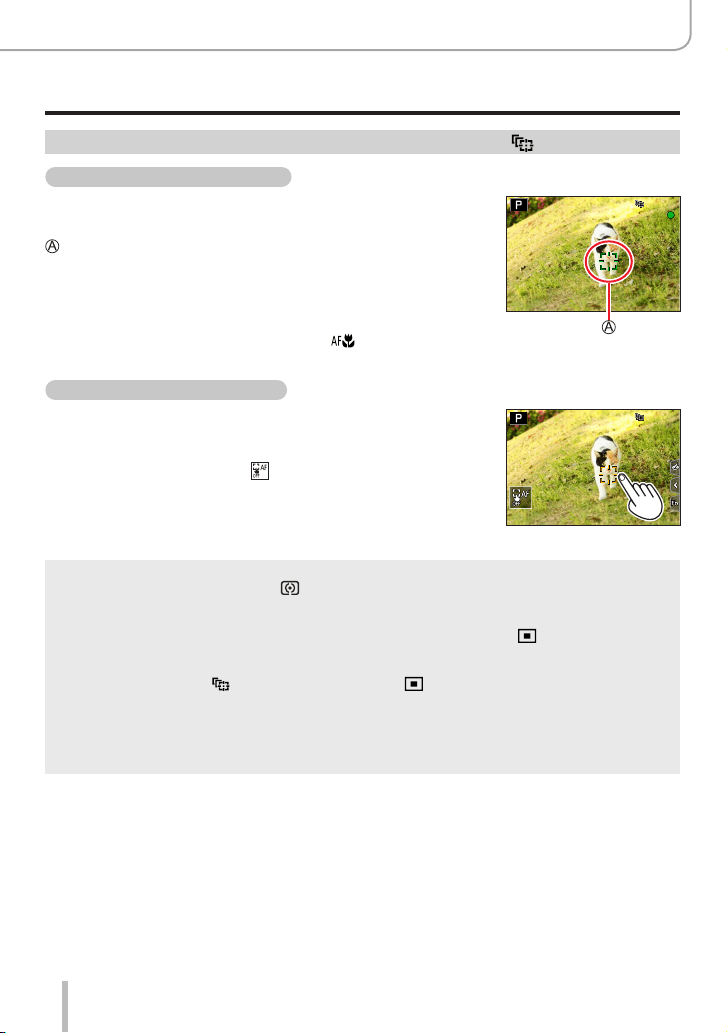

Automatically locking the focus on a moving subject (tracking)
With cursor button operations
Aim the AF tracking area at the subject and press the
shutter button halfway
AF Tracking area
When the subject is recognized, the AF tracking area turns green.
When you release the shutter button, the AF tracking area turns yellow
and the subject is automatically kept in focus.
• To stop AF Tracking → Press [MENU/SET].
• Focusing range: same as macro recording [
] (→96)
With touch screen operations
Touch the subject
Perform these operations with the touch shutter function deactivated.
The AF Tracking area turns yellow while the subject is locked.
• To stop AF Tracking → Touch [
].
●
If AF Lock fails, a red frame flashes for a while and then turns off.
●
When you set [Metering Mode] to [ ] (Multi Metering), the camera adjusts the exposure using a
locked subject. (→172)
●
Under certain recording conditions, such as when the subject is small or dark, AF Tracking may
not operate correctly. When AF Tracking does not work, focus will be on [
] (1-area-focusing).
●
This function is not available in the following case:
• When using [Time Lapse Shot]
●
In the following cases, [ ] performs the operation of [ ] (1-area-focusing).
• [Glistening Water], [Glittering Illuminations], [Soft Image of a Flower], [Monochrome]
(Scene Mode)
• [Sepia], [Monochrome], [Dynamic Monochrome], [Rough Monochrome], [Silky Monochrome],
[Soft Focus], [Star Filter], [Sunshine] (Creative Control Mode)
• [Monochrome], [Monochrome HC] ([Photo Style])
88
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Subject not centered in picture (49-area-focusing)
Focuses on a subject detail in the wide range area (up to
49-area-focusing) on the recording screen.
Setting the shape of an AF area , etc. (Custom Multi)
You can set the preferred shape of an AF area by selecting 49 frames in the AF area,
based on the subject.
→ [Rec] / [Motion Picture] → [AF Mode]
1
Select a Custom Multi icon ([ ], etc.), and press
2
Use to select the setting item
Current AF area shape
([Horizontal
Pattern])
Ideal shape for panning,
etc.
([Vertical
Pattern])
Ideal shape for recording
structures, etc.
([Central
Pattern])
Ideal shape for focusing
around the center.
/ /
(Custom)
You can set a custom registration shape.
3
Press
• The AF area setting screen appears.
89
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
4
Select the AF area
Selected AF area
When selecting [ ] / [ ] / [ ]
Change the shape of an AF area
Operation
Touch
operation
Description
Touch Moves the position
Spread /
Pinch
Changes the size (in 3 steps)
[DISP] [Reset]
Resets the AF area back to
the center.
• If you press the button
again, the frame size will be
reset to the initial setting.
Press [MENU/SET]
When selecting [ ] / [ ] / [ ]
Change the shape of an AF area
With cursor button operations
Use to select an AF area and press [MENU/SET] to
set (repeat)
• If you press [MENU/SET] again, the setting will be canceled.
• To cancel all the settings, press [DISP].
With touch screen operations
Touch where you want to set AF areas
• If you touch one of the selected AF areas, the selection of the
area will be canceled.
Press [Fn2]
■
Registering the set AF area in [ ], [ ] and [ ] (Custom)
Press on the screen of step
2
Use to select the registration target icon and press [MENU/SET]
●
The settings adjusted in [ ], [ ] or [ ] will be restored to the default settings when the
camera is turned off.
90
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Determining the position for focus (1-area-focusing) /
(Pinpoint-focusing)
(1-area-focusing)
Focuses on the AF area in center of the picture. (Recommended when focus is difficult to
achieve)
When the subject is not in the center of the composition in [ ], you can bring the subject
into the AF area, fix the focus and exposure by pressing the shutter button halfway, move the
camera to the composition you want with the shutter button pressed halfway, and then take the
picture. (Only when [AFS/AFF/AFC] in [Rec] menu is set to [AFS].)
(Pinpoint-focusing)
Enables more precise focusing on a smaller point than [ ] (1-area-focusing). When you
press the shutter button halfway, an enlarged display of the focus position appears.
●
If [ ] (Pinpoint-focusing) is selected while recording videos or 4K photos, the setting is changed
to [
] (1-area-focusing).
●
[ ] (Pinpoint-focusing) cannot be set in the following case:
• When [AFS/AFF/AFC] in [Rec] menu is set to [AFF] or [AFC]
91
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Changing the position and size of the AF area
Recording modes:
When [ ], [ ], [ ], or [ ] in Autofocus Mode is selected, you can change the
position and size of the AF area. With [ ], you can set the lock-on position.
• Perform these operations with the touch shutter function deactivated.
• You can also display the AF area setting screen by touching the recording screen.
→ [Custom] → [Operation] → [Touch Settings] → [Touch AF]
→ [AF]
• You can use the [Custom] ([Focus / Release Shutter]) menu to set the display method
for the AF area according to your preference. (→182)
●
When you set [Metering Mode] to [ ] (spot-focusing), the metering target will move along with
the AF area.
●
The position and size of the AF area cannot be changed in the Digital Zoom range.
■
When selecting [ ] / [ ] / [ ]
→ [Rec] / [Motion Picture] → [AF Mode]
Select [ ], [ ] or [ ] and press
• The AF area setting screen appears.
To change the AF area
Operation Touch operation Description
Touch Moves the position of the AF area.
— Spread / Pinch
Enlarges/reduces the AF area in small steps.
*
—
Enlarges/reduces the AF area in large steps.
*
[DISP] [Reset]
Resets the AF area back to the center.
• If you press the button again, the frame size will be
reset to the initial setting.
*
Not available when [ ] is selected.
Press [MENU/SET]
• AF area with the same function as [ ] is displayed in the touched position, when the [ ] is
selected. Setting of the AF area is cleared when [MENU/SET] is pressed or [
] is touched.
92
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
■
When selecting [ ]
You can set the focus position by selecting an AF area group. The AF area, which is
configured with 49 boxes, is divided into groups consisting of 9 boxes each (6 or 4 boxes
for the groups located at the edges of the screen).
→ [Rec] / [Motion Picture] → [AF Mode]
Select [ ] and press
• The AF area setting screen appears.
Examples of group
Press to select an AF area group
Press [MENU/SET]
• Setting of the AF area is cleared when [MENU/SET] is pressed or [ ] is
touched.
93
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
■

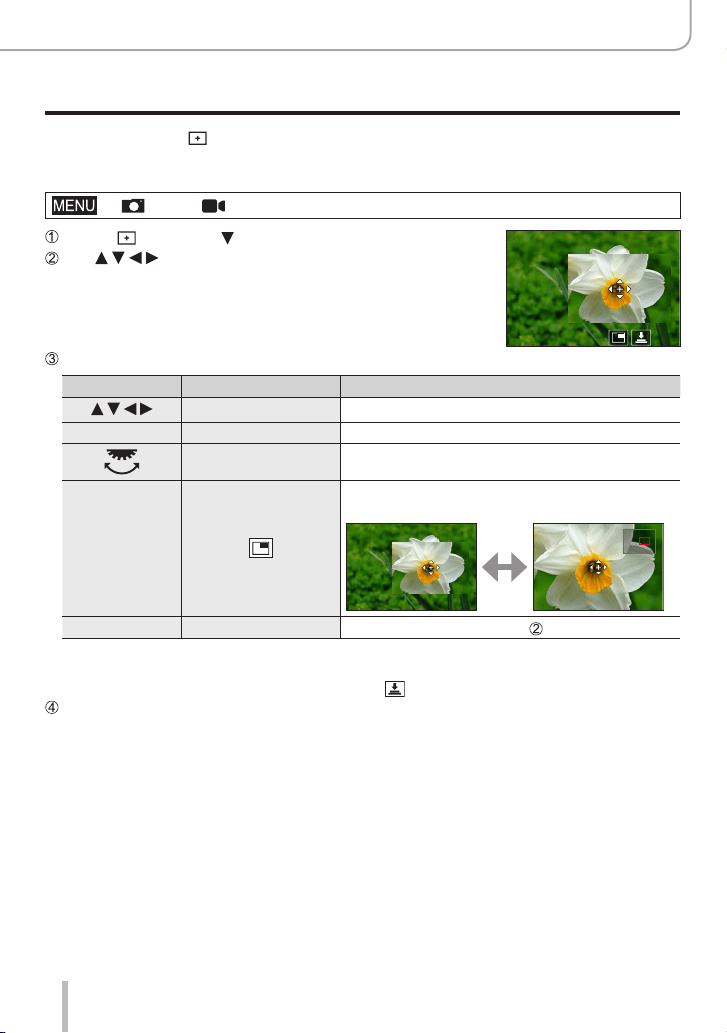

When selecting [ ]
You can enlarge the screen to perform more precise settings of the focus position.
• You cannot set the focus position at the edges of the screen.
→ [Rec] / [Motion Picture] → [AF Mode]
Select [ ] and press
Use to set the focus position and press
[MENU/SET]
• The enlarged screen will appear for setting the focus position.
Move [+] to the focus position
Operation Touch operation Description
Touch Moves [+].
— Spread / Pinch Enlarges/reduces the screen in small steps.
— Enlarges/reduces the screen in large steps.
—
Switches the enlarged display. (windowed/full
screen)
[DISP] [Reset]
Returns to the screen of step
.
• The image of a part of the screen can be enlarged or reduced approximately 3 to 6 times. The
image of the entire screen can be enlarged or reduced approximately 3 to 10 times.
• It is also possible to record a picture by touching [
].
Press [MENU/SET]
94
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Setting the AF area position by touch
Recording modes:
You can move the AF area displayed on the viewfinder by
touching the monitor at the desired position.
→ [Custom] → [Operation] → [Touch Settings] → [Touch Pad AF]
[EXACT] Moves the AF area in the viewfinder by
touching a desired position.
[OFFSET] Moves the AF area in the viewfinder to
where you drag it.
[OFF] —
• Press the shutter button halfway to determine the focus position. If you press [DISP]
before determining the focus position, it returns to the center.
• To cancel the settings for the AF area when the Autofocus Mode is set to [ ] (Face/
Eye Detection), [ ] (tracking), or [ ] (49-area-focusing), press [MENU/SET].
●
The Touch Shutter function is disabled when using [Touch Pad AF].
●
[Touch Pad AF] does not function in the following cases:
• When recording using [4K Live Cropping]
• When [Pull Focus] in [Snap Movie] is set to [ON]
95
Focus, Brightness (Exposure) and Color tone Settings
Using Autofocus
Optimizing the focus and exposure settings for a touched
position
Recording modes:
→ [Custom] → [Operation] → [Touch Settings] → [Touch AF]
→ [AF+AE]
1
Touch the subject detail you want to optimize the
exposure for
• The AF area setting screen appears. (→91)
• The exposure optimization position is displayed in the center of
the AF area. The position follows the movement of the AF area.
• [Metering Mode] is set to [
], which is used exclusively for the
[Touch AE].
ResetReset
SetSet
2
Touch [Set]
• The AF area with the same function as [ ] is displayed on the touched position.
• If you touch [
] (touch [ ] when [ ] is set), the setting of [AF+AE] is canceled.
When the background has become e.g. too bright using this
function, the its brightness can be adjusted by compensating
the exposure.
●
When recording with Touch Shutter, the focus and exposure settings are optimized for the touched
position before recording takes place.
●
At the edge of the screen, the metering may be affected by the brightness around the touched
location.
●
The [AF+AE] does not function in the following cases:
• When using the Digital Zoom
• When recording using [4K Live Cropping]
96
Focus, Brightness (Exposure) and Color tone Settings
Taking close-up pictures
Recording modes:
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of
flowers.
1
Press [ ] ( )
2
Press to select the item and then [MENU/SET]
[ ]
([AF Macro])
You can take pictures of a subject as close as 3 cm (1
3
/
16
″) from the lens by
setting the shortest focal length with the zoom lever.
[
]
([Macro Zoom])
Use this setting to get close to the subject and then further enlarge when
taking the picture. You can take a picture with the Digital Zoom up to 3x
while maintaining the distance to the subject for the extreme Wide position
(3 cm (1
3
/
16
″)).
• Note that enlarging will decrease picture quality.
• The zoom range will be displayed in blue (digital zoom range).
●
When recording a subject close to the camera, we recommend taking a picture without using the
flash.
●
A picture may be out of focus when the subject is out of the focusing range, even if the focus
display is lit.
●
When a nearby subject is to be recorded
• Using a tripod and [Self Timer] (→127) is recommended.
• The effective focusing range (depth of field) is significantly shallower. Therefore, if the distance
between the camera and the subject is changed after focusing on the subject, it may become
difficult to focus on it again.
• Resolution may be slightly reduced around the edges of the picture. This is not a malfunction.
●
[Macro Zoom] cannot be set in the following cases:
• [Handheld Night Shot] (Scene Mode)
• Panorama Shot Mode
• When recording with [High Speed Video]
• [Impressive Art], [Toy Effect], [Toy Pop], [Miniature Effect] (Creative Control Mode)
• When [HDR] is set to [ON]
• When [Multi Exp.] is set
• When [Quality] is set to [
], [ ] or [ ]
97

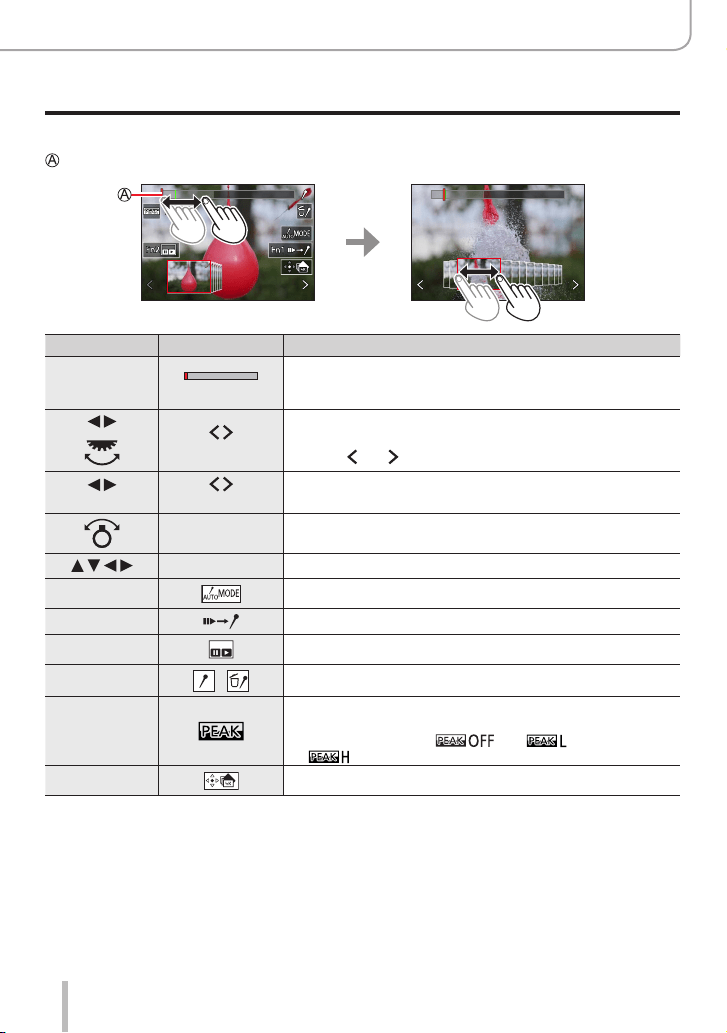

Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Manual Focusing
Recording modes:
Manual focusing is convenient e.g. when you want to take a series of pictures with the
same focus setting or when the autofocus system does not find an appropriate setting.
1
Press [ ] ( )
2
Press to select [MF] and then
[MENU/SET]
3
Turn the control ring to focus
Turning the control ring to the right:
Focuses on a nearer subject
Turning the control ring to the left:
Focuses on a more distant subject
MF Assist (Enlarged screen)
MF Guide (→191)
Peaking
• Color outlines are added to the parts of the image that
are in focus. (Peaking) (→188)
• The screen changes to the assist screen and an
enlarged display appears. (MF Assist)
You can move the enlarged part by dragging it across
the screen.
• You can also enlarge the display by spreading or
touching the screen twice.
98
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Manual Focusing

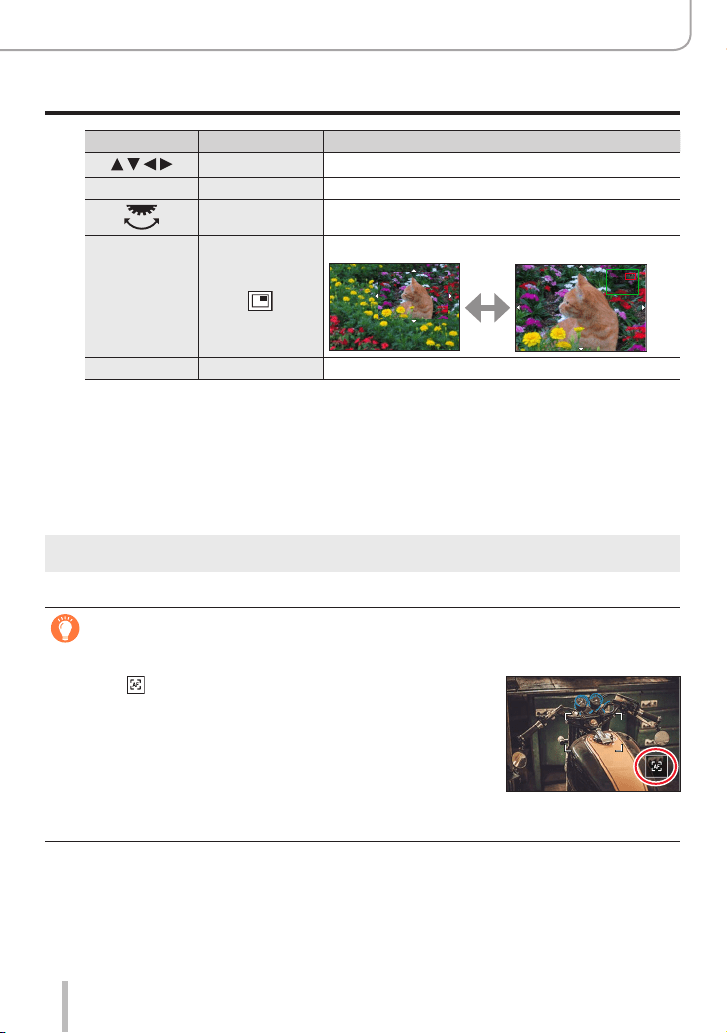

Operation Touch operation Description
Drag Moves the enlarged area.
— Spread / Pinch Enlarges/reduces the displayed section in small steps.
— Enlarges/reduces the displayed section in large steps.
—
*
1
Switches the enlarged display. (windowed/full screen)
*
2
[DISP] [Reset] Resets the area to be enlarged back to the center.
*
1
Cannot be set when using SnapShot Mode.
*
2
The image of a part of the screen can be enlarged or reduced approximately 3 to 6 times.
The image of the entire screen can be enlarged or reduced approximately 3 to 10 times.
4
Press the shutter button halfway
• The recording screen will be displayed.
• The same operation can be performed by pressing [MENU/SET].
●
When [Focus Switching for Vert / Hor] in the [Custom] ([Focus / Release Shutter]) menu is set, you
can set a position of the enlarged area of MF Assist for each direction of the camera.
Quickly adjusting the focus setting using Autofocus
In Manual Focusing, the focus can be set on the subject through Autofocus.
1
Touch [ ]
• Autofocus is activated at the center of the frame.
• Autofocus also works with the following operations.
– Pressing the [AE|AF LOCK] button to which [AF-ON] is
assigned (→99)
– Pressing the function button to which [AF-ON] is assigned
(→46)
– Dragging and releasing your finger at the position you want to
focus on
• This function cannot be used when [4K Live Cropping] is set.
99
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures by locking the focus and/or exposure
settings
Recording modes:
You can use the AF/AE Lock function to fix the focus and exposure settings in advance
and change the composition of the picture when recording. This function is convenient
when you want to focus on the edge of the screen or when your subject is back-lit.
1
Point the camera at the subject
2
Lock the focus and/or exposure by
pressing and holding [AE|AF LOCK]
• When you release [AE|AF LOCK], the focus and/or
exposure lock is canceled.
3
While you press and hold [AE|AF LOCK],
move the camera to compose the picture
you want to take and fully press the
shutter button
■
Setting the function of [AF/AE LOCK]
→ [Custom] → [Focus / Release Shutter] → [AF/AE Lock]
[AE LOCK]
Locks exposure only.
• [AEL] is displayed when the correct exposure is achieved.
[AF LOCK]
Locks focus only.
• [AFL] is displayed when the subject comes into focus.
[AF/AE LOCK]
Locks focus and exposure.
• [AFL] and [AEL] are displayed when the subject is in focus and the correct
exposure is achieved.
[AF-ON] Autofocus is activated.
●
AE Lock is disabled in Manual Exposure Mode.
●
AF Lock is disabled during Manual Focusing.
●
Program Shift can be set even when AE is locked.
100
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Exposure Compensation
Recording modes:
Use this function when you wish to modify the exposure settings the camera delivers, e.g.
when your main subject would otherwise be rendered brighter/darker than you want.
1
Press [ ] ( )
2
Rotate the thumb dial to compensate the
exposure
Exposure Bracket
Exposure Compensation
• Press
to set the Exposure Bracket. (→129)
OFF
Under-exposed
Optimum
exposure
Over-exposed
Adjust the
exposure to the [+]
direction
Adjust the
exposure to the [-]
direction
3
Press [MENU/SET] to set
• You can also press the shutter button halfway to set.
●
In Manual Exposure Mode, you can correct the exposure only when the ISO sensitivity is
set to [AUTO].
(You can select Exposure Compensation when the Quick menu is displayed by pressing
[
].)
●
You can set the exposure compensation value in the range between –5 EV and +5 EV.
Settings can be made within a range of –3 EV to +3 EV while recording videos, recording 4K
photos, or recording in [Post Focus].
●
Depending on the brightness, this may not be possible in some cases.
●
When the Exposure Compensation value is out of the –3 EV to +3 EV range, the brightness of
the recording screen will no longer change. It is recommended to record by checking the actual
brightness of the recorded image in the Auto Review or playback screen.
●
The set Exposure Compensation value is stored even if the camera is turned off. (When [Exposure
Comp. Reset] is set to [OFF])
101
Focus, Brightness (Exposure) and Color tone Settings
Setting the ISO Sensitivity
Recording modes:
Set ISO sensitivity (sensitivity to lighting).
→ [Rec] → [Sensitivity]
1
Select the ISO sensitivity by rotating the
thumb dial
ISO sensitivity
1
25
2
0
AUTO
ISO sensitivity is automatically set in a range up to 3200 (with the
flash on: 4000)
*
1
depending on the brightness of a subject.
(Intelligent ISO)
ISO sensitivity is automatically set in a range up to 3200 (with the
flash on: 4000)
*
1
depending on the movement and brightness of a
subject.
• The shutter speed is not fixed when the shutter button is pressed
halfway. It is continuously changed to match the movement of the
subject until the shutter button is pressed fully.
[L.80]
*
2
/ [L.100]
*
2
/
from [125] to
[12500] / [H.25000]
*
2
ISO sensitivity is fixed at the selected setting.
*
1
When [ISO Auto Upper Limit (Photo)] is set to [AUTO].
*
2
Only when [Extended ISO] is [ON].
2
Press [MENU/SET] to set
• You can also press the shutter button halfway to set.
102
Focus, Brightness (Exposure) and Color tone Settings
Setting the ISO Sensitivity
Setting guide
ISO sensitivity [125] [12500]
Location
(recommended)
Brighter
(outdoors)
Darker
Shutter speed Slower Faster
Interference Lower Higher
Subject blur Higher Lower
●
For details on the available flash range used when the ISO sensitivity is set to [AUTO], refer to
(→146).
●
[ ] cannot be selected in the following cases:
• Shutter-Priority Mode
• Manual Exposure Mode
●
When [Multi Exp.] is set, the maximum setting is [3200].
●
ISO sensitivity is set to [AUTO] (for videos) while a video is being recorded. You can use the
following ISO sensitivity settings when recording in Creative Video Mode ([Motion Picture] menu
→ [Sensitivity]), when recording 4K photos, or when recording using [Post Focus].
• [AUTO], [125] to [6400] ([L.80] to [6400] when [Extended ISO] is set to [ON])
103
Focus, Brightness (Exposure) and Color tone Settings
Setting the White Balance
Recording modes:
In digital photography, white balance ensures neutral, i.e. natural color reproduction in
any light. White balance is based on the camera being preset to reproduce a particular
color as white.
You can choose between automatic white balance, various presets, one custom setting
based on specific measurements, and a direct setting of the color temperature.
1
Press [ ] ( )
2
Rotate the thumb dial to set the White Balance
[AWB]/
[AWBc]
Automatic setting in accordance with the light source.
• Under a light source (such as an incandescent light) that produces reddish
pictures:
– [AWB] gives higher priority to what is seen by the eye and retains the
reddish hue.
– [AWBc] gives higher priority to the original colors of the subject and
reduces the reddish hue.
When the picture is taken under bright ambient light, the setting sometimes
delivers similar colors as those of the [AWB] setting.
• Adjust the colors of the pictures to similar colors when [AWB] or [AWBc] is
set under a light source that does not produce reddish pictures.
[
]
For taking pictures outdoors under a clear sky.
[
] For taking pictures outdoors under a cloudy sky.
[
]
For taking pictures outdoors in the shade.
[
]
For taking pictures outdoors under incandescent lights.
104
Focus, Brightness (Exposure) and Color tone Settings
Setting the White Balance
[ ]
*
For taking pictures with flash as the main/dominant light source.
[
]/[ ]/
[
]/[ ]
The manually metered and set value is used.
Press
Point the camera at a white object such as a piece of paper, ensuring that it is
inside the frame at the center of the screen, and press the shutter button
• This will set the White Balance and return you to the recording screen.
• It may not be possible to set the correct White Balance if subjects are too
bright or too dark.
[
]
For using a preset color temperature setting.
Press
Use to select the color temperature value and
press [MENU/SET]
• You can set the color temperature from [2500K] to
[10000K].
*
The [AWB] setting is applied while recording videos, recording 4K photos, or recording in [Post
Focus].
3
Press [MENU/SET] to set
• You can also press the shutter button halfway to set.
Under fluorescent lighting, LED lighting fixtures, etc., the optimal White Balance will vary
depending on the lighting type, so use [AWB], [AWBc], [
], [ ], [ ] or [ ].
●
The White Balance may not operate correctly if you take pictures using a flash and the subject is
situated beyond the effective flash range.
●
In the Scene Modes, settings suitable for each scene are made.
●
In the Scene Modes, changing the scene or recording mode will return White Balance settings
(including the White Balance fine adjustment setting) back to [AWB].
105
Focus, Brightness (Exposure) and Color tone Settings
Setting the White Balance
■
Auto White Balance Operational Range
: operational range
10000K
9000K
8000K
7000K
6000K
5000K
4000K
3000K
2000K
Cloudy sky (rain)
Shade
Incandescent lighting
Sunset/sunrise
Candlelight
Sunlight
White fluorescent lighting
Blue sky
K=Color temperature in degrees Kelvin
106
Focus, Brightness (Exposure) and Color tone Settings
Setting the White Balance
Performing White Balance fine adjustments
White Balance settings can be individually fine-tuned if colors still do not appear as
anticipated.
1
In step
2
of “Setting the White Balance” (→103), select
the White Balance and press
2
Use to perform White Balance fine
adjustments
: A (amber: orangish colors)
: B (blue: bluish colors)
: G (green: greenish colors)
: M (magenta: reddish colors)
• You can also make fine adjustments by touching the White
Balance graph at the desired position.
• Pressing [DISP] resets the position back to the center.
3
Press [MENU/SET] to finalize the setting
• Press the shutter button halfway to return to the recording screen.
●
When you perform fine adjustments of the White Balance toward the A (amber) or B (blue) side,
the color of the White Balance icon displayed on the screen will change to the fine-tuned color.
●
When you perform fine adjustments of the White Balance toward the G (green) or M (magenta)
side, [+] (green) or [-] (magenta) will be displayed in the White Balance icon on the screen.
107
Focus, Brightness (Exposure) and Color tone Settings
Setting the White Balance
Bracket recording using White Balance
Bracket settings are performed based on the fine adjustment values for White Balance,
and three photos with different coloring are automatically recorded when the shutter
button is pressed once.
1
Perform fine adjustments of the White Balance in
step
2
of “Performing White Balance fine adjustments”
(→106) and rotate the thumb dial to perform the
Bracket setting
• You can also set the bracket by touching [ ]/[ ]/[ ]/[ ].
BKTBKT
2
Press [MENU/SET] to finalize the setting
• Press the shutter button halfway to return to the recording
screen.
●
You can also set the White Balance Bracket in [Bracket] in the [Rec] menu. (→128)
●
This function is not available in the following cases:
• Panorama Shot Mode
• [Glistening Water], [Glittering Illuminations], [Handheld Night Shot], [Soft Image of a Flower]
(Scene Mode)
• When using [Burst]
• When recording 4K photos
• When recording using [Post Focus]
• When taking pictures while a video is being recorded
• When [Quality] is set to [
], [ ] or [ ]
• When [Multi Exp.] is set
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
108
Recording with the 4K Photo function and selecting
pictures to save
Recording with the 4K Photo function
Recording modes:
You can take a series of photos with a resolution of approximately 8 million pixels with a
frame rate of 30 fps. You can select and save a frame from the resulting photo series file.
• Use a UHS Speed Class 3 card.
1
Press [4K]
• The same operation can be performed by pressing
[ ] ( ), using to select a 4K photo icon, and
pressing .
2
Press to select the recording method
and then [MENU/SET]
• The recording method can also be set using
[4K PHOTO] in the [Rec] menu.
[4K Burst]
For capturing the best shot of a fast-moving subject
(e.g., sports, aeroplanes, trains)
Audio recording: None
[4K Burst(S/S)]
“S/S” is an abbreviation
of “Start/Stop”.
For capturing unpredictable photo opportunities
(e.g., plants, animals, children)
Audio recording: Available
*
[4K Pre-Burst]
For recording as needed whenever a photo opportunity arises
(e.g. the moment when a ball is thrown)
Audio recording: None
*
Audio is not played back when you perform playback with the camera.
4K Photo and Drive Settings
109
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
3
Recording with the 4K Photo function
[4K Burst]
Press the shutter button halfway
Press and hold the shutter button fully for as long as you want to
perform recording
• Recording will start approximately 0.5 seconds after you press
the shutter button fully. Therefore, press the button fully slightly in
advance of the intended movement.
Press and hold
Recording is performed
[4K Burst(S/S)]
“S/S” is an
abbreviation of
“Start/Stop”.
Press the shutter button fully
• Recording will start.
Press the shutter button fully again
• Recording will stop.
Start (First)
Stop (Second)
Recording is performed
When you press [Fn1] while recording, you can add a marker. (Up
to 40 markers for each recording.) When selecting and saving
pictures from a 4K photo series file, you can skip to the positions
where you added markers.
110
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
[4K Pre-Burst]
Press the shutter button fully
• The camera focuses continuously when using Autofocus. Except
when in Manual Exposure Mode, it also adjusts the exposure
continuously.
• Images may not be displayed as smoothly as when recording with the
normal recording screen.
Approximately 1 second
Recording is performed
In situations where you want to lock focus and exposure, such as
when the subject is not in the center, use [AF/AE LOCK]. (→99)
• Photo series are saved as a single 4K file in the MP4 format.
• When [Auto Review] is enabled, the picture selection screen will be displayed
automatically. To continue recording, press the shutter button halfway to display
the recording screen.
• For information on how to select and save pictures from 4K photo series files,
refer to (→111).
■
To cancel the 4K Photo functions
In step
2
, select [ ].
• The operation can be canceled by pressing the [ ] button ( ) and then selecting
[ ] ([Single]) or [ ].
Battery drainage and camera temperature
●
If the surrounding temperature is high or 4K photos are recorded continuously, [ ] may be
displayed and recording may be stopped halfway through. Wait until the camera cools down.
●
When [ ] ([4K Pre-Burst]) is set, the battery drains faster and the camera temperature rises.
(to protect itself, the camera may switch to [
] ([4K Burst]))
Select [
] ([4K Pre-Burst]) only when recording.
111
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save

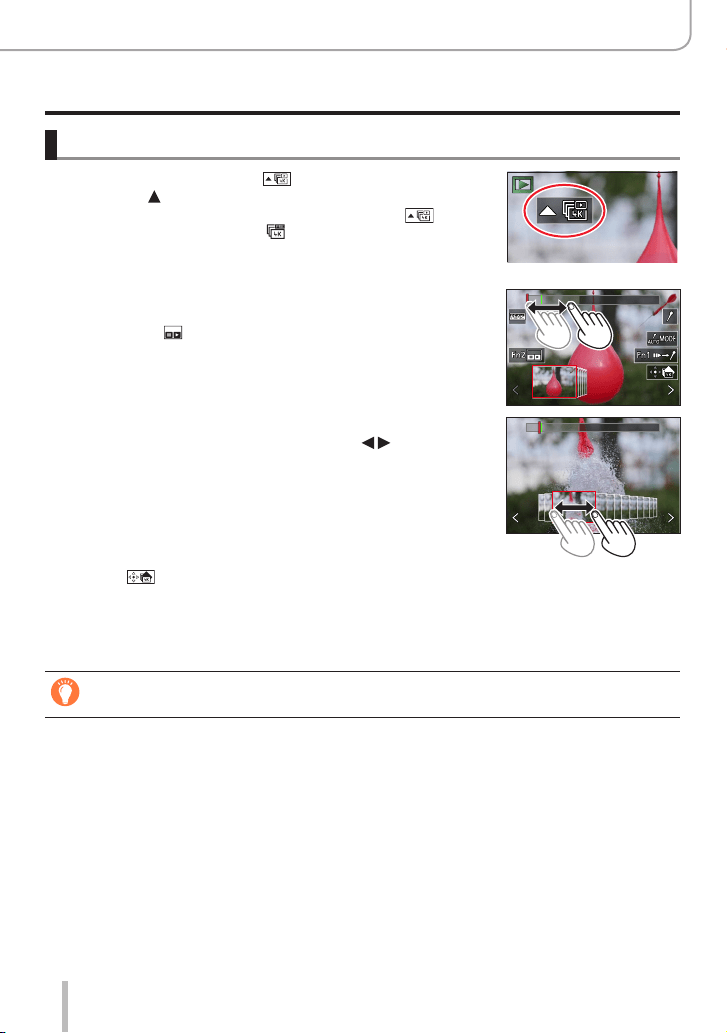

Selecting pictures from 4K photo series files and saving
1
Select a picture with the [ ] on the playback screen,
and press
• The same operation can be performed by touching [ ].
• In the case of recording with [
] ([4K Pre-Burst]), proceed to
step
3
.
2
Drag the slide bar to perform rough picture selection
• For information on how to operate the slide view screen, refer to
(→112).
• If you touch [
] (or press [Fn2]), you can choose a scene in the
4K photo series playback screen. (→113)
Slide view screen
3
Drag to select the frame you want to save as a picture
• The same operation can be performed using .
4
Touch [ ] to save the picture
• The selected picture will be saved as a new one in the JPEG format separate from the 4K photo
series file.
• The picture will be saved with recording information (Exif information), including its shutter
speed, aperture and ISO sensitivity information.
If you use [4K PHOTO Bulk Saving] in the [Playback] menu, you can bulk save 5 seconds’
worth of 4K recording. (→214)
112
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
<Slide view screen>
Position of the displayed frame
Operation Touch operation Description
—
Touch / Drag
Selects the frames to be displayed
• Frames preceding and following the selected one will be
displayed in slide view.
Drag
Selects the frame
• To switch the slide view, select the frame at either end and
touch [
] or [ ].
Press and hold
Touch and hold
Continuously scrolls the frames or scrolls frame-by-frame
backward or forward.
Spread / Pinch Enlarges/reduces the displayed area
Drag Moves the enlarged area (during enlarged display)
—
Switches a marker to be displayed (→115)
[Fn1]
Switches to marker operation (→114)
[Fn2]
Displays the 4K photo series playback screen
—
/
Adds/deletes a marker
—
In-focus subject details are highlighted with colored edges.
([Peaking])
• Switches in order of [
] → [ ] ([LOW]) →
[
] ([HIGH]).
[MENU/SET]
Saves the picture
113
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save

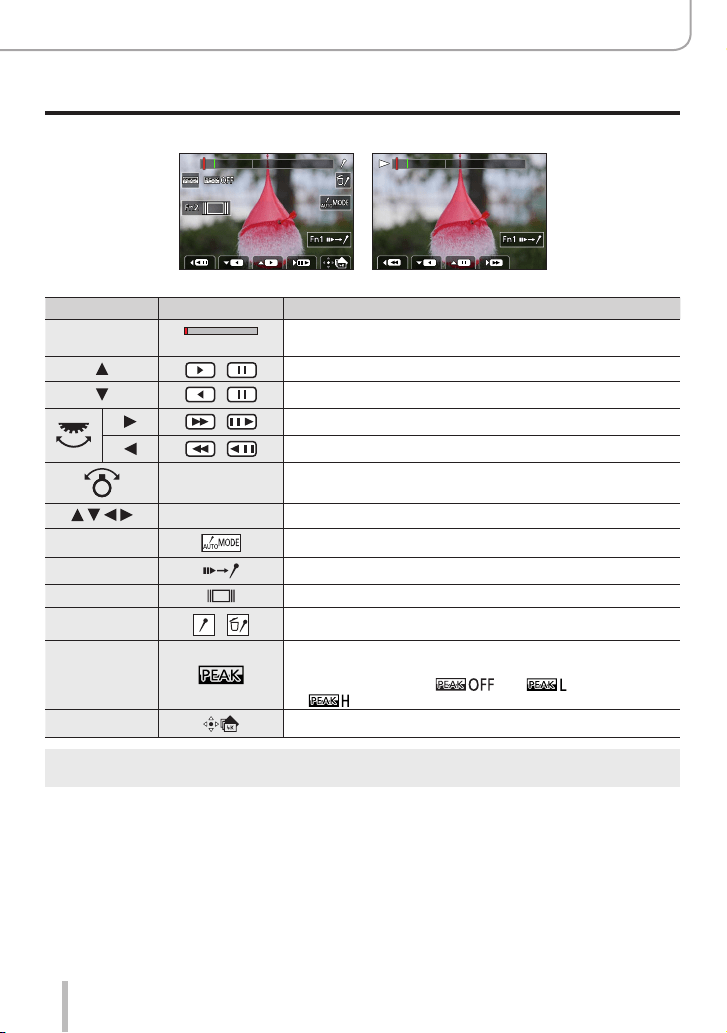

<4K photo series playback screen>
During pause During continuous playback
Operation Touch operation Description
—
Touch / Drag
Selects the frames to be displayed (while paused)
/
Continuous playback / Pause (during continuous playback)
/
Continuous rewind / Pause (during continuous rewind)
/
Fast forward playback / Single-frame forward (while paused)
/
Fast rewind playback / Single-frame rewind (while paused)
Spread / Pinch Enlarges/reduces the displayed area (while paused)
Drag Moves the enlarged area (during enlarged display)
—
Switches a marker to be displayed (→115)
[Fn1]
Switches to marker operation (→114)
[Fn2]
Displays the slide view screen (while paused)
—
/
Adds/deletes a marker
—
In-focus subject details are highlighted with colored edges.
([Peaking])
• Switches in order of [
] → [ ] ([LOW]) →
[
] ([HIGH]).
[MENU/SET]
Saves the picture (while paused)
●
You can also zoom in by quickly touching the touch screen twice. (If the display was enlarged, it
returns to the same magnification ratio.)
114
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
■
Selecting and saving pictures on the TV screen
• Set [HDMI Mode (Play)] to [AUTO] or [4K/30p]. When connecting to a TV that does not
support 4K video, select [AUTO].
• If you connect the camera to a TV and display 4K photo series files on the TV, they will
be displayed only on the 4K photo series playback screen.
• Even if you insert the SD card to a 4K-compatible TV with an SD card slot, you cannot
play back 4K photo series files recorded with [Aspect Ratio] set to an option other than
[16:9]. (As of June 2018)
• Depending on the TV to be connected, 4K photo series files may not be played back
correctly.

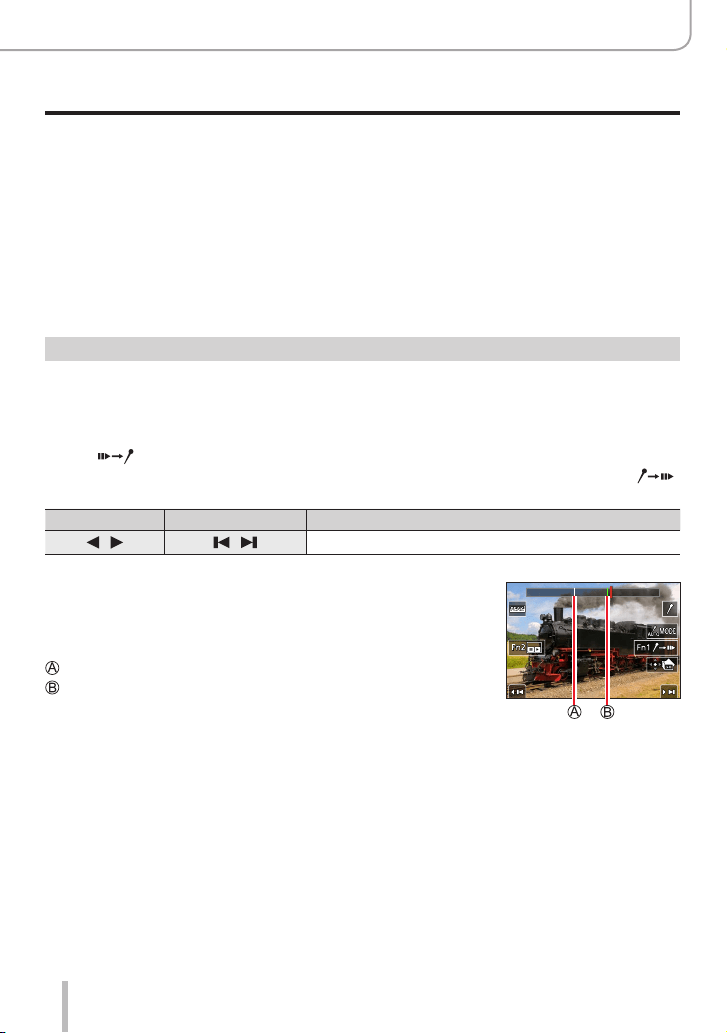

Marker
When selecting and saving pictures from a 4K photo series file, you can select pictures
easily by skipping between marked positions.
■
Skips to the marked positions
When [
] is touched on the slide view screen or 4K photo series playback screen, the
marker operation screen appears and you can skip to the marked positions. Touch [ ]
to return to the original operation.
Operation Touch operation Description
/
/
Moves to the previous/next marker.
Two types of markers are available.
White marker: This is manually set during recording or
playback.
Green marker: This is automatically set by the camera during
recording. (Auto Marking function)
Manually set marker (white)
Marker set using the Auto Marking function (green)
Marker operation screen
115
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
Auto Marking function
The camera automatically sets markers on scenes in which a face or the movement of a subject is
detected.
(Example: In a scene when a vehicle passes by, a balloon bursts, or a person turns around)
• Up to 10 markers are displayed for each file.
• In the following cases, markers may not be set by the Auto Marking function depending on the
recording conditions and the status of subjects.
– The camera is moving because of panning or camera shake
– The movement of a subject is slow/small, or the subject is small
– A face is not facing the camera
■
Switching a marker to be displayed
Touch [
] on the slide view screen, 4K photo series playback screen, or marker
operation screen.
[Auto] Displays a marker on a scene in which a face or the movement of a subject is
detected.
[Face Priority] Displays a marker with preference given to a scene in which a face is detected.
[Motion Priority] Displays a marker with preference given to a scene in which the movement of a
subject is detected.
[Off] Displays manually set markers only.
●
You cannot delete markers set by the Auto Marking function.
●
The markers set by the Auto Marking function may not be displayed correctly if you split the 4K
photo series file on a device other than this camera and then play it back on the camera.
●
In the following cases, markers set by the Auto Marking function are not displayed.
• 4K photo series files recorded with [4K Pre-Burst]
116
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
Notes on the 4K Photo function
■
To change the aspect ratio
Selecting [Aspect Ratio] in the [Rec] menu allows you to change the aspect ratio for 4K
photos.
■
To record the subject with reduced blur
You can reduce the blur of the subject by setting a faster shutter speed.
Set the mode dial to [ ]
Set the shutter speed by rotating the thumb dial
• Approximate shutter speed for outdoor recording in fine weather conditions: 1/1000 seconds or
faster.
• If you increase the shutter speed, the ISO sensitivity becomes higher, which may increase the
noise in the image.
■
Preventing camera shake when you are recording pictures
When you perform [Light Composition] or [Sequence Composition], we recommend
using a tripod and taking pictures remotely by connecting the camera to a smartphone to
prevent camera shake. (→236)
■
Shutter sound for 4K photo recording
• When using [
] ([4K Burst]) or [ ] ([4K Pre-Burst]), you can change the electronic
shutter sound settings in [Shutter Vol.] and [Shutter Tone]. (→198)
• When recording with [ ] ([4K Burst(S/S)]), you can set the start/stop tone volume in
[Beep Volume].
• You can perform high speed serial exposure recording quietly using the 4K Photo
function in combination with [Silent Mode]. (→176)
■
Scenes not suitable for the 4K Photo function
Recording indoors
When recording under fluorescent lighting or LED lighting fixtures, etc., the colors and
brightness may change or horizontal striping may appear on the screen. The striping may
be reduced by setting a slower shutter speed. (→180)
Fast-moving subjects
Subjects moving fast may appear distorted when recorded.
117
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
■
The camera’s setup for the 4K Photo function
The camera’s setup is automatically optimized for 4K photo recording.
• The following settings are fixed.
[Picture Size]
[4K] (8M)
[4:3]: 3328×2496 [3:2]: 3504×2336
[16:9]: 3840×2160 [1:1]: 2880×2880
[Quality] [
]
[Shutter Type] [ESHTR]
[Rec Quality]
*
[4K/100M/30p]
[Continuous AF]
*
[ON]
*
Settings in the [Motion Picture] menu are not applied to 4K photo series files recorded with the 4K
Photo function.
• The following limitations apply to the recording functions indicated below.
[ ] ([4K Burst])/
[
] ([4K Burst(S/S)])
[
] ([4K Pre-Burst])
Program Shift Disabled
Exposure compensation –3 EV to +3 EV
Shutter speed 1/30 to 1/16000
[Min. Shtr Speed] 1/1000 to 1/30
[AFS/AFF/AFC] ([AFF]) Disabled
[AF Mode] ([
])
Disabled
[MF Assist] ○ Disabled
White Balance ([
])
Disabled
ISO sensitivity
[AUTO], [125] to [6400]
([L.80] to [6400] when [Extended ISO] is set to [ON])
Flash Disabled
Bracket recording Disabled
• The following menu items are disabled:
[Snapshot Mode] [iHandheld Night Shot], [iHDR]
[Creative Control] [Simultaneous Record w/o Filter]
[Rec]
[Picture Size], [Quality], [Color Space], [Flash], [Long Shtr NR],
[Shutter Type], [Bracket], [HDR]
[Custom] [Rec Area], [Face Recog.], [Profile Setup]
[Setup]
[Economy] (Only [
] ([4K Pre-Burst])), [Monitor Display Speed],
[EVF Display Speed]
118
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
●
Recording stops when the continuous recording time exceeds 15 minutes.
When using an SDHC memory card, files are split into several files for recording and playback
if the file size would otherwise exceed 4 GB. (You can continue to record pictures without
interruption.)
If using an SDXC memory card, you can record pictures in a single file even if its size is greater
than 4 GB.
●
When recording, the recorded area is slightly smaller than usual.
●
The following changes occur when recording 4K photos:
• [Destination] in [Travel Date] cannot be recorded.
• [Simultaneous Record w/o Filter] in [Filter Settings] is not available.
• It is not possible to use the HDMI output.
●
When recording using the [ ] ([4K Pre-Burst]) function, Step Zoom does not operate.
●
Scene Detection in Snapshot Mode works the same way as when recording videos.
●
The 4K Photo function is disabled when using the following settings:
• [Clear in Backlight], [Glistening Water], [Artistic Nightscape], [Glittering Illuminations], [Handheld
Night Shot], [Clear Night Portrait], [Soft Image of a Flower] (Scene Mode)
• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
• During video recording
• When [Multi Exp.] is set
• When using [Time Lapse Shot]
• When using [Stop Motion Animation]
119
4K Photo and Drive Settings
Selecting the focusing plane after recording
([Post Focus]/[Focus Stacking])
Recording modes:
You can record 4K photo series files while changing the focus point and then select one
of them after recording. This function is best for non-moving subjects.
4K serial photo
recording with
automatic focus shift
Touch the desired focus
point
Finished picture has the
desired focus point
• To record pictures, use a UHS Speed Class 3 card.
• We recommend using a tripod to perform [Focus Stacking].
Recording using [Post Focus]
1
Press [PF]
2
Press to select [ON] and then [MENU/SET]
[Post Focus] icon
• You can also set it to [ON] by pressing [
] ( ), using to select a [Post Focus] icon
([
]).
3
Determine the composition and press the shutter
button halfway
• Autofocus activates and automatically detects the focus point on
the screen.
• If there is no focus point on the screen, the Focus indicator (
)
flashes and you cannot record.
From halfway pressing the shutter button to completion of recording
• Do not change the distance to subject or the composition.
120
4K Photo and Drive Settings
Selecting the focusing plane after recording ([Post Focus]/[Focus Stacking])

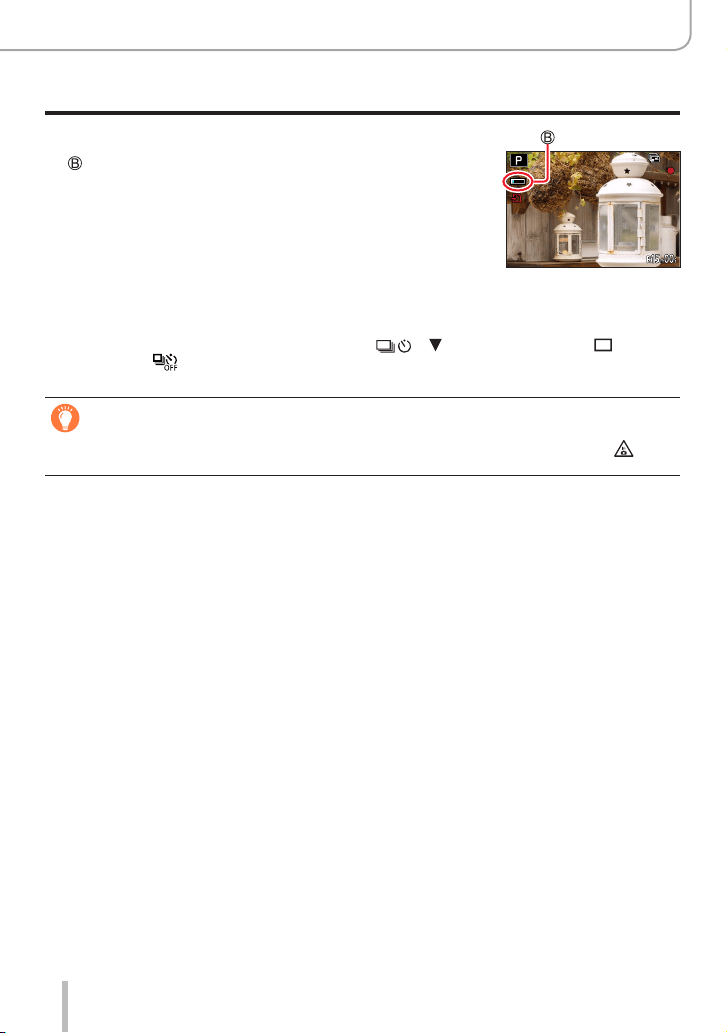

4
Press the shutter button fully to start recording
Recording progress bar
• The focus point changes automatically while recording. When the
recording progress bar disappears, recording automatically ends.
• The data will be saved as a single file in the MP4 format.
• If [Auto Review] is set, a screen will automatically appear that lets
you select the focus point. (→121)
■
Canceling [Post Focus]
Select [OFF] in step
2
.
• The operation can be canceled by pressing [ ] ( ) and then selecting [ ]
([Single]) or [ ].
About camera temperature
If the surrounding temperature is high or [Post Focus] recording is performed continuously, [ ] may
be displayed and recording may be stopped halfway through. Wait until the camera cools down.
121
4K Photo and Drive Settings
Selecting the focusing plane after recording ([Post Focus]/[Focus Stacking])

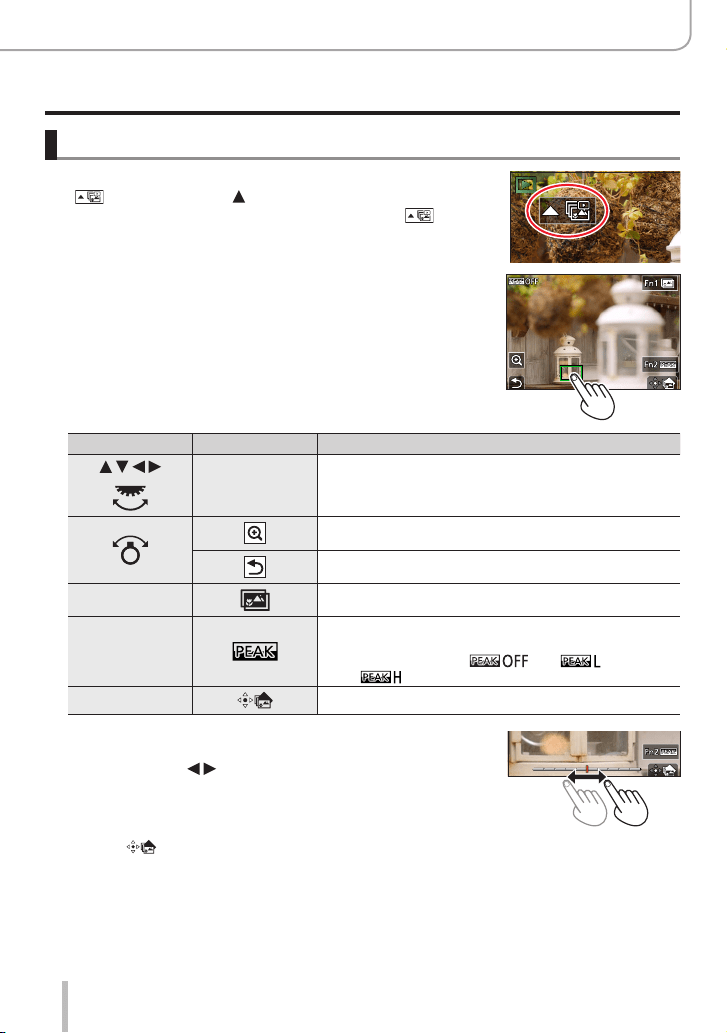

Selecting a focus point and saving the picture ([Post Focus])
1
On the playback screen, select the image with the
[ ] icon and press
• The same operation can be performed by touching [ ].
2
Touch the subject detail to be focused
• If there are no pictures with the focus on the selected point, a red
frame will be displayed, and pictures cannot be saved.
• The edge of the screen cannot be selected.
Operation Touch operation Description
Touch
Selects a focus point
• No selection can be made while the display is
enlarged.
Enlarges the display
Reduces the display (when in enlarged display)
[Fn1]
Switches to [Focus Stacking] operation (→122)
[Fn2]
In-focus subject parts are highlighted with colored
edges. ([Peaking])
• Switches in order of [
] → [ ] ([LOW])
→ [
] ([HIGH]).
[MENU/SET]
Saves the picture
• You can make fine adjustments to the focus by dragging the
slide bar during enlarged display. (The same operation can be
performed using
.)
3
Touch [ ] to save the picture
• The selected picture will be saved as a new separate file in the JPEG format.
122
4K Photo and Drive Settings
Selecting the focusing plane after recording ([Post Focus]/[Focus Stacking])
Determining subject parts to be in focus by combining several
shots and creating a single picture ([Focus Stacking])
Near
Focus Distant
1
Touch [ ] on screen in step
2
of “Selecting a focus point and saving the
picture ([Post Focus])” (→121)
• The same operation can be performed by pressing [Fn1].
2
Choose a stacking method and touch it
[Auto Merging]
Automatically selects photos suitable for stacking and combines them into
one picture.
• Focus point selection is based on objects closer to the camera.
• Performs the focus stacking and saves the picture.
[Range Merging] Combines the pictures with the selected focus positions into one picture.
(When selecting [Range Merging])
3
Touch the focus point
• Select positions at two or more points.
• Focus points between the selected two positions will be
selected.
• Positions that cannot be selected, or that would produce an
unnatural result will be grayed out.
• Touch a position again to deselect it.
• If you drag the screen you can then continue to select positions.
Operation Touch operation Description
Touch Selects the position
[Fn2] [Set/Cancel] Sets/clears the position
[DISP]
[All]
Selects all positions (Before
selecting position)
[Reset]
Deselects All (After selecting
position)
[MENU/SET]
Combines and saves the
Set/CancelSet/Cancel
ResetReset
Set/CancelSet/Cancel
ResetReset
123
4K Photo and Drive Settings
Selecting the focusing plane after recording ([Post Focus]/[Focus Stacking])
4
Touch [ ] to combine and save the picture
• The picture will be saved in JPEG format with recording information (Exif information) from the
nearest position’s picture, including its shutter speed, aperture and ISO sensitivity information.
Notes on the [Post Focus]/[Focus Stacking]
■
The camera’s setup for recording in [Post Focus]
• Since recording is performed in the same resolution as 4K photos, certain limitations
apply to recording functions and menu settings. For details, refer to “The camera’s
setup for the 4K Photo function” (→117).
• In addition to the limitations of the 4K Photo function, the following limitations apply to
[Post Focus] recording:
– [AF Mode] and [AFS/AFF/AFC] cannot be set.
– Manual Focus cannot be used.
– The following [Custom] menu items cannot be set:
[Shutter AF]
– Videos cannot be recorded.
– [Digital Zoom] is not available.
●
During recording, the recorded area is slightly smaller than usual.
●
The [Post Focus] function is disabled when using the following settings:
• [Clear in Backlight], [Glistening Water], [Artistic Nightscape], [Glittering Illuminations], [Handheld
Night Shot], [Clear Night Portrait], [Soft Image of a Flower] (Scene Mode)
• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
• When [Multi Exp.] is set
• When using [Time Lapse Shot]
• When using [Stop Motion Animation]
●
When selecting the focus and saving pictures, you cannot select and save the picture from a TV
screen even if the camera is connected to a TV through an HDMI micro cable.
●
In the following cases, [Focus Stacking] may produce an unnatural picture:
• If the subject is in motion
• If there are large differences in distance to the subject
• If there is significant blurring (recording with a larger aperture might make the picture less
unnatural)
●
During focus stacking, auto compensation is applied to deviations among pictures due to camera
shake. In such cases, the recorded area will be slightly smaller than at the time of focus stacking.
●
Only pictures taken using [Post Focus] on this camera are eligible for [Focus Stacking].
124
4K Photo and Drive Settings
Selecting a Drive Mode
Recording modes:
You can change what the camera will do when you press the shutter button.
1
Press [ ] ( )
2
Press to select the drive mode and
then [MENU/SET]
Drive Mode
[Single]
When the shutter button is pressed,
only one picture is recorded.
[Burst] (→125)
Pictures are taken in succession as long
as the shutter button is pressed.
[4K PHOTO]
(→108)
When the shutter button is pressed, a
picture is recorded with the 4K Photo
function.
[Post Focus]
(→119)
When the shutter button is pressed, the
pictures are recorded with [Post Focus].
[Self Timer]
(→127)
When the shutter button is pressed,
recording takes place after the set time
has elapsed.
■
To cancel the drive mode
In step
2
, select [ ] ([Single]) or [ ].
• You can cancel the self-timer by turning off the camera. (When [Self Timer Auto Off] is
set to [ON].)
125
4K Photo and Drive Settings
Selecting a Drive Mode
Continuous exposure function
■
Setting [Burst Rate]
Select [Burst] and press in step
2
(→124)
Select the frame rate with , and press [MENU/SET]
[H]
(High speed)
[M]
(Middle speed)
[L]
(Low speed)
Frame rate
(pictures/sec.)
[AFS] / [MF] 10 7
2
[AFF] / [AFC] 6 6
Live View during
serial recording
[AFS] / [MF] None
Available Available
[AFF] / [AFC] Available
Number of
recordable pictures
*
With RAW files 28 or more
Without RAW files 85 or more
*
When recording is performed under the test conditions specified by Leica Camera AG.
Pictures can be taken until the card becomes full. However, the frame rate will become slower
halfway through the recording. The number of serial pictures is limited by the picture-taking
conditions and the type and/or status of the card used.
■
About the maximum number of pictures that can be taken continuously
When you press the shutter button halfway, the maximum
number of pictures you can take continuously will appear. You
can check the approximate number of pictures that can be
taken before the frame rate slows down.
Example: When 20 pictures can be taken: [r20]
• Once recording starts, the maximum number of pictures that can be taken continuously
will decrease. When [r0] appears, the frame rate will slow down.
• When [r99+] is displayed, you can take 100 or more pictures continuously.
126
4K Photo and Drive Settings
Selecting a Drive Mode
Focusing in continuous mode
Focusing varies depending on focus settings and the setting of [Focus/Release Priority] in the
[Custom] ([Focus / Release Shutter]) menu.
Focus settings [Focus/Release Priority] [H] [M], [L]
[AFS]
[FOCUS]/
[BALANCE]/
[RELEASE]
At the first picture
[AFF] / [AFC]
*
1
[FOCUS]
Predicted focusing
*
2
Normal focusing
*
3
[BALANCE]/
[RELEASE]
Predicted focusing
*
2
[MF] — Focus set with Manual Focus
*
1
Focus is fixed in the first picture when dark subjects are recorded.
*
2
The camera predicts the focus within a possible range by giving higher priority to the frame rate.
*
3
Since the camera records a series of pictures while it adjusts the focus, the frame rate may be
slower.
●
The frame rate may become slower depending on the following settings:
[Sensitivity], [Picture Size], [Quality], [AFS/AFF/AFC], [Focus/Release Priority]
●
When the frame rate is set to [H] (when [AFS/AFF/AFC] is set to [AFS] or when the focus mode is
set to [MF]), the exposure and White Balance are fixed to those of the first picture.
When the frame rate is set to [H] (when [AFS/AFF/AFC] is set to [AFF] or [AFC]), [M], or [L], the
exposure and White Balance are adjusted individually for each picture.
●
It may take a while to store pictures that were taken using the continuous function. If you
continue to record while storing, the number of serial pictures that can be taken will
be reduced. A high-speed card is recommended when recording using the continuous
function.
●
This function is not available in the following cases:
• [Glistening Water], [Glittering Illuminations], [Handheld Night Shot], [Soft Image of a Flower]
(Scene Mode)
• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
• When recording using the flash
• When [Multi Exp.] is set
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
127
4K Photo and Drive Settings
Selecting a Drive Mode
Taking pictures with the self-timer
■
Setting the self-timer operation
Select [Self Timer] and press in step
2
(→124)
Select the self-timer operation with , and press [MENU/SET]
The shutter is activated after 10 seconds.
The shutter is activated after 10 seconds and three pictures are taken at intervals of
approximately 2 seconds.
The shutter is activated after 2 seconds. This is also effective for preventing camera shake
when pressing the shutter button.
●
After the self-timer indicator flashes, recording will start.
●
The focus and exposure are fixed when the shutter button is pressed halfway.
●
We recommend using a tripod.
●
[ ] cannot be set in the following cases:
• When recording using [Bracket]
• When [Multi Exp.] is set
• When [Simultaneous Record w/o Filter] of [Filter Settings] is set to [ON]
●
This function is not available in the following cases:
• During video recording
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
128
4K Photo and Drive Settings
Taking Picture Series with Automatically Changing
Settings
(Bracket Recording)
Recording modes:
You can create a series of pictures in which a range of preset setting changes is applied
automatically after pressing the shutter button.
1
Set the menu
→ [Rec] → [Bracket] → [Bracket Type]
(Exposure Bracket)
Pressing the shutter button creates a series of pictures with
differing exposure. (→129)
(Aperture Bracket)
Pressing the shutter button creates a series of pictures with
differing aperture settings. (→130)
• Available in Aperture-Priority Mode or when the ISO
sensitivity is set to [AUTO] in Manual Exposure Mode.
(Focus Bracket)
Pressing the shutter button creates a series of pictures with
differing focus settings. (→130)
(White Balance Bracket)
Pressing the shutter button creates a series of 3 pictures
with differing White Balance settings. (→107)
2
Press to select [More Settings] and then [MENU/SET]
• For information on [More Settings], refer to the page that describes each function.
• Press the shutter button halfway to exit the menu.
3
Focus on the subject and take a picture
• When Exposure Bracket is selected, the bracket display flashes until all of the
pictures you have set are taken. If you change the bracket settings or turn off
the camera before all of the pictures you have set are taken, the camera restarts
recording from the first picture.
■
To cancel [Bracket]
Select [OFF] in step
1
.
129
4K Photo and Drive Settings
Taking Picture Series with Automatically Changing Settings (Bracket Recording)
●
Bracket recording is disabled in the following cases.
• [Glistening Water], [Glittering Illuminations], [Handheld Night Shot], [Soft Image of a Flower]
(Scene Mode)
• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
• When recording using the flash (except for White Balance Bracket)
• When recording videos
• When recording 4K photos
• When recording using [Post Focus]
• When [Multi Exp.] is set
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]

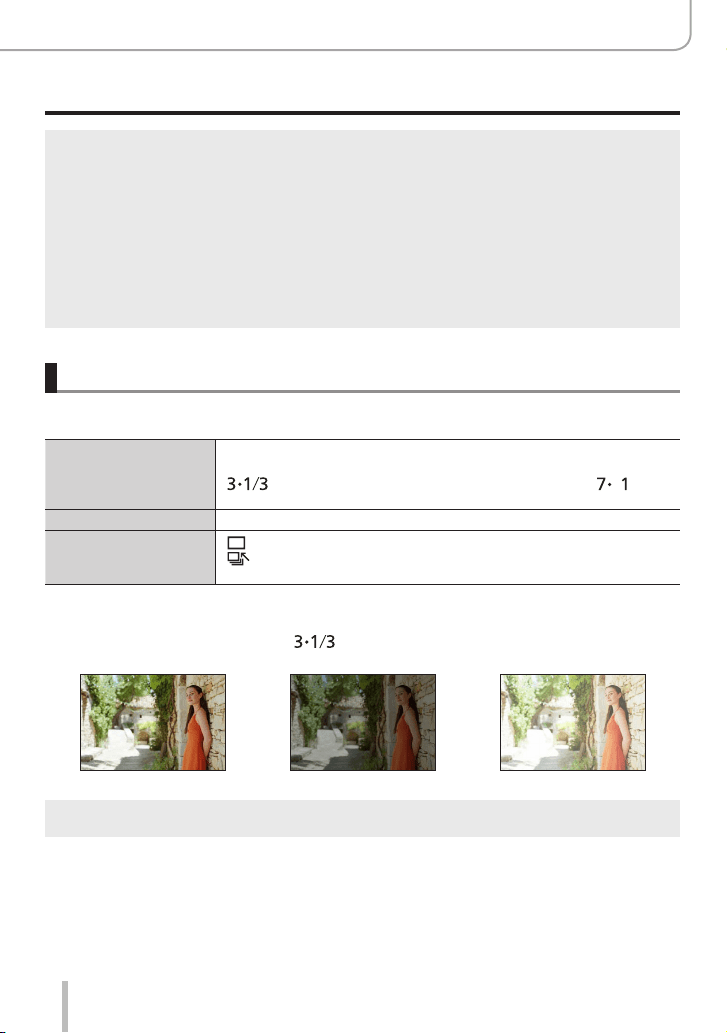

Exposure Bracket
■
About [More Settings] (step
2
in (→128))
[Step]
Sets the number of pictures to be taken and the exposure compensation
range.
[
] (Takes three pictures with an interval of 1/3 EV) to [ ]
(Takes seven pictures with an interval of 1 EV)
[Sequence] Sets the order in which pictures are taken.
[Single Shot Setting]
*
[ ]: Takes one picture each time you press the shutter button.
[
]: Takes all the pictures set to be taken after you press the shutter
button once.
*
Not available for continuous recording. When using this function, if you press and hold the shutter
button, recording will be performed continuously until a specified number of pictures are taken.
[Step]: [ ], [Sequence]: [0/–/+]
1st picture 2nd picture 3rd picture
±0 EV –1/3 EV +1/3 EV
●
When taking pictures using Exposure Bracket after setting the Exposure Compensation value, the
pictures taken are based on the selected Exposure Compensation value.
130
4K Photo and Drive Settings
Taking Picture Series with Automatically Changing Settings (Bracket Recording)
Aperture Bracket
Recording modes:
■
About [More Settings] (step
2
in (→128))
[Image Count]
[3]: Takes a specified number of pictures with different aperture values
within the range based on the initial aperture value.
[ALL]: Takes pictures using all aperture values.
• When using continuous recording, if you press and hold the shutter button, recording
will be performed until a specified number of pictures are taken.
Example:
3.3 4 5.6 8
When the initial position is set to F4:
first picture, second picture, third picture, fourth picture
Focus Bracket
■
About [More Settings] (step
2
in (→128))
[Step] Sets the interval between focus positions.
[Image Count]
*
Sets the number of pictures to be taken.
[Sequence]
[0/–/+]: Takes pictures with different focus positions within the range
based on the initial focus position.
[0/+]: Takes pictures with different focus positions toward the far side
based on the initial focus position.
*
Not available for continuous recording. When using this function, if you press and hold the shutter
button, recording will be performed continuously until a specified number of pictures are taken.
[Sequence]: Example when [0/–/+] is selected [Sequence]: Example when [0/+] is selected
Close-up
Infinity
first picture, second picture... fifth picture...
●
Pictures taken with Focus Bracket are displayed as a set of group pictures.
131
4K Photo and Drive Settings
Taking Pictures Automatically at Set Intervals
[Time Lapse Shot]
Recording modes:
The camera can automatically create a picture series of subjects such as animals or
plants as time elapses. To use this function, set the start time, the time between the shots
and the number of pictures. The pictures are recorded as a single group picture.
• Complete the date and time settings in advance. (→28)
1
Set the menu
→ [Rec] → [Time Lapse Shot]
[Shooting Interval
Setting]
[ON]: Sets the time from recording start time to the next recording
start time.
[OFF]: After recording is finished, the next recording is started without
any interval.
[Start Time] [Now] Starts the recording by fully-pressing the shutter
button.
[Start Time Set] Any time up to 23 hours 59 minutes ahead can
be set.
Press to select the item (hour and/or
minute), and
to set the start time, and then
[MENU/SET]
[Image Count] /
[Shooting Interval]
*
1
: Select the item (digit)
: Setting
[MENU/SET]: Set
*
1
Can be set only when [Shooting Interval Setting] is set to [ON].
• The estimated recording ending time is displayed on the setting screen. (When
[Shooting Interval Setting] is set to [OFF], the recording ending time is displayed
only when the focus mode is set to [MF] in Shutter-Priority Mode or Manual
Exposure Mode.)
• The camera may not be able to record using the pre-set interval and number of
pictures to be recorded or may not finish recording at the estimated recording
ending time under some recording conditions.
2
Press to select [Start] and then [MENU/SET]
3
Press the shutter button halfway to focus
132
4K Photo and Drive Settings
Taking Pictures Automatically at Set Intervals [Time Lapse Shot]
4
Press the shutter button fully
• The recording starts automatically.
• During recording standby, the camera turns off automatically when no operation
is performed for a preset interval. The [Time Lapse Shot] recording will continue
even if the camera is turned off, and it is automatically turned on at the recording
start time. If you want to turn on the camera manually, press the shutter button
halfway.
• Operations during recording standby (The camera is turned on)
Operation Touch operation Description
[Fn1]
*
2
*
3
Displays a selection screen that lets you pause or stop
the recording
Displays a selection screen that lets you resume or stop
the recording (during pause)
*
2
When you record pictures by setting [Shooting Interval Setting] to [OFF], you can press
[Fn1] even while recording is in progress. After recording (exposure) of a picture taken at
the time when you pressed [Fn1] is finished, a selection screen is displayed.
*
3
When you record pictures by setting [Shooting Interval Setting] to [OFF], you cannot
perform touch operation.
5
Select the video creation method
[Rec Quality] Sets the resolution of the video.
[Frame Rate]
Set the number of frames per second. The higher the number is, the
smoother the video will be.
[Sequence]
[NORMAL]: Stitches the pictures in the recording sequence.
[REVERSE]: Stitches the pictures in the reverse order of recording.
6
Press to select [OK] and then [MENU/SET]
• You can also create a video using [Time Lapse Video] in the [Playback] menu.
133
4K Photo and Drive Settings
Taking Pictures Automatically at Set Intervals [Time Lapse Shot]
●
This function is not intended for application-specific systems (monitoring cameras).
●
When using the lens’ zoom function, the camera could tilt when the lens barrel extends. Make sure
to immobilize the camera with a tripod or by other means.
●
[Time Lapse Shot] is paused in the following cases:
• When the remaining battery power runs out
• Turning the camera off
If the number of pictures set has not been taken yet, you can restart the operation by turning
off the camera in the pause state, replacing the battery or card, and then turning the camera on
again. (Note, however, that the pictures recorded after restarting the operation are saved as a
separate set of group pictures.)
●
We recommend using autofocus for time lapse recording in cases where a long [Shooting Interval]
is set and the camera will turn off automatically between shots.
●
When creating videos at a resolution of [4K], recording times are limited to 29 minutes.
If using an SDHC memory card, you will not be able to create videos with a file size greater than
4 GB. With an SDXC memory card, you can create videos with a file size greater than 4 GB.
●
When creating a video with a picture quality size of [FHD] or [HD], you will be unable to create it if
the recording time is more than 29 minutes or the file size is greater than 4 GB.
●
This function is not available in the following cases:
• [Handheld Night Shot] (Scene Mode)
• When [Multi Exp.] is set
• When using [Stop Motion Animation]
134
4K Photo and Drive Settings
Creating stop motion animation
[Stop Motion Animation]
Recording modes:
You can create a video by connecting a series of single pictures. The pictures are
recorded as a group.
• Complete the date and time settings in advance. (→28)
1
Set the menu
→ [Rec] → [Stop Motion Animation]
[Auto Shooting] [ON]: Takes pictures automatically at a set recording interval.
[OFF]: Takes pictures manually, one frame at a time.
[Shooting Interval] (Only when [Auto Shooting] is set to [ON])
Set the interval used for [Auto Shooting].
2
Press to select [Start] and then [MENU/SET]
3
Press to select [New] and then
[MENU/SET]
4
Press the shutter button halfway to focus
5
Press the shutter button fully
• Up to 9,999 frames can be recorded.
6
Move the subject for the next situation
• Repeat the recording of pictures in the same way.
• When you turn off the camera during recording, a message to restart recording
will appear when you turn on the camera.
How to create stop motion animation effectively
●
Up to two previously recorded pictures are displayed on the recording screen. Check this screen as
a guideline for determining the amount of required motion.
●
You can press [ ] (Playback) to check the recorded pictures. Press [ ] to delete unnecessary
pictures. To return to the recording screen, press [
] (Playback) again.
135
4K Photo and Drive Settings
Creating stop motion animation [Stop Motion Animation]
7
Touch [ ] to end the recording
• You can also end the recording by selecting [Stop
Motion Animation] in the [Rec] menu, and then
pressing [MENU/SET].
• When [Auto Shooting] is set to [ON], select [End] on
the confirmation screen. (If you select [Pause], press
the shutter button fully to resume recording.)
8
Select a method to create a stop motion animation
[Rec Quality] Sets the resolution of the video.
[Frame Rate]
Set the number of frames per second. The higher the number is, the
smoother the video will be.
[Sequence]
[NORMAL]: Connects the pictures in the recording sequence.
[REVERSE]: Connects the pictures in the reverse order of recording.
9
Press to select [OK] and then [MENU/SET]
• You can also create a stop motion animation using [Stop Motion Video] in the
[Playback] menu.
■
Adding pictures to an already recorded stop motion animation group
When you select [Additional] in step
3
, group pictures recorded using [Stop Motion
Animation] are displayed. Select a set of group pictures and press [MENU/SET]. Then,
select [Yes] on the confirmation screen.
136
4K Photo and Drive Settings
Creating stop motion animation [Stop Motion Animation]
●
[Auto Shooting] may not be performed according to the preset interval because recording could
take time under some recording conditions, such as when pictures are taken using a flash.
●
When creating videos at a resolution of [4K], recording times are limited to 29 minutes.
If using an SDHC memory card, you will not be able to create videos with a file size greater than
4 GB. With an SDXC memory card, you can create videos with a file size greater than 4 GB.
●
When creating a video with a picture quality size of [FHD] or [HD], you will be unable to create it if
the recording time is more than 29 minutes or the file size is greater than 4 GB.
●
You cannot select only one recorded picture using [Additional].
●
This function is not available in the following cases:
• When [Multi Exp.] is set
• When using [Time Lapse Shot]
●
[Auto Shooting] in [Stop Motion Animation] cannot be used in the following case:
• [Handheld Night Shot] (Scene Mode)
137
Stabilizer, Zoom and Flash
Compensating Camera Shake
Recording modes:
This function automatically detects and compensates camera shake.
→ [Rec] / [Motion Picture] → [Stabilizer]
(Normal)
Corrects vertical and horizontal camera shake.
(Panning)
Corrects vertical camera shake. This setting is ideal for panning (technique of
recording a subject by matching the camera movement with the movement of a
subject going in a specific direction).
[OFF] [Stabilizer] does not work.
To prevent camera shake
If the camera shake warning is displayed, use [Stabilizer], a tripod, or [Self
Timer].
●
Using a slower shutter speed can cause motion blur. The shutter speed will
be slower particularly in the following cases. Keep the camera still from the
moment the shutter button is pressed until the picture appears on the screen.
We recommend using a tripod.
• [Slow Sync.]
• [Slow Sync./Red-Eye]
• [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape],
[Artistic Nightscape], [Glittering Illuminations], [Clear Night Portrait]
(Scene Mode)
60
p
138
Stabilizer, Zoom and Flash
Compensating Camera Shake
●
When you use a tripod, we recommend setting [Stabilizer] to [OFF].
●
[Stabilizer] cannot be used by selecting [ ] (Normal) in Panorama Shot Mode.
●
In the following cases, the [Stabilizer] will switch to [ ] (Normal), even if it is set to [ ]
(Panning):
• During video recording
• When recording 4K photos
• When recording using [Post Focus]
●
[Stabilizer] cannot be used when recording with [High Speed Video].
●
The 5-axis Hybrid Image Stabilizer function automatically functions while recording videos. This
decreases the camera shake of the image when recording videos while zooming or walking, etc.
• The recorded area is slightly smaller than usual.
●
In the following cases, the 5-axis Hybrid Image Stabilizer function is not available.
• When using the Digital Zoom
• When recording videos with [Rec Quality] set to [4K/100M/30p] or [4K/100M/24p]
• When recording using [4K Live Cropping]
●
Cases where the stabilizer function may be ineffective:
• When there is a lot of camera shake
• With longer focal lengths (also with high magnification in the Digital Zoom range)
• When taking pictures while following a moving subject
• When the shutter speed becomes slower to take pictures indoors or in dark places
●
The panning effect by selecting [ ] is not fully achieved in the following cases:
• Bright summer days or other bright locations
• When the shutter speed is higher than 1/100 second
• When the motion of a subject is slow and the speed with which the camera is moved is too slow
(a nice background blur is not achieved)
• When the camera is not adequately tracking the motion of a subject
139
Stabilizer, Zoom and Flash
Using the Lens’ Zoom Function
Zoom types and use
The magnification, or zoom ratios mentioned throughout these instructions and for the different
settings below are based on that of the shortest focal length / maximum Wideangle setting,
which is determined as 1x.
Optical Zoom
Recording modes:
You can zoom in without degrading the picture quality.
Maximum magnification: 15x
●
This function is not available in the following case:
• When recording with [Macro Zoom]
Extended optical zoom
Recording modes:
This function works when resolutions with [ ] have been selected in [Picture Size].
Extended optical zoom allows you to zoom in using a higher zoom ratio than Optical
Zoom, without degrading the picture quality. The maximum zoom ratio varies depending
on the resolution.
Maximum magnification: 30x (Including the optical zoom ratio.)
●
This function is not available in the following cases:
• [Handheld Night Shot] (Scene Mode)
• [Toy Effect], [Toy Pop] (Creative Control Mode)
• When recording 4K photos
• When recording using [Post Focus]
• When [HDR] is set to [ON]
• When [Multi Exp.] is set
• When [iHandheld Night Shot] is set to [ON]
• When [iHDR] is set to [ON]
• When [Quality] is set to [
]
• When recording with [Macro Zoom]
• During video recording
140
Stabilizer, Zoom and Flash
Using the Lens’ Zoom Function
[i.Zoom]
Recording modes:
You can use the camera’s Intelligent Resolution technology to increase the zoom ratio up
to 2x higher than the original ratio with limited deterioration of resolution.
→ [Rec] / [Motion Picture] → [i.Zoom]
Settings: [ON] / [OFF]
●
When [Picture Size] is set to [S], the zoom ratio can be increased to up to 1.5x the original ratio.
●
[i.Zoom] works automatically in Snapshot Mode or Snapshot Plus Mode.
●
This function is not available in the following cases:
• [Handheld Night Shot] (Scene Mode)
• [Impressive Art], [Toy Effect], [Toy Pop] (Creative Control Mode)
• When recording with [Macro Zoom]
• When [HDR] is set to [ON]
• When [Multi Exp.] is set
• When [iHandheld Night Shot] is set to [ON]
• When [iHDR] is set to [ON]
• When [Quality] is set to [
], [ ] or [ ]
141
Stabilizer, Zoom and Flash
Using the Lens’ Zoom Function
[Digital Zoom]
Recording modes:
Allows you to zoom 4x further than Optical/Extended optical zoom. When [Digital Zoom]
is used simultaneously with [i.Zoom], you can increase the combined zoom ratio up to 4x.
Note that, with Digital Zoom, enlarging will decrease resolution.
→ [Rec] / [Motion Picture] → [Digital Zoom]
Settings: [ON] / [OFF]
●
When using [Digital Zoom], we recommend using a tripod and the self-timer (→127).
●
The AF area is largely displayed at the center in the Digital Zoom range.
●
This function is not available in the following cases:
• When [Monitor Display Speed] is set to [ECO 30fps] (setting at the time of purchase)
• When [EVF Display Speed] is set to [ECO 30fps]
• [Handheld Night Shot] (Scene Mode)
• [Impressive Art], [Toy Effect], [Toy Pop], [Miniature Effect] (Creative Control Mode)
• When recording using [Post Focus]
• When recording with [High Speed Video]
• When [HDR] is set to [ON]
• When [Multi Exp.] is set
• When [Quality] is set to [
], [ ] or [ ]
The illustration is an example of when using Optical Zoom, [i.Zoom], and [Digital Zoom] in Program
Mode.
Focusing range
Optical Zoom range
i.Zoom range
Digital Zoom range
Current zoom position (Focal lengths the same as those of a 35 mm film camera)
142
Stabilizer, Zoom and Flash
Using the Lens’ Zoom Function

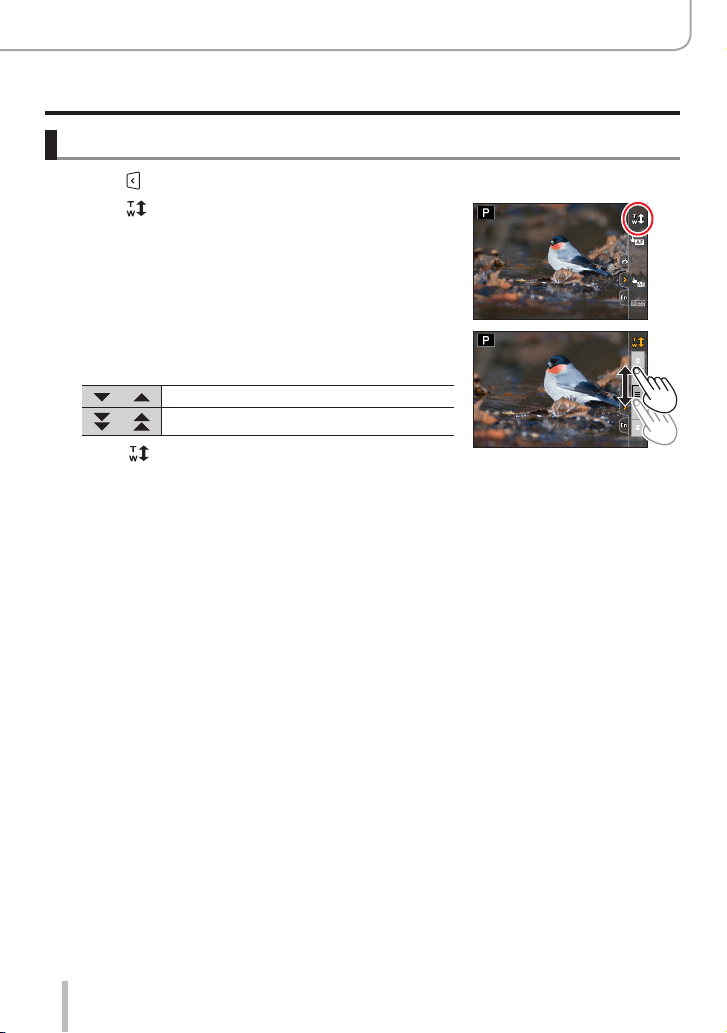

Using Touch zoom
1
Touch [ ]
2
Touch [ ]
• The slide bar is displayed.
3
Perform zoom operations by dragging the slide
bar
• The zoom speed varies depending on the touched position.
[ ] / [ ] Slow zooming
[
] / [ ]
Fast zooming
• Touch [
] again to end touch zoom operations.
143
Stabilizer, Zoom and Flash
Taking Pictures with the Built-In Flash
Recording modes:
■
Open/Close the flash
To open the flash
Slide the flash release lever.
• Be careful when opening the flash as it will jump out.
To close the flash
Press it down until it clicks into place.
• Be careful not to catch a finger or any other part of your body or any
object when you close the flash.
• Using force against any resistance to close the flash can damage the
camera.
• Be sure to close the flash when not in use.
• The flash setting is fixed to [
] (Forced Flash Off) while the flash is
closed.
144
Stabilizer, Zoom and Flash
Taking Pictures with the Built-In Flash
Changing the Flash Control Mode
Recording modes:
This function allows you to select the flash mode to match the situation.
→ [Rec] → [Flash] → [Flash Mode]
: [Forced Flash On]
: [Forced On/Red-Eye]
The flash is fired every time regardless of the recording
conditions.
• Use these modes when your subject is back-lit or under
fluorescent light.
: [Slow Sync.]
: [Slow Sync./Red-Eye]
When taking pictures of dark subjects, this feature will
use slower shutter speeds when the flash is fired, so dark
backgrounds will appear brighter.
• Ideal for taking pictures of people against a nightscape.
• Using a slower speed can cause motion blur. We
recommend using a tripod.
The flash is fired twice. The interval between the first and second flash is longer
when [ ] or [ ] is set. The subject should not move until the second flash is
fired.
• The red-eye reduction effect varies depending on the subject and is affected by factors
such as distance from the subject and whether the subject is looking at the camera
during the preliminary flash. In some cases, red-eye reduction may be negligible.
145
Stabilizer, Zoom and Flash
Taking Pictures with the Built-In Flash
■
Flash settings for each exposure control mode (○: Available, –: Not available)
Exposure control mode
*
1
Program Mode
○ ○ ○ ○
Aperture-Priority Mode
Shutter-Priority Mode
○ ○ – –
Manual Exposure Mode
Scene Modes
(●: Default
settings)
[Clear Portrait] ○ ● – –
[Silky Skin] ○ ● – –
[Clear in Backlight] ● – – –
[Sweet Child’s Face] ○ ● – –
[Clear Night Portrait] – – – ●
[Soft Image of a Flower] ● – – –
[Appetizing Food] ● – – –
[Cute Dessert] ● – – –
[Freeze Animal Motion] ● – – –
[Clear Sports Shot] ● – – –
[Monochrome] ● ○ ○ ○
*
1
For details about flash settings in Snapshot Mode ([ ] or [ ]), refer to (→52).
●
The flash is fixed to [ ] (Forced Flash Off) in the following cases:
• [Backlit Softness], [Relaxing Tone], [Distinct Scenery], [Bright Blue Sky],
[Romantic Sunset Glow], [Vivid Sunset Glow], [Glistening Water], [Clear Nightscape],
[Cool Night Sky], [Warm Glowing Nightscape], [Artistic Nightscape], [Glittering Illuminations],
[Handheld Night Shot] (Scene Mode)
• During video recording
• When recording 4K photos
• When recording using [Post Focus]
• When using the electronic shutter
• When [HDR] is set to [ON]
• When [Silent Mode] is set to [ON]
• When a picture effect in [Filter Effect] of [Filter Settings] is set
●
The Scene Mode flash setting is returned to the initial value with each change of scene.
146
Stabilizer, Zoom and Flash
Taking Pictures with the Built-In Flash
■
Shutter speeds for each flash control mode
Flash control
mode
Shutter speed (seconds)
1/60
*
2
- 1/2000
Flash control
mode
Shutter speed (seconds)
1 - 1/2000
*
2
The shutter speed is set to 60 seconds in Shutter-Priority Mode. The shutter speed is set to T
(Time) in Manual Exposure Mode.
• In Snapshot Mode ([ ] or [ ]), the shutter speed changes depending on the
detected scene.
■
The available flash range
The edges of a picture may become slightly dark if using flash at short distances and the
lens’ short focal lengths (close to max. Wide). This may be remedied by using slightly
longer focal lengths.
Max. Wide angle setting Max. Tele setting
Approx. 0.6 m - 6.8 m (2′ - 22′) Approx. 1.0 m - 3.9 m (3′3″ - 13′)
• These ranges are obtained, provided the ISO sensitivity is set to [AUTO], and [ISO Auto
Upper Limit (Photo)] is set to [AUTO].
●
Avoid doing the following, as the heat or light could cause deformation or discoloration.
• Using the flash at close range
• Covering the flash with your hand as it is firing
• Closing the flash as it is firing
●
Do not close the flash immediately after the preliminary flash is fired prior to taking pictures for
Forced ON/Red-Eye Reduction and other flash settings. If you close the flash immediately, it will
cause a malfunction.
●
Flash charging may take longer if the battery is depleted or if using flash repeatedly. When the
flash is being charged, the flash icon flashes red, and you cannot take a picture even when you
fully press the shutter button.
147
Stabilizer, Zoom and Flash
Taking Pictures with the Built-In Flash
2nd curtain sync
Recording modes:
2nd curtain sync fires the flash at the end of the exposure as opposed to the normal firing
time (at the beginning of the exposure). This can be utilized to create a certain effect
(especially with slower shutter speeds, see below).
→ [Rec] → [Flash] → [Flash Synchro]
[1ST] 1st curtain sync is the normal recording method when
using the flash.
[2ND] The light source appears behind the subject, making
the picture appear more logical.
●
If you set to [2ND], [2nd] will be displayed in the flash icon on the screen.
●
When a fast shutter speed is set, the [Flash Synchro] effect may not be sufficiently achieved.
●
When [2ND] is set, you cannot set the flash setting to [ ] or [ ].
Flash exposure compensation
Recording modes:
You can adjust the flash exposure to compensate for pictures in which the parts mainly
illuminated by the flash would otherwise appear too dark or bright.
→ [Rec] → [Flash] → [Flash Adjust.]
1
Press to set the flash output and then [MENU/SET]
Settings: –2 EV to +2 EV (increment: 1/3 EV)
When you do not want to adjust the flash exposure, select [±0 EV].
●
When the flash exposure is compensated, [+] or [-] is displayed on the flash icon.
148
Recording Videos
Recording Videos/4K Videos
Recording modes:
Videos, including those taken in 4K, are recorded in the MP4 format. (→150)
Audio is recorded in stereo.
1
Press the video button to start recording
Recording state indicator
Elapsed recording time
Remaining recording time
• Recording of videos appropriate for each video mode
is possible.
• Immediately release the video button after pressing it.
• While you are recording videos, the recording status
indicator (red) will flash.
2
Press the video button again to end
recording
• With recording in a quiet environment, the
sound of aperture setting, focusing and other
actions may be recorded in videos. This is not a
malfunction.
The focus operation during video recording can be set
to [OFF] in [Continuous AF]. (→151)
About operation sound when recording ends
If the operation sound of the video button pressed to end recording bothers you, try the following:
●
Record the video about three seconds longer, and then cut off the last part of the video using [Video
Divide] (→221) in the [Playback] menu.
■
Recording videos in Creative Video Mode
You can record a video by setting the aperture, shutter speed, and ISO sensitivity using
touch operation. (→77)
149
Recording Videos
Recording Videos/4K Videos
●
If the surrounding temperature is high, or a video is recorded continuously, [ ] is displayed and
recording may be stopped halfway through. Wait until the camera cools down.
●
Note that if you perform operations such as zoom, using buttons or dials, while recording a video,
operation noise may be recorded.
●
If Extended optical zoom is used before pressing the video button, these settings will be cleared,
and the recordable area will be changed significantly.
●
If the aspect ratio is different for pictures and videos, the captured area will change when starting
to record a video.
When you set [Rec Area] to [
], the angle of view setting used for recording videos is displayed.
●
The zoom speed will be slower than normal during video recording.
●
Depending on the type of the card, the card access indication may appear for a while after
recording video. This is not a malfunction.
●
ISO sensitivity is set to [AUTO] (for video) while a video is being recorded. You can set ISO
sensitivity and record video in Creative Video Mode.
●
The below-mentioned video recording modes are set in the following cases:
Selected Scene Mode
Recording mode at the time of
recording videos
[Clear in Backlight] Portrait Mode
[Clear Nightscape], [Artistic Nightscape],
[Handheld Night Shot], [Clear Night Portrait]
Low Light Mode
●
This function is not available in the following cases:
• [Glistening Water], [Glittering Illuminations], [Soft Image of a Flower] (Scene Mode)
• [Rough Monochrome], [Silky Monochrome], [Soft Focus], [Star Filter], [Sunshine] (Creative
Control Mode)
• When [Post Focus] is set
• When using [Time Lapse Shot]
• When using [Stop Motion Animation]
150
Recording Videos
Recording Videos/4K Videos
Setting the resolution and the frame rate
→ [Motion Picture] → [Rec Quality]
[Rec Quality] Resolution Frame rate Bit rate
[4K/100M/30p]
*
3840×2160 30p 100 Mbps
[4K/100M/24p]
*
3840×2160 24p 100 Mbps
[FHD/28M/60p] 1920×1080 60p 28 Mbps
[FHD/20M/30p] 1920×1080 30p 20 Mbps
[HD/10M/30p] 1280×720 30p 10 Mbps
*
4K videos
• The quality becomes higher when the number of bit rate gets bigger. This camera uses
the “VBR” recording method, and the bit rate is changed automatically depending on
the subject to record. Therefore, the recording time is shortened when a subject with
fast movement is recorded.
• 4K video cannot be set when using [Miniature Effect] (Creative Control Mode).
• To record 4K videos, use a UHS Speed Class 3 card.
• When you record 4K videos, the captured area will be slightly smaller than videos of
other resolutions.
• To ensure highly accurate focus, 4K videos are recorded at reduced Autofocus speeds.
It may be difficult to focus on the subject with Autofocus, but this is not a malfunction.
• For limitations on continuous recording, refer to (→27)
■
About the compatibility of the recorded videos
Videos recorded in the MP4 format may be played back with poor picture or sound quality
or playback may not be possible even when played back with equipment compatible with
the format. Also, the recording information may not be displayed properly.
• For details on videos recorded with [4K/100M/30p] or [4K/100M/24p] in the [MP4]
format, refer to “Viewing 4K videos” (→256).
151
Recording Videos
Recording Videos/4K Videos
Focusing while recording videos ([Continuous AF])
Recording modes:
Focusing varies depending on the setting of focus and the setting of [Continuous AF] in
the [Motion Picture] menu.
→ [Motion Picture] → [Continuous AF]
Focus setting [Continuous AF] Setting
[AFS]/[AFF]/[AFC]
[ON]
Allows the focus to be constantly adjusted
automatically while recording videos.
[OFF] Fixes focus position at the start of video recording.
[MF] [ON] / [OFF] Allows the focus to be adjusted manually.
●
When the focus setting is set to [AFS], [AFF], or [AFC], the camera will refocus if the shutter
button is pressed halfway while recording videos.
●
When Autofocus is activated while you are recording videos, the focusing operation sound may
be recorded under some conditions. If you want to suppress this sound, we recommend taking
pictures after setting [Continuous AF] to [OFF].
●
If you change the zoom lens’ focal length while recording videos, it may take some time to focus.
●
This function is not available in the following cases:
• While [Pull Focus] in [Snap Movie] is in operation.
• When recording with [High Speed Video]
• When recording using [4K Live Cropping]
152
Recording Videos

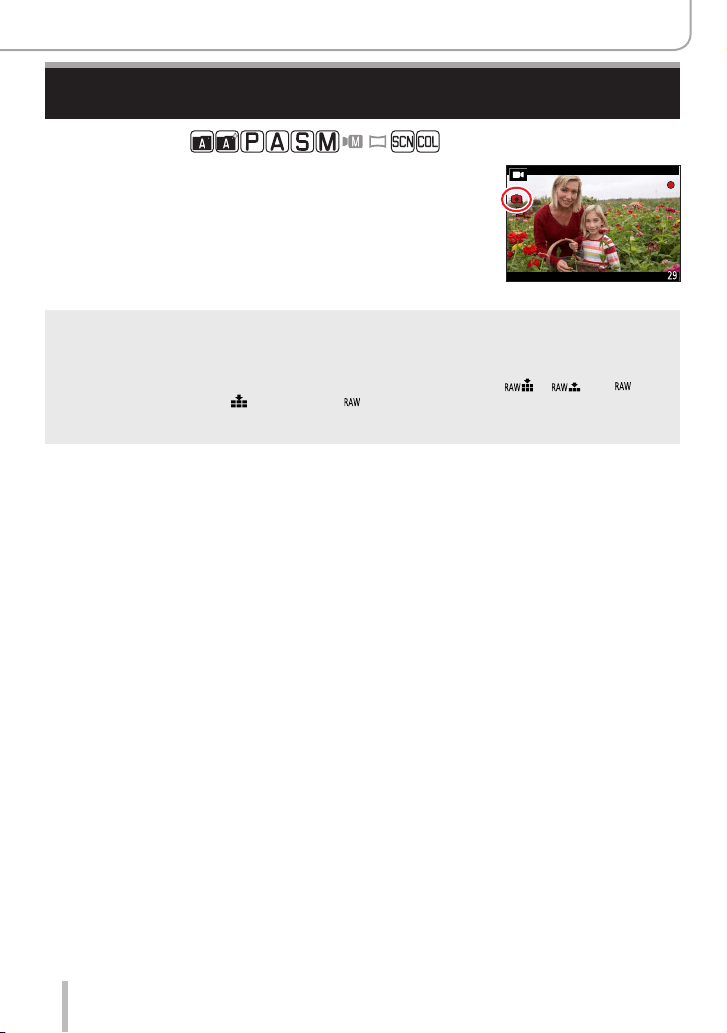

Taking Pictures While a Video is Being Recorded
Recording modes:
1
Press the video button fully during the
recording
• The simultaneous recording indicator is displayed
while recording pictures.
• Recording with the Touch Shutter function is also
available.
●
Pictures will be recorded with a resolution determined by the [Rec Quality] setting for videos.
●
Up to 40 pictures can be recorded during recording of the video.
(A video with a [Rec Quality] size of [4K]: up to 10 pictures)
●
The aspect ratio of a picture is fixed to [16:9].
●
Only pictures in JPEG file format are recorded when [Quality] is set to [ ], [ ], or [ ].
([Quality] is used with the [
] setting when [ ] is set.)
●
This function is not available in the following case:
• When [Snap Movie] is set to [ON]
153
Recording Videos
Recording Snap Videos
Recording modes:
You can specify the recording time in advance and record videos casually like you take
snapshots. The function also allows you to shift a focus at the start of recording and add
fade in/out effects in advance.
• The videos will be recorded with [FHD/20M/30p] in [MP4].
→ [Motion Picture] → [Snap Movie] → [ON]
• Press the shutter button halfway to exit the menu.
1
Press the video button to start recording
Elapsed recording time
Set recording time
• Immediately release the video button after pressing it.
• You cannot stop video recording in the middle.
The recording will stop automatically when the set
recording time has elapsed.
■
Deactivating Snap Video
Set [Snap Movie] to [OFF].
154
Recording Videos
Recording Snap Videos
■
Changing the settings
→ [Motion Picture] → [Snap Movie] → [SET]
[Record time] Sets the recording time of videos.
[Pull Focus] Allows dramatic imaging expression by shifting focus gradually at the start of
recording. (→155)
[Fade] Adds a fade-in (gradual appearance) effect to an image and audio as recording
starts or adds a fade-out (gradual disappearance) effect to them as recording
ends.
[WHITE-IN] / [WHITE-OUT]:
Adds a fade-in or fade-out effect that uses a white screen.
[BLACK-IN] / [BLACK-OUT]:
Adds a fade-in or fade-out effect that uses a black screen.
[COLOR-IN] / [COLOR-OUT]:
Adds an effect that fades in from black-and-white to color or an effect that fades
out from color to black-and-white. Audio will be recorded normally.
[OFF]
●
Videos recorded with [WHITE-IN] or [BLACK-IN] are displayed as all-white or all-black thumbnails
in Playback Mode.
●
If you assign [Snap Movie] to [Fn Button Set] in [Custom] ([Operation]) menu (→46), you can
display a screen that lets you switch [Snap Movie] between [ON]/[OFF] by pressing the assigned
function button. If you press [DISP] while the screen is displayed, you can change the settings for
Snap Video.
●
[Snap Movie] will be set to [OFF] when you connect to Wi-Fi with [Remote Shooting & View].
●
This function is not available in the following cases:
• [Miniature Effect] (Creative Control Mode)
• When [4K PHOTO] is set
• When [Post Focus] is set
• When [4K Live Cropping] is set
• When recording with [High Speed Video]
155
Recording Videos
Recording Snap Videos
Setting up [Pull Focus]
Set the frames that specify the positions where the [Pull
Focus] starts (first position) and stops (second position).
Touch operation
Touch a subject (first position), drag your finger to the desired location (second position),
and release the finger.
• To cancel the frame settings, touch [ ].
Button operation
Assign [AF Mode] to a function button ([Fn1] - [Fn4]) (→46)
Press the function button that [AF Mode] was assigned to at step
Press to move the frame, and then [MENU/SET] (First position)
• If you press [DISP] before pressing [MENU/SET], the frame will return to the center.
Repeat step (Second position)
• To cancel the frame settings, press [MENU/SET].
●
A greater effect can be achieved by creating a striking contrast of focus between the start
and end positions, for example by shifting focus from the background to foreground, or vice
versa.
●
After focusing, try to keep the distance between the subject and the camera constant.
●
When the camera fails to set the frame, it returns to the first position.
●
When [Pull Focus] is set to [ON]
• Autofocus Mode will be switched to [
], a setting specially designed for [Pull Focus].
• If you take a picture, the Autofocus operation [
] will take place at the first frame position.
●
When [Metering Mode] is set to [ ] (Spot), the spot metering target is fixed at the start position
(first position) of [Pull Focus].
●
This function is not available in the following cases:
• In Manual Focus
• When using Digital Zoom
156
Playing Back and Editing Pictures
Viewing your pictures
1
Press [ ] (Playback)
2
Press to select a picture to be
displayed
• When you press and hold , the pictures are
displayed one after another.
• Pictures can also be forwarded or rewound by rotating
the thumb dial or dragging the screen horizontally.
• If you keep your finger touching the left or right edge of
the screen after scrolling the pictures, the pictures will
continue to be scrolled. (The pictures are displayed in
a reduced size.)
■
Ending Playback
Press [
] (Playback) again.
The Playback can also be ended by pressing the shutter button halfway.
●
The playback screen appears if the camera is turned on while pressing [ ] (Playback).
●
When [Lens Retraction] is set to [ON], the lens barrel is retracted after approx. 15 seconds as the
camera is switched to the playback screen from the recording screen.
●
This camera is compliant with the unified DCF (Design rule for Camera File system) standard
formulated by the Japan Electronics and Information Technology Industries Association (JEITA),
and with Exif (Exchangeable image file format). Files that are not DCF-compliant cannot be played
back.
●
It may not be possible to properly play back pictures taken using other cameras than this one or it
may not be possible to use the functions of this camera for those pictures.
157
Playing Back and Editing Pictures
Viewing Videos
This camera was designed to play videos using the MP4 format.
• Videos are displayed with the ([ ]) icon.
1
Press to start playback
Video recording time
• Touching [ ] in the middle of the screen allows you
to play back videos.
• Videos recorded with [Snap Movie] are played back
automatically.
■
Operations during video playback
Operation Touch operation Description
Play / pause
Fast rewind
*
Single-frame rewind (while paused)
Fast forward
*
Single-frame forward (while paused)
Stop
Volume up
Volume down
*
The fast forward or rewind speed increases if you press again.
■
Operations during automatic Snap Video playback
Playback from the beginning
Returning to the previous picture
Scrolling to the next picture
• If you touch the screen, automatic playback will stop.
●
Videos can be viewed on your computer using the software available after registering your camera
on the Leica Camera AG home page (→262).
158
Playing Back and Editing Pictures
Viewing Videos

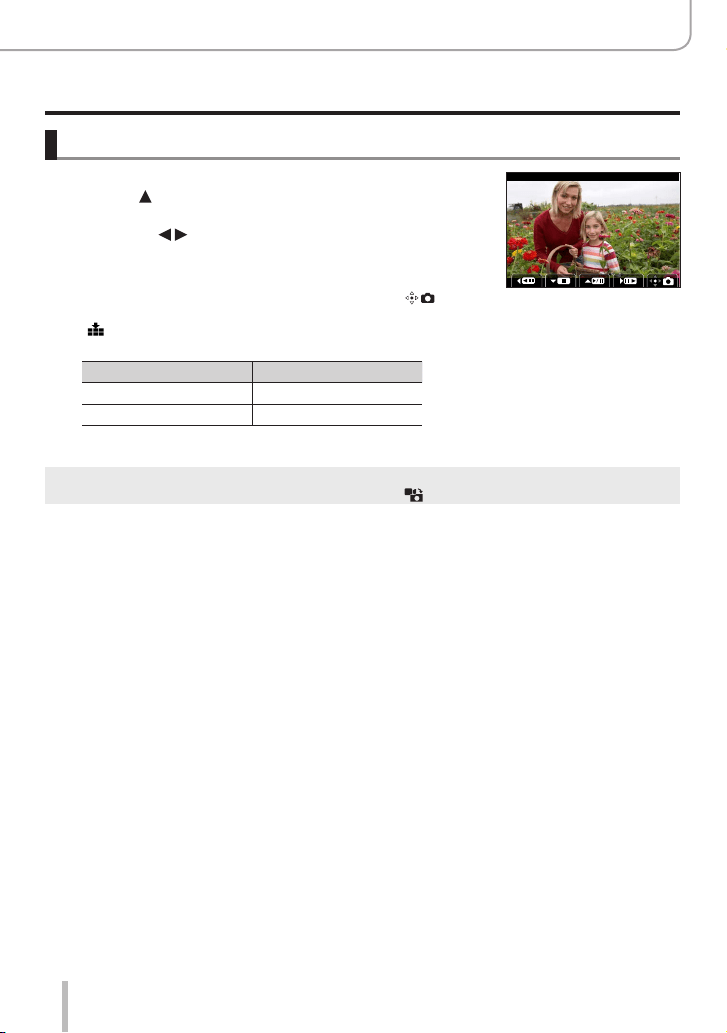

Extracting single frames from videos
1
Display the frame you want to capture as a picture by
pressing to pause a video being played back on the
camera
• If you press while paused, you can make finer adjustments
to the positions in a video.
2
Press [MENU/SET]
• The same operation can be performed by touching [ ].
• The picture is saved with an aspect ratio of [16:9] and [Quality] of
[
]. The resolution varies depending on the video being played
back.
[Rec Quality] [Picture Size]
[4K] [M] (8M)
[FHD], [HD] [S] (2M)
●
The resolution can be slightly reduced depending on the [Rec Quality] setting of the original video.
●
When a picture captured from a video is played back, [ ] is displayed.
159
Playing Back and Editing Pictures
Switching the Playback Method
Zooming in and viewing “Playback Zoom”
1
Move the zoom lever towards the T side
Current zoom position
• Each time you move the zoom lever towards the T side, the
magnification increases through four levels: 1x, 2x, 4x, 8x, and
16x.
Operation
Touch
operation
Description
—
Enlarges/reduces the screen in large
steps.
—
Spread /
Pinch
Enlarges/reduces the screen in small
steps.
Drag
Moves the enlarged area (during
enlarged display).
—
Forwards/rewinds a picture while
maintaining the same zoom
magnification and zoom position
(during Playback Zoom).
• You can also zoom in by quickly touching the display twice.
(If the display was enlarged, it returns to the same magnification
ratio.)
Viewing a list of pictures “Multi Playback”
1
Move the zoom lever towards the W side
• Move the zoom lever towards the W side and you can switch the
display methods in the following order: 1-picture screen (full-
screen) → 12-picture screen → 30-picture screen → Calendar
screen. (Move the lever to the T side to return.)
• It is possible to switch the playback screen by touching the
following icons.
– [
]: 1-picture screen – [
]: 12-picture screen
– [
]: 30-picture screen – [
]: Calendar screen (→160)
• The screen can be switched gradually by dragging the screen up
or down.
• When you select a picture using the cursor buttons and press
[MENU/SET] on the 12-picture or 30-picture screen, the selected
picture is displayed on the 1-picture screen (full-screen). (When
you select a video, it is automatically played back.)
●
Pictures displayed with [!] cannot be played back.
160
Playing Back and Editing Pictures
Switching the Playback Method
Viewing pictures by their recording date “Calendar Playback”
1
Move the zoom lever towards the W side to display the
calendar screen
2
Use to select the recording date and press
[MENU/SET]
Selected date
• Pictures are displayed in a 12-picture screen.
• Turn the zoom lever towards the W side to return to the Calendar
screen display.
2018
12
SUN MON TUE WED THU FRI SAT
1
8765432
1514131211109
22212019181716
29282726252423
3130
●
You can display the calendar between January 2000 to December 2099.
●
Pictures taken without clock settings are displayed with the date 1st January, 2018.
●
Pictures taken with destination settings made in [World Time] are displayed in the calendar screen
using the appropriate date for the destination’s time zone.
161
Playing Back and Editing Pictures

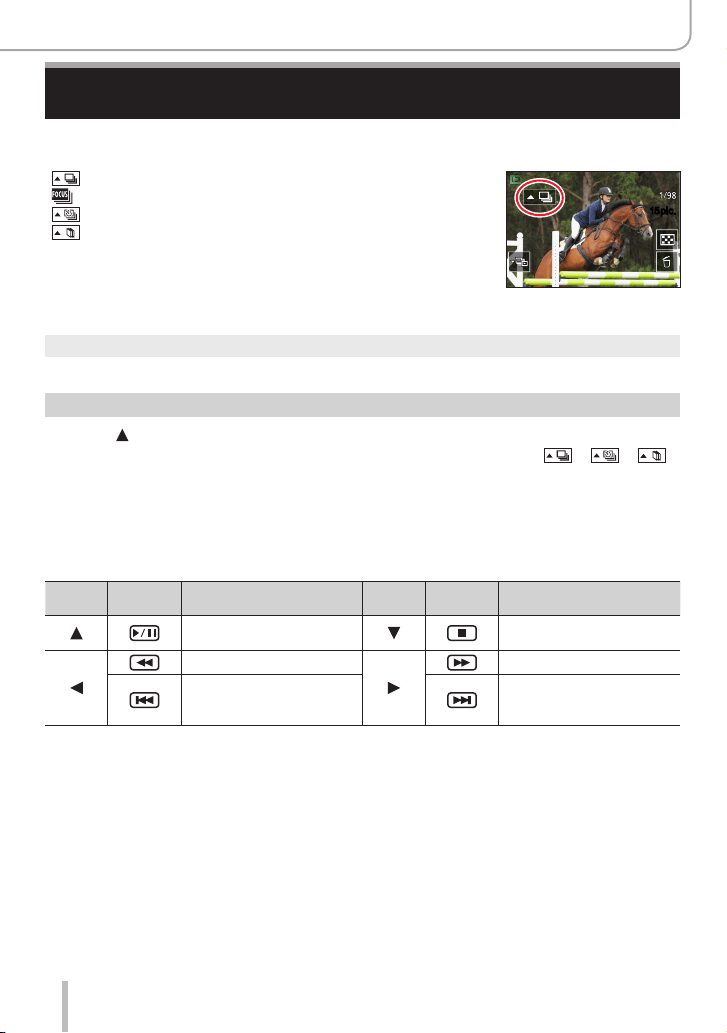

You can consecutively play back multiple pictures in a group or play back group pictures
one by one.
[
]: Group picture saved using [4K PHOTO Bulk Saving]
[ ]: Group pictures recorded using Focus Bracket
[ ]: Group pictures recorded using [Time Lapse Shot]
[ ]: Group pictures recorded using [Stop Motion Animation]
15 pic.15 pic.
• You can delete or edit pictures in group units. (For example, if you delete one of
pictures in a group, all pictures in that group will be deleted.)
●
Pictures will not be grouped if they are recorded without setting [Clock Set].
Playing back group pictures consecutively
1
Press
•
The same operation can be performed by touching the group picture icon ([ ], [ ], [ ]).
• When you play back group pictures one by one, the option settings are displayed.
[From the first picture]: Play back the group pictures consecutively from the first picture in a
group.
[From the current picture]: Play back the group pictures consecutively from the picture currently
played back.
■
Operations during continuous playback
Operation
Touch
operation
Description
Operation
Touch
operation
Description
Continuous playback /
Pause
Stop
Fast rewind playback Fast forward playback
Returning to the previous
(while paused)
Scrolling to the next picture
(while paused)
Viewing group pictures
162
Playing Back and Editing Pictures
Viewing group pictures

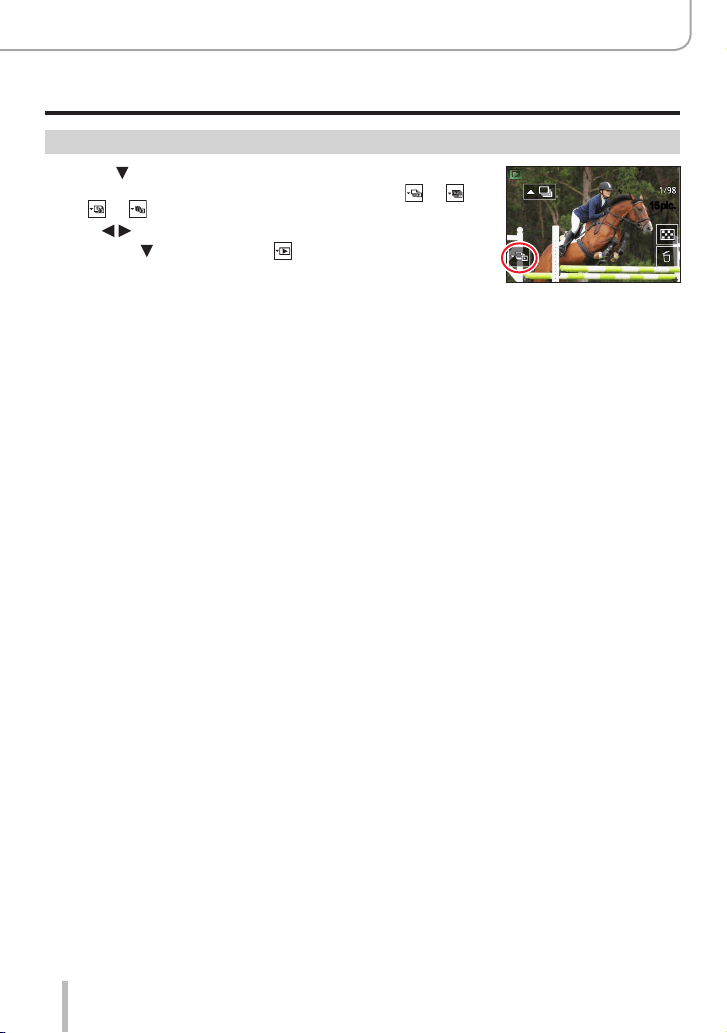

Playing back group pictures one by one
1
Press
• The same operation can be performed by touching [ ] / [ ] /
[
] / [ ].
15 pic.15 pic.
2
Use to scroll through the pictures
• Pressing again or touching [ ] will return you to the normal
playback screen.
• You can use the same operations for pictures stored in a group
as in normal picture playback. (Multi Playback, Playback Zoom,
deletion of pictures, etc.)
163
Playing Back and Editing Pictures
Deleting pictures
Deleted pictures cannot be recovered.
[Delete Single]
1
Press [ ] to delete displayed picture
• The same operation can be performed by touching [ ].
2
Use to select [Delete Single] and press [MENU/SET]
To delete multiple (up to 100
*
)/To delete all pictures
*
A picture group is handled as 1 picture. (All the pictures in the selected picture group
are deleted.)
1
Press [ ] while viewing a picture
2
Use to select [Delete Multi]/[Delete All] and press [MENU/SET]
• You can select [Delete All Non-rating] in [Delete All] if there are pictures that have been set as
[Rating].
(When [Delete Multi] is selected)
3
Use to select the pictures and press [MENU/
SET] (repeat)
Picture selected
• To cancel → Press [MENU/SET] again.
OKOK
4
Press [DISP] to execute
• The time this takes depends on the number of pictures to be deleted.
164
Using Menu Functions
Menu list
Menus to be displayed in each recording mode
[Snapshot Mode]
• [Snapshot Mode] (→51)
• [iHandheld Night Shot] (→53)
• [iHDR] (→54)
[Creative Video]
• [Exposure Mode] (→77)
• [High Speed Video] (→78)
• [4K Live Cropping] (→79)
[Custom Mode]
You can select your preferred custom setting group from [Set1], [Set2], and [Set3].
(→82)
[Panorama Shot]
• [Direction] (→65)
• [Picture Size] (→65)
[Scene Guide]
• [Scene Switch] (→67)
[Creative Control]
• [Filter Effect] (→71)
• [Simultaneous Record w/o Filter] (→71)
[Rec] →165
[Motion Picture] →180
[Custom] →182
[Setup] →196
[My Menu] →206
[Playback] →207
165
Using Menu Functions
Menu list
[Rec]
• The [AFS/AFF/AFC], [Sensitivity], [AF Mode], [Photo Style], [Filter Settings], [Metering
Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution], [Diffraction Compensation],
[Stabilizer], [i.Zoom] and [Digital Zoom] menu items are common for both [Rec] and
[Motion Picture] menus. If a setting in one menu is changed, the setting with the same
name in other menu will also be changed automatically.
• [Aspect Ratio] (→166)
• [Picture Size] (→166)
• [Quality] (→167)
• [AFS/AFF/AFC] (→84)
• [Sensitivity] (→101)
• [AF Mode] (→85)
• [Photo Style] (→168)
• [Filter Settings] (→170)
• [Color Space] (→171)
• [Metering Mode] (→172)
• [Highlight Shadow] (→173)
• [i.Dynamic] (→174)
• [i.Resolution] (→174)
• [Flash] (→144)
• [Red-Eye Removal] (→174)
• [ISO Auto Upper Limit (Photo)] (→175)
• [Min. Shtr Speed] (→175)
• [Long Shtr NR] (→175)
• [Diffraction Compensation] (→176)
• [Stabilizer] (→137)
• [i.Zoom] (→140)
• [Digital Zoom] (→141)
• [Burst Rate] (→125)
• [4K PHOTO] (→108)
• [Self Timer] (→127)
• [Time Lapse Shot] (→131)
• [Stop Motion Animation] (→134)
• [Silent Mode] (→176)
• [Shutter Type] (→177)
• [Bracket] (→128)
• [HDR] (→178)
• [Multi Exp.] (→179)
166
Using Menu Functions
Menu list
[Aspect Ratio]
Recording modes:
This function allows you to select the aspect ratio of the pictures to suit printing or the
playback method.
→ [Rec] → [Aspect Ratio]
[4:3] Aspect ratio of a 4:3 TV
[3:2] Aspect ratio of standard 35mm film cameras
[16:9] Aspect ratio of high-definition TV, etc.
[1:1] Aspect ratio of a square image
[Picture Size]
Recording modes:
The higher the resolution, i.e. the numbers of pixels, the finer the detail of the pictures will
appear even when they are printed large.
→ [Rec] → [Picture Size]
[Aspect Ratio] 4:3 3:2 16:9 1:1
[Picture Size]
[L] 17.5M
4864×3648
[L] 20M
5472×3648
[L] 17M
5472×3080
[L] 13.5M
3648×3648
[ M] 9M
3456×2592
[ M] 10M
3888×2592
[ M] 8M
3840×2160
[ M] 6.5M
2592×2592
[ S] 4.5M
2432×1824
[ S] 5M
2736×1824
[ S] 2M
1920×1080
[ S] 3.5M
1824×1824
●
The resolution will be fixed to [4K] when recording 4K photos or recording in [Post Focus].
167
Using Menu Functions
Menu list
Setting the file format/compression rate ([Quality])
Recording modes:
This function allows you to select the file format, e. g. JPEG and/or RAW, and in the
case of JPEG, the compression rate. RAW is especially suited for the subsequent
comprehensive editing of the image data using respective software, which is available
after registering your camera on the Leica Camera AG homepage (→262). The JPEG
setting [ ] delivers higher image quality than [ ] due to its lower compression rate,
while the latter has the advantage of smaller files.
Set the compression rate used for storing pictures.
→ [Rec] → [Quality]
Settings File format Description
[
]
JPEG
Gives priority to picture quality and saves pictures in JPEG file
format.
[
]
Saves pictures in JPEG file format using standard picture quality.
This setting is useful when you want to increase the number of
recordable pictures without changing the resolution.
[
]
RAW + JPEG
Saves pictures in both RAW and JPEG file format ([
] or [ ])
simultaneously.
[
]
[
] RAW Saves pictures in RAW file format.
About the RAW file format
In RAW file format the data is saved without any picture processing by the camera. To play back and
edit RAW file pictures, you must use this camera or dedicated software.
• You can develop the RAW file pictures using [RAW Processing] in the [Playback] menu. (→212)
●
A RAW picture is always recorded at [3:2] (5472×3648).
●
If you delete a picture recorded in [ ] or [ ] from the camera, the corresponding RAW and
JPEG pictures are also deleted.
●
When you play back a picture recorded with [ ], the gray area is displayed according to the
aspect ratio of the picture during recording.
●
The setting is fixed to [ ] when recording 4K photos or recording in [Post Focus].
●
You cannot set to [ ], [ ] or [ ] in the following cases:
• Panorama Shot Mode
• [Handheld Night Shot] (Scene Mode)
168
Using Menu Functions
Menu list
[Photo Style]
Recording modes:
You can adjust the colors and picture quality according to the concept of the picture that
you want to create.
→ [Rec] → [Photo Style]
[Standard] Standard setting.
[Vivid]
*
Setting with slightly high contrast and saturation.
[Natural]
*
Setting with slightly low contrast.
[Monochrome]
Setting that creates a picture using monochrome shades of gray only,
such as black and white.
[Monochrome HC]
*
Setting that creates a monochrome picture using rich shades of gray
with deep solid black tones.
[Scenery]
*
Setting that creates a picture using vivid colors for the blue sky and
green.
[Portrait]
*
Setting that produces the look of a healthy complexion.
[Custom]
*
Setting for using colors and picture quality that were registered in
advance.
*
This setting is not available in Snapshot Plus Mode.
●
In Snapshot Plus Mode, the setting will be reset to [Standard] when the camera is switched to
another Recording mode or the camera is turned off and back on.
●
Only picture quality adjustment can be set in the Scene Modes. (→169)
169
Using Menu Functions
Menu list
■
Adjusting the picture settings
• Picture settings are not available in the Snapshot Plus
Mode.
Standard
Press to select the type of Photo Style
Press to select an item and press to adjust
[Contrast]
[+] Increases the contrast in a picture.
[–] Decreases the contrast in a picture.
[Sharpness]
[+] Enhances the outlines in a picture.
[–] Softens the outlines in a picture.
[Noise Reduction]
[+]
Increases the noise reduction effect to reduce noise. This
setting may slightly lower the resolution.
[–]
Lowers the noise reduction effect to achieve a picture
quality with clearer resolution.
[Saturation]
*
1
[+] Gaudy coloring
[–] Subdued coloring
[Color Tone]
*
1
[+] Bluish coloring
[–] Yellowish coloring
[Filter Effect]
*
2
[Yellow]
Enhances the contrast of a subject. (Effect: Low)
Records a blue sky clearly.
[Orange]
Enhances the contrast of a subject. (Effect: Medium)
Records a blue sky with vibrant colors.
[Red]
Enhances the contrast of a subject. (Effect: High)
Records a blue sky with even more vibrant colors.
[Green]
Applies subdued coloring for the skin and lips of a person.
Emphasizes green leaves and makes them brighter.
[Off] —
*
1
[Color Tone] is displayed only when [Monochrome] or [Monochrome HC] is selected. Otherwise,
[Saturation] is displayed.
*
2
Displayed only when [Monochrome] or [Monochrome HC] is selected.
• When picture settings are adjusted, [+] will be displayed in the [Photo Style] icon.
Press [MENU/SET]
■
Registering the setting for the adjusted picture settings to [Custom]
Perform the picture settings adjustment in Step of “Adjusting the picture settings”
and press [DISP]
170
Using Menu Functions
Menu list
[Filter Settings]
Recording modes:
You can apply picture effects (filters) that are available for Creative Control Mode to
images in other modes, such as Aperture-Priority Mode or Panorama Shot Mode. (→71)
→ [Rec] → [Filter Settings] → [Filter Effect]
Settings: [ON] / [OFF] / [SET]
■
With touch screen operations
Touch [ ]
Touch the item you want to set
[ ]: Picture effects ON or OFF
[ ]: Picture effects (Filter)
[ ]: Adjusting the picture effect
●
[Rough Monochrome], [Silky Monochrome], [Soft Focus], [Star Filter] and [Sunshine] are not
available in the following cases.
• Creative Video Mode
• During video recording
●
The following functions are not available in Panorama Shot Mode.
– [Toy Effect], [Toy Pop], [Miniature Effect], [Sunshine]
●
When recording panorama pictures, the following effects are not applied to the recording screen.
– [Rough Monochrome], [Silky Monochrome], [Soft Focus], [Star Filter]
●
When recording a panorama picture in a scene with low brightness, you may not be able to
achieve the desired results if [High Key] is used in the Panorama Shot Mode.
●
The available ISO sensitivity settings will be limited up to [3200].
●
The ISO sensitivity for [High Dynamic] will be fixed to [AUTO].
●
When using [Filter Effect], you cannot use menus or recording functions which are not available in
Creative Control Mode.
●
This function is not available in the following cases:
• When recording with [High Speed Video]
• When recording using [4K Live Cropping]
171
Using Menu Functions
Menu list
■
Taking two pictures with and without picture effects
([Simultaneous Record w/o Filter])
You can take two pictures at the same time by pressing the shutter button once; one with
effects and one without effects.
→ [Rec] → [Filter Settings] → [Simultaneous Record w/o Filter]
Settings: [ON] / [OFF]
• The camera will take a picture with the effects applied and then another one without the
effects.
• After taking the picture, [Auto Review] will display only the picture with the effects
applied.
●
This function is not available in the following cases:
• Panorama Shot Mode
• When using [Burst]
• When recording 4K photos
• When recording using [Post Focus]
• When taking pictures while a video is being recorded
• When [Quality] is set to [
], [ ] or [ ]
• When recording using [Bracket]
• When using [Time Lapse Shot]
• When using [Stop Motion Animation]
[Color Space]
Recording modes:
You can set the method for reproducing the colors to correctly display the recorded
pictures on the screens of a PC or printer, etc.
→ [Rec] → [Color Space]
[sRGB] Sets the sRGB color space. This setting is widely used for devices such as PCs.
[AdobeRGB]
Sets the AdobeRGB color space.
AdobeRGB color space has a wider color reproduction range than sRGB color
space. Therefore, AdobeRGB color space is mainly used for business applications
such as commercial printing.
●
Select [sRGB] if you do not have expert knowledge about AdobeRGB color space.
●
The setting is fixed to [sRGB] while recording video, recording 4K photos, or recording in [Post
Focus].
172
Using Menu Functions
Menu list
[Metering Mode]
Recording modes:
You can select between three different brightness metering methods.
→ [Rec] → [Metering Mode]
[Metering Mode] Brightness measurement position Conditions
(Multiple)
The brightness is detected in
different sections of the frame.
The exposure is then based on the
probable main subject
Normal usage (high probability of
automatically correctly exposed
main subjects even with greater
brightness differences)
(Center-weighted)
The metering sensitivity is
concentrated on the center while also
registering the rest of the frame
Use when the subject is in the
center, or to deliberately base the
exposure on an off-center subject
(provided, subject is of medium
brightness)
(Spot)
Center of [+] (spot metering target)
Use to base the exposure on very
small subject parts (provided,
these parts are of medium
brightness)
●
If you set the spot metering target on the edge of the screen, the metering may be affected by the
brightness around the location.
173
Using Menu Functions
Menu list
[Highlight Shadow]
Recording modes:
You can adjust the highlights and shadows in a picture while confirming the brightness of
these areas on the screen.
1
Set the menu
→ [Rec] → [Highlight Shadow]
([Standard]) No adjustments.
([Higher contrast])
Makes the highlighted areas brighter and shadowed areas
darker.
([Lower contrast])
Makes the highlighted areas darker and shadowed areas
brighter.
([Brighten shadows]) Makes the shadowed areas brighter.
/ / (Custom)
You can set a custom registration shape.
2
Rotate the control ring to adjust the brightness of the
highlighted areas and rotate the thumb dial to adjust
the brightness of the shadowed areas
Highlighted area
Shadowed area
Preview display
• Adjustments can also be made by dragging the graph.
• To register your preferred settings, press
to select the
registration target icon (Custom 1, Custom 2, and Custom 3).
3
Press [MENU/SET]
●
You can press [DISP] on the brightness adjustment screen to switch the screen display.
●
The settings adjusted in [ ], [ ], [ ], or [ ] will be restored to the default settings when the
camera is turned off.
174
Using Menu Functions
Menu list
[i.Dynamic]
Recording modes:
This function automatically adjusts contrast and exposure to give more lifelike colors
when there is significant contrast between background and subject.
→ [Rec] → [i.Dynamic]
Settings: [AUTO] / [HIGH] / [STANDARD] / [LOW] / [OFF]
●
You may not see the effect depending on the recording conditions.
●
This function is not available in the following cases:
• When [HDR] is set to [ON]
• When [Sensitivity] is set to [H.16000], [H.20000] or [H.25000]
[i.Resolution]
Recording modes:
You can use the camera’s Intelligent Resolution technology to record pictures with
sharper outlines and clearer resolution.
→ [Rec] → [i.Resolution]
Settings: [HIGH] / [STANDARD] / [LOW] / [OFF]
[Red-Eye Removal]
Recording modes:
This function automatically detects red-eye and corrects picture data when recording with
flash red-eye reduction ([ ] or [ ]).
→ [Rec] → [Red-Eye Removal]
Settings: [ON] / [OFF]
●
When this function is set to [ON], the flash icon changes to [ ]/[ ].
●
Depending on the circumstances, it may not be possible to correct red-eye.
175
Using Menu Functions
Menu list
[ISO Auto Upper Limit (Photo)]
Recording modes:
You can set the upper limit of ISO sensitivity when ISO sensitivity is set to [AUTO] or
[ ].
→ [Rec] → [ISO Auto Upper Limit (Photo)]
Settings: [AUTO] / [200] / [400] / [800] / [1600] / [3200] / [6400] / [12500]
●
This function is not available in the following cases:
• [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape], [Handheld Night Shot]
(Scene Mode)
[Min. Shtr Speed]
Recording modes:
You can set the minimum value for the shutter speed to be used when ISO sensitivity is
set to [AUTO] or [ ].
→ [Rec] → [Min. Shtr Speed]
Settings: [AUTO] / [1/16000] to [1/1]
●
The shutter speed may be slower than the setting value under recording conditions in which the
correct exposure is not achieved.
[Long Shtr NR]
Recording modes:
The camera can automatically eliminate the noise made when taking pictures with a
slower shutter speed (e.g. to record night scenes).
→ [Rec] → [Long Shtr NR]
Settings: [ON] / [OFF]
●
While the camera eliminates the noise, [Long shutter noise reduction ongoing] is displayed for the
same period as the shutter speed for the signal processing time.
●
This function is not available in the following cases:
• During video recording
• When recording 4K photos
• When recording using [Post Focus]
• When using the electronic shutter
176
Using Menu Functions
Menu list
[Diffraction Compensation]
Recording modes:
The camera enhances the resolution by correcting the blurriness caused by diffraction
when the aperture is closed.
→ [Rec] → [Diffraction Compensation]
Settings: [AUTO] / [OFF]
●
Noise in the periphery of the picture may stand out with higher ISO sensitivity.
[Silent Mode]
Recording modes:
This function allows disabling the beeps and flash at the same time.
→ [Rec] → [Silent Mode]
Settings: [ON] / [OFF]
• This mode will mute beeps, set the flash to [
] (Forced Flash Off), and disable AF
Assist Lamp.
The settings for the following functions are fixed:
– [Flash Mode]: [ ] (Forced Flash Off)
– [Shutter Type]: [ESHTR]
– [AF Assist Lamp]: [OFF]
– [Beep Volume]: [ ] (Off)
– [Shutter Vol.]: [ ] (Off)
●
Even when this mode is set to [ON], the following lamps/indicators will light or flash.
• Self-timer indicator
• WIRELESS connection lamp
●
The operation sounds of this camera such as the lens aperture sound are not muted.
177
Using Menu Functions
Menu list
[Shutter Type]
Recording modes:
You can take pictures using two types of shutter modes: the mechanical shutter and
electronic shutter.
Mechanical shutter Electronic shutter
Flash ○ –
Shutter Speed
(seconds)
T (Time)
*
1
,
60 - 1/2000
1 - 1/16000
Shutter sound
Mechanical shutter sound
+
Electronic shutter sound
*
2
Electronic shutter sound
*
2
*
1
This setting is available only in Manual Exposure Mode.
*
2
You can use [Shutter Vol.] and [Shutter Tone] to adjust the volume of the electronic shutter sound.
(→198)
→ [Rec] → [Shutter Type]
[AUTO]
The shutter mode automatically switches based on the recording conditions and
shutter speed.
• The mechanical shutter mode has higher priority over the electronic shutter
mode because the mechanical shutter has less function-related restrictions
when recording with a flash, etc.
[MSHTR] Uses only the mechanical shutter mode to take a picture.
[ESHTR] Uses only the electronic shutter mode to take a picture.
●
When [ ] is displayed on the screen, recording is performed with an electronic shutter.
●
If you take a picture of a moving subject using the electronic shutter, the subject in the
picture may be skewed in some cases.
●
When you take a picture under a fluorescent or LED lighting fixture using the electronic
shutter, the recorded picture may have horizontal stripes. If you use a slower shutter
speed, the horizontal stripes may be reduced.
178
Using Menu Functions
Menu list
[HDR]
Recording modes:
The camera can combine 3 pictures taken at different exposures into a single picture
with a wide range of correctly rendered brightness levels. The individual pictures used to
create the HDR picture are not saved.
A combined HDR picture is saved in JPEG format.
→ [Rec] → [HDR]
Settings: [ON] / [OFF] / [SET]
■
Changing the settings
[Dynamic Range]
[AUTO]: Takes pictures after automatically setting the adjustment range of
the exposure based on the contrast of a subject.
[±1EV] / [±2EV] / [±3EV]: Takes pictures using the adjustment range of the
exposure being set.
[Auto Align]
[ON]: Automatically adjusts the displacement of pictures caused by camera
shake, etc. We recommend using this setting to take pictures with a
handheld camera.
[OFF]: Does not adjust the displacement of pictures. We recommend using
this setting when you use a tripod.
●
After the shutter button has been pressed, do not move the camera during the exposure series.
●
Since a series of pictures are combined after they have been recorded, it will take a few moments
before you will be able to record another picture.
●
A subject that was in motion when it was recorded may be recorded as an afterimage.
●
When [Auto Align] is set to [ON], the captured area is slightly smaller.
●
When you take pictures using the flash, the flash mode is fixed to [ ] (Forced Flash Off).
●
This function will not work for pictures while videos are being recorded.
●
This function is not available in the following cases:
• When using [Burst]
• When recording 4K photos
• When recording using [Post Focus]
• When recording using [Bracket]
• When [Quality] is set to [
], [ ] or [ ]
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
179
Using Menu Functions
Menu list
[Multi Exp.]
Recording modes:
You can create an effect similar to combining up to four exposures in a single picture.
→ [Rec] → [Multi Exp.]
1
Press to select [Start] and then [MENU/SET]
2
Decide on your composition and take the first picture
• After recording the first picture, press the shutter button halfway
to proceed to the next recording.
• Press
to select the item and then [MENU/SET]. You can
perform the following operations.
– [Next]: Proceed to the next recording.
– [Retake]: Delete the result of the last shot and take another
picture.
– [Exit]: Exit Multi Exposure and save the picture that was taken.
Next
Retake
Exit
3
Record the second, third, and fourth pictures
• When you press [Fn3] while taking pictures, the pictures that you
took are saved and Multi Exposure is closed.
Retake
Exit
4
Press to select [Exit] and then [MENU/SET]
• You can also end the operation by pressing the shutter button
halfway.
■
Changing the settings
[Auto Gain]
If you select [OFF], all exposure results are superimposed as they are.
Compensate the exposure as necessary, depending on the subject.
[Overlay]
If you select [ON], you can apply Multi Exposure to previously recorded
pictures. After [Start] is selected, pictures on the card will be displayed. Select
a RAW image, and press [MENU/SET] to proceed to recording.
●
When you take the second and subsequent pictures, you cannot change the focal length, i.e.
zoom.
●
Information for the picture taken last will be used as recording information of pictures taken using
Multi Exposure.
●
You can perform [Overlay] on RAW file pictures recorded using this camera only.
●
This function is not available in the following cases:
• When using [Time Lapse Shot]
• When using [Stop Motion Animation]
180
Using Menu Functions
Menu list
[Motion Picture]
• The [AFS/AFF/AFC], [Sensitivity], [AF Mode], [Photo Style], [Filter Settings], [Metering
Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution], [Diffraction Compensation],
[Stabilizer], [i.Zoom] and [Digital Zoom] menu items are common for both [Rec] and
[Motion Picture] menus. If a setting in one menu is changed, the setting with the
same name in other menu will also be changed automatically. For details, refer to the
corresponding item of the [Rec] menu.
• [Rec Quality] (→150)
• [Snap Movie] (→153)
• [Continuous AF] (→151)
• [ISO Auto Upper Limit (Video)] (→78)
• [Flkr Decrease] (→180)
• [Level Shot] (→180)
• [Wind Noise Canceller] (→181)
• [Zoom Mic] (→181)
[Flkr Decrease]
Recording modes:
The shutter speed can be fixed to reduce the flicker or striping in a video.
→ [Motion Picture] → [Flkr Decrease]
Settings: [1/50] / [1/60] / [1/100] / [1/120] / [OFF]
[Level Shot]
Recording modes:
The Level Shot function automatically detects the camera’s tilt while recording videos,
and horizontally corrects the recording video so it will not be tilted.
→ [Motion Picture] → [Level Shot]
Settings: [ON] / [OFF]
●
If you record while walking, or if the camera’s tilt is large, it may not be possible to horizontally
correct the video.
●
The captured area is slightly smaller when video recording starts.
●
Pictures taken while recording videos will not be horizontally corrected.
●
This function is not available in the following cases:
• When recording with [High Speed Video]
• When recording using [4K Live Cropping]
• When [Stabilizer] is set to [OFF]
• When [Rec Quality] is set to [4K/100M/30p] or [4K/100M/24p]
181
Using Menu Functions
Menu list
[Wind Noise Canceller]
Recording modes:
This will reduce the wind noise coming into the built-in microphones while maintaining
sound quality.
→ [Motion Picture] → [Wind Noise Canceller]
Settings: [HIGH] / [STANDARD] / [OFF]
• [HIGH] effectively reduces the wind noise by minimizing the low-pitched sound when a
strong wind is detected.
• [STANDARD] extracts and reduces only the wind noise without deteriorating the sound
quality.
●
You may not experience the full effect depending on the recording conditions.
[Zoom Mic]
Recording modes:
Coupled to the zoom operation, it will more clearly record sounds from more distant
sources when using longer focal lengths, and surrounding sounds with shorter focal
lengths.
→ [Motion Picture] → [Zoom Mic]
Settings: [ON] / [OFF]
●
When set to [ON] and zooming, the operation sound may also be more obvious in accordance
with the surrounding sounds. Also, the audio recording level will be lower compared to when
[OFF].
●
The stereo effect of the audio is reduced when using longer focal lengths.
182
Using Menu Functions
Menu list
[Custom]
[Exposure]
• [ISO Increments] (→183)
• [Extended ISO] (→183)
• [Exposure Comp. Reset] (→183)
[Focus / Release Shutter]
• [AF/AE Lock] (→99)
• [AF/AE Lock Hold] (→183)
• [Shutter AF] (→183)
• [Half Press Release] (→183)
• [Quick AF] (→183)
• [Eye Sensor AF] (→184)
• [Pinpoint AF Setting] (→184)
• [AF Assist Lamp] (→184)
• [Direct Focus Area] (→184)
• [Focus/Release Priority] (→185)
• [Focus Switching for Vert / Hor] (→185)
• [Loop Movement Focus Frame] (→185)
• [AF Area Display] (→185)
• [AF+MF] (→186)
• [MF Assist] (→186)
• [MF Assist Display] (→186)
[Operation]
• [Fn Button Set] (→46)
• [Q.MENU] (→45)
• [Ring/Dial Set] (→49)
• [Operation Lock Setting] (→186)
• [Touch Settings] (→186)
• [Dial Guide] (→187)
• [Zoom lever] (→187)
[Monitor / Display]
• [Auto Review] (→187)
• [Monochrome Live View] (→188)
• [Constant Preview] (→188)
• [Peaking] (→188)
• [Histogram] (→189)
• [Guide Line] (→189)
• [Center Marker] (→189)
• [Highlight] (→190)
• [Zebra Pattern] (→190)
• [Expo.Meter] (→191)
• [MF Guide] (→191)
• [EVF/Monitor Disp. Set] (→36)
• [Rec Area] (→191)
• [Remaining Disp.] (→191)
• [Menu Guide] (→191)
[Lens / Others]
• [Lens Position Resume] (→192)
• [Lens Retraction] (→192)
• [Self Timer Auto Off] (→192)
• [Face Recog.] (→192)
• [Profile Setup] (→195)
183
Using Menu Functions
Menu list
→ [Custom] → [Exposure]
[ISO Increments]
You can change the setting to increase ISO sensitivity by 1 EV or 1/3 EV.
[Extended ISO]
You can extend the numeric values that can be set for ISO Sensitivity. (→101)
[Exposure Comp. Reset]
If the recording mode is changed or the camera is turned off, the exposure compensation
value setting is reset.
→ [Custom] → [Focus / Release Shutter]
[AF/AE Lock Hold]
Focus and exposure stay locked even if you press and release [AE|AF LOCK] (or the
function button where [AF/AE LOCK] is registered). Press the button again to cancel the
lock.
[Shutter AF]
Sets whether or not the focus is adjusted automatically when the shutter button is
pressed halfway.
[Half Press Release]
This function trips the shutter immediately when the shutter button is pressed halfway.
[Quick AF]
With this setting, the focus setting is automatically adjusted when camera blurring is small
even when the shutter button is not pressed. (Increases battery consumption.)
●
This function is not available in the following cases:
• Preview Mode
• When the lighting is low
184
Using Menu Functions
Menu list
→ [Custom] → [Focus / Release Shutter]
[Eye Sensor AF]
Adjusts the focus automatically when the eye sensor is activated.
●
[Eye Sensor AF] may not work when the lighting is low.
[Pinpoint AF Setting]
[Pinpoint AF Time]
Sets the time for which the screen is enlarged when the shutter button is
pressed halfway with Autofocus Mode set to [
].
[Pinpoint AF Display]
Sets whether to display the enlarged screen that appears when
Autofocus Mode is set to [
] in a window or full screen.
[AF Assist Lamp]
Illuminates the AF Assist Lamp when the shutter button is pressed halfway when it is too
dark to facilitate focusing.
●
The AF Assist Lamp has an effective range of approx. 1.5 m (5′).
●
The setting is fixed to [OFF] in the following cases:
• [Distinct Scenery], [Bright Blue Sky], [Romantic Sunset Glow], [Vivid Sunset Glow], [Glistening
Water], [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape], [Artistic Nightscape],
[Handheld Night Shot] (Scene Mode)
• When [Silent Mode] is set to [ON]
[Direct Focus Area]
Moves the AF area or MF assist using the cursor buttons while recording.
●
When [ ], [ ], [ ], or [ ] is selected, you can move the AF area, when [ ] is selected,
you can move the lock start position, and when [
] is selected, you can move the focus position.
●
Perform the setting of functions assigned to the cursor buttons using the Quick menu (→44) or
function buttons (→46).
●
[Direct Focus Area] is fixed to [OFF] in the following cases:
• [Glistening Water] (Scene Mode)
• Creative Control Mode
• When recording using [4K Live Cropping]
185
Using Menu Functions
Menu list
→ [Custom] → [Focus / Release Shutter]
[Focus/Release Priority]
You can set whether to give higher priority to focusing or shutter release timing when you
take pictures using Autofocus mode.
You can set the priority for each focus mode ([AFS/AFF], [AFC]) separately.
[FOCUS] No picture is taken unless focusing is achieved.
[BALANCE]
A picture is taken with an appropriate balance between focusing and shutter
release timing.
[RELEASE] A picture is taken even if the subject is out of focus.
[Focus Switching for Vert / Hor]
The camera saves the focus positions of a picture separately when it is recorded by
holding the camera vertically and horizontally. The camera saves the following positions
of the picture taken the previous time.
• AF area position (When [ ], [ ] and [ ] are set)
• Position displayed by MF Assist
[Loop Movement Focus Frame]
You can move a focus area from one edge to the opposite edge of the screen in a loop
when the AF area position or MF Assist area display position is set.
[AF Area Display]
You can perform the AF area display setting when the Autofocus Mode is set to [ ]
(49-area-focusing) or Custom Multi.
[ON]
Displays the AF area on the recording screen.
• When the default AF area is selected in [ ] (49-area-focusing) or [ ], [ ], or
[
] of Custom Multi-function, the AF area is not displayed.
[OFF]
Displays the AF area on the recording screen for only a few seconds after the AF area
is set.
●
The [ON] setting operates as [OFF] in the following cases.
• When recording videos
• Creative Video Mode
• When recording 4K photos
186
Using Menu Functions
Menu list
→ [Custom] → [Focus / Release Shutter]
[AF+MF]
You can manually perform fine focusing during AF Lock (pressing the shutter button
halfway when [AFS/AFF/AFC] in [Rec] menu is set to [AFS] or setting AF Lock by
pressing [AF/AE LOCK]).
[MF Assist]
Allows you to set whether or not to display the MF Assist (enlarged screen) during Manual
Focus.
●
MF Assist is not displayed in the following cases:
• During video recording
• When recording with [
] ([4K Pre-Burst]) of the 4K Photo function
• When using the Digital Zoom
[MF Assist Display]
Allows you to set whether or not to display the MF Assist (enlarged screen) in a window
or full screen.
→ [Custom] → [Operation]
[Operation Lock Setting]
You can set an object for which operation is disabled when [Operation Lock] is assigned
to the function button using [Fn Button Set] (→46) in the [Custom] ([Operation]) menu.
[Cursor] Disables the operation of the cursor buttons and [MENU/SET] button.
[Touch Screen] Disables the touch operation using the touch panel.
[Touch Settings]
Enabling/disabling the touch operation.
[Touch Screen] All touch operations.
[Touch Tab]
Operations of tabs, such as [
] displayed on the right side of the screen.
[Touch AF]
Operation to optimize the focus [AF] or both the focus and brightness
[AF+AE] for a touched subject.
[Touch Pad AF]
Operation to move the AF area by touching the monitor when the
viewfinder is in use. (→94)
187
Using Menu Functions
Menu list
→ [Custom] → [Operation]
[Dial Guide]
Enabling/disabling the operation guide display when switching
recording modes.
Example
[Zoom lever]
Changing the zoom operation settings.
(Zoom)
Zooming operates in the normal way.
(Step Zoom)
Each time the lever is operated, the zoom lens stops at the position for
one of the preset focal lengths.
Focusing range
Current zoom position
• This setting does not work when
recording videos or 4K photos with
[
] ([4K Pre-Burst]).
→ [Custom] → [Monitor / Display]
[Auto Review]
[Duration Time (photo)]
Sets the time to display the pictures you have taken after taking
them.
[Duration Time (4K PHOTO)]
Sets the time to display the pictures you have taken after recording
4K photos.
[Duration Time (Post Focus)]
Sets the time to display the pictures you have taken after recording
using [Post Focus].
[Playback Operation Priority]
Allows you to switch the playback screen or to delete pictures
when the [Auto Review] function is activated.
●
When [Duration Time (photo)] is set to [HOLD], pictures are displayed until you press the shutter
button halfway. In this case, [Playback Operation Priority] is fixed to [ON].
188
Using Menu Functions
Menu list
→ [Custom] → [Monitor / Display]
[Monochrome Live View]
You can display the recording screen in black and white. This function is useful when this
would make it easier to focus in Manual Focus mode.
●
When using the HDMI output during recording, the image is not displayed in black and white.
●
This does not affect recorded pictures.
[Constant Preview]
You can check the effects of the chosen aperture and shutter speed on the recording
screen in Manual Exposure Mode.
●
This function is disabled when the flash is used.
[Peaking]
When you perform Manual Focus operation, this function automatically colors the edges
of the subject parts that are in Focus.
●
When [Detect Level] in [SET] is set to [HIGH], the indication is more discriminate, allowing you to
achieve a more precise focus.
●
Changing the [Detect Level] setting also changes the [Display Color] setting as follows.
[Detect Level] [HIGH] [LOW]
[Display Color]
[
] (Light blue) [ ] (Blue)
[
] (Yellow) [ ] (Orange)
[
] (Yellow Green)
[ ] (Green)
[
] (Pink) [ ] (Red)
[
] (White) [ ] (Gray)
●
Each time [ ] in [ ] is touched, the setting is switched in order of [ ] ([Detect Level]:
[LOW]) → [
] ([Detect Level]: [HIGH]) → [OFF].
●
This function is not available in the following case:
• [Rough Monochrome] (Creative Control Mode)
189
Using Menu Functions
Menu list
→ [Custom] → [Monitor / Display]
[Histogram]
Enables/disables the histogram display.
When set to [ON], you can move the display position of the histogram by pressing .
• Direct touch operation is also possible on the recording screen.
The histogram displays distribution of brightness in
picture – e.g. if the graph peaks at the right, this means
the picture is probably overexposed. A peak in the center
represents correct brightness (correct exposure). This
can be used as a reference for exposure correction, etc.
(Example)
Dark ← OK → Bright
●
When the histogram is not the same as that of the recorded picture under the following
conditions, it will be displayed in orange:
• During Exposure Compensation.
• When the flash fires.
• When the correct exposure is not achieved, such as when the lighting is low.
[Guide Line]
This function allows selecting the pattern of the guidelines to be displayed while
recording.
●
When you select [ ], you can move the position of the guideline by pressing .
●
You can also set the position directly by touching [ ] on the guideline of the recording screen.
●
The guideline is not displayed during panorama picture recording.
[Center Marker]
A cross [+] is displayed to indicate the center of the recording screen. This is useful for
zooming while keeping the subject at the center of the screen.
190
Using Menu Functions
Menu list
→ [Custom] → [Monitor / Display]
[Highlight]
You can set overexposed areas (areas that are too bright and where there are no shades
of gray) to flash on the screen when the [Auto Review] function is activated or during
playback.
●
To reduce overexposed areas, record a picture by setting negative
exposure compensation using the histogram display and so on as a
reference.
●
This feature is disabled during 4K photo playback, playback of pictures
recorded in [Post Focus], Multi Playback, Calendar Playback, or
Playback Zoom.
●
This does not affect recorded pictures.
[Zebra Pattern]
You can check the area in a picture, which could result in overexposure, by displaying
such an area using a zebra pattern.
[ZEBRA1]: [ZEBRA2]:
Select [SET] to set the brightness to be displayed for each zebra pattern.
• The range of brightness you can select from is [50%] to [105%]. The [OFF] setting is
available for [Zebra 2]. When [100%] or [105%] is selected, only the overexposed areas
are displayed with the zebra pattern. When a smaller numeric value is set, the range of
brightness to be displayed by each zebra pattern will increase.
●
To reduce overexposed areas, record a picture by setting negative exposure compensation using
the histogram display and so on as a reference.
●
The displayed zebra pattern is not recorded.
●
When [Zebra Pattern] is assigned to the function button using [Fn Button Set] (→46) in the
[Custom] ([Operation]) menu, every time you press the assigned function button, the setting will
switch in the following order: [Zebra 1] → [Zebra 2] → [Zebra OFF]. When [Zebra 2] is set to
[OFF], you can switch the setting quickly in the following order: [Zebra 1] → [Zebra OFF].
191
Using Menu Functions
Menu list
→ [Custom] → [Monitor / Display]
[Expo.Meter]
This function enables/disables the exposure meter display.
Exposure meter
●
When you set this function to [ON], an exposure meter is displayed
during Program Shift, aperture setting, and shutter speed setting.
●
Proper exposure is not possible in the range indicated in red.
●
If the exposure meter is not displayed, press [DISP] to switch the
display of the monitor.
●
The exposure meter will turn off if no operation is performed for
approximately 4 seconds.
8.05.64.0
8 15 30 60 125
[MF Guide]
When you focus manually, the MF guide is displayed on the
screen. You can check where the lens is presently focused.
Indicator for (infinity)
[Rec Area]
Switches the captured area setting used for recording pictures and videos.
Indicated as the captured area when recording pictures.
Indicated as the captured area when recording videos.
●
The recording area indicated is an approximation.
●
[Rec Area] is fixed to [ ] when recording 4K photos or recording in [Post Focus].
[Remaining Disp.]
Switches the display between the number of recordable pictures that you can take and
the available recording time.
[Menu Guide]
Switches between displaying/not displaying the selection screen when the mode dial is
switched to [ ]/[ ].
192
Using Menu Functions
Menu list
→ [Custom] → [Lens / Others]
[Lens Position Resume]
Remembers the zoom and focus positions when the camera is turned off.
[Lens Retraction]
Sets whether or not to retract the lens barrel shortly after the playback screen appears.
[Self Timer Auto Off]
Switches whether or not the self-timer is canceled when the camera is turned off.
[Face Recog.]
The Face Recognition function recognizes a face similar to a registered face and
automatically adjusts focus and exposure for the face with higher priority. Even if a person
you want to focus on is standing at the back or corner in a group photo, the camera will
automatically recognize the person and record this person’s face clearly.
Settings: [ON] / [OFF] / [MEMORY]
■
How the Face Recognition function works
During recording
• The camera recognizes a registered face and adjusts focus
and exposure.
• When registered faces that have set names are recognized,
the names are displayed (max. 3 people).
During playback
• The name and age are displayed.
193
Using Menu Functions
Menu list
→ [Custom] → [Lens / Others]
■
Registering face pictures
Up to 6 people’s faces can be registered along with such information as name and
birthdate.
Use to select [MEMORY] and press [MENU/SET]
32
654
1
KEN
New
Use to select [New] and press [MENU/SET]
Target the face within the frame and record
• Faces of subjects other than people (e.g. pets) cannot be
registered.
• When
is pressed or [ ] is touched, an explanation is
displayed.
Use to select the item for editing and press [MENU/SET]
[Name] Sets the name.
• For details on how to enter characters, refer to “Entering Text” (→50)
[Age] Sets the birthdate.
[Add Images] Up to 3 face pictures of the person can be registered.
Use to select [Add] and press [MENU/SET]
• When a registered face picture is selected with cursor buttons, a screen to
confirm deletion is displayed. Select [Yes ] to delete the face picture.
Record the picture (step )
■
Editing or deleting information about registered persons
Use to select [MEMORY] and press [MENU/SET]
Use to select the picture of the person to be edited or deleted and press
[MENU/SET]
Use to select the item and press [MENU/SET]
[Info Edit]
Allows editing name or other registered information. (Step
of “Registering face
pictures”)
[Priority] For setting the priority order for focus and exposure.
Use to select the registration order and press [MENU/SET]
[Delete] For deleting information and face pictures of registered persons.
194
Using Menu Functions
Menu list
→ [Custom] → [Lens / Others]
Recording tips when registering face pictures
• Make sure the subject’s eyes are open and mouth closed;
have the subject face the camera directly, and make sure
the outline of the face, the eyes and eyebrows are not
hidden by hair.
• Make sure there are no heavy shadows on the face. (During
registration, the flash is not used.)
Good example for registering
a face
If the camera seems to have difficulty recognizing faces when recording
• Register additional pictures of the same person’s face, indoors and outdoors or with
different expressions or angles.
• Register additional pictures at the place you are recording.
• If a registered person is no longer recognized, re-register that person.
• In some cases, the camera cannot recognize or incorrectly recognizes even registered
people depending on their expression or the environment.
●
[Face Recog.] functions only when Autofocus mode is set to [ ].
●
Only the first picture of a serial recording will contain Face Recognition information.
●
The name of the person recognized in the first picture is displayed in the case of group pictures.
●
This function is not available in the following cases:
• [Miniature Effect] (Creative Control Mode)
• During video recording
• When recording 4K photos
• When recording using [Post Focus]
• When using [Time Lapse Shot]
195
Using Menu Functions
Menu list
→ [Custom] → [Lens / Others]
[Profile Setup]
Allows you to set a name or birthday of a baby or pet before taking a picture to record the
name or age in months/years in the picture.
Settings: [ ] ([Baby1]) / [ ] ([Baby2]) / [ ] ([Pet]) / [OFF] / [SET]
■
Setting the name and age in months/years
Use to select [SET] and press [MENU/SET]
Use to select [Baby1], [Baby2] or [Pet] and press [MENU/SET]
Use to select [Age] or [Name] and press [MENU/SET]
Use to select [SET] and press [MENU/SET]
Enter the [Age].
Enter the [Name].
• For details on how to enter characters, refer to “Entering Text” (→50)
■
Canceling the display of the name and age in months/years
Set [Profile Setup] to [OFF].
●
[Profile Setup] is not available for 4K photo recording or recording in [Post Focus].
●
You cannot record the name or age in months/years in the following cases:
• During video recording
• Pictures that are taken while recording videos
196
Using Menu Functions
Menu list
• [Cust.Set Mem.] (→81)
• [Clock Set] (→28)
• [World Time] (→196)
• [Travel Date] (→197)
• [Wi-Fi] (→197)
• [Bluetooth] (→198)
• [Wireless Connection Lamp] (→198)
• [Beep] (→198)
• [Economy] (→199)
• [Monitor Display Speed] (→200)
• [EVF Display Speed] (→200)
• [Monitor Display] / [Viewfinder] (→200)
• [Monitor Luminance] (→201)
• [m/ft] (→201)
• [Eye Sensor] (→201)
• [USB Mode] (→201)
• [TV Connection] (→202)
• [Language] (→203)
• [Version Disp.] (→203)
• [Folder / File Settings] (→203)
• [No.Reset] (→205)
• [Reset] (→205)
• [Reset Network Settings] (→205)
• [Level Gauge Adjust.] (→206)
• [Format] (→26)
[World Time]
Sets the times for the region where you live and your travel destination.
• You can set [Destination] after setting [Home].
Settings: [Destination] / [Home]
1
Use to select [Destination] or [Home] and press [MENU/SET]
2
Use to select area and press [MENU/SET]
When [Destination] has been selected When [Home] has been selected
Current time at selected destination
City/area name
Difference with home time
→ [Setup]
[Setup]
197
Using Menu Functions
Menu list
■
To set daylight savings
Press
in step
2
. (Press again to release the setting)
• When daylight savings [ ] is set, the current time is advanced by 1 hour. If the setting is
canceled, the time automatically returns to the current time.
■
When you come back from your travel destination
Select [Home] in step
1
and press [MENU/SET].
●
If you cannot find your destination in the area displayed on the screen, set it based on difference
with home time.
[Travel Date]
■
[Travel Setup]
If you set your travel schedule and record pictures, the day of your trip on which the
picture was taken will be recorded.
■
To record [Location]
Once the [Travel Setup] is set, you can set the location.
• For details on how to enter characters, refer to “Entering Text” (→50)
●
To print [Location] or the number of days that have passed, use [Text Stamp].
●
The travel date is calculated from the set departure date and the date set in the camera’s clock.
When destination is set in [World Time], days elapsed are calculated based on local destination
time.
●
When [Travel Setup] is set to [OFF], the number of days elapsed is not recorded. It is not
displayed even if [Travel Setup] is set to [SET] after recording.
●
When the current date passes the return date, [Travel Setup] is automatically canceled.
●
[Location] cannot be recorded while recording videos, recording 4K photos, or recording in [Post
Focus].
[Wi-Fi]
■
[Wi-Fi Function] (→249)
■
[Wi-Fi Setup] (→255)
→ [Setup]
198
Using Menu Functions
Menu list
[Bluetooth]
■
[Bluetooth] (→228)
■
[Remote Wakeup] (→235)
■
[Returning from Sleep Mode] (→239)
■
[Auto Transfer] (→241)
■
[Location Logging] (→243)
■
[Auto Clock Set] (→244)
■
[Wi-Fi network settings]
Registers a wireless access point. (→249)
• The wireless access point used for the Wi-Fi connection is automatically registered.
• Up to 17 wireless access points can be registered. If you try to register more than 17
access points, the oldest registered access point will be deleted.
• Performing [Reset Network Settings] will delete registered wireless access points.
[Wireless Connection Lamp]
The lamp lights up while the wireless function is operating.
Settings: [ON] / [OFF]
[Beep]
Sets the beep sounds or shutter sounds.
■
[Beep Volume]
■
[Shutter Vol.]
■
[Shutter Tone]
●
When [Silent Mode] is set to [ON], [Beep] is not available.
→ [Setup]
199
Using Menu Functions
Menu list
→ [Setup]
[Economy]
■
[Sleep Mode]
The camera is automatically turned off if it has not been used for the time selected on the
setting.
• When you want to use the camera again, either press the shutter button halfway or turn
it back on.
■
[Sleep Mode(Wi-Fi)]
The camera is automatically turned off if it has not been used for approx. 15 minutes with
no Wi-Fi connection.
• When you want to use the camera again, either press the shutter button halfway or turn
it back on.
■
[Auto EVF/Monitor Off]
The monitor/viewfinder is automatically turned off if the camera has not been used for the
time selected on the setting.
• To turn the monitor/viewfinder on again, press any button.
●
This function is not available in the following cases:
• During video recording/playback
• When recording with [
] ([4K Pre-Burst]) of the 4K Photo function
• When recording in [Multi Exp.]
• When connected to computer/printer
• During Slide Shows
• When using [Time Lapse Shot]
• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
• While the HDMI output is being used for recording.
200
Using Menu Functions
Menu list
[Monitor Display Speed] / [EVF Display Speed]
Allows setting the display speed of the monitor or viewfinder.
[ECO 30fps] Minimizes power consumption and the operating time is extended.
[60fps]
You can display a moving subject in fluid motion. This setting is ideal for recording
fast-moving subjects.
●
When [Monitor Display Speed] or [EVF Display Speed] (or both) is set to [ECO 30fps], Digital
Zoom is not available.
●
[ECO 30fps] cannot be set in the following cases:
• Creative Video Mode
• When recording 4K photos
• When recording using [Post Focus]
●
[Monitor Display Speed] and [EVF Display Speed] are disabled while the HDMI output is being
used for recording.
●
The [Monitor Display Speed]/[EVF Display Speed] setting does not affect the recorded picture.
[Monitor Display] / [Viewfinder]
Allows adjusting brightness and color of the monitor or viewfinder.
[Brightness] Adjusts the brightness.
[Contrast] Adjusts the contrast.
[Saturation] Adjusts the vividness of colors.
[Red Tint] Adjusts red hues.
[Blue Tint] Adjusts blue hues.
●
It will adjust the monitor when the monitor is in use, and the viewfinder when the viewfinder is in
use.
●
Some subjects may look different from their actual appearance, but the recorded picture will not
be affected.
→ [Setup]
201
Using Menu Functions
Menu list
[Monitor Luminance]
Allows setting the monitor brightness according to the ambient light level.
(Auto)
The brightness is adjusted automatically depending on how bright it is
around the camera.
(Mode 1) The brightness is increased.
(Mode 2) The brightness is standard.
(Mode 3) The brightness is decreased.
●
Some subjects may look different from their actual appearance, but the recorded picture will not
be affected.
●
[ ] returns to ordinary brightness if there is no operation for 30 seconds when recording. (Press
any button or touch the screen to make the screen brighter again.)
●
Setting [ ] or [ ] reduces the operating time.
●
Cannot select [ ] during playback.
[m/ft]
Allows selecting how distance is displayed, in Ft or M.
[Eye Sensor]
[Sensitivity] Use this setting to set the sensitivity of the eye sensor.
[EVF/Monitor Switch]
Use this setting to switch the display between the viewfinder and monitor.
[EVF/MON AUTO] (Automatic switching between viewfinder and monitor) /
[EVF] (Viewfinder display) / [MON] (Monitor display)
• After the display is switched using the [EVF] button, the setting of [EVF/
Monitor Switch] will also change.
[USB Mode]
Allows selecting the communication method for when connecting camera to a computer
or printer with USB cable.
[Select on connection]
Selects the communication method each time you connect to a
computer or PictBridge-compatible printer.
[PC(Storage)] Selects when connecting to a computer.
[PictBridge(PTP)] Selects when connecting to a PictBridge-compatible printer.
→ [Setup]
202
Using Menu Functions
Menu list
[TV Connection]
■
[HDMI Mode (Play)]
Set the format for the output.
[AUTO] Automatically sets the output resolution based on information from a connected TV.
[4K/30p]
Outputs pictures with a resolution of 3840×2160 pixels using progressive scan for
2160 effective scanning lines.
[1080p] Outputs pictures using progressive scan for 1080 effective scanning lines.
[1080i] Outputs pictures using interlace scan for 1080 effective scanning lines.
[720p] Outputs pictures using progressive scan for 720 effective scanning lines.
[480p] Outputs pictures using progressive scan for 480 effective scanning lines.
●
If no image appears on the TV with [AUTO], switch the setting to one supported by your TV.
(Please read the instructions for the TV.)
■
[HDMI Info Display (Rec)]
Set whether to display recording information when you take pictures while you monitor
them on a TV or other device by connecting the camera via HDMI micro cable. (→260)
■
[HDTV Link]
If you select [ON], operations of the camera and the HDTV Link compatible equipment
connected to the camera with an HDMI micro cable are automatically linked, enabling you
to control the camera with the remote control of the HDTV Link compatible equipment.
(→261)
→ [Setup]
203
Using Menu Functions
Menu list
[Language]
Allows setting the language displayed on the screen.
●
If you set a different language by mistake, select [ ] from the menu icons to set the desired
language.
[Version Disp.]
Allows checking the firmware version of the camera.
●
When you press [MENU/SET] while the version is displayed, software information for this camera,
such as the license, is displayed.
[Folder / File Settings]
Allows setting the names of a folder and file for storing images.
Folder name File name
100ABCDE
Folder number (3-digits, 100–999)
User-defined 5-digit number
Color space ([L]: sRGB, [ _ ]: AdobeRGB)
User-defined 3-digit number
File number (4-digits, 0001–9999)
File extension
→ [Setup]
204
Using Menu Functions
Menu list
[Select Folder]
Allows selecting a folder for storing images.
• The number of files that can be stored is displayed for the folder name.
[Create a New
Folder]
Allows creating a new folder by advancing the folder number.
• When no folder for storing images is available on a card, the folder number reset
screen is displayed.
[OK]
Allows creating a new folder using the same user-defined 5-digit
number comprising a folder name as the current setting.
[Change]
Allows creating a new folder by entering a new user-defined
5-digit number comprising a folder name to change the current
folder name.
• Characters that can be set: uppercase alphanumeric
characters, numbers, and [ _ ]
• For details on how to enter characters, refer to “Entering Text”
(→50)
[File Name
Setting]
[Folder Number
Link]
Allows setting the same number in the folder name to a user-
defined 3-digit number in a file name.
[User Setting]
Allows setting a file name by entering a new user-defined 3-digit
number.
• Characters that can be set: uppercase alphanumeric
characters, numbers, and [ _ ]
• For details on how to enter characters, refer to “Entering Text”
(→50)
●
Up to 1,000 files can be stored in a single folder.
●
The serial numbers from 0001 to 9999 are assigned to the files stored in the order in which
pictures are taken. When a folder destination is changed, the file is stored with the file number
following the preceding file number.
●
In the following cases, a new folder is automatically created by advancing the folder number when
the next file is saved.
• When 1,000 files are stored in a folder
• When a file consisting of the file number of “9999” is stored in a folder
●
When folders with numbers from 100 to 999 already all exist, you cannot create a new folder. We
recommend saving all necessary pictures to your computer or other devices and formatting the
card.
→ [Setup]
205
Using Menu Functions
Menu list
[No.Reset]
Allows resetting picture file numbers. (The folder number is updated and the file number
starts from 0001.)
• To reset folder number to 100:
First, format the card, and reset the file numbers using [No.Reset]. Then, select [Yes]
on the folder number reset screen.
●
A folder number between 100 and 999 can be assigned.
Numbers cannot be reset once the folder number reaches 999. In this case, save all necessary
pictures to your computer, and format the card (→26).
[Reset]
Allows resetting the following settings to the default:
■
Recording settings and drive mode
■
Setup settings ([Wi-Fi Setup] and [Bluetooth] settings)
■
Custom settings ([Face Recog.] and [Profile Setup] settings)
■
Setup/custom settings
(except for [Wi-Fi Setup], [Bluetooth], [Face Recog.] and [Profile Setup] settings)
●
When the setup/custom settings are reset, the following settings are also reset:
• The [World Time] setting
• The [Travel Date] setting (Departure date, Return date, [Location])
• The settings of [Rotate Disp.] and [Picture Sort] in the [Playback] menu
●
Folder numbers and clock settings will not be reset.
[Reset Network Settings]
Allows resetting network settings to the default, such as equipment information you have
registered using [Wi-Fi Setup] or [Bluetooth].
→ [Setup]
206
Using Menu Functions
Menu list
→ [Setup]
[Level Gauge Adjust.]
■
[Adjust.]
Hold the camera in a horizontal position, and press [MENU/SET]. The level gauge will be
adjusted.
■
[Level Gauge Value Reset]
Restores the default level gauge setting.
[My Menu]
Allows you to register frequently used menus and display them on [My Menu]. Up to 23
menus can be registered.
→ [My Menu] → [My Menu Setting]
[Add] For selecting and registering a menu to be displayed on [My Menu].
[Sorting]
For changing the order of the menus to be displayed on [My Menu].
Select the menu whose order you want to change and set the new
location.
[Delete]
For deleting a registered menu from the [My Menu] display.
[Delete Item]: Selects and deletes a menu from the displayed menus.
[Delete All]: Deletes all displayed menus.
[Display from My Menu]
For setting a screen to be displayed when the menu screen is displayed.
[ON]: Displays [My Menu]
[OFF]: Displays the menu used the previous time
207
Using Menu Functions
Menu list
[Playback]
• [Slide Show] (→208)
• [Playback Mode] (→209)
• [Protect] (→210)
• [Rating] (→210)
• [Title Edit] (→211)
• [Face Rec Edit] (→211)
• [RAW Processing] (→212)
• [4K PHOTO Bulk Saving] (→214)
• [Light Composition] (→215)
• [Sequence Composition] (→216)
• [Clear Retouch] (→217)
• [Text Stamp] (→218)
• [Resize] (→219)
• [Cropping] (→220)
• [Rotate] (→220)
• [Video Divide] (→221)
• [Time Lapse Video] (→221)
• [Stop Motion Video] (→222)
• [Rotate Disp.] (→222)
• [Picture Sort] (→222)
●
It may not be possible to set or edit pictures taken with other cameras.
■
How to select an image(s) after selecting [Single] or [Multi]
When [Single] and [Multi] are not available, select a picture in the same way as when
[Single] is selected.
[Single]
Use to select a picture and press [MENU/SET]
• If [Set/Cancel] is displayed at the right bottom of the screen, the
setting is canceled when [MENU/SET] is pressed again.
SetSet
[Multi]
When a screen similar to the one on the right is
displayed:
2 3
4 5 6
1
OKOK
Use to select a picture and press [MENU/SET]
(repeat)
• To cancel → Press [MENU/SET] again.
Press [DISP] to execute
When a screen similar to the one on the right is
displayed:
2 3
4 5 6
1
Set/Cancel
Use to select a picture and press [MENU/SET]
(repeat)
• To cancel → Press [MENU/SET] again.
208
Using Menu Functions
Menu list
[Slide Show]
Allows automatically playing back recorded pictures, one after another. You can organize
slide shows composed of only pictures or only videos. Recommended when viewing on a
TV screen.
→ [Playback] → [Slide Show]
1
Use to select the item and press [MENU/SET]
• If you select [Picture Only], 4K picture series files and pictures
recorded using [Post Focus] will also be played back.
• Only an in-focus representative image will be played back from
pictures recorded using [Post Focus].
2
Use to select [Start] and press [MENU/SET]
■
Operations during Slide Show
Operation Touch operation Description
Play / Pause
Previous
Next
Stop
Volume up
Volume down
209
Using Menu Functions
Menu list
■
To change settings
Select [Effect] or [Setup] and press [MENU/SET].
[Effect] This allows you to select the screen effects when switching from one
picture to the next.
[Setup] [Duration] [Duration] can be set only when [Effect] is set to [OFF].
[Repeat] [ON] / [OFF]
[Sound] [AUTO]: With pictures, music will play back, and with videos, audio will
play back.
[Music]: Music effect will play back.
[Audio]: Audio is played back from videos.
[OFF]: Music and audio will not play back.
●
During slide shows of 4K picture series files, pictures recorded in [Post Focus], or group pictures,
effects will stay turned off even if [Effect] is set.
●
When you play back the following pictures in a slide show, the [Duration] setting is disabled.
• Videos
• 4K picture series files
• Pictures recorded using [Post Focus]
• Panorama pictures
• Group pictures
[Playback Mode]
For selecting the type of the pictures and playback. ([Normal Play], [Picture Only], [Video
Only])
→ [Playback] → [Playback Mode]
1
Use to select the item and press [MENU/SET]
• If you select [Picture Only], 4K picture series files and pictures recorded using [Post Focus] will
also be played back.
210
Using Menu Functions
Menu list
[Protect]
For setting protection to disable picture deletion. Prevents deletion of important pictures.
→ [Playback] → [Protect]
1
Select a picture (→207)
■
To clear all
Select [Protect] → [Cancel] → [Yes], and press [MENU/SET]
When you set the write-protect switch on the card to the “LOCK” position, the picture is not
erased.
●
By formatting, the picture is erased even if it is protected.
●
This protection may not be effective when using other devices.
[Rating]
You can label the pictures in five levels (ratings). When you have performed [Rating], the
following operations will be available.
• Deleting all pictures except the labelled pictures.
• You can check the rating level of the pictures by displaying the details of the file on
Windows 8, Windows 8.1, and Windows 10 (only JPEG pictures).
→ [Playback] → [Rating]
1
Select picture (→207)
2
Use to set the Rating levels (1 to 5) and press [MENU/SET]
(Repeat steps
1
and
2
to perform the setting with [Multi].)
■
To clear all
Select [Rating] → [Cancel] → [Yes], and press [MENU/SET]
●
When you have performed [Rating] for group pictures, the setting applies to all pictures in the
group, and the number rating set is shown on the rating settings icon of the first picture. If the total
number of pictures is 1,000 or higher, [999+] is displayed.
●
Only when [Playback Mode] is set to [Normal Play], you can select [Cancel].
211
Using Menu Functions
Menu list
[Title Edit]
Allows you to enter characters (titles etc.) on a recorded picture. After text has been
registered, it can be stamped in prints using [Text Stamp] (→218).
→ [Playback] → [Title Edit]
1
Select a picture (→207)
• [ ] is displayed for pictures with texts already stamped.
2
Enter characters
• For details on how to enter characters, refer to “Entering Text” (→50)
• To delete texts, delete all the characters in the character input screen.
●
You can set up to 100 pictures at one time with [Multi].
●
This function is not available in the following cases:
• Videos
• 4K picture series files
• Pictures recorded using [Post Focus]
• Pictures recorded with the [Quality] setting [
], [ ] or [ ]
[Face Rec Edit]
For editing or deleting the recognition information for pictures with incorrect information.
→ [Playback] → [Face Rec Edit] → [REPLACE] or [DELETE]
1
Use to select picture and press [MENU/SET]
2
Use to select a person and press [MENU/SET]
• If [DELETE], go to step
4
.
3
Use to select the person to replace for another and press [MENU/SET]
4
Use to select [Yes] and press [MENU/SET]
●
When Face Recognition information is deleted, it cannot be restored.
●
Edit the Face Recognition information in group units for a picture group. (You cannot edit the
information for each picture in a group.)
●
You can edit only the first picture in a group.
212
Using Menu Functions
Menu list
[RAW Processing]
You can use the camera to edit pictures that were recorded in RAW format. The created
pictures are saved in JPEG format.
→ [Playback] → [RAW Processing]
1
Press to select RAW file and then [MENU/SET]
2
Press to select the item and then [MENU/SET] to
set
• The following items can be set. The settings used during
recording are applied at the time of setting.
[White Balance]
Allows you to select White Balance to make adjustments. When you
select an item with [ ], you can edit the pictures using the same settings
that were applied for recording.
[Brightness
correction]
Allows you to correct brightness in the range from –2 EV to +2 EV.
[Photo Style] Allows you to select the [Photo Style] effects.
[i.Dynamic] Allows you to select the [i.Dynamic] settings.
[Contrast] Allows you to adjust the contrast.
[Highlight] Allows you to adjust the brightness of a highlighted area.
[Shadow] Allows you to adjust the brightness of a shadowed area.
[Saturation] /
[Color Tone]
Allows you to adjust the saturation. (You can adjust the coloring when
[Monochrome] or [Monochrome HC] is selected for [Photo Style].)
[Filter Effect]
Allows you to select a Filter effect. (Only when [Monochrome] or
[Monochrome HC] is selected for [Photo Style].)
[Noise Reduction] Allows you to set noise reduction.
[i.Resolution] Allows you to select the [i.Resolution] settings.
[Sharpness] Allows you to adjust the impression of resolution.
[More Settings]
Use
to select items and press [MENU/SET] to perform the following
operations.
[Reinstate Adjustments]: Restores the settings to the ones used during
recording.
[Color Space]: Allows you to select [Color Space] from either [sRGB] or
[AdobeRGB].
[Picture Size]: Allows you to select the resolution ([L], [M], or [S]) of a
JPEG file when saving pictures.
213
Using Menu Functions
Menu list
3
Press [MENU/SET] to finalize the setting
• The screen in step
2
reappears. To set another item, repeat steps
2
to
3
.
4
Press to select [Begin Processing] and then [MENU/SET]
■
Setting each item
When you select an item, the setting screen appears.
Operation
Touch
operation
Description
Drag Used to make adjustments
[WB K Set]
Used to display the color
temperature setting screen
(Only when [White Balance] is set
to [
])
[Adjust.]
Used to display the White Balance
fine adjustment screen
(Only when [White Balance] is set)
[DISP] [DISP.]
Used to display the comparison
screen
[MENU/SET] [Set]
Used to finalize an adjustment you
just made and to return to the item
selection screen
-2 -1 0 +1 +2
SetSet
Adjust.Adjust.
SetSet
• If you have selected [Noise Reduction], [i.Resolution], or [Sharpness], the comparison
screen is not displayed.
• Pictures can be enlarged by operating the zoom lever.
• You can also zoom in by quickly touching the monitor screen twice at the desired point.
(If the display was enlarged, it returns to the same magnification ratio.)
214
Using Menu Functions
Menu list
The following operating methods are available to make adjustments on the comparison
screen.
Current setting
Operation
Touch
operation
Description
Drag Used to make adjustments
[DISP] [DISP.] Used to return to the setting screen
[MENU/SET] [Set]
Used to finalize an adjustment you
just made and to return to the item
selection screen
SetSet
• If you touch the picture at the center, it will be enlarged. If you touch [ ], the picture will
be reduced to the original size.
●
A RAW image recorded by this camera is always recorded with the aspect ratio set to [3:2]
(5472×3648), but if you perform [RAW Processing] from the [Playback] menu, the picture will be
processed with the aspect ratio fixed as that at the time of recording.
●
The [White Balance] setting of pictures recorded using [Multi Exp.] is fixed to the setting used
during recording.
●
Edit group pictures one by one. The edited pictures will be newly saved separately from the
original group pictures.
●
When an HDMI micro cable is connected, [RAW Processing] is disabled.
●
You can only perform RAW processing of pictures recorded by this camera.
[4K PHOTO Bulk Saving]
You can bulk save 5 seconds’ worth of 4K recording from a 4K picture series file.
→ [Playback] → [4K PHOTO Bulk Saving]
1
Use to select the 4K picture series files and press [MENU/SET]
• If the total recording time is 5 seconds or less, all the frames can be saved as a picture.
2
Select the first frame to be bulk saved as a picture (→112, 113)
• The picture will be saved in JPEG format as a single burst picture group.
215
Using Menu Functions
Menu list
[Light Composition]
Allows you to select multiple frames from 4K picture series files that you wish to combine.
Parts of the image that are brighter than the preceding frame will be superimposed on the
preceding frame to combine the frames into one picture.
→ [Playback] → [Light Composition]
1
Use to select the 4K picture series files and press [MENU/SET]
2
Choose the combining method and press [MENU/SET]
■
[Composite Merging]: Selecting frames to combine
Drag the slide bar or use to select the frames to combine
Press [MENU/SET]
• The selected frames are remembered, and the display goes to
the preview screen.
• Use
to select items and press [MENU/SET] to perform
the following operations.
– [Next]: Lets you select more frames for combining.
– [Reselect]: Discards the frame selected immediately before
and lets you select a different image.
Repeat steps - to select more frames to combine (up to 40 frames)
Press to select [Save], and then [MENU/SET]
■
[Range Merging]: Selecting a range to combine
Select the frame of the first picture and press [MENU/SET]
• The selection method is the same as in step of [Composite Merging] setting.
Select the frame of the last picture and press [MENU/SET]
3
Select [Yes] at the confirmation screen and press [MENU/SET]
• Pictures are saved in JPEG format. Recording information (Exif information) of the first frame
such as shutter speed, aperture, and ISO sensitivity are also registered.
216
Using Menu Functions
Menu list
[Sequence Composition]
Allows you to select multiple frames from a 4K picture series file to create a sequence
composition of a moving subject into one picture.
→ [Playback] → [Sequence Composition]
1
Use to select the 4K picture series files and press [MENU/SET]
2
Select the frames to combine
Select the frames so that the moving subject will not overlap on the preceding or
subsequent frames. (The sequence composition may not be created properly if the
subject overlaps.)
Drag the slide bar or use to select the frames to combine
Press [MENU/SET]
• The selected frames are remembered, and the display goes to
the preview screen.
• Use
to select items and press [MENU/SET] to perform
the following operations.
– [Next]: Lets you select more frames for combining.
– [Reselect]: Discards the frame selected immediately before
and lets you select a different image.
Repeat steps - to select more frames to combine (from 3 to 40 frames)
Press to select [Save], and then [MENU/SET]
3
Select [Yes] at the confirmation screen and press [MENU/SET]
• Pictures are saved in JPEG format. Recording information (Exif information) of the first frame
such as shutter speed, aperture, and ISO sensitivity are also registered.
Tips for [Sequence Composition]
We recommend using a tripod to take pictures for [Sequence Composition].
217
Using Menu Functions
Menu list
[Clear Retouch]
Allows you to erase unnecessary parts recorded on the pictures.
• The erasing operation can only be
performed by touching. [Clear Retouch]
automatically enables touch operation.
→ [Playback] → [Clear Retouch]
1
Use to select a picture and press [MENU/SET]
UndoUndo
SCALINGSCALING
REMOVE
REMOVE
SetSet
2
Drag your finger over the part you want to erase
• The parts to be erased are colored.
• Touching [Undo] will return the colored part back to its previous
state.
Erasing details (enlarging the display)
SetSet
UndoUndo
SCALINGSCALING
REMOVE
REMOVE
Touch [SCALING]
• On the touch screen, spread two fingers to zoom in, or pinch two
fingers to zoom out.
• Dragging the screen allows you to move the enlarged part.
Touch [REMOVE]
• This will bring you back to the operation of dragging your finger
over the part you want to erase. The part you want to erase can
be dragged even while the picture is enlarged.
3
Touch [Set]
4
Touch [Save] or press [MENU/SET]
218
Using Menu Functions
Menu list
●
Pictures may appear unnatural because the background of deleted parts is artificially created.
●
Edit group pictures one by one. The edited pictures will be newly saved separately from the
original group pictures.
●
This function is not available when the viewfinder is in use.
●
When an HDMI micro cable is connected, [Clear Retouch] is disabled.
●
This function is not available in the following cases:
• Panorama pictures
• Videos
• 4K picture series files
• Pictures recorded using [Post Focus]
• Pictures recorded with the [Quality] setting [
]
[Text Stamp]
Allows you to stamp the recording date and time, names, travel destination, travel dates,
etc. on the recorded pictures.
→ [Playback] → [Text Stamp]
1
Select a picture (→207)
• [ ] appears on screen if the picture is stamped with text.
2
Use to select [Set] and press [MENU/SET]
[Shooting Date] [W/O TIME]: Stamp recording date
[WITH TIME]: Stamp recording date and time
[Name]
: Stamp name registered in Face Recognition
: Stamp name registered in [Profile Setup]
[Location] Stamp location registered in [Setup] menu’s [Travel Date]
[Travel Date] Stamp number of days that have elapsed since the travel date set in [Setup]
menu’s [Travel Date]
[Title] Stamp text registered in [Title Edit]
3
Press [ ]
4
Use to select [OK] and press [MENU/SET]
219
Using Menu Functions
Menu list
●
Do not request date printing in store or make date printing on printer for pictures with date
stamps. (Date printing may be overlapped.)
●
You can set up to 100 pictures at one time with [Multi].
●
The picture quality may be ‘grainier’.
●
If you stamp text on the pictures in a group, the edited pictures will be newly saved separately
from the original group pictures.
●
This function is not available in the following cases:
• Videos
• 4K picture series files
• Pictures recorded using [Post Focus]
• Pictures recorded with the [Quality] setting [
]
• Panorama pictures
• Pictures that other texts had already been stamped
• Pictures taken without setting clock
[Resize]
Allows you to reduce a picture’s resolution to facilitate e-mail attachment and use in web
pages, etc.
→ [Playback] → [Resize]
1
Select a picture and the resolution
[Single]
Use to select a picture and press [MENU/SET]
Use to select the desired resolution and press [MENU/SET]
SetSet
[Multi] (up to 100 pictures)
Use to select the desired resolution and press [MENU/SET]
Use to select a picture and press [MENU/SET]
(repeat)
• To cancel → Press [MENU/SET] again.
Press [DISP] to execute
2 3
4 5 6
1
OKOK
●
Picture quality is reduced after resizing.
●
This function is not available in the following cases:
• Videos
• 4K picture series files
• Pictures recorded using [Post Focus]
• Pictures recorded with the [Quality] setting [
]
• Panorama pictures
• Group pictures
• Pictures that other texts had already been stamped
220
Using Menu Functions
Menu list
[Cropping]
Allows you to enlarge your pictures and crop out unwanted areas.
→ [Playback] → [Cropping]
1
Use to select a picture and press [MENU/SET]
2
Select the area to crop and press [MENU/SET]
Operation Touch operation Description
Enlarges the picture
Reduces the picture
Drag Moves the enlarged area
●
Edit group pictures one by one. The edited pictures will be newly saved separately from the
original group pictures.
●
Original Face Recognition information will not be copied when pictures are cropped.
●
Picture quality is reduced after cropping.
●
This function is not available in the following cases:
• Videos
• 4K picture series files
• Pictures recorded using [Post Focus]
• Pictures recorded with the [Quality] setting [
]
• Panorama pictures
• Pictures that other texts had already been stamped
[Rotate]
Allows you to manually rotate the picture in 90-degree steps.
• You cannot select [Rotate] when [Rotate Disp.] is set to [OFF].
→ [Playback] → [Rotate]
1
Use to select a picture and press [MENU/SET]
2
Use to select the rotation direction and press
[MENU/SET]
[ ]: Rotate a picture 90 degrees clockwise.
[
]: Rotate a picture 90 degrees counterclockwise.
221
Using Menu Functions
Menu list
[Video Divide]
A single video can be split into 2 parts. This is convenient when you want to keep just the
necessary scenes, or if you wish to delete unnecessary scenes to increase free space on
your card, such as when traveling.
→ [Playback] → [Video Divide]
1
Use to select a video to split and press [MENU/SET]
2
Press at where you want to split the video to pause it
• If you press while paused, you can make finer adjustments
to the splitting positions.
3
Press
• The original video that was split is not retained.
(There will only be the 2 videos that were created by the split.)
●
During dividing, do not turn off the camera or remove the card or battery. If you do so, the video
may be deleted.
●
Videos cannot be divided at a location close to their start or their end.
●
This function is not available in the following case:
• Videos with a short recording time
[Time Lapse Video]
Allows you to create a video from the pictures in a group that were recorded using [Time
Lapse Shot].
→ [Playback] → [Time Lapse Video]
1
Use to select the [Time Lapse Shot] picture group and press
[MENU/SET]
2
Create a video after selecting a production method
• For details, refer to step
5
and the subsequent steps (→132).
222
Using Menu Functions
Menu list
[Stop Motion Video]
Allows you to create a video from the pictures in a group that were recorded using [Stop
Motion Animation].
→ [Playback] → [Stop Motion Video]
1
Use to select a stop motion animation group and press [MENU/SET]
2
Create a video after selecting a production method
• For details, refer to step
8
and the subsequent steps (→135).
[Rotate Disp.]
This mode allows you to display pictures vertically if they were recorded holding the
camera vertically.
→ [Playback] → [Rotate Disp.] → [ON]
●
When you play back pictures on a PC, they cannot be displayed in the rotated direction unless
the OS or software is compatible with Exif. Exif is a file format for pictures which allows recording
information, etc. to be added. It was established by “JEITA (Japan Electronics and Information
Technology Industries Association)”.
[Picture Sort]
Allows you to set the display sequence used for playing back pictures on this camera.
→ [Playback] → [Picture Sort]
[FILE NAME]
Displays pictures in the folder name or file name sequence. This display
format allows you to find the storage location of a picture on a card more
easily.
[DATE/TIME]
Displays pictures according to the date and time they were taken in
chronological order. When the pictures were taken using several cameras
and stored on the same card, this display format allows you to find a specific
picture more easily.
●
Pictures may not be displayed according to the [DATE/TIME] sequence immediately after a card
is inserted into this camera. In that case, wait a while, and the pictures will be displayed in the
[DATE/TIME] sequence.
223
Wi-Fi/Bluetooth
What you can do with the Wi-Fi
®
/Bluetooth
®
function
Operating the camera by connecting it to a smartphone
• Tripping the camera’s shutter using a smartphone (remote recording) (→236)
• Playing back or saving images stored on the camera (iOS devices) (→240)
• Playing back or saving images stored on the camera, or uploading them on
social media sites (Android devices) (→240)
Expanding the scope of applications by connecting the
camera to a smartphone compatible with Bluetooth Low
Energy
• Pairing (connection setup) (→228)
• Turning on/off the camera using a smartphone (→235)
• [B] (Bulb) recording (→238)
• Transferring recorded images to a smartphone automatically (→241)
• Writing location information of a smartphone on a recorded image (→243)
• Synchronizing the camera’s clock with a smartphone (→244)
• These instructions uses the term “smartphone” for both smartphones and tablets unless
it is necessary to distinguish between them.
224
Wi-Fi/Bluetooth
Wi-Fi/Bluetooth Function
■
Before Use
• Complete the date and time settings in advance. (→28)
• To use the Wi-Fi function on this camera, a wireless access point or a destination
device equipped with the wireless LAN function is required.
■
Lighting of the WIRELESS connection lamp (Blue)
Lit: When the Wi-Fi/Bluetooth function is ON or
connected
Flashing: When sending picture data
• In [Wireless Connection Lamp] in the [Setup] menu,
you can set the lamp so that it will not light/flash.
(→198)
■
[Wi-Fi] button
In these instructions, the function button to which [Wi-Fi] is assigned is referred to as the
[Wi-Fi] button. (At the time of purchase, [Wi-Fi] is assigned to [Fn5] in recording mode,
and [Fn1] in playback mode.)
• For details on the function buttons, refer to (→46).
To start up the Wi-Fi function (When in recording mode):
Touch [ ]
Touch [ ]
225
Wi-Fi/Bluetooth
Wi-Fi/Bluetooth Function
■
Operations that can be performed by pressing the [Wi-Fi] button
If you press the [Wi-Fi] button when you do not have a Wi-Fi connection, the
camera enters a standby mode in which it can connect directly to the smartphone.
(→230)
• If you press [DISP] at that time, you can select a destination from the history of previous
connections and quickly connect. (→253)
When the camera is connected to Wi-Fi, you can press the [Wi-Fi] button and
perform the following operations.
[Terminate the Connection] Terminates the Wi-Fi connection.
[Change the Destination]
Terminates the Wi-Fi connection, and allows you to
select a different Wi-Fi connection.
[Change Settings for Sending Images] For details (→248).
[Register the Current Destination to
Favorite]
Registers the current connection destination or the
connection method, so you can easily connect with the
same connection method next time.
[Network Address] For details (→255).
• Depending on the Wi-Fi function being used or the connection destination, you may not
be able to perform some of these operations.
226
Wi-Fi/Bluetooth
Wi-Fi/Bluetooth Function
■
Describing method
When selecting “[Select a destination from History]”, etc. is
described in a step, perform any of the following operations.
With cursor button operations
Use cursor buttons to select [Select a destination from History]
and press [MENU/SET].
With touch screen operations
Touch [Select a destination from History].
●
Do not remove the memory card or battery or move to an area without any reception while
sending images.
●
The camera cannot be used to connect to a public wireless LAN connection.
●
We recommend that you use a fully charged battery when you send pictures.
●
When sending images on a mobile network, high packet communication fees may be incurred
depending on the details of your contract.
●
Pictures may not be completely sent depending on transmission conditions. If the connection is
terminated while sending pictures, pictures with missing sections may be sent.
227
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
You can remotely operate the camera using a smartphone.
The “Leica C-Lux” app must be installed on your smartphone.
Installing the smartphone/tablet app “Leica C-Lux”
The “Leica C-Lux” app is an application provided by Leica Camera AG that allows your
smartphone to perform the following operations of a Wi-Fi-compatible Leica compact
digital camera.
For Android™ apps For iOS apps
Supported OS Android 4.2 or later
(Android 5.0 or higher is required to
use the Bluetooth function)
iOS 9.0 or later
(The Bluetooth function cannot be
used with the iPad 2)
Installation
procedure
Connect your Android device to a
network
Select “Google Play™ Store”
*
Enter “Leica C-Lux” into the search
box
Select “Leica C-Lux” and install it
• The icon will be added to
the menu.
*
Not available in China. To download
in China, please visit the site below:
www.leica-camera.com
Connect the iOS device to the
network
Select “App Store”
Enter “Leica C-Lux” into the search
box
Select “Leica C-Lux” and install it
• The icon will be added to
the menu.
• Use the latest version.
• Supported OS versions as of June 2018. Supported OS versions may be changed
without prior notice.
• The service may not be able to be used properly depending on the type of smartphone
being used.
• When downloading the app on a mobile phone network, high packet communication
fees may be incurred depending on the details of your contract.
• Some of the screens and information provided in this document may be different
depending on the supported operating system and “Leica C-Lux” app version.
228
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
Connecting the camera to a smartphone compatible with
Bluetooth Low Energy
You can connect the camera to a smartphone via a Bluetooth connection.
Supported
smartphones
Android: Android 5.0 or higher equipped with Bluetooth 4.0 or higher
(excluding those that do not support Bluetooth low energy)
iOS: iOS 9.0 or higher (excluding the iPad 2)
■
First-time connection
You need to set up pairing (connection) for the first time only. When pairing is set up, a
Wi-Fi connection is made automatically.
(On the camera)
→ [Setup] → [Bluetooth] → [Bluetooth]
→ [SET] → [Pairing]
• The camera enters pairing standby mode and displays its
device name.
(On your smartphone)
Start the “Leica C-Lux” app
• If a message is displayed indicating that the smartphone is searching for cameras, close the
message.
Select [Bluetooth]
Turn on Bluetooth
Select the device name displayed on the camera’s screen from the [Camera enable to
be registered] list
• A Bluetooth connection between the camera and the smartphone will be made.
(For Android devices) A Wi-Fi connection will be made by selecting [Connection].
If you are using an Android device, follow the steps up to here to complete the setup.
Proceed to the steps below only if you are using an iOS device (iPhone/iPod touch/iPad).
• If [Wi-Fi Password] (→255) is set to [ON] on the camera, you need to install the profile. (At the
time of purchase, [Wi-Fi Password] is set to [ON])
• If [Wi-Fi Password] is set to [OFF] on the camera, select [Wi-Fi Setup].
Install the profile
• If the smartphone is locked with a passcode, enter the passcode to unlock the smartphone.
Exit the browser
229
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
Turn on the Wi-Fi function in the setting menu
On the Wi-Fi setting screen, select the SSID displayed on the
camera (The device name selected in step )
• If the SSID is not displayed, it may be displayed after the Wi-Fi function is
turned off and on.
• When you need to change the connected device, follow the on-screen
message to change the setting.
Start the “Leica C-Lux” app
• The paired smartphone will be registered as a paired device after
connected via Wi-Fi.
■
Connecting to the paired smartphone (connecting for the second and subsequent
times)
(On the camera)
Enable the Bluetooth function
→ [Setup] → [Bluetooth] → [Bluetooth] → [ON]
(On your smartphone)
Start the “Leica C-Lux” app
• If a message is displayed indicating that the smartphone is searching for cameras, close the
message.
Select [Bluetooth]
Turn on Bluetooth
Select the device name displayed on the camera’s screen from the [Camera registered]
list
• Even if you set up pairing with more than one smartphone, you can only connect to one
smartphone at a time.
■
Terminating the Bluetooth connection
→ [Setup] → [Bluetooth] → [Bluetooth] → [OFF]
• The connection will be terminated and the camera’s Bluetooth function will be
deactivated.
• Even if you terminate the connection, the pairing information for it will not be deleted.
230
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■
Deleting the pairing information
(On the camera)
Set the menu
→ [Setup] → [Bluetooth] → [Bluetooth] → [SET] → [Delete]
Select the smartphone you want to delete
(On your smartphone)
Select the camera (device name) for which to delete the pairing information from the
[Camera registered] list, and delete the registration.
●
[ ] is displayed on the recording screen when a Bluetooth device is connected. If the Bluetooth
function is enabled, but the smartphone is not connected, the displayed [
] is semi-transparent.
●
When it takes time to set up pairing between a smartphone and a camera, delete the pairing
information of both devices and register them again. This may enable the devices to be
recognized properly.
●
Up to 16 smartphones can be registered. If you try to register more than 16 devices, the
smartphone with the oldest registration history will be replaced.
●
Performing [Reset Network Settings] will delete registered device information.
Connecting the camera to a smartphone that does not support
Bluetooth Low Energy
Connect to a smartphone via Wi-Fi.
• You can also connect via Wi-Fi to a smartphone that supports Bluetooth low energy by
following the same steps.
Using a password to set up a connection
When [Wi-Fi Password] is set to [ON], you can strengthen security by using manual input
or a QR code for password authentication.
([Wi-Fi Password] is set to [ON] at the time of purchase.)
231
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■
When reading a QR Code to connect
(On the camera)
→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Remote Shooting & View]
SSID and Password
QR Code
• The information (QR Code, SSID and Password) required for
directly connecting your smartphone to this camera is displayed.
• You can also display the information by pressing the [Wi-Fi] button
on the camera.
(On your smartphone)
Start the “Leica C-Lux” app
Select “QR code”
• When the smartphone is connected to a wireless access point, it may take time to display QR
code.
• (For iOS devices) A confirmation screen will be displayed. Select [OK] to proceed.
Use the “Leica C-Lux” app to scan the QR code displayed on the screen of the camera
• If you press [MENU/SET] on the camera, the QR code will be enlarged.
If you are using an Android device, follow the steps up to here to complete the setup.
Proceed to the steps below only if you are using an iOS device (iPhone/iPod touch/iPad).
Install the profile
• If the smartphone is locked with a passcode, enter the passcode to unlock the smartphone.
Exit the browser
Turn on the Wi-Fi function in the setting menu
On the Wi-Fi setting screen, select the SSID displayed on the
camera
Start the “Leica C-Lux” app
• (iOS devices) Steps
through are not required from the second
time on.
232
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■
Manually entering a password to set up a connection
(On the camera)
→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Remote Shooting & View]
SSID and Password
QR Code
• The information (QR Code, SSID and Password) required for
directly connecting your smartphone to this camera is displayed.
• You can also display the information by pressing the [Wi-Fi] button
on the camera.
(On your smartphone)
Turn on the Wi-Fi function in the setting menu
On the Wi-Fi setting screen, select the SSID displayed on the
camera
Enter the password displayed on the camera (For first time
connection only)
Start the “Leica C-Lux” app
Connecting without using the password
You can easily establish a Wi-Fi connection on this camera without entering a password
on your smartphone.
Preparation
(On the camera) Set [Wi-Fi Password] to [OFF]. (→255)
(On the camera)
→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Remote Shooting & View]
SSID
• The information required for directly connecting your smartphone to
this camera (SSID) is displayed.
• You can also display the information by pressing [Wi-Fi] button on
the camera.
233
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
(On your smartphone)
1
Turn on the Wi-Fi function in the setting menu
2
Select the SSID displayed on the screen of the camera
3
Start the “Leica C-Lux” app
• When the connection confirmation screen appears on the camera, select
[Yes ] and press [MENU/SET]. (Only when making a connection for the
first time.)
When [Wi-Fi Password] is set to [OFF].
When you start a Wi-Fi connection, be sure to verify that the device displayed on the
camera’s connection confirmation screen is really the device you want to connect to.
Even if the wrong device is displayed, you will still be connected to it if you select “Yes”.
If there seem to be other Wi-Fi enabled devices in the vicinity, we recommend that you
set [Wi-Fi Password] to [ON] (→255).
Changing the Wi-Fi connection method
To change the connection method, follow the steps below:
→ [Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [New Connection] → [Remote Shooting & View]
→ [DISP] button
or
→ [DISP] button → [New Connection]
→ [Remote Shooting & View] → [DISP] button
234
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■
When connecting with [Via Network]
(On the camera)
Select [Via Network] and press [MENU/SET]
• Connect the camera to a wireless access point by following the connection method (→249).
(On your smartphone)
Turn on the Wi-Fi function in the setting menu
Select the wireless access point you connected to the camera, and set
Start the “Leica C-Lux” app
■
When connecting with [Direct]
(On the camera)
Select [Direct] and press [MENU/SET]
• Connect the camera to the smartphone by following the connection method (→252).
(On your smartphone)
Start the “Leica C-Lux” app
Closing the Wi-Fi connection
1
Set the camera to Recording Mode
• Press the shutter button halfway to return to recording mode.
2
Select the camera’s menu items to terminate the Wi-Fi
connection
→ [Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [Yes]
• You can also terminate the connection by pressing the [Wi-Fi]
button on the camera.
3
On the smartphone, close the “Leica C-Lux” app
●
When recording with 4K Pre-series with the smartphone, terminate the connection only after
switching to 4K picture series recording by pressing [
] on the camera.
235
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
■
Required wireless connectivity mode
The wireless connectivity mode required varies depending on the function to be used
after connecting to a smartphone.
Wireless connectivity
required
Support for Bluetooth low energy
Bluetooth
Indicates that the function can be used with smartphones that support
Bluetooth low energy.
Wi-Fi
Indicates that the function can be used with smartphones that do not
support Bluetooth low energy.
Bluetooth Wi-Fi
Indicates that the function can be used with smartphones that support
Bluetooth low energy.
• Indicates that the function requires you to connect to a smartphone
using both Bluetooth and Wi-Fi.
Turning on/off the camera using a smartphone
Wireless connectivity required:
Bluetooth Wi-Fi
Even when the camera is turned off, you can remotely
turn it on and operate it from your smartphone. This
function allows you to turn on the camera from a distant
location and take pictures or view images on the camera
even when it is in your bag.
1
Make a Bluetooth connection to the smartphone (→228)
2
Select the camera’s menu
→ [Setup] → [Bluetooth] → [Remote Wakeup] → [ON]
3
Set the camera’s main switch to [OFF]
4
On the smartphone, start up the “Leica C-Lux” app, and set the Bluetooth
function to a state in which a connection can be made (standby state)
5
Operate the smartphone
Select [ ]
Select [Remote operation]
• The camera automatically turns on, allowing it to make a Wi-Fi connection automatically.
– (iOS devices) Depending on the connection status of the smartphone, you may need to
change the connected device on the Wi-Fi setup screen. Follow the on-screen message on
the smartphone to change the setting.
236
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
■
Turning off the camera with the smartphone
Select [ ]
Select [ OFF]
●
When [Remote Wakeup] is set to [ON], the Bluetooth function continues to operate even after the
camera is turned off, thus causing the battery to drain.
Tripping the camera’s shutter using a smartphone (remote
recording)
Wireless connectivity required:
Wi-Fi
1
Connect to a smartphone (→227)
2
Operate the smartphone
If the camera is already connected to the smartphone via Bluetooth, select [ ] → [Remote
operation].
(iOS devices) Depending on the connection status of the smartphone, you may need to change the
connected device on the Wi-Fi setup screen. Follow the on-screen message on the smartphone to
change the setting.
Select [ ]
Take the pictures
• The recorded images are saved in the camera.
• Some settings are not available.
■
Setting the higher priority between the camera and smartphone to perform
operations
→ [Setup] → [Wi-Fi] → [Wi-Fi Setup] → [Priority of Remote Device]
[Camera]
Allows you to perform operations with both the camera and the smartphone.
• The camera’s dial settings, etc. cannot be changed with the smartphone.
[Smartphone]
Allows you to perform operations only with the smartphone during remote
recording.
• The camera’s dial can also be operated with the smartphone.
• To end remote recording, press any of the buttons on the camera to turn
on the screen, and select [Cancel].
• The setting of this function cannot be changed while the connection is active.
237
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
●
The camera could tilt when the lens barrel extends. Make sure to immobilize the camera with a
tripod or by other means.
●
This function is not available in the following cases:
• Panorama Shot Mode (When [Priority of Remote Device] is set to [
] ([Smartphone]), you can
switch temporarily to Program Mode for remote recording only during remote recording.)
• When using [Time Lapse Shot]
238
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
Using the smartphone to operate the camera’s shutter via a Bluetooth
connection only
Wireless connectivity required:
Bluetooth
1
Make a Bluetooth connection to the smartphone (→228)
2
Operate the smartphone
Select [ ]
Select [Shutter Remote Control]
Take the pictures
• [Shutter Remote Control] is available only when the camera’s main switch is set to [ON].
• The Live View screen of the camera cannot be viewed on a smartphone.
• When the camera turns off after [Sleep Mode] is activated during recording, select [Shutter
Remote Control] again using the smartphone to turn on the camera once more. (This function
is enabled only when [Remote Wakeup] is set to [ON] and [Auto Transfer] is set to [OFF].)
[B] (Bulb) (Approximately up to 120 seconds)
You can perform [B] (Bulb) recording when the shutter speed is set to [T]
(time) in Manual Exposure Mode.
This function is useful when you take pictures of stars in the night sky or a
night scene, since the shutter can be kept open even for longer exposures.
1
Operate the smartphone
Press [ ] to start recording (Press and hold [ ])
Release your finger from [ ] to end recording
• Slide [ ] in the direction of LOCK to record with the shutter button fixed in the fully pressed
condition. (Slide [
] back in the opposite direction or press the shutter button of the camera to end
recording.)
• If Bluetooth is disconnected during the [B] (Bulb) recording, reconnect Bluetooth and perform the
operation to end recording using the smartphone.
• “[T] (time)” will be displayed on the camera screen.
239
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
■
Reducing the time to recover from Sleep mode
Select the smartphone function to be used as a priority function when waking the camera
from [Sleep Mode] with a smartphone.
Preparation
Set [Bluetooth] and [Remote Wakeup] to [ON]. (→235)
→ [Setup] → [Bluetooth] → [Returning from Sleep Mode]
[Remote / Transfer Priority]
Shortens the time required to wake the camera with
[Remote operation] or [Transfer image].
[Shutter Remote Priority]
Shortens the time required to wake the camera with
[Shutter Remote Control].
240
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
Playing back or saving images stored in the camera, or
uploading them on social media sites
Wireless connectivity required:
Wi-Fi
1
Connect to a smartphone (→227)
2
Operate the smartphone
If the camera is already connected to the smartphone via Bluetooth, select [ ] → [Remote
operation].
(iOS devices) Depending on the connection status of the smartphone, you may need to change the
connected device on the Wi-Fi setup screen. Follow the on-screen message on the smartphone to
change the setting.
Select [ ]
• You can switch a device of pictures to be displayed using the icon
at the top left on the screen. Select [Leica] to display a picture
saved in the camera.
Switch the
device of the
pictures to be
displayed
(Playing back a picture)
When the picture is touched, it is played back at a
larger size
• When playing back videos, the data size is reduced during
transmission to the “Leica C-Lux” app. Therefore, the picture
quality may be different from the actual video you have recorded.
Depending on your smartphone and its usage environment, you
may notice degradation in the picture quality or skipping of sound
when playing back videos and pictures.
(Saving and sending pictures to web services such as
SNS)
*
*
For iOS devices, you can save a picture only to the smartphone.
Press and hold the picture and drag it
• MP4 videos for which the [Rec Quality] size is [4K], 4K picture
series files, and pictures recorded with [Post Focus] cannot be
saved.
• RAW-format pictures can be saved only on smartphones with
Android 7.0 or higher or iOS 10.0 or higher. The pictures,
however, may not be displayed correctly on some smartphones or
some versions of operating systems.
241
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
Transferring recorded images to a smartphone automatically
Wireless connectivity required:
Bluetooth Wi-Fi
The camera automatically transfers recorded images to a Bluetooth-connected
smartphone via Wi-Fi.
1
Make a Bluetooth connection to the smartphone (→228)
2
Select the camera’s menu
→ [Setup] → [Bluetooth] → [Auto Transfer] → [ON]
• If a confirmation screen is displayed on the camera asking you to terminate the Wi-Fi
connection, select [Yes ] to terminate it.
3
On the smartphone, select [YES] (Android devices) or [Wi-Fi Setup] (iOS
devices)
• The camera automatically makes a Wi-Fi connection.
– (iOS devices) Follow the on-screen message on the smartphone to change the connected
device on the Wi-Fi setup screen.
4
Check the send settings on the camera, and select [Set]
• To change the send setting, press [DISP]. (→248)
• The camera will enter a mode where it can automatically transfer images and [
] will be
displayed on the recording screen. (If [Auto Transfer] is not displayed on the recording screen,
images cannot be transferred automatically. Check the status of the Wi-Fi connections to the
smartphone.)
5
Take pictures with the camera
• Every time you take a picture, it is automatically sent to a specified device.
• While sending a file, [
] is displayed on the recording screen.
If you set [Auto Transfer] to [ON] in advance, the Wi-Fi/Bluetooth connection will be
automatically established and Auto Transfer enabled the next time you turn on the camera and
start up the “Leica C-Lux” app on your smartphone.
242
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
■
To stop the automatic transfer of images
In step
2
, select [OFF].
• A confirmation screen is displayed, asking you to terminate the Wi-Fi connection.
●
When [Auto Transfer] in [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
●
If the file transfer is interrupted because the camera turns off, turn the camera on again to restart
file transfer.
• You may not be able to resend the files that did not get delivered if there is a change in their
storage status. For example, if you replace the card before turning on the camera again, the
files may not be resent.
• If the number of files that did not get delivered is large, it may not be possible to resend all of
the files.
●
Videos, 4K picture series files, and pictures recorded with [Post Focus] cannot be automatically
transferred.
●
RAW-format pictures can be saved only on smartphones with Android 7.0 or higher or iOS 10.0
or higher. The pictures, however, may not be displayed correctly on some smartphones or some
versions of operating systems.
243
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
Writing location information of a smartphone on a recorded
Wireless connectivity required:
Bluetooth
The smartphone sends its location information to the camera via Bluetooth, and the
camera performs recording while writing the acquired location information.
GPS
Bluetooth
The smartphone acquires
location information.
The smartphone sends the
location information.
The camera performs recording
while writing the location
information.
Preparation
Enable the GPS function on the smartphone.
1
Make a Bluetooth connection to the smartphone (→228)
2
Select the camera’s menu
→ [Setup] → [Bluetooth] → [Location Logging] → [ON]
• The camera will enter a mode where location information can be recorded and [ ] will be
displayed on the recording screen.
3
Take pictures on the camera
• Location information will be written to the recorded pictures.
When the displayed [ ] is semi-transparent
Location information is not acquired, so data cannot be written. Positioning with the GPS on the
smartphone may not be possible if the smartphone is in a location such as a building or a bag. Move
the smartphone to a location where positioning performance can be optimized, such as that offers a
wide view of the sky, to try positioning. In addition, refer to the instructions of your smartphone.
●
Images with location information are indicated with [ ].
●
Be sure to pay special attention to the privacy, the likeness rights, etc. of the subject when
you use this function. Use at your own risk.
●
The smartphone battery drains faster while location information is being recorded.
244
Wi-Fi/Bluetooth
Controlling the Camera with a Smartphone
Synchronizing the camera’s clock with a smartphone
Wireless connectivity required:
Bluetooth
Synchronize the [Clock Set] setting in the [Setup] menu and [Home] or [Destination]
setting in the [World Time] of the camera with those of a smartphone.
1
Make a Bluetooth connection to the smartphone (→228)
2
Select the camera’s menu
→ [Setup] → [Bluetooth] → [Auto Clock Set] → [ON]
245
Wi-Fi/Bluetooth
Sending pictures to a smartphone
■
Images that can be sent
JPEG
RAW
*
1
MP4
*
2,
*
3
4K Picture Series file
Pictures recorded in [Post Focus]
○ ○ ○ –
*
1
An Android 7.0 or higher or iOS 10.0 or higher operating system is required.
*
2
Sending by [Send Images While Recording] is not available.
*
3
Excluding videos recorded with [Rec Quality] of [4K].
• Some images may not be played back or sent depending on the device.
• For more information about picture playback, see the instructions of the destination
device to which you will send the pictures.
246
Wi-Fi/Bluetooth
Sending pictures to a smartphone
Preparation
Install the “Leica C-Lux” app in advance. (→227)
→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images While Recording] / [Send Images Stored in the Camera]
1
Select [Via Network] or [Direct] to connect (→249, 252)
(On your smartphone)
■
When connecting with [Via Network]
Set Wi-Fi function to “ON”
Select a wireless access point and set
Start the “Leica C-Lux” app
■
When connecting with [WPS Connection]
*
in [Direct]
Start the “Leica C-Lux” app
*
WPS refers to a function that allows you to easily configure the settings related to the connection
and security of wireless LAN devices. To check if the smartphone you are using is compatible
with WPS, refer to the instructions of the smartphone.
■
When connecting with [Manual Connection] in [Direct]
Set Wi-Fi function to “ON”
Select the SSID displayed on this camera
Start the “Leica C-Lux” app
2
Select the device you wish to connect to
3
Check the send settings, and select [Set]
• To change the send setting, press [DISP]. (→248)
[Send Images While Recording]
4
Take a picture (→247)
[Send Images Stored in the Camera]
4
Select the picture (→248)
●
When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
247
Wi-Fi/Bluetooth
Sending pictures to a smartphone
[Send Images While Recording]
A picture can be automatically sent to a specified device every time you take it.
• [
] is displayed on the recording screen while connected by
[Send Images While Recording], and [ ] is displayed while
files are being sent.
• To terminate the connection, follow the steps below:
→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [Yes]
11
• You cannot change the settings while sending a picture.
●
Since the camera gives priority to recording, sending may take longer during the recording.
●
If you turn off the camera before you have completed sending, or if you close the Wi-Fi
connection, or in similar situations, unsent files will not be resent.
●
You may not be able to delete files or use the [Playback] menu while sending.
●
If you set [Time Lapse Shot], the Wi-Fi connection is terminated and you cannot use this function.
248
Wi-Fi/Bluetooth
Sending pictures to a smartphone
[Send Images Stored in the Camera]
You can select and send recorded images.
When selecting [Single Select]
Select the picture
SetSet
Select [Set]
When selecting [Multi Select]
Select the picture (repeat)
• If selected again, the setting will be canceled.
2 3
4 5 6
1
OKOK
Select [OK]
• To close the connection, select [Exit].
●
Some images taken with a different camera may not be able to be sent.
●
Images that have been modified or edited with a computer may not be able to be sent.
Changing the settings for sending images
After you have completed connecting, you can change the send settings, such as the size
of pictures to be sent, by pressing [DISP].
[Size]
Resize the image to send.
[Original] / [Change] ([M], [S], [VGA])
[File Format] [JPG] / [RAW+JPG] / [RAW]
249
Wi-Fi/Bluetooth
About Wi-Fi connections
The following types of connections are available.
→ [Setup] → [Wi-Fi] → [Wi-Fi Function]
[New Connection] A connection is made by selecting a Wi-Fi function
and the connected device. When the following screen
is displayed, select either [Via Network] (→249) or
[Direct] (→252) and make a connection.
Wireless access point
[Select a destination from History] /
[Select a destination from Favorite]
A connection is made using the same settings as the
previous time. (→253)
Connecting via a wireless access point ([Via Network])
Select a connection method to the wireless access point.
[WPS (Push-Button)]
Saves push button type wireless access point that is compatible with
Wi-Fi Protected Setup™ with a WPS mark.
1
Press the wireless access point WPS button until it
switches to WPS Mode
[WPS (PIN code)]
Saves PIN code type wireless access point that is compatible with
Wi-Fi Protected Setup with a WPS mark.
1
On the camera screen, select the wireless access point
you are connecting to
2
Enter the PIN code displayed on the camera screen
into the wireless access point
3
Press [MENU/SET] on the camera
[From List]
Select this option when you are not sure about the WPS compatibility,
or when you want to search for and connect to a wireless access
point. (→250)
250
Wi-Fi/Bluetooth
About Wi-Fi connections
• The settings screen will only appear during the first connection. Connection methods
set on this camera are stored and will be used for subsequent connections. If you
want to change the wireless access point to connect to, press [DISP], then change the
connecting destination.
• WPS refers to a function that allows you to easily configure the settings related to the
connection and security of wireless LAN devices. To check if the wireless access point
you are using is compatible with WPS, refer to the instructions of the wireless access
point.
If you are not sure about the WPS compatibility
(connecting by [From List])
Search for available wireless access points.
• Confirm the encryption key of the selected wireless access point if the network
authentication is encrypted.
1
Select the wireless access point you are connecting to
• Pressing [DISP] will search for a wireless access point again.
• If no wireless access point is found, refer to “When connecting
with [Manual Input]”. (→251)
2
(If network authentication is encrypted)
Enter the encryption key
• For details on how to enter characters, refer to “Entering Text” (→50)
251
Wi-Fi/Bluetooth
About Wi-Fi connections
■
When connecting with [Manual Input]
• When connecting by [Manual Input], confirm SSID, network authentication type,
encryption type, encryption key of the wireless access point you are using.
On the screen of step
1
of “If you are not sure about the WPS compatibility (connecting
by [From List])”, select [Manual Input]
Enter the SSID of the wireless access point you are connecting to, then select [Set]
• For details on how to enter characters, refer to “Entering Text” (→50)
Select the network authentication type
[WPA2-PSK]
Supported encryption methods: [TKIP] / [AES]
[WPA2/WPA-PSK]
[No Encryption] —
(When an option other than [No Encryption] is selected)
Enter the encryption key
●
Check the wireless access points instructions and settings when saving a wireless access point.
●
If no connection can be established, the wireless access point’s transmission may be too weak.
Refer to “Message displays” (→276) and “Q&A Troubleshooting” (→282) for details.
●
Transmission speed may decrease, or may not be usable depending on the environment it is used
in.
252
Wi-Fi/Bluetooth
About Wi-Fi connections
Connecting directly ([Direct])
You can directly connect the camera to your device.
[WPS Connection]
[WPS (Push-Button)]
1
On the camera screen, select [WPS (Push-Button)]
2
Set the device to WPS mode
• You can extend waiting time for a connection by pressing [DISP] on this
camera.
[WPS (PIN code)]
1
On the camera screen, select [WPS (PIN code)]
2
Enter the PIN code of the device into the camera
[Manual
Connection]
1
Enter the SSID and password
into the device. The SSID and
password are displayed on the
connection waiting screen of this
camera
SSID and Password
• When [Wi-Fi Password] is set to [OFF], the
password is not displayed. Select SSID to
connect. (→232)
• Read the instructions of your device for details.
253
Wi-Fi/Bluetooth
About Wi-Fi connections
Connecting quickly with the same settings as used previously
([Select a destination from History] / [Select a destination from
Favorite])
The camera keeps a history of times you used the Wi-Fi function. You can register items
in the history to Favorite.
You can easily connect with the same settings as used previously by connecting from the
history or Favorite.
• If the Wi-Fi settings of the device to connect to have been changed, it may not be
possible to connect to the device.
1
Set the menu
→ [Setup] → [Wi-Fi] → [Wi-Fi Function]
[Select a destination from History] Connects using the same settings as used previously.
[Select a destination from Favorite] Connects using settings registered in Favorite.
2
Select the desired connection setting
• When selecting history or Favorite items, you can view connection details by pressing [DISP].
Registering History items to Favorite
→ [Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [Select a destination from History]
1
Select the item you wish to register and press
2
Enter a registration name
• For details on how to enter characters, refer to “Entering Text” (→50)
• Up to 30 characters can be entered. A double-byte character will be treated as two characters.
254
Wi-Fi/Bluetooth
About Wi-Fi connections
Editing items registered in Favorite
→ [Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [Select a destination from Favorite]
1
Select the Favorite item you wish to edit and press
[Remove from Favorite] —
[Change the Order in Favorite] For selecting the destination.
[Change the Registered Name]
• For details on how to enter characters, refer to “Entering
Text” (→50)
●
The number of settings that can be saved in the history is limited. Register and save frequently
used Wi-Fi connection settings to Favorites.
●
Performing [Reset Wi-Fi Settings] deletes content registered in the history and Favorite.
●
If the device you want to connect to (smartphone, etc.) is connected to a wireless access point
other than the camera, you cannot connect the device to the camera using [Direct]. Change the
Wi-Fi settings of the device you want to connect to so that the access point to be used is set to the
camera.
You can also select [New Connection] and reconnect the devices. (→249)
255
Wi-Fi/Bluetooth
[Wi-Fi Setup]
Configure the settings required for the Wi-Fi function.
[Wi-Fi Setup] cannot be changed when connected to Wi-Fi.
→ [Setup] → [Wi-Fi] → [Wi-Fi Setup]
[Priority of Remote Device] (→236)
[Wi-Fi Password]
You can improve security
by enabling password entry
for a direct connection to a
smartphone.
[ON]: Connects the camera and a smartphone using an SSID and
password. (→230)
[OFF]: Connects the camera and a smartphone using an SSID.
(→230)
• When [ON] is selected, you can also set up a connection by
scanning a QR code.
[Device Name]
You can change the name
(SSID) of this camera.
Press [DISP]
Enter the desired device name (Up to 32 characters can be
entered)
• For details on how to enter characters, refer to “Entering Text”
(→50)
[Wi-Fi Function Lock]
To prevent incorrect operation
or use of the Wi-Fi function
by a third party and to protect
saved personal information,
it is recommended that you
protect the Wi-Fi function with
a password.
[Setup]: Enter any 4-digit numbers as the password.
[Cancel]
• For details on how to enter characters, refer to “Entering Text”
(→50)
• If you forget the password, you can reset it with [Reset Network
Settings] (→205) in the [Setup] menu.
[Network Address]
Displays the MAC address and
IP address of this camera.
• A “MAC Address” is a unique address that is used to identify
network equipment.
• “IP address” refers to a number that identifies a PC connected to
a network such as the Internet. Usually, the addresses for homes
are automatically assigned by the DHCP function such as a
wireless access point. (Example: 192.168.0.87)
[Approved Regulations]
Displays certification note.
The technical compliance standard authentication number is
displayed.
256
Connecting with Other Devices
Viewing 4K videos
■
Viewing on a TV
When you connect the camera to a 4K-compatible TV and
play back a video recorded with [Rec Quality] of [4K], you can
enjoy high-resolution 4K images. Although resolution output
will be lower, you can also play back 4K videos by connecting
to a high-definition TV and other devices that do not have 4K
support.
Preparations
• Set [HDMI Mode (Play)] (→202) to [AUTO] or [4K/30p].
• When connecting to a TV that does not support 4K, select [Auto].
Connect the camera to a 4K-compatible TV using an HDMI micro cable and display the
playback screen (→258)
• When the [HDTV Link] setting on the camera is set to [ON] and the camera is connected to a
HDTV Link (HDMI)-compatible TV, it automatically switches its input and the playback screen is
displayed. For details, refer to (→261).
• You can also play back 4K videos by inserting the card into the SD
card slot of a TV that supports 4K.
• Read the instructions for the TV.
■
Viewing 4K videos on a PC screen
• To play back and edit 4K videos, a high-performance PC environment
is required.
257
Connecting with Other Devices
Viewing 4K videos
Saving 4K videos
You can only dub 4K videos to a Blu-ray disc or DVD with the specific compatibility.
■
Storing 4K videos on your PC
You can use the software available for downloading after registering your camera on the
Leica Camera AG homepage to import 4K videos to a PC. (→262)
• For details, refer to the software instructions.
258
Connecting with Other Devices
Viewing on a TV
Preparation
Turn off both camera and TV.
1
Connect the camera to the TV
Check the plug orientation and insert it straight. (If the cable is inserted in the wrong
direction, the plug and socket terminals could become deformed and cause faulty
operation.) Also, do not insert into the wrong socket. Doing so may damage the
camera.
HDMI micro cable
Use a “High Speed HDMI micro cable” with the HDMI logo.
Cables that do not comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (Type D - Type A plug, up to 2 m (7″) long)
[HDMI] socket
To HDMI video/audio input socket
2
Turn on the TV and switch its input source to match the
connection socket
3
Turn on the camera and press [ ]
259
Connecting with Other Devices
Viewing on a TV
●
Bars may appear at the sides or at the top and bottom of the screen, depending on the aspect
ratio setting.
●
Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.
●
Depending on the TV to be connected, video or 4K picture series files may not be played back
correctly.
●
Check the [HDMI Mode (Play)]. (→202)
●
To play back 24p videos, set [HDMI Mode] to [AUTO]. Otherwise, the picture is not output at 24
frames per second.
●
During TV viewing, pictures are not displayed on the camera screen. Also, sound is not produced
from the camera’s speaker.
●
HDMI output will be canceled if a USB cable is connected simultaneously.
●
Read the instructions for the TV.
The recorded pictures can be played back on a TV with an SD Memory Card
slot
●
Proper playback (aspect ratio) will be dependent on the TV used for viewing.
●
Video file formats that can be played back differ depending on the TV model.
●
You may not be able to play back panorama pictures. Also you cannot perform automatic scrolling
playback of panorama pictures.
●
For cards compatible with playback, refer to the instructions of the TV.
260
Connecting with Other Devices
Viewing on a TV
Recording while monitoring camera images
When using the HDMI output, you can take pictures while
monitoring the camera image on a TV, etc.
■
Switching the information displayed
You can change the display shown during HDMI output using [HDMI Info Display (Rec)]
in [TV Connection] on the [Setup] menu.
[ON]: The camera display is output as is.
[OFF]: Only images are output.
●
When using the Autofocus Mode [ ] or MF assist, the screen cannot be enlarged in windowed
mode.
●
If you use the HDMI output during recording, the aspect ratio setting is fixed to [16:9].
●
An electronic sound or shutter sound will not sound.
●
Some of setting screens are not output through the HDMI connection.
●
This function is not available in the following cases:
• During video recording
• During panorama picture recording
• When recording 4K photos
• When recording using [Post Focus]
261
Connecting with Other Devices
Viewing on a TV
HDTV Link (HDMI) (HDAVI Control™)
What is HDTV Link (HDMI)?
●
HDTV Link is a function that automatically links this camera to HDTV compatible
devices via HDMI micro cables for enabling easy operation with the HDTV remote
control. (Some operations are not available.)
●
HDTV Link (HDMI) is an exclusive function added to the industry-standard HDMI
control functions known as HDMI CEC (Consumer Electronics Control). Operation is
not guaranteed when connecting with other HDMI CEC-compatible devices. Refer to
your product’s instructions to verify compatibility with HDTV Link (HDMI).
Preparation
Set [HDTV Link] to [ON] (→202).
1
Connect the camera to an HDTV Link (HDMI)-compatible TV with an HDMI micro
cable (→258)
2
Turn on the camera and press [ ]
3
Operate with the remote control for the TV
Turning the camera off
• The camera can also be turned off when the television is turned off with its remote
control.
Automatic input select
• When the camera and TV are connected by HDMI micro cable, the camera is
turned on, and the camera’s [ ] (Playback) button is pressed, the television input
automatically switches to the camera’s screen. The television can also be switched on
via the camera from Standby Mode (if “Power on link” on the TV is set to “on”, provided,
it has this function).
●
Operations via the camera buttons will be limited.
●
To play back the audio of the videos in a slide show, set the [Sound] in the Slide Show setting
screen to [AUTO] or [Audio].
●
Use a “High Speed HDMI micro cable” with the HDMI logo.
Cables that do not comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (Type D - Type A plug, up to 2 m (7″) long)
Compatible HDMI micro cables are available from specialist photo dealers. Make absolutely sure
to use only cables compatible with this camera.
●
If HDTV Link (HDMI) does not function correctly (→283)
262
Connecting with Other Devices
Copying the Recorded Image Data to a Computer
With card readers (external)
• Some computers can read directly from the card taken from the camera, others require
the use of an external card reader. For details, refer to the instructions of the respective
devices.
• If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so would cause all recorded image data to
be erased, so make sure to select [NO].)
• With an external card reader, make sure it supports the type of card being used.
With a computer connected directly to the camera (using the available software)
■
Computers that can be used:
Any model capable of recognizing a mass storage device.
• Windows support: Windows 7/Windows 8/ Windows 8.1/Windows 10
• Mac support: OS X v10.5 to macOS 10.13
Using the software available for downloading after registering your camera on the Leica
Camera AG homepage, you can import the image data for pictures and videos recorded
with this camera in all file formats to a computer.
■
Installing the software
To utilize the software, it must be installed first. Three preparatory steps are necessary:
Register your camera on the Leica Camera AG homepage.
a. Open an account at http://owners.leica-camera.com. As a result, you will receive access to the
“Owners area”.
b. Register your camera at “My products” by entering its serial number. Do so by following the
respective instructions.
c. Then select “...software download...”. You will be requested to enter the TAN code which you
will find on a sticker on the Guarantee card.
• The key with which you can activate the software will be sent to you by email.
Install the software to your computer.
Activate the software with the key (numbers) you have received.
• Do so by following the respective instructions appearing after opening the software.
• For details on how to operate the software, refer to the online assistance.
263
Connecting with Other Devices
Copying the Recorded Image Data to a Computer
Copying pictures and videos
Preparations
• Turn on the camera and computer.
1
Connect the camera to the computer
• Check the plug orientation and insert it straight. (If the plug is inserted in the wrong direction,
the plug and socket terminals could become deformed and cause faulty operation.) Also, do not
insert into the wrong socket. Doing so may damage the camera.
• Do not use any other USB cables except a genuine Leica USB cable of the supplied type. Using
cables other than the above may cause a malfunction.
[Access]
• Do not disconnect the USB cable while [Access] is displayed.
[USB/CHARGE] socket
USB cable
2
Use to select [PC(Storage)] and press [MENU/SET]
• If you set the [USB Mode] to [PC(Storage)] in the [Setup] menu in advance, the camera will be
automatically connected to the PC without displaying the [USB Mode] selection screen.
3
Copy the images to the computer using the software available for downloading
after registering your camera on the Leica Camera AG homepage
●
Before inserting or removing a card, turn the camera off and disconnect the USB cable. Otherwise,
data may be destroyed.
●
Use a sufficiently charged battery.
●
When the battery begins to run out during communication, a warning beep sounds. Remove the
USB cable safely. Otherwise, data may be destroyed.
264
Connecting with Other Devices
Copying the Recorded Image Data to a Computer
■
Copying to your computer without using software
You can save pictures to use on your computer by dragging and dropping folders and
files into separate folders on your computer.
• Cards used in this camera contain the following files (folder structure).
●
Windows
Drive (“LEICA”) is
displayed in “Computer”.
●
Mac
Drive (“LEICA”) is
displayed on the desktop.
DCIM (pictures/videos)
100XXXXX
Folder number
File number
101XXXXX
999XXXXX
PRIVATE
Card
Color Space L: sRGB
_: AdobeRGB
.JPG : Pictures
.RWL : Pictures recorded in RAW file
.MP4 : [MP4] videos,
4K picture series files
265
Connecting with Other Devices
Storing recorded pictures and videos in a recorder
If you insert a card that has pictures recorded with this camera into
an accordingly equipped recorder, you can dub the content to a Blu-
ray Disc or DVD etc.
• See the instructions for the recorder for details for copying and
playing back.
266
Connecting with Other Devices
Printing
You can connect a camera directly to a PictBridge-compatible printer for printing.
Preparations
• Adjust the print quality or other settings on your printer, as needed.
• Turn on camera and printer.
1
Connect the camera to the printer
• Check the plug orientation and insert it straight. (If the plug is inserted in the
wrong direction, the plug and socket terminals could become deformed and cause
faulty operation.) Also, do not insert into the wrong socket. Doing so may damage
the camera.
• Do not use any other USB cables except a genuine Leica USB cable of the
supplied type. Using cables other than the above may cause a malfunction.
[ ]
• Do not disconnect the USB cable when the cable disconnection icon [
] is displayed
(may not be displayed with some printers).
[USB/CHARGE] socket
USB cable
2
Use to select [PictBridge(PTP)] and press [MENU/SET]
3
Use to select a picture and press [MENU/SET]
4
Use to select [Print start] and press [MENU/SET]
267
Connecting with Other Devices
Printing
Printing multiple pictures
Multiple pictures can be printed at one time.
1
Press to select [Multi Print] in step
3
of “Printing” (→266)
2
Use to select the item and press [MENU/SET]
[Multi Select]
Scrolls between pictures with , select pictures to print with
[MENU/SET] (Press [MENU/SET] again to release selection.)
Press [DISP] to execute
[Select All] Prints all pictures.
[Rating] Prints pictures selected as [Rating].
3
Use to select [Print start] and press [MENU/SET]
●
The group pictures are displayed one by one instead of all at the same time.
●
Use a sufficiently charged battery. When the battery begins to run out during communication, a
warning beep sounds. Cancel printing and disconnect USB cable.
●
Before inserting or removing a card, turn the camera off and disconnect the USB cable.
●
Some printers can print directly from the camera’s memory card. For details, see the instructions
for your printer.
●
A yellow “●” displayed during printing indicates an error message.
●
Print may be divided into several pictures if printing a large amount of pictures. (Remaining sheets
display may differ from the number of pictures set for printing.)
●
Videos, 4K picture series files, and pictures recorded with [Post Focus] cannot be printed.
●
Pictures recorded in a RAW file cannot be printed. (The pictures recorded in JPEG file format at
the same time as the RAW file can be printed.)
268
Connecting with Other Devices
Printing
■
Making print settings on the camera
Setting options include the number of printed pictures and their size. Make settings before
selecting [Print start].
[Print with Date] [ON] / [OFF]
[Num.of prints] Sets number of pictures (up to 999 pictures).
[Paper Size] Sets the paper size.
[Page Layout]
Sets whether or not to add borders and how many pictures to be printed on
each sheet of paper.
●
If the printer does not support date printing, the date cannot be printed on the picture.
●
When setting [Print with Date] to [ON], check the date printing settings on the printer (printer
settings may be prioritized).
●
Items may not be displayed if incompatible with printer.
●
To print to paper sizes/layouts not supported by this camera, set to [ ] and make settings on the
printer. (Consult your printer’s instructions.)
Printing with date and text
Time and date can be set to be printed on the picture when taking the picture by
activating the [Text Stamp] function in the [Playback] menu. (→218)
■
Printing date without [Text Stamp]
Printing in store:
Only the recording date can be printed. Request date printing in the store.
• The characters entered for [Age] or [Name] of [Profile Setup] or [Face Recog.],
[Location] in [Travel Date], and [Title Edit] cannot be printed at a store.
Using a printer:
The recording date can be printed by setting [Print with Date] (→268) to [ON] when
connecting to a printer compatible with date printing.
269
Others
List of monitor/viewfinder displays
• The following images are examples of when [Monitor Disp. Set] is set to [ ] (monitor
style) in the monitor.
• The information displayed, such as histograms, magnifications, and numeric values, are
only for the purpose of reference.
In recording
Recording mode (→34)
Custom Set (→81)
[Photo Style] (→168)
Flash setting (→144, 147)
60p
[Rec Quality] (→150)
[Snap Movie] (→153)
[Aspect Ratio] (→166)/
[Picture Size] (→166)
Image size (Panorama Shot
Mode) (→64)
Picture effect (Filter)
adjustment display (→72, 170)
Types of picture effects (Filter)
(→170)
Card (displayed only during
recording) (→25)
XXmXXs
Elapsed recording time
*
1
(→148)
Simultaneous recording
indicator (→152)
Automatic switching between
viewfinder and monitor (→31)
[Peaking] (→188)
[Highlight Shadow] (→173)
[HDR] (→178)/[iHDR] (→54)
[Multi Exp.] (→179)
Electronic shutter (→177)
Overheat indicator (→279)
60
p
270
Others
List of monitor/viewfinder displays
[Quality] (→167)
120fps [High Speed Video] (→78)
AFS AFF AFC MF
[AFS/AFF/AFC] (→84)/
MF (→97)
Focus Bracket (→130)
[AF Mode] (→85)
[Pull Focus] (→155)
[Face Recog.] (→192)
AFL AF Lock (→99)
Burst (→125)
[4K PHOTO] (→108)
[Post Focus] (→119)
[Self Timer] (→127)
Remaining battery (→22)
Macro recording (→96)
[Level Shot] (→180)
[Stabilizer] (→137)
Camera shake alert (→137)
Focus (Lights green.) (→33)/
Recording state (Flashes red.)
(→148)
Focus (Under low illumination)
(→83)
Focus (Starlight AF) (→83)
Wi-Fi connection status
Bluetooth connection status
(→230)
Location Logging (→243)
Histogram (→189)
Name
*
2
(→195)
Travel elapsed days
*
3
(→197)
Age in years/months
*
2
(→195)
Location
*
3
(→197)
Current date/time
*
3
Travel destination setting
*
3
: (→196)
Exposure meter (→191)
Zoom (→141)
AF area (→91)
Spot metering target (→172)
[Center Marker] (→189)
[Self Timer] (→127)
[Zoom Mic] (→181)
[Silent Mode] (→176)
AEL AE Lock (→99)
[Metering Mode] (→41, 172)
Program Shift (→56)
3.3 Aperture value (→33)
Aperture Bracket (→130)
60 Shutter speed (→33)
Exposure compensation
(→100)
Exposure Bracket (→129)
Brightness (exposure)
(→55, 76)
Manual Exposure Assist (→59)
ISO sensitivity (→101)
271
Others
List of monitor/viewfinder displays
(→55)
(→76)
(→77)
Coloring (→55)
Defocus control function
(→55, 76)
Brightness (exposure)
(→55, 76)
Type of defocus ([Miniature
Effect]) (→74)
[One Point Color] (→75)
[Sunshine] (→75)
Picture effect (Filter)
adjustment display
(→72, 170)
Picture effects ON or OFF
(→170)
Picture effects (Filter)
(→170)
Aperture value (→77)
Shutter speed (→77)
ISO sensitivity (→77)
[Dial Guide] (→187)
AWBc
White Balance (→103)
White Balance Bracket (→107)
White Balance Fine Adjustment
(→106)
Coloring (→54)
98
Number of recordable pictures
(→26)
r20
Maximum number of pictures
that can be taken continuously
(→125)
RXXmXXs
Available recording time
*
1
(→27)
Touch tab (→186)
Touch zoom (→142)
Touch Shutter (→40)
Touch AF (→40)
[Touch AE] (→41)
[Peaking] (→188)
Function buttons (→47)
*
1
[m] and [s] indicate “minute” and “second”.
*
2
This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup] setting is
set.
*
3
This is displayed for about 5 seconds when the camera is turned on, after setting the clock and after
switching from Playback to Recording mode.
272
Others
List of monitor/viewfinder displays
In playback
Playback Mode (→209)
Protected picture (→210)
With location information
(→243)
[Rating] (→210)
Cable disconnect prohibit icon
(→266)
Video playback (→157)
Panorama picture playback
(→66)
Continuous playback of picture
group (→161)
Save pictures from the 4K
picture series file (→111)
Save a picture from pictures
recorded using [Post Focus]
(→121)
Group pictures recorded using
Focus Bracketing (→161)
Text stamped display (→218)
XXmXXs
Elapsed playback time
*
1
Icon indicating the presence of
a marker (→112, 113)
4K Photo (4K picture series
file) (→108)
[Post Focus] (→119)
[Focus Stacking] (→122)
[Aspect Ratio] (→166)/
[Picture Size] (→166)
60p
[Rec Quality] (→150)
[Snap Movie] (→153)
[Quality] (→167)
120fps [High Speed Video] (→78)
Remaining battery (→22)
1/98 Picture number/Total pictures
Wi-Fi connection status
15 pic. Number of group pictures
XXmXXs
Video recording time
*
1
(→157)
15 pic.15 pic.
1ST DAY
1ST DAY
11 months 20 days
11 months 20 days
273
Others
List of monitor/viewfinder displays
Clear Retouch completed icon
(→217)
Acquiring information icon
Playback (Videos) (→157)
1ST DAY
Travel elapsed days (→197)
Picture Group Display (→162)
[Silent Mode] (→176)
Multi Playback (→159)
Delete (→163)
Name
*
2
(→193, 195)
Location
*
2
(→197)
Title
*
2
(→211)
Age in years/months (→193, 195)
Recording information
*
1
[m] and [s] indicate “minute” and “second”.
*
2
It is displayed in order of [Title], [Location], [Name] ([Baby1]/[Baby2], [Pet]), [Name] ([Face Recog.]).
274
Others
List of monitor/viewfinder displays
100-0001
1/5
10:00 1.DEC.2018
5500
Recording information (Basic)
Recording date/time
World time (→196)
100-0001 Folder/File number (→264)
Recording information (Advanced)
5500
White Balance (color
temperature) (→104)
[i.Dynamic] (→174)
[HDR] (→178)/[iHDR] (→54)
[i.Resolution] (→174)
Detailed information display
100-0001
2/5
R
G
B
Y
10:00 1.DEC.2018
Histogram display
100-0001
4/5
A B
G
M
Color Temperature
10:00 1.DEC.2018
5500K
White balance display
100-0001
3/5
Standard
Contrast
Sharpness
Noise Reduction
Saturation
10:00 1.DEC.2018
Photo style, Highlight shadow display
100-0001
5/5
Focal Length
8.8mm
Long Shtr NR
OFF
35mm Focal Length
24mm
N/A
10:00 1.DEC.2018
Lens information display
275
Others
Message displays
The following explains the meaning of major messages displayed on the screen, and how
to respond to them.
■
Memory cards
[Memory Card Error] / [Format this card?]
• Save needed data on a computer or other device, and then use [Format] on the camera. (→26)
• Try with a different card.
[Read Error] / [Write Error] / [Please check the card]
• Check whether the card has been inserted correctly (→24).
• Turn off the camera and remove the card. Reinsert the card and turn the camera on again.
• Try with a different card.
[Recording was cancelled due to the limitation of the writing speed of the card]
• The speed class of a required card varies depending on a video’s [Rec Quality]. 4K photo recording
requires a card that meets a particular speed class rating. Use a card that meets the rating. Be
sure to use a card of the recommended speed class (→25).
• If recording stops even when using a card of the recommended speed class (→25), the data writing
speed has dropped. If this happens, we recommend backing up the data on the card and formatting
it (→26). Depending on the type of the card, recording may stop in the middle.
[Memory Card Error] / [This memory card cannot be used]
• Use a compatible card. (→25)
■
Battery
[This battery cannot be used]
• Use a genuine Leica battery. Consult your dealer or your nearest Leica Customer Care center if the
display still remains.
• Wipe any dirt away from the battery terminals.
276
Others
Message displays
■
Wi-Fi function
[Failed to connect wireless access point] / [Connection failed] / [No destination found]
• The wireless access point information set on this camera is wrong. Check the authentication type,
encryption type, and encryption key. (→250)
• Transmissions from other devices may block the connection to a wireless access point. Check
other devices that are connected to the wireless access point and devices that use the 2.4 GHz
band.
[Connection failed. Please retry in a few minutes.] / [Network disconnected. Transfer stopped.]
• The transmission from the wireless access point is getting weak. Perform the connection closer to
the wireless access point.
• Depending on the wireless access point, the connection may be automatically disconnected after a
specific time has passed. Reconnect.
[Connection failed]
• Change the access point to connect to in the smartphone Wi-Fi settings to this camera.
■
Others
[Some pictures cannot be deleted] / [This picture cannot be deleted]
• Non-DCF pictures (→156) cannot be deleted. Save needed data on a computer or other device,
and then use [Format] on the camera. (→26)
[Cannot be set on this picture]
• [Title Edit], [Text Stamp], and other functions cannot be used for pictures that are not compliant with
the DCF standard (→156).
[A folder cannot be created]
• A folder cannot be created because available folder numbers have been already assigned.
Save all necessary pictures to your computer or other devices and format the card (→26).
After you format the card, execute [No.Reset] in the [Setup] menu to reset the folder number to
100. (→205)
[Please turn camera off and then on again] / [System Error]
• Turn the camera on again. (Consult your dealer or your nearest Leica Customer Care center if the
display still remains.)
277
Others
Q&A
Troubleshooting
Try checking these items (→277 - 284) first.
If the problem persists,
Performing [Reset] in the [Setup] menu may resolve the issue (→205).
■
Battery, power
The charging lamp flashes.
• Charging is being performed in a place with extremely high or low temperatures.
→ Reconnect the USB cable and retry charging in a place where the ambient temperature is 10 °C
to 30 °C (50 °F to 86 °F) (temperature conditions also apply to the battery itself).
• Charging is not possible if the power supply capacity of the computer is low.
Camera does not work even if the camera is turned on. Camera switches off as soon as the
camera is turned on.
• The battery needs recharging.
→ Charge the battery. (→18)
This camera is turned off automatically.
• [Economy] is activated. (→199)
The battery runs down quickly.
• [4K PHOTO] is set to [
] ([4K Pre-Burst]).
→ When [
] ([4K Pre-Burst]) has been selected, the battery drains faster.
Select [
] ([4K Pre-Burst]) only when recording.
• The Wi-Fi connection has been on for a long time.
→ The battery is used up faster with a Wi-Fi connection. Turn off the camera as often as possible
using [Economy] (→199) or other methods.
278
Others
Q&A Troubleshooting
■
Recording
Striping or flicker may appear under lighting such as fluorescent lighting and LED lighting
fixture.
• This is characteristic of MOS-type sensors like the one in this camera. This is
not a malfunction.
• If you are taking pictures using the electronic shutter, the striping may be
reduced by setting a slower shutter speed. (→58)
• When noticeable flicker or striping is seen under lighting such as a fluorescent
or LED lighting fixture in video recording mode, you can reduce it by setting
up [Flkr Decrease] (→180) and fixing the shutter speed. It is possible to select
a shutter speed from [1/50], [1/60], [1/100], or [1/120]. You can set the shutter
speed manually in the Creative Video Mode. (→77)
Cannot record pictures. The shutter will not operate immediately when the shutter button is
pressed.
• When [Focus/Release Priority] is set to [FOCUS], the camera will not record until proper focusing is
achieved. (→185)
Recorded pictures look white.
• Lens is dirty (fingerprints, etc.).
→ Turn the camera on to extract the lens barrel, and clean the front lens surface with a soft, dry
cloth.
Recorded pictures are too bright/too dark.
• AE Lock (→99) is set inappropriately.
Some pictures are taken when I press the shutter button just once.
• Drive Mode is set to other than [Single]. (→124)
• Bracket recording is set. (→128)
Correct focusing is not achieved.
• The subject is outside the focusing range.
• [Focus/Release Priority] is set to [RELEASE]. (→185)
• [Shutter AF] is set to [OFF]. (→183)
• AF Lock (→99) is set inappropriately.
• If there are fingerprints or dirt on the front lens surface, the focus may not be set on the subject.
Recorded pictures are blurred. The stabilizer function ineffective.
• The shutter speed is slower in dark locations and the stabilizer function is less effective.
→ Use a tripod and the self-timer (→127) when using a slower shutter speed.
279
Others
Q&A Troubleshooting
Recorded pictures appear ‘grainy’, or there is interference.
• We recommend trying the following methods.
→ Use a lower ISO sensitivity (→101).
→ Either adjust [Noise Reduction] of [Photo Style] to a higher setting or set each item other than
[Noise Reduction] to a lower setting. (→169)
→ Set [Long Shtr NR] to [ON]. (→175)
The subject appears skewed in pictures.
• If you take a picture of a moving subject in the electronic shutter mode, video recording mode,
or 4K photo recording mode, the subject in the picture may be skewed in some cases. This is
characteristic of MOS-type sensors like the one in this camera. This is not a malfunction.
Brightness or coloring of the recorded picture are different from real life.
• When recording under fluorescent or LED lighting fixture etc., increasing the shutter speed may
introduce slight changes to brightness and color. These are a result of the characteristics of the
light source and do not indicate a malfunction.
• When recording subjects in extremely bright locations or recording under fluorescent lighting, LED
lighting fixture, mercury lamp, sodium lighting etc., the colors and screen brightness may change or
horizontal striping may appear on the screen.
4K photo recording stops before finishing.
• When the ambient temperature is high or recording of the 4K Photo function is performed
continuously, the camera may display [
] and stop the recording. Wait until the camera cools
down.
280
Others
Q&A Troubleshooting
■
Videos
Videos cannot be recorded.
• When a large capacity card is used, you may not be able to take a picture for a while after you turn
on the camera.
Video recording stops midway.
• When the ambient temperature is high or a video is recorded continuously, the camera may display
[
] and stop the recording. Wait until the camera cools down.
• The required speed class of a card varies depending on the video [Rec Quality]. Be sure to use a
card of the recommended speed class (→25).
Sometimes focusing with Autofocus mode is difficult while recording 4K videos.
• This may occur when taking a picture by reducing the Autofocus speed in order to adjust the focus
at high precision. This is not a malfunction.
A noise, such as a clicking or buzzing noise, is recorded on a video. Audio is recorded at low
volumes.
• With recording in a quiet environment, the sound of aperture, focus and other actions may be
recorded in videos. This is not a malfunction. Focusing during video recording can be set to [OFF]
in [Continuous AF] (→151).
• If you block the microphone with your fingers while a video is being recorded, the audio may be
recorded at a low volume or may not be recorded at all. In this case, the camera may pick up the
lens operating sounds more easily.
Operating sounds are recorded in a video.
• We recommend recording videos in Creative Video Mode if you are concerned about operating
noise. (→77)
■
Flash
No flash is emitted.
• The flash function is unavailable in the following cases.
– The flash is closed.
– The flash mode is set to [
] (Forced Flash Off). (→143, 145)
• Set [Shutter Type] to [AUTO] or [MSHTR]. (→177)
• Set [Silent Mode] to [OFF]. (→176)
281
Others
Q&A Troubleshooting
■
Monitor/viewfinder
The monitor/viewfinder is turned off although the camera is turned on.
• If no operations are performed during the set time period [Auto EVF/Monitor Off] (→199) is
activated, and the monitor/viewfinder turns off.
• When a hand or an object is close to the eye sensor, the monitor display mode could be switched
to viewfinder display mode. (→31)
The monitor/viewfinder image may flicker for an instant or the brightness of the screen may
change significantly for an instant.
• This occurs due to the aperture of the lens changing when the shutter button is pressed halfway, or
when the brightness of the subject changes. This is not a malfunction.
Pressing [EVF] does not switch between the monitor and viewfinder.
• When it is connected to a computer or printer, the camera can display pictures on the monitor only.
■
Playback
Pictures cannot be viewed. There are no recorded pictures.
• A card is not inserted in the camera.
• Has the file name of the picture been changed on a computer? If so, it cannot be played back on
the camera.
→ It is recommended to use the software available for downloading after registering your camera
on the Leica Camera AG homepage (→262) to write pictures from PC to card.
• Set [Playback Mode] to [Normal Play]. (→209)
Red areas in pictures appear blackened.
• When the digital red-eye correction ([
], [ ]) is operating, red areas may be blackened.
→ We recommend closing the built-in flash, setting the flash mode to [
], or setting [Red-Eye
Removal] to [OFF] before recording. (→174)
282
Others
Q&A Troubleshooting
■
Wi-Fi function
A Wi-Fi connection cannot be established. The transmission gets disconnected. A wireless
access point is not displayed.
General tips for using a Wi-Fi connection
• Use within the communication range of the wireless LAN network.
• Is any device, such as a microwave oven, a cordless phone, etc., that uses 2.4 GHz frequency
operated nearby?
→ The transmission may get interrupted when used simultaneously. Use them sufficiently far away
from the device.
• When the battery indicator is flashing red, the connection with other equipment may not start or the
connection may be disrupted. (A message such as [Communication error] is displayed.)
• When this camera is placed on a metal table or shelf, the connection may not be established easily.
Use the camera away from metal surfaces.
About a wireless access point
• Check if the wireless access point to connect is in its operating state.
• Check the transmission condition of the wireless access point.
→ Perform the connection closer to the wireless access point.
→ Move the wireless access point or change its angle.
• Even if a transmission exists, it may not be displayed depending on the setting of the wireless
access point.
→ Turn off the wireless access point and then turn it back on.
• Is the network SSID of the wireless access point set not to broadcast?
→ It may not be detected when it is set not to broadcast. Enter and set the network SSID. (→250)
Alternatively, set the network SSID of the wireless access point to broadcast.
The camera is not displayed in the Wi-Fi setting screen of the smartphone.
• Try switching the Wi-Fi function off and back on in the Wi-Fi settings of the smartphone.
Transmission of the image fails midway. There is an image that could not be transmitted.
• Is the size of the image too large?
→ Transmit after dividing the video with [Video Divide] (→221).
→ Reduce the resolution at [Size] (→248), and then send.
• It may take longer to transmit when the distance to the wireless access point is greater.
→ Transmit closer to the wireless access point.
• File formats of the picture that can be sent. (→245)
I have forgotten the password for the Wi-Fi.
→ Execute the [Reset Network Settings] in the [Setup] menu. (→205)
However, the information you have set on the [Wi-Fi Setup] or [Bluetooth] will be reset.
283
Others
Q&A Troubleshooting
■
TV, computer, printer
No image appears on the TV. The image is blurred or not colored.
• The connection is not correct (→258).
• The television has not been switched to auxiliary input.
HDTV Link (HDMI) is not working.
• Is the camera’s [HDTV Link] setting set to [ON]? (→202)
→ Check the HDTV Link (HDMI) settings on the device you are connecting to.
→ Turn the camera off and on again.
Communication with the computer is not possible.
• Set [USB Mode] to [PC(Storage)] (→201, 263).
• Turn the camera off and then on again.
The computer does not recognize the card. (When using an SDXC Memory Card)
• Check whether your computer is compatible with SDXC Memory Cards.
• A message prompting you to format the card may appear when you connect it. Do not format the
card.
• If the [Access] indicator on the screen does not go off, turn the camera off before disconnecting the
USB cable.
Printing is not possible even though camera and printer are connected properly.
• The printer is not compatible with PictBridge.
• Set [USB Mode] to [PictBridge(PTP)] (→201, 266).
The edges of pictures are cut off when printing.
• Release any trimming or edgeless printing settings on printer before printing.
• The aspect ratio of pictures is different from that of paper used for printing.
→ If printing in shop, check if 16:9 sizes can be printed.
284
Others
Q&A Troubleshooting
■
Others
The lens makes a clicking noise.
• When the camera is turned on or off, the lens is moved, or an aperture setting is changed, such a
noise may be heard. This is not a malfunction.
• When the brightness changes after changing the zoom lens’ focal length or moving the camera, the
lens may make a noise while adjusting the aperture. This is not a malfunction.
Zooming stops instantaneously.
• When using Extended optical zoom, the zooming action will stop temporarily. This is not a
malfunction.
The red lamp is illuminated when pressing the shutter button halfway in dark locations.
• [AF Assist Lamp] is set to [ON] (→184).
The camera is hot.
• The camera may become a little warm during use, but this does not affect performance or quality.
The clock’s setting is incorrect.
• If you do not use the camera for a long time, the clock may have to be reset.
→ Reset the clock (→29).
285
Others
Usage cautions and notes
When in use
●
Keep this camera as far away as possible from electromagnetic equipment (such
as microwave ovens, TVs, video games etc.).
• If you use this camera on top of or near a TV, its pictures and/or sound may be
disrupted by electromagnetic fields.
• Do not use this camera near cell phones because doing so may result in noise
adversely affecting the pictures and/or sound.
• Recorded data may be damaged, or pictures may be distorted, by strong magnetic
fields created by speakers or large motors.
• Electromagnetic fields may adversely affect this camera, disturbing the pictures and/
or sound.
• If the camera is adversely affected by electromagnetic equipment and stops
functioning properly, turn it off and remove the battery. Then reinsert the battery and
turn the camera back on.
Do not use this camera near radio transmitters or high-voltage lines.
• If you record near radio transmitters or high-voltage lines, the recorded pictures and/
or sound may be adversely affected.
●
Do not extend the supplied cords or cables.
●
Do not allow the camera to come into contact with pesticides or volatile substances
(this can cause surface damage or the coating to peel).
●
Do not keep objects that may be influenced magnetically close to the speaker.
• Magnetized objects such as bank cards, commuter passes, and watches may be
adversely affected by the magnetic influence of the speaker.
●
Never leave the camera and the battery in a car or on a car hood in the summer.
Doing so may cause leakage of the battery electrolyte, overheating, fire or a battery
explosion due to the high temperature.
286
Others
Usage cautions and notes
Caring for your camera
To clean your camera, remove the battery, and/or disconnect the power plug from the
outlet, and wipe with a soft, dry cloth.
●
Use a damp cloth to remove stubborn stains, before wiping with a dry cloth.
●
Do not use benzine, thinners, alcohol, or kitchen detergent, as these may damage the
outer casing and finish of the camera.
●
If using a chemically-treated cloth, read the supplied instructions carefully.
●
Do not touch the lens shutter.
Lens shutter
When not using for a while
●
Turn off the camera before removing the battery and the card.
• Ensure that the battery is removed to prevent damage through over-discharge.
• Clock settings will be saved for approx. 3 months even after the battery is removed,
provided a fully charged battery was installed in the camera for 24 hours beforehand.
●
Do not leave the camera in contact with rubber or plastic bags.
●
Store the camera together with a drying agent (silica gel) if leaving in a drawer, etc.
Store batteries in cool (15 °C to 25 °C (59 °F to 77 °F)) places with low humidity
(40%RH to 60%RH) and no major temperature changes.
●
Charge the battery once per year and use completely before storing again.
●
Check all the parts before taking pictures when you have not used the camera for a
long period of time.
Monitor/viewfinder
●
Do not exert excessive force on the monitor. This may cause uneven display and
damage it.
●
In cold climates or other situations when the camera becomes cold, the monitor or
the viewfinder may appear slightly darker than normal immediately after the camera is
turned on. Normal brightness will return once the internal components have warmed up.
The monitor and viewfinder are made with extremely high precision technology.
However there may be some dark or bright spots (red, blue or green) on the screen.
This is not a malfunction. The monitor and viewfinder screens are controlled with
extremely high precision, but some pixels may be inactive. The spots will not be
recorded on pictures on a card.
287
Others
Usage cautions and notes
Lens
●
Do not exert excessive force on the lens.
●
Images may appear slightly white if the front lens surface is dirty (fingerprints, etc.).
Turn the camera on, hold the extracted lens barrel with your fingers, and gently wipe
the lens surface with a soft, dry cloth.
●
Do not leave the camera with the lens facing the sun as rays of light from the sun may
cause it to malfunction. Also, be careful when placing the camera outside or near a
window.
●
Do not touch the lens shutter, as this may damage the lens. Be careful when removing
the camera from a bag, etc.
Battery
The battery is a rechargeable lithium ion battery.
It is easily affected by temperature and humidity, and is affected more when the
temperature is high or low.
●
Remove the battery from the camera after use.
• Keep the battery in a plastic bag, making sure that it is kept away from metallic
objects (such as clips) when carrying or storing it.
●
The time required for charging varies depending on conditions of battery usage.
Charging takes longer at high or low temperatures and when the battery has not been
used in some time.
●
The battery will be warm during charging and for some time thereafter.
●
The battery will run out if not used for long periods of time, even after being charged.
●
Do not leave any metal items (such as clips) near the contact areas of the power plug.
Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the
resulting heat generated.
●
Frequently charging up the battery is not recommended.
(Doing so reduces the maximum usage time and can cause the battery to expand.)
●
If the available battery power is significantly reduced, the battery is reaching the end of
its lifespan. Please purchase a new battery.
●
When charging:
• Wipe dirt from the battery terminals with a dry cloth.
• Keep at least 1 m (3′ 3″) away from AM radios (may cause radio interference).
●
Do not use a damaged or dented battery (especially terminals), e.g. by dropping (can
cause faults).
288
Others
Usage cautions and notes
AC adapter
●
Keep at least 1 m (3′ 3″) away from AM radios (may cause radio interference).
●
The AC adapter may generate whirring sounds when it is being used. This is not a
malfunction.
●
After use, be sure to disconnect the power supply device from the electrical outlet. (A
very small amount of current is consumed if it is left connected.)
Memory cards
●
To prevent damage to cards and data
• Avoid high temperatures, direct sunlight, electromagnetic fields, and static electricity.
• Do not bend, drop, or expose to strong impacts.
• Put the card in its case or the storage bag after use and when storing or carrying it.
• Do not touch the card’s terminals or allow them to become dirty or wet.
●
Recorded data may be damaged or lost if the camera breaks down due to inappropriate
handling. Leica Camera AG will not be liable for any damage caused due to loss of
recorded data.
●
When disposing of/transferring memory cards
• If using the “format” or “delete” functions on your camera or computer, this only
changes the file management information, and does not completely delete the data
from within the memory card. When disposing of or transferring your memory cards,
we recommend physically destroying them, or using commercially available computer
data erasing software to completely delete the data from the card. Data within
memory cards should be managed responsibly.
When using a tripod or unipod
●
Do not apply excessive force or tighten screws when they are damaged. (This may
damage the camera, screw hole, or label.)
●
Ensure that the tripod is stable. (Refer to the tripod instructions.)
●
You may not be able to remove the card or the battery when using a tripod or unipod.
289
Others
Usage cautions and notes
Personal Information
To protect personal information, we recommend that you set a Wi-Fi password or a Wi-Fi
function lock. (→255)
If names or birthdays are set in [Profile Setup] or in the [Face Recog.] function, keep in
mind that the camera and recorded pictures will contain personal information.
Be sure to pay special attention to the privacy, likeness rights, etc. of a subject and
take your own responsibility when you use the [Silent Mode], or use functions such
as writing the location information and changing the shutter noise, etc.
●
Disclaimer
• Data containing personal information can be altered or lost due to malfunction, static
electricity, accidents, breakdowns, repairs, or other operations.
Leica Camera AG will not be liable for any damage that occurs, direct or indirect, as a
result of the alteration or loss of data containing personal information.
●
When ordering repairs or transferring/disposing of the camera
• After you make a note of the personal information, perform [Reset Network Settings]/
[Delete account] to delete data containing personal information such as wireless LAN
connection settings that you registered or set in this camera. (→205)
• To protect your personal information, please reset the settings. (→205)
• Remove the memory card from the camera.
• When ordering repairs, settings may be returned to the initial purchase state.
• If the above operations cannot be performed because of a camera malfunction,
consult your dealer or the nearest Leica Customer Care department.
●
When transferring or disposing of your memory card, see “When disposing of/
transferring memory cards” in the previous section. (→288)
●
Uploading pictures to WEB services
• Pictures may contain personal information that can be used to identify the user, such
as titles, recording dates and times, and location information. Before uploading the
pictures to WEB services, check the pictures carefully for information that should not
be disclosed.
290
Others
Usage cautions and notes
Wi-Fi function
■
Use the camera as a wireless LAN device
When using equipment or computer systems that require more reliable security than
wireless LAN devices, ensure that the appropriate measures are taken for safety designs
and defects for the systems used. Leica Camera AG will not take any responsibility for
any damage that arises when using the camera for any purpose other than as a wireless
LAN device.
■
Use of the Wi-Fi function of this camera is presumed to be in countries where
this camera is sold
There is the risk that the camera violates the radio transmission regulations if used in
countries other than those where this camera is sold, and Leica Camera AG takes no
responsibility for any violations.
■
There is the risk that data sent and received via radio transmission may be
intercepted
Please note that there is the risk that data sent and received via radio transmission may
be intercepted by a third party. We strongly recommend that you enable encryption in the
settings of your wireless access point to ensure information security.
■
Do not use the camera in areas with magnetic fields, static electricity or
interference such as near microwave ovens. Radio transmission may not reach
the camera.
• Using the camera near devices such as microwave ovens or cordless telephones
that use the 2.4 GHz radio wave band may cause a decrease in performance in both
devices.
■
Do not connect to the wireless network you are not authorized to use
When the camera utilizes its Wi-Fi function, wireless networks will be searched
automatically. When this happens, wireless networks that you are not authorized to use
(SSID
*
) may be displayed, however do not attempt to connect to the network as it may be
considered as unauthorized access.
*
SSID refers to the name that is used to identify a network over a wireless LAN connection. If the
SSID matches for both devices, transmission is possible.
291
Others
Usage cautions and notes
●
The SDXC Logo is a trademark of SD-3C, LLC.
●
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States
and other countries.
●
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
●
Leica is a registered trademark of Leica Microsystems IR GmbH.
●
Vario-Elmar is a registered trademark of Leica Camera AG.
●
Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United
States and/or other countries.
●
Windows is either registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries.
●
iMovie, Mac, OS X and macOS are trademarks of Apple Inc., registered in the U.S. and other
countries.
●
iPad, iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other
countries.
●
App Store is a service mark of Apple Inc.
●
Android and Google Play are trademarks or registered trademarks of Google Inc.
●
The Bluetooth
®
word mark and logos are registered trademarks owned by the Bluetooth SIG,
Inc. and any use of such marks by Leica Camera AG is under license. Other trademarks and
trade names are those of their respective owners.
●
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance
®
.
●
The Wi-Fi Protected Setup™ Logo is a certification mark of Wi-Fi Alliance
®
.
●
“Wi-Fi
®
” is a registered trademark of Wi-Fi Alliance
®
.
●
“Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™” are trademarks of Wi-Fi Alliance
®
.
●
QR Code is a registered trademark of DENSO WAVE INCORPORATED.
●
This product uses “DynaFont” from DynaComware Corporation. DynaFont is a registered
trademark of DynaComware Taiwan Inc.
●
Other names, company names, and product names mentioned in these instructions are
trademarks or registered trademarks of the companies concerned.
292
Others
Usage cautions and notes
This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer
or other uses in which it does not receive remuneration to (i) encode video in compliance with
the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any other use. Additional information may be
obtained from MPEG LA, L.L.C.
See http://www.mpegla.com
This product incorporates the following software:
(1) the software developed independently for Leica Camera AG,
(2) the software owned by third party and licensed to Leica Camera AG,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1
(LGPL V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or
LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY
or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and
conditions thereof displayed by selecting [MENU/SET] → [Setup] → [Version Disp.] →
[Software info].
293
Others
Leica Service Addresses
Leica Product Support
The Leica Product Support department can provide you with an answer to any technical
questions relating to Leica products, including software supplied, either in writing, on the
telephone or by e-mail.
It is also the contact point for purchasing advice and to order instructions.
Alternatively, you can send us your questions using the contact form on the Leica Camera
AG homepage.
Leica Camera AG
Product Support / Software Support
Am Leitz-Park 5
D-35578 Wetzlar
Telephone: +49 (0) 6441-2080-111 /-108
Fax: +49 (0) 6441-2080-490
Leica Customer Care
For servicing your Leica equipment or in the event of damage, the Leica Camera AG
Customer Care department or the repair service provided by authorized Leica agents in
your country are available (for addresses, see the Leica Camera AG homepage).
Leica Camera AG
Customer Care
Am Leitz-Park 5
D-35578 Wetzlar
Telephone: +49 (0) 6441-2080-189
Fax: +49 (0) 6441-2080-339
customer[email protected]
