OWNER’S MANUAL Gaming Headset JBL  JBLQUANTUM800BLKAM

TABLE OF CONTENTS

• INTRODUCTION
• WHAT’S IN THE BOX
• PRODUCT OVERVIEW
• GETTING STARTED
• USING YOUR HEADSET
• PRODUCT SPECIFICATIONS
• TROUBLESHOOTING
• LICENSE

Getting started

Charging your headset

Before use, fully charge your headset through the supplied USB-A to USB-C charging cable.

TIPS:

• It takes approximately 2 hours to fully charge the headset.
• You can also charge your headset through a USB-C to USB-C charging cable (not supplied).
• The headset cannot be powered on when being charged.

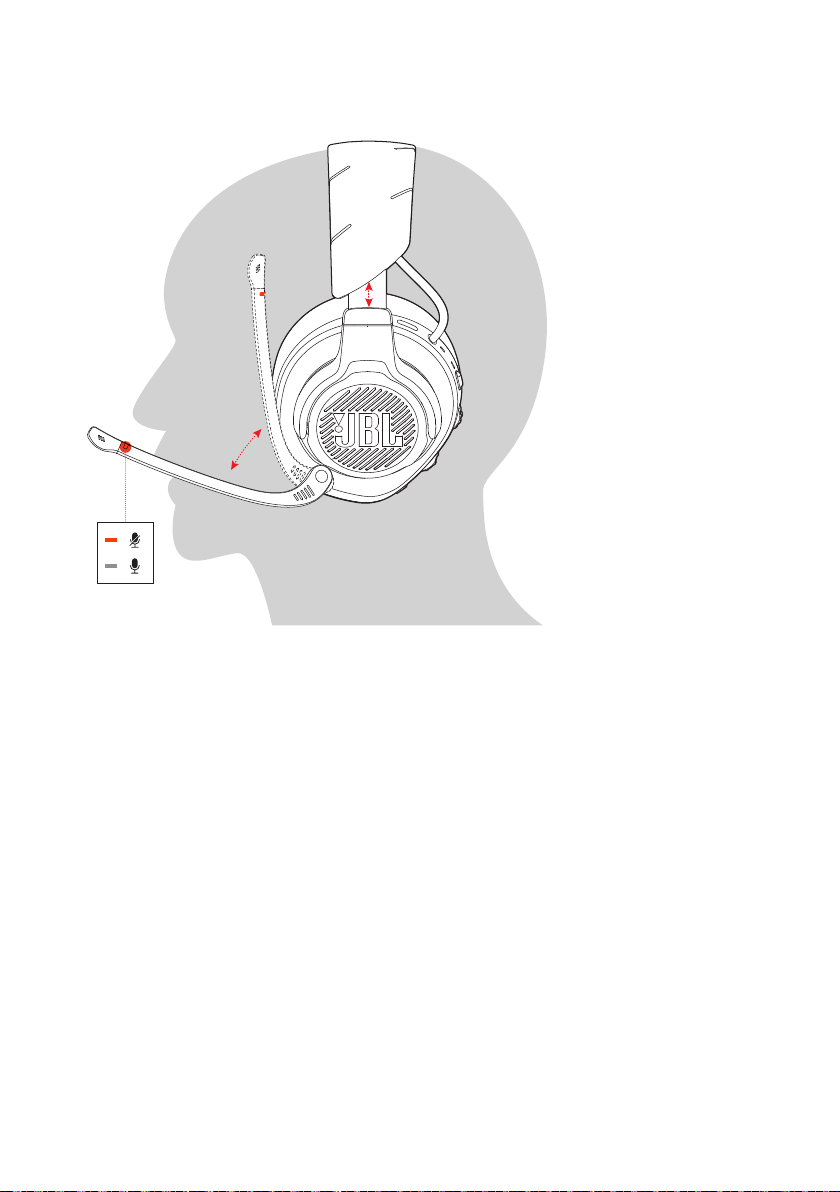

Wearing your headset

1. Put the side marked L onto your left ear and the side marked R onto your right ear.
2. Adjust the earpads and headband for a comfortable fit
3. Adjust the microphone as necessary

Power on

• Slide the power switch upwards to power on the headset.
• Slide downwards to power off.

First-time setup (for PC only)

• Download to gain full access to features on your JBL Quantum headset - from headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting effects to determining how the boom microphone side-tone works.

Software requirements

TIP:

• QuantumSURROUND and DTS Headphone:X V2.0 available on Windows only. Software installation required.

1. Connect the headset to your PC via 2.4G USB wireless connection
2. Go to “Sound Settings” -> “Sound Control Panel”.
3. Under “Playback” highlight “JBL QUANTUM800 GAME” and select “Set Default” -> “Default Device”.
4. Highlight “JBL QUANTUM800 CHAT“ and select “Set Default” -> “Default Communication Device”.
5. Under “Recording” highlight “JBL QUANTUM800 CHAT” and select “Set Default” -> “Default Device”.
6. In your chat application select “JBL QUANTUM800 CHAT” as the default audio device.
7. Follow the onscreen instructions to personalize your sound settings.

Using your headset

With 3.5mm audio connection

1. Connect the black connector to your headset.
2. Connect the orange connector to the 3.5mm headphone jack on your PC, Mac, mobile or gaming console device.

With 2.4G wireless connection

1. Plug the 2.4G USB wireless dongle into a USB-A port on your PC, Mac or PS4.
2. Power on the headset. It will pair and connect with the dongle automatically.

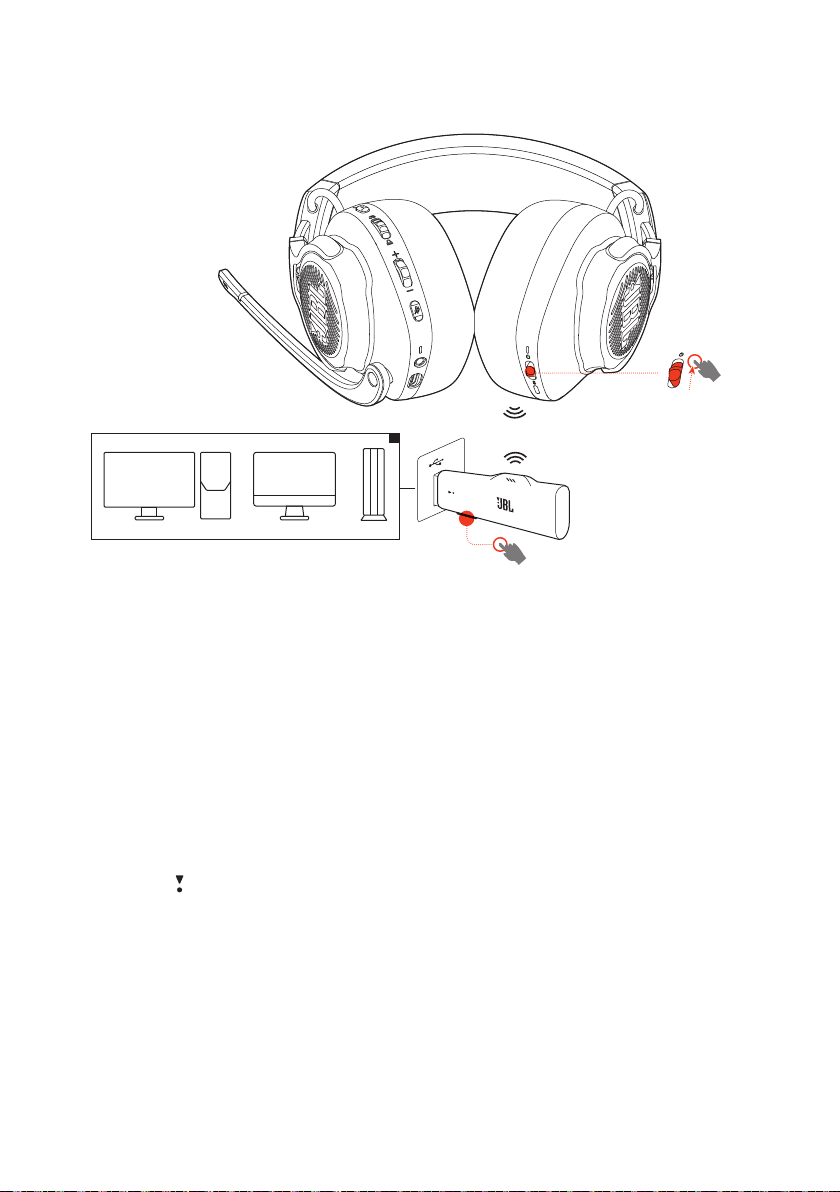

To pair manually

1. On the headset, slide the power switch upwards and hold for more than 5 seconds until the status LED flashes white.
2. On the 2.4G USB wireless dongle, hold CONNECT for more than 5 seconds until the LED flashes white quickly

TIPS:

• The headset turns off automatically after 10 minutes of inactivity.
• The LED enters connecting mode (flashing slowly) after disconnection from the headset.
• Compatibility with all USB-A ports is not guaranteed.

With Bluetooth (secondary connection)

With this function, you can connect your mobile phone to the headset while playing games, without worrying about missing important calls.

1. Hold on the headset for more than 2 seconds.
2. Enable Bluetooth on your mobile phone and choose “JBL Quantum800” from “Devices”

Troubleshooting

No power

• The headset turns off automatically after 10 minutes of inactivity. Power on the headset again.
• Recharge the headset

Bluetooth pairing failed

• Make sure you have enabled Bluetooth feature on the device to be connected with the headset.
• Move the device closer to the headset.
• The headset is connected to another device through Bluetooth. Disconnect the other device, then repeat the pairing procedures.

No sound or poor sound

• Make sure you have chosen JBL QUANTUM800 GAME as the default device in the game sound settings of your PC, Mac or gaming console device.
• Adjust volume on your PC, Mac or gaming console device.
• Check game chat balance on PC if you are only playing game or chat audio.
• Check that ANC is enabled while TalkThru is disabled.
• You may experience obvious sound quality degradation when using the headset near a USB 3.0 enabled device. This is not a malfunction. Use an extension USB dock instead to keep the dongle as far from the USB 3.0 port as possible.

My voice cannot be heard by my teammates

• Make sure you have chosen JBL QUANTUM800 CHAT as the default device in the chat sound settings of your PC, Mac or gaming console device.
• Make sure the microphone is not muted.
