Jbl Quantum 400 USB Gaming Headset

User Manual - Transcript

• Page 2 - English - : TABLE OF CONTENTS INTRODUCTION 1 WHATS IN THE BOX 2 PRODUCT OVERVIEW 3 Controls on headset 3 GETTING STARTED 5 Wearing your headset 5 Firsttime setup for PC only 6 USING YOUR HEADSET 8 With USB connection 8 With 35mm audio connection9 PRODUCT SPECIFICATIONS 10 TROUBLESHOOTING 11
• Page 3 - English - : 1 Introduction Congratulations on your purchase This manual includes information on the JBL QUANTUM400 gaming headset We encourage you to take a few minutes to read this manual which describes the product and includes stepbystep instructions to help you to set up and get started Read and understand all the safety instructions before using your product If you have any questions about this product or its operation please contact your retailer or customer service or visit us at wwwJBLQuantumcom
• Page 4 - English - : 2 Whats in the box 01 02 03 04 01 JBL QUANTUM400 headset 02 USB cable USBA to USBC 03 35mm audio cable 04 QSG warranty card and safety sheet 05 Windshield foam for boom microphone

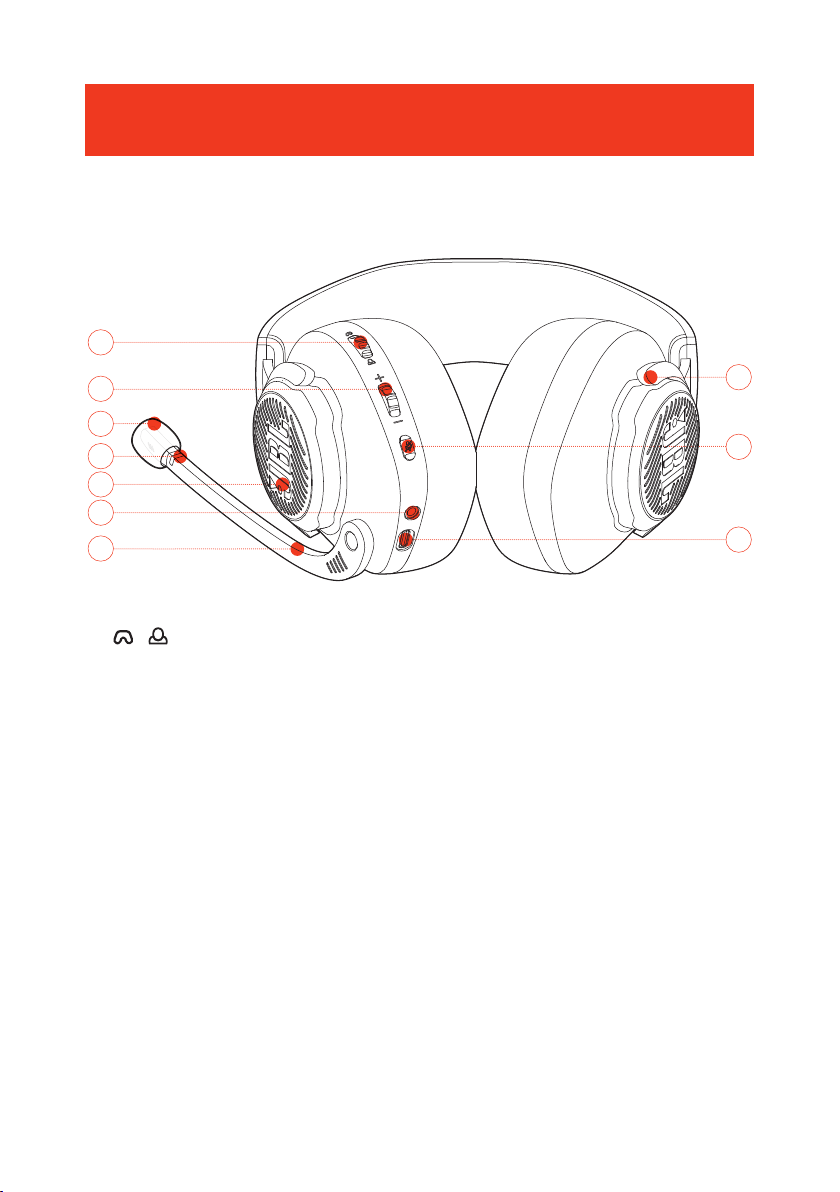

• Page 5 - English - : 3 PRODUCT OVERVIEW Controls on headset 01 dial Balances the chat volume in relation to the game audio volume 02 Volume dial Adjusts headset volume 03 Detachable windshield foam 04 Mic mute unmute LED Lights up when the microphone is muted 05 RGBlit JBL logo 06 35mm audio jack 07 Voice focus boom microphone Flip up to mute or flip down to unmute the microphone
• Page 6 - English - : 4 08 Flatfold ear cup 09 button Press to mute or unmute the microphone Hold for more than 5 seconds to turn the RGB light on or off 10 USBC port

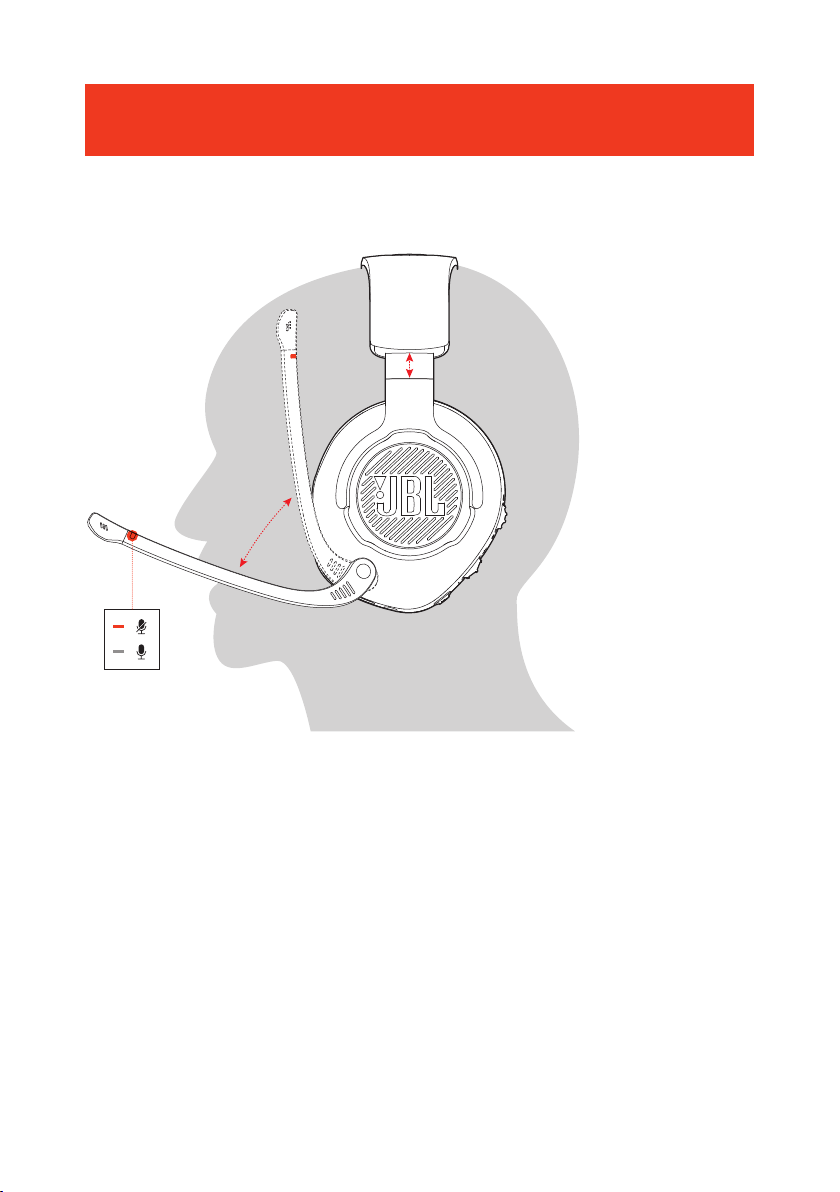

• Page 7 - English - : 5 Getting started Wearing your headset 1 Put the side marked L onto your left ear and the side marked R onto your right ear 2 Adjust the earpads and headband for a comfortable fit 3 Adjust the microphone as necessary
• Page 8 - English - : 6 Firsttime setup for PC only Download from jblquantumcomengine to gain full access to features on your JBL Quantum headset from headset calibration to adjusting 3D audio to suit your hearing from creating customized RGB lighting effects to determining how the boom microphone sidetone works Software requirements Platform Windows 7 Windows 10 64 bit only 500MB of free hard drive space for installation TIP QuantumSURROUND and DTS HeadphoneX V20 available on Windows only Software installation required 1 Connect the headset to your PC via USB connection See With USB connection 2 Go to Sound Settings gt Sound Control Panel 3 Under Playback highlight JBL QUANTUM400 GAME and select Set Default gt Default Device 4 Highlight JBL QUANTUM400 CHAT and select Set Default gt Default Communication Device 5 Under Recording highlight JBL QUANTUM400 CHAT and select Set Default gt Default Device
• Page 9: 7 6 Follow the onscreen instructions to personalize your sound settings JBL Quantum400 Game JBL Quantum400 Chat
• Page 10 - English - : 8 Using your headset With USB connection 1 Connect the orange connector USBA of the USB cable to a USBA port on your PC Mac or PS4 2 Connect the black connector USBC to the USBC port on your headset Basic operation Controls Operation Volume dial Adjust master volume Rotate towards to increase game volume Rotate towards to increase chat volume button Press to mute or unmute the microphone Hold for more than 5 seconds to turn on or off the RGB light TIP Depending on your device configuration you can also use a USBC to USBC cable not supplied USBC connectivity with all devices is not guaranteed

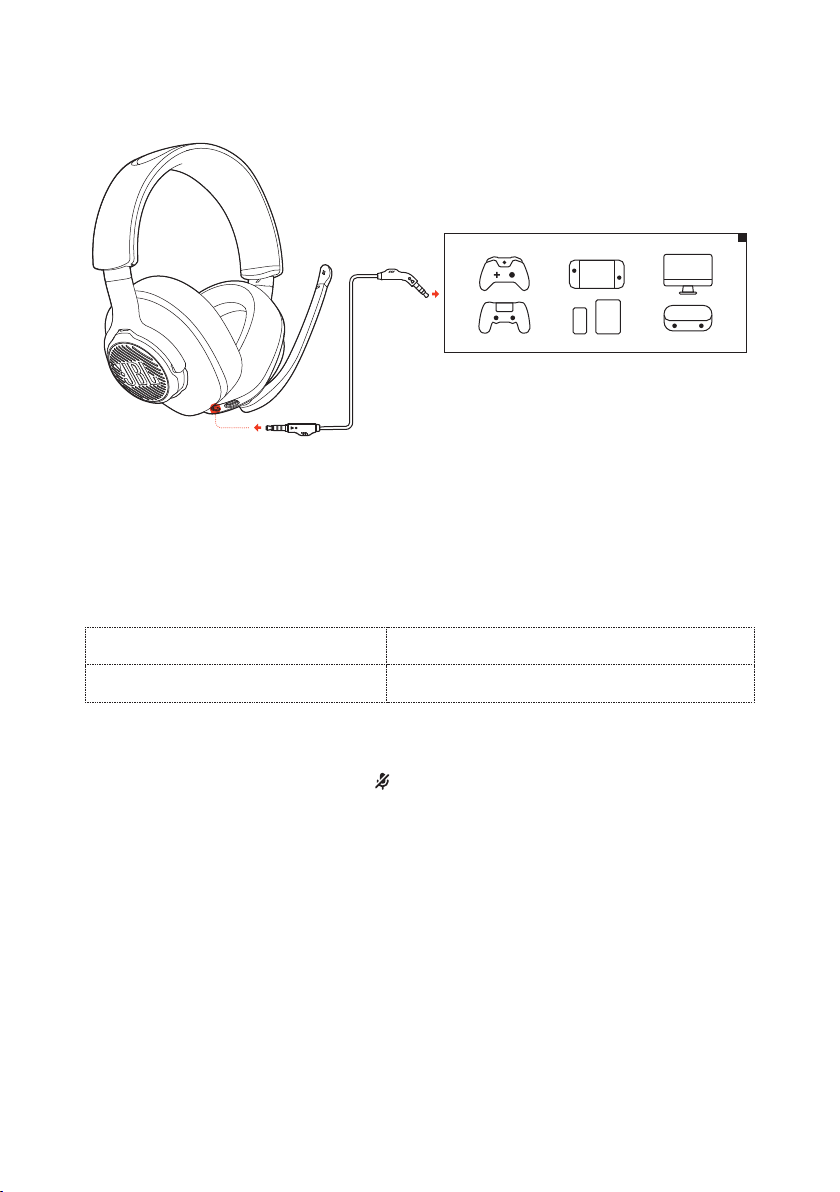

• Page 11 - English - : 9 With 35mm audio connection 1 Connect the black connector to your headset 2 Connect the orange connector to the 35mm headphone jack on your PC Mac mobile or gaming console device Basic operation Controls Operation Volume dial Adjust master volume NOTE The mic mute unmute LED button and RGBlit JBL logo on the headset do not work in 35mm audio connection
• Page 12 - English - : 10 Product Specifications Driver size 50 mm Dynamic drivers Frequency response 20 Hz 20 kHz Microphone frequency response 100 Hz 10 kHz Max input power 30 mW Sensitivity 98 dB SPL 1 kHz 1 mW Microphone sensitivity 40 dBV 1 kHz Pa Impedance 32 ohm Cable length 35 mm audio cable 12 m TypeC to TypeA Cable 3 m Microphone pickup pattern Directional Microphone size 4 mm x 15 mm Weight 274 g NOTE Technical specifications are subject to change without prior notice
• Page 13 - English - : 11 Troubleshooting If you have problems using this product check the following points before you request service No sound or poor sound Make sure you have chosen JBL QUANTUM400 GAME as the default device in the game sound settings of your PC Mac or gaming console device Adjust volume on your PC Mac or gaming console device Check game chat balance on PC if you are only playing game or chat audio In USB connection Make sure the USB cable is connected securely The USB ports on some gaming console devices may be incompatible with JBL QUANTUM400 This is not a malfunction In 35mm audio connection Make sure the 35mm audio cable is connected securely My voice cannot be heard by my teammates Make sure you have chosen JBL QUANTUM400 CHAT as the default device in the chat sound settings of your PC Mac or gaming console device Make sure the microphone is not muted I cant hear myself when Im talking Enable sidetone via to hear yourself clearly over game audio
