Refrigerator
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
English
Free Standing Appliance
DA99-02028A(HM09')-EN(0.2).indd 1 2010.3.9 7:52:22 PM
2_ features
features of your new refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and
energy-efficient features.
HIDDEN HINGES & DOOR S/W
Slick-covered hidden hinges & door s/w helps Neat & Stylish square frontal view.

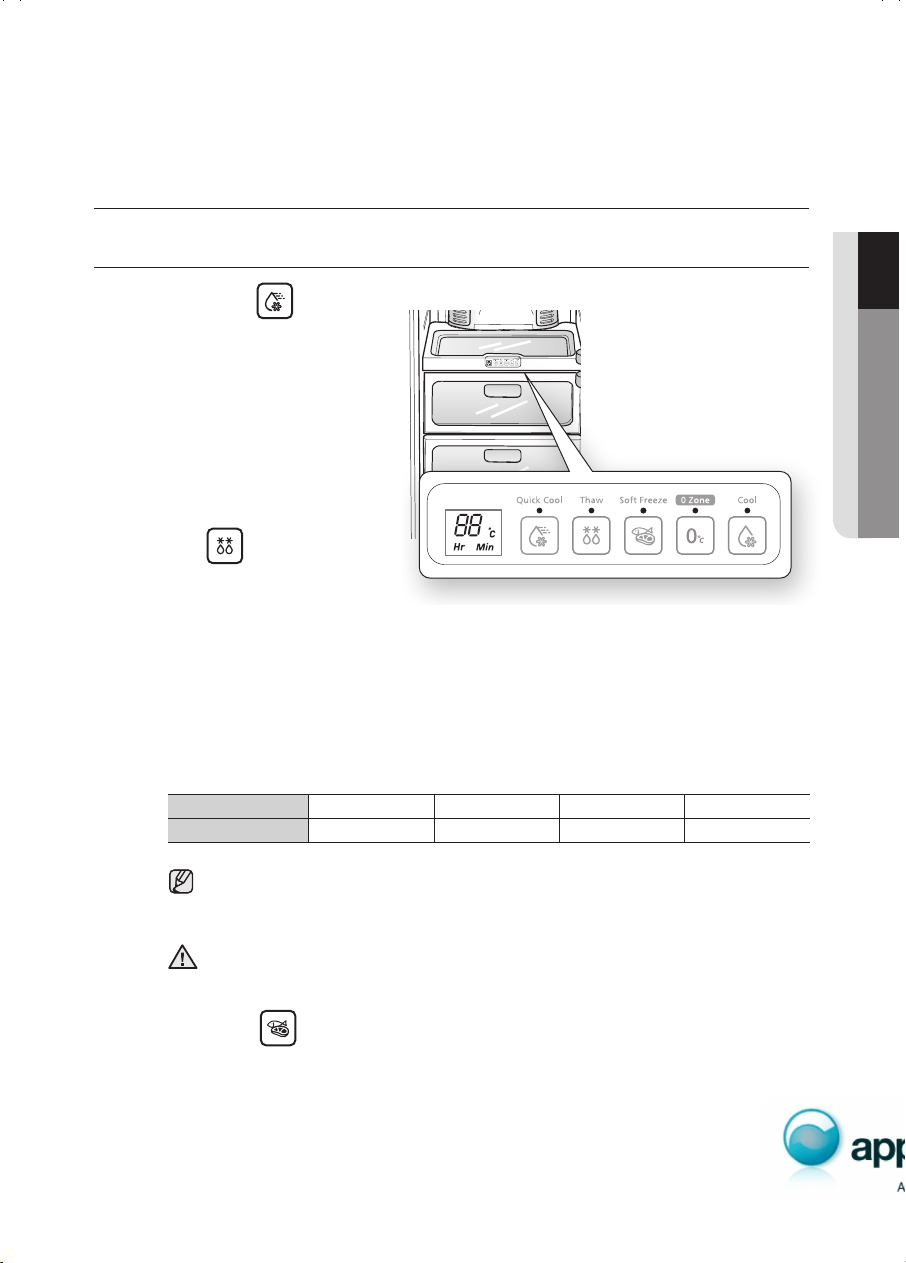

CoolSelect Zone™ Drawer (Optional)
With this state of the art feature, you can select Quick Cool, Thaw or Select
buttons to quickly chill, thaw and cool items just in the CoolSelect drawer.
Select Soft Freeze, Cool or 0 Zone to control the temperature of drawer.
EASY OPENNING (Optional)
Doors can be opened easily and smoothly with this “Easy Handle” for the
customer satisfaction.
BLACK CLEAR LED DISPLAY (Optional)
With luxurious black window, you can look and feel neat & clear design.
SOFT TOUCH TYPE HOME BAR (Optional)
With soft touch type Home Bar, just push and catch to open or close with latch and damping
system.
EASILY MOVABLE TRAY (Optional)
New concept tray to increase the movability with food simultaneously. Useful for
storage of dessert and cake etc.
CE Notice
This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC),
the Electromagnetic Compatibility Directive (2004/108/EC) and Energy efficiency Directive (96/57/EC)
of the European Union.
For easy future reference write the model and serial
number down. You will find your model number on the
left hand side wall of the refrigerator.
Model #
Serial #
DA99-02028A(HM09')-EN(0.2).indd 2 2010.3.9 7:52:22 PM
safety information _3
safety information
SAFETY INFORMATION
reference.
refrigerator may differ slightly from those described in this manual.
CAUTION/WARNING SYMBOLS USED
OTHER SYMBOLS USED
Indicates that a danger of death or serious injury exists.
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
before it is used.
the appliance and the rating label inside the fridge to see which refrigerant is used for the
refrigerator.
compatibility that is, however, also combustible. When transporting and installing the
appliance, care should be taken to ensure that no parts of the refrigerating circuit are
damaged.
detected, avoid any naked flames or potential sources of ignition and air the room in
which the appliance is standing for several minutes.
Represents something you must NOT do.
Represents something you must NOT disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
Represents a ground is needed to prevent electric shock.
It is recommended that this symbol be handled by service man.
WARNING
WARNING
WARNING
CAUTION
DA99-02028A(HM09')-EN(0.2).indd 3 2010.3.9 7:52:22 PM
4_ safety information
safety information
occurs, the size of the room in which the appliance may be sited depends on the amount of
refrigerant used.
the appliance.
- Otherwise, there is a risk of electric shock.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
SEVERE WARNING SIGNS
- Deteriorated insulation of electrical parts may cause an electric shock or fire.
other appliance.
- If your refrigerator is not level, the internal cooling system may not work correctly.
always be plugged into its own individual electrical which has a voltage rating that matched the
rating plate.
- This provides the best performance and also prevents overloading house wiring circuits, which
could cause a fire hazard from overheated wires.
straight out from the outlet.
- Damage to the cord may cause a short-circuit, fire and/or electric shock.
- This constitutes a fire hazard.
power cord has become frayed or damaged.
agent.
- Otherwise there is a risk of fire.
before plugging it back.
- There is a risk of electric shock or fire.
WARNING
WARNING
DA99-02028A(HM09')-EN(0.2).indd 4 2010.3.9 7:52:23 PM
safety information _5
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
- Improper use of the ground plug can result in electric shock.
- You run risk of causing a fire, malfunction and/or personal injury.
Samsung electronics service center.
than those recommended by the manufacturer.
recommended by the manufacturer.
- This may cause frostbite.
- Deterioration in the insulation may cause fire.
- When you open or close the door, the articles may fall and cause personal injury and/or material
damage.
CAUTION SIGNS
Refer to relevant instructions
- When you open the door, an item may fall out and cause personal injury or material damage.
- When the contents freeze, the glass may break and cause personal injury.
- There is a risk of explosion or fire.
- There is a risk of fire or electric shock.
explosions.
the refrigerator.
- If spilled, there is a risk of fire or electric shock.
CAUTION
DA99-02028A(HM09')-EN(0.2).indd 5 2010.3.9 7:52:23 PM
6_ safety information
safety information
CAUTION SIGNS FOR CLEANING
- Any sharp edges may cause personal injury.
- It may cause personal injury or material damage.
from the power plug pins.
- Otherwise there is a risk of fire.
before plugging it back.
WARNING SIGNS FOR DISPOSAL
small children or animals cannot become trapped inside.
appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator.
regard to safe disposal of this product.
safe disposal of this product. Ensure that none of the pipes on the back of the appliances are
damaged prior to disposal. The pipes shall be broke in the open space.
In the event of a power failure, call the local office of your Electricity Company and ask how long it
is going to last.
Most power failures that are corrected in an hour or two will not affect your refrigerator
temperatures.
However, you should minimize the number of door openings while the power is off.
For doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in
the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.
CAUTION
DA99-02028A(HM09')-EN(0.2).indd 6 2010.3.9 7:52:23 PM
safety information _7
safety information
ADDITIONAL TIPS FOR PROPER USAGE
- Do not place foods too closely in front of the vents at the rear of the appliance as it can
obstruct free air circulation in the freezer compartment.
- Wrap the food up properly or place it in airtight containers before put it into the fridge freezer
- Do not put any newly introduced food for freezing near to already frozen food.
than three weeks. But, remove all the food if you are going away for the three weeks or more.
Unplug the refrigerator and clean it, rinse and dry.
temperatures. However, you should minimize the number of door openings while the power is off.
not in the vicinity of the appliance.
becoming too warm in the frozen food compartment) when sited for an extended period of
time below the cold end of the range of temperatures for which the refrigerating appliance is
designed.
ice-freezing.
this will be carried out automatically.
prevent an undue rise in the temperature of the frozen food while defrosting the appliance, please
wrap the frozen food in several layers of paper such as newspaper.
Saving Energy Tips
- Install the appliance in a cool, dry room with adequate ventilation.
Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for
example).
- Never block any vents or grilles on the appliance.
- Allow warm food to cool down before placing it in the appliance.
- Put frozen food in the refrigerator to thaw.
You can then use the low temperatures of the frozen products to cool food in the refrigerator.
- Do not keep the door of the appliance open for too long when putting food in or taking food out.
The shorter time for which the door is open, the less ice will form in the freezer.
- Clean the rear of the refrigerator regularly. Dust increases energy consumption.
- Do not set temperature colder than necessary.
- Ensure sufficient air exhaust at the refrigerator base and at the back wall of the refrigerator.
Do not cover air vent openings.
- Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and keep your energy bills lower.
DA99-02028A(HM09')-EN(0.2).indd 7 2010.3.9 7:52:23 PM
SETTING UP YOUR SIDE-BY-SIDE
REFRIGERATOR
9
9 Getting ready to install the refrigerator
10 Removing the refrigerator doors
13 Reattaching the refrigerator doors
16 Leveling the refrigerator
SETTING UP YOUR SIDE-BY-SIDE
REFRIGERATOR
17
17 Making minor adjustments to the doors
18 Checking the water dispenser line(optional)
19 Installing the water dispenser line
OPERATING THE SAMSUNG
SIDE-BY-SIDE REFRIGERATOR
23
23 Setting up the refrigerator
24 Operating the refrigerator
25 Using the digital display
26 Controlling the temperature
27 Using the ice and cold water dispenser
28 Shelves and bins
29 Storing food
31
Using the CoolSelect Zone™ Drawer (Optional)
33 Removing the freezer accessories
34 Removing the refrigerator accessories
35 Cleaning the refrigerator
37 Replacing the interior light (only available
on some models)
38 Changing the water filter
39 Using the doors
TROUBLESHOOTING
40
8_ contents
contents
DA99-02028A(HM09')-EN(0.2).indd 8 2010.3.9 7:52:23 PM
setting up _9
01 SETTING UP
25mm
25mm
at least 50mm
at least 50mm
setting up your side-by-side
refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many
state-of-the-art features and efficiencies that this new appliance has to offer.
Selecting the best location for the refrigerator
- If your refrigerator is not level, the internal cooling system may not work correctly.
- Overall space required in use. Refer to drawing and dimension as below.
consumption and keep your energy bills lower.
See the next section on “Separating the Water Line” to avoid damage.
When installing, servicing or cleaning
behind the refrigerator, be sure to pull the
unit straight out and push back in straight
after finishing.
CAUTION
DA99-02028A(HM09')-EN(0.2).indd 9 2010.3.9 7:52:24 PM
10_ setting up
REMOVING THE REFRIGERATOR DOORS
1. Removing the Front Leg Cover
First, open both the freezer and refrigerator doors, and then take off the front leg cover by
turning the three screws counter-clockwise.
1
2
Separating the Water Supply Line from the Refrigerator
1
and pulling the water line
2
away.
Do not cut the water line. Gently separate it from the coupler.
DA99-02028A(HM09')-EN(0.2).indd 10 2010.3.9 7:52:26 PM
setting up _11
01 SETTING UP
3
4
5
2
1
setting up your side-by-side
refrigerator
2. Removing the freezer door
A few things to mention first.
eful not to pinch the water tubing and wire harness on the door.
1
using a screwdriver, and then
disconnect the wires by gently pulling them apart
2
.
7
6
Be careful not to pinch
the water tubing and
wire harness on the
door.
2. Remove hinge screws
3
and the ground screw
4
by turning counter-clockwise, and take off
the upper hinge
5
. Be careful that the door does not fall on you as you are removing it
6
by carefully lifting the door straight up
7
.
8
using a hex wrench.
DA99-02028A(HM09')-EN(0.2).indd 11 2010.3.9 7:52:28 PM
12_ setting up
5
by lifting the door straight up
6
.
Removing the Fridge Door
1
using a screwdriver.
2. Remove hinge screws
2
and the ground screw
3
by turning counter-clockwise, and take off
the upper hinge
4
. Be careful that the door does not fall on you as you are removing it
4
2
3
1
7
from the bracket
8
by gently lifting the lower hinge upwards.
DA99-02028A(HM09')-EN(0.2).indd 12 2010.3.9 7:52:31 PM
setting up _13
01 SETTING UP
setting up your side-by-side
refrigerator
REATTACHING THE REFRIGERATOR DOORS
Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on.
Reattaching the Freezer Door
1
back into the
lower corner of the door and then into the hole on the lower hinge
2
.
Gently pull the water line back down so that it runs straight, with no kinks
or bends.
2. Insert the upper hinge shaft
3
into the hole on the corner of the
freezer door
4
. Make sure the hinge is level between the upper
hinge hole
5
and the hole of the cabinet
6
and reattach the
hinge screws
7
and ground screw
8
by turning in a clockwise
direction.
9
on the front of the upper hinge
10
and
reattach with the screw.
1
2
10
9
4
5
6
7
8
3
DA99-02028A(HM09')-EN(0.2).indd 13 2010.3.9 7:52:32 PM
14_ setting up
Reattaching the Fridge Door
1
back into the lower hinge bracket
2
.
2. Fit the hole in the corner of the fridge door
3
over the lower hinge
4
.
5
into the hole on the hinge
6
. Make sure the hinge is level between the upper hinge
hole
7
and the hole on the top of the cabinet
8
. Then,
reattach hinge screws
9
and the ground screw
10
by
turning it in a clock wise direction.
11
on the front of the upper hinge
12
and
reattach it with the screw.
1
2
3
4
12
11
DA99-02028A(HM09')-EN(0.2).indd 14 2010.3.9 7:52:33 PM
setting up _15
setting up your side-by-side
refrigerator
Reattaching the Water Supply Line
1
into the coupler
2
.
Reattaching the Front Leg Cover
Before attaching the cover, check water connector for leakage.
Replace the front leg cover by turning the three screws clockwise, as shown in the figure.
01 SETTING UP
Front Leg Cover
Screw
2
1
DA99-02028A(HM09')-EN(0.2).indd 15 2010.3.9 7:52:35 PM
16_ setting up
Screw Driver
Leg
Leg
Screw Driver
LEVELING THE REFRIGERATOR
Now that the doors are back on the refrigerator, you will want to make sure the refrigerator is level so you can
then make final adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even.
The front of the refrigerator is also adjustable.
When the Freezer door is lower than the fridge
Insert a flat-blade screwdriver into a notch on the Leg, turn it clockwise or counter clockwise to
level the freezer.turning the three screws counter-clockwise.
When the Freezer door is higher than the fridge
Insert a flat-blade screwdriver into a notch on the Leg, turn it clockwise or counter clockwise to
level the fridge.
Refer to the next section for the best way to make very minor adjustments to the doors.
DA99-02028A(HM09')-EN(0.2).indd 16 2010.3.9 7:52:37 PM
setting up _17
01 SETTING UP
In the case of the process to correct the imbalance is the same. Open the doors and adjust them, one
at a time, as follows:
Unscrew the nut
1
from the lower hinge until it reaches the upper end of the bolt
2
.
When you release the nut
1
, make sure that you use the Allen wrench provided
3
to loosen
the bolt
2
in a counter-clockwise direction. You should then be able to unscrew the nut
1
with
your fingers.
Adjust the height difference between the doors by turning the bolt
2
clockwise or counter
clockwise
.
When you turn clockwise
, the door will move up.
3
2
1
Wrench
Bolt
Nut
setting up your side-by-side
refrigerator
MAKING MINOR ADJUSTMENTS TO THE DOORS
Remember, a leveling refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the refrigerator.
Adjustment part
When the door of the
freezer is higher than the
fridge
3
2
Wrench
Bolt
DA99-02028A(HM09')-EN(0.2).indd 17 2010.3.9 7:52:39 PM
18_ setting up
1
clockwise until it reaches the lower end of the
bolt, then tighten the bolt again with the wrench
3
to fix the nut in place
1
.
If you do not secure the nut firmly, the bolt may release.
3
2
1
Wrench
Bolt
Nut
CHECKING THE WATER DISPENSER LINE (OPTIONAL)
A water dispenser is just one of the helpful features on your new Samsung refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize
or destroy microorganisms. You will need to purchase a water purifying system to do that. In order for the
tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from
the water outlet.
INSTALLING THE WATER DISPENSER LINE
Parts for water line Installation
1
screws
2
3
4
Connecting to the water supply line
2. locate the nearest cold, drinking water line.
installation kit.
CAUTION
The water line must be connected
to the cold water pipe. If it is connected
to the hot water pipe, it may cause the
purifier to malfunction.
DA99-02028A(HM09')-EN(0.2).indd 18 2010.3.9 7:52:42 PM
CAUTION
01 SETTING UP
setting up your side-by-side
refrigerator
Connecting the water line to the refrigerator
cap from water line on the unit and insert compression nut to the water line on the unit
after disassembling from provided water line.
2. Connect both water line from the unit and water line provided kit.
Only connect the water line to a drinkable water source.
make sure you get a snug, leak-free connection.
Before being used, the leakage in these places should be examined
WATER LINE INSTALLATION.
except the retail price includes
installation cost.
Installer for the installation if needed.
Installing the water filter.
indicator sticker on the filter as shown.
future. For example, if you install the water filter in March,
Next, remove the fixed cap by turning it counter clockwise.
filter.
position and insert the filter into the filter housing.
5. Slowly turn the water filter clockwise 90º to align
with the indication mark on the cover, locking the
filter in position. Make sure that the indicator is
lined up with the “lock” position. Remember, do
not over-tighten.
If your model contains wine shelf, you should
remove the wine shelf before installing water
filters.
setting up _19
Sticker
(Month indication)
2
3
1
Cover filter
Align the indication
mark with lock position
Separation
of red cap
DA99-02028A(HM09')-EN(0.2).indd 19 2010.3.9 7:52:49 PM
20_ setting up
INSTALLING THE WATER DISPENSER LINE
Parts for water line Installation
Connecting to the water supply line
Connect the water pipe with coupler and tap.
2. Connect coupler “A” to the tap.
CAUTION
The water line must be connected to the cold
water pipe. If it is connected to the hot water
pipe, it may cause the purifier to malfunction.
screws
connector
WARRANTY INFORMATION
This water line installation is not covered by the
Follow these instructions carefully to minimise the risk of
expensive water damage.
Note:
If the coupler does not fit on the current tap, go
the nearest authorised service dealer and purchase the
right couplers fittings.
SIDE OF
WATER INLET
LINE OUTLET
90 degree
select the location where the purifier is
to install. (Model with the purifier)
- If you wish to reassemble the water inlet
and outlet sides of the purifier during purifier
installation, see the reference illustration.
- Cut the water line attached to the purifier to the
appropriate place after measuring the distance
between the purifier and the cold water tap.
Replacement Instructions
2. Note the Flow direction on the filter.
discontinue use and call your supporting dealer.
INLET SIDE
FLOW DIRECTION
You must also ensure that the cut is square and not at
any sort of angle as this could cause a leak
CAUTION
Locking Clip
Insert Locking Clip After
tube seated
DA99-02028A(HM09')-EN(0.2).indd 20 2010.3.9 7:52:51 PM
setting up _21
01 SETTING UP
setting up your side-by-side
refrigerator
Remove any residual matter inside the purifier. (Model with the purifier)
- Open the main water tap to check whether water
is running through the water tube on the water inlet
side of the purifier.
- If water does not come out through the line, check
whether the tap is open.
- Leave the tap open until clean water is running
out and any residual matter that built up during
manufacturing has been removed.
WATER LINE
WATER
OUTLET SIDE
Secure the water line.
- Using clip ”A”, fix the water line to the wall (the back of refrigerator).
- When the water line is secure, make sure whether the water line is not
excessively bent, pinched or squashed.
WATER LINE
Connect the water line to the refrigerator.
- Remove the compressor cover of the refrigerator.
- Connect the water line to the valve, as shown in the figure.
- When connected, check if there is any leakage.
If any, repeat the connection.
- Reattach the compressor cover of the refrigerator.
WATER LINE
INSTRUCTIONS
REFRIGERATOR
CONNECTION NUT
Attach the purifier lock-clip.
- Hold the purifier lock-clip in the appropriate position
(under the sink for example) and fix it tightly into place
where to screw.
Secure the purifier in position.
- Fix the purifier in position, as shown in the figure on the right.
WATER TUBE
DA99-02028A(HM09')-EN(0.2).indd 21 2010.3.9 7:52:53 PM
Removing any residual matter inside the water supply line after installing
filter.
water supply line.
2. Run water through the dispenser until the water runs clear
air from the lines.
leaks coming from the water filter.
A newly installed water filter cartridge may cause water to
briefly spurt from the water dispenser. This is due to air getting
into the line. It should pose no problem to operation.
Check the amount of water supplied to the ice tray. (Optional)
water supply tap after ice tray is twisted. Check to make sure the amount of water is correct(see
the illustration below).
If the water level is too low, the ice cubes will be small. This is a water pressure problem from
with in the main water pipes, not the refrigerator.
Ice maker
1
Feeler Arm
2
Test button
Check the water level
22_ setting up
DA99-02028A(HM09')-EN(0.2).indd 22 2010.3.9 7:52:55 PM
operating the SAMSUNG
side-by-side refrigerator
SETTING UP THE REFRIGERATOR
Now that you have your new refrigerator installed and in place, you are ready to set up and enjoy the full
features and functions of the appliance.
By completing the following steps, your refrigerator should be fully operational. If not, first check the power
supply and electricity source or try the troubleshooting section at the back of this user guide. If you have any
further questions, contact your Samsung Electronics service center.
and the refrigerator. Refer to installation instructions in this manual.
2. Once the refrigerator is plugged in, make sure the interior light comes on when you open the
doors.
The freezer should get slightly chilled and the motor should run smoothly.
Once the refrigerator temperature is sufficiently cool, you can store food and drink in the
refrigerator.
USING THE ANTI-SWEAT HEATER SWITCH
When the humidity of the indoor is high, sweat may form around the beverage station & dispenser. Turn the
Anti-sweat heater switch on, to remove the sweat and turn the switch off when the sweat disappears.
02 OPERATING
operating _23
RS21/23H** (OPTIONAL)
DA99-02028A(HM09')-EN(0.2).indd 23 2010.3.9 7:52:56 PM
24_ operating
OPERATING THE REFRIGERATOR
BUTTON
Speeds up the time needed to freeze products in the freezer. This can be helpful if
you need to quickly freeze items that spoil easily or if the temperature in the freezer
has warmed dramatically (For example, if the door was left open).
Freezer button to set the freezer to your desired temperature, You can set
Use this button to choose Cubed, Crushed or to turn the Ice feature off.
BUTTON
BUTTON
FUNCTION
seconds, all buttons will be locked. The Water dispenser lever and the Ice lever will not
button to set the fridge to your desired temperature.
1
2
3
4
5
6
7
5
6
7
1
3
4
2
RS21H F/D,RS23H F/D
RS21H N/B,RS23H N/B
RS21H K/J,RS23H K/J
DA99-02028A(HM09')-EN(0.2).indd 24 2010.3.9 7:52:57 PM
operating _25
operating the SAMSUNG
side-by-side refrigerator
USING THE DIGITAL DISPLAY
“88” segment on Freezer part indicates the current Freezer temperature.
“88” segment on Fridge part indicates the current Fridge temperature.
“Quick Cool”, “thaw”, “soft freeze” and “0 Zone” indicates the status of the CoolSelect Zone™ Drawer.
02 OPERATING
Power Freeze
This icon will light up when you activate the “Power freeze” feature. “Power freeze” is great for
Power freeze button and ice production will increase.
When you have enough, just press the button again to cancel the “Power freeze” mode.
When you use this function the energy consumption of the refrigerator will increase.
temperature setting.
If you need to freeze large amount of food stuff, set the temperature of freezer compartment
RS21H K/J,RS23H K/J
RS21H F/D,RS23H F/D
RS21H N/B,RS23H N/B
DA99-02028A(HM09')-EN(0.2).indd 25 2010.3.9 7:52:58 PM
26_ operating
Filter Indicator
When the filter indicator light is on, it is time to change the filter. Typically this happens about
do this), reset the indicator status light by pressing the Ice Type
When you do not use the water filter, press the Ice Type button for more than 5 seconds, the Filter
indicator lamp and the Filter Change letters will be off.
Child Lock
again to reactivate.
lamp turn on), the heater for sweat control is off at a same time. If sweat is appeared around the
the light will turn off and the sweat control function will be performed. and all keys will be unlocked
at a same time.
Cubed Ice, Crushed Ice and turnning the Ice maker off.
Enjoy cubed or crushed ice by selecting your preference
the feature off to save on water and energy consumption.
The Ice type light indicates the type of ice(or no ice) that is
currently chosen.
CONTROLLING THE TEMPERATURE
CONTROLLING THE FREEZER TEMPERATURE
Freezer button repeatedly until the desired temperature is shown in the
Five seconds after the new temperature is set the display will again show the actual current freezer
temperature. However, this number will change as the Freezer adjusts to the new temperature.
CONTROLLING THE FRIDGE TEMPERATURE
Fridge button repeatedly until the desired temperature is shown in the
temperature display. The temperature control process for the Fridge works just like the Freezer
Fridge button to set your desired temperature. After a few seconds, the Fridge
will begin tracking towards the newly set temperature. This will be reflected in the digital display.
The temperature of the freezer or the refrigerator may rise from opening the doors too
frequently, or if a large amount of warm or hot food is placed in either side. This may cause the
digital display to blink. Once the freezer and refrigerator return to their normal set temperatures
the blinking will stop. If the blinking continues, you may need to “reset” the refrigerator. Try
Ice type
DA99-02028A(HM09')-EN(0.2).indd 26 2010.3.9 7:52:58 PM
operating _27
Select this if you want to
turn off the icemaker
operating the SAMSUNG
side-by-side refrigerator
USING THE ICE AND COLD WATER DISPENSER
Ice is made in cubes. When you select “Crushed”, the icemaker grinds the ice cubes into
crushed ice.
Dispensing ice
against the ice dispenser lever with your glass. Make sure
the glass is in line with the dispenser to prevent the ice from
bouncing out.
Using the Water Dispenser
against the water dispenser lever with your glass. Make sure
the glass is in line with the dispenser to prevent the water from
splashing out.
bucket.
- It may result in personal injury or material damage.
- It may cause injury.
qualified person and connect to a potable water supply only.
the water valve.
- Otherwise, water leakage may occur.
- Otherwise, odor and mold may develop.
WARNING
CAUTION
02 OPERATING
DA99-02028A(HM09')-EN(0.2).indd 27 2010.3.9 7:53:0 PM
28_ operating
Ice Maker Bucket (Optional)
Door Bins
Ice Chute (Optional)
Lamp Cover
Glass Shelves
Drawers
Front Leg Cover
SHELVES AND BINS
Freezer
Drawers
Dairy Bin
Z Shelf(Optional)
Water Filter (Optional)
Lamp Cover
Glass Shelf
Door Bins
CoolSelect Zone
Drawer(Optional)
Wine Shelf(Optional)
Moving Shelf(Optional)
Egg Tray
Fridge
Beverage Station
(Optional)
DA99-02028A(HM09')-EN(0.2).indd 28 2010.3.9 7:53:2 PM
operating _29
1
2
3
4
12
5
11
6
9
10
13
8
7
operating the SAMSUNG
side-by-side refrigerator
STORING FOOD
Storing Food in the Freezer
The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum
spacesaving features and functions. Here are some of the customized compartments we have created
to keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored
food should be wrapped securely and as airtight as possible.
To get more space,you can remove top freezer drawers since it does not affect thermal and
mechanical characteristics. A declared storage volume of frozen food storage compartment is
calculated with these drawers removed.
In case the model has Cool Select Zone, do not insert a shelf to this rail, or the shelf can
collide with beverage station cover and the beverage station cover can be broken.
CAUTION
02 OPERATING
14
DA99-02028A(HM09')-EN(0.2).indd 29 2010.3.9 7:53:4 PM
30_ operating
Storing Food in the Freezer
Do not put your fingers, hands or any other objects in the ice
chute or the ice maker bucket. This may result in personal injury
or material damage.
Can be used to store all types of frozen food.
Can be used for small packages of frozen
food.
Best used to store meats or dry foods.
Stored food should be wrapped securely
using foil or other suitable wrapping
materials or containers.
Storing Food in the Fridge
Best place to keep eggs.
access.
Helps to preserve the taste, and prolong the
freshness of your food. Use it to store cheese,
meat, poultry, fish or any other foods that are
consumed on a regular basis.
Used to preserve the freshness of your stored
vegetables and fruits. It has been specifically
designed to control the level of humidity
within the drawer.
Can be used to store smaller dairy items like
butter or margarine, yogurt or cream-cheese
bricks.
Designed to handle large, bulky items such
as gallons of milk or other large bottles and
containers.
Bottles should be stored tightly together so that they do not tip and fall out when the refrigerator door is opened.
the inside of the appliance and leave the doors open. This helps keep odor and mold from developing.
- Deterioration in the insulation may cause fire.
Designed to move with foods easily. It can be used to store all
types food and drinks need to move often.
Maximizing and efficiently space usage.
Enough to store not wine bottles but also 2 litter
carton of milk.
Helps wines maintain their taste by providing an optimized place
for storing your wine bottles.
WARNING
WARNING
Designed to be crack-resistant. They can be used to
store all types of food and drinks. Circular marks on
the glass surface are a normal phenomenon and can
usually be wiped clean with a damp cloth.
14
Can be used to store the frequently used items, such
as canned beverages and snacks and allows access
to these items without opening the refrigerator door.
1
2
3
4
5
6
7
8
9
10
11
12
13
DA99-02028A(HM09')-EN(0.2).indd 30 2010.3.9 7:53:8 PM
operating _31
operating the SAMSUNG
side-by-side refrigerator
USING THE COOLSELECT ZONE™ DRAWER (OPTIONAL)
Quick Cool
with the CoolSelect Zone
TM
.
the “Quick Cool” button again.
CoolSelect Zone
TM
returns to the
previous temperature.
to the “Cool” temperature setting.
Thaw
of meats reduces the freshness of
foods.
After “Thaw” is selected, warm and cold air is alternately supplied into the CoolSelect Zone
TM
Drawer.
sequentially.
TM
display returns to “Zero Zone” condition.
to cut them for cooking.
Soft Freeze
set temperature of the refrigerator.
02 OPERATING
THAW TIME
WEIGHT
WARNING
With the “Thaw” option, food which is not needed to thaw in the CoolSelect Zone
TM
Drawer should be removed.
Depending on the size and thickness of meat and fish, the thawing time may vary.
The above weight represents the total weight of food in the CoolSelect Zone
TM
Drawer.
DA99-02028A(HM09')-EN(0.2).indd 31 2010.3.9 7:53:9 PM
32_ operating
Zero Zone (0ºC)
TM
Drawer is kept at 0 ºC
regardless of the set refrigerator temperature.
Cool
The digital panel shows the same temperature as that of the display panel.
TM
Drawer allows extra refrigerator space.
WARNING
For “Quick Cool” option, food stored in the CoolSelect Zone
TM
Drawer should be removed.
Depending on the beverages, the cool-down time may vary.
DA99-02028A(HM09')-EN(0.2).indd 32 2010.3.9 7:53:9 PM
02 OPERATING
operating _33
operating the SAMSUNG
side-by-side refrigerator
REMOVING THE FREEZER ACCESSORIES
Cleaning and rearranging the interior of the freezer is a snap.
go. Then, gently lift it up and remove it.
2. Remove the door bin by holding the door bin with both hands
and then gently lift it up.
it up.
5. Remove the front leg Cover by opening both the freezer and refrigerator doors, and removing
the three screws. Once the screws are free, detach the cover.
To reattach the front leg cover, place it back in its original
position and tighten the three screws.
Do not use excessive force when removing the cover.
Otherwise, the cover may break and cause injury.
DA99-02028A(HM09')-EN(0.2).indd 33 2010.3.9 7:53:11 PM
34_ operating
REMOVING THE FRIDGE ACCESSORIES
spill Proof Glass Shelf by pulling the shelf out as
far as it will go. Then, gently lift it up and gently remove it.
2. Remove the Vegetable & Fruit Drawer by pressing on the
indentations found on the inside left and right sides of the
Holding the drawer with one hand, lift it up a little bit while
pulling it forward and take it out of the refrigerator.
Gallon Door Bin by holding the bin with both
hands and gently lifting it up.
Z Shelf is attached to the cabinet wall.
Remove the wine shelf by sliding it up and gently lifting the
shelf out of the tabs.
Be careful not to assemble the Z shelf with being
switched top and bottom, left and right.
Before removing any accessories, make sure that no food is in the way.
When possible, remove the food altogether to reduce the risk of accidents.
To get the best energy efficiency of this product, please leave all selves, drawers and baskets
on their original position like as illustration in page (29)
CAUTION
DA99-02028A(HM09')-EN(0.2).indd 34 2010.3.9 7:53:13 PM
operating _35
02 OPERATING
operating the SAMSUNG
side-by-side refrigerator
WARNING

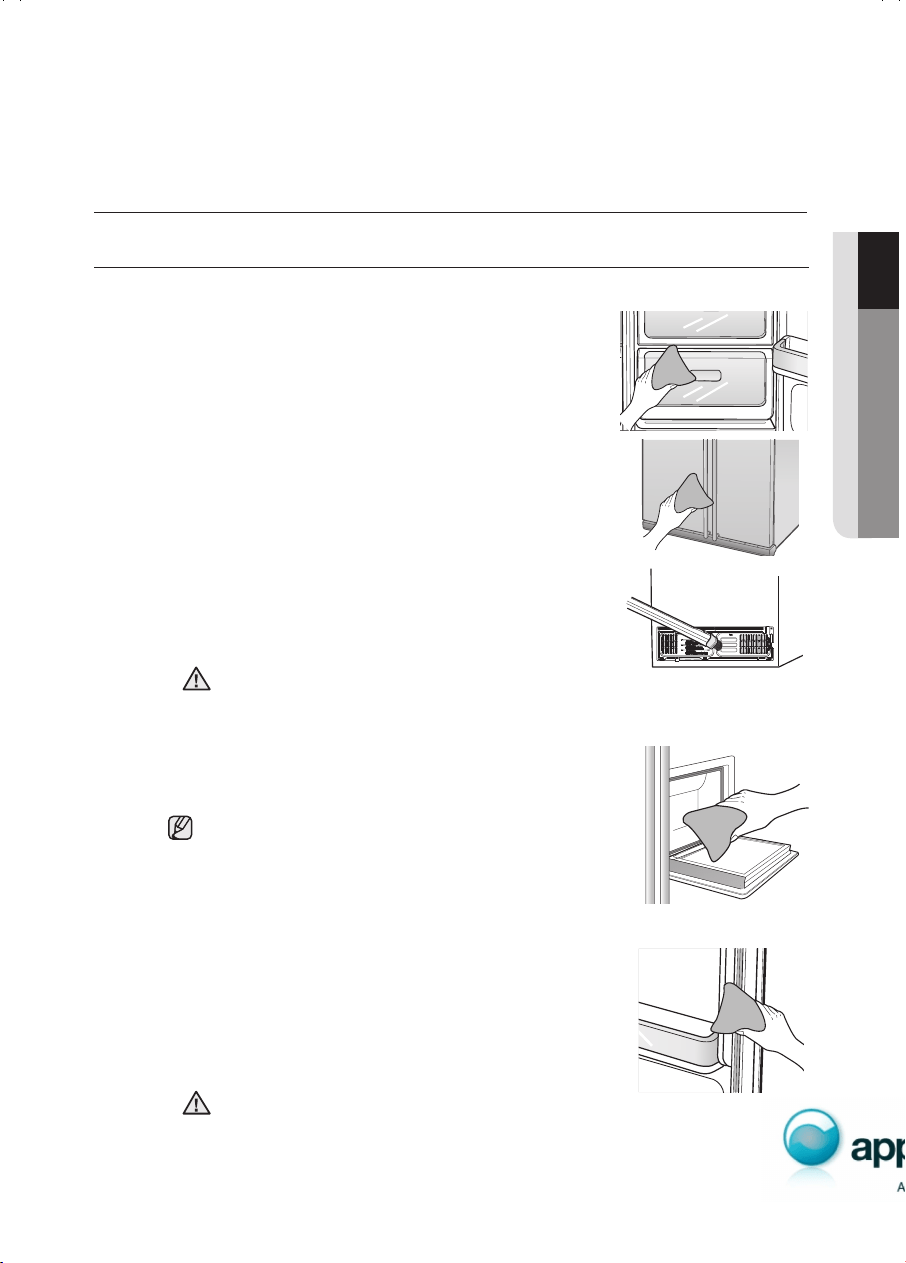

CLEANING THE REFRIGERATOR
Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor
and germ-free.
Cleaning the Interior
Clean the inside walls and accessories with a mild detergent and
then wipe dry with a soft cloth. You can remove the drawers and
shelves for a more thorough cleaning. Just make sure to dry them
before putting them back into place.
Cleaning the Exterior
Wipe the digital panel and display panel with a clean, soft cloth.
Spray water onto the cleaning cloth instead of spraying directly
on the surface of the refrigerator. This helps ensure an even
distribution of moisture to the surface. The doors, handles and
cabinet surfaces should be cleaned with a mild detergent and
then wiped dry with a soft cloth. To keep your appliance looking
its best, the exterior should be polished once or twice a year.
Do not use Benzene, Thinner or Clorox™ for cleaning.
They may damage the surface of the appliance and can create a risk of fire.
Cleaning the Soft touch type Home Bar
Use a damp cloth to clean the ice and water dispenser.
Then wipe dry with a clean, soft cloth.
Use soft touch type Home Bar as follow
- In the case of opening the Home Bar, it will be opened
automatically when you push the upper position of Home Bar
until rattling.
- In the case of closing the Home Bar, push the upper position
of Home Bar until rattling.
Cleaning the Rubber door seals
If the rubber door seals are dirty the doors may not close
door seals free of grit or grime by cleaning the doors with a mild
detergent and damp cloth. Wipe dry with a clean, soft cloth.
Do not spray the refrigerator with water while it is plugged
in, as it may cause an electric
shock. Do not clean the refrigerator with benzene, thinner or car detergent for risk of fire.
CAUTION
DA99-02028A(HM09')-EN(0.2).indd 35 2010.3.9 7:53:17 PM
36_ operating
Cartridge
Cleaning the Deodorizer (Optional)
To clean the twin deodorizer, remove the cover with a flat blade screwdriver. Remove the deodorizer
Then, allow the cartridge to dry completely before replacing it in the holder. This can take up to 8
hours in a well-ventilated area. For best results, repeat this process once or twice a year.
Cleaning behind the Refrigerator
To keep cords and exposed parts free of dust and dirt accumulation, vacuum behind the
appliance once or twice a year.
Do not remove the back cover. There can be a risk of electric shock.
If the cartridge dries in a confined (or humid) area, there may be an odor to the cartridge. If this
occurs, re-clean and allow to dry in a well-ventilated area.
WARNING
DA99-02028A(HM09')-EN(0.2).indd 36 2010.3.9 7:53:19 PM
operating _37
02 OPERATING
operating the SAMSUNG
side-by-side refrigerator
REPLACING THE INTERIOR LIGHT (Only available on some models)
- Otherwise, there is a risk of electric shock. If you experience difficulty when changing the
light, contact your service center.
Replacement bulbs for the fridge and freezer are available at most major retail outlets.
Changing the Interior Lights in the Refrigerator
UPPER LIGHT
The number of bulb is differ from the model.
2. After changing the bulb, reattach the light cover.
LOWER (OPTIONAL)
2. After changing the bulb, reattach the light cover.
WARNING
DA99-02028A(HM09')-EN(0.2).indd 37 2010.3.9 7:53:21 PM
38_ operating
1 2 3
1
2
3
4
5
Align the indication
mark with lock
position
Cover filter
Sticker
(month indicator)
Changing the Interior Lights in the Freezer
The freezer light is located in the bottom of the auger motor case.
2. Replace the bulb with a new one.
For LED lamp, please contact service engineer to replace it.
CHANGING THE WATER FILTER
The “Filter Indicator” light lets you know when it is time to change your water filter cartridge. To give you
some time to get a new filter, the light will come on up just before the capacity of the current filter runs out.
Changing the filter on time provides you with the freshest, cleanest water from your fridge.
Slowly turn the water filter clockwise 90º to align with the indication mark on the cover, locking the
filter in position. Make sure that the indicator is lined up with the “lock” position. Do not over tighten.
DA99-02028A(HM09')-EN(0.2).indd 38 2010.3.9 7:53:27 PM
operating _39
02 OPERATING
operating the SAMSUNG
side-by-side refrigerator
the Ice Type button
filter schedule.
dispenser and throw away. Make sure that
water flows clearly again before drinking.
A newly installed water filter cartridge may cause water to briefly spurt from the water
dispenser. This is due to air getting into the line. It should pose no problem to operation.
Ordering replacement filters
To order more water filter cartridges, contact your authorized Samsung dealer.
USING THE DOORS
The refrigerator doors are equipped with a door opening and closing feature that ensures that the doors
close all the way and are securely sealed.
After opening beyond a certain point, the door will “catch” and remain open. When the door is ajar ahead of
the catch that allows it to stay open, it will close automatically.
DA99-02028A(HM09')-EN(0.2).indd 39 2010.3.9 7:53:28 PM
The refrigerator does not
work at all or it does not
chill sufficiently.
Check that the power plug is properly connected.
Is the temperature control on the display panel set to the correct temperature? Try
setting it to a lower temperature.
Is the refrigerator in direct sunlight or located too near a heat source?
Is the back of the refrigerator too close to the wall and therefore keeping air from
circulating?
The food in the fridge is
frozen.
Is the temperature control on the display panel set to the correct temperature? Try
setting it to a warmer temperature.
Is the temperature in the room very low?
Did you store the food with a high water content in the coldest part of the fridge?
Try moving those items into the body of the fridge instead of keeping them in the
CoolSelect Zone™ drawer.
You hear unusual noises
or sounds.
Check that the refrigerator is level and stable.
Is the back of the refrigerator too close to the wall and therefore keeping air from
circulating?
Was anything dropped behind or under the refrigerator?
A “ticking” sound is heard from inside the refrigerator. This is normal and occurs
because various accessories are contracting or expanding in relation to the
temperature of the refrigerator interior.
The front corners and
sides of the appliance are
hot and condensation is
occurring.
Some heat is normal as anti-condensators are installed in the front corners of the
refrigerator to prevent condensation.
Is the refrigerator door ajar? Condensation can occur when you leave the door
open for a long time.
Ice is not dispensing.
ice?
Is the water line connected and the shut-off valve open?
Did you manually stop the ice making function? Make sure Ice Type is set to
Cubed or Crushed.
Is there any ice blocked within the ice storage unit?
Is the freezer tAemperature too warm? Try setting the freezer temperature lower.
You can hear water
bubbling in the
refrigerator.
This is normal. The bubbling comes from the refrigerant coolant liquid circulating
through the refrigerator.
There is a bad smell in
the refrigerator.
Has a food item spoiled?
Make sure that strong smelling food (for example, fish) is wrapped so that it is
airtight.
Clean out your freezer periodically and throw away any spoiled or suspect food.
Frost forms on the walls
of the freezer.
Is the air vent blocked? Remove any obstructions so air can circulate freely.
Allow sufficient space between the foods stored for efficient air circulation.
Is the freezer door closed properly?
Water dispenser is not
functioning.
Is the water line connected and the shut-off valve open?
Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
Is the water tank frozen because the refrigerator temperature is too low?
Try selecting a warmer setting on the main display panel.
40_ troubleshooting
troubleshooting
DA99-02028A(HM09')-EN(0.2).indd 40 2010.3.9 7:53:28 PM
memo
DA99-02028A(HM09')-EN(0.2).indd 41 2010.3.9 7:53:28 PM
memo
DA99-02028A(HM09')-EN(0.2).indd 42 2010.3.9 7:53:28 PM
memo
DA99-02028A(HM09')-EN(0.2).indd 43 2010.3.9 7:53:29 PM
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact
the SAMSUNG customer care center.
COUNTRY CALL Web site
AUSTRALIA
1300 362 603 www.samsung.com/au
COLOMBIA
01-8000112112 www.samsung.com.co
EIRE
0818 717 100 www.samsung.com/ie
HONG KONG
(852) 3698-4698 www.samsung.com/hk
INDIA
3030 8282, 1800 110011,
1-800-3000-8282,1800 266 8282
www.samsung.com/in
MALAYSIA
1800-88-9999 www.samsung.com/my
NEW ZEALAND
0800 SAMSUNG (726-7864) www.samsung.com/nz
PANAMA
800-7267 www.samsung.com/latin
PHILIPPINES
1800-10-SAMSUNG (726-7864) www.samsung.com/ph
SINGAPORE
1800-SAMSUNG (726-7864) www.samsung.com
SOUTH AFRICA
0860-SAMSUNG (726-7864 ) www.samsung.com
U.K
0845 SAMSUNG (7267864) www.samsung.com
VIETNAM
1 800 588 889 www.samsung.com
In an effort to promote recycling this user manual is printed on recycled paper.
Ambient Room Temperature Limits
This refrigerator is designed to operate in ambient temperatures specified by its
temperature class marked on the rating plate.
Class Symbol Ambient Temperature range (°C)
Extended Temperate SN +10 to +32
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
Internal temperatures may be affected by such factors as the location of the refrigerator,
ambient temperature and the frequency with which you open the door. Adjust the
temperature as required to compensate for these factors.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate col-
lection systems)
This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed
of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
English
Code No. DA99-02028A REV(0.2)
DA99-02028A(HM09')-EN(0.2).indd 44 2010.3.9 7:53:29 PM
