We recommend that you use a professional
electrician to install the USB charger wall outlet. For
information about electrical specications, see
SPECIFICATIONS.
SAFETY
Warnings:
• RISK OF ELECTRIC SHOCK — Use only in dry
locations and only indoors.
• All cables should be routed away from the charger
outlet openings.
• DO NOT use with any aquarium equipment.
• DO NOT install in an outlet that is not grounded.
Notes to the installer:
• This device must be installed in accordance with
National and Local electrical codes.
• To prevent severe shock or electrocution, always
turn power OFF at the service panel before
working with wiring.
• This device should be used with copper or
copper-clad wire. DO NOT use with aluminum
wire.
• DO NOT plug this device into a shallow wall box.
The wall box must be deep enough to house the
charger outlet. If the box is too shallow, the
charger outlet will not t securely into the wall.
PACKAGE CONTENTS
• 3.6A USB Charger Wall Outlet
• White decora-style wall plate
• Screws: 2 long and 2 short
• Quick Setup Guide
FEATURES
• Replaces a standard duplex outlet
• Quickly charges USB devices
• Tamper-resistant outlets for added safety
• Provides two USB ports with 3.6A total output
• Provides two standard 110V power outlets
• Works in nearly all installations
• Compatible with your existing decora wall plate
Before using your new product, please read these instructions to prevent any damage.

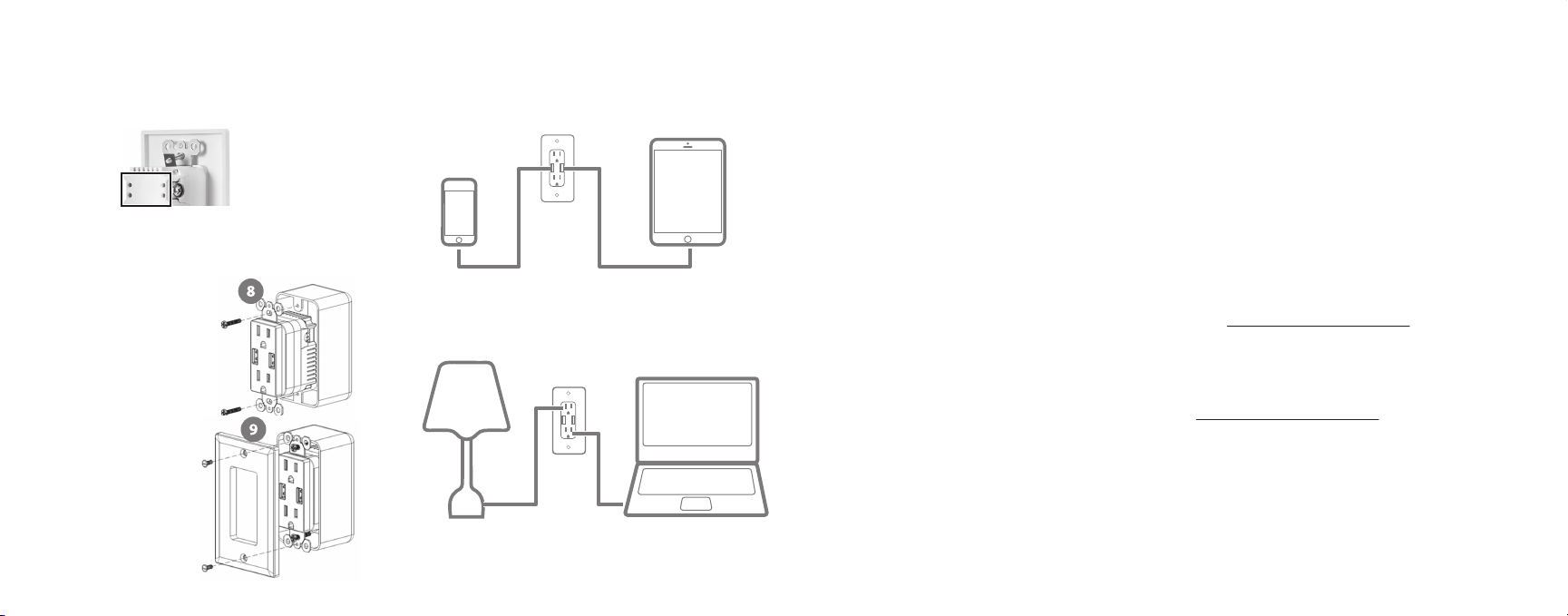

INSTALLING THE CHARGER
1 Warning: DISCONNECT POWER. Failure to do
so can result in severe injury or death.
Make sure that you disconnect power to the
circuit by removing the fuse from the circuit
breaker or turning OFF the circuit breaker.
2 Remove the wall plate and mounting screws
that cover the old outlet.
3 Carefully remove the existing outlet from the
wall box.
4 Disconnect the wiring from the old outlet. Note
the wire positions. Connect the charger outlet
wires the same way.
5 Connect the wires to the charger outlet:
• Black lead attaches to the hot wire(s)
• White lead attaches to the neutral wire(s)
• Green lead attaches to the ground wire(s)
QUICK SETUP GUIDE
3.6A
USB Charger
Wall Outlet
NS-HW36A217
Electrical
outlets (2)
USB ports (2)
Final at size: 12 × 4.7 in. (304.8 × 119.38 mm)
Final fold size: 3 × 4.7 in. (76.2 × 119.38 mm)
Hot
(black)
Neutral
(white)
Ground
(green)
