User Manual

• User Manual - (English, French, Spanish)

Energy Guide

• Energy Guide - (English)

Warranty

• Warranty - (English)

Installation Instruction

• Installation Guide - (English)

Table of contents

• Using your dishwasher
• Cleaning and maintaining your dishwasher
• Cycles
• Troubleshooting

User Manual for Dishwasher

Using your dishwasher

BASIC GUIDELINES

1. Open the door and load your dishes (see page 14).

- Place dishes into the upper and lower racks, unless you have selected Lower Rack.

- Remove any food remains from the dishes before placing them in the rack(s).

- After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them.

- Make sure the dishes will not prevent the detergent dispenser from opening.

2. Add detergent to the dispenser (see page 17).

- Make sure to use only automatic dishwasher detergent and rinse aid.

- Refer to “Using detergent” on page 17 for instructions explaining how to add detergent and rinse aid.

3. Press the Power button.

- When you press the Power button, the entire display turns on and off, and then the indicator of the most recently finished cycle lights up.

4. Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 9 and 22.)

- Press the appropriate cycle button.

- When you press a cycle button, the cycle indicator lights up.

5. Press the Start button, and then close the door within 3 seconds.

- The dishwasher will start draining after a few seconds, and then start the selected cycle.

- Make sure to close the door firmly. If the door is not closed properly, the selected cycle will not start automatically.

6. When the wash cycle is completed.

- The light illuminates and the dishwasher sounds a chime.

- The dishwasher powers off automatically.

CAUTION

- If you want to load more dishes or pause the dishwasher while it is already running, make sure to open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher.

- If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.

- To resume operation, press the Start button, and then close the door within 3 seconds.

- Adding dishes several minutes after the dishwasher starts operating may affect its performance.

- If you open the door while the dishwasher is running at high temperature, it will drain the hot water automatically to protect you from scalding.

You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize and Heated Dry option.

Touch controls

Touch controls allow you to operate the dishwasher easily.They:

• Are convenient to operate, requiring only a soft touch.
• Have a simple and stylish design.
• Are easy to clean.

If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons. See page 7.

- Children will not be able to accidently start the dishwasher by touching the controls with this option selected.

- If a cycle is running, the buttons will not respond. (except the Power button)

- If dishwasher is off, only the Power button responds.

Do not touch the VENT ELEMENT during or immediately after use.

Delay start

When you select the Delay Start option, your dishwasher will:

• Start draining to remove remaining water at once (pre-drain).

Your dishwasher will operate the selected cycle when the delay time expires.

WARNING

When using the dishwasher, try to arrange the dishes properly as described on page 14 to 16.

• You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.
• Select the appropriate cycle depending on the level of soil and the type of dishes.
• Use only the proper amount of detergent and rinsing agent.

WARNING Do not wash the following items in your dishwasher

• Acrylic or Aluminum items: Dishes with printed gold rim decoration may become discolored.
• Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come loose.
• Plastics with a temperature tolerance less than 194 (90 ):°F°C Thin plastics wash and dry poorly, and may be damaged due to elevated wash temperatures.
• Tin: Tin items should be washed by hand and dried immediately as they may rust.
• Wooden utensils: Wooden items may crack.

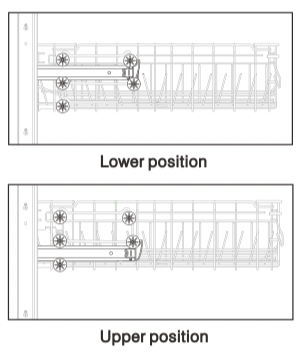

ADJUSTING THE HEIGHT OF THE UPPER RACK

You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to 8 in. (20 cm) in diameter.

1. To lower the upper rack by 2 in. (5 cm), remove the upper rack as shown in Removing the Upper Rack below .Then, reinsert the rack so that the upper four wheels on each side of the rack are above and below the guide rail. See the Loowerwer position illustration to the right .

2. To raise the upper rack, remove the upper rack as shown in RemovingRemovin the Upper Rack below. Then, reinsert the rack so that the lower three wheels on each sides of the rack are above and below the guide rail. See the Upper position illustration to the right.

CAUTION We recommend adjusting the height of the upper rack before loading dishes into the rack. If you adjust the rack after loading the dishes, you may damage the dishes.

REMOVING THE UPPER RACK

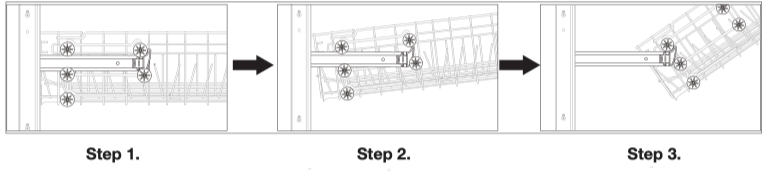

Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below.

CAUTION While the upper rack is removable, it must be installed for the dishwasher to operate properly. If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly.

LOADING THE LOWER RACK

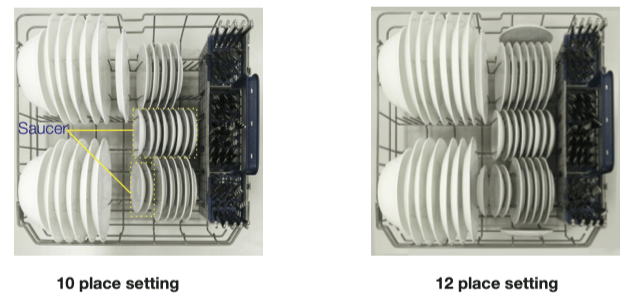

The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack.

See the recommended loading patterns below.

LOADING THE UPPER RACK

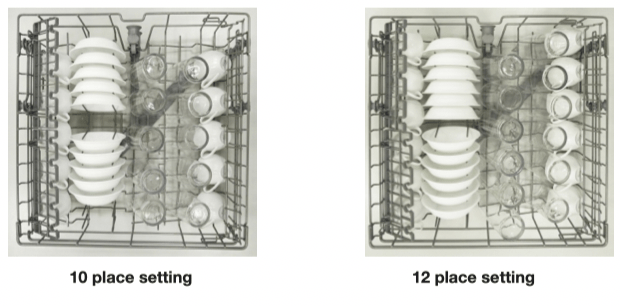

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out suficiently so you can load it without striking the counter above.

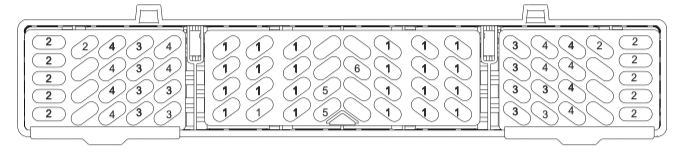

USING THE CUTLERY RACK

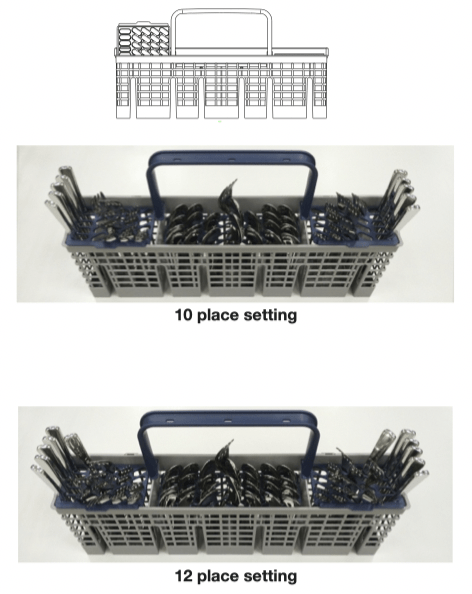

You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration.

You can use the cutlery rack with the cover open. Refer to the illustration to the right.

The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.

DO NOT let any item extend through the bottom.

1. Spoons

2. Knives

3. Salad forks

4. Forks

5. Serving spoons

6. Serving forks

USING DETERGENT

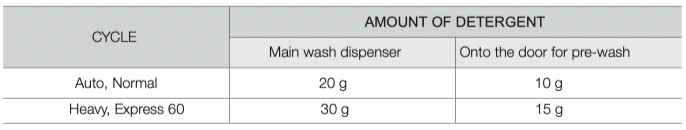

All dishwasher cycles require detergent in the detergent compartment.

Add the correct amount of detergent for the selected cycle to ensure the best performance.

CAUTION Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher’s performance or cause it to malfunction.

WARNING Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.

WARNING Keep dishwasher detergent out of the reach of children.

Filling the detergent dispenser

1. Open the detergent dispenser cap by pushing the detergent dispenser release catch.

The flap is always open at the end of a dishwashing cycle.

2. Add the recommended amount of detergent to the main wash detergent compartment.

3. Close the flap by sliding it to the down and then pressing it down.

4. For better cleaning result, especially if you have very dirt items, pour a small amount (about 15 g) of detergent onto the door.

The additional detergent will activate during the pre-wash phase.

The cover opens automatically to dispense the detergent during the wash.

The numbers inside the dispenser refer to grams.

Filling the rinse aid reservoir

Your dishwasher has been designed to use liquid rinse aid only.

Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.

Rinse aid improves the drying performance of the dishwasher.

CAUTION Do not add regular detergent to the rinse aid reservoir.

1. Open the rinse aid reservoir cap.

2. Fill the rinse aid reservoir with rinse aid.

Use the viewing port when filling the rinse aid reservoir.

CAUTION Do not fill the reservoir above the full level indicator. Excess rinse aid can over flow during the wash cycle.

3. View the amount of rinse aid in the reservoir through the clear viewing port. Stop adding when the reservoir reaches the full level.

4. Close the rinse aid reservoir cap.

Cleaning and maintaining your dishwasher

Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life.

CLEANING THE EXTERIOR

It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the electrical parts.

If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for Home Appliances or a similar product using a clean, soft cloth.

CLEANING THE INTERIOR

Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend filling the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal or Express 60 cycle with the sanitize option. This will keep your dishwasher clean.

If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty and without detergent until it flushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle finish.

CAUTION

Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).

Do not touch the HEATING ELEMENT during or immediately after use.

CLEANING THE FILTERS

1. Turn off the dishwasher.

2. Rotate the filter insert counterclockwise to unfasten and then detach the filter insert.

3. Remove the fine filter (flat, rectangular).

4. Remove any dirt or other remains from the filter, and then rinse it under running water.

5. Reassemble the filter in the reverse order of the dissasembly, re-insert the filter insert, and then rotate clockwise as shown until closed.

CAUTION If the filter insert is not closed properly, its performance will be decreased.

CLEANING THE NOZZLES

If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break.

Lower nozzle

1. Check whether the nozzle holes are clogged by food particles.

2. If cleaning is needed, remove the nozzle by pulling it upwards.

3. Clean the nozzle, and then push it back into place.

4. Check whether the nozzle is engaged correctly by rotating it by hand.

Middle nozzle

1. Pull the upper rack towards the front and remove it.

2. Check whether the nozzle holes are clogged by food particles.

3. If cleaning is needed, remove the nozzle.

4. To remove the nozzle, unfasten and remove the nut, and then remove the nozzle.

5. Clean the nozzle, re-insert it, and fasten the nut.

6. When fastening the nut, turn it firmly by hand.

7. Check whether the nozzle is engaged correctly by rotating it by hand.

Upper nozzle

1. Check whether the nozzle holes are clogged by food particles.

2. If cleaning is needed, remove the nozzle.

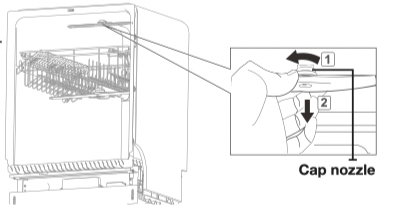

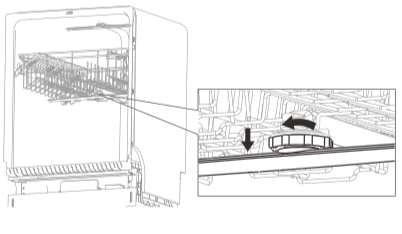

3. To remove the nozzle, pull out the upper rack first, unfasten the nozzle cap by turning it counterclockwise, and then remove the upper nozzle.

4. Clean the nozzle, re-insert it, and then fasten the nozzle cap to the nozzle by turning the cap clockwise.

5. Check whether the nozzle is engaged correctly by rotating it by hand.

STORING YOUR DISHWASHER

If you need to store your dishwasher for an extended period of time, first drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.

After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker.

Cycles

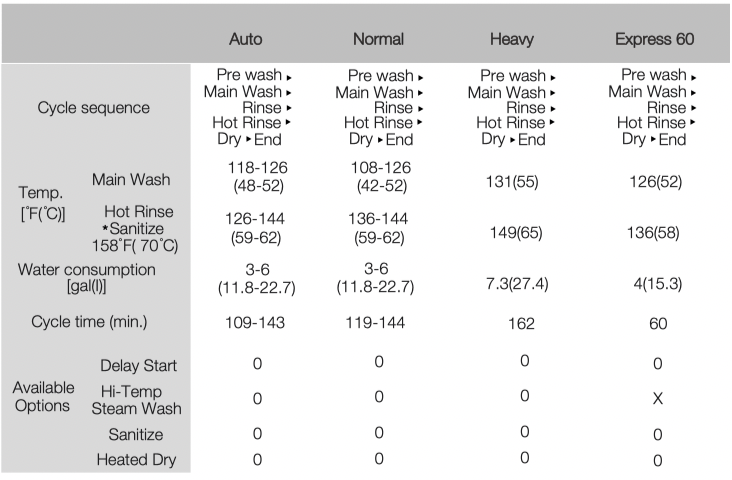

CYCLE CHART

• When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level of the dishes.
• The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.
• When you select any options, the cycle time can be changed.
• When the Rinse Aid is empty, wash time and Last Rinse temperature can increase a little.

Troubleshooting

CHECK THESE POINTS IF YOUR DISHWASHER…

INFORMATION CODES

The Control Panel displays information codes to help you understand what is occurring with your dishwasher.

If your dishwasher has a problem, the CODE SYMBOL lights blink as shown below.

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

WARNING

• If an overflow occurs, turn off the main water supply before calling for service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
