1. Important
1. Important
This electronic user’s guide is intended
for anyone who uses the Philips
monitor. Take time to read this user
manual before you use your monitor.
It contains important information and
notes regarding operating your monitor.
The Philips guarantee applies provided
the product is handled properly for
its intended use, in accordance with
its operating instructions and upon
presentation of the original invoice
or cash receipt, indicating the date of
purchase, dealer’s name and model
and production number of the product.
1.1 Safety precautions and
maintenance
Warnings
Use of controls, adjustments or
procedures other than those specied
in this documentation may result in
exposure to shock, electrical hazards
and/or mechanical hazards.
Read and follow these instructions
when connecting and using your
computer monitor.
Excessive sound pressure from
earphones and headphones can cause
hearing loss. Adjustment of the
equalizer to maximum increases the
earphones and headphones output
voltage and therefore the sound
pressure level.
Operation
• Please Keep the monitor out of
direct sunlight, very strong bright
lights and away from any other heat
source. Lengthy exposure to this
type of environment may result in
discoloration and damage to the
monitor.
• Remove any object that could fall
into ventilation holes or prevent
proper cooling of the monitor’s
electronics.
• Do not block the ventilation holes
on the cabinet.
• When positioning the monitor, make
sure the power plug and outlet are
easily accessible.
• If turning off the monitor by
detaching the power cable or DC
power cord, wait for 6 seconds
before attaching the power cable
or DC power cord for normal
operation.
• Please use approved power cord
provided by Philips all the time. If
your power cord is missing, please
contact with your local service
center. (Please refer to Service
contact information listed in
Important information manual.)
• Operate under the specified power
supply. Be sure to operate the
monitor only with the specified
power supply. Use of an incorrect
voltage will cause malfunction and
may cause fire or electric shock.
• Do not disassemble the AC adapter.
Disassembling the AC adapter may
expose you to the danger of fire or
electric shock.
• Protect the cable. Do not pull or
bend the power cable and signal
cable. Do not place the monitor
or any other heavy objects on the
cables, if damaged, the cables may
cause fire or electric shock.
• Do not subject the monitor to
severe vibration or high impact
conditions during operation.
• Do not knock or drop the monitor
during operation or transportation.
2
1. Important
• Excessive usage of monitor can
cause eye discomfort, it’s better to
take shorter breaks more often at
your workstation than longer breaks
and less often; for example a 5-10
minute break after 50-60-minute
continuous screen use is likely to
be better than a 15-minute break
every two hours. Try to keep your
eyes from eye strain while using the
screen for a constant period of time
by :
• Looking at something varying
distances after a long period
focusing on the screen.
• Conscious Blinking often while
you work.
• Gently closing and rolling your
eyes to relax.
• Reposition your screen to ap-
propriate height and angle ac-
cording to your height.
• Adjusting the brightness and
contrast to appropriate level.
• Adjusting the environment light-
ing similar to that of your screen
brightness, avoid the uorescent
lighting, and surfaces that don’t
reect too much light.
• Seeing a doctor if your symp-
toms.
Maintenance
• To protect your monitor from
possible damage, do not put
excessive pressure on the LCD
panel. When moving your monitor,
grasp the frame to lift; do not lift
the monitor by placing your hand or
fingers on the LCD panel.
• Unplug the monitor if you are not
going to use it for an extensive
period of time.
• Unplug the monitor if you need to
clean it with a slightly damp cloth.
The screen may be wiped with a
dry cloth when the power is off.
However, never use organic solvent,
such as, alcohol, or ammonia-based
liquids to clean your monitor.
• To avoid the risk of shock or
permanent damage to the set, do
not expose the monitor to dust,
rain, water, or excessive moisture
environment.
• If your monitor gets wet, wipe it
with dry cloth as soon as possible.
• If foreign substance or water gets in
your monitor, please turn the power
off immediately and disconnect
the power cord. Then, remove the
foreign substance or water, and
send it to the maintenance center.
• Do not store or use the monitor in
locations exposed to heat, direct
sunlight or extreme cold.
• In order to maintain the best
performance of your monitor and
use it for a longer lifetime, please
use the monitor in a location
that falls within the following
temperature and humidity ranges.
• Temperature: 0-40°C 32-104°F
• Humidity: 20-80% RH
Important information for Burn-in/
Ghost image
• Always activate a moving screen
saver program when you leave
your monitor unattended. Always
activate a periodic screen refresh
application if your monitor will
display unchanging static content.
Uninterrupted display of still or
static images over an extended
period may cause “Burn-in”, also
known as “after-imaging” or “ghost
imaging”, on your screen.
3
1. Important
• “Burn-in”, “after-imaging”, or
“ghost imaging” is a well-known
phenomenon in LCD panel
technology. In most cases, the
“burned in” or “after-imaging” or
“ghost imaging” will disappear
gradually over a period of time after
the power has been switched off.
Warning
Failure to activate a screen saver, or
a periodic screen refresh application
may result in severe “burn-in” or “after-
image” or “ghost image” symptoms
that will not disappear and cannot be
repaired. The damage mentioned above
is not covered under your warranty.
Service
• The casing cover should be opened
only by qualified service personnel.
• If there is any need for any
document for repair or integration,
please contact with your local
service center. (Please refer to
Service contact information listed in
Important information manual.)
• For transportation information,
please refer to “Technical
Specifications”.
• Do not leave your monitor in a car/
trunk under direct sun light.
Note
Consult a service technician if the
monitor does not operate normally, or
you are not sure what procedure to take
when the operating instructions given in
this manual have been followed.
1.2 Notational Descriptions
The following subsections describe
notational conventions used in this
document.
Notes, Cautions and Warnings
Throughout this guide, blocks of text
may be accompanied by an icon and
printed in bold or italic type. These
blocks contain notes, cautions or
warnings. They are used as follows:
Note
This icon indicates important
information and tips that help you make
better use of your computer system.
Caution
This icon indicates information that
tells you how to avoid either potential
damage to hardware or loss of data.
Warning
This icon indicates the potential for
bodily harm and tells you how to avoid
the problem.
Some warnings may appear in alternate
formats and may not be accompanied
by an icon. In such cases, the specic
presentation of the warning is
mandated by the relevant regulatory
authority.
4
1. Important
1.3 Disposal of product and
packing material
Waste Electrical and Electronic
Equipment-WEEE
This marking on the product or on
its packaging illustrates that, under
European Directive 2012/19/EU
governing used electrical and electronic
appliances, this product may not be
disposed of with normal household
waste. You are responsible for disposal
of this equipment through a designated
waste electrical and electronic
equipment collection. To determine the
locations for dropping o such waste
electrical and electronic, contact your
local government oce, the waste
disposal organization that serves your
household or the store at which you
purchased the product.
Your new monitor contains materials
that can be recycled and reused.
Specialized companies can recycle
your product to increase the amount of
reusable materials and to minimize the
amount to be disposed of.
All redundant packing material has been
omitted. We have done our utmost to
make the packaging easily separable
into mono materials.
Please nd out about the local
regulations on how to dispose of your
old monitor and packing from your
sales representative.
Taking back/Recycling Information for
Customers
Philips establishes technically and
economically viable objectives
to optimize the environmental
performance of the organization's
product, service and activities.
From the planning, design and
production stages, Philips emphasizes
the important of making products
that can easily be recycled. At Philips,
end-of-life management primarily
entails participation in national take-
back initiatives and recycling programs
whenever possible, preferably in
cooperation with competitors,
which recycle all materials (products
and related packaging material) in
accordance with all Environmental
Laws and taking back program with the
contractor company.
Your display is manufactured with high
quality materials and components
which can be recycled and reused.
To learn more about our recycling
program please visit
http://www.philips.com/a-w/about/
sustainability.html
5
2. Setting up the monitor
2. Setting up the monitor

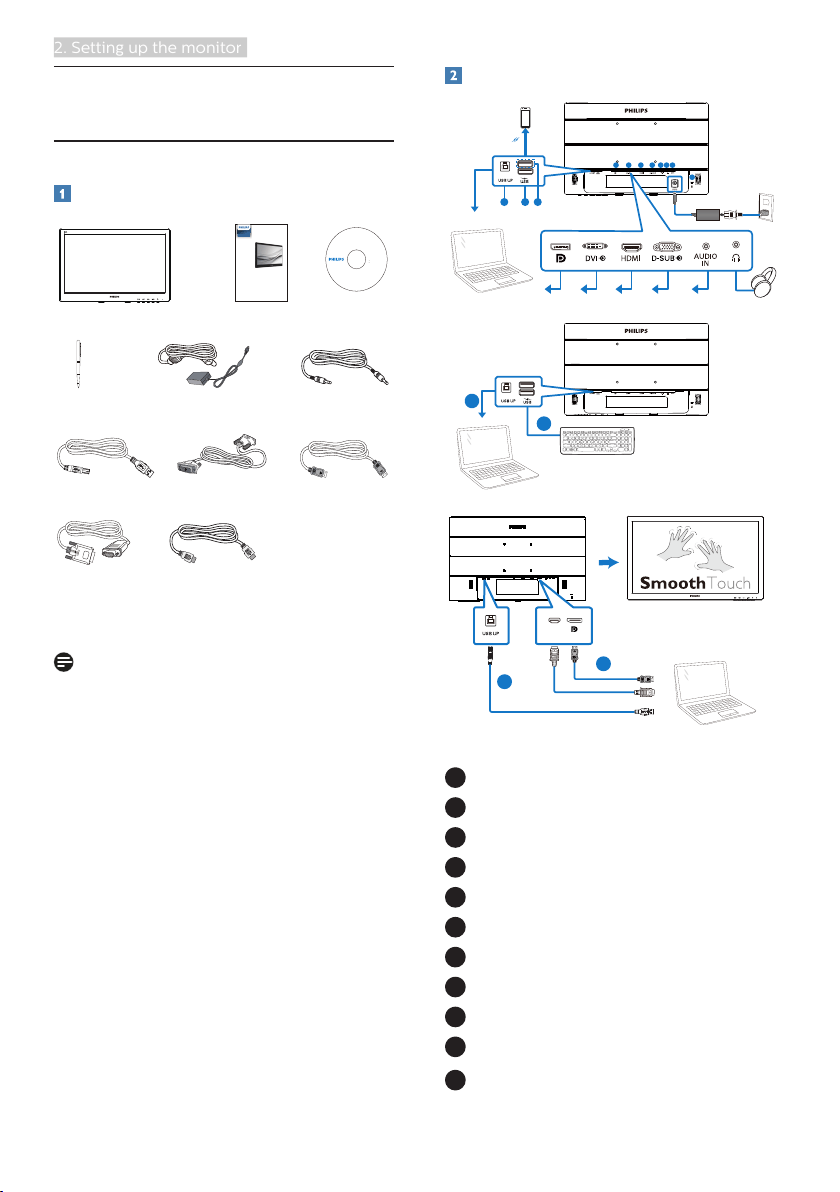

2.1 Installation
Package contents
* VGA * HDMI
* Audio cable
* CD
* DVI* USB A-B
* DP
AC/DC Adapter* Stylus
2
0
2
0
©
T
O
P
V
i
c
t
o
r
y
I
n
v
e
s
t
m
e
n
t
s
L
t
d
.
A
l
l
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
U
n
a
u
t
h
o
r
i
z
e
d
d
u
p
l
i
c
a
t
i
o
n
i
s
a
v
i
o
l
a
t
i
o
n
o
f
a
p
p
l
i
c
a
b
l
e
l
a
w
s
.
M
a
d
e
a
n
d
p
r
i
n
t
e
d
i
n
C
h
i
n
a
.
V
e
r
s
i
o
n
This product has been manufactured by and is
sold under the responsibility of Top Victory
Investments Ltd., and Top Victory Investments
Ltd. is the warrantor in relation to this product.
Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used under license.
Contents:
Drivers
User’s Manual
User’s Manual
www.philips.com/welcome
使用产品前请阅读使用说明
保留备用
Monitor
Register your product and get support at
www.philips.com/welcome
Quick
Start
B Line
162B9/172B9
*Dierent according to region
Note
162B9TN: Use only the AC/DC adapter
model: Philips ADPC1936.
172B9TN: Use only the AC/DC adapter
model: Philips ADPC2045.
Connecting to your PC
8
Step 1
Step 2
23 4
6 7
1
USB hub
5
Fast
Charger
9 10 11
or
Step 1
Step 2
or
HDMI
USB A-B
1
Kensington anti-theft lock
2
DC power input
3
Displayport input
4
DVI input
5
HDMI input
6
VGA input
7
Audio input
8
Earphone jack
9
USB upstream
10
USB downstream
11
USB fast charger
/
USB downstream
6
2. Setting up the monitor
Connect to PC
1. Connect the power cord to the back
of the monitor rmly.
2. Turn o your computer and unplug
its power cable.
3. Connect the monitor signal cable to
the video connector on the back of
your computer.
4. Connect USB upstream cable
between monitor and PC for the
touch functionality.
5. Plug the power cord of your
computer and your monitor into a
nearby outlet.
6. Turn on your computer and monitor.
If the monitor displays an image,
installation is complete.
Warning
USB 2.4Ghz wireless devices, such
as, wireless mouse, keyboard,
and headphones, maybe have
interference by the high-speed signal
of USB 3.1 devices, which may result
in a decreased eciency of the radio
transmission. Should this happen,
please try the following methods to
help reduce the eects of interference.
• Try to keep USB2.0 receivers away
from USB3.1 connection port.
• Use a standard USB extension cable
or USB hub to increase the space
between your wireless receiver and
the USB3.1 connection port.
2.2 Operating the monitor
Description of the control buttons
7
6
25
4
3
1
Switch monitor’s power
ON and OFF.
Access the OSD menu
.
Confirm the OSD
adjustment.
Adjust the OSD menu.
Adjust the brightness level.
Change the signal input
source.
Return to previous OSD
level.
SmartImage. There are
multiple selections:
EasyRead, Office, Photo,
Movie, Game, Economy,
LowBlue Mode, Off.
7
2. Setting up the monitor
Description of the On Screen Display
What is On-Screen Display (OSD)?
On-Screen Display (OSD) is a feature
in all Philips LCD monitors. It allows an
end user to adjust screen performance
or select functions of the monitors
directly through an on-screen
instruction window. A user friendly on
screen display interface is shown as
below:
Basic and simple instruction on the
control keys
In the OSD shown above, you can press
buttons at the front bezel of the
monitor to move the cursor, and press
OK button to conrm the choice or
change.
The OSD Menu
Below is an overall view of the structure
of the On-Screen Display. You can use
this as a reference when you want to
work your way around the dierent
adjustments later on.
Note
If this display has "DPS" for ECO design,
the default setting is "ON" mode: it
makes the screen looks slightly dim; for
optimum brightness, enter to the OSD
to set "DPS" to "OFF" mode.
Main menu Sub menu
Input
OSD Settings
Setup
Language
Color
Audio
Audio In, HDMI, DisplayPort
Brightness
Contrast
Horizontal
Vertical
Transparency
OSD Time Out
Auto
V.Position
Phase
Clock
Resolution
Notication
Reset
Information
Color Temperature
sRGB
User Dene
VGA
DVI
DisplayPort
SmartResponse
SmartContrast
DPS
(available for selective models)
Gamma
H.Position
HDMI 1.4
Stand-Alone
0~100
0~100
0~100
0~100
O, 1, 2, 3, 4
5s, 10s, 20s, 30s, 60s
On, O
Yes, No
0~100
0~100
0~100
Native, 5000K, 6500K, 7500K,
8200K, 9300K, 11500K
Red: 0~100
Green: 0~100
Blue: 0~100
O, Fast, Faster, Fastest
On, O
On, O
0~100
0~100
On, O
On, O
Volume
Audio Source
Mute
1.8, 2.0, 2.2, 2.4, 2.6
Sharpness
0~100
LowBlue
Mode
On
O
1, 2, 3, 4
English, Deutsch, Español, Ελληνική, Français, Italiano,
Maryar, Nederlands, Português, Português do Brasil,
Polski , Русский, Svenska, Suomi, Türkçe, Čeština,
Українська, 简体中文, 繁體中文,日本語,한국어
8
2. Setting up the monitor
Resolution notication
This monitor is designed for optimal
performance at its native resolution,
1366 x 768(162B9TN), 1280 x
1024(172B9TN). When the monitor is
powered on at a dierent resolution, an
alert is displayed on screen: Use 1366
x 768(162B9TN), 1280 x 1024(172B9TN)
for best results.
Display of the native resolution alert
can be switched o from Setup in the
OSD (On Screen Display) menu.
2.3 VESA Mounting
Note
This monitor accepts a 100mm x 100mm
VESA-Compliant mounting interface.
VESA Mounting Screw M4. Always
contact manufacturer for wall-mount
installation.
100mm
100mm
9
3. Image Optimization
3. Image Optimization
3.1 SmartImage
What is it?
SmartImage provides presets that
optimize display for dierent types
of content, dynamically adjusting
brightness, contrast, color and
sharpness in real time. Whether
you're working with text applications,
displaying images or watching a video,
Philips SmartImage delivers great
optimized monitor performance.
Why do I need it?
You want a monitor that delivers
optimized display all your favorite
types of content, SmartImage software
dynamically adjust brightness,
contrast, color and sharpness in real
time to enhance your monitor viewing
experience.
How does it work?
SmartImage is an exclusive, leading
edge Philips technology that analyzes
the content displayed on your screen.
Based on a scenario you select,
SmartImage dynamically enhances the
contrast, color saturation and sharpness
of images to enhance the contents
being displayed - all in real time with
the press of a single button.
How to enable SmartImage?
1. Press to launch the SmartImage
on screen display.
2. Keep pressing to toggle among
EasyRead, Oce, Photo, Movie,
Game, Economy, LowBlue Mode,
O.
3. The SmartImage on screen display
will remain on screen for 5 seconds,
or you can also press "OK" to make
conrmation.
There are multiple selections: EasyRead,
Oce, Photo, Movie, Game, Economy,
LowBlue Mode, O.
• EasyRead: Helps improve reading
of text based application like PDF
ebooks. By using a special algorithm
which increases the contrast and
boundary sharpness of text content,
the display is optimized for a
stress-free reading by adjusting
the brightness, contrast and color
temperature of the monitor.
• Office: Enhances text and dampens
brightness to increase readability
and reduce eye strain. This mode
significantly enhances readability
and productivity when you’re
working with spreadsheets, PDF
files, scanned articles or other
general office applications.
10
3. Image Optimization
• Photo: This profile combines color
saturation, dynamic contrast and
sharpness enhancement to display
photos and other images with
outstanding clarity in vibrant colors
- all without artifacts and faded
colors.
• Movie: Ramped up luminance,
deepened color saturation, dynamic
contrast and razor sharpness
displays every details in darker
areas of your videos without
color washout in brighter areas
maintaining a dynamic natural
values for the ultimate video
display.
• Game: Turn on over drive circuit for
best response time, reduce jaggy
edges for fast moving objects on
screen, enhance contrast ratio for
bright and dark scheme, this profile
delivers the best gaming experience
for gamers.
• Economy: Under this profile,
brightness, contrast are adjusted
and backlighting finetuned for just
right display of everyday office
applications and lower power
consumption.
• LowBlue Mode: LowBlue Mode
for easy on-the-eyes productivity
Studies have shown that just as
ultra-violet rays can cause eye
damage, shortwave length blue light
rays from LED displays can cause
eye damage and affect vision over
time. Developed for wellbeing,
Philips LowBlue Mode setting uses
a smart software technology to
reduce harmful shortwave blue
light.
• Off: No optimization by
SmartImage.
Note
Philips LowBlue mode, mode 2
compliance with TUV Low Blue Light
certication, you can have this mode by
simply press the hotkey , then press
to select LowBlue Mode, see above
SmartImage selection steps.
3.2 SmartContrast
What is it?
Unique technology that dynamically
analyzes displayed content and
automatically optimizes a Monitor's
contrast ratio for maximum visual clarity
and viewing enjoyment, stepping up
backlighting for clearer, crisper and
brighter images or dimming backlighting
for clear display of images on dark
backgrounds.
Why do I need it?
You want the very best visual clarity
and viewing comfort for every type of
content. SmartContrast dynamically
controls contrast and adjusts
backlighting for clear, crisp, bright
gaming and video images or displays
clear, readable text for oce work.
By reducing your monitor's power
consumption, you save on energy costs
and extend the lifetime of your monitor.
How does it work?
When you activate SmartContrast, it will
analyse the content you are displaying
in real time to adjust colors and control
backlight intensity. This function will
dynamically enhance contrast for a
great entertainment experience when
viewing videos or playing games.
11
4.SmoothTouch
4. SmoothTouch
What is it?
This is a display which uses “Projected
capacitive” 10 point touch panel
technology. Used with latest OS like
Windows 10, it oers you groovy
touch gestures like tap, grab, pinch,
rotate, zoom, swipe, etc. Your older
applications come to life, and now you
can fully utilize the new capabilities of
touch based applications. Now you can
view and scroll through nger-touch
directly without using keyboard or
mouse.
How do I use it?
To activate touch functionality, connect
the display with the provided USB cable
to your computer. You can softly touch
the screen surface to interact with the
applications with dierent gestures
like swipe, tap, pinch, etc. You can use
either single nger touch, or multi-nger
touch upto maximum simultaneous 10
touch points.
1. Connect the monitor signal cable to
the video connector on the back of your
computer.
2. Connect USB upstream cable
between monitor and PC for the touch
functionality.
or
Step 1
Step 2
or
HDMI
USB A-B
Operating System requirements
The touch function works on the
operating systems shown on the below
table.
OS OS Version/Name
Kernel
version
Touche finger Need Driver
Windows Win10 non multi-touch No
Windows Win8/Win8.1 non multi-touch No
Windows Win7 non multi-touch No
Windows *WES7 E non multi-touch Yes
Windows *XP non Single Yes
Android 7.1 (Nougat) 4.4.1 multi-touch No
Android 7.0 (Nougat) 4.4.1 multi-touch No
Android 6.0 (Marshmallow) 3.18 multi-touch No
Android 5.X (Lollipop) 3.16.1 multi-touch No
Android 4.4 (Jelly Bean) 3.1 multi-touch No
Note
• Do not touch the screen with sharp
objects, it may result in damage,
and it is not covered under your
warranty.
• Do not push hard, or rest anything
on the glass surface (if in horizontal
position) as it will damage the
screen and it is not covered under
your warranty. Using the touch
screen with fingers or stylus are
recommended.
• The touch function works only on
OS and applications which support
touch functions, see the table listed
above.
• *Some operating systems require
driver for the touch function. The
driver is available in the CD disk
or you can access them from the
Philips website supporting pages.
12
5.Technical Specifications
5. Technical Specifications
Picture/Display
Monitor Panel Type TN
Backlight W-LED
Panel Size
162B9TN: 15.6" (39.6 cm)
172B9TN: 17" (43.2 cm)
Aspect Ratio
162B9TN: 16:9
172B9TN: 4:3
Pixel Pitch
162B9TN: 0.252 (H) mm x 0.252 (V) mm
172B9TN: 0.264 (H) mm x 0.264 (V) mm
Contrast Ratio (typ.)
162B9TN: 500:1
172B9TN: 1,000:1
Optimum Resolution
162B9TN: 1366 x 768 @ 60 Hz
172B9TN: 1280 x 1024 @ 60 Hz
Viewing Angle
162B9TN: 90° (H) / 60° (V) @ C/R > 10 (typ.)
172B9TN: 170° (H) / 160° (V) @ C/R > 10 (typ.)
Display Colors
162B9TN: 262K
172B9TN: 16.7M
Flicker Free(172B9TN) YES
Picture Enhancement SmartImage
Vertical Refresh Rate
162B9TN: 50 Hz - 75 Hz
172B9TN: 48 Hz - 60 Hz
Horizontal Frequency
162B9TN: 30 kHz - 60 kHz
172B9TN: 30 kHz - 85 kHz
sRGB YES
LowBlue Mode YES
EasyRead YES
SmoothTouch
Touch Technology Projective Capacitive
Touch Points 10
Touch method Stylus, finger, glove
Transmission rate
≥
85 %
Touch interface USB
Touch glass hardness 7H
Touch active area 338.92 mm (H) x 271.34 mm (V)
Touch Response time
≥
35 ms
Openation system
Windows 7/8/8.1/10/ *XP/*WES7 E
Android 7.1/7.0 (Nougat) 6.0 (Marshmallow)
5.X (Lollipop) 4.4 (Jelly Bean)
Brightness
162B9TN: 220 nits (typ)
172B9TN: 210 nits (typ)
Ingress Protection IP65-front only
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to
LCD
13
5.Technical Specifications
Connectivity
Signal Input/Output
Analog: VGA
Digital: DVI-D, DP1.2, HDMI 1.4
USB USB3.1 x 2 including x 1 BC1.2 fast charger
Input Signal Separate Sync, Sync on Green
Audio In/Out PC audio-in, headphone out
Convenience
Built-in speaker 2 W x 2
User Convenience
OSD Languages
English, German, Spanish, Greek, French, Italian,
Hungarian, Dutch, Portuguese, Brazil Portuguese,
Polish, Russian, Swedish, Finnish, Turkish, Czech,
Ukranian, Simplified Chinese, Traditional Chinese,
Japanese, Korean
Other Convenience VESA mount (100 x 100 mm), Kensington Lock
Plug & Play Compatibility DDC/CI, sRGB, Windows 10/8.1/8/7
Power(162B9TN)
Consumption
AC Input
Voltage at
100VAC , 50Hz
AC Input
Voltage at
115VAC , 50Hz
AC Input
Voltage at
230VAC, 50Hz
Normal Operation 7.70 W (typ.) 7.80 W (typ.) 7.90 W (typ.)
Sleep (Standby mode) 0.3 W 0.3 W 0.3 W
Off mode 0.3 W 0.3 W 0.3 W
Heat Dissipation*
AC Input
Voltage at
100VAC , 50Hz
AC Input
Voltage at
115VAC , 50Hz
AC Input
Voltage at
230VAC , 50Hz
Normal Operation
26.28 BTU/hr
(typ.)
26.62 BTU/hr
(typ.)
26.96 BTU/hr
(typ.)
Sleep (Standby mode) 1.02 BTU/hr 1.02 BTU/hr 1.02 BTU/hr
Off mode 1.02 BTU/hr 1.02 BTU/hr 1.02 BTU/hr
On Mode(ECO mode) 5.6 W (typ.)
Power LED indicator
On mode: White, Standby/Sleep mode: White
(blinking)
Power Supply External, 100-240V AC, 50-60Hz
Power(172B9TN)
Consumption
AC Input
Voltage at
100VAC , 50Hz
AC Input
Voltage at
115VAC , 50Hz
AC Input
Voltage at
230VAC, 50Hz
Normal Operation 11.0 W (typ.) 11.1 W (typ.) 11.2 W (typ.)
Sleep (Standby mode) 0.3 W 0.3 W 0.3 W
Off mode 0.3 W 0.3 W 0.3 W
Heat Dissipation*
AC Input
Voltage at
100VAC , 50Hz
AC Input
Voltage at
115VAC , 50Hz
AC Input
Voltage at
230VAC , 50Hz
14
5.Technical Specifications
Normal Operation
37.54 BTU/hr
(typ.)
37.88 BTU/hr
(typ.)
38.23 BTU/hr
(typ.)
Sleep (Standby mode) 1.02 BTU/hr 1.02 BTU/hr 1.02 BTU/hr
Off mode 1.02 BTU/hr 1.02 BTU/hr 1.02 BTU/hr
On Mode(ECO mode) 7.7 W (typ.)
Power LED indicator
On mode: White, Standby/Sleep mode: White
(blinking)
Power Supply
External, 100-240V AC, 50-60Hz
Dimensions
Product(WxHxD)
162B9TN: 378 x 241 x 42 mm
172B9TN: 376 x 322 x 45 mm
Product with packaging
(WxHxD)
162B9TN: 445 x 388 x 159 mm
172B9TN: 445 x 420 x 159 mm
Weight
Product
162B9TN: 2.01 kg
172B9TN: 3.26 kg
Product with packaging
162B9TN: 3.44 kg
172B9TN: 4.67 kg
Operating Condition
Temperature range
(operation)
0°C to 40 °C
Relative humidity
(operation)
20% to 80%
Atmospheric pressure
(operation)
700 to 1060hPa
Temperature range
(Non-operation)
-20°C to 60°C
Relative humidity
(Non-operation)
10% to 90%
Atmospheric pressure
(Non-operation)
500 to 1060hPa
Environmental and energy
ROHS YES
Packaging 100% recyclable
Specific Substances 100% PVC BFR free housing
Cabinet
Color Black
Finish Texture
Note
1. This data is subject to change without notice. Go to www.philips.com/support to
download the latest version of leaet.
2. *Some operating systems require driver for the touch function. The driver is avail-
15
5.Technical Specifications
able in the CD disk or you can access them from the Philips website supporting
pages.
3. In order to comply with international energy standards, power consumptions are
under the PC/Display test mode and the monitor needs to connect with USB up-
stream cable.
16
5.Technical Specifications
5.1 Resolution & Preset Modes
Recommended Resolution
162B9TN: 1366 x 768 @ 60 Hz
172B9TN: 1280 x 1024 @ 60 Hz
162B9TN
H. freq
(kHz)
Resolution V. freq (Hz)
31.47 640 x 480 59.94
37.88 800 x 600 60.32
48.36 1024 x 768 60
44.77 1280 x 720 59.86
47.71 1366 x 768 59.79
172B9TN
H. freq
(kHz)
Resolution V. freq (Hz)
31.47 640 x 480 59.94
31.47 720 x 400 70.09
35.00 640 x 480 66.67
37.86 640 x 480 72.81
37.50 640 x 480 75.00
37.88 800 x 600 60.32
46.88 800 x 600 75.00
48.36 1024 x 768 60.00
60.02 1024 x 768 75.03
44.77 1280 x 720 59.86
63.89 1280 x 1024 60.02
Note
Please notice that your display works
best at native resolution of 1366 x
768(162B9TN), 1280 x 1024(172B9TN).
For best display quality,please follow
this resolution recommendation.
17
6.Power Management
6. Power Management
If you have VESA DPM compliance
display card or software installed in
your PC, the monitor can automatically
reduce its power consumption when
not in use. If an input from a keyboard,
mouse or other input device is detected,
the monitor will 'wake up' automatically.
The following table shows the power
consumption and signaling of this
automatic power saving feature:
162B9TN
Power Management Definition
VESA
Mode
Video H-sync V-sync
Power
Used
LED
Color
Active ON Yes Yes
7.80 W
(typ.)
34 W
(max.)
White
Sleep
(Standby
mode)
OFF No No 0.3 W
White
(blink)
Off mode OFF - - 0.3 W OFF
172B9TN
Power Management Definition
VESA
Mode
Video H-sync V-sync
Power
Used
LED
Color
Active ON Yes Yes
11.1 W
(typ.)
57 W
(max.)
White
Sleep
(Standby
mode)
OFF No No 0.3 W
White
(blink)
Off mode OFF - - 0.3 W OFF
The following setup is used to measure
power consumption on this monitor.
• Native resolution: 1366
x 768(162B9TN), 1280 x
1024(172B9TN),
• Contrast: 50%
• Brightness: 90%
• Color temperature: 6500k with full
white pattern
Note
This data is subject to change without
notice.
18
7.Customer care and warranty
7. Customer care and
warranty
7.1 Philips’ Flat Panel Monitors
Pixel Defect Policy
Philips strives to deliver the highest
quality products. We use some
of the industry's most advanced
manufacturing processes and practice
stringent quality control. However,
pixel or sub pixel defects on the TFT
Monitor panels used in at panel
monitors are sometimes unavoidable.
No manufacturer can guarantee that
all panels will be free from pixel
defects, but Philips guarantees that
any monitor with an unacceptable
number of defects will be repaired
or replaced under warranty. This
notice explains the dierent types of
pixel defects and denes acceptable
defect levels for each type. In order to
qualify for repair or replacement under
warranty, the number of pixel defects
on a TFT Monitor panel must exceed
these acceptable levels. For example,
no more than 0.0004% of the sub
pixels on a monitor may be defective.
Furthermore, Philips sets even higher
quality standards for certain types or
combinations of pixel defects that are
more noticeable than others. This policy
is valid worldwide.
subpixel
pixel
Pixels and Sub pixels
A pixel, or picture element, is composed
of three sub pixels in the primary colors
of red, green and blue. Many pixels
together form an image. When all sub
pixels of a pixel are lit, the three colored
sub pixels together appear as a single
white pixel. When all are dark, the three
colored sub pixels together appear as a
single black pixel. Other combinations
of lit and dark sub pixels appear as
single pixels of other colors.
Types of Pixel Defects
Pixel and sub pixel defects appear on
the screen in dierent ways. There are
two categories of pixel defects and
several types of sub pixel defects within
each category.
Bright Dot Defects
Bright dot defects appear as pixels or
sub pixels that are always lit or 'on'. That
is, a bright dot is a sub-pixel that stands
out on the screen when the monitor
displays a dark pattern. There are the
types of bright dot defects.
One lit red, green or blue sub pixel.
Two adjacent lit sub pixels:
- Red + Blue = Purple
- Red + Green = Yellow
- Green + Blue = Cyan (Light Blue)
19
7.Customer care and warranty
Proximity of Pixel Defects
Because pixel and sub pixels defects
of the same type that are near to one
another may be more noticeable,
Philips also species tolerances for the
proximity of pixel defects.
Pixel Defect Tolerances
In order to qualify for repair or
replacement due to pixel defects during
the warranty period, a TFT Monitor
panel in a Philips at panel monitor
must have pixel or sub pixel defects
exceeding the tolerances listed in the
following tables.
Three adjacent lit sub pixels (one white
pixel).
Note
A red or blue bright dot must be
more
than 50 percent brighter than
neighboring dots while a green
bright dot is 30 percent brighter than
neighboring dots.
Black Dot Defects
Black dot defects appear as pixels or
sub pixels that are always dark or 'o'.
That is, a dark dot is a sub-pixel that
stands out on the screen when the
monitor displays a light pattern. These
are the types of black dot defects.
20
7.Customer care and warranty
162B9TN
BRIGHT DOT DEFECTS ACCEPTABLE LEVEL
1 lit subpixel 1 or fewer
2 adjacent lit subpixels 0
3 adjacent lit subpixels (one white pixel) 0
Distance between two bright dot defects*
>5mm
Total bright dot defects of all types 1 or fewer
BLACK DOT DEFECTS ACCEPTABLE LEVEL
1 dark subpixel 3 or fewer
2 adjacent dark subpixels 1 or fewer
3 adjacent dark subpixels 0
Distance between two black dot defects* >5mm
Total black dot defects of all types 3 or fewer
TOTAL DOT DEFECTS ACCEPTABLE LEVEL
Total bright or black dot defects of all types 3 or fewer
172B9TN
BRIGHT DOT DEFECTS ACCEPTABLE LEVEL
1 lit subpixel 2
2 adjacent lit subpixels 1
3 adjacent lit subpixels (one white pixel) 0
Distance between two bright dot defects* >15mm
Total bright dot defects of all types 3
BLACK DOT DEFECTS ACCEPTABLE LEVEL
1 dark subpixel 5 or fewer
2 adjacent dark subpixels 2or fewer
3 adjacent dark subpixels 0
Distance between two black dot defects* >5mm
Total black dot defects of all types 5 or fewer
TOTAL DOT DEFECTS ACCEPTABLE LEVEL
Total bright or black dot defects of all types 5 or fewer
Note
1 or 2 adjacent sub pixel defects = 1 dot defect
21
7.Customer care and warranty
7.2 Customer Care & Warranty
For warranty coverage information and additional support requirements valid for your
region, please visit www.philips.com/support website for details or contact your local
Philips Customer Care Center.
For Warranty Period please refer to Warranty Statement in Important Information
Manual.
For extended warranty, if you would like to extend your general warranty period, an
Out of Warranty service package is oered via our Certied Service Center.
If you wish to make use of this service, please be sure to purchase the service within
30 calendar days of your original purchase date. During the extended warranty
period, the service includes pickup, repair and return service, however the user will be
responsible for all costs accrued.
If the Certied Service Partner cannot perform the required repairs under the oered
extended warranty package, we will nd alternative solutions for you, if possible, up
to the extended warranty period you have purchased.
Please contact our Philips Customer Service Representative or local contact center (by
Consumer care number) for more details.
Philips Customer Care Center number listed below.
•
Local Standard
Warranty Period
•
Extended Warranty
Period
•
Total Warranty Period
•
Depend on
different Regions
•
+ 1 Year
•
Local Standard warranty period
+1
•
+ 2 Years
•
Local Standard warranty period
+2
•
+ 3 Years
•
Local Standard warranty period
+3
**
Proof of original purchase and extended warranty purchase required.
Note
Please refer to important information manual for regional service hotline, which is
available on the Philips website support page.
22
8.Troubleshooting & FAQs
8. Troubleshooting &
FAQs
8.1 Troubleshooting
This page deals with problems that can
be corrected by a user. If the problem
still persists after you have tried these
solutions, contact Philips customer
service representative.
Common Problems
No Picture (Power LED not lit)
• Make sure the power cord is
plugged into the power outlet and
into the back of the monitor.
• First, ensure that the power button
on the front of the monitor is in the
OFF position, then press it to the
ON position.
No Picture (Power LED is White)
• Make sure the computer is turned
on.
• Make sure the signal cable is
properly connected to your
computer.
• Make sure the monitor cable has
no bent pins on the connect side. If
yes, repair or replace the cable.
• The Energy Saving feature may be
activated
Screen says
• Make sure the monitor cable
is properly connected to your
computer. (Also refer to the Quick
Start Guide).
• Check to see if the monitor cable
has bent pins.
• Make sure the computer is turned
on.
AUTO button doesn't function
• The auto function is applicable only
in VGA-Analog mode. If the result is
not satisfactory, you can do manual
adjustments via the OSD menu.
Note
The Auto Function is not applicable in
DVI-Digital mode as it is not necessary.
Visible signs of smoke or sparks
• Do not perform any troubleshooting
steps
• Disconnect the monitor from mains
power source immediately for safety
• Contact with Philips customer
service representative immediately.
Imaging Problems
Image is not centered
• Adjust the image position using
the “Auto” function in OSD Main
Controls.
• Adjust the image position using
the Phase/Clock of Setup in OSD
Main Controls. It is valid only in VGA
mode.
Image vibrates on the screen
• Check that the signal cable is
properly securely connected to the
graphics board or PC.
Vertical icker appears
• Adjust the image using the “Auto”
function in OSD Main Controls.
• Eliminate the vertical bars using
the Phase/Clock of Setup in OSD
Main Controls. It is valid only in VGA
mode.
23
8.Troubleshooting & FAQs
Horizontal icker appears
• Adjust the image using the “Auto”
function in OSD Main Controls.
• Eliminate the vertical bars using
the Phase/Clock of Setup in OSD
Main Controls. It is valid only in VGA
mode.
Image appears blurred, indistinct or too
dark
• Adjust the contrast and brightness
on On-Screen Display.
An "after-image", "burn-in" or "ghost
image" remains after the power has
been turned o.
• Uninterrupted display of still or
static images over an extended
period may cause "burn-in", also
known as "after-imaging " or "ghost
imaging", on your screen. "Burn-in",
"after-imaging", or "ghost imaging"
is a well-known phenomenon in
monitor panel technology. In most
cases, the "burned in" or "after-
imaging" or "ghost imaging" will
disappear gradually over a period
of time after the power has been
switched off.
• Always activate a moving screen
saver program when you leave your
monitor unattended.
• Always activate a periodic screen
refresh application if your monitor
will display unchanging static
content.
• Failure to activate a screen saver,
or a periodic screen refresh
application may result in severe
“burn-in” or “after-image” or “ghost
image” symptoms that will not
disappear and cannot be repaired.
The damage mentioned above is
not covered under your warranty.
Image appears distorted. Text is fuzzy
or blurred.
• Set the PC’s display resolution
to the same mode as monitor’s
recommended screen native
resolution.
Green, red, blue, dark, and white dots
appears on the screen
• The remaining dots are normal
characteristic of the liquid crystal
used in today’s technology, Please
refer the pixel policy for more detail.
*
The "power on" light is too strong and
is disturbing
• You can adjust “power on” light
using the power LED Setup in OSD
main Controls.
For further assistance, refer to the
Service contact information listed in
Important information manual and
contact Philips customer service
representative.
*
Functionality dierent according to
display.
8.2 General FAQs
Q1: When I install my monitor what
should I do if the screen shows
'Cannot display this video
mode'?
Ans.: Recommended resolution for this
monitor: 1366 x 768(162B9TN),
1280 x 1024(172B9TN).
• Unplug all cables, then connect your
PC to the monitor that you used
previously.
• In the Windows Start Menu, select
Settings/Control Panel. In the
Control Panel Window, select the
Display icon. Inside the Display
24
8.Troubleshooting & FAQs
Control Panel, select the 'Settings'
tab. Under the setting tab, in box
labelled 'desktop area', move the
sidebar to 1366 x 768(162B9TN),
1280 x 1024(172B9TN) pixels.
• Open 'Advanced Properties' and
set the Refresh Rate to 60 Hz, then
click OK.
• Restart your computer and repeat
step 2 and 3 to verify that your PC is
set at 1366 x 768(162B9TN), 1280 x
1024(172B9TN).
• Shut down your computer,
disconnect your old monitor and
reconnect your Philips LCD monitor.
• Turn on your monitor and then turn
on your PC.
Q2: What is the recommended re-
fresh rate for LCD monitor?
Ans.: Recommended refresh rate in
LCD monitors is 60 Hz, In case of
any disturbance on screen, you
can set it up to 75 Hz to see if
that removes the disturbance.
Q3: What are the .inf and .icm les on
the CD-ROM? How do I install
the drivers (.inf and .icm)?
Ans.: These are the driver les for your
monitor. Follow the instructions
in your user manual to install the
drivers. Your computer may ask
you for monitor drivers (.inf and
.icm les) or a driver disk when
you rst install your monitor. Fol-
low the instructions to insert the (
companion CD-ROM) included in
this package. Monitor drivers (.inf
and .icm les) will be installed
automatically.
Q4: How do I adjust the resolution?
Ans.: Your video card/graphic driver
and monitor together determine
the available resolutions. You
can select the desired resolution
under Windows
®
Control Panel
with the "Display properties".
Q5: What if I get lost when I am
making monitor adjustments via
OSD?
Ans.: Simply press the OK button, then
select 'Reset' to recall all of the
original factory settings.
Q6: Is the LCD screen resistant to
scratches?
Ans.: In general it is recommended
that the panel surface is not
subjected to excessive shocks
and is protected from sharp or
blunt objects. When handling the
monitor, make sure that there is
no pressure or force applied to
the panel surface side. This may
aect your warranty conditions.
Q7: How should I clean the LCD sur-
face?
Ans.: For normal cleaning, use a clean,
soft cloth. For extensive cleaning,
please use isopropyl alcohol. Do
not use other solvents such as
ethyl alcohol, ethanol, acetone,
hexane, etc.
Q8: Can I change the color setting of
my monitor?
Ans.: Yes, you can change your color
setting through OSD control as
the following procedures.
• Press "OK" to show the OSD (On
Screen Display) menu
• Press "Down Arrow" to select the
option "Color" then press "OK" to
enter color setting, there are three
settings as below.
1. Color Temperature: The settings
are Native, 5000K, 6500K,
7500K, 8200K, 9300K and
11500K. With settings in the
25
8.Troubleshooting & FAQs
5000K range the panel appears
"warm, with a red-white
color tone", while a 11500K
temperature yields "cool,
bluewhite toning".
2. sRGB: This is a standard setting
for ensuring correct exchange of
colors between dierent device
(e.g. digital cameras, monitors,
printers, scanners, etc).
3. User Dene: The user can choose
his/her preference color setting
by adjusting red, green blue
color.
Note
A measurement of the color of light
radiated by an object while it is being
heated. This measurement is expressed
in terms of absolute scale, (degrees
Kelvin). Lower Kevin temperatures such
as 2004K are red; higher temperatures
such as 9300K are blue. Neutral
temperature is white, at 6504K.
Q9: Can I connect my LCD monitor to
any PC, workstation or Mac?
Ans.: Yes. All Philips LCD monitors are
fully compatible with standard
PCs, Macs and workstations. You
may need a cable adapter to
connect the monitor to your Mac
system. Please contact your Phil-
ips sales representative for more
information.
Q10: Are Philips LCD monitors Plug-
and- Play?
Ans.: Yes, the monitors are Plug-and-
Play compatible with Windows
10/8.1/8/7.
Q11: What is Image Sticking, or Im-
age Burn-in, or After Image, or
Ghost Image in LCD panels?
Ans.: Uninterrupted display of still or
static images over an extended
period may cause "burn in", also
known as "after-imaging" or
"ghost imaging", on your screen.
"Burn-in", "after-imaging", or
"ghost imaging" is a well-known
phenomenon in LCD panel
technology. In most cases, the
"burned in" or "after-imaging"
or "ghost imaging" will disap-
pear gradually over a period of
time after the power has been
switched o.
Always activate a moving screen
saver program when you leave
your monitor unattended.
Always activate a periodic screen
refresh application if your LCD
monitor will display unchanging
static content.
Warning
Failure to activate a screen saver, or
a periodic screen refresh application
may result in severe “burn-in” or “after-
image” or “ghost image” symptoms
that will not disappear and cannot be
repaired. The damage mentioned above
is not covered under your warranty.
Q12: Why is my Display not showing
sharp text, and is displaying jag-
ged characters?
Ans.: Your LCD monitor works best
at its native resolution of
1366 x 768(162B9TN), 1280 x
1024(172B9TN). For best display,
please use this resolution.
Q13: How to unlock/lock my hot key?
Ans.: To lock the OSD, press and hold
the button while the
monitor is o and then press
26
8.Troubleshooting & FAQs
button to turn the monitor on.
To un-lock the OSD, press and
hold the button while the
monitor is o and then press
button to turn the monitor on.
Q14: Where can I nd Important In-
formation manual mentioned in
EDFU?
Ans.: Important Information manual
can be download on the Philips
website support page.
8.3 SmoothTouch
Q1: Why is the touch function not
available when I touch the dis-
play?
Ans.: Please ensure the supplied USB
cable is connected between your
computer and the display prop-
erly.
Q2: Does the touch function only ex-
ist on the Windows 10 OS?
Ans.: The touch function works only
on OS and applications which
support touch functions.
Q3: Why my touch function is very
slow?
Ans.: The touch function response
is dependent on the speed of
your computer conguration.
For example, your devise must
be either Windows or Android
certied listed on the specica-
tion page to ensure minimum
requirement for touch function in
order to maximize Touch utility.
Q4: Why my touch response is not
smooth enough?
Ans.: You may need to clean the
glass surface of the display with
proper screen cleaning material
from time to time, as the glass
tends to pick up dirt from your
ngers. Please keep your hands
clean and dry before touching
the screen to ensure uid touch
operation.
