Installation Instructions
for your new
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAVDP20
Drain Pan
For 18,000 BTU/hr units with a
Chassis Height of 47 inches only
31-50005HY -1 GEA
GE is a trademark of the General Electric Company. Manufactured under trademark license.

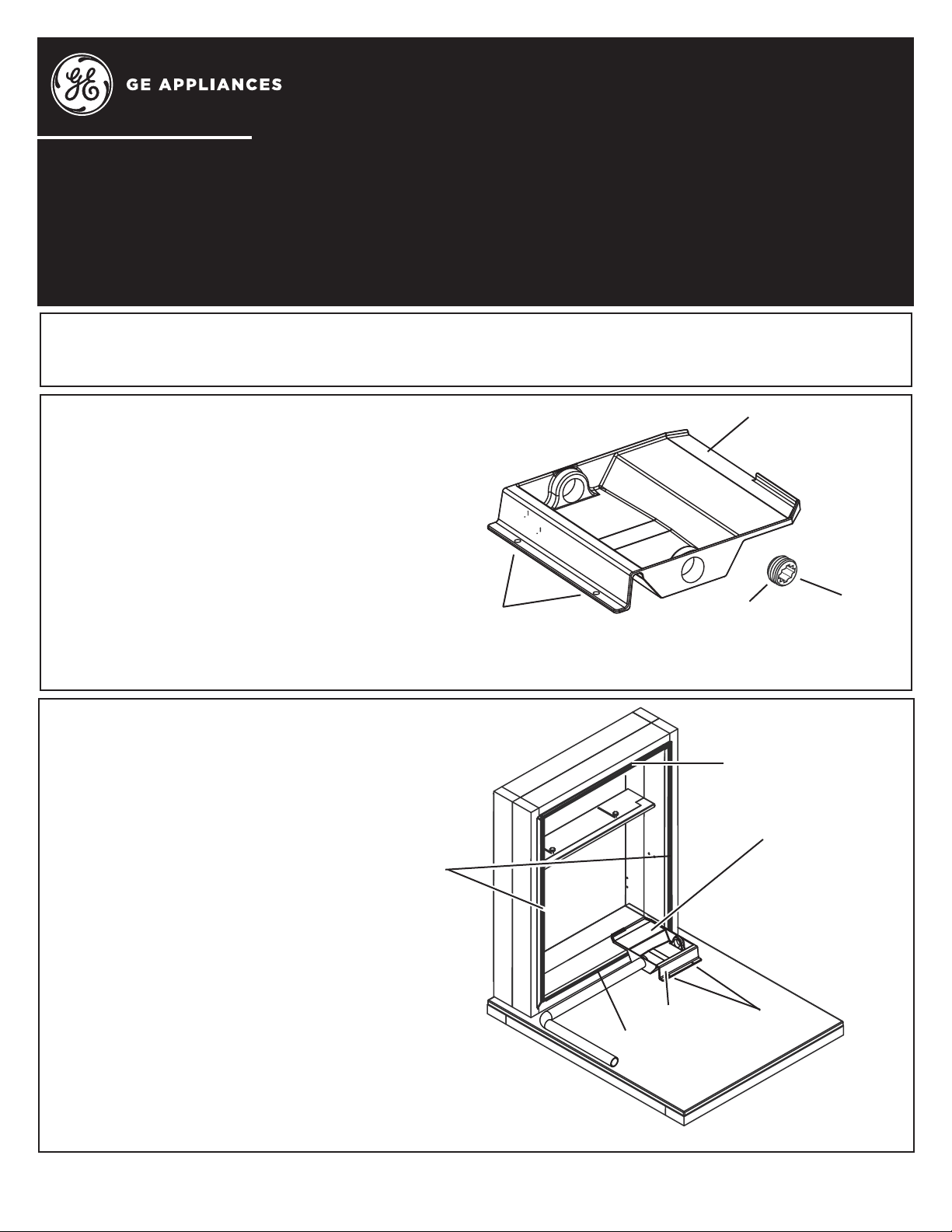

Parts Included
Materials Needed
(Field Supplied Parts)
Drain Pan with Mounting Holes
Drain Plug 3/4” 0PT
THE ACCESSORY DRAIN PAN (RAVDP20) MUST BE INSTALLED BEFORE
INSTALLING THE UNIT.
The drain pan will only work if installed correctly. Make sure to install and seal
the drain pan in the correct orientation as shown in the following illustrations.
Silicone Caulk (recommended)
Appropriate Mounting Screws to secure drain pan to floor
Pipe Sealant or Teflon tape
Condensate drain pipe/elbows

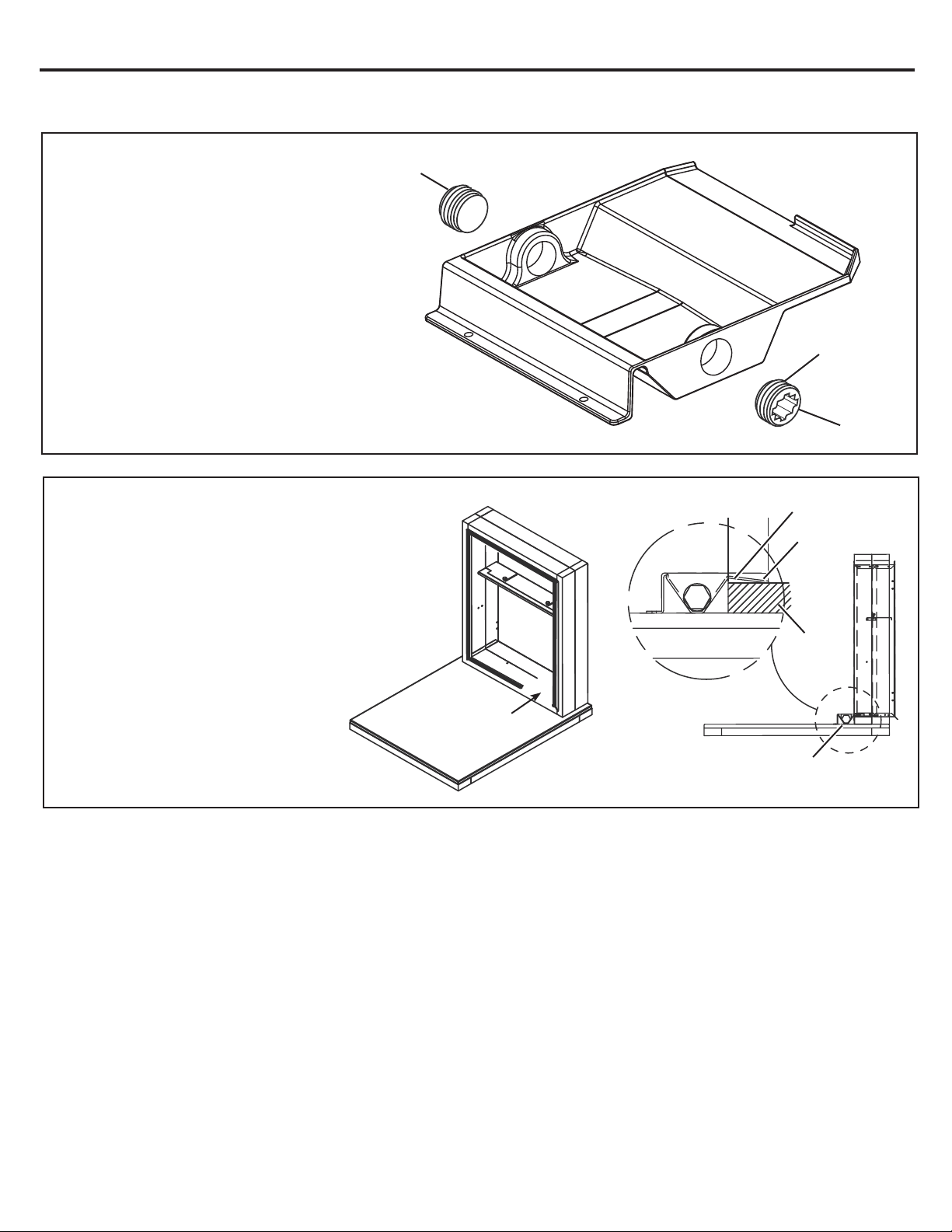

Drain Pan
Apply pipe sealant
or Teflon tape
Plug
Installation Overview
NOTE: THE ACCESSORY DRAIN PAN
(RAVDP20) MUST BE INSTALLED
BEFORE INSTALLING THE UNIT. This
kit is only used on the 18,000%78 units
with a chassis height of 47 inches.
1. The accessory drain pan has two (2)
provisions (left and right) for connecting
to an external condensate drain.
2. A field supplied condensate drain
system must be connected to one of the
two 3/4” FPT connections.
The remaining connection must be
plugged using the 3/4” plug (provided).
The pipe threads must be sealed with
field supplied Teflon tape or sealant
before securing the drain plug to the
drain pan.
Failure to follow these procedures may
result in serious property damage.
Kit RAVDP20 is the primary drain pan.
A field supplied secondary condensate
pan may berequired. Check with your
local andnational building/plumbing
codes.

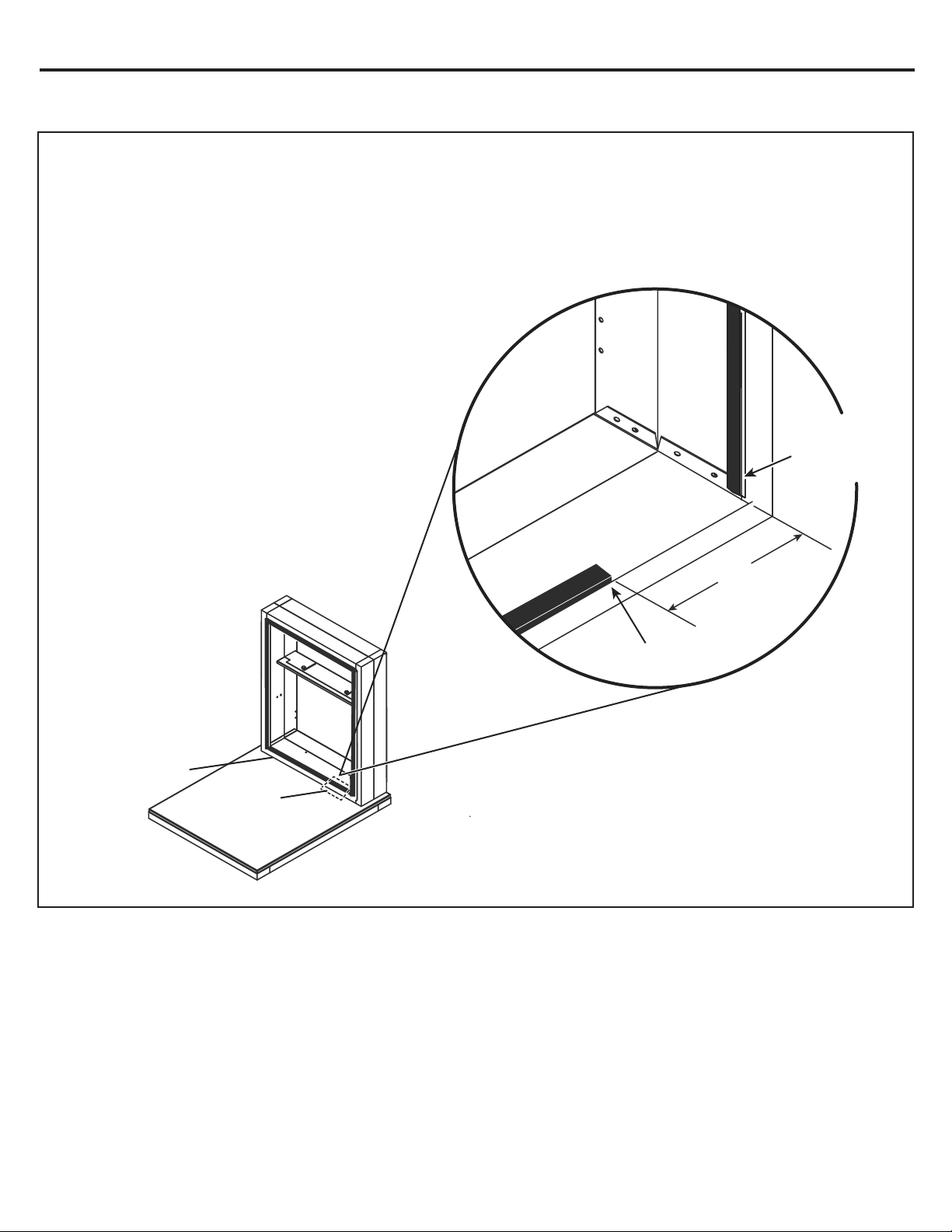

Bottom Seal
Drain Pan
Vertical Seal
8-1/4 inches
of bottom seal
removed to
place drain pan
Typical Installation
Top Seal

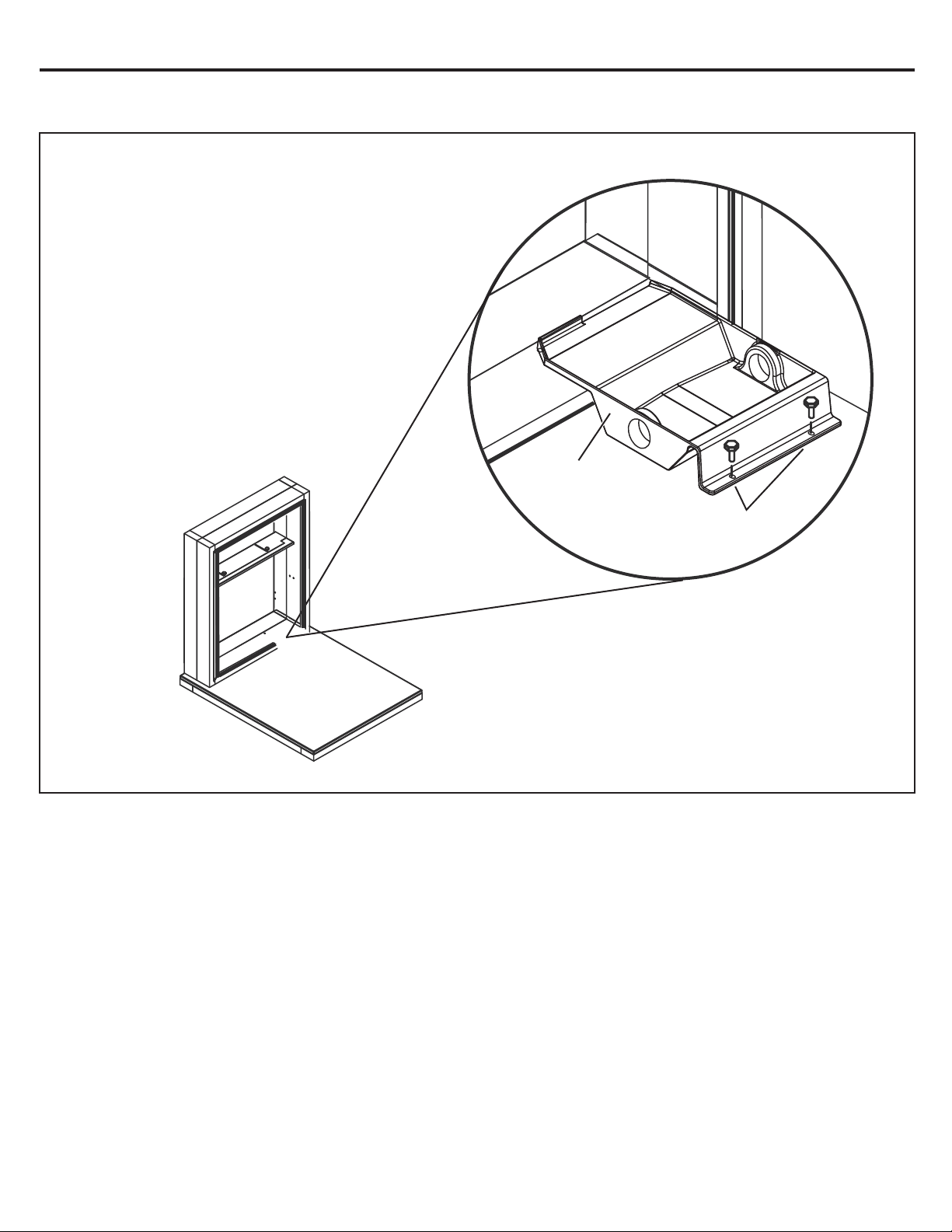

Mounting holes
Mounting Holes
