Installation Instructions
for your new
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAVDP18
Drain Pan
For 18,000 BTU/hr units with a
Chassis Height of 47 inches only
95303009 31-30818-1 11-17 GEA
GE is a trademark of the General Electric Company. Manufactured under trademark license.

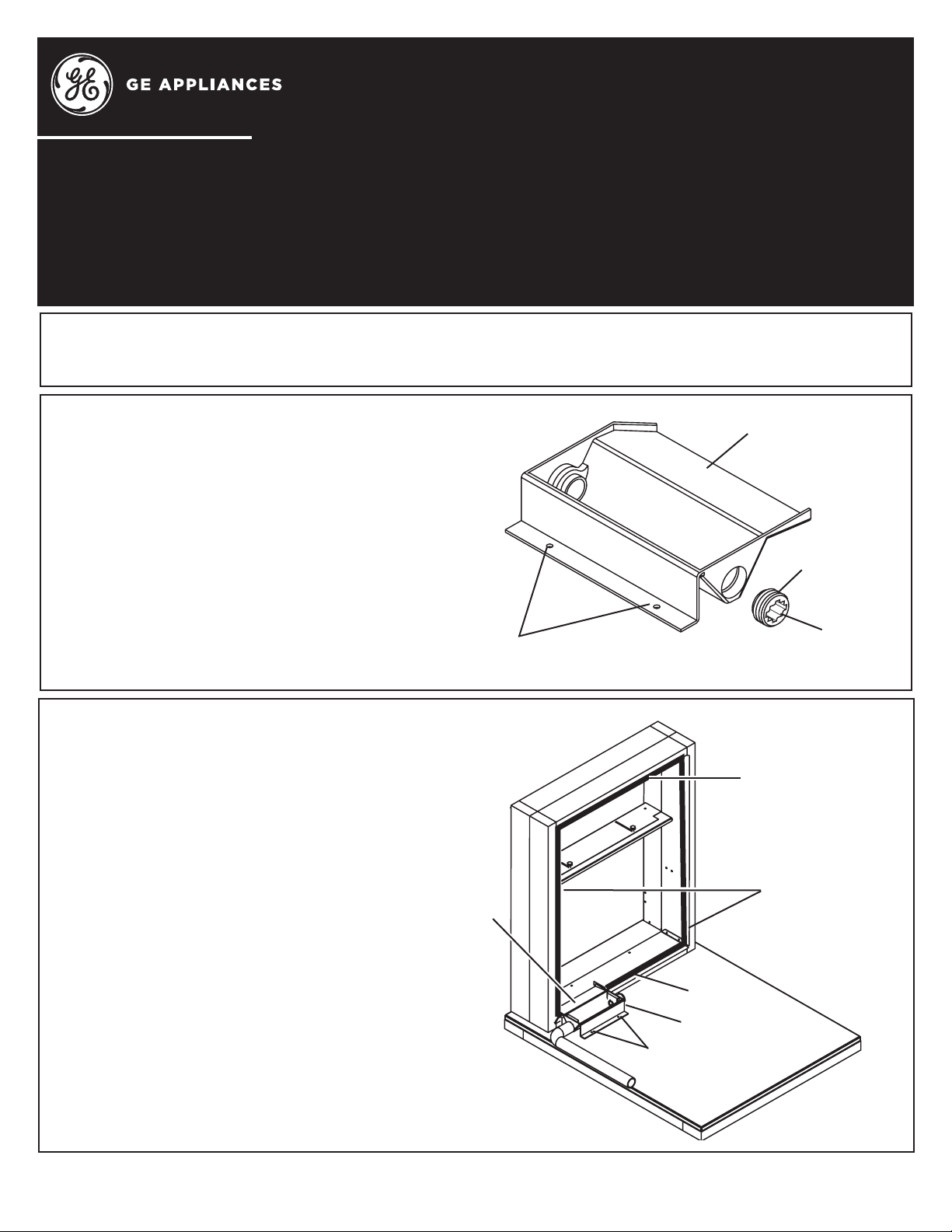

Parts Included
Materials Needed
(Field Supplied Parts)
Installation Overview
• Drain Pan with Mounting Holes
• Drain Plug 3/4” FPT

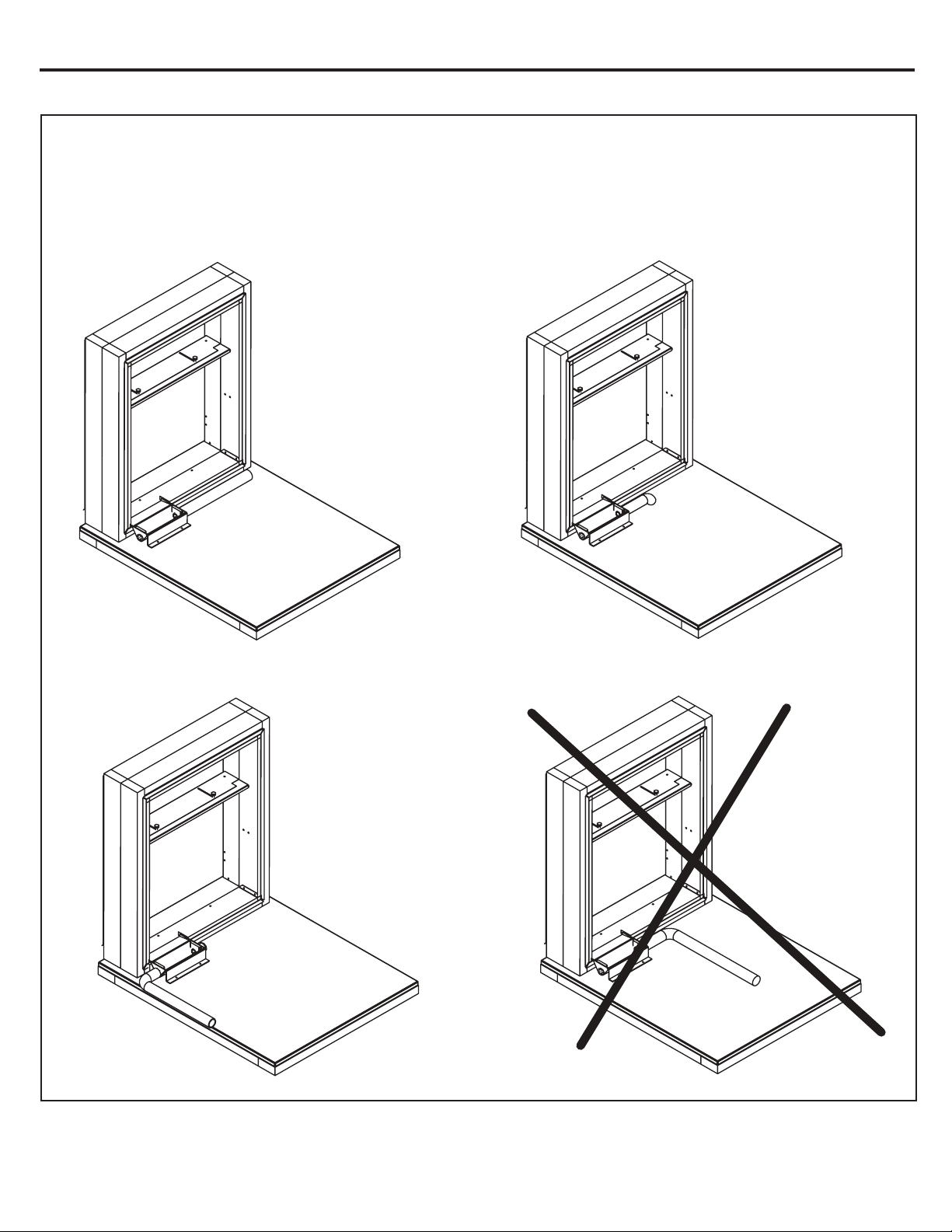

THE ACCESSORY DRAIN PAN (RAVDP18) MUST BE INSTALLED BEFORE
INSTALLING THE UNIT. The drain pan will only work if installed correctly. Make sure to install and seal
the drain pan in the correct orientation as shown in the following illustrations.
• Silicone Caulk (recommended)
• Appropriate Mounting Screws to secure drain pan to floor
• Pipe Sealant or Teflon tape
• Condensate drain pipe/elbows
Drain Pan
Apply pipe sealant
or Teflon tape
Plug
Mounting Holes
NOTE: THE ACCESSORY DRAIN PAN
(RAVDP18) MUST BE INSTALLED
BEFORE INSTALLING THE UNIT. This
kit is only used on the 18,000 units with a
chassis height of 47 inches.

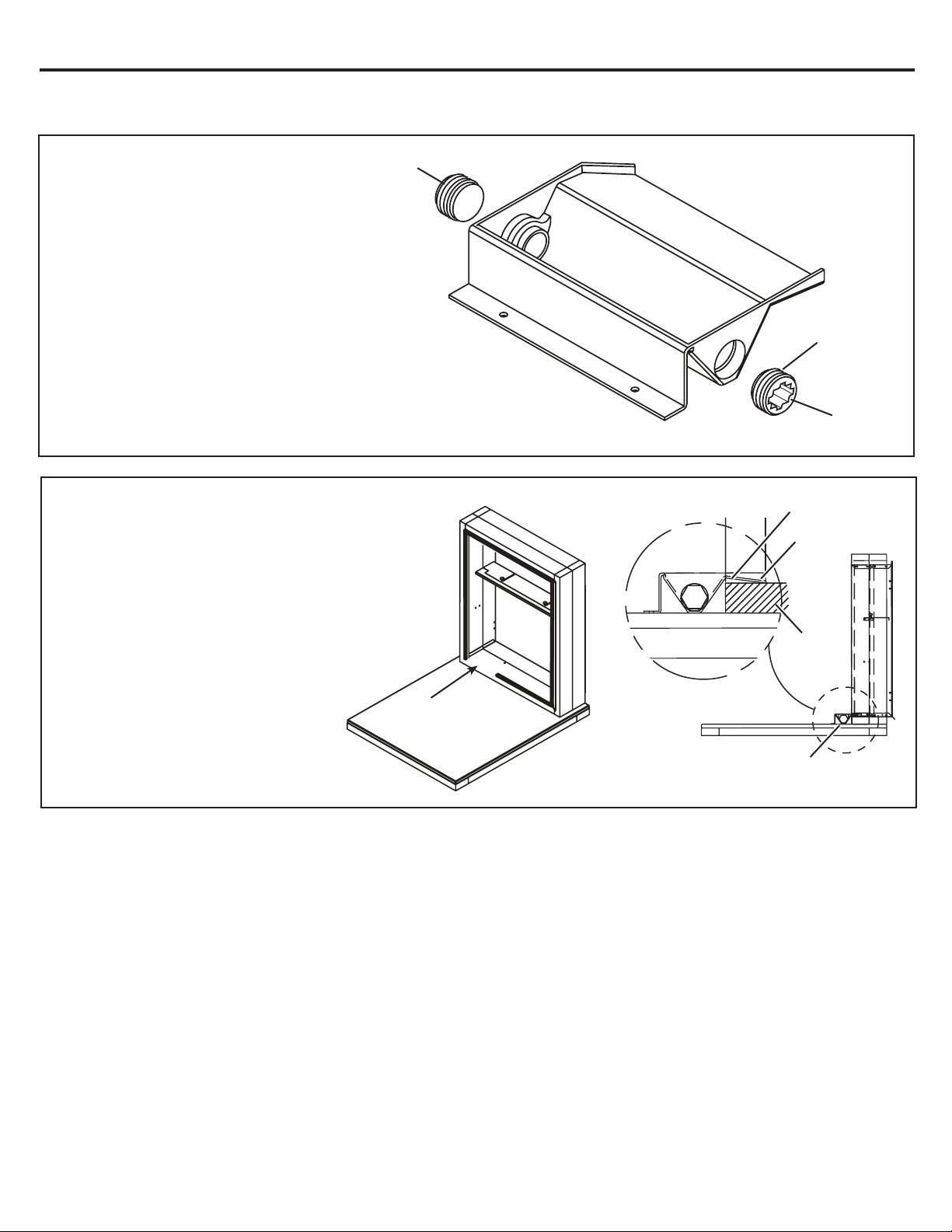

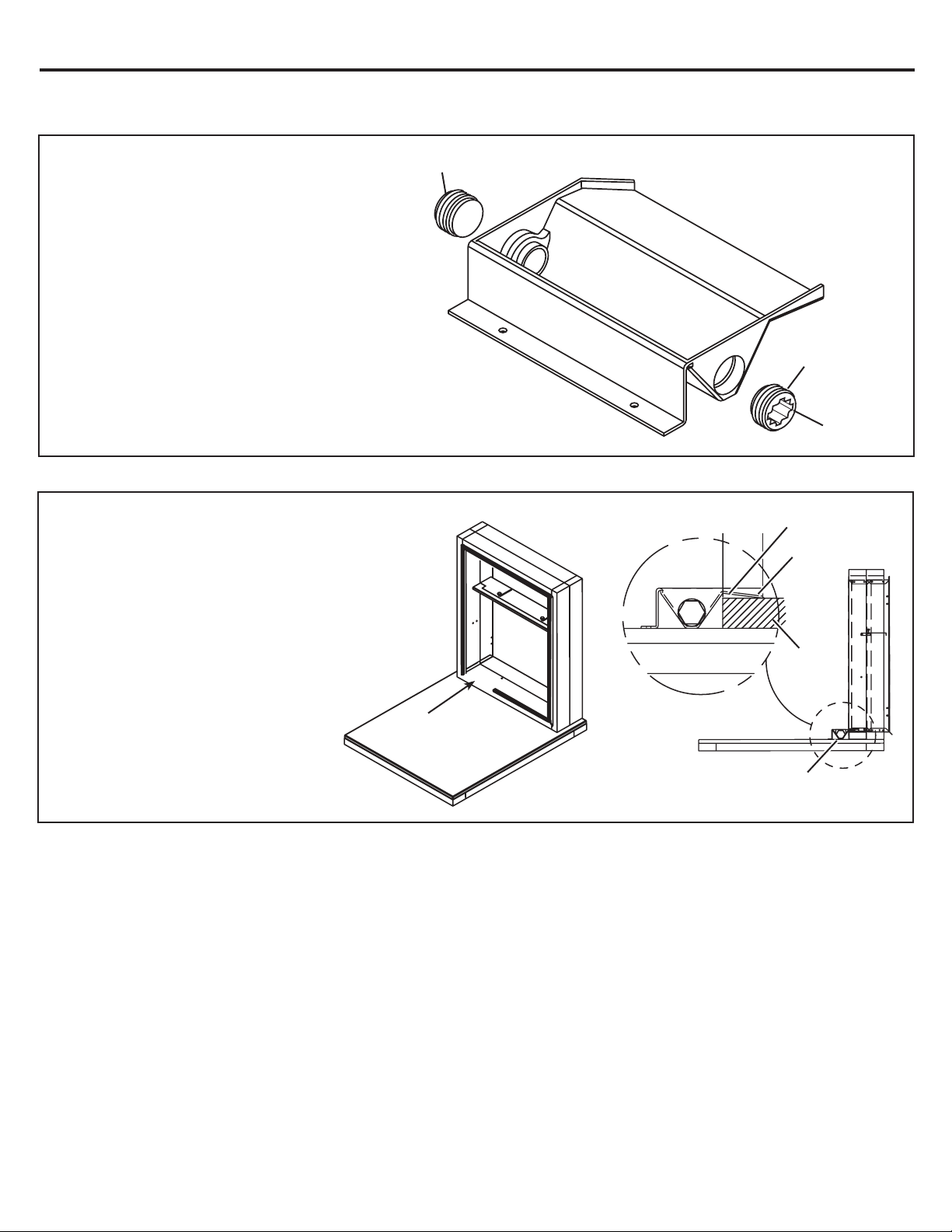

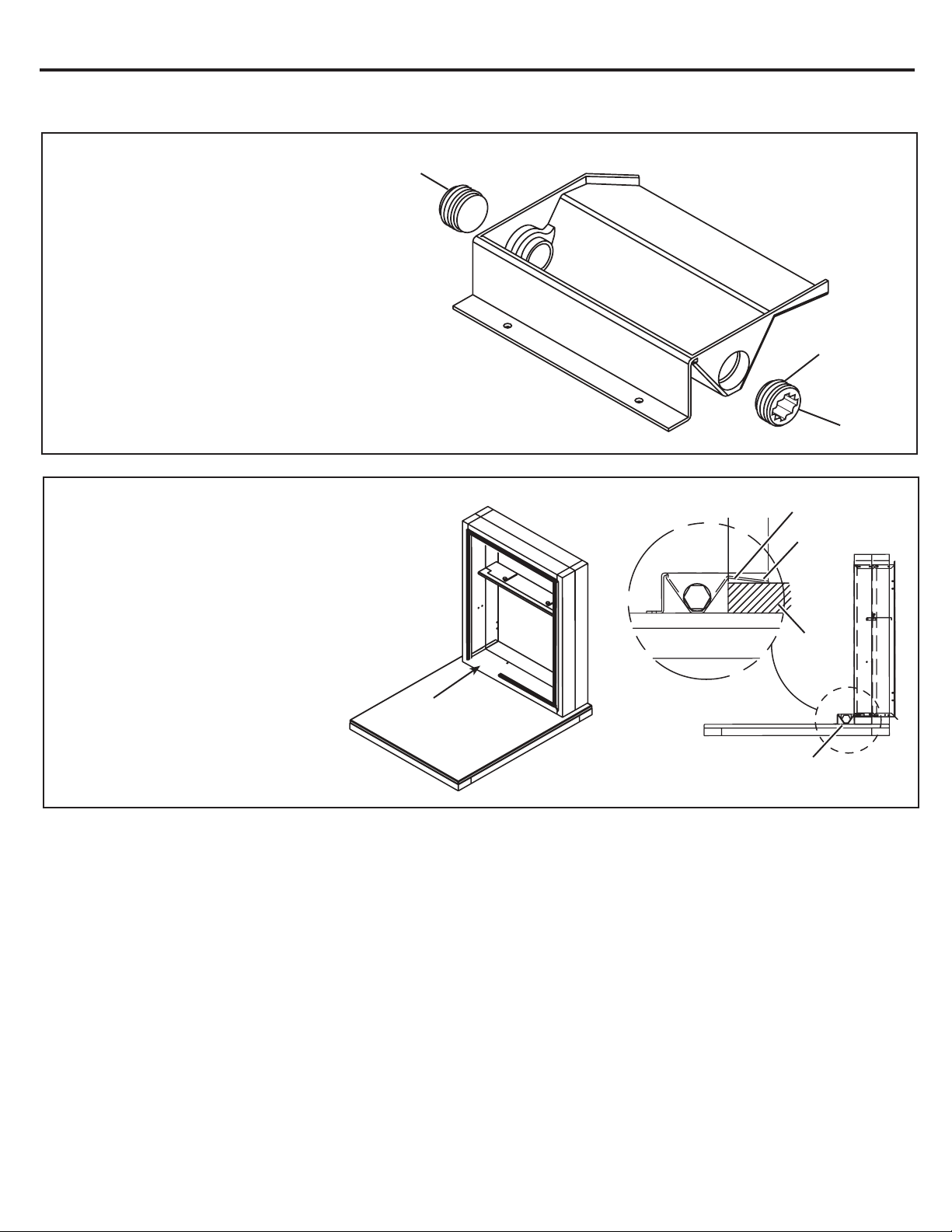

1. The accessory drain pan has two (2)
provisions (left and right) for connecting
to an external condensate drain.
2. A field supplied condensate drain
system must be connected to one of the
two 3/4” FPT connections.
3. The remaining connection must be
plugged using the 3/4” plug (provided).
The pipe threads must be sealed with
field supplied Teflon tape or sealant
before securing the drain plug to the
drain pan.
4. Failure to follow these procedures may
result in serious property damage.
5. Kit RAVDP18 is the primary drain pan.
A field supplied secondary condensate
pan is recommended and may be
required. Check with your local and
national building/plumbing codes.
Mounting Holes
Bottom Seal
Drain Pan
Vertical Seal

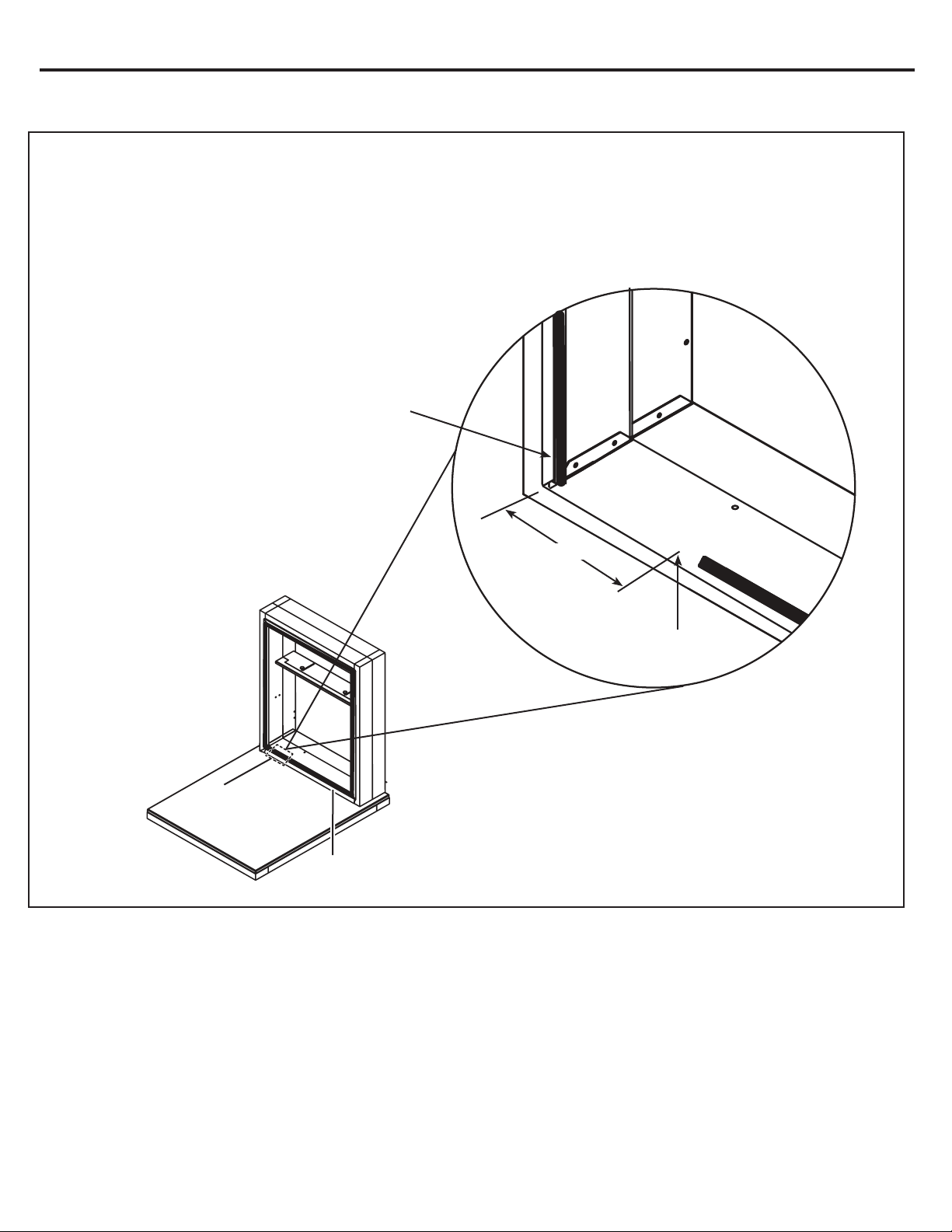

8-1/4 inches
of bottom seal
removed to
place drain pan
Shown with
condensate
draining to left.
Could also drain
to the right.

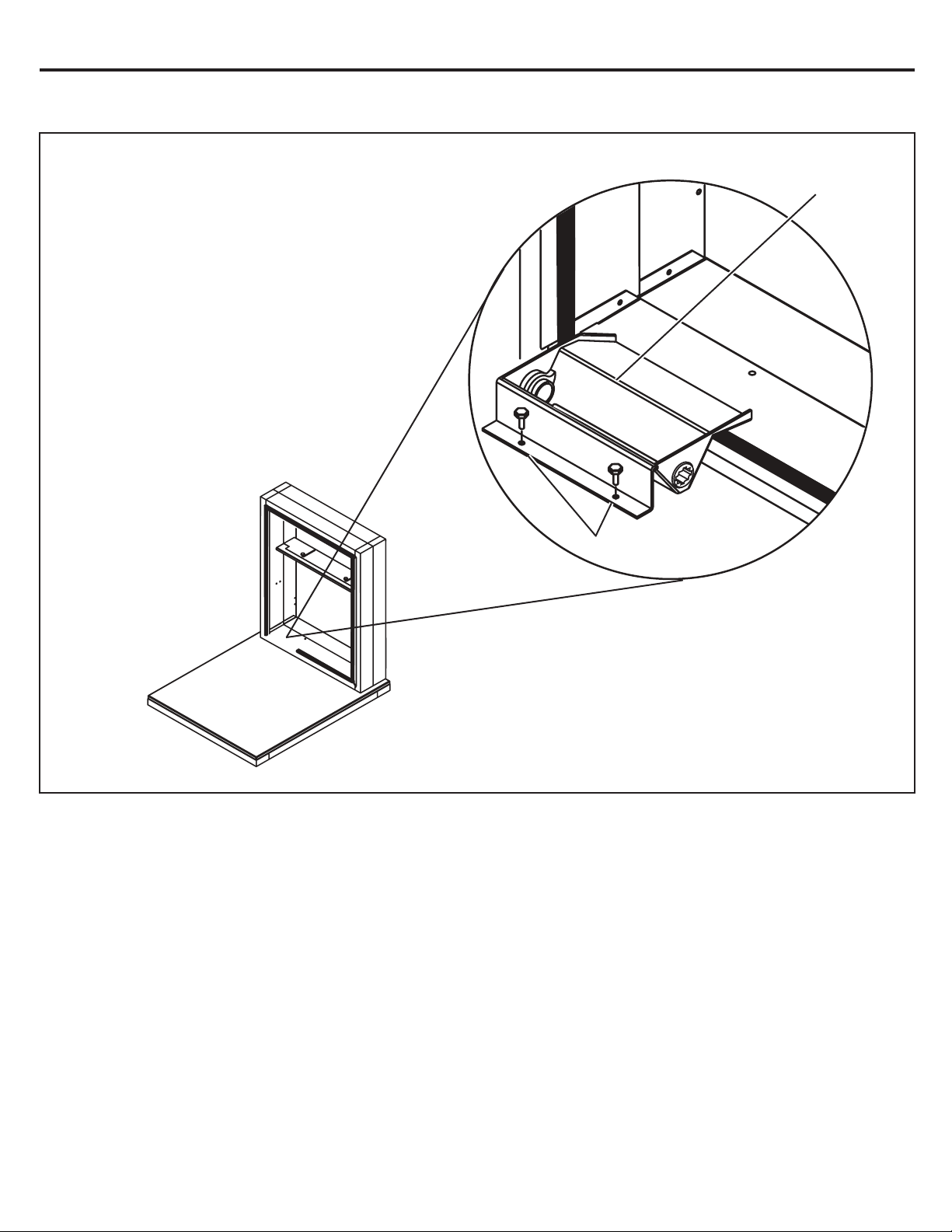

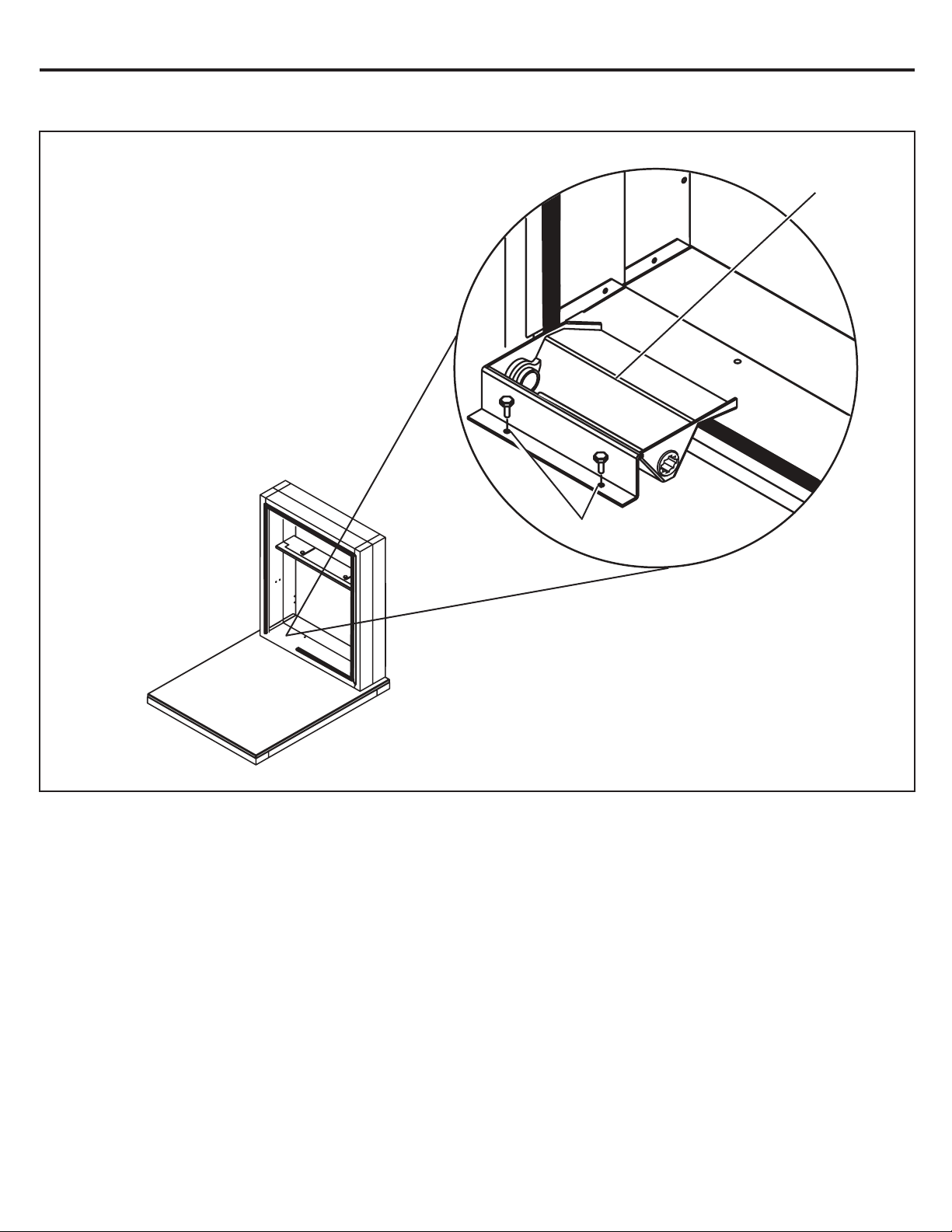

Typical Installation
Top Seal
