WATERPROOF SHOWER SUBSTRATE
MODEL:
JQ-3636/JQ-4872/JQ-6038/JQ-7272
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and dose not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:JQ-3636/JQ-4872/JQ-6038/JQ-7272
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WATERPROOF SHOWER
SUBSTRATE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.

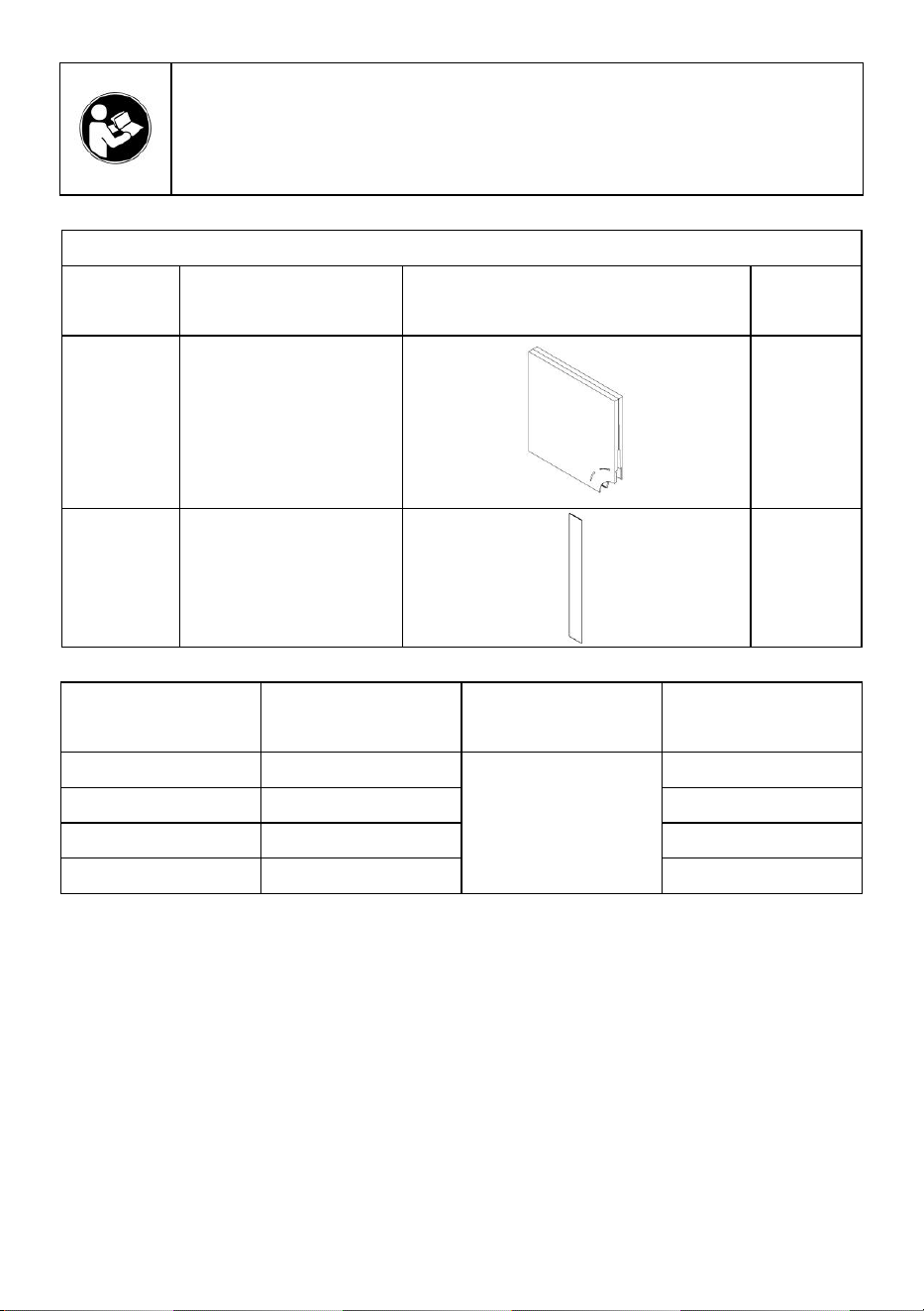

Part List
Code
Name
QTY.
A
Tray
2
B
Waterproof Cloth
2
Model
Specification
(inch)
Colour
Shower Tray
Hole
JQ-3636
38*36
Gray
Centre
JQ-4872
48*72
Centre
JQ-6038
60*38
Centre
JQ-7272
72*72
Centre
INSTALLATION STEPS
◆
Clean any dust or other debris from the surface of the solid backing.
Dampen particularly dry and porous substrates in order to help prevent
premature drying or skinning of the thin-set mortar.

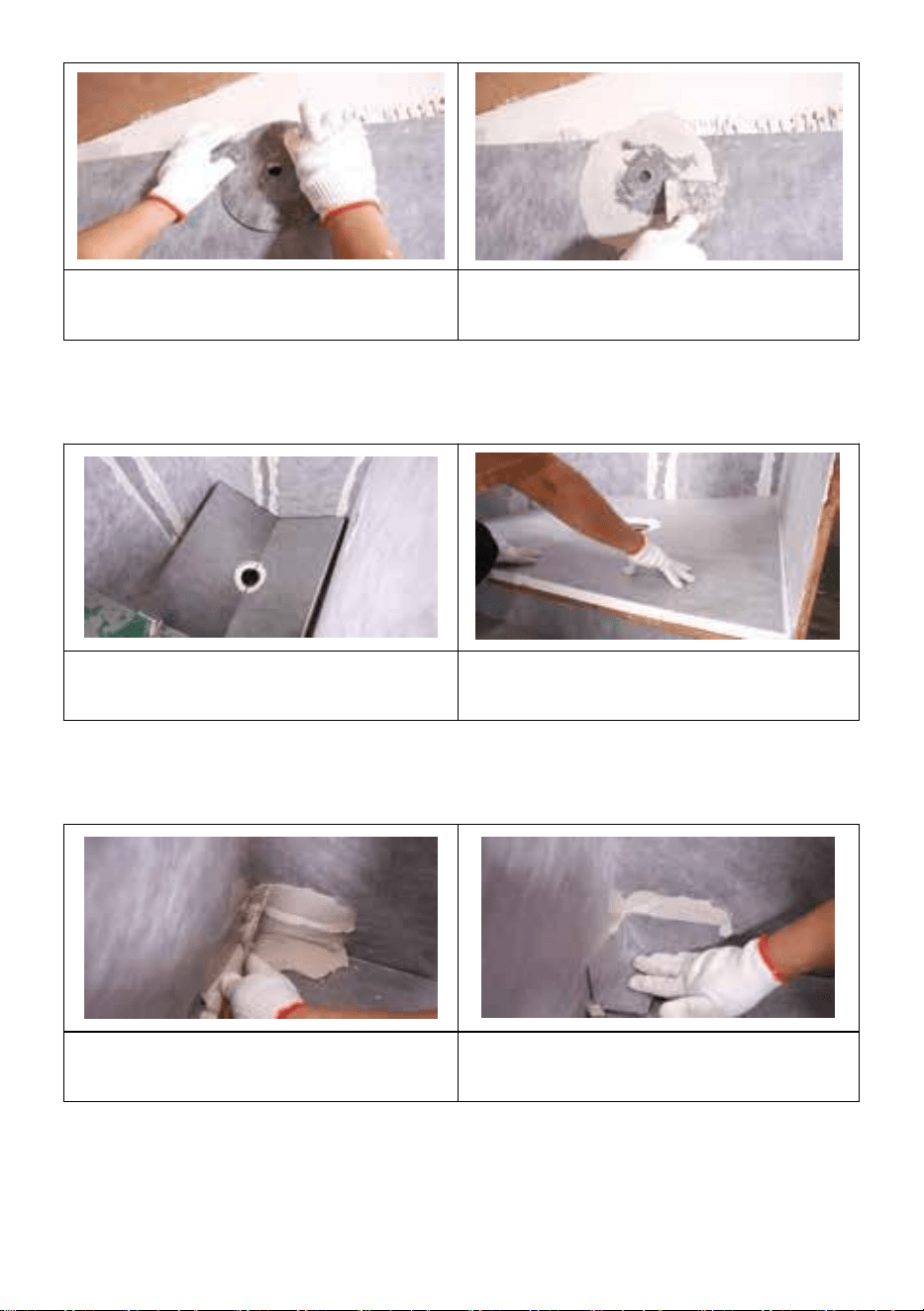

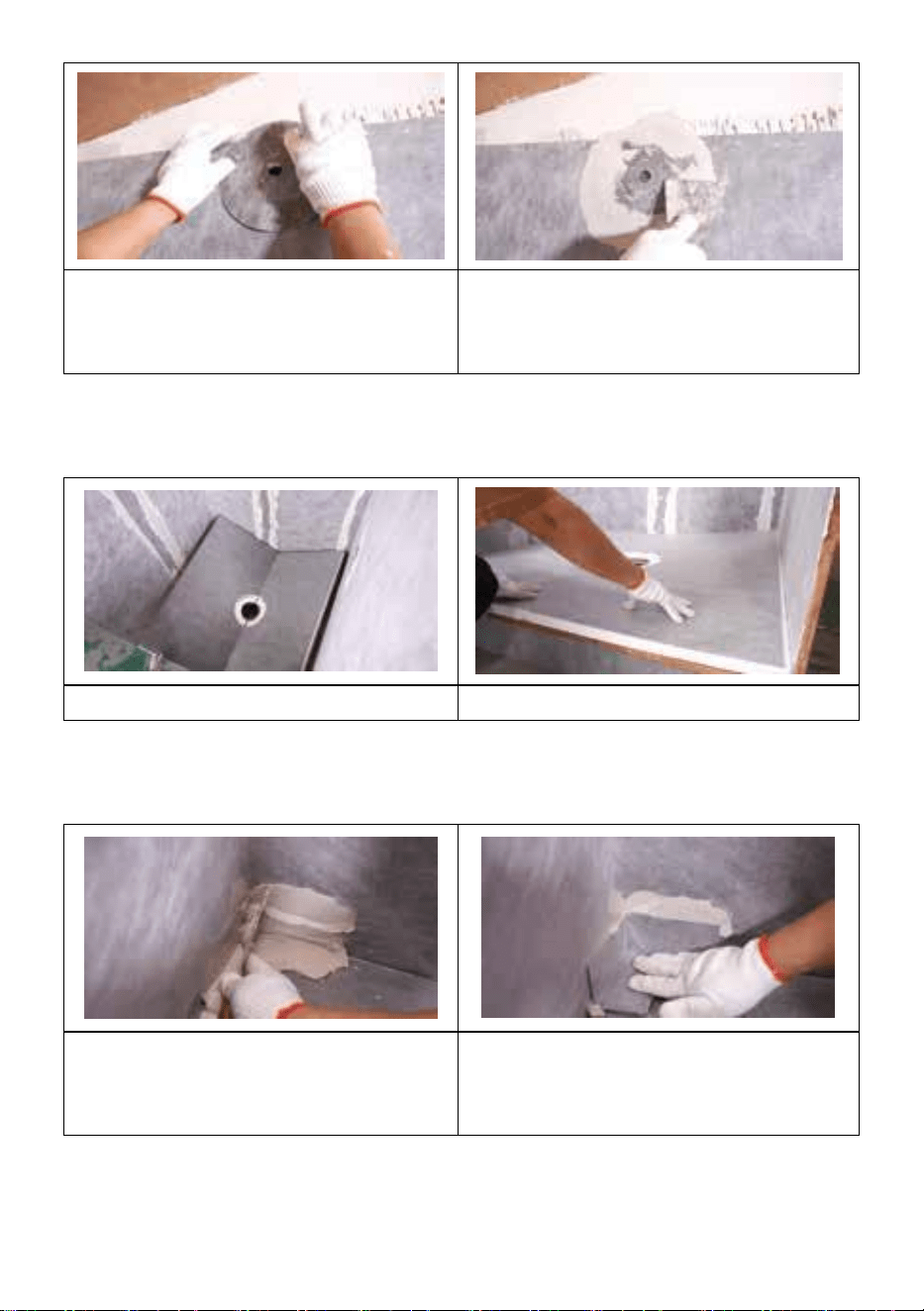

Step 1：
- 3 -

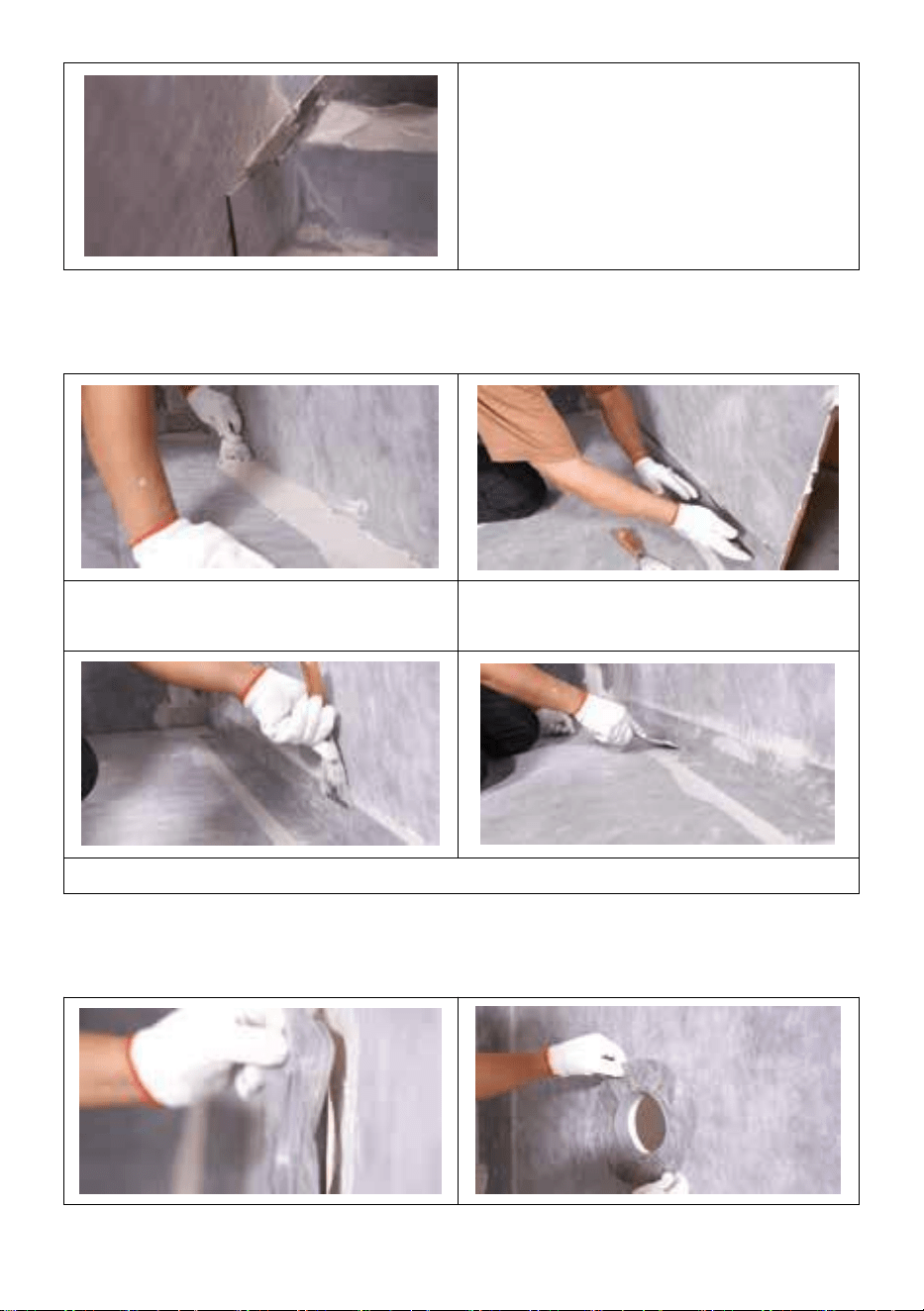

Cover the mixing valve seal(Not
provide)
Make the surface even
Step 2：

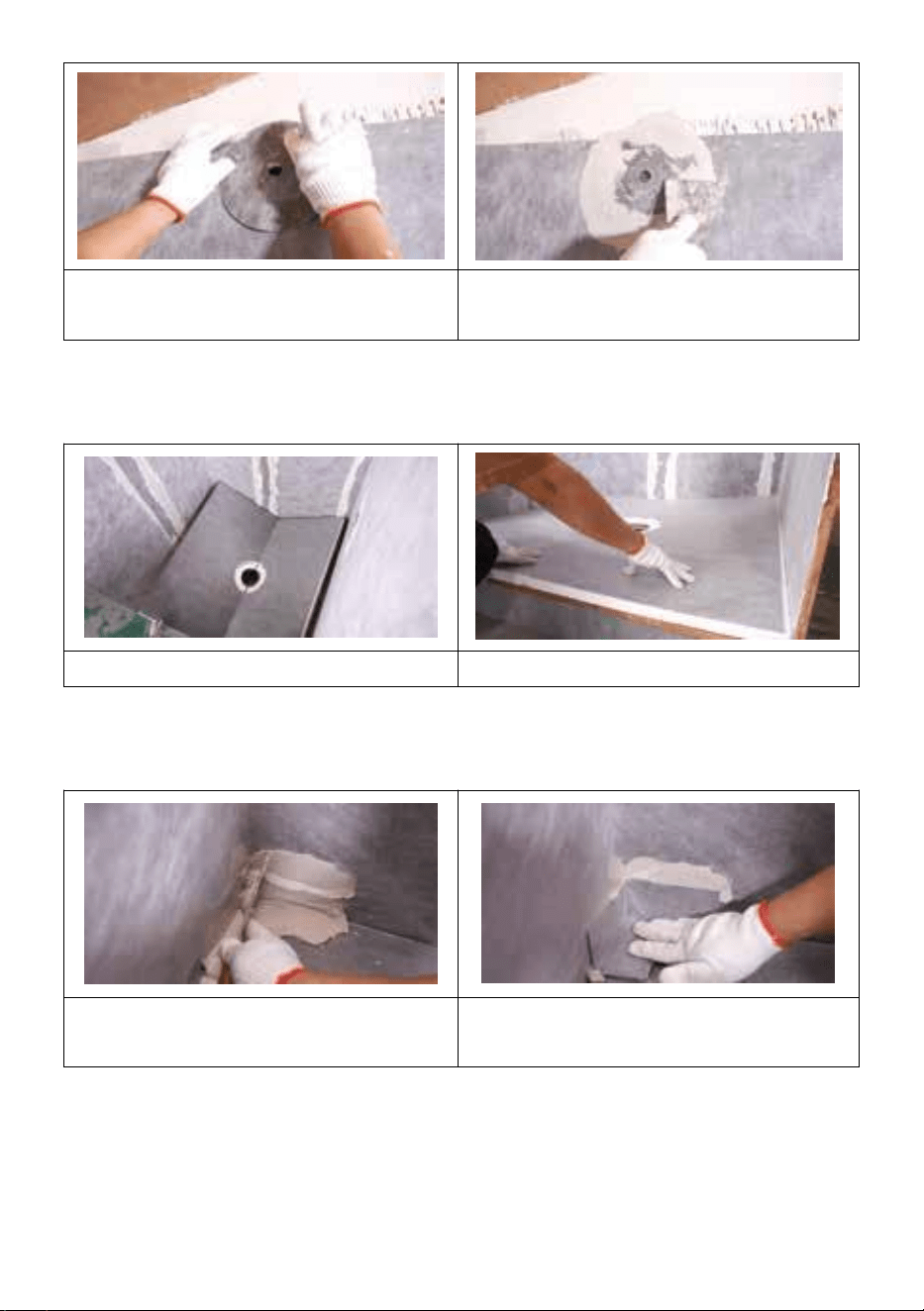

Unfold the tray
Embed the tray in the mortar
Step 3：
Brush the mortar
Install the waterproofing
corners(Not provide)
- 4 -
Trim the corner(Not provide)

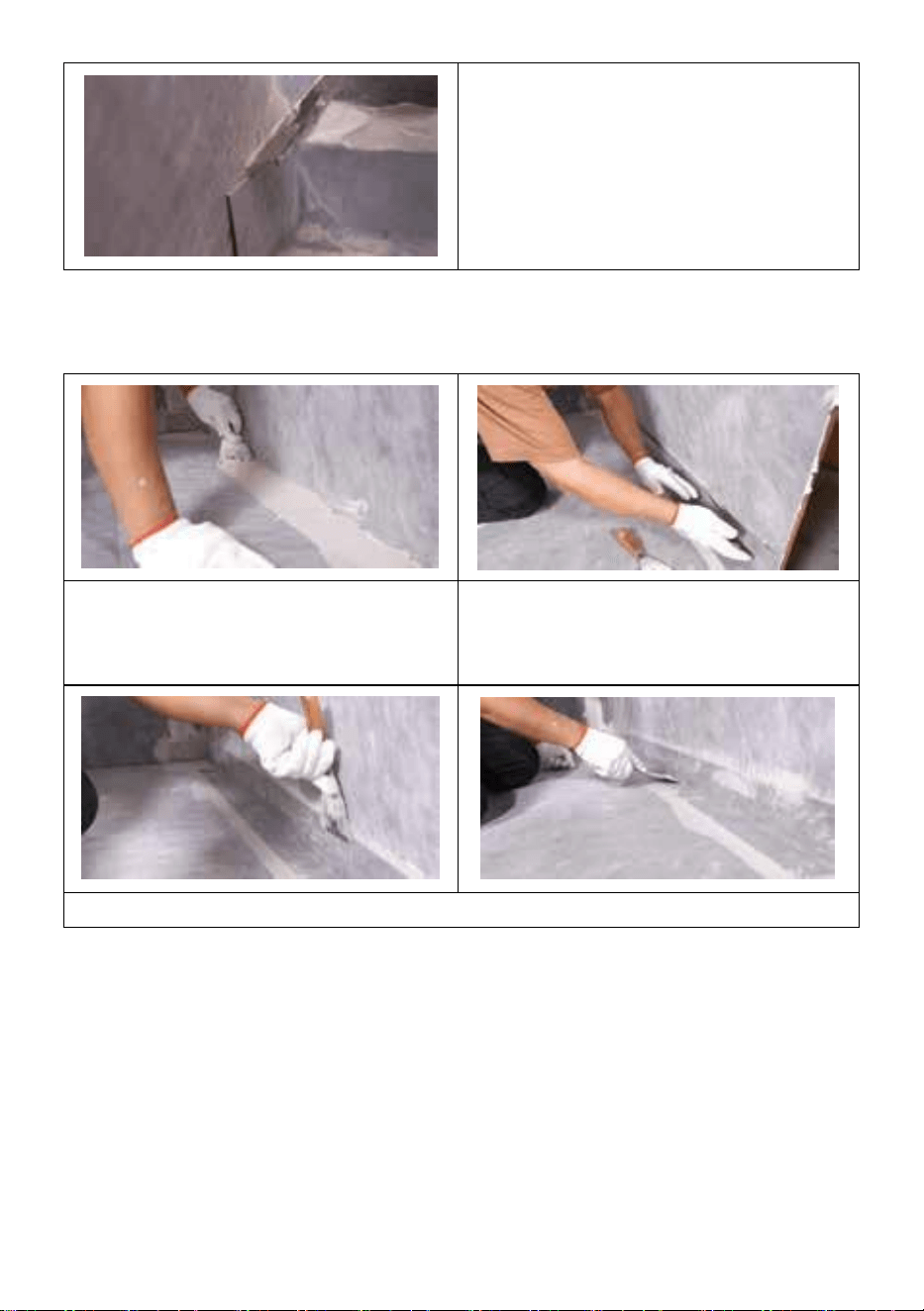

Step 4：
Brush the mortar
Cover the waterproofing strip(Not
provide)
Make the surface even
Step 5：
- 5 -
Brush the mortar

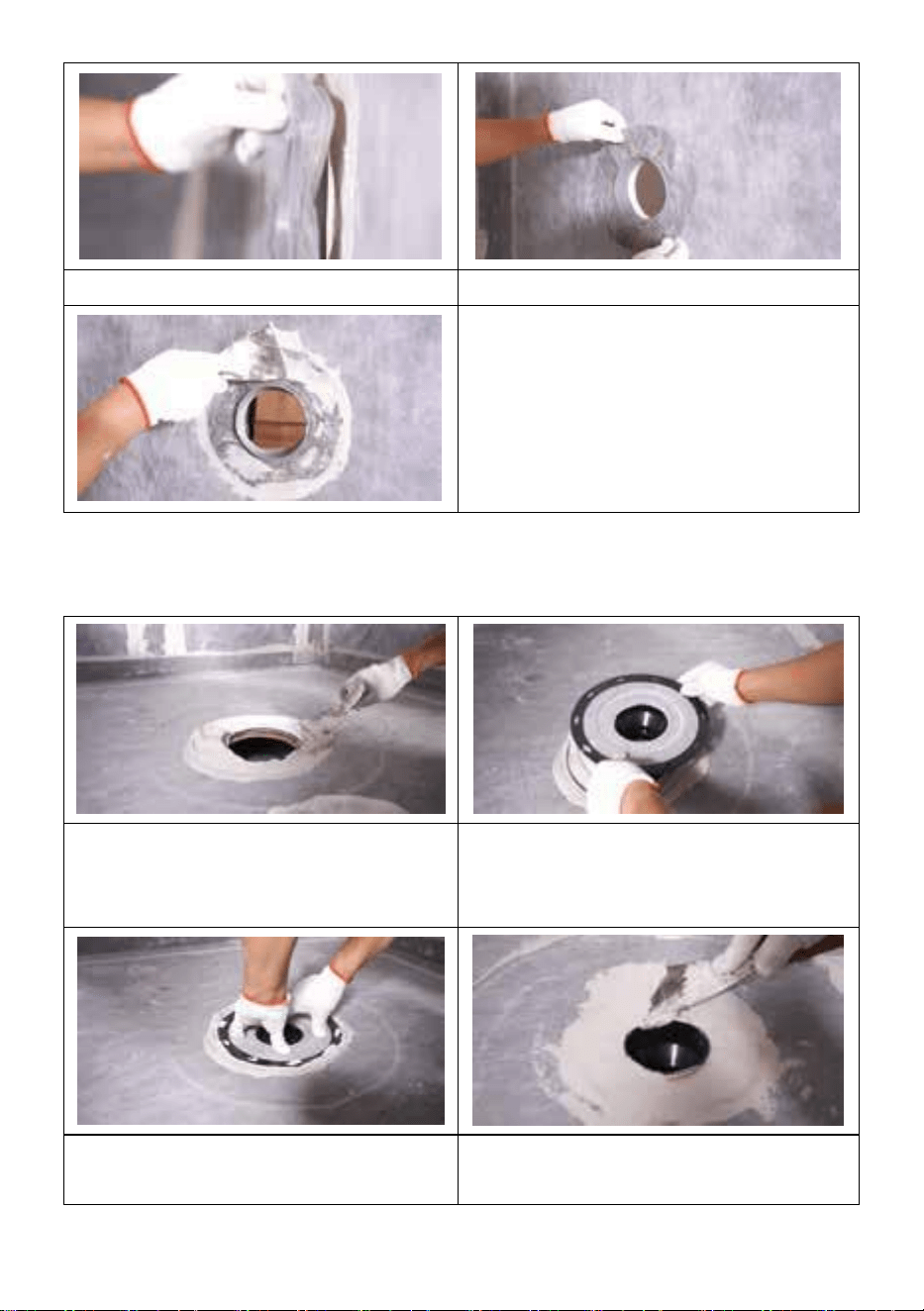

Cover the pipe seal
Trim the pipe seal(Not provide)

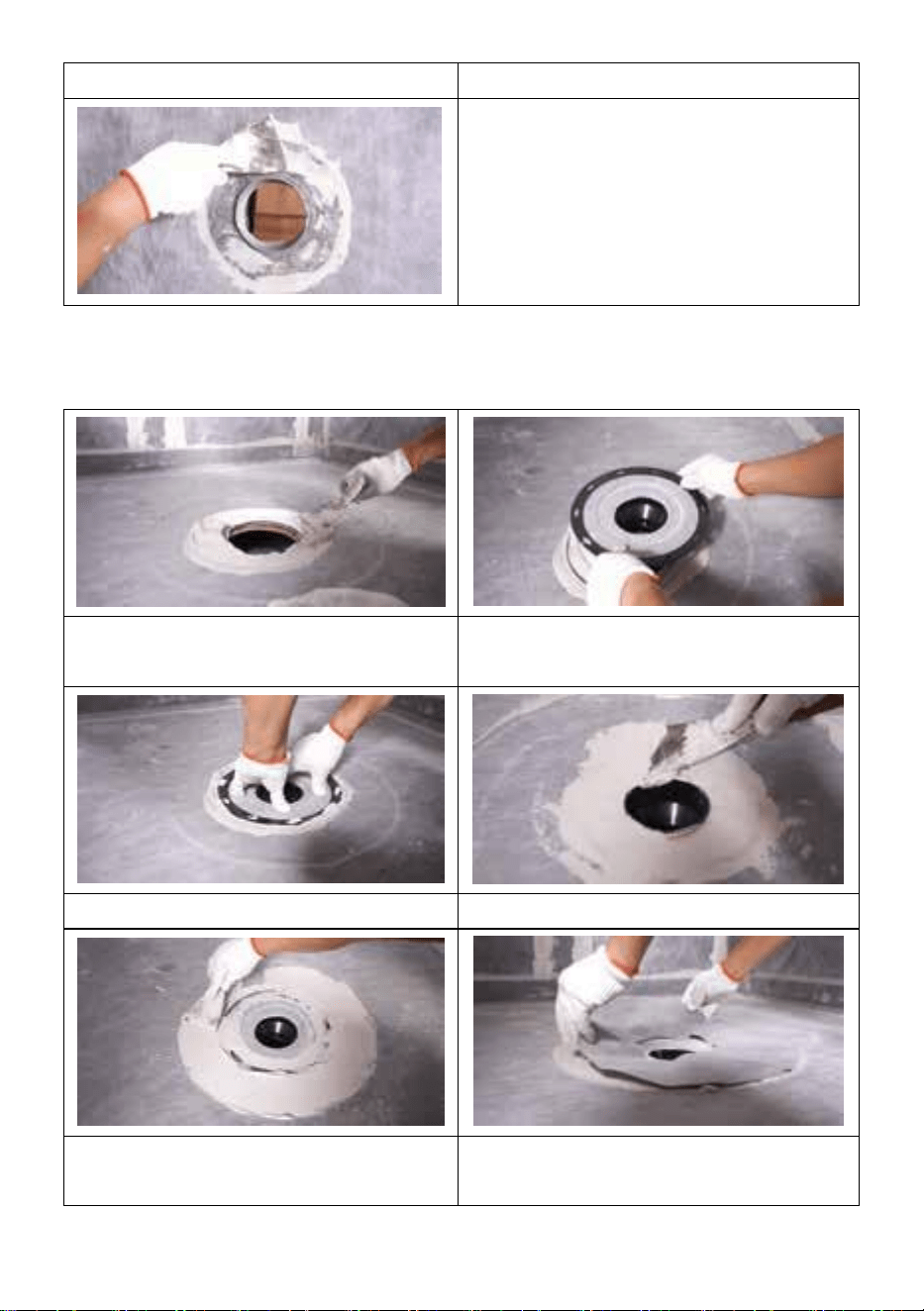

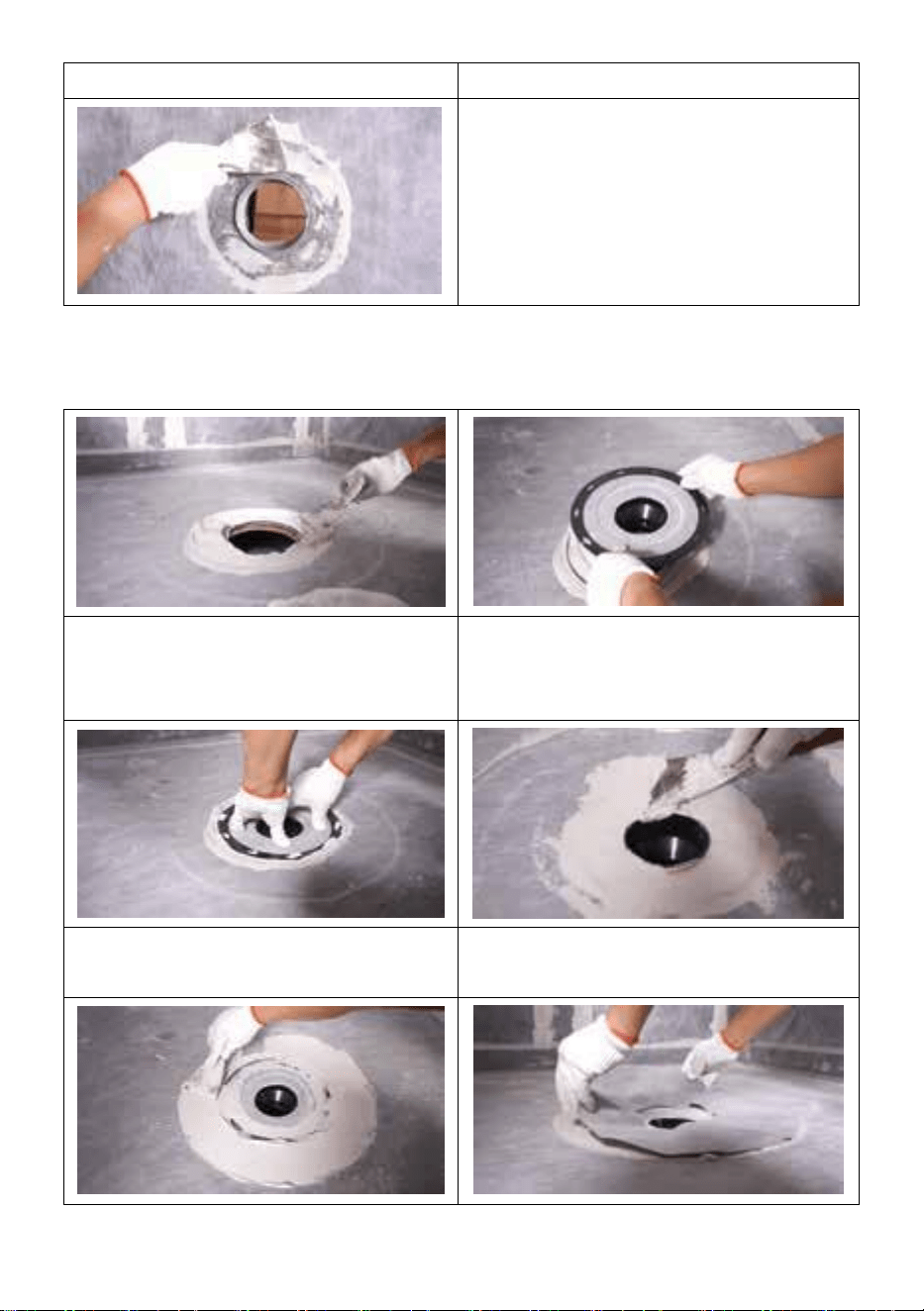

Step 6：

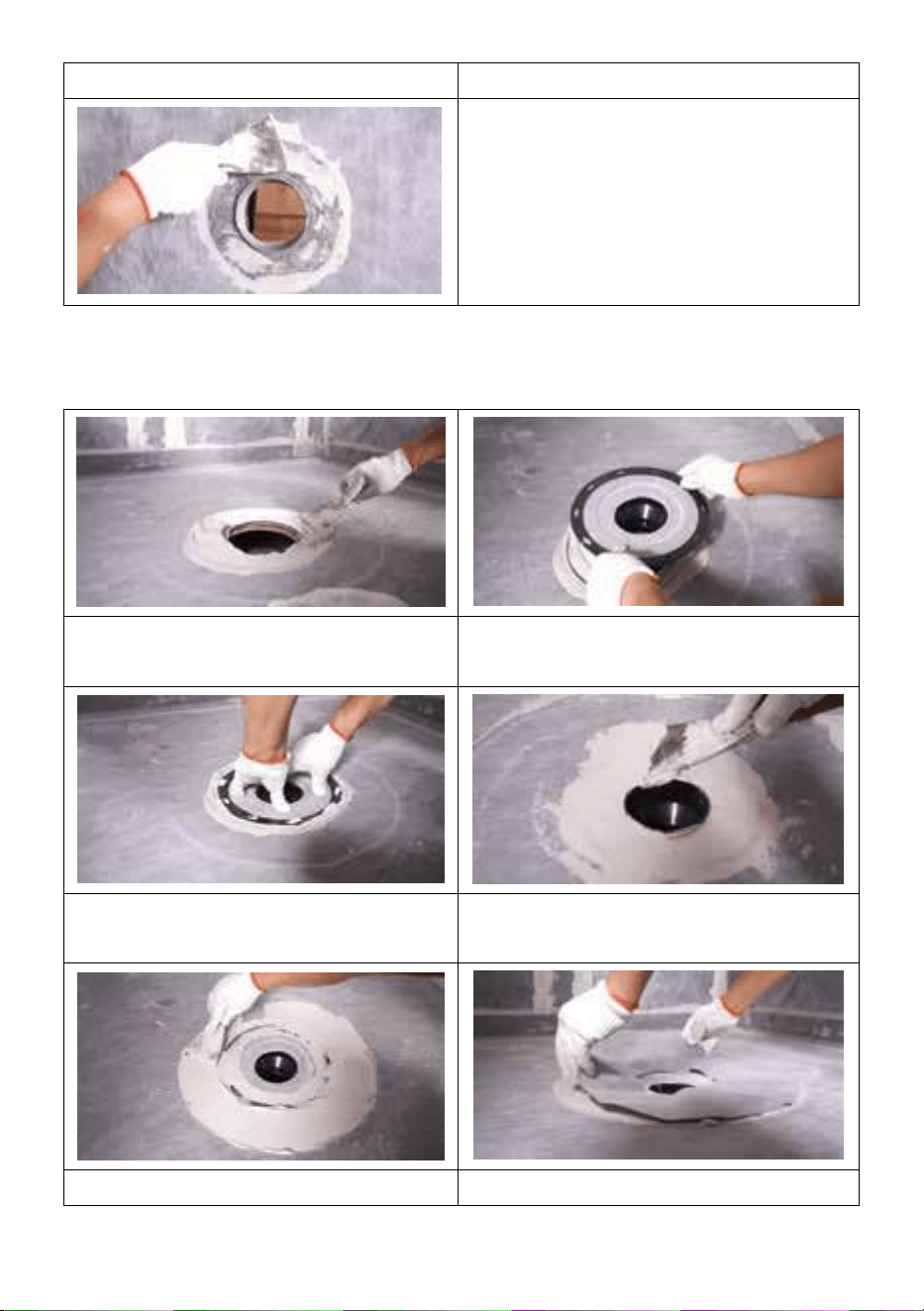

Brush the mortar
Press the bonding flange into the
mortar(Not provide)
Rotate the flange to fix it firmly

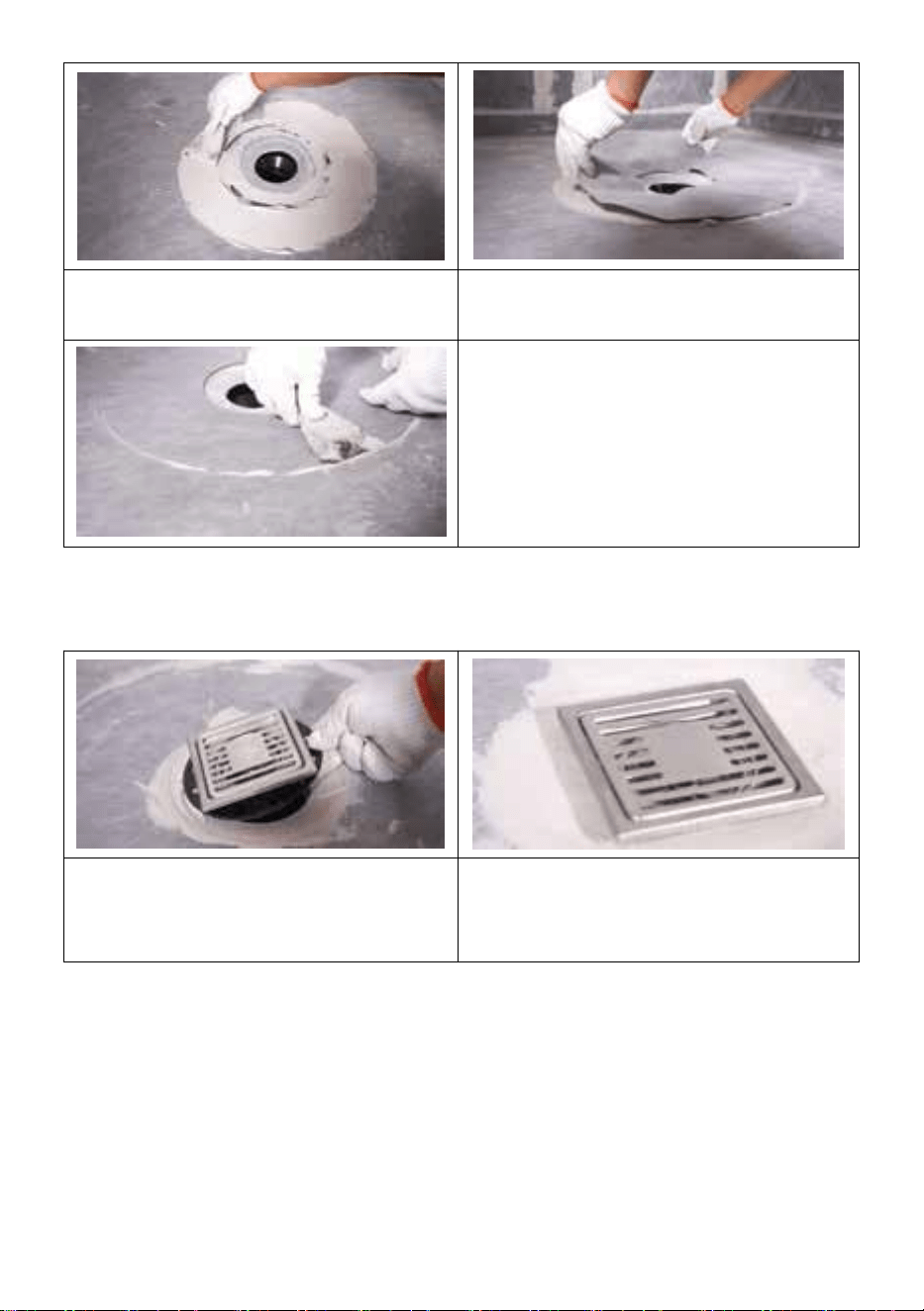

Brush the mortar around
Trim the surface
Cover the waterproofing
membrane(Not provide)
- 6 -
Make the surface even

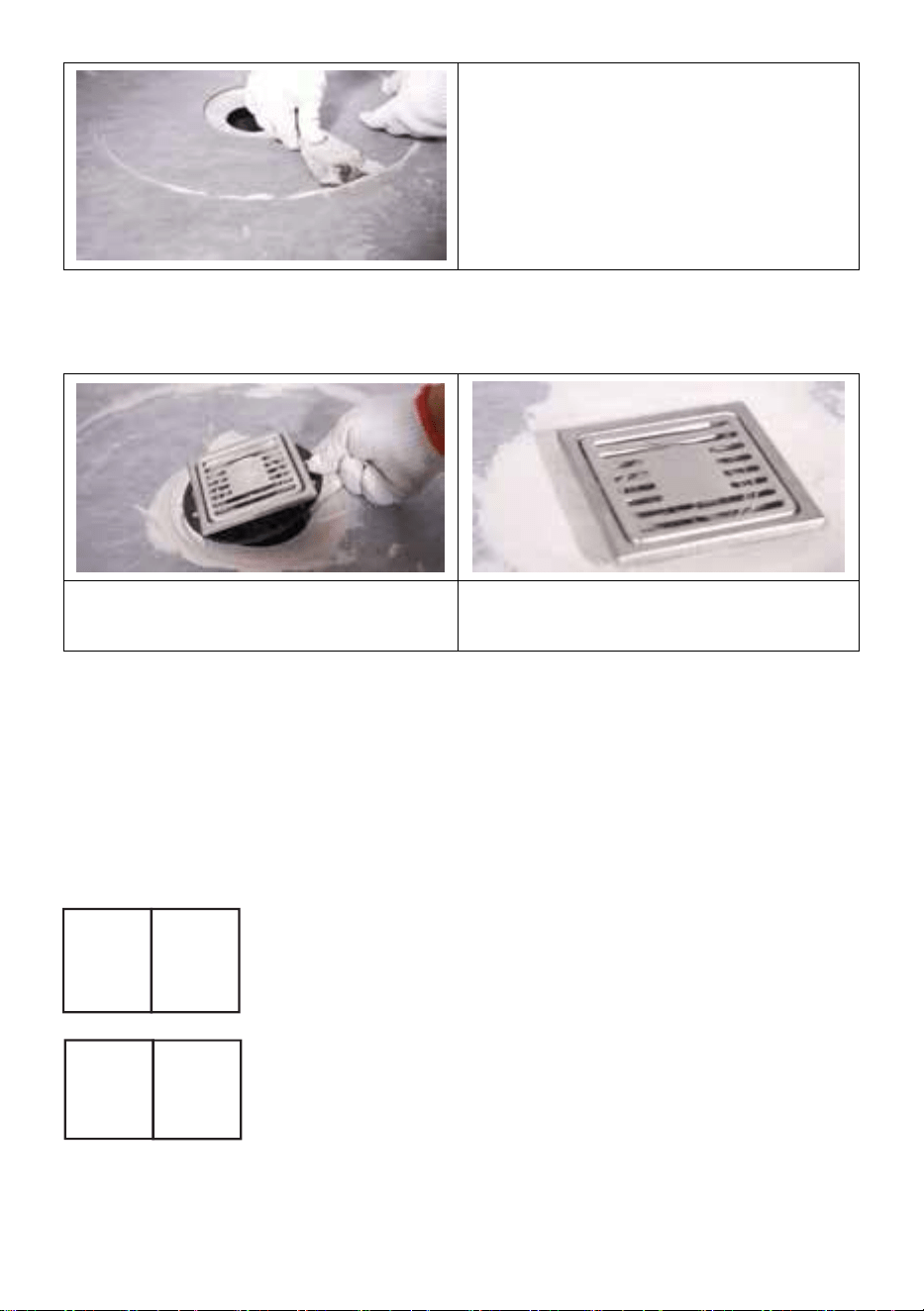

Step 7：

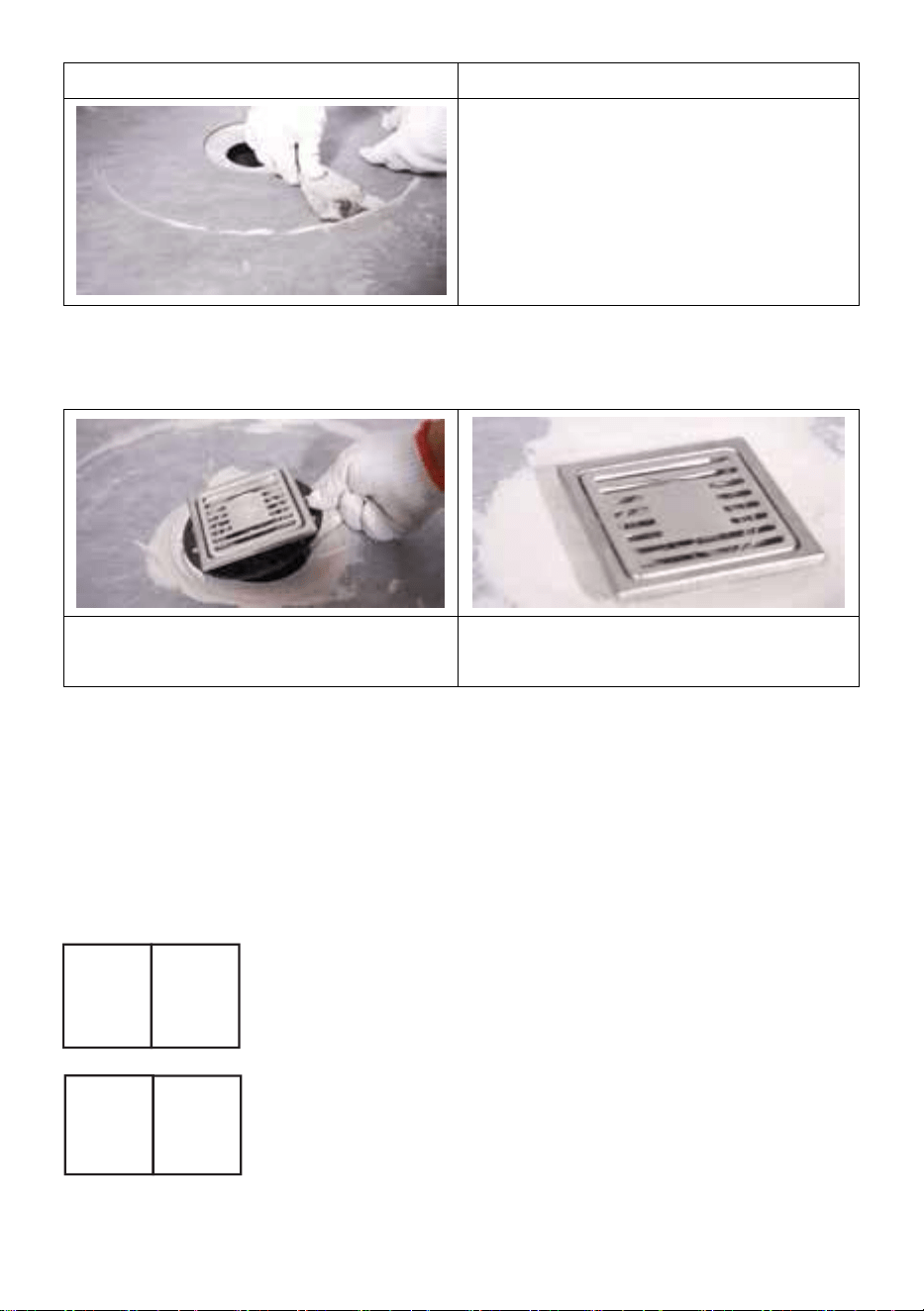

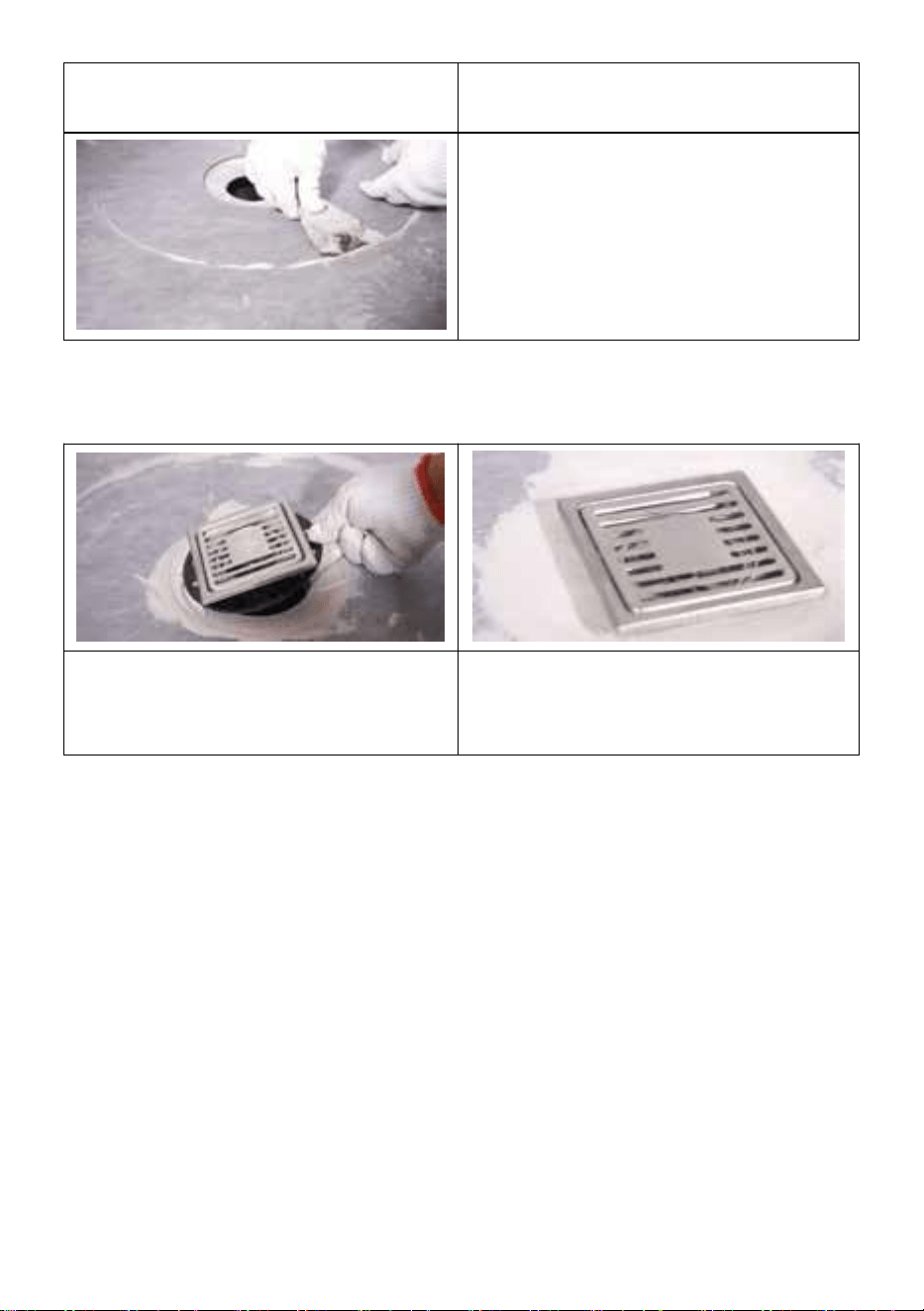

Install the drain adjustment
ring(Not provide)
Ensure full coverage
Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
Made In China
- 2 -
Technique Assistance et certificat de garantie électronique
www.vevor.com/support
SUBSTRAT DE DOUCHE IMPERMÉABLE
MODÈLE:
JQ-3636 /JQ-4872/JQ-6038/JQ-7272
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and dose not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 3 -
- 1 -
MODÈLE : JQ-3636 /JQ-4872/JQ-6038/JQ-7272.
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WATERPROOF SHOWER
SUBSTRATE
- 2 -
Avertissement : Pour réduire le risque de blessure, l'utilisateur
doit lire attentivement le manuel d'instructions.
Liste des pièces
Code
Nom
QTÉ.
UN
Plateau
2
B
Tissu
imperméable _
2
Modèle
Spécification
(pouces)
Couleur
Trou pour
receveur de
douche
JQ-3636
38* 36
Gris
Centre
JQ-4872
48 * 72
Centre
JQ-6038
60*38
Centre
JQ-7272
72*72
Centre
ÉTAPES D'INSTALLATION
◆
Nettoyez toute poussière ou autre débris de la surface du support solide.
Humidifier les supports particulièrement secs et poreux afin d'éviter un
séchage prématuré ou un pelage du mortier-colle.
Étape 1:
- 3 -
Couvrir le joint du mitigeur (Non
fourni)
Rendre la surface uniforme
Étape 2 :
Dépliez le plateau
Encastrer le plateau dans le
mortier
Étape 3 :
Badigeonner le mortier
Installer les coins d'étanchéité (non
fournis)
- 4 -
Coupez le coin (non fourni)
Étape 4 :
Badigeonner le mortier
Couvrir la bande d'étanchéité (non
fournie)
Rendre la surface uniforme
Étape 5 :
- 5 -
Badigeonner le mortier
Couvrir le joint du tuyau
Coupez le joint de tuyau (non
fourni)
Étape 6 ：
Badigeonner le mortier
Enfoncez la bride de liaison dans le
mortier (non fourni)
Faites pivoter la bride pour la fixer
fermement
Badigeonner le mortier autour
Couper la surface
Couvrir l'étanchéité
- 6 -
membrane (non fournie)
Rendre la surface uniforme
Étape 7 ：
Installez la bague de réglage
de la vidange (non fournie)
Assurer une couverture complète
Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETASTWOOD
NSW 2122 Australie
Importé aux États-Unis : Sanven Technology Ltd., Suite 250, 9166
Anaheim Place, Rancho Cucamonga, CA 91730
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
- 7 -
Fabriqué en Chine
- 2 -
