Technical Support and E-Warranty Certificate www.vevor.com/support
WATERPROOF SHOWER SUBSTRATE
MODEL:JQ-3860P
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and dose not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:JQ-3860P
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WATERPROOF SHOWER
SUBSTRATE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
Part List
Code
Name
QTY.
A
Tray 1
1
B
Tray 2
1
C
Waterproof Cloth
1
Model
Specification
(inch)
Colour
Shower Tray
Hole
JQ-3636
38*36
Gray
Centre
JQ-4872
48*72
Centre
JQ-6038
60*38
Centre
JQ-7272
72*72
Centre
- 3 -

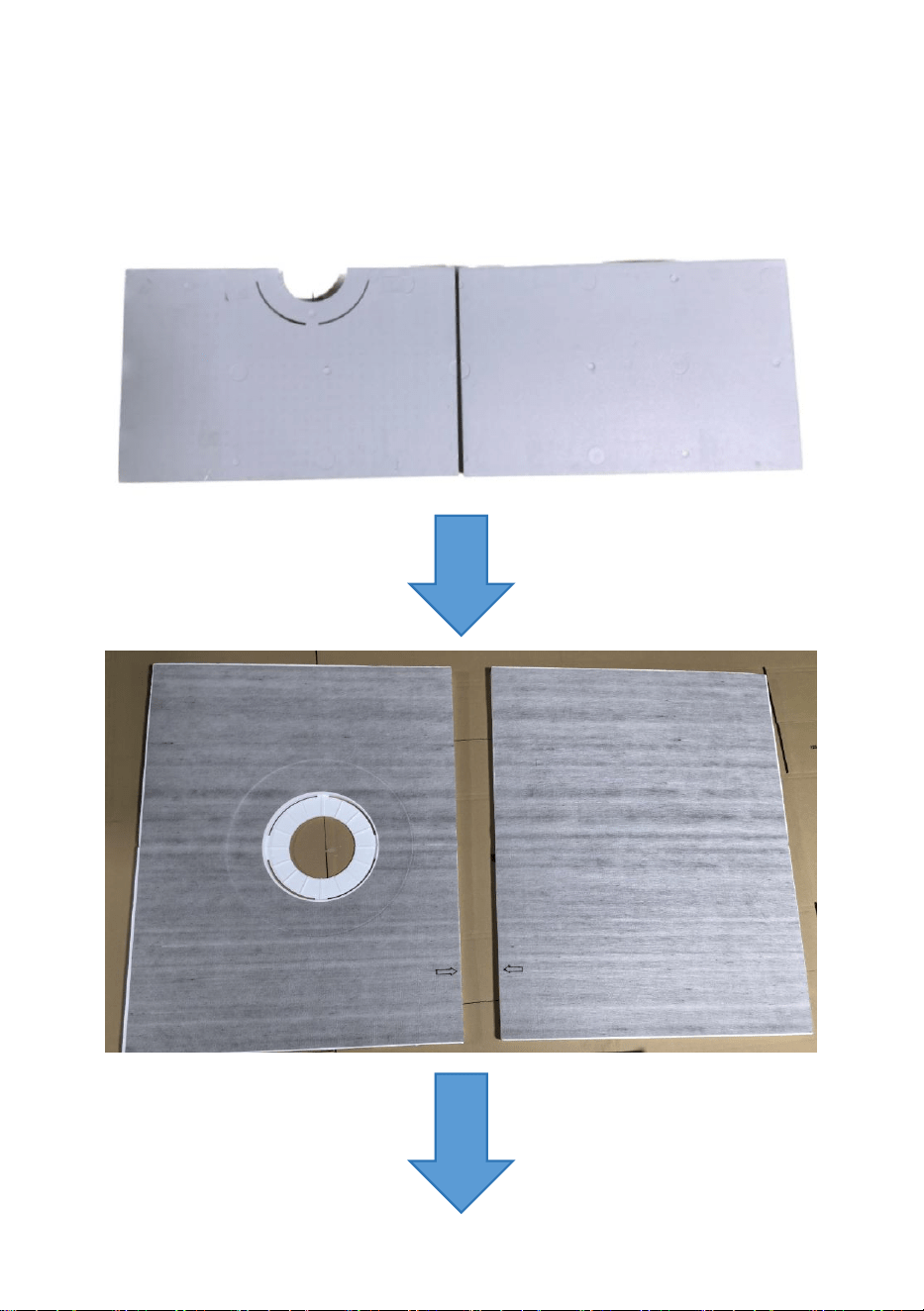

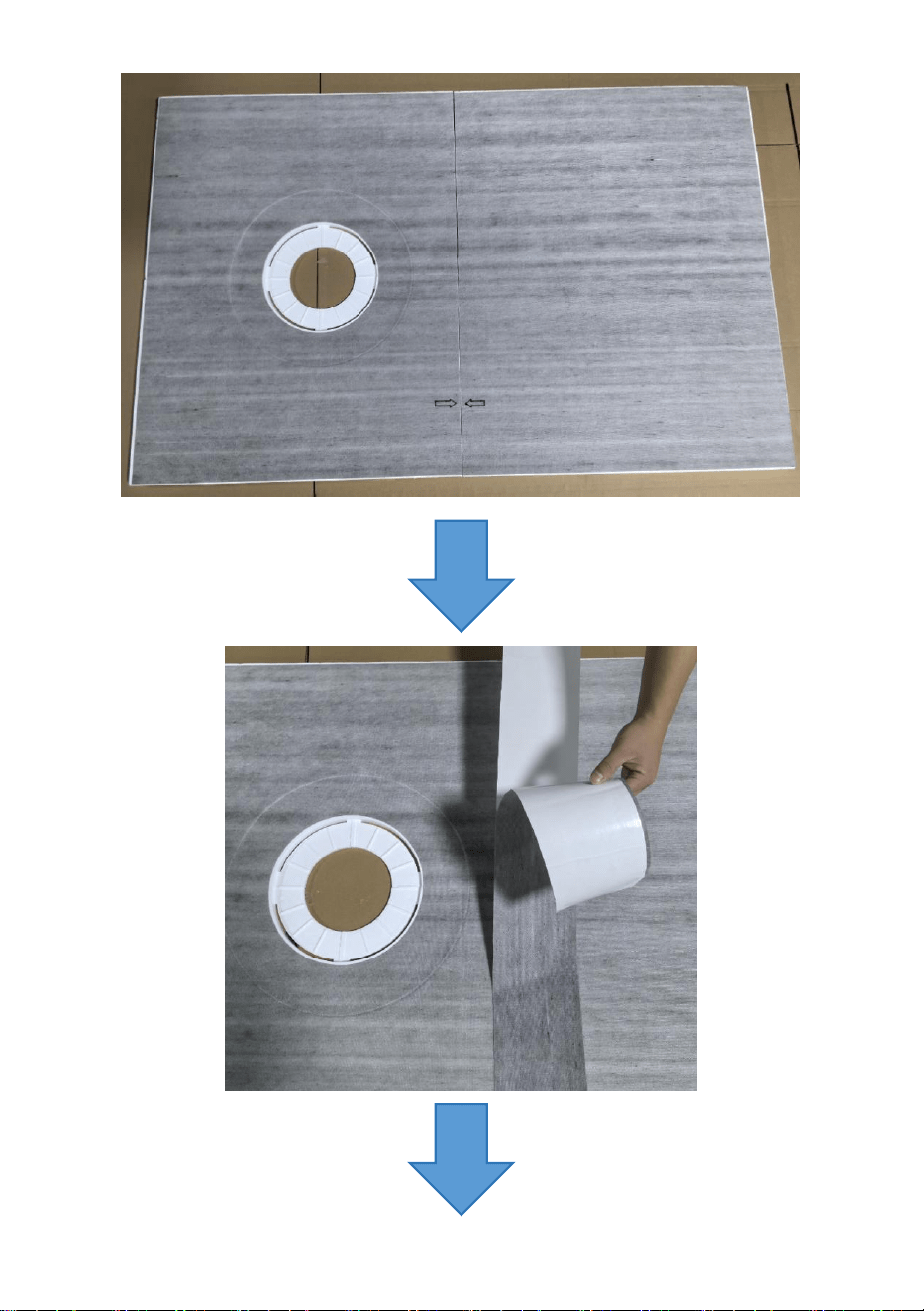

INSTALLATION STEPS
◆Clean any dust or other debris from the surface of the solid backing.
Dampen particularly dry and porous substrates in order to help prevent
premature drying or skinning of the thin-set mortar.
- 4 -
- 5 -
Step 1：
Cover the mixing valve seal(Not
provide)
Make the surface even
Step 2：
Unfold the tray
Embed the tray in the mortar
- 6 -
Step 3：
Brush the mortar
Install the waterproofing
corners(Not provide)
Trim the corner(Not provide)
Step 4：
Brush the mortar
Cover the waterproofing strip(Not
provide)
Make the surface even
- 7 -
Step 5：
Brush the mortar
Cover the pipe seal
Trim the pipe seal(Not provide)
Step 6：
Brush the mortar
Press the bonding flange into the
mortar(Not provide)
Rotate the flange to fix it firmly
Brush the mortar around
- 8 -
Trim the surface
Cover the waterproofing
membrane(Not provide)
Make the surface even
Step 7：
Install the drain adjustment
ring(Not provide)
Ensure full coverage
- 9 -
