INSTRUCTION / INSTALLATION SHEET
evōQ™ 5000 Home Theater 10” 150W
Sub-Woofer
IS-0260 Rev. E
301Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2010 by Legrand All Rights Reserved. Page 1 of 2
1. Introduction
Legrand offers the evōQ™ 5000 Home Theater 10” 150W Sub-
Woofer for those instances where extended base response is

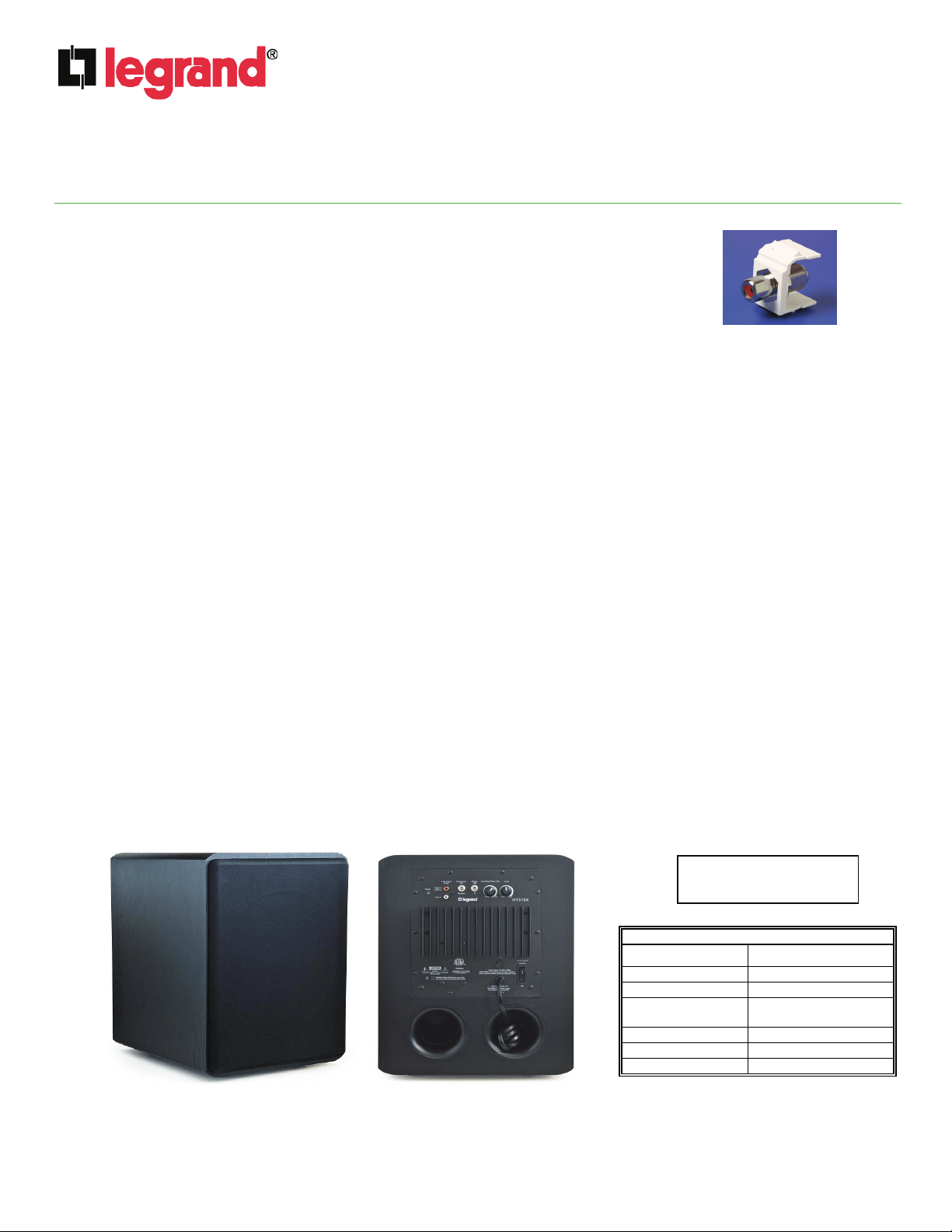

required. This speaker, part number HT5104, (see Figure 1), is
optimized for the home theater environment. It features a 10”
poly cone woofer, a ported cabinet and is typically placed on
the floor (see Figure 4).
Note: This Legrand evōQ™ 5000 Home Theater 10” 150W
Sub-Woofer is not a moisture resistant speaker.
2. Description
The Legrand evōQ™ 5000 Home Theater 10” 150W Sub-Woofer is a cube approximately 15.5” tall x 12.25”
wide x 14.3” deep. It is made of black vinyl covered MDF, and is a ported unit designed to be placed where
base response is best, supporting the non-directional nature of its base frequency output. It features RCA
connections for line level input, a volume control, a crossover bypass switch and adjustment (50-200Hz) and a
phase reversal switch. It also features a removable fabric grill cloth to enhance the sub-woofer’s appearance
when installed. This is a powered sub-woofer, and as such needs to be placed within 6 feet of a 120VAC 60Hz
electrical outlet.
3. Installation
Installation of the evōQ™ 5000 Home Theater Sub-Woofer, is best accomplished at multiple times during new
construction, at “Rough-in” before the drywall is installed, and at “Trim-out” after the drywall is installed and
painted.
A. “Rough-in” steps:
1. The evōQ™ 5000 10” 150W
Sub-Woofer may be installed in
a variety of ways with respect to
the rest of the home theater
equipment and structured wiring
system. It contains line level
inputs (RCA connectors) (see
Figure 2)
2. Separate source outputs from a home theater receiver may be run to the sub-
woofer and associated speakers independently. The Legrand HECC for instance
has separate outputs for a sub-woofer, from the rest of the speakers.
3. Pre-wire cabling from the source location to the intended sub-woofer location can be RG6QS coaxial
cable or RCA jumper cables depending on the intended location of the sub-woofer.
4. To cable from the source using coax cable in the wall, pre-wire two RG6QS cables from the source
location to the intended sub-woofer location.
5. To cable from the source at line level utilizing RCA jumper cables, simply connect the jumper cable
from the source to the sub-woofer.
Figure 2
Figure 1
