SB250 RECUMBENT BIKE
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW RECUMBENT
FITNESS
Table Of Contents
1
2
4
13
16
24
Product Registration
Important Safety Instructions
SB250 Assembly Instructions
Operation of Your Console
Program Operation
Manufacturer’s Limited Warranty
Thank you for your purchase of this quality tness bike from XTERRA Fitness. Your new
tness bike has been manufactured by one of the leading tness manufacturers in the world.
XTERRA Fitness will do all we can to make your ownership experience as pleasant as
possible for many years to come. If you have questions, or if parts are missing or damaged,
or you require customer service, call (870) 333-5500. Please have your model number and
serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new tness bike.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Bike and Welcome to the XTERRA Fitness Family!
SB250_VER6_20190621
SB250 Recumbent Bike
1
ATTENTION
THIS FITNESS BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR
THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warrantyreg.html
to register online.
Product Registration
This product uses an external power supply. The adapter must be plugged into
the power jack, located on the front of the unit near the stabilizer tube. Next, plug
the adapter into the appropriate wall outlet. When not in use, it is recommended to
unplug the power supply from the wall outlet.
IMPORTANT: If the product has been exposed to cold temperatures, allow the
product sit in room temperature to warm up before plugging in the adapter. Failure
to do so may result in damage to the display or electronic components.
IMPORTANT: Do not operate the product if the power supply, its plug, or its cord
has been damaged.
Power
Purchase Location
Purchase Date
2
SB250 Recumbent Bike
• To disconnect, turn all controls to the off position, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and
equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for
persons over the age of 35 or persons with pre-existing health conditions.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
3. This exercise equipment is not intended for use by persons with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the appliance to a service center for examination and
repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being use or where oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only.
13. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
CAUTION!! Please be careful when unpacking the carton.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
SB250 Recumbent Bike
3
Before you begin
Thank you for selecting our revolutionary Xterra SB250 Fitness Bike. Cycling is an effective exercise for
increasing cardiovascular tness, building endurance, and toning the body. Our tness bike provides an
impressive selection of features designed to make your workouts at home more effective and enjoyable.
For your benet, read this manual carefully before you use you tness bike. To help us assist you, note the
product model number and serial number before contacting us. Before reading further, please familiarize
yourself with the parts that are labeled in the drawing below
Console
Handle Bars
Seat Cushion
Hand Pulse Grip
Seat Back
Console Upright
Pedals
Shroud
Rear Stabilizer
Front Stabilizer
4
SB250 Recumbent Bike

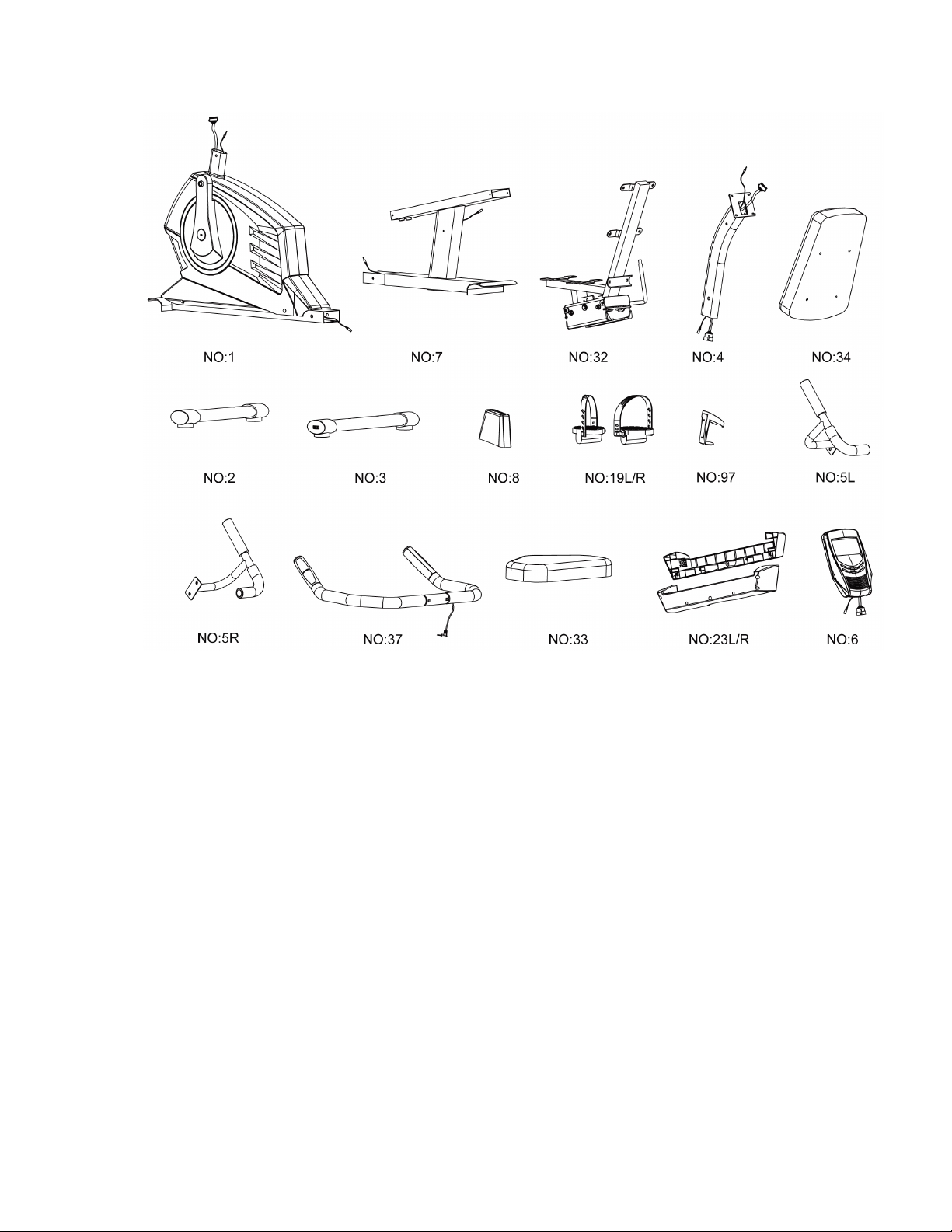

SB250 Pre-Assembly Check List
PART NO.
1
2
3
4
5L
5R
6/86
7
8
19L/R
23L/R
32
33
34
37
97
DESCRIPTION
Main frame
Front Stabilizer
Rear Stablizer
Front post
Stationary handlebar L
Stationary handlebar R
Computer/ Audio Wire
Rear Support Tube
Cover for Front Post
Left/Right Pedal
Left/Right Cover for Sliding tube
Seat Support Bracket
Seat Cushion
Back Cushion
Rear Handlebar
Bottle Holder
Hardware Bag
Manual
Q’TY
1
1
1
1
1
1
1/1
1
1
1/1
1/1
1
1
1
1
1
1
1
SB250 Recumbent Bike
5
SB250 Assembly Pack Checklist
Part No. Description Q’ty
14 Allen Screw M8*16 22
15 Curved Washer Φ8*20 8
16 Flat Washer Φ8*Φ17 8
21 Allen Screw M8*50 4
25 Leveling pad 1
35 Ball End Cap 1
43 Carriage Bolt M8*50 2
44 Domed Nut M8 2
Box Wrench 1
Allen key 6mm 1
Note: Above parts are all the parts needed to assemble this machine. Before you start to assemble,
please check the hardware packing to make sure they are included.
6
SB250 Recumbent Bike
1. Attach the front stabilizer (2) to the main frame (1), securing
with two allen screws (21), and two curved washers (15).
SB250 Assembly Instructions
Hardware Step 1
Front Stabilizer
2 Allen Screws (#21)
2 Curved Washers
(#15)
1
SB250 Recumbent Bike
7
Support Tube and Rear Stabilizer
2
Hardware Step 2
2 Allen Screw (#21)
6 Flat Washers (#16)
2 Curved Washers
(#15)
6 Allen Screw (#14)
1 Leveling Pad (#25)
1. Attach the rear stabilizer (3) to the rear support tube (7).
Secure using two allen screws (21) and two curved washers
(15).
2. Connect the middle extension hand pulse wire (17) to the rear
extension hand pulse wire (22).
3. Attach the rear support tube (7) to the main frame (1). Secure
using six allen screws (14) and six at washers (16).
4. Attach the leveling pad (25) to the bottom of main frame (1).
Tip: Avoid pinching the Extension Wires
8
SB250 Recumbent Bike
1. Insert front post (4) into the front post cover (8).
2. Connect the extension computer wire (9) to the lower computer wire (18).
3. Connect front extension hand pulse wire (10) to the middle extension hand pulse
wire (17).
4. Attach the front post (4) to the main frame (1). Secure the back of the post with two
allen screws (14) and two curved washers (15). Secure the side of the post with two
allen screws (14) and two at washers (16).
Tip: Avoid pinching the Extension Wire and pulse wires
5. Slide the cover down the front post onto the main frame.
6. Attach the left handlebar (5L) to the left side of the front post (4). Secure using two
allen screws (14). Repeat for right handlebar (5R).
7. Connect the extension computer wire (9) to the wire form the computer (6).
8. Connect the front extension hand pulse wire (10) to the wires from the computer (6).
9. Attach the computer (6) to the top bracket of front post (4). Secure using four
screws (12) which are pre-assembled on the back of computer (6).
10. Tip: Avoid pinching the Extension Wire and pulse wires
SB250 Assembly Instructions
Hardware Step 3
Console and Upright
2 Curved Washers
(#15)
8 Allen Screws (#14)
2 Flat Washers (#16)
3
SB250 Recumbent Bike
9
Seat Assembly
4
Hardware Step 4
1 Ball End Cap (#35)
Preassembled on
Cover:
4 Self Tapping Screws
(#26)
Preassembled on
Tube:
6 Screws (#28)
Preassembled on
Front Post:
2 Self Tapping Screws
(#55)
1. Thread the ball end cap (35) to the quick release handle (29). Note thread on clockwise.
2. Pull up the brake bracket (94) and the quick release handle (29).
3. Slide the seat support bracket (32) into the rear support tube (7). Secure by pressing
down the brake bracket (94) and quick release handle (35). Attach left sliding tube cover
(23L) to the left side of the seat support bracket (32). Secure using four self tapping
screws (26) which are pre-assembled on the left cover for sliding tube (23L) and three
screws (28) which are pre-assembled on the rear support tube (7).
4. Attach the right sliding tube cover (23R) to the right side of the seat support bracket (32).
5. Secure using three screws (28) which are pre-assembled on the rear support tube (7).
6. Attach the bottle holder (97) to the front post (4). Secure using two self tapping screws
(55) which are pre-assembled on the front post (4).
10
SB250 Recumbent Bike
1. Connect the rear extension hand pulse wire (22) to the hand
pulse wire (42).
2. Attach the rear handlebar (37) to the seat support bracket
(32). Secure using two carriage bolts (43), two curved
washers (15) and two domed nuts (44).
3. Attach the seat cushion (33) to the seat support bracket (32).
Secure using four allen screws (14). Attach back cushion
(34) to the seat support bracket (32). Secure using four allen
screws (14).
Tip: Avoid pinching the pulse Wires
SB250 Assembly Instructions
Hardware Step 5
Rear Handlebar Assembly
8 Allen Screws (#14)
2 Carriage Bolts (#43)
2 Curved Washers
(#15)
2 Domed Nuts (#44)
5
SB250 Recumbent Bike
11

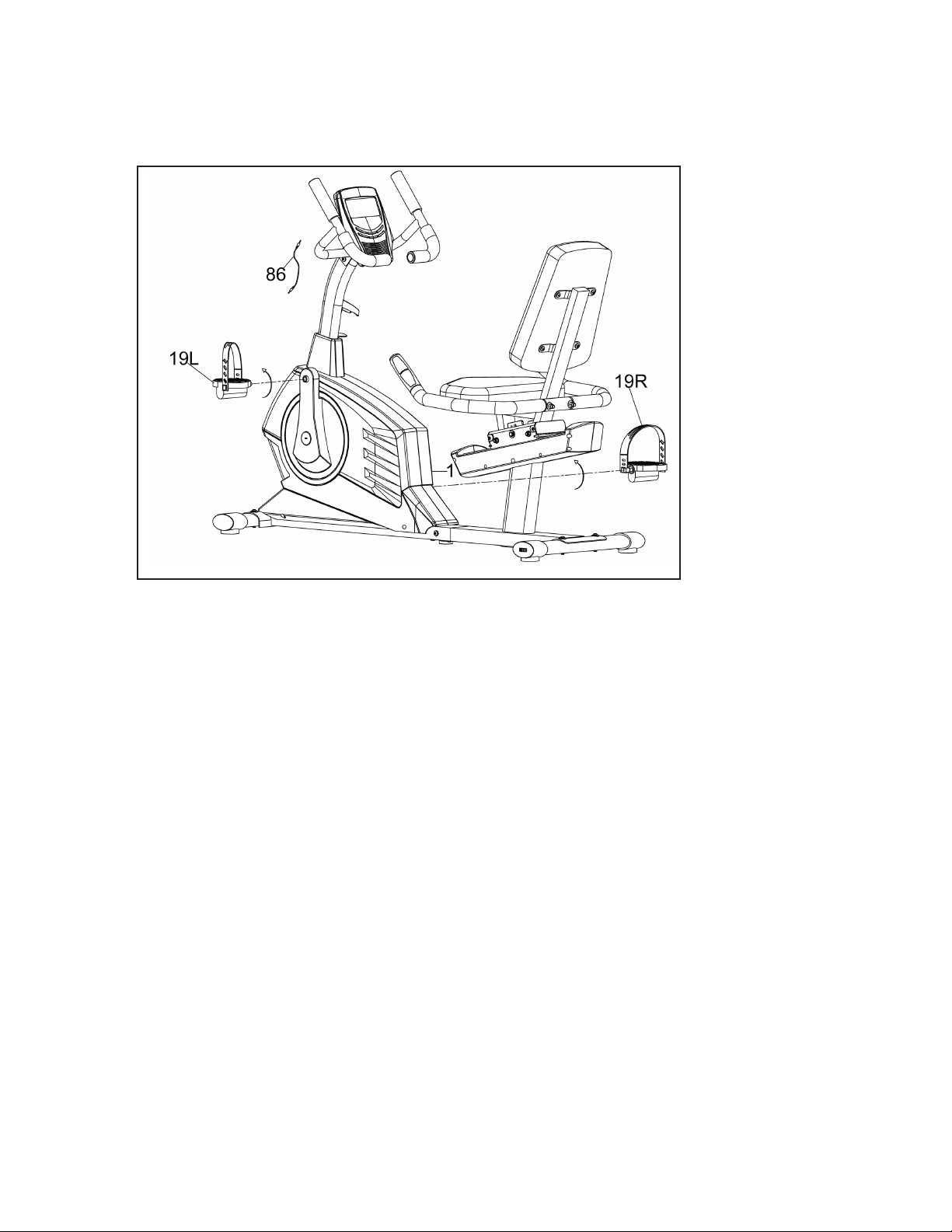

Pedals and Base Cover
6
1. The left and right pedals (19) are marked “L” & “R”. Attach the
straps to the pedals.
2. Connect left pedal (19L) to the left crank arm (48) on the left
hand side of the cycle as you sit on it. Repeat for the right
pedal (19R).
Note that the right pedal should be threaded on clockwise and the left
pedal on counterclockwise.
12
SB250 Recumbent Bike

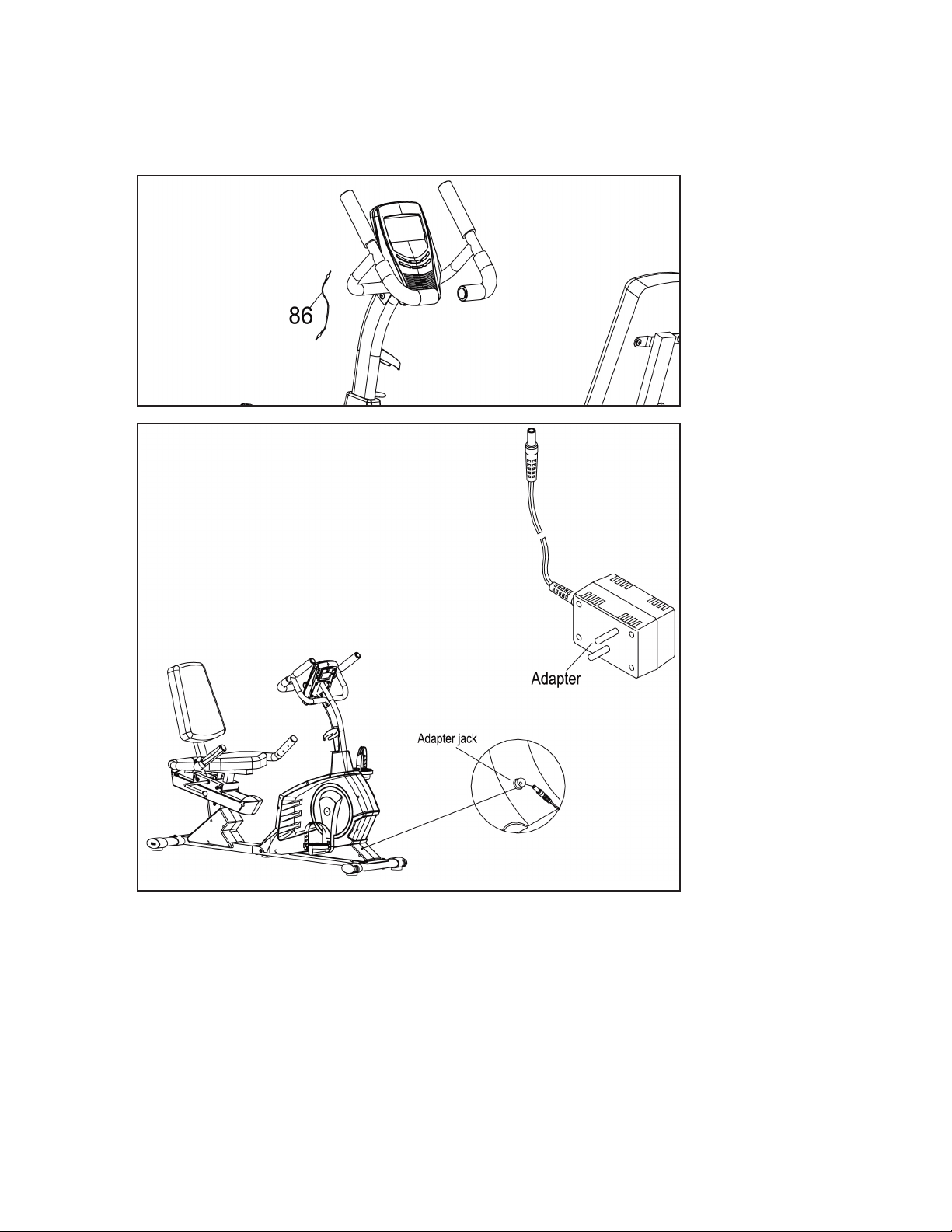

1. To listen to an MP3 during your workout, connect the MP3 with the
computer (6) by using the audio wire (86)
2. Plug adapter into the power receptacle.
SB250 Assembly Instructions
Power Adapter and MP3
7
SB250 Recumbent Bike
13
Operation of Your Console

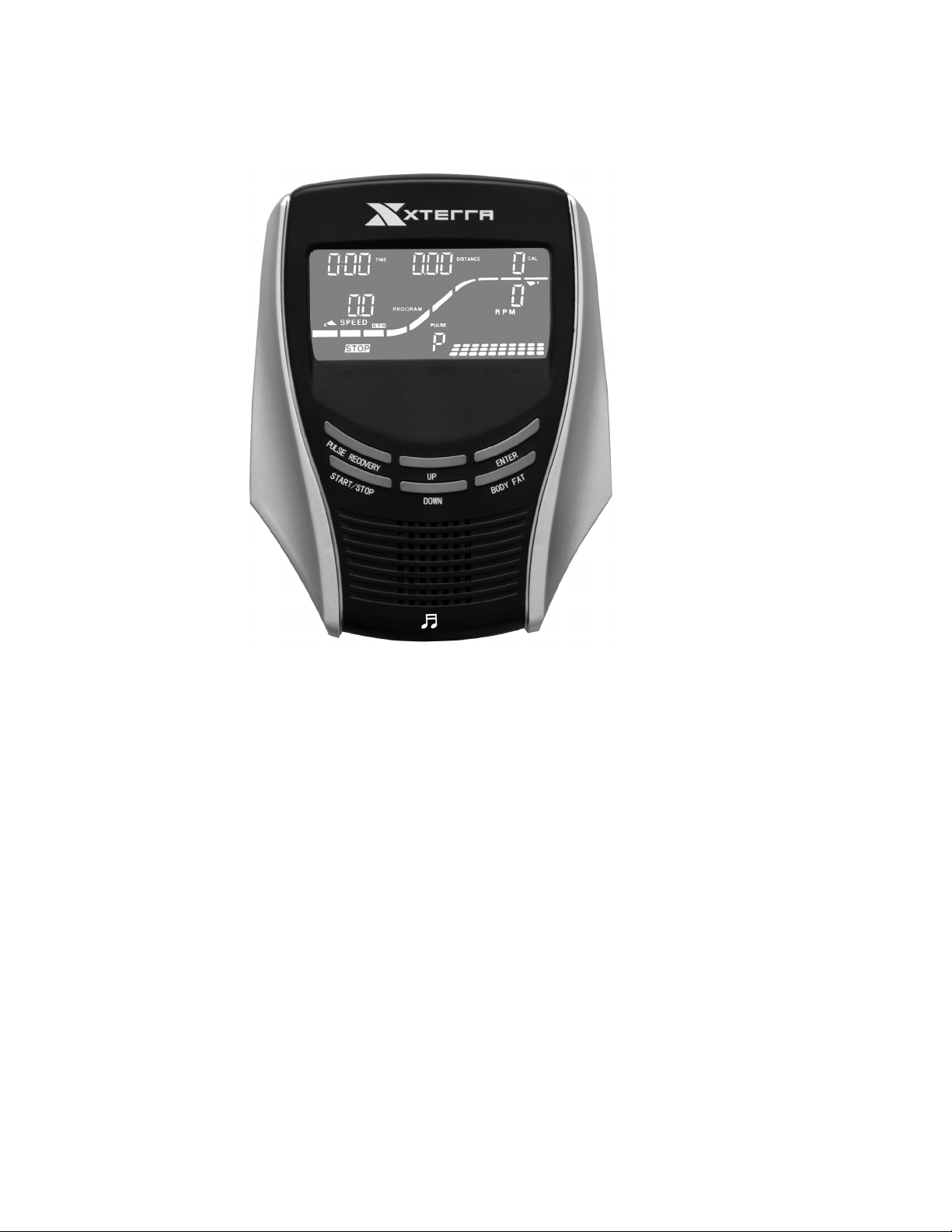

SB250 Console
START/STOP: Press to start or stop your exercise program.
Press to start body fat measurement.
UP: Press UP to increase the target values.
Press UP to increase the tension level while you are exercising.
Press UP to select your desired program.
DOWN: Press DOWN to decrease the preset target values.
Press DOWN to decrease the tension level.
Press DOWN to select your desired program.
ENTER: Press to accept the desired program.
Press to accept the target value.
Press and hold for four seconds to reset all values to zero when the unit is stopped.
Body Fat: Press to have your body fat measurement.
Pulse RECOVERY: Press to have the recovery grade of F1 to F6
Key Functions
14
SB250 Recumbent Bike
Functions
Time: Shows your elapsed workout time up to 99:00.
Counts down from your preset target time to 0:00 during your workout.
Speed: Displays between the current speed up to 99.9 M/H.
Distance: Displays the cumulative distance traveled during your workout up to 99.99 M.
Counts down from your preset target time to 0 M during your workout.
RPM: Displays the current rotation per minute.
Calories: Displays between the cumulative calories burned at any given time during
your workout up to 9990.
Counts down from your preset target calorie to 0
Note: This is a rough guide used for comparison of different exercise sessions,
which cannot be used for medical purposes.
Body fat: Hand on the pulse grip, press the body fat key, the monitor will be measure
the data of fat% , bmi, bmr.
Gripped pulse Display’s the user’s current heart rate in beats per minute during the workout.
Both hands must hold the gripped pulse for a heart rate reading during your workout.
You may preset your target pulse. The computer will alarm to remind you
as soon as your current heart rate has achieved at the preset gure.
Note: This data is a rough guide used for comparison of different exercise
sessions, which cannot be used for medical purposes.
Pulse Recovery: Your computer is equipped with a recovery program to monitor your heart rate
recovery. After your workout, press the recovery button and keep both hands
on the gripped pulse. The computer will cease monitoring all functions except
time which will commence countdown from 00:60 to 00:00. Once zero is reached the
pulse function will display a grade between F1 to F6. F1 being the best and F6 being
the worst reading you can receive.
Press the recovery button to return to the main display.
Note: If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR” on the message
window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest
transmitter is attached wel
SB250 Recumbent Bike
15
DISTANCE BAR: Every bar indicates 0.1 mile.
SPEAKER: To listen to an MP3 during your workout, connect the MP3 to the
monitor (6) by using the audio wire (86). Volume is controlled by
the MP3 player.
PROGRAM: Displays the program level from P1 to P23
P1 –Manual you can control the tension level
P2 to P13 programs are preset at the factory.
P14 to P17 programs are user setting
P18 to P22 programs are heart rate control programs
P23 body fat program
Remarks
The cycle is auto tension system. The monitor will only function while you insert adaptor.
Once you stop pedaling the monitor will shut off after 240 seconds. All values will be
reset to zero except for your saved user programs.
You will need to start pedaling before 30 seconds to keep your inputted data.
To listen to an MP3 during your workout, connect the MP3 with the computer (6) by using
the audio wire (86).
16
SB250 Recumbent Bike
Program
Introduction
&
Operation
Manual Program: Manual
P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance
level is 3. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the
workout) with a period of time or a number of calories or a certain distance.
Operations:
1. Use UP/DOWN keys to select the MANUAL (P1) program.
2. Press the ENTER key to enter MANUAL program.
3. The TIME will ash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key
to conrm your desired TIME.
4. The DISTANCE will ash and you can press UP or DOWN keys to set your target DISTANCE.Press
ENTER key to conrm your desired DISTANCE.
5. The CALORIES will ash and you can press UP or DOWN keys to set your exercise CALORIES. Press
ENTER key to conrm your desired CALORIES.
6. The PULSE will ash and then you can press UP or DOWN keys to set your exercise PULSE. Press
ENTER key to conrm your desired Pulse.
7. Press the START/STOP key to begin exercise.

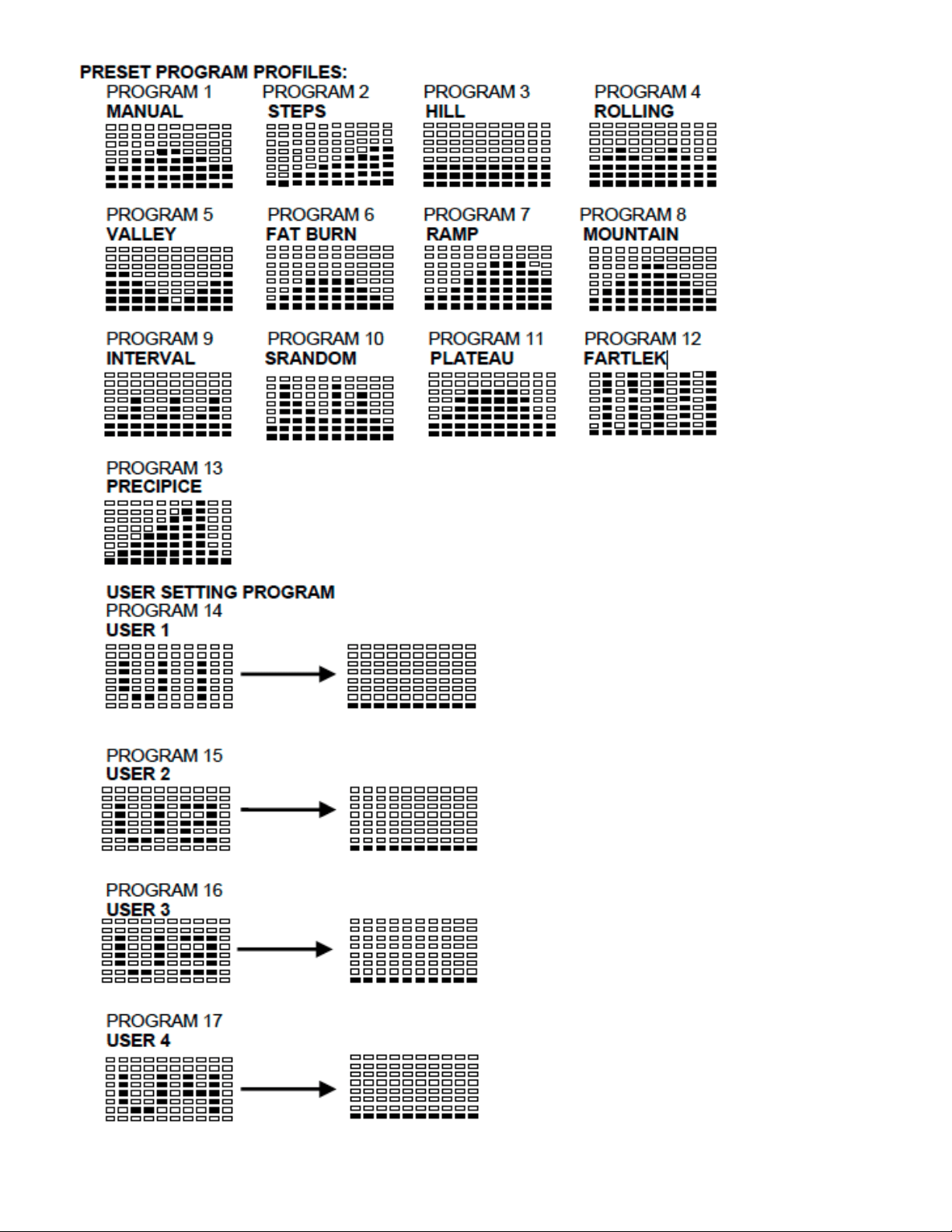

Preset Program:
Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice
Program
PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in
different intervals as the proles show. Users may exercise in any desirous of resistance level (Adjusting by
UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.
Operations:
1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
2. Press the ENTER key to enter your workout program.
3. The TIME will ash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER
key to conrm your desired TIME.
4. The DISTANCE will ash and you can press UP or DOWN keys to setting your target DISTANCE.
Press ENTER key to conrm your desired DISTANCE.
5. The CALORIES will ash and you can press UP or DOWN keys to setting your exercise CALORIES.
Press ENTER key to conrm your desired CALORIES
6. The PULSE will ash and then you can press UP or DOWN keys to set your exercise PULSE. Press
ENTER key to conrm your desired Pulse.
7. Press the START/STOP key to begin exercise.
User Setting Program: User 1, User 2, User 3, User 4
Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME,
DISTANCE, CALORIES and the resistance level in 10 columns. The values and proles will be stored in
SB250 Recumbent Bike
17
the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN
keys, and they will not change the resistance level stored in the memory.
Operations:
1. Use UP/DOWN keys to select the USER program from P14 to P17.
2. Press the ENTER key to enter your workout program.
3. The column 1 will ash, and then use the UP/DOWN keys to create your personal exercise
prole. Press ENTER to conrm your rst column of exercise prole. The default level is load 1.
4. The column 2 will ash, and then use the UP/DOWN keys to create your personal exercise
prole. Press ENTER to conrm your second column of exercise prole.
5. Follow the above description 5 and 6 to nish your personal exercise proles. Press ENTER to
conrm your desired exercise prole.
6. The TIME will ash and you can press UP or DOWN keys to setting your exercise TIME.
7. Press ENTER key to conrm your desired TIME.
8. The DISTANCE will ash and you can press UP or DOWN keys to setting your target DISTANCE.
Press ENTER key to conrm your desired DISTANCE.
9. The CALORIES will ash and you can press UP or DOWN keys to setting your exercise
CALORIES. Press ENTER key to conrm your desired CALORIES.
10. The PULSE will ash and then you can press UP or DOWN keys to set your exercise PULSE.
Press ENTER key to conrm your desired Pulse.
11. Press the START/STOP key to begin exercise.

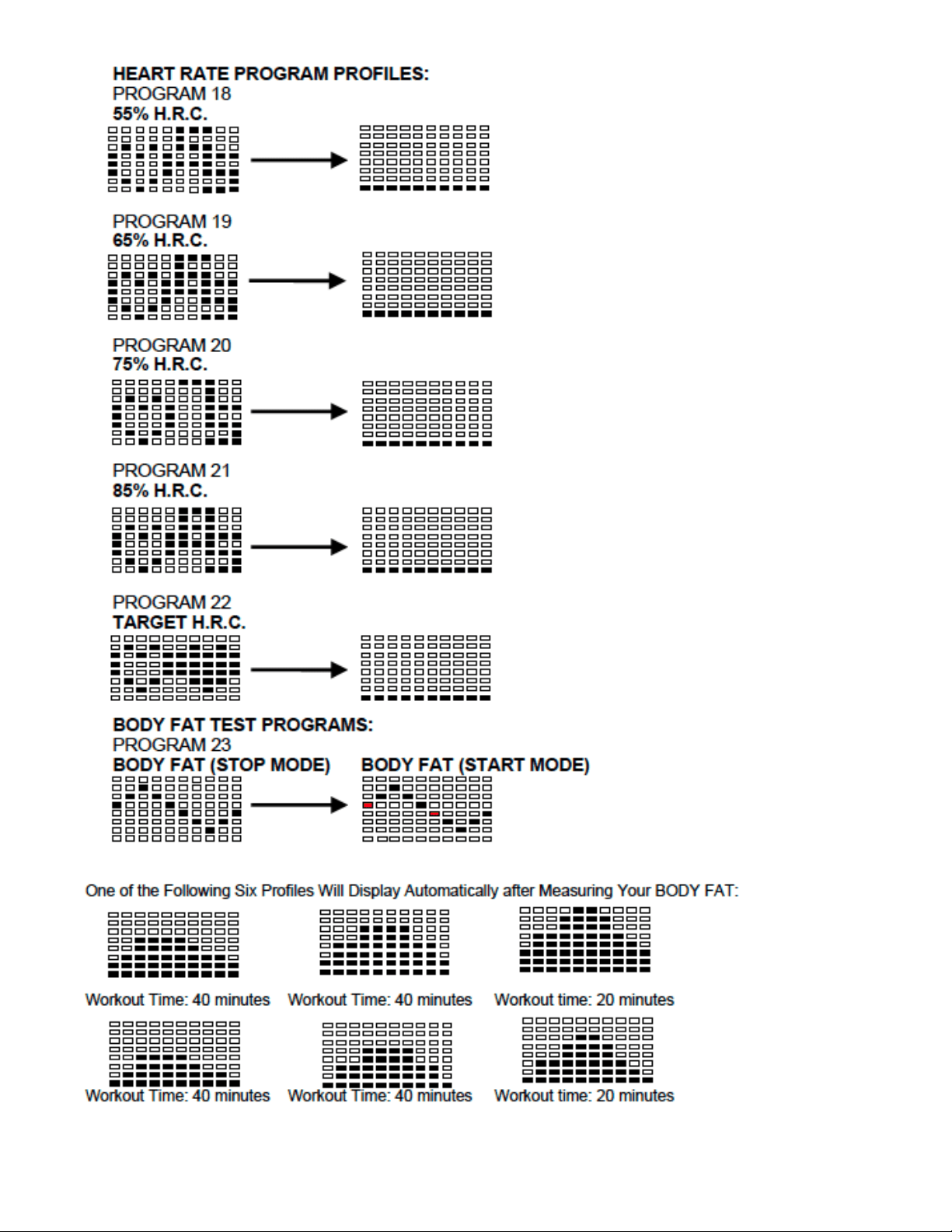

Heart Rate Control Program:
55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.
Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target
Heart Rate Control program.
Program 18 is the 55% Max H.R.C. - - Target H.R. = (220 – AGE) x 55%
Program 19 is the 65% Max H.R.C. - - Target H.R. = (220 – AGE) x 65%
Program 20 is the 75% Max H.R.C. - - Target H.R. = (220 – AGE) x 75%
Program 21 is the 85% Max H.R.C. - - Target H.R. = (220 – AGE) x 85%
Program 22 is the Target H.R.C. - - Workout by your target heart rate value.
Users can exercise according to your desired Heart Rate program by setting your AGE, TIME,
DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the
resistance level according to the heart rate detected. For example, the resistance level may
increase every 20 seconds while the heart rate detected is lower than the TARGET H.R.C. Also
the resistance level may decrease every 20 seconds while the heart rate detected is higher than
the TARGET H.R.C.
Operations:
1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
2. Press the ENTER key to enter your workout program
3. The AGE will ash at P18 to P21 programs and you can press UP or DOWN keys to set your
AGE. The default age is 35.
4. At program 22, the TARGET PULSE will ash and you can press UP or DOWN keys to set your
TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
5. The TIME will ash and you can press UP or DOWN keys to set your exercise TIME. Press
18
SB250 Recumbent Bike
ENTER key to conrm your desired TIME.
6. The DISTANCE will ash and you can press UP or DOWN keys to set your target DISTANCE. Press
ENTER key to conrm your desired DISTANCE.
7. The CALORIES will ash and you can press UP or DOWN keys to set your exercise CALORIES.
Press ENTER key to conrm your desired CALORIES.
8. Press the START/STOP key to begin exercise.
Body Fat Program: Body Fat
Program 23 is a special program design to calculate users’ body fat ratio and to offer a specic
loading prole for users. There are 3 body types divided according to the FAT% calculated.
Type1: BODY FAT% > 27
Type2: 27 ≥ BODY FAT% ≥ 20
Type3: BODY FAT % < 20
The computer will show the test results of FAT PERCENT
Operations:
1. Use the UP/DOWN keys to select the BODY FAT (P23) program.
2. Press the ENTER key to enter your workout program.
3. The HEIGHT will ash and you can press the UP or DOWN keys to set your HEIGHT. Press ENTER
key to conrm your HEIGHT. The default HEIGHT is 170cm or 5’07” (5feet 7 inches).
4. The WEIGHT will ash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER
key to conrm your WEIGHT. The default WEIGHT is 70kgs or 155lbs.
5. The GENDER will ash and you can press UP or DOWN keys to select your sex. The number 1
means male and 0 means female. Press ENTER key to conrm your Gender. The default sex is set
as 1 (Male).
6. The AGE will ash and you can press the UP or DOWN keys to set your AGE. Press the ENTER key
to conrm your AGE. The default AGE is 35.
7. Press the START/STOP key to begin body fat measurement. If the window shows “E” on the window,
please make sure your hands are holding the grips well or that the chest belt is touching your body
properly. Then press the START/STOP key again to begin body fat measurement.
8. After nishing your measurement, the computer will show the values of FAT PERCENT on the LCD
display.
9. Press START/STOP key to begin exercise.
SB250 Recumbent Bike
19
20
SB250 Recumbent Bike
SB250 Recumbent Bike
21
HOW TO ADJUST THE SEAT
The seat can be adjusted forward or backward to the position that is the most comfortable. To
adjust the seat, loosen the quick release knob, slide the seat to the the desired position and
retighten the knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, rst pull the ends of the straps off the tabs on the pedals. Adjust the
straps to the desired position, and then press the ends of the straps onto the tabs.
HOW TO MOVE THE EXERCISE BIKE
To move the exercise bike, grasp the rear stabilizer and carefully lift it until the exercise bike can
be moved on the front wheels. Carefully move the exercise bike to the desired location and then
lower it.
HOW TO LEVEL THE EXERCISE BIKE
The bike is equipped with adjustable end caps. If the unit is wobbly, please turn the leveling caps
on the rear stabilizer to level the unit.
HOW TO CHANGE MILES TO KM
Two people are needed for this. Unplug the adaptor from the cycle.
Press the start/stop button, the enter button and the up button all at the same time and connect
the adaptor.
Screen will beep and turn on.
Press the enter button until the miles or km is ashing.
Press the up button to change to km
Press enter button until the monitor resets.
Your cycle is now in km.
USER
DIRECTION
22
SB250 Recumbent Bike
Trouble Shooting
Problem Cause Solution
Monitor does not display
Adapter not plugged in Plug adapter in
Computer Wires not connected
Ensure the computer wires are con-
nected properly at the upright and
computer
No speed or distance displays on
the monitor
Sensor wire not connected
Ensure the computer wires are con-
nected properly at the upright and
the computer
Sensor wire not working properly Replace sensor wire
Monitor not working properly Replace monitor
No tension
Magnetic wheel not working properly Replace magnetic wheel
Computer wires not connected
properly
Ensure the computer wires are con-
nected properly at the upright and
the computer
Heart rate not displaying
Pulse wire not connected Secure plug wires together
Hand pulse defective Replace hand pulse grip
Monitor not working Replace Monitor
Grinding Noise
Crank bearing defective Replace crank bearings
Idler pulley defective Replace idler pulley
Flywheel defective Replace ywheel
Squealing V-belt slipping Adjust v-belt
E1 Monior cannot read the signal
change (level change or level
change cannot reach target
position) from the gear motor
Monitor has a problem Replace monitor
The connection cables from monitor
to gear motor are damaged or
disconnected. Pins of the connector
are bent or not x well.
Check all computer plugs and wires
are connected rmly.
Gear Motor damage or circuit on the
gear motor is abnormal.
Replace gear motor
Wire cable from gear motor to
magnetic system is too short to
drive the magnetic system or
position is not correct.
Adjust the length of motor wire
to make sure there are enough
space to drive the motor.
E2 The computer
cannot interface with the
IC chip.
EEPROM has problem (EEPROM
is installed incorrect)
Replace monitor
E3
The gear motor cannot read the
signal change from the level one
within 4 seconds after press the
start button.
Replace gear motor
SB250 Recumbent Bike
23
Maintenance
The safety of this produce can be maintained only if regular periodic checks are made. Most
checks can be performed once a week. However some checks should be made before each
workout, and are indicated as such below.
Checks
• Check that seat nuts are secure, check before each workout.
• Check that pedals are tight, pedals can work loose over time.
• Check that stabilizer bolts are tight, check before each workout this.
• Check that handlebar is secure, if not, tighten, check before each workout this.
• Should a part become defective, replace it immediately. Do not allow use of the equipment
until it has been repaired.
Cleaning
A damp cloth is sufcient to clean most surfaces of this unit. Be careful not to drip water on
the monitor. A mild liquid soap may be added if needed.
24
SB250 Recumbent Bike
Manufacturer’s Limited Warranty
Effective June 21, 2019 - BIKE LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use bike parts for a period of time listed below, from the date of retail sale, as determined by a
sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent
dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA
Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited Warranty
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratness.com/warrantyreg.html.
2. Proper use of the bike in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sufcient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the bike accessible for servicing, including any item that was not part of the bike at the time it was shipped from
the factory.
5. Damages to the bike nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
3. Products with original serial numbers that have been removed or altered.
4. Products that have been; sold, transferred, bartered, or given to a third party.
5. Products that are used as store display models.
6. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
7. Product use in any environment other than a residential setting.
8. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 333-5500.
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. The owner is responsible for adequate
packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
5. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame
1 Years
Parts Labor
1 Year None
SB250 Recumbent Bike
25
www.xterrafitness.com
©2019 All Rights Reserved. SB250 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611
