E-1
Dear SHARP Customer
Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color
LCD Projector built for outstanding quality, reliability and performance.
Every SHARP Color LCD Projector is adjusted for a proper picture and has passed through the
most stringent quality control tests at the factory. We have prepared this OPERATION MANUAL
so that you have the ability to adjust the picture and color to your personal viewing preference.
We sincerely hope that you will be satisfied with the quality and performance of your Color LCD
Projector for many years to come.
Please read the instructions carefully, and keep them handy for future reference.
IMPORTANT
For your assistance in reporting the loss or
theft of your Color LCD Projector, please
record the Serial Number located on the rear
of the projector and retain this information.
Important Information
There are two important reasons for prompt warranty registration of your new SHARP LCD
Projector, using the REGISTRATION CARD packed with the projector.
1) WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2) CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act,
PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE. U.S.A. ONLY
WARNING: High brightness light source, do not stare into the beam of light, or view directly.
Be especially careful that children do not stare directly into the beam of light.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
Model No.: XG-E1200U
Serial No.:
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk or electric
shock to persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
E-2
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equipment.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at his own expense.
The enclosed RGB signal cable and Macintosh adaptor must be used with the device. The cable and adaptor are
provided to ensure that the device complies with FCC Class A verification.
IMPORTANT SAFEGUARDS
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to ensure
your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZ-
ARD. In order not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for
its installation, use and servicing. For your own protection and reliable usage of your LCD Projector, please be sure
to read these “Important Safeguards” carefully before use.
1) Read Instructions – All the safety and operating instructions should be read before the product is operated.
2) Retain Instructions – The safety and operating instructions should be retained for future reference.
3) Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
4) Follow Instructions – All operating and use instructions should be followed.
5) Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6) Attachments – Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
7) Water and Moisture – Do not use this product near water – for example, near a bathtub, wash bowl, kitchen sink,
or laundry tub; in a wet basement; or near a swimming pool; and the like.
8) Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand,
tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the
product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by
the manufacturer.
9) A product and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and cart combination to overturn.
10) Ventilation – Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the
product and to protect it from overheating, and these openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should
not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
11) Power Sources – This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating instruc-
tions.
12) Grounding or Polarization – This product is equipped with a three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
13) Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the product.
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
E-3
14) Lightning – For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent
damage to the product due to lightning and power-line surges.
15) Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
16) Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
17) Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18) Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to restore the product to normal
operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
19) Replacement Parts – When replacement parts are required, be sure the service technician has used replace-
ment parts specified by the manufacturer or with the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
20) Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine that the product is in proper operating condition.
21) Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
22) Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
About the Temperature Monitor Function:
• If the projector starts to overheat due to set-up problems or a dirty air filter, “TEMP.” will flash
in the upper-left corner of the picture. If the temperature continues to rise, then the lamp will
turn off, the TEMPERATURE WARNING indicator will flash, and after a 90-second cooling-off
period the power will shut off. Refer to page 33, “Maintenance Indicators,” when the “TEMP.”
warning appears in the picture.
About the Lamp Monitor Function:
• When the projector is turned on after the lamp has been in use for more than 1,400 hours,
the yellow “LAMP” display will flash on the screen for 60 seconds, as shown on the right. This
is to alert you that it is time to replace the lamp. At this point, take your projector to the
nearest Authorized Sharp Industrial LCD Products Dealer or Service Center to have the lamp
replaced.
• If the lamp is used for more than 1,500 hours, the projector power will automatically turn off,
and the projector will be in STANDBY mode.
• Refer to page 33, “Maintenance Indicators,” when the “LAMP” display warning appears.
Caution: If “LAMP” begins to flash on the screen, be sure to take your projector to the nearest Authorized Sharp
Industrial LCD Products Dealer or Service Center to have the lamp replaced.
TEMP.
LAMP
E-4

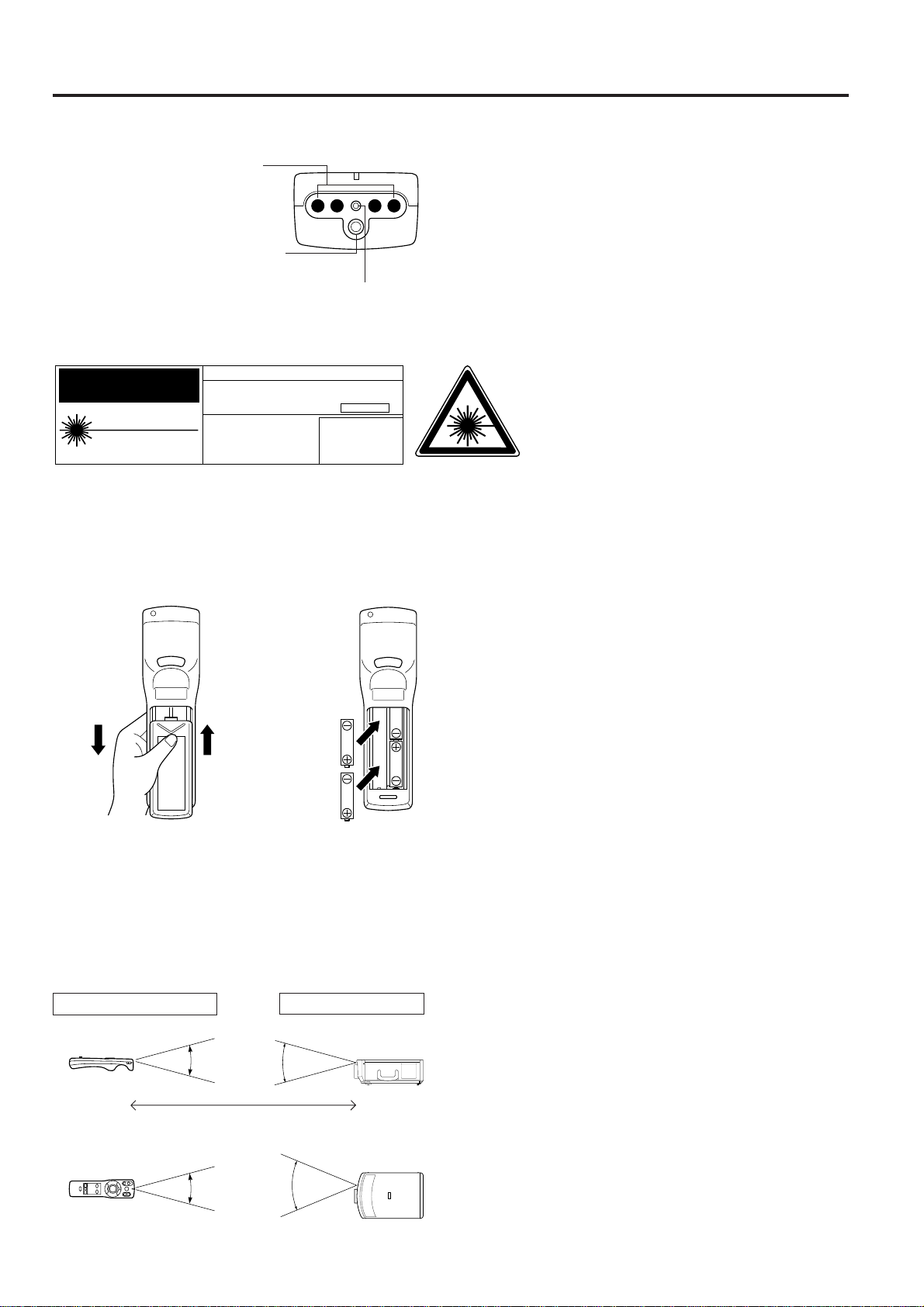

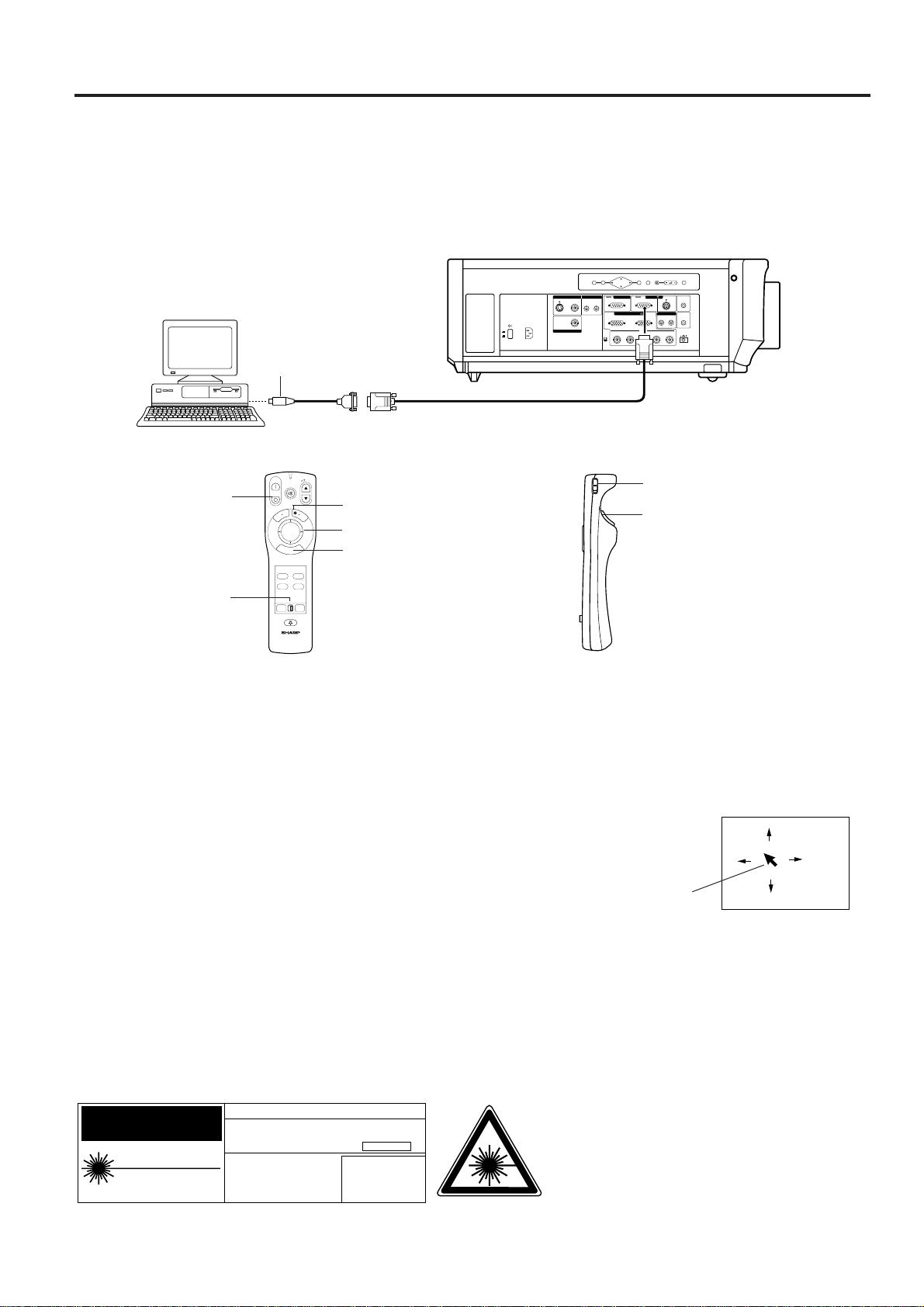

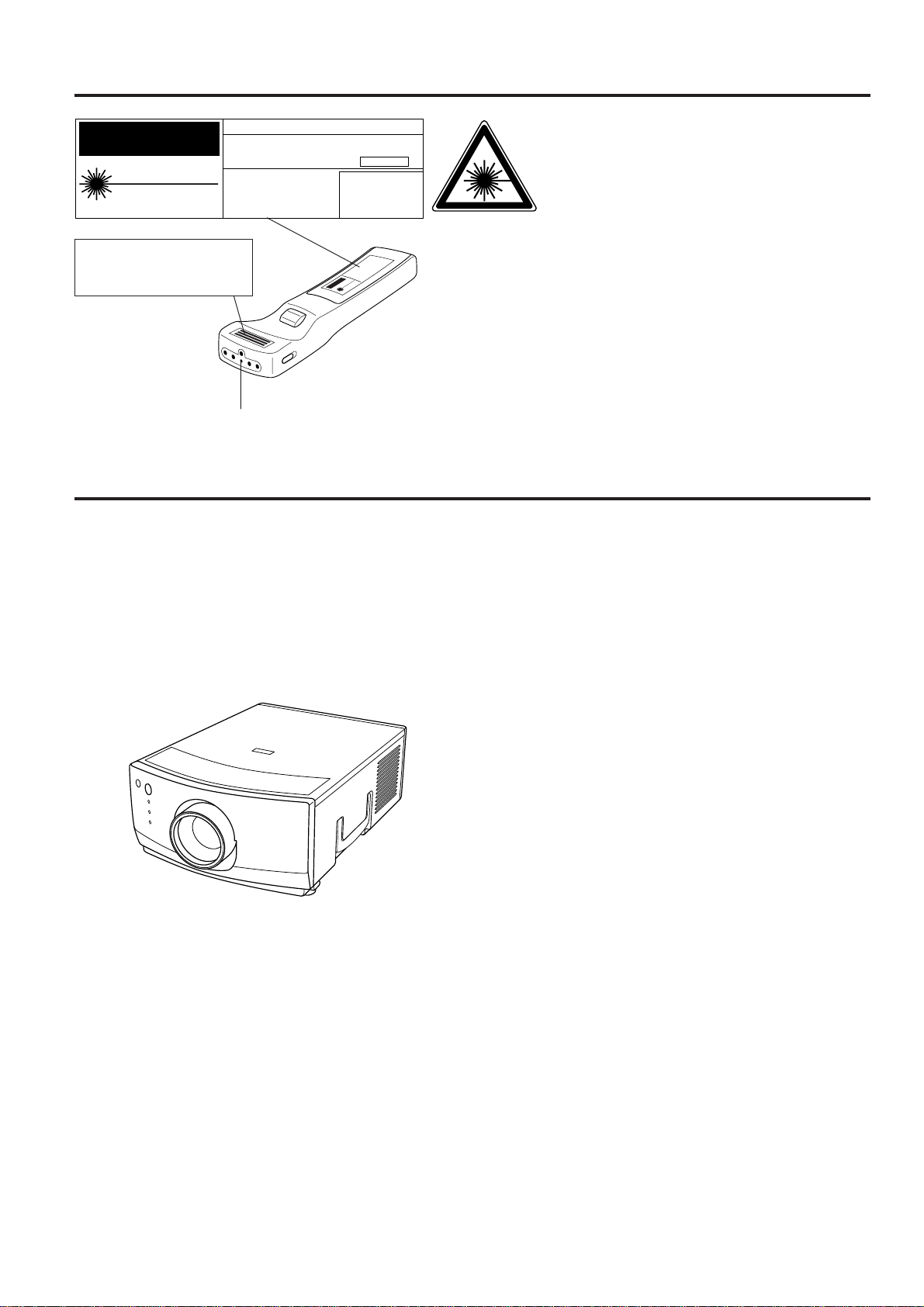

Cautions Concerning the Laser Pointer
The laser pointer on the remote control
emits a laser beam from the laser light
window shown in the figure to the left. The
laser emitted is a class II laser; therefore,
do not look into the laser window or shine
the laser beam on yourself or other people.
The three marks to the left are the caution
labels for the laser beam.
Always use the laser pointer at tempera-
tures between 41°F and 104°F (5°C and
40°C).
Caution: Use of controls or adjustments or
performance of procedures other than
those specified herein may result in hazard-
ous radiation exposure.
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : RRMCG1354CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
AVOID EXPOSURE-LASER
RADIATION IS EMITTED
FROM THIS APERTURE.
LASER LIGHT WINDOW
Outstanding Features
Allows easy projection of large screen, full-color computer
and video images.
• Can be projected directly onto a video screen or white
wall.
• Lightweight, convergence-free system for easy
installation.
DIRECT COMPUTER COMPATIBILITY
A multi-scan RGB Input accepts signals from XGA (1,024
dots × 768 lines compressed), SVGA (800 dots × 600
lines), VGA and Mac (832 dots × 624 lines maximum)
compatible computers without the need for any additional
hardware.
FLEXIBLE USE
In addition to the standard front projection mode, the
menu driven functions can be used to instantly reverse
the image for rear projection, and invert the image for
ceiling mounting.
POWER ZOOM AND FOCUS
• Provides simple screen-size adjustments from either the
projector or the remote control.
• Screen projection size adjusts from 40 to 500 inches.
LENS SHIFT
The lens can be easily raised and lowered to minimize or
eliminate “Keystone” type effects.
HIGH PICTURE QUALITY
The three LCD panels contain 519,168 × RGB pixels to
achieve exceptionally bright, high quality video images
with up to 580 doubled TV lines of resolution.
VERSATILE REMOTE CONTROL
• Built-in wireless mouse allows simultaneous operation
of projector and computer.
• Built-in Laser Pointer for professional presentations.
BUILT-IN STEREO SPEAKERS
Built in 3 W + 3 W stereo amplifiers and speakers elimi-
nate the need for external audio components.
E-5
ON
A.C.120V
S-VIDEO VIDEO
LR
FILTER
RGBH
LR
V
ON
OFF
C.A.120V
OFF
DC5V OUTPUT
MAX CURRENT 1A
COMPUTER
AUDIO IN
AUDIO OUTPUTOUTPUT
INPUT2
INPUT1 RGBCOMPUTER
WIRED
REMOTE
FOR PC98MOUSE PC CONTROLAUDIO INPUTVIDEO INPUT
VIDEO OUTPUT
WIRED REMOTE
CONTROL INPUT
(3.5 mm Mono Minijack)
DC 5V 1A OUTPUT
Filter ON/OFF
switch
COMPUTER RGB OUTPUT
connector (HD-15)
COMPOSITE VIDEO
OUTPUT: BNC
AC INLET
MAIN POWER
switch
MOUSE TERMINAL
Use when operating your personal computer with the
wireless mouse remote control.
Left Terminal: D-sub 9-pin (for IBM/Mac)
Right Terminal: 9-pin mini DIN (for NEC in JAPAN)
RS-232C (D-sub 9-pin)
Use when controlling the projector
from your personal computer.
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
MENU
button
ENTER button
ADJUSTMENT
(
/ , / ) buttons
LENS button
E-ZOOM
button
MUTE button
VOLUME UP-
DOWN buttons
INPUT SELECT
button
OPERATION PANEL ON SIDE OF PROJECTOR
Carrying handle
Cooling fan
(Exhaust vent)
Cautions:
• The exhaust vent, the lamp cage cover and adjacent areas may be extremely hot during
projector operation. To prevent injury, do not touch these areas until they have sufficiently
cooled.
• Allow at least 4" (10 cm) of space between the cooling fan (exhaust vent) and the other
nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will automatically turn off the
projector lamp. This does not indicate a malfunction. Remove the projector plug from the
wall outlet and wait 10 minutes. Then turn on the power by plugging the cord back in. This
will return the projector to its normal mode.
ON/OFF
POWER
LAMP
TEMP.
TEMPERATURE WARNING
indicator
LAMP REPLACEMENT
indicator
POWER indicator
Remote sensor
POWER ON/OFF button

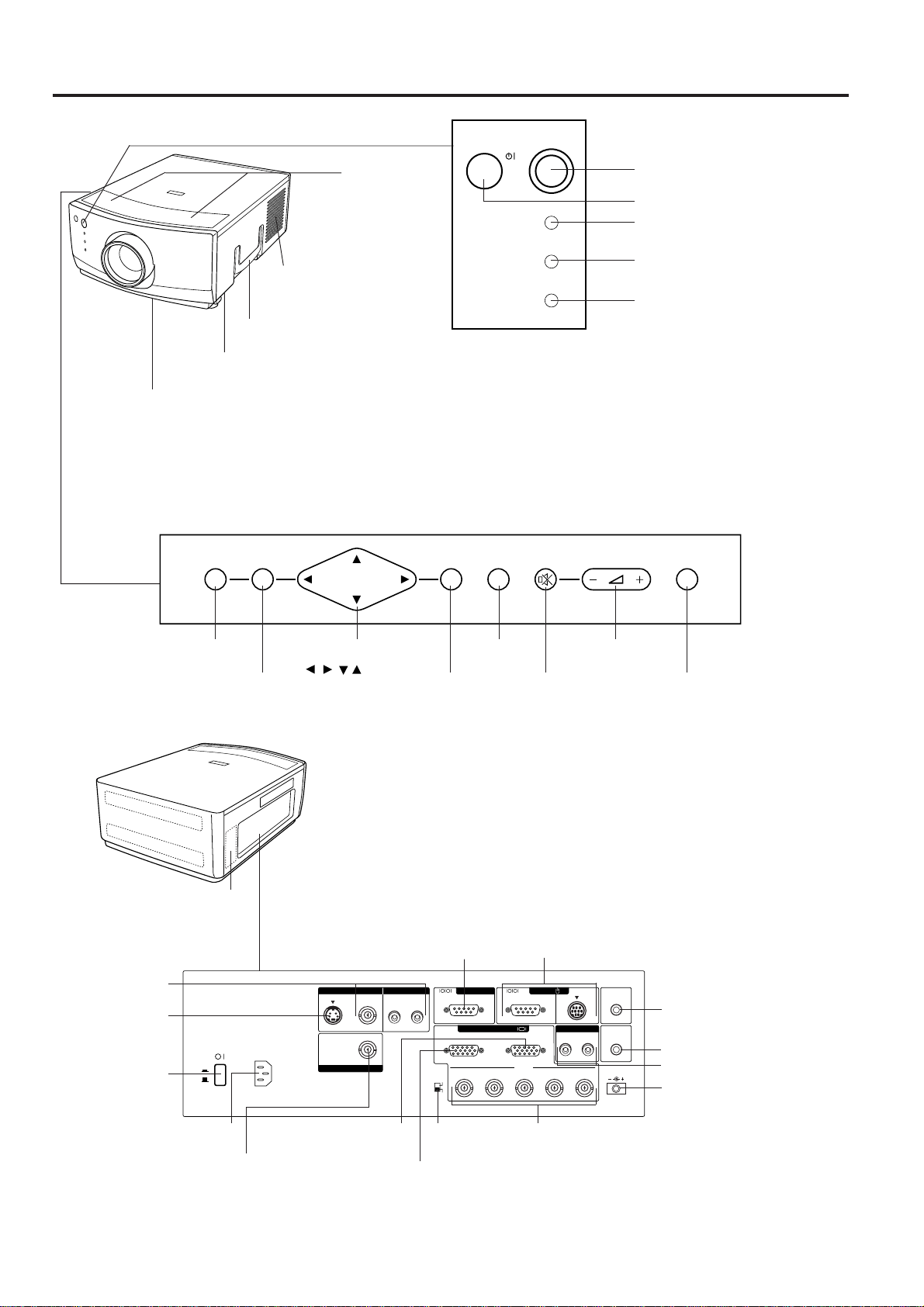

Location of Controls
FRONT VIEW
Lamp cage cover
(Natural ventilation)
Cooling fan
(Intake vent)
SIDE AND REAR VIEW
Cooling fan
(Intake vent)
AUDIO OUTPUT: RCA
COMPUTER AUDIO INPUT
(3.5 mm Stereo Minijack)
S-VIDEO INPUT
(4-pin mini DIN)
COMPOSITE
VIDEO INPUT
Video: BNC
Audio: RCA
COMPUTER RGB INPUT 2: BNC
(R, G, B, H-SYNC, V-SYNC)
Note:
• The DC 5V OUTPUT jack cannot supply a current of more than 1A.
COMPUTER RGB
INPUT 1 connector
(HD-15)
Speakers
E-6

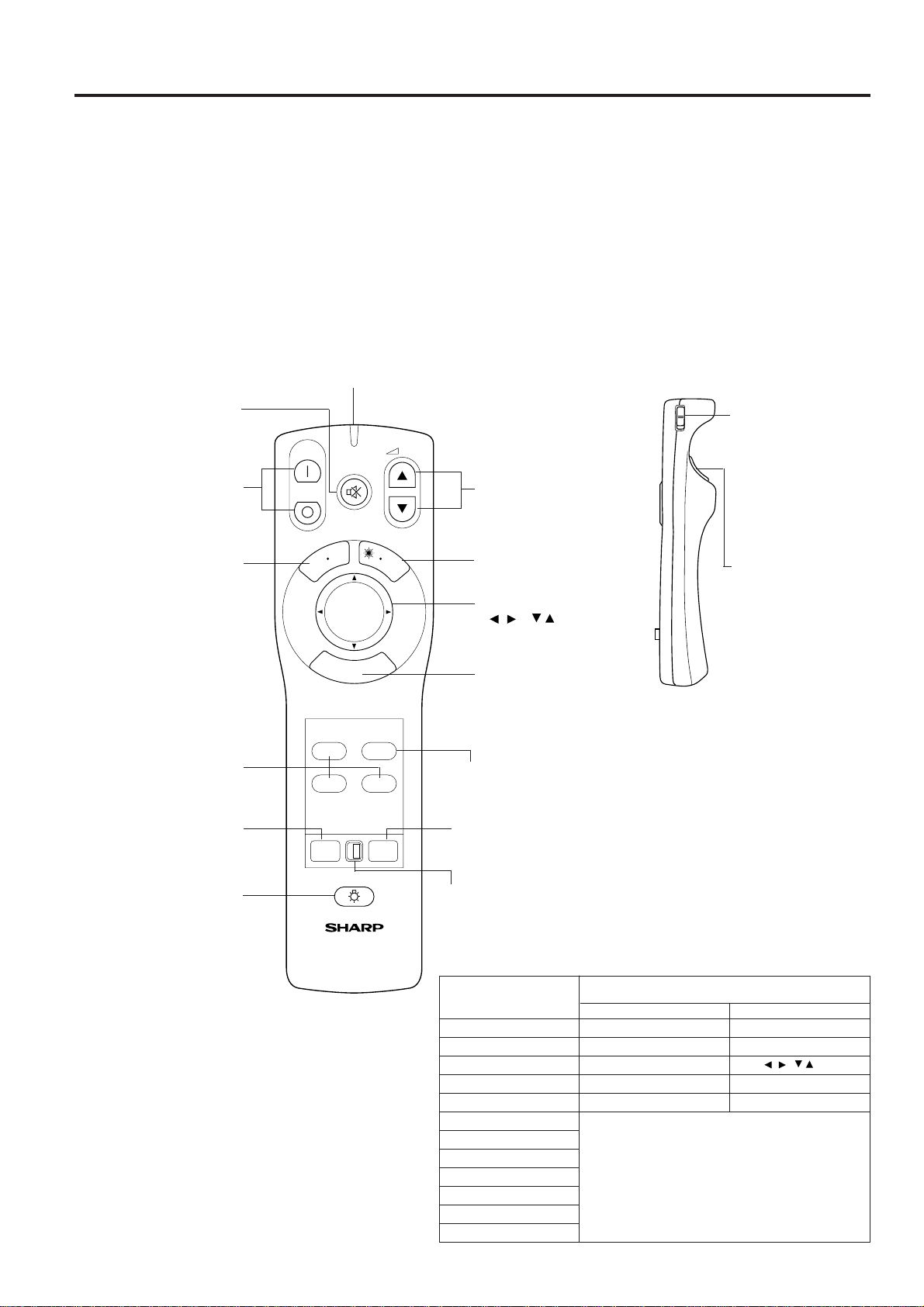

Operating the Wireless Mouse Remote Control
The functions of your personal computer’s mouse have been built into the remote control
enabling you to operate your projector and personal computer with only the remote con-
trol.
1. Slide the MAIN POWER switch on the side of the unit on.
2. Press the POWER ON button on the front panel of the remote control to turn the projector power on.
3. When using the remote control as a wireless mouse, move the MOUSE/ADJUSTMENT sliding switch to the
MOUSE position. When using the remote control to operate the projector, move the MOUSE/ADJUSTMENT
sliding switch to the ADJ. position. To activate the remote control key back-light feature, press the LIGHT button
on the remote control. The colors of the buttons will change as shown in the table at the bottom of this page.
POWER ON/OFF
buttons
MUTE button
VOLUME UP-DOWN
buttons
LASER POINTER/MENU
button
E-ZOOM/LENS
button
MOUSE/ADJUSTMENT
( / ),( / ) buttons
MOUSE label
Using the remote control
in a dark room
• Press the LIGHT button to turn
on the back-lights for the
operation buttons for about 10
seconds. The back-light colors
are explained in the table to the
right.
TRANSMIT indicator
R/C
OFF
ON
MAIN POWER switch
of remote control
Note:
When transporting the
remote control, turn
off the MAIN POWER
switch to avoid
draining the batteries.
LEFT-CLICK button
RIGHT-CLICK/ENTER
button
SIDE VIEW
Wireless Mouse Remote Control
FRONT VIEW
INPUT SELECT
buttons
INPUT
CHECK
button
Note:
• If the MAIN POWER switch on the remote control is left
on for more than 10 minutes without operation, the
power will automatically turn off. To turn the power back
on, press any button on the remote control for at least
one second.
ADJ. label
Remote control handling precautions
• The laser beam used in this product is harmless when
directed onto the skin, however please be careful not to
project the beam directly into the eyes. Do not stare into
the beam using an optical instrument.
• Do not expose the remote control to shocks, liquids or
high humidity.
The remote control may not operate normally if exposed
to direct sunlight or other intense light sources. Should
this happen, reposition the light source or the LCD
Projector.
When you change the setting of the MOUSE/ADJUSTMENT switch, the
functions of certain buttons on the remote control change. You can tell
which function the button currently possesses by the color of its back-
light display.
MOUSE/ADJUSTMENT switch
LIGHT button
ON
MUTE
MNLN
E-ZOOM/
LENS
E-Z
R-CLICK/ENTER
INPUT SELECT
VIDEO
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
CHECK
DATA1 DATA2
LASER/
MENU
VOL
OFF
Button name
Position of MOUSE/ADJUSTMENT Switch
MOUSE ADJ.
LASER POINTER/MENU LASER POINTER (GREEN) MENU (RED)
RIGHT-CLICK/ENTER RIGHT-CLICK (GREEN) ENTER (RED)
MOUSE/ADJUSTMENT MOUSE (NOT LIT) ADJ.
/ , /
(NOT LIT)
LEFT-CLICK ON (NOT LIT) –––
E-ZOOM/LENS E-ZOOM (GREEN) LENS (RED)
POWER ON/OFF
VOLUME UP-DOWN
MUTE
VIDEO
ON (RED)
DATA 1
DATA 2
INPUT CHECK
E-7
Using the optional cable with the remote control
• When the remote control cannot be used due to the
range or positioning of the projector (rear projection,
etc.), connect the optional cable from the Wired
Remote Control Input jack on the remote control to
the Wired Remote Input on the side of the projector.
Note:
• The signal transmitter does not function when the optional
cable is connected to the remote control.
Inserting the Batteries
Remove the battery cover as shown and insert four AA
size batteries making sure their polarities match the (+)
and (–) marks inside the battery compartment.
Notes:
Incorrect use of batteries may cause them to leak or burst.
• Insert the batteries with the (+) and (–) polarities as indicated.
• Remove the batteries if the remote control will not be operated
for an extended period of time.
• Maintain the batteries in a clean condition.
• Do not mix different brands of batteries. The life expectancy of
the new batteries will be shortened and the old batteries may
leak.
• When the batteries have been used up, remove them
immediately to prevent leakage and damage. Leaked battery
fluid may irritate the skin. Remove any battery fluid by wiping
with a cloth.
• Due to storage conditions and the shelf life of the supplied
batteries, they may run out after a short time. If so, replace
them with new batteries as soon as possible.
Remote control positioning
Use the remote control as shown in the figures on the left.
Note:
• The signal from the remote control can be reflected off the
screen for easy operation. However, the effective distance of
the signal may differ due to the screen material.
REAR VIEW
Insert the side
tabs into their
slots and press
in the cover
until properly
seated.
Transmission range
Reception range
30°
30°
Max. distance: 23' (7 m)
30°
45°
TOP VIEW
REMOTE CONTROL
SIGNAL TRANSMITTER
WIRED REMOTE CONTROL INPUT
(3.5 mm Mono Minijack)
LASER LIGHT WINDOW
Laser light shines out of
this window.
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : RRMCG1354CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
The laser pointer on the remote control emits
a laser beam from the laser light window
shown in the figure to the left. The laser
emitted is a class II laser; therefore, do not
look into the laser window or shine the laser
beam on yourself or other people. The two
marks to the left are the caution labels for the
laser beam.
Always use the laser pointer at temperatures
between 41°F and 104°F (5°C and 40°C).
Press in and
downward on
the arrow
mark and
remove.
E-8
Wireless Mouse Functions
m The wireless mouse functions and laser pointer on the remote control can help you create a more
professional presentation.
• By attaching the provided mouse cable to both the mouse terminal on your projector and the mouse
terminal on your personal computer, you can use the wireless mouse built into the remote control,
instead of the mouse equipped with your personal computer, to operate your personal computer. The
wireless mouse functions will work with personal computers compatible with IBM PS/2, serial (RS-
232C) or Apple ADB type mouse systems.
Connection Example
Personal computer
LEFT-CLICK button
POWER ON/OFF
buttons
ON
MUTE
MNLN
E-ZOOM/
LENS
E-Z
R-CLICK/ENTER
INPUT SELECT
VIDEO
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
CHECK
DATA1 DATA2
LASER/
MENU
VOL
OFF
RIGHT-CLICK button
LASER POINTER button
R/C
OFF
ON
MAIN POWER switch of
remote control
MOUSE buttons
MOUSE/ADJUSTMENT
sliding switch
The laser pointer on the remote control emits
a laser beam from the laser light window. The
laser emitted is a class II laser; therefore, do
not look into the laser window or shine the
laser beam on yourself or other people. The
two marks to the left are the caution labels for
the laser beam.
Always use the laser pointer at temperatures
between 41°F and 104°F (5°C and 40°C).
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : RRMCG1354CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
To mouse terminal
Supplied mouse cable (for IBM PS/2, serial and Apple ADB type mouse)
ON
A.C.120V
S-VIDEO VIDEO
LR
FILTER
RGBH
LR
V
ON
OFF
C.A.120V
OFF
DC5V OUTPUT
MAX CURRENT 1A
COMPUTER
AUDIO IN
AUDIO OUTPUTOUTPUT
INPUT2
INPUT1 RGBCOMPUTER
WIRED
REMOTE
FOR PC98MOUSE PC CONTROLAUDIO INPUTVIDEO INPUT
VIDEO OUTPUT
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
Projector
Functions and Operations
LEFT-CLICK button The LEFT-CLICK button on the back of the remote control corresponds to the left button of
the mouse on two-button mouse systems.
RIGHT-CLICK button The RIGHT-CLICK button on the front of the remote control corresponds to the right button
on two-button mouse systems.
Note: For one-button mouse systems use either the LEFT-CLICK or RIGHT-CLICK button.
LASER POINTER button Press the LASER POINTER button to activate the laser pointer.
When the button is pressed, the light stays on; when the button is released, the light goes off.
However, even when the button is pressed continuously, the light automatically goes off 1
minute after it goes on. To turn it on again press the laser pointer button one more time.
Mouse cursor
• First, connect the units as shown above, and turn the projector power on.
• Second, turn the computer power on.
• Next, slide the MAIN POWER switch on the side of the remote control.
• When using the remote control as a wireless mouse, move the MOUSE/ADJUSTMENT sliding switch to the MOUSE position.
Notes:
• In some situations the wireless mouse may be inoperable if your computer port is not correctly set-up. Please refer to your computer owners
manual for details on setting-up/installing the correct Mouse Driver.
• Do not connect or remove the mouse control cable to/from your computer while it is on. This may damage your computer.
• Do not connect the mouse input terminal for IBM/Mac and the mouse input terminal for PC98 simultaneously.
MOUSE buttons
By lightly pressing the up/down and right/left arrow buttons located on the front
of the remote control, you can move the mouse cursor on your monitor screen.
Note: The amount of pressure applied to the MOUSE button determines the speed the
mouse cursor travels. Pressing lightly on the periphery of the MOUSE button
makes the mouse cursor move slowly. Pressing hard makes it move quickly.
E-9

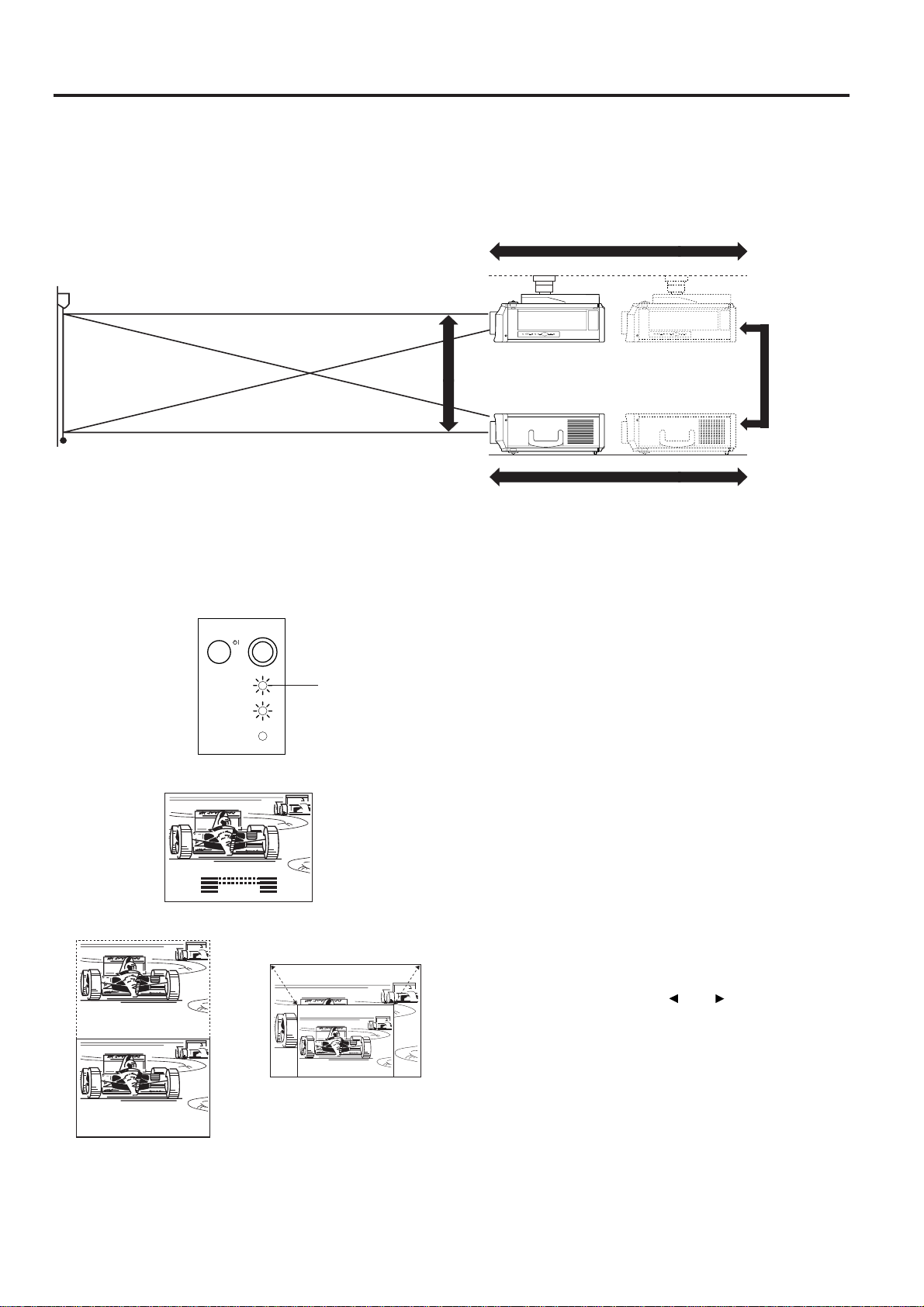

Setting Up the Projector
Using the Focus, Zoom and Lens Shift
• Lens Shift, Zoom, Focus and Reversed/Inverted Image mode functions broaden your options
for projector placement.
• See pages 10, 12 and 13 for details on projector setup.
SIDE VIEW
3
FOCUS
SHIFT
SHIFT
ZOOM
↔
←
←
←
ZOOM
SHIFT
3. Press the LENS button.
• When using the remote control to adjust the picture,
move the MOUSE/ADJUSTMENT sliding switch to the
ADJUSTMENT position. When the LENS button on the
remote control or on the projector is pressed, the LENS
adjustment mode is indicated for about 8 seconds.
• If the LENS button is pressed while the mode is indi-
cated on the screen, the picture adjustment mode
changes as shown on the left.
• You can adjust the picture as shown on the left by
pressing the ADJUSTMENT ( ) or ( ) buttons while in
ADJUST mode.
Note:
• Do not attempt to adjust the lens by hand as it may damage
the lens mechanism.
• Adjust the focus until the picture on the screen is sharp.
• The focus pattern appears on the screen.
• The picture can be adjusted to the desired size within
the zoom lens range.
• The picture can be adjusted within the shift range of the
lens.
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
Invert Image
Zoom
Ceiling setting
Lens Shift
Table setting
Zoom

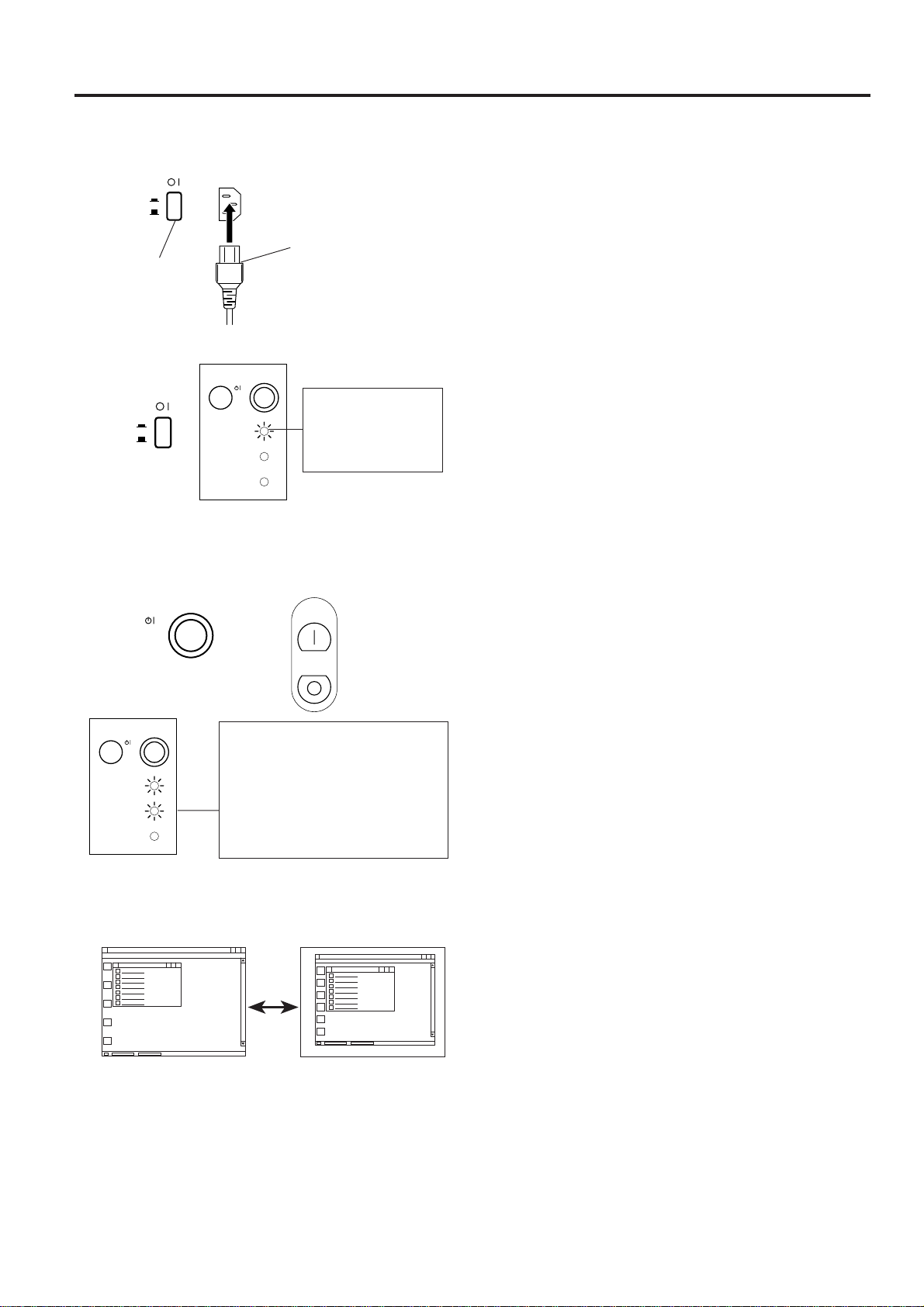

2. Turn on the POWER.
Press the POWER ON/OFF button on the projector or the
POWER ON button on the remote control to turn on the
power.
2
POWER
indicator
ON/OFF
POWER
LAMP
TEMP.
FOCUS
1. Turn on the MAIN POWER.
Turn on the MAIN POWER switch on the side of the
projector.
E-10
90°
90°

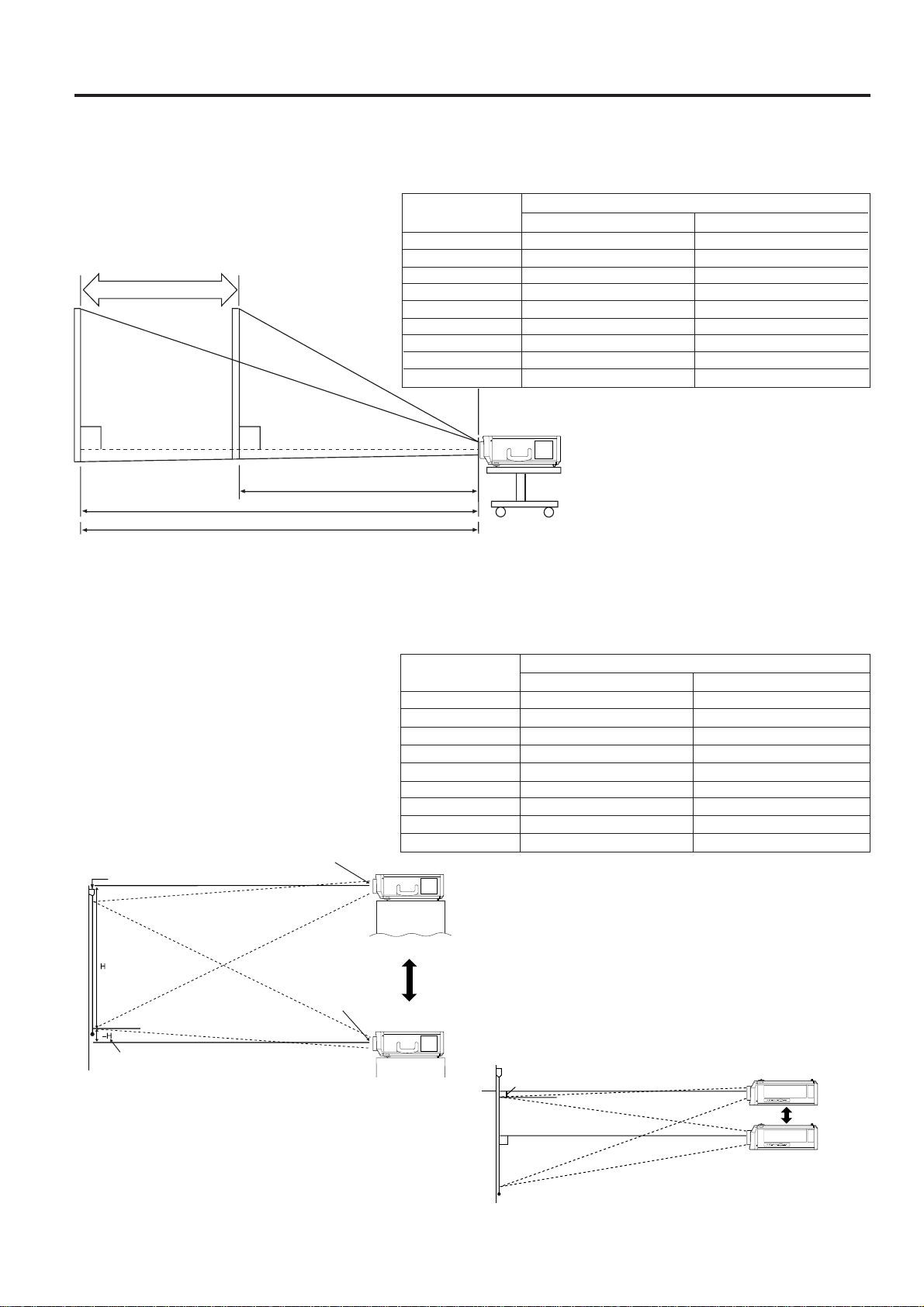

Projector Distance and Picture Size Relationship
m The motorized zoom lens allows adjustment to the image size within the projector’s range.
m The picture can be focused from a minimum of approximately 4.6 ft (1.4 m) to a maximum of 97.5 ft (29.7 m)
from the screen. Please set up the projector within this range.
Distance from screen
Picture size: 100 inches (254 cm)
• Above is an illustration of maximum and minimum projection distances for the XG-E1200U with a picture size of 100 inches
(254 cm). Move the projector forward or back if the edges of the image are distorted.
Note:
• Optimal image quality is produced with the projector positioned perpendicular to the screen with all feet flat and level. Tilting or angling
the projector will reduce the effectiveness of the lens shift function.
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
90˚
–H
High edge of screen
• Ceiling Mount
When the projector is in the inverted position, use the
upper edge of the screen as the base line, and ex-
change the lower and upper lens shift values.
Screen
Lower lens shift portion H: 15.1 inches (113 cm)
Lower edge of screen (white
portion) = Standard (0) point
Lens center
Lens center
Upper lens shift position
(High mount setup)
Lower lens shift position
126.4 in. (167 cm)
121.3 in. (154 cm)
115.7 in. (140 cm)
110.6 in. (127 cm)
17.9 in. (120 cm)
15.1 in. (113 cm)
14.3 in. (111 cm)
13.1 in. (18 cm)
12.0 in. (15 cm)
Upper lens shift position
326.4 in. (829 cm)
261.3 in. (664 cm)
195.7 in. (497 cm)
130.6 in. (332 cm)
97.9 in. (249 cm)
65.1 in. (165 cm)
52.3 in. (133 cm)
39.1 in. (99 cm)
26.0 in. (66 cm)
Distance from lens center to lower edge of screen (H)
Picture size
(diag.)
500 inches
400 inches
300 inches
200 inches
150 inches
100 inches
80 inches
60 inches
40 inches
Height of Projector
m This projector is equipped with a lens shift function that lets you adjust the projection height without moving the
projector.
m Adjust to match the setup configuration.
Zoom adjustment range: 19.3 ft–11.9 ft
Minimum L: 11.9 ft (3.6 m)
The formula for picture size and projection distance
y
1
= 0.0596x – 0.0891
y
2
= 0.0372x – 0.0865
x : Picture size (diag.) (inches)
y
1
: Maximum projection distance (m)
y
2
: Minimum projection distance (m)
Note: There is an error of 54 inches (510 cm) in the
formula above.
Maximum projection distance
97.5 ft (29.7 m)
77.9 ft (23.8 m)
58.4 ft (17.8 m)
38.8 ft (11.8 m)
29.0 ft (8.9 m)
19.3 ft (5.9 m)
15.3 ft (4.7 m)
11.4 ft (3.5 m)
7.5 ft (2.3 m)
Minimum projection distance
60.7 ft (18.5 m)
48.5 ft (14.8 m)
36.3 ft (11.1m)
24.1 ft (7.4 m)
18.0 ft (5.5 m)
11.9 ft (3.6 m)
9.5 ft (2.9 m)
7.0 ft (2.1 m)
4.6 ft (1.4 m)
Projection distance (L)
Picture size
(diag.)
500 inches
400 inches
300 inches
200 inches
150 inches
100 inches
80 inches
60 inches
40 inches
Diagram shows the lens shift position set at the factory.
Maximum L: 19.3 ft (5.9 m)
Distance between lens and screen: L
Upper lens
shift portion
H: 65.1 inches
(165 cm)
Lower lens shift position
(Desktop setup)
Picture size: 100 inches (254 cm)
E-11
Using the Image Invert/Reverse Function
■This projector is equipped with an image invert/reverse function. The projected image can be
inverted or reversed by using the MENU button and the ADJUSTMENT / and / buttons.
1 1. Press the MENU button.
With the MENU screen displayed, press the ADJUST-
MENT / buttons to select “IMAGE ADJ”. Then press the
ENTER button to display the IMAGE ADJ. screen.
• The last MENU screen selected is indicated for about
30 seconds.
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
E-ZOOM
[
OFF
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
ON
]
E-ZOOM
[
OFF
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
BLACK SCREEN
IMAGE ADJ.
REVERSE
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
E-ZOOM
[
ON
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
INVERT
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
ON
]
E-ZOOM
[
ON
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
4 4. Reversed Inverted Image Mode
In the IMAGE ADJ. menu, set the REVERSE and INVERT
functions to ON. The reversed inverted image will appear.
5. Press the MENU button anytime to exit
IMAGE ADJ.
3 3. Inverted Image Mode
In the IMAGE ADJ. menu, press the ADJUSTMENT /
buttons to select “INVERT”. Then press the ADJUST-
MENT / buttons to select ON. The inverted image will
appear.
2 2. Reversed Image Mode
In the IMAGE ADJ. menu, press the ADJUSTMENT /
buttons to select “REVERSE”. Then press the ADJUST-
MENT / buttons to select ON. The reversed image will
appear.
E-12

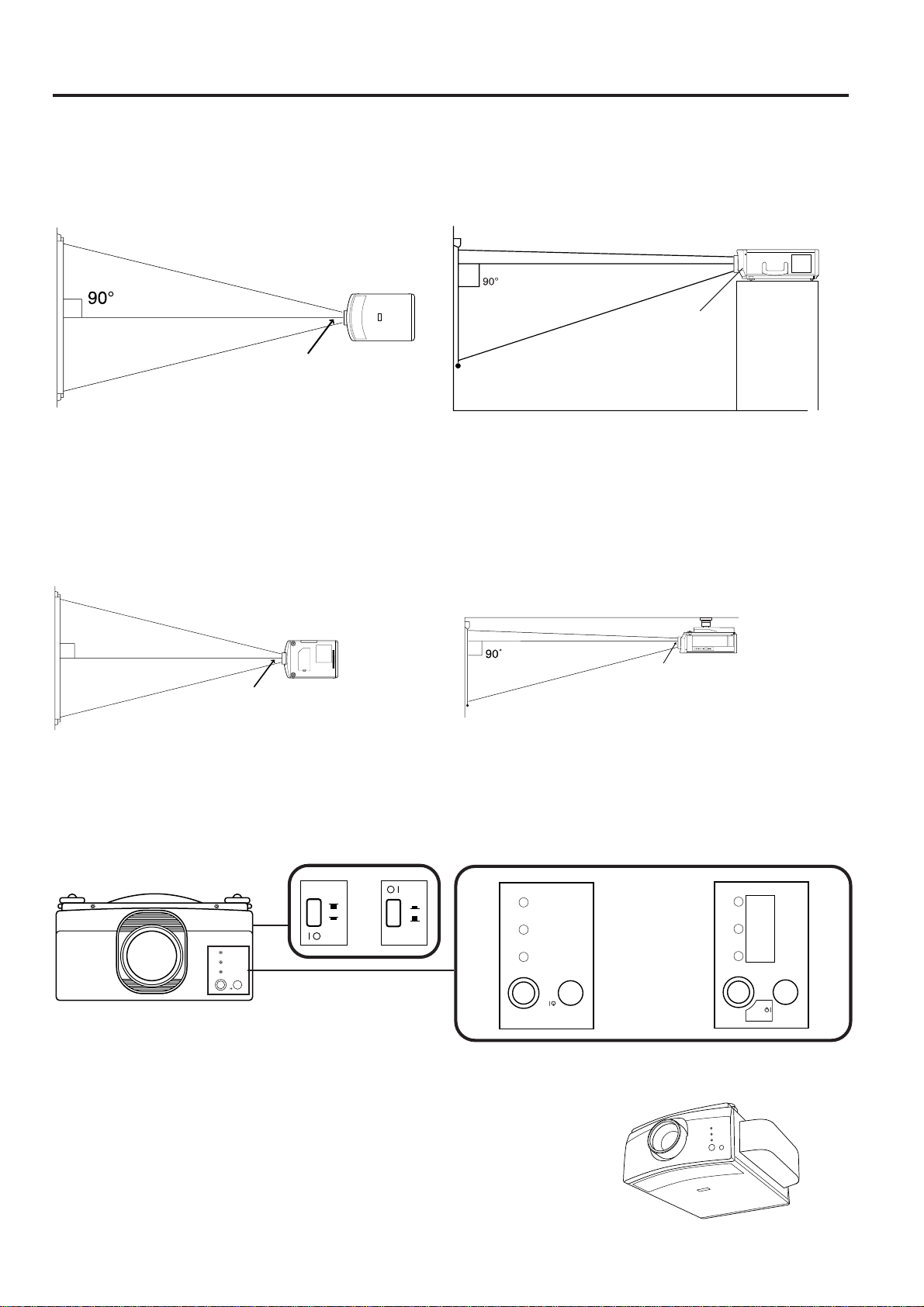

How to set up the projector and screen
Cautions: When setting up the projector
• Do not place it in humid or dusty places, or places where the air is sooty or full of cigarette smoke. If the lens,
mirror, or other optical components become dirty, the picture will blur or darken, making viewing difficult.
• Do not expose to extreme heat or cold.
Operating temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: 14°F to 140°F (120°C to 60°C)
• Do not tilt the projector more than 5°.
■ Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes out
colors, making viewing difficult. Close the curtains and dim the lights when using the screen in a bright or sunny
room.
■ The best picture will be obtained when the projector is at a 90 degree angle to the screen. Position the projector
and screen as shown.
SIDE VIEW
TOP VIEW
The projector lens should be centered
in the middle of the screen.
If the projector and screen are not
centered properly, the picture will be
distorted, making viewing difficult.
Lens center
■Using the horizontal reverse function makes the following setups possible.
Example of a reversed image setup
• By placing a mirror (normal flat type) in front of the lens and using the horizontal reverse function, the image
reflected from the mirror can be projected onto the screen.
• Rear projection with a rear projection screen is also possible when using the horizontal reverse function.
Rear Projection
If the projector and screen are not
centered properly, the picture will be
distorted, making viewing difficult.
The projector lens should be centered
in the middle of the screen.
AUDIENCE SIDE
▼
▼
Mirror
Example of a standard setup
Lens center
E-13
Inverted Labeling for Ceiling Mount
• When ceiling mounting the projector, attach the supplied inverted label as shown.
ON/OFF
POWER
LAMP
TEMP.
ON/OFF
POWER
LAMP
TEMP.
ON/OFF
POWER
LAMP
TEMP.
➡
Front
Example of a ceiling-mount setup
Before mounting the projector, be sure to contact your nearest Authorized Sharp Industrial LCD Products Dealer to
obtain the manufacturer recommended ceiling mount bracket (sold separately). (AN-XGCM20 Ceiling Mount
Bracket, AN-EP101AP Extension Tube).
• If the relative positions of the projector and the screen are not properly adjusted, the picture will be distorted.
MENU ENTER LENS E-ZOOM MUTE VOLUME
INPUT
SELECT
MN LN E-Z
IN
ADJ.
EN
90˚
SIDE VIEW
TOP VIEW
Lens center
Lens center
Example of a high-mount setup
• A high-mount setup makes projection from an elevated location possible, without ceiling modifications.
Lens center
©
Lens center
SIDE VIEW
TOP VIEW
Terminal Cover
• When the projector is ceiling mounted, attach the terminal cover
(supplied) to hide the connecting cables.
• Use the terminal cover to hide the connecting cables when the
projector is used on a desktop or high mounted.
ON
OFF
ON
OFF
➡
E-14

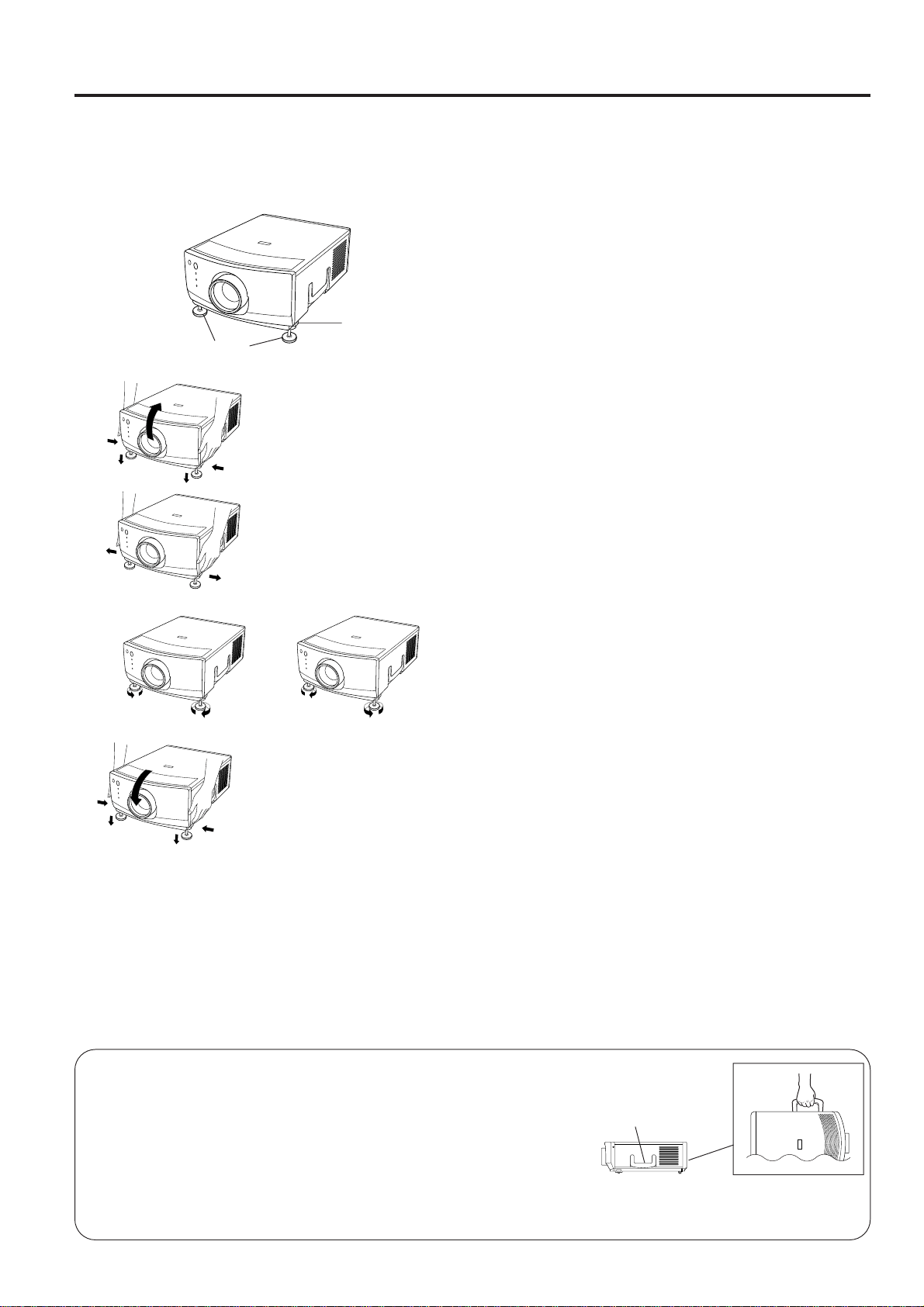

Adjusting the Height of the Picture
■ When adjustments for the projector position cannot be made using the Lens Shift alone, or when the projector
stand is on an angle, use the adjuster release to adjust the vertical angle of the projector. Minor adjustments can
be made with the adjusters.
Transporting the Projector
Use the carrying handle when carrying the projector.
When transporting the projector, carry it by the handle located on the side
of the unit.
Note:
• Always put on the lens cap to prevent damage to the lens when trans-
porting the projector.
Caution:
• Do not lift or carry the projector by the lens or the lens cover as this may
damage the lens.
3
1. Press the adjuster release and lift the
projector to the desired angle with both
hands.
• The adjuster legs will extend to the surface of the table.
2. Remove your hand from the adjuster
release.
• The adjuster legs will lock in position. Release the
projector once you are sure the adjuster legs have
locked in position.
3. Make any minor adjustments necessary.
• Turn the adjusters to further adjust the angle of the
projector.
Returning the projector to its original position
• While holding the projector with both hands, press the
adjuster release and slowly lower the projector to its
original position.
Notes:
• Adjustable up to approximately 5° from the horizontal.
• When adjustments are made with the adjusters, the picture may
become distorted, depending on the relative positions of the projector
and the screen.
• After adjusting, in some cases, all of the adjuster legs may not be
resting on the table.
To prevent the projector from wobbling, adjust the adjuster legs so that
they firmly contact the table.
Cautions:
• Do not press the adjuster release when the adjuster legs are extended
without firmly holding the projector.
• When lowering the projector, be careful not to get your fingers caught
in the area between the adjusters and the projector.
• Do not hold the lens when lifting or lowering the projector.
2
1
Adjusters
Carrying handle
Adjuster release
E-15
S-VIDEO VIDEO
LR
FILTER
RGBH
LR
V
ON
OFF
DC5V OUTPUT
MAX CURRENT 1A
COMPUTER
AUDIO IN
AUDIO OUTPUTOUTPUT
INPUT2
INPUT1 RGBCOMPUTER
WIRED
REMOTE
FOR PC98MOUSE PC CONTROLAUDIO INPUTVIDEO INPUT
VIDEO OUTPUT

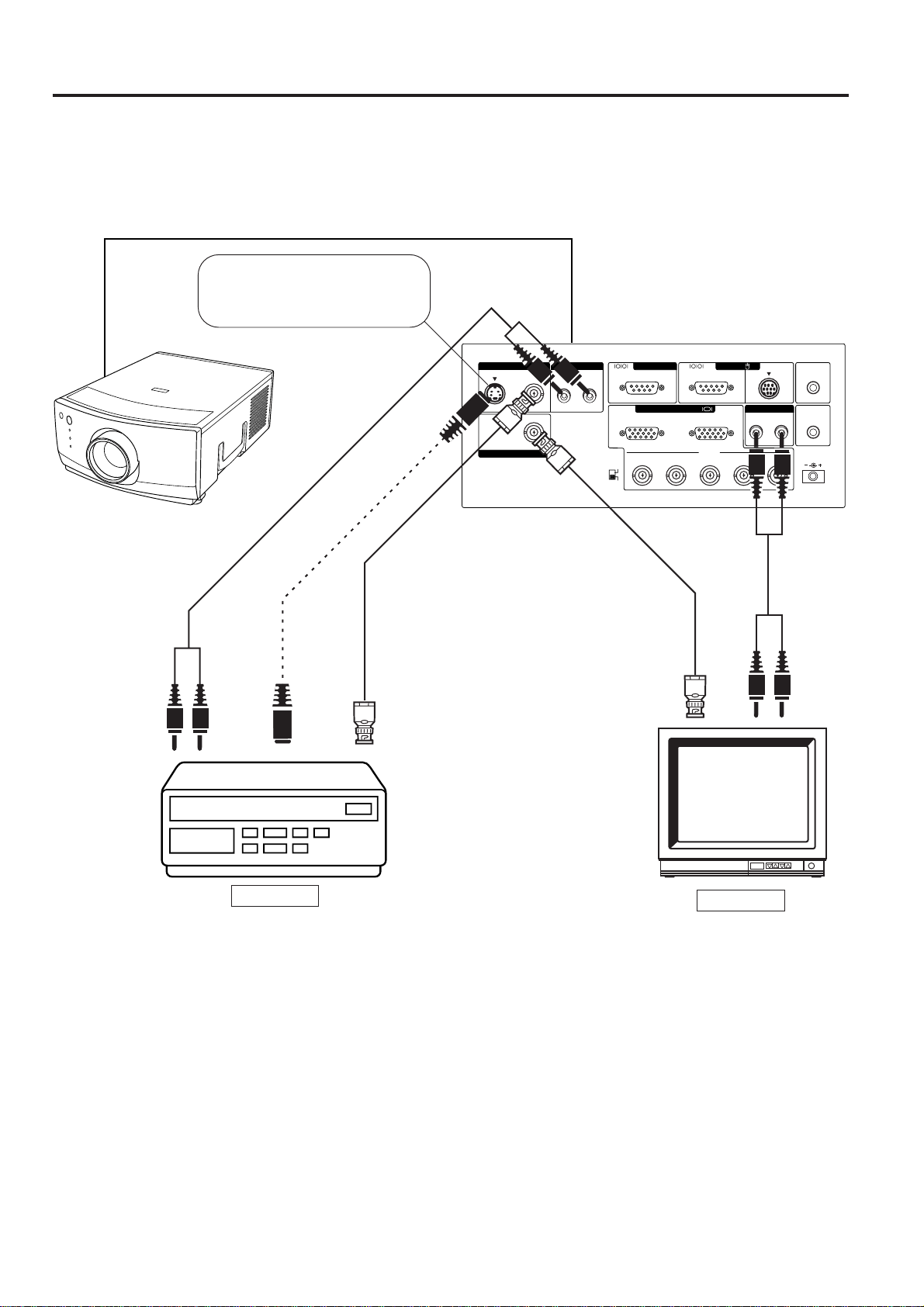

Connecting the Projector (VIDEO)
■To watch video playback with the projector connected to audio/video output equipment, such
as a VCR or Laser Disc Player, or to view on a separate monitor, make the following connec-
tions.
• Always turn off the LCD Projector while connecting to video equipment, in order to protect both the projector and
the equipment being connected.
Used when the AV equipment
to be connected has an S-
VIDEO output terminal.
To
audio
output
terminals
To
audio
input
terminals
To
video
input
terminal
Notes:
Note the following when using the S-VIDEO INPUT terminal:
• The S-VIDEO INPUT terminal uses a video signal system in which the picture is separated into a color and a
luminance signal to realize a higher-quality picture.
• The S-VIDEO INPUT terminal has priority over the VIDEO INPUT terminal. Make the audio connection via the
AUDIO INPUT terminals (left/right).
VCR
Monitor
Playback
➔
To
S-video
output
terminal
To
video
output
terminal
E-16

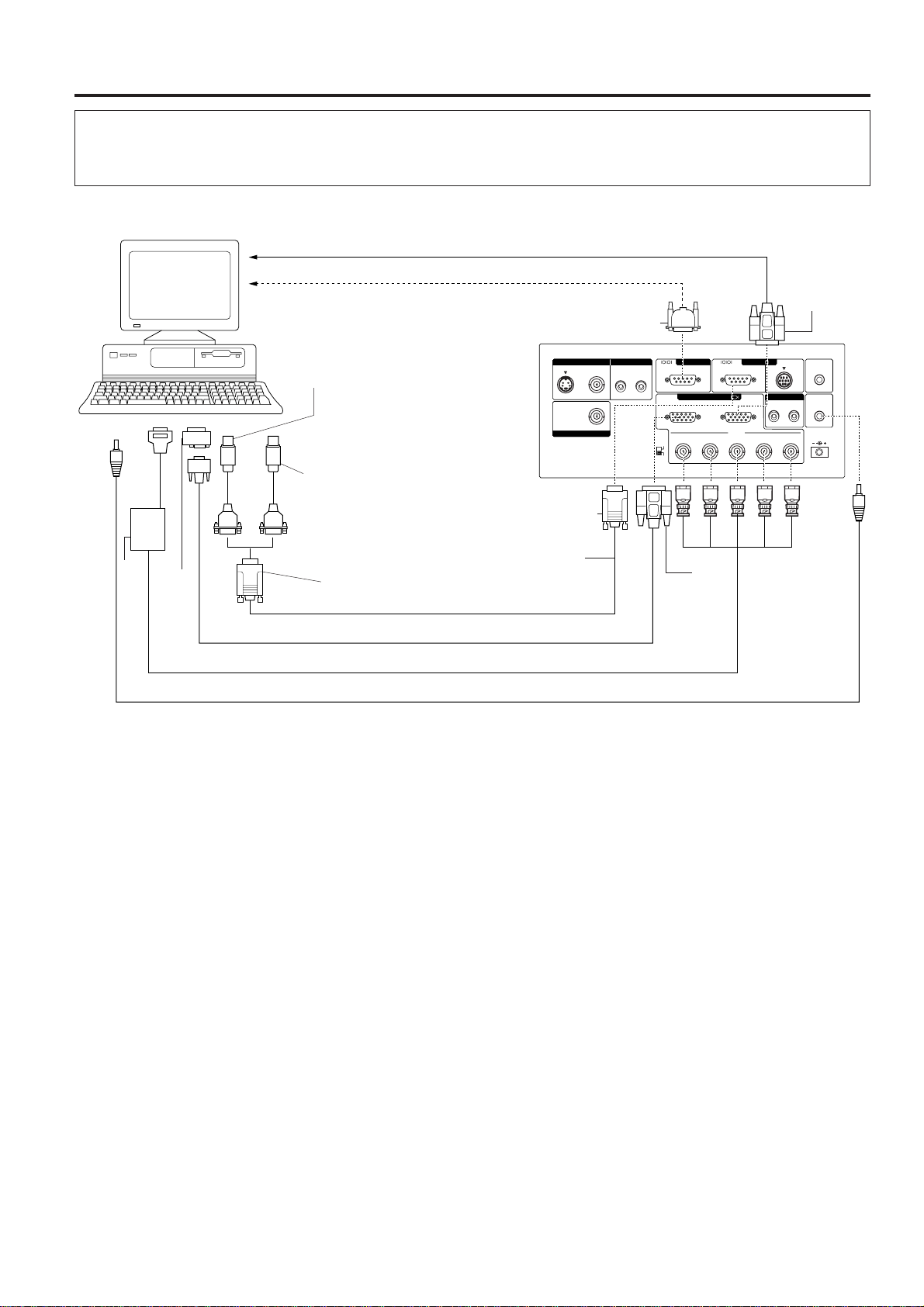

Connecting the Projector (RGB 1, 2: Computer)
• Please carefully read the manual of the computer you will be connecting.
• Before connecting, be sure to turn both the projector and the computer off. After making
all connections, turn the projector on first. The computer should always be turned on last.
To display input terminal
To RS-232C terminal
6-pin DIN
Audio Cable for Personal Computer (Sold separately)
4-pin DIN
9-pin D-Sub
• You can connect your projector to a computer for easy projection of full color computer images and an external
monitor for simultaneous viewing. See pages 17 and 18 for details of the connections.
• Refer to page 20 for a list of personal computers connectable to the projector. Use with computers other than
those listed may cause some of the functions not to work.
• When the RS-232C terminal on this unit is connected to a personal computer via an RS-232C cable (cross type),
the personal computer can control the projector and the status of the projector can be checked. See pages 35 and
36 for details.
• By connecting the projector mouse terminal to your personal computer’s mouse terminal, using the supplied
mouse control cables, you can use the remote control in place of the computer’s mouse. Refer to page 8 for
details.
Notes:
• The wireless mouse or RS-232C function may not operate if your computer port is not correctly set-up. Please refer to your
computer owners manual for details on setting-up/installing the correct Mouse Driver.
• Do not connect or remove the mouse control cable or RS-232C cable to/from your computer while it is on. This may damage
your computer.
• Do not connect to the mouse input terminal for IBM/Mac and mouse input terminal for PC98 simultaneously.
9-pin D-Sub
9-pin D-Sub
RGB Signal Cable (Supplied)
BNC 5 Cable (Sold separately)
Macintosh
Adaptor
(Supplied)
Mouse Control Cable for IBM
PS/2 (Supplied)
Mouse Control Cable
for Macintosh Series
(Supplied)
RGB
Switcher
Mouse Control
Cable (Supplied)
15-pin
D-Sub
15-pin
D-Sub
S-VIDEO VIDEO
LR
FILTER
RGBH
LR
V
ON
OFF
DC5V OUTPUT
MAX CURRENT 1A
COMPUTER
AUDIO IN
AUDIO OUTPUTOUTPUT
INPUT2
INPUT1 RGBCOMPUTER
WIRED
REMOTE
FOR PC98MOUSE PC CONTROLAUDIO INPUTVIDEO INPUT
VIDEO OUTPUT
(Sold
separately)
E-17
Connecting to the Computer RGB Input (RGB 1)/Output (RGB 1, 2) Terminals
■ You can connect your projector to a computer for easy projection of full-color computer images, and an external
monitor for simultaneous viewing.
Side view of the projector
RGB Signal
Input Socket
RGB Signal
Cable
(Supplied)

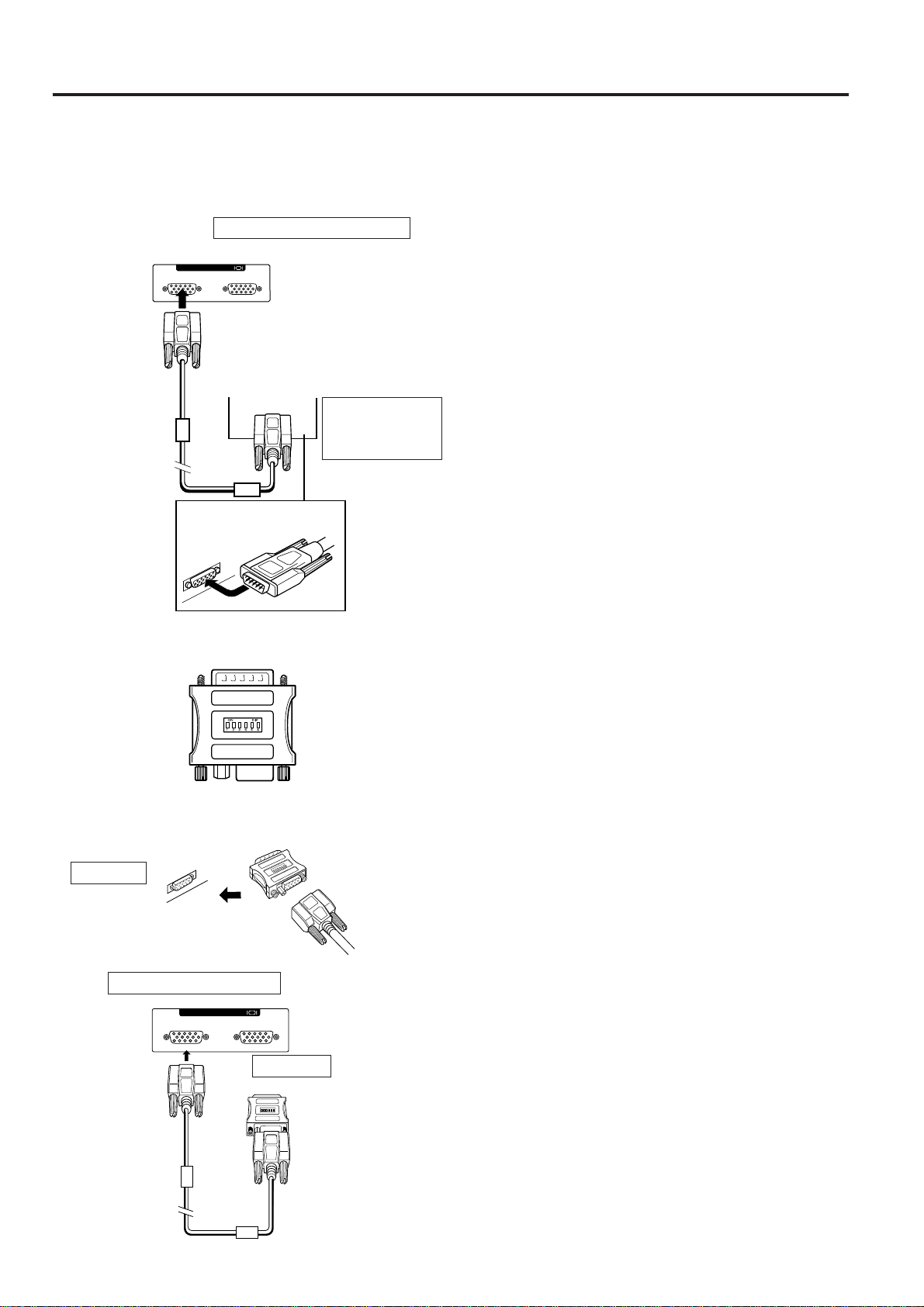

1. Connecting to an IBM-PC (VGA, SVGA,
XGA) Series computer – 1,024 × 768
maximum resolution
Plug the RGB signal cable correctly into the RGB INPUT
terminal on the projector and into the RGB signal output
terminal on the computer, and secure the plugs by
tightening the thumb screws.
Note:
• This connection is possible only when using a computer with a
VGA/SVGA/XGA or Mac display output port.
1
IBM-PC (VGA,
SVGA, XGA)
Series (computer)
ANALOG RGB OUT
OUTPUTINPUT1
RGBCOMPUTER
2 1
Macintosh Adaptor (Supplied)
2. Connecting to a Macintosh Series
Computer
• 640 × 480 or 832 × 624 resolution
1 Set the proper switches on the supplied adaptor.
• For 640 × 480 resolution, set switches 1 and 2 to
“ON” and 3,4,5 and 6 to “OFF”.
• For 832 × 624 resolution, set switches 2 and 4 to
“ON” and 1,3,5 and 6 to “OFF”.
2 Connect the supplied Macintosh adaptor to the RGB
signal output terminal on your Macintosh Series
computer, as shown on the left, and secure the plugs
by tightening the thumb screws.
3 Firmly plug the supplied RGB signal cable into both
the RGB input terminal on the projector and the
Macintosh adaptor on the computer, and secure the
plugs by tightening the thumb screws.
Notes:
• Be sure the switches on the adaptor are properly set.
• Once the adaptor is connected to a computer and the com-
puter is turned on, the display mode cannot be changed even
if the switches on the adaptor are reset.
• The supplied adaptor is only for use with H-SYNC and V-
SYNC output. When connecting a Macintosh Series computer
that only outputs C-SYNC, use a special C-SYNC output
adaptor (sold separately).
Side view of the projector
OUTPUTINPUT1
RGBCOMPUTER
RGB Signal
Input Socket
Macintosh
RGB Signal Output Socket
RGB Signal
Cable
(Supplied)
ANALOG
RGB OUT
Macintosh Adaptor (Supplied)
ANALOG RGB OUT
RGB Signal
Output Socket
Macintosh
3
2
ON
↑
↓
OFF
RGB Signal
Output Socket
E-18
3. Connecting to other compatible
computers
When connecting the projector to a compatible computer
other than an IBM-PC (VGA/SVGA/XGA) or Macintosh
series, a separate cable is needed. Please contact your
dealer for ordering information.
Notes:
• Connecting computers other than the recommended types
may result in damage to the projector, the computer, or both.
• Connect the audio from the computer to the COMPUTER
AUDIO INPUT terminal.
4. Connecting to the COMPUTER AUDIO
INPUT
• The COMPUTER AUDIO INPUT accepts COMPUTER RGB
input.
• Connect a 3.5 mm Stereo Minijack-RCA L/R cable (not
included) from the audio output terminal on the computer to
the COMPUTER AUDIO IN terminal on the projector.

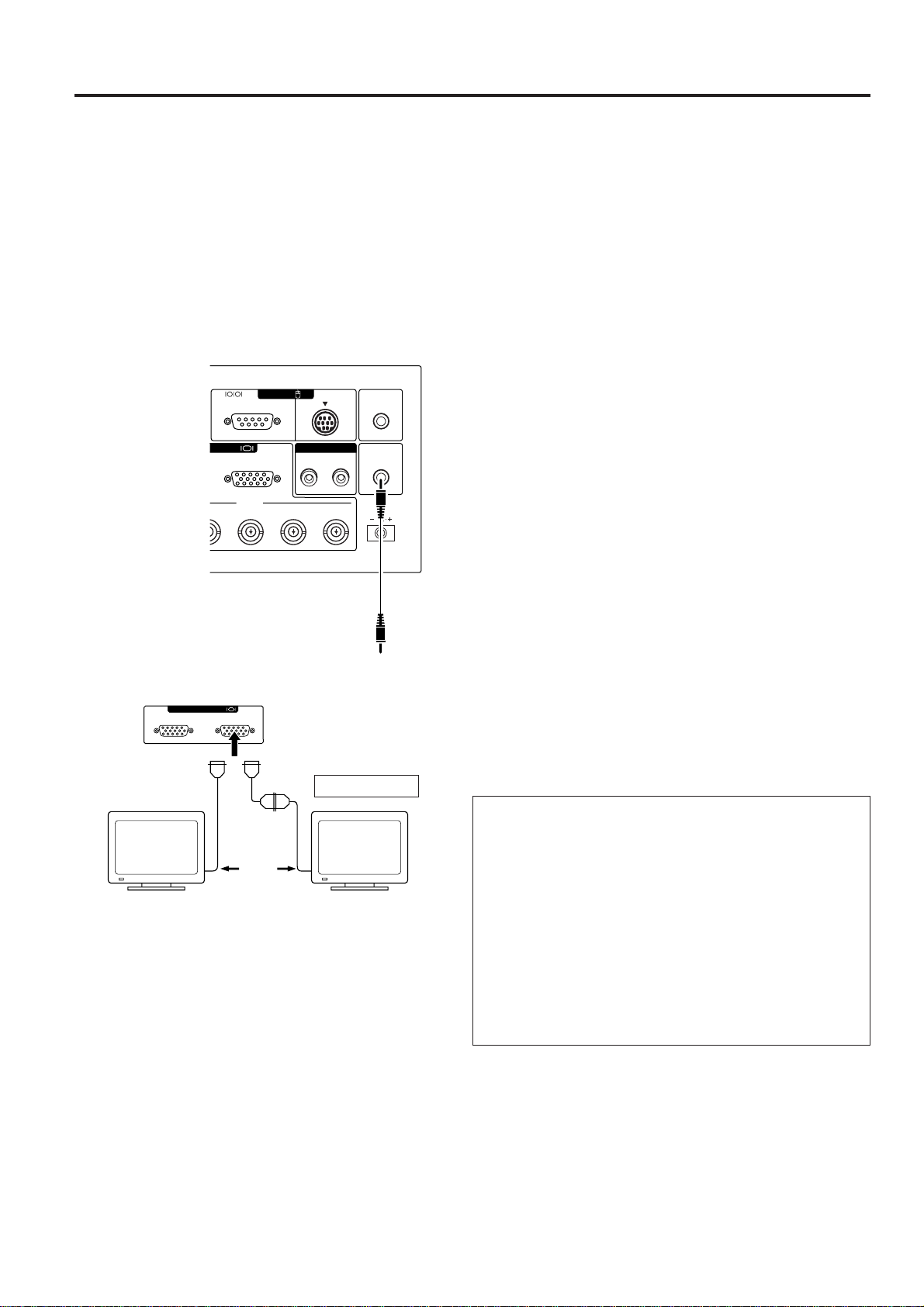

5. Connecting an external monitor
Connect your computer monitor to the projector’s COM-
PUTER RGB OUTPUT terminal to view images simulta-
neously on the external monitor and the projection
screen. Select either RGB 1 or RGB 2 to output the
images to the monitor.
Caution (Apple Macintosh):
Do not connect the COMPUTER RGB OUTPUT to any
monitor except the following:
Apple Color RGB Monitor 13"/14" (640 × 480) or
16"/17" (832 × 624)
The output signal from the projector to the monitor should be
the same as the input signal from the computer to the
projector.
Example: Input 13"/14" (640 × 480) → Output (640 × 480)
Input 16"/17" (832 × 624) → Output (832 × 624)
Note:
•
The supplied adaptor is only for use with H-SYNC and V-SYNC output. No
picture will appear when connected to monitors that only use C-SYNC.
Notes:
• When using the projector with an external IBM-PC monitor, connect
the monitor using the supplied cable. When using the projector with a
Macintosh monitor, an optional adaptor cable is required. Before using
any other type of monitor, carefully check the monitor’s interface
specifications and make sure that they match the specifications of the
projector’s interface.
• The external monitor output will only display an analog computer input
signal. It will not display a digital or video input signal. To split the
composite video signal, use a video distribution amplifier. This is
available from your local dealer. The computer RGB output will only
loop through the same signal connected to the computer RGB input.
(VGA IN → VGA OUT, Mac IN → Mac OUT)
4
5
Optional Macintosh
adaptor cable
Direct
connection
External IBM-PC
monitor
U.S.A. ONLY
External Macintosh
monitor
OUTPUTINPUT1
RGBCOMPUTER
BH
LR
V
DC5V OUTPUT
MAX CURRENT 1A
COMPUTER
AUDIO IN
AUDIO OUTPUTOUTPUT
INPUT2
RGB
WIRED
REMOTE
FOR PC98MOUSE
or
E-19

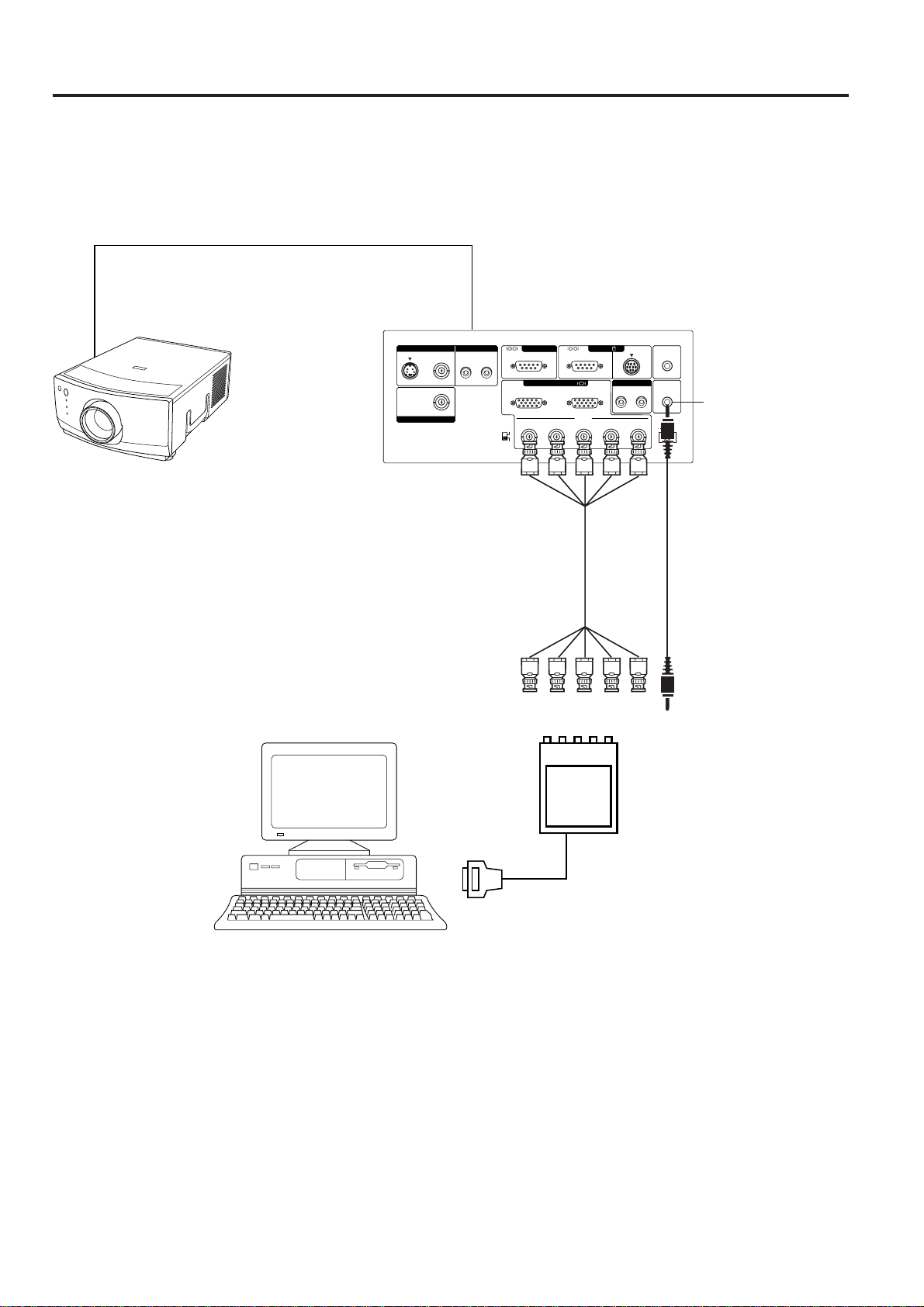

Connecting the Projector (RGB 2)
Connecting to the Computer RGB Input 2 Terminals
■Prevents a deterioration of picture quality to enable 5 BNC computer input.
• Before connecting, be sure to turn both the projector and the equipment off.
• Connect the R, G, B, H-SYNC and V-SYNC cables to the correct input terminals on the projector and an RGB
switcher (sold separately) connected to the computer, or connect a 5 BNC-VGA cable (sold separately) directly
from the input terminals on the projector to the computer.
S-VIDEO VIDEO
LR
FILTER
RGBH
LR
V
ON
OFF
DC5V OUTPUT
MAX CURRENT 1A
COMPUTER
AUDIO IN
AUDIO OUTPUTOUTPUT
INPUT2
INPUT1 RGBCOMPUTER
WIRED
REMOTE
FOR PC98MOUSE PC CONTROLAUDIO INPUTVIDEO INPUT
VIDEO OUTPUT
Playback
To RGB Switcher
(Sold separately)
To R, G, B, H-SYNC
and V-SYNC output
terminals
To audio output terminal
3.5 mm Stereo Minijack
to RCA L/R cable (Sold
separately)
• COMPUTER AUDIO
INPUT accepts
COMPUTER RGB 1
and 2 input.
• Use INPUT SELECT
to choose the
correct setting.
Side terminals
➞
RGB
Switcher
E-20
Input Signals (Recommended Timing)
For IBM and compatibles
Input signals: The video output signal timing of different
types of video signals are shown below
for reference.
For Apple Macintosh Series
VIDEO SIGNAL
VIDEO SIGNAL
C-SYNC (H)
VIDEO SIGNAL
C-SYNC (V)
V-SYNC
a
bc
d
w
x
z
a
b
c
d
e
e = 2 dot
w
x
y
z
y
VIDEO SIGNAL
HORIZONTAL
SYNC SIGNAL
VERTICAL
SYNC SIGNAL
EDOM
MBIMBIMBIMBIMBIMBIMBIMBIMBIelppAelppAelppA
AGVASEVAGVSAGVSAGVSAGVSAGXAGXAGX
hsotnicaM
MT
II is
hsotnicaM
MT
CL
hsotnicaM
MT
cihparGText
720 dots 640 dots 640 dots 640 dots
640 dots 832 dots
800 dots 800 dots 800 dots 800 dots 1024 dots 1024 dots 1024 dots
350 lines 400 lines 350 lines 400 lines 480 lines 480 lines 480 lines
480 lines 624 lines
600 lines 600 lines 600 lines 600 lines 768 lines 768 lines 768 lines
cihparGcihparG
ASEV
enilediuG
ASEV
dradnatS
ASEV
dradnatS
ASEV
enilediuG
ASEV
dradnatS
ASEV
dradnatS
rotinoM"31rotinoM"31rotinoM"61
OEDIV
LEVEL
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
p-pV7.0
57 Ω daol
.xamp-pV1
57 Ω daol
.xamp-pV7.0
57 Ω daol
.xamp-pV7.0
57 Ω daol
EPYT R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B
R•G•B
CNYS.C
R•G•B
CNYS.C
R•G•B
CNYS.C
H
S
Y
N
C
HCROPTNORFatod71414242046561424261468713
CNYSbtod8016904278210210863163169462656
HCROPKCABctod5505821821884606106144167169611422
DOIREPOEDIVdtod027046046008008008008420,1420,1420,1046046238
)d+c+b+a(H1
tod009008238420,1650,1040,1650,1443,1823,1213,1468698251,1
µs4777.136777.13314.62444.82004.62008.02333.12776.02707.71066.614175.82595.82421.02
tod1sn2803.539127.93647.13777.72000.52000.02202.02583,513.317.218860.33360419.13864.71
1H/zHk9864.138864.13068.73651.53978.73770.84578.64363,84674.65320.060000.53941179.43396.94
tod/1zHM223.82571.52005.13000.63000.04000.05005.94000.560.5757.870042.03941433.13642.75
LEVELTTL TTL TTL TLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLT
YTIRALOPCNYS–/++– +–– – –/+ +++–– + – – –
V
S
Y
N
C
HCROPTNORFwH8331833111911 73 1331 3 3 1
CNYS xH22222 32463663 3 3 3
HCROPKCAByH95439543238222323212929282939393
DOIREPOEDIVzH053004053004084084006006006006867867867084084426
)z+y+x+w(V1
H944944944944525025526826666526608608008525525766
sm1862.411862.411862.411862.412386.61537.31877.71975.61358.31333.31666.61272.41823.3100.5100.51324.31
1v/zH6680.076680.073680.073680.075049.95908.27052.65713.06881.27000.57600.06960.07920.5776.6676.66205.47
LEVELTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLT
YTIRALOPCNYS–/+– +– +– – –/+ +++–– + – – –
Notes:
• When connecting a notebook computer to the data-projector for display on an (800 × 600) LCD screen, the screen may not
show a full picture image. See page 26, “Computer Mode Memory Adjustments” for details.
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. If this occurs,
turn off the LCD display on the notebook computer and output the display data in “CRT only” mode. Details on how to change
display modes can be found in your notebook computer’s operation manual.
E-21
RGB Adjustment Controls
■When displaying computer patterns which repeat every other dot (tiling, vertical stripes, etc.),
interference may occur between the LCD pixels, causing flickering, vertical stripes, or contrast
irregularities in portions of the screen. Should this occur, use the ADJUSTMENT / buttons
for HORIZONTAL (LEFT/RIGHT) and VERTICAL (UP/DOWN) position adjustments to adjust
for the optimum picture.
RGB Input Adjustments (CLOCK, PHASE, V-POS and
H-POS)
1. Select RGB 1 or 2 with the INPUT SELECT button and press
the MENU button to select the RGB INPUT ADJ. mode.
With the MENU screen displayed, press the ADJUSTMENT / buttons to select
“RGB INPUT ADJ.” Then press the ENTER button to display the RGB INPUT
ADJ. screen.
2. Select the item you wish to adjust with the ADJUSTMENT
/ buttons. Adjust the item with the ADJUSTMENT /
buttons.
Note:
• To display only the item that you want to adjust, press the ENTER button after selecting the item
with the ADJUSTMENT / buttons. Then adjust the item with the ADJUSTMENT / buttons.
3. Press the MENU button anytime to exit RGB INPUT ADJ.
2
RGB INPUT ADJ.
PHASE
H-POS
V-POS
MODE
RESET
+
0
0
0
0
:SEL.
:ADJ.
:NEXT
ENTER
:END
MENU
[
OFF
]
-
+
-
+
-
+
-
CLOCK
Description of Adjustment Items
CLOCK SPEED ADJUSTMENT (FAST/SLOW)
•
Adjust the input signal horizontal frequency and the dot clock so that the screen display is normal
.
PHASE ADJUSTMENT (UP/DOWN)
• Used to reduce image distortion or improve contrast.
HORIZONTAL POSITION ADJUSTMENT (LEFT/RIGHT)
• Used to center the on-screen image by moving it to the left or right.
VERTICAL POSITION ADJUSTMENT (UP/DOWN)
• Used to center the on-screen image by moving it up or down.
MODE ADJUSTMENT
Connecting to IBM-PC Computers
• Ordinarily, the type of input signal is detected and the correct resolution mode (Text or
Graphics) is automatically selected. However, for the following signals, set MODE to ON or
OFF to select the projector’s resolution mode to match the computer display mode properly.
720 dots × 400 lines, 720 dots × 350 lines (Text Mode)
640 dots × 400 lines, 640 dots × 350 lines (Graphic Mode)
• For graphic mode, select MODE and set the MODE to ON.
• For text mode, select MODE again at this time, and set MODE to OFF.
Connecting to Macintosh LC/II Series Computers
• When connecting to a Macintosh II with 35 kHz Dot Frequency, select MODE and set MODE
to ON.
• When connecting to a Macintosh LC Series computer with 34.97 kHz Dot Frequency, set
MODE to OFF.
• When connecting to third party video cards and other Macintosh computers, set MODE to
ON or OFF to select the correct display mode.
• When the input signal is automatically detected or when there is no input signal, MODE (---)
appears on the screen and the display mode cannot be changed.
INITIAL RESET
• To return the H-POS, V-POS, PHASE and CLOCK adjustments to their initial settings, select
RESET and then press the ENTER button.
INPUT ADJUSTMENT
1 Filter switch
In the case of very detailed computer patterns which repeat every other dot (tiling, vertical
stripes, etc.), noise may appear on the screen. Should this occur, set the FILTER switch to ON.
The pattern area will balance, and the noise will be reduced.
Note:
• Avoid displaying computer patterns which repeat every other line (horizontal stripes).
(Flickering may occur, making the picture hard to see.)
FILTER
ON
OFF
1
E-22
ON/OFF
POWER
LAMP
TEMP.
Basic Operation of the Projector
1
When the power is on, the LAMP
REPLACEMENT indicator flashes
to show the operating condition of
the lamp.
Green: Lamp is ready
Flashing green: Warming up
Red: Change bulb
ON
A.C.120V
C.A.120V
OFF
1 AC cord
1. Connect the AC cord.
Connect the supplied AC cord to the AC inlet on the side
of the projector .
2. Turn on the MAIN POWER.
Press the MAIN POWER switch on the side of the projec-
tor. The POWER indicator lights red and the projector
enters STANDBY mode.
3. Turn on the POWER.
Press the POWER ON/OFF button on the projector or the
POWER ON button on the remote control.
• When the power is turned off by pressing the POWER
ON/OFF button, the POWER indicator will not turn off
until the fan has stopped running.
• See page 33, “Lamp/Maintenance Indicators” for
details.
Notes:
• When the POWER indicator is not lit, the remote control
cannot be used to operate the projector.
• If the power is turned on immediately after it has been turned
off, it may take a short while before the lamp turns on. (During
this period the LAMP REPLACEMENT indicator flashes.)
• After the projector is unpacked and turned on for the first time,
a slight odor may be emitted from the exhaust fan. This odor
will soon disappear with use.
4. E-ZOOM Function
This projector has an E-ZOOM mode which enlarges the
display when inputting an image of less than 800 × 600
dots in size. The E-ZOOM button on the projector or on
the remote control is used to operate E-ZOOM function.
See page 28, “E-ZOOM Function” for details.
Notes:
• E-ZOOM function does not operate in SVGA (800 × 600), Mac
16" (832 × 624), NTSC, PAL or SECAM INPUT mode.
• The picture size differs in RGB, NTSC, PAL and SECAM
INPUT modes.
2 MAIN
POWER
switch
Projector
ON/OFF
Remote control
ON/OFF
ON
OFF
ON/OFF
3
ON/OFF
POWER
LAMP
TEMP.
ON
OFF
When the MAIN
POWER is on, the
POWER indicator
lights red.
2
4
E-ZOOM (ON) E-ZOOM (OFF)
E-23
On-Screen Display
LANGUAGE
:SEL. :ENTER
ENTER
:END
MENU
NEDERLANDS
ESPAÑOL
DEUTSCH
ENGLISH
SVENSKA
ITALIANO
FRANÇAIS
5. Select one of eight ON-SCREEN DISPLAY
languages.
You can return to the previous screen by selecting the
uppermost item (turquoise) with the ADJUSTMENT /
buttons (in this case, LANGUAGE) and then pressing
the ENTER button.
The on-screen display is set to English at the factory. The
language for the unit’s ON-SCREEN DISPLAY can be set
to English, German, Spanish, Dutch, French, Italian,
Swedish or Japanese.
Setting the ON-SCREEN DISPLAY language
1) Press the MENU button. The menu will appear on the
screen.
2) Press the ADJUSTMENT
/ buttons to highlight the
LANGUAGE item yellow. Then press the ENTER button to
display the language menu.
3) Press the ADJUSTMENT
/ buttons to highlight the
desired language yellow. Then press the ENTER button to
set the language. The ON-SCREEN DISPLAY is now
programmed to display in the language chosen.
6. Change the system mode.
The video input system mode is set to AUTO at the
factory, but it can be changed to a different mode if the
selected system mode is not compatible with the con-
nected audiovisual equipment (when a color image
appears in black and white, etc.).
1) Press the MENU button. The menu will appear on the
screen.
2) Press the ADJUSTMENT / buttons to highlight the
“IMAGE ADJ.” yellow. Then press the ENTER button to
display the IMAGE ADJ.
3) Press the ADJUSTMENT
/ buttons to highlight SYSTEM
yellow. Then press the ENTER button to display the
SYSTEM.
4) Press the ADJUSTMENT
/ buttons to highlight yellow the
video system desired yellow. Then press the ENTER button
to set the system.
Notes:
• In AUTO mode, “PAL,” “SECAM,” or “NTSC” is displayed on the screen for a few
seconds when the mode is changed with the INPUT SELECT button.
• When the system mode is set to AUTO, you may not receive a clear picture due
to signal differences. If this happens, switch to the color system you are viewing.
7. Select input.
Press the INPUT SELECT button on the projector to
switch the picture input. When you press the button, the
current input mode is displayed for about 4 seconds. If
you press the button again while the input mode is
displayed, the mode changes as shown on the left.
Confirm the selected input terminal and press the INPUT
SELECT button.
Notes:
• This can be selected directly using the VIDEO, DATA1 and DATA2 buttons
on the remote control.
• In VIDEO mode, the system being received will be indicated below the
“VIDEO” display.
• When selecting RGB mode, the resolution being displayed will be indicated
under “RGB,” as shown on the left. (Refer to the second example when
connecting to Mac display.)
• When no signals are being received, “NO SIGNAL” will be displayed. When
receiving a signal the projector is not preset to receive, “NOT REG.” will be
displayed. (This display function does not operate in Video mode.)
Mac
COMPUTER
RGB2
For viewing the picture
from a video source
connected to: VIDEO
INPUT or S-VIDEO INPUT
COMPUTER
RGB1
On-Screen Display
:SEL. :NEXT
ENTER
:END
MENU
BLUE SCREEN
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
SYSTEM
[
OFF
]
[
ON
]
AUTO
SYSTEM
PAL
SECAM
:SEL. :ENTER
ENTER
:END
MENU
NTSC
➞
On-Screen Display
E-24
8. Press INPUT CHECK.
When the INPUT CHECK button on the remote control is
pressed, the current input mode is displayed for about 4
seconds.
Note:
• The INPUT CHECK button will not function if the INPUT
DISPLAY is turned off, as described on page 31.
9. Adjust the volume.
Press the VOLUME UP-DOWN buttons on the projector
or on the remote control to adjust the volume.
MUTE
• Press the MUTE button to temporarily turn off the
sound.
• Press the MUTE button once again to turn the sound
back on.
10. To turn off the power from the projector
or remote control
The power can be temporarily turned off by pressing the
POWER ON/OFF button on either the projector or remote
control.
The POWER indicator will turn red and the cooling fan
will run for 90 seconds, then the power will turn off,
and the projector will return to STANDBY mode.
The power can be turned on again either from the
projector or remote control. When the power is turned
on, the POWER indicator and LAMP REPLACEMENT
indicator light green.
Note:
• When the MAIN POWER is off on the projector set, the power
cannot be turned on from the remote control.
VOLUME
38
The number of displayed segments
(0~60) increases or decreases as
the volume is raised or lowered.
ON/OFF
POWER
LAMP
TEMP.
Mac
E-25
Adjusting the Picture
3
• This projector’s picture is factory preset to standard
settings. However, you can adjust it to suit your own
preferences with the ADJUSTMENT buttons on the
projector and the remote control.
• The adjustments can be memorized in RGB 1, RGB 2
or VIDEO separately.
• Four picture modes can be adjusted: “PICTURE,”
“BRIGHT,” “RED,” and “BLUE.”
Adjusting the Picture
1. Use the MENU button to select the mode
to be adjusted.
• When the MENU button is pressed, the MENU mode is
indicated for about 30 seconds. Press the ADJUST-
MENT / buttons to select RGB1 ADJ., then press the
ENTER button.
2. Adjust the Picture
• Press the ADJUSTMENT / buttons to highlight yellow
the picture adjustment item you want to adjust.
• Press the ADJUSTMENT / buttons to move the “ ”
mark of the selected adjustment item to the desired
setting.
• The adjustment mode is displayed for about 30
seconds.
Description of Adjustment Items
3. Display only the item to adjust.
• Press the ADJUSTMENT / buttons to highlight yellow
the picture adjustment item you want to adjust. If you
press the ENTER button at this time, only the selected
item will be displayed.
• Press the ADJUSTMENT / buttons to move the “ ”
mark of the selected adjustment item to the desired
setting.
• The adjustment mode is displayed for about 30
seconds.
Notes:
• When a VIDEO signal input has been selected, only “PIC-
TURE,” “BRIGHT,” “COLOR,” “TINT” and “SHARPNESS” can
be adjusted.
• TINT only appears in NTSC mode.
4. Press the MENU button anytime to exit
RGB ADJ.
ADJUSTMENT button
For less contrast
For less brightness
For weaker red
For weaker blue
For less color intensity
Skin tones become purplish
For less sharpness
Selected item
BRIGHT
RED
BLUE
COLOR
TINT
SHARPNESS
RESET
All RGB Video Adjustment items are returned to the factory preset settings.
Note: To reset all adjustment items, select RESET in
“RGB1 ADJ. ” mode and press the ENTER button.
ADJUSTMENT button
For more contrast
For more brightness
For stronger red
For stronger blue
For more color intensity
Skin tones become greenish
For more sharpness
+
:SEL.
:ADJ.
:ENTER
ENTER
:END
MENU
-
PICTURE 0
RGB1 ADJ.
RGB INPUT ADJ.
IMAGE ADJ.
AUDIO
SYSTEM SETUP
LANGUAGE
:SEL. :NEXT
ENTER
:END
MENU
1
On-Screen Display
2
RGB1 ADJ.
BRIGHT
RED
BLUE
RESET
MEMORY SELECT
+
0
0
0
0
:SEL.
:ADJ.
:NEXT
ENTER
:END
MENU
-
+
-
+
-
+
-
E-26
MEMORY SELECT
:SEL.
:ADJ.
ENTER
:END
MENU
0 1 2 3 4 5 6 7
RESOLUTION
HOR FREQ
VERT FREQ
SETTING
:ENTER
Hz
KHz 38
60
800×600
MEMORY SELECT
NON
SETTING
:SEL.
:ADJ.
ENTER
:END
MENU
0 1 2 3 4 5 6 7
:ENTER
➞
1 When RGB 1 or 2 is selected.
RGB1 ADJ.
RGB INPUT ADJ.
IMAGE ADJ.
AUDIO
SYSTEM SETUP
LANGUAGE
:SEL. :NEXT
ENTER
:END
MENU
RGB1 ADJ.
BRIGHT
RED
BLUE
RESET
MEMORY SELECT
+
0
0
0
0
:SEL. :NEXT
ENTER
:END
MENU
-
+
-
+
-
+
-
➞
➞
➞
MEMORY SELECT
SETTING
:SEL. :BACK
ENTER
:END
MENU
0 1 2 3 4 5 6 7
➞➞
➞
MEMORY SELECT
SETTING
:SEL.
:ADJ.
:END
MENU
0 1 2 3 4 5 6 7
PHASE
H-POS
V-POS
RESET
CLOCK 0
0
0
+
-
+
-
+
-
0
+
-
➞➞
➞
Computer Mode Memory Adjustments
• The projector has been preset with different modes for
use with SVGA and other compatible computers.
However, 7 memory positions are provided to store
mode adjustments.
• Each memory position can be used to store mode
adjustments to match the computer.
1. Press the ENTER button to select the
Memory Adjustment mode.
• Press the MENU button. While the MENU screen is
displayed, press the ADJUSTMENT / buttons to
select “RGB1 ADJ.” Press the ENTER button. The
MENU mode changes as shown.
• While the RGB adjustment menu is displayed, press the
ADJUSTMENT / buttons to select “MEMORY
SELECT.” Then press the ENTER button to change the
image.
2. Press the ADJUSTMENT / buttons.
• The screen shown on the left will appear. There are 7
memory positions.
• Press the ADJUSTMENT button once to move to the
following screen. Press the ADJUSTMENT / buttons
to select the number of the memory you want to adjust.
If that memory position has not been set, the screen on
the right will be displayed. If it has been set, the screen
on the left will be displayed. MEMORY No.0 cannot be
set. It contains the fixed factory preset settings.
• To make or change a setting, press the ADJUSTMENT
/ buttons to move the cursor to “SETTING.” Then
press the ENTER button to go to the next screen. (If
you do not want to make any adjustments, press the
MENU button.)
• Select the item you want to adjust by pressing the
ADJUSTMENT / buttons, then use the
ADJUSTMENT / buttons to make the adjustments.
When adjustments are completed, press the MENU
button. The display disappears and the adjustments are
stored in memory as a user mode. See page 25 for
details on the adjustment items.
3. Press the MENU button anytime to exit
RGB ADJ.
2
E-27
Adjusting the Audio
• The projector’s audio is factory preset to the standard
setting. However, you can adjust it to suit your own
preference with the ADJUSTMENT buttons on the
projector or the remote control.
• You can adjust the BALANCE, TREBLE and BASS.
• To return to the factory preset mode, press the AD-
JUSTMENT / buttons to select “RESET”, then press
the ENTER button.
• Press the MENU button to select the normal screen
mode.
Adjusting the Audio
• Press the MENU button.
Select “AUDIO” with the ADJUSTMENT / buttons.
Then press the ENTER button to change to the picture
indicated on the left.
• Select “BALANCE,” “TREBLE” or “BASS” with the
ADJUSTMENT / buttons. Adjust the mode you want
with the ADJUSTMENT / buttons.
• To return to the factory preset mode, press the AD-
JUSTMENT / buttons to select RESET, then press
the ENTER button.
Description of Adjustment Items
On-Screen Display
AUDIO
TREBLE
BASS
RESET
0
0
0
:SEL.
:ADJ.
:END
MENU
R
L
+
-
+
-
BALANCE
ADJUSTMENT button
Increased audio from the
left speaker
Weaker treble
Weaker bass
ADJUSTMENT button
Increased audio from the
right speaker
Stronger treble
Stronger bass
Selected items
BALANCE
TREBLE
BASS
E-28
E-ZOOM Function
■ This projector has an E-ZOOM (640 × 480 dots, etc.)
mode which enlarges the display when inputting an
image of less than 800 × 600 dots in resolution. In the
XGA (1,024 × 768 dots) mode, compression enables
full-mode display.
1. Press the MENU button to select E-ZOOM
mode.
Press the MENU button. While the MENU screen is
displayed, press the ADJUSTMENT / buttons to select
“IMAGE ADJ.” Then press the ENTER button to display
the IMAGE ADJ. screen as shown. Press the ADJUST-
MENT / buttons to select “E-ZOOM,” and press the
ADJUSTMENT / buttons to select ON. When the VGA
(640 × 480 dots) is input, the projector will enter E-ZOOM
mode.
E-ZOOM (ON): The screen image will be enlarged to 800 ×
600 dots.
E-ZOOM (OFF): The resolution of the image does not change.
E-ZOOM (---): No input
Notes:
• Select ON 1 or ON 2 to set the status for either a 640 × 400
dot image or 640 × 350 dot image in the E-ZOOM mode.
• In the E-ZOOM mode, an enlarged display increases the
amount of data processed on the screen and a compressed
image decreases the number of lines displayed, which may
make characters difficult to read.
2. Press the E-ZOOM button on the remote
control.
The E-ZOOM button on the remote control can be used to
select E-ZOOM and NO E-ZOOM modes.
Note:
• In SVGA (800 × 600 dots) or Mac 16" (832 × 624 dots) mode,
(---) appears, indicating the E-ZOOM function does not
operate in this mode.
3. Press the MENU button anytime to exit
E-ZOOM mode.
Notes:
• E-ZOOM function does not operate in SVGA (800 × 600), Mac
16" (832 × 624), NTSC, PAL, or SECAM INPUT modes.
• When connecting to some Mac 16" notebook computers, 832
× 624 dot signals may be output even in 640 × 480 mode, thus
disabling the E-ZOOM function.
• When connecting to some SVGA notebook computers, 800 ×
600 dot signals may be output even in 640 × 480 mode, thus
disabling the E-ZOOM function.
E-ZOOM Function
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
E-ZOOM
:SEL.
:ADJ.
:END
MENU
[
OFF
]
[
OFF
]
[
OFF
]
[
ON
]
[
OFF
]
On-Screen Display
1
2
E-ZOOM (OFF)
E-ZOOM (ON)
E-29
Setting Up the System
■ Using this function, you can check the input signal,
select the remote mouse, and select DC 5V output.
Checking the system
• Press the MENU button. Select “SYSTEM SETUP” with the
ADJUSTMENT
/ buttons. Then press the ENTER button to
change to the picture indicated on the left.
• The current system conditions will be displayed on the screen.
• Press the MENU button to select the normal screen mode.
Note:
• In the video screen, the resolution and frequency settings will
not be displayed.
Selecting the Remote Mouse
• Press the MENU button.
• Select SYSTEM SETUP with the ADJUSTMENT
/ buttons.
Then press the ENTER button.
• Select “REMOTE MOUSE” and then select either “[AT]” or
“[98] ”with the ADJUSTMENT
/ buttons.
• Select [AT] when using IBM compatibles and Apple Macintosh
series.
• Select [98] when using NEC PC98 series (for Japan).
• Press the MENU button to select the normal screen mode.
Selecting DC 5V output
• Press the MENU button.
• Select “SYSTEM SETUP” with the ADJUSTMENT
/
buttons. Then press the ENTER button.
• Select “DC 5V OUTPUT” and then select either “M.PWR” or
“LAMP” with the ADJUSTMENT
/ buttons.
• Select “M.PWR” when you want a continuous current supply
from the DC 5V OUTPUT with the main power on.
• Select “LAMP” when you want a current supply from the DC
5V OUTPUT only when LAMP is set to “ON”.
• Press the MENU button to select the normal screen mode.
Checking the Lamp Usage Time
The lamp usage time can be checked with the On-Screen
display.
1 Press the INPUT SELECT button on the projector or
remote control and select RGB 1 or RGB 2 INPUT.
2 Press the MENU button. While the MENU screen is
displayed, press the ADJUSTMENT / buttons to
select “RGB1 ADJ.” Press the ENTER button. The
MENU mode changes as shown.
3 While the RGB adjustment menu is displayed, press
the ADJUSTMENT / buttons to select “MEMORY
SELECT.” Then press the ENTER button to change the
image.
4 The screen shown on the left will appear.
5 Press the ADJUSTMENT button once to move to the
following screen.
6 Using the ADJUSTMENT / buttons, select memory
no. “1” and then press the ENTER button. Then,
repeating the same procedure for each number
separately, enter “7,” “0,” “1,” “0,” and “0.”
7 The lamp usage time will be displayed at the On-
Screen display for approximately 30 seconds.
Functions on the Projector
RGB1 ADJ.
RGB INPUT ADJ.
IMAGE ADJ.
AUDIO
SYSTEM SETUP
LANGUAGE
:SEL. :NEXT
ENTER
:END
MENU
MEMORY SELECT
SETTING
:SEL. :BACK
ENTER
:END
MENU
0 1 2 3 4 5 6 7
➞
RGB1 ADJ.
BRIGHT
RED
BLUE
RESET
MEMORY SELECT
+
0
0
0
0
:SEL. :NEXT
ENTER
:END
MENU
-
+
-
+
-
+
-
LAMP
0000
H
MEMORY SELECT
:SEL.
:ADJ.
ENTER
:END
MENU
0 1 2 3 4 5 6 7
RESOLUTION
HOR FREQ
VERT FREQ
SETTING
:ENTER
Hz
KHz 38
60
800×600
➞
➞
➞
12
3
56
4
7
SYSTEM SETUP
RESOLUTION
HOR FREQ
VERT FREQ
REMOTE MOUSE
:SEL.
:END
MENU
800¥600
[
AT
]
DC 5V OUTPUT
M. PWR
:ADJ.
60Hz
37.9 KHz
SYSTEM SETUP
RESOLUTION
HOR FREQ
VERT FREQ
REMOTE MOUSE
:SEL.
:END
MENU
800¥600
[
AT
]
DC 5V OUTPUT
M. PWR
:ADJ.
60Hz
37.9 KHz
SYSTEM SETUP
RESOLUTION
HOR FREQ
VERT FREQ
REMOTE MOUSE
:SEL.
:END
MENU
800¥600
[
AT
]
DC 5V OUTPUT
M. PWR
:ADJ.
60Hz
37.9 KHz
On-Screen Display
E-30
Using the Black Screen Function
■ This projector is equipped with a Black Screen Func-
tion. This function can be used to black out the presen-
tation image.
• Press the MENU button. While the MENU screen is
displayed, press the ADJUSTMENT / buttons to
select “IMAGE ADJ.” Then press the ENTER button to
display the IMAGE ADJ. screen shown. Press the
ADJUSTMENT / buttons to select “BLACK SCREEN,”
and press the ADJUSTMENT / buttons to select
ON. Then press the MENU button to display the black
screen.
Note:
• When BLACK SCREEN is set to OFF, the screen will change
to the presentation image when you press the MENU button.
On-Screen Display
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
E-ZOOM
:SEL.
:ADJ.
:END
MENU
[
OFF
]
[
OFF
]
[
OFF
]
[
ON
]
[
OFF
]
LCD Projector
BLACK SCREEN
E-31
On-Screen Display
Using the Blue Screen Function
■ This projector is equipped with a Blue Screen function
that will turn the screen blue when the video input
terminal is not connected to anything, or the video
component is turned off.
• Press the MENU button. While the MENU screen is
displayed, press the ADJUSTMENT / buttons to
select “IMAGE ADJ.” Then press the ENTER button to
display the IMAGE ADJ. screen as shown. Press the
ADJUSTMENT / buttons to select “BLUE SCREEN,”
and press the ADJUSTMENT / buttons to select ON
or OFF. Press the MENU button to return to the normal
screen.
• When the Blue Screen function is on, the screen will
turn blue when no video signal is being input through
the video input terminal.
• When the Blue Screen function is on, and no video
signal is input via the input terminal for more than 15
minutes, the power is automatically turned off.
• The indicators appear as shown each minute before the
power is turned off, from five minutes before until one
minute before.
Notes:
• The Blue Screen Function does not operate in RGB mode.
• When the power is turned off, the POWER indicator will light
red.
• To turn the power on again, press the POWER button to set it
to OFF, then press it again to set it to ON.
On-Screen Display
Using the On-Screen Display Override
Function
The On-Screen Displays (“RGB 1,024 × 768, 60Hz,” etc.)
that appear during input select can be turned off. Once
INPUT DISPLAY is turned off, the On-Screen Displays will
not appear even if the INPUT CHECK button on the
remote control is pressed.
• Press the MENU button. While the MENU screen is
displayed, press the ADJUSTMENT / buttons to
select “IMAGE ADJ.” Then press the ENTER button to
display the IMAGE ADJ. screen as shown. Press the
ADJUSTMENT / buttons to select “INPUT DISPLAY,”
and press ADJUSTMENT / buttons to select ON or
OFF.
• When OFF is selected, the On-Screen Display (“RGB
1,024 × 768, 60Hz,” etc.) will not be displayed during
input select.
On-Screen Display
REMAIN 5M
REMAIN 4M
REMAIN 1M
BLUE SCREEN
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
SYSTEM
[
OFF
]
[
ON
]
:SEL.
:ADJ.
:END
MENU
BLACK SCREEN
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
E-ZOOM
:SEL.
:ADJ.
:END
MENU
[
OFF
]
[
OFF
]
[
OFF
]
[
OFF
]
[
OFF
]
E-32

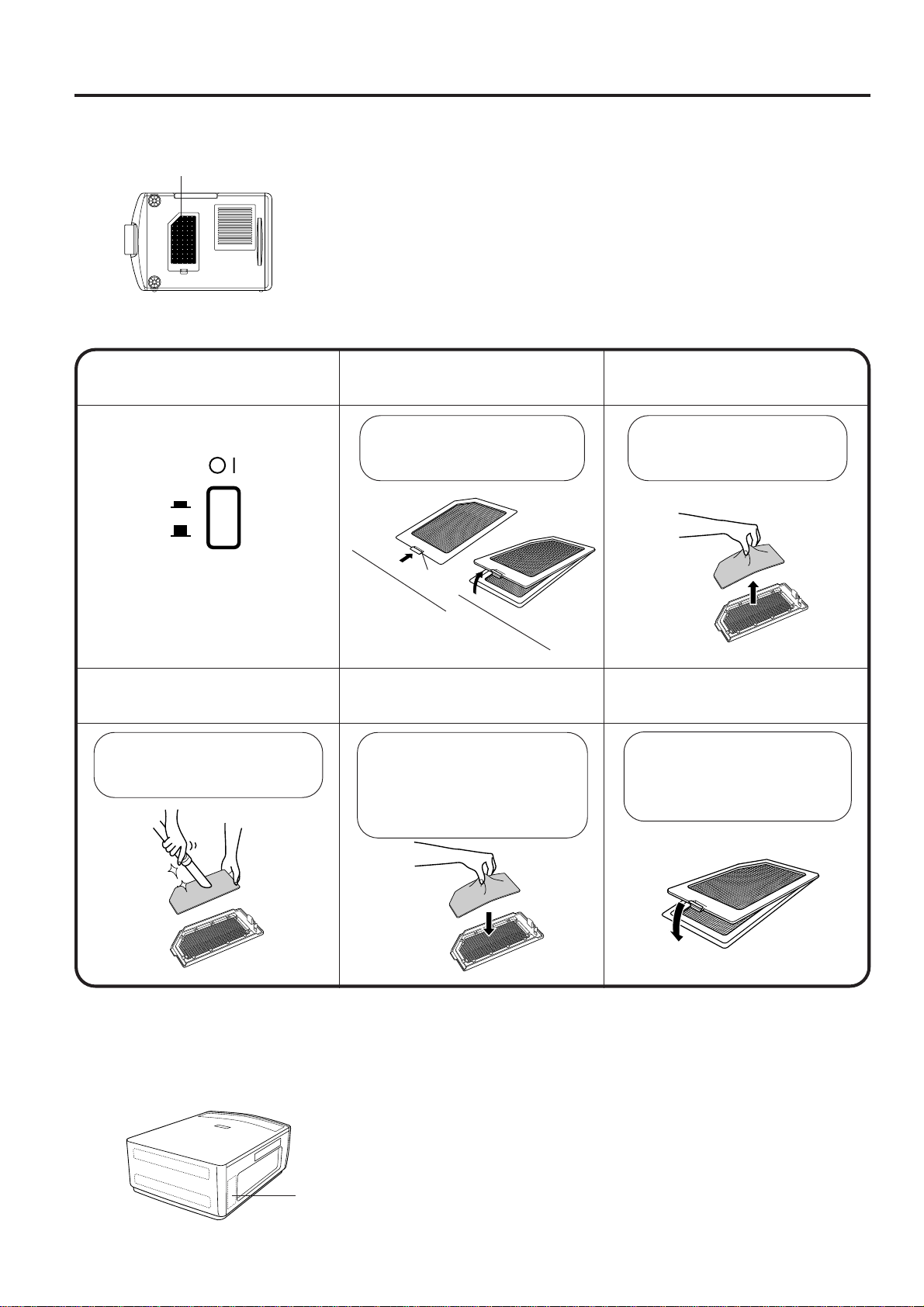

Air Filter Maintenance
■ The air filter should be cleaned every 100 hours of use. Clean the
filter more often when the projector is used in a dusty or smoky
location.
■ Have your nearest Authorized Sharp Industrial LCD Products Dealer
or Service Center exchange the filter (PFILD0055CEZZ) when it is no
longer possible to clean it.
Cleaning and Replacing the Filter
4 6
Insert the tab on the end of
the filter cover into the filter
cover opening and press the
filter cover into position.
Place the filter underneath the
tabs on the filter frame.
Return the air filter to its
original position in the filter
cover opening.
Clean the dust off the air filter
and cover with a vacuum
cleaner extension hose.
Clean the AIR FILTER.
5
Replace the AIR FILTER.
Replace
the FILTER COVER.
1 3
Turn OFF
the MAIN POWER.
2
Remove
the FILTER COVER.
Remove
the AIR FILTER.
Grasp the air filter between
your fingers and lift it out of
the filter cover.
Press the tab in the
direction of the arrow and
lift open the filter cover.
Press
Tab
Open
ON
OFF
Turn off the MAIN POWER
switch.
POWER indicator goes off.
Unplug the power cord.
Note:
• Be sure the AIR FILTER COVER is securely installed. The power cannot be turned on unless it is correctly
installed.
1. Bottom Air Filter
AIR FILTER cover
2. Side Air Filter
• The side air filter cannot be removed.
• If dust or dirt has collected inside the filter, clean the
filter with a vacuum cleaner extension hose.
AIR FILTER (Not removable)
E-33
Lamp/Maintenance Indicators
Lamp
■ The Lamp has a finite operating life of 1,500 hours. The lamp life may differ, however, depending on the usage environment.
• When the lamp is nearing the end of its operating life, the picture and color quality will deteriorate. When the projector is
turned on after the lamp has been in use for more than 1,400 hours, the LAMP REPLACEMENT indicator will light red and
“LAMP” will flash in yellow on the screen to alert you that it is time to replace the lamp. At this point, take your projector to the
nearest Authorized Sharp Industrial LCD Products Dealer or Service Center to have the lamp replaced.
Note: The lamp usage time can be checked with the On-Screen display. (See page 29.)
Caution: Once you are alerted that the lamp requires replacement, take your projector to the nearest Authorized Sharp
Industrial LCD Products Dealer or Service Center to have the lamp replaced.
• When the number of hours the lamp has been used reaches 1,500, the power automatically turns off and the projector enters the standby
condition. If you turn on the power after the lamp has been used for 1,500 hours, “LAMP” will flash on screen in red letters for five minutes and
then the power will turn off.
• Intense light hazard. Do not attempt to look into the aperture and lens while the projector is operating.
Maintenance Indicators
■ The warning lights on the projector indicate problems inside the projector.
■ There are two warning lights–a TEMPERATURE indicator which warns that
the projector is too hot, and a LAMP REPLACEMENT indicator which lets
you know when to change the lamp.
■ If a problem occurs, either the TEMPERATURE indicator or the LAMP
REPLACEMENT indicator will light up red, and the power will shut off. After
turning off the power, follow the procedures given below.
Check
• The projector AC cord is not plugged into the AC wall outlet.
• The main power switch is not pressed.
• The input is wrong. (See pages 23 and 24.)
• Cables improperly connected to side panel of the projector. (See pages 15, 16, 17, 18 and 19.)
• Remote control batteries have run down. (See page 7.)
• The optional cable for the remote control is improperly inserted.
• The main power of the remote control is not turned on.
• The remote control’s MOUSE/ADJUSTMENT switch is set to MOUSE.
• The lamp has reached the end of its operating life. (See page 33.)
• Cables improperly connected to side panel of the projector. (See pages 15, 16, 17, 18 and 19.)
• The BRIGHTNESS and PICTURE adjustments are set to minimum position. (See page 25.)
• The COLOR and TINT adjustments are not correct. (See page 25.)
• Adjust the focus. (See page 9.)
• The projection distance is too long or too short to allow for proper focus. (See page 10.)
• Cables improperly connected to side panel of the projector. (See pages 15, 16, 17, 18 and 19.)
• Volume is set to minimum. (See page 24.)
• If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes. This
will not affect operation or performance.
• Refer to “Lamp/Maintenance Indicators” on page 33.
Problem
No picture and no sound.
Sound is heard but no picture
appears.
Color is faded or poor.
Picture is blurred.
Picture appears but no sound is
heard.
An unusual sound is occasionally heard
from the cabinet.
Maintenance indicator lights up.
Notes:
• If the TEMPERATURE indicator comes on, follow the above possible solutions and then wait until the projector has cooled
down completely before turning the power back on. (At least 5 minutes.)
•
When the power is turned off and then turned on again, as during a brief rest, the LAMP replacement indicator may be triggered,
preventing the power from going on. When this happens, take the power plug out of the AC outlet and put it back in again.
Before Calling for Service
Problem
• Blocked air intake.
• Clogged air filter.
• Cooling fan breakdown.
• Clogged air filter.
• Internal circuit failure.
• Burnt-out lamp.
• Lamp circuit failure.
• The lamp has been used
for over 1,400 hours.
Warning Indicator
The internal
temperature is
abnormally high.
TEMPERATURE
indicator
LAMP REPLACE-
MENT indicator
The lamp does not
light up.
The lamp requires
replacement.
TEMPERATURE
indicator
ON/OFF
POWER
LAMP
TEMP.
LAMP REPLACEMENT
indicator
Symptom Possible Solution
• Relocate projector to a proper location.
• Clean the filter.
(See page 32.)
• Take the projector to your nearest Autho-
rized Sharp Industrial LCD Products Dealer
or Service Center for repair.
• Take the projector to your nearest Autho-
rized Sharp Industrial LCD Products Dealer
or Service Center for repair.
E-34

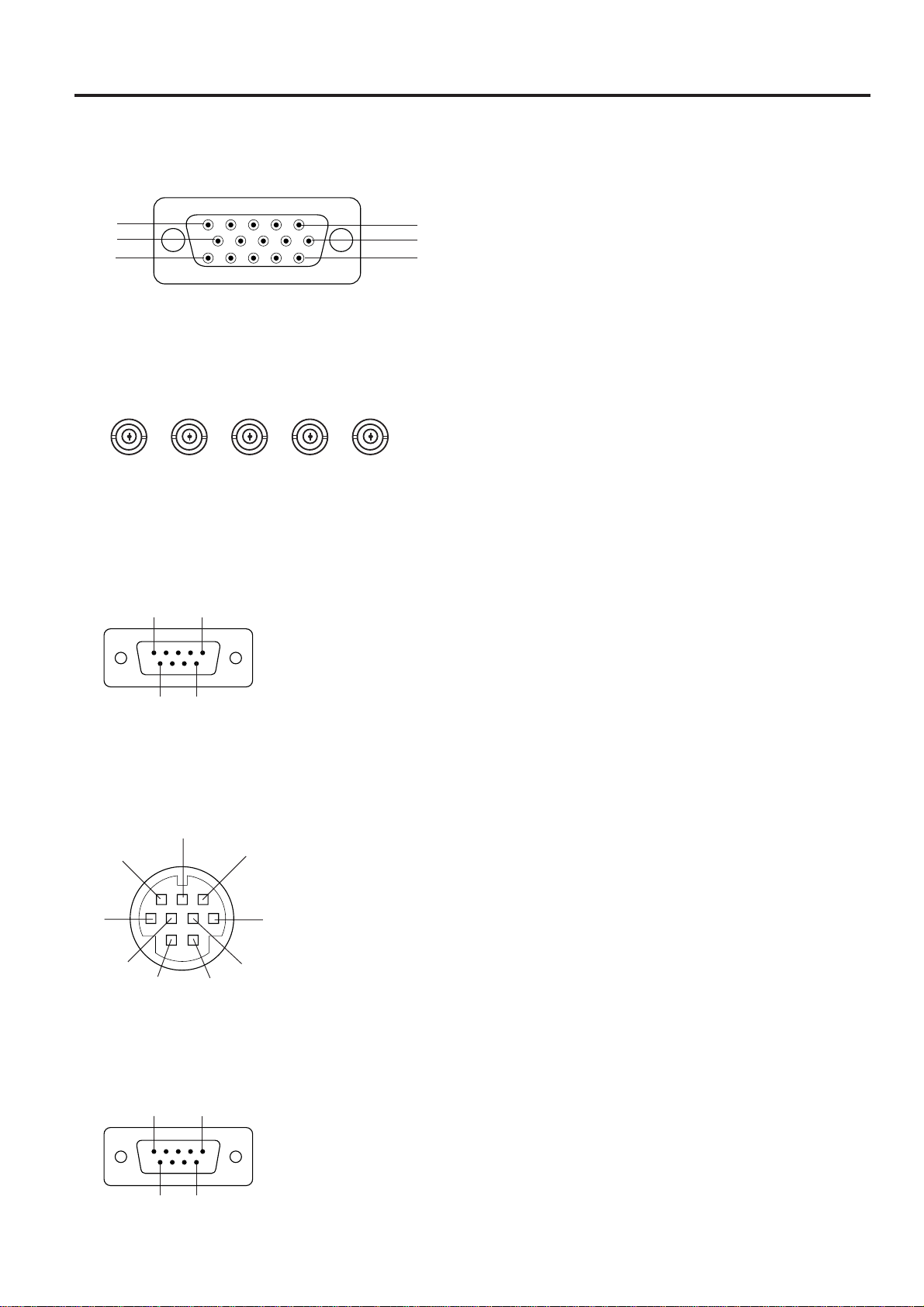

Connection Pin Assignments
Analog RGB 1 Signal Input and Analog RGB 1 and 2 Output Terminal :
15-pin mini D-sub female connector
Computer Input
Analog
1. Video input (red)
2. Video input (green)
3. Video input (blue)
4. Reserve input 1
5. Composite sync (Mac only)
6. Earth (red)
7. Earth (green)
1
15
5
6
11
10
8. Earth (blue)
9. GND
10.GND
11.GND
12.Reserve input 2
13.Horizontal sync signal
14.Vertical sync signal
15.Reserve input 3
Analog RGB 2 Signal Input : 5 BNC
Computer Input
Analog
R Video input (red)
G Video input (green)
B Video input (blue)
H Horizontal sync signal
V Vertical sync signal
RGBHV
5
1
9
6
Pin No. Signal Name I/O Reference
1 CD Carrier Detect Input Connected to internal circuit
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Equipment Ready Output Connected to internal circuit
5 SG Signal Ground Connected to internal circuit
6 DR Data Set Ready Output Not connected
7 RS Request to Send Output Connected to internal circuit
8 CS Clear to Send Input Connected to internal circuit
9 CI Ring Indicator Input Connected to internal circuit
Mouse Input Terminal (for IBM/Mac) : 9-pin D-sub female connector
Pin No. Signal I/O Reference
1 +5V Input Computer output
2 XA Input Computer output
3 XB Input Computer output
4 YA Input Computer output
5 YB Input Computer output
6 LEFT Input Computer output
7 NC Input Not connected
8 RIGHT Input Computer output
9 GND Computer output
3
6
8
9
7
5
2
1
4
Mouse Input Terminal (for NEC PC98 series for Japan) : 9-pin mini DIN connector
1
5
6
9
Pin No. Signal Name I/O Reference
1 CD Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Not connected
5 SG Signal Ground Connected to internal circuit
6 DR Data Set Ready Output Not connected
7 RS Request to Send Output Connected to internal circuit
8 CS Not connected
9 CI Not connected
RS-232C terminal : 9-pin D-sub male connector
E-35
1. PC control
The personal computer can control the projector by connecting the two via an RS-232C cable (not supplied).
2. Communication conditions
Set the serial port settings of the computer to match that of the table below.
Signal format: Conforms to RS-232C standard.
Baud rate: 9,600 bps
Data length: 8 bits
Parity bit: NON
Stop bit: 1 bit
Flow control: None
3. Basic format
Commands from the computer are sent in the following order: command, parameter, and return code. After the
unit processes the command from the computer, it sends a response code to the computer.
RS-232C Terminal Specifications
Command format
Return code (0DH)
C1 C2 C3 C4 P1 P2 P3 P4
Response code format
Normal response
O K
Return code (0DH)
Problem response (communication error or incorrect command)
E R R
Return code (0DH)
Command 4-digits Parameter 4-digits
When more than one code is being sent, send each command only after the OK response code for the previous
command from the unit is verified.
Note:
• Using the computer control function of the unit, the liquid crystal projector conditions cannot be read to the computer.
Therefore, confirm the conditions by transmitting the display commands for each adjustment menu and checking the
conditions with the On-Screen Display. If the unit receives a command other than a menu display command, it will execute
the command without displaying the On-Screen Display.
4. Commands
Note:
• If a dash appears in the
parameter column enter a
space. If an asterisk appears
enter a value in the range
indicated in brackets under
CONTROL CONTENTS. See
the examples on the next page.
CONTROL ITEM
COMMAND PARAMETER
CONTROL CONTENTS
C1 C2 C3 C4 P1 P2 P3 P4
INPUT SWITCHING
POWER SETTING
INPUT CHECK
___
VIDEO
RGB 1
POWER OFF
POWER ON
RGB 2
INPUT CHECK
ENGLISH
DEUTSCH
ESPANOL
NEDERLANDS
SVENSKA
ITALIANO
FRANCAIS
JAPANESE
AUTO
PAL
SECAM
NTSC
PICTURE (-30 ~ +30)
BRIGHT (-30 ~ +30)
COLOR (-30 ~ +30)
TINT (-30 ~ +30)
SHARPNESS (0 ~ 3)
VIDEO
RESET
___
LANGUAGE
SELECTION
___
___
___
___
___
___
___
___
VIDEO
SYSTEM
SELECTION
VIDEO
ADJUSTMENT
___
___
___
___
_**
_**
_**
_**
___
___
___
___
I
I
M
M
V
V
V
V
V
V
I
I
V
R
E
E
A
A
A
A
A
A
R
C
E
G
L
S
P
B
C
T
S
R
G
H
D
B
A
MELA
MELA
MELA
MELA
MELA
MELA
MELA
Y
MESY
MESY
MESY
I
R
O
I
H
E
VARE
B
K___
1
1
___
___
P
P
O
O
W
W
R
R
0
1
1
2
3
4
5
6
7
8
1
2
3
4
*
*
*
*
*
0
1
2
0
E-36
CONTROL ITEM
COMMAND PARAMETER
CONTROL CONTENTS
1C2C3C4C1P2P3P4P
VOLUME
ADJUSTMENT
V O L A _ _ * * VOLUME (0 ~ 60)
M U T E _ _ _ 0 MUTE OFF
_ _ _ 1 MUTE ON
AUDIO
ADJUSTMENT
A A B L _ * * * BALANCE (-30 ~ +30)
A A T E _ * * * TREBLE (-30 ~ +30)
A A B A _ * * * BASS (-30 ~ +30)
A A R E _ _ _ 0 AUDIO DISPLAY
_ _ _ 1 RESET
RGB 2 ADJUSTMENT
R B P I _ * * * PICTURE (-30 ~ +30)
RBBR
_
* * * BRIGHT (-30 ~ +30)
R
B R D _ * * * RED (-30 ~ +30)
R B B E _ * * * BLUE (-30 ~ +30)
R B R E _ _ _ 0 RGB DISPLAY
_ _ _ 1 RESET
RGB INPUT
ADJUSTMENT
I N C L _ * * * CLOCK (-60 ~ +60)
I N P H _ * * * PHASE (-60 ~ +60)
I A H P _ * * * H-POS (-60 ~ +60)
I A V P _ * * * V-POS (-30 ~ +30)
I A R E _ _ _ 0 RGB INPUT DISPLAY
_ _ _ 1 RESET
SCREEN SETTING
I M E Z _ _ _ 0 E-ZOOM OFF
_ _ _ 1 E-ZOOM ON
I M B E _ _ _ 0 BLUE SCREEN OFF
_ _ _ 1 BLUE SCREEN ON
I M B K _ _ _ 0 BLACK SCREEN OFF
_ _ _ 1 BLACK SCREEN ON
I M D I _ _ _ 0 INPUT DISPLAY OFF
_ _ _ 1 INPUT DISPLAY ON
I M R E _ _ _ 0 REVERSE OFF
_ _ _ 1 REVERSE ON
I M I N _ _ _ 0 INVERT OFF
_ _ _ 1 INVERT ON
VIDEO
CONFIRMATION
S Y S E _ _ _ 0 DISPLAY
MOUSE
ADJUSTMENT
REMO
I ARE
IMEZ
IMBE
IMBK
IMDI
IMRE
IMIN
REMO
___1
1
REMOTE MOUSE AT
_ _ _ 2 REMOTE MOUSE 98
DC 5V OUTPUT
DC5V
DC5V
_ _ _ 0 WHEN LAMP IS ON
_ _ _ WHEN MAIN POWER IS ON
RGB 1 ADJUSTMENT
R A P I _ * * * PICTURE (-30 ~ +30)
RABR
_
* * * BRIGHT (-30 ~ +30)
R
A R D _ * * * RED (-30 ~ +30)
R A B E _ * * * BLUE (-30 ~ +30)
RARE
MUTE
AARE
RBRE
RARE
_ _ _ 0 RGB DISPLAY
_ _ _ 1 RESET
L N F O _ * * * LENS FOCUS (-30 ~ +30)
L N Z O _ * * * LENS ZOOM (-30 ~ +30)
L N S H _ * * * LENS SHIFT (-30 ~ +30)
SCREEN MODE
MEMORY
MEMA
MEMA
_ _ _ 0 MEMORY RELEASE
_ _ _ * MEMORY SELECTION (1 ~ 7)
Examples:
For the RGB/VIDEO setting, select video and set the PAL mode.
Computer
→
←
O K
I V E D
— — —
1
→
←
O K
M E S Y
— — —
2
Switch to video screen
Set to PAL mode
Unit
When BRIGHT of VIDEO IMAGE ADJUSTMENT is set to -10.
→
←
O K
V A B R
—
–
1
0
Note:
• The “–30 ~ +30” values for Lens Focus, Lens Zoom and Lens Shift indicate the time required to set these functions to their
minimum and maximum adjustment settings.
E-37
Wired Remote Control Terminal Specifications
1. Specifications of wired remote control input
• 4.4ø minijack
• External: +5V (1A)
• Internal: GND
2. Function and transmission codes
VOLUME UP
VOLUME DOWN
POWER ON
POWER OFF
CURSOR UP
CURSOR DOWN
ADJUST UP
ADJUST DOWN
MUTE
MENU
E-ZOOM
VIDEO
RGB1
ENTER
LENS SELECT
CHANNEL CALL
RGB2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
C2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
C5
0
1
0
0
0
1
1
0
1
0
1
0
1
1
1
1
0
C6
0
0
1
1
0
0
1
0
1
0
1
1
0
1
1
1
1
C7
1
1
1
1
1
1
1
0
1
1
0
0
1
1
0
0
1
C8
0
0
0
0
1
1
1
0
0
0
0
0
0
0
1
1
0
C9
1
1
1
1
1
1
0
1
1
0
1
1
1
1
0
1
1
C10
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
1
C11
0
0
1
0
0
0
1
1
0
1
1
0
0
1
0
0
0
C12
0
0
0
1
1
1
0
0
0
1
1
0
0
0
1
0
0
C13
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C14
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
C15
No. Control Item System Code Data Code External Code
(Function)
3. Sharp remote control signal format
1) Transmission format
a) 15-bit format
2) Wave form of output signal
• Output using Pulse Position Modulation
“0”“1”“0”
D
“0”“0”“0”“1”
T
0
T
1
t
• t = 264 µs
• To = 1.05 ms
• T1 = 2.10 ms
• Pulse carrier frequency = 455/12 kHz
• Duty ratio = 1:1
3) Transmission control code
a) 15 bit
Note:
• To operate the MOUSE, L-CLICK and R-CLICK functions
through the wired remote control input, connect the cable from
the wired remote control (supplied) terminal on the projector to
the remote control. The codes for these functions are complex
and are, therefore, not listed here.
Wired remote control function code
10110********10
C1 System Code C5 C6 Data Code C13 C14 C15
LSB MSB
* System codes C1 to C5 are fixed at “10110”.
* Codes C14 and C15 are reverse confirmation bits, with
“10” indicating “Front” and “01” indicating “Rear”.
DDDDDD
DDDDDDD
67.5 ms 67.5 ms
b) Example of Reverse D to
D
C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14
System Address
D to D Common Data Bit Reverse in D
Function Key Data Bit
Data
Expansion
Data
Deter-
mination
Mask
C15
C1
1
DC2
0
C3
1
C4
1
C5
0
C6
1
C7
0
C8
0
C9
0
C10
0
C11
0
C12
0
C13
0
C14
1
C15
0
C1
1
DC2
0
C3
1
C4
1
C5
0
C6
0
C7
1
C8
1
C9
1
C10
1
C11
1
C12
1
C13
1
C14
0
C15
1
t
26.4 µs
E-38
Specifications are subject to change without notice.
Specifications
Product Type
Model
Video system
Display method
LCD panel
Lens
Projection lamp
Contrast ratio
Video input signal
S-video input signal
Video (monitor) output signal
Horizontal resolution
Audio output
Computer RGB input signal
RS-232C input terminal
Mouse input terminal (for IBM/Mac)
Mouse input terminal (for PC98)
Speaker system
Rated voltage
Rated frequency
Power consumption
Operating temperature
Storage temperature
Cabinet
I/R Carrier frequency
Laser Pointer of Remote Control
Dimensions (W × D × H)
Weight
Supplied accessories
Replacement parts
LCD Projector
XG-E1200U
PAL/SECAM/NTSC 3.58
LCD panel × 3, RGB optical shutter method
Panel size: 1.3" (19.8 [H] × 26.4 [W] mm)
Display method: Translucent TN liquid crystal panel
Drive method: TFT (Thin Film Transistor) Active Matrix panel
No. of dots: 519,168 dots (832 [H] × 624 [V])
1-1.6 zoom lens F2.5 to 3.2, f = 48 to 76 mm
370 W Metal halide
100:1
BNC Connector: VIDEO, composite video, 1 Vp-p, sync negative, 75 Ω
terminated
RCA Connector: AUDIO, 0.5 Vrms more than 22 kΩ (stereo)
4-pin mini DIN connector
Y (luminance signal): 1 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
BNC Connector: VIDEO, composite video, 1Vp-p, sync negative, 75 Ω
terminated
RCA Connector: AUDIO, 0.5 Vrms more than 2.2 kΩ (stereo)
580 TV lines (video input)
3 W + 3 W (stereo)
Video Signal:
15-pin mini D-sub connector (RGB 1),
BNC connector (RGB 2): RGB separate type analog input: 0-0.7 Vp-p,
positive, 75 Ω terminated
Stereo Minijack: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo)
Horizontal sync. signal: TTL level (positive/negative) or composite sync
(Apple only)
Vertical sync. signal: Same as above
9-pin D-sub male connector for controlling personal computer
9-pin D-sub female connector for wireless mouse
9-pin mini DIN connector for wireless mouse
3" (8 cm) round × 2
AC 120 V
50/60 Hz
520 W
41°F to 104°F (5°C to 40°C)
–4°F to 140°F (–20°C to 60°C)
Plastic
40 kHz
Wave length : 670 nm
Max. output : 1 mW
Class II Laser Product
14.10 × 20.80 × 7.70 (359 × 528 × 195 mm) projector only
17.50 × 20.80 × 7.70 (444 × 528 × 195 mm) incl. terminal cover
30.8 lbs. (14.0 kg)
Remote control unit, Four AA batteries, Extra air filter, RGB signal cable
(9.8', 3 m), Macintosh adaptor, Two BNC/RCA adaptors, Mouse control cable for
IBM PS/2 (5.9", 15 cm), Mouse control cable for Mac (5.9", 15 cm), Mouse control
cable (9.8', 3 m), AC cord, Terminal cover, Lens cover (installed)
Lamp unit (Lamp/cage module) (BQC-XGE1200U1), Remote control (RRMCG
1354CESA), Air filter (PFILD0055CEZZ), RGB signal cable (QCNW-4422CEZZ),
Macintosh adaptor (QPLGJ1511CEZZ), Mouse control cable for IBM PS/2 (QCNW-
4754CEZZ), Mouse control cable for Mac (QCNW-4755CEZZ), Mouse control
cable (QCNW-4620CEZZ), AC cord (QACCU5013CEZZ)
This will not affect the picture quality or the life expectancy of
the unit.
If you have any questions about this matter, please call toll free
1-800-BE-SHARP (1-800-237-4277).
U.S.A. ONLY
Our projector uses LCD (Liquid Crystal Display) panels. These very
sophisticated panels contain 519,168 pixels ( × RGB) TFTs (Thin
Film Transistors).
As with any high technology electronic equipment such as large
screen TVs, video systems and/or video cameras, there are certain
acceptable tolerances that the equipment must conform to. Sharp’s
acceptable tolerances permit a total of 6 inactive TFTs, which may
result in illuminated or inactive dots on the picture screen.
E-39

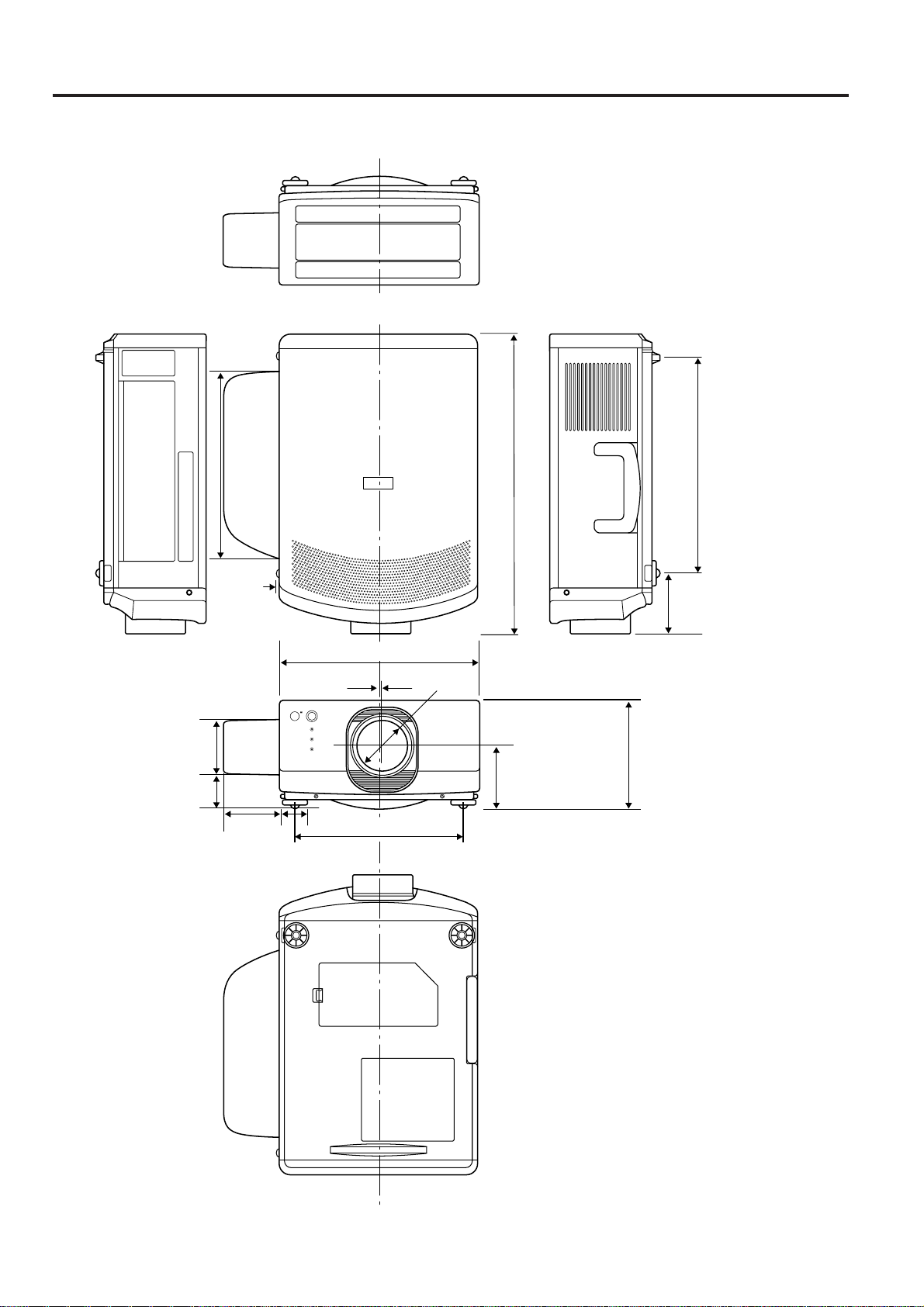

3.7"(95)
ON/OFF
POWER
LAMP
TEMP.
14.0"(355)
14.8"(377)
20.8"(528)
7.7"(195)
11.7"(296)
0.2"(6)
0.2"(4)
ø4.4"(ø111)
ø1.8"(ø45)
3.5"(89)
4.5"(116.7)
13.2"(335)
1.8"(46)
3.7"(93.4)
4.6"(118)
4.2"(107.5)
Rear View
Dimensions
(Lens at upper shift)
(Lens at lower shift)
(Lens extended)
(Lens housed)
Front View
Side View
Bottom View
[Units: inches (mm)]
Top View
