LED TV
22MT57D
24MT57D
27MT57D
*MBM64957405*
i
English
Read Safety and Reference.
Français
Lire le document Sécurité et référence.
Português
Consulte o manual Segurança e referência.
www.lg.com
P/No: MBM64957405(1501-REV00)
Printed in Korea
a
b
+
or
AAA
OK
NG
NG
OK
OK
NG
NG
OK
OK
NG
NG
OK
OK
NG
NG
OK
1
1
1-1
or
1-2
2 3
A
B
2
(MONO)
RGB OUT
AUDIO OUT
AUDIO OUT
DVI OUT
HDMI OUT
ANTENNA
/CABLE IN
RGB IN (PC)
HDMI IN
COMPONENT IN
VIDEO AUDIO
AV IN
DC
-IN
(
19 V
)
YP
B
P
R
L
R
L
R
(MONO)
COMPONENT IN
VIDEOAUDIO
AV IN
YP
B
P
R
L
R
YP
B
P
R
L
R
L
R
(MONO)
COMPONENT IN
VIDEOAUDIO
AV IN
YP
B
P
R
L
R
L
R
VIDEOAUDIO
VIDEOAUDIO
1
2
B
A
A
3
DC-IN
(19V )
DC-IN
(19V )
1
2
3
DC-IN
(19V )
DC-IN
(19V )
1
2
B
DC-IN
(19 V )
or
a
b
4
1 2
3
4
5
*MFL68901003*
Please read this manual carefully before operating
your set and retain it for future reference.
Safety and Reference
OWNER’S MANUAL
MT47* MT57*
P/NO : MFL68901003(1503-REV01)
Printed in Korea
www.lg.com
*Disclaimer
LG LED TV applies LCD screen with LED backlights.
LED TV*
2
This product is qualified for the BEE Star rating in the ‘Home’ Mode.
The Objectives of Star Labeling Program is designed to promote energy efficient products and practices.
When the television is initially set up, it is designed to meet the BEE Star Labeling requirements while maintaining optimum
picture quality.
• Changes to certain functionalities of this television (TV Guide, Picture/sound etc) may change the power consumption.
• Depending upon such changed setting (eg., Retail mode), the power consumption may vary which possibly could exceed the
stated energy consumption.
To reset the television to Star rating qualified settings, select ‘Home’ mode from the initial set-up procedure in ‘factory settings’
under the ‘Set-up’ menu.
ATTENTION:
India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.)
3
ENGENGLISH
Table of contents
4 Safety precautions
6 Licenses
6 Open source software notice information
6 Preparing
7 Lifting and moving the TV
7 Setting up the TV
7 Using the joystick button
7 Basic functions
8 Adjusting the menu
8 Mounting on a table
8 Adjusting the angle of the TV to suit view
8 Using the kensington security system
9 Mounting on a wall
9 Connections (Notifications)
9 Antenna connection
10 Other connections
10 - Connecting to a PC

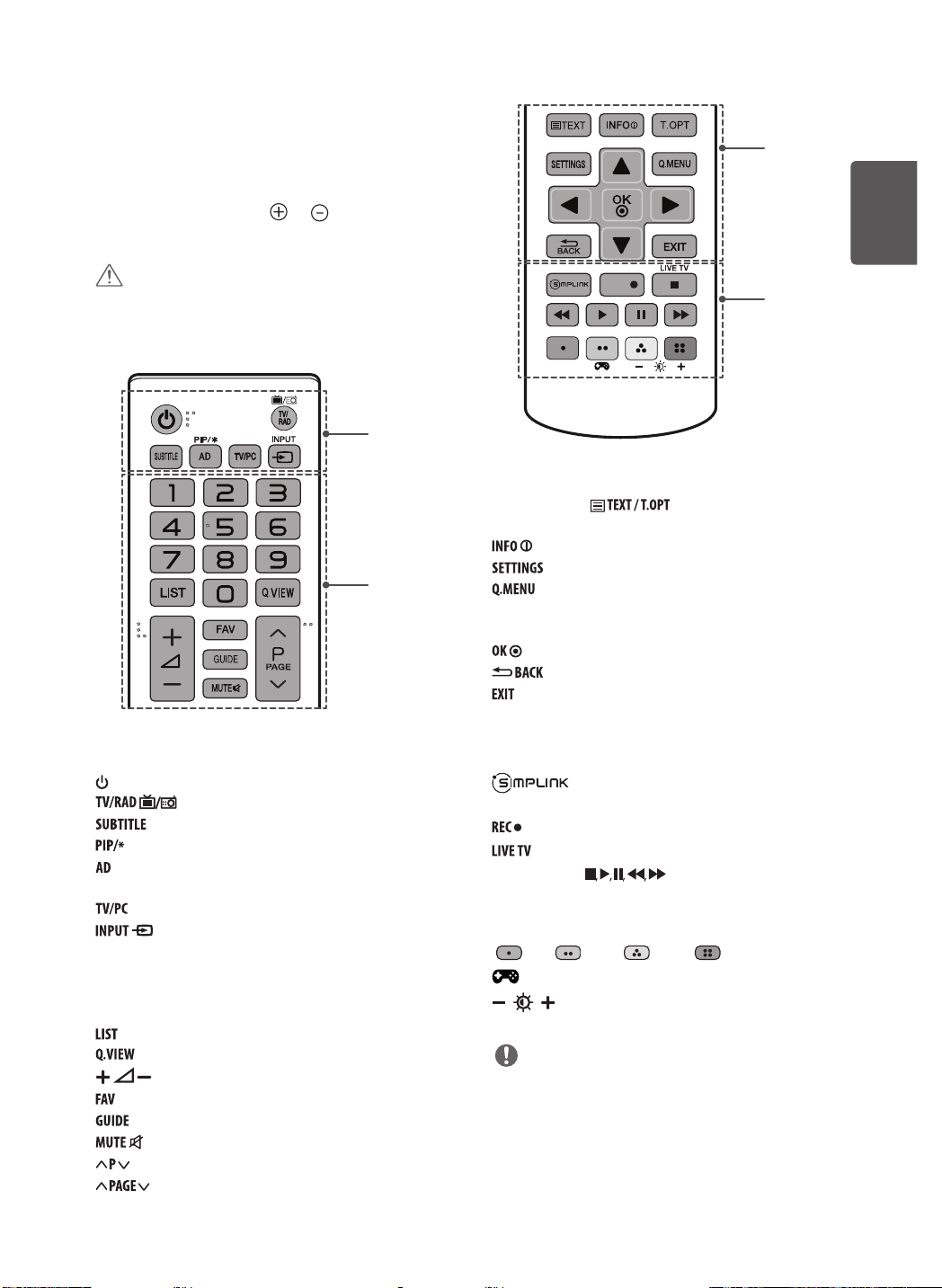

11 Remote control
12 Settings
14 To see web manual
15 Maintenance
15 Cleaning your TV
15 - Screen, frame, cabinet, and stand
15 - Power cord
15 Preventing “Image burn” or “Burn-in” on your TV screen
15 Troubleshooting
16 Specifications
18 Environmental information
Service
Unplug the monitor from the wall outlet and refer servicing to
qualified service personnel when :
• The power cord or plug is damaged or frayed.
• Liquid has been spilled into the monitor.
• The monitor has been exposed to rain or water.
• The monitor does not operate normally following the operating
instructions. Adjust only those controls that are covered in the
operating instructions. An improper adjustment of other controls
may result in damage and often requires extensive work by a
qualified technician to restore the monitor to normal operation.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor exhibits a distinct change in performance.
• Snapping or popping from the monitor is continuous or frequent
while the monitor is operating. It is normal for some monitors to
make occasional sounds when being turned on or off, or when
changing video modes.
Do not attempt to service the monitor yourself, as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
4
ENG
ENGLISH
Safety precautions
Please read these safety precautions carefully before using the
product.
WARNING
If you ignore the warning message, you may be seriously injured
or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or
the product may be damaged.
Precautions in installing the product
WARNING
• Keep away from heat sources like electrical heaters.
►
Electrical shock, fire, malfunction or deformation may occur.
• Keep the packing anti-moisture material or vinyl packing out of
the reach of children.
►
Anti-moisture material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can cause suffocation. Keep
it out of the reach of children.
• Do not put heavy objects on the product or sit upon it.
►
If the product collapses or is dropped, you may be injured.
Children must pay particular attention.
• Do not leave the power or signal cable unattended on the
pathway.
►
The passerby can falter, which can cause electrical shock, fire,
product breakdown or injury.
• Install the product in a neat and dry place.
►
Dust or moisture can cause electrical shock, fire or product
damage.
• If you can smell smoke or other odors or hear a strange sound
unplug the power cord and contact the service center.
►
If you continue to use without taking proper measures,
electrical shock or fire can occur.
• If you dropped the product or the case is broken, turn off the
product and unplug the power cord.
►
If you continue to use without taking proper measures,
electrical shock or fire can occur. Contact the service center.
• Do not drop an object on or apply impact to the product. Do not
throw any toys or objects on the product screen.
►
It can cause injury to human, problem to product and damage
the display.
• Do not let the product fall or drop when connecting it with an
external device.
►
This may cause injury and/or damage to the product.
• When connecting it with a game device, keep a distance of four
times as long as the diagonal measurement of the screen from
the device.
►
If the product falls because of the short cable, this may cause
injury and/or damage to the product.
• Leaving a fixed image on the screen for a long time may cause
damage to the screen and cause image burn-in. To use the product
for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when
the product is not used, turn off the power. Burn-in and related
problems are not covered by the warranty on this product.
• Do NOT install this product on a wall where there is high risk of
exposure to oil fumes or mist.
►
This may damage product and cause is to fail.
CAUTION
• Make sure the product ventilation hole is not blocked. Install the
product in a suitably wide place (more than 10 cm from the wall)
►
If you install the product too close to the wall, it may be
deformed or fire can break out due to internal heat.
• Do not block the ventilation hole of the product by a tablecloth
or curtain.
►
The product can be deformed or fire can break out due to
overheating inside the product.
• Install the product on a flat and stable place that has no risk of
dropping the product.
►
If the product is dropped, you may be injured or the product
may be broken.
• Install the product where no EMI occurs.
• Keep the product away from direct sunlight.
►
The product can be damaged.
• If you install the product in a place that does not meet the
recommended conditions, this may cause serious damage to the
product's picture quality, life cycle and appearance. Please check
with LG or a qualified installer before installing. This caution
applies to a place where there is an abundance of fine dust or oil
mist, chemical substances are used, the temperature is very high
or low, the humidity is very high, or the product is likely to remain
turned on for a long period of time (airport and train station),
failure to do so will invalidate the warranty.
• Do not install the product in an area with poor ventilation (e.g.on
a bookshelf, in a closet) or outside and avoid placing on cushions
or carpets.
• In addition, do not install it where there are heating objects such
as lighting equipment.
Precautions to the AC adapter and
electrical power
WARNING
• If water or any foreign substance goes inside the product (TV,
monitor, power cord, or AC adapter), disconnect the power cord
immediately and contact the service center.
►
Otherwise, this may cause a fire or electric shock due to damage
to the product.
• Do not touch the power plug or AC adapter with wet hands. If the
pins of the plug are wet or dusty, wipe and dry them before use.
►
Otherwise, this may cause a fire or electric shock.
5
ENGENGLISH
• Make sure to completely insert the power cord into the AC adapter.
►
If loosely connected, the poor connection may cause a fire or
electric shock.
• Be sure to use power cords and AC adapters provided or approved
by LG Electronics, Inc.
►
The use of non-approved products may cause a fire or electric
shock.
• When unplugging the power cord, always pull it by the plug. Do
not bend the power cord with excessive force.
►
The power line can be damaged, which may cause electric shock
or fire.
• Be careful not to step or place heavy objects (electronic appliances,
clothing, etc.) on the power cord or AC adapter. Be careful not to
damage the power cord or AC adapter with sharp objects.
►
Damaged power cords may cause a fire or electric shock.
• Never disassemble, repair or modify the power cord or AC adapter.
►
This may cause a fire or electric shock.
• Make sure to connect the power cable to the grounded current.
►
You may be electrocuted or injured.
• Use the rated voltage only.
►
The product can be damaged, or you may be electrocuted.
• In the presence of thunder and lightning, never touch the power
cord and signal cable because it can be very dangerous.
►
It can cause electric shock.
• Do not connect several extension cords, electrical appliances
or electrical heaters to a single outlet. Use a power bar with a
grounding terminal designed for exclusive use with the computer.
►
A fire can break out due to overheating.
• Do not touch the power plug with wet hands. Additionally, if
the cord pin is wet or covered with dust, dry the power plug
completely or wipe dust off.
►
You may be electrocuted due to excess moisture.
• If you don't intend to use the product for a long time, unplug the
power cable from the product.
►
Covering dust can cause a fire, or insulation deterioration can
cause electric leakage, electric shock or fire.
• Fix the power cable completely.
►
If the power cable is not fixed completely, a fire can break out.
• Do not insert a conductor (like a metal chopstick) into one end
of the power cable while the other end is connected to the input
terminal on the wall. Additionally, do not touch the power cable
right after plugging into the wall input terminal.
►
You may be electrocuted.
• The appliance coupler is used as the disconnect device.
• Please make sure the device is installed near the wall outlet to
which it is connected and that the outlet is easily accessible.
• As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is turned
off.
CAUTION
• Be sure to keep the outlet, AC adapter, and pins of the power plug
clean from dust and etc.
►
This may cause a fire.
• Do not unplug the power cord while the product is in use.
►
Electrical shock can damage the product.
• Use only the power cord supplied with the unit. If you use another
power cord, make sure that it is certified by the applicable national
standards when not provided by the supplier. If the power cable is
faulty in any way, please contact the manufacturer or the nearest
authorized repair service provider for a replacement.
Precautions in moving the product
WARNING
• Make sure to turn off the product.
►
You may be electrocuted or the product can be damaged.
• Make sure to remove all cables before moving the product.
►
You may be electrocuted or the product can be damaged.
• Make sure the panel faces forward and hold it with both hands to
move. If you drop the product, the damaged product can cause
electric shock or fire. Contact an authorized the service center for
repair.
• Make sure the product is turned off, unplugged and all cables
have been removed. It may take 2 or more people to carry larger
apparatus. Do not press against or put stress on the front panel of
the apparatus.
CAUTION
• Do not shock the product when moving it.
►
You may be electrocuted or the product can be damaged.
• Do not dispose the product-packing box. Use it when you move.
Precautions in using the product
WARNING
• Do not disassemble, repair or modify the product at your own
discretion.
►
Fire or electric shock accident can occur.
►
Contact the service center for check, calibration or repair.
• When the display is to be left unattended for an extended period
of time, unplug it from the wall outlet.
• Keep the product away from water.
►
Fire or electric shock accident can occur.
• Do not shock or scratch the front and sides of the screen with
metallic objects.
►
Otherwise, it may cause damage to the screen.
• Avoid high temperatures and humidity.
CAUTION
• Do not put or store inflammable substances near the product.
►
There is a danger of explosion or fire due to careless handling of
the inflammable substances.
• When cleaning the product, unplug the power cord and scrub
gently with a soft cloth to prevent scratching. Do not clean with a
wet cloth or spray water or other liquids directly onto the product.
An electric shock may occur. (Do not use chemicals such as
benzene, paint thinners or alcohol)
6
ENG
ENGLISH
• Take a rest from time to time to protect your vision.
• Keep the product clean at all times.
• Take a comfortable and natural position when working with a
product to relax the muscles.
• Take a regular break when working with a product for a long time.
• Do not press strongly upon the panel with a hand or sharp object
such as nail, pencil or pen, or make a scratch on it.
• Keep the proper distance from the product.
►
Your vision may be impaired if you look at the product too
closely.
• Set the appropriate resolution and clock by referring to the User’s
Guide.
►
Your vision can be impaired.
• Use authorized detergent only when cleaning the product. (Do not
use benzene, thinner or alcohol.)
►
Product can be deformed.
• Do not expose to dripping or splashing and do not place objects
filled with liquids, such as vases, cups, etc. on or over the
apparatus(e.g. on shelves above the unit).
• Batteries should not be exposed to excessive heat. For example,
keep away from direct sunlight, open fireplace and electric
heaters.
• Do NOT place non-rechargeable batteries in charging device.
• Using headsets (earphones) for a long time or listening loudly can
cause damage to your hearing.
• Spray water onto a soft cloth 2 to 4 times, and use it to clean the
front frame; wipe in one direction only. Too much moisture may
cause staining.
• Do not use products using high voltage around the Monitor. (ex.
Electrical Swatter)
►
Monitor may have malfunction as its electrical shock.
Mounting on a wall
• Do NOT install this product by yourself as you may injure yourself
or cause damage to product. Please contact Service personnel
authorised by Manufacturer.
Licenses
Supported licenses may differ by model. For more information about
licenses, visit
www.lg.com
.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
This DivX Certified® device has passed rigorous testing to ensure it
plays DivX® video.
To play purchased DivX movies, first register your device at vod.divx.
com. Find your registration code in the DivX VOD section of your
device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including
premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX,
LLC and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673;
7,460,668; 7,515,710; 7,519,274.
Open source software notice
information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected]. This offer is valid for three (3) years from the
date on which you purchased the product.
Preparing
NOTE
• Image shown may differ from your TV.
• Your TV’s OSD (On Screen Display) may differ slightly from that
shown in this manual.
• The available menus and options may differ from the input source
or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the
power consumption. And the TV should be turned off if it will not
be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced
if the level of brightness of the picture is reduced, and this will
reduce the overall running cost.
7
ENGENGLISH
• The items supplied with your product may vary depending on the
model.
• Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width.
• Use an extension cable that supports USB 2.0 if the USB cable or
USB memory stick does not fit into your TV’s USB port.
B
B
A
A
*A 10 mm
*B 18 mm
• Use a certified cable with the HDMI logo attached. If you do
not use a certified HDMI cable, the screen may not display or a
connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI®/™ cable
- High-Speed HDMI®/™ cable with Ethernet
CAUTION
• Do not use any unapproved items to ensure the safety and product
lifespan of the product.
• Any damages or injuries by using unapproved items are not
covered by the manufacturer’s warranty.
• Some models have a thin film attached on to the screen and this
must not be removed.
Lifting and moving the TV
Please note the following advice to prevent the TV from being
scratched or damaged and for safe transportation regardless of its
type and size.
• It is recommended to move the TV in the box or packing material
that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and
all cables.
• When holding the TV, the screen should face
away from you to avoid damage.
• Hold the top and bottom of the TV frame firmly. Make sure not to
hold the transparent part, speaker, or speaker grille area.
• When transporting the TV, do not expose the TV to jolts or
excessive vibration.
• When transporting the TV, keep the TV upright; never turn the TV
on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing /bending of frame
chassis as it may damage screen.
CAUTION
• Avoid touching the screen at all times, as this may result in
damage to the screen.
• When handling the TV, be careful not to damage the protruding
joystick button.
Setting up the TV
CAUTION
• Do not carry the TV upside-down by holding the stand body (or
stand base) as this may cause it to fall off, resulting in damage
or injury.
• When attaching the stand to the TV set, place the screen facing
down on a cushioned table or flat surface to protect the screen
from scratches.
NOTE
• Remove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse. (Only MT57D)
• Lift up the latch at the bottom of the stand base and detach the
stand base from the TV. (Only MT47D)
Using the joystick button
You can simply operate the TV functions, pressing or moving the
joystick button up, down, left or right.
• Image shown may differ from your TV.
Joystick button
Basic functions
Power On
When the TV is turned off, place
your finger on the joystick button
and press it once and release it.
Power Off
When the TV is turned on, place
your finger on the joystick button,
press it once for a few seconds
and release it. (However, if the
menu button is on the screen,
pressing and holding the joystick
button will let you exit the
menu.)
8
ENG
ENGLISH
Volume Control
If you place your finger over the
joystick button and move it left or
right, you can adjust the volume
level you want.
Programmes
Control
If you place your finger over the
joystick button and move it up or
down, you can scroll through the
saved programmes you want.
NOTE
• If you press the joystick button first, you may not adjust the
volume level and saved programmes.
CAUTION
• When your finger over the joystick button and push it to the up,
down, left or right, be careful not to press the joystick button.
Adjusting the menu
When the TV is turned on, press the joystick button one time. You
can adjust the menu items moving the joystick button up, down,
left, or right.
Turns the power off.
Accesses the main menu.
Clears on-screen displays and returns to TV viewing
Changes the input source.
Mounting on a table
• Image shown may differ from your TV.
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for proper
ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
• Do not place the TV near or on sources of heat, as this may result in
fire or other damage.
• Please be sure to connect the TV to the AC-DC power adapter
before connecting the TV’s power plug to a wall power outlet.
Adjusting the angle of the TV to suit
view
(Only 22/24/27MT57D, 22/24MT47D)
Tilt from +20 to -5 degrees up or down to adjust the angle of the TV
to suit your view.
• Image shown may differ from your TV.
Front
Rear
+20-5
CAUTION
• When you adjust the angle, do not hold the buttom of the TV
frame as shown on the following illustration, as may injure your
fingers.
Using the kensington security system
(This is not available for all models.)
• Image shown may differ from your TV.
The Kensington security system connector is located at the rear of
the TV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
ww w.kensington.com.
Connect the Kensington security system cable between the TV and
a table.
NOTE
• The Kensington security system is optional. You can obtain
additional accessories from most electronics stores.
9
ENGENGLISH
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm on each side and
from the wall. Detailed installation instructions are available from
your dealer, see the optional Tilt Wall Mounting Bracket Installation
and Setup Guide.
10 cm
10 cm
10 cm
10 cm
If you intend to mount the TV to a wall, attach Wall mounting
interface (optional parts) to the back of the TV. When you install
the TV using the wall mounting interface (optional parts), attach it
carefully so it will not drop.
1 If you use screw longer than standard, the TV might be damaged
internally.
2 If you use improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Model
22MT47D
22MT57D
24MT47D
24MT57D
27MT57D
28MT47D
Wall Mount
(A x B)
A
B
75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall mount bracket
(optional)
RW120
CAUTION
• Disconnect the power cord first, and then move or install the TV.
Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and
result in severe injury. Use an authorized LG wall mount and
contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV
and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the manufacturer’s warranty.
• Screw length from outer surface of back cover should be under
8mm.
Wall mount Pad
Back Cover
Standard screw
: M4 x L10
Wall mount Pad
Back Cover
Max.8mm
NOTE
• Use the screws that are listed on the VESA standard screw
specifications.
• The wall mount kit includes an installation manual and necessary
parts.
• The wall mount bracket is not provided. You can obtain additional
accessories from your local dealer.
• The length of screws may differ depending on the wall mount.
Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall
mount.
Connections (Notifications)
Connect various external devices to the TV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio
systems, USB storage devices, PC, camcorders or cameras, gaming
devices, and other external devices.
NOTE
• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the
TV port.
• If you record a TV programme on a DVD recorder or VCR, make
sure to connect the TV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
• Refer to the external equipment’s manual for operating
instructions.
• If you connect a gaming device to the TV, use the cable supplied
with the gaming device.
• In PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE
menu until the picture is clear.
• In PC mode, some resolution settings may not work properly
depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω)
(Not Provided).
NOTE
• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to
improve the image quality.
• If the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
10
ENG
ENGLISH
Antenna Booster
(Depending on model)
• This feature improves the sensitivity to weak RF Signal in
poor reception areas. LG’s built-in booster is auto-activated at
weak signal level. It strengthens signal level and minimizes
picture colour noise.
• This feature is auto-controlled by processor and no user
intervention required.
Other connections
Connect your TV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.
• USB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
Connecting to a PC
Your TV supports the Plug & Play* feature and has the built-in
speakers with Virtual Surround that reproduces sound clearly with
a rich bass.
* Plug & Play: The function when a PC recognizes a connected device
that users connect to a PC and turn on, without device configuration
or user intervention.
NOTE
• If you want to use HDMI-PC mode, you must set the Input Label
to PC mode.
• The OSD (On Screen Display) is displayed on the screen as shown
below.
- When turning the product on in HDMI input.
- When switching to HDMI input.
Is the input connected to your PC?
Do not show message again
Yes No
• If you select "Yes" the size and image quality are optimised for
your PC.
• If you select "No" the size and image quality are optimised for the
AV device (DVD player, set-top box).
• If you select "Do not show message again" this message does
not appear until the TV is reset. You can change the set value in
SETTINGS INPUT Input Label.
• The values set for HDMI1/HDMI2 are saved independently. (Only
MT57D)
11
ENGENGLISH
Remote control
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use the
TV correctly. To replace batteries, open the battery cover, replace
batteries (1.5 V AAA) matching the and ends to the label
inside the compartment, and close the battery cover. To remove the
batteries, perform the installation actions in reverse.
CAUTION
• Do not mix old and new batteries, as this may damage the remote
control.
• In Analogue TV and some countries, some remote control buttons
may not work.
hri^Z`^\^_]
REC
A
B
A
(Power) Turn the power on or off.
Selects Radio, TV and DTV programme.
Recalls your preferred subtitle in digital mode.
Turns the PIP mode on or off. (Depending on model)
By pressing the AD button, audio descriptions function will be
enabled.
Selects TV or PC mode.
Changes the input source.
B
Number buttons Enters numbers.
Accesses the saved programme list.
Returns to the previously viewed programme.
Adjusts the volume level.
Accesses your favourite programme list.
Shows programme guide. (Depending on model)
Mutes all sounds.
Scrolls through the saved programmes.
Moves to the previous or next screen.
hri^Z`^\^_]
REC
C
D
C
Teletext buttons ( ) These buttons are used for
teletext.
Views the information of the current programme and screen.
Accesses the main menus.
Accesses the quick menus.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
Selects menus or options and confirms your input.
Returns to the previous level.
Clears all on-screen displays and returns to TV viewing.
D
Accesses the AV devices connected with the HDMI
cable through HDMI-CEC. Opens the SIMPLINK menu.
Starts to record and display record menu.
Returns to LIVE TV.
Control buttons ( ) Controls the MY MEDIA menus,
Time Machine
Ready
control or the SIMPLINK compatible devices (USB,
SIMPLINK or Time Machine
Ready
).
Coloured buttons These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
(Gaming mode)
Turns the gaming mode on or off.
(Backlight)
Adjusts the brightness of the screen by
controlling the screen backlight.
NOTE
• On MHEG programme, you cannot adjust the backlight with the
yellow or blue key.
• AD(Audio Description Service) may not be available on all models
and is also dependant on broadcast service in your country.
12
ENG
ENGLISH
Settings
Automatically Setting Up Programme
SETTINGS SETUP Auto Tuning
Automatically tunes the programmes.
• If Input Source is not connected properly, programme registration
may not work.
• Auto Tuning only finds programmes that are currently
broadcasting.
• If Lock System is turned on, a pop-up window will appear asking
for password.
To select Picture Mode
SETTINGS PICTURE Picture Mode
Select the picture mode optimized for the viewing environment or
the programme.
• Vivid : Heightens contrast, brightness and sharpness to display
vivid images.
• Standard : Displays images in standard levels of contrast,
brightness and sharpness.
• Eco/APS : [Depending on model]
The Energy Saver feature changes settings on the TV to reduce
power consumption.
• Cinema/Game : Displays the optimum picture for movie, game.
• Soccer : Optimised picture mode for football matches. The pitch
and kits are presented in vibrant colours, with crystal-clear images
even for fast movements.
• Expert 1, 2 : Menu for adjusting picture quality that
allows experts and amateurs to enjoy the best TV viewing. This
is the adjustment menu provided for ISF-certified picture tuning
professionals. (ISF logo can only be used on ISF-certified TVs.)
ISFccc: Imaging Science Foundation Certified Calibration Control
• Depending on input signal, available range of picture modes may
differ.
• Expert mode is for picture tuning professionals to control
and fine-tune using a specific image. For normal images, the
effects may not be dramatic.
• The ISF function is only available on some models.
To set advanced control
SETTINGS PICTURE Picture Mode Advanced Control /
Expert Control
Calibrates the screen for each picture mode; or adjusts picture
settings for a special screen. First select a Picture Mode of your
choice.
• Dynamic Contrast : Adjusts the contrast to the optimal level
according to the brightness of the image.
• Dynamic Colour : Adjusts colours to make the image appear in
more natural colours.
• Skin Colour : Sets Skin colour spectrum separately to implement
the skin colour as defined by the user.
• Sky Colour : Sky colour is set separately.
• Grass Colour : Natural colour spectrum (meadows, hills, etc.) can
be separately set.
• Gamma : Sets the gradation curve according to the output of
picture signal in relation to the input signal.
• Colour Gamut : Selects the range of colours that can be
expressed.
• Edge Enhancer : Shows clearer and distinctive yet natural edges
of the video.
• Expert Pattern : [Depending on model]
Patterns used for expert adjustment.
• Colour Filter : Filters a specific colour spectrum in RGB colours to
fine-tune colour saturation and hue accurately.
• Colour Temperature : Adjusts the overall tone of the screen
as desired. In Expert mode, detailed fine-tuning can be set via
Gamma method, etc.
• Colour Management System : This is a system that experts use
when they adjust colour with a test pattern. They can select from
six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow)
without affecting other colours. For normal images, adjustments
may not result in noticeable colour changes.
• Depending on input signal or other picture settings, the range of
detailed items for adjustment may differ.
To set additional picture options
SETTINGS PICTURE Picture Mode Picture Option
[Depending on model]
Adjusts detailed setting for images.
• Noise Reduction : Eliminates noise in the picture.
• MPEG Noise Reduction : Eliminates noise generated while
creating digital picture signals.
• Black Level : Adjusts the brightness and contrast of the screen
to suit the black level of the input picture by using the blackness
(black level) of the screen.
• Real Cinema : Optimizes the screen for movie viewing.
• Motion Eye Care : Saves power consumption by adjusting the
brightness corresponding to the movement of the image on the
screen.
• Depending on input signal or other picture settings, the range of
detailed items for adjustment may differ.
To use Gaming Mode
SETTINGS PICTURE Gaming Mode
[Available only for RGB/HDMI-PC]
This mode allows you to optimize the picture quality for games.
• DAS Mode : [Depending on model]
This mode minimizes the time taken to display the video signal
received from the input device to ensure faster gameplay. (The
screen will flicker when turning DAS Mode On or Off.)
- DAS : Dynamic Action Sync
• Black Stabilizer :
Objects can be seen more clearly on a dark
screen by adjusting the black levels. Increasing the Black
Stabilizer value brightens the low gray levels on the screen. (You
can easily distinguish objects on a dark game screen.) Reducing the
Black Stabilizer value darkens the low gray levels and increases
the dynamic contrast on the screen.
- You can congure the detailed settings for Gaming Mode using
the button on the remote control.
13
ENGENGLISH
- When you set the Gaming Mode to On, Picture Mode is set to
Game, and you cannot change it to a dierent Picture Mode.
- You can set DAS Mode only when the frequency for vertical
input is 50Hz/60Hz.
- When PIP is turned on, the DAS Mode is unavailable
To use Energy Saving feature
SETTINGS PICTURE Energy Saving
Reduces power consumption by adjusting screen brightness.
• Off : Turns off the Energy Saving mode.
• Minimum / Medium / Maximum : Applies the pre-set Energy
Saving mode.
• Screen Off : Screen is turned off and only sound is played. Press
any button except Power button on the remote control to turn the
screen back on.
To use TV speaker
SETTINGS AUDIO Sound Out TV Speaker
[Depending on model]
Sound is output through the TV speaker.
To use Headphone
SETTINGS AUDIO Sound Out Headphone
[Depending on model]
Sound is output through the headphone connected to the earphone/
headphone port.
To synchronize audio and video
SETTINGS AUDIO AV Sync. Adjust
[Depending on model]
Synchronizes video and audio directly when they do not match.
• If you set AV Sync. Adjust to ON, you can adjust the sound output
(TV speakers) to the screen image.
To use SIMPLINK
[Depending on model]
SIMPLINK is a feature that enables you to control and manage various
multimedia devices conveniently via the SIMPLINK menu.
1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s
HDMI output terminal using an HDMI cable.
2 Select INPUT SIMPLINK.
SIMPLINK menu window appears.
3 In SIMPLINK Setting window, set SIMPLINK function to ON.
4 In SIMPLINK menu window, selects the device you want to
control.
• This function is only compatible with devices with the SIMPLINK
logo.
• To use the SIMPLINK function, you need to use a high-speed
HDMI® cable (with CEC (Consumer Electronics Control) feature
added). High-speed HDMI® cables have the No. 13 pin connected
for information exchange between devices.
• If you switch to another input, the SIMPLINK device will stop.
• If a third-party device with the HDMI-CEC function is also used, the
SIMPLINK device may not work normally.
• If you select or play media from a the device with a home theatre
function, the HT Speaker(Speaker) is automatically connected.
SIMPLINK function description
• Direct Play : Plays the multimedia device on the TV instantly.
• Select multimedia device : Selects the desired device via the
SIMPLINK menu to control it from the TV screen instantly.
• Disc playback : Manages the multimedia device with the TV
remote control.
• Power off all devices : When you power off the TV, all connected
devices are turned off.
• Sync Power on : When the equipment with SIMPLINK function
connected HDMI terminal starts to play, the TV will automatically
turn on.
To set password
SETTINGS LOCK Set Password
Sets or changes the TV password.
The initial password is set to ‘0000’.
To return Factory Reset
SETTINGS OPTION Factory Reset
All stored information is deleted and TV settings are reset.
The TV turns itself o and back on, and all settings are reset.
• When Lock System is in place, a pop-up window appears and
asks for password
• Do not turn off the power during initialization.
To remove the USB device
Q.MENU USB Device
Select a USB storage device that you want to remove.
When you see a message that the USB device has been removed,
separate the device from the TV.
• Once a USB device has been selected for removal, it can no longer
be read. Remove the USB storage device and then re-connect it.
Using a USB storage device - warning
• If the USB storage device has a built-in auto recognition program
or uses its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• Use only USB storage devices formatted with the Windows FAT32
or NTFS File System.
• For external USB HDDs, it is recommended that you use devices
with a rated voltage of less than 5 V and a rated current of less
than 500 mA.
• It is recommended that you use USB memory sticks of 32 GB or less
and USB HDDs of 2 TB or less.
• If a USB HDD with power-saving function does not work properly,
turn the power off and on. For more information, refer to the user
manual of the USB HDD.
• Data in the USB storage device can be damaged, so be sure to
back up important files to other devices. Data maintenance is the
user’s responsibility and the manufacturer is not responsible for
data loss.
14
ENG
ENGLISH
My Media supporting le
• Maximum data transfer rate : 20 Mbps (Mega bit per second)
• External supported subtitle formats : *.srt (SubRip), *.smi (SAMI),
*.sub (SubViewer, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)),
*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer), *.psb (PowerDivX)
• Internal supported subtitle formats: *.dat/*.mpg/*.mpeg/*.
vob (DVD Subtitle), *.ts/*.tp/*.m2ts/ (DVB Subtitle), *.mp4 (DVD
Subtitle, UTF-8 Plain Text), *.mkv (ASS, SSA, UTF-8 Plain Text,
Universal Subtitle Format, VobSub, DVD Subtitle), *.divx/*.avi
(XSUB
1
, XSUB+)
1 XSUB : Supports internal subtitles generated from DivX6
Supported Video Formats
• Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)
• .asf, .wmv
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD,
H.264/AVC, VC1(WMV3, WVC1), MP43
[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, MP3, 3D WMV
Single Stream
• .divx, .avi
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD,
H.264/AVC
[Audio] HE-AAC, LPCM, ADPCM, MPEG- 1 Layer I, MPEG-1 Layer II,
Dolby Digital, MPEG-1 Layer III (MP3), *DTS
• .ts, .trp, .tp, .mts, .m2ts
[Video] H.264/AVC, MPEG-2, AVS, VC1
[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3),
Dolby Digital, Dolby Digital Plus, AAC, HE-AAC, *DTS
• .vob
[Video] MPEG-1, MPEG-2
[Audio] Dolby Digital, MPEG-1 Layer I, MPEG- 1 Layer II, DVD-LPCM
• .mp4, .m4v, .mov
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID,
H.264/AVC
[Audio] AAC, MPEG-1 Layer III (MP3), *DTS
• .mkv
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID,
H.264/AVC
[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), *DTS, LPCM
• motion JPEG
[Video] MJPEG
[Audio] LPCM, ADPCM
• .mpg, .mpeg, .mpe
[Video] MPEG-1, MPEG-2
[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM
• dat
[Video] MPEG-1, MPEG-2
[Audio] MP2
• flv
[Video] Sorenson H.263, H.264/AVC
[Audio] MP3, AAC, HE-AAC
• *rm, *rmvb
[Video] RV30, RV40
[Audio] Dolby Digital, AAC, HE-AAC, RA6(Cook)
• 3gp, 3gp2
[Video] H.264/AVC, MPEG-4 Part2
[Audio] AAC, AMR(NB/WB)
• *DTS / *rm / *rmvb : Depending on model
Supported Audio Formats
• File type : mp3
[Bit rate] 32 Kbps - 320 Kbps
[Sample freq.] 16 kHz - 48 kHz
[Support] MPEG1, MPEG2, Layer2, Layer3
• File Type : AAC
[Bit rate] Free Format
[Sample freq.] 8 kHz ~ 48 kHz
[Support] ADIF, ADTS
• File Type : M4A
[Bit rate] Free Format
[Sample freq.] 8 kHz ~ 48 kHz
[Support] MPEG-4
• File Type : WMA
[Bit rate] 128 Kbps ~ 320 Kbps
[Sample freq.] 8 kHz ~ 48 kHz
[Support] WMA7, WMA8, WMA9 Standard
• File Type : WMA 10 Pro
[Bit rate] ~ 768 Kbps
[Channel / Sample freq.]
M0 : up to 2 Channel @ 48 kHz
(Except LBR mode),
M1 : up to 5.1 Channel @ 48 kHz,
M2 : up to 5.1 Channel @ 96 kHz
[Support] WMA 10 Pro
• File Type : OGG
[Bit rate] Free Format
[Sample freq.] ~ 48 kHz
[Support] OGG Vorvis
Supported Photo Formats
• Category : 2D (jpeg, jpg, jpe)
[Available file type] SOF0: Baseline,
SOF1 : Extend Sequential,
SOF2 : Progressive
[Photo size] Minimum : 64 x 64,
Maximum : Normal Type: 15360 (W) x 8640 (H),
Progressive Type : 1920 (W) x 1440 (H)
• Category : BMP
[Photo size] Minimum : 64 x 64, Maximum : 9600 x 6400
• Category : PNG
[Available file type] Interlace, Non-Interlace
[Photo size] Minimum : 64 x 64, Maximum : Interlace : 1200 x 800,
Non-Interlace : 9600 x 6400
• BMP and PNG format files may be slower to display than JPEG.
To see web manual
To obtain detailed User Guide information, please visit www.lg.com.
15
ENGENGLISH
Maintenance
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend
the product lifespan.
• Make sure to turn the power off and disconnect the power cord
and all other cables first.
• When the TV is left unattended and unused for a long time,
disconnect the power cord from the wall outlet to prevent possible
damage from lightning or power surges.
Screen, frame, cabinet, and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and
soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened
in clean water or a diluted mild detergent. Then wipe immediately
with a dry cloth.
• Avoid touching the screen at all times, as this may result in
damage to the screen.
• Do not push, rub, or hit the surface with your fingernail or a sharp
object, as this may result in scratches on the screen and image
distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may
result in fire, electric shock, or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
Preventing “Image burn” or “Burn-in” on
your TV screen
• If a fixed image displays on the TV screen for a long period of time,
it will be imprinted and become a permanent disfigurement on
the screen. This is “image burn” or “burn-in” and not covered by
the warranty.
• If the aspect ratio of the TV is set to 4:3 for a long period of time,
image burn may occur on the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen for a long period
of time (2 or more hours for LCD) to prevent image burn.
Troubleshooting
Cannot control the TV with the remote control.
• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote
control.
• Check if the batteries are still working and properly installed
( to , to ).
No image display and no sound is produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other
products.
The TV turns off suddenly.
• Check the power control settings. The power supply may be
interrupted.
• Check if the Automatic Standby(Depending on model) / Sleep
Timer / Off Time is activated in the TIME settings.
• If there is no signal while the TV is on, the TV will turn off
automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI/RGB), ‘No signal’ or ‘Invalid
Format’ is displayed.
• Turn the TV off/on using the remote control.
• Reconnect the HDMI/RGB cable.
• Restart the PC with the TV on.
If TV is turned off automatically.
• If On Time is enabled, the TV will be turned on at the specified
time. If you do not operate the TV for two hours, the TV will be
turned off automatically.
• To disable this function, use your remote control to go to
SETTINGS TIME Auto Off(On Time) Off.
16
ENG
ENGLISH
Specifications
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
Models
Dimensions (W x H x D) (mm) Weight (kg)
Power requirement
With stand Without stand With stand Without stand
22MT47D 507.6 x 365.4 x 158.7 507.6 x 316.5 x 52.7 2.9 2.75 19 V 1.6 A
24MT47D 556.0 x 393.8 x 158.7 556.0 x 345.2 x 53.1 3.6 3.4 19 V 1.6 A
28MT47D 641.5 x 445.4 x 171.0 641.5 x 396.3 x 57.5 4.7 4.5 19 V 2.0 A
22MT57D 507.6 x 410.5 x 198.2 507.6 x 316.5 x 75.5 3.1 2.8 19 V 1.6 A
24MT57D 554.9 x 437.2 x 198.2 554.9 x 343.3 x 74.8 3.8 3.6 19 V 2.0 A
27MT57D 642.0 x 488.5 x 222.7 642.0 x 394.5 x 75.0 5.0 4.7 19 V 2.0 A
AC/DC Adapter
22MT47D / 24MT47D / 22MT57D 24MT57D / 27MT57D / 28MT47D
Manufacturer : Lien Chang
Model : LCAP21A
Manufacturer : Honor
Model : ADS-40SG-19-3 19032G
Manufacturer : Lien Chang
Model : LCAP21C
Manufacturer : Honor
Model : ADS-45SN-19-3 19040G
In : AC 100 – 240 V ~ 50/60 Hz
Out : DC 19 V 1.7 A
In : AC 100 – 240 V ~ 50/60 Hz
Out : DC 19 V 2.1 A
Environment condition
-Operating Temperature : 10 °C to 35 °C
-Operating Humidity : 20 % to 80 %
-Storage Temperature : -10 °C to 60 °C
-Storage Humidity : 5 % to 90 %
Digital TV Analogue TV
Television system DVB-T
PAL B/B, PAL B/G, PAL D/K, PAL-I
SECAM B/G, SECAM D/K, NTSC-M
Programme coverage VHF, UHF VHF, UHF, CATV
Maximum number of storable programmes
1500
External antenna impedance
75 Ω
17
ENGENGLISH
RGB (PC) / HDMI (PC) supported mode
22/24/27MT57D , 22MT47D
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 400 31.468 70.080
640 x 480
31.469
37.500
59.940
75.000
800 x 600
37.879
46.875
60.317
75.000
1024 x 768 48.363 60.004
1024 x 768
(Only HDMI(PC))
56.476 70.069
1024 x 768 60.023 75.029
1152 x 864 67.500 75.000
1280 x 720 45.000 60.000
1280 x 800 49.702 59.810
1280 x 1024
63.981
79.976
60.020
75.025
1400 x 1050 65.317 59.978
1440 x 900 55.935 59.887
1600 x 900 60.000 60.000
1680 x 1050
64.674
65.290
59.883
59.954
1920 x 1080 67.500 60.000
24/28MT47D
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 400 31.468 70.080
640 x 480
31.469
37.500
59.940
75.000
800 x 600
37.879
46.875
60.317
75.000
1024 x 768
48.363
60.023
60.004
75.029
1280 x 800 49.702 59.810
1366 x 768 47.717 59.79
NOTE
• The optimal display resolution
- 22/24/27MT57D, 22MT47D: 1920 X 1080 @ 60 Hz.
- 24/28MT47D: 1366 X 768 @ 60 Hz.
• The optimal timing in each mode is vertical frequency 60 Hz.
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480
31.469
31.5000
59.940
60.000
720 x 576 31.250 50.000
1280 x 720
37.500
44.960
45.000
50.000
59.940
60.000
1920 x 1080
33.720
33.750
28.125
27.000
33.750
56.250
67.430
67.500
59.940
60.000
50.000
24.000
30.000
50.000
59.940
60.000
Component supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480
15.730
15.750
31.470
31.500
59.940
60.000
59.940
60.000
720 x 576
15.625
31.250
50.000
50.000
1280 x 720
44.960
45.000
37.500
59.940
60.000
50.000
1920 x 1080
33.720
33.750
28.125
56.250
67.432
67.500
59.940
60.000
50.000
50.000
59.940
60.000
Component port connecting information
Component ports on the TV
Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
18
Environmental information
Information for environmental preservation
LGE. announced the ‘LG Declaration for a Cleaner Environment’ in
1994, and this ideal has served as a guiding managerial principle
ever since. The Declaration is a foundation that has allowed us to
undertake environmentally friendly activities in careful consideration
of economic, environmental, and social aspects. We promote
activities for environmental preservation, and we specifically develop
our products to embrace the concept of environment-friendly. We
minimize the hazardous materials contained in our products. For
example, there is no cadmium to be found in our product.
Information for recycling
This product may contain parts which could be hazardous to the
environment. It is important that this product be recycled after use.
LGE. handles all waste product through an environmentally
acceptable recycling method. There are several take-back and
recycling systems currently in operation worldwide. Many parts will
be reused and recycled, while harmful substances and heavy metals
are treated by an environmentally friendly method. If you want
to find out more information about our recycling program, please
contact your local LG vendor or a corporate representative of LG.
We set our vision and policies on a cleaner world by selecting the
issue of the global environment as a task for corporate improvement.
Please visit our website for more information about our ‘green’
policies.
http://www.lg.com/global/sustainability/environment/take-back-
recycling.jsp
Disposal of your old appliance
1. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
3. To locate a nearest collection centre or call for pick-up (limited area only)
for disposal of this appliance, please contact Toll Free No. 1800-180-9999
for details. All collection centre and pick up facilities are done by third
parties with LG Electronics India Pvt. Ltd. Merely as a facilitator. For more
detailed information , please visit : http://www.lge.com/in.
INDIA only
i;kZoj.kh; tkudkjh
http://www.lge.com/in
Make sure to read the Safety Precautions
before using the product. Keep the Owner’s
Manual in an accessible place for future
reference.The model and serial numbers of the
TV are located on the back and on one side
of the TV. Record them below should you ever
need service.
MODEL
SERIAL
