User Manual Insignia NS-PUCHUB219 7-Port Type-C Hub with Gigabit Ethernet Adapter

• User Manual - (English)

• Quick Start Guide - (French)
• Quick Start Guide - (Spanish)

Table of contents

• PACKAGE CONTENTS
• FEATURES
• OPERATION SYSTEM COMPATIBILITY
• OVERVIEW
• USING YOUR HUB
• TROUBLESHOOTING
• SPECIFICATIONS

Owner Manual Charger & Adapter

PACKAGE CONTENTS

• 7-Port Type-C Hub
• Quick Setup Guide

FEATURES

• Connects peripherals to your Type-C notebook.
• Type-C-style finish creates a natural extension for computers.
• EMI Protection prevents interference with wireless devices.
• Single Type-C plug design provides a stable connection.
• Built-in protection keeps your devices safe.
• Dual USB ports support high data transfer rate.
• The card slots work with Micro SD, SD, SDHC, and SDXC.
• Mirror or extend your screen with the HDMI port and directly stream video to your HDTV, monitor, or projector.
• Supports 4K@30hz UHD or 1080P@60hz Full HD, downward compatible with 720p and 480p.
• The LAN Adapter offers full 10/100/1000 Mbps superfast Gigabit Ethernet performance over the RJ45 Ethernet port.
• Integrated Charging: The Type-C charging port provides power up to 87W to the USB ports simultaneously, so you can use multiple high-power devices at the same time.
• No data transmission on the USB-C port.

OPERATION SYSTEM COMPATIBILITY

• Windows® 8, 8.1, and 10
• Mac iOS 10.9 and up
• Chrome™ OS 36 and up

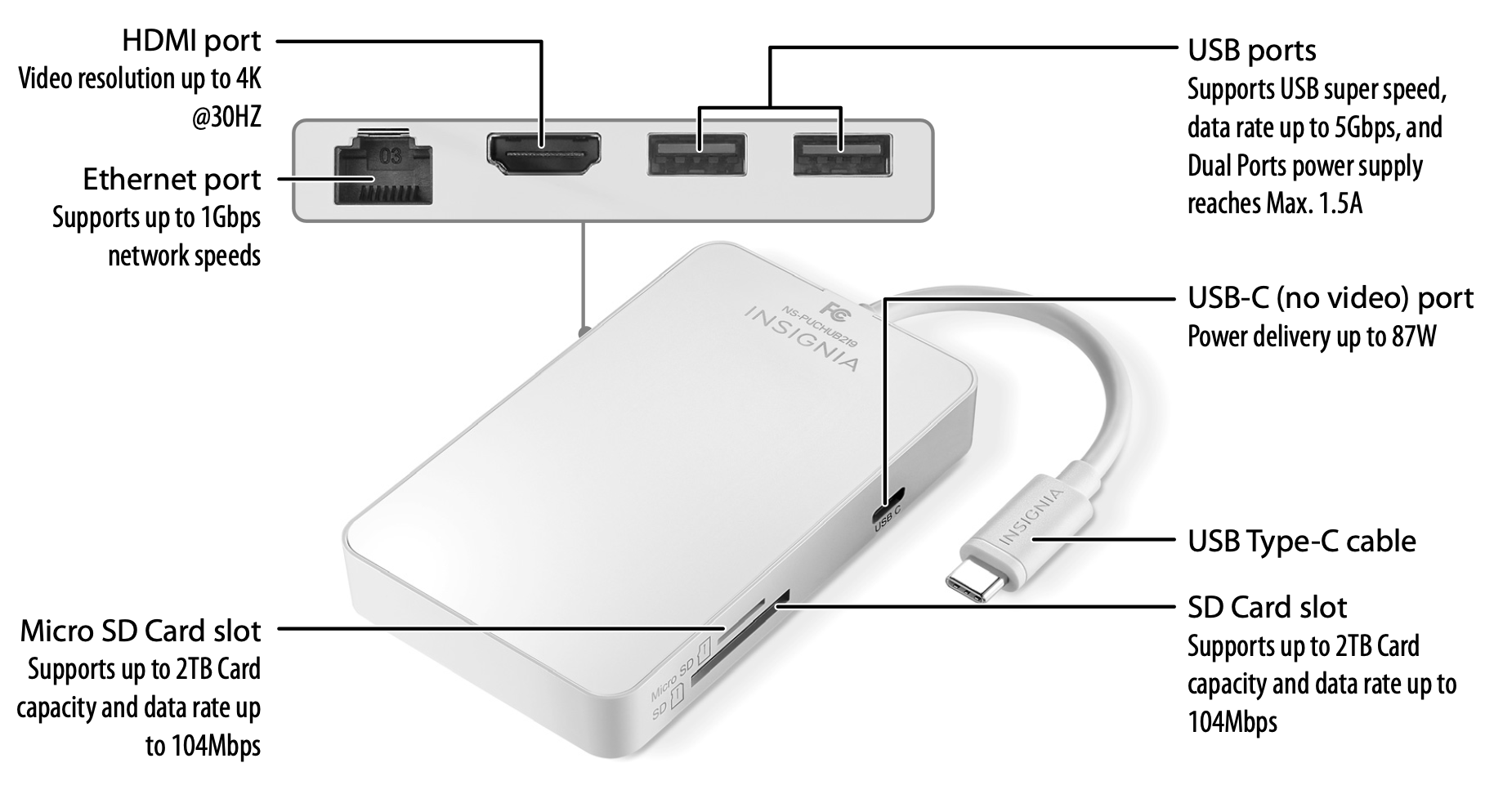

OVERVIEW

USING YOUR HUB

Installing the hub
Plug the 7-Port Type-C Hub into a USB Type-C port on your Type-C Notebook.

Uninstalling the hub
To remove the 7-Port Type-C Hub, unplug the hub from your Type-C Notebook.

Charging your devices

See other models: NS-VROTCS8 NS-CAHAPA NS-PCSSDM7 NS-PCHD335 NS-MA7GLS
Make sure that your computer is turned on in order to charge your devices and use the ports.

TROUBLESHOOTING

My computer does not detect the hub

• Unplug and plug the 7-Port Type-C Hub in again
• Make sure that the Type-C female and hub Type-C plugs are not damaged.
• Connect to another set of Type-C ports.

My computer does not detect the SD Card or Micro SD Card

• The hub cannot read cards with capacities greater than 2TB.
• Make sure that the card is not locked.
• Make sure that the card slot is not damaged and that the card is inserted as shown by the icon on the card.

My computer does not detect the hard drive

• Make sure that the hard drive is not damaged, then plug it in again.

My computer does not detect the HDMI video output

• Make sure that the HDMI monitor is operating normally.
• Make sure that the HDMI slot is not damaged, then plug it in again.

My display does not show 4K content

• You need a display that supports 4K resolutions and you need 4K content on your source device.

My computer does not have an internet connection

• Check the ethernet port to make sure that the ethernet cable is plugged in and working normally.
• Make sure that the website is set correctly.

My network speed is not 1 Gbps

• Your internet service must provide 1 Gbps.

My computer is not providing power to the hub

• Make sure that all cables are connected correctly.
• Make sure that your device is turned on.

SPECIFICATIONS

Dimensions (H × W × D): 3.86 × 2.36 × 0.57 in.
(9.9 × 6.1 × 1.45 cm)

Cable length: 2.5 in. (6.35 cm)

Weight: 0.21 lbs. (96 g)

Charging current: Max 5A
