INSTRUCTION MANUAL
E
2B
EFORE YOU BEGIN
Thank you for purchasing this digital camera. Please take the time to read through this
instruction manual so you can enjoy all the features of your new camera. Check the
packing list before using this product. If any items are missing, immediately contact your
camera dealer.
DiMAGE Z5 digital camera
Neck strap NS-DG7000
Lens cap LF-243
Shoe cap SC-1000
SD Memory Card

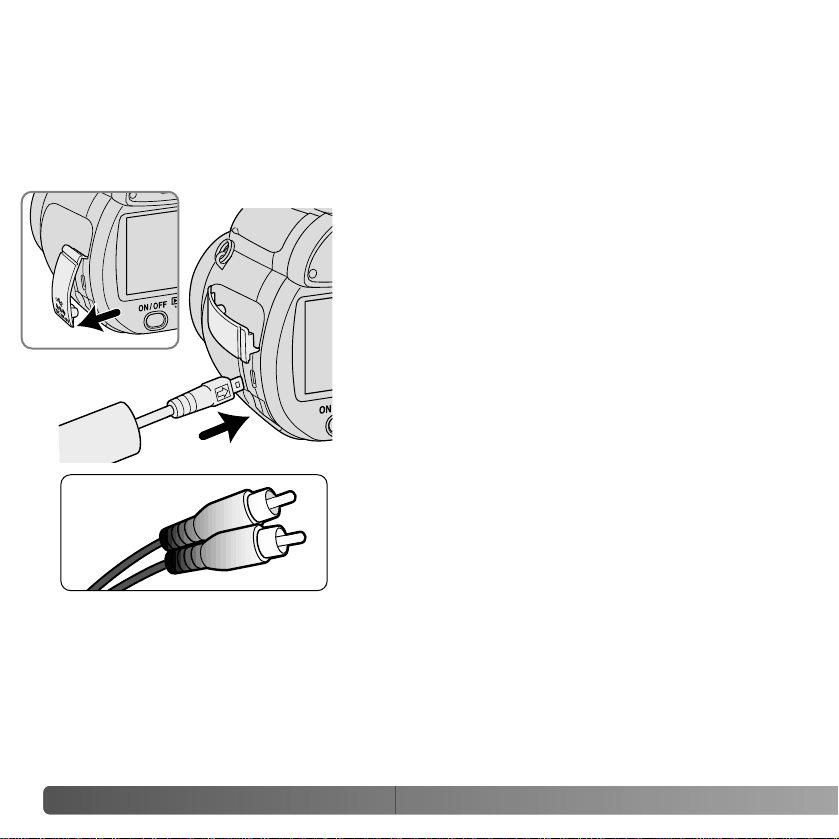

AV cable AVC-700
USB cable USB-2
4 AA alkaline batteries
DiMAGE Viewer CD-ROM
DiMAGE Z5 instruction manual
DiMAGE Viewer instruction manual
Warranty card
This product is designed to work with accessories manufactured and distributed by
Konica Minolta. Using accessories or equipment not endorsed by Konica Minolta may
result in unsatisfactory performance or damage to the product and its accessories.
BEFORE YOU BEGIN
Konica Minolta is a trademark of Konica Minolta Holdings, Inc. DiMAGE is a trademark of Konica
Minolta Photo Imaging, Inc. Apple, Macintosh, and Mac OS are registered trademarks of Apple
Computer Inc. Microsoft and Windows are registered trademarks of the Microsoft Corporation.
The official name of Windows is Microsoft Windows Operating System. Pentium is a registered
trademark of the Intel Corporation. Power PC is a trademark of the International Business
Machines Corporation. QuickTime is a trademark used under license. All other brand and product
names are trademarks or registered trademarks of their respective owners.
3
Read and understand all warnings and cautions before using this product.
Using batteries improperly can cause them to leak harmful solutions, overheat, or
explode which may damage property or cause personal injury. Do not ignore the following
warnings.
• Only use the batteries specified in this instruction manual.
• Do not install the batteries with the polarity (+/–) reversed.
• Do not use batteries which show wear or damage.
• Do not expose batteries to fire, high temperatures, water, or moisture.
• Do not attempt to recharge, short, or disassemble batteries.
• Do not store batteries near or in metallic products.
• Do not mix batteries of different types, brands, ages, or charge levels.
• When recharging rechargeable batteries, only use the recommended charger.
• Do not use leaking batteries. If fluid from the batteries enters your eye, immediately
rinse the eye with plenty of fresh water and contact a doctor. If fluid from the batteries
makes contact with your skin or clothing, wash the area thoroughly with water.
• Tape over battery contacts to avoid short-circuiting during disposal; always follow local
regulations for battery disposal.
WARNING
• Use only the specified AC adapter within the voltage range indicated on the adapter
unit. An inappropriate adapter or current may cause damage or injury through fire or
electric shock.
• Do not disassemble this product. Electric shock may cause injury if a high voltage
circuit inside the product is touched.
• Immediately remove the batteries or unplug the AC adapter and discontinue use if the
camera is dropped or subjected to an impact in which the interior, especially the flash
unit, is exposed. The flash has a high voltage circuit which may cause an electric shock
resulting in injury. The continued use of a damaged product or part may cause injuries
or fire.
FOR PROPER AND SAFE USE
4F
OR PROPER AND SAFE USE
• Keep batteries or small parts that could be swallowed away from infants. Contact a
doctor immediately if an object is swallowed.
• Store this product out of reach of children. Be careful when around children not to harm
them with the product or parts.
• Do not fire the flash directly into the eyes. It may damage eyesight.
• Do not fire the flash at vehicle operators. It may cause a distraction or temporary
blindness which may lead to an accident.
• Do not use the monitor while operating a vehicle or walking. It may result in injury or
an accident.
• Do not use this product in a humid environment, or operate this product with wet hands.
If liquid enters the product, immediately remove the batteries or unplug the AC adapter
and discontinue use. The continued use of a product exposed to liquids may cause
damage or injury through fire or electric shock.
• Do not use the product near inflammable gases or liquids such as gasoline, benzine,
or paint thinner. Do not use inflammable products such as alcohol, benzine, or paint
thinner to clean the product. The use of inflammable cleaners and solvents may cause
an explosion or fire.
• When unplugging the AC adapter, do not pull on the power cord. Hold the adapter unit
when removing it from an outlet.
• Do not damage, twist, modify, heat, or place heavy objects on the AC adapter cord. A
damaged cord may cause damage or injury through fire or electric shock.
• If the product emits a strange odor, heat, or smoke, discontinue use. Immediately
remove the batteries taking care not to burn yourself as the batteries become hot with
use. The continued use of a damaged product or part may cause injuries or fire.
• Take the product to a Konica Minolta Service Facility when repairs are required.
• Handling the cord on this product may expose you to lead, a chemical known to the
State of California to cause cancer, and birth defects or other reproductive harm. Wash
hands after handling.
5
• Do not point the lens directly at the sun, a fire may result. Replace the lens cap when
the camera is not in use.
• Do not use or store the product in a hot or humid environment such as the glove
compartment or trunk of a car. It may damage the product and batteries which may
result in burns or injuries caused by heat, fire, explosion, or leaking battery fluid.
• If batteries are leaking, discontinue use of the product.
• The lens retracts when the camera is turned off. Touching the lens barrel while it is
retracting may cause injury.
• The camera temperature rises with extended periods of use. Care should be taken to
avoid burns.
• Burns may result if the memory card or batteries are removed immediately after
extended periods of use. Turn the camera off and wait for it to cool.
• Do not fire the flash while it is in contact with people or objects. The flash unit
discharges a large amount of energy which may cause burns.
• Do not apply pressure to the LCD monitor. A damaged monitor may cause injury, and
the liquid from the monitor may cause inflammation. If liquid from the monitor makes
contact with skin, wash the area with fresh water. If liquid from the monitor comes in
contact with the eyes, immediately rinse the eyes with plenty of water and contact a
doctor.
• When using the AC adapter, insert the plug securely into the electrical outlet.
• Do not use if the AC adapter cord is damaged.
• Do not cover the AC adapter. A fire may result.
• Do not obstruct access to the AC adapter; this can hinder the unplugging of the unit in
emergencies.
• Unplug the AC adapter when cleaning or when the product is not in use.
CAUTION
6T
ABLE OF CONTENTS
The basic operation of this camera is covered between pages 12 and 33. This section of
the manual covers the camera parts, preparation of the camera for use, and the basic
camera operation for recording, viewing, and deleting images.
Many of the features of this camera are controlled with menus. The menu navigation
sections concisely describe how to change menu settings. Descriptions of the settings
immediately follow the navigation sections.
ABOUT THIS MANUAL

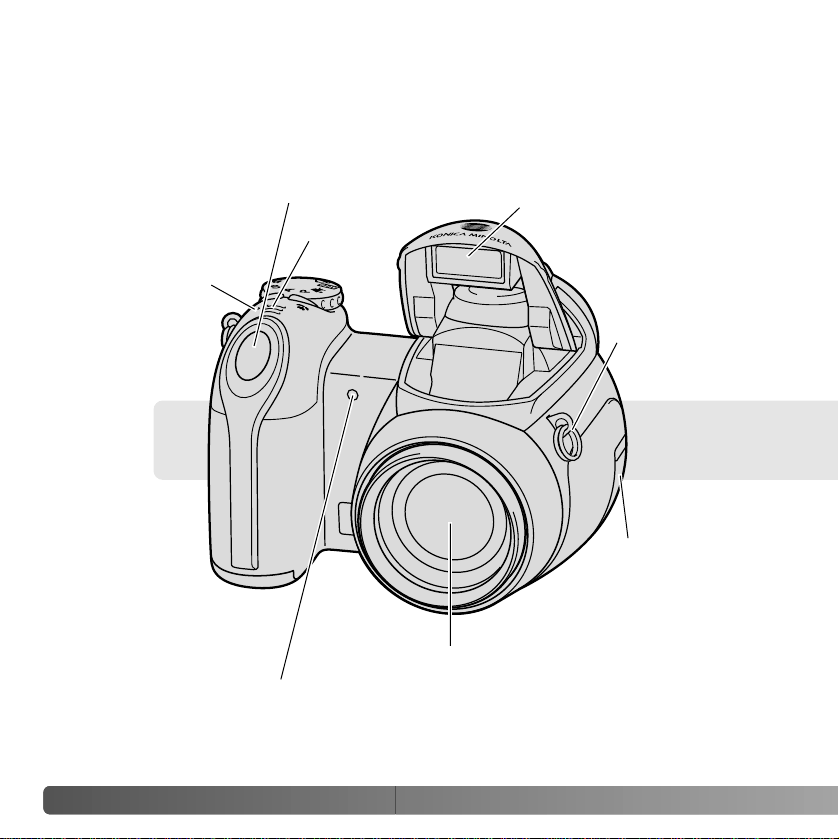

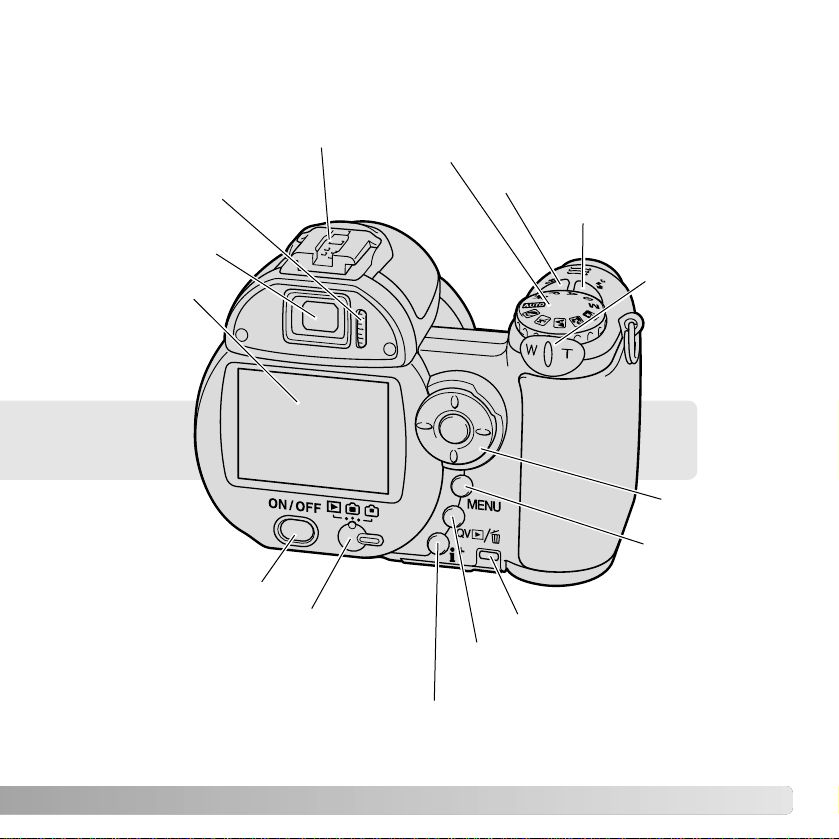

Names of parts ...........................................................................................................................10
Getting up and running...............................................................................................................12

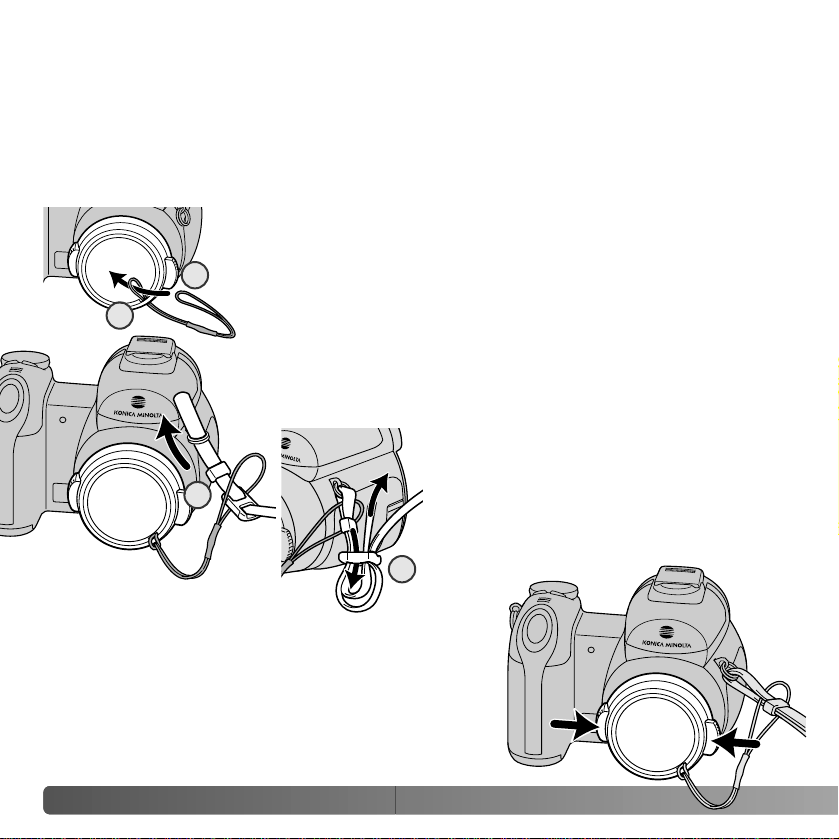

Attaching the strap and lens cap....................................................................................12

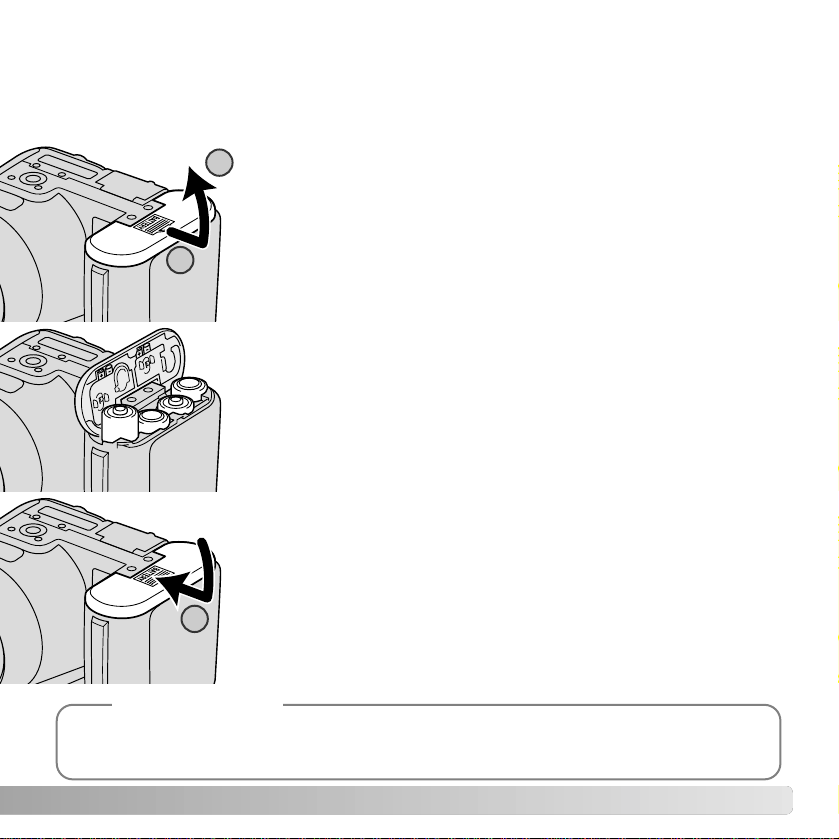

Inserting batteries...........................................................................................................13

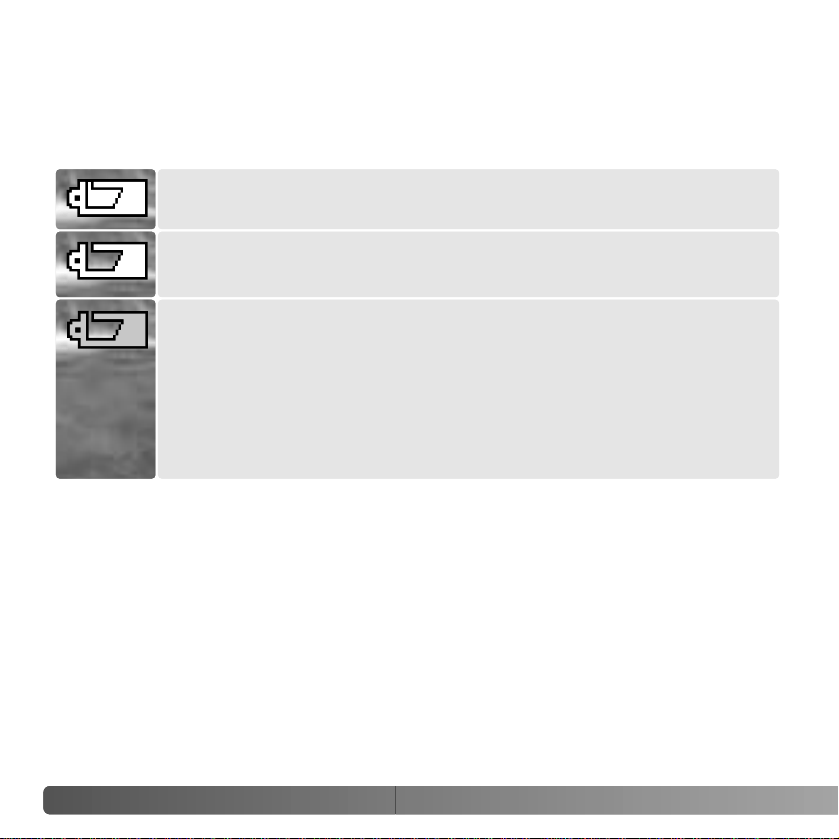

Battery condition indicator ..............................................................................................14
Auto power save.............................................................................................................14

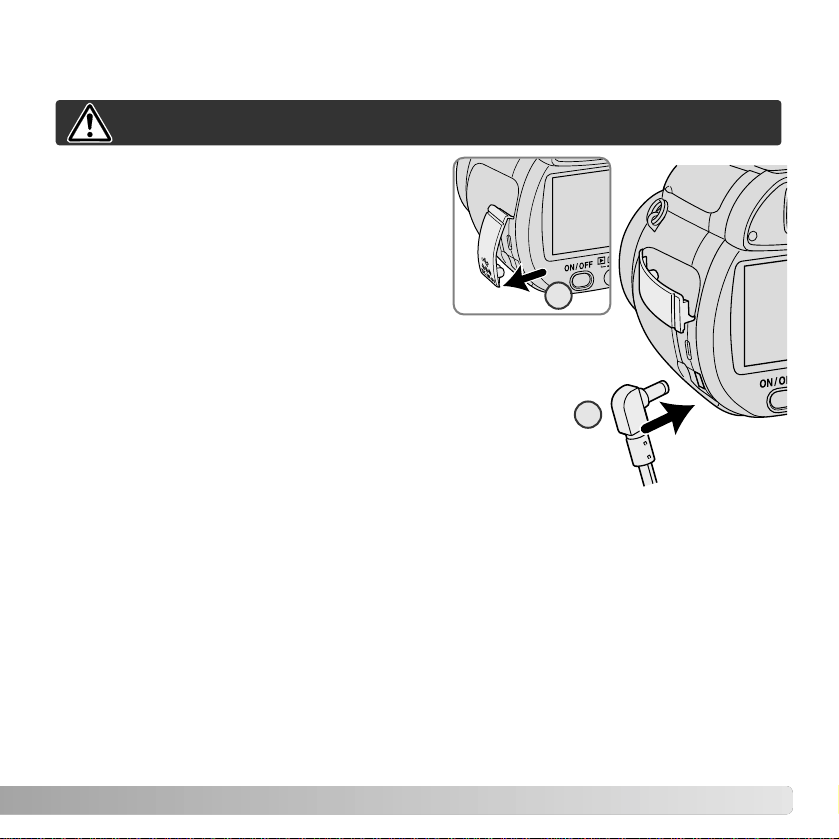

Connecting the optional AC adapter...............................................................................15

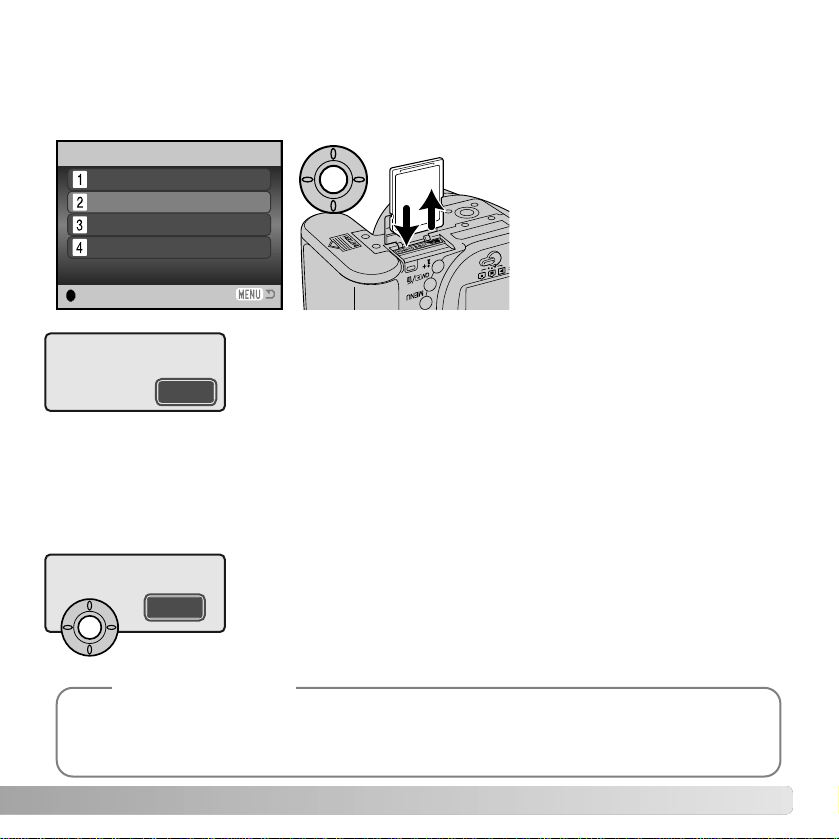

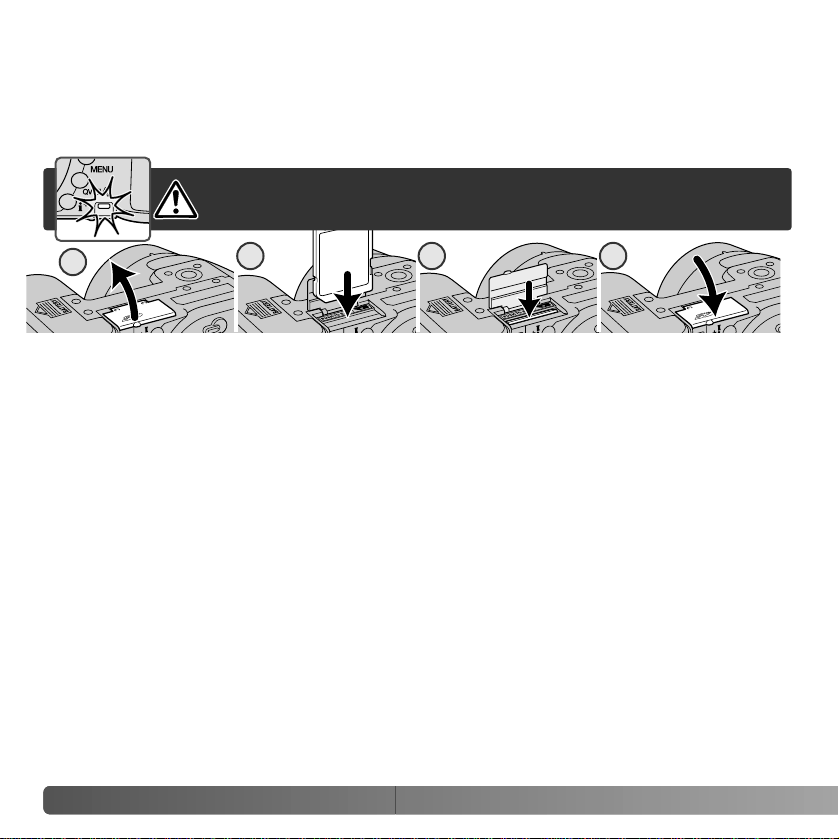

Changing the memory card............................................................................................16
Turning on the camera and displays ..............................................................................17
Setting the date and time................................................................................................18

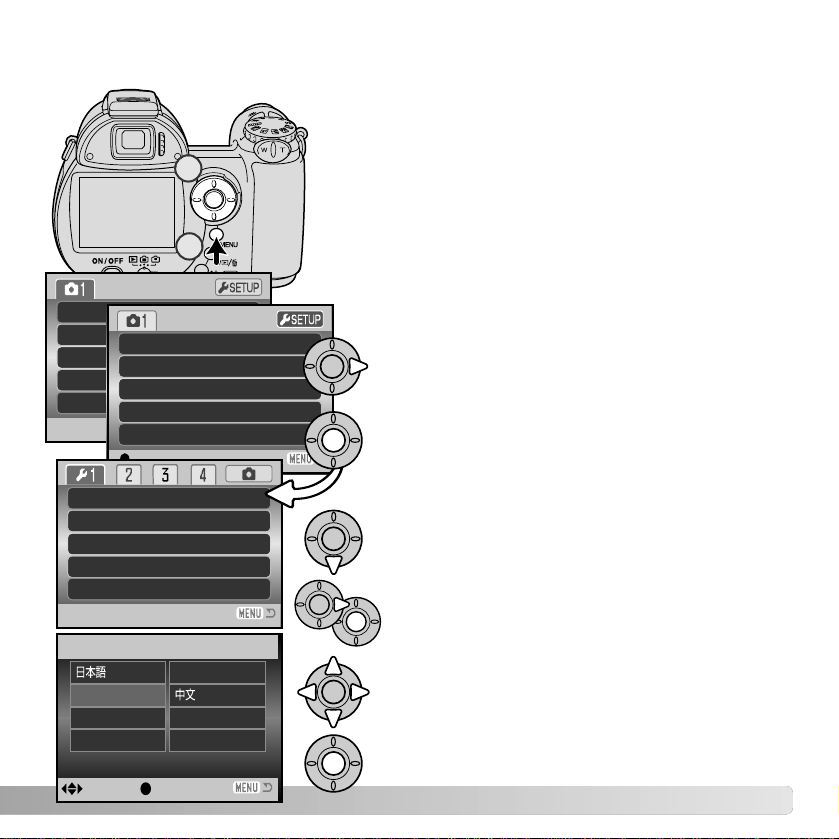

Setting the menu language.............................................................................................19
Basic recording...........................................................................................................................20

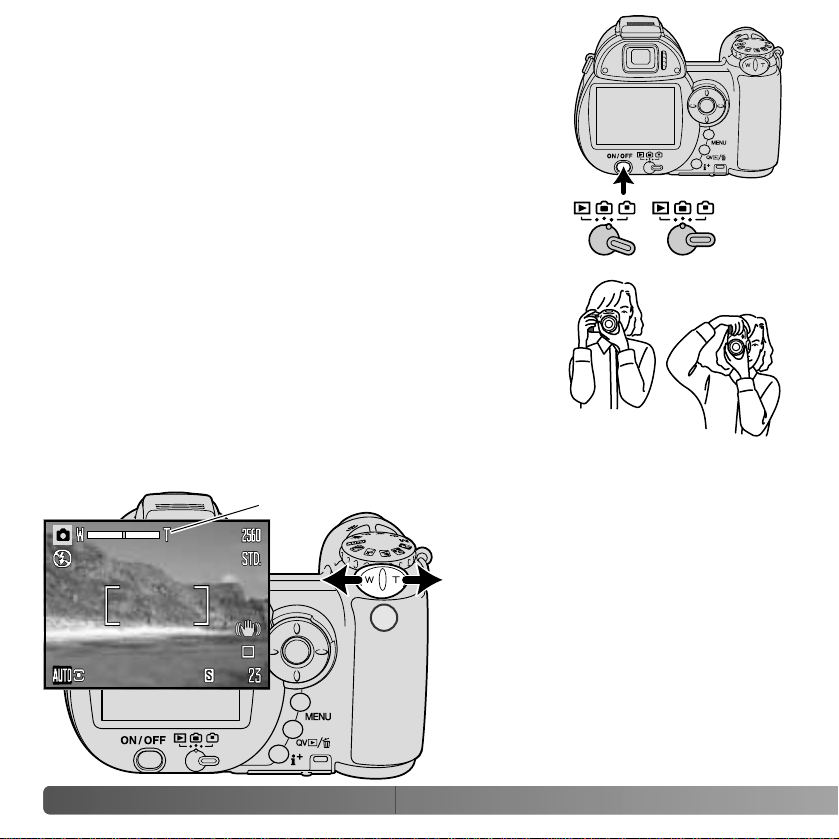

Handling the camera.......................................................................................................20

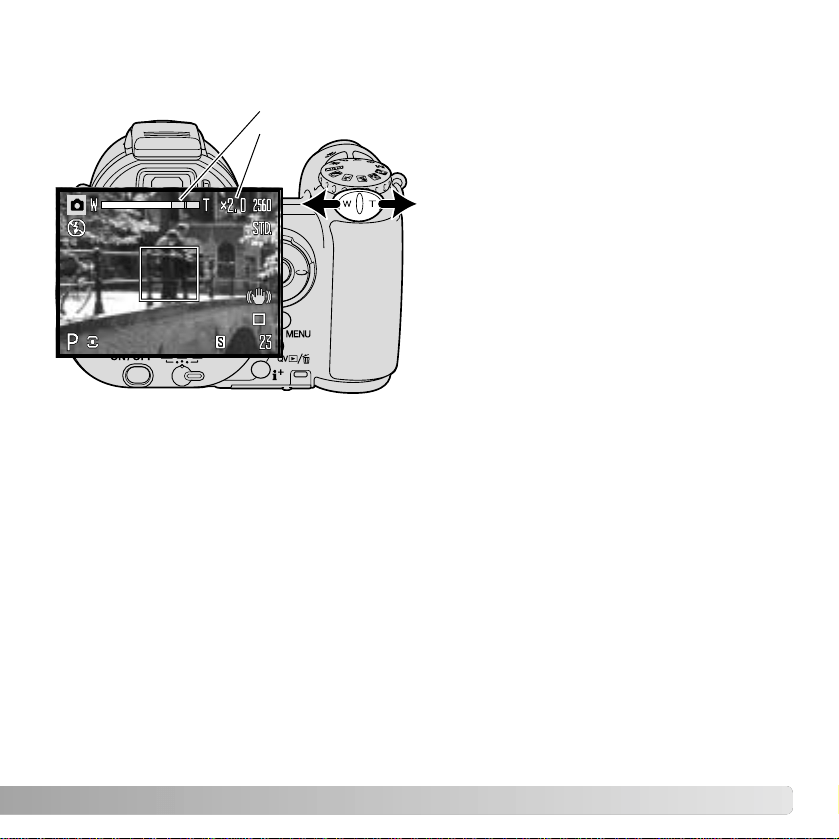

Using the zoom lens.......................................................................................................20

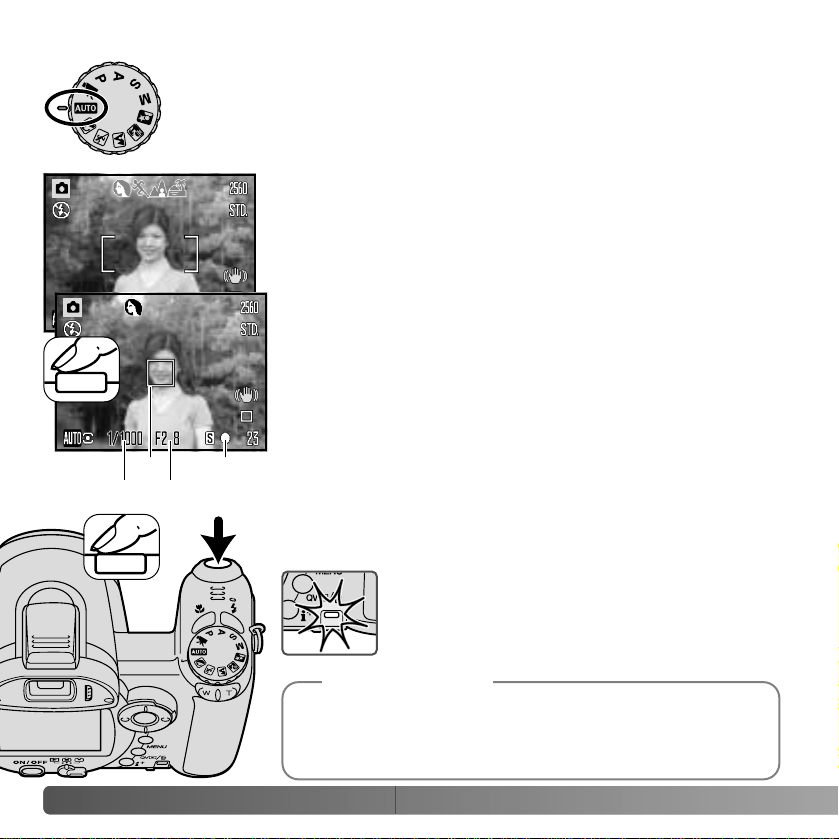

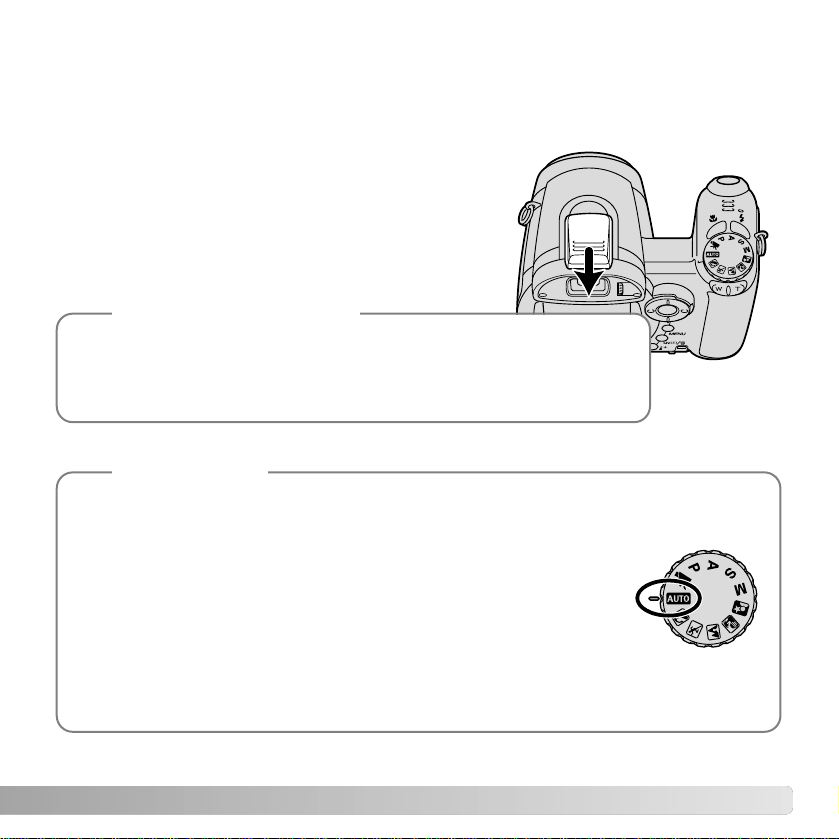

Recording images automatically.....................................................................................21

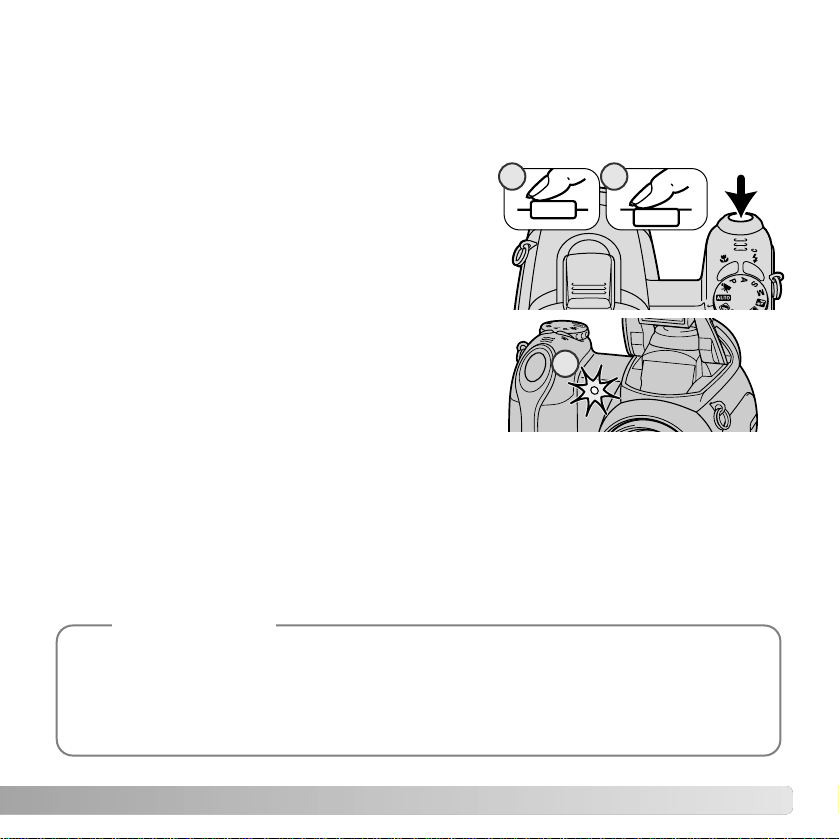

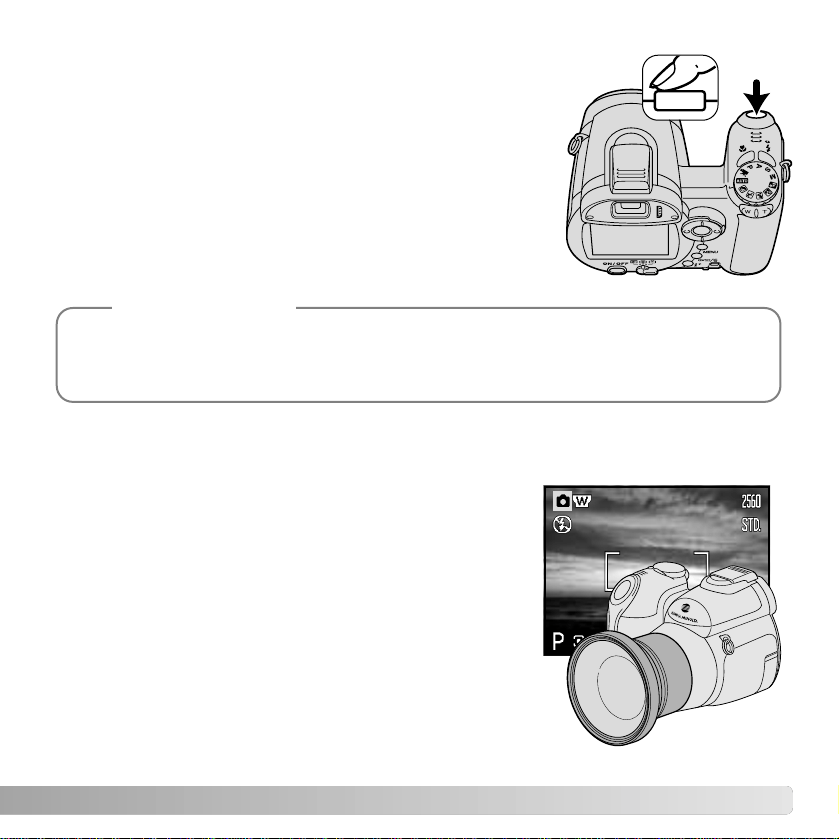

Basic recording operation...............................................................................................22

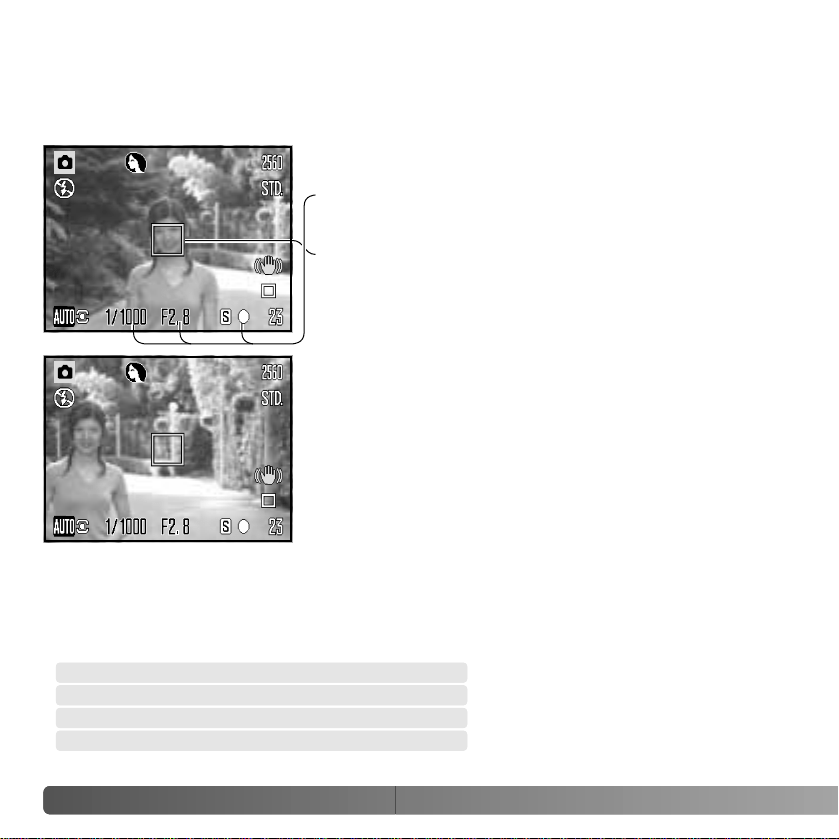

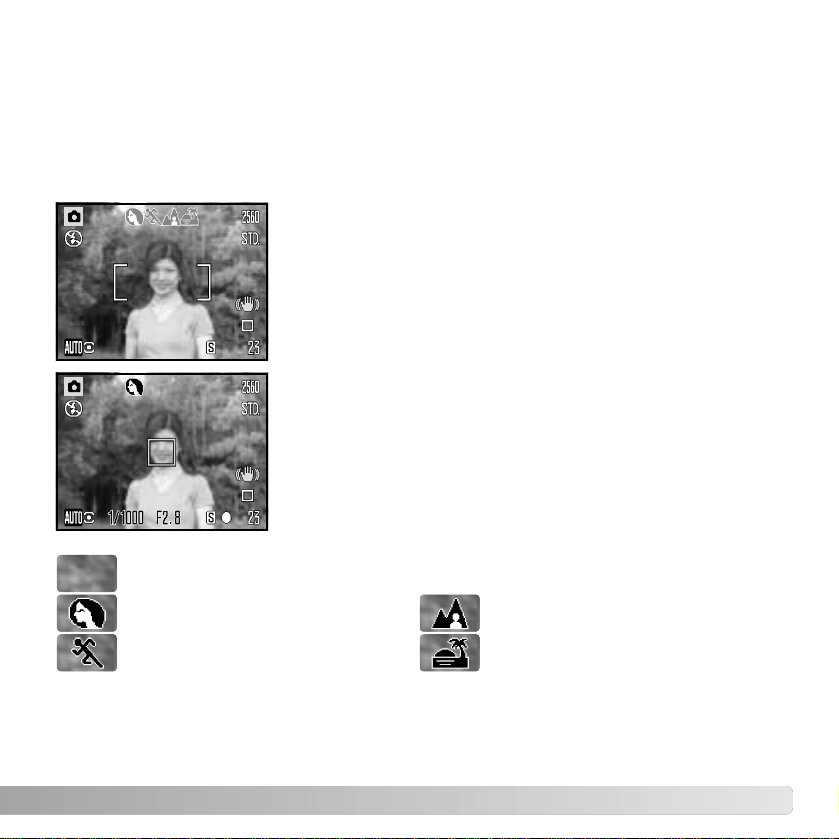

` Automatic Digital Subject Program Selection.................................................................23
Focus lock.......................................................................................................................24
Focus range....................................................................................................................24
Focus signals..................................................................................................................25
Special focusing situations .............................................................................................25

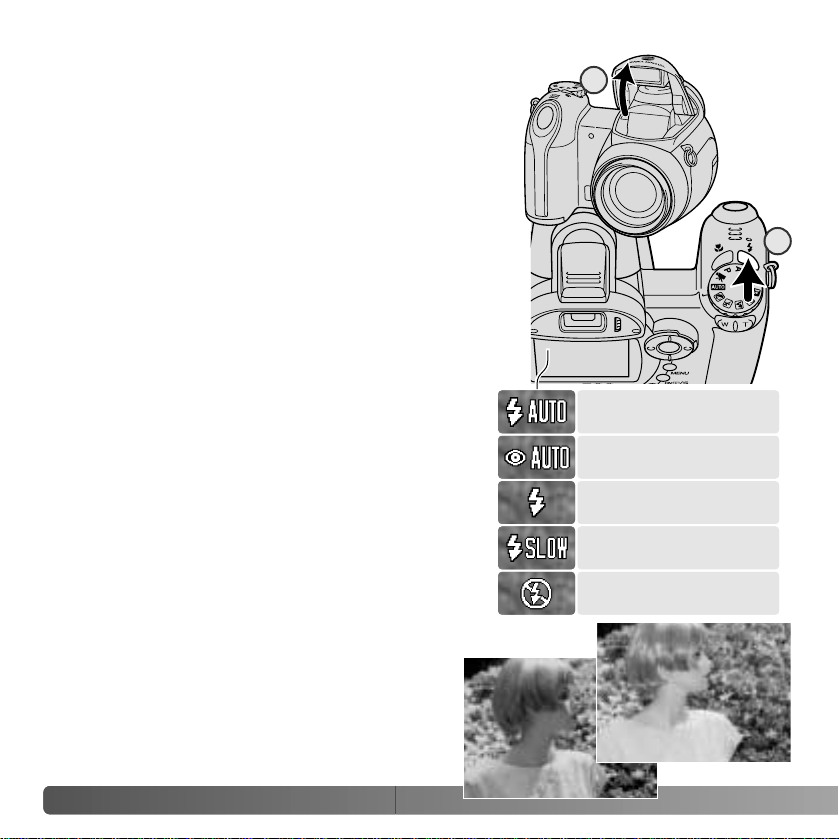

Flash modes...................................................................................................................26
Flash range - auto-recording mode................................................................................27

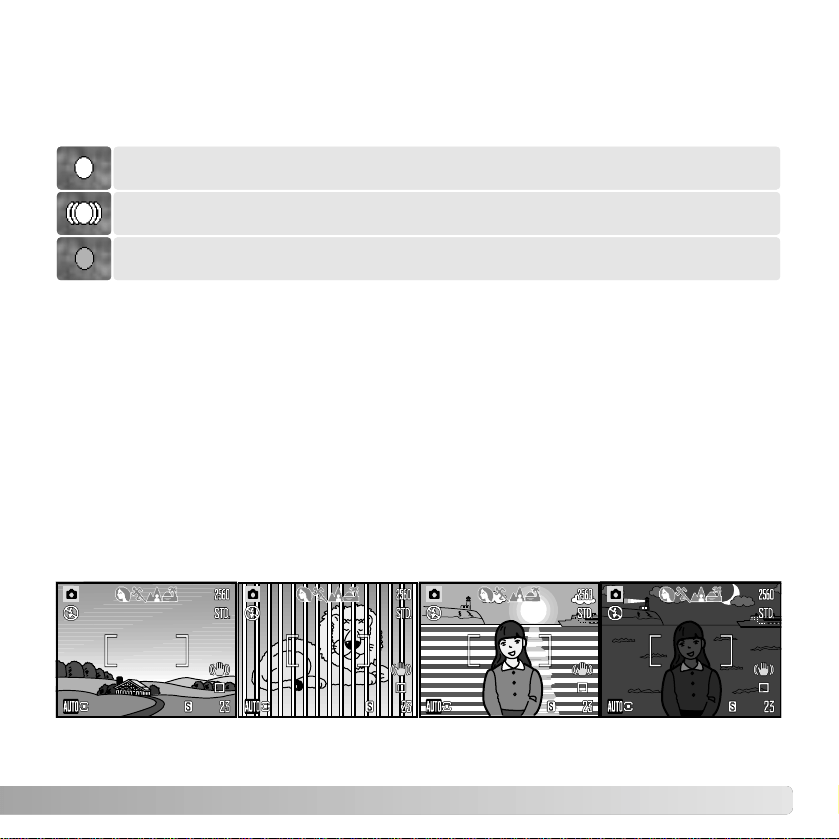

Camera-shake warning...................................................................................................27
i
+
button...........................................................................................................................28

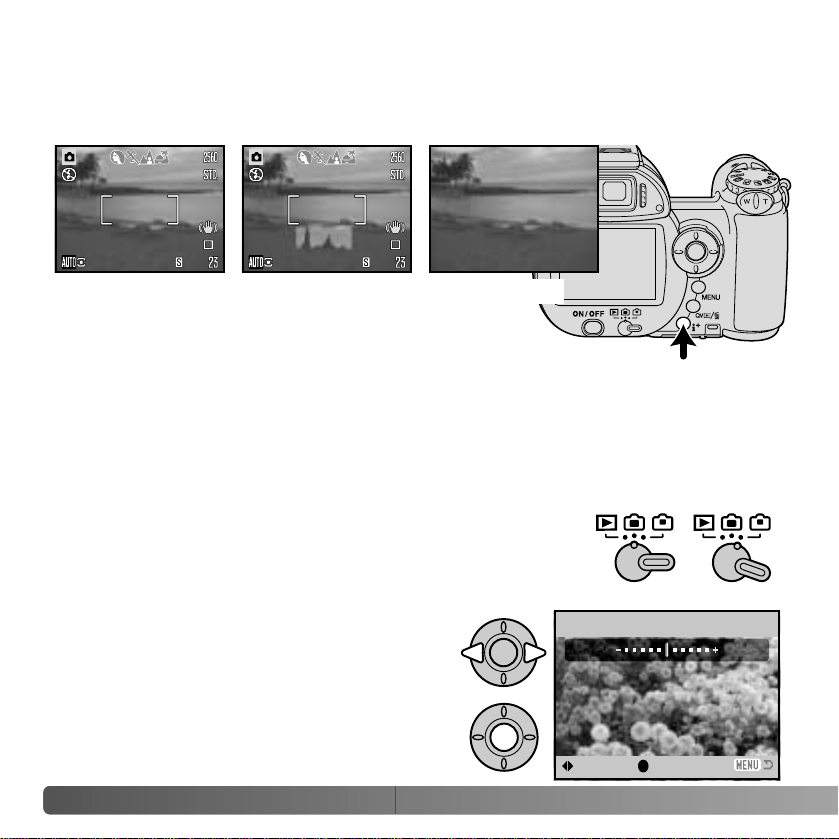

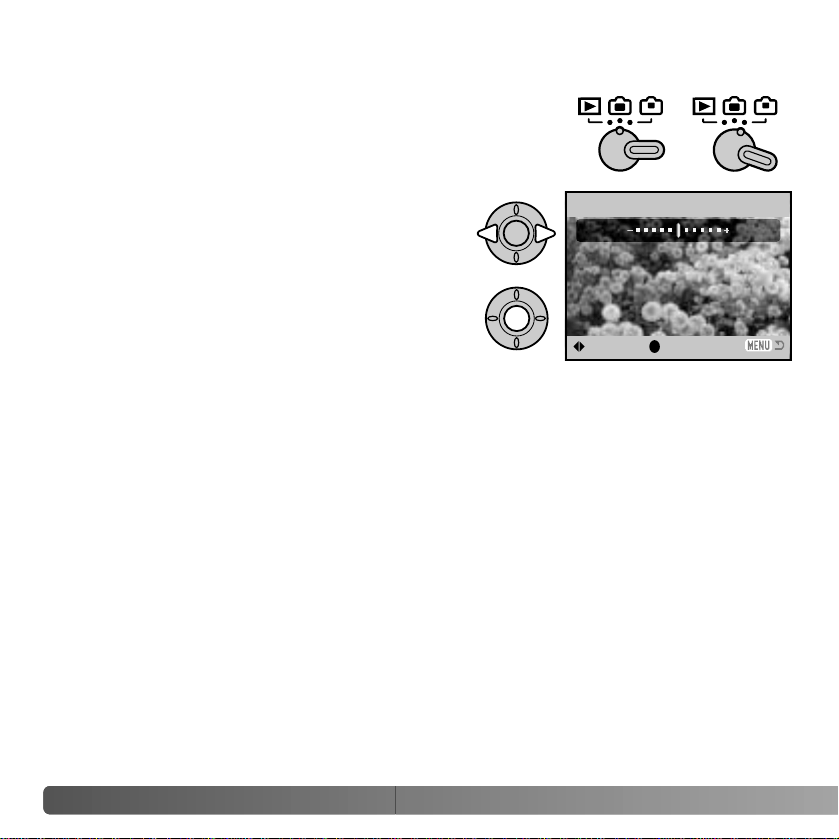

Adjusting monitor brightness ..........................................................................................28

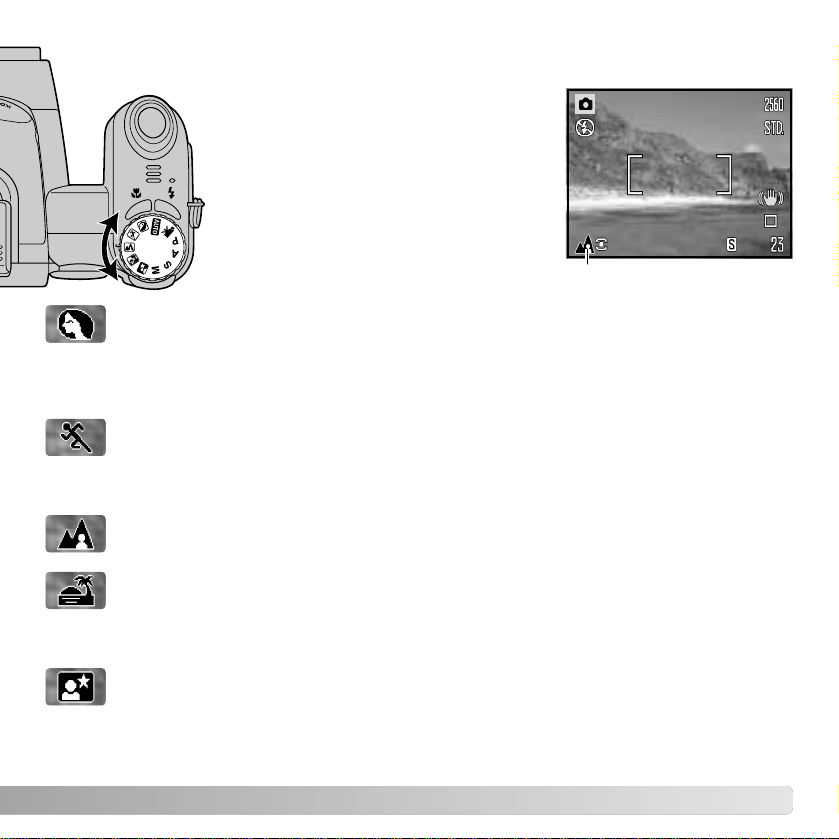

Digital subject programs.................................................................................................29
Basic playback............................................................................................................................30

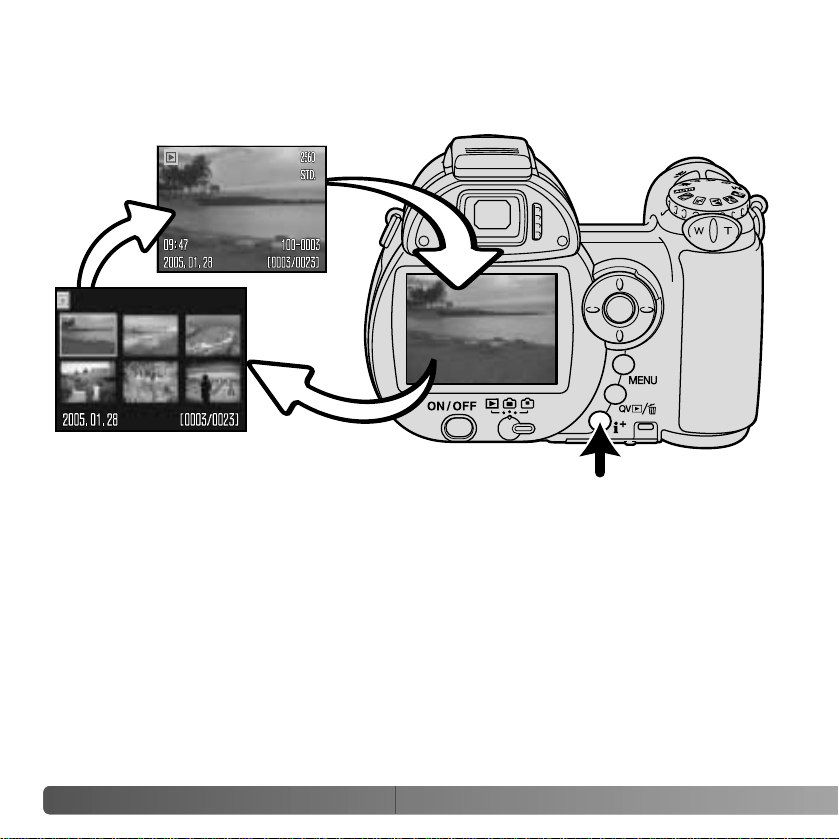

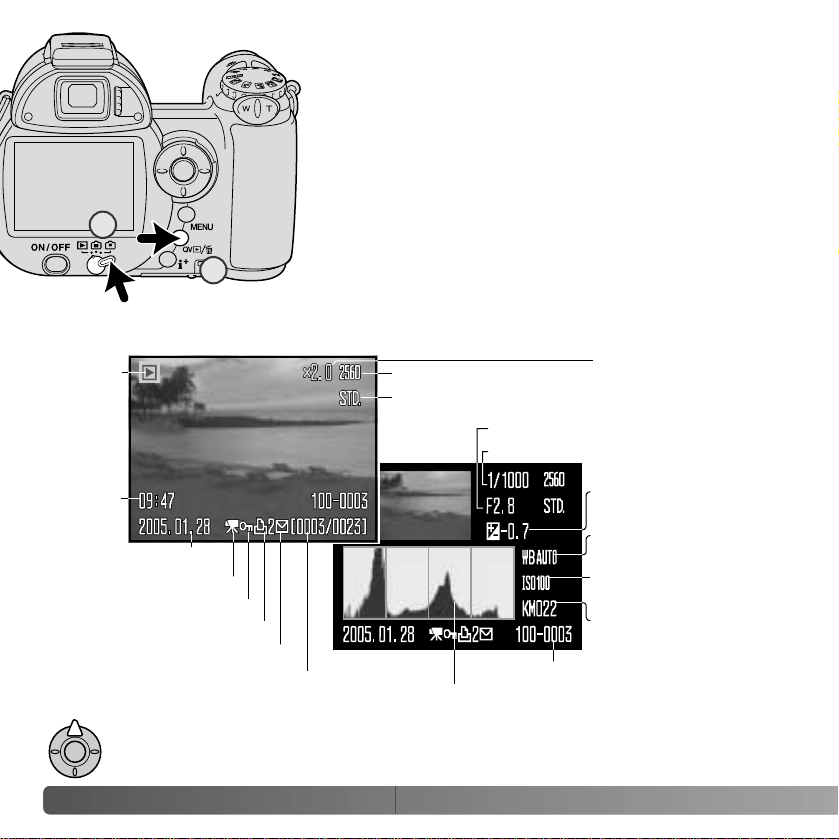

Single-frame playback and histogram display................................................................30
7
Viewing and rotating images ..........................................................................................31

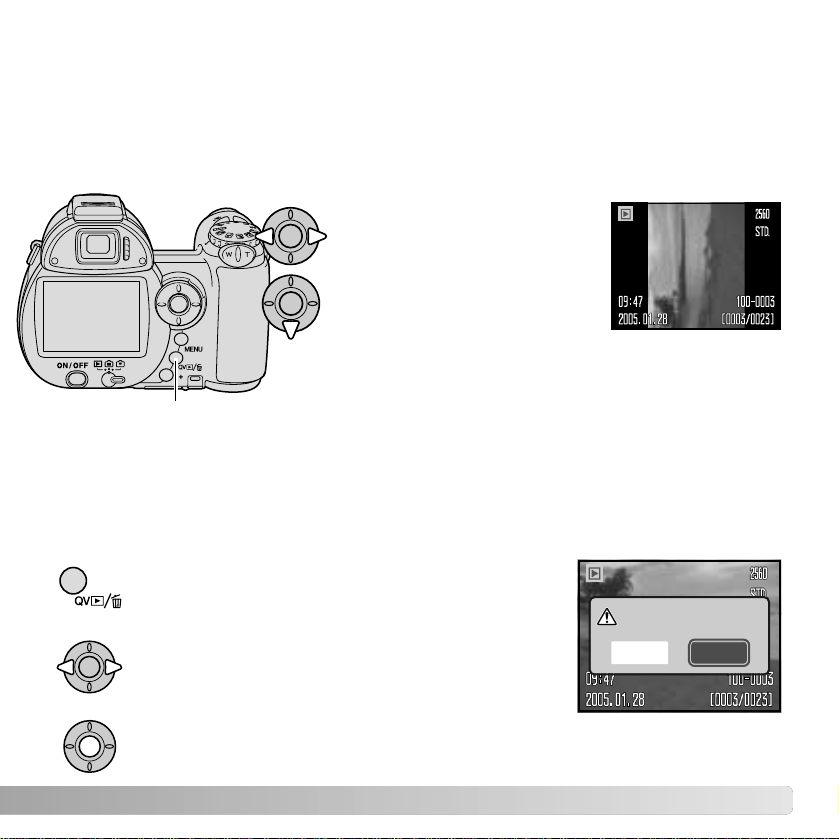

Deleting single images....................................................................................................31
i
+
button...........................................................................................................................32

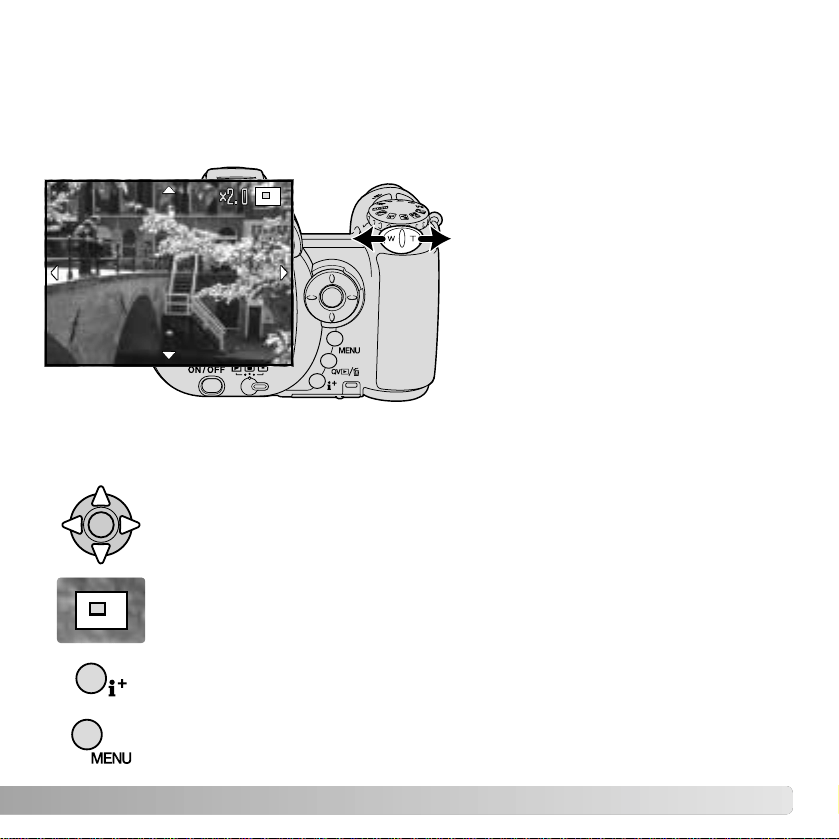

Enlarged playback..........................................................................................................33
Advanced recording....................................................................................................................34
Recording mode display.................................................................................................34
Macro ............................................................................................................................35
Program (P) exposure mode..........................................................................................36
Aperture priority (A) exposure mode ..............................................................................36

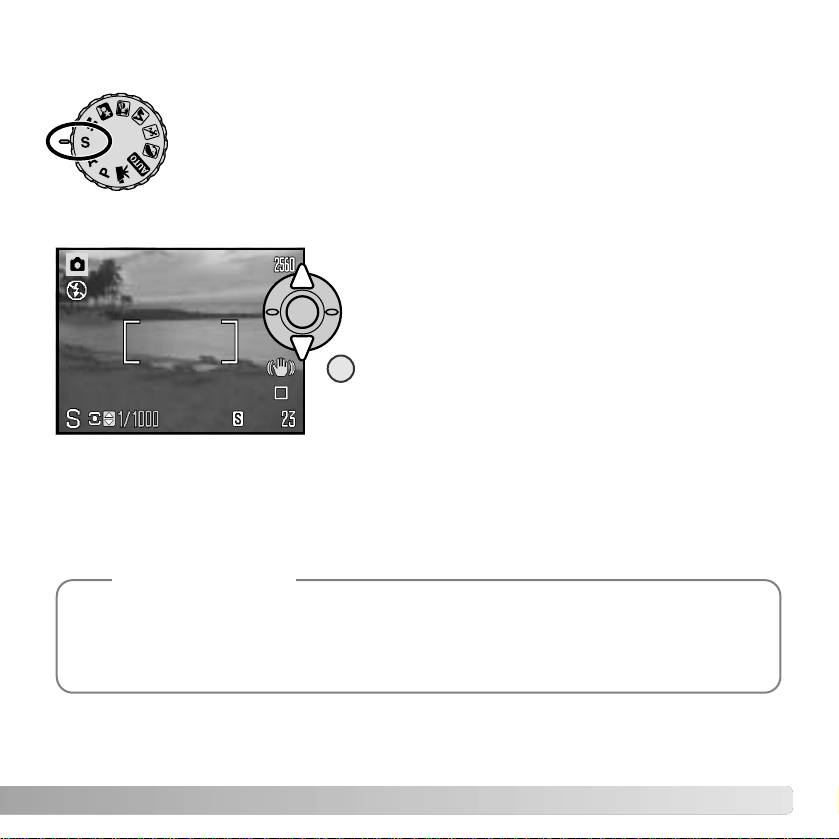

Shutter priority (S) exposure mode.................................................................................37

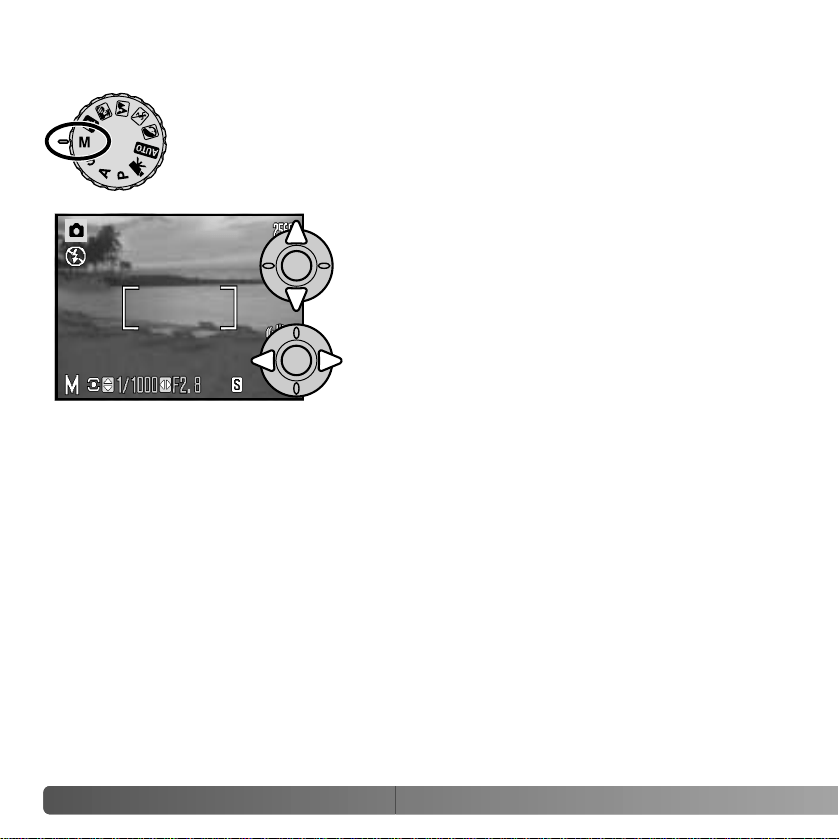

Manual (M) exposure mode............................................................................................38
Noise reduction...............................................................................................................39

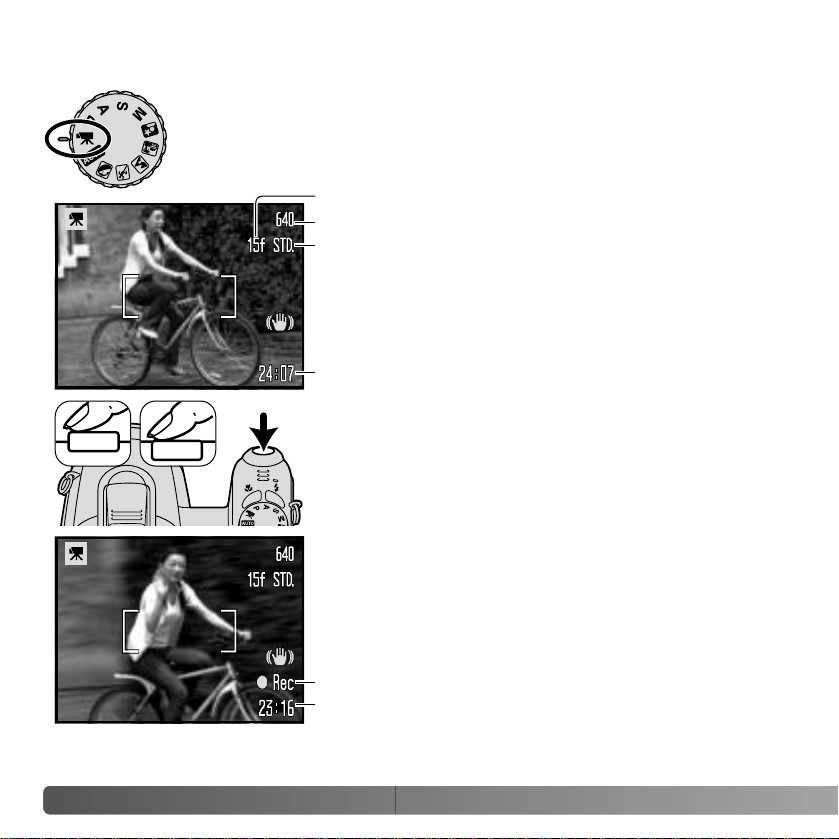

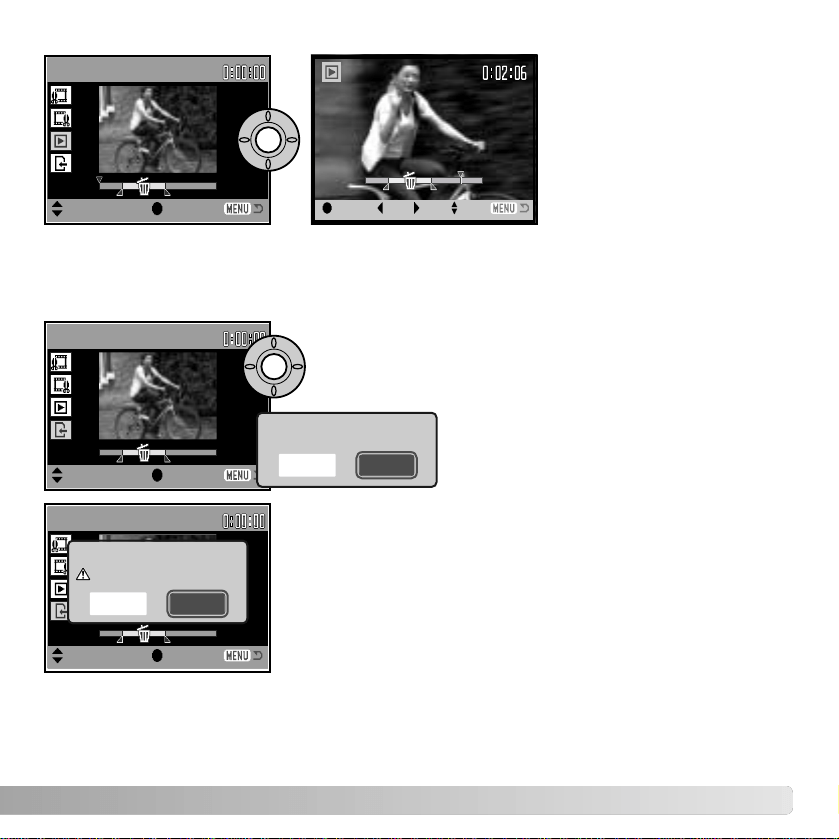

Movie recording..............................................................................................................40

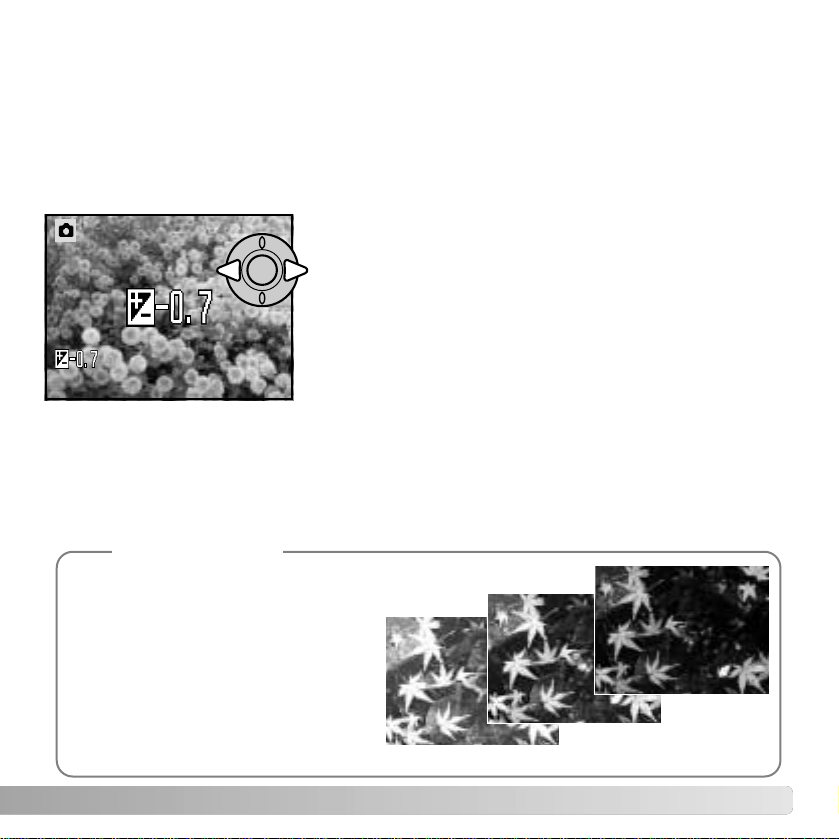

Exposure compensation.................................................................................................41
Focus area selection.......................................................................................................42
Attaching an accessory flash..........................................................................................43

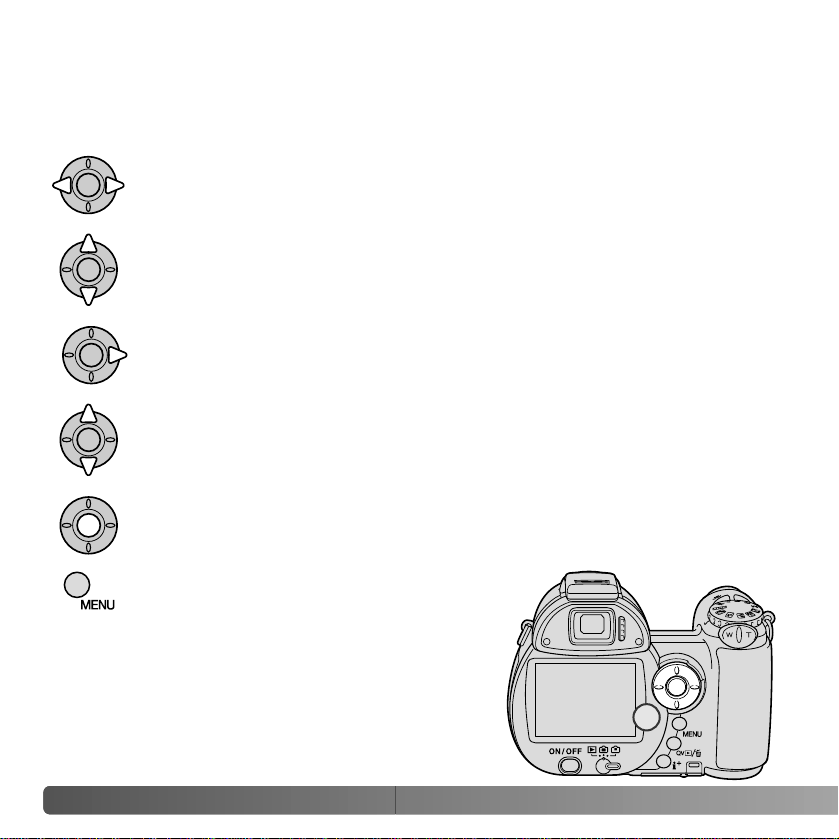

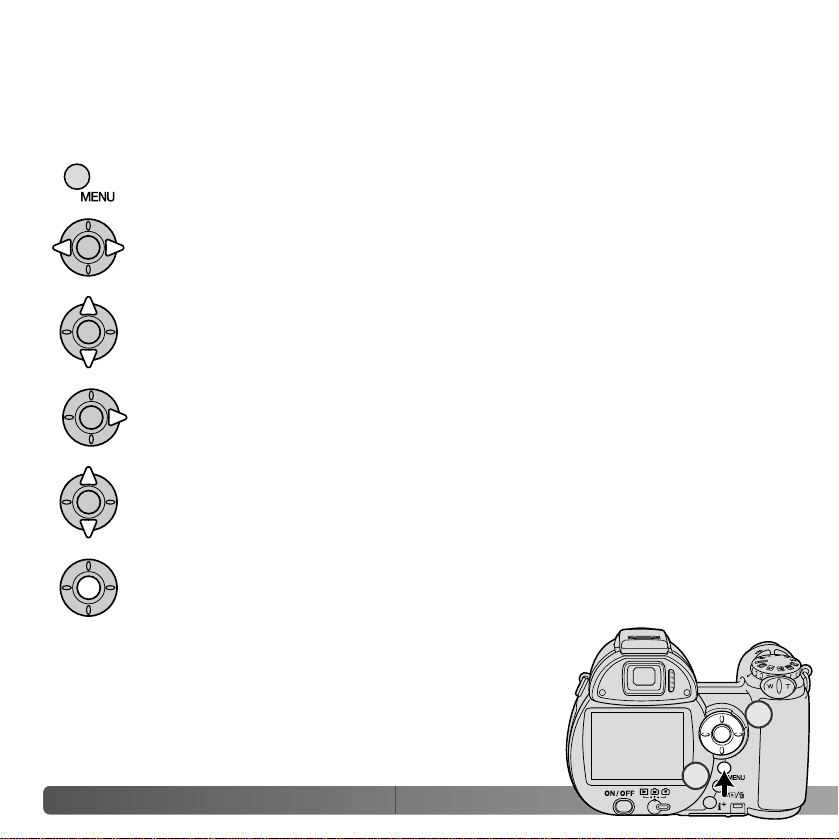

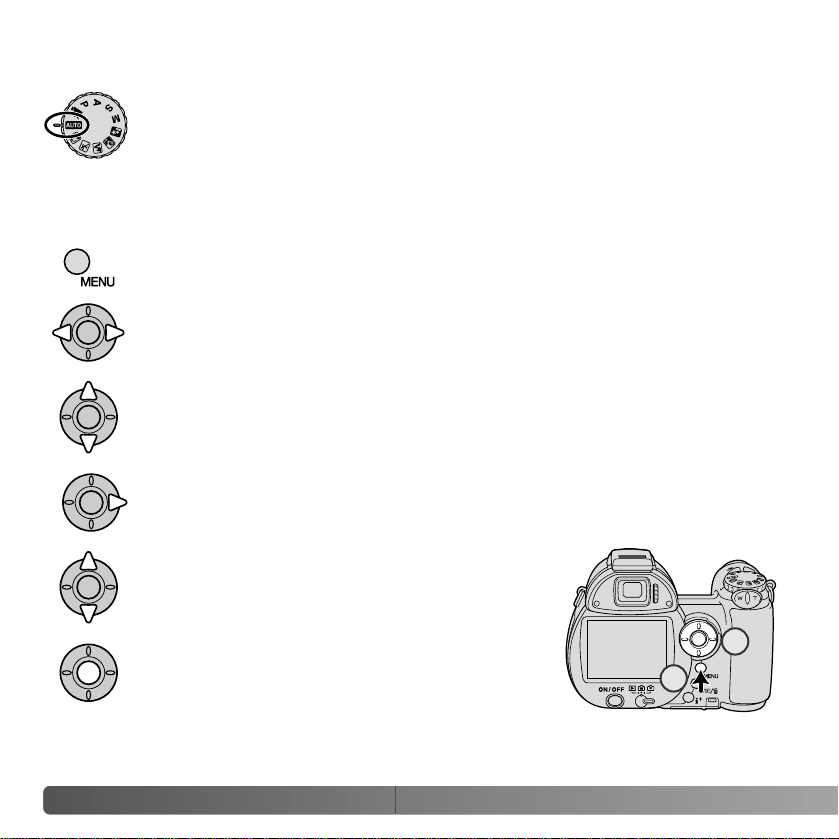

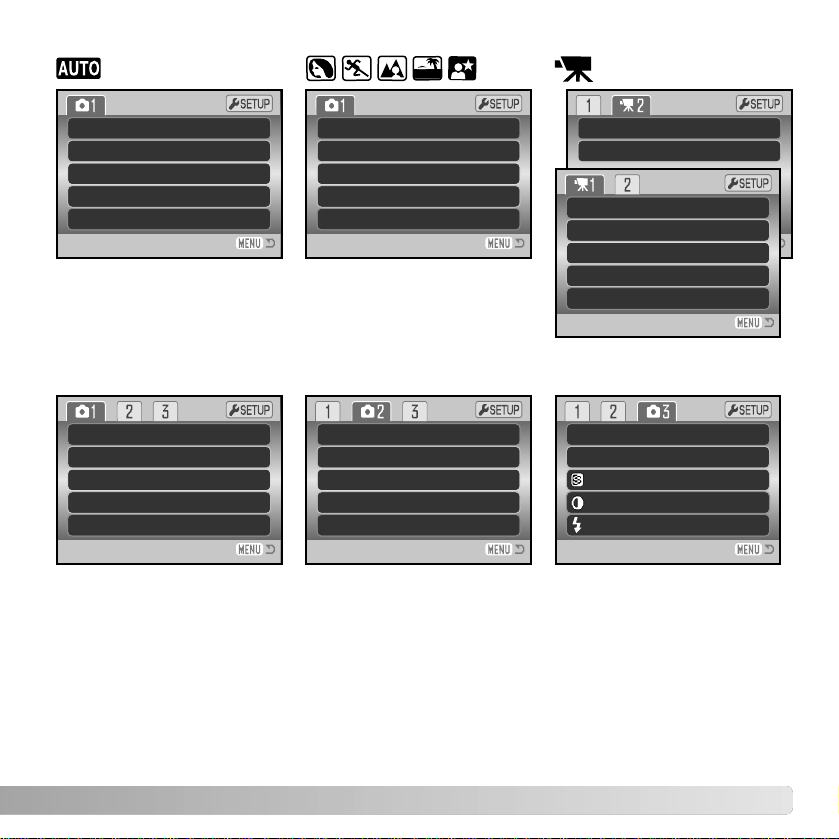

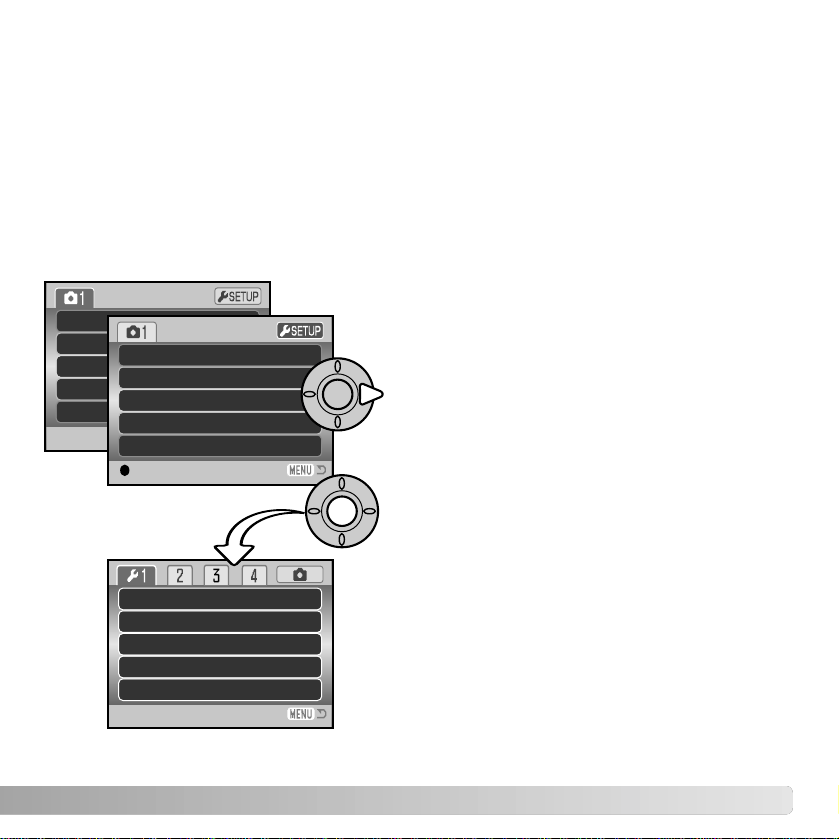

Navigating the recording menus.....................................................................................44

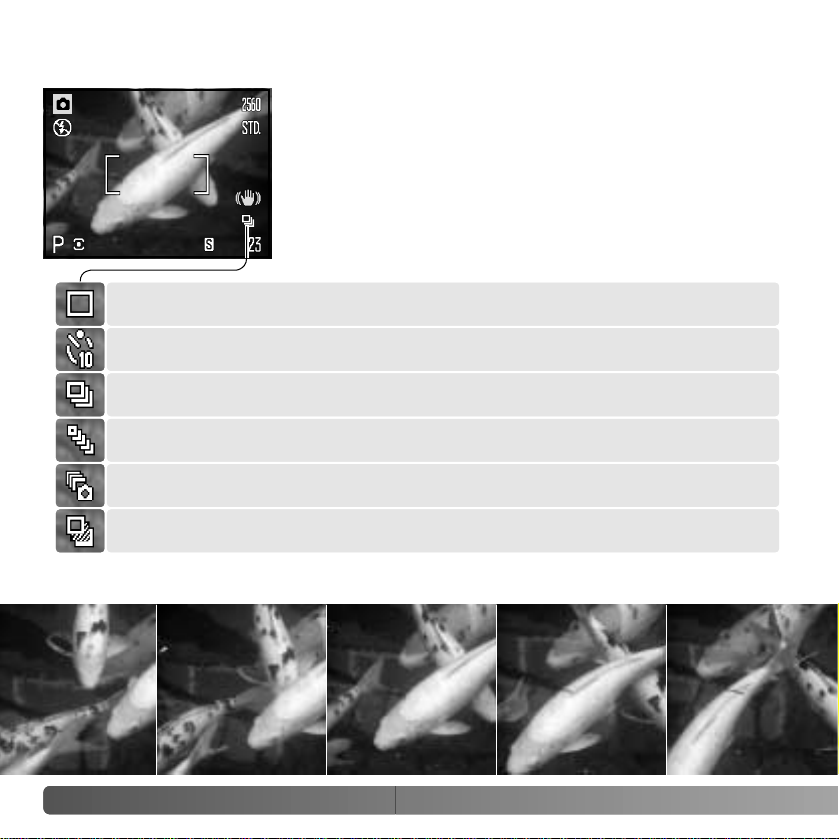

Drive modes....................................................................................................................46
Self-timer.........................................................................................................................47
Using the continuous-advance modes ...........................................................................48
Continuous-advance notes.............................................................................................49
Using the progressive-capture mods..............................................................................50

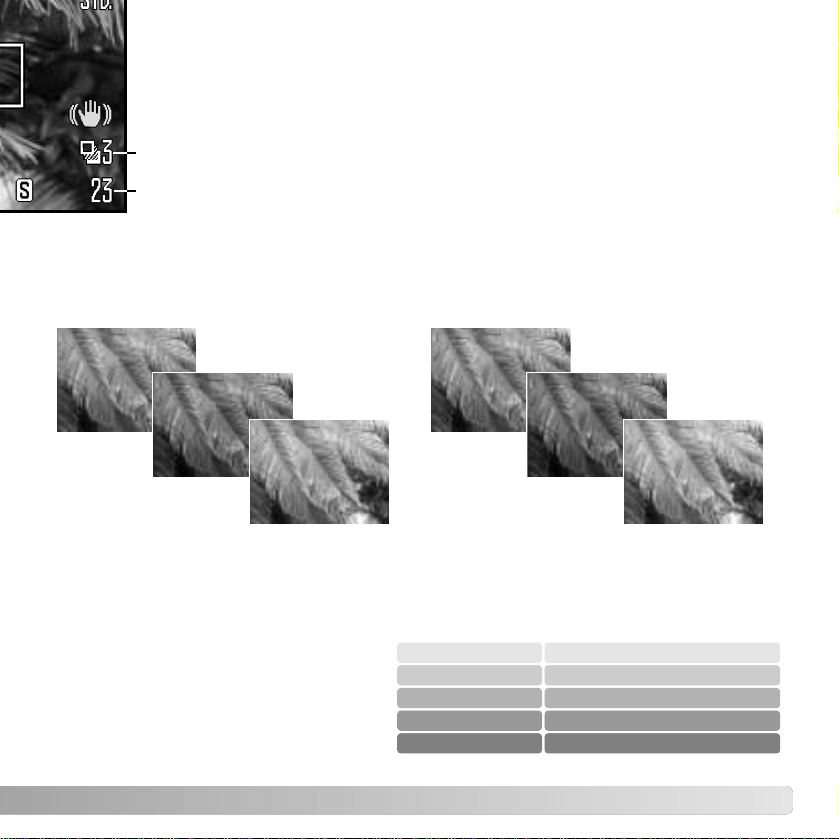

Bracketing.......................................................................................................................52
What is an Ev? ...............................................................................................................53

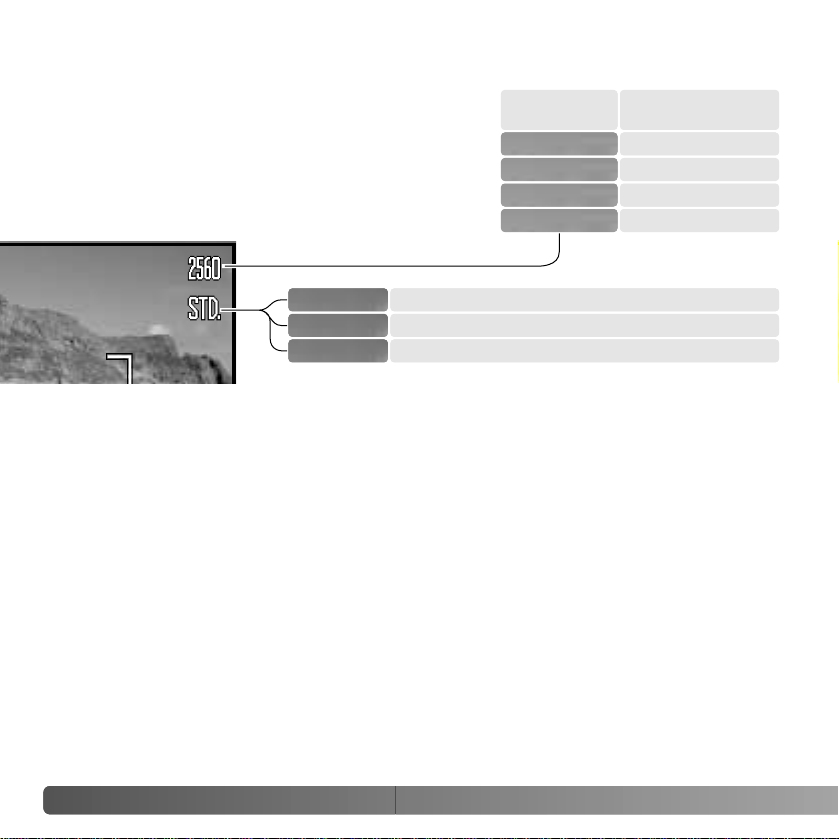

Image size and image quality.........................................................................................54
Auto DSP........................................................................................................................56

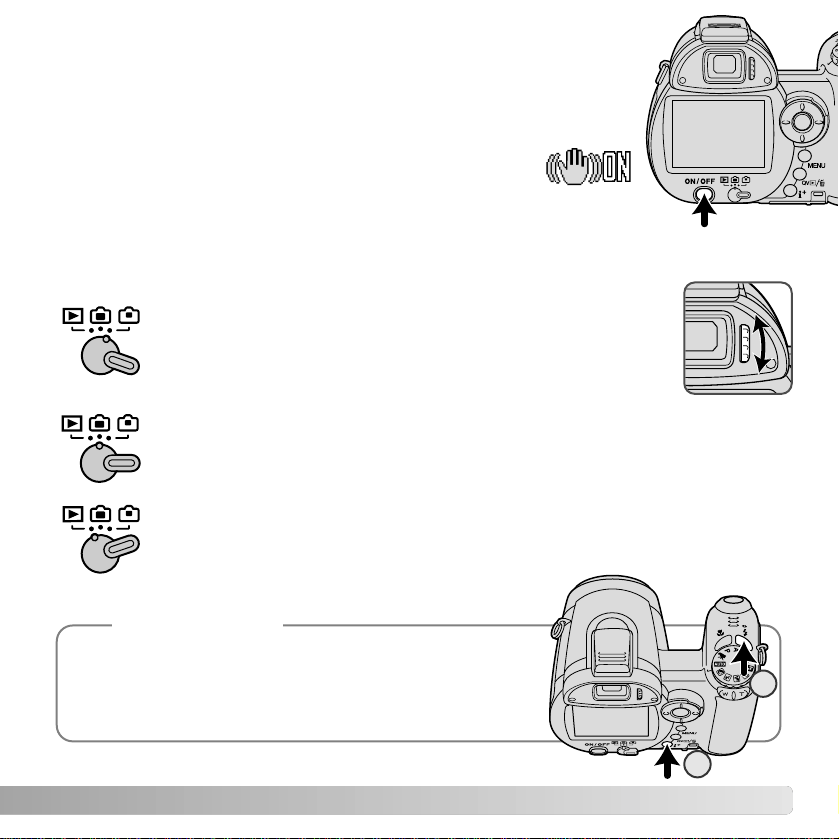

Anti-Shake system..........................................................................................................56
Focus modes..................................................................................................................58
Autofocus............................................................................................................58
Manual focus ......................................................................................................59
White balance.................................................................................................................60
Automatic white balance.....................................................................................60

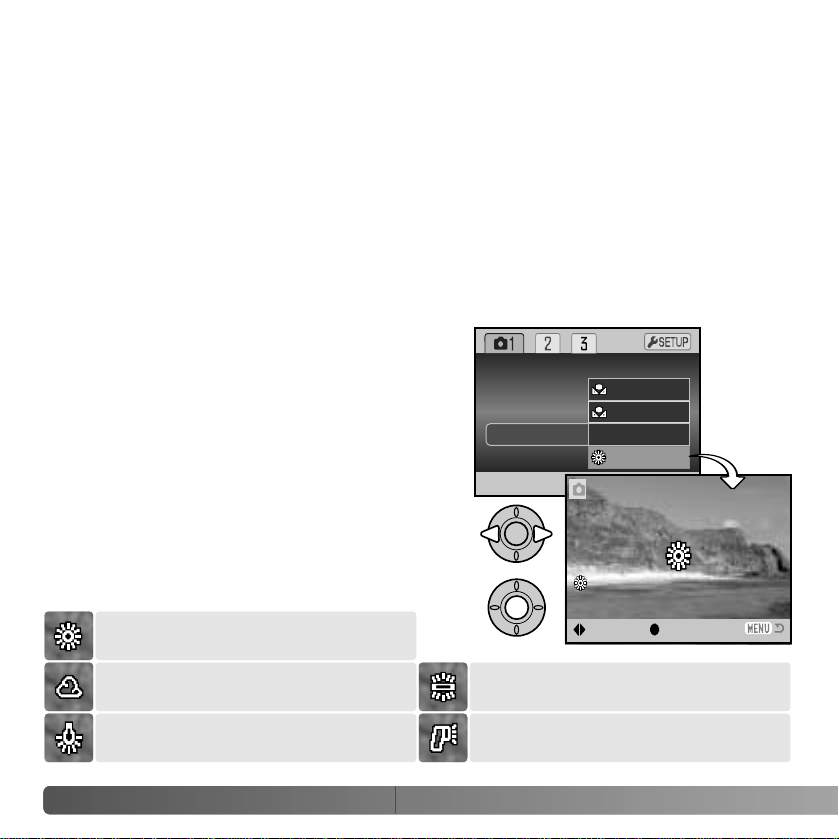

Preset white balance ..........................................................................................60

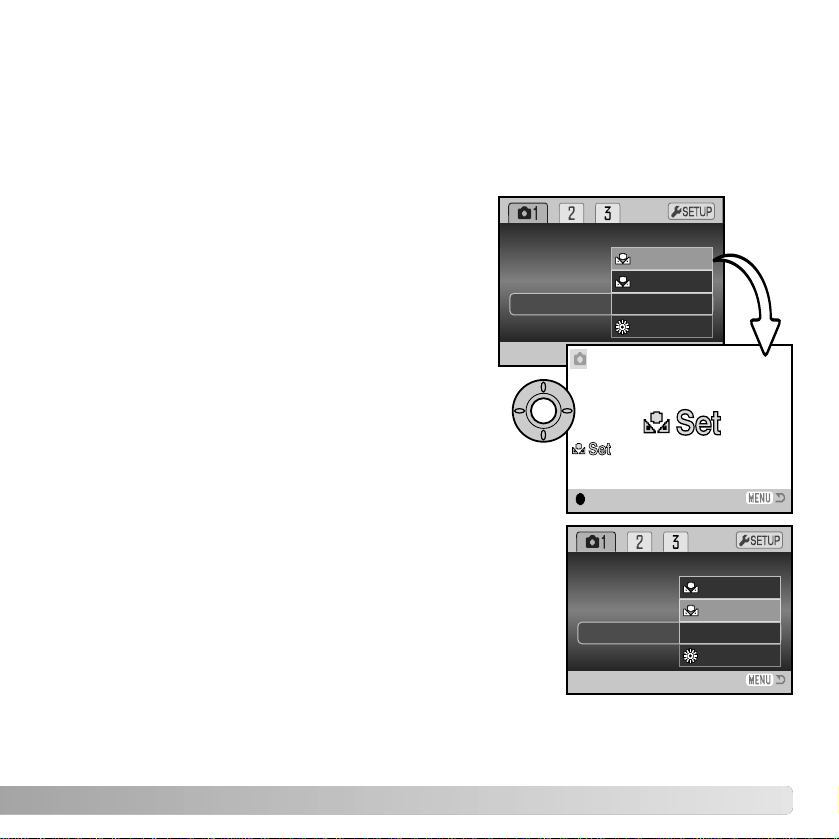

Custom white balance ........................................................................................61
Full-time AF.....................................................................................................................62
Flash mode.....................................................................................................................62
Flash compensation........................................................................................................62

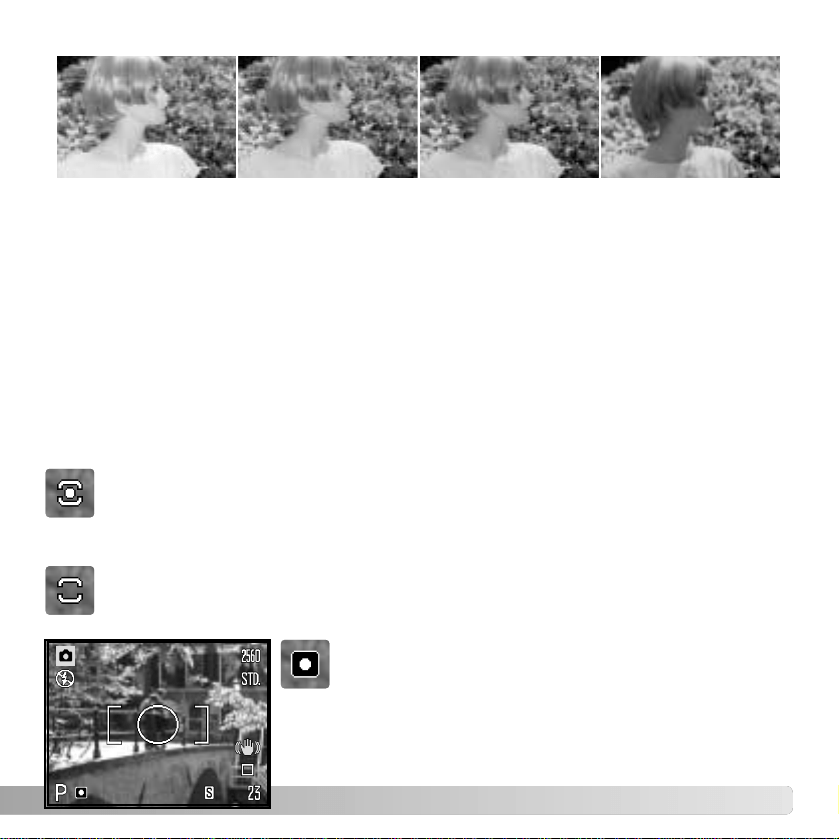

Metering modes..............................................................................................................63
Camera sensitivity - ISO.................................................................................................64
Flash range and camera sensitivity................................................................................64
8T
ABLE OF CONTENTS

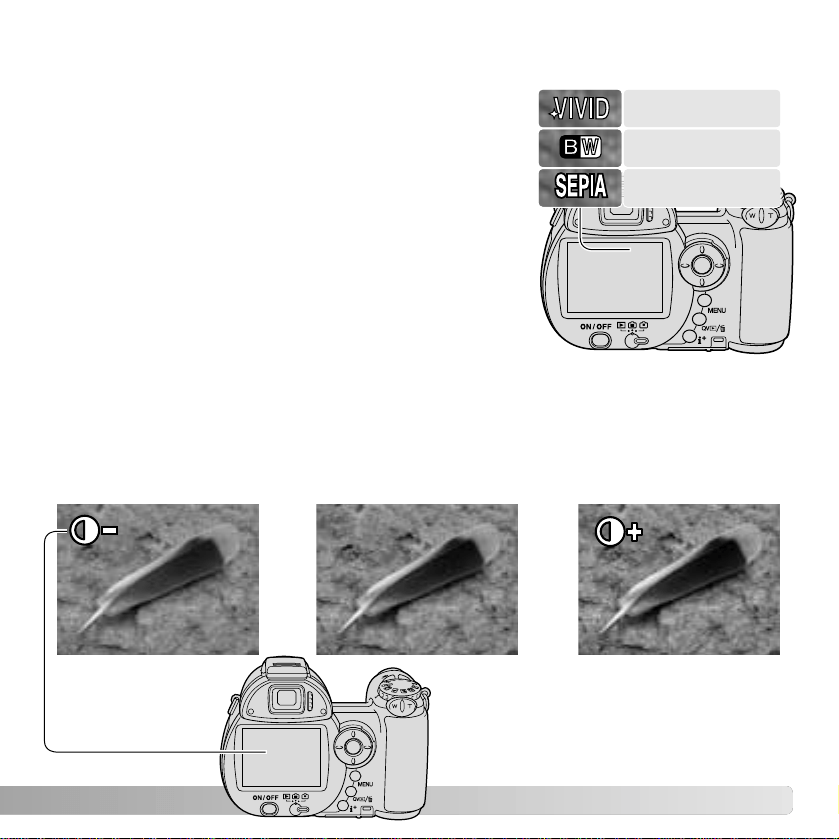

Color mode.....................................................................................................................65
Contrast ..........................................................................................................................65
Sharpness.......................................................................................................................66
Custom key function.......................................................................................................67
Quality (Movie)................................................................................................................68
Frame rate......................................................................................................................68
Movie file sizes ...............................................................................................................68
Movie mode....................................................................................................................69
A short guide to photography......................................................................................................70
Advanced playback.....................................................................................................................72

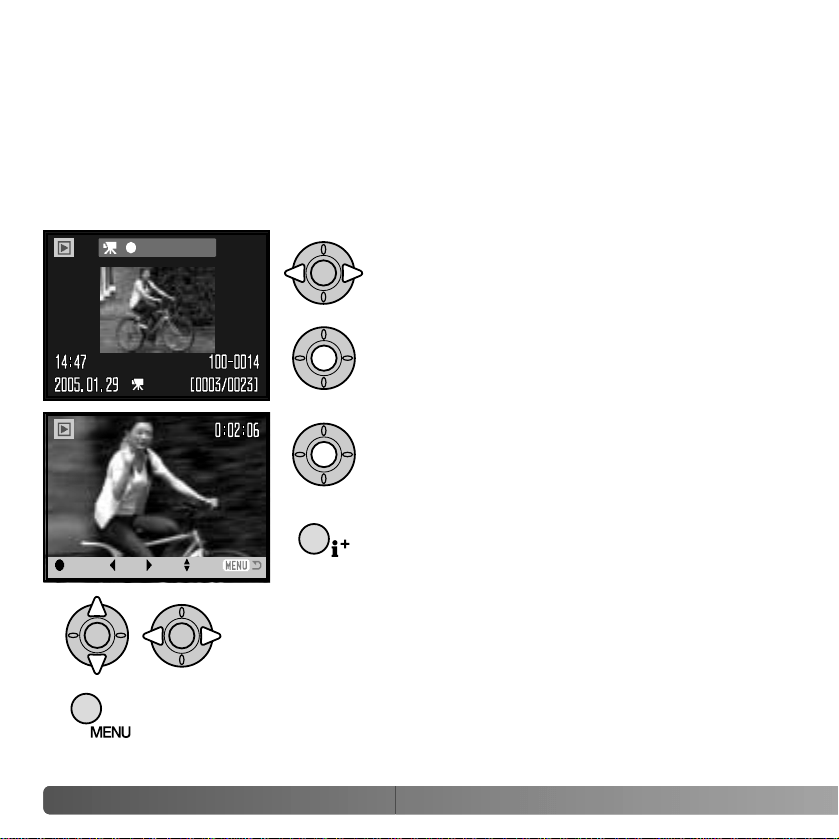

Playing back movies.......................................................................................................72
Capturing a movie frame................................................................................................73

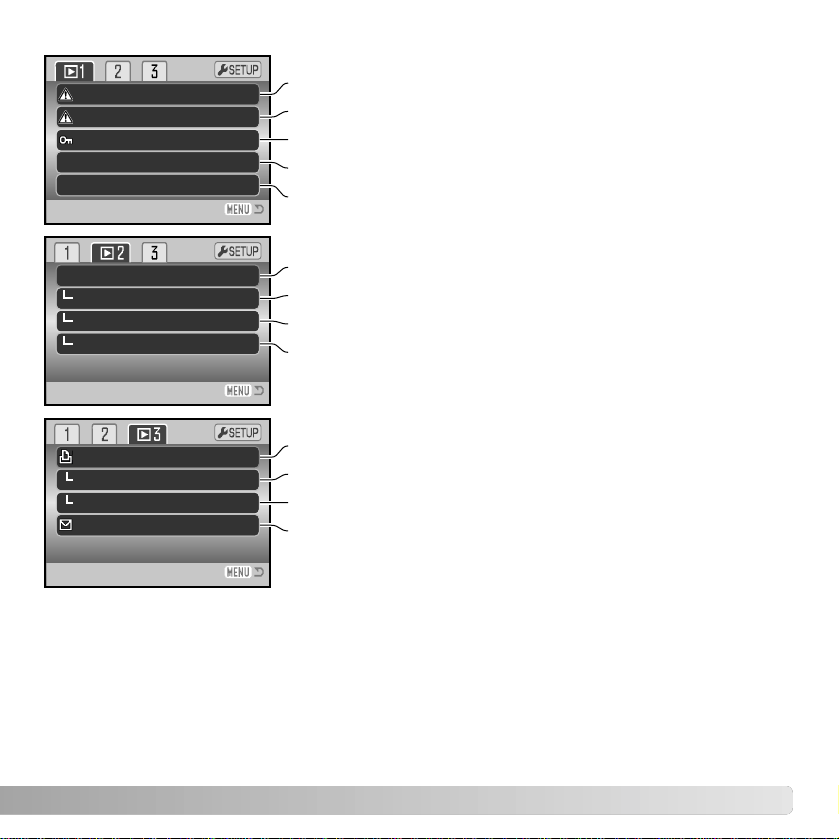

Navigating the playback menu .......................................................................................74
Frame-selection screen..................................................................................................76
Delete ............................................................................................................................77
Format ............................................................................................................................78
Lock ............................................................................................................................79
Movie editing...................................................................................................................80
Copy and E-mail Copy....................................................................................................82
Copy....................................................................................................................83
E-mail Copy........................................................................................................83
Slide Show......................................................................................................................84
About DPOF ...................................................................................................................86
DPOF setup....................................................................................................................86
Date print........................................................................................................................87
Index print.......................................................................................................................87
Viewing images on a television ......................................................................................88

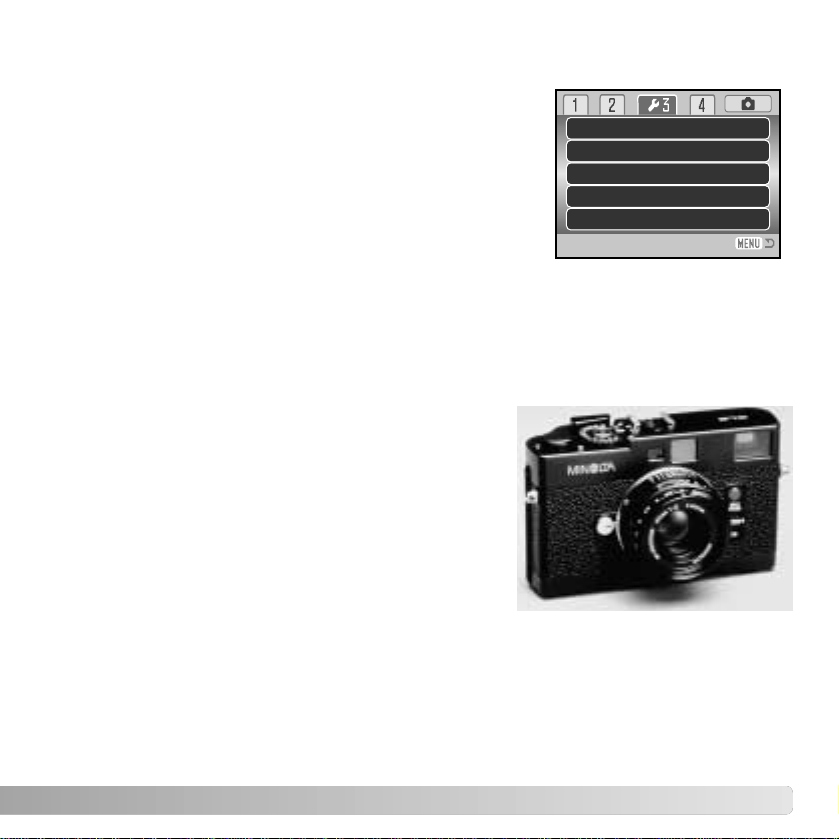

Setup menu ............................................................................................................................89
Opening the setup menu................................................................................................89
Navigating the setup menu.............................................................................................90
LCD monitor brightness..................................................................................................92
Auto power save.............................................................................................................92
Instant playback..............................................................................................................93
Lens accessory...............................................................................................................93
Language........................................................................................................................94
File number (#) memory.................................................................................................94
Folder name....................................................................................................................94
Date and time setup .......................................................................................................95

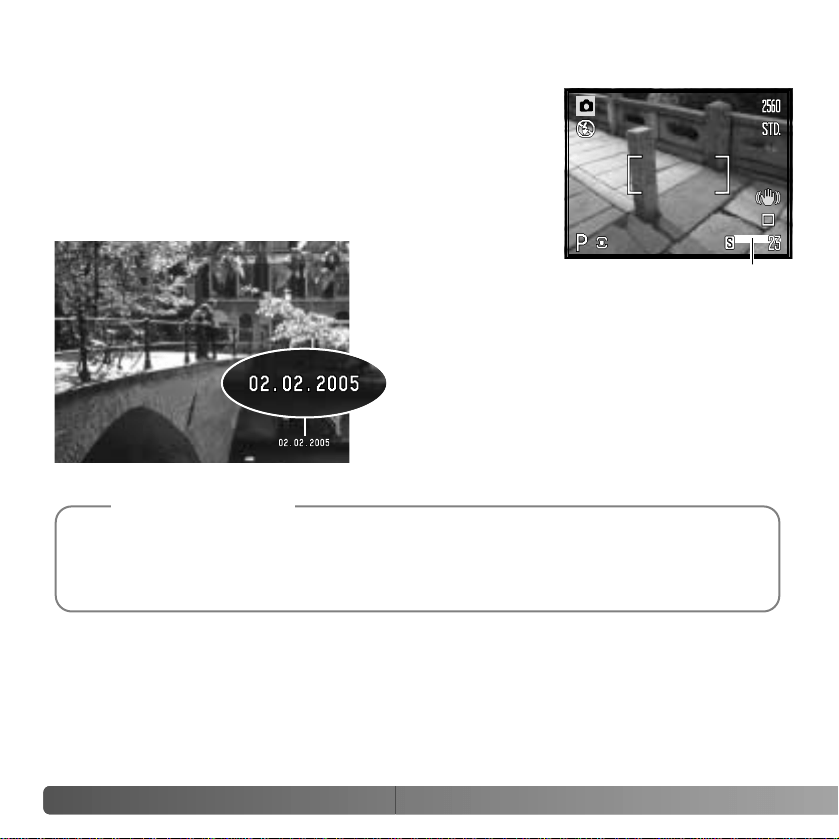

Date imprinting................................................................................................................96
Reset default...................................................................................................................97
9
Audio signals ..................................................................................................................99
Focus signal....................................................................................................................99
Shutter FX.......................................................................................................................99
Volume............................................................................................................................99
Video output..................................................................................................................100
Transfer mode...............................................................................................................100
Digital zoom..................................................................................................................100
Self-timer.......................................................................................................................101
Data-transfer mode...................................................................................................................102
System requirements....................................................................................................102

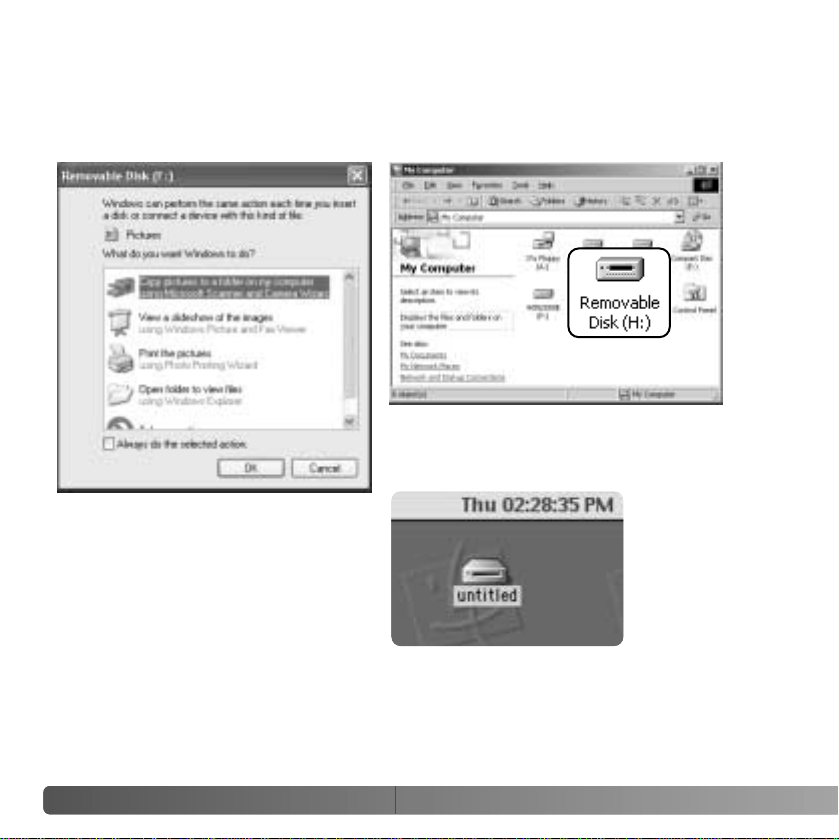

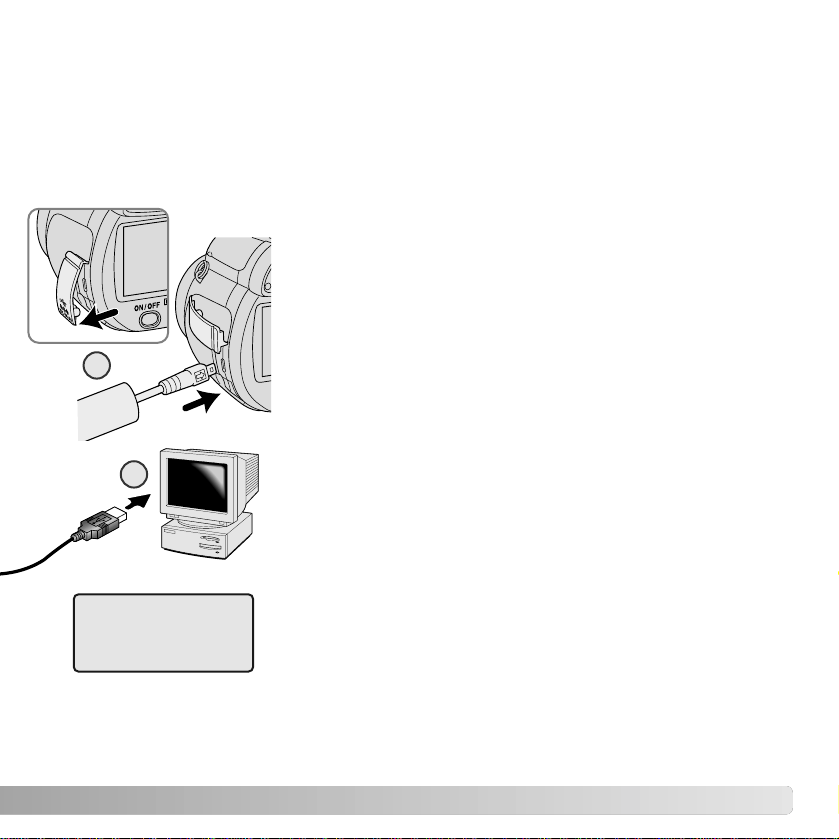

Connecting the camera to a computer.........................................................................103

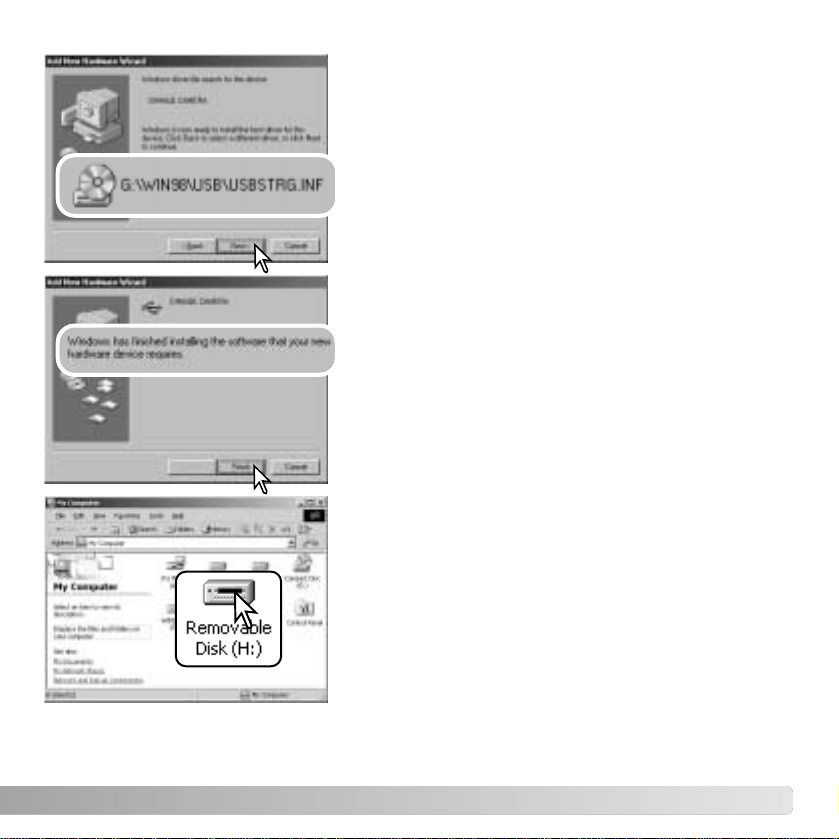

Connecting to Windows 98 and 98SE..........................................................................105
Automatic installation........................................................................................105
Manual installation............................................................................................106

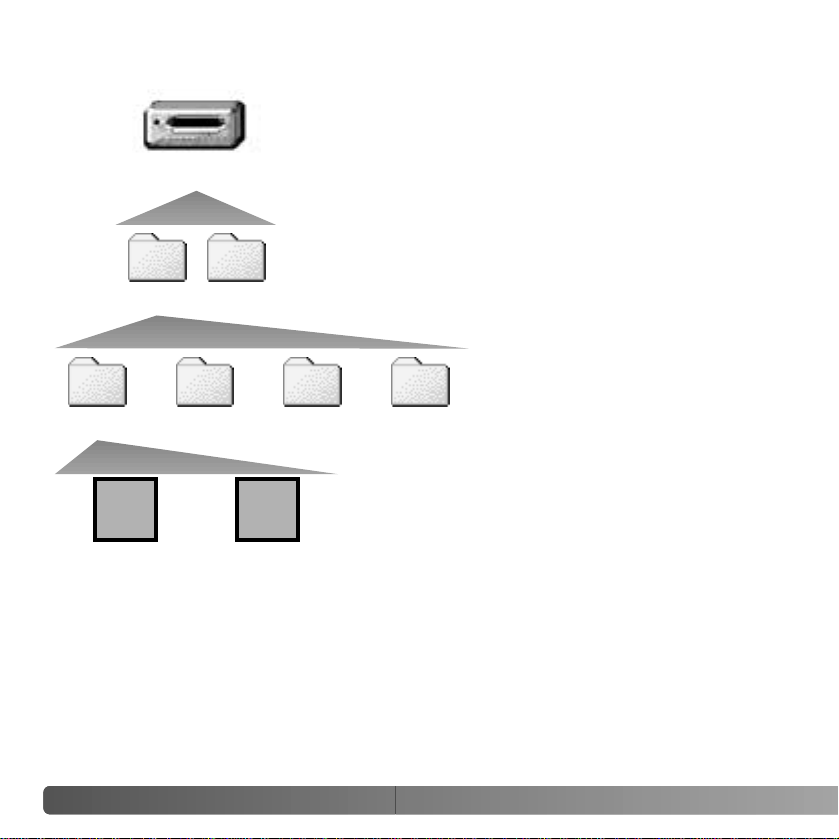

Memory card folder organization..................................................................................108
Auto power save - data-transfer mode.........................................................................109

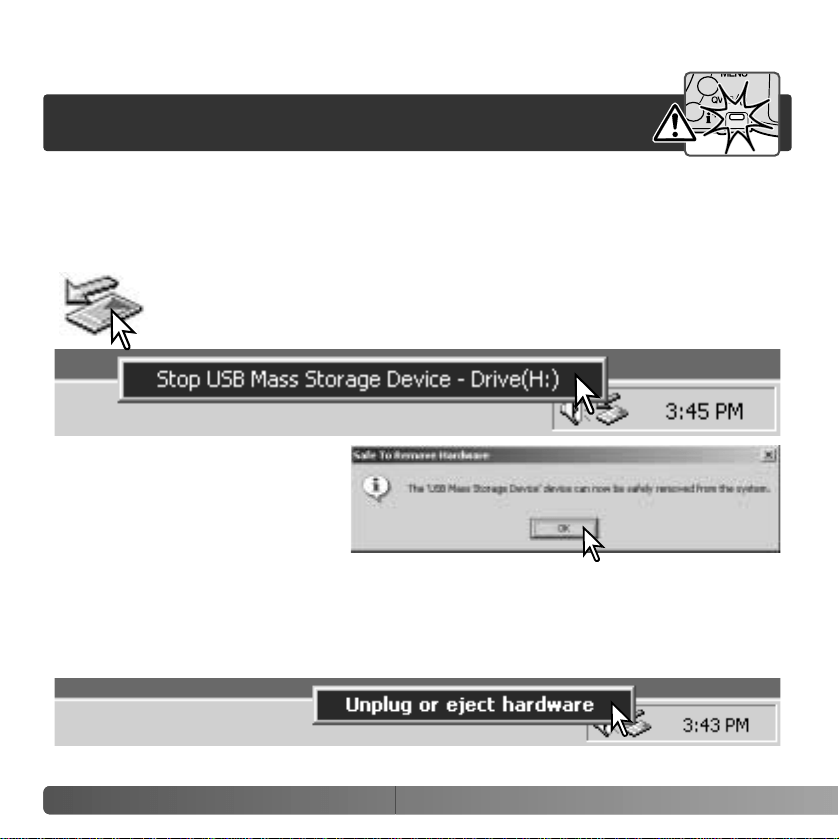

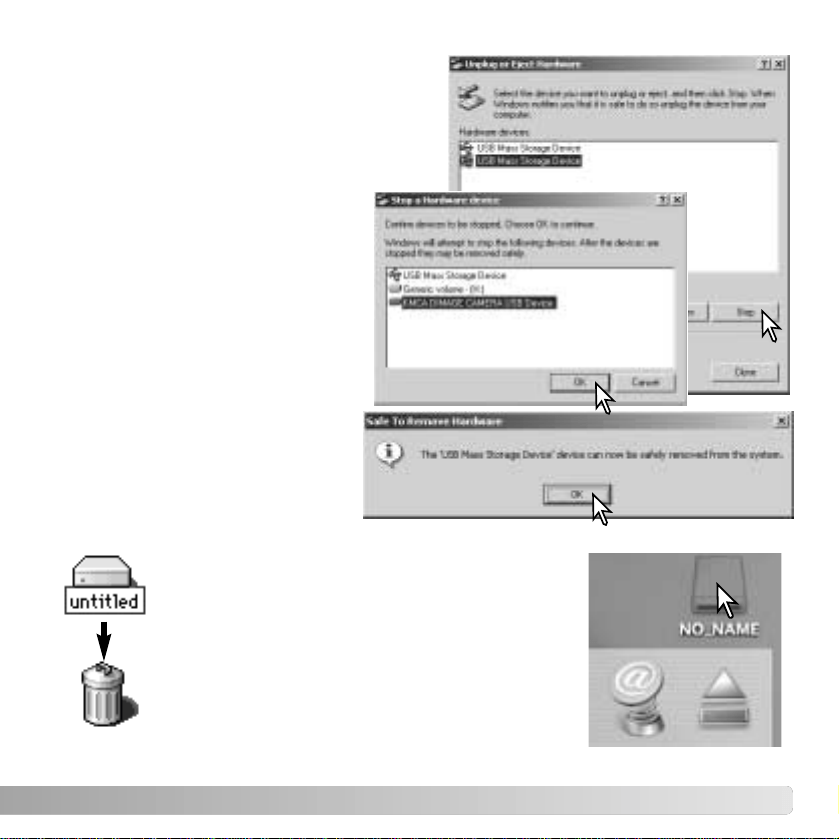

Disconnecting the camera ...........................................................................................110
Changing the memory card .........................................................................................112
Uninstalling the driver software - Windows...................................................................113

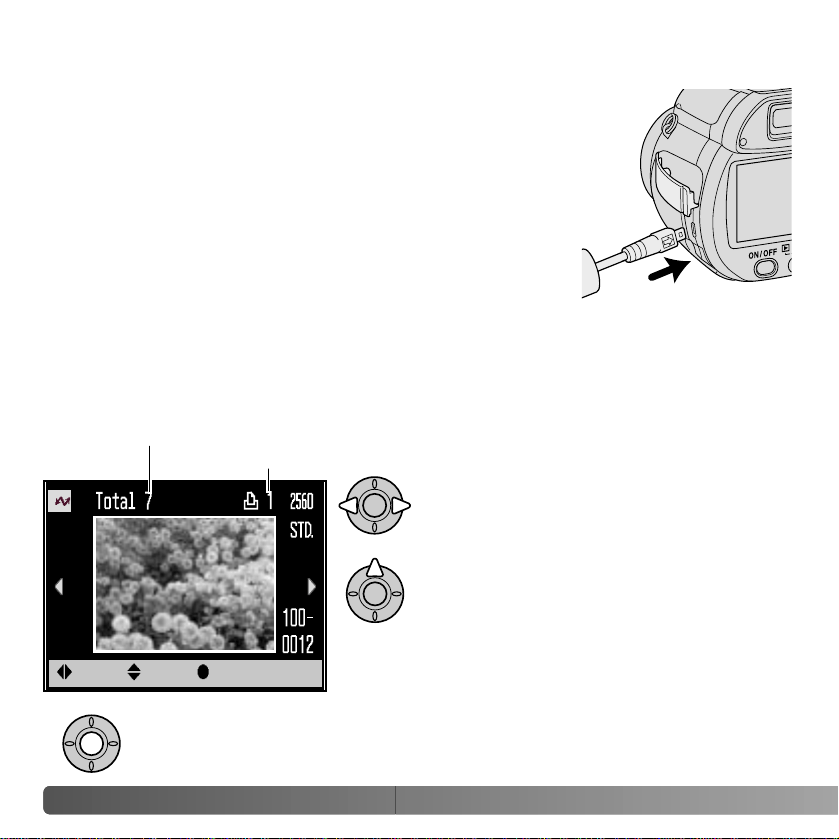

PictBridge......................................................................................................................114
Notes on printing errors ................................................................................................115
Navigating the PictBridge menu....................................................................................116
Appendix ..........................................................................................................................120
Troubleshooting ............................................................................................................120
Care and storage..........................................................................................................122
Camera care.....................................................................................................122
Storage .............................................................................................................122
Cleaning............................................................................................................122
LCD monitor care..............................................................................................123
Batteries............................................................................................................123
Operating temperatures and conditions ...........................................................123
Memory cards...................................................................................................124
Before important events and journeys..............................................................125
Copyright...........................................................................................................125
Questions and service......................................................................................125
QuickTime system requirements ..................................................................................126
Technical specifications................................................................................................128
Index ..........................................................................................................................130
10 N
AMES OF PARTS
* This camera is a sophisticated optical instrument. Care should be taken to keep these
surfaces clean. Please read the care and storage instructions in the back of this manual
(p. 122).
NAMES OF PARTS
Shutter-release button
Lens*
Self-timer lamp (p. 47)
Flash (p. 26)
Strap eyelet (p. 12)
The battery-chamber door (p. 13) and tripod socket are located on the bottom of the
body.
Microphone
USB / AV / DC
terminal cover
Speaker
11
Viewfinder* (p. 17)
LCD monitor*
Access lamp

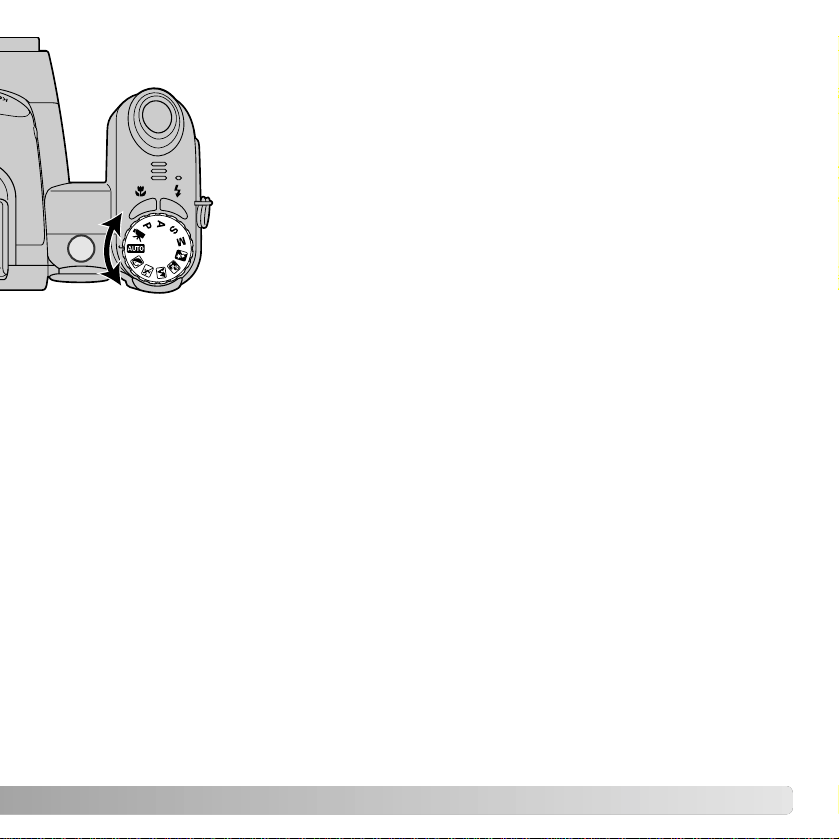

Exposure-mode dial (p. 21, 29, 36 - 40)
Accessory shoe (p. 43)
Controller
Zoom lever
(p. 20)
Menu button
Quick View / Delete button
(p. 30, 31)
Information button (p. 28, 32)
Mode switch
Main switch
Flash-mode button (p. 26)
Macro button (p. 35)
Diopter-adjustment
dial (p. 17)
12 G
ETTING UP AND RUNNING
GETTING UP AND RUNNING
Always keep the strap around your neck in the event that the camera is accidentally
dropped. An optional leather neck strap, NS-DG1000, is also available from your Konica
Minolta dealer. Availability varies with region.
ATTACHING THE STRAP AND LENS CAP
Using your thumb and index finger, pinch the outside
tabs of the lens cap to remove or attach. When the
camera is not in use, always replace the lens cap.
Pass one of the small loops of the lens-cap strap through the
eyelet on the lens cap (1). Pass the other loop through the first
loop and tighten (2).
Pass the end of the neck strap through the lens-cap strap and strap
eyelet on the camera body (3).
Thread the strap through the inside of the
buckle as shown (4). Repeat with the other
end of the strap.
2
3
1
4
13
INSERTING BATTERIES
Insert the batteries as indicated on the diagram on the inside of
the battery-chamber door. Confirm the positive and negative
battery terminals are oriented correctly.
To open the battery-chamber door, slide the door toward the side
of the camera (1) to release the safety catch. Lift the door to open
(2).
This digital camera uses four AA-size alkaline or Ni-MH batteries. Do not use other types
of AA batteries. The camera should be off when replacing batteries.
Close the battery-chamber door and slide it toward the body (3) to
engage the safety catch.
After installing the batteries, the set-time/date message may
appear on the monitor. The clock and calendar are set in section
2 of the setup menu (p. 18).
1
2
3
Camera notes
After initially inserting a charged battery, do not remove it from the camera for twenty-four
hours; the camera can be off during this period. The lithium-ion battery is used to charge an
internal battery, which protects settings when the camera is turned off.
14 G
ETTING UP AND RUNNING
BATTERY CONDITION INDICATOR
Full-battery indicator - the battery is fully charged. This indicator is
displayed for three seconds on the monitor when the camera is turned on.
Low-battery indicator - battery power is low. The battery should be
replaced as soon as possible.
This camera is equipped with an automatic battery-condition indicator. When the camera
is on, the battery-condition indicator appears on the monitor. If the monitor is blank, the
batteries may be exhausted or installed incorrectly.
AUTO POWER SAVE
To conserve battery power, the camera turns off displays and unnecessary functions if an
operation is not made within a minute. To restore power, press the shutter-release button
partway down, or press the main switch or controller. The length of the auto-power-save
period can be changed in section 1 of the setup menu (p. 90).
If an operation is not made within approximately 30 minutes, the camera turns off
automatically. Press the main switch to turn on the camera.
Low-battery warning - battery power is very low. The monitor indicator
is red. The battery should be replaced as soon as possible. This warning
automatically appears and remains on the monitor until the battery is
changed. If power falls below this level, the battery-exhausted message
will be displayed just before the camera shuts down. If the low-battery
warning is displayed, UHS continuous advance, Progressive Capture
drive mode, movie recording, and Anti-Shake system cannot be used.
15
CONNECTING THE OPTIONAL AC ADAPTER
The AC Adapter AC-11 allows the camera to be
powered from an electrical household outlet.
The AC Adapter is recommended when the
camera is interfaced with a computer or during
periods of heavy use.
Open the terminal cover (1) and insert the mini
plug of the AC adapter into the DC terminal (2).
Insert the AC adapter plug into an electrical
outlet.
Always turn off the camera before changing between power supplies.
1
2
16 G
ETTING UP AND RUNNING
CHANGING THE MEMORY CARD
An SD Memory Card or MultiMediaCard must be inserted for the camera to operate. If a
card has not been inserted, a no-card warning is displayed on the monitor. For more
about memory cards see page 124.
Always turn off the camera and confirm the access lamp is not lit
before removing a memory card; damage and data loss may result.
1.Open the card-slot door on the bottom of the camera.
2.Insert the memory card all the way into the card slot and release; the card should catch
in the slot. Insert the card so the face is toward the back of the camera. Always push
the card in straight. Never force the card. If the card does not fit, check that it is oriented
correctly.
3.To eject a memory card, press the card into the slot and release. The card can then be
pulled out. Take care when removing the card as it becomes hot with use.
4.Close the battery-chamber door.
A memory card used in another camera may have to be formatted before being used. If
the unable-to-use-card message appears, the card should be formatted with the camera.
A memory card can be formatted in section 1 of the playback menu (p. 74). When a card
is formatted, all the data on the card is permanently erased. If the card-error message
appears, press the central button of the controller to close the window; check the Konica
Minolta web site for the latest compatibility information:
North America: http://www.konicaminolta.us/
Europe: http://www.konicaminoltasupport.com
2 3
1
4
Camera notes
17
TURNING ON THE CAMERAAND DISPLAYS
Press the main switch to turn the camera on. Pressing the switch again
turns the camera off.

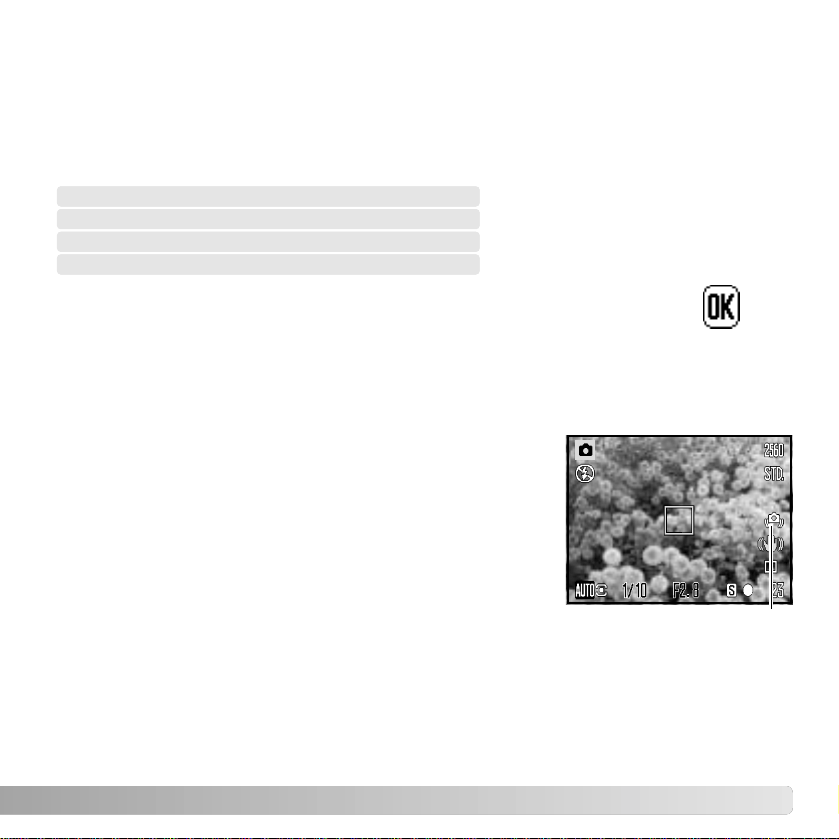

When the camera is turned on, the Anti-shake indicator
appears on the LCD monitor.
The mode switch, next to the main switch, is used to change between
the recording and playback modes as well as the selecting the
between the monitor and viewfinder display.
Recording mode (Monitor display) - the camera can record
images and the monitor is viewed directly.
Recording mode (Viewfinder display) - the camera can
record images and the monitor is viewed through the
viewfinder. The viewfinder has a built-in diopter. While looking
through the viewfinder, turn the diopter-adjustment dial until the
monitor image is sharp.
2
1
Playback mode (Monitor display) - images can be played
back and edited. The monitor is viewed directly.
To use the viewfinder in the playback mode, press and hold
the flash mode button (1) and then press and hold the
information (i
+
) button (2) until the monitor switches to the
viewfinder position.
18 G
ETTING UP AND RUNNING
Use the left and right keys to select the item to
be changed.
Use the up and down keys to adjust the item.
Press the central button to set the clock and
calendar.

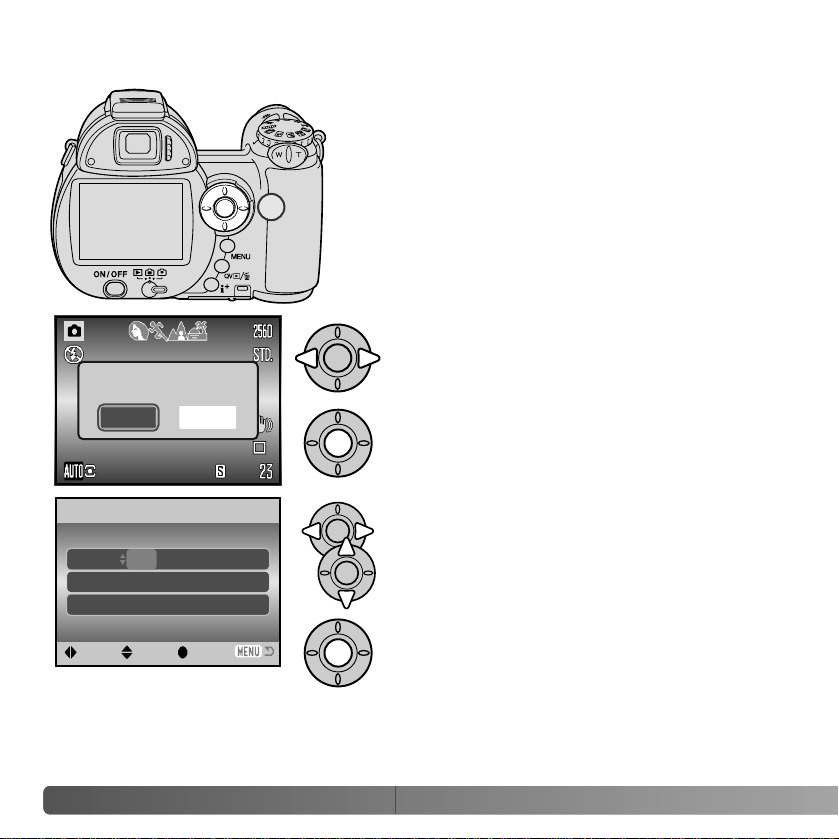

SETTING THE DATE AND TIME
After initially inserting a memory card and batteries,
the camera’s clock and calendar must be set. When
images are recorded, the image data is saved with
the date and time of recording.
If the clock and calendar have not been set, a
message is displayed for a few seconds each time
the camera is turned on. This message is also
displayed if the clock and calendar reset when the
camera is stored without batteries for a long period.
Date/Time setup screen
MM / DD / YYYY
00 : 00
Date/Time set
:enter
2005 . 01 . 01
Set date/time?
NoYes
Use the left and right keys of the controller (1)
to select “Yes.” “No” cancels the operation.
Press the center of the controller to open the
date/time setup screen.
The date/time setup screen can be opened in section 2 of
the setup menu.
:sel.:move
1
19
Use the down key to highlight the language
menu option.
Press the central button to complete the
operation.
Press the right key to highlight the current
language. Press the central button to open the
language screen.

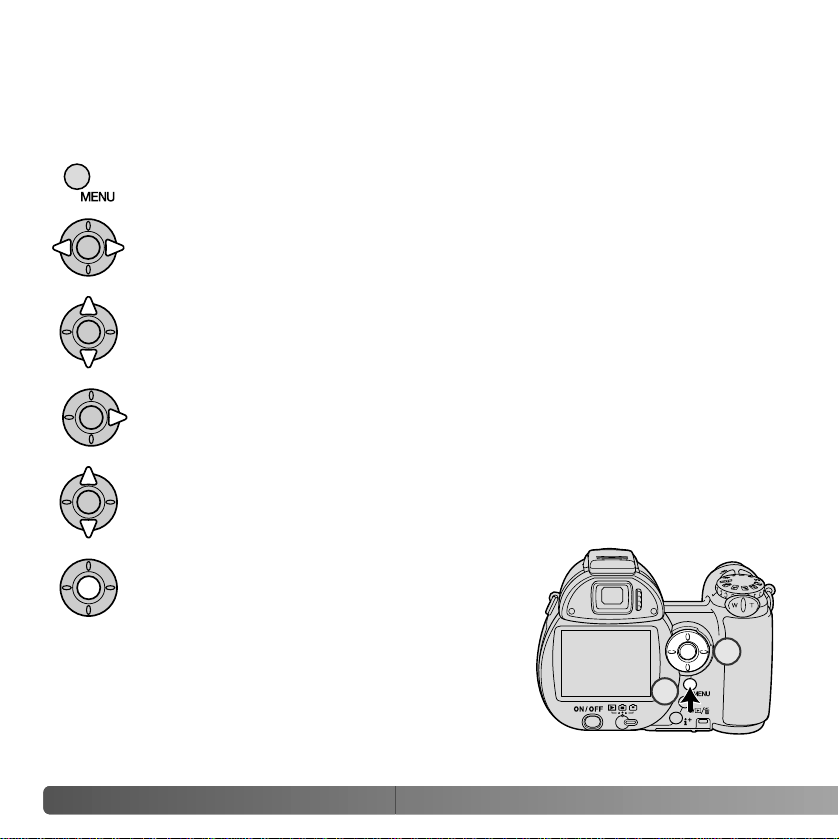

SETTING THE MENU LANGUAGE
For customers in certain areas, the menu language may
have to be set. Press the menu button (1) to open the
menu; the appearance of the menu will depend on the
position of the camera’s controls.
Navigating the menu is simple. The up/down and
left/right keys of the controller (2) move the cursor and
change settings on the menu. The central button of the
controller selects menu options and sets adjustments.
Digital
Use the right key of the controller to highlight
“setup” at the top of the menu.
Quality
Auto D
Drive mode
Image size
Quality
Auto DSP
Anti-shake
Drive m
Off
On
Standard
2560x1920
Single
Press the central button of the controller to open
the setup menu.
LCDbrightness
Power save
Inst.Playback
Lens acc.
Language
None
English
Off
1 min.
–
Use the controller to select the language.
Language
:enter:sel.
Español
Deutsch
English
/JPN
/CHN
2
1
Français
Italiano
Svenska
20 B
ASIC RECORDING
BASIC RECORDING
While using the viewfinder or LCD monitor, grip the camera
firmly with your right hand while supporting the body with
your left. Keep your elbows at your side and your feet
shoulder-width apart to hold the camera steadily. Take care
not to cover the lens with your fingers or the strap.
HANDLING THE CAMERA
This section covers the basic operation of this camera.
Thoroughly familiarize yourself with the operations in this
section before moving on to the other sections in the manual.
USING THE ZOOM LENS
The zoom lever controls the lens (1).
Sliding the lever to the right (T) will
zoom in to the telephoto position of
the lens. Sliding the lever to the left
(W) will zoom out to the wide-angle
position.
After zooming, the zoom scale is
displayed briefly. If the digital zoom
is active, the yellow section of the
scale indicates the digital-zoom
range.
Turn on the camera. Set the mode switch to a recording
position.
Zoom scale
1
21
RECORDING IMAGES AUTOMATICALLY
Turn the exposure-mode dial to the auto-recording position (1); all
camera operations are now fully automatic. The autofocus,
exposure, and imaging systems will work together to bring beautiful
results effortlessly.
While many of the camera’s systems in this mode are automatic,
some of the functions can be changed. The following list shows
changes that can be made in auto-recording.
1
Functions which can be changed with buttons:
• Flash mode
• Macro mode
Functions which can be changed with the auto-recording menu:
• Drive mode
• Image size
• Quality
• Automatic digital subject program selection
• Anti-Shake system
22 B
ASIC RECORDING
Press the shutter-release button all the way down to take the
picture.
The example uses auto recording. Except for movie recording, the
operation for other exposure modes is the same. Automatic Digital Subject
Program Selection is only available in the auto recording mode.
Place the subject anywhere within the focus frame. Make sure
the subject is within the focus range of the lens (p. 24). For
very close subjects, use the macro function (p. 35).
BASIC RECORDING OPERATION
Press the shutter-release button partway down to lock the
focus and exposure. An AF sensor (a) is displayed to indicate
the subject. Automatic Digital Subject Selection will choose
the appropriate exposure mode, see the facing page.
The focus signal (b) on the monitor will confirm focus lock. If
the focus signal is red, the camera was unable to locate the
subject. Repeat the previous steps until the signal is white.
The shutter speed (c) and aperture (d) appears and turns
black to indicate the exposure is locked.
a b
c d
The access lamp lights indicating image data
is being written to the memory card. Never
remove a memory card while data is being
transferred.
The recorded image can be previewed by continuing to hold
down the shutter-release button after the image is captured.
The instant-playback function can also be used (p. 93).
Camera notes
23

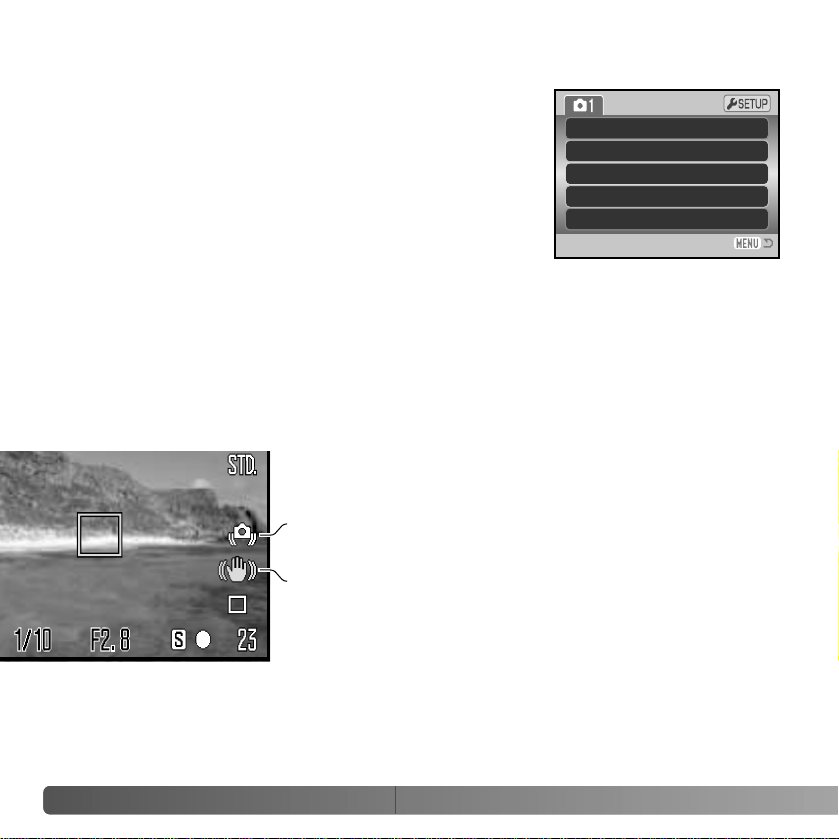

AUTOMATIC DIGITAL SUBJECT PROGRAM SELECTION
Automatic Digital Program Selection chooses between program autoexposure and one
of four digital subject programs. The digital subject programs optimize camera setting for
various conditions and subjects. Automatic Digital Subject Program Selection is only
available in auto recording and can be disabled in the auto-recording menu. For
information on individual subject programs, see page 29.
A row of gray indicators at the top on the monitor display will
indicate Automatic Digital Subject Selection is active. Place
the subject in the focus frames; the procedure is the same as
the basic recording operation described on page 22.
Press the shutter-release button partway down; the AF
system will locate the subject and the Automatic Digital
Subject Selection function will choose a subject program. If
no indicators are displayed, program autoexposure is active.
Press the shutter-release button all the way down to take the
picture. Hold the camera steadily when the sunset subject
program is selected as exposures can be long.
Program autoexposure (the Digital Subject Program indicators disappear)
Portrait
Sports action
Landscape
Sunset
BASIC RECORDING
24

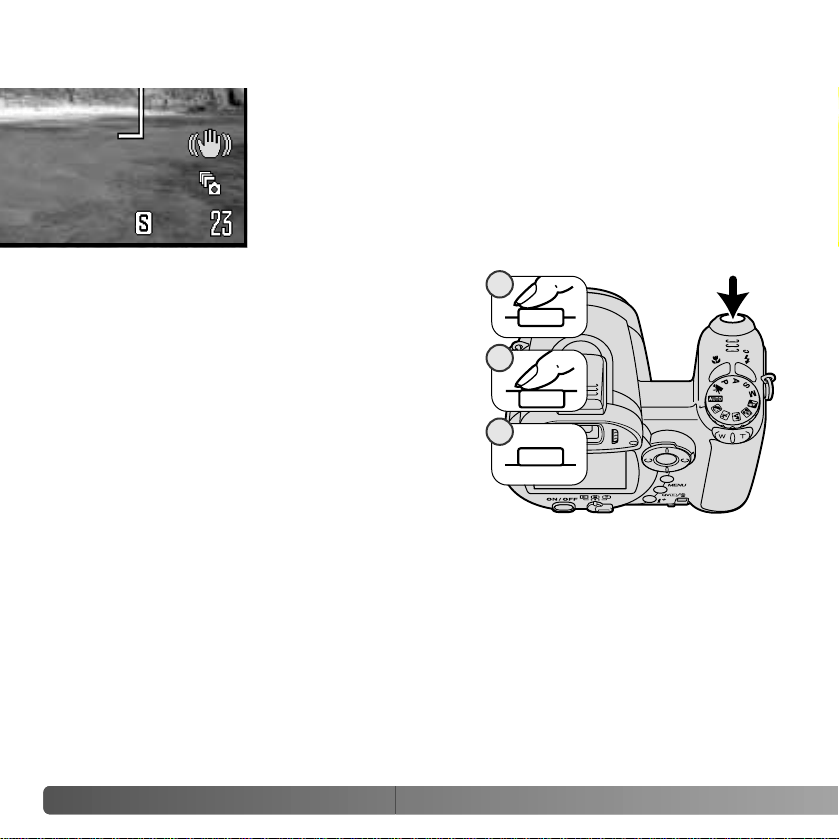

Focus lock prevents the AF system from focusing. This can be used with off-center
subjects or when a special focusing situation prevents the camera from focusing (p. 25).
Without lifting your finger from the shutter-release
button, recompose the subject within the image area.
Press the shutter-release button all the way down to take
the picture.
FOCUS LOCK
Place the subject within the focus frame. Press and hold
the shutter-release button partway down.
• The focus signal indicates the focus is locked. The
shutter speed and aperture value change from white to
black indicating the exposure is locked.
• When the focus is set, an AF sensor is displayed on
the live image to indicate the point of focus.
FOCUS RANGE
0.6 m - ∞ (2.0 ft. - ∞)
All distances are measured from the front of the lens. See page 35 for the macro focus
range.
Wide-angle position
1.6 m - ∞ (5.2 ft. - ∞)
Telephoto position
25
The focus signal in the lower right corner of the LCD monitor indicates the focus status.
The shutter can be released even if the camera cannot focus on the subject.
The camera may not be able to focus in certain situations. If the autofocus system cannot
focus on a subject, the focus signal will turn red. In this situation, focus-lock on an object
at the same distance as the main subject and then recompose the image on the monitor
to take the picture.
The subject in the
focus frame is low in
contrast.
The subject is too
dark.
Two subjects at differ-
ent distances overlap
in the focus frame.
The subject is near a
very bright object or
area.

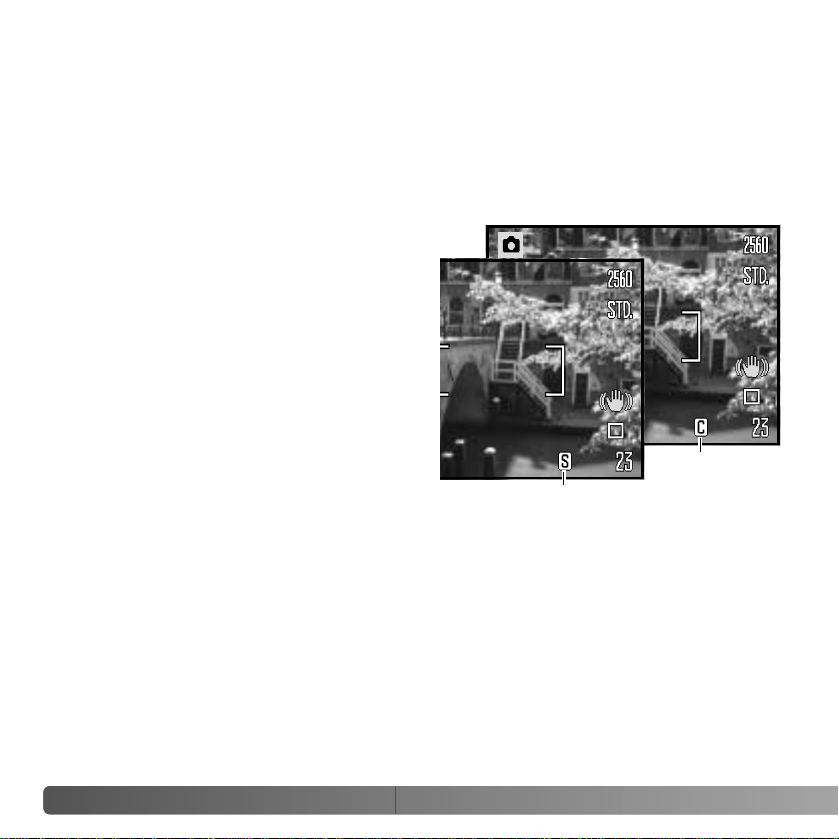

When using the sports action digital subject program, the camera continually focuses
when the shutter-release button is pressed partway down; the focus frames turn red.
Keep the subject within the red focus frames. Focus lock cannot be used.
If the AF system cannot focus, focus lock can be used with object at the same distance
as the main subject or the camera can be focused manually in the Digital Subject
Program or program (P) exposure modes (p. 36).
FOCUS SIGNALS
SPECIAL FOCUSING SITUATIONS
Focus locked.
Cannot focus. The subject is too close or a special situation is preventing the
AF system from focusing.
Focus confirmed (P, A, S, and M continuous AF focus mode and sports action
digital subject program). Exposure continuously adjusts.
To use the built-in flash, simply raise it (1). Lower the
flash unit to prevent it from firing. Flash-mode indicator
turns red while the flash is charging; wait until it
becomes white before taking pictures.
To change the flash mode, raise the flash and press the
flash mode button (2) until the appropriate mode is
indicated.
Autoflash - the flash fires automatically in low-light and
backlit conditions.
Red-eye reduction - multiple flashes are used before
the main flash burst to reduce red-eye; an effect
caused by light reflected from the retina. Use in low-
light conditions when taking photographs of people
or animals. The pre-flashes contract the pupils of the
subject’s eyes.
Fill-flash - the flash fires with each exposure
regardless of the amount of ambient light. Fill-flash
can be used to reduce harsh shadows caused by
strong direct light or sunshine.
Slow sync. - flash and ambient light exposures are
balanced; red-eye reduction is used. Use slow
sync. when in dark locations to reveal
background details. Ask your subject not to
move after the flash burst; the shutter may still
be open for the background exposure. Because
exposures can be long, the use of a tripod is
recommended.
Flash cancel - the flash is down and cannot fire.
26 B
ASIC RECORDING
Autoflash
Fill-flash
Slow sync. with
red-eye reduction
Autoflash with
red-eye reduction
FLASH MODES
Fill-flash
Flash cancel
2
1
27
If the shutter speed falls below the point where the camera
can be safely hand held, regardless if Anti-shake is active or
not (p. 56), the camera-shake warning appears on the LCD
monitor. Camera shake is slight blurring caused by subtle
hand motion and is more pronounced at the telephoto
position of the lens than at the wide-angle. Although the
warning appears, the shutter can still be released. If the
warning appears, place the camera on a tripod, use the built-
in flash, or zoom the lens towards the wide-angle position
until the warning disappears.
CAMERA-SHAKE WARNING
FLASH RANGE - AUTO-RECORDING MODE
The camera controls the flash output automatically. For well-exposed images, the subject
must be within the flash range. Distance is given from the front of the lens. Because of
the optical system, the flash range is not the same at the lens’ wide-angle position as it
is at the telephoto position.
0.2 - 3.6m (0.7 - 11.8 ft.)
Wide-angle position
1.2 - 2.2m (3.9 - 7.2 ft.)
Telephoto position
Camera-shake warning
If the flash output was sufficient to illuminate the subject, the flash-output
indicator briefly replaces the flash-mode indicator after the exposure.
Flash-output
indicator
The monitor image can be made lighter or darker. The
brightness level can be set individually for viewfinder and direct
viewing. Turn the mode switch to the appropriate position. Press
and hold the information (i
+
) button to open the LCD brightness
screen.
Use the left/right keys of the controller to adjust
the brightness; the monitor image changes
accordingly. Press the center of the controller to
set the brightness level or press the menu
button to close the screen without applying any
changes.
28 B
ASIC RECORDING
Pressing the information (i
+
) button changes the monitor display. The display cycles
among the standard display, real-time histogram, and live image only.
Standard display Live image only
Information button
i
+
BUTTON
ADJUSTING MONITOR BRIGHTNESS
Set LCD brightness
:adjust
:enter
Low High
The real-time histogram shows the approximate
luminance distribution of the live image. This
histogram cannot show the affect of flash illumination.
The histogram of a recorded image may not show the
same distribution as the real-time histogram.
Real-time histogram
29
DIGITAL SUBJECT PROGRAMS
Sports action - used to capture action by maximizing shutter speeds. The AF
system continuously focuses; see page 25. When using flash, the subject must
be within the flash range (p. 27). A monopod is more flexible and compact than a
tripod when shooting events.
Sunset - optimized to reproduce rich, warm sunsets. When the sun is above the
horizon, do not point the camera toward the sun for prolonged periods of time.
The intensity of the sun could damage the CCD. Between exposures, turn off the
camera or cover the lens.
Night portrait - for deep, subtle night scenes. The use of a tripod is
recommended. When used with flash, the subject and background exposures are
balanced. The flash can only be used with close subjects such as with a portrait
of a person. When using the flash, ask your subjects not to move after the burst;
the shutter will still be open for the background exposure.
Landscape - optimized to produce sharp, colorful landscapes. Used with bright
outdoor scenery.
Digital subject programs optimize the
camera’s exposure, white-balance, and
image-processing systems for specific
conditions and subjects. Simply turn the
exposure mode dial to select the
appropriate subject program; the active
subject program is displayed in the
bottom left corner of the monitor.
Portrait - optimized to reproduce warm, soft skin tones and a slight defocusing
of the background. Most portraits look best at a telephoto setting; the longer focal
length does not exaggerate facial features and the shallower depth of field
softens the background. Use the built-in flash with strong direct sunlight or
backlight to reduce harsh shadows.
Exposure-mode indicator
Images can be viewed in the Quick View or playback
modes. This section covers the basic operations in both
modes. The playback mode has additional functions, see
page 72.
To view images from the playback mode, turn the mode
switch to the playback position (1).
To view images from the recording mode, press the Quick
View / delete button (2).
30 B
ASIC PLAYBACK
BASIC PLAYBACK
SINGLE-FRAME PLAYBACK AND HISTOGRAM DISPLAY
Date of capture
Frame number/ total number of images
Lock indicator (p. 79)
DPOF indicator (p. 86)
Image size (p. 54)
Image quality (p. 54)
Time of
capture
Shutter speed
Aperture value
White-balance
setting (p. 60)
Sensitivity
setting (p. 64)
Degree of exposure
compensation (p. 41)
Folder name
Folder number - image file number
Histogram
Mode
indicator
To display the histogram display, press the up key of the controller. Press the
down key to return to single-frame playback.
Movie indicator (p. 72)
E-mail copy indicator (p. 82)
Magnification (p. 33)
2
1
31
The histogram shows the luminance distribution of the image from black (left) to white
(right). The 256 vertical lines indicates the relative proportion of that light value in the
image. The histogram can be used to evaluate exposure, but displays no color
information.
Quick View /
Delete button
In Quick View or the playback
mode, use the left/right keys of
the controller to scroll through
the images.
To rotate a vertical image, press
the down key to cycle through
the three positions: 90° counterclockwise, 90°
clockwise, and horizontal.
To return to the recording mode from Quick View,
press the menu button or shutter-release button
partway down.
The displayed image can be deleted. Once deleted, an image cannot be recovered.
To delete the displayed image, press the QV/delete
button. A confirmation screen will appear.
Press the central button of the controller to delete the image.
Use the left/right keys to highlight “Yes,” “No” will
cancel the operation.
VIEWING AND ROTATING IMAGES
DELETING SINGLE IMAGES
Delete this frame?
Yes No
32 B
ASIC PLAYBACK

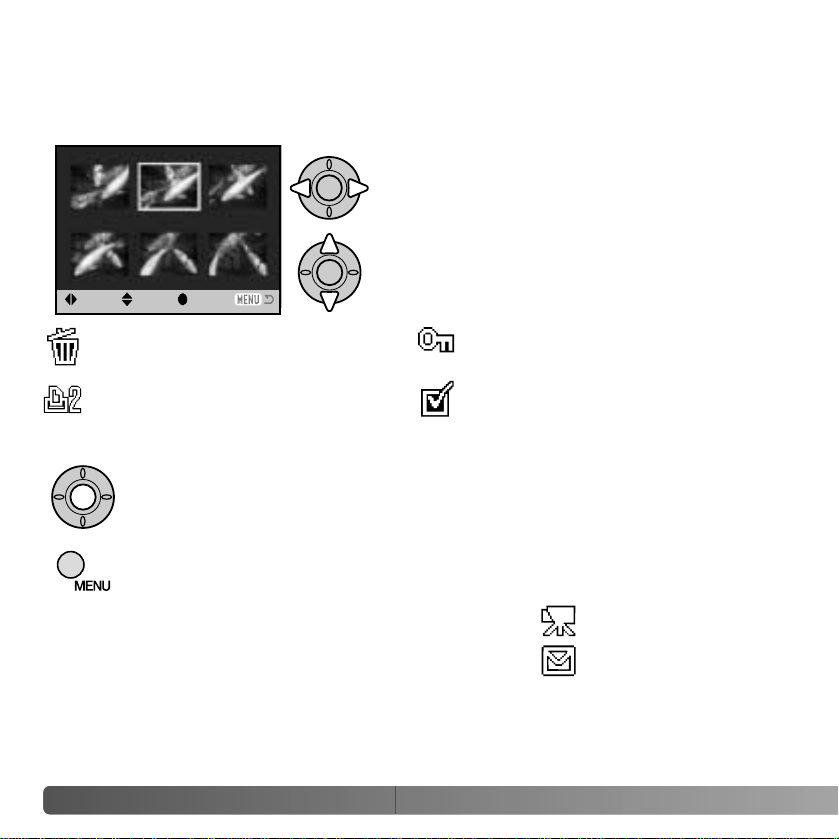

In index playback, the four-way keys of the controller will move the yellow border. When
the image is highlighted with the border, the date of recording, the lock and printing
status, and the frame number of the image are displayed at the bottom of the screen. The
highlighted image can be deleted using the QV/delete button (p. 31), or a movie clip can
be played by pressing the central button of the controller. When the display button is
pressed again, the highlighted image will be displayed in the single-frame playback
mode.
The information (i
+
) button controls the display format. Each time the button is pressed,
the display cycles through to the next format: full display, image only, index playback.
i
+
BUTTON
Full display
Index playback
Information button
Image only
With the image to be magnified
displayed, slide the zoom lever to the
right (T) to activate the enlarged
playback mode. The degree of
magnification is displayed on the LCD
monitor.
Slide the zoom lever to the right (T) to
increase the image magnification.
Slide the lever to the left (W) to
decrease the magnification.
33
ENLARGED PLAYBACK
Use the four-way keys of the controller to scroll the image. When scrolling,
the arrows in the display will disappear when the edge of the image has
been reached.
In single-frame playback in Quick View or the playback mode, a still image can be
enlarged for closer examination from 1.2X. The maximum magnification depends on
image size ranging from 2X for 640x480 size images to 4X for 2560x1920 images.
To exit the enlarged playback mode, press the menu button.
The information (i
+
) button switches between showing the full display and the
image only.
The locator in the top right corner of the monitor indicates the area of the
image being displayed.
With images larger than 640x480, move the zoom lever to the right (T) at maximum
magnification to doubled the image size for closer examination.
34 A
DVANCED RECORDING
ADVANCED RECORDING
This section cover the advanced recording features of this camera. Read the basic
recording section before moving on to this section.
3. Flash-mode indicator (p. 26)
7. White-balance indicator (p. 60)
8. Camera-sensitivity (ISO) display (p. 64)
11. Metering-mode indicator (p. 63)
12.Shutter-speed display
13.Aperture display
25.Digital-zoom display (p. 100)
19.Drive-mode indicator (p. 46)
17.Date-imprinting indicator (p. 96)
18.Frame counter (p. 55)
26.Color-mode indicator (p. 65)
24.Image-size display (p. 54)
23.Image-quality indicator (p. 54)
2. Mode indicator
10.Exposure-mode indicator (p. 36 - 38)
14.Macro-mode indicator (p. 35)
9. Exposure-compensation display (p. 41)
4. Flash-compensation display (p. 62)

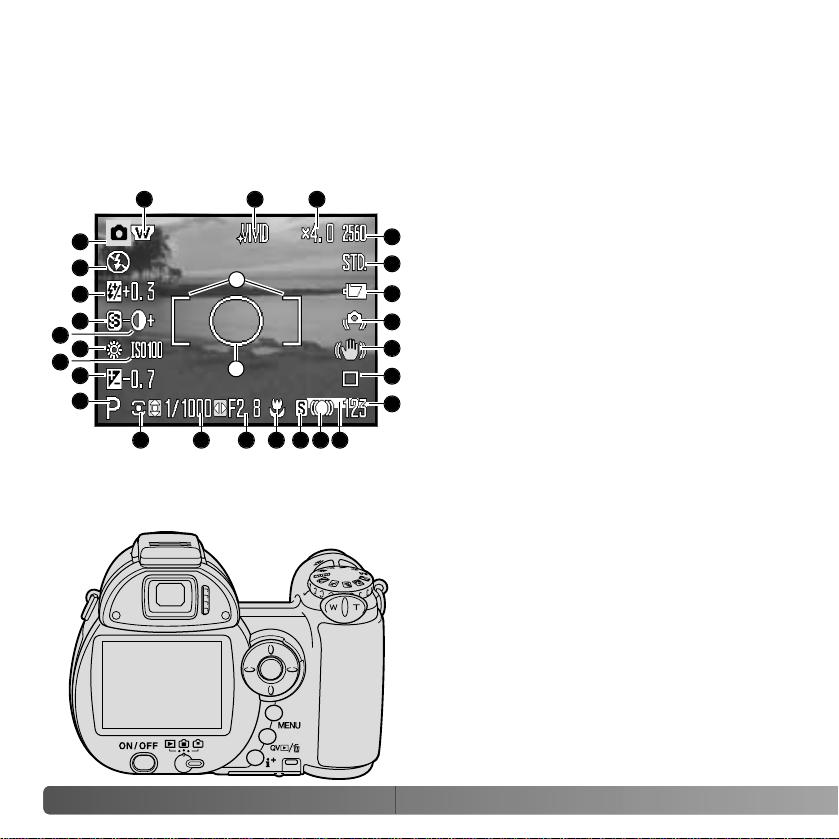

RECORDING MODE DISPLAY
1. Wide-angle converter indicator (p. 93)
5. Sharpness display (p. 66)
6. Contrast display (p. 65)
20.Anti-shake indicator (p. 56)
15.Focus-mode indicator (p. 58)
22.Battery-condition indicator (p. 14)
A. Focus frame
B. Spot metering area (p. 63)
1
2
3
4
5
8
7
9
10
6
11 12 13 14 15 16 17
18
19
20
21
22
23
24
2526
A
B
16.Focus signals (p. 25)
21.Camera-shake warning (p. 27)
35

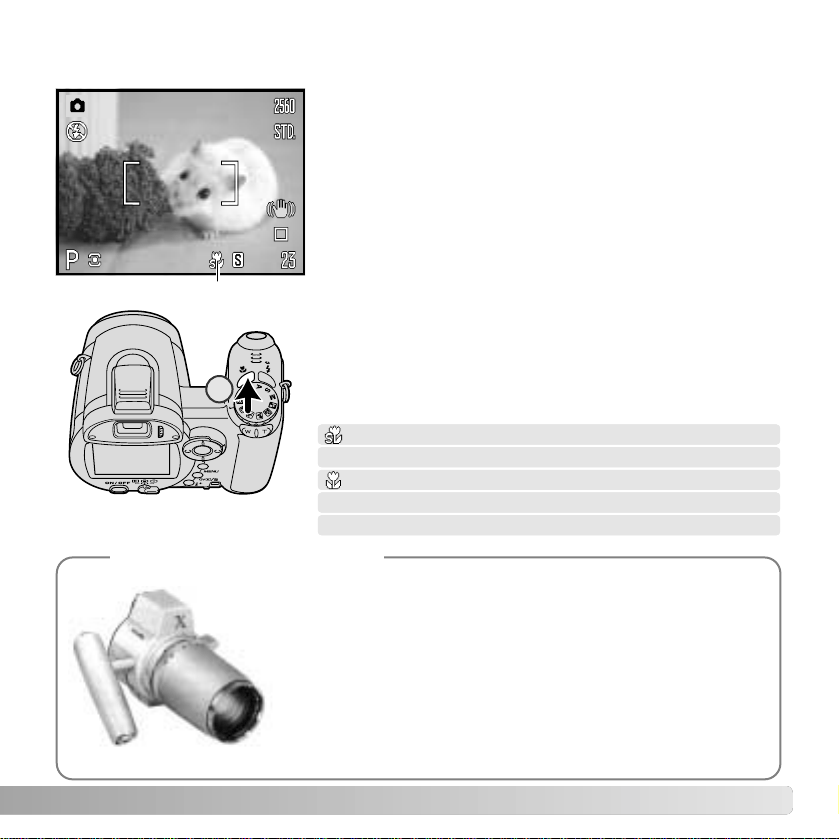

MACRO
Wide-angle position: 0.1 - 1m (3.9 in. - 3.3 ft.)
Telephoto position: 1.2 - 2.5m (3.9 - 8.2 ft.)
Super-macro indicator
Two macro modes are available: Super Macro and
standard macro. Super Macro allows the camera to
focus as close as 1cm (0.4 in.) from the front of the lens.
When Super Macro is selected, the lens automatically
zooms to a specific focal-length position and cannot be
changed. Standard macro allows the zoom to be used.
The minimum focus distance changes with focal length,
see below.
Press the macro button (1) to select the macro mode.
The modes cycle among standard macro, Super Macro,
and off.
The following chart lists the Super Macro and standard
macro ranges. All distances are measured from the front
of the lens.
1 - 100cm (0.4 in. - 3.3 ft.)
Super Macro
Standard macro
Konica Minolta History
1
Innovation and creativity is the cornerstone of Minolta’s success.
The Electro-zoom X was an exercise in camera design and
received a great deal of attention when it was unveiled at
Photokina in 1966.
The Electro-zoom X was an electronically controlled aperture-
priority mechanical SLR with a built-in 30 - 120mm f/3.5 zoom
lens giving twenty 12 X 17mm images on a roll of 16mm film. The
shutter-release button and battery chamber are located in the
grip. Only a few prototypes were built making it one of Minolta’s
rarest camera.

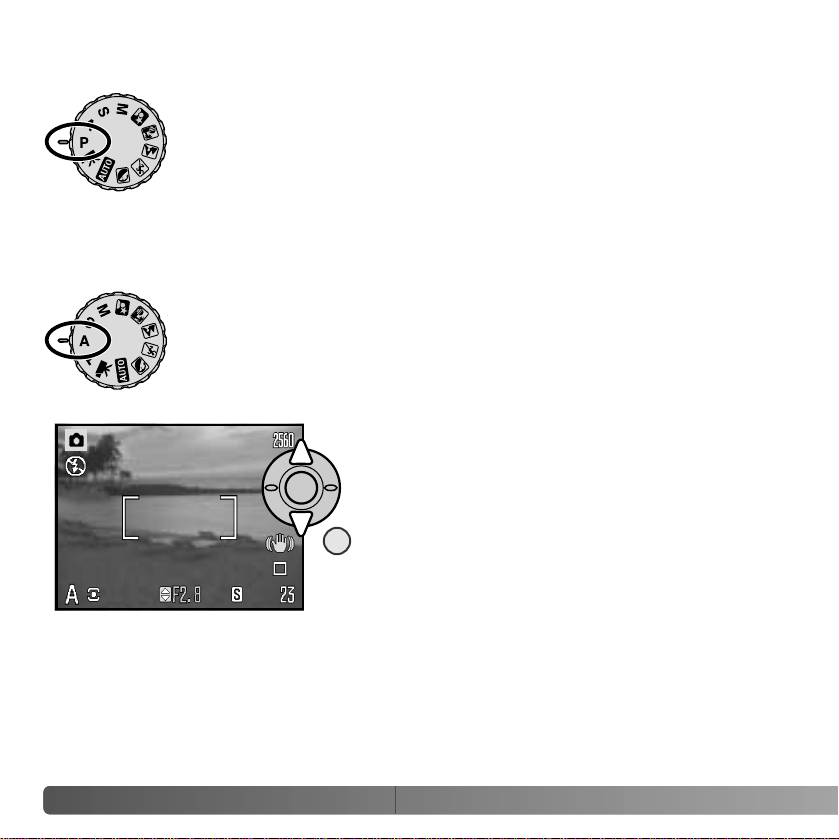

The photographer selects the aperture and the camera sets the
appropriate shutter speed to ensure the correct exposure. When aperture
priority is selected, the aperture value on the monitor turns blue and a
double arrow indicator appears next to it. The flash mode can be set to
fill-flash, fill-flash with red-eye reduction, or slow sync. with red-eye
reduction (p. 26).
36 A
DVANCED RECORDING
The program exposure mode controls both the shutter speed and
aperture to ensure correct exposures. This exposure mode allows
photographers to shoot without worry about exposure settings. The
shutter speed and aperture values of the exposure are displayed on the
monitor when the shutter-release button is pressed partway down. If
shutter speed and aperture displays turn red, the scene is beyond the
exposure control range of the camera.
PROGRAM (P) EXPOSURE MODE
Use the up/down keys of the controller (1) to set
the aperture. The aperture value can be changed
in 1/3 stop increments. Press the shutter-release
button partway down to activate the exposure
system; the corresponding shutter speed will be
displayed on the monitor.
Because the maximum aperture is not the same at the wide-angle and telephoto position,
as the lens is zoomed, the aperture will automatically shift. If the aperture value is beyond
the shutter-speed range, the shutter-speed display will turn red on the monitor.
APERTURE PRIORITY (A) EXPOSURE MODE
1
The shutter speed and aperture control more than the exposure. The shutter speed
determines how sharp a moving subject is. The aperture controls the depth of field; the area
in front of the camera that appears sharp. For more on exposure controls, see the Short Guide
to Photography on page 70.
The photographer selects the shutter speed and the camera sets the
appropriate aperture to ensure correct exposure. When shutter priority is
selected, the shutter speed on the monitor turns blue and a double arrow
indicator appears next to it. The shutter speed can be set between 1/1000
and 4 seconds. If the shutter speed is beyond the aperture range, the
aperture display will turn red. The flash mode can be set to fill-flash, fill-
flash with red-eye reduction, or slow sync. with red-eye reduction (p. 26).
Use the up/down keys of the controller (1) to set
the shutter speed. Press the shutter-release
button partway down to activate the exposure
system; the corresponding aperture will be
displayed on the monitor.
SHUTTER PRIORITY (S) EXPOSURE MODE
Shooting Tips
37
1
The camera-shake warning (p. 27) does not appear in S mode. If a slow shutter speed
is selected, noise-reduction processing is applied to the image; a message may appear
during processing. See page 39 for more on noise reduction.
Manual exposure mode allows individual selection of shutter speeds and
apertures. This mode overrides the exposure system giving the
photographer total control over the final exposure.
38 A
DVANCED RECORDING
Use the up/down keys of the controller to change
the shutter speed.
MANUAL (M) EXPOSURE MODE
The changes made to the exposure will be visible in the live image on the monitor. The
monitor shutter-speed and aperture display will turn red when the shutter-release button
is pressed partway down if the image is significantly underexposed or overexposed. If the
monitor is black, increase the exposure until the image is visible; decrease the exposure
if the monitor is white.
In manual exposure mode, the auto camera-sensitivity setting will fix the ISO value at
100. The camera sensitivity can be changed in section 3 of the recording menu (p. 64).
The flash mode can be set to fill-flash, fill-flash with red-eye reduction, or slow sync. with
red-eye reduction (p. 26), but the live image will not reflect the flash exposure.
The camera-shake warning (p. 27) does not appear in M mode. IIf a slow shutter speed
is selected, noise-reduction processing is applied to the image; a message may appear
during processing. See page 39 for more on noise reduction.
Use the left/right keys of the controller to change the
aperture.
39
Noise can be apparent when using a slow shutter speed or
high camera sensitivity (ISO), or using the camera in hot
environment. In these cases, noise-reduction is applied to the
image automatically. A message appears on the LCD monitor
if the noise-reduction processing period is long. A picture
cannot be taken while this message appears.
When the camera is hot, allow the camera to cool before
taking pictures.
NOISE REDUCTION
Processing...
40 A
DVANCED RECORDING
Frame the picture as described in the basic recording
operation section (p. 22). Press the shutter-release
button partway down to set the the focus and exposure.
Press the shutter-release button all the way down and
release to start recording.
Recording indicator
Remaining time
MOVIE RECORDING
The camera continues to focus during recording. The
camera will continue to record until the recording time is
used or the shutter-release button is pressed again.
This camera can record digital video with sound. Total recording time
varies with the image size and frame rate, see page 68. The optical and
digital zoom, exposure compensation, and the macro modes can be
used. Other changes can be made with the movie recording menu (p. 44).
If the optical zoom is used while recording, the sound of the zoom sound may be audible
during playback.
Before recording, the frame counter shows the
maximum time in seconds that can be recorded on the
next movie clip.
Recording time
Image size
Quality
Frame rate
Exposure compensation is used when
the camera’s exposure meter is
deceived by high-key or low-key scenes.
In the example, the dark water caused
the camera to overexpose the image
making it too bright and washed-out. By
compensating the exposure, detail is
brought out in the leaves, and the stones
and water appear richer.
41

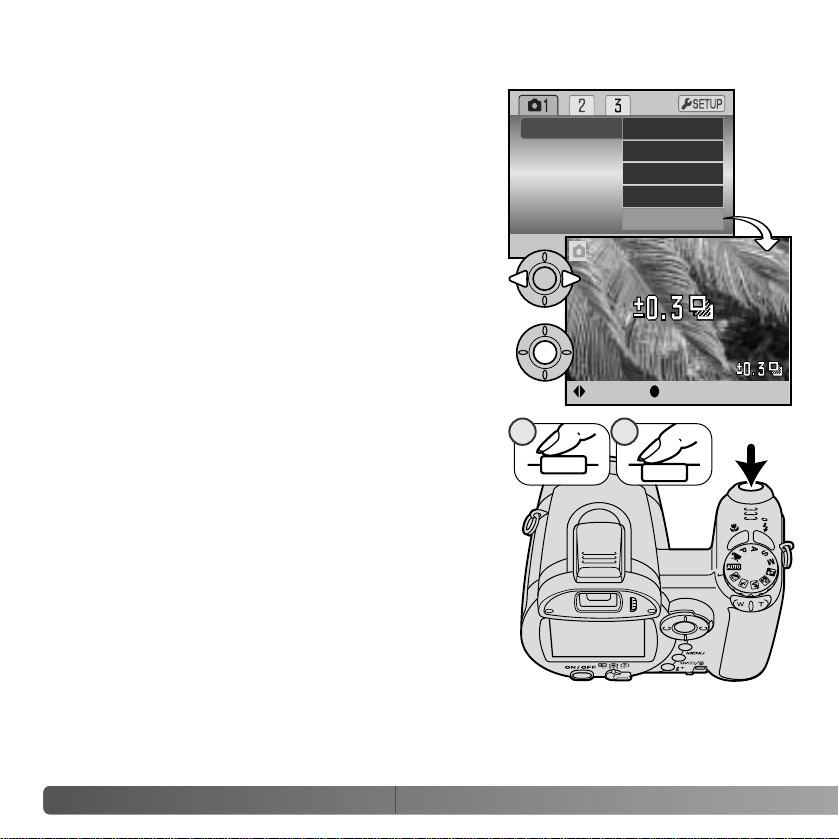

To adjust the exposure, press the left or right controller
key; the exposure-compensation screen appears.
Use the left/right keys of the controller to adjust the
exposure-compensation value. Changes to exposure are
visible in the live image.
Press the shutter-release button partway down or press
the central button of the controller to set the adjustment.
The camera exposure can be adjusted to make the final picture lighter or darker by as
much as ±2Ev in 1/3 increments. Exposure compensation can only be used with Digital
Subject Programs, the P, A, and S exposure modes. With Digital Subject Programs,
exposure compensation is reset when the camera is turned off. In P, A, and S exposure
modes, exposure compensation remains in effect until reset.
EXPOSURE COMPENSATION
When adjusting the exposure, the amount of compensation is shown in EV (p. 53). After
the setting is made, the shutter-speed and aperture displays indicate the actual
exposure. Because the exposure can be adjusted in fine steps, the shutter speed or
aperture value displayed may not change. When set to any value other than zero, the
exposure-compensation indicator remains on the monitor as a warning.
Camera notes
–2.0Ev
–1.0Ev
Camera exposure
42 A
DVANCED RECORDING
Press the shutter-release button partway down or press the
central button of the controller to select the area; the other
four areas disappear. Only when a focus area has been
selected, can the controller be used for other camera
operations.
Take the picture as described in the basic recording section;
press the shutter-release button partway down to lock focus
and exposure. Press the shutter-release button all the way
down to take the picture.
Once a focus area is selected, it will remain active even after
the picture has been taken. Press and hold the central button
of the controller to return to the standard focus frames.

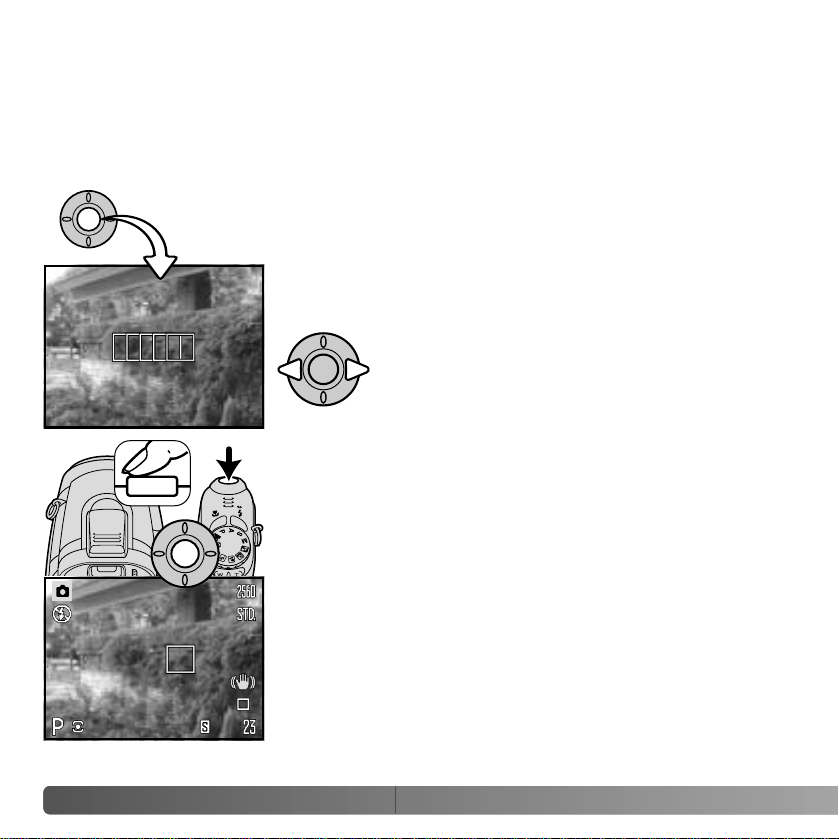

Press and hold the central button of the controller until the five spot
focus areas are displayed.
FOCUS AREA SELECTION
Use the left/right keys of the controller to highlight the desired
autofocus area; the active area is blue.
Individual focus areas can be selected when recording still images. With auto recording
and Digital Subject Programs, focus area selection is reset when the camera is turned
off. In P, A, S, and M exposure modes, the selected focus area remains active until reset.
When using an accessory flash, the camera uses pre-flash TTL metering to determine
exposure.
The flash modes available when using an optional flash unit varies with
the exposure mode. Autoflash can only be used with auto, program (P),
and Digital Subject Programs. Fill-flash and slow sync. can be used with
all exposure modes except movie. Red-eye reduction cannot be used.
Because of the large distance between the flash tube and optical axis,
red eye is rarely caused by accessory flash units.
Off-camera flash cables and accessories are not compatible with this camera. The Close-up
Diffuser CD-1000 can be used, but AF speed is reduced.
43
ATTACHING AN ACCESSORY FLASH
To extend the versatility of the camera, an accessory flash unit (sold separately) can be
used. Always remove the accessory flash when the camera is not in use, and replace the
accessory-shoe cap to protect the contacts.
Slide the accessory-shoe cap off as shown. Mount
the flash unit on the accessory shoe by sliding it
forward until it stops.
The following Konica Minolta flash units are compatible with this camera:
Maxxum/Program Flash 2500(D)
Maxxum/Program Flash 3600HS(D)
Maxxum/Program Flash 5600HS(D)
System Accessories
Flash Notes
44 A
DVANCED RECORDING
Press the central button of the controller to select
the highlighted setting; some options open a
selection screen.
On the movie recording and P, A, S, and M menu, use the left/right keys of the
controller to highlight the appropriate menu tab; the menu changes as the tabs
are highlighted.
The recording menu displayed varies with the position of the exposure-mode
dial. There are four menus depending on if auto recording, movie recording,
Digital Subject Programs, or the P, A, S, and M exposure modes are selected.
Use the up/down keys to scroll through the menu options. Highlight the option
whose setting needs to be changed.
With the menu option highlighted, press the right controller key; the settings
are displayed with the current setting highlighted. To return to the menu
options, press the left key.
Use the up/down keys to highlight the new
setting.
NAVIGATING THE RECORDING MENUS
Once a setting has been selected, the cursor will return to the menu options and the new
setting will be displayed. To return to the recording mode, press the menu button.
Pressing the menu button (1) turns the menu on and off. The four-way keys of the
controller (2) move the cursor in the menu. Pressing the central button of the controller
enters a setting.
Activate the menu with the menu button.
2
1
Focus mode
Color mode
Cont. AF
NaturalColor
45
Drive mode
Image size
Quality
Auto DSP
Anti-shake
Single
2560x1920
Standard
On
Disp. + Exp.
Drive mode
Image size
Quality
Focus mode
Anti-shake
Single
2560x1920
Standard
Autofocus
Disp. + Exp.
Drive mode
Image size
Quality
Single
Standard
Auto
Disp. + Exp.
Focus mode
Full-time AF
Flash mode
Metering mode
Single AF
Off
AutoFlash
0
MultiSegment
Flash comp.
Sensitivity
Color mode
Contrast
Auto
NaturalColor
Normal
Normal
Sharpness
Auto-recording menu Digital Subject Program menu
Movie menu
P, A, S, and M exposure-mode menu
Focus mode, 58
Frame rate, 68
Full-time AF, 62
Image size, 54
Key function, 67
Metering mode, 63
Movie mode, 69
Quality, 54
Quality (movie), 68
Sensitivity, 64
Sharpness, 66
White balance, 60
Anti-Shake, 56
Auto DSP, 56
Color mode, 65
Contrast, 65
Drive mode, 46
Flash compensation, 62
Flash mode, 62, 26
Index to menu functions
White balance
Quality
Frame rate
Movie mode
640x480 STD.
15 fps
Auto
STD. movie
White balance
2560x1920
PAS M
Anti-shake Disp. + Exp.
Key func. Flash modeAnti-shake
46 A
DVANCED RECORDING
The drive modes control the rate and method images are
captured. The drive mode is set on all menus except the
movie menu. With auto recording and Digital Subject
Programs, the drive mode is reset to single-frame advance
when the camera is turned off. In P, A, S, and M exposure
modes, the drive mode remains in effect until changed. Refer
to the following sections for descriptions of the drive modes.
Single-frame advance - to take a single image each time the shutter-release
button is pressed (p. 22).
Continuous advance - to continuously record images when the shutter-release
button is pressed and held.
Self-timer - to delay the release of the shutter. Used for self-portraits.
Bracketing - to take a series of three images with differing exposures.
DRIVE MODES
Progressive Capture - to continuously record 1024x768 size image at
approximately 10fps. Releasing the shutter button saves the last twenty images.
UHS continuous advance - to take up to twenty 1024x768 size images at
approximately 10fps when the shutter-release button is pressed and held.
The self-timer can be used to minimize camera shake with long exposures. When using the
camera on a tripod, photographs of static subjects (landscapes, still-lifes, or close-up
photographs) can be made with the self-timer. Because no contact is made with the camera
during exposure, there is no risk of camera shake caused by the operator. Two seconds self-
timer is suitable for this purpose.
47
Used for self-portraits, the self-timer will delay the release of the shutter for approximately
ten seconds after the shutter-release button is pressed. The self-timer is set on section
1 of the recording menus (p. 44).
Shooting tips
SELF-TIMER
The self-timer is counted down on the monitor. During the countdown, the self-timer lamp
on the front of the camera (3) will start to blink and is accompanied by an audio signal. A
few seconds before the exposure, the self-timer lamp will blink rapidly. The lamp will glow
steadily just before the shutter fires. To stop the countdown, slide the zoom lever to the
left or right. The self-timer drive mode is reset to single-frame advance after the
exposure. The audio signal can be turned off in section 3 of the setup menu (p. 99). The
self-timer delay can be changed to two seconds in section 4 of the setup menu (p. 101).
With the camera on a tripod, compose the picture so
the subject is within the focus frames. Press the
shutter-release button partway down to lock the
exposure and focus (1). Press the shutter-release
button all the way down to begin the countdown (2).
Because focus and exposure are determined when
the shutter-release button is pressed, do not stand in
front of the camera when taking a self-timer image.
Always confirm the focus with the focus signals
before beginning the countdown (p. 25).
2
3
1
48 A
DVANCED RECORDING
USING THE CONTINUOUS-ADVANCE MODES

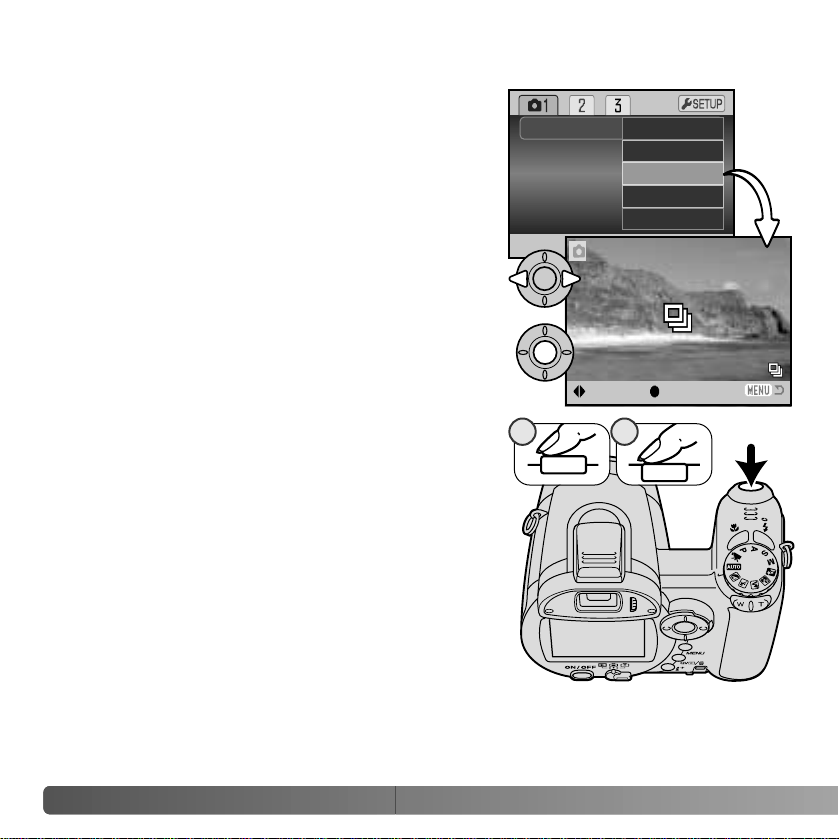

The continuous-advance drive modes allow a series
of images to be captured while holding down the
shutter-release button. These drive modes are set in
section 1 of the recording menus.
Drive mode
Image size
Self-timer
Single
Progressive
Bracketing
Quality
Continuous
Compose the picture as described in the basic
recording operation section (p. 22). Press the shutter-
release button partway down (1) to lock the focus and
exposure for the series.
Press and hold the shutter-release button all the way
down (2) to begin taking pictures. When the shutter-
release button is pressed and held, the camera will
begin recording images until the maximum number
has been taken or the shutter button is released.
The maximum number of frames and the rate of
capture depends on the continuous-advance drive
mode selected. See the notes section on the following
page.
White balance
:enter:select
Immediately after selecting the continuous option on
the menu, a selection screen is displayed to select
between standard and UHS continuous advance. Use
the left/right keys of the controller to select the
continuous advance mode. Press the central button of
the controller to set the drive mode. Pressing the
menu button cancels the operation without changing
the drive mode.
2
1
Anti-shake
49
The continuous-advance drive mode can capture images at a rate of approximately 2.2
fps. When single-shot AF is used, focus and exposure is locked with the first frame.
Focus and exposure is set for each image when the continuous-AF focus mode is used,
but the rate of capture is reduced. When the red low-battery warning appears, or the flash
or noise reduction (p. 39) is used, the rate of capture is also reduced.
The following chart lists the approximate maximum number of images that can be
captured.
CONTINUOUS-ADVANCE NOTES
CONTINUOUS ADVANCE
UHS CONTINUOUS ADVANCE
UHS continuous-advance captures up to twenty 1024x768 images at approximately
10fps regardless of the image quality setting. Focus and exposure is locked with the first
frame. The flash and the digital zoom cannot be used. When the red low-battery warning
is displayed or when the frame counter shows three or fewer frames remaining, this drive
mode cannot be used.
Shutter speeds must be 1/25 second or faster. A high camera sensitivity (ISO) is used
allowing faster shutter speed to be set; sensitivity cannot be set manually. Very bright
light sources in the scene may cause streaks to appear on the image. Black areas
caused by data loss may also be apparent.
Quality
Size
2560x1920 2048x1536 1600x1200 640x480
Fine
Standard
Economy
34638
6 9 17 122
8 18 38 143
50 A
DVANCED RECORDING
USING THE PROGRESSIVE-CAPTURE MODE
The Progressive-Capture drive mode continuously records
images while holding down the shutter-release button. When
the shutter button is released, the images stored in the
camera’s buffer memory are saved. This drive mode is set in
section 1 of the recording menus.
The advantage of Progressive Capture over the continuous-advance drive mode is that
it allows you to record events without the need to predict when the event will start. Simply
hold the shutter-release button down to start saving images, and when the action
happens, release the shutter button to save the recorded series. The flash cannot be
used. When the red low-battery warning is displayed, these drive modes cannot be used.
Compose the picture as described in the basic
recording operation section (p. 22). Press the
shutter-release button partway down (1) to lock the
focus and exposure for the series.
Press and hold the shutter-release button all the
way down (2) to begin taking pictures; focus and
exposure are locked with the first frame. When the
shutter-release button is pressed and held, the
camera will begin recording.
Release the shutter (3) to save the images in the
camera memory: the last twenty images are saved.
The rate of capture is 10fps regardless of the
image-quality setting. Image size is fixed at
1024x768.
2
1
3
51
The flash and the digital zoom cannot be used. Shutter speeds must be 1/25 second or
faster. A high camera sensitivity (ISO) is used allowing faster shutter speed to be set;
sensitivity cannot be set manually.
Very bright light sources in the scene may cause streaks to appear on the image. Black
areas caused by data loss may also be apparent.

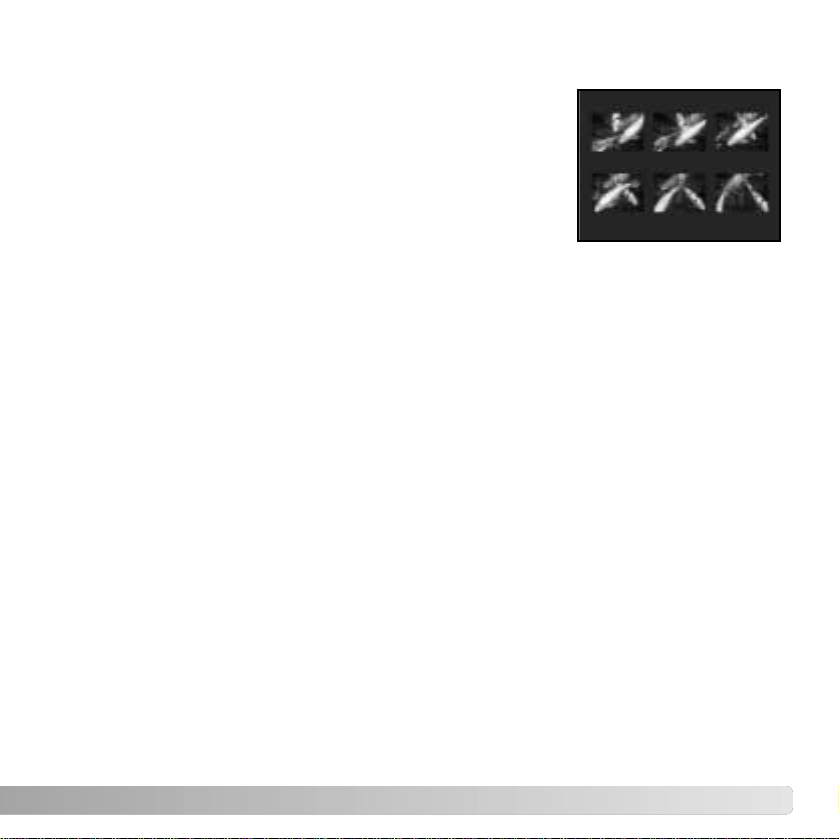

When a series is captured, a thumbnail of each image is
shown in an index display while being saved.
Progressive capture can only be used when there is enough
space available on the memory card to record an entire series
of images. The frame counter must show 21 frames or more to
use progressive capture.
This mode makes a three-image bracket of a scene.
Bracketing is a method of taking a series of images of
a static subject in which each image has a slight
variation in exposure. The bracketing mode is set in
section 1 of the recording menus.
Immediately after selecting the bracketing option on
the menu, a selection screen is displayed to select the
bracketing increment.
Press the left/right keys of the controller to select the
bracketing increment. Press the central button of the
controller to set the value. To change the increment,
select the bracketing drive mode again with the menu.
52 A
DVANCED RECORDING
BRACKETING
Compose the picture as described in the basic
recording operation section (p. 22).
Press the shutter-release button partway down (1) to
lock the focus exposure for the series.
Press and hold the shutter-release button all the way
down (2) to make the bracket series; three
consecutive images will be captured. Focus is locked
with the first frame.
:select
:enter
2
1
Drive mode
Image size Self-timer
Single
Progressive
Bracketing
Quality Continuous
White balance
Anti-shake
53
Number of frames in
bracketing series
Frame counter
When using exposure compensation (p. 41), the bracketing series will be made in
relation to the compensated exposure. Under extreme conditions, one of the bracketed
exposures may be inaccurate because it is outside the exposure control range of the
camera.
The remaining number of frames in the bracket series is
displayed on the monitor next to the bracketing
indicator. If the memory is filled or the shutter button is
released before the series has completed, the camera
will reset and the entire bracket must be made again.
The flash cannot be used with the bracketing drive
mode.
The order of the bracket series is normal exposure, underexposure, and overexposure.
The exposure bracket can be made in 0.3 or 0.5 Ev increments. The larger the number,
the greater the difference in exposure between the images in the bracketed series.
0.3 Ev
bracket
0.5 Ev
bracket
Normal
Under
Over
WHAT IS AN EV?
Ev stands for exposure value. A change
of one Ev adjusts the exposure
calculated by the camera by a factor of
two.
+2.0 Ev
+1.0 Ev
±0.0 Ev
–1.0 Ev
–2.0 Ev
4X as much light
2X as much light
1/2 as much light
1/4 as much light
Calculated exposure
54 A
DVANCED RECORDING
Changing image size affects the number of pixels in
each image. The greater the image size, the larger
the file size. Choose image size based on the final
use of the image - smaller images will be more
suitable for web sites whereas larger sizes will
produce higher quality prints.
LCD monitor
2560
2048
1600
640
Number of pixels
(hor. X vert.)
2560 X 1920
2048 X 1536
1600 X 1200
640 X 480
IMAGE SIZE AND IMAGE QUALITY
Image quality controls the rate of compression, but has no effect on the number of pixels
in the image. The higher the image quality, the lower the rate of compression and the
larger the file sizes. If economical use of the memory card is important, use the economy
mode. Standard image quality is sufficient for normal usage. The fine mode will produce
the highest quality image and the largest image files.
Image size and quality must be set before the picture is taken. Changes are displayed
on the LCD monitor. Changes made on one menu affects all exposure modes except
movie. Image size and quality must be reset manually. See navigating the recording
mode menu section on page 44.
If image size or quality are changed, the frame counter will display the approximate
number of images that can be recorded at that setting on the installed memory card. One
memory card can contain images with differing sizes and qualities. The number of
images that can be stored on a memory card is determined by the size of the card and
the file size of the images. The actual file size is determined by the scene; some subjects
can be compressed further than others. See the chart on the following page.
Fine - high-quality JPEG image.
Standard - the default setting. (JPEG)
Economy - the smallest file sizes. (JPEG)
STD.
ECON.
FINE
The frame counter indicates the approximate number of images that can be stored on the
memory card at the camera’s image quality and size settings. If the settings are changed,
the frame counter adjusts accordingly. Because the counter uses approximate file sizes, the
actual image taken may not change the counter or may decrease it by more than one. When
the frame counter displays zero, it indicates no more images at the image size and quality
settings can be captured. Changing those settings may allow more images to be saved to
the card.
55
Camera Notes
Fine
Standard
Economy
4 7 12 67
9 15 22 101
18 26 37 142
Approximate number of images that can be stored on a 16MB memory card
Quality
Size
2560 X 1920 2048 X 1536 1600 X 1200 640 X 480
Fine
Standard
Economy
2590KB 1710KB 1100KB 210KB
1360KB 920KB 680KB 140KB
750KB 530KB 380KB 100KB
Approximate file sizes
56 A
DVANCED RECORDING
AUTO DSP
Automatic Digital Subject Program Selection can be
temporarily disabled in the auto-recording menu. When
disabled, the program exposure mode is active. If the
camera is turned off, Automatic Digital Subject Program
Selection is activated.
Drive mode
Image size
Quality
Auto DSP
Anti-shake
Single
2560x1920
Standard
On
Disp. + Exp.
ANTI-SHAKE SYSTEM
The Anti-Shake system minimizes the affect of camera shake, a slight blurring caused by
subtle hand motion. Camera shake is more pronounced at the telephoto setting than at
the wide-angle. Anti-Shake is employed when the shutter speed falls below a certain limit
depending on the focal length in use. The effectiveness of Anti-Shake depends on the
shutter-speed in use and the degree of shaking. The system may not work with moving
subjects or when the camera is panned.
Camera-shake
warning
Anti-shake
indicator
When the system is active, the Anti-Shake
indicator appears. Regardless of the Anti-
Shake setting, if the shutter speed is too
slow for the camera to be safely handheld,
the camera-shake indicator appears as a
warning. Use the built-in flash or a wide-
angle zoom position.
Frame the subject as described in the basic operation section and press the shutter-
release button partway down. Confirm the image has stabilized on the monitor and press
the shutter-release button all the way down to take the picture.
57
Three options are available for the Anti-Shake system in section 1 of the recording
menus.
Display + Exp. - when the shutter-release button is pressed partway down, the anti-
Shake function will activate. The affect of the Anti-Shake system can be seen in the live
image.
Exposure - Anti-Shake is only applied during the exposure and is not apparent in the live
image. When the shutter-release button is pressed partway down, wait a moment before
taking the picture for the Anti-Shake system to stabilize the image.
Off - Anti-Shake will not activate.
The Anti-Shake system is less effective at short subject distances or when using the
macro function (p. 35). The use of a tripod is recommended. Anti-Shake is not effective
with a tripod mounted camera; turn off the Anti-Shake function to conserve power.
A thermometer indicator replaces the Anti-Shake indicator when the camera is
overheating because of high operating or ambient temperatures. When taking
still images, the Anti-Shake system is used only for the exposure. When taking
movies, Anti-Shake is canceled. A lower camera sensitivity (ISO) than selected
may be used. Allow the camera to cool before using Anti-Shake.
If Anti-Shake cannot compensate the camera motion, the Anti-Shake indicator turns red.
58 A
DVANCED RECORDING
This camera has autofocus and manual focus control. The focus mode is selected
separately in the Digital Subject Program, movie, and P, A, S, and M exposure-mode
menus. When using Digital Subject Programs, the focus mode is reset when the camera
is turned off.
FOCUS MODES
With the P, A, S, or M exposure modes or
movie recording, the autofocus mode can be
specified between single-shot AF and
continuous AF in section 2 of the menu (p.
44). Single-shot AF, indicated by S on the
monitor, allows the focus to be locked before
recording the image, see the basic recording
section.
Continuous AF, indicated by C, continually
focuses the camera. When capturing still
images, the camera continues to focus when
the shutter-release button is held partway
down. In movie recording, focus is locked
when the shutter-release button is partway
down, but it is continually adjusted during
recording.
Single-shot AF
Continuous AF
Autofocus
59

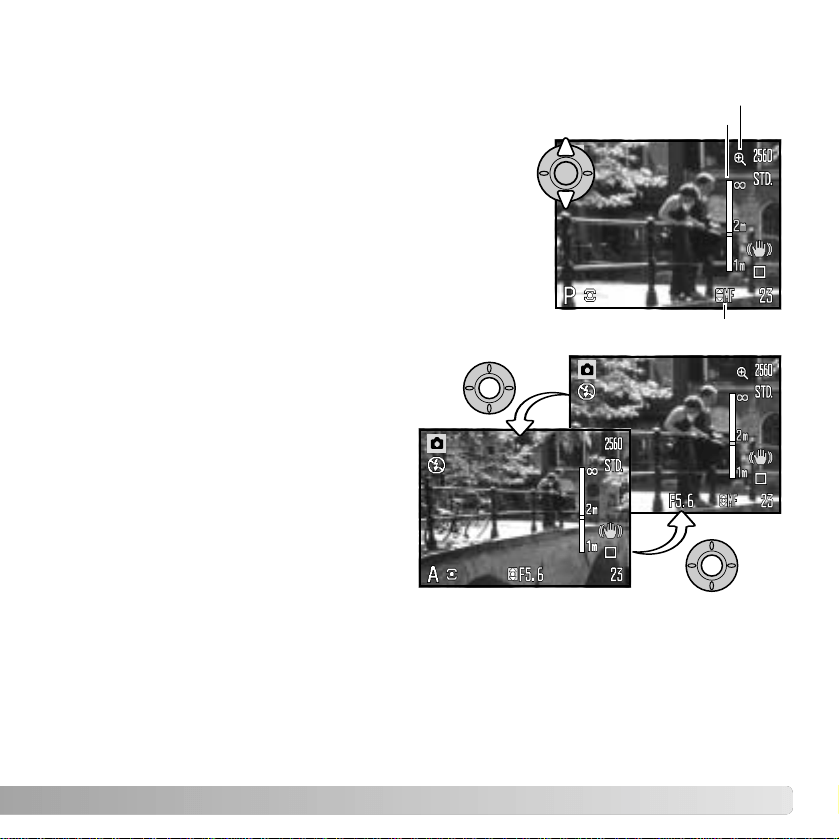

When using the shutter-priority, aperture-
priority, or manual exposure modes (p. 36
- 38) with manual focus, press the central
button of the controller to switch between
using the up/down keys to focus or to
adjust the exposure. The active function is
indicated in blue.
When focusing manually, a scale shows the approximate
subject distance. The scale changes depending on the
focusing range.
Use the up/down controller keys to focus; the monitor
image is automatically magnified by a maximum of 2.5X
depending on the digital zoom setting; the magnifier
indicator is displayed. The live image returns to normal
after two seconds, when zooming, or when the shutter-
release button is pressed partway down.
Manual-focus scale
Manual-focus indicator
Magnifier indicator
Manual Focus
60 A
DVANCED RECORDING
Preset white-balance settings must be set before
the image is taken. Once set, the effect is
immediately visible on the LCD monitor.
Immediately after selecting the preset white-
balance option on the menu, a selection screen is
displayed.
Press the left/right keys of the controller to select
the preset white balance. Press the central button
of the controller to apply it. The following preset
options are available:
Automatic White Balance
Preset White Balance
The automatic white balance compensates for the color temperature of a scene. In most
cases, the auto setting will balance the ambient light and create beautiful images, even
under mixed-lighting conditions. When the built-in flash is used, the white balance is set
for the color temperature of the flash.
Fluorescent - for fluorescent
lighting: office ceiling lights.
Tungsten - for incandescent
lighting: household light bulbs.
Daylight - for outdoor and sunlit
subjects.
Cloudy - for overcast outdoor
scenes.
White balance is the camera’s ability to make different types of lighting appear neutral.
The effect is similar to selecting daylight or tungsten film, or using color compensating
filters in conventional photography. An indicator will be displayed on the monitor if a
setting other than auto white-balance is chosen. White balance is set independently in
section 1 of the movie, and P, A, S, and M exposure-mode menus (p. 44).
WHITE BALANCE
Drive mode
Image size
Anti-shake
Cust.set
Auto
Preset
Quality
CustRecall
White balance
Flash - for use with the built-in
flash.
:select
:enter
61
Custom white-balance allows the camera to be calibrated to a specific lighting condition.
The setting can be used repeatedly until reset. Custom white balance is especially useful
with mixed-lighting or when critical control over color is needed. The object used to make
a calibration must be neutral. A blank piece of white paper is an ideal surface and can
easily be carried in a camera bag.
Custom White Balance
To calibrate the camera, select custom setup
(Cust.set) from the white balance option in section 1
of the movie, and P, A, S, and M exposure-mode
menus (p. 44); the custom white-balance calibration
screen opens.
Fill the image area with a white object; the object
does not need to be in focus. Press the central
button of the controller to make the calibration or
press the menu button to cancel the routine.
The live view shows the effect of the new white
balance setting. The custom setting will remain in
effect until another calibration is made or the white-
balance setting is changed.
If the custom white-balance setting is required again, select
custom recall from the white-balance option of the menu; the
last custom white-balance setting will be applied to the
camera. The same custom white-balance setting is made
and accessed from the movie, P, A, S, and M exposure
modes.
Drive mode
Image size
Anti-shake
Cust.set
Auto
Preset
Quality
CustRecall
White balance
Drive mode
Image size
Anti-shake
Cust.set
Preset
Quality
CustRecall
White balance
:enter
Auto
62 A
DVANCED RECORDING
FULL-TIME AF
With full-time AF active, the autofocus systems continually focuses to keep the monitor
image sharp. This also reduces the autofocusing time when taking pictures. When the
camera is set to manual focus, full-time AF is disabled. Turning the full-time AF function
off can help conserve battery power. Full-time AF can be turned on and off in section 2
of the P, A, S, and M menus (p. 44).
Full-time AF is active regardless of the menu setting when using macro in auto-recording
or with a Digital Subject Program as well as when using the sports action digital subject
program. When the red low-battery warning is displayed, full-time AF is disabled.
FLASH MODE
The flash modes can be changed in section 2 of the P, A, S,
and M menus (p. 44). This menu option is used when
another function is assigned to the flash mode button, see
page 67 on the custom key function. For more on flash
modes, refer to page 26.
Focus mode
Full-time AF
Flash mode
Metering mode
Single AF
Off
Autoflash
0
MultiSegment
Flash comp.
FLASH COMPENSATION
Flash compensation increases or decreases the flash
exposure of the built-in flash in reference to the ambient
exposure by as much as 2 Ev.
Select the flash compensation option section 2 of the P, A,
S, and M menus (p. 44). Use the up/down keys to adjust the
degree of compensation. Press the central controller button
to set this value. If any value other than 0.0 is set, an
indicator will be displayed on the monitor as a warning.
–2 ~ +2
Focus mode
Full-time AF
Metering mode
+0.3
Flash mode
Flash comp.
63
Flash compensation changes the ratio between the ambient and flash exposures. When
using fill-flash to reduce harsh shadows caused by direct sunlight, flash compensation
changes the ratio between the highlights and shadows. The flash affects the darkness of
the shadows without affecting the area illuminated by the sun. By decreasing the flash
output with a negative Ev setting, the shadows receive less light and are deeper, but
retain detail that would be lost without the flash. Using a positive Ev setting will soften or
eliminate shadows.
Center weighted: a traditional metering method in film cameras. The system
measures light values over the entire image area with emphasis given the central
region.
Spot metering: uses a small area within the image to
calculate the exposure. A small circle appears in the
middle of the live image indicating the measuring
area. The spot allows precise exposure
measurements of a particular object without being
influenced by extremely bright or dark areas within the
scene.
Multi-segment metering: uses 256 segments to measure luminance and color.
This data is combined with distance information to calculate the camera exposure.
This advanced metering system will give accurate worry-free exposures in almost
all situations.
Metering mode indicators are displayed on the monitor. The metering mode is set in
section 2 of the P, A, S, and M menus (p. 44).
METERING MODES
No compensation
Negative compensation
Positive compensation
No flash
64 A
DVANCED RECORDING
ISO setting
AUTO
50
0.2 - 3.6m (0.7 - 11.8ft.)
Flash range (telephoto)
1.2 - 2.2m (3.9 - 7.2ft.)
0.2 - 2.0m (0.7 - 6.6ft.) 1.2 - 1.3m (3.9 - 4.3ft.)
The flash range is measured from the front of the lens. Because of the optical system,
the flash range is not the same at the lens’ wide-angle position as it is at the telephoto
position.
FLASH RANGE AND CAMERA SENSITIVITY
Five camera sensitivity settings can be selected: Auto, 50,
100, 200, and 320; the numerical values are based on an
ISO equivalent. ISO is the standard used to indicate film
sensitivity: the higher the number, the more sensitive the
film. Camera sensitivity is set in section 3 of the P, A, S, and
M menus (p. 44).
100
200
320
0.28 - 2.9m (0.9 - 9.5ft.)
0.4 - 4.0m (1.3 - 13.1ft.)
0.50 - 5.1m (1.65 - 16.7ft.)
1.2 - 1.8m (3.9 - 5.9ft.)
1.2 - 2.5m (3.9 - 8.2ft.)
1.2 - 3.2m (3.9 - 10.5ft.)
Flash range (wide angle)
The auto setting automatically adjusts the camera sensitivity to the light conditions
between ISO 50 and 160. When any other setting than auto is used, “ISO” and the set
value will be displayed on the monitor.
A specific sensitivity setting can be selected. As the ISO value doubles, the camera
sensitivity doubles. Like grain in silver-halide film that increases with speed, noise
increases with sensitivity in digital imaging; an ISO setting of 50 will have the least noise
and 320 will have the most. An ISO setting of 320 may allow the camera to be hand-held
in low-light conditions without the need of a flash. Noise reduction is applied
automatically to the image; see page 39 for details.
Sensitivity
Color mode
Contrast
Auto
NaturalColor
Normal
Normal
Sharpness
Key func. Flash mode
CAMERA SENSITIVITY - ISO
65
COLOR MODE
The color mode controls whether an image is color or
black and white. This must be set before the image is
recorded. The color mode is set in section 3 of the P, A,
S, and M menus and section 2 of the movie menu (p. 44).
The live image reflects the selected color mode. The
color mode has no effect on image file size.
Natural Color reproduces the colors in the scene
faithfully. This mode uses no monitor indicator when
active. Vivid Color increases the saturation of the colors
in the scene. Black & White produces neutral
monochrome images. The sepia mode creates warm-
tone monochrome images.
Black & White
Vivid Color
Sepia
CONTRAST
Contrast: normal
Contrast: low Contrast: high
This function increases or decreases the contrast of the scene in three levels: high (+),
normal, and low (–). This can be set in section 3 of the P, A, S, and M menus (p. 44). Any
changes made are applied to the live image. If any level except normal is selected, an
indicator appears on the monitor as a warning.
Sensitivity
Color mode
Contrast
Auto
NaturalColor
Normal
Normal
Sharpness
Key func. Flash mode
66 A
DVANCED RECORDING
Sharpness: hard
Sharpness: soft
SHARPNESS
Sharpness accents or softens details in an image in three
levels: hard (+), normal, and soft (–). This can be set in
section 3 of the P, A, S, and M menus (p. 44).
Any changes made are applied to the live image, but may
be difficult to see. However, when viewed with a computer,
the changes will be evident. If any level except normal is
selected, an indicator appears on the monitor as a warning.
Normal
67

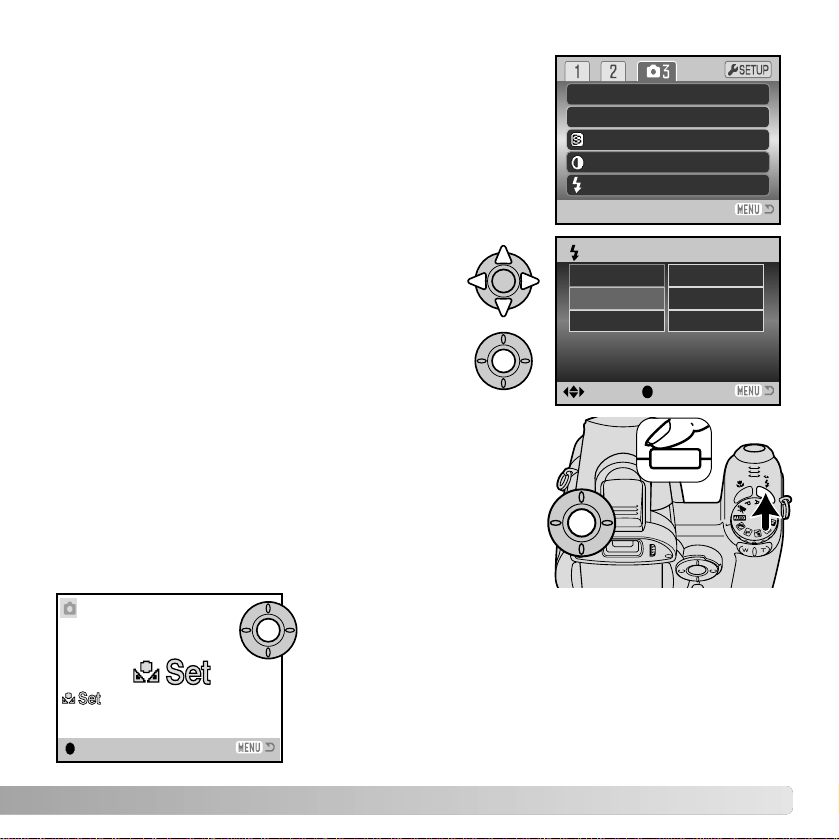

CUSTOM KEY FUNCTION
The function assigned to the flash mode button can be
selected among the flash mode, drive mode, white balance,
focus mode, color mode, and camera sensitivity. This can
be set in section 3 of the P, A, S, and M menus (p. 44). The
flash mode can also be changed in section 2 of the P, A, S,
and M menus.
Pressing the flash-mode button changes the function set in
the menu. Press the central button of the controller or press
the shutter-release button partway down to apply the
setting.
When selecting custom white balance, the calibration
screen appears. Fill the frame with a white object and
press the central button of the controller to calibrate the
camera.
:enter
Key func.
:enter:sel.
Focus mode
Color mode
White balance
Drive mode
Flash mode
Sensitivity
When the key-function option is selected and
entered, a selection screen appears. Use the
four-way key of the controller to select the
function. Press the central button to complete
the operation.
Sensitivity
Color mode
Contrast
Auto
NaturalColor
Normal
Normal
Sharpness
Key func. Flash mode
68 A
DVANCED RECORDING
QUALITY (MOVIE)
Movies can be recorded at three size and quality
combinations: 640x480 Fine, 640x480 Standard, and
320x240 Standard. Image size and quality are the same as
those for still images: the larger the image size and higher
the quality, the larger the file size. Quality is set in section 1
of the movie menu (p. 44).
FRAME RATE
Movies can be recorded at two frame rates: 15 fps and 30 fps. The higher the frame rate,
the smoother the moving image and the larger the file sizes. Frame rate is set in section
1 of the movie menu (p. 44).
MOVIE FILE SIZES
If quality or the frame rate is changed, the frame counter displays the approximate
number of seconds that can be recorded with the installed memory card. The total time
that can be stored on a memory card is determined by the size of the card and the
recording rate. The actual file size is determined by the scene; some subjects can be
compressed further than others.
30 fps
15 fps
30 fps
15 fps
Approximate recording rate
Frame rate
Quality
14 seconds
28 seconds
640 X 480 STD.
1000KB/s
500KB/s
320 X 240 STD.640 X 480 FINE
750KB/s
9 seconds
18 seconds
450KB/s
230KB/s
Approximate number of seconds that can be stored on a 16MB memory card.
29 seconds
57 seconds
1500KB/s
Quality
Frame rate
Movie mode
640x480 STD.
15 fps
Auto
STD. movie
White balance
Anti-shake Disp. + Exp.
69
MOVIE MODE
The movie mode option selects the type of movie recorded. Standard produces a normal
movie clip. Night Movie uses high camera sensitivity to record under low light levels;
camera sensitivity will automatically increase in low light. Image quality can be lower with
Night Movies because of the higher sensitivity. The movie mode is set in section 1 of the
movie menu (p. 44).
The performance of the memory card may prematurely end the recording of a movie clip.
Test the card before important events. Check the Konica Minolta web site for the latest
compatibility information:
North America: http://www.konicaminolta.us/
Europe: http://www.konicaminoltasupport.com.
70 A
SHORT GUIDE TO PHOTOGRAPHY
A SHORT GUIDE TO PHOTOGRAPHY
Photography can be a rewarding pursuit. It is a broad and disciplined field that can take
years to master. But the pleasure in making photographs and the joy of capturing a
magical moment cannot be compared. The guide is an introduction to some basic
photographic principles.
The lens aperture controls not only
exposure, but also depth of field; the
area between the closest object in
focus and the furthest object in focus.
The larger the aperture value, the
greater the depth of field. The smaller
the aperture value, the shallower the
depth of field. The required shutter
speed for the exposure increases with
the aperture value. Usually landscape
photographs use a large depth of field
(large aperture value) to keep the
foreground and background in focus,
and portraits use a shallow depth of
field (small aperture value) to separate
the subject from the background.
Depth of field also changes with focal
length. The smaller the focal length,
the greater the depth of field; the
longer the focal length, the shallower
the depth of field.
71
The shutter controls not only exposure, but
also the ability to stop motion. Fast shutter
speeds are used in sport photography to stop
action. Slow shutter speeds can be used to
show the flow of motion such as water
cascading over a waterfall. The use of a
tripod is recommended with slow shutter
speeds.
The change in aperture and shutter speed is not apparent in the live image. Unlike film
cameras, test photographs can be taken and immediately viewed. For critical work, take
a test photograph at the set aperture or shutter speed and view the result in Quick View
(p. 30). The image can be deleted if not acceptable and another test image can be taken
at a different setting.
Press the controller to pause the movie
playback; press the controller again to resume
the playback.
72 A
DVANCED PLAYBACK

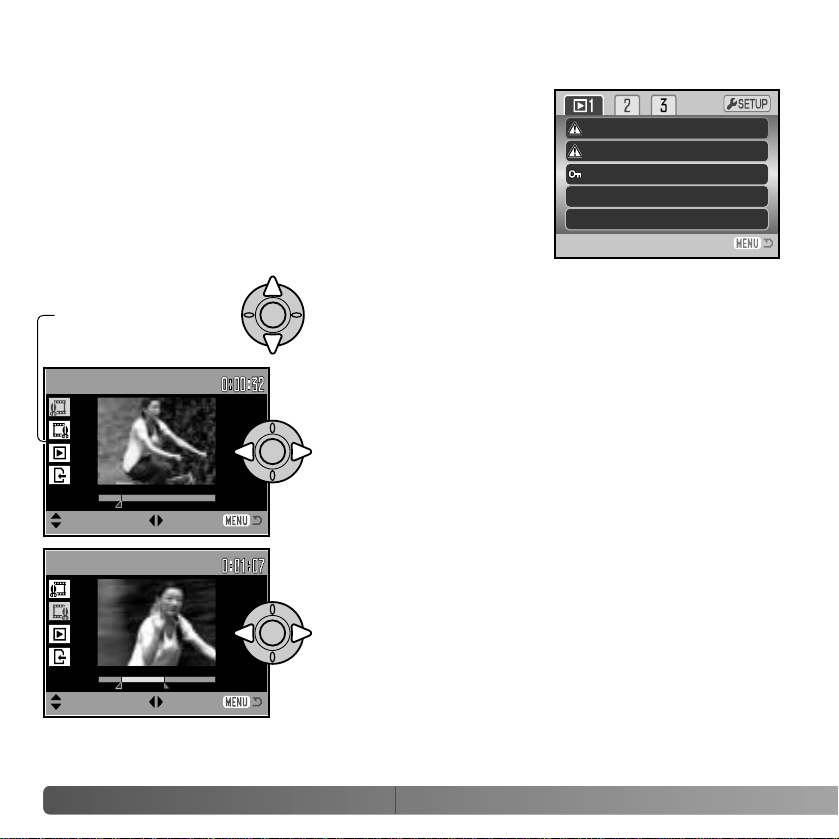

Use the left/right keys of the controller to display
the movie.
Press the center of the controller to play back
the movie clip.
PLAYING BACK MOVIES
ADVANCED PLAYBACK
Press the display button to view the movie with
or without the guidance bar.
During playback, the up/down keys adjust the volume and
the left/right keys rewind and fast forward the recording.
The basic functions in this mode are described in the basic playback section on pages
30 through 33. This section covers how to playback movie clips as well as the advanced
function on the playback menu. Movie clips can be played back in Quick View or the
playback mode.
To cancel the playback, press the menu button.
Pause
Play
Rew
Fwd
Vol
Play Rew Fwd
73

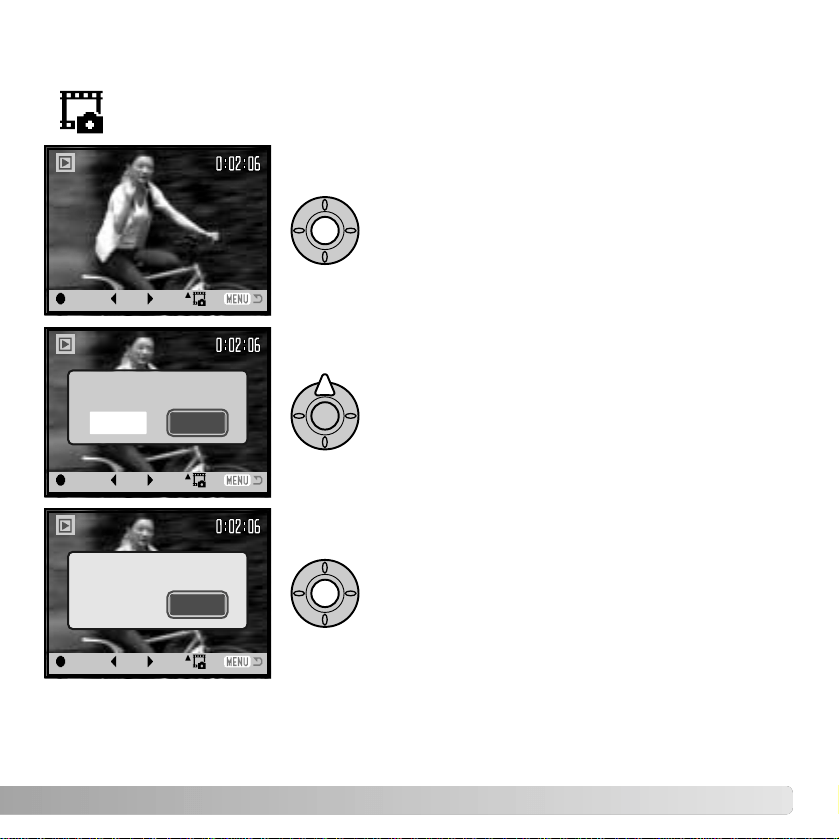

CAPTURING A MOVIE FRAME
A single frame from a movie clip can be copied and saved as a still image. The
copied image has the same image size as the original movie.
During playback, press the center button of the
controller to pause the movie playback at the
point to capture the frame. When the movie is
paused, the left/right keys can be used to jog the
clip to display the correct frame.
Play Rew Fwd
Press the up key of the controller to capture the
frame. Before the frame is captured, a
confirmation screen appears. Choosing “Yes”
executes the operation, “No” cancels it. Press
the center button of the controller to continue.
The file name of the captured image is displayed.
Press the center button of the controller to
complete the operation.
Saved as PICT0015.JPG.
OK
Quality of the captured image is equivalent to economy, but it is not recorded nor
displayed.
Play Rew Fwd
Capture this frame?
Yes No
74 A
DVANCED PLAYBACK
Press the central button of the controller to select the highlighted setting.
Use the left/right keys of the controller to highlight the appropriate menu tab;
the menu changes as the tabs are highlighted.
Use the up/down keys to scroll through the menu options. Highlight the option
whose setting needs to be changed.
With the menu option highlighted, press the right controller key; the settings
are displayed with the current setting highlighted. If “Enter” is displayed, press
the center of the controller to continue.
Use the up/down keys to highlight the new setting.
Once a setting has been selected, the cursor will return to
the menu options and the new setting will be displayed. To
return to the playback mode, press the menu button.
Pressing the menu button (1) turns the menu on and off. The four-way keys of the
controller (2) move the cursor in the menu. Pressing the central button of the controller
enters a setting.
Activate the menu with the menu button.
NAVIGATING THE PLAYBACK MENU
2
1
DPOF set
Date print
–
Off
–
–E-mail copy
Index print
75
Delete
Format
–
–
–
–Edit movie
Lock
Slide show
Playback
–
–
5 sec.
NoRepeat
Duration
To delete images on the memory card (p. 77).
To format the memory card (p. 78).
To create an index print with the DPOF order (p. 87).
To protect images from deletion (p. 79).

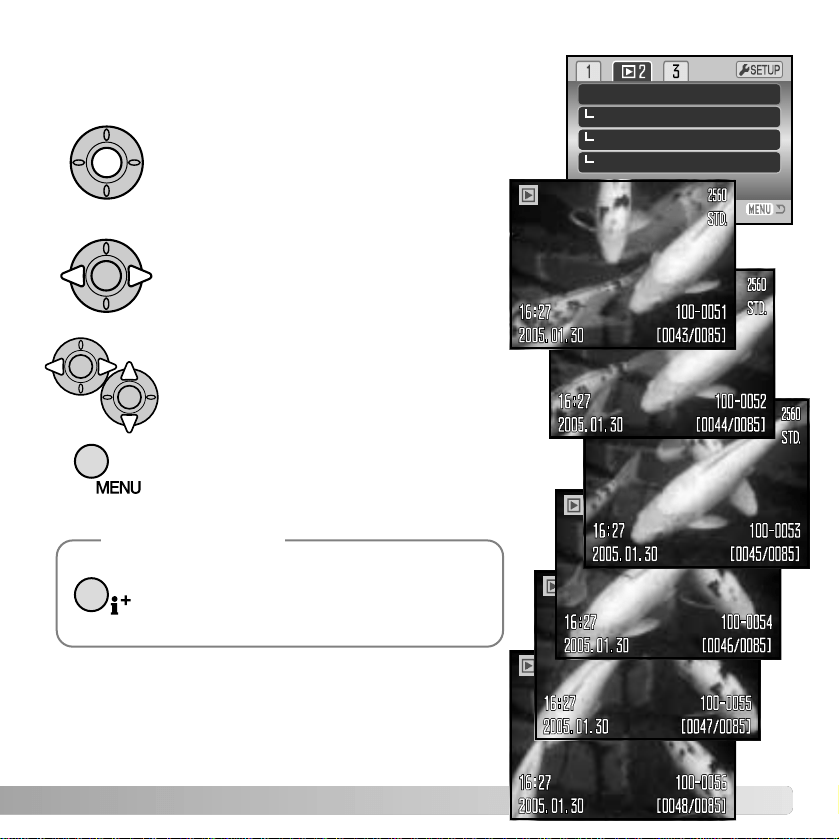

To play back images automatically (p. 84).
To select the images for the Slide Show (p. 84).
To specify how long each image is played back (p. 84).
To repeat the Slide Show presentation automatically (p. 84).
To select images for DPOF printing (p. 86).
To print the date with the DPOF images (p. 87).
To copy and resize images to be e-mailed (p. 82).
Refer to the following sections for descriptions of the menu options.
Section 1 and 3 of the playback menus cannot be used when the SD Memory Card is
locked with the write-protect switch (p. 124).
To make a cut on a movie clip (p. 80).
–Copy
To copy images from one memory card to another (p. 82).
76 A
DVANCED PLAYBACK
When a marked-frames setting is chosen on a menu, the frame selection screen will
appear. This screen allows multiple images to be chosen.
The left/right keys of the controller moves the
yellow border to select the image.
The up key of the controller selects the frame;
when selected, an indicator appears next to the
image. The down key deselects the image
removing the indicator.
The menu button cancels the screen and any operation made.
The garbage can indicates the image is
selected for deletion.
The key indicates the image is locked
or selected to be locked.
The check indicates the image is
selected for the slide show or to be
copied.
FRAME-SELECTION SCREEN
Press the central button of the controller to complete the operation.
The printer icon indicates the image is
selected for DPOF printing. The
number of copies is shown on the right.
Movie file
E-mail copy file
Indicators may be displayed on the right of each index
image to indicate movie and E-mail copy files.
:sel.
:enter
:move
77
Deleting permanently erases the file. Once deleted,
a file cannot be recovered. Care should be taken
when deleting images.
Single, multiple, or all files on the memory card can be
deleted in section 1 of the playback menu (p. 74). The
delete option has three settings:
DELETE
The file displayed or highlighted in the playback mode is deleted.
Before a file is deleted, a confirmation screen appears.
Choosing “Yes” executes the operation, “No” cancels it.
The delete function will only erase unlocked files. Locked
files must be unlocked before they can be deleted.
This
frame
All
frames
Marked
frames
To delete multiple files. When this setting is chosen, the frame-selection
screen is displayed. Use the left/right keys of the controller to highlight the
first file to be deleted. Pressing the up key marks the thumbnail with the
delete indicator. To deselect a file for deletion, highlight it with the yellow
border and press the down key; the indicator disappears. Continue until all
the files to be deleted are marked. Press the central button of the controller
to continue (the confirmation screen appears), or press the menu button to
cancel the operation and return to the playback menu. On the confirmation
screen, highlighting and entering “Yes” deletes the marked files.
All unlocked files are deleted.
Delete
Format
–
–
–
–Edit movie
Lock
–Copy
Delete this frame?
Yes No
Delete –
E
Copy
The formatting function is used to erase all data on a
memory card. Before formatting a memory card, copy the
data to a computer or storage device. Locking images will
not protect them from being deleted when the card is
formatted. Always format the memory card using the
camera; never use a computer to format a card.
When the format option is selected and entered in section
1 of the playback menu (p. 74), a confirmation screen
appears. Choosing “Yes” formats the card, choosing “No”
cancels the formatting operation. A screen appears to
indicate the card has been formatted.
78 A
DVANCED PLAYBACK
FORMAT
When a memory card is formatted, all data on the
card is erased.
A memory card used in another camera may have to be formatted before being used. If
the unable-to-use-card message appears, the card should be formatted with the camera.
If the card-error message appears, press the central button of the controller to close the
window; check the Konica Minolta web site for the latest compatibility information:
North America: http://www.konicaminolta.us/
Europe: http://www.konicaminoltasupport.com.
Delete
Format
–
–
–
–Edit movie
Lock
–Copy
Format?
Yes No
Delete
E
Copy
79
Single, multiple, or all files can be locked. A locked file cannot be deleted by either the
playback menu functions or the QV/delete button. However, the formatting function (p.
78) will erase all files on a memory card whether locked or not. Important images should
be locked. The lock function is in section 1 of the playback menu (p. 74). The lock option
has four settings:
LOCK
The file displayed or highlighted in the playback mode is locked.
This
frame
All
frames
Marked
frames
To lock or unlock multiple files. When this setting is chosen, the frame-
selection screen is displayed. Use the left/right keys of the controller to
highlight the file to be locked. Pressing the up key marks the file with the
lock indicator. To unlock a file, highlight it with the yellow border and press
the down key; the lock indicator disappears. Continue until all the files to be
locked are marked. Press the central button of the controller to lock the
marked thumbnails, or press the menu button to cancel the operation and
return to the playback menu.
All files on the memory card are locked.
Unlock
all
All files on the memory card are unlocked.
80 A
DVANCED PLAYBACK
The edit-movie option in section 1 of the playback menu
allows an unwanted section to be cut from a movie clip.
The movie to be edited must first be displayed in the
playback mode before opening the playback menu.
Highlight “Enter” in the movie edit option and press the
center button of the controller to open the editing screen.
MOVIE EDITING
Delete
Format
–
–
–
–Edit movie
Lock
–Copy
Function menu
The function menu indicates the active step in the
editing procedure. The up/down key selects functions.
Find 1st frame of cut.
:function
:find
Find last frame of cut.
:function
:find
Use the left/right keys of the controller to display the
first frame of the section to be cut. The bar under the
image and the timer in the top right corner of the screen
show the approximate location of the point.
Use the down key to select the next step.
Use the left/right keys of the controller to display the
last frame of the section to be cut. The bar under the
image and the timer in the top right corner of the screen
show the approximate location of the point.
Use the down key to select the next step.
81
Pause Rew
Fwd
Vol
Preview edit.
:function
:play
Press the center controller
button to preview the edit.
The arrow above the bar
indicates the playback
frame.
After playback, use the down key to continue if the edit is acceptable. To make changes
to the edit, use the up key of the controller to return to the previous steps to adjust the
start and end points. To cancel the edit operation, press the menu button.
Save edit.
:function
:save
Save edit.
:function
:save
After the edited movie clip is saved, the file name is
displayed.
The original movie file can be deleted from the memory card
by selecting “Yes” on the screen. Once deleted, it cannot be
recovered. By selecting “No,” both the original and edited file
remain on the card.
Save edit?
Yes No
Press the center controller button to save the edit; a
confirmation screen is displayed. Select “Yes” to
continue.
Delete original file?
Yes No
Saved as PICT0016.MOV.
Delete
Format
–
Edit movie
Lock
Copy
82 A
DVANCED PLAYBACK
The copy function in section 1 of the playback
menu (p. 74) makes exact copies of image or
movie files and can store the copied data on
another memory card. E-mail Copy in menu
section 3 makes a 640x480 (VGA) JPEG copy of
an original still image so that it may be easily
transmitted by e-mail. E-mail copies can only be
copied to the original card.
COPY AND E-MAIL COPY
DPOF set
Date print
–
Off
–
–E-mail copy
Index print
When a copy function is used, a folder is created for the files (p. 108); copy files are
placed in a folder with a name ending in CP, and E-mail Copy images are placed in a
folder ending in EM. The same folder is used to store copies until the number of images
exceed 9,999. Copies of locked images are unlocked. DPOF information is not copied.
The copy and E-mail copy functions have two menu options:
To copy the file displayed or highlighted in the playback mode.
This
frame
Marked
frames
To copy single or multiple files. When selected, the frame-selection screen
will appear; highlight the file to be copied with the yellow border and then
press the up key of the controller to mark it with the check indicator. To
deselect a file to be copied, highlight the selected thumbnail and press the
down key; the check disappears. Continue until all the files to be copied are
marked. Press the central button of the controller to continue, or press the
menu button to cancel the operation and return to the playback menu.
Up to 24MB of data can be copied. If too many images have been selected, a warning
will appear and the copy routine will be canceled. Divide the number of images into two
or three batches. The amount of data can be converted into E-mail copies depends on
the free space remaining on the memory card and the image size of the copy.
83
Copy
After the copy-completed message is highlighted, a screen
indicates the name of the folder containing the copied images;
press the central controller button to return to the menu.
When the image(s) to be copied are selected, a screen with four messages is displayed.
The messages are highlighted during the copying procedure.
When the change-card
message is highlighted,
remove the camera’s memory
card and insert the card to
which the image should be
copied. Press the central
button of the controller to
continue or the menu button to
cancel the copy operation.
Copying completed.
Copy
:enter
Copying to camera memory.
Change card.
Copying to card.
Copied to 101KM_CP.
OK
E-mail copy makes a 640x480 (VGA) JPEG copy of an original still image. The copy of
a fine-quality image is converted to standard quality. The quality setting of standard and
economy images are not changed. The image size of captured movie frames do not
change.
E-mail Copy
When the image(s) to be converted to an e-mail file are selected,
the copy routine begins and a screen appears indicating the name
of the folder containing the copied images; press the central button
of the controller to return to the menu.
Copied to 102KM_EM.
OK
The copy-unsuccessful message appears when one or all of the images could not be copied.
Check the memory card to see which files were copied and then repeat the procedure for
the uncopied images.
Camera Notes
84 A
DVANCED PLAYBACK
Section 2 of the playback menu controls the slide-show function. This function
automatically displays all still images and movie clips on the memory card in order. The
menu has the following options:
SLIDE SHOW
Slide show
Playback
Duration
Repeat
Enter
All
frames
Marked
Frames
1 - 60s.
Yes / No
To start the slide-show presentation. Highlight “Enter” and
press the central button of the controller to start the slide show.
To select all the images on the memory card to be displayed
in the slide-show presentation.
To select specific images to be displayed in the slide-show
presentation. When this setting is chosen, the frame-selection
screen is displayed. Use the left/right keys of the controller to
highlight the image to be included in the presentation.
Pressing the up key will mark the image with a check indicator.
To deselect a marked image, highlight it with the yellow border
and press the down key; the check disappears. Continue until
all the images have been edited. Press the controller to set the
marked frames, or press the menu button to cancel the
operation and return to the playback menu.
To select the period each still image is displayed during the
slide show.
Selecting “Yes” causes the slide show to repeat until it is
canceled using the menu button. “No” ends the slide show
presentation and returns to the playback menu when all the
images have been displayed once.
The presentation can be viewed without
image information. Before opening the
playback menu, press the information (i
+
)
button to turn off the information display.
85
Slide show
Playback
–
–
5 sec.
NoRepeat
Duration
Press the central button of the controller
to pause and restart the slide show
presentation.
Press the menu button to cancel the
presentation.
Camera Notes
The controller can be used to control the presentation
during playback.
The left/right keys advance to the next
still image or return to the previous one.
During a movie, the left/right keys
forward or rewind the clip. The up/down
keys adjust the volume.
86 A
DVANCED PLAYBACK
The DPOF-set menu option is used to create an order for standard prints from still
images on the memory card. Single, multiple, or all images can be printed. Print orders
are created in section 3 of the playback menu (p. 74). The print menu option has four
settings:
ABOUT DPOF
This camera is supported by DPOF™ version 1.1. The DPOF (Digital Print Order Format)
allows direct printing of still images from digital cameras. After the DPOF file is created,
the memory card is simply taken to a photofinishing service or inserted into the memory-
card slot of DPOF compatible printers. When a DPOF file is created, a misc. folder is
automatically created on the memory card to store it (p. 108).
DPOF SETUP
To create a DPOF file for the displayed or highlighted image.
This
frame
All
frames
Marked
frames
To chose a group of images to be printed or when the number of copies of
each image varies. When selected, the frame selection screen appears.
Use the left/right keys of the controller to highlight an image to be printed.
Pressing the up key will mark the image with the print indicator. The number
next to the indicator shows the number of copies that will be printed.
Pressing the up key increases the number of copies, pressing the down key
decreases the number. A maximum of nine copies can be ordered. To
deselect an image for printing, press the down key until the number of
copies reaches zero and the print indicator disappears. Continue until all the
images to be printed are marked. Press the central button of the controller
to create the DPOF file, or press the menu button to cancel the operation
and return to the playback menu.
To create a DPOF file for all images on the memory card.
Cancel
all
To delete the DPOF file.
DPOF files and images can be printed directly from the camera with a DPOF compatible
PictBridge printer, see page 119.
87
When the this-frame or all-frames setting is chosen, a screen appears requesting the
number of copies of each image; a maximum of nine copies can be ordered. Use the
up/down keys of the controller to set the required number of copies. If the all-frames
setting was used to create a print order, any additional images recorded afterwards will
not be included in the order.
DPOF files created with another camera will be canceled. After the pictures have been
printed, the DPOF file will still remain on the memory card and must be canceled
manually.
DATE PRINT
To print the date of capture with each image with a DPOF compatible printer, turn the
section 3 menu option on. To cancel date print, simply turn the option off. How and where
the date is printed varies with the printer.
INDEX PRINT
Camera Notes
To create an index print of all the images on the card,
select “Yes” in the index print option in section 3 of
the playback menu. To cancel an index print, simply
change the setting to “No.”
If an index-print order is created, any additional
images saved afterwards on the card will not be
included in the index print. The number of images
printed per sheet differs between printers. The
information printed with the thumbnails can vary.
88 A
DVANCED PLAYBACK
VIEWING IMAGES ON A TELEVISION
It is possible to view camera images on your television. The camera has a video-out
terminal to make the connection using the supplied AV cable. The camera is compatible
with the NTSC and PAL standards. The video-output setting can be checked and set in
section 4 of the setup menu (p. 90).
1.Turn off the television and the camera.
2.Open the terminal cover and insert the small plug
of the AV cable into the camera’s AV-out terminal.
The arrow on the plug should face the back of the
camera.
3.Plug the other end of the AV cable into the video
and audio input terminals on the television. The
yellow plug is for the video output. The white plug
is for the monaural audio output.
4.Turn the television on.
5.Change the television to the video channel.
6.Turn the camera’s mode dial to the playback
position and turn on the camera. The camera’s
monitors will not activate when the camera is
attached to a television. The playback-mode
display will be visible on the television screen.
7.View images as described in the playback section.
89
The setup menu is used to control the camera’s functions and operation. The navigating
the setup menu section covers the operation of the menu. The section is followed by
detailed descriptions of the settings.
OPENING THE SETUP MENU
SETUP MENU
Anti-sh
Quality
Auto D
Drive mode
Image size
Quality
Auto DSP
Anti-shake
Drive m
LCDbrightness
Power save
Inst.Playback
Lens acc.
Language
–
1 min.
Off
None
English
Setup menu
The setup menu is opened from the other menus. It can be accessed from any of the
recording or playback menus.
Press the central button of the controller to
open the setup menu.
Disp. + Exp.
On
Standard
2560x1920
Single
Use the right key of the controller to highlight
setup tab at the top of the menu.
Reverse the procedure to return to the original
menu. Pressing the menu button closes the
menu and returns to the recording or playback
modes.
:enter
90 S
ETUP MENU
Press the central button of the controller to select the highlighted setting. Once
a setting has been selected, the cursor will return to the menu options and the
new setting will be displayed.
Use the left/right keys of the controller to highlight the appropriate menu tab;
the menu changes as the tabs are highlighted.
Use the up/down keys to scroll through the menu options. Highlight the option
whose setting needs to be changed.
With the menu option highlighted, press the right controller key; the settings
are displayed with the current setting highlighted. If “Enter” is displayed, press
the center of the controller to continue.
Use the up/down keys to highlight the new setting.
See page 89 on how to open the menu. The four-way keys of the controller (1) move the
cursor in the menu. Pressing the central button of the controller enters a setting.
Close the menu with the menu button.
NAVIGATING THE SETUP MENU
1
LCDbrightness
Power save
Inst.Playback
Lens acc.
Language
–
1 min.
Off
None
English
91
Video output
Transfer mode
NTSC
Data storage
Reset default
Audio signals
Volume
–
1
1
1
2
Shutter FX
Focus signal
File # memory
Folder name
Date imprint
Off
Std. form
Date/Time set
To set monitor brightness (p. 92).
To switch video output between NTSC and PAL (p. 100).
To set the menu language (p. 94, 19).
To activate file number memory (p. 94).
To select the folder name format (p. 94).
To activate date imprinting (p. 96).
To reset camera functions (p. 97).
To change or turn off audio signals (p. 99).
To change or turn off the shutter sound effect (p. 99).
To adjust the volume of camera signals (p. 99).
To set the auto power save period (p. 92).
To set the camera’s clock and calendar (p. 95, 18).
To play back a still image after it is recorded (p. 93).
Specified when using a lens accessory (p. 93).
To change or turn off the focus signal (p. 99).
To specify camera use with a computer or printer (p. 100).
Off
10 sec.Self-timer
Digital zoom
To change the self-timer delay period (p. 101).
To increase the telephoto magnification (p. 100).
–
Off
92 S
ETUP MENU
Monitor brightness can be adjusted in 11 levels.
Brightness can be set individually for viewfinder
and direct viewing in the recording mode. Turn the
mode switch to the appropriate position before
opening the brightness option in section 1 of the
setup menu (p. 90). Also see page 28.
Use the left/right keys of the controller to adjust
brightness, the monitor image changes
accordingly. Press the central button of the
controller to set the level.
AUTO POWER SAVE
To conserve battery power, the camera will shut down if no operation is made within a
certain period. The length of the auto-power-save period can be changed to 1, 3, 5, or 10
minutes. When the camera is connected to a computer, the auto-power-save period is
fixed at ten minutes. Auto power save is set in section 1 of the setup menu (p. 90). LCD
monitor turns off after 1 minute regardless of the setup menu setting.
Set LCD brightness
:adjust
:enter
Low High
LCD MONITOR BRIGHTNESS
93
An image can be displayed on the monitor after it is captured.
When used with the continuous-advance, progressive-
capture, or bracketing drive modes (p. 46), the images in the
series are played back in a six-frame index display. Instant
playback is activated section 1 of the setup menu (p. 90). A
playback period of two or ten seconds can be selected. To
cancel the playback and save the image before the end of
the playback period, press the shutter-release button
partway down.
INSTANT PLAYBACK
Single still images can be previewed immediately after being captured without instant
playback active. Simply continue to hold the shutter-release button down after taking the
picture to display the image. Release the shutter button to end the playback.
Camera Notes
LENS ACCESSORY
This camera is compatible with the optional Wide-Angle
Converter ZCW-300 Kit. This kit contains a 0.75X wide-
angle converter, which reduces the focal length of the
zoom lens’ wide-angle position giving it the equivalent of a
26mm lens on a 35mm camera.
When the converter is mounted, the lens accessory option
in section 1 of the setup menu should be set to
“WideConvertr.” An indicator (W) appears in the top left
corner of the monitor as a warning. Refer to the converter
manual for more information.
94 S
ETUP MENU
LANGUAGE
The language used in the menus can be changed in section 1 of the setup menu. See
page 19 for details.
If file number memory is selected, when a new folder is
created or a new memory card is used, the next image
recorded will have a file number one greater than the last
file saved. If the new card contains an image with a greater
file number, the new image will be assigned a file number
one greater than the greatest on the card. If the file number
memory is disabled, the image file number is reset to 0001
when saved in a new folder or card. File number memory is
activated in section 2 of the setup menu.
FILE NUMBER (#) MEMORY
File # memory
Folder name
Date imprint
Off
Std. form
–
Off
Date/Time set
FOLDER NAME
All recorded images are stored in folders on the memory card. Two folder-
name formats are available in section 2 of the setup menu, standard and
date.
Standard folders have an eight character name. The initial folder is named
100KM022. The first three digits are the folder’s serial number, which will
increase by one each time a new folder is created. The next two letters
refer to Konica Minolta, and the last three numbers indicate the camera
used; 022 indicates a DiMAGE Z5.
A date folder name also starts with the three digit serial number and is
followed by one register for the year, two register for the month, and two
registers for the day: 101YMMDD. The folder 10150130 was created in 2005 on January
30th.
100KM022
(Standard)
10150130
(Date)
95
With the date folder format selected, when an image is recorded, a new folder with the
day’s date is created. All images recorded that day are placed in that folder. Images
recorded on a different day are placed in a new folder with the corresponding date. If the
file number memory function is off (p. 94), when a new folder is created, the serial
number in the image-file name is reset to 0001. If file number memory function is on, the
serial number in the image-file is one greater than the last image saved. For more
information on folder organization and file names, see page 108.
DATE AND TIME SETUP
It is important to accurately set the clock. When a still image or a movie clip is recorded,
the date and time of the recording are saved with the image and are displayed during
playback or can be read with the supplied DiMAGE Viewer software. The date format that
is displayed or imprinted can be changed: YYYY/MM/DD (year, month, day),
MM/DD/YYYY (month, day, year), DD/MM/YYYY (day, month, year). See page 18 for
instructions on how to set the clock and calendar.
96 S
ETUP MENU
DATE IMPRINTING
The date is imprinted in the lower right corner
of the image when viewed horizontally. It is
printed directly on the photograph writing over
the image information. The date can be
imprinted in three formats: year / month / day,
month / day / year, and day / month / year. The
date and date format are set in section 2 of the
setup menu (p. 90).
The date of recording can be printed directly on the image.
The imprinting function must be activated in section 2 of the
setup menu (p. 90) before the image is taken. Once
activated, the date will continue to be imprinted until the
function is reset; a yellow bar is displayed behind the frame
counter to indicate the imprinting function is active.
Date-imprinting indicator
Every time a still image is recorded, it is stored with an exif tag that contains the date and
time of recording as well as shooting information. This information can be viewed with the
camera in the Quick View or playback mode, or on a computer with the DiMAGE Viewer
software.
Camera Notes
97
p. 60White balance Auto
p. 62Full-time AF Off
p. 62Flash compensation 0.0
p. 63Metering mode Multi segment
p. 64Camera sensitivity (ISO) Auto
p. 65Color mode Natural color
p. 66Sharpness Normal
p. 65Contrast Normal
p. 68Quality 640 X 480 Std.
p. 68Frame rate 15 fps
p. 60White Balance Auto
p. 69Movie mode Standard movie
p. 58Focus mode Continuous AF
Movie menu
RESET DEFAULT
This function affects all modes. When selected, a confirmation screen appears; choosing
“Yes” resets the following functions and settings, “No” cancels the operation.
p. 26Flash mode Autoflash (Fill-flash in A, S, M modes)
p. 46Drive mode Single-frame advance
p. 23Auto Digital Subject Selection On (Auto recording mode)
p. 56Anti-Shake Display + Exp.
p. 58Focus mode Autofocus / Single-shot AF
Recording mode
p. 65Color mode Natural color
p. 54Image size 2560 X 1920
p. 54Image quality Standard
p. 41Exposure compensation 0.0
p. 42Focus area Wide frames
p. 28Monitor display Standard
p. 67Custom key function Flash mode
p. 56Anti-Shake Display + Exp.
98 S
ETUP MENU
p. 84Playback (Slide Show) All frames
p. 84Duration (Slide Show) 5 seconds
p. 84Repeat (Slide Show) No
Playback menu
p. 99Volume 2
p. 92Auto-power-save period 1 minute
p. 93Lens accessory None
p. 94File number (#) memory Off
p. 94Folder name Standard
p. 99Audio signals 1
p. 92LCD Brightness Normal
p. 93Instant playback Off
Setup menu
p. 99Shutter FX 1
p. 87Index print No
p. 87Date print Off
p. 96Date imprinting Off
p. 99Focus signals 1
p. 100Transfer mode Data storage
p. 100Digital zoom Off
p. 101Self-timer 10 seconds
99
AUDIO SIGNALS
Every time a button is pressed, an audio signal gives a
positive confirmation of the operation. The audio signals
can be turn off in section 3 of the setup menu (p. 90). The
tone of the signal can also be changed; signal 1 is electrical
and signal 2 is mechanical.
Reset default
Audio signals
Volume
–
1
1
1
2
Shutter FX
Focus signal
FOCUS SIGNAL
When the shutter-release button is pressed partway down, an audio signal confirms the
AF system has focused. The focus signals can be changed or turned off in section 3 of
the setup menu (p. 90). Two tones are available.
SHUTTER FX
When the shutter is released, a shutter sound effect
gives a positive confirmation a still image is recorded.
The sound effect can be turn off in section 3 of the
setup menu (p. 90). Two shutter effects are available.
Signal 1 is taken from the Dynax/Maxxum 9 SLR and
signal 2 is taken from the legendary Minolta CLE, a
compact rangefinder that represents the pinnacle of
the development of the Leitz-Minolta CL.
VOLUME
The volume of the audio signals and shutter FX can be increased or decreased in section
3 of the setup menu (p. 90). The volume can be turned off. This affects the camera’s
audio signals only and will not change the playback levels of a movie clip.
100 S
ETUP MENU
VIDEO OUTPUT
Camera images can be displayed on a television (p. 88).
The video output can be changed between NTSC and PAL
in section 4 of the setup menu. North America uses the
NTSC standard and Europe uses the PAL standard. Check
which standard is used in your region to play back images
on your television set.
TRANSFER MODE
The data-transfer mode must be specified depending on whether images are transferred
to a computer or printed directly. The data-storage option must be selected to transfer
data from the camera to a computer or when using the DiMAGE Viewer software. The
PictBridge option allows images to be printed directly from the camera with a PictBridge
compatible printer (p. 114).
Video output
Transfer mode
NTSC
Data storage
10 sec.
Disp. + Exp.Anti-shake
Self-timer
DIGITAL ZOOM
The digital zoom extends the power of the telephoto position of the optical zoom by up
to 4X in 0.2X increments. It is activated in section 4 of the setup menu (p. 90). The
transition between the optical zoom and digital zoom is seamless. When the digital zoom
is active, the image magnification is displayed on the monitor and the focus frames
change to a single focus area. Because of the degree of magnification, the use of a tripod
is recommended.
101
SELF-TIMER
Self-timer delay period can be selected between 10 seconds and 2 seconds in section 4
of the setup menu (p. 90). A two-second self-timer is recommended to reduce camera
shake when using a tripod. Unlike the 10 seconds self-timer, the two-second self-timer is
not canceled after taking a picture.
The digital zoom is operated by the zoom
lever (1). Slide the lever right (T) to zoom
in to the telephoto position of the lens.
When the digital zoom activates, the
image magnification will be displayed on
the monitor. Turn the lever left (W) to
zoom out. After zooming, the zoom scale
is displayed briefly. The yellow section
indicates the digital-zoom range.
Digital-zoom images are interpolated to
the set image size. Some loss of quality
may be evident.
Magnification
Zoom scale
102 D
ATA-TRANSFER MODE
DATA-TRANSFER MODE
Read this section carefully before connecting the camera to a computer. Instructions on
using and installing the DiMAGE Viewer software are found in the supplied software
manual. The DiMAGE manuals do not cover the basic operation of computers or their
operating systems; please refer to the manual supplied with your computer.
Check the Minolta web site for the latest compatibility information:
North America: http://www.konicaminolta.us/
Europe: http://www.konicaminoltasupport.com

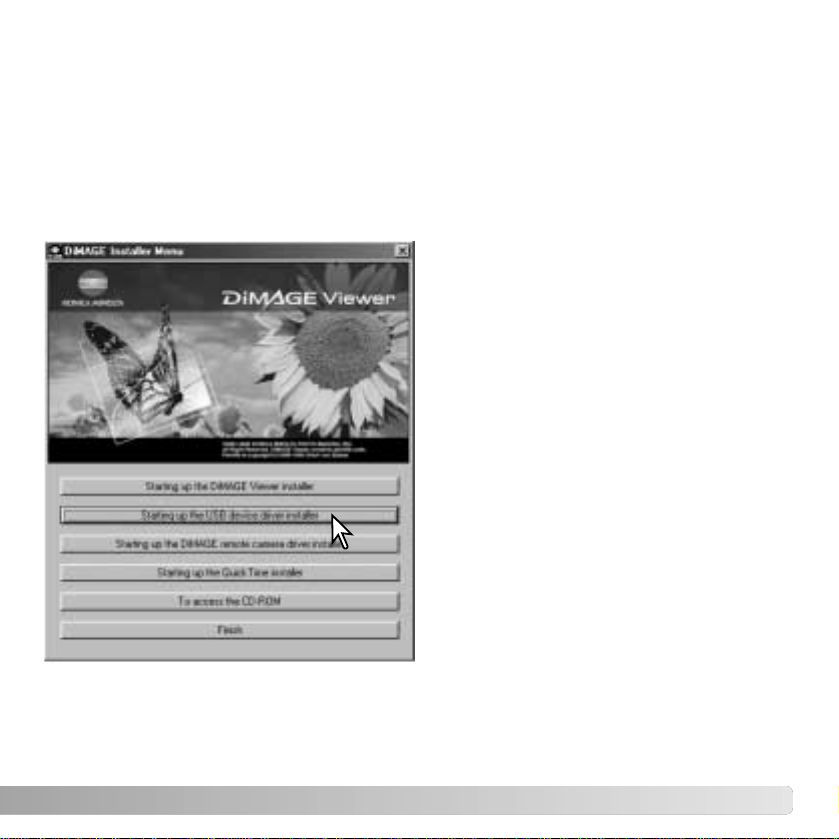

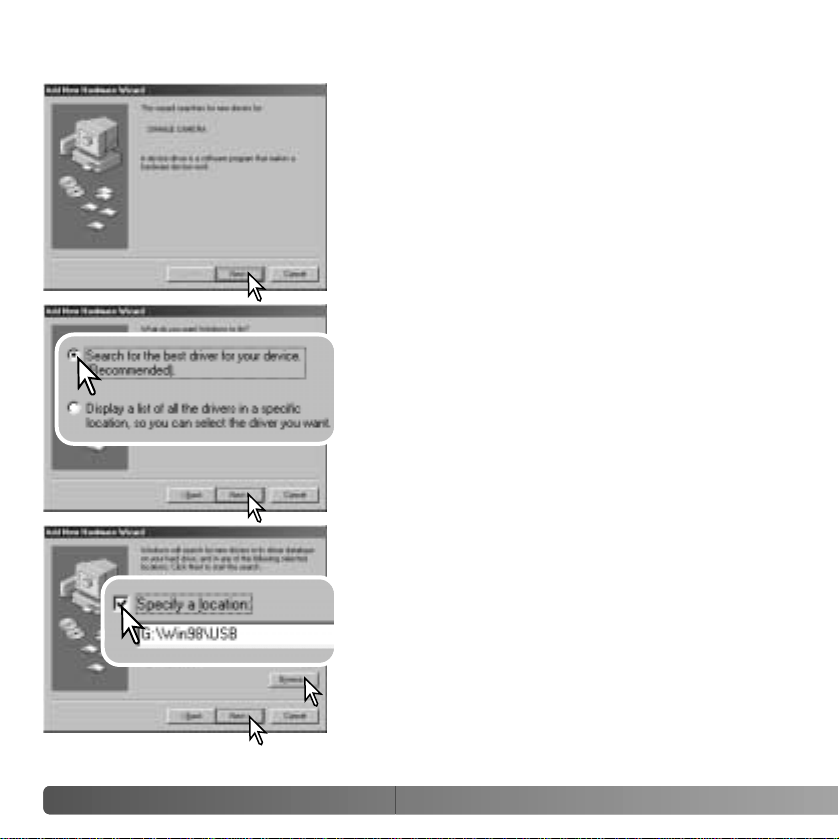

Users with Windows 98 or 98 second edition will need to install the driver software on the
included DiMAGE Viewer CD-ROM (p. 105). No special driver software is required for
other Windows or Macintosh operating systems.
Customers who have bought a previous DiMAGE digital camera and have installed the
Windows 98 driver software must repeat the installation procedure. The updated version
of the driver software included on the supplied DiMAGE Viewer CD-ROM is required for
the operation of the DiMAGE Z5 with a computer. The new software will have no affect
on the performance of older DiMAGE cameras.
A remote camera driver is supplied in the Windows edition of the DiMAGE Viewer CD-
ROM. The driver is not compatible with this camera.
Windows 98, 98SE, Me, 2000 Professional, and XP home and professional editions
Mac OS 9.0~9.2.2 and Mac OS X 10.1.3~10.1.5, 10.2.1~10.2.8, 10.3~10.3.6
SYSTEM REQUIREMENTS
For the camera to be connected directly to the computer and used as a mass-storage
device, the computer must be equipped with a USB port as a standard interface. Both the
computer and the operating system must be guaranteed by their manufacturers to
support USB interface. The following operating systems are compatible with the camera:
103
CONNECTING THE CAMERA TO A COMPUTER
Confirm the battery has sufficient power before connecting the camera to a computer; the
full-battery indicator should be displayed on the monitor. The use of the AC adapter (sold
separately) is recommended over the use of the battery. For users with Windows 98 or
98 Second Edition, read the section on page 105 on how to install the necessary USB
driver before connecting the camera to a computer.
1.Start up the computer. The computer must be on before
connecting the camera.
2.Insert the memory card into the camera. To change the
memory card while the camera is connected to a computer,
see page 112.
3.Open the terminal cover and attach the smaller plug of the
USB cable to the camera. The arrow on the plug should
face the back of the camera. Make sure the plug is firmly
attached.
4.Attach the other end of the USB cable to the computer’s
USB port. Make sure the plug is firmly attached. The
camera should be connected directly to the computer’s
USB port. Attaching the camera to a USB hub may prevent
proper operation.
5.Press the main switch to turn on the camera. The USB
connection is made automatically; a screen appears to
indicate the operation. The monitor turns off when the
connection has been made. If the USB connection is not
made, disconnect the camera and restart the computer.
Repeat the connection procedure above.
3
4
Initializing USB connection.
Continued on next page
104 D
ATA-TRANSFER MODE
When the USB connection is completed, a drive icon, or volume, appears in My
Computer or the desktop; the name varies with memory card. When using Windows XP,
a window opens requesting instructions on what to do with the image data; follow the
directions in the window.
Windows XP
Windows
Mac OS
105
The driver needs only to be installed once. If the driver cannot be installed automatically,
it can be installed manually with the operating system’s add-new-hardware wizard; see
the instructions on the following page. During installation, if the operating system
requests the Windows 98 CD-ROM, insert it into the CD-ROM drive and follow the
accompanying instructions on the screen. No special driver software is required for other
Windows or Macintosh operating systems.
CONNECTING TO WINDOWS 98 AND 98 SE
Before connecting the camera to the
computer, place the DiMAGE Viewer CD-
ROM in the CD-ROM drive. The DiMAGE
installer menu should automatically
activate. To automatically install the
Windows 98 USB driver, click on the
starting-up-the-USB-device-driver-installer
button. A window appears to confirm that
the driver should be installed; click “Yes” to
continue.
When the driver has been successfully
installed, a window appears. Click “OK.”
Restart the computer and connect the
camera (p. 103) to complete the operation.
Automatic Installation
106 D
ATA-TRANSFER MODE
Choose the recommended search for a suitable
driver. Click “Next.”
Choose to specify the location of the driver. The
browse window can be used to indicate the driver
location. The driver should be located in the CD-
ROM drive at :\Win98\USB. When the location is
shown in the window, click “Next.”
Manual Installation
To install the Windows 98 driver manually, follow the
instructions in the connecting-the-camera-to-a-
computer section on page 98.
When the camera is plugged into the computer, the
operating system will detect the new device and the
add-new-hardware-wizard window opens. Place the
DiMAGE Viewer CD-ROM in the CD-ROM drive. Click
“Next.”
107
The add new hardware wizard will confirm the
location of the driver. The letter designating the CD-
ROM drive will vary between computers. Click “Next”
to install the driver in the system.
One of three drivers may be located:
MNLVENUM.inf, USBPDR.inf, or USBSTRG.inf.
The last window confirms the driver has been
installed. Click “Finish” to close the add new
hardware wizard. Restart the computer.
When the my-computer window is opened, a new
removable-disk icon is displayed. Double click on the
icon to access the camera’s memory card; see page
102.
108 D
ATA-TRANSFER MODE
Once the camera is connected to the computer, image files
can be accessed by double clicking on icons. Image folders
are located in the DCIM folder. The misc. folder contains
DPOF print files (p. 86).
Files and folders on the memory card can be deleted using
the computer. Never format the memory card from the
computer; always use the camera to format the card. Only
files recorded by the camera should be stored on the
memory card.
MEMORY CARD FOLDER ORGANIZATION
Drive Icon
Dcim
Still image
PICT0002.MOV
Movie clip
Misc
100KM022 10150130 102KM_CP 103KM_EM
From left to right: standard folder,
date folder, copy folder, e-mail
copy folder.
Copy images (p. 82) are placed in a folder with a
name ending in “CP.” E-mail Copy images are
placed in a folder ending in “EM.” When a new
folder is created, the first three digits in the folder
name is one greater than the largest folder
number on the card. When the index number in
the image file name exceeds 9,999, a new folder
is created with a number one greater than the
greatest folder number on the memory card: e.g.
from 100KM022 to 101KM022. A new folder is
created every time the copy function is used.
Image-file names begin with
“PICT” followed by a four-digit file
number and a jpg or mov
extension. To copying images,
simply drag and drop the file icon
into a location in the computer.
109
The number in the image file name may not correspond to the frame number of the
image. As images are deleted in the camera, the frame counter will adjust itself to show
the number of images on the card and reassign the frame numbers accordingly. The
serial numbers used with image files will not change when an image is deleted. When a
new image is recorded, it will be assigned a number one greater than the largest serial
number in the folder. File serial numbers can be controlled with the file-number-memory
function in section 2 of the setup menu (p. 94).
Image files contain Exif tag data. This data includes the time and date the image was
recorded as well as the camera settings used. This data can be viewed with the camera
or the DiMAGE Viewer software.
If a camera image is opened in an image-processing application that does not support
Exif tags, and then the image is saved overwriting the original data, the Exif tag
information is erased. Some Exif compatible applications rewrite the Exif data preventing
the DiMAGE Viewer from reading it. When using software other than the DiMAGE
Viewer, always make a backup copy of the image files to protect the Exif tag data.
To view images correctly on your computer, the monitor’s color space may need to be
adjusted. Refer to your computer manual on how to calibrate the display to the following
requirements: sRGB, with a color temperature of 6500K, and a gamma of 2.2. Changes
made to the captured image with the camera’s contrast controls will affect any color-
matching software in use.
AUTO POWER SAVE - DATA-TRANSFER MODE
When connected to a computer or printer, if the camera does not receive a read or write
command within ten minutes, it will shut down to save power. When the camera shuts
down, an unsafe-removal-of-device warning may appear on the computer monitor. Click
“OK.” Neither the camera or computer will be damaged in this operation. Turn off the
camera with the main switch. Remake the USB connection by turning the camera on.
110 D
ATA-TRANSFER MODE
DISCONNECTING THE CAMERA
Windows Me, 2000 Professional, and XP
Confirm that the access lamp is not lit. Turn off the camera and then disconnect the USB
cable.
To disconnect the camera, click once on the unplug-or-eject-hardware icon
located on the task bar. A small window will open indicating the device to be
stopped.
Windows 98 / 98 Second Edition
When more than one external device are connected to the computer, repeat the
procedure above except right click on the unplug-or-eject-hardware icon. This will open
the unplug-or-eject-hardware window after clicking on the small window indicating the
unplug-or-eject-hardware routine.
Click on the small window to stop
the device. The safe-to-remove-
hardware window will open. Close
the window, turn the camera off,
and then disconnect the USB
cable.
Never disconnect the camera when the access lamp is red - the data or
memory card may permanently be damaged.
111
The hardware devices to be stopped will be
displayed. Highlight the device by clicking on
it then click “Stop.”
Confirm that the access lamp is not lit and then drag
the mass-storage device icon and drop it into the
trash. Turn the camera off, and then disconnect the
USB cable.
A confirmation screen will appear to
indicate the devices to be stopped.
Clicking “OK” will stop the device.
A third and final screen will appear
to indicate the camera can be safely
disconnected from the computer.
Close the window, turn the camera
off, and then disconnect the USB
cable.
Macintosh
112 D
ATA-TRANSFER MODE
CHANGING THE MEMORY CARD
Windows 98 and 98 Second Edition
1.Turn off the camera.
2.Change the memory card.
3.Turn on the camera to remake the USB connection.
Windows Me, 2000 Professional, and XP
Macintosh
1.Stop the USB connection using the unplug-or-eject-hardware routine (p. 110).
2.Turn off the camera.
3.Change the memory card.
4.Turn on the camera to remake the USB connection.
1.Stop the USB connection by dragging the drive icon into the trash (p. 111).
2.Turn off the camera.
3.Change the memory card.
4.Turn on the camera to remake the USB connection.
Never remove the card when the access lamp is red - the data or
memory card may permanently be damaged.
113
1.Insert a memory card in the camera and connect it to the computer with the USB cable.
Other devices must not be connected to the computer during this procedure.
2.Right click on the My-computer icon. Select “properties” from the drop-down menu.
Windows XP: from the start menu go to the control panel. Click on the performance and
maintenance category. Click “System” to open the system properties window.
3.Windows 2000 and XP: select the hardware tab in the properties window and click the
device-manager button.
Windows 98 and Me: click the device-manager tab in the properties window.
4.The driver file will be located in the universal-serial-bus-controller or other-devices
location of the device manager. Click on the locations to display the files. The driver
should be indicated with Konica Minolta, the camera name, or “USB Mass Storage
Device.” Under certain conditions, the driver name may be different. However, the
driver will be indicated by either a question mark or exclamation point.
5.Click on the driver to select it.
6.Windows 2000 and XP: click on the action button to display the drop-down menu.
Select “uninstall.” A confirmation screen will appear. Clicking “Yes” will remove the
driver from the system.
Windows 98 and Me: click the remove button. A confirmation screen will appear.
Clicking “Yes” will remove the driver from the system.
7.Disconnect the USB cable and turn off the camera. Restart the computer.
UNINSTALLING THE DRIVER SOFTWARE - WINDOWS
Confirm the transfer-mode option in section 4 of the setup
menu is set to PictBridge. Connect the camera to a PictBridge
compatible printer using the camera’s USB cable. The larger
plug on the cable is connected to the printer. Open the AV out/
USB port cover and insert the smaller plug of the cable into the
camera. Turn the camera on; the PictBridge screen is
displayed automatically.
Individual still images can be selected for printing on the
PictBridge screen. For other printing options, see the menu
navigation section on page 110.
The information (i
+
) button switches between the single frame and index playback formats
on the PictBridge screen. Enlarged playback, activated with the zoom lever, can be used
to examine image files on the screen.
114 D
ATA-TRANSFER MODE
PICTBRIDGE
Use the left/right keys of the controller to
display the image to be printed.
Total number of prints
Number of copies
Press the up key to select the number of
copies to be printed. To deselect an image
for printing, press the down key until the
number of copies reaches zero.
Repeat the previous steps until all the images to be printed are selected. Press
the central button of the controller to continue.
:select:move :print
115
The number of prints in the print run are displayed as well
as the print parameters selected with the menu. See the
menu navigation section for more information (p. 110).
Press the central button of the controller to begin printing,
or press the menu button to return to the PictBridge screen.
A maximum number of fifty images can be printed.
Once printing begins, the operation can be canceled by pressing
the center of the controller. When printing run is finished, a
message indicates the end of the operation; press the center of
the controller and turn the camera off to end the routine.
If the battery is exhausted before the print run is complete, printing is canceled. Use a
fully-charged battery or the optional AC adapter.
If a minor problem occurs during printing, such as the paper runs out, follow the
procedure recommended for the printer; no action is required for the camera. If a major
printer error occurs, press the center of the controller to end the routine. Refer to the
printer manual for the correct procedure for the printer problem. Check the printer
settings before starting again and deselect the images that were printed.
NOTES ON PRINTING ERRORS
No. of prints:
Print size:
Data print:
7
Printer setup
Printer setup
Printer setup
Printer setup
Print quality:
Layout:
:start
Printing finished.
OK
116 D
ATA-TRANSFER MODE
NAVIGATING THE PICTBRIDGE MENU
Press the central button of the controller to
select the highlighted setting.
Use the left/right keys of the controller to highlight the appropriate menu tab;
the menu changes as the tabs are highlighted.
Use the up/down keys to scroll through the menu options. Highlight the option
whose setting needs to be changed.
With the menu option highlighted, press the right controller key; the settings
are displayed with the current setting highlighted. If “Start” is displayed, press
the center of the controller to continue.
Use the up/down keys to highlight the new setting.
Once a setting has been selected, the cursor will return
to the menu options and the new setting will be
displayed. To return to the PictBridge screen, press the
menu button. Read the following sections on information
on the menu options.
Pressing the menu button (1) turns the menu on and off. The four-way keys of the
controller (2) move the cursor in the menu. Pressing the central button of the controller
enters a setting.
Activate the menu with the menu button.
2
1
117
Batch print
Index print
–
–
Batch print
Index print
An index print of all still images on the memory card can be made. The quality and size
of the print can be specified with the camera menu. The number of images per page
varies with the printer. The print-setup confirmation screen is displayed before the print
routine starts.
The options that can be changed vary with the printer.
Batch print in section 1 selects all still images on the memory card for printing. Two
options are available:
All-frames - to print all images on the card. A screen opens so the number of copies of
each image can be specified. A maximum number of fifty images can be printed.
Reset - to cancel changes made with the batch print option or with the print selection
screen.
The paper size of the print can be specified.
Highlight the current page size and press
the central button of the controller to open
paper-size screen. Use the controller to
select the paper size, and press the central
button to complete the operation. A paper
size not available with the printer in use
cannot be selected.
The following are the dimensions for each paper sizes for
your reference:
Paper size
Data print
Printer setup
Printer setup
Printer setup
Printer setup
Print quality
Layout
Paper size
2”x 3” card
100mmx150mm
Postcard
L
Printer setup
4”x 6”
2L 8”x 10”
A4 Letter
118 D
ATA-TRANSFER MODE
Paper size
Print quality
The print quality can be set. The printer-setup option uses the quality set with the printer.
The fine quality can be specified with the camera.
Layout
The layout of the print can be set. The printer-setup option uses the layout parameters of
the printer. Borderless printing can be specified with the camera as well as the number
of images per page.
L
Postcard
89x127mm
100x148mm
3.5x5.0 in.
3.9x5.8 in.
2L
A4
127x178mm
210x297mm
5.0x7.0 in.
8.3x11.7 in.
100x150mm
2”x 3” card
4”x 6”
100x150mm
54x86mm
102x152mm
3.9x5.9 in.
2.1x3.4 in.
4 x 6 in.
8”x 10”
Letter
203x254mm
216x279mm
8 x 10 in.
8.5x11.0 in.
:enter:sel.
119
Data print
Data can be printed with the image. The printer-setup option uses the options set with
the printer. The date of capture and the file name can be selected for printing. Data
printing can also be disabled with the menu.
DPOF print –
DPOF print
DPOF print in section 3 allows still images and an index
print selected with the DPOF printing options in section 3 of
the playback menu to be printed from a DPOF compatible
PictBridge printer. Simply select the start option from the
menu to begin the routine.
The number of prints in the print run are displayed; an index
print is counted as one. Press the central button of the
controller to begin printing, or press the menu button to
return to the PictBridge menu.
Once printing begins, the operation can be canceled by pressing
the center of the controller. When printing run is finished, a
message indicates the end of the operation; press the center of
the controller and turn the camera off to end the routine.
No. of prints:
Print size:
Data print:
7
Printer setup
Printer setup
Printer setup
Printer setup
Print quality:
Layout:
:start
Printing finished.
OK
120 A
PPENDIX
Problem Symptom Cause Solution
The camera
will not
work.
Nothing dis-
played on the
monitors.
The batteries are dead. Replace batteries (p. 13).
The section covers minor problems with basic camera operation. For major problems or
damage, or if a problem continues to reoccur frequently, contact a Konica Minolta service
facility.
Access lamp
turns red when
pressing the
main switch
APPENDIX
TROUBLESHOOTING
Pictures are
not sharp.
Subject is too close.
Make sure the subject is within
the autofocus range (p. 24) or
use the macro mode (p. 35).
The camera is in macro
mode.
Cancel the macro mode setting
(p. 35).
A special situation is
preventing the autofo-
cus system from focus-
ing (p. 25).
Use the focus-lock function to
focus on an object at the same
distance as the subject (p. 24) or
use manual focus (p. 59).
Focus signal is
red.
AA Ni-MH batteries are
inserted incorrectly.
Reinsert the batteries taking care
that the negative and positive ter-
minals are oriented as indicated
on the inside of the battery cham-
ber door (p. 13).
121
Pictures are
not sharp.
Pictures are
taken indoors or
in low-light situ-
ations without
flash.
Slow shutter speeds
result in blurred images
when the camera is
hand-held.
Use a tripod, change the camera
sensitivity to a higher setting (p.
64), or use the flash (p. 26).
The subject is beyond
the flash range (p. 64).
Move closer to the subject or
change the camera sensitivity to
a higher setting (p. 64).
While using flash, the pictures
are too dark.
The camera temperature rises with extended periods of use. Care should be taken to
avoid burns when handling the camera, batteries, or memory card.
If the camera does not function normally or the system error message appears, turn the
camera off, remove and reinsert the batteries, or unplug and reconnect the AC adapter.
If the camera has become hot with extended use, wait for it to cool before removing or
disconnecting the power supply. Always turn the camera off using the main switch
otherwise the memory card may be damaged and the camera reset.
The camera controls the live monitor image by varying the CCD sensitivity and controlling
the aperture. The aperture can sometimes be heard stopping down or opening up with
changes in subject brightness.
Focus is continuously adjusted with the sports action subject program and continuous AF.
While focusing, the live image may appear to jump. Wait until the focus signal confirms
focus or release and press the shutter-release button again.
This manual contains information on products and accessories available at the time of
printing. To obtain compatibility information on products not contained in this manual,
contact a Konica Minolta service facility.
122 A
PPENDIX
Read this section in its entirety to get the best results from your camera. With proper
care, your camera will provide years of service.
Camera care
• Do not subject the camera to shock or impact.
• Turn off the camera when transporting.
• This camera is neither waterproof nor splashproof. Inserting or removing batteries or
the memory card, or operating the camera with wet hands may damage the camera.
• When at the beach or near water, take care not to expose the camera to water or sand.
Water, sand, dust, or salt can damage the camera.
• Do not leave the camera under direct sunlight. Do not point the lens directly at the sun;
the CCD may be damaged.
Storage
• Store in a cool, dry, well-ventilated area away from dust and chemicals. For long
periods of disuse, store the camera in an airtight container with a silica-gel drying
agent.
• Remove the batteries and memory card from the camera when not in use for extended
periods.
• Do not store the camera in an area with naphthalene or mothballs.
• During long periods of storage, operate the camera occasionally. When taking the
camera out of storage, check that the camera is functioning properly before using.
Cleaning
• If the camera or the outside of the lens is dirty, gently wipe it with a soft, clean, dry cloth.
If the camera or lens comes in contact with sand, gently blow away loose particles.
Wiping may scratch the surface.
• To clean the lens surface, first blow away any dust or sand, then gently wipe the lens
with a cloth or tissue designed for optics. Use lens-cleaning fluid if necessary.
• Never use organic solvents to clean the camera.
• Never touch the lens surface with your fingers.
CARE AND STORAGE
123
LCD monitor care
• The LCD monitor is manufactured using high-precision technology and more than
99.99% of the pixels operate properly. Less than 0.01% of the monitor pixels are
displayed as color or bright points; this is not monitor defect and does not affect the
recorded image.
• Do not apply pressure to the surface of the LCD monitor; it may be permanently
damaged.
• In cold temperatures, the LCD monitor may become temporarily dark. When the
camera warms up, the display will function normally.
• If fingerprints are on the LCD monitor, gently wipe with a soft, clean, dry cloth.
Batteries
• Battery performance decreases with temperature. In cold environments, we
recommend keeping spare batteries in a warm place, such as the inside of a coat.
Batteries can recover their power when they warm up.
• In cold environments, the use of Ni-MH batteries is recommended over alkaline
batteries for better performance.
• If batteries have been exhausted when used in the camera, do not reload them even if
their charge seems to recover over time. These batteries will interfere with normal
camera operation.
• A special built-in battery supplies power to the clock and memory when the camera
battery is exhausted or removed. If the camera resets each time the battery is
replaced, the built-in battery is exhausted. It must be replaced at a Konica Minolta
service facility.
Operating temperatures and conditions
• This camera has been designed for use in temperatures from 0°C to 40°C (32°F to
104°F).
• Never leave the camera exposed to extreme high temperatures, such as in a car
parked in the sun, or to extreme humidity.
• When taking the camera from a cold to a warm environment, place it in a sealed plastic
bag to prevent condensation from forming. Allow the camera to come to room
temperature before removing it from the bag.
124 A
PPENDIX
Memory cards
SD Memory Cards and MultiMediaCards are manufactured with precision electronic
components. The following may cause data loss or damage:
• Improper use of the card.
• Bending, dropping, or subjecting the card to impact.
• Heat, moisture, and direct sunlight.
• Static electrical discharge or electromagnetic fields near the card.
• Removing the card or interrupting the power supply while the camera or a computer is
accessing the card (reading, writing, formatting, etc.).
• Touching the electrical contacts of the card with your fingers or metal objects.
• Using the card beyond its life. Purchasing a new card periodically may be necessary.
The response time is longer with MultiMediaCards compared with SD Memory Cards.
This is not a defect, but rather due to the specifications of the cards. When using large
capacity cards, some operations like deletion may take longer.
SD Memory Cards have a write-protect switch to prevent image
data from being deleted. By sliding the switch to the bottom of
the card, the data will be protected. Images cannot be recorded
when the card is protected. If an attempt is made to record or
delete an image with the camera, the card-locked message will
appear on the monitor.
Memory cards should not be used to permanently store image
data. Always make a copy of camera files on an appropriate
storage device or recording media. Konica Minolta has no
responsibility for any loss or damage to data.
Write-
protect
switch
Lock
position
125
Before important events and journeys
• Check the camera’s operation; take test pictures and purchase spare batteries.
• Konica Minolta has no responsibility for any damage or loss incurred by equipment
malfunction.
Copyright
• TV program, films, video tapes, photographs, and other materials may be copyrighted.
Unauthorized recording or duplication of such material may be contrary to copyright
laws. Taking pictures or images of performances, exhibitions, etc., is prohibited without
approval and can infringe on copyright. Images protected by copyright can only be
used under the provisions within the copyright laws.
Questions and service
• If you have questions about your camera, contact your local camera dealer or write to
the Konica Minolta distributor in your area.
• Before shipping your camera for repair, please contact a Konica Minolta Service
Facility.
126 A
PPENDIX
QUICKTIME SYSTEM REQUIREMENTS
QuickTime is used for playing back movies.
To install QuickTime, follow the instructions in
the installer. QuickTime is not supplied with
the camera in all sales regions. Users can
download the latest version of QuickTime free
of charge from the Apple Computer web site
at http://www.apple.com.
IBM PC / AT Compatible
Pentium processor-based PC
or compatible computer
Windows 98, Me, 2000, or XP.
128MB or more of RAM
FCC Compliance Statement
Declaration on Conformity
Responsible Party: Konica Minolta Photo Imaging U.S.A. Inc.
Address: 725 Darlington Avenue, Mahwah, NJ 07430
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Changes
or modifications not approved by the party responsible for compliance could void the user's
authority to operate the equipment. This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Do not remove the ferrite cores from the cables.
127
This mark on your camera certifies that this camera meets the requirements of the EU
(European Union) concerning interference causing equipment regulations. CE stands
for Conformité Européenne (European Conformity).
This Class B digital apparatus complies with Canadian ICES-003.
Digital Camera:
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
DiMAGE Z5
128 A
PPENDIX
CCD: 1/2.5-type interline primary-color CCD
Number of effective pixels: 5.0 million
Total number of pixels: 5.2 million
Camera sensitivity (ISO): Auto and 50, 100, 200, 320 ISO equivalents.
Aspect ratio: 4:3
Lens construction: 13 elements in 10 groups
Maximum aperture: f/2.8 (wide-angle position), f/4.5 (telephoto position)
Focal length: 5.83 - 69.9mm (35mm equivalent: 35 - 420mm)
Focusing range: Wide-angle: 0.6m - ∞ / 2.0ft. - ∞
Telephoto: 1.6m - ∞ / 5.2ft. - ∞
Standard macro:
Wide-angle: 0.1 - 1.0m / 0.3 - 3.3ft.
Telephoto: 1.2 - 2.5m / 3.9 - 8.2ft.
Super macro (at 10.45mm, 35mm equivalent: 63mm):
1 - 100cm / 0.4in. - 3.3ft.
(All distances from the front of the lens)
Autofocusing system: Video AF
Focus modes: Single-shot AF, Continuous AF with Predictive Focus
Control, Full-time AF, Manual focus.
Shutter: CCD electronic shutter and mechanical shutter
Shutter speeds: 1/1000 - 4s
Built-in flash recycling time: 7s (approx.)
Monitor LCD: 2.0-inch digital interface TFT color
Monitor field of view: 100% (approx.)
Viewfinder field of view: 100% (approx.)
A/D conversion: 12 bit
Recording media: SD Memory cards and MultiMediaCards
File formats: JPEG, Motion JPEG (mov).
DCF 2.0 and DPOF compliant.
Printing output control: Exif print, PRINT Image Matching III, PictBridge
Menu languages: Japanese, English, German, French, Spanish, Chinese
(simplified character), Italian, and Swedish
TECHNICAL SPECIFICATIONS
129
AV output: NTSC and PAL
Batteries: Four AA alkaline or Ni-MH batteries.
Battery performance (recording):Approximate number of recorded images: 240 frames
with alkaline batteries, 420 frames with 2500mAh Ni-
MH batteries, conforming to the CIPA standard with SD
Memory Card.
* CIPA: Camera & Imaging Products Association
Battery performance (playback): Approximate continuous playback time: 240 min. with
alkaline batteries, 330 min. with 2500mAh Ni-MH
batteries, based on Konica Minolta standard.
Optional external power source: AC Adapter AC-11
Dimensions: 108.5 (W) X 80 (H) X 84 (D) mm
4.27 (W) X 3.15 (H) X 3.31 (D) in.
Weight: Approximately 340g / 12.0 oz.
(without batteries or memory card)
Operating temperature: 0° - 40°C / 32° - 104°F
Operating humidity: 5 - 85% (noncondensing)
Specifications are based on the latest information available at the time of printing and are
subject to change without notice.
130 A
PPENDIX
A mode, 36
AC adapter, 15
Anti-shake system, 56
Aperture priority mode, 36
Audio signals, 99
Auto power save, 14, 92, 109
Autoflash, 26
Autofocus, 58
Automatic white balance, 60
Battery
Care and storage, 123
Indicator, 14
Inserting, 13
Bracketing, 52
Camera-shake warning, 27, 56
Center weighted metering, 63
Color, 65
Connecting, 102
Continuous advance, 48
Continuous AF, 58
Contrast, 65
Copy, 82
Custom key function, 67
Custom white balance, 61
Date and time, 18, 95
Date imprinting, 96
Date print (DPOF), 87
Deleting, 31, 77
Digital Subject Program
Automatic, 23, 56
Digital Subject Program, 29
Digital zoom, 100
Diopter, 17
Disconnecting, 110
Display
Histogram, 28
