QUICK USER MANUAL for SOUNDBAR
CONNECTIONS
1 Output to subwoofer (not supplied)
2 Optical input (Audio)
3 DC In 12v (Power for speaker bar)
THE REMOTE CONTROL

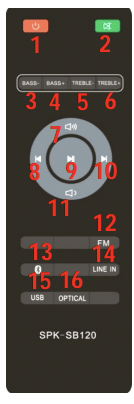

1 ON / OFF Turn Sound Bar On or Off
2 MUTE Mute or Unmute audio
3 BASS- Surround sound (sound effects equaliser)
4 BASS+ Music sound (sound effects equaliser)
5 TREBLE- Movie sound (sound effects equaliser)
6 TREBLE+ News (sound effects equaliser)
7 VOL + Increase Volume (of sound bar)
8 CH - Previous music file / Radio station
9 PLAY/PAUSE Pause or Play Audio while playing
10 CH + Next music file / Radio station
11 VOL - Decrease Volume (of sound bar)
12 FM Select Audio Input via FM Radio
13 BLUETOOTH Select Audio Input via BLUETOOTH
14 LINE IN Select Audio Input via LINE IN
15 USB Select Audio Input via USB
16 OPTICAL Select Audio Input via OPTICAL INPUT
ON DEVICE CONTROLS / HARDWARE INPUTS
1 POWER Turn Sound Bar On or Off
2 SOURCE Toggle between audio input sources
3 VOL+ /NEXT Increase volume of sound bar OR select next song (or radio station)
4 VOL-/PREV Decrease volume of sound bar OR select previous song (or radio station)
5 LINE IN Connect any audio device via a 3.5mm headphone audio socket
6 USB IN Connect your thumb drive via the USB socket
ON DEVICE DISPLAY
1 LINE Select LINE IN Audio Input
2 FM Select FM RADIO Audio input
3 USB Select USB Audio input
4 BLUE Select BLUETOOTH Audio input
5 OPT Select Optical Audio input
REPLACING THE BATTERIES
- Open the battery compartment by sliding the cover back.
- Insert the new battery as pictured making you have observed the correct polarity
- Close the battery compartment.
Note: the remote control has a usable angle of 30 degrees from the speaker IR receiver.
CONNECTING YOUR SPEAKER TO YOUR TV
GOOD

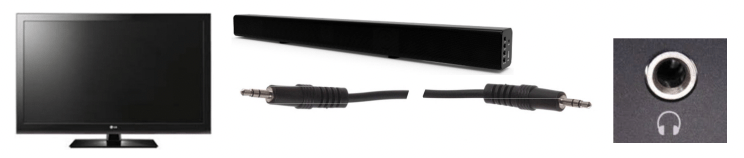

You can connect your sound bar to your TV if you have a headphone / Aux 3.5mm jack.

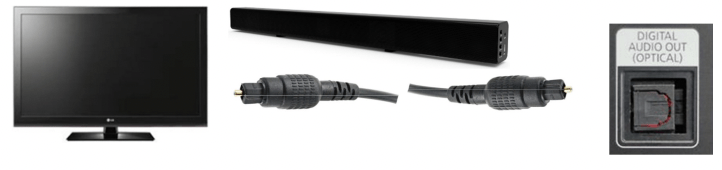

If your TV has an Optical port, you can connect the sound bar to your TV this way for digital sound. This method is similar in operation to the 3.5mm jack option

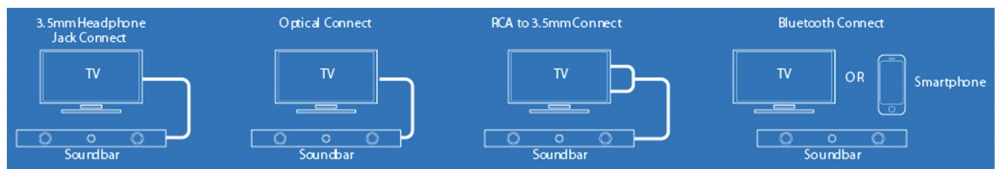

ALL CONNECTION TYPES
CONNECTING VIA
Connection type | Connection Method | Via on-board buttons | Via Remote Control |
LINE IN | Via 3.5mm Audio Cable | Connect your audio device to the sound-bar using the 3.5mm cable and press the SOURCE button until the word LINE is shown on front display | Connect your audio device to the sound-bar using the 3.5mm cable and press the LINE button until the word LINE is displayed. |
USB (Storage) | Music playback Via USB Storage | Connect your storage device (such as a thumb drive) to the sound-bar and press the SOURCE button until the word USB is shown on the front display | Connect your storage device (such as a thumb drive) to the sound-bar and press the USB button. The word USB will be shown on the front display |
BLUE | Via Bluetooth (Wireless) | Press the SOURCE button until the word BLUE is shown on the front display. Turn on your portable Bluetooth device and follow the pairing instructions above. | Press the BLUE button until the word BLUE is shown on the front display. Turn on your portable Bluetooth device and follow the pairing instructions above. |
OPT | Via Optical fibre Cable | Connect your Media device (such as BluRay or DVD player) to the sound-bar using an Optical Fibre Cable and press the SOURCE button until the word OPT is shown on the front display. | Connect your Media device (such as BluRay or DVD player) to the sound-bar using an Optical Fibre Cable and press the OPT button. The word will be shown on the front display. |
FM (Radio) | Listen to FM Radio | Press the SOURCE button until the word FN (meaning FM) is shown on the front display. | Press the FM button. The word FN (meaning FM) will be shown on the front display. |
USING BLUETOOTH
1) Press the INPUT button to toggle to the BT function. “BLUE” will begin to flash on screen, which means the Bluetooth “pairing mode” has been activated.
2) Turn the Bluetooth function on, on your device (smart phone or tablet etc).
3) Scan for new devices, and look for SPK-SB120 to pop up on screen.
4) Once found and selected, you may be prompted for a password to complete the pairing process. The password is 0000 (4 zeros).
5) Once connected and paired, “BLUE” will stop flashing to indicate pairing has been completed.
6) You are now ready to listen to music wireless via your sound bar. Open your music files, select a song and press play.
SPECIFICATIONS
Output Power | 2 x 10 Watt |
Speaker size | 2 inch |
Number of speakers | 2 |
Vibrating Diaphragm | 1 |
Cabinet material | ABS Plastic (Crack resistant) |
Sound bar dimensions | 75 x 5.8 x 6cm |
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
- Read all instructions carefully before use.
- Retain manuals for future reference.
- Use this product only in the manner described.
- Only use a water-dampened soft-cloth to clean the surface of this product.
- The following will damage this product: any liquid such as water or moisture, extreme heat; cold; humidity, dusty or sandy environments.
- Only place this device on stable surfaces and ensure that any attached cables are secure and will not cause the device to fall.
- There are no user serviceable parts in this product.
- Un-authorized attempts to dismantle or repair this product will void product warranty
- Using this device near other electronic devices may cause interference.
