SCRAMBLER XP 1000 EPS
International
1
WELCOME
Thank you for purchasing a POLARIS vehicle, and welcome to our
world-wide family of POLARIS enthusiasts. Be sure to visit us online at
www.polaris.com for the latest news, new product introductions,
upcoming events, career opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and
recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
• Low emission vehicles (LEVs)
• RANGER® utility vehicles
• RZR® sport vehicles
• VICTORY® motorcycles
• GEM® electric vehicles
Always follow the instructions and recommendations in this manual.
The manual contains instructions for minor maintenance, but
information about major repairs is outlined in the POLARIS Service
Manual and should be performed only by a factory-certified Master
Service Dealer® (MSD) technician. Please see your dealer for all of
your service needs during (and after) the warranty period.
2
POLARIS® and SCRAMBLER® are registered trademarks of POLARIS Industries
Inc.
Autolite® is a registered trademark of FRAM Group IP LLC
Copyright 2013 POLARIS Sales Inc. All information contained within this publication
is based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor
discrepancies may result between the actual vehicle and the information presented in
this publication. Depictions and/or procedures in this publication are intended for
reference use only. No liability can be accepted for omissions or inaccuracies. Any
reprinting or reuse of the depictions and/or procedures contained within, whether whole
or in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are provided as
translations of the original instructions.
Printed in U.S.A.
2014 SCRAMBLER XP 1000 EPS International Owner’s Manual
P/N 9924896
3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features and Controls. . . . . . . . . . . . . . . . . . . 18
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Winch Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Emission Control Systems . . . . . . . . . . . . . . . 67
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 113
POLARIS Products. . . . . . . . . . . . . . . . . . . . . 117
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 118
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 124
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
4
INTRODUCTION
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and
symbols are used. Become familiar with their meanings before reading
the manual.
The safety alert symbol indicates a potential personal injury hazard.
DANGER
A DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
WARNING
A WARNING indicates a hazardous situation that, if not avoided, could result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that could result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.
5
INTRODUCTION
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a POLARIS key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Frame VIN: _____________________________________________________________
Engine Serial Number: ____________________________________________________
Key Number: ___________________________________________________________
###
VIN
Engine Serial Number
Key
Number
6
SAFETY
Failure to follow the warnings in this manual can result in serious injury or death.
This POLARIS vehicle is not a toy and can be hazardous to operate. A collision
or rollover can occur quickly, even during routine maneuvers, if you fail to take
proper precautions.
Read and understand your owner's manual and all warnings before operating
this POLARIS vehicle.
Safety Training
Never operate this vehicle without proper instruction. Take a training
course.
For more information about safety, contact an authorized POLARIS
dealer or visit the POLARIS web site at www.polaris.com.
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited
for anyone under 16 years of age.
Restrictions
This vehicle is approved for OFF-ROAD TOWING ONLY. Towing a
trailer with this vehicle on public roads is prohibited. See your
POLARIS dealer about configuring the vehicle to be certified to tow a
trailer on-road.
Equipment Modifications
The warranty on your POLARIS vehicle may be terminated if any
equipment has been added, or if any modifications have been made, that
increase speed or power.
The addition of certain accessories, including (but not limited to) mowers,
blades, tires, sprayers and large racks may change vehicle handling. Use only
POLARIS-approved accessories. Know their function and effect on the vehicle.
WARNING
7
SAFETY
Safe Riding Gear
Always wear protective clothing to reduce the chance of injury.
Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding a
POLARIS vehicle, always wear a helmet that meets or exceeds
established safety standards.
Approved helmets in the USA and Canada bear a U.S. Department of
Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.

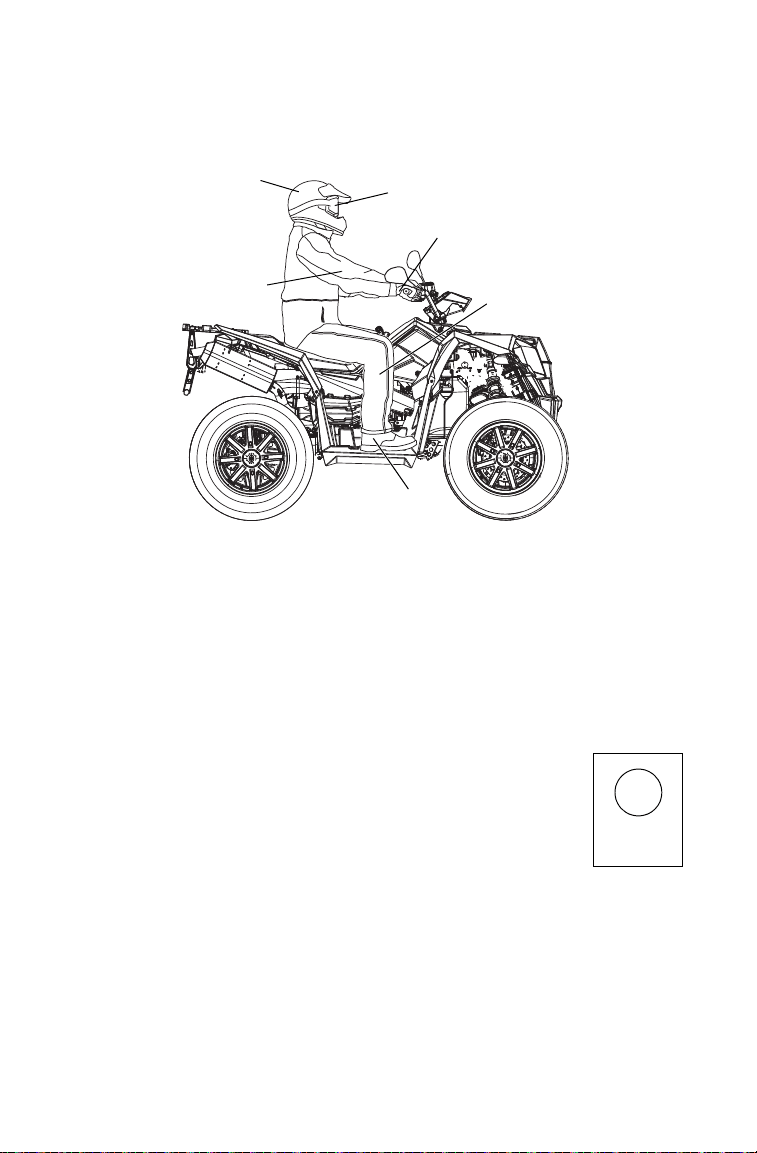

Helmet
Eye Protection
Gloves
Boots
Long
Pants
Long
Sleeves
E
4
051039
0006.31
8
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection.
Whenever riding a POLARIS vehicle, always wear shatterproof goggles
or use a shatterproof helmet face shield. POLARIS recommends
wearing approved Personal Protective Equipment (PPE) bearing
markings such as VESC 8, V-8, Z87.1, or CE. Make sure protective eye
wear is kept clean.
Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
Boots
The best footwear is a pair of sturdy over-the-calf boots with low heels.
Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide the
best protection.
9
SAFETY
Safety Warnings
Serious injury or death can result if you do not follow the instructions and
procedures listed here and throughout this manual. See the OPERATION
section of the owner’s manual for proper operating procedures.
Read and understand all warnings, cautions and
operating procedures in this manual and on the
safety labels before operating the vehicle.
Never operate this vehicle without proper instruction.
Take a training course. Beginners should receive
training from a certified instructor.
Never permit others to operate the vehicle unless
they have read and understand this manual and all
product labels, and have completed a certified safety
training course.
Never allow anyone under 16 years of age to
operate this vehicle.
Gasoline is highly flammable and explosive under certain conditions.
• Use extreme caution whenever handling gasoline.
• Refuel with the engine stopped. Refuel outdoors or in a well-ventilated area.
• Do not smoke or allow open flames or sparks in or near the area where refu-
eling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
Engine exhaust contains poisonous carbon monoxide and can cause loss of
consciousness resulting in severe injury or death. Never run an engine in an
enclosed area.
WARNING
10
SAFETY

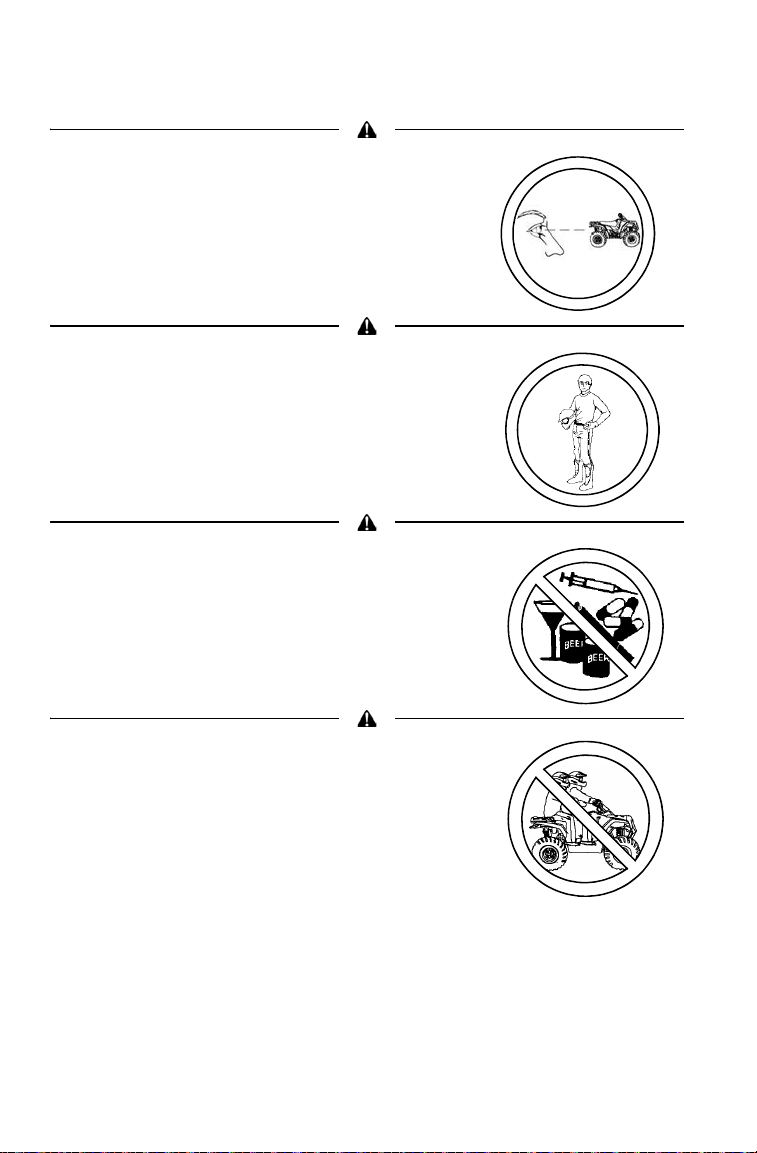

Safety Warnings
Always inspect your vehicle before each use
to verify that it's in safe operating condition.
See page 40. Follow the inspection and
maintenance procedures outlined in this
manual.
Always wear an approved helmet that fits
properly. Wear eye protection (goggles or
face shield), gloves, boots, long sleeves and
long pants.
Never consume alcohol or drugs before or
while operating this vehicle.
Never carry a passenger on this vehicle.
11

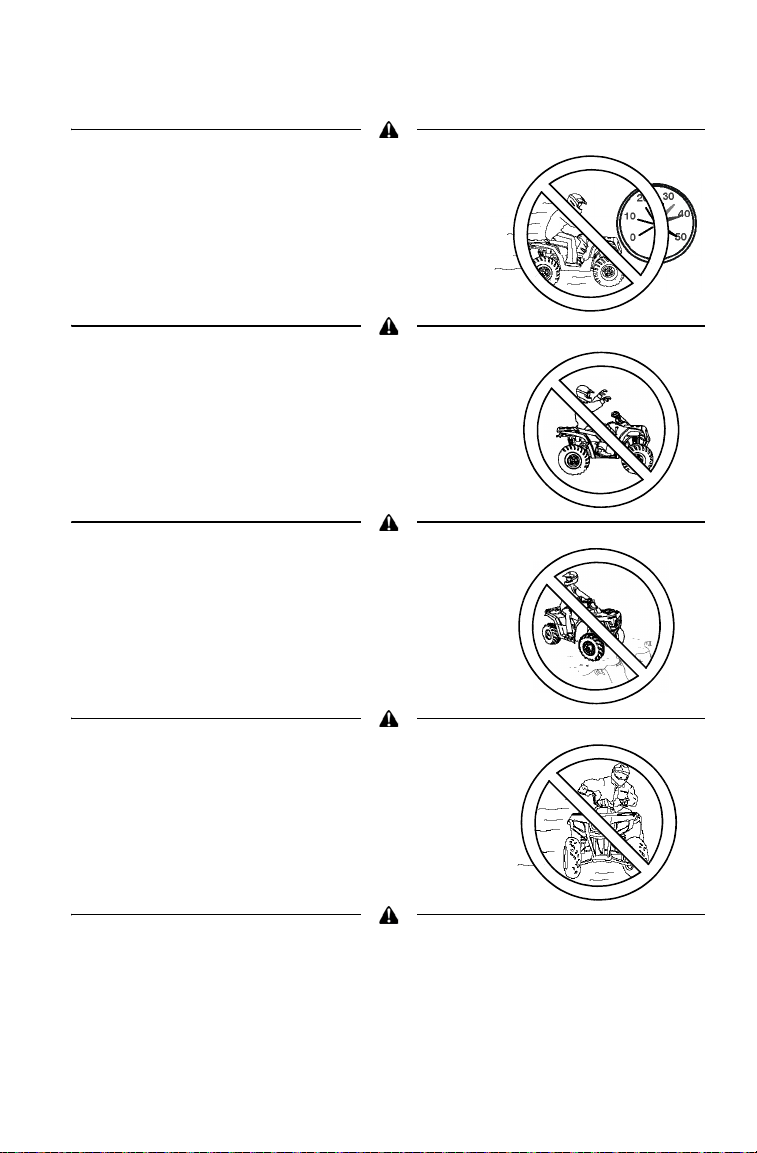

SAFETY
Safety Warnings
Never operate at excessive speeds. Travel
and turn at speeds appropriate for the terrain,
visibility, operating conditions and your
experience.
Keep both hands on the handlebars. Keep
both feet on the footrests.
Always travel slowly when operating on
unfamiliar terrain. Use extra caution.

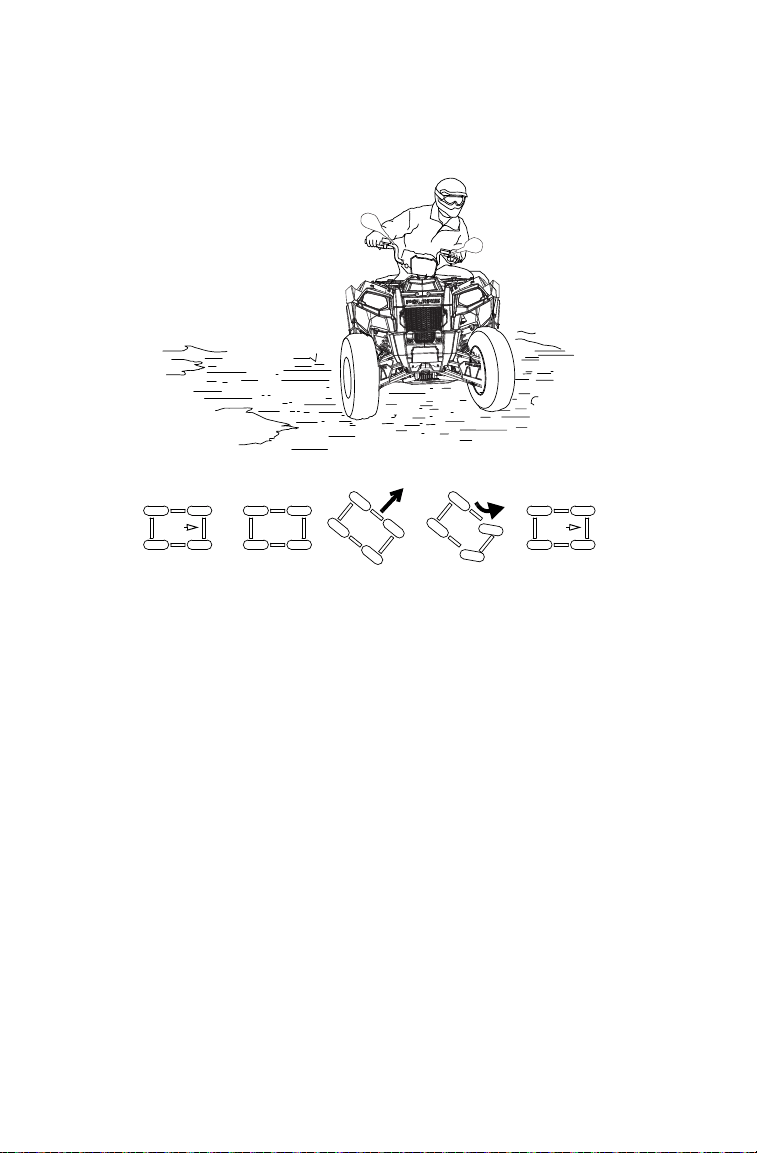

Always follow the procedures outlined in this
manual for turning. See page 43.
Never turn sharply at excessive speeds,
which can lead to vehicle overturn.
If the vehicle has been involved in an accident, always have an authorized
POLARIS dealer inspect the entire vehicle for possible damage, including (but
not limited to) brake, throttle and steering systems.
12
SAFETY
Safety Warnings
Never attempt jumps or other stunts.

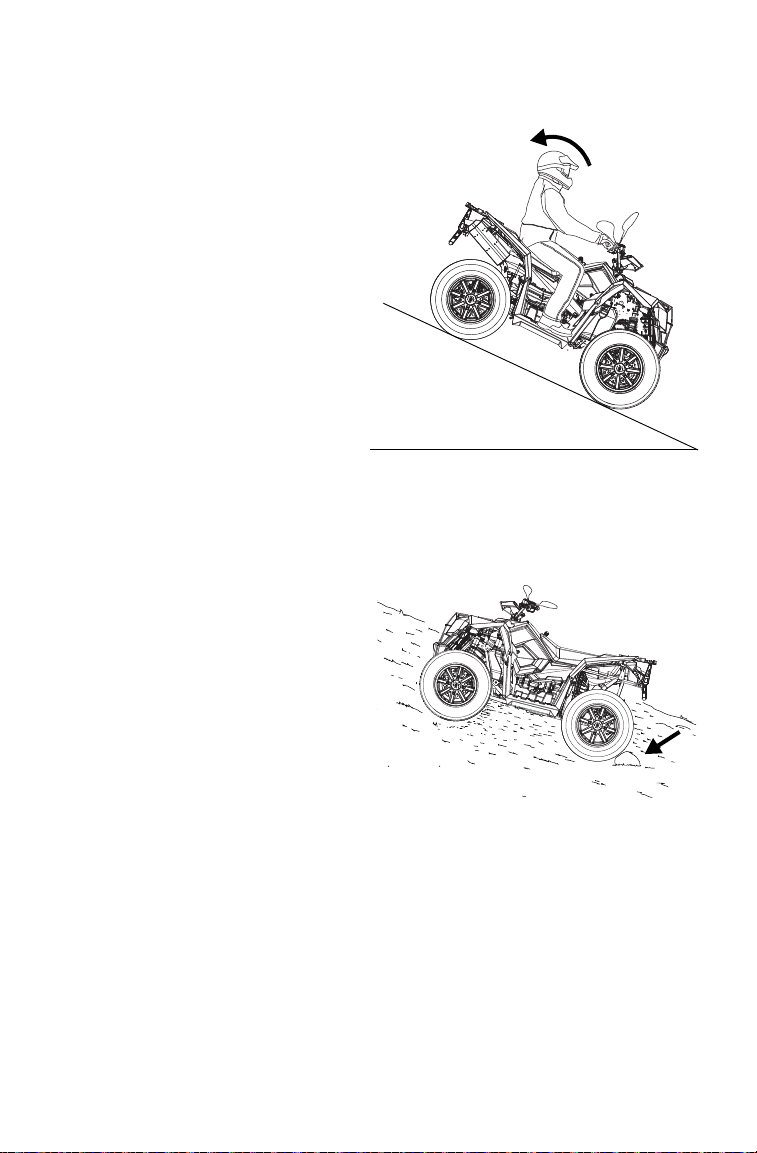

Always follow the procedures outlined in this
manual for driving on hills. See page 45.
Never operate on hills too steep for the
vehicle or for your abilities. Practice on
smaller hills before attempting larger hills.
Avoid climbing hills steeper than 25°.
Always follow the procedures outlined in this
manual for driving downhill and for braking on
hills. See page 47.

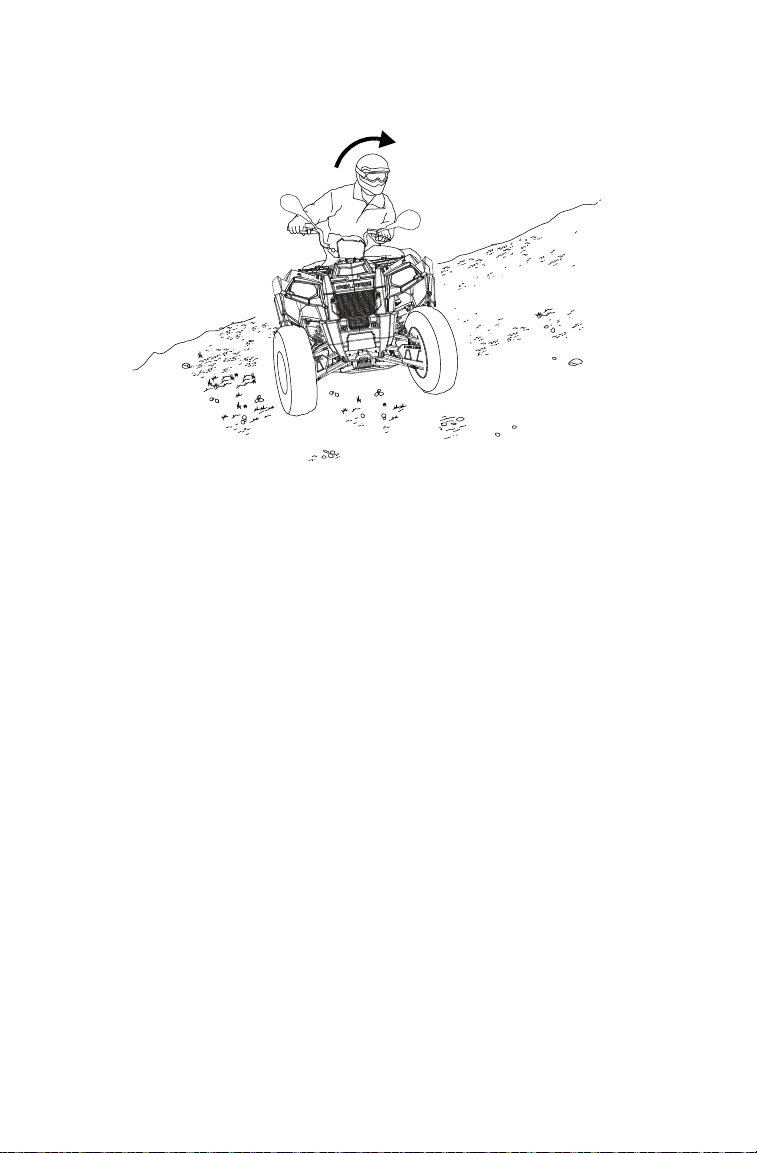

Always follow the procedures outlined in this
manual for crossing the side of a hill. See
page 46.
Never attempt to turn the vehicle around on
any hill until you've mastered (on level
ground) the turning technique outlined in this
manual. See page 48.
+25°
+25°
13

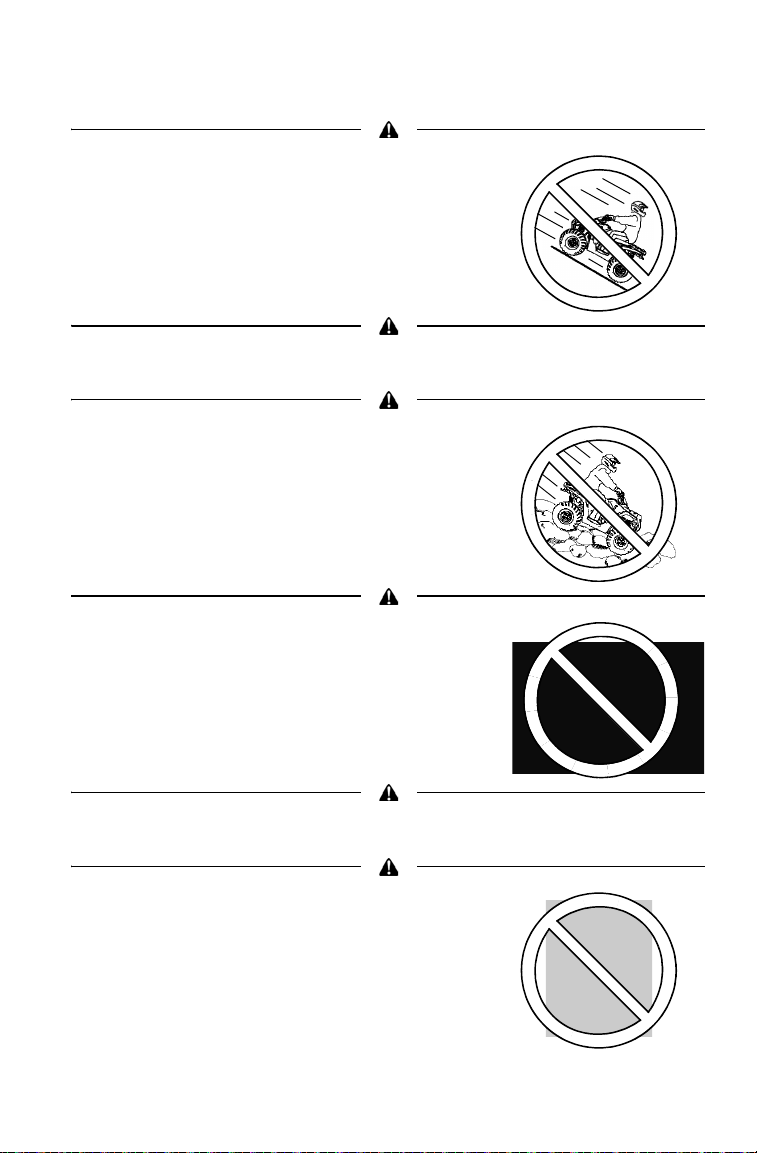

SAFETY
Safety Warnings
Always follow the procedures outlined in this
manual for braking if you stall or roll
backwards while climbing a hill. Never back
down a hill. See page 48.
Always follow the procedures outlined in this manual for operating over
obstacles. See page 50.
Always follow the procedures outlined in this
manual for operating on slippery or loose
surfaces. Use extra caution. Always avoid
skidding or sliding. See page 44.
Always follow the procedures outlined in this

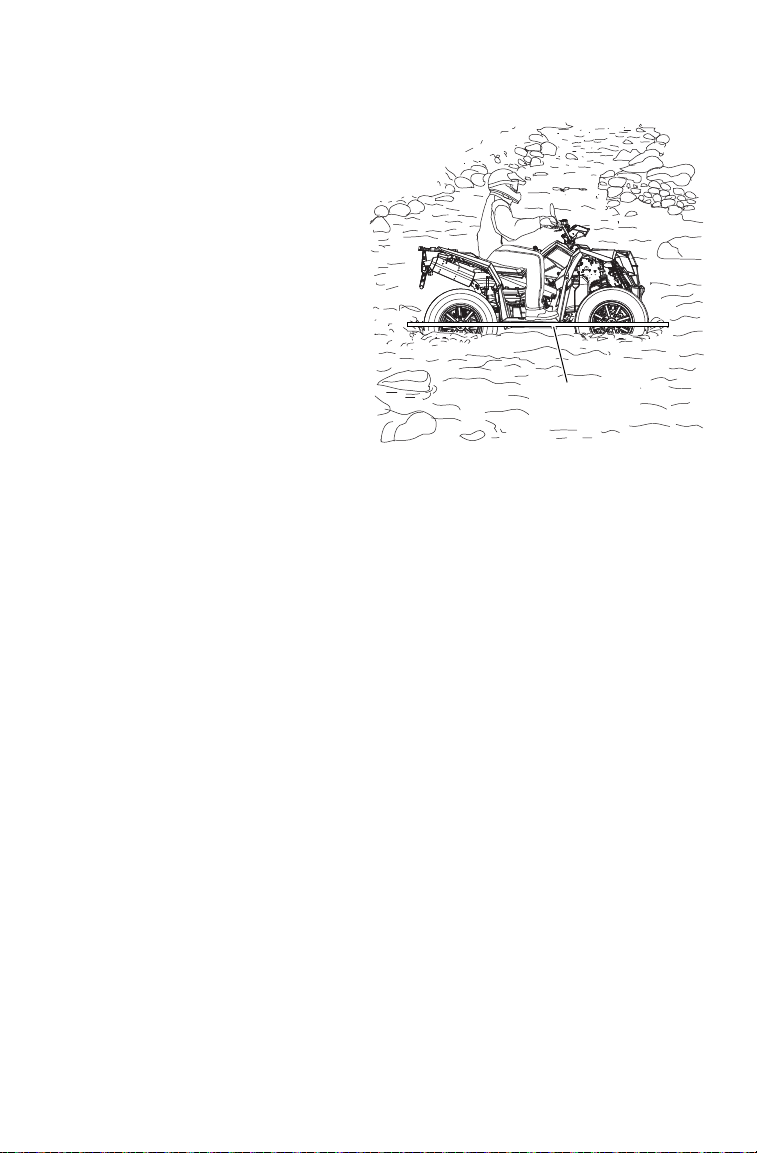

manual for driving through water. Never drive
through deep or fast-flowing water. See page
49.
Always follow the procedures outlined in this manual for driving in reverse. See
page 51.
Always use the size and type of tires
specified for your vehicle. Maintain the proper
tire pressure.
14
SAFETY
Safety Warnings
Never modify this vehicle through improper installation or use of accessories.
Never exceed the stated load capacity for your vehicle. Cargo must be properly
distributed and securely attached. Reduce speed and follow the instructions in
this manual for carrying cargo or towing. Allow a greater distance for braking.
Never operate the vehicle on a frozen body of water unless you have
independently verified that the ice is sufficiently thick to support the weight and
moving force of the vehicle, you and your cargo, together with any other
vehicles in your party.
Operating on paved surfaces may affect the handling and control of the vehicle
and could result in loss of control. Avoid sudden turns or swift movement of the
handlebars.
Always remove the ignition key when the
vehicle is not in use to prevent unauthorized
use or accidental starting.
Always unlock the steering before starting the engine. See page 21.
Hot components can cause serious burns and fire. Do not touch hot exhaust
system components. Always keep combustible materials away from the exhaust
system.
For more information about safety, contact an authorized
POLARIS dealer or visit the POLARIS web site at
www.polaris.com.
15
SAFETY

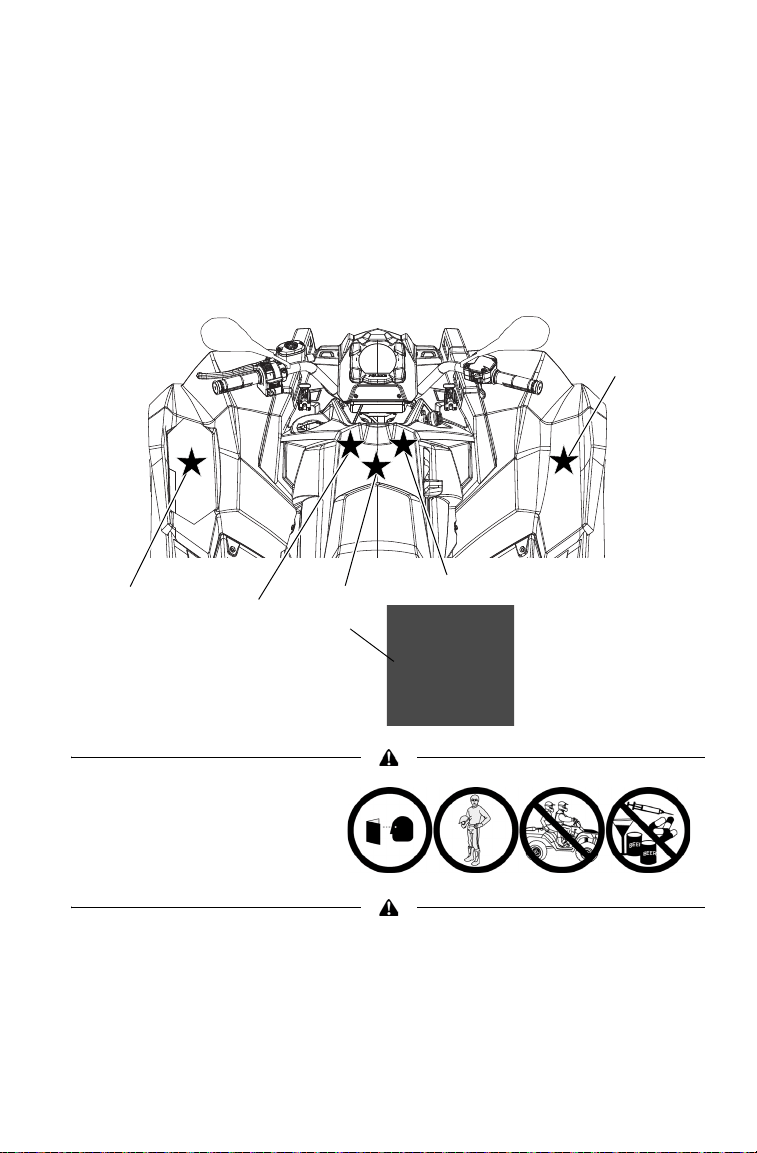

Safety Labels and Locations
Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions on each label carefully. If any of the
labels shown in this manual differ from the labels on your vehicle,
always read and follow the instructions of the labels on the vehicle.
If an informational or graphic label becomes illegible or comes off, con-
tact your POLARIS dealer to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge. The part number is
printed on the label.
General Alert
(Multi-Lingual)
Before you operate this vehicle,
read the owner’s manual.
7173025
4X4 Caution
CAUTION
Do not push switch to engage 4X4 (AWD) if the rear wheels are spinning. This
may cause severe drive shaft and clutch damage.
7175485
General
Alert
Age 16
Alert
Hill
Operation
Alert
Reverse
Override
Warning
4X4 Caution
16
SAFETY
Safety Labels and Locations
Reverse Override Warning
WARNING
Improper use of the override button can lead to loss of control resulting in severe
injury or death. Do not activate override while throttle is engaged. Always apply
throttle gradually, while in reverse.
7175486
Hill Operation Alert
Never operate this vehicle on HILLS steeper than 25 degrees 25°.
To prevent flip-over on hilly terrain, when going up or down, use throttle and
brakes gradually.
7179119
Tire Pressure/Load Alert
COLD TIRE PRESSURE IN PSI (KPa):
FRONT: 7 (48.3) REAR: 7 (48.3)
MAXIMUM WEIGHT CAPACITY:
290 LBS. (131 KG)
INCLUDES WEIGHT OF OPERATOR,
CARGO AND ACCESSORIES.
LUG NUT TORQUE VALUES:
Steel rims 45 ft-lbs. (61 Nm)
Aluminum rims 75 ft-lbs. (102 Nm)
Read Owner’s Manual for more detailed
loading information.
“No Passenger” Warning
WARNING
NEVER ride as a passenger.
Passengers can cause a loss of control, resulting in SEVERE INJURY or
DEATH.
7175378
“No Passenger”
Warning
Tire Pressure/Load
Alert
17
SAFETY

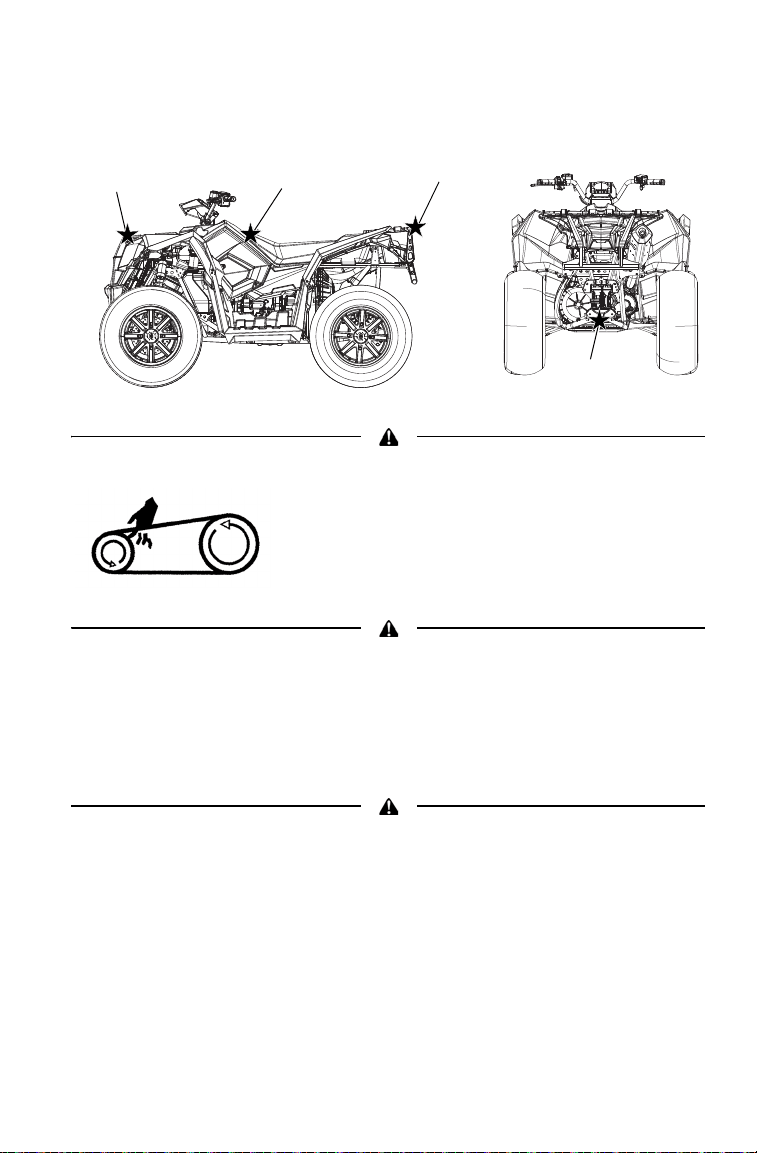

Safety Labels and Locations
Clutch Cover Alert
7175826
Rack Warning, Front and Rear
WARNING
• DO NOT TOW FROM RACK OR BUMPER. Vehicle damage or tipover may
result causing severe injury or death. Tow only from tow hooks or hitch.
• Max. Rack Loads: Front 25 lbs. (11 kg) Rear 50 lbs. (23 kg)
7179093
Hitch Capacity Label
TRAILER MAX WEIGHT:
1500 LBS. (682 KG) ON LEVEL GROUND
850 LBS. (386 KG) UP TO 15° GRADE
HITCH MAX. VERTICAL WEIGHT: 150 LBS. (68 KG)
7170509
Clutch Cover
Alert
(on clutch box)
Rack
Warning
Rack
Warning
Hitch
Capacity Label
18
FEATURES AND CONTROLS
Switches
Engine Stop Switch
The engine will not start or
run when the switch is in the
OFF position.
OFF
RUN
Push the stop switch down to
stop the engine quickly. Pull
the stop switch up to the
RUN position before
attempting to start the
engine.
Both the main switch and the
engine stop switch will shut
off all electrical power to the
vehicle, including lights.

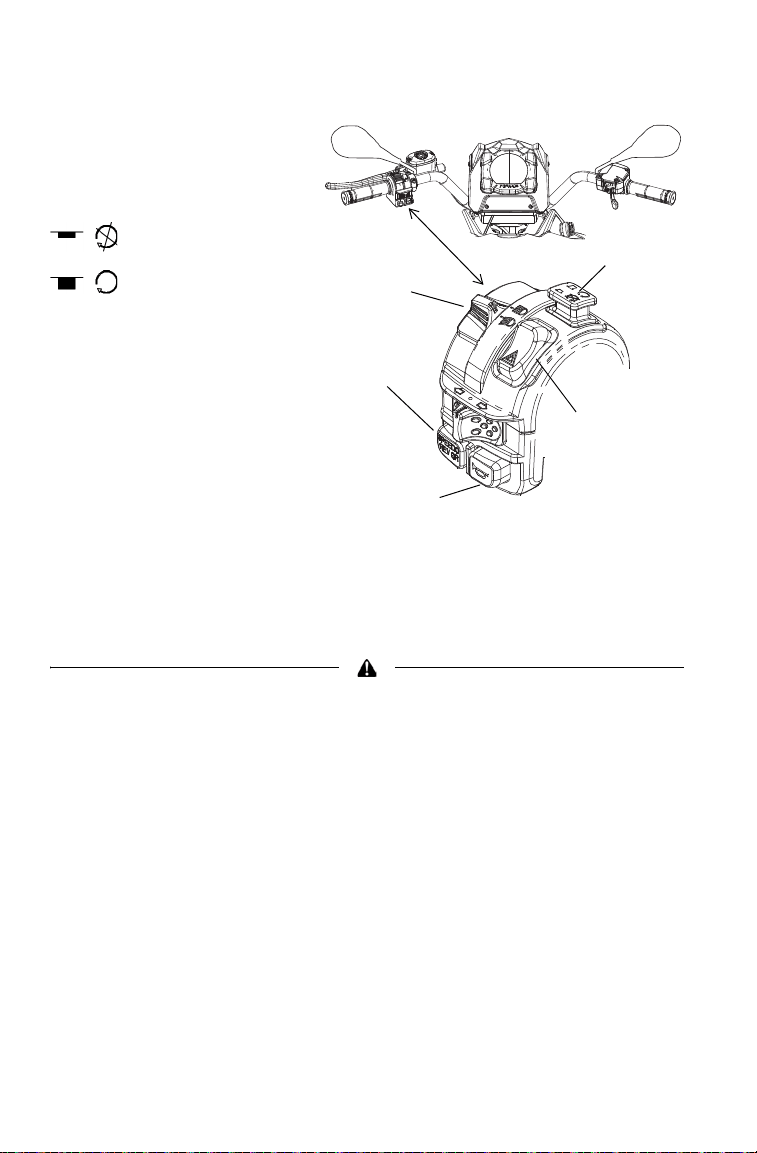

Mode/Reverse Override Switch
This vehicle is equipped with a reverse speed limiter system. To gain
additional wheel speed while backing, release the throttle and depress
the override switch.
Pressing the override switch while the throttle is open can cause loss of control,
which may result in serious injury or death. Always release the throttle before
pressing the override switch.
The override switch also allows activation of All Wheel Drive in
reverse, if the AWD switch is on.
The reverse override button also acts as a MODE button when held
down for approximately one half second. See the instrument cluster
information beginning on page 27. The transmission cannot be in
reverse when using the override button as a MODE button.
Reverse
Override
Switch
Engine
Stop
Switch
Headlight
Switch
Hazard
Switch
Horn
Switch
19
FEATURES AND CONTROLS
Switches

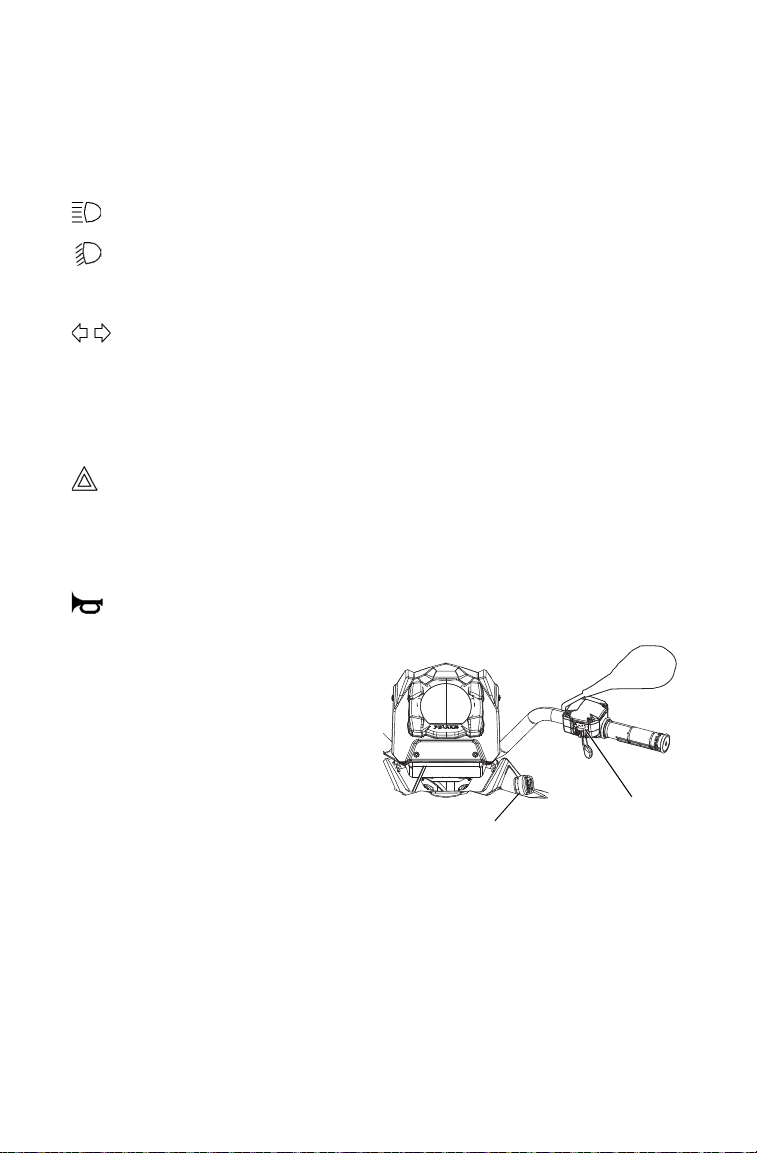

Headlight Switch
The lights do not operate unless the main key switch is on and the
engine stop switch is in the RUN position.
High Beam
Low Beam
Turn Signal Switch
Push the toggle switch either left or right to activate the
corresponding turn signal light. The indicator on the pod will also
flash. Return the toggle to the center position and push it inward
to end the signal.
Hazard Switch
Push the hazard warning switch to cause all turn signal lights to
flash simultaneously. Use this feature to alert others of an
emergency or other situation requiring caution.
Horn Switch
Press the horn switch to sound the horn.
Main Key Switch
Use the main key switch to start
the engine. See page 41 for start-
ing procedures.
4X4 Switch
Use the 4X4 switch to engage
4X4 or 2X4. See page 26.
Main Key
Switch
4X4 Switch
20
FEATURES AND CONTROLS
Automatic Transmission Gear Selector
The transmission gear selector is
located on the right side of the vehicle.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park
To shift gears, brake to a complete
stop. When the engine is idling, move the lever to the desired gear.
NOTICE: Shifting gears with the engine speed above idle or while the vehicle is
moving could cause transmission damage.
Whenever the vehicle is left unattended, always place the transmission
in PARK and lock the parking brake.
Belt Life
To extend belt life, use low forward gear when pulling a heavy load at
less than seven miles per hour for extended periods and when operating
uphill at a slow speed.
Gear
Selector
21
FEATURES AND CONTROLS
Mirrors
Use the mirrors to assist in traffic maneuvers. Always check and adjust
the mirrors before driving the vehicle.

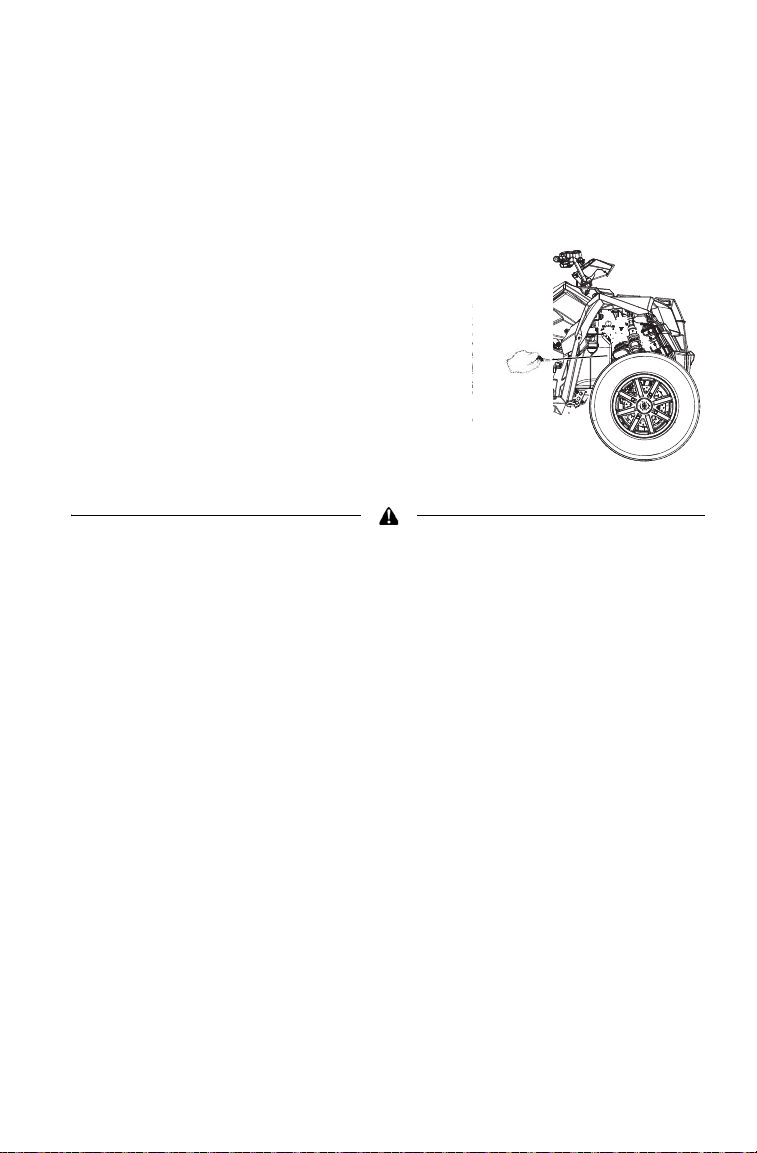

Steering Lock
Lock the steering to prevent unauthorized use or theft of the vehicle.
1. Turn the handlebars to the full left posi-
tion.
Tip: The handlebars may also be locked in the
full right position.
2. Insert the steering lock key and turn it
clockwise. Remove the key.
Tip: Place the steering lock keys in a safe place.
The lock must be replaced if the keys are
lost.
3. Reverse the procedure to unlock the
steering.
The handlebars are locked in the fully turned position when the steering is
locked. Always unlock the steering before starting the engine.
22
FEATURES AND CONTROLS
Throttle Lever
Failure to check or maintain proper operation of the throttle system can result in
an accident if the throttle lever sticks during operation. Check the lever for
proper operation before starting the engine. Check occasionally during
operation.
Do not start or operate the vehicle with sticking or improperly operating throttle
controls. Contact your dealer for repair if throttle problems arise.
Press the throttle lever to
increase engine speed and
vehicle movement.
Release the lever to reduce
engine speed and vehicle
movement.
Throttle Release Switch
The throttle release switch causes the engine to stop if the throttle cable
sticks in an open position when the operator releases the throttle lever.
The throttle release switch stops the engine in the event of a throttle system
malfunction. Do not modify the throttle release switch or replace it with other
throttle mechanisms.
2x4
23

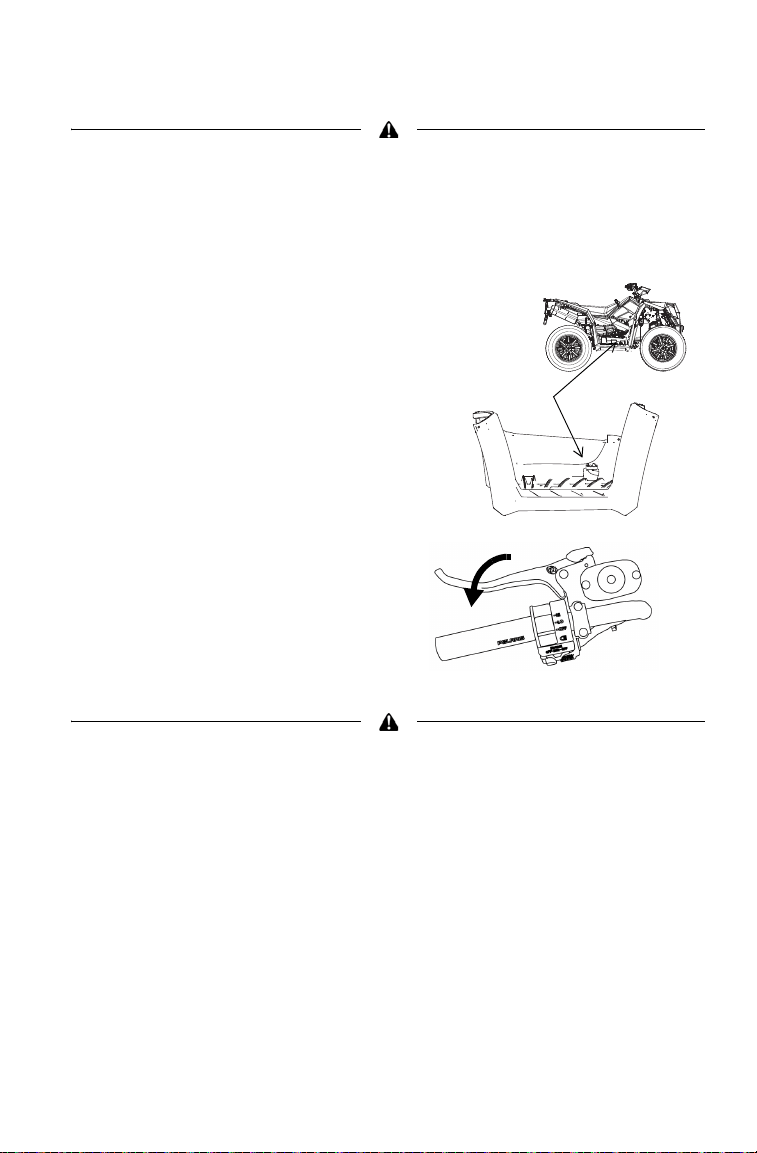

FEATURES AND CONTROLS
Brakes
Aggressively applying the brakes when backing down a hill may cause rear
tipover. Aggressively applying the brakes while moving forward may cause the
rear wheels to skid and result in loss of control.
Read this owner's manual and understand the operation of all brake systems on
this vehicle. Always use caution whenever applying the brakes.
Foot Brake
The all-wheel foot brake is located on
the right footrest. The foot brake oper-
ates both front and rear brakes. Press the
brake pedal down with your foot to
apply the all-wheel brakes.
If the rear wheels begin to skid or slide
while using the foot brake, reduce brake
pressure.
Hand Brake Lever
The hand brake operates both front
and rear brakes. Squeeze the brake
lever toward the handlebar to apply
the all-wheel brakes.
If the rear wheels begin to skid or
slide while using the brake, reduce
lever pressure.
Operating the vehicle with a spongy brake lever can result in loss of braking,
which could cause an accident. Never operate the vehicle with a spongy-feeling
brake lever. Always contact your dealer for service before operating the vehicle.
Foot
Brake
24
FEATURES AND CONTROLS
Brakes
Parking Brake
1. Place the transmission in
PARK.
2. Squeeze and release the brake
lever two or three times, then
squeeze and hold.
3. Push the parking brake lock for-
ward to engage the lock.
4. Release the brake lever.
5. To release the parking brake
lock, squeeze and release the brake lever.
Operating the vehicle while the parking brake is engaged could result in an
accident and serious injury or death. Always release the parking brake lock
before operating.
25
FEATURES AND CONTROLS
Fuel Tank
Always refuel with the engine stopped, and
outdoors or in a well ventilated area. Refuel
on a level surface.
Remove the fuel tank cap and add fuel. Use
either leaded or unleaded gasoline with a min-
imum pump octane number of 87=(R+ M/2)
octane. Do not use fuel with ethanol content
greater than 10%, such as E-85 fuel.
The fuel tank is designed to allow for the nor-
mal expansion of fuel. Do not overfill. Do not
fill the tank neck.
Extreme Use 30 AH Battery
If your factory-installed 18 AH battery cannot maintain a charge
because of operation in extreme cold or with multiple electrical accesso-
ries, please see your POLARIS dealer to purchase a 30 AH battery.
1. Fully charge the new battery before installing it. See page 106.
2. To install the 30 AH battery, remove the 18 AH battery. See page
104.
3. Remove the plastic spacer at the bottom of the battery compartment.
Save the spacer for future use.
4. Install the new battery. See page 105.
Electronic Power Steering (EPS)
Electronic power steering (EPS) engages when the ignition key is turned
to the ON position. EPS remains engaged whether the vehicle is moving
or idle. See page 29 for EPS Warning Indicator information.
Fuel Tank Cap
26
FEATURES AND CONTROLS
All Wheel Drive System
The All Wheel Drive system is controlled by the 4X4 switch.
4X4 Mode
When the switch is on 4X4, the vehicle
is in 4X4, and the 4X4 indicator icon in
the instrument cluster display will be
visible.
When in 4X4, the demand drive unit
will automatically engage any time the
rear wheels lose traction. When the
rear wheels regain traction, the demand
drive unit will automatically disen-
gage.
There is no limit to the length of time
the vehicle may remain in 4X4. The
vehicle automatically engages 4X4
when operating in reverse if the switch
is set to the 4X4 position.
2X4 Mode
When the switch is on 2X4, the vehicle is in two-wheel drive at all
times.
Engaging 4X4
The 4X4 switch may be turned on or off while the vehicle is moving.
Initially, the vehicle's electronic system will not enable 4X4 until the
engine RPM is below 3100. Once enabled, 4X4 remains enabled until
the 4X4 switch is turned off. If the switch is turned off while the demand
drive unit is moving, it will not disengage until the rear wheels regain
traction.
Engage the 4X4 switch before getting into conditions where front wheel
drive may be needed. If the rear wheels are spinning, release the throttle
before switching to 4X4.
NOTICE: Switching to 4X4 while the rear wheels are spinning may cause
severe drive shaft and gearcase damage. Always switch to 4X4 while
the rear wheels have traction or are at rest.
2x4
4X4
Switch
27
FEATURES AND CONTROLS
Instrument Cluster
NOTICE: High water pressure may damage vehicle components. Wash the
vehicle by hand or with a garden hose using mild soap.
Certain products, including insect repellents and chemicals, will
damage the speedometer lens and other plastic surfaces. Do not use
alcohol to clean the instrument cluster. Do not allow insect sprays to
contact the lens. Immediately clean off any gasoline that splashes on
the instrument cluster.
28
FEATURES AND CONTROLS
Instrument Cluster
Multi-Function Display (MFD) Gauge

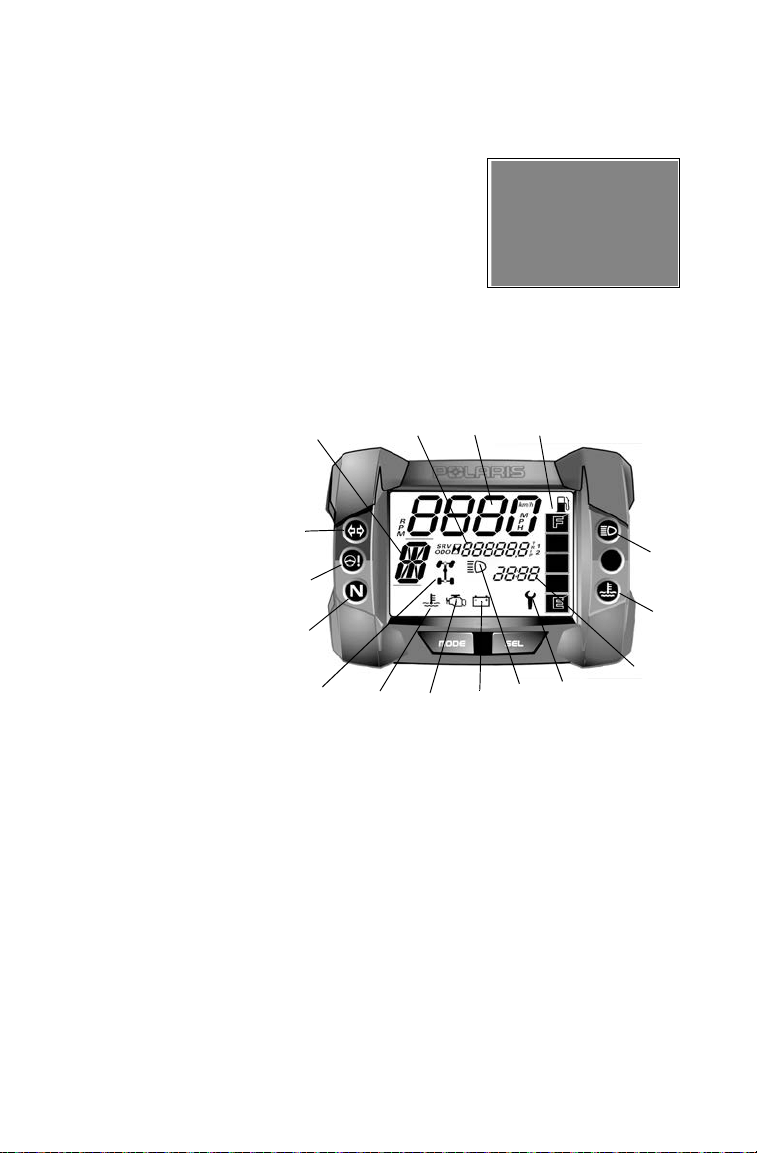

The rider information center is located in the
instrument cluster. All segments will light up
for one second at start-up. If the instrument
cluster fails to illuminate, a battery over-volt-
age may have occurred and the cluster may
have shut down to protect the electronic speed-
ometer. If this occurs, take the vehicle to your
Polaris dealer for proper diagnosis.
The information center is set to display standard units of measurement
and a 12-hour clock at the factory. To change to metric and/or a 24-hour
clock, see page 31.

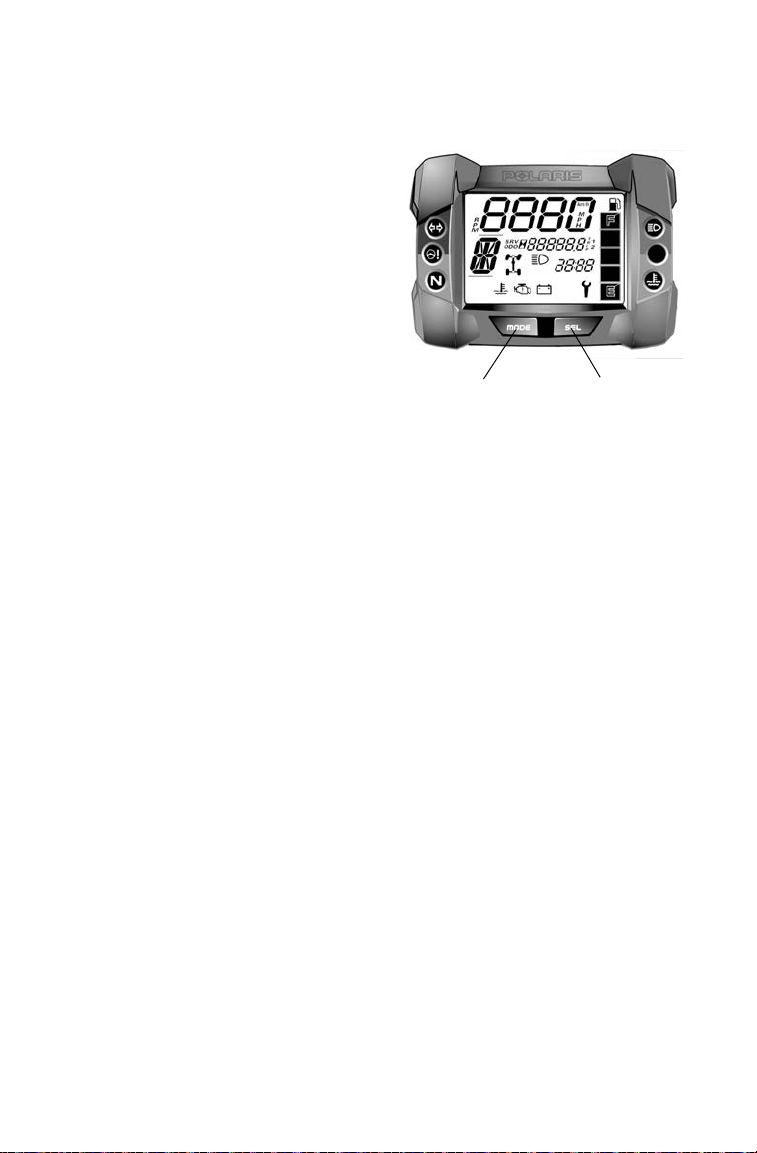

1. Gear Display -
This area displays
gear shifter posi-
tion.
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
-- = Gear Signal
Error (or shifter
between gears)
2. Information
Display - This area
displays odometer,
tripmeters, engine
hour meter and programmable service hour interval.
3. Speed Display - This area displays vehicle ground speed or engine
speed. See page 30.
4. Fuel Gauge - The segments of the fuel gauge show the level of fuel
in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments including the fuel icon will flash. Refuel
immediately.
Tip: If the fuel icon fails to display, an open or short circuit has occurred in the
fuel sensor circuit. See your dealer.
1
3
4
8
7
5
9
6
10
11
2
5
6
12
13
14
29
FEATURES AND CONTROLS
Instrument Cluster
Multi-Function Display (MFD) Gauge
5. High Beam Indicator - This indicator illuminates when the lights
are set to high beam.
6. Engine Overheat Warning - This icon flashes to indicate an
overheated engine. If the icon stops flashing but remains
illuminated, the overheating condition remains, and the system will
automatically reduce engine power.
7. Clock Display - The clock displays time in a 12-hour or 24-hour
format. If the engine is turned off, press the MODE button. The
time will display for 5-10 seconds. See page 32 for resetting
instructions.
8. Service Reminder Display - A flashing wrench symbol alerts the
operator that the preset service interval has been reached. The
vehicle should be brought to your dealer for scheduled
maintenance. See page 32 for resetting instructions.
9. Under / Over Voltage - This warning usually indicates that the
vehicle is operating at an RPM too low to keep the battery charged.
It may also occur when the engine is at idle and high electrical load
(lights, cooling fan, accessories) is applied. Drive at a higher RPM
or recharge the battery to clear the warning.
10. Check Engine Warning - This icon displays if an EFI-related fault
occurs. Do not operate the vehicle if this warning appears. Serious
engine damage could result. See your dealer.
11. 4X4 Display - This icon displays when the 4X4 system is engaged
(switch is on 4X4).
12. Neutral Indicator - This indicator illuminates, in addition to
displaying in the gear indicator display, when the transmission is in
neutral.
13. EPS Warning Indicator - If this indicator light remains on after
starting the engine, the EPS system is inoperative. See your
authorized Polaris dealer for service.
14. Directional Indicator - This indicator illuminates when the hazard
switch or a turn signal switch is turned on.
30
FEATURES AND CONTROLS
Instrument Cluster
Multi-Function Display (MFD) Gauge
Use the MODE button to toggle
through the speed display options.
Use the SELECT button (SEL) to
toggle through the information area
options.
MODE and SELECT button opera-
tion is locked out at speeds above
approximately 15 MPH (25 km/h).
Tip: The reverse override button also
acts as a MODE button when held
down for approximately one half
second. The reverse override but-
ton also acts as the SELECT but-
ton when pressed and released
quickly. The transmission cannot be in reverse when using the override but-
ton as a MODE or SELECT button. This feature does not contain a vehicle
speed lockout function and can be used at any operating speed.
Speed Display
Use the MODE button to toggle through the speed display options.
Ground speed is displayed in either miles per hour (MPH) or kilometers
per hour (km/h).
Engine speed is displayed in revolutions per minute (RPM).
MODE
Button
SELECT
Button
31
FEATURES AND CONTROLS
Instrument Cluster
Multi-Function Display (MFD) Gauge
Display Units (Standard/Metric)
The display can be viewed in either standard or metric units of measure-
ment. To change units:
1. Press and hold the MODE button until vehicle speed is displayed.
2. Toggle through the information area using the SELECT button until
the odometer is displayed.
3. Press and hold the MODE button until the displayed units change.
Release the button.
4. New settings remain until changed using the same procedure.
12-Hour/24-Hour Clock Display
1. Press and hold the MODE button until RPM is displayed.
2. Toggle through the information area using the SELECT button until
the odometer is displayed.
3. Press and hold the MODE button until the clock displays the new
clock format (either 24-hour or 12-hour). Release the button.
4. New settings remain until changed using the same procedure.
Odometer Mode
The odometer records and displays the distance traveled by the vehicle.
Trip Meter Mode
The trip meters record the distance traveled by the vehicle on each trip if
reset before each trip. To reset a trip meter, select the trip meter 1 or trip
meter 2 mode. Press and hold the MODE button on the instrument clus-
ter until the total changes to 0. In the Rider Information Center, the trip
meter display contains a decimal point, but the odometer displays with-
out a decimal point.
Hour Meter Mode
This mode logs the total hours the engine has been in operation.
32
FEATURES AND CONTROLS
Instrument Cluster
Multi-Function Display (MFD) Gauge
Programmable Service Interval
When the hours of engine operation equal the programmed service
interval setting, the wrench icon will flash for 5 seconds each time the
engine is started. When this feature is enabled, it provides a convenient
reminder to perform routine maintenance. The service interval is pro-
grammed at 50 hours at the factory. Use the following procedure to
change the service interval.
1. Press the SELECT button until remaining service hours display.
2. Press and hold the MODE button.
3. When the service hours flash, press and release the SELECT button
to advance the hours to the desired setting (including OFF). When
the digits stop flashing, the interval has been set.
Clock Mode
Use one of the following two methods to reset the clock.
Method 1
1. Select the Hour Meter Mode.
2. Press and hold the mode button on the instrument cluster until the
hour display flashes. Release the button.
3. Press and release the SELECT button to advance the hours.
4. After the hours are set, press and release the MODE button to move
to the minutes. Use the same procedure to reset the minutes.
5. When the digits stop flashing the clock has been set.
Method 2
1. With the key turned off, press and hold the MODE button.
2. While still holding the MODE button, turn the key to the ON posi-
tion.
3. Continue to hold the MODE button until the hour display flashes.
Release the button.
4. Set the time as outlined in steps 3-5 of Method 1.
33
FEATURES AND CONTROLS
Instrument Cluster
Multi-Function Display (MFD) Gauge
Diagnostic Display Mode
The EFI diagnostic display mode is for informational purposes only.
Please see your Polaris dealer for all major repairs.
The diagnostic mode is accessible only when the check engine warning
indicator activates after the key has been turned on. Leave the key on if
you want to view the active code (failure code).
The diagnostic mode becomes inaccessible if the key is turned off and
on and the warning indicator is no longer active. This allows the deter-
mination of persistent as well as intermittent faults.
Inactive codes are stored in the history of the unit. Please see your
Polaris dealer to retrieve inactive codes.
Use the following procedure to view active codes that occur when the
key is on.
1. Place the transmission in PARK.
2. Press and release the SELECT button until the flashing check
engine warning indicator appears in the display.
3. A set of two numbers will also appear in the display.
• The 2-6 digit suspect parameter number (SPN) in the information area
indicates which component is generating the fault code.
• The 1-2 digit failure mode indicator (FMI) number in the clock area indi-
cates the fault mode, such as open or short circuit.
4. See pages 34-36 for code definitions and failure descriptions.
Tip: More than one fault may be active. Press and hold the MODE button to tog-
gle through all currently active diagnostic codes.
34
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
Open Load: There is a break in the wires that lead to the item listed in
the chart (injector, fuel pump, etc.), or the item has failed.
Short-to-Ground:
The wire is shorted to ground between the electronic
control unit and the item listed in the chart.
Shorted Load:
The wires leading to the item listed in the chart are
shorted together, or the item has shorted internally.
Short-to-Battery:
The wire leading from the item listed in the chart to
the electronic control unit is shorted to a wire at battery voltage.
SCRAMBLER XP 1000 EPS Diagnostic Codes
Component Condition SPN FMI
Throttle Position Sensor Voltage Too High 51 3
Voltage Too Low 51 4
Engine Temperature Sensor Voltage Too High 110 3
Voltage Too Low 110 4
Temperature Too High 110 16
Engine Overheat Shutdown 110 0
Intake Air Temperature Sensor Voltage Too High 105 3
Voltage Too Low 105 4
Manifold Absolute Pressure Sensor Voltage Too High 102 3
Voltage Too Low 102 4
Signal Out of Range 102 2
Crankshaft Position Sensor Circuit Fault 636 8
Plausibility Fault 636 2
Vehicle Speed Signal Speed Too High 84 8
Plausibility Fault 84 2
Gear Sensor Signal Voltage Too Low 523 4
Voltage too high 523 3
Signal fault 523 2
Injector 1 (MAG) (SDI Part Load) Driver Circuit Open/Grounded 651 5
Driver Circuit Short to B+ 651 3
Driver Circuit Grounded 651 4
35
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
SCRAMBLER XP 1000 EPS Diagnostic Codes
Component Condition SPN FMI
Injector 2 (PTO) (SDI Part Load) Driver Circuit Open/Grounded 652 5
Driver Circuit Short to B+ 652 3
Driver Circuit Grounded 652 4
Ignition Coil Primary Driver 1
(MAG)
Driver Circuit Short to B+ 1268 3
Ignition Coil Primary Driver 2
(PTO)
Driver Circuit Short to B+ 1269 3
Fuel Pump Driver Circuit Driver Circuit Open/Grounded 1347 5
Driver Circuit Short to B+ 1347 3
Driver Circuit Grounded 1347 4
Fan Relay Driver Circuit Driver Circuit Open/Grounded 1071 5
Driver Circuit Short to B+ 1071 3
Driver Circuit Grounded 1071 4
Idle Air Control Driver Circuit Open/Grounded 634 5
Driver Circuit Short to B+ 634 3
Driver Circuit Grounded 634 4
Position Out of Range 634 7
Starter Enable Circuit Driver Circuit Open/Grounded 1321 5
Driver Circuit Short to B+ 1321 3
Driver Circuit Grounded 1321 4
Chassis Relay Driver Circuit Open/Grounded 520208 5
Driver Circuit Short to B+ 520208 3
Driver Circuit Grounded 520208 4
All Wheel Drive Control Driver Circuit Open/Grounded 520207 5
Driver Circuit Short to B+ 520207 3
Driver Circuit Grounded 520207 4
System Power Voltage Too High 168 3
Voltage Too low 168 4
Throttle Safety Signal Voltage Too High 520194 3
Voltage Too Low 520194 4
Signal Out of Range 520194 2
Throttle Stuck 520194 7
Idle Speed Speed Too High 520211 3
Speed Too Low 520211 4
36
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
SCRAMBLER XP 1000 EPS Diagnostic Codes
EPS Models Only
Steering Over Current Shutdown Current Above Normal/Grounded 520221 6
Steering Excessive Current Error Current Above Normal/Grounded 520222 6
Steering Torque Sensor T1 Par-
tial Failure
T1 Shorted to Ground 520223 4
T1 Shorted to Bus 520223 3
Steering Torque Sensor T2 Par-
tial Failure
T2 Shorted to Ground 520224 4
T2 Shorted to Bus 520224 3
Steering Torque Sensor Full
Failure
T1 and T2 Shorted to Ground 520225 4
T1 and T2 Shorted to Bus 520225 3
T1 Short to Ground & T2 Short to Bus 520225 16
T2 Short to Ground & T1 Short to Bus 520225 17
T1 and T2 are Shorted 520225 2
Steering Position Sensor P1
Partial Failure
P1 Shorted to Ground 520226 4
P1 Shorted to Bus 520226 3
Steering Position Sensor P2
Partial Failure
P2 Shorted to Ground 520227 4
P2 Shorted to Bus 520227 3
Steering Position Sensor Full
Failure
P1 and P2 Shorted to Ground 520228 4
P1 and P2 Shorted to bus 520228 3
EPAS Inverter Temperature Greater than 110 Degrees C 520229 16
Greater than 120 Degrees C 520229 0
EPAS CAN Comm. Receive Err No RX Message for 2 Seconds 520230 9
EPAS CAN Comm. Transmit Err No TX Message for 2 Seconds 520231 9
IC CAN Comm. w/EPAS EPAS Offline 520230 31
37
FEATURES AND CONTROLS
Front Rack/Compartment
Release the front rack latches
and remove the rack to gain
access to the front compart-
ment. To reinstall the rack,
hold the rack as shown in the
illustration. Position the front
edge in the tabs, then push the
rack downward and secure
the latches.
Access the following
components in the front
compartment:
• Radiator cap
• Brake fluid reservoir
• Battery
• Coolant recovery bottle cap
• Electrical/fuse/relay components
Latches
Brake Fluid
Reservoir
Radiator
Cap
Coolant Bottle Cap
Electrical/Fuse/Relay
Battery
38
OPERATION
Failure to operate the vehicle properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.
Break-In Period
The break-in period for your new POLARIS vehicle is the first 20 hours
of operation. No single action on your part is as important as following
the procedures for a proper break-in. Careful treatment of a new engine
and drive components will result in more efficient performance and lon-
ger life for these components.
NOTICE: Excessive heat build-up during the first three hours of operation will
damage close-fitted engine parts and drive components. Do not
operate at full throttle or high speeds during the first three hours of
use.
39
OPERATION
Break-In Period
Engine and Drivetrain Break-in
1. Fill the fuel tank with gasoline. See page 25. Always exercise
extreme caution whenever handling gasoline.
2. Check the engine oil level on the dipstick. See page 73. Add oil if
necessary to maintain the level between the safe and add marks.
3. Drive slowly at first. Select an open area that allows room to famil-
iarize yourself with vehicle operation and handling.
4. Vary the throttle positions. Do not operate at sustained idle.
5. Perform regular checks on fluid levels, controls and areas outlined
on the daily pre-ride inspection checklist. See page 40.
6. Pull only light loads.
7. Change both the oil and the filter at 25 hours.
8. Check fluid levels of transmission and all gearcases after the first 25
hours of operation and every 100 hours thereafter.
PVT Break-in (Clutches/Belt)
A proper break-in of the clutches and drive belt will ensure a longer life
and better performance. Break in the clutches and belt by operating at
slower speeds during the break-in period as recommended. Pull only
light loads. Avoid aggressive acceleration and high speed operation dur-
ing the break-in period.
If a belt fails, always clean away all debris when replacing the belt.
40
OPERATION
Pre-Ride Checklist
Failure to inspect and verify that the vehicle is in safe operating condi-
tion before operating increases the risk of an accident. Always inspect
the vehicle before each use to make sure it's in safe operating condition.
Item Remarks Page
Hand brake/lever travel Ensure proper operation 85
Foot brake Ensure proper operation 85
Brake fluid Ensure proper levels 83
Front suspension Inspect, lubricate if necessary 72
Rear suspension Inspect, lubricate if necessary 72
Steering/steering lock Unlock the steering; ensure free
operation
21
Tires Inspect condition and pressure 88
Wheels/fasteners Inspect, ensure fastener tightness 88
89
Frame nuts, bolts, fasteners Inspect, ensure tightness -
Fuel and oil Ensure proper levels 25
73
Coolant level Ensure proper level 81
82
Coolant hoses Inspect for leaks -
Throttle Ensure proper operation 22
102
Indicator lights/switches Ensure operation 18
Engine stop switch Ensure proper operation 18
Mirrors Adjust for best side/rear vision 21
Air filter, pre-filter Inspect, clean 90
Headlamp Check operation 92
Brake light/tail lamp Check operation 92
Riding gear Wear approved helmet, goggles, and
protective clothing
7
Winch Inspect cable and switch. 55-66
41
OPERATION
Starting the Engine
1. Position the vehicle on a level surface outdoors or in a well-
ventilated area.
2. Place the transmission in PARK.
3. Lock the parking brake.
Tip: The starter interlock will prevent the engine from starting if the transmission
is in gear and the brake is not engaged.
4. Sit on the vehicle and move the engine stop switch to RUN.
5. Do not press the throttle while starting the engine.
6. Turn the ignition key past the ON position to engage the starter.
Activate the starter for a maximum of five seconds, releasing the
key when the engine starts.
7. If the engine does not start, return the key to the OFF position and
wait five seconds before attempting to start again. Activate the
starter for another five seconds if necessary. Repeat this procedure
until the engine starts.
NOTICE: Operating the vehicle immediately after starting could cause engine
damage. Allow the engine to warm up for several minutes before
operating the vehicle.
Cold Weather Operation
If the vehicle is used year-round, check the oil level frequently. A rising
oil level could indicate the accumulation of contaminates such as water
or excess fuel in the bottom of the crankcase. Water in the bottom of the
crankcase can lead to engine damage and must be drained. Water
accumulation increases as outside temperature decreases.
42
OPERATION
Driving Procedures
1. Wear protective riding gear. See page 7.
2. Perform the pre-ride inspection. See page 40.

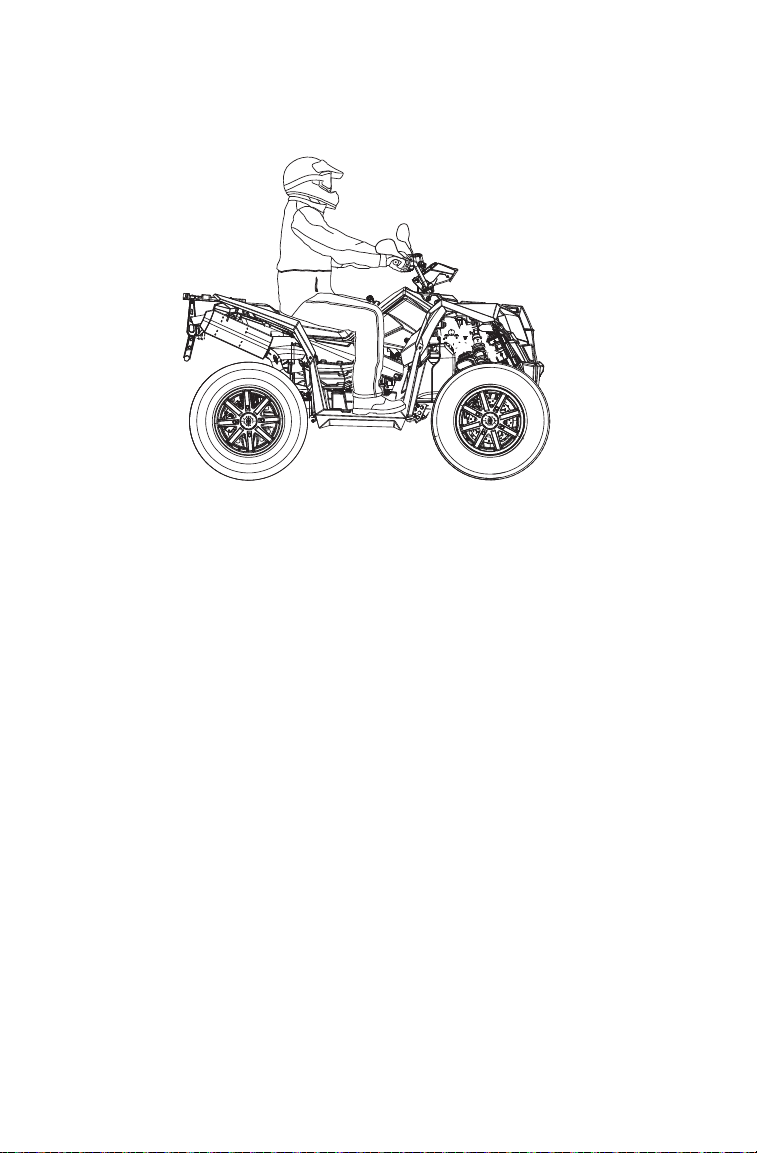

3. Sit upright with both feet on the footrests and both hands on the
handlebars.
4. Start the engine and allow it to warm up.
5. Shift the transmission into gear.
6. Check your surroundings and determine your path of travel.
7. Release the parking brake.
8. Slowly depress the throttle with your right thumb and begin driving.
9. Drive slowly. Practice maneuvering and using the throttle and
brakes on level surfaces.
43
OPERATION
Turning the Vehicle
1. Before turning, activate a
turn signal to alert others of
your intentions. Activate
the left signal before a left
turn. Activate the right sig-
nal before a right turn.

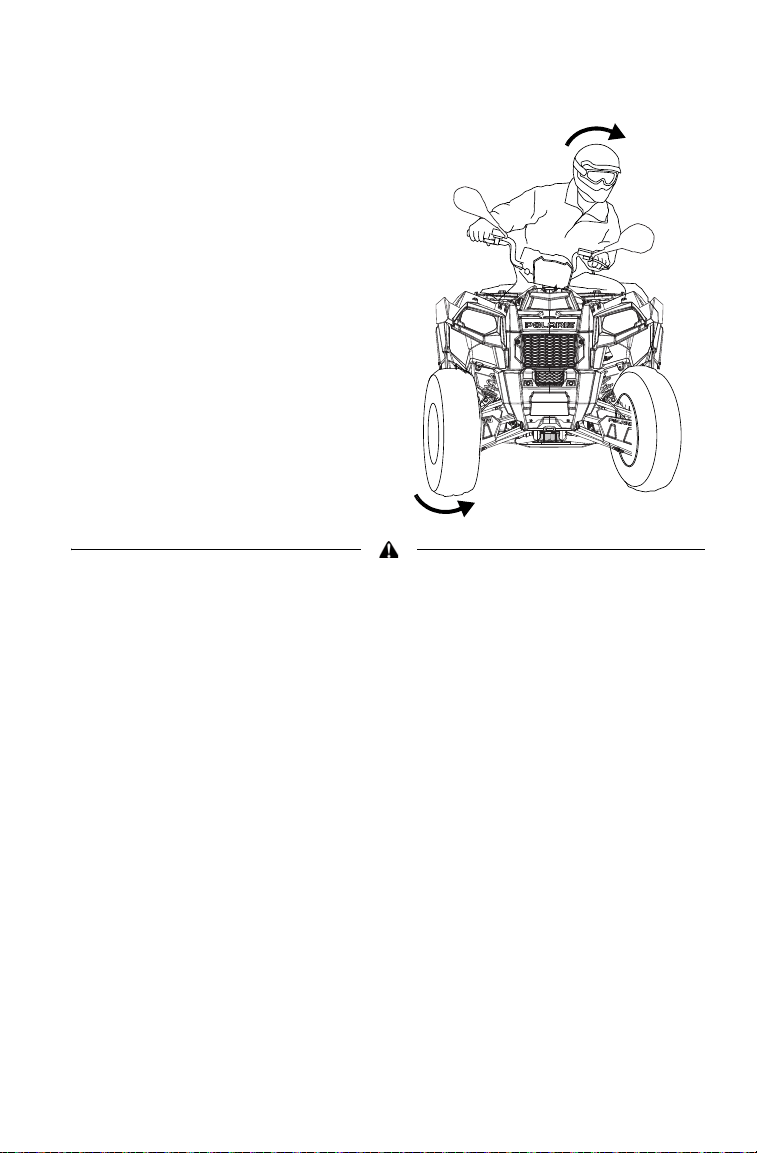

2. Steer in the direction of the
turn, leaning your upper
body to the inside of the
turn while supporting your
weight on the outer foot-
rest. Use the same leaning
technique for turning in
reverse.
3. Practice making turns at
slow speeds before
attempting to turn at faster
speeds.
Turning improperly can result in vehicle overturn. Never turn abruptly or at sharp
angles. Never turn at high speeds.
44
OPERATION
Driving on Slippery Surfaces
Whenever riding on slippery surfaces such as wet trails or loose gravel,
or during freezing weather, follow these precautions:
1. Do not operate on excessively rough, slippery or loose terrain.
2. Slow down when entering slippery areas.
3. Engage 4X4 before wheels begin to lose traction.
NOTICE: Severe damage to drive train may occur if the 4X4 is engaged while
the wheels are spinning. Allow the rear wheels to stop spinning
before engaging 4X4, or engage 4X4 before wheels begin to lose
traction.
4. Maintain a high level of alertness, reading the trail and avoiding
quick, sharp turns, which can cause skids.
5. Never apply the brakes during a skid. Correct a skid by turning the
handlebars in the direction of the skid and shifting your body
weight forward.
Sideways
Skid
Turn in
direction of
skid
45
OPERATION

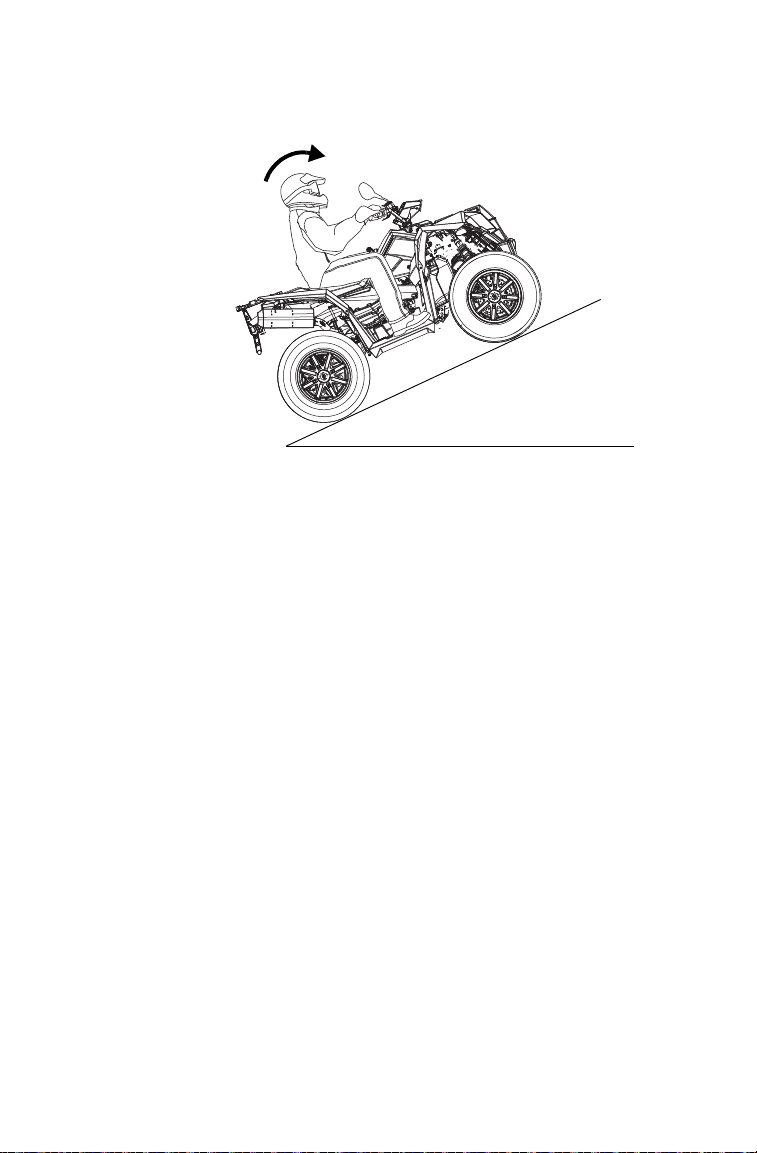

Driving Uphill
Braking and handling are greatly affected when operating in hilly ter-
rain. Improper procedure could cause loss of control or overturn. When-
ever traveling uphill, follow these precautions:
1. Drive straight uphill.
2. Avoid steep hills (25° maximum).
3. Always check the terrain carefully before ascending any hill.
4. Never climb hills with excessively slippery or loose surfaces.
5. Keep both feet on the footrests.
6. Shift body weight uphill.
7. Proceed at a steady rate of speed and throttle opening. Opening the
throttle suddenly could cause the vehicle to flip over backwards.
8. Never go over the top of any hill at high speed. An obstacle, a sharp
drop, or another vehicle or person could be on the other side of the
hill.
9. Remain alert and be prepared to take emergency action. This may
include quick dismounting of the vehicle.
25° Maximum
46
OPERATION
Driving on a Sidehill (Sidehilling)
Driving on a sidehill is not recommended. Improper procedure could
cause loss of control or overturn. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a sidehill is unavoidable, follow these precautions:
1. Slow down!
2. Shift body weight uphill.
3. Keep your feet on the footrests.
4. If the vehicle begins to slide or tip, quickly turn the front wheel
downhill, if possible, or dismount on the uphill side immediately!
47
OPERATION
Driving Downhill
When driving downhill, follow
these precautions:
1. Avoid steep hills (25°
maximum).
2. Shift body weight uphill.
3. Drive straight downhill.
4. Slow down. Excessive
speed when traveling down-
hill can cause loss of con-
trol.
5. Squeeze the brake lever
gradually. Applying the
brakes too firmly may cause
the rear wheels to lock,
which could result in loss of
control.
Parking on an Incline
Avoid parking on an incline if
possible. If it's unavoidable,
follow these precautions:
1. Stop the engine.
2. Place the transmission in
PARK.
3. Lock the parking brake.
4. Always block the rear
wheels on the downhill side.
25° Maximum
48
OPERATION
Turning Around on a Hill (K-Turn)
If the vehicle stalls while climbing a hill, never back it down the hill!
Use the K-turn to turn around.
1. Stop and lock the parking brake while keeping body weight uphill.
2. Leave the transmission in forward and shut off the engine.
3. Dismount on the uphill side of the vehicle, or on the left if the vehi-
cle is pointing straight uphill.
4. Staying uphill of the vehicle, turn the handlebars full left.
5. While holding the service brake, release the parking brake lock and
slowly allow the vehicle to roll around to your right until it's point-
ing across the hill or slightly downward.
6. Lock the parking brake and remount the vehicle from the uphill
side, keeping body weight uphill.
7. Restart the engine with the transmission still in forward.
8. Release the parking brake and proceed slowly, controlling speed
with the service brake, until the vehicle is on more level ground.
8 ft. (2.4 m)
49
OPERATION
Driving Through Water
Your vehicle can operate
through water with a maximum
recommended depth equal to
the bottom of the footrests.
Follow these precautions when
operating through water:
1. Determine water depths
and current before entering
water.
2. Choose a crossing where
both banks have gradual
inclines.
3. Avoid operating through
deep or fast-flowing water.
NOTICE: Major engine damage can result if the vehicle is not thoroughly
inspected after operation in water. Perform the services outlined in
the maintenance chart. See page 69. The following areas need
special attention: engine oil, transmission oil, demand drive fluid, rear
gearcase oil and all grease fittings
.
If the vehicle tips or overturns in water, or if the engine stops during or
after operating in water, restarting can result in serious engine
damage. Transport the vehicle to your dealer for service before
restarting the engine. If this is not possible, follow the vehicle
immersion inspection and drying procedures outlined on page 96,
then see your dealer for service at the first opportunity.
4. After leaving water, test the brakes. Apply them lightly several
times while driving slowly. The friction will help dry out the pads.
If it’s unavoidable to enter water deeper than the footrest level:
• Proceed slowly. Avoid rocks and obstacles.
• Balance your weight carefully. Avoid sudden movements.
• Maintain a steady rate of speed. Do not make sudden turns or stops.
Do not make sudden throttle changes.
Maximum
Depth
50
OPERATION

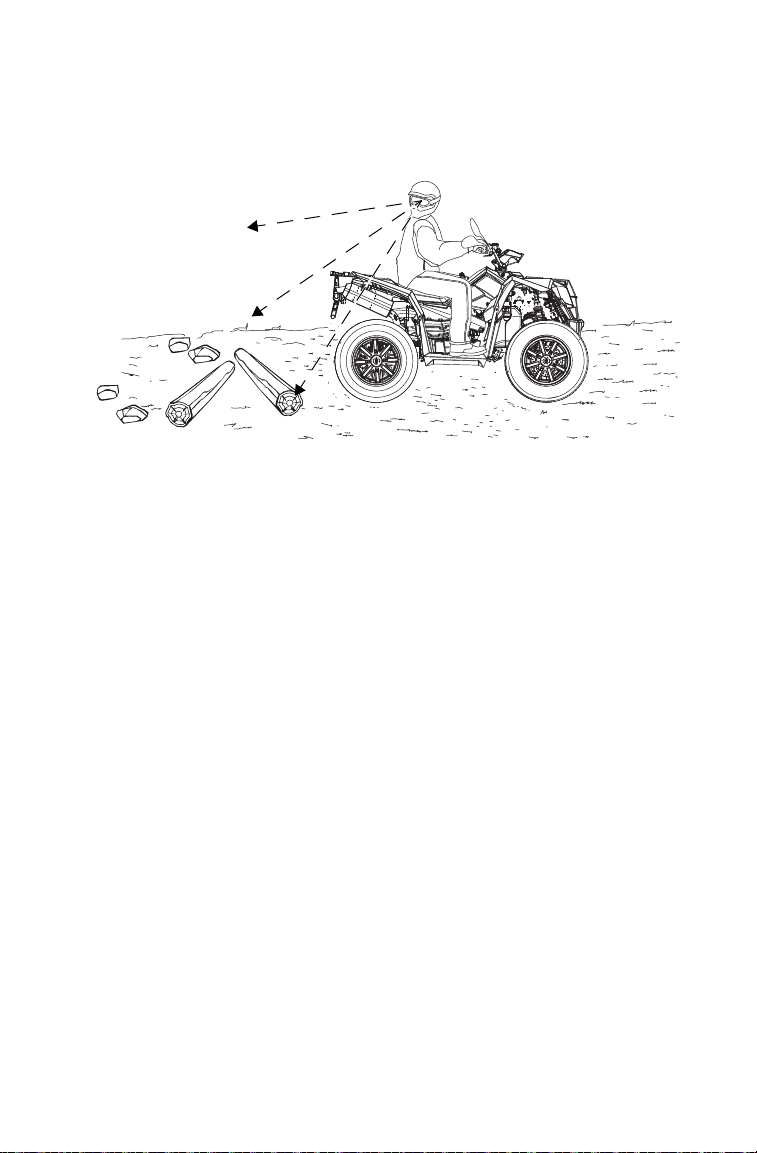

Driving Over Obstacles
Follow these precautions when operating over obstacles:
1. Always check for obstacles before operating in a new area.
2. Look ahead and learn to read the terrain. Be constantly alert for haz-
ards such as logs, rocks and low hanging branches.
3. Travel slowly and use extra caution when operating on unfamiliar
terrain. Not all obstacles are immediately visible.
4. Never attempt to operate over large obstacles, such as rocks or
fallen trees.
51
OPERATION
Driving in Reverse
Follow these precautions when operating in reverse:
1. Always check for obstacles or people behind the vehicle.
2. Always avoid backing downhill.
3. Back slowly.
4. Apply the brakes lightly for stopping.
5. Avoid turning at sharp angles.
6. Never open the throttle suddenly.
7. Do not use the override button unless additional wheel speed is
required for vehicle movement. Use the override with caution as
rearward vehicle speed is greatly increased. Do not operate at wide
open throttle. Operate the throttle just enough to maintain a desired
speed.
NOTICE: Excessive throttle operation while in the speed limit mode may cause
fuel to build in the exhaust, resulting in engine popping and/or engine
damage.
52
OPERATION
Hauling Cargo
Overloading the vehicle or carrying or towing cargo improperly can alter vehicle
handling and may cause loss of control or brake instability. Always follow these
precautions when hauling cargo.
• Read and understand the load distribution warnings listed on the vehicle
warning labels.
• REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING
WHEN HAULING CARGO.
• Never exceed the stated load capacity for this vehicle. When determining the
weight you are adding to the vehicle, include the weight of the operator,
accessories, loads in the rack or box and the load on the trailer tongue. The
combined weight of these items must not exceed the maximum weight capac-
ity.
• CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on
the rear rack. When operating over rough or hilly terrain, reduce speed and
cargo to maintain stable driving conditions. Carrying loads on only one rack
increases the possibility of vehicle overturn.
• CARRY LOADS AS LOW ON THE RACKS AS POSSIBLE. Carrying loads
high on the racks raises the center of gravity of the vehicle and creates a less
stable operating condition.
• SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create
unstable operating conditions, which could result in loss of control of the vehi-
cle.
• OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When
handling off-centered loads that cannot be centered, securely fasten the load
and operate with extra caution. Always attach the tow load to the hitch point
designated for your vehicle.
• HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use
extreme caution when applying brakes with a loaded vehicle. Avoid terrain or
situations that may require backing downhill.
• USE EXTREME CAUTION when operating with loads that extend over the
rack sides. Stability and maneuverability may be adversely affected, causing
the vehicle to overturn.
• DO NOT TRAVEL FASTER THAN THE RECOMMENDED SPEEDS. TOW-
ING SPEED should never exceed 16 km/h. Never exceed 8 km/h when tow-
ing loads in rough terrain, while cornering, or while ascending or descending
hills.
• TOWING is approved OFF-ROAD ONLY.
53
OPERATION
Hauling Cargo

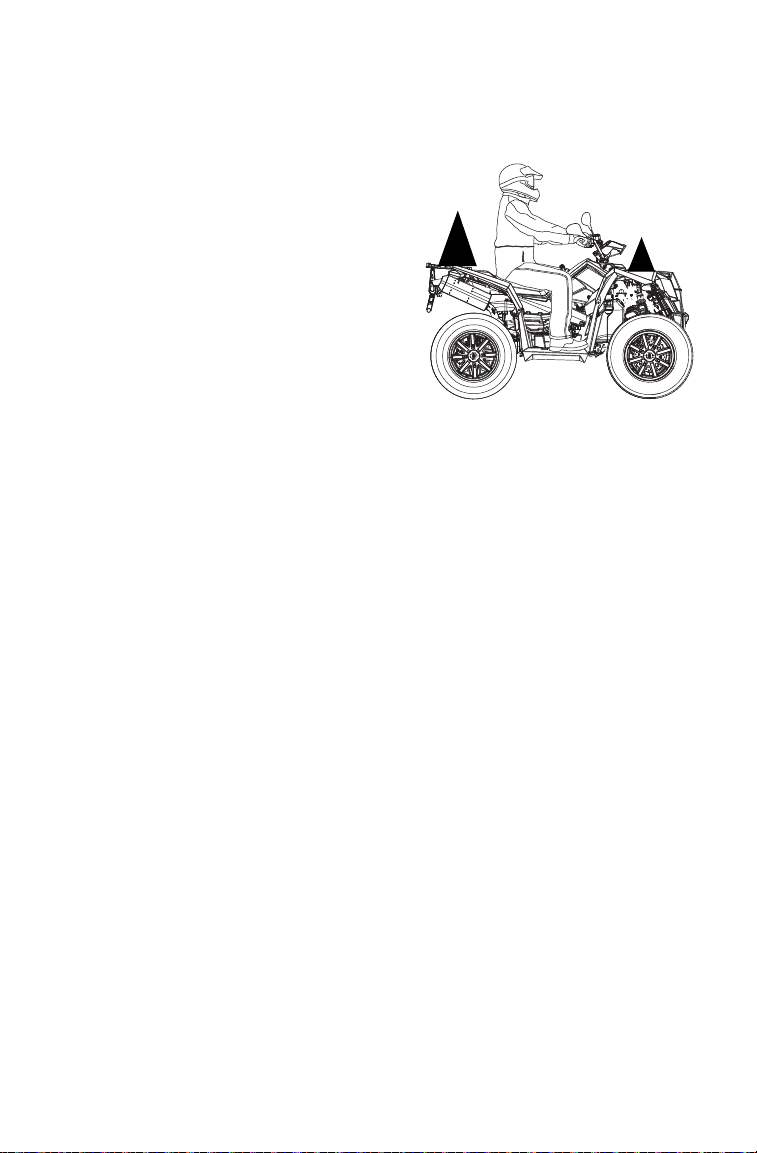

1. Never exceed the weight
capacities specified for your
vehicle on warning labels and
in the specifications section of
this manual.
2. Cargo weight should be
evenly distributed (1/3 on the
front rack and 2/3 on the rear
rack) and mounted as low as
possible.
3. When operating over rough or
hilly terrain, reduce speed and
cargo weight to maintain
stable driving conditions.
4. Use low forward gear when
hauling or towing heavy
cargo to extend belt life.
1/3
2/3
54
OPERATION
Hauling Cargo
Towing Loads
Towing is approved OFF-ROAD ONLY. See your POLARIS dealer
about configuring the vehicle to be certified to tow a trailer on-road.
• Always attach a towed load to the hitch point. Remove the hitch from
the vehicle when not towing a trailer. If towing a load, reduce rear
rack cargo weight by the amount of tongue weight.
• The combination of rear rack cargo weight and tongue weight must
not exceed the rear rack capacity.
• The total load (operator, accessories, cargo and weight on hitch) must
not exceed the maximum weight capacity of the vehicle.
NOTICE: Using an improper hitch or exceeding
the maximum tongue weight capacity
can result in serious damage to the
vehicle and will void your vehicle
warranty. Never install a hitch longer
than 4" (10 cm). Never install
automotive accessories on your
POLARIS vehicle. Always install
POLARIS-approved (or equivalent)
accessories designed for use on this
vehicle.
Maximum Towing Capacities
Do not exceed the following maximum capacities when towing. Avoid
towing on inclines.
SCRAMBLER XP 1000 EPS
Maximum Towed Load (Level Ground) 1500 lbs. (680 kg)
Maximum Vertical Hitch Weight 150 lbs. (68 kg)
Maximum
4" (10 cm)
55
WINCH GUIDE
These safety warnings and instructions apply if your vehicle came
equipped with a winch or if you choose to add an accessory winch to
your vehicle.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Your winch may have a cable made of either wire rope or specially
designed synthetic rope. The term “winch cable” will be used for either
unless noted otherwise.
Winch Safety Precautions
1. Read all sections of this manual.
2. Never use alcohol or drugs before or while operating the winch.
3. Never allow children under 16 years of age to operate the winch.
4. Always wear eye protection and heavy gloves when operating the
winch.
5. Always keep body, hair, clothing and jewelry clear of the winch
cable, fairlead and hook when operating winch.
6. Never attempt to “jerk” a load attached to the winch with a moving
vehicle. See the Shock Loading section on page 64.
7. Always keep the area around the vehicle, winch, winch cable and
load clear of people (especially children) and distractions while
operating the winch.
8. Always turn the vehicle ignition power OFF when it and the winch
are not being used.
9. Always be sure that at least five (5) full turns of winch cable are
wrapped around the winch drum at all times. The friction provided
by this wrapped cable allows the drum to pull on the winch cable
and move the load.
10. Always apply your vehicle’s park brake and/or park mechanism to
hold the vehicle in place during winching. Use wheel chocks if
needed.
WARNING
56
WINCH GUIDE
Winch Safety Precautions
11. Always align the vehicle and winch with the load directly in front of
the vehicle as much as possible. Avoid winching with the winch
cable at an angle to the winching vehicle’s centerline whenever
possible.
12. If winching at an angle is unavoidable, follow these precautions:
A. Look at the winch drum occasionally. Never let the winch cable “stack”
or accumulate at one end of the winch drum. Too much winch cable at
one end of the winch drum can damage the winch and the winch cable.
B. If stacking occurs, stop winching. Follow step 15 on page 62 to feed
and rewind the cable evenly before continuing the winch operation.
13. Never winch up or down at sharp angles. This can destabilize the
winching vehicle and possibly cause it to move without warning.
14. Never attempt to winch loads that weigh more than the winch’s
rated capacity.
15. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.

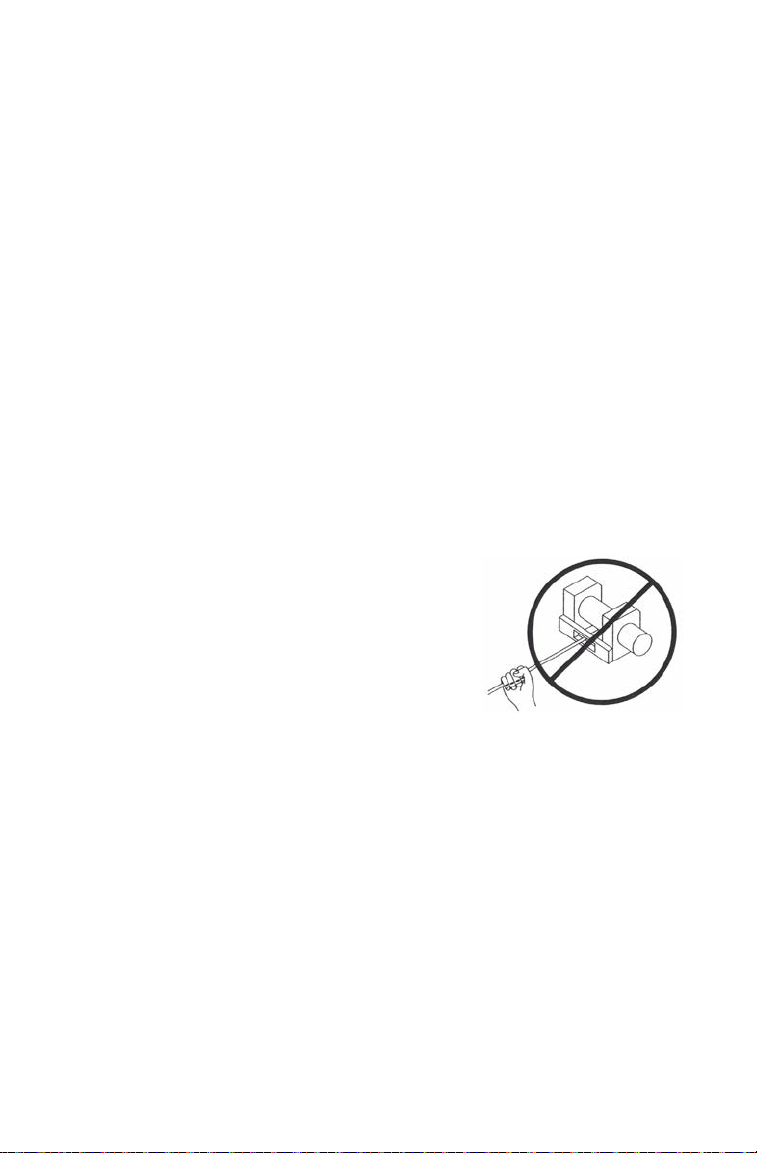

16. Never touch, push, pull or straddle the
winch cable while winching a load.
17. Never let the winch cable run through
your hands, even if wearing heavy
gloves.
18. Never release the clutch on the winch
when the winch cable is under load.
19. Never use the winch for lifting or
transporting people.
57
WINCH GUIDE
Winch Safety Precautions
20. Never use the winch to hoist or suspend a vertical load.
21. Never immerse or submerse your winch in water. Take your winch
to your dealer for service if this occurs.
22. Always inspect your winch and winch cable before each use.
23. Never winch the hook fully into the winch. This can cause damage
to winch components.
24. Unplug the remote control from the vehicle when the winch is not in
use to prevent inadvertent activation and use by unauthorized
persons.
25. Never grease or oil the winch cable. This will cause the winch cable
to collect debris that will shorten the life of the cable.
58
WINCH GUIDE
Winch Operation
Read the Winch Safety Precautions in the preceding pages before using
your winch.
Tip: Consider practicing the operation and use of your winch before you actually
need to use it in the field.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Each winching situation is unique.
• Take your time to think through the winching you are about to do.
• Proceed slowly and deliberately.
• Never hurry or rush during winching.
• Always pay attention to your surroundings.
• You may need to change your winching strategy if it is not working.
• Always remember that your winch is very powerful.
• There are simply some situations that you and your winch will not be able
to deal with. Do not be afraid to ask others to help when this happens.
1. Always inspect the vehicle, winch, winch cable and winch controls
for any signs of damage or parts in need of repair or replacement
before each use. Pay particular attention to the first 3 feet (1 meter)
of winch cable if the winch is being used (or has been used) for lift-
ing an accessory plow assembly. Promptly replace any worn or
damaged cable.
2. Never operate a winch or a vehicle in need of repair or service.
3. Always apply your vehicle’s
park brake and/or park
mechanism to hold the vehicle
in place during winching. Use
wheel chocks if needed.
WARNING
Hook Strap
59
WINCH GUIDE
Winch Operation

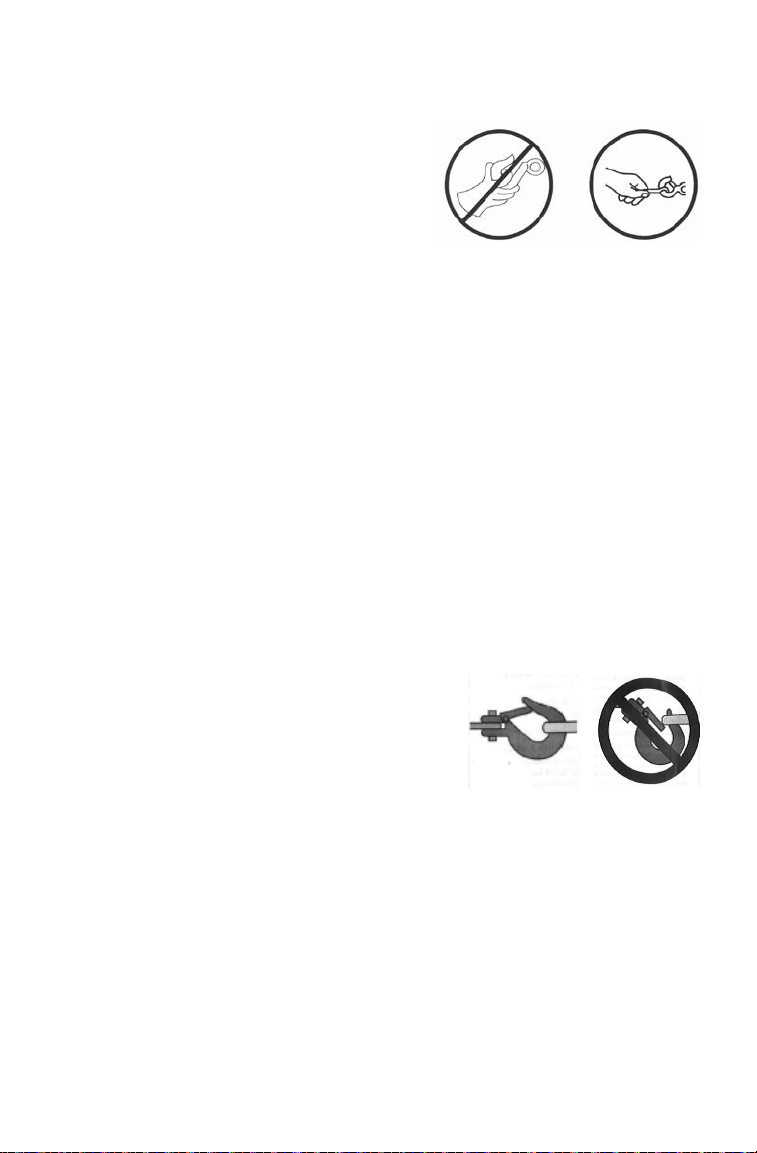

4. Always use the hook strap when
handling the hook.
WARNING! Never put your fingers into
the hook. This could lead to SEVERE
INJURY.
A. Attach the hook itself onto the
load or use a tow strap or chain
to secure the load to the winch
cable.
Tip: A “tow strap” is NOT intended to stretch. A “recovery strap” is designed to
stretch.
WARNING! Never use a recovery strap when winching due to the excessive
energy that can be released if the winch cable breaks. This can result in
SEVERE INJURY or DEATH. See the Shock Loading section on page 64.
B. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
WARNING! Replace the winch cable at the first sign of damage to prevent
SEVERE INJURY or DEATH in the event of failure. For your safety, always
replace POLARIS winch parts (including the cable) with genuine POLARIS
replacement parts available at your authorized POLARIS dealer.
C. If possible, keep the winch cable aligned with the centerline of the
winching vehicle. This will help the spooling of the winch cable and
reduce the load on the fairlead.
D. If freeing a stuck vehicle by attaching to a tree, use an item such as a
tow strap to avoid damaging the tree during winch operation. Sharp
cables and chains can damage and even kill trees. Please remember
to TreadLightly® (treadlightly.org).
E. Before operating the winch, be sure
that the safety latch on the winch
cable hook is fully seated when the
load is attached.
F. Never operate your winch with a
damaged hook or latch. Always
replace damaged parts before using
the winch.
NO YES
NO
YES
60
WINCH GUIDE
Winch Operation
5. Never remove the hook strap from the hook.
6. Release the winch clutch and pull out the winch cable.
7. Pulling out as much cable as possible maximizes the winch’s pulling
capacity. Always be sure that at least five (5) full turns of winch
cable are wrapped around the winch drum at all times. The friction
provided by this wrapped cable allows the drum to pull on the
winch cable and move the load.
8. Read and adhere to the following information for winch damping to
ensure safe winch use.
A. In order to absorb energy that could be released by a winch cable
failure, always place a “damper” on the winch cable. A damper can be
a heavy jacket, tarp, or other soft, dense object. A damper can absorb
much of the energy released if a winch cable breaks when winching.
Even a tree limb can help as a damper if no other items are available to
you.
B. Lay the damper on top of the mid-point of the winch cable length that is
spooled out.
C. On a long pull, it may be necessary to stop winching so that the
damper can be repositioned to the new mid-point of the winch cable.
Always release the tension on the winch cable before repositioning the
damper.
D. Avoid being directly in line with the winch cable whenever possible.
Also, never permit others to stand near or in line with the winch cable
during winch operation.
9. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
10. Never use straps, chains or other rigging items that are damaged or
worn.
61
WINCH GUIDE
Winch Operation
11. The ONLY time a winch-equipped vehicle should be moving when
using the winch is when that vehicle itself is stuck. The winch-
equipped vehicle should NEVER be in motion to “shock” load the
winch cable in an attempt to move a second stuck vehicle. See the
Shock Loading section on page 64. For your safety, always follow
these guidelines when winching a vehicle free:
A. Release the winch clutch and spool out the necessary length of winch
cable.
B. Align the winch cable as close as possible to the winching vehicle’s
centerline.
C. Attach the winch cable hook to the anchor point or the stuck vehicle’s
frame following instructions in this manual.
D. Re-engage the clutch on the winch.
E. Slowly winch in the slack in the winch cable.
F. Select the proper vehicle gear to propel the stuck vehicle in the
direction of winching.
G. Shift to the lowest gear available on the stuck vehicle.
H. Slowly and carefully apply vehicle throttle and winch together to free
the vehicle.
I. Stop winching as soon as the stuck vehicle is able to propel itself
without the help of the winch.
J. Detach the winch cable hook.
K. Rewind the winch cable evenly back onto the winch drum following the
instructions in this manual.
12. Never attempt to winch another stuck vehicle by attaching the
winch cable to a suspension component, brush guard, bumper or
cargo rack. Vehicle damage may result. Instead, attach the winch to
a strong portion of the vehicle frame or hitch.
62
WINCH GUIDE
Winch Operation
13. Extensive winching will run down the battery on the winching
vehicle. Let the winching vehicle’s engine run while operating the
winch to prevent the battery from running low if winching for long
periods.
14. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
15. After winching is complete, especially if winching at an angle, it
may be necessary to re-distribute the winch cable across the winch
drum. You will need an assistant to perform this task.
A. Release the clutch on the winch.
B. Feed out the winch cable that is unevenly bunched up in one area.
C. Re-engage the winch clutch.
D. Have an assistant pull the winch cable tightly with about 100 lbs. (45
kg) of tension using the hook strap.
E. Slowly winch the cable in while your assistant moves the end of the
winch cable back and forth horizontally to evenly distribute the winch
cable on the drum.
F. Doing this reduces the chances of the winch cable “wedging” itself
between lower layers of winch cable.
63
WINCH GUIDE
Winch Cable Care
For your safety, always replace POLARIS winch parts (including the
cable) with genuine POLARIS replacement parts available at your
authorized POLARIS dealer.
WARNING! Use of worn or damaged cable could lead to sudden failure and
SEVERE INJURY.
1. Always inspect your winch before each use. Inspect for worn or
loose parts including mounting hardware. Never use the winch if
any part needs repair or replacement.
2. Always inspect your winch cable before each use. Inspect for worn
or kinked winch cable.
A. A kinked winch cable made of
wire rope is shown at right. Even
after being “straightened out,”
this cable has already been
permanently and severely
damaged. Promptly discontinue
use of a winch cable in this
condition.
B. A kinked winch cable made of
wire rope that has been
“straightened out” is shown at
right. Even though it may look
usable, the cable has been
permanently and severely damaged. It can no longer transmit the load
that it could prior to kinking. Promptly discontinue use of a winch cable
in this condition.
C. A winch cable made of
synthetic rope should be
inspected for signs of fraying.
Replace the cable if fraying is
observed (shown at right).
Promptly discontinue use of a
winch cable in this condition.
D. Also replace the winch cable if there are fused or melted fibers. Such
an area of the synthetic rope will be stiff and appear smooth or glazed.
Promptly discontinue use of a winch cable in this condition.
A
B
C
64
WINCH GUIDE
Shock Loading
WARNING! Your winch cable is very strong but it is NOT designed for dynamic,
or “shock” loading. Shock loading may tension a winch cable beyond its strength
and cause the cable to break. The end of a broken winch cable under such high
loading can cause SEVERE INJURY or DEATH to you and other bystanders.
Winch cables are designed to NOT absorb energy. This is true of both
wire-rope and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never
take up slack in the winch cable by moving the winching vehicle in
an attempt to move an object. This is a dangerous practice. It gener-
ates high winch cable loads that may exceed the strength of the
cable. Even a slowly moving vehicle can create large shock loads in
a winch cable.
WARNING! SEVERE INJURY or DEATH can result from a broken winch cable.
2. Never quickly turn the winch ON and OFF repeatedly (“jogging”).
This puts extra load on the winch, winch cable, and generates
excessive heat from the motor. This is a form of shock loading.
3. Never tow a vehicle or other object with your winch. Towing an
object with a winch produces shock loading of the cable even when
towing at slow speeds. Towing from a winch also positions the
towing force high on the vehicle. This can cause instability of the
vehicle and possibly lead to an accident.
65
WINCH GUIDE
Shock Loading
4. Never use recovery straps with your winch. Recovery straps are
designed to stretch and can store energy. This stored energy in the
recovery strap is released if a winch cable fails making the event
even more hazardous. Similarly, never use elastic “bungie” cords
for winching.
5. Never use the winch to tie down a vehicle to a trailer or other
transportation vehicle. This type of use also causes shock loading
that can cause damage to the winch, winch cable, or vehicles used.
Your winch cable is designed and tested to withstand the loads
produced by the winch motor when operated from a stationary
vehicle. Always remember that the winch and winch cable are NOT
designed for shock loading.
66
WINCH GUIDE
Winch Maintenance and Service Safety
WARNING! Improper or lack of winch maintenance and service could lead to
SEVERE INJURY or DEATH. Always follow all winch instructions and warnings
in this manual.
1. Always inspect your winch before each use. Inspect for worn or
kinked winch cable. Also inspect for worn or loose parts including
mounting hardware.
2. Permit your winch motor to cool down prior to servicing your
winch.
3. Never work on your winch without first disconnecting the battery
connections to prevent accidental activation of the winch
4. For your safety, always replace POLARIS winch parts (including
the cable) with genuine POLARIS replacement parts available at
your authorized POLARIS dealer.
5. Some winch models use wire rope as the winch cable. Other
winches use a specially designed synthetic rope as the winch cable.
6. Never replace a synthetic-rope winch cable with a consumer-grade
polymer rope such as can be purchased in a hardware store.
Although they may look similar, they are NOT alike. A polymer
rope not designed for winch use will stretch and store excessive
energy when winching.
WARNING! Failure of a stretched rope under winching conditions will release
all of the stored energy. This will increase the chances of SEVERE INJURY or
DEATH.
67
EMISSION CONTROL SYSTEMS
Noise Emission Control System
Do not modify the engine, intake or exhaust components, as doing so
may affect compliance with governmental noise level requirements.
Spark Arrester
Your POLARIS vehicle has a spark arrester that was designed for on-
road and off-road operation. It is required that this spark arrester remain
installed and functional when the vehicle is operated.
Exhaust Emission Control System
Exhaust emissions are controlled by engine design. An electronic fuel
injection (EFI) system controls fuel delivery. The engine and EFI com-
ponents are set at the factory for optimal performance and are not
adjustable.
Electromagnetic Interference
This vehicle complies with the EMC requirements of European direc-
tives 97/24/EC and 2004/108/EC.
Non-ionizing Radiation: This vehicle emits some electromagnetic
energy. People with active or non-active implantable medical devices
(such as heart monitoring or controlling devices) should review the lim-
itations of their device and the applicable electromagnetic standards and
directives that apply to this vehicle.
European Vibration and Noise
The driver-perceived noise and hand/arm and whole body vibration lev-
els of this machinery is measured per prEN 15997.
The operating conditions of the machinery during testing:
The vehicles were in like-new condition. The environment was con-
trolled as indicated by the test procedure(s).
The uncertainty of vibration exposure measurement is dependent on
many factors, including:
• Instrument and calibration uncertainty
• Variations in the machine such as wear of components
• Variation of machine operators such as experience or physique
• Ability of the worker to reproduce typical work during measurements
• Environmental factors such as ambient noise or temperature
68
MAINTENANCE
Periodic Maintenance Chart
Careful periodic maintenance will help keep your vehicle in safe,
reliable condition. Inspect, clean, lubricate, adjust and replace parts as
necessary. When inspection reveals the need for replacement parts, use
genuine POLARIS parts available from your POLARIS dealer. Record
maintenance and service in the Maintenance Log beginning on page
124.
Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, have a
qualified dealer perform these operations.
Maintenance intervals in the following chart are based upon average
riding conditions and an average vehicle speed of approximately 10
MPH (16 km/h). Vehicles subjected to severe use must be inspected and
serviced more frequently.
Severe Use Definition
• Frequent immersion in mud, water or sand
• Racing or race-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
• Short trip cold weather operation
Pay special attention to the oil level. A rise in oil level during cold
weather can indicate contaminants collecting in the oil sump or
crankcase. Change oil immediately if the oil level begins to rise.
Monitor the oil level, and if it continues to rise, discontinue use and
determine the cause or see your dealer.
69
MAINTENANCE
Periodic Maintenance Chart
Maintenance Chart Key
Improperly performing the procedures marked with a “D” could result in
component failure and lead to serious injury or death. Have an authorized
POLARIS dealer perform these services.
Perform all services at whichever maintenance interval is reached first.
Symbol Description
► Perform these operations more often for vehicles subjected to severe use.
E Emission-related service.
D Have an authorized POLARIS dealer perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
Steering -
Pre-Ride
-
See Pre-Ride Checklist on
page 40.
Front suspension - -
Rear suspension - -
Tires - -
Brake fluid level - -
Brake lever travel - -
Brake system - -
Wheels/fasteners - -
Frame fasteners - -
Engine oil level - -
Winch - See pages 55-66.
►
E
Air filter, pre-filter - Daily - Inspect; clean often; replace
as needed
Coolant - Daily - Check level daily, change
coolant every 2 years
► Power steering unit
(if equipped)
- Daily - Inspect daily; clean often
Headlamp/taillight - Daily - Check operation
70
MAINTENANCE
Periodic Maintenance Chart
► Perform these procedures more often for vehicles subjected to severe use.
E Emission-Related Service
D Have an authorized POLARIS dealer perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
►
E
Air filter,
main element
- Weekly - Inspect; replace as needed
► Brake pad wear 10 H Monthly 100 (160) Inspect periodically
Battery 20 H Monthly 200 (320) Check terminals; clean; test
► Engine oil change 25 H 1 M 250 (400) Break-in oil and filter change
(see page 38)
► Demand drive fluid 25 H 1 M 250 (400) Break-in oil level check
► Rear gearcase oil 25 H 1 M 250 (400) Break-in oil level check
► Transmission oil 25 H 1 M 250 (400) Break-in oil level check
► General
lubrication
50 H 3 M 500 (800) Lubricate all fittings, pivots,
cables, etc.
Shift linkage 50 H 6 M 500 (800) Inspect, lubricate
D Steering 50 H 6 M 500 (800) Lubricate
► Front suspension 50 H 6 M 500 (800) Lubricate
► Rear suspension 50 H 6 M 500 (800) Lubricate
E Throttle Cable/
Release Switch
50 H 6 M 500 (800) Inspect; adjust; lubricate;
replace if necessary
E Throttle body
intake ducts/flange
50 H 6 M 500 (800) Inspect duct for proper seal-
ing/air leaks
Drive belt 50 H 6 M 500 (800) Inspect; replace as needed
Cooling system 50 H 6 M 1000 (1600) Inspect coolant strength
seasonally; pressure test
system yearly
► Radiator 50 H 6 M 1000 (1600) Inspect; clean external
surfaces
► Cooling hoses 50 H 6 M 1000 (1600) Inspect for leaks
► Oil lines and
fasteners
100 H 6 M 1000 (1600) Inspect for leaks and loose
fittings
► Engine oil change 100 H 6 M 1000 (1600) Change the oil and filter
► Demand drive fluid
(normal use)
100 H 12 M 1000 (1600) Change fluid
► Rear gearcase oil 100 H 12 M 1000 (1600) Change fluid
► Transmission oil 100 H 12 M 1000 (1600) Change fluid
71
MAINTENANCE
Periodic Maintenance Chart
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
Fuel system 100 H 12 M 1000 (1600) Check for leaks at tank cap,
lines, filter, pump; replace
lines every two years
► Engine mounts 100 H 12 M 1000 (1600) Inspect
Exhaust muffler/
pipe
100 H 12 M 1000 (1600) Inspect
D
E
Spark plug 100 H 12 M 1000 (1600) Inspect; replace as needed
► Wiring 100 H 12 M 1000 (1600) Inspect for wear, routing,
security; apply dielectric
grease to connectors
subjected to water, mud, etc.
D Clutches (drive
and driven)
100 H 12 M 1000 (1600) Inspect; clean; replace worn
parts
D Front wheel
bearings
100 H 12 M 1000 (1600) Inspect; replace as needed
D Brake fluid 200 H 24 M 2000 (3200) Change every two years
Spark arrester 300 H 36 M 3000 (4800) Clean out
D
E
Valve clearance 1000 H - 10000
(16000)
Inspect; adjust
D Toe adjustment - Inspect periodically; adjust
when parts are replaced
Headlight aim - Adjust as needed
72
MAINTENANCE
Lubrication Guide
Check and lubricate all components at the intervals outlined in the
Periodic Maintenance Chart beginning on page 69. Items not listed in
the chart should be lubricated at the General Lubrication interval.
The a-arms and lower control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
Item Recommended
Lubricant
Capacity
at Fluid
Change
Fill Plug
Torque
Drain Plug
Torque
Inspection
Procedure
Engine Oil PS-4 5W-50
4-Cycle Oil
2 qt.
(1.9 l)
--- 12 ft. lbs.
(16 Nm)
Page 73.
Transmission
Oil
AGL Gearcase
Lubricant &
Transmission
Fluid
37 oz.
(1100 ml)
10-14 ft. lbs.
(14-19 Nm)
10-14 ft. lbs.
(14-19 Nm)
Page 76.
Demand Drive
Fluid (Front
Gearcase)
Demand Drive
Fluid
9.3 oz.
(275 ml)
8-10 ft. lbs.
(11-14 Nm)
11 ft. lbs.
(15 Nm)
Page 77.
Rear
Gearcase Oil
ATV Angle Drive
Fluid (or GL5 80-
90 weight gear
lube)
7.1 oz.
(210 ml)
10-14 ft. lbs.
(14-19 Nm)
10-14 ft. lbs.
(14-19 Nm)
Page 78.
Brake Fluid DOT 4 Brake
Fluid
--- --- --- Page 83.
Front Prop
Shaft Yoke
U-Joint Grease Grease fittings (3 pumps maximum) every 500 miles,
before long periods of storage, or after pressure
washing or submerging.
A-Arms, Front
and Rear
POLARIS All
Season Grease
Grease fittings after extreme use or if suspension
becomes squeaky.
Front Prop Shaft Yoke
Front
73
MAINTENANCE
Engine Oil
Oil Recommendations
POLARIS recommends the use of POLARIS PS-4 Full Synthetic 5W-
50 4-cycle oil or a similar oil for this engine. Oil may need to be
changed more frequently if POLARIS oil is not used. Always use 5W-
50 oil. Follow the manufacturer's recommendations for ambient
temperature operation. See page 117 for the part numbers of POLARIS
products.
See the table on page 72 for fluid recommendations, capacities and plug
torques.
NOTICE: Mixing brands or using a non-recommended oil may cause serious
engine damage. Always use the recommended oil. Never substitute
or mix oil brands.

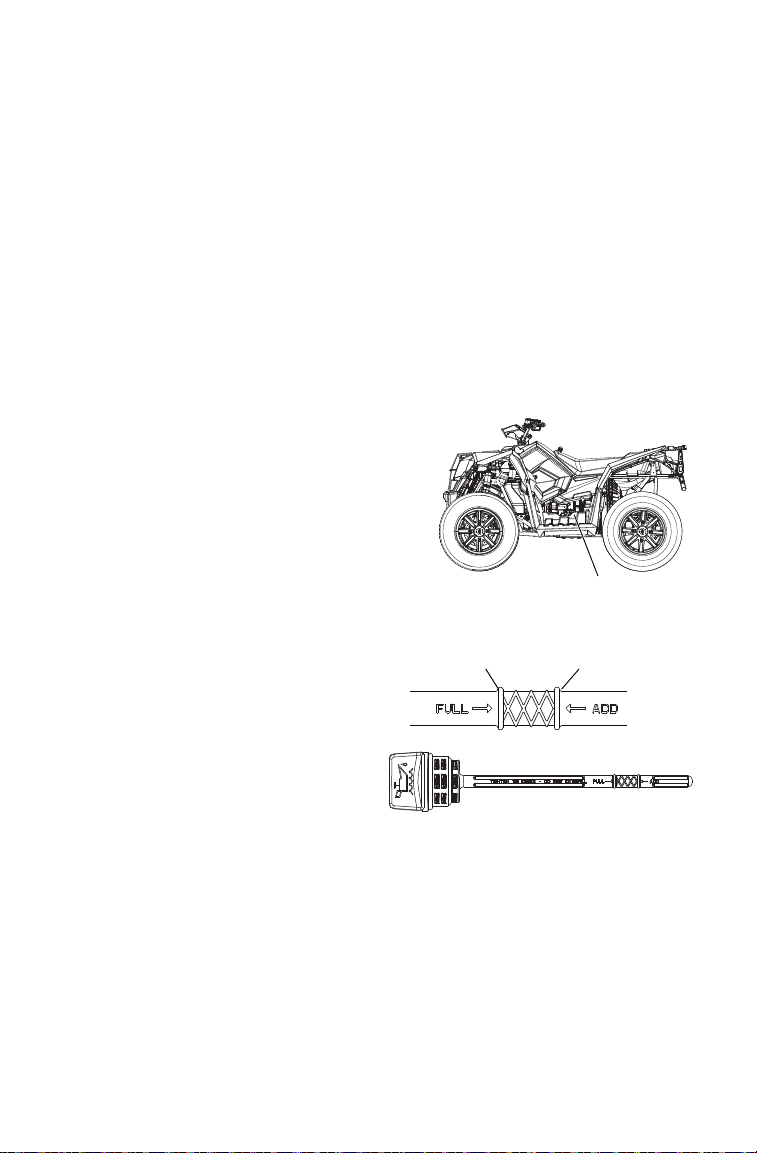

Oil Level
Check the oil level when the
engine is cold. Never check the
oil with the engine running.
1. Position the vehicle on a
level surface.
2. Access the oil dipstick and
fill tube from the left side of
the vehicle. Remove the
dipstick. Wipe it dry with a
clean cloth.
3. Reinstall and tighten the
dipstick.
4. Remove the dipstick and
check the oil level.
5. Add the recommended fluid
as needed. Maintain the oil
level in the safe range
between the FULL and ADD
marks. Do not overfill.
6. Reinstall and tighten the dipstick.
Dipstick
Full
Add
74
MAINTENANCE
Engine Oil

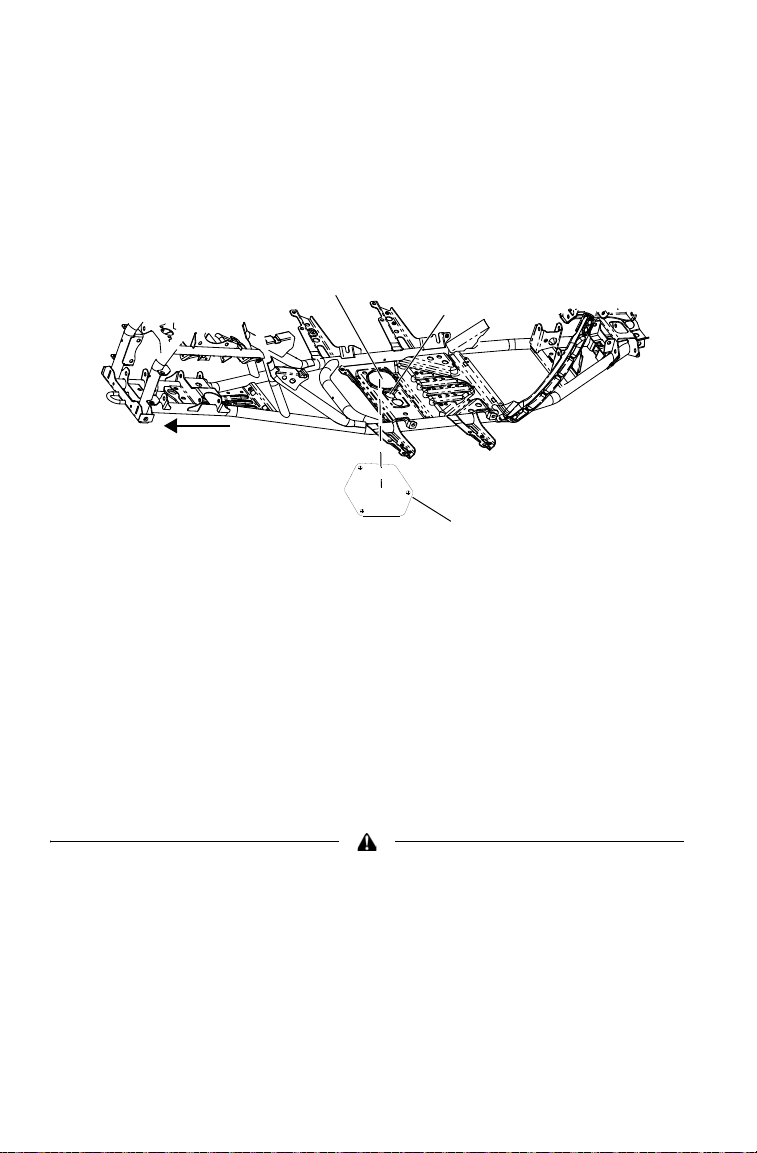

Oil and Filter Change
See the table on page 72 for fluid recommendations, capacities and plug
torques. Always change the oil and filter at the intervals outlined in the
Periodic Maintenance Chart beginning on page 69. Always change the
oil filter whenever changing oil.
1. Position the vehicle on a level surface.
2. Start the engine. Allow it to warm up at idle for two to three
minutes.
3. Stop the engine.
4. On the bottom of the vehicle, a guard plate covers the oil filter
access hole. Remove the three bolts securing the guard plate and
remove the guard plate.
5. Clean the area around the drain plug.
6. Place a drain pan under the crankcase.
7. Remove the drain plug. Allow the oil to drain completely.
Hot oil can cause burns to skin. Do not allow hot oil to contact skin.
8. Install a new sealing washer on the drain plug. The sealing surfaces
on drain plug and crankcase should be clean and free of burrs, nicks
or scratches.
9. Reinstall the drain plug. Torque to specification.
Front
Oil Filter
Access
Drain
Plug
Top View
Guard Plate
75
MAINTENANCE
Engine Oil
Oil and Filter Change

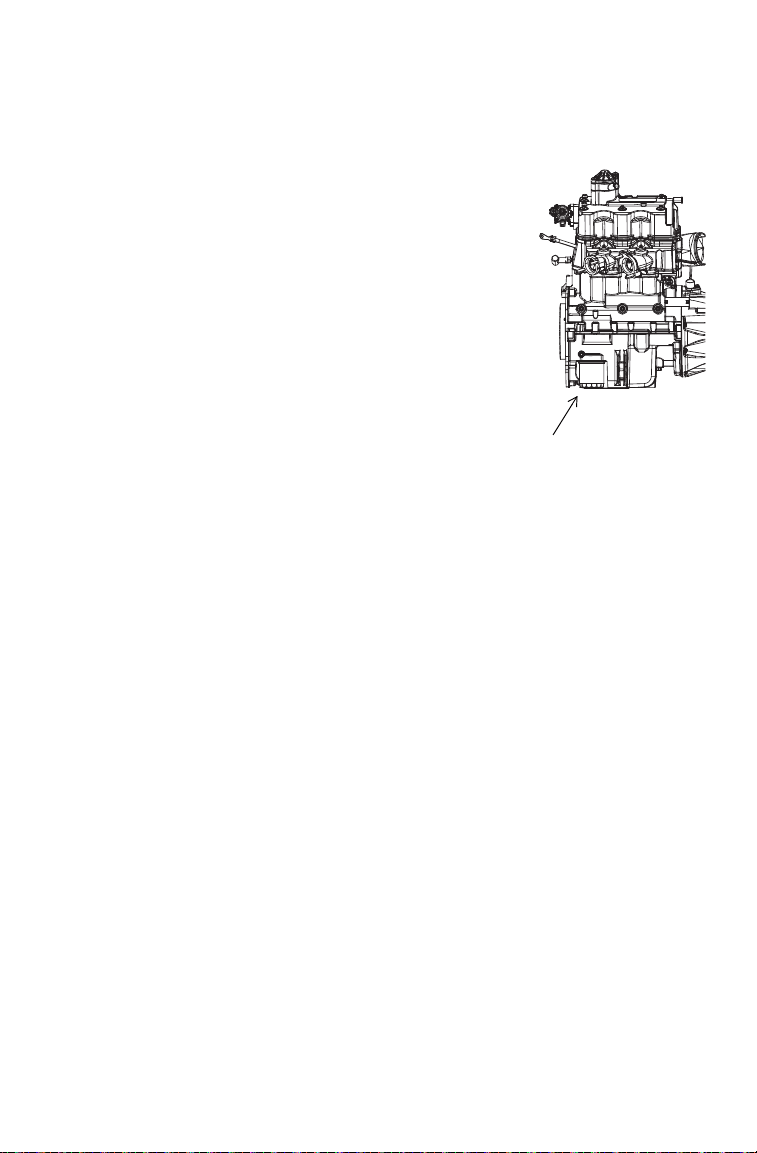

10. Place shop towels beneath the oil
filter. Using an oil filter wrench
(available from your POLARIS
dealer), turn the filter counter-
clockwise to remove it.
11. Using a clean dry cloth, clean the
filter sealing surface on the crankcase.
12. Lubricate the o-ring on the new filter
with a film of fresh engine oil. Check
to make sure the o-ring is in good
condition.
13. Install the new filter and rotate it
clockwise by hand until the filter
gasket contacts the sealing surface,
then turn it an additional 3/4 turn.
14. Remove the dipstick. Add the proper amount of the recommended
oil. Do not overfill.
15. Reinstall the dipstick.
16. Reinstall the guard plate over the filter access hole.
17. Place the transmission in PARK.
18. Lock the parking brake.
19. Start the engine. Allow it to idle for one to two minutes.
20. Stop the engine.
21. Check for leaks.
22. Check the oil level. Add oil as needed to bring the level to the upper
mark on the dipstick.
23. Dispose of used filter and oil properly.
Oil Filter
76
MAINTENANCE

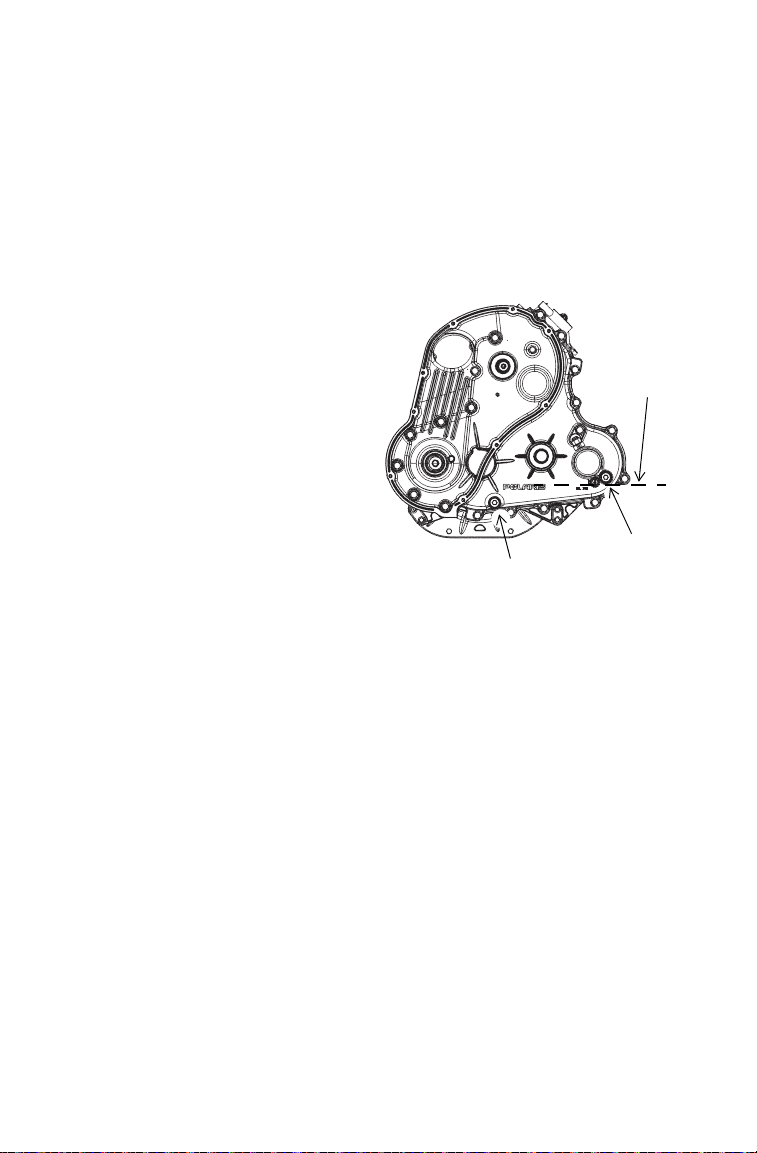

Transmission Oil
Always check and change the transmission oil at the intervals outlined
in the Periodic Maintenance Chart beginning on page 69. See the table
on page 72 for fluid recommendations, capacities and plug torques. See
page 117 for the part numbers of POLARIS products.
Maintain the oil level at the bottom of the fill plug hole. The fill plug is
located on the right side of the vehicle behind the footwell. The drain
plug is located on the bottom rear of the gearcase.
Oil Check
1. Remove the footwell (see page
87).
2. Remove the fill plug. Check
the oil level.
3. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
4. Reinstall the fill plug. Torque
to specification.
5. Reinstall the footwell.
Oil Change
1. Remove the footwell.
2. Place a drain pan under the gearcase. Remove the drain plug. Allow
the oil to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
4. Remove the fill plug. Add the proper amount of the recommended
oil.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks.
7. Reinstall the footwell.
8. Dispose of used oil properly.
Drain Plug
Fill Plug
Fill
Level
77
MAINTENANCE
Front Gearcase (Demand Drive) Fluid
Always check and change the demand drive fluid at the intervals
outlined in the Periodic Maintenance Chart beginning on page 69. See
the table on page 72 for fluid recommendations, capacities and plug
torques. See page 117 for the part numbers of POLARIS products.
Use the recommended fluid. Use of other fluids may result in improper
operation of components. Maintain the fluid level at the bottom of the
fill hole threads. The fill plug is located on the right side of the demand
drive unit. The drain plug is located on the bottom right side of the unit.
Fluid Check
1. Position the vehicle on a level
surface. Remove the fill plug.
Check the fluid level.
2. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
3. Reinstall the fill plug. Torque to
specification.
Fluid Change
1. Position the vehicle on a level surface. Remove the fill plug.
2. Place a drain pan under the demand drive unit. Remove the drain
plug. Allow the fluid to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
4. Add the proper amount of the recommended fluid.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks. Dispose of used fluid properly.
Drain Plug
Fill
Plug
Fill
Level
78
MAINTENANCE

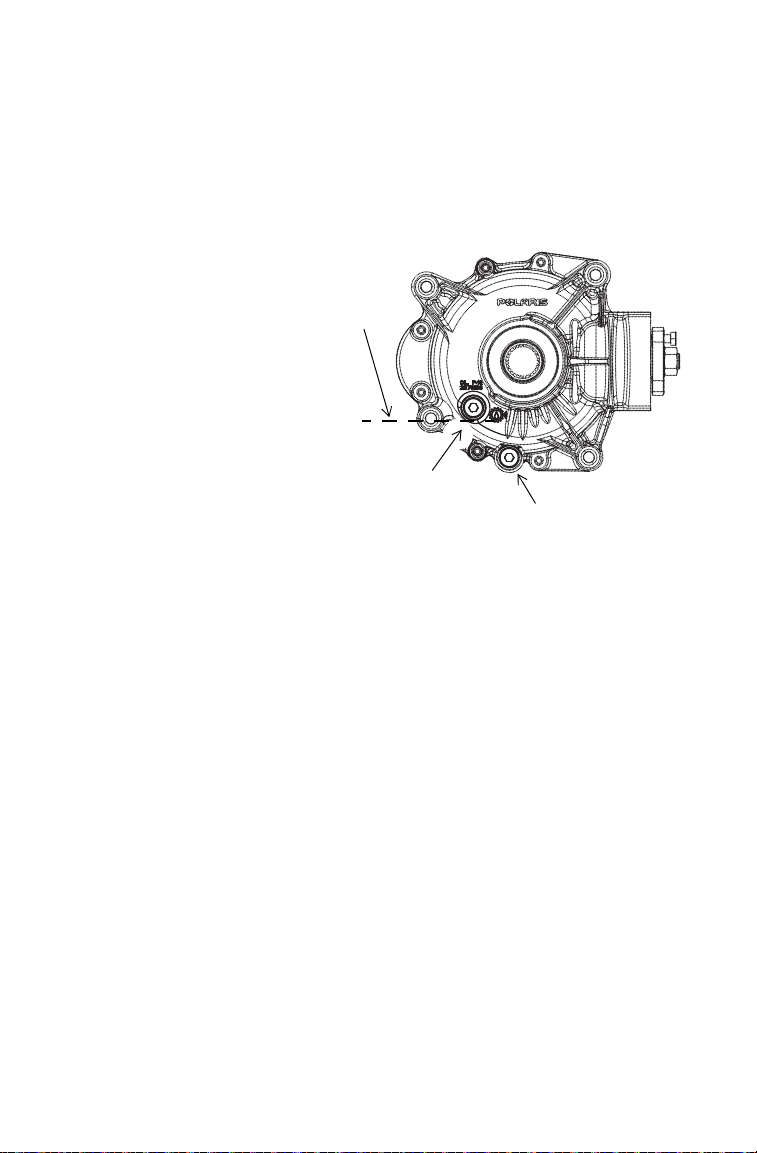

Rear Gearcase Oil
Always check and change the rear gearcase oil at the intervals outlined
in the Periodic Maintenance Chart beginning on page 69. See the table
on page 72 for fluid recommendations, capacities and plug torques. See
page 117 for the part numbers of POLARIS products.
The fill plug is located on the
rear of the gearcase. The drain
plug is located on the bottom
of the gearcase.
Maintain the fluid level at the
bottom of the fill hole threads.
Do not overfill.
Oil Check
1. Position the vehicle on a
level surface.
2. Remove the fill plug.
Check the oil level.
3. Add the recommended oil
as needed to bring the
level to the bottom of the
fill hole threads. Do not overfill.
4. Reinstall the fill plug. Torque to specification.
Drain Plug
Fill Plug
Fill
Level
79
MAINTENANCE
Rear Gearcase Oil
Oil Change
1. Position the vehicle on a level surface.
2. Place a drain pan under the drain hole.
3. Remove the drain plug. Allow the oil to drain completely.
4. Clean and reinstall the drain plug with a new sealing washer. Torque
to specification.
5. Remove the fill plug. Add the proper amount of the recommended
oil. Do not overfill.
6. Reinstall the fill plug. Torque to specification.
7. Check for leaks.
8. Dispose of used oil properly.
80
MAINTENANCE
Power Steering Unit
If your model is equipped with
power steering, frequently
clean the areas around and on
the power steering unit to
allow proper cooling. Clean
these areas thoroughly.
Steering Assembly
The steering assembly of the vehicle should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your
POLARIS dealer for service before operating the vehicle.
Cooling System
The engine coolant level is controlled by the recovery system. Recovery
system components are the recovery bottle, the radiator filler neck, the
radiator pressure cap and the connecting hose.
As coolant operating temperature increases, the expanding (heated)
excess coolant is forced out of the engine, past the pressure cap, and into
the recovery bottle. As engine coolant temperature decreases the con-
tracting (cooled) coolant is drawn back up from the bottle, past the pres-
sure cap, and into the radiator.
Some coolant level drop on new vehicles is normal as the system is
purging itself of trapped air. Check the coolant level and maintain as
recommended by adding coolant to the recovery bottle.
POLARIS recommends the use of POLARIS Antifreeze 60/40 premix
or a 50/50 mixture of high quality aluminum compatible anti-freeze/
coolant and distilled water. POLARIS Antifreeze is already premixed
and ready to use. Do not dilute with water. See page 117 for the part
numbers of POLARIS products.
Always follow the manufacturer's mixing recommendations for the
freeze protection required in your area.
Clean
Often
81
MAINTENANCE
Cooling System
Recovery Bottle Coolant
The recovery bottle fluid level can be viewed from inside the front right
wheel well. Access the recovery bottle cap under the front storage
compartment.
1. View the fluid level in the bottle.
2. If the level is low, remove the front rack.
3. Remove the bottle cap and add coolant as needed. Maintain the
coolant level between the minimum and maximum marks on the
bottle (when the fluid is cool).
4. Reinstall the cap.
5. Reinstall the front rack.
Maximum
Mark
Minimum
Mark
Coolant Bottle Cap
82
MAINTENANCE
Cooling System
Radiator Coolant
To ensure that the coolant maintains its ability to protect the engine,
POLARIS recommends that you drain the system completely every two
years and add a fresh mixture of antifreeze and water.
Replace the coolant any time the cooling system has been drained for
maintenance or repair. If the recovery bottle has run dry, check the level
in the radiator. Add coolant as needed.
Escaping steam can cause burns. Never remove the pressure cap while the
engine is warm or hot. Always allow the engine to cool before removing the
pressure cap.
1. Remove the front rack.
2. Remove the pressure cap.
3. Using a funnel, slowly add cool-
ant through the radiator filler
neck.
4. Reinstall the pressure cap. Use of
a non-standard pressure cap will
not allow the recovery system to
function properly. Contact your
dealer for the correct replacement
part.
5. Reinstall the front rack.
Radiator
Cap
83
MAINTENANCE
Brake Fluid
Check brake fluid levels for both brake systems before each ride.
Always maintain brake fluid at the recommended level. Do not overfill.
The brakes should feel firm when they're applied. Spongy or weak
brakes may indicate a fluid leak or low fluid level. A low fluid level
may also mean that brake pads are worn and need to be replaced. Do not
operate the vehicle with spongy or weak brakes. See your dealer for ser-
vice.
Operating the vehicle with a spongy brake can result in loss of braking, which
could cause an accident. Never operate the vehicle with spongy-feeling brakes.
If the fluid level is low add DOT 4 brake fluid only. See page 117 for the
part numbers of POLARIS products.
An over-full master cylinder may cause brake drag or brake lock-up, which could
result in serious injury or death. Maintain brake fluid at the recommended level.
Do not overfill.
Under normal operation, the diaphragm extends into the reservoir as
fluid level drops. If the fluid level is low and the diaphragm is not
extended, a leak is likely and the diaphragm should be replaced. To
ensure proper diaphragm operation, always fill the reservoir as needed
whenever the cover is loosened or removed. Do not overfill.
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake fade
and the possibility of accident or severe injury. After opening a bottle of brake
fluid, always discard any unused portion.
84
MAINTENANCE
Brake Fluid

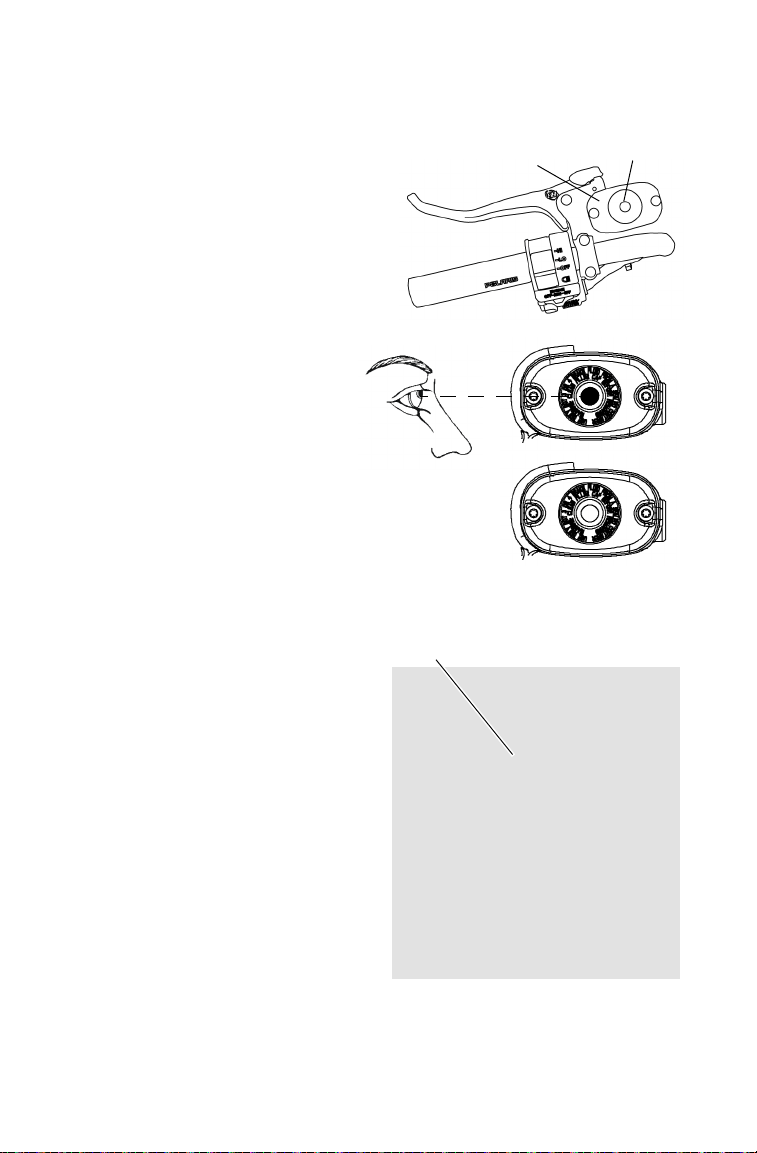

Hand Brake
The master cylinder is located on
the left handlebar. Maintain the
fluid level 6 mm below the top
edge of the master cylinder. Do
not overfill.
1. Position the vehicle on a
level surface. Make sure the
handlebars are straight.
2. View the fluid level through
the indicator window (eye)
on the top of the master
cylinder.
Tip: The eye will appear dark when
the fluid level is full. When fluid
is low, the eye will be clear.
3. If the fluid level is low,
remove the cover screws and
add fluid to the fill line. Do
not overfill.
4. Reinstall the cover. Torque screws to 7 in. lbs. (.8 Nm).
Foot Brake
The foot brake fluid reservoir is
located under the front rack. The
brake fluid reservoir cap is black.
NOTICE: Do not use ADC fluid in the
brake fluid reservoir. ADC
fluid will damage the
rubber components of the
brake system.
Master
Cylinder
Indicator
Window
Full
Low
Brake Fluid Reservoir
85
MAINTENANCE
Brake Inspections
The front and rear brakes are hydraulic disc brakes, activated by
applying the foot brake. The handlebar brake is also hydraulic. Both
brake systems are self-adjusting.
Perform the following checks to keep the brake systems in good
operating condition. Check more often if brakes are used heavily under
normal operation.
1. Always keep brake fluid at an adequate
level. See page 84.
2. Check the brake systems regularly for
fluid leaks.
3. Check the brakes for excessive travel or
spongy feel.
4. Check the friction pads for wear, damage
and looseness. Replace the pads when
the friction material is worn to 1 mm.
5. Check the security and surface condition
of the disc. Clean any grease using a
recommended brake cleaner or alcohol. Do not use spray lubricants
or other petroleum-based products. If you discover any damage
(cracks, excessive corrosion, warping) see your dealer for service
before operating.
1 mm
86
MAINTENANCE

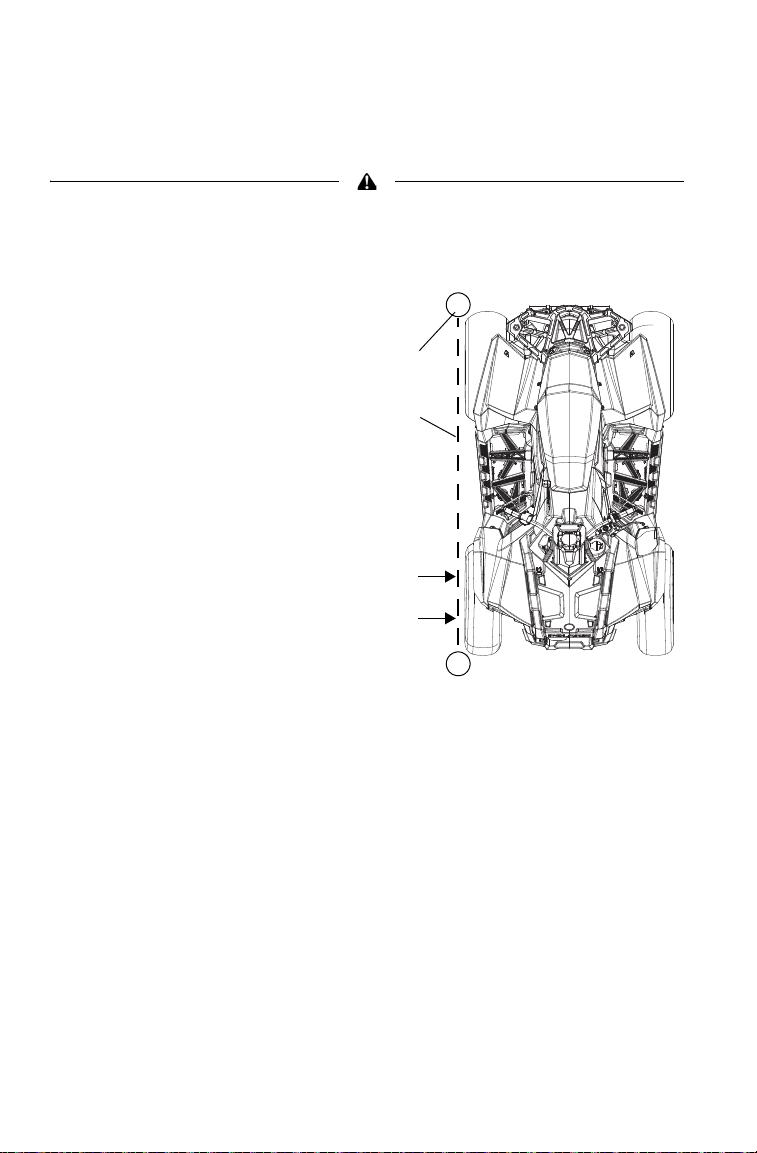

Toe Alignment
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 1/4-1/2 inch (6-12 mm) toe out.
Severe injury or death can result from improper toe alignment and adjustment.
Do not attempt to adjust tie rod alignment. All tie rod adjustments should be
performed by an authorized POLARIS dealer.
1. Position the vehicle on a
level surface.
2. Place the handlebars in a
straight-ahead position.
3. Tie a length of string
between two stands as
shown in the illustration.
Position the stands so
that the string is flush
with the side of the rear
tire. If available, you
may use a long straight-
edge instead of string.
4. Measure the distance
from the string to the
rim at the front (1) and
rear (2) of the front rim.
The rear measurement
should be 1/8-1/4 inch (3-6 mm) more than the front measurement
on each side of the vehicle to obtain the recommended 1/4-1/2 inch
(6-12 mm) toe out alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your POLARIS dealer for
service.
Steering Assembly
The steering assembly of the vehicle should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your
POLARIS dealer for service before operating the vehicle.
String
Stand
2
1
87
MAINTENANCE
Seat Removal
1. Grasp one side of the seat
near the rear edge.
2. Pull upward abruptly to
disengage the under-seat
fasteners.
3. Remove the seat.
Side Panel/Footwell Removal
Remove the seat before removing a side panel. To remove a side panel
or footwell, remove the fasteners securing it to the frame. Lift the right
side panel upward while removing it to clear the shifter knob.
Hex Head Screws
Plastic Rivets
88
MAINTENANCE
Tires
Operating your vehicle with worn tires, improperly inflated tires, non-standard
tires or improperly installed tires will affect vehicle handling and could cause an
accident resulting in serious injury or death. Always follow all tire maintenance
procedures as outlined in this manual and on the labels on the vehicle. Always
use original equipment size and type when replacing tires.
Refer to the specifications section beginning on page 117 for
recommended tire type, size and pressure.
Tire Tread Depth
Always replace tires
when tread depth is
worn to 1/8" (3 mm)
or less.
Front Wheel Hub Tightening
Front wheel bearing tightness and spindle nut retention are critical
component operations. All service must be performed by your
authorized POLARIS dealer.
Wheel Removal
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Loosen the wheel nuts slightly.
Do not service axle nuts that have a cotter pin installed. See your POLARIS
dealer.
5. Elevate the side of the vehicle by placing a suitable stand under the
footrest frame.
6. Remove the wheel nuts.
7. Remove the wheel.
WARNING
1/8" (3 mm)
89
MAINTENANCE
Tires
Wheel Installation
1. Place the transmission in PARK.
2. Lock the parking brake.
3. Place the wheel on the hub with the valve stem toward the outside
and rotation arrows on the tire pointing toward forward rotation (if
equipped).
4. Install the wheel nuts and finger-tighten them.
5. Lower the vehicle to the ground.
6. Torque the wheel nuts to specification.
Loose nuts could cause a tire to come off during operation, which could result in
an accident or overturn. Always ensure that all nuts are torqued to specification.
Wheel Nut Torque Specifications
Check the wheel nut torques occasionally and when they've been
loosened for maintenance service. When servicing cast aluminum
wheels, use either a thin-walled impact socket or a standard non-impact
socket to remove and torque lug nuts.
Nut Type Nut Torque
Lug Nut 75 ft. lbs. (102 Nm)
90
MAINTENANCE

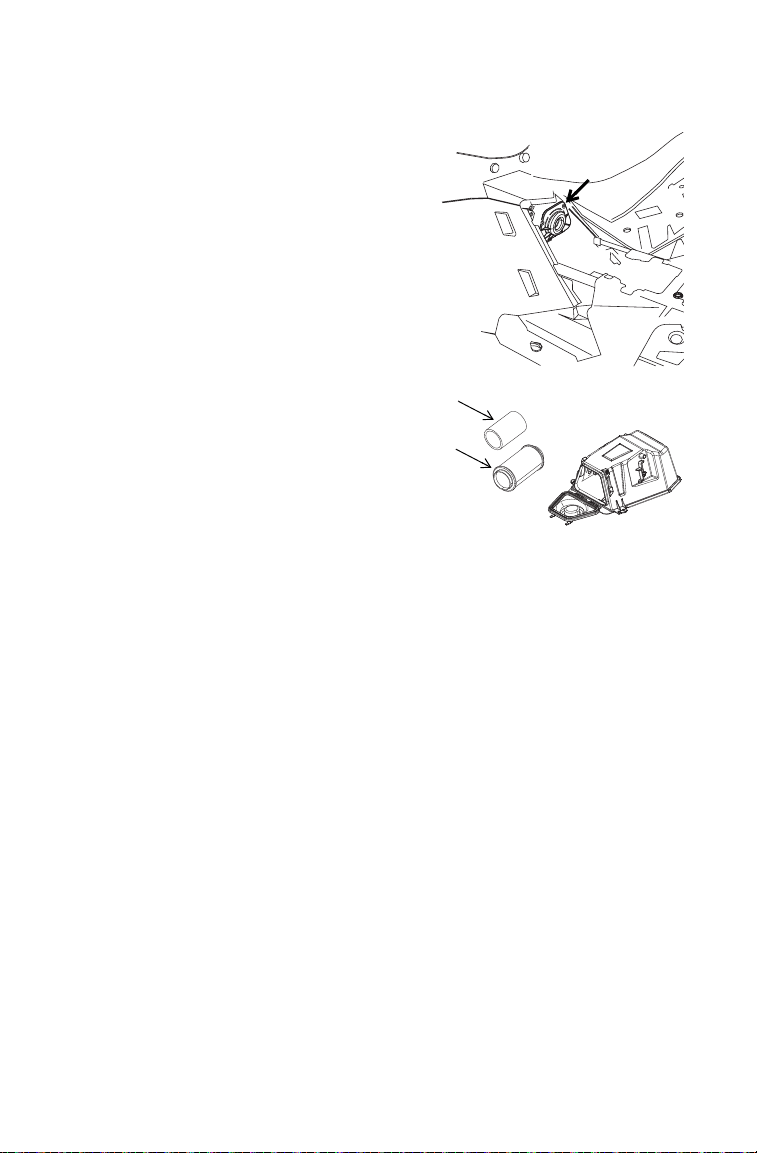

Air Filter
1. Remove the seat.
2. Remove the air box cover
strap, and remove the air box
cover.
3. Remove the filter.
4. Remove the fabric type pre-
filter from the main filter.
Wash the pre-filter in soapy
water, then rinse and let dry.
5. Reinstall the pre-filter over
the main filter. Install a new
main filter if needed.
6. Reinstall the filter into the air
box.
7. Reinstall the air box cover
and the seat.
Main
Filter
Pre-Filter
Strap
91
MAINTENANCE
Fuse Replacement
If the engine stops or will not start,
or if you experience other electri-
cal failures, a fuse may need
replacement. Locate and correct
any short circuits that may have
caused the blown fuse, then
replace the fuse.
1. Remove the front rack.
2. Remove the fuse box cover.
3. Remove the suspect fuse from
the fuse panel. If the fuse is
blown, install a new fuse with
the same amperage rating.
4. Reinstall the fuse box cover.
5. Reinstall the front rack.
Fuse Box
92
MAINTENANCE

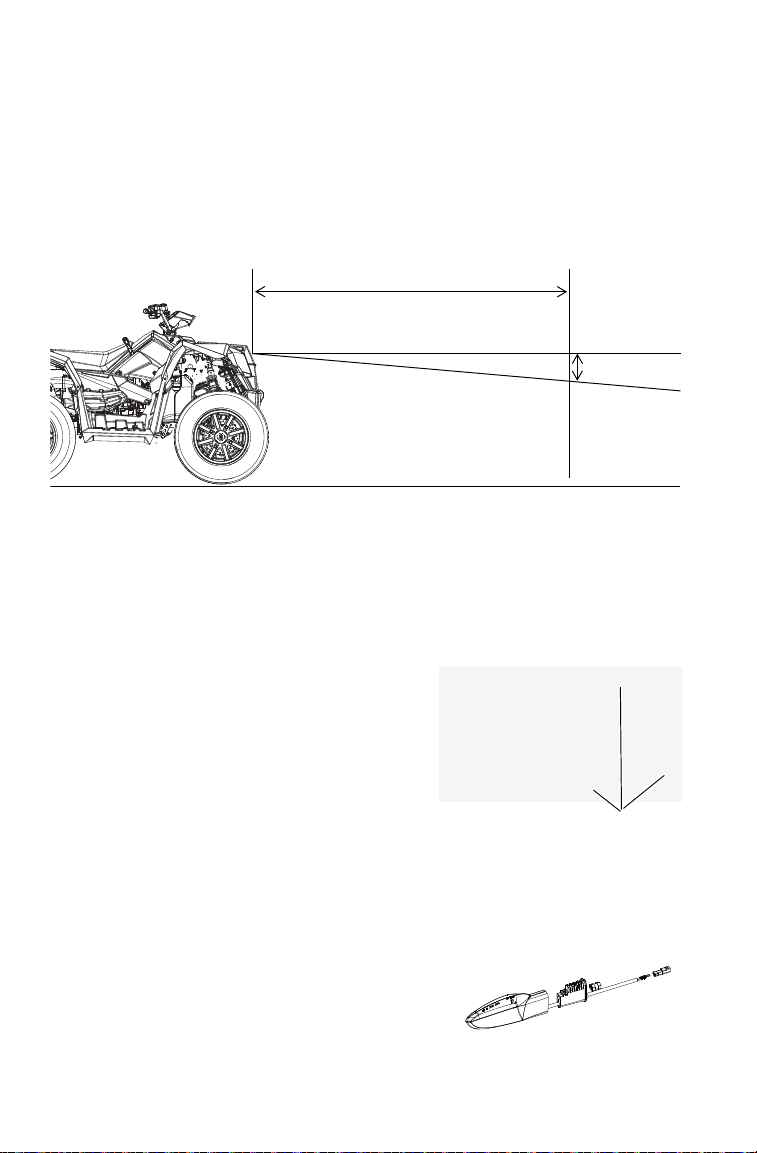

Lights
Headlight Beam Inspection
The headlight beam can be adjusted slightly. Use the following
procedure to make the adjustment.
1. Position the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall. Place the transmission in
PARK.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
3. Start the engine. Turn the headlight switch to high beam.
4. Observe the headlight aim on the wall. The most intense part of the
headlight beam should be two inches (5 cm) below the mark on the
wall. Include rider weight on the seat when measuring.
Headlight Beam Adjustment
The headlight beam can be adjusted
horizontally and vertically.
Tighten or loosen one or more of the three
headlight adjustment screws to adjust the
beam upward or downward or to the left or
right.
Taillight/Brakelight Lamp Replacement
The taillight assembly is not serviceable. If the light fails to operate
properly, replace the entire taillight assembly.
Turn Signal Replacement
If a front or rear turn signal light becomes
inoperable, the lamps cannot be replaced.
Replace the entire signal lamp assembly.
2 in. (5 cm)
Lamp Center Height
25 ft. (7.6 m)
Screws
93
MAINTENANCE
Lights
Poor lighting can result in loss of control or an accident. Lights become dirty
during normal operation. Wash the headlights and taillights frequently.
Hot components can cause serious burns to skin. Do not service the headlamps
until they've cooled.
Headlight/Position Light Lamp Replacement
When servicing a halogen lamp, do
not touch the lamp with bare fingers.
Oil from your skin leaves a residue,
causing a hot spot that will shorten
the life of the lamp. Hold the plastic
part of the lamp.
1. Place the transmission in PARK.
2. Open the front rack cover.
3. Remove the plug at the back of the
headlight.
4. Pull the harness plug to disconnect
it from the back of the headlight.
5. Position light: Rotate the socket to
remove it. Go to step 6.
Headlamp: Reach under the
bumper and remove the rubber
cover from the back of the
headlight. Turn the collar counter-
clockwise and carefully remove
the collar and socket.
6. Remove the lamp. Apply dielectric
grease to the socket and install a
new lamp.
7. Reverse all steps to reassemble the
headlight.
Position Light
Collar
Socket
Headlamp
94
MAINTENANCE
Spark Plugs
Spark Plug Recommendations
Refer to the specifications section beginning on page 117 for the recom-
mended spark plug type and gap for your vehicle. Torque spark plugs to
specification.
NOTICE: Using non-recommended spark plugs can result in serious engine
damage. Always use POLARIS-recommended spark plugs.
Spark Plug Inspection
Spark plug condition is indicative of engine operation. Check the spark
plug firing end condition after the engine has been warmed up and the
vehicle has been driven at higher speeds. Immediately check the spark
plugs for correct color. See page 95.
A hot exhaust system and engine can cause burns. Wear protective gloves
when removing a spark plug for inspection.
1. Rotate the spark plug cap 1/4 turn and pull it off the spark plug.
2. Rotate the spark plug counter-clockwise to remove it.
3. Reverse the procedure for spark plug installation. Torque to specifi-
cation.
Torque Specification
New Spark Plug 18-20 ft. lbs. (24-27 Nm)
Previously Installed Spark Plug 18-20 ft. lbs. (24-27 Nm)
95
MAINTENANCE
Spark Plugs
Spark Plug Inspection
Normal Spark Plug
The normal insulator tip is gray, tan or light brown. There will be few
combustion deposits. The electrodes are not burned or eroded. This indi-
cates the proper type and heat range for the engine and the service.
The tip should not be flaky and white. A white insulator tip indicates
overheating, caused by use of an improper spark plug or incorrect fuel.
Wet Fouled Spark Plug
The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil, use
of non-recommended oil or incorrect throttle body adjustments.
96
MAINTENANCE
Vehicle Immersion
If your vehicle becomes immersed, major engine damage can result if
the machine is not thoroughly inspected. Take the vehicle to your dealer
before starting the engine. If it's impossible to take your vehicle to a
dealer before starting it, follow the steps outlined below.
1. Move the vehicle to dry land or at the very least, to water below the
footrests.
2. Check the air box. If water is present, dry the air box and replace the
filter with a new filter. If equipped, remove the air box drain plug to
drain water. Reinstall the drain plug.
3. Remove the spark plugs.
4. Turn the engine over several times using the electric start.
5. Dry the spark plugs. Reinstall the plugs or install new plugs.
6. Attempt to start the engine. If necessary, repeat the drying proce-
dure.
NOTICE: Serious damage can occur after immersion if fluids are not changed
promptly. See your dealer as recommended
.
7. Take the vehicle to your dealer for service as soon as possible,
whether you succeed in starting it or not.
8. If water has been ingested into the PVT, follow the procedure on
page 100 for drying out the PVT.
97
MAINTENANCE

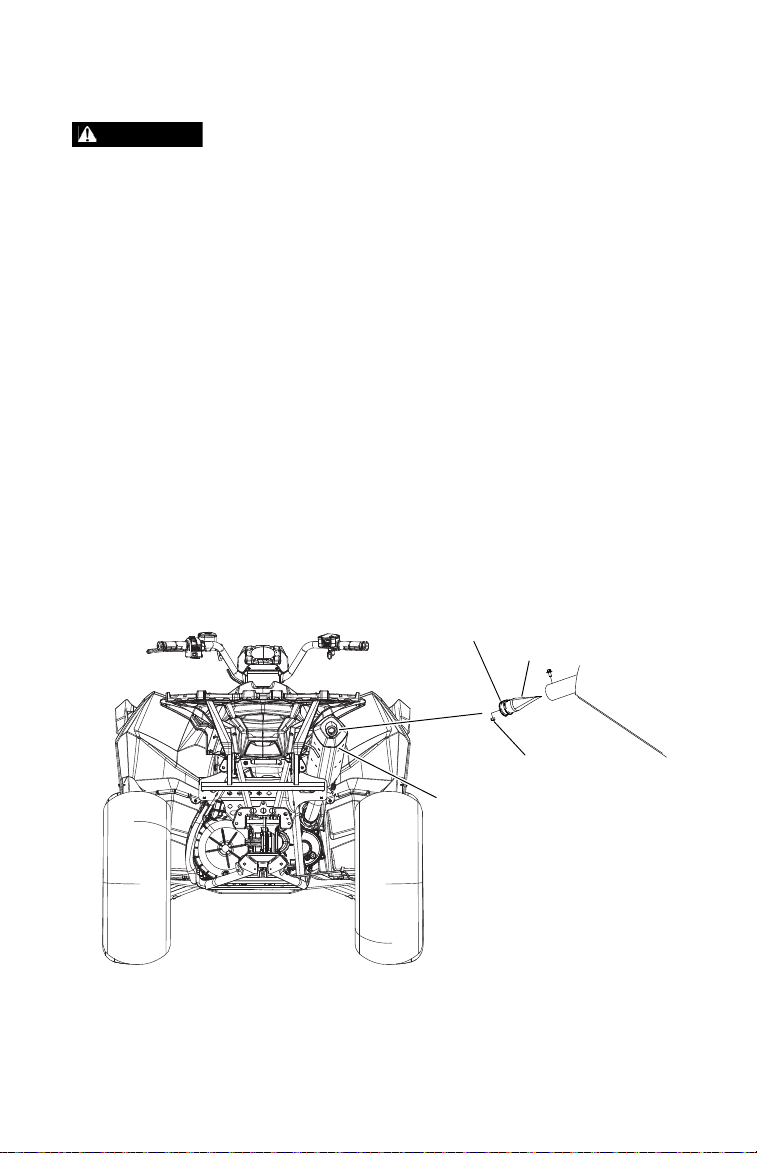

Spark Arrester
Failure to heed the following warnings while servicing the spark arrester could
result in serious injury or death. Never run the engine in an enclosed area.
Remove any combustible materials from the area. Wear eye protection and
leather work gloves. Do not stand behind or in front of the vehicle while purging.
Never go under the vehicle while it's inclined.
The exhaust system can get extremely hot. Do not perform service on the spark
arrester while the system is hot. Allow components to cool sufficiently before
proceeding.
If your model is equipped with dual exhaust, periodically perform the
following procedure for both arresters to remove accumulated carbon.
1. Remove the retaining nut. Remove the arrester from the end of the
muffler.
2. Use a non-synthetic brush to clean the arrester screen. A synthetic
brush may melt if components are warm. If necessary, blow debris
from the screen with compressed air.
3. Inspect the screen for wear and damage. Replace a worn or
damaged screen.
4. Reinstall the arrester. Torque the nut to 7-9 ft. lbs. (10-12 Nm).
WARNING
Arrester
Retaining
Nut
Screen
Muffler
98
MAINTENANCE
PVT System
Failure to comply with the instructions in this warning can result in severe injury
or death.
Do not modify any component of the PVT system. Doing so may reduce its
strength so that a failure may occur at a high speed. The PVT system has been
precision balanced. Any modification will cause the system to be out of balance,
creating vibration and additional loads on components.
The PVT system rotates at high speeds, creating large amounts of force on
clutch components. Extensive engineering and testing has been conducted to
ensure the safety of this product. However, as the owner, you have the following
responsibilities to make sure this system remains safe:
• Always follow all recommended maintenance procedures. Always look for
and remove debris inside and around the clutch and vent system when
replacing the belt.
• See your dealer as outlined in the owner's manual.
• This PVT system is intended for use on POLARIS products only. Do not
install it in any other product.
• Always make sure the PVT housing is securely in place during operation.
WARNING
99
MAINTENANCE
PVT System
The basic operation of the POLARIS PVT system is dependent on
engine speed and vehicle torque requirements. As engine speed
increases, the force exerted on the movable drive sheave by the fly-
weights also increases. This, in turn, increases the amount of pinch
applied to the drive belt. Similarly, if the engine speed decreases, the
amount of centrifugal force decreases, reducing the amount of belt
pinch.
The approximate gear ratio difference between high and low range is
1:2.25. This difference in gearing affects the operation of the PVT, espe-
cially at speeds less than 7 MPH (11 km/h), due to the system's depen-
dence on engine speed.
For example, when operating at a ground speed of 3 MPH (5 km/h) in
low range, the engine speed would be around 3000 RPM. This is well
above the engagement speed of 1600 - 1800 RPM. However, in high
range at 3 MPH (5 km/h), the engine would be running at only 1500
RPM. Whenever operating this close to the engagement speed, the
engine may be running at a speed too low to provide the pinch needed to
prevent belt slip. Belt slip is responsible for creating the excessive heat
that destroys belts, wears clutch components and causes outer clutch
covers to fail.
The air temperature in the clutch cover is substantially reduced by using
low range while operating at low ground speeds. Reducing the tempera-
ture inside the clutch cover greatly extends the life of the PVT compo-
nents (belt, cover, etc.).
100
MAINTENANCE
PVT System
When To Use Low Range and High Range
PVT Drying
There may be some instances when water is accidently ingested into the
PVT system. Use the following instructions to dry it out before operat-
ing.
1. Position the vehicle on a level surface.
2. Remove the drain plug. Allow the water to drain completely. Rein-
stall the drain plug.
3. Start the engine. Place the transmission in PARK.
4. Apply varying throttle for 10-15 seconds to expel the moisture and
air-dry the belt and clutches. Do not hold the throttle wide open for
more than 5 seconds.
5. Allow the engine RPM to settle to idle speed, then shift the trans-
mission to the lowest available range.
6. Test for belt slippage. If the belt slips, repeat the process.
7. Take the vehicle to your dealer for service as soon as possible.
Condition Range to Use
Operating at speeds less than 7 MPH (11 km/h) Low
Towing heavy loads Low
Operating in rough terrain (swamps, mountains, etc.) Low
Operating at speeds greater than 7 MPH (11 km/h) High
101
MAINTENANCE
Camber and Caster
The camber and caster are non-adjustable.
Front/Rear Shock Compression
The compression damping clicker knob is located on the top of the front
shock reservoir and on the bottom of the rear shock reservoir. When the
knob is turned clockwise until it stops, the damping is in the fully closed
position.
1. Turn the clicker clockwise to increase compression damping.
2. Turn the clicker counter-clockwise to decrease compression
damping.
FOX Shocks
Setting Compression Damping
Softest 20 clicks from closed
Factory 10 clicks from closed
Firmest 2 clicks from closed
Decrease
Increase
Front
+-
Rear
D
e
c
r
e
a
s
e
I
n
c
r
e
a
s
e
+
-
102
MAINTENANCE
Throttle Body/Idle RPM
Idle RPM is preset by the manufacturer. If the engine idle speed is not
satisfactory, please see your POLARIS dealer for adjustment.

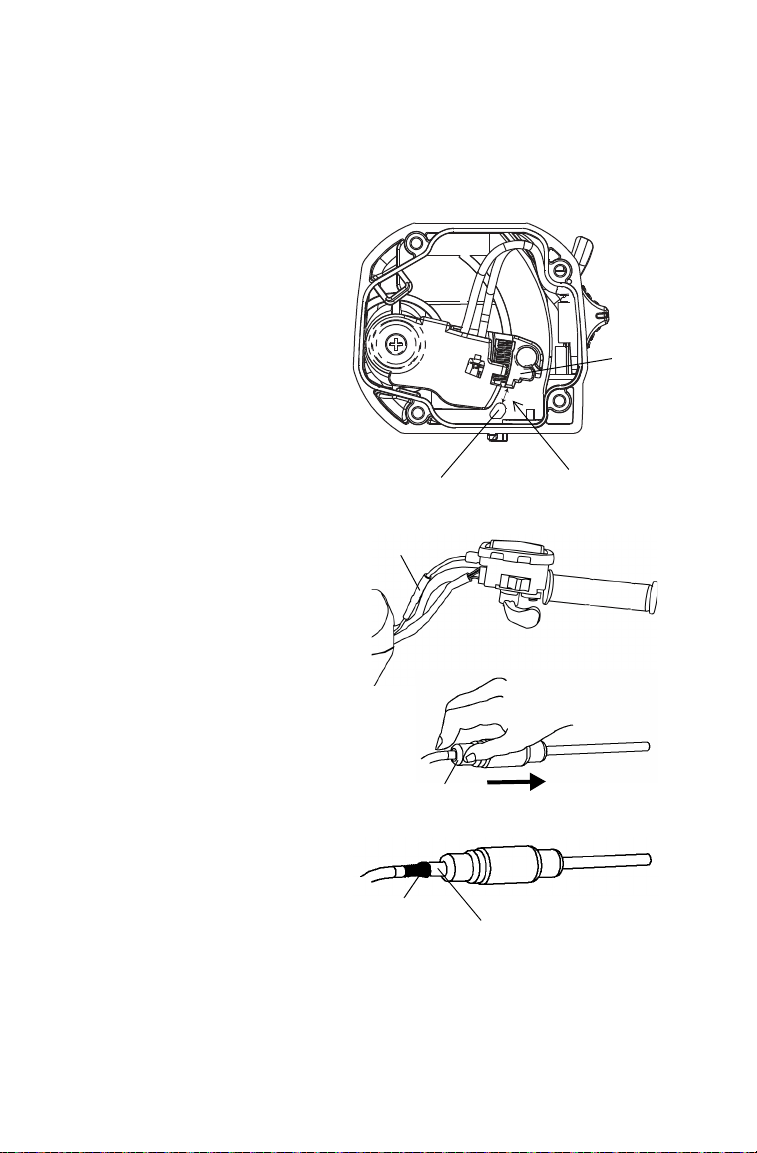

Throttle Cable Freeplay
1. Remove the four cover
screws from the right han-
dlebar control and remove
the cover.
2. With the handlebars
straight ahead, place very
light pressure on the throt-
tle lever. A gap of 2-3 mm
should be visible between
the throttle arm stop pin
and the throttle arm.
If adjustment is needed:
1. Locate the throttle cable
adjuster. Squeeze the end
of the rubber boot and slide
it back far enough to
expose the inline cable
adjuster locknut.
2. Loosen the adjuster lock-
nut.
3. Rotate the boot to turn the
adjuster until 2-3 mm of
freeplay is achieved
between the stop pin and
the throttle arm. While
adjusting freeplay, flip the
throttle lever back and
forth repeatedly.
(continued on next page)
2-3 mm Gap
Throttle
Arm
Arm Stop Pin
Lock
Nut
Adjuster
Boot
Cable
Adjuster
103
MAINTENANCE
Throttle Cable Freeplay
4. Place the transmission in PARK. Lock the parking brake.
5. Start the engine and allow the idle to stabilize. If necessary, tap the
throttle lever to ensure the idle speed settles.
6. If idle speed remains above or below the recommended setting (see
specification pages), verify the correct gap. If gap is correct and idle
speed is still not satisfactory, please see your POLARIS dealer for
service.
7. With the engine running, turn the handlebars fully to the left and
right. Tap the throttle lever at each turn, verifying that idle RPM
returns to the recommended setting. If idle speed increases, it may
be necessary to increase the gap between the stop pin and throttle
arm, but do not exceed the recommended 2-3 mm gap.
8. When adjustments are complete, tighten the locknut.
9. Squeeze the end of the rubber boot and slide it over the cable
adjuster to its original position.
10. Ensure the control cover seal is in place, then reinstall the cover and
screws.
Handlebars
The handlebars can be adjusted for rider preference.
Improper adjustment of the handlebars or incorrect torquing of the adjuster
block tightening bolts can cause limited steering or loosening of the handlebars,
resulting in loss of control and serious injury or death. Follow the adjustment
procedures exactly, or see your POLARIS dealer for service.
1. Remove the upper headlight pod.
2. Loosen the four handlebar bolts.
3. Adjust the handlebar to the desired height. Be sure the handlebars
do not contact the gas tank or any other part of the machine when
turned fully to the left or right.
4. Torque the front two bolts to 10-12 ft. lbs. (14-17 Nm), then torque
the rear two bolts. A gap of up to 1/8" (3 mm) will remain at the rear
of the clamp blocks.
104
MAINTENANCE
Battery
Improperly connecting or disconnecting battery cables can result in an explosion
and cause serious injury or death. When removing the battery, always
disconnect the negative (black) cable first. When reinstalling the battery, always
connect the negative (black) cable last.
Your vehicle is equipped with a sealed battery, which requires little
maintenance. POLARIS does not recommend using a conventional bat-
tery in this vehicle. The orientation of the battery could result in electro-
lyte leakage, which would shorten the life of the battery considerably.
Always keep battery terminals and connections free of corrosion. If
cleaning is necessary, remove corrosion with a stiff wire brush. Wash
with a solution of one tablespoon baking soda and one cup water. Rinse
well with tap water and dry off with clean shop towels. Coat the termi-
nals with dielectric grease or petroleum jelly.
Battery Removal
1. Remove the front rack.
2. Disconnect the black (negative) battery cable first.
3. Disconnect the red (positive) battery cable last.
4. Disconnect the battery hold-down strap.
5. Lift the battery out of the vehicle.
WARNING
105
MAINTENANCE
Battery
Battery Installation
Using a new battery that has not been fully charged can damage the bat-
tery and result in a shorter life. It can also hinder vehicle performance.
Follow the battery charging instructions on page 106 before installing
the battery.
If your factory-installed 18 AH battery cannot maintain a charge
because of operation in extreme cold or with multiple electrical accesso-
ries, please see your POLARIS dealer to purchase a 30 AH battery.
Before installing the 30 AH battery, remove the plastic spacer at the bot-
tom of the battery compartment. Save the spacer for future use.
1. Ensure that the battery is fully charged.
2. Place the battery in the battery holder.
3. Coat the terminals with dielectric grease or petroleum jelly.
4. Secure the battery hold-down strap.
5. Connect and tighten the red (positive) cable first.
6. Connect and tighten the black (negative) cable last.
7. Verify that cables are properly routed. Cables should be safely
tucked away at the front and rear of the battery.
8. Install the front rack.
Battery Storage
Whenever the vehicle is not used for a period of three months or more,
remove the battery from the vehicle, ensure that it's fully charged, and
store it out of the sun in a cool, dry place. Check battery voltage each
month during storage and recharge as needed to maintain a full charge.
POLARIS recommends maintaining battery charge by using a
POLARIS Battery Tender charger or by charging about once a month to
make up for normal self-discharge. Battery Tender can be left connected
during the storage period, and will automatically charge the battery if
the voltage drops below a pre-determined point. See page 117 for the
part numbers of POLARIS products.
106
MAINTENANCE
Battery
Battery Charging
The following battery charging instructions apply only to the
installation of a sealed battery. Read all instructions before proceeding
with the installation of this battery.
The sealed battery is already filled with electrolyte and has been sealed
and fully charged at the factory. Never pry the sealing strip off or add
any other fluid to this battery.
The single most important thing about maintaining a sealed battery is to
keep it fully charged. Since the battery is sealed and the sealing strip
cannot be removed, you must use a voltmeter or multimeter to measure
DC voltage.
An overheated battery may explode, causing severe injury or death. Always
watch charging times carefully. Stop charging if the battery becomes very warm
to the touch. Allow it to cool before resuming charging.
For a refresh charge, follow all instructions carefully.
1. The battery should be disconnected from a load or charger for at
least two hours before checking voltage. Check the battery voltage
with a voltmeter or multimeter. A fully charged battery will register
12.8 V or higher.
2. If the voltage is less than 12.8 volts, recharge the battery at 1.2 amps
or less until battery voltage is 12.8 or greater.
3. When using an automatic charger, refer to the charger
manufacturer's instructions for recharging. When using a constant
current charger, use the guidelines on the next page for recharging.
107
MAINTENANCE
Battery
Battery Charging
Always verify battery condition before and 1-2 hours after the end of
charging.
State of
Charge
Voltage Action
Charge Time
(Using constant current
charger @ standard amps
specified on top of battery)
100% 12.8-13.0 volts None, check at 3
mos. from date of
manufacture
None required
75%-100% 12.5-12.8 volts May need slight
charge, if no
charge given,
check in 3 months
3-6 hours
50%-75% 12.0-12.5 volts Needs charge 5-11 hours
25%-50% 11.5-12.0 volts Needs charge At least 13 hours,
verify state of charge
0%-25% 11.5 volts or less Needs charge with
desulfating charger
At least 20 hours
108
MAINTENANCE
Cleaning and Storage
Washing the Vehicle
Keeping your POLARIS vehicle clean will not only improve its
appearance but it can also extend the life of various components.
NOTICE: High water pressure may damage components. POLARIS
recommends washing the vehicle by hand or with a garden hose,
using mild soap.
Certain products, including insect repellents and chemicals, will
damage plastic surfaces. Do not allow these types of products to
contact the vehicle.
The best and safest way to clean your POLARIS vehicle is with a
garden hose and a pail of mild soap and water.
1. Use a professional-type washing cloth, cleaning the upper body first
and the lower parts last.
2. Rinse with clean water frequently.
3. Dry surfaces with a chamois to prevent water spots.
Washing Tips
• Avoid the use of harsh cleaners, which can scratch the finish.
• Do not use a power washer to clean the vehicle.
• Do not use medium to heavy duty compounds on the finish.
• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.
109
MAINTENANCE
Cleaning and Storage
Washing the Vehicle
If a high pressure water system is used for cleaning (not recommended),
exercise extreme caution. The water may damage components and could
remove paint and labels. Avoid directing the water stream at the
following items:
If an informational or graphic label becomes illegible or comes off,
contact your POLARIS dealer to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge.
Grease all zerk fittings immediately after washing. Allow the engine to
run for a while to evaporate any water that may have entered the engine
or exhaust system.
Polishing the Vehicle
POLARIS recommends the use of common household aerosol furniture
polish for polishing the finish on your POLARIS vehicle. Follow the
instructions on the container.
Polishing Tips
• Avoid the use of automotive products, some of which can scratch the
finish of your vehicle.
• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.
• Wheel bearings • Electrical components
• Radiator • Switches and controls
• Transmission seals • Fuel system components
• Cab and body panels • Labels and decals
110
MAINTENANCE
Cleaning and Storage
Storage Tips
NOTICE: Starting the engine during the storage period will disturb the
protective film created by fogging and damage could occur. Never
start the engine during the storage period.
Clean the Exterior
Make any necessary repairs and then clean the vehicle as recommended.
See page 108.
Oil and Filter
Change the oil and filter. See page 74.
Fluid Levels
Inspect the following fluid levels. Change fluids as recommended in the
Periodic Maintenance Chart beginning on page 69.
• Demand drive unit (front gearcase)
• Rear gearcase
• Transmission
• Brake fluid (change every two years and any time the fluid looks dark
or contaminated)
• Coolant (test strength)
Stabilize the Fuel
1. Fill the fuel tank.
2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel
Stabilizer. Follow the instructions on the container for the recom-
mended amount. Carbon Clean removes water from fuel systems,
stabilizes fuel and removes carbon deposits from pistons, rings,
valves and exhaust systems.
3. Allow the engine to run for 15-20 minutes to allow the stabilizer to
disperse through the entire fuel delivery system.
111
MAINTENANCE
Cleaning and Storage
Storage Tips
Fog the Engine
1. After stabilizing the fuel, remove the spark plugs and add 2-3 table-
spoons of engine oil. To access the plug holes, use a section of clear
1/4" hose and a small plastic squeeze bottle filled with the pre-mea-
sured amount of oil.
2. Reinstall the spark plugs. Torque to specification.
3. Apply dielectric grease to the inside of each spark plug cap and rein-
stall the caps onto the plugs.
4. Turn the engine over several times using electric start. Oil will be
forced in and around the piston rings and ring lands, coating the cyl-
inder with a protective film of fresh oil.
5. If POLARIS fuel system additive is not used, the fuel tank, fuel
lines, and injectors should be completely drained of gasoline.
Air Filter / Air Box
1. Inspect and clean (or replace) the pre-cleaner and air filter. See page
90.
2. Clean the air box.
Inspect and Lubricate
Inspect all cables and lubricate all areas of the vehicle as recommended
in the Periodic Maintenance Chart beginning on page 69.
Battery Maintenance
Remove the battery and recharge it as outlined on page 106. Store the
battery in a cool, dry place.
Storage Area/Covers
Set the tire pressure and safely support the vehicle with the tires slightly
off the ground. Be sure the storage area is well ventilated. Cover the
vehicle with a genuine POLARIS cover. Do not use plastic or coated
materials. They do not allow enough ventilation to prevent condensa-
tion, and may promote corrosion and oxidation.
112
MAINTENANCE

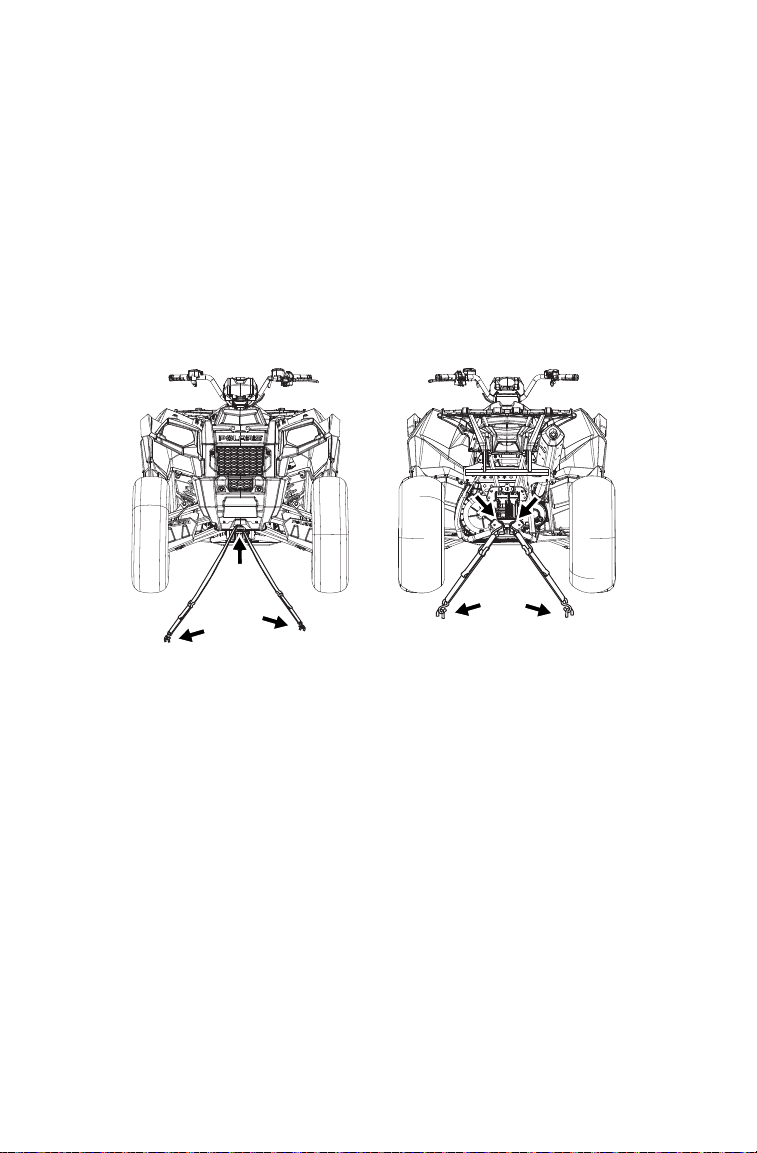

Transporting the Vehicle
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Secure the fuel cap, oil cap and seat.
5. Always tie the frame of the POLARIS vehicle to the transporting
unit securely with suitable straps or rope. Do not attach tie straps to
the front A-arm bolt pockets, racks or handlebars.
6. Remove the key to prevent loss during transporting.
Accessories
Auxiliary power outlets provide 12-volt power for operating
accessories. Accessory outlets are available for all models. POLARIS
also has a wide range of additional accessories available for your
vehicle. Always install accessories that are approved for use on this
vehicle. Please see your POLARIS dealer.
113
TROUBLESHOOTING
Drive Belt Wear/Burn
Possible Cause Solution
Driving onto a pickup or
tall trailer in high range
Use low range during loading.
Starting out going up a
steep incline
Use low range or turn around using the K-turn (see page
48).
Driving at low RPM or
ground speed (3-7 MPH)
Drive at a higher speed or use low range more frequently.
See page 100.
Insufficient warm-up at
low ambient tempera-
tures
Warm the engine at least 5 minutes. With the transmission
in neutral, advance the throttle to about 1/8 throttle in
short bursts, 5 to 7 times. The belt will become more flex-
ible and prevent belt burning.
Slow/easy clutch engage-
ment
Use the throttle quickly and effectively.
Towing/pushing at low
RPM/low ground speed
Use low range only.
Utility use/plowing Use low range only.
Stuck in mud or snow Shift the transmission to low range and carefully use fast,
aggressive throttle application to engage clutch.
WARNING! Excessive throttle may cause loss of
control and vehicle overturn.
Climbing over large
objects from a stopped
position
Shift the transmission to low range and carefully use fast,
brief, aggressive throttle application to engage clutch.
WARNING! Excessive throttle may cause loss of
control and vehicle overturn.
Belt slippage from water
or snow ingestion into the
PVT system
Dry out the PVT. See page 100. Inspect clutch seals for
damage if repeated leaking occurs.
Clutch malfunction See your POLARIS dealer.
Poor engine performance Check for fouled plugs or foreign material in gas tank or
fuel lines. See your dealer.
Slippage from failure to
warm up belt
Always warm up the belt by operating below 30 mph for
one mile (5 miles or more when temperature is below
freezing).
Wrong or missing belt Install the recommended belt.
Improper break-in Always break in a new belt and/or clutch. See page 39.
114
TROUBLESHOOTING
Engine Doesn't Turn Over
Engine Turns Over, Fails to Start
Engine Backfires
Possible Cause Solution
Low battery voltage Recharge the battery to 12.8 VDC
Loose battery connections Check all connections and tighten
Loose solenoid connections Check all connections and tighten
Possible Cause Solution
Out of fuel Refuel, cycle key to ON position three
times for 5 seconds each, then start
Clogged fuel filter See your dealer
Water is present in fuel Drain the fuel system and refuel
Old or non-recommended fuel Replace with fresh recommended fuel
Fouled or defective spark plugs Inspect plugs and replace if necessary
No spark to spark plug Inspect plugs, verify stop switch is on
Water or fuel in crankcase Immediately see your POLARIS dealer
Low battery voltage Recharge the battery to 12.8 VDC
Mechanical failure See your dealer
Possible Cause Solution
Weak spark from spark plug Inspect, clean and/or replace spark plugs
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Old or non-recommended fuel Replace with fresh recommended fuel
Incorrectly installed spark plug wires See your dealer
Incorrect ignition timing See your dealer
Mechanical failure See your dealer
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with fresh recommended fuel
Leaking exhaust components See your dealer
115
TROUBLESHOOTING
Engine Pings or Knocks
Engine Runs Irregularly, Stalls or Misfires
Possible Cause Solution
Poor quality or low octane fuel Replace with recommended fuel
Incorrect ignition timing See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Possible Cause Solution
Fouled or defective spark plugs Inspect, clean and/or replace spark plugs
Worn or defective spark plug wires See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with new fuel
Low battery voltage Recharge battery to 12.8 VDC
Kinked or plugged fuel tank vent line Inspect and replace
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your dealer
Throttle release switch malfunction See your dealer
Other mechanical failure See your dealer
Possible Lean Fuel Cause Solution
Low or contaminated fuel Add or change fuel, clean the fuel system
Kinked or plugged fuel tank vent line Inspect and replace
Low octane fuel Replace with recommended fuel
Clogged fuel filter See your dealer
Incorrect fuel Replace with recommended fuel
Possible Rich Fuel Cause Solution
Fuel is very high octane Replace with lower octane fuel
Stopping/starting without adequate
warm-up
Allow engine to warm up before
operating and/or stopping
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
116
TROUBLESHOOTING
Engine Stops or Loses Power
Engine Overheating
Possible Cause Solution
Out of fuel Refuel, cycle key to ON position three
times for 5 seconds each, then start
Kinked or plugged fuel vent line Inspect and replace
Water is present in fuel Replace with new fuel
Fouled or defective spark plugs Inspect, clean and/or replace spark plug
Worn or defective spark plug wires See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plug
Loose ignition connections Check all connections and tighten
Low battery voltage Recharge the battery to 12.8 VDC
Incorrect fuel Replace with fresh recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your dealer
Throttle release switch malfunction See your dealer
Other mechanical failure See your dealer
Overheated engine Clean radiator screen and core, clean
engine exterior, see your dealer
Possible Cause Solution
Debris lodged in screen Clean the screen.
Plugged Radiator Use a garden hose to flush any debris
from the radiator fins. NOTE: High
pressure washers can deform the radiator
fins and reduce cooling efficiency.
117
POLARIS PRODUCTS
Part
Number
Description
Engine Lubricant
2870791 Fogging Oil (12 oz. Aerosol)
2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (qt./.95 l)
2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (gal./3.8 l)
Gearcase / Transmission Lubricants
2878068 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(qt./.95 l)
2878069 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(gal./3.8 l)
2877922 Demand Drive Fluid (qt./.95 l)
2877923 Demand Drive Fluid (gal./3.8 l)
2870465 Pump for Gallon (3.8 l) Jug
Coolant
2871534 Polaris Antifreeze 60/40 Premix (qt./.95 l)
2871323 Polaris Antifreeze 60/40 Premix (gal./3.8 l)
Grease / Specialized Lubricants
2871312 Grease Gun Kit, All Season Grease
2871322 All Season Grease (3 oz./89 ml cartridge)
2871423 All Season Grease (14 oz./414 ml cartridge)
2876160 ATV Angle Drive Fluid (qt./.95 l)
2872276 ATV Angle Drive Fluid (2.5 gal./9.5 l)
2871460 Premium Starter Grease
2871515 U-Joint Grease (3 oz./89 ml cartridge)
2871551 U-Joint Grease (14 oz./414 ml cartridge)
2871329 Dielectric Grease (Nyogel™)
Additives / Miscellaneous
2871326 Carbon Clean
2870652 Fuel Stabilizer
2872189 DOT 4 Brake Fluid
2871956 Loctite™ 565 Thread Sealant
2859044 POLARIS Battery Tender™ Charger
118
SPECIFICATIONS
* Based on EU Directive 76/432/EC
SCRAMBLER XP 1000 EPS
Maximum Weight Capacity 290 lbs. (131 kg) (includes operator, cargo and
accessories)
Dry Weight 767 lbs. (348 kg)
Fuel Capacity 5.25 gal. (20 l)
Engine Oil Capacity 2 qts. (1.9 l)
Coolant Capacity 2 qts. (1.9 l)
Rear Gearcase Oil Capacity 7.1 oz. (210 ml)
Demand Drive Fluid Capacity 9.3 oz. (275 ml)
Transmission Oil Capacity 37 oz. (1100 ml)
Front Rack Capacity 25 lbs. (11.3 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Receiver Hitch Tongue Capacity 150 lbs. (68 kg)
Hitch Towing Rating 1500 lbs. (680.4 kg)
Unbraked Trailer Towing
Capacity*
1914 lbs. (868 kg)
Overall Length 82.5 in. (209.5 cm)
Overall Width 48 in. (122 cm)
Overall Height 49.5 in. (125.7 cm)
Wheelbase 53 in. (134.6 cm)
Ground Clearance 10.6 in. (27 cm)
Minimum Turning Radius 84 in. (213 cm) unloaded
Displacement 952 cc
Bore x Stroke 90.5 x 74
Alternator Output 475w @1200 RPM/Peak 630w
Compression Ratio 11:1
Starting System Electric
Ignition System Electronic Fuel Injection
Idle RPM 1200 +/- 50
Throttle Body/Size Mikuni Dual Bore/42 mm
Spark Plug Type / Gap AUTOLITE 5682 / .035 in. (0.9 mm)
Lubrication System Wet Sump
Driving System Type Automatic PVT (POLARIS Variable
Transmission)
119
SPECIFICATIONS
Clutching
*EBS models require no helix/spring adjustment
SCRAMBLER XP 1000 EPS
Front Suspension Dual a-arm with 9.2" (23 cm) travel
Rear Suspension Progressive rate with 10.2" (26 cm) travel
Transmission H/L/N/R/P
Gear Reduction, Low 5.034:1
Gear Reduction, Reverse 4.508:1
Gear Reduction, High 2.367:1
Drive Ratio, Front 3.818:1
Drive Ratio, Rear 3.7:1
Tires/Pressure, Front 26x8-14 / 7 psi (48.3 kPa)
Tires/Pressure, Rear 26x10-14 / 7 psi (48.3 kPa)
Hand Brake Single-Control Hydraulic Disc, All Wheel
Foot Brake Foot-Activated Hydraulic Disc, All Wheel
Brake, Parking Hydraulic Lock, All Wheel
Mechanical Lock in PARK
Headlight 2 Hi/Lo beam on bumper (55/60 watt)
Taillight/Brake Light LED
Instrument Cluster Digital LCD/LED
Altitude Shift
Weight
Drive
Clutch
Spring
Driven
Clutch
Spring
Helix*
Meters
(Feet)
0-1800
(0-6000)
24-70
PN 5633136
Red/Black
Stripe
PN 7043500
Black/White
Lettering
PN 7044086
58-66F
Parallel BA
PN 3235590
1800-3700
(6000-12000)
24-68
PN 5632418
Red/Black
Stripe
PN 7043500
Black/White
Lettering
PN 7044086
58-66F
Parallel BA
PN 3235590
120
WARRANTY
LIMITED WARRANTY
POLARIS Sales Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a SIX
MONTH LIMITED WARRANTY on all components of your POLARIS vehicle against
defects in material or workmanship. POLARIS further warrants that the spark arrestor in
this product will meet the efficiency requirements of USFS standard 5100-1C for at least
1000 hours when subjected to normal use and when maintenance and installation are in
accordance with POLARIS recommendations.
This warranty covers parts and labor charges for repair or replacement of defective parts
and begins on the date of purchase by the original retail purchaser. This warranty is
transferable to another owner during the warranty period through a POLARIS dealer,
but any such transfer will not extend the original term of the warranty. The duration of
this warranty may vary by international region based upon local laws and regulations.
REGISTRATION
At the time of sale, the Warranty Registration Form must be completed by your dealer
and submitted to POLARIS within ten days of purchase. Upon receipt of this
registration, POLARIS will record the registration for warranty. No verification of
registration will be sent to the purchaser as the copy of the Warranty Registration Form
will be your proof of warranty coverage. If you have not signed the original registration
and received the customer copy, please contact your dealer immediately. NO
WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR VEHICLE IS
REGISTERED WITH POLARIS. Initial dealer preparation and set-up of your vehicle is
very important in ensuring trouble-free operation. Purchasing a machine in the crate or
without proper dealer set-up will void your warranty coverage.
WARRANTY COVERAGE AND EXCLUSIONS:
LIMITATIONS OF WARRANTIES AND REMEDIES
This POLARIS limited warranty excludes any failures that are not caused by a defect in
material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF
DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental
damage, normal wear and tear, abuse or improper handling. This warranty also does not
cover any vehicle, component, or part that has been altered structurally, modified,
neglected, improperly maintained, or used for purposes other than for which it was
designed.
This warranty excludes damages or failures resulting from: improper lubrication;
improper engine timing; improper fuel; surface imperfections caused by external stress,
heat, cold or contamination; operator error or abuse; improper component alignment,
tension, adjustment or altitude compensation; snow, water, dirt or other foreign
substance ingestion/contamination; improper maintenance; modified components; use
of aftermarket or unapproved components, accessories, or attachments; unauthorized
repairs; or repairs made after the warranty period expires or by an unauthorized repair
center.
121
WARRANTY
LIMITATIONS OF WARRANTIES AND REMEDIES
This warranty excludes damages or failures caused by abuse, accident, fire, or any other
cause other than a defect in materials or workmanship and provides no coverage for
consumable components, general wear items, or any parts exposed to friction surfaces,
stresses, environmental conditions and/or contamination for which they were not
designed or not intended, including but not limited to the following items:
Lubricants and Fluids
1. Mixing oil brands or using non-recommended oil may cause engine damage. We
recommend the use of POLARIS engine oil.
2. Damage or failure resulting from the use of non-recommended lubricants or fluids is
not covered by this warranty.
This warranty provides no coverage for personal loss or expense, including mileage,
transportation costs, hotels, meals, shipping or handling fees, product pick-up or
delivery, replacement rentals, loss of product use, loss of profits, or loss of vacation or
personal time.
THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE,
AT POLARIS’ OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE
MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN
THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON
FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY
TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR
IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR
OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTAL,
INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL
SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS
ESSENTIAL PURPOSE.
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS
EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED
WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE
ABOVE SIX MONTH WARRANTY PERIOD. POLARIS DISCLAIMS ALL
EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO
NOT PERMIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY
TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.
• Wheels and tires • Finished and unfinished surfaces
• Suspension components • Carburetor/Throttle body components
• Brake components • Engine components
• Seat components • Drive belts
• Clutches and components • Hydraulic components and fluids
• Steering components • Circuit breakers/Fuses
• Batteries • Electronic components
• Light bulbs/Sealed beam lamps • Spark plugs
• Filter • Sealants
• Lubricants • Coolants
• Bushings • Bearings
122
WARRANTY
HOW TO OBTAIN WARRANTY SERVICE
If your vehicle requires warranty service, you must take it to a POLARIS Servicing
Dealer. When requesting warranty service you must present your copy of the Warranty
Registration From to the dealer. (THE COST OF TRANSPORTATION TO AND
FROM THE DEALER IS YOUR RESPONSIBILITY). POLARIS suggests that you use
your original selling dealer; however, you may use any POLARIS Servicing Dealer to
perform warranty service.
In the country where your product was purchased:
Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer. If
you move or are traveling within the country where your product was purchased,
Warranty and Service Bulletin repairs may be requested from any authorized POLARIS
dealer that sells the same line as your product.
Outside the country where your product was purchased:
If you are traveling temporarily outside the country where your product was purchased,
you should take your product to an authorized POLARIS dealer. You must show the
dealer photo identification from the country of the selling dealer’s authorized location as
proof of residence. Upon residence verification, the servicing dealer will be authorized
to perform the warranty repair.
If you move:
If you move to another country, be sure to contact POLARIS Customer Assistance and
the customs department of the destination country before you move. Product
importation rules vary considerably from country to country. You may be required to
present documentation of your move to POLARIS in order to continue your warranty
coverage. You may also be required to obtain documentation from POLARIS in order to
register your product in your new country. You should warranty register your product at
a local POLARIS dealer in your new country immediately after you move to continue
your warranty coverage and to ensure that you receive information and notices regarding
your vehicle.
If you purchase from a private party:
If you purchase a POLARIS product from a private party, to be kept and used outside of
the country in which the product was originally purchased, all warranty coverage will be
denied. You must nonetheless register your product under your name and address with a
local POLARIS dealer in your country to ensure that you receive safety information and
notices regarding your product.
123
WARRANTY
EXPORTED PRODUCTS
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO
WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS
SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER’S AUTHORIZED
LOCATION. This policy does not apply to products that have received authorization for
export from POLARIS. Dealers may not give authorization for export. You should
consult an authorized dealer to determine this product’s warranty or service coverage if
you have any questions. This policy does not apply to products registered to government
officials or military personnel on assignment outside the country of the selling dealer’s
authorized location. This policy does not apply to Safety Bulletins.
NOTICE
If your product is registered outside of the country where it was purchased and you have
not followed the procedure set above, your product will no longer be eligible for
warranty or service bulletin coverage of any kind, other than safety bulletins. Products
registered to Government officials or military personnel on assignment outside of the
country where the product was purchased will continue to be covered by the Limited
Warranty.
Please work with your dealer to resolve any warranty issues. Should your dealer require
any additional assistance, they will contact the appropriate person at POLARIS.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state or in different countries. If any of the above terms are void
because of federal, state, local law, all other warranty terms will remain in effect.
124
MAINTENANCE LOG
Present this section of your manual to your dealer each time your vehicle is serviced.
This will provide you and future owners with an accurate log of maintenance and ser-
vices performed.
DATE MILES (KM)
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
125
MAINTENANCE LOG
DATE MILES (KM)
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
126
INDEX
0-9
4X4 Switch . . . . . . . . . . . . . . . . 19, 26
A
Access, Front Compartment . . . . . . 37
Accessories . . . . . . . . . . . . . . . . . . 112
Age Restrictions. . . . . . . . . . . . . . . . . 6
Air Filter . . . . . . . . . . . . . . . . . . . . . 90
All Wheel Drive System . . . . . . . . . 26
B
Battery . . . . . . . . . . . . . . . . . . 104-107
Charging . . . . . . . . . . . . . . . 106-107
Extreme Use 30 AH . . . . . . . . . . 25
Installation . . . . . . . . . . . . . . . . 105
Removal . . . . . . . . . . . . . . . . . . 104
Storage . . . . . . . . . . . . . . . . . . . 105
Belt Life. . . . . . . . . . . . . . . . . . . . . . 20
Boots . . . . . . . . . . . . . . . . . . . . . . . . . 8
Brake Fluid . . . . . . . . . . . . . . . . . 83-84
Brake Inspections. . . . . . . . . . . . . . . 85
Brake Lever . . . . . . . . . . . . . . . . . . . 23
Brake, Foot . . . . . . . . . . . . . . . . 23, 84
Brake, Hand Lever. . . . . . . . . . . . . . 84
Brake, Parking . . . . . . . . . . . . . . . . . 24
Brakelight . . . . . . . . . . . . . . . . . . . . 92
Brakes . . . . . . . . . . . . . . . . . . . . . 23-24
Break-In Period . . . . . . . . . . . . . . 38-39
C
Camber Adjustment. . . . . . . . . . . . 101
Cargo . . . . . . . . . . . . . . . . . . . . . . 52-54
Caster Adjustment . . . . . . . . . . . . . 101
Cleaning and Storage. . . . . . . . 108-111
Clothing . . . . . . . . . . . . . . . . . . . . . . . 8
Clutching . . . . . . . . . . . . . . . . . . . . 119
Cold Weather Operation . . . . . . . . . 41
Coolant Bottle . . . . . . . . . . . . . . . . . 81
Coolant, Radiator. . . . . . . . . . . . . . . 82
Cooling System . . . . . . . . . . . . . . 80-82
D
Demand Drive Fluid . . . . . . . . . . . . . 77
Diagnostic Codes. . . . . . . . . . . . . 34-36
Display Units, Standard/Metric. . . . . 31
Drive Belt Wear/Burn . . . . . . . . . . . 113
Drivetrain Break-In . . . . . . . . . . . . . . 39
Driving Downhill. . . . . . . . . . . . . . . . 47
Driving in Reverse. . . . . . . . . . . . . . . 51
Driving on a Sidehill . . . . . . . . . . . . . 46
Driving on Slippery Surfaces . . . . . . 44
Driving Over Obstacles. . . . . . . . . . . 50
Driving Procedures . . . . . . . . . . . . . . 42
Driving Through Water . . . . . . . . . . . 49
Driving Uphill . . . . . . . . . . . . . . . . . . 45
E
Electromagnetic Interference. . . . . . . 67
Electronic Power Steering. . . . . . . . . 25
Engaging 4X4 . . . . . . . . . . . . . . . . . . 26
Engine Break-In. . . . . . . . . . . . . . . . . 39
Engine Fogging . . . . . . . . . . . . . . . . 111
Engine Oil . . . . . . . . . . . . . . . . . . 73-75
EPS Warning Indicator . . . . . . . . . . . 29
Equipment Modifications . . . . . . . . . . 6
European Vibration and Noise . . . . . 67
Exhaust Emission Control System . . 67
Extreme Use 30 AH Battery . . . . . . . 25
Eye Protection . . . . . . . . . . . . . . . . . . . 8
F
Fluid
Brake. . . . . . . . . . . . . . . . . . . . 83-84
Coolant . . . . . . . . . . . . . . . . . . 80-82
Demand Drive. . . . . . . . . . . . . . . . 77
Engine Oil. . . . . . . . . . . . . . . . 73-75
Rear Gearcase . . . . . . . . . . . . . 78-79
Transmission Oil. . . . . . . . . . . . . . 76
Fluid Change
Demand Drive. . . . . . . . . . . . . . . . 77
Engine Oil. . . . . . . . . . . . . . . . 74-75
Rear Gearcase . . . . . . . . . . . . . . . . 79
Transmission. . . . . . . . . . . . . . . . . 76
127
INDEX
F
Fluid Level
Demand Drive . . . . . . . . . . . . . . . 77
Engine Oil . . . . . . . . . . . . . . . . . . 73
Rear Gearcase . . . . . . . . . . . . . . . 78
Transmission . . . . . . . . . . . . . . . . 76
Foot Brake, Auxiliary . . . . . . . . . . . . 23
Footwell Removal. . . . . . . . . . . . . . . 87
Front Compartment. . . . . . . . . . . . . . 37
Front Gearcase (Demand Drive). . . . 77
Front Rack/Compartment . . . . . . . . . 37
Fuel Tank Cap. . . . . . . . . . . . . . . . . . 25
Fuse Replacement. . . . . . . . . . . . . . . 91
G
Gauge, Code Definitions. . . . . . . 34-36
Gauge, MFD . . . . . . . . . . . . . . . . 28-33
Gauge, MFD (XP EPS Models) . . . . 32
Gear Selector. . . . . . . . . . . . . . . . . . . 20
Gearcase Oil, Rear . . . . . . . . . . . 78-79
Gloves. . . . . . . . . . . . . . . . . . . . . . . . . 8
H
Hand Brake. . . . . . . . . . . . . . . . . . . . 84
Handlebar Adjustment . . . . . . . . . . 103
Hauling Cargo. . . . . . . . . . . . . . . 52-54
Hazard Switch. . . . . . . . . . . . . . . . . . 19
Headlight Lamp . . . . . . . . . . . . . . . . 93
Headlight Switch. . . . . . . . . . . . . . . . 19
Helmet. . . . . . . . . . . . . . . . . . . . . . . . . 7
High Beam Adjustment . . . . . . . . . . 92
High Range Use . . . . . . . . . . . . . . . 100
Horn Switch . . . . . . . . . . . . . . . . . . . 19
I
Idle RPM Adjustment. . . . . . . . . . . 102
Immersion. . . . . . . . . . . . . . . . . . . . . 96
Instrument Cluster. . . . . . . . . . . . 27-36
K
Key Switch . . . . . . . . . . . . . . . . . . . . 19
K-Turn . . . . . . . . . . . . . . . . . . . . . . . 48
L
Lights . . . . . . . . . . . . . . . . . . . . . 92-93
Headlight Beam Adjustment . . . . 92
Headlight Beam Inspection . . . . . 92
Headlight Lamp . . . . . . . . . . . . . . 93
Position Light Lamp . . . . . . . . . . 93
Taillight/Brakelight . . . . . . . . . . . 92
Turn Signal Replacement. . . . . . . 92
Low Range Use. . . . . . . . . . . . . . . . 100
Lubrication Guide. . . . . . . . . . . . . . . 72
M
Maintenance Chart . . . . . . . . . . . 68-71
Metric Display . . . . . . . . . . . . . . . . . 31
Mirrors . . . . . . . . . . . . . . . . . . . . . . . 21
Mode Switch. . . . . . . . . . . . . . . . . . . 18
Modifications . . . . . . . . . . . . . . . . . . . 6
N
Noise Emission Control System. . . . 67
O
Oil
Engine . . . . . . . . . . . . . . . . . . 73-75
Rear Gearcase . . . . . . . . . . . . 78-79
Transmission . . . . . . . . . . . . . . . . 76
Oil and Filter Change . . . . . . . . . 74-75
Oil Change
Rear Gearcase . . . . . . . . . . . . . . . 79
Transmission . . . . . . . . . . . . . . . . 76
Oil Level
Engine . . . . . . . . . . . . . . . . . . . . . 73
Rear Gearcase . . . . . . . . . . . . . . . 78
Transmission . . . . . . . . . . . . . . . . 76
Oil Recommendations . . . . . . . . . . . 73
Override Switch . . . . . . . . . . . . . . . . 18
P
Parking Brake . . . . . . . . . . . . . . . . . . 24
Parking on an Incline . . . . . . . . . . . . 47
Periodic Maintenance Chart . . . . 68-71
Polaris Product List. . . . . . . . . . . . . 117
Polishing the Vehicle . . . . . . . . . . . 109
Position Light Lamp . . . . . . . . . . . . . 93
128
INDEX
P
Power Steering. . . . . . . . . . . . . . . . . 25
Power Steering Unit (Cleaning). . . . 80
Pre-Ride Checklist. . . . . . . . . . . . . . 40
PVT Break-In. . . . . . . . . . . . . . . . . . 39
PVT Drying . . . . . . . . . . . . . . . . . . 100
PVT System. . . . . . . . . . . . . . . . 98-100
R
Rack/Compartment, Front . . . . . . . . 37
Reverse Operation . . . . . . . . . . . . . . 51
Reverse Override Switch. . . . . . . . . 18
Riding Gear . . . . . . . . . . . . . . . . . . . 7-8
S
Safety Labels . . . . . . . . . . . . . . . . 15-17
Safety Training . . . . . . . . . . . . . . . . . 6
Safety Warnings. . . . . . . . . . . . . . . 9-14
Safety, Winch Maintenance. . . . . . . 66
Severe Use . . . . . . . . . . . . . . . . . . . . 68
Shock Compression. . . . . . . . . . . . 101
Shock Loading the Winch . . . . . . 64-65
Side Panel Removal. . . . . . . . . . . . . 87
Sidehilling . . . . . . . . . . . . . . . . . . . . 46
Signal Words . . . . . . . . . . . . . . . . . . . 4
Spark Arrester . . . . . . . . . . . . . . . . . 97
Spark Arrester Requirements. . . . . . 67
Spark Plug Inspection . . . . . . . . . 94-95
Spark Plug Recommendations. . . . . 94
Spark Plugs . . . . . . . . . . . . . . . . . 94-95
Starting the Engine . . . . . . . . . . . . . 41
Steering Assembly. . . . . . . . . . . 80, 86
Steering Lock. . . . . . . . . . . . . . . . . . 21
Storage. . . . . . . . . . . . . . . . . . . 108-111
Storage Tips. . . . . . . . . . . . . . . 110-111
Switches
4X4 Switch . . . . . . . . . . . . . . 19, 26
Engine Stop Switch. . . . . . . . . . . 18
Hazard Switch. . . . . . . . . . . . . . . 19
Headlight Switch. . . . . . . . . . . . . 19
Horn Switch . . . . . . . . . . . . . . . . 19
Main Key Switch . . . . . . . . . . . . 19
Mode Switch. . . . . . . . . . . . . . . . 18
Reverse Override Switch . . . . . . 18
Stop Switch. . . . . . . . . . . . . . . . . 18
Turn Signal Switch . . . . . . . . . . . 19
T
Taillight . . . . . . . . . . . . . . . . . . . . . . . 92
Throttle Body Adjustment. . . . . . . . 102
Throttle Cable Freeplay. . . . . . 102-103
Throttle Lever . . . . . . . . . . . . . . . . . . 22
Tire Tread Depth . . . . . . . . . . . . . . . . 88
Tires . . . . . . . . . . . . . . . . . . . . . . 88-89
Wheel Installation. . . . . . . . . . . . . 89
Wheel Nut Torque . . . . . . . . . . . . 89
Wheel Removal . . . . . . . . . . . . . . 88
Toe Alignment. . . . . . . . . . . . . . . . . . 86
Towing Capacities. . . . . . . . . . . . . . . 54
Towing Loads . . . . . . . . . . . . . . . . . . 54
Training . . . . . . . . . . . . . . . . . . . . . . . . 6
Transmission Gear Selector. . . . . . . . 20
Transmission Oil . . . . . . . . . . . . . . . . 76
Transporting the Vehicle . . . . . . . . . 112
Turn Signal Switch . . . . . . . . . . . . . . 19
Turning Around on a Hill . . . . . . . . . 48
Turning the Vehicle. . . . . . . . . . . . . . 43
V
Vehicle Identification Numbers. . . . . . 5
Vehicle Immersion . . . . . . . . . . . . . . 96
W
Warning Symbols . . . . . . . . . . . . . . . . 4
Washing the Vehicle . . . . . . . . 108-109
Wheel Hub Tightening . . . . . . . . . . . 88
Wheel Installation . . . . . . . . . . . . . . . 89
Wheel Nut Torque Specifications . . . 89
Wheel Removal . . . . . . . . . . . . . . . . . 88
Winch Cable Care . . . . . . . . . . . . . . . 63
Winch Maintenance/Service Safety. . 66
Winch Operation . . . . . . . . . . . . . 58-62
Winch Safety Precautions . . . . . . 55-57
Winch Shock Loading. . . . . . . . . 64-65
PMS 419
Before you operate this vehicle,
read the owner’s manual
For your nearest Polaris dealer,
visit www.polaris.com
Polaris Sales Inc., 2100 Hwy 55
Medina, MN 55340 USA
Part No. 9924896 Rev 02
Printed in USA
*9924896 *
