PMS 419
Owner's Manual
for Maintenance and Safety
Read this manual carefully. It contains important safety information.
This is an adult vehicle only.
Operation is prohibited for those under 16 years of age.
Sportsman Forest 800
1
WELCOME
Thank you for purchasing a POLARIS vehicle, and welcome to our
world-wide family of POLARIS enthusiasts. Be sure to visit us online at
www.polaris.com for the latest news, new product introductions,
upcoming events, career opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and
recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
• Low emission vehicles (LEVs)
• RANGER® utility vehicles
• RZR® sport vehicles
• VICTORY® motorcycles
• GEM® vehicles
Always follow the instructions and recommendations in this manual.
The manual contains instructions for minor maintenance, but
information about major repairs is outlined in the POLARIS Service
Manual and should be performed only by a factory-certified Master
Service Dealer® (MSD) technician. Please see your dealer for all of
your service needs during (and after) the warranty period.
2
POLARIS® and SPORTSMAN® are registered trademarks of POLARIS Industries Inc.
Copyright 2013 POLARIS Sales Inc. All information contained within this publication
is based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor
discrepancies may result between the actual vehicle and the information presented in
this publication. Depictions and/or procedures in this publication are intended for
reference use only. No liability can be accepted for omissions or inaccuracies. Any
reprinting or reuse of the depictions and/or procedures contained within, whether whole
or in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are provided as
translations of the original instructions.
Printed in U.S.A.
2014 SPORTSMAN FOREST 800 Owner’s Manual
P/N 9924421
3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features and Controls. . . . . . . . . . . . . . . . . . . 26
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Winch Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Emission Control Systems . . . . . . . . . . . . . . . 75
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 124
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 128
POLARIS Products. . . . . . . . . . . . . . . . . . . . . 130
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 135
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
4
INTRODUCTION
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and
symbols are used. Become familiar with their meanings before reading
the manual.
The safety alert symbol indicates a potential personal injury hazard.
DANGER
A DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
WARNING
A WARNING indicates a hazardous situation that, if not avoided, could result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that could result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.
5
INTRODUCTION
Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. A POLARIS ATV is not a toy and can be
hazardous to operate. This vehicle handles differently than other vehicles, such
as motorcycles and cars. A collision or rollover can occur quickly, even during
routine maneuvers like turning, or driving on hills or over obstacles, if you fail to
take proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating a POLARIS ATV. Keep this manual
with the ATV.
• Never operate an ATV without proper instruction. Take a training course.
• This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone
under 16 years of age.
• Never permit a guest to operate the ATV unless the guest has read this
manual and all product labels and has completed a certified safety training
course.
WARNING
6
INTRODUCTION

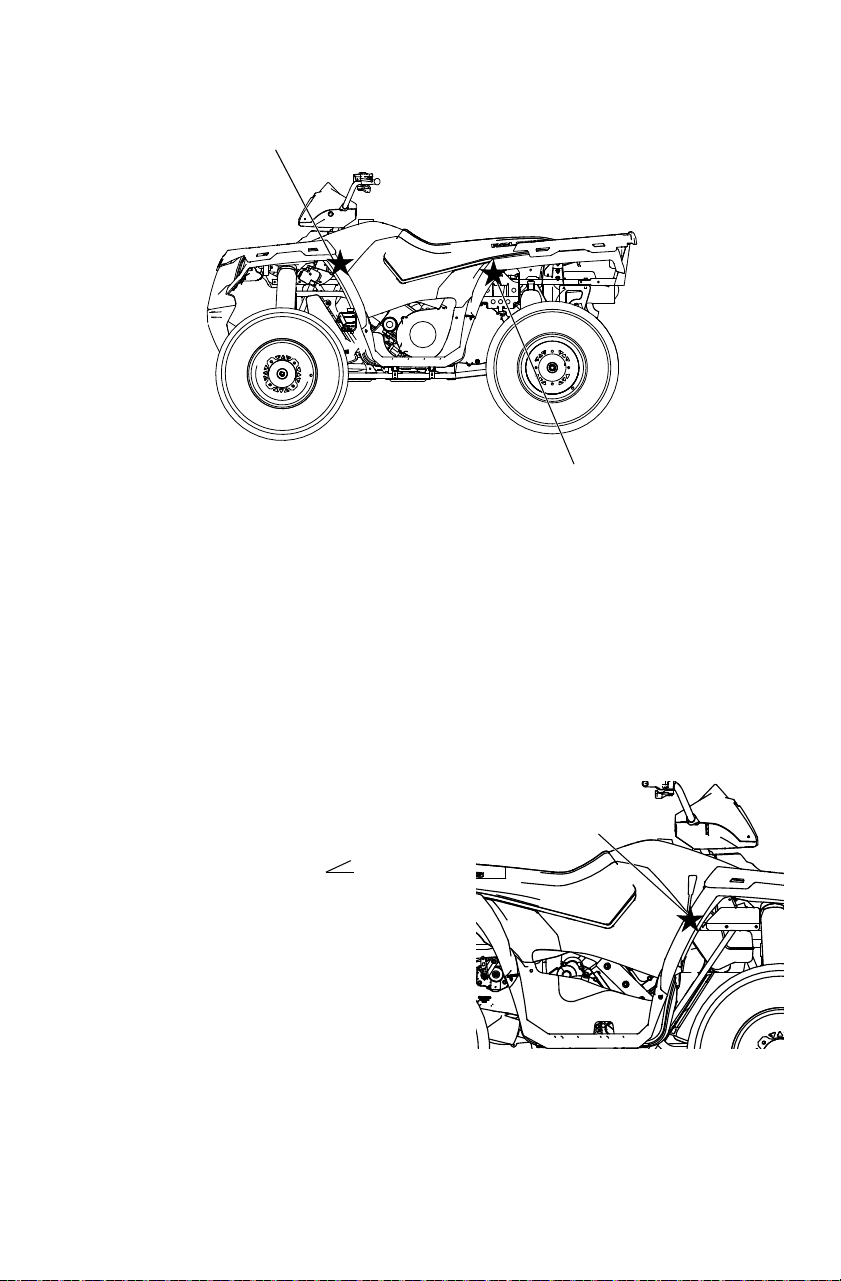

Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a POLARIS key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Frame VIN: ____________________________________________________________
Engine Serial Number: ___________________________________________________
Key Number: ___________________________________________________________
####
VIN
(front or rear frame)
Engine Serial Number
Key Number
7
SAFETY
Safety Training
Never operate this vehicle without proper instruction. Take a training
course.
For more information about safety, contact an authorized POLARIS
dealer or visit the POLARIS web site at www.polaris.com.
8
SAFETY

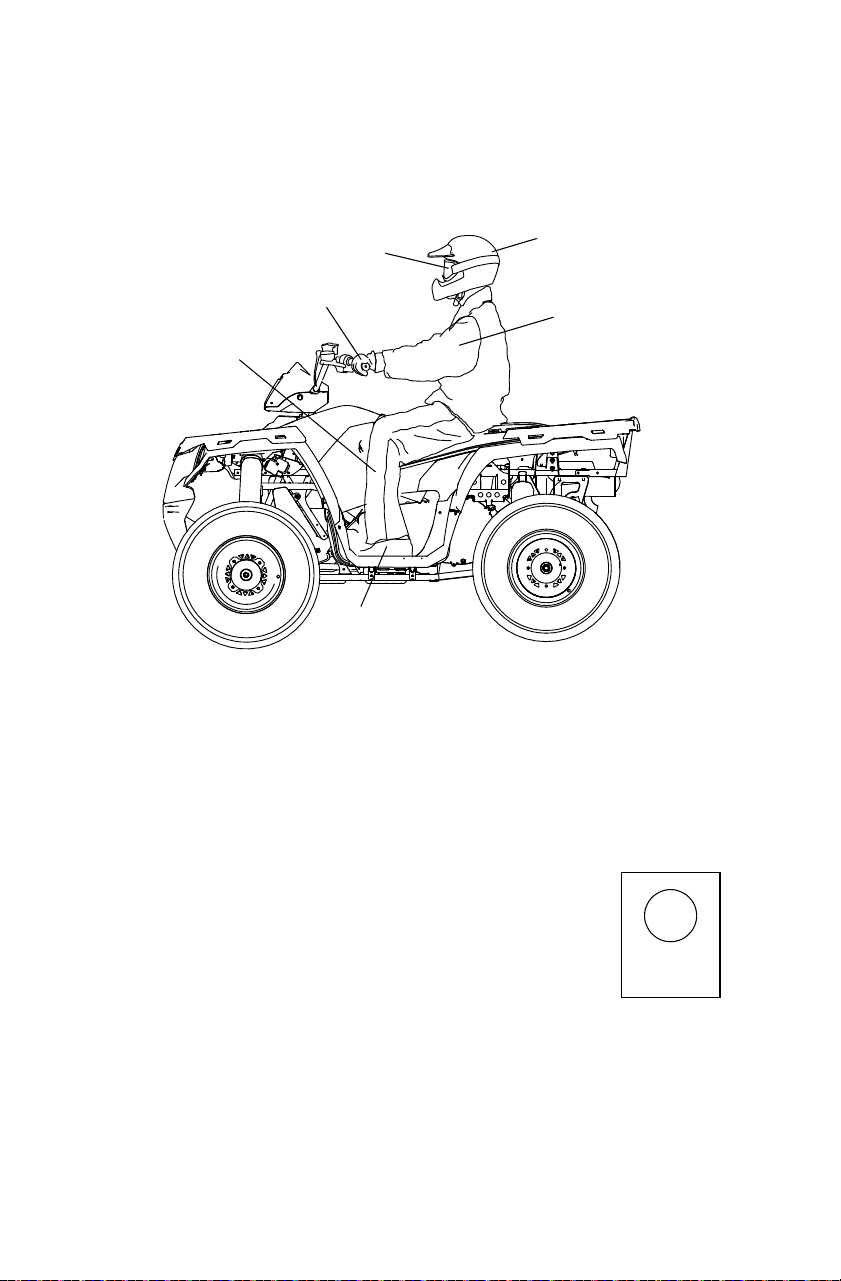

Safe Riding Gear
Always wear appropriate clothing when riding an ATV. Wear protective
clothing for comfort and to reduce the chance of injury.
Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding a
POLARIS vehicle, always wear a helmet that meets or exceeds
established safety standards.
Approved helmets in the USA and Canada bear a U.S. Department of
Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.
Helmet
Eye Protection
Gloves
Boots
Long Pants
Long
Sleeves
E
4
051039
0006.31
9
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection.
Whenever riding a POLARIS vehicle, always wear shatterproof goggles
or use a shatterproof helmet face shield. POLARIS recommends
wearing approved Personal Protective Equipment (PPE) bearing
markings such as VESC 8, V-8, Z87.1, or CE. Make sure protective eye
wear is kept clean.
Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
Boots
The best footwear is a pair of sturdy over-the-calf boots with low heels.
Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide the
best protection.
Equipment Modifications
We strongly recommend that consumers do not install on a POLARIS
ATV any equipment that may increase the speed or power of the vehicle,
or make any other modifications to the vehicle for these purposes.
The warranty on your POLARIS ATV is terminated if any equipment
has been added to the vehicle, or if any modifications have been made to
the vehicle, that increase its speed or power.
The addition of certain accessories, including (but not limited to)
mowers, blades, tires, sprayers, or large racks, may change the handling
characteristics of the vehicle. Use only POLARIS-approved accessories,
and familiarize yourself with their function and effect on the vehicle.
10
SAFETY
Failure to operate the ATV properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the OPERATION
section of the owner’s manual for proper operating procedures.
Operating Without Instruction
Operating this ATV without proper instruction
increases the risk of an accident. The operator
must understand how to operate the ATV properly
in different situations and on different types of
terrain.
Never operate this vehicle without proper
instruction. Take a training course. Beginners
should receive training from a certified instructor.
Never permit others to operate the vehicle unless
they have read and understand this manual and all
product labels, and have completed a certified
safety training course.
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY.
Operation is prohibited for anyone under 16 years
of age.
Even though a child may be within the
recommended age group for operating some ATVs,
he/she may not have the skills, abilities, or
judgment needed to operate an ATV safely and
could be susceptible to accident or injury.
WARNING
11
SAFETY
Safety Warnings
Handling Gasoline
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always refuel with the engine stopped, and outdoors or in a well ventilated
area.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
Exposure to Exhaust
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
The engine exhaust from this product contains chemicals known to cause
cancer, birth defects or other reproductive harm. Operate this vehicle only
outdoors or in well-ventilated areas.
Failure to Inspect Before Operating
Failure to inspect and verify that the ATV is in safe
operating condition before operating increases the
risk of an accident.
Always inspect the ATV before each use to make
sure it's in safe operating condition.
Always follow all inspection and maintenance
procedures and schedules described in the
owner's manual.
12
SAFETY
Safety Warnings

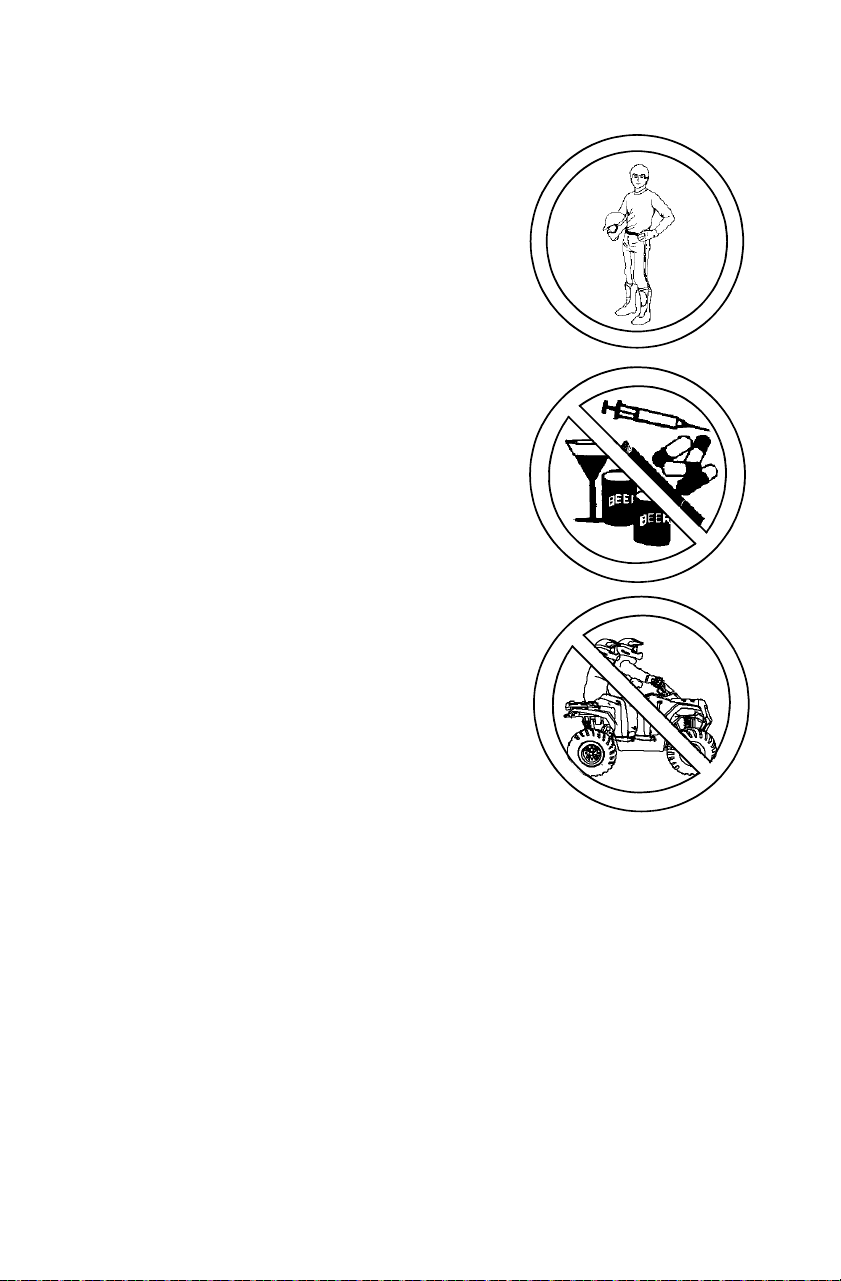

Protective Apparel
Riding in this vehicle without wearing an
approved helmet and protective eyewear
increases the risk of a serious injuries in the
event of an accident.
Operator and passenger must always wear an
approved helmet that fits properly and eye
protection (goggles or face shield).
Using Alcohol or Drugs
Operating the ATV after consuming
alcohol or drugs could adversely affect
operator judgment, reaction time,
balance and perception.
Never consume alcohol or drugs before
or while operating an ATV.
Carrying a Passenger
Carrying a passenger greatly reduces the
operator's ability to balance and control the
ATV, which may result in an accident or
overturn.
Never carry a passenger on this ATV.
13
SAFETY
Safety Warnings

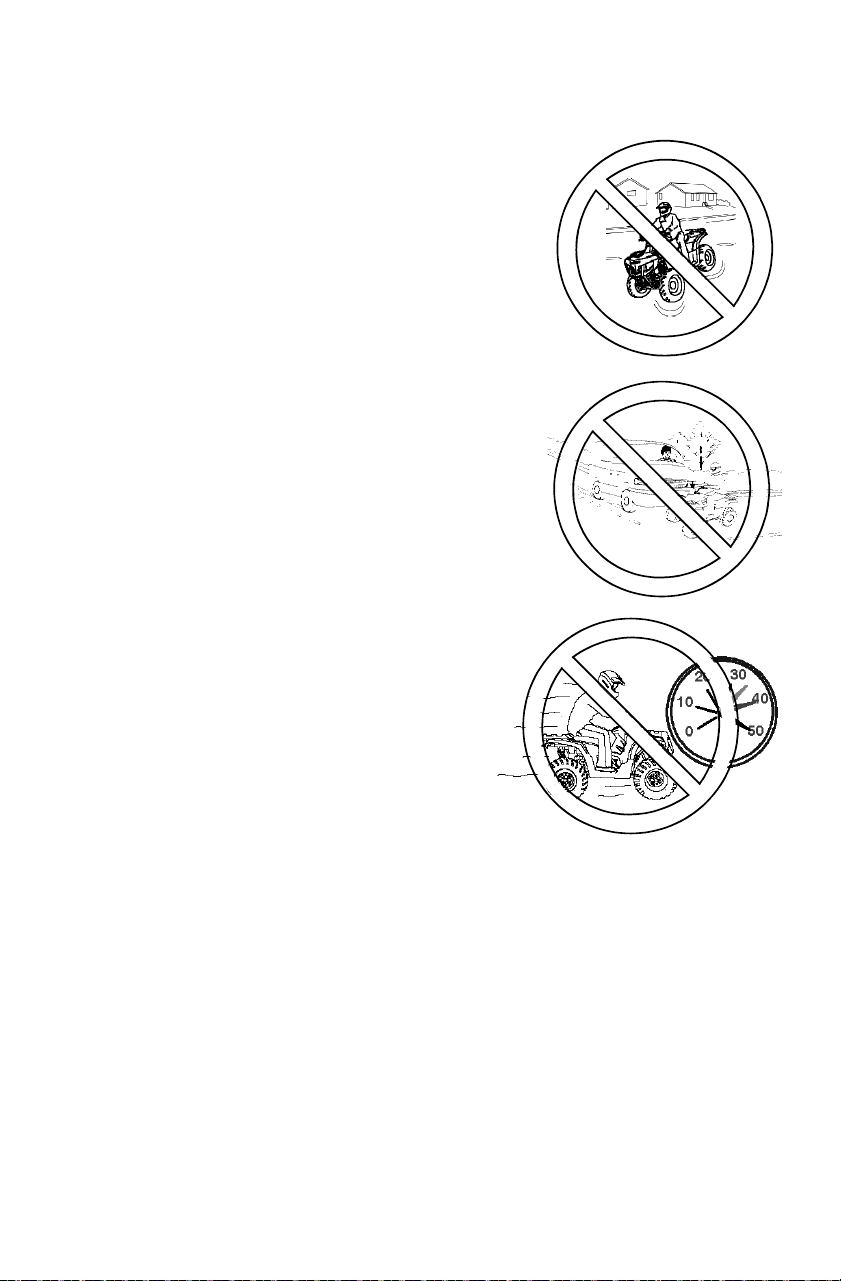

Operating on Pavement
Operating an ATV on paved surfaces
(including sidewalks, paths, parking lots and
driveways) may adversely affect the
handling of the ATV and could result in loss
of control and accident or overturn.
Avoid operating the ATV on pavement. ATV
tires are designed for off-road use. If it's
unavoidable, travel slowly and avoid sudden
turns or stops.
Operating on Public Roads
Operating this ATV on public streets, roads
or highways could result in a collision with
another vehicle.
Never operate the ATV on any public street,
road or highway, including dirt and gravel
roads. In many regions it's unlawful to
operate ATVs on public streets, roads and
highways.
Operating at Excessive
Speeds
Operating the ATV at excessive speeds
increases the operator's risk of losing
control.
Always operate at a speed that's
appropriate for the terrain, the visibility and
operating conditions, and your experience.
14
SAFETY
Safety Warnings

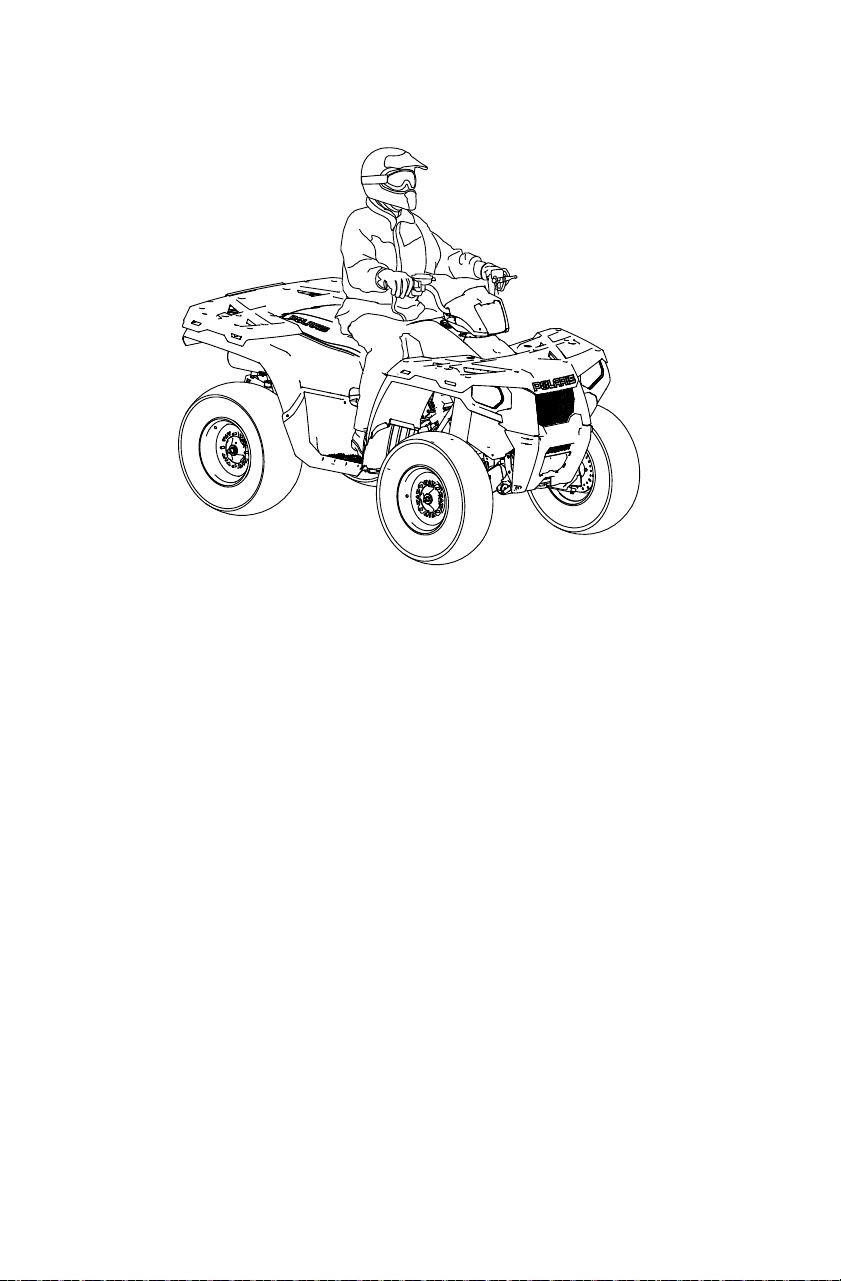

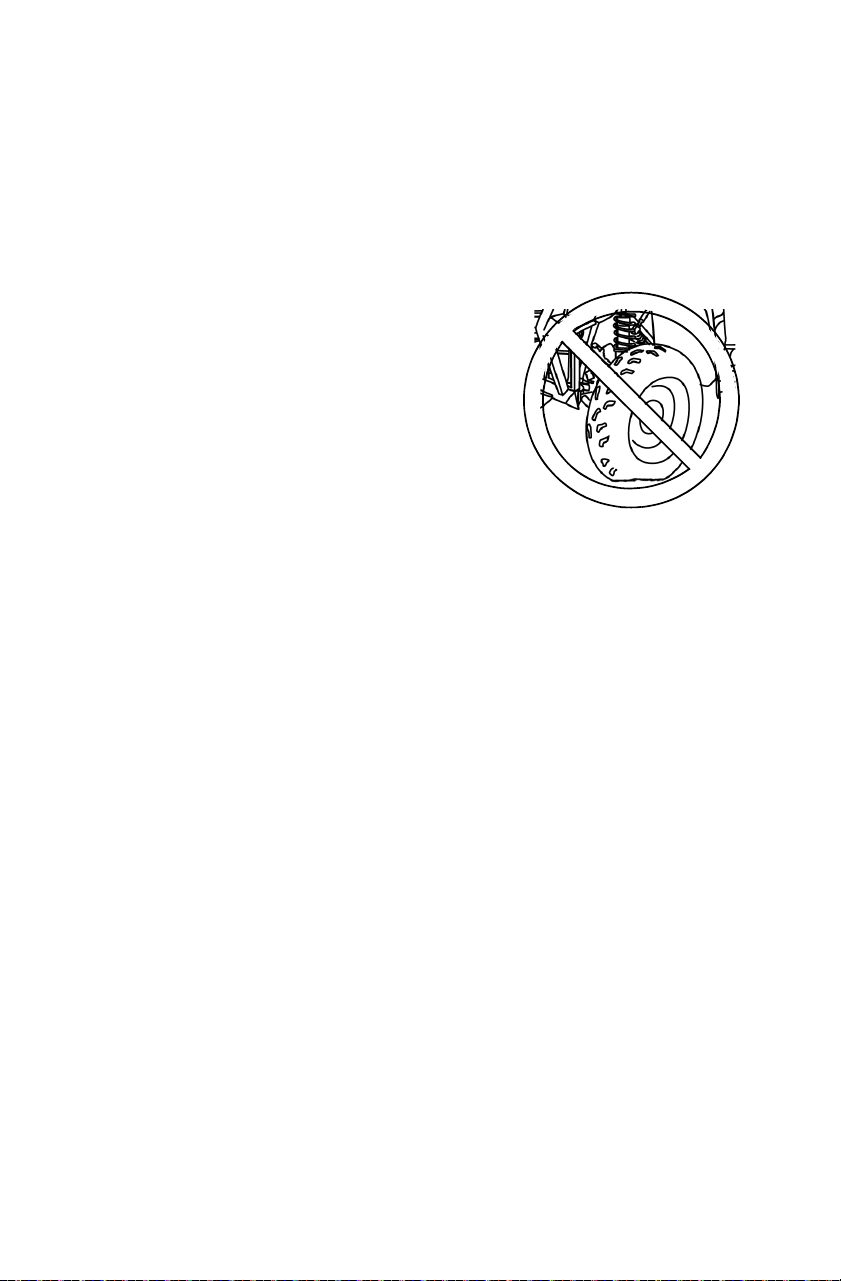

Physical Control of the ATV
Removing a hand from the handlebars or
feet from the footrests during operation can
reduce your ability to control the vehicle or
cause loss of balance and ejection from the
ATV. If the operator's foot is not firmly
planted on the footrest, it could also contact
the rear wheels.
Never remove your hands from the
handlebars while operating, and always
keep both feet on the footrests.

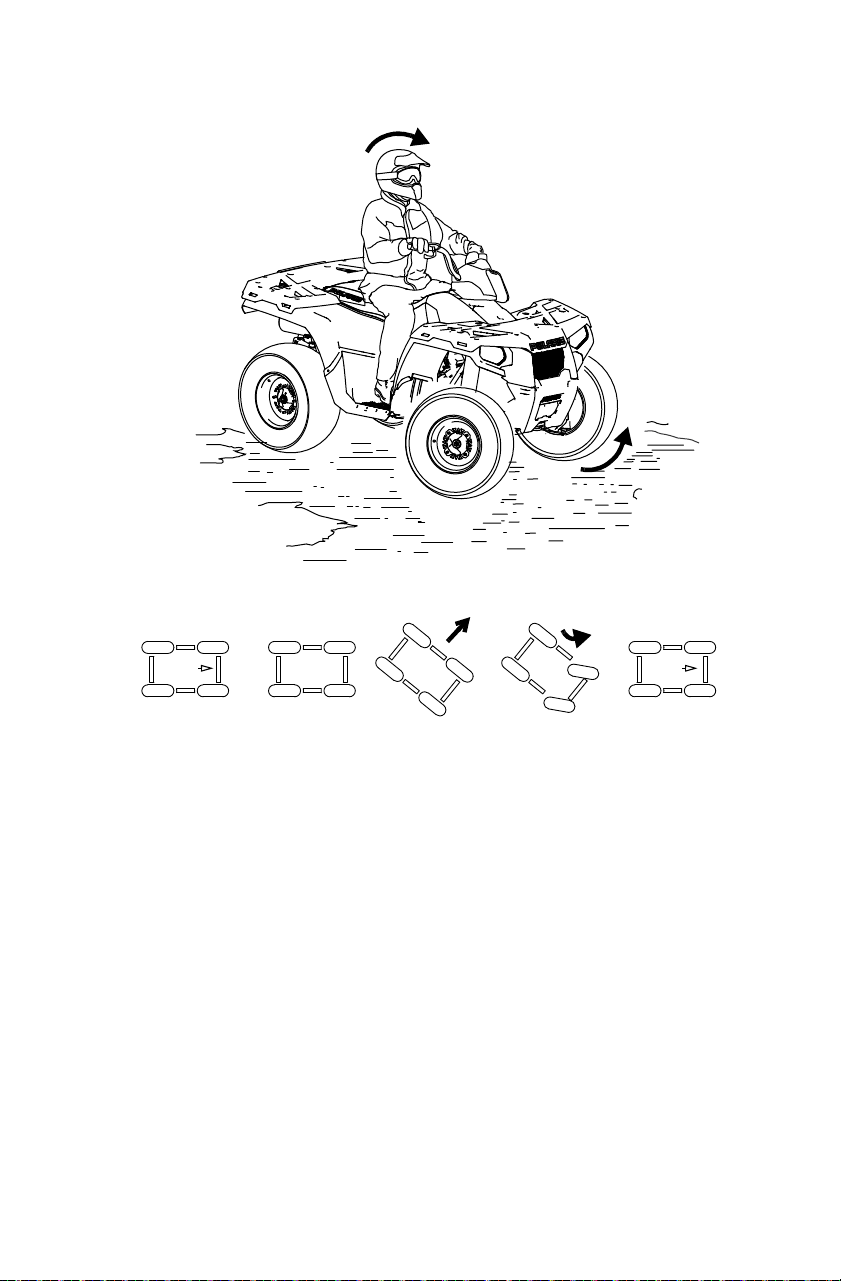

Turning Improperly
Turning improperly could cause loss of
traction, loss of control, accident or overturn.
Always follow proper procedures for turning
as described in the owner's manual.
Never turn abruptly or at sharp angles. Never
turn at high speeds. Practice turning at slow
speeds before attempting to turn at faster
speeds.
Jumps and Stunts
Attempting wheelies, jumps and other
stunts increases the risk of an accident or
overturn.
Never attempt wheelies, jumps, or other
stunts. Avoid exhibition driving.
Improper Hill Climbing
Improper hill climbing could cause loss of
control or overturn. Always follow proper
procedures for climbing hills as described in
the owner's manual. See page 53.
15
SAFETY
Safety Warnings

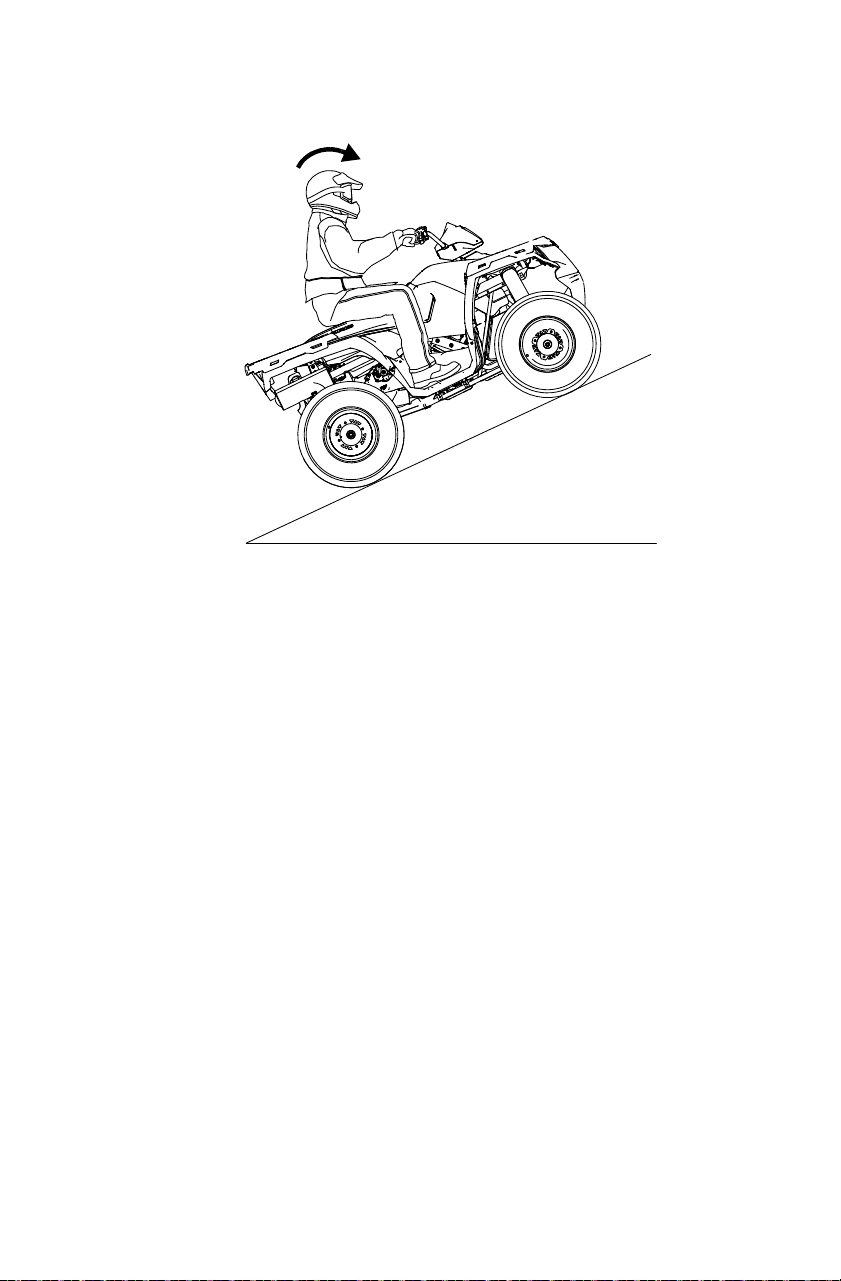

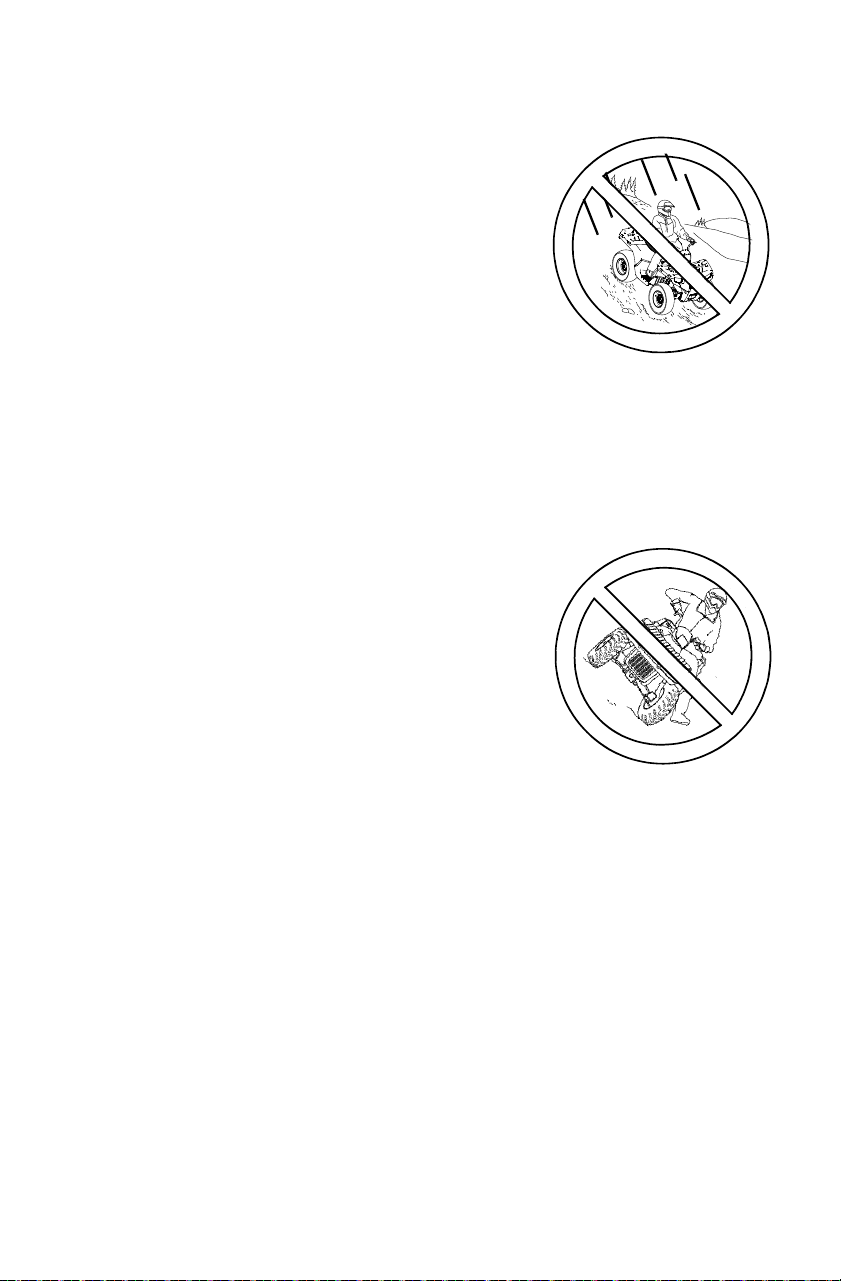

Descending Hills Improperly
Improperly descending a hill could cause loss
of control or overturn.
• Always follow proper procedures for
traveling down hills as described in the
owner's manual. NOTE: A special technique
is required when braking while traveling
downhill. See page 55.
• Always descend a hill with the transmission
in forward gear. Do not descend a hill with
the transmission in neutral.
• Always check the terrain carefully before
descending a hill.
• Shift your weight rearward.
• Never travel down a hill at high speed.
• Avoid traveling down a hill at an angle, which would cause the vehicle to lean
sharply to one side. Travel straight down the hill when possible.

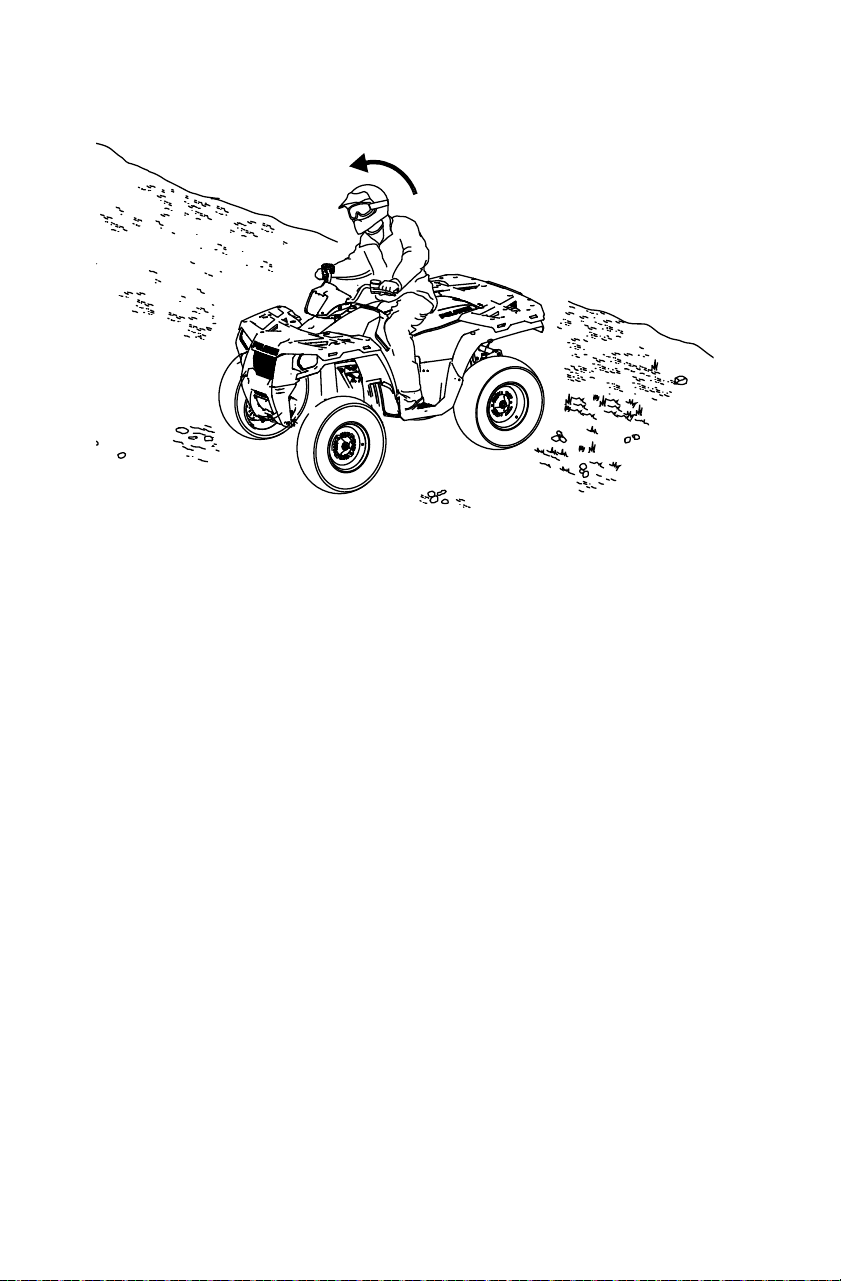

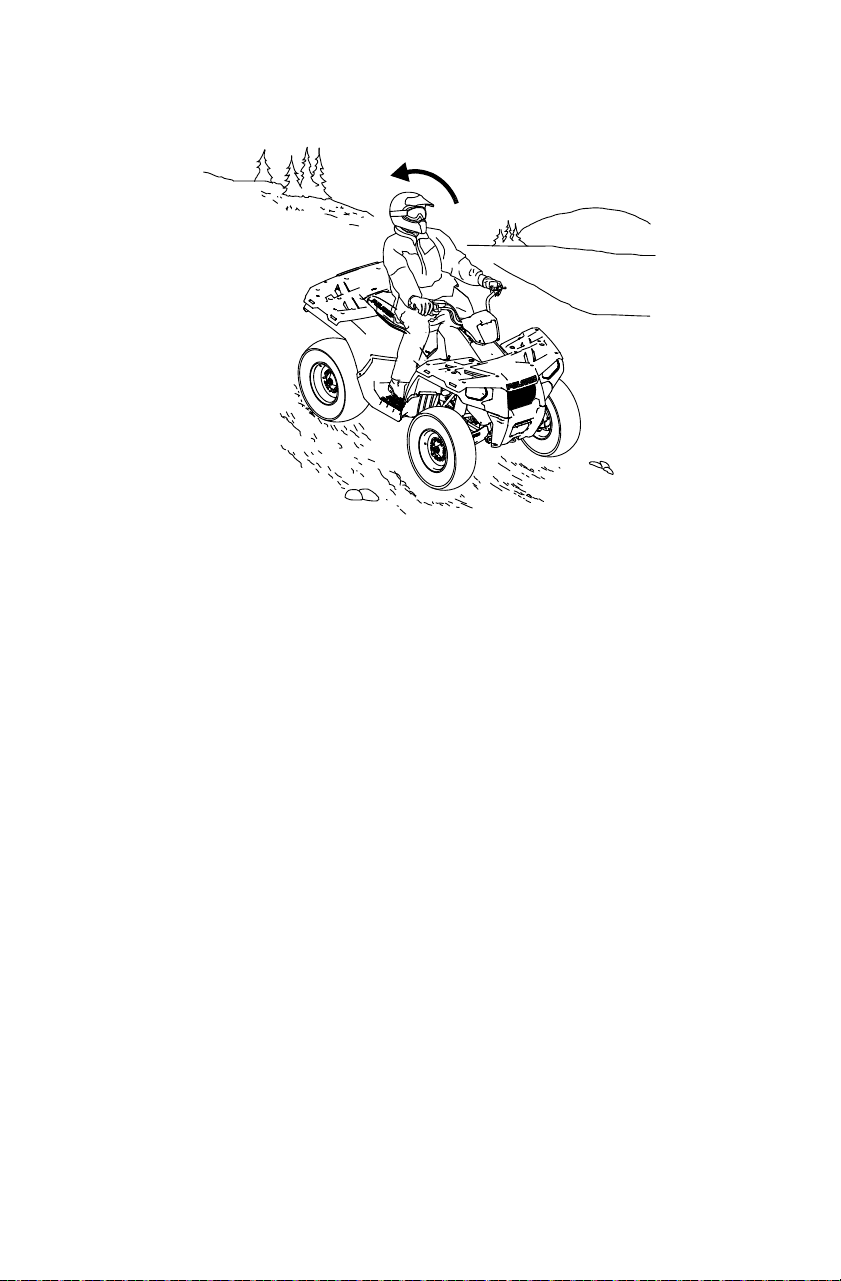

Crossing Hillsides
Driving on a sidehill is not recommended.
Improper procedure could cause loss of control
or overturn. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a hillside is unavoidable, always follow
proper procedures as described in the owner's
manual. See page 54.
Never attempt to turn the ATV around on any hill
until you've mastered the turning technique (on
level ground) as described in the owner's
manual. See page 56.
16
SAFETY
Safety Warnings

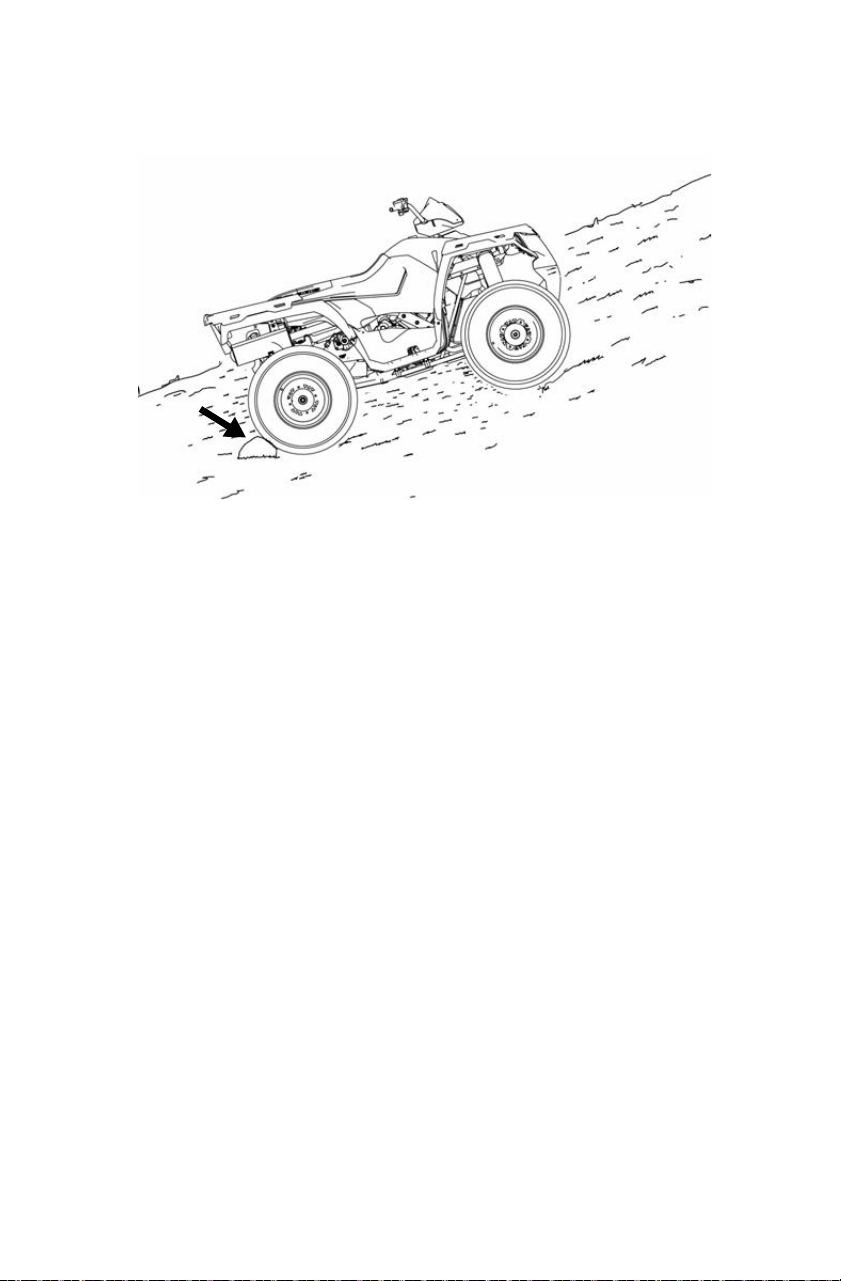

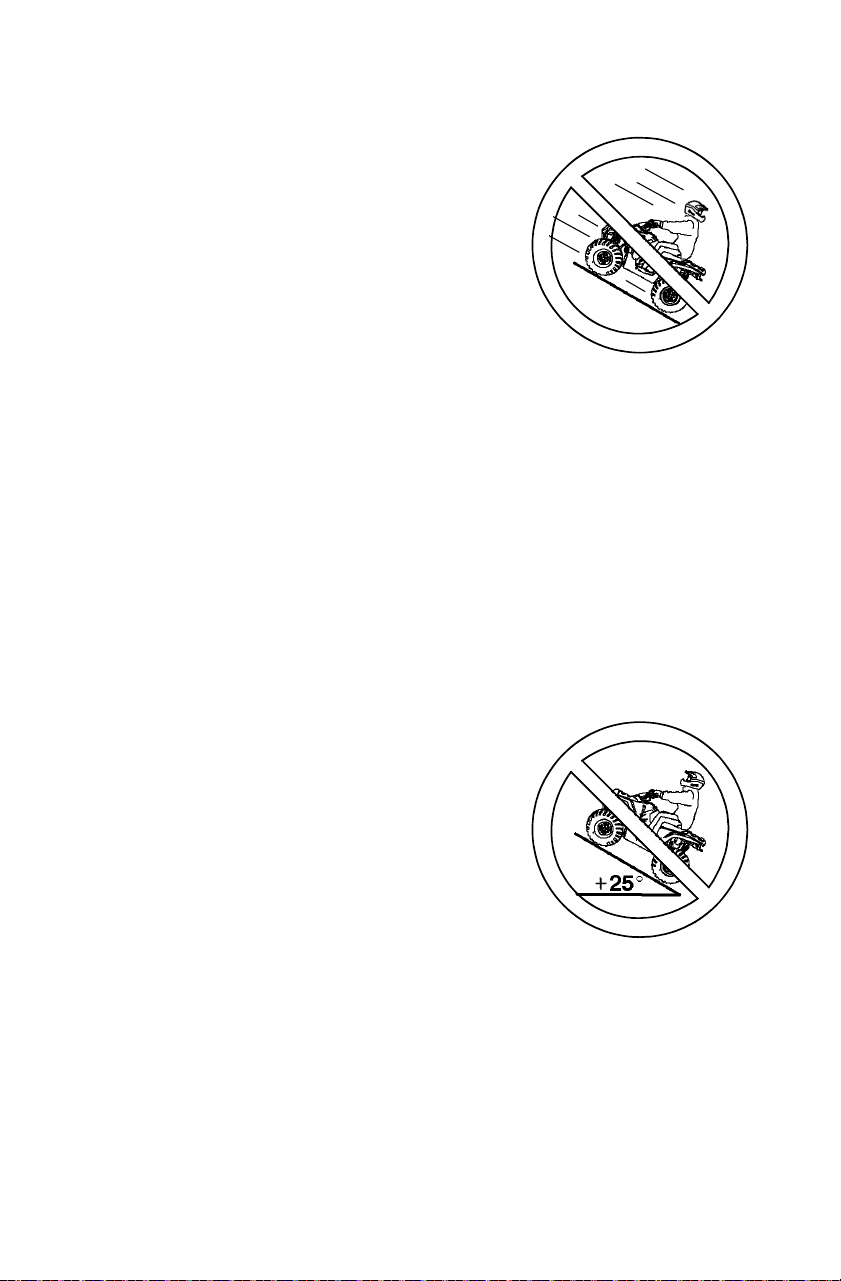

Stalling While Climbing a Hill
Stalling, rolling backwards or improperly
dismounting while climbing a hill could cause an
overturn.
• Always maintain a steady speed when climbing
a hill.
If all forward speed is lost:
• Keep body weight uphill.
• Apply the brakes.
• Lock the parking brake when fully stopped.
• Dismount on uphill side, or to either side if ATV is pointed straight uphill.
• Turn the ATV around and remount, following the procedure described in the
owner's manual. See page 56.
If the ATV begins rolling downhill:
• Keep body weight uphill.
• Never apply engine power.
• Never apply the rear brake while rolling backwards. Apply the single-lever
brake gradually.
• When fully stopped, apply the rear brake as well, and then lock the parking
brake.
• Dismount on uphill side, or to either side if ATV is pointed straight uphill.
• Turn the ATV around and remount, following the procedure described in the
owner's manual. See page 56.
Operating on Steep Hills
Operating on excessively steep hills could cause
an overturn.
Never operate on hills too steep for the ATV or for
your abilities. Never operate the ATV on hills
steeper than 25 degrees.
17
SAFETY
Safety Warnings

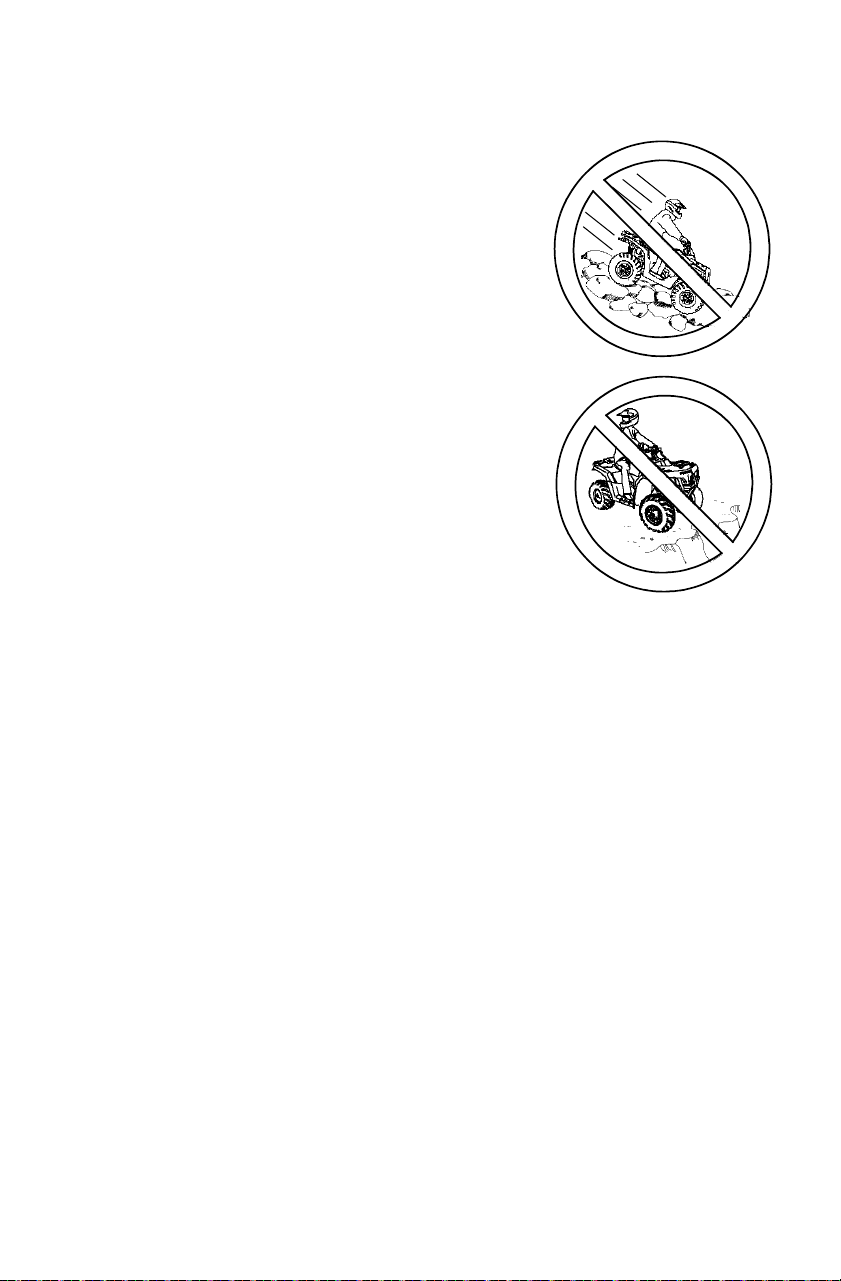

Operating on Slippery Terrain
Failure to use extra caution when operating on
excessively rough, slippery or loose terrain could
cause loss of traction, loss of control, accident or
overturn.
Do not operate on excessively rough, slippery or
loose terrain. Always use extra caution on rough,
slippery or loose terrain.
Operating in Unfamiliar Terrain
Failure to use extra caution when operating on
unfamiliar terrain could result in an accident or
overturn.
Unfamiliar terrain may contain hidden rocks,
bumps, or holes that could cause loss of control or
overturn.
Travel slowly and use extra caution when operating
on unfamiliar terrain. Always be alert to changing
terrain conditions.
18
SAFETY
Safety Warnings

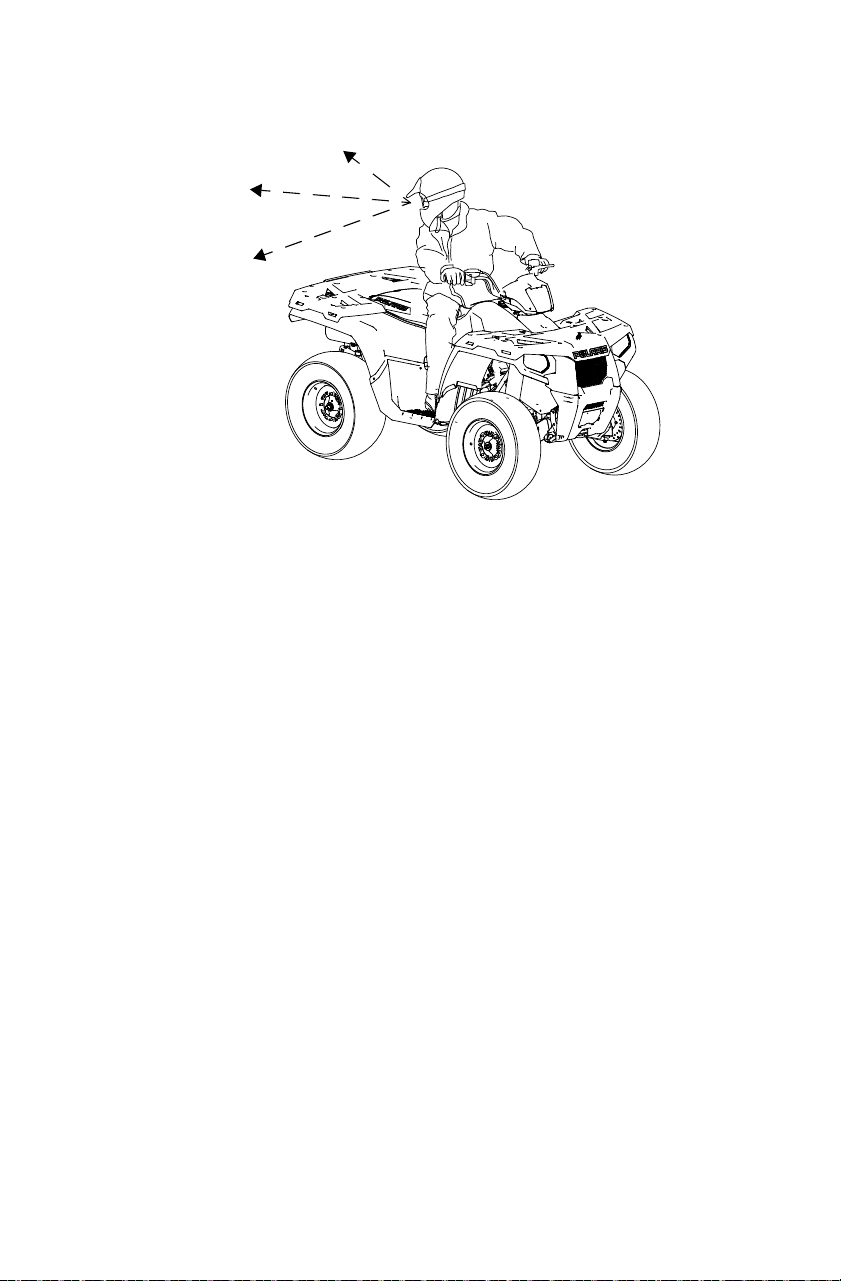

Operating Improperly in Reverse
Improperly operating in reverse could result in a collision with an obstacle or
person. Always follow proper operating procedures as outlined in this manual.
See page 59.
Before shifting into reverse gear, always check for obstacles or people behind
the ATV. When it's safe to proceed, back slowly.
Improper Tire Maintenance
Operating this ATV with improper tires
or with improper or uneven tire
pressure could cause loss of control or
accident.
Always use the size and type of tires
specified for your ATV.
Always maintain proper tire pressure as
described in the owner's manual and
on safety labels.
19
SAFETY
Safety Warnings

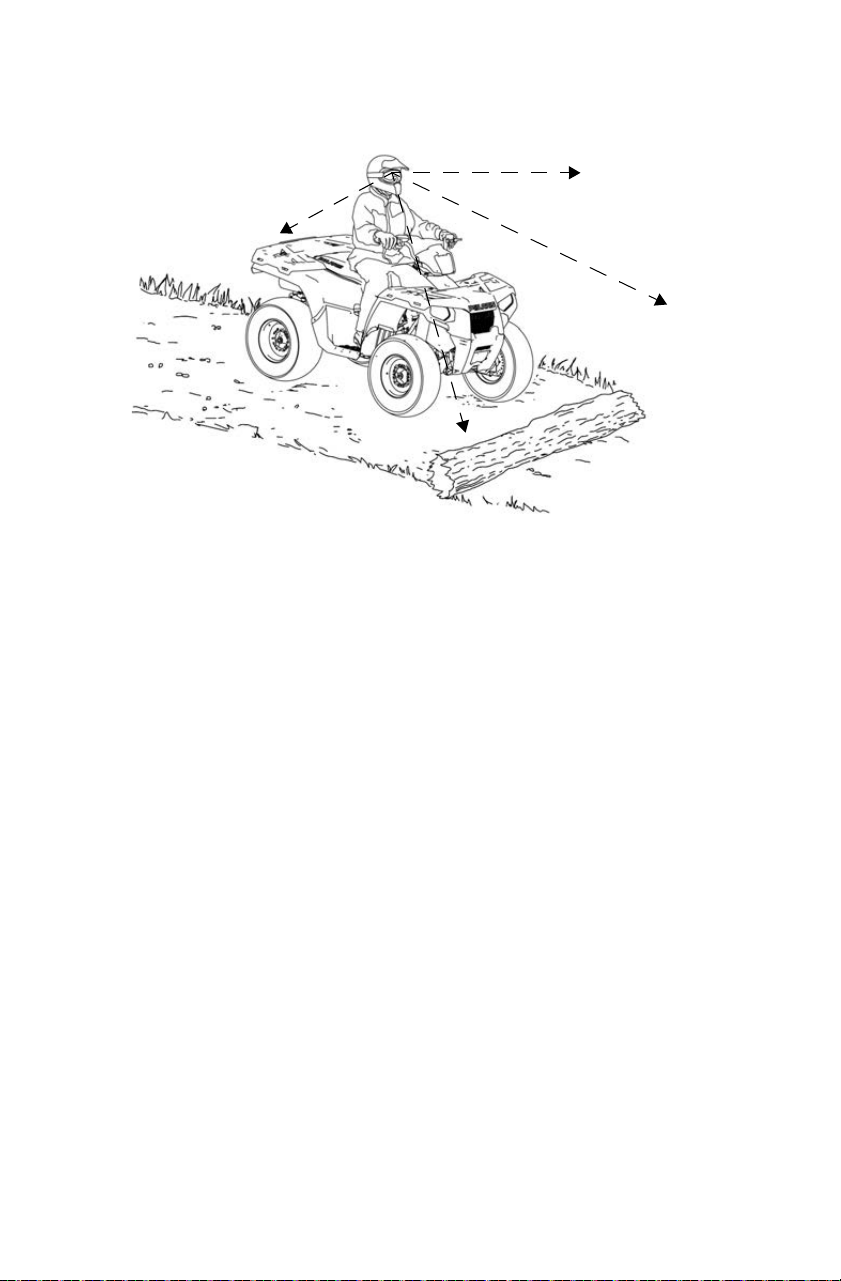

Operating Over Obstacles
Improperly operating over obstacles could cause loss of control or overturn.
Before operating in a new area, check for obstacles. Avoid operating over large
obstacles such as rocks and fallen trees. If unavoidable, use extreme caution
and always follow proper operating procedures as outlined in this manual. See
page 58.
Skidding or Sliding
Skidding or sliding can cause loss of control or overturn (if tires regain traction
unexpectedly).
On slippery surfaces such as ice or loose gravel, travel slowly and use extra
caution to reduce the chance of skidding or sliding. Do not operate on
excessively slippery surfaces.
Operating Through Deep Water
Operating the ATV through deep or fast-
flowing water could cause the tires to float,
causing loss of control or overturn.
Avoid operating the ATV through deep or
fast-flowing water. If it's unavoidable to
enter water that exceeds the
recommended maximum depth (see page
57):
• Travel slowly.
• Balance your weight carefully.
• Avoid sudden movements.
• Maintain a slow and steady forward motion. Do not make sudden turns or
stops, and do not make sudden throttle changes.
• Wet brakes may have reduced stopping ability. After leaving water, test the
brakes. Apply them lightly several times while driving slowly. The friction will
help dry out the pads.
20
SAFETY
Safety Warnings
Improper Cargo Loading
Overloading the ATV or carrying/towing cargo improperly may cause changes in
handling, which could cause loss of control or an accident.
• Never exceed the stated load capacity for this ATV.
• Cargo should be properly distributed and securely attached.
• Reduce speed when carrying cargo or pulling a trailer. Allow a greater
distance for braking.
• NEVER exceed 50 MPH (80 km/h) when rear cargo loads are above 75 lbs.
(34 kg) and/or front cargo loads are above 37 lbs. (17 kg).
• Always follow the instructions in the owner's manual for carrying cargo or
pulling a trailer.
Operating on Frozen Bodies of Water
Operating on frozen bodies of water may result in serious injury or death if the
ATV and/or the operator fall through the ice.
Never operate the ATV on a frozen body of water unless you have
independently verified that the ice is sufficiently thick to support the weight and
moving force of the ATV, you and your cargo, together with any other vehicles in
your party. Variances in snow depth and/or water currents may result in uneven
ice thickness. Always check with local authorities and residents to confirm ice
conditions and thickness over your entire route. ATV operators assume all risk
associated with ice conditions on frozen bodies of water.
Poor Visibility
Operating the ATV in darkness or inclement weather could result in a collision or
accident, especially if operating on a road or street. This ATV is not equipped
with highway-approved lights. Operate this vehicle off-road only. Use caution
and drive at reduced speeds in conditions of reduced visibility such as fog, rain
and darkness. Clean headlights frequently and replace burned out headlamps
promptly.
21
SAFETY
Safety Warnings
Operating a Damaged ATV
Operating a damaged ATV can result in an accident. After any overturn or
accident, have a qualified service dealer inspect the entire machine for possible
damage, including (but not limited to) brakes, throttle and steering systems.
Physical Skills
Safe operation of this rider-active vehicle requires good judgement and physical
skills. Persons with cognitive or physical disabilities who operate this vehicle
have an increased risk of overturn and loss of control.
Hot Exhaust Systems
Exhaust system components are very hot during and after use of the vehicle.
Hot components can cause burns and fire. Do not touch hot exhaust system
components. Always keep combustible materials away from the exhaust
system. Use caution when traveling through tall grass, especially dry grass.
Unauthorized Use of the ATV
Leaving the keys in the ignition can lead to unauthorized use of the vehicle,
which could result in an accident or overturn. Always remove the ignition key
when the vehicle is not in use.
22
SAFETY

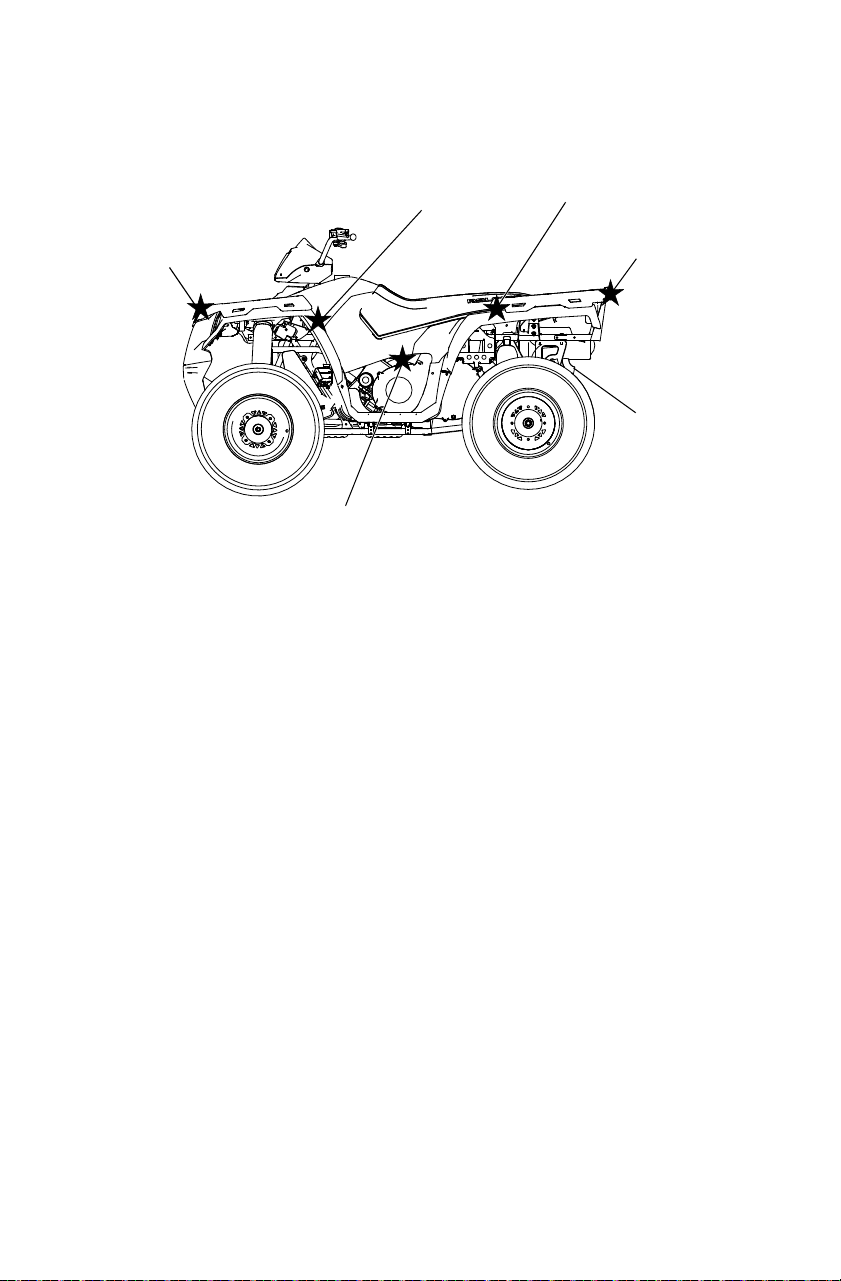

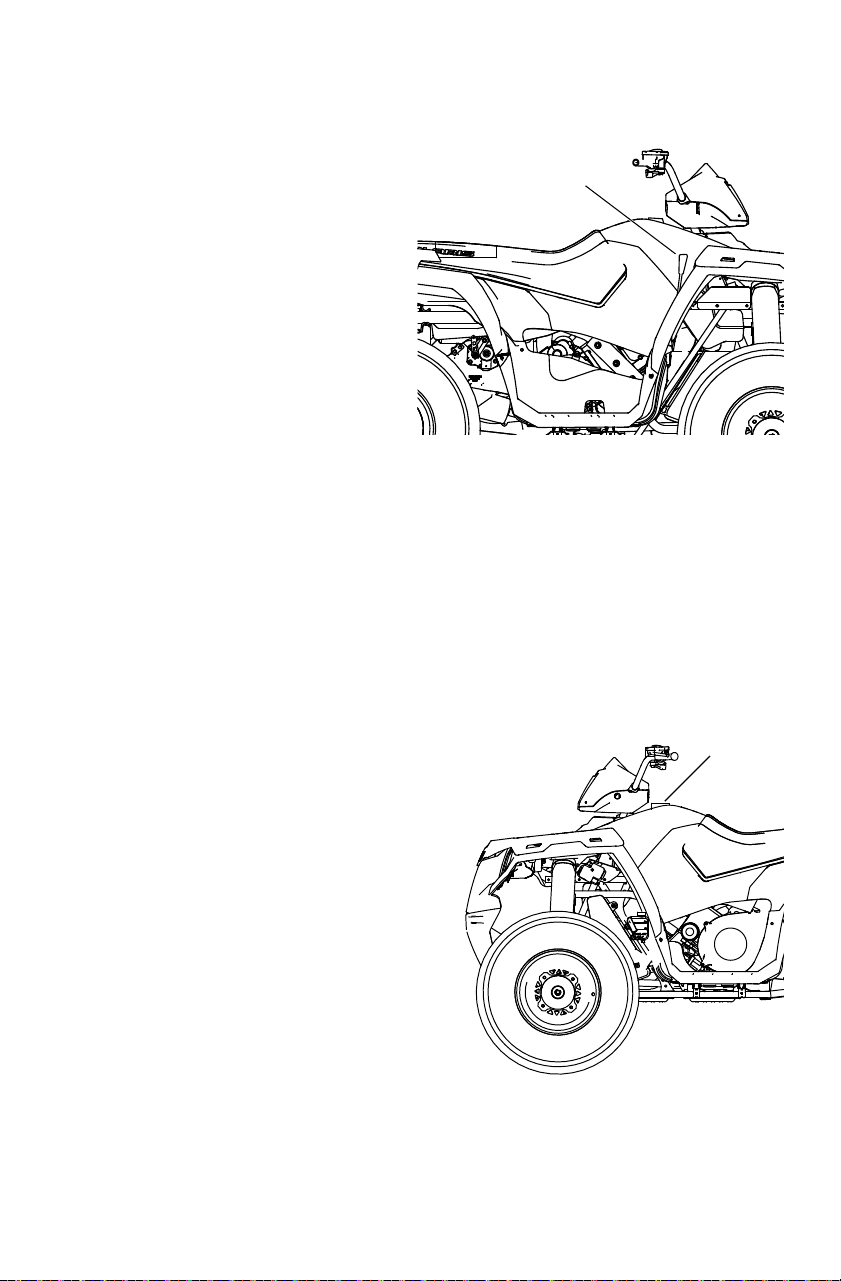

Safety Labels and Locations
Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions on each label carefully. If any of the
labels shown in this manual differ from the labels on your vehicle,
always read and follow the instructions of the labels on the vehicle.
If an informational or graphic label becomes illegible or comes off,
contact your POLARIS dealer to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge. The part number is
printed on the label.

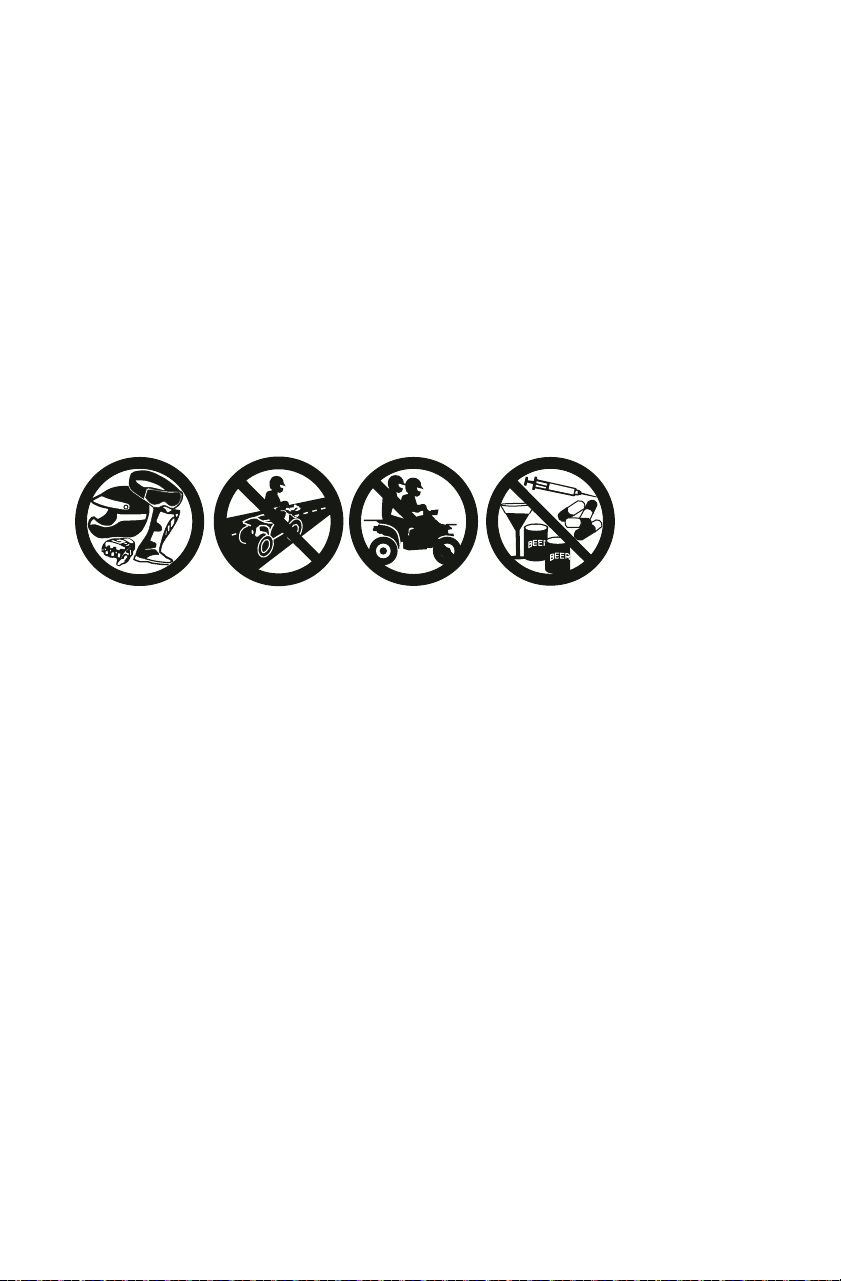

General Warning
WARNING
Improper ATV use can result in SEVERE INJURY or DEATH
ALWAYS USE AN APPROVED HELMET AND PROTECTIVE GEAR
NEVER USE ON PUBLIC ROADS
NEVER CARRY PASSENGERS
NEVER USE WITH DRUGS OR ALCOHOL
NEVER operate:
• without proper training or instruction
• at speeds too fast for your skills or the conditions
• on public roads - a collision can occur with another vehicle
• with a passenger - passengers affect balance and steering and increase risk
of losing control
ALWAYS:
• use proper riding techniques to avoid vehicle overturns on hills and rough
terrain and in turns
• avoid paved surfaces - pavement may seriously affect handling and control
LOCATE AND READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
23
SAFETY
Safety Labels and Locations
Tire Pressure/Load Warning
WARNING
Improper tire pressure or overloading can cause loss of control.
Loss of control can result in severe injury or death.
• Cold tire pressure:
Front: 5.0 psi (34.5 kPa)
Rear: 5.0 psi (34.5 kPa)
• Maximum weight capacity: 515 lbs. (234 kg)
Discretionary Warning
WARNING
• Never operate this ATV on HILLS
steeper than 25 degrees 25°. To
prevent overturn on hilly terrain, use
throttle and brakes gradually, and shift
weight uphill.
• REVERSE operation can be dangerous
even at low speeds. Steering becomes
difficult. To prevent loss of control, avoid
sudden braking or sharp turns.
Tire Pressure/Load
Warning
General Warning
Discretionary
Warning
24
SAFETY
Safety Labels and Locations
“No Passenger” Warning
WARNING
NEVER ride as a passenger.
Passengers can cause a loss of control, resulting in SEVERE INJURY or
DEATH.
Age 16 Warning
WARNING
Operating this ATV if you are under the age of 16 increases your chance of
severe injury or death.
NEVER operate this ATV if you are under age 16.
“No Passenger”
Warning
Age 16
Warning
Rack
Warning
Rack
Warning
Clutch Cover
Warning
Hitch
Capacity
25
SAFETY
Safety Labels and Locations
Clutch Cover Warning
WARNING
• Moving parts hazard under belt-clutch guard. To prevent serious injury, do not
operate vehicle with guard removed.
• Do not modify engine or clutch. Doing so can cause part failure, possible
imbalance, and excessive engine RPM, which can result in serious injury or
death.
NO STEP
Rack Warning, Front and Rear
WARNING
• DO NOT TOW FROM RACK OR BUMPER. Vehicle damage or tipover may
result causing severe injury or death. Tow only from tow hooks or hitch.
• Max Rack Loads: Front 100 lbs. (45 kg) Rear 200 lbs. (91 kg)
Reverse Override Warning/4X4 Caution
WARNING
Improper use of the override button can lead to loss of control resulting in severe
injury or death. Do not activate override while throttle is engaged. Always apply
throttle gradually, while in reverse.
26
FEATURES AND CONTROLS

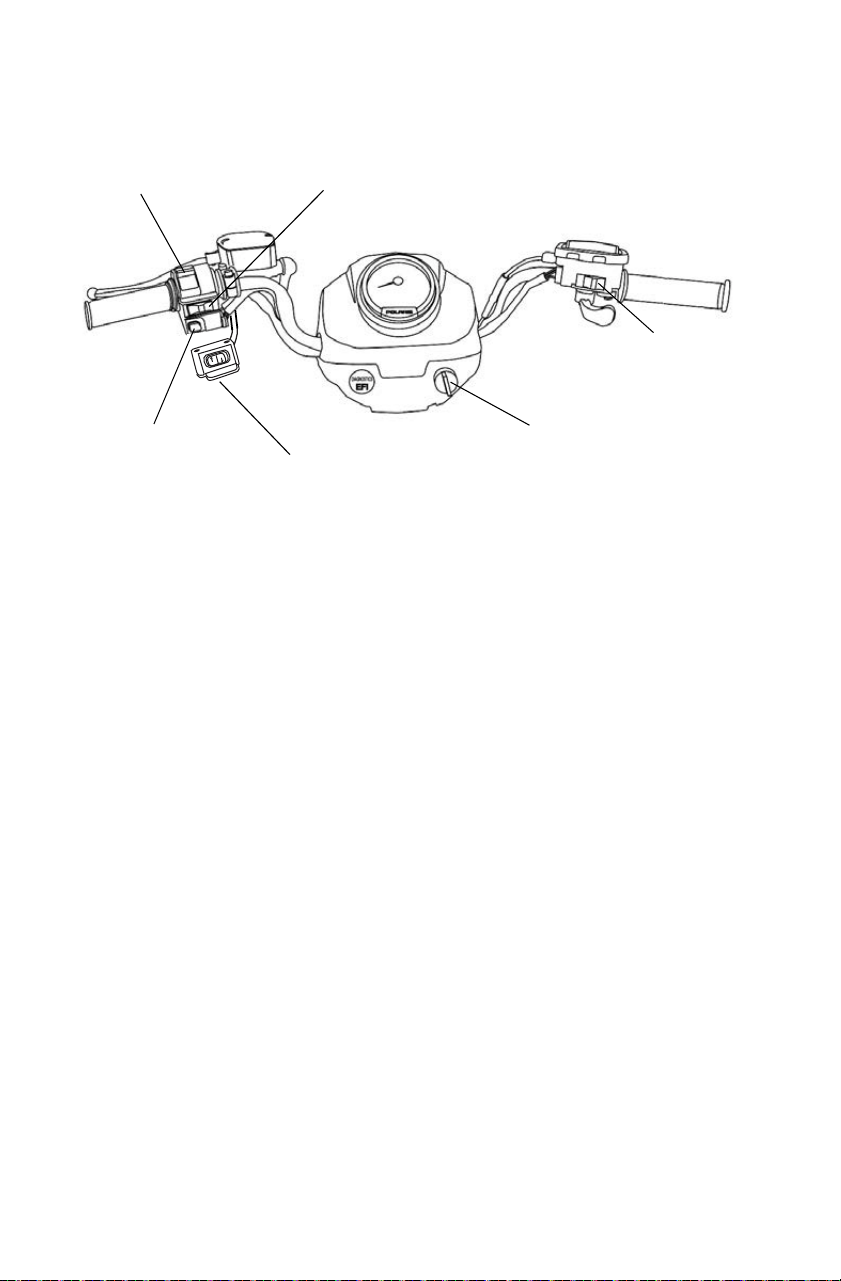

Switches
Mode/Reverse Override Switch
This vehicle is equipped with a reverse speed limiter system.To gain
additional wheel speed while backing, release the throttle and depress
the override button.
WARNING! Pressing the override button while the throttle is open can cause
loss of control, which may result in serious injury or death. Always release the
throttle before pressing the override button.
The override switch is used to toggle through the modes of the rider
information center. See page 35.
AWD Switch
Use the AWD switch to engage 4X4 or 2X4. See page 34.
Winch Switch

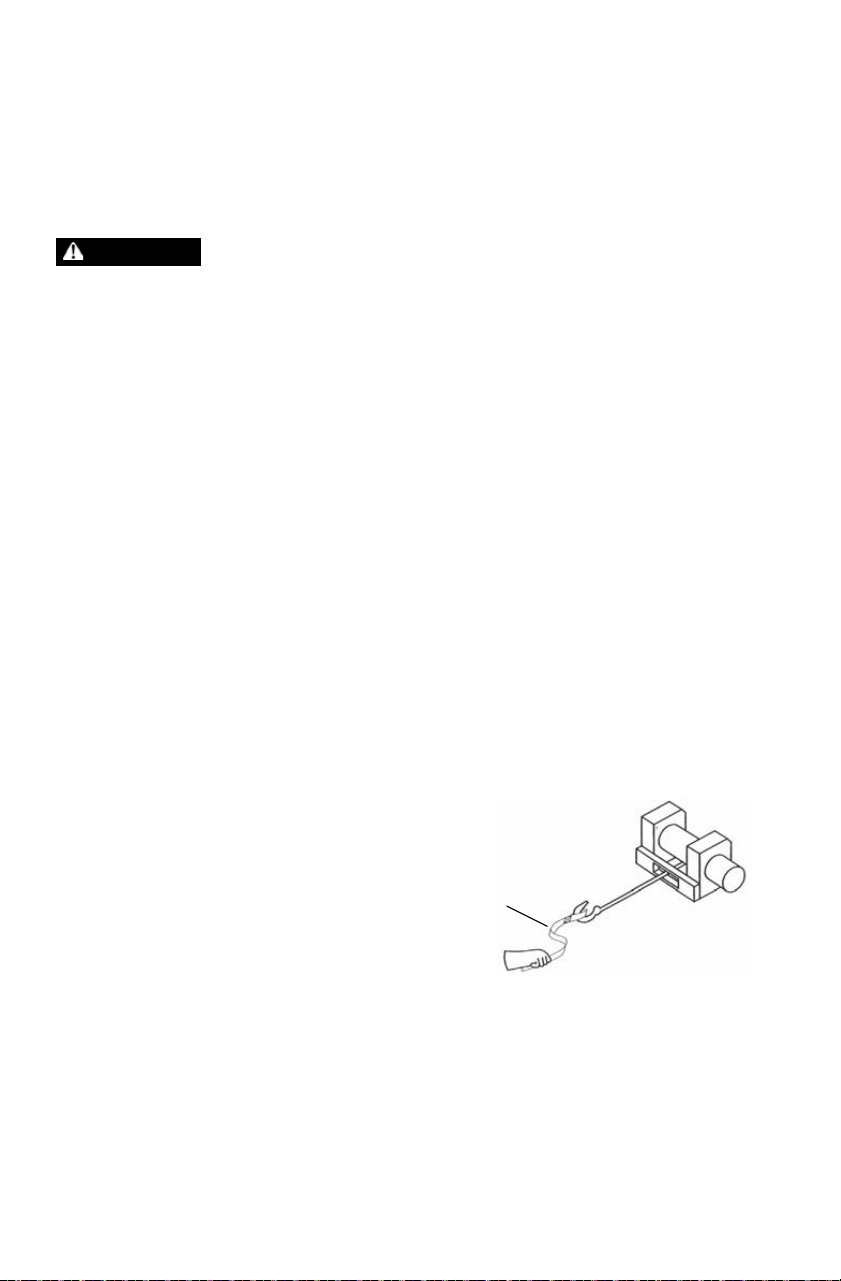

See page 63 for winch information.
Mode/Reverse
Override
Switch
Main Key Switch
Engine
Stop Switch
Headlight
Switch
AWD
Switch
OUT
IN
Winch Switch
27
FEATURES AND CONTROLS
Switches
Engine Stop Switch
Move the stop switch either
left or right to the OFF position
to stop the engine quickly. The
engine will not start or run
when the switch is off.
Both the main switch and the engine stop switch will shut off all
electrical power to the vehicle, including lights.
Main Key Switch
Use the main key switch to start the engine. See page 49 for starting
procedures.
Headlight Switch
Use the headlight switch to turn the lights on and off and to change the
lights from high beam to low beam. The key must be in the ON position
and the engine stop switch must be in the RUN position to operate the
headlights.
OFF OFFRUN
28
FEATURES AND CONTROLS
Throttle Lever
Operating an ATV with sticking or improperly operating throttle controls could
cause an accident. Never start or operate an ATV that has a sticking or
improperly operating throttle. Always contact your dealer for service before
operating the vehicle.
Failure to check or maintain proper operation of the throttle system can result in
an accident if the throttle lever sticks during operation. Always check the lever
for free movement and return before starting the engine. Also check
occasionally during operation.
Engine speed and vehicle
movement are controlled by
pressing the throttle lever. The
throttle lever is spring loaded.
Engine speed returns to idle when
the lever is released.
This vehicle is equipped with a
throttle release switch, which is
designed to reduce the risk of a
frozen or stuck throttle. If the
throttle cable should stick in an open position when the operator releases
the throttle lever, the engine will stop, and power to the rear wheels will
cease.
WARNING
29
FEATURES AND CONTROLS
Brake Lever
Operating the ATV with a spongy brake lever can result in loss of braking, which
could cause an accident. Never operate the ATV with a spongy-feeling brake
lever. Always contact your dealer for service before operating the vehicle.
Squeeze the brake lever toward the
handlebar to apply the front and
rear brakes. These brakes are
hydraulically activated disc type
brakes that are activated by only
one lever.
Always test brake lever travel and
master cylinder fluid level before
riding. When squeezed, the lever
should feel firm. Any sponginess
would indicate a possible fluid leak or low master cylinder fluid level,
which must be corrected before riding. Contact your dealer for proper
diagnosis and repairs.
WARNING
30
FEATURES AND CONTROLS
Master Cylinder/Brake Fluid
An over-full master cylinder may cause brake drag or brake lock-up, which could
result in an accident. Maintain brake fluid at the recommended level. Do not
overfill.
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake fade
and the possibility of brake failure, which could result in an accident. After
opening a bottle of brake fluid, always discard any unused portion.
Check the brake fluid in the master
cylinder before each ride.
1. Position the ATV on a level
surface.
2. Position the handlebars so the
master cylinder is level.
3. View the brake fluid level
through the indicator window
on the top of the master
cylinder. The eye will appear
dark when the fluid level is
full. When fluid is low, the eye will be clear.
4. If the fluid level is low add DOT 4 brake fluid only. Do not overfill.
WARNING
Master Cylinder
Indicator
Window
31
FEATURES AND CONTROLS
Parking Brake
Locking the Parking Brake
1. Place the transmission in
PARK.
2. Squeeze and release the brake
lever two or three times, then
squeeze and hold.
3. Push the parking brake lock
forward to engage the lock.
4. Release the brake lever.
5. To release the parking brake lock, squeeze and release the brake
lever. It will return to its unlocked position.
WARNING! Operating the ATV while the parking brake is engaged could result
in an accident or fire. Always check to be sure the parking brake is disengaged
before operating.
The parking brake may relax if left on for a long period of time. Always
block the wheels to prevent rolling. Always block the wheels on the
downhill side of the ATV if leaving it parked on a hill. Another option is
to park the ATV in a sidehill position. Never depend on the parking
brake alone if the ATV is parked on a hill. Always block the wheels to
prevent rolling.
32
FEATURES AND CONTROLS

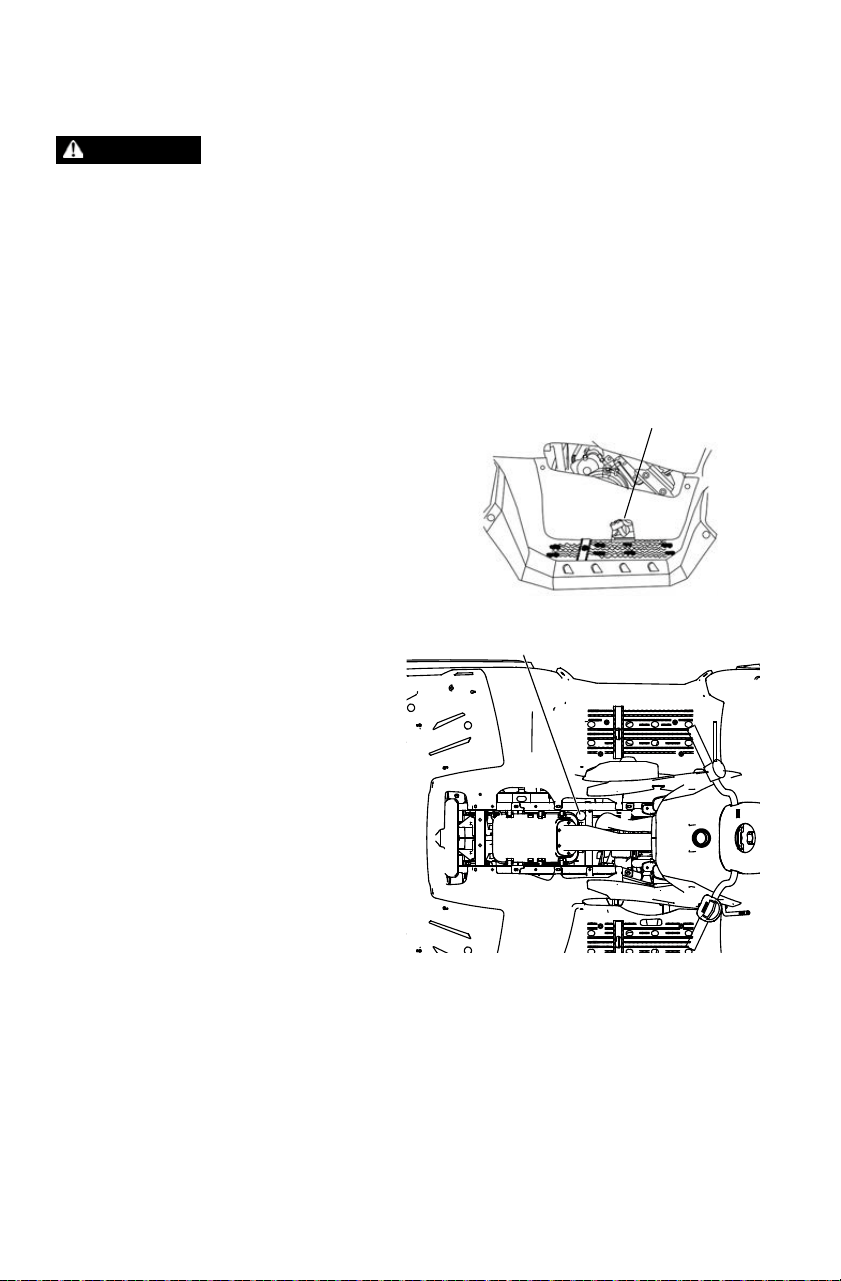

Auxiliary Foot Brake
Never back down a hill. Applying the auxiliary brake when backing down a hill
may cause rear tipover, which could result in serious injury or death.
Use caution when applying the auxiliary brake. Do not aggressively apply the
auxiliary brake when going forward. The rear wheels may skid and slide
sideways, causing loss of control, which may result in serious injury or death.
The auxiliary brake system is intended to be used as a backup for the
main brake system. Should the main system fail, use the auxiliary foot
brake.
The auxiliary foot brake is located
on the inside of the right footrest.
Operate this brake with your right
foot.
If the rear wheels slide while
using the auxiliary brake, reduce
brake pedal pressure to brake the
rear wheels without skidding.
Brake Fluid Level
Check the brake fluid level
frequently for the auxiliary brake
system. The reservoir is located
under the seat on the left side of
the vehicle. Maintain the fluid
level between the maximum and
minimum marks.
WARNING
Auxiliary Foot Brake
Foot Brake Fluid
Reservoir
33
FEATURES AND CONTROLS
Automatic Transmission Gear Selector
The transmission gear selector is
located on the right side of the
vehicle.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park
To shift gears, brake to a
complete stop. When the engine
is idling, move the lever to the
desired gear.
NOTICE: Shifting gears with the engine speed above idle or while the vehicle is
moving could cause transmission damage.
Whenever the ATV is left unattended, always place the transmission in
PARK and lock the parking brake.
Belt Life
To extend belt life, use low forward gear when pulling a heavy load at
less than seven miles per hour for extended periods and when operating
uphill at a slow speed.
Fuel Tank Cap
Always refuel with the engine
stopped, and outdoors or in a well
ventilated area. Refuel on a level
surface.
Remove the fuel tank cap to add fuel
to the fuel tank. Use either leaded or
unleaded gasoline with a minimum
pump octane number of 87=(R+ M/
2) octane. Do not use fuel with
ethanol content greater than 10
percent, such as E-85 fuel.
Gear
Selector
Fuel
Tank
Cap
34
FEATURES AND CONTROLS
All Wheel Drive (AWD) System
The All Wheel Drive system
is controlled by the AWD
switch. When the switch is
on 2X4, the ATV is in two-
wheel drive at all times.
When the switch is on AWD,
the ATV is in all wheel drive
and the AWD indicator light
in the instrument cluster will
be on.
When in AWD, the demand
drive unit will automatically
engage any time the rear wheels lose traction. When the rear wheels
regain traction, the demand drive unit will automatically disengage.
There is no limit to the length of time the vehicle may remain in AWD.
Engaging AWD
The AWD switch may be turned on or off while the vehicle is moving.
Initially, the vehicle's electronic system will not enable AWD until the
engine RPM is below 3100. Once enabled, AWD remains enabled until
the AWD switch is turned off. If the switch is turned off while the
demand drive unit is moving, it will not disengage until the rear wheels
regain traction.
Engage the AWD switch before getting into conditions where front
wheel drive may be needed. If the rear wheels are spinning, release the
throttle before switching to AWD.
NOTICE: Switching to AWD while the rear wheels are spinning may cause
severe drive shaft and gearcase damage. Always switch to AWD
while the rear wheels have traction or are at rest.
AWD
Switch
35
FEATURES AND CONTROLS
Instrument Cluster
Your ATV is equipped with an instrument cluster that senses vehicle
speed from the right front wheel. In addition to showing vehicle speed,
the speedometer needle flashes when a warning condition exists.
The instrument cluster measures distance in miles as well as hours of
operation. It also includes a reverse speed limiter function that limits the
ATV's speed to approximately 7-9 mph (11-14 km/h). Refer to page 26
for additional information.
NOTICE: High water pressure may damage ATV components. Wash the ATV
by hand or with a garden hose using mild soap.
Certain products, including insect repellents and chemicals, will
damage the speedometer lens and other plastic surfaces. Do not use
alcohol to clean the instrument cluster. Do not allow insect sprays to
contact the lens. Immediately clean off any gasoline that splashes on
the instrument cluster.
Rider
Information
Center
Speedometer
Needle
Speedometer
36
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up. If the instrument
cluster fails to illuminate, a battery over-voltage may have occurred and
the instrument cluster may have shut off to protect the electronic
speedometer. If this occurs, take the ATV to your POLARIS dealer for
proper diagnosis.
1. Gear Indicator - This
indicator displays gear
shifter position.
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
2. AWD Indicator - This
indicator illuminates
when the AWD switch
is on AWD.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode Indicator
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is operating at an RPM too low to keep the battery
charged. It may also occur when the engine is at idle and high
electrical load (lights, cooling fan, accessories) is applied. Drive at a
higher RPM or recharge the battery to clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Fuel Gauge - The segments of the fuel gauge show the level of fuel
in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments will flash, FUEL will display in the LCD,
and the speedometer needle will blink. Refuel immediately.
8. Check Engine Warning Indicator - This indicator serves two
purposes. The word HOT displays if the engine overheats. It also
appears if an EFI-related fault occurs. Do not operate the ATV if
this warning appears. Serious engine damage could result.
9. Mode Indicator
1
2
345
6
7
9
8
37
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Standard Modes
Use the MODE button to toggle through the mode options. The reverse
override button is also the MODE button. See page 26. The transmission
cannot be in reverse when using this feature.
Odometer Mode
The odometer records the miles traveled by the ATV.
Trip Meter Mode
The trip meter records the miles traveled by the ATV on each trip if it's
reset before each trip. To reset the trip meter, select the trip meter mode.
Press and hold the mode button (override button) until the total changes
to 0. In the Rider Information Center, the trip meter display contains a
decimal point, but the odometer displays without a decimal point.
Hour Meter Mode
This mode logs the total hours the engine has been in operation.
Tachometer Mode
The engine RPM is displayed digitally. Small fluctuations in the RPM
from day to day may be normal because of changes in humidity,
temperature and elevation.
38
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
The wrench icon will display when the gauge is in the diagnostic mode.
To exit the diagnostic mode, turn the key switch off and on. Any
movement of the tires will also cause the gauge to exit the diagnostic
mode.
To enter the diagnostics mode:
1. Turn the key switch off and wait 10 seconds.
2. Lock the parking brake.
3. Place the transmission in neutral.
4. Hold the mode/reverse override button and turn the key switch on.
Release the switch as soon as the display is activated.
5. Use the mode button to toggle through the diagnostic screens.
39
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
Battery Voltage Screen
View this screen to check battery voltage level.
Tachometer Screen
View the tachometer to check engine speed.
AWD Diagnostic Screen
The gauge indicates whether or not current is flowing through the all-
wheel-drive coil. This screen is for informational purposes only. Please
see your dealer for all major repairs.
Gear Circuit Diagnostic Screen
This screen displays the resistance value (in ohms) being read at the
gear switch input of the gauge. This screen is for informational purposes
only. Please see your dealer for all major repairs.
Programmable service interval
When the hours of engine operation equal the programmed service
interval setting, the wrench icon will flash for 5 seconds each time the
engine is started. When this feature is enabled, it provides a convenient
reminder to perform routine maintenance. See page 40.
The service interval is programmed at 50 hours at the factory.
40
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
Programmable service interval
To enable or disable the service interval:
1. Enter the diagnostic mode.
2. Toggle to the service interval screen.
3. Press and hold the mode button for about 7 seconds, until either ON
or OFF appears in the Rider Information Center, depending on your
preference.
To reset the service interval:
1. Enter the diagnostic mode.
2. Toggle to the service interval screen.
3. Press and hold the mode button for 2-3 seconds, until the wrench
icon flashes. Release the button.
4. Press and release the mode button once to advance the setting by
one hour. Press and hold the mode button to advance the hours
quickly.
5. If you scroll past the intended number, press and hold the button
until the hours cycle back to zero.
6. When the desired setting is displayed, wait until the wrench icon
stops flashing. The new service interval is now programmed.
Miles/Kilometers toggle
The display in the tripmeter and odometer can be changed to display
either standard or metric units of measurement.
1. Enter the diagnostic mode.
2. Toggle to the screen that displays either kilometers (KM) or miles
(MP).
3. Press and hold the mode button until the letters flash, then press and
release the button once. When the display stops flashing, the mode
has been set.
41
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Downloading Codes
The EFI diagnostic mode is for informational purposes only. Please see
your POLARIS dealer for all major repairs.
See page 43 for Blink Codes and Failure Descriptions. Use the
following procedure to download blink codes (failure codes) from the
EFI module.
1. Place the transmission in PARK.
2. Stop the engine.
3. Turn the key switch to the ON position.
4. Turn the key switch off and on three times in less than five seconds,
then leave the switch on. Any blink code numbers stored in the EFI
module will display, one at a time, on the screen. The number “61”
and the word “END” displays after all codes have been transmitted.
42
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Downloading Codes
Code Definitions
Open Load:
There is a break in the wires that lead to the item listed in
the chart (injector, fuel pump, etc.), or the item has failed.
Short-to-Ground:
The wire is shorted to ground between the electronic
control unit and the item listed in the chart.
Shorted Load:
The wires leading to the item listed in the chart are
shorted together, or the item has shorted internally.
Short-to-Battery:
The wire leading from the item listed in the chart to
the electronic control unit is shorted to a wire at battery voltage.
43
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Downloading Codes
Blink
Code
Failure Description
12 BEGIN SEQUENCE
22 Throttle Position Sensor Low
22 Throttle Position Sensor High
22 Throttle Position Sensor Out of Adjustment
25 Gear Sensor Signal
31 System Voltage Low
31 System Voltage High
36 Ignition Coil A Prim/Sec Circuit Malfunction: Open Load/Short-to-Ground
36 Ignition Coil A Prim/Sec Circuit Malfunction: Shorted Load/Short-to-Battery
37 Ignition Coil B Prim/Sec Circuit Malfunction: Open Load/Short-to-Ground
37 Ignition Coil B Prim/Sec Circuit Malfunction: Shorted Load/Short-to-Battery
41 Air Temp Sensor Low Voltage
41 Air Temp Sensor High Voltage
42 Engine Coolant Temp Low Voltage
42 Engine Coolant Temp High Voltage
44 Crank Position Sensor Circuit Fault
45 Barometric Pressure/Manifold Air Pressure Sensor Low
46 Barometric Pressure/Manifold Air Pressure Sensor High
47 IAC Stepper Motor: Open Load
47 IAC Stepper Motor: Short-to-Ground
51 Injector Circuit Malfunction - Cyl 1: Open Load/Short-to-Ground
51 Injector Circuit Malfunction - Cyl 1: Shorted Load/Short-to-Battery
52 Injector Circuit Malfunction - Cyl 2: Open Load/Short-to-Ground
52 Injector Circuit Malfunction - Cyl 2: Shorted Load/Short-to-Battery
55 MIL Circuit: Open Load/Short-to-Ground
55 MIL Circuit: Shorted Load/Short-to-Battery
56 Fuel Pump: Open Load/Short-to-Ground
56 Fuel Pump: Shorted Load/Short-to-Battery
58 Fan Circuit: Open Load/Short-to-Ground
58 Fan Circuit: Shorted Load/Short-to-Battery
63 Starter Enable: Open Load/Short-to-Ground
63 Starter Enable: Shorted Load/Short-to-Battery
72 Gear Sensor Signal
73 4X4: Open Load/Short-to-Ground
73 4X4: Shorted Load/Short-to-Battery
74 Rear Differential Enable: Open Load/Short-to-Ground (if equipped)
74 Rear Differential Enable: Shorted Load/Short-to-Battery (if equipped)
61 END SEQUENCE
44
OPERATION
Failure to operate the ATV properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.
Break-In Period
The break-in period for your new POLARIS ATV is the first ten hours
of operation, or the time it takes to use the first two full tanks of
gasoline. No single action on your part is as important as following the
procedures for a proper break-in. Careful treatment of a new engine and
drive components will result in more efficient performance and longer
life for these components.
NOTICE: Excessive heat build-up during the first three hours of operation will
damage close-fitted engine parts and drive components. Do not
operate at full throttle or high speeds during the first three hours of
use.
WARNING
45
OPERATION
Break-In Period
Engine and Drivetrain Break-in
1. Fill the fuel tank with gasoline. See page 33. Always exercise
extreme caution whenever handling gasoline.
2. Check the engine oil level on the dipstick. See page 82. Add oil if
necessary to maintain the level between the safe and add marks.
3. Drive slowly at first. Select an open area that allows room to
familiarize yourself with vehicle operation and handling.
4. Vary the throttle positions. Do not operate at sustained idle.
5. Perform regular checks on fluid levels, controls and areas outlined
on the daily pre-ride inspection checklist. See page 46.
6. Pull only light loads.
7. During the break-in period, change both the oil and the filter at 25
hours or one month.
8. Check fluid levels of transmission and all gearcases after the first 25
hours of operation and every 100 hours thereafter.
PVT Break-in (Clutches/Belt)
A proper break-in of the clutches and drive belt will ensure a longer life
and better performance. Break in the clutches and belt by operating at
slower speeds during the break-in period as recommended. Pull only
light loads. Avoid aggressive acceleration and high speed operation
during the break-in period.
If a belt fails, always clean away all debris when replacing the belt.
46
OPERATION
Pre-Ride Checklist
Failure to inspect and verify that the ATV is in safe operating condition
before operating increases the risk of an accident. Always inspect the
ATV before each use to make sure it's in safe operating condition.
Item Remarks Page
Brake system/lever travel Ensure proper operation 29
90
Brake fluid Ensure proper level 30
Auxiliary brake Ensure proper operation 32
Front suspension Inspect, lubricate if necessary 81
Rear suspension Inspect, lubricate if necessary 81
Steering Ensure free operation -
Tires Inspect condition and pressure 95
Wheels/fasteners Inspect, ensure fastener tightness 95
96
Frame nuts, bolts, fasteners Inspect, ensure tightness -
Fuel and oil Ensure proper levels 33
82
Coolant level (if applicable) Ensure proper level 88
89
Coolant hoses (if applicable) Inspect for leaks -
Throttle Ensure proper operation 28
93
Indicator lights/switches Ensure operation 26
Engine stop switch Ensure proper operation 27
Air filter, pre-filter Inspect, clean 97
Air box sediment tube Drain deposits whenever visible -
Headlamp Check operation, apply POLARIS
dielectric grease when lamp is
replaced
27
99
Brake light/tail lamp Check operation, apply POLARIS
dielectric grease when lamp is
replaced
103
Riding gear Wear approved helmet, goggles, and
protective clothing
8
Winch Inspect cable and switch. 63-74
47
OPERATION
Safe Operation Practices
1. Complete the recommended safety training before operating this
vehicle. See page 7.
2. Do not allow anyone under 16 years of age to operate this vehicle.
Do not allow anyone with cognitive or physical disabilities to
operate this vehicle.
3. Never carry a passenger on this ATV.
4. Engine exhaust fumes are poisonous. Never start the engine or let it
run in an enclosed area.
5. Before operating, learn how to use the auxiliary brake for
emergency situations (if service brakes become inoperable).
6. Operate this vehicle off-road only. Never operate the vehicle on
pavement or on any public street, road or highway, including dirt
and gravel roads.
7. Use caution and drive at reduced speeds in conditions of reduced
visibility such as fog, rain and darkness. Clean headlights
frequently and replace burned out headlamps promptly.
8. Drive in a manner appropriate for your skills and operating
conditions. Never operate at excessive speeds. Never attempt
wheelies, jumps, or other stunts. Never remove your hands from the
handlebars while operating, and always keep both feet on the
footrests.
9. Never consume alcohol or drugs before or while operating an ATV.
10. Always use the size and type of tires specified for your vehicle.
Always maintain proper tire pressure.
11. Never operate a damaged ATV. After any overturn or accident, have
a qualified service dealer inspect the entire machine for possible
damage.
12. Never operate the ATV on a frozen body of water unless you have
independently verified that the ice is sufficiently thick to support the
weight and moving force of the ATV, you and your cargo, together
with any other vehicles in your party.
13. Do not touch hot exhaust system components. Always keep
combustible materials away from the exhaust system.
14. Always remove the ignition key when the vehicle is not in use to
prevent unauthorized use.
48
OPERATION
Know Your Riding Area/Tread Lightly
Familiarize yourself with all laws and regulations concerning the
operation of this off-road vehicle in your area. Respect the environment
in which you ride. Find out where the designated riding areas are by
contacting your POLARIS dealer, a local riding club or local officials.
Help keep our trails open for recreational vehicle use. As an off-road
enthusiast, you represent the sport and can set a good example (or a poor
example) for others to follow. Tread lightly. Operate with respect for the
terrain, avoid littering, and always stay on the designated trails.
Trail Etiquette
Always practice good etiquette when riding. Allow a safe distance
between your vehicle and other vehicles operating in the same area.
Communicate to oncoming operators by signaling the number of
vehicles in your group. When stopping, move your vehicle to the edge
of the trail as far as possible to allow others to pass safely.
49
OPERATION
Starting the Engine
1. Position the vehicle on a level surface outdoors or in a well-
ventilated area.
2. Place the transmission in PARK.
3. Lock the parking brake.
Tip: The starter interlock will prevent the engine from starting if the transmission
is in gear and the brake is not engaged.
4. Sit on the vehicle and move the engine stop switch to RUN.
5. Do not press the throttle while starting the engine.
6. Turn the ignition key past the ON position to engage the starter.
Activate the starter for a maximum of five seconds, releasing the
key when the engine starts.
7. If the engine does not start, return the key to the OFF position and
wait five seconds before attempting to start again. Activate the
starter for another five seconds if necessary. Repeat this procedure
until the engine starts.
NOTICE: Operating the vehicle immediately after starting could cause engine
damage. Allow the engine to warm up for several minutes before
operating the vehicle.
Cold Weather Operation
If the ATV is used year-round, check the oil level frequently. A rising oil
level could indicate the accumulation of contaminates such as water or
excess fuel in the bottom of the crankcase. Water in the bottom of the
crankcase can lead to engine damage and must be drained. Water
accumulation increases as outside temperature decreases.
See your POLARIS dealer for engine heater kits, which provide quicker
warm-ups and easier starting in colder weather.
50
OPERATION
Driving Procedures
1. Wear a helmet and eye protection. See page 8.
2. Sit upright with both feet on the footrests and both hands on the
handlebars.
3. Start the engine and allow it to warm up.
4. Shift the transmission into gear.
5. Check your surroundings and determine your path of travel.
6. Release the parking brake.
7. Slowly depress the throttle with your right thumb and begin driving.
8. Drive slowly. Practice maneuvering and using the throttle and
brakes on level surfaces.
51
OPERATION
Turning the Vehicle
Your ATV is equipped with
a solid rear axle, which
drives both rear wheels
equally at all times. This
means that the wheel on the
outside of the turn must
travel a greater distance
than the inside wheel when
turning and the inside tire
must slip traction slightly.
To turn, steer in the
direction of the turn,
leaning your upper body to
the inside of the turn while
supporting your weight on
the outer footrest. This
technique alters the balance
of traction between the rear
wheels, allowing the turn to be made smoothly. The same leaning
technique should be used for turning in reverse.
Practice making turns at slow speeds before attempting to turn at faster
speeds.
WARNING! Turning improperly can result in vehicle overturn. Never turn
abruptly or at sharp angles. Never turn at high speeds.
52
OPERATION
Driving on Slippery Surfaces
Whenever riding on slippery surfaces such as wet trails or loose gravel,
or during freezing weather, follow these precautions:
1. Do not operate on excessively rough, slippery or loose terrain.
2. Slow down when entering slippery areas.
3. Engage AWD before wheels begin to lose traction.
NOTICE: Severe damage to drive train may occur if the AWD is engaged while
the wheels are spinning. Allow the rear wheels to stop spinning
before engaging AWD, or engage AWD before wheels begin to lose
traction.
4. Maintain a high level of alertness, reading the trail and avoiding
quick, sharp turns, which can cause skids.
5. Never apply the brakes during a skid. Correct a skid by turning the
handlebars in the direction of the skid and shifting your body
weight forward.
Sideways
skid
Turn in direction
of skid
53
OPERATION
Driving Uphill
Braking and handling are greatly affected when operating in hilly
terrain. Improper procedure could cause loss of control or overturn.
Whenever traveling uphill, follow these precautions:
1. Drive straight uphill.
2. Avoid steep hills (25° maximum).
3. Always check the terrain carefully before ascending any hill.
4. Never climb hills with excessively slippery or loose surfaces.
5. Keep both feet on the footrests.
6. Shift body weight uphill.
7. Proceed at a steady rate of speed and throttle opening. Opening the
throttle suddenly could cause the ATV to flip over backwards.
8. Remain alert and be prepared to take emergency action. This may
include quick dismounting of the vehicle.
25° Maximum
54
OPERATION
Driving on a Sidehill (Sidehilling)
Driving on a sidehill is not recommended. Improper procedure could
cause loss of control or overturn. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a sidehill is unavoidable, follow these precautions:
1. Slow down.
2. Avoid crossing the side of a steep hill.
3. Shift body weight uphill.
4. Keep your feet on the footrests.
5. If the vehicle begins to tip, quickly turn the front wheel downhill, if
possible, or dismount on the uphill side immediately!
55
OPERATION
Driving Downhill
When driving downhill, follow these precautions:
1. Avoid steep hills (25° maximum).
2. Shift body weight uphill.
3. Drive straight downhill.
4. Slow down. Excessive speed when traveling downhill can cause
loss of control.
5. Squeeze the brake lever gradually. Applying the brakes too firmly
may cause the rear wheels to lock, which could result in loss of
control.
56
OPERATION
Turning Around on a Hill (K-Turn)
If the vehicle stalls while climbing a hill, never back it down the hill!
Use the K-turn to turn around.
1. Stop and lock the parking brake while keeping body weight uphill.
2. Leave the transmission in forward and shut off the engine.
3. Dismount on the uphill side of the vehicle, or on the left if the
vehicle is pointing straight uphill.
4. Staying uphill of the vehicle, turn the handlebars full left.
5. While holding the service brake, release the parking brake lock and
slowly allow the vehicle to roll around to your right until it's
pointing across the hill or slightly downward.
6. Lock the parking brake and remount the vehicle from the uphill
side, keeping body weight uphill.
7. Restart the engine with the transmission still in forward.
8. Release the parking brake and proceed slowly, controlling speed
with the service brake, until the vehicle is on more level ground.
8 ft. (2.4 m)
57
OPERATION
Driving Through Water

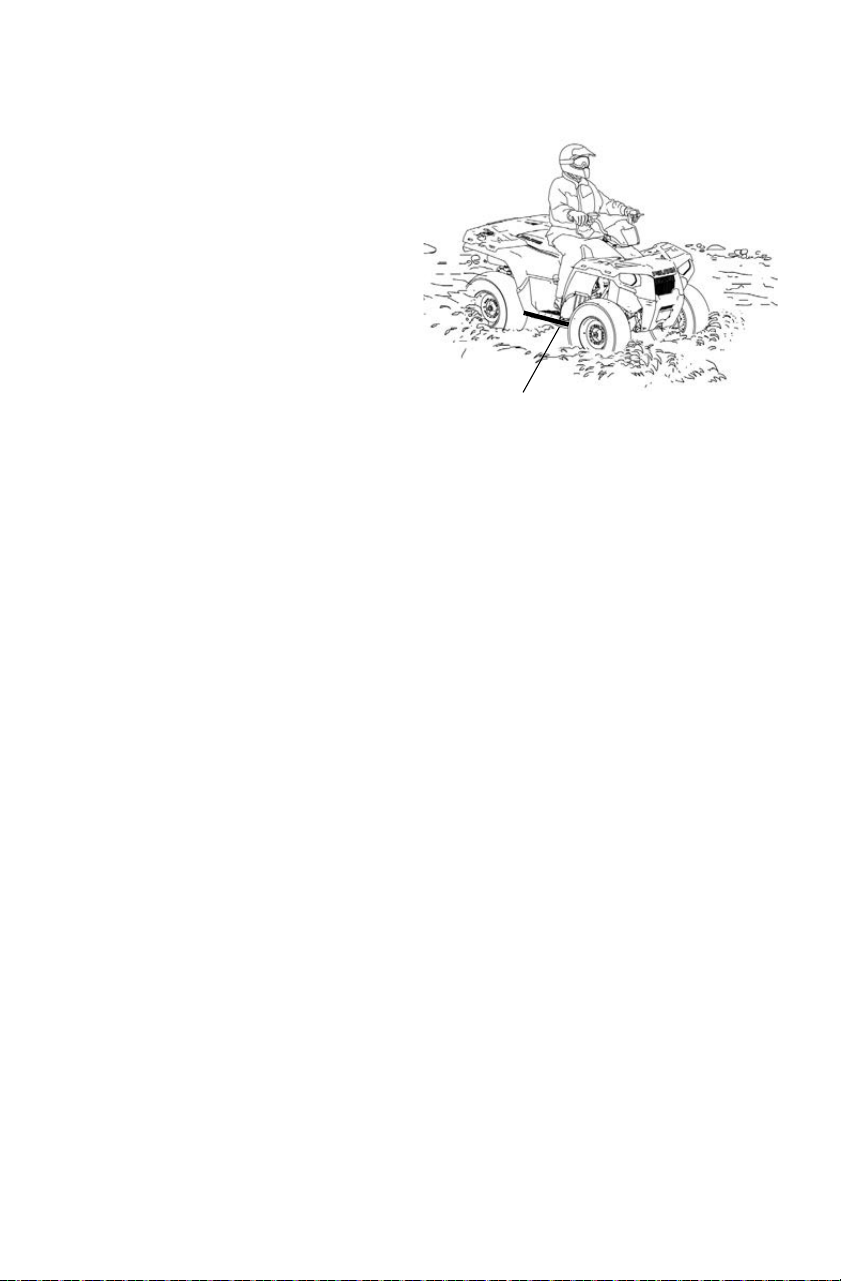

Your ATV can operate through
water with a maximum
recommended depth equal to
the bottom of the footrests.
Follow these procedures when
operating through water:
1. Determine water depths and
current before entering
water.
2. Choose a crossing where
both banks have gradual
inclines.
3. Avoid operating through
deep or fast-flowing water.
NOTICE: Major engine damage can result if the vehicle is not thoroughly
inspected after operation in water. Perform the services outlined in
the maintenance chart. See page 76. The following areas need
special attention: engine oil, transmission oil, demand drive fluid, rear
gearcase oil (if equipped), and all grease fittings
.
If the vehicle tips or overturns in water, or if the engine stops during or
after operating in water, restarting can result in serious engine
damage. Transport the vehicle to your dealer for service before
restarting the engine. If this is not possible, follow the vehicle
immersion inspection and drying procedures outlined on page 106,
then see your dealer for service at the first opportunity.
4. After leaving water, test the brakes. Apply them lightly several
times while driving slowly. The friction will help dry out the pads.
If it’s unavoidable to enter water deeper than the footrest level:
• Proceed slowly. Avoid rocks and obstacles.
• Balance your weight carefully. Avoid sudden movements.
• Maintain a steady rate of speed. Do not make sudden turns or stops.
Do not make sudden throttle changes.
Maximum
Depth
58
OPERATION
Driving Over Obstacles
Follow these precautions when operating over obstacles:
1. Always check for obstacles before operating in a new area.
2. Look ahead and learn to read the terrain. Be constantly alert for
hazards such as logs, rocks and low hanging branches.
3. Travel slowly and use extra caution when operating on unfamiliar
terrain. Not all obstacles are immediately visible.
4. Never attempt to operate over large obstacles, such as rocks or
fallen trees.
59
OPERATION
Driving in Reverse
Follow these precautions when operating in reverse:
1. Always check for obstacles or people behind the vehicle.
2. Always avoid backing downhill.
3. Back slowly.
4. Apply the brakes lightly for stopping.
5. Avoid turning at sharp angles.
6. Never open the throttle suddenly.
7. Do not use the override button unless additional wheel speed is
required for vehicle movement. Use the override with caution as
rearward vehicle speed is greatly increased. Do not operate at wide
open throttle. Operate the throttle just enough to maintain a desired
speed.
NOTICE: Excessive throttle operation while in the speed limit mode may cause
fuel to build in the exhaust, resulting in engine popping and/or engine
damage.
60
OPERATION
Hauling Cargo
Overloading the vehicle or carrying or towing cargo improperly can alter vehicle
handling and may cause loss of control or brake instability, which can result in
serious injury or death. Always follow these precautions when hauling cargo:
REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING
WHEN HAULING CARGO.
NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When
determining the weight you are adding to the vehicle, include the weight of the
operator, accessories, loads in the rack or box and the load on the trailer tongue.
The combined weight of these items must not exceed the maximum weight
capacity.
CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on
the rear rack. When operating over rough or hilly terrain, reduce speed and
cargo to maintain stable driving conditions. Carrying loads on only one rack
increases the possibility of vehicle overturn.
CARRY LOADS AS LOW ON THE RACKS AS POSSIBLE. Carrying loads high
on the racks raises the center of gravity of the vehicle and creates a less stable
operating condition.
SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create
unstable operating conditions, which could result in loss of control of the vehicle.
OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When
handling off-centered loads that cannot be centered, securely fasten the load
and operate with extra caution. Always attach the tow load to the hitch point
designated for your vehicle.
HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use
extreme caution when applying brakes with a loaded vehicle. Avoid terrain or
situations that may require backing downhill.
USE EXTREME CAUTION when operating with loads that extend over the rack
sides. Stability and maneuverability may be adversely affected, causing the
vehicle to overturn.
DO NOT BLOCK THE FRONT HEADLIGHT BEAM when carrying loads on the
front rack.
DO NOT TRAVEL FASTER THAN THE RECOMMENDED SPEEDS.
NEVER exceed 50 MPH (80 km/h) when rear cargo loads are above 75 lbs. (34
kg) and/or front cargo loads are above 37 lbs. (17 kg).
Vehicle should never exceed 10 mph (16 kph) while towing a load on a level
surface. Vehicle speed should never exceed 5 mph (8 kph) when towing loads in
rough terrain, while cornering, or while ascending or descending a hill.
WARNING
61
OPERATION
Hauling Cargo
Never exceed the weight
capacities specified for your
ATV on warning labels and in
the specifications section of this
manual.
Cargo weight should be evenly
distributed (1/3 on the front rack
and 2/3 on the rear rack) and
mounted as low as possible.
NEVER exceed 50 MPH (80
km/h) when rear cargo loads are
above 75 lbs. (34 kg) and/or
front cargo loads are above 37
lbs. (17 kg).
When operating over rough or hilly terrain, reduce speed and cargo
weight to maintain stable driving conditions.
Do not obstruct the headlight beam with cargo.
Use low forward gear when hauling or towing heavy cargo to extend
belt life.
Towing Loads
Always attach a towed load to the hitch point. Remove the hitch from
the ATV when not towing a trailer. If towing a load, reduce rear rack
cargo weight by the amount of tongue weight.
• The combination of rear rack cargo weight and tongue weight must
not exceed the rear rack capacity.
• The total load (operator, accessories, cargo and weight on hitch) must
not exceed the maximum weight capacity of the vehicle.
• Unbraked Trailer Towing Capacity is 1914 lbs. (868 kg) based on EU
Directive 76/432/EC.
NOTICE: Using an improper hitch or exceeding
the maximum tongue weight capacity
can result in serious damage to the
vehicle and will void your ATV
warranty. Never install a hitch longer
than 4" (10 cm). Never install
automotive accessories on your
POLARIS ATV. Always install
POLARIS-approved (or equivalent)
accessories designed for ATV use.
1/3
2/3
Maximum
4" (10 cm)
62
OPERATION
Parking on an Incline
Avoid parking on an incline if possible. If it's unavoidable, follow these
precautions:
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Always block the rear wheels on the downhill side.
63
WINCH GUIDE
These safety warnings and instructions apply if your vehicle came
equipped with a winch or if you choose to add an accessory winch to
your vehicle.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Your winch may have a cable made of either wire rope or specially
designed synthetic rope. The term “winch cable” will be used for either
unless noted otherwise.
Winch Safety Precautions
1. Read all sections of this manual.
2. Never use alcohol or drugs before or while operating the winch.
3. Never allow children under 16 years of age to operate the winch.
4. Always wear eye protection and heavy gloves when operating the
winch.
5. Always keep body, hair, clothing and jewelry clear of the winch
cable, fairlead and hook when operating winch.
6. Never attempt to “jerk” a load attached to the winch with a moving
vehicle. See the Shock Loading section on page 72.
7. Always keep the area around the vehicle, winch, winch cable and
load clear of people (especially children) and distractions while
operating the winch.
8. Always turn the vehicle ignition power OFF when it and the winch
are not being used.
9. Always be sure that at least five (5) full turns of winch cable are
wrapped around the winch drum at all times. The friction provided
by this wrapped cable allows the drum to pull on the winch cable
and move the load.
10. Always apply your vehicle’s park brake and/or park mechanism to
hold the vehicle in place during winching. Use wheel chocks if
needed.
WARNING
64
WINCH GUIDE
Winch Safety Precautions
11. Always align the vehicle and winch with the load directly in front of
the vehicle as much as possible. Avoid winching with the winch
cable at an angle to the winching vehicle’s centerline whenever
possible.
12. If winching at an angle is unavoidable, follow these precautions:
A. Look at the winch drum occasionally. Never let the winch cable “stack”
or accumulate at one end of the winch drum. Too much winch cable at
one end of the winch drum can damage the winch and the winch cable.
B. If stacking occurs, stop winching. Follow step 15 on page 70 to feed
and rewind the cable evenly before continuing the winch operation.
13. Never winch up or down at sharp angles. This can destabilize the
winching vehicle and possibly cause it to move without warning.
14. Never attempt to winch loads that weigh more than the winch’s
rated capacity.
15. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
16. Never touch, push, pull or straddle the
winch cable while winching a load.

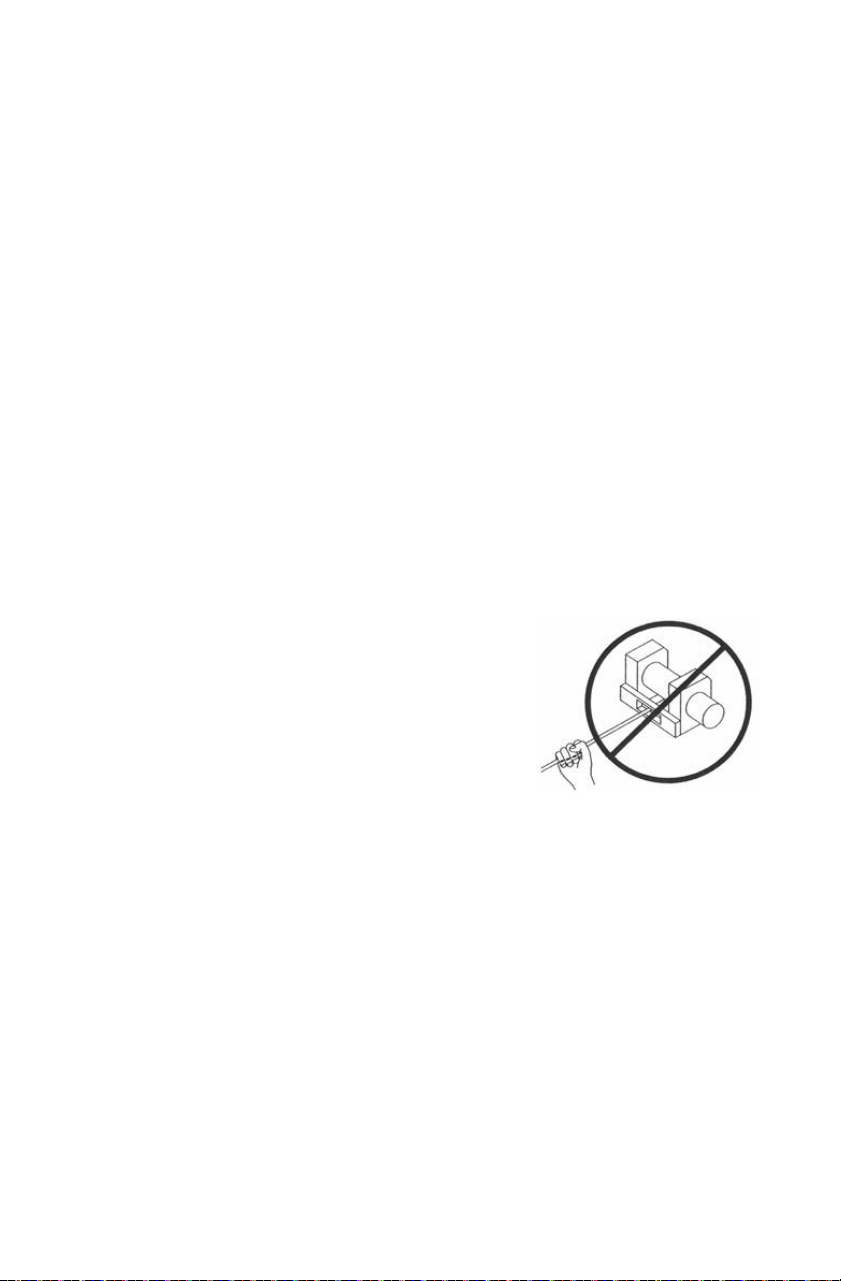

17. Never let the winch cable run through
your hands, even if wearing heavy
gloves.
18. Never release the clutch on the winch
when the winch cable is under load.
19. Never use the winch for lifting or
transporting people.
65
WINCH GUIDE
Winch Safety Precautions
20. Never use the winch to hoist or suspend a vertical load.
21. Never immerse or submerse your winch in water. Take your winch
to your dealer for service if this occurs.
22. Always inspect your winch and winch cable before each use.
23. Never winch the hook fully into the winch. This can cause damage
to winch components.
24. Unplug the remote control from the vehicle when the winch is not in
use to prevent inadvertent activation and use by unauthorized
persons.
25. Never grease or oil the winch cable. This will cause the winch cable
to collect debris that will shorten the life of the cable.
66
WINCH GUIDE
Winch Operation
Read the Winch Safety Precautions in the preceding pages before using
your winch.
Tip: Consider practicing the operation and use of your winch before you actually
need to use it in the field.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Each winching situation is unique.
• Take your time to think through the winching you are about to do.
• Proceed slowly and deliberately.
• Never hurry or rush during winching.
• Always pay attention to your surroundings.
• You may need to change your winching strategy if it is not working.
• Always remember that your winch is very powerful.
• There are simply some situations that you and your winch will not be able
to deal with. Do not be afraid to ask others to help when this happens.
1. Always inspect the vehicle, winch, winch cable and winch controls
for any signs of damage or parts in need of repair or replacement
before each use. Pay particular attention to the first 3 feet (1 meter)
of winch cable if the winch is being used (or has been used) for lift-
ing an accessory plow assembly. Promptly replace any worn or
damaged cable.
2. Never operate a winch or a vehicle in need of repair or service.
3. Always apply your vehicle’s
park brake and/or park
mechanism to hold the vehicle
in place during winching. Use
wheel chocks if needed.
WARNING
Hook Strap
67
WINCH GUIDE
Winch Operation
4. Always use the hook strap when
handling the hook.
WARNING! Never put your fingers into
the hook. This could lead to SEVERE
INJURY.
A. Attach the hook itself onto the
load or use a tow strap or chain
to secure the load to the winch
cable.
Tip: A “tow strap” is NOT intended to stretch. A “recovery strap” is designed to
stretch.
WARNING! Never use a recovery strap when winching due to the excessive
energy that can be released if the winch cable breaks. This can result in
SEVERE INJURY or DEATH. See the Shock Loading section on page 72.
B. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
WARNING! Replace the winch cable at the first sign of damage to prevent
SEVERE INJURY or DEATH in the event of failure. For your safety, always
replace POLARIS winch parts (including the cable) with genuine POLARIS
replacement parts available at your authorized POLARIS dealer.
C. If possible, keep the winch cable aligned with the centerline of the
winching vehicle. This will help the spooling of the winch cable and
reduce the load on the fairlead.
D. If freeing a stuck vehicle by attaching to a tree, use an item such as a
tow strap to avoid damaging the tree during winch operation. Sharp
cables and chains can damage and even kill trees. Please remember
to TreadLightly® (treadlightly.org).
E. Before operating the winch, be sure
that the safety latch on the winch
cable hook is fully seated when the
load is attached.
F. Never operate your winch with a
damaged hook or latch. Always
replace damaged parts before using
the winch.
NO YES
NO
YES
68
WINCH GUIDE
Winch Operation
5. Never remove the hook strap from the hook.
6. Release the winch clutch and pull out the winch cable.
7. Pulling out as much cable as possible maximizes the winch’s pulling
capacity. Always be sure that at least five (5) full turns of winch
cable are wrapped around the winch drum at all times. The friction
provided by this wrapped cable allows the drum to pull on the
winch cable and move the load.
8. Read and adhere to the following information for winch damping to
ensure safe winch use.
A. In order to absorb energy that could be released by a winch cable
failure, always place a “damper” on the winch cable. A damper can be
a heavy jacket, tarp, or other soft, dense object. A damper can absorb
much of the energy released if a winch cable breaks when winching.
Even a tree limb can help as a damper if no other items are available to
you.
B. Lay the damper on top of the mid-point of the winch cable length that is
spooled out.
C. On a long pull, it may be necessary to stop winching so that the
damper can be repositioned to the new mid-point of the winch cable.
Always release the tension on the winch cable before repositioning the
damper.
D. Avoid being directly in line with the winch cable whenever possible.
Also, never permit others to stand near or in line with the winch cable
during winch operation.
9. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
10. Never use straps, chains or other rigging items that are damaged or
worn.
69
WINCH GUIDE
Winch Operation
11. The ONLY time a winch-equipped vehicle should be moving when
using the winch is when that vehicle itself is stuck. The winch-
equipped vehicle should NEVER be in motion to “shock” load the
winch cable in an attempt to move a second stuck vehicle. See the
Shock Loading section on page 72. For your safety, always follow
these guidelines when winching a vehicle free:
A. Release the winch clutch and spool out the necessary length of winch
cable.
B. Align the winch cable as close as possible to the winching vehicle’s
centerline.
C. Attach the winch cable hook to the anchor point or the stuck vehicle’s
frame following instructions in this manual.
D. Re-engage the clutch on the winch.
E. Slowly winch in the slack in the winch cable.
F. Select the proper vehicle gear to propel the stuck vehicle in the
direction of winching.
G. Shift to the lowest gear available on the stuck vehicle.
H. Slowly and carefully apply vehicle throttle and winch together to free
the vehicle.
I. Stop winching as soon as the stuck vehicle is able to propel itself
without the help of the winch.
J. Detach the winch cable hook.
K. Rewind the winch cable evenly back onto the winch drum following the
instructions in this manual.

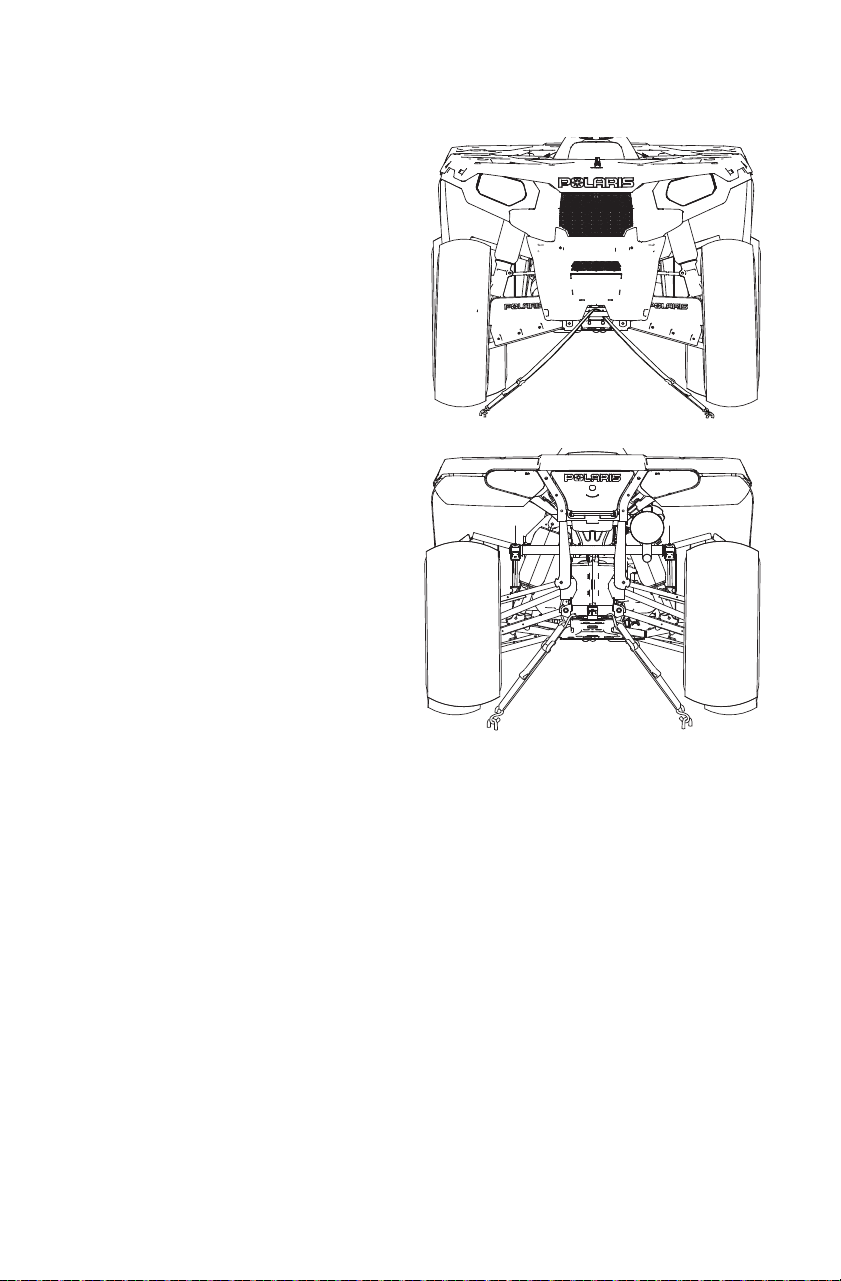

12. Never attempt to winch another stuck vehicle by attaching the
winch cable to a suspension component, brush guard, bumper or
cargo rack. Vehicle damage may result. Instead, attach the winch to
a strong portion of the vehicle frame or hitch.
70
WINCH GUIDE
Winch Operation
13. Extensive winching will run down the battery on the winching
vehicle. Let the winching vehicle’s engine run while operating the
winch to prevent the battery from running low if winching for long
periods.
14. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
15. After winching is complete, especially if winching at an angle, it
may be necessary to re-distribute the winch cable across the winch
drum. You will need an assistant to perform this task.
A. Release the clutch on the winch.
B. Feed out the winch cable that is unevenly bunched up in one area.
C. Re-engage the winch clutch.
D. Have an assistant pull the winch cable tightly with about 100 lbs. (45
kg) of tension using the hook strap.
E. Slowly winch the cable in while your assistant moves the end of the
winch cable back and forth horizontally to evenly distribute the winch
cable on the drum.
F. Doing this reduces the chances of the winch cable “wedging” itself
between lower layers of winch cable.
71
WINCH GUIDE
Winch Cable Care
For your safety, always replace POLARIS winch parts (including the
cable) with genuine POLARIS replacement parts available at your
authorized POLARIS dealer.
WARNING! Use of worn or damaged cable could lead to sudden failure and
SEVERE INJURY.
1. Always inspect your winch before each use. Inspect for worn or
loose parts including mounting hardware. Never use the winch if
any part needs repair or replacement.
2. Always inspect your winch cable before each use. Inspect for worn
or kinked winch cable.
A. A kinked winch cable made of
wire rope is shown at right. Even
after being “straightened out,”
this cable has already been
permanently and severely
damaged. Promptly discontinue
use of a winch cable in this
condition.
B. A kinked winch cable made of
wire rope that has been
“straightened out” is shown at
right. Even though it may look
usable, the cable has been
permanently and severely damaged. It can no longer transmit the load
that it could prior to kinking. Promptly discontinue use of a winch cable
in this condition.
C. A winch cable made of
synthetic rope should be
inspected for signs of fraying.
Replace the cable if fraying is
observed (shown at right).
Promptly discontinue use of a
winch cable in this condition.
D. Also replace the winch cable if there are fused or melted fibers. Such
an area of the synthetic rope will be stiff and appear smooth or glazed.
Promptly discontinue use of a winch cable in this condition.
A
B
C
72
WINCH GUIDE
Shock Loading
WARNING! Your winch cable is very strong but it is NOT designed for dynamic,
or “shock” loading. Shock loading may tension a winch cable beyond its strength
and cause the cable to break. The end of a broken winch cable under such high
loading can cause SEVERE INJURY or DEATH to you and other bystanders.
Winch cables are designed to NOT absorb energy. This is true of both
wire-rope and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never
take up slack in the winch cable by moving the winching vehicle in
an attempt to move an object. This is a dangerous practice. It gener-
ates high winch cable loads that may exceed the strength of the
cable. Even a slowly moving vehicle can create large shock loads in
a winch cable.
WARNING! SEVERE INJURY or DEATH can result from a broken winch cable.
2. Never quickly turn the winch ON and OFF repeatedly (“jogging”).
This puts extra load on the winch, winch cable, and generates
excessive heat from the motor. This is a form of shock loading.
3. Never tow a vehicle or other object with your winch. Towing an
object with a winch produces shock loading of the cable even when
towing at slow speeds. Towing from a winch also positions the
towing force high on the vehicle. This can cause instability of the
vehicle and possibly lead to an accident.
73
WINCH GUIDE
Shock Loading
4. Never use recovery straps with your winch. Recovery straps are
designed to stretch and can store energy. This stored energy in the
recovery strap is released if a winch cable fails making the event
even more hazardous. Similarly, never use elastic “bungie” cords
for winching.
5. Never use the winch to tie down a vehicle to a trailer or other
transportation vehicle. This type of use also causes shock loading
that can cause damage to the winch, winch cable, or vehicles used.
Your winch cable is designed and tested to withstand the loads
produced by the winch motor when operated from a stationary
vehicle. Always remember that the winch and winch cable are NOT
designed for shock loading.
74
WINCH GUIDE
Winch Maintenance and Service Safety
WARNING! Improper or lack of winch maintenance and service could lead to
SEVERE INJURY or DEATH. Always follow all winch instructions and warnings
in this manual.
1. Always inspect your winch before each use. Inspect for worn or
kinked winch cable. Also inspect for worn or loose parts including
mounting hardware.
2. Permit your winch motor to cool down prior to servicing your
winch.
3. Never work on your winch without first disconnecting the battery
connections to prevent accidental activation of the winch
4. For your safety, always replace POLARIS winch parts (including
the cable) with genuine POLARIS replacement parts available at
your authorized POLARIS dealer.
5. Some winch models use wire rope as the winch cable. Other
winches use a specially designed synthetic rope as the winch cable.
6. Never replace a synthetic-rope winch cable with a consumer-grade
polymer rope such as can be purchased in a hardware store.
Although they may look similar, they are NOT alike. A polymer
rope not designed for winch use will stretch and store excessive
energy when winching.
WARNING! Failure of a stretched rope under winching conditions will release
all of the stored energy. This will increase the chances of SEVERE INJURY or
DEATH.
75
EMISSION CONTROL SYSTEMS
Noise Emission Control System
Do not modify the engine, intake or exhaust components, as doing so
may affect compliance with governmental noise level requirements.
Spark Arrester
Your POLARIS vehicle has a spark arrester that was designed for on-
road and off-road operation. It is required that this spark arrester remain
installed and functional when the vehicle is operated.
Exhaust Emission Control System
Exhaust emissions are controlled by engine design. An electronic fuel
injection (EFI) system controls fuel delivery. The engine and EFI
components are set at the factory for optimal performance and are not
adjustable.
Electromagnetic Interference
This vehicle complies with the EMC requirements of European
directives 97/24/EC and 2004/108/EC.
Non-ionizing Radiation: This vehicle emits some electromagnetic
energy. People with active or non-active implantable medical devices
(such as heart monitoring or controlling devices) should review the
limitations of their device and the applicable electromagnetic standards
and directives that apply to this vehicle.
European Vibration and Noise
The driver-perceived noise and hand/arm and whole body vibration
levels of this machinery is measured per prEN 15997.
The operating conditions of the machinery during testing:
The vehicles were in like-new condition. The environment was
controlled as indicated by the test procedure(s).
The uncertainty of vibration exposure measurement is dependent on
many factors, including:
• Instrument and calibration uncertainty
• Variations in the machine such as wear of components
• Variation of machine operators such as experience or physique
• Ability of the worker to reproduce typical work during measurements
• Environmental factors such as ambient noise or temperature
76
MAINTENANCE
Periodic Maintenance Chart
Careful periodic maintenance will help keep your vehicle in the safest,
most reliable condition. Inspection, adjustment and lubrication of
important components are explained in the periodic maintenance chart.
Inspect, clean, lubricate, adjust and replace parts as necessary. When
inspection reveals the need for replacement parts, use genuine
POLARIS parts available from your POLARIS dealer.
Record maintenance and service in the Maintenance Log beginning on
page 135.
Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, have a
qualified dealer perform these operations.
Maintenance intervals in the following chart are based upon average
riding conditions and an average vehicle speed of approximately 10
miles per hour. Vehicles subjected to severe use must be inspected and
serviced more frequently.
Severe Use Definition
• Frequent immersion in mud, water or sand
• Racing or race-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
• Short trip cold weather operation
Pay special attention to the oil level. A rise in oil level during cold
weather can indicate contaminants collecting in the oil sump or
crankcase. Change oil immediately if the oil level begins to rise.
Monitor the oil level, and if it continues to rise, discontinue use and
determine the cause or see your dealer.
77
MAINTENANCE
Periodic Maintenance Chart
Maintenance Chart Key
WARNING! Improperly performing the procedures marked with a “D” could
result in component failure and lead to serious injury or death. Have an
authorized POLARIS dealer perform these services.
Symbol Description
► Perform these operations more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer perform these services.
78
MAINTENANCE
Periodic Maintenance Chart
Perform all services at whichever maintenance interval is reached first.
► Perform these procedures more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
Steering -
Pre-Ride
-
Make adjustments as need
ed. See Pre-Ride Checklist
on page 46.
Front suspension - -
Rear suspension - -
Tires - -
Brake fluid level - -
Brake lever travel - -
Brake system - -
Wheels/fasteners - -
Frame fasteners - -
Engine oil level - -
Winch - - See pages 63-74.
► Air filter, pre-filter - Daily - Inspect; clean often; replace
as needed
► Air box sediment
tube
- Daily - Drain deposits when visible
Coolant
(if applicable)
- Daily - Check level daily, change
coolant every 2 years
Headlamp/taillight - Daily - Check operation; apply
dielectric grease if replacing
► Air filter,
main element
- Weekly - Inspect; replace as needed
Recoil housing
(if applicable)
- Weekly - Drain water as needed,
check often if operating in wet
conditions
►
D
Brake pad wear 10 Monthly 100 (160) Inspect periodically
Battery 20 Monthly 200 (320) Check terminals; clean; test
► Engine oil change
(break-in)
25 1 M - Perform a break-in oil change
at one month
► Demand drive fluid
(front gearcase)
25 1 M 250 (400) Break-in oil level check
► Rear gearcase oil
(if equipped)
25 1 M 250 (400) Break-in oil level check
► Transmission oil 25 1 M 250 (400) Break-in oil level check
► Engine breather
filter (if equipped)
25 Monthly 250 (400) Inspect; clean if needed
79
MAINTENANCE
Periodic Maintenance Chart
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
► General
lubrication
50 3 M 500 (800) Lubricate all fittings, pivots,
cables, etc.
Shift linkage 50 6 M 310 (500) Inspect, lubricate, adjust
D Steering 50 6 M 310 (500) Lubricate
► Front suspension 50 6 M 310 (500) Lubricate
► Rear suspension 50 6 M 310 (500) Lubricate
D Throttle Cable/
Throttle Release
Switch
50 6 M 500 (800) Inspect; adjust; lubricate;
replace if necessary
Throttle Body
Intake Duct
50 6 M 500 (800) Inspect duct for proper seal-
ing/air leaks
Drive belt 50 6 M 500 (800) Inspect; adjust; replace as
needed
Cooling system
(if applicable)
50 6 M 500 (800) Inspect coolant strength
seasonally; pressure test
system yearly
► Oil lines and
fasteners
100 6 M 1000 (1600) Inspect for leaks and loose
fittings
► Engine oil and filter
change
100 6 M 1000 (1600) Change the oil and filter
► Oil tank vent hose
(if equipped)
100 6 M 1000 (1600) Inspect routing, condition
► Demand drive fluid
(front gearcase)
100 12 M 1000 (1600) Change fluid
► Rear gearcase oil
(if equipped)
100 12 M 1000 (1600) Change fluid
► Transmission oil 100 12 M 1000 (1600) Change fluid
Fuel system 100 12 M 1000 (1600) Check for leaks at tank cap,
lines, filter, pump; replace
lines every two years
► Radiator 100 12 M 1000 (1600) Inspect; clean external
surfaces
► Cooling hoses
(if applicable)
100 12 M 1000 (1600) Inspect for leaks
► Engine mounts 100 12 M 1000 (1600) Inspect
Exhaust muffler/
pipe
100 12 M 1000 (1600) Inspect
D Spark plug 100 12 M 1000 (1600) Inspect; replace as needed
► Wiring 100 12 M 1000 (1600) Inspect for wear, routing,
security; apply dielectric
grease to connectors
subjected to water, mud, etc.
80
MAINTENANCE
Periodic Maintenance Chart
► Perform these procedures more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
D Clutches (drive
and driven)
100 12 M 1000 (1600) Inspect; clean; replace worn
parts
D Front wheel
bearings
100 12 M 1000 (1600) Inspect; replace as needed
D Brake fluid 200 24 M 2000 (3200) Change every two years
►
D
Fuel filter 200 24 M 2000 (3200) Check for leaks around lines.
Replace every 2 years, more
often under extreme
conditions.
Spark arrester 300 36 M 3000 (4800) Clean out

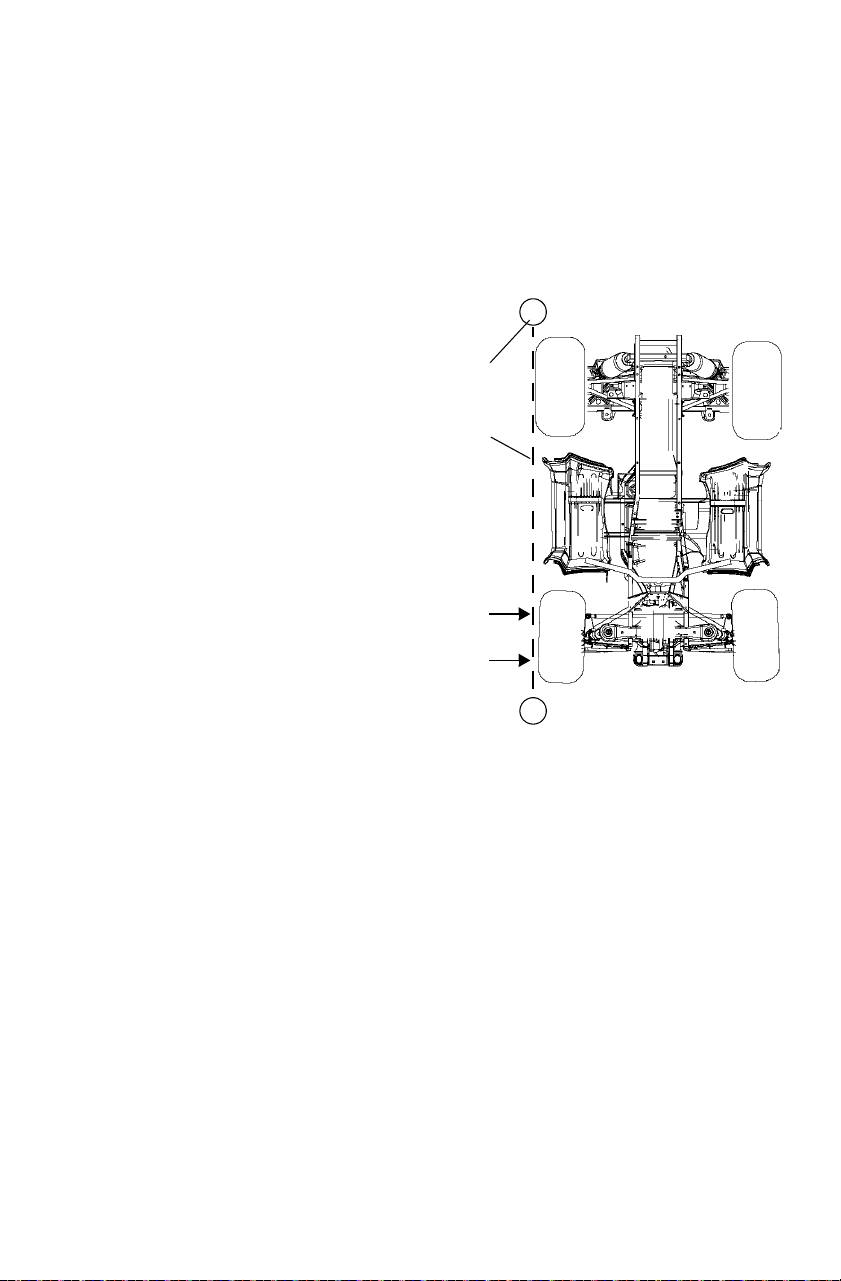

D Toe adjustment - Inspect periodically; adjust
when parts are replaced
Headlight aim - Adjust as needed
81
MAINTENANCE
Lubrication Guide
Check and lubricate all components at the intervals outlined in the
Periodic Maintenance Chart beginning on page 76. Items not listed in
the chart should be lubricated at the General Lubrication interval.
The a-arms and lower control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
Item Lube Capacity at
Fluid Change
Inspection
Procedure
Engine Oil PS-4 5W-50
4-Cycle Oil
2 qt. (1.9 l) See page 82.
Brake Fluid DOT 4 Brake Fluid --- See page 30.
Transmission Oil AGL Gearcase Lubricant
& Transmission Fluid
32 oz. (946 ml) See page 85.
Demand Drive
Fluid (Front
Gearcase)
Demand Drive Fluid 9 oz. (265 ml) See page 87.
Front Prop Shaft
Yoke
U-Joint Grease --- Grease fittings (3
pumps maximum) every
500 miles, before long
periods of storage, or
after pressure washing
or submerging.
Front Prop Shaft Yoke
82
MAINTENANCE
Engine Oil
Oil Recommendations
POLARIS recommends the use of POLARIS PS-4 Full Synthetic 5W-
50 4-cycle oil or a similar oil for this engine. Oil may need to be
changed more frequently if POLARIS oil is not used. Always use 5W-
50 oil. Follow the manufacturer's recommendations for ambient
temperature operation. See page 130 for the part numbers of POLARIS
products.
NOTICE: Mixing brands or using a non-recommended oil may cause serious
engine damage. Always use the recommended oil. Never substitute
or mix oil brands.

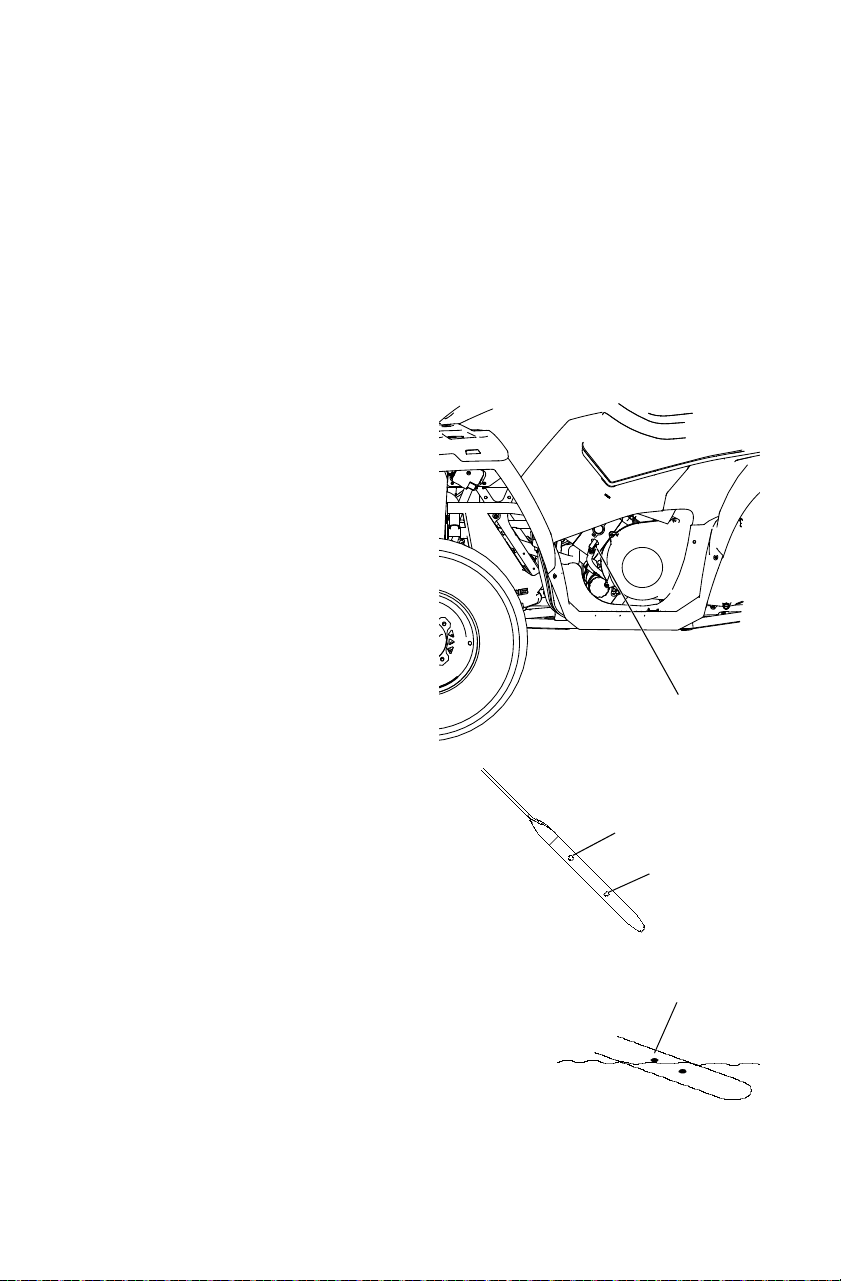

Oil Level
Access the oil dipstick and fill tube
from the left side of the ATV.
1. Position the vehicle on a level
surface.
2. Lift the lever lock to remove the
dipstick. Wipe it dry with a clean
cloth.
3. Reinstall the dipstick completely,
but do not lock it. The dipstick
must be inserted completely to
keep the angle and depth of the
stick consistent.
4. Remove the dipstick and check
the oil level. Maintain the oil
level in the safe range. Do not
overfill.
Tip: Due to the dipstick entry angle into
the crankcase, the oil level will read
higher on the bottom side of the
dipstick. Always read the level on the
upper surface of the dipstick.
5. After reinstalling the dipstick,
seat the lever lock.
Dipstick
Safe
Add Oil
{
Safe
Range
Check Level
on Top Side
83
MAINTENANCE
Engine Oil
Oil and Filter Change
Always change the oil and filter at the intervals outlined in the Periodic
Maintenance Chart beginning on page 76. Always change the oil filter
whenever changing oil.
1. Position the vehicle on a level surface.
2. Start the engine. Allow it to warm up at idle for two to three
minutes.
3. Stop the engine.
4. Clean the area around
the drain plug.
5. Place a drain pan
under the crankcase.
6. Remove the drain
plug. Allow the oil to
drain completely.
CAUTION! Hot oil can
cause burns to skin. Do not
allow hot oil to contact skin.
7. Install a new sealing washer on the drain plug. The sealing surfaces
on drain plug and crankcase should be clean and free of burrs, nicks
or scratches.
8. Reinstall the drain plug. Torque to 20 ft. lbs. (27 Nm).
9. Place shop towels beneath the oil
filter. Using an oil filter wrench
(available from your POLARIS
dealer), turn the filter counter-
clockwise to remove it.
10. Using a clean dry cloth, clean the
filter sealing surface on the
crankcase.

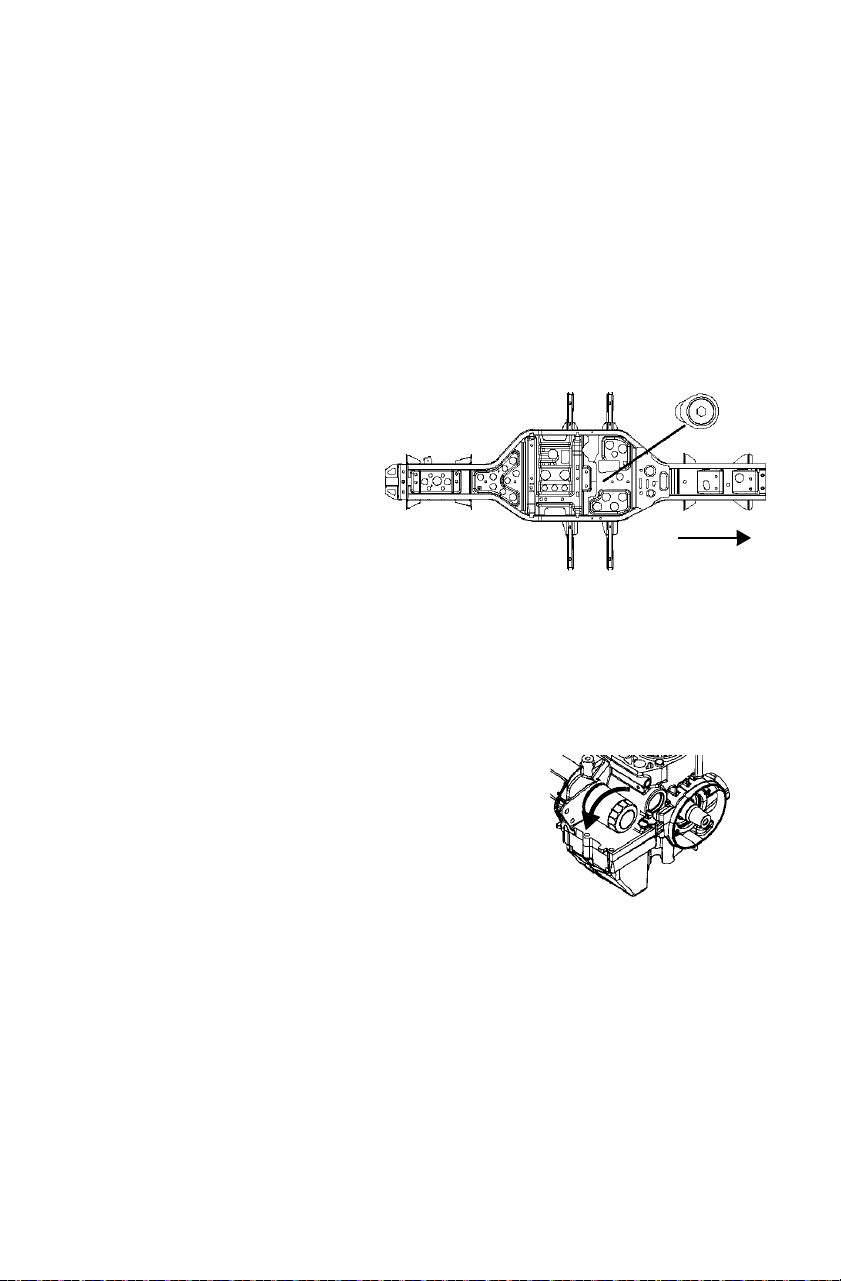

Drain Plug Location
to front
84
MAINTENANCE
Engine Oil
Oil and Filter Change
11. Lubricate the o-ring on the new filter with a film of fresh engine oil.
Check to make sure the o-ring is in good condition.
12. Install the new filter and rotate it clockwise by hand until the filter
gasket contacts the sealing surface, then turn it an additional 3/4
turn.
13. Remove the dipstick.
14. Add two quarts (1.9 l) of recommended oil.
15. Place the transmission in PARK.
16. Lock the parking brake.
17. Start the engine. Allow it to idle for one to two minutes.
18. Stop the engine.
19. Check for leaks.
20. Check the oil level. Add oil as needed to bring the level to the upper
mark on the dipstick.
21. Dispose of used filter and oil properly.
85
MAINTENANCE
Transmission Oil
Always check and change the transmission oil at the intervals outlined
in the Periodic Maintenance Chart beginning on page 76. Maintain the
oil level at the bottom of the fill plug hole threads. See page 130 for the
part numbers of POLARIS products.

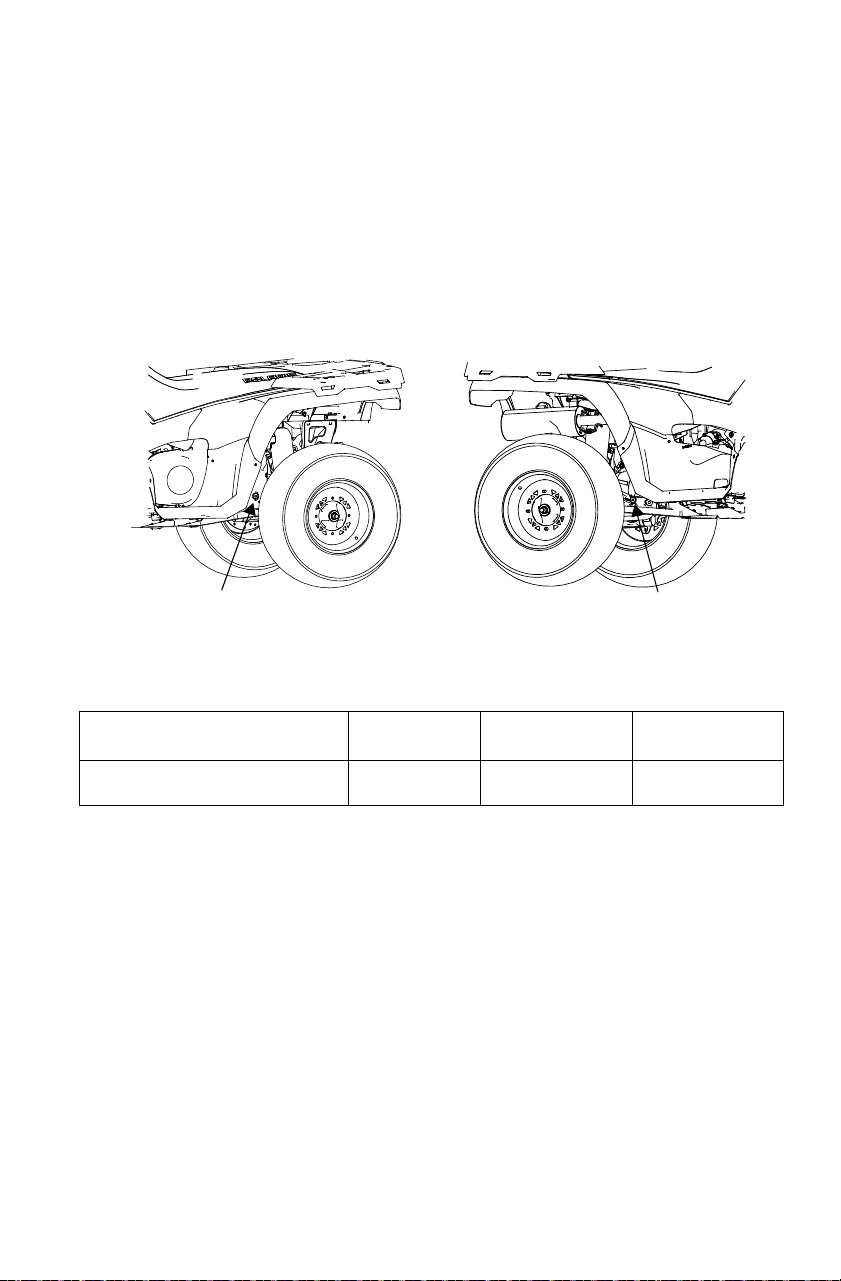

The fill plug is located on the left side of the ATV, under the rear fender,
behind the wheel. The drain plug is located on the right side of the
gearcase, on the right side of the ATV, behind the wheel well.
Transmission Oil Recommendations
Lubricant Capacity Fill Plug
Torque
Drain Plug
Torque
AGL Gearcase Lubricant &
Transmission Fluid
32 oz.
(946 ml)
10-14 ft. lbs.
(14-19 Nm)
10-14 ft. lbs.
(14-19 Nm)
Drain Plug
Fill Plug
86
MAINTENANCE
Transmission Oil
Oil Check
1. Position the vehicle on a level
surface.
2. Remove the fill plug. Check the
oil level.
3. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
4. Reinstall the fill plug. Torque to
specification.
Oil Change
1. Remove the fill plug.
2. Place a drain pan under the gearcase. Remove the drain plug. Allow
the oil to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
4. Add the proper amount of the recommended oil.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks.
7. Dispose of used oil properly.
Fill Level
Fill Plug
87
MAINTENANCE
Front Gearcase (Demand Drive) Fluid
Always check and change the demand drive fluid at the intervals
outlined in the Periodic Maintenance Chart beginning on page 76. We
recommend the use of Demand Drive Fluid. Use of other fluids may
result in improper operation of components. See page 130 for the part
numbers of POLARIS products.
Maintain the fluid level at the bottom of the fill hole threads. See below
for capacity.
The fill plug is located on the right side of the demand drive unit. The
drain plug is located on the bottom right side of the unit.
Fluid Check
1. Position the vehicle on
a level surface. Remove
the fill plug. Check the
fluid level.
2. Add the recommended
fluid as needed to bring
the level to the bottom
of the fill hole threads.
3. Reinstall the fill plug.
Torque to 8-10 ft. lbs.
(11-14 Nm).
Fluid Change
1. Position the vehicle on a level surface. Remove the fill plug.
2. Place a drain pan under the demand drive unit. Remove the drain
plug. Allow the fluid to drain completely.
3. Clean and reinstall the drain plug. Torque to 11 ft. lbs. (15 Nm).
4. Add the recommended fluid. See table above for capacity.
5. Reinstall the fill plug. Torque to 8-10 ft. lbs. (11-14 Nm).
6. Check for leaks. Dispose of used fluid properly.
Demand Drive Capacity
Demand Drive 9 oz. (265 ml)
Drain Plug
Fill
Plug
Fill Level
88
MAINTENANCE
Cooling System
The engine coolant level is controlled, or maintained, by the recovery
system. The recovery system components are the recovery bottle, the
radiator filler neck, the radiator pressure cap and the connecting hose.
As coolant operating temperature increases, the expanding (heated)
excess coolant is forced out of the engine, past the pressure cap, and into
the recovery bottle. As engine coolant temperature decreases the
contracting (cooled) coolant is drawn back up from the bottle, past the
pressure cap, and into the radiator.
Some coolant level drop on new vehicles is normal as the system is
purging itself of trapped air. Check the coolant level and maintain as
recommended by adding coolant to the recovery bottle.
POLARIS recommends the use of POLARIS Antifreeze 60/40 premix
or a 50/50 mixture of high quality aluminum compatible anti-freeze/
coolant and distilled water. POLARIS Antifreeze is already premixed
and ready to use. Do not dilute with water. See page 130 for the part
numbers of POLARIS products.
Always follow the manufacturer's mixing recommendations for the
freeze protection required in your area.
Recovery Bottle Coolant
The recovery bottle is located
on the left side of the vehicle.
1. Remove the left side panel.
See page 94.
2. Maintain the coolant level
between the minimum and
maximum marks on the
bottle (when the fluid is
cool).
3. Add coolant as needed.
Recovery
Bottle
89
MAINTENANCE
Cooling System
Radiator Coolant
To ensure that the coolant maintains its ability to protect the engine,
POLARIS recommends that you drain the system completely every two
years and add a fresh mixture of antifreeze and water.
Replace the coolant any time the cooling system has been drained for
maintenance or repair. If the recovery bottle has run dry, check the level
in the radiator. Add coolant as needed.
CAUTION! Escaping steam can cause burns. Never remove the pressure cap
while the engine is warm or hot. Always allow the engine to cool before
removing the pressure cap.

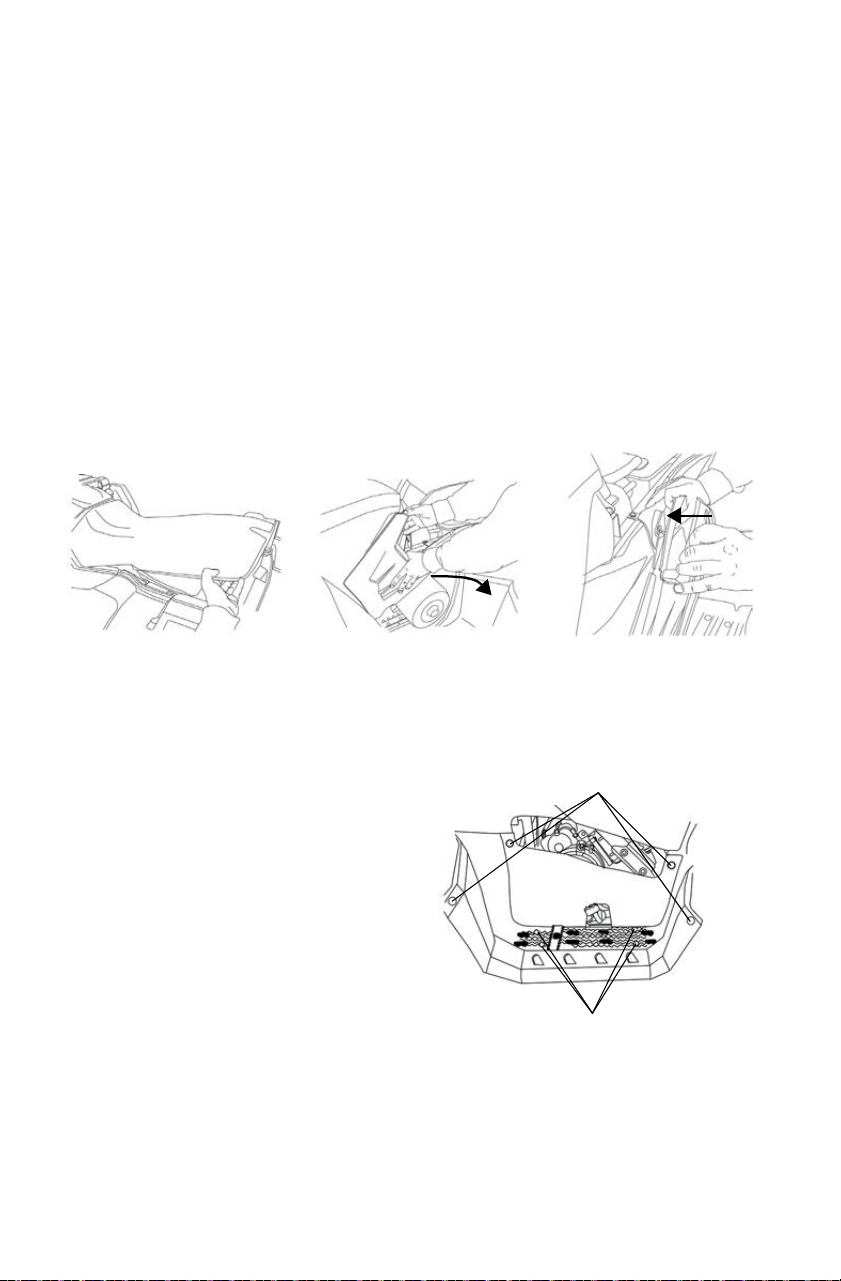

1. Open the front box cover.
2. Remove the access panel
screws. Squeeze the outer
edges of the panel inward to
remove the panel.
3. Remove the pressure cap.
4. Using a funnel, slowly add
coolant through the radiator
filler neck.
5. Reinstall the pressure cap.
Use of a non-standard
pressure cap will not allow
the recovery system to
function properly. Contact
your dealer for the correct replacement part.
6. Reinstall the access panel and secure the front box cover.
Radiator
Cap
90
MAINTENANCE
Brakes
Hand Brake
The front and rear brakes are hydraulic disc brakes, activated by moving
the single brake lever toward the handlebar. These brakes are self-
adjusting.
Under normal operation, the diaphragm extends into the reservoir as
fluid level drops. If the fluid level is low and the diaphragm is not
extended, a leak is likely and the diaphragm should be replaced. To
ensure proper diaphragm operation, always fill the reservoir as needed
whenever the cover is loosened or removed. Do not overfill.
WARNING! An over-full master cylinder may cause brake drag or brake lock-
up, which could result in serious injury or death. Maintain brake fluid at the
recommended level. Do not overfill.
The following checks are recommended to keep the brake system in
good operating condition. Check more often if brakes are used heavily
under normal operation.
1. Always keep brake fluid at an adequate
level. See page 30.
2. Check the brake system for fluid leaks.
3. Check the brakes for excessive travel or
spongy feel.
4. Check the friction pads for wear, damage
and looseness. Replace brake pads when
they are worn to 3/64" (1 mm).
5. Check the security and surface condition
of the disc. Clean any grease using a
recommended brake cleaner or alcohol.
Do not use spray lubricants or other petroleum-based products. If
you discover any damage (cracks, excessive corrosion, warping) see
your dealer for service before operating.
Auxiliary Foot Brake
The hydraulic auxiliary brake system requires no adjustment. Check the
brake fluid level frequently for the auxiliary brake system. See page 32.
3/64" (1 mm)
91
MAINTENANCE
Toe Alignment
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 1/8" to 1/4" (3-6 mm) toe out.
WARNING! Severe injury or death can result from improper toe alignment and
adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments
should be performed by an authorized POLARIS dealer.
1. Position the vehicle on a
level surface.
2. Place the handlebars in a
straight-ahead position.
3. Tie a length of string
between two stands as
shown in the illustration.
Position the stands so
that the string is flush
with the side of the rear
tire. If available, you
may use a long straight-
edge instead of string.
4. Measure the distance
from the string to the
rim at the front (1) and
rear (2) of the front rim.
The rear measurement
should be 1/16"-1/8" (2-3 mm) more than the front measurement on
each side of the vehicle to obtain the recommended 1/8" to 1/4" (3-6
mm) toe out alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your POLARIS dealer for
service.

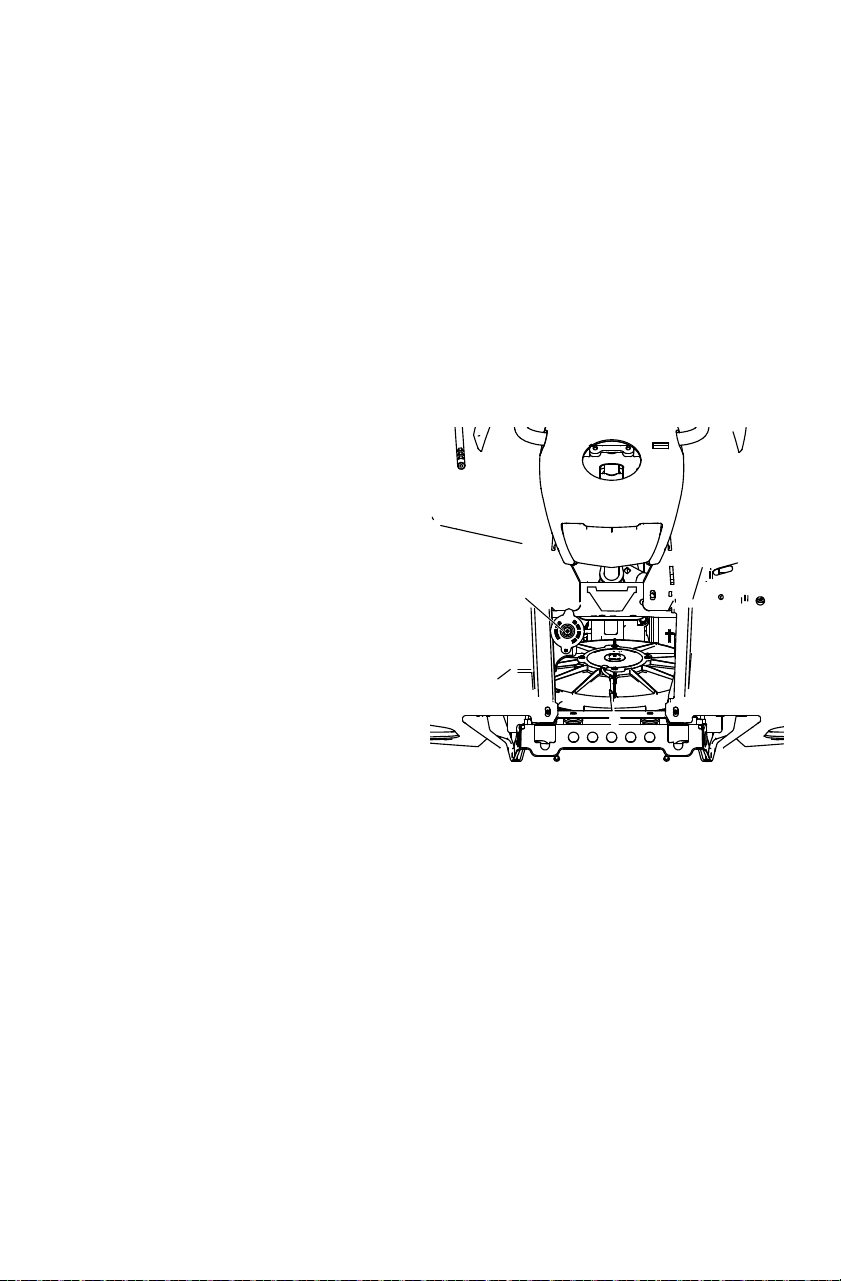

String
Stand
2
1
FRONT
92
MAINTENANCE
Camber and Caster
The camber and caster are non-adjustable.
Rear Spring
The rear shock absorber spring is adjusted
by rotating the adjuster either clockwise
or counter-clockwise to increase or
decrease spring tension. Accessory
springs are available through your
POLARIS dealer.
Handlebars
The handlebars can be adjusted for rider
preference.
WARNING! Improper adjustment of the handlebars or incorrect torquing of the
adjuster block tightening bolts can cause limited steering or loosening of the
handlebars, resulting in loss of control and serious injury or death. Follow the
adjustment procedures exactly, or see your POLARIS dealer for service.
1. Remove the upper headlight
pod.
2. Loosen the four handlebar
bolts.
3. Adjust the handlebar to the
desired height.
4. Be sure the handlebars do not
contact the gas tank or any
other part of the machine when
turned fully to the left or right.
5. Torque the front two bolts to
10-12 ft. lbs. (14-17 Nm), then
torque the rear two bolts. A
gap of up to 1/8" (3 mm) will
remain at the rear of the clamp
blocks.
Adjuster
Handlebar
Bolts
93
MAINTENANCE
Throttle Body/Idle RPM
Idle RPM is preset by the manufacturer. If the engine idle speed is not
satisfactory, please see your POLARIS dealer for adjustment.
Throttle Cable Freeplay
Adjust throttle cable freeplay at the handlebar.
1. Locate the throttle cable
adjuster at the handlebar.
2. Squeeze the end of the
rubber boot and slide it far
enough to expose the end of
the inline cable adjuster.
3. Loosen the adjuster lock nut.
4. Rotate the boot to turn the
adjuster until 1/16" to 1/8"
(1.5-3 mm) of freeplay is
achieved at the thumb lever.
While adjusting freeplay, be
sure to flip the throttle lever
back and forth.
5. Tighten the lock nut.
6. Squeeze the end of the
rubber boot and slide it over
the cable adjuster to its
original position.
Lock Nut
Adjuster
Boot
94
MAINTENANCE
Steering Assembly
The steering assembly of the ATV should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your
POLARIS dealer for service before operating the vehicle.
Side Panel Removal
1. Remove the seat.
2. Grasp the rear of the side panel near the rear cab. With a firm
motion, pull the panel outward to disengage the side panel from the
grommet. Pull the panel downward and rearward to remove it.
3. When reinstalling side panels, align the fasteners and press firmly to
secure them.
Footwell Removal
1. Remove the four screws on
the bottom of the footwell.
2. Use a flat screwdriver or
sidecutters to remove the
plastic rivets securing the
footwell to the fenders.
3. Remove the footwell.
Step 1 Step 2 Step 3
Screws
Rivets
95
MAINTENANCE
Tires
Operating your ATV with worn tires, improperly inflated tires, non-standard tires
or improperly installed tires will affect vehicle handling and could cause an
accident resulting in serious injury or death. Always follow all tire maintenance
procedures as outlined in this manual and on the labels on the vehicle. Always
use original equipment size and type when replacing tires.
Refer to the specifications section beginning on page 128 for
recommended tire type, size and pressure.
Tire Tread Depth
Always replace tires
when tread depth is
worn to 1/8" (3 mm)
or less.
Front Wheel Hub Tightening
Front wheel bearing tightness and spindle nut retention are critical
component operations. All service must be performed by your
authorized POLARIS dealer.
Wheel Removal
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Loosen the wheel nuts slightly.
WARNING! Do not service axle nuts that have a cotter pin installed. See your
POLARIS dealer.
5. Elevate the side of the vehicle by placing a suitable stand under the
footrest frame.
6. Remove the wheel nuts.
7. Remove the wheel.
WARNING
1/8" (3 mm)
96
MAINTENANCE
Tires
Wheel Installation
1. Place the transmission in PARK.
2. Lock the parking brake.
3. Place the wheel on the hub with the valve stem toward the outside
and rotation arrows on the tire pointing toward forward rotation.
4. Install the wheel nuts and finger-tighten them.
5. Lower the vehicle to the ground.
6. Torque the wheel nuts to specification.
WARNING! Loose nuts could cause a tire to come off during operation, which
could result in an accident or overturn. Always ensure that all nuts are torqued to
specification.
Wheel Nut Torque Specifications
Check the wheel nut torques occasionally and when they've been
loosened for maintenance service.
Nut Type Nut Torque
Lug Nut
(Aluminum
Wheels)
30 ft. lbs. (41 Nm)
PLUS 1/4 TURN
2-Piece
Flange Nut
(Steel
Wheels)
27 ft. lbs. (37 Nm)
97
MAINTENANCE
Air Filter
1. Remove the seat.
2. Release the air box cover clips,
and remove the air box cover.
3. Loosen the clamp and remove
the filter.
4. Remove the fabric type pre-filter
from the main filter. Wash the
pre-filter in soapy water, then
rinse and let dry.
5. Reinstall the pre-filter over the
main filter. Install a new main
filter if needed.
6. Reinstall the filter into the air
box and tighten the clamp. Do
not over-tighten the clamp, as
filter damage could occur.
7. Reinstall the air box cover and
the seat.
Main Filter
Pre-Filter
98
MAINTENANCE
Fuse Replacement
If the engine stops or will not
start, or if you experience other
electrical failures, a fuse may need
replacement. Locate and correct
any short circuits that may have
caused the blown fuse, then
replace the fuse. Spare fuses are
provided in the rear storage box.
1. Open the front box cover.
2. Remove the suspect fuse from
the fuse panel. If the fuse is
blown, install a new fuse with
the same amperage.
3. Secure the front box cover.
Fuse Feature Supported
5A Speedometer
15A Electronic Fuel Injection
20A (Main Fuse) Ignition, Lighting
20A Accessories, 12V Power Receptacle
Fuse Panel
Fuses
5or61520 20
99
MAINTENANCE
Lights
Poor lighting can result in reduced visibility when driving. Headlight
and taillight lenses become dirty during normal operation. Clean lights
frequently and replace burned out lamps promptly. Always make sure
lights are adjusted properly for best visibility.
Headlight Lamp Replacement
When servicing a halogen lamp, don't touch the lamp with bare fingers.
Oil from your skin leaves a residue, causing a hot spot that will shorten
the life of the lamp.
1. Remove the two screws on the lower front corners of the headlight
pod.
2. Remove the screw from the rear of the pod.
3. Lift the pod slightly while depressing the tabs at the rear of the pod.
4. Lift the pod cover and disconnect the speedometer harnesses from
the speedometer.
CAUTION! Hot components can cause burns to skin. Allow lamps to cool
before servicing.
5. Unplug the headlamp from the wiring harness. Be sure to pull on the
connector, not on the wiring.
6. Turn the lamp counter-clockwise to remove it.
7. Apply dielectric grease to the socket and install the new lamp. Make
sure the tab on the lamp locates properly in the housing.
8. Reassemble the pod.
100
MAINTENANCE
Lights
High Beam Adjustment
The headlight beam can be adjusted slightly upward or downward. Use
the following procedure to make the adjustment.
1. Position the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall. Place the transmission in
PARK.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
3. Start the engine. Turn the headlight switch to high beam.
4. Observe the headlight aim on the wall. The most intense part of the
headlight beam should be two inches (5 cm) below the mark on the
wall. Include rider weight on the seat when measuring.
5. The adjustment knob is located on the right side of the headlight
pod. Adjust the beam to the desired position by turning the knob
either clockwise or counter-clockwise.
25 ft.
(7.6 m)
2" (5 cm)
101
MAINTENANCE
Lights
Low Beam Adjustment
The low beam can be adjusted slightly
upward or downward.
1. Loosen the phillips screw located at the
rear of the headlamp.
2. Tilt the headlamp upward or
downward.
3. Tighten the screw.
Phillips
Screw
102
MAINTENANCE
Lights
Headlight Housing Replacement
1. Remove the two screws on the lower front corners of the headlight
pod.
2. Lift the pod slightly while depressing the tabs at the rear of the pod.
3. Lift the pod cover and disconnect the speedometer harnesses from
the speedometer.
4. Unplug the headlamp from the wiring harness.
5. Use a small screwdriver to remove the o-rings from the headlight
mounting tabs.
6. Pull the headlight housing up to release it from the locking tabs.
7. Lift the adjusting knob up to remove it from the locking tabs.
8. Carefully pull the assembly up
and out of the pod.
9. Reverse the steps to install the
new housing and reassemble
the pod. The distance from the
headlamp parting line to the
end of the adjustment knob
stop is 5 1/8" (13 cm).
10. Adjust the headlight aim by
turning the adjusting knob.
5 1/8"
(13 cm)
103
MAINTENANCE
Lights

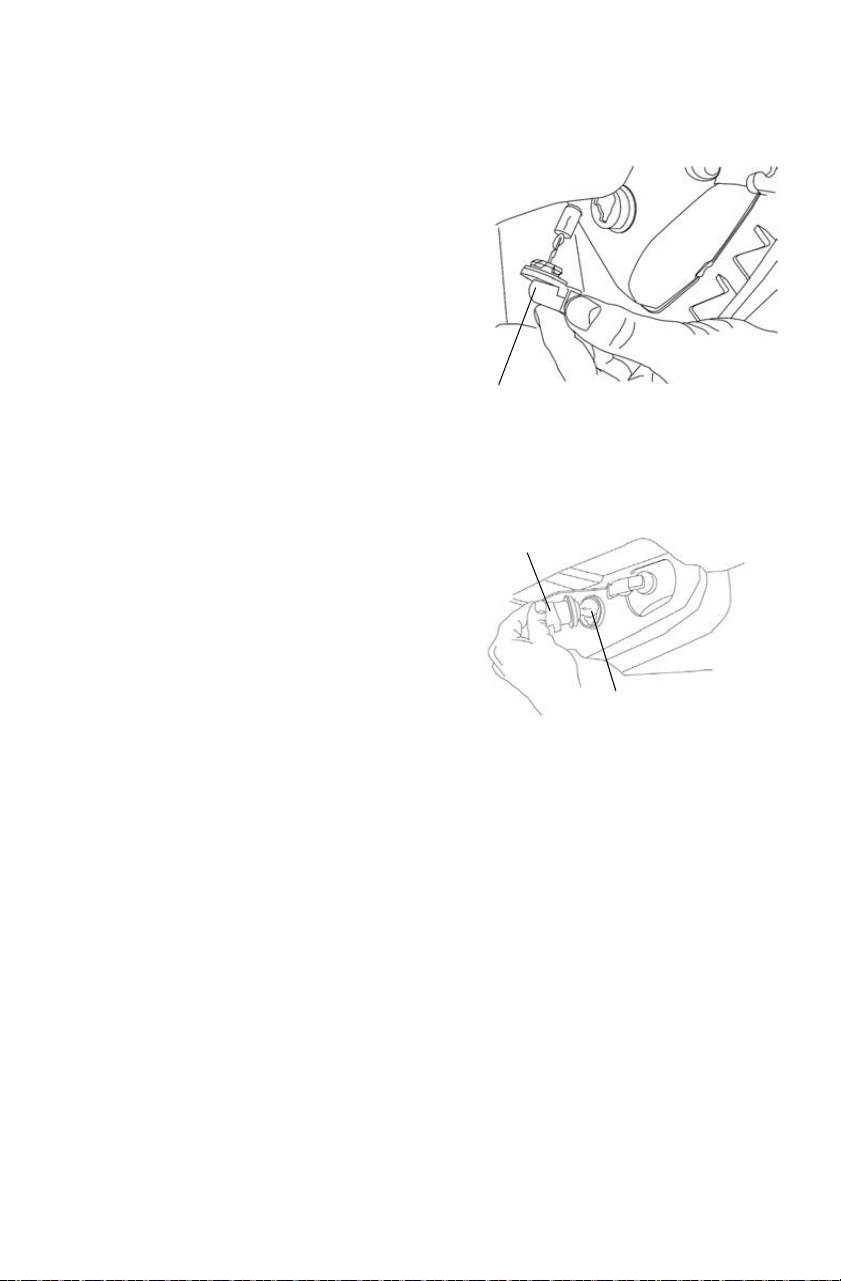

Lower Headlamp Replacement
1. Turn the back of the headlight
harness counter-clockwise and
pull the harness assembly away
from the headlight assembly.
2. Remove the headlamp and install
the new headlamp.
3. Reinstall the harness assembly
into the headlight assembly.
4. Turn the headlight harness
clockwise to secure the
headlamp.
Taillight/Brakelight Lamp Replacement
1. Remove the harness connector
from the back of the light
assembly.
2. Turn the lamp counter-
clockwise to remove it.
3. Apply dielectric grease to the
socket and install the new
lamp.
4. Reinstall the harness connector.
5. Test the light for proper operation.
Harness
Connector
Lamp
104
MAINTENANCE
Spark Plugs
Spark Plug Recommendations
Refer to the specifications section beginning on page 128 for the
recommended spark plug type and gap for your vehicle. Torque spark
plugs to specification.
NOTICE: Using non-recommended spark plugs can result in serious engine
damage. Always use POLARIS-recommended spark plugs.
Spark Plug Inspection
Spark plug condition is indicative of engine operation. Check the spark
plug firing end condition after the engine has been warmed up and the
vehicle has been driven at higher speeds. Immediately check the spark
plugs for correct color. See page 105.
CAUTION! A hot exhaust system and engine can cause burns. Wear
protective gloves when removing a spark plug for inspection.
1. Rotate the spark plug cap 1/4 turn and pull it off the spark plug.
2. Using the special wrench provided in the tool pouch, rotate the
spark plug counter-clockwise to remove it.
3. Reverse the procedure for spark plug installation. Torque to
specification.
Plug Condition Torque Specification
New Spark Plug 9-11 ft. lbs. (12-15 Nm)
Previously Installed Spark Plug 17-20 ft. lbs. (23-27 Nm)
105
MAINTENANCE
Spark Plugs
Spark Plug Inspection
Normal Spark Plug
The normal insulator tip is gray, tan or light brown. There will be few
combustion deposits. The electrodes are not burned or eroded. This
indicates the proper type and heat range for the engine and the service.
The tip should not be flaky and white. A white insulator tip indicates
overheating, caused by use of an improper spark plug or incorrect fuel.
Wet Fouled Spark Plug
The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil, use
of non-recommended oil or incorrect throttle body adjustments.
106
MAINTENANCE
Vehicle Immersion
If your vehicle becomes immersed, major engine damage can result if
the machine is not thoroughly inspected. Take the vehicle to your dealer
before starting the engine. If it's impossible to take your ATV to a dealer
before starting it, follow the steps outlined below.
1. Move the ATV to dry land or at the very least, to water below the
footrests.
2. Check the air box. If water is present, dry the air box and replace the
filter with a new filter.
3. Remove the spark plugs.
4. Turn the engine over several times using the electric start.
5. Dry the spark plugs. Reinstall the plugs or install new plugs.
6. Attempt to start the engine. If necessary, repeat the drying
procedure.
7. Take the ATV to your dealer for service as soon as possible, whether
you succeed in starting it or not.
8. If water has been ingested into the PVT, follow the procedure on
page 110 for drying out the PVT.
107
MAINTENANCE
Spark Arrester
Failure to heed the following warnings while servicing the spark arrester could
result in serious injury or death. Never run the engine in an enclosed area.
Remove any combustible materials from the area. Wear eye protection and
leather work gloves. Do not stand behind or in front of the vehicle while purging.
Never go under the vehicle while it's inclined.
The exhaust system can get extremely hot. Do not perform service on the spark
arrester while the system is hot. Allow components to cool sufficiently before
proceeding.
Use the following procedure to periodically purge accumulated carbon
from the exhaust pipe/muffler.
1. Remove the arrester clean-out plug
from the bottom of the muffler. Be
sure to clean out both arresters if
your model has two.
2. Place the transmission in PARK.
3. Start the engine.
4. Quickly squeeze and release the
throttle lever several times to purge
carbon from the system.
5. If carbon comes out of the exhaust, cover or plug the exhaust outlet.
Wear protective gloves.
6. Lightly tap on the exhaust pipe with a rubber mallet while repeating
step 4.
7. If particles are still suspected to be in the muffler, elevate the rear of
the vehicle one foot (30 cm) higher than the front. Block the wheels.
8. Place the transmission in PARK. Lock the parking brake. Repeat
steps 4 to 6 until no more particles are expelled.
9. Stop the engine. Allow the arrester to cool.
10. Reinstall the arrester plug and remove the exhaust outlet cover or
plug.
WARNING
Exhaust
Outlet
Clean-Out Plug
108
MAINTENANCE
PVT System
Failure to comply with the instructions in this warning can result in severe injury
or death.
Do not modify any component of the PVT system. Doing so may reduce its
strength so that a failure may occur at a high speed. The PVT system has been
precision balanced. Any modification will cause the system to be out of balance,
creating vibration and additional loads on components.
The PVT system rotates at high speeds, creating large amounts of force on
clutch components. Extensive engineering and testing has been conducted to
ensure the safety of this product. However, as the owner, you have the following
responsibilities to make sure this system remains safe:
• Always follow all recommended maintenance procedures. Always look for
and remove debris inside and around the clutch and vent system when
replacing the belt.
• See your dealer as outlined in the owner's manual.
• This PVT system is intended for use on POLARIS products only. Do not
install it in any other product.
• Always make sure the PVT housing is securely in place during operation.
WARNING
109
MAINTENANCE
PVT System
PVT Operation
The basic operation of the POLARIS PVT system is dependent on
engine speed and vehicle torque requirements. As engine speed
increases, the force exerted on the movable drive sheave by the
flyweights also increases. This, in turn, increases the amount of pinch
applied to the drive belt. Similarly, if the engine speed decreases, the
amount of centrifugal force decreases, reducing the amount of belt
pinch.
On POLARIS ATVs, the approximate gear ratio difference between
high and low range is 1:2.25. This difference in gearing affects the
operation of the PVT, especially at speeds less than 7 MPH (11 km/h),
due to the system's dependence on engine speed.
For example, when operating at a ground speed of 3 MPH (5 km/h) in
low range, the engine speed would be around 3000 RPM. This is well
above the engagement speed of 1200 - 1400 RPM. However, in high
range at 3 MPH (5 km/h), the engine would be running at only 1500
RPM. Whenever operating this close to the engagement speed, the
engine may be running at a speed too low to provide the pinch needed to
prevent belt slip. Belt slip is responsible for creating the excessive heat
that destroys belts, wears clutch components and causes outer clutch
covers to fail.
110
MAINTENANCE
PVT System
PVT Operation
The air temperature in the clutch cover is substantially reduced by using
low range while operating at low ground speeds. Reducing the
temperature inside the clutch cover greatly extends the life of the PVT
components (belt, cover, etc.).
When To Use Low Range and High Range
PVT Drying
There may be some instances when water is accidently ingested into the
PVT system. Use the following instructions to dry it out before
operating.
1. Position the vehicle on a level surface.
2. Remove the drain plug. Allow the water to drain completely.
Reinstall the drain plug.
3. Start the engine. Place the transmission in PARK.
4. Apply varying throttle for 10-15 seconds to expel the moisture and
air-dry the belt and clutches. Do not hold the throttle wide open for
more than 10 seconds.
5. Allow the engine RPM to settle to idle speed, then shift the
transmission to the lowest available range.
6. Test for belt slippage. If the belt slips, repeat the process.
7. Take the vehicle to your dealer for service as soon as possible.
Condition Range to Use
Operating at speeds less than 7 MPH (11 km/h) Low
Towing heavy loads Low
Operating in rough terrain (swamps, mountains, etc.) Low
Operating at speeds greater than 7 MPH (11 km/h) High
111
MAINTENANCE
Battery
Improperly connecting or disconnecting battery cables can result in an explosion
and cause serious injury or death. When removing the battery, always
disconnect the negative (black) cable first. When reinstalling the battery, always
connect the negative (black) cable last.
Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can
result from contact with skin, eyes or clothing.
Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get prompt medical attention.
Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away.
Ventilate when charging or using in an enclosed space. Always shield eyes
when working near batteries. KEEP OUT OF REACH OF CHILDREN.
Your ATV may have either a sealed battery, which requires little
maintenance, or a conventional battery. A sealed battery can be
identified by its flat covers on the top of the battery. A conventional
battery has six filler caps on the top of the battery.
Always keep battery terminals and connections free of corrosion. If
cleaning is necessary, remove corrosion with a stiff wire brush. Wash
with a solution of one tablespoon baking soda and one cup water. Rinse
well with tap water and dry off with clean shop towels. Coat the
terminals with dielectric grease or petroleum jelly. Be careful not to
allow cleaning solution or tap water into a conventional battery.
WARNING
WARNING
112
MAINTENANCE
Battery
Battery Removal
1. Disconnect the battery hold-down strap.
2. Remove the battery cover (if equipped).
3. On conventional batteries, remove the battery vent tube.
4. Disconnect the black (negative) battery cable first.
5. Disconnect the red (positive) battery cable last.
6. Lift the battery out of the ATV. Be careful not to tip a conventional
battery sideways, which could spill electrolyte.
NOTICE: If electrolyte spills, immediately wash it off with a solution of one
tablespoon baking soda and one cup water to prevent damage to the
vehicle.
113
MAINTENANCE
Battery
Battery Installation
Using a new battery that has not been fully charged can damage the
battery and result in a shorter life. It can also hinder vehicle
performance. Follow the battery charging instructions on page 115
before installing the battery.
1. Ensure that the battery is fully charged.
2. Place the battery in the battery holder.
3. With conventional batteries, install the battery vent tube (sealed
batteries do not have a vent tube). The vent tube must be free of
obstructions and securely installed. Route the tube away from the
frame and vehicle body to prevent contact with electrolyte.
WARNING! Battery gases could accumulate in an improperly installed vent tube
and cause an explosion, resulting in serious injury or death. Always ensure that
the vent tube is free of obstructions and is securely installed as recommended.
4. On conventional batteries, coat the terminals with dielectric grease
or petroleum jelly.
5. Connect and tighten the red (positive) cable first.
6. Connect and tighten the black (negative) cable last.
7. Install the battery cover (if equipped).
8. Secure the battery hold-down strap.
9. Verify that cables are properly routed. Cables should be safely
tucked away at the front and rear of the battery.
114
MAINTENANCE
Battery
Battery Storage
Whenever the vehicle is not used for a period of three months or more,
remove the battery from the vehicle, ensure that it's fully charged, and
store it out of the sun in a cool, dry place. Check battery voltage each
month during storage and recharge as needed to maintain a full charge.
POLARIS recommends maintaining battery charge by using a
POLARIS Battery Tender charger or by charging about once a month to
make up for normal self-discharge. Battery Tender can be left connected
during the storage period, and will automatically charge the battery if
the voltage drops below a pre-determined point. See page 130 for the
part numbers of POLARIS products.
Battery Fluid (Conventional Battery)
A poorly maintained battery will
deteriorate rapidly. Check the battery
fluid level often. Maintain the fluid
level between the upper and lower
level marks.
Add only distilled water. Tap water
contains minerals that are harmful to
a battery.
Lower
Mark
Upper
Mark
115
MAINTENANCE
Battery
Battery Charging (Conventional Battery)
1. Remove the battery from the vehicle to prevent damage from
leaking or spilled electrolyte during charging. See page 112.
2. Charge the battery with a charging output no larger than 1/10 of the
battery’s amp/hr rating. Charge as needed to raise the specific
gravity to 1.270 or greater.
3. Reinstall the battery. See page 113. Make sure the positive terminal
is toward the front of the vehicle.
Battery Charging (Sealed Battery)
The following battery charging instructions apply only to the
installation of a sealed battery. Read all instructions before proceeding
with the installation of this battery.
The sealed battery is already filled with electrolyte and has been sealed
and fully charged at the factory. Never pry the sealing strip off or add
any other fluid to this battery.
The single most important thing about maintaining a sealed battery is to
keep it fully charged. Since the battery is sealed and the sealing strip
cannot be removed, you must use a voltmeter or multimeter to measure
DC voltage.
WARNING! An overheated battery may explode, causing severe injury or
death. Always watch charging times carefully. Stop charging if the battery
becomes very warm to the touch. Allow it to cool before resuming charging.
For a refresh charge, follow all instructions carefully.
1. Check the battery voltage with a voltmeter or multimeter. A fully
charged battery will register 12.8 V or higher.
2. If the voltage is less than 12.8 volts, recharge the battery at 1.2 amps
or less until battery voltage is 12.8 or greater.
3. When using an automatic charger, refer to the charger
manufacturer's instructions for recharging. When using a constant
current charger, use the guidelines on the next page for recharging.
116
MAINTENANCE
Battery
Battery Charging (Sealed Battery)
Always verify battery condition before and 1-2 hours after the end of
charging.
State of
Charge
Voltage Action
Charge Time
(Using constant current
charger @ standard amps
specified on top of battery)
100% 12.8-13.0 volts None, check at 3
mos. from date of
manufacture
None required
75%-100% 12.5-12.8 volts May need slight
charge, if no
charge given,
check in 3 months
3-6 hours
50%-75% 12.0-12.5 volts Needs charge 5-11 hours
25%-50% 11.5-12.0 volts Needs charge At least 13 hours,
verify state of charge
0%-25% 11.5 volts or less Needs charge with
desulfating charger
At least 20 hours
117
MAINTENANCE
Cleaning and Storage
Washing the Vehicle
Keeping your POLARIS vehicle clean will not only improve its
appearance but it can also extend the life of various components.
NOTICE: High water pressure may damage components. POLARIS
recommends washing the vehicle by hand or with a garden hose,
using mild soap.
Certain products, including insect repellents and chemicals, will
damage plastic surfaces. Do not allow these types of products to
contact the vehicle.
The best and safest way to clean your POLARIS vehicle is with a
garden hose and a pail of mild soap and water.
1. Use a professional-type washing cloth, cleaning the upper body first
and the lower parts last.
2. Rinse with clean water frequently.
3. Dry surfaces with a chamois to prevent water spots.
Washing Tips
• Avoid the use of harsh cleaners, which can scratch the finish.
• Do not use a power washer to clean the vehicle.
• Do not use medium to heavy duty compounds on the finish.
• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.
118
MAINTENANCE
Cleaning and Storage
Washing the Vehicle
If a high pressure water system is used for cleaning (not recommended),
exercise extreme caution. The water may damage components and could
remove paint and decals. Avoid directing the water stream at the
following items:
If an informational or graphic label becomes illegible or comes off,
contact your POLARIS dealer to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge.
Grease all zerk fittings immediately after washing. Allow the engine to
run for a while to evaporate any water that may have entered the engine
or exhaust system.
Polishing the Vehicle
POLARIS recommends the use of common household aerosol furniture
polish for polishing the finish on your POLARIS vehicle. Follow the
instructions on the container.
Polishing Tips
• Avoid the use of automotive products, some of which can scratch the
finish of your vehicle.
• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.
• Wheel bearings • Electrical components
• Radiator • Switches and controls
• Transmission seals • Fuel system components
• Cab and body panels • Labels and decals
119
MAINTENANCE
Cleaning and Storage
Chrome Wheel Care (if equipped)
Proper maintenance will protect chrome wheels from corrosion,
preserve wheel life and ensure a “like new” appearance for many years.
Chrome wheels exposed to road salt (or salt in the air in coastal areas)
are more susceptible to corrosion if not properly cleaned. Clean chrome
wheels more often if they're exposed to salt or other corrosive elements.
1. Wash chrome wheels frequently. Use a mild detergent. Never use
abrasive cleaners on plated or painted surfaces.
2. Rinse well with clear water. Soap, detergents, salt, dirt, mud and
other elements can cause corrosion.
3. Polish the clean chrome wheels periodically. Use an automotive
grade chrome polish.
4. Routinely and liberally apply a weather resistant wax to each
polished chrome wheel. Choose a product suitable for chrome
finishes. Read and follow the product labels and instructions.
Removing Corrosion
If light rust is found on the chrome finish, use steel wool (#0000-OTT
grade) to remove it. Gently rub the affected areas with the steel wool
until the corrosion has been removed. Clean and polish the wheel as
outlined above.
120
MAINTENANCE
Cleaning and Storage
Storage Tips
NOTICE: Starting the engine during the storage period will disturb the
protective film created by fogging and damage could occur. Never
start the engine during the storage period.
Clean the Exterior
Make any necessary repairs and then clean the vehicle as recommended.
See page 117.
Stabilize the Fuel
1. Fill the fuel tank.
2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel
Stabilizer. Follow the instructions on the container for the
recommended amount. Carbon Clean removes water from fuel
systems, stabilizes fuel and removes carbon deposits from pistons,
rings, valves and exhaust systems.
3. Allow the engine to run for 15-20 minutes to allow the stabilizer to
disperse through the entire fuel delivery system.
Oil and Filter
Change the oil and filter. See page 83.
Air Filter / Air Box
1. Inspect and clean (or replace) the pre-cleaner and air filter.
2. Clean the air box.
3. Drain the sediment tube.
121
MAINTENANCE
Cleaning and Storage
Storage Tips
Fluid Levels
Inspect the following fluid levels. Change fluids as recommended in the
Periodic Maintenance Chart beginning on page 76.
• Demand drive unit (front gearcase)
• Rear gearcase (if equipped)
• Transmission
• Brake fluid (change every two years and any time the fluid looks dark
or contaminated)
• Coolant (test strength/fill)
Fog the Engine
1. Treat the fuel system with POLARIS Carbon Clean, following the
instructions on the can. Run the engine for several minutes so the
Carbon Clean reaches the injectors. Stop the engine.
2. Remove the spark plugs and add 2-3 tablespoons of engine oil. To
access the plug holes, use a section of clear 1/4" hose and a small
plastic squeeze bottle filled with the pre-measured amount of oil.
3. Reinstall the spark plugs. Torque to specification.
4. Apply dielectric grease to the inside of each spark plug cap and
reinstall the caps onto the plugs.
5. Turn the engine over several times. Oil will be forced in and around
the piston rings and ring lands, coating the cylinder with a
protective film of fresh oil.
6. If POLARIS fuel system additive is not used, the fuel tank, fuel
lines, and injectors should be completely drained of gasoline.
122
MAINTENANCE
Cleaning and Storage
Storage Tips
Inspect and Lubricate
Inspect all cables and lubricate all areas of the vehicle as recommended
in the Periodic Maintenance Chart beginning on page 76.
Battery Maintenance
Remove the battery and recharge it as outlined on page 115. Store the
battery in a cool, dry place.
Storage Area/Covers
Set the tire pressure and safely support the ATV with the tires slightly
off the ground. Be sure the storage area is well ventilated. Cover the
vehicle with a genuine POLARIS cover. Do not use plastic or coated
materials. They do not allow enough ventilation to prevent
condensation, and may promote corrosion and oxidation.
Accessories
Auxiliary power outlets provide 12-volt power for operating
accessories. Accessory outlets are available for all models. POLARIS
also has a wide range of additional accessories available for your ATV.
Always install accessories that are approved for ATV use. Please see
your POLARIS dealer.
123
MAINTENANCE
Transporting the Vehicle
Follow these procedures when
transporting the vehicle.
1. Stop the engine.
2. Place the transmission in
PARK.
3. Lock the parking brake.
4. Secure the fuel cap, oil cap
and seat.
5. Always tie the frame of the
ATV to the transporting
unit securely with suitable
straps or rope. Do not
attach tie straps to the front
A-arm bolt pockets, racks
or handlebars.
6. Remove the key to prevent
loss during transporting.
124
TROUBLESHOOTING
Drive Belt Wear/Burn
Possible Cause Solution
Driving onto a pickup or
tall trailer in high range
Use low range during loading.
Starting out going up a
steep incline
Use low range or turn around using the K-turn (see page
56).
Driving at low RPM or
ground speed (3-7 MPH)
Drive at a higher speed or use low range more frequently.
See page 110.
Insufficient warm-up at
low ambient tempera-
tures
Warm the engine at least 5 minutes. With the transmission
in neutral, advance the throttle to about 1/8 throttle in
short bursts, 5 to 7 times. The belt will become more flex-
ible and prevent belt burning.
Slow/easy clutch engage-
ment
Use the throttle quickly and effectively.
Towing/pushing at low
RPM/low ground speed
Use low range only.
Utility use/plowing Use low range only.
Stuck in mud or snow Shift the transmission to low range and carefully use fast,
aggressive throttle application to engage clutch.
WARNING! Excessive throttle may cause loss of control
and vehicle overturn.
Climbing over large
objects from a stopped
position
Shift the transmission to low range and carefully use fast,
brief, aggressive throttle application to engage clutch.
WARNING! Excessive throttle may cause loss of control
and vehicle overturn.
Belt slippage from water
or snow ingestion into the
PVT system
Dry out the PVT. See page 110. Inspect clutch seals for
damage if repeated leaking occurs.
Clutch malfunction See your POLARIS dealer.
Poor engine performance Check for fouled plugs or foreign material in gas tank or
fuel lines. See your dealer.
Slippage from failure to
warm up belt
Always warm up the belt by operating below 30 mph for
one mile (5 miles or more when temperature is below
freezing).
Wrong or missing belt Install the recommended belt.
Improper break-in Always break in a new belt and/or clutch. See page 45.
125
TROUBLESHOOTING
Engine Doesn't Turn Over
Engine Turns Over, Fails to Start
Engine Backfires
Possible Cause Solution
Tripped circuit breaker or blown fuse Reset the breaker/Replace fuse
Low battery voltage Recharge the battery to 12.8 VDC
Loose battery connections Check all connections and tighten
Loose solenoid connections Check all connections and tighten
Possible Cause Solution
Out of fuel Refuel, cycle key to ON position three
times for 5 seconds each, then start
Clogged fuel filter Replace the filter
Water is present in fuel Drain the fuel system and refuel
Old or non-recommended fuel Replace with fresh recommended fuel
Fouled or defective spark plugs Inspect plugs and replace if necessary
No spark to spark plug Inspect plugs, verify stop switch is on
Water or fuel in crankcase Immediately see your POLARIS dealer
Low battery voltage Recharge the battery to 12.8 VDC
Mechanical failure See your dealer
Possible Cause Solution
Weak spark from spark plug Inspect, clean and/or replace spark plugs
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Old or non-recommended fuel Replace with fresh recommended fuel
Incorrectly installed spark plug wires See your dealer
Incorrect ignition timing See your dealer
Mechanical failure See your dealer
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with fresh recommended fuel
126
TROUBLESHOOTING
Engine Pings or Knocks
Engine Runs Irregularly, Stalls or Misfires
Possible Cause Solution
Poor quality or low octane fuel Replace with recommended fuel
Incorrect ignition timing See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Possible Cause Solution
Fouled or defective spark plugs Inspect, clean and/or replace spark plugs
Worn or defective spark plug wires See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with new fuel
Low battery voltage Recharge battery to 12.8 VDC
Kinked or plugged fuel tank vent line Inspect and replace
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your dealer
Throttle release switch malfunction See your dealer
Other mechanical failure See your dealer
Possible Lean Fuel Cause Solution
Low or contaminated fuel Add or change fuel, clean the fuel system
Kinked or plugged fuel tank vent line Inspect and replace
Low octane fuel Replace with recommended fuel
Clogged fuel filter Replace filter
Incorrect fuel Replace with recommended fuel
Possible Rich Fuel Cause Solution
Fuel is very high octane Replace with lower octane fuel
Stopping/starting without adequate
warm-up
Allow engine to warm up before operat-
ing and/or stopping
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
127
TROUBLESHOOTING
Engine Stops or Loses Power
Engine Overheating
Possible Cause Solution
Out of fuel Refuel, cycle key to ON position three
times for 5 seconds each, then start
Kinked or plugged fuel vent line Inspect and replace
Water is present in fuel Replace with new fuel
Fouled or defective spark plugs Inspect, clean and/or replace spark plug
Worn or defective spark plug wires See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plug
Loose ignition connections Check all connections and tighten
Low battery voltage Recharge the battery to 12.8 VDC
Incorrect fuel Replace with fresh recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your dealer
Throttle release switch malfunction See your dealer
Other mechanical failure See your dealer
Overheated engine Clean radiator screen and core, clean
engine exterior, see your dealer
Possible Cause Solution
Debris lodged in screen Remove and clean the screen. Pull on the
top portion of the screen, then remove the
lower portion.
Plugged Radiator Use a garden hose to flush any debris
from the radiator fins. NOTE: High pres-
sure washers can deform the radiator fins
and reduce cooling efficiency.
128
SPECIFICATIONS
* Based on EU Directive 76/432/EC
SPORTSMAN FOREST 800
Maximum Weight Capacity 515 lbs. (234 kg) (includes operator, cargo,
accessories)
Dry Weight 741 lbs. (336 kg) +/- 7%, based on
configuration
Fuel Capacity 4.13 gal. (15.6 l)
Engine Oil Capacity 2 qts. (1.9 l)
Coolant Capacity 3.6 qts. (3.4 l)
Demand Drive Fluid Capacity 9 oz. (265 ml)
Transmission Oil Capacity 32 oz. (946 ml)
Front Rack/Storage Box Capacity 100 lbs. (45 kg)
Rear Rack Capacity 200 lbs. (91 kg)
Unbraked Trailer Towing Capacity* 1914 lbs. (868 kg)
Overall Length 83 in. (211 cm)
Overall Width 48 in. (122 cm)
Overall Height 48 in. (122 cm)
Wheelbase 50.75 in. (128.9 cm)
Ground Clearance 11.25 in. (28.5 cm)
Minimum Turning Radius 65 in. (165 cm) unloaded
Engine SPM800 4-Stroke (Low Torque Capacity)
Displacement 760 cc
Engine Power 41 kW
Bore x Stroke 80 x 76
Alternator Output 500 Watts @ 3000 rpm
Compression Ratio 10:1
Starting System Electric
Fuel System Electronic Fuel Injection
Ignition System ECU
Ignition Timing 8 BTDC @ 2000 RPM
Spark Plug / Gap RC7YC / .035 in. (0.9 mm)
Lubrication System Pressurized Wet Sump
Seat Single Seat, length 650 mm
Steering System Akerman Principle, with handlebar controls
Transmission Power System Shaft drive on all wheels
Driving System Type Automatic PVT (POLARIS Variable
Transmission)
Front Suspension MacPherson strut with 8.2" (21 cm) travel
Rear Suspension Progressive rate with 9.5" (24 cm) travel
129
SPECIFICATIONS
Clutching
SPORTSMAN FOREST 800
Transmission Automatic PVT with E-Z Shift H/L/N/R/P
Gear Reduction, Low 23.91:1
Gear Reduction, Reverse 21.74:1
Gear Reduction, High 8.28:1
Drive Ratio, Front 3.82:1
Tires/Pressure, Front Off Road Style, Deep Tread Design
Size 25x8-12 / 5 psi (34.5 KPa)
Tires/Pressure, Rear Off Road Style, Deep Tread Design
Size 25x11-12 / 5 psi (34.5 KPa)
Brakes, Front Single-Control Hydraulic Disc
Brakes, Rear Single-Control Hydraulic Disc
Brakes, Auxiliary Foot-Activated Hydraulic Disc
Brake, Parking Hydraulic lock on all wheels, Mechanical Lock in
Park
Hitch Rear mounting for attachment of coupling
devices
Winch Front permanent installed winch with 2500 lbs.
(1125 kg) capacity
Headlight 1 Single Beam on Headlight Pod (50 watt)
2 Single Beam on Bumper (50 watt)
Taillights 8.26 watts
Brake Light 26.9 watts
Instrument Cluster LCD
Altitude Shift
Weight
Drive Clutch
Spring
Driven
Clutch
Spring
Helix
Meters
(Feet)
0-1800
(0-6000)
23-62
PN 5632337
Black
PN 7043594
Black/Almond
PN 7043167
48-54
Progressive
1800-3700
(6000-12000)
23-58
PN 5632218
Black
PN 7043594
Black/Almond
PN 7043167
48-54
Progressive
130
POLARIS PRODUCTS
Part
Number
Description
Engine Lubricant
2870791 Fogging Oil (12 oz. Aerosol)
2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (qt./.95 l)
2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (gal./3.8 l)
Gearcase / Transmission Lubricants
2878068 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(qt./.95 l)
2878069 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(gal./3.8 l)
2877922 Demand Drive Fluid (qt./.95 l)
2877923 Demand Drive Fluid (gal./3.8 l)
2870465 Pump for Gallon (3.8 l) Jug
Coolant
2871534 Polaris Antifreeze 60/40 Premix (qt./.95 l)
2871323 Polaris Antifreeze 60/40 Premix (gal./3.8 l)
Grease / Specialized Lubricants
2871312 Grease Gun Kit, All Season Grease
2871322 All Season Grease (3 oz./89 ml cartridge)
2871423 All Season Grease (14 oz./414 ml cartridge)
2876160 ATV Angle Drive Fluid (qt./.95 l)
2872276 ATV Angle Drive Fluid (2.5 gal./9.5 l)
2871460 Premium Starter Grease
2871515 U-Joint Grease (3 oz./89 ml cartridge)
2871551 U-Joint Grease (14 oz./414 ml cartridge)
2871329 Dielectric Grease (Nyogel™)
Additives / Miscellaneous
2871326 Carbon Clean
2870652 Fuel Stabilizer
2872189 DOT 4 Brake Fluid
2871956 Loctite™ 565 Thread Sealant
2859044 POLARIS Battery Tender™ Charger
131
WARRANTY
LIMITED WARRANTY
POLARIS Sales Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a SIX
MONTH LIMITED WARRANTY on all components of your POLARIS vehicle against
defects in material or workmanship. POLARIS further warrants that the spark arrestor in
this product will meet the efficiency requirements of USFS standard 5100-1C for at least
1000 hours when subjected to normal use and when maintenance and installation are in
accordance with POLARIS recommendations.
This warranty covers parts and labor charges for repair or replacement of defective parts
and begins on the date of purchase by the original retail purchaser. This warranty is
transferable to another owner during the warranty period through a POLARIS dealer,
but any such transfer will not extend the original term of the warranty. The duration of
this warranty may vary by international region based upon local laws and regulations.
REGISTRATION
At the time of sale, the Warranty Registration Form must be completed by your dealer
and submitted to POLARIS within ten days of purchase. Upon receipt of this
registration, POLARIS will record the registration for warranty. No verification of
registration will be sent to the purchaser as the copy of the Warranty Registration Form
will be your proof of warranty coverage. If you have not signed the original registration
and received the customer copy, please contact your dealer immediately. NO
WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR VEHICLE IS
REGISTERED WITH POLARIS. Initial dealer preparation and set-up of your vehicle is
very important in ensuring trouble-free operation. Purchasing a machine in the crate or
without proper dealer set-up will void your warranty coverage.
WARRANTY COVERAGE AND EXCLUSIONS:
LIMITATIONS OF WARRANTIES AND REMEDIES
This POLARIS limited warranty excludes any failures that are not caused by a defect in
material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF
DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental
damage, normal wear and tear, abuse or improper handling. This warranty also does not
cover any vehicle, component, or part that has been altered structurally, modified,
neglected, improperly maintained, or used for purposes other than for which it was
designed.
This warranty excludes damages or failures resulting from: improper lubrication;
improper engine timing; improper fuel; surface imperfections caused by external stress,
heat, cold or contamination; operator error or abuse; improper component alignment,
tension, adjustment or altitude compensation; snow, water, dirt or other foreign
substance ingestion/contamination; improper maintenance; modified components; use
of aftermarket or unapproved components, accessories, or attachments; unauthorized
repairs; or repairs made after the warranty period expires or by an unauthorized repair
center.
132
WARRANTY
LIMITATIONS OF WARRANTIES AND REMEDIES
This warranty excludes damages or failures caused by abuse, accident, fire, or any other
cause other than a defect in materials or workmanship and provides no coverage for
consumable components, general wear items, or any parts exposed to friction surfaces,
stresses, environmental conditions and/or contamination for which they were not
designed or not intended, including but not limited to the following items:
Lubricants and Fluids
1. Mixing oil brands or using non-recommended oil may cause engine damage. We
recommend the use of POLARIS engine oil.
2. Damage or failure resulting from the use of non-recommended lubricants or fluids is
not covered by this warranty.
This warranty provides no coverage for personal loss or expense, including mileage,
transportation costs, hotels, meals, shipping or handling fees, product pick-up or
delivery, replacement rentals, loss of product use, loss of profits, or loss of vacation or
personal time.
THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE,
AT POLARIS’ OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE
MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN
THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON
FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY
TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR
IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR
OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTAL,
INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL
SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS
ESSENTIAL PURPOSE.
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS
EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED
WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE
ABOVE SIX MONTH WARRANTY PERIOD. POLARIS DISCLAIMS ALL
EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO
NOT PERMIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY
TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.
• Wheels and tires • Finished and unfinished surfaces
• Suspension components • Carburetor/Throttle body components
• Brake components • Engine components
• Seat components • Drive belts
• Clutches and components • Hydraulic components and fluids
• Steering components • Circuit breakers/Fuses
• Batteries • Electronic components
• Light bulbs/Sealed beam lamps • Spark plugs
• Filter • Sealants
• Lubricants • Coolants
• Bushings • Bearings
133
WARRANTY
HOW TO OBTAIN WARRANTY SERVICE
If your vehicle requires warranty service, you must take it to a POLARIS Servicing
Dealer. When requesting warranty service you must present your copy of the Warranty
Registration From to the dealer. (THE COST OF TRANSPORTATION TO AND
FROM THE DEALER IS YOUR RESPONSIBILITY). POLARIS suggests that you use
your original selling dealer; however, you may use any POLARIS Servicing Dealer to
perform warranty service.
In the country where your product was purchased:
Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer. If
you move or are traveling within the country where your product was purchased,
Warranty and Service Bulletin repairs may be requested from any authorized POLARIS
dealer that sells the same line as your product.
Outside the country where your product was purchased:
If you are traveling temporarily outside the country where your product was purchased,
you should take your product to an authorized POLARIS dealer. You must show the
dealer photo identification from the country of the selling dealer’s authorized location as
proof of residence. Upon residence verification, the servicing dealer will be authorized
to perform the warranty repair.
If you move:
If you move to another country, be sure to contact POLARIS Customer Assistance and
the customs department of the destination country before you move. Product
importation rules vary considerably from country to country. You may be required to
present documentation of your move to POLARIS in order to continue your warranty
coverage. You may also be required to obtain documentation from POLARIS in order to
register your product in your new country. You should warranty register your product at
a local POLARIS dealer in your new country immediately after you move to continue
your warranty coverage and to ensure that you receive information and notices regarding
your vehicle.
If you purchase from a private party:
If you purchase a POLARIS product from a private party, to be kept and used outside of
the country in which the product was originally purchased, all warranty coverage will be
denied. You must nonetheless register your product under your name and address with a
local POLARIS dealer in your country to ensure that you receive safety information and
notices regarding your product.
134
WARRANTY
EXPORTED PRODUCTS
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO
WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS
SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER’S AUTHORIZED
LOCATION. This policy does not apply to products that have received authorization for
export from POLARIS. Dealers may not give authorization for export. You should
consult an authorized dealer to determine this product’s warranty or service coverage if
you have any questions. This policy does not apply to products registered to government
officials or military personnel on assignment outside the country of the selling dealer’s
authorized location. This policy does not apply to Safety Bulletins.
NOTICE
If your product is registered outside of the country where it was purchased and you have
not followed the procedure set above, your product will no longer be eligible for
warranty or service bulletin coverage of any kind, other than safety bulletins. Products
registered to Government officials or military personnel on assignment outside of the
country where the product was purchased will continue to be covered by the Limited
Warranty.
Please work with your dealer to resolve any warranty issues. Should your dealer require
any additional assistance, they will contact the appropriate person at POLARIS.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state or in different countries. If any of the above terms are void
because of federal, state, local law, all other warranty terms will remain in effect.
135
MAINTENANCE LOG
Present this section of your manual to your dealer each time your vehicle is serviced.
This will provide you and future owners with an accurate log of maintenance and
services performed.
DATE MILES (KM)
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
136
MAINTENANCE LOG
DATE MILES (KM)
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
137
MAINTENANCE LOG
DATE MILES (KM)
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
138
INDEX
A
Accessories . . . . . . . . . . . . . . . . . . 122
Air Filter . . . . . . . . . . . . . . . . . . . . . 97
All Wheel Drive System . . . . . . . . . 34
Auxiliary Foot Brake. . . . . . . . . . . . 90
AWD Switch . . . . . . . . . . . . . . . 26, 34
AWD System. . . . . . . . . . . . . . . . . . 34
B
Battery . . . . . . . . . . . . . . . . . . . 111-116
Charging (Conventional) . . . . . 115
Charging (Sealed Battery) . . . . 116
Charging (Sealed) . . . . . . . . . . . 115
Fluid (Conventional Battery) . . 114
Installation . . . . . . . . . . . . . . . . 113
Removal . . . . . . . . . . . . . . . . . . 112
Storage . . . . . . . . . . . . . . . . . . . 114
Belt Life. . . . . . . . . . . . . . . . . . . . . . 33
Boots . . . . . . . . . . . . . . . . . . . . . . . . . 9
Brake Fluid, Auxiliary Foot Brake . 32
Brake Fluid, Main Brake System. . . 30
Brake Lever . . . . . . . . . . . . . . . . . . . 29
Brake, Foot . . . . . . . . . . . . . . . . 32, 90
Brake, Hand Lever. . . . . . . . . . . . . . 90
Brake, Parking . . . . . . . . . . . . . . . . . 31
Brakelight . . . . . . . . . . . . . . . . . . . 103
Brakes . . . . . . . . . . . . . . . . . . . . . . . 90
Break-In Period . . . . . . . . . . . . . . 44-45
C
Camber Adjustment. . . . . . . . . . . . . 92
Cargo . . . . . . . . . . . . . . . . . . . . . . 60-61
Caster Adjustment . . . . . . . . . . . . . . 92
Chrome Wheel Care . . . . . . . . . . . 119
Cleaning and Storage. . . . . . . . 117-122
Clothing . . . . . . . . . . . . . . . . . . . . . . . 9
Clutching . . . . . . . . . . . . . . . . . . . . 129
Codes . . . . . . . . . . . . . . . . . . . . . . 41-43
Cold Weather Operation . . . . . . . . . 49
Coolant Bottle . . . . . . . . . . . . . . . . . 88
Coolant, Radiator. . . . . . . . . . . . . . . 89
Cooling System . . . . . . . . . . . . . . 88-89
Corrosion Removal, Chrome. . . . . 119
D
Demand Drive Capacities . . . . . . . . . 87
Demand Drive Fluid . . . . . . . . . . . . . 87
Downloading Codes . . . . . . . . . . 41-43
Drive Belt Wear/Burn . . . . . . . . . . . 124
Drivetrain Break-In . . . . . . . . . . . . . . 45
Driving Downhill. . . . . . . . . . . . . . . . 55
Driving in Reverse. . . . . . . . . . . . . . . 59
Driving on a Sidehill . . . . . . . . . . . . . 54
Driving on Slippery Surfaces . . . . . . 52
Driving Over Obstacles . . . . . . . . . . . 58
Driving Procedures . . . . . . . . . . . . . . 50
Driving Through Water . . . . . . . . . . . 57
Driving Uphill . . . . . . . . . . . . . . . . . . 53
E
Electromagnetic Interference. . . . . . . 75
Engaging AWD . . . . . . . . . . . . . . . . . 34
Engine Break-In. . . . . . . . . . . . . . . . . 45
Engine Fogging . . . . . . . . . . . . . . . . 121
Engine Oil . . . . . . . . . . . . . . . . . . 82-84
Equipment Modifications . . . . . . . . . . 9
Etiquette, Trail Riding. . . . . . . . . . . . 48
European Vibration and Noise . . . . . 75
Exhaust Emission Control System . . 75
Eye Protection . . . . . . . . . . . . . . . . . . . 9
F
Fluid
Brake. . . . . . . . . . . . . . . . . . . . . . . 30
Demand Drive. . . . . . . . . . . . . . . . 87
Fluid Change
Demand Drive. . . . . . . . . . . . . . . . 87
Foot Brake, Auxiliary . . . . . . . . . . . . 32
Footwell Removal . . . . . . . . . . . . . . . 94
Front Gearcase (Demand Drive) . . . . 87
Fuel Safety. . . . . . . . . . . . . . . . . . . . . 11
Fuel Tank Cap . . . . . . . . . . . . . . . . . . 33
Fuse Replacement . . . . . . . . . . . . . . . 98
G
Gasoline Handling. . . . . . . . . . . . . . . 11
Gear Selector . . . . . . . . . . . . . . . . . . . 33
Gloves . . . . . . . . . . . . . . . . . . . . . . . . . 9
139
INDEX
H
Hand Brake . . . . . . . . . . . . . . . . . . . . 90
Handlebar Adjustment . . . . . . . . . . . 92
Hauling Cargo. . . . . . . . . . . . . . . 60-61
Headlight Housing Replacement . . 102
Headlight Lamp Replacement . . . . . 99
Headlight Switch. . . . . . . . . . . . . . . . 27
Helmet. . . . . . . . . . . . . . . . . . . . . . . . . 8
High Beam Adjustment . . . . . . . . . 100
High Range Use . . . . . . . . . . . . . . . 110
I
Idle RPM Adjustment. . . . . . . . . . . . 93
Immersion . . . . . . . . . . . . . . . . . . . . 106
Instrument Cluster. . . . . . . . . . . . 35-43
K
Key Switch . . . . . . . . . . . . . . . . . . . . 27
K-Turn . . . . . . . . . . . . . . . . . . . . . . . 56
L
Light Switch . . . . . . . . . . . . . . . . . . . 26
Lights . . . . . . . . . . . . . . . . . . . . 99-103
Headlight Housing Replacement 102
Headlight Lamp . . . . . . . . . . . . . . 99
High Beam Adjustment . . . . . . . 100
Low Beam Adjustment . . . . . . . 101
Lower Headlamp Replacement . 103
Taillight/Brakelight/Worklight . 103
Low Beam Adjustment . . . . . . . . . . 101
Low Range Use. . . . . . . . . . . . . . . . 110
Lower Headlamp Replacement. . . . 103
Lubrication Guide. . . . . . . . . . . . . . . 81
M
Maintenance Chart . . . . . . . . . . . 76-80
Master Cylinder . . . . . . . . . . . . . . . . 30
Mode Switch. . . . . . . . . . . . . . . . . . . 26
Modifications . . . . . . . . . . . . . . . . . . . 9
N
Noise Emission Control System . . . . 75
O
Oil
Engine . . . . . . . . . . . . . . . . . . 82-84
Transmission . . . . . . . . . . . . . 85-86
Oil and Filter Change . . . . . . . . . 83-84
Oil Level, Engine . . . . . . . . . . . . . . . 82
Oil Recommendations . . . . . . . . . . . 82
Override Switch . . . . . . . . . . . . . . . . 26
P
Parking Brake . . . . . . . . . . . . . . . . . . 31
Parking on an Incline . . . . . . . . . . . . 62
Periodic Maintenance Chart . . . . 76-80
Polaris Product List. . . . . . . . . . . . . 130
Polishing the Vehicle . . . . . . . . . . . 118
Pre-Ride Checklist . . . . . . . . . . . . . . 46
PVT Break-In . . . . . . . . . . . . . . . . . . 45
PVT Drying . . . . . . . . . . . . . . . . . . 110
PVT System . . . . . . . . . . . . . . 108-110
R
Reverse Operation . . . . . . . . . . . . . . 59
Reverse Override Switch . . . . . . . . . 26
Rider Information Center . . . . . . 36-43
Riding Area. . . . . . . . . . . . . . . . . . . . 48
Riding Gear. . . . . . . . . . . . . . . . . . . 8-9
S
Safe Operation Practices. . . . . . . . . . 47
Safety Labels . . . . . . . . . . . . . . . 22-25
"No Passenger" Warning . . . . . . . 24
Age 16 Warning. . . . . . . . . . . . . . 24
Clutch Cover Warning . . . . . . . . . 25
Discretionary Warning. . . . . . . . . 23
General Warning . . . . . . . . . . . . . 22
Rack Warning, Front and Rear . . 25
Reverse Override Warning . . . . . 25
Tire Pressure/Load Warning . . . . 23
Safety Training . . . . . . . . . . . . . . . . . . 7
Safety Warnings . . . . . . . . . . . . . 11-21
Protective Apparel . . . . . . . . . . . . 12
Safety, Winch Maintenance . . . . . . . 74
Service Interval Programming . . . . . 40
140
INDEX
S
Severe Use . . . . . . . . . . . . . . . . . . . . 76
Shock Loading the Winch . . . . . . 72-73
Side Panel Removal. . . . . . . . . . . . . 94
Sidehilling . . . . . . . . . . . . . . . . . . . . 54
Signal Words . . . . . . . . . . . . . . . . . . . 4
Spark Arrester . . . . . . . . . . . . . . . . 107
Spark Arrester Requirements. . . . . . 75
Spark Plug Inspection . . . . . . . 104-105
Spark Plug Recommendations. . . . 104
Spark Plug Torque Specification. . 104
Spark Plugs . . . . . . . . . . . . . . . 104-105
Specifications, 800 EFI . . . . . . . . . 129
Spring Adjustment, Rear Shock . . . 92
Starting the Engine . . . . . . . . . . . . . 49
Steering Assembly. . . . . . . . . . . . . . 94
Storage. . . . . . . . . . . . . . . . . . . 117-122
Storage Tips. . . . . . . . . . . . . . . 120-122
Switches. . . . . . . . . . . . . . . . . . . . 26-27
AWD Switch. . . . . . . . . . . . . 26, 34
Engine Stop Switch. . . . . . . . . . . 27
Headlight Switch. . . . . . . . . . . . . 27
Main Key Switch . . . . . . . . . . . . 27
Mode Switch. . . . . . . . . . . . . . . . 26
Reverse Override Switch . . . . . . 26
Stop Switch. . . . . . . . . . . . . . . . . 27
Winch Switch . . . . . . . . . . . . . . . 26
T
Taillight . . . . . . . . . . . . . . . . . . . . . . 103
Throttle Body Adjustment. . . . . . . . . 93
Throttle Cable Freeplay Adjustment . 93
Throttle Lever . . . . . . . . . . . . . . . . . . 28
Tire Tread Depth . . . . . . . . . . . . . . . . 95
Tires. . . . . . . . . . . . . . . . . . . . . . . 95-96
Wheel Installation. . . . . . . . . . . . . 96
Wheel Nut Torque . . . . . . . . . . . . 96
Wheel Removal . . . . . . . . . . . . . . 95
Toe Alignment. . . . . . . . . . . . . . . . . . 91
Towing Loads . . . . . . . . . . . . . . . . . . 61
Trail Etiquette . . . . . . . . . . . . . . . . . . 48
Training . . . . . . . . . . . . . . . . . . . . . . . . 7
Transmission Gear Selector. . . . . . . . 33
Transmission Oil . . . . . . . . . . . . . 85-86
Transmission Oil Recommendations. 85
Transporting the Vehicle . . . . . . . . . 123
Tread Lightly. . . . . . . . . . . . . . . . . . . 48
Turning Around on a Hill . . . . . . . . . 56
Turning the Vehicle. . . . . . . . . . . . . . 51
V
Vehicle Identification Numbers. . . . . . 6
Vehicle Immersion . . . . . . . . . . . . . 106
W
Warning Symbols . . . . . . . . . . . . . . . . 4
Washing the Vehicle . . . . . . . . 117-118
Wheel Hub Tightening . . . . . . . . . . . 95
Wheel Installation . . . . . . . . . . . . . . . 96
Wheel Nut Torque Specifications . . . 96
Wheel Removal . . . . . . . . . . . . . . . . . 95
Winch Cable Care . . . . . . . . . . . . . . . 71
Winch Maintenance/Service Safety. . 74
Winch Operation . . . . . . . . . . . . . 66-70
Winch Safety Precautions . . . . . . 63-65
Winch Shock Loading . . . . . . . . . 72-73
