ELECTRONIC CASH REGISTER

INSTRUCTION MANUAL

ER-A242

MODEL

A242_0_Cover 06.1.10 5:10 PM Page 3

FCC Regulations state that any unauthorized changes or modifications to

this equipment not expressly approved by the manufacturer could void

the user’s authority to operate this equipment.

Note: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when this equipment is operated in a commercial

environment.

This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his

own expense.

WARNING

CAUTION

The AC power socket-outlet should be installed near the equipment

and should be easily accessible.

Please record below the model number and serial number for easy

reference in case of loss or theft. These numbers are located on the

right side of the unit. Space is provided for further pertinent data.

Model Number

Serial Number

Date of Purchase

Place of Purchase

FOR YOUR RECORDS

A242_0_Cover 06.1.10 5:10 PM Page 4

English

INTRODUCTION

Thank you very much for your purchase of the SHARP Electronic Cash Register, Model ER-A242.

Please read this manual carefully before operating your machine in order to gain full understanding of

functions and features.

Please keep this manual for future reference. It will help you if you encounter any operational problems.

Never install the batteries into the cash register before initializing it. Before you start operating the cash

malfunction of the cash register will occur. For this procedure, please refer to page 7.

IMPORTANT

• On the printer, a cutter to cut the paper roll is mounted. Always be careful not to cut yourself by the

cutter.

• Install your register in a location that is not subject to direct radiation, unusual temperature changes,

high humidity or exposed to water sources.

Installation in such locations could cause damage to the cabinet and the electronic components.

• Never operate the register with wet hands.

The water could seep into the interior of the register and cause component failure.

• When cleaning your register, use a dry, soft cloth. Never use solvents, such as benzine and/or

thinner.

The use of such chemicals will lead to discoloration or deterioration of the cabinet.

• The register plugs into any standard wall outlet (120V AC ±10%).

Other electrical devices on the same electrical circuit could cause the register to malfunction.

• For protection against data loss, please install three “AA” batteries after initializing the cash register.

When handling the batteries, never fail to observe the followings:

Incorrectly using batteries can cause them to burst or leak, possibly damaging the interior of the

cash register.

• Be sure that the the positive (+) and negative (-) poles of each battery are facing in the proper

direction for installation.

• Never mix batteries of different types.

• Never mix old batteries and new ones.

• Never leave dead batteries in the battery compartment.

• Remove the batteries if you do not plan to use the cash register for long periods.

• Should a battery leak, clean out the battery compartment immediately, taking care to avoid letting

the battery fluid come into direct contact with your skin.

• For battery disposal, follow the corresponding law in your country.

• If the register malfunctions, call your local dealer for service - do not try to repair the register

yourself.

• For a complete electrical disconnection, disconnect the main plug.

CAUTION!

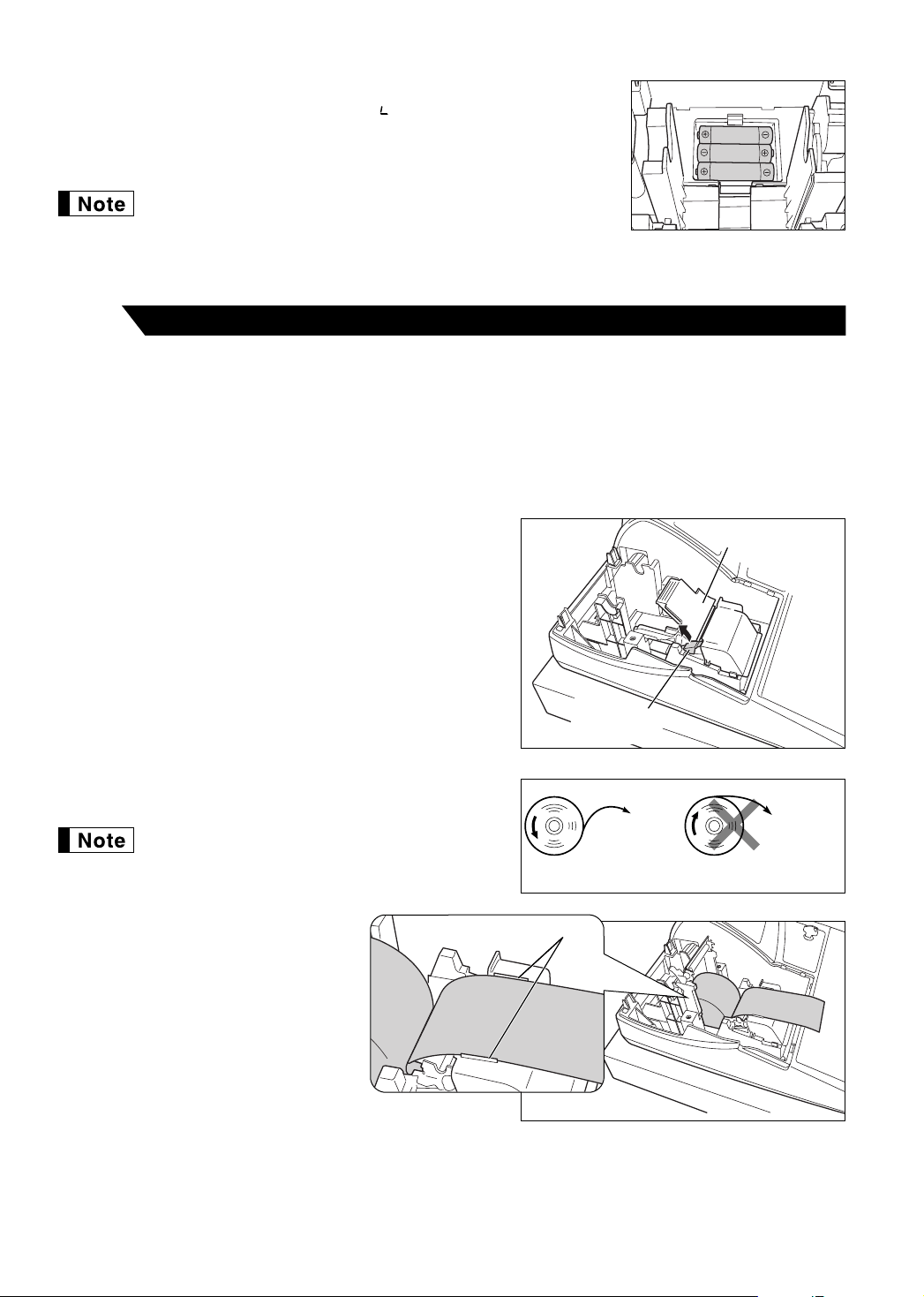

For Easy Set-up, see

“GETTING STARTED” (page 7).

A242_1 06.1.10 5:12 PM Page 1

CONTENTS

INTRODUCTION ............................................................................................................................................1

IMPORTANT ..................................................................................................................................................1

CONTENTS....................................................................................................................................................2

PARTS AND THEIR FUNCTIONS.................................................................................................................4

1 External View ........................................................................................................................................4

2 Printer....................................................................................................................................................4

3 Mode Switch and Mode Keys................................................................................................................5

4 Keyboard ...............................................................................................................................................5

5 Displays.................................................................................................................................................6

6 Drawer Lock Key ...................................................................................................................................6

GETTING STARTED......................................................................................................................................7

OVERVIEW OF FLOW OF DAILY SALES ENTRIES .................................................................................11

BASIC SALES ENTRY ................................................................................................................................12

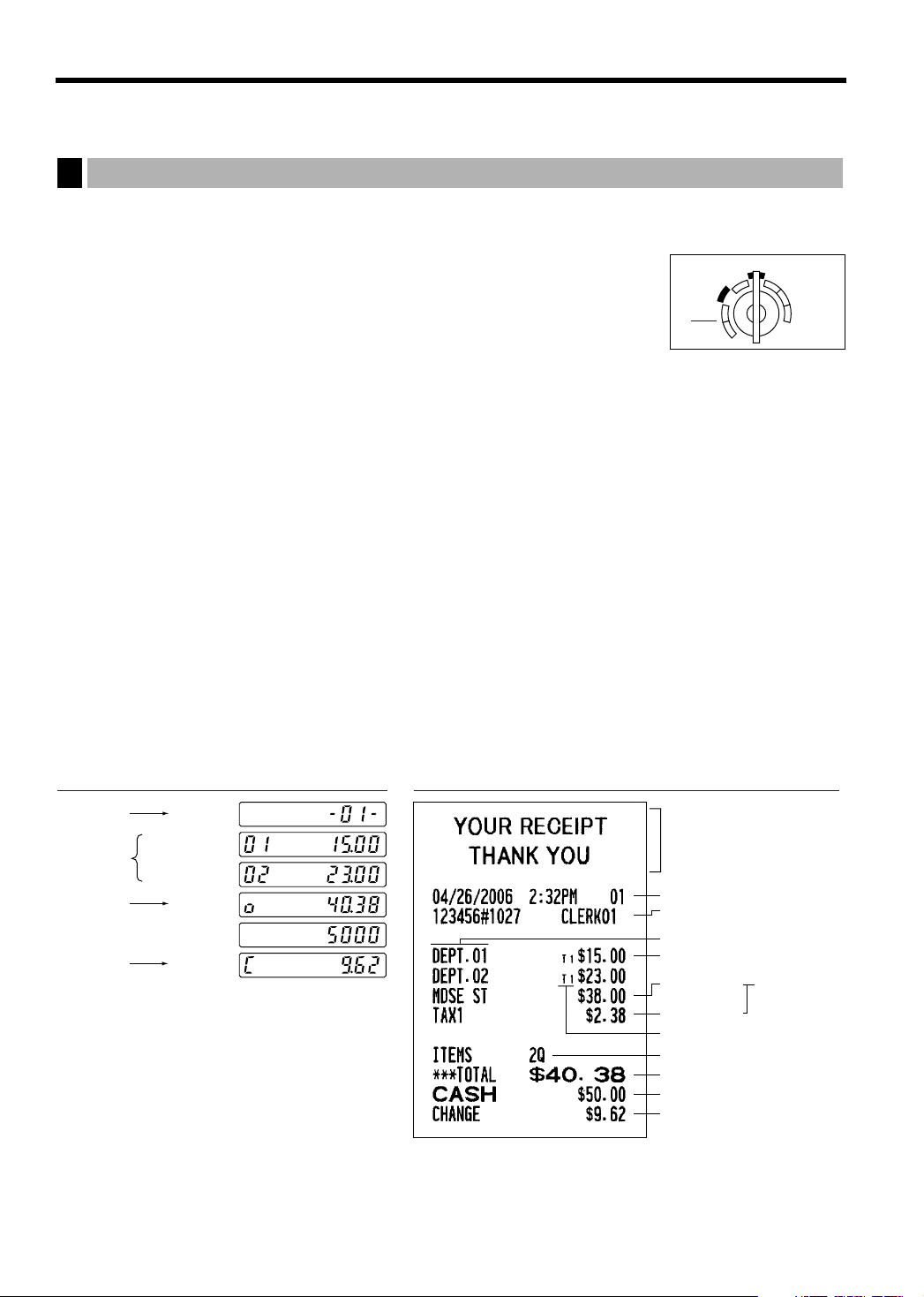

1 Basic Sales Entry Example .................................................................................................................12

2 Error Warning ......................................................................................................................................13

3 Item Entries .........................................................................................................................................14

Single item entries ........................................................................................................................14

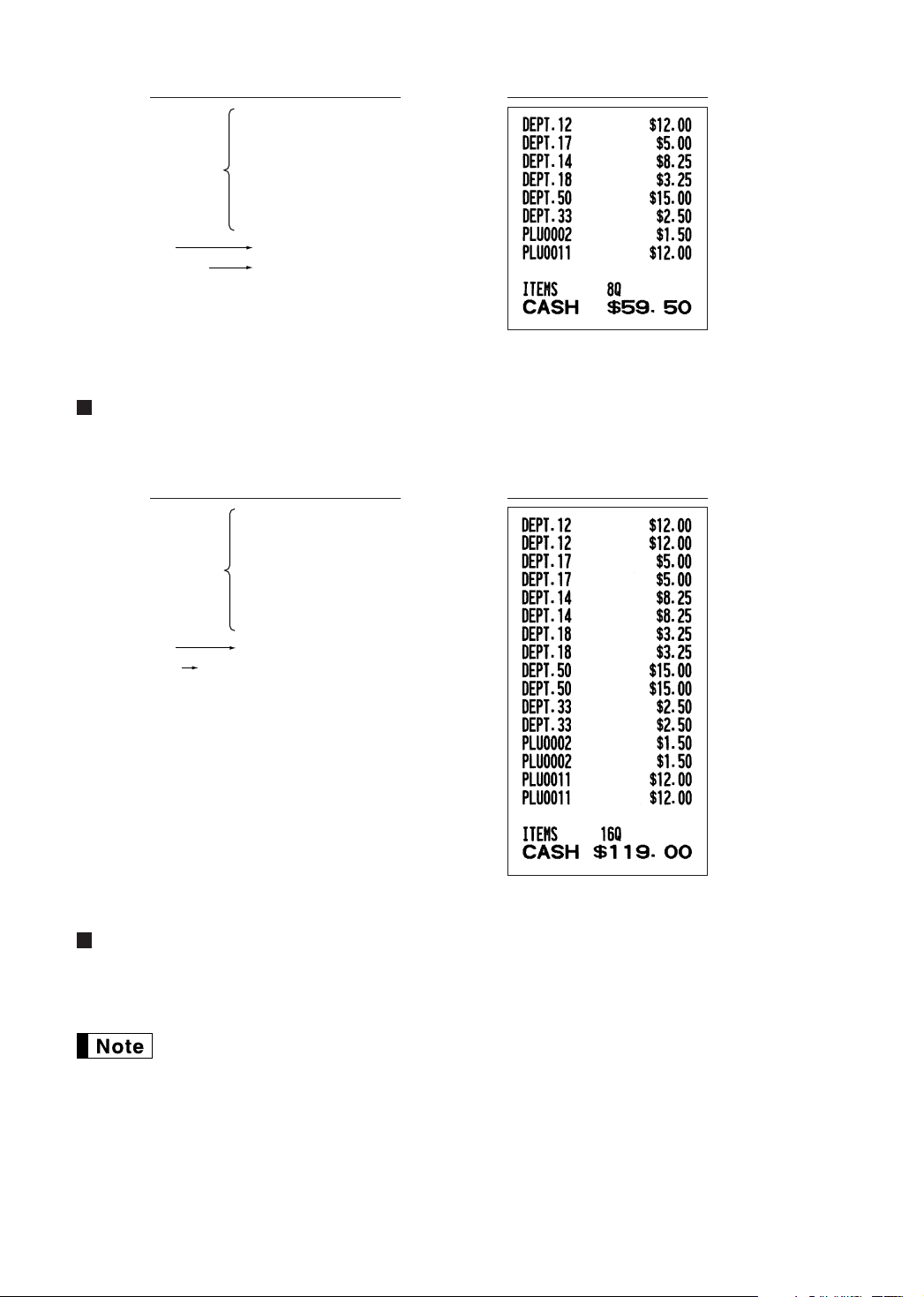

Repeat entries ..............................................................................................................................15

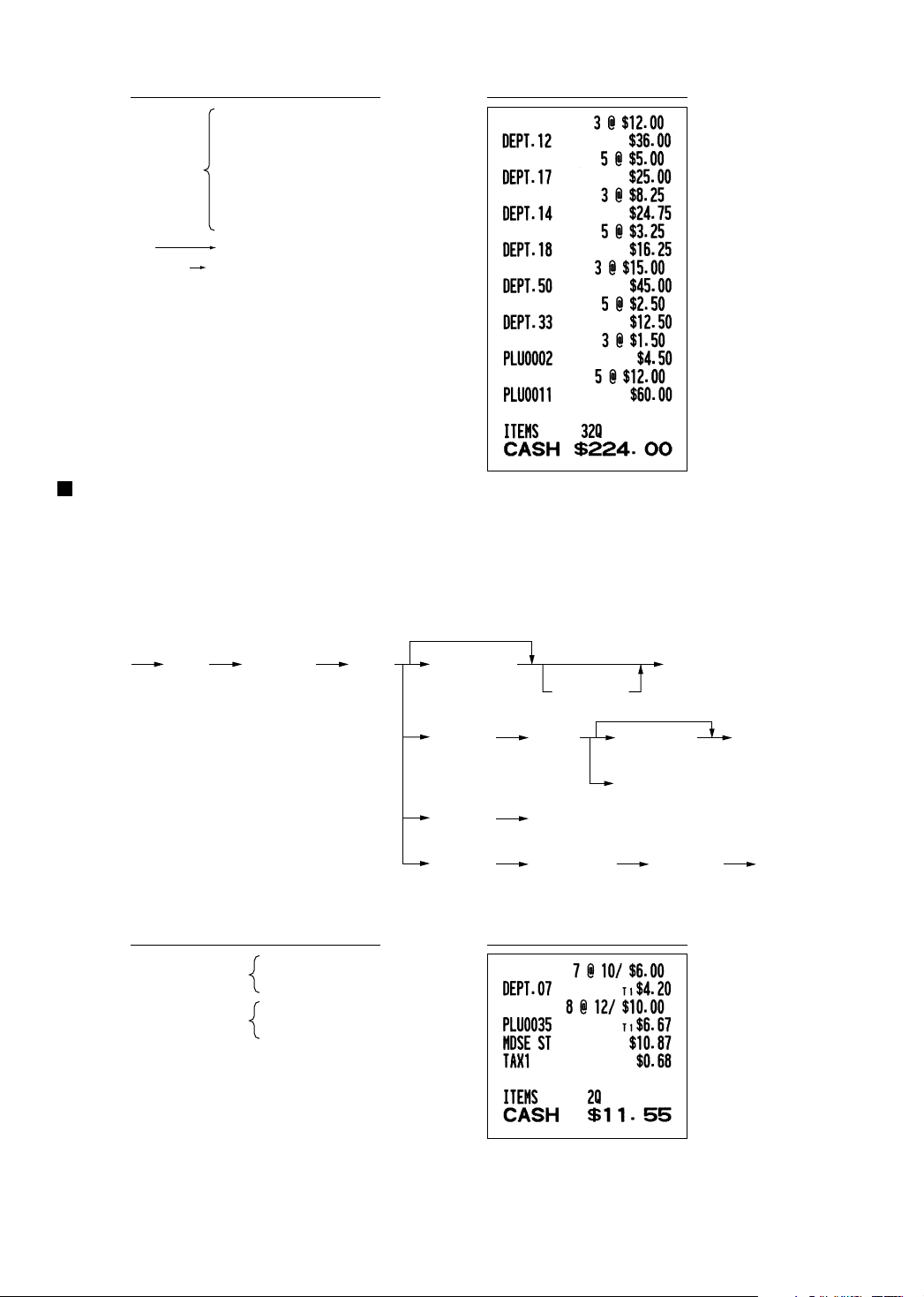

Multiplication entries .....................................................................................................................15

Split pricing entries .......................................................................................................................16

Single item cash sale (SICS) entry...............................................................................................17

4 Displaying Subtotal..............................................................................................................................17

5 Finalization of Transaction ..................................................................................................................17

Cash or check tendering...............................................................................................................17

Cash or check sale that does not require tender entry.................................................................18

Charge (credit) sale ......................................................................................................................18

Mixed-tender sale .........................................................................................................................18

6Tax Calculation....................................................................................................................................19

Automatic tax................................................................................................................................19

Manual tax ....................................................................................................................................19

Tax delete.....................................................................................................................................19

Tax status shift .............................................................................................................................20

OPTIONAL FEATURES...............................................................................................................................21

1 Auxiliary Entries...................................................................................................................................21

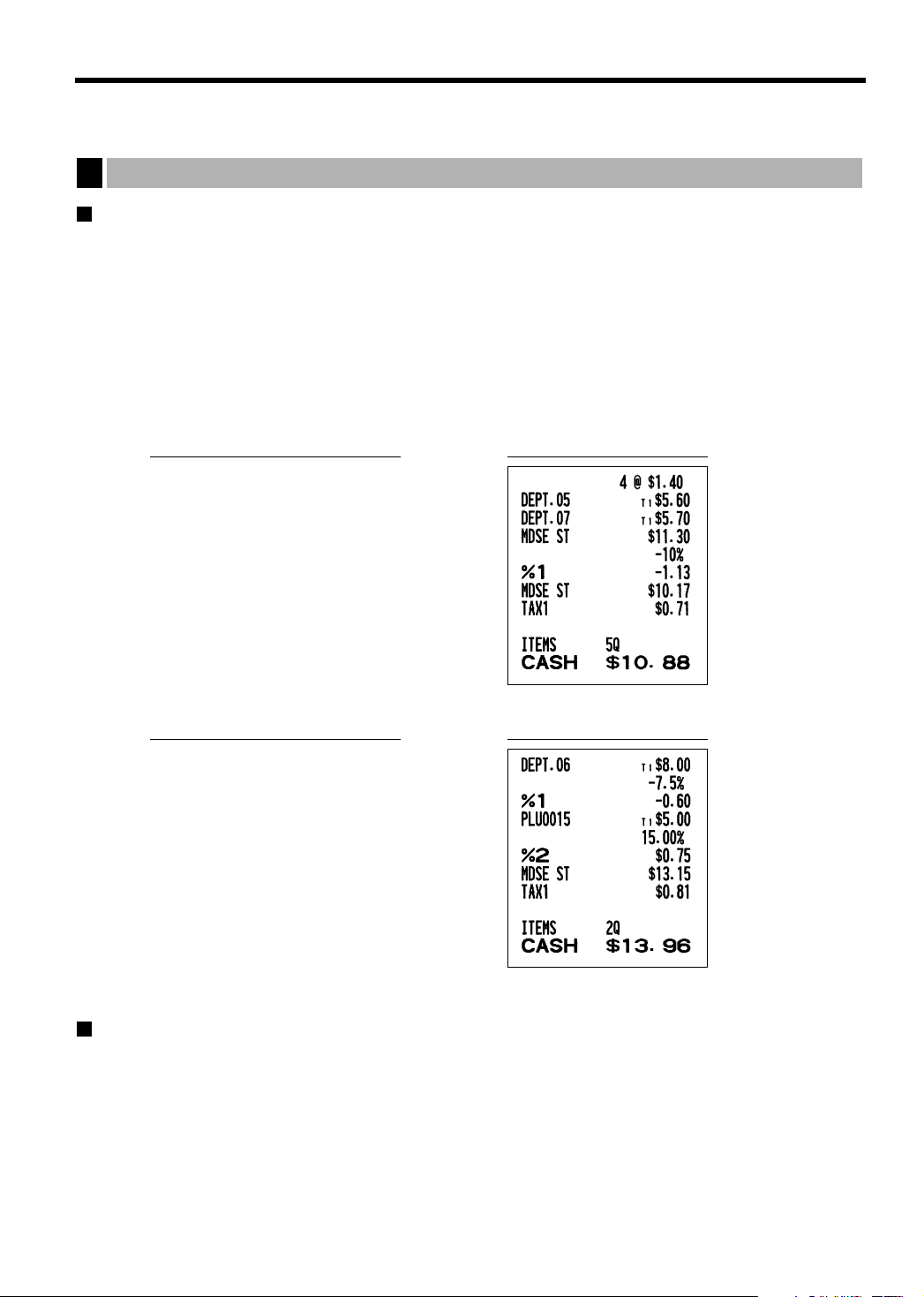

Discount and premium entries using the percent key...................................................................21

Discount and premium entries using the discount key .................................................................21

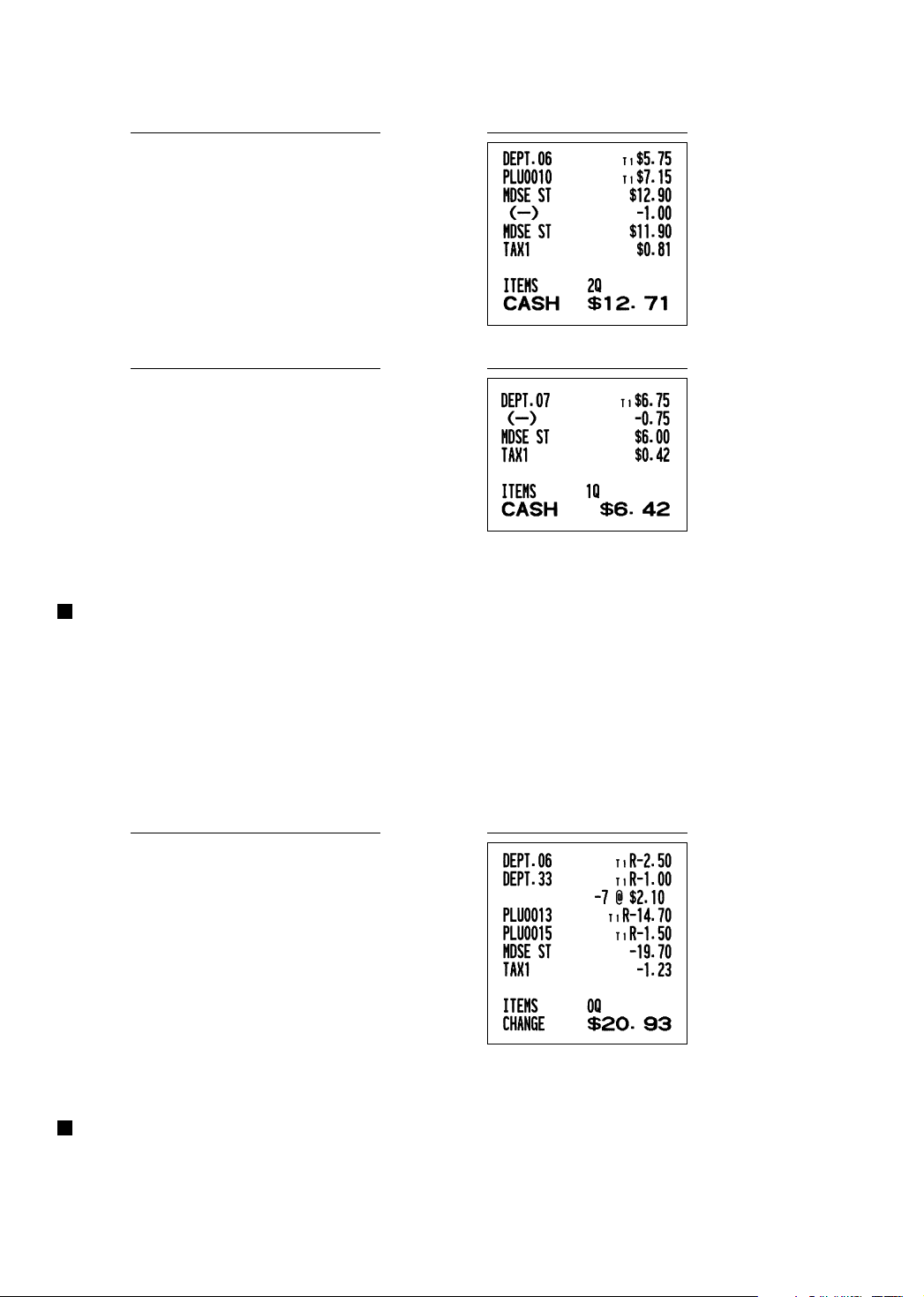

Refund entries ..............................................................................................................................22

Non-add code number entries and printing ..................................................................................22

2 Auxiliary Payment Treatment ..............................................................................................................23

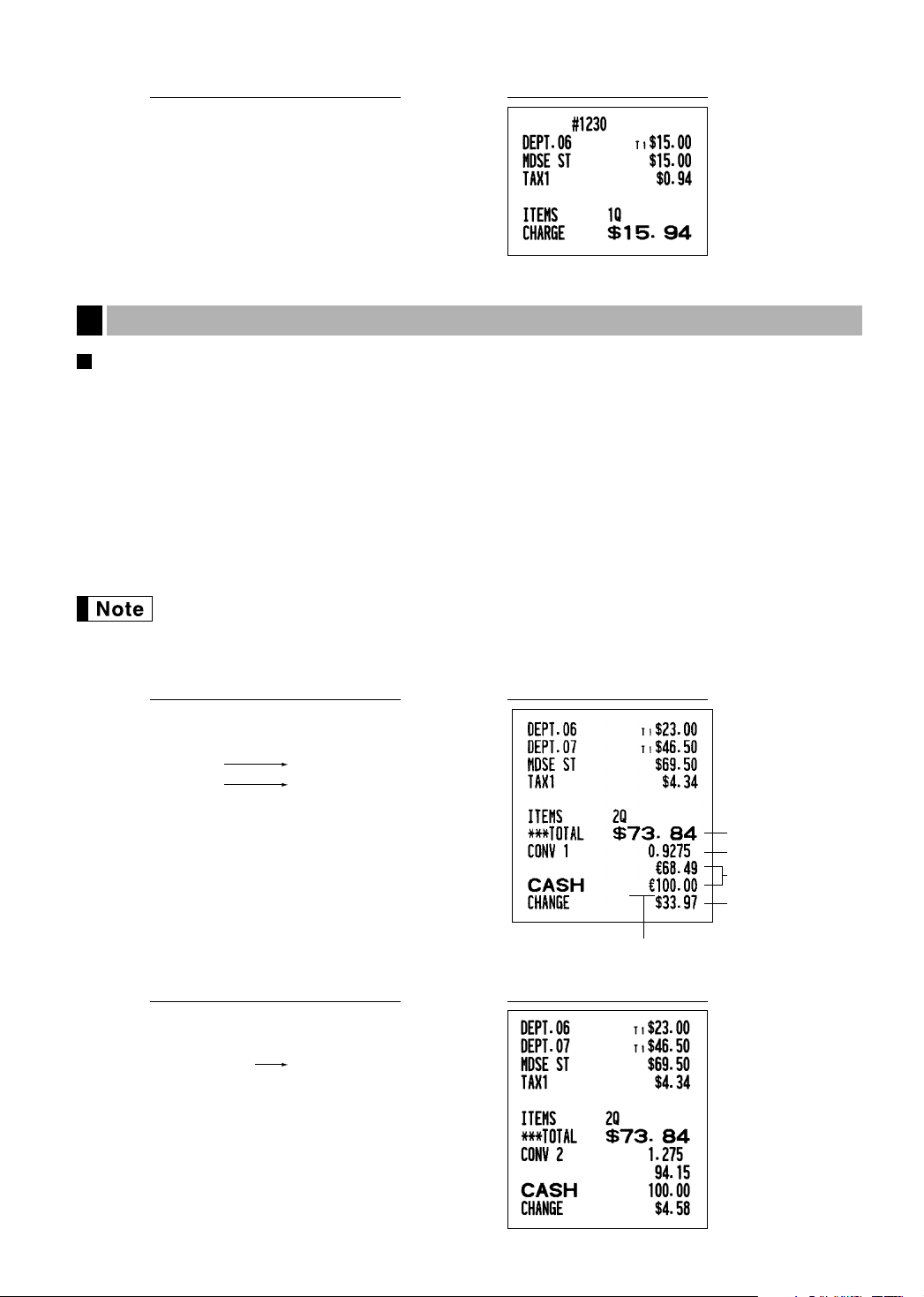

Currency conversion.....................................................................................................................23

Received-on Account and Paid-out Entries..................................................................................24

No sale (exchange) ......................................................................................................................24

3 Automatic Sequence Key (

key) Entries.........................................................................................24

CORRECTION .............................................................................................................................................25

1 Correction of the Last Entry (direct void).............................................................................................25

2 Correction of the Next-to-last or Earlier Entry (indirect void)...............................................................25

3 Subtotal Void .......................................................................................................................................26

4 Correction of Incorrect Entries not Handled by the Direct or Indirect Void Function ...........................26

PRIOR TO PROGRAMMING ......................................................................................................................27

FOR THE MANAGER

FOR THE OPERATOR

A242_1 06.1.10 5:12 PM Page 2

BASIC FUNCTION PROGRAMMING (For Quick Start) ............................................................................27

1 Date and Time Programming ..............................................................................................................27

2 Tax Programming for Automatic Tax Calculation Function .................................................................28

Tax programming using a tax rate................................................................................................28

The tax table (applicable to the add-on tax) .................................................................................29

Quantity for doughnut tax exempt (for Canadian tax system) ......................................................31

AUXILIARY FUNCTION PROGRAMMING .................................................................................................32

1 Department Programming ...................................................................................................................32

2 PLU (Price Look-Up) and Subdepartment Programming ....................................................................33

3 Miscellaneous Key Programming........................................................................................................35

Rate for

and

..............................................................................................................35

Amount for

..............................................................................................................................36

Percent rate limitation for

and

..........................................................................................36

Function parameters for

and

....................................................................................36

Function parameters for

.........................................................................................................37

Entry digit limit for

and

............................................................................................38

Function parameters for

and

(when using as CA key) .........................................38

4 Text programming ...............................................................................................................................39

ADVANCED PROGRAMMING ....................................................................................................................44

1 Register Number and Consecutive Number Programming .................................................................44

2 Electronic Journal (EJ) Programming..................................................................................................45

3 Various Function Selection Programming 1 ........................................................................................47

Function selection for miscellaneous keys ...................................................................................47

Print format ...................................................................................................................................48

Receipt print format ......................................................................................................................48

Function selection for tax..............................................................................................................48

Other programming ......................................................................................................................49

4 Various Function Selection Programming 2 ........................................................................................51

Power save mode.........................................................................................................................51

Logo message print format...........................................................................................................51

RS-232C interface ........................................................................................................................52

Thermal printer density.................................................................................................................53

Language selection ......................................................................................................................53

Training clerk specification for training mode ...............................................................................53

AUTO key programming...............................................................................................................54

5 Reading Stored Program.....................................................................................................................54

TRAINING MODE ........................................................................................................................................56

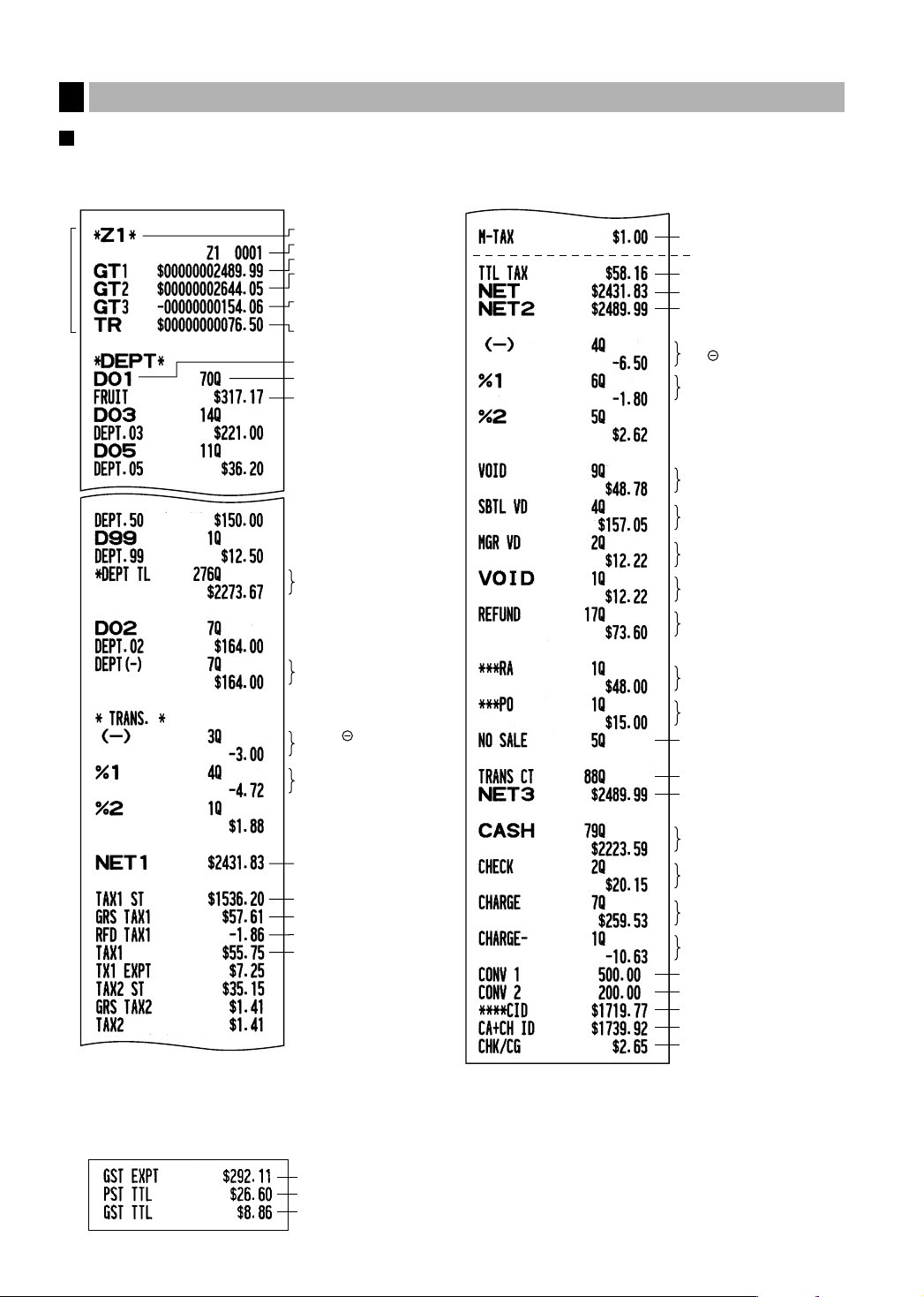

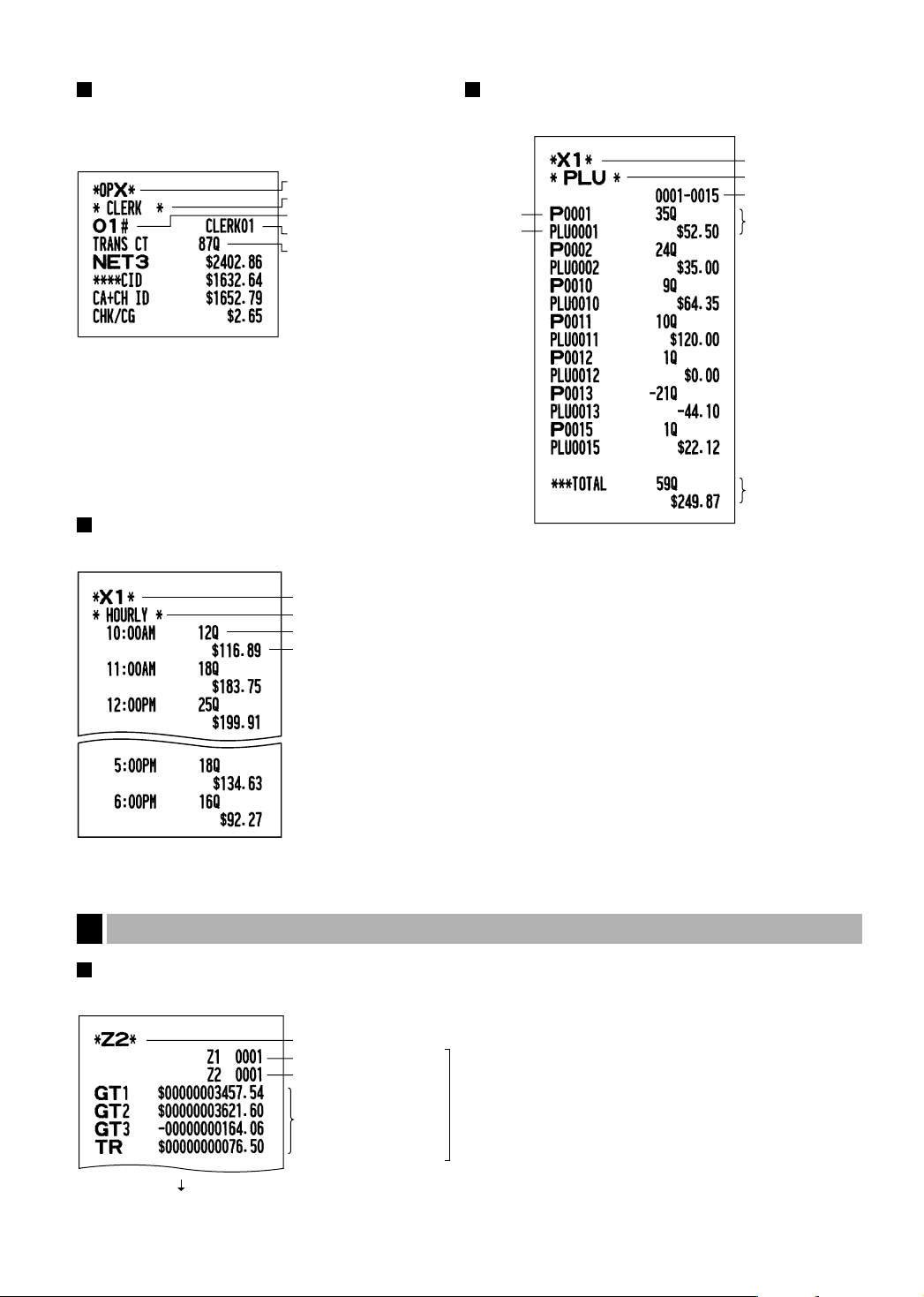

READING (X) AND RESETTING (Z) OF SALES TOTALS ........................................................................57

EJ REPORT READING AND RESETTING .................................................................................................60

OVERRIDE ENTRIES ..................................................................................................................................61

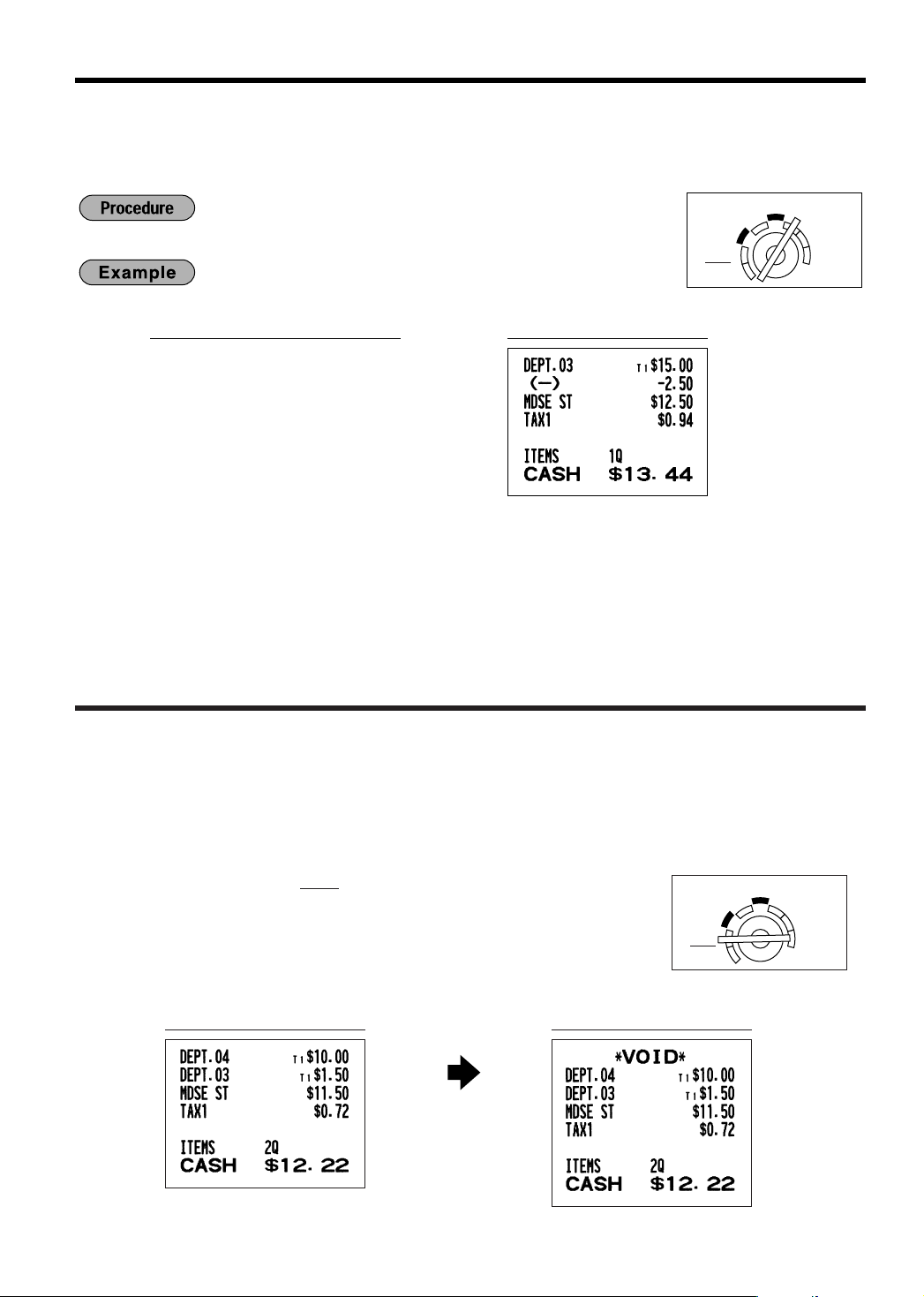

CORRECTION AFTER FINALIZING A TRANSACTION (Void mode).......................................................61

OPERATOR MAINTENANCE......................................................................................................................62

1 In Case of Power Failure.....................................................................................................................62

2 In Case of Printer Error .......................................................................................................................62

3 Cautions in Handling the Printer and Recording Paper.......................................................................62

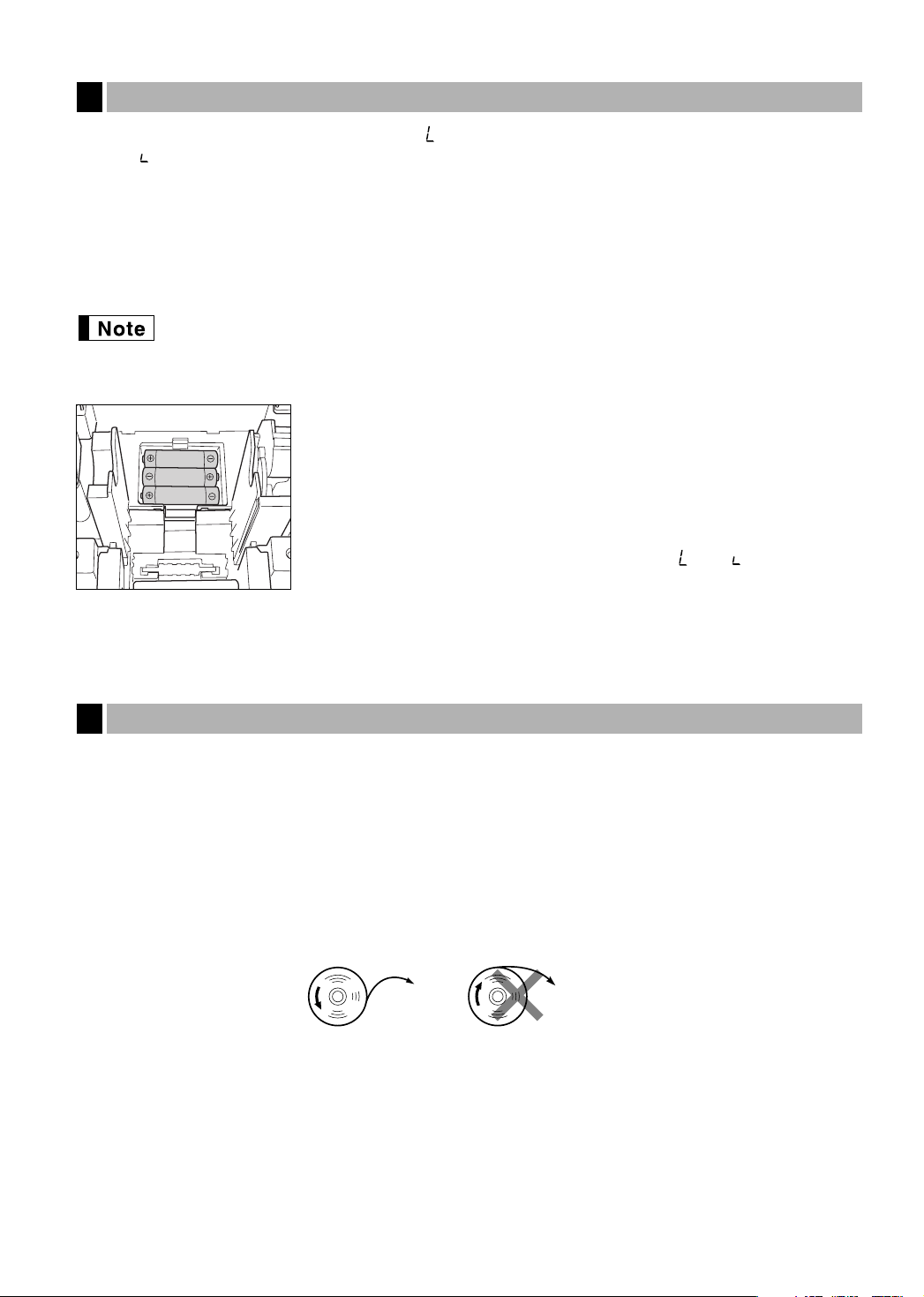

4 Replacing the Batteries .......................................................................................................................63

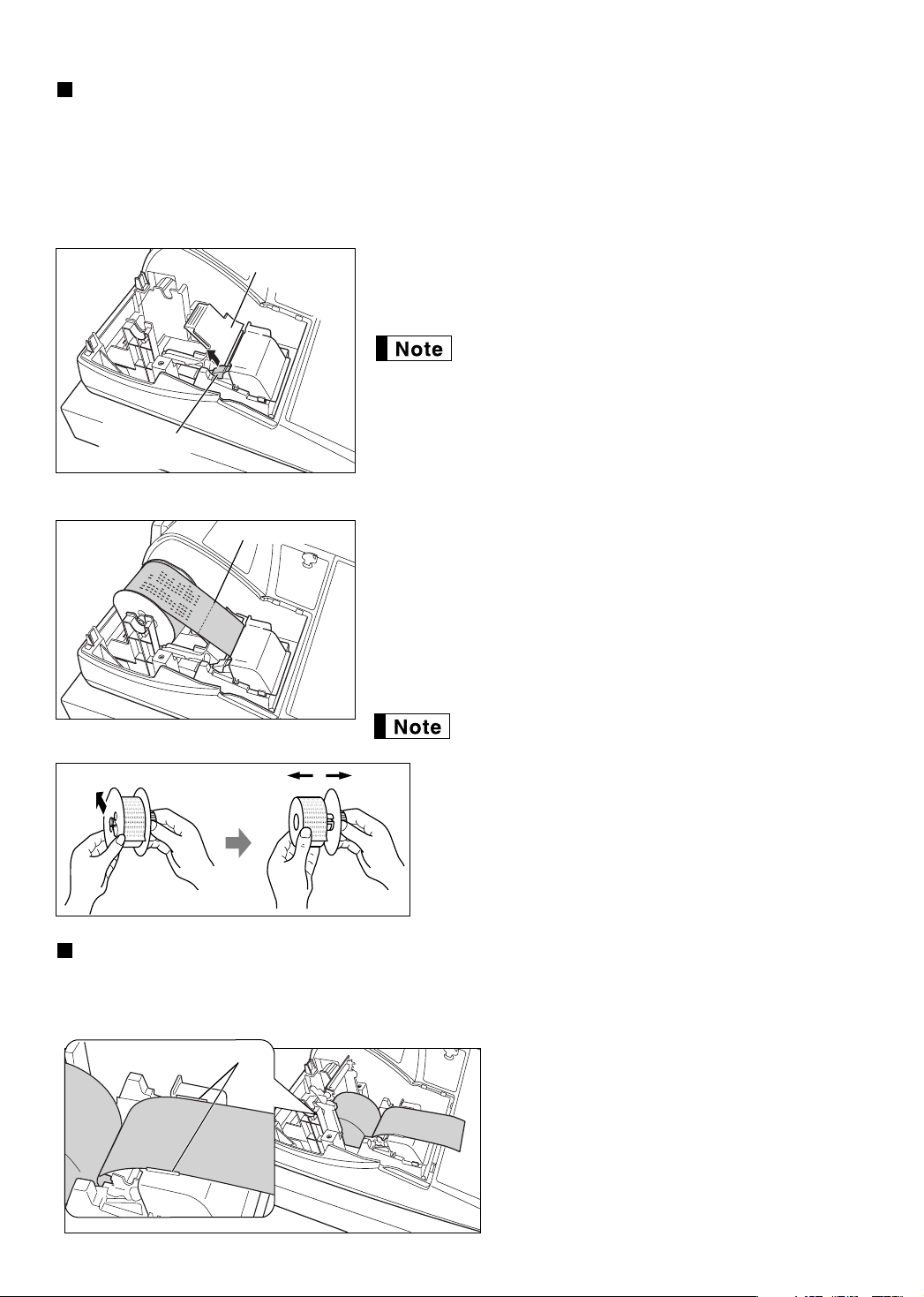

5 Replacing the Paper Roll.....................................................................................................................63

6 Removing a Paper Jam.......................................................................................................................66

7 Cleaning the Printer (Print Head / Sensor / Roller) .............................................................................66

8 Removing the Till and the Drawer .......................................................................................................66

9 Opening the Drawer by Hand..............................................................................................................66

10 Before calling for service .....................................................................................................................67

Error code table ............................................................................................................................67

SPECIFICATIONS .......................................................................................................................................68

A242_1 06.1.10 5:12 PM Page 3

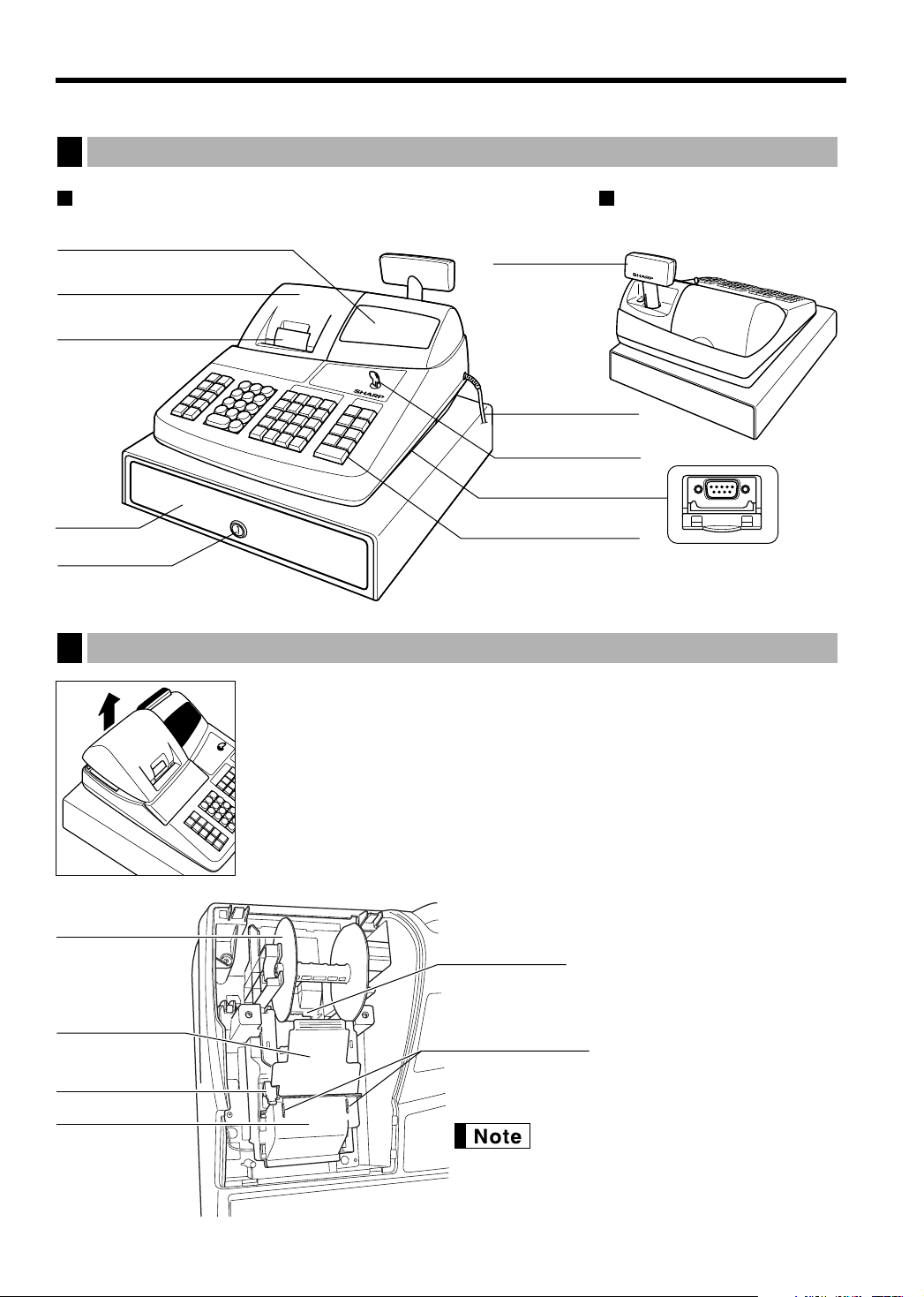

PARTS AND THEIR FUNCTIONS

Front view Rear view

External View

The printer is one station type thermal printer, therefore it does not require any type

of ink ribbon or cartridge.

Lift the rear of the printer cover to remove. To re-install, hook the pawls on the

cabinet and close.

Caution: The paper cutter is mounted on the printer cover. Be careful not to

cut yourself.

Printer

RS-232C connector

Operator display

Receipt paper

Drawer lock

Drawer

Printer cover

Customer display

(Pop-up type)

Mode switch

Power cord

Keyboard

Take-up spool

Print roller

release rever

Print roller arm

Inner cover

Paper roll cradle

Paper positioning guides

Do not attempt to remove the paper roll

with the print roller arm is locked. This may

result in damage to the printer and print

head.

A242_1 06.1.10 5:13 PM Page 4

The mode switch can be operated by inserting one of the two supplied mode keys - manager (MA) and operator

(OP) keys. These keys can be inserted or removed only in the “REG” or “OFF” position.

The mode switch has these settings:

OFF: This mode locks all register operations. (AC power turns off.)

No change occurs to register data.

OP X/Z: To take individual clerk X or Z reports, and to take flash reports.

It can be used to toggle receipt state “ON” and “OFF” by pressing

the

key.

REG: For entering sales.

PGM: To program various items.

VOID

: Enters into the void mode. This mode allows correction after

finalizing a transaction.

MGR: For manager’s entries. The manager can use this mode for an

override entry.

X1/Z1: To take the X/Z report for various daily totals

X2/Z2: To take the X/Z report for periodic (weekly or monthly)

consolidation

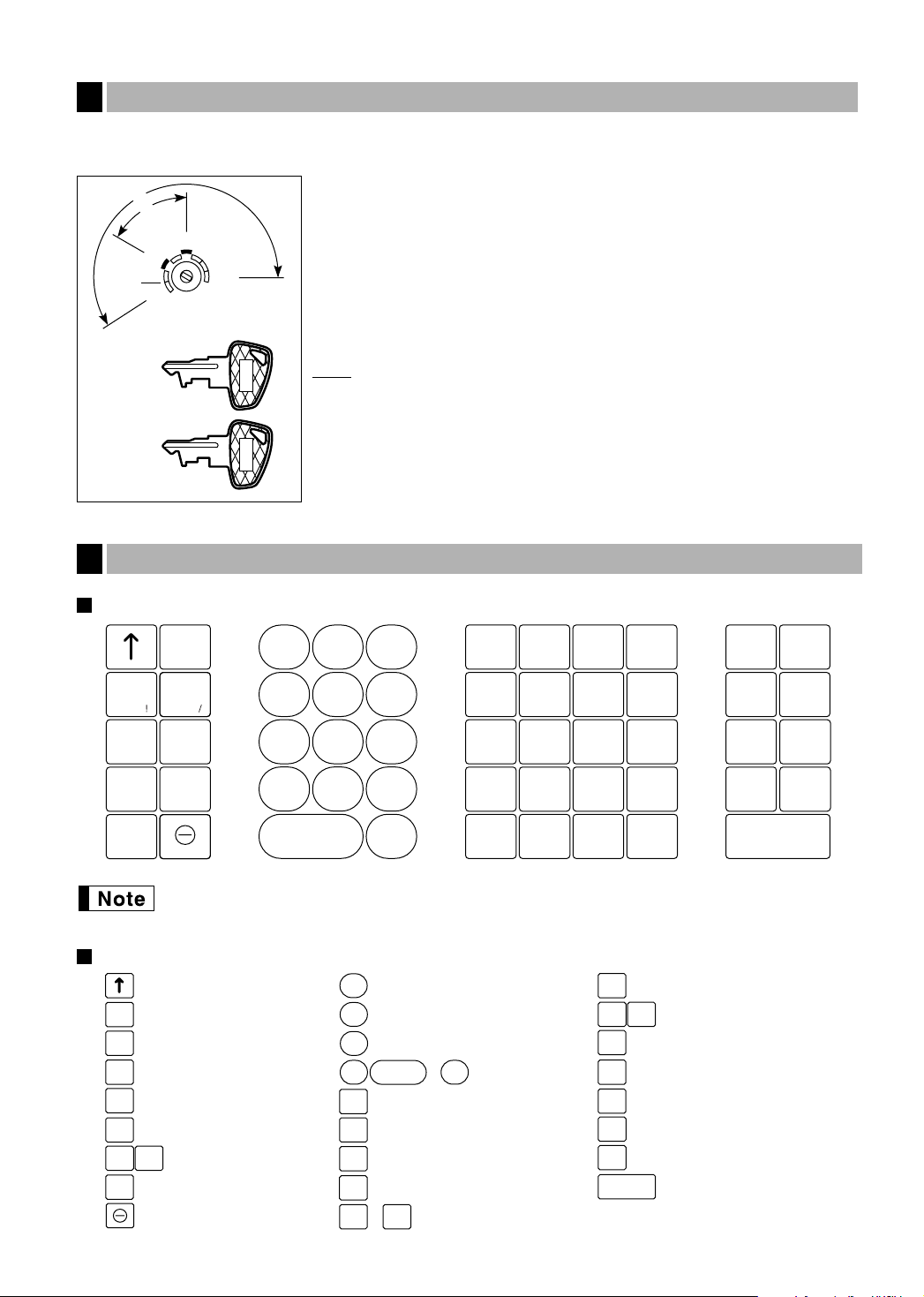

Keyboard layout

The small characters on the bottom or lower right in each key indicates functions or characters

which can be used for character entries for text programming. For details, refer to page 39.

Key names

Keyboard

PGM

VOID

OFF

X/Z

REG

MGR

1/Z1

X2/Z2

Manager key (MA)

Operator key (OP)

Mode Switch and Mode Keys

123

456

789

•

DEPT

SHIFT

CLK

CONV

%1RA

VOID

RFND

–

NUMBER

SHIFT

SPACE

ESC

RCPT

/PO

FOR

PLU

/SUB

DEPT

AUTO

TAX

TAX2

SHIFT

TAX1

SHIFT

MDSE

SBTL

#/TM

SBTL

CHK

CA/AT/NS

ESC

RCPT

/PO

CA/AT/NS

Paper feed key

Received-on account key

Receipt print/Paid-out key

Void key

Conversion key

Escape key

Multiplication key

Decimal point key

Clear key

Department code entry key

PLU/Subdepartment key

Department shift key

Clerk code entry key

Department keys

Total/Amount tender

/No sale key

Numeric keys

VOID

FOR

•

CONV

RFND

Refund key

Percent 1 and 2 keys

Discount key

PLU

/SUB

DEPT

SHIFT

TAX1

SHIFT

Merchandise subtotal key

MDSE

SBTL

Non-add code/Time display

/Subtotal key

#/TM

SBTL

CLK

Tax key

TAX

Check key

CHK

Automatic sequence key

AUTO

Charge key

TAX2

SHIFT

Tax 1 and 2 shift keys

A242_1 06.1.10 5:13 PM Page 5

This key locks and unlocks the drawer. To lock it, turn 90

degrees counterclockwise. To unlock it, turn 90 degrees

clockwise.

Drawer Lock Key

Operator display Customer display (Pop-up type)

Amount: Appears in the far-right eight (max.) positions. When the amount is negative, the minus symbol “-”

appears before the amount.

Number of repeats for repetitive registrations:

The number of repeats is displayed, starting at “2” and incremental with each repeat. When you

have registered ten times, the display will show “0.”(2 → 3

.....

9 → 0 → 1 → 2

...

)

Receipt function status:

The indicator “_” appears in the RCPT OFF position when the receipt function is in the OFF

status.

Time: Appears in the far-right six positions (hour-minute -“ ” or hour-minute -“ ”) in the OP X/Z, REG,

or MGR mode. “ ” is displayed in the morning (AM), and “ ” in the afternoon (PM). In the REG

or MGR mode, press the

key to display the time.

Machine state symbols

: Appears during programming.

: Appears when an error is detected.

: Appears when the subtotal is displayed or when the amount tendered is smaller than the sales amount.

: Appears when the

key is pressed to calculate a subtotal in foreign currency.

: Appears when a transaction is finalized by pressing the

key.

: Appears when the change due amount is displayed.

: May appear in the far-left three positions at the timing of key entry when the electronic journal (EJ)

memory is full. (Depending on programming.)

: Appears when the voltage of the installed batteries is under the required level. You must replace with

new ones within two days. Refer to page 63 for details.

: Appears when the batteries are not installed, or the installed batteries are dead. You must replace with

new ones immediately. Refer to page 63 for details.

: May appear right below the eighth and ninth places at the timing of finalization of a transaction when the

electronic journal (EJ) memory is nearly full.

Also appears right below the tenth place when power save mode is effective.

: Appears when the print roller arm is not locked.

: Appears when the paper is not set or out.

PLU/SUB

DEPT REPEAT

RCPT

OFF

NUMBERSHIFT

Clerk code

Displays

SK1-1

A242_1 06.1.10 5:13 PM Page 6

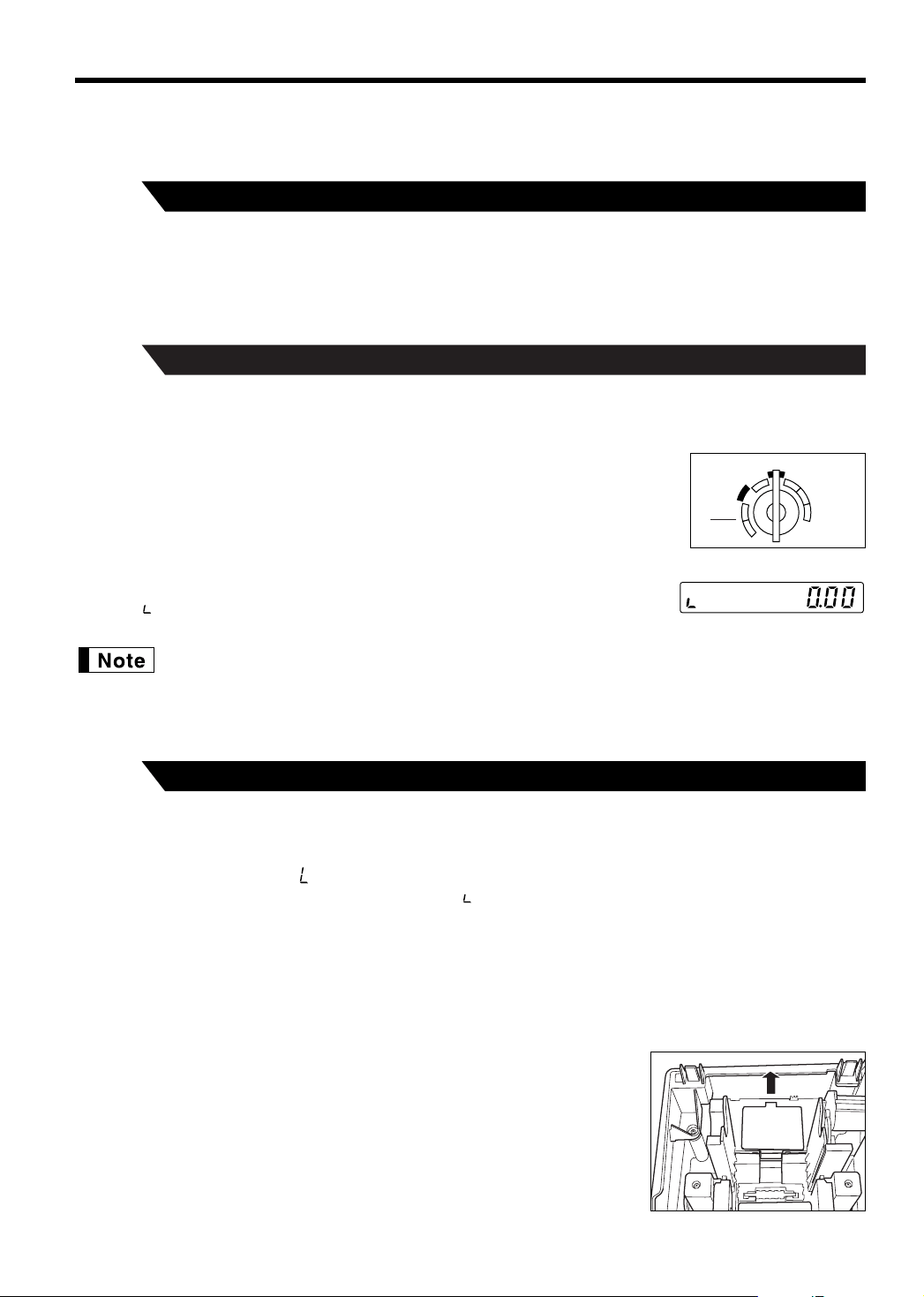

GETTING STARTED

Please follow the procedure shown below. The batteries are not installed and the power is OFF.

Three new “AA” batteries must be installed in the cash register to prevent the data and

user-programmed settings from being erased from the memory, when the AC cord is accidentally disconnected

or in case of power failure. Once installed, the batteries will last approximately one year before needing

replacement. At this time, the “ ” symbol will appear on the display to indicate the batteries are low and must

be replaced within two days. If the no battery symbol “ ” appears, you must install the batteries at once.

Install three new “AA” batteries according to the procedure shown below with the AC cord connected and the

mode switch set to the REG position:

1. Push the printer cover forward and detach it.

Be careful with the paper cutter, so as not to cut yourself.

2. Open the battery compartment cover next to the paper roll cradle.

Initializing the cash register

In order for your cash register to operate properly, you must initialize it before programming for the first

time. Follow this procedure.

1. Insert the manager (MA) key into the mode switch and turn it to the REG

position.

2. Insert the plug into the AC outlet. The buzzer will sound three times.

IMPORTANT: This operation must be performed without batteries installed.

3. The cash register has now been initialized. The register display will show “0.00”

with “ ”.

If the buzzer does not sound when the plug is inserted, the initialization has not been done

successfully. (This will occur when the voltage is still high because you operated the cash register

just before starting initialization.) In this case, wait at least one minute after pulling out the plug,

and insert the plug again.

Find a stable surface where the cash register is not subject to water sources or direct sunlight near an

AC outlet.

Unpack the cash register and make sure all accessories are included. For details of accessories, please refer to

“Specifications” section.

REG

OPX/Z MGR

PGM

X1/Z1

X2/Z2

OFF

VOID

Installing the cash register

Installing batteries

A242_1 06.1.10 5:13 PM Page 7

3. Insert three new “AA” batteries as illustrated at the right.

When the batteries are properly installed “ ” on the display will disappear.

4. Close the battery compartment cover.

Be sure to observe precautions shown on page 1 when handling

batteries.

Precaution: The paper cutter is mounted on the printer cover. Take caution when removing and

installing the cover.

The register can print receipts or journals. For the printer, you must install the paper roll provided with the

Install the paper roll according to the procedure shown below with the AC cord connected and the mode switch

set to the REG position:

1. Lift up the print roller release lever to unlock and open the

print roller arm.

2. Set a paper roll in the paper roll cradle as illustrated at the

right.

When setting a new paper roll in the paper roll

cradle, be sure to cut the paper end behind the

taped (or pasted) point in advance.

3. Feed the end of the paper along with

the paper positioning guides as

illustrated at the right.

Installing a paper roll

To the printer

Incorrect

To the printer

Correct

Print roller

release lever

Print roller arm

Paper positioning guides

A242_1 06.1.10 5:13 PM Page 8

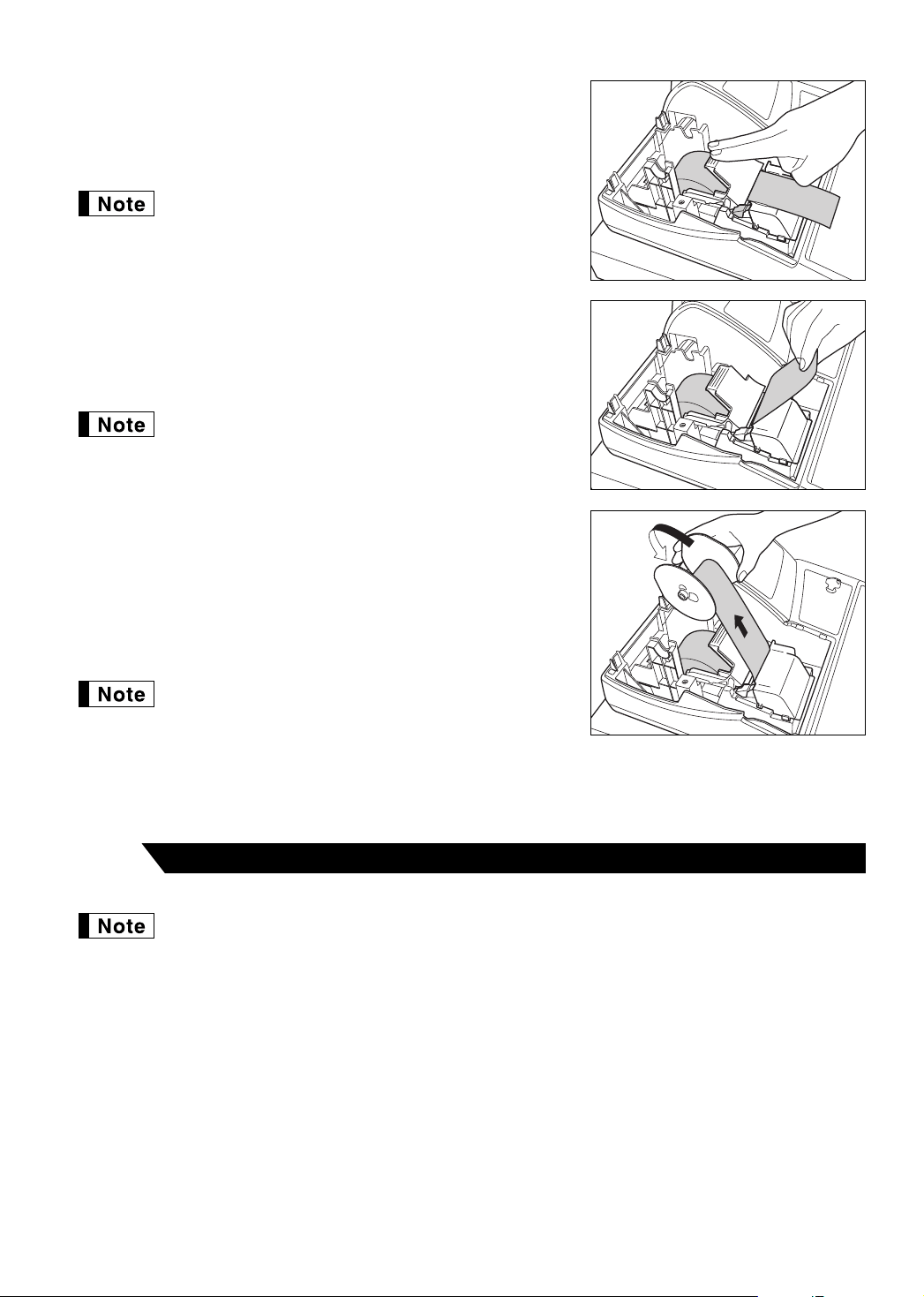

4. While holding down the paper, slowly close the print roller arm, and

push down the arm until you hear a click locking the arm. Make

sure securely you push down the center of the wing part of the arm

as illustrated at the right. The paper will be fed automatically.

If the print roller arm is not securely locked, printing is not

done right. If this problem occurs, open the arm, and

close the arm as instructed above.

5. When not using the take-up spool (using as receipt paper):

• Cut off the excess paper using the edge of the inner cover, and

replace the printer cover. Press the

key to make sure the

paper end comes out of the printer cover and clean paper

appears.

If the paper end does not come out, open the printer

cover, and pass the paper end between the paper cutter

and the paper guide of the printer cover, and replace the

cover.

When using the take-up spool (using as journal paper):

• Insert the end of the paper into the slit in the spool. (Press the

key to feed more paper if required.)

• Wind the paper two or three turns around the spool shaft.

• Set the spool on the bearing, and press the

key to take up

excess slack in the paper.

• Replace the printer cover.

When using a paper roll as journal paper, you must change

the printing style. Refer to “Print Format” in “Various

Function Selection Programming 1” section (Job code 6)

for changing the printing style.

The cash register provides text languages of English, French and Spanish. It is preset to English.

If you want to change the language, you must change it before programming. Refer to “Language

selection” in “Various Function Selection Programming 2” section for changing the language.

Before you can proceed with registration of sales, you must program:

• date

• time

• tax

Please refer to the BASIC FUNCTION PROGRAMMING section for details (page 27).

Programming date, time and tax

A242_1 06.1.10 5:13 PM Page 9

Now you are ready for sales registration.

Starting sales entries

While the cash register is pre-programmed so it can be used with minimal setup, it does provide you

with optional functions. Before you start programming, please read through the sales operations section to

understand optional functions. The main optional functions are listed below.

• PLU (price lookup)

• Consecutive number

• Machine number

• Receipt or journal printing selection (factory setting: receipt printing)

• Power save mode (factory setting: goes into power save mode in 30 minutes)

• Electronic journal (EJ) memory size (factory setting: 2000 lines are storable. Up to 3000 lines)

The memory for electronic journal is commonly used for PLU. If you change the setting, the

maximum number of PLU code will decrease from 1200 to 200.

• Text programming for clerk name, department items, PLU/subdepartment items, logo messages printed on

the top or bottom of receipts, function texts and foreign currency symbol

• Split pricing entry

This is not factory preset. You must enable this function.

• Foreign currency conversion rate

You must set a conversion rate to use

key.

• Preset unit price for departments and PLUs

• Preset amount for

• Preset rates for

You do not have to program these preset prices/amount/rates because you can enter when

registration. It might be convenient to preset so you do not have to re-enter every time.

• Amount entry digit limit for PO amount, RA amount, Manual tax amount

The factory setting makes the maximum amount you can enter. You can program to limit the amount.

• Key sequence for AUTO key

• RS-232C programming

• Specification of clerk to be trained

Department programming:

The cash register is pre-programmed for departments as follows:

Department: Allow open price entry, taxable status- taxable 1 for department 1 to 10, and non taxable

for department 11 to 99

When you use department 11 or above, and/or you apply taxable status other than taxable 1 for department 1 to

10, you must change department settings. Please refer to the department programming section for

programming details.

Programming other necessary items

A242_1 06.1.10 5:13 PM Page 10

OVERVIEW OF FLOW OF DAILY SALES ENTRIES

Things to do before you start sales entries:

• Make sure the power cord is securely inserted into the AC outlet.

• Turn the mode switch to OP X/Z position, and check if time is correctly set.

• Replace the drawer, if removed for safety.

• Check if there is enough paper on roll.

• Select receipt ON/OFF function.

• Make any necessary programming for the day in PGM mode.

For details, refer to BASIC SALES ENTRY, page 12. For drawer and paper roll, refer to OPERATOR

MAINTENANCE, page 62 and for programming, refer to programming sections.

Things you can do for sales entries:

• Item entries

• Item repeat entries

• Item multiplication entries

• Single item cash sale (SICS), if programmed.

• Split pricing entries, if programmed.

• Displaying subtotals

• Cash/Check/Charge sale

• Cash tendering in a foreign currency, if the currency conversion rate is programmed.

• Manual tax entry

• Discount or premium using

and

key

• Refund entry

• No sale

• Paid-out entries

• Received on account entries

• Printing non-add code number

• Making corrections

• Checking sales report

For details of sales entry method, refer to BASIC SALES ENTRY (page 12) and OPTIONAL FEATURES

(page 21). For details of correcting sales entries, refer to CORRECTION (page 25). For details on reading

sales information, refer to READING (X) AND RESETTING (Z) OF SALES TOTAL (page 57).

Things to do after you close your store:

• Print sales reports, and clear sales data for the day.

• Print Electronic Journal (EJ) reports, and clear Electronic Journal (EJ) data, if necessary.

• Account money - comparing it with the amount in cash in drawer printed on the general report.

• Remove the drawer for safety.

• Turn the mode switch to OFF position.

For details of reading sales information, refer to READING (X) AND RESETTING (Z) OF SALES TOTAL (page

57) and EJ REPORT READING AND RESETTING (page 60). For details of removing the drawer and

maintenance details, refer to OPERATOR MAINTENANCE (page 62).

FOR THE OPERATOR

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 11

BASIC SALES ENTRY

Listed below is a basic sales entry example when selling department items by cash. For operation details,

please refer to each section.

Mode switch setting

1. Turn the mode switch to the REG position.

Clerk assignment

2. Enter your clerk code. (For example, clerk code is 1. Press the

and

key in

this order.) The clerk code 1 is automatically selected just after initialization of the

cash register.

Item entries

3. Enter the price for the first department item. (For example, for 15.00, enter

15:

, and press the

appropriate department key.)

For department 17 to department 32, press the

key first before pressing the department key.

For department 33 and above, enter the department code using numeric keys, and press the

key,

then enter the price and press the

key again.

4. Repeat step 3 for all the department items.

Displaying subtotals

5. Press the

key to display the amount due.

Finalizing the transaction

6. Enter the amount received from the customer. (You can omit this step if the amount tendered is the same as

the subtotal.)

7. Press the

key, and the change due is displayed (when the amount received was not entered, the total

amount is displayed) and the drawer is opened.

8. Tear off the receipt and give it to the customer with his or her change.

9. Close the drawer.

PrintKey operation example

Basic Sales Entry Example

REG

OPX/Z MGR

PGM

X1/Z1

X2/Z2

OFF

VOID

Graphic logo

Date/Time/Clerk code number

/Consecutive number/Clerk name

Items

Tax status (T1: taxable 1)

Price

Merchandise

subtotal

Not printed when

non-taxable items

only are sold.

Tax amount

Total amount

Cash tendering/amount received

Change

Total quantity

1 L

1500 !

2300 "

5000

Item

entries

Clerk

assignment

Displaying

subtotal

Finalizing

the transaction

(In this example, the tax rate is set to 6.25%.)

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 12

Clerk assignment

Prior to any item entries, clerks must enter their clerk codes into the register. However, the code entry may not

be necessary when the same clerk handles the next transaction.

Receipt ON/OFF function

When you use the printer to issue receipts, you can disable receipt printing in the REG mode to save paper

using the receipt ON/OFF function. To disable receipt printing, press the

key in the OP X/Z position. This

key toggles the receipt printing status ON and OFF.

To check the receipt printing status, turn the mode switch to the OP X/Z position or press the

key in the REG

mode. When the function is in the OFF status, the receipt off indicator “_” is illuminated. Your register will print

reports regardless of the receipt state, so the paper roll must be installed even when the receipt state is “OFF”.

To issue a receipt when receipt ON/OFF function is set to OFF:

If your customer wants a receipt after you finalized a transaction with the receipt ON/OFF function being OFF

status, press the

key. This will produce a receipt. However, if more than 30 items were entered, the

receipt will be issued in the format of summary receipt print.

Power Save Mode

The register will enter into power save mode when no entries are performed based on the pre-programmed time

limit (by default, 30 minutes).

When your register goes to the power save mode, it will light off all the display except the decimal point at the

leftmost position. Your register will return to the normal operation mode when any key is pressed or a mode is

changed with the mode key. Please note when your register is recovered by a key entry, its key entry is invalid.

After the recovery, start the key entry from the beginning.

Clerk code 1 to 25

To display the signed-on clerk code

■ Sign-on (in REG, MGR, VOID mode) ■ Sign-off (in REG, MGR, VOID mode)

In the following examples, your register will go into an error state accompanied with a warning beep and the

error symbol “ ” on the display. Clear the error state by pressing the

key and take proper action.

Please refer to the error code table on page 67.

• You enter over a 32-digit number (entry limit overflow): Cancel the entry and re-enter the correct number.

• You make an error in key operation: Clear the error and continue operation.

• You make an entry beyond a programmed amount entry limit: Check to see if the entered amount is correct. If

it is correct, it can be rung up in the MGR mode. Contact your manager.

• An including-tax subtotal exceeds eight digits: Delete the subtotal by pressing the

key and press the

key to finalize the transaction.

Error escape function

When you want to quit a transaction due to an error or an unforeseen event, use the error escape function as

shown below:

The transaction is voided (treated as a subtotal void) and the receipt is issued by this function. If you have

already entered a tendered amount, the operation is finalized as a cash sale.

Transaction

To clear the error state

Error Warning

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 13

Single item entries

Department entries

The cash register provides a maximum of 99 departments for a merchandise classification. Group attributes,

such as taxable status, are applied on items when they are entered to the departments.

• When using the department keys (for department 1 to 32)

For department 1 to 16, enter a unit price and press a department key. If you use a programmed unit price,

press a department key only.

For department 17 to 32, enter a unit price, press the

key and press a department key. If you use a

programmed unit price, press the

key and press a department key.

Less than the programmed upper limit amounts

When zero is entered, only the sales quantity is

added.

For the optional departments 17 through 32,

press the

key.

• When using the department code entry key

Enter a department(dept.) code and press the

key, then enter a unit price and press the

key again. If

the dept. code is programmed to preset price entry style and a unit price is preset, your cash register will finish

its registration operation.

Less than the programmed upper limit

amounts

When zero is entered, only the sales

quantity is added.

PLU/subdepartment entries

For another merchandise classification, the cash register provides a maximum of 1200 PLUs/subdepartments.

PLUs are used to call up preset prices by a code entry. Subdepartments are used to classify merchandise into

smaller groups under the departments. Every PLU and subdepartment has a code form 1 to 1200, and should

belong to a department to obtain attributes of that department.

The cash register is pre-programmed to PLU mode and zero for unit price. To use PLU entries, their preset unit

prices should be previously programmed. (Refer to page 33.)

To use subdepartment entries, change to subdepartment mode for the PLU codes.

• PLU entries

• Subdepartment (open PLU) entries

* Less than the programmed upper limit

amounts

When zero is entered, only the sales

quantity is added.

PLU code

(1 to 1200)

Unit price *

(max. 7 digits)

PLU code

(1 to 1200)

Dept. code

(1 to 99)

Unit price *

(max. 7 digits)

When using a programmed unit price

(In case only preset price entry is allowed.)

Department keyUnit price *

(max. 7 digits)

When using a programmed unit price

Item Entries

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 14

Repeat entries

You can use this function for entering a sale of two or more of the same items. Repeat pressing a department

key,

key or

key as shown on key operation example.

Multiplication entries

When you sell a large quantity of items, it is convenient to use the multiplication entry method. Enter quantity

using numeric keys and press the

key before starting item entry as shown in the example below.

When programmed to allow fractional quantity entries, you can enter up to four integers and three

digit decimal, though the quantity is counted as one for sales reports. To enter a fractional quantity,

use the decimal point key between integer and decimal, as

7P5

for entering 7.5.

1200 ( (

500 D ! !

) )

" "

50 d 1500 d d

33 d d

2 p p

11 p 1200 p p

Subdepart-

ment entry

PLU entry

Department entry

PrintKey operation example

Subdepartment

entry

PLU entry

Department entry

1200 (

500 D !

)

50 d 1500 d

33 d

2 p

11p1200p

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 15

Split pricing entries

This function is practical when the customer wants to purchase items normally sold in bulk.

To realize this function, you must change the programmed setting. Refer to “Various Function Selection

Programming 1” (job code 70) for programming details.

To make split pricing entries, follow the procedure below:

Department entry

PLU entry

7 @ 10 @

600 *

8 @ 12 @

35 p

PrintKey operation example

Selling q'ty

(Up to 4 digits)

Base q'ty

(Up to 2 digits)

Unit price

per base q'ty

When using a programmed unit price

@ @

Department key

Dept. code

PLU code

PLU code Unit price

per base q'ty

p p

Unit price

per base q'ty

(Only preset entry is allowed.)

Subdepartment

entry

PLU entry

Department entry

3 @ 1200 (

5 @ 500 D !

3 @ )

5 @ D "

3 @ 50 d 1500 d

5 @ 33 d

3 @ 2 p

5@ 11p1200p

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 16

Single item cash sale (SICS) entry

• This function is useful when a sale is for only one item and is for cash. This function is applicable only to those

departments that have been set for SICS or to their associated PLUs or subdepartments.

• The transaction is complete and the drawer opens as soon as you press the department key,

key or

key.

If an entry to a department or PLU/subdepartment set for SICS follows the ones to departments or

PLUs/subdepartments not set for SICS, it does not finalize and results in a normal sale.

For finishing

the transaction

250

PrintKey operation example

The register provides three types of subtotals:

Merchandise subtotal

Press the

key at any point during a transaction. The net sale subtotal - not including tax - will appear in

the display.

Taxable subtotal

Taxable 1 subtotal

Press the

and

keys in this order at any point during a transaction. The sale subtotal of

taxable 1 items will appear in the display.

Taxable 2 subtotal

Press the

and

keys in this order at any point during a transaction. The sale subtotal of

taxable 2 items will appear in the display.

Including-tax subtotal (full subtotal)

Press the

key at any point during a transaction. The sale subtotal including tax and the symbol “ ” will

appear in the display.

Cash or check tendering

Press the

key to get an including tax subtotal, enter the amount tendered by your customer, then press

the

key if it is a cash tender or press the

key if it is a check tender. When the amount tendered is

greater than the amount of the sale, your register will show the change due amount and the symbol “ ” will light

up. Otherwise the register will show a deficit and the symbol “ ” will light up. You now must make a correct

tender entry.

Cash tendering

1000 A

PrintKey operation example

Finalization of Transaction

Displaying Subtotals

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 17

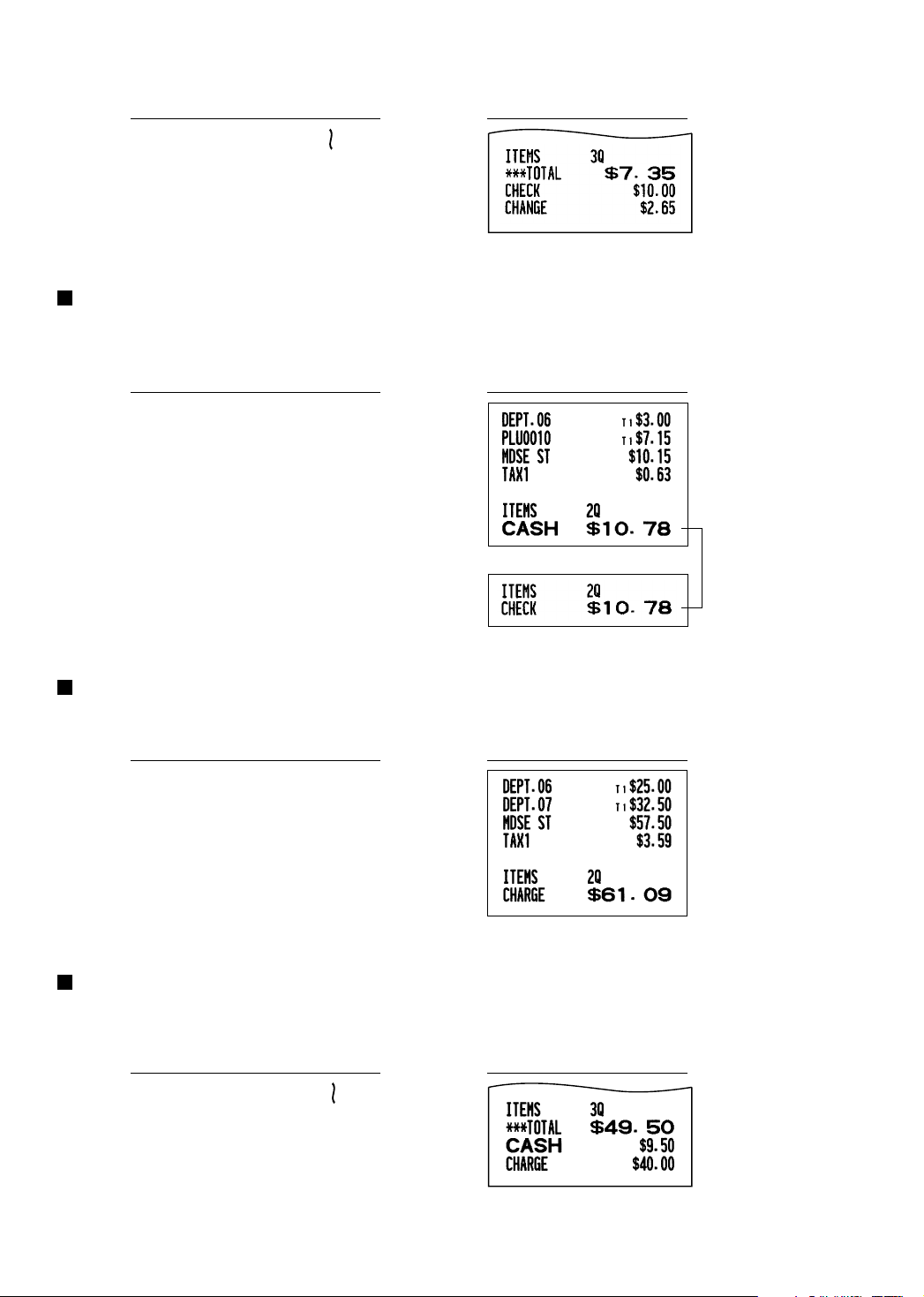

Check tendering

Cash or check sale that does not require entry

Enter items and press the

key if it is a cash sale or press the

if it is a check sale. Your register will

display the total sale amount.

Charge (credit) sale

Enter items and press the charge key (

Mixed-tender sale

You can perform mixed-tendering of check and cash, cash and charge, and check and charge.

Example: Your customer pays $9.50 in cash and $40.00 by charge for an including-tax subtotal of $49.50.

950 A

PrintKey operation example

2500

3250

PrintKey operation example

In the case of check sale

300

PrintKey operation example

1000 C

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 18

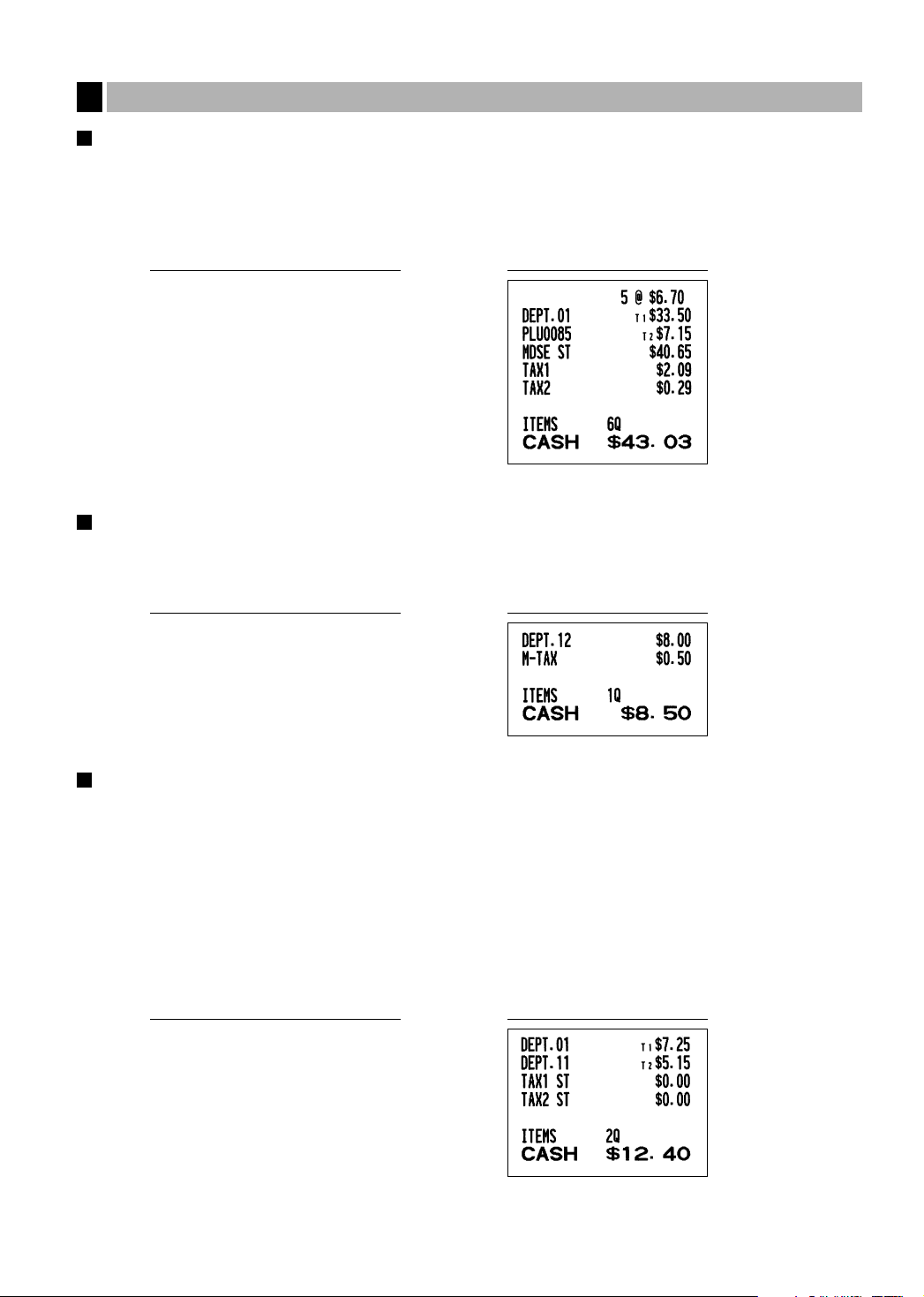

Automatic tax

When the register is programmed with a tax rate (or tax table) and the tax status of an individual department is

set for taxable, it computes the automatic tax on any item that is entered directly into the department or indirectly

via a related PLU.

Example: Selling five $6.70 items (dept. 1, taxable 1) and one $7.15 item (PLU no. 85, taxable 2) for cash

Manual tax

The machine allows you to enter tax manually after it finalizes an item entry.

Example: Selling an $8.00 item (dept. 12) for cash with 50 cents as tax

Tax delete

You can delete the automatic tax on the taxable 1 and taxable 2 subtotal of each transaction by pressing the

key after the subtotal is displayed.

To delete taxable 1 subtotal, press

to get taxable 1 subtotal, and then press

to delete the

subtotal.

To delete taxable 2 subtotal, press

to get taxable 2 subtotal, and then press

to delete the

subtotal.

To delete all taxable (1-4) subtotal, press

and

in this order.

Example: Selling a $7.25 item (dept. 1, taxable 1) and another $5.15 item (dept. 11, taxable 2) for cash and

entering the sale as a non-taxable one

725

515

PrintKey operation example

800

(

PrintKey operation example

670

PrintKey operation example

Tax Calculation

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 19

Tax status shift

The machine allows you to shift the programmed tax status of each department or the PLU key by pressing the

and/or

keys before those keys. After each entry is completed, the programmed tax status of each

key is resumed.

Example: Selling the following items for cash with their programmed tax status reversed

• One $13.45 item of dept. 16 (non-taxable) as a taxable 1 item

• One $7.00 item of PLU no. 25 (non-taxable) as a taxable 1 and 2 item

• One $4.00 item of dept. 11 (taxable 2) as a non-taxable item

• Two $10.50 items of dept. 1 (taxable 1) as taxable 2 items

When Canadian tax system is applied:

When using a tax status shift, the entry of a multi-taxable item for PST or GST will be prohibited.

Please see below:

In case of; Tax 1: PST, Tax 2: PST,

Tax 3: PST, Tax 4: GST

Taxable 1 and 2 item ········· prohibited

Taxable 1 and 3 item········· prohibited

Taxable 2 and 3 item ········· prohibited

Taxable 1 and 4 item ············· allowed

Taxable 2 and 4 item ············· allowed

Taxable 3 and 4 item ············· allowed

In case of; Tax 1: PST, Tax 2: PST,

Tax 3: GST, Tax 4: GST

Taxable 1 and 2 item ········· prohibited

Taxable 1 and 3 item ············· allowed

Taxable 2 and 3 item ············· allowed

Taxable 1 and 4 item ············· allowed

Taxable 2 and 4 item ············· allowed

Taxable 3 and 4 item ········· prohibited

1345

TUp

400

1050

TU!

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 20

OPTIONAL FEATURES

Discount and premium entries using the percent key

The percent key is used to apply a manually entered or preset discount or premium percent rate to individual

items or to a merchandise subtotal. In the default setting, you can manually enter a discount percent rate to

both individual items and merchandise subtotal. For manual entry of discount or premium percent rate, enter the

rate (up to 100.00) with the numeric keys (you need a decimal point when you enter a fractional percent rate),

and press a percent key. When using a preset rate (if programmed), just press a percent key.

When entry limit is programmed for a percent key, you can not enter a rate over the limit (error code 34 will

occur.)

Percent calculation for the merchandise subtotal

Percent calculation for item entries

Discount and premium entries using the discount key

The discount key is used to apply a manually entered or preset discount or premium amount to individual items

or to a merchandise subtotal. In the default setting, you can manually enter a discount amount to both individual

items and merchandise subtotal. For manual entry of discount or premium amounts, enter the amount with the

numeric keys, and press the discount key. When using a preset amount (if programmed), press the discount

key.

When entry digit limit is programmed for the discount key, you can not enter an amount over the limit (error code

34 will occur.)

800

(When premium and 15% are

programmed for the

key)

PrintKey operation example

140

570

PrintKey operation example

Auxiliary Entries

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 21

Discount for the merchandise subtotal

Discount for item entries

Refund entries

For departments 1 to 16, enter the refund amount and press the

key, and then press the corresponding

department key and for departments 17 to 32, enter the refund amount and press the

key, then press the

key and press the corresponding department key (when using the preset price, omit entering the amount).

In case of department 33 to 99, enter the department code and press

key and the

key, then enter the

refund amount and press the

key if necessary.

For a refund of a PLU item, enter the PLU code and press the

key, then press the

key.

For a refund of a subdepartment item, enter the PLU code and press the

key and

key, then enter the

refund amount and press the

key.

Non-add code number entries and printing

You can enter a non-add code number such as a customer’s code number and credit card number, a maximum

of 16 digits, at any point during the entry of a sale. The cash register will print it at once.

To enter a non-add code number, enter the number and press the

key.

250

100

150

PrintKey operation example

675

(When a discount amount of

$0.75 is programmed.)

PrintKey operation example

575

100

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 22

Currency conversion

The register allows payment entries in a foreign currency (only cash payment is available). Pressing the

key

creates a subtotal in the foreign currency.

When using a programmed currency conversion rate, press the

key after item entries, then enter the

tendered amount in foreign currency if not exact amount payment, and press the

key.

When making a manual entry of currency conversion rate, after item entries, enter the conversion rate (0.0000 to

9999.9999; you need a decimal point when you enter fractional conversion rate) and press the

key, then

enter the tendered amount in foreign currency if not exact amount payment, and press the

key.

In both cases, the change due will be displayed in domestic currency, and when the amount tendered is short,

the deficit is shown in domestic currency.

• Press the

key after pressing the

key to cancel payment in a foreign currency.

• If programmed, a foreign currency symbol is printed when you use a prest rate.

Applying preset conversion rate

Applying manual conversion rate

Conversion rate

2300 +

4650 *

1 P 275 V

10000 A

PrintKey operation example

Domestic currency

Conversion rate

Domestic currency

Foreign currency

Foreign currency symbol

(Printed if programmed)

Currency

conversion

Amount

tendered in

foreign currency

(When a currency conversion

rate of 0.9275 is programmed for

the

key.)

2300 +

4650 *

10000 A

PrintKey operation example

Auxiliary Payment Treatment

1230

1500

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 23

Received-on Account and Paid-out Entries

When you receive on account from a customer or when you pay an amount to a vendor, it is a good idea to use

the

key or the

key respectively.

For the received-on-account (RA) entry, enter the amount, and press the

key.

For the paid-out (PO) entry, enter the amount and press the

key.

Cash tendering only available for RA and PO operation.

No sale (exchange)

When you need to open the drawer with no sale, just press the

key. The drawer will open and printer will

print “NO SALE” on the receipt or journal. If you let the machine print a non-add code number before pressing

the

key, a no sale entry is achieved and a non-add code number is printed.

You can achieve a programmed transaction simply by pressing the

key.

(

= 500

)

PrintKey operation example

Automatic Sequence Key (

key) Entries

12345

4800

PrintKey operation example

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 24

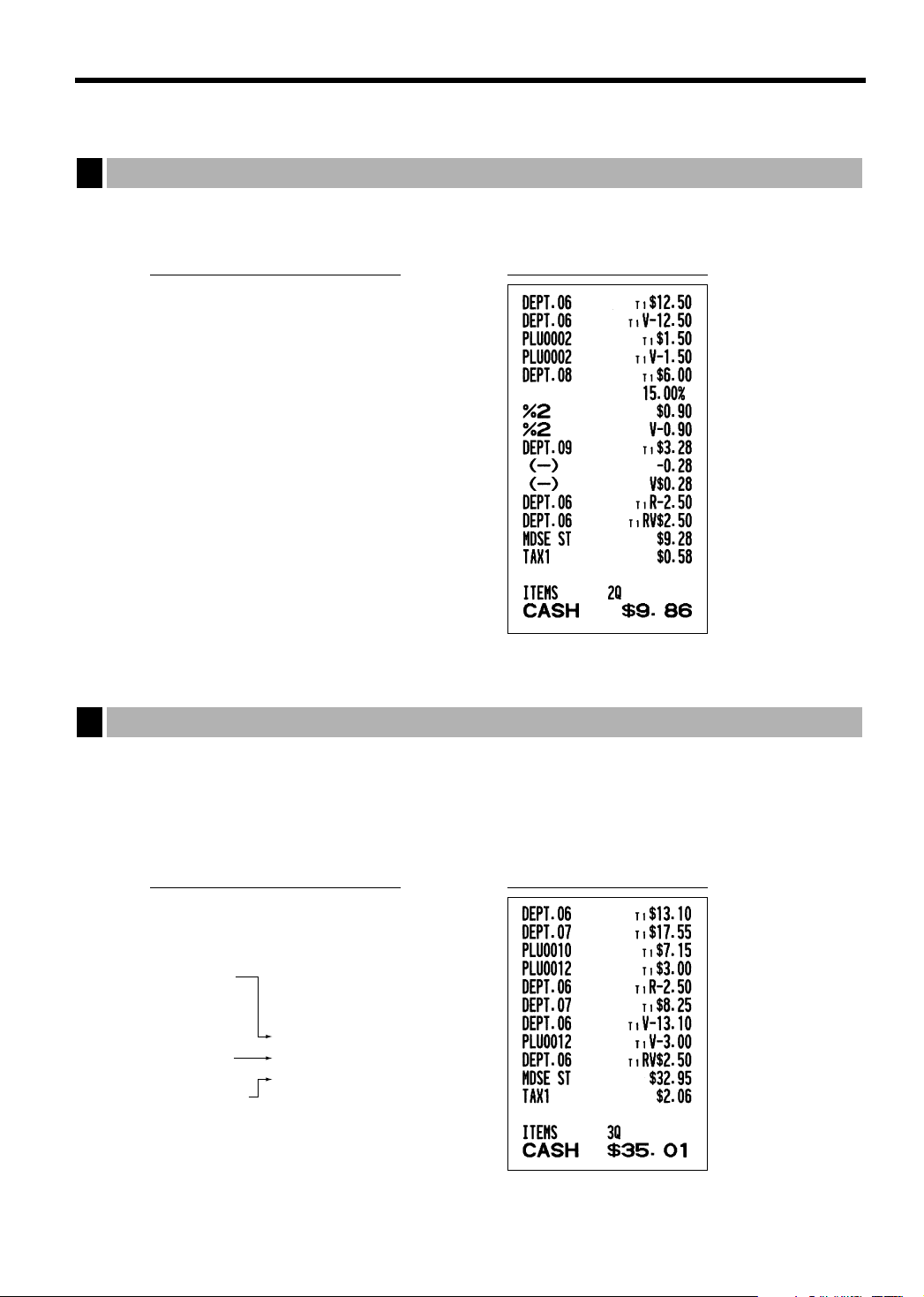

CORRECTION

If you make an incorrect entry relating to a department, PLU/subdepartment, percentage (

and

), discount

(

) or refund, you can void this entry by pressing the

key immediately after the incorrect entry.

You can void any incorrect department entry, PLU/subdepartment entry or item refund entry made during a

transaction if you find it before finalizing the transaction (e.g. pressing the

key). This function is

applicable to department, PLU/subdepartment and refund entries only.

For the operation, press the

key just before you press a department key,

key or

key. For the

refund indirect void, press the

key after you press the

key.

Correction

of a PLU entry

Correction of

a refund entry

Correction

of a

department

entry

1310 +

1755 *

10 p

12 p

250 f +

825 *

1310 v +

12 v p

250 f v +

PrintKey operation example

Correction of the Next-to-last or Earlier Entry (indirect void)

1250

600

328

250

PrintKey operation example

Correction of the Last Entry (direct void)

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 25

You can void an entire transaction. Once subtotal void is executed, the transaction is aborted and the register

issues a receipt. This function does not work when more than 30 items have been entered.

Any errors found after the entry of a transaction has been completed or during an amount tendered entry cannot

be voided. These errors must be corrected by the manager.

The following steps should be taken:

1. If you are making the amount tendered entry, finalize the transaction.

2. Make correct entries from the beginning.

3. Hand the incorrect receipt to your manager for its cancellation.

Correction of Incorrect Entries not Handled by the Direct or Indirect Void

Function

Subtotal void

1310 "

1755 +

10 p

35 p

PrintKey operation example

Subtotal Void

A242_2 FOR THE OPERATOR 06.1.10 5:16 PM Page 26

PRIOR TO PROGRAMMING

Before starting sales entries, you must first program necessary items so that the cash register suits your sales

manner. In this manual, there are three sections, BASIC FUNCTION PROGRAMMING where required items

must be programmed, AUXILIARY FUNCTION PROGRAMMING where you can program for more convenient

use of keys on the keyboard, and ADVANCED FUNCTION PROGRAMMING where various optional

programming features are provided. Find the appropriate features for your needs, and make the necessary

programming.

You can select the language of text (English, French or Spanish) printed on receipts or journals.

For the language selection, please refer to “Language Selection” described later in this section.

Procedure for programming

1. Check to see whether a paper roll is present in the machine. If there is not enough paper on the roll, replace

it with a new one (refer to MAINTENANCE section for the replacement).

2. Put the manager key in the mode switch and turn it to the PGM position.

3. Program necessary items into the cash register.

Every time you program an item, the cash register will print the setting. Please

refer to print samples in each section.

4. If necessary, issue programming reports for your reference.

• On the procedures and key operation examples shown in the programming details, numbers such

as “04262006” indicates the parameter which must be entered using the corresponding numeric

keys.

• Asterisks in the tables shown in the programming details indicate default settings.

BASIC FUNCTION PROGRAMMING

(For Quick Start)

Date

For setting the date, enter the date in 8 digits using the month-day-year (MM/DD/YYYY) format, then press the

key.

You can use the date format of day-month-year (DD/MM/YYYY) or year-month-day (YYYY/MM/DD)

format. To change the format, refer to “Various Function Selection Programming 1” section (Job

code 61).

Date

04262006

(Apr. 26, 2006)

PrintKey operation example

Date(MM/DD/YYYY)

Date and Time Programming

FOR THE MANAGER

REG

OPX/Z MGR

PGM

X1/Z1

X2/Z2

OFF

VOID

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 27

Time

For setting the time, enter the time in 4 digits using the 24-hour format. For example, when the time is set to

2:30 AM, enter 230; and when it is set to 2:30 PM, enter 1430.

In the display, current time is displayed in 12-hour format. For AM time, “ ” and for PM time “ ”

will appear in the rightmost position with the current time. If you want to display time in the 24-hour

format, refer to “Various Function Selection Programming 1” section (Job code 61).

The cash register can support US and Canadian tax systems. If you use the Canadian tax system,

you must first change the tax system, then program the tax rate or tax table and quantity for

doughnut exempt which are described in this section. For changing your cash register’s tax

system, please refer to “Various Function Selection Programming 1” section (job code 70).

Before you can proceed with registration of sales, you must first program the tax that is levied in accordance

with the law of your state. The cash register comes with the ability to program four different tax rates. In most

states, you will only need to program Tax 1. However if you live in an area that has a separate local tax (such

as a Parish tax) or a hospitality tax, the register can be programmed to calculate these separate taxes.

When you program the tax status for a department, tax will be automatically added to sales of items assigned to

the department according to the programmed tax status for the department. You can also enter tax manually.

There are two tax programming methods. The tax rate method uses a straight percentage rate per dollar. The

tax table method requires tax break information from your states or local tax offices. Use the method which is

acceptable in your state. You can obtain necessary data for tax programming from your local tax office.

Tax programming using a tax rate

The percent rate specified here is used for tax calculation on taxable subtotals.

To delete a tax rate, use the following sequence:

s @ v A@

Tax number (1 to 4)

s @9 @

@ s A

When the lowest taxable amount is zero

Tax number (1 to 4)

Tax rate

(0.0000 to 100.0000)

Lowest taxable amount

(0.01 to 999.99)

Tax Programming for Automatic Tax Calculation Function

Time

1430

PrintKey operation example

Time(max. 4 digits in 24-hour format)

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 28

Example: Programming the tax rate 4% as tax rate 2 with tax exempt as 12¢

• If you make an incorrect entry before pressing the third

key in programming a tax rate, cancel

it with the

key.

• You do not need to enter the trailing zeros of the tax rate (after the decimal point), but you do

need to enter the decimal for fractions.

• The lowest taxable amount setting is ignored when you select VAT system for Canadian tax.

The tax table (applicable to the add-on tax)

If you are in an area that uses a tax table for tax calculation, you can program the cash register accordingly. Tax

table programming can be performed for Tax 1 through Tax 4.

Sample tax table

New Jersey tax table: 6%

To program a tax table, first make a table like the one shown above right.

From the tax table, calculate the differences between a minimum break point and the next one (A). Then, from

the differences, find irregular cycles (B) and regular cycles (C and D). These cycles will show you the following

items necessary to program the tax table:

T: The tax amount collected on the minimum taxable amount (Q)

Q: The minimum taxable amount

M1: The maximum value of the minimum breakpoint on a regular cycle (C)

We call this point “MAX point.”

M2: The maximum value of the minimum breakpoint on a regular cycle (D)

We call this point “MAX point.”

M: Range of the minimum breakpoint on a regular cycle: difference between Q and M1 or between M1 and M2

PrintKey operation example

Taxes

Range of sales amount

Minimum breakpoint

.00

.01

.02

.03

.04

.05

.06

.07

.08

.09

.10

.11

.12

.13

.01

.11

.23

.39

.57

.73

.89

1.11

1.23

1.39

1.57

1.73

1.89

2.11

Maximum breakpoint

.10

.22

.38

.56

.72

.88

1.10

1.22

1.38

1.56

1.72

1.88

2.10

2.22

T Q

A: Difference between the

minimum breakpoint and

the next one (¢)

–

10 (0.11 - 0.01)

12 (0.23 - 0.11)

16 (0.39 - 0.23)

18 (0.57 - 0.39)

16 (0.73 - 0.57)

16 (0.89 - 0.73)

22 (1.11 - 0.89)

12 (1.23 - 1.11)

16 (1.39 - 1.23)

18 (1.57 - 1.39)

16 (1.73 - 1.57)

16 (1.89 - 1.73)

22 (2.11 - 1.89)

B: Non-cyclic

C: Cyclic-1

D: Cyclic-2

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 29

The first figure to be entered depends upon whether the difference between a minimum

breakpoint to be entered and the preceding minimum breakpoint is not less than $1.00 or

more than 99¢. When the difference is not less than $1.00, enter “1,” and when it is not more

than 99¢, enter “0” or nothing.

The second figure depends upon whether your tax table is to be programmed as tax table 1,

2, 3 or 4.

*2 If the rate is fractional (e.g. 4-3/8%), then the fractional portion (3/8) would be converted to its decimal

equivalent (i.e. .375) and the resulting rate of 4.375 would be entered. Note that the nominal rate (R) is

generally indicated on the tax table.

If you make an incorrect entry before entering the M in programming a tax table, cancel it with the

key; and if you make an error after entering the M, cancel it with the

key. Then program

again from the beginning.

• Limitations to the entry of minimum breakpoints

The register can support a tax table consisting of no more than 72 breakpoints. (The maximum number of

breakpoints is 36 when the breakpoint difference is $1.00 or more.) If the number of breakpoints exceeds the

Example: Programming the sample tax table shown on the previous page as tax table 1

You do not need to enter the trailing zeros of the tax rate (after the decimal point) but you do need

to enter the decimal point for fractions.

s 8 @

1 @

6 @

100 @

1 @

11 @

23 @

39 @

57 @

73 @

89 @

111 @

Tax rate

(MAX point)

The first

cyclic

portion

PrintKey operation example

Second figure:

(1 to 4)

*1 First figure:

(1 or 0)

s @ s@

max. six digits

(0.0001 - 99.9999%)

max. four

digits

One- or two-

digit number

Rate

@@8

To delete a tax table, use the following sequence:

s @ @

max. six digits

(0.0001 - 99.9999%)

max. four

digits

One- or two-

digit number

Rate

max. three

digits

max. five

digits

@ A

Minimum breakpoint

max. five digits

Repeat until the MAX point is entered.

@@8

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 30

• If the tax is not provided for every cent, modify the tax table by setting the tax for every cent

in the following manner.

When setting the tax, consider the minimum breakpoint corresponding to unprovided tax to be the same as the

one corresponding to the tax provided on a large amount.

Sample tax table Modification of the left tax table

Example 8%

From the modified tax table above;

Rate = 8(%), T = $0.01 = 1¢, Q = $0.11 = 11¢, M1 = 1.11, M2 = 2.11, M = 100

Quantity for doughnut tax exempt (for Canadian tax system)

This option is available only when the Canadian tax system is selected.

Example: To program the quantity “6”

PrintKey operation example

s @19 s A

To program zero

Q’ty for doughnut

tax exempt

(max. 2 digits: 1 to 99)

Tax

Minimum

breakpoint

.00

.01

.02

.03

.04

.05

.06

.07

.08

.09

.10

.11

.12

.13

.14

.15

.16

.17

.01

.11

.26

.47

.68

.89

1.11

1.26

1.47

1.68

1.89

2.11

T Q

Tax

Minimum

breakpoint

.00

.01

.02

.03

.04

.06

.09

.10

.11

.12

.14

.17

.01

.11

.26

.47

.68

.89

1.11

1.26

1.47

1.68

1.89

2.11

Breakpoint

difference (¢)

10 (0.11-0.01)

15 (0.26-0.11)

21 (0.47-0.26)

21 (0.68-0.47)

21 (0.89-0.68)

0 (0.89-0.89)

22 (1.11-0.89)

0 (1.11-1.11)

15 (1.26-1.11)

21 (1.47-1.26)

21 (1.68-1.47)

21 (1.89-1.68)

0 (1.89-1.89)

22 (2.11-1.89)

0 (2.11-2.11)

B: Non-cyclic

C: Cyclic-1

D: Cyclic-2

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 31

AUXILIARY FUNCTION PROGRAMMING

Merchandise can be classified into a maximum of 99 departments. Items sold with use of the department keys

can later be printed on a report that shows the quantities sold and sales amounts classified by department. The

data is useful for making purchasing decisions and other store operations. Departments can be assigned to

articles whose prices were set using PLU/subdepartment function.

When using a department key, you must set the parameters to specify the department status, such as positive

or negative department. Prices can be assigned directly to departments for frequently purchased items, which

enables you to enter the prices by simply pressing the department keys or dept. code entries.

Department status

To program another department, start from the beginning without pressing the

key.

Item: Selection: Entry:

A Tax 4 status Taxable 1

Non-taxable* 0

B Tax 3 status Taxable 1

Non-taxable* 0

C Tax 2 status Taxable 1

Non-taxable* 0

D Tax 1 status Taxable (*for dept. 1 thru 10) 1

Non-taxable (*for dept. 11 thru 99) 0

E SICS / Normal SICS 1

Normal* 0

F Sign Negative department 1

Positive department* 0

G Entry digit limit 0-7 (default: 7)

H Type of unit price entry Open and preset 3

Preset only 2

Open only* 1

Inhibit department key 0

Tax status (taxable 1 through 4 / non-taxable)

• When any entry of a taxable department is made in a transaction, tax is automatically computed according to

the associated tax table or rate.

SICS (Single Item Cash Sale)

• If an entry of a department programmed for SICS is made first, the sale will be finalized as a cash sale as

soon as the department key is pressed. If the entry is made after entering a department not programmed for

SICS, the sale will not be finalized until the

key is pressed.

Entry digit limit

• Set the number of allowable digits for the maximum entry amount for each department. The limit is effective

for operations in the REG mode and can be overridden in the MGR mode.

For department 33-99:

Dept. code

ABCDEFGH

To set all zeros

Dept. keyABCDEFGH

*To program departments 17 through 32, press the department shift key at this point.

Department Programming

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 32

Example: Programming department 2 as taxable 1, SICS, negative department, entry digit limit - 7 digits, and

allowing open & preset entry. (ABCDEFGH: 00011173)

Preset unit price

To program another department, start from the beginning without pressing the

key.

Even if a department is not programmed to allow the entry of preset unit prices in functional

programming, the department is automatically changed to allow the entry of preset unit prices by

this programming entry.

The PLU function allows speedy key entries whereby a price is automatically called up when a code is entered.

The subdepartment is a kind of “open PLU”, which requires you to enter a price after the PLU code is entered. A

maximum of 1200 PLU/subdepartment settings are possible. Each one belongs to a department and acquires

the department’s parameters (tax status, SICS and sign).

The cash register is preprogrammed so all 1200 codes are assigned as PLUs associated with department 1 and

preset unit price “0”.

PLU (Price Look-Up) and Subdepartment Programming

Unit price

1000

PrintKey operation example

For department 33-99:

Dept. code

Unit price

(max. six digits)

To program zero

Dept. key

Unit price

(max. six digits)

*To program departments 17 through 32, press the department shift key at this point.

Tax status

From left, EGH

Sign(F)

00011173

PrintKey operation example

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 33

Unit price and associated department assignment

*2: 1 through 1200 (Depending on the EJ memory size setting, up to 200)

*3: For a subdepartment, set the limit amount of unit price entry.

To program the following PLU, start from entering a unit price or an associated department code without

pressing the

key.

To program another PLU, start from the beginning without pressing the

key.

To delete a PLU code, use the following sequence:

PLU/subdepartment selection

*1: 1 through 1200 (Depending on the EJ memory size setting, up to 200)

*2: 0 for subdepartment or 1 for PLU (default: 1)

When you program the last PLU code, the programming sequence will be complete with a press of

the

key.

PLU/subdept.

PrintKey operation example

PLU code

To program "0"

To program the following PLU

To program another PLU

PLU code

To delete the following PLU

To delete another PLU

PLU code

Unit price

Associated dept.

125

PrintKey operation example

PLU code

*1: To assign departments 17 through 32, press the department shift key at this point.

To program zero

Unit price

(max. six digits)

Associated

Dept. key

PLU code

When the associated department is department 33-99:

To program zero

Associated

dept. code

(1 to 99)

Unit price

(max. six digits)

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 34

The cash register provides miscellaneous keys such as

and

. While the cash register is pre-programmed so you can use these keys, you must set a currency

conversion rate to use

key. You can also program these keys for more convenient use. Please refer to the

data below for programming these keys. Factory setting is indicated with parentheses.

Percent rate (0.00%), tax status (non-taxable), sign (minus), item % and subtotal %

entry* (both are allowed), percent rate limitation (100 %)

Amount (0.00), tax status (non-taxable), sign (minus), item

and subtotal

entry*

(both are allowed), entry digit limit (7 digits)

Not necessary to program

Entry digit limit (9 digits)

Currency conversion rate (0.0000), currency conversion rate entry method - open or

preset (both are enabled)

and

Compulsory entry of amount tender (not compulsory), entry digit limit (8 digits), footer

printing (not printed)

(Manual tax) Entry digit limit (7 digits)

* Item %/Item

: Percent/discount calculation is applied to individual department and

PLU/subdepartment.

* Subtotal %/Subtotal

: Percent/discount calculation is applied to subtotals.

Rate for

and

*: Rate

0.00 — 100.00 (% rate)

0.0000 — 9999.9999 (Currency conversion rate)

You must use a decimal point when setting fractional rates.

Percent rate

Currency

conversion rate

9275

PrintKey operation example

*Rate or

To program another rate

To program zero

Miscellaneous Key Programming

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 35

Amount for

Percent rate limitation for

and

• Percent entries that exceed the upper limit may be overridden in the MGR mode.

• 10.00% can be entered as

10P00

. The

key is needed only

for fractional entry.

Function parameters for

and

*ABCDEFGH or

To program for another key

To program “0” for all items

Percentage limit

PrintKey operation example

s @29

Percentage limit (0.00 -100.00%)

To program zero

To program for another percent key

Discount amount

200

PrintKey operation example

Discount amount (max. six digits)

A-

To program zero

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 36

*: Item: Selection: Entry:

A Tax 4 status Taxable 1

Non-taxable* 0

B Tax 3 status Taxable 1

Non-taxable* 0

C Tax 2 status Taxable 1

Non-taxable* 0

D Tax 1 status Taxable 1

Non-taxable* 0

E +/- sign + (premium) sign 0

- (discount) sign* 1

F Item % / Item

Allow* 0

Disallow 1

G Subtotal % / Subtotal

Allow* 0

Disallow 1

H Entry digit limit for discount key 0-7 (default: 7)

When programming for percent keys, always enter 0 for H.

Tax status (taxable 1 through 4 / non-taxable)

• When taxable is selected, tax is applied to the amount obtained after premium or discount calculation.

+/- sign

• Programming of the +/- sign assigns the premium or discount function for each key.

Entry digit limit (For discount key only)

• The entry digit limit is in effect for the REG mode operations but can be overridden in the MGR mode. The

entry digit limit is represented by the number of allowable digit for the maximum entry amount for discount

key.

Function parameters for

*: Item: Selection: Entry:

A Open rate entry Allow* 0

Disallow 1

B Preset rate entry Allow* 0

Disallow 1

From left, AB

PrintKey operation example

*AB

To program “0” for all items

From left, FGH

Sign(E)

Tax status

00011006

-A

PrintKey operation example

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 37

Entry digit limit for

and

• For

, enter 0 to 9 (digits), and for

(manual tax), enter 0 to 7 (digits). By default, 9 for

and

and 7 for

are set.

Entry digit limit is in effect for REG mode operation but can be overridden in the MGR mode. The entry digit

limit is represented by the number of allowable digits for maximum entry or total amount. When “0” is set, the

operation of the corresponding key is prohibited.

Function parameters for

and

(when using as CA key)

*1:Item: Selection: Entry:

A Footer printing Allow 1

Disallow* 0

B Amount tendered entry Compulsory 1

Non-compulsory (for the CA or CHK keys)* 0

Inhibit (for the CH key)* 0

C Entry digit limit 0-8 (default: 8)

Footer printing

• This programming decides whether or not the machine should print a message at the foot of a receipt when a

specified media key is used. With regard to programming method of footer logo message, refer to “Logo

messages” section on page 43.

Amount tendered entry

• You may select amount tendered, compulsory or optional, for the

and

keys.

• You may select amount tendered, compulsory or inhibited, for the

key.

Entry digit limit

• For the

and

keys, program upper limit entry amount for the tendered amount. For the

key,

program upper limit entry for total cash amount which can be handled on the register. The entry digit limit is

in effect for REG mode operation but can be overridden in the MGR mode. The entry digit limit is represented

by the number of allowable digits for the maximum entry or total amount. When “0” is set, the operation of the

corresponding key is prohibited.

ABC (A:0, B:1, C:8)

018

PrintKey operation example

ABC or

To program “0” for all items

To program for another key

:Press s key for CA key setting.

@s, Cc

PrintKey operation example

Entry digit limit

(only for manual entry)

A@r, R

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 38

The register allows you to program the text for clerk names, department item names, PLU/subdepartment item

names, and so on, if necessary. There are two ways for programming text: using character keys on the

keyboard or entering character codes with numeric keys on the keyboard.

Using character keys on the keyboard

You can enter characters according to the small figures printed in the lower right position of the key tops. For

the layout, please refer to “Keyboard” section on page 5.

The following are used as control keys for character entry:

Toggles between upper-case and lower-case letters. By default, the upper-case letter is selected.

Once the

key is pressed, you are locked in for entering lower-case letters. “_” lights up at the

SHIFT position of the display when lower-case letters entry is selected.

Press the

key to enter numeric characters. For example to enter “1”, press the

and

key. If you press the

key without pressing the

key, the cash register goes to character codes

entry mode.

Once the

key is pressed, you are locked in for entering numeric characters. “_” lights up at the

NUMBER position of the display when numeric characters entry is selected.

Toggles between single-size and double-size characters. By default, the single-size character is

selected. Once the

key is pressed, you are locked in for entering double size characters. “_” lights

up at the DC position of the display when double-size characters entry is selected.

Backs up the cursor, erasing the character to the left.

To program the word “Clerk01” with the letter “C” being double size.

To make the letter “C” double size character

To make character size return to normal size

To toggle the characters to lower-case letters

hijk

To enter numbers

N01

Entering character codes with numeric keys on the keyboard

Numerals, letters and symbols are programmable by entering the character code and the

key. (If numeric

characters entry is selected, that is, “_” lights up at the NUMBER position of the display, press the

key to

release it.) Set the alphanumeric character code table on the next page. By doing this, you can program

characters other than those on the key tops.

• Double-size characters can be made by entering the character code 253.

• All three digits of the character code MUST be entered (even if it starts with zero).

To program the word “SHARP” in double-size characters

When you press an appropriate number key (job code number) and press the

key for text entry just after you

start programming with the

key, the cash register will be automatically ready for text entry.

Listed below is an overview of what you can program and the allowable number of single sized characters for

each text entry.

• Department text 12 characters

• PLU text (item label) 12 characters

• Function text 8 characters

• Logo message 6 lines and 24 characters for each line

• Clerk name 8 characters

• Foreign currency symbol 4 characters

253

083

072

065

082

080

S H A R P

Text Programming

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 39

Alphanumeric character code table

*(DC): Double-size character code

: The shaded character cannot be displayed (displayed as space).

The character “!!” (code 128) cannot be displayed (displayed as “!”).

Code

001

002

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

030

031

032

033

034

035

036

037

038

039

040

041

042

043

044

045

Character

⌳

⌿

⌫

⍀

⌬

⍜

⌶

⌸

⌺

⌼

⌽

(space)

”

’

(

)

Code

046

047

048

049

050

051

052

053

054

055

056

057

058

059

060

061

062

063

064

065

066

067

068

069

070

071

072

073

074

075

076

077

078

079

080

081

082

083

084

085

086

087

088

089

090

Character

;

Code

091

092

093

094

095

096

097

098

099

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

Character

{

}

1/2

←

Code

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

177

178

180

181

182

183

184

185

186

187

188

189

190

191

192

Character

→

↓

▲

´´

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

253

↑

]

[

*(DC)

’

”

Code

Character

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 40

Department text

*To program departments 17 through 32, press the department shift key.

PLU text (item label)

Function text

* Function no.: See “List of function texts” shown on the following page.

Text

programmed for

PLU code 1

MELON

(Programming MELON to PLU1)

PrintKey operation example

Text

programmed for

dept. 1

FRUIT

(Programming FRUIT for dept.1)

PrintKey operation example

s 1 P

To program another dept.

To keep current setting

Dept. key

Character keys

(max.12 digits)

Dept. code

(1 to 99)

s P2 p

PLU code

When the next PLU code immediately

follows the one just entered

Character keys

(max.12 digits)

To keep current setting

To program another PLU

s P3 @

*Function no.

(max. 2 digits)

Character keys

(max. 8 digits)

To keep the current setting

To program another function text

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 41

List of function texts

• The items marked with “ * ” are for Canada only.

• The function no. 53 “Exempt VAT” is only effective for the Canadian tax system (2 GST, VAT

type).

(–)

%1 %1

%2 %2

Net sales total NET1

Net taxable 1 subtotal TAX1 ST

Gross tax 1 total GRS TAX1

Tax 1 total of refund entries RFD TAX1

Net tax 1 total TAX1

Exempt tax 1 TX1 EXPT

Net taxable 2 subtotal TAX2 ST

Gross tax 2 total GRS TAX2

Tax 2 total of refund entries RFD TAX2

Net tax 2 total TAX2

Exempt tax 2 TX2 EXPT

Net taxable 3 subtotal TAX3 ST

Gross tax 3 total GRS TAX3

Tax 3 total of refund entries RFD TAX3

Net tax 3 total TAX3

Exempt tax 3 TX3 EXPT

Net taxable 4 subtotal TAX4 ST

Gross tax 4 total GRS TAX4

Tax 4 total of refund entries RFD TAX4

Net tax 4 total TAX4

Exempt tax 4 TX4 EXPT

Gross manual tax total GRS MTAX

Refund manual tax total RFD MTAX

Net manual tax total M-TAX

Exempt total from GST GST EXPT

PST total PST TTL

GST total GST TTL

Tax total TTL TAX

Net

NET

Sales total including tax total NET2

Refund REFUND

Item void VOID

Function

no.

Key or function

Default

setting

Void mode

VOID

Manager void MGR VD

Subtotal void SBTL VD

No sale NO SALE

RA RA

PO PO

Customer counter TRANS CT

Sales total

NET 3

Cash CASH

Check CHECK

Gross charge CHARGE

Refund charge CHARGE–

Currency conversion1

(Preset)

CONV 1

Currency conversion2

(Open)

CONV 2

Cash in drawer CID

Cash+check in drawer CA+CH ID

Check change CHK/CG

Exempt VAT VAT EXPT

(+)Dept. total DEPT TL

(–)Dept. total DEPT(–)

Subtotal SUBTOTAL

Merchandise subtotal MDSE ST

Total TOTAL

Change CHANGE

Items ITEMS

Department report title

DEPT

PLU report title PLU

Transaction report title TRANS.

Clerk report title CLERK

Hourly report title HOURLY

Non add symbol #

Copy receipt title

COPY

EJ report title EJ

EJ report end title EJ END

Function

no.

Key or function

Default

setting

CARD

(Programming CARD for gross

charge)

PrintKey operation example

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 42

Clerk names

Logo messages

The register can print programmed messages on every receipt. On the standard model, the graphic logo is

printed on the receipt. If you want to print logo messages, please change the logo message print format. (See

page 51 for the programming details.) The options are listed below:

* “Header 3-line message” type: 1 to 3

“Footer 3-line message” type : 4 to 6

“Header 6-line message” type: 1 to 6

“Header 3-line and footer 3-line message” type: 1 to 6 (1 to 3 as header, 4 to 6 as footer)

Logo print format (6 types)

Graphic logo

Default setting

Text 2nd line

Graphic logoGraphic logo

Text 3rd line

Text 1st line

Header 3-line

message and

footer 3-line

messages

Header 3-line message Footer 3-line

message

Header 6-line

message

Text 2nd line

Text 3rd line

Text 1st line

Text 2nd line

Text 3rd line

Text 1st line

Text 2nd line

Text 3rd line

Text 1st line

Text 5th line

Text 6th line

Text 4th line

Text 5th line

Text 6th line

Text 4th line

Text 5th line

Text 6th line

Text 4th line

DAVID

PrintKey operation example

s P5 s@

To program another clerk

Character keys

(max. 8 digits)

Clerk code

(1-25)

To keep current setting

s P4 @

*Line number

(1-6)

Character keys

(max. 24 digits)

To keep the current setting

To program another line

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 43

To print the logo message “THANK YOU” using double sized characters and centering on the third line.

A 6-line logo message is preprogrammed when shipped. Please start entering from the first line

when you first program a logo message.

Foreign currency symbol

Foreign currency symbol for

key is printed with a foreign currency exchange amount.

Foreign currency

symbol

Entry using

character code

s 6 P

S S S

207 :

PrintKey operation example

s P6

Character keys

(max. 4 digits)

To keep the current setting

SSS

THANK

YOU

SSS

PrintKey operation example

ADVANCED PROGRAMMING

The register number and consecutive numbers are printed on every receipt or journal.

When your store has two or more registers, it is practical to set separate register numbers for their identification.

The consecutive number is increased by one each time a receipt is issued or when a journal print occurs.

For consecutive number programming, enter a number (max. 4 digits) that is one less than the desired starting

number.

123456

PrintKey operation example

s A

To set the register number “0”

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 44

Consecutive numbers

The cash register provides the electronic journal (EJ) function. By default, a maximum of 2000 lines can be

stored in memory. If you want to store more journal data, you can expand to a maximum of 3000 lines, although

the maximum number of PLUs is decreased to 200 codes because the memory is shared with PLU settings.

You can also program various options for EJ, such as availability of EJ memory nearly full warning, availability of

printing EJ data during a transaction, data type to be stored in memory, and printing format.

For reading journal data, refer to “EJ REPORT READING AND RESETTING” (page 60).

EJ memory type

When this procedure is executed, EJ data is cleared, and PLU data (programming data and sales

data) are reset to the default after all data is cleared even if the same memory type is selected.

*A: 0 for EJ 2000 lines and PLU 1200 codes (default)

1 for EJ 3000 lines and PLU 200 codes

PrintKey operation example

s @90 A

Electronic Journal (EJ) Programming

Consecutive

number

1000

PrintKey operation example

s A

A number (one to four digits) that is one

less than the desired starting number

To begin the count from 0001

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 45

Function parameters for EJ

* Item: Selection: Entry:

A Always enter 0. (Fixed position) 0

B Always enter 0. (Fixed position) 0

C Temporary EJ printing during a transaction Disallow 0

Allow* 1

D EJ printing and clearing EJ data when No* 0

issuing general Z1 report Yes 1

E PGM mode operation records type Details* 0

Header information only 1

F REG/MGR/VOID modes operation Details* 0

records type Total 1

G Compressing printing for EJ data No (normal size) 0

Yes (small size)* 1

H Action when EJ memory area is full Continue 0

Warning (near full warning)* 1

Lock (with near full warning) 2

On the default setting, an asterisk is marked.

Temporary EJ printing during a transaction

• If selecting “yes”, you can print journal data of a current transaction recorded in EJ memory by pressing the

key during the transaction. To realize this function completely, the cash register is programmed to

receipt printing and set Receipt ON/OFF function to OFF.

PGM mode operation records type

• The header information only is printed during the program reading operation.

The header information only is printed for X/Z reports.

(Receipt sample for Header Information only)

Action when EJ memory area is full

• By default, when the memory for EJ becomes nearly full, the cash register shows decimal points at the 8th

and 9th positions of the display (EJ memory nearly full message), and the cash register keeps storing new

data while erasing the oldest data. When “0” is selected, the cash register will no longer show EJ memory

nearly full message. When “2” is selected, the cash register shows EJ memory nearly full message and when

the memory is totally full, the cash register locks the sales/data entry with a display of the memory full

message “ ”. You will only be able to issue an EJ report.

00100002

PrintKey operation example

ss68 @

*ABCDEFGH

To set “00000000”

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 46

The cash register provides various detailed functions listed below.

• Function selection for miscellaneous keys

• Print format

• Receipt print format

• Function selection for tax

• Others

For this programming, job code entry style is applied. You can continue programming until you press the

key for the programming described in this section. To continue programming, repeat from a job code entry.

*1 Enter job code using numeric keys specified in each section below.

*2 Data entry details are listed on each table in each section below.

Example: When programming for job code 5 as ABCDEFGH: 00000100.

Function selection for miscellaneous keys

Job code: 5

* Item: Selection: Entry:

A PO in REG mode Allow the PO operation in REG mode* 0

Disallow it 1

B RA in REG mode Allow the RA operation in REG mode* 0

Disallow it 1

C Subtotal void in REG mode Allow the REG mode subtotal void* 0

Disallow it 1

D Indirect void in REG mode Allow the REG mode indirect void* 0

Disallow it 1

E Direct void in REG mode Allow the REG mode direct void* 0

Disallow it 1

F Refund key availability Allow the REG mode refund entry* 0

Disallow it 1

G No sale in REG mode Allow the no sale operation in REG mode* 0

Disallow it 1

H Fractional quantity availability Allow fractional quantity entry 0

Disallow it* 1

00000100

PrintKey operation example

s @

ABCDEFGH*

Job code

To set “00000000”

Various Function Selection Programming 1

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 47

Print format

Job code: 6

* Item: Selection: Entry:

A Printing style Use the printer for journal printing 0

Use the printer for receipt printing* 1

B Receipt print format Total 0

Detailed* 1

C Time print on all receipts/journals Allow time printing* 0

Disallow it 1

D Date print on all receipts/journals Allow date printing* 0

Disallow it 1

E Consecutive no. print on all receipts/journals Allow consecutive no. printing* 0

Disallow it 1

F Always enter 0. (Fixed position) 0

G Zero skip for PLU report Disallow zero skip 0

Allow zero skip* 1

H Zero skip for general, clerk and Disallow zero skip 0

hourly reports Allow zero skip* 1

Printing style

• Even when receipt printing is selected, the journal rewind motor will be driven in PGM, OP X/Z, X1/Z1 and

X2/Z2 modes so you can wind sales and programming reports.

Receipt print format

Job code: 7

* Item: Selection: Entry:

A Always enter 0. (Fixed position) 0

B Always enter 0. (Fixed position) 0

C Subtotal print with a press of subtotal key Disallow subtotal printing* 0

Allow it 1

D Merchandise print with a press of Disallow merchandise subtotal printing* 0

merchandise subtotal key Allow it 1

E Always enter 0. (Fixed position) 0

F Always enter 0. (Fixed position) 0

G Always enter 0. (Fixed position) 0

H Number of purchases print Allow printing of number of purchases* 0

Disallow it 1

Function selection for tax

Job code: 15

* Item: Selection: Entry:

A to F Always enter 0. (Fixed position) 0

G Tax delete in REG mode availability Allow tax delete in REG mode* 0

Disallow it 1

H Manual tax entry in Allow manual tax entry in REG mode* 0

REG mode availability Disallow it 1

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 48

Other programming

Job code: 61

* Item: Selection: Entry:

A Always enter 0. (Fixed position) 0

B Always enter 0. (Fixed position) 0

C Minus dept. and PLU/subdept. availability Disallow to program minus dept. and PLU/subdept. 0

Allow it* 1

D Fractional treatment Round off (4 down, 5 up)* 0

Raising to unit 1

Disregarding fractional treatment 2

E Use of

key Use

key as 00 key* 0

Use

key as 000 key 1

F Time format Use 12-hour format* 0

Use 24-hour format 1

G Date format Use month-day-year format* 0

Use day-month-year format 1

Use year-month-day format 2

Position of decimal point (from right) (TAB)

0 to 3 (default 2)

Job code: 62

* Item: Selection: Entry:

A Always enter 0. (Fixed position) 0

B Error beep activation By lock error* 0

By misoperation 1

C Key touch sound availability Allow to sound* 0

Disallow it 1

D Buffered keyboard Yes* 0

No 1

E Void mode operation availability Allow void mode operation* 0

Disallow it 1

F Void mode entry data print in Z2 reports Allow printing of void mode entry data in Z2 reports* 0

Disallow it 1

G Void mode entry data print in Z1 reports Allow printing of void mode entry data in Z1 reports* 0

Disallow it 1

H Addition of hourly sales total data in No* 0

void mode Yes 1

Job code: 66

* Item: Selection: Entry:

A Printing a receipt after transaction Total only 0

Details* 1

B Amount printing when PLU/subdept. Disallow printing* 0

unit price is zero Allow it 1

C Subtotal printing for conversion of Allow printing* 0

deficit Disallow it 1

D Always enter 0. (Fixed position) 0

E Compression printing on journals in Disallow compression printing (normal size) 0

PGM, OP X/Z, X1/Z1 and X2/Z2 modes Allow compression printing (small size)* 1

F Compression printing on journals in Disallow compression printing (normal size) 0

REG, MGR and VOID modes Allow compression printing (small size)* 1

G Logo message printing on journals Disallow logo message printing on journals* 0

Allow logo message printing on journals 1

H Footer printing Printing footer on all receipts* 0

Printing footer with selected function key at the time of finalization

Compression printing

• This programming is valid only when journal printing is selected. This does not affect EJ printing. (For EJ

programming, please refer to page 46.)

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 49

Job code: 70

* Item: Selection: Entry:

A Split pricing counting Quantity* 0

Package 1

B Multiplication/split pricing entry availability Allow multiplication entry only* 0

Allow both of multiplication and split pricing 1

C Always enter 0. (Fixed position) 0

D Always enter 0. (Fixed position) 0

E Tax printing when GST is VAT Allow tax printing* 0

Disallow it 1

F GST exempt printing on X/Z reports Allow printing of GST exempt* 0

Disallow it 1

GH Tax calculation system Auto tax* 00

Canadian tax (tax type number) 01 through 11

Tax calculation system

• For US tax system, select “auto-tax”.

• For Canadian tax, from the table below, specify a tax system suitable for your province (if necessary contact

your local tax office for correct sales tax information) and for your type of retail business. In the cash register,

four kinds of tax can be set and each tax is arranged to match GST or PST as follows:

Tax 1: PST Tax 2: PST

Tax 3: PST or GST Tax 4: GST

(The most common type for Canada is type number 06.)

• To program a GST, use Tax 4; and to program two GSTs, use Tax 3 and 4. To program a PST,

use Tax 1; to program two PSTs, use Tax 1 and 2; and to program three PSTs, use Tax 1, 2 and

• The entry of a multi-taxable item for PST or GST is prohibited as follows for the Canadian tax

system. When programming for departments, avoid programming the prohibited multi-taxable

status.

In case of; Tax 1: PST, Tax 2: PST,

Tax 3: PST, Tax 4: GST

Taxable 1 and 2 item ········· prohibited

Taxable 1 and 3 item ········· prohibited

Taxable 2 and 3 item ········· prohibited

Taxable 1 and 4 item ············· allowed

Taxable 2 and 4 item ············· allowed

Taxable 3 and 4 item ············· allowed

In case of; Tax 1: PST, Tax 2: PST,

Tax 3: GST, Tax 4: GST

Taxable 1 and 2 item ········· prohibited

Taxable 1 and 3 item ············· allowed

Taxable 2 and 3 item ············· allowed

Taxable 1 and 4 item ············· allowed

Taxable 2 and 4 item ············· allowed

Taxable 3 and 4 item ········· prohibited

Canadian tax

Tax 4 method Tax 3 method Tax 2 and 1 method

type number

GST GST PST PST

01 VAT VAT - Tax on tax

02 VAT VAT - Tax on base

03 VAT - Tax on tax Tax on tax

04 VAT - Tax on base Tax on base

05 Add on Tax - Tax on tax Tax on Tax

06 Add on Tax - Tax on base Tax on base

07 Add on Tax VAT - Tax on tax

08 Add on Tax VAT - Tax on base

09 Add on Tax Add on Tax - Tax on tax

10 Add on Tax Add on Tax - Tax on base

11 VAT - VAT (Tax on base) Tax on tax

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 50

The cash register provides various options so you can use the register to suit your sales needs.

In this section, you can program the following features (parameters within parentheses indicates default setting):

• Power save mode (entering the power save mode in 30 minutes)

• Logo message print format (graphic logo only)

• Thermal printer density (standard density)

• RS-232C interface

• Language selection (English)

• Training clerk specification (none) - If you specify a clerk code who is trained for use on this cash register, the

cash register will go into training mode when the clerk code is registered for sales entries. The sales

operations done by the trained clerk does not affect sales total. For details, refer to TRAINING MODE section.

Power save mode

* Item: Selection: Entry:

A Entering power save mode Yes* 0

when time is displayed No 1

B-D Time(min.) to entering power save mode 001-254 or 999

since no operation is made (Default 030)

When 999 is set for B to D, entering into power save mode is inhibited.

Logo message print format

You can select the number of lines for your logo message, and the position to print it on receipt or journal.

*A: Logo message type

0: Header 3-line message without graphic logo

1: Graphic logo only (default)

2: Footer 3-line message with graphic logo

3: Header 6-line message

4: Header 3-line message with graphic logo

5: Header 3-line message and footer 3-line message

PrintKey operation example

s11@

To set “0”

0060

PrintKey operation example

s10@

*ABCD

Various Function Selection Programming 2

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 51

RS-232C interface

(1) RS-232C terminal number

Default: 1

(2) RS-232C transmission form

* Item: Selection: Entry:

A Transmission line form Half duplex system 1

Full duplex system* 0

(3) RS-232C baud rate

* Item: Selection: Entry:

A Always enter 0. 0

B Baud rate (bps) 2400 3

4800 4

9600* 5

19200 6

(4) RS-232C start code and end code

*A-C: Start code 000-127 (default: 002)

D-F: End code 000-127 (default: 013)

(5) RS-232C time out setting

Default: 007

PrintKey operation example

s35@

Time out (1 to 255 sec.)

s33@

*ABCDEF

To set “000000”

s32@

*AB

s31@

To set “0”

s30@

Terminal number

(max. 6 digits)

To set “0”

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 52

Thermal printer density

* 50 is the default setting. To make the print darker, set a larger number, and to make the print lighter, set a

smaller number.

Language selection

*Language: 0: English 2: French 3: Spanish (default: English)

When you change the language, the texts such as clerk names, logo messages and function texts

(refer to page 42), which you programmed, will be reset to the default settings. The language

selection must be made before programming clerk names, logo messages and function texts.

Training clerk specification for training mode

For the details of clerk training, please refer to “TRAINING MODE” on page 56.

PrintKey operation example

s86@

Clerk code

(1 to 25)

To cancel

PrintKey operation example

s88@

*Language

(0, 2 or 3)

To set “0”

PrintKey operation example

s50@

*Printer density

(00-99)

To set “0”

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 53

AUTO key programming — Automatic sequence key —

If you program frequently performed transactions or report sequences for the

key, you can recall those

transactions and/or reports simply by pressing the

key in key operations.

Programming for

; entering a PLU 2 item (programmed unit price: 1.50) and a dept. 6 item (unit price: 1.00)

When the

key has been programmed to execute a report job function, the mode switch must be

in the appropriate position (OPX/Z for individual clerk reports, X1/Z1 for daily reports or X2/Z2 for

weekly or monthly reports).

100

AUTO

setting

PrintKey operation example

Transaction

Delete

max. 25 times

The machine allows you to read every program stored in the PGM mode.

Key sequence for reading stored program

• To stop reading programming report 1 or PLU programming report, turn the mode switch to the

MGR position.

• When printing is performed continuously, the printing may be intermitted several seconds. After

the intermission, the printing will be restarted.

Report name Key sequence

Programming report 1

Programming report 2 2 A

Auto key programming report 1 A

Printer density programming report 3 A

PLU programming report Start PLU code @ End PLU code p

Reading Stored Programs

A242_3 FOR THE MANAGER 06.1.10 5:19 PM Page 54

Mode

Dept. code

Dept. text

Function no.& its text

Dept. unit price w/sign

Dept. function

Minus department

Function parametrs (F-H)

Discount amt. w/sign



Percent limit

Tax status

Logo Message

Print format (A-H)

Receipt print format(A-H)

Power save mode(A-D)

Logo message print format

Function selection for tax (A-H)

Percent rate with sign

Entry digit limit

Function parameters (A-C)

Function parameters

Foreign currency 

symbol/Rate

Thermal printer density

Function selection for 

miscellaneous keys (A-H)

Tax rate

Min. taxable amount

Clerk code/name

Tax table

Doughnut tax exempt

RS-232C terminal no.

RS-232C transmission form (A)



RS-232C baud rate(AB)

RS-232C Start-End code

RS-232C timeout



Sample printouts

1 Programming report 1

A242_4 FOR THE MANAGER 06.1.10 5:36 PM Page 55

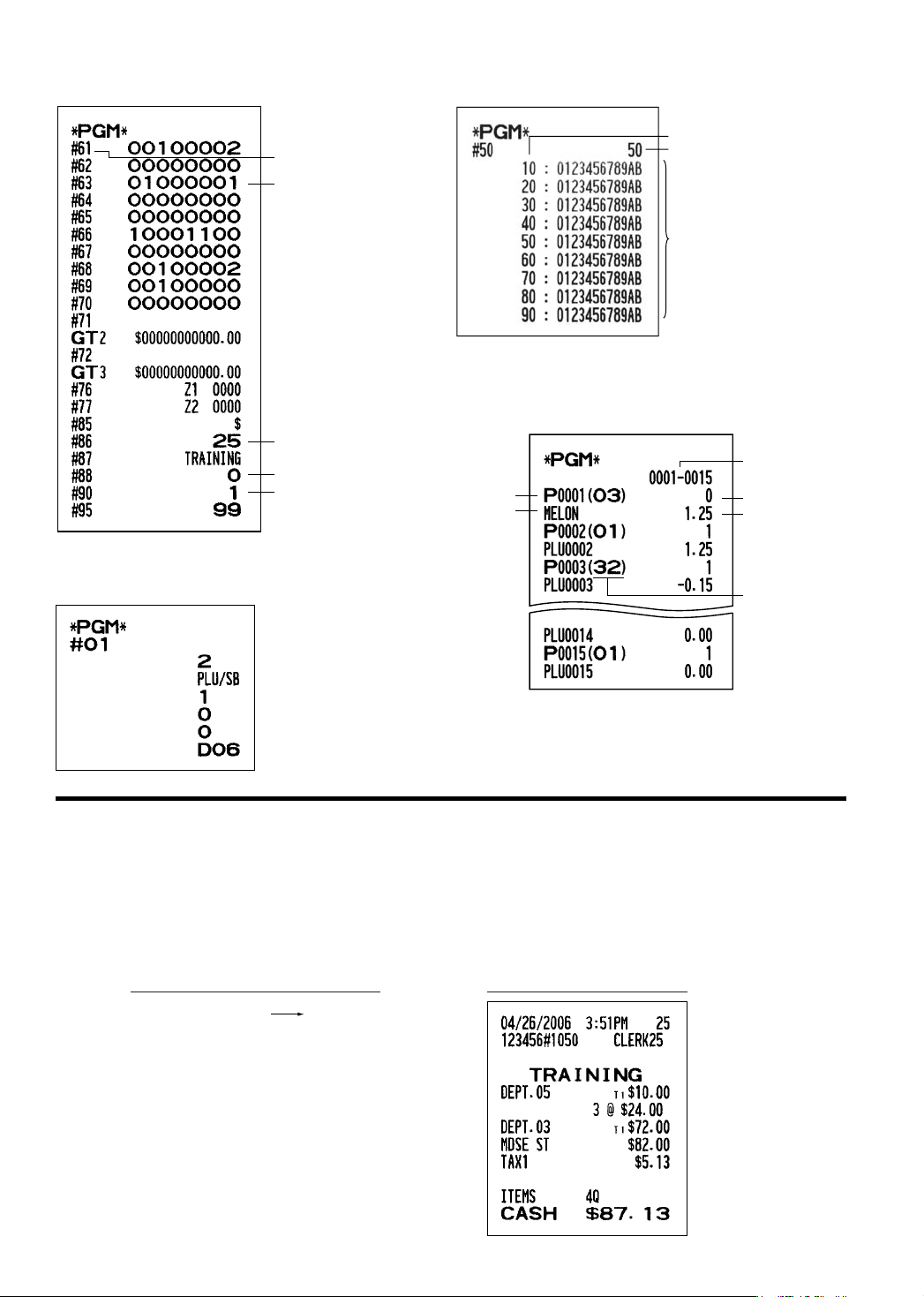

2 Programming report 2

Job code

A to H from the left

Training clerk specification

Language selection

EJ memory type

* Job code #63, 64, 65, 67,

69, 71, 72, 76, 77, 85, 87

and 95 are fixed settings,

for which you cannot

change the settings.

4 Printer density programming report

Entered Value

Printer density

Printing density

example

5 PLU programming report

PLU code

PLU text

Mode parameter

Unit price

Range

Associated

dept. code

3 Auto key programming report

TRAINING MODE

The training mode is used when the operator or the manager practices register operations.

When a clerk in training is selected, the machine automatically enters the training mode. To specify a clerk to be

trained, refer to “Training clerk specification for training mode” in “ADVANCED PROGRAMMING” in page 53.

The training operation is valid only in REG, MGR and VOID mode.

The corresponding clerk memory is only updated in the training mode.

A clerk set in training

25 L

1000 >

3 @

PrintKey operation example

A242_4 FOR THE MANAGER 06.1.10 5:25 PM Page 56

READING (X) AND RESETTING (Z)

OF SALES TOTALS

• Use the reading function (X) when you need to take a reading of sales information entered since the last reset.

You can take this reading any number of times. It does not affect the register’s memory.

• Use the resetting function (Z) when you need to clear the register’s memory. Resetting prints all sales

information and clears the entire memory except for the GT1 through GT3, Training GT, reset count, and

consecutive number.

X1 and Z1 reports: Daily sales reports

X2 and Z2 reports: Periodic (monthly) consolidation reports

When you take a X or Z report, turn the mode switch to the appropriate position referring to the column of “Mode

switch position” shown on the table below, and use the following corresponding key sequence.

• When both sales quantities and sales amounts are zero, printing is skipped. If you do not want to

skip, change the programming. (Refer to “Print format” of “Various Function Selection

Programming 1”.)

• “X” represents read symbol and “Z” represents reset symbol in the reports.

• To stop reading and resetting the PLU sales report, turn the mode switch to the MGR position.

The data will not be erased when you reset.

• When printing is performed continuously, the printing may be intermitted several seconds. After

the intermission, the printing will be restarted.

Item

Mode switch position

Key operation

OPX/Z

X, Z

key: Sales total

key: Amount of cash in drawer

For dept. 17 to 32; Dept. key (

)

Dept. code : Department sales total

For dept. 1 to 16; Dept. key (

)

Full clerk report

PLU sales report

Hourly report

X1/Z1

X1, Z1

X2/Z2

X2, Z2

Flash report:

(Only display)

To clear the

display, press the

key or turn the

mode switch to

another position.

Full sales report

Individual clerk

report

Reading: Resetting:

Reading:

Resetting:

Reading: Resetting:

(The report of the current clerk)

All PLUs

End

PLU code

Start

PLU code

Reading:

All PLUs

End

PLU code

Start

PLU code

Summary of Reading (X) and Resetting (Z) Reports

A242_4 FOR THE MANAGER 06.1.10 5:25 PM Page 57

Full sales report

• Sample report

*1: When you take X1 report, “X1” is printed.

*2: Printed in the Z1 report only.

*3: When the Canadian tax system is selected, the following is printed here.

Exempt total from GST

PST total

GST total

Daily Sales Totals

REG-mode void counter

and total

Subtotal void counter and

total

Manager item void counter

and total

Void-mode transaction

counter and total

Refund counter and total

Received on account

counter and total

Paid out counter and total

Next sales total

Taxable 1 total

Gross tax 1 total

Refund tax 1 total

Net tax 1 total

Mode title*1

Reset counter

Net grand total(GT2-GT3)

Grand total of plus

registration

Grand total of

minus registration

Grand total of training

mode registration

Dept. code

Sales q'ty

Sales amount

“+” dept. counter

and total

“-” dept. counter

and total

Subtotal counter

and total

Subtotal percent 1

counter and total

Item counter and total

Item percent 1

counter and total

Manual tax total

Tax total

Net total without tax

Net total with tax

No-sales counter

Customer counter

Sales total

Foreign currency total (preset)

Foreign currency total (open)

Cash in drawer

Cash + check in drawer

Change total for check tendering

Cash counter and total

Check sales counter and total

Charge sales counter and total

Charge refund counter and total

A242_4 FOR THE MANAGER 06.1.10 5:25 PM Page 58

Full sales report

• Sample report

The subsequent printouts are the same in format

as in the X1/Z1 full sales report.

*1: When you take X2 report, “X2” is printed.

*2: Printed in the Z2 report only

Mode title*1

Reset counter of daily total

Reset counter of periodic

Grand total

Periodic Consolidation

Clerk reports

Individual clerk report

• Sample report

Full clerk report

The printout occurs in the same format as in the

sample report of individual clerk, but all clerk’s sales

data are printed in the order of clerk code number

(from #1 to #25).

Mode title*

Report title

Clerk code

Clerk name

Customer counter

Hourly report

• Sample report

*: When you take Z1 report, “Z1” is printed.

Mode title*

Report title

Customer counter

Sales total

PLU sales report

• Sample report

*: When you take Z1 report, “Z1” is printed.

PLU code

Item label

Mode title*

Report title

Range

Range sum

Sales q'ty and total

A242_4 FOR THE MANAGER 06.1.10 5:25 PM Page 59

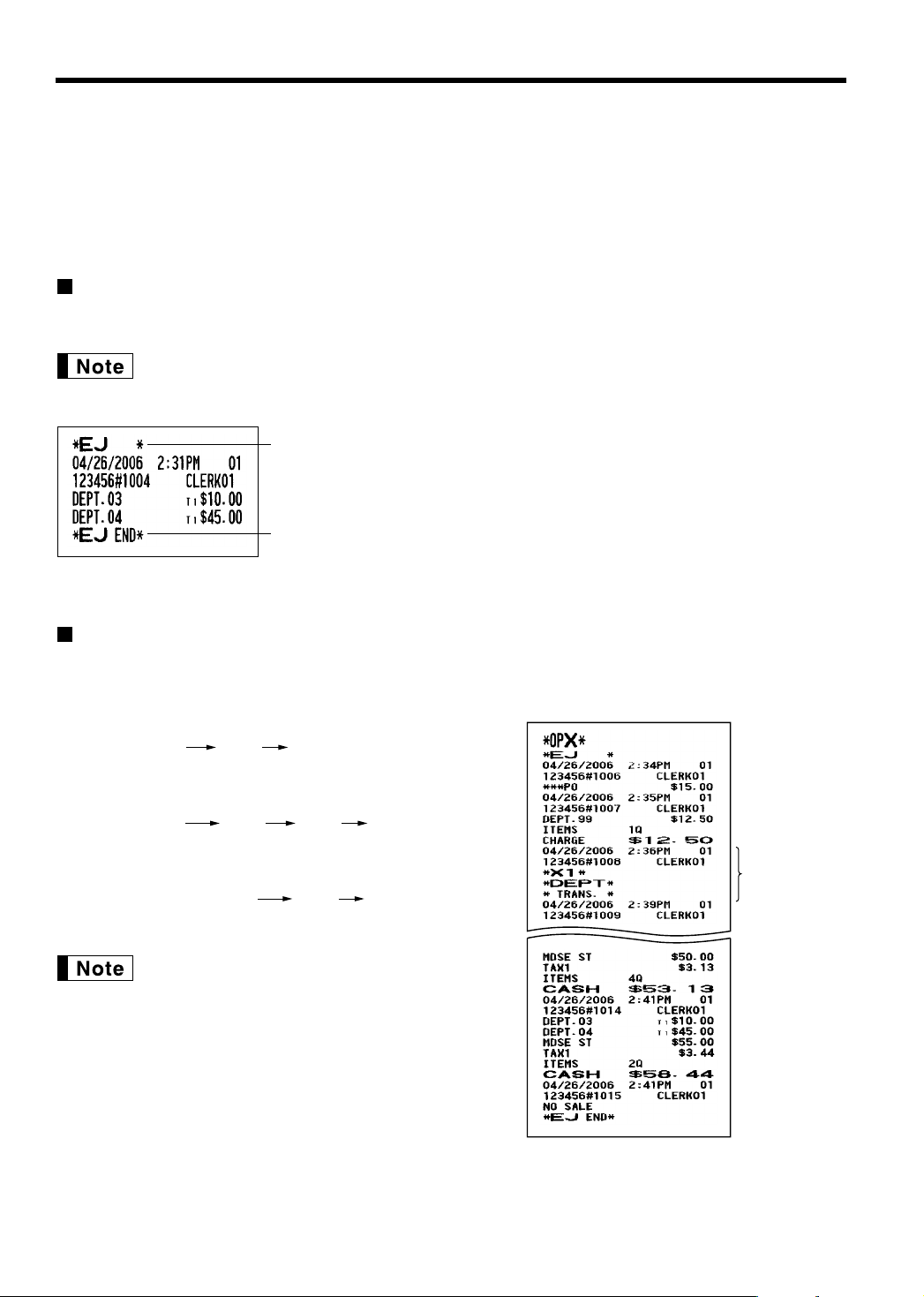

EJ REPORT READING AND RESETTING

The cash register provides an electronic journal (EJ) function. This function is intended to record the journal

data in a memory instead of journal paper, and print the data as an EJ report. The register records the journal

data in REG, PGM, VOID, X1/Z1 and X2/Z2 modes. By default, a maximum of 2000 lines are stored in the

memory, but you can expand it to 3000 lines. For details of EJ programming, please refer to “Electronic Journal

Programming” section (page 45).

Printing journal data on the way of a transaction

You can print journal data of a current transaction recorded in EJ memory by pressing the

key during the

transaction.

This function is valid when the printing style is programmed to receipt, and the receipt ON/OFF

function is set to OFF.

• Sample print

Reading and resetting the electronic journal data (Issuing EJ report)

You can read the journal data stored in the EJ memory in the journal format by executing the following

procedure in the X1/Z1 or OP X/Z mode.

• Sample EJ report

• On the EJ memory, a maximum of 2000 (or 3000, if

programmed) lines of data can be stored. When executing all

data reading, all of the data stored in the EJ memory will be

printed. To save paper, compression print is available.

• To stop reading or resetting the data, turn the mode switch to

“MGR” position. The data will not be erased when resetting.

• When printing is performed continuously, the printing may be

intermitted several seconds. After the intermission, the printing

will be restarted.

Header

information

7: P

To reset all of the data:

710

To read the last 10 records:

To read all of the data:

EJ report title

EJ report end title

A242_4 FOR THE MANAGER 06.1.10 5:25 PM Page 60

OVERRIDE ENTRIES

Programmed limit for functions (such as for maximum amounts) can be overridden by making an entry in the

MGR mode.

On this example, the register has been programmed not to allow

discounts entries over $1.00.

REG-mode 1500

entries 250

...Error

Turn the mode switch

to the MGR position.

250

Return the mode switch

to the REG position.

PrintKey operation example

REG

OPX/Z MGR

PGM

X1/Z1

X2/Z2

OFF

VOID

1. Turn the mode switch to the MGR position.

2. Make an override entry.

CORRECTION AFTER FINALIZING A

TRANSACTION (Void mode)

When you need to void incorrect entries that clerks cannot correct (incorrect entries found after finalizing a

transaction or cannot be corrected by direct or indirect void), follow this procedure:

1. Turn the mode switch to the

VOID

position using the manager key (MA), to enter

into the void mode.

2. Repeat the entries that are recorded on an incorrect receipt. (All data for the

incorrect receipt are removed from register memory; the voided amounts are

added to the void-mode transaction totalizer.)

Cancellation receiptIncorrect receipt

REG

OPX/Z MGR

PGM

X1/Z1

X2/Z2

OFF

VOID

A242_4 FOR THE MANAGER 06.1.10 5:25 PM Page 61

OPERATOR MAINTENANCE

When power is lost, the machine retains its memory contents and all information on sales entries.

• When power failure is encountered in register idle state or during an entry, the

machine returns to normal operation after power recovery.

• When power failure is encountered during a printing cycle, the register prints

“========” and then carries out the correct printing procedure after power

recovery. (See the sample print.)

If the printer runs out of paper, the printer will stall, and “PPPPPPPPPP” will appear on the display. Key entries

will not be accepted. Refer to section 5 in this chapter, install a new roll, then press the

key. The printer will

print the power failure symbol and resume printing.

If the print roller arm is not locked, the printer stalls, “H” will appear on the extreme left of the display. Key

entries will not be accepted. Push down the arm until it is securely locked, then press the

key. The printer

will print the power failure symbol and resume printing.

Cautions in handling the printer

• Avoid dusty and humid environments, direct sunlight and iron powder. (A permanent magnet and

electromagnet are used in this machine.)

• Never pull the paper when the print roller arm is locked. First lift up the arm, and then remove the paper.

• Never touch the surface of the print head and print roller.

Cautions in handling the recording paper (thermal paper)

• Use only the paper specified by SHARP.

• Do not unpack the thermal paper until you are ready to use it.

• Avoid heat. The paper will color at around 70°C.

• Avoid dusty and humid storage places. Avoid direct sunlight.

• The printed text on the paper can discolor under conditions of high humidity and temperature, exposure to the

direct sunlight, contact with glue, thinner or a freshly copied blueprint, and heat caused by friction from

scratching or other such means.

• Be very careful when handling the thermal paper. If you want to keep a permanent record, copy the printed text

with a photocopier.

Cautions in Handling the Printer and Recording Paper

In Case of Printer Error

In case of Power Failure

A242_5 OPERATOR MAINTE 06.1.10 5:29 PM Page 62

This cash register displays a low battery symbol ( ) when the batteries are low, and displays a no battery

symbol ( ) when batteries are extremely low or batteries are not installed.

When the low battery symbol is displayed, replace the batteries with new ones as soon as possible. The

existing batteries will be dead in about two days.

When the no battery symbol is displayed, replace the batteries immediately. Otherwise, if the AC power cord is

disconnected or a power failure occurs, all the programmed settings will be reset to the default settings and any

data stored in memory will be cleared.

Be sure to observe precautions shown on page 1 when handling batteries.

To replace the batteries:

1. Make sure that the cash register is plugged in.

2. Turn the mode switch to the REG position.

3. Remove the printer cover.

4. Open the battery compartment cover next to the paper roll cradle and

remove the old batteries.

5. Install three new “AA” batteries in the battery compartment. Be sure the

positive and negative poles of each battery are facing in the proper

direction. When they are installed correctly, the “ ” or “ ” symbol will

disappear.

6. Close the battery compartment cover.

7. Replace the printer cover.

Be sure to use paper rolls specified by SHARP.

The use of any other paper rolls other than those specified could cause paper jamming, resulting in register

malfunction.

Paper specification

Paper width: 2.25 ± 0.02 in (57.5 ± 0.5 mm)

Max. outside diameter: 3.15 in (80 mm)

Quality: Thermal paper

• Be sure to set the paper roll prior to using your machine, otherwise it may cause a malfunction.

Install the paper roll in the printer. Be careful to set the roll correctly.

(How to set the paper roll)

To the printer

Incorrect

To the printer

Correct

Replacing the Paper Roll

Replacing the Batteries

A242_5 OPERATOR MAINTE 06.1.10 5:29 PM Page 63

Removing the paper roll

When a red dye appears on the paper roll, it is time to replace it. Replace the paper roll with a new one. If you

plan on not using the register for an extended period of time, remove the paper roll, and store it in an appropriate

place.

Caution: The paper cutter is mounted on the printer cover. Be careful not to cut yourself.

When not using the take-up spool (using as receipt paper):

1. Remove the printer cover.

2. Lift up the print roller release lever to unlock and open the print

roller arm.

3. Remove the paper roll from the paper roll cradle.

Do not pull the paper through the printer.

When using the take-up spool (using as journal paper):

1. Turn the mode switch to a position other than OFF with the

power cord connected.

2. Remove the printer cover.

3. Press the

key to advance the journal paper until its printed

part is out of the way.

4. Cut the paper and remove the take-up spool.

5. Lift up the print roller release lever to unlock and open the print

roller arm.

6. Remove the paper roll from the paper roll cradle.

Do not pull the paper through the printer.

7. Remove the outer side of the take-up spool as shown

on the left.

8. Remove the printed journal roll from the take-up spool.

Installing the paper roll

Caution: The paper cutter is mounted on the printer cover. Be careful not to cut yourself.

Installing the receipt paper roll:

1. Turn the mode switch to a position other than

OFF with the power cord connected.

2. Remove the printer cover.

3. Lift up the print roller release lever to unlock

and open the print roller arm.

4. Set the paper correctly in the paper roll

cradle.

5. Feed the end of the paper along with the

paper positioning guides.

Area to cut

Print roller

release lever

Print roller arm

Paper positioning guides

A242_5 OPERATOR MAINTE 06.1.10 5:29 PM Page 64

6. While holding down the paper, slowly close the print roller arm, and

push down the arm until you hear a click locking the arm. Make

sure securely you push down the center of the wing part of the arm

as illustrated at the left. The paper will be fed automatically.

If the print roller arm is not securely locked, printing is not

done right. If this problem occurs, open the arm, and

close the arm as instructed above.

7. Cut off the excess paper using the edge of the inner cover, and

replace the printer cover. Press the

key to make sure the

paper end comes out of the printer cover and clean paper appears.

If the paper end does not come out, open the printer

cover, and pass the paper end between the paper cutter

and the paper guide of the printer cover, and replace the

cover.

Installing the journal paper roll:

1. Turn the mode switch to a position other than OFF with the power

cord connected.

2. Remove the printer cover.

3. Lift up the print roller release lever to unlock and open the print

roller arm.

4. Set the paper correctly in the paper roll cradle.

5. Feed the end of the paper along with the paper positioning guides.

6. While holding down the paper, slowly close the print roller arm, and

push down the arm until you hear a click locking the arm. Make

sure securely you push down the center of the wing part of the arm

as illustrated at the left. The paper will be fed automatically.

7. Insert the end of the paper into the slit in the spool. (Press the

key to feed more paper if required.)

8. Wind the paper two or three turns around the spool shaft.

9. Set the spool on the bearing, and press the

key to take up

excess slack in the paper.

10. Replace the printer cover.

You can wind the roll paper in OP X/Z, X1/Z1, and X2/Z2 modes even if you programmed so that

the printer is used for issuance of receipts. This may be convenient to wind reports. In this case,

set the roll paper to the take-up spool.

A242_5 OPERATOR MAINTE 06.1.10 5:29 PM Page 65

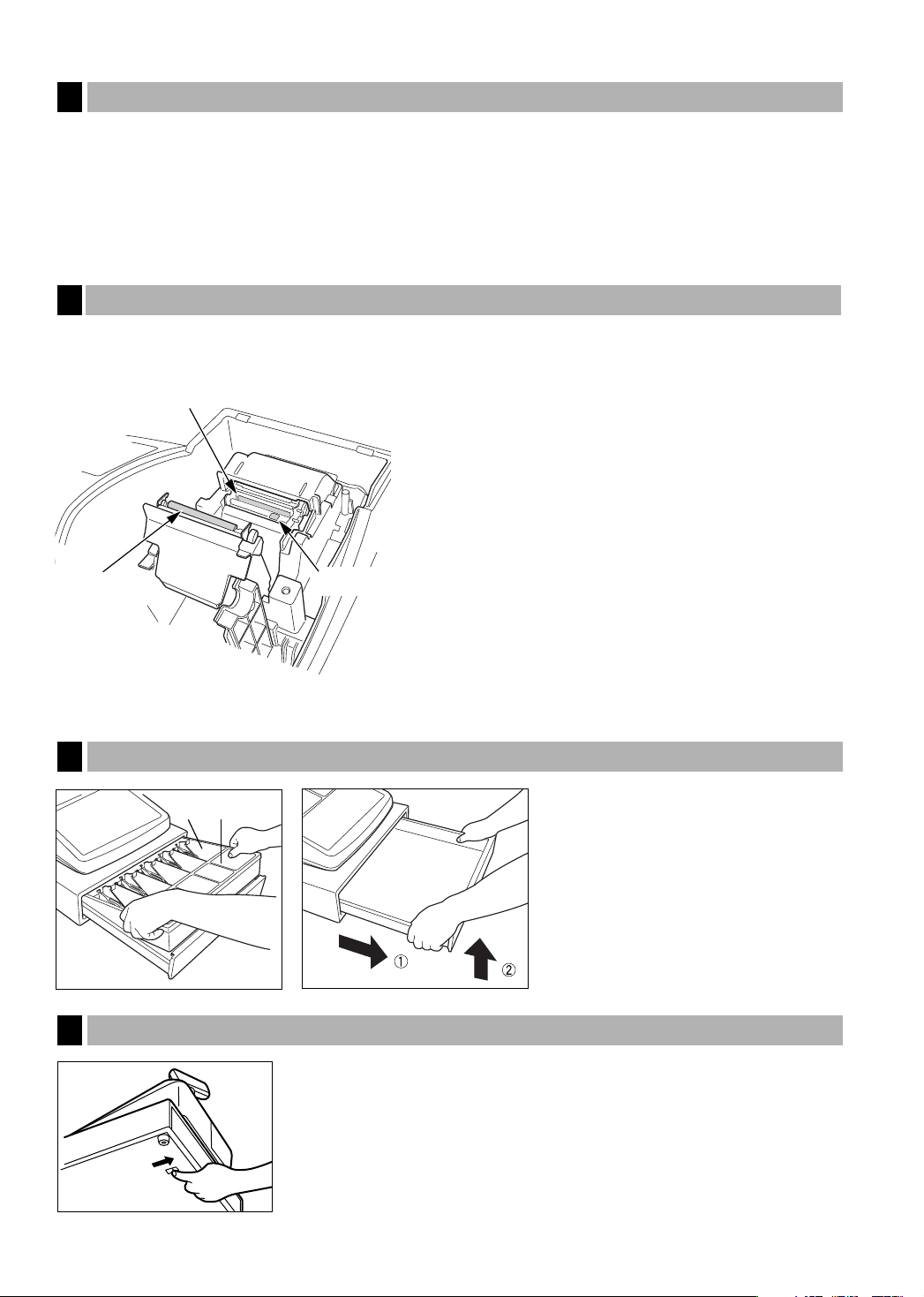

Caution: The paper cutter is mounted on the printer cover. Be careful not to cut yourself. Never touch

the print head immediately after printing, as the head may still be hot.

1. Remove the printer cover.

2. Lift up the print roller release lever to unlock the print roller arm, and open the print roller arm.

3. Remove the paper jam. Check for and remove any shreds of paper that may remain in the printer.

4. Reset the paper roll correctly by following the steps in “Installing the paper roll”.

When the printed text is getting dark or faint, paper dust may be stuck to the print head, sensor and/or roller.

Clean them as follows:

Caution:

• Never touch the print head with a tool or anything hard

as it may damage the head.

• The paper cutter is mounted on the printer cover. Be

careful not to cut yourself.

1. Turn the mode switch to the OFF position.

2. Remove the printer cover.

3. Lift up the print roller release lever to unlock and open the

print roller arm.

4. Remove the paper roll referring to the “Removing the

paper roll” section.

5. Clean the print head with a cotton swab or soft rag

moistened with ethyl alcohol or isopropyl alcohol. Clean

the roller and the sensor in the same manner.

6. Reset the paper roll correctly by following the steps in

“Installing the paper roll”.

The till in the register is detachable. After

closing your business for the day, remove

the till from the drawer and keep the

drawer open. To detach the drawer, pull it

forward fully with the till removed, and

remove it by lifting it up.

The drawer automatically opens. However, when a power failure occurs or the

machine becomes out of order, slide the lever located on the bottom of the

machine in the direction of the arrow. (See the figure at the left.)

The drawer will not open if it is locked with the key.

Lever

Opening the Drawer by Hand

Removing the Till and the Drawer

Cleaning the Printer (Print Head / Sensor / Roller)

Removing a Paper Jam

Till

Coin case

Print head

Roller

Sensor

A242_5 OPERATOR MAINTE 06.1.10 5:29 PM Page 66

The malfunctions shown in the left-hand column below, labelled “Fault,” do not necessarily indicate functional

faults of the machine. It is therefore advisable to refer to “Checking” shown in the right-hand column before

calling for service.

Error code table

When the following error codes are displayed, press the

key and take a proper action according to the table

below.

Fault Checking

The display won’t be illuminated even when

the mode switch is turned to any other

position than “OFF”.

• Is power supplied to the electrical outlet?

• Is the power cord plug out or loosely connected to the

electrical outlet?

(2)

The display shows symbols that do not make sense. • Has the machine been initialized properly as shown

“GETTING STARTED”?

(Note that initialization clears all the data and programmed

settings stored in memory.)

(1)

The display is illuminated, but the whole machine

refuses registrations.

• Is a clerk code assigned to the register?

• Is the mode switch set properly at the “REG” position?

(3)

No receipt is issued. • Is the paper roll properly installed?

• Is there a paper jam?

• Is the receipt function in the “OFF” status?

• Is the print roller arm securely locked?

(4)

No journal paper is taken up. • Is the take-up spool installed on the bearing properly?

• Is there a paper jam?

• Is the journal printing selected in the printing style

programming? (If the receipt printing is selected, the paper

is not wound around the take-up spool.)

(5)

Printing is unusual. • Is the print roller arm securely locked?

• Is the paper roll properly installed?

• Are the print head/sensor/roller clean?

(6)

Before Calling for Service

Error

Error status Action

code

E01 Registration error Make a correct key entry.

E02 Misoperation error Make a correct key entry.

E03 Undefined code is entered. Enter a correct code

E07 Memory is full (in the

key programming). Program the

key within 25 steps.

E11 Compulsory depression of the

key for Press the

key and continue the operation.

direct finalization

E12 Compulsory tendering Make a tendering operation.

E32 No entry of a clerk code Make a clerk code entry.

E34 Overflow limitation error Make a registration within a limit of entry.

E35 The open price entry is inhibited. Make a preset price entry.

E36 The preset price entry is inhibited. Make an open price entry.

E37 The direct finalization is inhibited. Make a tendering operation.

E67 Subtotal void is not allowed. Finalize the transaction, and correct the wrong entries in the

void mode.

A242_5 OPERATOR MAINTE 06.1.10 5:29 PM Page 67

SPECIFICATIONS

Model: ER-A242

Dimensions: 16.6 (W) x 16.9 (D) x 11.7 (H) in. (421 (W) x 429 (D) x 297 (H) mm)

Weight: 28.0 Ib (12.7 kg)

Power source: 120V AC ± 10%, 60 Hz

Power consumption: Stand-by 7.7 W

Operating 30 W (max.)

Working temperature: 32 °F to 104 °F (0 °C to 40 °C)

Electronics: LSI (CPU) etc.

Display:

Operator display: 7-segment display (10 positions)

Customer display: 7-segment display (7 positions)

Printer:

Type: One-station thermal printer

Printing speed: Approx. 12 lines/second

Printing capacity: 24 digits each for receipt and journal paper

Other functions: • Graphic logo printing function

• Logo message function

• Receipt (ON-OFF) function, compression printing function

Paper roll: Width: 2.25 ± 0.02 in (57.5 ± 0.5 mm)

Max. diam.: 3.15 in (80 mm)

Quality: High quality (0.06 to 0.08 mm thickness)

Cash drawer: 5 slots for bill and 5 for coin denominations

Accessories: Manager key 2

Operator key 2

Drawer lock key 2

Paper roll 1

Take-up spool 1

RS-232C cable (QCNWG3190RCPZ) 1

Customer support tool 1 disk

Instruction manual 1 copy

* Specifications and appearance subject to change without notice for improvement.

Example:

Candy

Danish

Use these labels with the department keys. Write department names on the labels and attach them to the

department keys by first removing the transparent key covers. (Please make a copy of this page.)

A242_5 OPERATOR MAINTE 06.1.11 11:47 AM Page 68

NOTICE

BE SURE TO ASK YOUR AUTHORIZED SHARP DEALER ABOUT THE WARRANTY THAT

YOUR SELLING DEALER EXTENDS TO YOU. In order to assure you, the end-user, of warranty

protection, Sharp extends a limited warranty to each of its authorized dealers, and in turn requires

each of its authorized dealers to extend its own warranty to you on terms that are no less favorable

than those given to the dealer by Sharp. You should be aware, however, that Sharp does not itself

extend any warranties, either express or implied, directly to you, the end-user, and no one is author-

ized to make any representations or warranties on behalf of Sharp. Specifically, SHARP DOES

NOT EXTEND TO YOU, THE END-USER, ANY EXPRESS WARRANTY OR ANY IMPLIED

WARRANTY OF MERCHANTABILITY, FITNESS FOR USE OR FITNESS FOR ANY PARTIC-

ULAR PURPOSE IN CONNECTION WITH THE HARDWARE, SOFTWARE, OR FIRMWARE

EMBODIED IN OR USED IN CONJUNCTION WITH THIS PRODUCT. Sharp is not responsible

for any damages or loss, either direct, incidental or consequential, which you, the end-user, may

experience as a result of your purchase or use of the hardware, software or firmware embodied in

or used in conjunction with this product. Your sole remedy in the event that you encounter any

difficulties with the product is against the authorized dealer from which you purchased the product.

In the event that this authorized dealer does not honor its warranty commitments, please contact

the General Manager of Sales, Retail and Financial System Division, ISG, Sharp Electronics Corpora-

tion, Sharp Plaza, P.O. Box 650, Mahwah, NJ 07430-2135 so that Sharp can try to help you to

assure complete satisfaction of all the warranty rights to which you are entitled from the authorized

dealer.

A242_0_Cover 06.1.10 5:10 PM Page 5

SHARP ELECTRONICS CORPORATION

SHARP CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

1-800-BE-SHARP

http://www.sharpusa.com

Printed in China

KS(TINSE2561RCZZ)

➀

A242_0_Cover 06.1.10 5:10 PM Page 2

ER-A242 Sharp

Product's Documents

User Manual

Specifications

Sharp ER-A242 Questions and Answers

Related Products

Sharp SMD2420MS 24 Inch Built-In Microwave Drawer with 11 Power Levels, Sensor Cook, ADA Compliant

Sharp SMD2430MS 24 Inch Built-In Microwave Drawer with 11 Power Levels and Sensor Cook for Convenient Cooking

Sharp SWA3099MS Celerity High-Speed Oven

Rowenta TN6000F4 FOREVER SHARP TN6000

Rowenta TN6010F4 FOREVER SHARP TN6010

Rowenta TN6030F4 FOREVER SHARP SP TN6030
