Introduction
Quick Start
Setup
Connections
Basic Operation
Useful Features
Appendix
MODEL
XG-P610X
(Standard zoom lens attached)
XG-P610X-N
(No lens attached)
DATA PROJECTOR
OPERATION MANUAL
ii
IMPORTANT
••
••
• For your assistance in reporting the loss or theft of your Projector, please record
the Model and Serial Numbers located on the side of the projector and retain this
information.
••
••
• Before recycling the packaging, please ensure that you have checked the contents
of the carton thoroughly against the list of “Supplied accessories” on page 11.
Model No.:
Serial No.:
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse
need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which
is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains
plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric
shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug proceed as follows:
• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian, Dutch, Swedish,
Portuguese, Chinese, Korean and Japanese. Carefully read through the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Italienisch,
Niederländisch, Schwedisch, Portugiesisch, Chinesisch, Koreanisch und Japanisch. Bitte lesen Sie die Bedienungsanleitung
vor der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, espagnol, italien,
néerlandais, suédois, portugais, chinois, coréen et japonais. Veuillez lire attentivement ces instructions avant de faire
fonctionner le projecteur.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, español, italiano, holandés, sueco,
portugués, chino, coreano y japonés. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, spagnolo, italiano, olandese, svedese,
portoghese, cinese, coreano e giapponese. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Spaans, Italiaans, Nederlands, Zweeds,
Portugees, Chinees, Koreaans en Japans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, spanska, italienska, holländska,
svenska, portugisiska, kinesiska, koreanska och japanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Espanhol, Italiano, Holandês, Sueco,
Português, Chinês, Coreano e Japonês. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.
Introduction
-1
Before using the projector, please read this operation manual carefully.
There are two important reasons for prompt warranty registration of your new SHARP Projector, using
the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING:
FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Introduction
ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
See side of projector.
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Class A verification.
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
-2

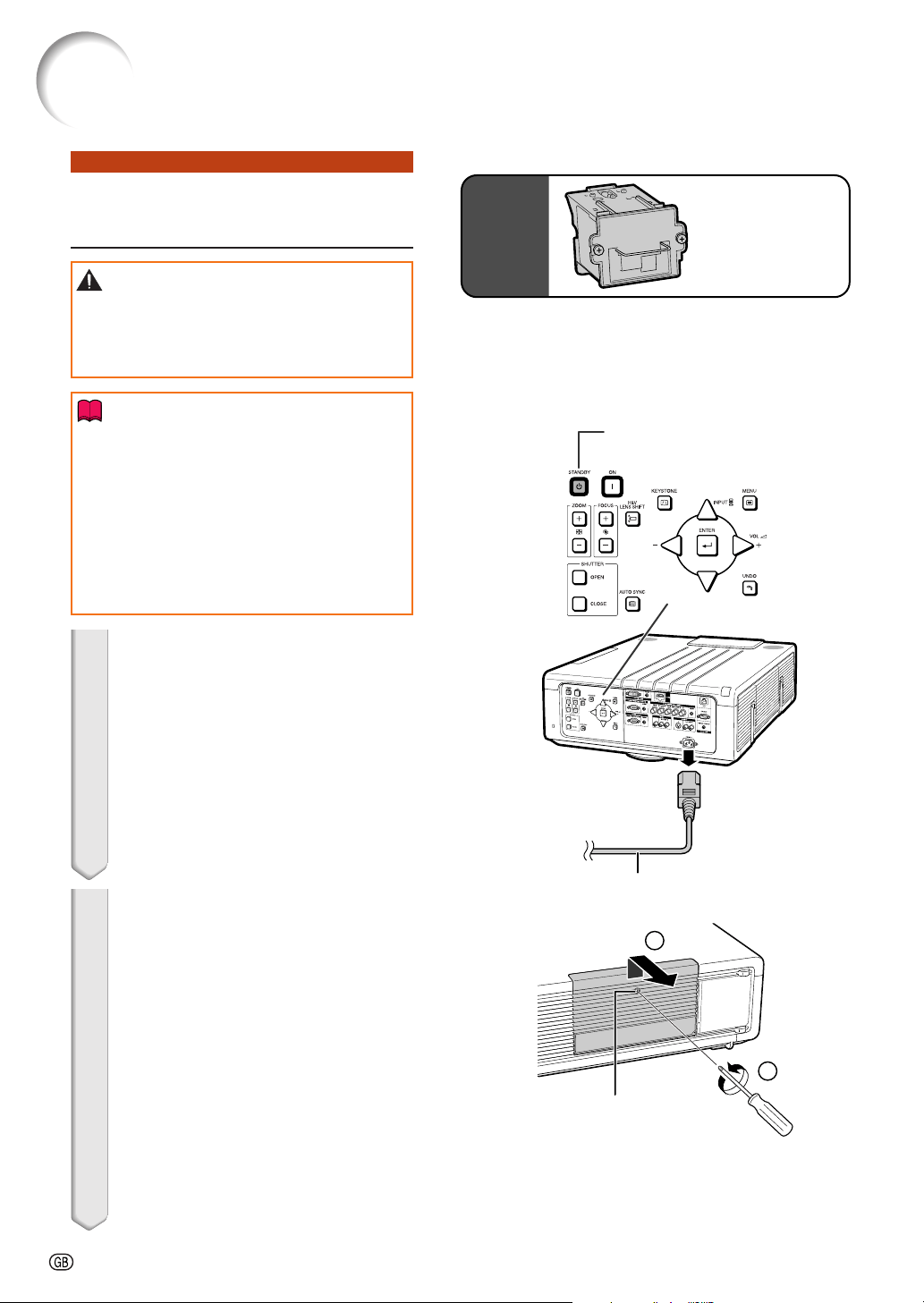

Caution Concerning Lamp Replacement
See “Replacing the Lamp” on page 71.
PRODUCT DISPOSAL
This product utilizes tin-lead solder, and lamp containing a small amount of mercury.
Disposal of these materials may be regulated due to environmental considerations. For
disposal or recycling information, please contact your local authorities, the Electronics
Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org,
or Sharp at 1-800-BE-SHARP.
This SHARP projector uses a DLP
®
chip. This very sophisticated panel contains 786,432 pixels (micromirrors). As
with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there
are certain acceptable tolerances that the equipment must conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture
screen. This will not affect the picture quality or the life expectancy of the unit.
• DLP
®
and the DLP logo are registered trademarks of Texas Instruments.
• Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe
®
Reader
®
is a trademark of Adobe Systems Incorporated.
• Macintosh
®
is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC.
• All other company or product names are trademarks or registered trademarks of their respective compa-
nies.
• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instru-
ments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse as-
semble or discompile the contents thereof.
Authorized representative responsible for the European Union Community Market
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
E.U. ONLY
U.S.A. ONLY
Introduction
-3
Useful Features
-47

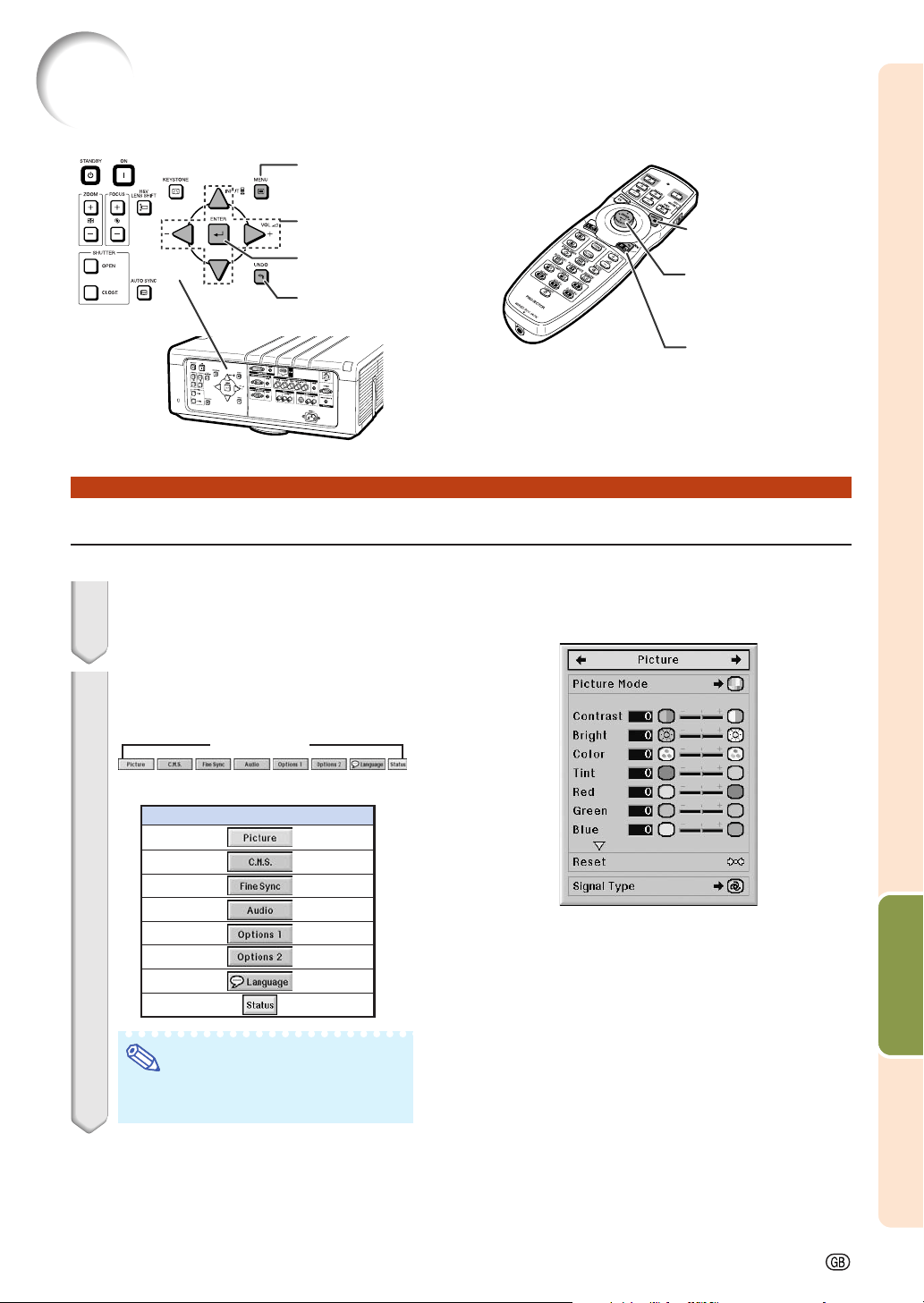

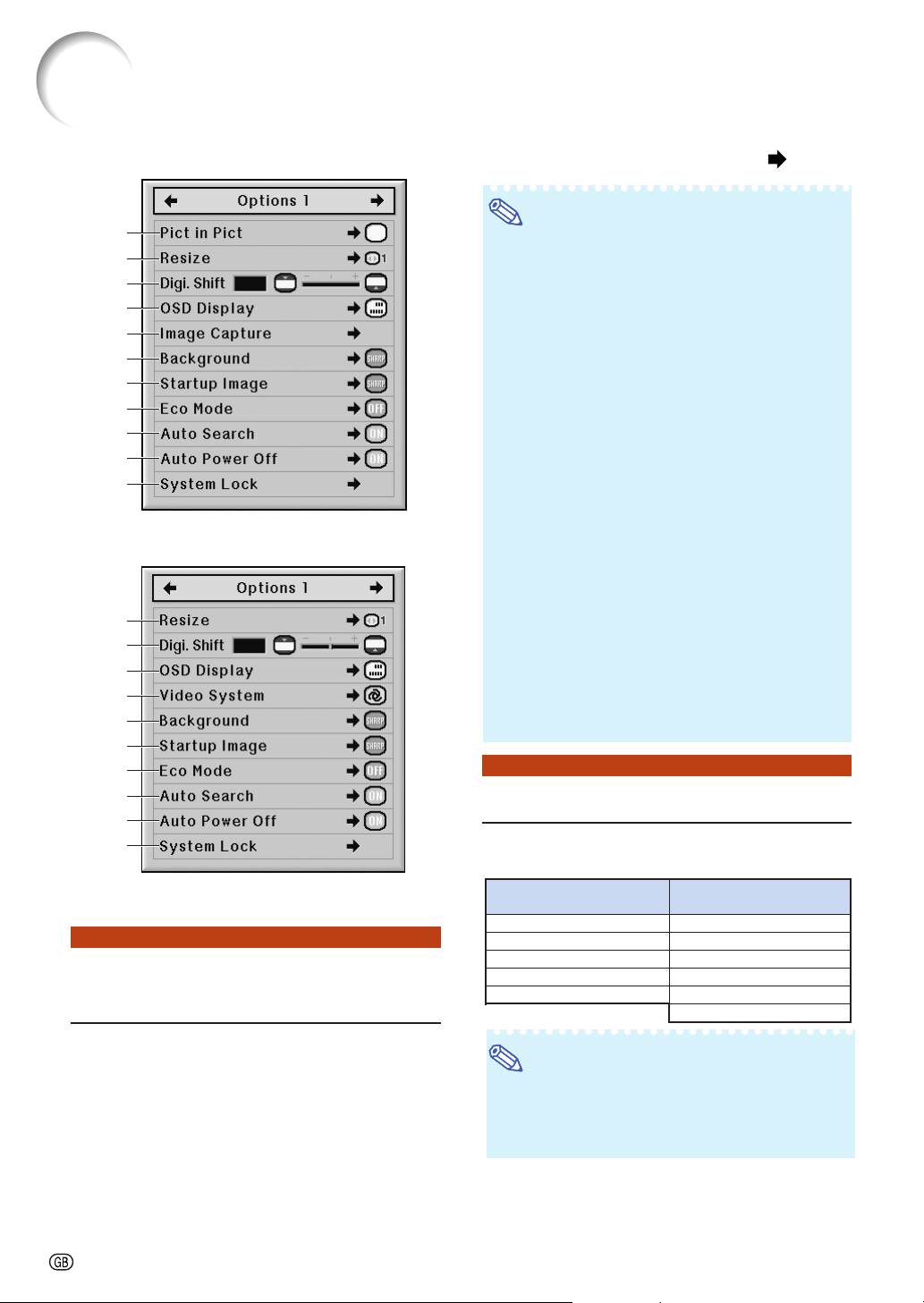

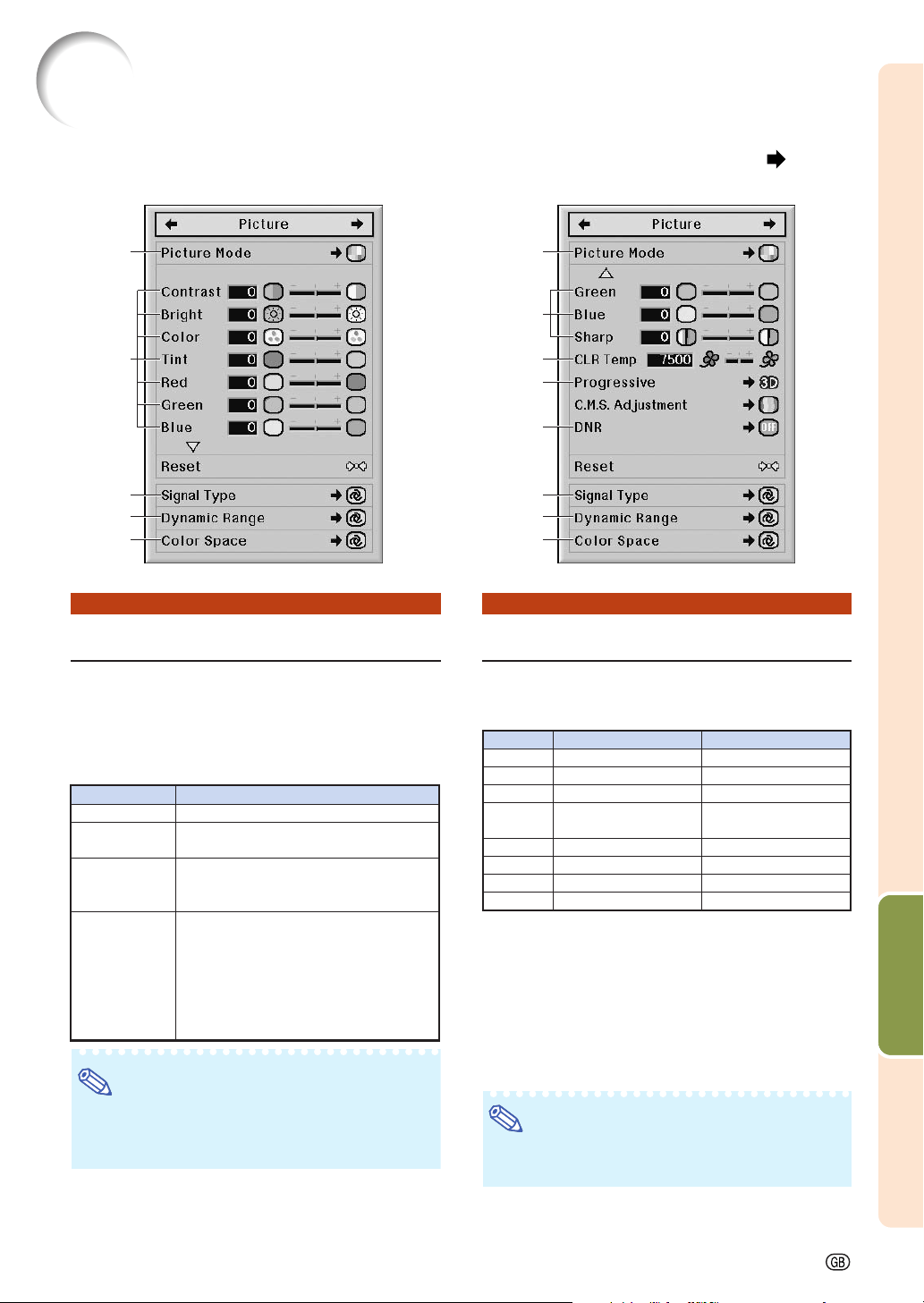

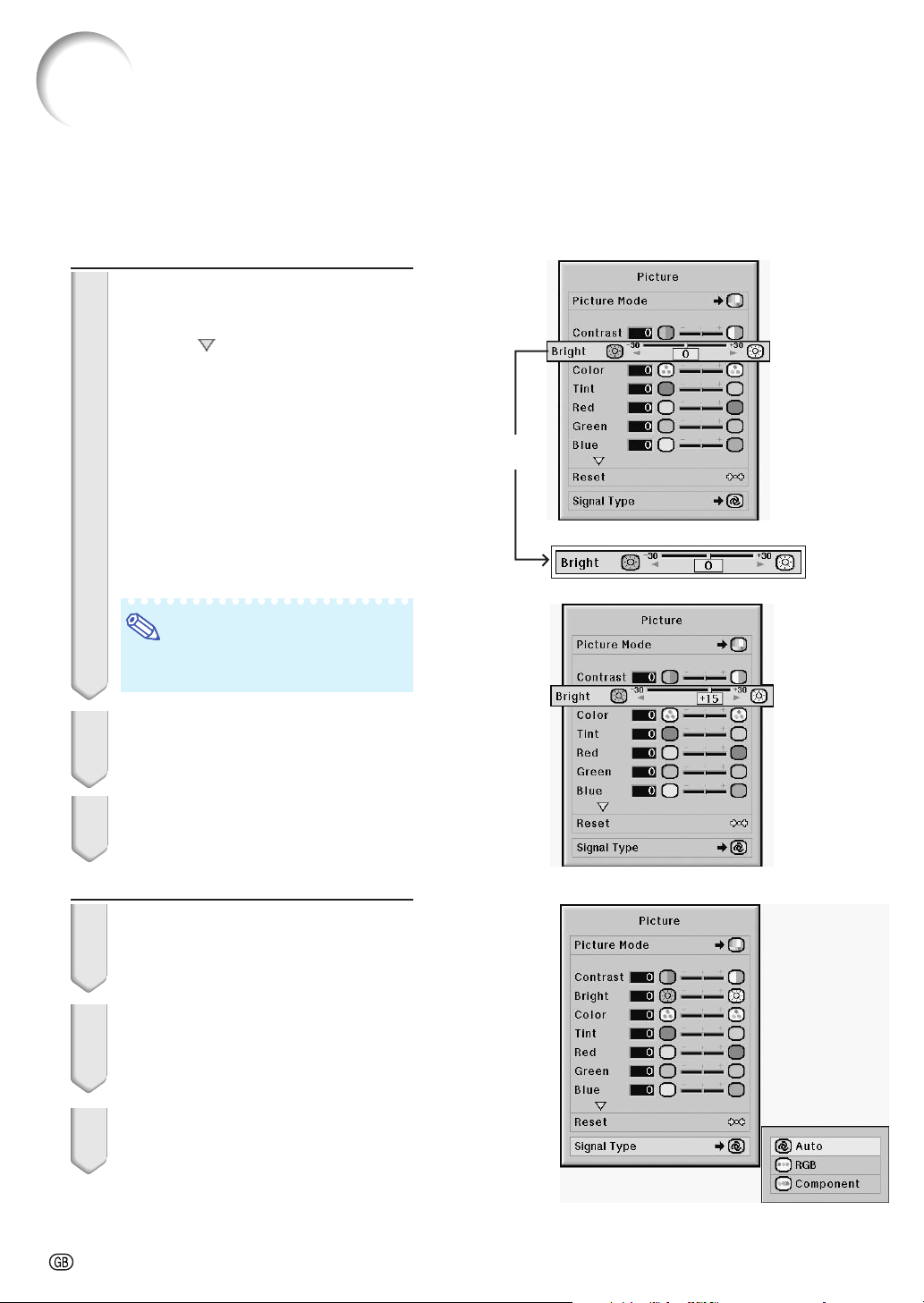

Menu items

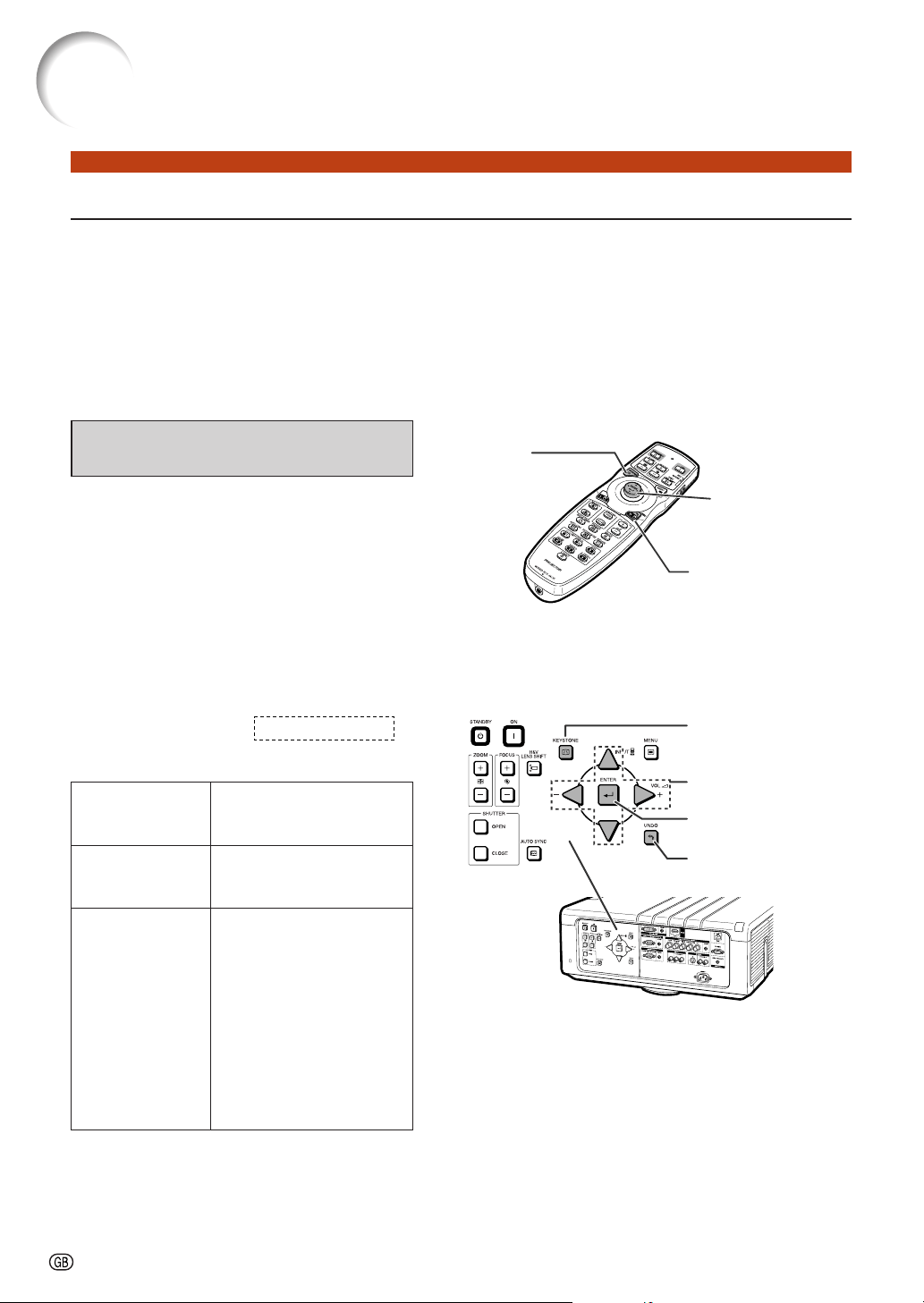

Using the Menu Screen
Menu Selections
• This operation can also be performed by using the buttons on the projector.
Example: “Picture” screen menu for
COMPUTER1 (RGB) mode
1
Press MENU.
• The “Picture” menu screen for the se-
lected input mode is displayed.
2
Press
\\
\\
\ or
||
||
| to display the other
menu items.
• Menu items are as shown below.
Note
• The “Fine Sync” menu is not available
for VIDEO or S-VIDEO.
Menu item
ENTER button
MENU button
UNDO button
Mouse/adjustment
button ('/"/\/|)
Adjustment
buttons ('/"/\/|)
MENU button
UNDO button
ENTER button
Using the Menu Screen

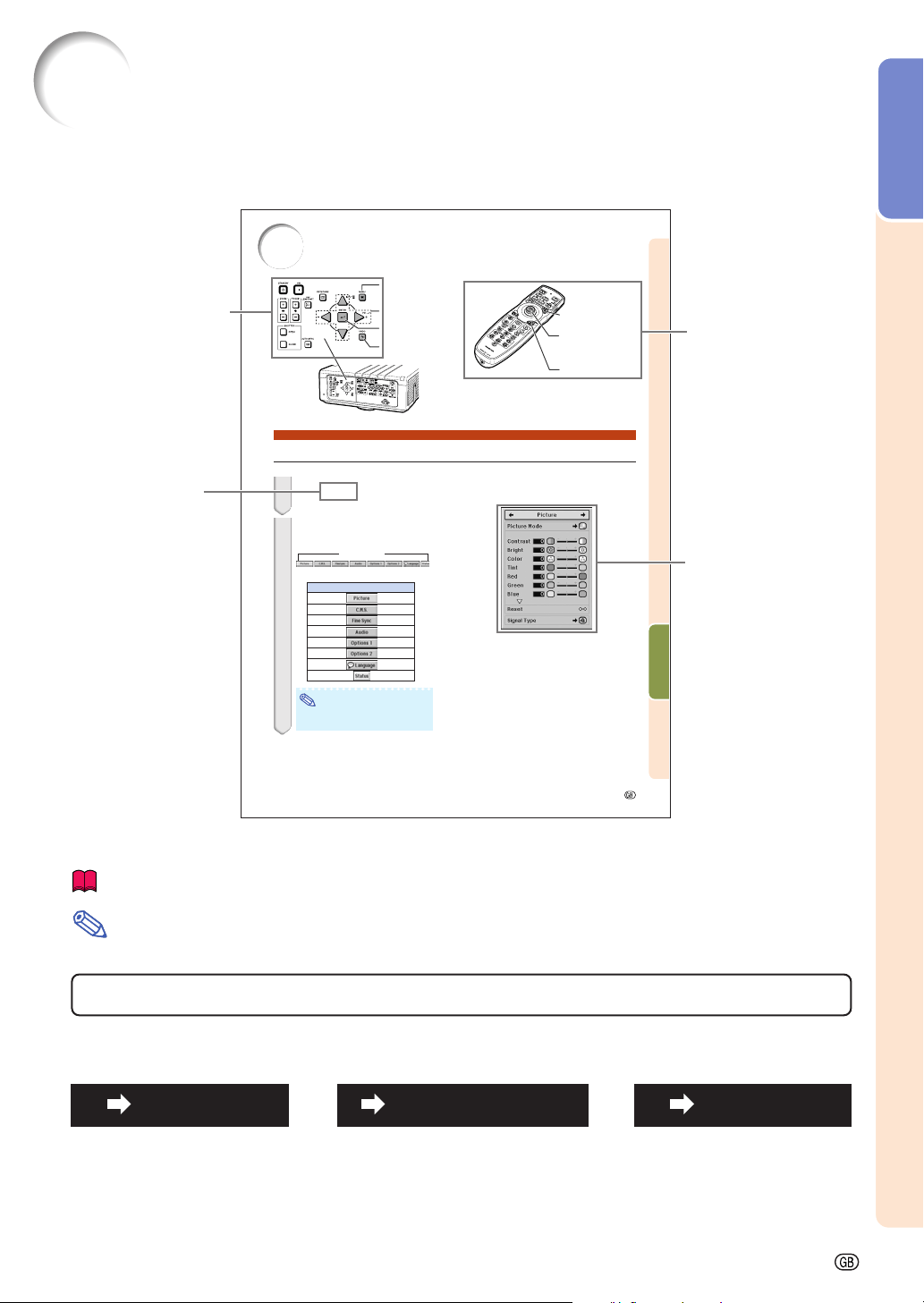

How to Read This Operation Manual
••
••
• In this operation manual, the illustrations and on-screen displays are simplified for explana-
tion. This may differ from the actual on-screen display.
Info
...........Indicates safeguards when using the projector.
For Future Reference
Maintenance Troubleshooting Index
Page 83
Pages 79 and 80
Page 66
On-screen display
Button used in
this step
Note
........Indicates additional information for setting up and operating the projector.
Buttons used in this
operation
Buttons used in this
operation
-4
Contents
Preparing
Introduction
Using
Quick Start
Setup
Connections
How to Read This Operation Manual ............ 3
Contents.......................................................... 4
How to Access the PDF
Operation Manuals ................................... 7

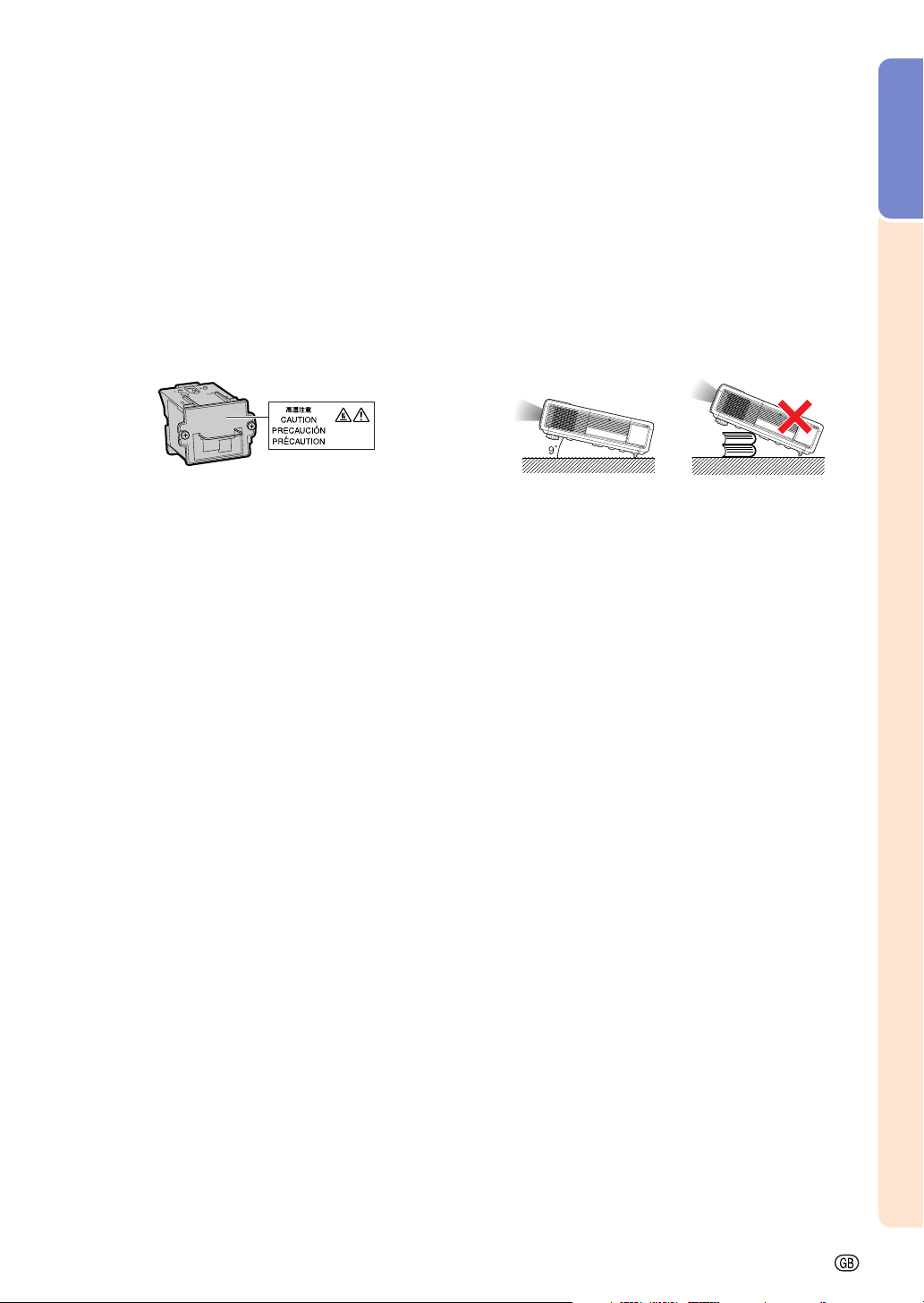

IMPORTANT SAFEGUARDS .......................... 8
Accessories .................................................. 11

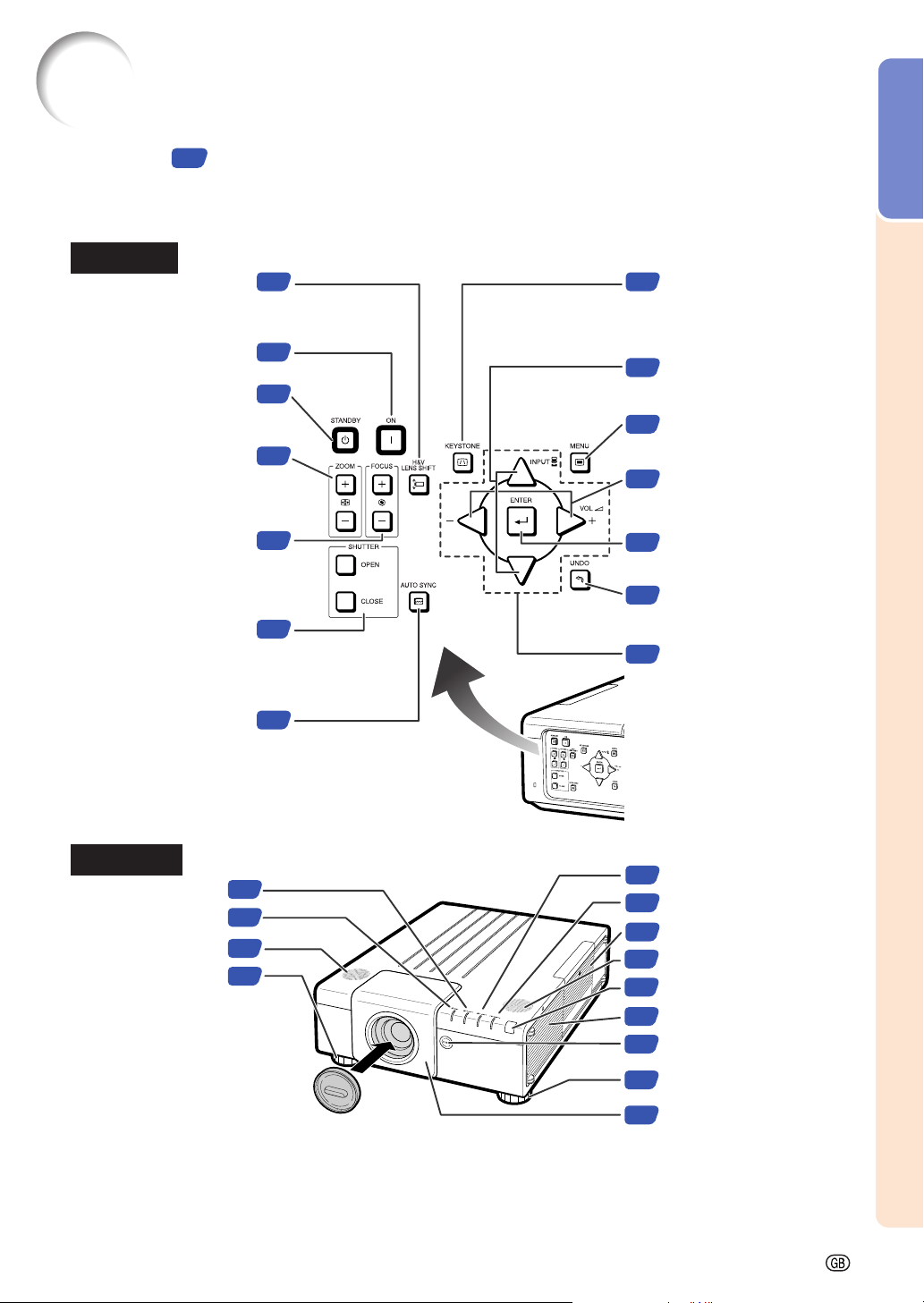

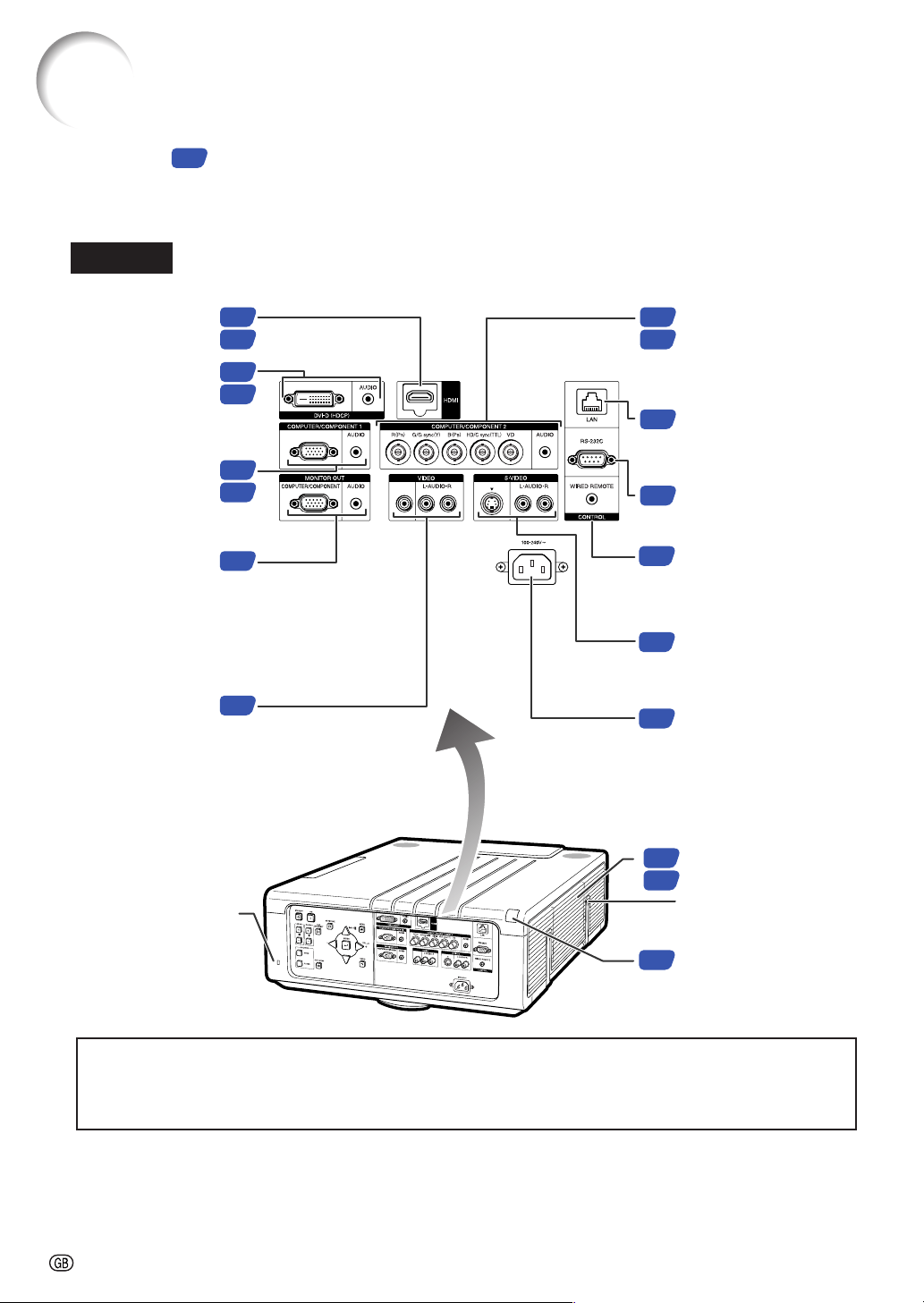

Part Names and Functions .......................... 13
Using the Remote Control ........................... 16

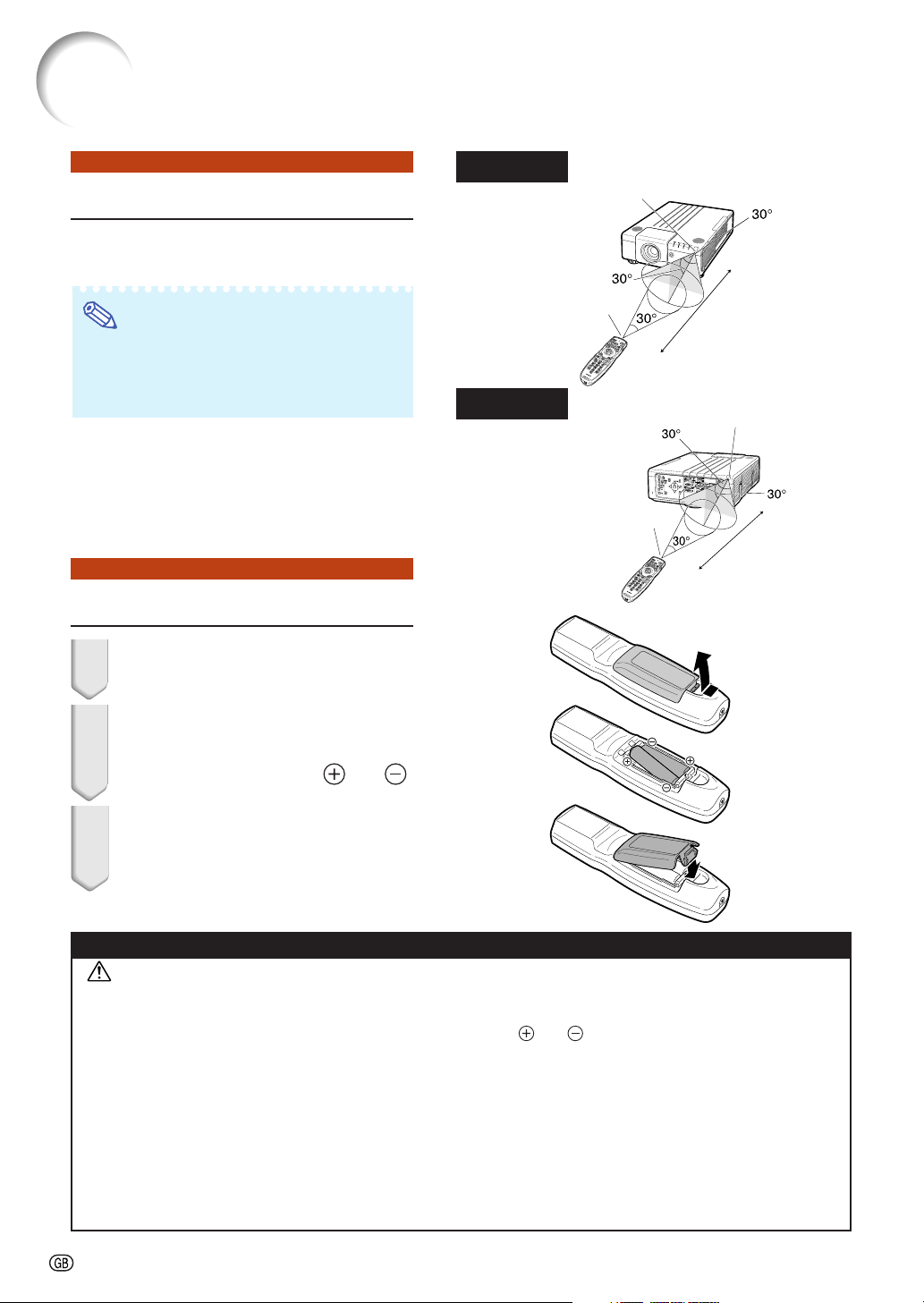

Usable Range .................................................... 16
Inserting the Batteries ....................................... 16

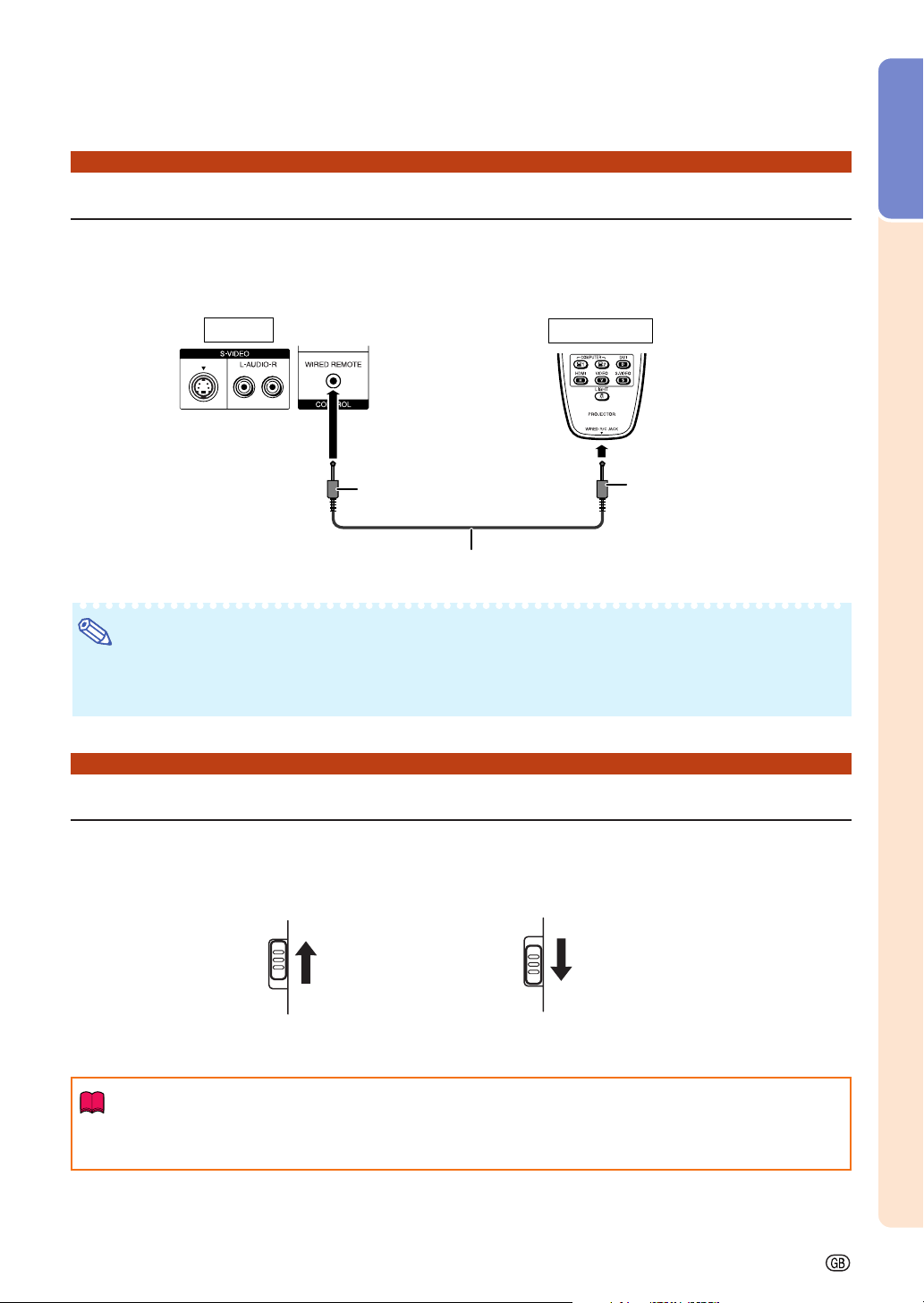

Using the Remote Control with
a Signal Cable ............................................. 17
Switching the Remote Control Mode ................. 17
Using the Remote Control as
a Wireless Computer Mouse ....................... 18
Quick Start .................................................... 19

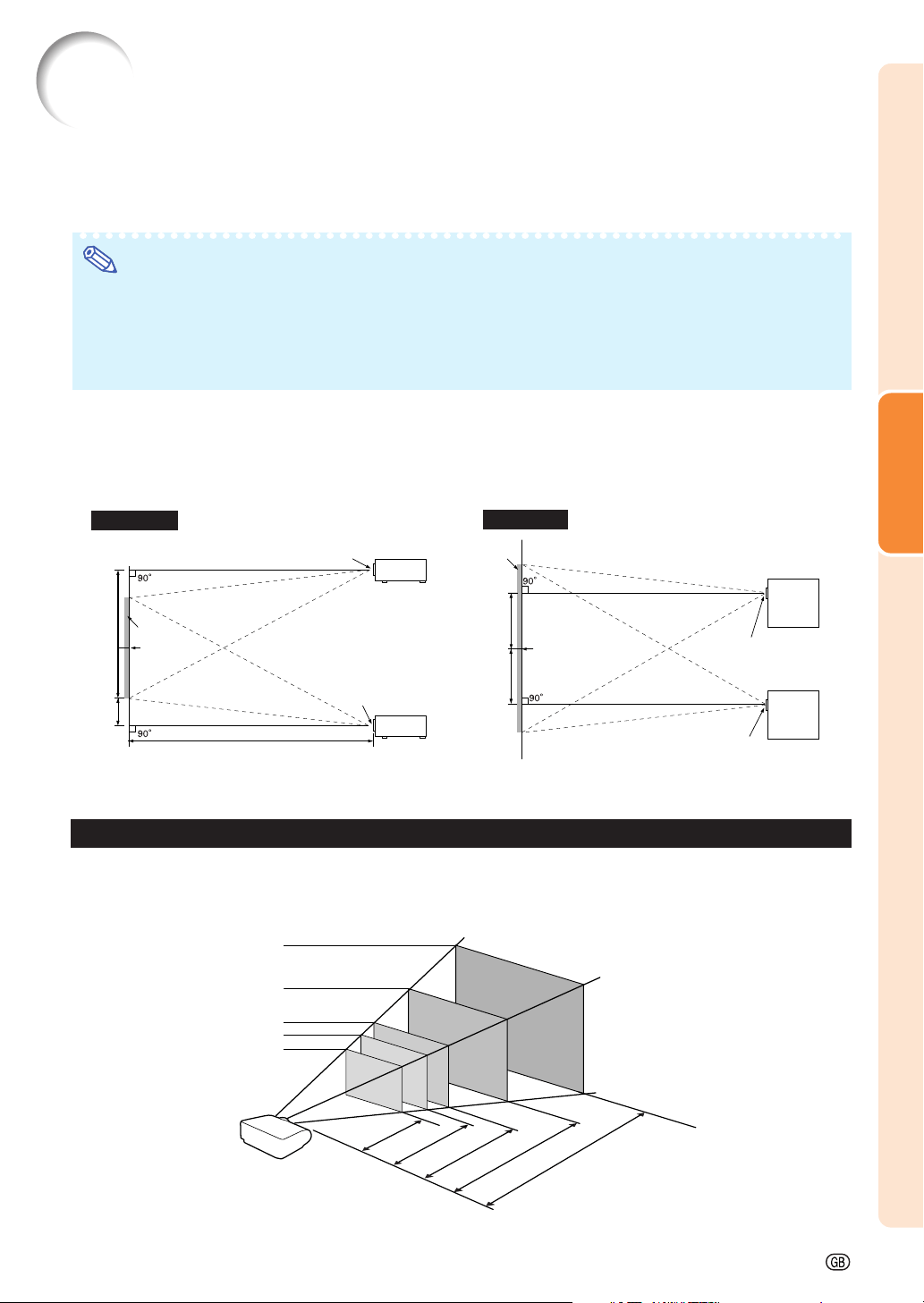

Setting Up the Projector .............................. 21
Setting Up the Projector .................................... 21

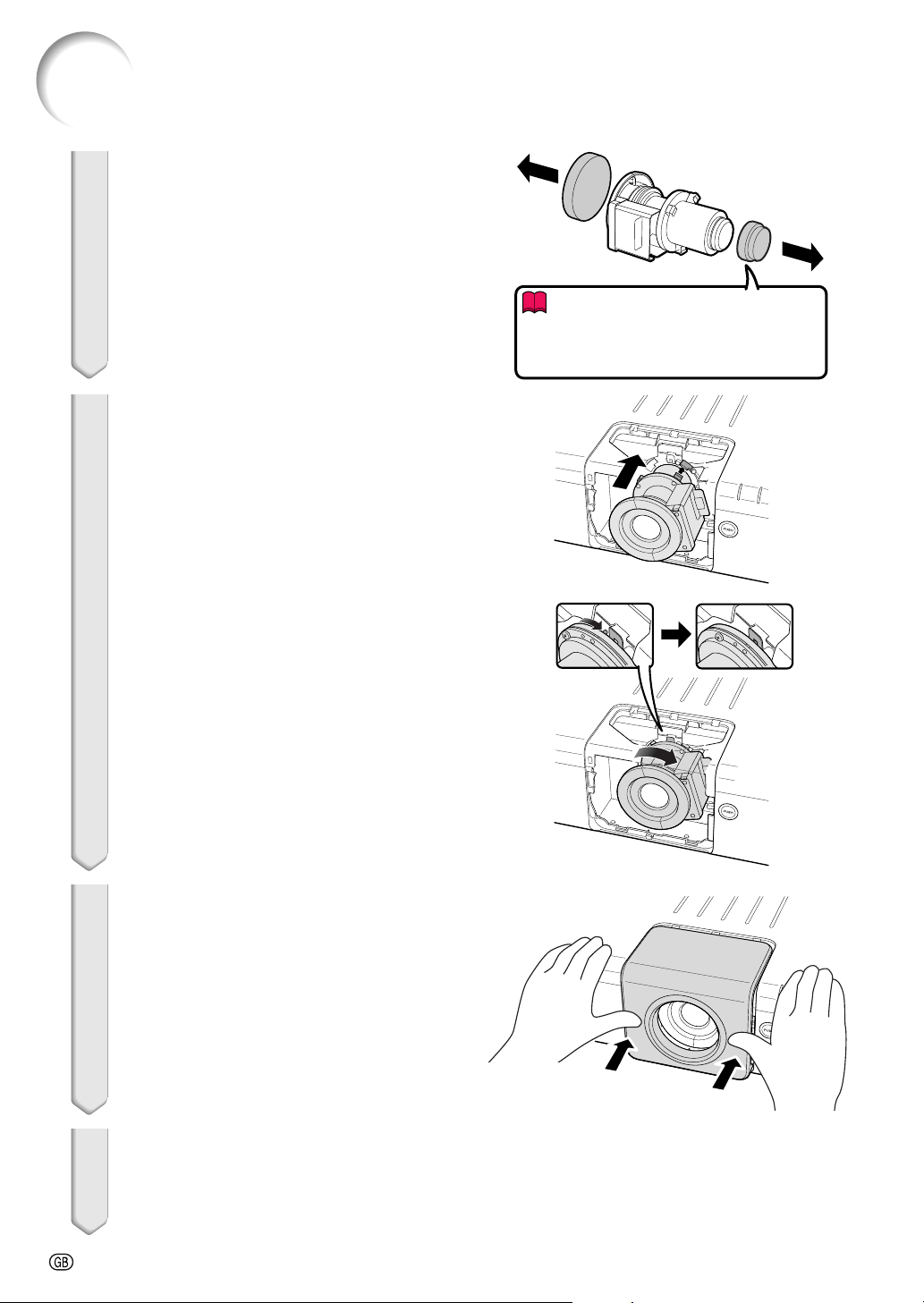

Standard Zoom Lens (AN-P18EZ : Standard
Equipment with XG-P610X) ......................... 22
Projecting a Reversed Image ............................ 23

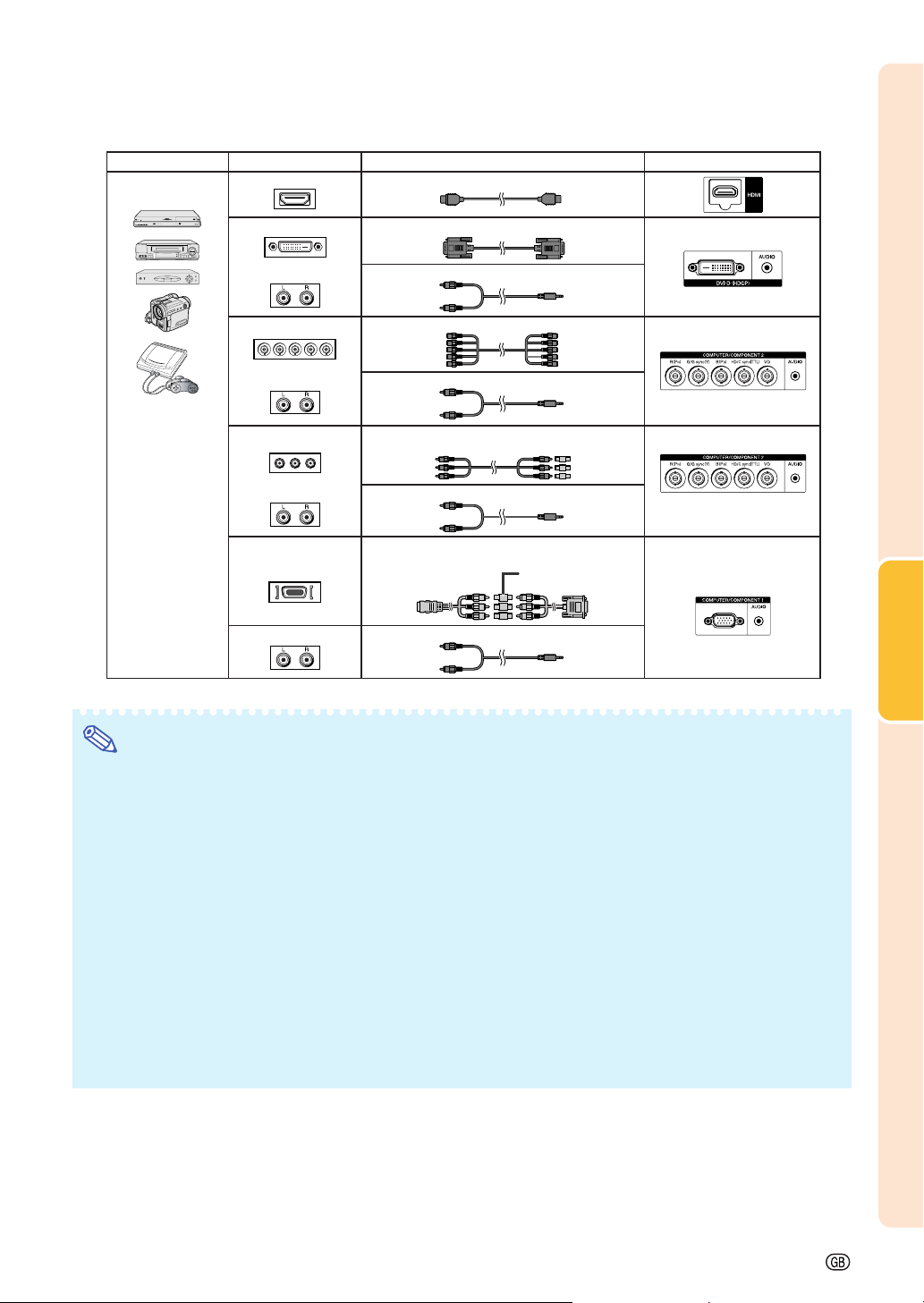

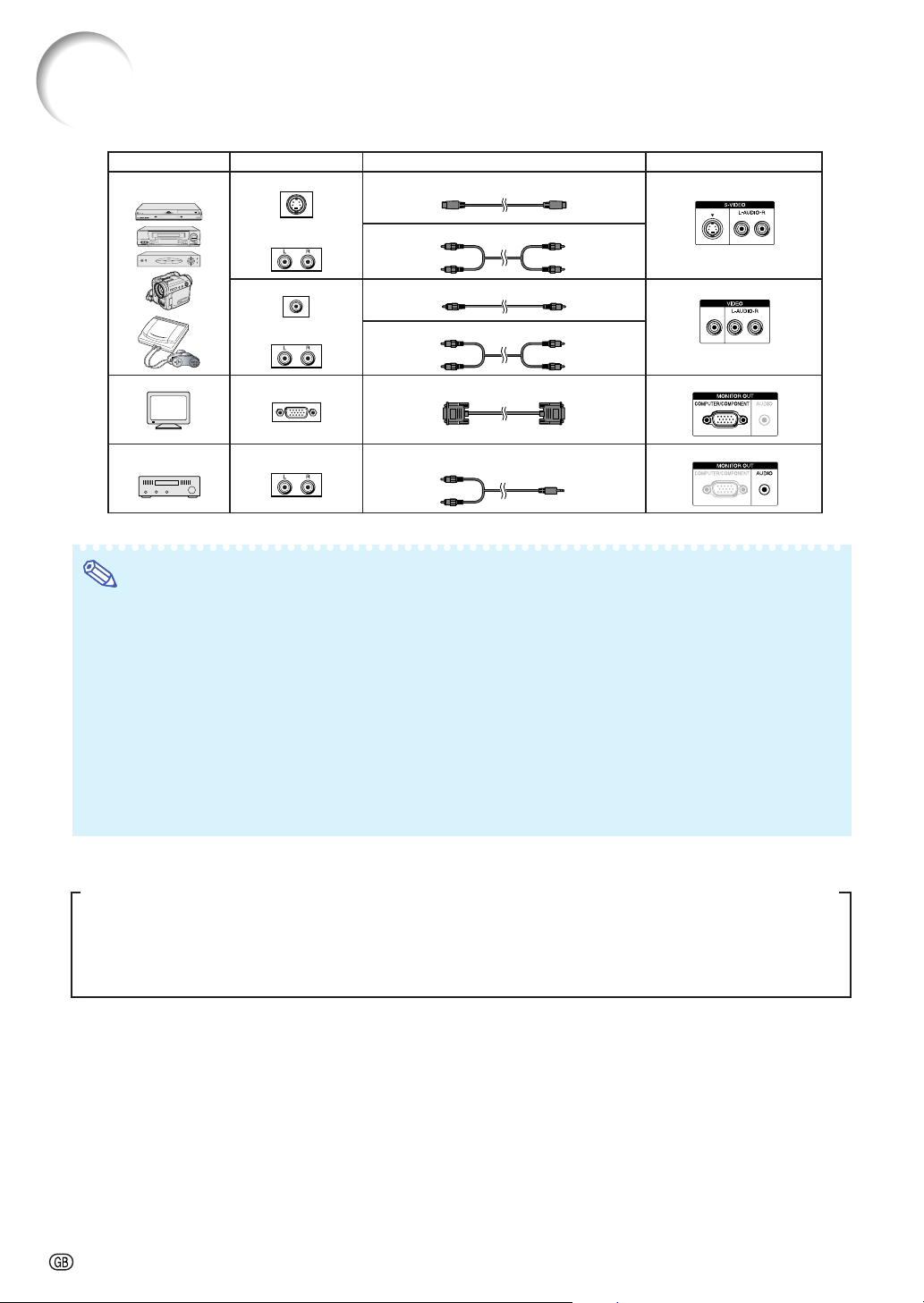

Connecting the Projector to Other
Equipment ............................................... 24

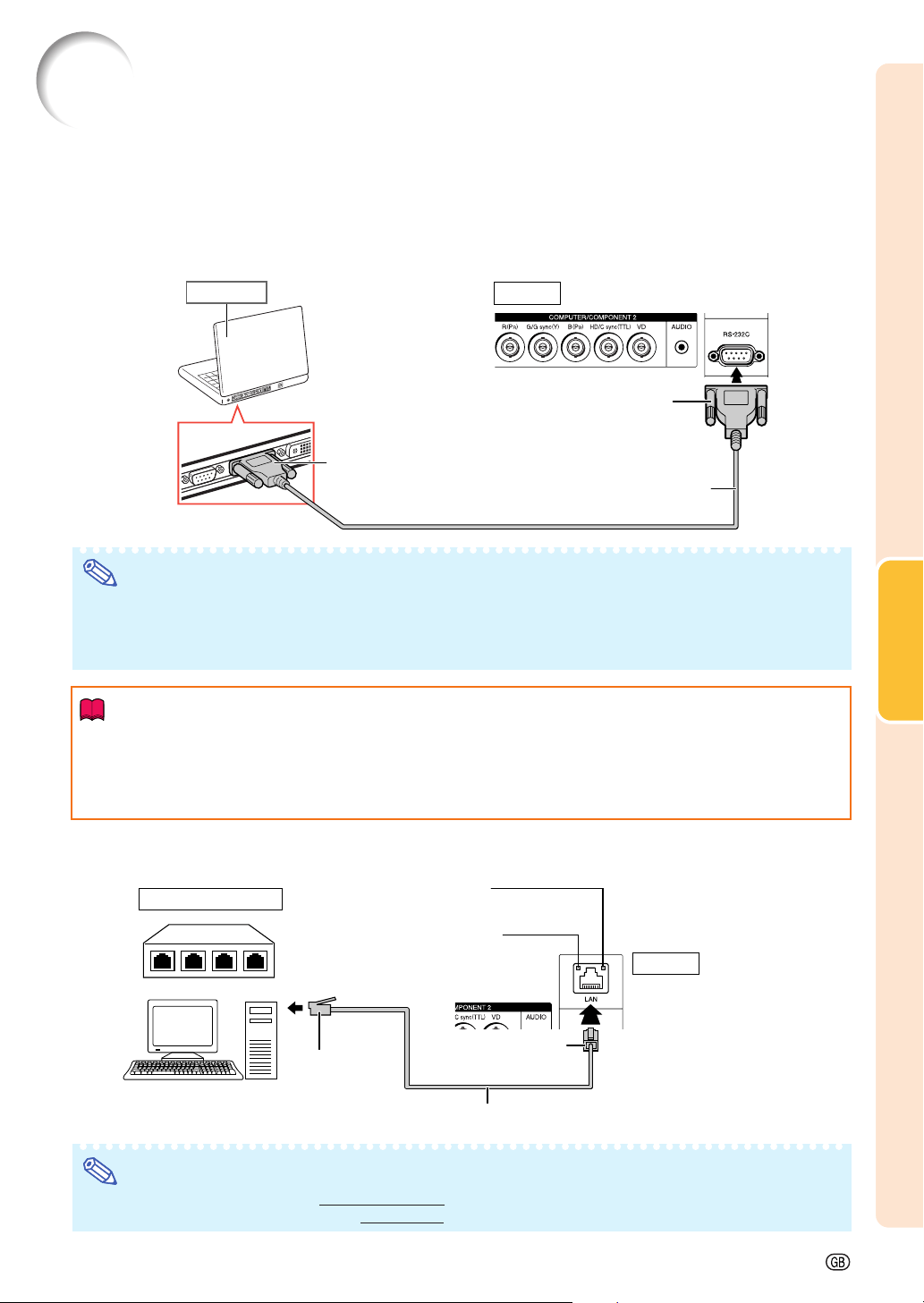

Controlling the Projector by a Computer ... 27
Basic Operation

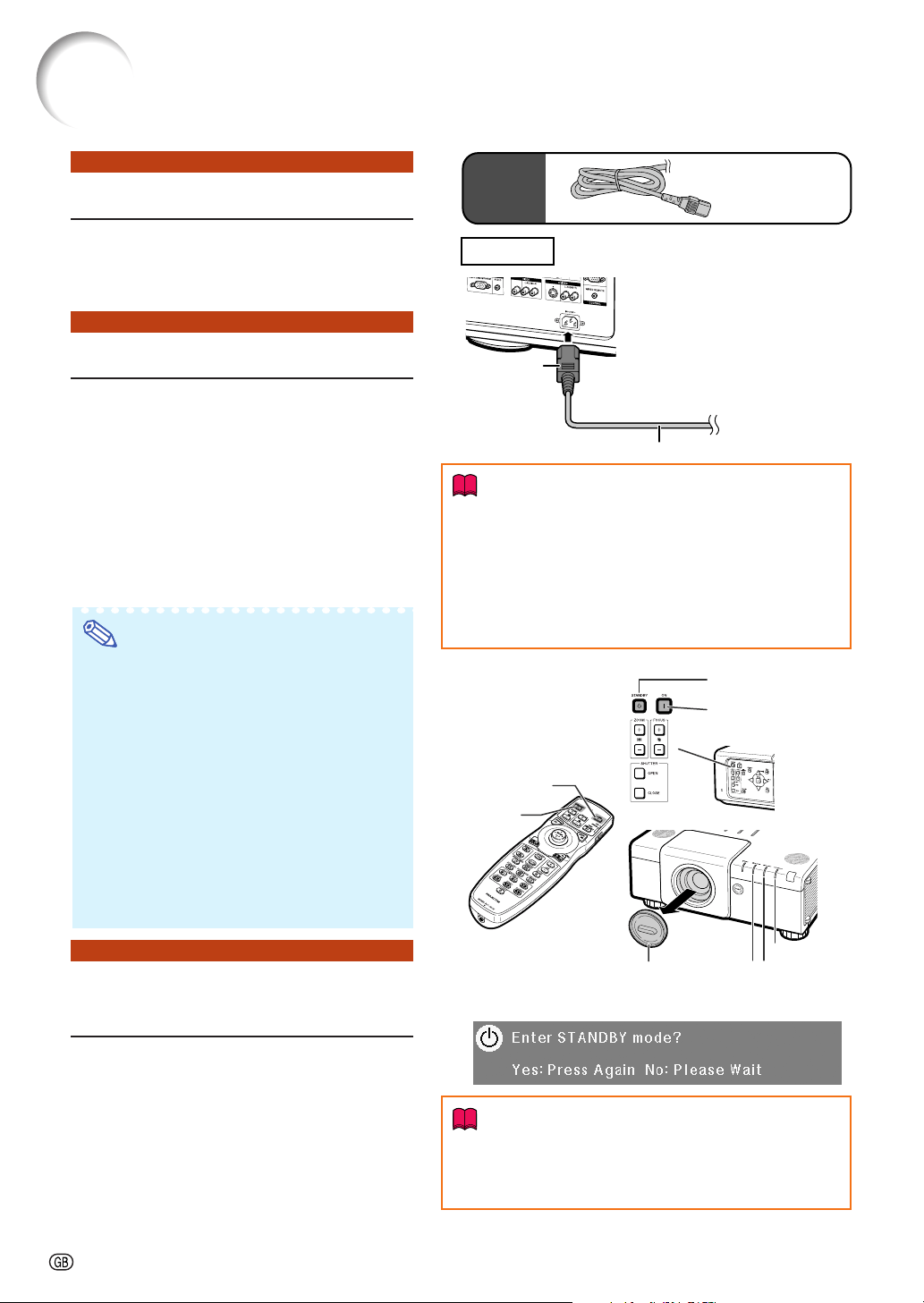

Turning the Projector On/Off ....................... 28
Connecting the Power Cord .............................. 28
Turning the Projector On .................................... 28
Turning the Power Off (Putting the Projector
into Standby Mode) ..................................... 28
Image Projection .......................................... 29

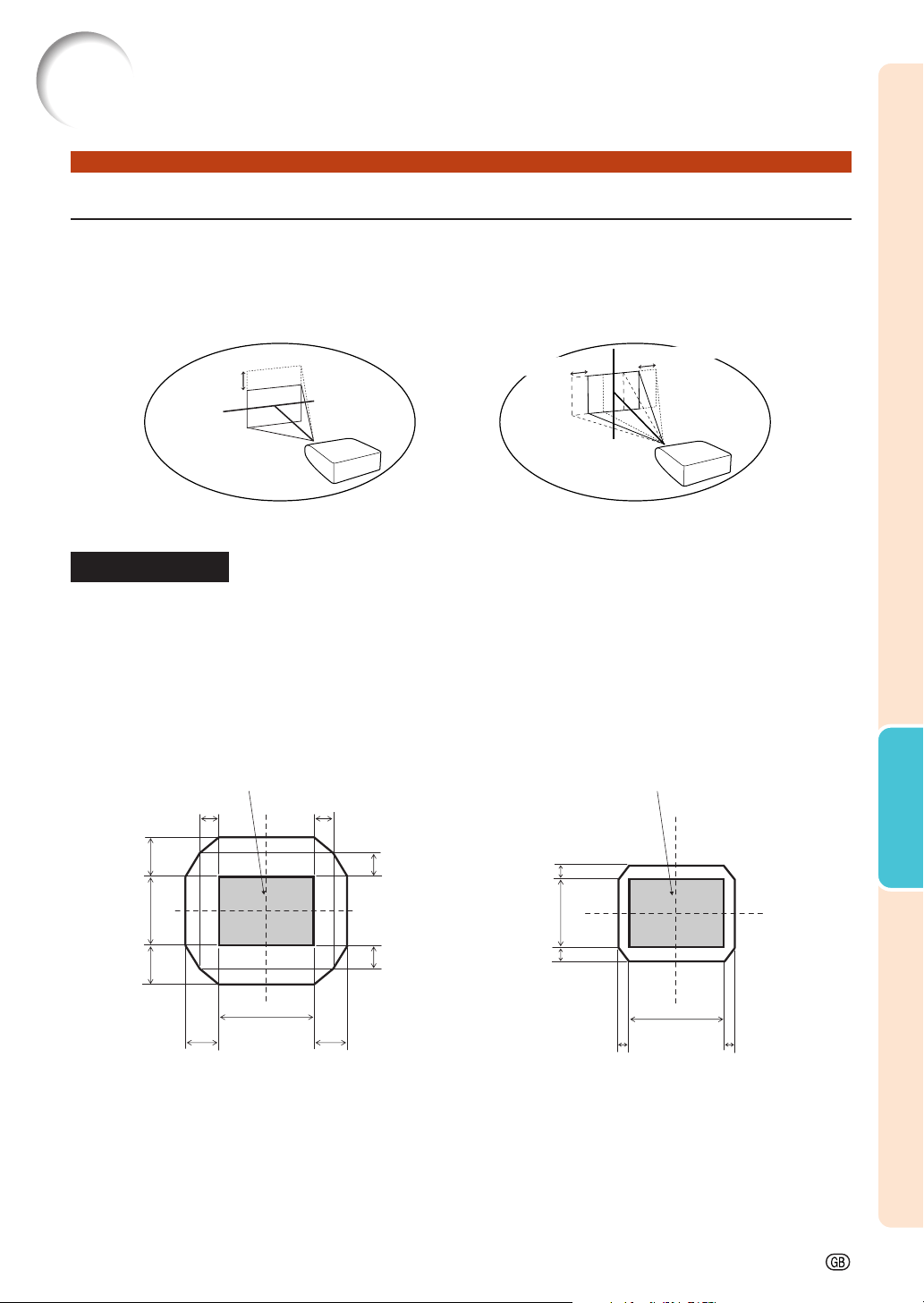

Shifting the Lens ................................................ 29
Using the Adjustment Feet ................................ 30
Adjusting the Focus ........................................... 31
Adjusting the Projected Image Size .................. 31

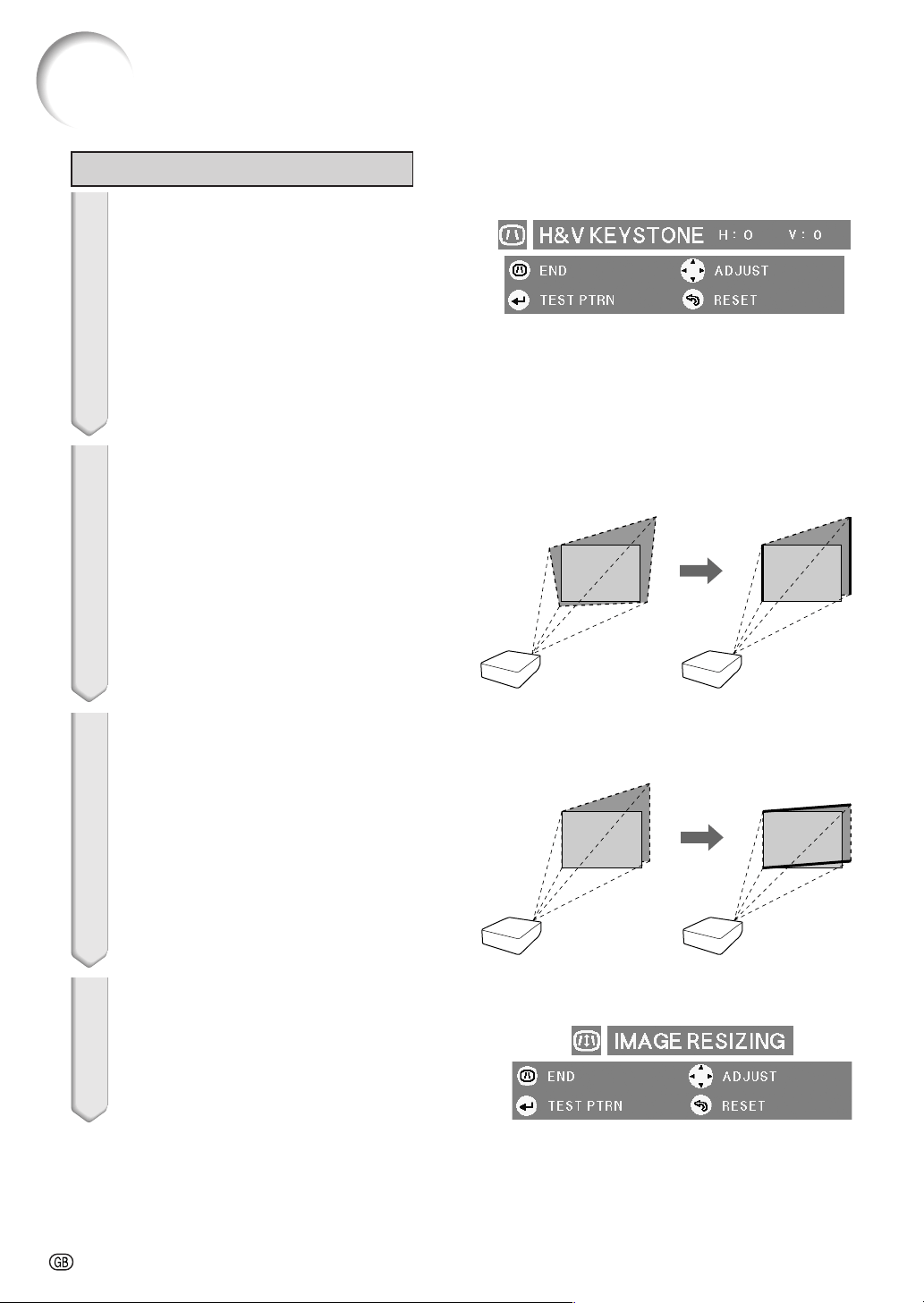

Correcting Trapezoidal Distortion ...................... 32
Switching the Input Mode .................................. 36
Adjusting the Volume ......................................... 36
Turning Off the Sound Temporarily .................... 37
Displaying an Enlarged Portion of an Image ..... 37
Freezing a Moving Image .................................. 38
Selecting the Picture Mode ............................... 38

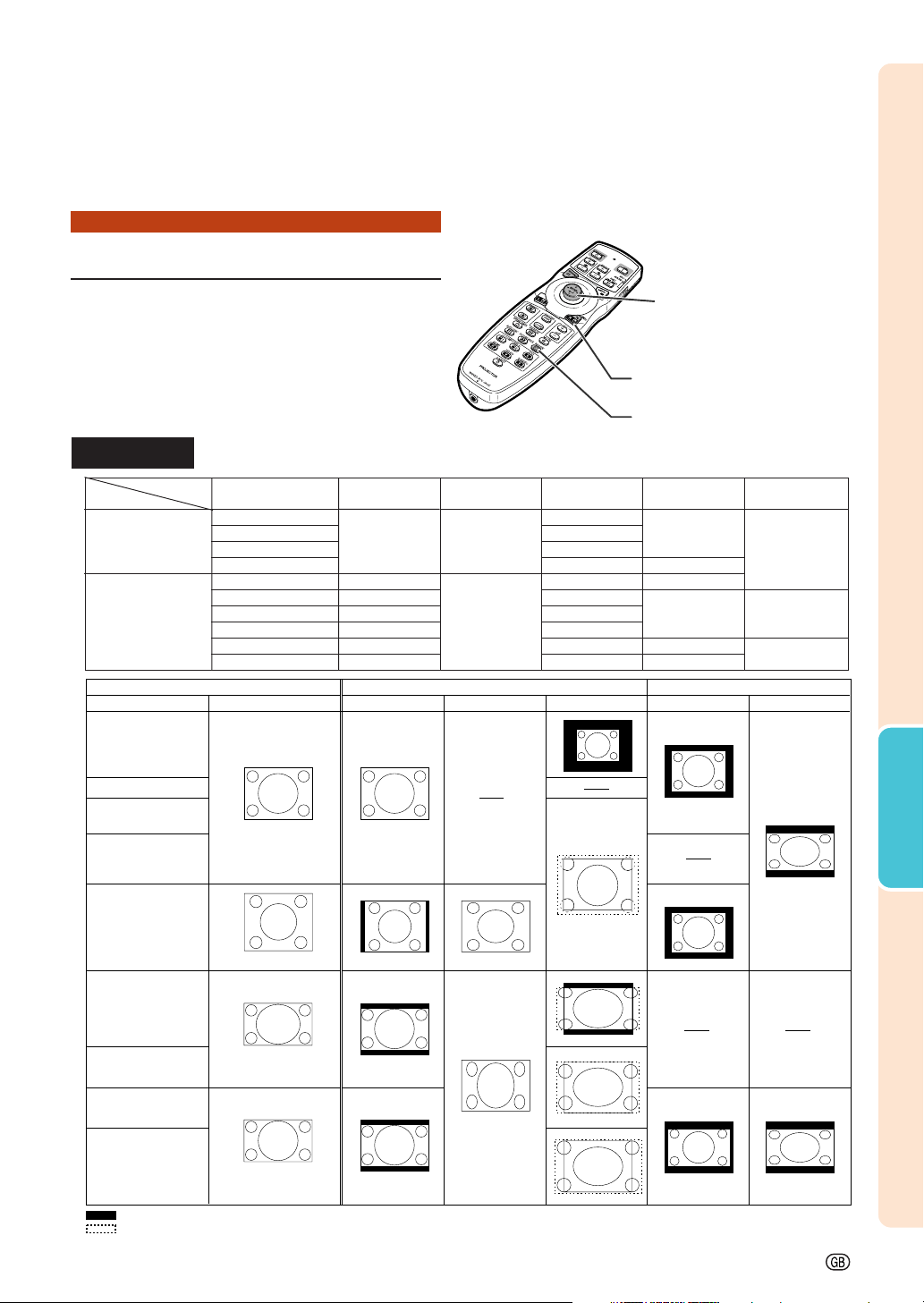

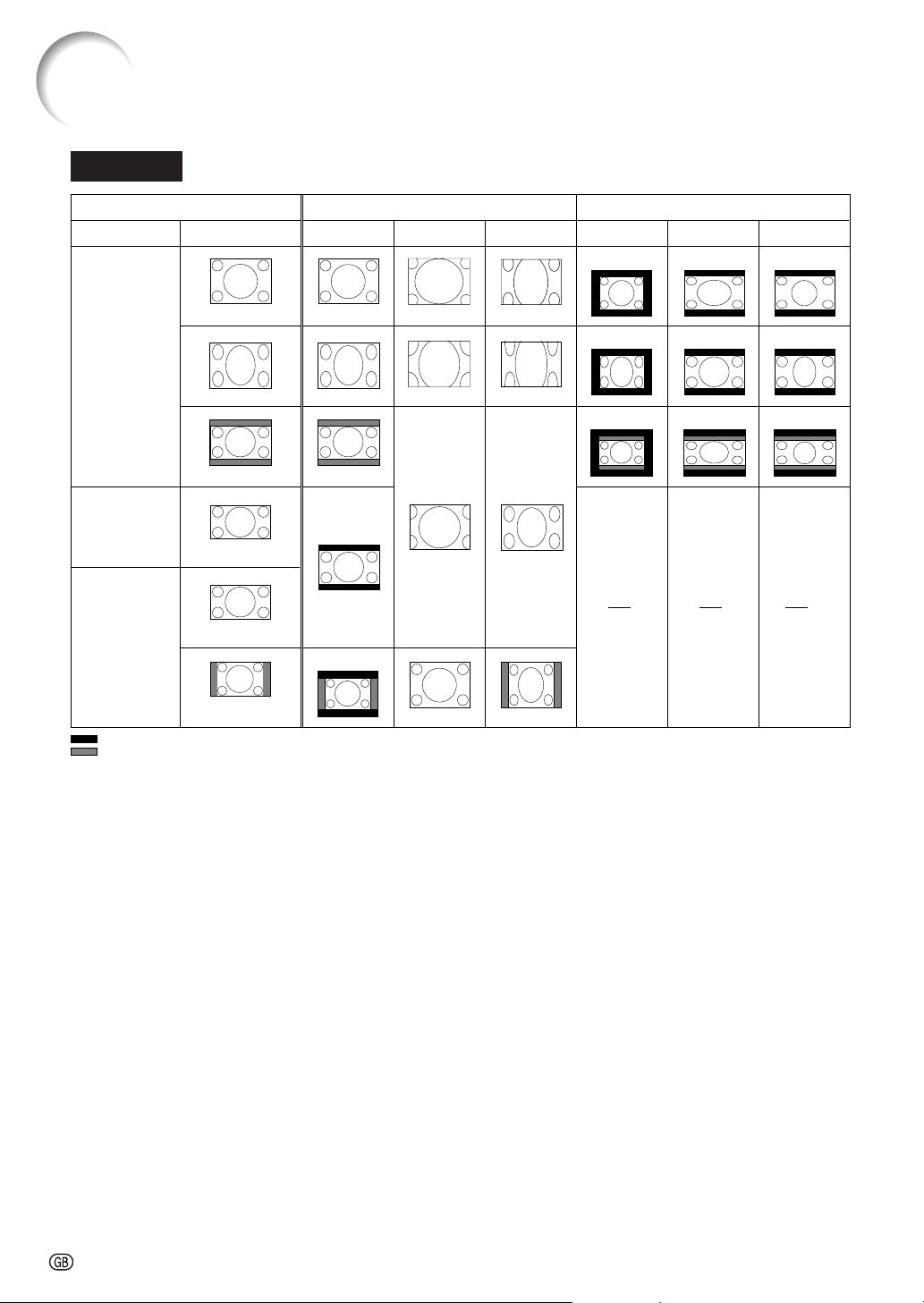

Resize Mode ...................................................... 39
Hiding the Projected Image
(Shutter function) ......................................... 41

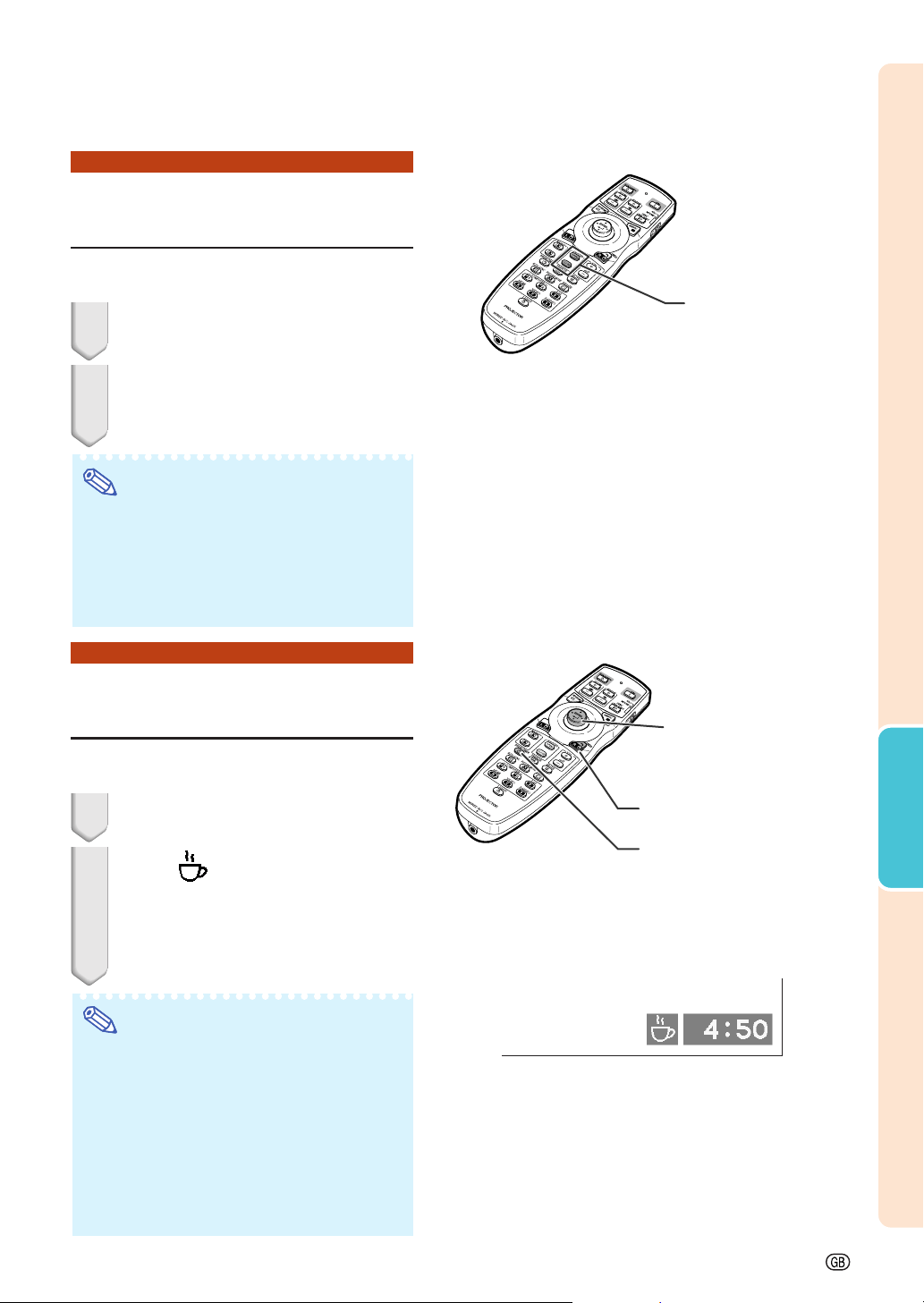

Displaying and Setting the Break Timer ............ 41
Introduction
-5
Useful Features
Menu Items ................................................... 42
Using the Menu Screen ............................... 47
Menu Selections ................................................ 47
Picture Adjustment (“Picture” menu) ......... 49
Selecting the Picture Mode ............................... 49
Adjusting the Image .......................................... 49
Adjusting the Color Temperature ....................... 50
Selecting the Progressive Mode ........................ 50
Reducing Image Noise (DNR) ........................... 50
Selecting the Signal Type .................................. 51
Selecting the Dynamic Range ........................... 51
Selecting the Color Space ................................. 51

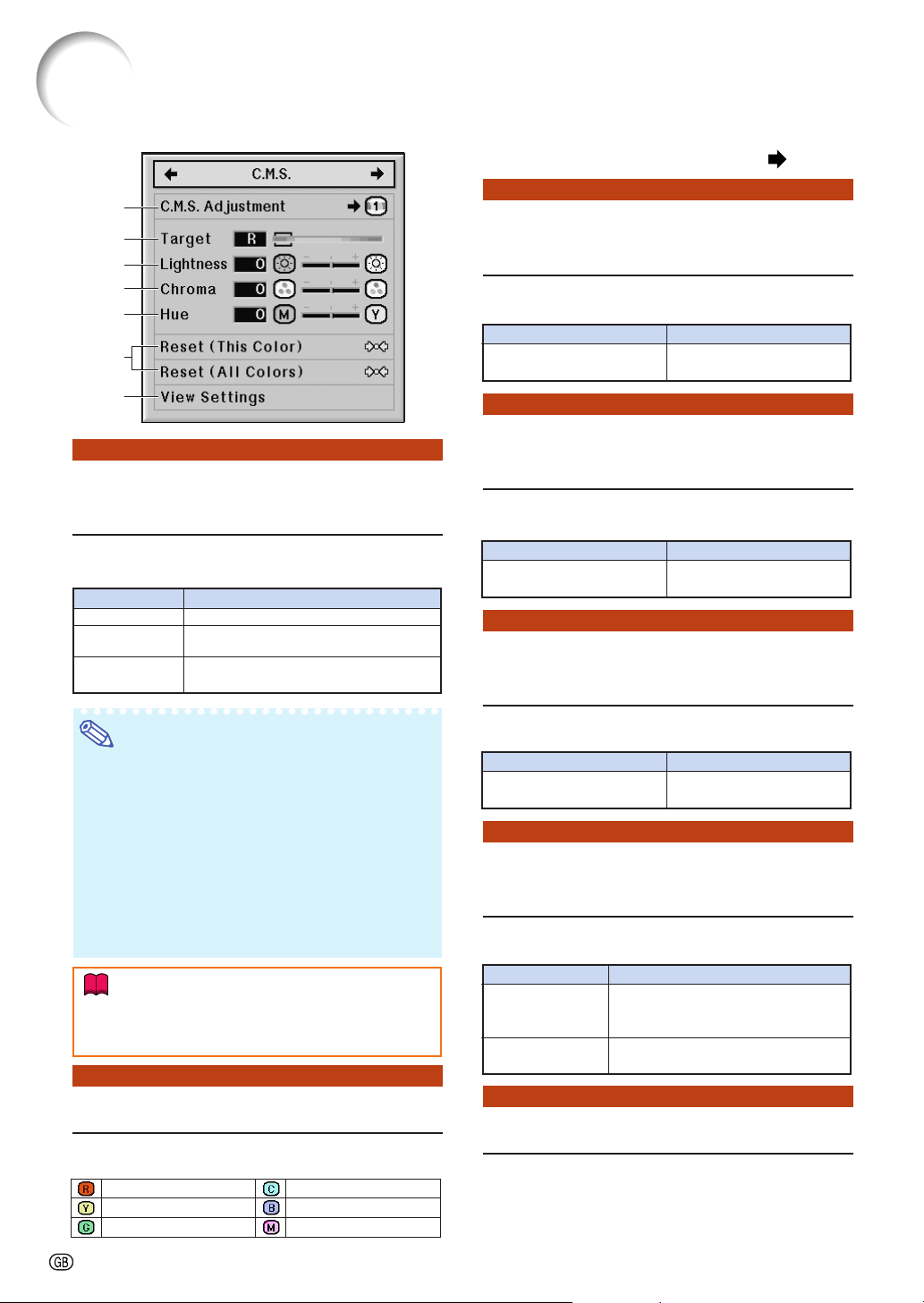

Color Management System
(“C. M. S.” menu) ..................................... 52
Selecting the Color Reproduction Mode ........... 52
Selecting the Target Color ................................. 52
Setting the Brightness of the Target Color ......... 52
Setting the Chromatic Value of
the Target Color ........................................... 52
Setting the Hue of the Target Color ................... 52
Resetting User-defined Color Settings .............. 52
Overview of All Color Settings ........................... 52

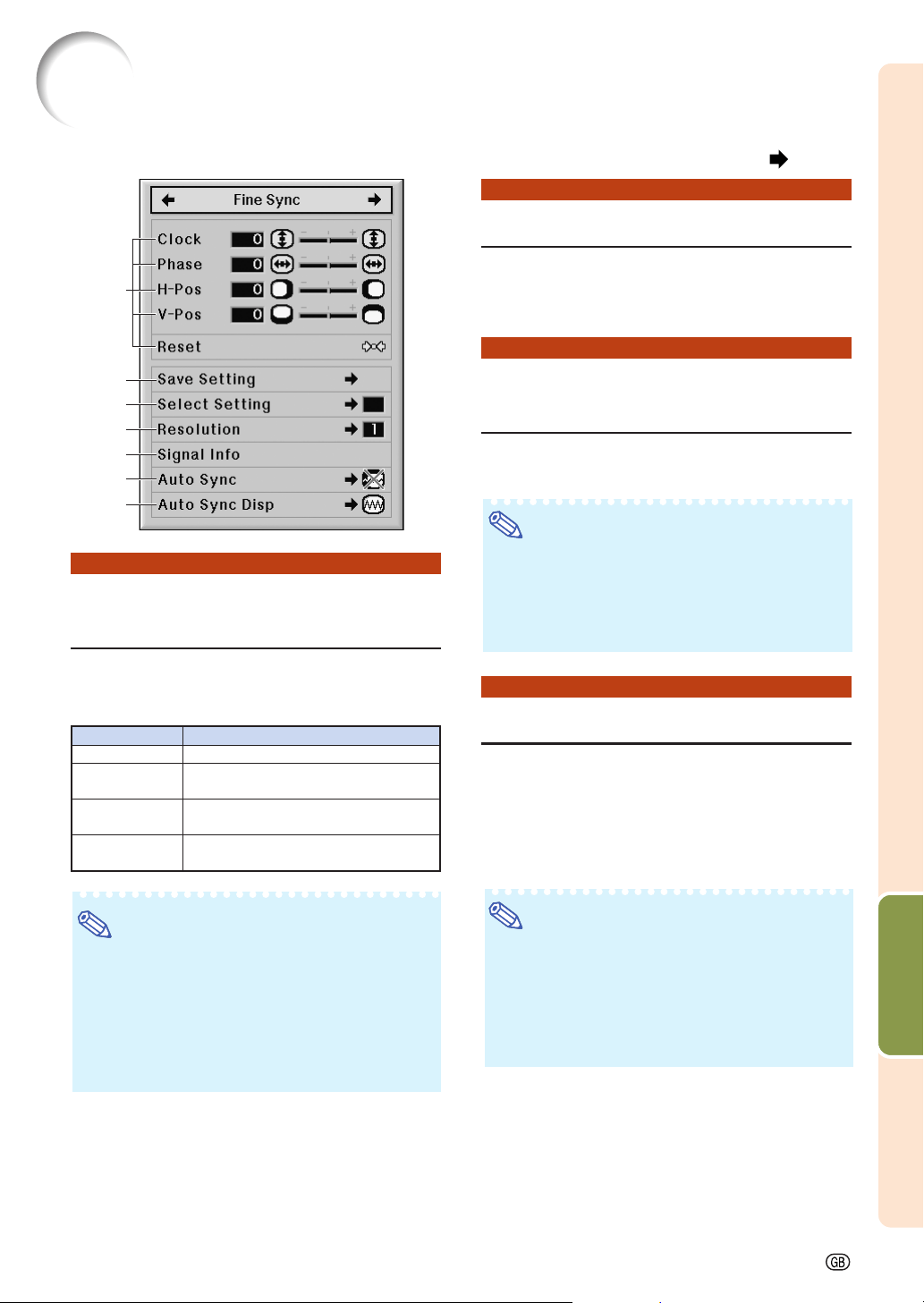

Computer Image Adjustment
(“Fine Sync” menu) ................................ 53
Adjusting the Computer Image ......................... 53
Saving Adjustment Settings .............................. 53
Accessing Adjustment Settings ........................ 53
Setting the Resolution ........................................ 53
Checking the Input Signal ................................. 54
Auto Sync Adjustment ....................................... 54
Setting the Auto Sync Display Function ............ 54

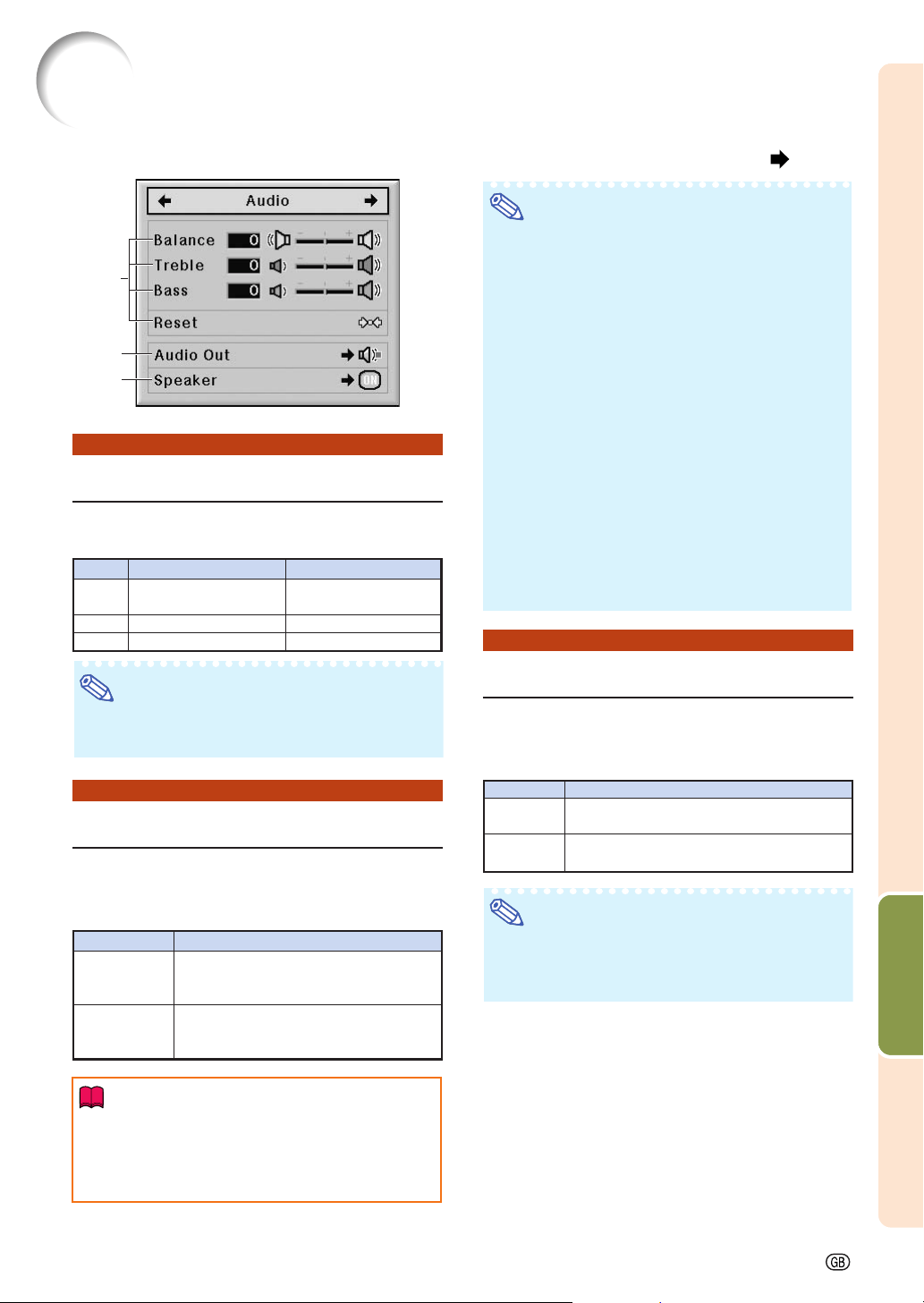

Audio Adjustment (“Audio” menu) ............. 55
Adjusting the Audio ........................................... 55
Setting the Audio Output Type .......................... 55
Setting the Speaker ........................................... 55
Using the “Options 1” Menu ........................ 56
Displaying Dual Pictures (Pict in Pict) ............... 56
Setting the Resize Mode ................................... 56
Shifting the Projected Image Vertically
(Digital Shift) ................................................ 57
Setting On-screen Display................................. 57
Setting the Video System................................... 57
Capturing Projected Images ............................. 57
Selecting the Background Image ...................... 58
Selecting the Startup Image .............................. 58
Setting the Eco Mode ........................................ 58
Detecting the Input Signals Automatically ........ 58
Setting the Auto Power Off Function.................. 58

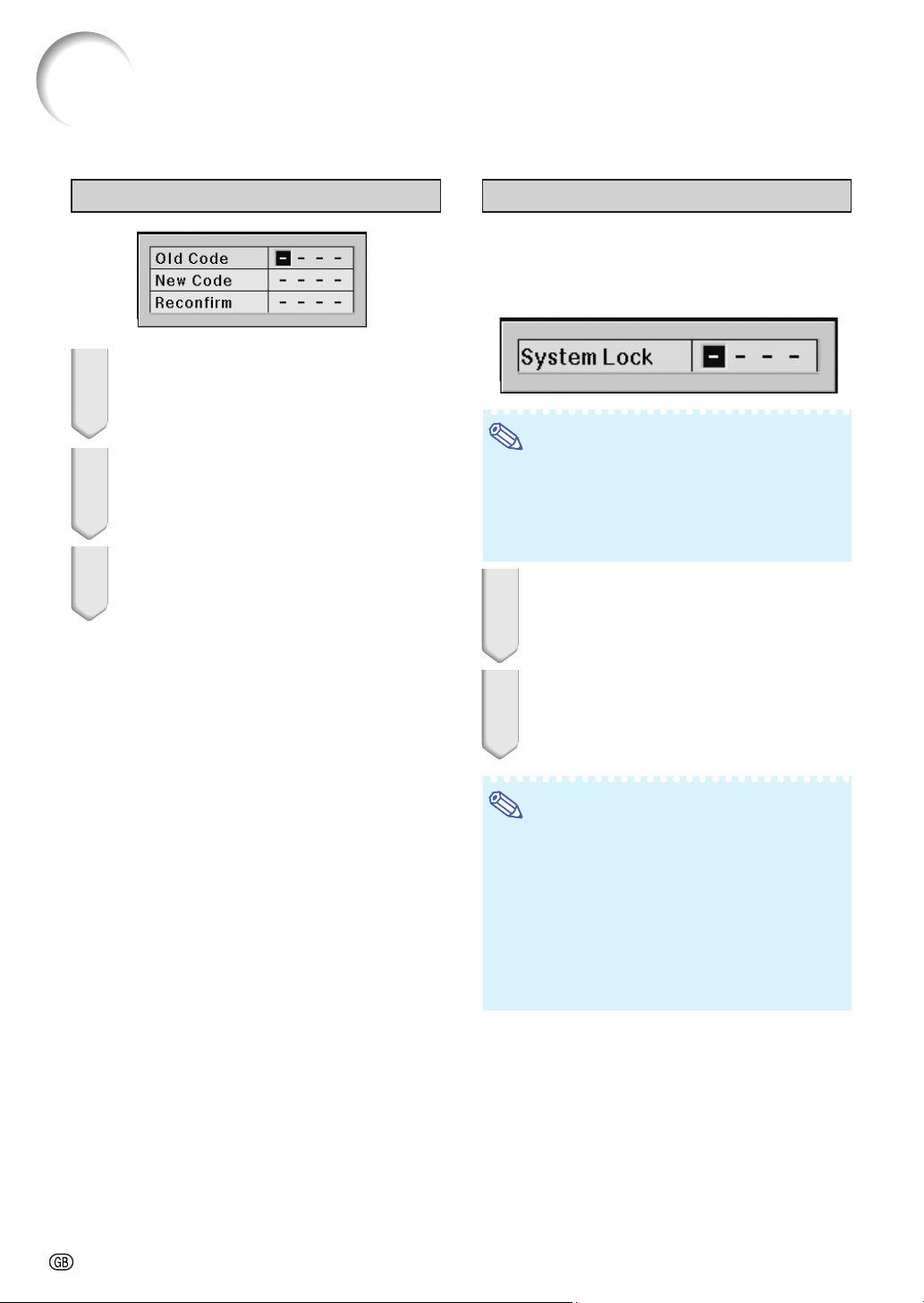

Setting the System Lock Function ..................... 59

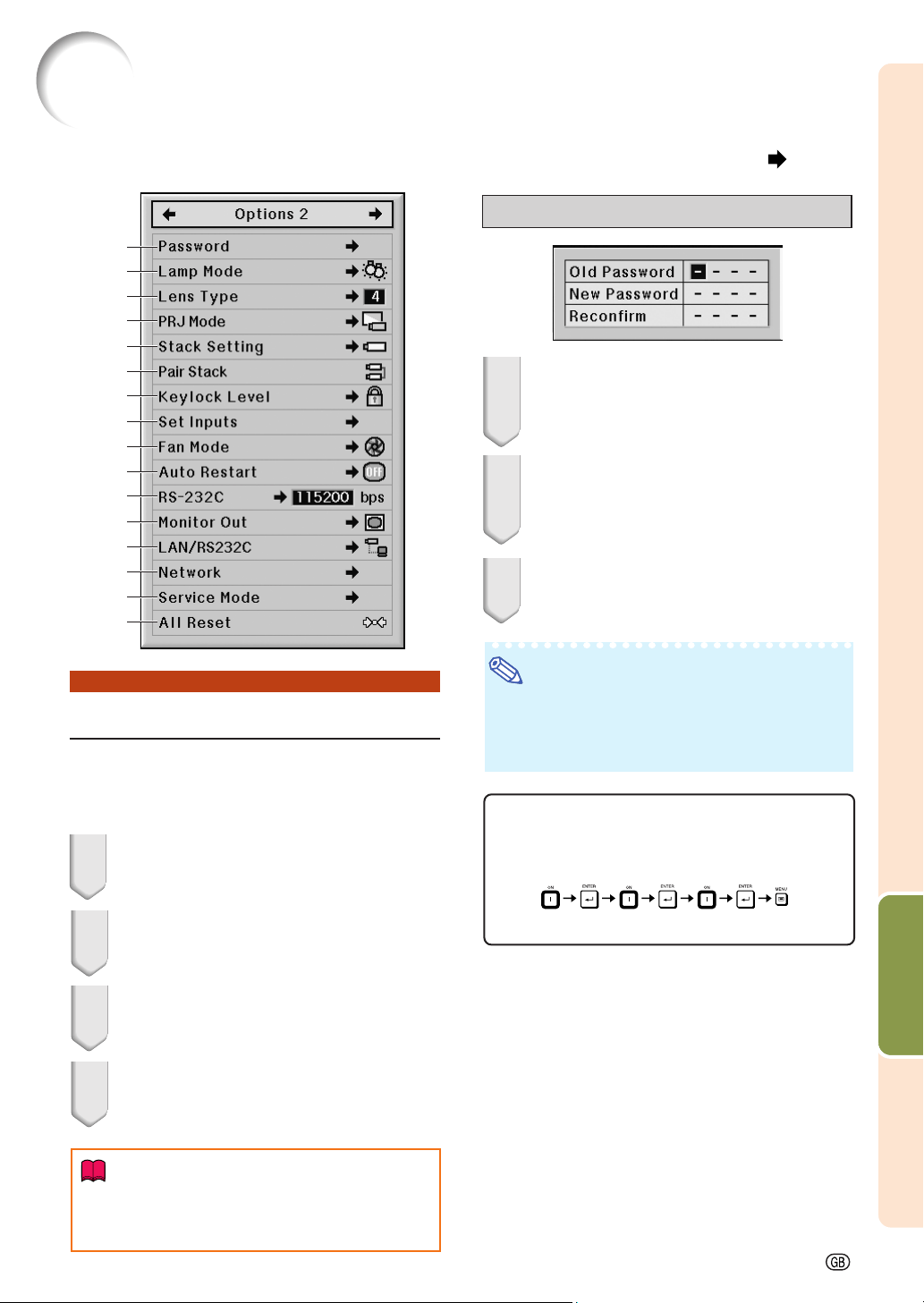

Helpful Functions Set during Installation
(“Options 2” menu) ................................. 61

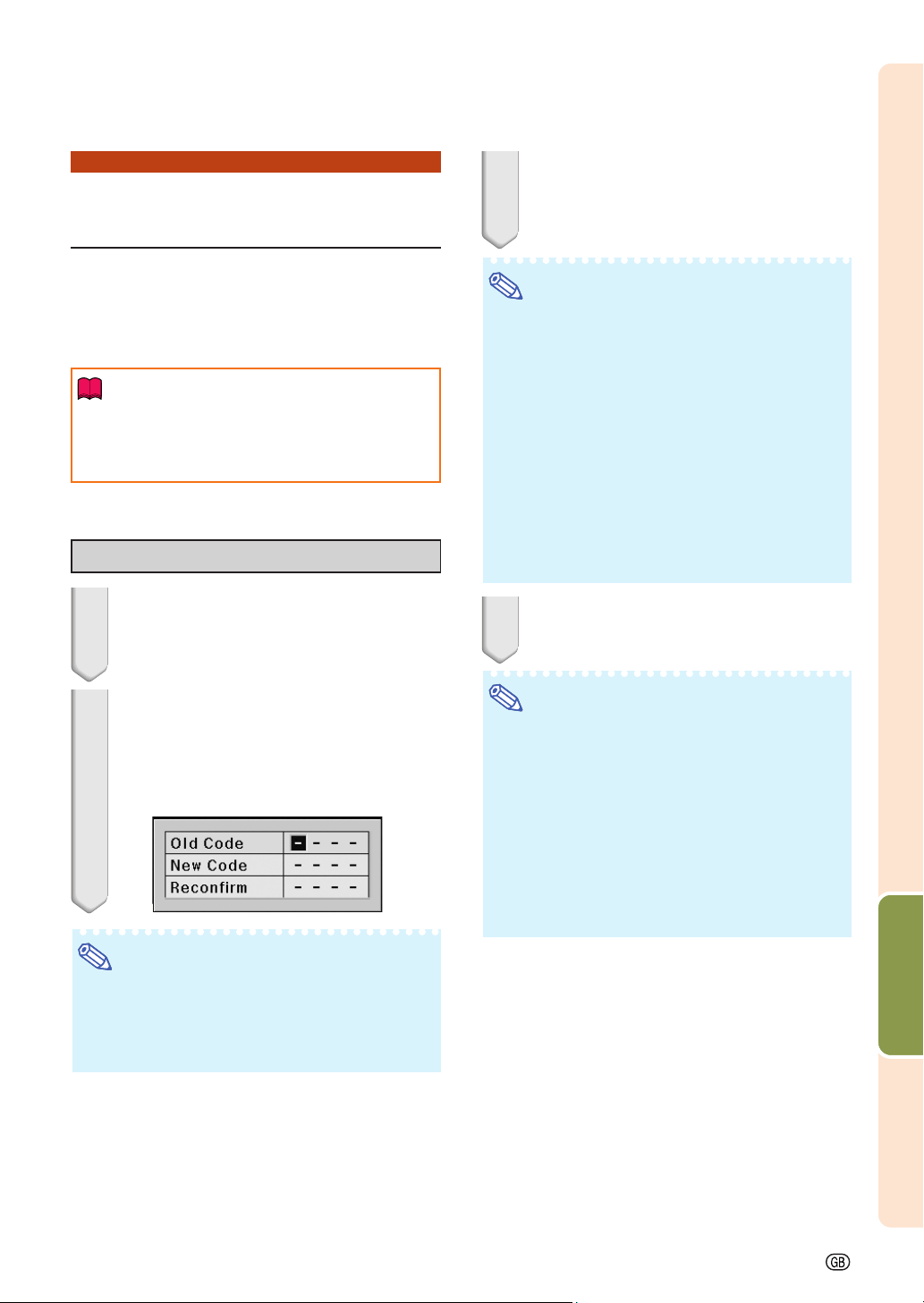

Setting a Password ............................................ 61
Setting the Lamp Mode ..................................... 62
Selecting the Lens Type .................................... 62
Reversing/Inverting Projected Images .............. 62
Controlling Multiple Projectors with the One
Remote Control ........................................... 62
Shortcut to Make Projector Stack Settings ........ 63
Locking the Operation Buttons
on the Projector ........................................... 63
Bypassing Unused Input Selections ................. 63
Selecting the Fan Mode .................................... 63
Setting the Auto Restart Function ...................... 63
Selecting the Transmission Speed
(RS-232C) ................................................... 64
Setting the Monitor Output ................................ 64
Setting the LAN/RS232C ................................... 64
Setting the DHCP Client .................................... 64
Helpful Functions Set during Installation
(“Options 2” menu)/Using the Other Menus
(“Language” and “Status” menus) ...............
65

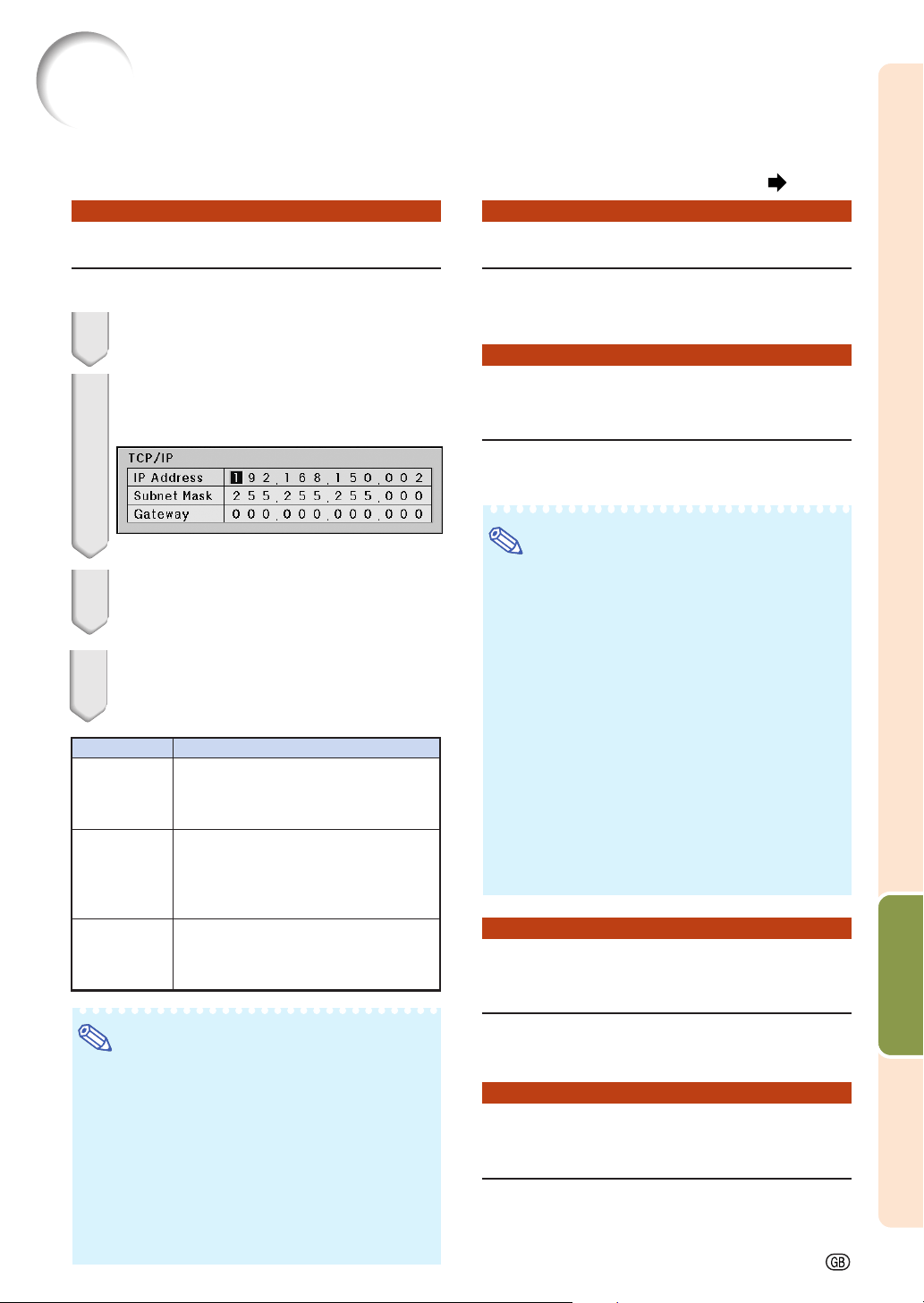

Setting the TCP/IP ............................................. 65
Service Mode .................................................... 65
Returning to the Default Settings ....................... 65
Selecting the On-screen Display Language ..... 65
Overview of All Menu Settings and the Lamp Life
.... 65
The optional lenses are introduced on page 12. Please purchase the lens for your desired
usage.
Reference
Appendix
Maintenance ................................................. 66

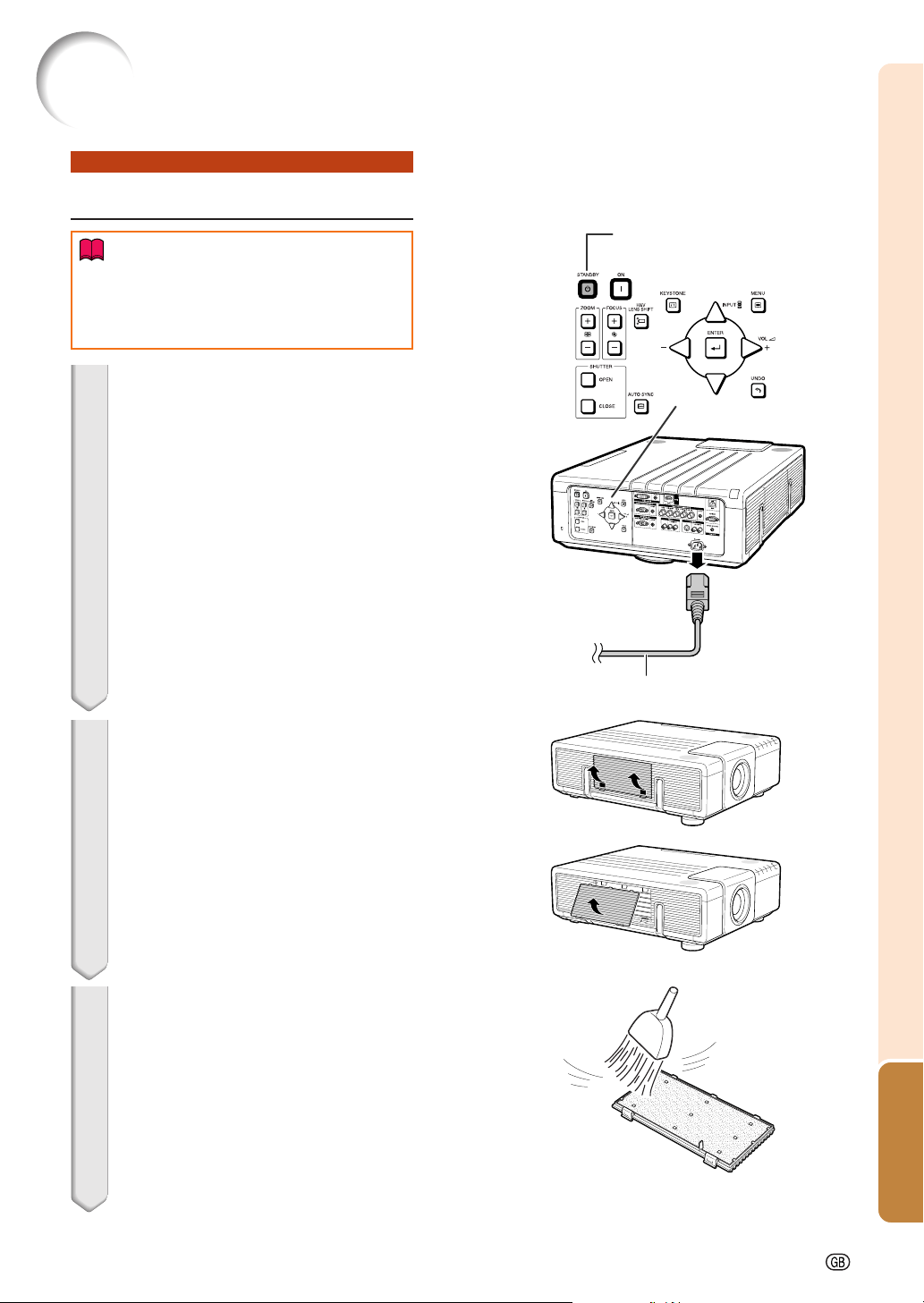

Cleaning and Replacing the Dust Filters ... 67
Cleaning the Dust Filters ................................... 67

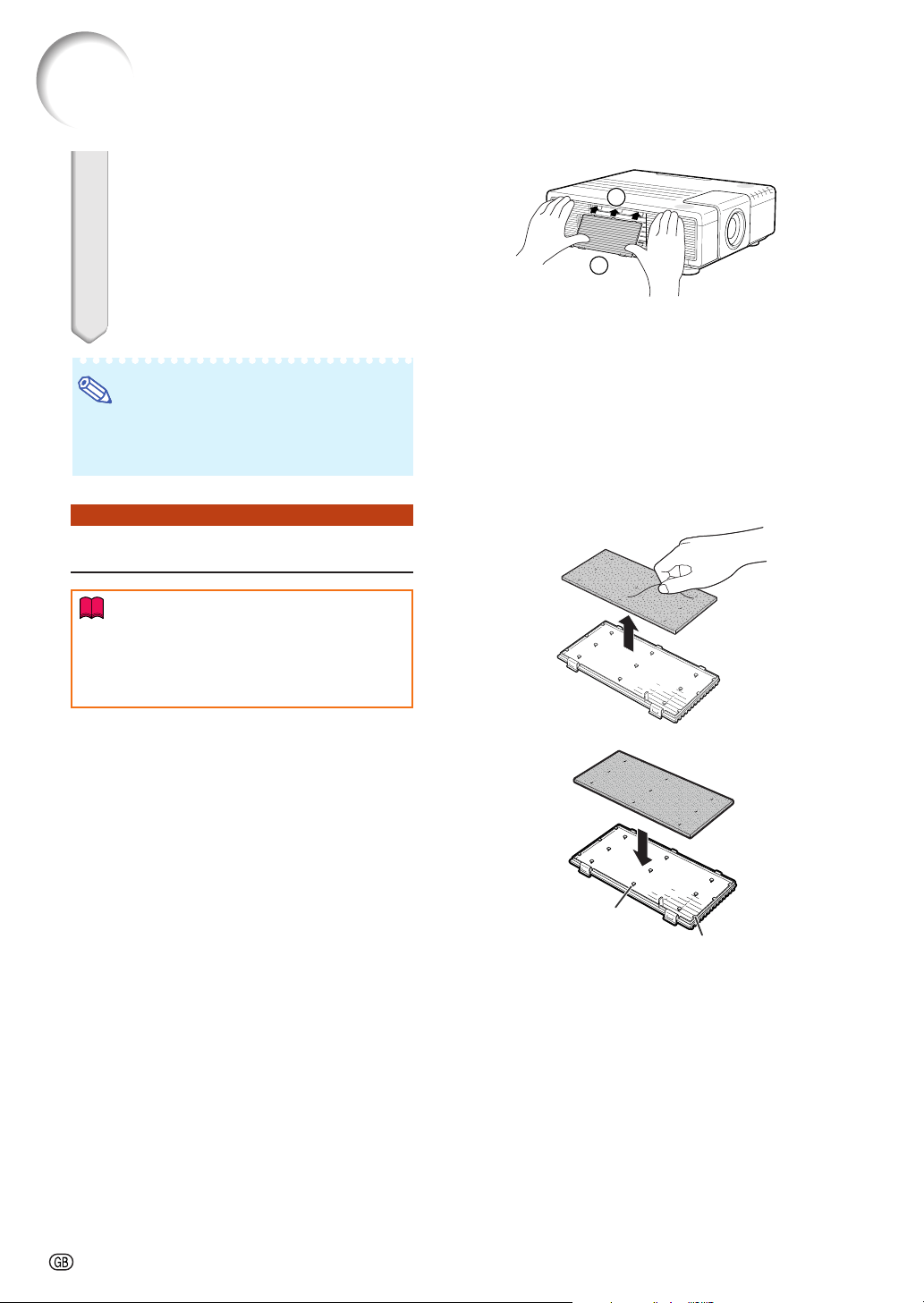

Replacing the Dust Filters ................................. 68

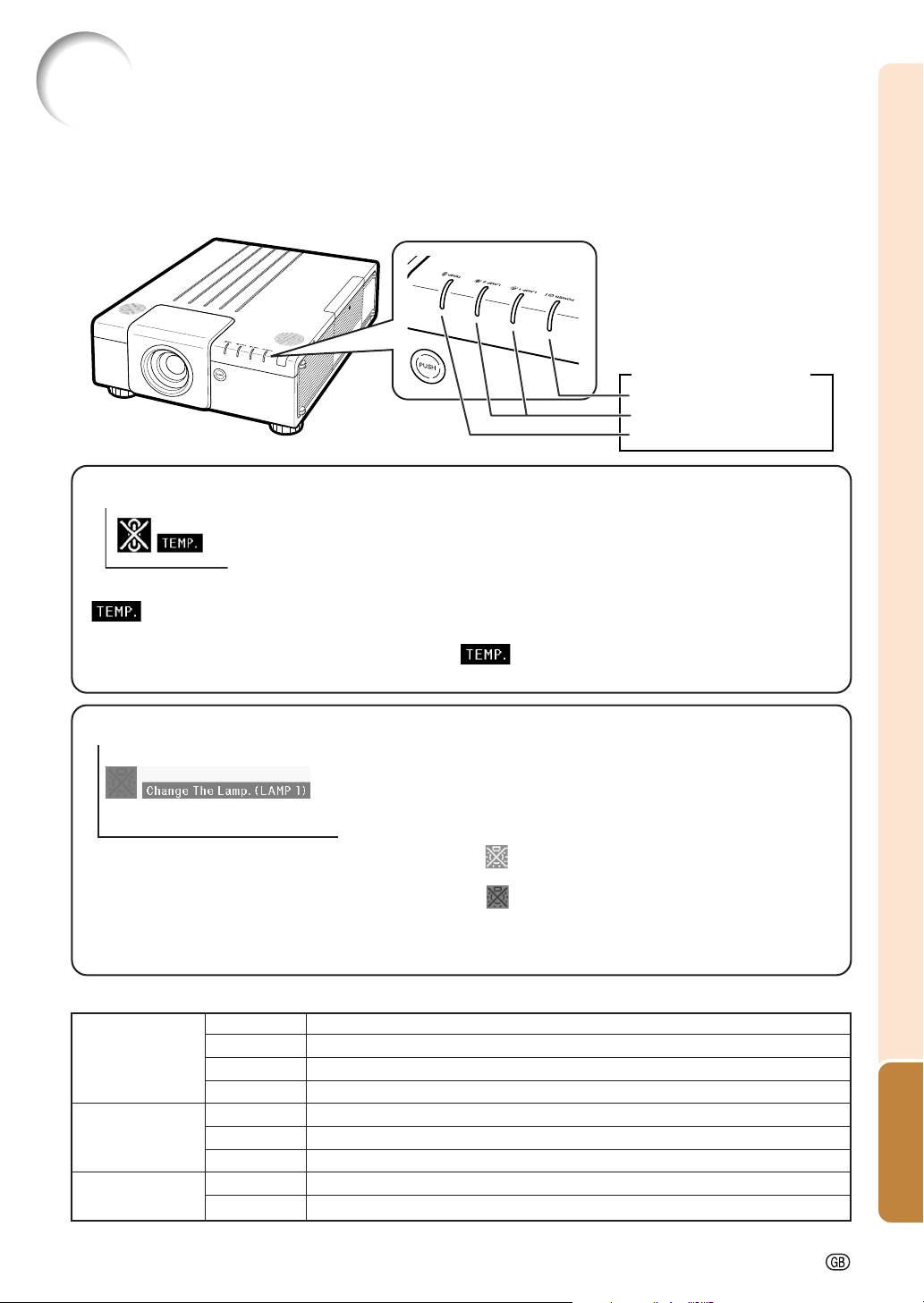

Maintenance Indicators ............................... 69
Regarding the Lamp .................................... 71
Lamp ................................................................. 71
Caution Concerning the Lamp .......................... 71

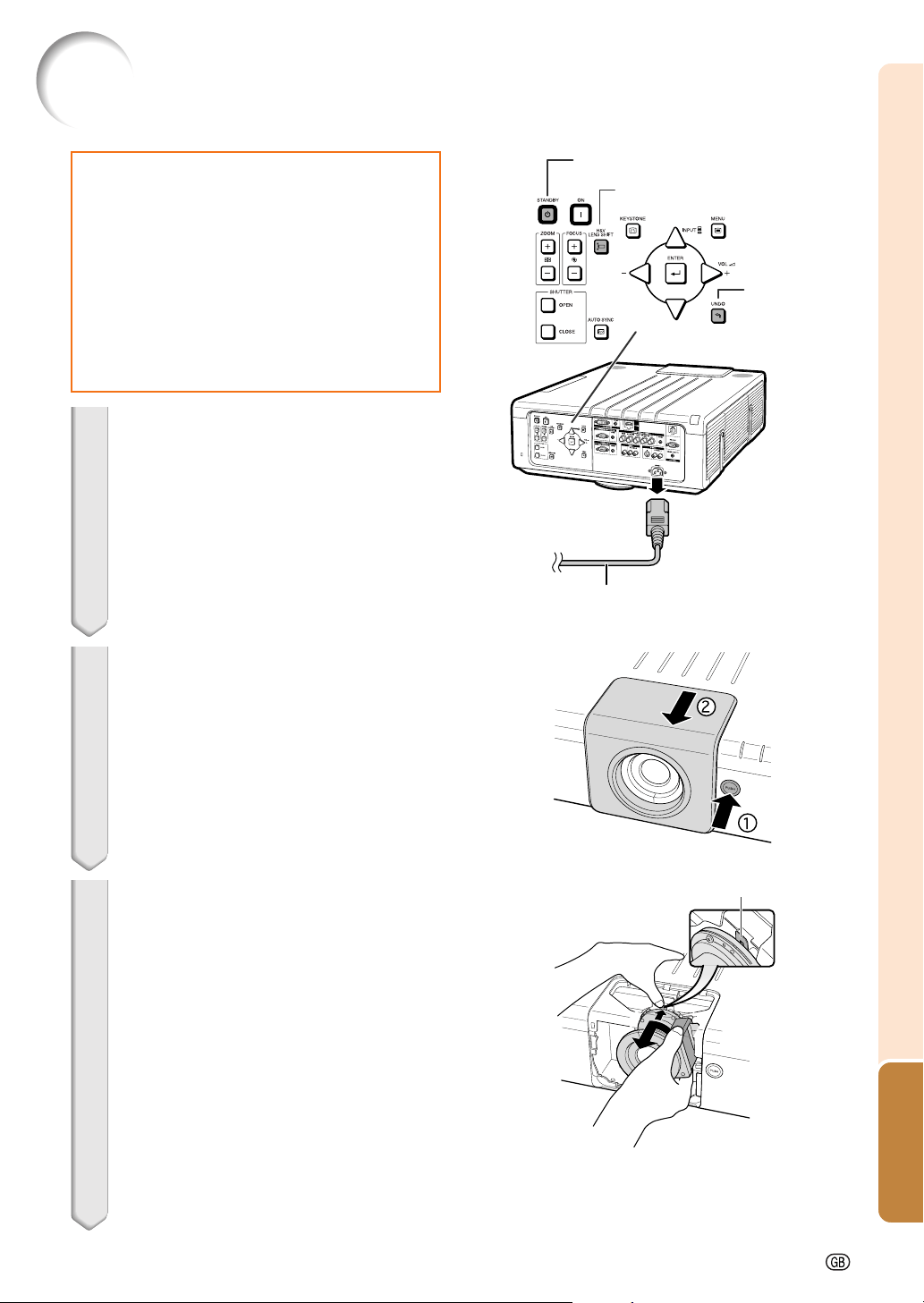

Replacing the Lamp .......................................... 71
Removing and Installing the Lamp Unit ............ 72

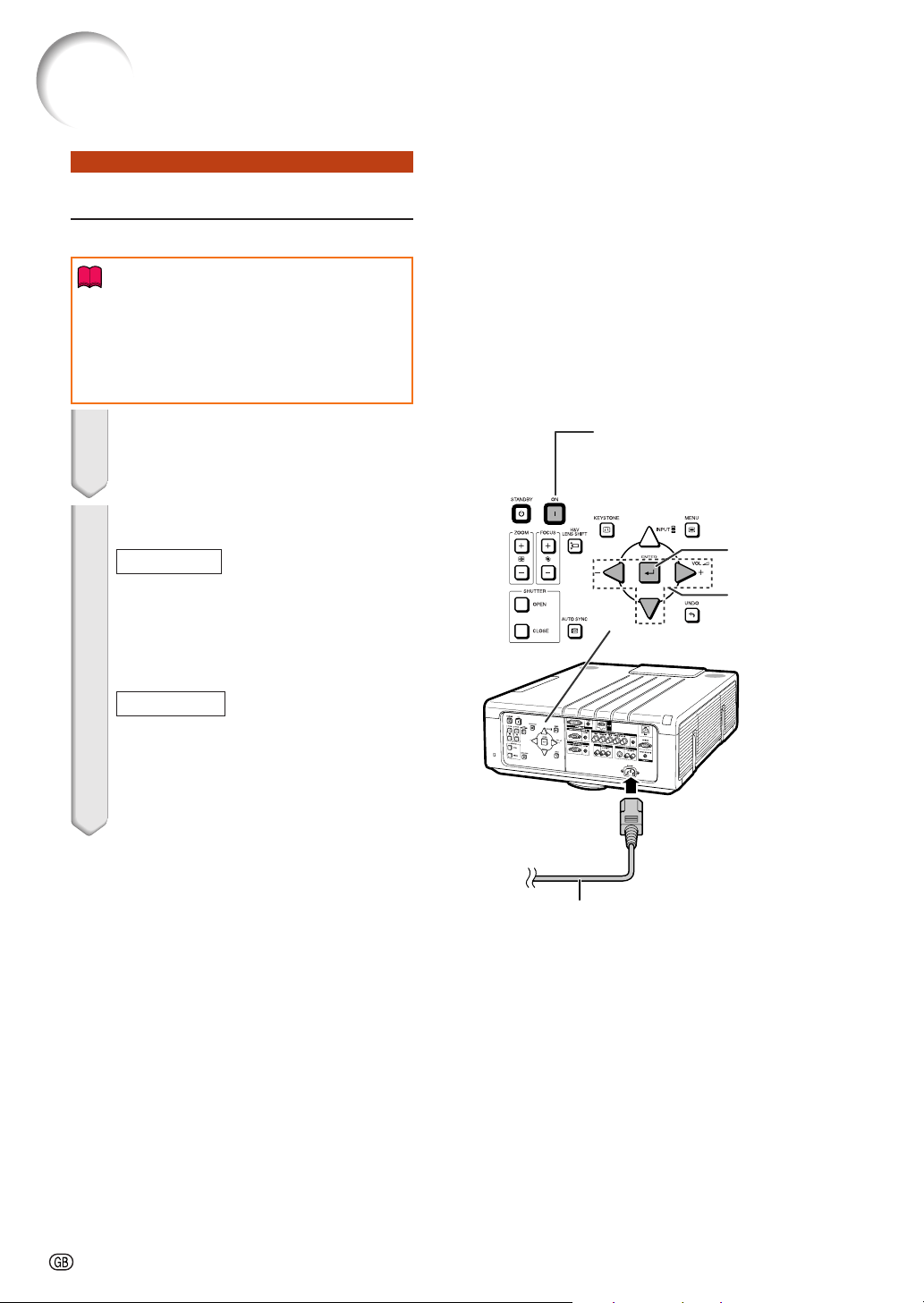

Resetting the Lamp Timer ................................. 74

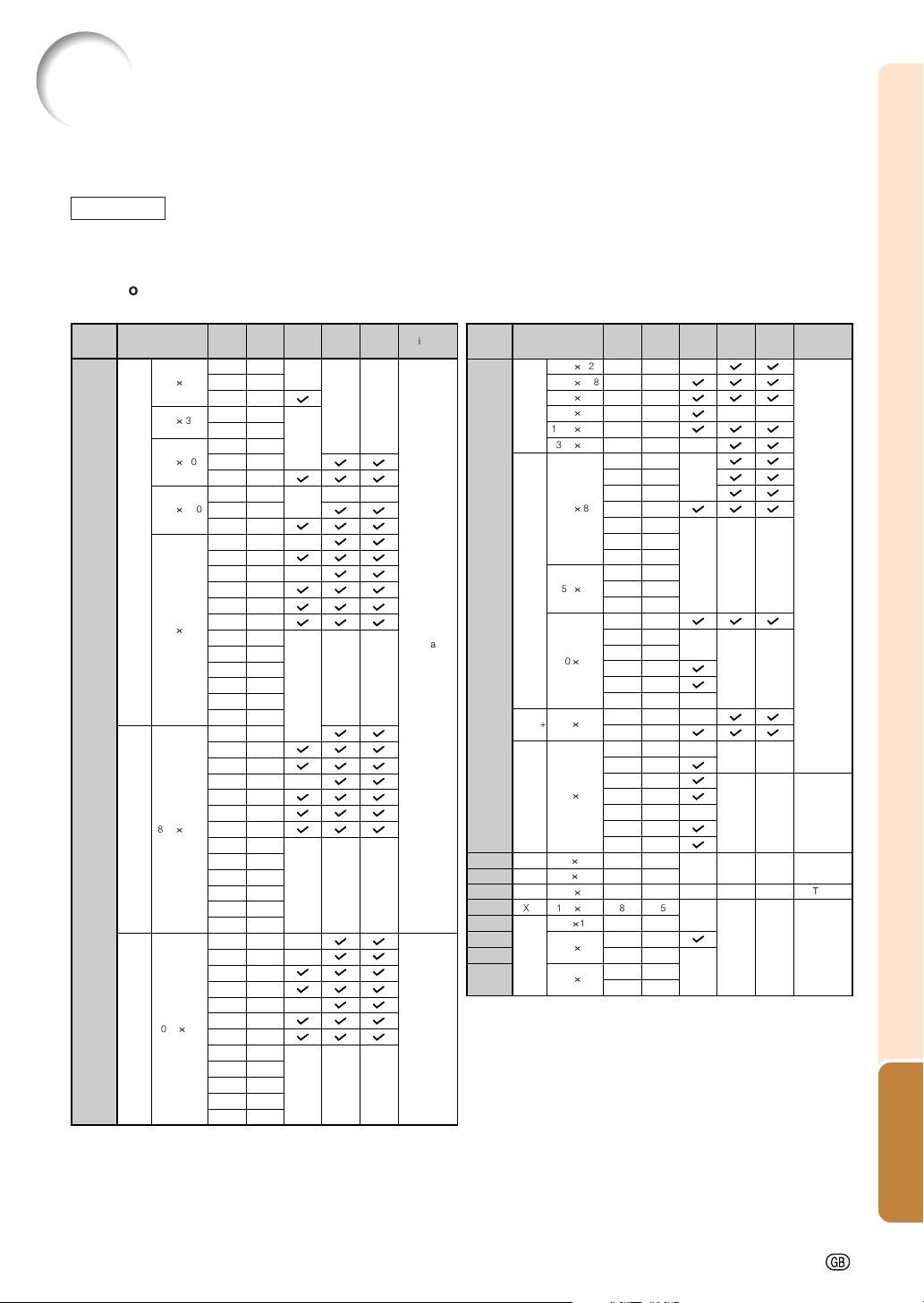

Computer Compatibility Chart .................... 75
Attaching the Optional Lens ....................... 77
Troubleshooting ........................................... 79
For SHARP Assistance ................................ 81
Specifications ............................................... 82
Index .............................................................. 83
-6
Contents
SETUP MANUAL
Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.
Setting up the Screen .................................... 2
Screen Size and Projection Distance ........... 3
Connecting Pin Assignments ..................... 11
Wired Remote Control Terminal
Specifications ......................................... 13
RS-232C Specifications and Commands ... 14
Setting up the Projector Network
Environment ............................................ 20
Controlling the Projector via LAN .............. 26
Setting the Projector Using
RS-232C or Telnet ................................... 31
Controlling the Projector Using RS-232C
or Telnet ................................................... 34
Stack Projection ........................................... 41
Video Wall Projection ................................... 44
Resetting the Lamp Timer of the Projector
via LAN .................................................... 53
Troubleshooting ........................................... 55
Dimensions ................................................... 58
Introduction
-7
PDF operation manuals in several languages are included in the CD-ROM, so that you can
work with the projector. To utilize these manuals, you need to install Adobe
®
Reader
®
on your
computer (Windows
®
or Macintosh
®
).
Please download Adobe
®
Reader
®
from the Internet (http://www.adobe.com).
Accessing the PDF manuals
For Windows
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the pro-
jector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the SETUP
MANUAL.
For Macintosh
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the pro-
jector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the SETUP
MANUAL.
How to Access the PDF Operation Manuals
Info
• If the desired pdf file cannot be opened by double clicking the mouse, start Adobe
®
Reader
®
first, then
specify the desired file using the “File”, “Open” menu.
-8
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for
future reference.
3. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
6. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the
manufacturer.
9. Transportation
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization
This product is provided with one of the following types of
plugs. If the plug should fail to fit into the power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a
grounding terminal.
This plug will only fit into a grounding type power
outlet.
IMPORTANT SAFEGUARDS
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
14. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to
lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to normal
operation.
e. If the product has been dropped or damaged in any
way.
f. When the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, ensure that the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21
.
Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
CAUTION: Please read all of these instructions before you operate this product and save these
instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic
rules for its installation, use and servicing.
Introduction
-9
Ensure that you read the following safeguards when
setting up your projector.
Caution concerning the lamp unit
■ Potential hazard of glass particles if lamp rup-
tures. In case of lamp rupture, contact your
nearest Sharp Authorized Projector Dealer
or Service Center for replacement. See
“Regarding the Lamp” on page 71.
Caution concerning the setup of the pro-
jector
■ For minimal servicing and to maintain high
image quality, SHARP recommends that this
projector be installed in an area free from hu-
midity, dust and cigarette smoke. When the
projector is subjected to these environments,
the vents and lens must be cleaned more
often. As long as the projector is regularly
cleaned, use in these environments will not
reduce the overall operation life of the unit.
Internal cleaning should only be performed
by a Sharp Authorized Projector Dealer or
Service Center.
Do not set up the projector in places ex-
posed to direct sunlight or bright light.
■ Position the screen so that it is not in direct
sunlight or room light. Light falling directly on
the screen washes out the colors, making
viewing difficult. Close the curtains and dim
the lights when setting up the screen in a
sunny or bright room.
The projector may be safely tilted to a
maximum angle of 9 degrees.
■ Placement should be within 9 degrees of
horizontal.
If you have application requiring tilt angle
exceeding 9 degrees, please check with your
local Sharp sales office.
When using the projector in high-altitude
areas such as mountains (at altitudes of
approximately 1,500 meters (4,900 feet)
or more)
■ When you use the projector in high-altitude
areas with thin air, set “Fan Mode” to “High”.
Neglecting this can affect the longevity of the
optical system.
Warning about placing the projector in a
high position
■ When placing the projector in a high posi-
tion, make certain it is carefully secured to
avoid personal injury caused by the projec-
tor falling down.
Do not subject the projector to hard im-
pact and/or vibration.
■ Take care with the lens so as not to hit or
damage the surface of the lens.
Rest your eyes occasionally.
■ Continuously watching the screen for long
hours will cause eye strain. Take regular
breaks to rest your eyes.
Avoid locations with extremes of tem-
perature.
■ The operating temperature of the projector
is from 41°F to 104°F (+5°C to +40°C).
■ The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
-10
Using the projector in other countries
■ The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, make
sure you use an appropriate power cord for
the country you are in.
Temperature monitor function
■
If the projector starts to over-
heat due to setup problems or
blockage of the air vents, “ ”
and “ ” will illuminate in
the lower left corner of the picture. If the tem-
perature continues to rise, the lamp will turn off,
the temperature warning indicator on the pro-
jector will blink, and after a 90-second cooling-
off period the projector will enter the standby
mode. Refer to “Maintenance Indicators” on
page 69 for details.
Info
• The cooling fan regulates the internal tem-
perature, and its performance is automati-
cally controlled. The sound of the fan may
change during projector operation due to
changes in the fan speed. This does not
indicate malfunction.
• Even if you unplug the power cord after
projector operation, the cooling fan con-
tinues to run for a while. When you place
the projector into the storage case, make
sure that the cooling fan has stopped.
Optional lens installation
■ For installing an optional lens, refer to “At-
taching the Optional Lens” on page
77
or the
lens installation manual (supplied with the
optional lens).
■ Remove the optional lens when carrying the
projector. Carrying the projector with an op-
tional lens attached can cause the projector
to be damaged by vibration or other factors.
Do not block the intake and exhaust
vents.
■ Allow at least 11
13
/16 inches (30 cm) of space
between the exhaust vent and the nearest
wall or obstruction.
■ Set up the projector where air will not stay
near its exhaust vent. In order to avoid allow-
ing the heat from the exhaust vent to enter
the intake vent area, leave at least more than
11
13
/16 inches (30 cm) of space between the
intake vent and the surrounding walls or ob-
jects.
■ If the cooling fan becomes obstructed, a pro-
tection circuit will automatically put the pro-
jector into standby mode to prevent overheat
damage. This does not indicate a malfunc-
tion (See pages 69 and 70.). Remove the pro-
jector power cord from the wall outlet and wait
at least 10 minutes. Place the projector where
the intake and exhaust vents are not blocked,
plug the power cord back in and turn on the
projector. This will return the projector to the
normal operating condition.
Caution regarding usage of the projector
■
When using the projector, take care not to subject
it to hard impact and/or vibration, as this can result
in damage. Take extra care with the lens. If you are
not to use the projector for a long time, make cer-
tain you unplug the power cord from the wall outlet,
and disconnect any other cables connected to it.
■ Do not carry the projector by holding the lens.
■ When storing the projector, ensure you at-
tach the lens cap or dustproof cap to the pro-
jector. (See page 13.)
■ Do not expose the projector to direct sunlight
or near heat sources. The projector may
change color or become deformed.
Other connected equipment
■ When connecting a computer or other audio-
visual equipment to the projector, make the
connections AFTER unplugging the power
cord of the projector from the AC outlet and
turning off the equipment to be connected.
■ Please read the operation manuals of the pro-
jector and the equipment to be connected for
instructions on how to make the connections.
IMPORTANT SAFEGUARDS
Introduction
-11
Accessories
Two R-6 batteries
(“AA” size, UM/SUM-3, HP-7 or similar)
Power cord
*
For U.S., Canada, etc.
(6' (1.8 m))
<9NK3090204900>
For Europe, except U.K.
(6' (1.8 m))
<9NK3090152700>
*Use the power cord that corresponds to the wall outlet in your country.
• Projector manual and technical
reference CD-ROM
<9NK3534059900>
• Operation manual (this manual)
<9NK5010071200>
(1)
(2) (3)
(4)
Lens cap
(Only supplied with XG-P610X)
<9NK3392072800>
Dustproof cap
(Only supplied with XG-P610X-N)
<9NK3392072900>
Supplied accessories
RGB cable
(10' (3.0 m))
<9NK3080431000>
For U.K., Hong Kong
and Singapore
(6' (1.8 m))
<9NK3090152900>
For Australia, New
Zealand and Oceania
(6' (1.8 m))
<9NK3090152600>
Remote control
<9NK5041816900>
■ Lamp unit AN-P610LP
■ Ceiling-mount adaptor AN-P610T
■ Ceiling-mount unit AN-TK201
AN-TK202
■ Remote receiver AN-MR2
■ 3 RCA to mini D-sub 15 pin cable (10'
(3.0 m)) AN-C3CP2
Note
• Some of the optional accessories may not be available depending on the region. Please check with your
nearest Sharp Authorized Projector Dealer or Service Center.
Optional accessories
Note
• Codes in “< >” are Replacement parts codes.
• When the lens is attached, use the lens cap supplied with the lens.
• You can attach the dustproof cap to the projector only when no lens is attached. (Do not attach the
dustproof cap when the lens is attached.)
-12
Accessories
Optional lenses
No lens is attached to XG-P610X-N. The standard zoom lens is attached to XG-P610X.
The optional lenses from Sharp are also available for specialized application. Please see
your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the
lens operation manual when using a lens.)
Throw Distance
The graph below is for 100-inch (254 cm) screen with 4:3 normal mode.
Screen
5101520253035 455040 (ft)
12' – 15' (3.7 m – 4.6 m)
Throw distance ratio 1:1.8–2.25
Fixed wide lens (AN-P8EX)
5'4" (1.6 m)
Throw distance ratio 1:0.8
Tele-zoom lens (AN-P23EZ)
15' – 20' (4.6 m – 6.1 m)
Throw distance ratio 1:2.25–3.00
Tele-zoom lens (AN-P30EZ)
20' – 30' (6.1 m – 9.1 m)
Throw distance ratio 1:3.0–4.5
Tele-zoom lens (AN-P45EZ)
30' – 46' 8" (9.1 m – 14.2 m)
Throw distance ratio 1:4.5–7.0
Wide-zoom lens (AN-P15EZ)
10' – 12' (3.0 m – 3.7 m)
Throw distance ratio 1:1.5–1.8
Standard zoom lens (AN-P18EZ : Standard equipment with XG-P610X)
Fixed wide lens (AN-P12EX)
8' (2.4 m)
Throw distance ratio 1:1.2
■ Lens Projection distance for 100" screen size
Fixed wide lens (× 0.8) AN-P8EX 5'4" (1.6 m)
Fixed wide lens (× 1.2) AN-P12EX 8' (2.4 m)
Wide-zoom lens (× 1.5 – 1.8) AN-P15EZ 10' – 12' (3.0 m – 3.7 m)
Standard zoom lens (× 1.8 – 2.25) AN-P18EZ 12' – 15' (3.7 m – 4.6 m)
(attached to XG-P610X)
Tele-zoom lens (× 2.25 – 3.0) AN-P23EZ 15' – 20' (4.6 m – 6.1 m)
Tele-zoom lens (× 3.0 – 4.5) AN-P30EZ 20' – 30' (6.1 m – 9.1 m)
Tele-zoom lens (× 4.5 –7.0) AN-P45EZ 30' – 46'8" (9.1 m – 14.2 m)
Introduction
-13
30
69
69
55
72
69
55
16
66
77
69
30
77
28
28
31
31
54
41
30 32
36
47
36
47
47
47
SHUTTER buttons
• OPEN: For opening the shutter.
• CLOSE: For closing the shutter
and hiding the projected
image.
Lamp unit cover
Attaching the lens cap/dustproof cap
Snap on the lens cap/dustproof cap
straight.
Removing the lens cap/dustproof cap
Pull the lens cap/dustproof cap directly
outward.
STANDBY button
For putting the projector
into standby mode.
ON button
For turning the power on.
ZOOM buttons
For adjusting the projected
image size.
FOCUS buttons
For adjusting the focus.
Power indicator
H&V LENS SHIFT button
For shifting the lens horizontally
and vertically.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
ENTER button
For setting items selected
or adjusted on the menu.
KEYSTONE button
For entering the Keystone
Correction mode.
Adjustment buttons
('/"/\/|)
For selecting menu items
and other settings.
INPUT buttons
For switching input mode.
Volume buttons
For adjusting the speaker
sound level.
Temperature warning
indicator
Lamp 2 indicator
Lamp 1 indicator
MENU button
For displaying adjustment
and setting screens.
UNDO button
For undoing an operation or
returning to the previous display.
Remote control sensor
Speaker
Lens cover
Lens cover removal button
Speaker
Exhaust vent
Adjustment foot
(on the bottom of the projector)
Adjustment foot
(on the bottom of
the projector)
Projector
Part Names and Functions
Numbers in refer to the main pages in this operation manual where the topic is explained.
Rear View
Front View
-14
Part Names and Functions
Projector (Rear View)
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
Numbers in refer to the main pages in this operation manual where the topic is explained.
17
26
28
Remote control sensor
16
24
25
24
25
67
68
24
25
24
25
27
27
26
26
COMPUTER/COMPONENT 2
terminals
BNC terminals for computer
RGB and component signals
and audio input terminal.
WIRED REMOTE terminal
For connecting the remote control
to the projector when the signals
from the remote control cannot
reach the remote control sensor.
LAN terminal
Terminal for controlling the
projector using a computer
via network.
RS-232C terminal
Terminal for controlling the
projector using a computer.
S-VIDEO input terminals
Terminals for connecting video
equipment with an S-video
terminal and audio input terminal.
AC socket
Connect the supplied power cord.
Filter cover
(Intake vent)
Carrying handle
For carrying the projector.
HDMI terminal
Terminal for HDMI input.
DVI-D input terminals
Terminals for DVI digital
RGB and digital component
signals and audio input
terminal.
COMPUTER/COMPONENT1
input terminals
Terminals for computer RGB
and component signals and
audio input terminal.
MONITOR OUT terminals
∫
COMPUTER/COMPONENT
Output terminal for computer
RGB and component signals.
(Shared for COMPUTER/
COMPONENT 1 and 2 input.)
∫
AUDIO Output terminal.
(Shared for all inputs)
VIDEO input terminals
Terminals for connecting
video equipment and audio
input terminal.
Kensington Security
Standard connector
Terminals Refer to “Connecting the Projector to Other Equipment” on pages 24–26.
Introduction
-15
Remote Control
31
17
28
47
30
31
36
54
17
39
28
41
18
32
37
41
36
37
38
38
18
•
47
18
•
47
LIGHT button
For lighting all buttons on the
remote control.
STANDBY button
For putting the projector into
standby mode.
ZOOM buttons
For adjusting the projected image size.
KEYSTONE button
For entering the Keystone
Correction mode.
MAGNIFY (enlarge/reduce) buttons
For enlarging/reducing part of the image.
COMPUTER 1/2, DVI, HDMI,
VIDEO, S-VIDEO buttons
For switching to the respective
input modes.
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
BREAK TIMER button
For setting the break time.
L-CLICK button
For left-clicking while the ADJ./MOUSE
switch is in the MOUSE position.
FOCUS buttons
For adjusting the focus.
Mouse/adjustment button
('/"/\/|)
• For moving the computer cursor
while the ADJ./MOUSE switch is
in the MOUSE position.
• For selecting menu items while
the ADJ./MOUSE switch is in the
ADJ. position.
ENTER button
For setting items selected or
adjusted on the menu.
SHUTTER buttons
• OPEN: For opening the shutter.
• CLOSE:
For closing the shutter and
hiding the projected Image.
FREEZE button
For freezing images.
RESIZE button
For switching the screen size.
PICTURE MODE button
For switching the picture mode.
WIRED R/C JACK
For connecting the remote control
to the projector when the signals
from the remote control cannot
reach the remote control sensor.
Volume buttons
For adjusting the speaker sound level.
MUTE button
For temporarily turning off the
sound.
R-CLICK/UNDO button
• For right-clicking while the
ADJ./MOUSE switch is in the
MOUSE position.
• For undoing an operation or
returning to the previous
display while the ADJ./MOUSE
switch is in the ADJ. position.
MENU button
For displaying adjustment and
setting screens.
ON button
For turning the power on.
ADJ./MOUSE switch
For switching the remote control
modes.
H&V LENS SHIFT button
For shifting the lens horizontally
and vertically.
Numbers in refer to the main pages in this operation manual where the topic is explained.
Note
• The LIGHT button on the remote control is made of luminous material that is visible in the dark. Visibility
will diminish over time. Exposure to light will recharge the luminous buttons.
-16
Using the Remote Control
Inserting the Batteries
1
Press the tab and lift open the battery
cover in the direction of the arrow
.
2 Insert the batteries.
• Insert the batteries making sure the po-
larities correctly match the
and
marks inside the battery compartment.
3 Insert the tabs on the end of the
battery cover into their slots and
press the cover into position.
Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.
Caution
• Danger of explosion if battery is incorrectly replaced.
Replace only with the alkaline or manganese batteries.
• Insert the batteries making sure the polarities correctly match the
and marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept.
Be sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
Usable Range
The remote control can be used to control the
projector within the ranges shown in the il-
lustration.
Note
• The signal from the remote control can be re-
flected off a screen for easy operation. How-
ever, the effective distance of the signal may
differ depending on the screen material.
When using the remote control:
• Ensure that you do not drop it or expose it to
moisture or high temperature.
• The remote control may malfunction under a
fluorescent lamp. In this case, move the pro-
jector away from the fluorescent lamp.
Front View
Rear View
Remote control
signal transmitters
Remote control sensor
Remote control
23' (7 m)
Remote control sensor
Remote control
signal transmitters
Remote control
23' (7 m)
Introduction
-17
Using the Remote Control with a Signal Cable
When the signals from the remote control cannot be reached due to the positioning of the projector, use a
ø3.5 mm minijack cable to connect the remote control to the projector. Now you can control the projector
with the remote control.
Note
• The wireless remote function is not possible when the ø3.5 mm minijack cable is connected to the projec-
tor. Should the wireless remote operation be required, the ø3.5 mm minijack cable should be discon-
nected from the projector.
Switching the Remote Control Mode
The remote control has two functions. One is projector control and the other is wireless computer mouse.
Slide the ADJ./MOUSE switch on the remote control to other side compatible to the desired usage.
Info
• When using the remote control as the wireless computer mouse, connect the optional remote receiver
(AN-MR2) to the computer. (See page 18.)
ADJ.
MOUSE
ADJ.
MOUSE
Projector control Wireless computer mouse
Rear view
Remote control
To WIRED R/C JACK
To WIRED REMOTE terminal
ø3.5 mm minijack cable (commercially available or
available as Sharp service part QCNWGA038WJPZ)
-18
Using the Remote Control as a Wireless Computer Mouse
When connecting the optional remote re-
ceiver (AN-MR2) to the computer, you can
use the remote control as the wireless com-
puter mouse.
1 Connect the optional remote re-
ceiver to the USB terminal on the
computer.
2 Slide the ADJ./MOUSE
switch on the remote con-
trol to the MOUSE position.
3 Use the mouse function.
• Point the remote control at the remote
receiver.
■ When moving the cursor
Press '/"/\/|.
■ When left-clicking
Press L-CLICK.
■ When right-clicking
Press R-CLICK.
■ When your computer supports only a
one-click mouse (such as Macintosh
®
)
Press L-CLICK or R-CLICK. (L-CLICK
and R-CLICK have common function.)
ADJ.
MOUSE
Note
• This function only works with the Microsoft
®
Windows
®
OS and Mac OS
®
. However, this func-
tion does not work with the following operation
systems that do not support USB.
• Versions earlier than Windows
®
95.
• Versions earlier than Windows
®
NT4.0.
• Versions earlier than Mac OS
®
8.5.
• Confirm that the computer recognizes the USB
connection.
• While the remote control is connected to the
projector with a signal cable, you cannot use
the wireless computer mouse function.
Computer
To USB terminal
Remote receiver
Mouse/adjustment button ('/"/\/|)
ADJ./MOUSE switch
R-CLICK button
L-CLICK button
Using the Remote Control
Quick Start
-19

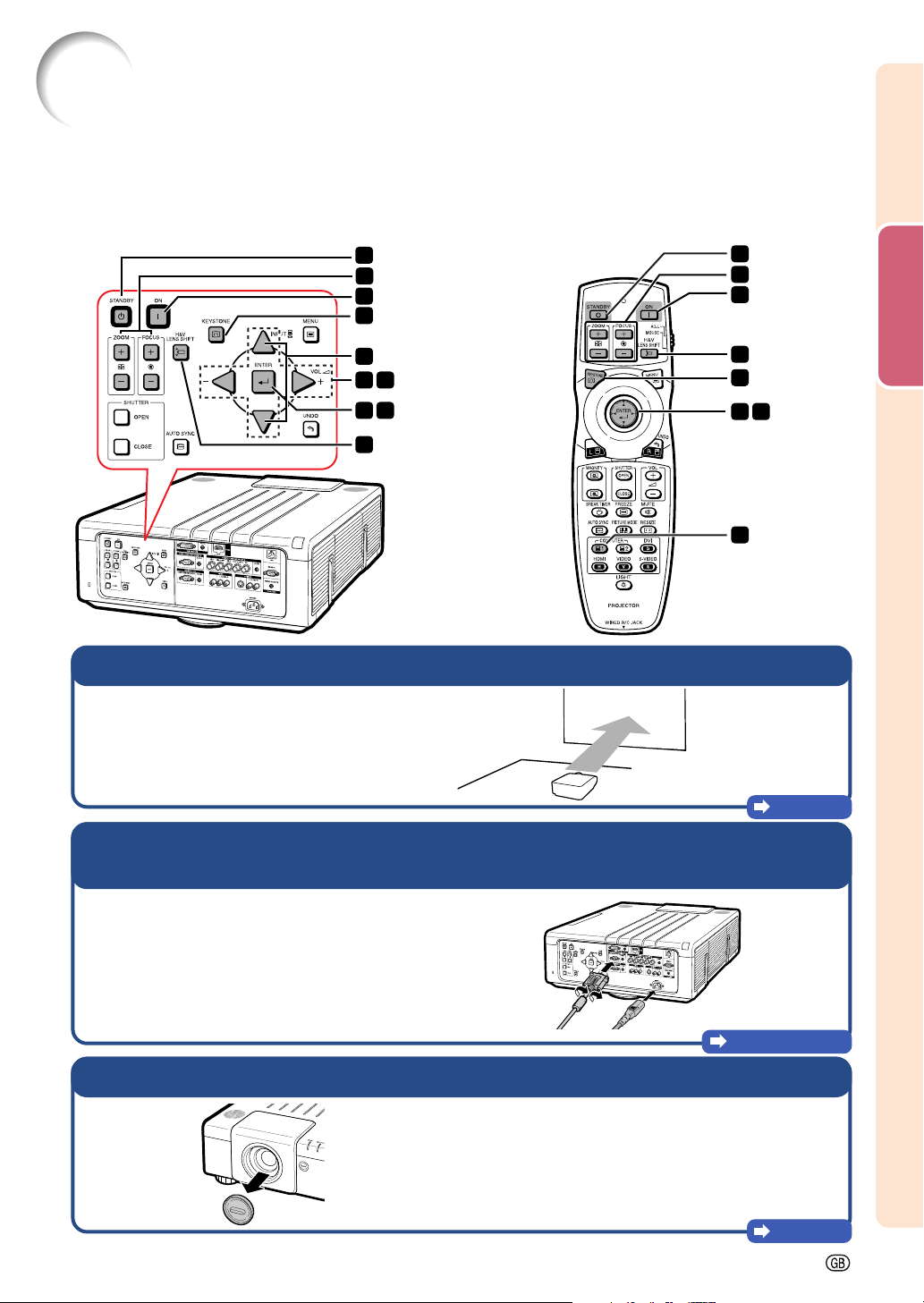

Quick Start
Page 21
1. Place the projector facing a screen
Pages 24, 28
Page 28
Press ON on the projector or on the remote control.
This section shows the basic operation (projector connecting with the computer). For details, see the page
described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
3. Remove the lens cap and turn the projector on
When connecting equipment other than the computer,
see pages 25 and 26.
5
4
6
7
6
7
6
4
3
8
3
4
6
7
4
8
5
6
-20

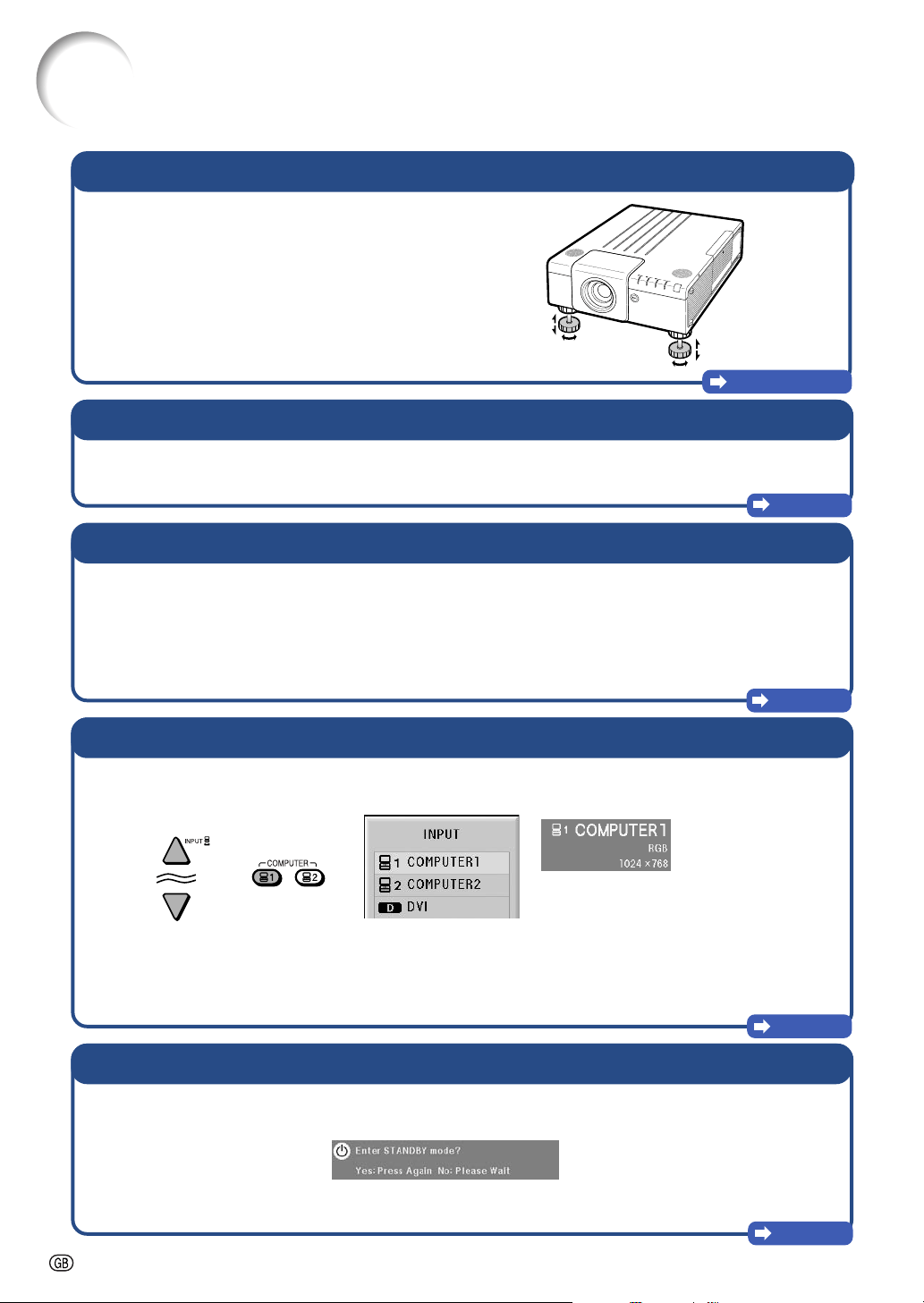

Pages 29, 30
4. Adjust the angle
5. Adjust the focus and the zoom
Page 31
8. Turn the power off
Page 28
7. Select the input mode
Page 36
11
11
1 Press FOCUS +/– on the projector or on the remote control to adjust the focus.
22
22
2 Press ZOOM +/– on the projector or on the remote control to adjust the zoom.
Press INPUT on the projector or COMPUTER1 on the remote control to select the “COMPUTER1” mode.
••
••
• When you press INPUT on the projector, the INPUT list appears.
Press '/" to switch the INPUT mode and then press ENTER.
••
••
•
When using the remote control, press COMPUTER1/2, DVI, HDMI, VIDEO or S-VIDEO to switch the input mode.
Press STANDBY on the projector or on the remote control. While the confirmation message is displayed,
press STANDBY again.
••
••
• You can unplug the power cord even if the projector is operating.
••
••
• Even if you unplug the power cord from the AC outlet, the cooling fan continues to run for a while.
Adjust the projector angle:
••
••
•
Shift the lens horizontally and vertically.
11
11
1
Press H&V LENS SHIFT on the projector or
on the remote control.
22
22
2
Press
', ", \ or |
on the projector or the
remote control.
••
••
•
Adjust the projector angle by rotating the adjust-
ment feet.
6.
Correcting the image distortion due to the projection angle
11
11
1 Press KEYSTONE on the projector or on the remote control.
22
22
2 Press ENTER on the projector or on the remote control.
33
33
3 Press ', ", \ or | to move the position for the upper left of the image.
44
44
4 Press ENTER to set the position.
55
55
5
Repeat the same procedure with the positions for the upper right, lower right and lower left of the image.
••
••
•
When the position of the lower left is set, the correction is made and the display disappears.
Page 32
""
""
" On-screen display
On the
projector
On the remote
control
INPUT list
On-screen display (RGB)
Quick Start
Setup
-21
Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat
and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.
Note
• The projector lens should be centered in the middle of the screen. If the horizontal line passing through
the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling
directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights
when setting up the projector in a sunny or bright room.
Standard Setup (Front Projection)
■ Place the projector at the required distance from the screen according to the desired picture size. (For
details, refer to “SETUP MANUAL” contained on the supplied CD-ROM.)
Setting Up the Projector
Rightmost lens shift
position
Leftmost lens shift
position
Lens center
Lens center
Screen
W
Center of screen
Top View
Indication of the Projection Image Size and Projection Distance
For details, refer to “SETUP MANUAL” contained on the supplied CD-ROM.
Example : NORMAL Mode (4:3) for the standard zoom lens (AN-P18EZ)
300"
200"
100"
80"
60"
Picture Size
240"×180"
160"
×
120"
80"
×
60"
64"
×
48"
48"
×
36"
Projection Distance
36'
–
45'
(11.0 m – 13.7 m)
24'
–
30'
(7.3 m
–
9.1 m)
12'
–
15'
(3.7 m
–
4.6 m)
9'7
"–
12'
(2.9 m
–
3.7 m)
7'2
"–
9'
(2.2 m – 2.7 m)
Upper lens shift
position
(Desktop setup)
Lower lens shift
position
(High mount setup)
H1
H2
Screen
Side View
Lens center
Lens center
Center of screen
L
-22
Standard Zoom Lens (AN-P18EZ : Standard Equipment with XG-P610X)
F2.5, f=25.5-32 mm
4:3 Signal Input (Normal Mode)
The formula for picture size and projection distance
[m/cm]
L1 (m) = 0.03658
χ
L2 (m) = 0.04572
χ
H1 (cm) = –1.6002
χ
H2 (cm) = 0.0762
χ
W (cm) = ±0.7112
χ
[Feet/inches]
L1 (ft) = 0.03658
χ
/ 0.3048
L2 (ft) = 0.04572
χ
/ 0.3048
H1 (in) = –1.6002
χ
/ 2.54
H2 (in) = 0.0762
χ
/ 2.54
W (in) = ±0.7112
χ
/ 2.54
χ
: Picture size (diag.) (in/cm)
L1: Minimum projection distance (m/ft)
L2: Maximum projection distance (m/ft)
H1: Lower distance from the lens center to the bottom of the image (cm/in)
H2: Upper distance from the lens center to the bottom of the image (cm/in)
W: Distance from the lens center to the center of the image (cm/in)
Note
• Allow a margin of error in the value in the diagrams above.
• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates
that the bottom of the image is below the lens center.
• See page 21 about projection distance [L] and distance from the lens center to the bottom of the image [H].
The formula for picture size and projection distance
[m/cm]
L1 (m) = 0.03985
χ
L2 (m) = 0.04981
χ
H1 (cm) = –1.53583
χ
H2 (cm) = 0.29056
χ
W (cm) = ±0.77483
χ
[Feet/inches]
L1 (ft) = 0.03985
χ
/ 0.3048
L2 (ft) = 0.04981
χ
/ 0.3048
H1 (in) = –1.53583
χ
/ 2.54
H2 (in) = 0.29056
χ
/ 2.54
W (in) = ±0.77483
χ
/ 2.54
χ
: Picture size (diag.) (in/cm)
L1: Minimum projection distance (m/ft)
L2: Maximum projection distance (m/ft)
H1: Lower distance from the lens center to the bottom of the image (cm/in)
H2: Upper distance from the lens center to the bottom of the image (cm/in)
W: Distance from the lens center to the center of the image (cm/in)
16:9 Signal Input (Stretch Mode)
Setting Up the Projector
Picture (Screen) size Projection distance [L]
Distance from the lens center to
the bottom of the image [H]
Distance from the lens
center to the center of
the image [W]
Diag. [
χ
] Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]
300'' (762 cm)
250'' (635 cm)
200'' (508 cm)
150'' (381 cm)
120'' (305 cm)
100'' (254 cm)
80'' (203 cm)
70'' (178 cm)
60'' (152 cm)
610 cm (240'')
508 cm (200'')
406 cm (160'')
305 cm (120'')
244 cm (96'')
203 cm (80'')
163 cm (64'')
142 cm (56'')
122 cm (48'')
457 cm (180'')
381 cm (150'')
305 cm (120'')
229 cm (90'')
183 cm (72'')
152 cm (60'')
122 cm (48'')
107 cm (42'')
91 cm (36'')
11.0 m (36' 0'')
9.1 m (30' 0'')
7.3 m (24' 0'')
5.5 m (18' 0'')
4.4 m (14' 5'')
3.7 m (12' 0'')
2.9 m (9' 7'')
2.6 m (8' 5'')
2.2 m (7' 2'')
–480.1 cm (–189
"
)
–400.1 cm (–157
1
/
2
"
)
–320.0 cm (–126'')
–240.0 cm (–94
1
/
2
"
)
–192.0 cm (–75
19
/
32
"
)
–160.0 cm (–63'')
–128.0 cm (–50
13
/
32
"
)
–112.0 cm (–44
3
/
32
"
)
–96.0 cm (–37
51
/
64
"
)
22.9 cm (9")
19.1 cm (7
1
/2")
15.2 cm (6'')
11.4 cm (4
1
/2")
9.1 cm (3
19
/32")
7.6 cm (3'')
6.1 cm (2
13
/32")
5.3 cm (2
3
/32")
4.6 cm (1
51
/64")
±213.4 cm (84'')
±177.8 cm (70'')
±142.2 cm (56'')
±106.7 cm (42'')
±85.3 cm (33
19
/32")
±71.1 cm (28'')
±56.9 cm (22
13
/32")
±49.8 cm (19
19
/32")
±42.7 cm (16
51
/64")
13.7 m (45' 0'')
11.4 m (37' 6'')
9.1 m (30' 0'')
6.9 m (22' 6'')
5.5 m (18' 0'')
4.6 m (15' 0'')
3.7 m (12' 0'')
3.2 m (10' 6'')
2.7 m (9' 0'')
Picture (Screen) size Projection distance [L]
Distance from the lens center to
the bottom of the image [H]
Distance from the lens
center to the center of
the image [W]
Diag. [
χ
]
Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]
250'' (635 cm)
200'' (508 cm)
150'' (381 cm)
120'' (305 cm)
100'' (254 cm)
80'' (203 cm)
60'' (152 cm)
553 cm (218'')
443 cm (174'')
332 cm (131'')
266 cm (105'')
221 cm (87'')
177 cm (70'')
133 cm (52'')
311 cm (123'')
249 cm (98'')
187 cm (74'')
149 cm (59'')
125 cm (49'')
100 cm (39'')
75 cm (29'')
10.0 m (32' 8")
8.0 m (26' 2")
6.0 m (19' 7")
4.8 m (15' 8")
4.0 m (13' 1")
3.2 m (10' 6")
2.4 m (7' 10")
–384.0 cm (–151
11
/
64
")
–307.2 cm (–120
15
/
16
")
–230.4 cm (–90
45
/
64
")
–184.3 cm (–72
9
/
16
")
–153.6 cm (–60
15
/
32
")
–122.9 cm (–48
3
/
8
")
–92.1 cm (–36
9
/
32
")
72.6 cm (28
19
/
32
")
58.1 cm (22
7
/
8
")
43.6 cm (17
5
/
32
")
34.9 cm (13
47
/
64
")
29.1 cm (11
7
/
16
")
23.2 cm (9
5
/
32
")
17.4 cm (6
55
/
64
")
±193.7 cm (76
17
/
64
")
±155.0 cm (61
1
/
64
")
±116.2 cm (45
3
/
4
")
±93.0 cm (36
39
/
64
")
±77.5 cm (30
1
/
2
")
±62.0 cm (24
13
/
32
")
±46.5 cm (18
19
/
64
")
12.5 m (40' 10")
10.0 m (32' 8")
7.5 m (24' 6")
6.0 m (19' 7")
5.0 m (16' 4")
4.0 m (13' 1")
3.0 m (9' 10")
Setup
-23
Projecting a Reversed Image
Projection from behind the Screen
■ Place a translucent screen between the projector and the audience.
■ Reverse the image by selecting “Rear” in the “PRJ Mode” menu. (See page 62.)
Projection Using a Mirror
■ Place a mirror (normal flat type) in front of the lens.
■ When the translucent screen is placed between the mirror and audience, select “Front” in the “PRJ Mode”
menu. (See page 62.)
■ When the mirror is placed on the audience side, select “Rear” in the “PRJ Mode” menu. (See page 62.)
Info
• When using a mirror, ensure that both the projector and the mirror are carefully placed so the projected
light does not shine into the eyes of the audience.
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceiling-mount
adaptor and unit for this installation.
Before mounting the projector, contact your nearest Sharp Au-
thorized Projector Dealer or Service Center to obtain the recom-
mended ceiling-mount adaptor and unit (sold separately).
■ Invert the image by selecting “Ceiling + Front” in “PRJ Mode”.
See page 62 for use of this function.
Translucent screen
Audience
Set to “Front”
Audience
Translucent screen
Mirror
Set to “Rear”
Audience
Mirror
-24
Connecting the Projector to Other Equipment
Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off
the equipment to be connected. After making all connections, turn on the projector and then the other
pieces of equipment. When connecting a computer, ensure that it is the last equipment to be turned on after
all the connections are made.
IMPORTANT: Ensure that the appropriate input mode has been selected on the projector before you
turn on the connected equipment.
• For more details of connection and cables, refer to the operation manual of the connected equipment.
• You may need other cables or connectors not listed below.
COMPUTER/COMPONENT1
DVI-D
DVI Digital cable (commercially available)
RGB cable (supplied)
Mini D-sub 15 pin/5 BNC cable (commercially available)
Computer audio cable (
ø
3.5 mm stereo minijack,
commercially available)
RGB output terminal
RGB output terminal
Computer audio output
terminal
DVI digital output terminal
Computer audio cable (
ø
3.5 mm stereo minijack,
commercially available)
Computer audio output
terminal
Computer audio cable (
ø
3.5 mm stereo minijack,
commercially available)
Computer audio output
terminal
HDMI cable (commercially available) HDMI
HDMI digital output terminal
Equipment Cable
Terminal on connected equipment
Terminal on the projector
Computer
COMPUTER/COMPONENT2
Terminals on the Projector
Note
• When connecting the projector to a compatible computer other than a PC (VGA/SVGA/XGA/SXGA/UXGA)
or Macintosh (i.e. Workstation), a separate cable may be needed. Please contact your dealer for more
information.
• With the DVI digital connection, select “D. PC RGB” for “Signal Type” in the “Picture” menu.
• See page 75 “Computer Compatibility Chart” for a list of computer signals compatible with the projector. Use
with computer signals other than those listed may cause some of the functions to not work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest
Macintosh Dealer.
• Depending on the computer you are using, an image may not be projected unless the computer’s
external output port is switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a
SHARP notebook computer). Refer to the specific instructions in your computer's operation manual to
enable your computer’s external output port.
Connections
-25
Note
• Select the input signal type of the video equipment when connecting to the COMPUTER1/2, DVI-D or
HDMI terminal. See page 51.
• The HD/C sync and VD terminals may be used depending on the specifications of the DTV decoder
connected to this projector. Please refer to the operation manual of the DTV decoder for details.
• The HD/C sync terminal of the 5 BNC terminal is only for TTL signal.
• Select “480P” or “576P” for “Resolution” on the “Fine Sync” menu, if necessary. (See page 53.)
• While the projector is connected to video equipment that has an HDMI output terminal, only the video
signal can be input to the projector. (Connect the AUDIO input terminal for audio input.)
• Depending on specifications of video equipment or HDMI to DVI digital cable, the signal transmission
may not work property. (The HDMI specification does not support all connections to video equipment that
has HDMI digital output terminal using HDMI to DVI digital cable.)
• For details on compatibility for connection, see support information on DVI connection provided by the
video equipment manufacturer.
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-
mercially available cable that fits in the projector terminal you want to connect.
• The projector does not support RGBC signals via the Euro-scart.
ø3.5 mm stereo minijack to RCA audio cable (commercially
available)
Cables for a camera or a video game/3 RCA to
mini D-sub 15 pin cable (optional, AN-C3CP2)
ø3.5 mm stereo minijack to RCA audio cable (commercially
available)
Component video
output terminal
RCA adaptor plug
(commercially available)
COMPUTER/COMPONENT2
COMPUTER/COMPONENT2
COMPUTER/COMPONENT1
HDMI
DVI-D
5 BNC cable (commercially available)
Component cable (commercially available) + BNC-
RCA adaptor plug (commercially available)
RGB video output terminal
Audio output terminal
Audio output terminal
Audio output terminal
D-video
output terminal
Audio output terminal
Video equipment,
Camera, Video game
DVI digital output terminal
HDMI digital output terminal
ø3.5 mm stereo minijack to RCA audio cable (commercially
available)
DVI Digital cable (commercially available)
HDMI cable (commercially available)
ø3.5 mm stereo minijack to RCA audio cable (commercially
available)
Equipment Cable
Terminal on connected equipment
Terminal on the projector
-26
Video equipment,
Camera, Video game
S-video cable (commercially available)
S-video output terminal
Video output terminal
S-VIDEO
VIDEO
RCA audio cable (commercially available)
Audio output terminal
RCA audio cable (commercially available)
Audio output terminal
Video cable (commercially available)
Monitor
MONITOR OUT
RGB input terminal
RGB cable (supplied or commercially available)
Amplifier
MONITOR OUT
Audio output terminal
Equipment Cable
Terminal on connected equipment
Terminal on the projector
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Note
• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
• Video signal for monitor output is analog RGB signal as well as component signal (COMPUTER1/2). DVI
and HDMI input video signals would not be output.
• When the audio from HDMI input is directed to the MONITOR OUT (AUDIO) terminal, output will be
generated as Linear PCM audio.
• HDMI (High-Definition Multimedia Interface) is a digital AV interface that can deliver a high-definition
video signal, multi-channel audio signal, and bi-directional control signal all in just one cable.
• Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the digital
video signal does not degrade when transmitted, and a high-quality image with a simple connection can
be enjoyed.
• The HDMI terminal does not support the CEC signal.
Connecting the Projector to Other Equipment
This projector is able to process the following signals when connected to HDMI
equipment:
• Video signal: For details, see “HDMI Support” in the list of “Computer Compatibility Chart” on page 75.
• Audio signal: Linear PCM audio
• Sampling frequency: 48kHz/44.1kHz/32kHz
Connections
-27
Controlling the Projector by a Computer
When the RS-232C terminal on the projector is connected to the RS-232C serial terminal on
the computer, or when the LAN terminal on the projector is connected to the LAN terminal on
the computer, the computer can be used to control the projector. Refer to the “SETUP MANUAL”
contained on the supplied CD-ROM for details.
When connecting to a computer using an RS-232C serial control cable
Note
• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
• Refer to “SETUP MANUAL” contained on the supplied CD-ROM for the RS-232C specifications and
commands.
Info
• Do not connect the RS-232C cable to a terminal other than the RS-232C terminal on the computer. This
may damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This
may damage your computer.
When connecting to the LAN terminal using a LAN cable
Note
•
When connecting to a hub, use straight-through Category 5 (CAT.5) type cable (commercially available).
• When connecting to a computer, use cross-over Category 5 (CAT.5) type cable (commercially available).
Rear view
To RS-232C terminal
To RS-232C terminal
RS-232C serial control cable
(cross type, commercially available)
Computer
Hub or computer
TX/RX LED (yellow)
Illuminates when
transmitting/receiving data.
LINK LED (green)
Illuminates when linked.
To LAN terminal
To LAN terminal
LAN cable
(Category 5 type, commercially available)
* To ensure safety, do not
connect the LAN terminal
with any cables such as a
telephone line that may
cause excessive voltage.
Rear view
-28
Turning the Projector On/Off
Info
• When “Auto Restart” is set to “On”:
If the power cord is unplugged from the AC outlet or the
breaker switch is turned off when the projector is on,
then the projector automatically turns on when the power
cord is plugged into the AC outlet or the breaker switch
is turned on. (See page 63.)
• English is the factory preset language. If you want to change
the on-screen display to another language, change the lan-
guage according to the procedure on page 65.
▼On-screen display
Power cord
Supplied
accessory
Connecting the Power Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
Then plug into the AC outlet.
Turning the Projector On
Before performing the steps in this section,
connect any equipment that you use with the
projector. (See pages 24–27.)
Remove the lens cap and press ON on the
projector or on the remote control.
• The power indicator illuminates green.
• After the lamp indicator illuminates, the projec-
tor is ready to start operation.
• When System Lock is set, the keycode input
screen appears. Enter the right keycode to
start projection. See page 60 for details.
Note
• The lamp indicator illuminates or blinks, in-
dicating the status of the lamp.
Green: The lamp is on.
Blinking green: The lamp is warming up.
Red:
The lamp is shut down abnormally
or the lamp should be replaced.
•
When switching on the projector, a slight flick-
ering of the image may be experienced within
the first minute after the lamp has been illumi-
nated. This is normal operation as the lamp’s
control circuitry is stabilizing the lamp output
characteristics. This does not indicate malfunc-
tion.
• If the projector is put into standby mode and
immediately turned on again, the lamp may
take some time to illuminate.
Turning the Power Off
(Put-
ting the Projector into Standby Mode)
Press STANDBY on the projector or on
the remote control, then press that but-
ton again while the confirmation mes-
sage is displayed, to put the projector
into standby mode.
Power cord
To AC outlet
To AC socket
Rear view
Lens cap
ON button
STANDBY
button
Lamp indicators1, 2
Power indicator
STANDBY button
ON button
Info
• You can unplug the power cord from the AC outlet even if
the cooling fan is still running. Even if you unplug the power
cord from the projector, the cooling fan continues to run
for a while.
Basic Operation
-29

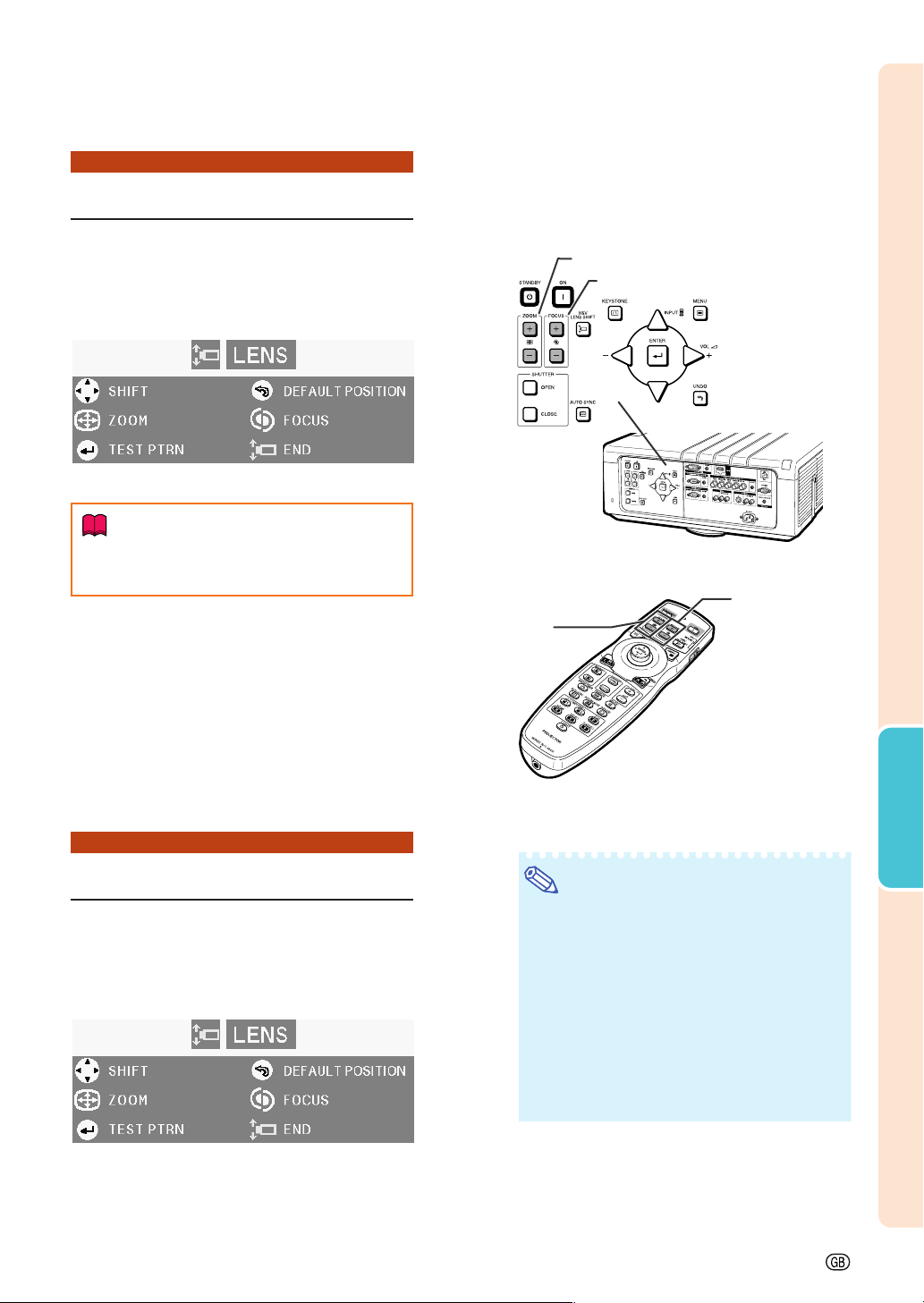

Image Projection
Shifting the Lens
In addition to the zoom function and adjustment of projection angle using the adjust-
ment feet, you can adjust the position of the projection using the lens shift function.
This is a useful function in cases such as when the screen cannot be moved.
Adjustable range
••
••
• The adjustable range is shown below.
Horizontal range: ±35%
Vertical range: ±55%
The adjustable range has limitations even within the range shown above.
Select the correct type of lens that match with the installed lens (see page 62).
••
••
• The image can be adjusted as shown on the diagram.
Adjustable
range
When moving upward or downward When moving in the left and right direction
Adjustable range
Adjustable range
H:
Height of the image
W:
Width of the image
H:
Height of the image
W:
Width of the image
AN-P15EZ, AN-P18EZ, AN-P23EZ, AN-P30EZ, AN-P45EZ
AN-P8EX, AN-P12EX
W X 20%
W X 35% W X 35%
W X 20%
W
H X 31%
H X 31%
H X 55%
H
H X 55%
W X 11%W X 11%
W
H X 18%
H
H X 18%
Position of the image when the image is centered, both
vertically and horizontally, in lens shift
Position of the image when the image is centered, both
vertically and horizontally, in lens shift
-30
Using the Adjustment Feet
• When the position of the projected image cannot be adjusted
with the lens shift function, use the adjustment feet to adjust
the projected angle.
• The height of the projector can be adjusted using the
adjustment feet when the screen is located higher than the
projector, the screen is inclined or when the installation site
is slightly inclined.
• Install the projector so that it is as perpendicular to the
screen as possible.
1 Rotate the adjustment feet to
adjust the projected angle.
• The projector is adjustable up to approxi-
mately 5 degrees.
Warning!
• Do not hold the lens and lens cover when
projector angle is adjusted.
• Use caution not to pinch your finger in the
space between the adjustment foot and the
projector when the projector angle is lowered.
1 Press H&V LENS SHIFT on the
projector or on the remote control.
• Pressing ENTER on the projector or on
the remote control displays the test pat-
tern. Checking the test pattern is useful
for more accurate adjustment.
2 Press ', ", \ or | on the pro-
jector or the remote control to
adjust the image position.
▼On-screen display
Mouse/adjustment
button
('/"/\/|)
ENTER button
H&V LENS SHIFT
button
UNDO button
ENTER button
Adjustment button
('/"/\/|)
H&V LENS SHIFT
button
UNDO button
Adjustment feet
Up
Up
Down
Down
Note
• When UNDO is pressed, the lens shift reset
screen is displayed. Lens shift can be reset
to factory default with this screen.
Image Projection
Basic Operation
-31
Note
• After you have pressed FOCUS or ZOOM
on the remote control or the projector, you
can display the test pattern by pressing
ENTER. The test pattern is useful for mak-
ing more accurate adjustments.
• For fine adjustments, when H&V LENS
SHIFT, FOCUS or ZOOM is pressed, the
projected image moves a small amount in
the desired direction for approximately one
second. Hold down the buttons to move the
projected image quickly.
Adjusting the Focus
Press FOCUS +/– on the projector
or on the remote control to adjust the
focus.
Info
• It is recommended that the focus be adjusted
after the projector has warmed up for at least 30
minutes.
Adjusting the Projected Image Size
Press ZOOM +/– on the projector or
on the remote control to adjust the
projected image size.
▼On-screen display
▼On-screen display
ZOOM buttons
FOCUS buttons
ZOOM
buttons
FOCUS buttons
-32
For correcting an image desig-
nating the corner of the pro-
jected image
For correcting an image desig-
nating the horizontal or vertical
axes
For correcting the image dis-
tortion which cannot be cor-
rected with “H&V KEY-
STONE”.
*Only when “H&V KEY-
STONE” is set to the values
other than “0”, “IMAGE
RESIZING” can be adjusted.
(This function cannot be used
when correcting with “GEO-
METRIC ADJUSTMENT”.)
GEOMETRIC
ADJUSTMENT
H&V KEYSTONE
IMAGE RESIZING
↑
↑
Selecting the Type of the
Correction
Select the type of the keystone correction.
Press KEYSTONE on the projector or on
the remote control.
• “GEOMETRIC ADJUSTMENT” will be dis-
played.
• Each time
KEYSTONE
is pressed, the display
toggles as follows:
GEOMETRIC → H&V KEYSTONE
ADJUSTMENT
The display ← IMAGE RESIZING *
disappears.
Correcting Trapezoidal Distortion
When the image is projected either from the top or from the bottom towards the screen at an angle,
the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion is called Keystone Correction.
There are the two types of the Keystone Correction.
1) “GEOMETRIC ADJUSTMENT” for correcting an image designating the corner of the projected im-
age
2) “H&V KEYSTONE” for designating the correction of the horizontal and vertical axes
Mouse/adjustment
button ('/"/\/|)
ENTER button
UNDO button
KEYSTONE
button
ENTER button
KEYSTONE
button
UNDO button
Adjustment
button ('/"/\/|)
Image Projection
Basic Operation
-33
Geometric Adjustment
Upper Left Upper Right Lower Right
Lower Left
GEOMETRIC ADJUSTMENT
1 Press KEYSTONE on the pro-
jector or on the remote control
repeatedly until “GEOMETRIC
ADJUSTMENT” is displayed.
2 Press the buttons below to ad-
just the position, size or focus
of the projected image.
• Match screen’s four sides to green
test pattern.
• Pressing
''
''
',
""
""
",
\\
\\
\ or
||
||
| on the projector
or H&V LENS SHIFT on the remote
control allows you to shift the lens.
• Pressing ZOOM +/– on the projector or
on the remote control allows you to ad-
just the projected image size.
• Pressing FOCUS +/– on the projector
or on the remote control allows you to
adjust the focus.
3 Press ENTER on the projector
or on the remote control.
4 Press ', ", \ or | to move the
position for the upper left of the
image.
• Move the upper left of the yellow frame
onto the upper left of the screen.
5 Press ENTER to set the posi-
tion.
6
Repeat the same procedure with the
positions for the upper right, lower
right and lower left of the image.
• At this time, pressing UNDO on the pro-
jector or on the remote control returns
to the previous screen.
• Before correcting the upper left of the
image, pressing UNDO returns to the re-
set confirmation screen.
• When the position of the lower left is
set, the correction is made and the
display disappears.
• If the message “Can not correct.” is dis-
played, step 2 may have been performed
incorrectly. In this case, go back to step
2 and try the procedure again.
▼On-screen display
-34
Vertical Keystone Correction
(Adjustment with
' / "
)
Horizontal Keystone Correction
(Adjustment with
\ / |
)
▼On-screen display
H&V KEYSTONE
1 Press KEYSTONE on the pro-
jector or on the remote control
repeatedly until “H&V KEY-
STONE” is displayed.
• When the correction has already been
made with “GEOMETRIC ADJUST-
MENT”, the confirmation message for
resetting the correction before “H&V
KEYSTONE” is displayed, and then re-
set.
2 Press ' or " to parallelize the
left and right sides of the pro-
jected image.
3 Press \ or |
to parallelize the
upper and lower sides of the
projected image.
4 Press KEYSTONE to display
“IMAGE RESIZING”.
• Only when “H&V KEYSTONE” is set
to the values other than “0”, “IMAGE
RESIZING” works.
▼On-screen display
Image Projection
Basic Operation
-35
IMAGE RESIZING
(Adjustment with
' / " / \ / |
)
5 Press ', ", \ or | to correct
the image distortion.
6 Press KEYSTONE to set the
position.
-36
Switching the Input
Mode
Select the appropriate input mode for the con-
nected equipment.
Press COMPUTER1/2, DVI, HDMI,
VIDEO or S-VIDEO on the remote
control to select the input mode.
■ When you select the input mode with
INPUT
PP
PP
P/
RR
RR
R on the projector or
PP
PP
P/
RR
RR
R on
the remote control:
• When
PP
PP
P/
RR
RR
R is pressed, the Input list ap-
pears. While the Input list is displayed,
follow the procedure below to switch the
input mode.
– Press
PP
PP
P/
RR
RR
R to select the desired input
mode and then press ENTER.
• When “AUTO SEARCH” is selected,
input signal is automatically detected.
• If ENTER is not pressed, the projector
switches to the selected input mode in
a few seconds.
Note
• When no signal is received, “NO SIGNAL”
will be displayed. When non-supported sig-
nal is received, “NOT REG.” is displayed.
• The input mode is not displayed when “OSD
Display” of the “Options1” menu is set to
“Level A” or “Level B”. (See page 57.)
Adjusting the Volume
Press VOL +/– on the projector or on
the remote control to adjust the volume.
Note
• Pressing VOL– will lower the volume.
Pressing VOL+ will raise the volume.
• When “Pict in Pict” (see page 56) is set to
“On”, audio volume cannot be adjusted on
the projector. The audio volume buttons will
instead function as location shift button for
the smaller screen.
COMPUTER1/2,
DVI, HDMI, VIDEO
and S-VIDEO buttons
'/" buttons
"On-screen display
Volume
buttons
Image Projection
Input mode menu
Basic Operation
-37
×1 ×4 ×9 ×16 ×36 ×64×2 ×3
"On-screen display
Mouse/adjustment
button ('/"/\/|)
MAGNIFY
(enlarge/reduce)
buttons
UNDO button
RESIZE button
MUTE button

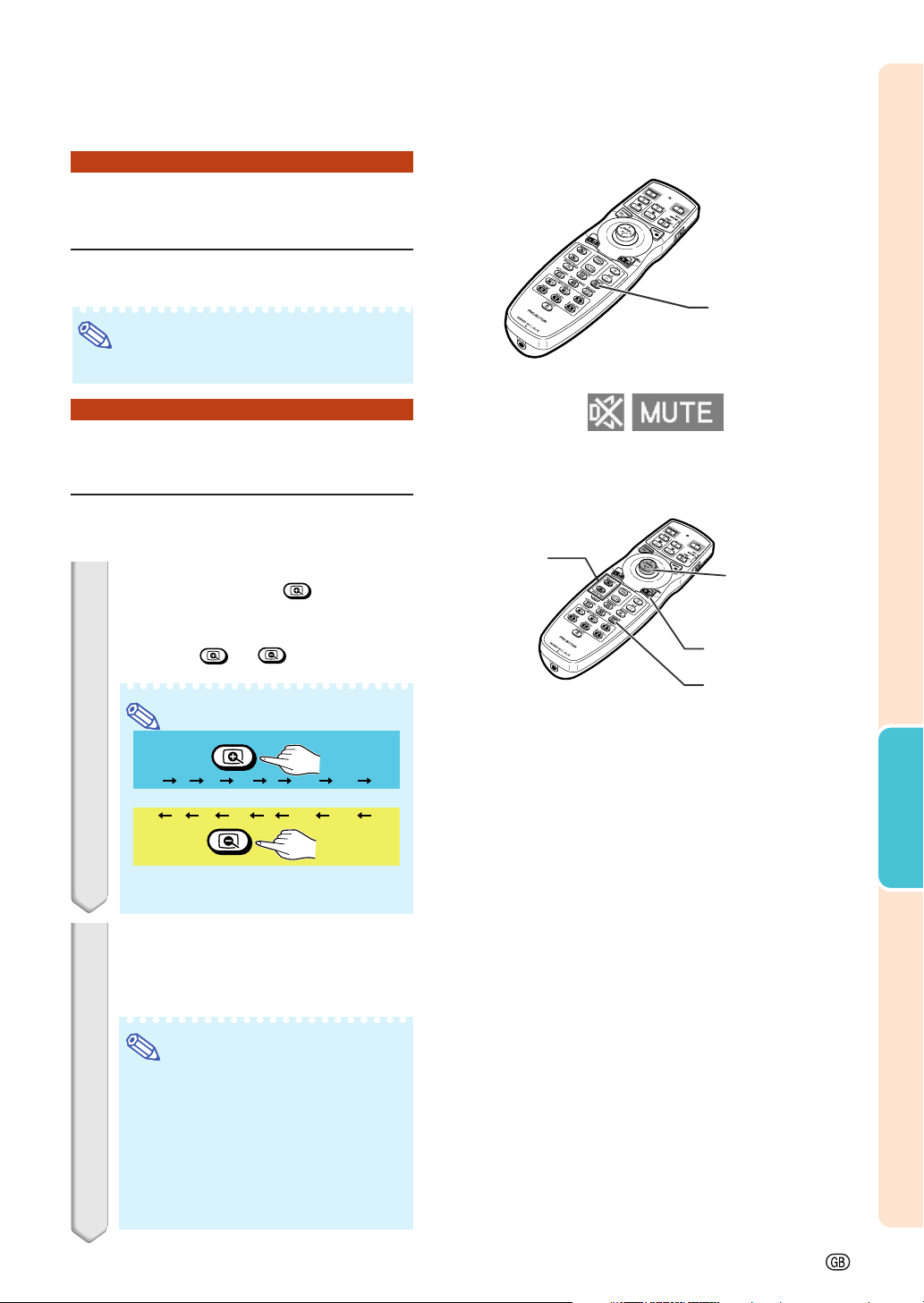

Turning Off the Sound
Temporarily
Press MUTE on the remote control
to temporarily turn off the sound.
Note
• Pressing MUTE again will turn the sound back on.
Displaying an Enlarged
Portion of an Image
Graphs, tables and other portions of projected
images can be enlarged. This is helpful when
providing more detailed explanations.
1 Press MAGNIFY on the re-
mote control.
• Enlarges the image.
• Pressing
or enlarges or re-
duces the projected image.
Note
• You can change the location of the en-
larged image using ', ", \ and |.
2 Press UNDO on the remote con-
trol to cancel the operation.
• The magnification then returns to ×1.
Note
In the following cases, the image will
return to the normal size (×1).
- When switching the input mode.
- When UNDO has been pressed.
- When the input signal is changed.
-
When the input signal resolution and
refresh rate (vertical frequency) change.
- When RESIZE has been pressed.
-38

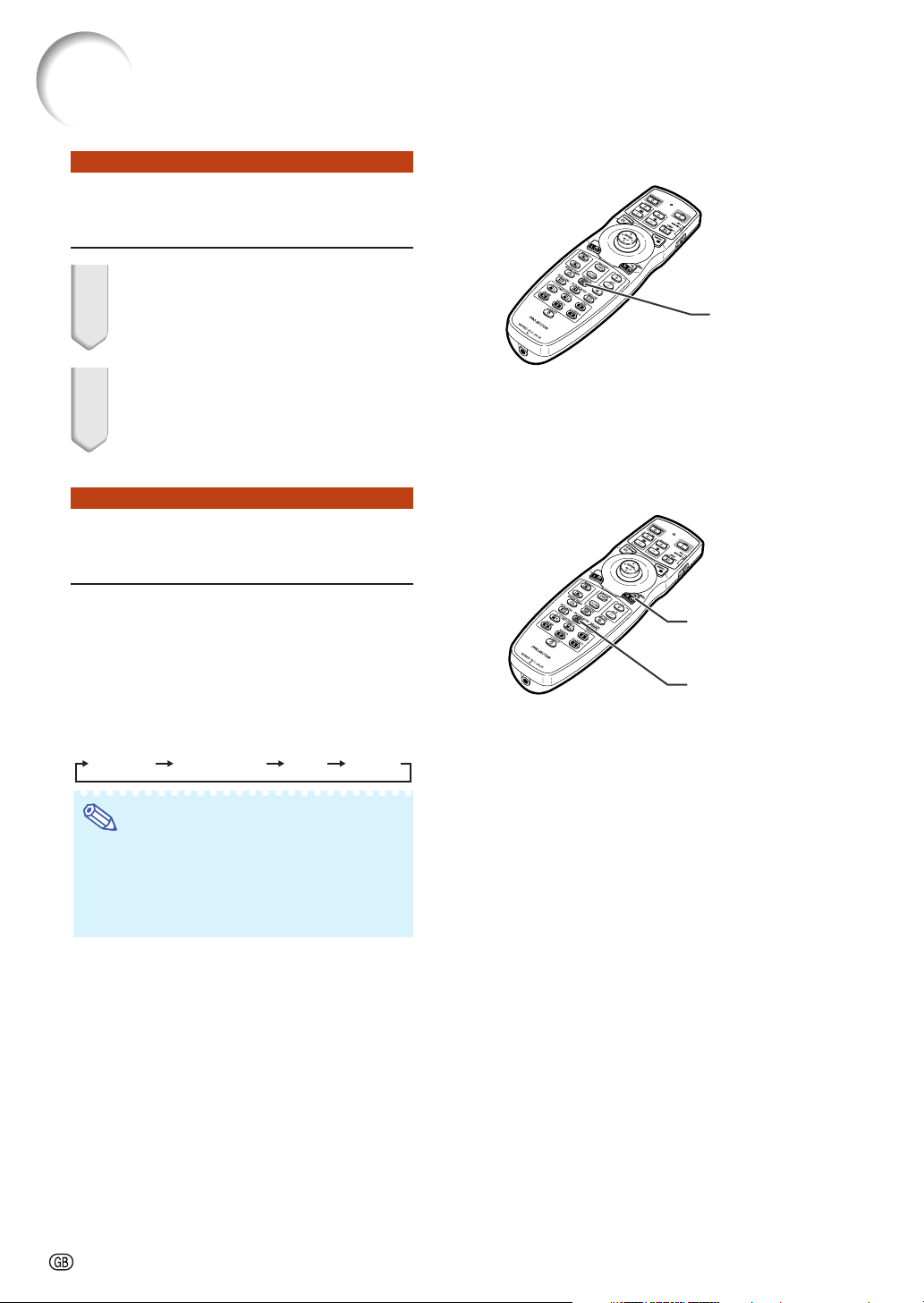

Freezing a Moving
1 Press FREEZE on the remote
control.
• The projected image is frozen.
2 Press FREEZE again to return
to the moving image from the
currently connected equipment.
Selecting the Picture
Mode
You can select the suitable picture mode for the
projected image, such as movie or video game.
Press PICTURE MODE on the re-
mote control.
• When pressing PICTURE MODE, the picture
mode changes in order of
Note
• Press UNDO to return to the “STANDARD”
mode while the selected picture mode is dis-
played.
• This function can also be accessed from the
OSD menu (see page 49).
STANDARD PRESENTATION MOVIE CUSTOM
FREEZE button
PICTURE MODE
button
UNDO button
Image Projection
Basic Operation
-39
Resize Mode
Press RESIZE on the remote control.
• Pressing RESIZE changes the display as shown
in the tables below.
• To return to the standard image, press UNDO
while “RESIZE” is displayed on the screen.
• This function can also be accessed from the OSD
menu (see page 56).
This function allows you to modify or customize the resize mode to enhance the input image. Depend-
ing on the input signal, you can choose a desired image.
COMPUTER
STRETCH
For 4:3 screen For 16:9 screen
Input signal
Image type
NORMAL FULL BORDER
4:3 aspect ratio
5:4 aspect ratio
16:10 aspect ratio
16:9 aspect ratio
: Cutout area on which images cannot be projected
: Area where the signals are off screen
*1
The Digital Shift function can be used for these images.
*2
Same as NORMAL mode.
Computer
Resolution
lower than
XGA
XGA
Resolution
higher than
SXGA
SXGA
(1280 × 1024)
1280 × 720
1280 × 768
1280 × 800
1360 × 768
1366 × 768
SXGA
(1152 × 864)
DOT BY DOT
*1
*1
*1
*1
*1
*1
*1
*2
*2 *2
*2
4:3 aspect ratio
Other aspect ratios
SVGA (800 × 600)
XGA (1024 × 768)
SXGA (1152 × 864)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
1024 × 768
968 × 768
1024 × 576
1024 × 578
1024 × 576
1024 × 614
1024 × 640
—
768 × 576
—
720 × 576
—
960 × 576
922 × 576
1024 × 576
—
1024 × 576
NORMAL
FULL BORDER STRETCHDOT BY DOT
800 × 600
—
1152 × 864
1400 × 1050
1280 × 1024
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
RESIZE button
Mouse/adjustment button
('/"/\/|)
UNDO button
Main resolution
1024 × 768
-40
VIDEO/DTV
*1
*1
*1
*1
*1
*1
*1
*1
*2*2 *2*2
*1
*1
*1
4:3 aspect ratio
Squeeze
Letter box
16:9 aspect ratio
16:9 aspect ratio
(4:3 aspect ratio in 16:9)
For 4:3 screen For 16:9 screen
Input signal
Image type NORMALVideo/DTV
480I, 480P,
576I, 576P,
NTSC, PAL,
SECAM
720P, 1035I,
1080I, 1080P
540P
BORDER STRETCH SMART STRETCH
AREA ZOOM
V-STRETCH
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*1
The Digital Shift function can be used for these images.
*2
Same as NORMAL mode.
About Copyrights
• When using the RESIZE function to select an image size with a different aspect ratio to a TV program or video
image, the image will look different from its original appearance. Keep this in mind while choosing an image
size.
• The use of the Resize or Keystone Correction function to compress or stretch the image for commercial
purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright
holders. Please use caution.
Image Projection
Basic Operation
-41
Note
Hiding the Projected
Image (Shutter function)
This function allows you to tempo-
rarily hide the projected image.
1 Press SHUTTER CLOSE.
• The projected image is hidden.
2 Pressing SHUTTER OPEN will
turn the projected image back
on.
In the following cases, hiding will be cancelled
automatically.
• When STANDBY on the projector or on the
remote control is pressed.
• When a caution or information message is
displayed.
• When the power is turned on.
Displaying and Setting
the Break Timer
This function allows you to show the re-
maining time for break during meeting.
1 Press BREAK TIMER.
2 While “ ” is displayed, press ',
", \ or | to set the break timer.
• You can set anywhere between 1 and
60 minutes (in 1 units).
• The break timer starts to count down as
soon as
''
''
',
""
""
",
\\
\\
\ or
||
||
| is pressed.
Note
• Pressing UNDO will cancel the break timer.
• Auto Power Off function will be temporarily dis-
abled during the break timer.
When no input signal is detected for more than
15 minutes, the projector will automatically enter
the standby mode if the break timer has elapsed.
• The break timer will be displayed on the
startup image. To change the screen dis-
played during the break timer, change the
setting of “Startup Image” (see page 58).
• When “Slave” is set for “Stack Setting”, the
break timer is not displayed. (See page 62.)
▼On-screen display
SHUTTER
button
Mouse/adjustment
button
(
'
/
"
/
\
/
|
)
UNDO button
BREAK TIMER
button
-42
Menu Items
The following shows the items that can be set in the projector.
“Picture” menu
COMPUTER1/2, DVI, HDMI
+30-30
+30-30
+30-30
+30-30
+30-30
Tint
Color
Bright
+30-30
Contrast
Red
Green
4500K
10500K
Main Menu Sub Menu
CLR Temp
Page 49
Page 49
Page 49
Page 50
Picture Mode
Standard
Presentation
Movie
Custom
*1
*1
*1
*1
*1
*1
*2
+30-30
Blue
Signal Type
Auto
RGB
Component
COMPUTER1/2
D.PC RGB
D.PC Comp.
D.Video RGB
D.Video Comp.
DVI
D.Video Auto
D.Video RGB
D.Video Comp.
D.PC. RGB
D.PC. Comp.
HDMI
Reset
Progressive
Page 50
Page 49
Page 51
*3
*5
*1 *4
2D Progressive
3D Progressive
Film Mode
Page 50
DNR
Off
Level 1
Level 2
Level 3
Page 52
C.M.S. Adjustment
Standard
Custom 1
Custom 2
Custom 3
sRGB
+30-30
Sharp
Dynamic Range
Auto
Standard
Enhanced
Page 51
Auto
ITU601
ITU709
Color Space
Page 51
*6
*6
*1 “Color”, “Tint”, “Red”, “Green”, “Blue” and “CLR Temp” cannot be adjusted when “C. M. S. Adjustment” is set to
“sRGB”.
*2 “Sharp” can be adjusted only when 480
I
, 480P, 540P, 576
I
, 576P, 720P, 1035
I
, 1080
I
or 1080P signal is input.
*3 “Progressive” can be adjusted only when 480
I
or 576
I
signal is input.
*4 “sRGB” can be selected under the conditions below.
• When “Signal Type” is set to “RGB”, “D. PC. RGB” or “D. Video RGB”.
• When “Signal Type” is set to “Auto” or “D. Video Auto” and the input signal is distinguished as “RGB”.
*5 “DNR” can be adjusted only when 480
I
, 480P, 576
I
or 576P signal is input.
*6 “Dynamic Range” and “Color Space” can be worked only when DVI or HDMI signal is input.
Useful Features
-43
VIDEO/S-VIDEO
+30-30
+30-30
+30-30
+30-30
+30-30
Tint
Color
Bright
+30-30
Contrast
Red
Green
4500K
10500K
Main Menu Sub Menu
CLR Temp
Page 49
Page 49
Page 49
Page 50
Picture Mode
Standard
Presentation
Movie
Custom
+30-30
Blue
Reset
Progressive
Page 50
Page 49
2D Progressive
3D Progressive
Film Mode
Page 50
DNR
Off
Level 1
Level 2
Level 3
Page 52
C.M.S. Adjustment
Standard
Custom 1
Custom 2
Custom 3
+30-30
Sharp
“Picture” menu
-44
“Fine Sync” menu
*6 The “Fine Sync” menu is displayed only while the input mode is COMPUTER1/2, DVI or HDMI.
*7 “Clock”, “Phase”, “H-Pos”, “V-Pos”, “Reset”, “Save Setting”, “Select Setting” and “Resolution” can be adjusted only
while the input mode is COMPUTER1 or 2.
Fine Sync
+30-30
+60-60
+150-150
+150-150
Clock
Phase
H-Pos
V-Pos
Reset
Auto Sync Disp
Save Setting
Main Menu
Auto Sync
Page 53
Page 53
Page 53
Page 54
*6
*7
Page 54
Off
Normal
High Speed
Background
Adjusting Disp.
Select Setting
Page 53
Resolution
Page 53
Signal Info
Page 54
Sub Menu
“C.M.S.” menu
View Settings
Reset (This Color)
C.M.S.
Main Menu
Page 52
Page 52
Page 52
Page 52
C.M.S. Adjustment
Standard
Custom 1
Custom 2
Custom 3
sRGB
Page 52
Reset (All Colors)
[R] Red
[Y] Yellow
[G] Green
[C] Cyan
[B] Blue
[M] Magenta
Target
Page 52
+30-30
+30-30
+30-30
Lightness
Chroma
Hue
Page 52
Page 52
Page 52
Sub Menu
COMPUTER1/2, DVI, HDMI
Menu Items
Useful Features
-45
On
Off
On
Off
Pict in Pict
Options 1
Main Menu Sub Menu
OSD Display
Auto
PAL (50/60Hz)
SECAM
NTSC4.43
NTSC3.58
PAL-M
PAL-N
Video System
Background
Image Capture Save Image
Delete
Logo
Custom
Blue
None
Normal
Full
Dot By Dot
Area Zoom
V-Stretch
Border
Stretch
Smart Stretch
Eco Mode
Auto Search
System Lock
Auto Power Off
Page 56
Page 57
Page 56
Resize
Page 56
Page 57
Page 57
Page 58
Page 58
Page 58
Page 58
Page 59
*10
*8
*9
*8
Normal
Level A
Level B
Startup Image
Logo
Custom
None
On
Off
Page 58
On
Off
Page 57
Digi. Shift
+96-96
“Audio” menu
+30-30
+30-30
+30-30
Speaker
Bass
Treble
+30-30
Balance
Reset
Audio Out
Audio
Main Menu
Page 55
Page 55
Page 55
Page 55
FAO
VAO
On
Off
Sub Menu
*8 Item when inputting RGB signal through COMPUTER1/2, DVI or HDMI.
*9 Selectable items in “Resize” mode may differ depending on the signal.
*10 Item when selecting VIDEO or S-VIDEO.
“Options 1” menu
-46
“Language” menu
“Status” menu
Main Menu Sub Menu
Language
Page 65
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Türkçe
Status
Main menu
Page 65
LAN/RS232C
Monitor Out
RS-232C
Options 2
Enable
Disable
COMPUTER1 [ON/OFF]
COMPUTER2 [ON/OFF]
DVI [ON/OFF]
HDMI [ON/OFF]
VIDEO [ON/OFF]
S-VIDEO [ON/OFF]
9600 bps
38400 bps
115200 bps
Enable
Disable
Main Menu Sub Menu
Set Inputs
Page 61
Page 61
Page 63
Page 64
Service Mode
Page 65
Page 64
Page 64
Network
DHCP Client [ON/OFF]
TCP/IP
Page 64
All Reset
Password
Old Password
New Password
Reconfirm
Both Lamps
Lamp 1 Only
Lamp 2 Only
Equal Use
Lamp Mode
Page 62
Front
Ceiling + Front
Rear
Ceiling + Rear
PRJ Mode
Page 62
Page 62
Stack Setting
Normal
Master
Slave
Pair Stack
Page 63
Page 63
Keylock Level
Normal
Level A
Level B
Page 63
Fan Mode
Normal
High
On
Off
Page 63
Auto Restart
Page 65
IP Address
Subnet Mask
Gateway
*11
Lens Type
Page 62
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Page 65
*11 Adjustable only when “DHCP Client” is set to “OFF”
“Options 2” menu
Menu Items
Useful Features
-47
Menu items
Using the Menu Screen
Menu Selections
• This operation can also be performed by using the buttons on the projector.
Example: “Picture” screen menu for
COMPUTER1 (RGB) mode
1 Press MENU.
• The “Picture” menu screen for the se-
lected input mode is displayed.
2 Press
\\
\\
\ or
||
||
| to display the other
menu items.
• Menu items are as shown below.
Note
• The “Fine Sync” menu is not available
for VIDEO or S-VIDEO.
Menu item
ENTER button
MENU button
UNDO button
Mouse/adjustment
button ('/"/\/|)
Adjustment
buttons ('/"/\/|)
MENU button
UNDO button
ENTER button
-48
Single
adjustment
item
Example 1: Adjusting “Bright”
3 Press
''
''
' or
""
""
" to select the item
you want to adjust.
• Pressing displays the items on the
lower part of the “Picture” menu.
To adjust the projected
image while viewing it
Press ENTER.
• The selected single adjustment item
(e.g. “Bright”) appears instead of the
menu.
• When pressing
''
''
' or
""
""
", the following
item (“Color” after “Bright”) will be dis-
played.
Note
• Press UNDO to return to the previ-
ous screen.
4 Press
\\
\\
\ or
||
||
| to adjust the item
selected.
• The adjustment is stored.
5 Press MENU.
• The menu screen will disappear.
Example 2: Selecting “Signal Type”
3 Press
''
''
' or
""
""
" to select the item
you want to set and then press
ENTER.
4 Press
''
''
' or
""
""
" to select the de-
sired item and then press EN-
TER.
5 Press MENU.
• The menu screen will disappear.
Using the Menu Screen
There are two methods of adjustment de-
pending on the menu item. Use the appli-
cable method from Example 1 or 2 shown
below.
Useful Features
-49
Picture Adjustment (“Picture” menu)
11
11
1
Selecting the Picture Mode
This function allows you to select the picture
mode in accordance with brightness of the room
or content of the image to be projected.
In all picture modes, items on the “Picture” menu
can be adjusted and saved.
Note
• You can also press PICTURE MODE on the re-
mote control to select the picture mode. (See
page 38.)
22
22
2 Adjusting the Image
Select a picture mode before adjusting the im-
age.
*1 “Color”, “Tint”, “Red”, “Green” and “Blue” cannot
be adjusted when “C.M.S. Adjustment” on the
“C.M.S.” menu is set to “sRGB”. (See page 52.)
*2 “Sharp” can be adjusted only when 480I, 480P,
540P, 576I, 576P, 720P, 1035I, 1080I or 1080P
DTV signal is input during the COMPUTER1/2,
DVI, HDMI mode; or the input mode is set to
VIDEO or S-VIDEO.
Note
• To reset all adjustment items, select “Reset” and
press ENTER.
| |
| |
| Page 1
Selectable items
Standard
Presentation
Movie
Custom
Description
For standard image
Brightens darker portions of image for
more enhanced presentations.
Gives greater depth to darker portions
of image for a more exciting theater
experience.
The factory preset value is the same as
the one of “Standard”.
Using the dedicated software “Sharp
Gamma Manager” allows you to adjust
the gamma curve.
Visit “http://sharp-world.com/projector/”
for details.
Selectable items
Press
\\
\\
\
Press
||
||
|
Contrast
Bright
Color
*1
Tint
*1
Red
*1
Green
*1
Blue
*1
Sharp
*2
For less contrast
For less brightness
For less color intensity
For making skin tones
purplish
For weaker red
For weaker green
For weaker blue
For less sharpness
For more contrast
For more brightness
For more color intensity
For making skin tones
greenish
For stronger red
For stronger green
For stronger blue
For more sharpness
Menu operation Page 47
| |
| |
| Page 2
2
1
6
7
8
3
4
5
2
1
6
7
8
-50
33
33
3
Adjusting the Color Temperature
Note
• “CLR Temp” cannot be set when “C.M.S. Ad-
justment” on the “C.M.S.” menu is set to “sRGB”.
(See page 52.)
44
44
4
Selecting the Progressive Mode
*
The film source is a digital video recording with the original
encoded as is at 24 frames/second. The projector can con-
vert this film source to progressive video at 60 frames/sec-
ond with NTSC and PAL60Hz or at 50 frames/second with
PAL50Hz and SECAM to play back a high-definition image.
Note
•
In NTSC or PAL60Hz, even if the 3D Progressive
mode has been set, the three-two pull down enhance-
ment will be enabled automatically when the film
source has been entered.
•
When the image is blurred or noisy, switch to the
optimal mode.
•
When using progressive inputs, inputs are directly
displayed so that “2D Progressive”, “3D Progressive”
and “Film Mode” cannot be selected.
Menu operation Page 47
Selectable items
4500K
10500K
Description
For lower color temperature for warmer,
reddish incandescent-like images.
For higher color temperature for cooler,
bluish, fluorescent-like images.
Description
Useful to display fast-moving images such
as sports and action films.
Useful to display relatively slowmoving
images such as drama and documentary
more clearly.
Reproduces the image of film source*
clearly. Displays the optimized image of film
transformed with three-two pull down (NTSC
and PAL60Hz) or two-two pull down
(PAL50Hz and SECAM) enhancement to
progressive mode images.
Selectable items
2D
Progressive
3D
Progressive
Film Mode
55
55
5
Reducing Image Noise (DNR)
Video digital noise reduction (DNR) provides high
quality images with minimal dot crawl and cross
color noise.
Note
• Set a level so as to view a clearer picture.
Make sure to set “DNR” to “Off” in the
following cases:
• When the image is blurry.
• When the contours and colors of moving im-
ages drag.
• When TV broadcasts with weak signals are pro-
jected.
Info
• This function is available for all signals with
VIDEO or S-VIDEO.
• This function is available for 480I, 480P, 576I
and 576P signals with COMPUTER1/2, DVI or
HDMI.
Description
DNR does not function.
Sets the DNR level.
Selectable items
Off
Level 1–3
Picture Adjustment (“Picture” menu)
Useful Features
-51
Description
Automatically selects the appropriate
input signal between RGB and Compo-
nent.
Set when RGB signals are received.
Set when component signals are
received.
Selectable items
Auto
RGB
Component
Description
Set when digital PC RGB signals are
received from the computer.
Set when digital PC component signals
are received from the computer.
Set when digital video RGB signals are
received from video equipment.
Set when digital video component signals
are received from video equipment.
Selectable items
D. PC RGB
D. PC Comp.
D. Video RGB
D. Video Comp.
66
66
6
Selecting the Signal Type
When using an input mode other than S-VIDEO or
VIDEO input, set the signal type setting to the cor-
responding input signal type (RBG or Component).
■ When COMPUTER1/2 is selected for the input
mode
■ When DVI is selected for the input mode
■ When HDMI is selected for the input mode
This function sets the type of picture signal input from
HDMI-compatible equipment.
77
77
7 Selecting the Dynamic
Range
An optimum picture may not be displayed if a DVI-D
or HDMI capable device’s output signal type and
the projector’s input signal type do not match. If this
should occur, switch the “Dynamic Range”mode.
88
88
8
Selecting the Color Space
This function select the color space for signals in-
put from a DVI-D- or HDMI-compatible device.
Description
In most circumstances, “Auto” should
be selected.
When the black levels of the image
show banding or appear faded, select
the item that results in the better picture
quality.
Selectable items
Auto
Standard
Enhanced
Description
In most circumstances, “Auto” should
be selected.
Select the item that results in the better
picture quality.
Selectable items
Auto
ITU601
ITU709
Menu operation Page 47
Description
Automatically set the RGB or compo-
nent signal when digital video signals
are received from video equipment.
Set when digital video RGB signals are
received from video equipment.
Set when digital video component signals
are received from video equipment.
Set when digital PC RGB signals are
received from the computer.
Set when digital PC component signals
are received from the computer.
Selectable items
D. Video Auto
D. Video RGB
D. Video Comp.
D. PC RGB
D. PC Comp.
-52
Color Management System (“C. M. S.” menu)
11
11
1 Selecting the Color
Reproduction Mode
This function allows you to select the color re-
production mode for the projected images.
Note
• sRGB is an international standard of color repro-
duction regulated by the IEC (International
Electrotechnical Commission). As the fixed color
area has been decided by the IEC, the images are
displayed in a natural tint based on an original im-
age, when “C.M.S. Adjustment” is set to “sRGB”.
• You cannot set “Color”, “Tint”, “Red”, “Green”,
“Blue”, “CLR Temp” on the “Picture” menu, when
“C.M.S. Adjustment” is set to “sRGB”.
• For additional information about the sRGB func-
tion, visit “http://www.srgb.com/”.
Info
• When “C.M.S. Adjustment” is set to “sRGB”, the
projected image may become dark, but this
does not indicate a malfunction.
22
22
2
Selecting the Target Color
This function allows you to select the target color
for adjusting the display characteristics.
33
33
3
Setting the Brightness of
the Target Color
This function allows you to set the brightness of
the selected target color.
44
44
4
Setting the Chromatic
Value of the Target Color
This function allows you to set the chromatic
value of the selected target color.
55
55
5
Setting the Hue of the
Target Color
This function allows you to set the hue of the
selected target color.
66
66
6
Resetting User-defined
Color Settings
This function allows you to reset the specific tar-
get color or all of the six colors.
77
77
7
Overview of All Color Settings
This function allows you to confirm the settings
of all the colors.
For more brightness of the
target color
For less brightness of the
target color
Press \ Press |
For more chromatic value of
the target color
For less chromatic value of
the target color
Press \ Press |
Menu operation Page 47
1
2
3
4
5
6
7
For stronger yellow of the
target color
For stronger red of the
target color
Press \ Press |
Description
“Lightness”, “Chroma” and “Hue” of
the color selected for “Target” are
reset.
“Lightness”, “Chroma” and “Hue” of
all colors are reset.
Selectable items
Reset (This Color)
Reset (All Colors)
Red Cyan
Yellow Blue
Green Magenta
Selectable items
Standard
Custom 1 – 3
sRGB
Description
Standard settings
“Lightness”, “Chroma” and “Hue” can be
adjusted for each of the six colors.
A natural tint based on an original im-
age from the computer.
Useful Features
-53
Computer Image Adjustment (“Fine Sync” menu)
11
11
1
Adjusting the Computer
Use the Fine Sync function in case of irregulari-
ties such as vertical stripes or flickering in por-
tions of the screen.
Note
• You can automatically adjust the computer im-
age by setting “Auto Sync” on the “Fine Sync”
menu to “Normal” or “High Speed”, or by press-
ing AUTO SYNC on the projector or on the re-
mote control. See page 54 for details.
• To reset all adjustment items, select “Reset” and
press ENTER.
Selectable items
Clock
Phase
H-Pos
V-Pos
Description
Adjusts vertical noise.
Adjusts horizontal noise (similar to
tracking on your VCR).
Centers the on-screen image by
moving it to the left or right.
Centers the on-screen image by
moving it up or down.
22
22
2
Saving Adjustment Settings
This projector allows you to store up to seven
adjustment settings for use with various com-
puters.
33
33
3
Accessing Adjustment
Settings
Adjustment settings stored in the projector can
be easily accessed.
Note
• If a memory has not been set, the resolution
and frequency setting will not be displayed.
• When selecting a stored adjustment setting with
“Select Setting”, you can set the projector in the
stored adjustments.
44
44
4
Setting the Resolution
Ordinarily, the type of input signal is detected
and the correct resolution mode is automatically
selected. However, for some signals, the optimal
resolution mode in “Resolution” on the “Fine
Sync” menu may need to be selected to match
the computer display mode.
Note
• If your computer displays patterns which repeat
every other line (horizontal stripes), flickering
may occur which makes the image hard to see.
• See “Checking the Input Signal” on page 54 for
information on the currently selected input sig-
nal.
1
1
2
3
4
5
6
7
Menu operation Page 47
-54
55
55
5
Checking the Input Signal
You can check the input signal information.
66
66
6
Auto Sync Adjustment
Used to automatically adjust a computer image.
Note
• Auto Sync adjustment is also performed by
pressing AUTO SYNC on the projector or on
the remote control.
• The Auto Sync adjustment may take some time
to complete, depending on the image of the
computer connected to the projector.
• When the optimum image cannot be achieved
with Auto Sync adjustment, use manual adjust-
ments. (See page 53.)
• When AUTO SYNC is pressed while “Auto
Sync” is “High Speed” or “Off”, Auto Sync will
be executed in “High Speed” mode. If the but-
ton is pressed again within one minute, Auto
Sync will be executed in “Normal” mode.
Computer Image Adjustment (“Fine Sync” menu)
Selectable items
Off
Normal
High Speed
Description
Auto Sync adjustment is not automati-
cally performed.
Auto Sync adjustment will occur when
the projector is turned on or when the
input signals are switched, when
connected to a computer.
“Normal” takes more time than “High
Speed” for more accurate Auto Sync
adjustment.
77
77
7
Setting the Auto Sync
Display Function
Used to set the display during Auto Sync.
Description
The image set as a background image
is projected. See page 58.
The computer image being adjusted is
displayed.
Selectable items
Background
Adjusting Disp.
Menu operation Page 47
Useful Features
-55
Audio Adjustment (“Audio” menu)
11
11
1
Adjusting the Audio
This function allows you to adjust the projector’s
audio.
Note
• To reset all adjustment items, select “Reset” and
press ENTER.
22
22
2
Setting the Audio Output Type
This function determines whether the audio level
output from the AUDIO OUTPUT terminal is fixed
or variable by linking with VOLUME.
Info
•
When “Audio Out” has been set to “VAO”, first
make sure to lower the volume of the projector
before turning the power on or off and when
switching the input.
Note
When the projector is connected to audio equipment:
•
It is recommended that “FAO” be selected on “Audio
Out”. Because the audio signal from the audio equip-
ment does not vary in strength with the volume level
of the projector, you can enjoy better sound.
• When “FAO” is selected on “Audio Out”, video and
audio may not synchronize.
- When connecting audio equipment that has a
function for adjusting audio delay time, adjust
the delay time for synchronizing video and au-
dio.
- When the audio equipment does not have such
a function and the unsynchronized video and au-
dio bothers you, select “VAO” on “Audio Out”.
Selecting “VAO” synchronizes video and audio
automatically.
• The HDMI audio will not output from the
MONITOR OUT AUDIO terminal when the pro-
jector is in the standby mode.
33
33
3
Setting the Speaker
This function allows you to turn the audio out-
put of the internal speaker on or off when the
projector is connected to an external amplifier.
Note
• The HDMI audio will not output from the
MONITOR OUT AUDIO terminal when the pro-
jector is in the standby mode.
Description
Audio output that does not vary in
strength with the volume level of the
source projector.
Audio output that varies in strength with
the volume level of the source projec-
tor.
Selectable items
FAO
(Fixed Audio
Output)
VAO
(Variable
Audio Output)
Increased audio from
the right speaker
For stronger treble
For stronger bass
Balance
Treble
Bass
Increased audio from
the left speaker
For weaker treble
For weaker bass
Selectable items
Press \ Press |
Selectable items
On
Off
Description
The audio signal is output from the internal
speaker.
The audio signal is not output from the
internal speaker.
1
2
3
Menu operation Page 47
-56
Using the “Options 1” Menu
11
11
1 Displaying Dual Pictures
(Pict in Pict)
The Pict in Pict (picture in picture) function al-
lows you to display two pictures on the same
screen. You can display the image input from
VIDEO or S-VIDEO as an inset picture overlap-
ping the main picture input from COMPUTER1/2,
DVI or HDMI.
Note
• You can press ' / " / \ / | on the projector or
on the remote control to change the location of
the inset picture image.
(The inset picture frame will be displayed. To dis-
play the inset picture to the desired position, move
the frame and press ENTER on the projector or
on the remote control.)
• When “On” is selected, INPUT and VOL on the
projector will function as location shift button for
the inset picture.
• Inset picture can only be displayed in compos-
ite video or S-video signal of NTSC/PAL/
SECAM.
• The audio of the inset picture will come out of
the projector’s speakers.
• While the “Pict in Pict” function is working, the
“FREEZE” function only works for the inset
picture.
• The “Pict in Pict” function does not work when
the following signals are input to the main
picture.
−UXGA/SXGA+/SXGA/WXGA signal
−480I/480P/540P/576I/576P/720P/1035I/1080I/
1080P signal
−Interlaced RGB signal
−
All signals (when “Resize” is set to “Dot by Dot”)
−
No signal (or when the resolution or refresh rate
(vertical frequency) of the signal is changed)
22
22
2 Setting the Resize Mode
Depending on the input signal, you can select
the screen image.
Note
• For details of the Resize mode, see pages 39
and 40.
• You can also press RESIZE on the remote con-
trol to change the Resize mode. (See page 39.)
Menu operation Page 47
When inputting RGB signal
Normal
Full
Dot By Dot
Border
Stretch
When inputting HDMI/
DTV/video signal
Normal
Area Zoom
V-Stretch
Border
Stretch
Smart Stretch
COMPUTER1/2, DVI, HDMI
2
3
4
6
7
8
9
0
q
w
1
VIDEO, S-VIDEO
3
4
5
7
8
9
0
q
w
2
Useful Features
-57
55
55
5
Setting the Video System
The video input system mode is factory preset
to “Auto”; however, a clear picture from the con-
nected audio-visual equipment may not be re-
ceived, depending on the video signal difference.
In that case, switch the video signal.
Note
• The video signal can only be set in VIDEO or
S-VIDEO mode.
• When “Video System” is set to “Auto”, you may
not receive a clear picture due to signal differ-
ences. Should this occur, switch to the video
system of the source signal.
• While “Video System” is set to “Auto”, when
PAL-M or PAL-N signal is input, the image from
PAL signal will be displayed.
66
66
6
Capturing Projected Images
This projector allows you to capture projected
images (RGB signals) and set them as a startup
image, or background image when no signals are
being received.
Note
•
Images can be captured only when they are from
XGA (1024 × 768) non-interlace signals in COM-
PUTER1/2, DVI or HDMI mode with “RESIZE”
set to “Normal”.
• The saved image is reduced to 256 colors.
• Images from equipment connected to VIDEO
or S-VIDEO terminal cannot be captured.
• Only one image can be captured and saved.
• The color of images may differ before and after
saving if an image is captured on which image
adjustment has been performed using the
“C.M.S.” function.
• To delete the captured image, select “Delete”,
and then press ENTER.
Description
When connected to PAL video equipment.
When connected to SECAM video equipment.
When reproducing NTSC signals in PAL
video equipment.
When connected to NTSC video equipment.
Selectable items
PAL (50/60 Hz)
SECAM
NTSC4.43
NTSC3.58
33
33
3
Shifting the Projected
Image Vertically (Digital
Shift)
For easier viewing, this function shifts the im-
age projected on the screen up or down elimi-
nating either the upper or lower black band found
in 16:9 and other wide aspect ratios.
Note
• This function will not work depending on the type
of resize mode. See pages 39 and 40 for details.
44
44
4
Setting On-screen Display
This function allows you to turn the on-screen
messages on or off.
Note
• When “Keylock Level” is set to “Level A” or “Level
B”, pressing STANDBY displays “All buttons on
Projector are locked.” regardless of the “OSD
Display” setting.
Press \
Shifts the projected image
down.
Press |
Shifts the projected image
up.
Menu operation Page 47
Description
All on-screen displays are displayed.
INPUT/VOLUME/MUTE/FREEZE/AUTO
SYNC/MAGNIFY/ “An invalid button has
been pressed.” are not displayed.
All on-screen displays are not displayed (ex-
cept the menu, H&V LENS SHIFT, KEY-
STONE, FOCUS, ZOOM, “All buttons on Pro-
jector are locked.” and warning displays).
Selectable items
Normal
Level A
Level B
-58
Using the “Options 1” Menu
77
77
7
Selecting the Background
Note
• When “Custom” is selected, an image saved us-
ing “Image Capture” can be displayed as a back-
ground image.
88
88
8
Selecting the Startup Image
Note
• When “Custom” is selected, an image saved
using “Image Capture” can be displayed as a
startup image.
99
99
9 Setting the Eco Mode
When the two lamps are lit at the same time
* This is a reference value and is not guaranteed.
Note
• When “Eco Mode” is set to “On”, the power con-
sumption will decrease and the lamp life will
extend.
Selectable items
Logo
Custom
Blue
None
Description
Default image
User customized image (e.g. company logo)
Blue screen
Black screen
00
00
0 Detecting the Input
Signals Automatically
Note
• While the “Auto Search” function is detecting
the input signal, pressing a button on the pro-
jector or the remote control stops the “Auto
Search” function. After the “Auto Search” func-
tion finishes completely, press the desired button.
qq
qq
q Setting the
Auto Power
Off Function
Note
• When “Auto Power Off” is set to “On”, 5 min-
utes before the projector enters the standby
mode, the message “Enter STANDBY mode in
X min.” will appear on the screen to indicate
the remaining minutes.
Selectable items
Logo
Custom
None
Description
Default image
User customized image (e.g. company logo)
Black screen
Brightness
Approx.
77%
100%
Selectable items
On
Off
Power consumption (When
using AC 100V)
82%
100%
Lamp life
Approx.
3,000 hours*
Approx.
2,000 hours*
Selectable items
On
Off
Description
Automatically searches for and switches to
the input mode in which signals are being
received.
“Auto Search” does not function.
Description
The projector automatically enters the
standby mode when no input signal is
detected for 15 minutes or longer.
The “Auto Power Off” function will be
disabled.
Selectable items
On
Off
Menu operation
Page 47
Useful Features
-59
Setting the keycode
1 Select “System Lock” on the “Op-
tions 1” menu, then press
||
||
|.
• A message is displayed.
• Read this message, and press ENTER.
2 Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
• When setting the keycode for the first time,
press " on the projector for four times.
Note
• If you input a wrong keycode, the cursor returns
to the first point of the “Old Code”.
• The preset keycode is 4 " buttons on the projec-
tor. If this keycode is set, the keycode input screen
does not appear when turning the power on.
3 Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
Note
• You cannot use the following buttons for
keycode:
ON, STANDBY, ENTER, L-CLICK, R-CLICK/
UNDO, MENU, ZOOM, FOCUS, H&V LENS
SHIFT
• System Lock function recognizes each but-
ton on the remote control or on the projec-
tor as an individual button, even if they share
the same button name. If you set the keycode
with the buttons on the projector, use only
those buttons on the projector. If you set the
keycode with the buttons on the remote con-
trol, use only those buttons on the remote
control.
ww
ww
w Setting the System Lock
Function
This function prevents unauthorized use of the
projector. Once this function is activated, users
must enter the correct keycode each time the
projector is turned on. We suggest you record
the keycode in a safe place where only autho-
rized users have access.
Info
•
If you lose or forget your keycode, contact your near-
est Sharp Authorized Projector Dealer or Service
Center (see page 81). Even if the product warranty
is valid, the keycode reset will incur a charge.
4 Enter the same keycode in “Recon-
firm”.
Note
Not displaying the keycode input screen
when turning the projector on
• Press " on the projector for four times in steps
3 and 4 above.
When the System Lock is set
• When System Lock is set, the keycode input
screen appears after the power is turned on.
When it appears, enter the right keycode to start
projection. Failure to enter the keycode will
cause images not to be projected even when
signals are entered to the projector.
-60
Using the “Options 1” Menu
When the system lock is set
If you have set the system lock, enter the
keycode and follow the procedure below to
release the system lock.
▼Input screen for keycode
Note
• When System Lock is set, the keycode input
screen appears after the power is turned on.
• If no keycode is entered, the image will not be
displayed, even if the projector receives the in-
put signal.
1 Press ON on the remote control or
on the projector to turn on the pro-
jector.
2 When the keycode input screen ap-
pears, enter the right keycode to
start projection.
Note
• System Lock function recognizes each but-
ton on the remote control or on the projector
as an individual button, even if they share
the same button name. If you set the keycode
with the buttons on the projector, use only
those buttons on the projector. If you set the
keycode with the buttons on the remote con-
trol, use only those buttons on the remote
control.
Changing the keycode
1 Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
2
Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
3 Enter the same keycode in “Recon-
firm”.
Useful Features
-61
Helpful Functions Set during Installation (“Options 2” menu)
11
11
1 Setting a Password
••
••
• There is no factory preset for the password,
so the “Options 2” menu is enabled.
••
••
• If you do not want others to operate the
“Options 2” menu, set a password.
1 Select “Password” from the
“Options 2” menu, and press
||
||
|.
2 Press
''
''
' or
""
""
" to set the first digit in
“New Password” and then press
||
||
|.
3 Enter the remaining 3 digits and
press ENTER.
4 Enter the same password in
“Reconfirm” and press ENTER.
Info
• The password must be entered to use the
“Options 2” menu when a password has
been set.
Changing the password
1 Press
''
''
',
""
""
" and
||
||
| to enter the pass-
word in “Old Password” and press
ENTER.
2 Press
''
''
',
""
""
" and
||
||
| to set the new
password in “New Password” and
press ENTER.
3 Enter the same 4-digit password in
“Reconfirm” and press ENTER.
Note
• If you do not want to set a password, leave the
fields blank in steps 2 and 3 and press ENTER.
• To cancel the password settings, press UNDO.
If You Forget Your Password
If you forget the password, delete it using the fol-
lowing procedure and set a new password.
Press
on the
projector.
1
1
2
3
4
5
6
7
8
9
0
q
w
e
t
y
u
r
Menu operation Page 47
-62
44
44
4 Reversing/Inverting
Projected Images
This projector is equipped with a reverse/invert
image function that allows you to reverse or in-
vert the projected image for various applications.
Note
• This function is used for the reversed image and
ceiling-mount setups. (See page 23.)
55
55
5 Controlling Multiple
Projectors with the One
Remote Control
This function allows you to control multiple projectors
with the one remote control during the stack projec-
tion or the video wall projection. When using this func-
tion, connect the projectors with LAN cables and as-
sign a projector as the master and the other projectors
as the slaves.
See page 27 for connecting LAN cables.
Note
•
When controlling multiple projectors with the one
remote control, settings via web browser are re-
quired. Refer to the “SETUP MANUAL” contained
on the supplied CD-ROM for details.
•
Only when controlling two projectors with the one
remote control, using “Pair Stack” allows you to skip
settings via web browser. (See page 63.)
•
When “Slave” is selected on “Stack Setting”, the slave pro-
jector cannot be controlled with the remote control.
To control the slave projector with the remote control, con-
nect the remote control to the projector. (See page 17.)
Description
Normal image
Inverted image
Reversed image
Reversed and inverted image
Selectable items
Front
Ceiling + Front
Rear
Ceiling + Rear
Helpful Functions Set during Installation (“Options 2” menu)
Description
The stack setting is not available.
Set the projector as the master.
Set the projector as the slave.
Selectable items
Normal
Master
Slave
Description
Both lamps are used for greater
brightness.
The lamp 1 is used.
When the lamp 1 burns out, the lamp 2
automatically switches in use.
The lamp 2 is used.
When the lamp 2 burns out, the lamp 1
automatically switches in use.
Both lamps are used alternately for
certain periods.
Selectable items
Both Lamps
Lamp 1 Only
Lamp 2 Only
Equal Use
22
22
2 Setting the Lamp Mode
This function allows you to select the usage of
the two lamps installed in the projector.
33
33
3 Selecting the Lens Type
When you change the lens, you need to set the
lens type. See the table below to select the lens
type.
Info
•
The Lens Shift, Keystone Correction, etc. may not
properly function if the correct lens type is not se-
lected.
Note
• When “Lens Type” is changed, “GEOMETRIC
ADJUSTMENT”, “H&V KEYSTONE” and “IM-
AGE RESIZING” will be reset.
Attached lens
AN-P8EX
AN-P12EX
AN-P15EZ
AN-P18EZ
AN-P23EZ
AN-P30EZ
AN-P45EZ
Selectable items
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Menu operation
Page 47
Useful Features
-63
66
66
6 Shortcut to Make
Projector Stack Settings
Normally, settings via web browser are required for
the stack projection. You can skip the settings via
web browser by using “Pair Stack”, only when you
use the two projectors for the stack projection.
Note
• Before setting “Pair Stack”, select “Master” or
“Slave” on “Stack Setting”.
1 Select “Pair Stack” on the “Option
2” menu, and then press ENTER.
• The confirmation screen will be displayed.
2 Select “OK”, and then press
ENTER.
• The network settings of the projector will
change as shown below.
77
77
7 Locking the Operation
Buttons on the Projector
This function can be used to lock the use of cer-
tain operation buttons on the projector.
Master Slave
IP Address 192.168.150.2 192.168.150.3
Subnet Mask 255.255.255.0 255.255.255.0
DHCP Client OFF OFF
Gateway 0.0.0.0 0.0.0.0
User Name (Reset) (Reset)
Password (Reset) (Reset)
Data Port 10002 10002
Description
All operation buttons are functional.
Only INPUT/VOLUME buttons on the
projector are available.
All operation buttons on the projector
are unavailable.
Selectable items
Normal
Level A
Level B
88
88
8 Bypassing Unused Input
Selections
This function allows you to skip the input mode
that you rarely use. You can skip the input modes
when
“Auto Search” works
.
99
99
9 Selecting the Fan Mode
This function changes the fan rotation speed.
Note
• When “Fan Mode” is set to “High”, the fan rota-
tion speeds up, and the fan noise becomes
louder.
00
00
0 Setting the Auto Restart
Function
Selectable items Description
ON
Sets each input mode selectable
respectively.
OFF
Sets each input mode unavail-
able respectively.
Description
Suitable for normal environments.
Select this when using the projector at
attitudes of approximately 1,500 meters
(4,900 feet) or more.
Selectable items
Normal
High
COMPUTER 1
COMPUTER 2
DVI, HDMI,
VIDEO, S-VIDEO
Selectable items
On
Off
Description
If the power cord is unplugged from the
outlet or the breaker switch is turned off
when the projector is on, then the
projector automatically turns on when
the power cord is plugged into the AC
outlet or the breaker switch is turned on.
The projector does not turn on automati-
cally when the power cord is plugged
into the AC outlet or the breaker switch
is turned on.
Menu operation Page 47
-64
qq
qq
q
Selecting the Transmission
Speed (RS-232C)
Make sure that both the projector and computer
are set for the same baud rate.
Note
• Refer to the “SETUP MANUAL” contained on
the supplied CD-ROM for RS-232C Specifica-
tions and Command Settings.
• Refer to the computer’s operation manual for
instructions for setting the computer’s baud rate.
ww
ww
w Setting the Monitor
Output
When the Monitor Out has been set to “Enable”,
the monitor output is activated and power is con-
sumed even in the standby mode. It is recom-
mended that the Monitor Out be set to “Disable”
when it is not connected. This reduces power
consumption when the projector is in the standby
mode.
Description
Tr ansmission speed is slow.
Tr ansmission speed is rapid.
Selectable items
9600 bps
38400 bps
115200 bps
Description
The monitor output function is activated
even if the projector is in standby mode.
The monitor output function is switched off
when the projector is in standby mode.
Selectable items
Enable
Disable
ee
ee
e Setting the LAN/RS232C
When the LAN/RS232C has been set to “Enable”,
the LAN/RS232C is activated and power is con-
sumed even in the standby mode. It is recom-
mended that the LAN/RS232C be set to “Disable”
when it is not connected.
This reduces power
consumption when the projector is in the standby
mode.
Note
• When you want to control the projector using
the LAN/RS232C function, select “Enable.”
• The item “LAN/RS232C” will be made unavail-
able for setting when “Master” or “Slave” is se-
lected on “Stack Setting”. (“LAN/RS232C” will
be set to “Enable” automatically.) (See page 62.)
rr
rr
r Setting the DHCP Client
Connect the LAN cable before turning the pro-
jector on. If not, the DHCP Client function does
not work.
Note
•
Select “ON” for “DHCP Client”. “Obtaining IP
Address...” appears, then the message “The
network settings have been changed.”, IP Address,
Subnet Mask and Gateway will be displayed.
• If the DHCP server is not available, “Could not
obtain IP Address.” appears.
In this case, set the TCP/IP manually. (See “Set-
ting the TCP/IP” on page 65.)
Description
The LAN/RS232C function is activated
even if the projector is in standby mode.
The LAN/RS232C function is switched off
when the projector is in standby mode.
Selectable items
Enable
Disable
Description
Obtains configuration parameters for
TCP/IP network automatically.
Sets the TCP/IP manually.
Selectable items
ON
OFF
Helpful Functions Set during Installation (“Options 2” menu)
Menu operation Page 47
Useful Features
-65
Note
• Before setting “TCP/IP”, select “OFF” for “DHCP
Client”.
• Confirm the existing network’s segment (IP ad-
dress group) to avoid setting an IP address that
duplicates the IP addresses of other network
equipment or computers. If “192.168.150.002”
is not used in a network with an IP address of
“192.168.150.XXX”, you don’t have to change
the projector IP address.
• For details about each setting, consult your net-
work administrator.
tt
tt
t Setting the TCP/IP
Set the TCP/IP manually.
1
Select “TCP/IP”, then press ENTER.
2 Enter “IP Address” using
''
''
',
""
""
",
||
||
|
and \, then press ENTER.
3 Enter “Subnet Mask” using
''
''
',
""
""
",
||
||
| and \, then press ENTER.
4 Enter “Gateway” using
''
''
',
""
""
",
||
||
| and
\, then press ENTER.
Description
Factory default setting:
192.168.150.002
Enter an IP address appropriate for the
network.
Factory default setting:
255.255.255.000
Set the subnet mask to the same as that
of the computer and equipment on the
network.
Factory default setting:
000. 000. 000. 000
* When not in use, set to:
“000. 000. 000. 000”.
Selectable items
IP Address
Subnet Mask
Gateway
yy
yy
y
Service Mode
Only the service centers use the menu. Do not
use the menu.
uu
uu
u Returning to the Default
Settings
This function allows you to initialize the settings
you have made in the projector.
Note
About the network settings
• “IP Address”, “Subnet Mask”, “Gateway” and
other network setting items are initialized.
The following items or menu cannot be initialized.
• “C. M. S.” menu
-“Lightness”, “Chroma” and “Hue” respectively
saved for Custom 1-3 on the “C.M.S.” menu.
• “Fine Sync” menu
-Resolution
• “Options 1” menu
-System Lock
• “Options 2” menu
-Lens Type
• “Language” menu
• Image stored using “Image Capture”
• Lamp Timer (Life)
Selecting the On-screen
Display Language
The projector can switch the on-screen display
language among 16 languages.
Overview of All Menu
Settings and the Lamp Life
This function can be used to display all the ad-
justed settings as a list on the screen and you
can confirm the lamp life.
Helpful Functions Set during Installation (“Options 2”
menu)/Using the Other Menus (“Language” and
“Status” menus)
Menu operation Page 47
-66
Cleaning the air vents and the intake vent cover
■ Use a vacuum cleaner to clean dust from the ex-
haust vent, the intake vents and the intake vent cover
(on the bottom of the projector).
Cleaning the projector
■ Ensure the power cord is unplugged before clean-
ing the projector.
■ The cabinet as well as the operation panel is made
of plastic. Avoid using benzene or thinner, as these
can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides on
the projector.
Do not attach rubber or plastic items to the projec-
tor for long periods.
The effects of some of the agents in the plastic may
cause damage to the quality or finish of the projector.
■ Wipe off dirt gently with a soft flannel cloth.
■ When the dirt is hard to remove, soak a cloth in a
mild detergent diluted with water, wring the cloth
well and then wipe the projector.
Strong cleaning detergents may discolor, warp or
damage the coating on the projector. Make sure to
test on a small, inconspicuous area on the projec-
tor before use.
Cleaning the lens
■ Use a commercially available blower or lens clean-
ing paper (for glasses and camera lenses) for clean-
ing the lens. Do not use any liquid type cleaning
agents, as they may wear off the coating film on the
surface of the lens.
■ As the surface of the lens can easily get damaged,
be careful not to scrape or hit the lens.
Maintenance
Mild detergent
diluted with water
Wax
Thinner
Mild detergent
Cleaning
Paper
Info
• If you want to clean the air vents and the intake
vent cover during projector operation, ensure
you press STANDBY on the projector or on the
remote control and put the projector into standby
mode. After the cooling fan has stopped, un-
plug the power cord from the AC socket and
clean the air vents and the intake vent cover.
Appendix
-67
Cleaning the Dust Filters
1 Press STANDBY on the projec-
tor or on the remote control to
put the projector into standby
mode.
• Disconnect the power cord and unplug
the power cord from the AC socket after
the cooling fan stops.
2 Remove the filter cover.
• Remove the filter cover as shown in
the figures while pressing down the
tabs.
3 Clean the dust off the dust fil-
ters and the cover with a hand
broom.
Cleaning and Replacing the Dust Filters
• The dust filters should be cleaned every 100
hours of use. Clean the filters more often
when the projector is used in a dusty or
smoky location.
Info
STANDBY button
Power cord
-68
Cleaning and Replacing the Dust Filters
4 Replace the filter cover.
• Insert the filter cover as shown in the
figure and push both the two tabs until
you hear a click.
Remove
Attach
Pierced through
the nine slits.
Insert the filter
below the six tabs
on both left and
right sides.
Note
• Be sure the filter cover is securely installed.
The power will not turn on unless it is cor-
rectly installed.
Replacing the Dust Filters
After removing the filter cover (see
step 2 of “Cleaning the Dust Filters”),
remove the dust filters, then replace
with new ones.
• Pick the dust filters up with your fingers and lift
them out of the filter cover.
• When attaching the dust filters, make sure that
these are inserted below the tabs on both left
and right, and that the slits are pierced through.
•
If the filters become too dirty to clean effec-
tively, purchase new ones (9NK3243101400)
from your nearest Sharp Authorized Projec-
tor Dealer or Service Center.
Info
1
2
Appendix
-69
Maintenance Indicators
■ The warning lights on the projector indicate problems inside the projector.
■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate
red, and the projector will enter the standby mode. After the projector has entered the standby
mode, follow the procedures given below.
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,
“
” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will
turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and
then the projector will enter the standby mode. After “
” appears, ensure you perform the measures
described on page 70.
About the lamp indicator
“Change The Lamp. (LAMP 2)” is displayed when the remain-
ing life of the lamp 2 becomes 5% or less.
■ When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp. (LAMP 1/
2)” will be displayed on the screen.
■ When the percentage becomes 0%, it will change to “
” (red), the lamp will automatically turn off. At
this time, the lamp indicator will illuminate in red.
If you try to turn on the projector a fourth time without replacing the lamp, the lamp whose life is 0%
will not light up.
Power indicator
Lamp (1, 2) indicators
Temperature warning indicator
Maintenance Indicators
Indicators on the Projector
Red on
Green on
Red blinks
Green blinks
Green on
Green blinks
Red on
Off
Red on
Power indicator
Lamp (1, 2)
indicators
Temperature
warning indicato
r
Normal (Standby)
Normal (Power on)
Abnormal (See page 70.)
Normal (Cooling)
Normal
The lamp is warming up.
The lamp is shut down abnormally or requires to be changed. (See page 70.)
Normal
The internal temperature is abnormally high. (See page 70.)
-70
Maintenance indicator
Problem
Cause Possible solution
Temperature
warning
indicator
Normal
Abnormal
Off
Red on
(Standby)
The internal
temperature is
abnormally high.
Abnormal
• Blocked air intake
• Relocate the projector to an area
with proper ventilation. (See page
10.)
• Cooling fan break-
down
• Internal circuit failure
• Clogged air intake
• Clogged dust filter
• Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center for repair. (See
page 81.)
• Clean the air vents and the dust
filter. (See page 67.)
Lamp (1, 2)
indicators
Red on
(Standby)
The lamp does
not illuminate.
• Burnt-out lamp
• Lamp circuit failure
• Carefully replace the lamp. (See
page 72.)
• Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center for repair. (See
page 81.)
• Please exercise care when
replacing the lamp.
Red on
Time to change
the lamp.
• Remaining lamp life
becomes 5% or less.
Green on
Green blinks
when the lamp
is warming up.
Info
• If the temperature warning indicator blinks and the projector enters the standby mode, the temperature
warning indicator starts to illuminate. Check whether any of the ventilation holes are blocked (see page 10)
and then try turning the power back on. Wait until the projector has cooled down completely before plugging
in the power cord and turning the power back on. (At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the
projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red
and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power
cord in the AC outlet and then turn the power on again.
• The cooling fan keeps the internal temperature of the projector constant and this function is controlled
automatically. The sound of the cooling fan may change during operation because the fan speed may
change and this is not a malfunction.
The lamp does
not illuminate.
• The lamp is shut
down abnormally.
• Disconnect the power cord from
the AC outlet, and then connect it
again.
Power
indicator
Green on/
Red on
Red
blinks
The power
indicator blinks in
red when the
projector is on.
••
••
• The filter cover is
open.
••
••
• The lens cover is
open.
••
••
• Securely install the filter cover or
lens cover.
••
••
• If the power indicator blinks even
when the filter cover or lens cover
is securely installed, contact your
nearest Sharp Authorized Projector
Dealer or Service Center for
advice. (See page 81.)
Maintenance Indicators
Appendix
-71
Regarding the Lamp
U.S.A. ONLY
Lamp
■ It is recommended that the lamp unit (sold separately) be replaced when the remaining lamp life
becomes 5% or less, or when you notice a significant deterioration in the picture and color quality.
The lamp life (percentage) can be checked with the on-screen display. See page 65.
■ Purchase a replacement lamp unit of type AN-P610LP from your place of purchase, nearest Sharp
Authorized Projector Dealer or Service Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service
of this projector under warranty, including lamp replacement, must be obtained through a Sharp Autho-
rized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer
or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information
www.lamprecycle.org or 1-800-BE-SHARP
Caution Concerning the Lamp
■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition
and the frequency of use. It is important to note that failure can often result in the bulb cracking.
■ When the lamp indicator and on-screen display icon are illuminated, it is recommended that the
lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to assure safe operation.
Replacing the Lamp
Caution
• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn
or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■ Carefully change the lamp by following the instructions described in this section. *If you wish, you
may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
* If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized
Projector Dealer or Service Center for repair.
-72
Removing and Installing
the Lamp Unit
Warning!
• Do not remove the lamp unit from the pro-
jector right after use. The lamp and parts
around the lamp will be very hot and may
cause burn or injury.
Info
• Make sure the lamp unit is removed using
the handle. Make sure the glass surface of
the lamp unit or the inside of the projector
are not touched.
• To avoid injury to yourself and damage to
the lamp, make sure you carefully follow
the steps below.
• Do not loosen other screws except for the
lamp unit cover and lamp unit.
1 Press STANDBY on the projec-
tor or on the remote control to put
the projector into standby mode.
• Disconnect the power cord and unplug
the power cord from the AC socket after
the cooling fan stops.
• The cooling fan may continue to run for
a while even after the power cord is re-
moved.
• Leave the lamp until it has fully cooled
down (about 1 hour).
2 Remove the lamp unit cover.
• Loosen the user service screw (1) that
secures the lamp unit cover. Remove the
lamp unit cover to slide it in the direc-
tion of the arrow (2).
STANDBY button
Power cord
1
2
User service screw
Optional
accessory
Lamp unit
AN-P610LP
Regarding the Lamp
Appendix
-73
3 Remove the lamp unit.
• Loosen the securing screws (two for
each lamp) from the lamp unit. Hold the
lamp unit by the handle and pull it in the
direction of the arrow. At this time, keep
the lamp unit horizontal and do not tilt it.
4 Insert the new lamp unit.
• Fully insert the lamp unit into the lamp
unit compartment. Press the handles
back to their positions, and tighten the
securing screws.
5 Replace the lamp unit cover.
• Slide the lamp unit cover to the position
where the indicator “
||
||
|” of the lamp cover
unit and the “
\\
\\
\” of the projector will meet
to close the cover. Then tighten the user
service screw to secure the lamp unit
cover.
Info
• If the lamp unit and lamp unit cover are not
correctly installed, the power will not turn
on, even if the power cord is connected to
the projector.
Securing screws
Handle
AN-P610LP
Compartment
for
Lamp 1
Compartment
for
Lamp 2
User service screw
-74
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
• Make sure to reset the lamp timer only
when replacing the lamp. If you reset the
lamp timer and continue to use the same
lamp, this may cause the lamp to become
damaged or explode.
1 Connect the power cord.
• Plug the power cord into the AC socket
of the projector.
2 Reset the lamp timer.
For Lamp 1
• When you reset the timer, while simul-
taneously holding down \, " and
ENTER, press ON on the projector.
• “LAMP 1 0000H” is displayed, indicat-
ing that the lamp timer is reset.
For Lamp 2
• When you reset the timer, while simul-
taneously holding down |, " and
ENTER, press ON on the projector.
• “LAMP 2 0000H” is displayed, indicat-
ing that the lamp timer is reset.
Power cord
ENTER button
\
,
",
| buttons
ON button
Regarding the Lamp
Appendix
-75
Computer Compatibility Chart
• Multiple signal support
Horizontal Frequency: 15–126 kHz
Ver tical Frequency: 43–200 Hz
Computer
PC/
MAC/
WS
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
VGA
PC
PC
SVGA
XGA
VESA
Standard
Resolution
640
´
350
1152
´
864
1280
´
720
1280
´
768
1280
´
800
1360
´
768
1366
´
768
1152
´
882
1280
´
1024
1400
´
1050
720
´
350
640
´
400
720
´
400
640
´
480
800
´
600
1024
´
768
Display
Upscale
True
27.0 60
27.0 60
27.0 60
60
31.5 70
31.5 70
31.5
70
31.5
60
34.7
70
37.9
72
37.5
75
43.3
85
48.0
90
53.0
100
63.6
120
79.5
150
81.3
160
100.4 200
31.3 50
35.2 56
37.9 60
46.6 70
48.1 72
46.9 75
53.7 85
57.0 90
DVI
Support
64.5 101
76.2 120
95.6 150
101.9 160
127.4 200
96.8 120
31.5 70
37.9 85
37.9
27.0
85
37.9
85
26.2
50
Advanced
Intelligent
Compression
Advanced
Intelligent
Compression
55.0 60
67.5 75
76.6 80
77.1 85
65.9 72
54.5 60
67.4 74
64.0 60
1600
´
1200
SXGA
WXGA
SXGA+
UXGA
91.1 85
74.7 52
80.0 75
78.9 74
74.6 70
81.3 65
90.0 72
93.8 75
106.3 85
75.0 60
107.2 100
64.0 60
87.5 70
MAC 16"
MAC 21"
HP (WS)
WS
MAC 13"
MAC 19"
PC (WS)
SUN (WS)
Intelligent
Compression
Upscale
640
´
480
832
´
624
35.0
1152
´
870
68.7
67
60.2
1280
´
1024
78.1 72
60.0 60
1024
´
768
1280
´
960
VGA
SVGA
SXGA
SXGA
XGA
True
75
85.9 85
1152
´
900
61.8 66
71.7 76
49.7 75
75
90.2 100
66.2 70
64.9 72
45.0 60
47.7 60
47.8 60
47.8 60
62.8 75
113.3 140
35.5 43
40.3 50
48.4 60
58.1 72
68.7 85
60.0 75
72.9 90
77.0 95
80.8 100
56.5 70
HDMI
Support
PC/
MAC/
WS
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
VESA
Standard
Resolution Display
DVI
Support
HDMI
Support
1280
´
800
49.7 60
65.3 60
The following is a list of modes that conform to VESA. However, this projector supports other signals
that are not VESA standards.
The table below lists signal codes that are compatible with the projector. When the images are distorted or
cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.
Pixel Clock: 12–230 MHz
Sync signal: Compatible with TTL level
• Compatible with sync on green signal
-76
Note
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)
mode. Should this occur, turn off the LCD display on the notebook computer and output the display data
in “CRT only” mode. Details on how to change display modes can be found in your notebook computer’s
operation manual.
• When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.
• When projecting the RGB interlace signal using COMPUTER 1/2 with “Signal Type” set to “Auto” or
“RGB”, the image may not be projected as desired. In this case, select either VIDEO or S-VIDEO.
• When “Screen resolution” of the computer is different from the resolution displayed on the projected
image, follow the procedures shown below.
–Refer to “Setting the Resolution” on page 53 and select the same resolution as the resolution in “Screen
resolution” of the computer.
–Depending on the computer you are using, the output signal may not be faithful to the “Screen resolu-
tion” adjustment. Check the settings of the computer’s signal output. If the settings cannot be changed,
it is recommended that the resolution be set to the one that corresponds to “True” in the “Display”
column.
DTV
15.7
31.5
33.8
15.6
31.3
45.0
37.5
33.8
33.8
28.1
67.5
56.3
480
I
480P
540P
576
I
576P
720P
1035
I
1080
I
1080P*
60
60
60
50
50
60
50
60
60
50
60
50
Signal Vertical Frequency (Hz)
DVI/HDMI Support
(Compatible with HDCP)
Horizontal Frequency (kHz)
* When 1080P signal is input, the image is compressed before it is displayed on the screen.
Computer Compatibility Chart
Appendix
-77
STANDBY button
UNDO button
H&V LENS SHIFT
button
Power cord
1 Press STANDBY on the projector
or on the remote control to put the
projector into standby mode.
• Disconnect the power cord and unplug the
power cord from the AC socket after the
cooling fan stops.
2 Remove the lens cover.
• Press the lens cover removal button (1).
Slide the lens cover forward (2).
3 Turn the lens in the direction of the
arrow while pressing the lens re-
moval lever to pull the lens out.
Do not attempt to exchange the lens when the
projector is installed hanging from the ceiling.
Injury may occur if the lens cover and lens fall.
Before exchanging the lens, reset lens shift to the
center position. (The lens shift is located at the
center in the factory preset.)
When resetting the lens shift to the center position,
press H&V LENS SHIFT and then press UNDO.
• The lens shift reset screen will be displayed.
Select “Yes” to reset.
Attaching the Optional Lens
Removal lever
-78
4 Remove the lens cap from a re-
placement lens.
5 Insert the hook of the replacement
lens to the notch, and turn the lens
in the direction of the arrow.
• Make sure that the lens is locked with the
lens removal lever when you hear a click
sound.
6 Slide and attach the lens cover.
• The power cannot be turned on unless the
lens cover is fully inserted.
7 After changing (setting) the lens,
select the correct lens type. (See
page 62.)
Attaching the Optional Lens
Info
If you try to attach the lens to the projector
without removing this cap, the optional lens
attachment part can be damaged.
Appendix
-79
Troubleshooting
Check
• Projector power cord is not plugged into the wall outlet.
• Power to the external connected devices is off.
• The selected input mode is wrong.
• Cables are incorrectly connected to the projector.
• Remote control batteries have run out.
•
External output has not been set when connecting notebook computer.
•
When the connected DVI digital equipment is turned on before the
“DVI” input mode is selected on the projector, the image may not be
projected properly or may not be displayed at all. Ensure that the
appropriate input mode has been selected and set the input signal type
on the projector before you turn on the connected equipment.
•
Is the lens cover correctly attached?
•
Is the filter cover correctly attached?
•
Is the lamp unit cover correctly attached?
• Cables are incorrectly connected to the projector.
• “Bright” is set to minimum position.
• The “Shutter” is closed.
• Image adjustments are incorrectly set.
(COMPUTER 1/2, DVI, HDMI only)
• Input signal type (RGB/Component) is incorrectly set.
(VIDEO, S-VIDEO only)
• Video Input system is incorrectly set.
• Adjust the focus.
• The projection distance exceeds the focus range.
• When an optional lens is attached, refer to the operation
manual of the lens.
•
There is fog on the lens. If the projector is carried from a cold
room into a warm room, or if it is suddenly heated, condensation
may form on the surface of the lens and the image will become
blurred. Please set up the projector at least one hour before it is
to be used. If condensation should form, remove the power cord
from the wall outlet and wait for it to clear.
(Computer Input only)
• Perform “Fine Sync” Adjustments. (“Clock” Adjustment)
• Perform “Fine Sync” Adjustments. (“Phase” Adjustment)
• Turn off the LCD display of the notebook computer.
• Noise may appear depending on the computer.
• The “DNR” (Digital Noise Reduction) setting is not correct.
• Cables are incorrectly connected to the projector.
• Volume is set to minimum.
• The “MUTE” function is working.
• The “Speaker” menu is set to “Off”.
Problem Page
28
—
36
24–27
16
24
78
68
73
24–27
49
41
49
51
57
31
22
—
53
53
76
—
50
24–27
36
37
55
Sound is heard but no
picture appears.
Color is faded or poor.
Picture is blurred;
noise appears.
Picture appears but no
sound is heard.
No picture and no sound
or projector does not start.
-80
CheckProblem Page
An unusual sound is
occasionally heard
from the cabinet.
Maintenance
indicator illuminates or
blinks in red.
The projector cannot be
turned on or put into the
standby mode using the
ON or STANDBY button
on the projector.
All buttons on the
projector and the remote
control are unavailable.
Picture is green on
COMPUTER 1or 2
(COMPONENT).
Picture is pink (no green)
on COMPUTER 1/ 2 or
DVI (RGB).
The black levels of the
image show banding or
appear faded when DVI
or HDMI is selected.
Picture is too bright and
whitish.
The cooling fan
becomes noisy.
The lamp does not light
up even after the
projector turns on.
The lamp suddenly turns
off during projection.
The image sometimes
flickers.
The lamps take a long
time to turn on.
Picture is dark.
The remote control
cannot be used.
• If the picture is normal, the sound is due to cabinet shrinkage
caused by room temperature changes. This will not affect
operation or performance.
• See “Maintenance Indicators”.
• If the “Keylock Level” menu is set to “Level A” or “Level B”, all or
specific buttons on the projector are unavailable. Use the
remote control to operate the projector.
• If the “Stack Setting” menu is set to “Slave” and the “Keylock
Level” menu is set to “Level B”, all buttons on the projector and
the remote control are unavailable. Connect the remote control
to the projector, and then use the remote control to operate the
projector.
• Change the input signal type setting.
• Make adjustments that result in the best picture quality in the
“Dynamic Range” setting.
• Image adjustments are incorrectly set.
• When temperature inside the projector increases, the cooling
fan runs faster.
• The lamp indicator is illuminating in red.
Replace the lamp.
• Cables are incorrectly connected to the projector or the
connected equipment works improperly.
• If this happens frequently, replace the lamp.
• The lamps will eventually need to be changed.
The lamps have reached the end of its life. Replace the lamps.
• Operate the remote control while pointing it at the projector’s
remote control sensor.
• The remote control may be too far away from the projector.
• If direct sunlight or a strong fluorescent light is shining on the
projector’s remote control sensor, place the projector where it
will not be affected by strong light.
• Is a ø3.5 mm minijack cable plugged into the WIRED REMOTE
terminal?
• The batteries may be depleted or inserted incorrectly. Make
sure the batteries are inserted correctly or insert new ones.
—
69
63
17
62
63
51
51
49
9, 10
66, 69, 70
69
24–27
72
72
16
16
This projector is equipped with a microprocessor. Its performance could be adversely affected by incorrect op-
eration or interference. If this should happen, unplug the projector and plug it in again after more than 5 minutes.
Troubleshooting
Appendix
-81
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, first refer to the
“Troubleshooting” section on pages 79 and 80. If this operation manual does not answer
your question, please contact the SHARP Service departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
http://www.sharpusa.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation Mexico
Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin American
Group
(305) 264-2277
www.servicio@sharpsec.com
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
08705 274277
http://www.sharp.co.uk/customersupport
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
http://www.sharp.fr
Spain Sharp Electronica Espana, S.A.
93 5819700
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
http://www.sharp.se
Austria Sharp Electronics (Europe) GMBH
Branch Office Austria
0043 1 727 19 123
http://www.sharp.at
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia
Pty. Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
Phone:(09) 573-0111
Fax:(09) 573-0112
http://www.sharp.net.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
-82
Specifications
Model
Display devices
Resolution
Lens
(Standard)
Lens shift
Input terminals
Output terminals
Speakers
Projection lamp
Rated voltage
Rated frequency
Input current
Power consumption (Standby)
Operation temperature
Cabinet
Dimensions (main body only) [W × H × D]
Weight (approx.)
F number
Zoom
Focus
HDMI
DVI-D (Compatible with HDCP)
Computer / Component (5BNC)
Computer/Component
(mini D-sub 15 pin)
S-Video (mini DIN 4 pin)
Video (RCA)
Audio (ø3.5 mm stereo minijack)
Audio (RCA)
Computer/Component
(mini D-sub 15 pin)
Audio (ø3.5 mm stereo minijack)
LAN (RJ-45)
RS-232C (mini DIN 9 pin)
Wired Remote
(ø3.5mm stereo minijack)
XG-P610X (Standard zoom lens attached) /
XG-P610X-N (No lens attached)
0.7" DLP
®
Chip ×3
XGA (1024 × 768)
F 2.5
Power, ×1.25 (f = 25.5 – 32.0 mm)
Power
Power (V : ±55% / H : ±35%)
×1
×1
×1
×1
×1
×1
×3
×2 (L/R)
×1
×1 (variable audio output)
×1
×1
×1
3 W × 2 (Stereo)
280 W × 2 lamps
AC 100 – 240 V
50/60 Hz
7.7 A
755 W (16.7 W) with AC 100 V
710 W (16.9 W) with AC 240 V
41°F to 104°F (+5°C to +40°C)
Plastic
19
22
/
32
" × 25
3
/
32
" × 7
31
/
64
"
(500 × 637 × 190 mm)
XG-P610X: 57.4 lbs. (26.0 kg)
XG-P610X-N: 54.1 lbs. (24.5 kg)
Control and
communication
terminals
As a part of policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Appendix
-83
AC socket ....................................................................... 28
ADJ./MOUSE switch ...................................................... 17
Adjustment buttons ........................................................ 47
Adjustment feet .............................................................. 30
Advanced intelligent compression ................................ 75
All Reset ........................................................................ 65
Area zoom ..................................................................... 40
Aspect ratio .................................................................... 39
Audio .............................................................................. 55
Audio Out ....................................................................... 55
Auto Power Off............................................................... 58
Auto Restart ................................................................... 63
Auto Search ................................................................... 58
Auto Sync (Auto Sync adjustment) ............................... 54
AUTO SYNC button ....................................................... 54
Auto Sync Disp .............................................................. 54
Background.................................................................... 58
Border ............................................................................ 39
BREAK TIMER button ................................................... 41
C.M.S. (Color Management System) ............................ 52
C.M.S. Adjustment ......................................................... 52
Carrying handle ............................................................. 14
Clock .............................................................................. 53
CLR Temp (Color Temperature) .................................... 50
COMPUTER1 button ..................................................... 36
COMPUTER2 button ..................................................... 36
COMPUTER/COMPONENT1 terminals ....................... 24
COMPUTER/COMPONENT2 terminals ....................... 24
DHCP Client .................................................................. 64
Digi. Shift........................................................................ 57
DNR ............................................................................... 50
Dot By Dot ..................................................................... 39
Dustproof cap ................................................................ 13
DVI button ...................................................................... 36
DVI-D terminals ............................................................. 24
Eco Mode ....................................................................... 58
ENTER button................................................................ 47
Exhaust vent .................................................................. 66
Fan Mode ....................................................................... 63
Filter cover ..................................................................... 67
Fine Sync ....................................................................... 53
FOCUS buttons ............................................................. 31
FREEZE button ............................................................. 38
Gateway ......................................................................... 65
Geometric adjustment ................................................... 33
H-Pos ............................................................................. 53
H & V keystone .............................................................. 34
H & V LENS SHIFT button ............................................ 30
HDMI button................................................................... 36
HDMI terminal ................................................................ 24
Image Capture ............................................................... 57
Image resizing ............................................................... 35
INPUT buttons ............................................................... 36
Intake vent ..................................................................... 66
IP Address ..................................................................... 65
Kensington Security Standard connector ..................... 14
Keycode ......................................................................... 59
Keylock Level ................................................................. 63
KEYSTONE button ........................................................ 32
Keystone Correction ...................................................... 32
Lamp .............................................................................. 71
Lamp indicators 1, 2 ...................................................... 69
Lamp Mode .................................................................... 62
Lamp Timer (Life) .......................................................... 65
Lamp unit cover ............................................................. 72
LAN terminal .................................................................. 27
LAN/RS232C ................................................................. 64
Language ....................................................................... 65
Index
L-CLICK button .............................................................. 18
Lens cover ..................................................................... 77
MAGNIFY buttons .......................................................... 37
MENU button ................................................................. 47
Monitor Out .................................................................... 64
MONITOR OUT terminals ............................................. 26
Mouse button ................................................................. 18
MUTE button.................................................................. 37
Network .......................................................................... 64
Normal ........................................................................... 39
ON button ...................................................................... 28
Options 1 ....................................................................... 56
Options 2 ....................................................................... 61
OSD Display .................................................................. 57
Pair Stack....................................................................... 63
Password ....................................................................... 61
Phase ............................................................................. 53
Pict in Pict ...................................................................... 56
Picture ............................................................................ 49
Picture Mode ................................................................. 49
PICTURE MODE button ................................................ 38
Power cord ..................................................................... 28
Power indicator .............................................................. 69
PRJ Mode ...................................................................... 62
Progressive .................................................................... 50
R-CLICK button ............................................................. 18
Remote control .............................................................. 16
Remote control sensor .................................................. 16
Remote receiver ............................................................ 18
Resize ............................................................................ 39
RESIZE button ............................................................... 39
Resolution ...................................................................... 53
RGB cable ..................................................................... 24
RS-232C ........................................................................ 64
RS-232C terminal .......................................................... 27
S-VIDEO button ............................................................. 36
S-VIDEO terminals ........................................................ 26
Save Setting .................................................................. 53
Select Setting ................................................................ 53
Service Mode ................................................................. 65
Set Inputs....................................................................... 63
SHUTTER buttons ......................................................... 41
Signal Info ...................................................................... 54
Signal Type .................................................................... 51
Smart Stretch ................................................................ 40
Speaker.......................................................................... 55
sRGB ............................................................................. 52
Stack Setting ................................................................. 62
STANDBY button ........................................................... 28
Startup Image ................................................................ 58
Status ............................................................................. 65
Stretch ........................................................................... 39
Subnet Mask .................................................................. 65
System Lock .................................................................. 59
TCP/IP ........................................................................... 65
Temperature warning indicator ...................................... 69
UNDO button ................................................................. 47
V-Pos .............................................................................. 53
V-stretch ......................................................................... 40
VIDEO button................................................................. 36
VIDEO terminals ............................................................ 26
Video System ................................................................ 57
Volume buttons .............................................................. 36
WIRED R/C JACK ......................................................... 17
WIRED REMOTE terminal ............................................ 17
ZOOM buttons ............................................................... 31
SHARP CORPORATION
