Cybex - V Series Upright Bike
Assembly Instructions
Part Number
1008692-0001 AA
User and Service Documents Link
Operation Manuals and other Product Information available at
https://www.lftechsupport.com/web/document-library/documents
https://www.lftechsupport.com/web/document-library/documents
https://www.lftechsupport.com/web/document-library/documents
https://www.lftechsupport.com/web/document-library/documents
https://www.lftechsupport.com/web/document-library/documents
https://www.lftechsupport.com/web/document-library/documents
Trobareu el manual de funcionament i altra informació de producte a
https://www.lftechsupport.com/web/document-library/documents
Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn
https://www.lftechsupport.com/web/document-library/documents
Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter
https://www.lftechsupport.com/web/document-library/documents
Encontrará el manual de funcionamiento y otra información de producto en
https://www.lftechsupport.com/web/document-library/documents
Erabiltzailearen Eskuliburua eta Beste Produktuei buruzko Informazioa eskuratu
https://www.lftechsupport.com/web/document-library/documents gunean
Käyttöoppaat ja muut tuotetiedot ovat saatavana osoitteessa
https://www.lftechsupport.com/web/document-library/documents
Les manuels d’utilisation, ainsi que d’autres informations sur les Produits, sont disponibles sur
https://www.lftechsupport.com/web/document-library/documents
Felhasználói kézikönyvek és más termékinformációk:
https://www.lftechsupport.com/web/document-library/documents
Manuali di funzionamento e altre informazioni sui prodotti disponibili su
https://www.lftechsupport.com/web/document-library/documents
Instrukcje obsługi i inne informacje o produktach dostępne na stronie
https://www.lftechsupport.com/web/document-library/documents
Manuais de Operação e Informações sobre outros produtos disponíveis em
https://www.lftechsupport.com/web/document-library/documents
https://www.lftechsupport.com/web/document-library/documents
Kullanım Kılavuzları ve Diğer Ürün Bilgileri https://www.lftechsupport.com/web/document-library/documents’da
bulunmaktadır
Page 3 of 25
Table of Contents
Getting Started
Safety Instructions........................................................................................................................5
Consignés de Sécurité..................................................................................................................7
Where to Place Unit......................................................................................................................9
How to Stabilize the Unit.............................................................................................................9
Starting Up Bike Console.............................................................................................................9
Using the Power Assist Option.................................................................................................10
Product Overview

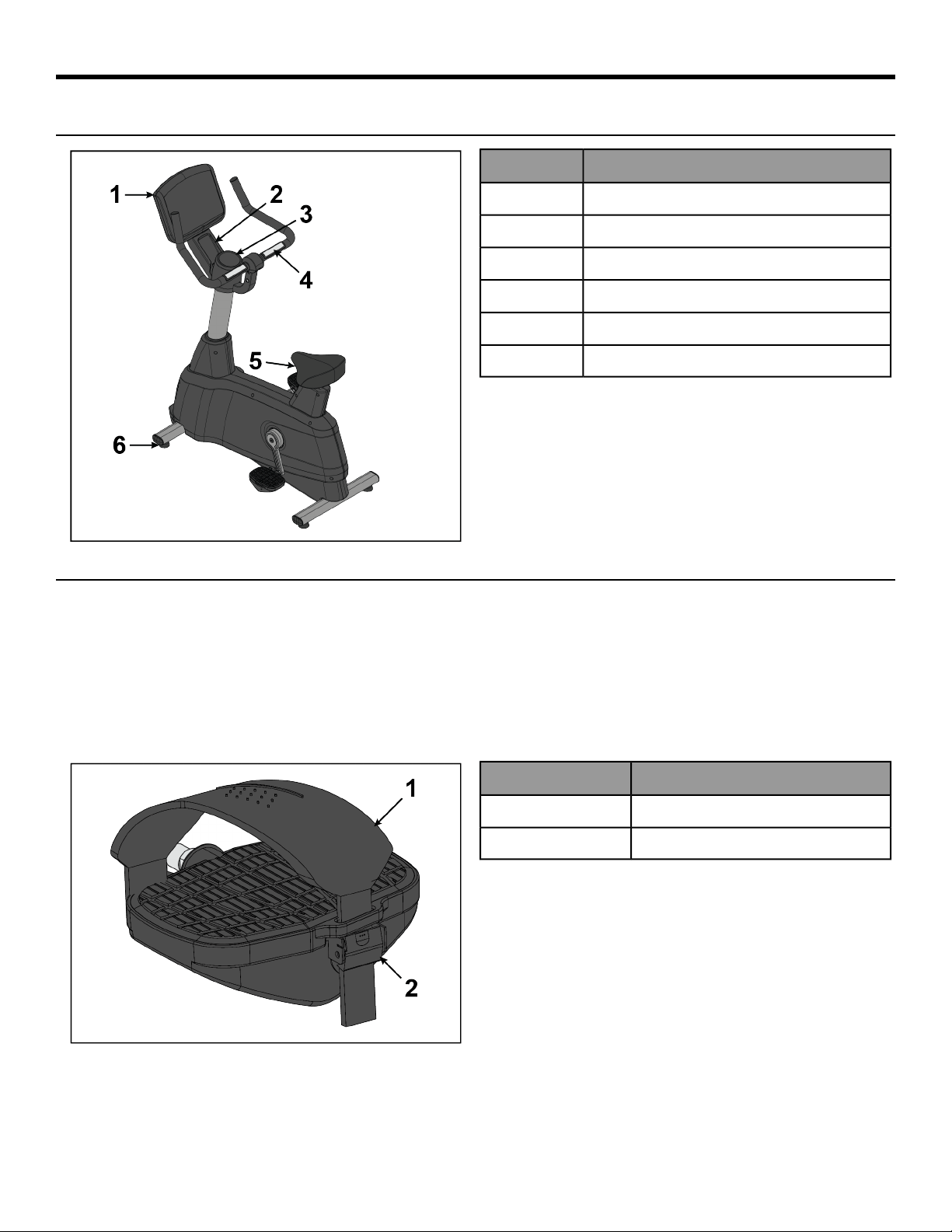

Product Features........................................................................................................................11
How to Adjust Pedal Straps......................................................................................................11
How to Adjust Seat.....................................................................................................................12
Assembly
Component and Hardware List...............................................................................................13
Tools Required............................................................................................................................14
Remove Base from Packaging.................................................................................................14

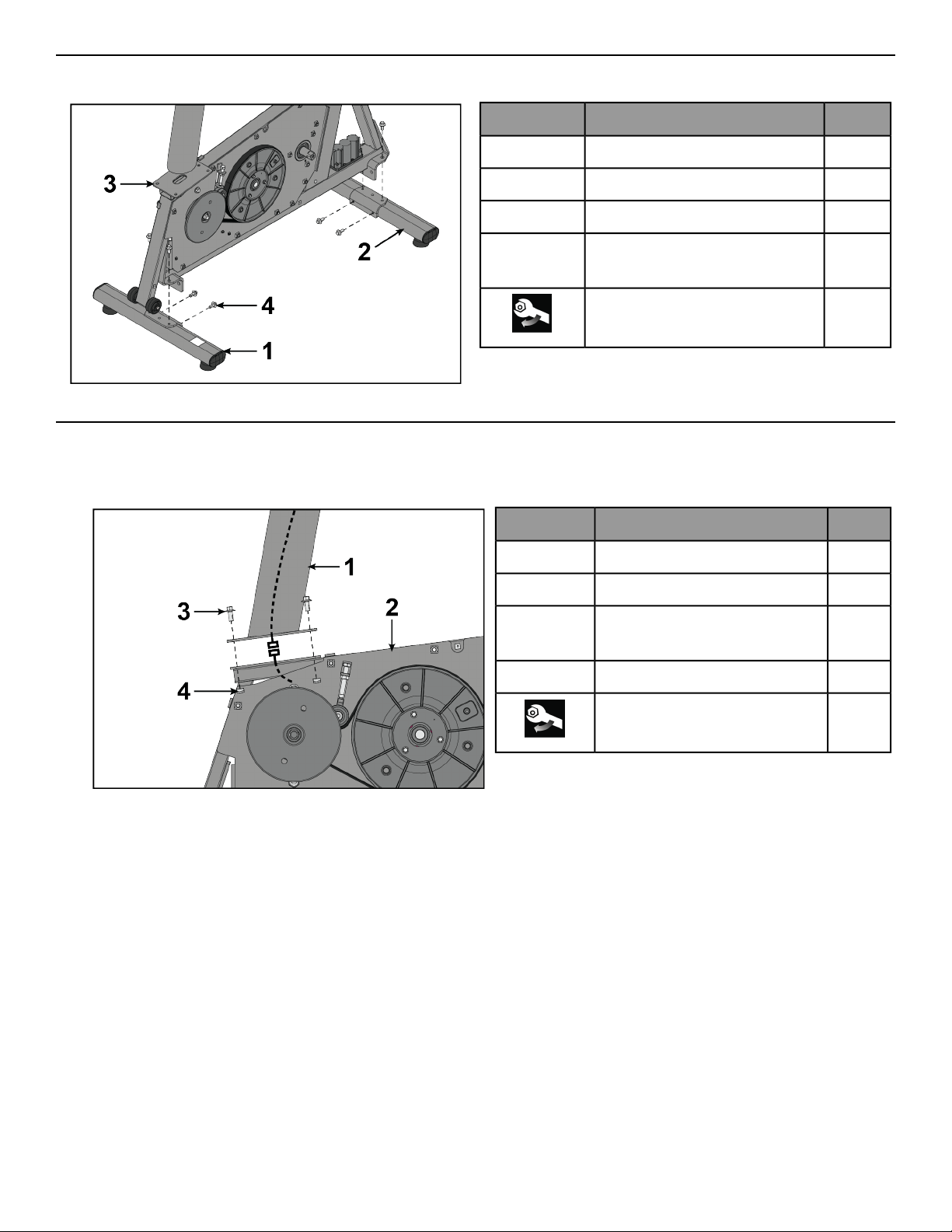

Install Stabilizers.........................................................................................................................15
Install Monocolumn Assembly.................................................................................................15

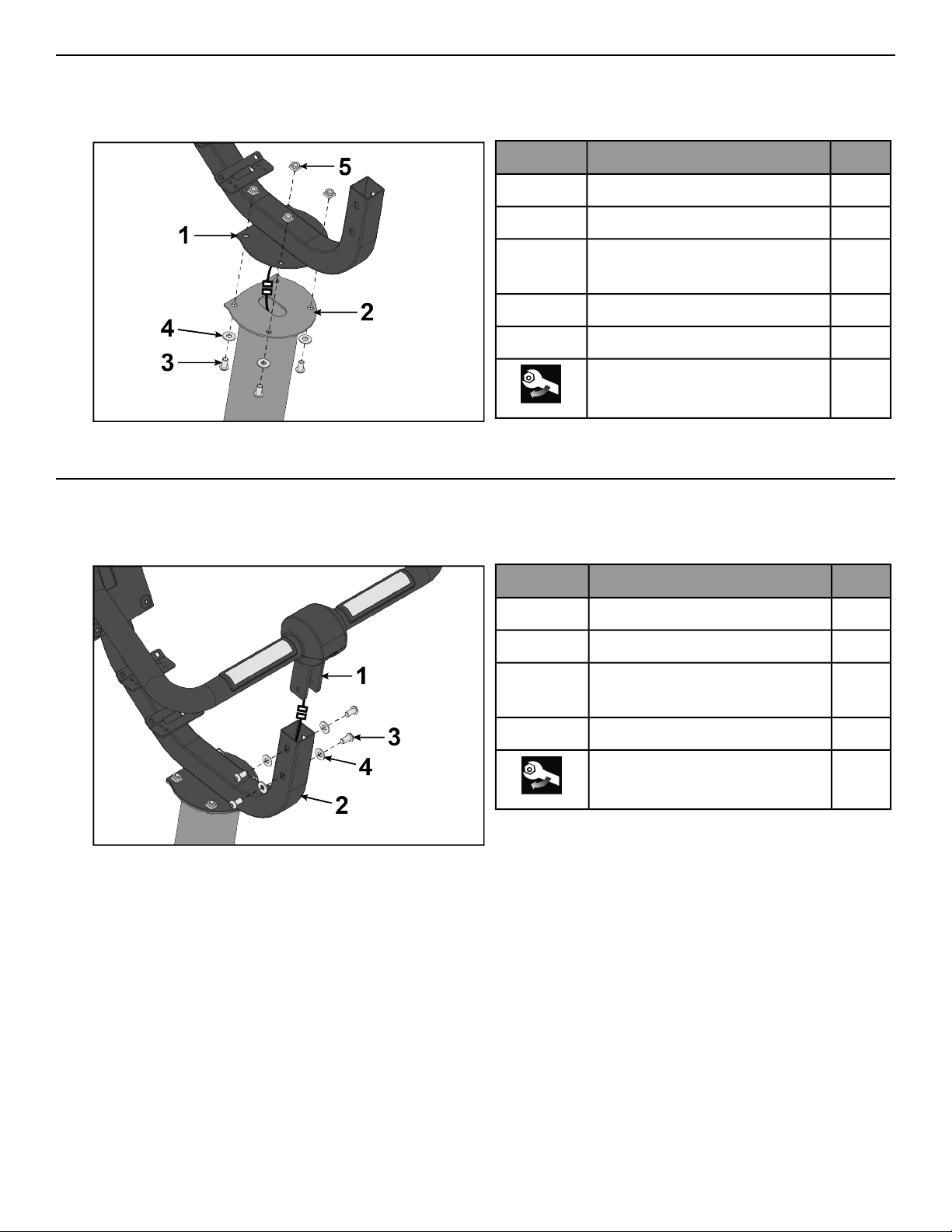

Install Console Support Assembly...........................................................................................16

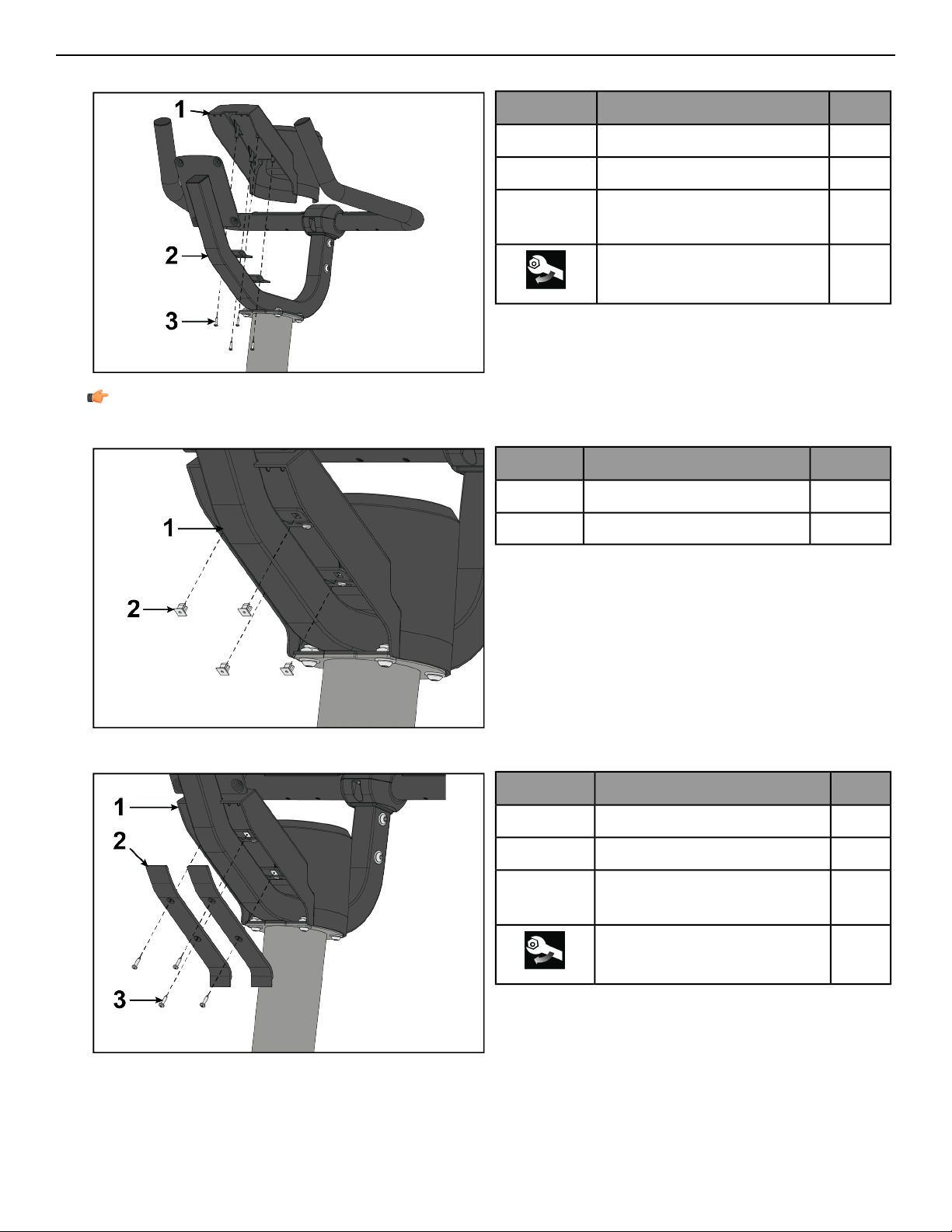

Install Handlebar Assembly......................................................................................................16

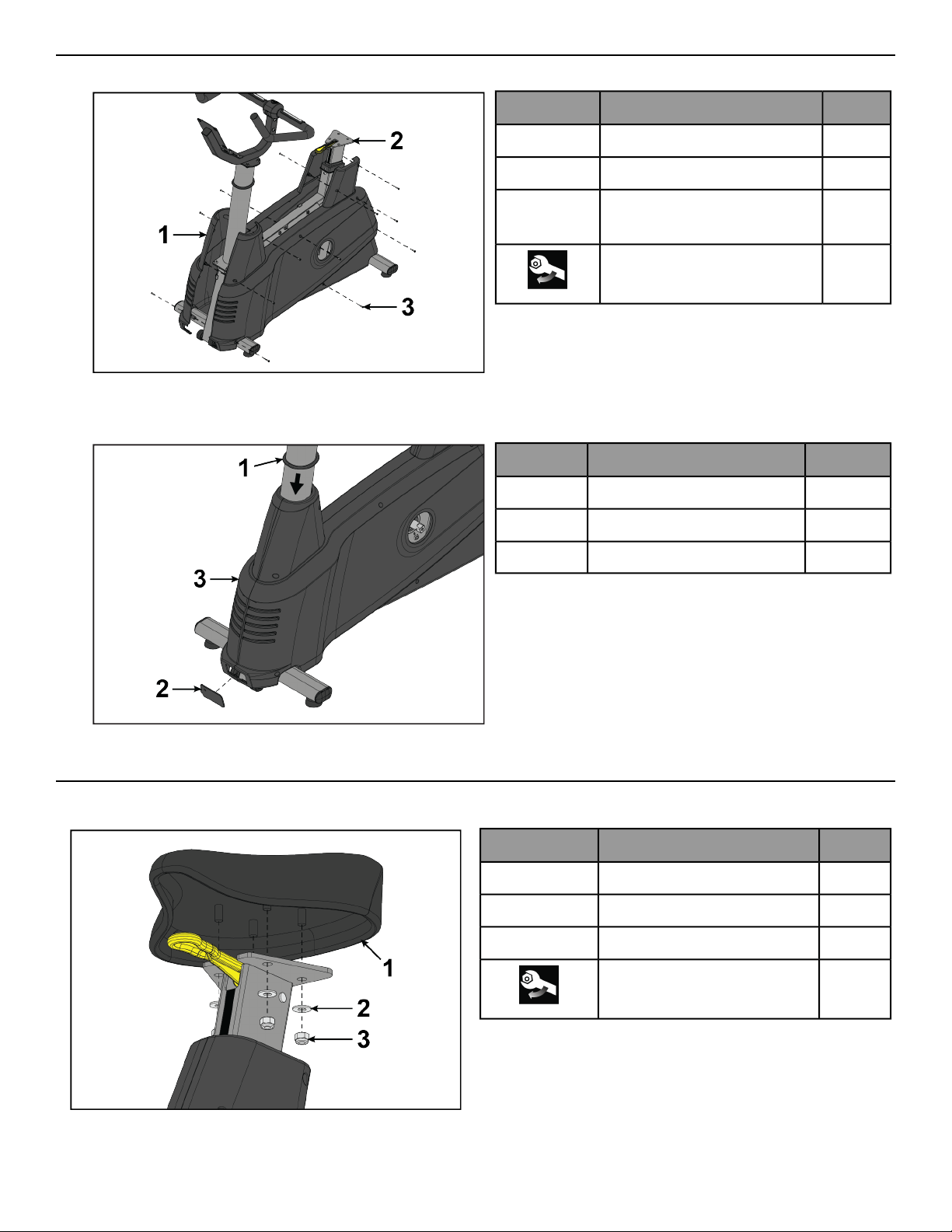

Install Shrouds.............................................................................................................................17
Install Seat....................................................................................................................................17
Install Cup Holder.......................................................................................................................18

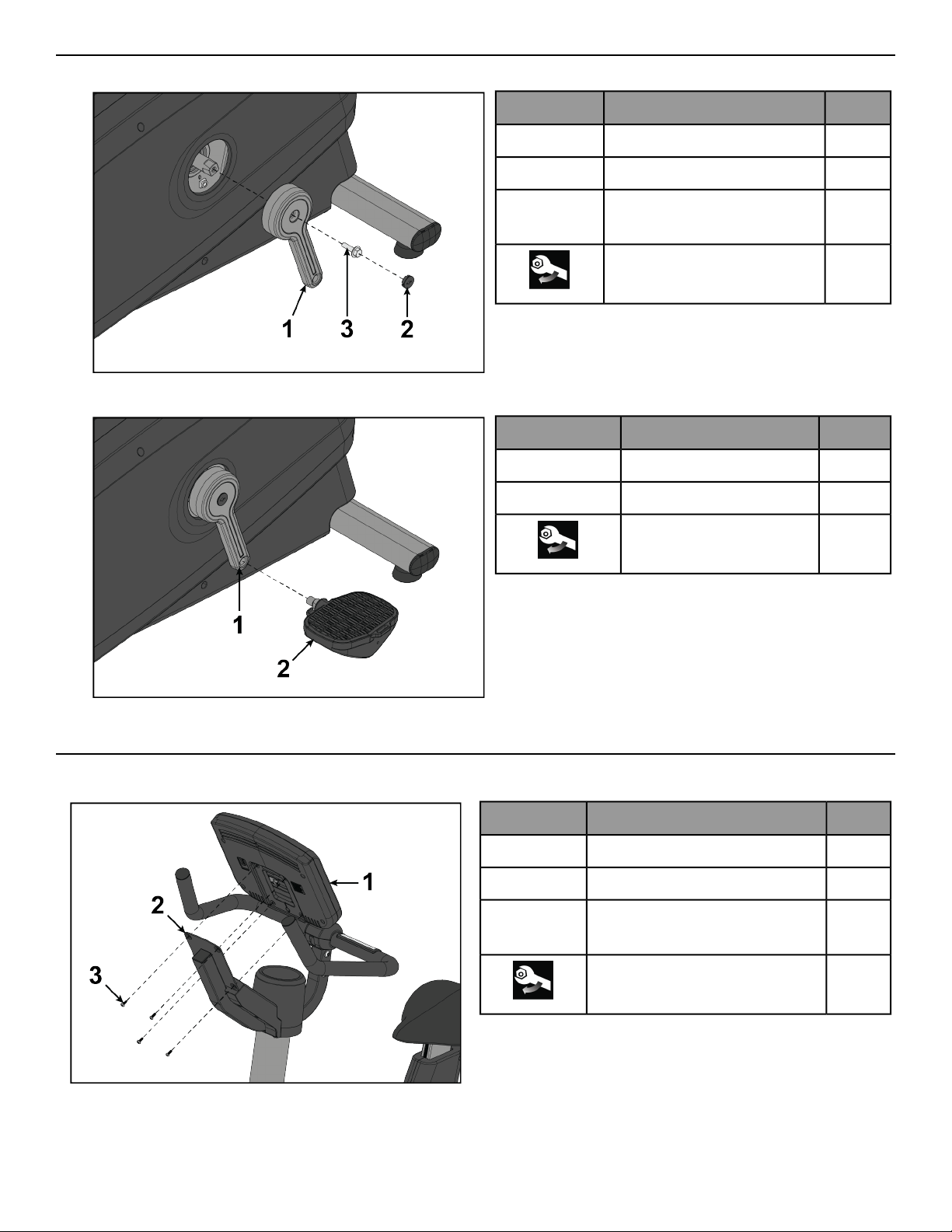

Install Pedals................................................................................................................................19
Install Console.............................................................................................................................19

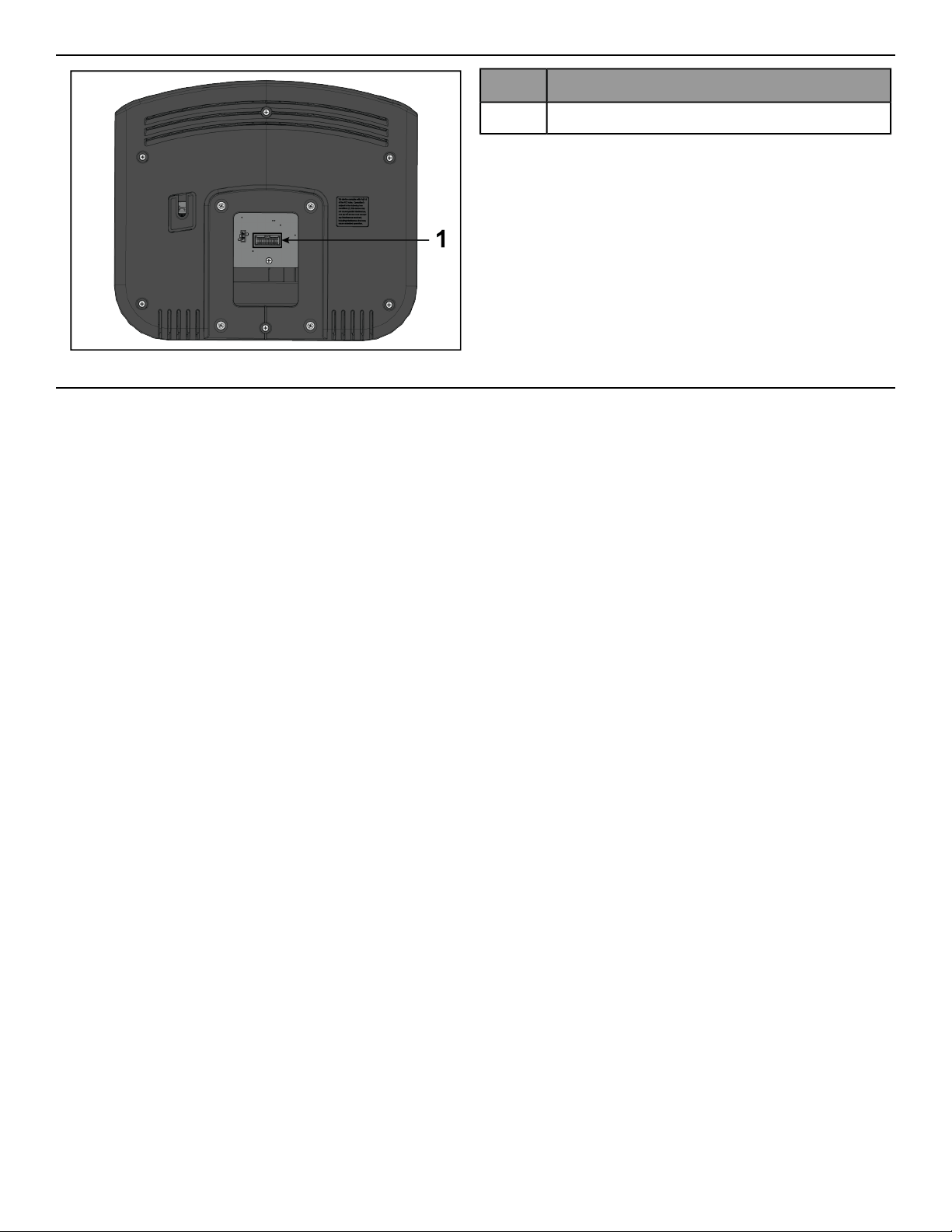

Console Connections.................................................................................................................20
Tighten Hardware.......................................................................................................................20
Service and Technical Data
Preventive Maintenance Tips...................................................................................................21
Approved and Compatible Cleaners.......................................................................................21
Preventive Maintenance Schedule..........................................................................................22
Troubleshooting the Polar
®
Heart Rate Chest Strap............................................................22
Troubleshooting the Lifepulse
™
Sensors...............................................................................23
How To Obtain Product Service..............................................................................................23
Specifications
Specifications..............................................................................................................................24
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc.
DISCLAIMER: CybexInternational, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document
at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
©
Copyright 2018, Cybex International, Inc.
Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893
www.cybexintl.com • 1008692-0001 AA • 2018
Page 4 of 25
Getting Started
Safety Instructions
Read all instructions before using Cybex International, Inc. products.
Warning: Health-related injuries may result from incorrect or excessive use of exercise equipment. Cybex
International, Inc. STRONGLY recommends seeing a physician for a complete medical exam before undertaking
an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is
over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. If,
at any time while exercising, the user experiences faintness, dizziness, pain, or shortness of breath, he or she
must stop immediately.
Caution: Any changes or modifications to this equipment could void the product warranty.
Danger: To reduce the risk ofelectrical shock or injury from moving parts, always unplug Cybex International,
Inc. products before cleaning or attempting any maintenance activity.
Warning: To reduce the risk of burns, fire, electric shock, or injury, it is imperative to connect each product
to a properly grounded electrical outlet.
Warning: Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or
death. If you feel faint, stop exercising immediately.

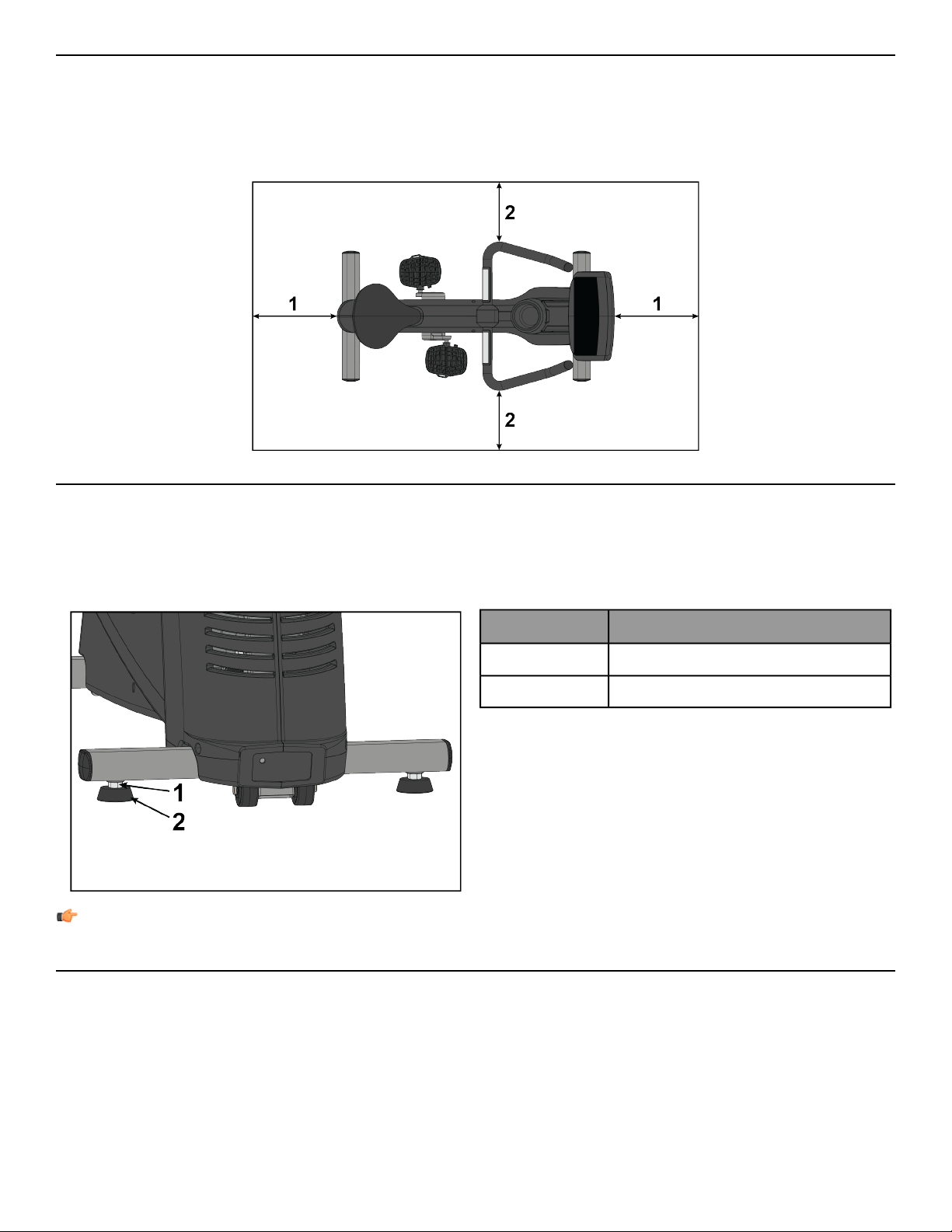

Warning: Allow a distance of 16 in. (41 cm) between the widest part of the bike and other objects on either
side. Provide at least 3 ft. (0.9 m) between the front or rear of the bike to any other objects and 2 ft. (0.6 m)
in the direction the equipment is accessed from.
• Never operate a Cybex International, Inc. product if it has a damaged power cord or electrical plug, or if it has
been dropped, damaged, or even partially immersed in water. Contact Customer Support Services.
• Position the product so that the power cord plug to the wall is accessible to the user. Make sure that the power
cord is not knotted or twisted and that it is not trapped under any equipment or other objects.
• If the electrical supply cord is damaged, it must be replaced by the manufacturer, an authorized service agent,
or a similarly qualified person to avoid a hazard.
• Always follow the console instructions for proper operation.
• This appliance is not intended for useby persons (including children) with reduced physical, sensory, or mental
capabilities, or lack of experience or knowledge unless they have supervision or been given instruction concerning
the use of the appliance by a person responsible for their safety.
• Do not use this product outdoors, near swimming pools or in areas of high humidity.
• Never operate a Cybex International, Inc. product with the air openings blocked. Keep air openings free of lint,
hair, or any other obstructing material.
• Never insert objects into any opening in these products. If an object should drop inside, turn off the power,
unplug the power cord from the outlet, and carefully retrieve it. If the item cannotbe reached, contact Customer
Support Services.
• Never place liquids of any type directly on the unit, except in an accessory tray or holder. Containers with lids
are recommended.
• Do not use these products in bare feet. Always wear shoes. Wear shoes with rubber or high-traction soles. Do
not use shoes with heels, leather soles, cleats or spikes. Make sure no stones are embedded in the soles.
• Keep all loose clothing, shoelaces, and towels away from moving parts.
• Do not reach into, or underneath, the unit or tip it on its side during operation.
• This equipment is not intended for use by children. Keep children under the age of 14 away from the machine.
• Do not allow other people to interfere in any way with the user or equipment during a workout.
Page 5 of 25
• Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and
using.
• The product should never be left unattended when plugged in. Disconnect from the electrical outlet when not
in use, and before putting on or taking off parts.
• Use these products for their intended use as described in this manual. Do not use attachments that have not
been recommended by the manufacturer.
• Free standing equipment shall be installed on a stable and leveled surface.
• Do not stand or sit on plastic shrouds.
• Use caution when mounting or dismounting the bike. Use the stationary handlebar whenever additional stability
is required.
• Read all warnings on each product prior to starting a workout.
• If warnings are missing or damaged, please contact Cybex International, Inc. immediately for replacement
warning labels. Warning labels are shipped with every product and should be installed before product is used.
Cybex International, Inc. is not responsible for missing or damaged warning labels.
• Health and Environmental Regulations Warning - This product may contain chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm. For more information related to the
European Commission Regulation (EC) No. 1907/2006 (REACH) and the California Safe Drinking Water and Toxic
Enforcement Act of 1986 (Proposition 65), please visit
https://www.lftechsupport.com/web/guest/environmental-regulations-information.
Page 6 of 25
Consignés de Sécurité
Veuillez lire toutes les instructions avant d’utiliser Cybex International, Inc. les appareils.
Attention: Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Cybex
International, Inc. Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant
d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents
familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45
ans ou plus, tabagisme, hypercholestérolémie (taux de cholestérol sanguin trop élevé), obésité, absence
d'exercice physique depuis un an ou plus. Arrêtez immédiatement votre entraînement si vous ressentez l'un
des signes suivants lors de l'utilisation de votre appareil : étourdissements, vertiges, douleur ou essoufflement.
Attention: Toute modification apportée à cet équipement pourrait en annuler la garantie.
Danger: Pour réduire les risques de chocs électriques ou de blessures en raison des pièces mobiles,
débranchez toujours les produits Cybex International, Inc. avant de les nettoyer ou de procéder aux tâches
d’entretien.
Attention: Pour réduire les risques de brûlures, d'incendies, de chocs électriques ou de blessures, il est
essentiel de brancher chaque appareil sur une prise électrique correctement mise à la terre.
Attention: Les systèmes de surveillance de la fréquence cardiaque peuvent être inexacts. Un exercice trop
intensif peut entraîner des blessures graves, voire mortelles. Si vous ressentez une sensation de malaise,
arrêtez immédiatement l’exercice.
Attention: Laissez une distance de 41 cm (16 po.) entre la partie la plus large du vélo et les objets se trouvant
de part et d'autre. Laissez un dégament d'au moins 0,9 m (3 pi.) entre l'avant et l'arrière du vélo et les objets
alentour, et d'au moins 0,6 m (2 pi.) dans la direction qui permet d'accéder à l'appareil.
• Ne faites jamais fonctionner d’appareil Cybex International, Inc. dont la fiche ou le cordon d'alimentation sont
altérés, ni aucun appareil qui serait tombé, aurait été endommagé ou même partiellement plongé dans l'eau.
Contactez le Cybex International, Inc. Service à la clientèle.
• Placez l'appareil de façon à ce que l'utilisateur ait accès à la fiche du cordon d'alimentation. Assurez-vous que
le cordon d'alimentation n'est pas noué ou tordu et qu'il n'est pas coincé sous un autre appareil ou sous tout
autre objet.
• Si le cordon d'alimentation électrique est endommagé, il doit être remplacé par le fabricant, par un réparateur
agréé ou par une personne qualifiée afin d'éviter tout danger.
• Suivez toujours les instructions s'affichant sur la console.
• Cet appareil n'est pas destiné à être utilisé par des personnes ou des enfants présentant des capacités physiques,
sensorielles ou mentales réduites, ou encore un manque d'expérience et de connaissances, sauf en cas de
supervision ou d'instructions relatives à son utilisation par une personne responsable de leur sécurité.
• N'utilisez pas cet appareil à l'extérieur, près d'une piscine ou dans des endroits très humides.
• Ne bloquez jamais le système d’aération de votre appareil Cybex International, Inc.. Le système d'aération doit
être propre et ne contenir aucun résidu de tissus, cheveux ou autres matériaux.
• N'insérez jamais d'objet dans les ouvertures de cet appareil. Siun objet tombe dans l'appareil, mettezce dernier
hors tension, débranchez le cordon d'alimentation et récupérez l'objet avec précaution. Si vous ne pouvez pas
l'atteindre, consultez le Service clients Cybex International, Inc..
• Ne placez jamais de liquides d'aucune sorte directement sur l'appareil, sauf si vous disposez d'un support ou
d'un plateau pour accessoires. Nous vous recommandons de n'utiliser que des récipients pourvus d'un bouchon.
• N'utilisez pas ce produit pieds nus. Portez toujours des chaussures. Portez des chaussures avec semelles en
caoutchouc ou antidérapantes. N'utilisez pas de chaussures à talon,à semelle en cuir, à crampons ouà pointes.
Vérifiez qu'aucun gravier n'est coincé dans vos semelles.
• Éloignez les vêtements amples, les lacets de chaussure et les serviettes des parties mobiles de l'appareil.
• Ne placez pas les mains à l'intérieur ou sous l'appareil ; ne le faites pas basculer sur le côté durant son
fonctionnement.
Page 7 of 25
• Cet équipement n'est pas destiné à être utilisé par les enfants. Tenez les enfants âgés de moins de 14 ans à
l'écart de la machine.
• Ne laissez personne gêner l'utilisateur ou le fonctionnement de l'appareil pendant un exercice.
• Laissez les consoles LCD s'adapter à la température ambiante pendant 1 heure avant de brancher l'unité et de
l'utiliser.
• Ne laissez jamais l'appareil sans surveillance lorsqu'il est branché. Débranchez-le systématiquement après son
utilisation, et avant l'ajout et le retrait de pièces. Pour débrancher l'appareil, placez l'interrupteur sur OFF et
ôtez la prise électrique du mur.
• Utilisez cet équipement uniquement aux fins auxquelles il est destiné et de la manière décrite dans le présent
manuel. N'utilisez pas d'accessoires qui ne sont pas recommandés par le fabricant.
• L'équipement indépendant doit être installé sur une surface stable et plane.
• Ne vous mettez ni debout, ni assis sur les caches en plastique du vélo.
• Montez et descendez avec précaution du vélo. Utilisez le guidon fixe lorsque vous avez besoin de renforcer
votre équilibre.
• Lisez les avertissements avant de commencer à vous entraîner.
• Si certaines étiquettes d’avertissement sont manquantes ou endommagées, contactez Cybex International,
Inc. immédiatement. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissementsont expédiées avec
les appareils et doivent être installées avant utilisation de ces derniers. Cybex International, Inc. n'est pas
responsable des étiquettes manquantes ou endommagées.
• Réglementation en matière de santé et d’environnement : avertissement – Cet appareil peut contenir des
produits chimiques considérés par l’État de Californie comme étant cancérigènes et causant des malformations
congénitales et d’autres troubles de l’appareil reproducteur. Pour plus d'informations sur le règlement de la
Commission européenne (CE) n°1907/2006 (REACH) et sur le California Safe Drinking Water and Toxic Enforcement
Act de 1986 (Proposition 65), consultez la page
https://www.lftechsupport.com/web/guest/environmental-regulations-information.
Page 8 of 25
Where to Place Unit
Read the entire manual before setting up the bike. After following all Safety Instructions, move the bike to the
location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the bike is accessed from and 3 ft.
(1 m) between the front or rear of the bike or any other objects.
Free area
How to Stabilize the Unit
After placing the unit in position, check the unit’s stability by attempting to rock it from side to side. Any slight
rocking indicates that the unit must be leveled. Determine which foot is not resting completely on the floor. Loosen
the jam nut with an open-end M17 wrench and rotate the stabilizing foot to lower it. Verify that the bike is stable,
and repeat the adjustment as necessary until the unit no longer rocks. Lock the adjustment by tightening the jam
nut against the stabilizing bar.
DescriptionItem
Jam Nut1
Stabilizing Leg2
Note: Stabilize the bike each time the unit is relocated.
Starting Up Bike Console
When a user begins pedaling, the unit’s Auto-Start feature powers up the console, causing the console display to
light up and the MESSAGE CENTER to flash a prompt: “SELECT WORKOUT USING ARROW KEYS OR PRESS QUICK
START.” If the user does not make a selection in 20 seconds, the console automatically starts a MANUAL workout.
If the user stops pedaling for more than 15 seconds, the console shuts down. Alternately, the user may press the
POWER ON key to power up the console.
Page 9 of 25
Using the Power Assist Option
The units optional Power Assist feature makes it possible for the console to be powered by an external electrical
source, eliminating the need to pedal at a minimum speed to supply constant power to the console. With this
option, users who wish to ride the bike for rehabilitative exercise may pedal at a rate below the minimum without
losing console power.
Enabling the Power Assist option requires an optional kit. Contact Customer Support Services to order the kit.
Page 10 of 25
Product Overview
Product Features
DescriptionItem
Console1
Accessory Tray2
Cup holder3
Contact Heart Rate Sensors4
Seat Adjustment Lever5
Leg Leveler6
How to Adjust Pedal Straps
The bike pedal straps keep the user’s shoes on the pedals during a workout. The straps should fit comfortably but
tight enough to prevent shoes from slipping at any point in the pedaling rotation. A user should test and adjust
the tightness of the straps before starting a workout.
Use one hand to push the strap latch upward to loosen the ribbed strap. Use the other hand to pull the ribbed
strap out from underneath the strap latch. Rest the foot on the pedal. Wrap the ribbed strap over the foot to
determine the desired length. Push the strap latch upward and thread the ribbed strap through the strap latch to
select the appropriate slot. Let go of the strap latch to secure position.
DescriptionItem
Strap1
Clip2
Page 11 of 25
How to Adjust Seat
A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain
will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate
the feet, ankles, hips and knees.
Sit on the seat and place the balls of the feet on the pedals. An optimum position allows movement through the
bottom of the stroke without locking the knees, shifting in the seat or forcefully extending the hips. The knees
should have a slight bend at the point of fullest leg extension.
If the seat needs to be adjusted lower, lift the spring-loaded adjusting handle located underneath the nose of the
seat. Hold both the handle and nose of the seat with one hand and use the other hand to grab the rear of the seat.
Slide the handle and seat down to the proper position. Release the handle to complete engagement. Gently slide
the seat up and down a small distance to ensure it is locked into place. Check the seat distance and readjust as
necessary.
If the seat needs to be adjusted higher, grab the seat and slide it up to the proper position. When adjusting the
seat to a higher position, the user does not have to lift the adjusting handle.
Caution: Do not attempt to adjust the seat while pedaling the bike or sitting on the seat. Doing so may
cause injury or result in an uncomfortable workout.
DescriptionItem
Seat1
Adjustment Lever2
Page 12 of 25
Assembly
Component and Hardware List
Components
QtyDescriptionItem
1Base Assembly1
2Stabilizer2
1Console Support Assembly3
1Monocolumn Assembly4
1Handlebar Assembly5
1Seat6
1Cup Holder7
2Cup Holder Cover8
2Pedal9
1Console10
1Power Bracket11
2Crank Arm12
Hardware
QtyDescriptionItem
12Screw, M8 x 16mm Hex Flange Head1
4Screw, M8 x 16mm Hex Button Head (silver)2
8Washer, M8 Flat (silver)3
4Washer, M8 Flat (black)4
4Screw, M8 x 16mm Hex Button Head (black)5
15Screw, M4 x 16mm Phillips Pan Head6
4Locknut, M87
4Screw, M5 x 12mm Phillips Pan Head8
4Plastic Grommet9
2Screw, M8 x 30mm Hex Flange Head10
2Cap11
Page 13 of 25
Tools Required
• 14 mm Socket wrench• Phillips screwdriver
• 5 mm Allen wrench
• 15 mm Pedal wrench
• 10 mm Socket wrench
• 17 mm Open end wrench
• 13 mm Socket wrench
• Scissors
Remove Base from Packaging
1. Remove screws securing shrouds to base assembly using a Phillips screwdriver.
QtyDescriptionItem
2Shrouds1
1Base Assembly2
6
Screw, M4 X16mm Phillips Pan
Head
3
2. Cut cable ties securing base assembly to packaging using a scissors.
3. Remove base assembly from packaging.
QtyDescriptionItem
1Base Assembly1
Page 14 of 25
Install Stabilizers
Install screws securing stabilizers to base assembly using a 10 mm socket wrench.
QtyDescriptionItem
1Front Stabilizer1
1Rear Stabilizer2
1Base Assembly3
8
Screw, M8 x 16mm Hex Flange
Head
4
20 ft. lbs. (27.1 Nm)
Install Monocolumn Assembly
1. Connect cables.
2. Install screws and locknuts securing monocolumn assembly to base assembly using a 10 and 13 mm socket
wrench.
QtyDescriptionItem
1Monocolumn Assembly1
1Base Assembly2
4
Screw, M8 X 16mm Hex Flange
Head
3
4Locknut, M84
18 ft. lbs. (24.4 Nm)
Page 15 of 25
Install Console Support Assembly
1. Connect cables.
2. Install screws, washers, and locknuts securing console support assembly to monocolumn assembly using a
5 mm Allen wrench and 13 mm socket wrench.
QtyDescriptionItem
1Console Support Assembly1
1Monocolumn Assembly2
4
Screw, M8 X 16mm Hex Button
Head (silver)
3
4Washer, M8 Flat (silver)4
4Locknut, M85
18 ft. lbs. (24.4 Nm)
Install Handlebar Assembly
1. Connect cables.
2. Install screws and washers securing handlebar assembly to console support assembly using a 5 mm Allen
wrench.
QtyDescriptionItem
1Handlebar Assembly1
1Console Support Assembly2
4
Screw, M8 X 16mm Hex Button
Head (black)
3
4Washer, M8 Flat (black)4
18 ft. lbs. (24.4 Nm)
Page 16 of 25
Install Shrouds
1. Install screws securing shrouds to base assembly using a Phillips screwdriver.
QtyDescriptionItem
2Shrouds1
1Base Assembly2
13
Screw, M4 X16mm Phillips
Pan Head
3
13 in. lbs. (1.47 Nm)
2. Slide collar down monocolumn assembly and press into place.
3. Install power bracket into front of base assembly
QtyDescriptionItem
1Collar1
1Power Bracket2
1Base Assembly3
Install Seat
Install locknuts and washers securing seat to base assembly using a 13 mm socket wrench.
QtyDescriptionItem
1Seat1
4Washer, M8 Flat (silver)2
4Locknut, M83
20 ft. lbs. (27.1 Nm)
Page 17 of 25
Install Cup Holder
1. Install screws securing cup holder to console support assembly using a Phillips screwdriver.
QtyDescriptionItem
1Cup Holder1
1Console Support Assembly2
4
Screw, M4 X16mm Phillips Pan
Head
3
13 in. lbs. (1.47 Nm)
Note: Do not install screws using a drill.
2. Install grommets to console support assembly.
QtyDescriptionItem
1Console Support Assembly1
4Grommet2
3. Install screws securing cup holder covers to console support assembly using a Phillips screwdriver.
QtyDescriptionItem
1Console Support Assembly1
2Cup Holder Covers2
4
Screw, M4 X16mm Phillips Pan
Head
3
13 in. lbs. (1.47 Nm)
Page 18 of 25
Install Pedals
1. Install screws and caps securing crank arms to base assembly using a 13 mm socket wrench.
QtyDescriptionItem
2Crank Arm1
2Cap2
2
Screw, M8 X 30mm Hex
Flange Head
3
31.5 in. lbs. (42.7 Nm)
2. Install pedals to crank arms using a 15 mm pedal wrench.
QtyDescriptionItem
2Crank Arm1
2Pedal2
13 ft. lbs. (17.6 Nm)
Install Console
Install screws securing console to console support assembly using a Phillips screwdriver.
QtyDescriptionItem
1Console1
1Console Support Assembly2
4
Screw, M5 X 12mm Phillips Pan
Head
3
23 in. lbs. (2.6 Nm)
Page 19 of 25
Console Connections
Description
Display Connection1
Tighten Hardware
Make sure all hardware is 100% tight.
Page 20 of 25
Service and Technical Data
Preventive Maintenance Tips
Note: Safety of the equipment can be maintained only if the equipment is examined regularly for damage
or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention
to parts that are subject to wear, as outlined below.
Note: Pour assurer la sécurité du matériel,il convient de l'inspecter régulièrement afin de déceler tout signe
d'usure ou d'endommagement. N’utilisez pas l’appareil avant d’avoir réparé ou remplacé les pièces
défectueuses. Prêtez une attention particulière aux pièces sujettes à usure, tel que décrit ci-dessous.
The following preventive maintenance tips will keep the product operating at peak performance:
• Locate the product in a cool, dry place.
• Clean the display console and all exterior surfaces with an approved or compatible cleaner (see Approved and
Compatible Cleaners) and a microfiber cloth.
• Long fingernails may damage or scratch the surface of the console; use the pad of the finger to press the selection
buttons on the console.
• Clean the top surface of the pedals regularly.
Note: When cleaning the exterior of the unit, a non-abrasive cleaner and soft cotton cloth are strongly
recommended. At no time should cleaner be applied directly to any part of the equipment.
Approved and Compatible Cleaners
Two preferred cleaners have been approved by reliability experts: PureGreen 24 and Gym Wipes. Both cleaners
will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force
formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1.
PureGreen 24 is available in a spray which is convenient for gym staff to use. Apply the spray to a microfiber cloth
and wipe down the equipment. Use PureGreen 24 on the equipment for at least 2 minutes for general disinfection
purposes and at least 10 minutes for fungus and viral control.
Gym Wipes are large, durable pre-moistened wipes to use on the equipment before and after workouts. Use Gym
Wipes on the equipment for at least 2 minutes for general disinfection purposes.
Contact Customer Support Services to order these cleaners (1-800-351-3737 or email:
Mild soap and water or a mild non-abrasive household cleanercan also be used to clean thedisplay and all exterior
surfaces. Use a soft microfiber cloth only. Apply the cleaner to the microfiber cloth before cleaning. DO NOT use
ammonia or acid based cleaners. DO NOT use abrasive cleaners. DO NOT use paper towels. DO NOT apply cleaners
directly to the equipment surfaces.
Page 21 of 25
Preventive Maintenance Schedule
BiannuallyMonthlyWeeklyItem
InspectCleanConsole Overlays
InspectCleanBottle Holders / Accessory Trays
InspectConsole Mounting Bolts
InspectHardware
InspectCleanFrame / Seat Post
InspectCleanPlastic Covers
Clean / InspectLifepulse Sensors
Inspect / AdjustLeg Levelers
InspectCleanPedals / Straps
Troubleshooting the Polar
®
Heart Rate Chest Strap
Heart rate reading is erratic or absent entirely
Corrective ActionProbable Cause
Wet the belt transmitter electrodes.
Belt transmitter electrodes are not wet enough to pick up accurate
heart rate readings.
Ensure the belt transmitter electrodes are laying flat against the
skin.
Belt transmitter electrodes are not laying flat against the skin.
Wash the belt transmitter with mild soap and water.Belt transmitter needs cleaning.
Setup of the belt transmitter is accomplished by initially bringing
it with in 1 foot of the receiver. The receiver is in the console. After
the heart rate is displayed on the console the range is extended to
3 feet.
Belt transmitter not properly set up.
Contact Customer Support Services for instructions on howtohave
the chest strap replaced.
Chest strap battery is depleted.
Abnormally elevated heart rate readings
Corrective ActionProbable Cause
Move the exercise equipment a few inches away from the probable
cause, or move the probable cause a few inches away from the
exercise equipment, until the heart rate readings are accurate.
Electromagnetic interference from television sets and/or antennas.
Electromagnetic interference from cell phones.
Electromagnetic interference from computers.
Electromagnetic interference from cars.
Electromagnetic interference from high voltage power lines.
Electromagnetic interferencefrom motor drivenexercise equipment.
Page 22 of 25
Troubleshooting the Lifepulse
™
Sensors
If the heart rate reading is erratic or missing, do the following:
• Dry the hands to prevent slipping.
• Apply hands to the sensors that are set into the handlebars.
• Grasp the sensors firmly.
• Apply constant pressure around the sensors.
How To Obtain Product Service
1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product
and its features and workouts.
2. Locate and write down the serial number of the unit which is located on the top right of the front stabilizer.
3. Contact Customer Support Services at http://www.lifefitness.com.
Page 23 of 25
Specifications
Specifications
Heavy / Commercial EN ISO 20957 Class SADesigned Use
400 lbs. / 181 kgMaximum User Weight
5 in. x 5.5 in. / 127 mm x 140 mmPedal Size
BeltDrive Type
None (optional external power supply)Power Requirements
Patented Lifepulse
™
digital contact heartrate and Polar® telemetry compatible heart ratemonitoring
system
Heart Rate Monitoring Systems
Shipped Dimensions (without console)Physical Dimensions (with console)
72 in. / 1828.8 mm41.7 in. / 1060 mmLength
28 in. / 711 mm24 in. / 609.6 mmWidth
35 in. / 889 mm59.5 in. / 1511.2 mmHeight
194 lbs. / 88 kg174 lbs. / 78.9 kg (without console)Weight
Page 24 of 25
