RC-300
Recumbent Bike
USER MANUAL
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at www.lifespanfitness.com.au
2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
VI. Computer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
VII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
VIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
IX. Hand Pulse Tecnology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
| TABLE OF CONTENTS
3
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please keep this manual with you at all times.
• It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions
• Before starting any exercise program you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you
do experience any of these symptoms, you should consult your doctor before continuing with your
exercise program.
• Keep children and pets away from the equipment. This equipment is designed for adult use only.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 meters of free space around it.
• Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use
the equipment until the problem has been rectified.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
in the equipment or that may restrict or prevent movement.
• This equipment is designed for indoor and family use only.
• Care must be taken when lifting or moving the equipment so as not to injure your back.
IMPORTANT SAFETY INSTRUCTIONS |
4
• Always keep this instruction manual and assembly tools at hand for reference.
• The equipment is not suitable for therapeutic use.
• The pulse or heart rate sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
II. CARE INSTRUCTIONS
• Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
• The machine can be kept clean by wiping it down using dry cloth.
| CARE INSTRUCTIONS
IMPORTANT
• All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and
other moving parts. Failure to do so may cause damage to your threads and void your warranty.
• All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and
5
III. EXPLODED DIAGRAM
EXPLODED DIAGRAM |
38
37
30
35
31
5
31
24
25b
4
22
36
21
24
23R
19
6 7 8 9
10
11
12
2
131415
17R
18R
11
12
1
26
20
16
11
12
1514
27
11
12
13
3
55
44
45
52
24
47
48
49
50
51
29
28 53
32
25a
54
53
23L
43
46
19
39
18L
17L
41
42
40
14
19
19 14 7
6
IV. PARTS LIST
No. Description Qty
1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4 Handlebar post 1
5 Fixed handlebar 1
6 Nylon nut M8 2
7 Flat washer D8xΦ16x1.5 6
8 Roller 2
9 Inner hexagon bolt M8x40xL12 2
10 End cap 2
11 Hex nut M10 5
12 Adjusting pad 5
13 Inner hexagon bolt M8xL58 4
14 Inner hexagon bolt M8xL58 8
15 Arc washer d8x2xΦ25xR39 4
16 End cap 2
17L/R Crank 1
18L/R Pedal 1
19 Inner hexagon bolt M8x15 8
20 Arc washer d8xR20 2
21 Sensor wire 1
22 Extension wire 1
23L/R Protective guard 1
24 Screw 5
25a/b Protective guard 1
26 Inner hexagon bolt M8x90 2
27 Lifting handle 1
28 Inner hexagon bolt M8x12 4
No. Description Qty
29 Backrest 1
30 Round end cap 2
31 Screw 4
32 Plastic handle knob 1
33 Spacer 1
34 Flat washer 1
35 Foam grip 2
36 Extension pulse wire 1 2
37 Extension pulse wire 2 2
38 Computer 1
39 Eccentric shaft 1
40 Inner hexagon bolt 2
41 Handle 1
42 Foam grip 1
43 Flat washer 8
44 Extension pulse wire 3 2
45 Pulse wire 2
46 Fixed bracket 1
47 Protective guard 1
48 Inner hexagon bolt 4
49 Flat washer 4
50 Seat frame 1
51 Square end cap 2
52 Foam grip 2
53 Round end cap 2
54 Seat 1
55 Adapter 1
| PARTS LIST
Some items on this list may come pre-installed on your equipment. If you feel like you’re missing
anything, please double check your equipment.
TOOLS
(S-13, 14, 15)-1PC (S=6)-1PC (S=5)-1PC
7
V. ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS |
1. Secure the lifting handle (27) to the rear stabilizer (3) with hex nut (26) and arc washer (20).
2. Secure the front stabilizer (2) and rear stabilizer (3) onto the main frame (1) with Inner hexagon bolt
(13), spring washer (14) and arc washer (15).
STEP 1
3
27
13
14 15
26
20
1
15 14 13
2
8 | ASSEMBLY INSTRUCTIONS
1. Connect the sensor wire (21) and extension pulse wire 1 (36) to the extension wire (22) and extension
pulse wire 2 (37).
2. Secure the handlebar post (4) onto the main frame (1) with Inner hexagon bolt (19), spring washer
(14) and flat washer (7).
3. Secure the protective guard (23L/R) onto the main frame (1) with screws (24).
STEP 2
1. Secure the handlebar (5) to the handlebar post (4) with the plastic handle knob (32), protective
guard (25a), spacer (33) and flat washer (34).
STEP 3
4
22
36
21
37
19 14 7
14
19
23L
24
23R
19
1
5
34
33
4
25a
32
9ASSEMBLY INSTRUCTIONS |
1. Connect the extension pulse wire2 (37) and extension wire (22) with the cables of the computer (38).
2. Secure the computer (38) to the computer bracket of the handlebar post (4) with screws (31).
3. Secure the computer (38) to the computer bracket of the handlebar post (4) with screws (31).
STEP 4
38
37
31
25a
31
22
24
25b
4
10 | ASSEMBLY INSTRUCTIONS
1. Secure the pedal (18L/R) to the crank (17L/R) with wrench.
2. Secure pedal (18L) in a counter-clockwise direction and pedal (18R) clockwise direction as shown.
3. Ensure the pedals (18L/R) are secured tightly during workout to avoid damage to the pedals.
STEP 5
1. Connect the pulse wire (45) with the extension pulse wire 3 (44) of the main frame (1), then secure
the seat frame (50) onto the fixed bracket (46) with Inner hexagon bolt (28) and flat washer (43).
2. Secure the handle (41) onto the eccentric shaft (39) with Inner hexagon bolt (40).
STEP 6
18L
17L
17R
18R
28
43
46
39
41
40
44
45
50
11ASSEMBLY INSTRUCTIONS |
1. Secure the seat (54) onto the connecting slice of the seat frame (50) with Inner hexagon bolt (19) and
flat washer (43).
2. Secure the seat (54) onto the connecting slice of the seat frame (50) with Inner hexagon bolt (19) and
flat washer (43).
3. Secure the seat (54) onto the connecting slice of the seat frame (50) with Inner hexagon bolt (19) and
flat washer (43).
4. Secure the seat (54) onto the connecting slice of the seat frame (50) with Inner hexagon bolt (19) and
flat washer (43).
5. Ensure all bolts are tightened fully and plug the power cord (55) as pictured above.
STEP 7
54
43
19
29
50
49
48
47
24
55
12

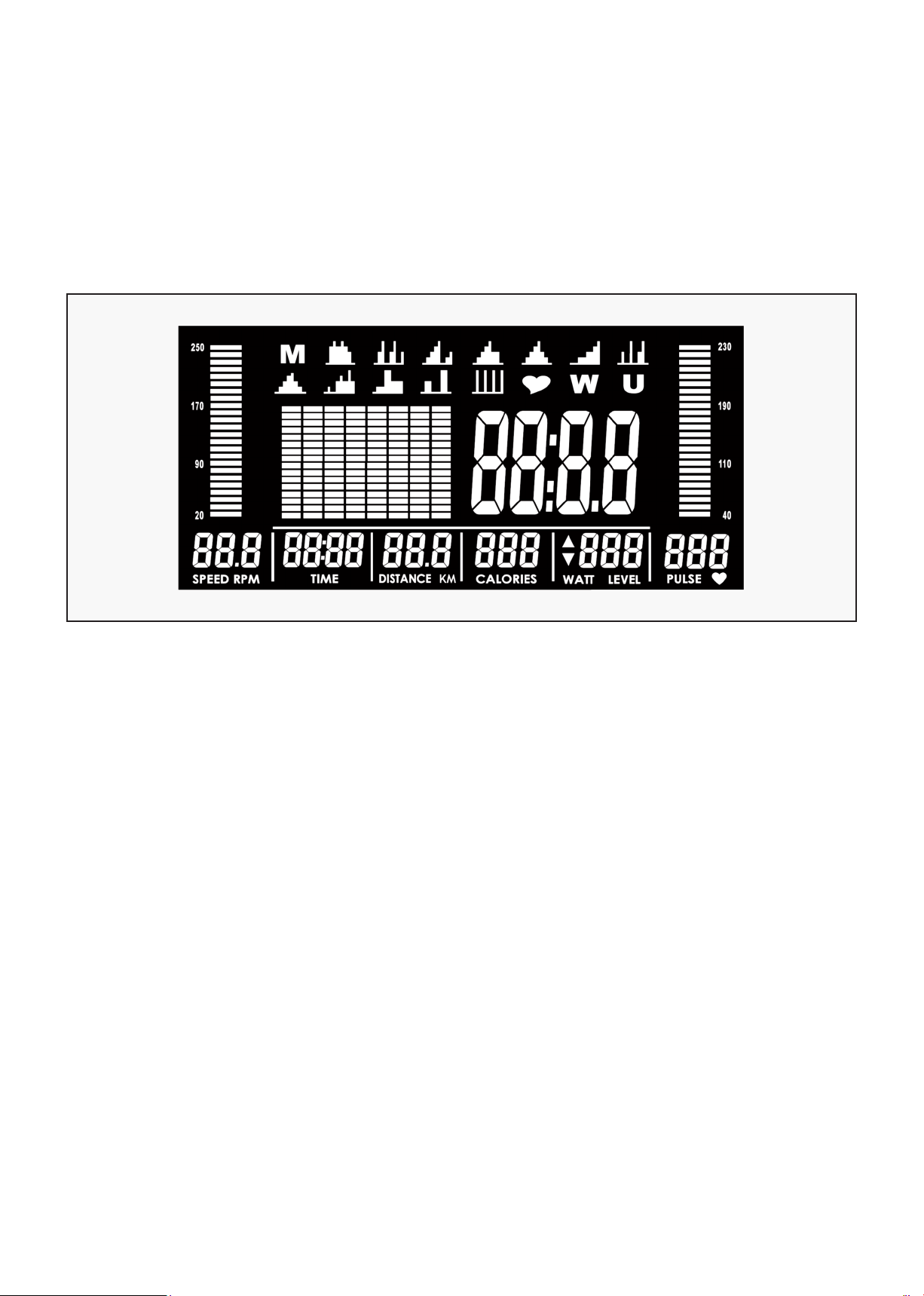

VI. COMPUTER OPERATION
| COMPUTER OPERATION
BUTTON FUNCTIONS
UP To make upward adjustment or increase training resistance.
DOWN
To make downward adjustment or decrease training resistance.
MODE
To confirm all settings.
START/ STOP
To start or stop workout.
RESET
To reset current settings or press to have monitor switching to initial training
mode for renew selection.
RECOVERY
To test heart rate recovery status.
BODY FAT
To test body fat%.
Press "BODY FAT" and hold for 2 seconds to modify user data (SEX/ AGE/ HEIGHT
& WEIGHT) in standby mode.
13COMPUTER OPERATION |

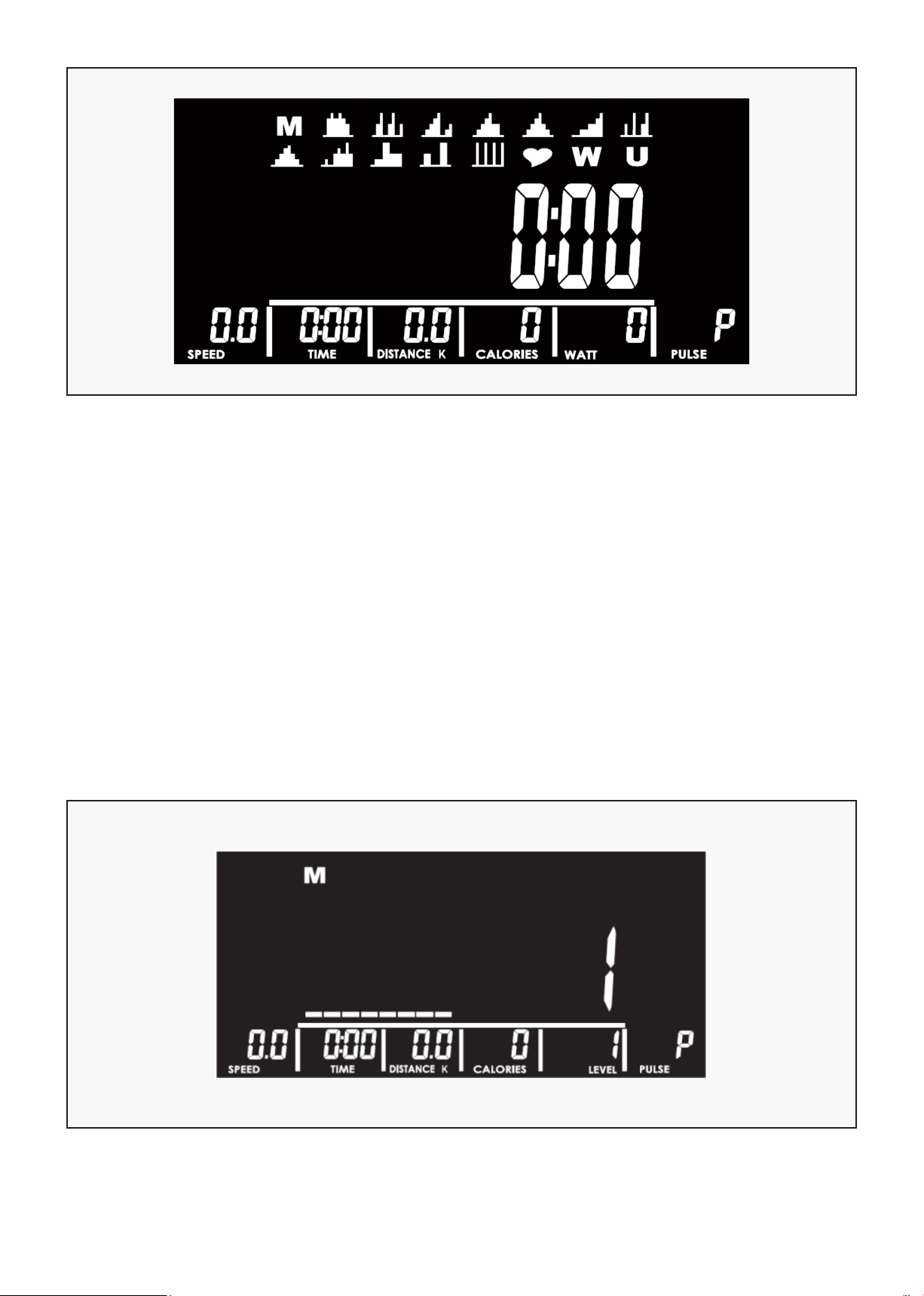

1. POWER ON
a. Plug in adaptor to power on console, system will have a buzzer beeping as a cue.
b. LCD will have all segments displaying for two seconds along with "78.0" (wheel diameter), "E" for EU
regulation (or "A" for Asian regulation), and "K" (KM) (or "M" (ML)) for one second.
c. Press "RESET" key for 2 seconds as a TOTAL REST key.
BUTTON FUNCTIONS
2. USER PROFILE SET UP
a. Use UP (▲) and DOWN (▼) keys to select a user profile from U1~U4. Press "MODE" to confirm a
desirable user profile.
b. Press "MODE" each time when values are determined for SEX, AGE, HEIGHT, and WEIGHT settings.
All entered data will be saved in user profile U1~U4.
3. PROGRAM SELECTION
a. 3-1 Programs display on the LCD as MANUAL → 12 PROGRAMS → H.R.C. → WATT → USER PROGRAM →
MANUAL in sequence.
b. 3-2 Use UP (▲) and DOWN (▼) keys to select a program and press "MODE" to confirm when a
selection is determined.
14 | COMPUTER OPERATION
4. MANUAL MODE
a. Select "M" and use UP (▲) and DOWN (▼) keys to adjust the resistance level; press "MODE" when the
value is determined.
b. The resistance level can be readjusted during workout.
c. The LEVEL column will switch and display WATT value after three seconds of no resistance
adjustment.
d. Use UP (▲) and DOWN (▼) keys for TIME, DISTANCE, CALORIES, and PULSE settings. Press "MODE"
each time when values are determined.
e. Press "START" and start pedaling. RPM & PULSE bars will display values accordingly.
f. Press "STOP" to pause exercise and all exercise values will be saved.
g. Press "RESET" and return to program selection.
15COMPUTER OPERATION |

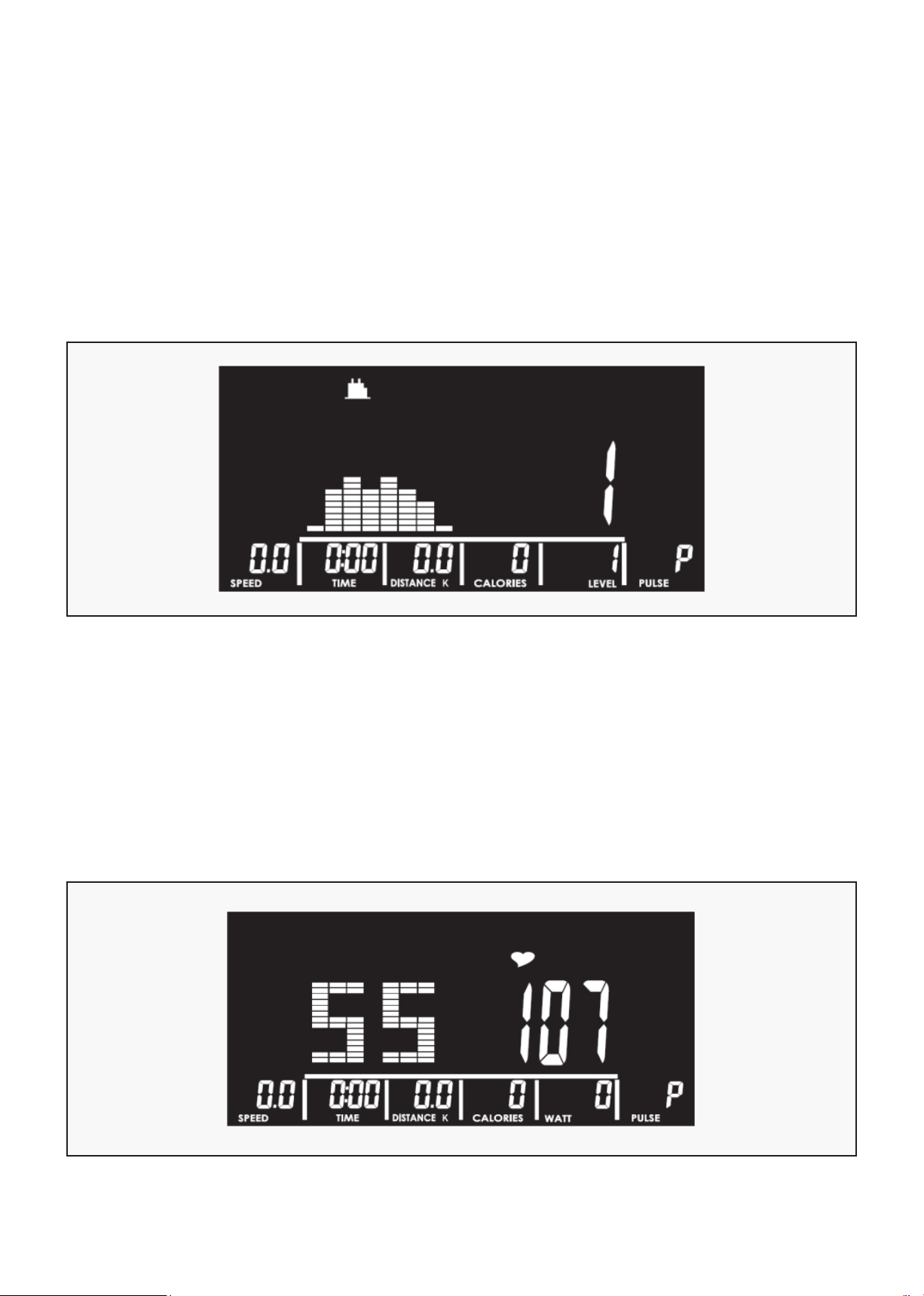

5. 12 PROGRAMS
a. Use UP (▲) and DOWN (▼) keys to select a program from P1 to P12 and press "MODE" to confirm after
determining selection.
b. LCD will display corresponding flashing graphic to the selected program.
c. Use UP (▲) and DOWN (▼) keys to adjust resistance level and TIME; press "MODE" each time when
value’s determined and press "START" to start workout.
d. The resistance level can be readjusted during workout.
e. LEVEL column will switch and display WATT value after three seconds of no resistance adjustment.
6. H.R.C
a. Use UP (▲) and DOWN (▼) keys to select 55%, 75%, 90%, or TARGET.
b. The heart rate value will be calculated automatically according to the AGE value user inputs and will
be shown in the alphanumeric column in flashing text.
c. If you select "TARGET", use UP (▲) and DOWN (▼) keys to set a value between 30~230bpm and press
"MODE" to confirm when value’s determined.
d. Use UP (▲) and DOWN (▼) keys to set TIME and press "MODE" to start workout.
16 | COMPUTER OPERATION

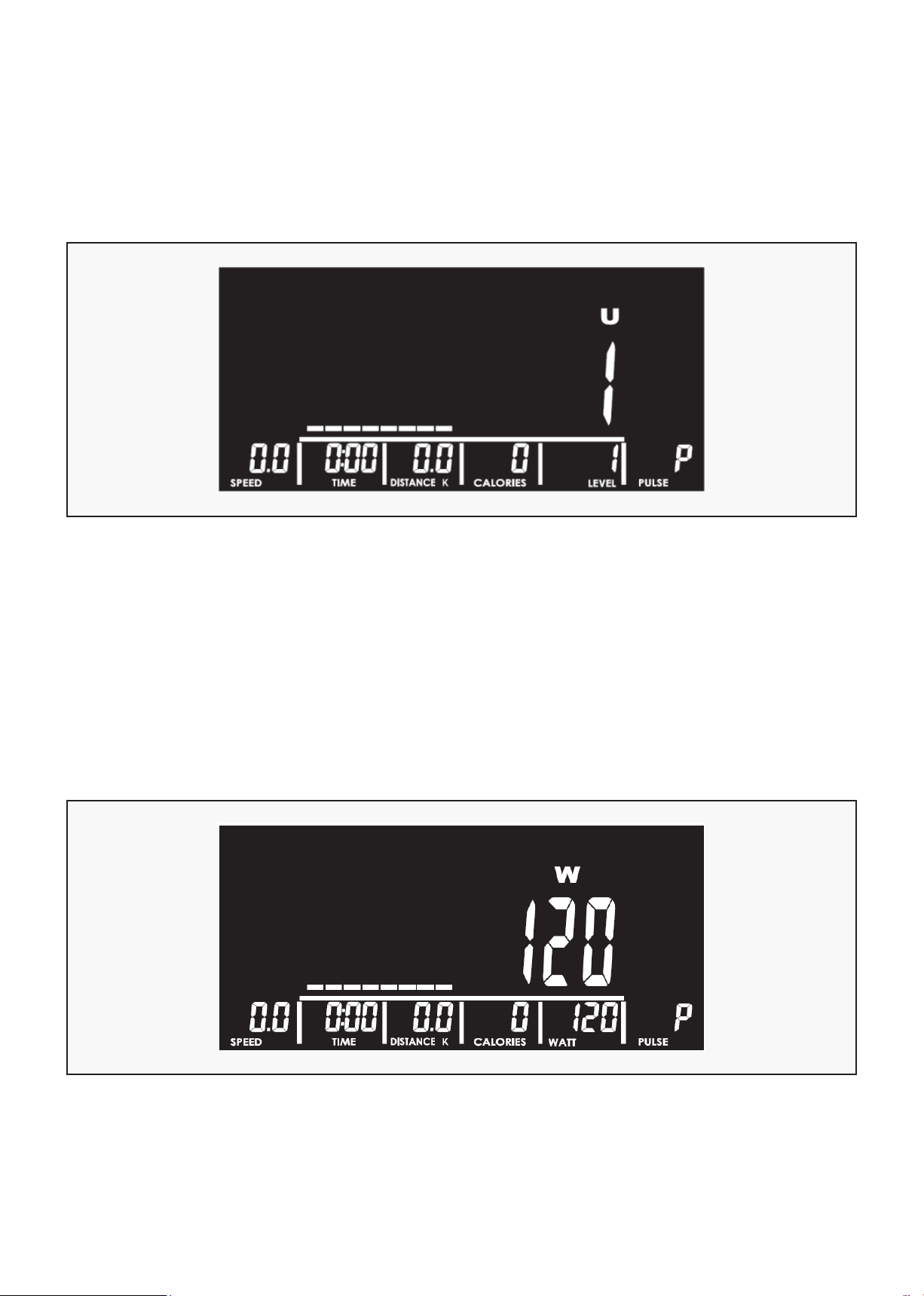

7. USER PROGRAM
a. Use UP (▲) and DOWN (▼) keys to create user’s desired program, press "MODE" when each chart
value is determined.
b. Press "MODE" and hold for 2 seconds to skip to TIME setting.
c. Press "START" to begin workout.
8. WATT
a. WATT default value 120 will be displayed in the alphanumeric column in flashing text waiting for an
adjustment.
b. Use UP (▲) and DOWN (▼) keys to adjust WATT and TIME values.
c. Press "START" to start exercise.
d. WATT LEVEL will be adjusted automatically according to user’s actual RPM input value.
e. WATT LEVEL can be readjusted manually during workout.
17COMPUTER OPERATION |

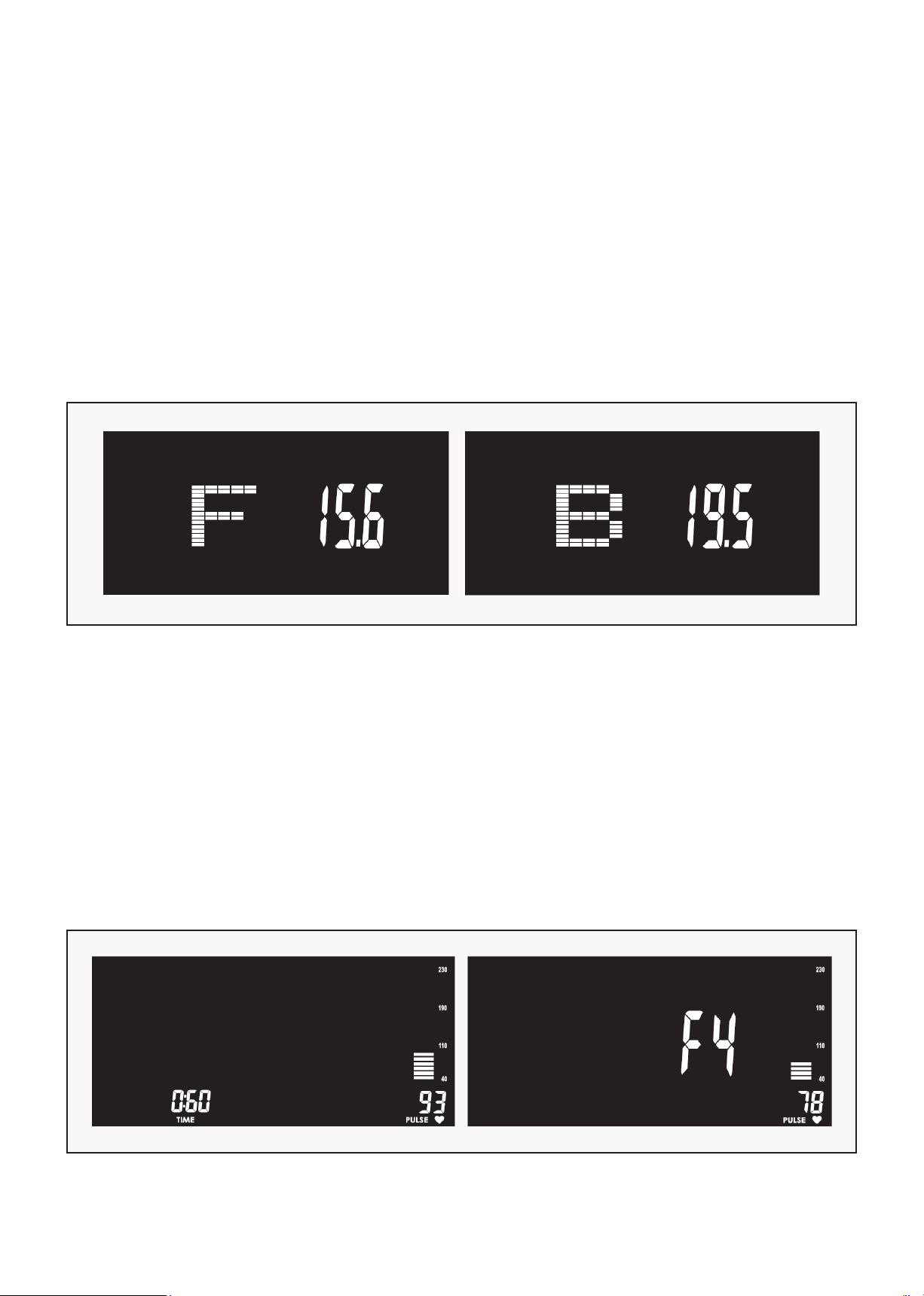

9. BODY FAT
a. This function is valid after user stops pedalling (or press "STOP").
b. A continuous RPM signal input is required during BODY FAT test.
c. Press "BODY FAT". The console system will display "UX" for two seconds and start the body fat
measurement process. It will show results of FAT% and BMI on screen 8 seconds later.
d. Press "BODY FAT" and hold for two seconds to enter user profile to reset SEX, AGE, HEIGHT and WEIGHT.
Press "MODE" to start body fat measurement process.
e. If LCD displays following messages:
I. "E-1"- no heart rate signal input detected;
II. "E-4" – When FAT% result exceeds 5~50 and BMI result exceeds 5~50.
10. RECOVERY
a. RECOVERY function is valid when there’s a heart rate value input detected (during exercise or after
user presses "STOP").
b. Press "RECOVERY" and LCD will display TIME "0:60" counting down with user’s actual heart rate value
showing in the PULSE column.
c. When TIME reaches to "0:00", LCD will have result "FX" (X=1~6) displaying in the alphanumeric
section.
d. Press "RECOVERY" again and return to previous mode during or after RECOVERY test has occurred;
LCD will continue displaying user’s actual heart rate value on screen.
18 | COMPUTER OPERATION
11. BMI CHART
≤19 Underweight
=(20---25) Normal Weight
=(25---29) Overweight
≥30 Obese
SPECIAL FEATURES
1. Built-in Speakers
2. USB Port for Battery Charger
3. MP3 Compatible
4. Book Support
19
VII. EXERCISE GUIDE
PLEASE NOTE:
Before beginning any exercise program, consult your physician. This is important especially if you are
over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to
your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough
energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work
so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.
WARM UP
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your
exercise.
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your
intensity for maximum performance. Breathe regularly and deeply as you exercise.
EXERCISE GUIDE |
20
COOL DOWN
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-
exercise problems.
WORKOUT GUIDELINES
This is how your pulse should behave during general fitness exercise. Remember to warm up and
cool down for a few minutes.
The most important factor here is the amount of effort you put in. The harder and longer you work,
the more calories you will burn.
TARGET ZONE
MAXIMUM
85%
70%
COOL DOWN
AGE
HEART RATE
200
180
160
140
120
100
80
20 25 30 35 40 45 50 55 60 65 70 75
| EXERCISE GUIDE
21
VIII. WARRANTY
WARRANTY |
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Any claim against this warranty must be made through your original place of purchase.
Proof of purchase is required before a warranty claim may be processed.
If you have purchased this product from the Official Lifespan Fitness website, please visit
https://lifespanfitness.com.au/warranty-form
For support outside of warranty, if you wish to purchase replacement parts or request a repair or
service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service
Request Form or Parts Purchase Form.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
22
IX. HAND PULSE TECHNOLOGY
| HAND PULSE TECHNOLOGY
This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals
that run through the body when your heart beats. These electrical EKG/ECG signals are very small and
must be amplified 1000 times to make the signal viable for the computer to display your pulse.
To ensure proper operation:
• The user must maintain good, consistent contact on all four sensors.
• The users skin cannot be too dry or too wet.
Other factors that could affect the reading:
• Change of grip on the sensors (during slow pace walking and up to running).
• Tightening of hand muscles will produce small electrical signal.
• Static electricity charges from the air or from walking on the treadmill.
EKG/ECG Sensors may filter through actual EKG/ECG signals and "Noise" factors that may affect the
reading. This will cause the pulse reading to be delayed and will take longer to update the display as the
heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no
electrical signal in the hands are other factors that may also affect pulse readings.
These are limitations of hand pulse technology and even the most expensive systems (which can
cost upwards of $3,000) used in hospitals have the same problems. The difference is that a patient
in a hospital is not running on a treadmill. Hand pulse technologies work well on stationary exercise
machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer
treadmills with a wireless heart rate receiver which may be the more accurate option.
To test if your hand pulse sensors are working up to specification, hold them while standing on the
sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will
eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly
(saliva works as a great conductor if this doesn’t bother you).
WWW.LIFESPANFITNESS.COM.AU
