User guide.
MOBILE PHONE
User Manual
Please read this manual before operating your device
and keep it for future reference.
i
Legal Notices
Legal Notices
WARNING!This product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm. For more information, please
call 1-800-SAMSUNG (726-7864).
Intellectual Property
All Intellectual Property, as defined below, owned by
or which is otherwise the property of Samsung or its
respective suppliers relating to the SAMSUNG Phone,
including but not limited to, accessories, parts, or
software relating there to (the “Phone System”), is
proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions.
Intellectual Property includes, but is not limited to,
inventions (patentable or unpatentable), patents, trade
secrets, copyrights, software, computer programs, and
related documentation and other works of authorship.
You may not infringe or otherwise violate the rights
secured by the Intellectual Property. Moreover,
you agree that you will not (and will not attempt to)
modify, prepare derivative works of, reverse engineer,
decompile, disassemble, or otherwise attempt to
create source code from the software. No title to or
ownership in the Intellectual Property is transferred to
you. All applicable rights of the Intellectual Property
shall remain with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product, including
but not limited to ‘PowerTOP’ and ‘e2fsprogs’,
incorporate source code covered under GNU General
Public License (GPL), GNU Lesser General Public
License (LGPL), OpenSSL License, BSD License and
other open source licenses. To obtain the source code
covered under the open source licenses, please visit:
opensource.samsung.com
VZW_B690V_EN_UM_TN_PF1_090816_FINAL
ii
Legal Notices
Disclaimer of Warranties;
Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS
WARRANTY CONTAINED ON THE WARRANTY
PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT “AS IS”, AND
SAMSUNG MAKES NO EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH
RESPECT TO THE PRODUCT, INCLUDING BUT
NOT LIMITED TO THE MERCHANTABILITY OF THE
PRODUCT OR ITS FITNESS FOR ANY PARTICULAR
PURPOSE OR USE; THE DESIGN, CONDITION OR
QUALITY OF THE PRODUCT; THE PERFORMANCE
OF THE PRODUCT; THE WORKMANSHIP OF THE
PRODUCT OR THE COMPONENTS CONTAINED
THEREIN; OR COMPLIANCE OF THE PRODUCT
WITH THE REQUIREMENTS OF ANY LAW, RULE,
SPECIFICATION OR CONTRACT PERTAINING
THERETO. NOTHING CONTAINED IN THE
INSTRUCTION MANUAL SHALL BE CONSTRUED
TO CREATE AN EXPRESS OR IMPLIED WARRANTY
OF ANY KIND WHATSOEVER WITH RESPECT TO
THE PRODUCT. IN ADDITION, SAMSUNG SHALL
NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND
RESULTING FROM THE PURCHASE OR USE OF THE
PRODUCT OR ARISING FROM THE BREACH OF THE
EXPRESS WARRANTY, INCLUDING INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS
OF ANTICIPATED PROFITS OR BENEFITS.
Modification of Software
SAMSUNG IS NOT LIABLE FOR PERFORMANCE
ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR
EDITING OF REGISTRY SETTINGS, OR YOUR
MODIFICATION OF OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE
MAY CAUSE YOUR DEVICE AND APPLICATIONS
TO WORK IMPROPERLY. YOUR CARRIER MAY
NOT PERMIT USERS TO DOWNLOAD CERTAIN
SOFTWARE, SUCH AS CUSTOM OS.
IF YOUR CARRIER PROHIBITS THIS, IF YOU
ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE
DEVICE WITHOUT AUTHORIZATION, YOU WILL
BE NOTIFIED ON THE SCREEN THAT THE PHONE
WILL NO LONGER OPERATE AND BE INSTRUCTED
TO POWER DOWN THE DEVICE. YOU MUST THEN
CONTACT YOUR CARRIER TO RESTORE THE DEVICE
TO THE CARRIER AUTHORIZED SETTINGS.
iii
Legal Notices
Samsung Electronics America
(SEA), Inc.
Address:
85 Challenger Road
Ridgefield Park,
New Jersey 07660
Phone:
1-800-SAMSUNG (726-7864)
Internet Address:
samsung.com
©2016 Samsung Electronics America, Inc. Samsung
is a registered trademark of SamsungElectronics Co.,
Ltd.
Other marks are the property of their respective
owners.
Note: Screen images are simulated. Appearance of
device may vary.
Do you have questions about your
Samsung Mobile Device?
For 24 hour information and assistance, we offer a
new FAQ/ARS System (Automated Response System)
at: samsung.com/us/support
The actual available capacity of the internal memory is
less than the specified capacity because the operating
system and default applications occupy part of the
memory. The available capacity may change when you
upgrade the device.
iv
Legal Notices
Legal Information
Important legal information can be accessed at
samsung.com
Read this information before using your mobile device.
Samsung Limited Warranty - This product is
covered under the applicable Samsung Limited
Warranty INCLUDING ITS DISPUTE RESOLUTION
PROCEDURE and your right to opt out of arbitration
within 30 calendar days of the first consumer
purchase. You may opt out by either sending
an email to [email protected] with the
subject line “Arbitration Opt-Out” or by calling
1-800-SAMSUNG (726-7864). For more detailed
procedures, please refer to the “Dispute Resolution
Procedures and Arbitration and Opt-Out” section of
the Limited Warranty.
The online version of the Health/Safety and Warranty
guide for your device can be found at:
English
samsung.com/us/Legal/Phone-HSGuide
Spanish
samsung.com/us/Legal/Phone-HSGuide-SP
The online version of the End User License
Agreement (EULA) for your device can be
foundonline at:
samsung.com/us/Legal/SamsungLegal-EULA
v
Table of Contents
Table of Contents
Getting Started........................................................... 1
Front View .........................................................................2
Side View ..........................................................................4
Open View ........................................................................6
Assemble Your Device ...................................................8
Set Up Your Device.......................................................13
Know Your Device..................................................16
Home Screen .................................................................17
Status Bar.......................................................................19
Navigation .......................................................................20
Enter Text........................................................................29
Calling............................................................................36
Make and Answer Calls ...............................................37
Main Menu ..................................................................43
Contacts..........................................................................44
Messaging ......................................................................60
Recent Calls ...................................................................74
Internet ............................................................................76
Media Center..................................................................77
Tools.................................................................................97
Apps.............................................................................. 109
VZ Navigator................................................................ 110
Settings ........................................................................ 111
Getting Started
Learn about your mobile
device hardware, assembly
procedures, and how to get
started using your new device.
2
Front View
Getting Started
Front View
Flashlight Camera
Rewind Fast Forward
Play/Pause
Speakers
3
Front View
Getting Started
Here are some key features on the front of your device.
•
Camera: Take pictures and record videos.
•
Fast forward: When the phone is closed, press to
Lock or Unlock external keys (press Fast Forward
key, then press and hold the Rewind key to unlock
external keys). During music playback, press and
hold to fast forward music. Press to go to the next
song.
•
Play/Pause: During music playback, press to
play/pause music. When the phone is closed,
presstoaccess an external menu of applications.
•
Speakers: Play music and other sounds.
•
Rewind: During music playback, press and hold to
rewind music, or press to go to the previous song.
•
Flashlight: Illuminate subjects in low-light
environments when taking a photo or recording
video, or use as a flashlight.
4
Side View
Getting Started
Side View
Shortcut/PTT key
Headset jack
Volume key
Speakerphone
USB charger/
Memory
Accessory port
card slot
5
Side View
Getting Started
Here are some key features on the sides of your device.
•
Headset jack: Plug in an optional 3.5 mm headset
(not included) for safe, convenient conversations.
•
Speakerphone: When the phone is closed, press
and hold to turn Driving Mode on or off. When the
phone is open, press to turn Speakerphone on
oroff.
•
USB charger/Accessory port: Connect the USB
charger (included) and other optional accessories
(not included).
•
Memory card slot: Install an optional memory card
(not included) for storage of files.
• Volume key: Press to adjust master volume or voice
volume during a call. Press to mute an incoming call
ringtone. Press and hold down to activate Sound Off
mode or press and hold up to return to the Master
Volume level. When using the external menu, press to
navigate lists. With the phone closed, press down
four times to initiate the Fake Call feature.
• Shortcut/PTT key: Press and hold to launch a
shortcut menu. When PTT+ is activated, press to
initiate PTT.
6
Open View
Getting Started
Open View
Earpiece
Directional keys Center select key
Left soft key Right soft key
Voice commands/Flashlight
Camera/Camcorder
Send End/Power
Clear
Voicemail
Vibration mode
7
Open View
Getting Started
Here are some key features found on the opened phone.
•
Center select key: Press to select the highlighted
item.
•
Right soft key: Press to select the lower right menu
item on the display.
•
Voice commands/Flashlight: With the flip open,
press to launch Voice Commands, or press and
hold to turn the Flashlight on or off.
•
End/Power: Press to end a call. Press and hold
to turn the phone On or Off. Press to send an
incoming call to voicemail.
•
Clear: Press to delete a character or to go back.
Press and hold to delete the previous word. When
navigating menus and pages, press to go back to
the previous screen.
• Vibration mode: With the flip open, press and hold
to switch between Vibrate Mode and Master
Volume level.
• Voicemail: Press and hold to dial voicemail.
• Send: Press to dial a call. From the Home screen,
press to view Recent Calls.
• Camera/Camcorder: Press to launch the camera,
or press and hold to launch the camcorder.
• Left soft key: Press to select the lower left menu
item on the display.
• Directional keys: Press to scroll phone menus.
• Earpiece: Hear call sounds, including the caller.
8
Assemble Your Device
Getting Started
Assemble Your Device
This section helps you to assemble
your device.

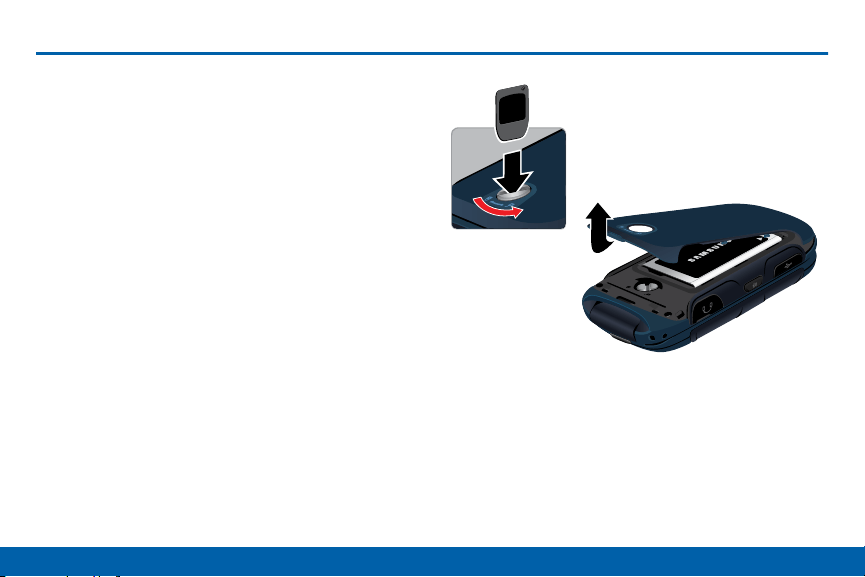

Remove the Back Cover
Warning: Do not bend or twist the back cover
excessively. Doing so may damage the cover.
1. Insert the battery cover removal tool into the slot
on the back cover and turn it counter clockwise to
open the battery cover.
Included
2. Insert the tool in the groove at the top of the cover
to lift the cover up and remove.
9
Assemble Your Device
Getting Started

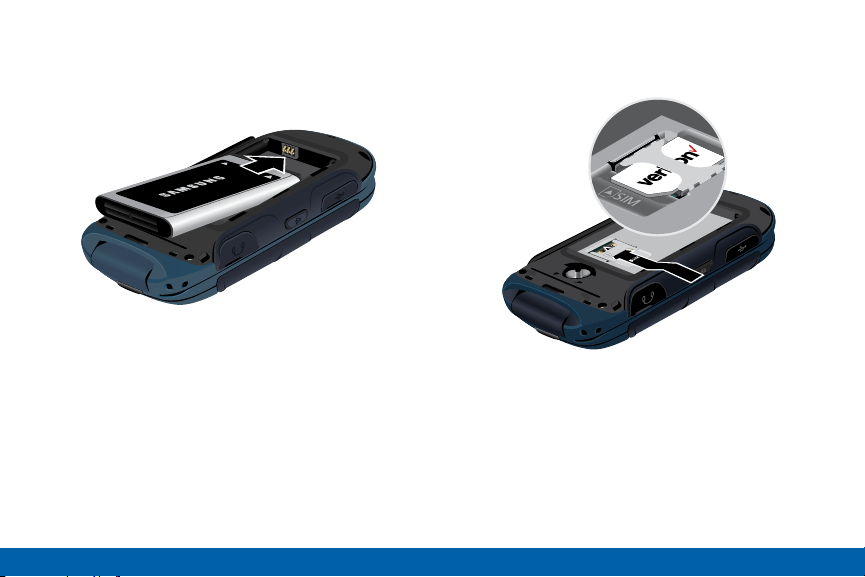

Install the Battery
1. Insert the battery into the opening on the back of
the phone, making sure the connectors align.
2. Gently press down to secure the battery.
Install the SIM Card
When you subscribe to a cellular network, you are
provided with a plug-in SIM card. During activation,
your SIM card is loaded with your subscription details,
such as your Personal Identification Number (PIN),
available optional services, and other features.
Warning: Please be careful when handling the SIMcard
to avoid damaging it. Keep all SIM cards outof reach of
small children.
► Carefully slide the SIM card into the SIM card slot.
•
Make sure that the card’s gold contacts face
into the device and that the angled corner of the
card is positioned as shown.
Caution: If the SIM card is not inserted correctly, the
device cannot detect it. Reorient the SIM card and place
it back into the slot if it is notdetected.
10
Assemble Your Device
Getting Started
Replace the Back Cover
1. Place the cover over the back of the phone, then
press down along the edges to secure the cover.
Included
2. Use the battery cover removal tool to turn the dial
clockwise until the cover is locked.
Note: When placing the cover back on the phone, press
down firmly along the edges to ensure that the cover
is flush with the phone. This ensures that the battery
compartment is pressurized.
Charge the Battery
Your device is powered by a rechargeable, standard
Li-Ion battery. A USB Charger (charging head and
USB cable) is included with the device for charging
the battery from any standard outlet.
The battery comes partially charged. A fully
discharged battery requires up to four hours of charge
time. You can use the device while charging.
Note: It is recommended you fully charge the battery
before using your device for the first time.
Caution: Use only charging devices and batteries
approved by Samsung
™
. Samsung accessories
are designed to maximize battery life. Using other
accessories may invalidate your warranty and may
cause damage.
11
Assemble Your Device
Getting Started

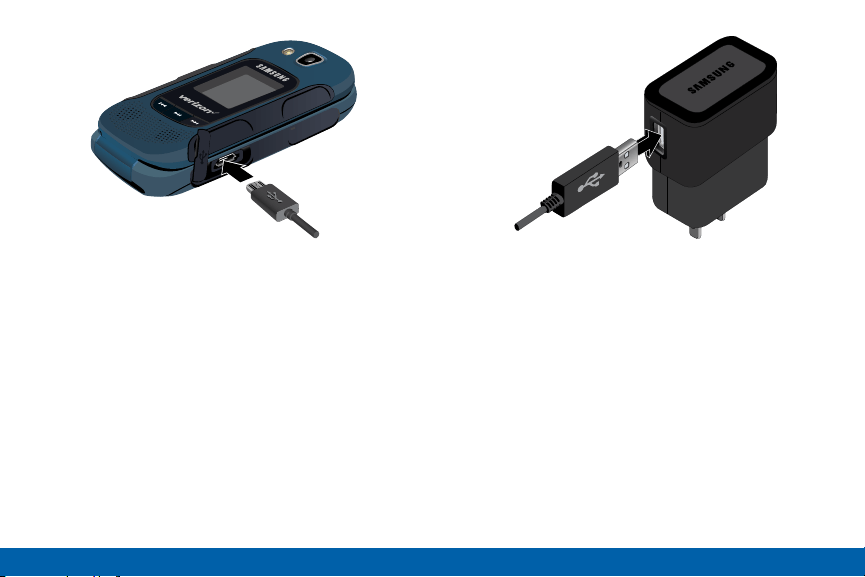

USB Cable
Charging Head
1. Open the side slot and insert the USB cable into
the port.
3. When charging is complete, unplug the charging
head from the outlet and remove the USB cable
from the device.
2. Connect the USB cable to the charging head, and
then plug the charging head into a standard outlet.
Caution: Failure to unplug the wall charger before you
remove the battery can cause damage to the device.
12
Assemble Your Device
Getting Started
When to Charge the Battery
When the battery is low and only a few minutes of
operation remain, the battery icon blinks and the
device sounds a warning tone at regular intervals.
( )
In this condition, your device conserves its remaining
battery power by dimming the screen.
When the battery level becomes too low, the device
automatically turns off.
For a quick check of your battery level,
► View the battery charge indicator located in the
Statusbar of the display. Four bars indicates
a full charge.
(
)
13
Set Up Your Device
Getting Started
Set Up Your Device
Turn the Phone On or Off
1. Open the phone.
2. Press and hold End/Power until the phone
power-on screen displays.
Note: Do not turn on the phone when mobile phone use
is prohibited.
3. If the phone requests a password, enter it and
press OK or the Center key. For more
information, see
“Security” onpage132.
The Home screen displays while the phone
searches for your network. After the phone finds
your network and displays adequate signal strength
bars, you can make or receive calls.
Note: The display language is preset to Automatic
at the factory. To change the language, use the
Languagemenu. For more information, see
“Language” onpage131.
4. When you want to switch off the phone, press
and hold End/Power until the power-off image
displays.
Initial Setup
The first time you turn on your phone, Set-up Wizard
prompts you to configure basic preferences so you
can quickly get started using your phone.
You can also access Set-up Wizard at any time in
Settings.
1. From the Home screen, press Menu >
Settings > Set-up Wizard.
2. Use Preview, Skip, and Next or Set to
follow the prompts and set preferences:
•
Font style: Choose a font style for the dial,
menus, and messaging.
•
Font size: Choose a font size for the dial, menus,
and messaging.
•
Volume key control: When enabled, you can
adjust the display’s font size by pressing the
Volume Key.
14
Set Up Your Device
Getting Started
•
Front screen menu: View information about the
menu available on the Front Screen when the
phone is closed.
•
Call sounds: Choose how your phone alerts you
to incoming calls.
•
Display themes: Choose the look of your
phone’s screen.
•
Menu layout: Choose the look of the Mainmenu.
•
Main clock: Select a format for the clock on the
Home screen.
•
Front clock: Select a format for the clock on the
external display when the phone is closed.
Set Up Your Voicemail
Note: If your service provider did not preconfigure your
voicemail server number, store the voicemail server
number before accessing the server. Your service
provider can give you the number.
Setting Up Your Personal Options
To set up your personal options:
1. Open the phone to access the keypad.
2. From the Home screen, press and hold One.
3. Follow the voicemail prompts. If you need additional
help setting up your voicemail, contact your service
provider.
15
Set Up Your Device
Getting Started
Install an Optional
MemoryCard
You can install an optional microSD
™
or microSDHC
™
memory card (not included) to expand available
memory space.
Note: A memory card can be installed at any time; it is
not necessary to install it prior to using the device.
To add additional memory to your phone, you can
insert a microSD card into the memory card slot on
the side of the phone.
Use the following instructions and illustrations to
properly install a microSD card.
Note: Your phone supports microSD cards to a
maximum size of 32 GB.
1. Lift the memory card cover out and turn it to
expose the card slot.
2. With the gold contacts facing down, carefully push
the memory card into the slot until it “clicks” into
place.
3. Replace the memory card cover.
To remove a microSD card:
1. Lift the memory card cover out and turn it to
expose the card slot.
2. Push the memory card inward to release and
carefully slide the card out of the memory card slot.
3. Replace the memory card cover.
Know Your Device
Learn some of the key
features of your mobile
device, including the screens
and icons, as well as how to
navigate the device and enter
text using the keyboard.
17
Home Screen
Know Your Device
Home Screen
Status bar
Home screen
Event status
(appears when there
is a notification)
Contacts shortcut
Message shortcut Menu shortcut
18
Home Screen
Know Your Device
The Home screen is the starting
point for using your device. Here are
some features of the Homescreen.
•
Contacts shortcut: Opens the Contacts
application.
•
Menu shortcut: Opens the Menu screen.
•
Message shortcut: Opens the Messaging or
Messages application.
•
Event status: Displays icons to indicate active
alerts, reminders, and alarms.
•
Home screen: Displays Wallpaper, Banners,
andClock.
•
Status bar: Displays icons to show network status,
battery power, and connection details.
Change Display Appearance
You can change and customize several features of
the Main and Cover display. See “Display Settings”
onpage121 for more details.
19
Status Bar
Know Your Device
Status Bar
The Status bar at the top of the Main
display provides device information
(such as network status, battery
charge, and time) and message
notifications.
Icon Glossary
The Icon Glossary is a list of all icons used on your
phone.
► From the Home screen, press Menu >
Settings > Phone info > Icon glossary.
20
Navigation
Know Your Device
Navigation
Command Keys
There are several command keys that you can use
to navigate your phone. These keys are referenced
throughout this user manual.
Soft Keys
There are two soft keys: the Left soft key and
the Right soft key. The roles of the soft keys vary
depending on the function you are currently using.
The labels on the bottom line of the display, just above
each soft key, indicate the current function of the
corresponding key.
Left Soft Key
Some functions of the Left soft key are:
•
On a Home screen, press the Left soft key to
launch Messages.
Right Soft Key
Some functions of the Right soft key are:
•
In a Home screen, press the Right soft key to
launch Contacts List.
21
Navigation
Know Your Device
Directional Key
Press the Directional key up, down, left, or right to
browse menus and lists or to launch applications from
the Home screen with Directional Key Shortcuts.
While navigating, you can also press the number key
corresponding to a menu item to launch the item.
Up
Left Right
Down
My pictures
My shortcuts
1. Alarm clock
2. Phone search
3. Bluetooth On/Off
4. Calendar
New text
message
Directional Key Shortcuts
From the Home screen, press the Directional key to
launch favorite applications.
Customize Directional Key Shortcuts with Set
Shortcuts under Phone Settings. For details, see
“Set My Shortcuts” onpage129.
22
Navigation
Know Your Device
Navigation Keypad
Use the directional keys on the Navigation keypad to
browse menus, sub-menus, and lists. Press the Up or
Down Navigation keys when browsing the web to jump
highlighted links on the web page.
Note: The Center Navigation key can often be used
instead of the Select soft key.
Center Select Key
Press the Center select key to select a highlighted
item or perform the highlighted action.
For example, from the Home screen, press
Menu
to launch the Menu.
Clear Key
Use the
Clear key for the following functions:
•
If you enter an incorrect character, briefly press it to
backspace and delete the character.
•
Press and hold it to erase an entire sentence.
•
Briefly press it to back up one menu level.
End/Power Key
Use the End/Power key for the following functions:
•
Press and hold it to turn your phone on or off.
•
Press it once to disconnect a call.
•
Press it to return to the Home screen from
anymenu.
•
Press it to cancel the last input.
•
Press it to send an incoming call directly to
Voicemail.
23
Navigation
Know Your Device
Send Key
Use the Send key for the following functions:
•
Press it once to answer calls.
•
Enter a number and briefly press it to make a call.
•
Briefly press it in the Home screen to display a list
of recent calls to and from your phone.
•
Press it twice in standby mode to call the most
recent number.
•
Press it to pick up a waiting call.
•
Press and hold it to turn on your phone when the
phone is off.
Camera/Camcorder Key
Use the Camera/Camcorder key to:
•
Launch the camera.
•
While in camera mode, press the Camera/
Camcorder key to take a photo.
•
Press and hold Camera/Camcorder key to launch
the camcorder.
•
While in camcorder mode, press the Camera/
Camcorder key to begin recording a video.
Voice Commands/Flashlight Key
Use the Voice commands/Flashlight key for the
following functions:
•
Press it once to turn the Flashlight on or off.
•
Press and hold it to launch Voice Commands.
Voicemail Key
Press and hold One to call Voicemail.
24
Navigation
Know Your Device
Shortcut Key
Use the Shortcut key for the following:
•
Press the Shortcut key to launch an application. For
information about selecting an application for the
Shortcut key, see “Set Side Key” onpage130.
Speakerphone Key
Use the Speakerphone key to:
•
During a call, press and hold the Speakerphone
key to switch call audio from the Earpiece to the
Speakers.
•
To answer an incoming call in Speakerphone mode,
press and hold the Speakerphone key.
•
With the flip closed, press and hold the
Speakerphone key to turn Driving Mode on or off.
Volume Key
Use the Volume key for the following:
• Press the Volume key to set Master Volume.
• Press and hold the Volume key down to activate
Sound Off mode.
• During calls, press the Volume key to adjust voice
volume.
• During music playback, press the Volume key to
adjust audio volume.
• Press the Volume key to silence the ringtone of an
incoming call.
• With the phone closed, press the Volume key down
4 times to initiate a Fake Call. For more information
about Fake Calls, see “Fake Call” onpage41.
• With the phone closed, press the Volume key to
navigate the external menu.
• When navigating menus with the phone open, press
the Volume key to change the font size of the
menus.
25
Navigation
Know Your Device
Press Fastforward, then press and hold
Rewind.
Vibration Key
Use the Vibration key to:
•
Press and hold the Vibration key to switch between
the current volume setting and Vibrate Only mode.
Front Keys
When the phone is closed, use the front keys as soft
keys to navigate a special menu.
With the phone closed, press Play/Pause to launch
the special Menu. Press the Volume keys to navigate
the menu:
•
Message: View messages and reply using Quick
Text.
•
My music: Play music.
•
Voice commands: Open Voice Commands.
•
Full readout: Read numbers, menus, alerts, and
messages aloud.
•
Today’s schedule: List events scheduled fortoday.
•
Take picture: Launch the camera.
•
Record video: Launch the camcorder.
•
Bluetooth: Turn Bluetooth
®
on or off.
In this menu, Play functions as a select key and
Rewind functions as a back key, which can be used to
return to the previous menu.
Lock or Unlock the Front Keys
The front keys can be locked or disabled, preventing
them from being pressed accidentally.
To lock (disable) the front keys:
► Press
Fastforward.
To unlock (enable) the front keys:
►
26
Navigation
Know Your Device
Menu Navigation
Menus and sub-menus can be accessed by scrolling
through them using the Navigation keys or by using
the shortcut keys.
Accessing a menu by scrolling.
1. From the Home screen, press Menu.
2. Scroll using the Navigation keys to reach a main
menu item, such as Settings. Press OK to
display the menu.
•
If the menu contains sub-menus, you can access
them by first highlighting the option and then
pressing OK.
•
To return to the previous menu level, press
Clear.
•
To exit the menu without changing the settings,
press End/Power.
Use Shortcut Numbers
Numbered menu items, such as menus, sub-menus,
and options can be quickly accessed by using their
shortcut numbers.
In Menu mode, Main Menus can be accessed by
pressing the number keys (1 to 9) corresponding to
their location on the screen.
27
Navigation
Know Your Device
•
Display settings: Access the display
settingsmenu.
Shortcuts
Your phone offers shortcuts from Idle mode that can
be customized for your ease and specific needs. The
shortcuts menu is accessed by pressing the Right
navigation key when on a Home screen. Upto four
shortcuts can be configured.
•
Driving mode: Access the Driving Mode page.
•
Fake call: Access the Fake Call settings page.
•
Internet: Open the Internet browser.
•
Media center: Access the Media Center menu.
To see the shortcuts that can be added, from Idle
mode, press Menu > Settings > Phone settings
> Set
Shortcuts > Set my shortcuts > Edit. The
following shortcuts are available:
•
Messaging inbox: View and write messages.
•
Music & tones: Access the Music & Tones menu.
•
My music: View music stored on your phone.
•
Alarm clock: Set and edit alarms.
•
My pictures: View pictures stored on your phone.
•
Advanced voice command: Access the voice
commands menu.
•
My ringtones: View ringtones.
•
My sounds: View sounds stored on your phone.
•
Apps: Access the Apps menu.
•
My Verizon: Access your Verizon account.
•
Backup assistant: Access the Backup Assistant
menu.
•
My videos: View videos stored on your phone.
•
Bluetooth menu: Access the Bluetooth menu.
•
New contact: Add a new contact.
•
Bluetooth On/Off: Enable or disable Bluetooth.
•
New message: Compose a new message.
•
Calculator: Access the Calculator.
•
Notepad: Access the Notepad.
•
Calendar: Access the Calendar app.
•
Phone search: Search your phone for files.
•
Call settings: Access the call settings menu.
•
Phone settings: Access the Phone Settings menu.
28
Navigation
Know Your Device
•
Picture & video: Access the Picture & Video menu.
•
Play all songs: Start playing all songs.
•
Settings: Access the Settings menu.
•
Social networks: Access social network apps.
•
Sounds settings: Access the Sounds Settings
menu.
•
Stopwatch: Access the Stopwatch.
•
Tip calculator: Access the Tip Calculator.
•
Tools: Access the Tools menu.
•
USB mass storage: Set the USB connection to
Mass Storage.
•
VZ Navigator: Access the VZ Navigator app.
•
World clock: Access the World Clock.
Select Options
To view the various functions and options available
and to select the one you want:
► Press the appropriate soft key.
To select the function displayed or the option
highlighted:
► Press Select.
To view the next function or highlight the next option
on a list:
► Press the Down Navigation key.
To move back to the previous function or option on a
list:
► Press the Up Navigation key.
To move back up one level in the menu structure:
► Press
Clear.
To exit the menu structure without changing the
settings:
► Press
End/Power.
29
Enter Text
Know Your Device
Enter Tex t
Learn how to select the desired
text input method when entering
text and characters. This section
also describes how to use the T9
predictive text system to reduce the
key strokes required to enter text.
Change the Text Entry Mode
You can change the entry mode to your preference.
1. While entering text, press the Left soft key to
display a list of entry modes.
2. Highlight an entry mode, then press OK.
Use XT9 Word to Enter Text
XT9
™
Word is a predictive text entry mode that
recognizes common English words matching the
sequence of your key presses and inserts the most
common word into your text. XT9 Word requires only
one key press per letter of the word, and is much
faster than traditional text entry.
To switch to XT9 Word mode:
► Press the Left soft key, then press XT9 word.
30
Enter Text
Know Your Device
While entering text:
•
Press the key for each letter only once.
•
Enter the entire word before editing or deleting
characters. Press Clear to backspace and clear
one character or press and hold to clear an entire
word.
•
If XT9 Word inserts the wrong word, press Zero
to toggle between other matching words.
•
Press to switch between Type (initial case), type
(lower case) and TYPE (upper case).
•
To enter a space, press .
•
Press once to enter a period.
•
Press and hold any key to enter the number on
thekey.
Use XT9 Palabra to Enter Text
XT9 Palabra is a predictive text entry mode for
Spanish that recognizes common words matching the
sequence of your key presses and inserts the most
common word into your text. XT9 Palabra requires
only one key press per letter of the word, and is much
faster than traditional text entry.
To switch to XT9 Palabra mode:
► Press the Left soft key, then press XT9
palabra.
31
Enter Text
Know Your Device
While entering text:
•
Press the key for each letter only once.
•
Enter the entire word before editing or deleting
characters. Press Clear to backspace and clear
one character or press and hold to clear an entire
word.
•
If XT9 Palabra inserts the wrong word, press to
toggle between other matching words.
•
Press to switch between Type (initial case), type
(lower case) and TYPE (upper case).
•
To enter a space, press .
•
Press once to enter a period.
•
Press and hold any key to enter the number on
thekey.
Use Abc Mode to Enter Text
Abc Mode is standard text entry mode for mobile
telephones.
► To switch to Abc mode, press the Left soft key,
then press Abc.
While entering text:
•
Press the appropriate key once for the first letter on
the key, twice for the second letter, three times for
the third letter, and four times for the fourth letter.
•
When the correct letter displays, pause briefly to
advance to the next letter or press another key.
•
Press Clear to backspace and clear one
character or press and hold to clear an entire word.
•
Press to switch between Abc (initial case),
abc(lower case) and ABC (upper case).
•
To enter a space, press .
•
Press once to enter a period, twice for an “at”
symbol (@),three times for a question mark (?), four
times for an exclamation mark (!), five times for a
hyphen (-), six times for a comma, seven times for
an ampersand (&), eight times for a colon (:), nine
times for an apostrophe (’), and ten times for a
slash (/).
•
Press and hold any key to enter the number on
thekey.
32
Enter Text
Know Your Device
Enter Numbers
Use 123 mode to enter numbers into a text field.
► To switch to 123 mode, press the Left soft key,
then press 123.
While entering numbers:
•
Press the appropriate key for each number.
•
Press Clear to backspace to clear one number.
Press and hold to clear multiple numbers in a
string.
Enter Symbols
Use Symbols mode to enter common symbols into a
text field.
► To switch to Symbols mode, press the
Left soft
key, then press Symbols.
To enter symbols:
•
There are three pages of symbols. Press Prev
to move to the previous page or Next to move to
the next page of symbols.
•
Use the Directional key to highlight a symbol,
then press the OK key to insert it.
– or –
Press the key for the number corresponding to a
symbol.
33
Enter Text
Know Your Device
Press
Options. The following options display:
Enter Smileys
Use Smileys mode to enter common symbols into a
text field.
To switch to Smileys mode:
► Press the Left soft key, then press Smileys.
To enter smileys:
► Use the Directional key to highlight a smiley,
and then press OK to insertit.
– or –
Press the key for the number corresponding to a
smiley.
Enter Quick Text
Use Quick Text mode to insert preloaded messages
into a text message or to create and insert your own
Quick Text phrases.
To switch to Quick Text mode:
► Press the
Left soft key, then select Quick text.
To insert a phrase:
► Use the
Directional key to highlight a phrase,
then press
OK to insert it.
– or –
Press the key for the number corresponding to a
Quick Text phrase.
To erase a Quick Text phrase:
► Use the
Directional key to highlight a phrase,
then press
Erase.
For additional options:
►
•
New: Create a new phrase.
•
Edit: Modify the highlighted phrase.
•
Move: Change the order of the phrases.
34
Enter Text
Know Your Device
Press
N
ew.
Enter Domain Extensions
Use Domain Extensions to insert common Internet
symbols or phrases, such as @ or .com.
Note: Domain Extensions mode is only available in
fields where you enter addresses, such as in Contacts,
or when creating a recipient list in a message.
To switch to Domain Extensions mode:
► Press the Left soft key, then press Domain
extensions.
To insert a Domain Extensions item:
► Use the Directional key to highlight a phrase,
then press OK to insertit.
– or –
Press the key for the number corresponding to a
Domain Extensions item.
To erase a Domain Extension:
► Use the
Directional key to highlight a phrase,
then press
Erase.
To create a new Domain Extension:
►
35
Enter Text
Know Your Device
Keys
The following chart lists the keys and the characters
associated with each key. English and Spanish letters
are shown:
. @ ¿ ? ¡ ! - , & : ’ / 1
A a B b C c Á á Ã ã Ç ç 2
D d E e F f É é 3
G g H h I i Í í 4
J j K k L l 5
M m N n O o Ó ó Ñ ñ 6
P p Q q R r S s 7
T t U u V v Ú ú Ü ü 8
W w X x Y y Z z 9
* +
0
(space), #
Push one button to contact other
Verizon Wireless
™
Push to Talk (PTT)
customers.
A Barge call automatically connects, while an Alert call
sends a tone, which gives the recipient the option to
either answer or ignore the call.
For complete details, go to verizonwireless.com/ptt.
Turn PTT On/Off
1. Press Menu > Settings > PTT settings >
PTTmode.
2. Select On/Off, then press OK.
Calling
Make telephone calls using a
variety of calling features and
services.
37
Make and Answer Calls
Calling
Make and Answer Calls
Learn how to make or answer a call.
Explore features and functionality
associated with making or answering
a call.
Make a Call
1. Open the phone.
2. Using the keypad, enter the phone number, then
press Send.
Note: To make a call using a speed dial, enter the
speed dial digits, holding down the last digit until the
phone dials the stored telephone number. For more
information about assigning Speed Dials, see
"Speed Dials" onpage54.
Make an International Call
1. Press and hold Star. The plus (+) character
displays.
2. Enter the local country exit code, the destination
country code, area code, and phone number
3. Press Send.
Answer Calls
You can answer a call or send the caller to voicemail.
•
If the phone is closed, open the flip to answer the
call automatically.
•
If the phone is open, press Send.
Note: These are default answer options. You can choose
other options for answering calls. For more information,
see "Answer Options" onpage138.
38
Make and Answer Calls
Calling
Send a Call to Voicemail
To send a call to voicemail:
•
Press Ignore to send the call to voicemail.
•
To send the call to voicemail and send a reply
message to the caller, press Txt, then select a
message.
Note: To silence the ringtone for an incoming call,
press Quiet.
Answer Call-Waiting Calls
When you receive a call while on a call:
•
Press Send to answer the new call. The original
call is placed on hold.
•
Press Send again to return to your original call.
Call In-Progress Options
While on a call, you can answer an incoming call or
access other features.
•
While in a call, press Mute to mute the
microphone so the other party cannot hear your
voice.
•
While in a call, press Options for these options:
-
Messaging: Launch Messaging, to create a new
message or view messages.
-
Contact list: Open the Contact list.
-
Recent calls: Display recent received, missed
and dialed calls.
-
Bluetooth menu: Display the Bluetooth menu.
-
Main menu: Display the Main menu.
-
Notepad: Open the Notepad.
-
Voice privacy: Improve the security of a
voicecall.
39
Make and Answer Calls
Calling
-
Whisper mode: Increase the microphone to
maximum volume level, to make your voice
easier to hear for the other party.
-
Noise cancellation: Reduce external noise on
the call.
-
Hold: Place the current call on hold.
-
Unhold: Reactivate the call on hold.
-
End held call: End a call that is on hold.
-
Swap: Place the current call on hold and then
activate the previous call.
-
Join: Combine all of the established calls (both
active and on hold).
-
Transfer: Transfer the call to another phone.
-
Select one: Select a held call to reactivate.
End a Call
When you want to end your call, press End/Power
or close the phone.
Recent Calls
Recent Calls contains a record of calls to and from
your phone.
1. With the phone open, press Send.
2. All Calls display by date, time, and contact name
or phone number, plus an icon to show the type
ofcall:
Missed call: Calls you did not answer.
Received call: Calls you answered.
Dialed call: Calls made from your phone.
3. Use the Directional key to scroll right or left to
view Calls filtered by type.
4. Highlight a call to use these options:
•
Press Message to create a new message
addressed to the phone number.
•
Press Open to view call details.
40
Make and Answer Calls
Calling
•
Press Options for these options:
-
Save to contacts/details: Save the number
to Contacts (only available if the number
is not already saved) or view the contact’s
information.
-
Erase: Delete the call record.
-
Lock/Unlock: Enable or remove protection.
Locked call records cannot be deleted.
-
Erase all: Delete all recent call records.
-
View timers: View call statistics.
Use Recent Calls to Make a Call
1. With the flip open, press Send.
2. Use the Directional key to highlight a call, then
press Send.
Use Recent Calls to Create or Update
Contacts
1. With the flip open, press Send.
2. Use the Directional key to highlight a call, then
press Options > Save to contacts
3. Use the Directional key to highlight an option,
then press OK:
•
Add new contact
•
Update existing
4. Continue entering contact information, as desired.
41
Make and Answer Calls
Calling
Delete Recent Call Records
1. With the flip open, press Send.
2. Use the Directional key to highlight a call, then
press Options.
3. Select Erase or Erase all, then follow the prompts
to erase records.
Fake Call
Use Fake Call to have your phone ring with a fake call
when you press the Volume key down four times in
arow.
Set Up Fake Calls
Enable and choose options for Fake Calls.
► From the Home screen, press
Menu > Settings
> Call settings > Fake call.
Initiate a Fake Call
► From Idle mode with the phone closed and the
external keys unlocked, press the Volume key
down four times.
After the Fake Call Timer period elapses, your phone
rings to notify you of the fake call. If you entered Fake
contact Info, it appears on the screen. Otherwise the
screen displays “Restricted.”
When you answer the Fake Call, you hear the Fake
Call Voice, if you selected it in Fake Call settings.
42
Make and Answer Calls
Calling
Driving Mode
When Driving Mode is enabled, your phone uses
sounds to alert you to notifications, regardless of other
phone or call settings.
For example, when you receive a call or message, your
phone reads out the caller’s (or sender’s) name and
number, and Call Alert sounds play, even if you have
set main volume to Sounds off or Vibrate only.
Enable Driving Mode with
Voice Commands
1. With the flip open, press and hold Voice
commands/Flashlight key.
2. At the audio prompt, say “Turn driving mode on.”
Enable Driving Mode in Settings
1. From the Home screen, press Menu >
Settings> Sounds settings > Drivingmode.
2. Choose a setting:
•
Caller ID only: Reads Caller ID for incoming
calls and messages.
•
ID & message: Reads Caller ID and the
message content for incoming messages.
•
Off: Disable Driving Mode.
Main Menu
The Menu screen displays all
applications installed on your
device. Learn how to use and
arrange your apps.
44
Contacts
Main Menu
Contacts
Store information about your daily
contacts in Contacts, to make calling
and messaging easier.
To quickly access the Contacts list:
► From the Home screen, press Contacts.
To access Contacts for all features:
► From the Home screen, press Menu >
Contacts.
Add a Contact
To add a contact to the Contact List:
1. From the Home screen, press Contacts.
2. Press Options > New contact.
3. In the Name field, use the keypad to enter a name
for the contact.
4. Use the Directional keys to highlight fields to
enter information for the contact, including at least
one phone number or email.
5. Press Save when you are finished.
45
Contacts
Main Menu
Add a Contact from the Keypad
Enter a telephone number with the keypad, then save
it as a Contact.
1. From the Home screen, use the keypad to enter a
telephone number.
2. Press Save > Add new contact.
3. Use the Directional keys to highlight Mobile1,
Mobile2, Home, Business, or Fax, then press
OK.
4. In the Name field, use the keypad to enter a name
for the contact.
5. Use the Directional keys to highlight fields to
enter information for the contact.
6. Press Save when you are finished.
Add a Contact from Recent Calls
Save a telephone number from a recent call record as
a contact.
1. With the flip open, press Send to display
Recent calls.
2. Use the Directional keys to highlight a
recentcall.
3. Press Options > Save to contacts > Add new
contact.
4. Use the Directional keys to highlight Mobile1,
Mobile 2, Home, Business, or Fax, then press
OK.
5. In the Name field, use the keypad to enter a name
for the contact.
6. Use the Directional keys to highlight fields to
enter information for the contact.
7. Press Save when you are finished.
46
Contacts
Main Menu
Erase Contacts
To remove contacts from your contact list:
1. From the Home screen, press Contacts.
2. Press Options > Manage contacts > Erase.
3. Highlight a contact and press Mark to mark
it for erasure, or press Options > Mark all to
mark all contacts.
4. Press Done, then follow the prompts to confirm
the erasure.
5. At the prompt, enter the Lock code. By default, the
Lock Code is the last four digits of your telephone
number.
Edit a Contact
To make changes to an existing contact:
1. From the Home screen, press Contacts.
2. Highlight a contact, then press Edit.
3. Use the Directional keys to move to fields to
modify or add information for the contact.
4. Press Save when you are finished.
47
Contacts
Main Menu
Edit a Contact from the Keypad
Enter a telephone number with the keypad, then save
it to an existing contact.
1. From the Home screen, use the keypad to enter a
telephone number.
2. Press Save > Update existing.
3. Use the Directional keys to highlight a contact,
then press OK.
4. Use the Directional keys to highlight Mobile1,
Mobile 2, Home, Business, or Fax, then press
OK.
5. Use the Directional keys to move to fields to
modify or add information for the contact.
6. Press Save when you are finished.
Edit a Contact from Recent Calls
Save a telephone number from a recent call record to
a contact.
1. With the flip open, press Send to display recent
calls.
2. Use the Directional keys to highlight a
recentcall.
3. Press Options > Saveto contacts > Update
existing.
4. Use the Directional keys to highlight a contact,
then press OK.
5. Use the Directional keys to highlight Mobile1,
Mobile 2, Home, Business, or Fax, then press
OK.
6. Enter a name for the contact in the Name field.
7. Continue adding information to fields or press
Save.
48
Contacts
Main Menu
Manage Contacts
Use Manage contacts to perform actions such as
erasing, locking, or unlocking multiple contacts at one
time.
1. From the Home screen, press Contacts.
2. Press Options > Manage contacts.
3. Choose an option:
•
Erase: Mark multiple contacts for deletion.
•
Lock: Mark multiple contacts to lock. Locked
contacts cannot be deleted.
•
Unlock: Mark multiple contacts to unlock.
•
Copy to card: Copy contacts to an optional
installed memory card (available if a card is
installed).
4. Find contacts by pressing the Directional keys
to browse the list.
5. Highlight contacts, then press Mark for each
contact or press Options > Mark all to mark all
contacts.
6. Press Done, then follow the prompts to confirm
the changes.
49
Contacts
Main Menu
Add Pauses or Waits
Calls to automated systems can require you to enter
numbers to navigate menus or to enter a password or
account number. You can store phone numbers with
special pause or wait characters to make entering
these numbers easier.
1. From the Home screen, press Contacts.
2. Create a new contact or edit an existing contact.
3. Enter the phone number up to the pause or wait,
then press Options to select an option:
•
Add 2-Sec pause: Stops the dialing sequence
for two seconds, then automatically dials the
remaining digits. A “P” displays in the field to
indicate the pause.
•
Add wait: Stops the dialing sequence, waiting
for input from you. A “W” displays in the field to
indicate the wait.
4. Press Save when you are finished.
Note: Entering multiple pauses extends the length of a
pause, and each pause counts as a digit. For example,
two consecutive pauses create a total pause of four
seconds and count as two digits.
Find Contacts
1. From the Home screen, press Contacts. The
Contact List displays, with the cursor in the Go to
field.
2. In the Go to field, enter the first few characters of
the Contact name to see matching entries.
3. Use the Directional keys to highlight a contact,
then use these options:
•
Send: Call the contact.
View: Open the contact entry.
•
Edit: Edit the contact entry.
•
Options: List contacts options.
•
50
Contacts
Main Menu
Use Contacts
Use Contacts to Make Calls
1. From the Home screen, press Contacts.
2. Highlight a contact, then press Send to call the
contact.
Use Contacts to Send Messages
1. From the Home screen, press Contacts.
2. Highlight a contact, then press Options > New
message to type your text message.
Backup Assistant
Backup Assistant is a wireless service that saves a
copy of your phone’s address book to a secure web
site. If your phone is lost, stolen, or damaged, Backup
Assistant can restore your saved address book to a
new phone - wirelessly. Schedule daily backups to
save your information manually or automatically. Log
in to your web account for full access to your contacts
for viewing, printing, adding, deleting, and editing.
Visit verizonwireless.com/backupassistant or contact
Verizon Wireless for more information.
Note: Standard TXT messaging rates apply. Backup
Assistant is free for My Verizon subscribers.
► From the Home screen, press Menu >
Contacts > Backup assistant.
51
Contacts
Main Menu
Favorites
Set contacts as Favorites to quickly find contacts to
view, send a message, or call the contact.
Assign Favorites
1. From the Home screen, press Menu >
Contacts > Favorites.
2. Use the Directional keys to highlight an empty
Favorite.
3. Press Add, then choose an option:
•
From contacts: Highlight and mark contacts
to assign as favorites. You can mark multiple
contacts at once to create a Favorite for each.
•
From groups: Choose a group to assign as a
Favorite. Highlight and mark the group.
4. Press Done to create the favorites.
Remove Favorites
1. From the Home screen, press Menu >
Contacts > Favorites.
2. Highlight a Favorite and press Options.
3. Choose an option:
•
New message: Send a new message to the
contact.
•
Remove: Erase the selected contact from the
Favorites list.
•
Remove all: Erase all favorites from the list.
4. Press OK
52
Contacts
Main Menu
Use Favorites
Use Favorites to quickly view a favorite’s contact
record, send a message to a favorite, or view
messages to and from the favorite.
1. From the Home screen, press Menu >
Contacts > Favorites.
2. Highlight a favorite contact to use these options:
•
To send a message, press Options > New
message.
•
To view the favorite’s contact record, press
View.
•
To call the favorite, press Send.
•
To view all messages to and from the favorite,
press Messages.
Groups
You can assign contacts to categories, called Groups,
to make searching your contacts faster, or to quickly
send messages to group members.
Add Contacts to Groups
1. From the Home screen, press Menu >
Contacts > Groups.
2. Use the Directional keys to highlight a group.
3. Press Options > Add.
4. Highlight contacts and press Mark to place a
checkmark beside each contact.
5. Press Done to add the contacts to the group.
Note: You can also assign a contact to a group when
you create or edit the contact record.
53
Contacts
Main Menu
Change a Contact’s Group
Assignment
1. From the Home screen, press Contacts.
2. Use the Directional keys to highlight the
contact you want to reassign.
3. Press Edit.
4. Highlight the Group field, then press Edit.
5. Highlight groups and press Mark to mark or
unmark groups for assignment.
6. Press Done.
7. Press Save to save the new group assignments.
Create a New Group
In addition to the default groups, you can create
additional groups.
1. From the Home screen, press Menu >
Contacts > Groups.
2. Press New.
3. At the prompt, enter a name for the new group.
4. Press Save to save the new group.
54
Contacts
Main Menu
Send a Message to Group Members
Send a message to all members of a group at once.
Note: Messaging availability varies when roaming
outside the Verizon Wireless Network.
1. From the Home screen, press Menu >
Contacts > Groups.
2. Use the Directional keys to highlight a group,
then press View to view it.
3. Press Options > New message.
4. Create the new message, then press Send.
Speed Dials
Speed dial numbers are 1-, 2-, or 3-digit shortcuts
assigned to contacts, which allows you to quickly call
the contacts.
The following Speed Dials are reserved by default and
cannot be reassigned:
•
Speed Dial 1 is reserved for Voicemail.
•
Speed Dial 96 is reserved for Data Usage inquiries
(#DATA) .
•
Speed Dial 97 is reserved for Balance inquiries
(#BAL).
•
Speed Dial 98 is reserved for Minute Usage (#MIN).
•
Speed Dial 99 is reserved for Payment information
(#PMT).
•
Speed Dial 211 is reserved for health and human
services.
•
Speed Dial 311 is reserved for non-emergency
municipal services.
•
Speed Dial 411 is reserved for directory assistance.
•
Speed Dial 611 is reserved for customer service
access.
•
Speed Dial 911 is reserved for emergency calls.
55
Contacts
Main Menu
Assign Speed Dials
1. From the Home screen, press Menu >
Contacts > Speed dials.
2. Use the Directional keys to highlight a speed
dial.
– or –
Enter a speed dial in the Go to field.
3. Press Set.
4. Use the Directional keys to highlight a contact.
– or –
Enter the first field characters in the Go to field.
5. Press
OK.
6. At the prompt, confirm the assignment.
Emergency Contacts
Set up to 3 emergency contacts, plus enter personal
information that may be helpful to others using your
phone in an emergency.
Note: Emergency contacts display in red in Contacts.
Assign Emergency Contacts
1. From the Home screen, press
Contacts.
•
In case of emergency is highlighted
automatically.
2. Press View to set emergency contacts.
3. Highlight Contact 1, Contact 2, or Contact 3 and
press Add.
4. At the Add Contact screen, highlight an option and
press OK:
•
From contacts: Choose an existing contact from
Contacts List.
•
New contact: Enter a new contact.
56
Contacts
Main Menu
5. At the prompt, use the Directional keys to
highlight a contact or enter the first field characters
in the Go to field.
6. Press OK.
Re-assign or Unassign an Emergency
Contact
1. From the Home screen, press Contacts.
•
In case of emergency is highlighted
automatically.
2. Press View to display emergency contacts.
3. Highlight a contact, then press Options for
these options:
•
Re-assign: Choose another contact from
Contacts List or create a new contact for this
assignment.
•
Unassign: Remove the contact from this
emergency contact.
Enter Personal Information
Enter up to 3 notes containing information that
might be helpful to others using your phone in an
emergency.
1. From the Home screen, press Contacts.
•
In case of emergency is highlighted
automatically.
2. Press View to display emergency contacts.
3. Press Personal info, then press View.
4. Highlight Note 1, Note 2, or Note 3, then press
Add.
5. Enter your personal information, then press
Save to save the note.
57
Contacts
Main Menu
My Name Card
My name card is your personal contact entry in
Contacts, which you can send to recipients as a virtual
business card (vCard) attached to a message or
through Bluetooth.
Edit My Name Card
By default, My name card contains your mobile
telephone number. You can edit My name card to
include other information.
1. From the Home screen, press Menu >
Contacts > My name card.
2. Press Edit.
3. Use the Directional keys to move to fields to
modify or add information.
4. Press Save when you are finished.
Send My Name Card (vCard) by
Message
Send your contact information, as My Name Card, as
an attachment to a message.
1. From the Home screen, press Menu >
Contacts > My name card.
2. Press Options > Sendvia message and press
OK.
3. Press Add to select contacts.
4. Press OK and enter your message text.
5. Continue creating the new message, then press
Send.
58
Contacts
Main Menu
Send My Name Card (vCard) by
Bluetooth
Send your contact information, as My name card, to
Bluetooth devices that support vCards.
1. From the Home screen, press Menu >
Contacts > My name card.
2. Press Options > SendviaBluetooth and press
OK.
3. At the Choose Device screen, use the
Directional keys to highlight an option, then
press OK.
•
Add new device: Searches for a new Bluetooth
device for pairing.
•
<Device name>: Sends My Name Card to a
previously-paired Bluetooth device.
4. Continue with the Bluetooth transfer.
Share Contacts
You can share contacts as Name Cards (vCards) in a
message or through Bluetooth.
Send Name Cards (vCards)
byBluetooth
Send individual contacts or your entire contact list to
Bluetooth devices that support vCards.
Not all Bluetooth devices accept a name card and not
all devices support transfers of multiple name cards.
Check your target device’s documentation.
1. From the Home screen, press Contacts.
2. Press Options, then press Send name card.
3. At the Send Name Card screen, highlight Bluetooth
and press OK.
59
Contacts
Main Menu
4. At the Send Via Bluetooth screen, highlight
contacts individually and press Mark or press
Options > Mark all, then press Done.
5. At the Choose Device screen, highlight an option,
then press OK:
•
Add new device: Search for a new Bluetooth
device for pairing.
•
<Device name>: Send to a previously-paired
Bluetooth device.
6. Continue with the Bluetooth transfer.
Send Name Cards (vCard)
by Message
Send a contact record or your entire contact list as
attachments to a message.
1. From the Home screen, press Contacts.
2. Press Options, then press Send name card.
3. At the Send Name Card screen, highlight Message
and press OK.
4. At the Send With Message screen, highlight
contacts individually and press Mark, then
press Done.
5. Continue creating the new message, then press
Send.
60
Messaging
Main Menu
Messaging
This section explains how to send
and receive messages, and other
features and functionality related to
messaging.
Types of Messages
Your phone can send and receive:
•
Text Messages
•
Multimedia Messages
•
Social Networks
Text Messages are simple messages containing
text, which can be sent to another mobile phone.
Your phone also supports long text messages. Text
messaging is also known as SMS (Simple Messaging
Service).
Multimedia Messages contain text, as well as
attachments such as sounds, graphics, animations,
and name cards. Multimedia messaging is also known
as MMS (Multimedia Messaging Service.
Create and Send Messages
1. From the Home screen, press Message > New
message.
2. At the New Text Msg screen, enter recipients in the
To fields:
•
Use the keypad to enter a recipient’s phone
number, contact name, or email address.
•
Press Add to select recipients From
contacts, Recent calls, Favorites, or Groups.
- or -
Choose To contacts to save a number you enter
as a contact.
61
Messaging
Main Menu
•
As you enter characters, matching contacts
display in a list. Use the Directional keys to
highlight a contact, then press OK to select it, or
press Add > To contacts to save the number
you entered.
3. Use the Directional keys to move to the Text
field to compose your message.
4. While entering text, press Options for the
following options:
•
View recipients: View each recipient. This
option will only appear if there are multiple
recipients.
•
Attach: Add an attachment to the message.
•
Group conversation: Make the message a
group conversation, where replies will go to
every recipient. This option will only appear if
there are multiple recipients.
•
Save as draft: Save a copy of the message in
the Drafts folder.
•
Insert quick text: Insert a preloaded phrase.
•
Copy: Select and copy text, for pasting into
another field. Use the Directional keys to
highlight text in the field, then press Done.
•
Paste: If you have copied text, paste the
copiedtext.
•
Add subject: Add subject text.
•
Priority level: Set the urgency of the message,
to High or Normal.
•
Callback #: Include a callback number
with the message. By default, this is your
mobile telephone number, or you can enter a
differentnumber.
•
Cancel message: Cancel the message, with the
option to save it in the Drafts folder.
5. Press Send or the Send key to send
themessage.
Note: Multimedia messages are only available within
Verizon Wireless Enhanced Services Area.
62
Messaging
Main Menu
Add Attachments
Adding an attachment converts the text message
to a multimedia message. Blank slides are created
for additional attachments, making it easy to add
additional attachments.
Note: Videos cannot be added to messages containing
pictures or sound.
1. Use the Directional keys to move to the
Text field. Press Options > Attach. Adding
an attachment converts the text message to a
multimedia message.
Attachment options are:
•
Picture: Select a picture from your phone or
optional memory card.
•
Take picture: Take a new picture using the
camera.
•
Video: Select a video from your phone or
optional memory card.
•
Record Video: Record a new video using the
camcorder.
•
Sound: Select a sound recording from your
phone or optional memory card.
•
Record sound: Create a new sound recording
using the microphone.
•
Name card: Attach your Name Card or Name
Cards for your Contacts.
•
Calendar event: Select or create a new
Calendar Event.
2. Use the Directional keys to highlight the
attachment, then press Options for these
options:
•
Attach: Add an attachment to the message.
•
Preview: View the message before sending.
•
Save as draft: Save a copy of the message in
the Drafts folder.
•
Add slide: Insert a second slide to the message.
•
Priority level: Set the urgency of the message,
to High or Normal.
•
Remove picture/Video/Sound/Name card/
Calendar event: Removes the attachment.
63
Messaging
Main Menu
•
Remove slide: Delete the current slide (available
if more than one slide is attached).
•
Cancel message: Cancel the message, with the
option to save it in the Drafts folder.
3. Press Send or the Send key to send
themessage.
Message Settings
This menu allows you to define settings for messages
sent or received on your phone. To access your
message settings, use the following steps:
1. From the Home screen, press Menu >
Messaging.
2. Press Settings for these options:
•
Inbox view: Set the default message view. Press
Time to display messages by time received
or Contact to display messages by name or
number (also known as threaded view).
•
Entry mode: Choose a default text entry
mode, from Abc, ABC, 123, XT9 word, XT9
palabra, Chinese, Korean, Vietnamese, or
XT9Vietnamese.
•
Auto save sent: Choose the save mode for
messages you send. Press On to save all sent
messages, Off to discard sent messages,
or Prompt to have the phone prompt you
eachtime.
•
Auto erase inbox: Press On to automatically
replace the oldest message of the same type
when the Inbox exceeds the maximum number
of messages of that type. For example, when
the Inbox exceeds 300 text messages, the
oldest text message is replaced with a new one.
Picture and video messages are replaced when
the phone’s memory is full. Press Off to disable
automatic erasures.
•
Messaging font size: Set the default size for
message text, Normal or Large.
•
TXT auto view: Press On to automatically
display text messages when they arrive, or Off to
have the phone prompt you.
64
Messaging
Main Menu
•
Multimedia auto receive: Press On to
automatically accept new multimedia messages.
Press Off to have the phone prompt you to
download new multimedia messages.
•
Group messaging: Configure default settings
for messages sent to multiple contacts. Press
Individual messages to allow recipients to only
reply to you (not the group), or press Group
conversation to allow recipients to reply to the
whole group.
•
Domain extensions: Create and manage a list
of web and Email extensions for the Domain
Extensions entry mode. Press Erase to
delete extensions. Press New to create new
extensions. To modify an extension, highlight the
extension and press Edit.
•
Quick text: Create and manage preloaded
phrases to add to messages. Press Erase to
delete phrases. Press Options > New to add
new phrases. To modify a phrase, highlight the
phrase and press Edit.
•
Emergency alerts: This device is designed
to receive Wireless Emergency Alerts from
the Commercial Mobile Alert Service (CMAS),
including Presidential Alerts, Imminent Alerts
(Severe or Extreme), and Amber Alerts (missing
persons). You may choose not to receive
Imminent and Amber alerts, but Presidential
Alerts cannot be disabled.
•
Voicemail #: Enter a new Voicemail speed dial.
The default is *86.
•
Callback #: Press On to add a callback phone
number to your messages and set the phone
number. Press Off to omit a callback number
(you can manually add a callback number to
individual messages).
•
Signature: Press Custom to add a signature
to all messages, then use the Directional
keys to move to the signature field to create the
signature. Press None to disable signatures.
65
Messaging
Main Menu
•
Delivery receipt: Choose whether you are
notified when a message you send is delivered.
Press On to be notified for every message or Off
to disable notification (you can set an optional
delivery receipt for individual messages when
you create them).
•
Social networks: Select your preferred social
network as the default. Press Facebook, Twitter,
or Let me choose.
Receive Messages
When you receive a message, you can choose to:
•
View now: Open the message for viewing.
•
View later: Dismiss the alert and save the message
in the Messages folders.
View Text Messages
When you receive a text message, the alert sounds
(unless turned off) and New text message displays on
the screen.
1. At the New Text Message prompt, press OK to
View now.
2. Press Reply to respond to the message with a
new Text, Picture, Video or Voice message.
3. Press Erase to delete themessage.
4. While viewing the message, press Options for
these message options:
•
Forward: Send the message to another
recipient.
•
Reply w. copy: Reply to the sender, plus other
recipients, if desired, and include a copy of the
original message.
•
Save as Quick text: Save the message text to
the Quick Text list.
66
Messaging
Main Menu
•
Lock/Unlock: Lock or unlock the message to
prevent deletion.
•
Add to contacts: Save the number of the sender
to Contacts as a new entry or update to an
existing entry.
•
Messaging font size: Select the font size,
Normal or Large.
•
Extract addresses: Display all Contact
Numbers, Email Addresses, and URLs extracted
from the message, to call, send an email, or
open the web page.
•
Message info: Display details about the
message.
View Multimedia Messages
When you receive a multimedia message, an alert
sounds (unless turned off) and New multimedia
message displays on the screen.
Note: This procedure describes default behavior. If you
make changes to Message Settings, options or steps
may be different.
1. At the New Message prompt, press OK to
Viewnow.
2. After loading, the attachment (and text, if any)
displays. Use the Directional keys to scroll to
see the entire message, if necessary.
3. Press Reply to respond to the message with a
new Text, Picture, Video or Voice message.
4. Press Erase to delete the message.
67
Messaging
Main Menu
5. While viewing the message, press Options for
these message options:
•
Play again: Play the attached video or sound
again.
•
Forward: Send the message to another
recipient.
•
Reply w. copy: Reply to the sender, plus other
recipients, if desired, and include a copy of the
original message.
•
Erase: (Voice or Picture message with attached
Sound) Delete the message.
•
Save picture: (Picture messages only) Save the
attached picture to My Pictures.
•
Save video: (Video messages only) Save the
attached video to My Videos.
•
Save sound: (Voice or Picture message with
attached Sound) Save the attached sound to My
Sounds.
•
Save as ringtone: (Voice or Picture message
with attached Sound) Save the attached sound
as a ringtone.
•
View name card: (If Name card is attached)
Display the attached name card.
•
Save name card: (If Name card is attached)
Save the attached name card to Contacts.
•
Set as: Assign the attached picture as Wallpaper
or Picture ID.
•
Save as Quick text: Save the message text to
the Quick Text list.
•
Lock/Unlock: Lock or unlock the message to
prevent deletion.
•
Add to contacts: Save the number of the sender
to Contacts as a new entry or addition to an
existing entry.
•
Extract addresses: Display all Contact
Numbers, Email Addresses, and URLs extracted
from the message, to call, send an email, or
open the web page.
•
Message info: Display details about the
message.
68
Messaging
Main Menu
Emergency Alerts
Emergency Alerts allows customers to receive
geographically-targeted Wireless Emergency Alerts.
Alerts alert customers of imminent threats to their
safety within their area. There is no charge for
receiving an Emergency Alert.
There are three types of Emergency Alerts:
•
Presidential
•
Imminent (Severe or Extreme)
•
Amber Alerts (missing person alert)
Customers may choose not to receive Imminent Alerts
and Amber Alerts.
Note: Presidential Alerts can not be disabled.
To disable Imminent Threat Alerts (Extreme and
Severe) and Amber Alerts, follow these instructions:
1. From the Home screen, press Menu >
Messaging.
2. Press Settings > Emergency alerts for the
following options:
•
Receive alerts: All alerts are enabled by default
(checkmark showing).
To disable alerts, highlight an alert and press
Unmark, then press Done.
•
Alert reminder: Set alerts to repeat Once,
Every 2 minutes, Every 15 minutes, or
Off(norepeats).
•
Alert vibrate: Press On to have the phone
vibrate when new messages arrive. Press Off to
disable this feature.
69
Messaging
Main Menu
Message Folders
Messages are stored in the message folders. You can
choose how messages appear with the Inbox View
setting in Message Settings.
Note: To scroll through all messages in the Messages,
Sent or Drafts folder, open one message, then press the
Directional keys left or right to scroll through the
folders.
View Messages by Contact
By default, the Inbox View setting is set to Contact.
All incoming and sent messages are stored in the
Messages folder, grouped by contact name (if the
sender/recipient is stored as a contact), or phone
number, to provide a threaded view of the message
exchange.
1. From the Home screen, press
Message.
•
The most recent message from each contact
displays. The icon shows whether the message
is new or already opened, and a number to the
right indicates the number of unread messages
from this contact/number.
2. Highlight New message to create a new message.
3. To view a message thread, use the Directional
keys to highlight a contact/number, then press
Open.
4. To send a reply message, press Reply.
5. While viewing the list of contacts/messages,
use the Directional keys to highlight a
contact/number, then press Options for these
options:
•
Erase: Delete the highlighted message thread.
•
Add to contacts: Save the sender or recipient’s
number to a contact record (available If the
number is not already saved).
•
New message: Create a new message
addressed to the contact/number.
70
Messaging
Main Menu
•
Manage messages: Perform actions on multiple
messages, including Erase, Lock, Unlock, Mark
as Read, Mark as Unread, and Copy to Card
(available if the memory card is inserted).
•
Sort alphabetically: Display message threads
by contact/phone number.
•
Messaging menu: Return to the Messaging
menu.
•
Social networks: Update your networks by
message.
View Messages by Time
When the Inbox View setting is set to Time, incoming
messages are stored in the Inbox and sent messages
are stored in the Sent folder, sorted by time.
Note: The Inbox folder is only present when the Inbox
View setting is set to Time.
Inbox Folder
1. From the Home screen, press Message >
Inbox.
2. Use the Directional keys to scroll the list
of messages. Highlight a message, then press
Erase to delete the message, or press
Open to view the message.
3. Highlight a message, then press Options for
message options:
•
Reply: Reply to the sender with a new message.
•
Reply w. copy: Reply to the sender, plus other
recipients, if desired, and include the first
100 characters of the original message in the
Textfield.
•
Forward: Send the message to another
recipient.
•
Add to contacts: Save the number of the sender
to Contacts as a new entry or additional to an
existing entry (available if the number is not
already saved).
71
Messaging
Main Menu
From the Home screen, press Messa
ge > Sent.
•
Extract addresses: Display numbers, Email
Addresses, and URLs from the message, to call,
send an email, or open the web page.
•
Message info: Display details about the
highlighted message.
•
Manage inbox: Perform actions on multiple
messages, including Erase, Lock, Unlock,
Markas read, Mark as unread, and Copyto
card (available if the memory card is inserted).
•
Sort by sender: List all messages in the Inbox
by Sender.
•
Sort by size: List all messages in the Inbox by
Size.
Sent Folder
When the Inbox View setting is set to Time, outgoing
messages are stored in the Sent folder by date and
time.
Note: The Sent folder is only present when the Inbox
View setting is set to Time.
1.
2. Use the Directional keys to scroll the list of
messages. Highlight a message, then use these
options:
•
Press Erase to delete the message.
•
Press Open to view the message.
•
Press Options for message options:
-
Forward: Send the message to another
recipient.
-
Resend: Send the message again, to the
original recipients, plus new recipients if
desired.
-
Add to contacts: Save the number of
the sender to Contacts as a new entry or
additional to an existing entry (available if the
number is not already saved).
-
Message info: Display details about the
highlighted message.
-
Manage sent: Perform actions on multiple
messages, including Erase, Lock, Unlock, and
Copy to Card (available if the memory card is
inserted).
72
Messaging
Main Menu
-
Sort by recipient: List messages by the first
addressee.
-
Sort by time/type: List messages by type
(Text, Picture, Video or Voice) or by time
received.
Drafts Folder
Drafts are messages you have created, but have not
yet sent. You can review, edit or send a draft message.
1. From the Home screen, press Menu >
Messaging > Drafts.
2. Use the Directional keys to scroll the list of
messages. While viewing the list of messages,
press Options for message options:
•
Send: Send the message, as-is, to the listed
recipients.
•
Add to contacts: Save the number of the sender
to Contacts as a new entry or additional to an
existing entry (available if the number is not
already saved).
•
Manage drafts: Perform actions on multiple
messages, including Erase, Lock, Unlock, and
Copy to card (available if the memory card is
inserted).
•
Sort by recipient: List all messages by the first
addressee.
•
Sort by time/type: List messages by type (Text,
Picture, Video or Voice) or by time created.
3. Highlight a message, then press Erase to delete
the message or press Edit to edit the message
before sending.
73
Messaging
Main Menu
Voicemail
From the Messaging menu, you can view the total of
new voicemail messages, clear the voicemail counter,
and call voicemail to check messages.
1. From the Home screen, press Menu >
Messaging > Voicemail.
2. On the Voicemail screen, view the number of new
messages. Press Call to dial voicemail to check
messages, or press Clear to clear the voicemail
counter.
Social Networks
Update your social networking sites from your phone.
After setting up your accounts on your phone, you can
update your status and upload media right from your
phone.
Note: You must add your phone number to your social
networking accounts before accessing them with your
phone. For more information, press Help.
1. From the Home screen, press
Menu >
Messaging > Social networks.
2. Use the
Directional keys to highlight anoption:
•
Update status: Enter text, then press Send
to select sites to update.
•
Facebook: Access options for updating and
accessing your account.
•
Twitter: Access options for updating and
accessing your account.
74
Recent Calls
Main Menu
Recent Calls
Recent Calls shows you all calls
received, dialed, and missed, as well
as call timers.
To access the Recent Calls category:
► From the Home screen, press Menu >
Recent calls.
The following pages are available:
•
Missed: View all missed calls.
•
Received: View all received calls.
•
Dialed: View all calls dialed from your phone.
•
All: View all calls from all categories.
•
View timers: View a variety of timers for calls made
to and from your phone, as well as data usage.
Call History Options
1. When viewing calls in Recent Calls, use the
Directional keys to highlight a call.
2. Press Message to compose a text message to
send to the highlighted number.
3. Press Options for the following options:
•
Save to contacts: Save the number as a contact
if it is not already saved to your phone.
– or –
Details: View contact details if the number is
saved in your phone.
•
Erase: Remove the call entry.
•
Lock: Prevent the call entry from being erased.
•
Erase all: Remove all call entries.
•
View timers: Open the View Timers page to see
all call timers.
75
Recent Calls
Main Menu
Press Reset all to reset all call timers.
Reset Call Timers
Call timers can be reset individually or all at once as
follows:
1. From the Home screen, press Menu >
Recent calls > View timers.
2. Use the Directional keys to highlight a timer.
3. Press Reset to reset the timer to zero.
– or –
76
Internet
Main Menu
Internet
Internet is your access to the World
Wide Web.
To launch Internet:
1. From the Home screen, press Menu >
Internet.
2. Use the Left soft key, Center select key,
and Right soft key to browse the Internet.
Note: By default, you can use a Directional key shortcut
to launch Internet from the Home screen by pressing the
Left Directional key.
77
Media Center
Main Menu
Media Center
Media Center includes applications
for downloading, creating, viewing,
and managing multimedia content,
right on your phone.
Important: If your service plan does not include an
unlimited data feature, you incur either airtime charges,
if you exceed your minutes bundle, or megabyte(MB)
charges at applicable rates for downloading and/or
using applications.
Apps
Browse and download applications to your phone,
from the Apps store.
1. From the Home screen, press Menu >
Mediacenter > Apps.
2. Use the Left soft key, Center select key,
and Right soft key to browse and download
applications.
Note: For more information about Apps, press
Options > Help.
78
Media Center
Main Menu
Internet
Use the Internet Browser to browse the World
WideWeb.
1. From the Home screen, press Menu >
Mediacenter > Internet.
2. Use the Left soft key, Center select key,
and Right soft key to browse the Internet.
Note: By default, you can use a Directional key shortcut
to launch Internet from the Home screen by pressing the
Left Directional key.
Music and Tones
Create and manage music and sounds on your phone.
1. From the Home screen, press
Menu >
Mediacenter > Music & tones.
2. Select an option:
•
My ringtones: Set tones on your phone for
incoming call Ringtone, as a ringtone for Contact
ID, and Alert Sounds.
•
My music: Manage music you have loaded on
your phone.
•
My sounds: Record and manage sounds for use
as alerts for calls and messages.
My Music
Play music that you transfer from your PC or from an
optional installed memory card. You can play music
with the phone open or closed.
1. From the Home screen, press Menu >
Mediacenter > Music & tones > My music.
2. At the My Music screen, you have these options:
•
Play all songs: Play all songs stored on your
phone and installed memory card.
•
All songs: Display all songs stored on your
phone and memory card, to choose songs to
play and manage your music.
79
Media Center
Main Menu
Press the Center select key to Pause
playback. Press the Center select key again
to Play.
•
Playlists: Display and manage playlists. Highlight
a playlist, then press View to display it or
press Play to play it. Press Options
to create a new playlist, erase or rename
the highlighted playlist, or change the input
language.
•
Artists: Display songs by artist. Highlight an
artist, then press View to display songs by
the artist or press Play to play the songs.
•
Genres: Display songs by music type. Highlight
a genre, then press View to display songs
from the genre or press Play to play the
songs.
•
Albums: Display songs by album title. Highlight
an album, then press View to display
songs from the album or press Play to play
thesongs.
•
Manage my music: Erase songs, lock or unlock
songs, or move music between your phone’s
memory and an optional installed memory card.
•
Music settings:
-
Repeat: Choose a playback mode, from
Repeat All, Repeat All, Repeat One, or Off.
-
Shuffle: Choose On to play songs in random
order or Off to play them in the order they
appear.
-
Music only mode: When On, all wireless
communications, including calls, are disabled,
and the phone acts as a music player only.
Play Music
1. From the Home screen, press Menu >
Mediacenter > Music & tones > My music.
2. Select an option, then press Play to play the
selection.
3. Use the Center select key and Directional
key to control playback:
•
80
Media Center
Main Menu
•
Press the Directional key left for
Rewind or to go to the previous song, or
press and hold to scan backward through the
song.
•
Press the Directional key right for
Forward or to go to the next song, or press
and hold to scan forward through the song.
•
Press the Directional key up to choose
playback modes from Shuffle,
Repeat track, or Repeat all.
•
Press the Directional key down to Stop
playback.
4. During playback, press Mute to mute the
playback.
5. During playback, press Options for these
options:
•
Library: Continue playback and return to the
Library.
•
Audio to phone/device: Switch the audio output
to phone or Bluetooth headset. This option
is only available when a Bluetooth headset is
connected to the phone.
•
Exit player: Stop playback and close My Music.
•
Add to playlist: Add the current song to a
playlist.
•
Sound effect: Choose an effect to add to the
music.
•
Skin: Choose a theme for the music player.
•
Song info: View details about the current song.
•
Memory info: View the amount of memory
available, used and total for the Phone and Card
memory.
•
Music settings: Choose Repeat mode, Shuffle
mode, or Music Only mode. In Music Only mode,
access to the wireless networks is disabled and
you cannot send or receive calls or messages.
81
Media Center
Main Menu
Create a Playlist
1. From the Home screen, press Menu >
Mediacenter > Music & tones > My music >
Playlists.
2. Highlight Yes and press OK to create the first
playlist.
– or –
Press Options > Create new to create
additional lists.
3. Enter a name for the playlist, then press OK.
Add Songs to a Playlist
1. From the Home screen, press
Menu >
Mediacenter > Music & tones > My music >
Playlists.
2. Press
Add to open the playlist, then highlight
songs and press
Mark to select them.
3. Press
Done.
Note: To add songs to playlists while playing music,
press Options > Add to playlist, then select a playlist.
Play Music with the Phone Closed
1. With the phone closed, press
Play/Pause.
2. Use the Volume key to highlight My Music and
press
Play/Pause.
3. Use
Fast forward,
Play/Pause, and
Rewind to control playback.
Note: To stop playback and close My Music, open the
phone and press
End/Power.
82
Media Center
Main Menu
Picture and Video
Manage pictures and videos on your phone.
My Pictures
View and manage pictures preloaded on your phone
or downloaded and stored on your phone or optional
memory card.
Note: Copyright-protected pictures cannot be uploaded
or sent as a message attachment. This includes pictures
that are preloaded on your phone.
1. From the Home screen, press Menu >
Mediacenter > Picture & video > My pictures.
2. Use the Directional keys to browse picture
thumbnails. Highlight a thumbnail, and then use
these options:
•
Press View to display the picture larger.
Press List to return to thumbnails.
•
Press Erase to delete the highlighted picture.
•
While viewing thumbnails, press Options for
these options:
-
Send: Attach the picture to a new Picture
Message, send it through Bluetooth, or post it
to Blogs or Facebook.
-
Set as: Set the picture as the Main Wallpaper,
Front Wallpaper or Picture ID for a contact.
-
Take picture: Launch the Camera to take new
pictures or video.
-
Manage pictures: Erase pictures, Lock (or
Unlock) pictures to prevent deletion, or move
pictures to the phone’s memory or optional
memory card.
-
Rename: Change the name of the highlighted
picture.
-
Full view: Display the picture full-screen.
-
Slide show: Set the duration, then play a
slideshow of all pictures in My Pictures.
-
File info: View details about the picture.
3. To view a picture, highlight a thumbnail and
press View. While viewing the picture, press
Options for options to modify the picture.
83
Media Center
Main Menu
Create a Slide Show
View all the pictures in My pictures as a slide show,
where you choose the duration of each slide.
1. From the Home screen, press Menu >
Mediacenter > Picture & video > My pictures.
2. Press Options > Slide show.
3. Press the Directional key right or left to choose
a duration for each slide, then press Play.
4. While viewing the slide show, use the Left soft
key, Center select key, and Right soft key
to control playback.
View and Modify a Picture
My pictures offers powerful tools for modifying
pictures.
1. From the Home screen, press Menu >
Mediacenter > Picture & video > My pictures.
2. Use the Directional key to browse picture
thumbnails. To view a picture, highlight a thumbnail
and press View.
3. While viewing the picture, press Options for
these options:
•
Send: Attach the picture to a new Picture
Message, send it through Bluetooth, or post it to
Blogs or Facebook.
•
Set as: Set the picture as the Main Wallpaper,
Front Wallpaper or Picture ID for a contact.
•
Take picture: Launch the Camera to take new
pictures or video.
•
Zoom/Rotate: Change the zoom level or
orientation of the picture.
84
Media Center
Main Menu
•
Edit: Modify the selected picture:
-
Effects: Choose an effect to apply to the
picture. Press the Directional key right or
left to see different effects, then press Save to
save the effect to the picture.
-
Decorate: Press Add to add a Frame or
Clip Art to the picture.
-
Revision: Adjust the Brightness, Saturation,
Contrast or Blur.
-
Merge: Choose two pictures to combine.
Press Set to choose another picture,
then press OK. Press Merge to combine the
pictures.
-
Copy/Paste: Select a portion of one picture
(the Foreground) to paste on another picture
(the Background). Highlight Foreground or
Background, then press Set and follow the
prompts.
-
Resize: Change the resolution of the picture.
-
Rotate/Flip: Rotate the selected picture
in incremental steps or flip the picture
horizontally or vertically.
•
Rename: Change the name of the picture.
•
Move: Move the picture to the phone or optional
memory card.
•
Lock/Unlock: Lock the picture to protect it from
erasure or Unlock.
•
Full view: Display the picture full-screen.
•
Slide show: Set a duration, then play a slide
show of all pictures in My Pictures.
•
File info: View details about the picture.
85
Media Center
Main Menu
My Videos
View and manage videos.
Note: Copyright-protected videos cannot be uploaded or
sent as a message attachment.
1. From the Home screen, press Menu >
Mediacenter > Picture & video > My videos.
2. Use the Directional key to browse video
thumbnails. Highlight a thumbnail, then use these
options:
•
Press Play to view the video.
Press Clear key to return to thumbnails.
•
Press Erase to delete the highlighted video.
3. While viewing thumbnails, press Options for
these options:
•
Send: Attach the video to a new Video Message
or post to Blogs.
•
Record video: Launch the Camcorder to record
a new video.
•
Set as wallpaper: Set the video as an animated
wallpaper on the Home screen.
•
Manage videos: Erase videos, Lock (and
Unlock) videos to prevent erasure, and move
videos to the phone or optional memory card.
•
Rename: Change the name of the highlighted
video.
•
File info: Display information about the video.
4. To view a video, highlight a thumbnail and press
Play. While viewing the video, use these
options:
•
Use the Directional key to control playback:
-
Press up to switch to full-screen playback.
-
Press right to move to the next video or press
and hold to scan forward though the current
video.
-
Press down to stop playback.
-
Press left to move to the previous video or
press and hold to scan backward through the
current video.
86
Media Center
Main Menu
•
Press Mute/Unmute to control audio
playback.
•
Press Options for options:
-
My videos: Return to My Videos.
-
File info: Display information about the video.
-
Help: View information about using the
Directional key with playback.
Take Pictures
Your phone’s built-in camera produces photos in JPEG
format.
Note: Do not take photos of people without their
permission. Do not take photos in places where cameras
are not allowed. Do not take photos in places or in a
manner where you may interfere with another person’s
privacy.
1. With the flip open, press
Camera/Camcorder.
– or –
From the Home screen, press Menu >
Mediacenter > Picture & video > Take picture.
Note: You can also launch Camera with the phone
closed. Press
Menu, then use the Volume key to
highlight Take picture and press
OK.
2. Set Options, if desired. For more information, see
“Picture Options” onpage87.
3. Using the screen as a viewfinder, compose your
picture by aiming the lens at your subject.
4. Press
Take to take the picture.
5. After taking a photo, use the soft keys for these
options:
•
Press Erase to delete the new photo.
•
Press Send to attach it to a new picture
message.
•
Press Save to save the picture to
Mypictures.
87
Media Center
Main Menu
Picture Options
Use Picture Options to customize your photos.
Note: While setting Options, press Help for
information about an option.
1. With the flip open, press Camera/Camcorder.
– or –
From the Home screen, press
Menu >
Mediacenter > Picture & video > Take picture.
2. Use the number keys for Settings shortcuts. For
example:
•
Press 1 to select Camera or Camcorder mode.
•
Press 2 to select Shooting mode.
•
Press 3 to set a Timer for a delay between
pressing Take and the taking of the photo.
•
Press * to select a Flash mode.
For more information, see “Settings” onpage111.
3. Press Options and use the Directional key
left and right to view these options.
•
Mode: Switch between Camera and Camcorder.
•
Shooting mode: Choose Single shots,
Continuous shooting, Mosaic shots to merge into
one image, add a Frame, or take multiple shots
to form a Panorama.
•
Resolution: Choose a resolution for new photos,
from 5M (2592x1936), 3.1M (2048x1536),
1.9M(1600x1200), 1.2M (1280x960), or 0.3M
(640x480).
•
Auto focus: Turn auto focus On or Off.
•
Flash: Choose a flash setting, from Auto, On,
Only this Shot, or Off.
•
Brightness: Choose a setting for image
brightness, from 1 to 9.
•
White balance: Choose a setting for the type
of light, from Auto, Daylight, Incandescent,
Fluorescent, or Cloudy.
•
Exposure metering: Select an area for
measuring exposure level, from Matrix,
Center-weighted, or Spot.
88
Media Center
Main Menu
•
Effects: Choose an effect to add to photos, from
None, Black & White, Antique, or Negative.
•
Night shot: Select On when taking pictures of
night to adjust for low level of light.
•
Timer: Choose a time delay when taking
a picture, from Off (no delay), 2 Seconds,
5Seconds, or 10 Seconds.
•
Viewfinder mode: Choose to display either
Icons, No Icons, or Guidelines on the viewfinder.
•
Preview mode: Select the screen size for
previews after you take a new picture, from Full
screen or Standard screen.
•
Settings: Choose detailed Photo and Setup
options.
-
Photo quality: Set image quality, from Normal,
Fine, or Superfine.
-
Review: Set the preview mode for viewing
pictures after you take them.
-
Shutter sound: Turn On to have a sound play
when you press TAKE.
-
Auto name: Turn On to have new pictures
named automatically.
-
Memory: Choose the default save location,
Phone memory or memory Card.
-
Shortcuts: View shortcuts for using keypad
keys to quickly access Camera settings when
taking a picture.
Record Videos
Record videos with your phone’s built-in Camcorder.
Note: Do not take videos of people without their
permission. Do not take videos in places where cameras
are not allowed. Do not take videos in places or in a
manner where you may interfere with another person’s
privacy.
1. With the flip open, press and hold
Camera/Camcorder.
– or –
From the Home screen, press Menu
> Mediacenter > Picture & video
>Recordvideo.
Note: You can also launch Camera with the phone
closed. Press
Menu, then use the Volume key to
highlight Record video and press
OK.
89
Media Center
Main Menu
2. Set Options, if desired. For more information, see
“Video Options” onpage89.
3. Using the screen as a viewfinder, compose your
shot by aiming the lens at your subject.
4. Press Rec to start recording. Use the soft keys
to control recording:
•
Press Pause/Resume to temporarily halt
recording, then start again.
•
Press Stop to stop recording.
•
Press Mute/Unmute to control audio
recording.
5. After recording a video, use the soft keys for
options:
•
Press Save to save the video to My Videos.
•
Press Play to view the video. For information
about playing videos, see “My Videos”
onpage85.
•
Press Erase to delete the new photo.
Video Options
Use Video Options to customize your videos.
Note: While setting Options, press Help for
information about an option.
1. With the flip open, press and hold
Camera/Camcorder.
– or –
From the Home screen, press
Menu
>
Mediacenter > Picture & video
>Recordvideo.
2. Use the number keys for Settings shortcuts. For
example:
•
Press 1 to select Camera or Camcorder mode.
•
Press 2 to select Send or Save mode.
•
Press 3 to set a Timer for a delay between
pressing Record and the start of a recording.
•
Press * to select a Flash mode.
90
Media Center
Main Menu
3. Press Options and use the Directional key
for these options:
•
Mode: Switch between Camera and Camcorder.
•
Recording mode: Choose For Send to record a
video suitable for sending in a message, or For
Save to record a video of any length.
•
Flash: Choose a flash setting, from Auto, On, or
Off.
•
Brightness: Choose a setting for image
brightness, from 1 to 9.
•
White balance: Choose a setting for the type
of light, from Auto, Daylight, Incandescent,
Fluorescent, or Cloudy.
•
Effects: Choose an effect to add to videos, from
None, Black & White, Antique, or Negative.
•
Timer: Choose a time delay before recording,
from Off (no delay), 2 Seconds, 5 Seconds, or
10 Seconds.
•
Viewfinder mode: Choose to display either
Icons, No Icons, or Guidelines on the viewfinder.
•
Settings: Choose detailed Video and Setup
options.
-
Video quality: Set image quality, from Normal,
Fine or Superfine.
-
Review: Set the preview mode for viewing
videos after recording.
-
Shutter sound: Turn On to have a sound play
when you start recording.
-
Audio recording: Turn On to record audio
along with your videos.
-
Auto name: Turn On to have Camcorder
automatically name your videos when you
save them.
-
Memory: Set the default save location, Phone
or Card memory.
-
Shortcuts: View shortcuts for using keypad
keys to quickly access Camcorder settings
when recording video.
91
Media Center
Main Menu
EasyMove
Transfer photos stored in your phone to a compatible
Samsung device.
1. From the Home screen, press Menu >
Mediacenter.
2. Press EasyMove and follow the prompts to transfer
your photos.
Push To Talk Plus
Push one button to contact other Verizon Wireless
™
Push to Talk (PTT) customers.
Note: You must have PTT service activated on your
account to use the PTT+ app. For complete details, go
to verizonwireless.com/ptt.
Download PT T+
If PTT+ is not preloaded on your device, you will need
to download it from the Apps store.
1. From the Home screen, press
Menu > Apps.
2. Search for PTT Plus, and follow the prompts to
download the app.
Activate PTT+
To activate the PTT+ app:
1. From the Home screen, press Menu >
Mediacenter > Push to talk plus.
2. Press Purchase and follow the prompts to
download the application.
92
Media Center
Main Menu
Release the PTT Key to let another partytalk.
Access PTT+
You can access the PTT+ app in a couple of ways.
► From the Home screen, press Menu >
Mediacenter > Push to talk plus.
– or –
Press
PTT to access the PTT+ app.
Alert Calls
An alert call sends a tone, which gives the recipient
the option to either answer or ignore the call.
Make an Alert Call
To make an Alert call:
1. Press PTT to access the PTT+ app.
2. Highlight the contact you want to alert.
•
Press the Directional key to the right to view
your PTT+ contact list.
3. Press Alert. The screen will notify you if the
alert is successfully sent.
•
If the called party answers the alert, the Call in
Progress screen will open and you can begin
your PTT call.
Receive Alert Calls
When your phone receives an alert, the Instant
Personal Alert screen will display the contact
information of the caller.
To answer the alert:
1. Press and hold PTT and begin talking.
2.
3. Press End/Power to end the call.
To dismiss the alert:
► Press Dismiss.
93
Media Center
Main Menu
Barge Calls
A Barge call automatically connects to the recipient.
Make a Barge Call
To make a Barge call:
1. Press PTT to access the PTT+ app.
2. Highlight the contact you want to alert.
•
Press the Directional key to the right to view
your PTT+ contact list.
3. Press and hold PTT. Listen for the tone and
then begin speaking.
4. Release PTT when you have finished speaking.
This allows the called party to reply.
5. Press End/Power to end the call.
Answer a Barge Call
When your phone receives a Barge call, the Barge
tone plays. You then hear the calling party speaking
through the speaker phone. The calling party’s
wireless number or saved contact name appears on
your display.
To answer a Barge call:
1. Press and hold PTT to talk.
2. Release PTT to let another party talk.
3. Press End/Power to end the call.
94
Media Center
Main Menu
PTT+ Contacts
View your PTT+ Contacts list. This is different from the
Contacts list in your phone.
1. Press PTT to access the PTT+ app.
2. Press the Directional key to the right to view
the contact list.
Add PTT+ Contacts
You can create PTT+ contacts to make finding and
contacting them easier. A contact’s mobile telephone
number may be their PTT number if they are also
subscribed to PTT service.
1. Press PTT to access the PTT+ app.
2. Press the Directional key to the right to view
the contact list.
3. Press +New contact.
4. Tap an option and enter the contact information:
•
Manual: Manually enter the contact name and
phone number.
•
Import Contact: Import the contact from your
phone’s contact list.
5. Enter or edit the contact information:
•
Contact name: Enter a name for the contact.
•
Phone number: Enter the contact phone
number.
•
Favorite: Select to add the contact to your
favorites list. (These groups will display together
on the Favorite Contacts page.)
6. Press Save when you are finished.
Edit a PTT+ Contact
Make changes to an existing PTT+ contact.
1. Press PTT to access the PTT+ app.
2. Press the Directional key to the right to view
the contact list.
3. Highlight a PTT+ contact and then press
Options> Edit.
4. Edit the contact information, and press Save
when you are finished.
95
Media Center
Main Menu
PTT Groups
You can assign PTT+ contacts to Groups, to make
searching your contacts faster, or to quickly make a
PTT Group call.
Create a PTT Group
1. Press PTT to access the PTT+ app.
2. Press the Directional key to the right twice to
view the Groups list.
3. Press +New group.
4. Enter the group information:
•
Group name: Enter a name for your group.
•
Favorite: Select to add the group to your
favorites list. (These groups will display together
on the Favorite Groups page.)
•
Members: Tap +Add members and select
contacts to add to the group. Tap Add when
finished.
5. Press Save to save the group.
Edit a PTT Group
1. Press PTT to access the PTT+ app.
2. Press the Directional key to the right twice to
view the Groups list.
3. Highlight a PTT+ group, and then press
Options> Edit.
4. Edit the information or members, and press
Save when you are finished.
PT T+ Settings
Configure your PTT+ alerts, and features.
To access PTT+ Settings:
1. Press PTT to access the PTT+ app.
2. Tap Options > Settings.
96
Media Center
Main Menu
PTT+ Alert Settings
Customize your PTT+ alert settings.
1. Press PTT to access the PTT+ app.
2. Tap Options > Settings and tap an alert option
to enable or configure:
•
Vibrate alert: Enable or disable vibrate alerts.
•
Audible alert: Enable or disable audible alerts.
•
Alert repeat: Select to receive alerts once, on
repeat, or continuously.
•
Alert tone: Select an alert tone.
•
Instant personal alert: Enable or disable instant
personal alerts.
•
Missed call alert: Enable or disable missed call
alerts.
Other PTT+ Settings
1. Press PTT to access the PTT+ app.
2. Tap Options > Settings and tap an option to
configure:
•
Contacts sorting: Sort contacts into
alphabetical order or by availability.
•
Show tutorial: View a PTT tuorial.
•
Display name: Change your display name in the
PTT+ app.
•
My PTT+ number: View your PTT+ number.
•
Capacity: View your capacity for contacts and
groups.
•
Auto start: Enable or disable auto start.
•
About: View the app version and copyright
information.
•
Logout: Logout of the PTT+ app.
97
Tools
Main Menu
Tools
In Tools, a variety of useful electronic
tools are provided, including a voice
recorder, calculator, calendar, timer,
and stopwatch.
Voice Commands
Voice Commands is advanced speech recognition
software that recognizes your spoken commands to
dial phone numbers, create messages, and launch
applications such as Contacts, Calendar and My
Pictures.
To use Voice Commands, speak naturally into your
phone, at a distance of 3-12 inches. There is no need
to “train” Voice Commands, it is designed to recognize
natural speech.
1. With the flip open, press Voice commands to
launch Voice Commands.
– or –
From the Home screen, press Menu > Tools
> Voice commands.
2. At the audio prompt, speak a command:
•
Call <name or #>: Dial a call by saying a Name
in your Contacts List, a Name and a Location
(home, work, mobile) or the phone number.
•
Send message <name or #>: Send a text,
picture, or video message to a number or to
someone in your Contacts List.
•
Go to <menu>: Open any application installed
on your device.
•
Check <item>: View details of your phone
Status, Voicemail, Messages, Missed Calls, Time,
Signal Strength, Battery Level, Volume, Balance,
Minutes, Payment, and My Number.
98
Tools
Main Menu
•
Contacts <name>: Open a contact record from
Contacts.
•
Redial: Call the last number you dialed.
•
Play <playlist>: Open the My Music menu, plays
songs in a playlist, or all songs.
•
Turn driving mode on/off: Activate Driving
Mode.
•
My Verizon: Launch the My Verizon application.
•
Help: View a helpful tutorial about using Voice
Commands.
Voice Commands Settings
When using the Voice Command system, there are
four commands that are available at all times:
•
Repeat repeats the Voice Command prompt.
•
Readout reads out the phone status or contact
details.
•
Info offers more information command or reads out
available options.
•
Quit exits the Voice Command system.
You can adjust the settings and preferences by
opening Voice Commands menu. Using this menu, you
can change the following Voice Command features:
1. With the flip open, press Voice commands to
launch Voice Commands.
2. Press Settings to configure:
•
Confirm choices: Control whether Voice
Commands asks you to confirm a command.
Choose Automatic, Always confirm, or Never
confirm.
•
Sensitivity: Set the sensitivity of speech
recognition. Press More sensitive if Voice
Commands often misses commands, Automatic
for default sensitivity, or Less sensitive.
•
Adapt voice: Train speech recognition to your
voice.
99
Tools
Main Menu
•
Prompts: Choose the type of prompts Voice
Commands gives you:
-
Mode: Choose the type of prompts, from
Prompts (voice prompts, as by default),
Readout (reads out each screen), or
Tonesonly (plays only tones to prompt you
for commands).
-
Audio playback: Set playback location to
Speakerphone or Earpiece.
-
Timeout: Control how long Voice commands
listens for a command.
•
Key setting: Choose how to launch Voice
Commands, from Voice key only (press the
VoiceCommands key) or Voice key/Headset
(Press the Voice Commands key, or insert a
headset).
•
About: View information about Voice Commands.
Note: Press Info for descriptions of Voice
Commands settings.
Calculator
You can perform calculations, including addition,
subtraction, multiplication, and division using your
phone.
Normal
1. From the Home screen, press Menu > Tools
> Calculator > Normal.
2. Enter the first number in your equation, up to
15digits.
3. Use the Directional key to enter an operator:
•
Up: [ + ] Addition
•
Down: [ – ] Subtraction
•
Right: [ X ] Multiplication
•
Left: [ ÷ ] Division
100
Tools
Main Menu
While entering equations, you can use these
options:
•
Press Clear or the Clear key to delete
entries.
•
Press Operator to enter Left [ ( ] and
Right[) ] parentheses or raise a number by a
power.
•
Press Pound after a number to change the
sign.
•
To enter a decimal point, press Asterisk.
4. Press OK to perform the calculation.
Converter
1. From the Home screen, press Menu > Tools
> Calculator > Converter.
2. Use the Directional key to select:
•
Temperature: Convert between Celsius and
Fahrenheit.
•
Length: Convert between inch, foot, yard, mile,
millimeter, centimeter, meter, and kilometer.
•
Weight: Convert between ounce, pound, ton,
grain, milligram, gram, and kilogram.
•
Area: Convert between inch
2
, foot
2
, yard
2
,
centimeter
2
, meter
2
, kilometer
2
, acre, and
hectare.
•
Volume: Convert between gallon, inch
3
, foot
3
,
yard
3
, liter, centimeter
3
, and meter
3
.
•
Currency: Convert between major international
currencies.
3. Using the Directional key, select a From unit of
measurement, a number to convert, and a To unit
of measurement.
•
Press Asterisk to enter a decimal point.
The converted value is displayed.
101
Tools
Main Menu
Tip Calculator
Calculate a tip and how much each person should
pay.
1. From the Home screen, press Menu > Tools
> Tip calculator.
2. Use the Directional key to move to each field:
•
Bill: Enter the amount of the bill.
•
Tip: Enter the tip percentage.
•
# Paying: Enter the number of people paying.
As you enter numbers in the fields, the Calculator
automatically displays the Tip, Total bill including
the tip, and Each person’s share of the bill.
•
Press Asterisk to enter a decimal point.
Calendar
Set up events, with reminders, to be alerted to an
upcoming event.
Add an Event
1. From the Home screen, press Menu > Tools
> Calendar.
2. Press New.
3. Use the Directional key to highlight fields, then
enter the details:
•
Subject: Enter the name of the event.
•
Start time: Enter a time. Use the Directional
key to set am or pm.
•
End time: Enter a time. Use the Directional
key to set am or pm.
•
Start date: Enter the start date for the event.
•
End date: Enter the end date for the event.
•
Recurrence: Press Set to set the frequency.
102
Tools
Main Menu
•
Alert time: Use the Directional key to set an
alert to sound.
•
Reminder: Use the Directional key to set a
reminder for the event.
•
Alert tone: Press Set to choose a tone for
the reminder alert.
•
Vibrate: Use the Directional key to turn alert
vibration On or Off.
4. Press Save to save the event.
Review and Edit Events
1. From the Home screen, press Menu > Tools
> Calendar.
2. From the Calendar screen, find an event:
•
Use the Directional key to highlight a date
on the calendar, then press View to display the
day’s events.
•
Press Options, then press Go to date and
enter a date to view.
3. While viewing an event screen, press
Options
for these options:
•
Monthly view: Select month view.
•
Weekly view: Select week view.
•
Go to date: Enter a date to show it on the
calendar.
•
Send: Send events as vCalendar objects to a
Bluetooth device or as a message attachment.
•
Erase: Delete the highlighted event from the
calendar.
•
Erase all: Delete all events from the calendar.
•
Erase all old: Delete events prior to today.
•
Search: Enter keywords to find an event.
•
Copy event: Create a duplicate of an existing
event.
4. Use the Directional key to highlight a single
event, then press View to display it.
103
Tools
Main Menu
5. While viewing an event, press Options for these
options:
•
Send: Send events as vCalendar objects to a
Bluetooth device or as a message attachment.
•
Copy event: Create a copy of the event.
•
View calendar: Return to calendar view.
Alarm Clock
Set alarms to go off once or recur periodically at a
specific time. Once set, alarms are easy to change or
turn off.
Note: When an alarm is scheduled in the next 24 hours,
the Alarm icon appears in the Event Status line on the
Home screen.
Set an Alarm
1. From the Home screen, press Menu > Tools
> Alarm clock.
2. Press Add, then use the Directional key to
highlight fields to enter alarm details:
•
Alarm: Use the Directional key to toggle the
alarm On or Off.
•
Time: Enter the time for the alarm. Use the
Directional key to select am or pm.
•
Frequency: Press Set, then choose days for
the alarm to sound.
•
Snooze: Press Set, then choose settings for
snooze (delaying the alarm when it sounds).
•
Ringer: Use the Directional key to set a type
of alert, and select a ringtone.
3. When you finish entering information, press
Save.
104
Tools
Main Menu
Disable an Alarm
You can turn an alarm off to control whether the alarm
goes off, without changing any other settings. This can
be useful when you want to skip a day, but to retain
the same alarm settings.
1. From the Home screen, press Menu > Tools
> Alarm clock.
2. Use the Directional key to highlight the alarm
you want to turn off.
3. Press Options, then press Turn off.
Remove an Alarm
Erase alarms to remove them from Alarm Clock.
1. From the Home screen, press Menu > Tools
> Alarm clock.
2. Use the Directional key to highlight the alarm
you want to disable.
3. Press Options and press Erase to remove the
alarm or press Erase all to remove all alarms.
Snooze an Alarm
If the alarm includes a snooze setting, you can snooze
the alarm according to the settings you chose when
you created the alarm.
To snooze an alarm:
► When the phone is open, press OK to snooze
the alarm.
Dismiss an Alarm
You can dismiss an alarm using these options:
•
When the phone is open, press End.
•
When the phone is open, use the Directional
key to highlight Dismiss, then press OK.
Note: If the phone is closed, you can silence an alarm
by pressing the Volume key down. You must flip the
phone open to respond to the alarm.
105
Tools
Main Menu
Stop Watch
Measure lap times and total elapsed time.
1. From the Home screen, press Menu > Tools
> Stopwatch.
2. Press Start to start timing.
3. During timing, press Lap to record lap times.
4. Press Stop to stop timing.
5. Press Reset to discard times.
World Clock
World Clock allows you to view the current time in your
location, and anywhere in the world.
1. From the Home screen, press Menu > Tools
> World clock.
2. Current Time Zone displays automatically for your
location.
3. Use the Directional key to scroll time zones
around the world. Use these options:
•
Press Cities to choose a city to display.
•
Press DST on/DST off to adjust the time for
Daylight Savings Time.
106
Tools
Main Menu
Notepad
Create, read, edit and erase text notes.
1. From the Home screen, press Menu > Tools
> Notepad.
If you have any stored notes, they appear in the
display. If this is your first time in Notepad, then
Nonotes displays.
2. To add a new note, press
Add, then enter the
note.
3. While entering text, press
Options for these
options:
•
Copy: Return to the note to use the
Directional key to highlight text to copy, then
press Done.
•
Paste: Insert previously-copied text into the note.
•
Cancel: Forget the copied text and return to the
note.
4. When you are finished entering note text, press
Save.
Review and Edit Notes
1. From the Home screen, press Menu > Tools
> Notepad.
2. Use the Directional key to highlight a note,
then press View.
3. Press Edit to make changes. While editing text,
press Options for these options:
•
Copy: Return to the note to use the
Directional key to highlight text to copy, then
press Done.
•
Paste: Insert previously-copied text into the note.
•
Cancel: Discard changes and return to the note.
4. When you are finished editing the note, press
Save.
107
Tools
Main Menu
Manage Notes
1. From the Home screen, press Menu > Tools
> Notepad.
2. Press Options for these options:
•
Edit: Open the highlighted note to modify it.
•
Erase: Delete the highlighted note.
•
Erase notes: Mark multiple notes for deletion.
•
Lock/Unlock: Add or remove protection from
erasure.
USB Mass Storage
Connect your phone to a PC, to copy files, such as
music, pictures or videos, between your phone and
the PC.
Note: While connected to a PC, your phone cannot
make or receive calls.
1. Insert an optional memory card in your phone.
2. Plug in a USB cable to your phone and connect it
to a USB port on a PC.
3. From the Home screen, press Menu > Tools
> USB mass storage.
4. At the prompt on your PC, select a method for
transferring files.
5. After transferring files, press Disconnect, and
confirm the disconnection.
108
Tools
Main Menu
Phone Search
Use Phone search to find items on your phone.
1. From the Home screen, press Menu > Tools
> Phone search.
2. Enter search criteria in the search box.
3. To select categories to search, use the
Directional key to highlight them, then press
Mark to select or press Mark all to select
all categories.
4. Press Done, then press Search to perform
a search of the selected categories with the
criteria.
5. Highlight a search result, then View to display
the item.
109
Apps
Main Menu
Apps
Browse and download applications to
your phone, from the Apps store.
Important: If your service plan does not include an
unlimited data feature, you incur either airtime charges,
if you exceed your minutes bundle, or megabyte(MB)
charges at applicable rates for downloading and/or
using applications.
Shop Apps
1. From the Home screen, press Menu > Apps.
2. Use the Directional key and Center select
key to browse applications.
•
Press Options to select options available for
the application.
•
Press OK to launch the highlighted
application.
•
Press Exit to return to the Menu screen.
Note: For help using Apps, press Options > Help.
110
VZ Navigator
Main Menu
VZ Navigator
VZ Navigator
®
uses GPS positioning
to tell you where you are, what is
nearby, and to quickly and easily
give you directions. With audible
turn-by-turn directions, you can
locate points of interest in the U.S.,
including landmarks, restaurants, and
even ATMs.
Note: VZ Navigator requires service activation. Contact
Verizon Wireless for more information.
► From the Home screen, press Menu >
VZNavigator.
The first time you launch VZ Navigator, you are
prompted to download and install the application,
and to agree to the terms of service.
Note: To use VZ Navigator, you must enable the
Location Detection setting. For more information, see
“Location Detection” onpage131.
111
Settings
Main Menu
Settings
You can configure settings for your
phone under Settings.
My Verizon
My Verizon connects to the Verizon Wireless Mobile
Web. You can setup Favorites or choose from the
available applications.
► From the Home screen, press Menu >
Settings > My Verizon.
M
ain Volume
Set the volume for all ringtones and alerts.
1. From the Home screen, press
Menu >
Se
ttings > Main Volume.
2. Use the Directional key or Volume key to
highlight a volume level, then press Set.
Network Modes
Choose a preferred network mode.
1. From the Home screen, press
Menu >
Settings > Network modes.
2. Use the
Directional key to highlight a
CDMAmode, GSM mode, or Global mode, then
press
Set.
112
Settings
Main Menu
Bluetooth Menu
Use Bluetooth to exchange information over a distance
of about 30 feet without a physical connection.
Turn Bluetooth On or Off
Turn Bluetooth on to exchange information with a
Bluetooth device. To save battery life or, in situations
where use of wireless devices is prohibited, turn
Bluetooth off.
1. From the Home screen, press Menu >
Settings > Bluetooth menu.
2. Press Turn on or Turn off.
– or –
From the Home screen, press the Directional
key right, highlight Bluetooth on/off, then press
OK.
Note: When Bluetooth is turned on, the
Bluetooth on
icon appears in the Status bar of the display.
Supported Profiles
Bluetooth profiles are specifications for services
supported by individual devices. Profiles improve the
ability of different devices to work together.
Note: This phone does not support all Bluetooth
profiles. For more information about compatible
Bluetooth devices, visit the Verizon Wireless website at:
verizonwireless.com.
► From the Home screen, press Menu >
Settings > Bluetooth menu > Options >
Supported profiles.
Your phone supports these Bluetooth profiles:
•
Headset: HSP 1.1 supports the use of a compatible
Bluetooth headset for mono voice.
•
Handsfree: HFP 1.5 supports Bluetooth headsets,
and may also support other installed compatible
Bluetooth devices with speakerphone capabilities,
such as car kits or conference devices.
113
Settings
Main Menu
•
Dial up networking: DUN 1.1 allows the phone
to be used as a data modem with a compatible
Bluetooth device, such as a laptop or PDA. This
functionality may require specific services on your
wireless plan; contact Verizon Wireless for more
information.
•
Stereo: A2DP 1.0, AVRCP 1.0, GAVDP 1.0, AVDTP
1.0, and AVCTP 1.0 support delivery of stereo audio
to a compatible Bluetooth device.
•
Phonebook access: PBAP 1.0 allows sharing of
your name card and contact entries as vCards
(v3.0) with compatible Bluetooth devices.
•
Object push: OPP 1.1 allows sending and receiving
of contact name cards (vCard 3.0), calendar events
(vCalendar 2.0), and other non-protected data
between devices.
•
Serial port: SPP 1.1 allows a remote Bluetooth
device to act as a virtual serial port.
Bluetooth Options
Use Bluetooth options to view and change your
phone’s name, display supported profiles, and set
visibility and pairing.
1. From the Home screen, press Menu >
Settings > Bluetooth menu.
2. Press Options for these options:
•
My phone info: Enter a custom name for your
phone, visible to other Bluetooth devices during
searches. You can also view the phone type,
Status, and Address.
•
Discovery mode: Press On for other Bluetooth
devices to detect your device or Off for no
visibility. After selecting On, your phone is
discoverable for one minute, then Discovery
Mode automatically resets to Off.
•
Supported profiles: View a list of supported
Bluetooth profiles and their descriptions.
Highlight a profile and press View to see a
description.
114
Settings
Main Menu
•
Search setting: Choose types of devices to
search during pairings, from All, Audio Device,
PC, Phone, or Printer.
•
Auto pairing: Choose On to allow your phone to
pair with other Bluetooth devices with a default
device code or Off to prevent automatic pairing.
Add a New Device
Search for a Bluetooth device and pair with it, to
exchange information between your phone and the
device.
1. From the Home screen, press Menu >
Settings > Bluetooth menu > Add new device.
Bluetooth turns on, if it is not already on.
2. At the prompt “Place device you are connecting
to in discoverable mode”, activate the target
device’s Bluetooth discoverable mode, then press
OK.
3. Your phone searches for discoverable Bluetooth
devices and displays them.
4. Use the Directional key to highlight the target
device and press Pair. Follow the prompts:
•
Auto pairing: If you enabled Auto Pairing in
Bluetooth Options, and the selected device
supports it, your phone sends a default device
code to the device. At the prompt, confirm the
device code to complete pairing.
•
Pairing with passkey: Enter a passkey, then
press Set. Follow the prompts on the target
device to enter the same passkey and complete
the pairing.
5. At the prompt, set incoming security for future
pairings:
•
Always ask: Your phone prompts you to accept
future pairings from this device.
•
Always connect: Your phone automatically
accepts future pairing requests from this device.
115
Settings
Main Menu
6. Use the Directional key to highlight the new device,
then press Options to set options for this
paired device:
•
Remove device: Remove this device from your
phone’s pairing list.
•
Rename device: Change the name of this device
in the pairing list.
•
Incoming security: Choose Always Ask or
Always Connect for future pairings with this
device.
•
Service discovery: View the service profiles
supported for pairing with this device.
•
Device info: View information about the paired
device.
Accessibility
Customize the readout feature, which reads aloud the
words on the screen.
Easy Set-up
Quickly set readout settings.
1. From the Home screen, press Menu >
Settings > Accessibility > Easy Set-up.
2. Follow the screen prompts to choose settings for
Full readout, Menu readout, Digit dial readout,
Alertreadout, Flip open & talk, Text message
readout, and Internet readout.
3. Select a speech rate for reading (fast, mediumfast,
normal, medium slow, or slow).
Full Readout
1. From the Home screen, press Menu >
Settings > Accessibility > Full readout.
2. Choose On or Off to enable or disable all readout
options.
116
Settings
Main Menu
Menu Readout
1. From the Home screen, press Menu >
Settings > Accessibility > Menu readout.
2. Choose On or Off to enable or disable the readout
option for menus.
Digit Dial Readout
1. From the Home screen, press Menu >
Settings > Accessibility > Digit dial readout.
2. Choose On or Off to enable or disable the readout
option for digit dial.
Alert Readout
1. From the Home screen, press Menu >
Settings > Accessibility > Alert readout.
2. Choose On or Off to enable or disable the readout
option for alerts.
Flip Open & Talk
1. From the Home screen, press Menu >
Settings > Accessibility > Flip open & talk.
2. Choose On or Off to enable or disable the Flip
open & talk option.
Text Message Readout
1. From the Home screen, press Menu >
Settings > Accessibility > Text message
readout.
2. Choose On or Off to enable or disable the readout
option for text messages.
Internet Readout
1. From the Home screen, press Menu >
Settings > Accessibility > Internet readout.
2. Choose On or Off to enable or disable the readout
option for the Internet.
117
Settings
Main Menu
Speech Rate
1. From the Home screen, press Menu >
Settings > Accessibility > Speech rate.
2. Select a speech rate for reading (fast, medium fast,
normal, medium slow, or slow).
Sounds Settings
Configure the sounds your phone plays for calls,
alerts, key presses, and other actions.
Easy Set-up
Use Easy set-up to quickly set sounds for your phone.
1. From the Home screen, press
Menu >
Settings > Sounds settings > Easy set-up.
2. Use the Directional key, Left soft key,
Right soft key, and Center select key
to follow the prompts to configure Call sounds,
Keypad volume, Text msg alert, Multimediamsg
alert, and Voicemail msg alert.
Call Sounds
Configure sound and vibration settings for incoming
calls.
1. From the Home screen, press
Menu >
Settings > Sounds settings > Call sounds.
2. Configure these settings, then press
Set to
save:
•
Call ringtone: Select from a list of preloaded
ringtones.
•
Call vibrate: Press On to select a vibration
pattern for use with the Call Ringtone or
pressOff.
•
Caller ID readout: Select one of the following:
-
Ring only: The phone plays the Call Ringtone
for incoming calls.
-
Caller ID + ring: The phone announces the
caller ID and plays the Call Ringtone for
incoming calls.
-
Name repeat: The phone repeats the caller’s
information for incoming calls.
118
Settings
Main Menu
Alert Sounds
Choose sound and vibration settings for new
messages and other alerts.
► From the Home screen, press Menu >
Settings > Sounds settings > Alert sounds to
configure these settings:
•
Txt message: Choose an Alert tone, Alert
vibrate setting and Reminder options for
incoming text messages.
•
Multimedia message: Choose an Alert tone,
Alert vibrate setting and Reminder options for
incoming multimedia messages.
•
Voicemail: Choose an Alert tone, Alert vibrate
setting and Reminder options for incoming
voicemail messages.
• Emergency tone:
- Alert: Plays the Emergency Dialing tone,
except when the master volume setting is
Vibrate or All Sounds Off.
- Vibrate: Vibrates only and does not play the
Emergency Dialing tone.
- Off: The phone does not play the Emergency
Dialing tone or vibrate.
• Missed call: Choose an Alert tone, Alert vibrate
setting and Reminder options for missed call
alerts.
• Device connect: Choose whether a tone is
played when you connect the phone to another
device with a USB cable.
• Battery charge alert: Choose an Alert, Vibrate,
or Off for receiving an alert when the battery
needs charging.
119
Settings
Main Menu
Keypad Sounds
Choose the sounds your phone plays when you press
keys.
1. From the Home screen, press Menu >
Settings > Sounds settings > Keypad sounds.
2. Press Default or Lucid, then press Set to save.
Keypad Volume
Set the volume of key press sounds.
1. From the Home screen, press Menu >
Settings > Sounds settings > Keypad volume.
2. Press the Directional key or the Volume key to
adjust the keypad volume.
3. Press Set to save.
Voice Command Settings
Voice Commands is advanced speech recognition
software that recognizes your spoken commands to
dial phone numbers, create messages, and launch
applications such as Contacts, Calendar and My
Pictures.
► From the Home screen, press Menu >
Settings > Sounds settings > Voice command
settings.
Service Alerts
Configure settings for sounds your phone plays to
notify you of changes in system or service status.
1. From the Home screen, press
Menu >
Settings > Sounds settings > Service alerts.
2. Choose On or Off for these alerts:
•
ERI: A sound plays when you enter and exit
network coverage areas.
•
Minute beep: During calls, a beep plays once
per minute.
120
Settings
Main Menu
•
Call connect: A sound plays when a call
connects and ends.
•
Software update: A sound plays when a
software update is complete.
3. Press Set to save.
Power On/Off
Control the sounds your phone plays when you turn
the phone on or off.
1. From the Home screen, press Menu >
Settings > Sounds settings > Power on/off.
2. Choose Power on or Power off, then press
Set.
Driving Mode
Driving Mode overrides the Main
Volume level and
converts all visual notifications to sounds. When
Driving Mode is On, Main Volume is set to High, and
Call Alert sounds play regardless of the sound
setting. You can choose to have Caller ID read out
for incoming calls or messages, or to have Caller ID
and message contents read out.
1. From the Home screen, press Menu >
Settings > Sounds settings > Driving mode.
2. Choose a setting:
•
Caller ID only: Reads out Caller ID for incoming
calls and messages.
•
ID & message: Reads out Caller ID and the
message content for incoming messages.
•
Off: Driving Mode is not enabled.
121
Settings
Main Menu
Display Settings
Configure settings for your phone’s screen.
Easy Set-Up
Use Easy Set-up to quickly set the display settings for
your phone.
1. From the Home screen, press Menu >
Settings > Display settings > Easy set-up.
2. Use the Directional keys, Left soft key,
Right soft key, and Center select key to
follow the prompts to configure Personal banner,
Display backlight, Keypad backlight, Main
wallpaper, Front wallpaper, Display themes,
Menu layout, Dial fonts, Volume key control,
Main clock, and Front clock.
Banner
Display a personal greeting or network status banner
on the Home screen.
Personal Banner
Create a greeting to display on the Home screen.
1. From the Home screen, press
Menu >
Settings > Display settings > Banner >
Personal banner.
2. Enter up to 18 characters in the Enter text field.
3. Use the Directional keys to move to Select
text color, and choose a color for thebanner.
•
Press Abc to select text input method and
language.
•
Press Options > Cancel to discard your
changes.
4. Press Set to display the banner on the
Homescreen.
122
Settings
Main Menu
Press
Set to save your selections.
ERI Banner
When enabled, the ERI banner displays on the front
screen and the Home screen to show current network
coverage.
1. From the Home screen, press Menu >
Settings > Display settings > Banner > ERI
banner.
2. Press the Directional key left or right to toggle
the banner On to enable and Off to disable.
3. Move to Main screen to choose a color for the
banner on the Home screen.
4. Move to Front screen to choose a color for the
banner on the front screen.
5.
Backlight
Set the duration and brightness of the backlight for the
display and keypad.
Note: The backlight setting also determines how long
the screen is illuminated before locking.
1. From the Home screen, press Menu >
Settings > Display settings > Backlight.
2. Press Display for these settings:
•
Duration: Set the duration of the backlight.
•
Brightness: Press the Directional key left or
right to adjust the brightness.
3. Keypad: Select a duration for the keypad backlight.
123
Settings
Main Menu
Wallpaper
Set the background image for the Home screen and
the front LCD screen. When you select wallpaper for
the front LCD screen, it does not display a clock.
1. From the Home screen, press Menu >
Settings > Display settings > Wallpaper.
2. Press Main screen to set the Home screen
wallpaper:
•
Main screen: Press My pictures to select a
preloaded image or your own picture. Press My
videos to select a video for an animated Home
screen.
•
Front screen: Choose a preloaded image or
your own picture from My Pictures.
Note: While selecting wallpaper, press View to see a
preview of the selection or press Options to take a
picture or video, rename a file or see file information.
Display Themes
Customize the appearance of your phone’s menus and
screens.
1. From the Home screen, press Menu >
Settings > Display settings > Display themes.
2. Select a theme, then press Set. Press
Preview to see an example of a theme or press
Help for more information.
3. Press Set to save your selections.
Main Menu Settings
Customize the appearance of the Main menu.
124
Settings
Main Menu
Menu Layout
Choose from 3 preset layouts for the menu display.
1. From the Home screen, press Menu >
Settings > Display settings > Main menu
settings > Menu layout.
2. Highlight a layout:
•
Tab: Displays items as tabs, to allow scrolling
right and left.
•
List: Displays items in a list, to allow scrolling up
and down.
•
Grid: Displays items in a 3x3 grid, to allow
scrolling up, down, right or left. Grid is the
default layout.
3. Press Set to save your selections.
Note: While selecting a layout, press Preview to see
an example of the layout.
Replace Menu Items
When the Menu Layout is set to List or Grid, you can
customize the menu by replacing some items with your
favorite applications or tools.
Note: Some menu items, such as Settings and
Contacts, cannot be replaced.
1. From the Home screen, press Menu >
Settings > Display settings > Main menu
settings > Replace menu items.
2. Highlight an item and press Edit.
3. Highlight a new menu item, then press Set to
save your selection.
4. Continue replacing items, then press Done to
save your settings.
125
Settings
Main Menu
Position Menu Items
When the Menu Layout is set to List or Grid, you can
change the location of the menu items on the menu
display.
1. From the Home screen, press Menu >
Settings > Display settings > Main menu
settings > Position menu items.
2. Use the Directional key to highlight an item to
move to another location, then press Move.
3. Use the Directional key to select a new item,
then press Swap to save the new menu.
4. Continue positioning items, then press Done to
save your settings.
Reset Menu Layout
Reset Menu Layout, items, and positions to the default
settings.
1. From the Home screen, press Menu >
Settings > Display settings > Main menu
settings > Reset menu layout.
2. Highlight an options, then press OK to reset:
•
Menu layout: Revert to the default menu layout.
•
Menu items: Restore the default list of menu
items.
•
Item positions: Restore items to their default
menu locations.
•
All: Reset all menu settings.
126
Settings
Main Menu
Fonts
Set the style and size of characters in the display, and
set the Volume key control.
Style
1. From the Home screen, press Menu >
Settings > Display settings > Fonts > Style.
2. In the Dial font style field, press the
Directional key left or right to choose a font for
the Dialer.
3. Press the Directional key down to highlight
Menu font style, then press it left or right to
choose a font for the menu.
4. Press Set to save your selections.
Note: Press Preview to scroll through examples
of the font attributes, then press Set to make your
selection.
Size
1. From the Home screen, press Menu >
Settings > Display settings > Fonts > Size.
2. In the Dial font size field, press the Directional
key left or right to choose a size for the Dialer.
3. Press the Directional key down to highlight
Menu font size, then press it left or right to choose
a size for the menu.
4. Press the Directional key down to highlight
Messaging font size, then press it left or right to
choose a font for the menu.
5. Press Set to save your selections.
Note: Press Preview to scroll through examples
of the font attributes, then press Set to make your
selection.
127
Settings
Main Menu
Volume Key Control
When set to On, you can use the Volume key to adjust
the size of fonts in the display temporarily, while using
your phone.
1. From the Home screen, press Menu >
Settings > Display settings > Fonts >
Volumekey control.
2. Highlight On or Off, then press Set to save
your selection.
Clock Format
Choose the type of clock to display on the Home
(Main) screen and the Front display.
Main Clock
1. From the Home screen, press Menu >
Settings > Display settings > Clock format >
Main clock.
2. Highlight a format: Analog, Large analog,
Digital12 (hour), Large digital 12 (hour),
Digital24 (hour), Large digital 24 (hour),
orOfffor no clock.
3. Press the Directional key down to highlight
Clock color, then press it left or right to choose a
color clock.
4. Press Set to save the setting.
128
Settings
Main Menu
Front Clock
1. From the Home screen, press Menu >
Settings > Display settings > Clock format >
Front clock.
2. Highlight a format: Analog, Orange analog, Lime
analog, Digital 12 (hour), Digital 24 (hour), Digital
orange 12, Digital orange 24, Digital lime 12,
Digital lime 24, Dual clock, or Off for no clock.
3. Press Set to save the setting.
Note: Press Preview to scroll through examples
of the clock attributes, then make your selection by
pressing Set. Press Help for more information.
Phone Settings
Airplane Mode
When Airplane Mode is On, all network functions of
your phone are disabled, and you cannot send or
receive calls or messages. While in Airplane Mode,
you can use other features of your phone, such as
tools.
1. From the Home screen, press
Menu >
Settings > Phone settings > Airplane mode.
2. Highlight On or Off and press Set.
Set Shortcuts
Customize My Shortcuts and Directional key shortcuts,
for easy access to your favorite applications or
features.
129
Settings
Main Menu
Set My Shortcuts
From the Home screen, press the Directional key
right to access the four My Shortcuts.
1. From the Home screen, press Menu >
Settings > Phone settings > Set shortcuts >
Set my shortcuts.
2. Use the Directional key to highlight a shortcut,
then press Edit.
3. Highlight an item, then press Set to set the
shortcut.
4. While setting shortcuts, press Options for these
options:
•
Reset shortcut (#): Reset the highlighted
shortcut to its default.
•
Reset my shortcuts: Reset all shortcuts to the
defaults.
Note: You can also set shortcuts from My Shortcuts.
From the Home screen, press the Directional key
right to launch My Shortcuts, then press Settings.
Set Directional Keys
From the Home screen, press the Directional key
to access your favorite items.
1. From the Home screen, press Menu >
Settings > Phone settings > Set shortcuts >
Set directional keys.
2. Use the Directional key to highlight Up
directional key, Left directional key, or Down
directional key, then press Edit.
3. Highlight an item, then press Set to set the
shortcut.
4. While setting shortcuts, press Options for these
options:
•
Reset (xx) key: Reset the highlighted directional
key to its default.
•
Reset directional keys: Reset all shortcuts to
the defaults.
Note: You can also set shortcuts from My shortcuts.
From the Home screen, press the Directional key
right to launch My shortcuts, then press Settings to
select Set directional keys.
130
Settings
Main Menu
Set Side Key
When PTT mode is off, the PTT key acts as a shortcut
key, to launch a favorite application or feature. Use this
setting to assign the Side key shortcut.
Note: The Set Side Key setting is only available when
PTT mode is Off.
1. From the Home screen, press Menu >
Settings > Phone settings > Set shortcuts >
Set side key.
2. Highlight an application or feature from the list,
then press Set to save the setting.
External Keys Locked
Choose a time period for the external keys to remain
active after you close the phone, after which the
external keys lock to prevent accidental key presses.
1. From the Home screen, press Menu >
Settings > Phone settings > External keys
locked.
2. Highlight an option, then press Set to save the
setting:
•
Always off: External keys do not lock
automatically when you close the phone (you
can lock the keys manually using the front keys).
•
7 seconds: External keys remain active for seven
seconds after you close the phone.
•
15 seconds: External keys remain active for
fifteen seconds after you close the phone.
•
30 seconds: External keys remain active for
thirty seconds after you close the phone.
131
Settings
Main Menu
Voice Command Settings
Voice Commands is advanced speech recognition
software that recognizes your spoken commands to
dial phone numbers, create messages, and launch
applications such as Contacts, Calendar and My
Pictures.
For details, see “Voice Commands” onpage97.
► From the Home screen, press Menu >
Settings > Phone settings > Voice command
settings.
Language
Choose a language for your phone’s displays.
1. From the Home screen, press
Menu >
Settings > Phone settings > Language.
2. Highlight a language, then press Set to save
the setting.
Location Detection
Choose whether your phone’s GPS (Global Positioning
System) location is available to the network at all times
or only when you have dialed an Emergency Number,
such as 911.
1. From the Home screen, press
Menu >
Settings > Phone settings > Location
detection.
2. Highlight a setting, then press Set to save the
setting:
•
On: GPS location is on whenever the feature is
available.
•
E911 only: GPS location turns on only when you
dial 911.
132
Settings
Main Menu
Current Country
Select your current location, to allow the phone to
apply the correct country code when dialing.
Note: If you travel to a different country, the network may
not report the correct location. In that case, you see the
message Please verify your current location.
1. From the Home screen, press Menu >
Settings > Phone settings > Current country.
2. Highlight a country from the list, then press Set.
Security
Lock your phone, set restrictions, and choose other
security options.
Access to all Security settings requires the phone’s
Lock Code. By default the Lock Code is the last four
digits of your number.
Important: For security reasons, your phone does not
display lock codes. If you change the lock code, be sure
to record the new code for future reference.
Edit Codes
Set a new Phone Only lock code (for unlocking and
locking the phone) or Calls & Services lock code (for
restricting access to calls and other features).
1. From the Home screen, press Menu >
Settings > Phone settings > Security.
2. Enter the Phone Only lock code at the prompt.
The default lock code is the last four digits of your
phone number.
3. Press Edit codes, then highlight a code:
•
Phone only: Enter a new lock code at the
prompt, then enter the new code again to
confirm the change.
•
Calls & services: Enter a new lock code at
the prompt, then enter the new code again to
confirm the change.
133
Settings
Main Menu
Restrictions
1. From the Home screen, press Menu >
Settings > Phone settings > Security.
2. Enter the Phone Only lock code at the prompt.
The default lock code is the last four digits of your
phone number.
3. Press Restrictions.
4. Enter the Calls & Services lock code at the prompt.
The default lock code is the last four digits of your
phone number.
5. Press Location setting for these options:
•
Unlock setting: Allow changes to the Location
setting with no code.
•
Lock setting: Require the Calls & Services lock
code to change the Location setting.
6. Press Calls for these options:
•
Incoming calls: Press Allow all to allow all
incoming calls. Press Contacts only to allow
calls from numbers stored in Contacts. Press
Block all to block all incoming calls.
•
Outgoing calls: Press Allow all to allow all
outgoing calls. Press Contacts only to allow
calls from numbers stored in Contacts. Press
Block all to block all outgoing calls.
7. Press Messages for these options:
•
Incoming messages: Press Allow all to allow all
incoming messages. Press Block all to block all
incoming messages.
•
Outgoing messages: Press Allow all to allow all
outgoing messages. Press Block all to block all
outgoing messages.
8. Press Dial-Up mode, to Allow or Block use of your
phone as a modem.
134
Settings
Main Menu
Phone Lock Setting
Set the locking behavior of your phone. When the
phone is locked, you must enter the Phone Only
lock code to use it, except when dialing emergency
numbers.
1. From the Home screen, press Menu >
Settings > Phone settings > Security.
2. Enter the Phone Only lock code at the prompt.
The default lock code is the last four digits of your
phone number.
3. Press Phone lock setting for these options:
•
Unlocked: The phone is unlocked at all times.
•
On power up: The phone is automatically locked
when you turn it on. You can make emergency
calls, but must enter the Phone Only lock code
to access other features.
Lock Phone Now
1. From the Home screen, press Menu >
Settings > Phone settings > Security.
2. Enter the Phone Only lock code at the prompt.
The default lock code is the last four digits of your
phone number.
3. Press Lock phone now. The phone locks and
returns to the Home screen. To unlock the phone,
press Unlock and enter the Phone Only lock code.
Restore Phone
Return all phone settings to the factory defaults and
permanently erase all user information.
Warning: Choosing Restore Phone returns your phone
to the default settings and permanently erases all your
entries and information saved on the phone, including
pictures, videos, music, messages, contacts and
downloaded applications.
1. From the Home screen, press Menu >
Settings > Phone settings > Security.
135
Settings
Main Menu
From the Home screen, press Menu >
S
ettings > Phone settings > Security.
2. Enter the Phone Only lock code at the prompt.
The default lock code is the last four digits of your
phone number.
3. Press Restore phone.
4. At the prompt, highlight Yes, then press OK to
restore default settings.
Note: After the phone power cycles back on, press *228
and press the Send key to connect to the network and
program your phone with default network settings.
Note: For the VZ Navigator preloaded app, if you delete
it manually, it is deleted permanently and cannot be
restored by Restore Phone. You can download it again at
anytime from Apps.
Reset Settings
Return all phone settings to the factory defaults.
Note: Choosing Reset Settings returns your phone to
the default settings, but does not delete your entries and
information.
1.
2. Enter the Phone Onl
y lock code at the prompt.
The default lock code is the last four digits of your
phone number.
3. Press Reset settings.
4. At the prompt, highlight Yes, then press OK to
restore default settings.
136
Settings
Main Menu
SIM Security
Set preferences for data access when your phone is
outside the home network area.
1. From the Home screen, press Menu >
Settings > Phone settings > SIM security.
2. Enter your passcode, and choose an option:
•
PIN lock: Lock or unlock your PIN.
•
Edit PIN code: Change your PIN code.
Global Data Roaming Access
Set preferences for data access when your phone is
outside the home network area.
Important: Accessing data services while roaming may
result in significant charges. Consult Verizon Wireless for
more information.
1. From the Home screen, press Menu >
Settings > Phone settings > Global data
roaming access.
2. Choose a setting, then press Set:
•
Allow access for all trips: Enable access to
data networks at any time, by any application.
•
Allow access only for this trip: Enable access
to data network currently available.
•
Deny data roaming access: Block data usage
while roaming.
137
Settings
Main Menu
System Select
Set preferences for roaming behavior.
1. From the Home screen, press Menu >
Settings > Phone settings > System select.
2. Choose CDMA settings or GSM settings.
3. If you choose CDMA settings, choose a setting:
•
Home only: Restrict the phone’s operation to
your home network, with no roaming. When
outside the coverage area, call functions and
other features are not available.
•
Automatic: Allow the phone to automatically
acquire service, using the Verizon Wireless
network and the networks of roaming partners.
NAM Select
Select the primary NAM (Number Assignment
Module).
1. From the Home screen, press Menu >
Settings > Phone settings > NAM select.
2. Highlight an option, then press OK:
•
NAM select: Press NAM1 or NAM2.
•
Auto NAM select: Press Enable to allow
automatic NAM selection or Disable to use the
NAM Select setting.
138
Settings
Main Menu
Time and Date
Select the primary NAM (Number Assignment
Module).
1. From the Home screen, press Menu >
Settings > Phone settings > Time & date.
2. Set your time and date preferences:
•
Auto update: Enable or disable this option.
•
Time: Manually change the time.
•
Date: Manually change the date.
•
DST: Turn day light savings time on or off.
•
Time zone: Select a time zone.
Call Settings
Customize settings related to placing and receiving
calls.
Answer Options
Select a method for answering incoming calls.
1. From the Home screen, press Menu >
Settings > Call settings > Answer options.
2. Use the Directional key to highlight options
and press Mark to mark them for selection or
press Mark all:
•
Flip open: Answer incoming calls by flipping the
phone open.
•
Any key: When the phone is open, answer calls
by pressing any key.
•
Auto with handsfree: Incoming calls are
answered automatically, after a short delay.
3. Press Done to save the settings.
139
Settings
Main Menu
Auto Retry
Select settings for automatic redialing of unanswered
calls.
1. From the Home screen, press Menu >
Settings > Call settings > Auto retry.
2. Select a time period or choose Off for no
automaticretries.
3. Select an option and press Set.
TTY Mode
Your phone is fully TTY compatible, allowing you to
connect a TTY device to the phone’s headset jack. To
use your phone with a TTY device, enable TTY Mode.
1. From the Home screen, press Menu >
Settings > Call settings > TTY mode.
2. Highlight Yes, then press OK to enable TTY.
3. Follow the prompts to select a TTY mode, from
TTYfull, TTY + talk (VCO), TTY + hear (HCO),
orTTY off.
One Touch Dial
One Touch Dial controls the speed dial feature of your
phone. You must turn One Touch Dial On to use speed
dials on the phone.
1. From the Home screen, press Menu >
Settings > Call settings > One touch dial.
2. Highlight On or Off and press Set.
Voice Privacy
Note: This feature is only available on the
VerizonWireless network.
When enabled, voice signals are encrypted for
enhanced privacy.
1. From the Home screen, press Menu >
Settings > Call settings > Voice privacy.
2. Highlight On or Off and press Set.
140
Settings
Main Menu
Data Settings
Select a port for connecting the phone to a PC, and
set maximum connection speed.
1. From the Home screen, press Menu >
Settings > Call settings > Data settings.
2. Configure these data settings:
•
Select port: Press USB to allow connections
through the USB port, Bluetooth to allow
connections through Bluetooth, or Null to
prevent connections. Press Set to save the
setting.
•
Port speed: Choose a speed, from Auto, 19200,
38400, 57600, 115200, or 230400. Press Set to
save the setting.
DTMF Tones
Set DTMF tone length. DTMF tones are used as input
by some automated phone systems, where you may
need to transmit DTMF tones to make selections.
1. From the Home screen, press
Menu >
Settings > Call settings > DTMF tones.
2. Highlight Normal or Long, then press Set.
Assisted Dialing
Assisted dialing makes international dialing easier, by
inserting the appropriate access codes automatically,
based on the Reference Country.
1. From the Home screen, press Menu >
Settings > Call settings > Assisted dialing.
2. Use the Directional key to highlight On or Off.
141
Settings
Main Menu
3. Highlight Reference country and press Set to
select a different reference country.
•
Press Details to enter additional dialing
information for that country.
4. Press OK.
Note: When Assisted Dialing is On, the Home
screen displays “Assisted dialing” when dialing an
international number.
Fake Call
Use the Fake Call feature to cause your phone to
ring with a fake call any time you press the Volume
key down four times quickly, from idle mode with the
phone closed and the external keys unlocked.
1. From the Home screen, press
Menu >
Settings > Call settings > Fake call.
2. Configure these options:
•
Fake call on/off: Press On to enable or Off to
disable the Fake Call feature.
•
Fake call timer: Choose the length of time, to
elapse between pressing the Volume key down
4times and the ringing of the fake call.
•
Fake call voice: Press No voice to have no
audio through the earpiece when you answer a
fake call or Use fake call voice to choose sound
to play through the earpiece when you answer a
fake call.
•
Fake contact info: Enter fake contact
information to appear in the phone’s display
when a fake call is ringing.
Noise Cancellation
Enable Noise Cancellation to minimize the effect of
noisy environments on voice quality in calls.
1. From the Home screen, press Menu >
Settings > Call settings > Noise cancellation.
2. Select On or Off, then press Set.
142
Settings
Main Menu
Memory
Manage memory settings for saving pictures, videos,
music, sounds and ringtones to your phone’s memory
or to an optional installed memory card.
Note: Your phone does not include a memory card.
1. From the Home screen, press Menu >
Settings > Memory.
2. Configure these options:
•
Save options: Set the default save location for
Pictures, Videos, and Sounds to Phone memory
or Card memory.
•
Phone memory: View and manage usage of
your phone’s internal memory.
-
Phone memory usage: Memory usage and
allocation for the phone’s internal memory.
-
My pictures: Pictures saved in the phone’s
internal memory.
-
My videos: Videos saved in the phone’s
internal memory.
-
My ringtones: Ringtones saved in the phone’s
internal memory.
-
My music: Music saved in the phone’s internal
memory.
-
My sounds: Sounds saved in the phone’s
internal memory.
-
My contacts: Contacts saved in the phone’s
internal memory.
-
My messages: Messages saved in the
phone’s internal memory.
-
Move all to card: Move all files from the
phone’s memory to an optional installed
memory card.
•
Card memory: View and manage memory usage
of an optional installed memory card.
-
Card memory usage: Memory usage and
allocation for the memory card.
-
My pictures: Pictures saved on the memory
card.
-
My videos: Videos saved on the memory card.
-
My ringtones: Ringtones saved on the
memory card.
-
My music: Music saved on the memory card.
143
Settings
Main Menu
-
My sounds: Sounds saved on the memory
card.
-
My contacts: Contacts saved on the memory
card.
-
My messages: Messages saved on the
memory card.
-
Move all to phone: Move all files from the
memory card to the phone’s internal memory.
-
Format card: Permanently erase all contents
on the card, and prepare the card for use in
the phone.
USB Mode
Use the USB Mode setting to set the functionality
when you connect your phone to a PC with a USB
cable.
1. From the Home screen, press Menu >
Settings > USB mode.
2. Highlight a setting, then press Set:
•
USB mass storage: Enable access to your
phone’s memory, and an optional installed
memory card.
•
Charging only: Connecting your phone to a PC
with a USB cable charges the phone only.
•
Ask on plug: When you attach your phone to a
device using USB, you are prompted to choose
the USB mode.
144
Settings
Main Menu
Phone Info
View software and hardware information for your
phone, your assigned telephone number, an icon
glossary, and manage software updates.
1. From the Home screen, press Menu >
Settings > Phone info and select an option:
•
My number to display the Mobile Device and
Identification numbers.
•
SW/HW version to view version information
about your phone’s software.
•
Icon glossary to view the list of icons with a
brief description.
•
Software update to check the status of your
phone’s software and to check for view new
software updates that you can download for your
phone.
•
SIM ID to display the SIM card identification
number.
Set-Up Wizard
Set-up Wizard assists you with configuring basic
preferences so you can quickly get started using your
phone.
1. From the Home screen, press Menu >
Settings > Set-up Wizard.
2. Follow the prompts to set up your device
preferences.
