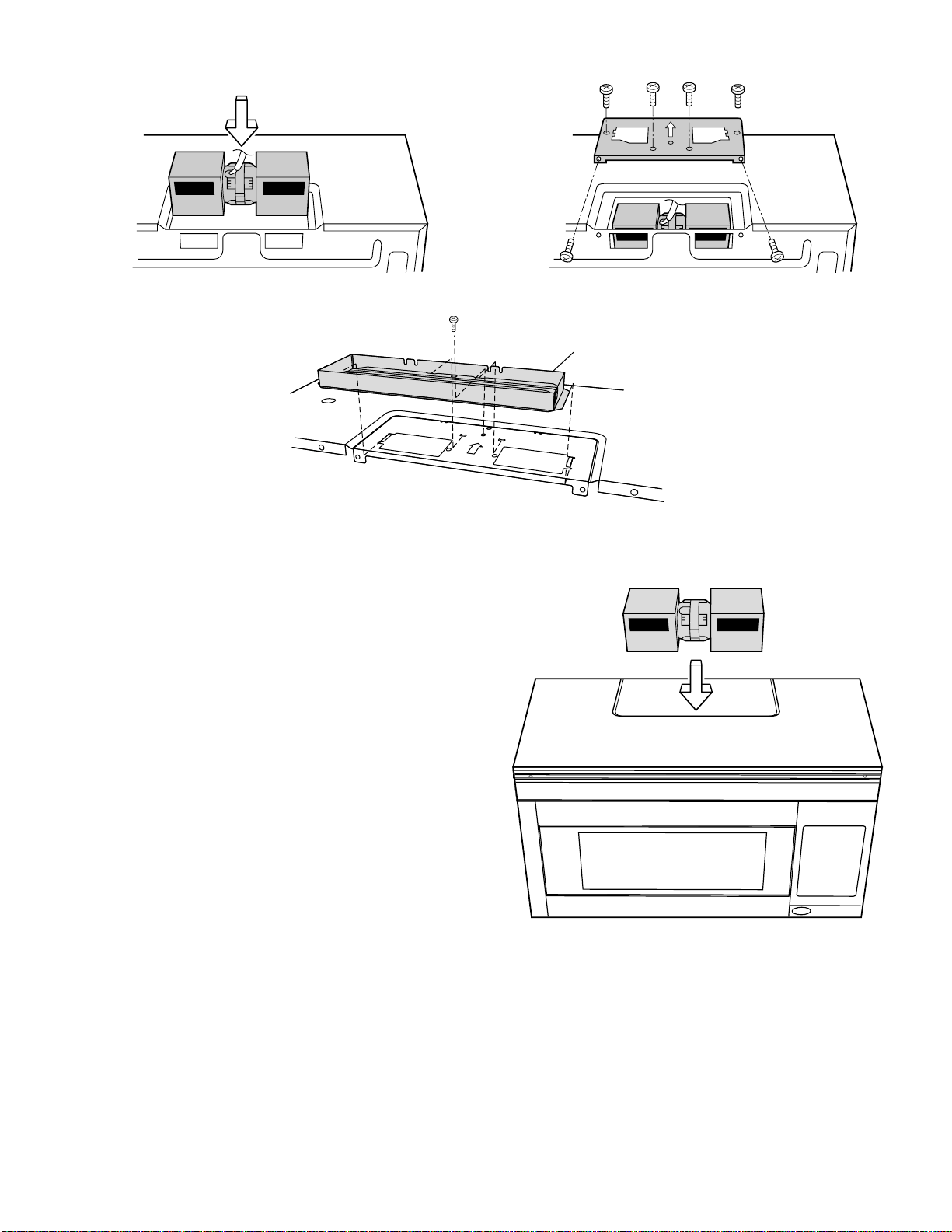

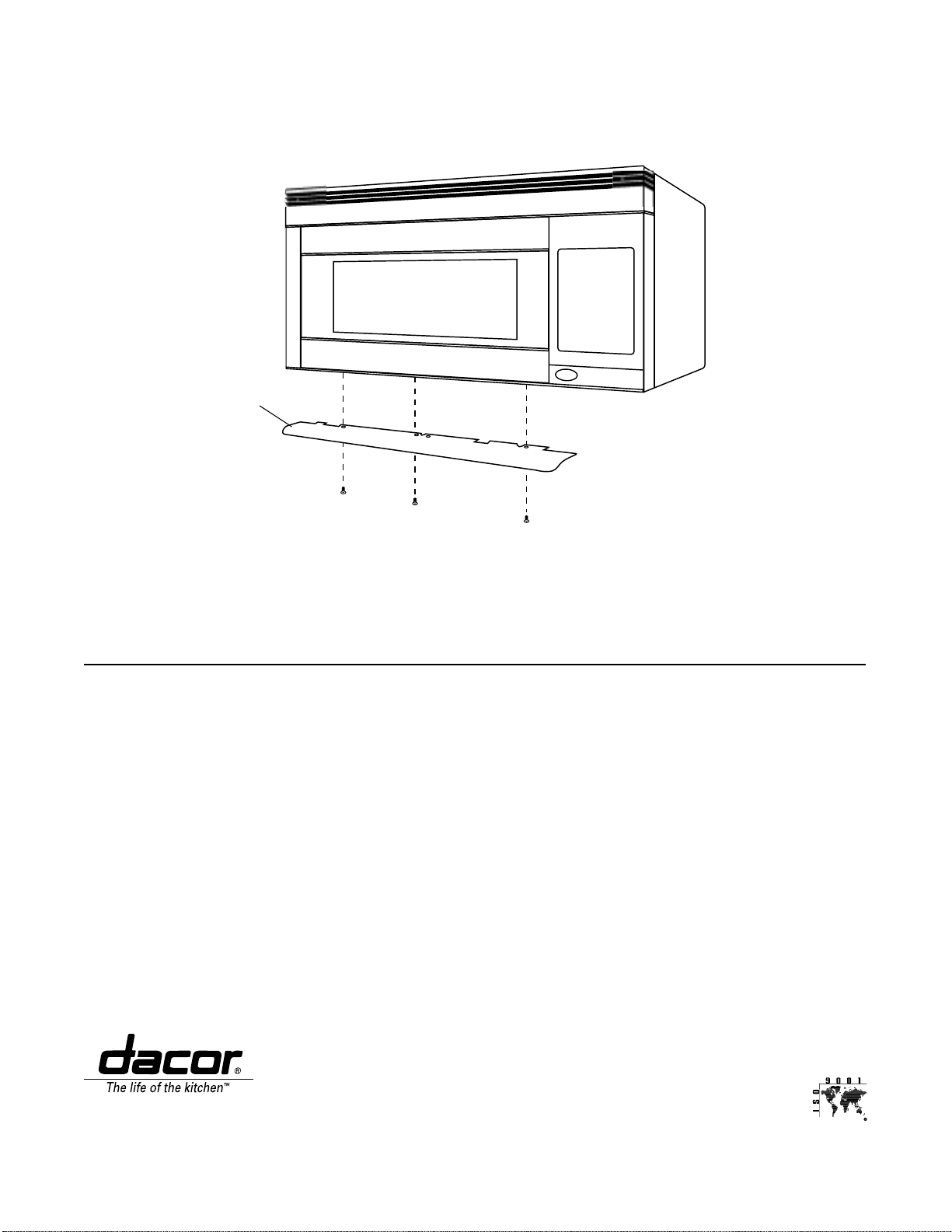

User Manual Dacor PCOR30S Over The Range Microwave S

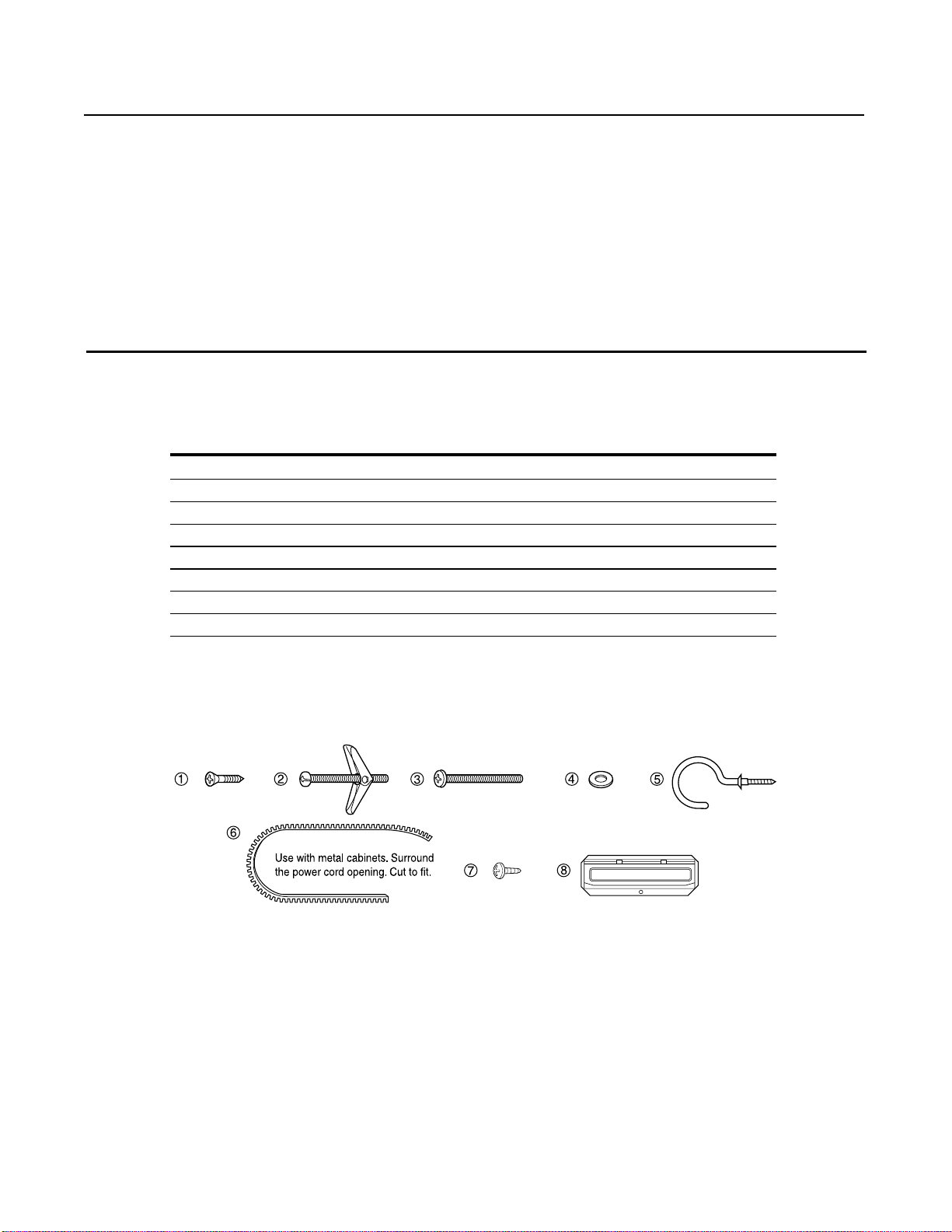

Please read all instructions thoroughly before installing the Over the Range Microwave Oven/Hood System. Two

people are recommended to install this product.

If a new electrical outlet is required, its installation should be completed by a qualified electrician before the

Microwave Oven/Hood is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on page 2.

1 MOUNTING SPACE

This Microwave Oven/Hood requires a mounting space on

a wall as shown in Figure 1. It is designed to be used with

standard 12-inch wall cabinets.

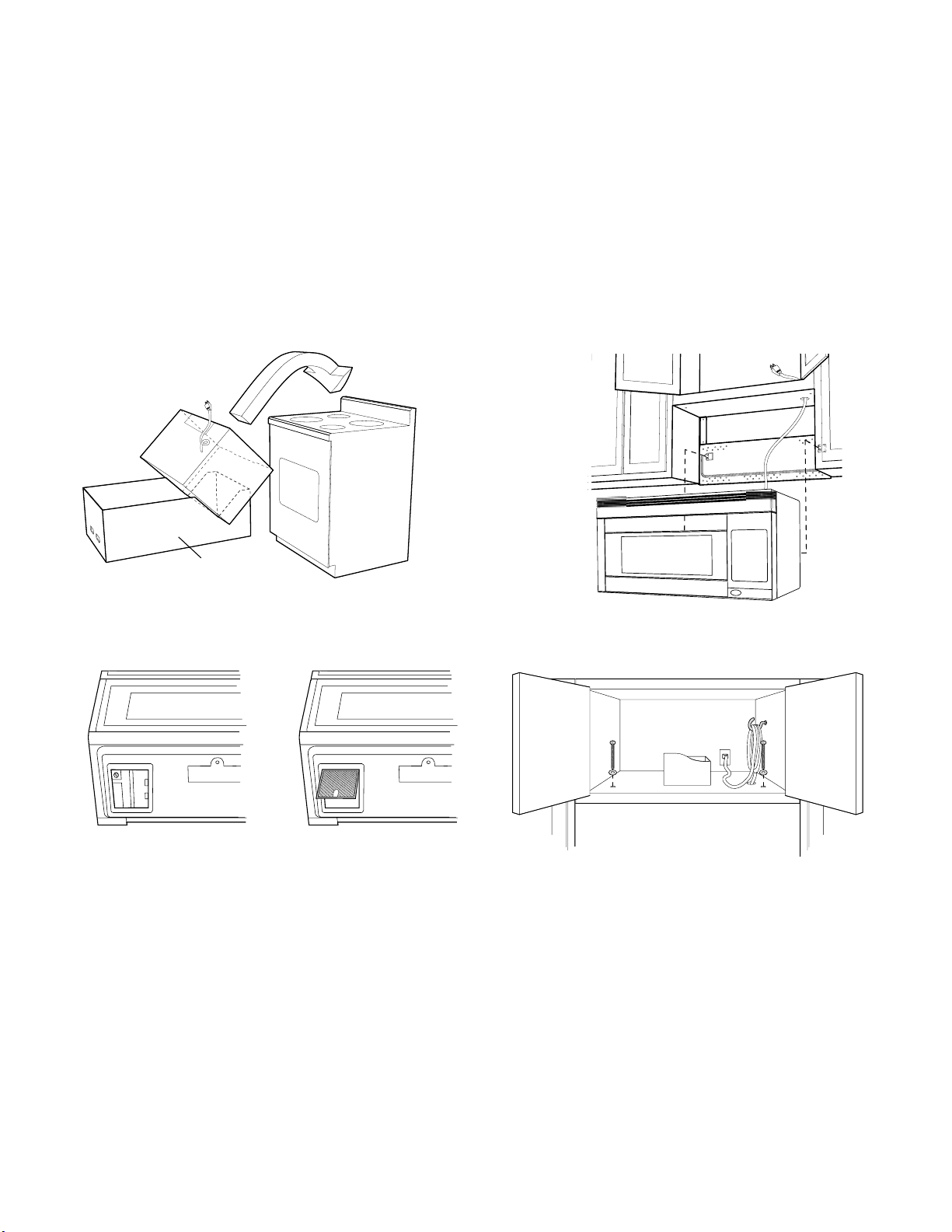

2 WALL CONSTRUCTION

This Microwave Oven/Hood should be mounted against and supported by a flat vertical wall. The wall must be flat for proper

installation. If the wall is not flat, use spacers to fill in the gaps. Wall construction should be a minimum of 2” x 4” wood studding and

3/8” or more thick dry wall or plaster/lath. The mounting surfaces must be capable of supporting weight of 110 pounds—the oven

and contents—AND the weight of all items which would normally be stored in the top cabinet above the unit.

The unit should be attached to a minimum of one 2” x 4” wall stud.

To find the location of the studs, one of the following methods may be used:

A. Use a stud finder, a magnetic device which locates the nails in the stud.

B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate stud location.

The center of the stud can be located by probing the wall with a small nail to find the edges of the stud and then placing a mark

halfway between the edges. The center of any adjacent studs will normally be 16” or 24” to either side of this mark.

Figure 1

Backsplash

At least 2"

Epicure range - 36" or
