Table of contents

• DESCRIPTION OF THE APPLIANCE
• USE OF THE APPLIANCE
• STARTING-UP AND APPLIANCE MANAGEMENT
• COOKING ADVICES
• MAINTENANCE AND CLEANING
• WHAT TO DO IN CASE OF A PROBLEM
• INSTALLATION INSTRUCTIONS
• ELECTRICAL CONNECTION
• POSITION OF NAMEPLATE

User Guide for Induction Cooktop

DESCRIPTION OF THE APPLIANCE

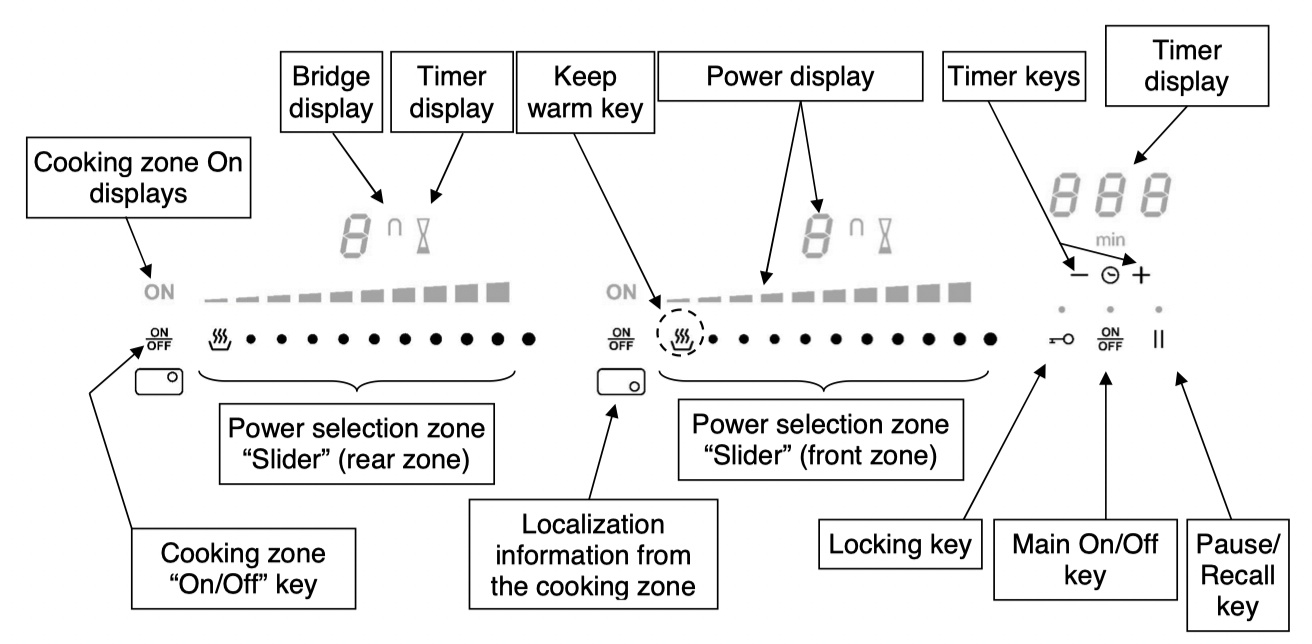

Control panel

USE OF THE APPLIANCE

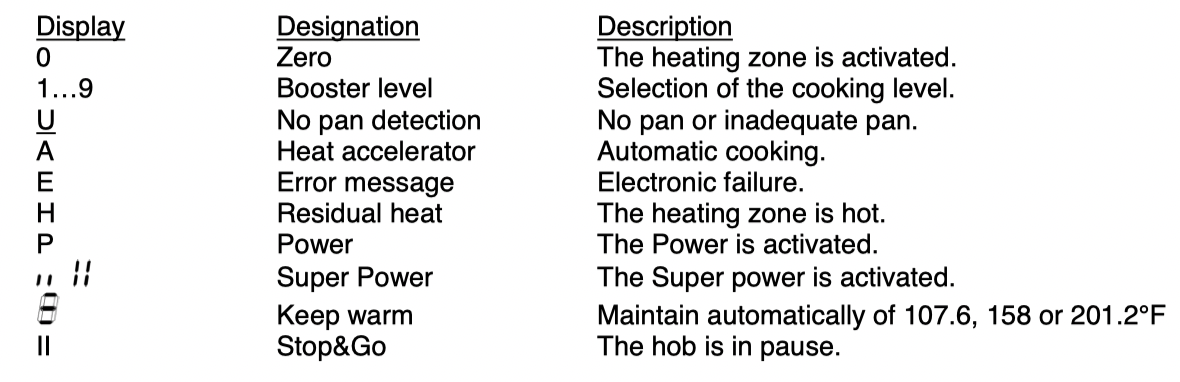

Display

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms…

• Are excluded: cupper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,…

The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn’t work. This diameter is varying in function of the heating zone diameter.

If the pan is not adapted to the induction hob the display will show [ U ].

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

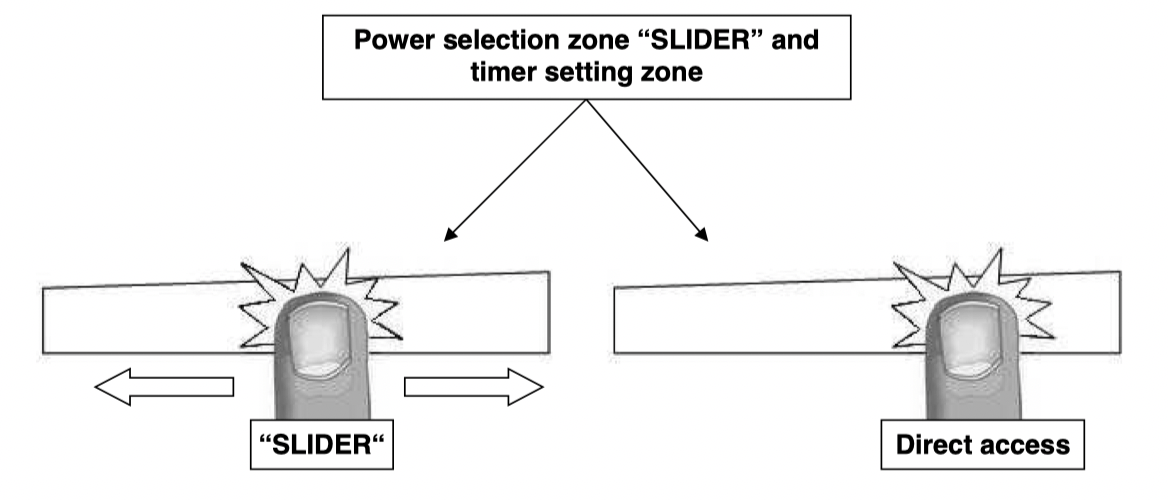

Power selection zone “SLIDER” and timer setting zone

To select the power with the slider, slide your finger on the “SLIDER” zone. You can already have a direct access if you put your finger directly on the chosen level.

Starting-up

• Start up / switch off the hob:

• Start up / switch off a heating zone:

If no action is made within 20 second the electronics returns in waiting position.

Pan detection

The pan detection ensures a perfect safety. The induction doesn’t work:

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [ U ]. This symbol disappears when a pan is put on the heating zone.

• If the pan is removed from the heating zone the operation is stopped. The display shows [ U ]. The symbol [ U ] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.

After use, switch the heat element off: don’t let the pan detection [ U ] active.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [ H ] on the display.

The symbol [ H ] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don’t touch the heating zones and don’t put any heat sensitive object on them. There are risks of burn and fire.

Booster and Double Booster function

Booster [ P ] and Double Booster [ ] grant a boost of Power to the selected heating zone. If this function is activated the heating zones work during 10 minutes with an ultra high Power. This is foreseen for example to heat up rapidly big quantities of water, like nuddles

• Start up / Stop the Booster:

• Start up / Stop Double Booster

• Power management:

The hole cooking hob is equipped with a maximum of Power. When the Power function is activated, and in order to exceed the maximum Booster, the electronic system orders to reduce automatically the power level of an other heating zone. The display is blinking on [ 9 ] during a few seconds and then shows the maximum of power allowed:

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 999 minutes) for each heating zone.

• Setting and modification of the cooking time:

After a few seconds, the [ min ] display stops with blinking.

The time is confirmed and the timer starts.

• To stop the cooking time:

If several timers are activated, repeat the process.

• Egg timer function:

Egg timer is an independent function. It stops as soon as a heating zone starts up. If the egg timer is on and the hob is switched off, the timer continues until time runs out.

After a few seconds, the [ min ] display stops with blinking. The time is confirmed and the timer starts.

• Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays blinking [ 000 ] and a sound rings.

To stop the sound and the blinking, press the key [ - ] and [ + ].

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, and then reduces automatically its power on the pre-selected level.

• Start-up:

• Switching off the automatic cooking:

Stop&Go function

This function brakes all the hob’s cooking activity temporarily and allows restarting with the same settings.

• Start up/stop the pause function:

Recall Function

After switching off the hob (press main On/Off key), it is possible to recall the last settings.

• cooking stages of all cooking zones (Booster)

• minutes and seconds of programmed cooking zone-related timers

• Keep warm function

• Automatic cooking

The recall procedure is following:

• Press [ main On/Off ] key

• Then press [ II ] before the light stops blinking.

The previous settings are again active.

“Keep warm” Function

This function allows the reach and automatically maintains at the temperature of 107.6, 158 or 201.2°F.

This will avoid liquids overflowing and fast burning at the bottom of the pan.

• To engage, to start the function « Keep warm »:

The maximum duration of keeping warm is 2 hours.

Bridge Function

This function allows the use of 2 cooking zones at the same time (left zones) with the same features as a single cooking zone. Booster function isn’t allowed.

Control panel locking

To avoid modification of the setting of the cooking zones , in particular during cleaning, the control panel can be locked (with exception to the main On/Off key).

COOKING ADVICES

Pan quality

Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Not adapted materials: aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible induction.

To check if pans are compatibles:

• Put a little water in a pan placed on an induction heating zone set at level [ 9 ].This water must heat in a few seconds.

• A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn’t mean any failure on the appliance and doesn’t influence the cooking operating.

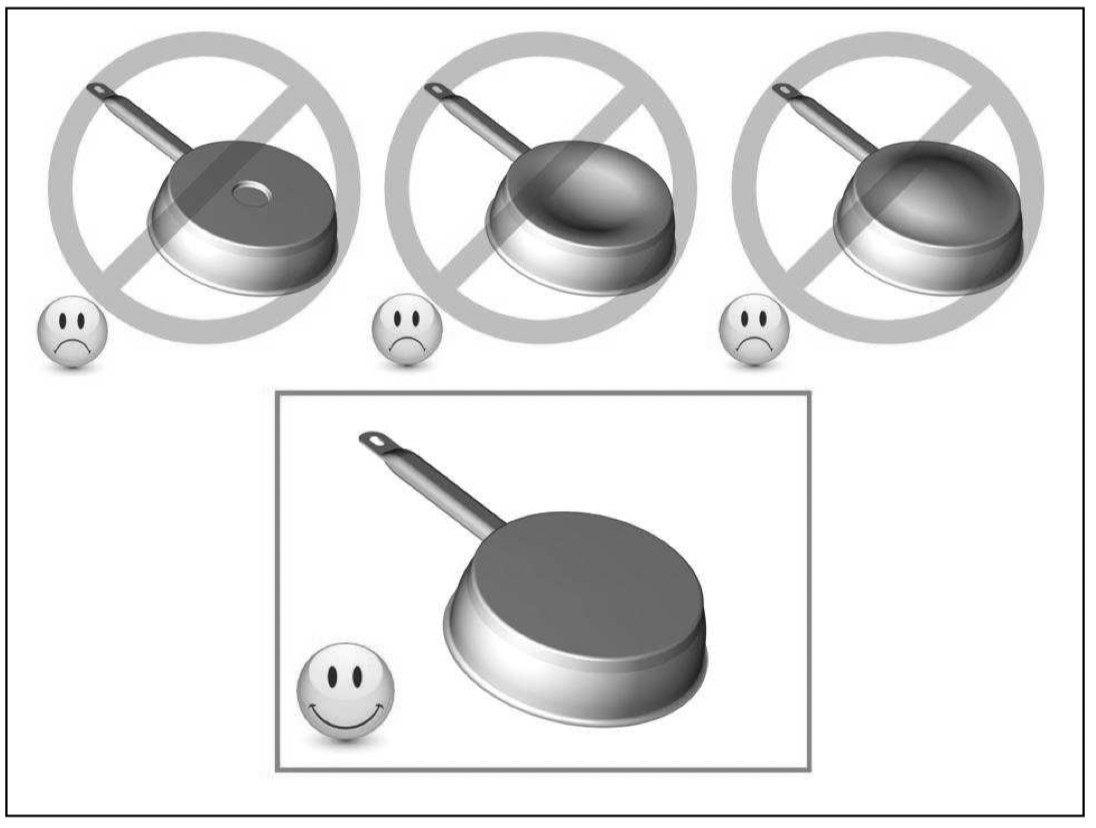

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Examples of cooking power setting

(the values below are indicative)

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.

• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.

• Do not ever use any steam-cleaner or pressure washer

• Do not use any object that may scratch the ceramic glass.

• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.

• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn’t start-up:

• The hob is badly connected on the electrical network.

• The protection fuse cut-off.

• The looking function is activated.

• The sensitive keys are covered of grease or water.

• An object is put on a key.

The control panel displays [ U ]:

• There is no pan on the cooking zone.

• The pan is not compatible with induction.

• The bottom diameter of the pan is too small.

The control panel displays [ E ]:

• The electronic system is defective.

• Disconnect and replug the hob.

• Call after sales

One or all cooking zone cut-off:

• The safety system functioned.

• You forgot to cut-off the cooking zone for a long time.

• One or more sensitive keys are covered.

• The pan is empty and its bottom overheated.

• The hob also has an automatic reduction of Booster level and breaking Automatic overheating

Continuous ventilation after cutting off the hob:

• This is not a failure, the fan continuous to protect the electronic device.

• The fan cooling stops automatically.

The automatic cooking system doesn’t start-up:

• The cooking zone is still hot [ H ].

• The highest Booster level is set [ 9 ].

The control panel displays [ ]:

• Refer to the chapter “Keep warm“.

The control panel displays [ II ]:

• Refer to the chapter “Stop&Go“

The control panel displays [ ] or [ Er03 ] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [ E2 ] :

• The hob is overheated, let it cool and then turn it on again.

The control panel displays [ E8 ] :

• The air inlet of the ventilator is obstructed, release it.

The control panel displays [ U400 ] :

• The hob is not connected to the network. Check the connection and reconnect the hob.

The control panel displays [ Er47 ] :

• The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the after sales service.

INSTALLATION INSTRUCTIONS

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

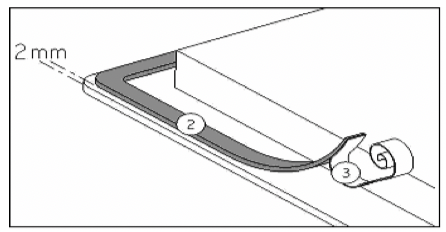

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

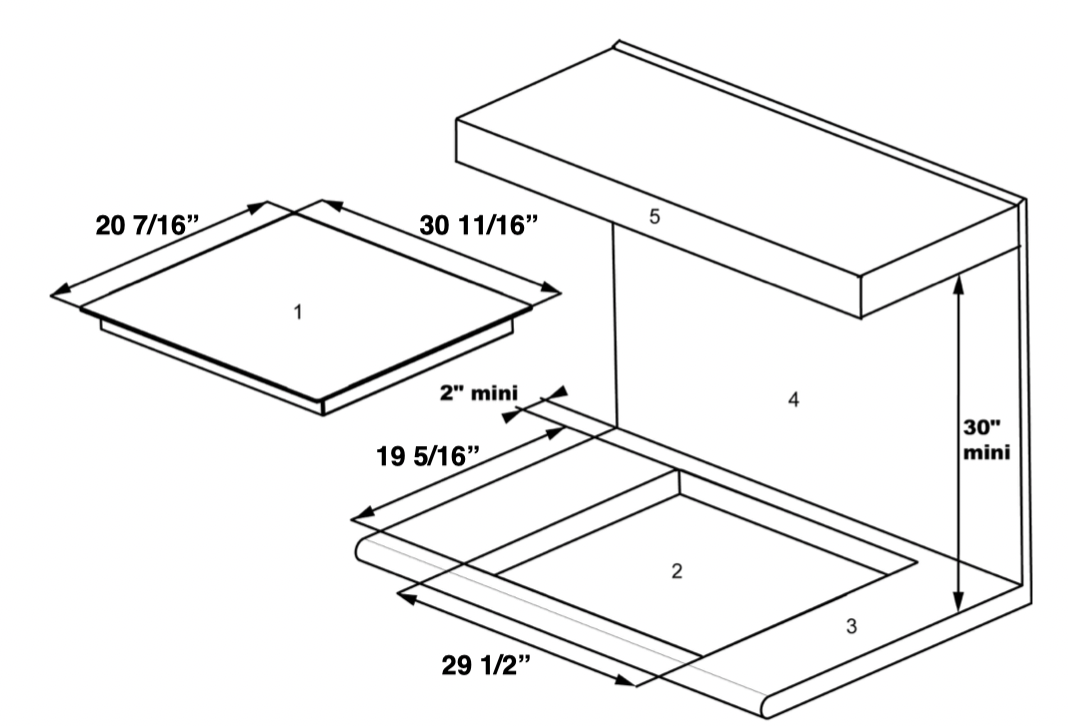

Fitting - installing:

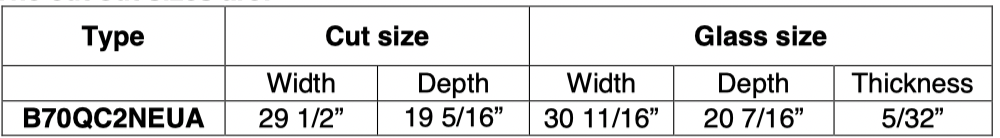

• The cut out sizes are:

1. Induction hob

2. Cut out

3. Worktop

4. Building back wall

5. Top building cabinet

• NOTE: The serial plate is located under the cooktop. When ordering parts for or making inquiries about your cooktop, always be sure to include the model and serial numbers and a lot number or letter from the serial plate on your cooktop.

• Ensure that there is a distance of 2” between the hob and the wall or sides.

• Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.

• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 212 °F.

• The mural rods of edge must be heat-resisting.

• Not to install the hob to the top of a not ventilated oven or a dishwasher.

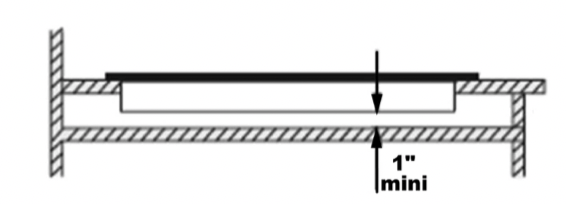

• To guarantee under the bottom of the hob casing a space of 1” to ensure a good air circulation of the electronic device.

• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.

• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.

• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 29 15/16”.

• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

ELECTRICAL CONNECTION

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.

• The electrical parts should always be protected after the installation.

• The appliance should be connected using a multipolar circuit breaker.

• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.

• The inlet hose must be positioned so that it does not touch any of the hot parts of the cooktop or oven.

Caution!

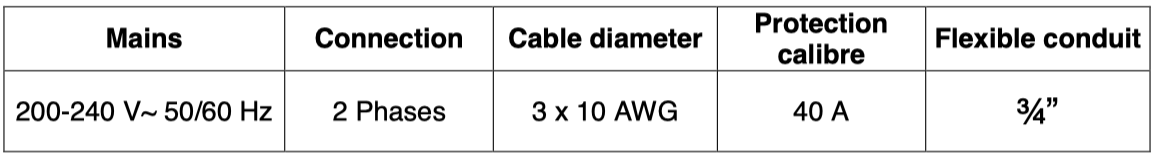

This appliance must only be connected to a network 200-240 V~ 50/60 Hz. Always connect the ground wire

USE ONLY UL LISTED OR CSA APPROVED COMPONENTS

Connection of the cooktop

Use the brass bridges which are in the connection box to bridge terminals 1-2 and terminals 4-5.

Connect phase 1 to the terminal 1, phase 2 to the terminal 4 and the ground to terminal

Caution! Ensure that the cables are correctly inserted and tightly screwed down.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

POSITION OF NAMEPLATE

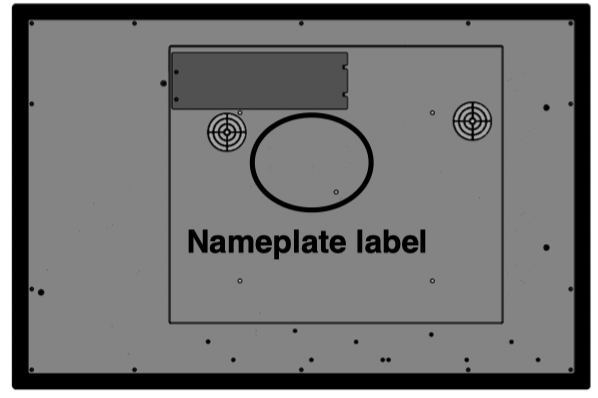

The nameplate is located under the cooktop, as shown on the picture below. When ordering parts for or making inquiries about your cooktop, always be sure to include the model and serial numbers and a lot number or letter from the serial plate on your cooktop.
