Brother DS-820W Mobile Color Page Scanner, , Wi-Fi User Manual

User’s Guide

DS-820W

DS-920DW

Version A

USA

Using the documentation

Thank you for buying a Brother machine! Reading the documentation will help you make the most of your

machine.

Symbols and conventions used in the documentation

The following symbols and conventions are used throughout the documentation.

IMPORTANT IMPORTANT indicates a potentially hazardous situation which, if not avoided, may

result in damage to property or loss of product functionality.

NOTE Notes tell you how you should respond to a situation that may arise or give tips

about how the operation works with other features.

Bold Bold style identifies keys on the machine control panel or computer screen.

Italics Italicized style emphasizes an important point or refers you to a related topic.

Courier New Courier New font identifies the messages shown on the LCD of the machine.

NOTE

• For DSmobile 920DW users: this guide uses DSmobile 820W screen images, unless otherwise indicated.

• If you are using a tablet running Windows

, you can make your selections either by tapping the screen or

by clicking with your mouse.

Trademarks

The Brother logo, Brother and DSmobile are registered trademarks of Brother Industries, Ltd.

Apple, Macintosh, Mac OS, iOS and App Store are trademarks of Apple Inc., registered in the United States

and other countries.

Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the

United States and / or other countries.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Google Play and Android are trademarks of Google Inc.

Nuance, the Nuance logo and PaperPort are trademarks or registered trademarks of Nuance

Communications, Inc. or its affiliates in the United States and / or other countries.

Any trade names and product names of companies appearing on Brother products, related

documents and any other materials are all trademarks or registered trademarks of those respective

companies.

iii

Table of contents

1 General Information 1

Scanner overview .....................................................................................................................................1

Control panel overview .............................................................................................................................3

Items displayed on the LCD ...............................................................................................................5

LCD messages ...................................................................................................................................6

Power button LED indications ...................................................................................................................6

Checking the Wi-Fi

indicator ............................................................................................................7

Setting the Clock .......................................................................................................................................8

Using the auto power off function .............................................................................................................8

Installing the battery ..................................................................................................................................9

Charging battery .....................................................................................................................................10

Formatting an SD card ............................................................................................................................11

Changing the scan resolution (DS-920DW only) ....................................................................................11

2 Document Specifications 12

Acceptable documents ...........................................................................................................................12

Unacceptable documents .......................................................................................................................13

Documents recommended for use with the Carrier Sheet ......................................................................13

3 Scan Preparation 15

Loading a document ...............................................................................................................................15

Loading the Carrier Sheet .......................................................................................................................16

Important Carrier Sheet tips .............................................................................................................17

4 Scan Using the Control Panel 18

Scanning in SD mode .............................................................................................................................18

5 Scan Using Your Computer 19

Installing the scanner driver and scanning software ...............................................................................19

For Windows

users .........................................................................................................................19

For Macintosh users .........................................................................................................................21

Connecting your scanner to your computer in TWAIN Mode .................................................................23

Choosing your scanning software ...........................................................................................................23

Using DSmobileCapture (for Windows

) ................................................................................................24

Changing DSmobileCapture scan settings (for Windows

) ....................................................................27

File settings ......................................................................................................................................27

Image settings ..................................................................................................................................28

Paper settings ...................................................................................................................................29

Preview settings ...............................................................................................................................31

Options settings ................................................................................................................................32

Imprinter settings ..............................................................................................................................33

Information ........................................................................................................................................34

Using DSmobileCapture (for Macintosh) ................................................................................................35

Changing DSmobileCapture scan settings (for Macintosh) ....................................................................36

Image settings ..................................................................................................................................36

File settings ......................................................................................................................................38

Paper settings ...................................................................................................................................39

Options settings ................................................................................................................................40

Information ........................................................................................................................................41

Using Button Manager V2 (for Windows

) .............................................................................................42

Scanning method ..............................................................................................................................44

Scan buttons in the Button Manager V2 Button Panel (for Windows

) ..................................................45

Scan to an image ..............................................................................................................................45

Scan to BR-Docs ..............................................................................................................................45

Scan to an application ......................................................................................................................46

Scan to an email ...............................................................................................................................46

Scan to a printer ...............................................................................................................................47

Scan to shared folder .......................................................................................................................47

Scan to a FTP server ........................................................................................................................47

6Wi-Fi

Connection 48

Connecting in access point (AP) mode ...................................................................................................48

7 Scan to the Cloud Server Using a Wireless Access Point (BOL Mode) 50

8 Access Scanned Images on the SD Card 51

Using your web browser .........................................................................................................................51

Setting a Wi-Fi

network password ........................................................................................................51

Using the USB connection between your scanner and computer ..........................................................54

Using ScanHub™ (Android™) ................................................................................................................55

Using ScanHub™ (iOS) ..........................................................................................................................55

9 Changing Settings Using Your Browser 56

Configuring Wi-Fi

settings in access point (AP) mode .........................................................................56

Configure network settings ...............................................................................................................56

Reset network settings .....................................................................................................................57

10 Scanner Calibration 58

Calibration using the control panel .........................................................................................................58

Calibration using software (for Windows

) .............................................................................................59

Calibration using software (for Macintosh) .............................................................................................62

11 Scanner Maintenance 64

Cleaning the outside of your scanner .....................................................................................................64

Cleaning the inside of your scanner .......................................................................................................64

12 Troubleshooting 66

Error messages and Error codes ............................................................................................................66

Troubleshooting ......................................................................................................................................68

A Appendix A 75

Specifications ..........................................................................................................................................75

General .............................................................................................................................................75

Scanner ............................................................................................................................................76

Li-ion battery .....................................................................................................................................77

Interfaces ..........................................................................................................................................77

Network ............................................................................................................................................77

Computer requirements ....................................................................................................................78

B Appendix B 79

Contacting Brother ..................................................................................................................................79

Register your product .......................................................................................................................79

Frequently asked questions (FAQs) .................................................................................................79

For customer service ........................................................................................................................80

Technical support (for PageManager and BizCard) ...............................................................................81

Basic functions

Storing scanned images

*1:This function is not available while using the Wi-Fi

connection.

*2:To use this function, you need a Brother Online account.

*3:To use this function, you need an Internet connection.

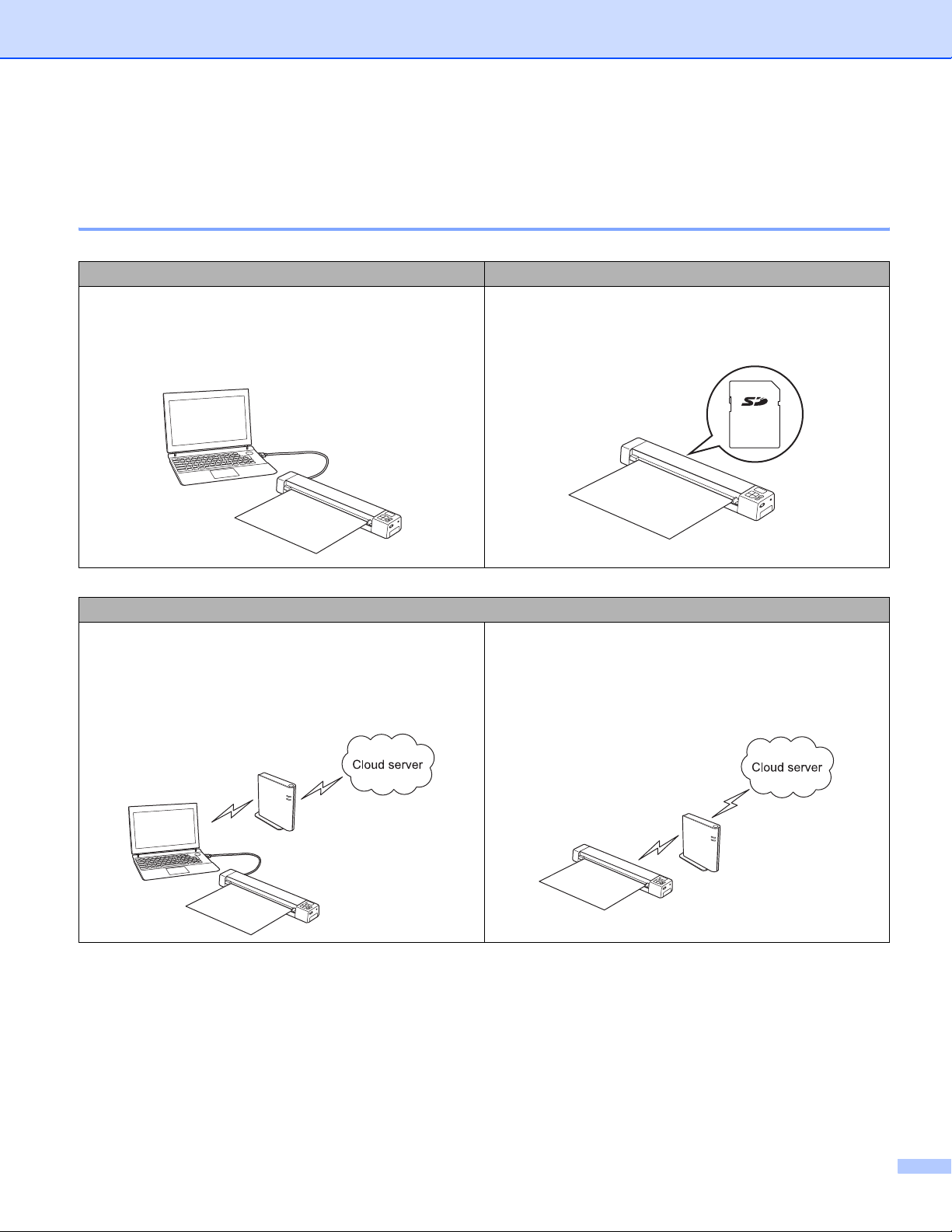

Scan to your computer

Scan to an SD Memory Card (SD card)

You can store scanned images on your computer as long

the Micro USB Cable connects the scanner and the com-

puter. For more information, see Scan Using Your Com-

puter on page 19.

You can store scanned images on the SD card included

with your scanner. For more information, see Scan Using

the Control Panel on page 18.

Scan to cloud server

*2,3

You can store scanned images in BR-Docs (Brother On-

line storage) using the Button Manager V2 Button Panel.

For more information, see the Button Manager V2 User’s

Guide.

You can store scanned images in BR-Docs using your

scanner’s control panel. You must first connect your scan-

ner to the Internet via an access point. For more informa-

tion, see Scan to the Cloud Server Using a Wireless

Access Point (BOL Mode) on page 50.

vii

Accessing scanned images stored on the SD card

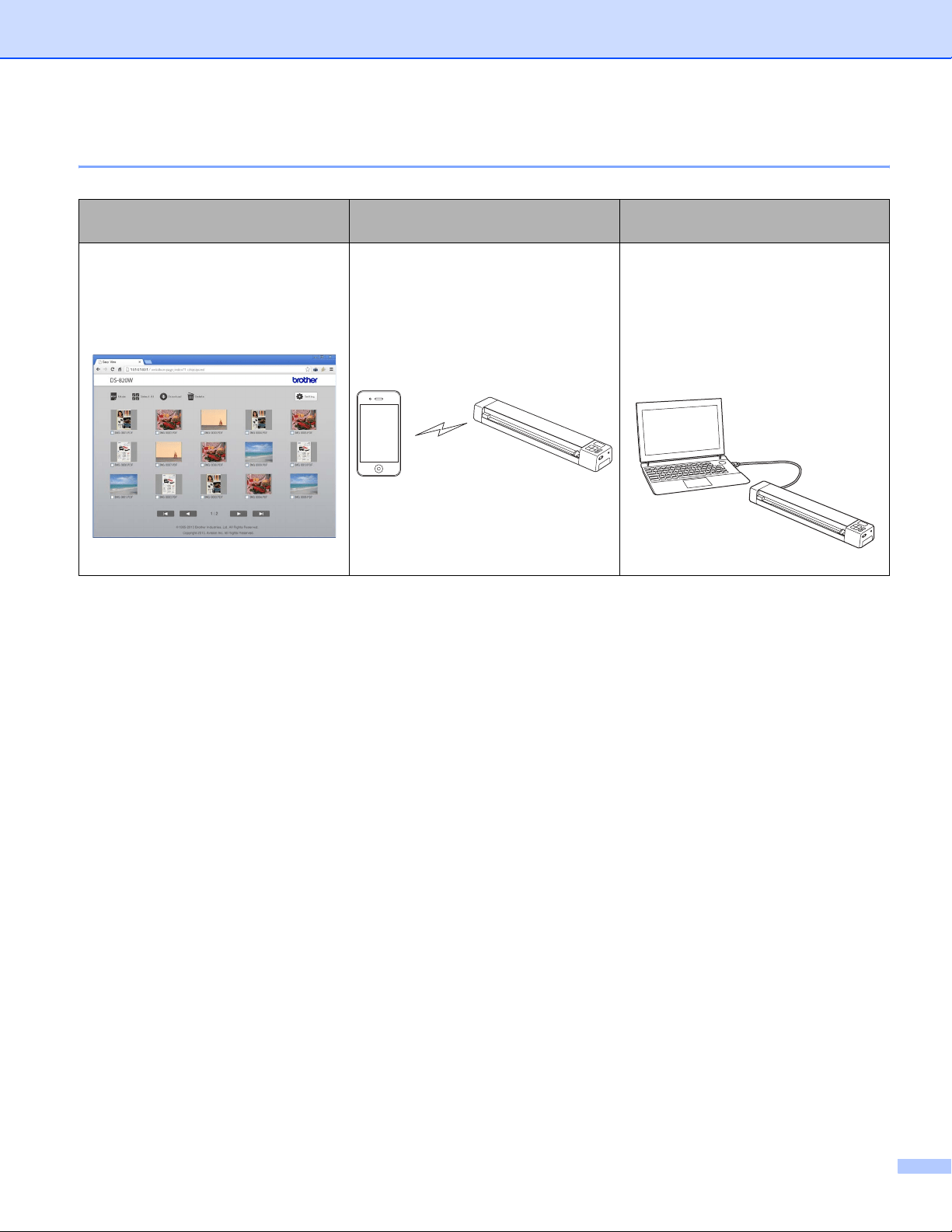

View in the browser

View on an Android™ or iOS mo-

bile device

View on your computer via the USB

connection

Access scanned images stored on the

SD card via the web browser of a

wireless LAN tablet or your computer.

For more information, see Using your

web browser on page 51.

Access scanned images stored on the

SD card via ScanHub™. For more in-

formation, see Using ScanHub™ (An-

droid™) on page 55 or Using

ScanHub™ (iOS) on page 55.

Access and view scanned images

stored on the SD card from your com-

puter when it is connected to your

scanner via the supplied Micro USB

Cable. For more information, see Us-

ing the USB connection between your

scanner and computer on page 54.

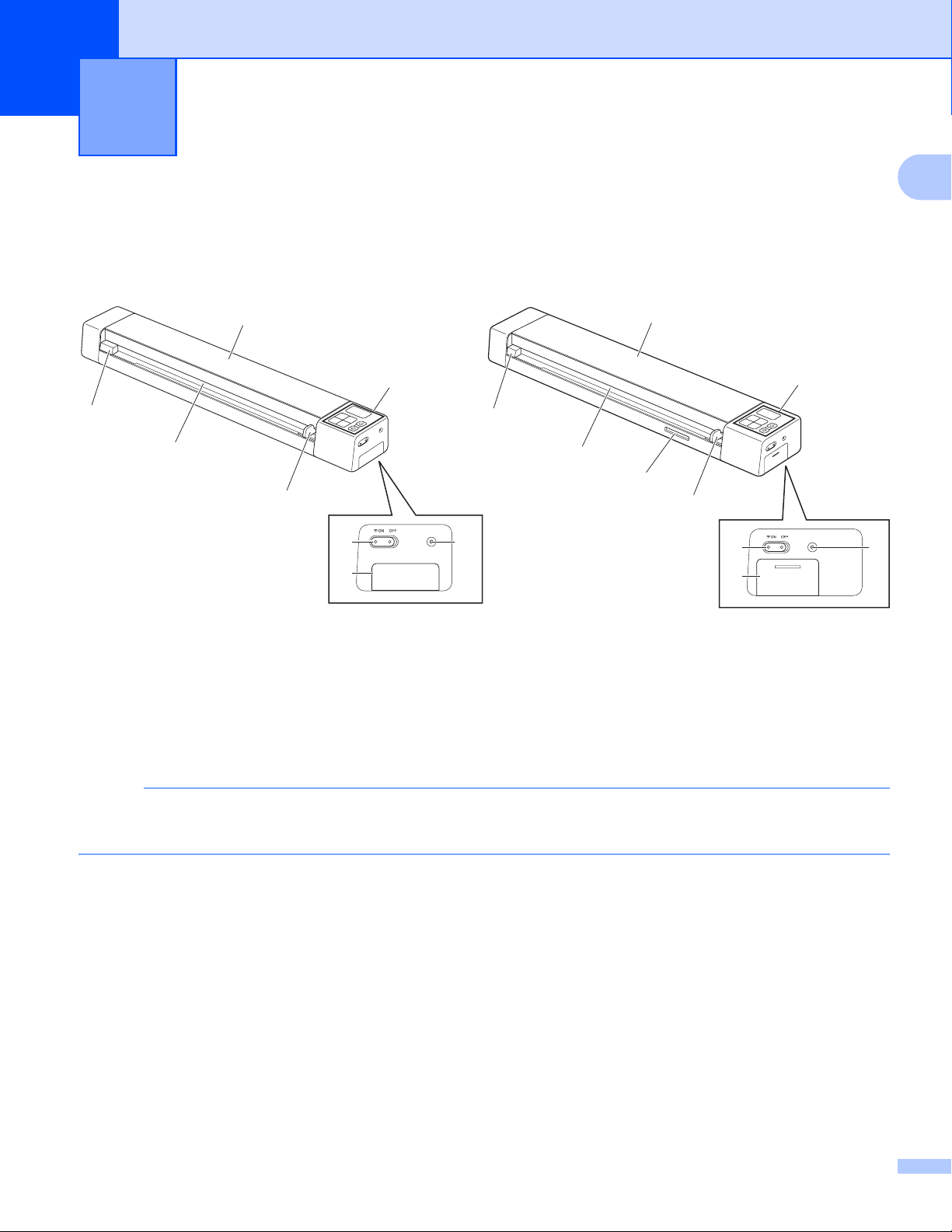

Scanner overview

Front

1 Top cover

2 Control panel

3 Reset button

4 Battery compartment

5Wi-Fi

(ON / OFF) switch

NOTE

When you do not use the Wi-Fi

function, set the Wi-Fi

switch to OFF. If you leave the switch in the ON

position, the battery will be consumed faster.

6 Document guide

7 Feeder slot

8 Left edge

9 SD card slot

General Information 1

DS-820W DS-920DW

General Information

Rear

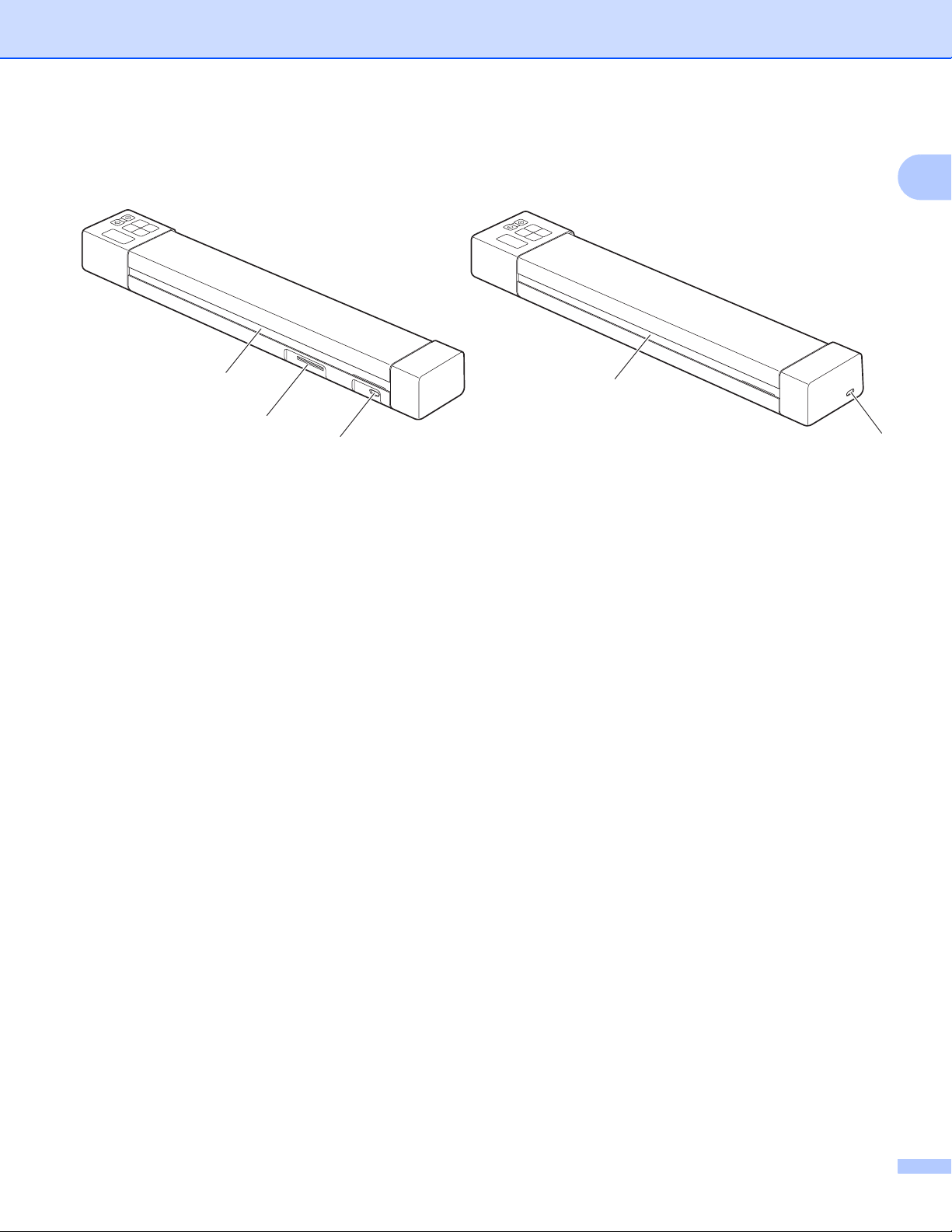

1 Micro USB port

2 SD card slot

3 Paper ejection slot

DS-820W DS-920DW

General Information

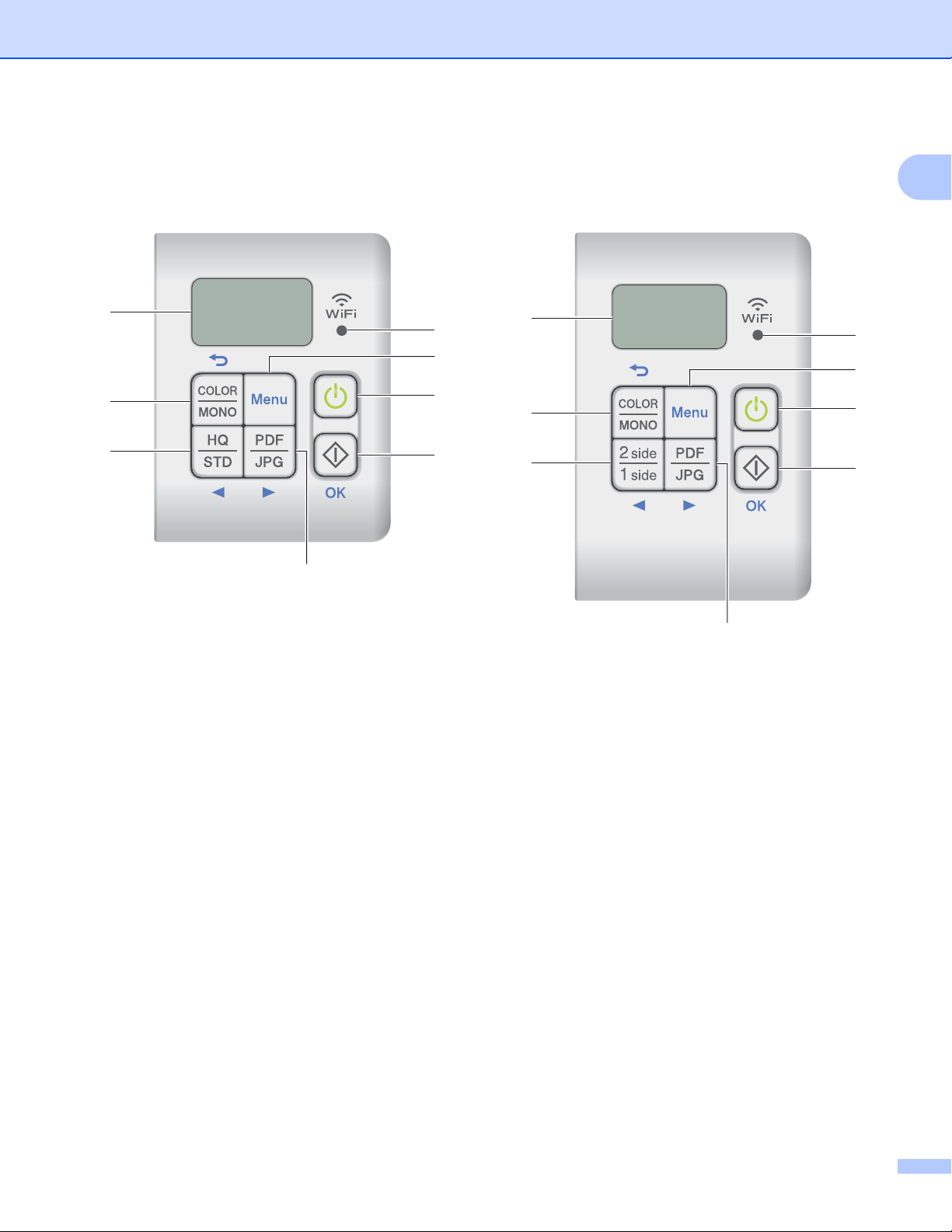

Control panel overview

1Wi-Fi

indicator

Indicates the status of the Wi-Fi

connection.

2 Menu button

Press to configure the menu settings.

3 Power button

• Press to turn on the scanner.

• Press and hold to turn off the scanner.

4 Start / OK button

• Press to confirm a selected item.

• For Windows

Press to start scanning when using Button Manager V2.

For more information, see Using Button Manager V2 (for Windows

) on page 42.

• For Macintosh

Press to start scanning when using DSmobileCapture.

For more information, see Using DSmobileCapture (for Macintosh) on page 35.

DS-820W DS-920DW

General Information

5 PDF / JPG ( ) button

• Press to change the scanning file format (PDF or JPEG).

• Press to scroll through the menu and option items.

6 HQ / STD ( ) button

• Press to change the resolution. HQ is 600 dpi and STD is 300 dpi.

• Press to scroll through the menu and option items.

7 COLOR / MONO ( ) button

• Press to change the scan mode (color or mono [black and white]).

• Press to return to the previous screen.

8 Liquid Crystal Display (LCD)

Displays messages to help you set up and use your scanner.

9 2 side / 1 side ( ) button

• Press to change the scan mode (2 side scan or 1 side scan).

• Press to scroll through the menu and option items.

General Information

Items displayed on the LCD

1 SD

Appears when the SD card is inserted into the scanner’s SD card slot.

2 Remaining battery power

3 The selected menu or the current status appears here.

For more information about the messages displayed on the LCD, see LCD messages on page 6.

4 PDF / JPG

Displays the scanning file format (PDF or JPEG).

5 HQ / STD (DS-820W only)

Press to change the resolution. HQ is 600 dpi and STD is 300 dpi.

6 COLOR / MONO

Displays the scan mode (color or mono [black and white]).

7 2 / 1 (DS-920DW only)

Displays the scan mode (2 side (double-sided) scan or 1 side (single-side) scan).

DS-820W DS-920DW

General Information

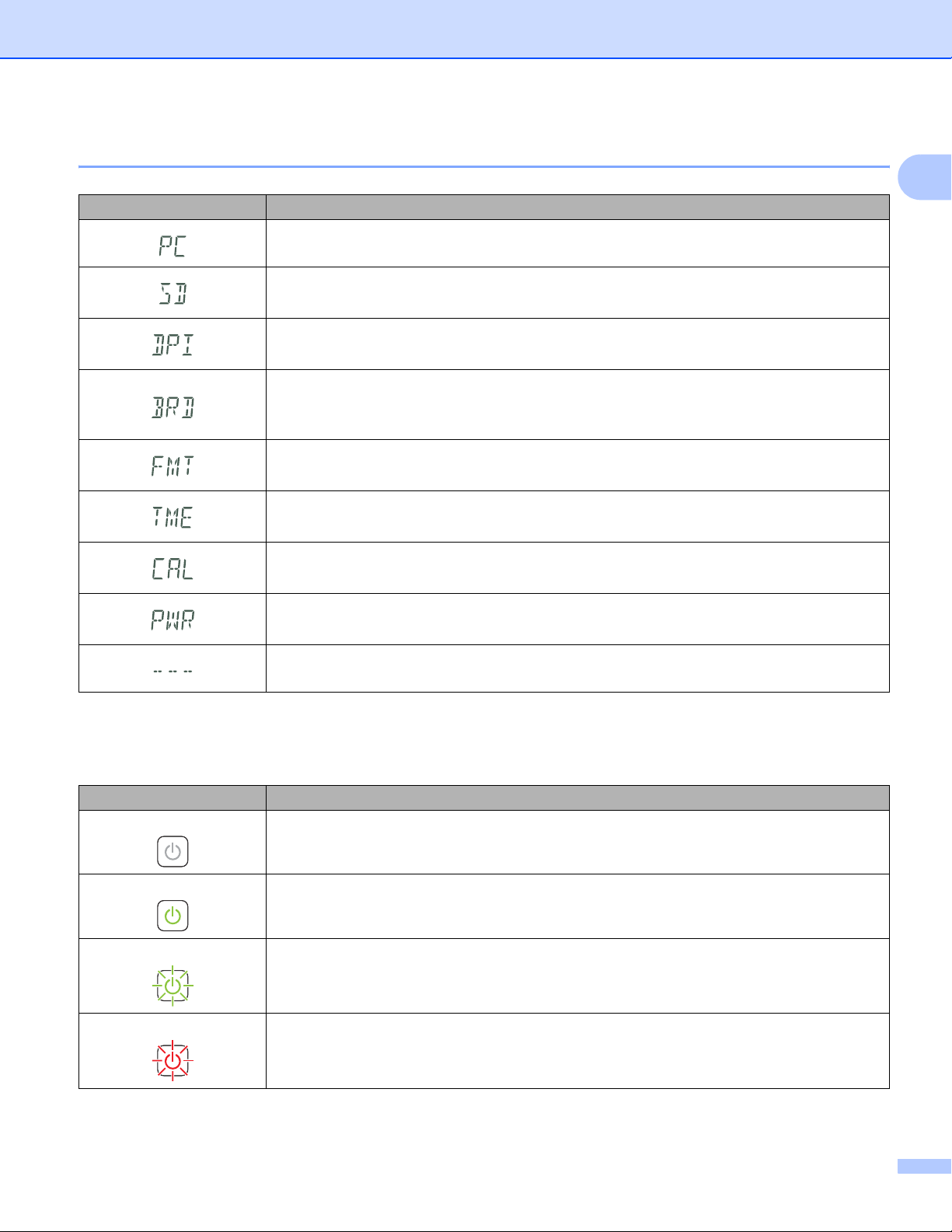

LCD messages

Power button LED indications

Message Machine Status

The machine is connected to your computer in TWAIN mode.

The machine is in SD mode (Mass-storage mode).

For more information, see Scanning in SD mode on page 18.

(DS-920DW only) The machine displays the menu to change the resolution.

For more information, see Changing the scan resolution (DS-920DW only) on page 11.

The machine is in BR-Docs mode.

For more information, see Scan to the Cloud Server Using a Wireless Access Point (BOL

Mode) on page 50.

The machine displays the menu to format an SD card.

For more information, see Formatting an SD card on page 11.

The machine displays the menu to set its clock.

For more information, see Setting the Clock on page 8.

The machine displays the calibration menu.

For more information, see Calibration using the control panel on page 58.

The machine displays the menu to use the auto power off function.

For more information, see Using the auto power off function on page 8.

The machine is not connected to your computer and there is no SD card inserted in it.

LED indication Machine Status

No light The machine is not connected to your computer or the Li-ion battery is not installed.

Green light The machine is ready to scan or is charging the battery.

Blinking green The machine is scanning a document.

Rapidly blinking red Some error has occurred. The top cover is open, or a document is jammed.

General Information

Checking the Wi-Fi

indicator

NOTE

When you are not using the Wi-Fi

function, set the Wi-Fi

switch to OFF. If you leave the switch in the

ON position, the battery will be consumed faster.

Wi-Fi

indicator Wi-Fi

status

No light The Wi-Fi

switch is set to OFF.

Lit (Red) The Wi-Fi

switch is set to ON and the scanner is starting up a Wi-Fi

connection. It will

take about 40 seconds to make the Wi-Fi

connection.

Lit (Blue) A Wi-Fi

connection has been made [in access point (AP) mode].

For more information, see Connecting in access point (AP) mode on page 48.

Blinking (Blue) The scanner is searching for an access point.

Lit (Orange) Connection to an access point has been made.

Blinking (Orange) Your scanner is transferring scanned images to BR-Docs.

For more information, see Scan to the Cloud Server Using a Wireless Access Point (BOL

Mode) on page 50.

Slow blinking (Red) Connection to BR-Docs has failed.

WiFi

General Information

Setting the Clock

Before using your scanner, set the scanner clock to the correct time.

a Turn on your scanner.

b On the scanner’s control panel, press Menu.

c Press or until TME is displayed on the LCD.

d Press Start / OK.

e Press or to set year.

f Press Start / OK to confirm the year.

NOTE

To return to the previous screen, press the COLOR / MONO ( ) button.

g Repeat steps 5 and 6 to set month, day, hour (24-hour format) and minute.

h After setting the minute, the LCD displays OK, indicating that the clock is set.

Using the auto power off function

You can turn your scanner off automatically to save power. The scanner will power off after five minutes of

inactivity.

NOTE

When the Wi-Fi

switch is set to ON, this function is disabled.

a Turn on your scanner.

b On the scanner’s control panel, press Menu.

c Press or until PWR is displayed on the LCD.

d Press Start / OK.

e Do one of the following:

• To enable the auto power off function, press or to select YES.

• To disable the auto power off function, press or to select NO.

f Press Start / OK.

g The LCD displays OK, indicating that auto power off has been set.

General Information

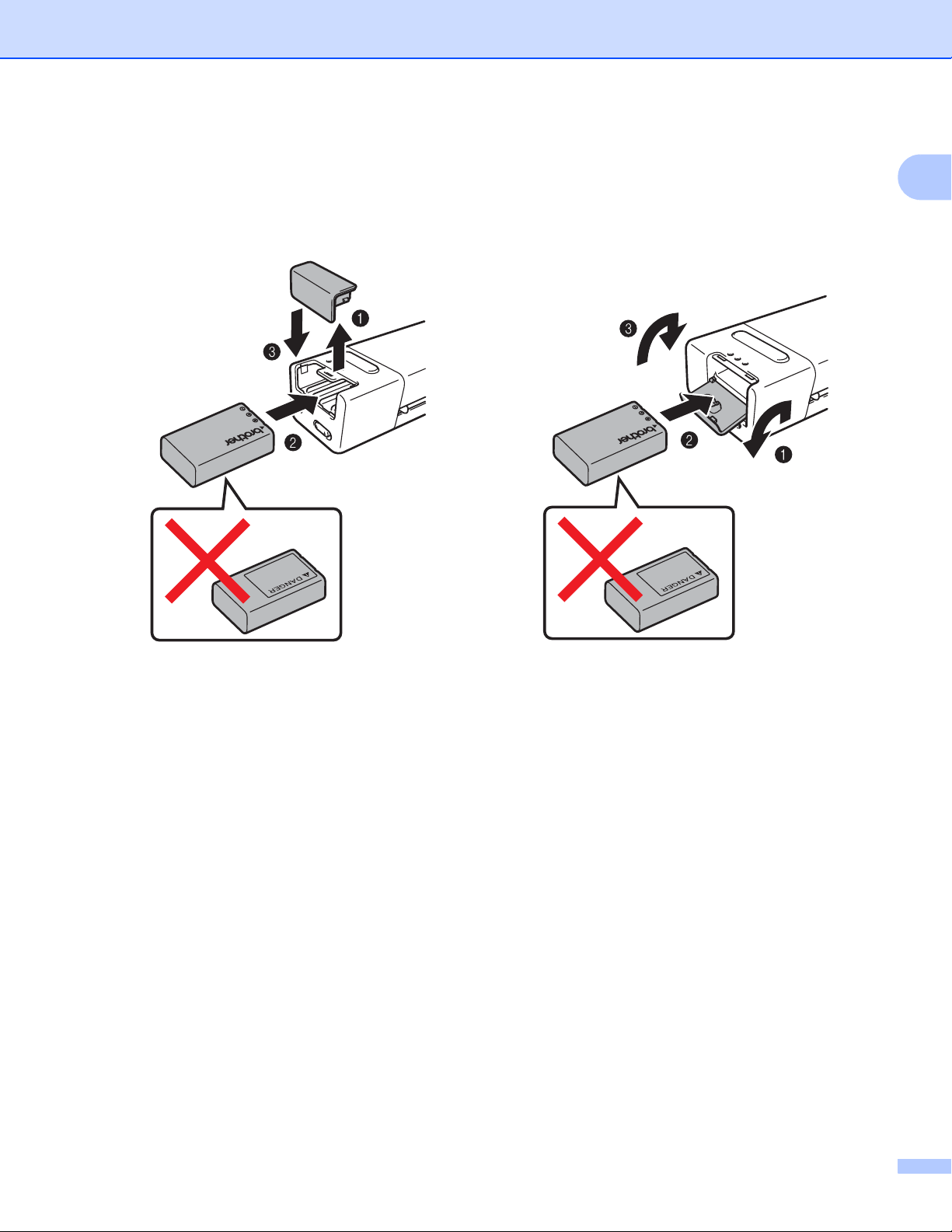

Installing the battery

Install the supplied Li-ion Battery into the end of your scanner, as shown in the illustration.

DS-820W DS-920DW

General Information

Charging battery

a Make sure that your computer is ON.

b Connect the supplied Micro USB Cable to the micro USB port on your scanner.

c Connect the cable to your computer. The battery starts charging automatically.

d The Power button lights up green while the battery is charging, and goes off when charging is

complete.

NOTE

• When charging the battery, press and hold the Power button to turn off your scanner. You can charge

the battery with the power either on or off, but charging takes more time than when the scanner is off.

• When charging the battery with the power on, slide the Wi-Fi

switch to OFF.

• When the scanner is turned on, the battery level is displayed on the LCD panel.

• If you do not use the scanner for a long period, charge the battery fully at least once every six months to

prevent battery capacity deterioration.

• If you do not use the scanner for a long period, remove the battery from the scanner, and store the battery

in a cool, dry place at a consistent temperature.

Battery icon Power level

Full

Half full

Low

General Information

Formatting an SD card

When you purchase your own SD card, you must format the SD card before using it.

NOTE

Before formatting an SD card, make sure if there is no important data on it. When you format an SD card

that was previously used with other devices, all of its data will be deleted.

a Insert the SD card into the SD card slot.

b Turn on your scanner.

c Make sure that SD appears on the LCD display.

d On the scanner’s control panel, press Menu.

e Press or until FMT is displayed on the LCD.

f Press Start / OK.

g Do one of the following:

• To format the SD card, press or to select YES, and then press Start / OK.

The SD icon and FMT in the LCD display will blink, and the scanner will begin to format the SD card.

When the LCD display OK, formatting is complete.

• To cancel formatting, press or to select NO, and then press Start / OK.

Changing the scan resolution (DS-920DW only)

NOTE

For DS-820W: change the resolution using your scanner’s HQ / STD ( ) button.

a Turn on your scanner.

b On the scanner’s control panel, press Menu.

c Press or until DPI is displayed on the LCD.

d Press Start / OK.

e Press or to select 600 (600dpi) or 300 (300dpi).

f Press Start / OK.

g The LCD displays OK, indicating that resolution has been set.

Acceptable documents

Document Specifications 2

Standard Paper Length 1 side scan

3.5 in. to 32 in. (90 mm to 812.8 mm)

2 side scan (DS-920DW only)

3.5 in. to 16 in. (90 mm to 406.4 mm)

Width 2.2 in. to 8.5 in. (55 mm to 215.9 mm)

Weight 16 lb to 28 lb (60 g/m

to 105 g/m

)

To scan thinner document, use the Carrier Sheet (see Loading

the Carrier Sheet on page 16).

Maximum Number of Pages 1 page (1 sheet)

Standard Paper Size A4 8.3 × 11.7 in. (210 × 297 mm)

A5 5.8 × 8.3 in. (148 × 210 mm)

A6 4.1 × 5.8 in. (105 × 148 mm)

A7 2.9 × 4.1 in. (74 × 105 mm)

A8 2.0 × 2.9 in. (52 × 74 mm)

B5 7.2 × 10.1 in. (182 × 257 mm)

B6 5.0 × 7.2 in. (128 × 182 mm)

B7 3.6 × 5.0 in. (91 × 128 mm)

B8 2.5 × 3.6 in. (64 × 91 mm)

Legal 8.5 × 14 in. (215.9 × 355.6 mm)

Letter 8.5 × 11 in. (215.9 × 279.4 mm)

Plastic Cards

(DS-820W: non-em-

bossed cards only)

Length 1.57 in. to 3.4 in. (40 mm to 86 mm)

Width 1.57 in. to 3.4 in. (40 mm to 86 mm)

Standard Size (ISO) 3.37 × 2.13 × 0.03 in. (85.6 × 54.0 × 0.76 mm)

Material Plastic (PET)

Type Plastic card such as a driver’s license or an insurance card

Thickness Less than 0.031 in. (0.8 mm)

Maximum Number of Pages 1 page (1 sheet)

Receipts Length 1 side scan

3.5 in. to 32 in. (90 mm to 812.8 mm)

2 side scan (DS-920DW only)

3.5 in. to 16 in. (90 mm to 406.4 mm)

Width 2.2 in. to 8.5 in. (55 mm to 215.9 mm)

Thickness More than 0.016 in. (0.04 mm)

Maximum Number of Pages 1 page (1 sheet)

Document Specifications

Unacceptable documents

 Documents with paper clips or staples

 Documents with wet ink

 Fabrics, metallic sheets, overhead projector sheets

 Glossy or mirrored media

 Embossed plastic cards

 Documents that exceed recommended thicknesses

Documents recommended for use with the Carrier Sheet

Use the supplied Carrier Sheet when you scan the following:

 Documents with a carbon sheet attached on the back

 Documents written in pencil

 Documents narrower than 2.2 in. (55 mm) wide

 Documents shorter than 3.5 in. (90 mm) long

 Documents of uneven thickness, such as envelopes

 Documents with large wrinkles or curls

 Bent or damaged documents

 Documents that use tracing paper

 Documents that use coated paper

 Photographs (photographic paper)

 Documents printed on perforated paper

 Documents printed on unusually-shaped paper (not square or rectangle)

 Documents with photos, notes, or stickers affixed to them

 Documents that use carbonless paper

 Documents that use loose-leaf paper or any paper with holes in it

 Photographic negatives

For more information about using the Carrier Sheet when scanning, see Loading the Carrier Sheet on

page 16.

CAUTION

To avoid cutting yourself, do not slide or scrape your hand or fingers along the edges of the Carrier Sheet.

Document Specifications

IMPORTANT

• Do not place the Carrier Sheet in direct sunlight or in an area subject to high temperatures and high

humidity, or the Carrier Sheet may warp.

• Do not place large or heavy objects on the Carrier Sheet when it is lying flat.

• Do not bend or pull the Carrier Sheet. If it becomes damaged, it may not be acceptable for scanning, and

should not be used.

Loading a document

IMPORTANT

• Insert only one page into the scanner at a time. Insert the next page only after the first one is completely

scanned. Inserting more than one page at a time may cause your scanner to malfunction.

• DO NOT pull on the document while it is feeding.

• DO NOT use paper that is curled, wrinkled, folded, ripped, stapled, paper clipped, pasted, or taped.

• DO NOT try to scan cardboard or fabric.

NOTE

• Make sure there is enough space behind the paper ejection slot. The scanned document will be ejected

from the rear of the scanner.

• Make sure documents that have ink or correction fluid on them are completely dry.

• Certain types of plastic cards may be scratched when scanned. To prevent damage to the card, we

recommended using the Carrier Sheet. For more information, see Loading the Carrier Sheet on page 16.

a Set your document a face up in the feeder slot b and align the left edge of the page with the left edge

of the feeder slot

To scan a plastic card

a, set the card top edge first into the feeder slot b and align the left edge of the

card with the left edge of the feeder slot

For DS-920DW: When you perform duplex scanning, insert the first page face up into the feeder slot.

b Slide the document guide d until it touches the right side of the document.

c Gently insert the document until you feel its top edge touch the inside of the scanner.

NOTE

If you insert a document while SD is displayed on the LCD, scanning begins automatically.

Scan Preparation 3

Scan Preparation

Loading the Carrier Sheet

NOTE

Make sure documents that have ink or correction fluid on them are completely dry.

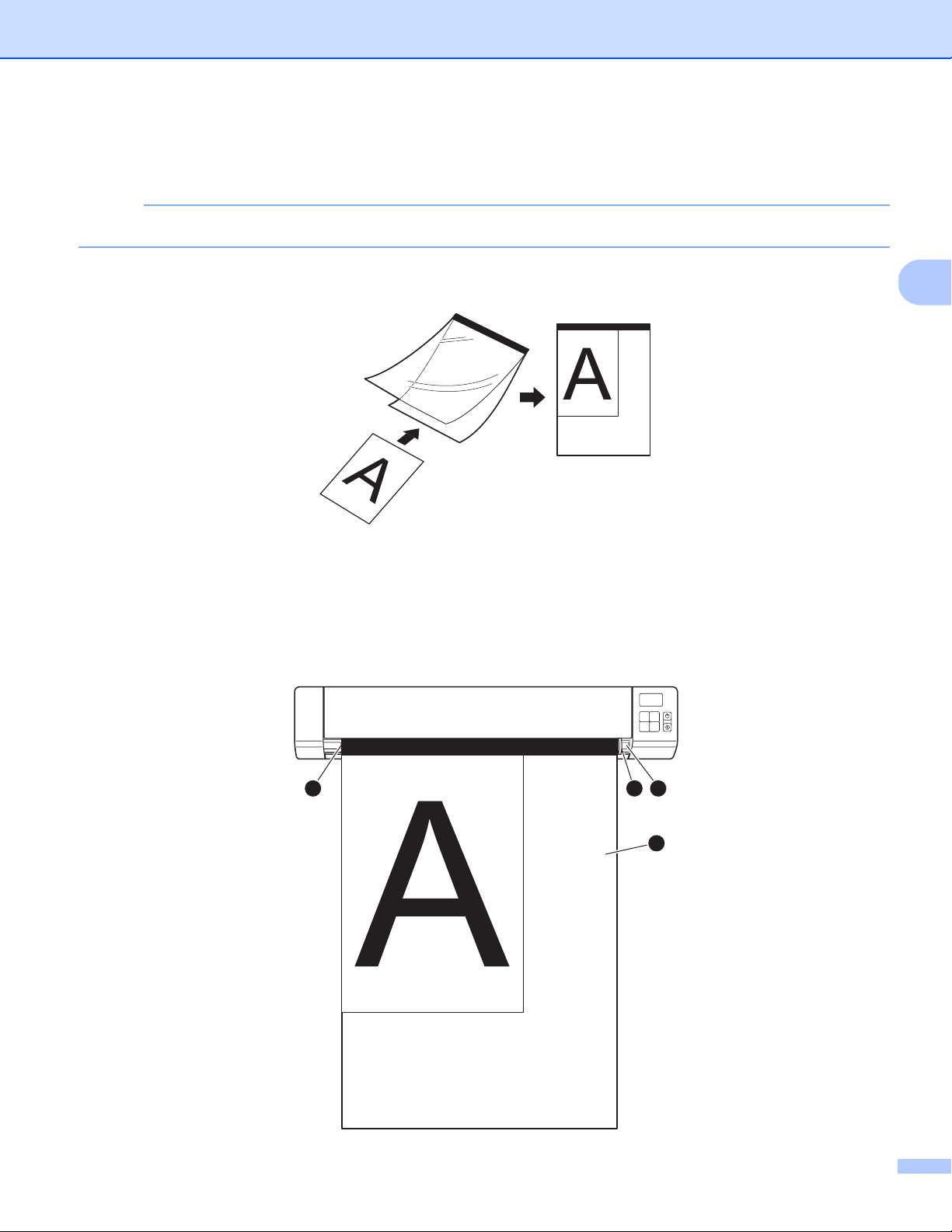

a Set the document you want to scan in the left corner of the Carrier Sheet and align the top of the

document with the top left corner of the Carrier Sheet.

b Set the Carrier Sheet a, document face up, with the black edge first in the feeder slot b and align the

left edge of the Carrier Sheet with the left edge of the feeder slot

For DS-920DW: When you perform duplex scanning, insert the first page face up into the feeder slot.

c Slide the document guide d against the right side of the Carrier Sheet.

d Gently insert the Carrier Sheet until you feel its top edge touch the inside of the scanner.

Scan Preparation

Important Carrier Sheet tips

 To avoid document jams, do not load the Carrier Sheet upside down. For more information, see Loading

the Carrier Sheet on page 16.

 To avoid document jams, do not put several small documents into the Carrier Sheet at the same time.

Insert only one document into the Carrier Sheet at a time.

 Do not write on the Carrier Sheet, as the writing may be seen in scanned documents. If the Carrier Sheet

becomes dirty, wipe it with a dry cloth.

 Do not leave documents in the Carrier Sheet for extended periods of time, as the printing on the

documents may bleed through onto the Carrier Sheet.

Scanning in SD mode

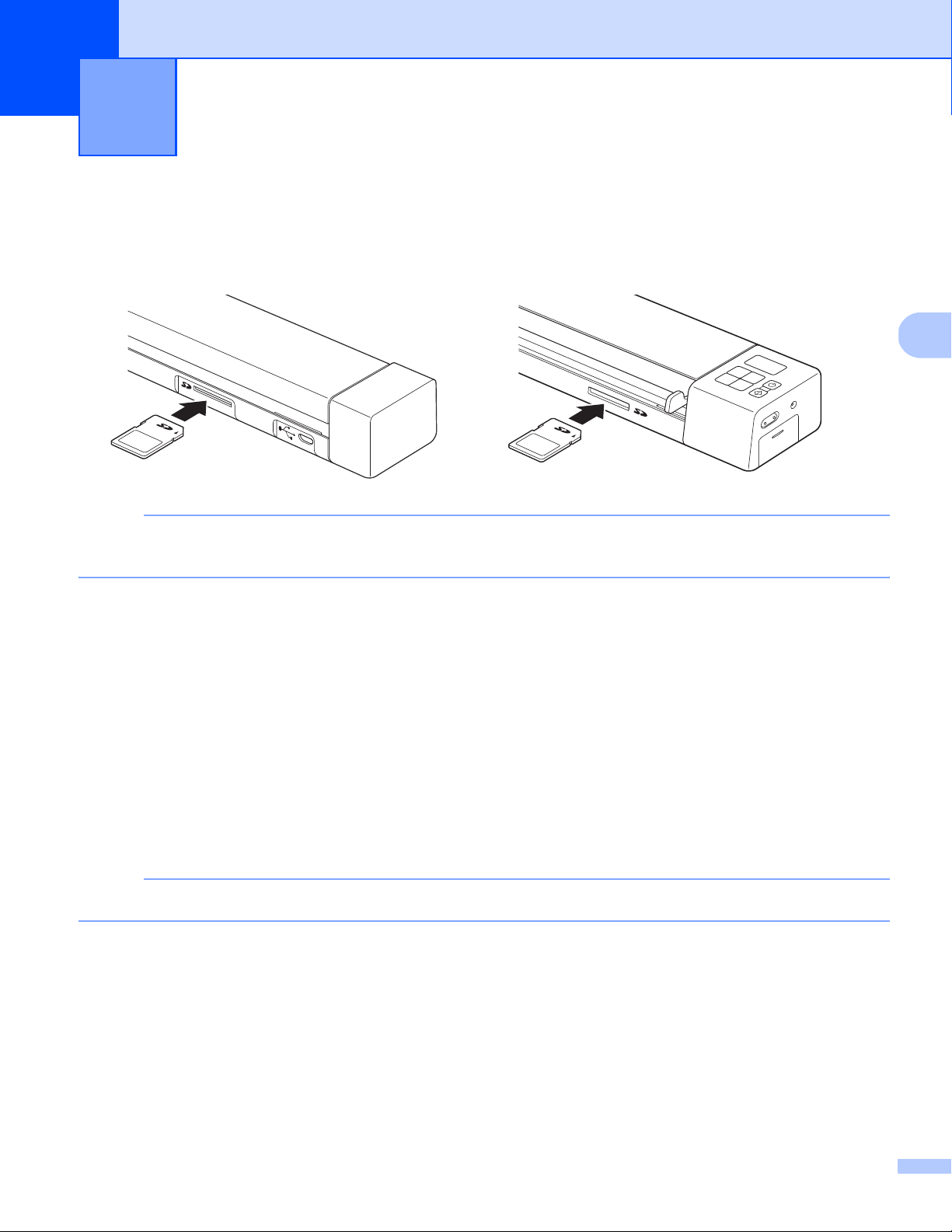

a Insert the SD card into the SD card slot.

NOTE

When you use a purchased SD card, you must format the SD card first. To format the SD card on your

scanner, see Formatting an SD card on page 11.

b Turn on your scanner.

c Make sure that SD appears on the LCD display.

d If necessary, adjust the scanning settings by pressing the COLOR / MONO, PDF / JPG and HQ / STD

(2 side / 1 side) buttons on the control panel.

e Insert your document.

f Your scanner starts scanning automatically.

The Power button LED blinks green and SD blinks on the LCD.

g The scanned image is stored on the SD card.

Check the scan result just in case.

NOTE

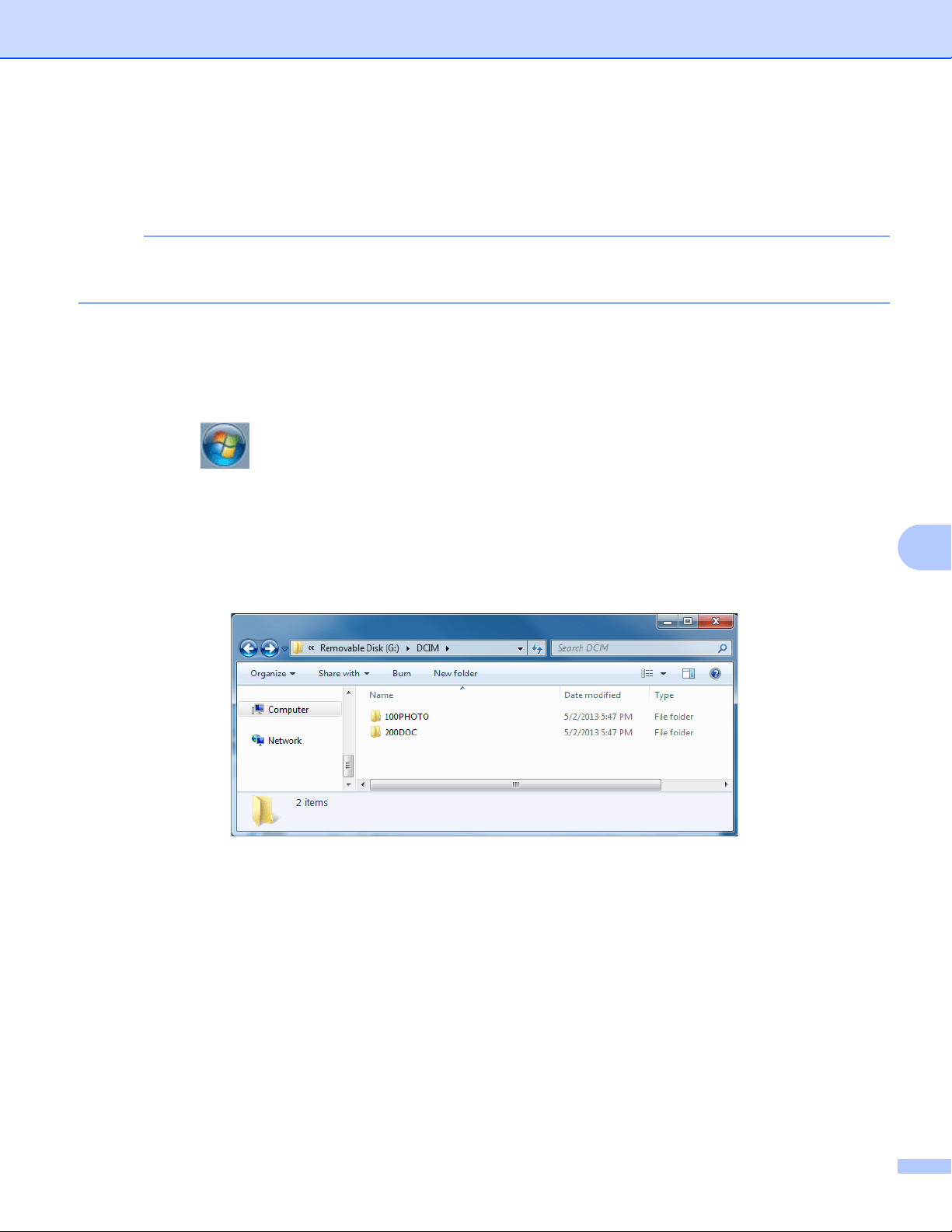

To access the scanned images on the SD card, see Access Scanned Images on the SD Card on page 51.

Scan Using the Control Panel 4

DS-820W DS-920DW

Installing the scanner driver and scanning software

For Windows

users

NOTE

• Make sure that your computer is ON and you are logged on with Administrator rights.

• DO NOT connect the Micro USB Cable yet.

• If your computer does not have a DVD-ROM drive, the supplied DVD-ROM does not contain drivers for

your operating system, or you want to download manuals and utilities, visit your model page at

http://solutions.brother.com/

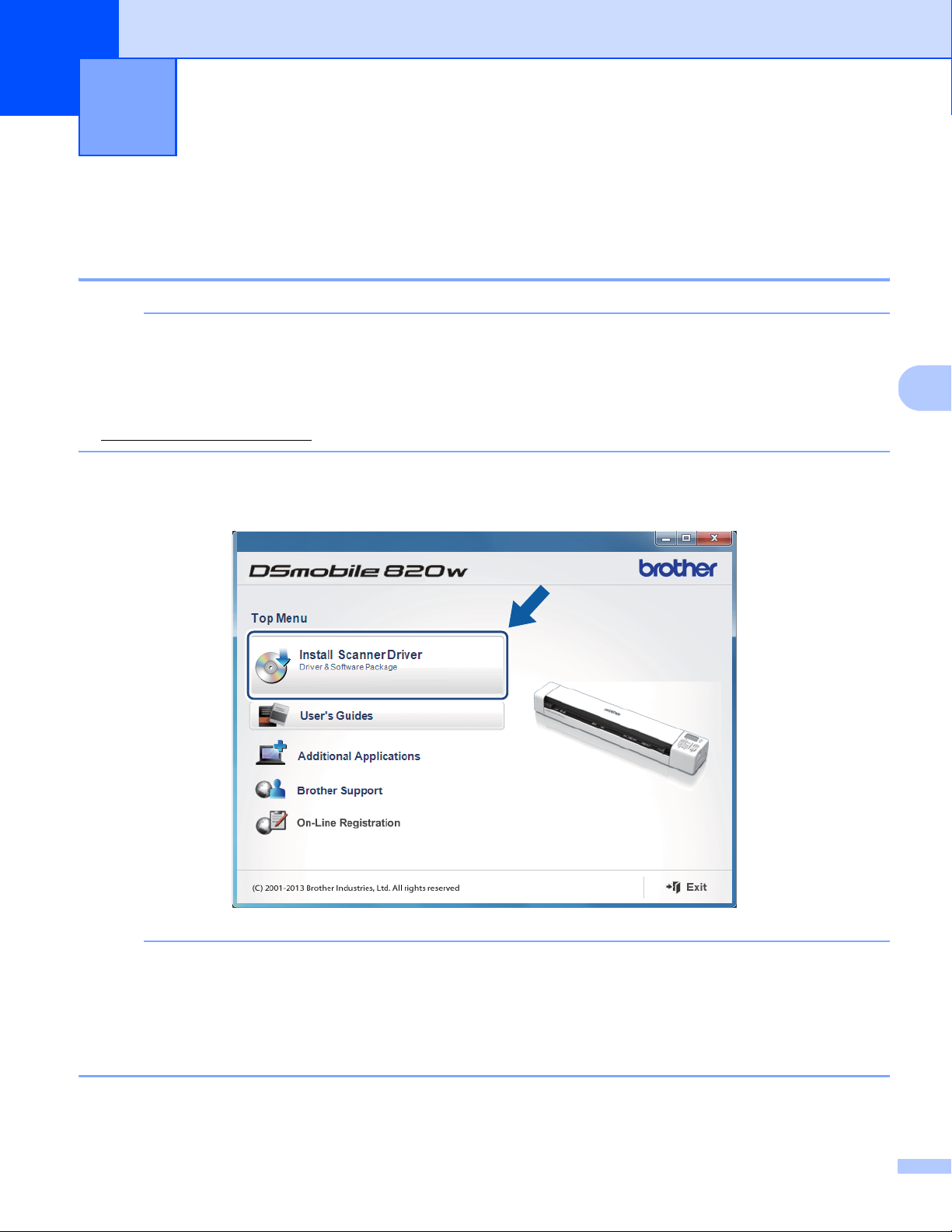

a Insert the DVD-ROM.

b When the Setup screen appears, click Install Scanner Driver and follow the on-screen instructions.

NOTE

• If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the

CD-ROM icon, and then double-click AutoRun.exe.

• When you install the scanner driver, DSmobileCapture (a scanning application) will be installed at the

same time. For more information on using DSmobileCapture, see Using DSmobileCapture (for Windows

)

on page 24.

Scan Using Your Computer 5

Scan Using Your Computer

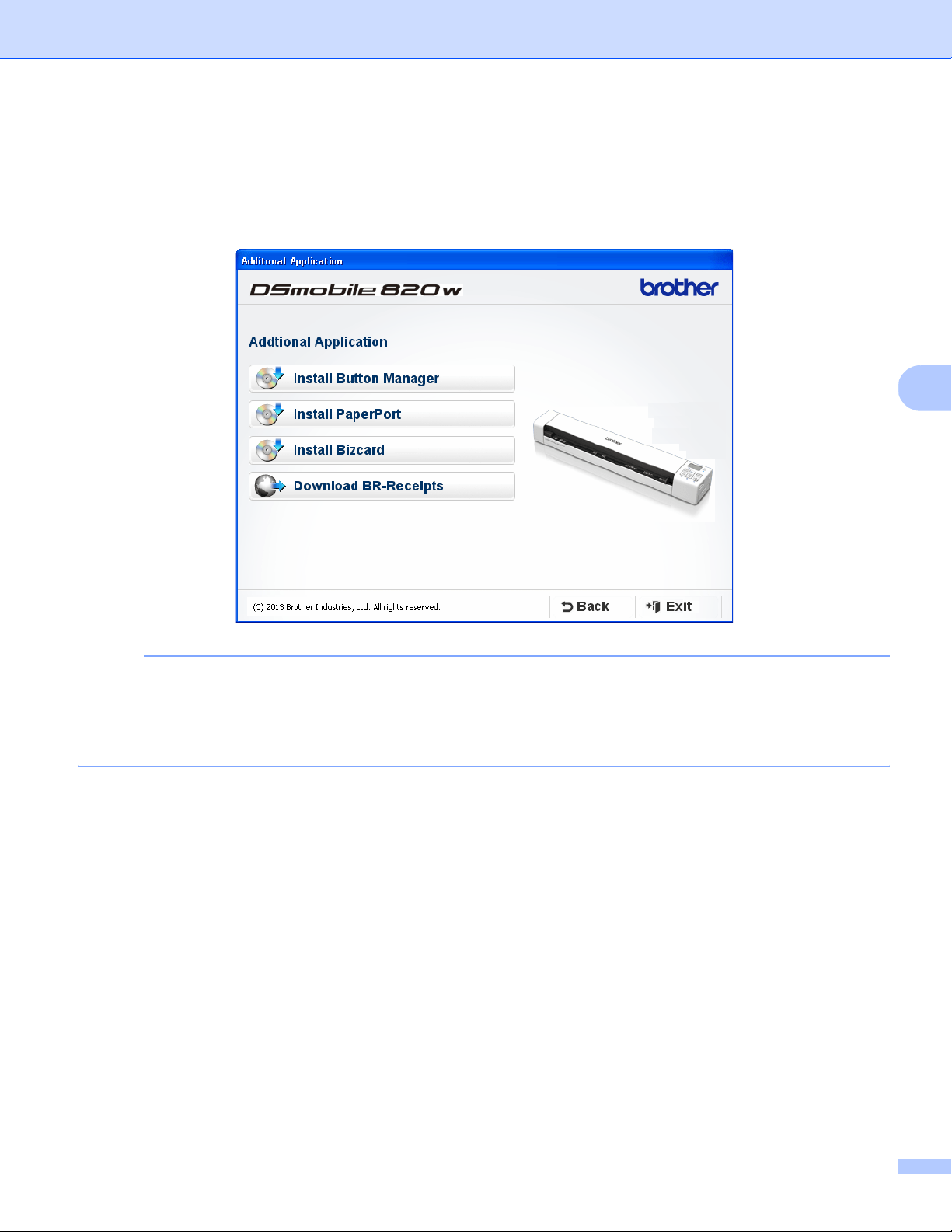

c Click Additional Applications to install any of these applications during setup.

• Button Manager V2: document scanning and storing (in specified destinations)

• PaperPort™ 12SE: document scanning, editing and management

• Presto! BizCard 6: business card scanning, editing and management

• BR-Receipts: receipt scanning, editing and management

NOTE

• To register your product and download BR-Receipts, click Download BR-Receipts to access the Brother

Online site at http://www.brother.com/product/brotheronline/

• For more information on which scanning application will work best for you, see Choosing your scanning

software on page 23.

Scan Using Your Computer

For Macintosh users

NOTE

• Make sure that your computer is ON and you are logged on with Administrator rights.

• DO NOT connect the Micro USB Cable yet.

• If your computer does not have a DVD-ROM drive, the supplied DVD-ROM does not contain drivers for

your operating system, or you want to download manuals and utilities, visit your model page at

http://solutions.brother.com/

a Insert the DVD-ROM.

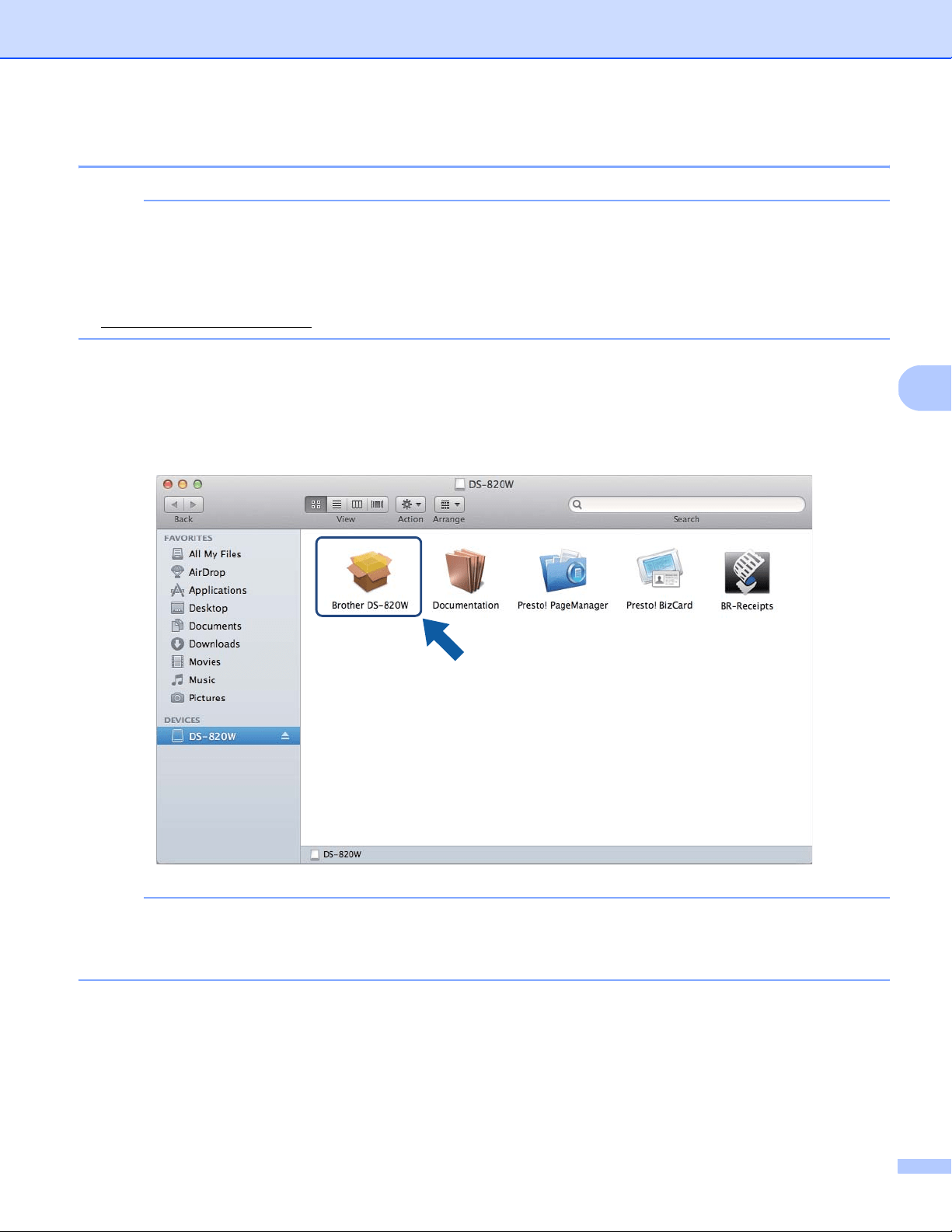

b Double-click on the DVD icon, and then double-click DS-820W (DS-920DW).

c Double-click on Brother DS-820W (DS-920DW) and follow the on-screen instructions to install the

scanner driver.

NOTE

When you install the scanner driver, DSmobileCapture (a scanning application) will be installed at the

same time. For more information on using DSmobileCapture, see Using DSmobileCapture (for Macintosh)

on page 35.

Scan Using Your Computer

d Click one of these folders to install the application during setup.

• Presto! PageManager 9: document scanning, editing and management

• Presto! BizCard 6: business card scanning, editing and management

• BR-Receipts: receipt scanning, editing and management

NOTE

•Clicking Presto! PageManager or Presto! BizCard will bring you to NewSoft Technology Corporation’s

website. Download the application from this website.

• To register your product and download BR-Receipts, double-click BR-Receipts to access the Brother

Online site at http://www.brother.com/product/brotheronline/

• For more information on which scanning application will work best for you, see Choosing your scanning

software on page 23.

Scan Using Your Computer

Connecting your scanner to your computer in TWAIN Mode

Before scanning a document using the scanning software, select TWAIN Mode on your computer.

a Turn on your scanner.

b Connect the Micro USB Cable to the Micro USB port on your scanner. Connect the cable to your

computer.

c Press the Start / OK button on the scanner to display PC on the LCD.

Choosing your scanning software

After downloading the scanner drivers, select a scanning software application for saving scanned images to

your computer. Brother has supplied several options for you on the DVD-ROM; use this table to help

determine which of the included scanning applications will work best for you:

NOTE

•Clicking Presto! PageManager or Presto! BizCard will bring you to NewSoft Technology Corporation’s

website. Download the application from this website.

• To register your product and download BR-Receipts, double-click BR-Receipts to access the Brother

Online site at http://www.brother.com/product/brotheronline/

Software Function For more information

DSmobileCapture Document scanning, browsing and filing For Windows

: See Using DSmobileCap-

ture (for Windows

) on page 24.

For Macintosh: See Using DSmobileCap-

ture (for Macintosh) on page 35.

Button Manager V2

(Windows

only)

Document scanning and storing (in speci-

fied destinations)

See the software’s user instructions or Us-

ing Button Manager V2 (for Windows

) on

page 42.

Nuance PaperPort

™

12SE

(Windows

only)

Document scanning, OCR scanning, edit-

ing and management

See the software’s user instructions.

Presto! PageManager 9

(Macintosh only)

Document scanning, OCR scanning, edit-

ing and management

See the software’s user instructions.

Presto! BizCard 6 Business card scanning, editing and man-

agement

See the Presto! BizCard User’s Manual

which will be downloaded onto your com-

puter when you download the software.

BR-Receipts Receipt scanning and management See the software’s user instructions.

Scan Using Your Computer

Using DSmobileCapture (for Windows

)

a Connect the supplied Micro USB Cable to the Micro USB port on your scanner. Connect the cable to

your computer.

b Double-click the DSmobileCapture shortcut on your desktop.

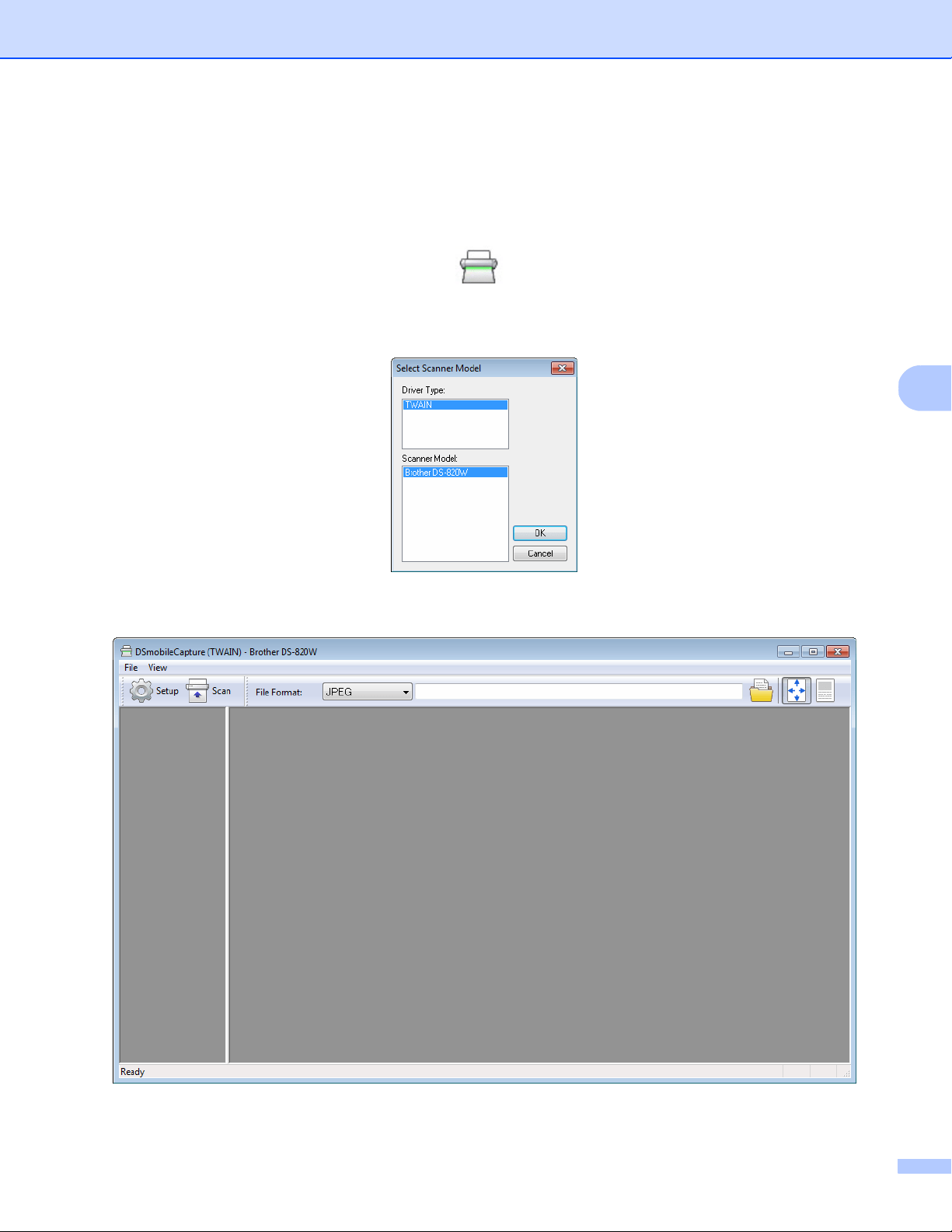

c The Select Scanner Model dialog box appears. Select TWAIN under Driver Type and select Brother

DS-820W (DS-920DW) under Scanner Model, and then click OK.

d DSmobileCapture launches.

Scan Using Your Computer

e Change the scanning settings, if needed.

For more information on changing settings, see Changing DSmobileCapture scan settings (for

Windows

) on page 27.

f Insert a document into your scanner.

g Click Scan . Your scanner starts scanning.

A thumbnail of the scanned image appears in the DSmobileCapture screen and the scanned image will

be saved in the directory you specified in step 5.

Check the scan result just in case.

Scan Using Your Computer

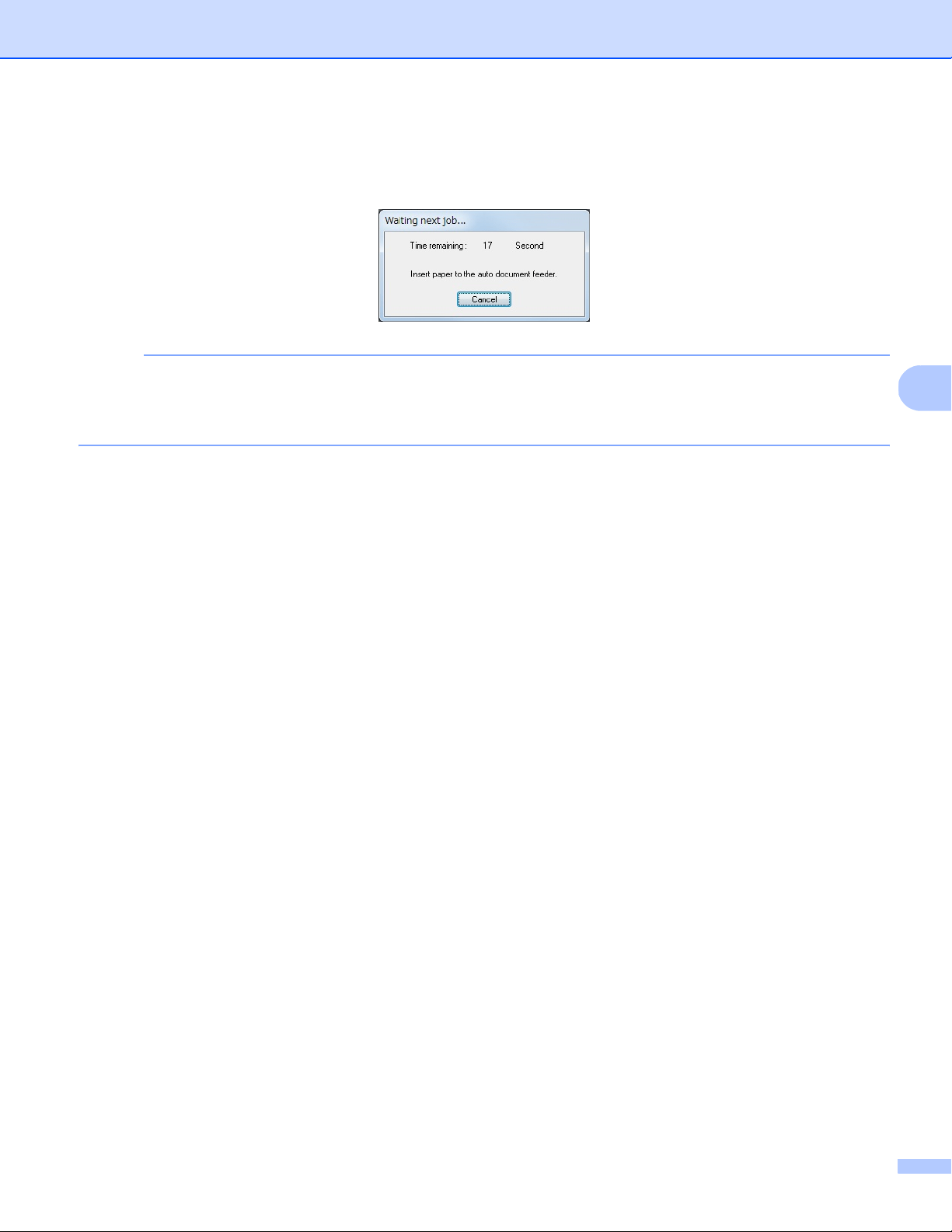

h For continuous scanning, insert the next document into the scanner while Waiting next job... screen

appears. When the document is inserted, scanning will start automatically.

To stop the continuous scanning, click Cancel on Waiting next job... screen.

NOTE

• To change the time delay when waiting for the next job, see Paper settings on page 29.

• To save multiple documents as one file, choose Multi-page PDF or Multi-page TIFF from the File Format

drop-down list.

Scan Using Your Computer

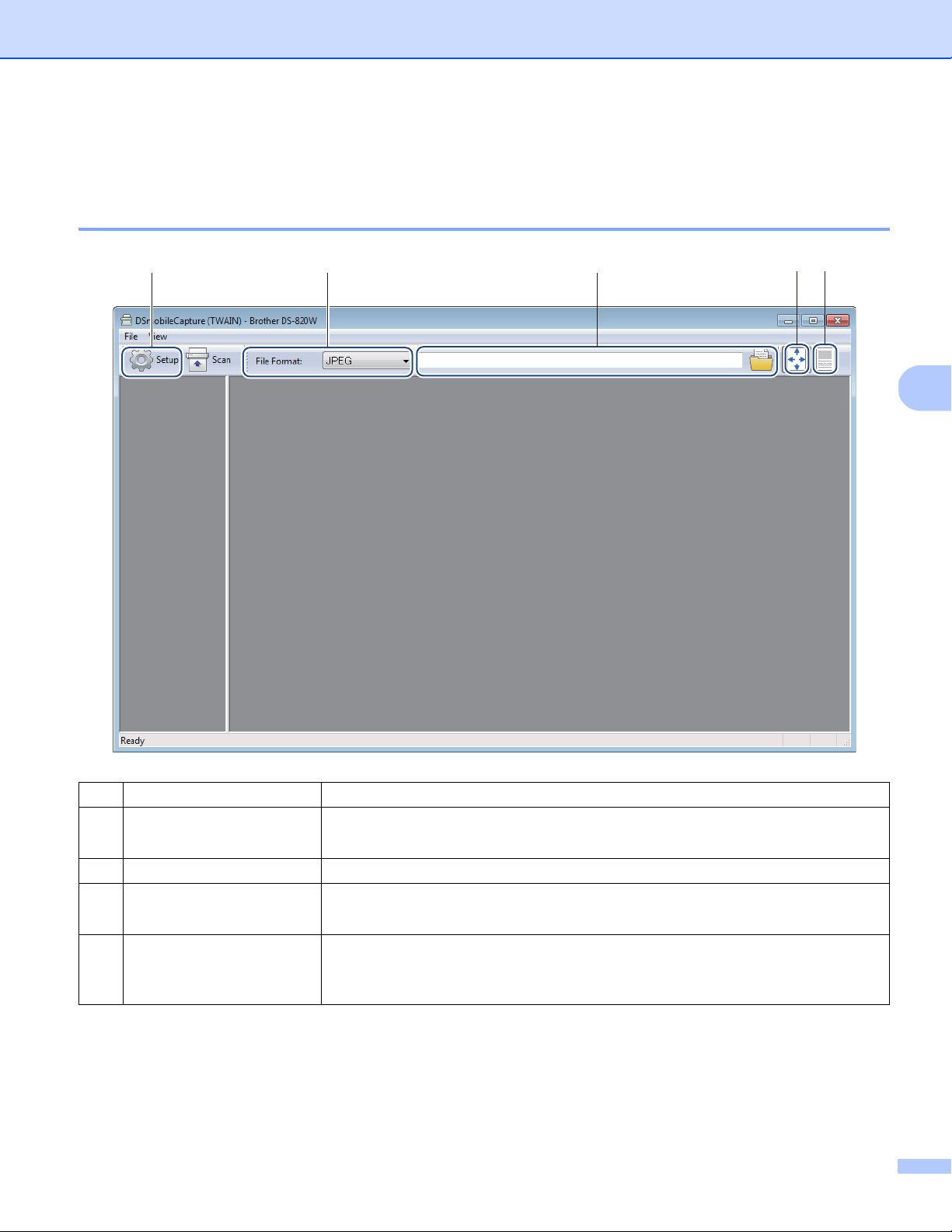

Changing DSmobileCapture scan settings (for Windows

)

File settings

(1) Setup Change scanner properties.

(2) File Format Change the file format.

Select the format you want from the drop-down list.

(3) Path Specify the directory where you want to save scanned images.

(4) Fit Page You can view and size the scanned image.

You cannot use Fit Page when PDF or Multi-page PDF is chosen in File Format.

(5) Actual Size (100%) You can view the scanned image in Actual Size (100%).

You cannot use Actual Size (100%) when PDF or Multi-page PDF is chosen in

File Format.

(2)(1) (3) (4) (5)

Scan Using Your Computer

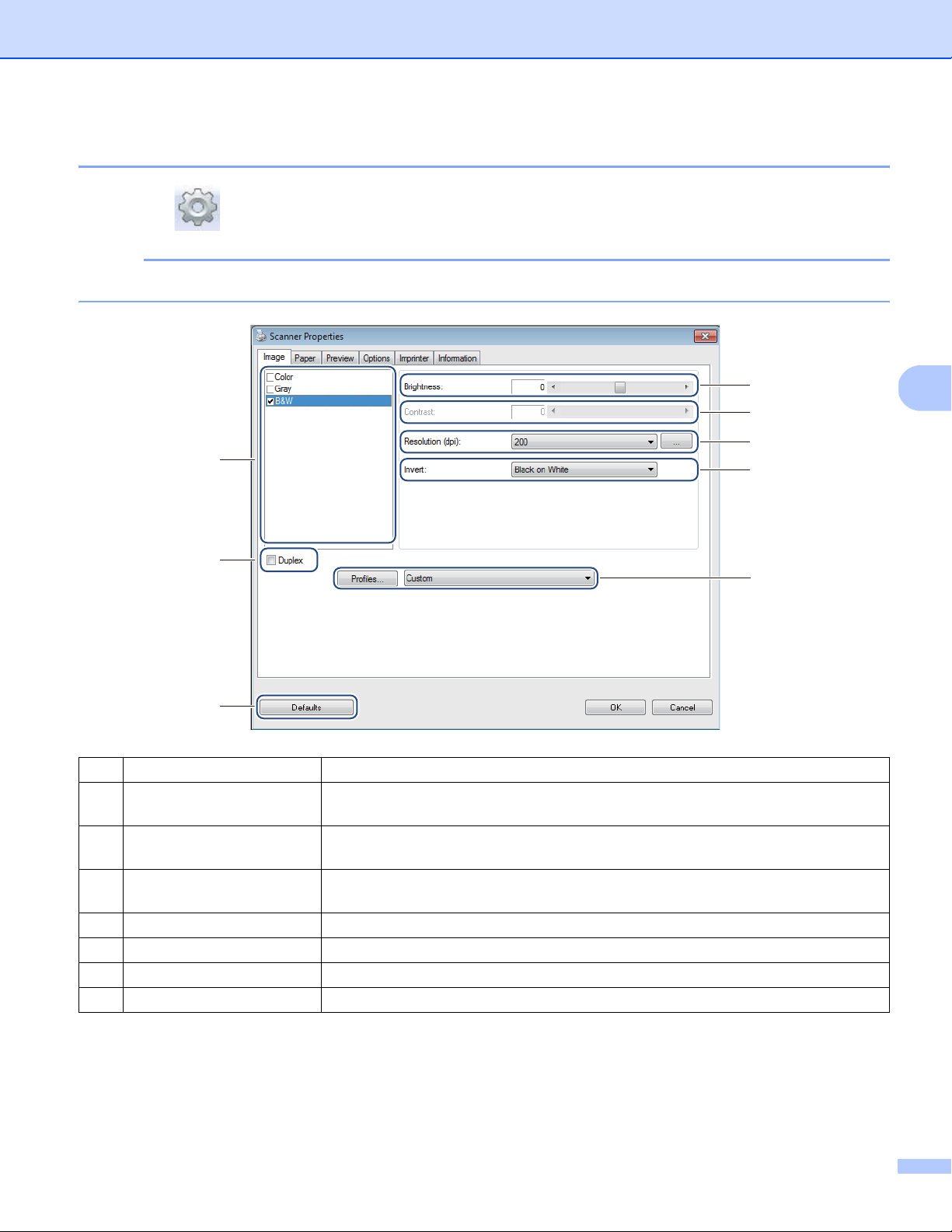

Image settings

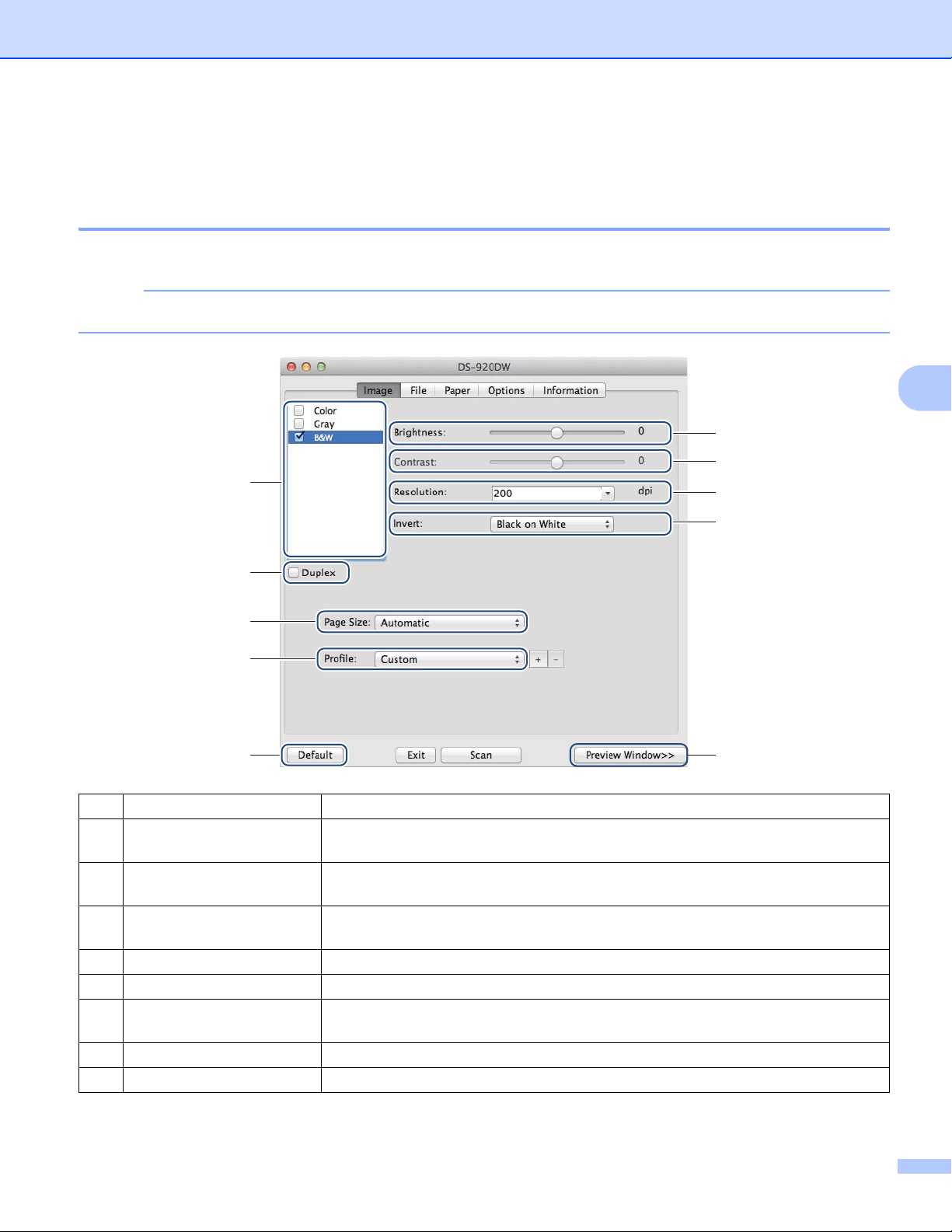

Click Setup , and then click the Image tab to choose image type and to set basic scan settings.

NOTE

This image is from the DS-920DW.

(1) Image Selection Box Choose the type of document you want to scan.

(2) Duplex (DS-920DW only) Select the Duplex check box to perform Duplex (2 side) scan-

ning.

(3) Brightness Adjusts the lightness or darkness of an image. The range is from -100 to +100. The

factory default is 0.

(4) Contrast Adjusts the range between the darkest and the lightest shades in the image. The

range is from -100 to +100. The factory default is 0.

(5) Resolution Determine the quality of the scanned image. The factory default is 200 dpi.

(6) Invert Reverse the brightness and the colors in the image.

(7) Profiles Save or change the scanning setting in the dialog box of Scanner Properties.

(8) Defaults Reset values in this and all other Properties tabs to the original factory settings.

(1)

(6)

(3)

(4)

(5)

(8)

(2)

(7)

Scan Using Your Computer

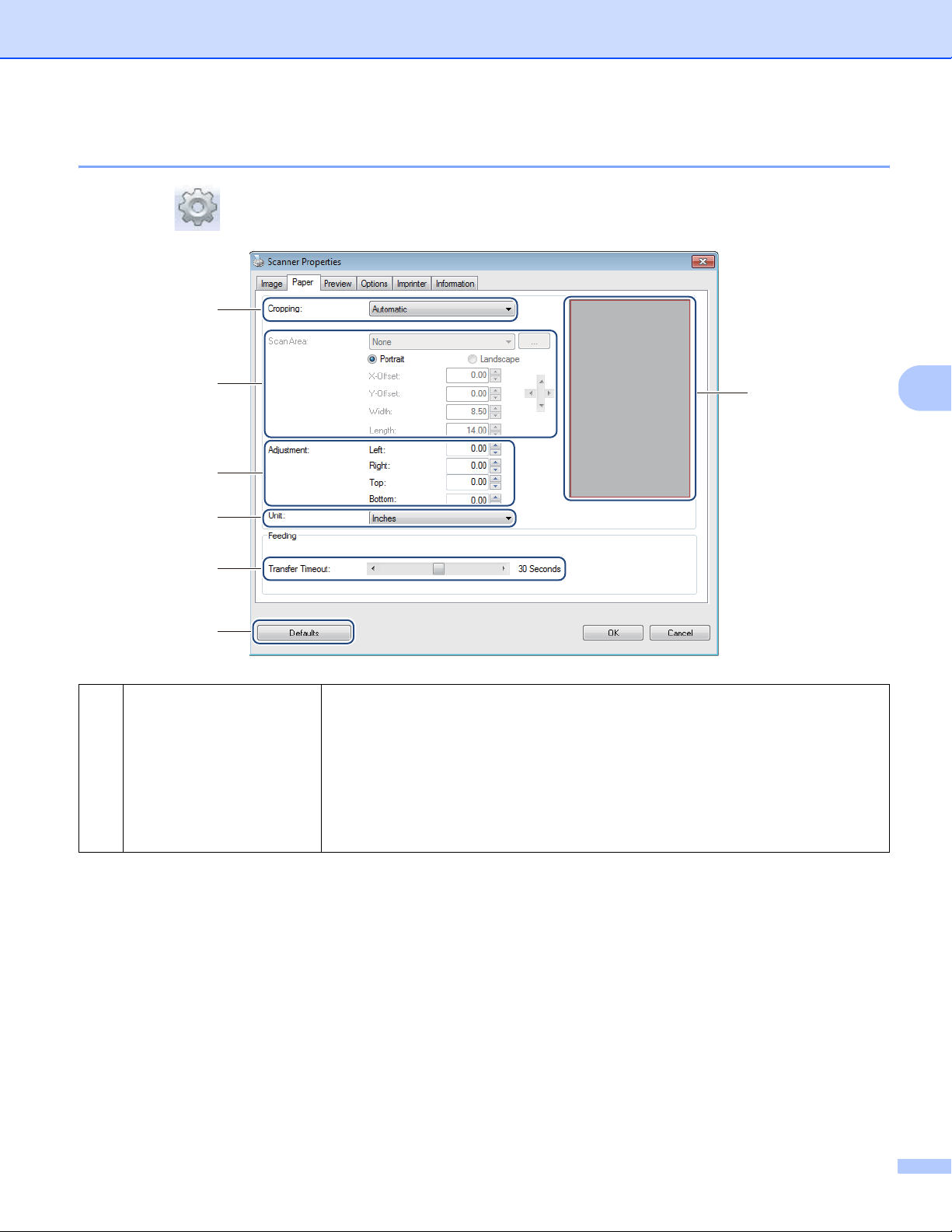

Paper settings

Click Setup , and then click the Paper tab to define values related to image output.

(1) Cropping Cropping allows you to capture a portion of the scanned document.

 Automatic

Choose Automatic to allow the software to adjust the cropping window according

to the document size. Use this option for batches of mixed-sized documents.

 Fix for Transfer

Choose Fix for Transfer if you want the ability to define the area or zone to be

imaged. Use for batches of same-sized documents.

(1)

(2)

(3)

(5)

(6)

(7)

(4)

Scan Using Your Computer

(2) Scan Area Choose your paper size from the drop-down list or create a custom paper size by

clicking Add in the drop-down list.

If you selected Fix for Transfer in Cropping (1), define the X-Offset and

Y-Offset or specify Width and Length to redefine the scan area. The Display

Area (4) in this screen displays image placement as you change the values.

• X-Offset - the distance from the left edge of the document to the left edge of the

scanned area.

• Y-Offset - the distance from the top edge of the document to the top edge of the

scanned area.

• Width - the width of the scanned area.

• Length - the length of the scanned area.

• Use these arrows (or your mouse) to move the scan area; you can view

the results in the Display Area of this screen.

(3) Adjustment Adjustment allows you to add a specific margin at left, right, top and bottom of

your image. This may help to reduce possible corner clipping on any skewed im-

ages. Select a value from 0 to +5 mm. The Adjustment result will not appear in

the Display Area.

(4) Display Area Displays image placement as you change the values in Scan Area (2).

(5) Unit Unit allows you to define your preferred measurement system. Select Inches, Mil-

limeters, or Pixels from the drop-down list.

(6) Transfer Timeout Transfer Timeout allows you to set the amount of time (in seconds) the scanner

will wait before starting automatic scan after the first scan job is completed. When

you have many separate documents that need to be scanned with the same scan

settings, this feature is especially useful. The default time is 30 seconds.

The value ranges from 0 to 60 seconds.

(7) Defaults Reset values in this and all other Properties tabs to the original factory settings.

Scan Using Your Computer

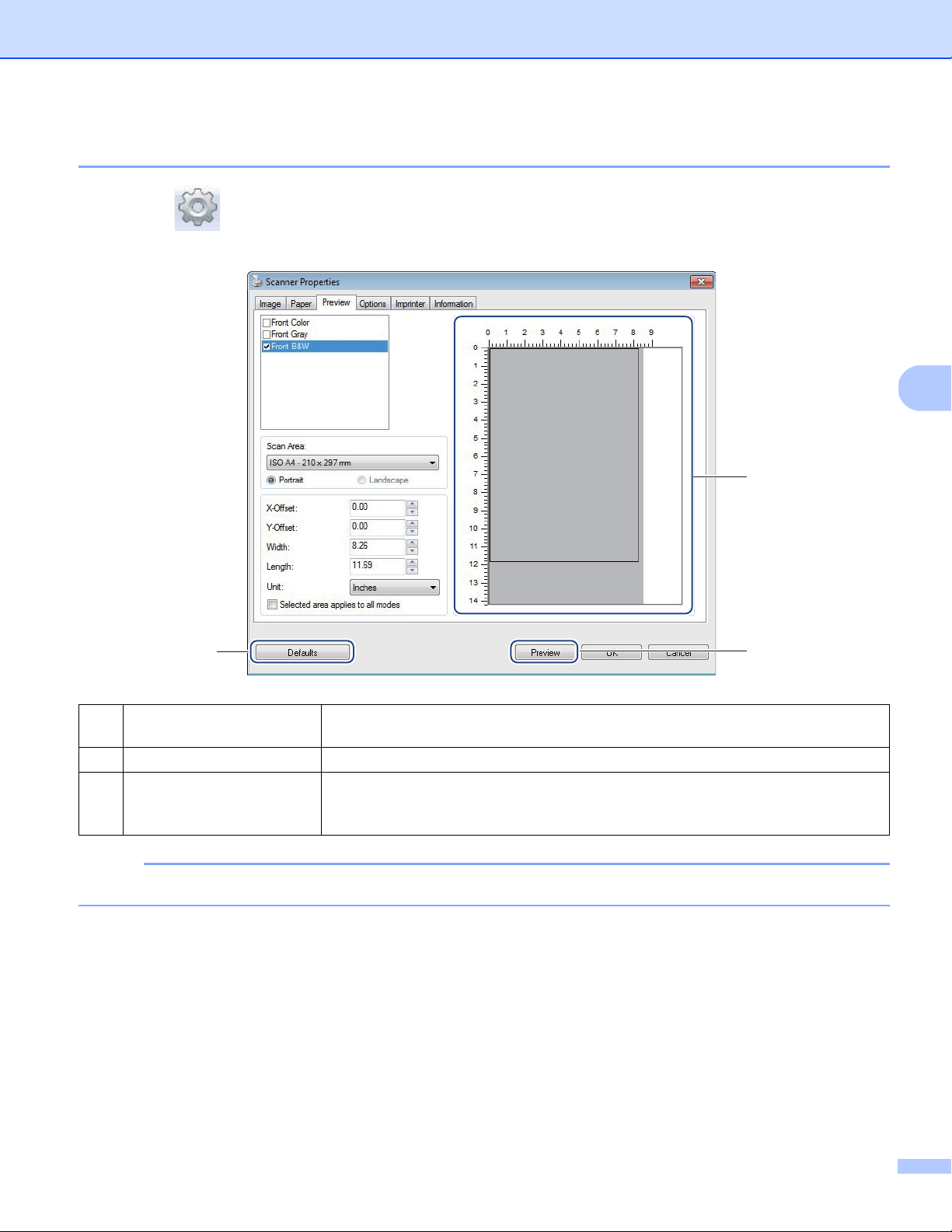

Preview settings

Click Setup , and then click the Preview tab to preview your image before the final scan so that you

can set your scan area correctly.

NOTE

If you chose Automatic cropping, in the Paper tab screen, you cannot preview your scan on this screen.

(1) Preview Window When you click Preview (3), the scanned image will appear in this area. This pre-

view image lets you define your scan area.

(2) Defaults Reset values in this and all other Properties tabs to the original factory settings.

(3) Preview Click to start the preview scan. The scanned image will appear in the Preview

Window (1). Note that the scanned image is only for the preview and will not be

saved.

(3)

(1)

(2)

Scan Using Your Computer

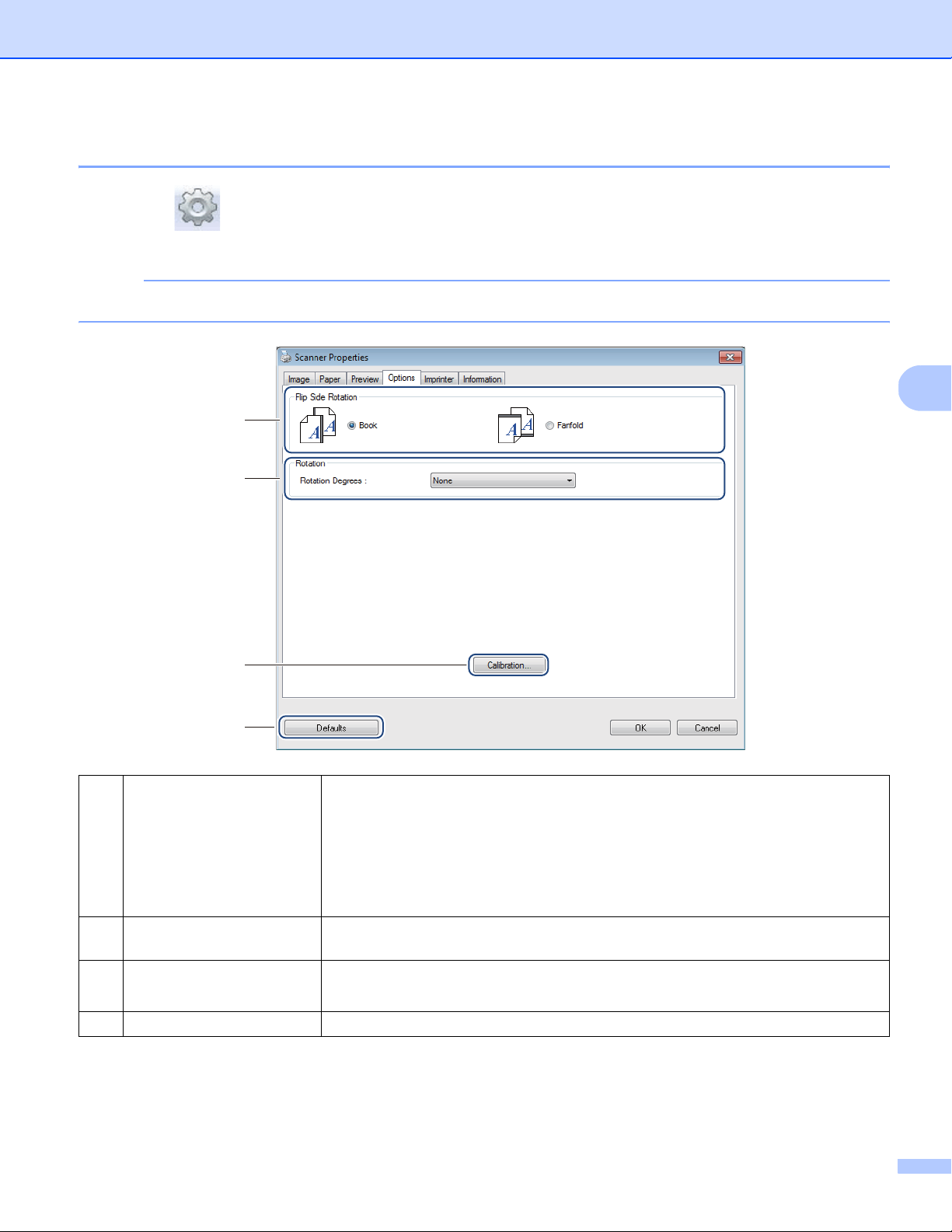

Options settings

Click Setup , and then click the Options tab to set additional image processing settings or calibrate

your scanner.

NOTE

This image is from the DS-920DW.

(1) Flip Side Rotation

(DS-920DW only)

 Book

Select Book to maintain the same image orientation on the reverse side of the out-

put page.

 Fanfold

Select Fanfold to rotate the image orientation 180 degrees on the reverse side of

the output page.

(2) Rotation Choose the rotation angle from the drop-down list if you want to rotate your

scanned image.

(3) Calibration Calibrate the scanner.

For more information, see Calibration using software (for Windows

) on page 59.

(4) Defaults Reset values in this and all other Properties tabs to the original factory settings.

(2)

(3)

(4)

(1)

Scan Using Your Computer

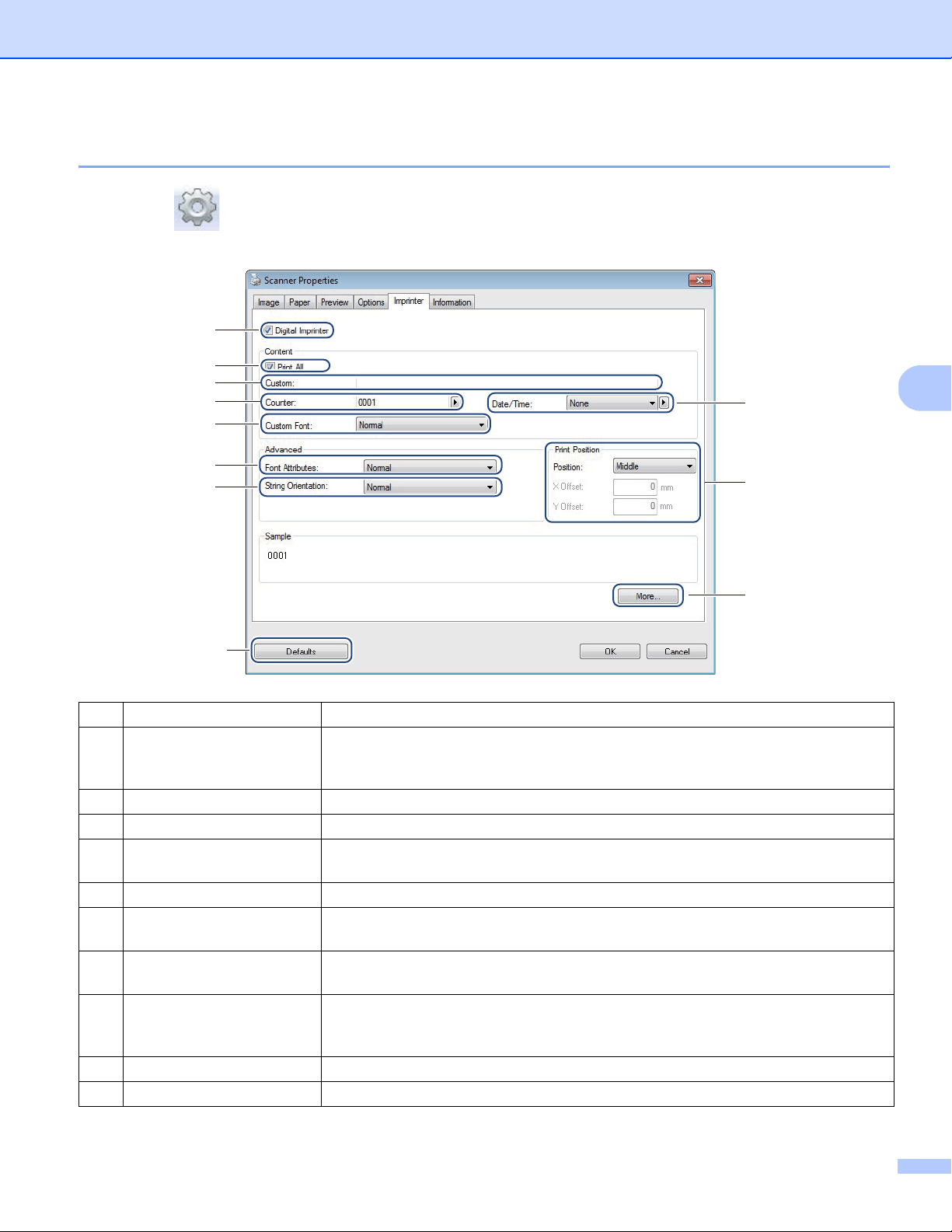

Imprinter settings

Click Setup , and then click the Imprinter tab to print alphanumeric characters, date, time, document

count and custom text on your scanned images.

(1) Digital Imprinter Select Digital Imprinter to print the message on the front of your scanned image.

(2) Print All Select the Print All check box to print your print string (message) on all pages of

your document. Clear the Print All check box to print the print string on the first

page only.

(3) Custom Type the text you want to print.

(4) Counter Displays the page count for the scan session.

(5) Date / Time Select a format from the drop-down list if you want to include the date and time in

your print string.

(6) Custom Font Click the drop-down list to select a font for your print string.

(7) Font Attributes Select a font attribute from the drop-down list. Options include Normal, Underline,

Double, or Bold.

(8) String Orientation Select a print string orientation from the drop-down list. Options include Normal,

Rotated, Vertical, Vertical Inversion, 90 Degrees CW or 90 Degrees CCW.

(9) Print Position Select the position of your print string from the drop-down list. Options include Top,

Middle, Bottom, or Custom. If you choose Custom, enter the X Offset and Y Off-

set values to specify the position.

(10) More Click More... to set Size, Density and Transparency for your print string.

(11) Defaults Reset values in this and all other Properties tabs to the original factory settings.

(2)

(3)

(1)

(4)

(5)

(6)

(11)

(7)

(8)

(9)

(10)

Scan Using Your Computer

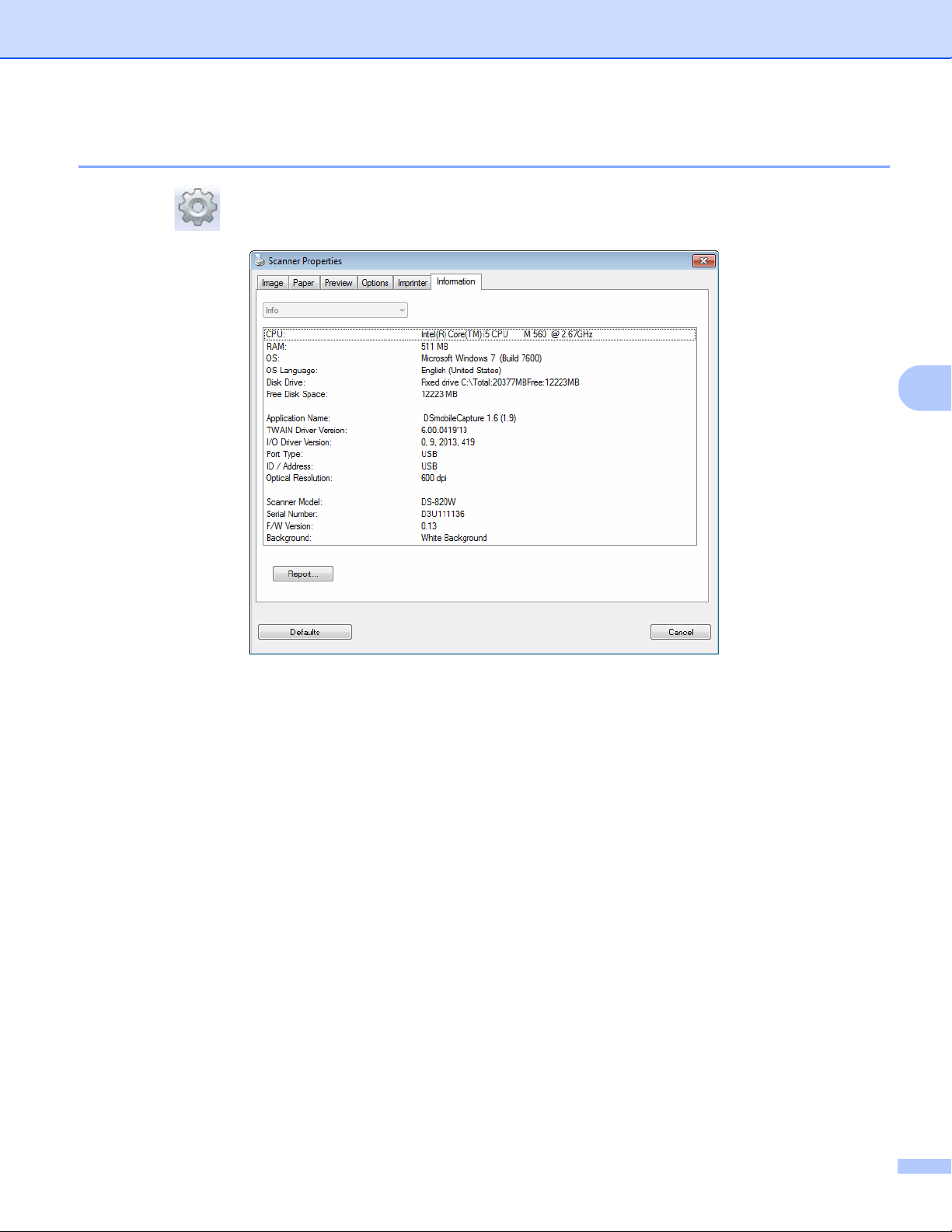

Information

Click Setup , and then click the Information tab to view system and scanner information.

Scan Using Your Computer

Using DSmobileCapture (for Macintosh)

a Connect the supplied Micro USB Cable to the Micro USB port on your scanner. Connect the cable to

your computer.

b Double-click the DSmobileCapture shortcut on your desktop.

c DSmobileCapture launches.

d Change the scanning settings, if needed.

For more information on changing settings, see Changing DSmobileCapture scan settings (for

Macintosh) on page 36.

e Insert a document into your scanner.

f Click Scan in the DSmobileCapture screen or press the scanner’s Start / OK button.

Your scanner starts scanning. The scanned image will be saved in the directory you specified in step 4.

Check the scan result just in case.

Scan Using Your Computer

Changing DSmobileCapture scan settings (for Macintosh)

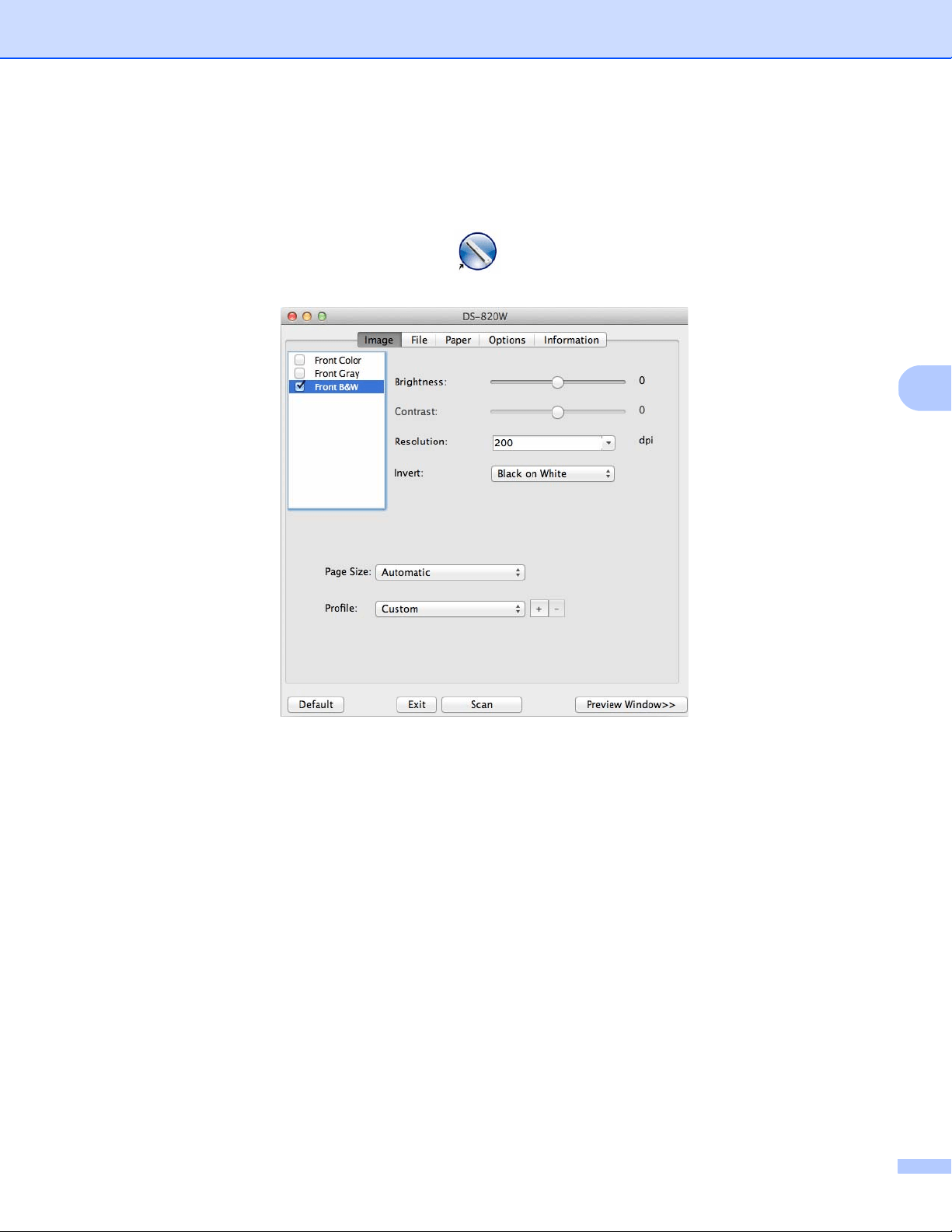

Image settings

Click the Image tab to choose image type and to set several basic scan settings.

NOTE

This image is from the DS-920DW.

(1) Image Selection Box Choose the type of document you want to scan.

(2) Duplex (DS-920DW only) Select the Duplex check box to perform Duplex (2 side) scan-

ning.

(3) Brightness Adjusts the lightness or darkness of an image. The range is from -100 to +100. The

factory default is 0.

(4) Contrast Adjusts the range between the darkest and the lightest shades in the image. The

range is from -100 to +100. The factory default is 0.

(5) Resolution Determine the quality of the scanned image. The factory default is 200 dpi.

(6) Invert Reverse the brightness and the colors in the image.

(7) Page Size Page Size allows you to capture a portion of the scanned document. Choose your

paper size from the Page Size pop-up list.

(8) Profiles Save or change the scanning setting in the dialog box of Scanner Properties.

(9) Default Reset values in this and all other Properties tabs to the original factory settings.

(1)

(7)

(8)

(3)

(4)

(5)

(6)

(10)

(9)

(2)

Scan Using Your Computer

(10) Preview Window Click to preview your image before final scan. This preview image lets you define

your scan area.

When you click Preview, scanning for the preview starts and the scanned image

will appear in the Preview Window. Note that the scanned image is only for the

preview and will not be saved.

Scan Using Your Computer

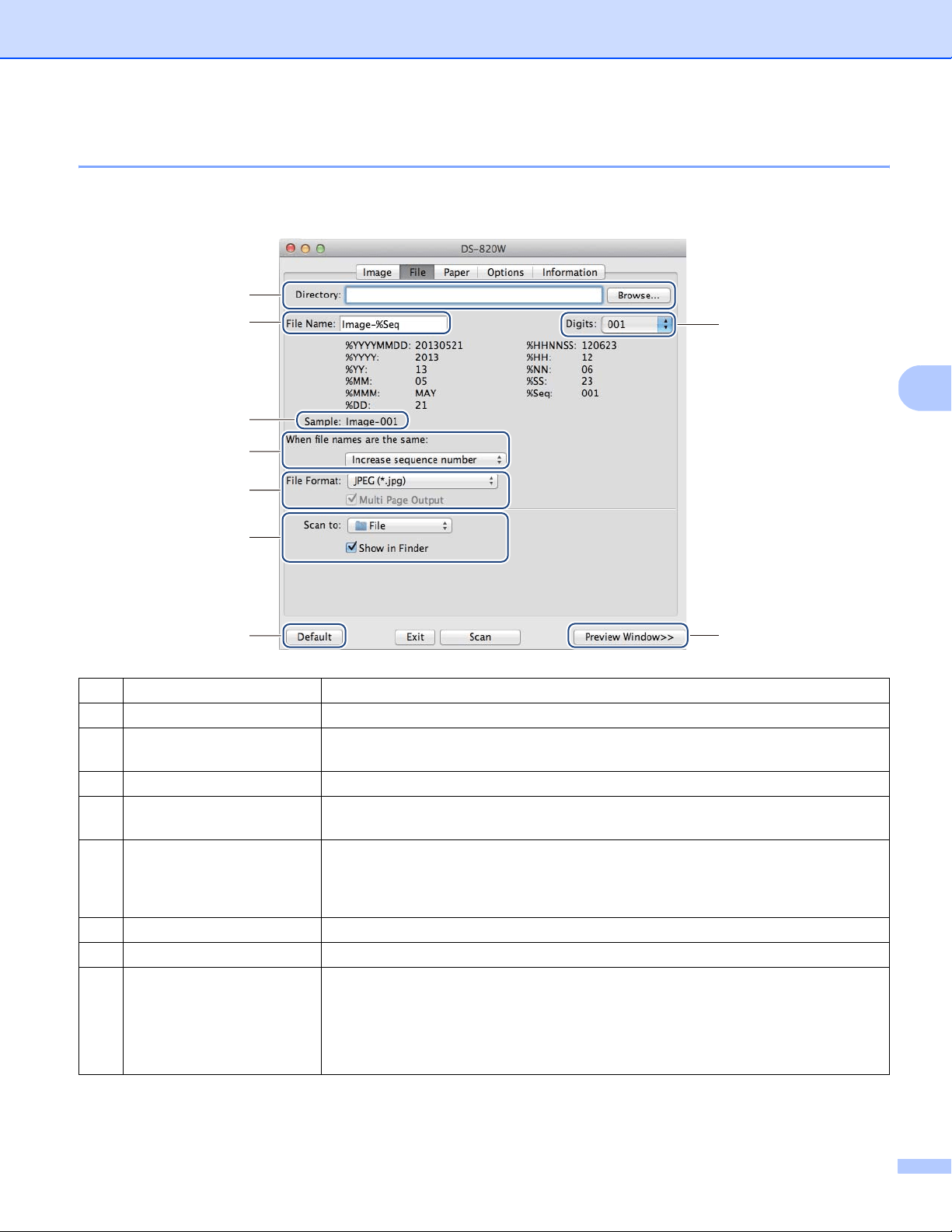

File settings

Click the File tab to configure the settings related to the file name and the directory where you want to save

the scanned image.

(1) Directory Specify the directory where you want to save scanned images.

(2) File Name Set the rule for the file name of the scanned image.

(3) Digits Determine the starting number of the sequence number that is included in the file

name.

(4) Sample Preview the file name that you set.

(5) When file names are the

same

Change the file name if the same name already exists in the directory you chose

in Directory.

(6) File Format Choose the file format for the scanned image.

When you choose TIFF or PDF, the Multi Page Output option is available.

You can continue to scan the next document after the first scan job is completed.

(7) Scan to Choose the destination to send the scanned image.

(8) Default Reset values in this and all other Properties tabs to the original factory settings.

(9) Preview Window Click to preview your image before final scan. This preview image lets you define

your scan area.

When you click Preview, scanning for the preview starts and the scanned image

will appear in the Preview Window. Note that the scanned image is only for the

preview and will not be saved.

(1)

(2)

(4)

(5)

(6)

(7)

(8)

(3)

(9)

Scan Using Your Computer

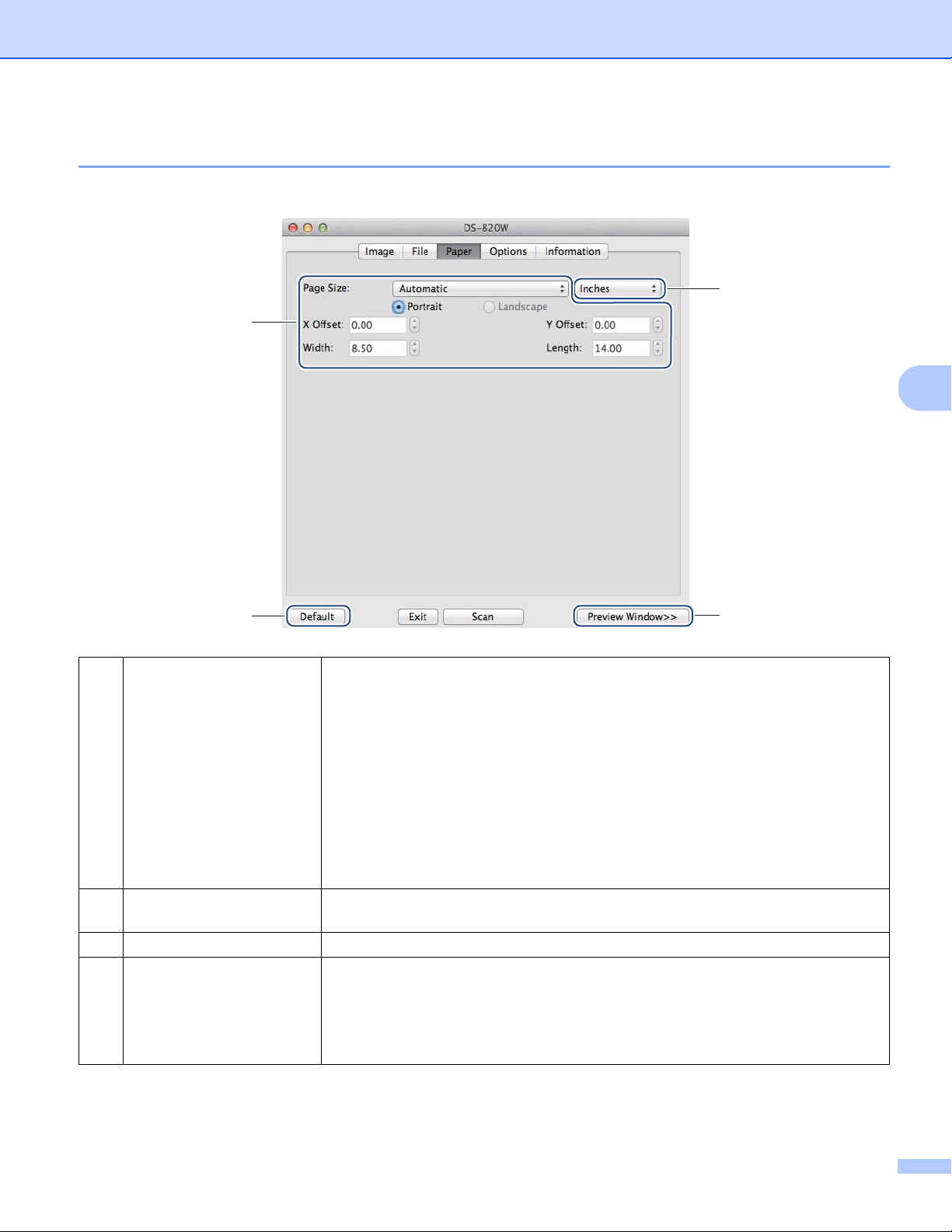

Paper settings

Click the Paper tab to define values related to image output.

(1) Page Size Page Size allows you to capture a portion of the scanned document.

Choose your paper size from the Page Size pop-up list, define the X Offset and

Y Offset values or specify Width and Length to define your scanned area. Click

Preview Window (4) to preview image placement as you change the values.

• X Offset - the distance from the left edge of the document to the left edge of the

scanned area.

• Y Offset - the distance from the top edge of the document to the top edge of the

scanned area.

• Width - the width of the scanned area.

• Length - the length of the scanned area.

(2) Unit Unit allows you to define your preferred measurement system. Select Inches, Mil-

limeters, or Pixels from the pop-up list.

(3) Default Reset values in this and all other Properties tabs to the original factory settings.

(4) Preview Window Click to preview your image before final scan. This preview image lets you define

your scan area.

When you click Preview, scanning for the preview starts and the scanned image

will appear in the Preview Window. Note that the scanned image is only for the

preview and will not be saved.

(1)

(3)

(2)

(4)

Scan Using Your Computer

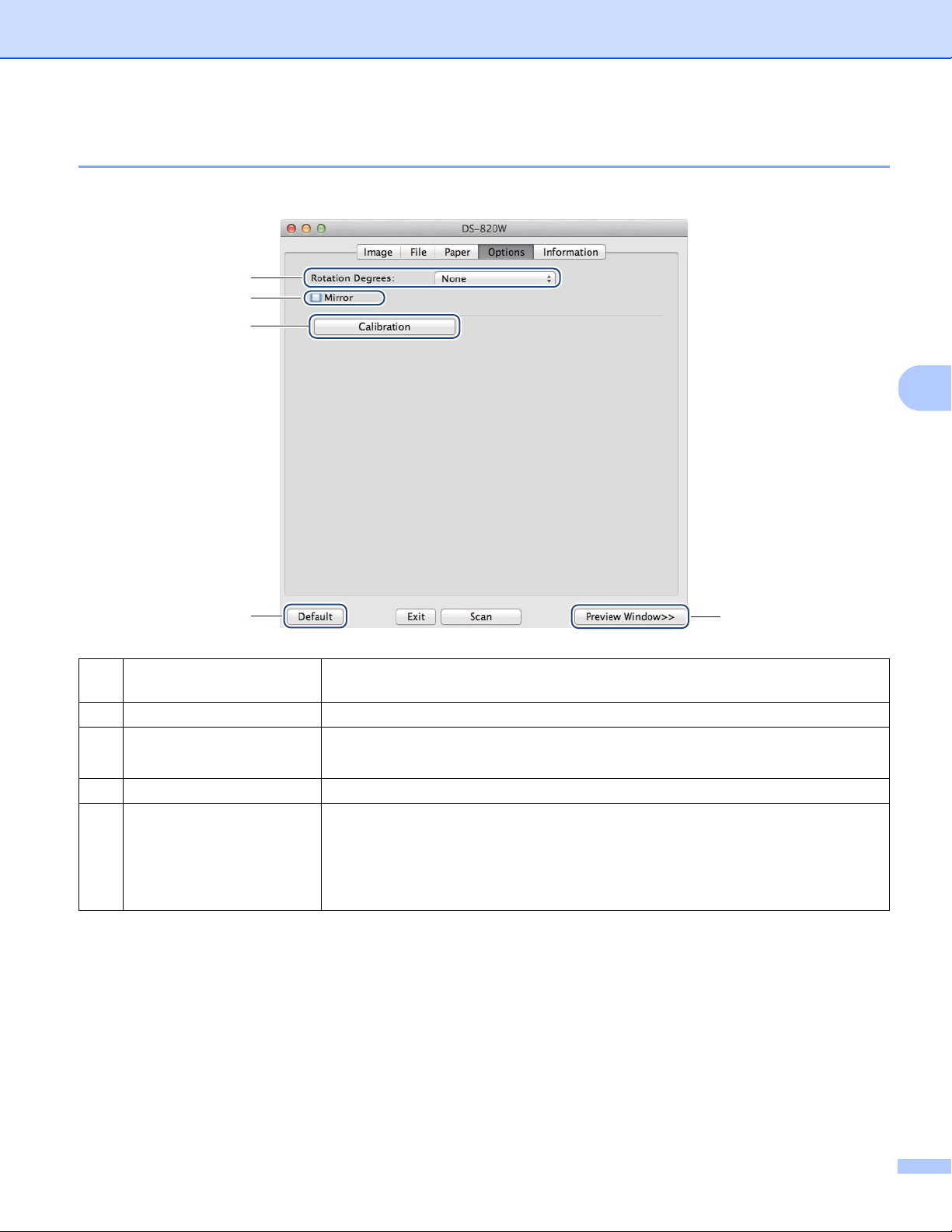

Options settings

Click the Options tab to set some additional image processing settings or calibrate your scanner.

(1) Rotation Degrees Choose the rotation angle from the pop-up list if you want to rotate your scanned

image.

(2) Mirror Select the Mirror check box to reverse your image.

(3) Calibration Calibrate the scanner.

For more information, see Calibration using software (for Macintosh) on page 62.

(4) Default Reset values in this and all other Properties tabs to the original factory settings.

(5) Preview Window Click to preview your image before final scan. This preview image lets you define

your scan area.

When you click Preview, scanning for the preview starts and the scanned image

will appear in the Preview Window. Note that the scanned image is only for the

preview and will not be saved.

(1)

(2)

(3)

(4)

(5)

Scan Using Your Computer

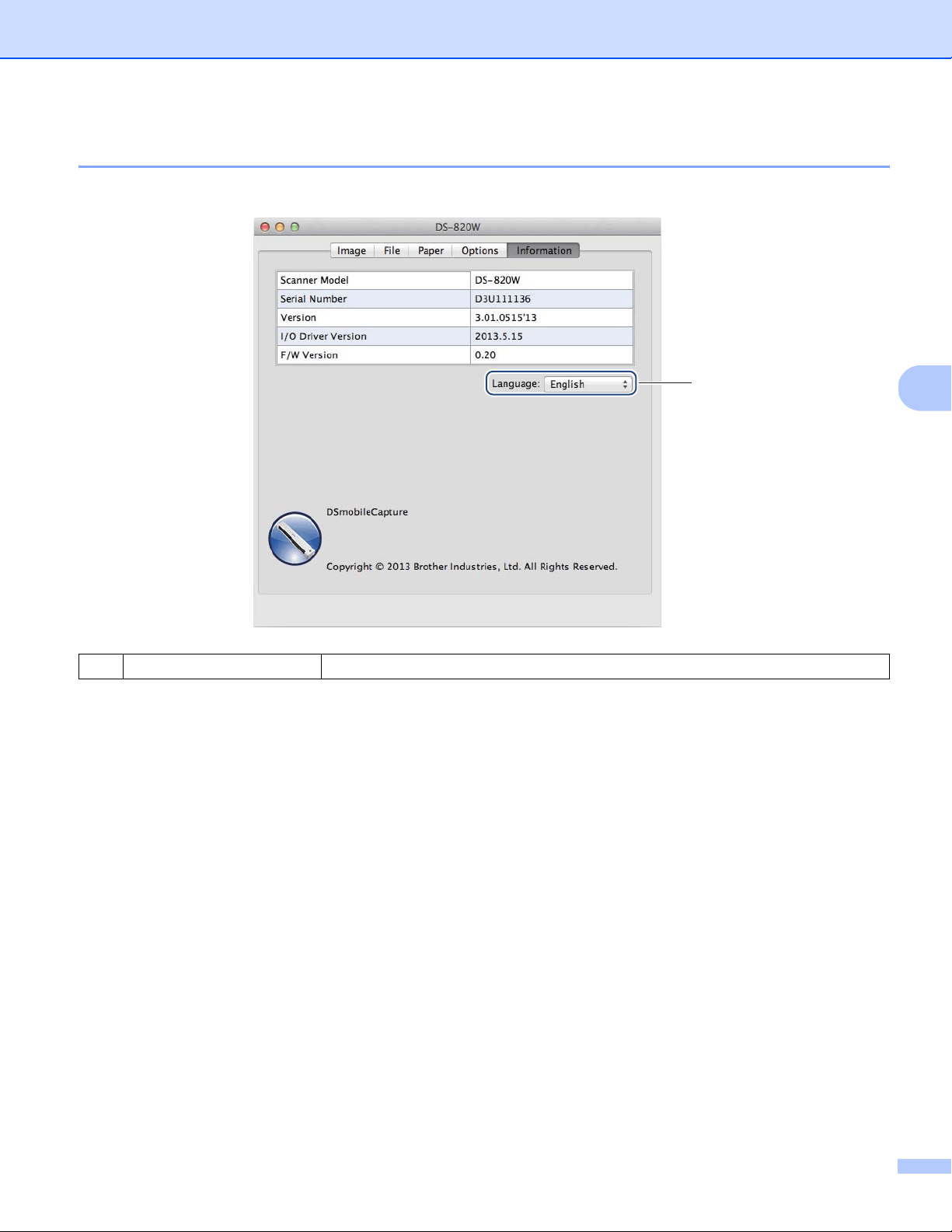

Information

Click the Information tab to view system and scanner information.

(1) Language Choose the language you want to display from the pop-up list.

(1)

Scan Using Your Computer

Using Button Manager V2 (for Windows

)

NOTE

• For more detailed instructions, see the Button Manager V2 User’s Guide from the application’s help menu.

• To see the help menu, right-click the Button Manager V2 icon on the system tray, and then click

Help.

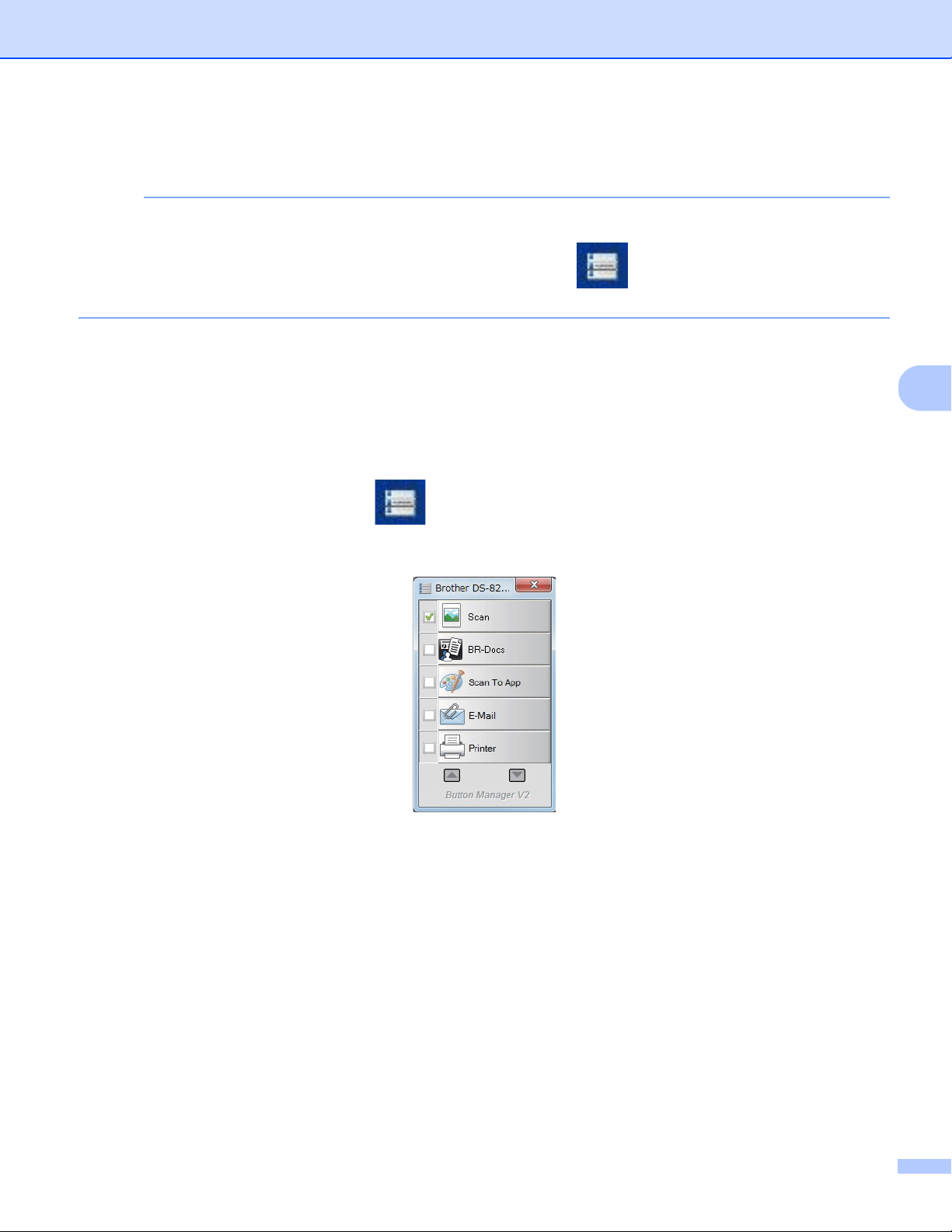

Use either one of these two methods to launch Button Manager V2 Button Panel.

To display the shortcut icon and launch Button Manager V2 Button Panel from your system

tray

a Connect the Micro USB Cable to the Micro USB port on your scanner. Connect the Micro USB Cable to

a USB port on your computer.

b Click the Button Manager V2 icon on the system tray at the bottom right corner of your computer

screen.

c Button Manager V2 Button Panel launches.

Scan Using Your Computer

To launch Button Manager V2 Button Panel from the Windows

Start button

a Click Start > All Programs > Brother DS-820W (DS-920DW) Scanner > Button Manager >

Button Manager V2.

b When the Select Scanner Model dialog box appears, select your scanner model from the list, and then

click OK.

c Button Manager V2 Button Panel launches.

Scan Using Your Computer

Scanning method

To scan using the scan button on Button Manager V2 Button Panel

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c If necessary, right-click the desired scan button in the Button Manager V2 Button Panel to change scan

settings.

For more information, see the Button Manager V2 User’s Guide.

d Click the scan button you want to use in the Button Manager V2 Button Panel to start scanning.

Scan Using Your Computer

Scan buttons in the Button Manager V2 Button Panel (for

Windows

)

Scan to an image

Use this option to open the scanned image in a specific application. Note that the application must already

be open and running on your computer.

To change scan settings, right-click the Scan button (see the Button Manager V2

User’s Guide).

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click Scan .

When scanning is complete, the scanned image will be inserted to your open and running application.

Check the scan result just in case.

NOTE

• If no application launches or the application is minimized, the scanned image will be saved in a predefined

folder (for more information about changing the folder path, see the Button Manager V2 User’s Guide).

• If two or more applications are open, the scanned image will appear in the active application.

Scan to BR-Docs

Use this option to save scanned image in BR-Docs.

To change scan settings, right-click the BR-Docs button.

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click BR-Docs to start scanning.

When scanning is complete, the scanned image will be sent directly to BR-Docs.

Check the scan result just in case.

NOTE

For more information about BR-Docs, see the Button Manager V2 User’s Guide.

Scan Using Your Computer

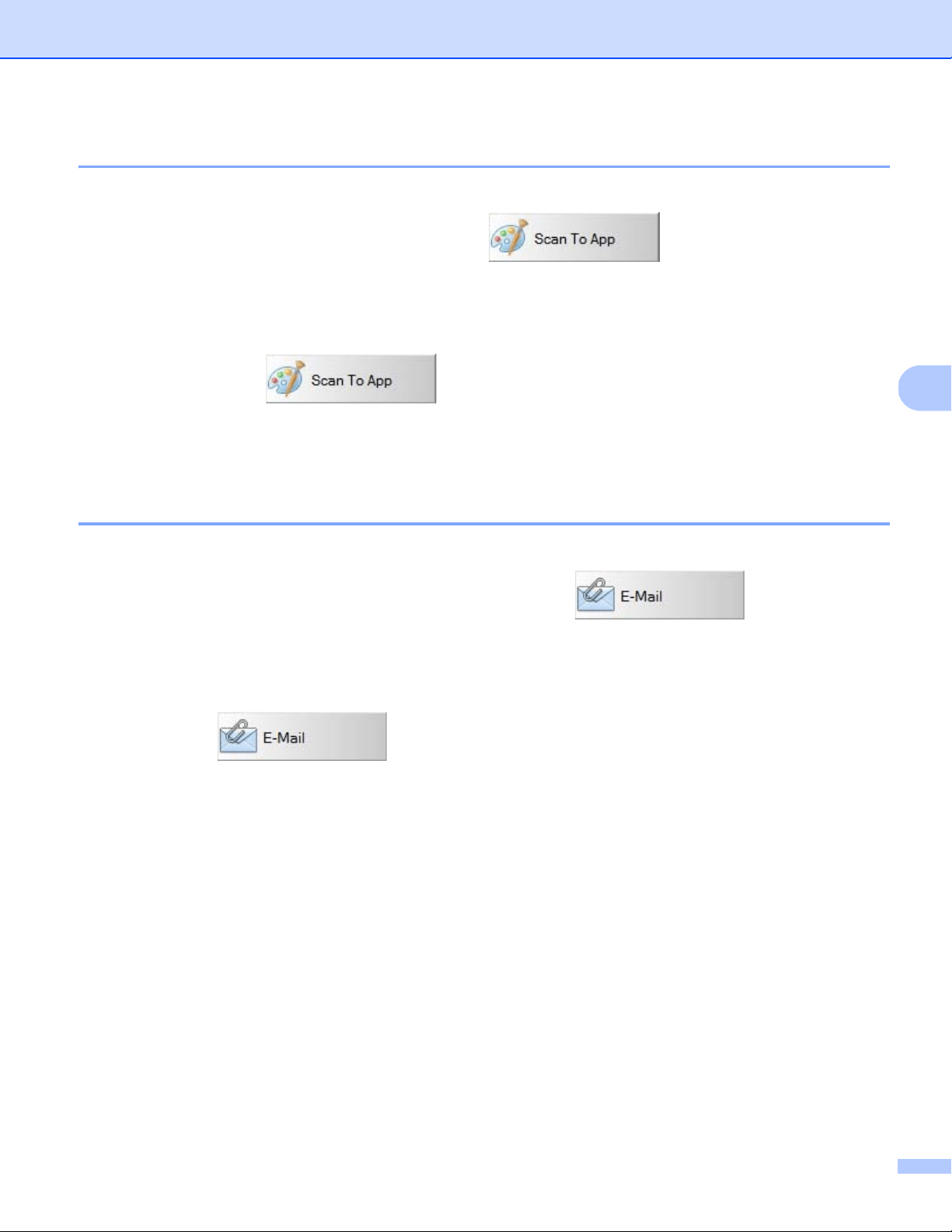

Scan to an application

Use this option to open the scanned image with a application that you choose from a list.

To change scan settings, right-click the Scan to App button.

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click Scan to App to start scanning.

When scanning is complete, the scanned image will be opened with the application you chose from the

displayed list.

Check the scan result just in case.

Scan to an email

Use this option to attach the scanned image to an email.

To change scan settings or email software, right-click the E-mail button.

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click E-mail to start scanning.

When scanning is complete, your email software launches and the scanned image will be attached to a

blank email.

Check the scan result just in case.

Scan Using Your Computer

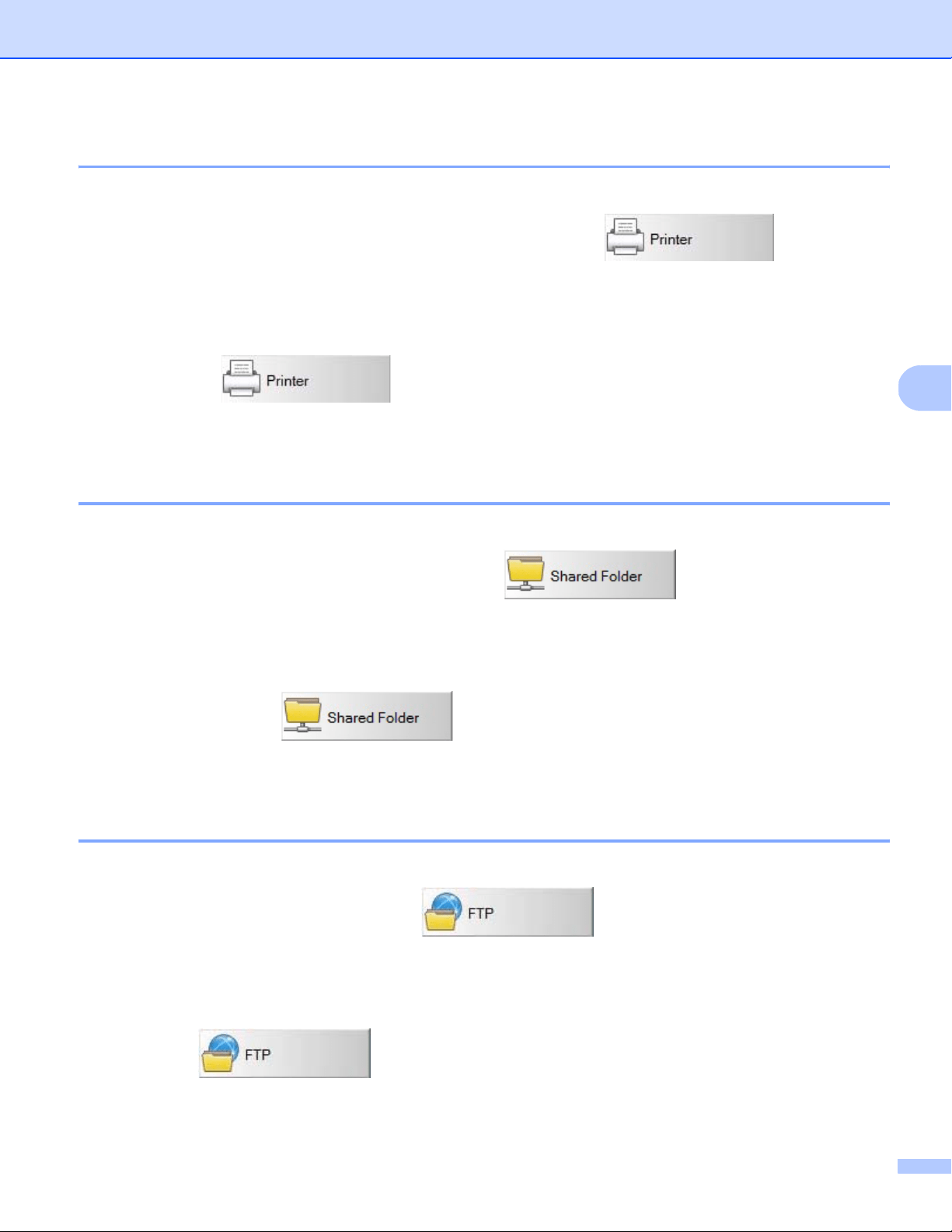

Scan to a printer

Use this option to print the scanned image from your default printer.

To change scan settings or destination printer, right-click the Printer button.

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click Printer to start scanning.

When scanning is complete, the scanned image will be printed from your default printer.

Check the scan result just in case.

Scan to shared folder

Use this option to save the scanned image in a shared folder on your network.

To change scan settings, right-click the Shared Folder button.

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click Shared Folder to start scanning.

When scanning is complete, the scanned image will be sent directly to the shared folder.

Check the scan result just in case.

Scan to a FTP server

Use this option to save the scanned image in a folder on your FTP server.

To change scan settings, right-click the FTP button.

a Insert a document into your scanner.

b Launch Button Manager V2 Button Panel.

c Click FTP to start scanning.

When scanning is complete, the scanned image will be sent directly to the folder on your FTP server.

Check the scan result just in case.

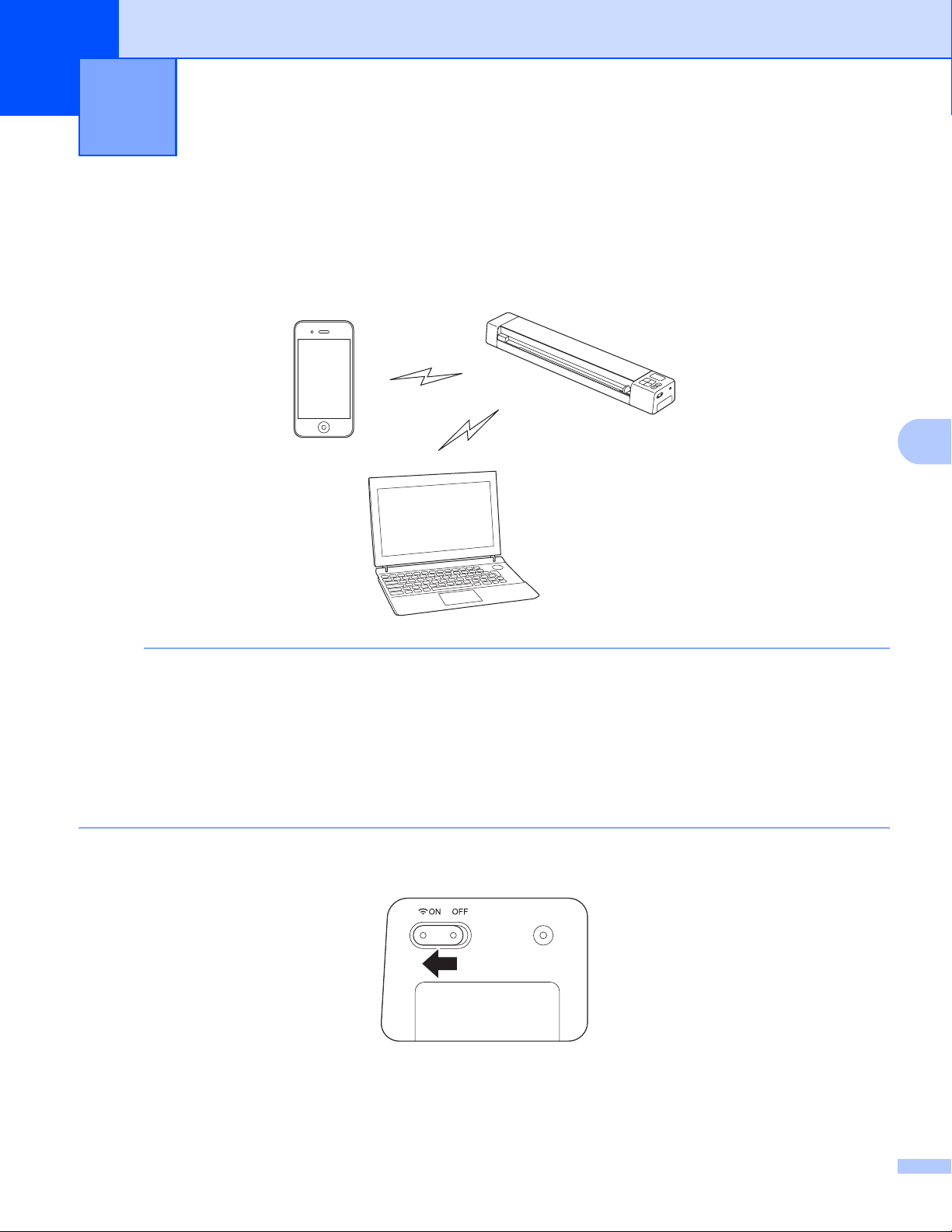

Connecting in access point (AP) mode

You can connect your wireless device (computer, smartphone, tablet, etc.) to your scanner. Your scanner

itself can be the access point without going through any access point, and your wireless device can access

the scanned images stored on the SD card directly.

NOTE

• If you have not set a Wi-Fi

network password, be sure to set up a network password in your web browser

first. For more information, see Setting a Wi-Fi

network password on page 51.

• Without a Wi-Fi

network password, data on your SD card can be viewed and stolen by a third party.

• If you forget your password, press the scanner’s RESET button to reset the password. For more

information, see Reset network settings on page 57.

• Up to three wireless devices can connect to your scanner at a time.

a Slide the Wi-Fi

switch to ON.

Wait for about 40 seconds until the Wi-Fi

indicator turns from red to blue.

b Activate the Wi-Fi

function of your wireless device (computer, smartphone, tablet, etc.) to select the

scanner.

For more information, see the instructions provided with your wireless device.

Wi-Fi

Connection 6

Wi-Fi

Connection

c Select the scanner’s SSID, Brother DS-820W-xxxx (Brother DS-920DW-xxxx) (where xxxx is your

model name).

You can store scanned images with Brother Online storage services (BOL) in BR-Docs. Configure access

using your scanner’s control panel.

NOTE

• To use this function, you must first configure your BOL (Brother Online) Account in a web browser. (See

Configure network settings on page 56.) Configure Wi-Fi

Settings for Internet access in your web

browser, and then connect your scanner to the Internet via an access point (see Configure network

settings on page 56).

• When you use this function, a file that is 50 MB or more cannot be scanned.

a Slide the Wi-Fi

switch to ON.

Wait about 40 seconds until the Wi-Fi

indicator turns from red to blue.

When your scanner makes a connection to your access point the Wi-Fi

indicator starts blinking blue.

b Insert the SD card into your scanner.

c Make sure that SD appears on the LCD

d On the scanner’s control panel, press Menu.

e Press or until BRD is displayed on the LCD.

f Insert your document.

g Your scanner starts scanning automatically.

The Power LED blinks green and the SD card indicator blinks on the LCD.

h When scanning is completed, your scanner starts transferring the scanned image to BR-Docs.

The Wi-Fi

indicator blinks orange while transferring.

i When transferring is completed, the Wi-Fi

indicator turns blue.

Check the scan result just in case.

Scan to the Cloud Server Using a Wireless

Access Point (BOL Mode)

Using your web browser

You can use your wireless device’s (computer, smartphone, tablet, etc.) web browser to view the scanned

images stored on the scanner’s SD card and download the scanned images to your wireless device.

a Connect your wireless device to your scanner in AP mode.

For more information, see Connecting in access point (AP) mode on page 48.

b Launch your wireless device’s web browser.

c Type http://10.10.100.1 in the address bar.

d When you view the scanned image in the browser for the first time, the Password Setup screen

appears. Set your password, and then click Apply.

If you have already set the password, type the password to log in.

e The home screen appears in the browser.

NOTE

Images will not appear when there is no data on the SD card.

Setting a Wi-Fi

network password

If you have not set a Wi-Fi

network password, be sure to set up a network password in your web browser

first. Without a Wi-Fi

network password, data on your SD card can be viewed and stolen by a third party.

a Connect your wireless device to your scanner in AP mode.

For more information, see Connecting in access point (AP) mode on page 48.

b Launch your wireless device’s web browser.

c Type http://10.10.100.1 in the address bar.

d When you view the scanned image in the browser for the first time, the Password Setup screen

appears. Set your password, and then click Apply.

If you have already set the password, type the password to log in.

e The home screen appears in the browser.

f Click Setting > Wi-Fi Setting. Then, Wi-Fi Setting screen appears.

g Select WPA2(AES) from Encryption drop-down list.

h Type Pre-shared Key, and click Apply.

i Rebooting... screen appears, and the setting is completed.

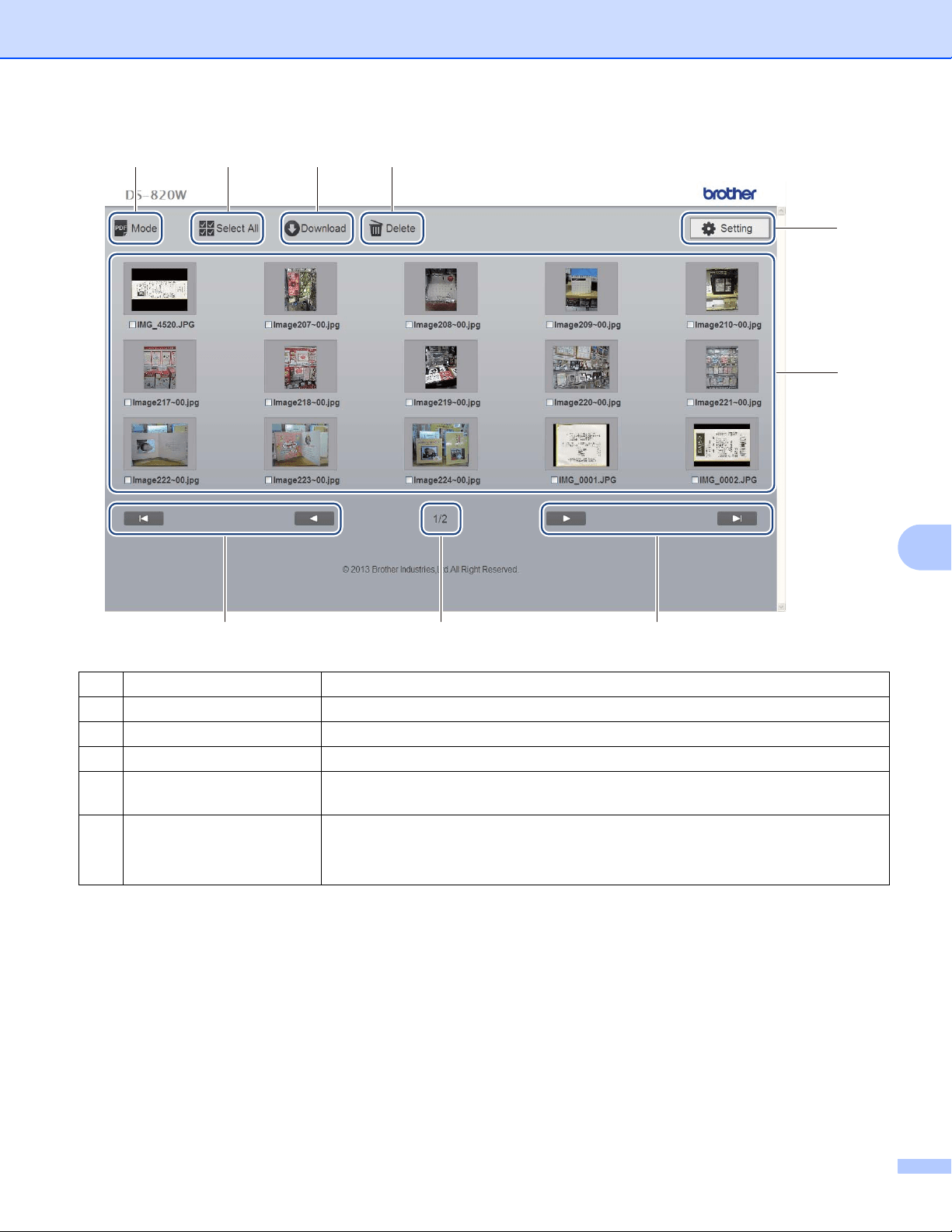

Access Scanned Images on the SD Card 8

Access Scanned Images on the SD Card

(1) Mode Click to switch the scanned image according to the file format (PDF or JPEG).

(2) Select All Click to select all check boxes.

(3) Download Click to download the file that is checked in the box.

(4) Delete Click to delete the file that is checked in the box.

(5) Setting Click to go to the settings pages. For more information, see Changing Settings Us-

ing Your Browser on page 56.

(6) Thumbnail view Displays the scanned images (up to 15 images per screen). When you double-

click the scanned image in the thumbnail view, the preview screen will appear.

The scanned images do not appear when there is no data on the SD card.

(6)

(1) (2) (3) (4)

(5)

(7)

(8) (7)

Access Scanned Images on the SD Card

(7) On-screen cursors

Click to go to the first page.

Click to go to the previous page.

Click to go to the next page.

Click to go to the last page.

(8) Page Displays the number of the current page and the total number of pages.

Access Scanned Images on the SD Card

Using the USB connection between your scanner and

computer

NOTE

You cannot view the contents of the SD card when the Wi-Fi

switch is ON or your computer is in TWAIN

mode.

(For Windows

)

a Connect the Micro USB Cable to the Micro USB port on your scanner. Connect the cable to your

computer.

b Click Start > Computer, and then double-click Removable Disk.

c Double-click DCIM.

The folders on the SD card appear.

• 100PHOTO folder

Stores the scanned images in JPEG format.

• 200DOC folder

Stores the scanned images in PDF format.

(For Macintosh)

a Connect the Micro USB Cable to the Micro USB port on your scanner. Connect the cable to your

computer.

b iPhoto launches automatically, and the scanned images on the SD card will appear.

Access Scanned Images on the SD Card

Using ScanHub™ (Android™)

You can use your Android™ device’s application to view the scanned images stored on the scanner’s SD

card and download scanned images to the Android™ device.

Install the application from Google Play to your Android™ device. To download, install, or uninstall the

Android™ application, see the instructions provided with your device.

NOTE

• If you have not set a Wi-Fi

network password, be sure to set up a network password in your web browser

first. For more information, see Setting a Wi-Fi

network password on page 51.

• Without a Wi-Fi

network password, data on your SD card can be viewed and stolen by a third party.

Using ScanHub™ (iOS)

You can use your iOS device’s application to view the scanned images stored on the scanner’s SD card and

download scanned images to the iOS device.

Install the application from the App Store to your iOS device. To download, install, or uninstall the iOS

application, see the instructions provided with your device.

NOTE

• If you have not set a Wi-Fi

network password, be sure to set up a network password in your web browser

first. For more information, see Setting a Wi-Fi

network password on page 51.

• Without a Wi-Fi

network password, data on your SD card can be viewed and stolen by a third party.

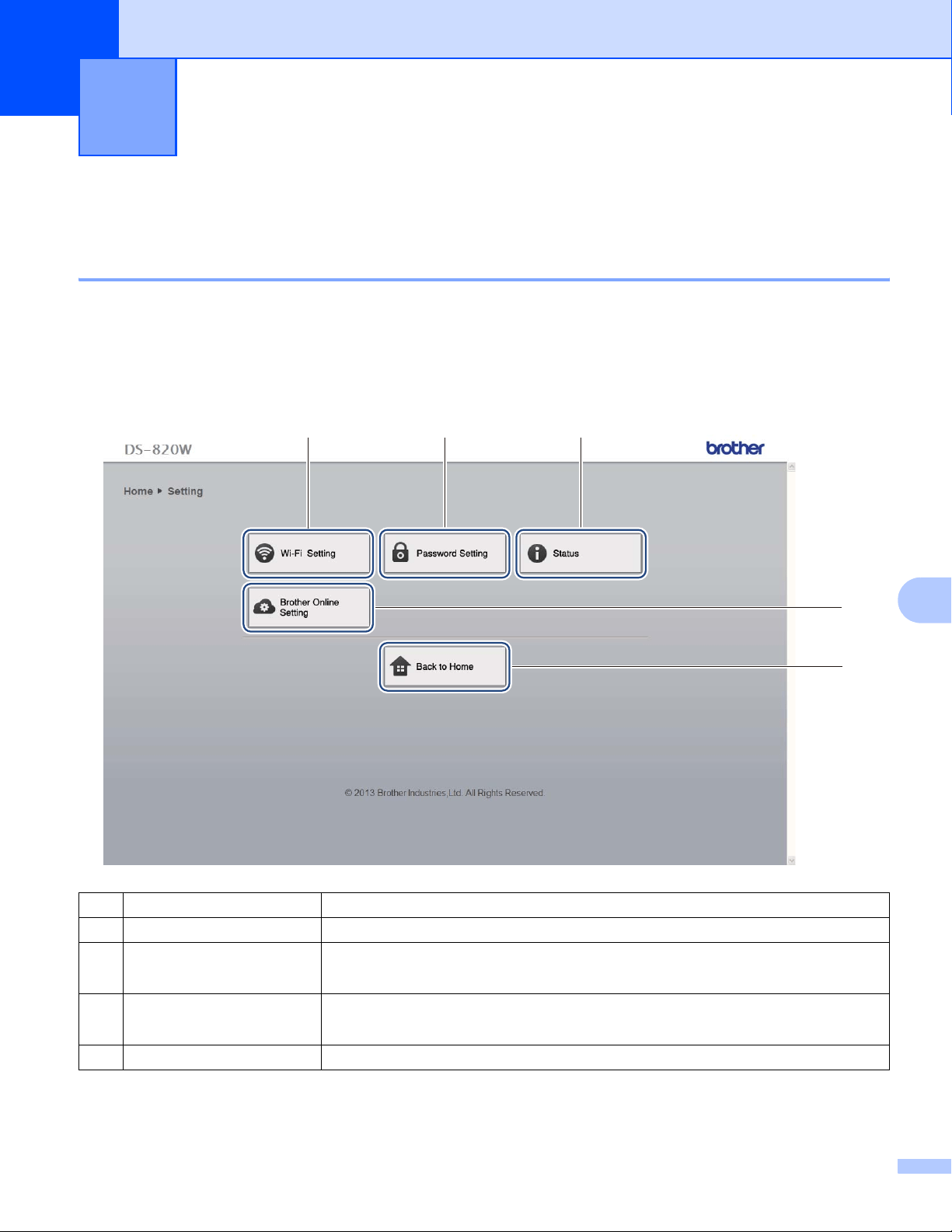

Configuring Wi-Fi

settings in access point (AP) mode

Configure network settings

You can configure network settings in your browser.

a Access the browser in AP mode.

For more information, see Connecting in access point (AP) mode on page 48.

b Click Settings.

Changing Settings Using Your Browser 9

(1) Wi-Fi Setting Set the SSID (network name) and Pre-Shared Key.

(2) Password Setting Set the password to log in.

(3) Status Check the status of the current access point.

Check the firmware version.

(4) Brother Online Setting Configure your BOL (Brother Online) Account.

Configure Wi-Fi

settings for Internet access in infrastructure mode.

(5) Back to Home Return to the Home screen.

(1) (2) (3)

(5)

(4)

Changing Settings Using Your Browser

Reset network settings

You can restore any settings you changed via Wi-Fi

connection (Wi-Fi

AP Setting and Password Setup)

to the factory settings.

a Press and hold the scanner’s reset button (1) using a pointed object, such as a needle or a fine-point

pen for 10 seconds.

NOTE

When you press the reset button, the settings controlled by the buttons on the control panel will not be

restored to the factory settings and the scanned images on the SD card will not be deleted.

(1)

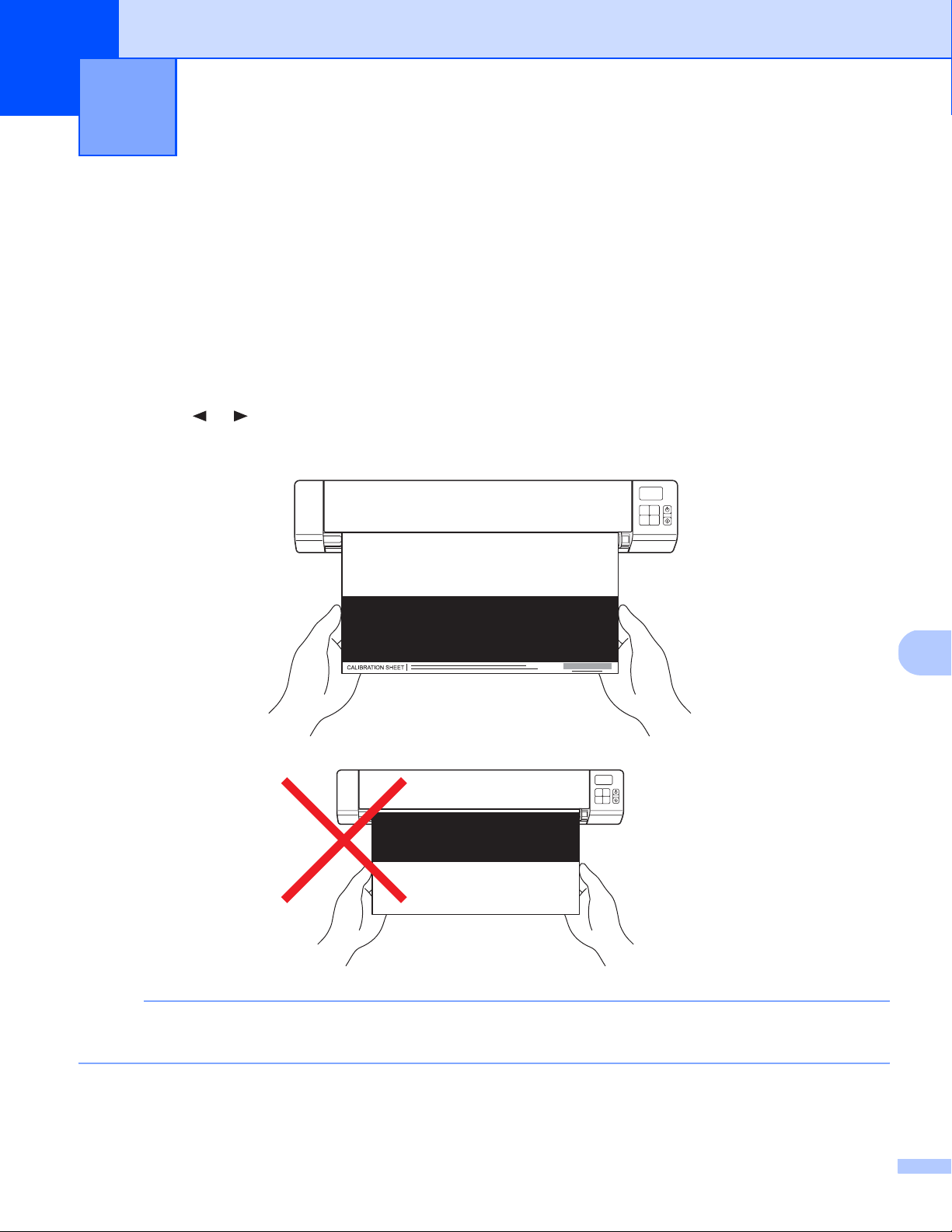

Calibrate your scanner only if the scanned images start to look fuzzy, the color looks abnormal (darker than

normal), after 8,000 scans, or if the scanner has been stored without being used for a long time.

You will need the Calibration Sheet that came with your scanner to successfully perform calibration.

Calibration using the control panel

a Turn on your scanner.

b Press the Menu button.

c Press the or button repeatedly to select CAL on the LCD.

d Hold the edges of the Calibration Sheet and insert it into the feeder slot as shown below.

NOTE

Hold only the edges of the calibration sheet and be careful not to touch the white or black area. Leaving

marks or fingerprints on this sheet can cause errors in calibration.

Scanner Calibration 10

Scanner Calibration

e Press the Start / OK button.

f The scanner starts feeding the calibration sheet. The Power button LED blinks green.

g After the calibration sheet is ejected, OK appears on the LCD and calibration is finished.

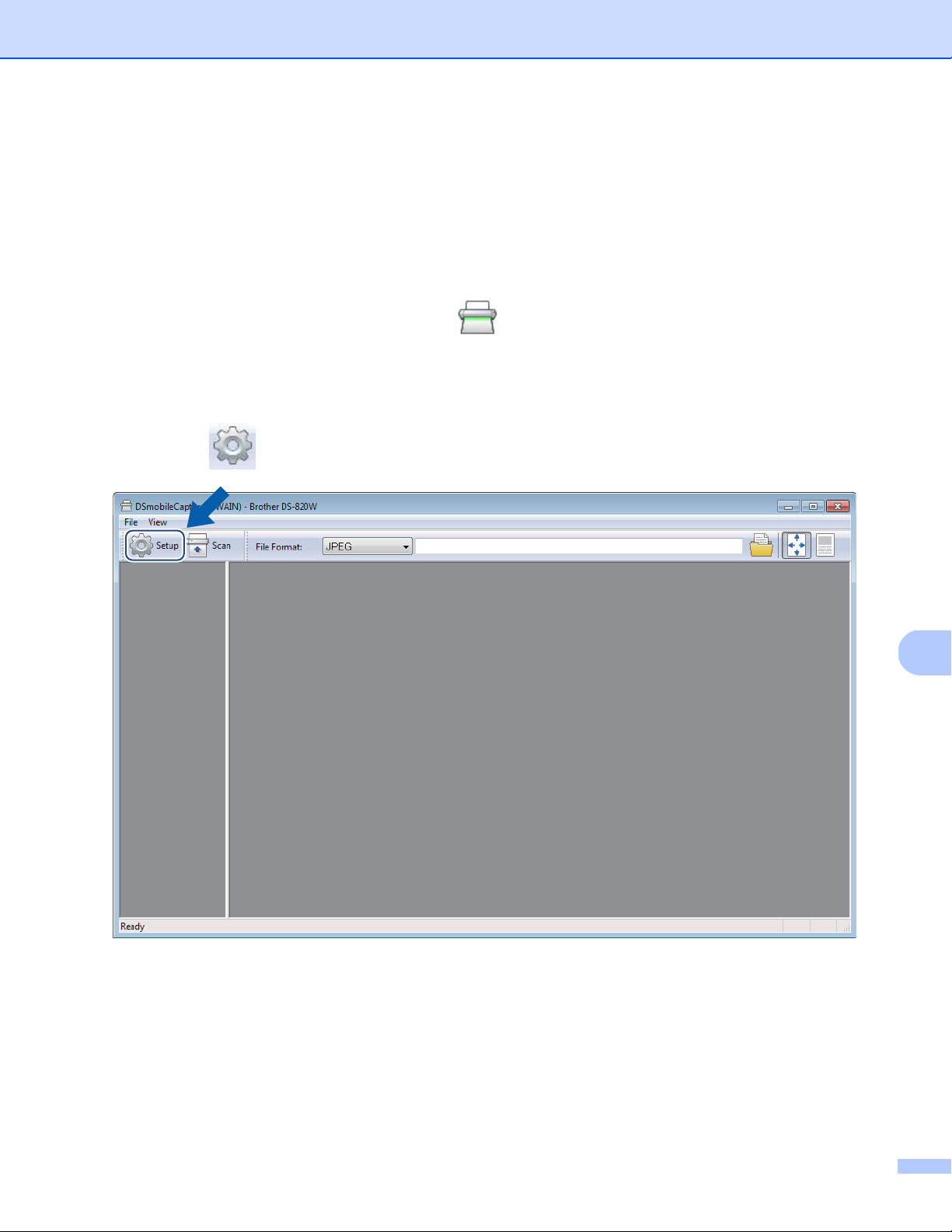

Calibration using software (for Windows

)

a Double-click the DSmobileCapture shortcut on your desktop.

b The Select Scanner Model dialog box appears. Select TWAIN under Driver Type, select Brother DS-

820W (DS-920DW) under Scanner Model, and then click OK.

c DSmobileCapture launches.

d Click Setup .

Scanner Calibration

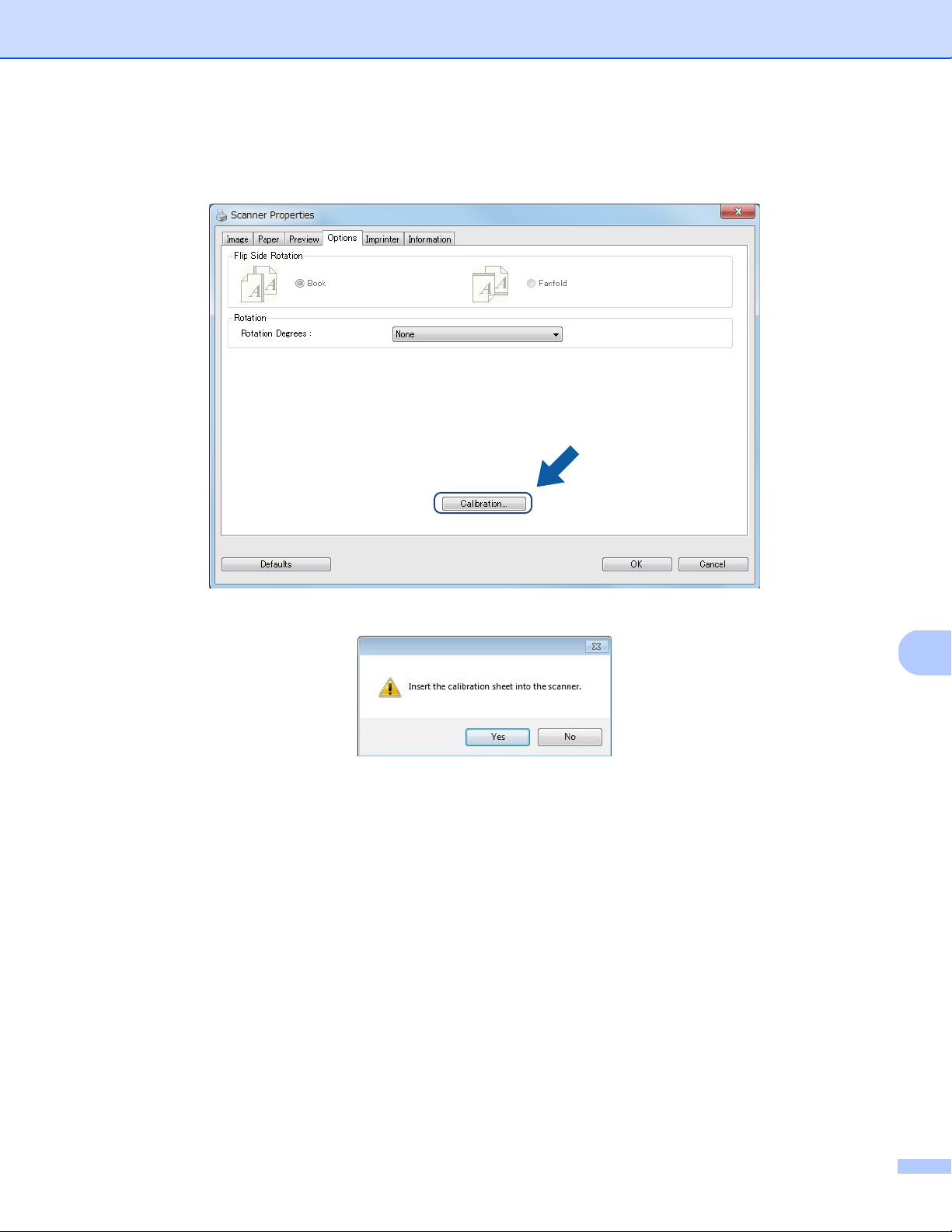

e Click the Options tab.

f Click Calibration to start calibrating the scanner.

g A message appears, prompting you to insert the Calibration Sheet.

Scanner Calibration

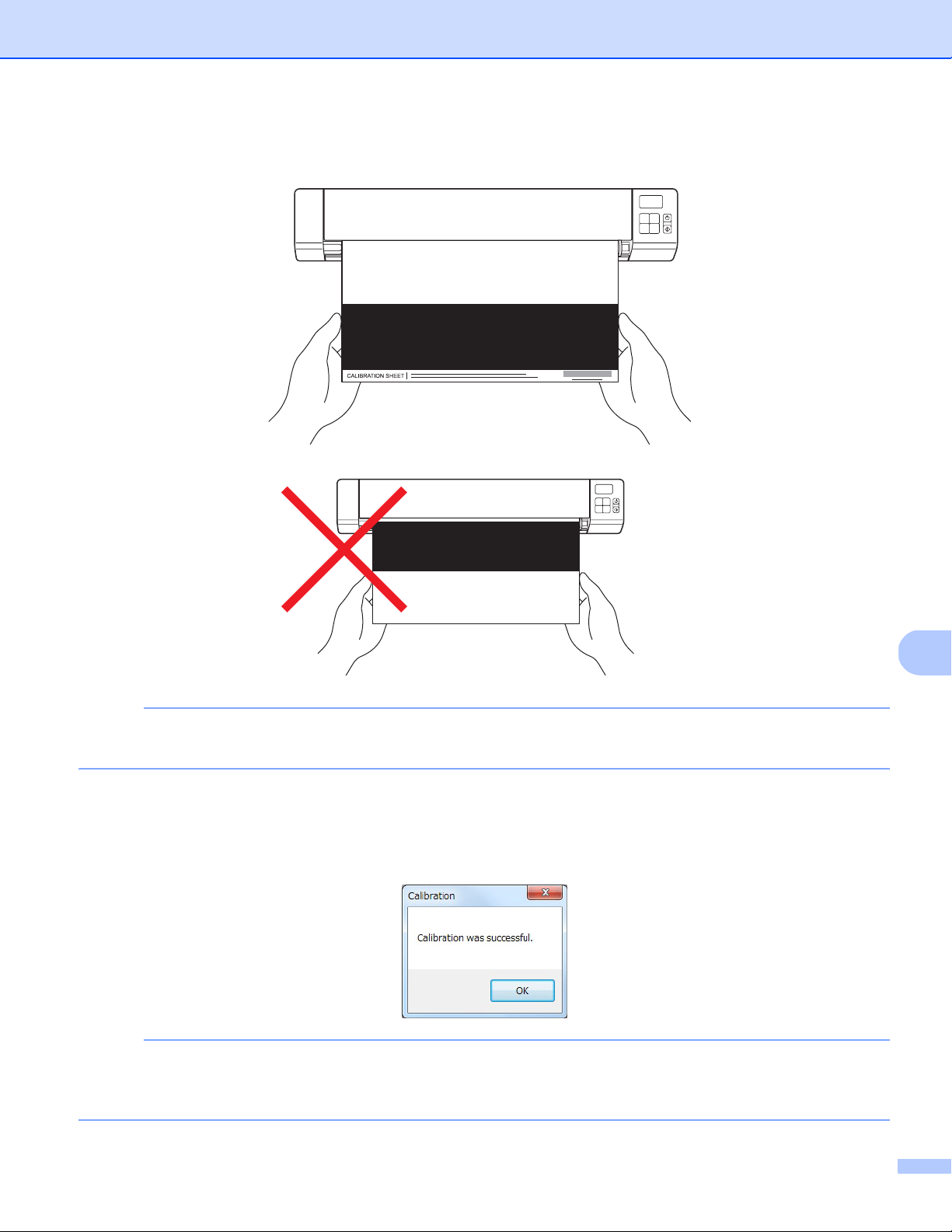

h Hold the edges of the Calibration Sheet and insert it into the feeder slot as shown below.

Click Yes.

NOTE

Hold only the edges of the Calibration Sheet and be careful not to touch the white or black area. Leaving

marks or fingerprints on this sheet can cause errors in calibration.

i Scanning starts automatically.

j After the Calibration Sheet is scanned, a Calibration was successful message appears on your

screen, indicating that calibration is finished. Click OK to end calibration, and then click OK to close the

Options screen.

NOTE

If a Calibration failed message appears on your screen, remove the Micro USB Cable from your

computer. Reconnect the Micro USB Cable to the computer and perform the calibration again. If calibration

fails again, check the scanner’s print head to ensure it is clean.

Scanner Calibration

Calibration using software (for Macintosh)

a Double-click the DSmobileCapture shortcut on your desktop.

b DSmobileCapture launches.

c Click the Options tab.

d Click Calibration to start calibrating the scanner.

e A message appears, prompting you to insert the Calibration Sheet.

Scanner Calibration

f Hold the edges of the Calibration Sheet and insert it into the feeder slot as shown below.

Click OK.

NOTE

Hold only the edges of the Calibration Sheet and be careful not to touch the white or black area. Leaving

marks or fingerprints on this sheet can cause errors in calibration.

g Scanning starts automatically.

h After the Calibration Sheet is scanned, a Calibration was successful message appears on your

screen, indicating that calibration finished successfully. Click OK to end calibration.

NOTE

If a Calibration failed message appears on your screen, remove the Micro USB Cable from your

computer. Reconnect the Micro USB Cable to the computer and perform the calibration again. If calibration

fails again, check the scanner’s print head to ensure it is clean.

IMPORTANT

Do not use any solvents or corrosive liquid, such as alcohol, kerosene, etc., to clean any part of the

scanner, or the plastic may be permanently damaged.

Cleaning the outside of your scanner

To prevent dust accumulation, we recommend cleaning the exterior of your scanner periodically.

a Remove the Micro USB Cable from both your scanner and your computer.

b Wipe the outside of the scanner with a dry, soft, lint-free cloth.

If necessary, wipe the exterior with a cloth lightly dampened with water or diluted detergent, and finish

with a dry cloth.

c Reconnect the Micro USB Cable to your scanner and your computer.

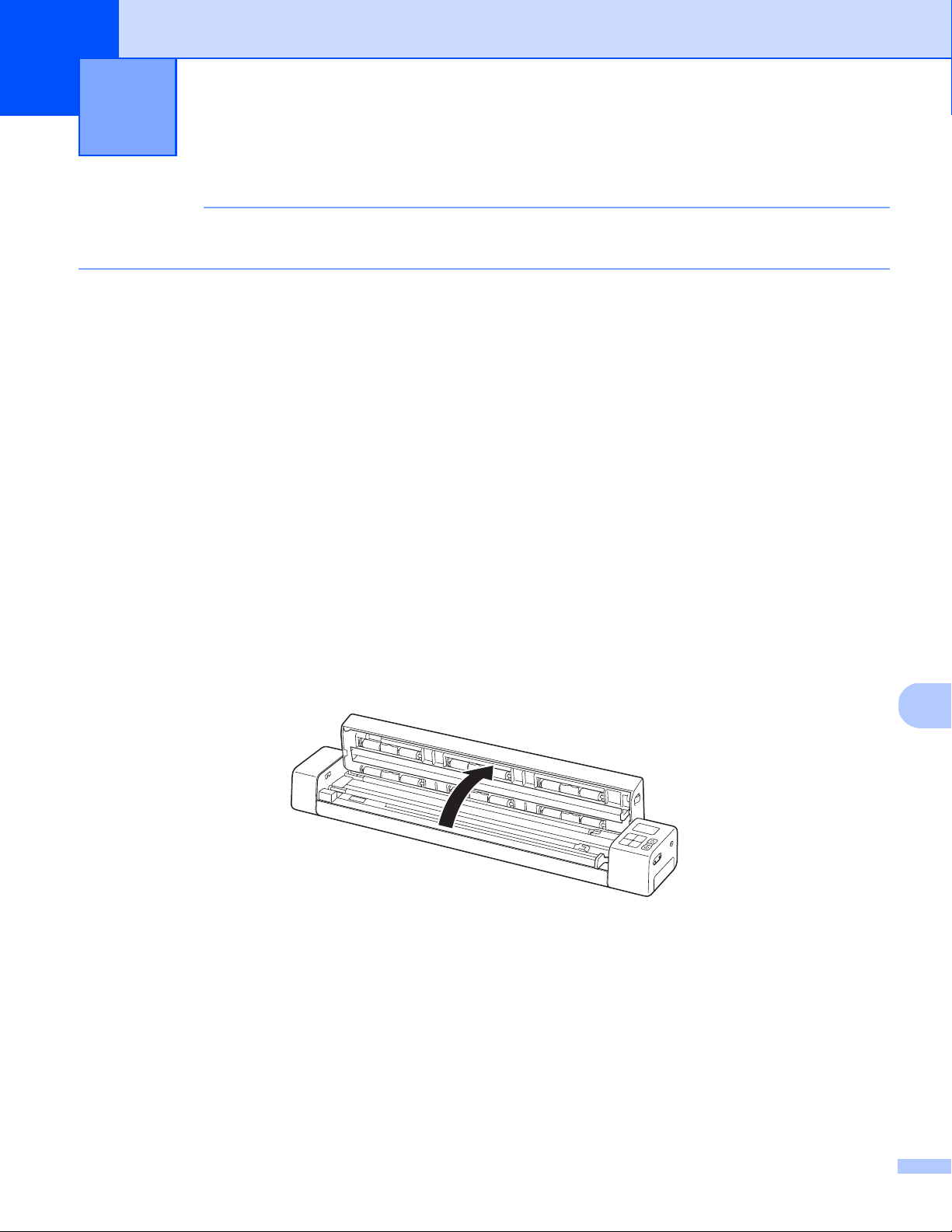

Cleaning the inside of your scanner

To maintain the scanned image quality, clean the interior of your scanner periodically. If vertical lines or

stripes appear on scanned images, this indicates that it is time to clean your scanner.

a Remove the Micro USB Cable from both your scanner and your computer.

b Open the scanner’s top cover.

Scanner Maintenance 11

Scanner Maintenance

c Gently wipe the glass and feed rollers with the supplied cleaning cloth.

d Close the top cover.

e Reconnect the Micro USB Cable to your scanner and your computer.

IMPORTANT

For technical help, you must contact the Customer Service center in the country where you bought the

scanner. For more information, see For customer service on page 80. Calls must be made from within

that country.

If you think there is a problem with your scanner, check the chart below and follow the suggestions.

Most problems can be easily resolved by yourself. If you need additional help, go to the Brother Solutions

Center at http://solutions.brother.com/

for more FAQs and troubleshooting tips.

Using non-Brother supplies may affect scan quality, hardware performance and product reliability.

Error messages and Error codes

Error messages

Troubleshooting 12

Error message Cause Action

Driver busy The scanning application in use

crashed or the scanner driver is

locked with administrator rights.

Press and hold the Power button to

turn off the scanner, and press the

Power button to turn on it. Then

launch the application again.

A document is jammed. Please open

the top cover and remove the

jammed paper by pulling it forward,

then try again.

A document is jammed. Open the top cover and remove the

document by pulling it forward, then

close the top cover.

The cover of the manual document

feeder is open.

Your scanner’s top cover is open

when scanning starts.

Close the top cover and start scan-

ning again.

No paper in the manual document

feeder

No document is set in the feeder slot. Set your document in the feeder slot

and start scanning again.

Cannot find the scanner. Your scanner is not connected to

your computer.

Confirm that the Micro USB Cable

connecting the scanner to the com-

puter is properly connected.

Your scanner is not turned on. Press the Power button to turn on

the scanner.

Operation system return error Your Operating System cannot rec-

ognize your scanner.

 Confirm that the Micro USB Cable

connecting the scanner to the

computer is properly connected.

 Restart the computer.

Troubleshooting

Error Codes

Calibration failed. Please reboot the

machine.

The calibration failed for some rea-

son. For example, the Calibration

Sheet is not inserted in the correct di-

rection.

 Press and hold the Power button

to turn off the scanner, and press

the Power button to turn on it.

Then, perform the calibration

again.

 Insert the Calibration Sheet in the

correct direction.

• To perform the calibration using

the control panel, see Calibration

using the control panel on

page 58.

• For Windows

: to perform the cal-

ibration using software, see Cali-

bration using software (for

Windows

) on page 59.

• For Macintosh: to perform the cal-

ibration using software, see Cali-

bration using software (for

Macintosh) on page 62.

Error Code Items Description Root cause / Code Purpose How to restore

E03 Card full or Card Read /

Write error

The SD card is full, protected, or cor-

rupt; scanned images cannot be

saved to the SD card.

Check the SD card’s protective

switch, reinsert the SD card, or insert

a new SD card.

E04 Paper Jam Scan exceeds the maximum length,

and cannot successfully eject the

scanned document.

Open the top cover and remove the

document, then close the cover and

try to scan again.

E05 Missing Scan Data Scanner does not detect a document

in the document feeder slot.

Make sure the document is properly

inserted.

E06 Cover Open The scanner’s top cover is open, or

the top cover sensor has failed.

Close the scanner’s top cover.

E19 Calibration Fail The scanner’s internal check failed

because of a calibration data error.

Recalibrate the scanner.

• To perform the calibration using

the control panel, see Calibration

using the control panel on

page 58.

• For Windows

: to perform the cal-

ibration using software, see Cali-

bration using software (for

Windows

) on page 59.

• For Macintosh: to perform the cali-

bration using software, see Cali-

bration using software (for

Macintosh) on page 62.

Error message Cause Action

Troubleshooting

Scanning difficulties

Difficulty Cause Suggestions

My scanner does not

turn on.

The supplied Micro USB Cable is not

connected securely.

Make sure the Micro USB Cable is securely con-

nected to your scanner and computer.

The battery is low. Connect the Micro USB Cable to your scanner and

computer to charge the battery.

If you charge the scanner’s battery only a little from

empty battery, you cannot use the scanner. Turn off

the scanner until the battery is charged fully.

My computer does not

recognize the scanner

when it is connected

via the Micro USB

Cable.

Causes may vary. Make sure the Micro USB Cable is securely con-

nected to your scanner and computer. Remove the

Micro USB Cable and reconnect the Micro USB

Cable to your scanner and computer.

My scanned images

have black lines run-

ning through them,

blank spaces, or are of

overall bad quality.

This problem occurs if the scanner is

not calibrated correctly or if a foreign

object, such as a paper clip or ripped

paper, is stuck in the scanner.

1. Check the document feeder slot and make sure

that the slot is clear. If foreign objects are found,

remove them from your scanner.

2. Calibrate your scanner (see Scanner Calibration

on page 58).

If scan quality is not improved after you calibrate

your scanner:

1. Clean the scanner (see Scanner Maintenance on

page 64).

2. Calibrate your scanner again.

My scanned image is

missing.

The Document Guides are not adjusted

to fit the width of the document.

Adjust the Document Guide to fit the width of the

document.

The settings are not suitable for your

document. For example, a A4 docu-

ment was fed when Letter was selected

as document size.

Make sure the document size settings are suitable

for your document.

For Windows

: see Paper settings on page 29.

For Macintosh: see Paper settings on page 39.

The scan speed is too

slow.

The resolution is not suitable for your

document.

Decrease the scanner resolution.

For Windows

: see Image settings on page 28.

For Macintosh: see Image settings on page 36.

Troubleshooting

My scanner is con-

nected but it will not

feed my document or

do anything else.

Your document is not set correctly. Insert your document until you feel the top edge of

the document touch the inside of your scanner.

Your document is too thin or too thick. Check that your document is acceptable (see Doc-

ument Specifications on page 12).

If your document is not the problem:

1. Confirm that the Micro USB Cable connecting

your scanner to your computer is properly con-

nected.

2. Reinstall the scanner driver from the DVD-ROM.

The scanner’s top cover is open. Close the top cover and start scanning again.

The scanner is turned off because the

auto power off function is active.

Press the Power button to turn on the scanner.

You are operating the settings menu.

(SD mode only)

Get out of the settings menu to put the scanner into

standby mode.

No SD card is inserted in the scanner’s

SD card slot. (SD mode only)

Insert an SD card into the scanner’s SD card slot.

The document is

jammed.

Causes may vary. Open the scanner’s top cover and gently pull out

the document. Make sure that no piece of paper re-

mains in the scanner.

Your document is not acceptable for the

machine (for example, if the paper is

too long).

 Make sure your document is acceptable for the

machine (see Document Specifications on

page 12).

 Use the supplied Carrier Sheet (see Loading the

Carrier Sheet on page 16).

My scanner gets

warm.

It is normal for your scanner to emit a

small amount of heat after prolonged

use.

If there is a strange smell coming from the scanner

or the scanner feels a little bit hot to the touch, im-

mediately remove the Micro USB Cable from your

scanner and computer.

The scan quality is

poor.

Paper dust has accumulated inside

your scanner.

Clean your scanner (see Scanner Maintenance on

page 64).

Calibration needs to be performed. Perform the calibration.

• To perform the calibration using the control pan-

el, see Calibration using the control panel on

page 58.

• For Windows

: to perform the calibration using

software, see Calibration using software (for

Windows

) on page 59.

• For Macintosh: to perform the calibration using

software, see Calibration using software (for

Macintosh) on page 62.

The scanner resolution is too low. Increase the scanner resolution.

For Windows

: see Image settings on page 28.

For Macintosh: see Image settings on page 36.

Difficulty Cause Suggestions

Troubleshooting

Colors in the scanned

image are dark.

The settings are not appropriate for the

type of document being scanned.

Adjust the scanning settings.

For Windows

: see Image settings on page 28.

For Macintosh: see Image settings on page 36.

Calibration needs to be performed. Perform the calibration.

• To perform the calibration using the control pan-

el, see Calibration using the control panel on

page 58.

• For Windows

: to perform the calibration using

software, see Calibration using software (for

Windows

) on page 59.

• For Macintosh: to perform the calibration using

software, see Calibration using software (for

Macintosh) on page 62.

OCR feature does not

work.

The scanner resolution is too low. Increase the scanner resolution.

For Windows

: use PaperPort™ 12SE to increase

the resolution.

For Macintosh: use Presto! PageManager 9 to in-

crease the resolution.

(Windows

users)

Nuance PaperPort™ 12SE has not

been installed on your computer.

Make sure you have installed Nuance PaperPort™

12SE from the supplied DVD-ROM.

(Macintosh users)

Presto! PageManager has not been in-

stalled on your computer.

Make sure you have installed Presto! PageMan-

ager from the supplied DVD-ROM.

The scanned image is

skewed (slanted).

The scanner’s Document Guide are not

adjusted to fit the width of the docu-

ment.

Adjust the Document Guide to fit the width of the

document.

White vertical lines or

white stripes appear

on the scanned image.

The scanner is under direct sunlight. • Move the scanner indoors or to a place without

sunlight to avoid the direct sunlight.

• Change the scanner’s direction.

A light source is near the scanner. • Move the scanner far away from the light source.

• Change the scanner’s direction.

Difficulty Cause Suggestions

ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghi jklmn opqrst uvwxyz.

OPQRSTUVW

QRSTUV

OPQRSTUVW

QRSTUV

OPQRSTUVW

QRSTUV

OPQRSTUVW

QRSTUV

ghijklmnop

ghijklmno

hijklmn

ijk

qrst

qrs

ghijklmnop

ghijklmno

hijklmn

qrst

qrs

ghijklmnop

ghijklmno

hijklmn

qrst

qrs

ghijklmnop

ghijklmno

hijklmn

qrst

qrs

Troubleshooting

Software difficulties

Bleed-through is seen

in the scanned image.

Your document is too thin. Check that your document is acceptable (see Doc-

ument Specifications on page 12).

The contrast setting is improper. Increase the contrast level.

For Windows

: see Image settings on page 28.

For Macintosh: see Image settings on page 36.

When I want to scan in

SD mode, is it possible

to change the paper

size, the image quality,

etc. on my scanner?

You can change only part of the set-

tings.

For more information about the settings, see step 4

of Scanning in SD mode on page 18.

(DS-920DW only)

Duplex scanning can-

not be performed.

The duplex scanning settings are not

configured in DSmobileCapture.

Launch DSmobileCapture, click the Image tab,

and then select the Duplex check box.

The scan mode of the scanner is set to

1 side (in SD mode).

Press the scanner’s 2 side / 1 side button so that 2

appears on the LCD.

Difficulty Cause Suggestions

When I press Scan in

my scanning software,

an error message ap-

pears: Please install

scanner or The scan

was aborted because

the scanner is not

powered on or not

connected properly.

This error message appears if your

scanner isn’t recognized by your com-

puter.

1. Make sure your scanner is connected properly.

2. Confirm that the Micro USB Cable is working and

that it is not frayed or damaged in any way.

If the error still appears after verifying that the Micro

USB Cable is connected properly, reinstall the

scanner driver from the DVD-ROM.

I cannot install the

scanner drivers.

(Windows

)

You may not have been given adminis-

trator privileges.

Log into Windows

with administrator rights.

I cannot install the

scanner drivers.

(Macintosh)

You may not have been given adminis-

trator privileges.

From Apple menu, select System Preferences >

System > Users & Groups. The left pane of the

window will list the current accounts, one of which

should be your name with the word “Admin” under-

neath. If this is not

the case, contact your system

administrator.

Difficulty Cause Suggestions

Troubleshooting

Network difficulties

Other difficulties

The file size is too

large.

The size of the file will depend upon

many factors. The physical size of the

document and the amount of text /

graphics on each page are factors that

will affect the resulting file size. These

factors cannot be changed.

To produce the smallest scan file for a given docu-

ment, use the lowest resolution and Black and

White mode, and scan the smallest area possible.

Using the opposite settings (scanned in the highest

resolution, in the Color mode, and scanning the

largest area possible) will produce the largest-sized

file.

For Windows

: see Changing DSmobileCapture

scan settings (for Windows

) on page 27).

For Macintosh: see Changing DSmobileCapture

scan settings (for Macintosh) on page 36).

Difficulty Cause Suggestions

My wireless device

(computer, smart-

phone, tablet, etc.)

cannot access my

scanner via the wire-

less LAN network.

The Wi-Fi

switch of the scanner is set

to OFF.

Slide the Wi-Fi

switch to ON.

Four or more wireless devices are con-

nected to your scanner at a time.

Disconnect the wireless devices that are already

connected to the scanner. Then, try to connect

three or fewer wireless devices to the scanner.

Causes may vary. Set the Wi-Fi

switch to OFF, then set it to ON to

reconnect the scanner.

I forgot the login pass-

word to enter the

Home screen on the

browser.

Causes may vary. Reset the network settings (see Reset network set-

tings on page 57).

Difficulty Cause Suggestions

I do not have or lost

the Calibration Sheet.

Causes may vary. The special glossy calibration sheet that came with

your scanner will give you the best calibration re-

sults. To order a new Calibration Sheet, go to Broth-

er Mall at http://www.brothermall.com

I want use a USB hub. Causes may vary. Use your scanner without connecting to a USB hub.

A USB hub may not be able to supply enough pow-

er to the scanner.

I cannot charge my

scanner.

The scanner is on while you are trying

to charge it.

Turn the scanner off when you charge it.

The Li-ion battery is not installed cor-

rectly.

Make sure the Li-ion battery is installed in the cor-

rect direction (see the Quick Setup Guide).

Difficulty Cause Suggestions

Troubleshooting

My scanner cannot be

turned on or is turned

off immediately.

The battery has not been inserted. Insert the battery.

The battery has been inserted in the

wrong direction.

Insert the battery in the correct direction. For more

information, see Installing the battery on page 9.

• The battery is empty.

• The battery is low.

• The scanner’s Wi-Fi

switch is ON.

Do one of the following:

• Slide the scanner’s Wi-Fi

switch to OFF to use

the scanner.

• Connect the Micro USB Cable to your scanner

and your computer to use the scanner. If you

cannot turn on the scanner when you press the

Power button, wait for two minutes, and then

press the Power button again.

• Turn off the scanner and connect the Micro USB

Cable to your scanner and your computer until

the battery is charged fully. And then use the

scanner.

When I set the Wi-Fi

switch to ON, the

Wi-Fi

indicator does

not turn on.

The battery is low. Connect the Micro USB Cable to your scanner and

your computer to charge the battery.

The Li-ion battery is not installed. Install the battery, and then charge it.

I lost the Li-ion battery

or I cannot charge the

battery.

Causes may vary. Contact Brother Mall at

http://www.brothermall.com

My computer cannot

access the SD card via

the Micro USB Cable.

The Micro USB Cable is not connected

to your computer.

Connect the Micro USB Cable to your scanner and

your computer.

Your scanner is in TWAIN mode. Press the Start / OK button, and then display SD on

the LCD to change to Mass Storage mode (SD

mode).

The Wi-Fi

switch is set to ON. Slide the Wi-Fi

switch to OFF.

A document is being scanned. When the scanning is finished, wait for the SD

card’s folder to be displayed on your computer

screen.

When I type

http://10.10.100.1 to

access the home

screen in the web

browser, the scanned

images stored on the

scanner’s SD card are

not displayed on the

home screen.

Your scanner is in TWAIN mode. Press the Start / OK button, and then display SD on

the LCD to change to Mass Storage mode (SD

mode).

Your scanner is scanning a document. Display the web browser again when scanning is

complete.

Difficulty Cause Suggestions

Troubleshooting

My scanner cannot be

put into TWAIN mode.

The scanner’s Wi-Fi

switch is ON. Slide the Wi-Fi

switch to OFF and select TWAIN

mode on the computer (see Connecting your scan-

ner to your computer in TWAIN Mode on page 23).

I set the auto power off

to ON but my scanner

does not turn off auto-

matically.

The Wi-Fi

switch is set to ON. Slide the Wi-Fi

switch to OFF.

Difficulty Cause Suggestions

Specifications

NOTE

This chapter provides a summary of the scanner’s specifications. For additional specifications, go to your

scanner’s product page at http://www.brother.com/

and click the Specifications tab.

General

Measured when the scanner is connected to your computer.

Appendix A A

DS-820W DS-920DW

Power Source USB bus-power / Li-ion battery

Power consumption

Scanning / Battery

Charging

5 V / 500 mA or less

Battery full-charged

/ Power Off

5 V / 1 mA or less

Dimensions Width 12.1 in. (308.0 mm)

Height 1.6 in. (40.7 mm) 1.6 in. (41.2 mm)

Depth 2.1 in. (52.5 mm) 2.6 in. (66.9 mm)

Weight Approx. 0.97 lb (440 g) Approx. 1.17 lb (530 g)

Temperature Operating 41 to 95 °F (5 °C to 35 °C)

Humidity Operating 15 to 85 %

Storage 10 to 90 %

Document Size Single Paper Width 2.2 in. to 8.5 in. (55 mm to 215.9 mm)

Length 1 side scan

3.5 in. to 32 in. (90 mm to 812.8 mm)

- 2 side scan

3.5 in. to 16 in. (90 mm to

406.4 mm)

Appendix A

Scanner

Windows

XP in this User’s Guide includes Windows

XP Home Edition and Windows

XP Professional.

For the latest driver updates for the Mac OS X you are using, visit us at http://solutions.brother.com/ and click “Downloads” from your model page.

DS-820W DS-920DW

Color / Black Yes / Yes

Duplex Scan No Yes

TWAIN Compliant Windows

Windows

/ Windows Vista

/ Windows

7 / Windows

Macintosh Mac OS X 10.6.x, 10.7.x, 10.8.x

Color Depth Input 48 bit color Processing

Output 24 bit color Processing

Resolution Optical Up to 600 × 600 dpi

Interpolated 1200 dpi

Scanning Width Up to 8.5 in. (216 mm)

Gray Scale Input 16 bit

Output 8 bit

Scanning Max. Speed Mono 8.0 ppm (7.5 seconds (Letter) up to 300 dpi)

7.5 ppm (8 seconds (A4) up to 300 dpi)

4.3 ppm (14.1 seconds (Letter) above 400 dpi)

4 ppm (15 seconds (A4) above 400 dpi)

Color 8.0 ppm (7.5 seconds (Letter) up to 300 dpi)

7.5 ppm (8 seconds (A4) up to 300 dpi)

4.3 ppm (14.1 seconds (Letter) above 400 dpi)

4 ppm (15 seconds (A4) above 400 dpi)

Duplex Scanning Max. Speed - Mono 5.3 ppm (11.3 seconds

(Letter) up to 300 dpi)

5 ppm (12 seconds (A4) up

to 300 dpi)

3 ppm (19.8 seconds (Let-

ter) above 400 dpi)

2.9 ppm (21 seconds (A4)

above 400 dpi)

Color 5.3 ppm (11.3 seconds

(Letter) up to 300 dpi)

5 ppm (12 seconds (A4) up

to 300 dpi)

3 ppm (19.8 seconds (Let-

ter) above 400 dpi)

2.9 ppm (21 seconds (A4)

above 400 dpi)

Appendix A

Li-ion battery

NOTE

• The numbers described in the Li-ion battery table may differ depending on the scanning document and on

environmental factors, such as temperature and the charging and discharging method.

• For longer battery life:

- Slide the Wi-Fi

switch to OFF when you are not using the Wi-Fi

function.

- Turn the scanner off when you are not using it.

Interfaces

Your scanner has a Hi-Speed USB 2.0 interface. The scanner can also be connected to a computer that has a USB 1.1 interface.

Third party USB ports are not supported.

Network

DS-820W DS-920DW

Charging time 4 hours

Continuous standby time (WLAN OFF) 5 minutes (when the auto power function is active.)

Scannable number of sheets (WLAN ON) 90 sheets 140 sheets

Scannable number of sheets (WLAN OFF) 450 sheets 680 sheets

USB Hi-Speed USB 2.0

Use a USB 2.0 cable (Type A / B) that is no more than 4 feet (1.2 meters) long.

SD card SD card memory size limit: between 2GB - 32GB

When you do not use the SD card that came with your scanner, any operation is not guaran-

teed.

Wireless LAN IEEE 802.11b/g/n

DS-820W DS-920DW

Network

(common)

Protocol (IPv4) ARP, DNS Resolver, HTTP, ICMP, DHCP with BOOTP

Network

Security

Wireless SSL/TLS (HTTPS)

Wireless Network Security WEP 64/128 bit, WPA-PSK (AES),

WPA2-PSK (AES)

WEP 64/128 bit, WPA-PSK

(TKIP/AES), WPA2-PSK (AES)

Wireless Certification Wi-Fi Certification Mark License (WPA™/WPA2™, Personal)

Appendix A

Computer requirements

For the latest driver updates, visit http://solutions.brother.com

All trademarks, brand and product names are property of their respective companies.

SUPPORTED OPERATING SYSTEMS AND SOFTWARE FUNCTIONS

Computer Platform &

Operating System Version

Processor

Minimum Speed

Minimum

RAM

Recommended

RAM

Hard Disk Space to

install

Supported

PC Interface

For

Drivers

For

Applications

Windows

Operating

System

Windows

Home

Windows

Professional

Intel

Core™2 Duo

or equivalent

1 GB 2 GB 80 MB 1.2 GB USB

Windows

Professional x64

Edition

64-bit (Intel

64 or

AMD64) supported

CPU

1 GB 2 GB

Windows Vista

Intel

Core™2 Duo

or equivalent 64-bit

(Intel

64 or

AMD64) supported

CPU

1 GB 2 GB 80 MB 1.2 GB

Windows

7 Intel

Core™2 Duo

or equivalent 64-bit

(Intel

64 or

AMD64) supported

CPU

1 GB (32-bit)

2 GB (64-bit)

2 GB (32-bit)

4 GB (64-bit)

80 MB 1.2 GB

Windows

8 Intel

Core™ i3 or

equivalent 64-bit

(Intel

64 or

AMD64) supported

CPU

1 GB (32-bit)

2 GB (64-bit)

2 GB (32-bit)

4 GB (64-bit)

80 MB 1.2 GB

Macintosh

Operating

System

Mac OS X 10.6.x Intel

Processor 1 GB 2 GB 80 MB 400 MB USB

Mac OS X 10.7.x Intel

Processor 1 GB 2 GB

Mac OS X 10.8.x Intel

Processor 2 GB 4 GB

Contacting Brother

IMPORTANT

For technical help, contact the Customer Service center in the country where you bought the scanner. For

more information, see For customer service on page 80. Calls must be made from within that country.

By registering your product with Brother International Corporation, you will be recorded as the original owner

of the product. Your registration with Brother:

 may serve as confirmation of the purchase date of your product should you lose your receipt

 may support an insurance claim by you in the event of product loss covered by insurance

 will help us notify you of enhancements to your product and special offers

Complete and fax the Brother Warranty Registration And Test Sheet or, for your convenience and most

efficient way to register your new product, register online at

http://www.brother.com/registration/

Frequently asked questions (FAQs)

The Brother Solutions Center is our one-stop resource for all your Brother machine needs. You can download

the latest software documents and utilities, read FAQs and troubleshooting tips, and learn how to get the most

from your Brother product.

http://solutions.brother.com/

You can check the Brother Solutions Center for Brother driver updates.

To keep your machine performance up to date, check the Brother Solutions Center for the latest firmware

upgrade.

Appendix B B

Appendix B

For customer service

If you have comments or suggestions, please write us at:

Service center (USA only)

Visit http://www.brother-usa.com/service/

In USA: 1-877-BROTHER (1-877-276-8437)

1-901-379-1215 (fax)

For the location of a Brother authorized service center, call 1-877-BROTHER (1-877-

276-8437).

In Canada: 1-877-BROTHER

(514) 685-4898 (fax)

For the location of a Brother authorized service center, call 1-877-BROTHER.

In USA: Printer Customer Support

Brother International Corporation

7905 North Brother Boulevard

Bartlett, TN 38133

In Canada: Brother International Corporation (Canada), Ltd.

- Marketing Dept.

1, Rue Hotel de Ville Dollard-des-Ormeaux, PQ, Canada H9B 3H6

Internet addresses

Brother Global Web Site: http://www.brother.com/

For Frequently Asked Questions (FAQs), Product Support and Technical Questions, Driver Updates and Utilities, and

User’s Guides: http://solutions.brother.com/

For Brother Accessories & Supplies:

In USA: http://www.brothermall.com/

In Canada: http://www.brother.ca/

Appendix B

Technical support (for PageManager and BizCard)

For USA

For Canada

Other countries

NOTE

For all other issues, see For customer service on page 80.

Company name: NewSoft America Inc.

Postal Address: 47102 Mission Falls Court, Suite 202 Fremont CA 94539

Telephone: 510-770-8900

Fax: 510-770-8980

E-mail Address: [email protected]

URL: http://www.newsoftinc.com

E-mail Address: [email protected]

Brother DS-820W Mobile Color Page Scanner, , Wi-Fi Transfer, Fast Scanning, Compact and Lightweight

Product's Documents

User Manual

Specifications

Brother DS-820W Questions and Answers

Related Products

Brother DS640 Compact Mobile Document Scanner

Brother COMPACT DS-640 Mobile Document Scanner, Model: DS640

Brother DS-720D Mobile Color Page Scanner

Brother DS-640 Compact Mobile Document Scanner

AmazonBasics RDS740D Brother DS-740D Duplex Compact Mobile Document Scanner
