Ed : 02/17 Rev :
00

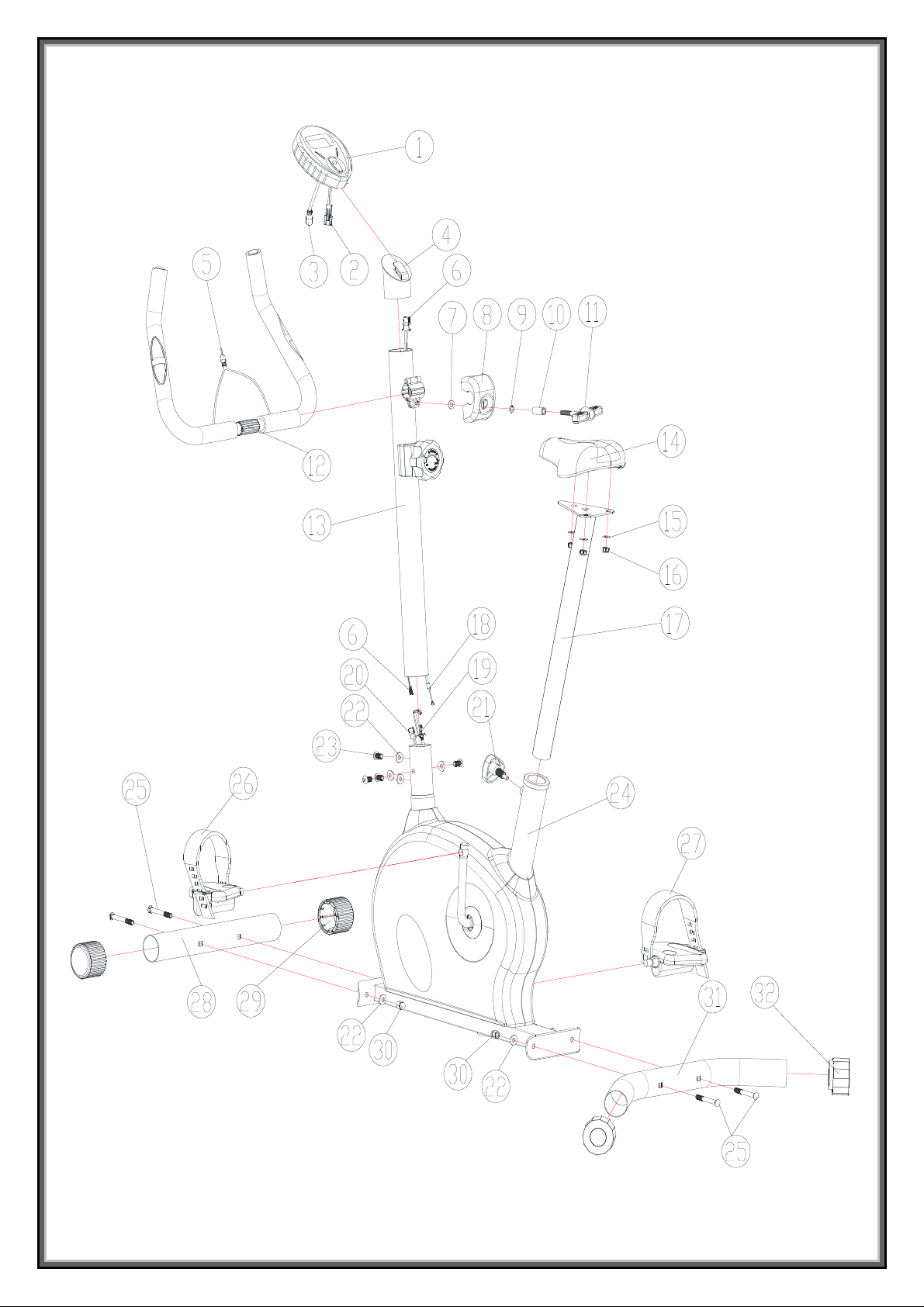

INSTRUCTION
2
3
ASSEMBLY
INSTRUCTIONS

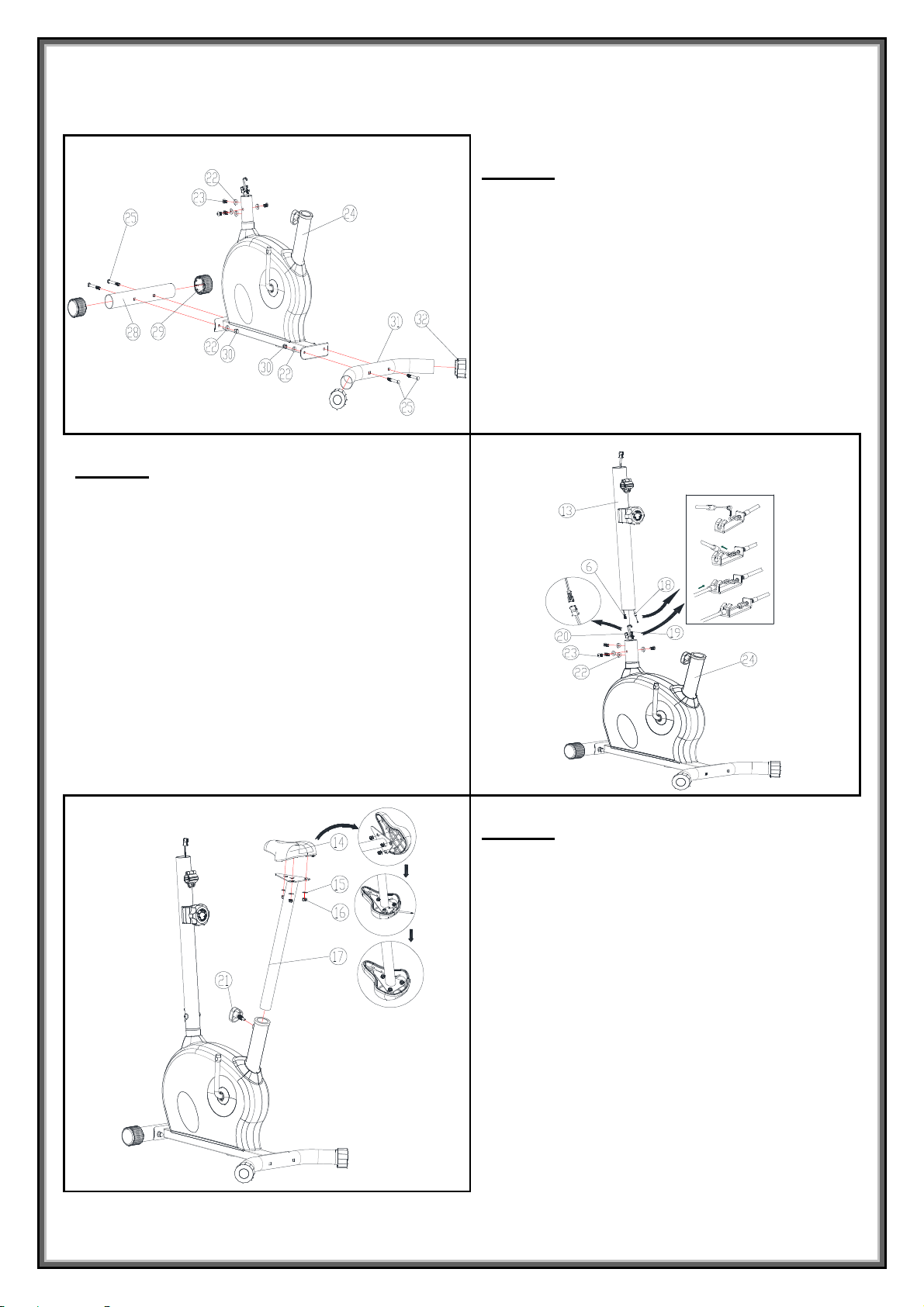

Step 1
Assembly the rear and front stabilizer
(31&28) with 4 bolts (25), 4 nuts (30) and 4
washers (22).
Step 2
Connect the computer cable up (6) and down
(20), connect the tension control cable up (18)
and down (19) as shown in the right sketch.
Assemble the handlebar post (13) to the main
frame, fix it with four screws (23) and washers
(22).
a
b
c
d
e
Step 3
Assemble the seat (14) to the seat post (17)
with 3 nuts (16) and washers (15).
Insert the seat post into the main frame
through the plastic sleeve. Select the ideal
hole position on the seat post (17). Insert the
knob (21) into the hole. Tighten fully the
knob.
4
ASSEMBLY
INSTRUCTIONS

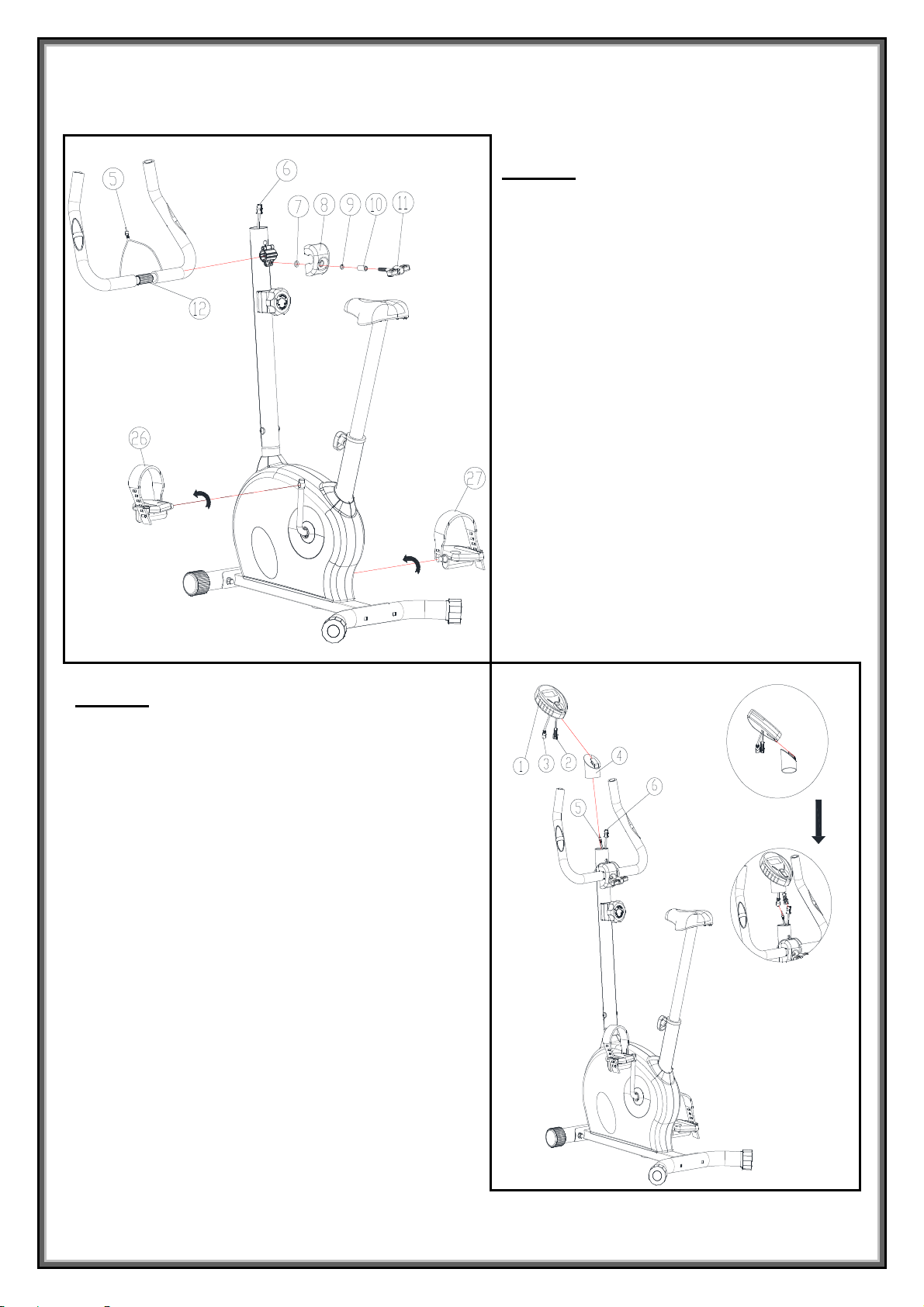

Step 4
Assemble the handlebar (12) to the
bracket on the handlebar post with
handlebar clamp.
Pass the T-knob (11) through the metal
bush (10), spring washer (9), washer (7)
and the plastic cover (8).
Fix the T-knob through the clamp, adjust
the handlebar with your desired angle,
fasten the T-knob.
Assemble the left hand pedal (26) to the
left hand crank (screw anticlockwise) and
the right hand pedal (27) to right hand
crank.
Step 5
Pass the hand pulse cable (5) through the hole
on handlebar post, assemble the plastic tray (4)
on top of the handlebar post, connect the cables
from computer and handlebar post, slide the
computer onto the tray.
5
PARTS LIST
NO. DESCRIPTION Q'TY
1 Computer 1PCS
2 Sensor cable connector 1PCS
3 Hand pulse cable (upper) 1PCS
4
Plastic tray
1SET
5 Hand pulse cable (lower) 1PCS
6 Sensor cable (upper) 1PCS
7 Flat washer 1PCS
8 Handlebar cover 1PCS
9 Spring washer 1PCS
10 Metal bush 1PCS
11 T knob 1PCS
12 Handlebar 1PCS
13 Handlebar post 1PCS
14 Saddle 1PCS
15 Flat washer 6PCS
16 Nylon nut 6PCS
17 Seat post 1PCS
18 Tension controller (upper) 1PCS
19 Tension controller (lower) 1PCS
20 Sensor cable (lower) 1PCS
21 Seat post knob 1PCS
22 Semicircle washer 8PCS
23 Umbrella head hex screws 4PCS
24 Main frame 1PCS
25 Carriage screw 4PCS
26 Pedal ( L) 1PCS
27 Pedal ( R) 1PCS
28 Front stabilizer 1PCS
29 Front end cap 2PCS
30 Hooded Nut 4PCS
31 Rear stabilizer 1PCS
32 Rear end cap 2PCS
33 Foam grip 2PCS
34 Hand pulse 2PCS
35 Umbrella head cross screw 2PCS
36 Handlebar cap 2PCS
37 Star washer 2PCS
38 Hex screw 5PCS
39 6000 bearing 1PCS
40 flywheel 1PCS
41 6900 bearing 1PCS
6
NO. DESCRIPTION Q'TY
42 Bushing 1PCS
43 Flywheel spindle 1PCS
44 Sleeve 1PCS
45 Bushing 1PCS
46 Idle wheel 1PCS
47 Spring 1PCS
48 Idler clamping 1PCS
49 Hex screw 1PCS
50 Crank cover 2PCS
51 Chain cover (R) 1PCS
52 Belt 1PCS
53 Pulley 1PCS
54 Right tooth plug 1PCS
55 Bead nest 2PCS
56 Bottom bracket 2PCS
57 Crank 1PCS
58 Left tooth plug 1PCS
59 Have tooth washer 1PCS
60 Hex nut 1PCS
61 Chain cover (L) 1PCS
62 Umbrella head hex screw 1PCS
63 Magnetic set 1SETS
64 Hex screw 2PCS
65 Outer hex bolt 1PCS
66 Tension control (lower) 1PCS
67 Umbrella head cross screw 5PCS
68 Hex. wrench 1PCS
69 Harpoon wrench 1PCS
7

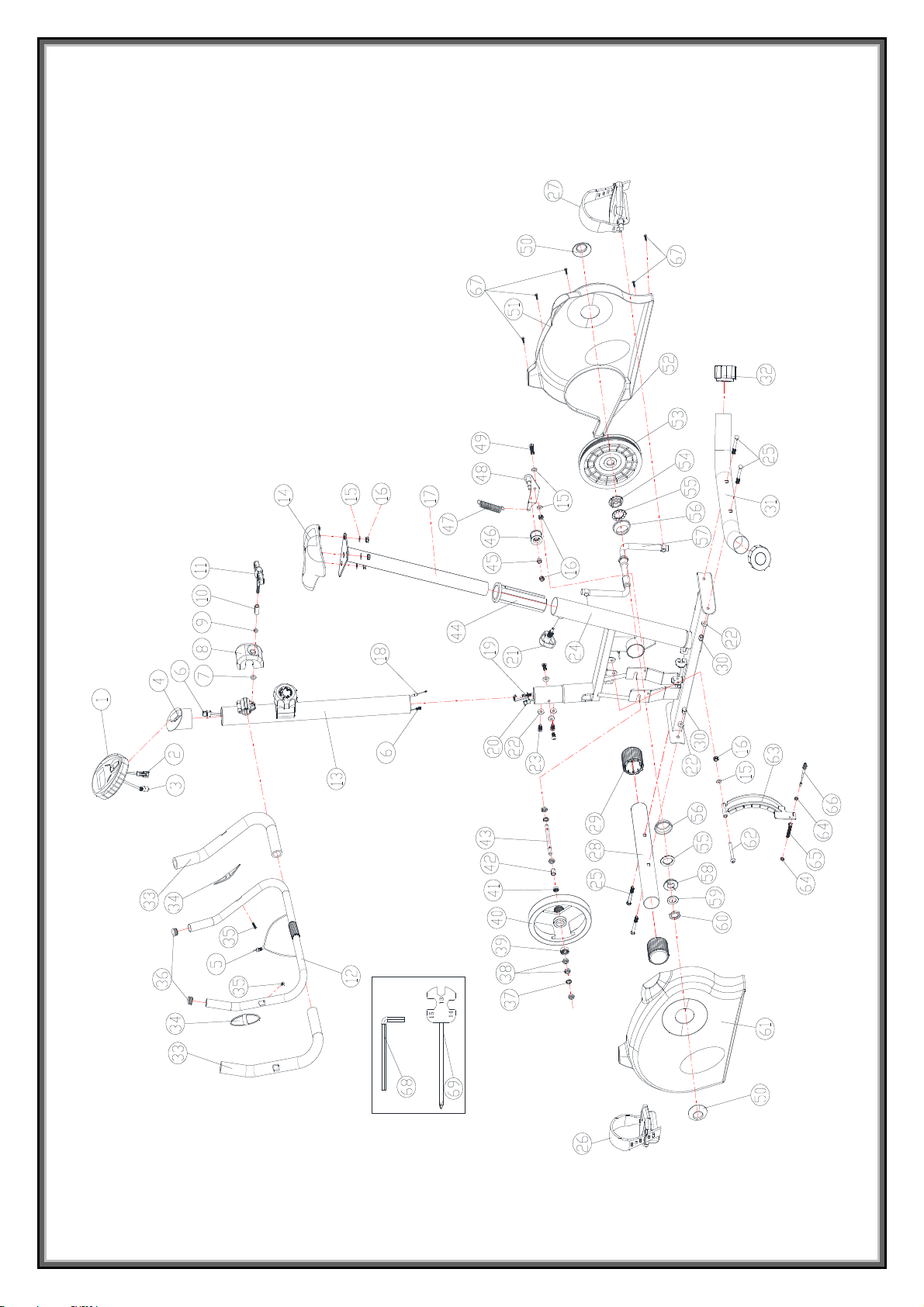

COMPLETE BIKE ASSEMBLY
8

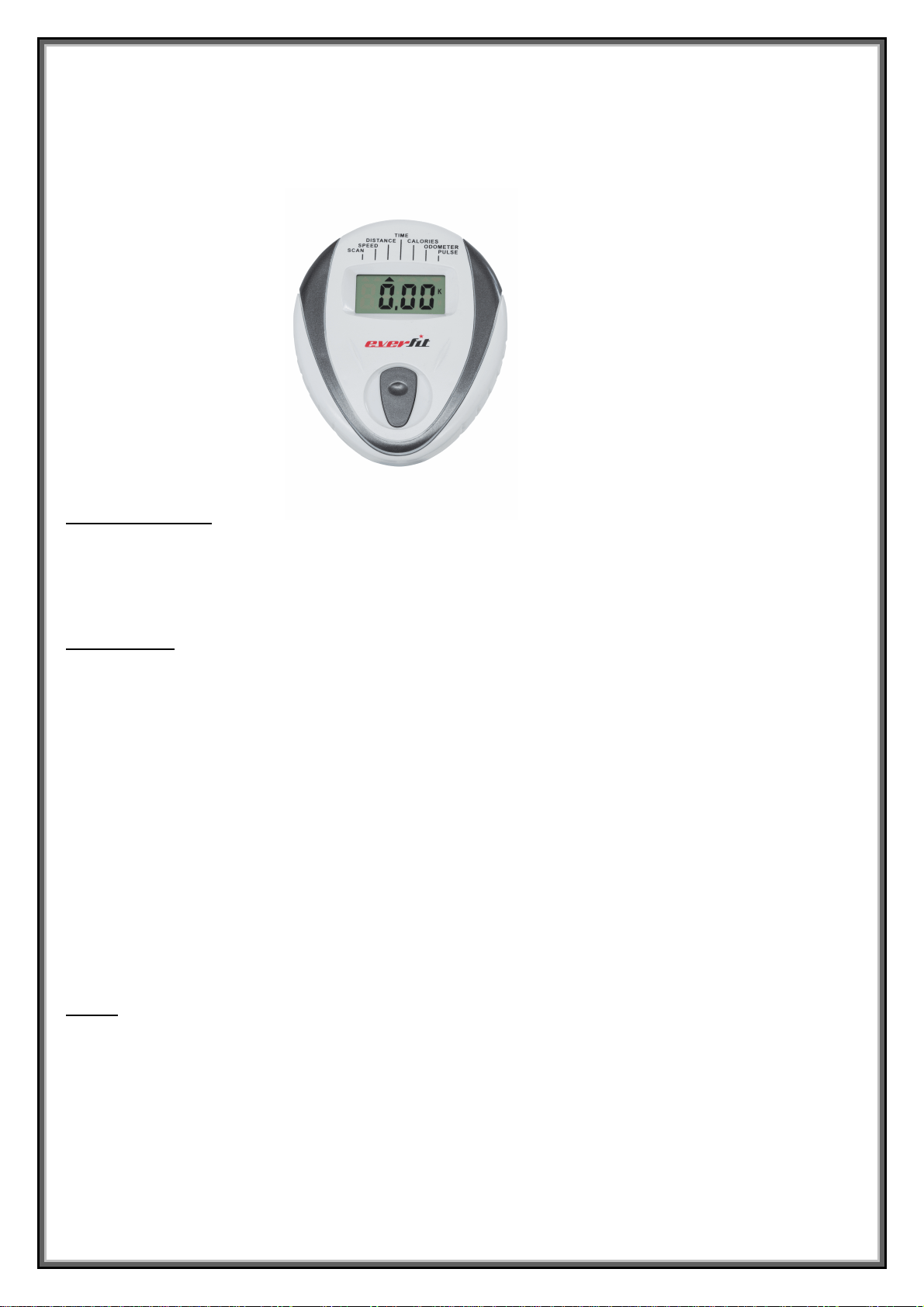

EXERCISE METER
Monitor Display
KEY
FUNCTION:
MODE: This key lets you to select and lock on to a particular function you want.
FUNCTIONS
SCAN
Automatically scan through each mode in sequence every 6 seconds. The display loop is
SCAN-TIME-DISTANCE-CALORIE-SCAN on the main screen.
TIME
Accumulates total working time from 00:00 up to 99:59.
SPEED
Displays current training SPEED, the maximum is 99.9km/ml,it always displays.
DISTANCE
Accumulates training distance from 0.00 to the maximum 99.99km/ml with each increment
0.01km/ml.
ODO
Press the MODE key until the pointer advance to ODOMETER. The total accumulated distance
will be shown.
CALORIE
Accumulates calories consumption during training from 0 to the maximum 9999 cal with each
increment 1 cal.
PULSE
Press the MODE key until the pointer advance to PULSE. User’s current heart rate will be
displayed in beats per minutes. Place the palms of your hands on both of the contact pads (or
put ear-clip to ear),and wait for 30 seconds for the most accurate reading.
NOTE
1. Without any signal been transmitted into the monitor for 4 minutes, the LCD display will shut off automatically,
and all function values will be kept. You may press mode or start pedaling to have the monitor power on again.
2. If improper display on monitor, please re-install batteries to have a good result.
3. Battery spec: 1.5v um-3 or AAA (2 pcs).
GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.evert.it - info@evert.it
