Dishwasher
User manual
DW5*R407*BB/DW5*R406*BB/DW5*R405*BB/
DW5*R404*BB
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 1 2021-04-06 3:51:21
English2
Contents
Contents
Safety information 4
What you need to know about safety instructions 4
Important safety symbols 4
Instructions about the WEEE 5
Important safety precautions 6
Instructions when using your dishwasher 8
Instructions for protecting your children 9
Instructions for installing your dishwasher 10
Installation 13

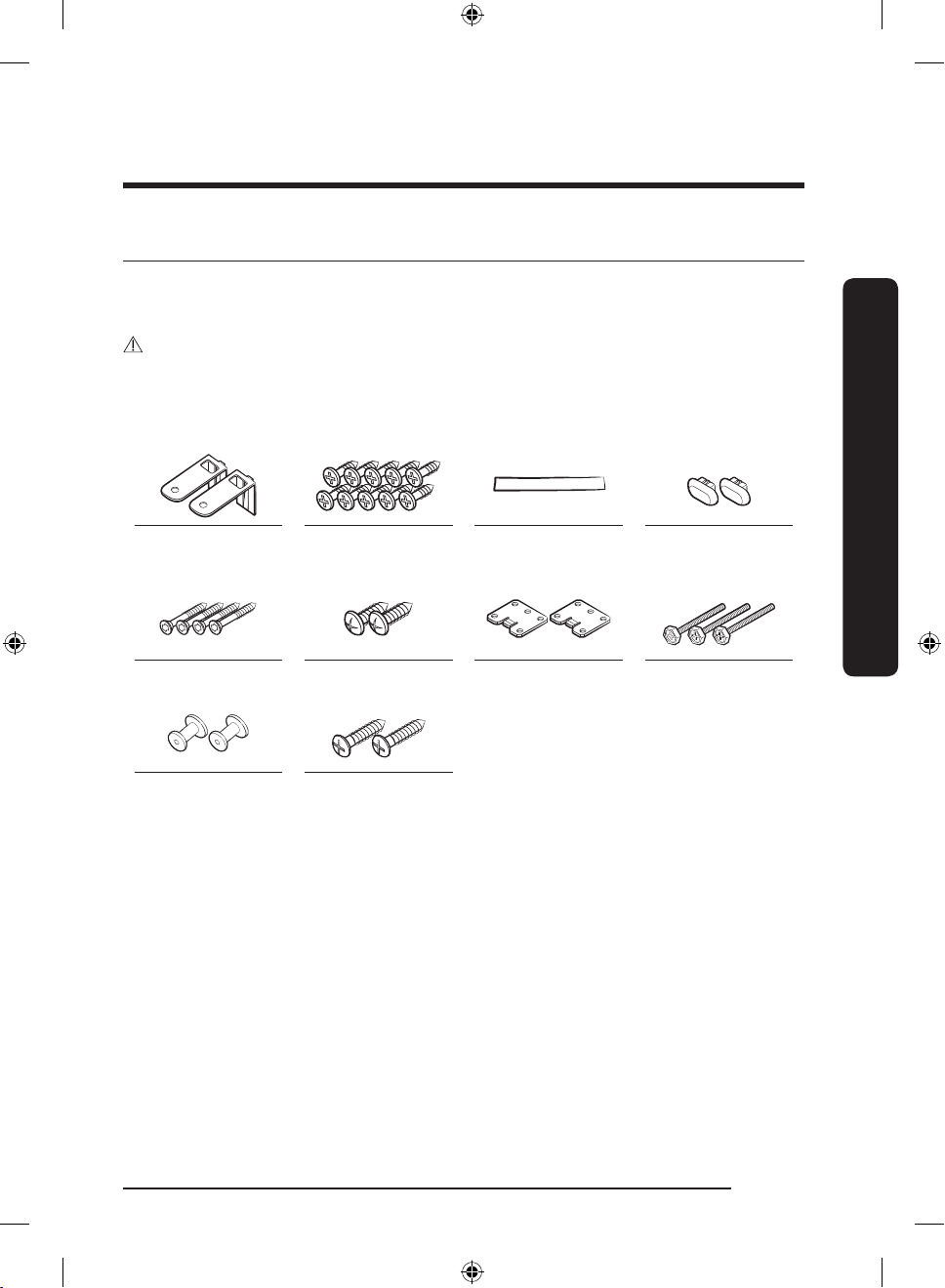

What’s included 13
Installation requirements 15
Step-by-step installation 17
Skirting board 28
Before you start 29
Dishwasher at a glance 29
Unsuitable items for the dishwasher 31
Basic use of racks 32
Detergent compartment 37
Rinse aid reservoir 40
Salt storage 41
Touchpad responsiveness 42
Setting mode 43
Operations 45
Control panel 45
Cycle overview 47
Simple steps to start 48
Salt storage 49
Delay Start 51
Control Lock 51
Maintenance 52
Cleaning 52
Long-term care 55
Troubleshooting 56
Checkpoints 56
Information codes 59
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 2 2021-04-06 3:51:21
English4
Safety information
Safety information
Congratulations on your new Samsung dishwasher. This manual contains important
information on the installation, use and care of your appliance. Please take time to read
this manual to take full advantage of your dishwasher’s many benets and features.
What you need to know about safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance and retain it at a safe
place near the appliance for your future reference. Use this appliance only for its intended
purpose as described in this user manual.
Warning and important safety instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your dishwasher.
Because the following operating instructions cover various models, the characteristics
of your dishwasher may differ slightly from those described in this manual and not all
warning signs may be applicable. If you have any questions or concerns, contact your
nearest service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning symbols are here to prevent injury to you and others. Please follow them
explicitly.
Keep these instructions in a safe place and ensure that new users are familiar with the
content. Pass them on to any future owner.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 4 2021-04-06 3:51:21
English 5
Safety information
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the
end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details of
where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
For information on Samsung’s environmental commitments and product specic regulatory
obligations e.g. REACH, WEEE, Batteries, visit our sustainability page available via
Samsung.com
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 5 2021-04-06 3:51:21
English6
Safety information
Safety information
Important safety precautions
To reduce the risk of re, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. This appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
2. For use in Europe: This appliance can be used by
children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision.
3. Children should be supervised to ensure that they do
not play with the appliance.
4. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to
be used and old hose-sets should not be reused.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 6 2021-04-06 3:51:21
English 7
Safety information
6. For appliances with ventilation openings in the base,
a carpet must not obstruct the openings.
7. For use in Europe: Children of less than 3 years
should be kept away unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external
switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the
utility.
9. WARNING: Knives and other utensils with sharp
points must be loaded in the basket with their points
down or placed in a horizontal position.
This appliance is intended to be used in household and
similar applications such as:
• staff kitchen areas in shops, ofces and other working
environments;
• farm houses;
• by clients in hotels, motels and other residential type
environments;
• bed and breakfast type environments.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 7 2021-04-06 3:51:21
English8
Safety information
Safety information
Instructions when using your dishwasher
This dishwasher is not designed for commercial use. It is intended for use in domestic
households and in similar working and residential environments such as:
• Shops
• Ofces and showrooms
and by residents in establishments such as:
• Hostels and guest houses.
It must only be used as a domestic appliance as specied in this user manual, for cleaning
domestic crockery and cutlery. Any other usage is not supported by the manufacturer and
could be dangerous.
The manufacturer cannot be held liable for damage resulting from incorrect or improper
use or operation.
Do not use solvents in the dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher detergent. Dishwasher detergents contain irritant or
corrosive ingredients which can cause burning in the nose, mouth and throat if swallowed,
or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or
inhaled.
Avoid leaving the door open unnecessarily, as you could trip over it.
Do not sit or lean on the opened door. This could cause the dishwasher to tip and be
damaged, and you could get injured.
Only use detergent and rinse aid formulated for domestic dishwashers. Do not use
washing-up liquid.
Do not use any strong acid cleaning agent.
Do not ll the rinse aid reservoir with powder or liquid detergent. This will cause serious
damage to the reservoir.
Inadvertently lling the salt reservoir with powder or liquid dishwasher detergent
will damage the water softener. Make sure you have picked up the correct packet of
dishwasher salt before lling the salt reservoir.
Please only use special coarse grained dishwasher salt for reactivation, as other salts may
contain insoluble additives which can impair the functioning of the softener.
In an appliance with a cutlery basket (depending on model), cutlery is cleaned and dried
more if placed in efciently the basket with the handles downwards. However, to avoid the
risk of injury, place knives and forks etc. with the handles upwards.
Plastic items which cannot withstand being washed in hot water, such as disposable plastic
containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The
high temperatures in the dishwasher may cause them to melt or lose shape.
On models with Delay Start function, make sure that the dispenser is dry before adding
detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and
may not be thoroughly dispersed.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 8 2021-04-06 3:51:21
English 9
Safety information
Knives and other utensils with sharp points must be loaded in the basket with their points
down or placed in a horizontal position.
Instructions for protecting your children
This appliance is not a toy! To avoid the risk of injury, keep children well away and do
not allow them to play in or around the dishwasher or to use the controls. They will not
understand the potential dangers posed by it. They should be supervised whenever
you are working in the kitchen. There is also a danger that children playing might shut
themselves in the dishwasher.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Older children may only use the dishwasher when its operation has been clearly explained
to them and they are able to use it safely, recognising the dangers of misuse.
KEEP CHILDREN AWAY FROM DETERGENTS!
Dishwasher detergents contain irritant and corrosive ingredients which can cause burning
in the mouth, nose and throat if swallowed, or inhibit breathing.
Keep children away from the dishwasher when the door is open. There could still be
detergent residues in the cabinet.
Consult a doctor immediately if your child has swallowed or inhaled detergent.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 9 2021-04-06 3:51:21
English10
Safety information
Safety information
Instructions for installing your dishwasher
Before setting up the appliance, check it for any externally visible damage. Under no
circumstances should you use a damaged appliance. A damaged appliance could be
dangerous.
The dishwasher must only be plugged into the electricity supply via a suitable switched
socket. The electrical socket must be easily accessible after the dishwasher is installed
so that it can be disconnected from the electricity supply at any time. (Refer to the
“Dishwasher at a glance” section on page 29.)
There must be no electrical sockets behind the dishwasher. Danger of overheating and re
risk if the dishwasher were to be pushed up against a plug.
The dishwasher must not be installed under a hob. The high radiant temperatures which
are sometimes generated by a hob could damage the dishwasher. For the same reason it
should not be installed next to open res or other appliances which give off heat, such as
heaters etc.
Do not connect the dishwasher to the mains supply until it has been fully installed and any
adjustment has been made to the door springs.
Before connecting the appliance, check that the connection data on the data plate (voltage
and connected load) match the mains electricity supply. If in any doubt, consult a qualied
electrician.
The electrical safety of this appliance can only be guaranteed when continuity is complete
between it and an effective grounding system. It is most important that this basic safety
requirement is present and regularly tested and where there is any doubt the electrical
system in the house should be checked by a qualied electrician.
The manufacturer cannot be held liable for the consequences of an inadequate grounding
system (e.g. electric shock).
Do not connect the appliance to the mains electricity supply by a multi-socket unit or an
extension lead. These do not guarantee the required safety of the appliance (e.g. danger of
overheating).
This appliance may only be installed in mobile installations such as ships if a risk
assessment of the installation has been carried out by a suitably qualied engineer.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 10 2021-04-06 3:51:21
English 11
Safety information
The plastic housing of the water connection contains an electrical component. The housing
must not be submerged in water.
There are electrical wires in the hose of Aqua-Stop. Never cut the water inlet hose, even if
it is too long.
Installation, maintenance and repairs may only be carried out by a suitably qualied and
competent person in strict accordance with current national and local safety regulations.
Repairs and other work by unqualied persons can be dangerous. The manufacturer cannot
be held liable for unauthorised work.
The integrated waterproof system offers protection from water damage, provided the
following conditions are met:
• The dishwasher is correctly installed and plumbed in.
• The dishwasher is properly maintained and parts are replaced where it can be seen that
this is necessary.
• The stopcock has been turned off when the appliance is not used for a longer period of
time (e.g. during holidays).
• The waterproof system will work even if the appliance is switched off. However, the
appliance must remain connected to the electricity supply.
A damaged appliance can be dangerous. If the dishwasher gets damaged, switch it off at
the mains and call your dealer or the service department.
Unauthorised repairs could result in unforeseen dangers for the user, for which the
manufacturer cannot accept liability. Repairs should only be undertaken by an approved
service technician.
Faulty components must only be replaced by original spare parts. Only when these parts
are tted can the safety of the appliance can be guaranteed.
Always disconnect the dishwasher from the electrical supply for maintenance work (switch
off at the wall socket and remove the plug).
If the connection cable is damaged it must be replaced with a special cable, available from
the manufacturer. For safety reasons, this must only be tted by the service department or
an authorised service technician.
In countries where there are areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and its surroundings in a
clean condition at all times. Any damage which may be caused by cockroaches or other
vermin will not be covered by the guarantee.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 11 2021-04-06 3:51:21
English12
Safety information
Safety information
In the event of a fault or for cleaning purposes, the appliance is only completely isolated
from the electiricity supply when:
• it is switched off at the wall socket and the plug is withdrawn, or
• it is switched off at the mains, or
• the mains fuse is disconnected, or
• the screw-out fuse is removed (in countries where this is applicable).
Do not make any alterations to the appliance, unless authorised to do so by the
manufacturer.
Never open the casing/housing of the appliance. Tempering with electrical connections or
components and mechanical parts is highly dangerous and can cause operational faults or
electric shock.
While the appliance is under guarantee, repairs should only be undertaken by a service
technician authorised by the manufacturer. Otherwise the guarantee will be invalidated.
When installing the product, make sure there is space at the top, left, right and back of the
product to ensure proper ventilation. If there is insufcient space between the product and
the sink, it may damage the sink or allow mold to grow.
Make sure that your dishwasher’s hardness level setting is correct as your area. (Refer to
the “Salt storage” section on page 41.)
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 12 2021-04-06 3:51:21
English 13
Installation
Installation
What’s included
Make sure all the parts are included in the product package. If you have a question about
the dishwasher or the parts, contact a local Samsung customer centre or your retailer. The
actual appearance of the dishwasher may differ, depending on your model and country.
CAUTION
After unpacking the dishwasher, keep packaging materials out of children’s reach to ensure
their safety.
Installation kit (provided)
Top bracket (2) Ø4 X 14 screw (10) Protective sticker
(1)
Plastic cap (2)
Ø3.5 X 45 screw (4) Ø3.5 X 16 screw (2) Door bracket (2) Sub foot (3)
Custom panel
xer (wood panel
holders, 2)
Ø3.5 X 25 screw (2)
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 13 2021-04-06 3:51:22
English14
Installation
Installation
Installation kit (not provided)
Hose clamp
Tools required (not provided)
Safety glasses Gloves Flashlight Wrench (22 mm)
for the front foot
Torx T15 Pliers Nipper Tape measure
Pencil Phillips screwdriver Flat head
screwdriver
Cutting knife
Level Hole saw
(80-100 mm)
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 14 2021-04-06 3:51:22
English 15
Installation
Installation requirements
To prevent a risk of re, electric shock, or
personal injury, all wiring and grounding
must be done by a qualied technician.
Power supply
• An individual 220-240 V~, 50 Hz
branch circuit that is dedicated to the
dishwasher.
• Power outlet with a maximum allowable
current of 16 A (maximum 11 A for the
dishwasher)
WARNING
• Do not use an extension cord.
• Use only the power plug that comes
with the dishwasher.
• After installation is complete, make sure
the power plug is not bent or damaged.
Grounding
For permanent grounding, the dishwasher
must be properly grounded to a grounded
metal or permanent wiring system. The
grounding conductor must be run with
the circuit conductors and then connected
to the grounding terminal or lead on the
dishwasher.
WARNING
• Do not connect the ground wire to
plastic plumbing, gas lines, or hot water
pipes. Improperly connected grounding
conductors may cause electric shock.
• Do not modify the power plug of the
dishwasher. If the power plug does
not t the outlet, have a proper outlet
installed by a qualied electrician.
Water supply
• The water supply line must support
water pressures between 0.04 and
1 MPa.
• Water temperatures must be lower than
60 °C.
• A stopcock with a 3/4” male thread must
be installed on the water tap.
To reduce a risk of leaks:
• Make sure water taps are easily
accessible.
• Turn the water tap off when the
dishwasher is not in use.
• Check for any leaks at the water hose
ttings on a regular basis.
• To stop any leak, seal the water line
connections and joints using Teon tape
or sealing compound.
Aqua Stop
The Aqua Stop is an electrical component
that is designed to prevent water leaks. The
Aqua Stop is attached to the water hose
and automatically cuts off the water ow in
the event of damage to the hose.
CAUTION
• Handle the Aqua Stop with care.
• Do not kink or twist the water hose
connected to the Aqua Stop. If the Aqua
Stop is damaged, shut off the water taps
and unplug the power plug immediately.
Then, contact a local Samsung customer
centre or a qualied technician.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 15 2021-04-06 3:51:22
English16
Installation
Installation
Drain
If you are using a drain system dedicated
to the dishwasher, connect the drain hose
to a drain system that is between 30 cm
and 70 cm off the ground. Connecting the
drain hose to a drain system more than
80 cm off the ground can cause the drained
water to ow backward.
Flooring
For safety, the dishwasher must be
installed on a solidly constructed oor.
Wooden oors may need to be reinforced
to minimise vibrations. Avoid installing
on carpet or soft tile. Carpeting and soft
tile may cause vibrations and may cause
your dishwasher to move slightly while
operating.
WARNING
Do not install the dishwasher on a poorly
supported structure.
Ambient temperature
Do not install the dishwasher in an area
exposed to freezing temperatures. The
dishwasher always retains some water in
the water valve, pump, and hose. If the
water freezes in the dishwasher or hoses,
it may damage the dishwasher and its
components.
Test run
After installing the dishwasher, run the
Quick cycle to make sure the dishwasher is
installed correctly.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 16 2021-04-06 3:51:22
English 17
Installation
Step-by-step installation
The installation procedure may differ depending on the model.
STEP 1 Select a location
A
B
Select a location that meets the following
conditions.
• The location must have a solid oor that
can support the weight of the dishwasher.
• The location must be near a sink with easy
access to the water supply, drain system,
and electrical outlet.
• The location must let you load dishes into
the dishwasher easily.
• The location must have sufcient space
for the dishwasher door to open easily
and provide enough space between the
dishwasher and the cabinet sides.
• The rear wall must be free of obstructions.

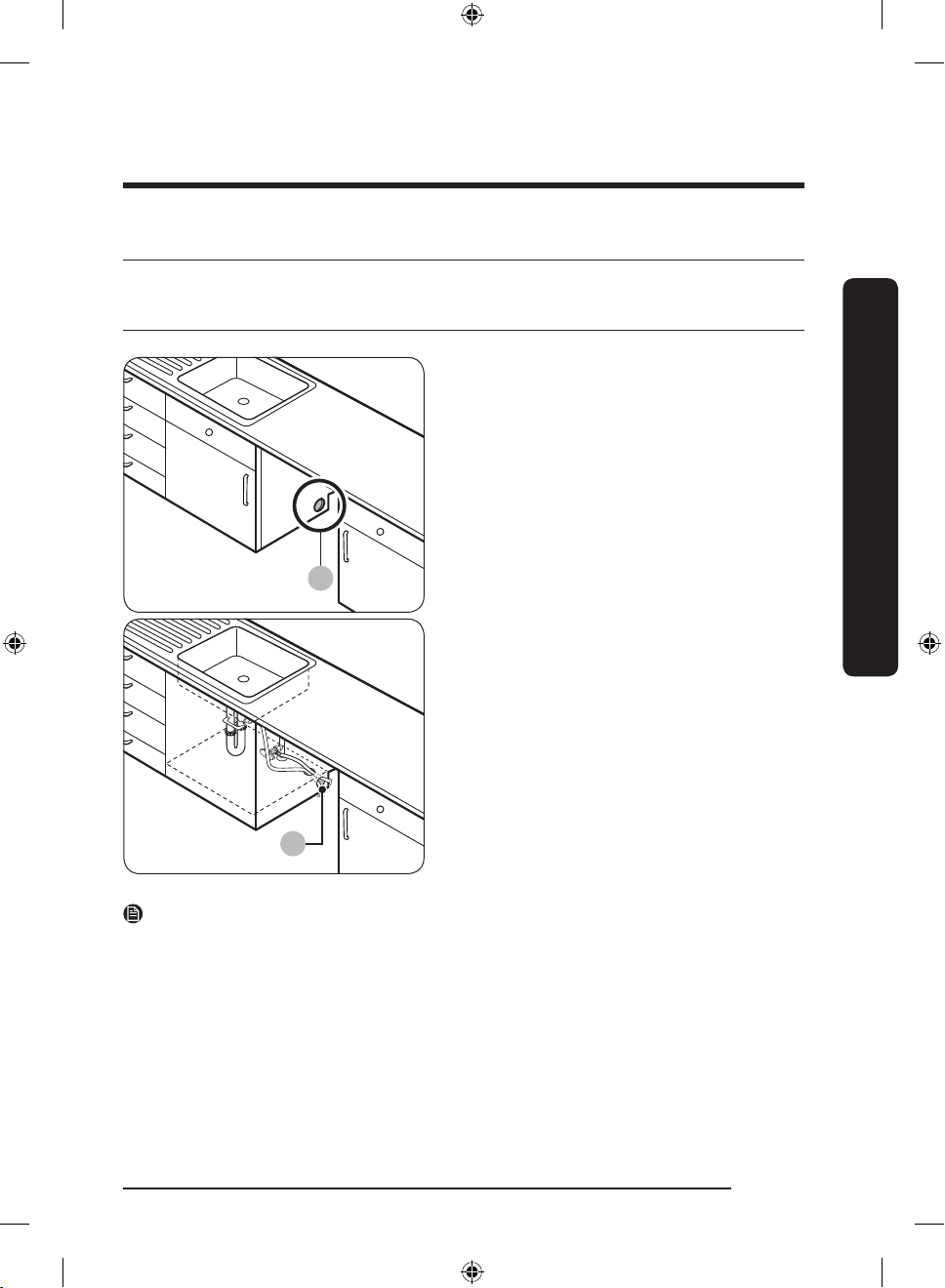

Installation in a new location
If you install the dishwasher in a new
location, follow these instructions before
installing the dishwasher.
1. Using a hole saw, cut a hole into the side
of the cabinet that holds the sink (A).
2. If the base inside the sink cabinet is raised
above the kitchen oor and is higher than
the connections on the dishwasher, make a
hole in the base inside the cabinet and in
the cabinet side (B).
NOTE
• If you are replacing an old dishwasher, check the existing connections for compatibility
with the new dishwasher and replace the connections as needed.
• You may need to cut a hole in the opposite side of the cabinet according to the location
of the electrical outlet.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 17 2021-04-06 3:51:23
English18
Installation
Installation
Cabinet dimensions
575
450
450
550
815 - 845
820 - 870
45
100
50
NOTE
Check if the distance between the oor and the bottom of the worktop is more than
850 mm. If so, insert the sub foot included in the installation kit. For details, see the next
section. If the distance is less than 850 mm, skip to STEP 3.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 18 2021-04-06 3:51:23
English 19
Installation
STEP 2 To insert the sub foot
If the distance between the oor and the bottom of the worktop is more than 850 mm,
insert the sub foot into the hole on the bottom of the dishwasher before you start the
installation.
850 ~
1. Lay the dishwasher on its back.
CAUTION
Do not lay down the dishwasher on its side.
Water may leak.
2. Find the sub foot in the installation kit,
and then insert the sub foot into the
hole on the bottom of the dishwasher as
shown in the gure.
STEP 3 Check the water line
• The water line pressure must be between 0.04 and 1.0 MPa.
• Make sure that the water temperature does not exceed 60 °C. Hot water over 60 °C may
cause the dishwasher to malfunction.
• Make sure that the water supply valve is turned off before connecting the water supply
line to the dishwasher.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 19 2021-04-06 3:51:23
English20
Installation
Installation
STEP 4 Arrange the hoses
1. Clean the bottom of the countertop.
2. Attach the protective sticker as shown.
3. Pull the power plug, the water hose, and
the drain hose through the sink hole.
CAUTION
• Use caution not to kink or step on the
power plug or the hoses.
• Do not remove the brown paper on the
back of the dishwasher. The paper is
used to keep the rear side clean against
the wall.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 20 2021-04-06 3:51:23
English 21
Installation
STEP 5 Install the custom panel
Ø2
~8
1. Put the installation template on the
back of the custom panel and x it
temporarily using transparent tape. Note
that the rear of the custom panel will be
attached to the dishwasher door.
CAUTION
• The top end of the custom panel must
be aligned with the top end of the
installation template.
• Use a custom panel between 2 kg and
5 kg.
2. Mark 6 points guided on the installation
template.
A
B
A
B
3. Remove the installation template, and
then tighten the custom panel xers (A)
with 2 screws (B, Ø3.5 X 25) as shown in
the gure.
D
C
4. Tighten the door bracket (C) with
8 screws (D, Ø4 X 14) as shown in the
gure.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 21 2021-04-06 3:51:24
English22
Installation
Installation
A
F
C
E
30 mm
5. Insert the door brackets (C) on the
custom panel to the holes (E) on the the
dishwasher door to x the custom panel.
6. While holding the custom panel, attach
it to the door and insert the custom
panel xers (A) into the holes (F) as
shown in the gure.
7. Push the custom panel downward to x.
CAUTION
Do not let the custom panel extend
more than 30 mm from the top of the
dishwasher.
UP
DOWN
UP
DOWN
30°
8. Adjust the spring level while the door
is approximately opened at 30 degrees.
The door should hold its position, and
should not fall open.
CAUTION
• Do not adjust the spring level while the
door is completely opened.
• If the custom panel weighs more than
5 kg, the door may fall open.
• Custom panels weighing more than 5 kg
are not recommended.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 22 2021-04-06 3:51:24
English 23
Installation
9. Open the dishwasher door and remove
the 4 screws.
CAUTION
Use caution when opening the door. The
door might open or close unexpectedly
if the spring level is not adjusted
appropriately, resulting in physical injury.
10. Secure the custom panel to the door by
fastening the 4 screws (3.5 X 45).
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 23 2021-04-06 3:51:24
English24
Installation
Installation

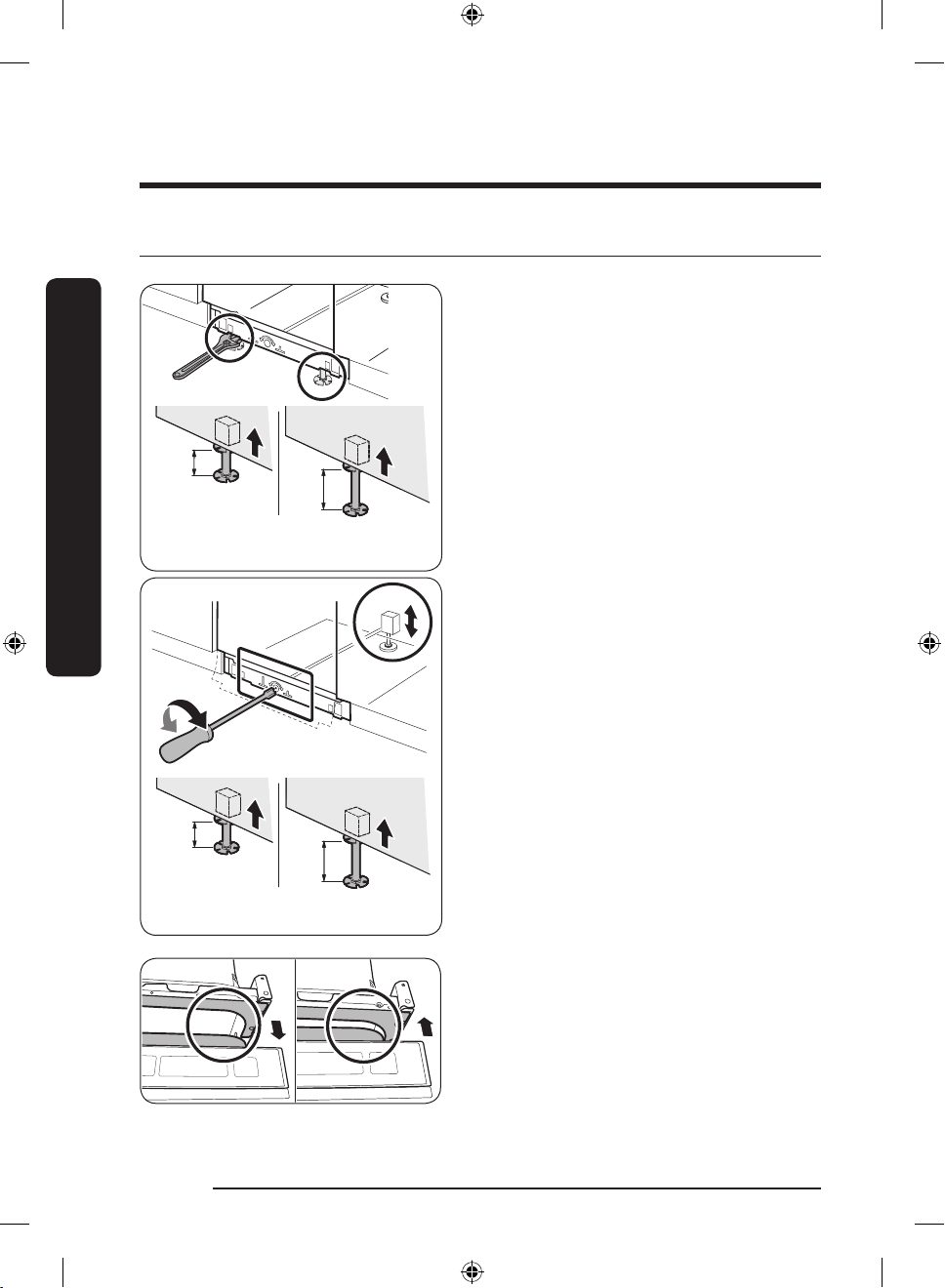

STEP 6 Level the dishwasher
0-30 mm
20-50 mm
Normal Tall-kitchen (Insert the
sub foot)
0-30 mm
20-50 mm
Normal Tall-kitchen (Insert the
sub foot)
You can adjust the height of the dishwasher
to level it. Note that in these steps, the
dishwasher is currently inserted halfway.
1. Use the level to check if the dishwasher
is level.
2. To adjust the front height, use a 22 mm
wrench.
• To lower the height, turn the foot
counterclockwise.
• To raise the height, turn the foot
clockwise.
3. To adjust the rear height, insert the
screwdriver in the bottom centre of the
dishwasher.
• To lower the height, turn the
screwdriver clockwise.
• To raise the height, turn the screwdriver
counterclockwise.
4. When levelling is complete, check if the
door opens and closes properly.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 24 2021-04-06 3:51:25
English 25
Installation
STEP 7 Secure the dishwasher
You can use the brackets to secure the dishwasher to the countertop. Alternatively, you can
drill the side holes to secure the dishwasher to the cabinet sides.
To the countertop using the brackets
1. Insert the provided brackets into the top
front holes of the dishwasher as shown.
2. Insert the dishwasher fully into place
under the countertop.
Ø 2
~
8
3. Tighten the 2 screws (Ø4 X 12) to x the
brackets.
NOTE
After xing the dishwasher to the
countertop, some screws remain. You can
simply discard these screws, or use them
to x the sides of the dishwasher to the
cabinet if you want to.
4. Connect the water hose, but do not
open the water tap until installation is
complete.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 25 2021-04-06 3:51:25
English26
Installation
Installation
To the sides
CAUTION
If the plastic caps are not assembled, water
may leak and cause a re or electric shock.
1. Remove the plastic caps.
2. Tighten the 2 screws (Ø3.5 X 16) to the
2 places (marked on the illustration).
3. Insert the provided plastic caps to the
2 places where screws are fastened.
4. Connect the water hose, but do not
open the water tap until installation is
complete.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 26 2021-04-06 3:51:25
English 27
Installation
STEP 8 Connect the drain hose
Max. 80 cm
Min. 30 cm
1. Connect the drain hose to the drain
outlet.
CAUTION
• Install the drain system properly so that
the drain hose does not come out of the
drain outlet in the draining process.
• Make sure that the drain hose, supply
hose, and power cord is not kinked or
folded.
STEP 9 Final check
1. Remove all foam, paper packaging, and unnecessary parts from inside the dishwasher.
2. Turn the circuit breaker on.
3. Open the water supply valve to supply water to the dishwasher.
4. Plug in and turn the dishwasher on. Then, select and run the Quick cycle.
5. Check if the dishwasher turns on normally and if there are any water leaks while the
dishwasher is operating. Make sure to check for water leaks on both ends of the water
line and the drain hose connector.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 27 2021-04-06 3:51:25
English28
Installation
Installation
Skirting board
1. Put the skirting board on the bottom of
the dishwasher.
2. Open the door of the dishwasher, and
draw a baseline on the skirting board
where it interferes with the door.
3. Follow the baseline and cut the skirting
board using a saw.
4. Attach the cut skirting board to the
bottom of the dishwasher. Make sure the
board does not interfere with the door
of the dishwasher.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 28 2021-04-06 3:51:25
English 29
Before you start
Before you start
Follow these instructions carefully to ensure proper installation of the dishwasher and to
prevent accidents when washing dishes.

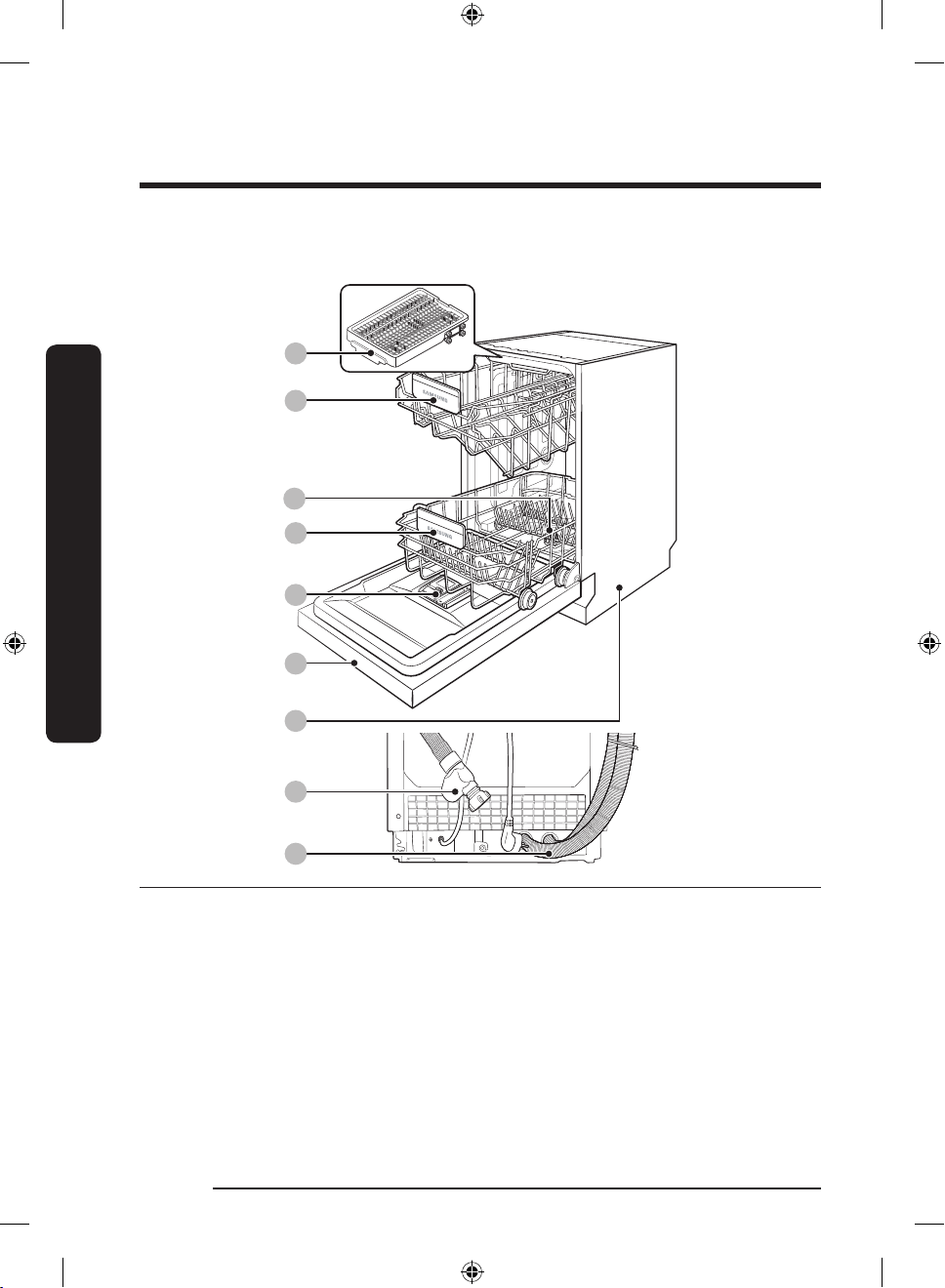

Dishwasher at a glance
DW5*R406*BB / DW5*R404*BB
NOTE: “ * ” Asterisk(s) means variant model and can be varied (0-9) or (A-Z).
04
05
07
08
06
01
02
03
01 Upper rack 02 Lower rack 03 Salt storage
04 Dispenser 05 Door 06 Base
07 Inlet hose 08 Drain hose
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 29 2021-04-06 3:51:26
English30
Before you start
Before you start
DW5*R407*BB / DW5*R405*BB
NOTE: “ * ” Asterisk(s) means variant model and can be varied (0-9) or (A-Z).
05
06
08
09
07
01
02
04
03
01 Cutlery rack 02 Upper rack 03 Salt storage
04 Lower rack 05 Dispenser 06 Door
07 Base 08 Inlet hose 09 Drain hose
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 30 2021-04-06 3:51:26
English 31
Before you start
CAUTION
• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint.
These materials will damage the dishwasher. Ash does not dissolve and will spread
inside the dishwasher.
• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks,
paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the
dishwasher to malfunction, and damage your dishes and dishwasher.
Unsuitable items for the dishwasher
WARNING
Wash only items such as glass, porcelain, and cutlery which the manufacturer declares as
dishwasher safe. Do not wash aluminium (e.g. grease lters). The dishwasher may damage
aluminium, or in extreme cases, cause a severe chemical reaction.
Do not wash the following items in the dishwasher.
• Copper, brass, tin, ivory, and aluminium items or items with adhesive
• Non-heat resistant plastics
• Craft items, antiques, valuable vases, and decorative glassware
• Pottery or glazed-ceramic items
• Wooden cutlery and crockery or items with wooden parts
• Delicate glassware or glassware containing lead crystal. Clouding may occur on the
glassware after frequent washing.
NOTE
Silverware that has contacted foods containing sulphur may become discoloured. Food
with sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine, and
marinades.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 31 2021-04-06 3:51:26
English32
Before you start
Before you start
Basic use of racks
Height adjustment
You can adjust the height of the upper rack so that the lower rack can accommodate larger
sized dishes. Depending on the height of the upper rack, the lower rack can accommodate
plates up to 29 cm in diameter, and the upper rack can accommodate plates up to 18 cm in
diameter.
CAUTION
• Adjust the height of the upper rack before loading dishes into the rack. Adjusting the
rack after loading the dishes may damage the dishes.
• Make sure to hold both handles when adjusting, or the dishwasher door may not close
properly.
DW5*R407*BB / DW5*R406*BB
• To raise the upper rack, pull the upper
rack upwards. The adjustable handle will
latch, and the upper rack will raise.
• To lower the upper rack, hold both the
adjustable handles located at the left
and right sides of the upper rack, and
then evenly press down.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 32 2021-04-06 3:51:26
English 33
Before you start
DW5*R405*BB / DW5*R404*BB

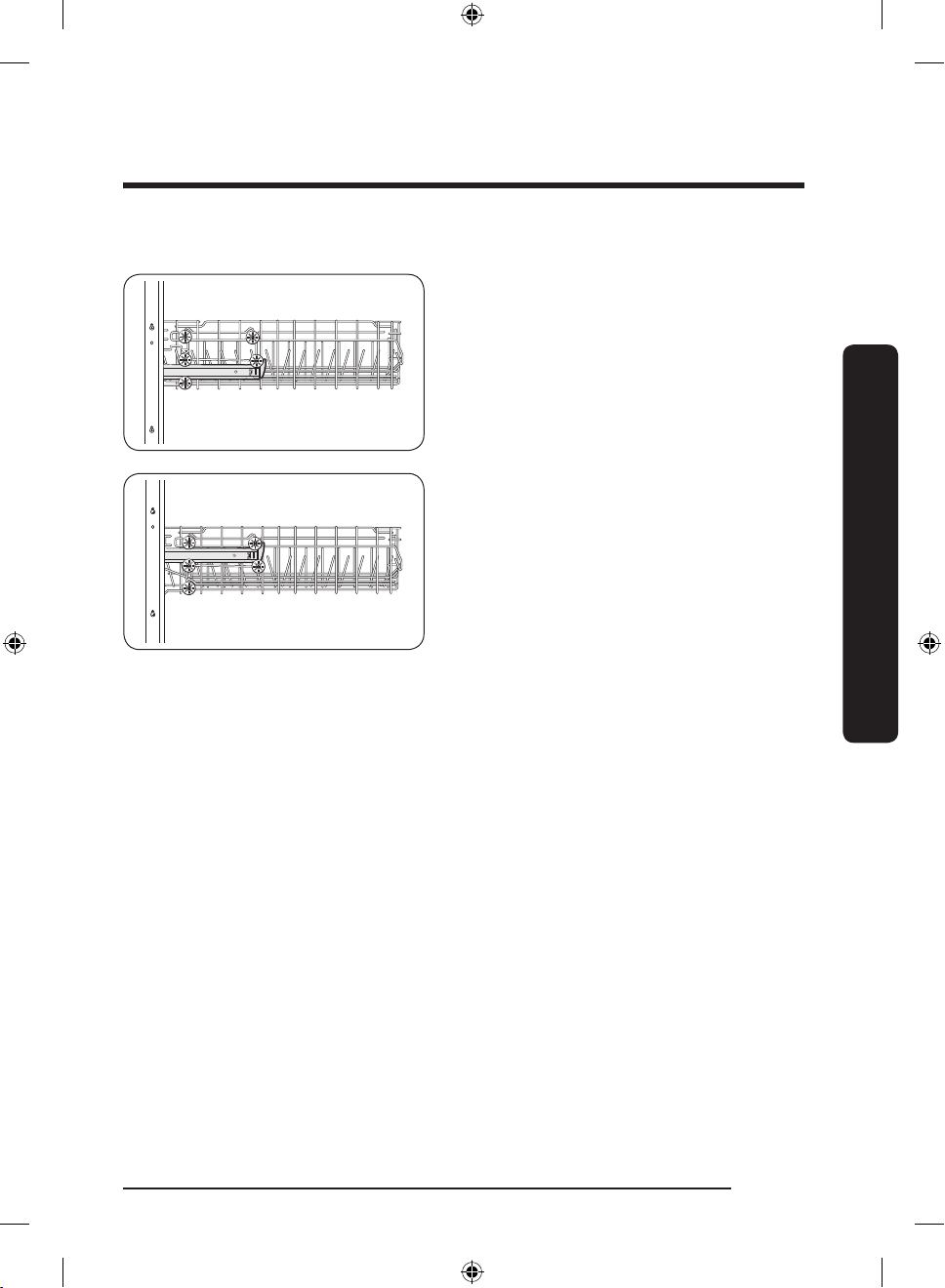

• To raise the upper rack, remove the
upper rack (as instructed in “Upper rack
removal” section on page 34), and then
put the lower three wheels on each side
of the rack to lock on the guide rail.
• To lower the upper rack, remove the
upper rack (as instructed in “Upper rack
removal” section on page 34), and then
put the upper four wheels on each side
of the rack to lock on the guide rail.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 33 2021-04-06 3:51:26
English34
Before you start
Before you start
Upper rack removal
CAUTION
• Do not operate the dishwasher without the upper rack. Otherwise, noises occur and the
dishwasher does not operate properly.
• Because the upper rack is removable, insert the upper rack properly to ensure the
dishwasher operates normally.
DW5*R407*BB / DW5*R406*BB
Pull the upper rack to the front until it is fully extended, and then lift it slightly to remove.
See the following gures.
DW5*R405*BB / DW5*R404*BB
Pull the upper rack towards the front and then remove it by lifting it up slightly and
pulling it towards the front. See the following gures.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 34 2021-04-06 3:51:27
English 35
Before you start

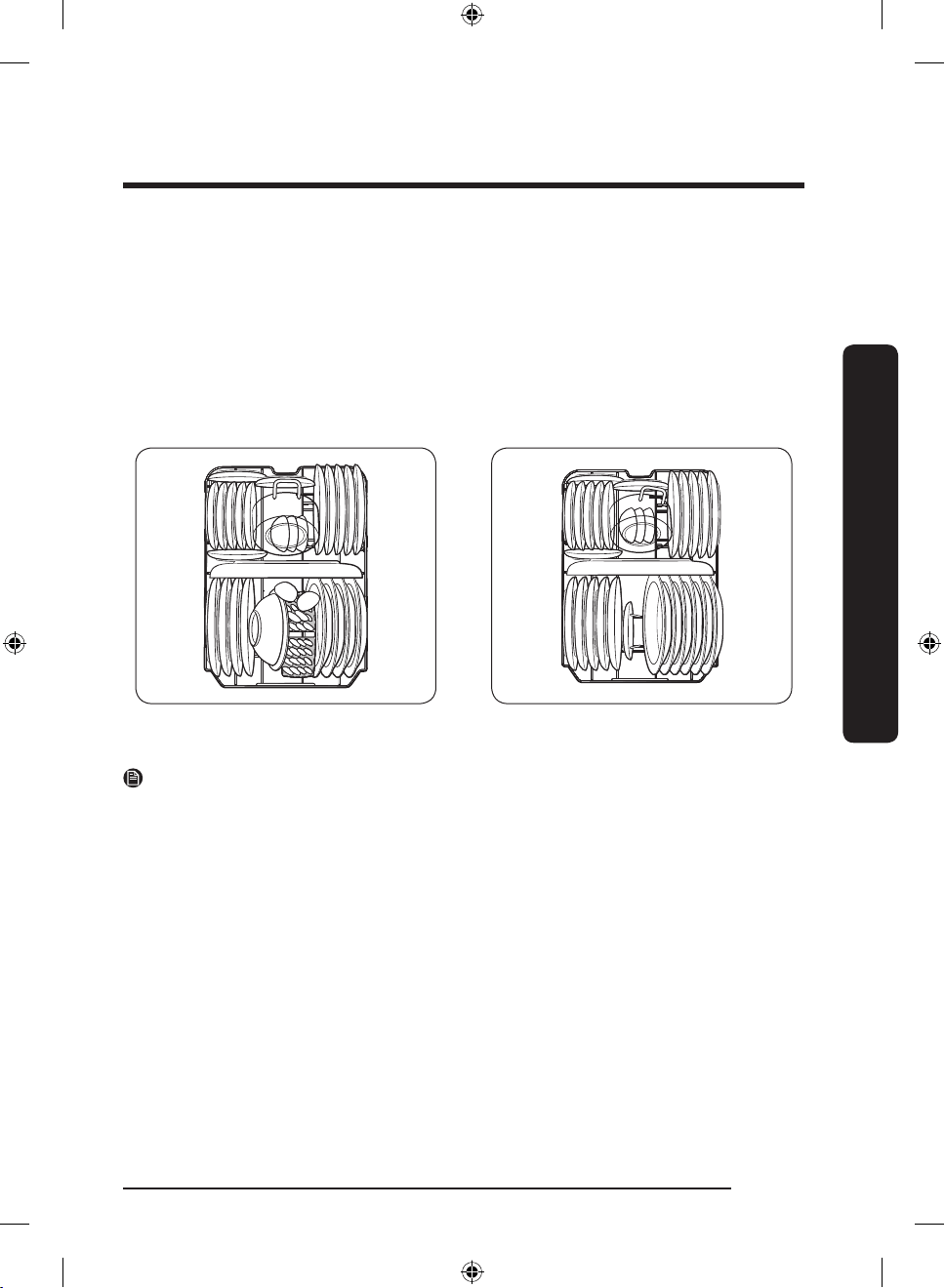

Loading dishes
Lower rack
We recommend that you place large items, that are difcult to clean (such as pots, pans,
lids, serving dishes and bowls), in to the lower rack.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid
blocking the rotation of the upper nozzle. Pots, serving bowls, etc. must always be placed
top down.
Deep pots should be slanted to allow water to ow out.
The lower rack features folding tines to easily load more larger pots and pans.
DW5*R406*BB / DW5*R404*BB DW5*R407*BB / DW5*R405*BB
NOTE
Long items, serving cutlery, salad servers and big knives should be placed on the shelf so
that they do not obstruct the rotation of the nozzles.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 35 2021-04-06 3:51:28
English36
Before you start
Before you start

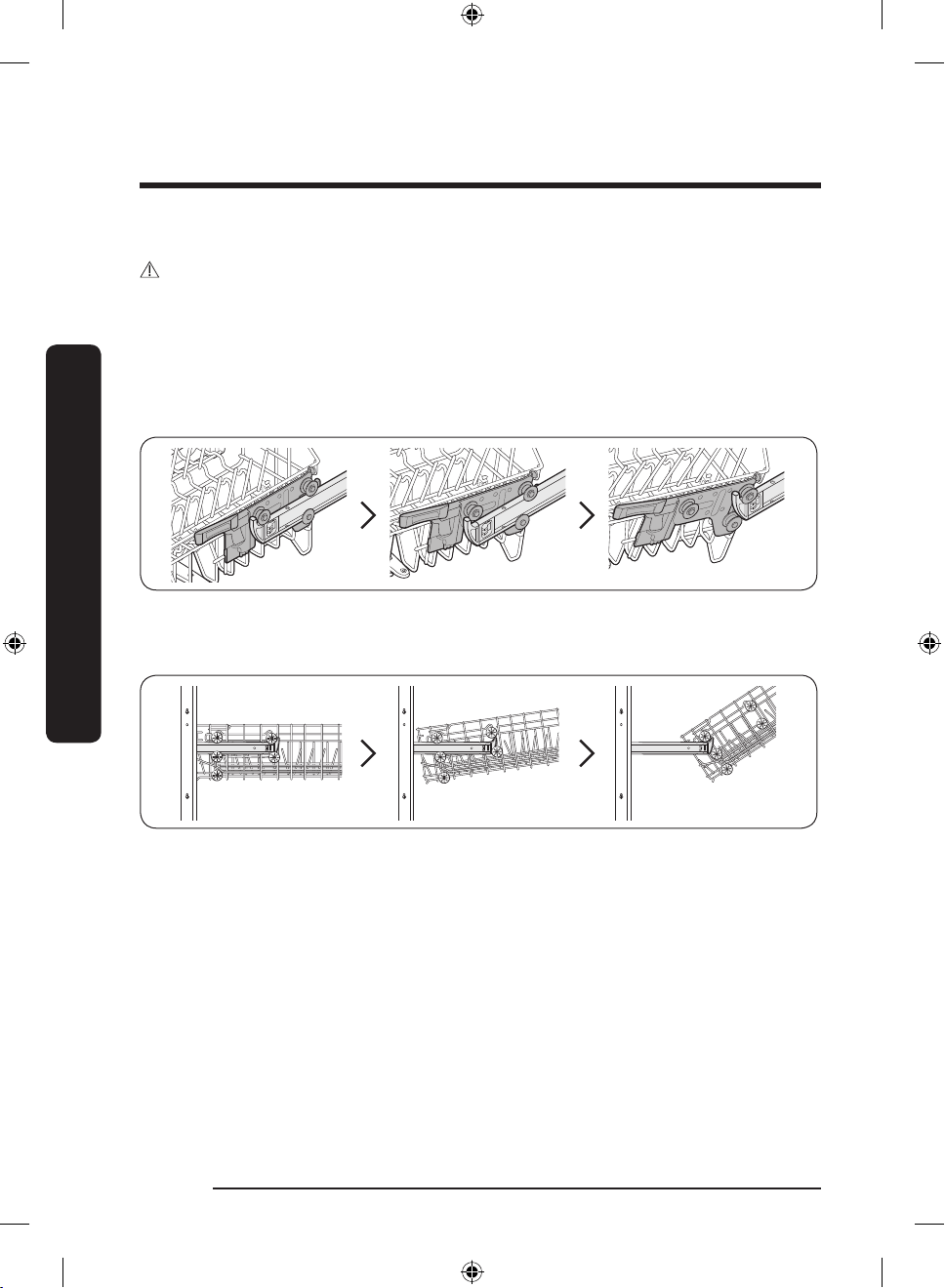

Using the folding tines
For better stacking of pots and pans, the tines can be folded down as show in the gure.
Upper rack
The upper rack is designed to hold more delicate and lighter dishware such as glasses,
coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as
they are not too dirty). Position the dishes and cookware so that they will not get moved
by the spray of water. Always place glasses, cups & bowls upside down.
DW5*R406*BB / DW5*R404*BB DW5*R407*BB / DW5*R405*BB
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 36 2021-04-06 3:51:29
English 37
Before you start

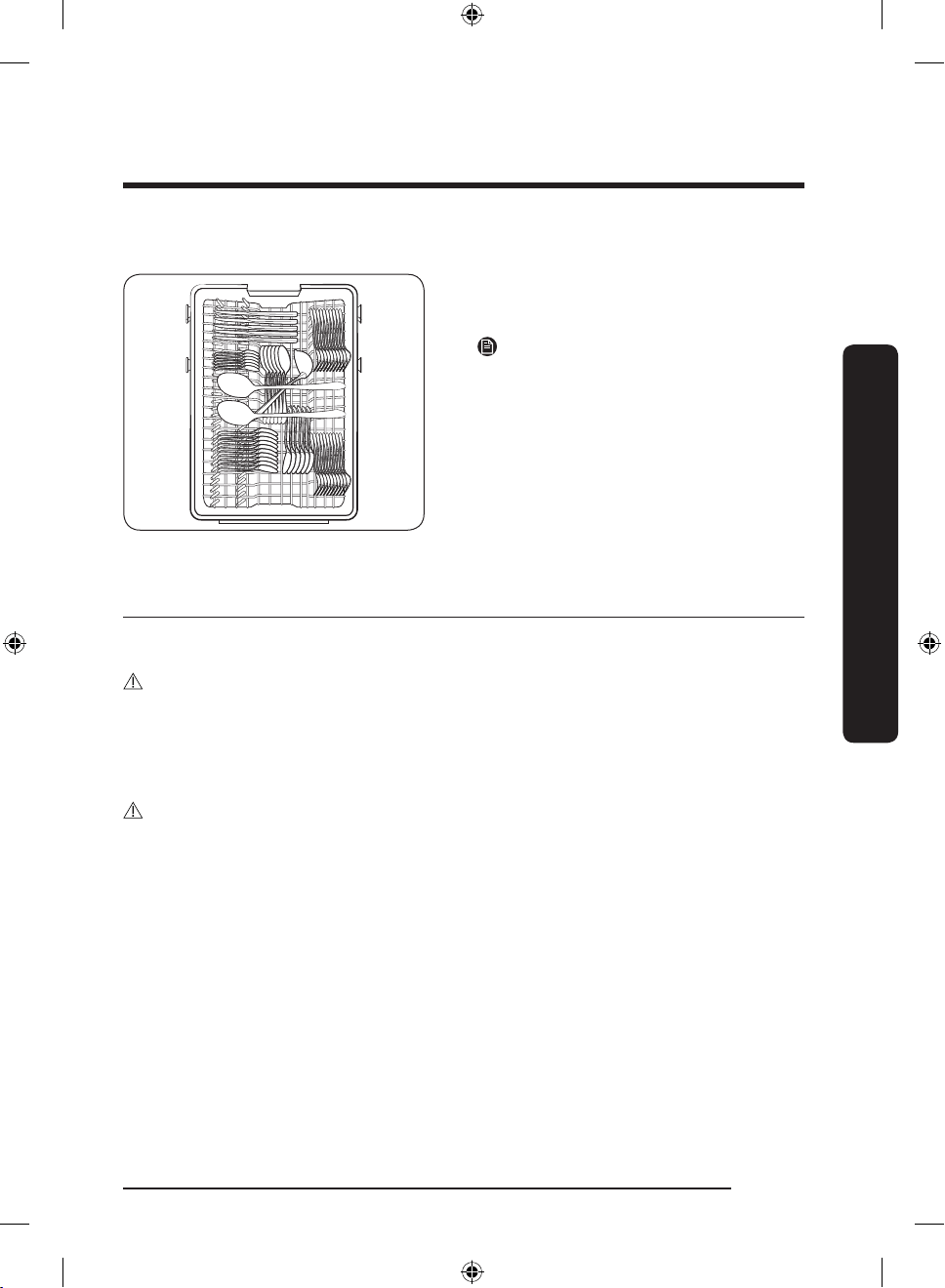

Cutlery rack (DW5*R407*BB / DW5*R405*BB model only)
The cutlery rack is best for atware and
cooking or serving utensils. Use the cutlery
rack to organize atware or utensils.
NOTE
The cutlery rack can be removed if you
need more space on the upper rack to clean
larger items.
Detergent compartment
All dishwasher cycles require detergent in the detergent compartment. Apply detergent as
recommended for the selected cycle to ensure best performance.
WARNING
• Do not consume dishwasher detergent. Avoid breathing in detergent fumes. Dishwasher
detergent contains irritants and caustic chemicals that can induce respiratory conditions.
If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical
attention immediately.
• Keep dishwasher detergent out of children’s reach.
CAUTION
Use dishwasher detergent only. Other types of detergent produce excessive foam, which
may decrease the dishwasher’s performance or cause it to malfunction.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 37 2021-04-06 3:51:29
English38
Before you start
Before you start
Filling the detergent
1. Open the detergent dispenser cap by
pushing the detergent dispenser catch
to the right.
NOTE
The cap remains open at the end of a cycle.
2. Add the recommended amount of
detergent to the main wash detergent
compartment.
3. Close the lid by sliding it up.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 38 2021-04-06 3:51:29
English 39
Before you start

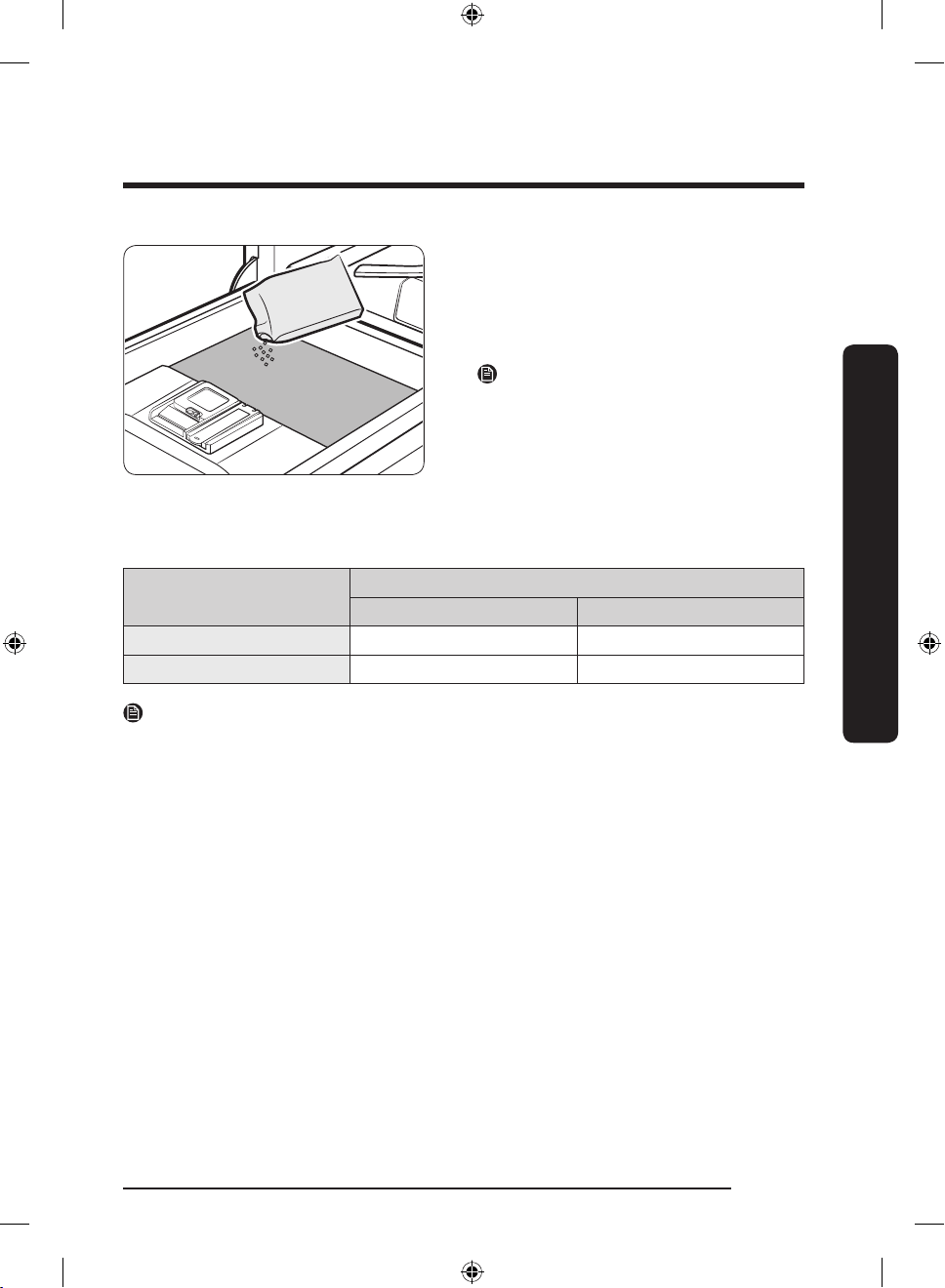

4. If the items are heavily soiled, pour
a small amount of detergent onto
the door for better cleaning results.
(For amount of detergent, refer to the
“Recommended amount of detergent”
section.)
NOTE
The additional detergent will activate
during the pre-wash process.
The cover opens automatically to dispense the detergent during the wash.
Recommended amount of detergent
Cycle
Amount of detergent
Main wash dispenser Onto the door for pre-wash
AUTO, Normal
2
/
3
oz (20 g)
1
/
3
oz (10 g)
Intensive, Express 1 oz (30 g)
1
/
2
oz (15 g)
NOTE
The numbers inside the dispenser refer to grams.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 39 2021-04-06 3:51:30
English40
Before you start
Before you start
Rinse aid reservoir
Rinse aid improves the drying performance of the dishwasher. When the Rinse Rell
indicator lights up on the control panel, rell with rinse aid. Only use liquid rinse aid.
Powdered rinse aid will clog the reservoir opening and cause the dishwasher to
malfunction.
CAUTION
• Do not apply any type of detergent to the rinse aid reservoir.
• Do not excessively ll the reservoir. Excessive rinse aid may overow during a cycle.
Filling the rinse aid
1. Open the rinse aid reservoir cap.
2. Fill the rinse aid reservoir with rinse aid.
NOTE
Use the viewing port when lling the rinse
aid reservoir.
CAUTION
Do not ll the reservoir above the full level
indicator. Excess rinse aid can overow
during the wash cycle.
3. Close the rinse aid reservoir cap.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 40 2021-04-06 3:51:30
English 41
Before you start
Salt storage
CAUTION
• Use dishwasher-specic salt only. Do not use any other type of salt or solvent. This may
damage the salt storage and the water softening system.
• To prevent corrosion due to an excessive amount of salt or salty water, always ll the
salt storage immediately before a washing cycle gets started.
Filling the salt storage
1. Open the door.
2. Turn the cap counterclockwise to open.
3. Fill the salt storage with water (only
required when using the dishwasher for
the rst time).
4. Apply dishwasher salt.
CAUTION
• The maximum capacity is about 1 kg. Do
not exceed the capacity.
• Exceeding the capacity may affect the
dishwasher performance.
5. Turn the cap clockwise to close.
NOTE
• To clean salt or salt water from
dishwasher, run the Quick cycle.
• Depending on the size of the salt grains,
it may take a while for the salt to
dissolve and the indicator ( ) to turn
off.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 41 2021-04-06 3:51:30
English42
Before you start
Before you start
Salt indicator
The indicator ( ) turns on if there is not enough salt for the next several cycles.
Touchpad responsiveness
To prevent the touch-enabled controls from losing responsiveness, follow these
instructions.
• Touch the centre of each button with
one nger.
• Do not touch more than one button at a
time, except as directed.
• Clean the surface of the control panel
regularly with a soft, damp cloth.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 42 2021-04-06 3:51:30
English 43
Before you start
Setting mode
You can change the sound, auto door open function, rinse aid level, and water hardness
settings to your preference.
Entering the Setting mode
1. Turn the dishwasher on.
2. Press and hold the AUTO (DW5*R407*BB / DW5*R406*BB model) or Normal
(DW5*R405*BB / DW5*R404*BB models) cycle button for ve seconds within 60 seconds
from turning on the dishwasher.
- When you entered the Setting mode, the display will show “0:00”.
Sound setting
You can turn the sound on or off.
1. Press the Lower rack only (DW5*R407*BB / DW5*R406*BB model) or Half load
(DW5*R405*BB / DW5*R404*BB models) button to select the sound setting menu.
- The display shows the current setting. (Default setting: “U1”)
2. Press the AUTO (DW5*R407*BB / DW5*R406*BB model) or Normal (DW5*R405*BB /
DW5*R404*BB models) cycle button to change the setting.
- U0: Sound off
- U1: Sound on
3. Wait 5 seconds to save the setting.
Auto door open function setting (applicable models only)
You can set the dishwasher to automatically open the door after each cycle for better
drying results.
1. Press the Rinse Add button to select the auto door open function setting menu.
- The display shows the current setting. (Default setting: “A1”)
2. Press the AUTO (DW5*R407*BB / DW5*R406*BB model) cycle button to change the
setting.
- A0: Function disabled
- A1: Function enabled
3. Wait 5 seconds to save the setting.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 43 2021-04-06 3:51:30
English44
Before you start
Before you start
Rinse aid level setting
You can change the amount of rinse aid applied during a cycle.
1. Press the Sanitize button to select the rinse aid level setting menu.
- The display shows the current setting. (Default setting: “d4”)
2. Press the AUTO (DW5*R407*BB / DW5*R406*BB model) or Normal (DW5*R405*BB /
DW5*R404*BB models) cycle button to change the setting.
- You can select from d1 - d5 (minimum – maximum).
3. Wait 5 seconds to save the setting.
Water hardness level setting
You can change the water hardness level according to water hardness in your local area.
Changing this setting will have effect on the salt consumption in the dishwasher’s salt
storage.
1. Press the Delay Start button to select the water hardness level setting menu.
- The display shows the current setting. (Default setting: “H4”)
2. Press the AUTO (DW5*R407*BB / DW5*R406*BB model) or Normal (DW5*R405*BB /
DW5*R404*BB models) cycle button to change the setting.
- You can select from H1 – H6 (soft – hard).
3. Wait 5 seconds to save the setting.
NOTE
• Change the setting according to the table in the “Adjusting salt consumption” section on
page 49.
• The manufactory setting: H4 (EN50242)
• The dishwasher regenerates the water softener once every 3–4 cycles depending on the
setting. However, the dishwasher will regenerate the water softener on the rst cycle
after you change the setting.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 44 2021-04-06 3:51:30
English 45
Operations
Operations
Control panel
DW5*R407*BB / DW5*R406*BB
01 02 060403 07 08 10
09
DW5*R405*BB / DW5*R404*BB
01 02 06 07 08 10
09
05
01 POWER Press to turn the dishwasher on or off.
02 Cycle
Press to select a desired wash cycle. For more information,
see the “Cycle overview” section on page 47.
03 Upper rack only
(DW5*R407*BB /
DW5*R406*BB)
Press to wash items using only the upper rack to save
energy.
04 Lower rack only
(DW5*R407*BB /
DW5*R406*BB)
Press to wash items using only the lower rack to save energy.
05 Half load
(DW5*R405*BB /
DW5*R404*BB)
Press to wash small number of items to save energy.
06 Rinse Add
Press to select the Rinse Add option. You can use it when you
want an additional rinse process at the end of the cycle.
07 Sanitize
Press to increase the water temperature up to 69 °C in the
nal rinse process for high temperature sanitization.
This option is not available with Delicate and Quick.
08 Multi tab
(Control Lock)
Press to select the Multi tab option to use the 3 in 1 tablet
which does not need salt and rinse aid.
This option is not available with Express and Quick.
Control Lock: Child lock allows you to lock the buttons on
the control panel except for the POWER button. For more
information, see the “Control Lock” section on page 51.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 45 2021-04-06 3:51:31
English46
Operations
Operations
09 Delay Start
You can delay the cycle starting time up to 24 hours. For
more information, see the “Delay Start” section on page 51.
10 START
(Cancel & Drain)
Press START to start operation. Make sure the door is closed.
Cancel & Drain: To cancel the current cycle and drain the
dishwasher, press and hold START for 3 seconds.
Indicators
No Salt indicator Lights up when the salt storage runs out of salt.
Rinse Rell indicator Lights up if the dishwasher runs out of rinse aid.
Control Lock indicator
Lights up if Control Lock is activated, and blinks if
any button except for the POWER button is pressed.
Delay Start indicator Lights up if Delay Start is activated.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 46 2021-04-06 3:51:31
English 47
Operations
Cycle overview
DW5*R407*BB / DW5*R406*BB
01 03 04 05 06 07
DW5*R405*BB / DW5*R404*BB
02 03 04 05 06 07
01 AUTO
(DW5*R407*BB /
DW5*R406*BB)
This cycle detects the level of soil and automatically initiates the
optimal cycle, which is appropriate for all levels of soiled items.
02 Normal
(DW5*R405*BB /
DW5*R404*BB)
For normally soiled loads, such as pots, plates, glasses, and
lightly soiled pans. Standard daily cycle.
03 ECO
This cycle reduces power and water consumption, which is
appropriate for normally soiled items.
04 Intensive Select this cycle for heavily soiled items.
05 Delicate
Select this cycle for lightly soiled, fragile items such as glasses.
Sanitize option is not available in this cycle.
06 Express
Normally soiled daily using items, with short cycle time. Multi
tab option is not available in this cycle.
07 Quick
Select this cycle to clean lightly soiled items in a short time.
Sanitize and Multi tab options are not available in this cycle.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 47 2021-04-06 3:51:31
English48
Operations
Operations
Simple steps to start
1. Open the door, and then load the dishwasher. Make sure to remove food remains and
waste on the dishes.
2. Apply detergent to the detergent dispenser. For better results, add rinse aids.
3. Press POWER, and then select a cycle with necessary options (Upper rack only,
Lower rack only, Half load, Rinse Add, Sanitize, Multi tab, and Delay Start). Some options
may not be available depends on the cycle.
NOTE
• If you select Upper rack only (DW5*R407*BB / DW5*R406*BB), make sure the dishes are
loaded in the upper rack.
• If you select Lower rack only (DW5*R407*BB / DW5*R406*BB), make sure the dishes are
loaded in the lower rack.
4. Press START, and then close the door. The dishwasher starts the cycle after draining for
a few seconds.
NOTE
• To change the cycle after it has started, press and hold START for 3 seconds to cancel
the cycle. Then, select a new cycle.
• The default cycle is ECO.
• To resume after you have opened the door to stop the dishwasher while operating,
simply close the door.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 48 2021-04-06 3:51:31
English 49
Operations
Salt storage
The water softener is designed to remove minerals and salts from the water, which would
have a detrimental or adverse effect on the operation of the appliance. The higher the
content of these minerals and salts, the harder your water is. The softener should be
adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjusting the amount of salt consumed based on
the hardness of the water used. This is intended to optimise and customise the level of salt
consumption so that the salt consumption could be set proceed as follows:
1. Turn the dishwasher on.
2. Press and hold the AUTO (DW5*R407*BB / DW5*R406*BB model) or Normal
(DW5*R405*BB / DW5*R404*BB models) cycle button for ve seconds within 60 seconds
from turning on the dishwasher.
- When you entered the Setting mode, the display will show “0:00”.
3. Press the Delay Start button to select the water hardness level setting menu.
- The display shows the current setting. (Default setting: “H4”)
4. Press the AUTO (DW5*R407*BB / DW5*R406*BB model) or Normal (DW5*R405*BB /
DW5*R404*BB models) cycle button to change the setting.
- You can select from H1 – H6 (soft – hard).
5. Wait 5 seconds to save the setting.
NOTE
• It is recommended that adjustments should be made in accordance with the following
(or Manual) table.
• The manufactory setting: H4 (EN50242)
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 49 2021-04-06 3:51:31
English50
Operations
Operations
Water hardness
Water
hardness
setting
Salt
consumption
(gram/cycle)
Autonomy
(cycles/1 kgs)
°dH °fH °Clark mmol/l
0-5 0-9 0-6 0-0.94 H1 0 /
6-11 10-20 7-14 1.0-2.0 H2 20 60
12-17 21-30 15-21 2.1-3.0 H3 30 50
18-22 31-40 22-28 3.1-4.0 H4 40 40
23-34 41-60 29-42 4.1-6.0 H5 50 30
35-55 61-98 43-69 6.1-9.8 H6 60 20
NOTE
• 1 dH (German degree) = 0.178 mmol/l
• 1 Clark (British degree) = 0.143 mmol/l
• 1 fH (French degree) = 0.1 mmol/l
• Contact your local water board for information on the hardness of your water supply.
• WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits may form on dishes and utensils. The appliance is equipped with
a special softener that uses a salt specically designed to eliminate lime and minerals
from the water.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 50 2021-04-06 3:51:31
English 51
Operations
Delay Start
You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the
delay time, press Delay Start. The hour displayed indicates the time at which the cycle will
start.
1. Open the door, and then load the dishwasher.
2. Press Delay Start to change the time in 1-hour increments.
- If you press and hold the button, the time will increase until you release the button.
3. Press START, and then close the door.
NOTE
To change the delay time once the dishwasher has started, press POWER and restart the
dishwasher.
Control Lock
To prevent children from playing with the dishwasher, Control Lock locks all button
controls except for POWER.
• To activate Control Lock, press and hold Multi tab for 3 seconds. With Control Lock
activated, you cannot select a cycle or option, or start an operation.
• To deactivate Control Lock, press and hold Multi tab again for 3 seconds.
• Control Lock remains active after the dishwasher restarts. To cancel Control Lock, you
must deactivate it rst.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 51 2021-04-06 3:51:31
English52
Maintenance
Maintenance
Cleaning
Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and
lengthen the lifecycle.
Exterior
Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the
control panel to gently wipe away spills and dust.
CAUTION
• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances.
These materials may discolour the surface of the dishwasher and cause stains.
• The dishwasher has electric parts inside. Do not spray water directly onto the
dishwasher. Protect electrical components from water.
• For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a
clean, soft cloth.
Interior
Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles.
Wipe inside the dishwasher and inside the door with a wet dishcloth.
CAUTION
• Do not remove the front seal (the long rubber seal enclosing the opening of the
dishwasher). The seal keeps the inner side of the dishwasher sealed.
• Use a damp cloth to remove lime scale or grease deposits inside the dishwasher.
Alternatively, apply some detergent, and then run an empty cycle using the highest
rinse temperature.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 52 2021-04-06 3:51:31
English 53
Maintenance

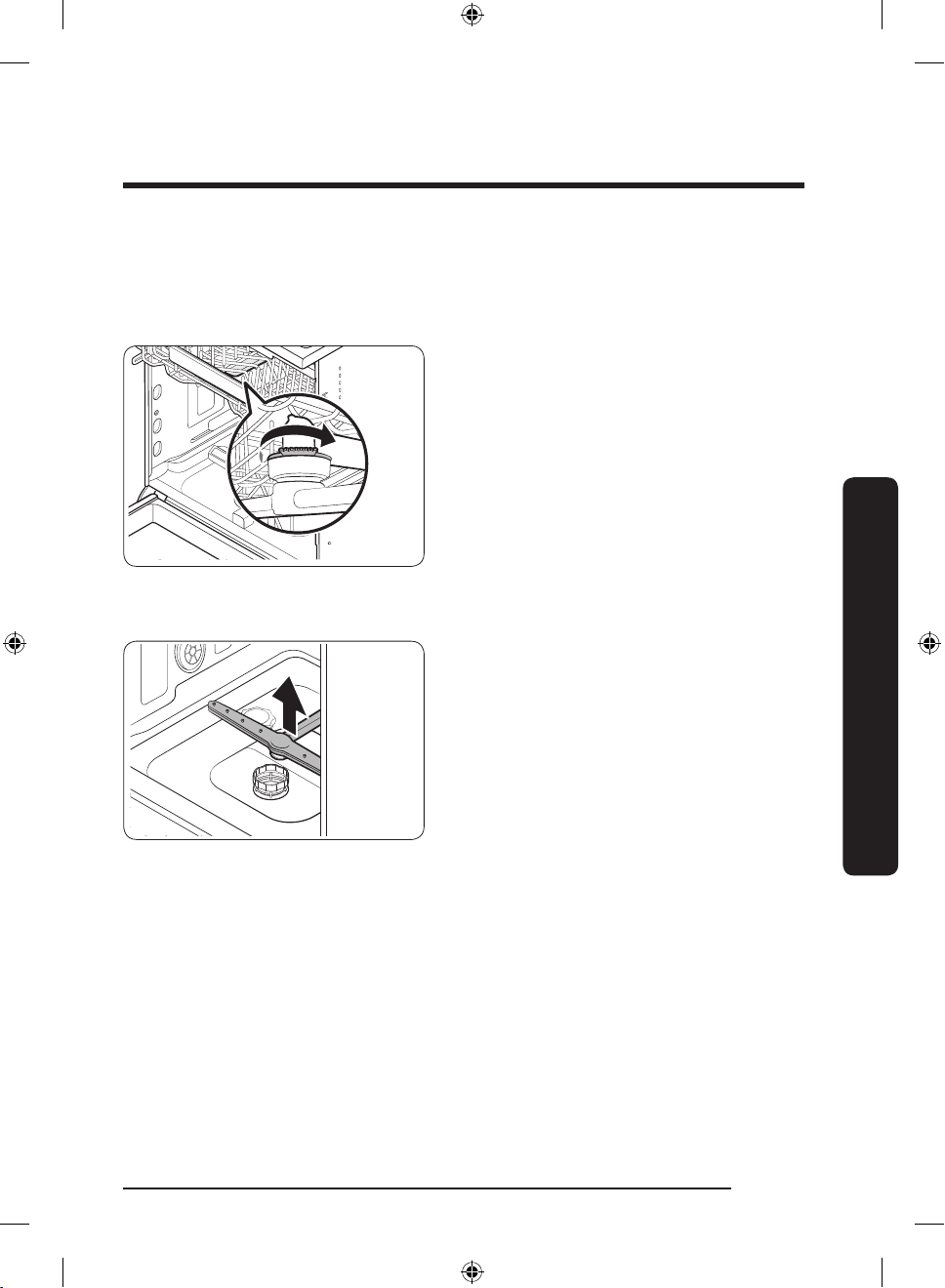

Nozzles
To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean
each nozzle. Use caution when removing the nozzles as they may break.
Upper nozzle
1. Open the door, and then pull out the
upper rack to reveal the upper nozzle.
2. Loosen and remove the nut, and then
remove the nozzle.
3. Unclog and clean the nozzle.
4. Reinsert the nozzle, and then tighten the
nut by hand.
5. Rotate the nozzle by hand to make sure
the nozzle is engaged correctly.
Lower nozzle
1. Open the door, and then pull out the
lower rack. The lower nozzle is visible
on the bottom.
2. Unclog and clean the nozzle.
3. Reinsert the nozzle.
4. Rotate the nozzle by hand to make sure
the nozzle is engaged correctly.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 53 2021-04-06 3:51:32
English54
Maintenance
Maintenance

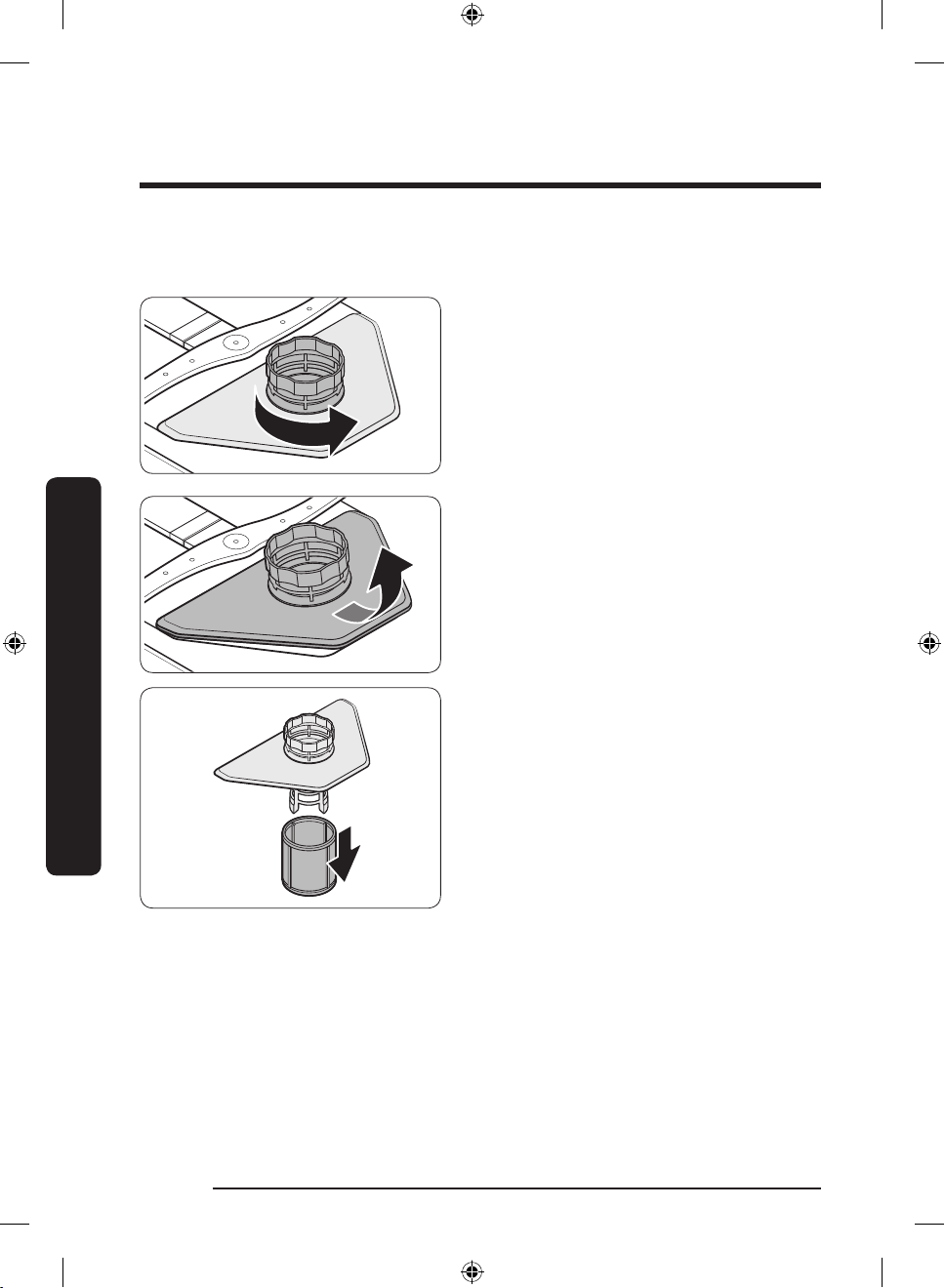

Filter
We recommend cleaning the lter every month.
1. Open the door, and then remove the
lower rack rst.
2. Turn the lter handle counterclockwise
to unlock the Coarse lter.
3. Remove the Coarse lter, and then the
cylindrical micro lter underneath.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 54 2021-04-06 3:51:32
English 55
Maintenance

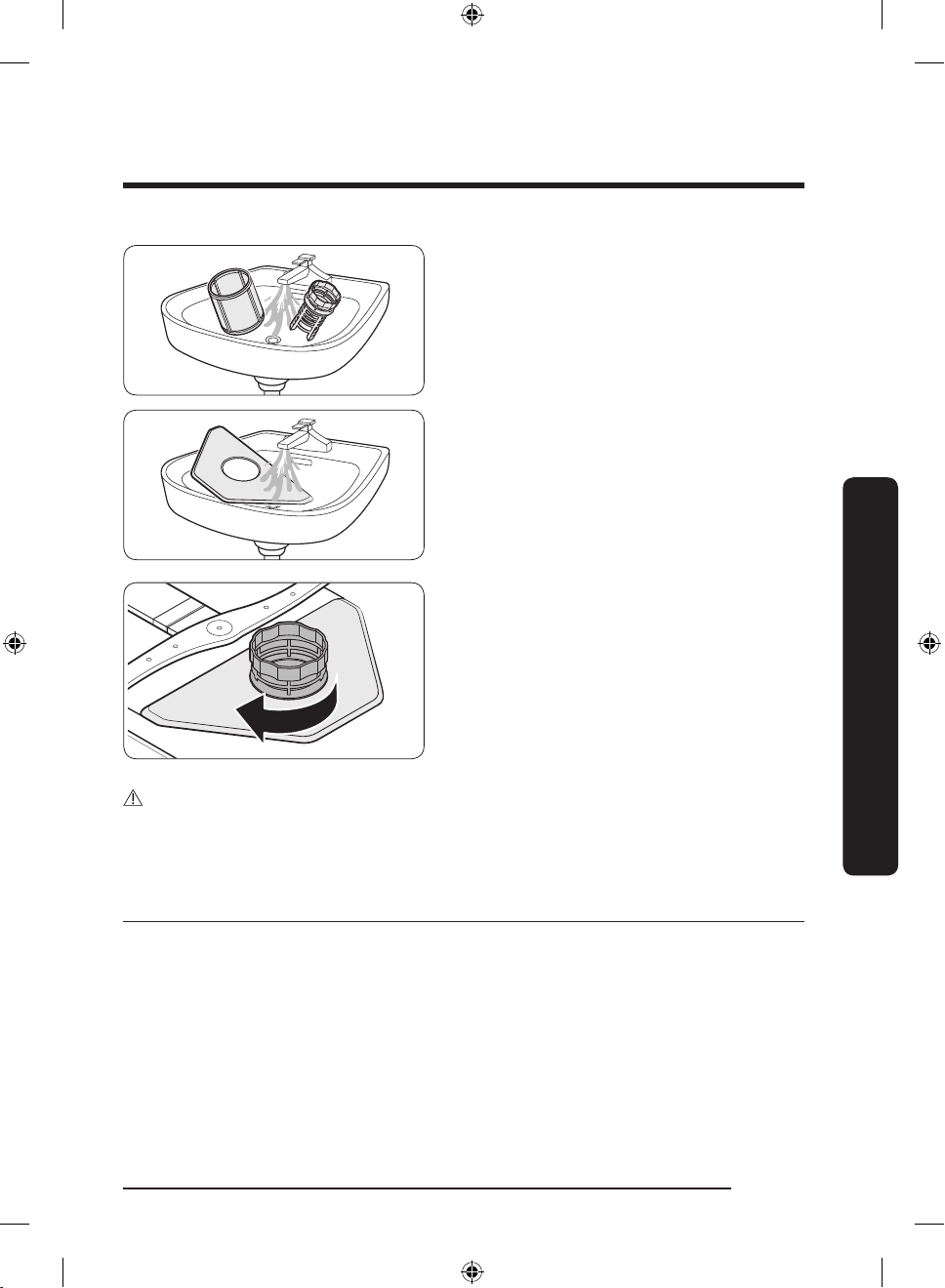

4. Remove any dirt and impurities from
the micro lter and the Coarse lter.
5. Rinse them with running water, and then
dry well.
6. Reinsert the lter, and then the Coarse
lter.
7. Turn the lter handle clockwise to lock.
CAUTION
Make sure the Coarse lter is closed properly. A loose cover can reduce the ltering
performance.
Long-term care
If you will not use the dishwasher for an extended period of time, rst drain the unit
completely, and then disconnect the water hose. Shut off the water supply valve and the
circuit breaker. Water remaining in the hoses or the internal components can damage the
dishwasher.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 55 2021-04-06 3:51:32
English56
Troubleshooting
Troubleshooting
Checkpoints
If you encounter an issue with the dishwasher, rst check the table below and try the
suggestions.
Symptom Possible cause Action
The dishwasher does
not start.
The door is not completely
closed.
• Make sure the door is
latched and completely
closed.
• Make sure the upper rack
is properly joined with the
nozzle.
• Make sure the upper rack is
properly assembled.
The power cord is not
connected.
• Connect the power cord.
Water is not being supplied.
• Make sure the water supply
valve is open.
The control panel is locked. • Deactivate the Control Lock.
The dishwasher has
bad odours.
Water remains from the
previous cycle.
• With the dishwasher empty,
add detergent, and then
run the Quick cycle. This is
available only on applicable
models.
Water remains in the
dishwasher after a
cycle has nished.
The drain hose is folded or
clogged.
• Straighten and unclog the
hose.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 56 2021-04-06 3:51:32
English 57
Troubleshooting
Symptom Possible cause Action
Food remains on
dishes.
An incorrect cycle was
selected.
• Select a cycle according to
the soil level of the dishes
as instructed in this manual.
The lters are clogged or not
correctly fastened.
• Clean the lters.
• Make sure the lters are
correctly fastened.
An insufcient amount of
detergent was used.
• Use the correct amount of
detergent for each load.
The water pressure is low.
• Make sure the pressure is
between 0.04–1.0.
The nozzles are clogged.
• Clean and unclog the
nozzles.
Dishes improperly loaded or
overloaded.
• Arrange the dishes so
they do not interfere with
the nozzles and/or the
detergent dispenser.
The water is too hard.
• Check the salt rell
indicator, and rell with
dishwasher salt.
Dishes are not dried
well.
There is no rinse aid in the
dispenser, or not enough rinse
aid was used.
• Add rinse aid.
• Check the rinse aid settings.
Too many dishes are loaded.
• Overloading may reduce
the drying performance.
Load your dishes as
recommended.
Glasses and cups spilled water
onto other dishes while being
unloaded.
• Empty the lower rack
rst, and then the upper
rack. This will avoid water
dripping from the upper
rack onto the dishes in the
lower rack.
Multiple detergent tablets were
used without selecting the
Sanitize option.
• Select the Sanitize option or
use rinse aid.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 57 2021-04-06 3:51:32
English58
Troubleshooting
Troubleshooting
Symptom Possible cause Action
The dishwasher is
too noisy.
The dishwasher makes a sound
when the dispenser cover is
open and the drain pump is
operating.
• This is normal.
The dishwasher is not level.
• Make sure the dishwasher
is level.
The nozzle bumps against the
dishes, creating a chopping
sound.
• Rearrange the dishes.
Yellow or brown lm
remains on dishes.
Coffee and tea soils.
• Use a cycle with a higher
temperature.
Indicators do not
light up.
The power cord is not
connected.
• Connect the power cord.
The nozzles do not
rotate smoothly.
The nozzles are clogged with
food particles.
• Clean the nozzles.
A white coating
remains on dishes.
The water is too hard.
• Make sure the salt ll
indicator and softener
settings are correct
according to the water
hardness of your area.
• Make sure the salt storage
cap is correctly fastened.
Air bubbles and
scratch marks are on
the control panel.
Air gets into the protective
lm, causing EPS marks to
remain.
• Remove the protective lm
from the control panel.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 58 2021-04-06 3:51:32
English 59
Troubleshooting
Information codes
If the dishwasher fails to operate, you may see an information code on the display. Check
the table below and try the suggestions.
Code Action
LC
Leakage check
• Close the water supply valve. Go to your home’s circuit breaker panel,
and set the dishwasher’s circuit breaker switch to off. Then, contact the
installer to repair. If the issue continues, contact a local Samsung service
centre.
4C
Water supply check
• Check if the water supply valve is closed, if the water supply is
suspended, or if the water inlet valve or line is frozen or clogged by
foreign particles. If the issue continues, contact a local Samsung service
centre.
AC
PCB communication check
• Abnormal communication between the main PCB and the sub PCB.
• If the problem continues, contact an authorised Samsung service center.
HC
High temperature heating check
• Functional check. With the dishwasher empty, add detergent, and then
run a cycle. If the issue continues, go to your home’s circuit breaker
panel, and set the dishwasher’s circuit breaker switch to off. Then,
contact a Samsung service centre.
tC
Thermistor check
• Temperature sensor is broken (short or open circuit). If the problem
continues, contact an authorised Samsung service center.
PC
Distribution motor check
• Abnormal working with distribution motor assembly, or main PCB. If the
issue continues, contact a local Samsung service center.
If any information code keeps appearing on the screen, contact a local Samsung service
centre.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 59 2021-04-06 3:51:32
English60
Cycle chart
Cycle chart
DW5*R407*BB / DW5*R406*BB
Cycle AUTO ECO Intensive
Amount of food
remains
Very light to heavy Normal Heavy
Cycle sequence
Pre wash (45 °C)
Main wash (45 °C-
55 °C) Rinse
Hot rinse (65 °C)
Dry End
Main wash (50 °C)
Rinse Hot
rinse (50 °C) Dry
End
Pre wash (50 °C)
Main wash (60 °C)
Rinse Rinse
Hot rinse (70 °C)
Dry End
Water consumption
(L)
9.5-13
9.9 (DW5*R406*BB)
9.5 (DW5*R407*BB)
15.5
Energy consumption
(kWh)
0.85-1.2
0.704 (DW5*R406*BB)
0.755 (DW5*R407*BB)
1.33
Cycle time (min) 150 220 175
Cycle Delicate Express Quick
Amount of food
remains
Light Normal Light
Cycle sequence
Pre wash
Main wash (40 °C)
Rinse Hot
rinse (60 °C)
Dry End
Pre wash (40 °C)
Main wash (45 °C)
Hot rinse (60 °C)
Dry End
Main wash (35 °C)
Rinse (35 °C)
Water consumption
(L)
12 9.1 10.5
Energy consumption
(kWh)
0.71 0.77 0.28
Cycle time (min) 125 60 20
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 60 2021-04-06 3:51:32
English 61
Cycle chart
DW5*R405*BB / DW5*R404*BB
Cycle Normal ECO Intensive
Amount of food
remains
Normal Normal Heavy
Cycle sequence
Pre wash (45 °C)
Main wash (55 °C)
Rinse
Hot rinse (65 °C)
Dry End
Main wash (45 °C)
Rinse Hot
rinse (60 °C) Dry
End
Pre wash (50 °C)
Main wash (60 °C)
Rinse Rinse
Hot rinse (70 °C)
Dry End
Water consumption (L)
13.1
9.5 (DW5*R404*BB)
9.9 (DW5*R405*BB)
16.5
Energy consumption
(kWh)
1.1
0.780
(DW5*R404*BB)
0.836
(DW5*R405*BB)
1.3
Cycle time (min) 175 220 165
Cycle Delicate Express Quick
Amount of food
remains
Light Normal Light
Cycle sequence
Pre wash
Main wash (40 °C)
Rinse Hot
rinse (60 °C)
Dry End
Pre wash (50 °C)
Main wash (60 °C)
Hot rinse (60 °C)
Dry End
Main wash (35 °C)
Rinse (35 °C)
Water consumption (L)
13.4 9.1 10.5
Energy consumption
(kWh)
0.78 0.75 0.3
Cycle time (min) 125 60 20
NOTE
• The cycle time depends on the options you have added, and the pressure and
temperature of the supplied water.
• The dishwasher drains the remaining water inside automatically if it has not been used
for the last 5 days.
• The power consumption depends on the water temperature and/or load. When the rinse
aid reservoir is empty, time and temperature can increase a little.
• If no rinse aid is used, the cycle time and temperature may increase slightly.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 61 2021-04-06 3:51:33
English62
Appendix
Appendix
Transportation/relocation
Make sure the dishwasher is empty with no loose parts. First, drain the dishwasher as
follows.
1. Open the door, and then turn the dishwasher on.
2. Select and run the ECO cycle.
3. Press START, and then close the door.
4. When the cycle is nished, open the door after 5 seconds.
5. Press and hold START for 3 seconds to drain water.
6. Close the door.
7. When the draining process is complete, open the door.
8. Turn the dishwasher off, and then shut the water valve off.
9. Disconnect the both the water hose and the drain hose.
CAUTION
Do not shake or sway the dishwasher while moving it. Residual water may drip from the
dishwasher.
Protection against frost
If you leave the dishwasher in a place with a risk of frost for an extended time, make sure
to empty the dishwasher. For details, see the “Transportation/relocation” section.
Disposing the dishwasher and helping the environment
Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it,
please observe your local waste disposal regulations. Cut off the power cord so that the
appliance cannot be connected to a power source.
Remove the door so that animals and children cannot get trapped inside the appliance.
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 62 2021-04-06 3:51:33
English 63
Appendix
Specications
MODEL
FBI (Fully Built In)
DW5*R407*BB DW5*R406*BB DW5*R405*BB DW5*R404*BB
Power 220-240 V
~
, 50 Hz
Water pressure 0.04-1.0 MPa
Wash capacity 10 place setting 9 place setting 10 place setting 9 place setting
Rated power 1760-2100 W
Dimension
(Width x Depth x Height)
450 x 550 x 815 mm
Weight (Unpacked) 38 kg 37.5 kg 33 kg 32 kg
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 63 2021-04-06 3:51:33
English64
For standard test
For standard test
NOTE
The information for comparability test as follows.
DW5*R407*BB / DW5*R405*BB
• Washing capacity: 10 place settings
• Test standard: EN 60436
• Position of upper rack: lower position
• Wash cycle: ECO
• Additional options: None
• Rinse aid level setting: 5
• Water hardness level setting: H3
• Dosage of the standard detergent: main-wash 18 g
• For the arrangement of the items, refer to the below gures
4
4
5
3
3
8
6
1
2
2
1. Knives 2. Forks
3. Serving spoons 4. Soup spoons
5. Teaspoons 6. Dessert spoons
7. Serving forks 8. Gravy ladles
Cutlery rackUpper rack
Lower rack
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 64 2021-04-06 3:51:33
English 65
For standard test
DW5*R406*BB / DW5*R404*BB
• Washing capacity: 9 place settings
• Test standard: EN 60436
• Position of upper rack: lower position
• Wash cycle: ECO
• Additional options: None
• Rinse aid level setting: 5
• Water hardness level setting: H3
• Dosage of the standard detergent: main-wash 17 g
• For the arrangement of the items, refer below gures
Upper rack
Lower rack
1. Knives 2. Forks
3. Serving spoons 4. Soup spoons
5. Teaspoons 6. Dessert spoons
7. Serving forks 8. Gravy ladles
Cutlery rack
4 4
3 3
4 4
44 4 4 4
6
6
6
5
8
5
5
5
6
6
5
6
7
12
6
6
6
5
5
5
5
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 65 2021-04-06 3:51:34
Memo
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 66 2021-04-06 3:51:35
Memo
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 67 2021-04-06 3:51:35
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
UK 0333 000 0333 www.samsung.com/uk/support
IRELAND
(EIRE)
0818 717100 www.samsung.com/ie/support
DD81-02709B-05
DW4000RM(A5)_IB_DD81-02709B-05_EN.indd 68 2021-04-06 3:51:35
